2004 Ta Chiao Bro 91'
28.04 m2004 Ta Chiao Bro 91' Fontaine 92
- 2015
- 28.04 m
- Diesel
- Sail
- Schooner
2004 Ta Chiao Bro Fontaine 92
Refit Year: 2015

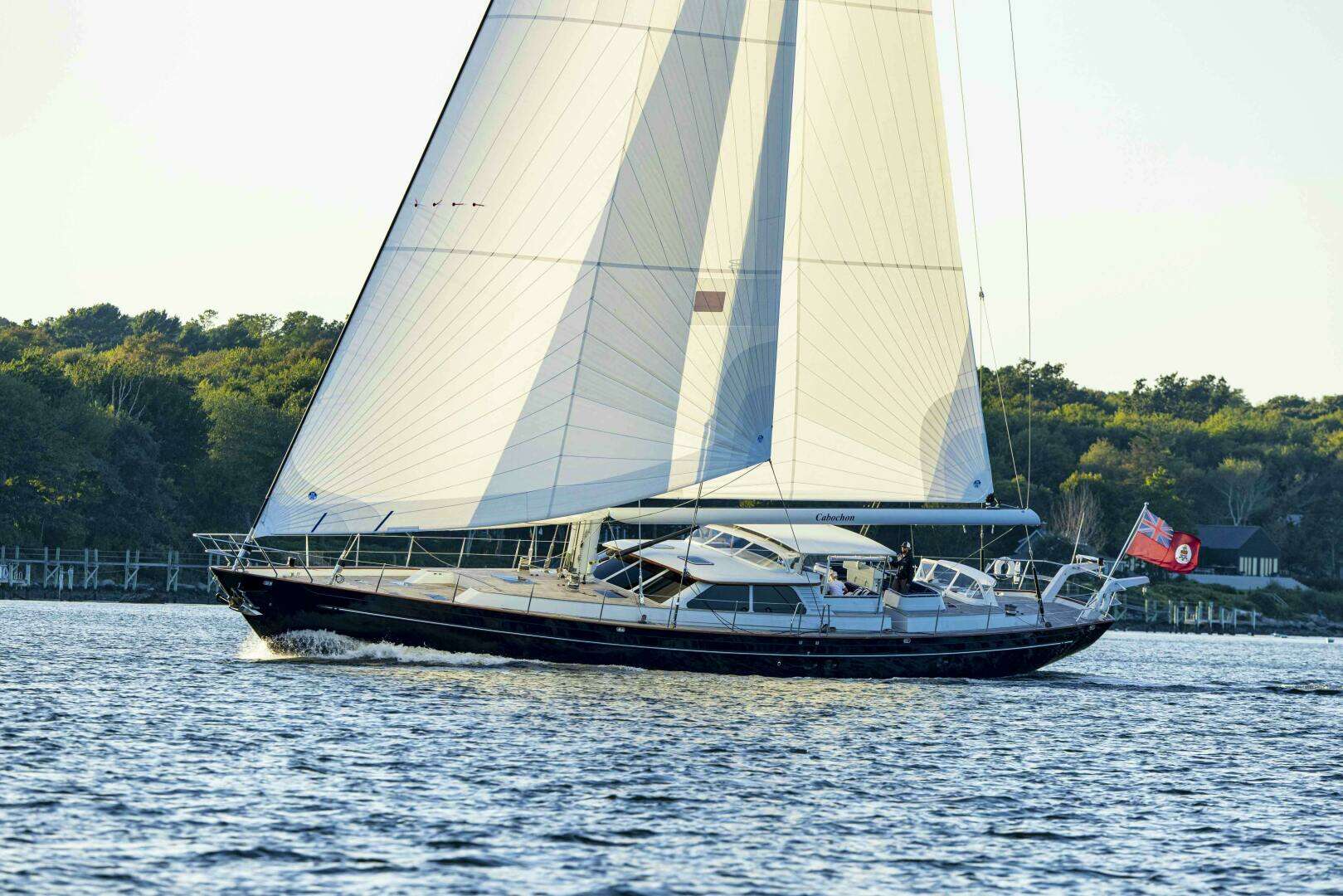

91' (28.04 m) CABOCHON
-
Flag of Registry: Cayman Islands
Port of Registry: Taipei
FEATURES: |
---|
2004 Ta Chiao Bro 91' Fontaine 92
- 2015
- 28.04 m
- Diesel
- Sail
- Schooner
$ 1,750,000 USD
$ 2,439,937 CAD*โฌ 1,555,487 Euros*ยฃ 1,315,394 GBP*
LOA91'
LOA Inch11''
LOA28.04''
Beam21'
Draft Max Feet18'
Draft Min Feet1'
Draft Min Inch6''
Fuel Tank (Gallons)2000
Fuel Tank (Liters)7571
Fresh Water (Gallons)1000
Fresh Water (Liters)3785
Holding Tank (Gallons)2000
TypeSail
ConditionUsed
Specifications
CABOCHON
1009106
319f2fdc-5853-ef11-a317-000d3a3af381
91'11" (28.04 Meters)
Sail-Used
2004
2015
1'6"
3
8
2
1
8
2
4
12 Knots
11 Knots
Diesel
GRP
Yes
2000 Gallons (7571 Liters)
1000 Gallons (3785 Liters)
2000 Gallons
99
99
lloyd's register
Fontaine
Ta Chiao Bro
Engines
Engine 1
- Engine Make: John Deere
- ModelEngine Model: 6090SFM75
- YearEngine Year: 2013
- Engine TypeEngine Type: Inboard
- Power HPPower HP: 375.00
- Feul TypeFeul Type: Diesel
- HoursHours: 0.00
Full Details
OVERVIEW
Built for an experienced yachtsman and designed by Ted Hood / Ted Fontaine, CABOCHONโs stout construction, world-class features and attention to detail are evident everywhere, from her robust practical engineering and redundant systems to beautifully book-matched teak joinery and dovetailed drawers. CABOCHON is a remarkable yacht that incorporates numerous desirable features โ shoal draft (board up = 6โ6โ/ board down = 18โ), gracious accommodations, performance under sail and comfort at sea, all in one beautiful vessel. ย CABOCHON has benefitted from a rolling refit over the last three years which has included Awlgrip hull, decks re-caulked, rig unstepped, and painted with recently inspected standing rigging, electronics, entertainment systems, exterior and interior soft goods, mechanical service, air-conditioning system, hydraulic system, helm station controls, exterior canvas, tender, etc.ย She is US duty paid, MECAL approved, and recently commercially registered to allow for a charter program (although never chartered thus far). CABOCHON will continue to turn heads worldwide, no matter where she is sailing, and is currently offered at an exceptional value. ย ADDITIONAL SPECS, EQUIPMENT AND INFORMATIONยBoat Name: Custom Ted Fontaine 92โฒ Pilothouse 2004ย
Builder: Ta Chaoย
Designer: Ted Hood - Ted Fontaineย
Location: Portsmouth, RIย
Displacement Measure:198,000 lbs.ย
Engine Brand: John Deere, Model: 6-cylinder 6090SFM75 diesel, 375 HPย
Hours: 1350
ACCOMMODATIONS
CABOCHON has accommodations for six adults and two children in the ownerโs party, with three large private staterooms aft, split-level dining/lounge areas amidships, plus two en-suite cabins forward of the galley for crew. Joinery is finely crafted Euro-style teak with a gloss varnish finish.PILOTHOUSE

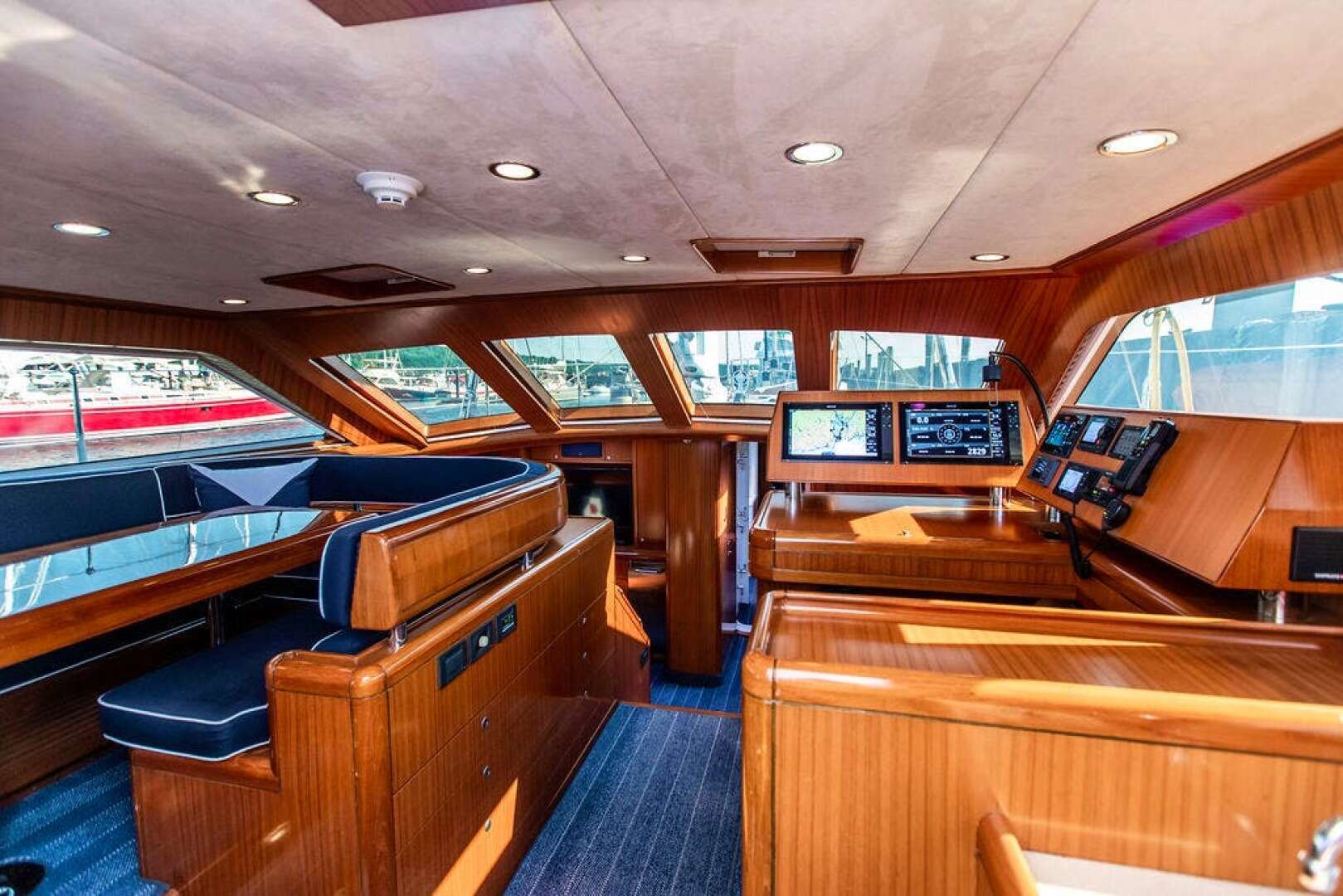

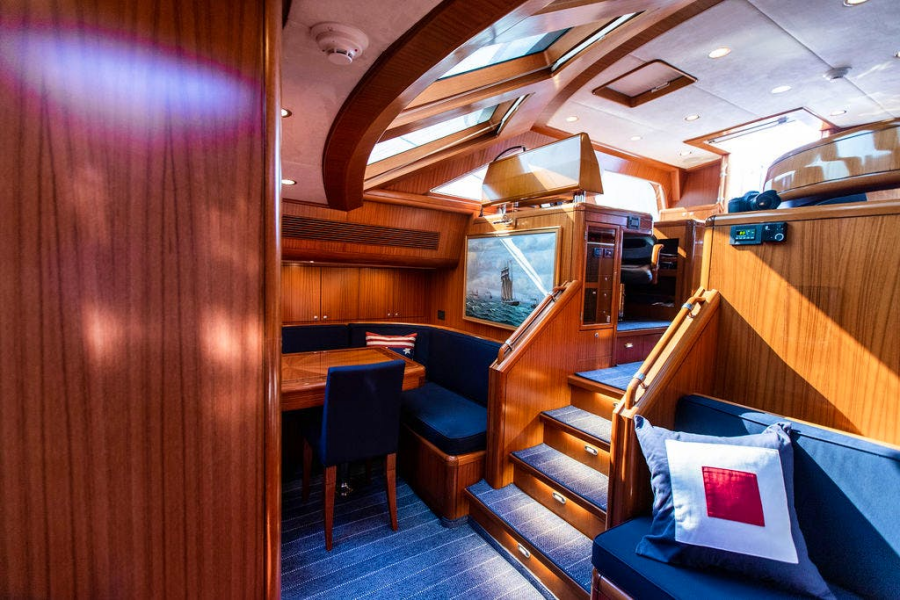

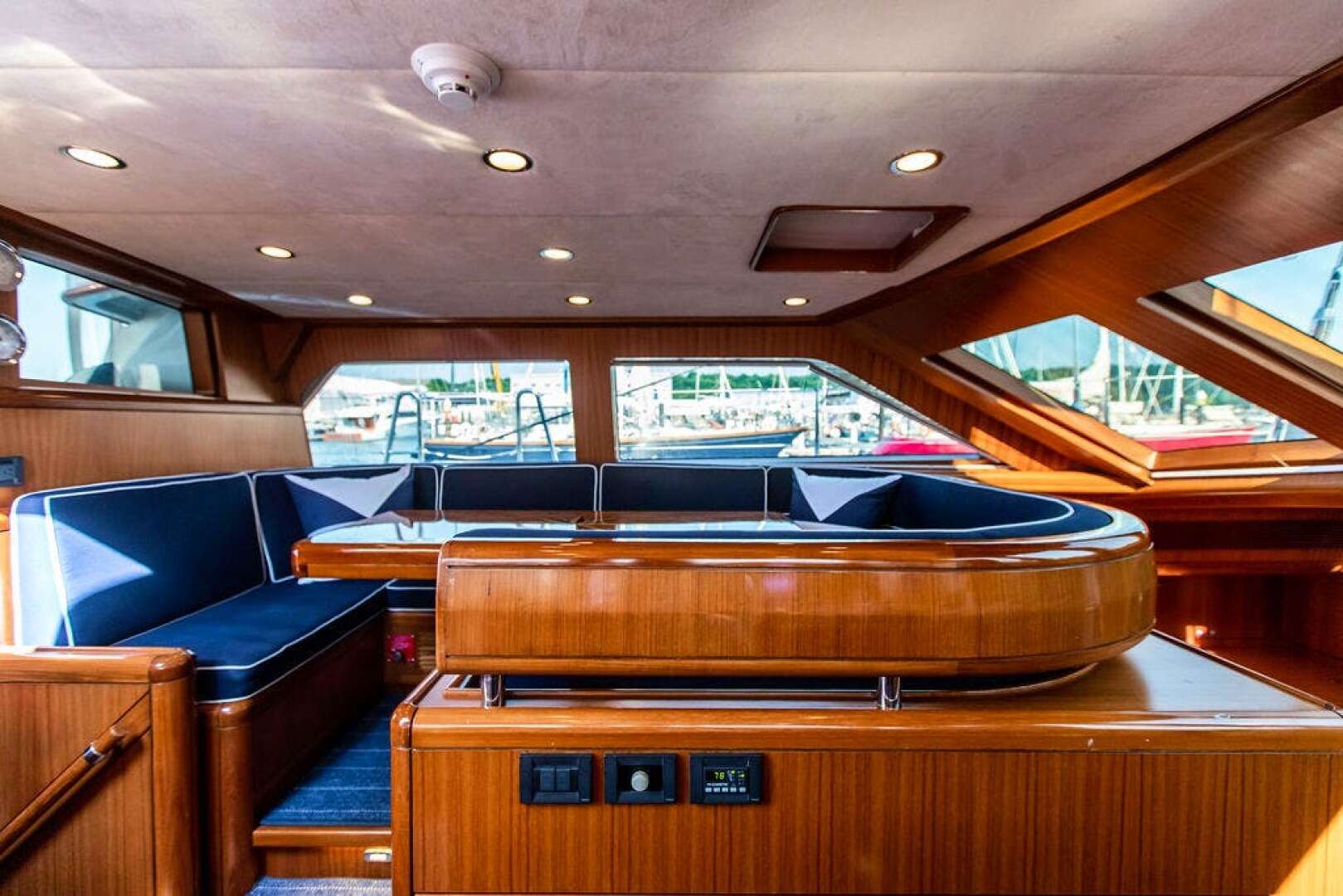

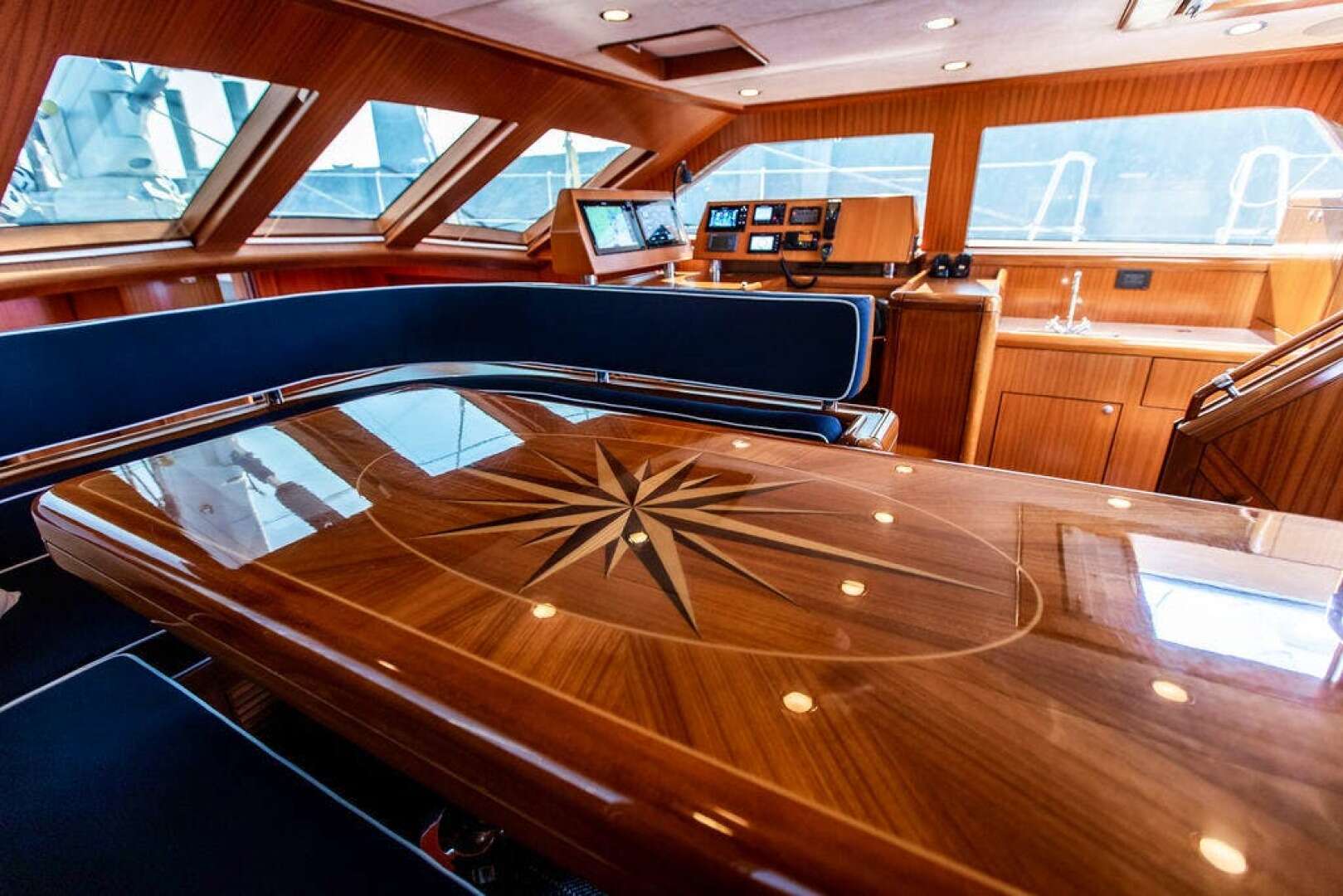

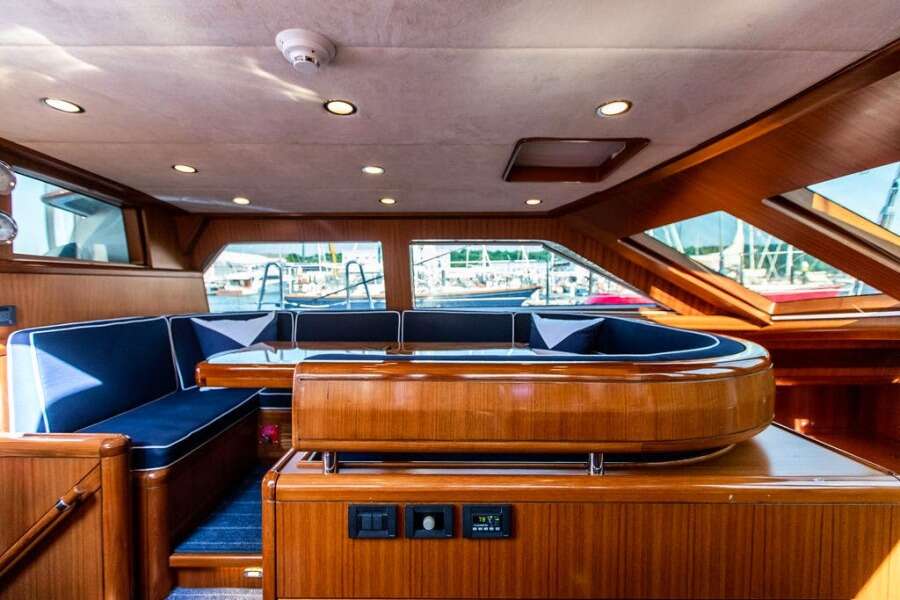

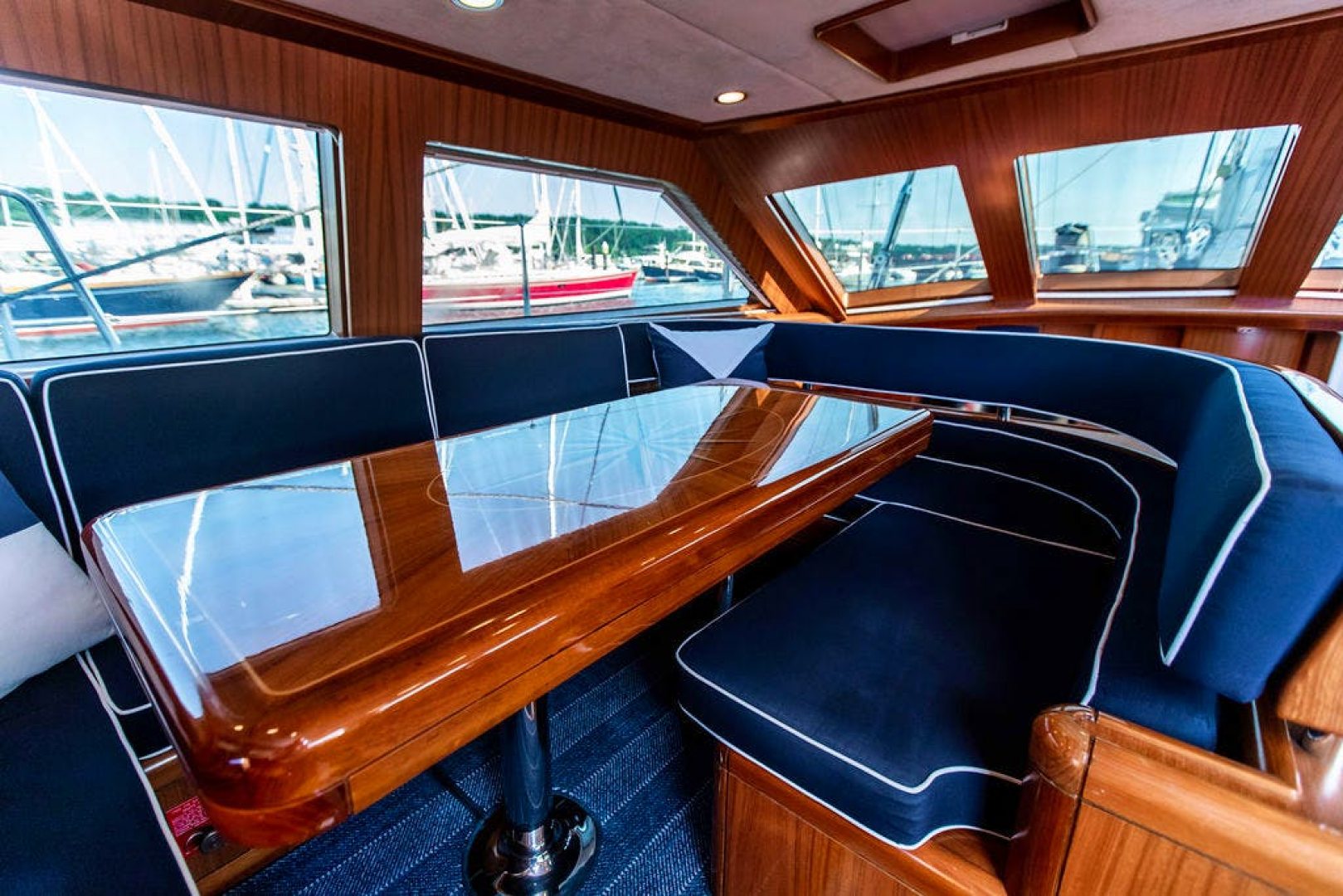

The large pilothouse, originally designed for inclement weather, becomes the social center aboard CABOCHON. It is light and airy with excellent visibility. To port is a U-shaped settee and teak table that seats six, great for informal meals, cocktails or just planning the dayโs activities. To starboard and forward is the navigation area with throttle and autopilot control, complete with all electronics, nav table and helmsmanโs seat. Aft of the nav area is a wet bar and coffee machine. ยMASTER STATEROOM

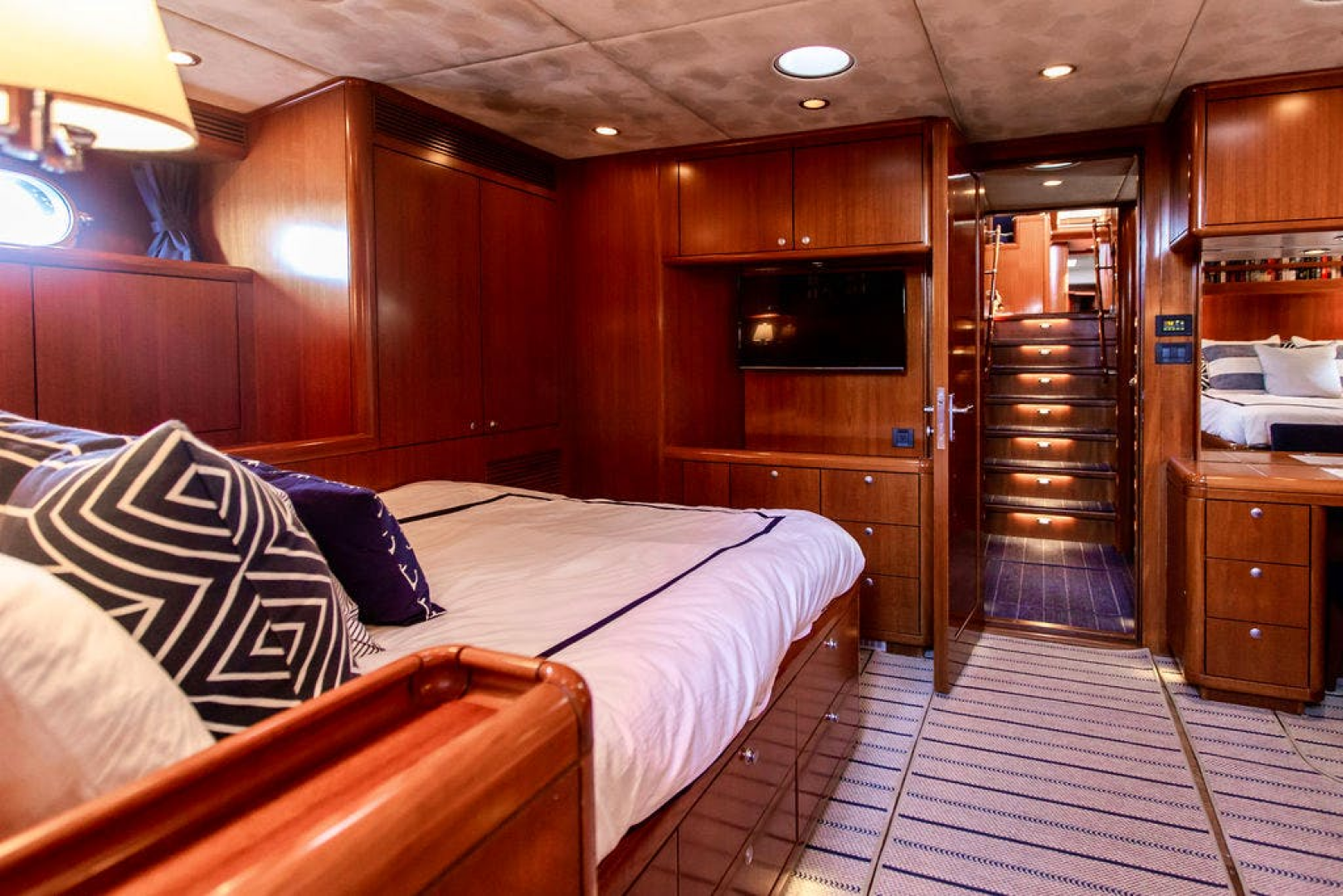

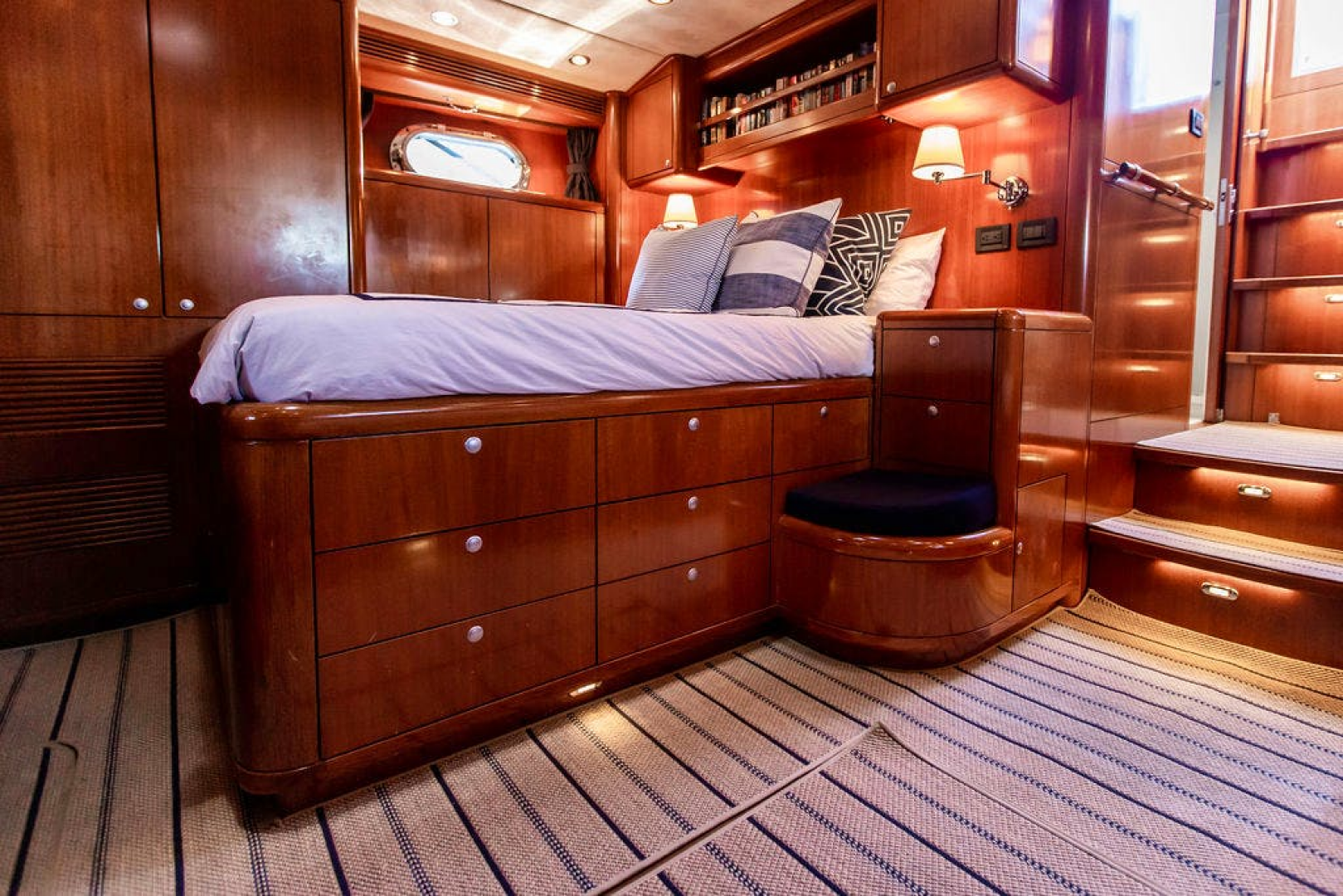

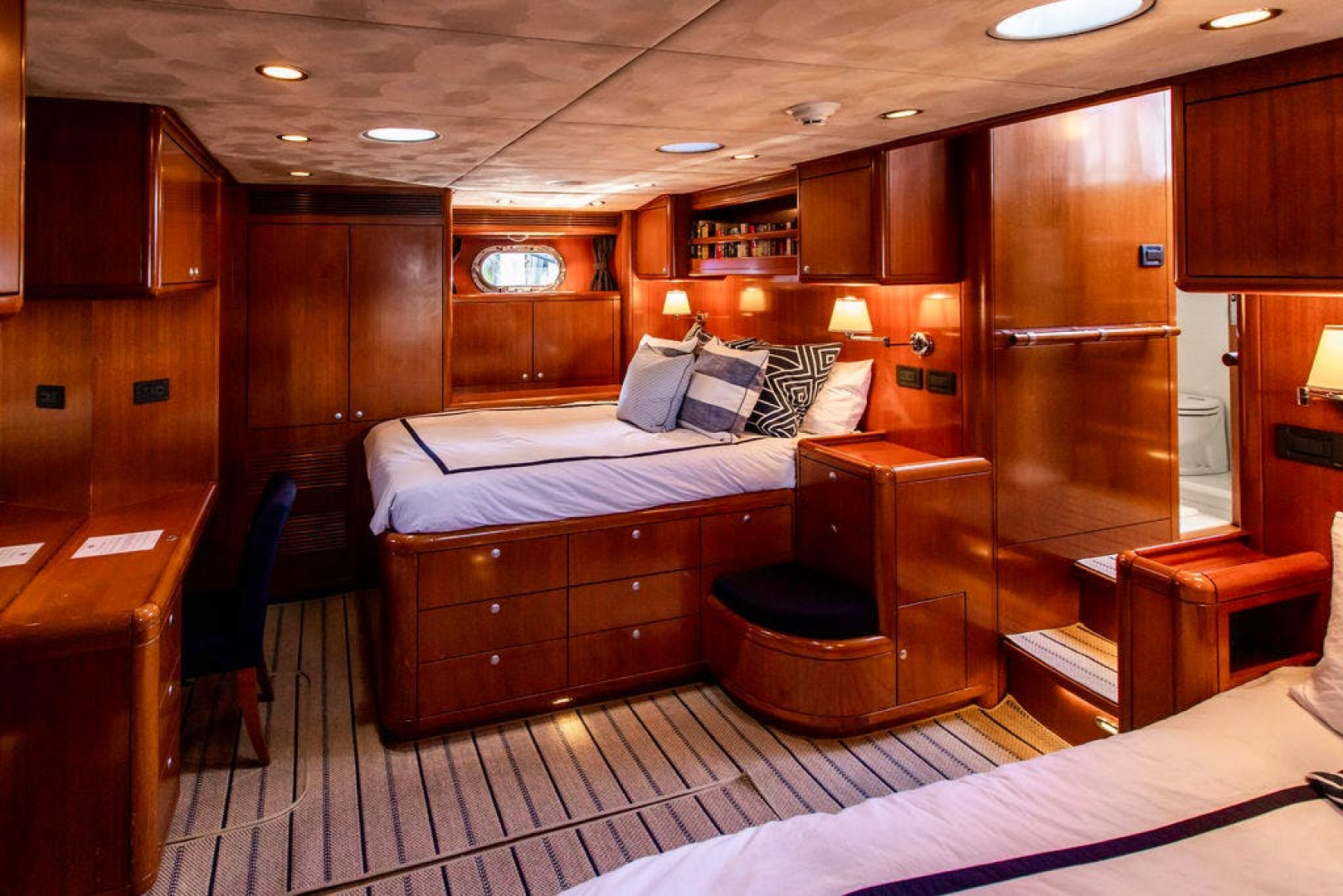

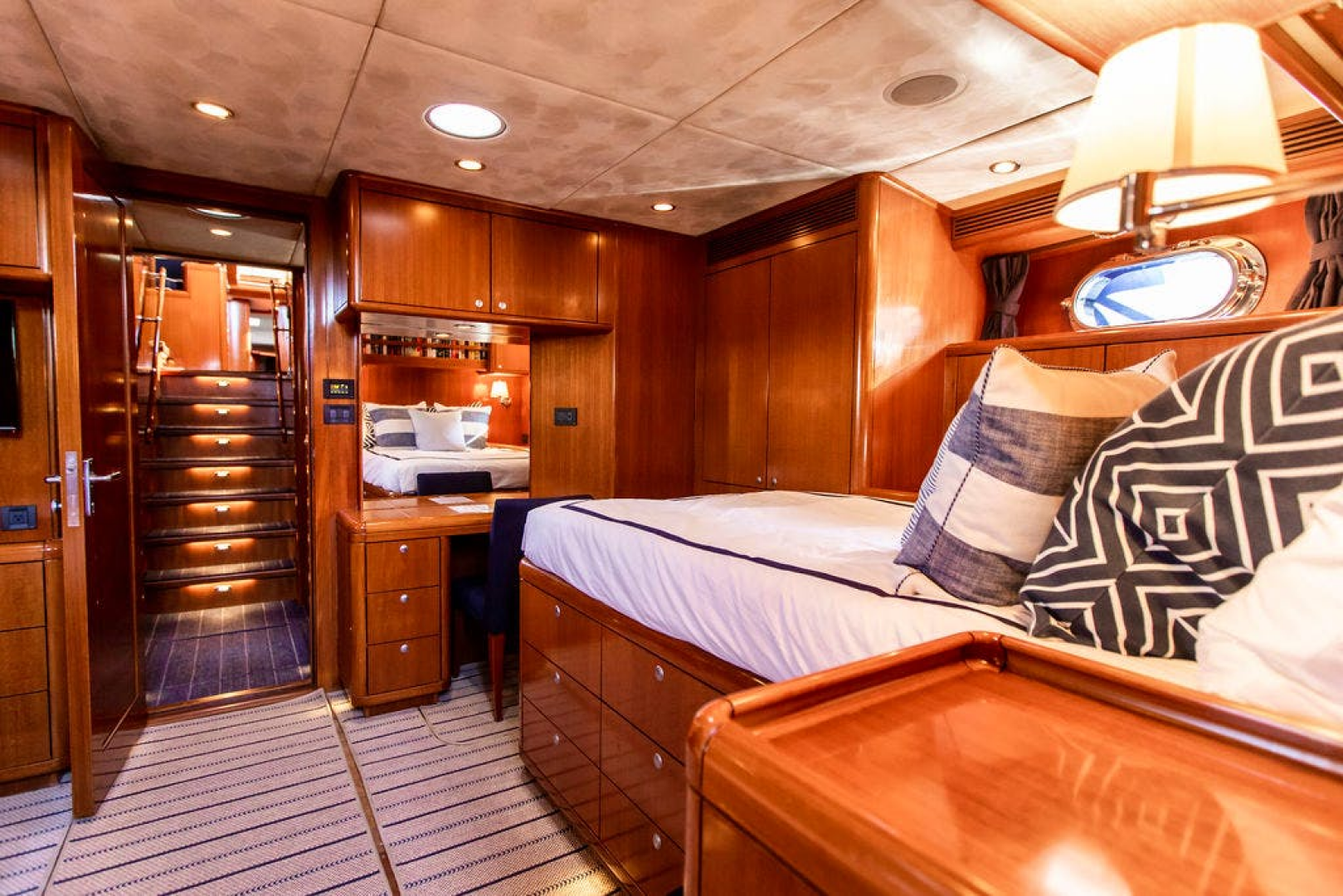

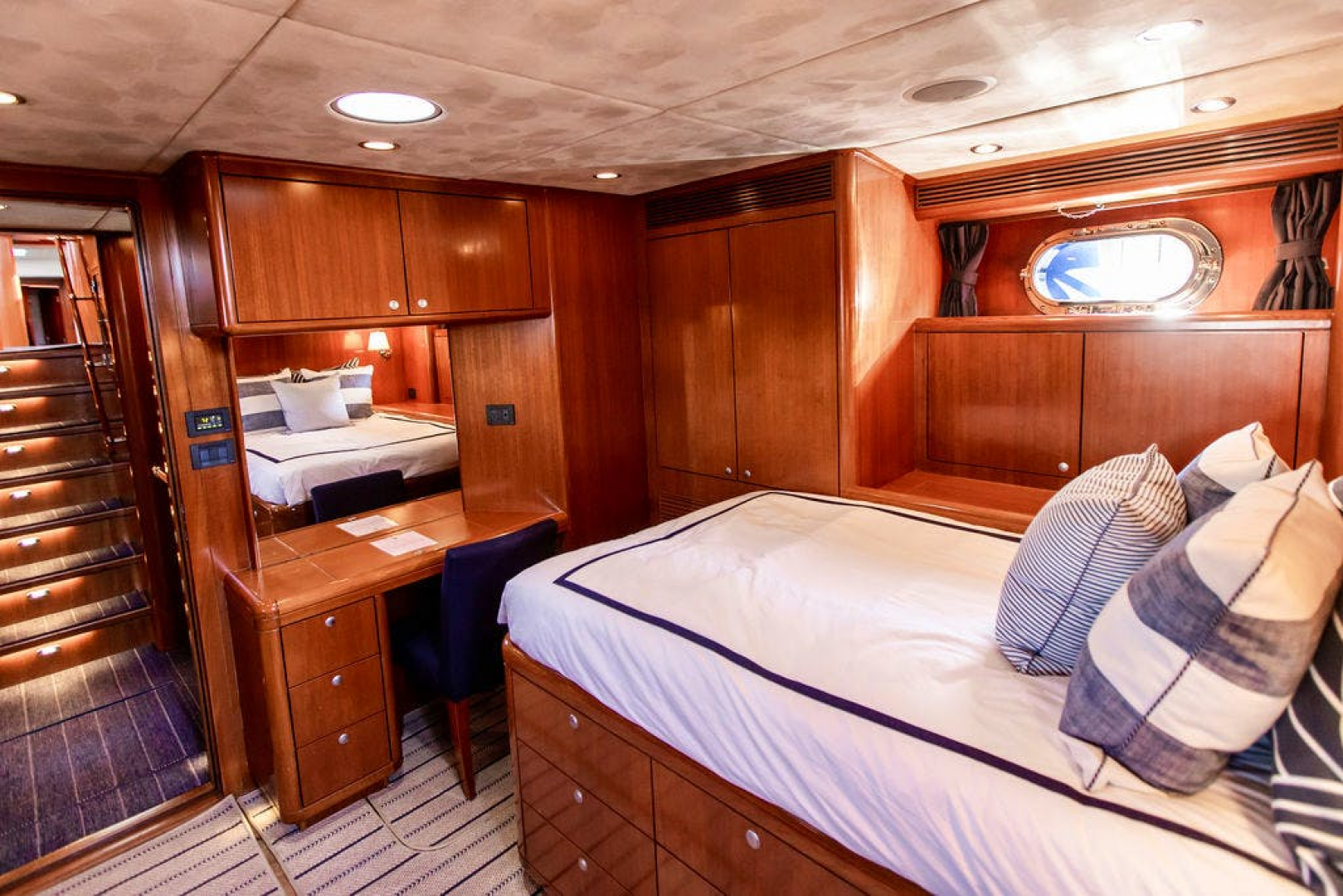

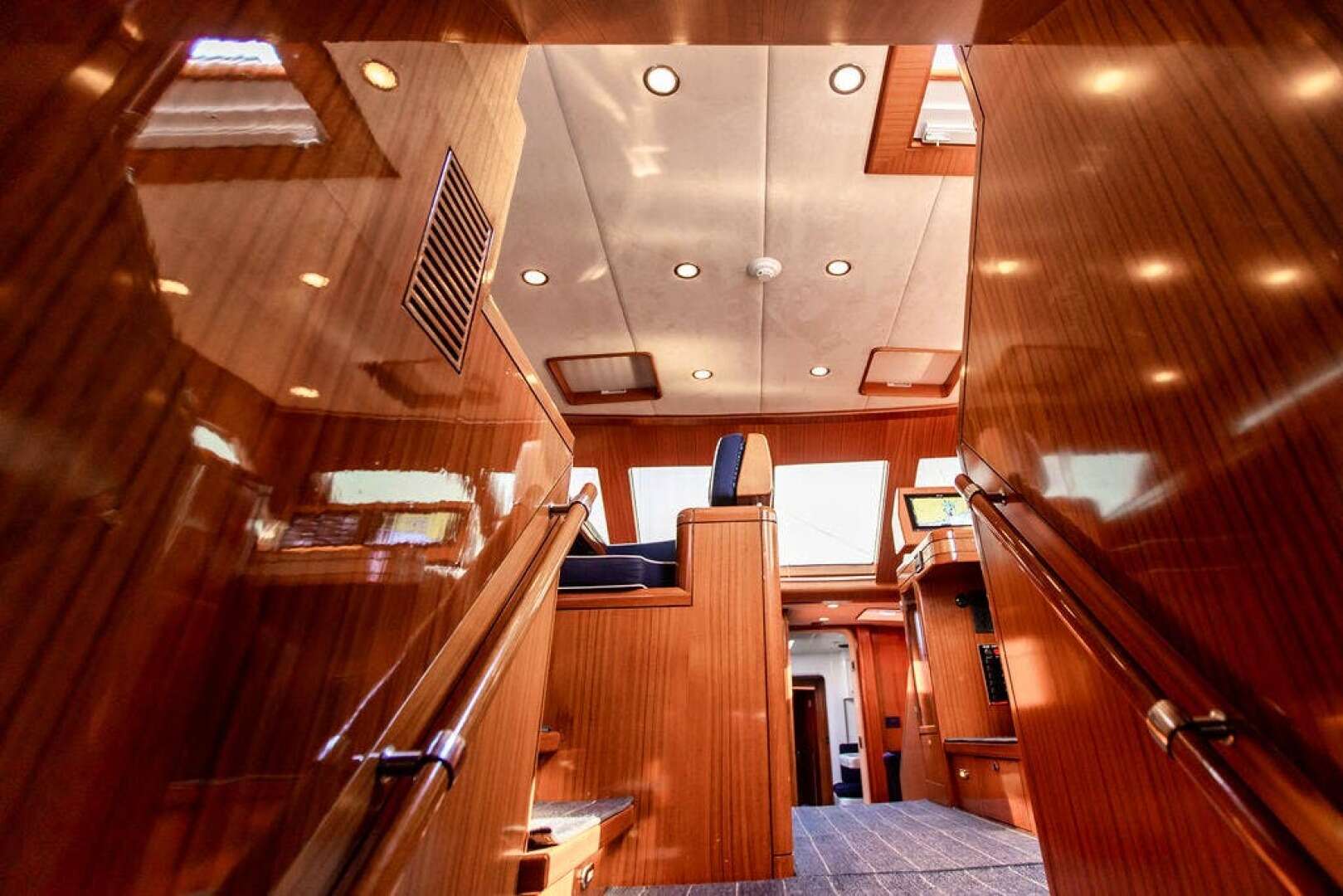

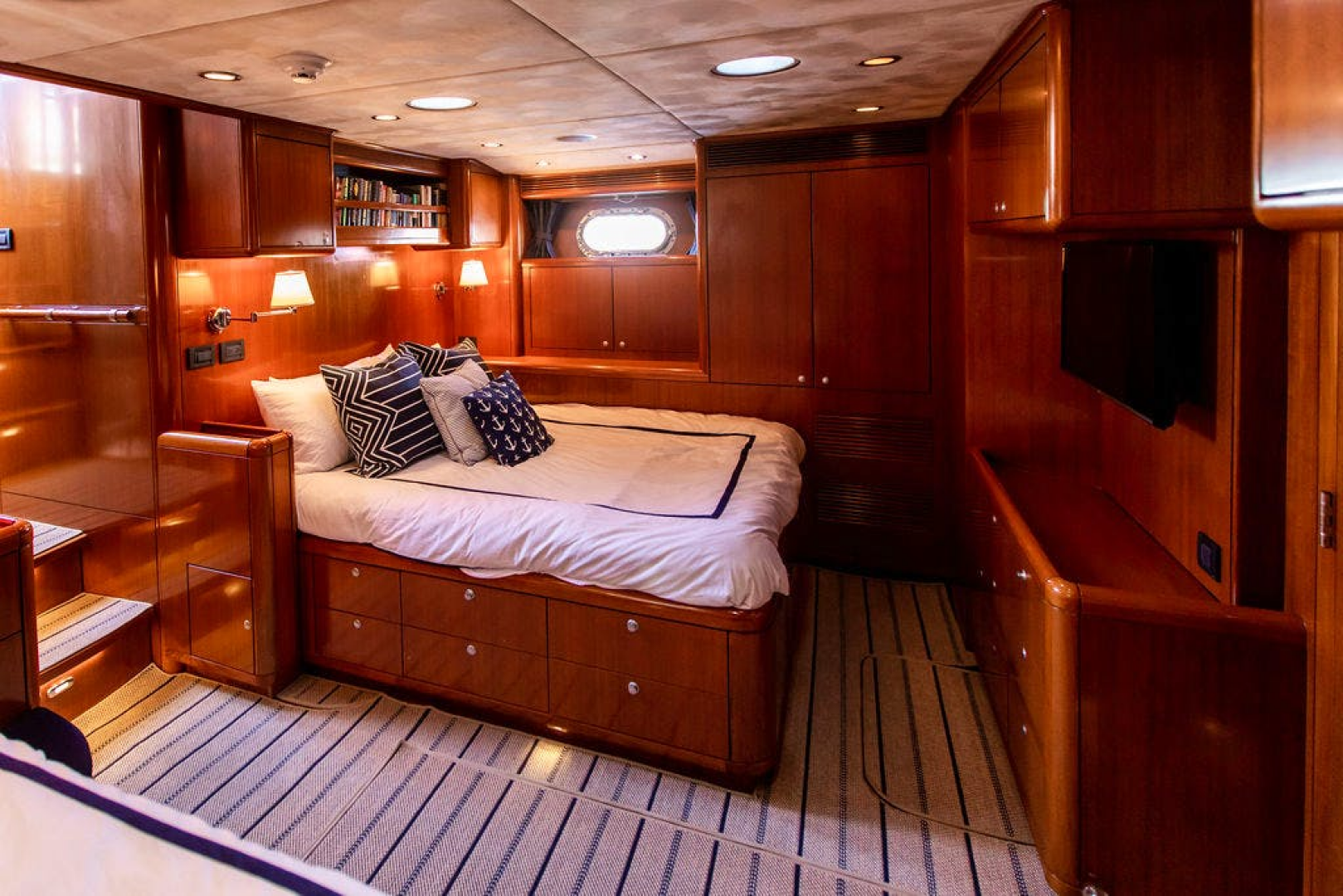

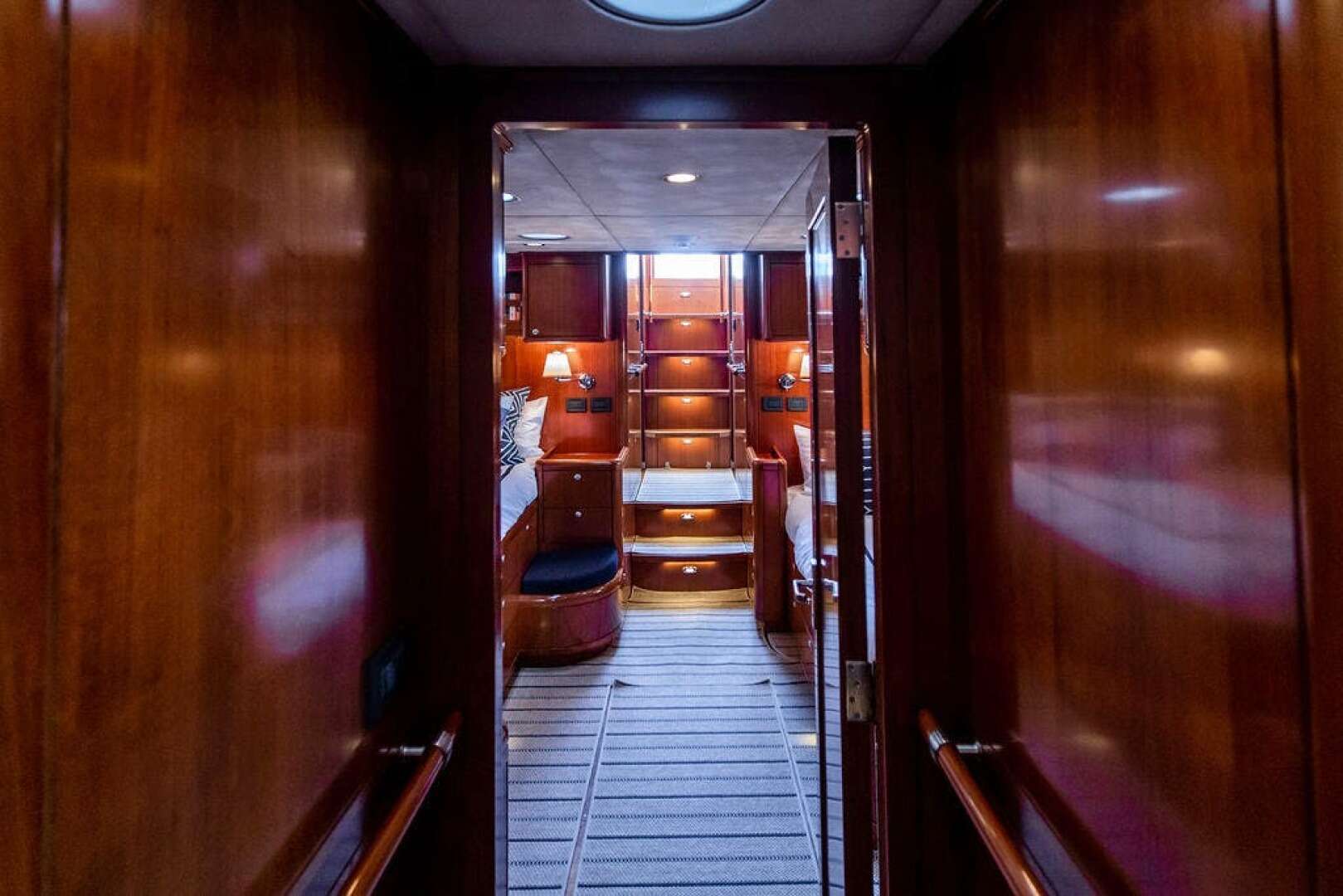

Entered from the pilothouse down full-sized easy-access stairs and hallway, the master stateroom aft has 1 king (new, 2019) and 1 queen sized berth, port and starboard, a makeup area, two cedar-lined hanging lockers, plenty of storage space and his and hers bathrooms. Port head features a bath tub while the starboard head features an enclosed shower. Opening portholes for ventilation and deck prisms for additional natural light. LCD TV with high-definition satellite and Sonos system(2018). Aft, a centerline companionway leads to a private aft cockpit.GUEST STATEROOM

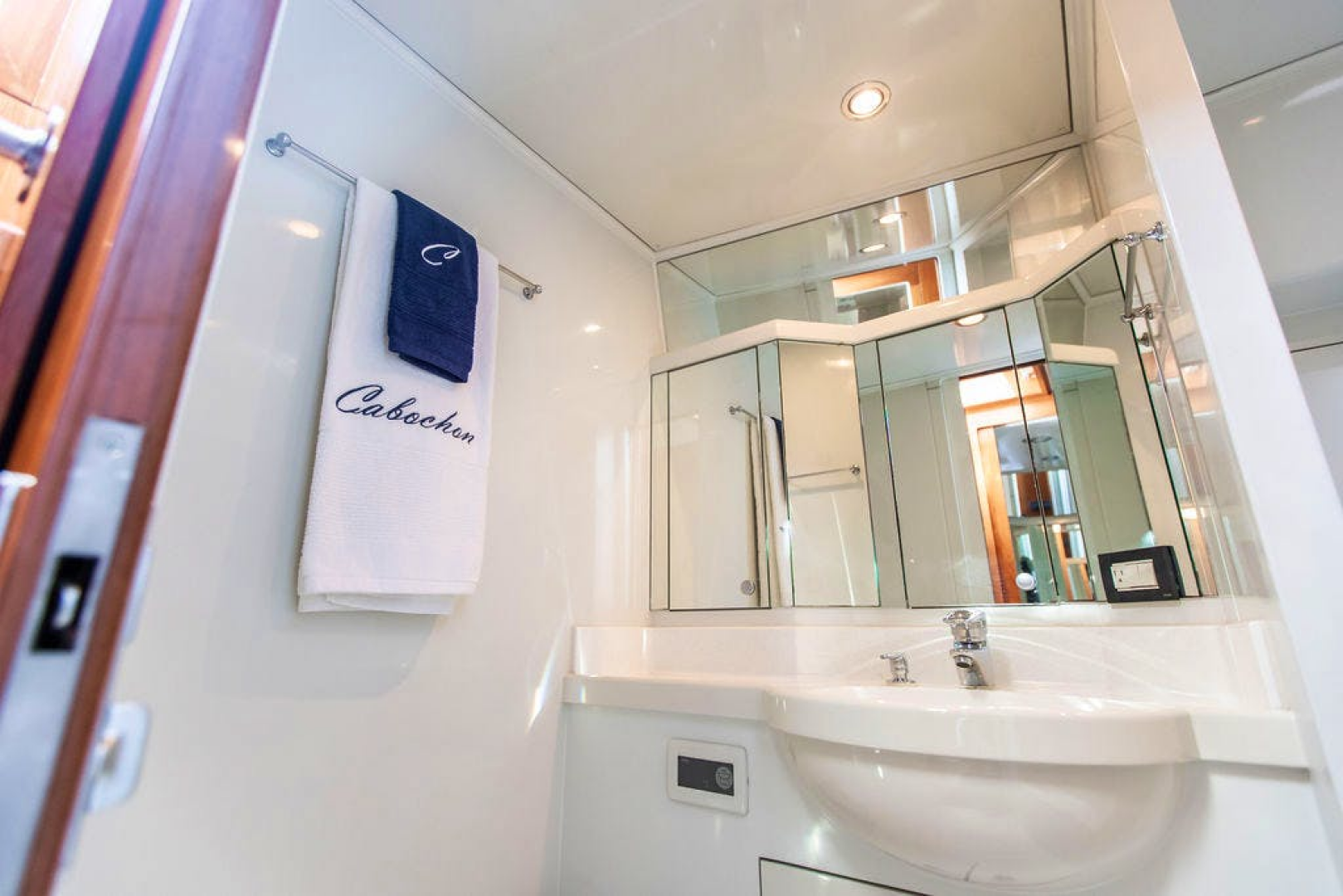

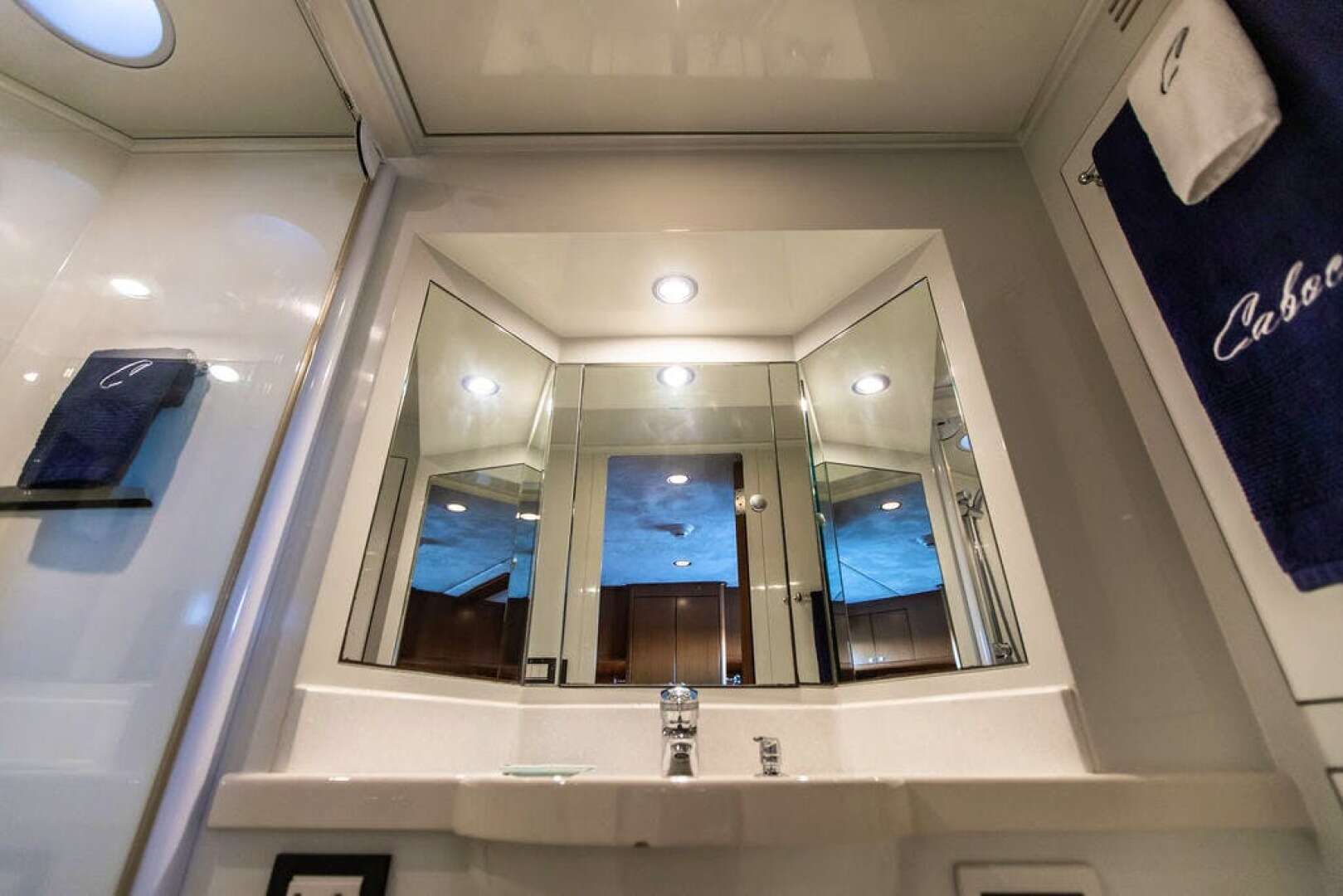

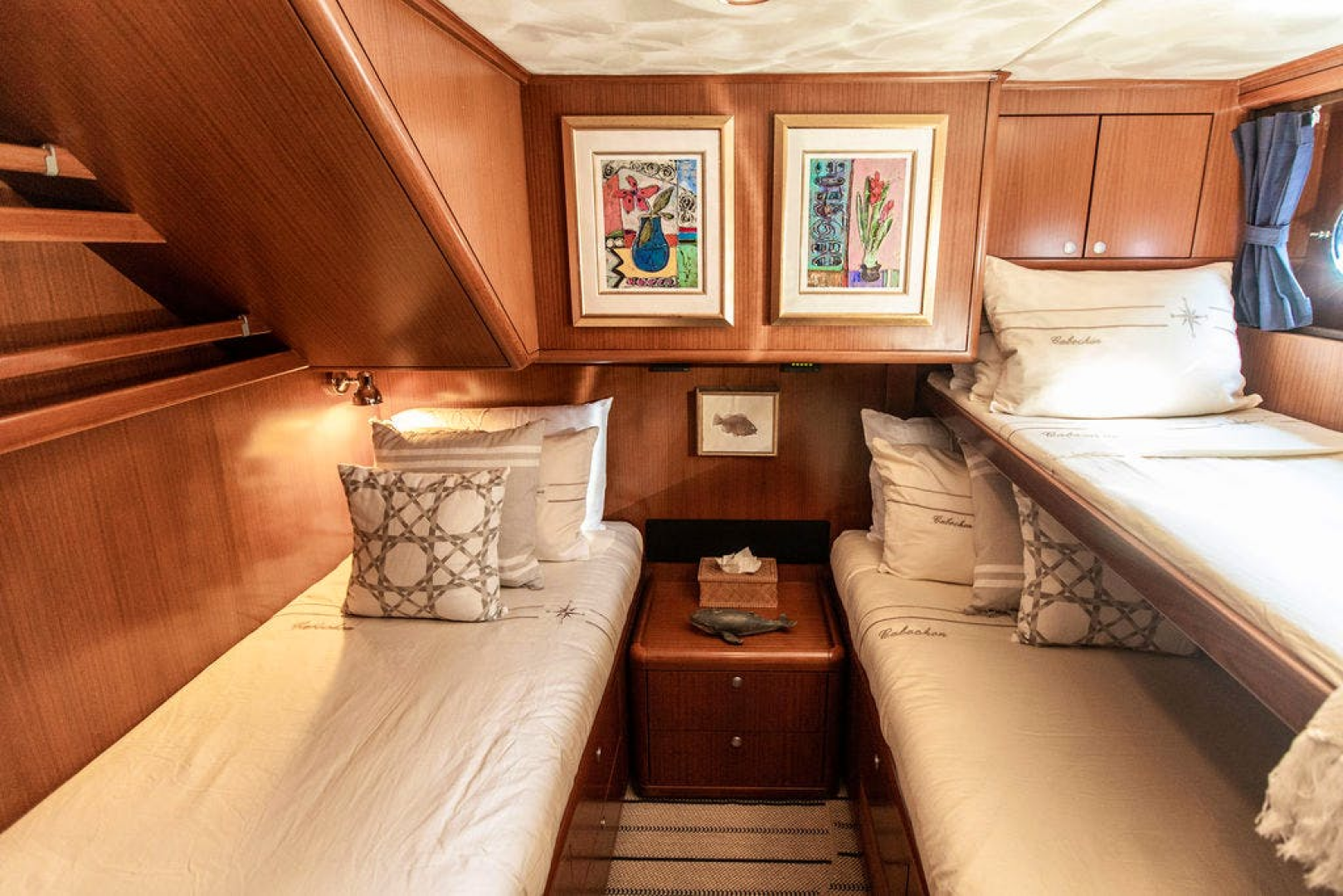

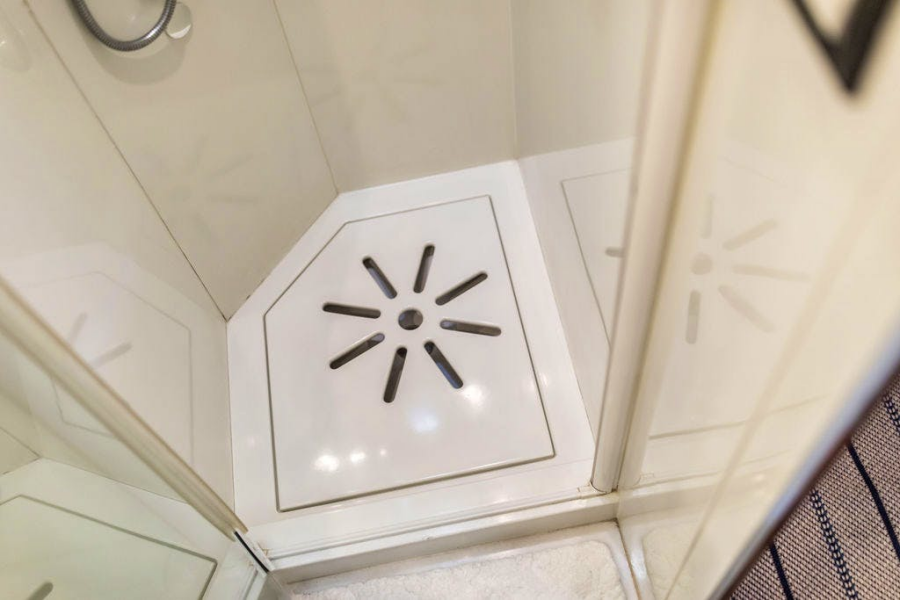

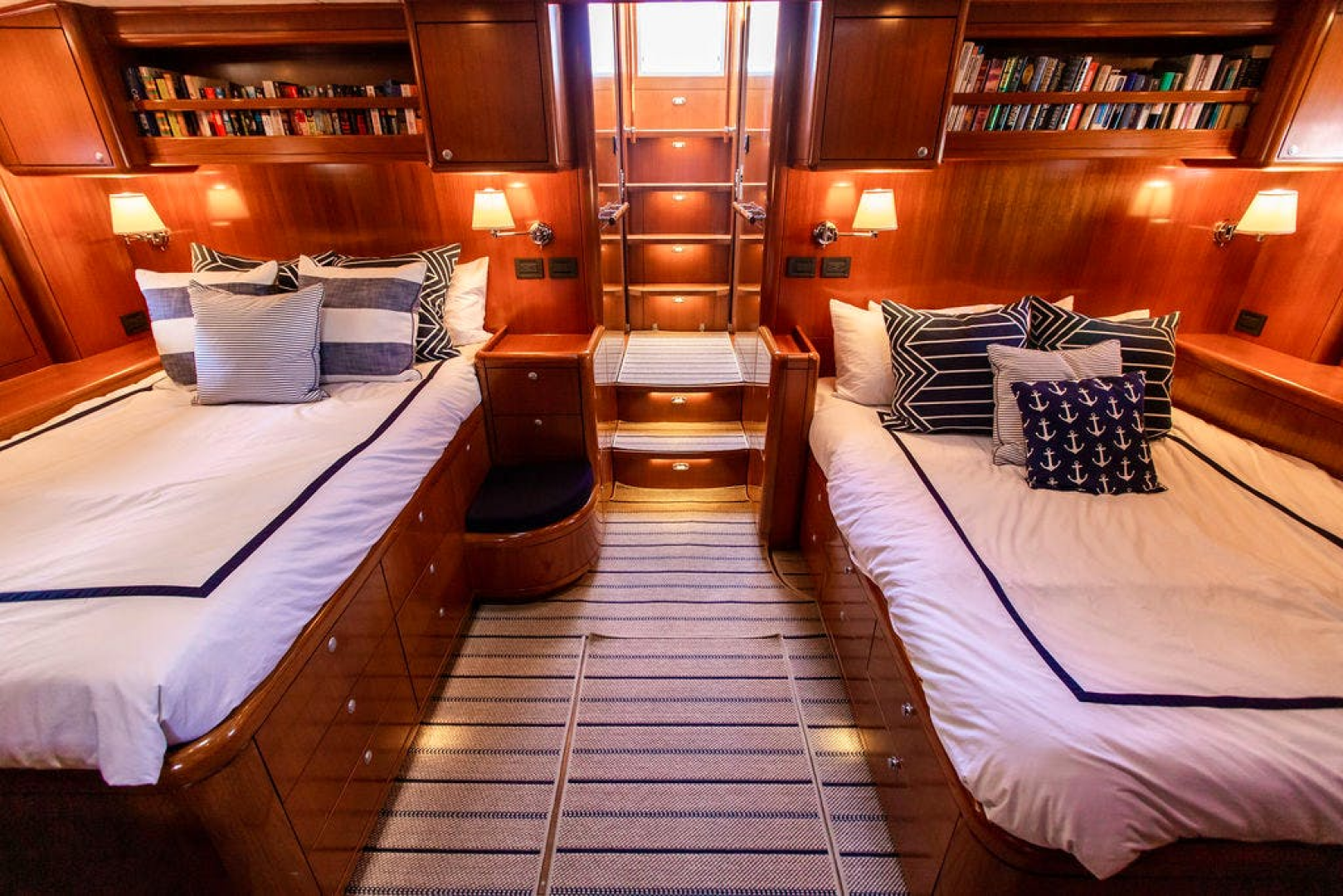

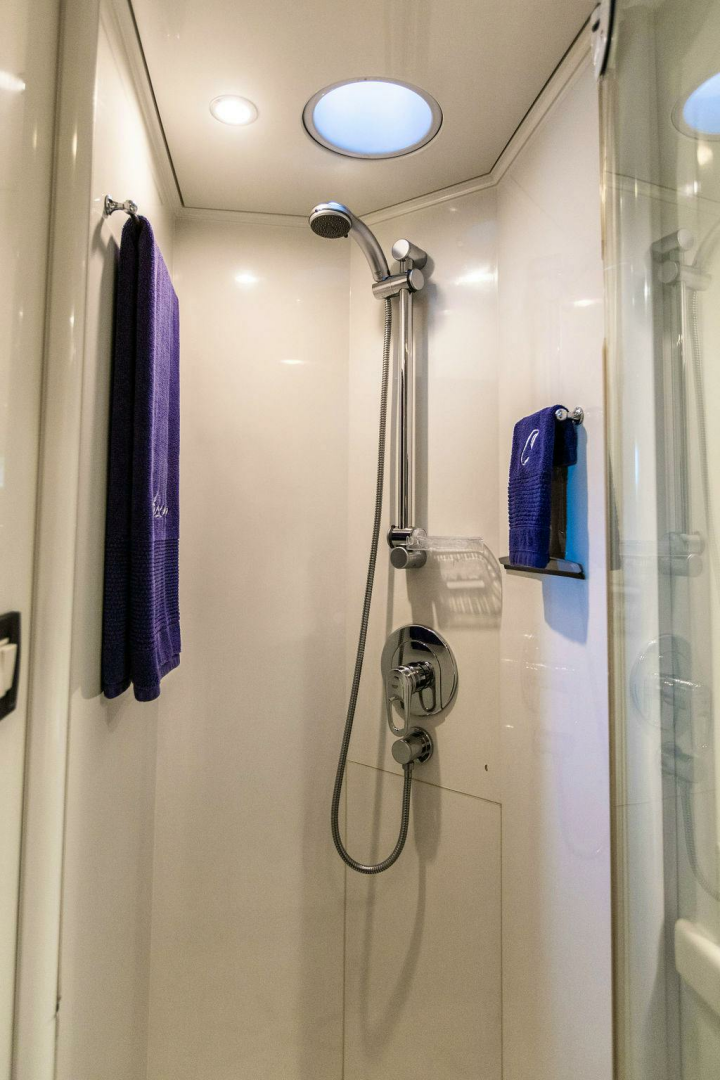

Forward of the master stateroom and separated by a passageway are two guest staterooms, each with en-suite head and stall shower. Both guest staterooms have two twin beds, plus fold-away Pullman berths for children. Both cabins have fillers for the twin beds which convert them to single queens (new, 2019) Both cabins have cedar-lined hanging lockers, plenty of storage space, two opening portholes for ventilation and deck prisms for additional natural light. LCD TVs with high-definition satellite and Sonos system.ยMAIN SALON

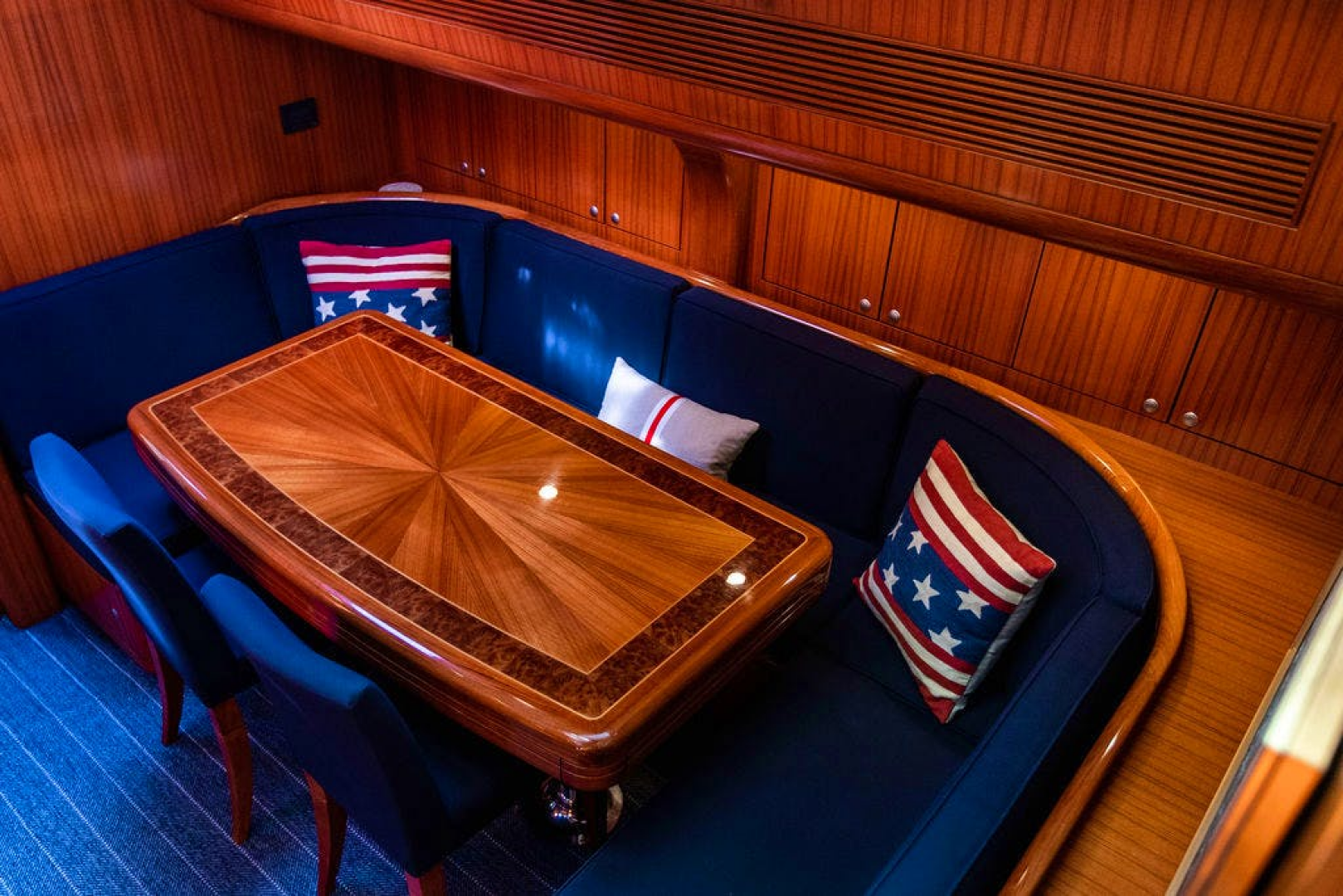

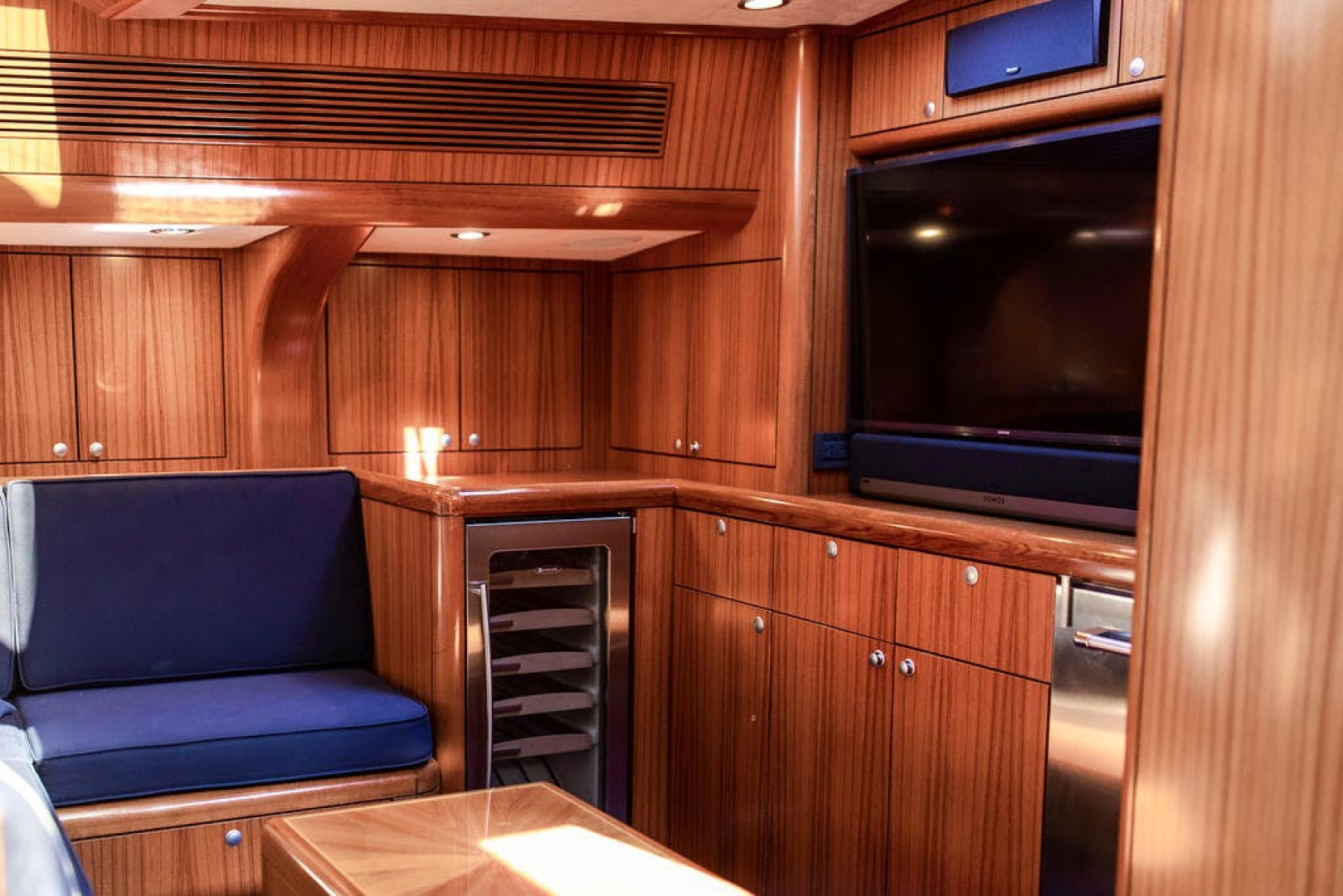

The full-beam salon is open to the pilothouse salon, so that the pilothouse windows reach over 50 percent of the salon. Two hatches provide abundant natural light in the salon. To starboard is a dining area for eight. To port is an L-shaped couch with coffee table and a 40โฒโฒ LCDTV with high-definition satellite, DVD, and Sonos system. ย In addition to ample dry storage, there is a built-in wine rack, refrigerator and ice maker.ยGALLEY

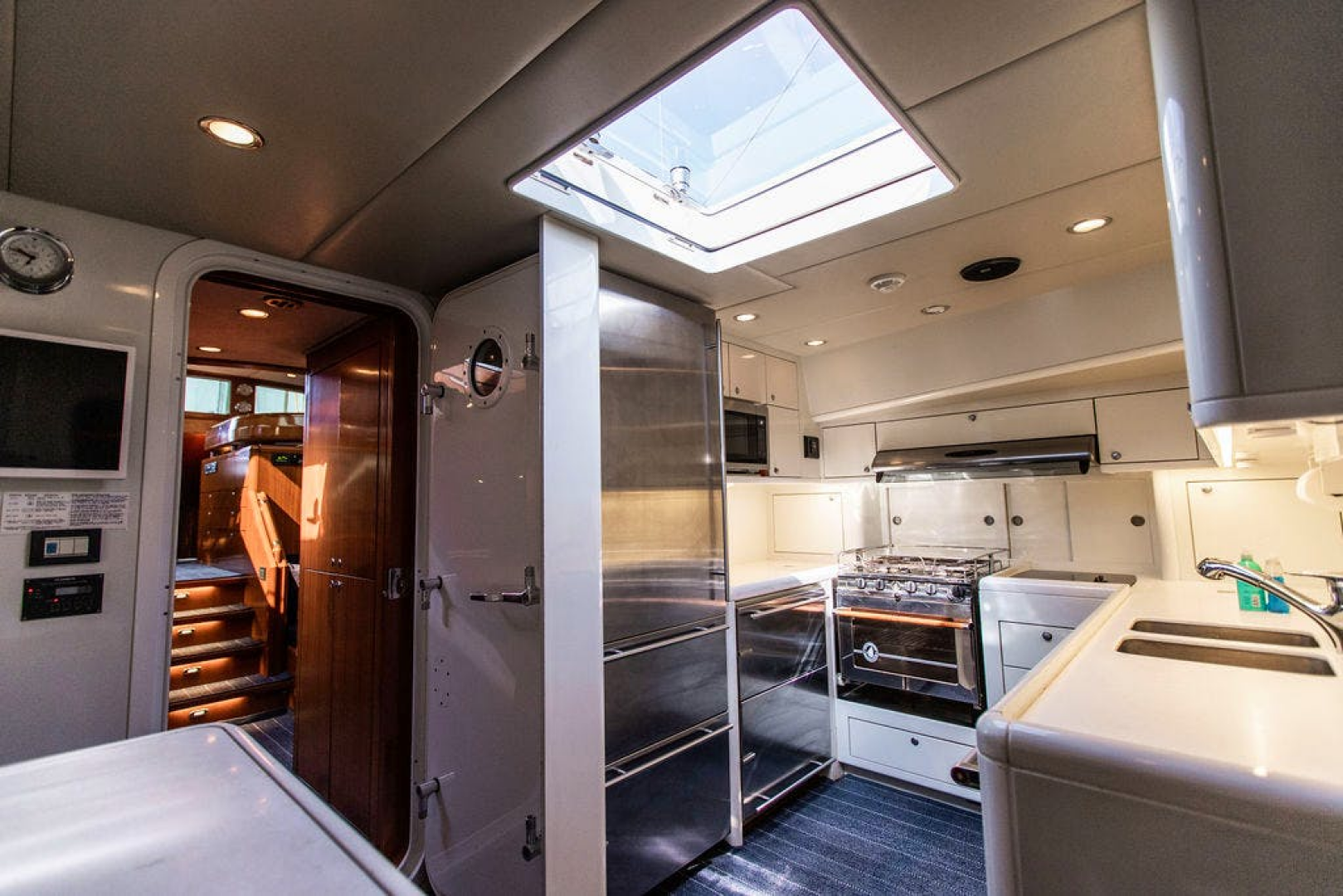

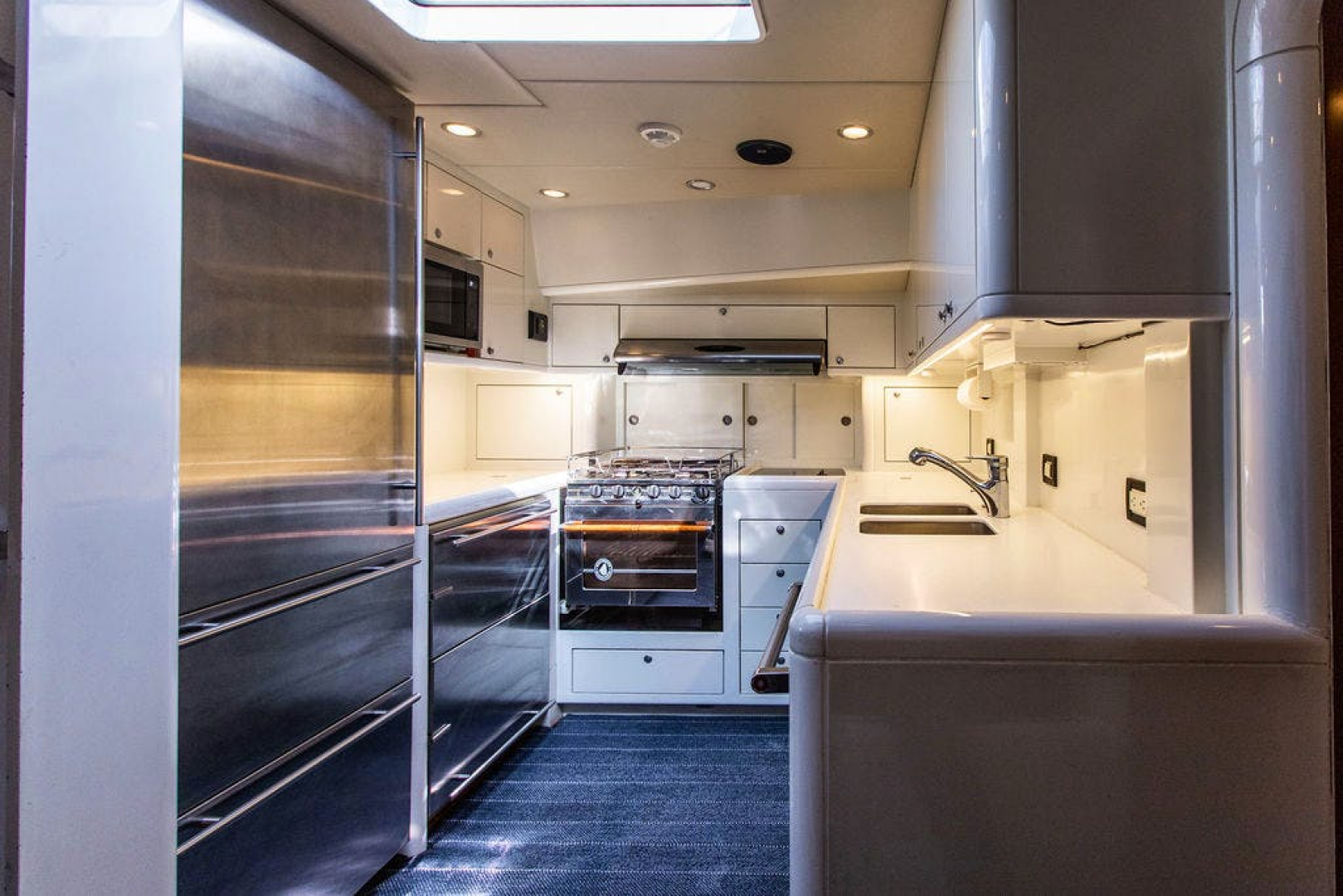

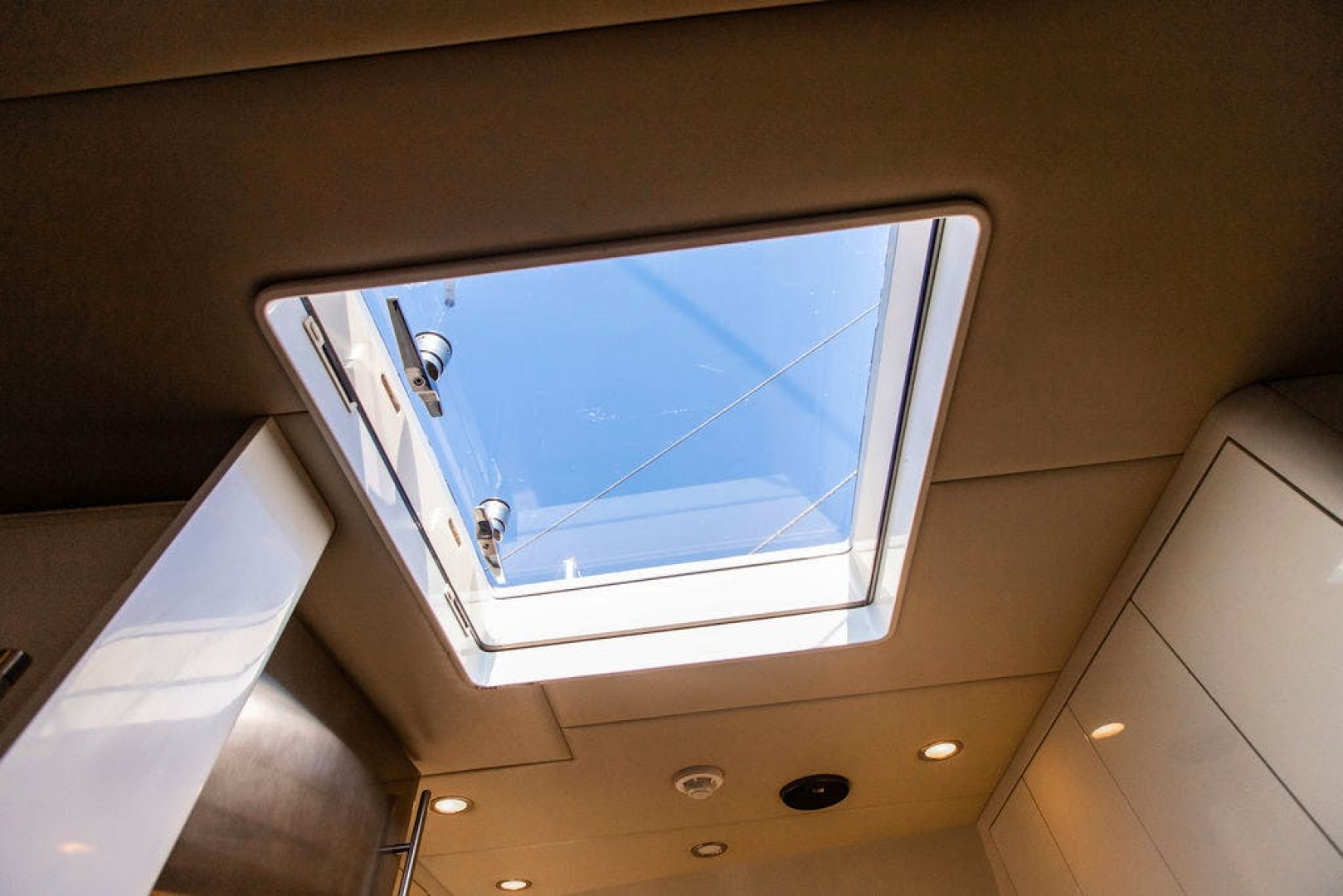

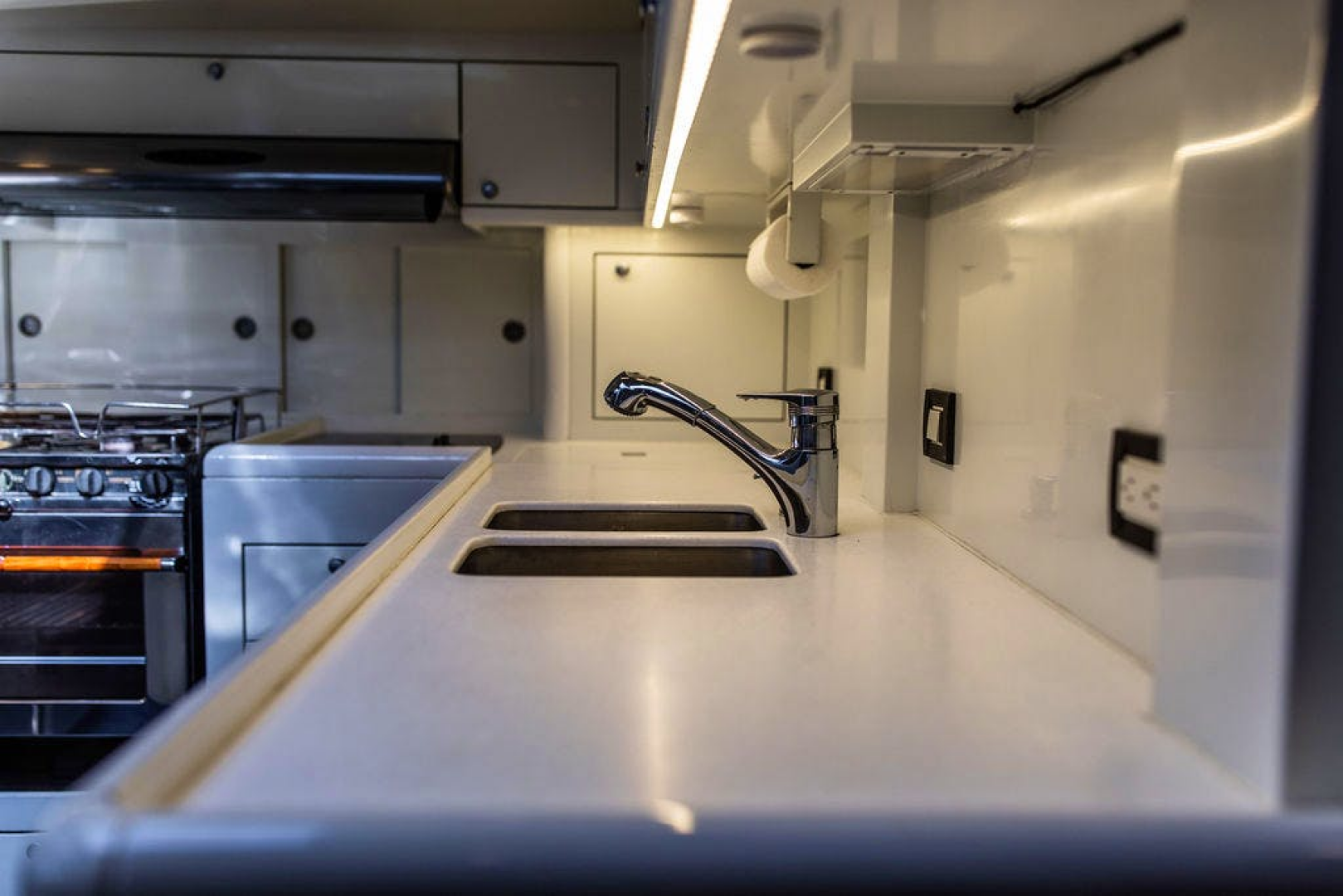

Forward of the main salon, a sliding teak door, as well as a watertight MCA door, lead to a large, U-shaped galley and crew mess. The fully equipped galley has a large hatch for light and/or fresh air while at anchor, so the running of A/C (new 2019) is often an elective. There are multiple freezer compartments to support โaround-the-worldโ adventuring. ย- Broadwater 4-burner propane stove and ovenย

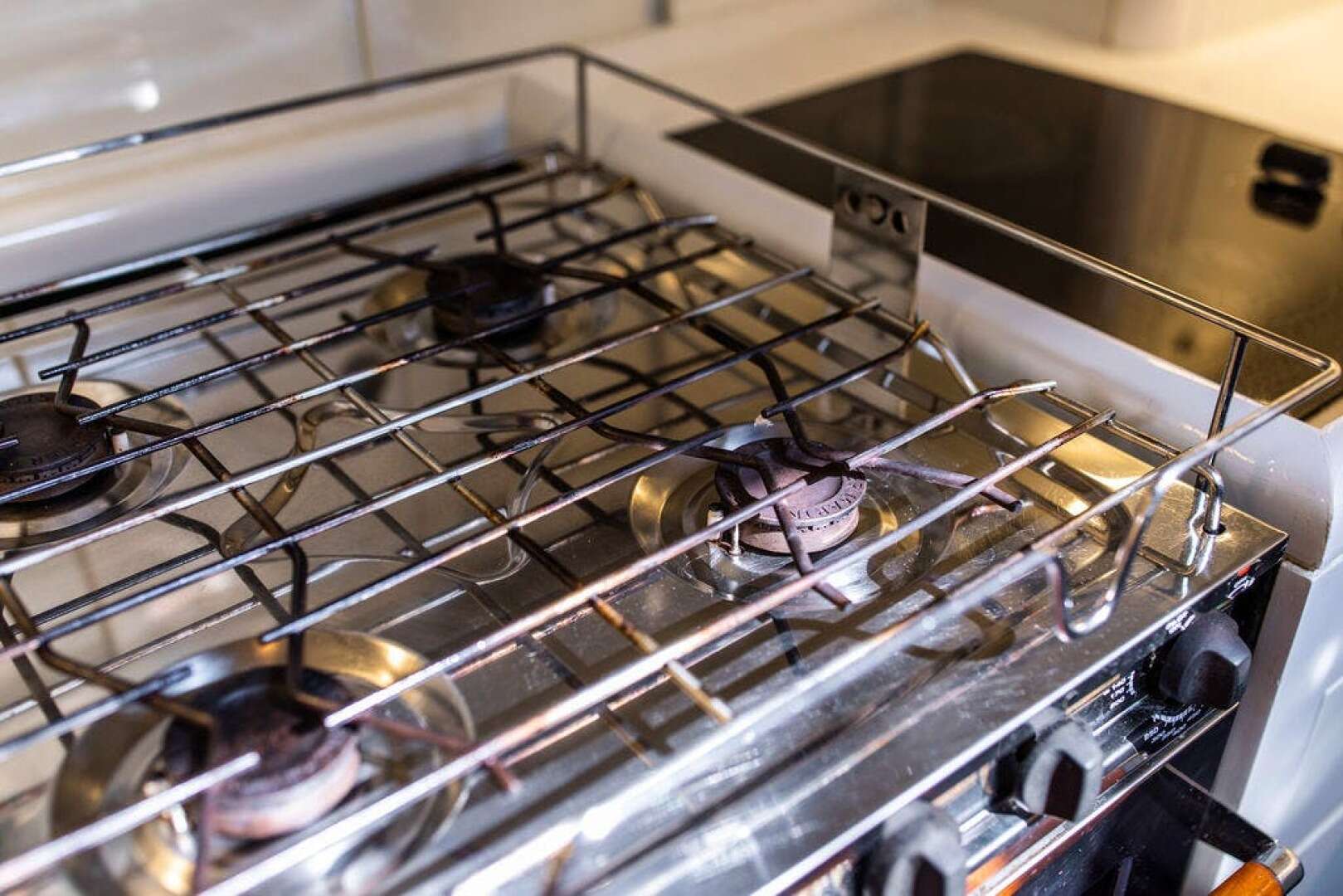

- KitchenAid cook top (new 2022)

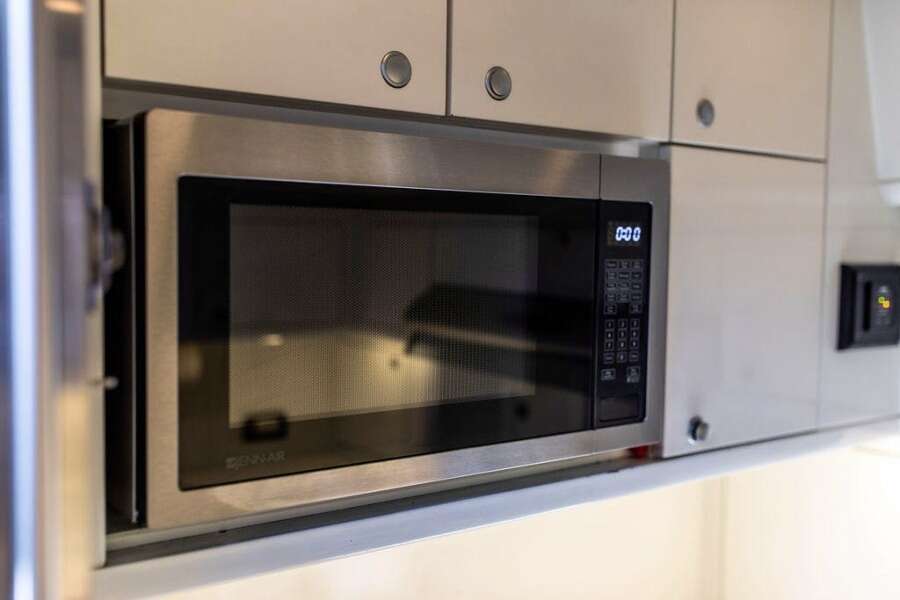

- KitchenAid microwave oven (new 2020)ย
- KitchenAid dishwasher (new 2016)ย
- KitchenAid trash compactorย
- Sub Zero vertical refrigerator with (2) bottom drawersย
- Sub Zero (2) freezer drawersย
- Lift-up, under-counter freezer compartment outboard (D.C.) ย
- Sub-sole freezer compartment (D.C.) ย
- Miscellaneous small appliancesย
- Extractor fan and lighting over stoveย

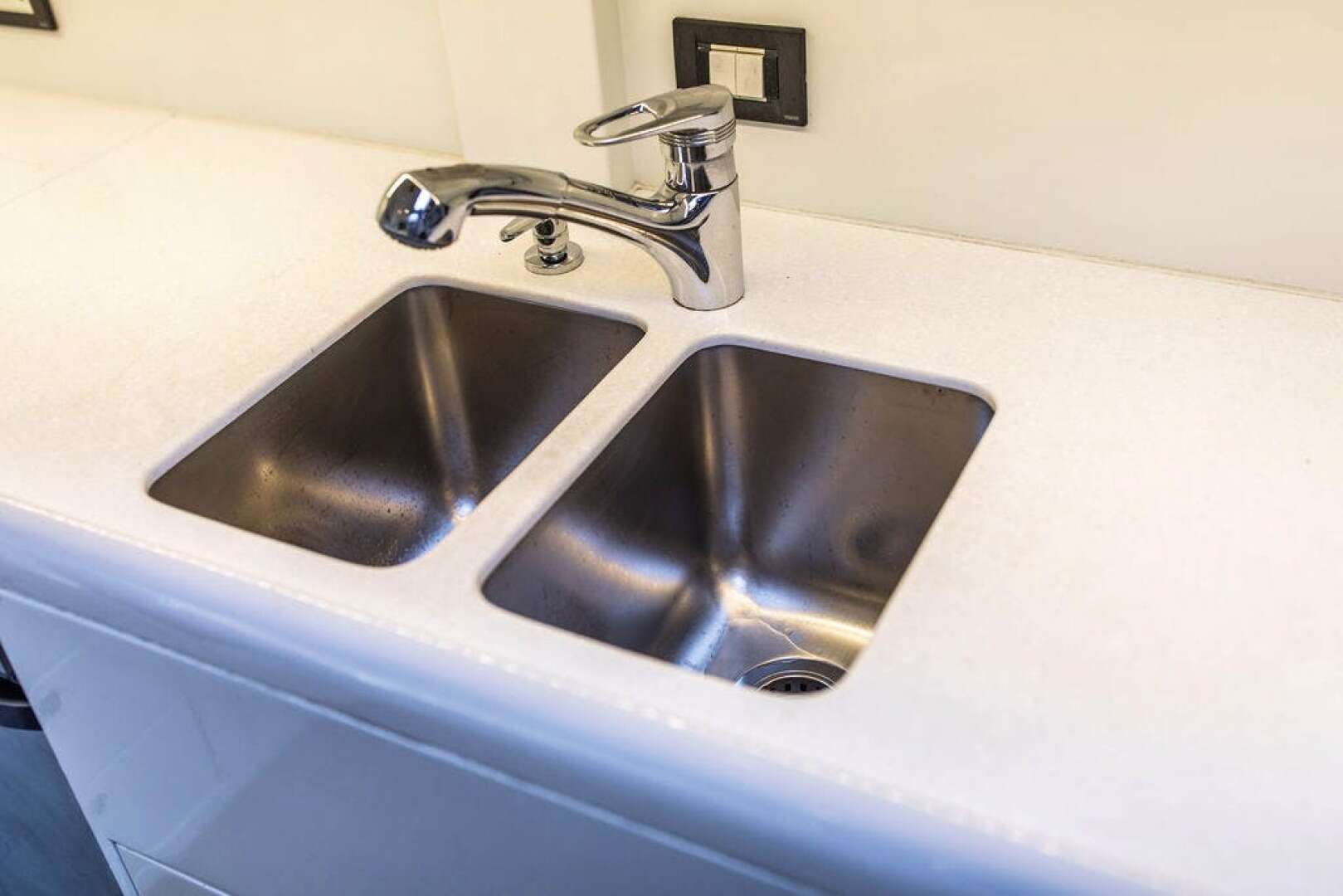

- Double stainless-steel sinks with retractable faucet ย
- Corian countertopsย
- Cork flooring with full carpet (2019)ย
CREW ACCOMMODATIONS

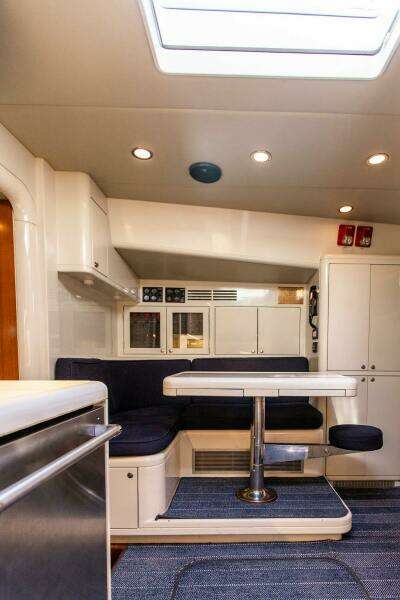

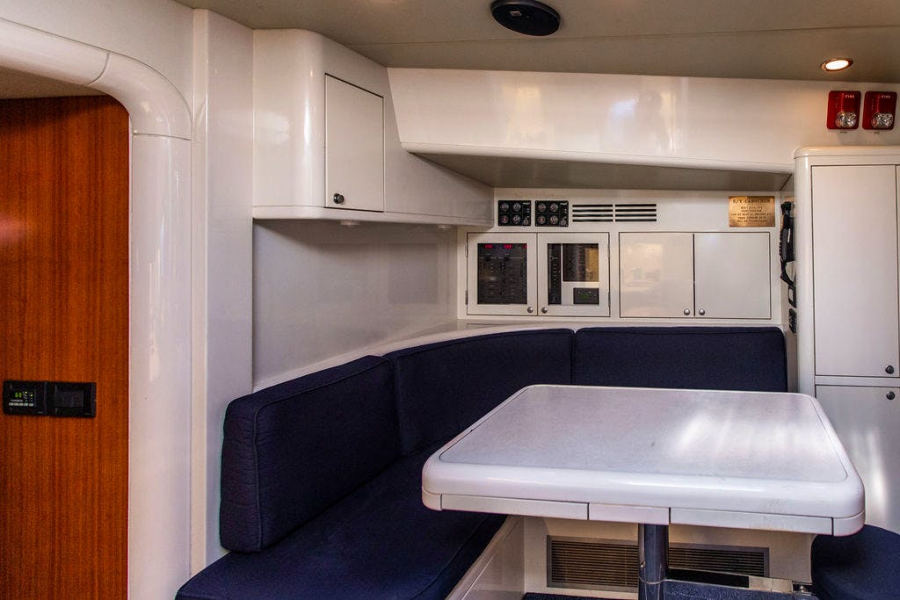

Two double crew cabins are located forward of the galley. Each cabin has its own sink and toilet and shares a centrally located shower. The crew mess is equipped with its own entertainment center, including LCD TV (2018), with High-Def Satellite, Sonos and Apple TV. Miele washer and Miele dryer are located beside the crew mess for easy access.ยCOCKPIT

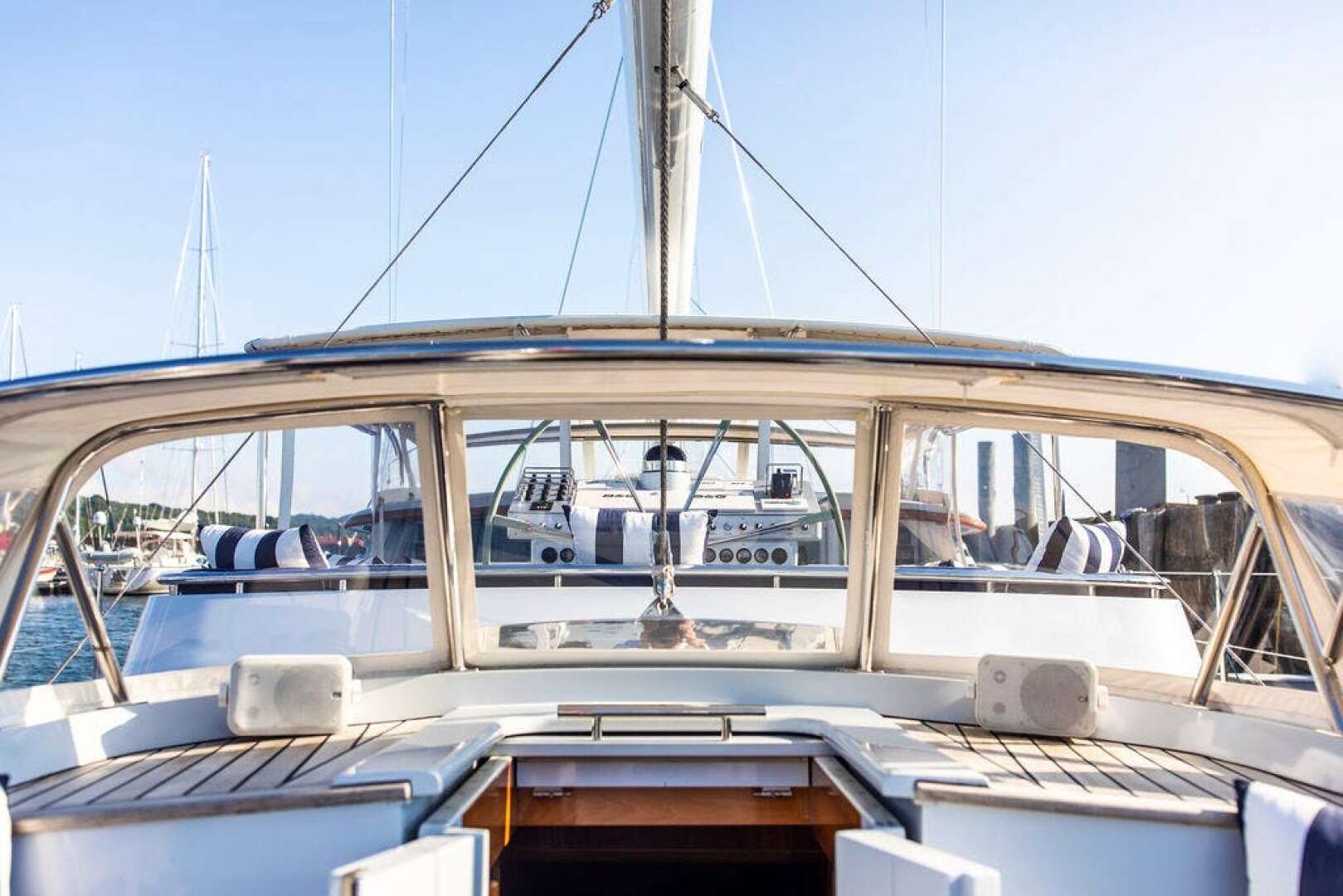

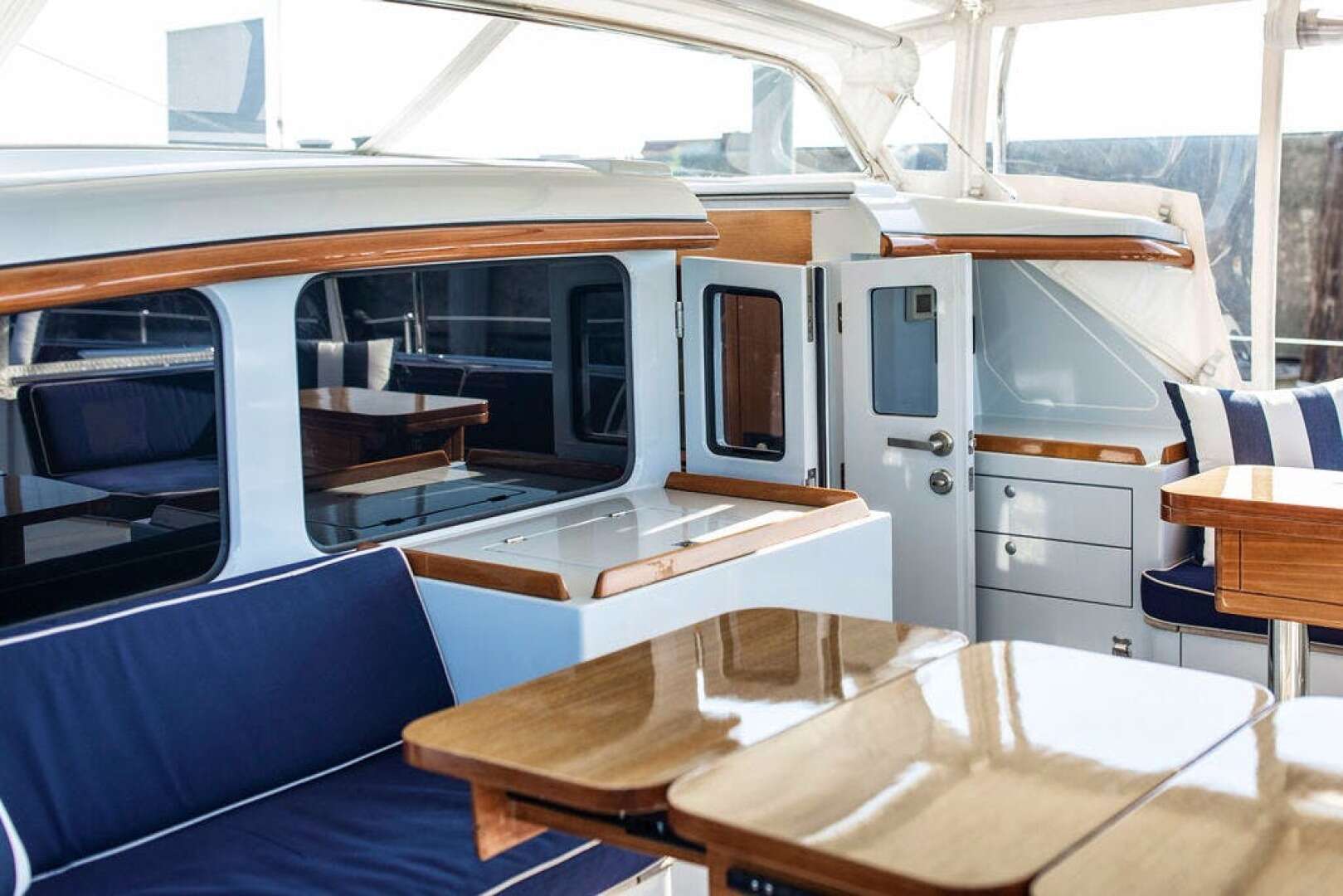

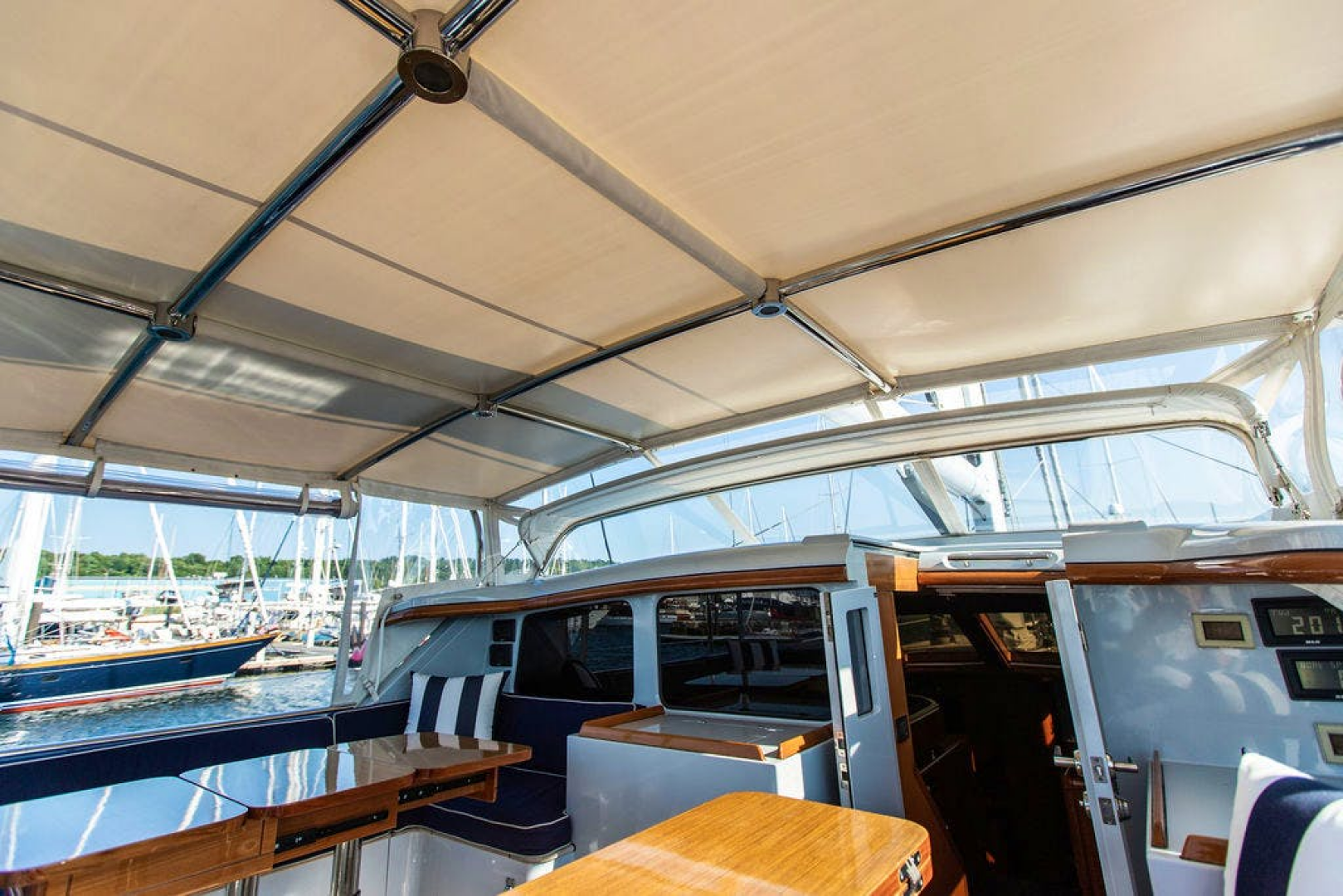

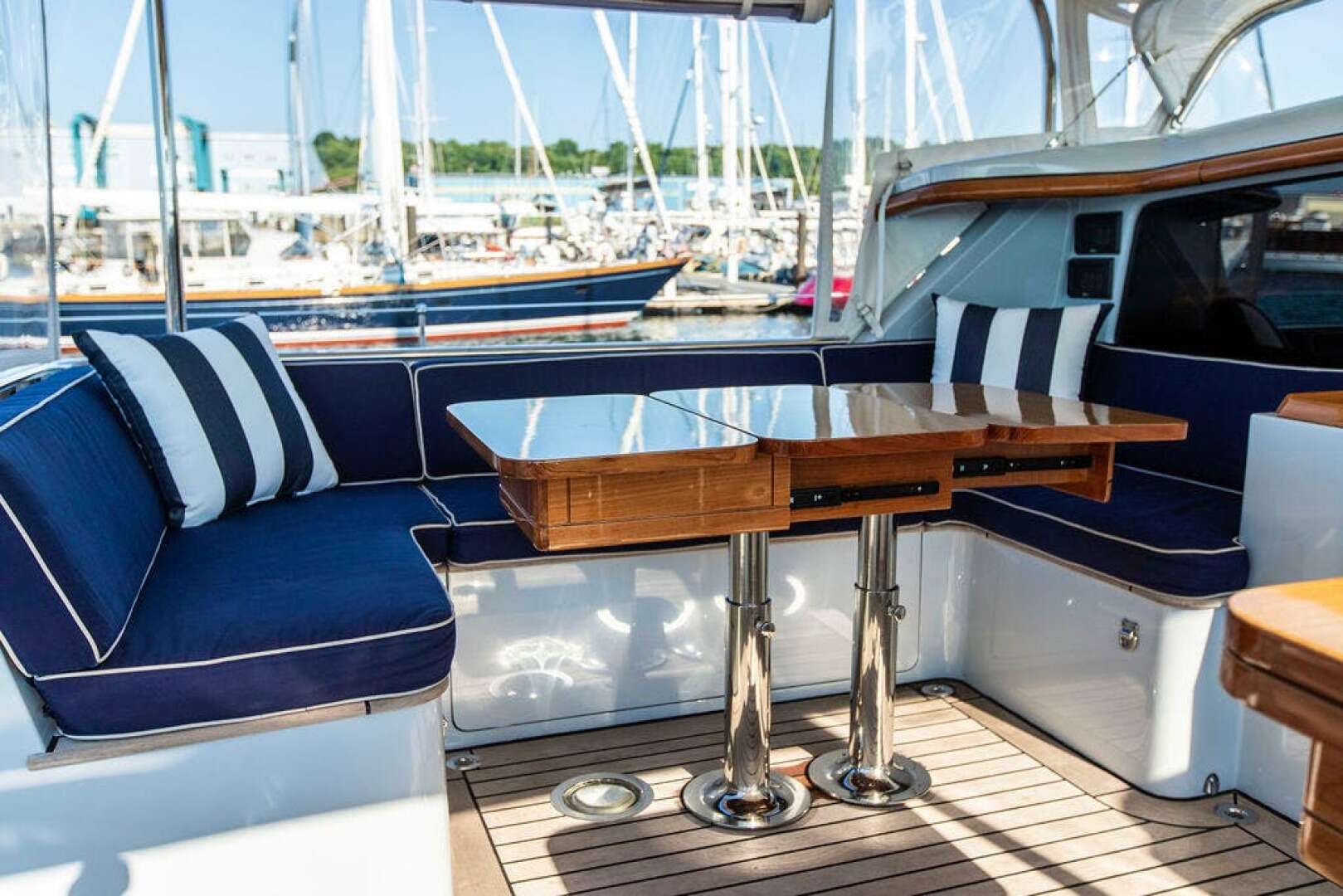

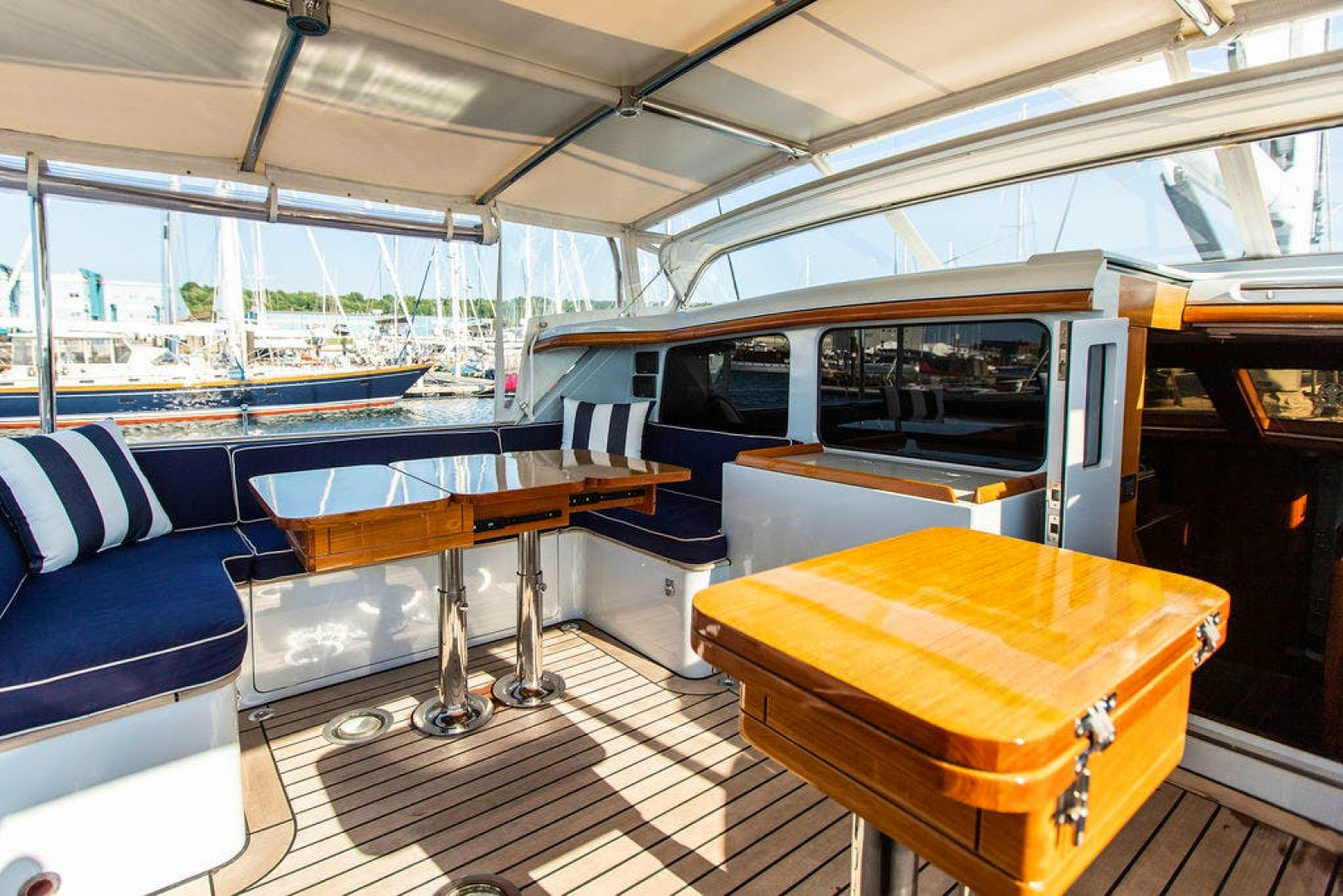

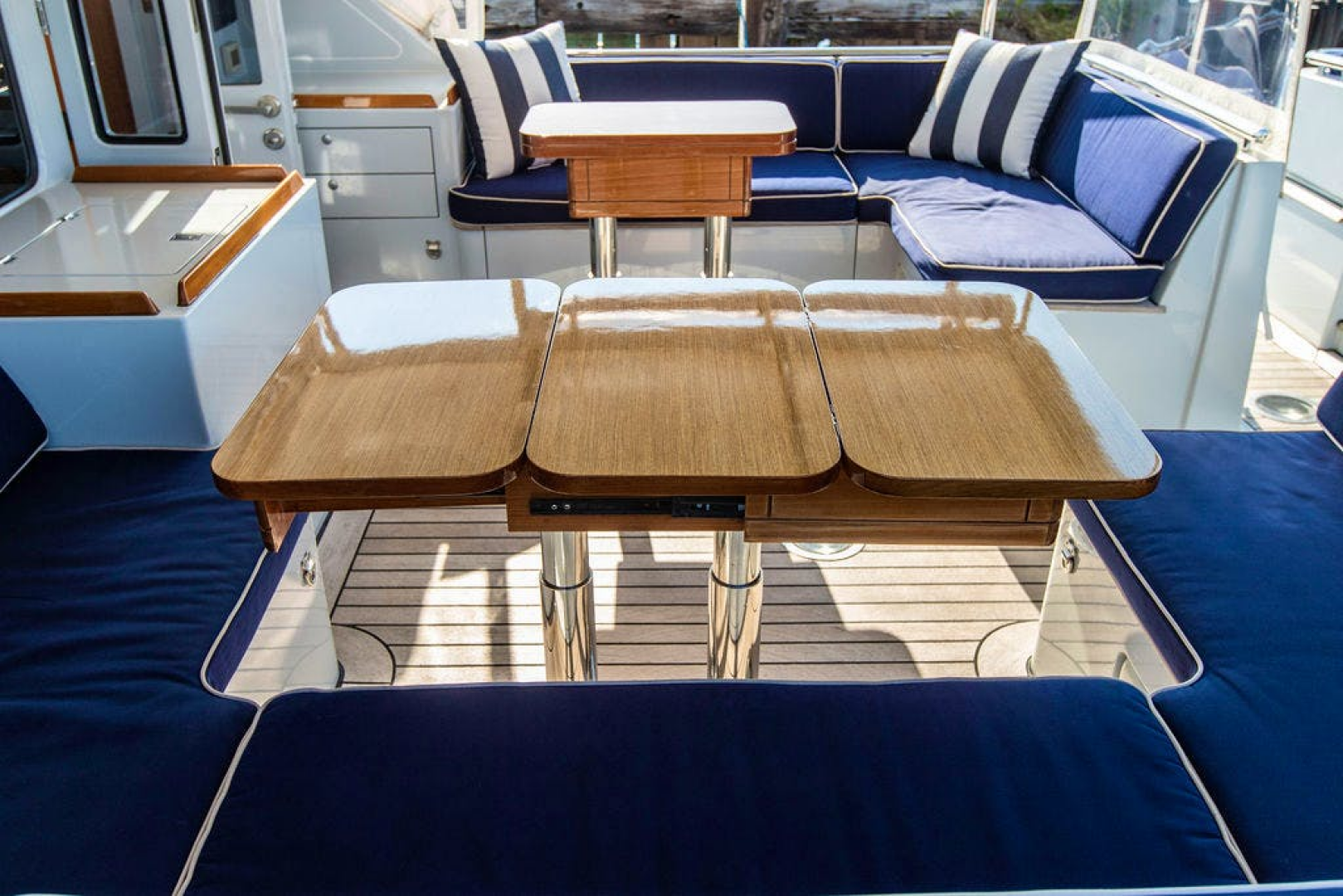

Aft of the pilothouse is the primary cockpit which can be fully enclosed and protected with a rigid bimini top, isinglass side curtains, and dodger (2019). There is a U-shaped seating area to port with a teak table that opens for cocktails or on-deck dining. Opposite to starboard is an L-shaped seating area with an additional teak table. Blue cushions with white piping (2019) complement the โWhisper Grayโ Awlgrip house, teak trim and teak deck. There is a beverage fridge to port of the companionway and cabinet space to starboard. Aft of the cockpit area is the raised helm area with U-shaped settee around the 54โ wheel. The pedestal accommodates navigational instruments, compass, engine controls with toggle controls for easy command and control of all sail handling. CABOCHON can literally be sailed by just one person without leaving the helm. Helm station completely redesigned and rebuilt in 2019 with engraved black face helm panel, new engine controls and MFDs which show engine data, generator start/stop controls, navigational electronics, wind instruments and PTO controlsยOWNER'S COCKPIT

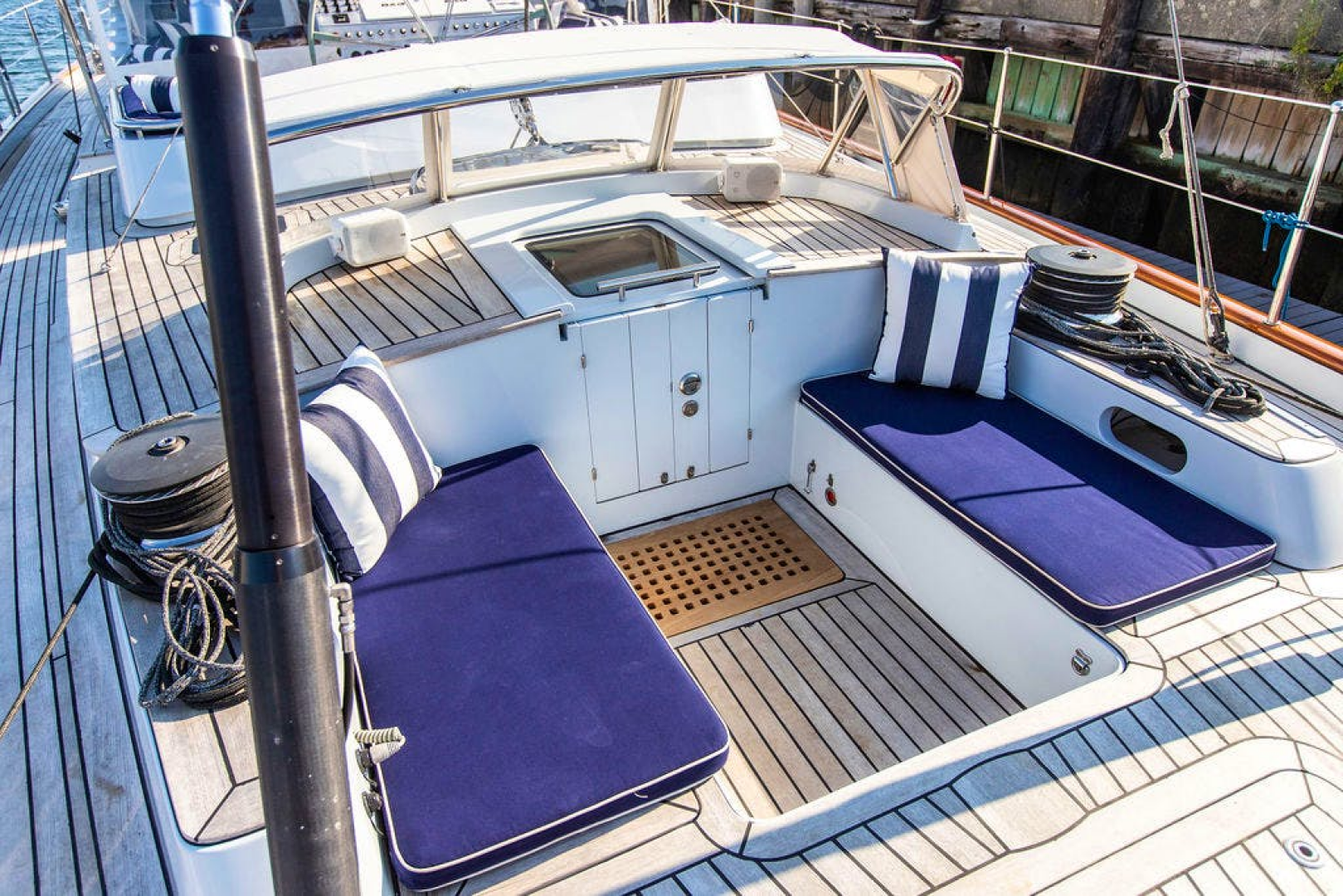

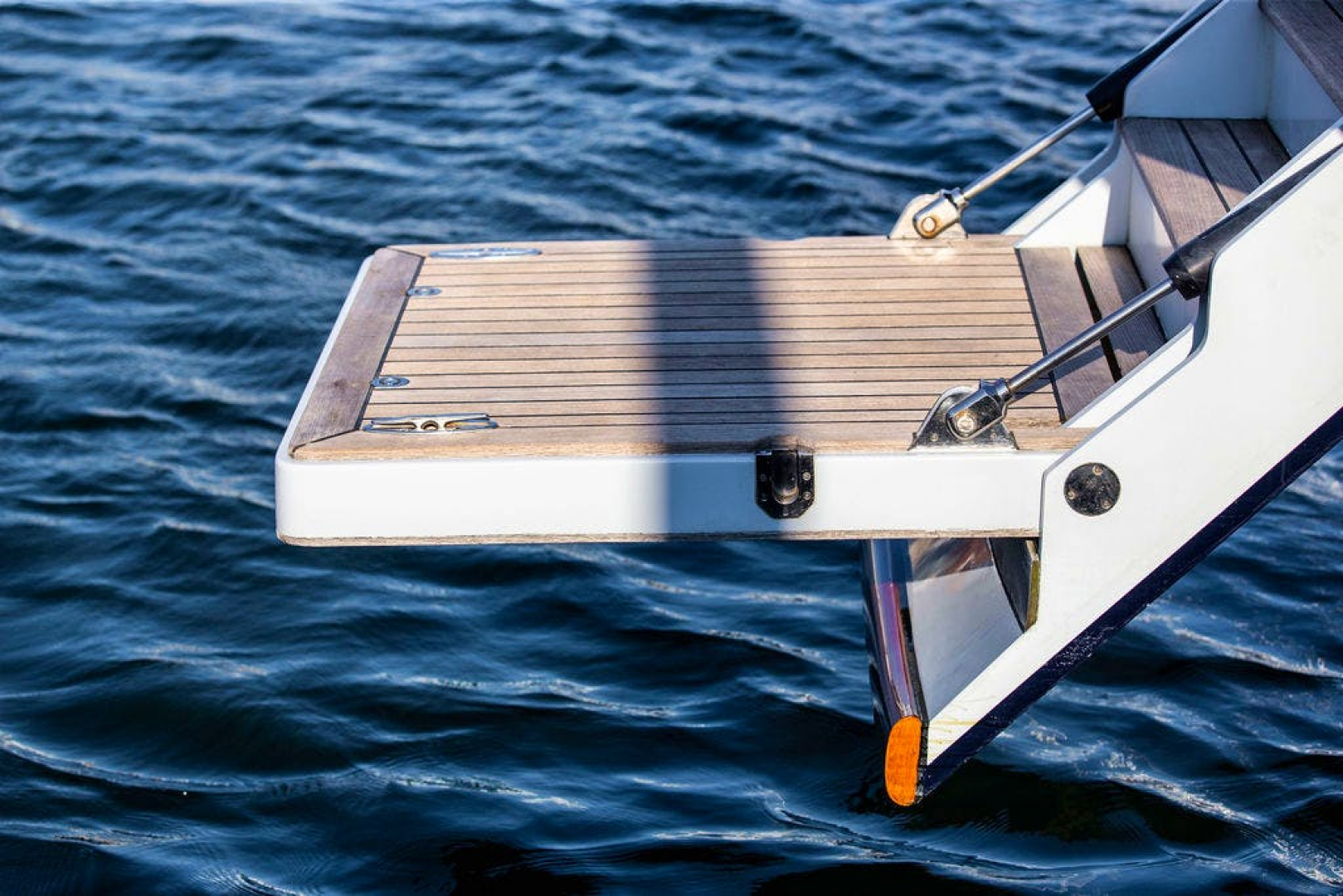

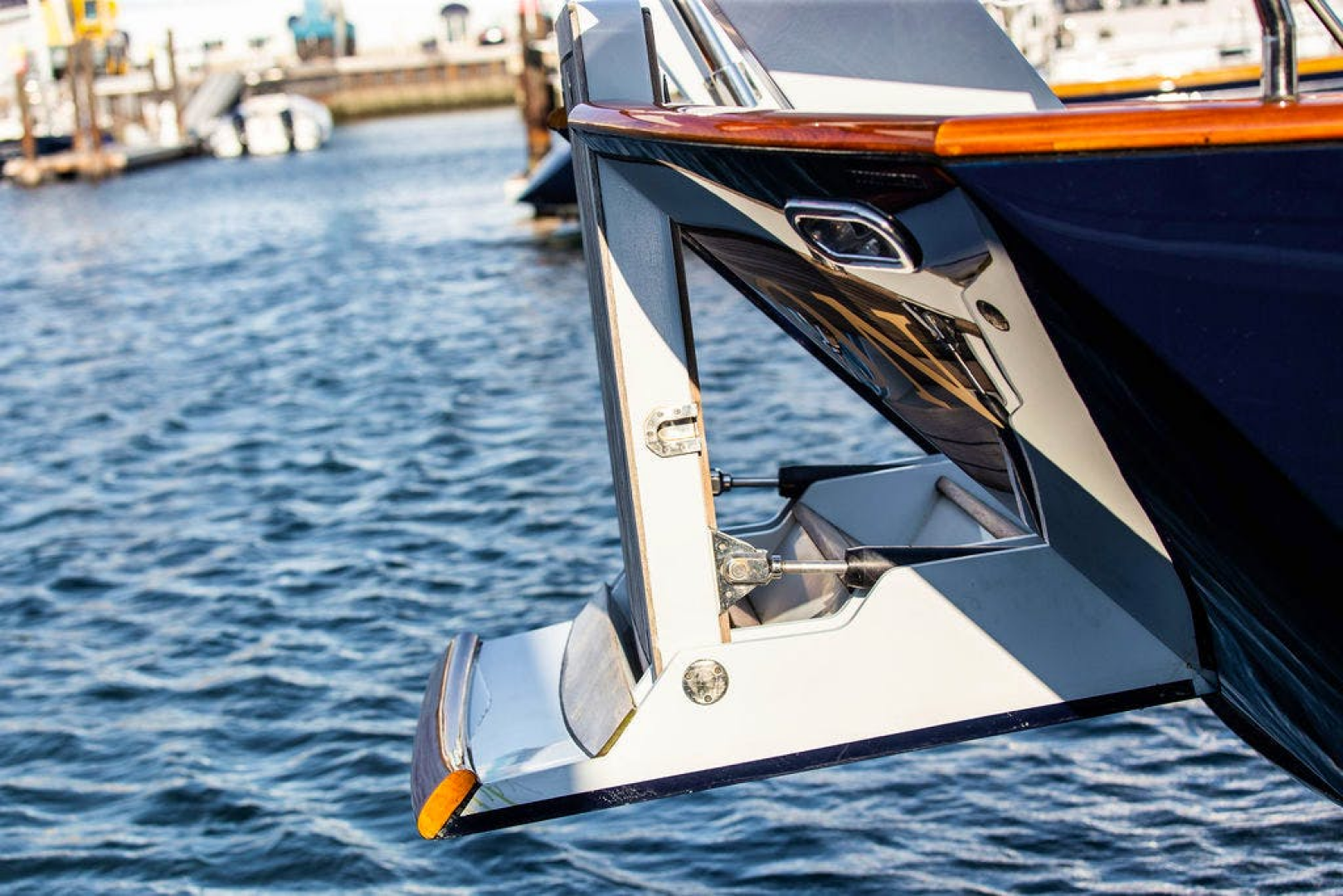

Aft of the helm station is a private ownersโ cockpit, protected by a dodger with settees suitable for sunning or napping. The transom opens into a hydraulic boarding platform with steps and swim ladder and adjacent H&C shower. Boarding via tender is a breezeELECTRONICS AND NAVIGATION EQUIPMENT

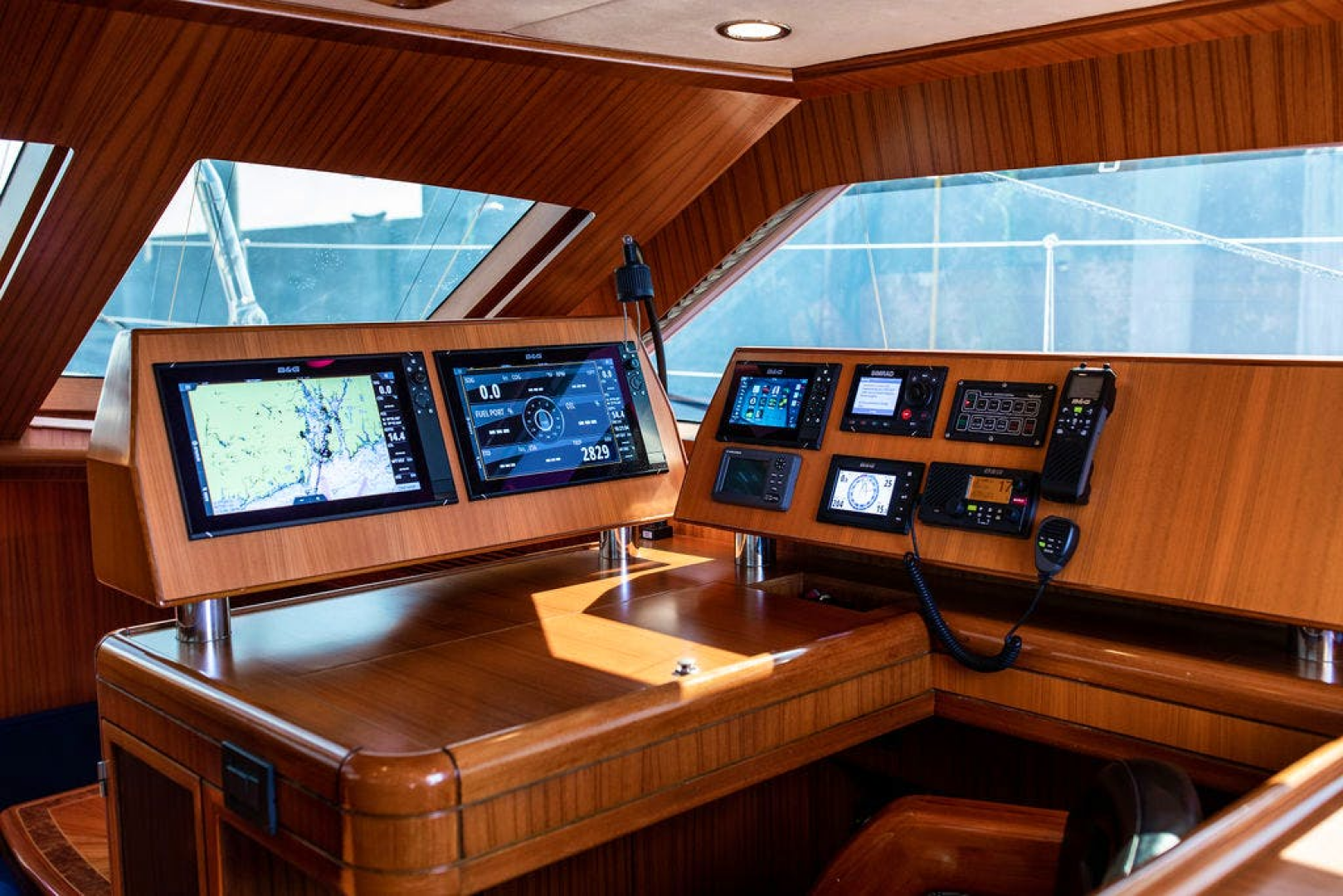

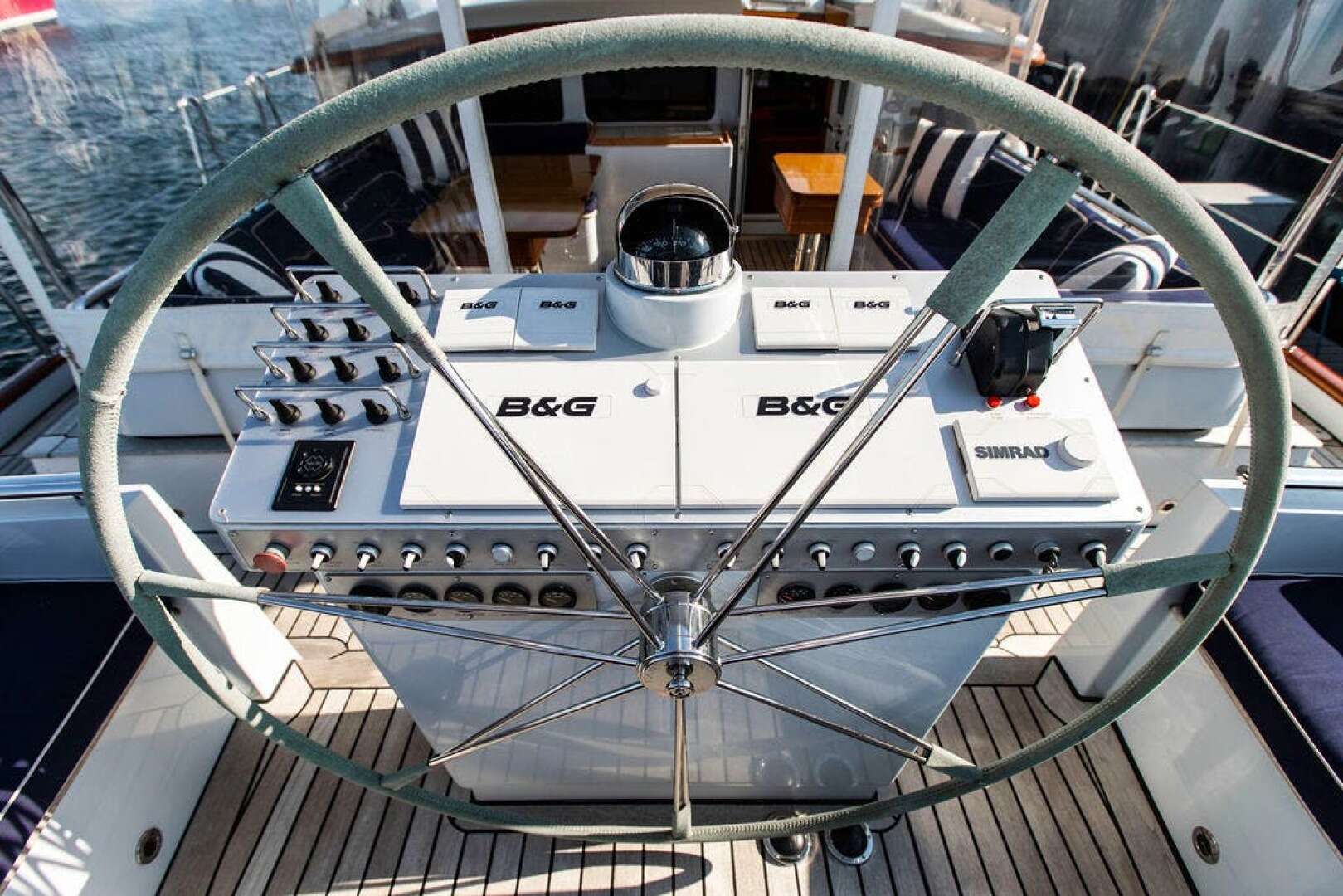

Navigation and communications equipment renewed in 2018 ย- (4) B&G Zeus 12โ MFDโs with ย Radar, Chart-Plotter, GPS, AIS unitsย
- (2) at helm pedestal and (2) at navigation stationย
- (2) B&G open array 4kW digital radar scannersย
- (2) B&G V60 VHF radios with DSCย
- (4) B&G Depth, Wind, Speed, sailing instrumentsย
- (2) in cockpit and (2) at navigation stationย
- (2) B&G Hydra autopilot at helm and navigation stationย
- SatCom, ย
- Starlink installed 2023
- IridiumGO,phone and dataย
- Thrane & Thrane TT-3020C with GPSย
- High-Definition Satellite TVย
- Sonos stereo system throughout entire vessel (2018)ย
- Weather Station Oceans Sea Station 2000 Microย
- EPIRB ACR Global Fix 406 Category 1ย
ย
HYDRAULICS AND DECK EQUIPMENT
Hydraulics are an integrated system designed by Maxpower, system allows the functions to be powered by three sources: Maxpower DC-pump or (2) Rexroth Genset drivenPTOโs. ย- Entire system completely rebuilt in 2019 including new centerboard ram. hydraulic manifold and all hoses. ย
- Backstay hydraulics overhauled โ 2019ย
- Centerboard hydraulic ram โ 2019ย
DECK EQUIPMENT

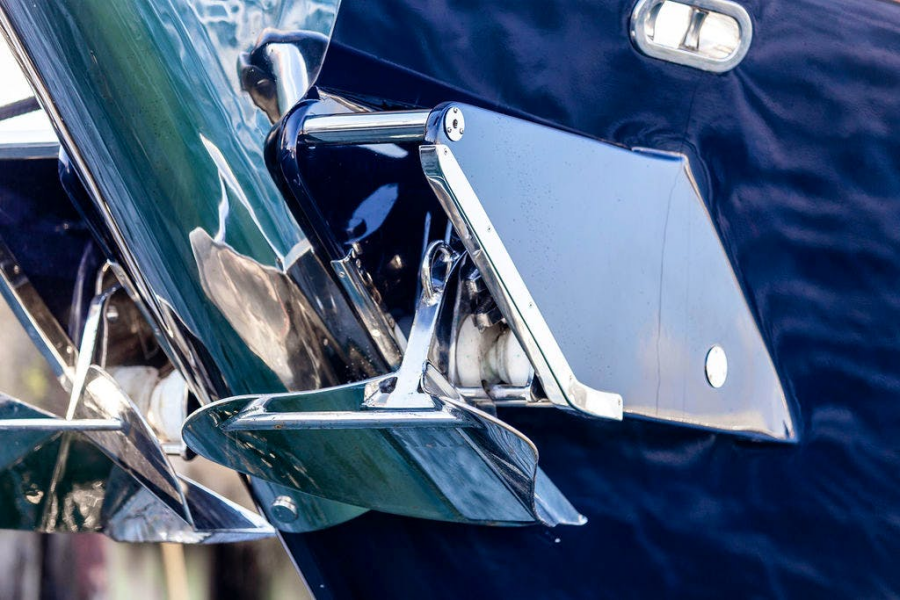

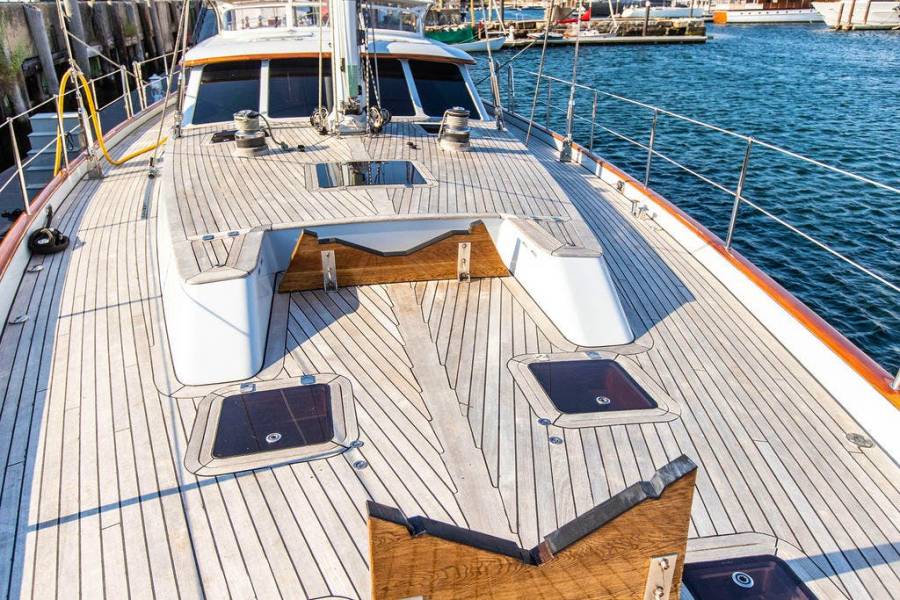

- 81 Kg polished stainless steel CQR anchor with 450โ ยฝโ galvanized all chain rode โ 2019ย
- 63 Kg polished stainless steel Delta anchor - 2019 with 350โ (re-galvanized 2019) chain rodeย
- Fortress anchor ย
- Muir hydraulic windlasses mounted under hatch (rebuilt, 2019) ย
- Hydraulic ram and pumps (2018)ย
- Solimar flush hatches with solid teak rims (Removed, rebuilt, refinished, & re-installed โ 2019ย

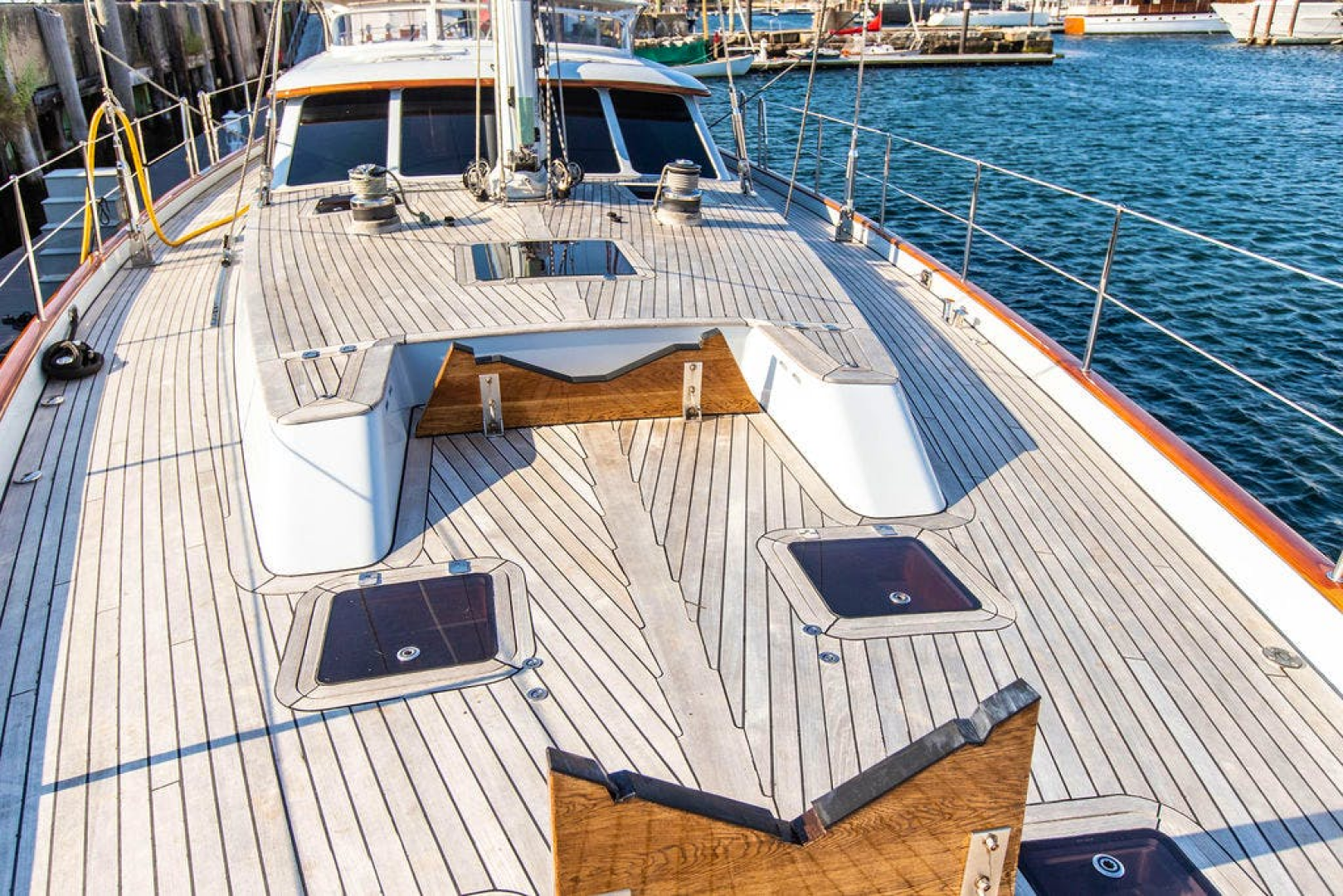

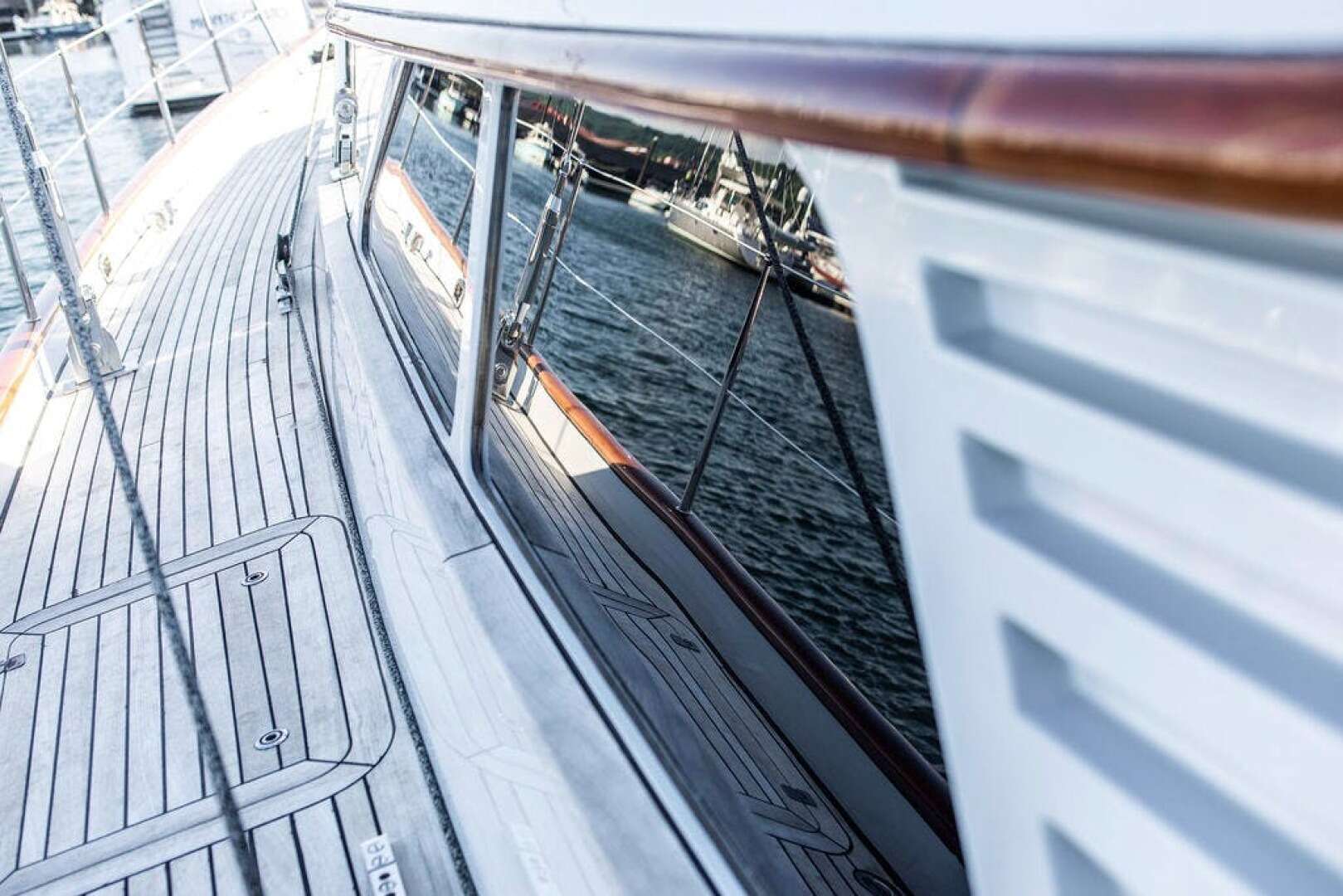

- Teak decks - re-caulked 2021ย
- Teak bow seatย
- Teak stern seatsย
- Dinghy lift aluminum davits with hydraulic function - rebuilt, 2019, Spectra line for davitsย

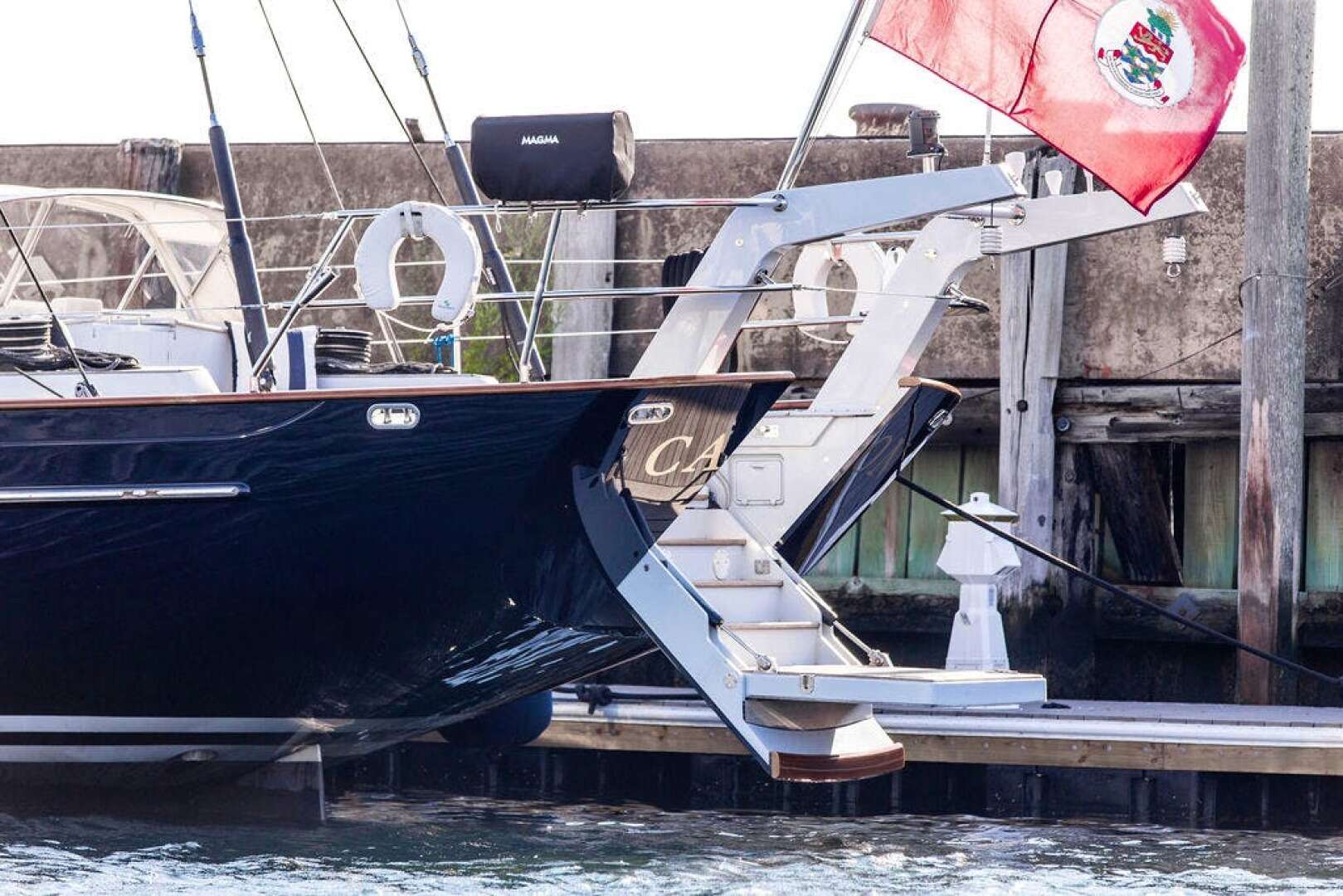

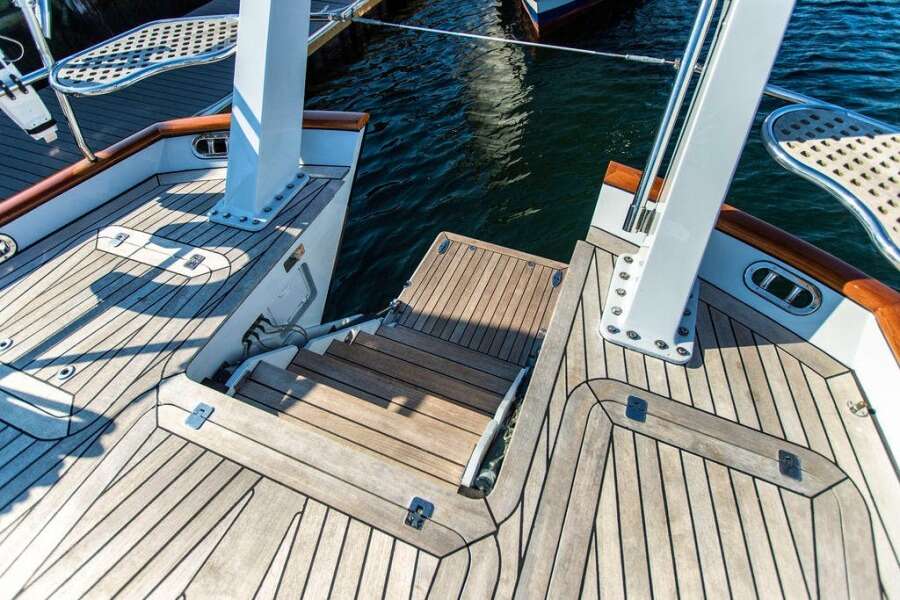

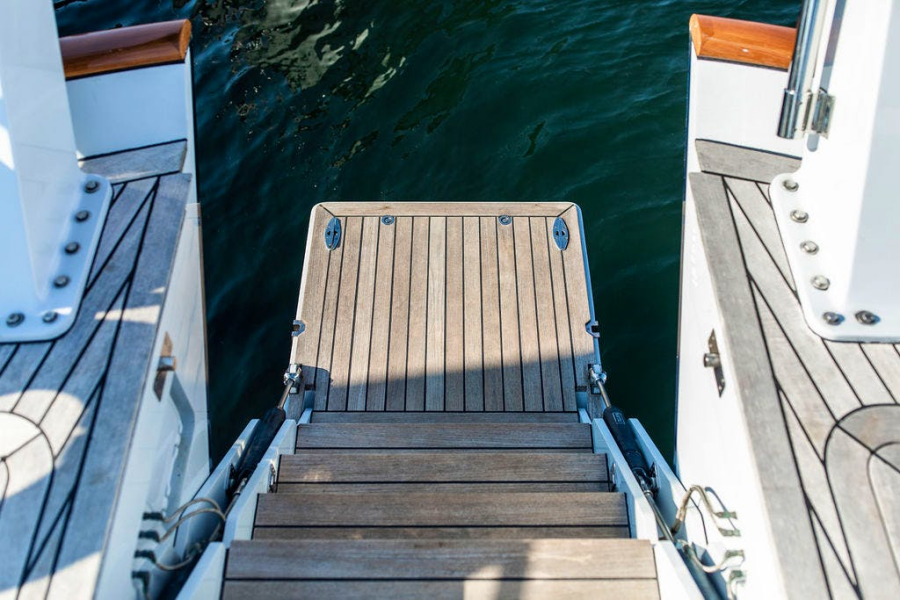

- Hydraulic stern stairs and teak boarding platformย
- Hot and cold shower, at stairs๏ทย
- 8 Deck prismsย
- Sturdy, rigid bimini, dodger and connective pieceย
- Viking 8-person Solas life raft
- Revere 4 person Solas liferaft - 2023ย ย
- Hydraulic manifold and all hoses โ 2019ย
- Backstay hydraulics overhauled โ 2019ย
- Centerboard hydraulic ram - 2019)ย
- Chocks on foredeck for dinghy in addition to davits on the sternย
- Custom lifting system for on deck storage including new lifting boom โ 2019ย
- New fire alarm system overhauled in 2019ย
ENTERTAINMENT SYSTEM
- 40โฒโฒ LCD in salon, 30โฒโฒ LCD in master stateroom, 24โฒโฒ LCD in crew mess ย
- High-Definition Satellite TV system โ 2018ย
- Wi-Fi system - 2018)ย
- Sonos audio system - 2018ย
- Surround sound in salon with additional speakers in pilothouse, cockpit and aft cockpitย
- Separate system in master stateroomย
- Apple TV in Aft Cabin, Salon and Crew Mess
ย
ELECTRICAL SYSTEM
- Two Northern Lights 1800 RPM generators 25 kWโ(Port - 7654 hrs./ Stbd.- 676 hrs.).ย
- Major service including new heat exchangers, injectors rebuilt, raw-water pumps, new hoses โ 2024
- 2400 EnerSys TPPL - 2023ย
- Mastervolt chargers: three 200 amp and one 40 amp charging system โ 2019
- 250A Electrodyne alternator on main engine, including spare
- 220-volt single phase 100A Shore Power with transformer
- Cablemaster to store 90โ cableย
- 4 KW inverter for house bank - 2019ย
- 4000W Cotex Inverter - 2023
CONSTRUCTION DETAILS
The composite hull is built in a sandwich structure using Core-cell foam core and E-glass with an additional five layers of Kevlar incorporated for extra strength. The deck and pilothouse are also sandwich construction with E-glass. Centerboard configuration offers minimum draft of 6โ-6โ with board up and a maximum draft of 18โ with board down. ย- Classification: Lloydโs HCC (Hull Construction Certificate)ย

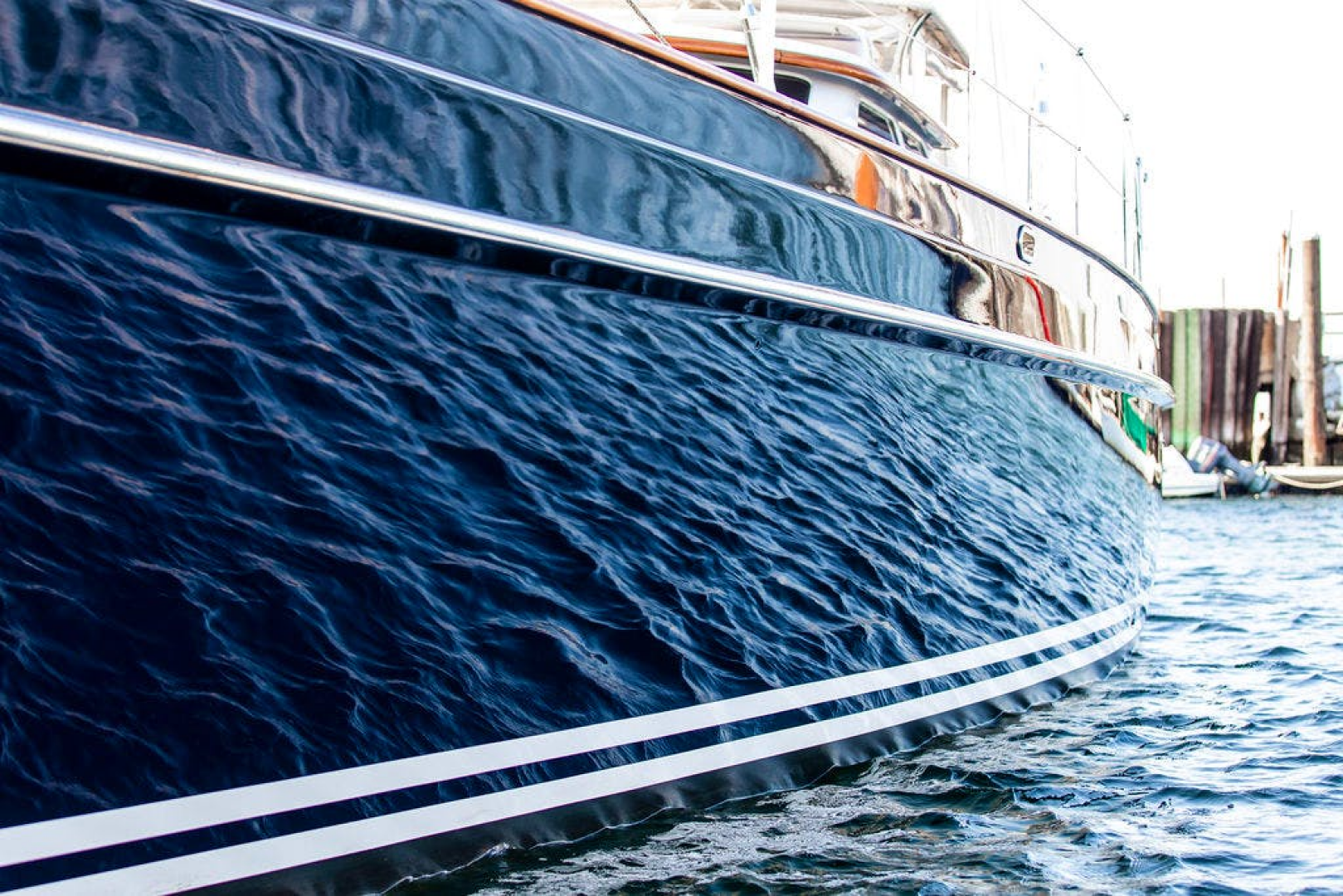

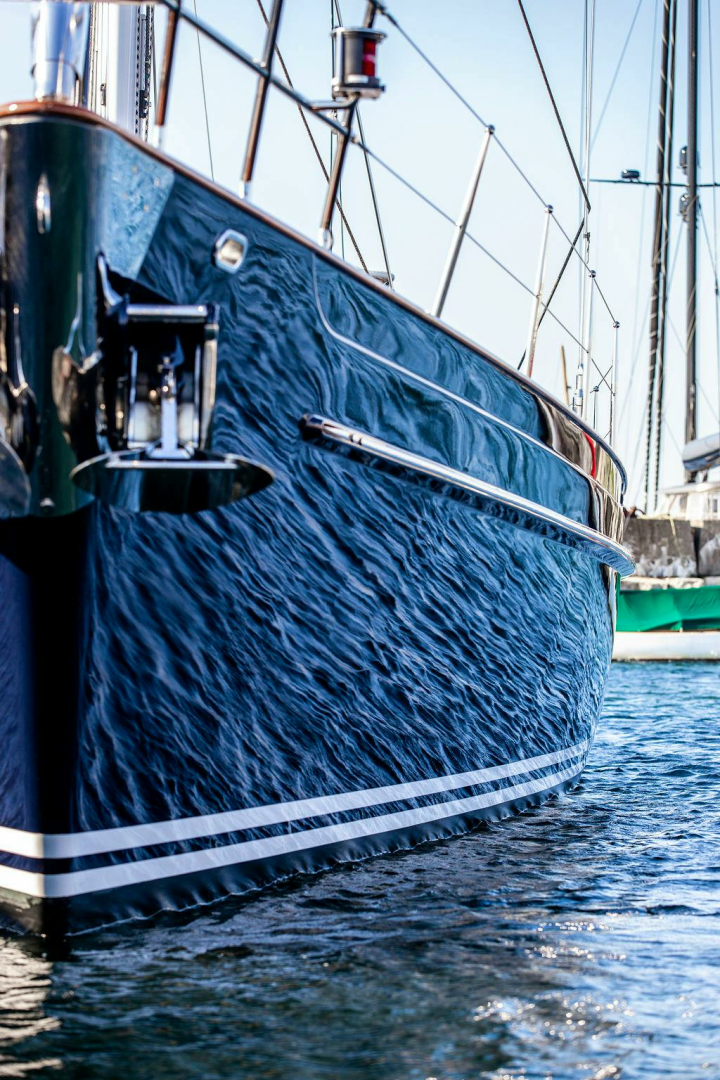

- โMidnight Blueโ Awlgrip hull (2021) with varnished teak exterior trimย
- โLight Grayโ Awlgrip nonskid ย
- Matterhorn White Awlgrip Bootstripe
- Black Seahawk Biocop Bottom
- โWhisper Grayโ Awlgrip house ย
- Integral rub rails with stainless-steel strikerย
- Four watertight bulkhead ย
- Teak cap rail with (16) coats of varnishย
ENGINE AND MECHANICAL
Large well-laid-out engine room with easy access to all pumps, stand-up headroom around main engine.ย
- John Deere 6-cylinder Model 6090SFM75, 375 hp engine main engine (1350ย hours)turbocharger and heat exchangers overhauled in 2024.ย
- 90 cm 3-blade Maxprop propellerย
- Max Power 35 hp bow thruster - 2019ย
- Chilled water Marine Air AC system โ 2019 including chillers, air handlers and ductworkย
- Fire suppression system in engine room โ 2019ย
- Eberspacher diesel heater system - entire system new โ 2019ย
- Sea Recovery Water maker, 60 gph - 110 VACย
- Sea Recovery Water maker, 8 gph โ 24 VDCย
- Isotherm water heaters ย
- Fresh Water pumps โ 2019ย
- Fuel polishing system ย
- Fuel shut off system (new, 2019)ย
- Shaft seal โ 2015ย
- Highfield 13โ center console inflatable hard bottom tender with 70-hp Yamaha outboard โ 2016 ย

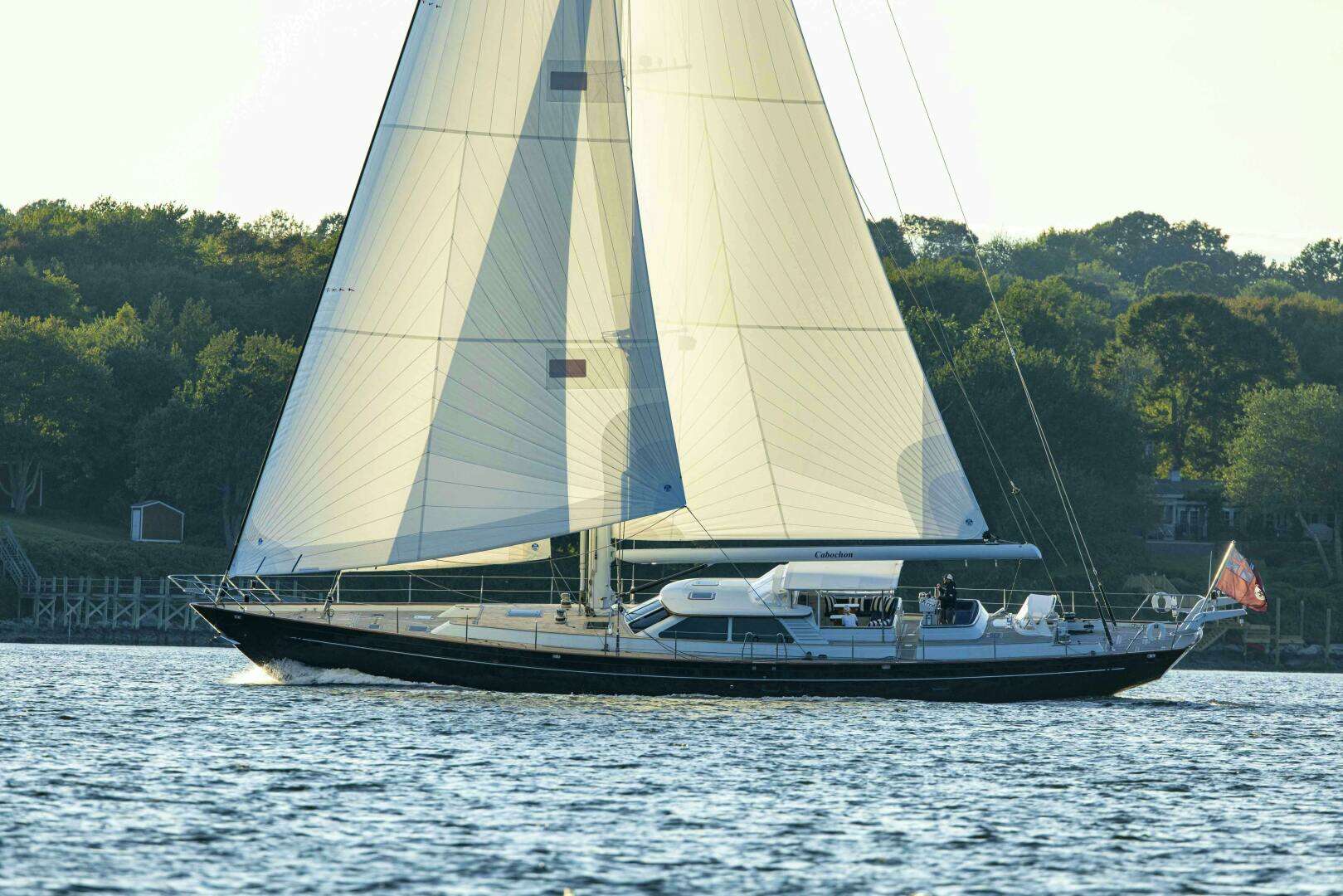

SAILS AND RIGGING
CABOCHON is easily sailed shorthanded with โbig boatโ systems such as captive winches and hydraulic furlingโall sails can be deployed, trimmed, and furled by one person from the helm pedestal. Also unlike boats of her size built of steel or aluminum, her hull is fiberglass with layers of Kevlar for strength and rigidity.ย- Rig pulled and fully inspected - 2021ย
- All rigging removed and fully inspected โ 2021ย
- Lorimar Carbon Fiber mast with 4 spreaders and in-mast furling, โWhisper Grayโ Awlgrip ย
- Spreader lights โ 2019ย
- Navtec rigging and hydraulicsย
- Backstay hydraulic cylinders rebuilt โ 2019ย
- Hydraulic boom vang (rebuilt cylinder, 2021)ย
- Rod rigging (new 2015)ย
- Mast partner with Spartite, ย
- Spectra running rigging โ 2019ย
- North Sails are NPL Tour UltraX NorLam
- 1,944 ft.ยฒNorth main โ 2023ย
- 828 ft.ยฒNorth staysail โ 2023ย
- 2,583 ft.ยฒNorth genoa โ 2023ย
- 204 ft.ยฒ two-ply Storm Orange Dacron storm (Halsey Lidgard)ย
- 527 ft.ยฒ two-ply Storm Orange Dacron trysail (Halsey Lidgard)ย
- (4) Nielson-Harken for genoa and staysail ย ย
- Magic Trim for mainsheetย
- Magic Trim in boom for outhaulย
- (2) Harken 3-speed MPS/running backstayย
- (2) Harken 2-speed halyard/mast winchesย
- Harken foredeck winchย
- Reckman โ main, staysail and genoa furlers rebuilt - 2021
TENDER
- 2016 AB om 460 HYP - 15'2" Center Console Inflatable with 70hp Yamaha outboard
- Sunbrella Chaps
- Garmin GPS
EXCLUSIONS
Artwork and owner's personal effectsContact
