2013 Westport 164'

50.00 m
$ 28,950,000 USD
Lauderdale Marine Center, 2015 SW 20th Street, Suite 20033315USAFort Lauderdale FL 33315 USA
+1 954 806 7036

2013 Westport 164'

-

LOA164'

LOA50.00''

Beam31'

Draft Max Feet8'

Fuel Tank (Gallons)19371

Fuel Tank (Liters)73320

Fresh Water (Gallons)2235

Fresh Water (Liters)8460

TypePower

ConditionUsed

Specifications

Name

VALINOR

HIN/IMO

9636814

Stock Number

1d81ed2f-a68c-ef11-ac21-000d3a37748c

Power-Used

Year

2013

Cabins

6

Sleeps

12

Single Berths

4

Twin Berths

2

King Berths

4

Crew Cabins

6

Crew Sleeps

12

Maximum Speed

21 Knots

Cruise Speed

20 Knots

Fuel Type

Diesel

Hull Material

GRP

Hull Shape

Semi Displacement

Air Conditioning

Yes

Stabilizers Brand

Naiad Dynamics US, Inc.

19371 Gallons (73320 Liters)

2235 Gallons (8460 Liters)

Gross Tonnage

492

Classification

ABS

Interior Designer

Donald Starkey

Builder

Westport

Engines

Engine 1

  • Engine Make: MTU
  • ModelEngine Model: 16V 4000 M90
  • YearEngine Year: 2013
  • Engine TypeEngine Type: Inboard
  • Power HPPower HP: 3650.00
  • Feul TypeFeul Type: Diesel
  • HoursHours: 7193.00
  • Engine LocationEngine Location: Port

Engine 2

  • Engine Make: MTU
  • ModelEngine Model: 16V 4000 M90
  • YearEngine Year: 2013
  • Engine TypeEngine Type: Inboard
  • Power HPPower HP: 3650.00
  • Power KWPower KW: 2720.00
  • Feul TypeFeul Type: Diesel
  • HoursHours: 7176.00
  • Engine LocationEngine Location: Starboard
  • Engine Quantity2
  • Full Details

    OVERVIEW

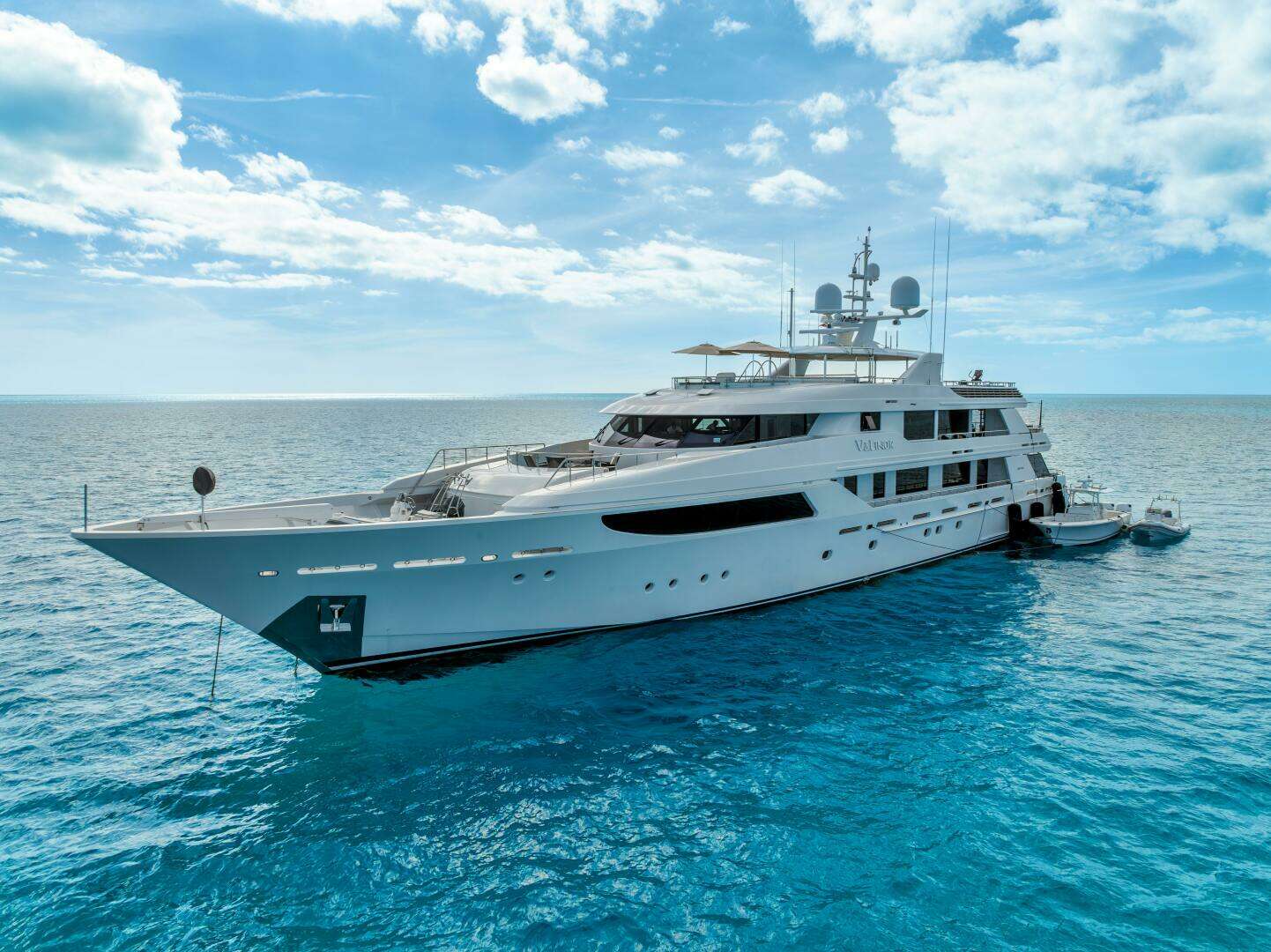

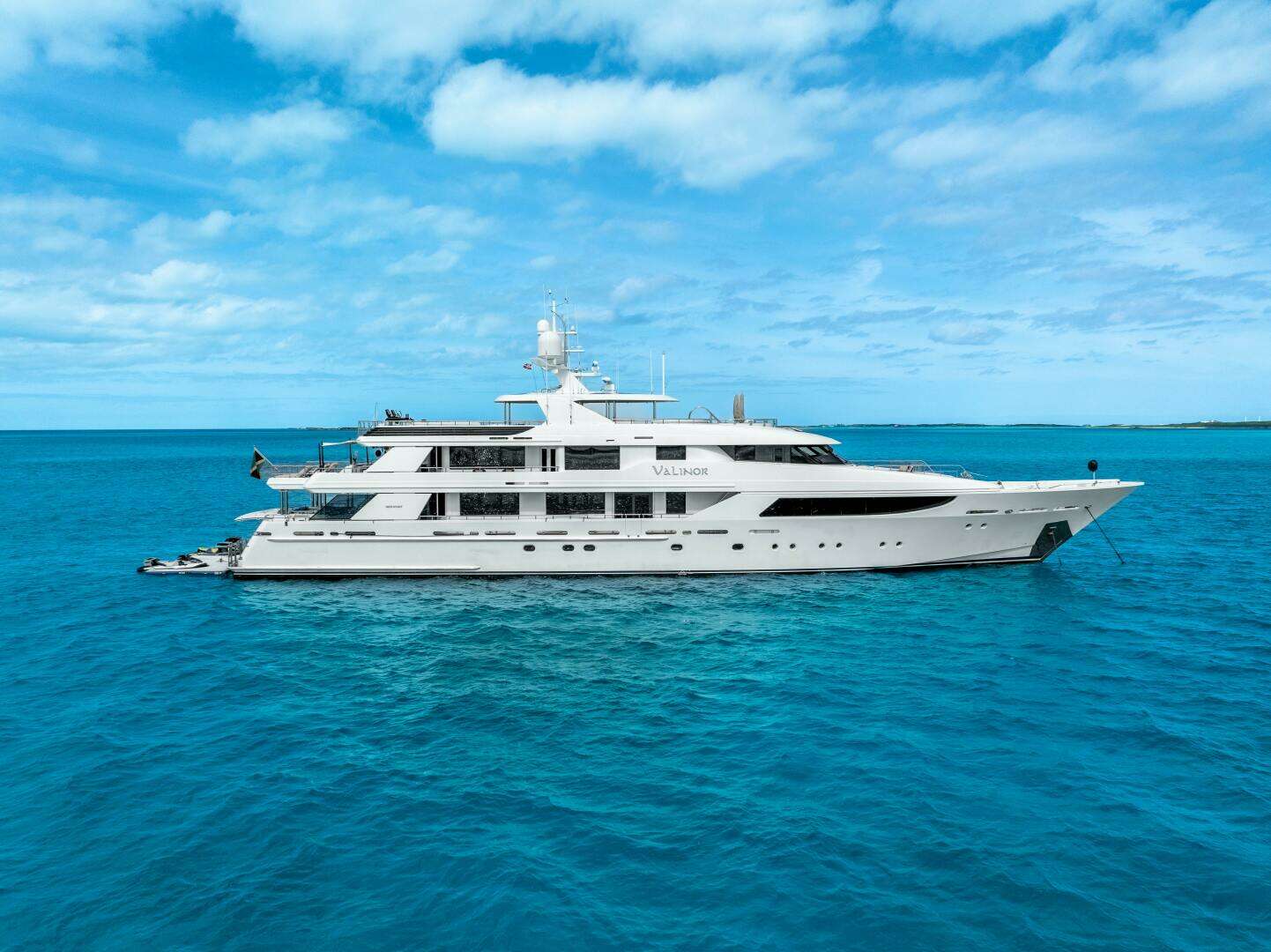

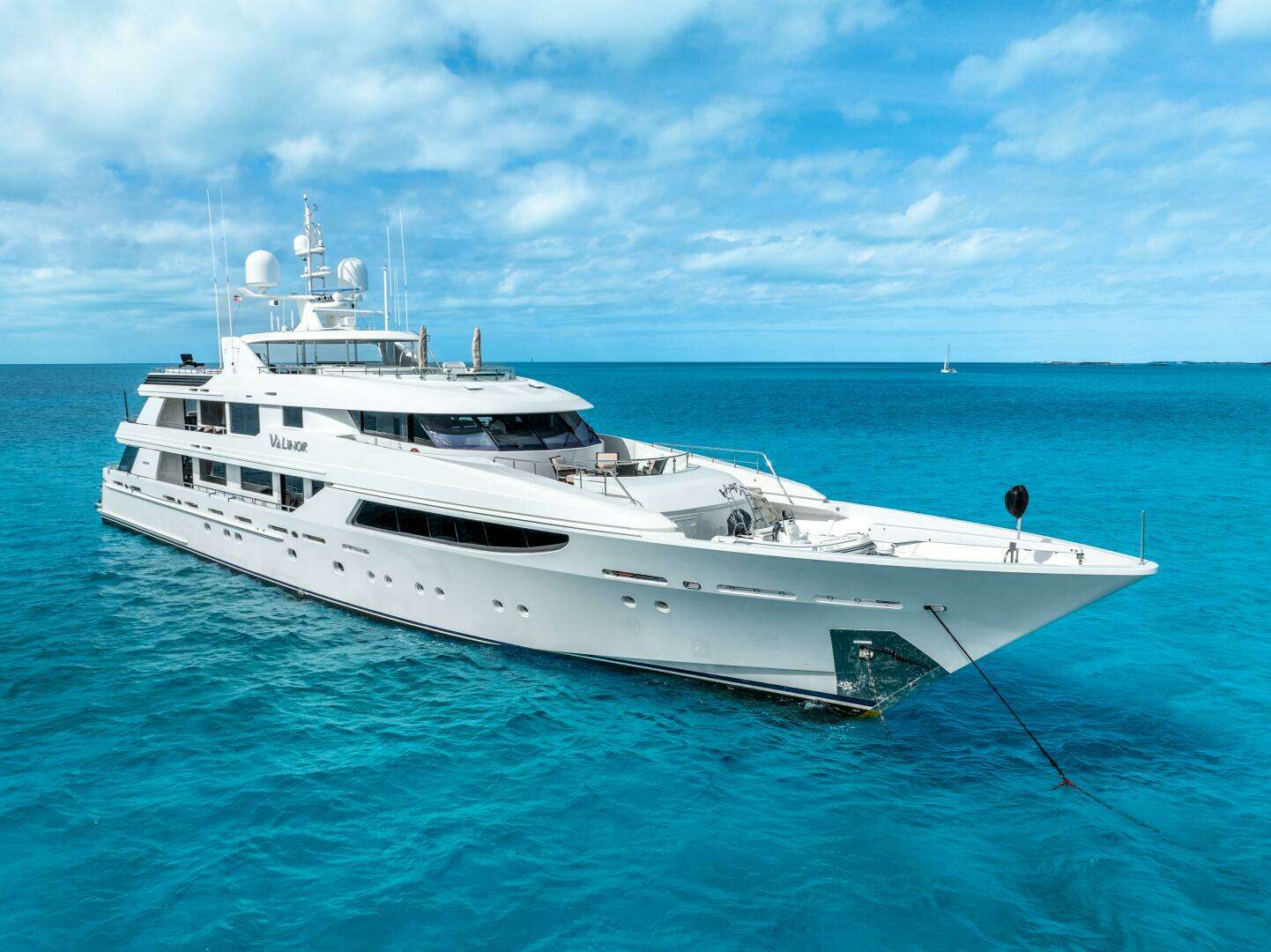

    Launched in 2013, the 50m (164’) VALINOR is the ideal choice for an owner with an appetite for adventure. Built on Westport’s proven hull design, VALINOR has been fitted from stem to stern to enable extended cruising throughout the world’s most remote locations, including her most recent exploration of the South Pacific.

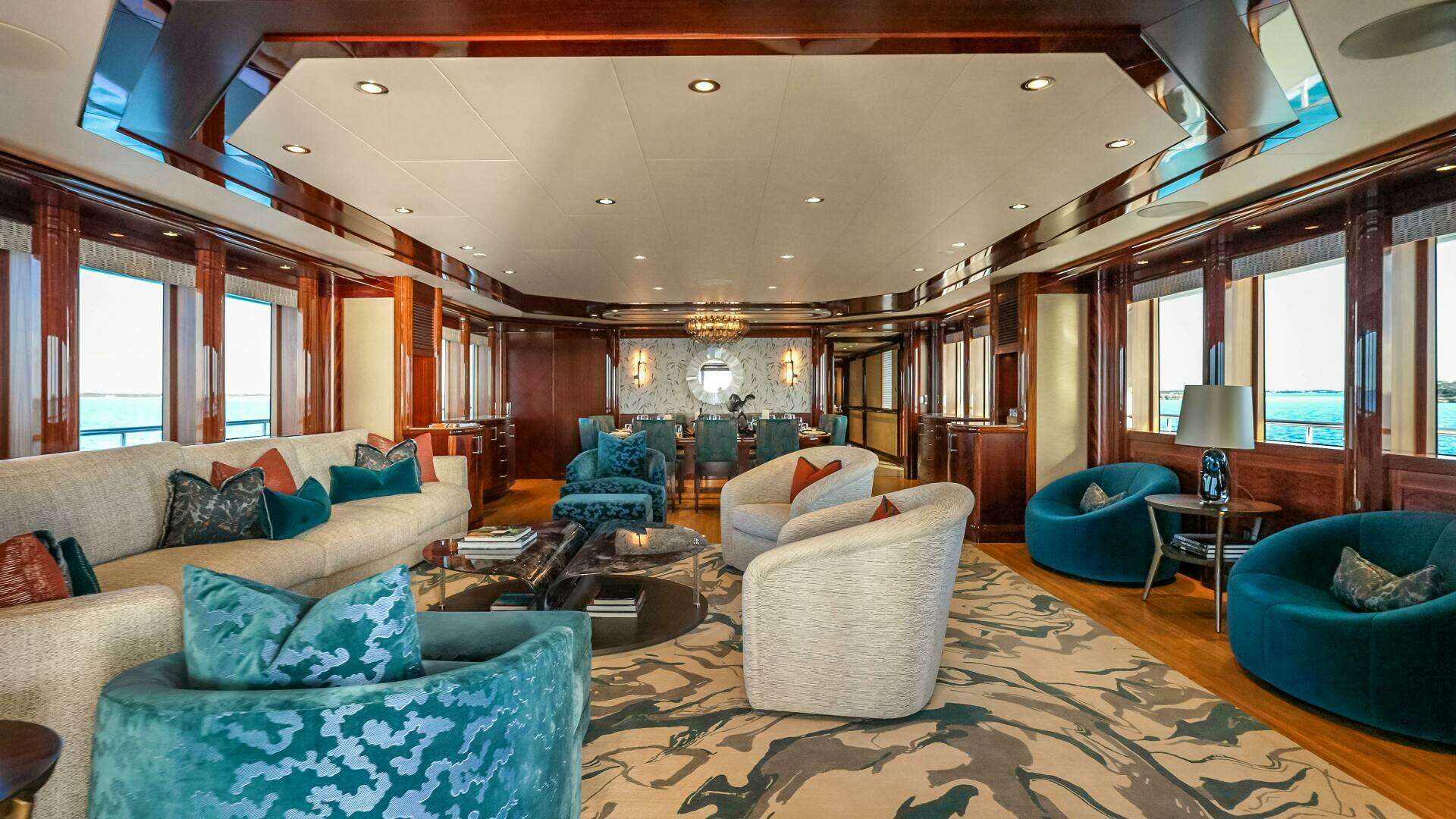

    Her interior is a warm mix of contemporary and traditional, and her outdoor decks are perfectly suited either for casual lounging or alfresco dining. Able to accommodate up to 15 guests, VALINOR has a unique layout including an impressive six cabins with an on-deck VIP and master stateroom on the upper bridge deck. Accommodations include a large master stateroom on the bridge deck with private balcony and amazing views, a beautiful VIP with a large marble-clad ensuite bathroom, forward on the main deck, plus two king-sized staterooms and two twin staterooms (with Pullman berths) on the lower deck. Guests can relax and enjoy their time onboard in the care of VALINOR’s experienced crew of up to 12.

    With an amazing collection of interior volume, massive deck space, 6 staterooms, a tender garage, touch and go helicopter capability, and the ability to cruise at or near 20 knots, the Westport 50 meter offers a unique combination of features, speed, and quality that is hard to match.

    HIGHLIGHTS

    1. Hull 11 of only 14 Westport 50-meter built.

    2. Only two owners since new.

    3. Meticulously maintained by her owners.

    4. Helicopter capable.

    5. High quality American manufacturing and product support.

    6. 6 stateroom layout including upper deck master stateroom.

    7. Garage for tender or storage plus tender/toy storage on bow and sun deck.

    8. Beautiful open galley arrangement with excellent storage.

    9. Massive crew accommodations.

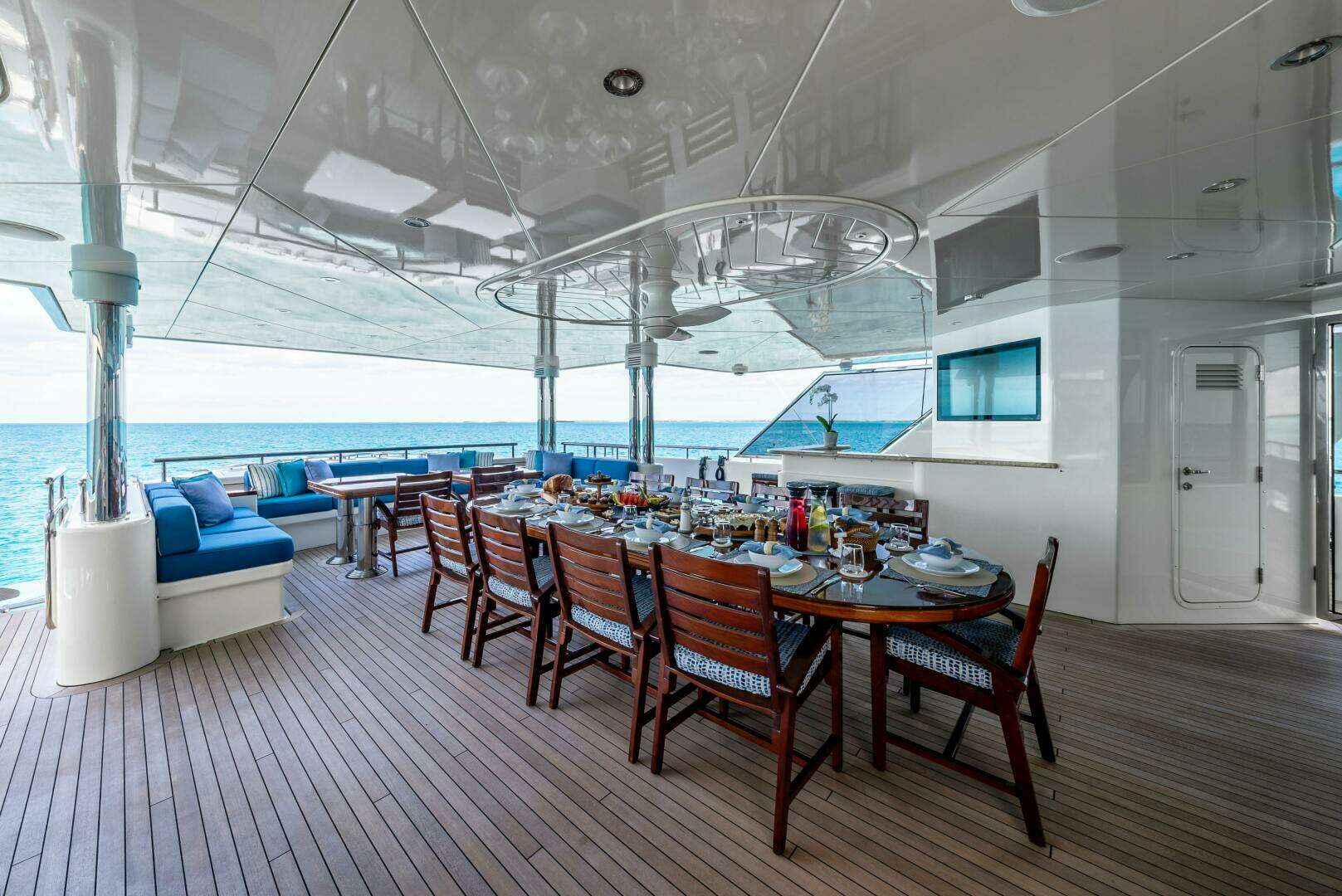

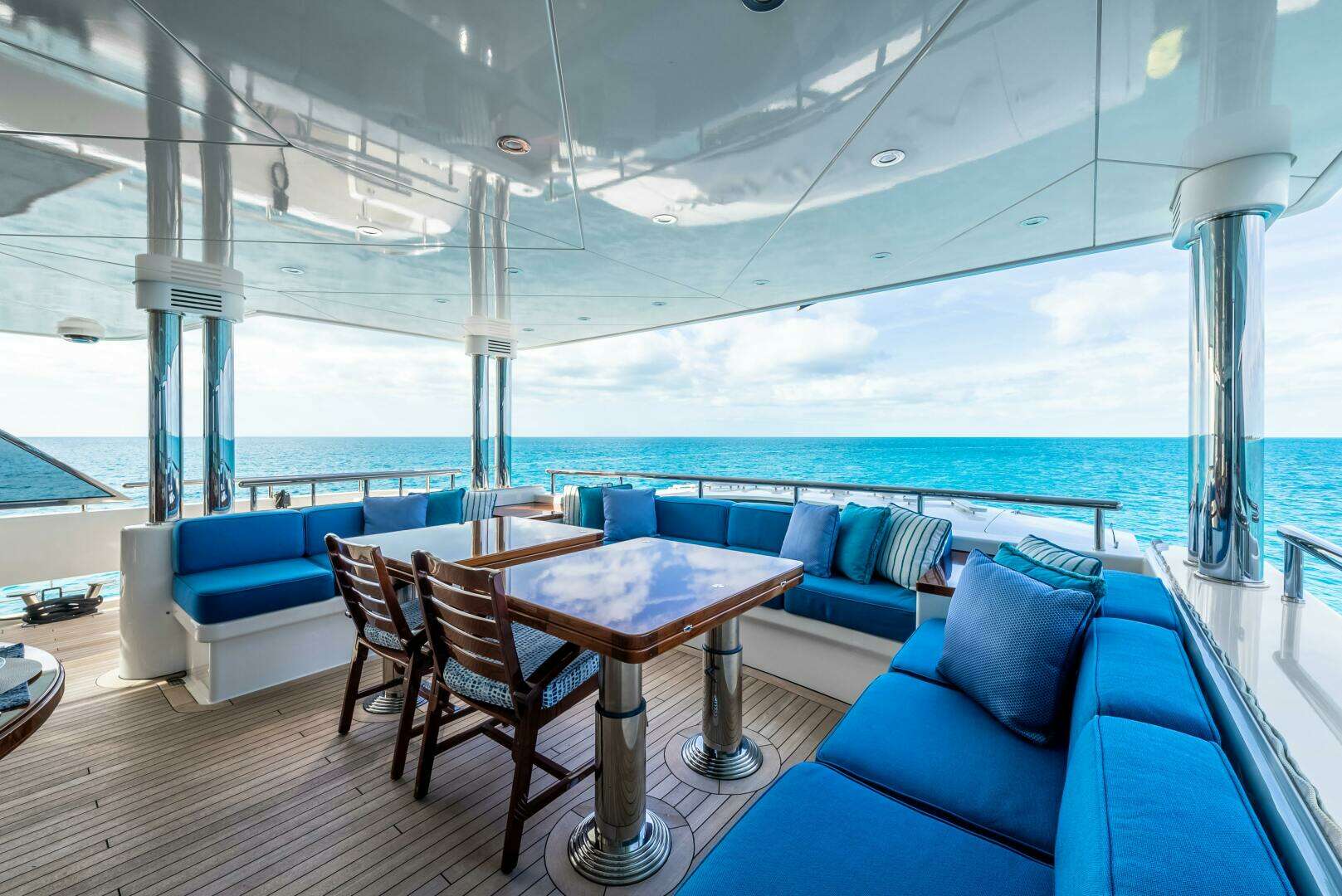

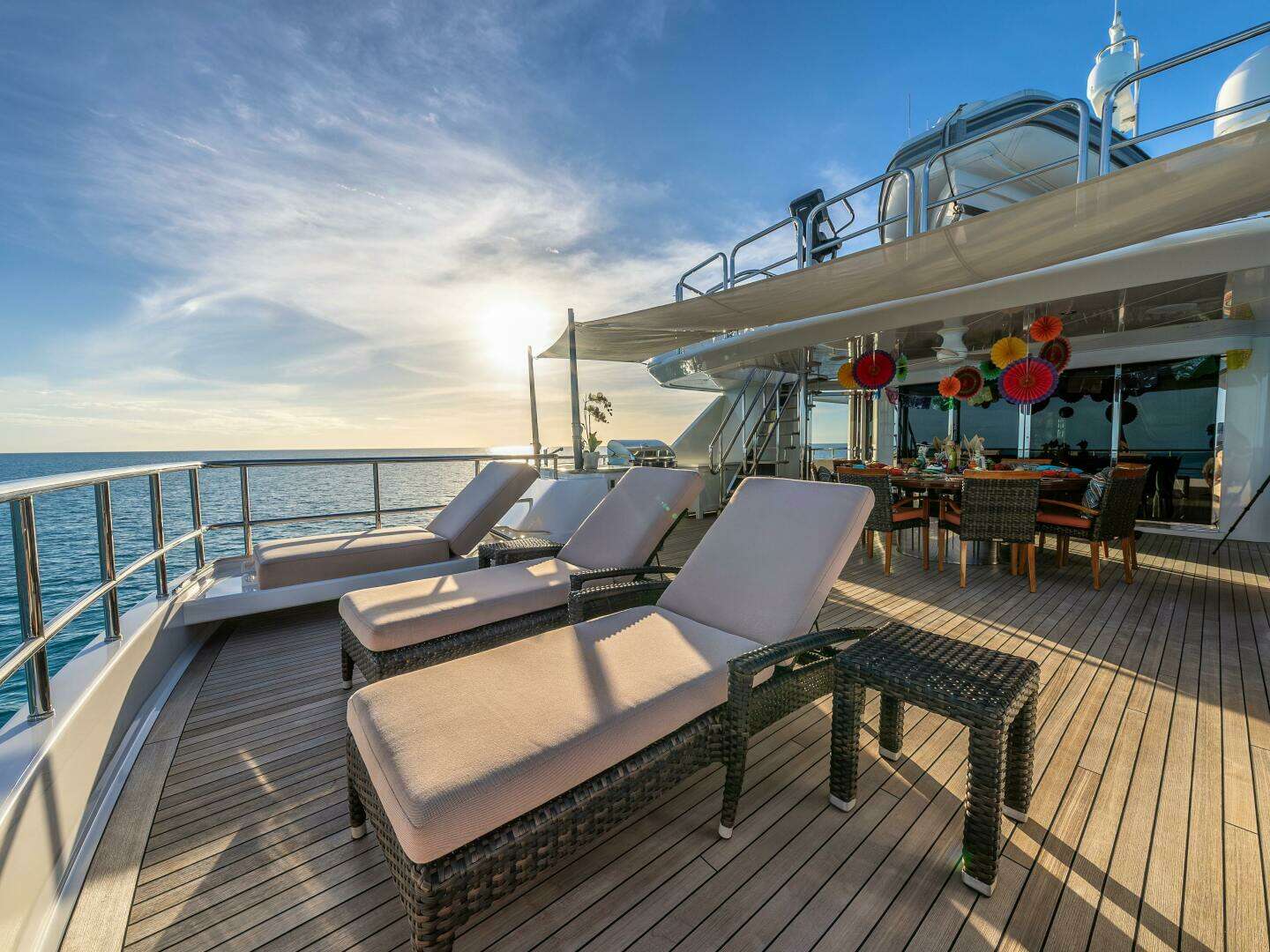

    10. Large aft deck and sun deck guest areas plus bonus terraces on bow and bridge side deck.

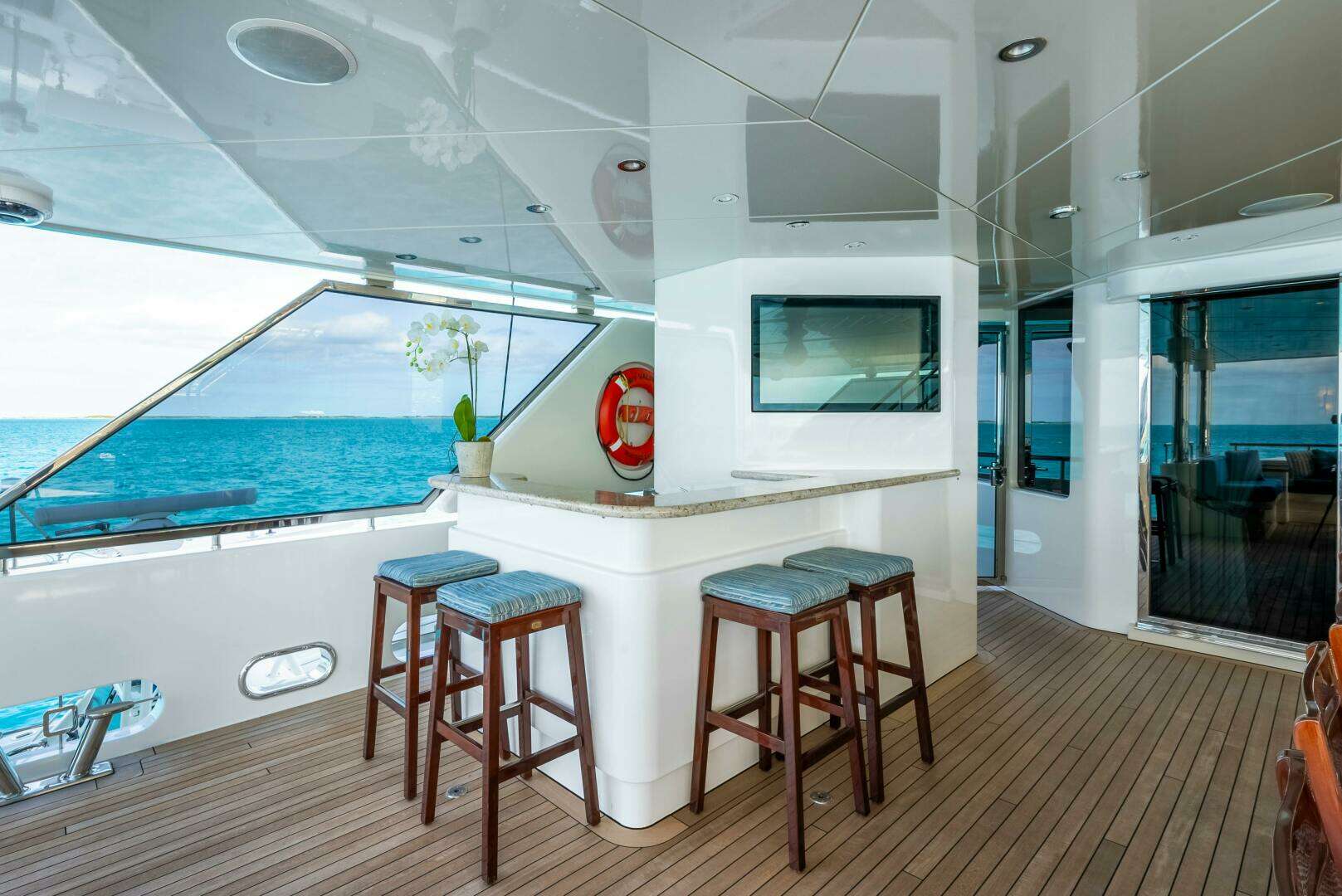

    11. Custom bridge aft deck layout with BBQ and service areas.

    12. 10 year ABS special survey completed October 2022

    13. 19.5 knot cruise speed

    MAIN SPECIFICATIONS

    TYPE Twin-Screw Diesel, Semi Displacement

    FLAG Jamaica

    DIMENSIONS Length O.A. 50m (164 ft)

    Beam 9.5m (31 ft)

    Draft (full load) 2.45m (8 ft)

    TONNAGE GT 492

    DISPLACEMENT (light ship) 281.63

    YEAR BUILT 2013, Refit: (small interior refit in 2022)

    BUILDER Westport Shipyard, USA

    NAVAL ARCHITECT William Garden

    EXTERIOR DESIGNER Donald Starkey

    INTERIOR DESIGNER Donald Starkey

    CONSTRUCTION GRP composite hull and superstructure, last painted (At Build)

    CLASSIFICATION ABS 100 A1 Commercial Yachting Service + AMS LY2, MCA compliant

    ACCOMMODATIONS

    Accommodation for up to 15 guests in 6 staterooms: 1 Master on the Bridge Deck, 1 VIP on the Main Deck, 2 Doubles and 2 Twins (plus 3 Pullman berths) on the Lower Deck. Additional accommodations for up to 12 crew in 6 cabins: 5 double cabins forward/below and 1 captain’s cabin on the Main Deck.

    BRIDGE DECK – OWNERS

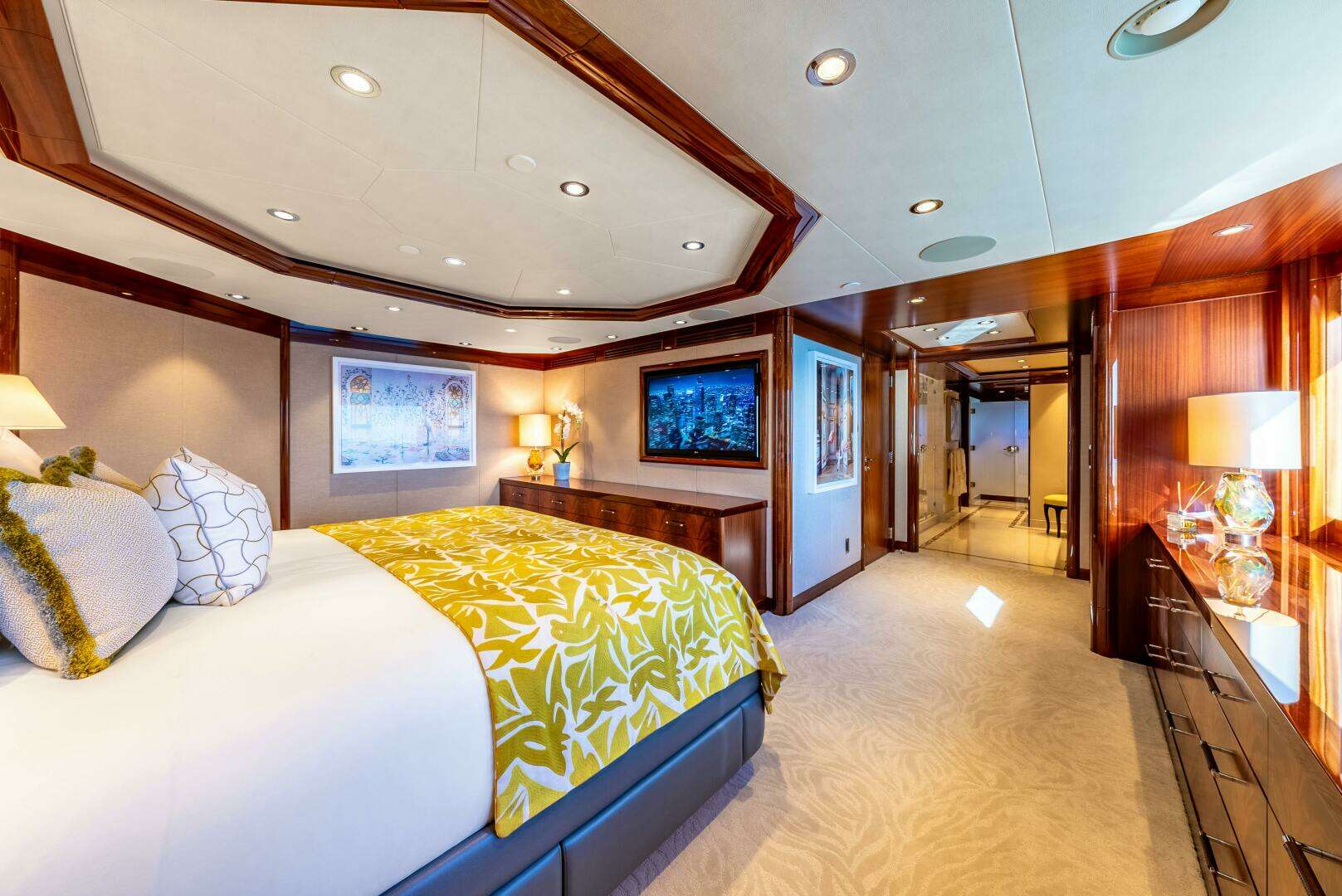

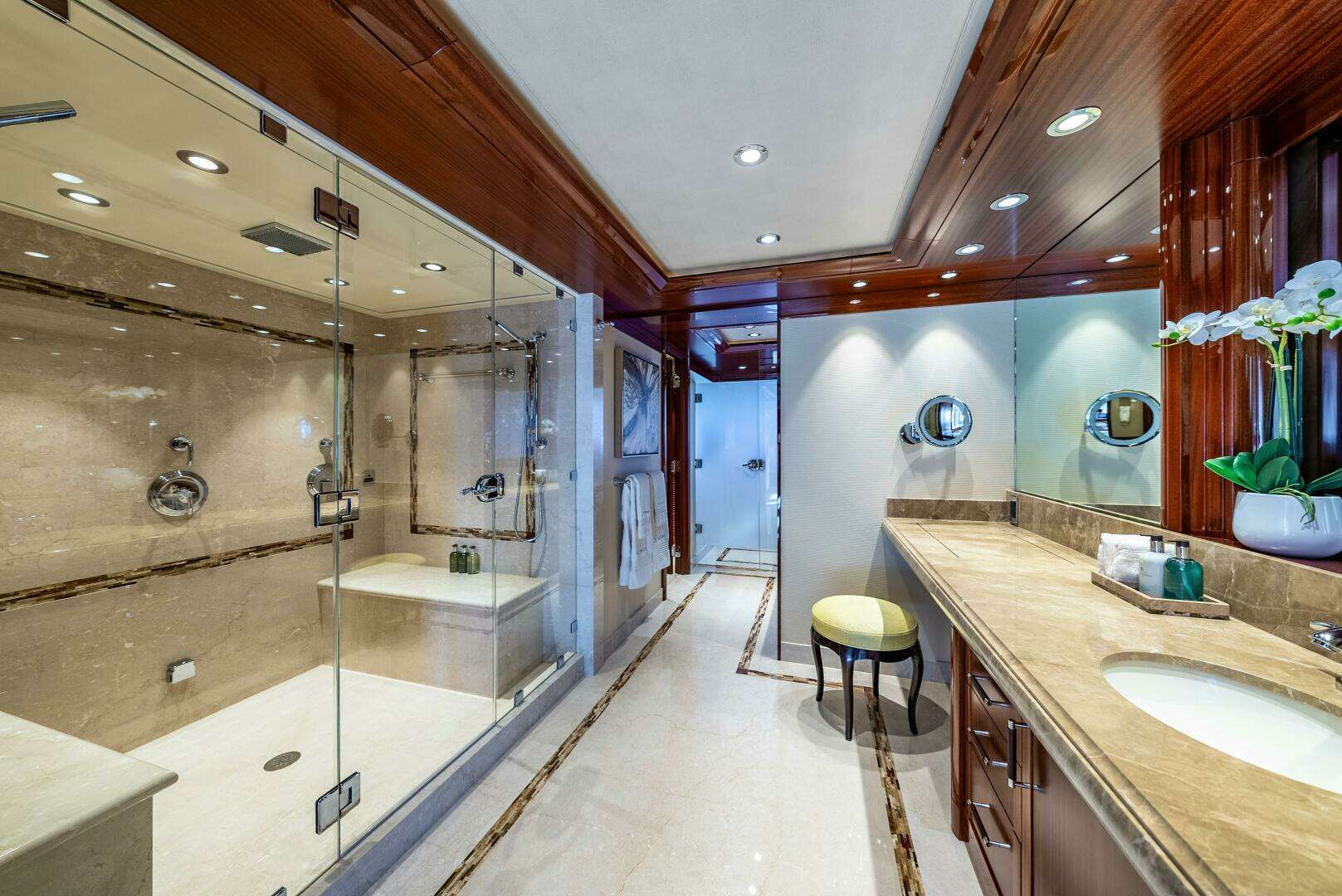

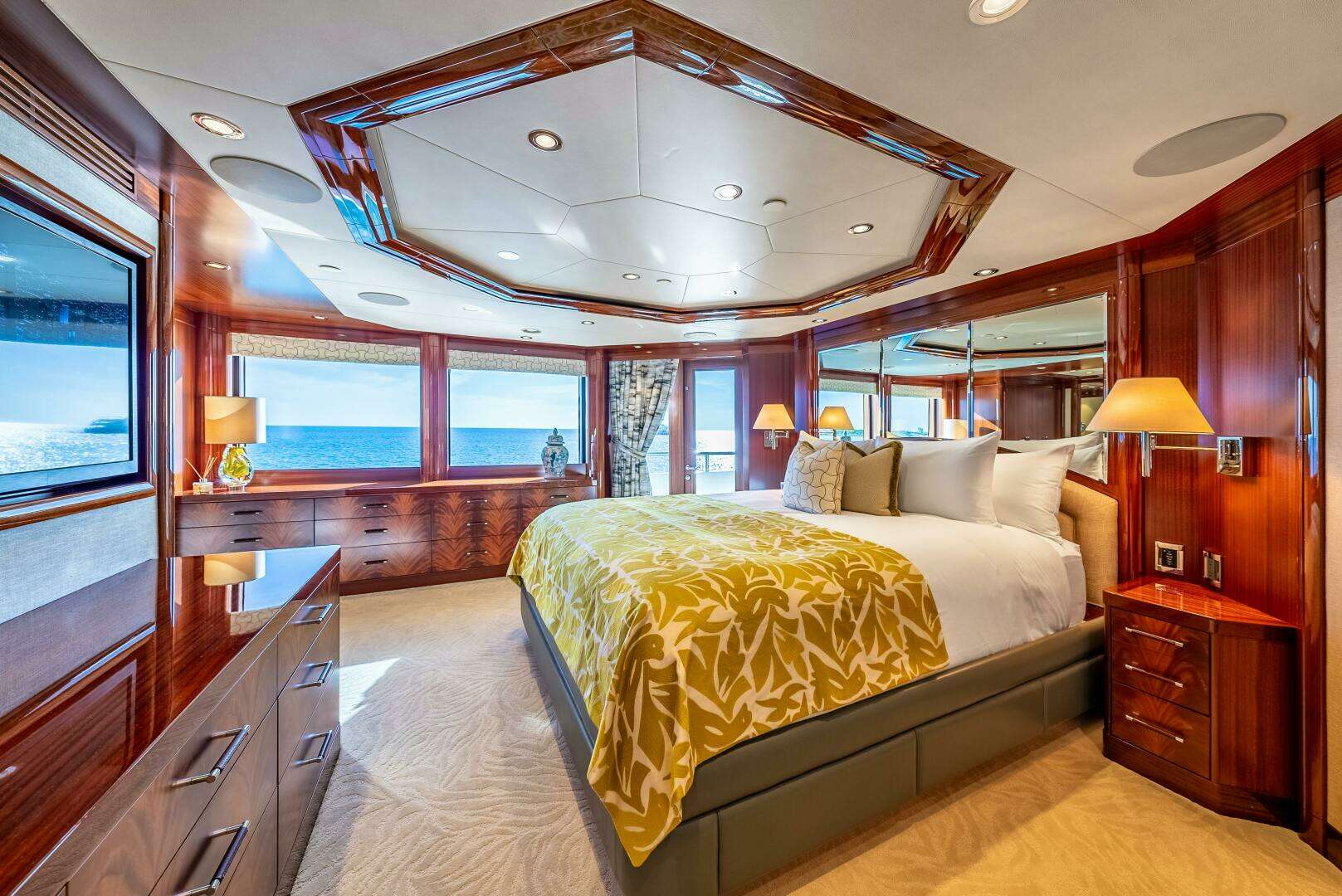

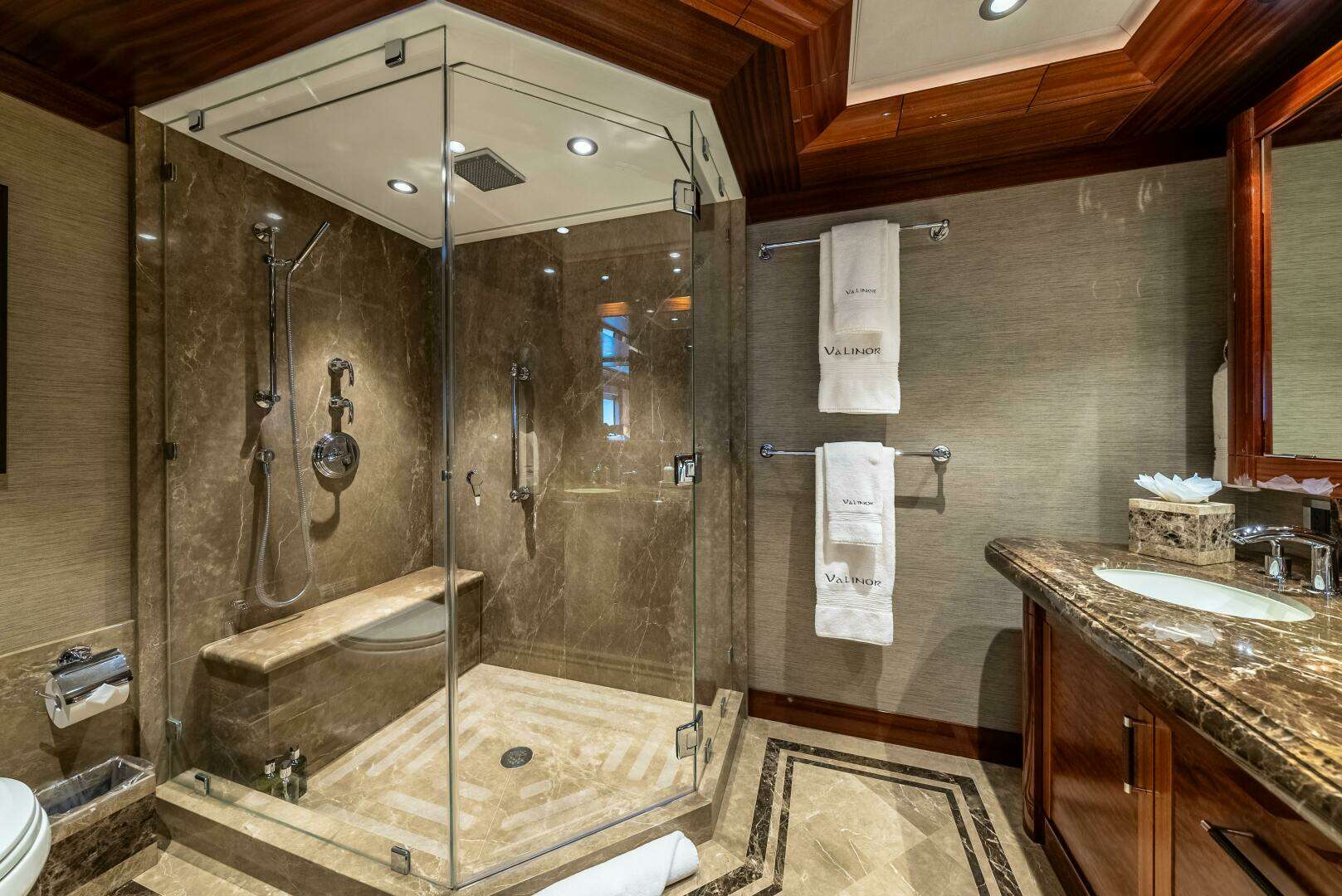

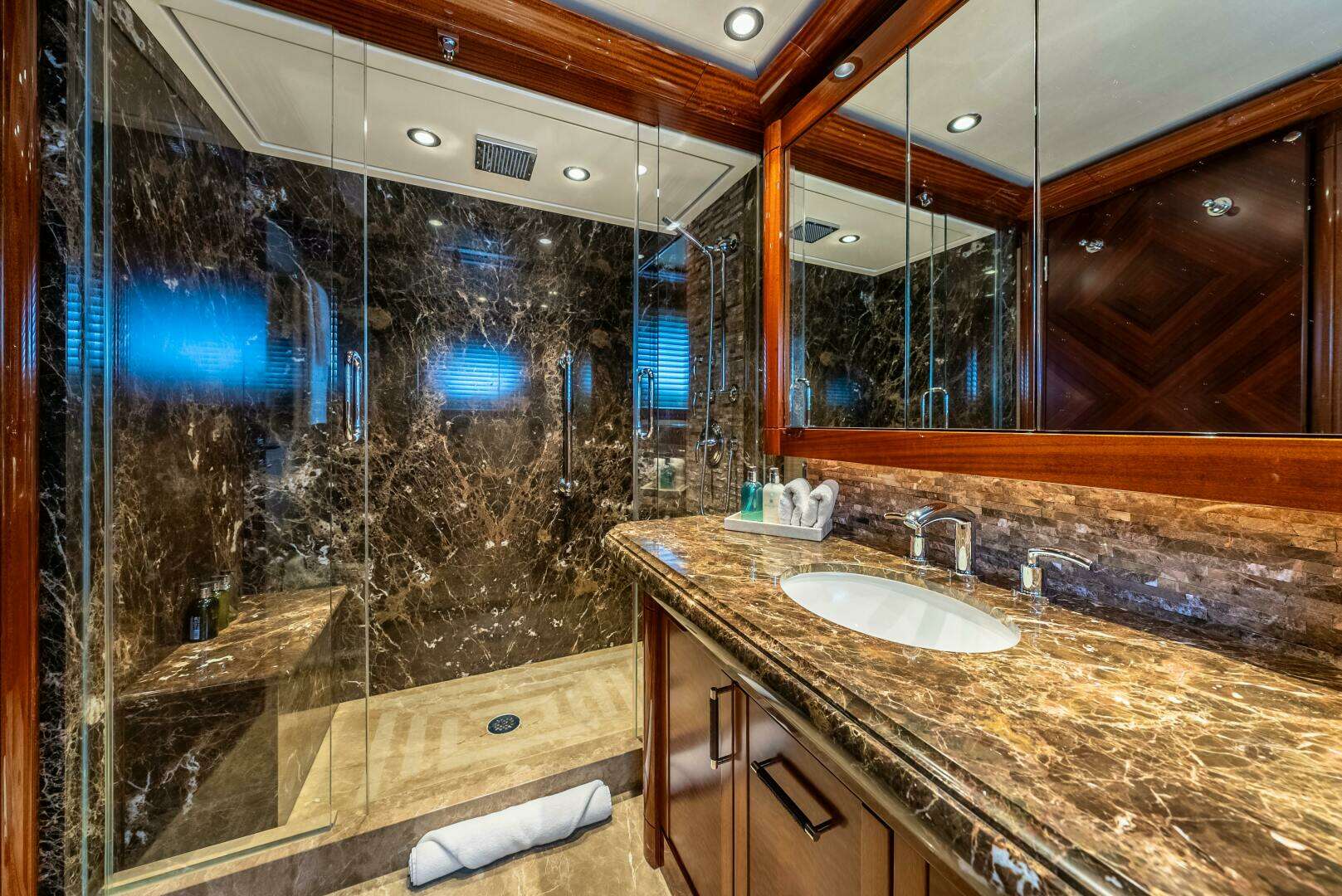

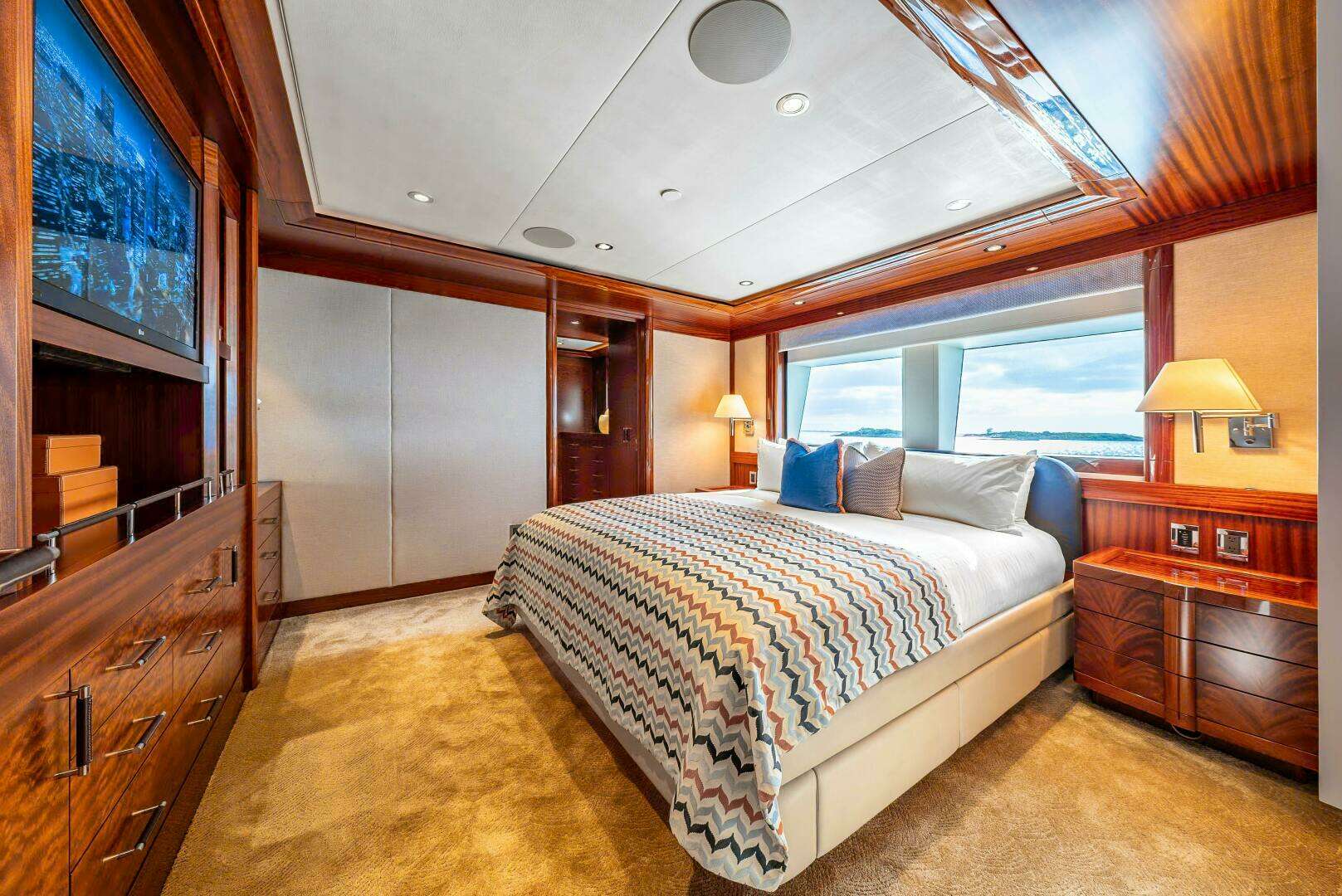

    Master stateroom and en-suite, with steam shower, a private exterior deck, and extended master head and closet space used from relocation of captain’s cabin.

    GUEST STATEROOMS

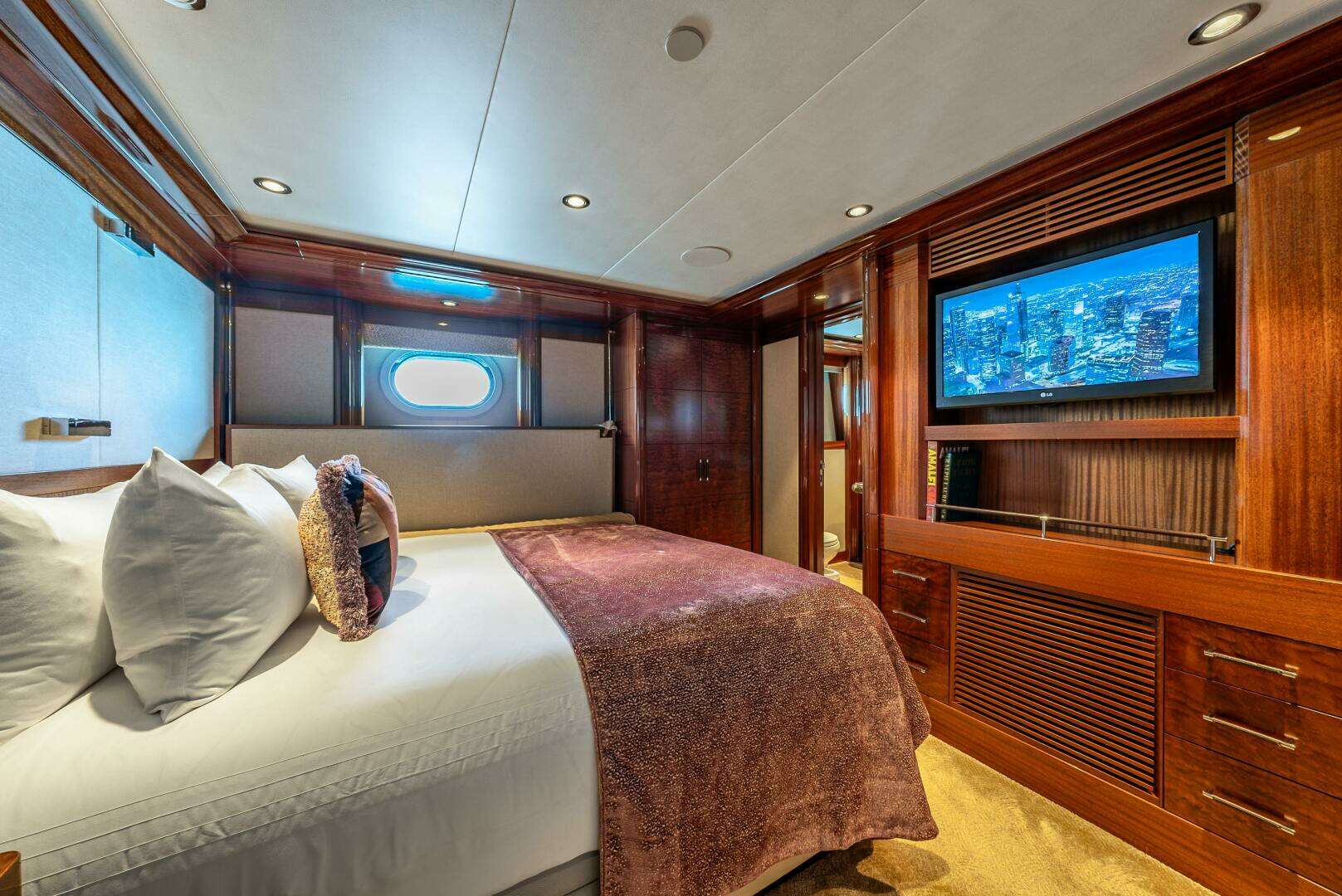

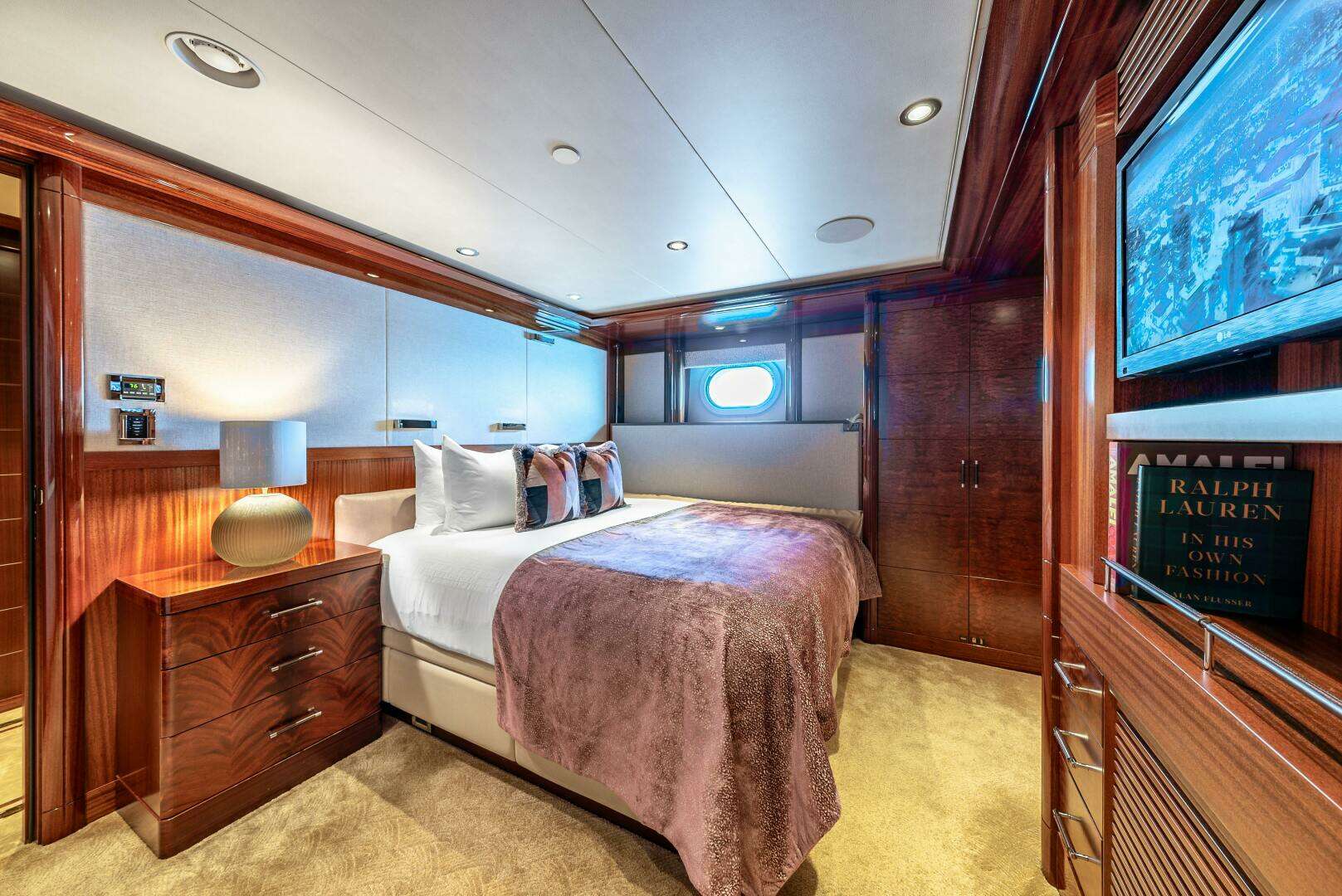

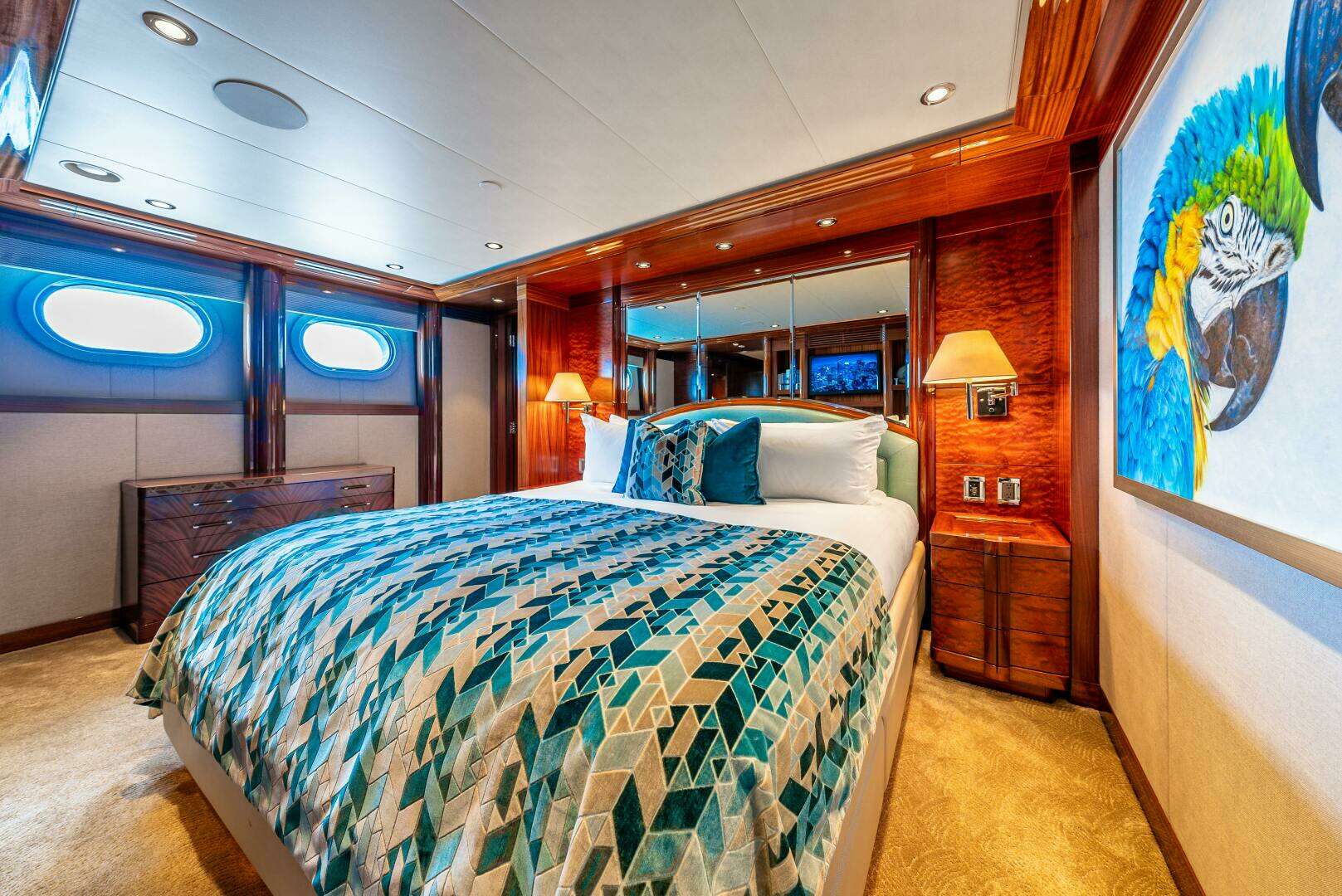

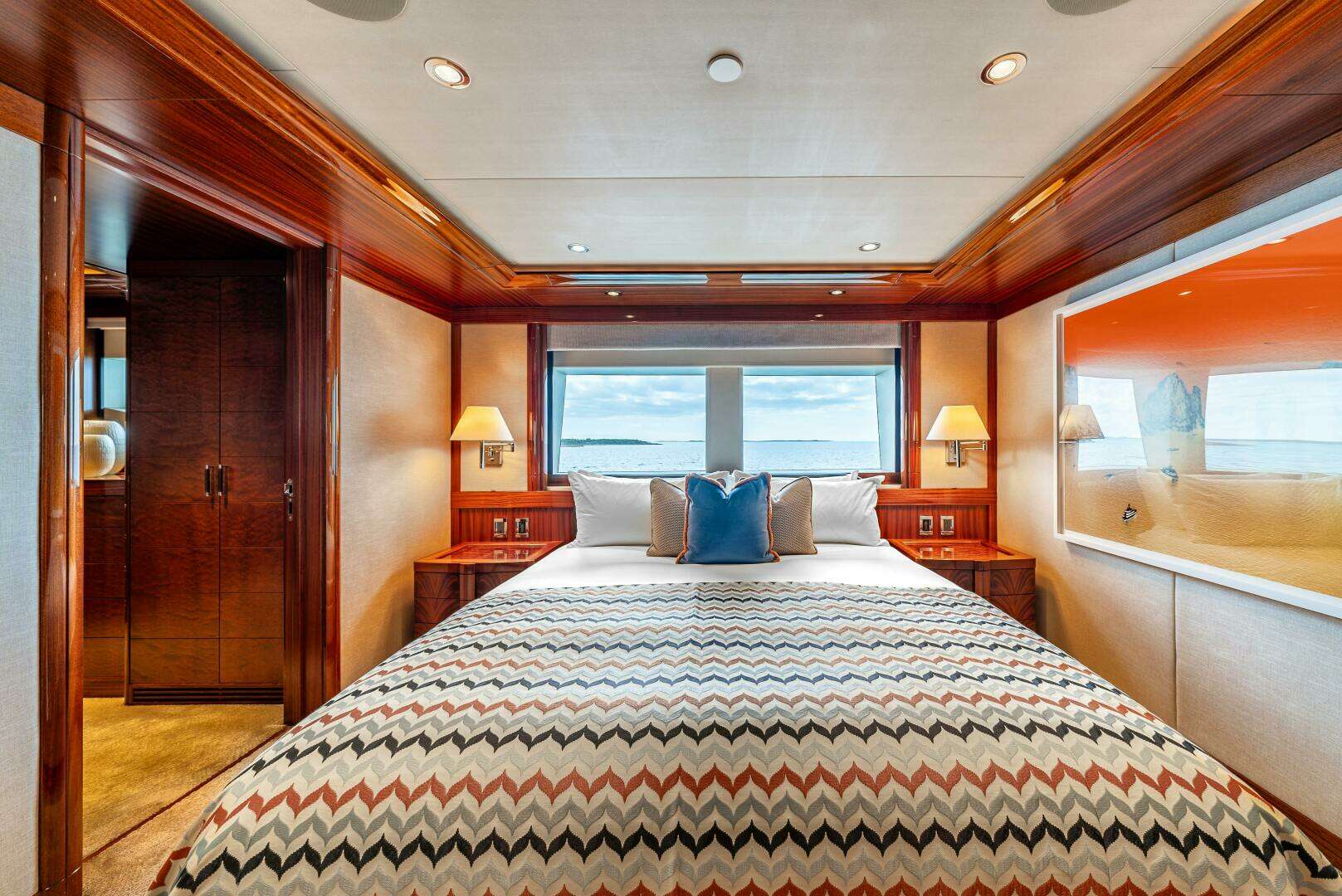

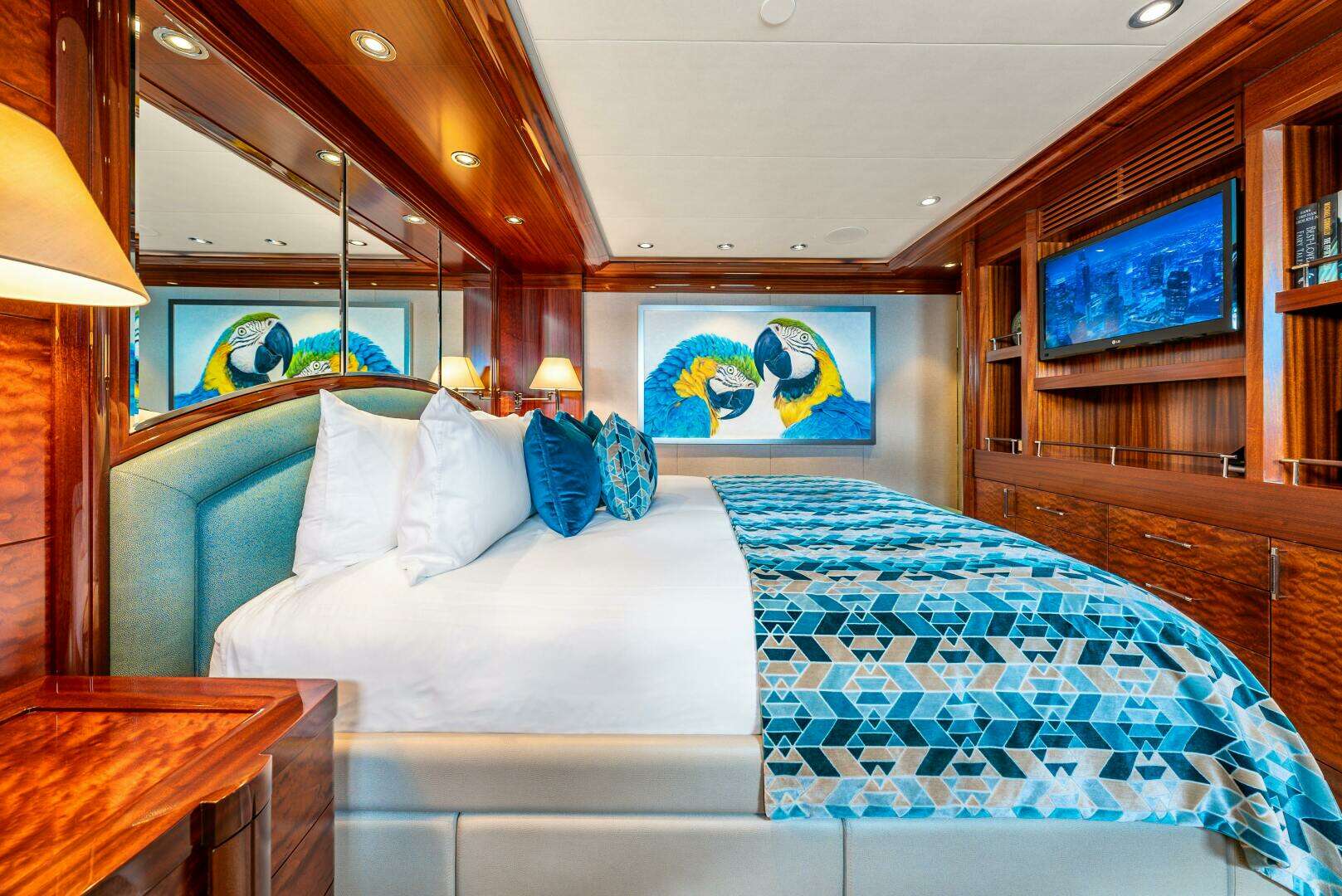

    1 x On-deck Guest stateroom with King-size bed and en-suite bathroom;

    2 x Double staterooms with King-size bed and en-suite bathroom (Stbd & Port Aft)

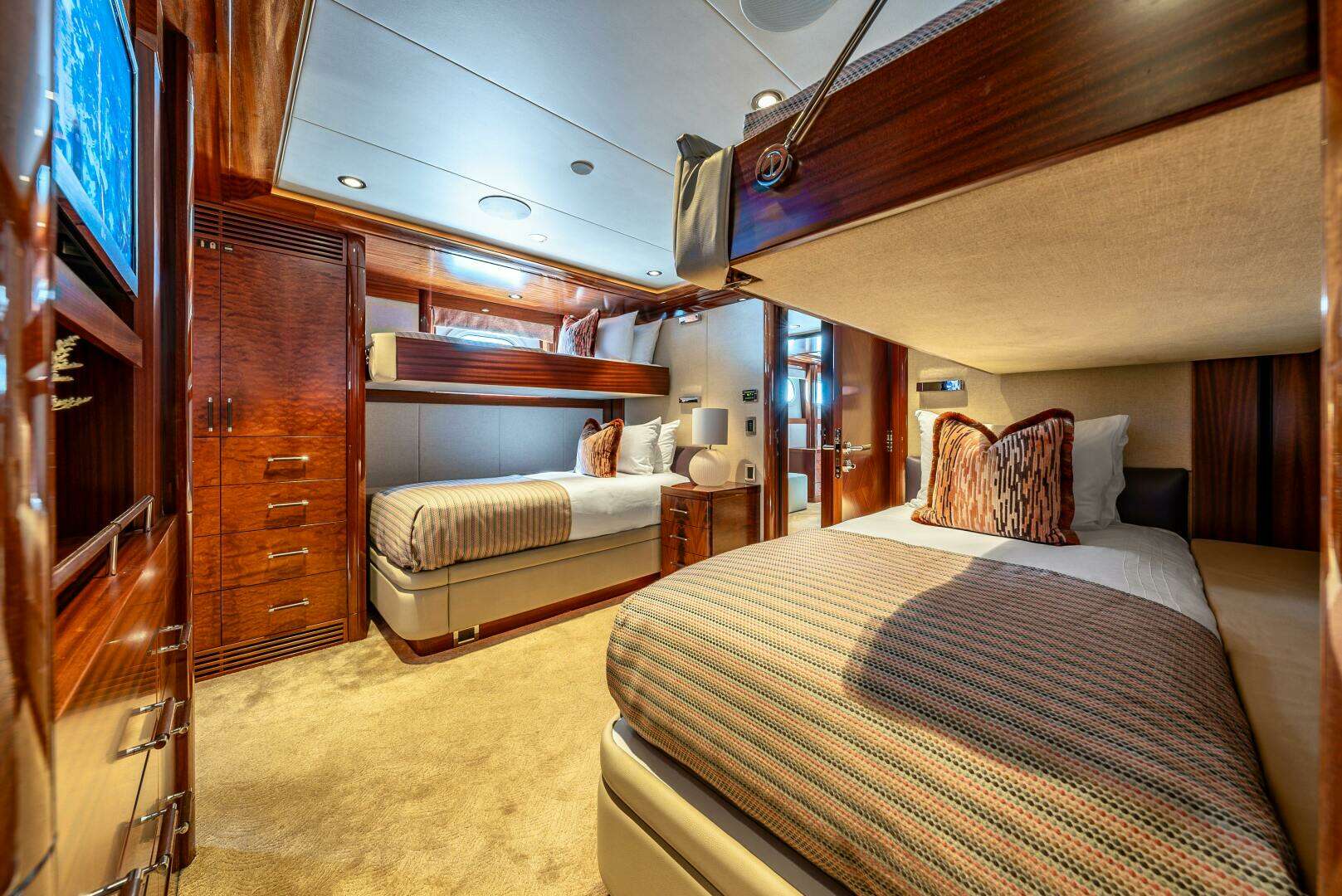

    1 x Twin berth stateroom + Pullman and en-suite (Port Forward); can covert to Queen

    1 x Twin stateroom + 2 x Pullman berths and en-suite (Stbd Forward)

    CREW

    Captain’s cabin on main deck (double) with en-suite

    5 x Twin crew cabins with en-suite.

    MACHINERY

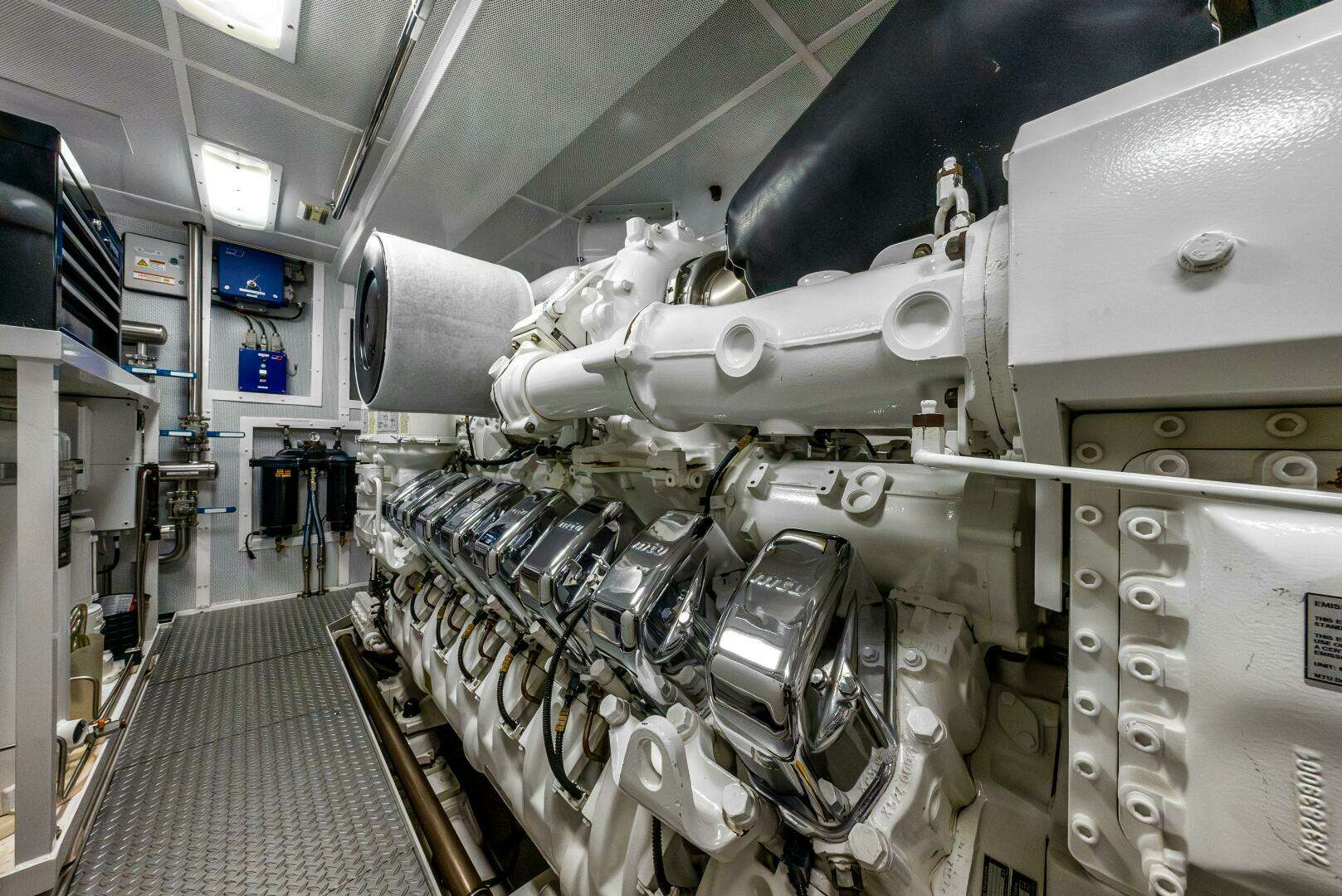

    MAIN ENGINES 2 x MTU 16V 4000 M90, 3650hp 2,720 kW

    ENGINE HOURS (October 2024)

    Port: 7,193 hours

    Stbd: 7,176 hours

    GEAR BOXES Z/F 7550A 2.964 reduction gear

    SHAFTS & PROPELLERS 5.5 inches Wartsila WFS1R-P (PSE) Type Seal

    SPEEDS

    Maximum speed 21 knots

    Cruising speed 19-20 knots

    Economical speed 10 knots

    FUEL CONSUMPTIONS (detailed info available on request)

    **RANGE 3000 nm at 10 knots (Includes 15.8 Lp/h for generator)

    AUXILIARY MACHINERY AND ELECTRICAL SYSTEM

    GENERATORS

    2 x Northern Lights M1066T-99KW with PTO’s powering central hydraulic system.

    1 x Northern Lights Auxiliary Generator - 65KW

    GENERATOR HOURS October 2024

    Port: 9846 hours*

    Stbd: 17426 hours*

    Mid: 7312 hours*

    * All three generators had in-frame rebuilds completed in 2021. Full rebuild as per the manufacturer’s specification.

    ELECTRICITY 120-208V/3 phase/60Hz

    SHORE POWER - Magnus SP200 150kVA Shore Power Convertor

    Power output: 150kVA / 150kW. 100 Amp, 3 wire with ground, 3 phase.

    BATTERIES & UPS’s:

    • Radio battery bank
    • Emergency battery bank
    • House battery bank
    • Phone system UPS
    • VSat UPS & AV UPS (UPS upgraded in 2022)

    TANK CAPACITIES (APPROX.)

    FUEL 68137 liters (18800 US Gallons)

    WATER 8,459 liters (2,235 US Gallons)

    WATERMAKERS 3 x 13,626 liters/day (3,600 US Gallons/day)

    LUBE OIL 870.55 liters (230 US Gallons)

    DIRTY LUBE OIL 870.55 liters (230 US Gallons)

    GREY WATER Three Sumps for transfer to black water tank or directly overboard via Y-valve

    BLACK WATER 6,358.80 liters (1,680 US Gallons)

    ANCILLARY EQUIPMENT

    STEERING SYSTEM Jastram S2-33-2-35 Powered from Stbd M/E PTO. Back-up power from central hydraulic system. (Total overhaul 2022)

    RUDDER ANGLE INDICATOR Pilothouse and wing stations.

    BOW THRUSTER Marine Arcturus 24” Hydraulic, (Central Hydraulic system) 85hp

    STABILIZERS Naiad Dynamics US, Inc. Model 621. 4 Fin system with ‘At anchor’ Stabilization. M/E PTO or central hydraulic system 85hp for power.

    FUEL FILTERS 1 x Facet 900444-FG-220

    FUEL SEPARATOR 2 x Alfa Laval MIB 303S-13

    OIL/WATER SEPARATOR 1 x Bilgemon 488

    FIRE/BILGE PUMP 2 x MP Pumps, Model No. 25934

    BOILERS 3 x A.O Smith DEN 80110 80 Gallon. New heating elements & Anades - New heating elements & Anodes

    WATERMAKERS 2 x FCI watermaker Atlas Plus 2800 GPD

    SEWAGE TREATMENT Headhunter TW-HMX-512, 1200 GPD

    WC's Headhunter royal flush system

    AIR CONDITIONING Dometic- Cruise air, 3 chiller arrangement, Model No. ST5540 (001) SEH, 540,000 BTU.

    VENTILATION

    2 x Fresh air make up running through conditioners

    Galley extraction

    Engine room intake & extraction Delta-T

    SAFETY AND SECURITY EQUIPMENT

    FIRE FIGHTING

    Fixed

    6 x Hydrant with Fire Hose and nozzle,

    Engine room - Kidde Fire Systems FM200 system FM200 96Kg tank.

    Generators have self suppression systems and alarms x3

    Main switchboard Fixed Fire Boy 2kg CO2

    Interior freshwater sprinkler system

    Galley - Fixed ANSULITE R-102, 7-liter system (Foam)

    Mobile

    2 x Fireman’s outfits and SCBA

    26 x Dry Powder Portable Extinguishers

    10 x CO2 Portable extinguishers

    2 x Foam Portable extinguishers

    2 x Lithium Safe Extinguishers

    LIFE-SAVING

    49 x Lifejackets Pneumatic SOLAS A

    12 x Child Lifejackets

    4 x 12-man life rafts with SOLAS A-pack

    27 Immersion suits

    2 x EPIRB

    3 x SART (1 x SART, 2 x AIS SART)

    Flares

    Smokehoods in every cabin, bridge, engine room and equipment room

    Rescue Boat (None, 14ft tender used as rescue boat)

    Medlink Medaire First Aid Equipment (Category A)

    ALARMS Heat and smoke detector (FO flame detectors in engine room) with automatic general alarm throughout the vessel

    SECURITY

    9 x Digital IP CCTV cameras (Axis Cameras and Axis Camera Station)

    2 x FLIR Infrared and thermal imaging camera (FWD and AFT)

    Full vessel security system

    VIC (Vessel Information Center) Alarm touch panel

    COMMUNICATION EQUIPMENT GMDSS EQUIPPED AND SERTIFIED

    SATCOM Furuno Felcom 18 Inmarsat Sat C with SSAS

    2 x Iridium satellite telephones

    2 x VSat based VOIP telephone lines

    CELLULAR SYSTEM Onebox K4 5G for internet data installed (June 2022)

    VHF RADIOTELEPHONES 2 x Furuno 25W FM8500 DSC VHF, 1 x Furuno MF/HF

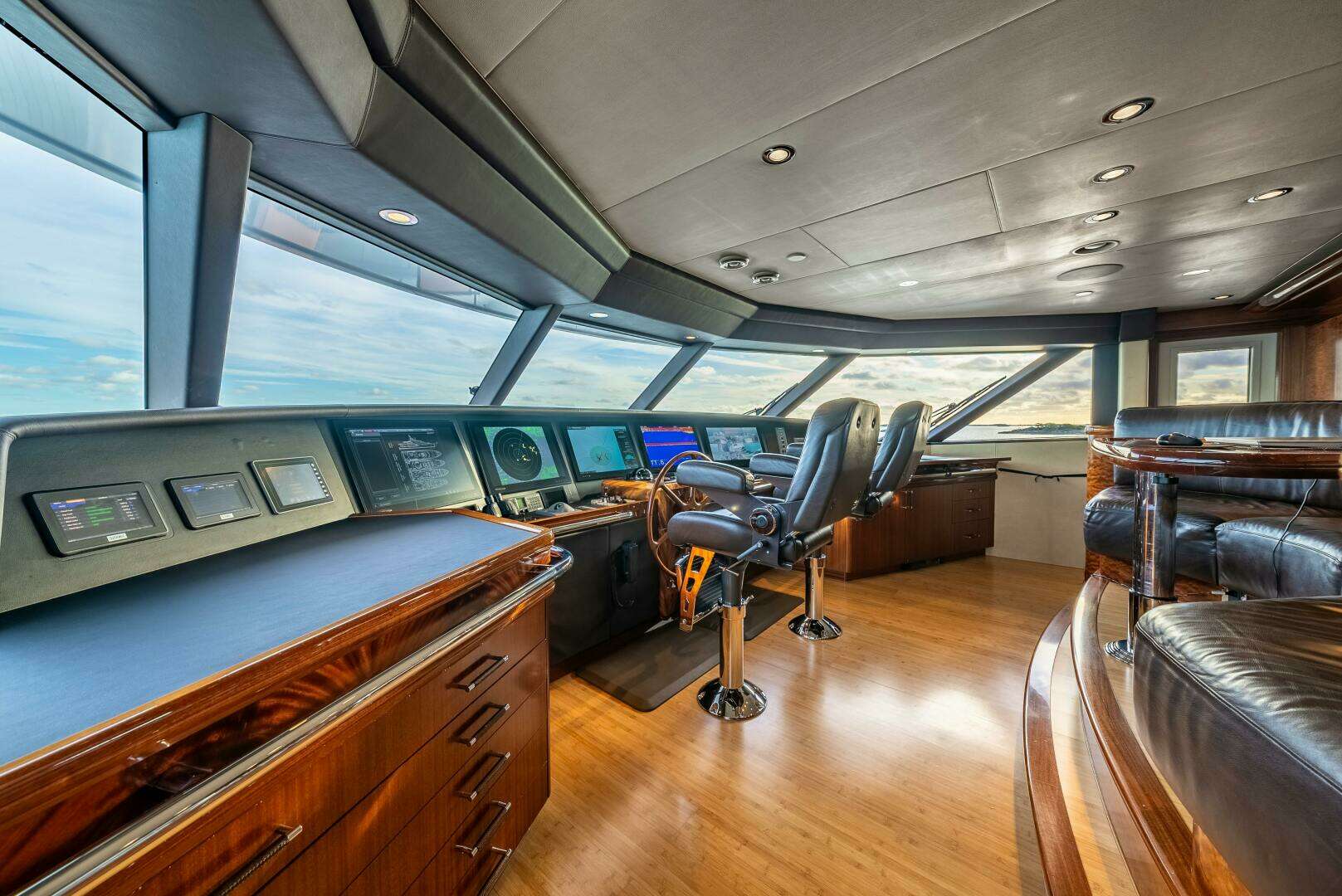

    NAVIGATION EQUIPMENT

    MAGNETIC COMPASS Richie Globe Master 600, Halcyon Fluxgate interface with B&G

    GYRO COMPASS Simrad GC80

    AUTOMATIC PILOT Simrad AP70

    LOG Furuno DS80 Doppler Speed Log

    ECHO SOUNDER Furuno FCV1200 Black Box Sounder

    RADAR Furuno 2127 (X and S Band) - New magnetron 2023

    CHART PLOTTER TimeZero, Transas Navi-Sailor 4000 ECS. TZ CPU upgraded to Transas CPU

    DISPLAYS x5 24" Hatteland screens

    GPS 2 x Furuno GP150

    NAVTEX Furuno NX-700B with NX5 Active Antenna Coupler

    WIND INSTRUMENTS B&G Hydra 2000

    METERELOGICAL INSTRUMENTS B&G Hydra 2000 magnetic compass

    DECK EQUIPMENT

    ANCHOR WINDLASS 2 x Maxwell Model No. VWC 11000 (Total rebuild October 2022)

    AFT WARPING CAPSTANS 2 x Maxwell dual rotation Model No. VC8000 (Total rebuild October 2022)

    GROUND TACKLE 2 x 5 shackle (150m) 5/8 inch, 2 x Stainless steel custom

    BOAT CRANE & DAVITS 2 x Nautical Structures Marine Euro 1750LBS, 1 x 3800LBS, 1 x 5000LBS beam crane (All three overhauled in September 2022)

    PASSERELLE Nautical Structures Model No.15716

    1x SIDE BOARDING LADDER Nautical structures Carbon wave rider

    SEARCHLIGHT 2 x Carlisle & Finch Company Model No. 2PS115

    AUDIO VISUAL ENTERTAINMENT SYSTEMS

    VSAT SEATEL/ VIASAT Dome not connected

    HD SAT TV SEATEL dome

    STARLINK Installed in March 2023

    2x Marine antenna’s

    iPad controlled Crestron system with KALEIDESCAPE Movie & Music

    Apple TV throughout all guest areas

    Wireless music connectivity throughout vessel

    INTERNET Full Wifi throughout vessel, server distributed on 4 networks fully controlled by K4 Onebox system.

    Sources:

    • V-Sat
    • Starlink
    • 5G Data
    • Marina Wifi

    OFFICE EQUIPMENT

    COMPUTERS

    1 x Microsoft server

    5 x Think Pad laptop computers

    2 x Dell desktop computers

    PHOTOCOPIER/PRINTER

    2 x HP Envy Photo (July 2021)

    1 x Brother MFC - J824DW network printer

    DOMESTIC EQUIPMENT

    MAIN GALLEY

    1 x Electrolux 267080 Oven Combi Steamer

    1 x Miele oven H4682 B

    1 x Miele rapid wash dishwasher PG8056 (New October 2019)

    1 x Electrolux rapid wash dishwasher WT30H208DU

    1 x Wells Bloomfield Char- broiler 5H-B406-208

    1 x Brass Smith heat lamp

    Walk-in fridge/freezer room – American panel

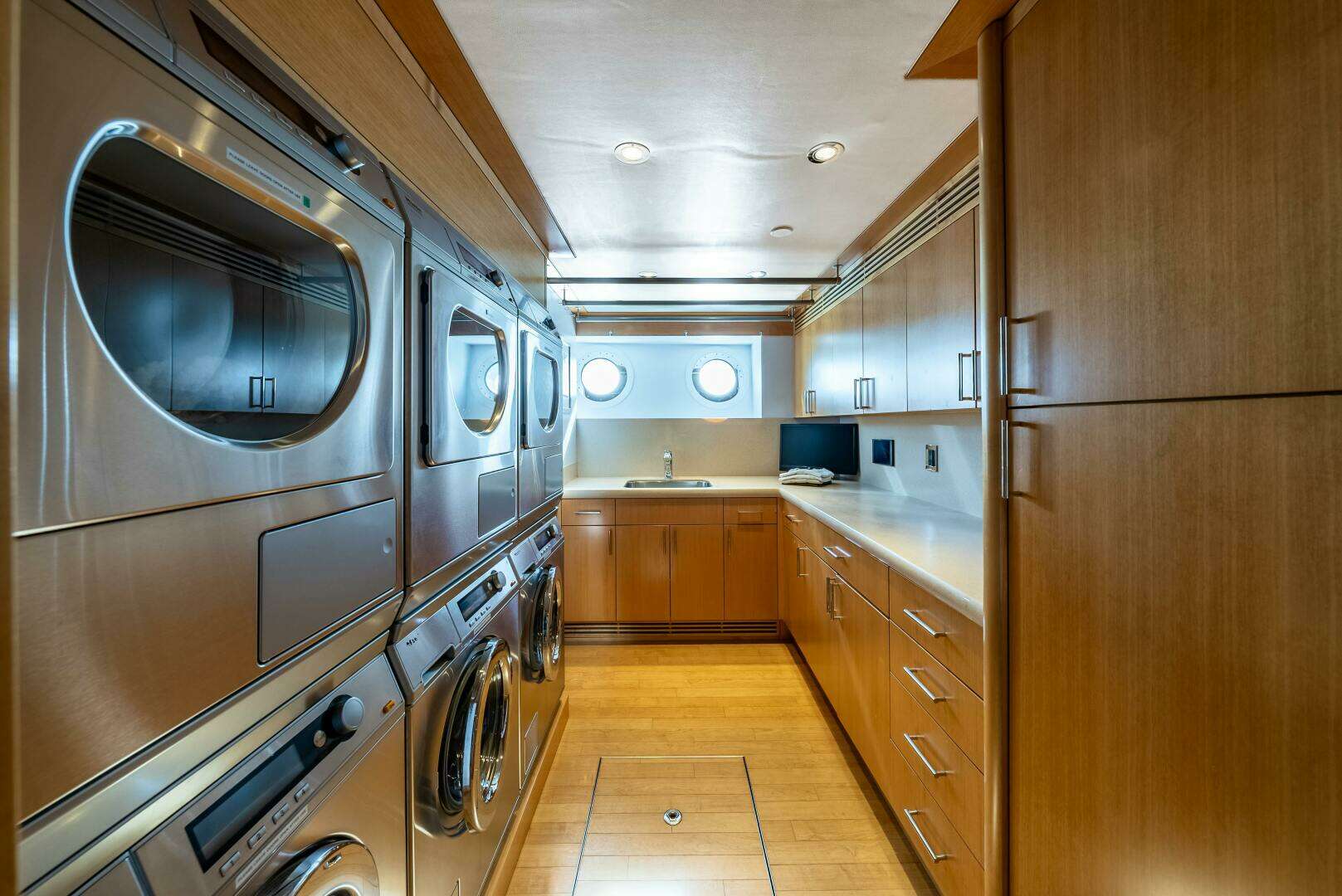

    LAUNDRY

    3 x Miele washers PW6068 PLUS LP USA – New Sept 2018

    3 x Miele dryers DT 7138 PLUS USA – New Sept 2018

    1 x LauraStar steam iron

    MAIN DECK PANTRY

    1 x Panasonic microwave Model NE-1064F

    1 x Fisher & Pykel twin drawer dishwasher Model DD24DCX6

    BRIDGE DECK PANTRY

    1 x Instahot boiling water dispenser SST-FLTR

    1 x Haier microwave Model SST-FLTR

    1 x Instahot boiling water dispenser SST-FLTR

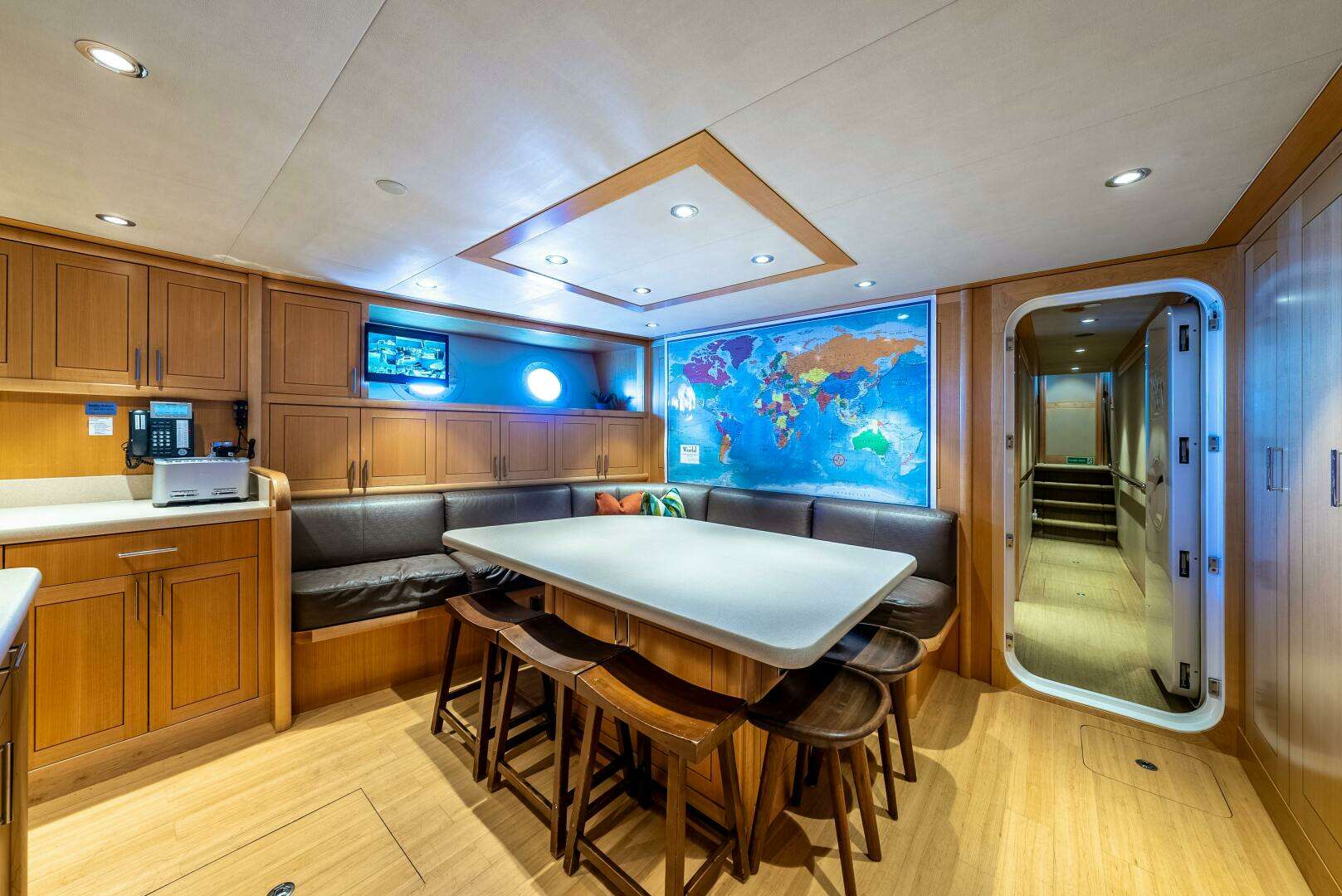

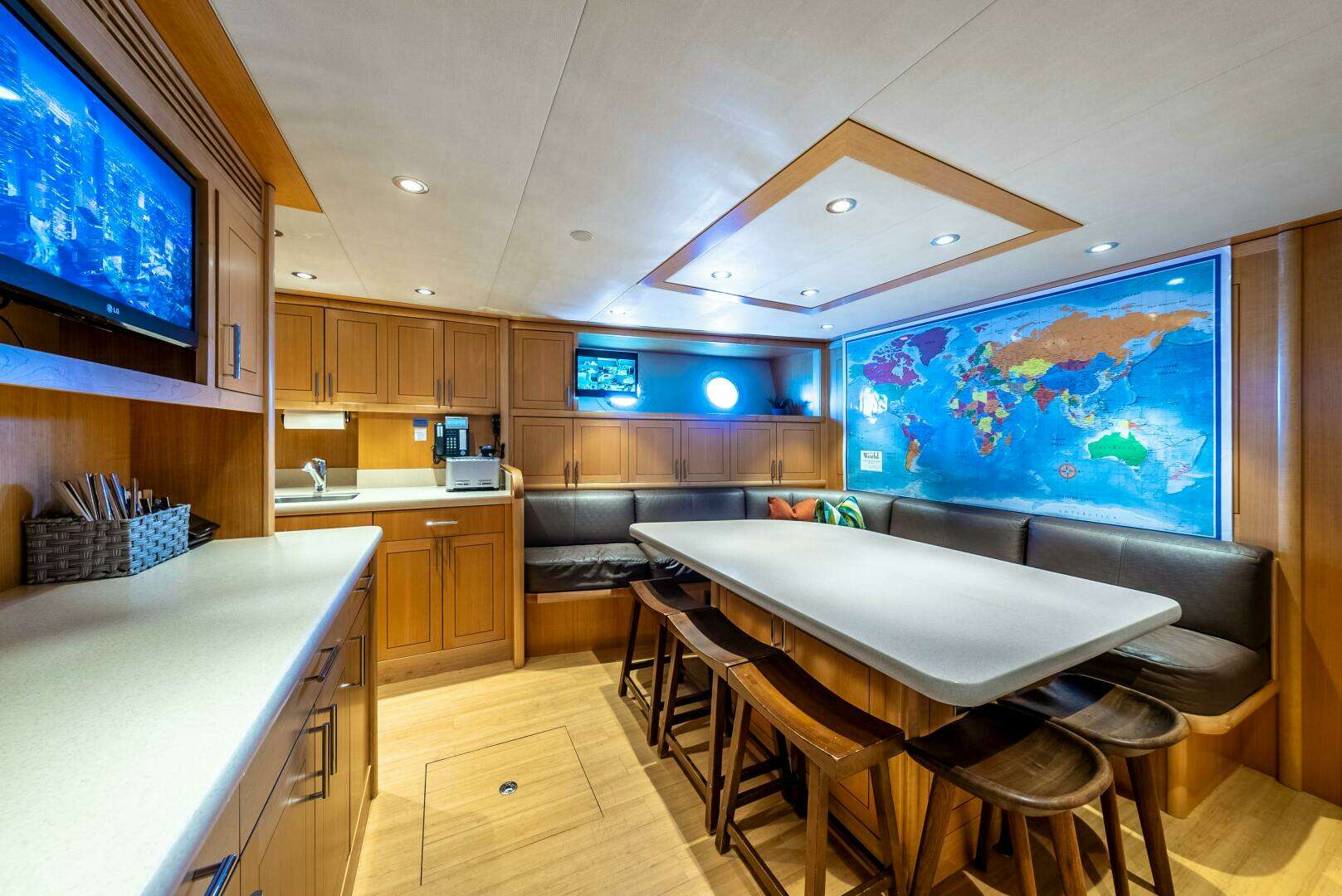

    CREW MESS

    1 x Sharp microwave Model R1214.

    1 x Miele G6745 Dishwasher

    1 x Instahot boiling water dispenser SST-FLTR

    OTHER EQUIPMENT

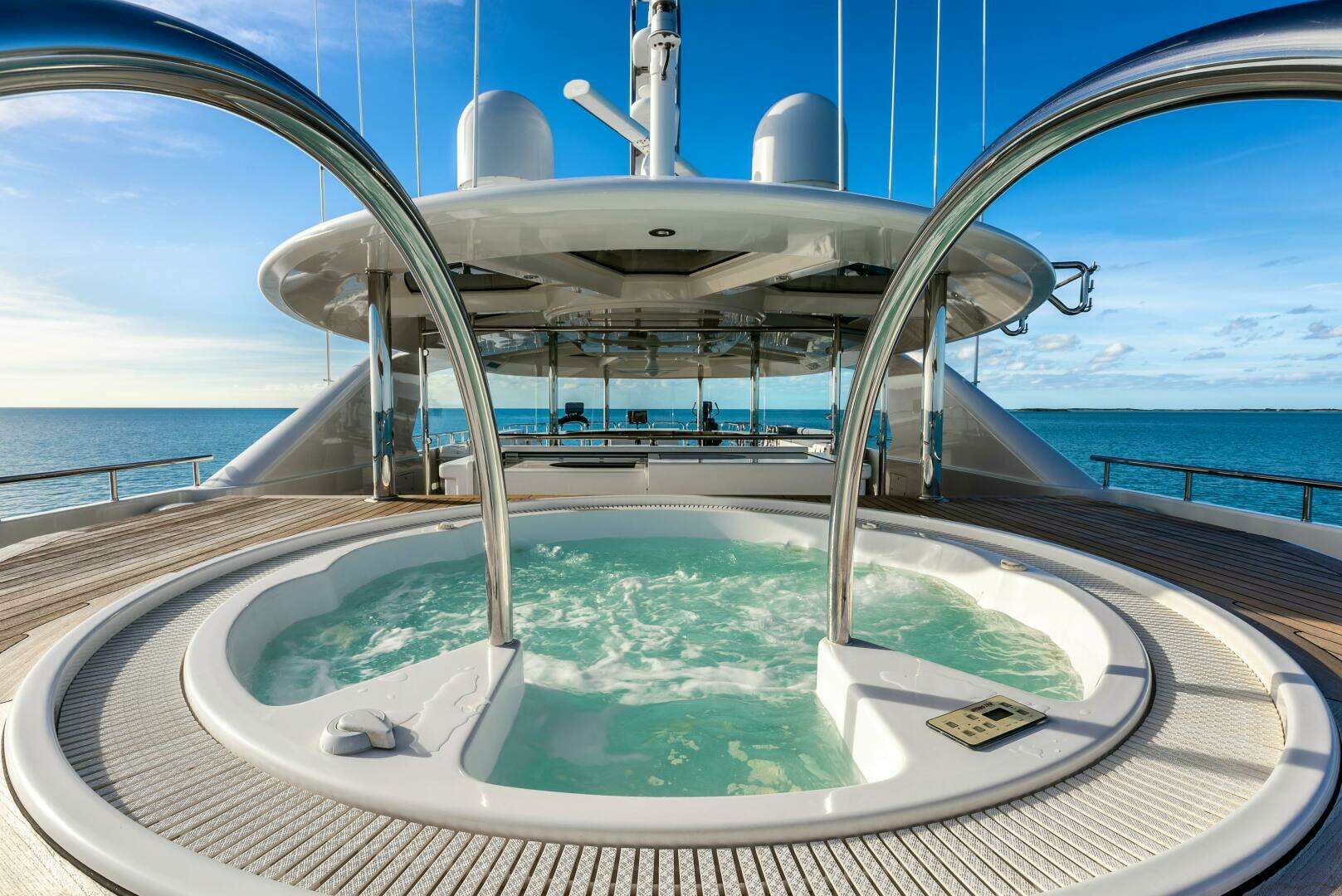

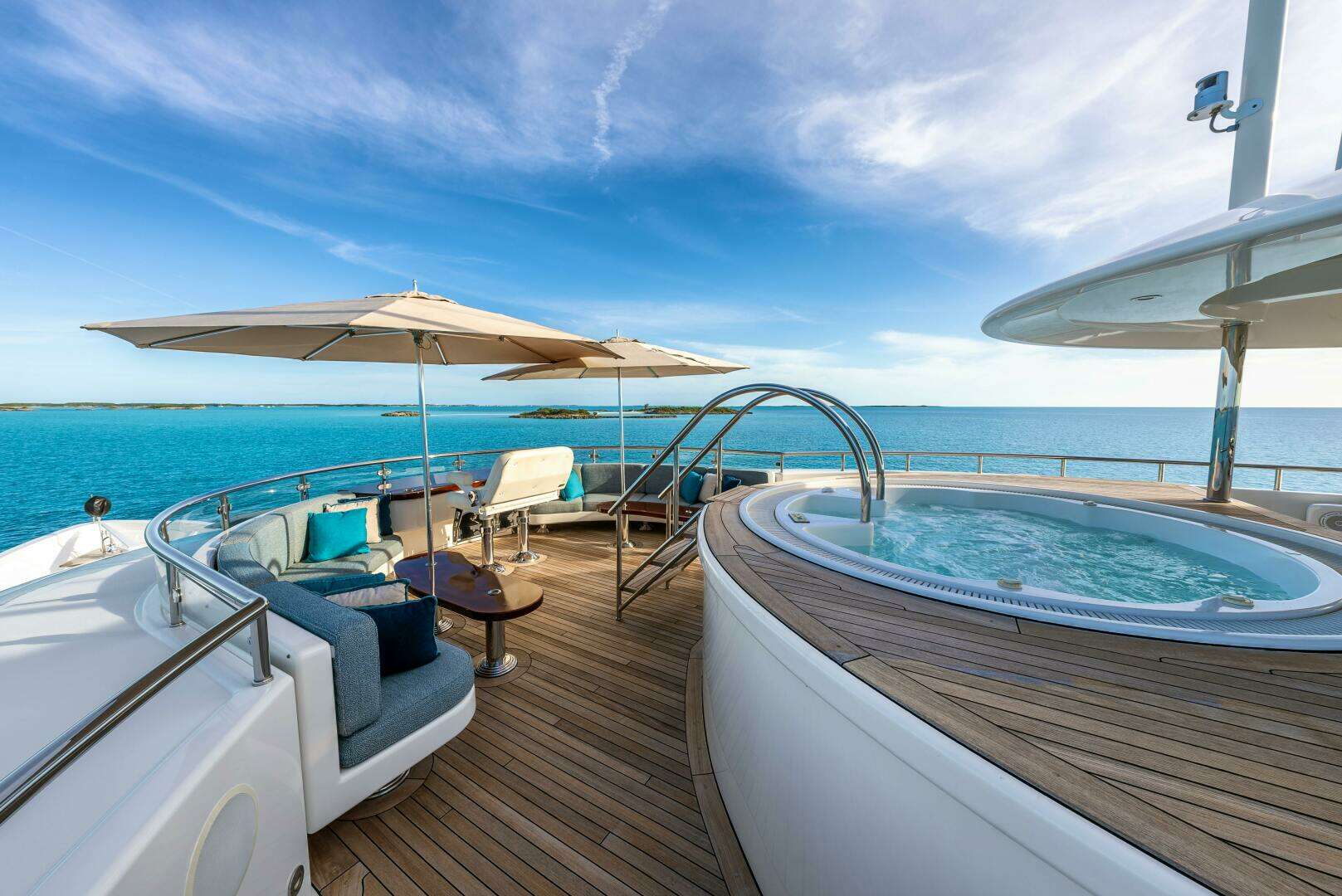

    JACUZZI DIP POOL Located on the sun deck, 2 x 25kW Instahot in-line heaters

    4 x Ship’s safes on board

    1 x BBQ Located on bridge deck

    TENDER AND WATERSPORTS EQUIPMENT

    TENDER

    19ft AB RIB 200HP / 14ft AB RIB 70 HP

    WATERSPORTS EQUIPMENT

    2 x 2021 Seadoo Wakepro and Fishpro

    2 x Seabob F-5's

    2 x LIFT E Foils

    2 x Paddle boards

    2 x Hobie Mirage Eclipse pedal boards

    1 x Platforms for tenders and jetskis

    2 x Wake boards

    2 x Kayaks

    REMARKS

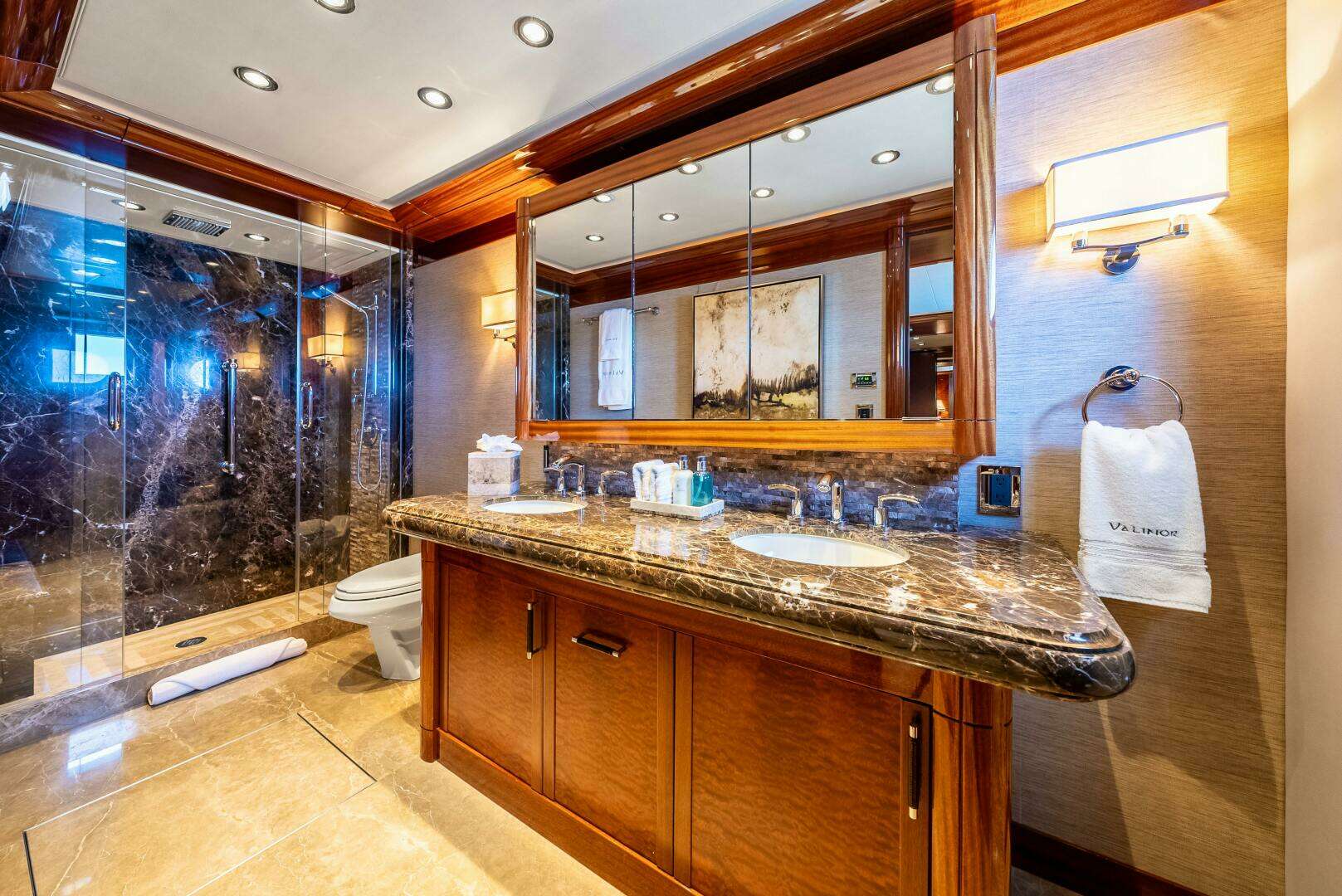

    The bridge deck master stateroom features His and Hers baths and access to a semi-private terrace to starboard, steam shower and walk-in closet.With a private terrace and elevated position, this amazing stateroom offers privacy and visibility that is difficult to match on a 50-meter yacht.

    Twelve crew are accommodated in five spacious en-suite cabins on the lower deck. The captain's cabin is finished to guest standards and situated forward on the port side of the main deck.

    Owner will supply an Exclusions List upon receipt of written offer.

    Name reserved.
