2009 Trinity Yachts 191'

58.22 m
$ 23,950,000 USD
Lauderdale Marine Center, 2015 SW 20th Street, Suite 20033315USAFort Lauderdale FL 33315 USA
+1 954 647 5986

2009 Trinity Yachts 191'

-

LOA191'

LOA58.22''

Beam35'

Beam Inch9''

Draft Max Feet10'

Draft Max Inch2''

Fuel Tank (Gallons)48645

Fuel Tank (Liters)184141

Fresh Water (Gallons)6000

Fresh Water (Liters)22712

Holding Tank (Gallons)48645

TypePower

ConditionUsed

Specifications

Name

UNBRIDLED

HIN/IMO

9526318

Stock Number

ef008101-034b-ed11-bba1-000d3a32e066

Power-Used

Year

2009

Refit Year

2019

35'9"

10'2"

Cabins

6

Sleeps

16

Single Berths

2

Twin Berths

4

King Berths

1

Full Beam Master

Yes

On Deck Master

Yes

Crew Cabins

6

Captain's Quarters

Yes

Crew Sleeps

13

Maximum Speed

16 Knots

Cruise Speed

13 Knots

Range NMI

5932

Fuel Type

Diesel

Hull Material

Aluminum

Hull Shape

Displacement

Air Conditioning

Yes

Stabilizers

Standard and Zero Speed

Stabilizers Brand

Quantum

48645 Gallons (184141 Liters)

6000 Gallons (22712 Liters)

48645 Gallons

Gross Tonnage

803

Displacement

600

Classification

ABS

MCA Certified

Yes

Interior Designer

Patrick Knowles Designs

Builder

Trinity Yachts

Engines

Engine 1

  • Engine Make: Caterpillar
  • ModelEngine Model: 3512B
  • YearEngine Year: None
  • Engine TypeEngine Type: Inboard
  • Power HPPower HP: 2012.00
  • Power KWPower KW: 1500.00
  • Feul TypeFeul Type: Diesel
  • HoursHours: 15.00

Engine 2

  • Engine Make: Caterpillar
  • ModelEngine Model: 3512B
  • YearEngine Year: None
  • Engine TypeEngine Type: Inboard
  • Power HPPower HP: 2012.00
  • Power KWPower KW: 1500.00
  • Feul TypeFeul Type: Diesel
  • HoursHours: 15.00

Engine 3

  • Power KWPower KW: 189.00
  • HoursHours: 26917.00

Engine 4

  • Power KWPower KW: 189.00
  • HoursHours: 24560.00

Engine 5

  • Power KWPower KW: 99.00
  • HoursHours: 427.00
  • Engine Quantity5
  • Full Details

    MACHINERY

    MAIN ENGINES

    2 x Caterpillar, 3512B 1509kW (2,012hp)

    ENGINE HOURS

    May 2024

    • Port: 15,0832 hours (Topend overhaul at 11,028 hrs)
    • Stbd: 15,793 hours (Topend overhaul at 10,083 hrs)

    GEAR BOXES

    2 x Reintjes WAF 743 K31 (Gear Ratio 3.52:1)

    SHAFTS & PROPELLERS

    6 inch Aqualoy HS-22 with Michigan Wheel 5 blade

    SPEEDS

    Maximum speed 16 knots

    Cruising speed 13.5 knots

    Economical speed 12 knots

    FUEL CONSUMPTIONS

    882 Liters/hour at 16 knots

    440 Liters/hour at 13.5 knots

    360 Liters/hour at 12 knots

    RANGE 3,569 nm at 12 knots with 10% Reserve

    AUXILIARY MACHINERY & ELECTRICAL SYSTEM

    GENERATORS

    2 x 189kW Kilo Pak

    EMERGENCY GENERATOR

    1 x 99kW Kilo Pak

    GENERATOR HOURS

    May 2024

    • Port: 27,991 hours, Topend Overhaul 25,626
    • Stbd: 25,873 hours, Full overhaul 24,372
    • Emergency Gen: 427 hours

    ELECTRICITY

    480V and 110V, 60hz

    SHORE POWER

    2 x ASEA AC1003 Power Converters

    BATTERIES

    Main Engine and Generators CAT 24VDC

    TANK CAPACITIES (approximate)

    FUEL 126,445 Liters (33,403.24 Gallons)

    WATER 22,710 Liters (6,000 Gallons)

    WATERMAKERS 2 x FCI 4000 US gallon per day each

    LUB OIL 1,892 Liters (500 Gallons)

    DIRTY LUB OIL 2,840 Liters (750.25 Gallons)

    GREY WATER 3,028 Liters (800 Gallons)

    BLACK WATER 2,181 Liters (577 Gallons)

    ANCILLARY EQUIPMENT

    STEERING SYSTEM EMI, Proportional Electro-Hydraulic Steering System

    RUDDER ANGLE INDICATOR Anschutz

    BOW THRUSTER Quantum QT-200 Hp

    STERN THRUSTER Quantum QT-75 Hp

    STABILIZERS 2 x Quantum active fin with digital controls

    FUEL FILTERS CAT & Racor Parker

    FUEL SEPERATOR Alfa Laval P100

    OIL/WATER SEPARATOR Mahle NFV MPEB-VT

    FIRE/BILGE PUMP 2 x Grundfo 7.5 Hp

    BOILERS Rheem RUUD Electric Water Heater x 4, each 99 gallons

    SEWAGE TREATMENT

    • Headhunter Tidal Wave
    • WC's Headhunter

    AIRCON DITIONING 2 x Blitzer 444000 btu/hr compressors, 45 kW heating

    VENTILATION Marine Air 5 stage 75 ton, 60kW heating

    SAFETY & SECURITY EQUIPMENT

    FIRE FIGHTING Consillium Salwico CS4000

    ALARMS MX 4000

    SECURITY CCTV

    COMMUNICATION EQUIPMENT GMDSS EQUIPPED & CERTIFIED

    SATCOM

    • 1 x V-Sat – Seatel FB250
    • 1 x V-Sat – Seatel FB500

    SSB RADIOTELEPHONE Furuno FS 1570

    CELLULAR SYSTEM Tellular SX7t GSM

    VHF RADIOTELEPHONES

    • 2 x Furuno 8800 D
    • 3 x Simrad

    TELEPHONE EXCHANGE Panasonic TDX 200

    INTERCOM SYSTEM Raymarine

    WATCHKEEPING RECIEVER Sat C GMDSS Alarm Panel

    NAVIGATION EQUIPMENT

    MAGNETIC COMPASS Anschutz

    GYRO COMPASS Gyrostar 22, Anschutz

    AUTOMATIC PILOT Pilostar D, Anschutz

    LOG B&G and Consillium

    ECHO SOUNDER Furuno FCV 1200

    RADAR

    • 1 x X Band Furuno
    • 1 x S Band Furuno

    CHART PLOTTER 2 x Transas Ecdis

    1 x Timezero

    GPS

    • 2 x Veica MX 420 DGPS
    • 1 x Simrad MX612 DGPS

    NAVTEX Furuno NX-700

    WIND INSTRUMENTS B&G 3000

    DECK EQUIPMENT

    ANCHOR WINDLASS Muir

    AFT WARPING CAPSTANS Muir

    GROUND TACKLE 2x Stockless anchors – 580kg each

    BOAT CRANE & DAVITS Nautical Structures

    • 1x Foredeck Crane SWL 2,500 LBS,
    • 1x Sundeck Crane SWL 2,500 LBS,
    • 1x Main Deck Overhead Crane 6,200 LBS per lifting point (4x Lifting points)

    PASSERELLE Marquipt

    SIDE BOARDING LADDERS 2 x Marquipt manual ladders

    SEARCHLIGHT ARC 600

    AWNING 4x Sun Awnings

    AUDIO/VISUAL ENTERTAINMENT SYSTEMS

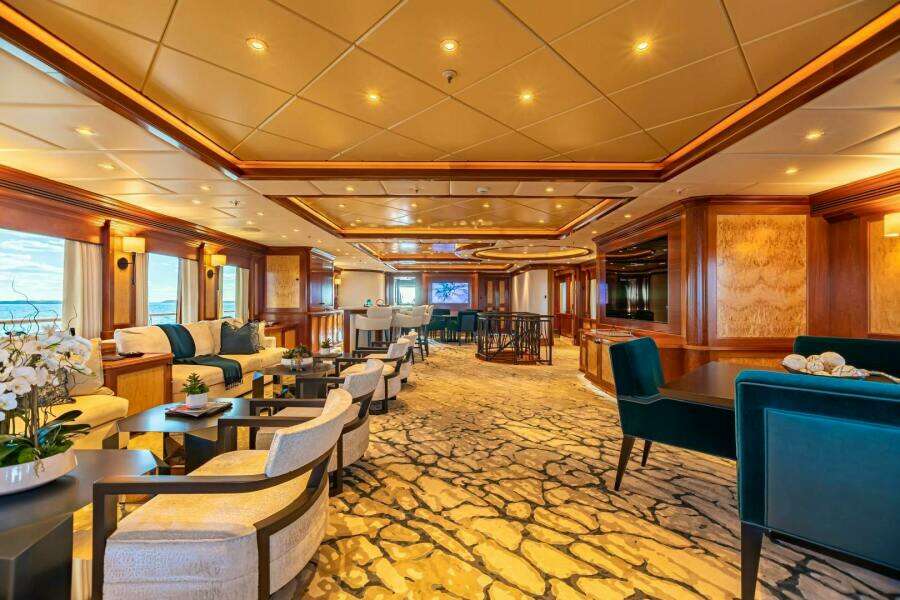

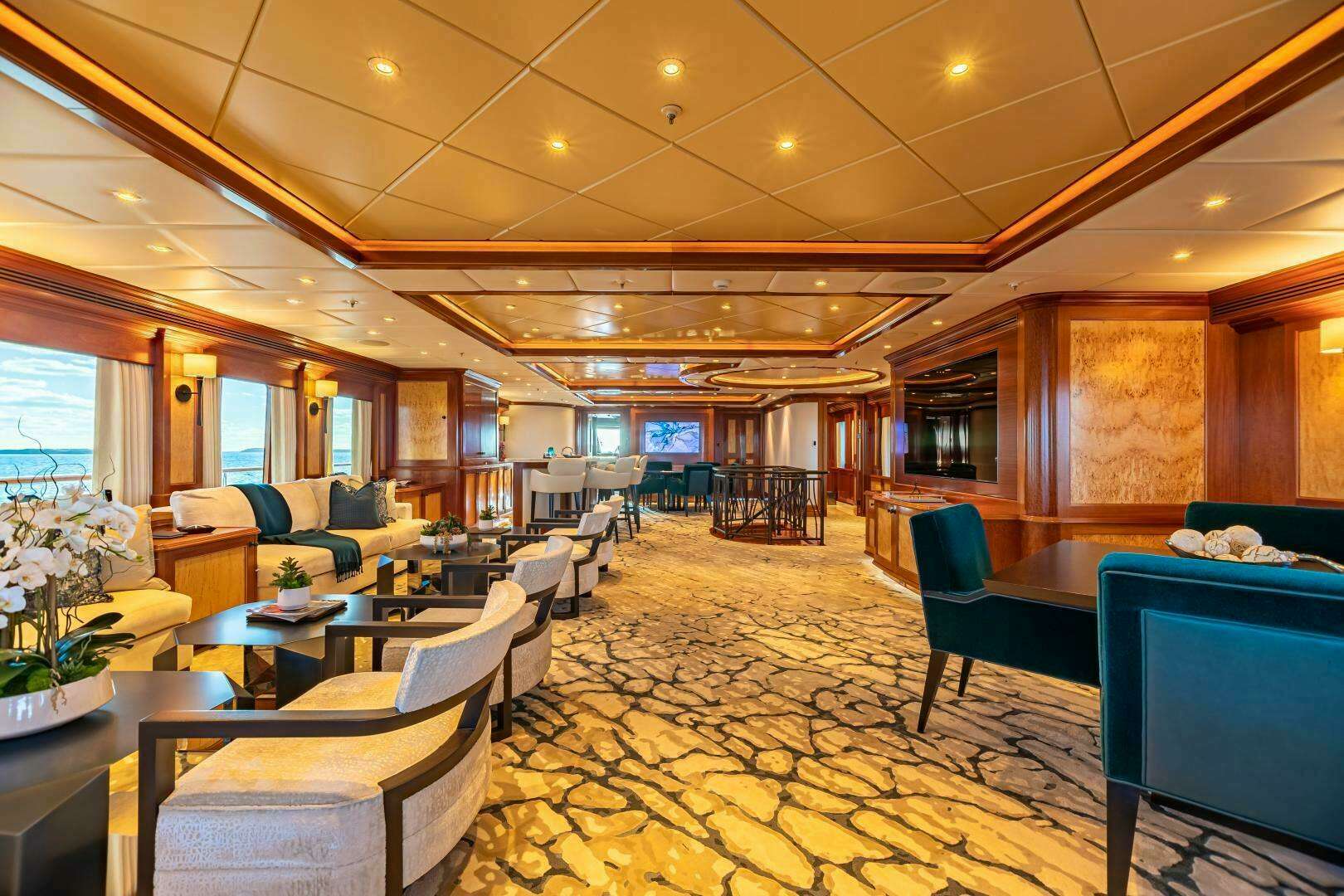

    MAIN SALON

    1 x Media Décor Motorized Art Frames

    4 x B&W CCM80 speakers

    1 x B&W FPM5 Vented Box Systems

    1 x Arcam AVR280BLK Receiver

    1 x Crestron CP2E Control Processor

    1 x Crestron TPMC8X Touch panel

    1 x Crestron TPMC8XDSW Docking Station

    1 x iPad Crestron AV App

    2 x Sunfire Subwoofers

    1 x Crestron Room Media Controller

    1 x CNXRMCLV Control System

    1 x Zantech CB18 Phoenix Connector

    3 x Crestron Light Switch Keypad

    1 x Apple TV

    DINING ROOM

    2 x B&W Ceiling Speakers

    1 x Crestron Touch panel

    3 x Crestron Light Switch Keypad

    1 x Crestron Docking Station

    1 x iPad Crestron AV App

    1 x Auxiliary Port

    FOYER

    1 x B&W Speakers

    2 x Linn Sweetspot Speakers

    1 x Crestron Touch panel

    2 x Crestron Keypad

    GYM

    1 x B&W Ceiling Speakers

    1 x NAD DVD Player

    1 x Sherbourn Amplifier

    1 x Sunfire Subwoofer

    1 x Crestron Docking Station

    4 x Crestron Keypads

    1 x B&W Ceiling Speaker

    1 x Crestron Keypad (Bathroom)

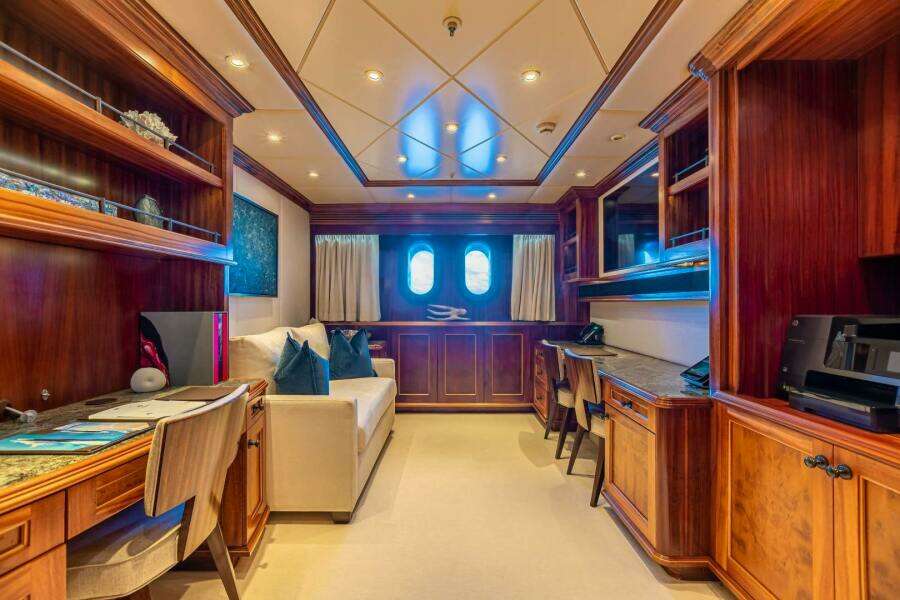

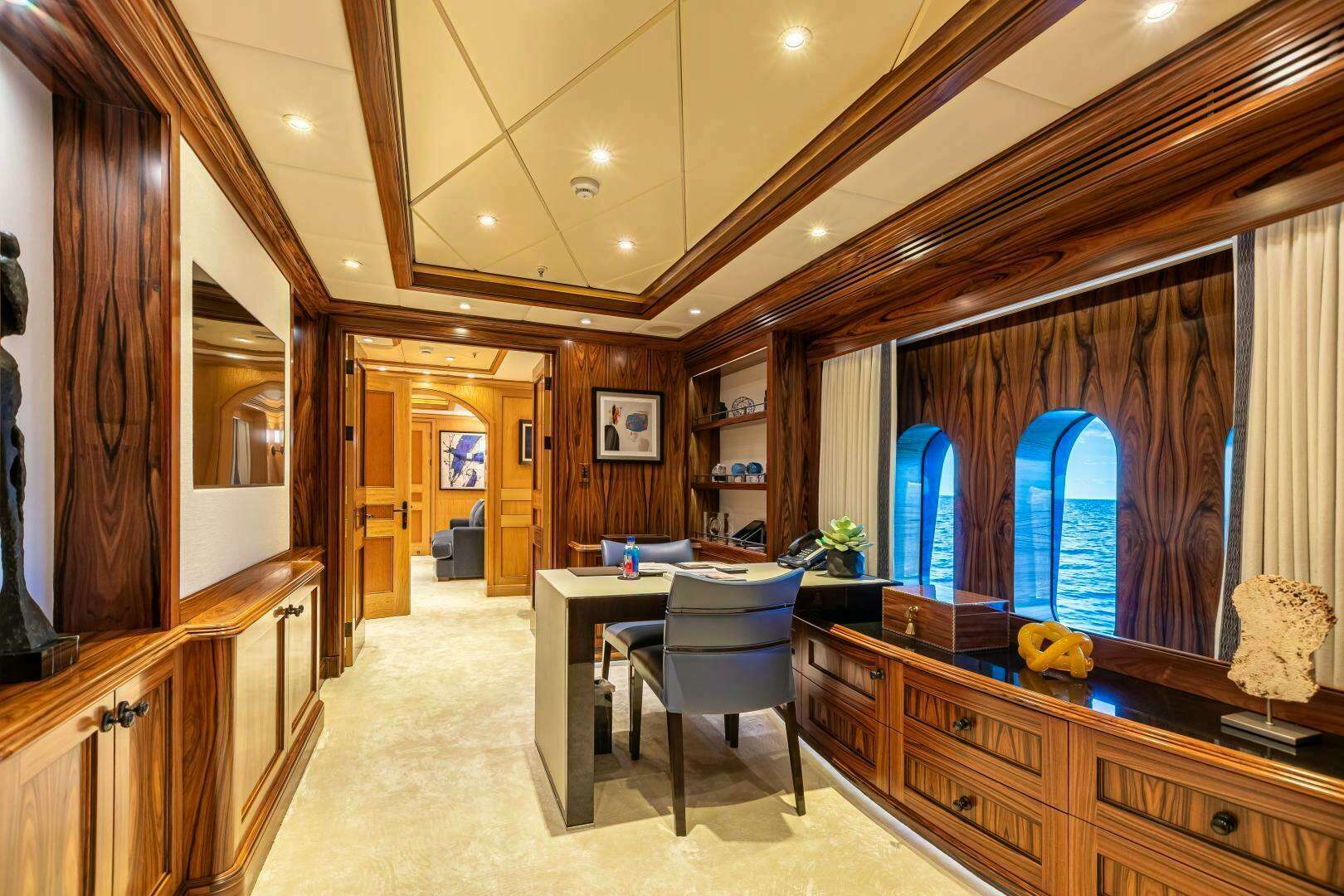

    HIS OFFICE

    1 x 42 inch NEC Plasma

    2 x B&W Speakers

    1 x Sherbourn Amplifier

    1 x Sunfire Subwoofer

    1 x Crestron Touch panel

    1 x iPad – Crestron AV App

    3 x Crestron Light Switch Keypad

    HER OFFICE

    2 x B&W Speakers

    1 x Sherbourn Amplifier

    1 x Sunfire Subwoofer (1)iPad – Crestron AV App

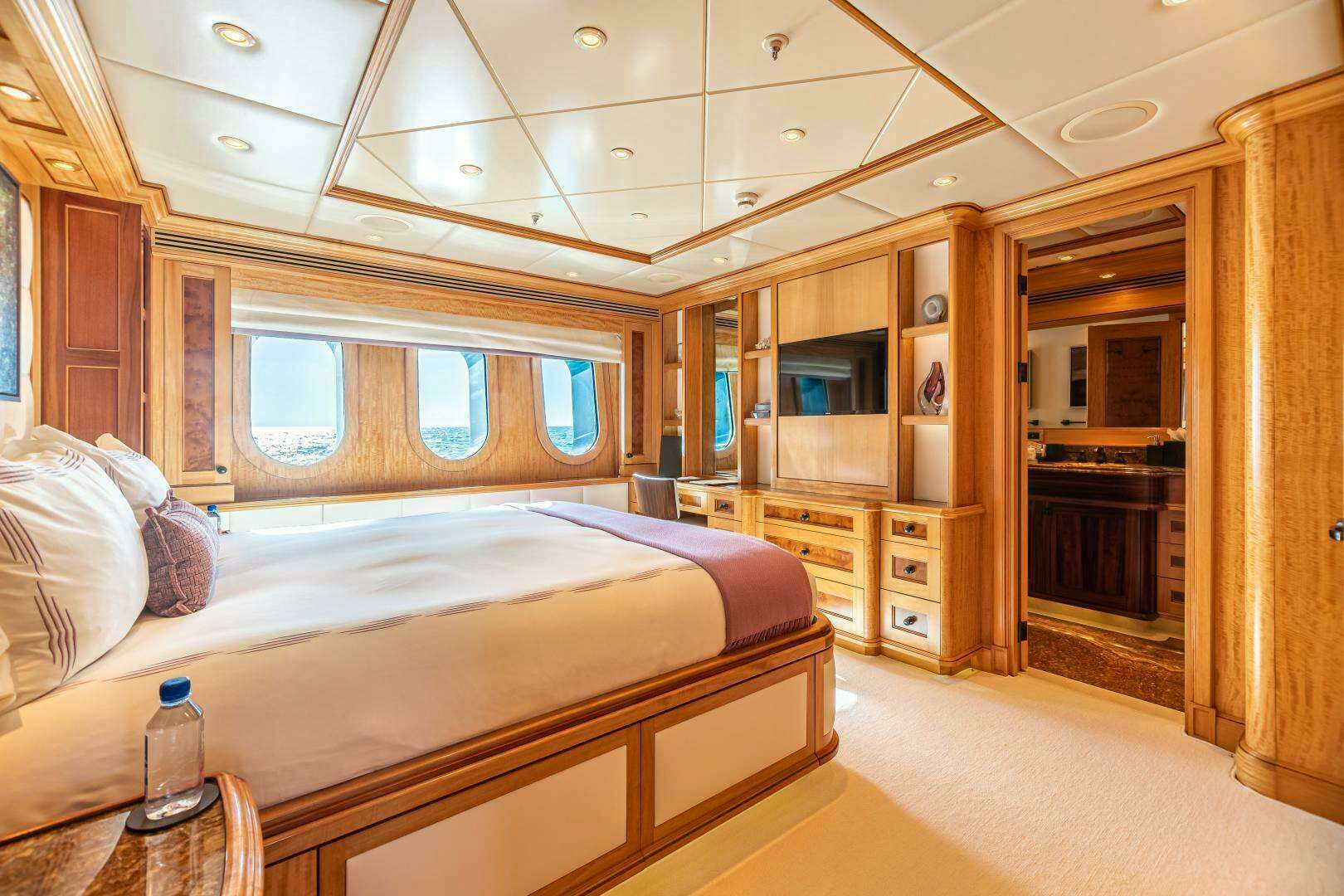

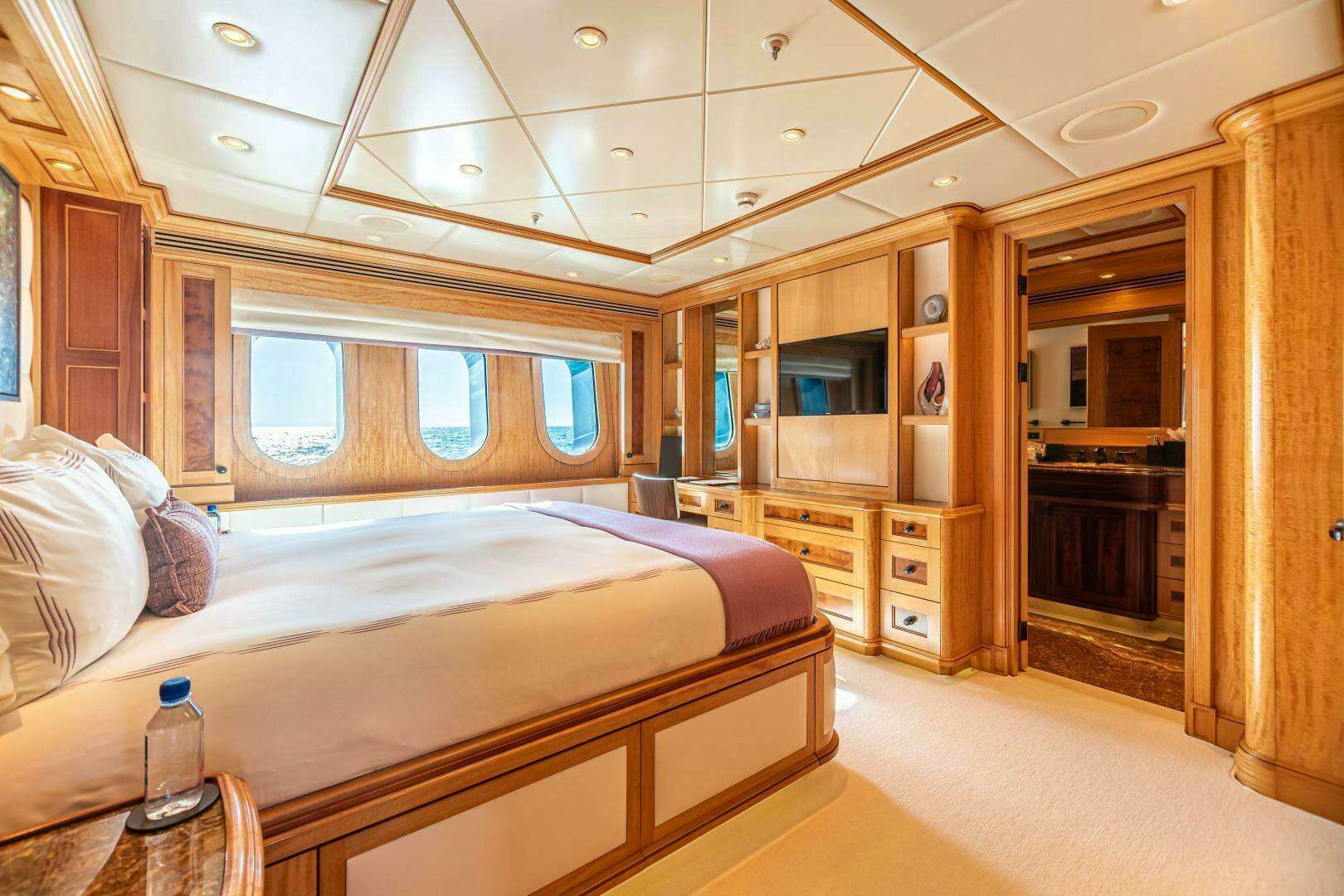

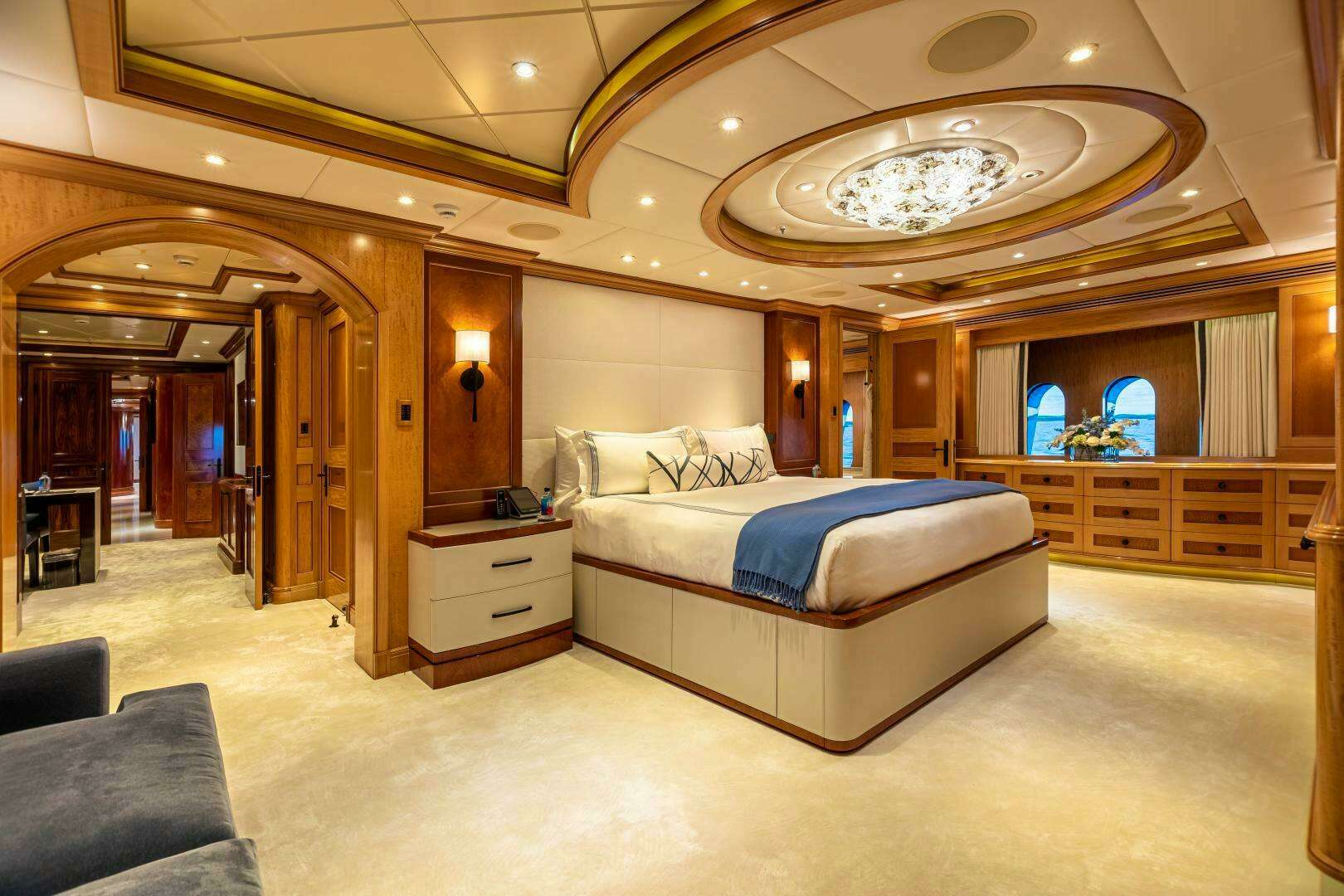

    MASTER STATEROOM

    1 x Auxiliary Ports

    4 x B&W Speakers

    1 x B&W Ceiling Speaker (Bathroom)

    4 x Sonace Symphony

    1 x 20 inch Sharp Monitor

    1 x iPad Mini Crestron Av App

    4 x Crestron Light Switch Keypad

    1 x Apple TV

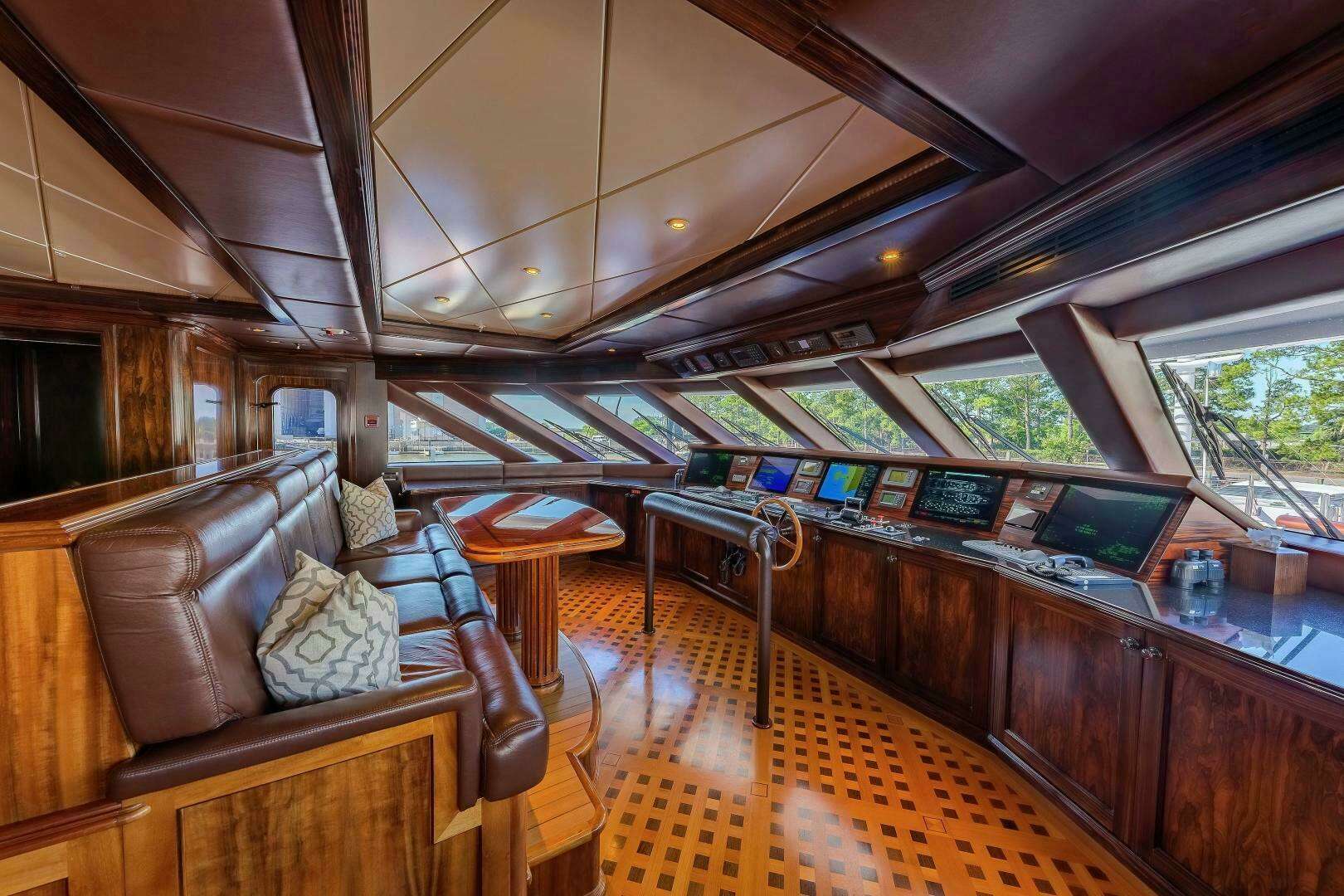

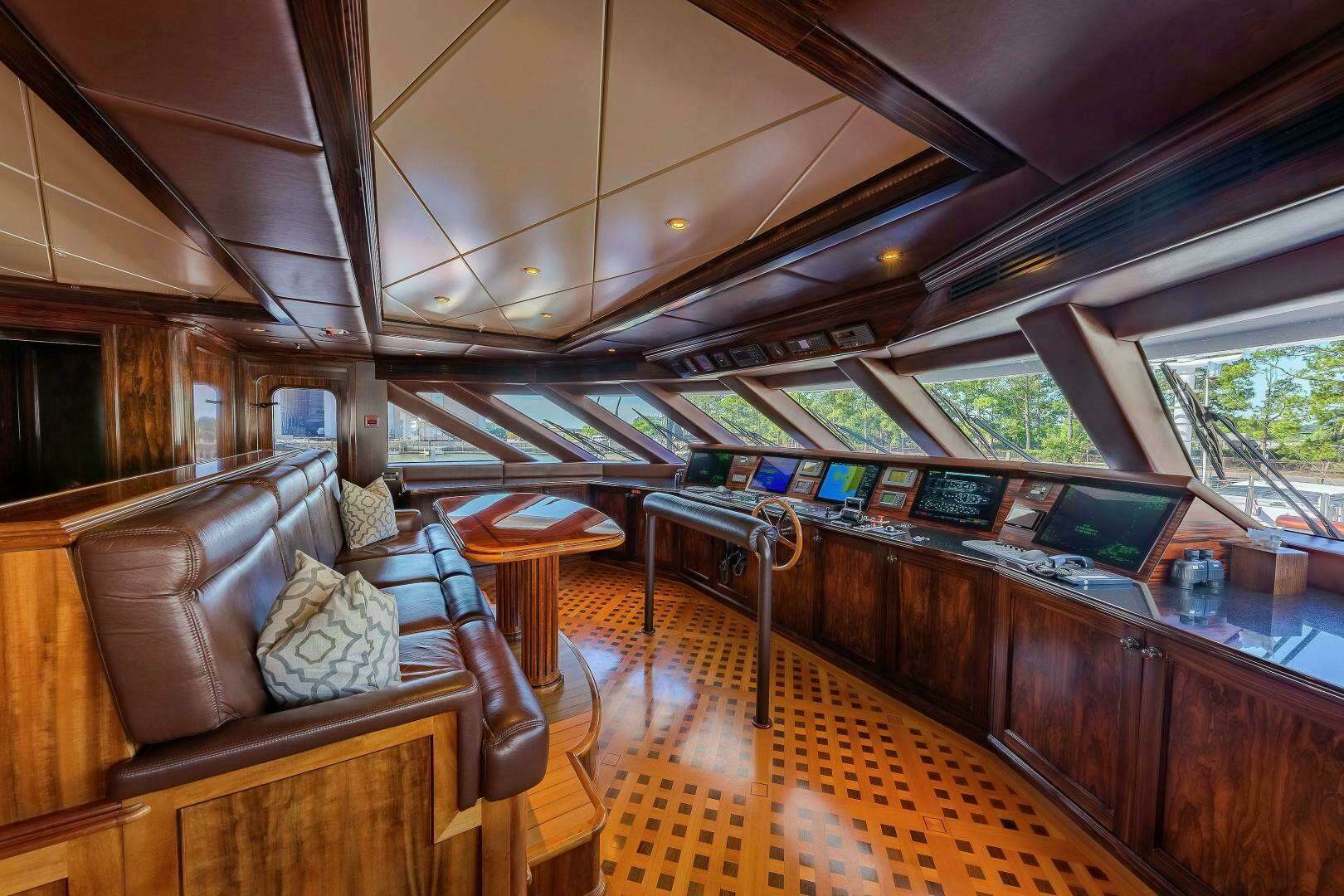

    PILOT HOUSE

    2 x B&W CCM65 Ceiling Speakers

    1 x Sherbourn LDS2/75 Amplifier

    1 x VST Receiver

    5 x Crestron Light Switch Keypads

    2 x Crestron Touch panels

    1 x Sonace Table Top iPod

    1 x Auxiliary Ports

    SKYLOUNGE

    1 x Media Décor Motorized Art Frames

    2 x Sunfire Subwoofers

    4 x Crestron Light Switch Keypads

    1 x Cisco Wireless Access Point

    1 x Auxiliary Ports

    1 x iPad Crestron AV App

    1 x iPad Mini Crestron AV App

    1 x Apple TV

    GUEST STUDY

    1 x Crestron Processor

    1 x NAD DVD Player

    1 x Sunfire Subwoofer

    1 x Crestron Light Switch Keypad

    1 x 42 inch NEC Plasma

    3 x Quantum LCR Speakers

    1 x iPad Crestron AV App

    1 x iPad Docking Station

    1 x Apple TV

    VIP GUEST PORT

    1 x 32 inch NEC Plasma

    1 x Crestron Light Switch Keypad

    1 x iPad Crestron AV App

    1 x iPad Docking Station

    1 x Linn Sweetspot Speakers

    1 x NAD DVD Player

    VIP GUEST STARBOARD

    1 x 32 inch NEC Plasma

    1 x Crestron Light Switch Keypad

    1 x iPad Crestron AV App

    1 x iPad Docking Station

    1 x Linn Sweetspot Speakers

    1 x NAD DVD Player

    GUEST TWIN PORT

    1 x 32 inch NEC Plasma

    1 x NAD DVD Player

    1 x iPad Crestron AV App

    1 x iPad Docking Station

    1 x Sherbourn Amplifier

    2 x Speakercraft Flush Mount Speakers

    GUEST TWIN STARBOARD

    1 x 32 inch NEC Plasma

    1 x NAD DVD Player

    1 x iPad Crestron AV App

    1 x iPad Docking Station

    1 x Sherbourn Amplifier

    1 x Speakercraft Flush Mount Speakers

    LOWER HALL

    2 x Speakercraft (1) NAD DVD Player

    4 x Crestron Light Switch Keypads

    2 x Speakercraft Flush Mounted Speakers

    GALLEY

    2 x B&W Speakers

    2 x Crestron Light Switch Keypads

    1 x VST Car Stereo

    1 x 20 inch Sharp LCD Monitor

    1 x Crestron Touch Panel

    CREW LOUNGE

    1 x Crestron Processor

    1 x NAD DVD Player

    1 x Velodyne Subwoofer

    5 x Speakercraft Speakers

    1 x iPad – Crestron AV App

    1 x iPad Docking Station

    1 x 32 inch Runco Monitor

    1 x Cisco Wireless Access Point

    CAPTAIN’S CABIN

    1 x NAD DVD Player

    2 x Speakercraft Speakers

    1 x Crestron Touch Panel

    1 x Crestron Docking Station

    1 x Crestron Light Switch Keypad

    1 x Liberty Panel Crafters Custom Decora Style Insert

    1 x 32 inch LCD Monitor

    CREW CABINS

    (4) 1 x Info Display Integration TV/DVD System per berth

    2 x Speakercraft 6 inch Round Speakers

    1 x VST receiver

    1 x VST DVD Player

    2 x VST Wireless Headphones

    1 x AV Toolbox Amp

    1 x Liberty Panel Crafters Custom Decora Style Insert

    LAZARETTE/DIVE ROOM

    1x JL Audio Marine Subwoofers

    4 x JL Audio Marine Speakers

    1 x Creston Waterproof Handheld Remote

    1 x Crestron Wall Mount Touch panel

    1 x Crestron Touch panel

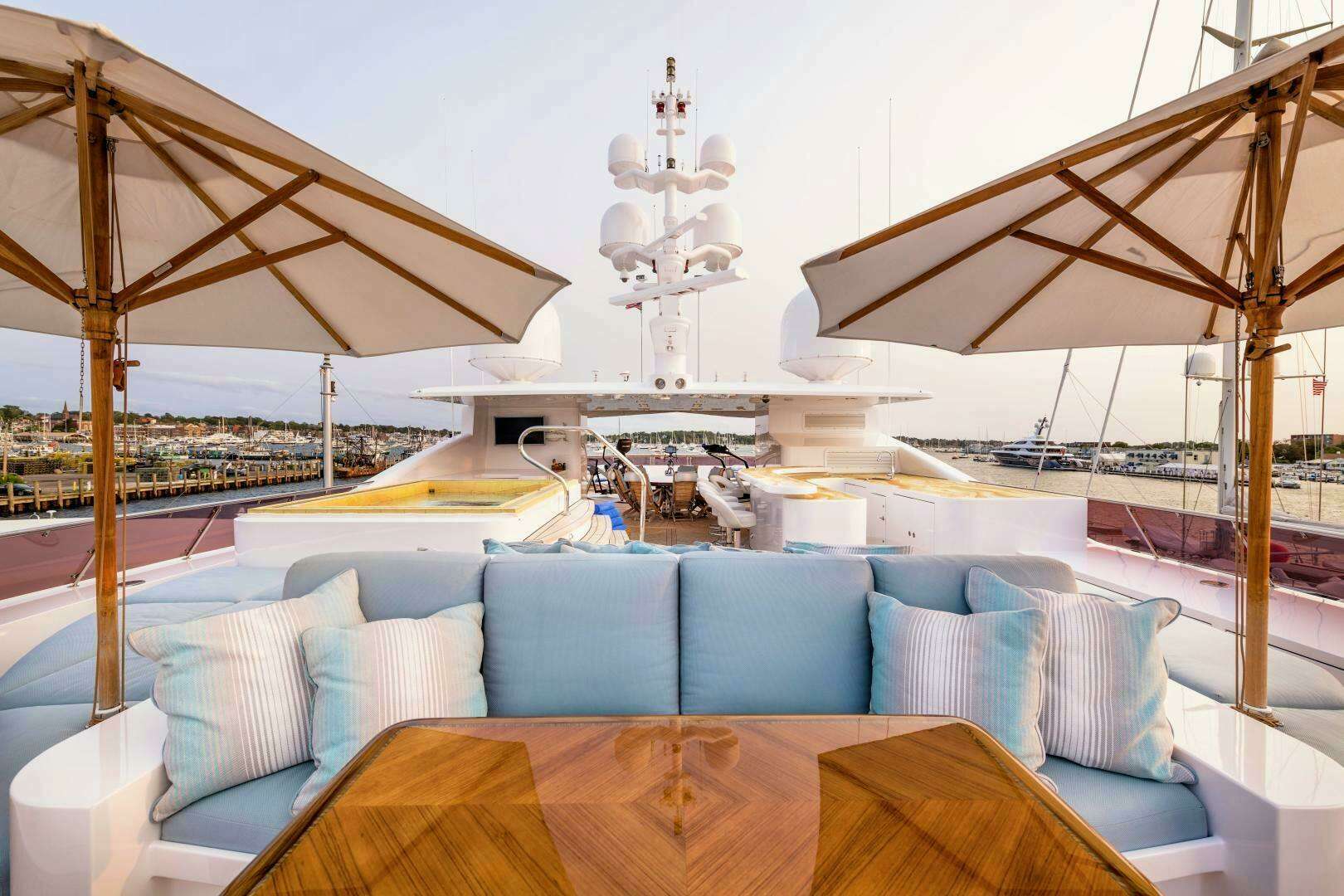

    SUNDECK

    1 x Crestron Touch panel

    1 x Crestron Docking Station

    1 x Crestron Waterproof Handheld Remote

    1 x JL Audio Speakers

    1 x Runco 42 inch Monitor

    1 x iPad – Crestron AV App

    UPPER DECK AFT

    1 x Crestron Touchscreen

    1 x Crestron Keypads

    1 x Crestron Touch panel

    1 x 2 Way RF Receivers

    4 x JL Audio Marine Speakers

    6 x JL Audio Speakers

    2 x JL Audio Subwoofers

    1 x Cisco Wireless Access Point

    PORTUGESE BRIDGE

    1 x JL Audio Marine Subwoofers

    4 x JL Audio Marine Speakers

    OFFICE EQUIPMENT

    COMPUTERS

    • 1 x OptiPlex 760 PC with HP2195 monitors
    • 1 x Apple PC

    PHOTOCOPIER/PRINTER

    • Cannon MX 7600 (all in one)
    • 3 x HP Office Jet Pro 8600 Pro Plus (all in one)

    DOMESTIC EQUIPMENT

    MAIN GALLEY

    • 2 x Gaggenau Electric Ovens
    • 1 x Gaggenau Hot Plate
    • 1 x Kitchen Aid Ice Machine
    • 1 x Vulcan Electric Salamander
    • 1 x Electrolux Dishwasher
    • 1 x Sharp Microwave
    • 1 x Keurig Machine
    • 1 x Nespresso Machine

    LAUNDRY

    • 3 x Miele Professional Little Giant Dryers, PDR 90855
    • 3 x Miele Professional Little Giant Washers, PDR 90855

    OTHER EQUIPMENT

    JACUZZI DIP POOL Bradfords Custom Tile 8 Person

    SHIP'S SAFES

    • 1x Master Cabin Hayman Electronic
    • 1 x Challenger Electronic
    • 1 x Captain Cabin Dial Lock

    BARBEQUE Viking Professional 2burner BBQ

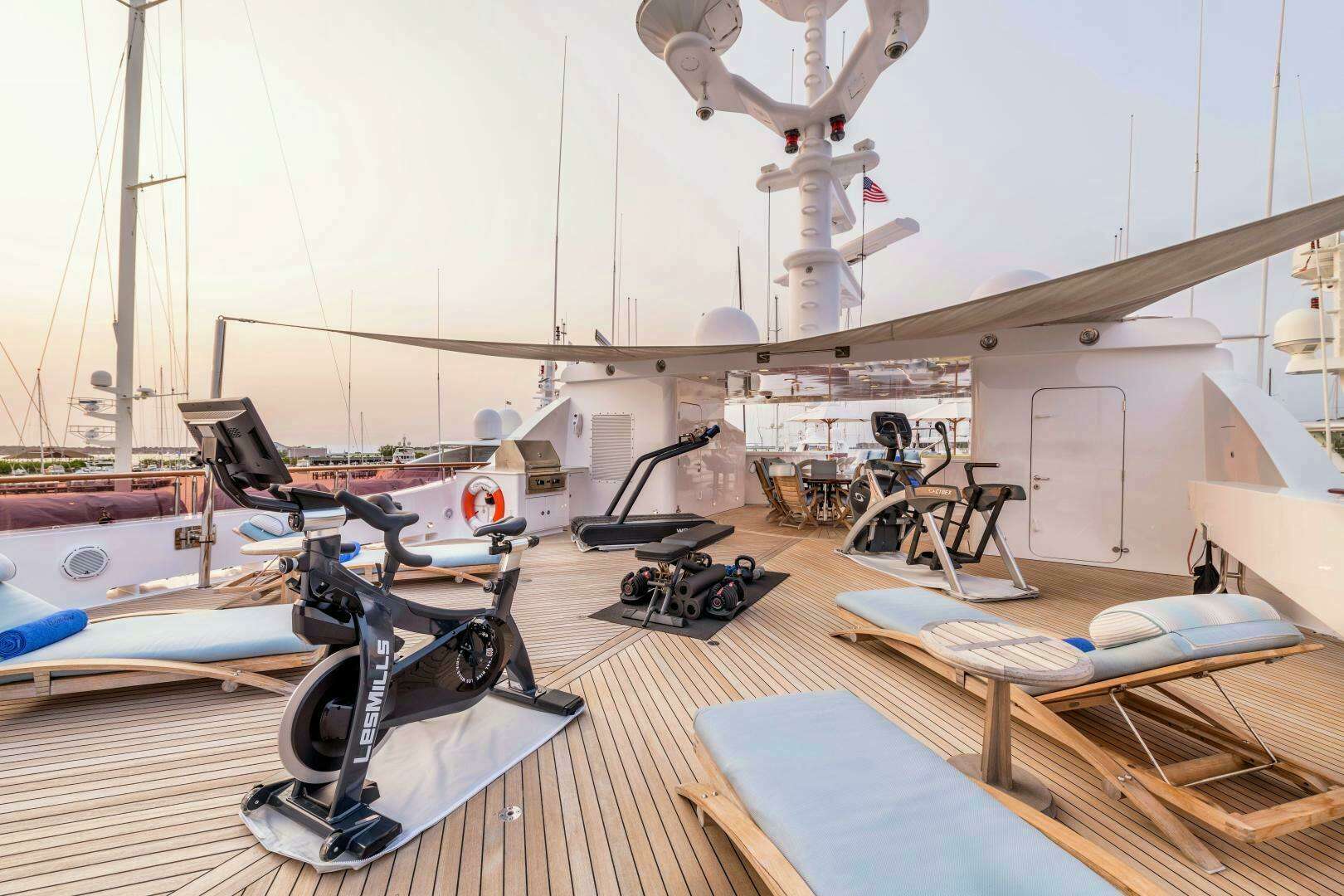

    GYM EQUIPMENT

    • 1 x Woodway Treadmill
    • 1 x Cybex Elliptical Trainer
    • 1 x Bowflex bench + Free weights
    • 1 x Les Mills V-BK Exercise Bike
    • 1 x RowErg Rower - PM5

    TENDERS & WATERSPORTS EQUIPMENT

    TENDERS

    • 1 x 28ft Zodiac Hurricane H853 (Volvo Jet)
    • 1 x 32ft Vanquish (2x Mercruiser Inboards)

    OTHER

    • 1 x 4.2m Zodiac SOLAS Rescue shuttle

    WATERSPORTS

    • 1 x Seadoo Spark 3UP TRIXX 90 IBR with audio
    • 1 x Seadoo Spark 2UP TRIXX IBR with audio
    • 2 x 4.3m Johnson Kayaks
    • 1 x Ocean Kayak
    • 2 x Sets of Water Skis
    • 2 x Mables
    • 1 x Inflatable Banana
    • 3 x Stand up paddleboards

    EQUIPMENT

    • Extensive diving equipment
    • 17 x dive tanks
    • 14 x scubapro BCDs
    • 1 x Air compressor
    • 1 x Nitrox Membrane System
    • Wetsuits - long and short
    • Snorkeling gear
    • Deep Sea Fishing Gear

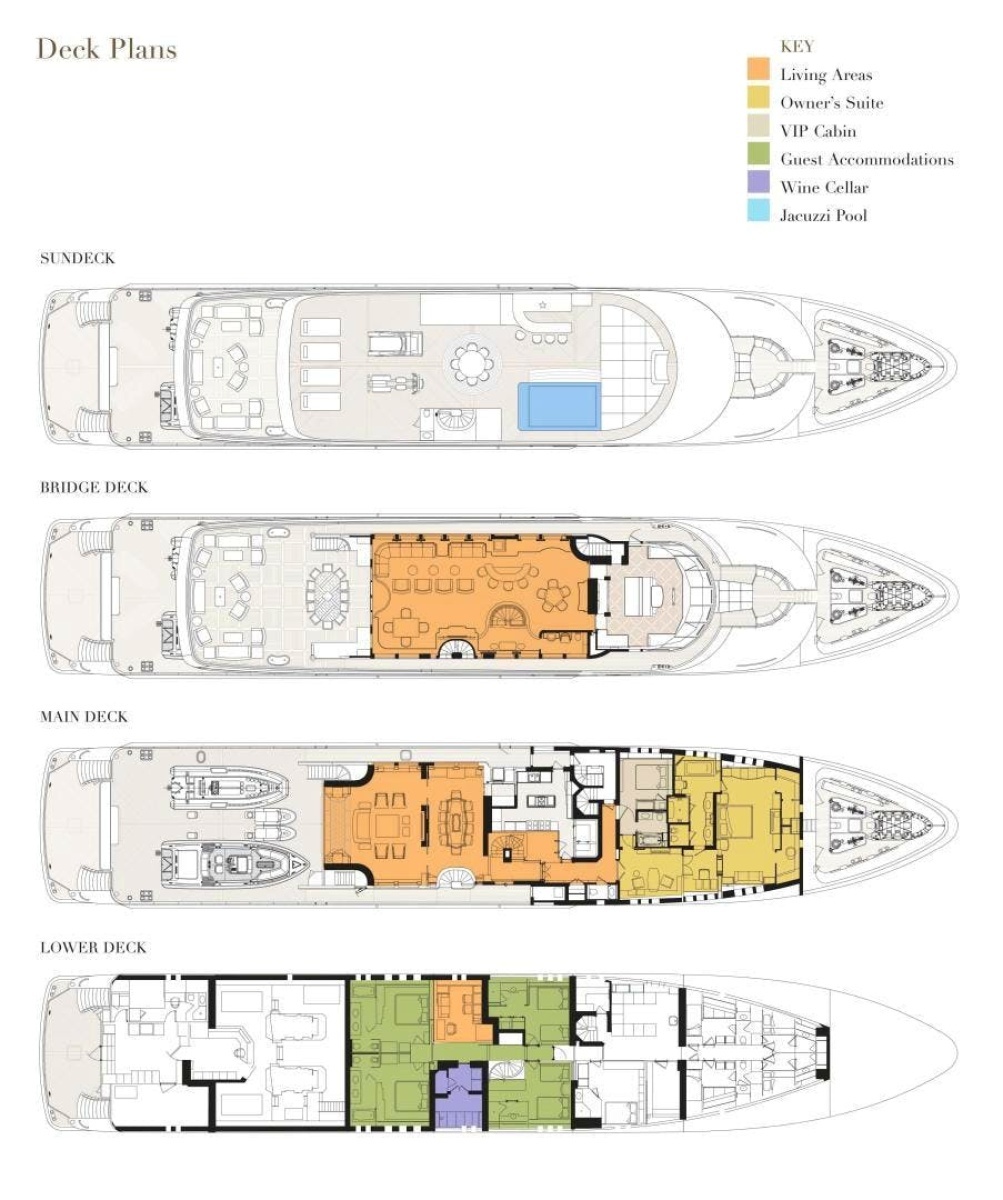

    ACCOMMODATION

    Accommodation for up to 16 guests in six adaptable cabins, and up to 14 crew in six crew cabins, as follows:

    OWNER

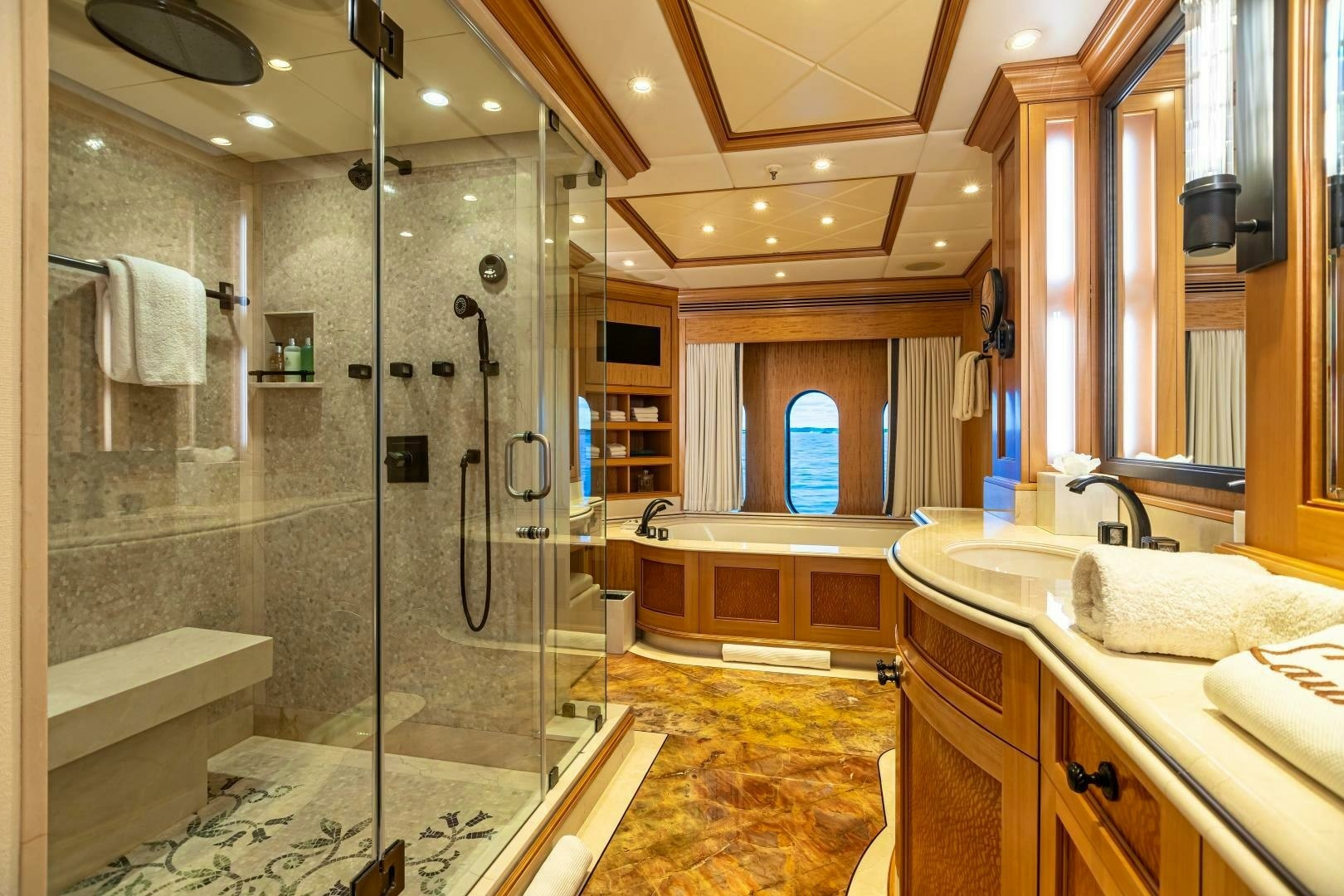

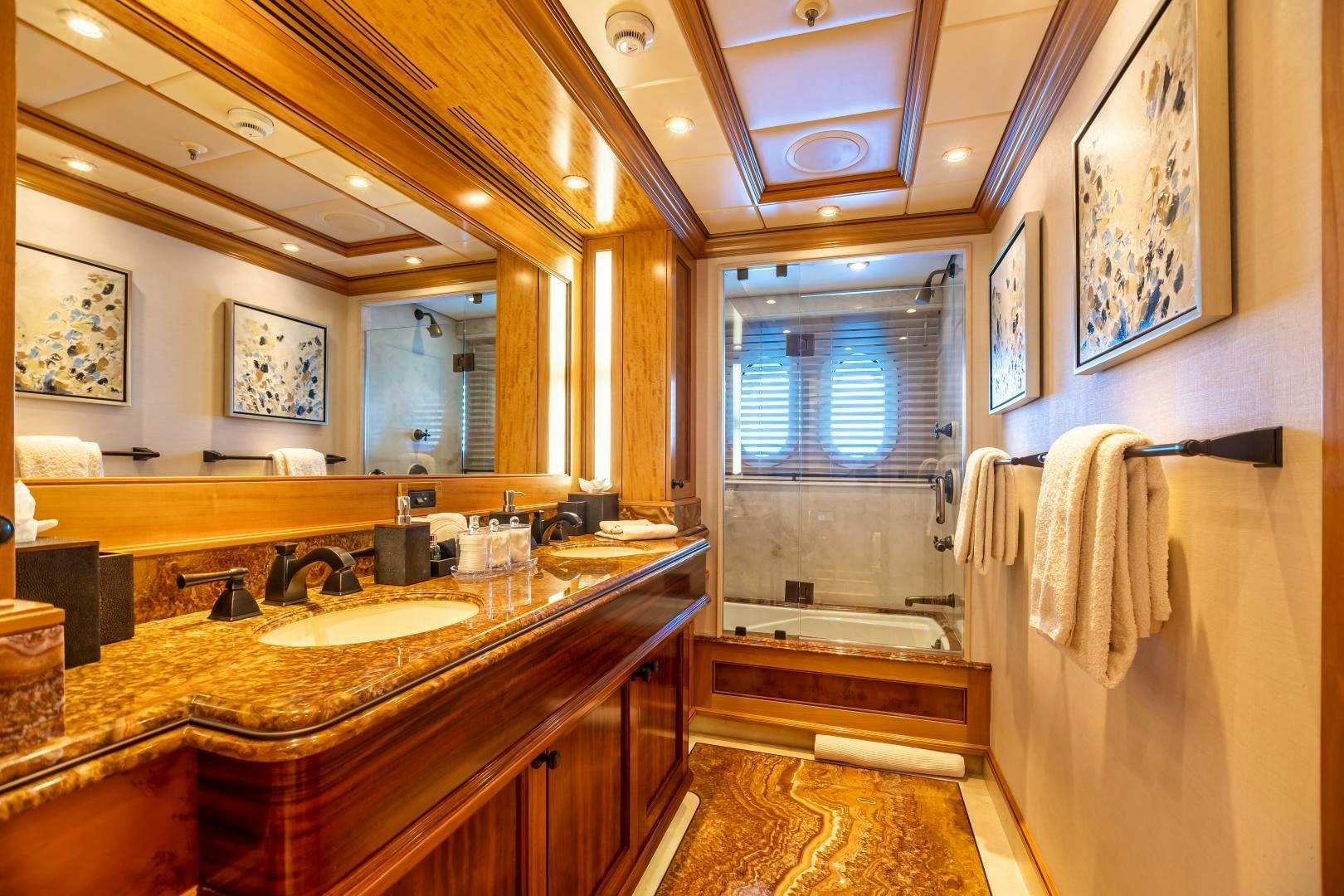

    • Full beam owner’s suite, located forward on the main deck with en suite. Private study located aft of cabin

    GUESTS

    • 2 x Double VIP cabins with queen bed and en suite bathroom located on lower deck.

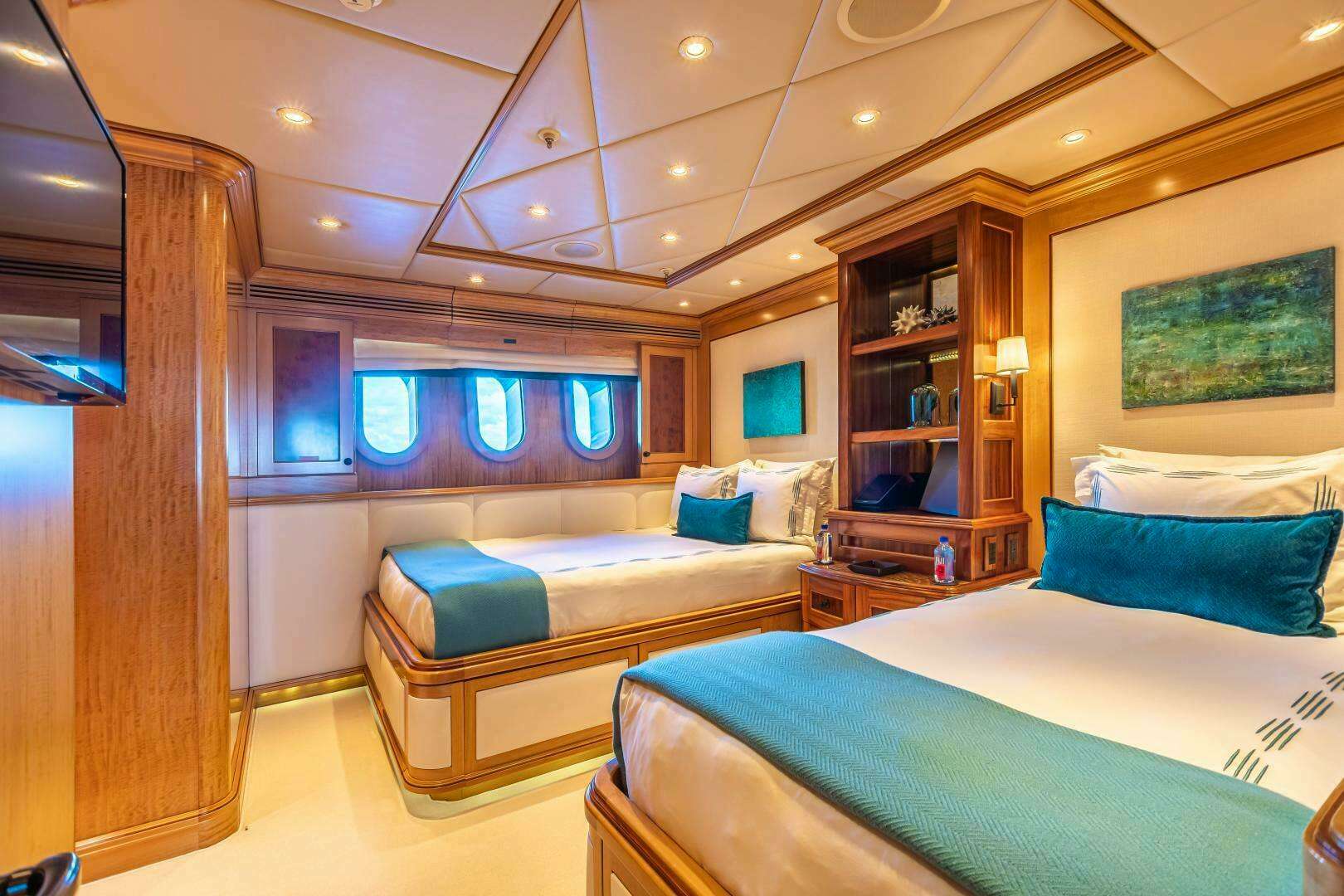

    • 2 x Twin cabins, each have with a double bed, single bed & Pullman berth. Both have an en suite bathroom and are located on lower deck.
    • Additional cabin with en suite bathroom, located on main deck aft of master cabin. Option of a double Murphy bed or 2 x pullman berths.
    • Dedicated guest office on lower deck

    CREW

    • 1 x Captain’s cabin
    • 1 x Engineer’s cabin
    • 2 x Two-berth cabins
    • 2 x Three-berth cabins

    REFIT

    2024

    15 year Survey Upgrades

    1. Main engine service including remove and replace or rebuild on Aftercoolers, Turbos, Heat exchangers and Borescope checks on all cylinders and Injector inspection

    2. Generator  service including Aftercooler, Turbos, Heat exchangers and Borescope checks on all cylinders and Injector inspection

    3. Full upgrade to AC system including Pumps and Chilled water loop insulation and valves

    4. 8 Coast of Varnish on all bright works

    5. Propellor and Shaft removal and alignment works

    6. New Hot water heater installed

    7. Full Service on OWS

    8. Full Service on Fuel Oily Water separator

    9. Full service on all Refrigeration systems

    10. Full Service on water makers

    11. Chemical Cleaning of all raw Water lines for Main machinery

    12. Remove , test and replace all Thru  Hull Valves and Main Machinery Valves

    13. Repaint Antifoul

    14. Service Stabilizers

    15. Meridian 5G sim card system upgraded

    2019

    • Complete paint job

    MAIN SALON/DINING SALON

    • New overheads installed

    • Main salon aft worktops resurfaced

    • Marble floor put down aft of main salon

    • New stone (marble) installed on outer shelves of main salon and dining

    • New furniture and soft goods throughout

    • New TV installed

    • New wallcovering in main salon and dining

    • New wool and dull silk carpets installed in main salon and dining area

    • Various artwork and ornaments replaced

    • AV system has been updated and some new iPads

    MAIN DECK CORRIDOR

    • New marble flooring as well as new artwork installed

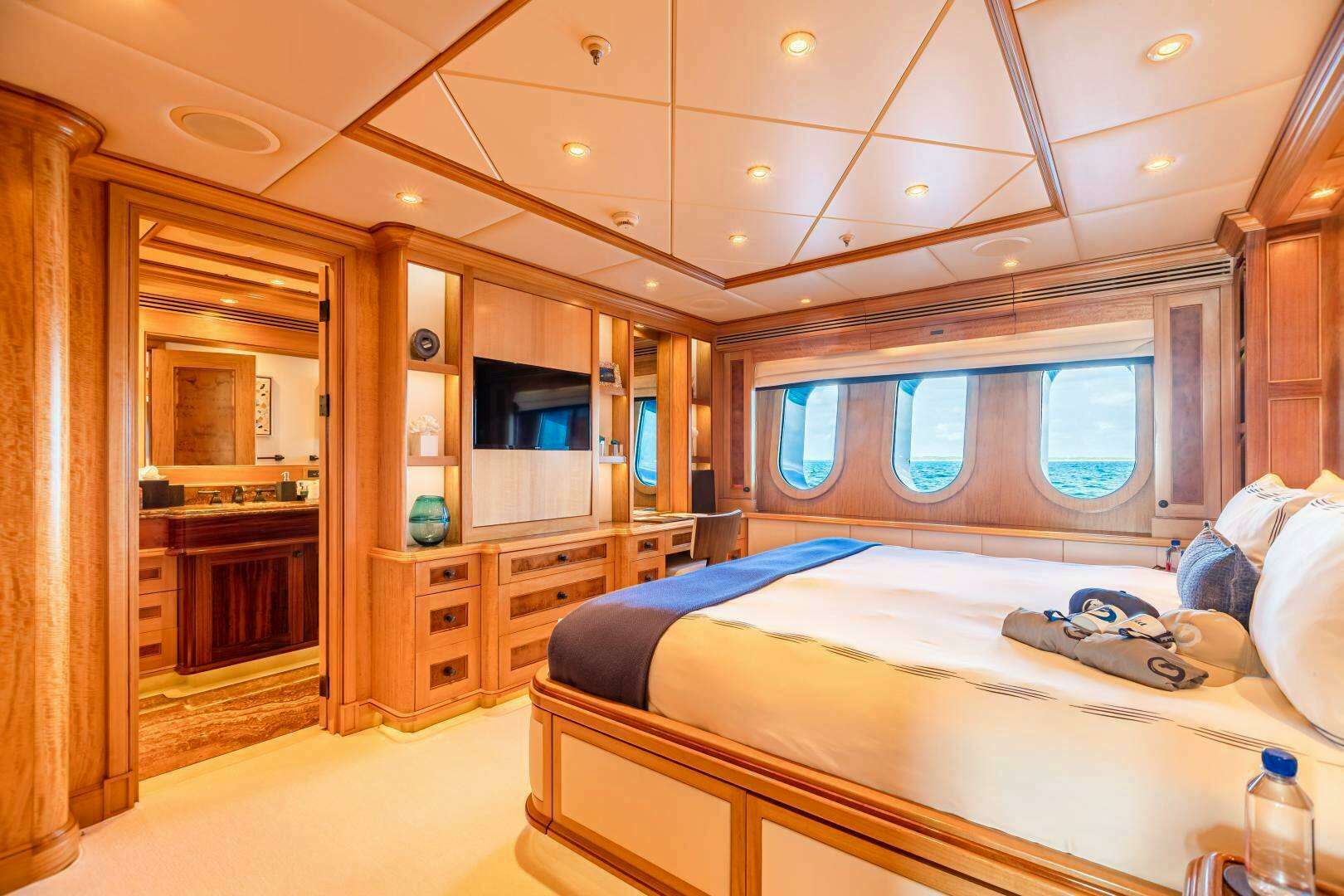

    MASTER STATEROOM

    • New overheads installed made Vinyl

    • Master office leather floor has been taken up and carpets have been put down throughout the offices and master stateroom

    • New furniture and soft goods in master stateroom and study

    • TV replaced in Master office, AV system updated and trim around TV replaced

    • Artwork/ornaments updated

    • New master stateroom chandelier installed with various glass slates and new wall sconces installed around master cabin

    GYM

    • New overheads installed made from Vinyl

    • New carpet installed matching the master cabin

    • New drapes installed

    • New wall Panels installed in room

    • New glass panels installed in gym shower and new faucets being installed on sink

    SKYLOUNGE

    • New overheads installed

    • New carpet has been installed

    • New skylounge bar top has been installed

    • Sconces replaced throughout the skylounge

    • LED strip lights updated and added in areas of the skylounge

    • New furniture and soft goods

    • Wooden walls in skylounge have now been replaced with white wallcovering

    • 2 brand new TVs installed

    • Various nesting updated inside cupboards to accommodate new glassware

    • New decorative pillows and cashmere blankets for skylounge as well as updated artwork around the room

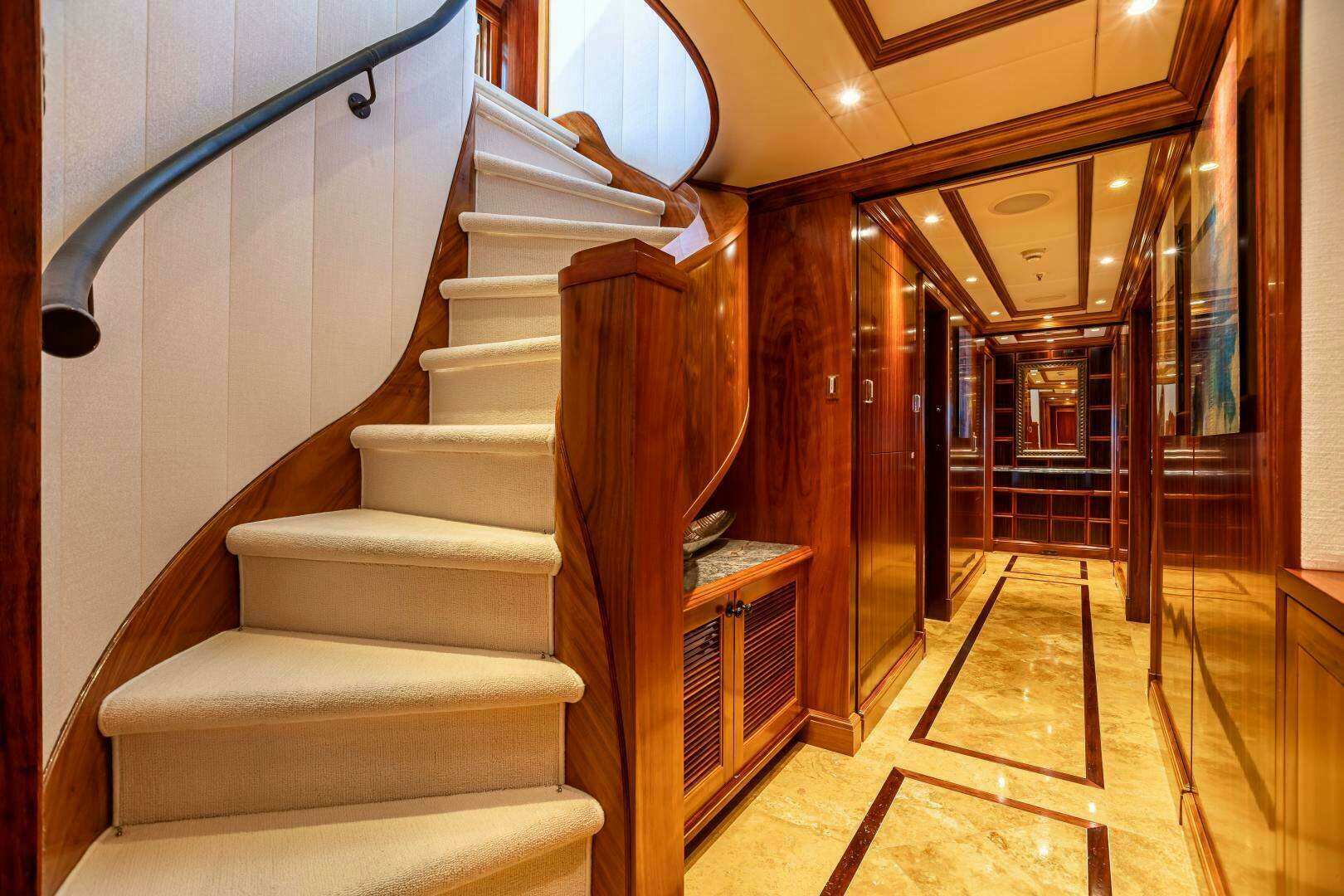

    SKYLOUNGE DAYHEAD AND STAIRCASES

    • New Vinyl overheads in skylounge dayhead

    • Skylounge dayhead floor has been replaced with marble, sink worktop replaced with marble and new faucets installed around the sink area

    • Stair Wall Panel Fabric installed (whisper walls)

    • Skylounge leather railing installed made from 100% leather

    • Carpet installed on both guest staircases

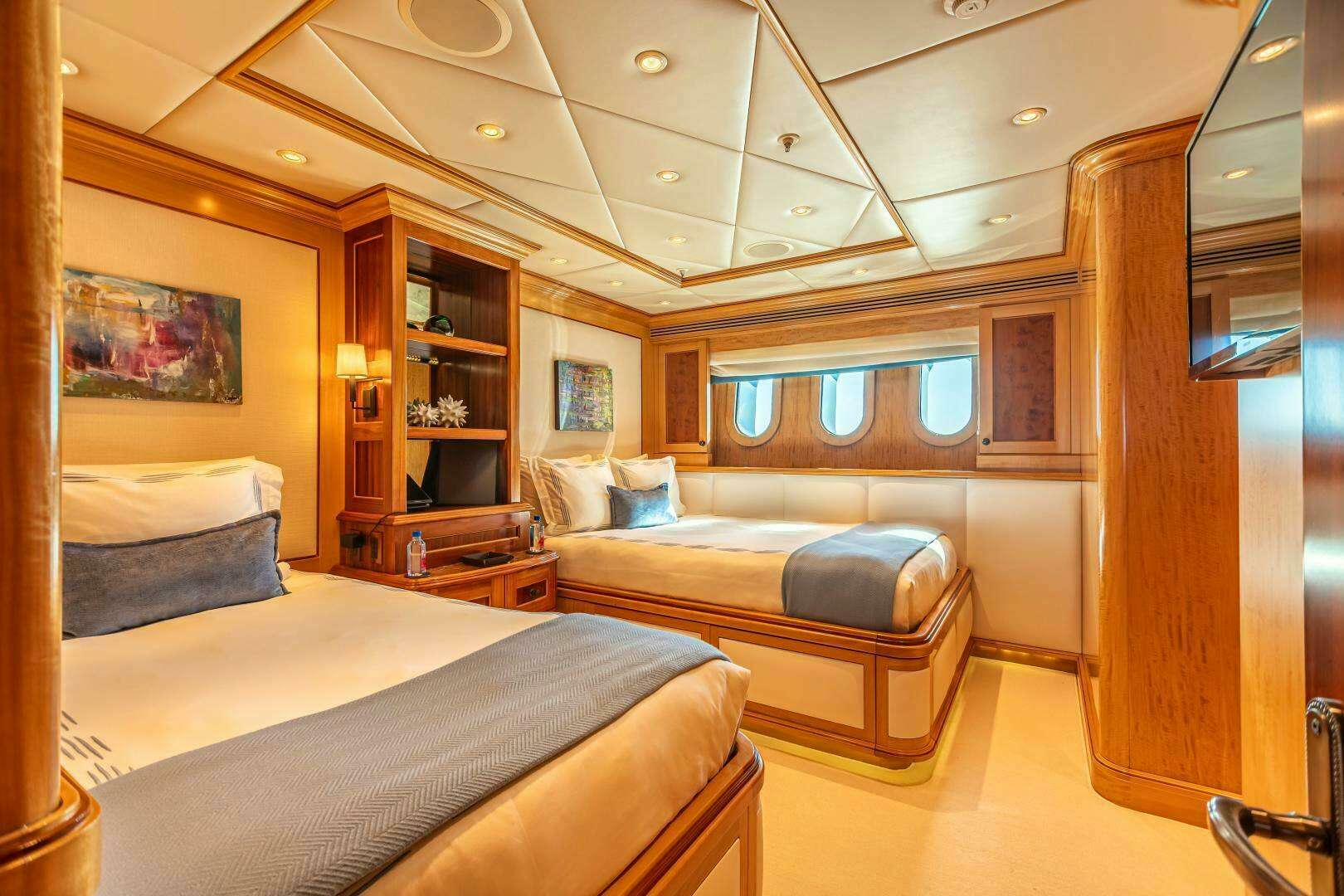

    GUEST STATEROOMS

    • New carpets installed in all lower guest staterooms

    • Each bedroom has new headboard panels

    • New shelving panels installed

    • New blinds installed, roman shades

    • New decorative pillows, cashmere blankets, ornaments, and artwork through guest staterooms

    • New bed linen updated throughout each guest cabin

    • Updated AV system in all cabins

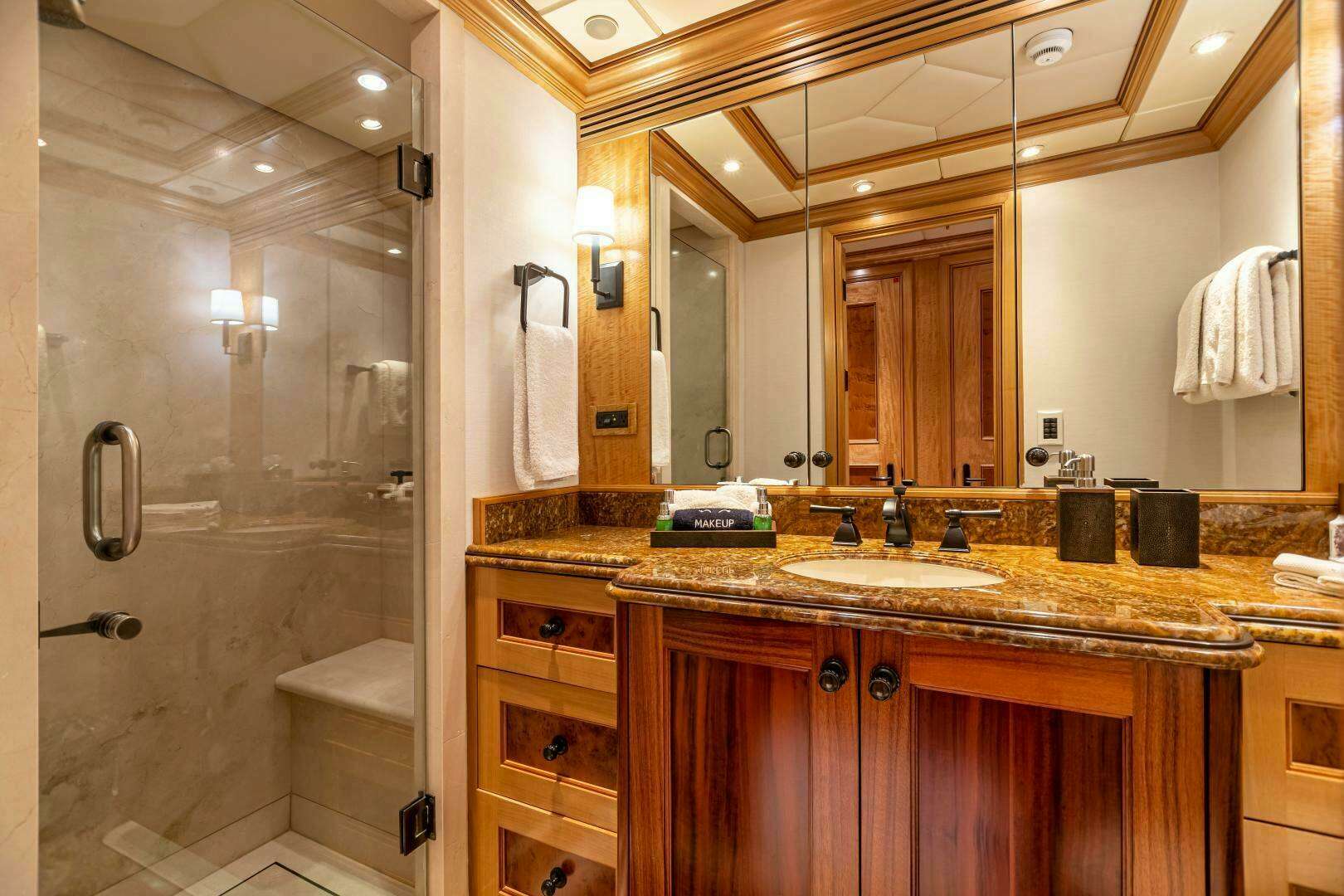

    • New wall covering installed in each guest stateroom bathroom

    • All faucets replaced with new ones in each guest stateroom

    GUEST STUDY

    • Various new furniture

    • New carpet installed

    • Brand new TV installed in study with new wall panels

    • AV updated in study

    • New speakers replaced in study

    ENGINEER REFIT LIST

    HULL

    • zinc anodes Inspected and replaced

    FRESH WATER SYSTEM

    • Replaced all four Domestic Boilers

    TANKS

    • Inspected and cleaned

    VENTILATION

    Engine Room Ventilation System:

    • Port & Stbd Fire Dampers Replaced with new

    • Port Supply Fan Replaced with new

    • Stbd Exhaust Fan Replaced with new

    • All four Internal Fan Motors on Central Circulation System has been replaced with new

    Galley Fan System:

    Supply Fan Replaced with new

    • Exhaust Fan Replaced with new

    SHIP VALVES

    • All 42 Though-Hull Valves has been removed For ABS inspection

    • Pressure Tested 5 New Type Approved Through-Hull Valves

    • Install All Through-Hull Valves and Pressure Tested After Installed

    • ABS Inspected All Through-Hull Pipes

    • Replaced Stbd A/C Sea Water Outlet Through-Hull Pipe

    • Replaced Stbd Generator Spray Ring By-Pass Through-Hull Pipe

    • Replaced Stbd Sea Chest Through-Hull Pipe

    • Repaired Port Sea Chest Through-Hull Pipes With Valves Closed

    • Repaired Broken Galley Drain Grey Water Pipe Located Between Guest Study & Port Twin

    • Pressure Test All Through-Hull Valves In Place

    PUMPS

    • Various have been removed of the vessel, inspected, repaired or replaced.

    BOW THRUSTER

    • Removed for inspection and seal replacement

    PROPS & SHAFTS

    • Port & Stbd Prop Shaft Wartsila Seals Replaced

    • New port and stbd Stern Tube fwd bearing carrier with stainless steel has been fabricated and ABS approved

    • Port & Stbd P-Struts repaired with Belzona, ABS approved

    GEAR BOXES:

    • both have been removed of the vessel and send over to Reintjes for 10 year Major Service

    • Port & Stbd Vulkan Couplings has been serviced

    STEERING SYSTEM

    • emergency steering header tank oil replaced

    • Filter elements and seals replaced

    • port and stbd Rudders removed, bushing and seal replaced, shaft alignment checked, rudders pressure tested, hydraulic rams removed and serviced, hose fitting replaced

    MAIN ENGINES

    • all engine vibration mounts replaced

    GENERATORS PORT & STBD

    • sea water pipes replaced

    • aft crankcase seals on both engines replaced

    • injector wiring harness on both engines replaced with a CAT upgraded ones

    • power unit space heaters installed

    BATTERIES

    • Replaced all fire door batteries

    • Replaced all water tight doors batteries

    • All four Main Engines starter batteries replaced

    WINDLASS

    • Both port & stbd units serviced and new seals installed

    VSAT & TVRO

    • Install new Italian Sky decoders

    ULTRA FOG

    Completed 10 years inspection and service

    AIR COMPRESSED SYSTEM:

    • Replaced both air compressors with new

    • Replace service reservoir relief valve located in the bridge

    • Borescoped all 3 air reservoirs

    OWS

    • Opened, cleaned, Monitor Calibrated and inspected by ABS & Flag surveys

    BILGES

    • Cleaned and painted all bilges

    GALLEY OVEN MODIFICATION:

    • Fabricated a new island and installed 2 new MKN ovens and ice maker

    DIESEL PURIFIER

    • Carried out major, intermediate, oil change, clutch pads and bearings replacement

    LOAD BANK

    • Replaced all gaskets, including element gaskets and pipe fitting gaskets and replaced pump end

    2018

    STABILIZER SYSTEM

    • Port & Stbd fins removed

    • Upper and lower seals replaced

    • Shaft, roller & hull sleeve bearings on Port & Stbd sides replaced

    • All cylinder spherical bearings replaced

    • Replaced all accumulator bladders and filling valves

    • Replaced all o-rings on hydraulic distribution block solenoid valve

    BOW THRUSTER

    • All bearings replaced

    STERN THRUSTER:

    • Thruster leg replaced with brand new unit

    • Shaft Seals replaced

    • Electrical Motor removed and serviced including megger testing

    2017

    MAIN ENGINES - Painted both engines after below service.

    • PORT - Top End 9000 hr service completed

    • Replaced all exhaust gaskets & insulation

    • Replaced sea water flex couplings

    • Removed and serviced both Starters Motors

    • STBD - Top End 9000 hr service completed

    • Replaced all exhaust gaskets & insulation

    • Alternator pulley and belt checked

    • ET Full Check

    • Removed and serviced both Starters Motors

    GENERATORS

    • PORT - Major Overhaul Carried out

    • STBD - Major Overhaul Carried out

    EMERGENCY GEN

    • Replaced four starter batteries with new

    PTO UNITS

    • Rexroth hydraulic motor removed for servicing and testing, unit installed and tested

    • PTO pumps removed and inspected, new seals & gaskets installed, units tested

    • Hydraulic hoses on PTO units replaced

    STABILIZER SYSTEM - PTO pump suppressors rebuild

    A/C SYSTEM

    • Rebuild both 1 & 2 sea water pumps

    • Rebuild both 1 & 2 chiller pumps

    2016



    PORT & STBD GENERATOR

    • Installed larger fuel booster pump on both Gens

    • Woodward EasyGen PT Isolation Installation carried out

    • Installed new block heat sensors on both Gens

    • Install Fuel Restriction gauges after Racor Filter

    LOAD BANK

    • Replaced all heater elements, pressure sensor and flow sensor

    • Replaced all seals on housing

    • Installed new cooling water pump & motor

    MOORING/WINDLASS

    • Entire aft capstans removed for full service

    • Windlass hydraulic pump & gearbox overhauled

    • Gypsy bushings replaced

    • Adaptors and hydraulic hoses replaced

    BATTERIES

    • Master & Slave Transas Memory Battery replaceed

    • Replaced Port Engine Room Battery Bank batteries x 4

    • Replaced Stbd Engine Room Battery Bank batteries x 4

    LAZ (TRANSOM) DOOR

    • Removed all locking pins and seals replaced

    FRESH WATER SYSTEM

    • All boiler elements replaced

    • Replaced all boilers safety valves

    2015

    DIESEL PURIFIER

    • Installed a float switch in drain tank

    • Carried out a major service

    • Carried out an intermediate service

    MOORING/WINDLASS

    • Windlass brake pad removed and replaced with riveted type

    • All windlass bushings replaced

    • Windless drive unit removed and full service carried out

    QUATUM HYDRAULIC SYSTEM

    • 3x solenoid valves on power pack replaced

    • All suppressors and accumulators replaced

    • Inboard sea water cooling pump replaced

    BATTERIES

    • All Water Tight door batteries replaced

    • All UPS batteries in Dive Room replaced

    • All APC UPS batteries in A/V Room replaced

    • All APC UPS x 2 under bridge console replaced

    LAZ (TRANSOM) DOOR:

    • Hydraulic rams removed and seals replaced

    • All Hydraulic hoses replaced

    Disclaimer

    The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.

    Mechanical Disclaimer

    Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.

    Listing MLS by Yachtr.com

    Contact

    For more information about this yacht, please contact Kevin Merrigan We look forward to working with you!

    For more information about this yacht, please contact Kevin Merrigan. We look forward to working with you!

    For more information about this yacht, please contact Kevin Merrigan.

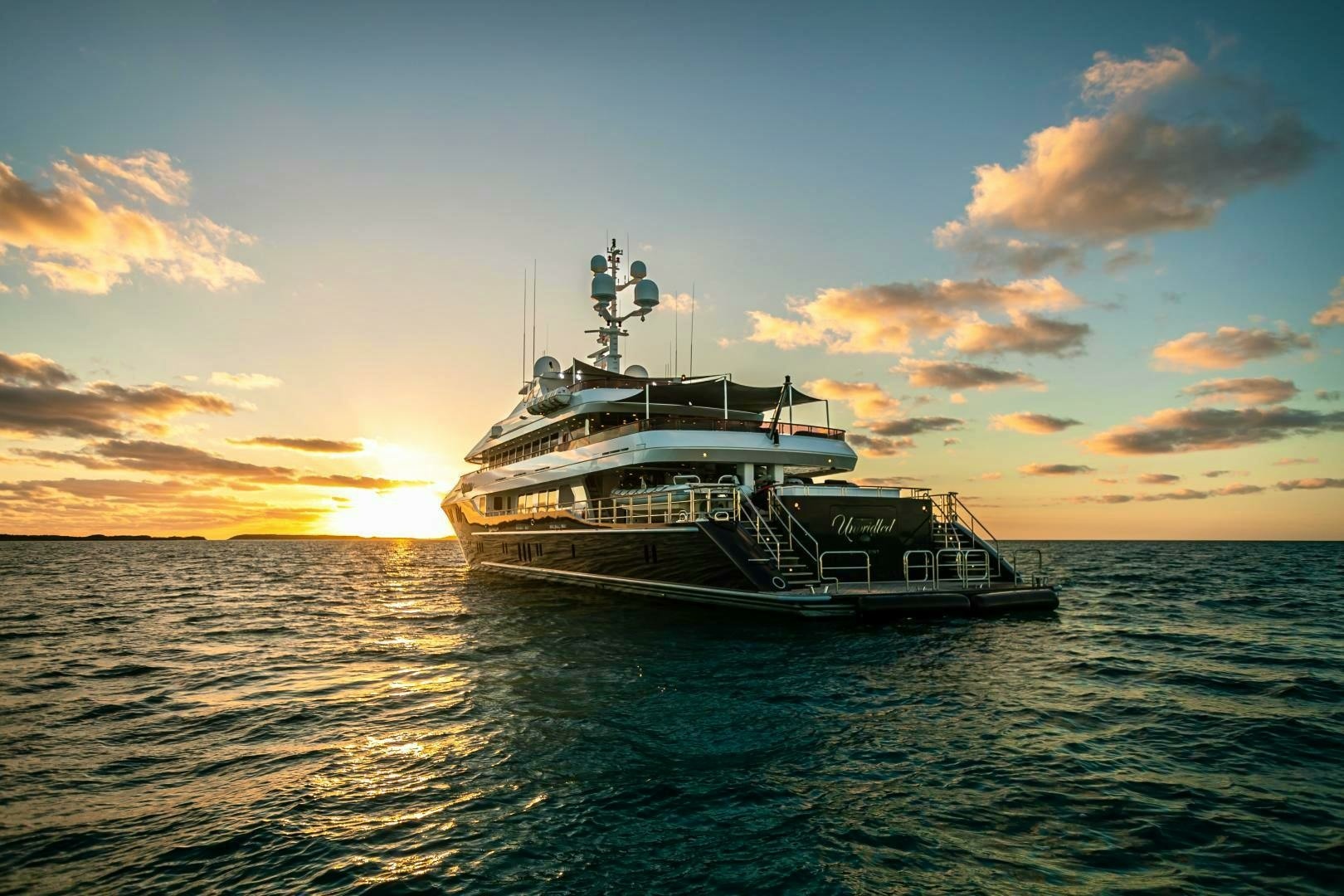

    UNBRIDLED 191ft Trinity Yachts Yacht For Sale
    Kevin Merrigan
    Chairman

    Lauderdale Marine Center

    2015 SW 20th Street

    Suite 200

    Fort Lauderdale FL 33315 USA

    +1 954 647 5986
