Detailed Specification

MAIN CHARACTERISTICS

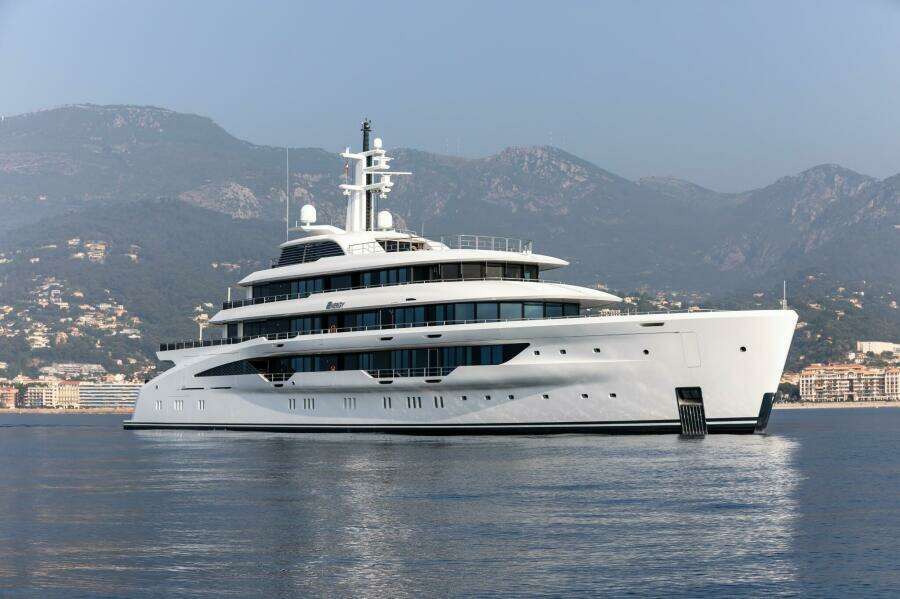

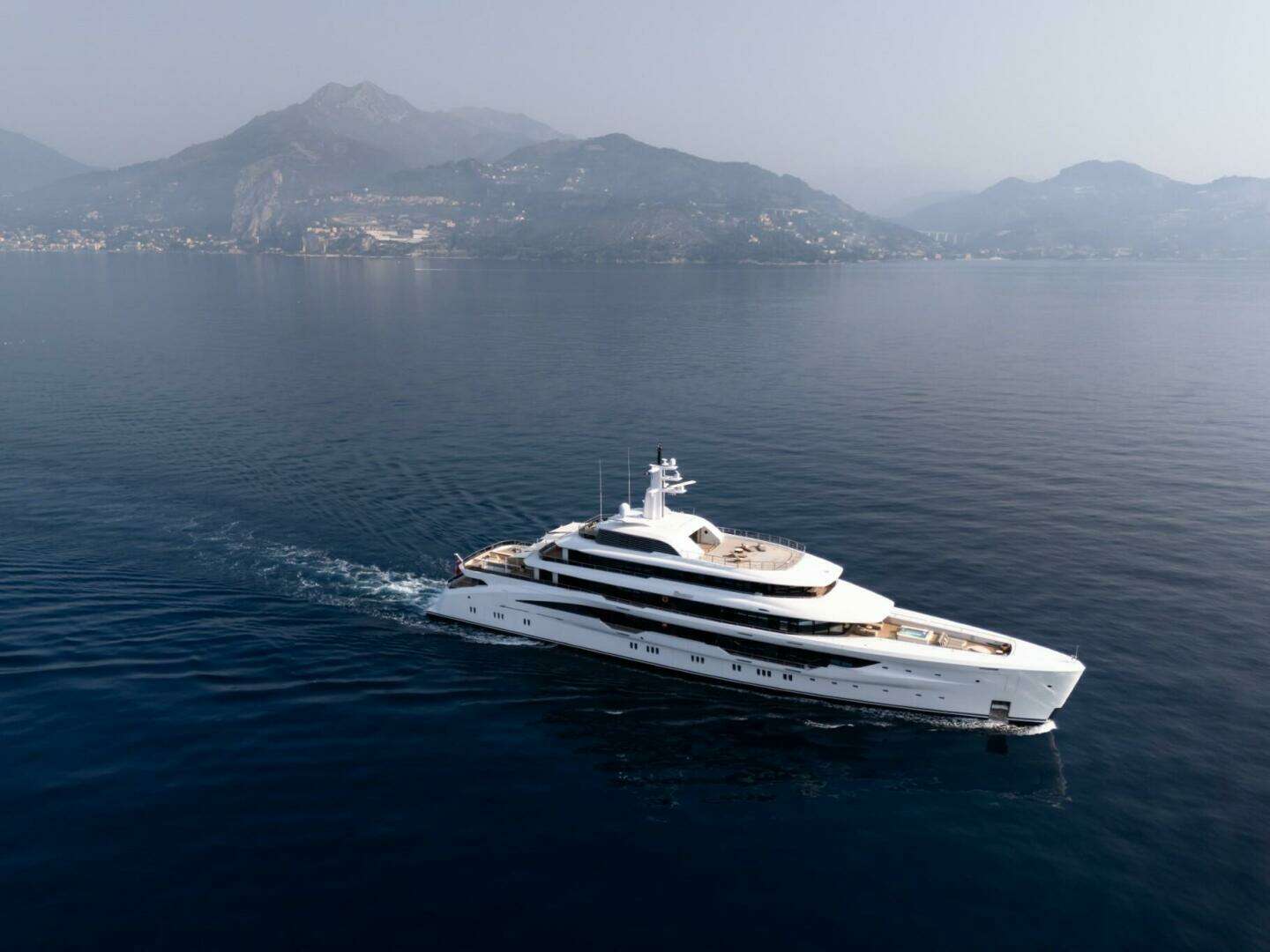

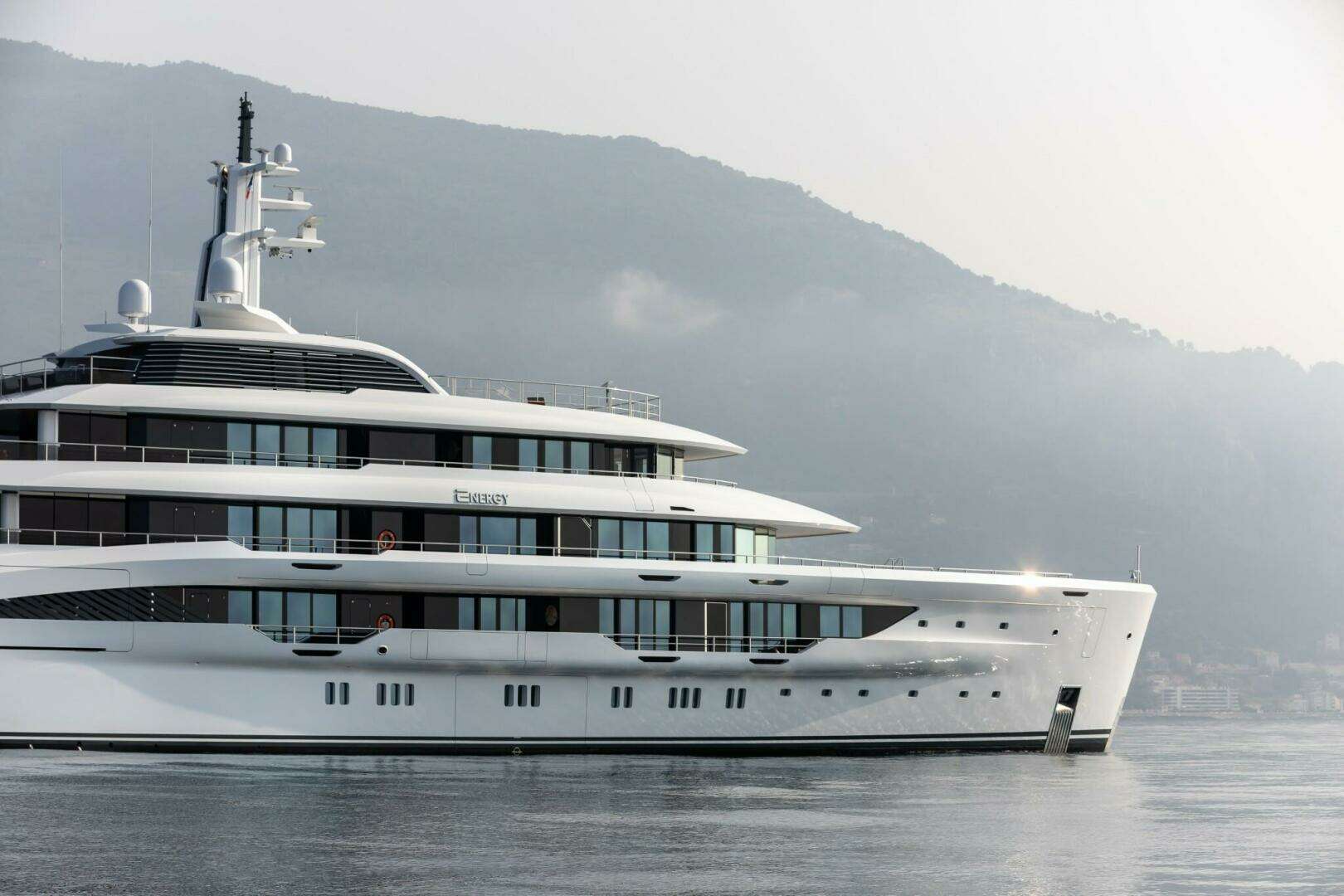

Name: ENERGY

Type: Twin Screw Diesel Displacement Yacht

Builder: Amels

Year: 2022

LOA (M/FT): 77.80 M (255’03”)

Beam Moulded (M/FT): 14.00 M (46’01”)

Beam Max (M/FT): 16.00 M (52’06”)

Draft (Full Load) (M/FT): 3.85 M (12’01”)

Draft (Light Ship) (M/FT): 3.31 M (10’10”)

Gross Tonnage: 2,884

Net Tonnage: 865

Displacement (Fully Loaded): 2,407

Air Draft: 29m

Hull Material: Steel

Superstructure: Aluminium

Decks: 6

Flag: Cayman Islands

Classification: Lloyds Register

Naval Architect: Damen/Amels

Exterior Designer: Espen Oeino

Interior Designer: Francois Zuretti

Light Wood Onboard: Zebra wood

Dark Wood Onboard: Walnut

Main Engines: 2 x MTU 16V4000M63L 2240KW each

Speeds: 17 Max /13.5 Cruising

Range: 5,000 nm @ 13 kn

Guest Accommodation: 7

Number Of Guests:  14

Crew Accommodation: 17 crew cabins plus 1 hospital/staff cabin.

Minimum Safe Manning: 7 crew on MSMD

NOTEWORTHY FEATURES AT A GLANCE

·    Famous Francois Zuretti interior design

·    The most recent Amels available on the market, ready for global exploring

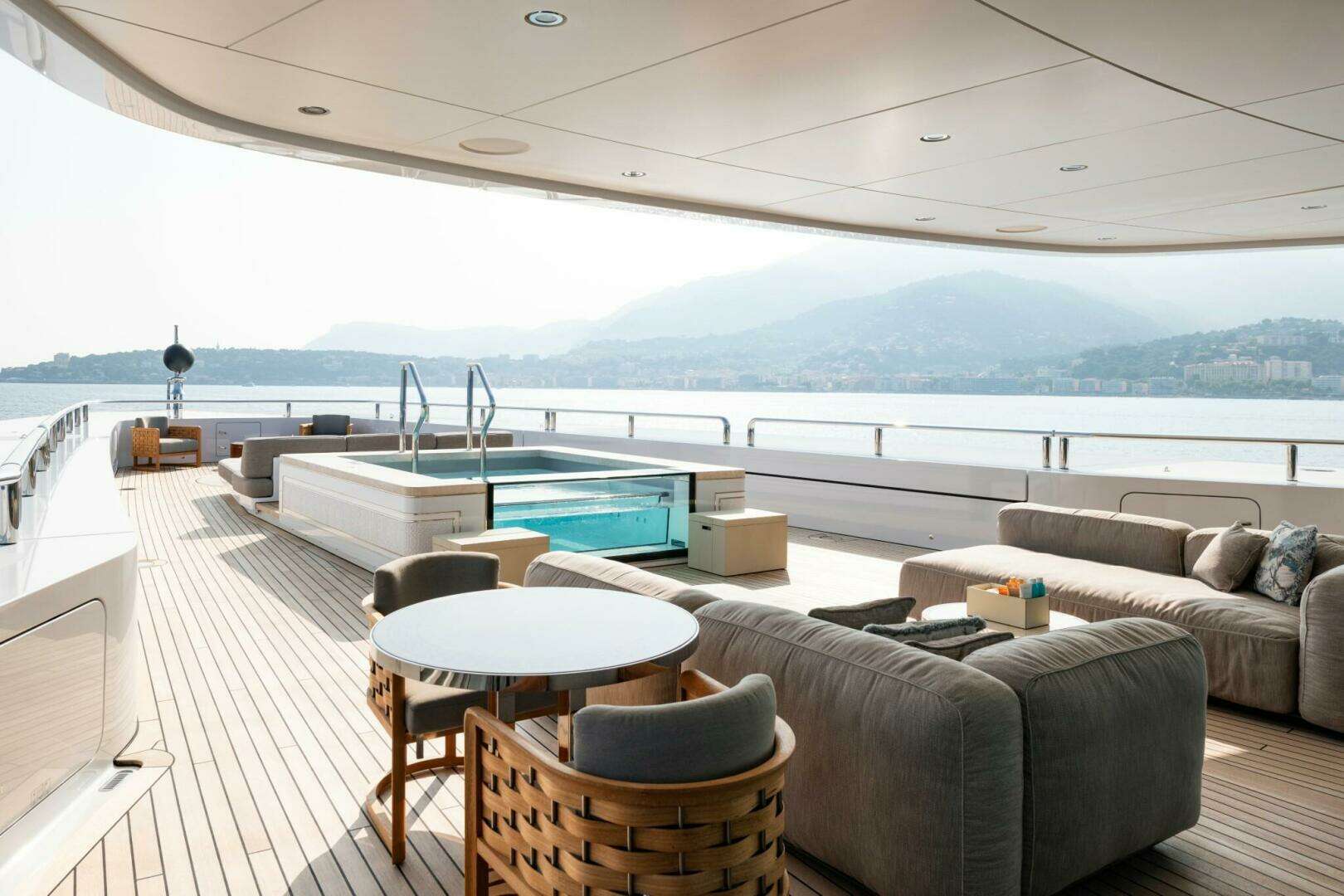

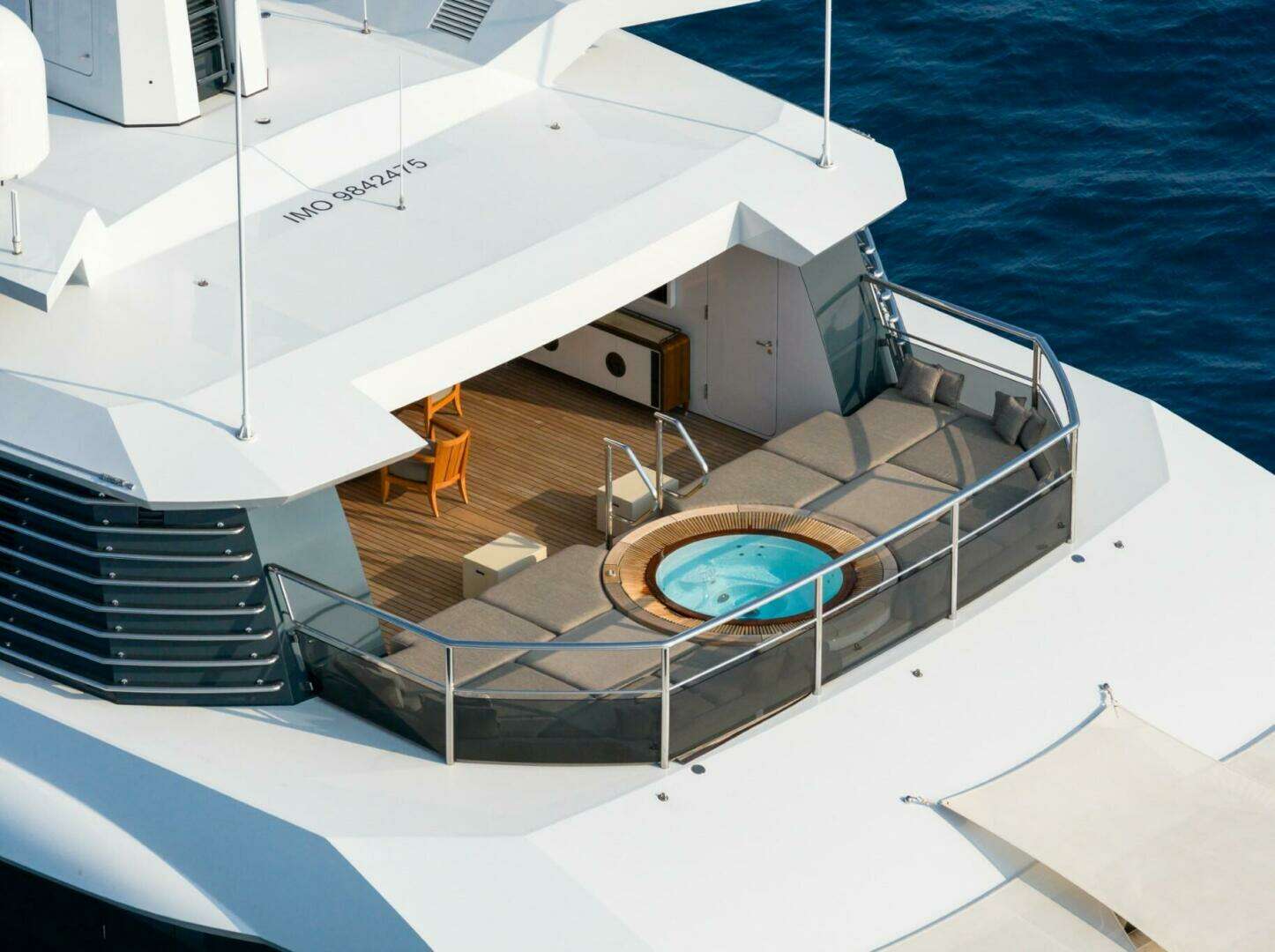

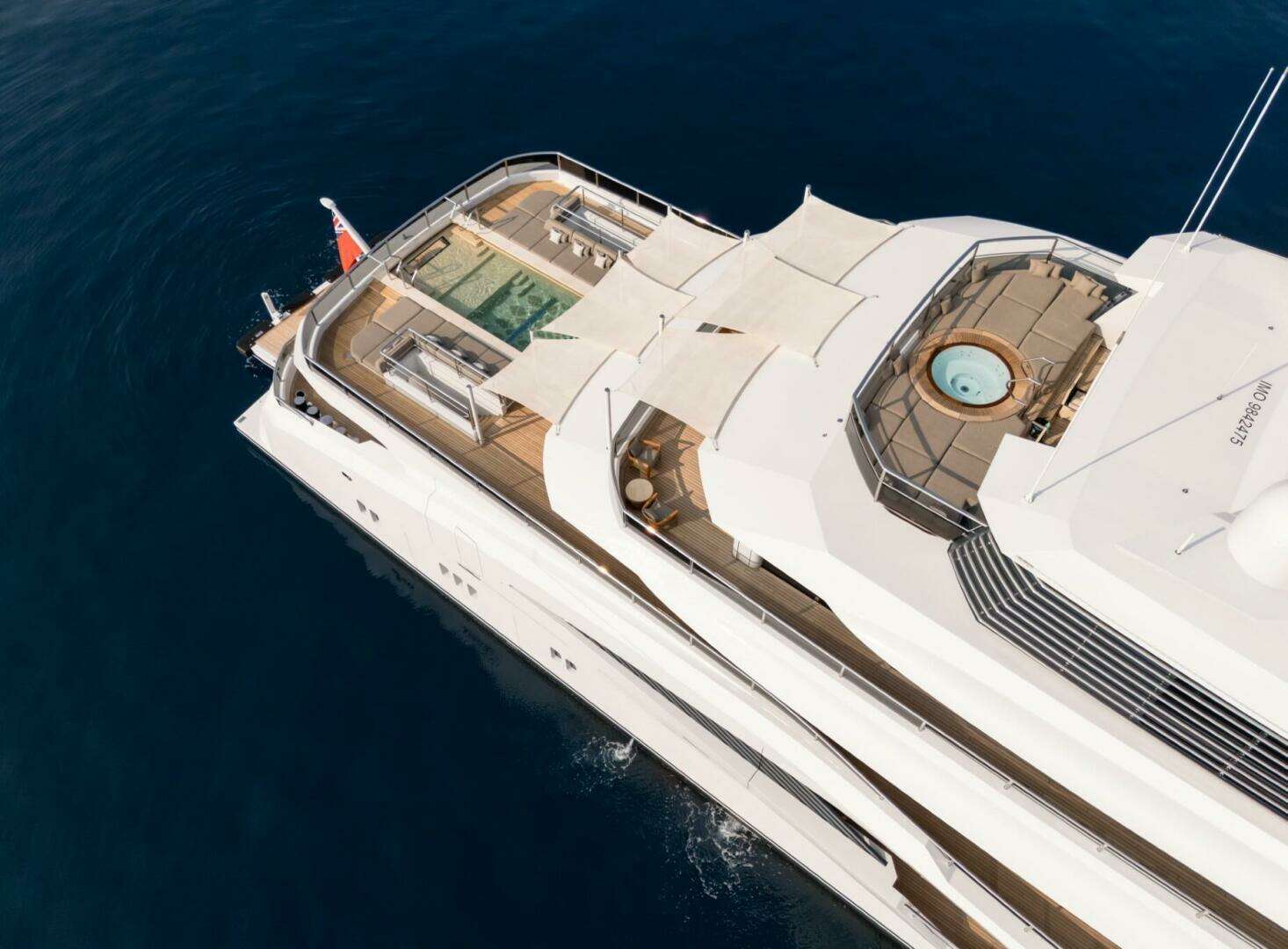

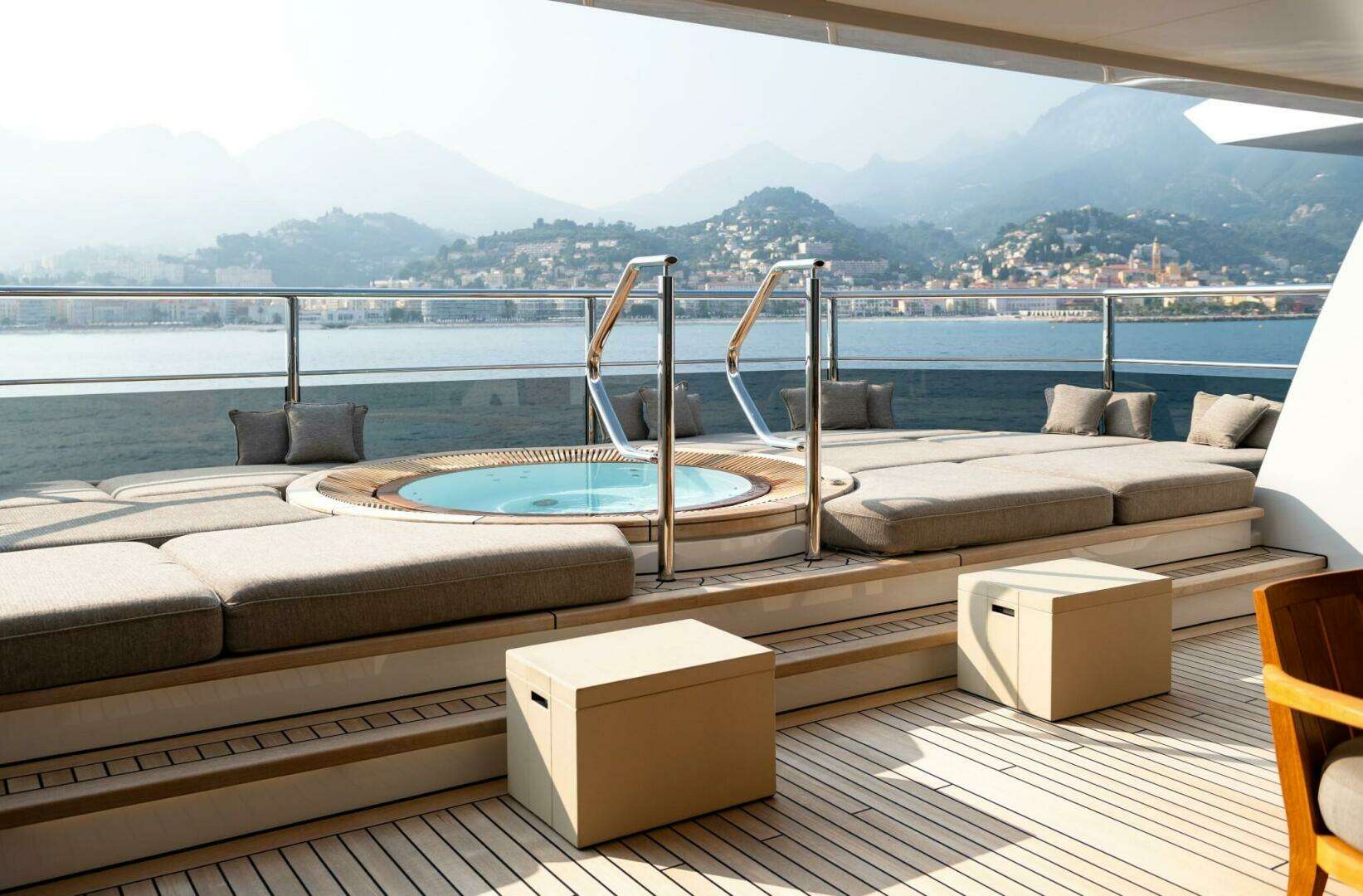

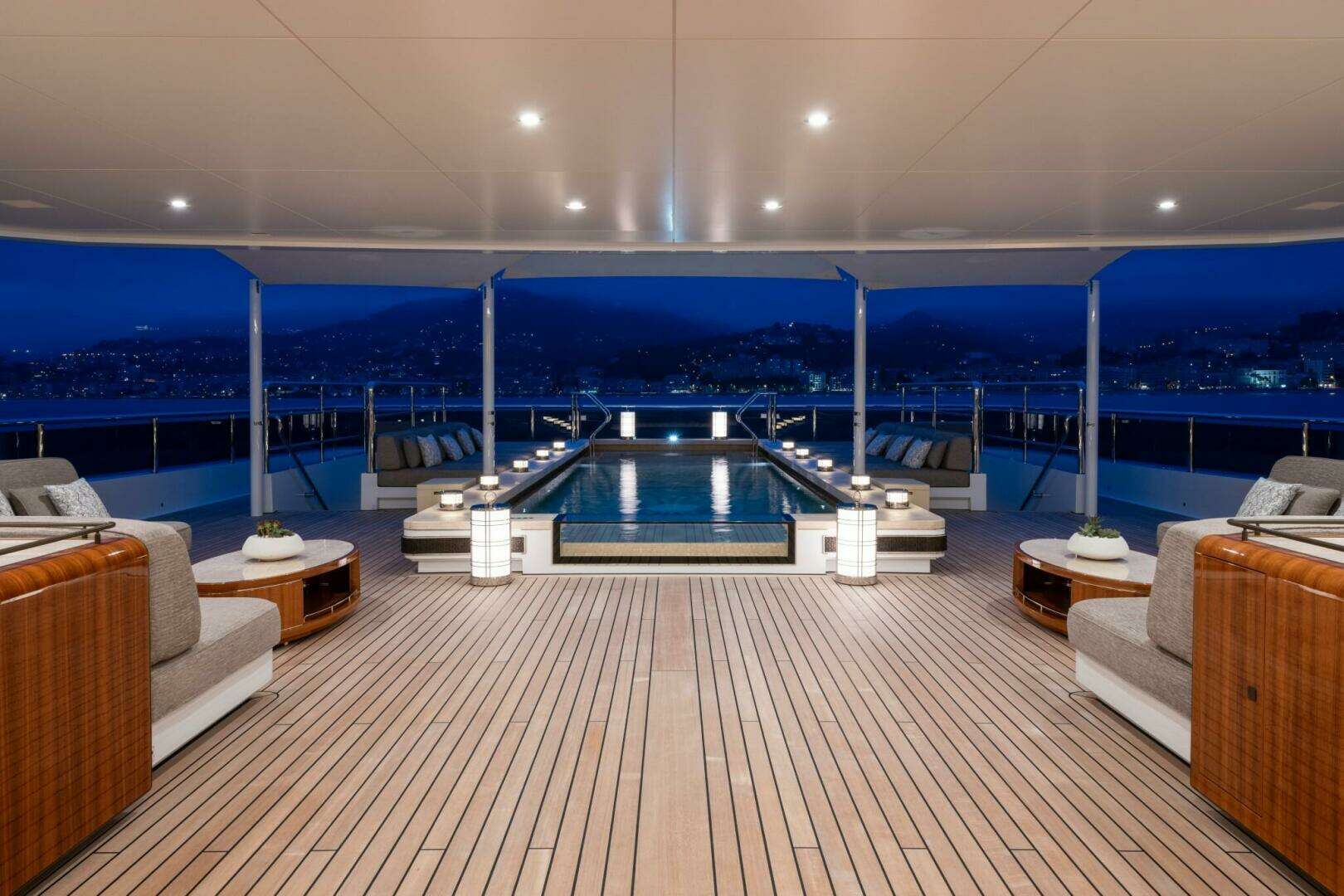

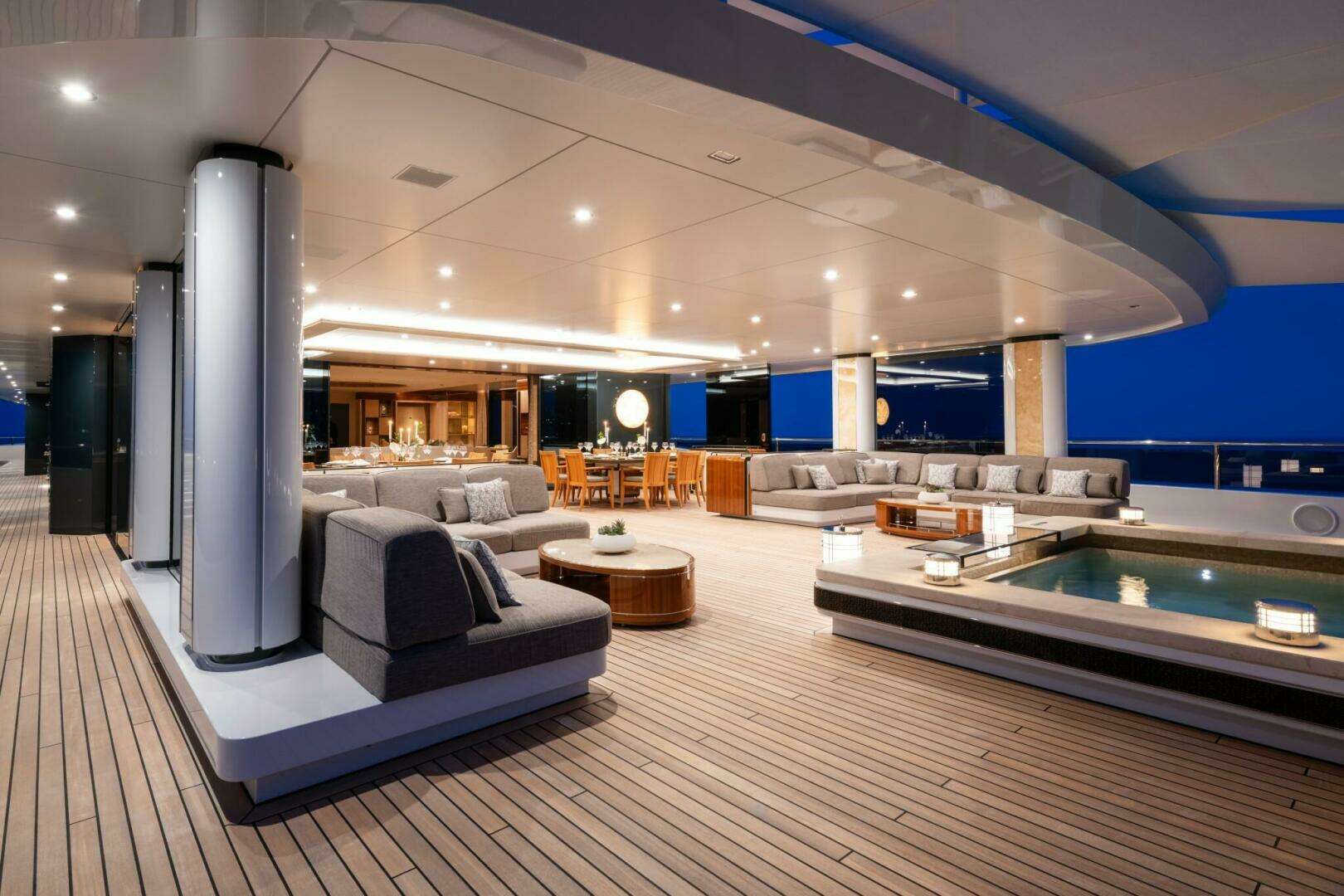

·    Dedicated Owner's deck with spa tub and full-size pool

·    Massive 2884 gross tons of volume

·    Seven guest staterooms including Master with private sun lounge

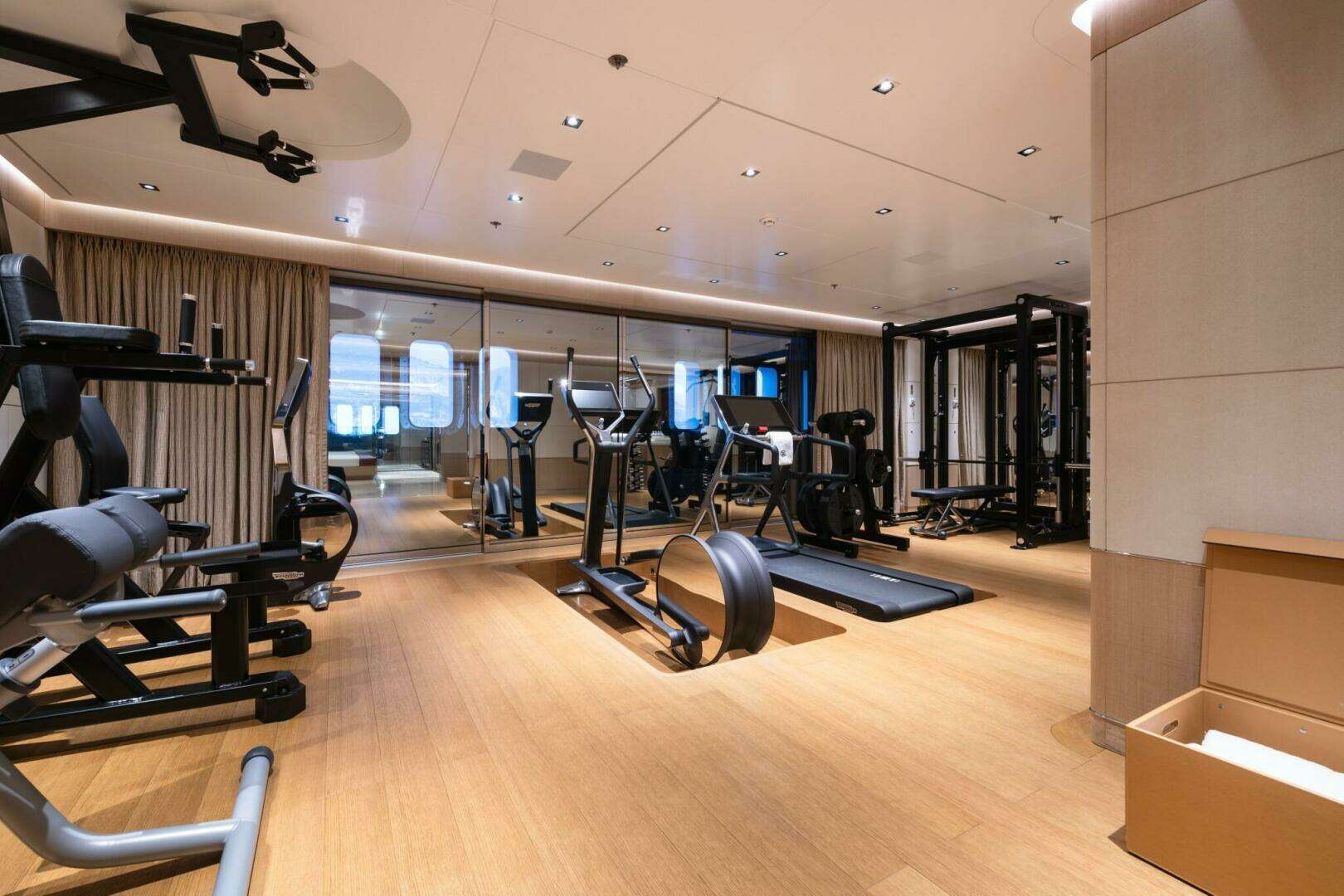

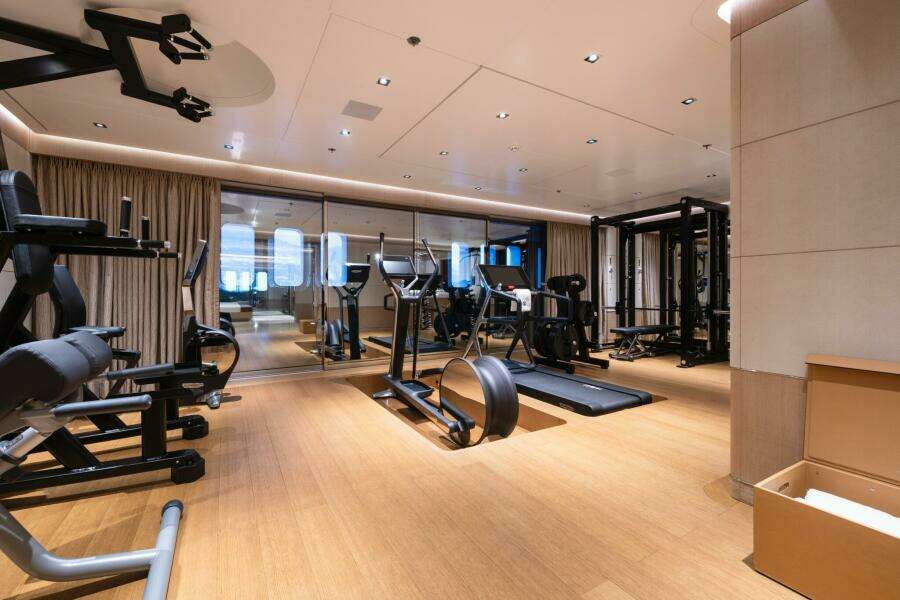

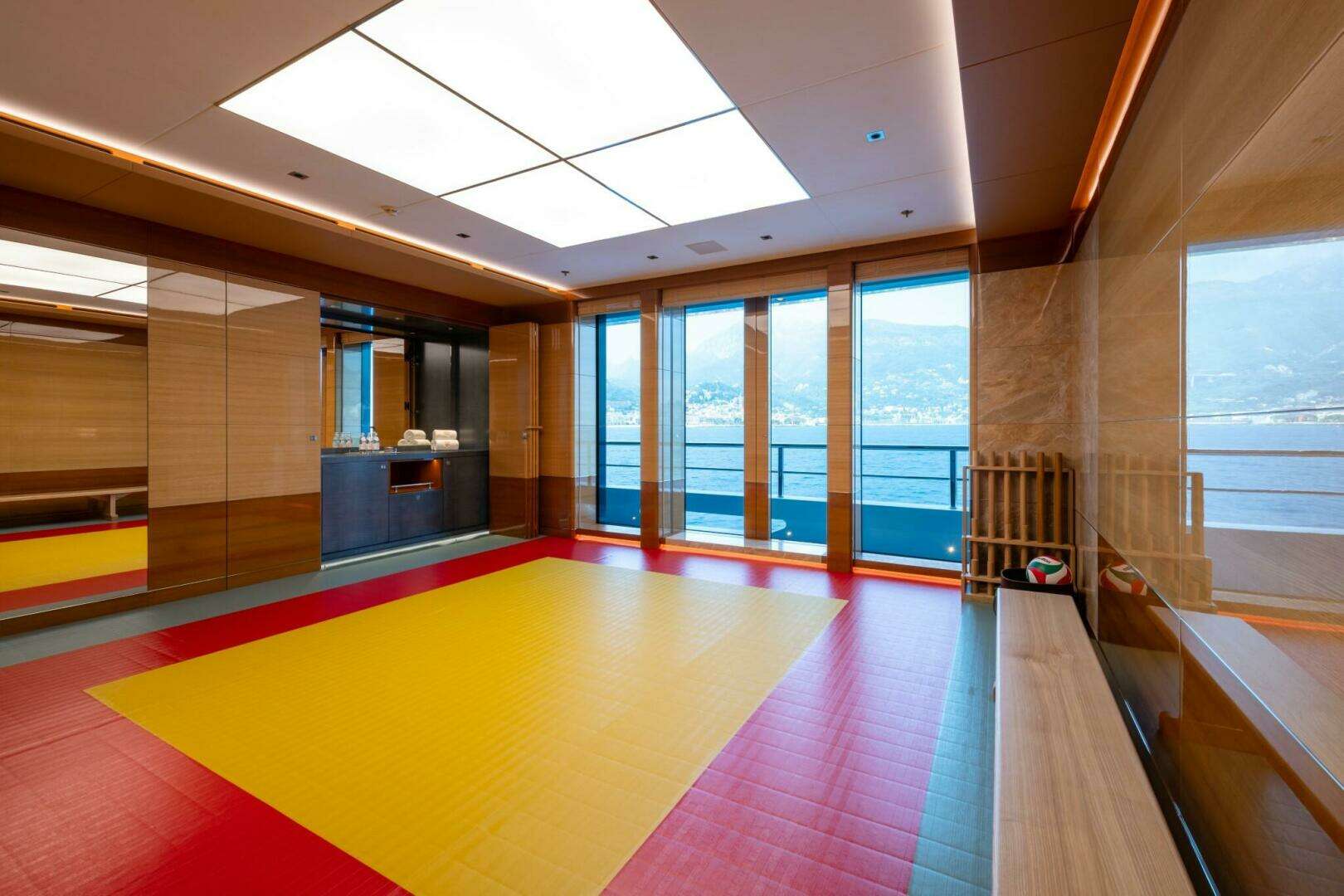

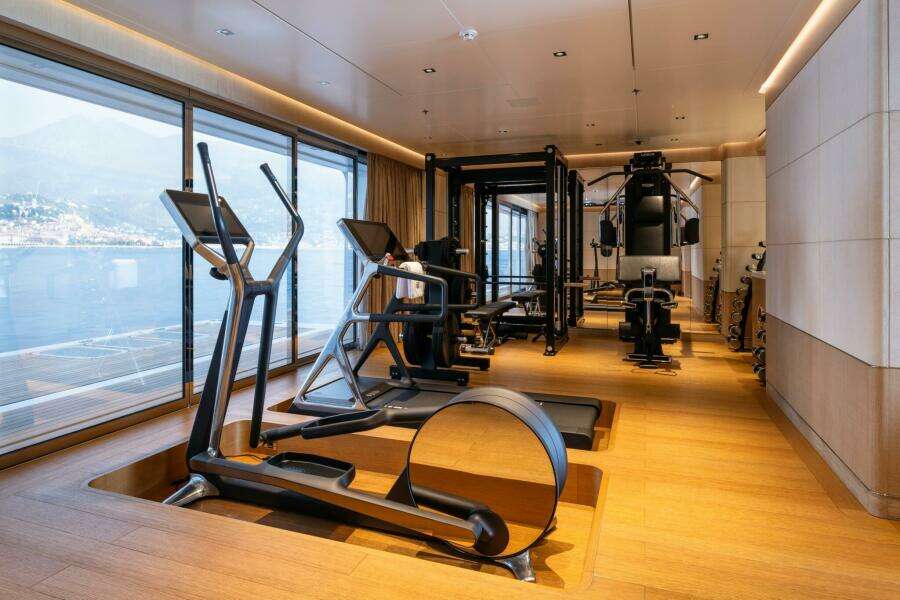

·    Gym, spa, beach club and countless other amenities, all top range

·    ‘Touch & Go’ helicopter landing area

·    Fully custom-built Amels

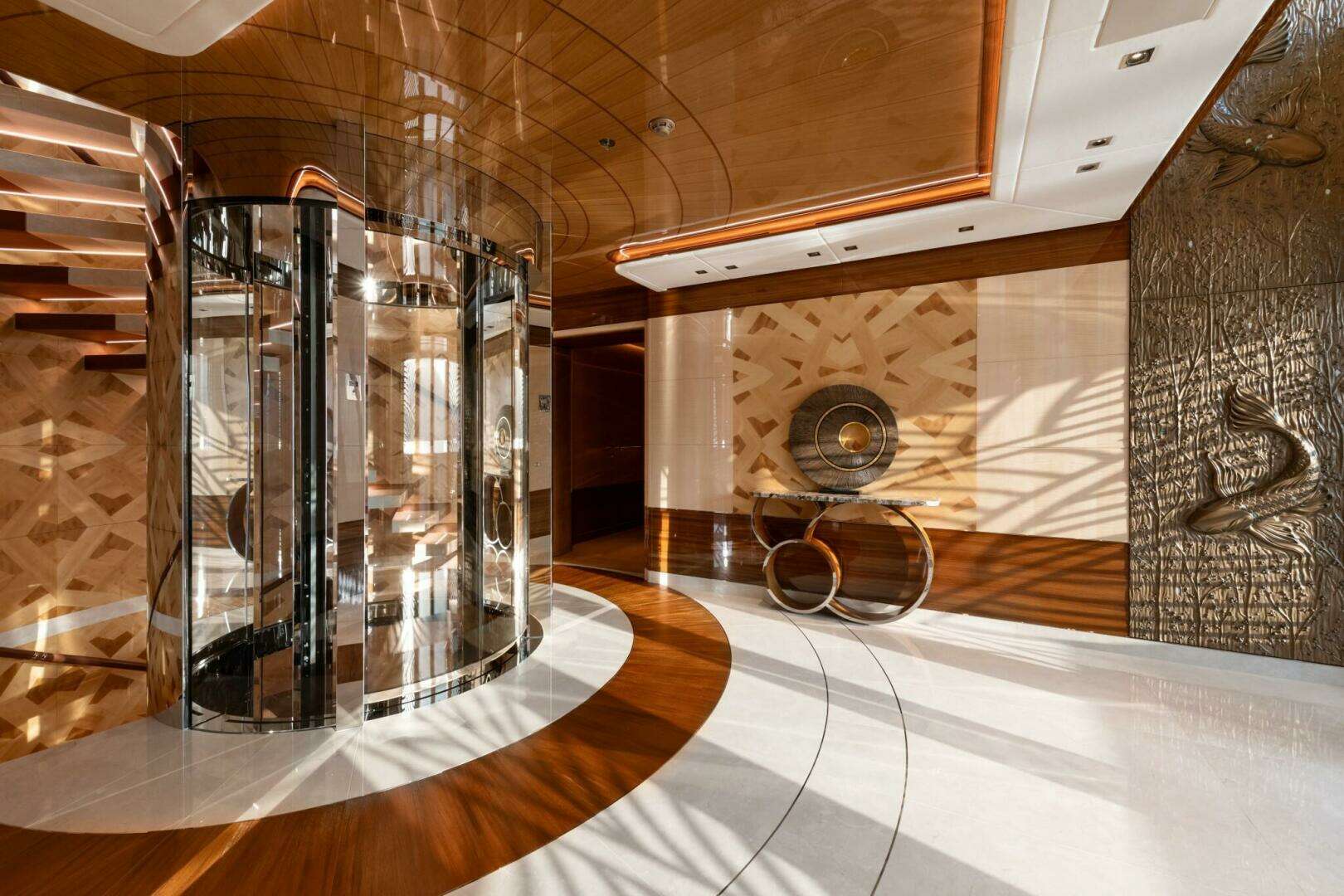

·    Elevator for 6 guests (wheelchair accessible)

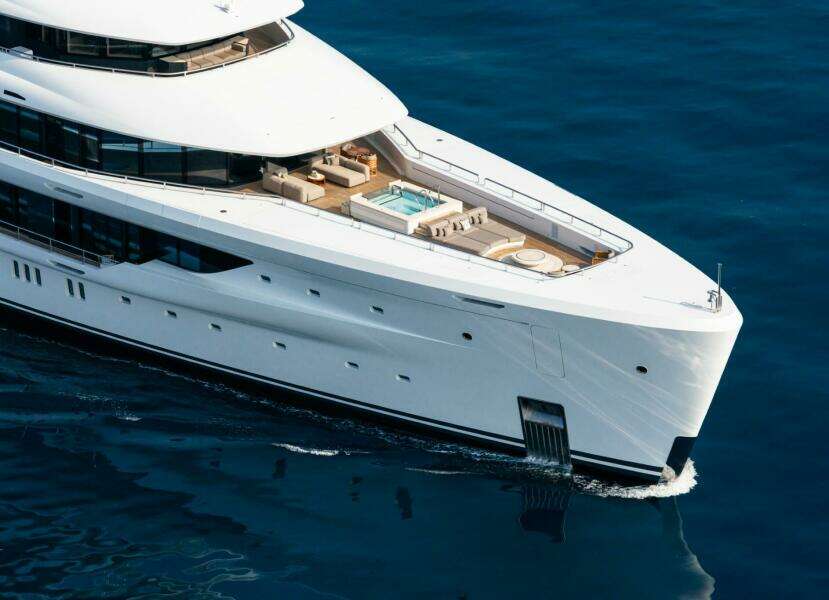

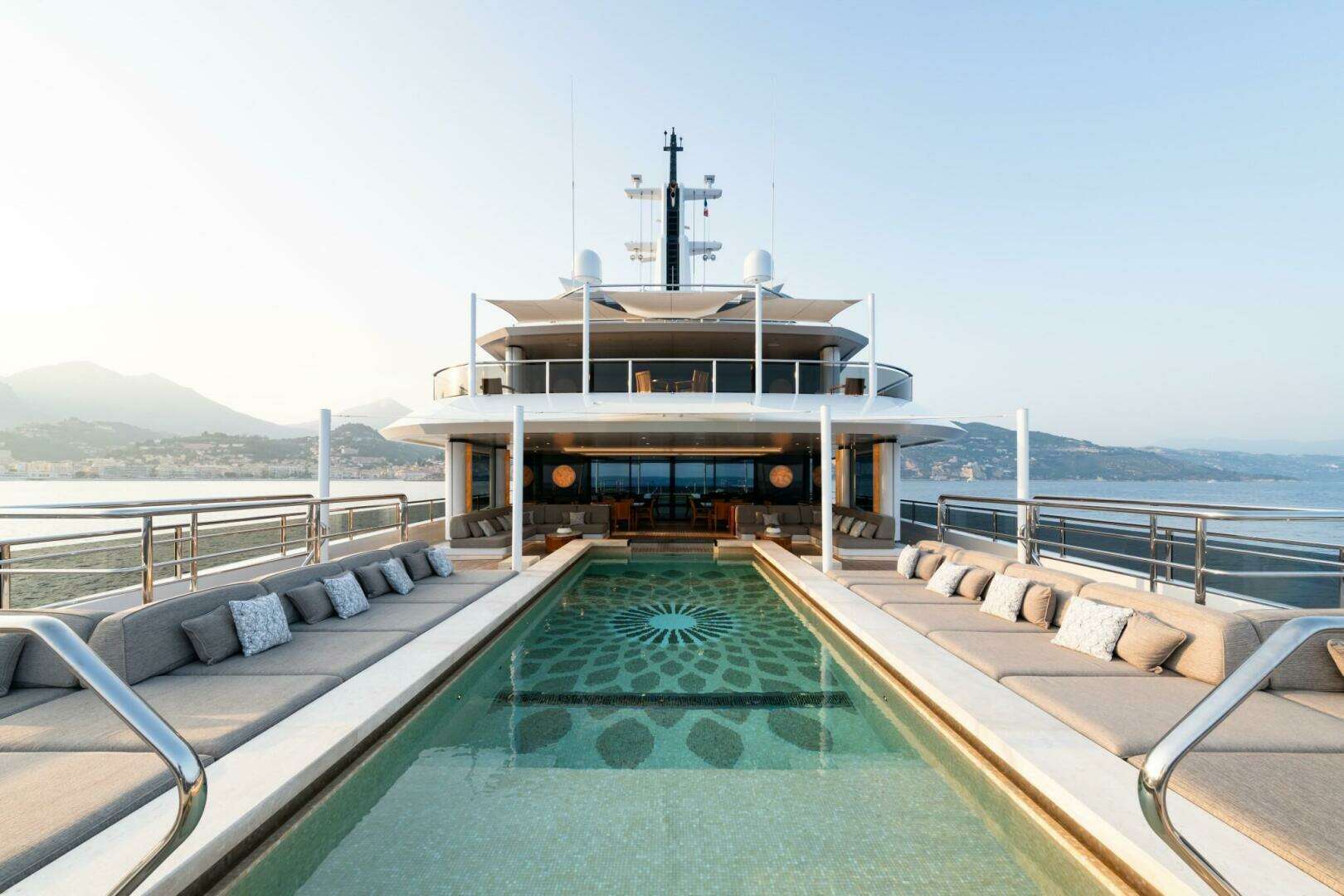

·    Main deck pool is 10m long by 3m wide, equipped with two variable-speed swimming jets

classification

Flag: Cayman Islands

Port of Registry: George Town

Classification: Member of IACS

 IACS Society: Lloyd’s Register

 Built to commercial compliance: MCA LY3

EU Tax Status: Excluding VAT

US Tax Status: Not available for sale to US Residents

Official Number:  750 741

IMO Number: 9 842 475

MMSI Number: 319 239 800

CEILING HEIGHTS

Crew Accommodation On Tank Deck: 2.06    M (6‘08”)

Crew Accommodation On Lower Deck: 2.10 M (6‘09”)

Guest Accommodation On Lower Deck: 2.20 M (7’02”)

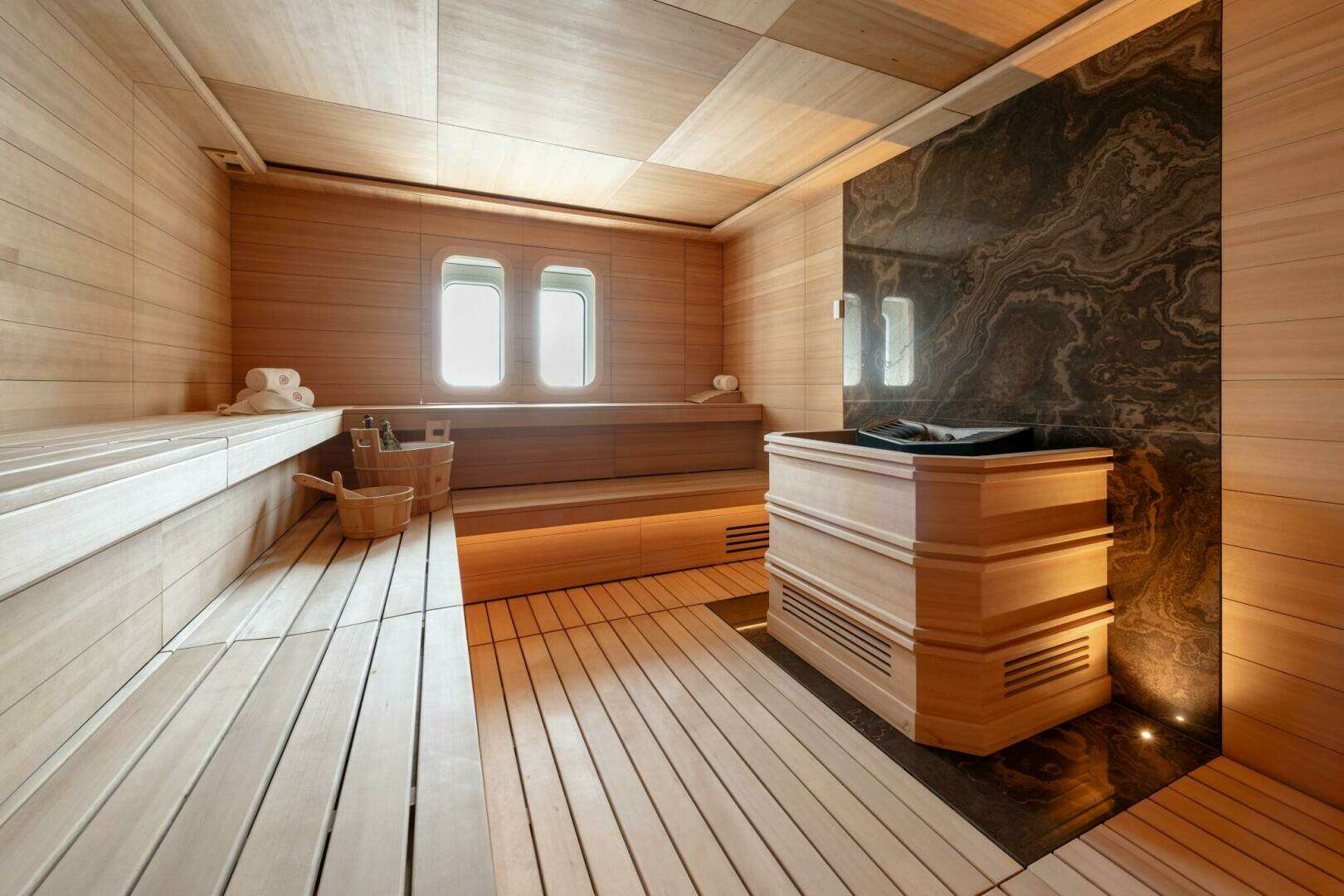

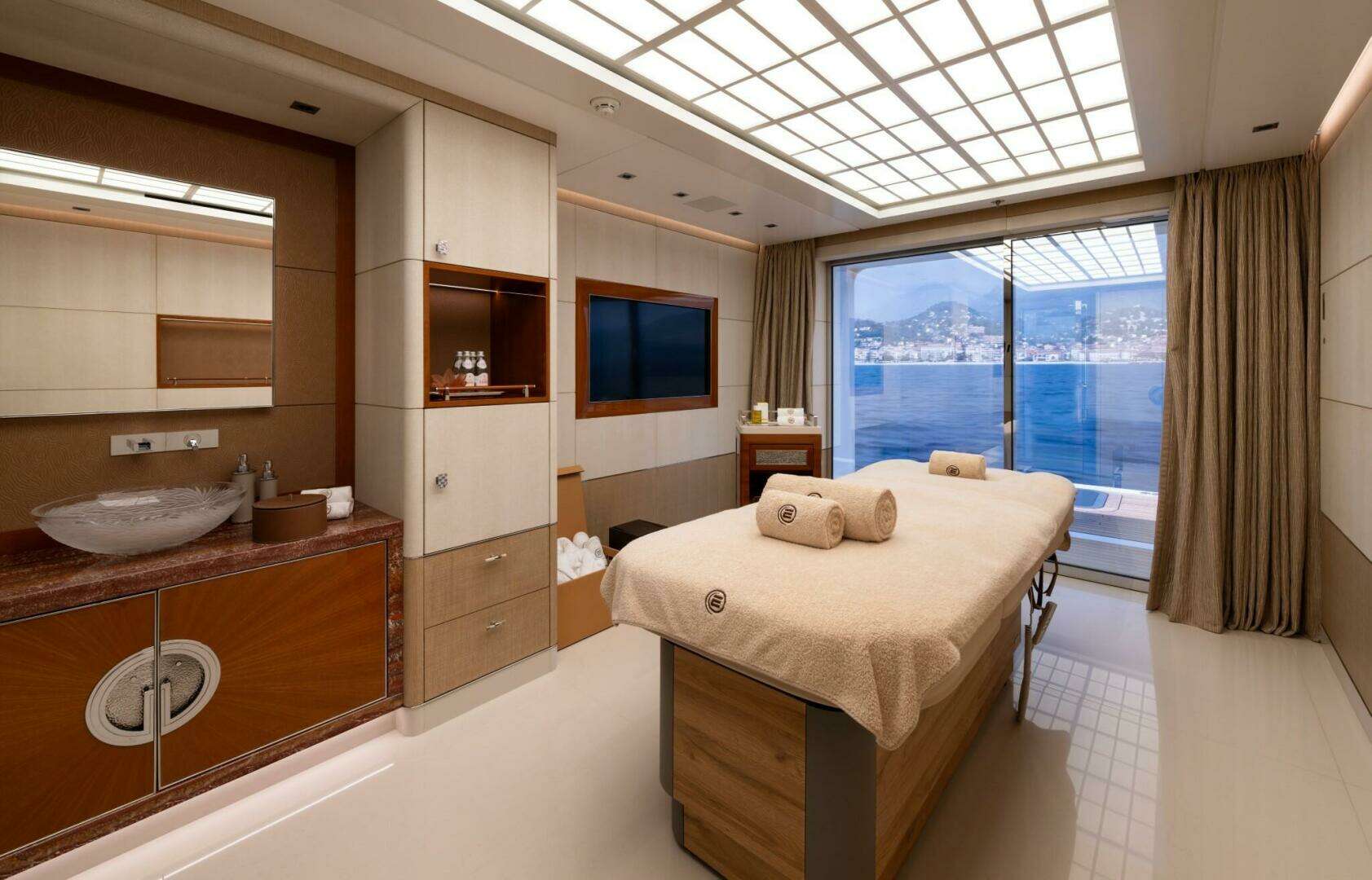

Wellness Center On Lower Deck: 2.30 M (7‘05”)

Crew Accommodation On Main Deck: 2.10 M (6‘09”)

Owners And Guest Accommodation On Main Deck: 2.40 M (7‘09”)

Owners And Guest Accommodation On Upper Deck: 2.40 M (7‘09”)

Owners Foyer On Upper Deck: 2.30 M (7‘05”)

Guest Accommodation On Bridge Deck: 2.30 M (7‘05”)

Captain’s Cabin, Captain’s Bathroom, Ships Office:     2.30 M (7‘05”)

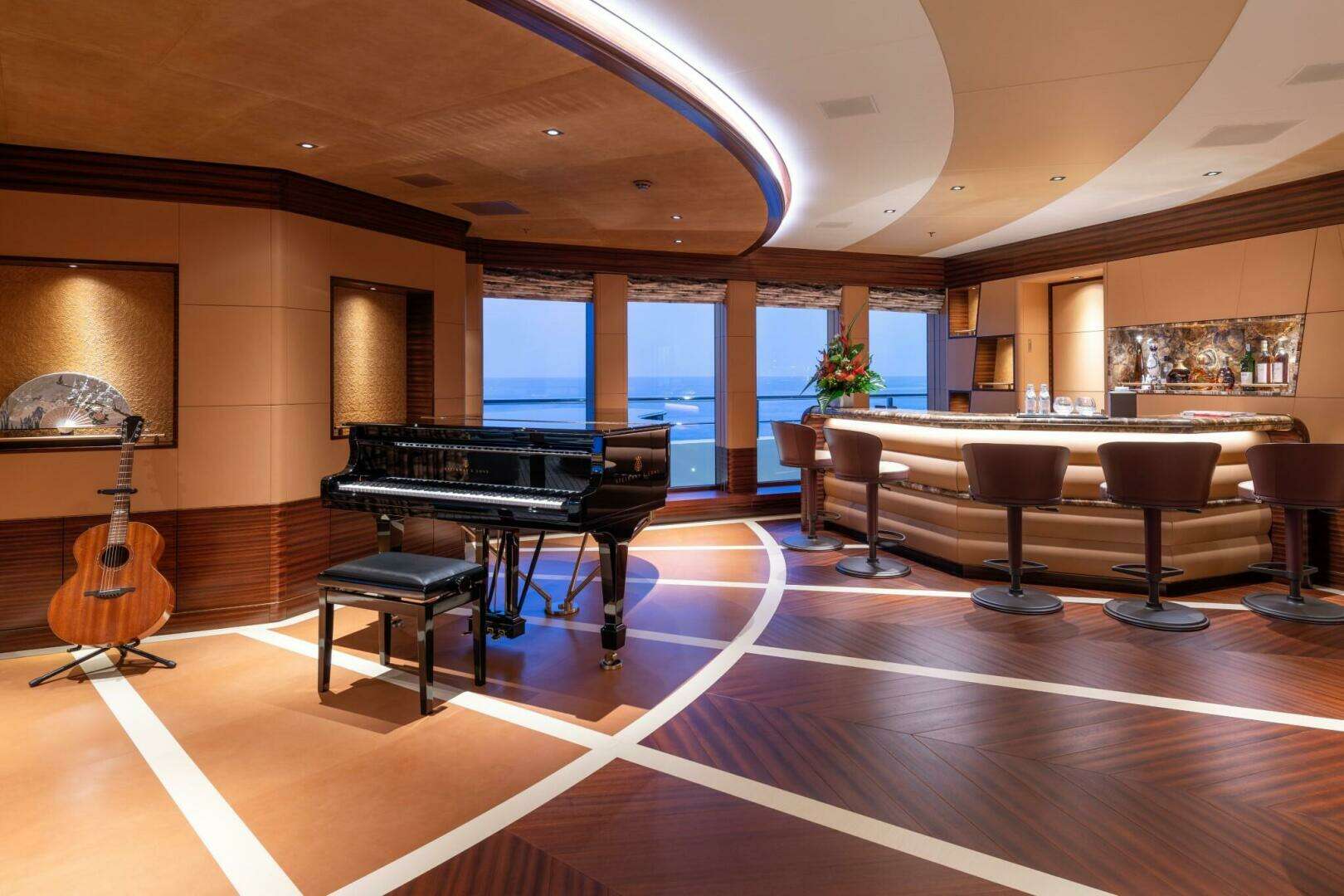

Music Lounge On Bridge Deck: 2.40 M (7’09”)

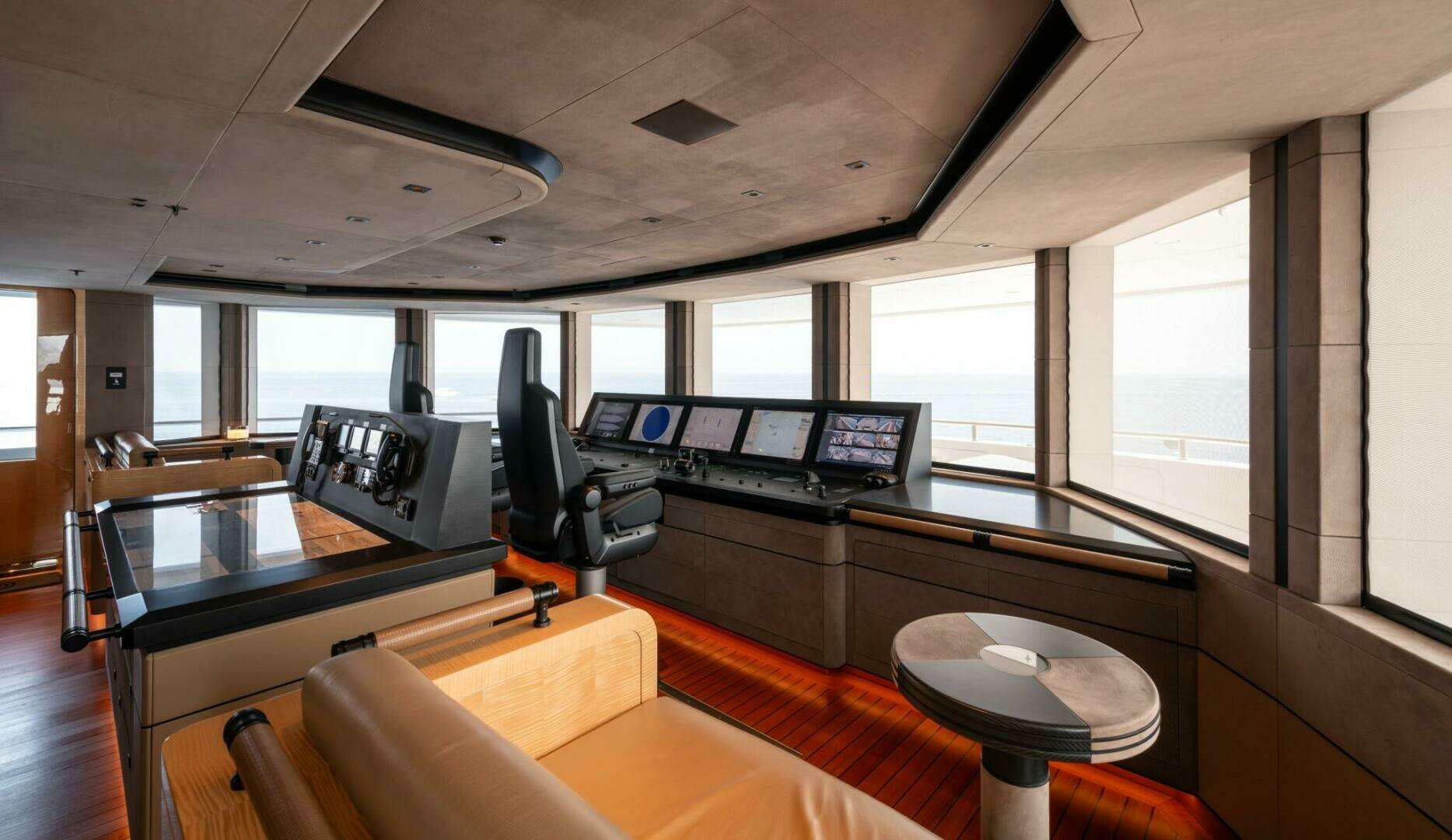

Wheelhouse: 2.30 M (7’05”)

ACCOMMODATIONS

LOWER DECK:

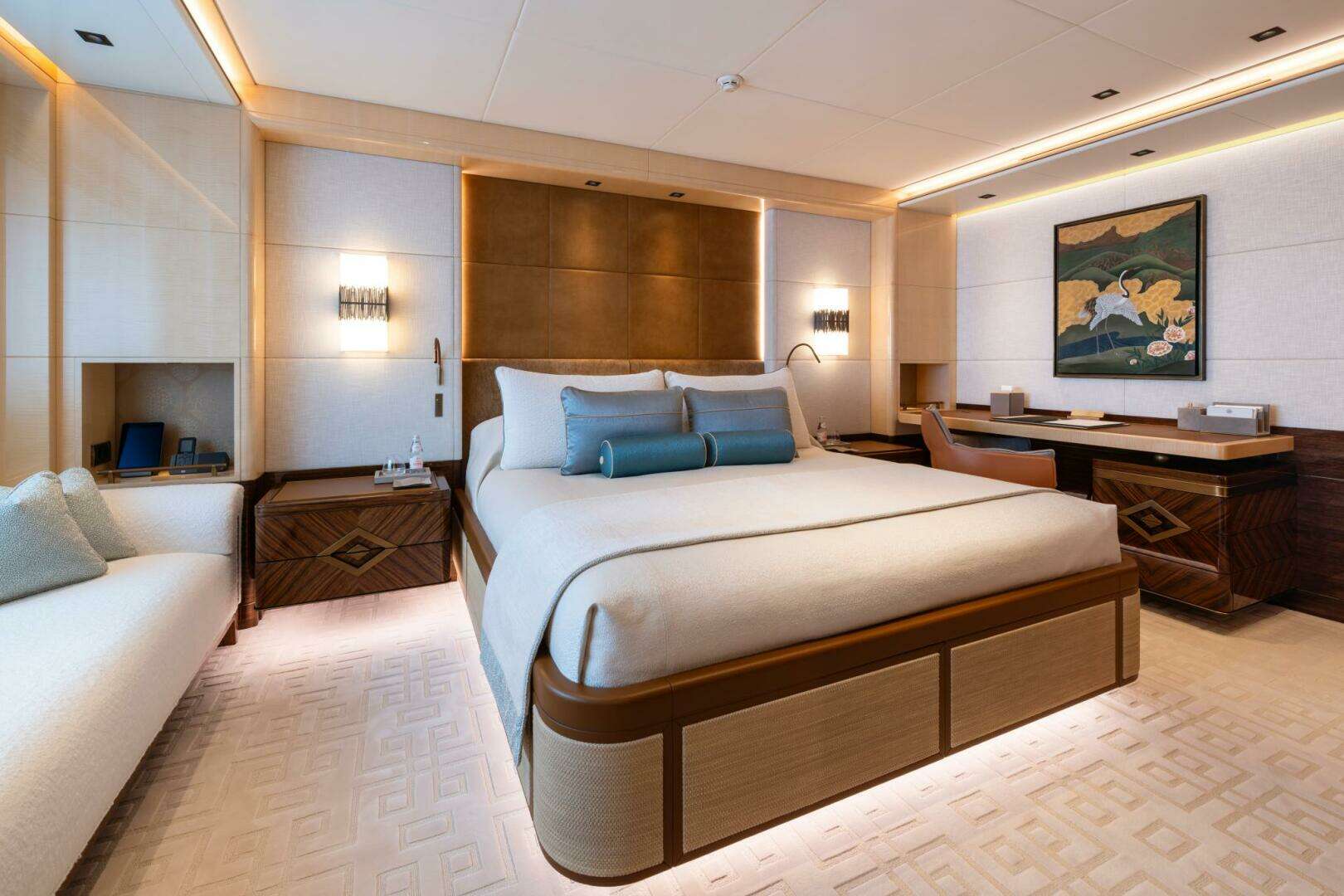

4 x double guest staterooms on lower deck with en suite bathrooms

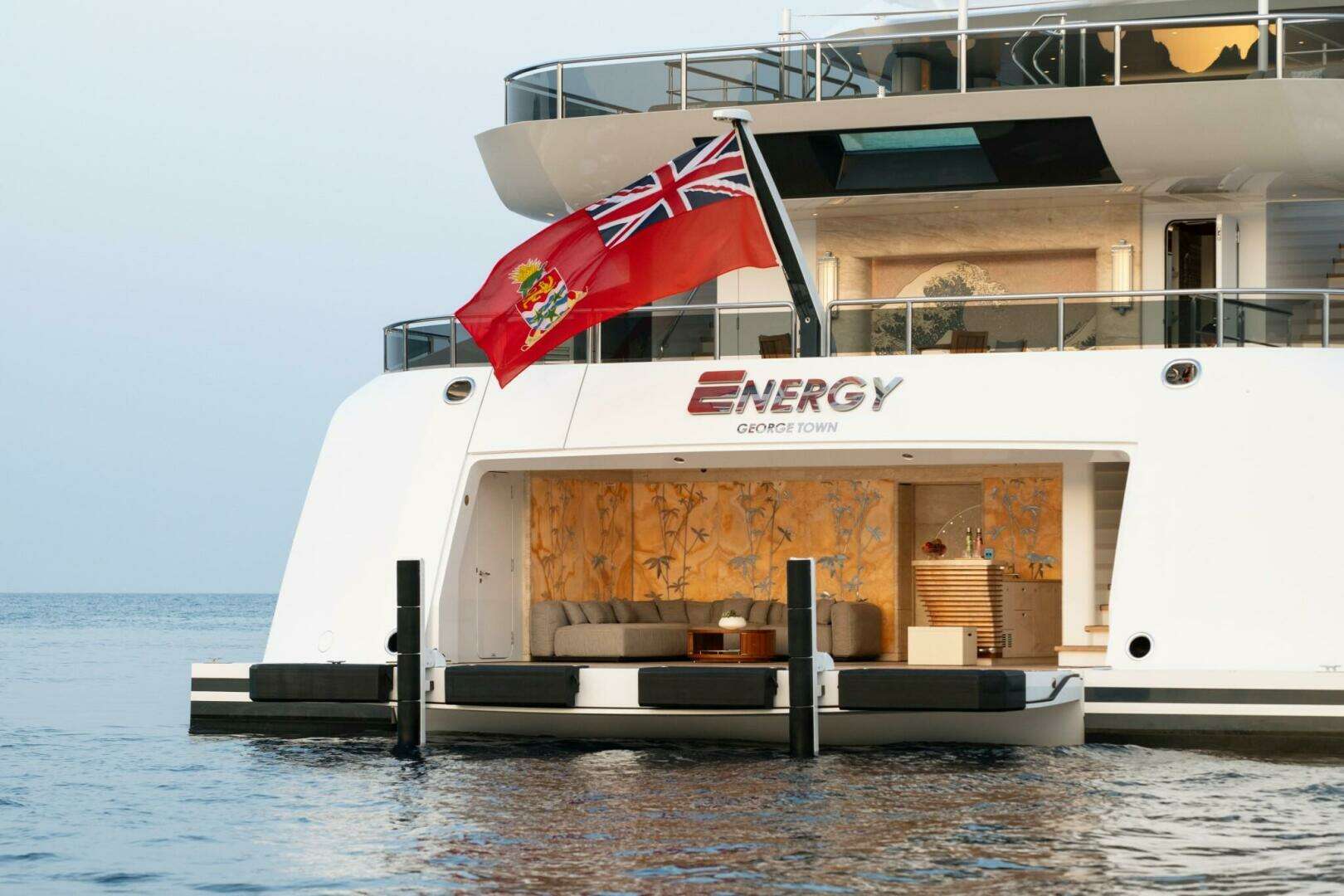

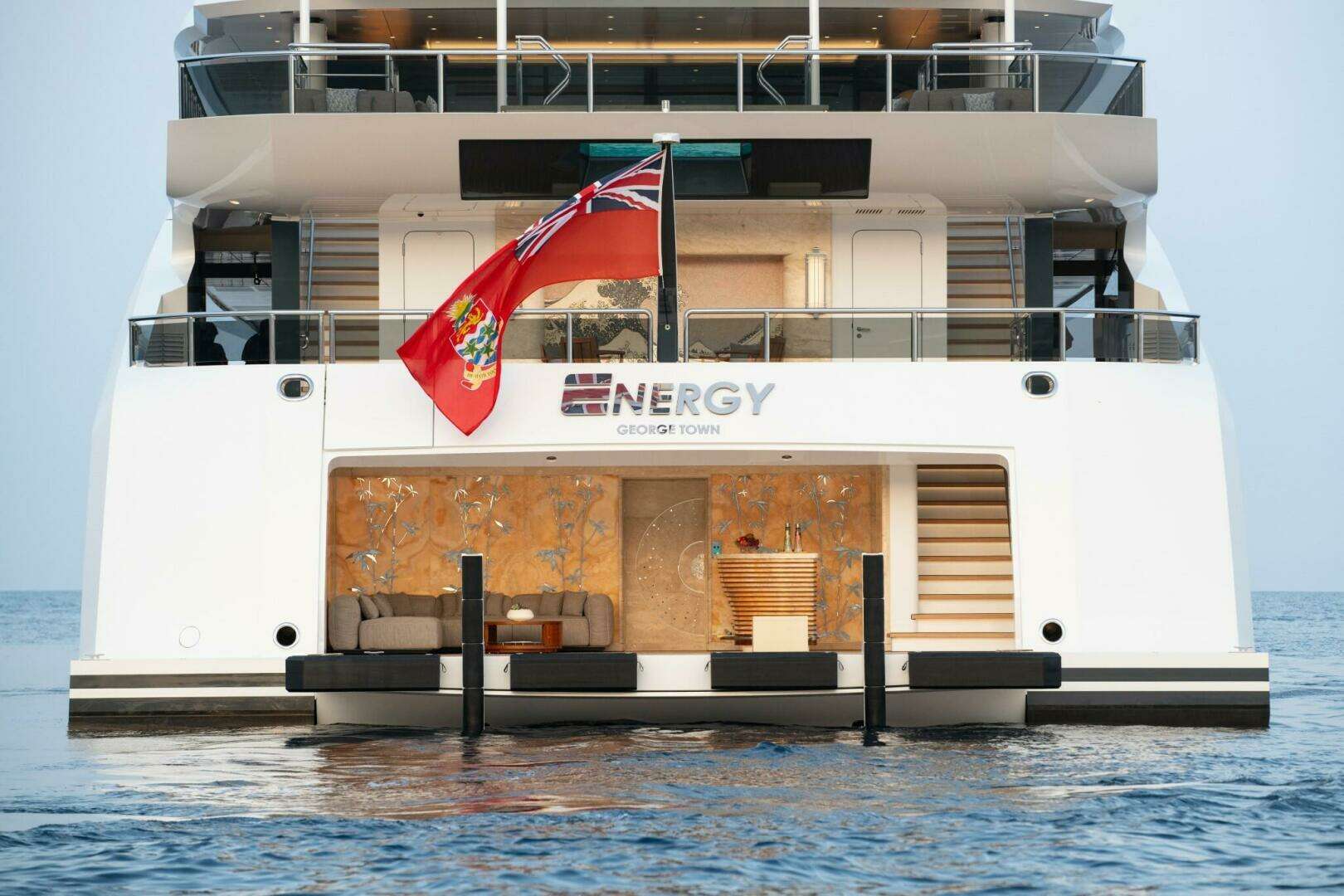

Whether your guests arrive at the swim platform or the sea-level lobby, all four lower deck guest staterooms have step-free access past the beauty salon to the beach club and wellness spa aft. There is a huge sea terrace outside the gym and massage room on port side. Sauna and hammam are located on starboard side. The relaxation room between the sauna and the hammam offers another sea terrace.

MAIN DECK:

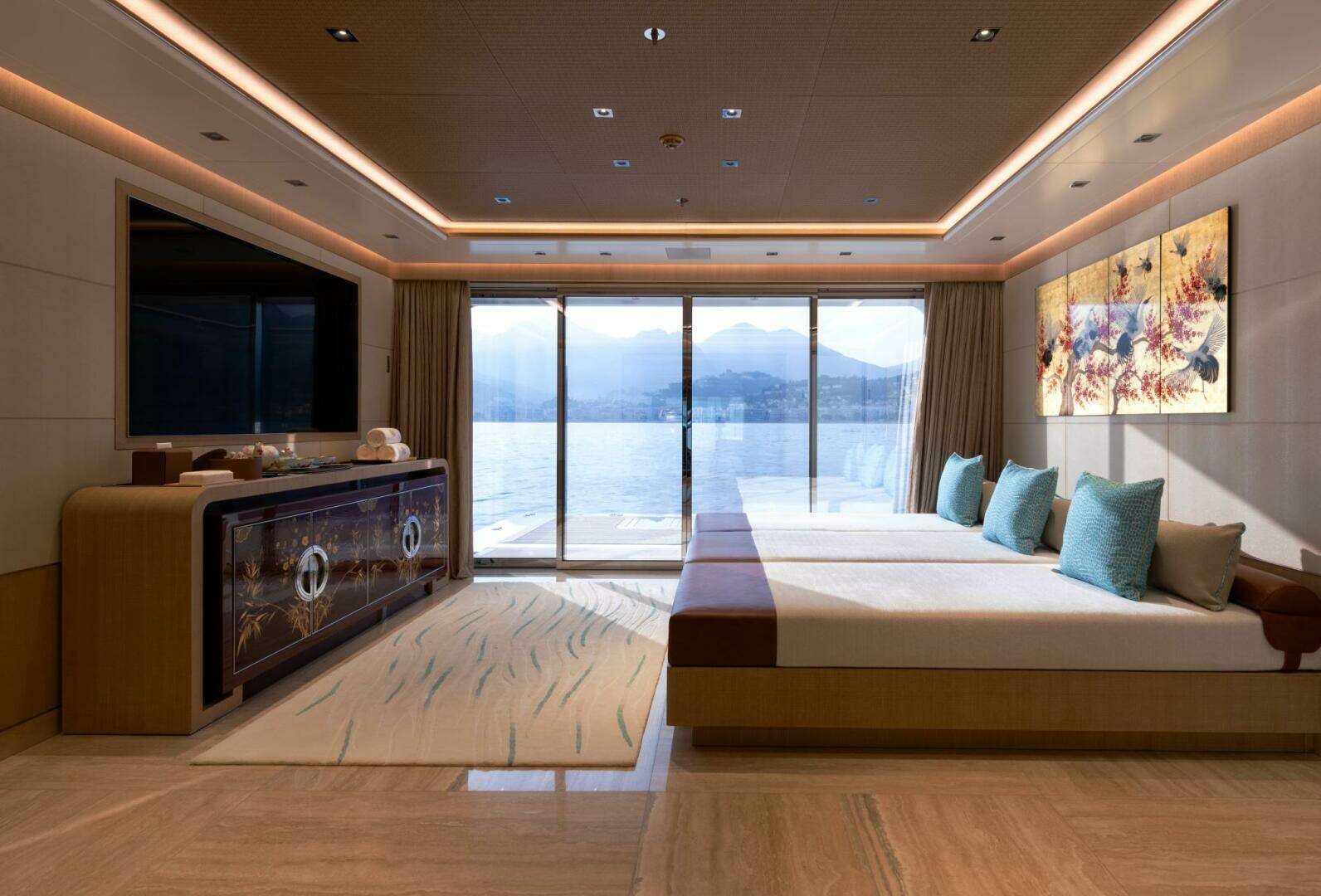

2 x VIP staterooms on main deck with en suite bathrooms and queen size beds.

The ocean connection extends to both VIP staterooms, each of which has a private balcony at the forward end of extra wide sidedecks. Moving aft, inside or out, you pass your boardroom-style office, martial arts room, lobby with lower- to bridge-deck glass elevator, formal dining room, two-tender boat deck and intimate waterfall lounge. Both VIP staterooms have full-height sliding glass walls opening onto a private balcony.

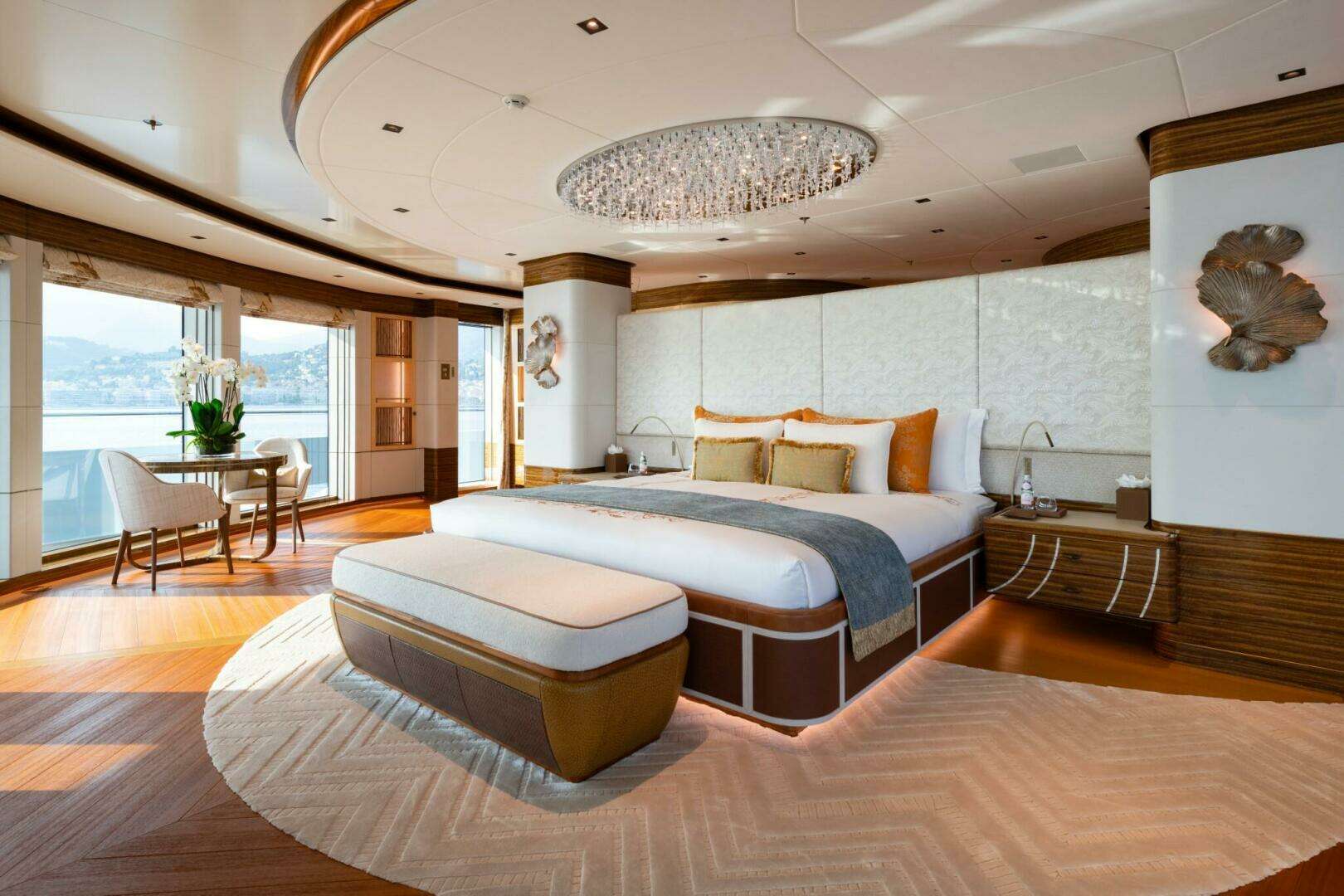

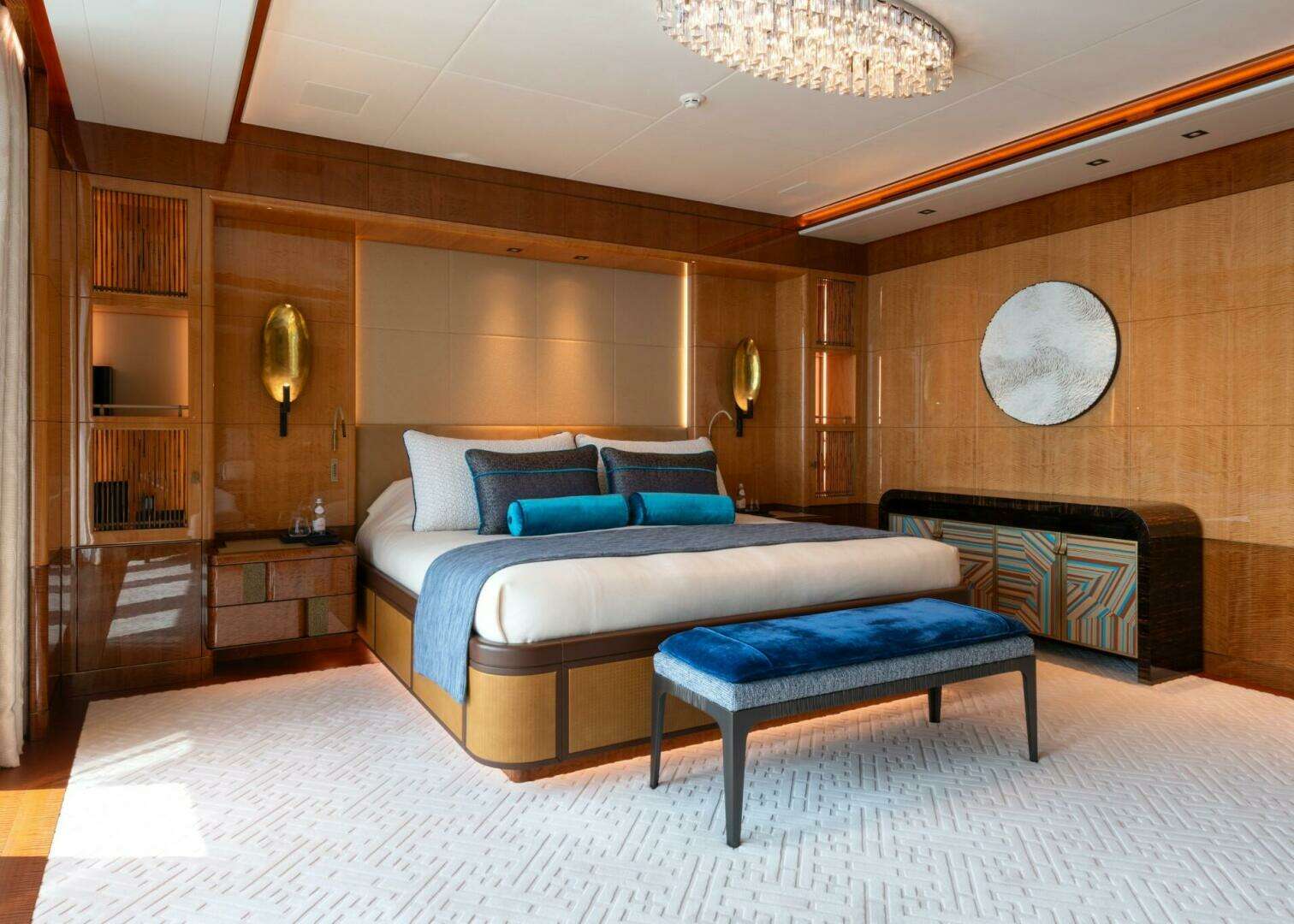

OWNER’S STATEROOM:

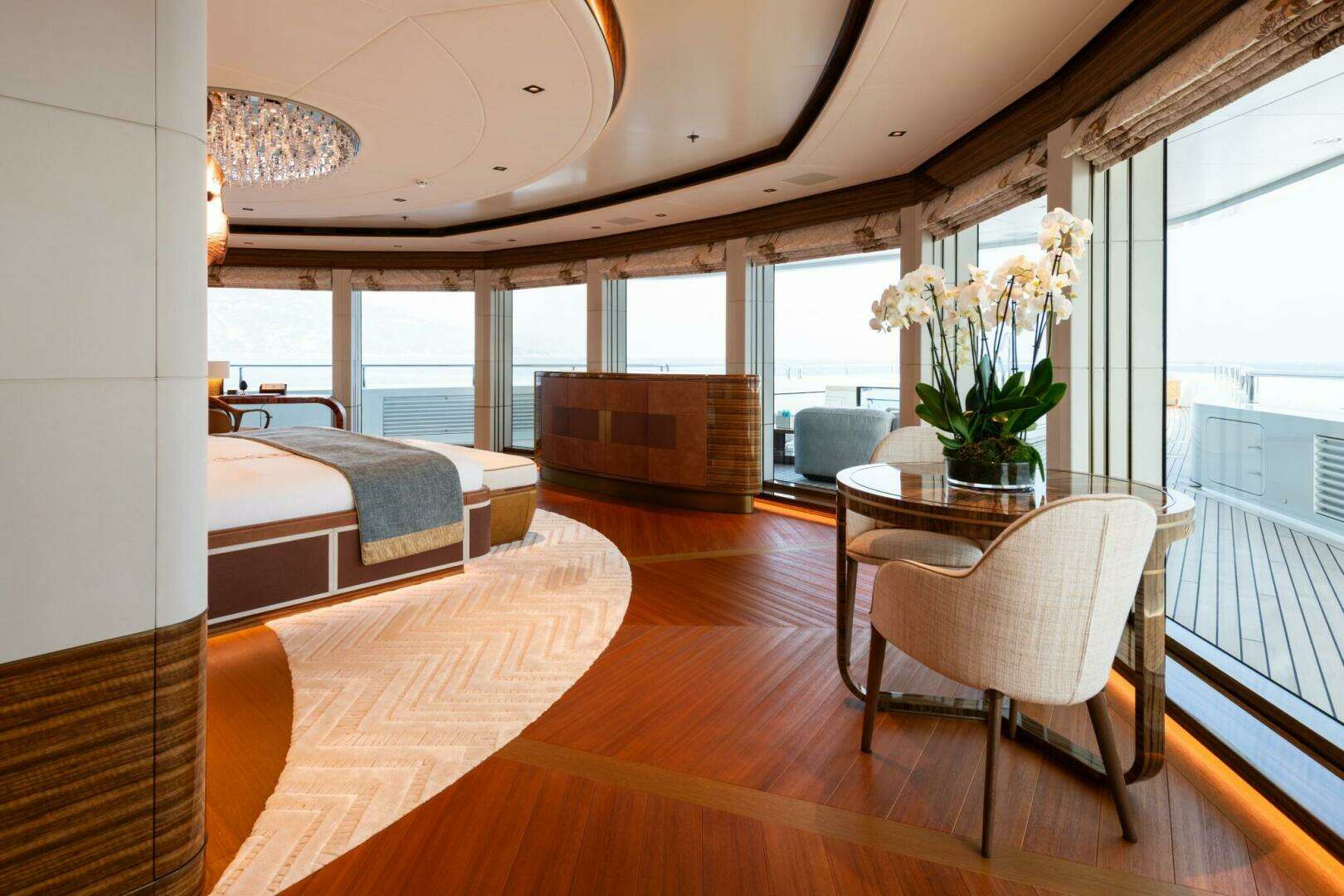

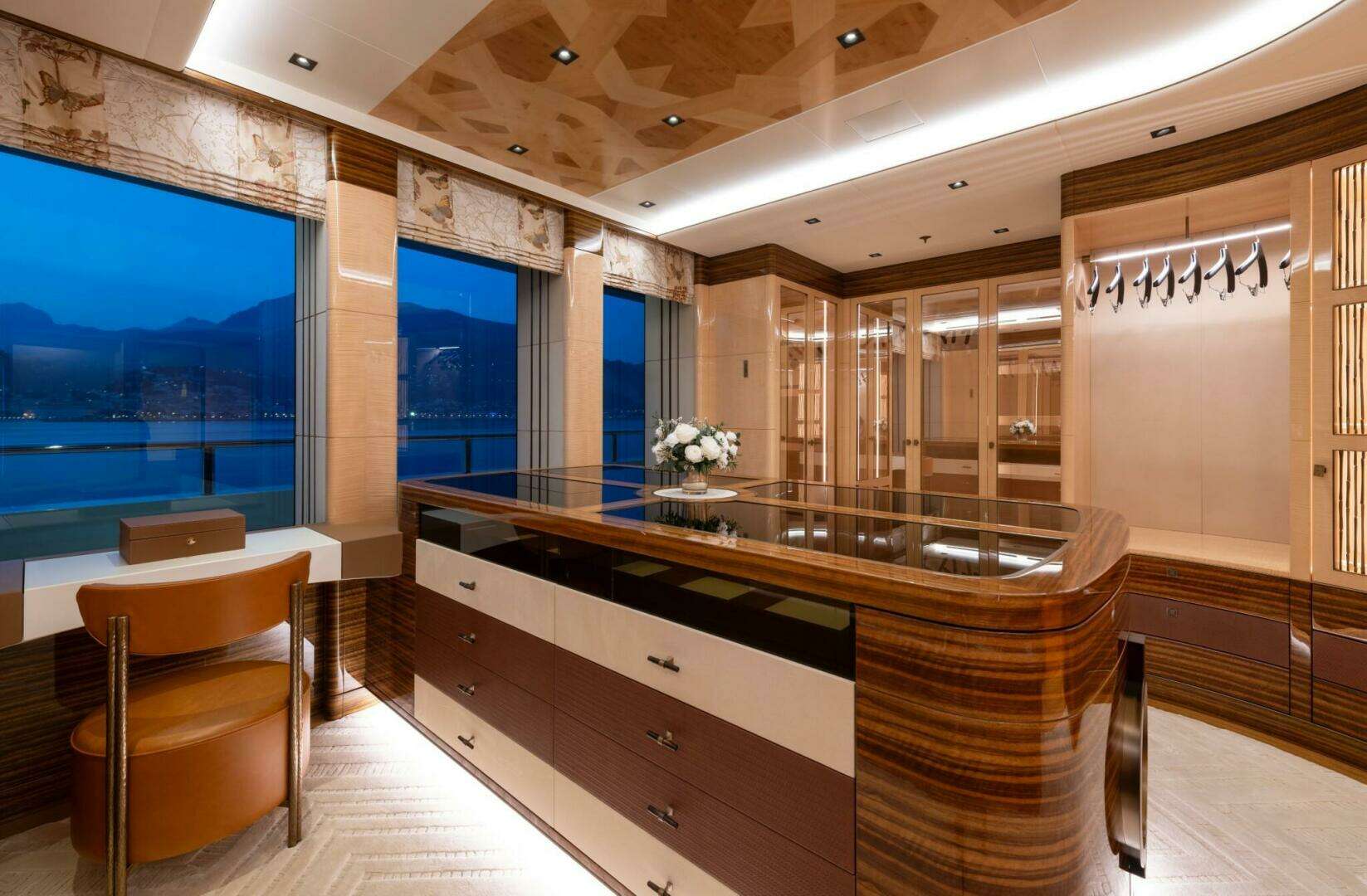

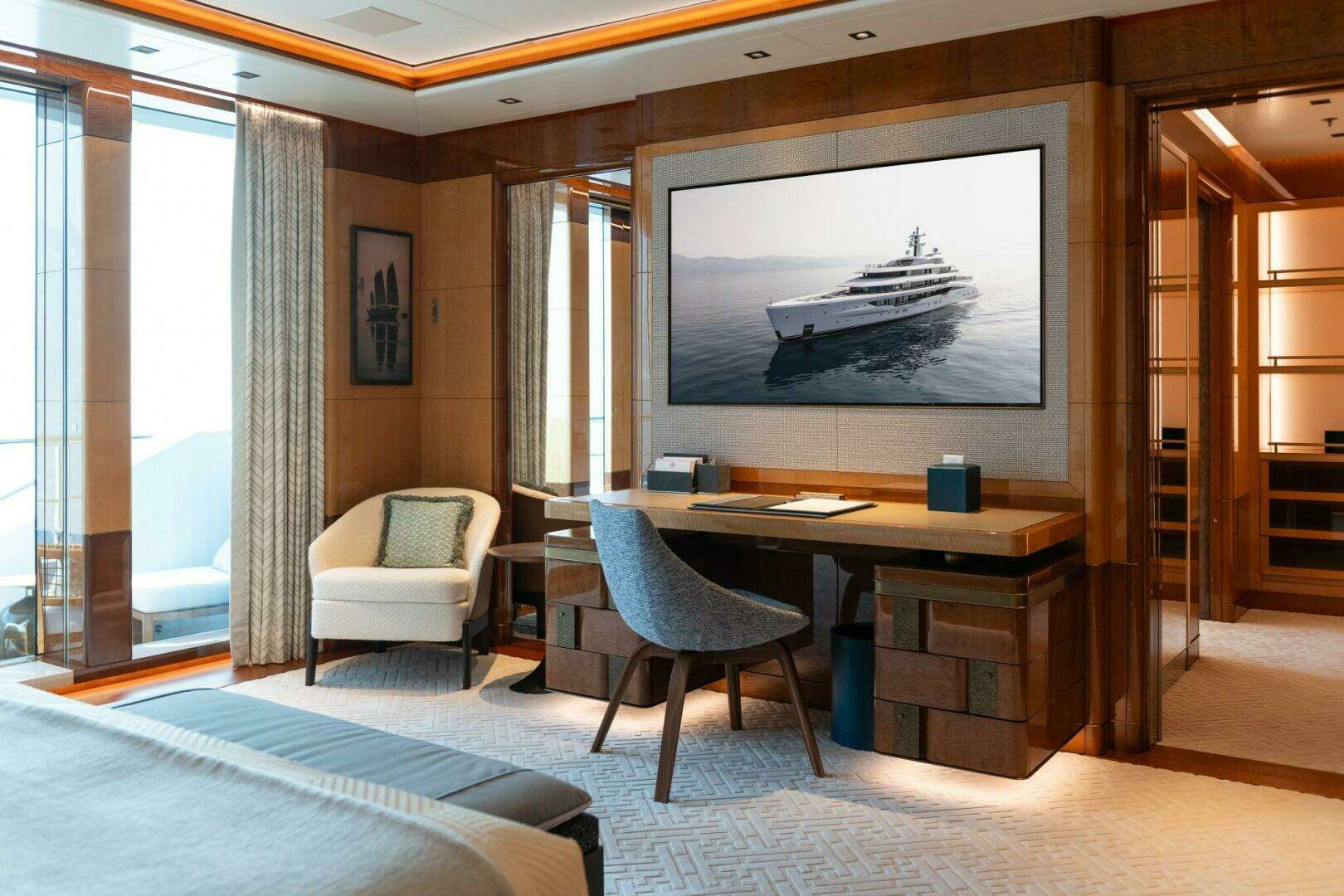

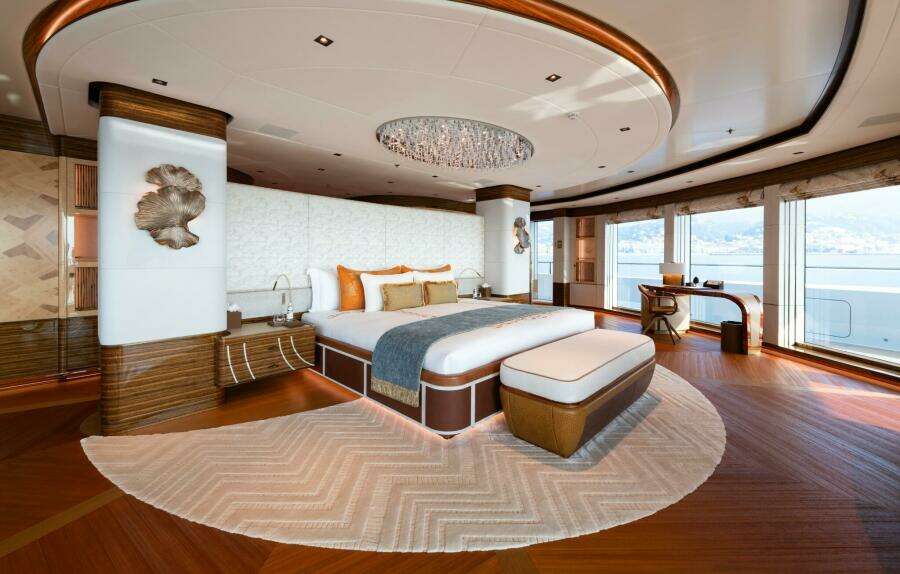

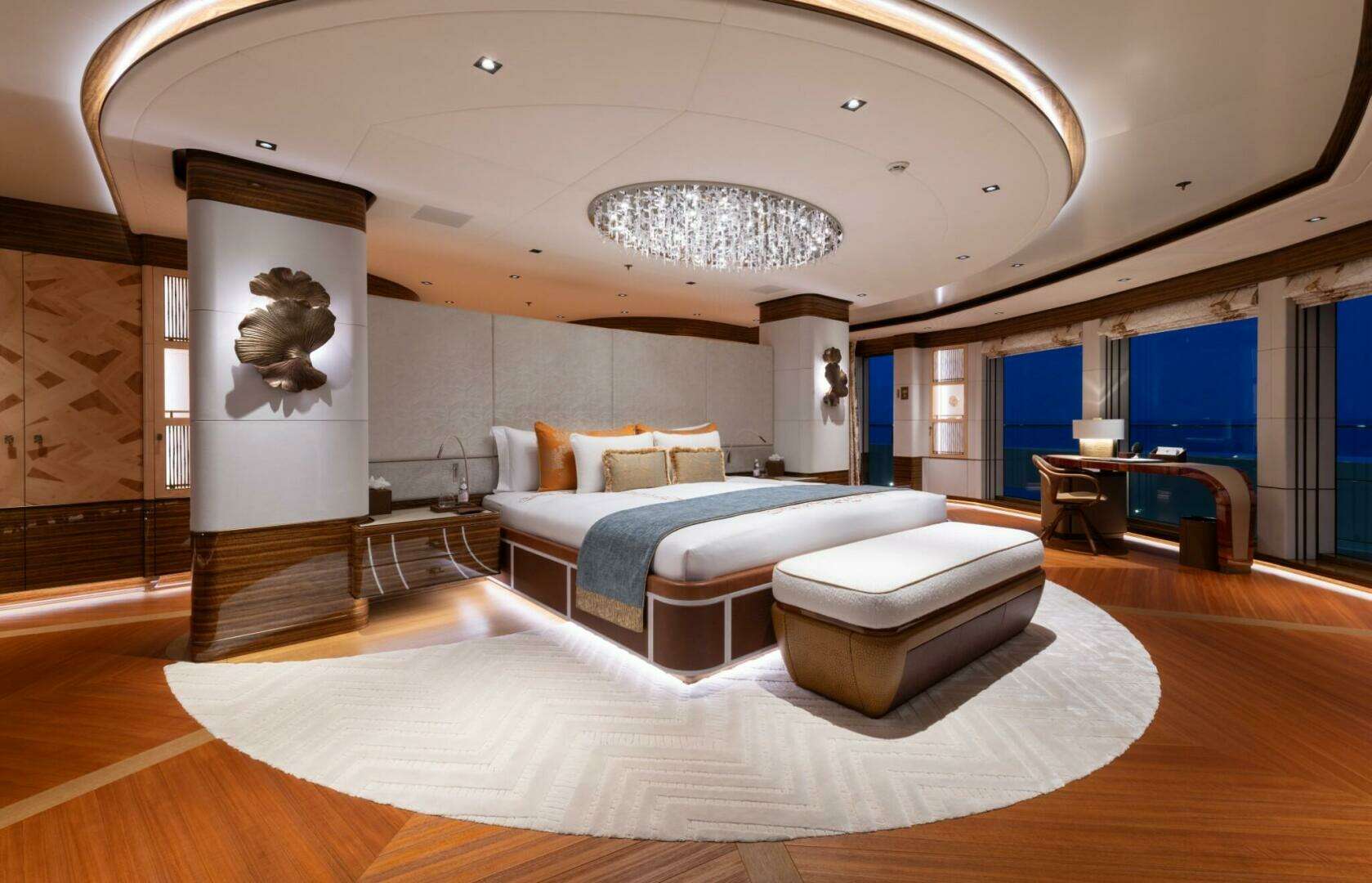

Owner’s suite on upper deck with large dressing room and en suite bathroom with king size bed.

Through full-height glass, the Owner’s suite overlooks, and has direct access to, a private foredeck terrace. With walkaround sidedecks you pass your private saloon and bar, which opens on three sides to let in the sound and scent of the ocean, to open-air dining for up to 16 guests and one of the largest pools on a yacht.

CREW ACCOMODATION:

17 cabins for 27 crew plus 1 hospital/staff cabin

CONSTRUCTION

         Hull Material: Steel

Superstructure Material: Aluminium

Motor Hull Sub Type: Flybridge

Number of Decks: 6

CAPACITIES

Gross Tonnage: 2,884

Net Tonnage: 865

Displacement Tons: 2,407

Fuel Capacity: 265,200 Litres (70,058 Gallons)

Fresh Water Capacity: 75,000 Litres (19,813 Gallons)

Water Makers: 72,000 Litres (19,020 Gallons)

Grey Water: 38,000 Litres (10,040 Gallons)

Black Water: 17,800 Litres (4,702 Gallons)

Lube Oil: 7,900 Litres (2,087 Gallons)

Waste Oil: 6,900 Litres (1,822 Gallons)

                                                              Speed         RPM             Total Fuel Cons ME’s (litres/hour)                   Total Fuel Cons ME’s (gallon/hour)

Maximum:                                              16.2             1,750             1,150                                                          304

Cruising:                                                13.3             1,350             550                                                          145

Economical:                                           6                  600                62                                                          16

Consumption at Anchor:                       70 – 100 litres/hr 1,680 – 2,400 /day

Fuel Consumption in Litres:                  15,000 litres/day (24 hours) with 1 generator running

Fuel Consumption in Gallon:                2,963 gallon/day (24 hours) with 1 generator running

MAIN MACHINERY

Main Engines: 2 x MTU 16V4000M63L 2240KW each

Engine Hours: Port: 1,758 hours (August 2026)

Starboard: 1,758 hours (August 2026)

No longer under warranty

Propulsion Type: Twin screw fixed propellers

Gear Boxes: Reintjes WAF 863 Ratio 5.842:1

Shafting: The propeller shafts and intermediate shafts are made of steel grade C45N

Propellers: 2 x 5 Blade

GENERATORS & ELECTRICITY

Output/Electricity: Main Switch-Board 400/230 VAC

 Generators: 3 x Scania Diesel Engines DI16-047M

 Capacity: 3 x 400 kWe @ 0.8 pf

 Voltage: 230/400 VAC

 Phases: 3

Frequency: 50 Hz

Generator Hours: Port Aft: 8,500 hours (August 2026)

Port Fwd: 9,200 hours (August 2026)

Starboard: 8,500 hours (August 2026)

No longer under warranty

Emergency Generator: Scania Diesel Engine DSS250R

Capacity: 200 ekW@0,8pf

Voltage: 230/400 VAC

Phase: 3

Frequency: 50 Hz

Shore Power:    Shore Connection – Upgraded Shore Power Transformer 405 kVA/400VAC

Four (4) single core cables are provided, the 3 phase cables are suitable for the maximum load of the transformer. The cable length is thirty (30) m.

A motorized cable reel is provided to store the shore cable as specified.

No US outlets to be able to plug in directly in the USA.

Batteries: Low Voltage System 24 VDC

Main engines and auxiliary engines

Emergency Generator Engine: General Service/Emergency

Battery/Plant: GMDSS battery plant

AUXILIARY MACHINERY

Steering System: The Yacht is fitted with two (2) balanced spade rudders. The rudders are of a welded steel construction and are double plated. Each rudder has streamlined sections and has appropriate rudder area for good directional stability and manoeuvrability. The rudder trunks are adequately built into the hull framing structure. An oil-lubricated roller bearing is fitted on the upper side of each rudderstock.

Bow Thruster: 250KW Schottel STT 001

Stern Thruster: 350KW Schottel SPJ 82RD

Dynamic Positioning: Sirehna DP System

 Stabilizers: Naiad Hydraulic power unit 2x18,5 kW

The Yacht is provided with four (4) stabilizer fins for active roll damping from zero to maximum speed. The two (2) forward fins are installed in a dedicated watertight compartment around Fr 74 – 80, the aft two (2) fins are fitted in the engine room. Location and construction as per section 0010. The dimensions and shape of the fins are designed for optimised performance at zero speed (at anchor) and a cruising speed of 13.5 kn

FUEL & OIL SYSTEM

Fuel Oil Separator: Alfa Laval P605

Oily Bilge Water Separator: Facet CPS-2,5B MKIII+EBM

FIREFIGHTING & BILGE SYSTEM

Firefighting & Bilge Pump: 1 x Bilge / Fire Pump, 39-26m3 / hour at 0.95 / 5.5 bar

1 x Fire / Bilge Pump, 37-25m3 / hour at 0.95 / 5.5 bar

Emergency Fire / Bilge Pump: 1 x Emergency Fire / Bilge Pump, 37-25m3 / hour at 0.95 / 5.5 bar

FRESH WATER SYSTEM

Fresh Water Makers: 72,000 litres per 24 hours capacity, Idromar, 3 cubic tonnes/hour

  Hot Water Boilers: 3 x 1,000 litres

1 x 600 litres of Hot water

BLACK & GREY WATER SYSTEM

Black & Grey Water Treatment: Hamann AG HL cont plus 10

WC's (toilets/bidets): Evac Optima 5 Wall Toilet

AC & VENTILATION SYSTEM

Air Conditioning: Heinen & Hopman Engineering

 Chilled Water Plant

 Warm Water Plant

 Mechanical Ventilation Exhaust

Mechanical Ventilation Supply

Air Compressor: Kaeser

Air Handling Units: Heinen Hopman

 Provision Refrigeration: 2 x Walkin fridges 2 x Walkin freezers – FREDINA

Galley – 3 upright full height fridges - Foster

Engine Room AC: Heinen Hopman

Engine Room Ventilation: Heinen Hopman

Galley Ventilation & Extraction: Heinen Hopman

NAVIGATION & COMMUNICATION SYSTEMS

NAVIGATION SYSTEMS

Monitors: AMS – Symatic ET200SP

X-Band Radar: Radar Synapsis NX

S-Band Radar: Radar Synapsis NX

Chart Plotter: ECDIS Synapsis NX Upgraded to E05.03

Magnetic Compass: Cassens & Plath Reflecta

Gyrocompass: Anschutz Gyro Standard 22

Auto Pilot: NautoPilot 5000 Series

Echo Sounder: Skipper ESN200

Speed Log: Skipper ESN200

GPS: DGNSS System Sailor 6560 GNSS / Sailor 6570 DGNSS

AIS: Furuno Sailor 6280

Navtex: NAVTEX Sailor 6390

Wind Instruments: Raytheon

Search Lights: 2 x SL2 Luminell

COMMUNICATION SYSTEMS

SAT Com: Starlink dual High Performance flat panel installation

4G Receiver: Peplink MAX-HD2-LTEA-WF

VSAT: Dual Sailor 900 VSAT installation with arbitrator as a primary Satellite Internet connectivity system

Mini VSAT: 2 x Sailor 6110 mini-C Inmarsat C maritime satellite transceiver with integrated GPS (Part of the GMDSS)

INMARSAT – C: Sailor 500 Inmarsat Fleet Broadband satellite communication system for satellite telephony and low bandwidth data communication

SSAS: Number, Quantity, Brand, Model

ECDIS: ECDIS Synapsis NX Upgraded to E05.03

 Cellular Telecom System: 2N Voice Blue Max GSM gateway

No onboard GSM distribution system

VHF Radiotelephones: Sailor 6222 VHF DSC

Watchkeeping: SM Electrics Integrated class approved BNWAS

 Telephone System:CISCO ISR4331 /K9 gateway with UCM

CISCO 7821 desk phones and 8821 handhelds

SSB: Sailor 6300 MF/HF DSC SSB

Aircraft Emergency Comms:  2 x I-Com, Airband Radios

UHF Communication:  Hytera digital mobile radio system with a single RD985S base station/repeater and Hytera HP685 handhelds

DECK MACHINERY & EQUIPMENT

Anchor Windlass System: Muir VRC 22000

Cranes: Number, Brand, Model, Max Load

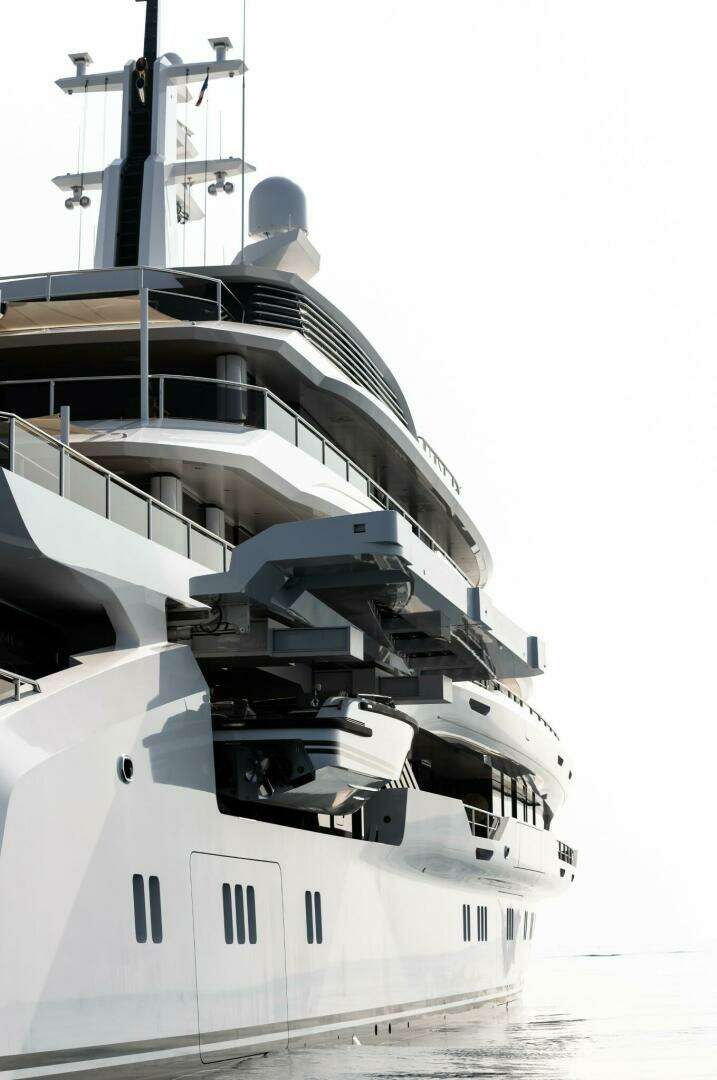

 Boat Cranes & Davits: Van Driel - Rescue Boat Crane 1400KG SWL Knuckle Boom with extendable jib

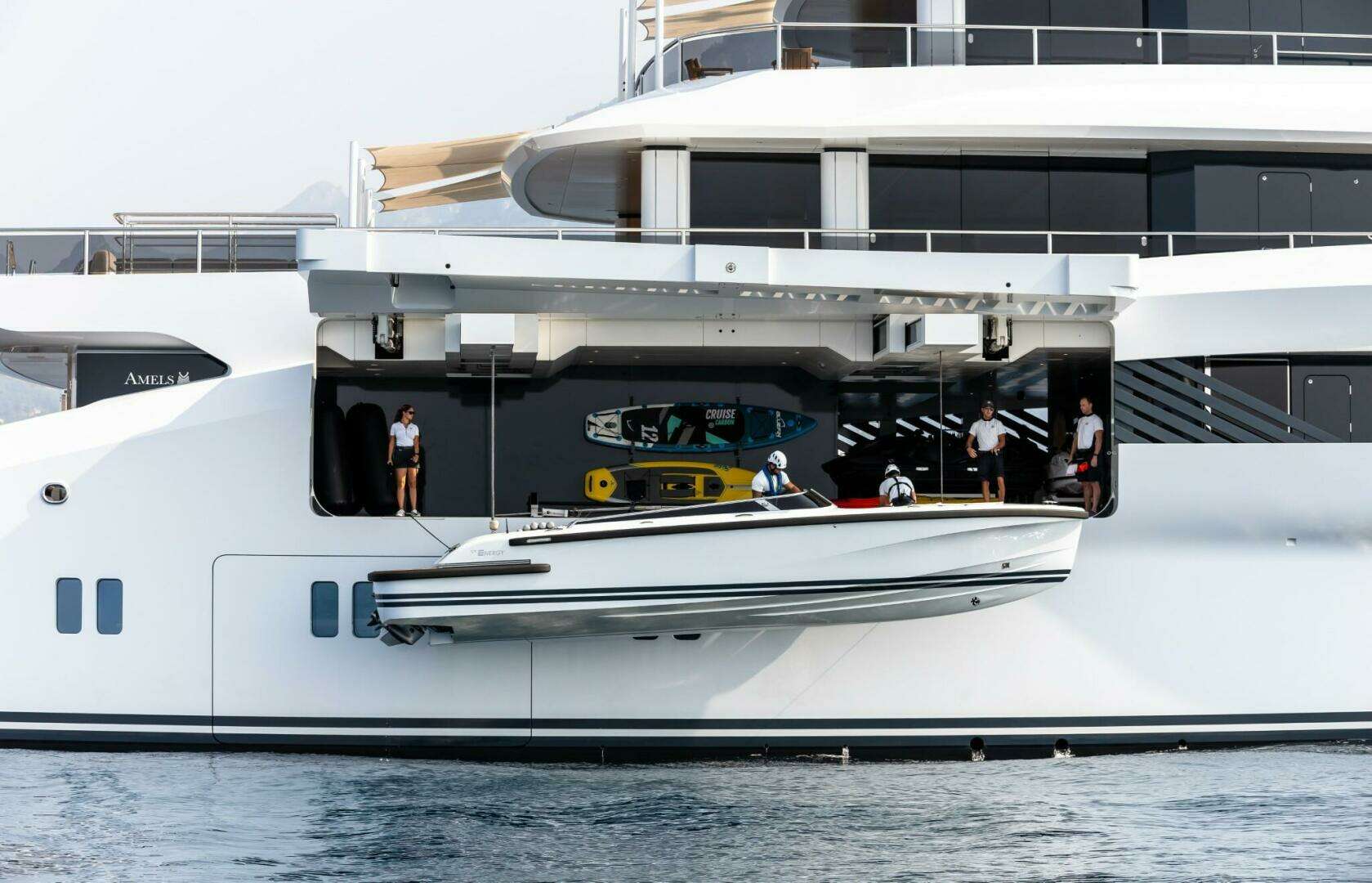

 Van Driel – Tender Boat Double Telescopic Overhead Crane PS & SB sides 4500KG SWL

 Rated to 4.5 tons fwd and 4.5 tons aft

Jeremy Rogers – Portable Atlas Crane, 500KG SWL

Warping Capstans: Muir

Ground Tackle: M32, Polyester, Black Lines, 40mm - 25m, 35m, 40m, 60m

Passerelle: Winel

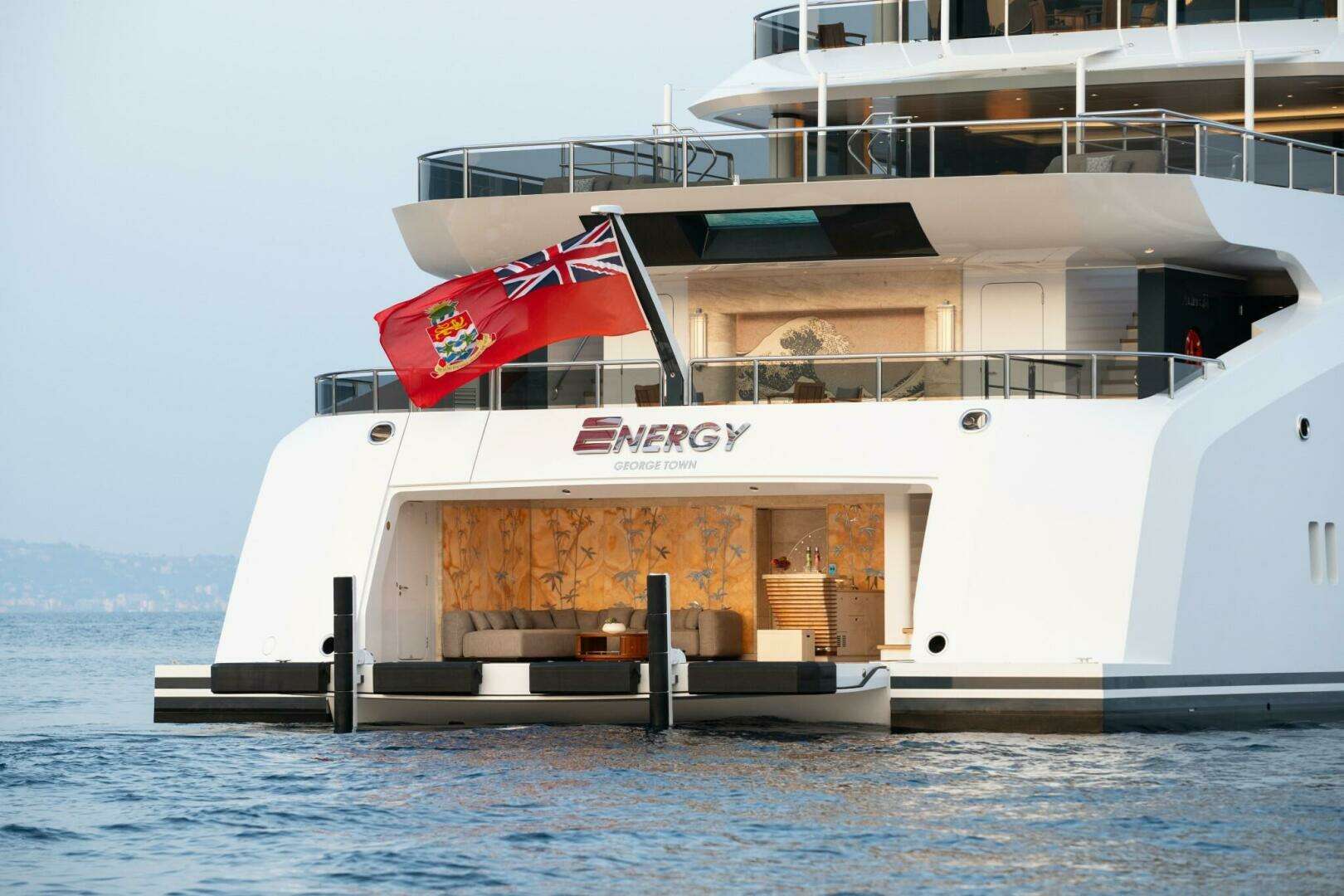

Swimming Platform: Winel & Newthex

Transom Swim Platform, 7.6m x 2.1m

Wellness Plartform, 2.1m x 10.2m

Relax Platform, 2.1m x 3.8m

Sea Entrance Platform, 2.1m x 5.1m

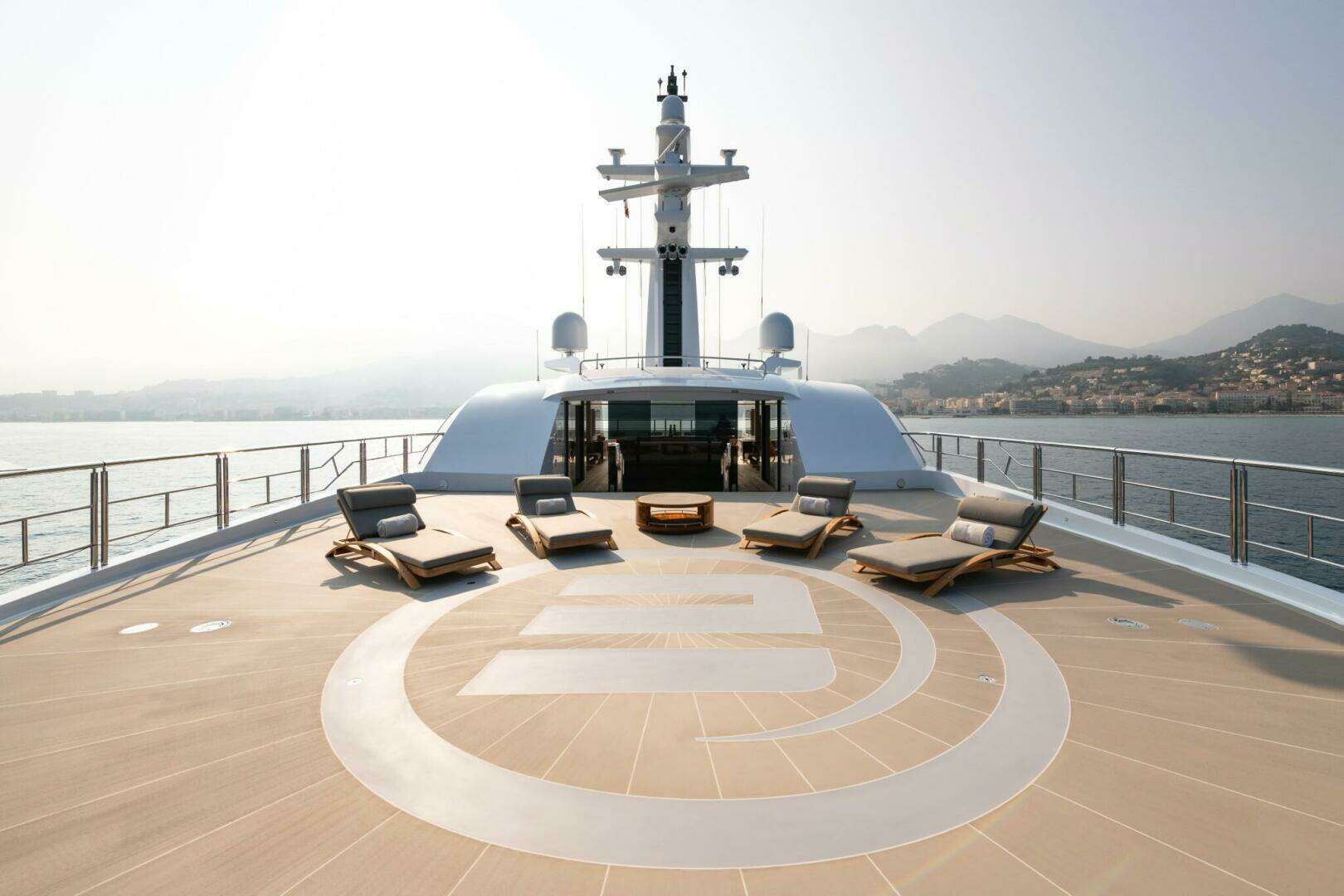

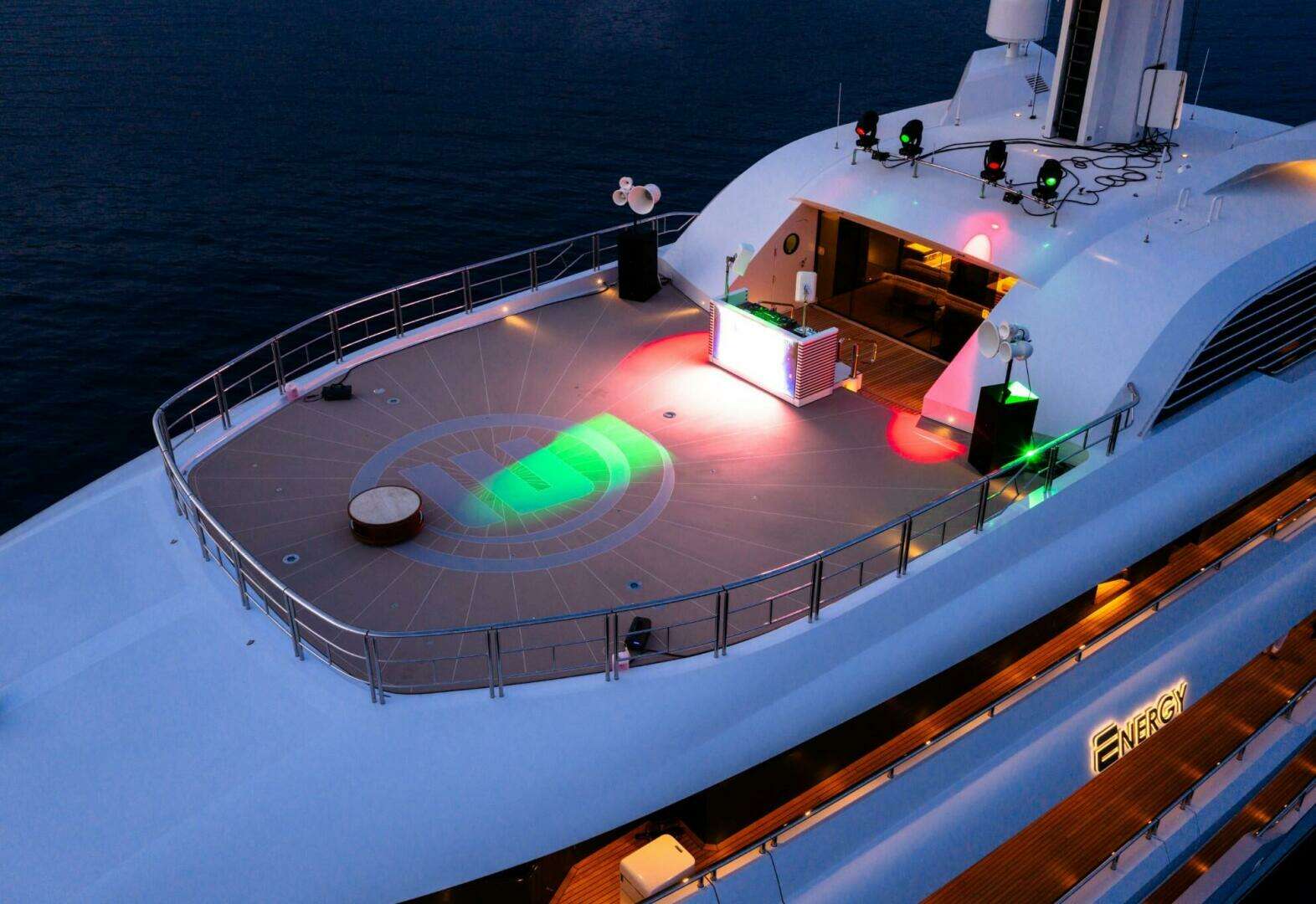

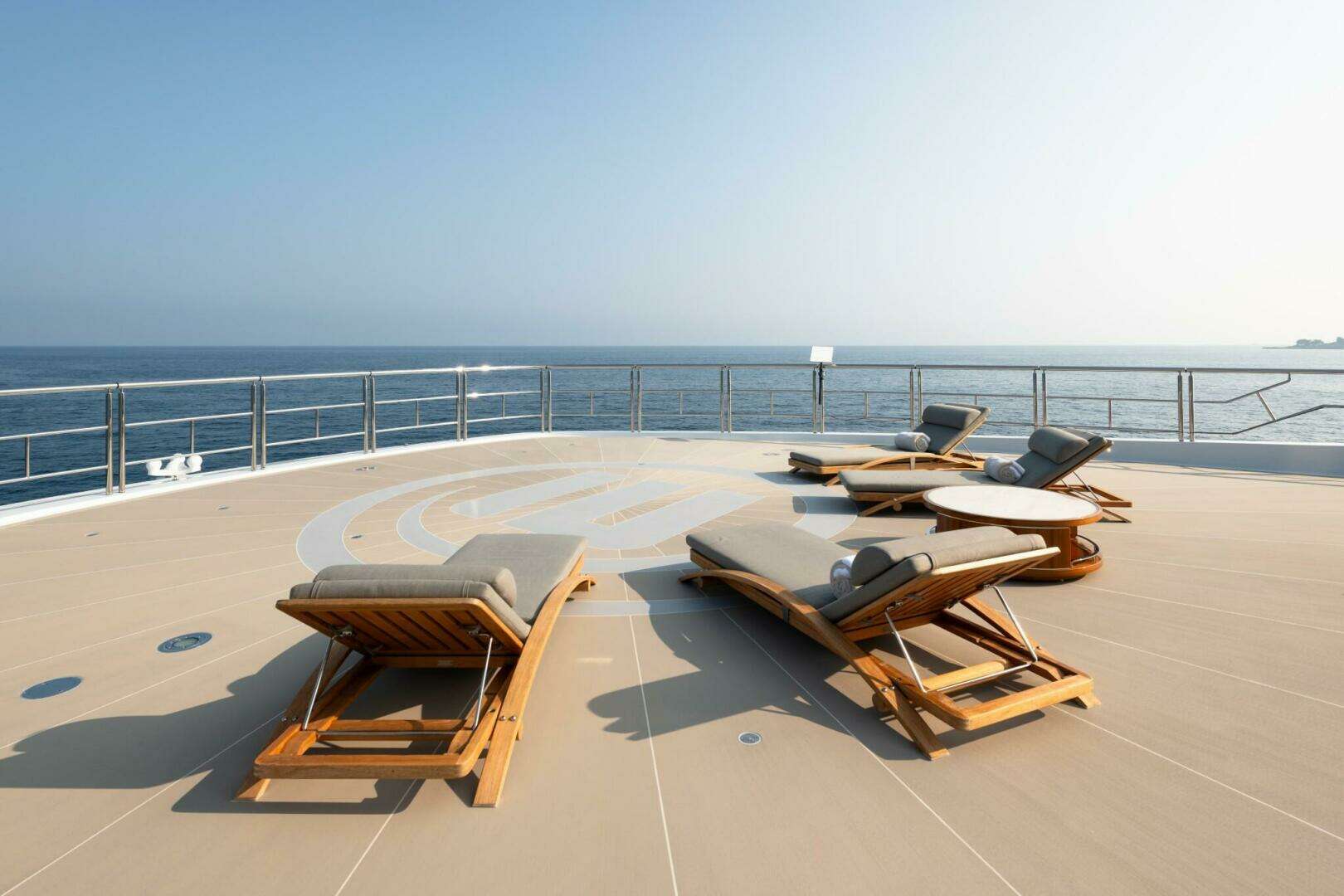

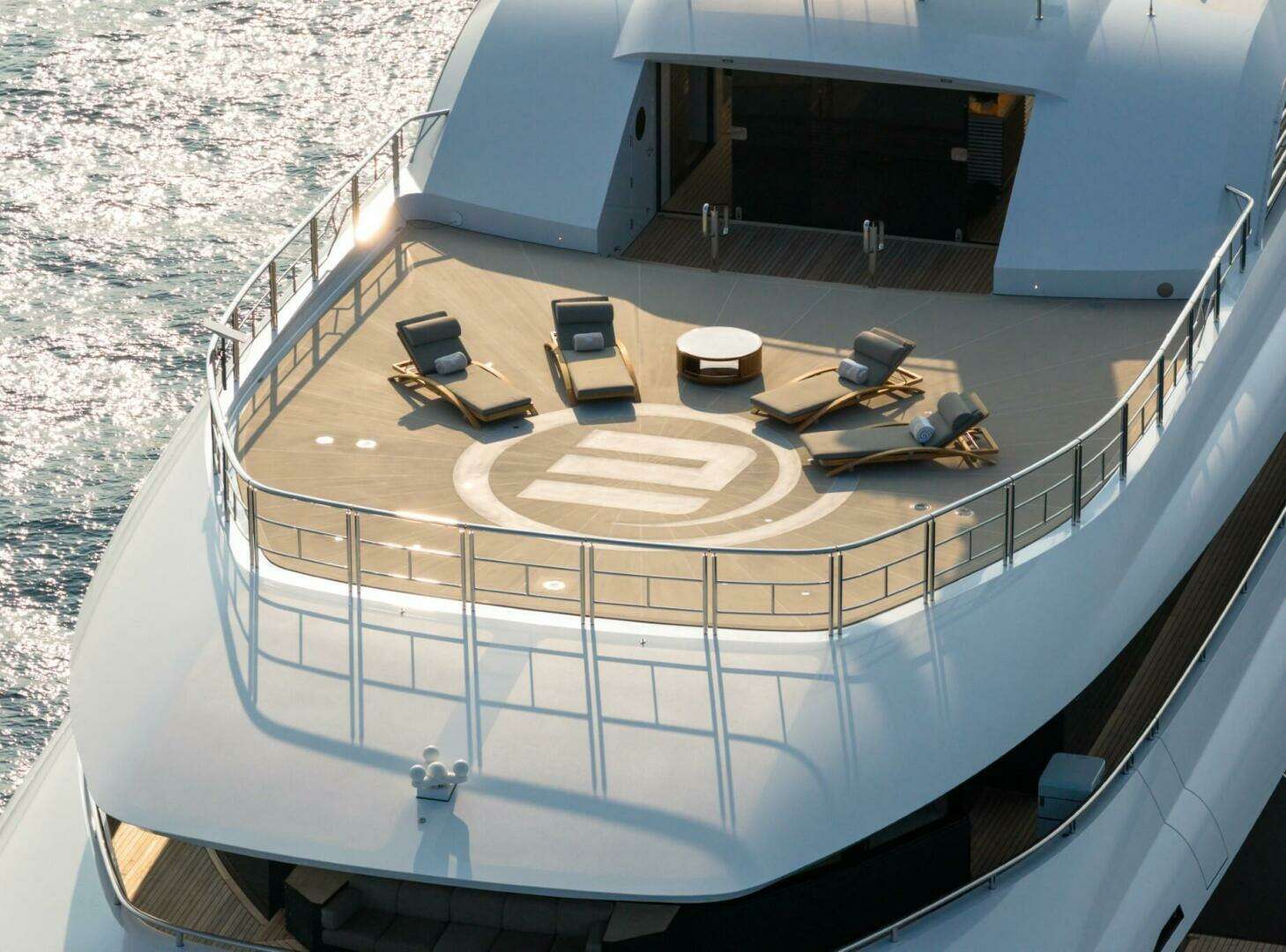

Helipad:  Touch & Go (Helicopter maximum weight 3.700 kg / 8157 lbs)

Helipad rails: Hinged and fold outwards (except furthest aft rails that attach the superstructure)

SAFETY, SECURITY, & FIREFIGHTING EQUIPMENT

Security System: A security system for the exterior entry doors and hatches that provide access to crew and luxury spaces is fitted. The vessel is currently ISPS compliant

Ship’s Safe: 1 x Dometic Safe in Ships Office

1 x Dometic Safe in Captain Cabin

6 x Dometic Safe in Guest and VIP Staterooms

1 x Stockinger Safe in Master Stateroom

1 x Dometic Safe in Master Stateroom

1 x Stockinger Safe in Owners Office

Firefighting Equipment: Consilium Fire Detection system

1 x Fire / Bilge Pump, 37-25m3 / hr at 0.95 / 5.5 bar

1 x Bilge / Fire Pump, 39-26m3 / hr at 0.95 / 5.5 bar

1 x Emergency Fire / Bilge Pump, 37-25m3 / hr at 0.95 / 5.5 bar

Marioff Hi-Fog Water mist system

Co2 High Pressure System in Galley ducting

4 x Drager Bodyguard 7000&3M Fire Team Equipment

12 x BA Air bottles 300 BAR, 6ltr

Heli Foam AFFF System 3%

27 x Fire Hose, Box & Nozzle

56 x Manually Operated Call Points

85 x Portable Fire Extinguishers

2 x Self-Inducing Foam Branch pipe/ Variable in-line Foam Inductor

6 x Fire Blankets

1 x International Shore Connection

Alarms: AMS – Symatic ET200SP

MOB Boat:1 x Survitec Embarkation Ladder 4.30m

Starboard accommodation ladder: for deployment and use alongside

1 x Castoldi SOLAS Rescue Boat rigid/inflatable 4.28m

Life Rafts: 4 x Life raft RFD Survival MK IV 25 Pax

1 x Life raft RFD Survival MK IV 20 Pax

Breathing Apparatus: 47 x Drager Smoke Hoods

8 x EEBD, Ocenco / Drage

Lifejackets: 47 x SOLAS Adult Lifejackets Crew saver

6 x SOLAS Child Lifejackets Stearns

39 x SOLAS additional Lifejackets

Immersion Suits: 47 x SOLAS Adults Immersion Suits, Crew Endurance

6 x SOLAS Child Immersion Suits, Crew Saver

Life Rings: 6 x Lifebuoy 2,5 Kg. / 4 Kg

1 x MOB Rescue Sling

EPIRB: 2 x EPIRB, Sailor

SART: 2 x SART, Sailor

Flares and Signals: 2 x Position Indicating Lights for Lifebuoys

2 x Lifebuoys Self Activating Smoke Signals

4 x Red Handheld Flares

12 x Rocket Parachute Flares

2 x Orange Smoke

24 x Emergency Torches, Peli 3310

Medical Equipment: 1 x MSOS – Category A Kit

1 x Themis Telemedical Communication Platform

1 x AED

1 x Invacare, Oxygen Concentrator

1 x Rigid body stretcher

1 x Body Splint Stretcher

1 x Kendrick Extraction Device

ENTERTAINMENT, AUDIO/VISUAL AND IT SYSTEMS

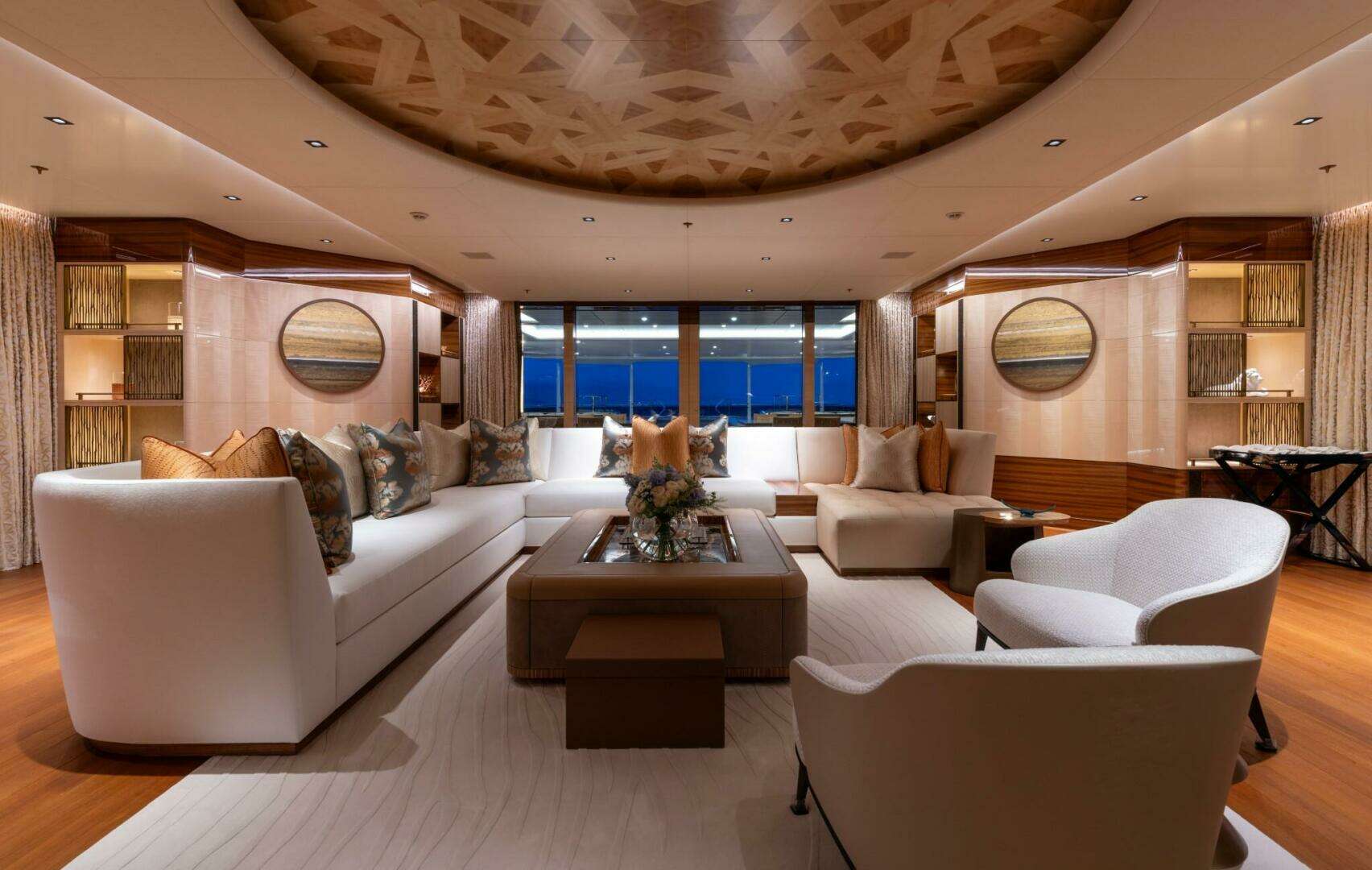

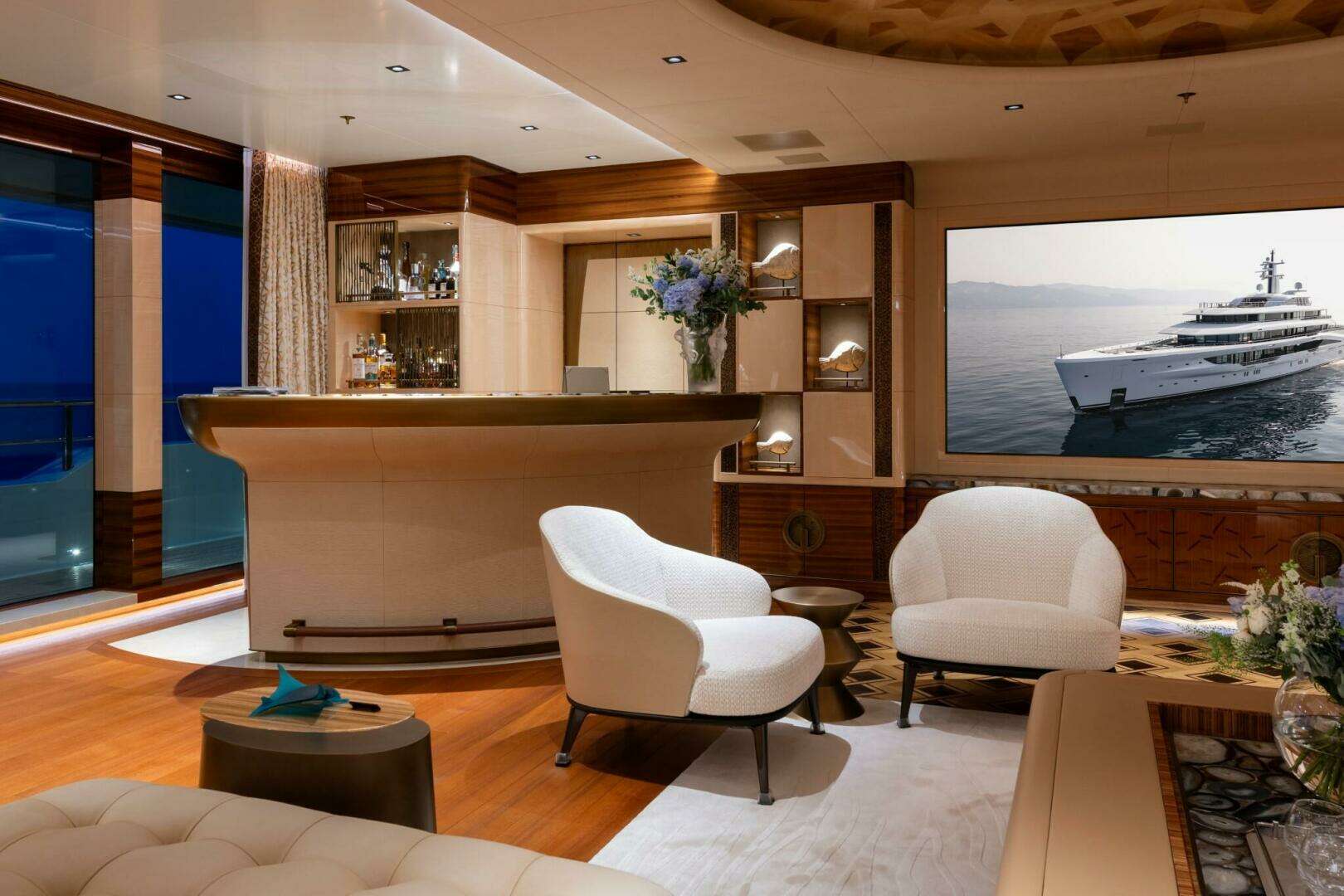

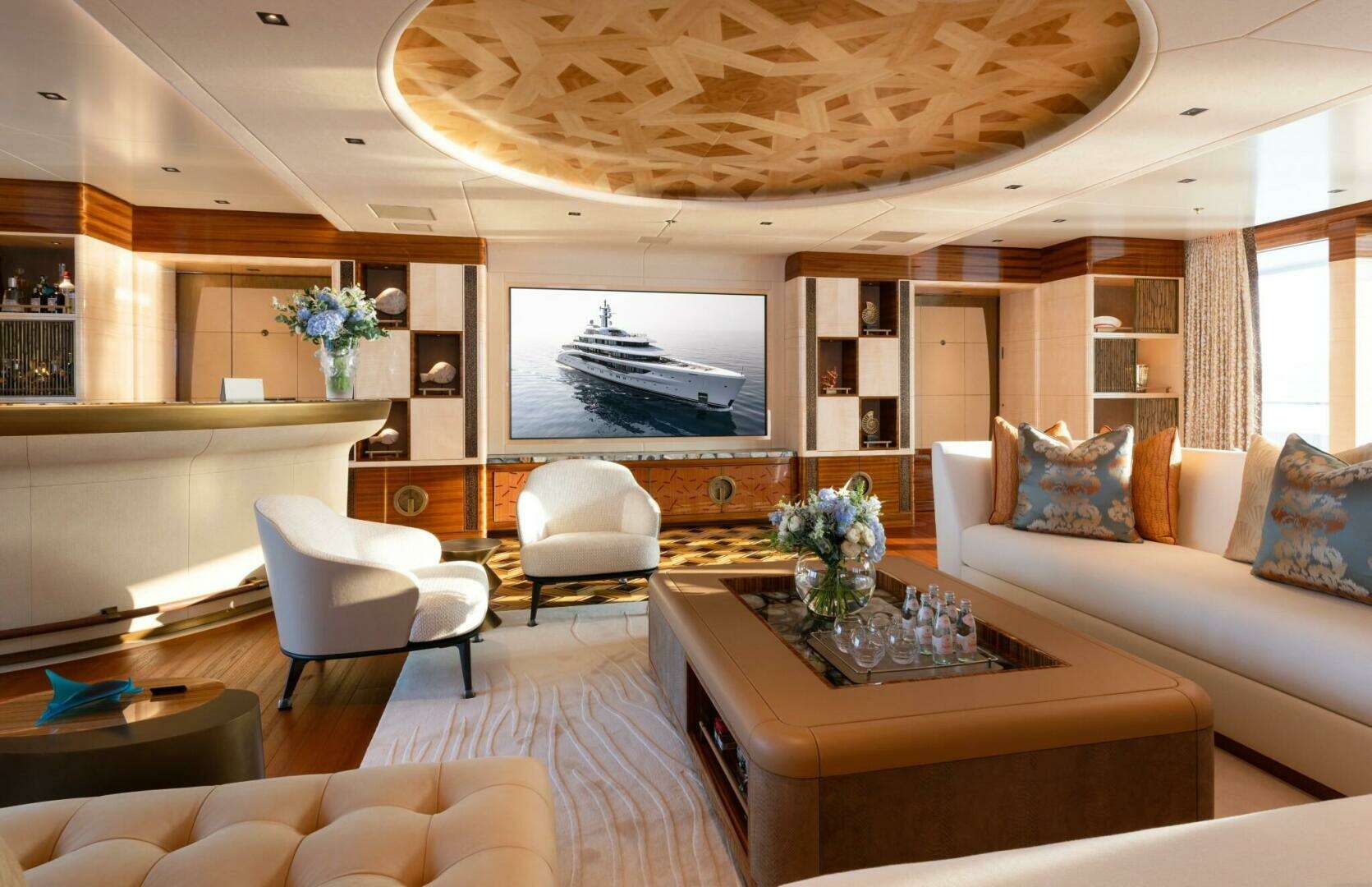

Main Salon: Crestron DM-NVX-351 endpoint, Sony 4K 85” Display

Dante digital audio distribution

Ceiling integrated James Loudspeakers QXC 820S

Master Stateroom: Crestron DM-NVX-351 endpoint, Sony 4K 77” Display Future Automation TV lift

Dante digital audio distribution

Ceiling integrated James speakers (James Loudspeakers – QXC820S)

Guest Staterooms: Crestron DM-NVX-351 endpoint, Sony 4K 65” Display

Dante digital audio distribution

Ceiling integrated B&W speakers (B&W CCM362)

Upper Deck Lounge: Crestron DM-NVX-351 endpoint, LG 98” 4K Display

Dante digital audio distribution

Ceiling integrated CAT speakers (California Audio Technology – Elite Sausalito Marine)

Bridge Deck Music Lounge: Crestron DM-NVX-351 endpoint, Sony 4K 77” Display

Dante digital audio distribution

Ceiling integrated CAT speakers (California Audio Technology – Elite Sausalito Marine)

EPSON ET-16650 Printer

Top Deck:  Dual Crestron DM-NVX-351 endpoints with two SAMSUNG 65” Terrace (outdoor designated) 4K displays

Dante digital audio distribution

Ceiling integrated B&W Marine Speakers

Captain’s Cabin: Crestron DM-NVX-351 endpoint, Sony 4K 49” Display

Dante digital audio distribution

Bridge: Raytheon Integrated Bridge

Crew Cabins: Lithe Audio Bluetooth Ceiling Speaker

Crew Mess: Crestron DM-NVX-351 endpoint, Sony 4K 55” Display

Dante digital audio distribution

Ceiling integrated B&W speakers (B&W CCM362)

EPSON ET-5800 Printer

Galley: Ceiling integrated B&W speakers (B&W CCM362)

Laundry: Crestron DM-NVX-351 endpoint, Sony 4K 43” Display

Office Equipment: 9psc of Dell XPS 15” Laptops

Dell Latitude 5430 Toughbook

iMac all-in-one desk computer

2pcs of Lenovo Think Station P360 with HP 27” monitors

Fractal custom high performance tower PC with dual HP 27” monitors

GALLEY & LauNDRY EQUIPMENT

MAIN GALLEY EQUIPMENT

MAIN DECK PANTRY

Cooking Equipment: Panasonic NE-1037 Microwave

Dishwasher: 1 x Miele Dishwasher

BRIDGE DECK PANTRY

Cooking Equipment: Panasonic NE-1037 Microwave

Refrigeration/Freezer: Miele fridge/freezer

Dishwasher: 1 x Miele Dishwasher

CREW GALLEY / MESS EQUIPMENT / COOKING EQUIPMENT

Microwave: Panasonic NE-1037 Microwave

Refrigeration/Freezer: 1 x Miele fridge/freezer

1 x Miele fridge

Dishwasher: 2 x Miele Dishwasher

Main Laundry Equipment: 2 x Miele Professional PW 814 big capacity washing machine

2 x Miele Professional PT 8257 WP big capacity drying machine

Miele PW 6065 standard capacity washing machine

OTHER EQUIPMENT

Pool:1 x Whirlpool Upper deck forward ( 2 cubic tons)

1 x Pool Upper deck aft

Pool Details:

- Capacity 30 cubic tons (35 mins to fill and dump, quick dump 3-4 mins)

- The deep end 1.4m from pool bottom to cap stone

- 1.16 from bottom to recirculation gutter

- 10m long by 3m wide

- Fresh water

- With dump tank

- 2 x variable speed swimming jets

- Principal awning: Available and on-board, covers the entire pool

Spa Tub: 1 x Jacuzzi top deck

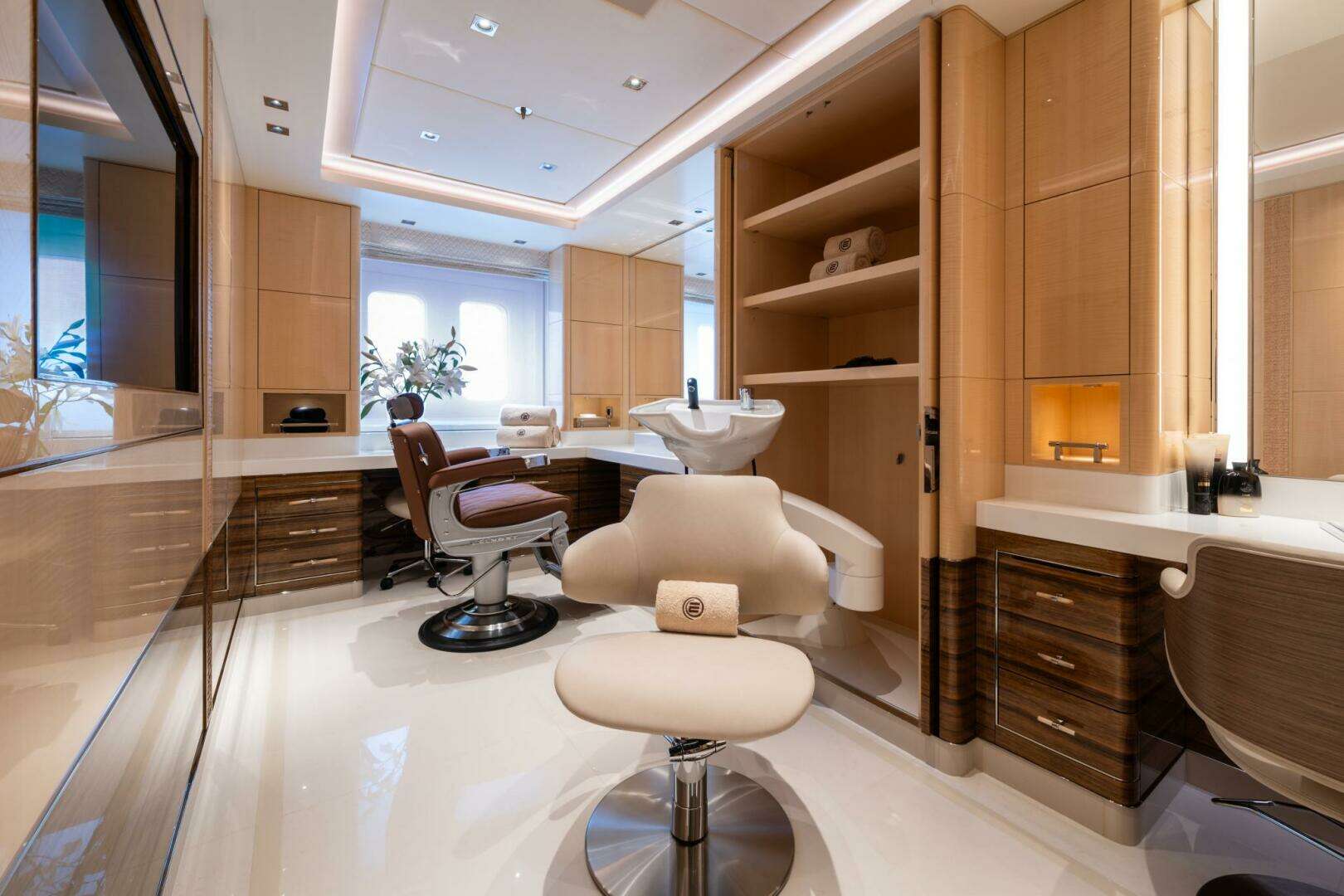

Wellness: Beauty Salon on Lower Deck

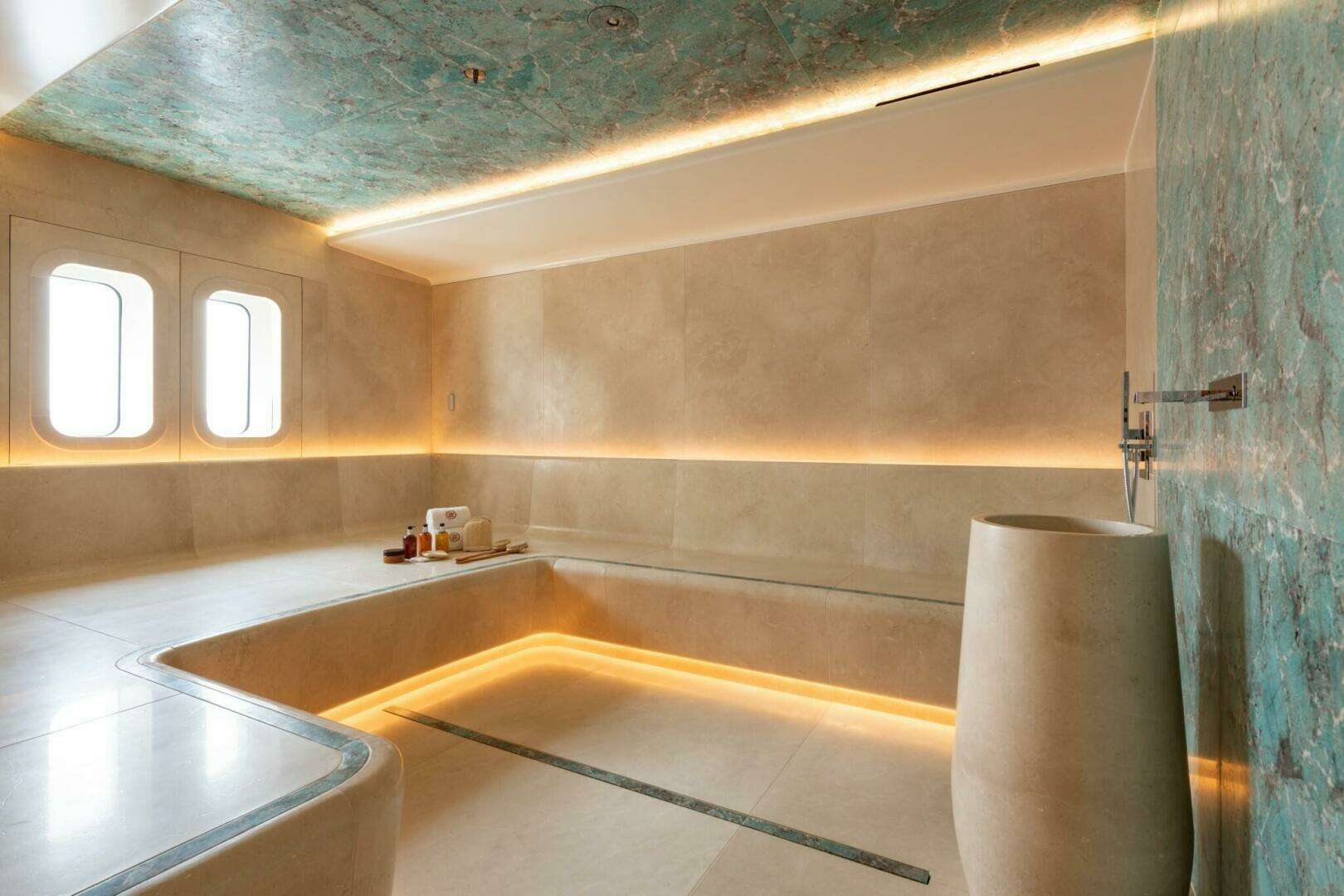

Hammam on Lower Deck

Sauna on Lower Deck

Elevators: 1 x Guest Elevator Holland Marine Lifts (for 6 guests), wheelchair accessible

1 x Crew Elevator Holland Marine Lifts

Dumbwaiter: 1 x Dumbwaiter Holland Marine Lifts

Gym Equipment: Techno Gym

Sun Awnings: Sun Awnings, Reckmann. Long & Short versions, Max 30 knots during usage

TENDERS & TOYS

Tenders: 1 x Pascoe 10m, 500HP Yanmar, 16 Pax

1 x Ribeye 9.8m 250HP Yanmar, 14 Pax

Jet Skis: 2 x Seadoo Jet ski GTX 300 Limited 2022 300HP

1 x Seadoo Jet ski RXP-X 300HP

1 x Seadoo Jet ski Spark Trixx – 3 UP 90 HP

2 x Yamaha Stand up Super Jet 1095 cc

1 x Jet Surf Awake Ravik 3 XR 57kph

Toys: 1 x E-Foil Flite board Series 2 Pro 55 kph

1 x Wake board Ronix Quarter till Midnight

1 x Wake board Ronix RXT Blackout

1 x Water Bike Mirage Eclipse ACX 10.5

1 x Water Skis Hemi Combo 59”

Wake Surf Phase matrix pro premium skim

3 x Sea Bobs F5 SR 22km/h

1 x Jobe Inflatable 4 Persons, Sonar

1 x Jobe Inflatable 4 Persons, Chaser

1 x Jobe Inflatable 3 Persons, Airstream II

2 x Jobe Inflatable 1 Persons, Resolve

Jobe Inflatable 1 Persons, Hydra x

3 x Kayaks Carolina Deluxe

2 x SUP Bluefin Cruise Carbon

1 x SUP Elite MSL Inflatable

1 x Slide FunAir Extreme Slide, 9 meters

6 x Cressi SCUBA diving sets

DISCLAIMER

NOT FOR SALE OR CHARTER TO US RESIDENTS WHILE IN US WATERS

All speeds, measurements, capacities, consumptions, etc. may be approximate or estimated. Specifications provided for information only. Data was obtained from sources believed to be reliable and is not guaranteed by owner or brokers. Buyer assumes the responsibility to ascertain the correctness of all data contained herein and otherwise provided and must instruct his agent and surveyors to confirm all details for accuracy prior to purchase. Subject to prior sale price and inventory change or withdrawal from market without notice.
