ABOUT AEGEAN YACHT

AEGEAN YACHT was founded by Sinan Ozer in 1976. Production is based at two full service, seafront boatyards in Bodrum and Antalya freezone in Turkey. Initially dedicated to wooden yacht construction, for the last 20 years the shipyard has focused on refit work as well as new build, full & semi-custom yachts built from steel & aluminum. In the almost 50 years since opening the doors, the shipyard has delivered more than 50 yachts, from 20 to 57m, across both sail and power.

HULL AND SUPERSTRUCTURE

The Hull of the Vessel shall be built of A and/or AH grade Marine steel and the Superstructure of the Vessel shall be built of Marine Grade Aluminium according to CE requirements.

DECK EQUIPMENT

Two DATA DZC 1400 hydraulic vertical windlasses at fore main deck with rope drums.

Two stainless steel FOB HHP anchors as per CE rules.

Two, size, as per CE rules, studlink galvanized anchor chains with 2 swivels, 137,5 meters each, Ø 12.5 mm

Stainless steel bollards and fairleads,

Mooring ropes, 24 mmø, 2 x 80 m. & 24 mmø, 1x 100 m.

Two DATA DHC 1000 hydraulic capstans aft,

Hydraulic swimming platform

Fuel and water inlets,

Standard sanitary outlet

MACHINERY AND MAIN PROPULSION

1. Main Engines

Two MAN D2676LE425 650 HP @ 2100 RPM marine diesel Engine Medium Duty with ZF reverse reduction gears to be controlled from wheel house & aft deck.

2. Propulsion Gear

Two reverse reduction gearboxes ZF 550-1A with reduction ratio of 2.96:1.

The gearboxes will be connected to the stainless-steel shafts with flexible couplings.

3. Propellers & Stern tubes & Bow thrusters

Two ERIS or equivalent well balanced manganese bronze propellers to be supplied and installed.

Propeller shafts in 316 L stainless steel or duplex steel diameter as per CE rules.

Seamless steel stern tubes. Bronze stern glands.

4. Main Diesel Generators

Diesel generators, KOHLER or equivalent brand, 2 x 35 kW.

The generators will be furnished with sound insulation cabins and installed on steel foundations with rubber chocks.

5. Pumps

GIANNESCHI or equivalent pumps to be installed as per rules.

All pumps have to be installed on rubber chocks.

All pumps to be installed with by-pass emergency systems.

6. Fire-Fighting System

A fixed & remote controlled NOVEC 1230 fire-fighting system for fire protection of engine room to be supplied and installed.

The system will be installed in the engine room in compliance with regulations. Number and type of detectors according to CE requirements.

The accommodation will have an extensive fire detection system, with signals in the main fire alarm panel.

ACCOMMODATION

Cabins:

Owner:

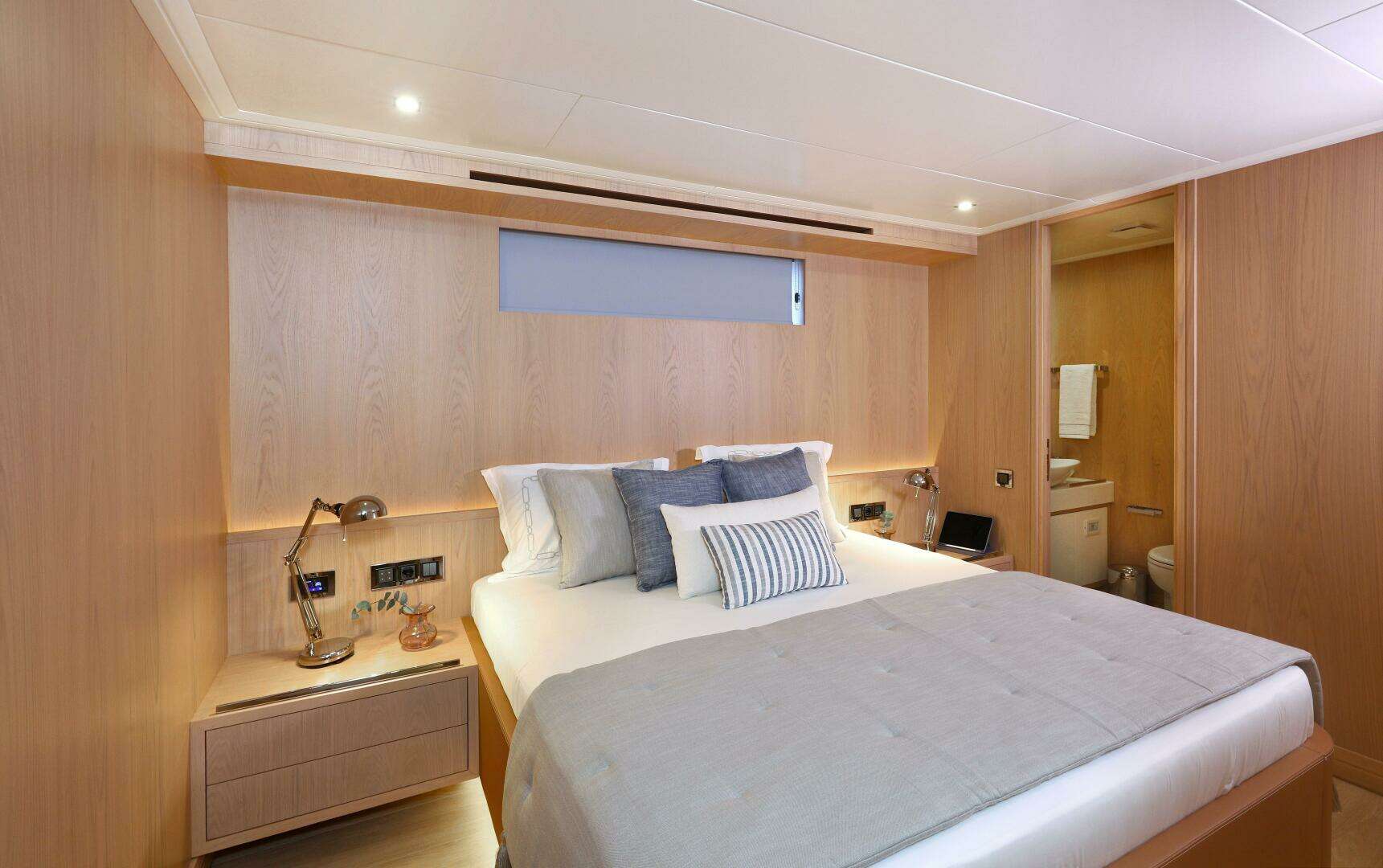

Full beam master suite on the upper deck with large sliding glass door opening to a private upper aft deck

Guests:

2 x additional full-beam master suites on main and lower deck

1 VIP cabin

2 x Twin cabins

Crew:

4 x Single cabins with their own individual bathroom, accommodating 4 crew

DOMESTIC APPLIANCES & GALLEY EQUIPMENT

POLYCOR or equivalent acrylic counters & non skid ceramic floors

SIEMENS or equivalent refrigerator / freezer

SIEMENS or equivalent cook top 4 burners, electric

SIEMENS or equivalent overhead hood

SIEMENS or equivalent electric oven

SIEMENS or equivalent dishwasher

NAVIGATIONAL ELECTRONIC EQUIPMENT

Given for indication only; a new owner can upgrade or change the below:

SIMRAD GB 12 INCH GLASS BRIDGE DISPLAY I-marine TCBS CLASS B AIS

SIMRAD BSM-1 BROADBAND SOUNDER SIMRAD B260 1 KW TRANSDUCER SIMRAD HALO20 RADAR

SIMRAD AP44 AUTO PILOT

SIMRAD RS 20SVHF RADIO WITH CLASS-D DSC

NAVIONICS Aegean Sea, Black and Mediterranean Sea Chart SIMRAD HS75 GPS COMPASS

FURUNO NX300 NAVTEX RECEIVER INTELLIAN i6P SAT TV

Disclaimer

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice. Any vessel that is not U.S. flagged and has not paid U.S. duties cannot be offered for sale to U.S. residents whilst in U.S. waters.
