CONSTRUCTION

• Hull lamination, Vinylester resin-infused PVC foam core

• Hull structure, in lightweight composite FRP girders

• Knitted Fiberglass, e-glass throughout

• Engine bed structure girder design with high-density foam

• Bulkheads, structural, cored composite

• Bulkheads, fully laminated bulkheads bonded to the hull

• Deck lamination, vacuum-bagged foam core

• Deck and housetop structure, in composite FRP beams and frames

• Deck hardware installation, high-density core in way of hardware

• Deck hull joint, fully laminated and mechanically fastened

• Collision bow tank and bulkhead, with plexiglass inspection plate

• Cabin soles, structural, vacuum-bagged, cored composite, with soundproof features

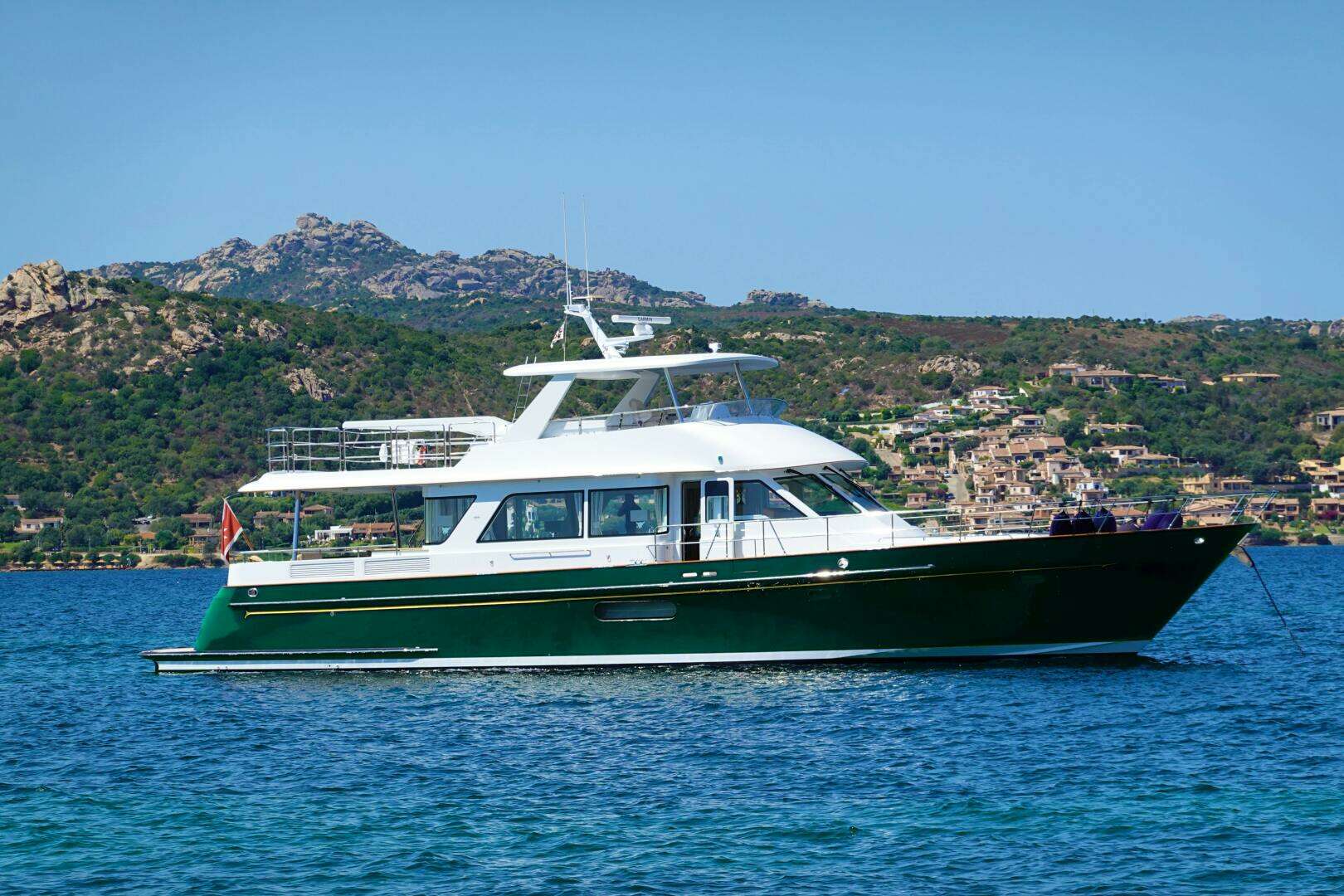

• Hull: Gel coat Jade Mist Green

• Deck: Gel coat Vestal white

• Bottom paint: Interlux Ultra Speed anti-fouling (or equal premium bottom paint).

• Painted boot stripe, single

• Captiva stripe with Gold Leaf, Relieved into the hull

CONSTRUCTION

• Hull lamination, Vinylester resin-infused PVC foam core

• Hull structure, in lightweight composite FRP girders

• Knitted Fiberglass, e-glass throughout

• Engine bed structure girder design with high-density foam

• Bulkheads, structural, cored composite

• Bulkheads, fully laminated bulkheads bonded to the hull

• Deck lamination, vacuum-bagged foam core

• Deck and housetop structure, in composite FRP beams and frames

• Deck hardware installation, high-density core in way of hardware

• Deck hull joint, fully laminated and mechanically fastened

• Collision bow tank and bulkhead, with plexiglass inspection plate

• Cabin soles, structural, vacuum-bagged, cored composite, with soundproof features

• Hull: Gel coat Jade Mist Green

• Deck: Gel coat Vestal white

• Bottom paint: Interlux Ultra Speed anti-fouling (or equal premium bottom paint).

• Painted boot stripe, single

• Captiva stripe with Gold Leaf, Relieved into the hull

MECHANICAL AND PLUMBING

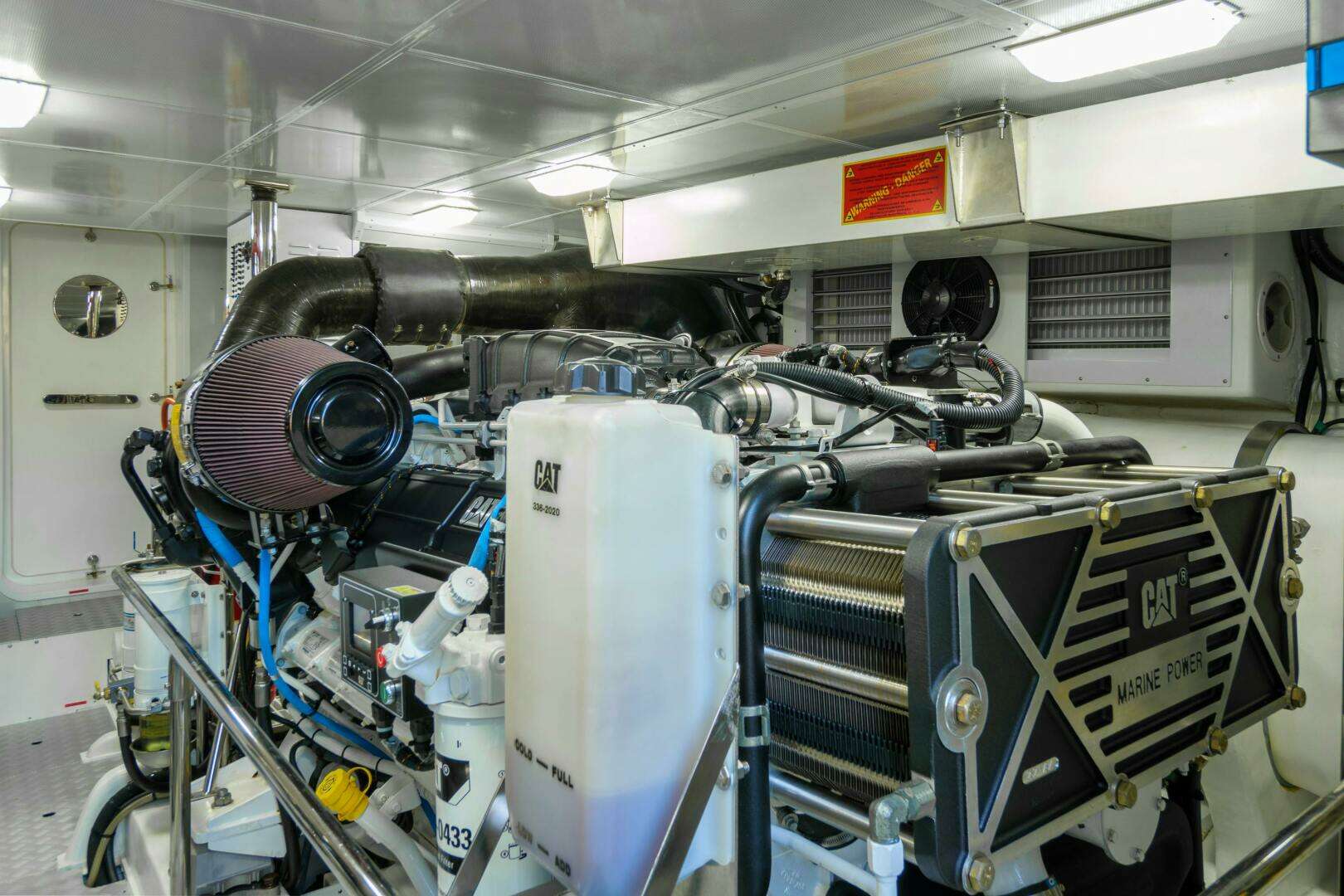

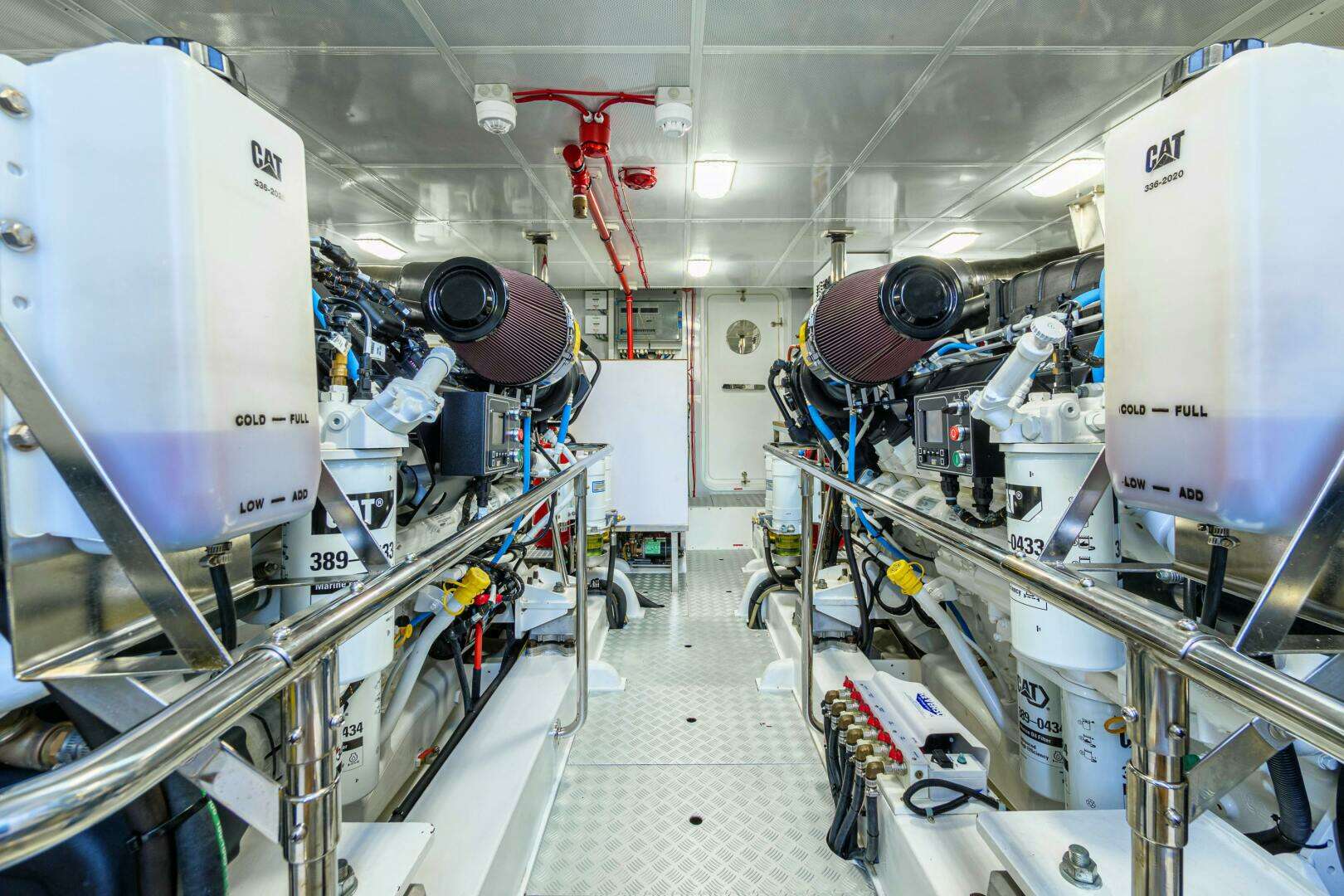

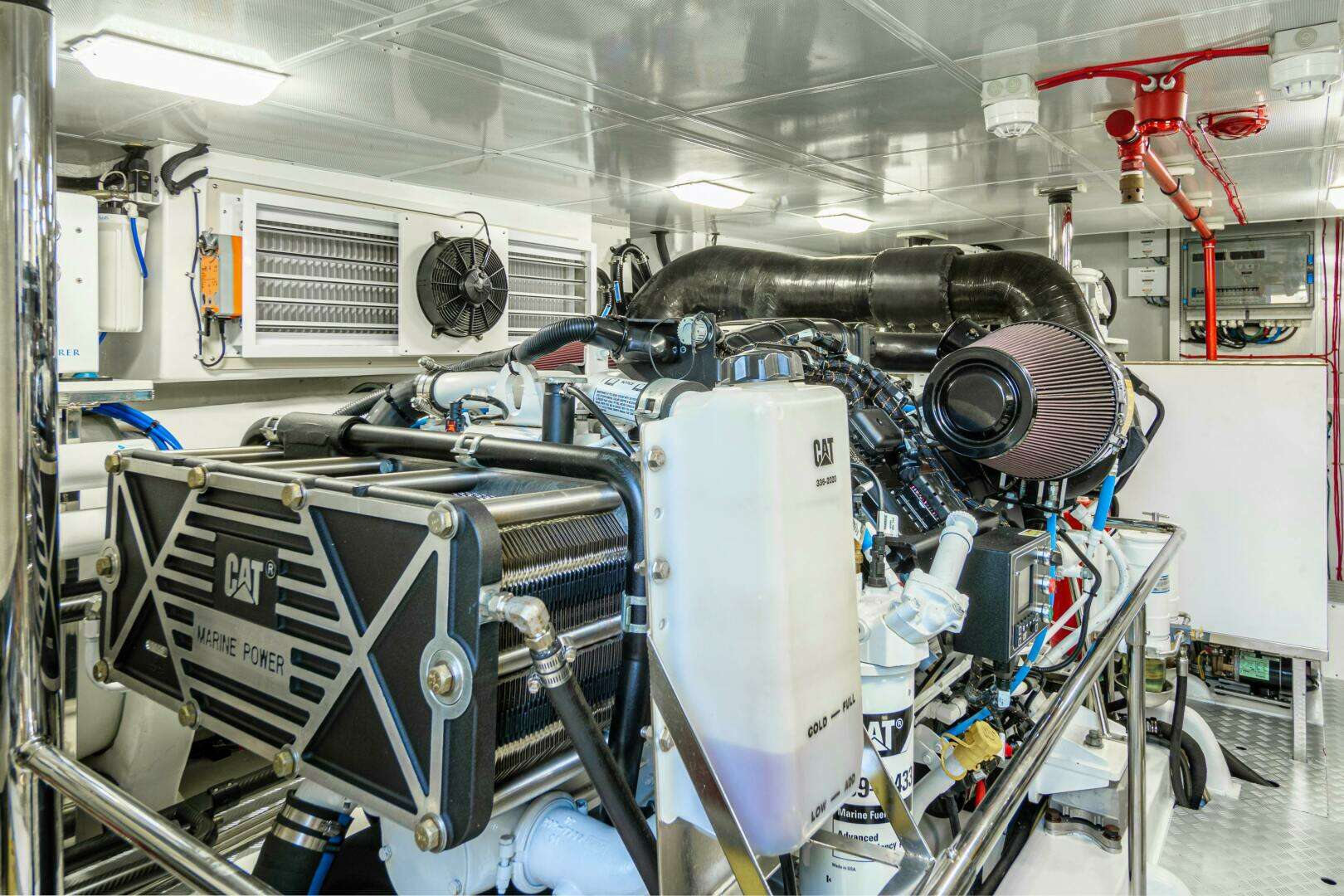

• Engines: Twin Caterpillar C32 diesel, 1900 bhp @ 2300

• Twin Disc Quick Shift remote-mounted v-drives (model MGX-6620-RV, 2.09:1)

• Caterpillar Three60 joystick control system with 2 stations

• Bow Thruster, proportional hydraulic, integrated to Cat Three60 system

• Stern Thruster, proportional hydraulic, integrated to Cat Three60 system

• Engine throttle and gear shift controls, dual station, electronic, with synchronizers

• Ride and trim control, Humphree Active Ride Control system. Engine mounts, heavy-duty isolation mounts

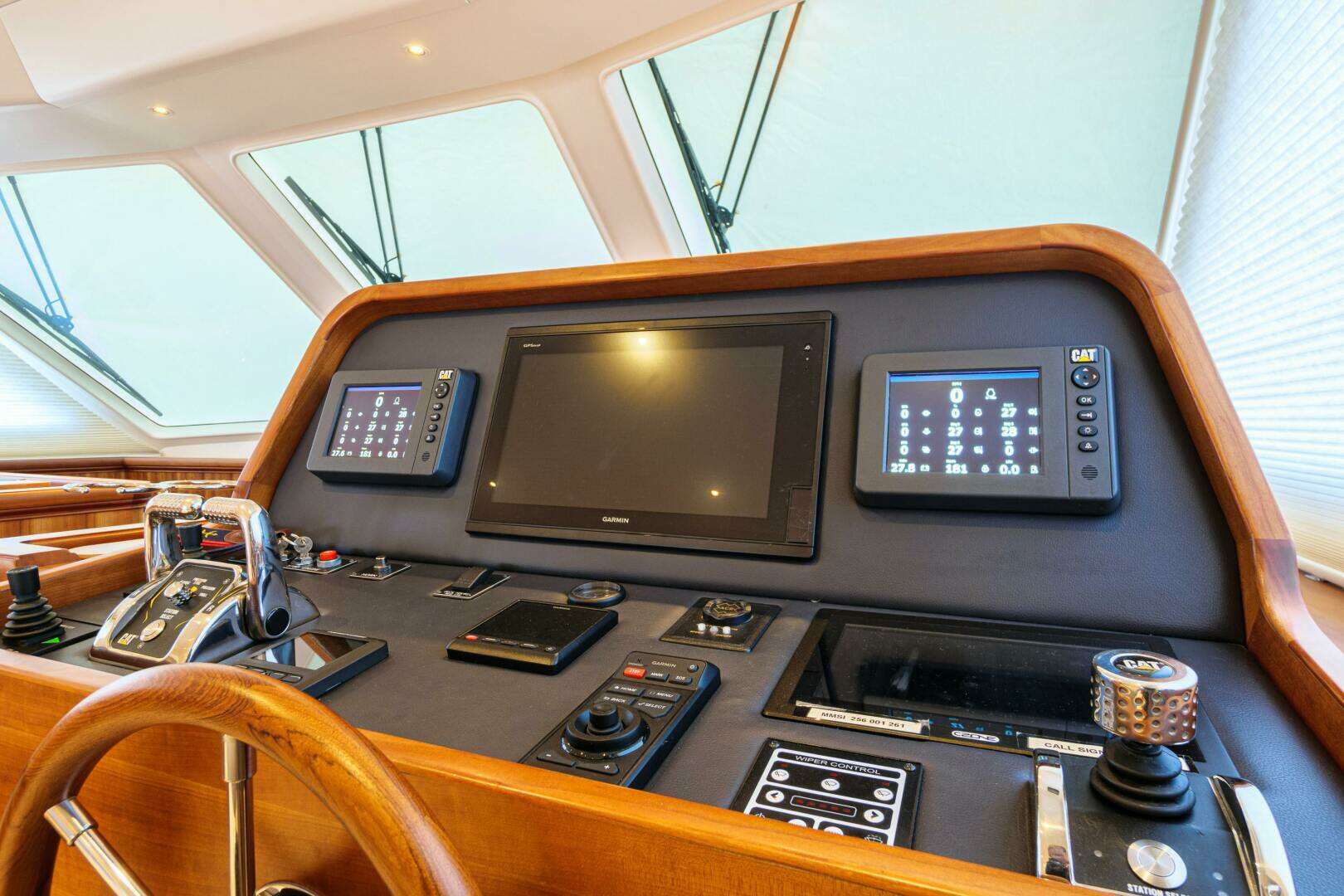

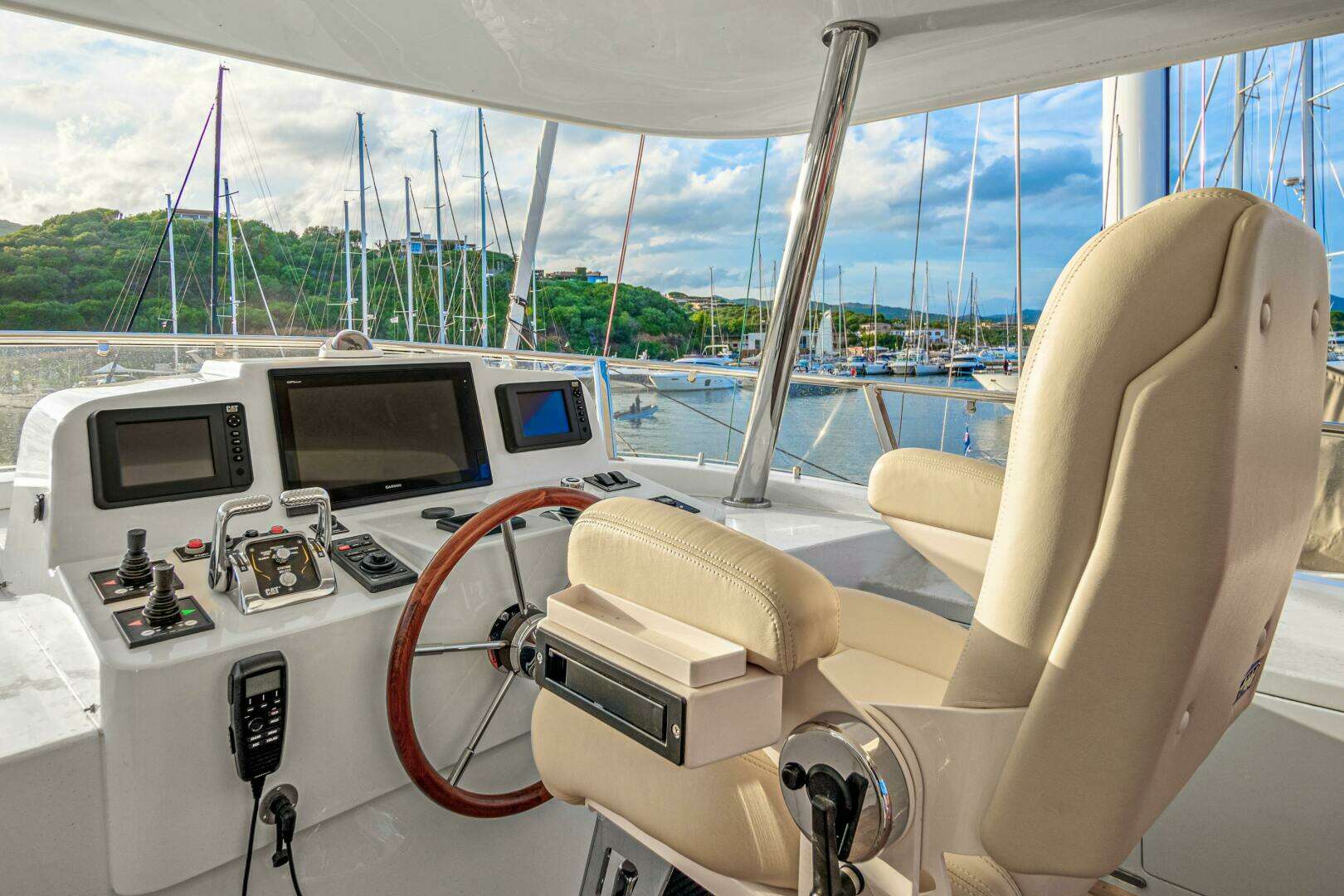

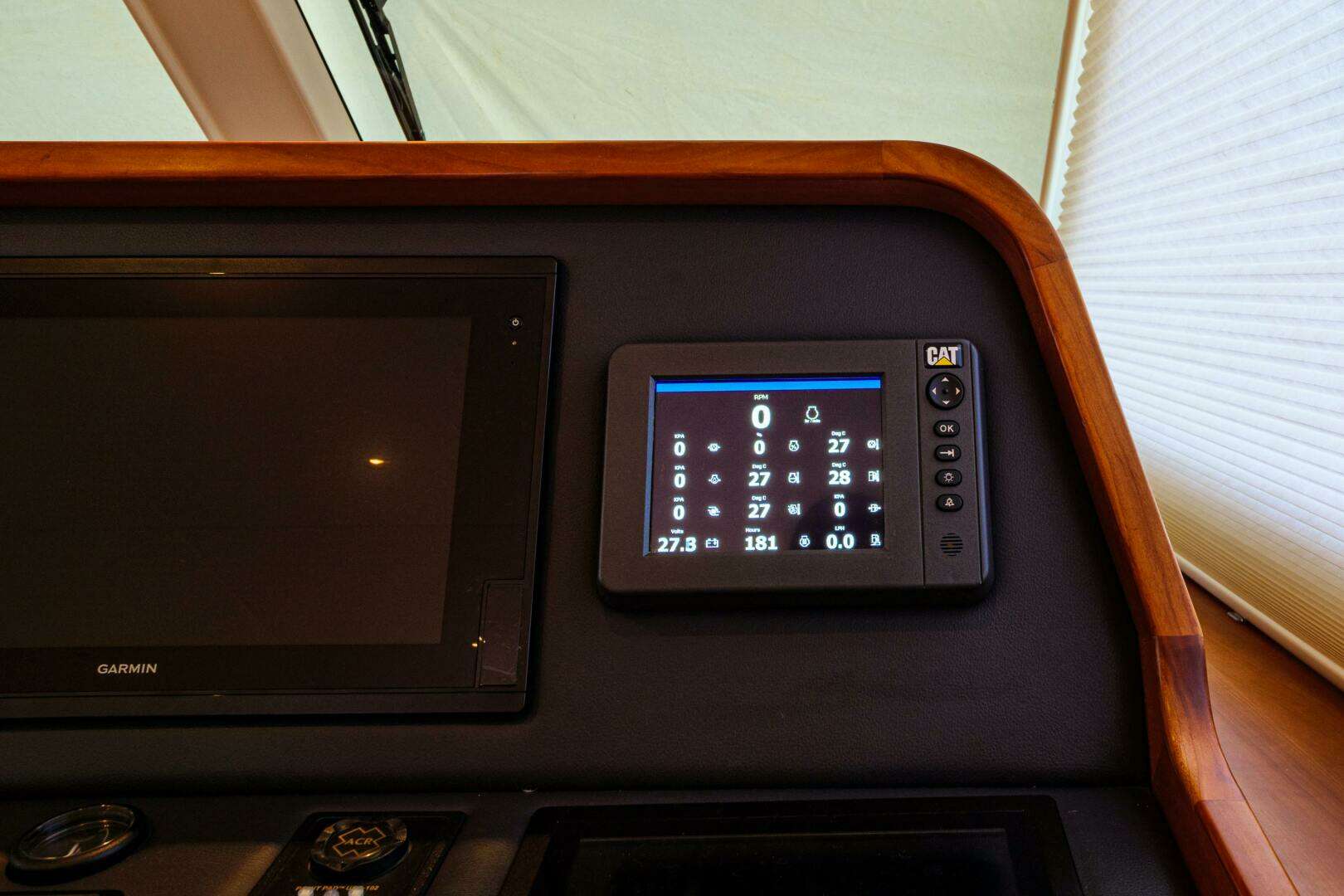

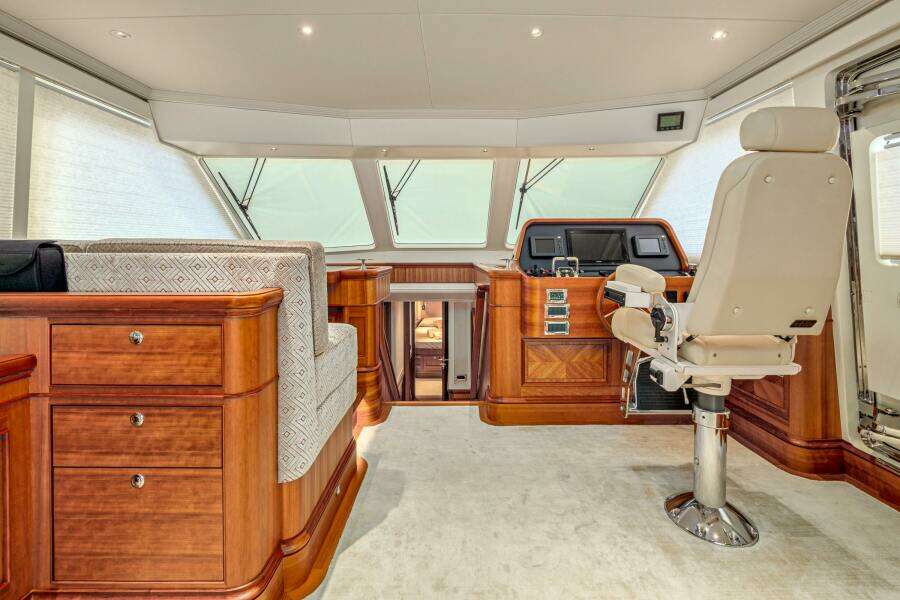

• Engine instrumentation at the helm, start/stop with electronic digital displays

• Engine instrumentation in the engine room, start/stop analog controls for each engine

• Exhaust system, twin stainless risers, dual chamber FRP muffler with FRP tubing, high-temperature hose

• Propellers, Nibral, dynamically balanced, 5-bladed

• Exhaust, discharge at transom corner

• Propeller shafts, HS stainless steel, with tapered coupling

• Prop pocket tunnels

• Shaft P brackets, bronze with rubber bearings

• Shafting with drip-less lip seals, bearings, and spare seal installed

• Steering, power-assisted with autopilot connection points

• Steering rudders, stainless steel with stainless shaft and tiller arms with lip seal, bearings

• Soft mounting, pumps, fans, compressors, and other noise/vibration sources will be elastically mounted

• Engine room, sound insulation, composite panels of dampening, barrier, and absorption layers

• Pantograph engine room door, watertight, hinged

• Engine room fire protection system, Sea- Fire, automatic system, with manual override and dampers

• Engine removal soft patch in after deck

• Engine room flooring, in Aluminum diamond plate

• Engine room safety rails around engines, stainless steel

• Engine room faucet, Hot and cold

• Engine room finish, in white, flow coated Gelcoat, and brushed Polyurethane

• Exhaust, generator system with gas water separator

• Oil sump, FRP composite, under engines

• Three fuel tanks, main, baffled Aluminum tank

• Fuel management panel with valves and two pumps, 24 VDC

• Fuel hose, fill, supply, return, approved Type A1 and A2

• Fuel filters, Racor®, and water separators for each engine and generator

• Oil change kit, for engine, gear, and generator, 24 VDC

• Fuel tank vents. Flush SS

• Watermaker 900 gallons per day

• Fuel vent filters, and anti-spill device for each tank

• Seacocks: Groco Safety Seacocks® for engine raw water intake

• All Hose connections below the waterline are DBL clamped

• Seacocks, with raw water strainers for pumps and intakes

• Three tanks, freshwater, baffled stainless steel

• Two tank, gray water, baffled in FRP composite.235 Gal.

• Two tank, black water, baffled in FRP composite. 225 Gal.

• Tank fills, for fuel, water and waste, stainless steel

• Tank gauges for fuel and water (fresh, gray, and waste), 24 vdc.

• Tank, vents for water, gray, waste tanks

• Four discharge pumps, for waste and gray water tanks, 24 vdc.

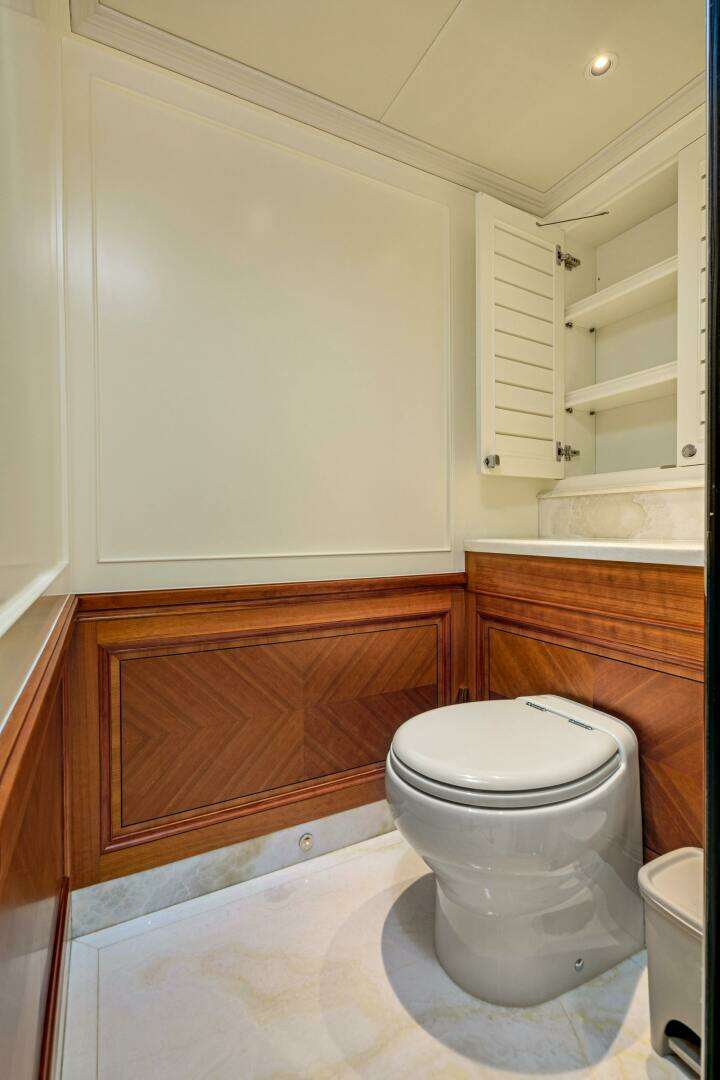

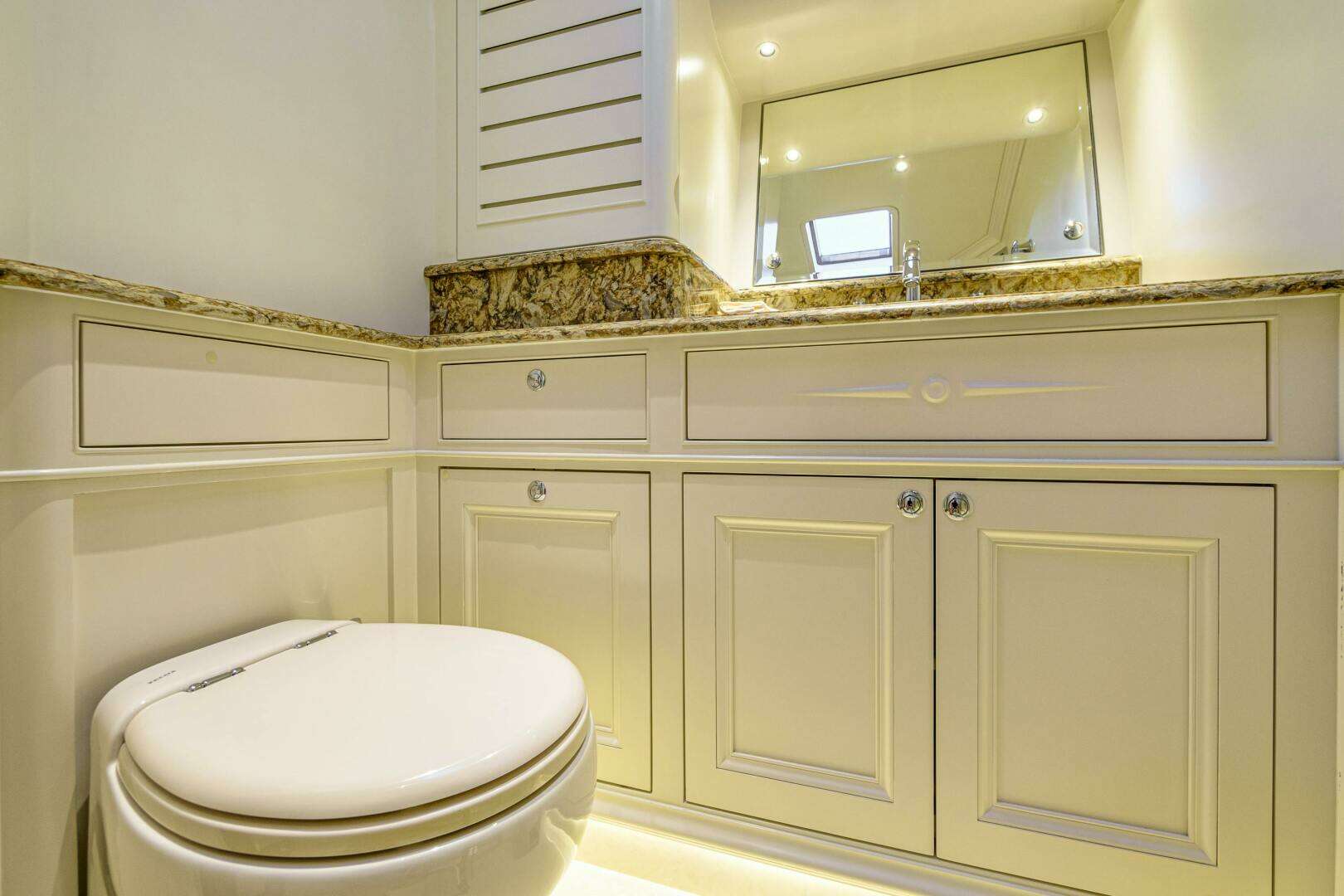

• Toilets, macerator, 24vdc Tecma® electric system. Fresh water flush

• Freshwater system, engineered plastic piping and fittings

• Freshwater pumps, twin, variable pressure, 24 AC/DC

• Freshwater regulator, for dock-side water

• Water heaters, twin 20-gallon, 230 vac. Seaward

• Miele Stacked washer and dryer, 220 vac, vented

• Bilge System

• Anchor locker, self-draining

• VIP bilge – Rule -37000 GPH

• Owners bilge – Rule 3700 GPH

• Crew bilge -Rule 2000 GPH

• Engine room -Rule 2 x 3700

• In addition, there is a Whale BP 3740

• Manual bilge pump in crew accommodation

MECHANICAL AND PLUMBING

• Engines: Twin Caterpillar C32 diesel, 1900 bhp @ 2300

• Twin Disc Quick Shift remote-mounted v-drives (model MGX-6620-RV, 2.09:1)

• Caterpillar Three60 joystick control system with 2 stations

• Bow Thruster, proportional hydraulic, integrated to Cat Three60 system

• Stern Thruster, proportional hydraulic, integrated to Cat Three60 system

• Engine throttle and gear shift controls, dual station, electronic, with synchronizers

• Ride and trim control, Humphree Active Ride Control system. Engine mounts, heavy-duty isolation mounts

• Engine instrumentation at the helm, start/stop with electronic digital displays

• Engine instrumentation in the engine room, start/stop analog controls for each engine

• Exhaust system, twin stainless risers, dual chamber FRP muffler with FRP tubing, high-temperature hose

• Propellers, Nibral, dynamically balanced, 5-bladed

• Exhaust, discharge at transom corner

• Propeller shafts, HS stainless steel, with tapered coupling

• Prop pocket tunnels

• Shaft P brackets, bronze with rubber bearings

• Shafting with drip-less lip seals, bearings, and spare seal installed

• Steering, power-assisted with autopilot connection points

• Steering rudders, stainless steel with stainless shaft and tiller arms with lip seal, bearings

• Soft mounting, pumps, fans, compressors, and other noise/vibration sources will be elastically mounted

• Engine room, sound insulation, composite panels of dampening, barrier, and absorption layers

• Pantograph engine room door, watertight, hinged

• Engine room fire protection system, Sea- Fire, automatic system, with manual override and dampers

• Engine removal soft patch in after deck

• Engine room flooring, in Aluminum diamond plate

• Engine room safety rails around engines, stainless steel

• Engine room faucet, Hot and cold

• Engine room finish, in white, flow coated Gelcoat, and brushed Polyurethane

• Exhaust, generator system with gas water separator

• Oil sump, FRP composite, under engines

• Three fuel tanks, main, baffled Aluminum tank

• Fuel management panel with valves and two pumps, 24 VDC

• Fuel hose, fill, supply, return, approved Type A1 and A2

• Fuel filters, Racor®, and water separators for each engine and generator

• Oil change kit, for engine, gear, and generator, 24 VDC

• Fuel tank vents. Flush SS

• Watermaker 900 gallons per day

• Fuel vent filters, and anti-spill device for each tank

• Seacocks: Groco Safety Seacocks® for engine raw water intake

• All Hose connections below the waterline are DBL clamped

• Seacocks, with raw water strainers for pumps and intakes

• Three tanks, freshwater, baffled stainless steel

• Two tank, gray water, baffled in FRP composite.235 Gal.

• Two tank, black water, baffled in FRP composite. 225 Gal.

• Tank fills, for fuel, water and waste, stainless steel

• Tank gauges for fuel and water (fresh, gray, and waste), 24 vdc.

• Tank, vents for water, gray, waste tanks

• Four discharge pumps, for waste and gray water tanks, 24 vdc.

• Toilets, macerator, 24vdc Tecma® electric system. Fresh water flush

• Freshwater system, engineered plastic piping and fittings

• Freshwater pumps, twin, variable pressure, 24 AC/DC

• Freshwater regulator, for dock-side water

• Water heaters, twin 20-gallon, 230 vac. Seaward

• Miele Stacked washer and dryer, 220 vac, vented

• Bilge System

• Anchor locker, self-draining

• VIP bilge – Rule -37000 GPH

• Owners bilge – Rule 3700 GPH

• Crew bilge -Rule 2000 GPH

• Engine room -Rule 2 x 3700

• In addition, there is a Whale BP 3740

• Manual bilge pump in crew accommodation

ELECTRICAL

• DC electrical system, 12 VDC + 24 VDC

• AC electrical system, 230 vac.

• Batteries, Northstar 210 4 ea. 255 Ah for engine start, 4 ea. 255 Ah for house, 1 ea. 105 Ah for generator

• Stainless steel angle bar with hold-down straps for batteries

• Battery charger, mastervolt 24/60 AMP

• Battery charger, 230 vac-12 VDC, 30 amp

• Battery condition indicator

• Battery isolation

• Battery switch, emergency paralleling

• Battery management panel, AC ship’s systems panel in crew’s quarters

• Alternator, engines, 24 VDC, 60 Amp

• Mass Combi, 24/4000-100

• Alternator, generator, 12vdc, 30 amps

• Engine room air intake/discharge system, with fire dampeners

• Engine room blowers, Manship 24 VDC

• Engine room lights, LED, 24 VDC

• Carbon Monoxide detector, each stateroom, and salon, 24 VDC

• Air-conditioning, direct expansion, reverse cycle, remote compressors

• Air-conditioning, condensation tank with AC equipment 3 X 24000 Btu and 2 X 16000 Btu
  compressors in the engine room, and air handlers in accommodations

• VIP – 16000 Btu

• Guest Cabin – 8000 Btu, Owner's cabin – 2X 12000 Btu, Utility room – 4000 Btu

• Galley – 12000 Btu, Salon – 12000 Btu, Lower helm – 12000 Btu, Crew 8000 Btu

• Dual generators, Northern Lights 230vac with sound shield, diesel, 25 KW for 50 Hz

• Twin power isolation transformers, 230 vac.

• Searchlight remote ARC 100

• Shore power cable, twin Glendinning® Cablemaster 50 amp with 75 ft. white cable

• Bonding system, zinc anodes

• Bonding system throughout

• Circuit breakers, 12 vdc, 24 vdc, 230 vac.

• Circuit breaker panels in the passageway, helm, and crew quarters.

• Navigation lights, LED, 24 VDC.

• Outlets 230 vac, galley, engine room heads, salon, cabins, GFCI circuit protection. Dutch / French style

• Wiring, marine-grade, tinned copper

• Wire fittings, marine grade, terminals, connectors, fuses, fittings and conduit

ELECTRICAL

• DC electrical system, 12 VDC + 24 VDC

• AC electrical system, 230 vac.

• Batteries, Northstar 210 4 ea. 255 Ah for engine start, 4 ea. 255 Ah for house, 1 ea. 105 Ah for generator

• Stainless steel angle bar with hold-down straps for batteries

• Battery charger, mastervolt 24/60 AMP

• Battery charger, 230 vac-12 VDC, 30 amp

• Battery condition indicator

• Battery isolation

• Battery switch, emergency paralleling

• Battery management panel, AC ship’s systems panel in crew’s quarters

• Alternator, engines, 24 VDC, 60 Amp

• Mass Combi, 24/4000-100

• Alternator, generator, 12vdc, 30 amps

• Engine room air intake/discharge system, with fire dampeners

• Engine room blowers, Manship 24 VDC

• Engine room lights, LED, 24 VDC

• Carbon Monoxide detector, each stateroom, and salon, 24 VDC

• Air-conditioning, direct expansion, reverse cycle, remote compressors

• Air-conditioning, condensation tank with AC equipment 3 X 24000 Btu and 2 X 16000 Btu
  compressors in the engine room, and air handlers in accommodations

• VIP – 16000 Btu

• Guest Cabin – 8000 Btu, Owner's cabin – 2X 12000 Btu, Utility room – 4000 Btu

• Galley – 12000 Btu, Salon – 12000 Btu, Lower helm – 12000 Btu, Crew 8000 Btu

• Dual generators, Northern Lights 230vac with sound shield, diesel, 25 KW for 50 Hz

• Twin power isolation transformers, 230 vac.

• Searchlight remote ARC 100

• Shore power cable, twin Glendinning® Cablemaster 50 amp with 75 ft. white cable

• Bonding system, zinc anodes

• Bonding system throughout

• Circuit breakers, 12 vdc, 24 vdc, 230 vac.

• Circuit breaker panels in the passageway, helm, and crew quarters.

• Navigation lights, LED, 24 VDC.

• Outlets 230 vac, galley, engine room heads, salon, cabins, GFCI circuit protection. Dutch / French style

• Wiring, marine-grade, tinned copper

• Wire fittings, marine grade, terminals, connectors, fuses, fittings and conduit

EXTERIOR OUTFIT

• 8 " Bulwark with varnish teak cap rail

• Cap rail, varnished teak

• CQR Stainless Steel Anchor with 200 1/2 “ galvanized chain

• Anchor chain locker, self-draining, with access hatches

• 316 Stainless Steel anchor roller, single roller, stainless steel. Muir VRC 4000 windlass with handheld

• Windlass equipment, chain stopper, deck chafe plate

• Foredeck storage lockers

• Scuppers, stainless steel

• 316 Stainless Steel Cleats, mooring & midship, stainless steel

• 316 Stainless Steel Chocks, stainless steel

• Courtesy lights, 24 VDC.

• Engine room air intake/discharge vents, painted aluminum

• Decking, teak decks with grey caulk on decks, and swim platform

• Cabin house top, non-slip paint, Awlgrip®

• Flagstaffs, bow burgee and stern ensign, Varnished teak

• Flagstaff holders, bow and stern, stainless steel

• Rub rail, heavy-duty white vinyl with stainless steel half-round

• Quarter guard, PVC with stainless steel half-round

• Handrails, stainless steel, with intermediate rail

• Safety gates integrated access gates port and starboard

• Skylight hatches, polished stainless steel with screens/blinds on the forward cabin top

• Varnish, exterior, marine varnish

• Grab rails, 39” 316 stainless steel or varnished teak

• Air horn, dual chromed Kahlenberg® horns, 24 VDC

• Canvas covers for seating, tables, windshield

• Teak decks throughout

• Teak eyebrow for Flybridge

• All caulking to be light grey

EXTERIOR OUTFIT

• 8 " Bulwark with varnish teak cap rail

• Cap rail, varnished teak

• CQR Stainless Steel Anchor with 200 1/2 “ galvanized chain

• Anchor chain locker, self-draining, with access hatches

• 316 Stainless Steel anchor roller, single roller, stainless steel. Muir VRC 4000 windlass with handheld

• Windlass equipment, chain stopper, deck chafe plate

• Foredeck storage lockers

• Scuppers, stainless steel

• 316 Stainless Steel Cleats, mooring & midship, stainless steel

• 316 Stainless Steel Chocks, stainless steel

• Courtesy lights, 24 VDC.

• Engine room air intake/discharge vents, painted aluminum

• Decking, teak decks with grey caulk on decks, and swim platform

• Cabin house top, non-slip paint, Awlgrip®

• Flagstaffs, bow burgee and stern ensign, Varnished teak

• Flagstaff holders, bow and stern, stainless steel

• Rub rail, heavy-duty white vinyl with stainless steel half-round

• Quarter guard, PVC with stainless steel half-round

• Handrails, stainless steel, with intermediate rail

• Safety gates integrated access gates port and starboard

• Skylight hatches, polished stainless steel with screens/blinds on the forward cabin top

• Varnish, exterior, marine varnish

• Grab rails, 39” 316 stainless steel or varnished teak

• Air horn, dual chromed Kahlenberg® horns, 24 VDC

• Canvas covers for seating, tables, windshield

• Teak decks throughout

• Teak eyebrow for Flybridge

• All caulking to be light grey

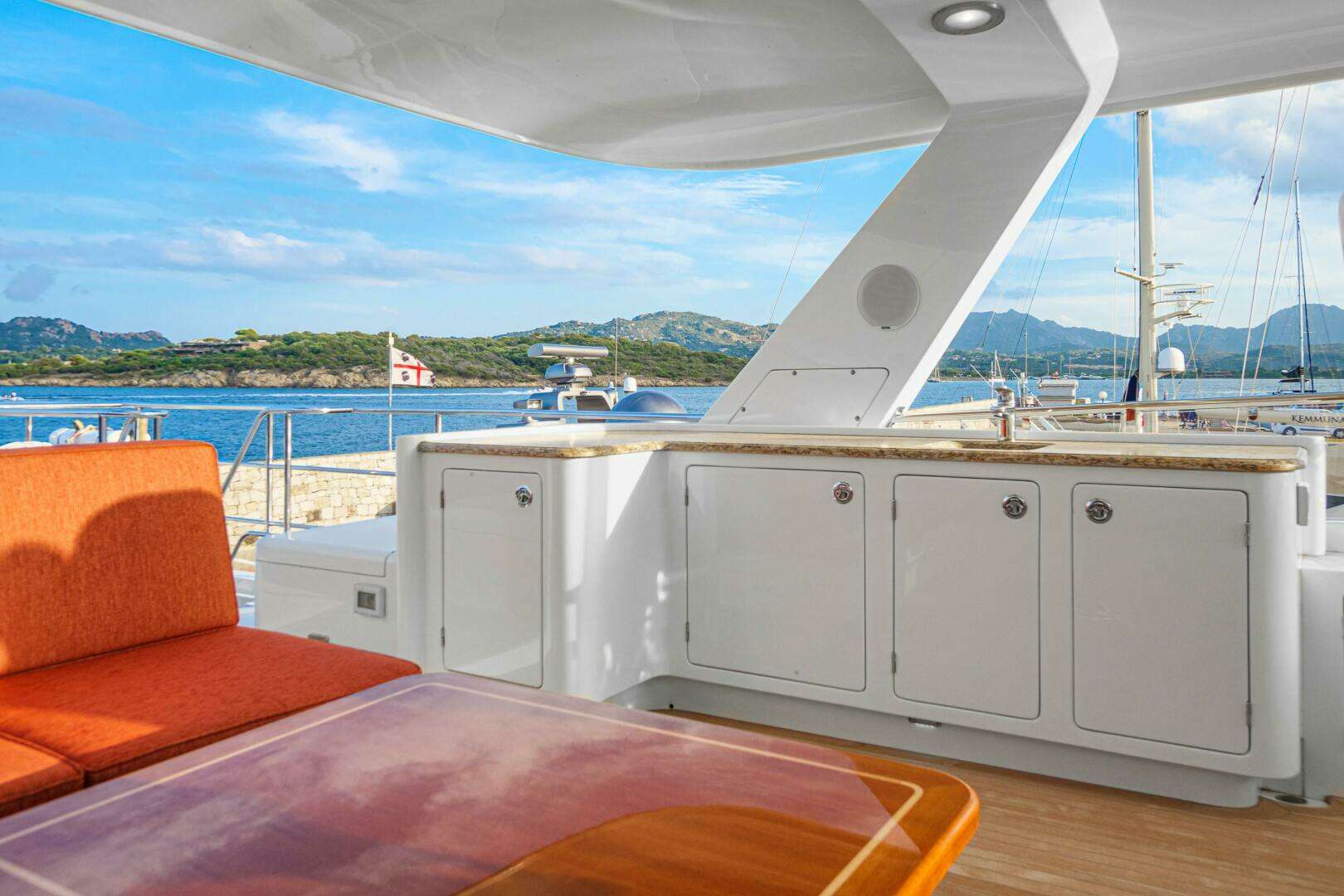

AFT DECK

• Twin Capstan winches with cleats, 24 VDC

• Settee, exterior FRP furniture with storage

• Table varnished teak with stainless steel pedestal, high/low mechanism, rotate and expand with marquetry

• Cushions and seating, marine grade soft foam, and Sunbrella

• Bimini, fixed with canvas center, lights, and gutters

• Crew quarter’s access through the deck hatch

• Engine room access, weather-tight pantograph door from the swim platform, and through crew’s cabin

• Stowage, inside settee

• Swim platform, FRP integrated with teak decking

• Swim platform 316 stainless steel cleats, removable swim ladder carbon fiber, wide steps, stores in engine room

• Transom shower, hot and cold with retractable hose

• Freshwater spigot, wash-down

• Outlets, exterior, 230 vac.

• LED deck flood light, aft deck

• Three underwater LED lights

• Stainless steel rails, aft deck

• Saltwater wash-down, pump, system, and outlet, 24 VDC.

• Fender and storage provided in transom and/or deck amenities

• Courtesy lights

• No transom stairs port side, locker on the deck for shoe storage

• Install Passeralle stbd side, in steps

• Aft Cockpit seat to have two dedicated shoe lockers, Granite top, small fiddle, no kick space

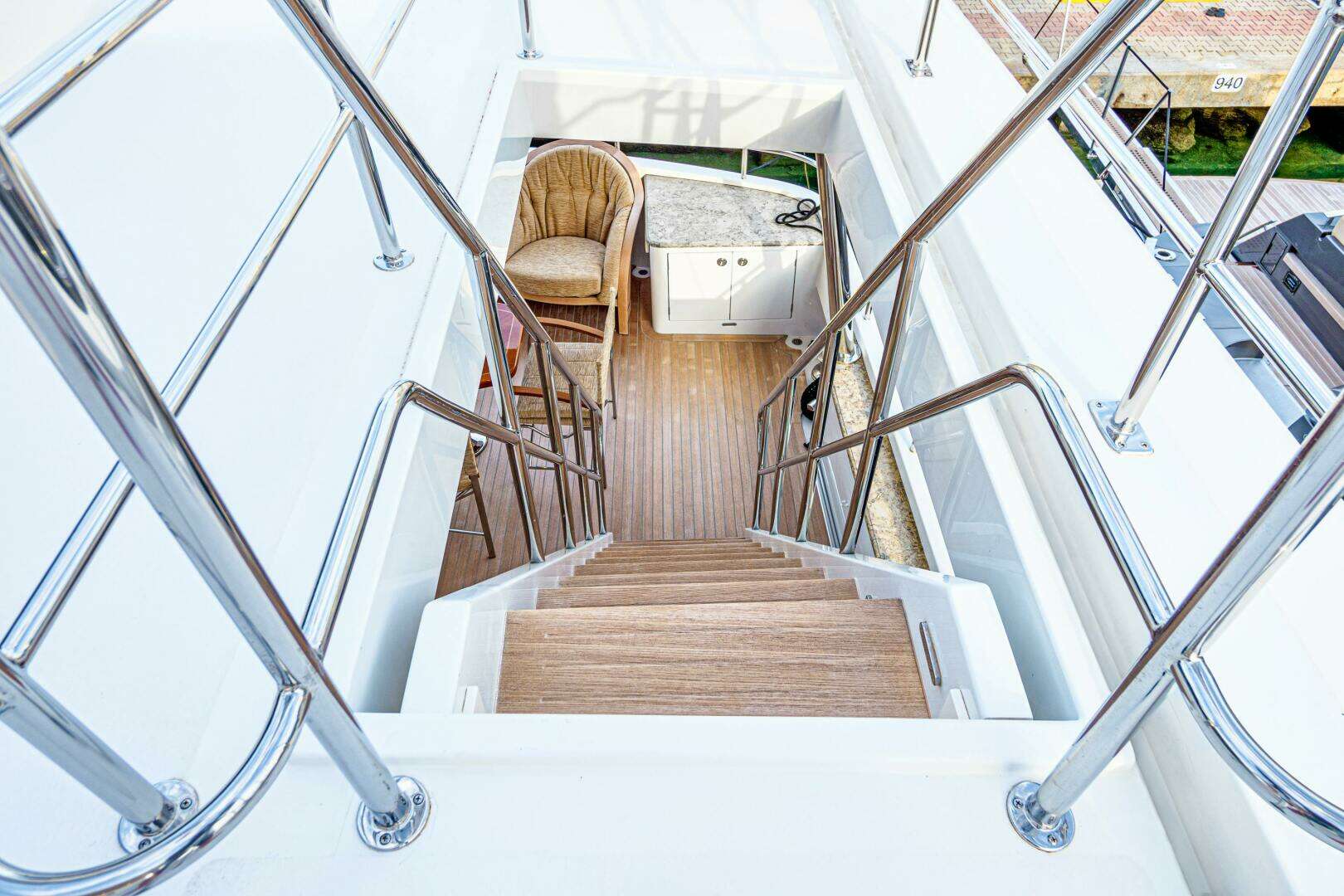

• FB staircase-HYD and RYD to approve new design

• Port cabinet to have fridge and storage

• Deckhouse to have straight electric opening door

• Crew access via a sliding hatch

• Swim platform to be 1.3 M

• Passeralle to extend 1.5M beyond the platform

AFT DECK

• Twin Capstan winches with cleats, 24 VDC

• Settee, exterior FRP furniture with storage

• Table varnished teak with stainless steel pedestal, high/low mechanism, rotate and expand with marquetry

• Cushions and seating, marine grade soft foam, and Sunbrella

• Bimini, fixed with canvas center, lights, and gutters

• Crew quarter’s access through the deck hatch

• Engine room access, weather-tight pantograph door from the swim platform, and through crew’s cabin

• Stowage, inside settee

• Swim platform, FRP integrated with teak decking

• Swim platform 316 stainless steel cleats, removable swim ladder carbon fiber, wide steps, stores in engine room

• Transom shower, hot and cold with retractable hose

• Freshwater spigot, wash-down

• Outlets, exterior, 230 vac.

• LED deck flood light, aft deck

• Three underwater LED lights

• Stainless steel rails, aft deck

• Saltwater wash-down, pump, system, and outlet, 24 VDC.

• Fender and storage provided in transom and/or deck amenities

• Courtesy lights

• No transom stairs port side, locker on the deck for shoe storage

• Install Passeralle stbd side, in steps

• Aft Cockpit seat to have two dedicated shoe lockers, Granite top, small fiddle, no kick space

• FB staircase-HYD and RYD to approve new design

• Port cabinet to have fridge and storage

• Deckhouse to have straight electric opening door

• Crew access via a sliding hatch

• Swim platform to be 1.3 M

• Passeralle to extend 1.5M beyond the platform

COMMON INTERIOR FEATURES

• Finish, satin gloss throughout

• Cherry furniture with Amboyna in lay per RYD 251

• Global Yachts to provide samples of finish and trim lines for RYD / owner approval

• Cabin doors: Cherry veneered panels with solid frame, chrome door hardware, door stops

• Décor: Working curtains and shear blinds owner supplied and fit in EU

• Décor: Pleated blinds on all windows and entrance door

• Décor package: The owner is to supply all built-in fabric

• Drawers with under drawer runners Lowe push button- RYD to specify material

• Grab rails, wood, and stainless steel

• Hardware, All Yellow metal- except crew and galley-RYD to specify material

• Headlining, noise-reducing foam-backed fabric panels, removable

• Blackout screen, for fixed ports and hatches

• Insect screens/blinds, retractable for emergency deck hatch in VIP stateroom

• Lighting, LED and incandescent, downlights, accent lights, indirect, 24 VDC, with dimmers per RYD specification

• LED reading lights over berths, 24 VDC.

• Locker doors, concealed hinges, positive locks. Soft close, Lowe

• Outlets and switches, Vimar®, décor colored covers, mounting frames, modular switches and boxes for outlets

• Owner’s operation and maintenance manual

• Portlights in hull, stainless steel, fixed

• Sole: teak butt jointed, semi-gloss

• Steps, with clear non-skid varnish

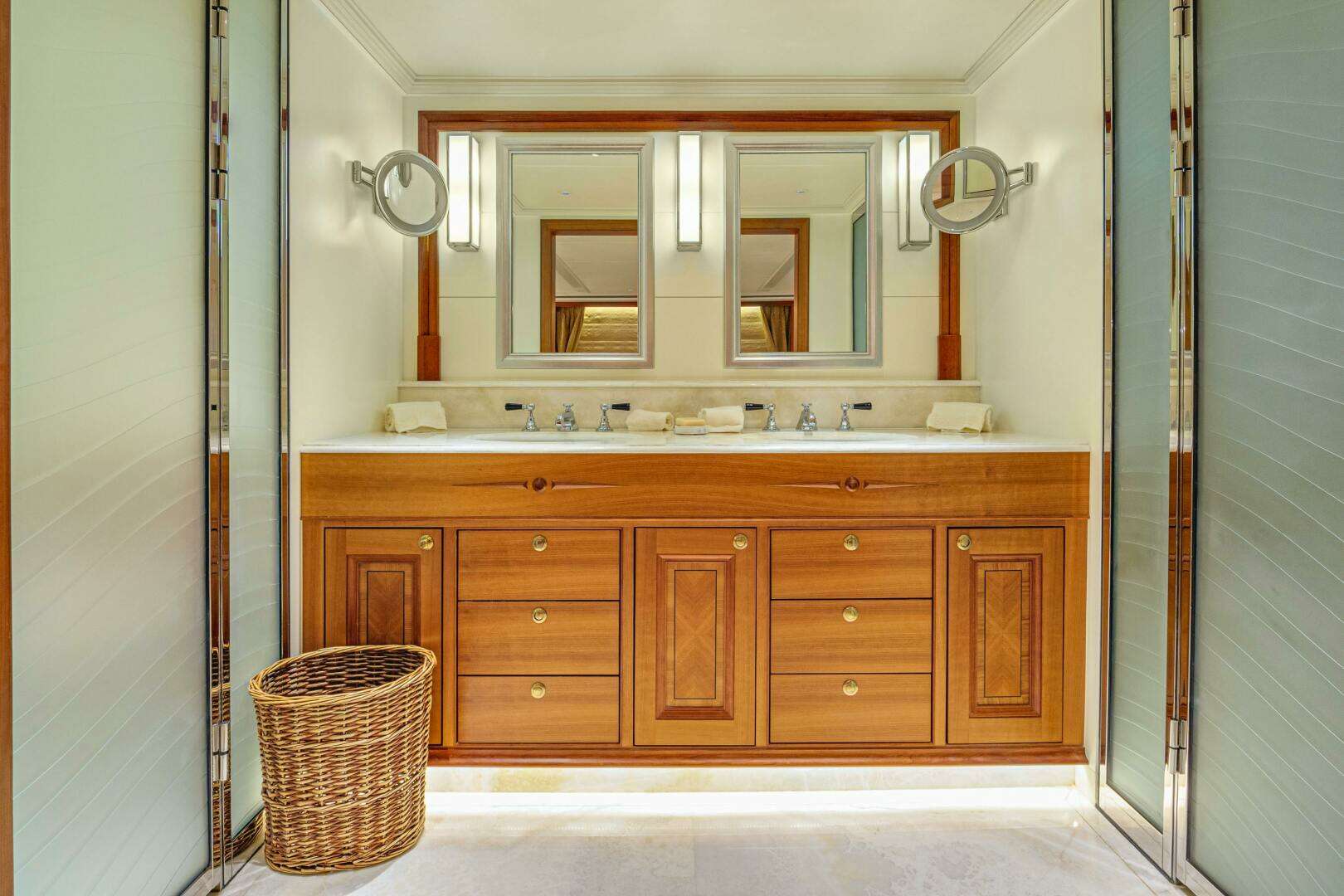

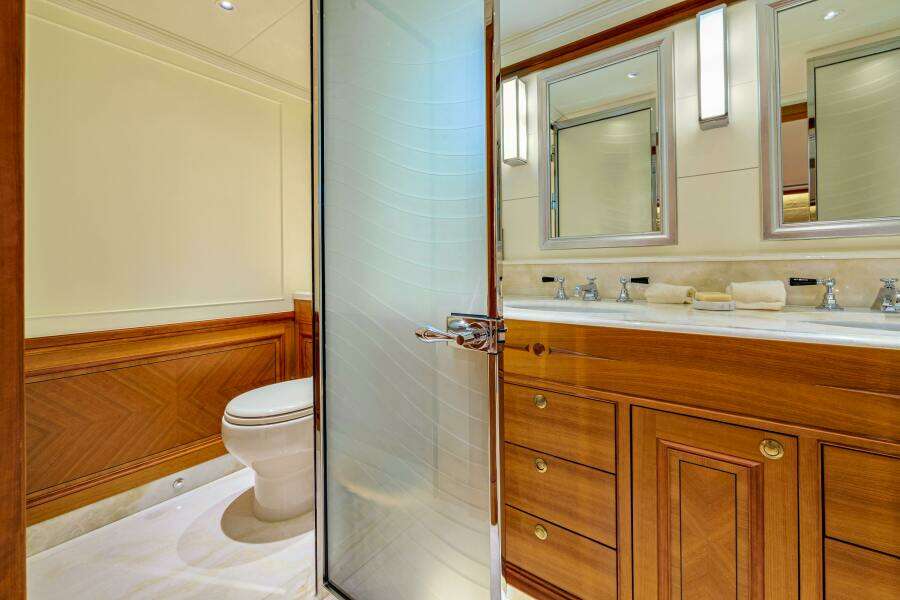

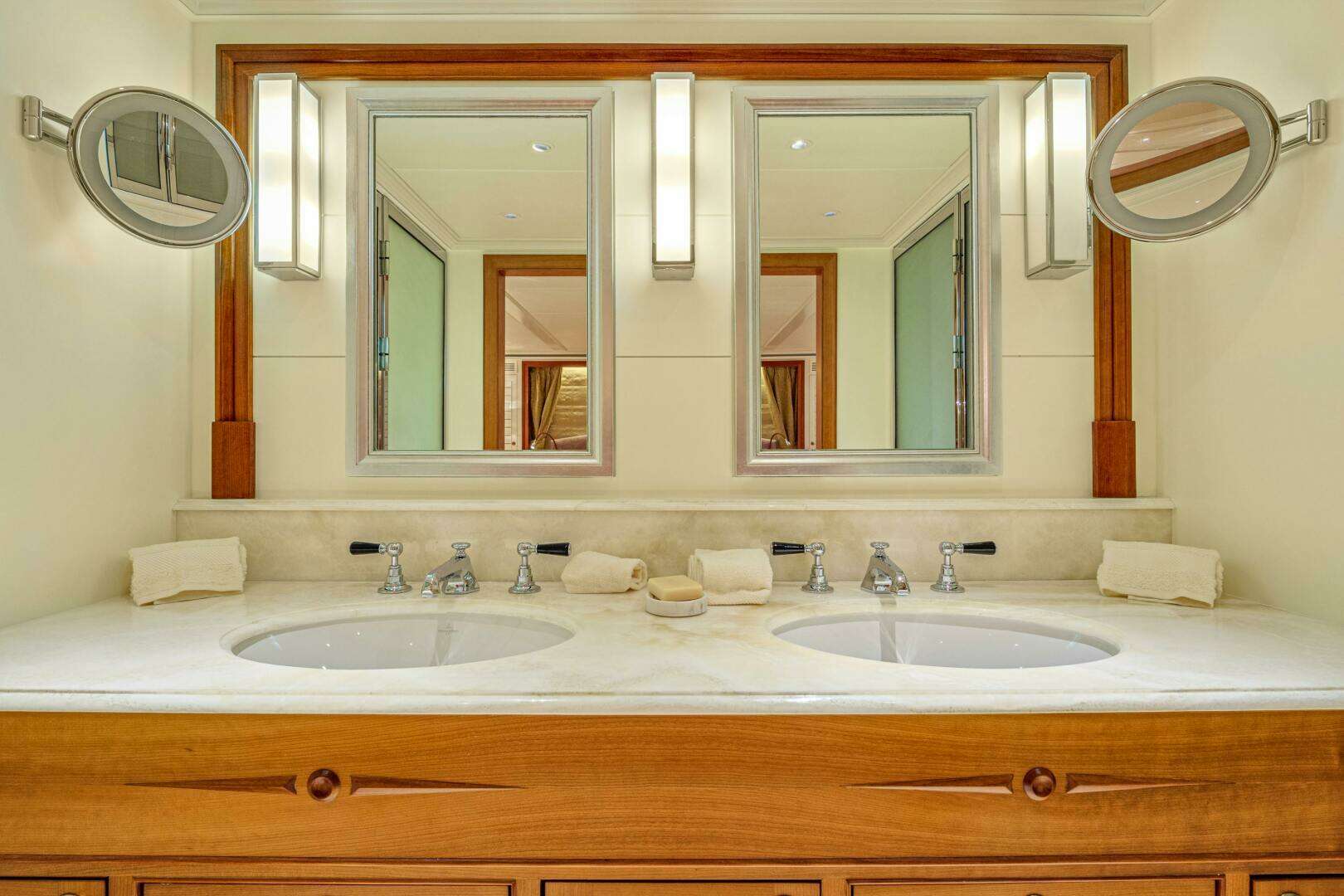

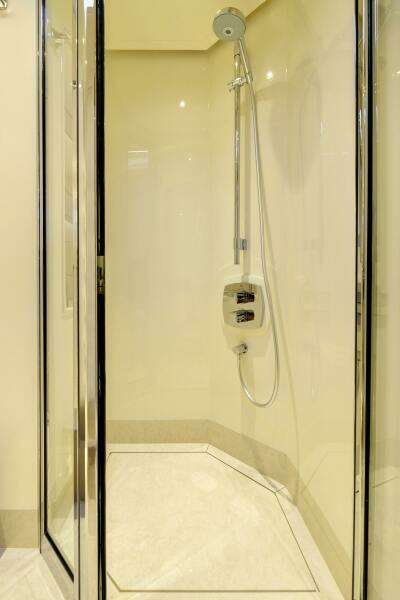

• Heads to have stone countertops, floors, and shower

• Overhead lights and deco strip to be Cantaloupe as per RYD. RYD to provide specification

COMMON INTERIOR FEATURES

• Finish, satin gloss throughout

• Cherry furniture with Amboyna in lay per RYD 251

• Global Yachts to provide samples of finish and trim lines for RYD / owner approval

• Cabin doors: Cherry veneered panels with solid frame, chrome door hardware, door stops

• Décor: Working curtains and shear blinds owner supplied and fit in EU

• Décor: Pleated blinds on all windows and entrance door

• Décor package: The owner is to supply all built-in fabric

• Drawers with under drawer runners Lowe push button- RYD to specify material

• Grab rails, wood, and stainless steel

• Hardware, All Yellow metal- except crew and galley-RYD to specify material

• Headlining, noise-reducing foam-backed fabric panels, removable

• Blackout screen, for fixed ports and hatches

• Insect screens/blinds, retractable for emergency deck hatch in VIP stateroom

• Lighting, LED and incandescent, downlights, accent lights, indirect, 24 VDC, with dimmers per RYD specification

• LED reading lights over berths, 24 VDC.

• Locker doors, concealed hinges, positive locks. Soft close, Lowe

• Outlets and switches, Vimar®, décor colored covers, mounting frames, modular switches and boxes for outlets

• Owner’s operation and maintenance manual

• Portlights in hull, stainless steel, fixed

• Sole: teak butt jointed, semi-gloss

• Steps, with clear non-skid varnish

• Heads to have stone countertops, floors, and shower

• Overhead lights and deco strip to be Cantaloupe as per RYD. RYD to provide specification

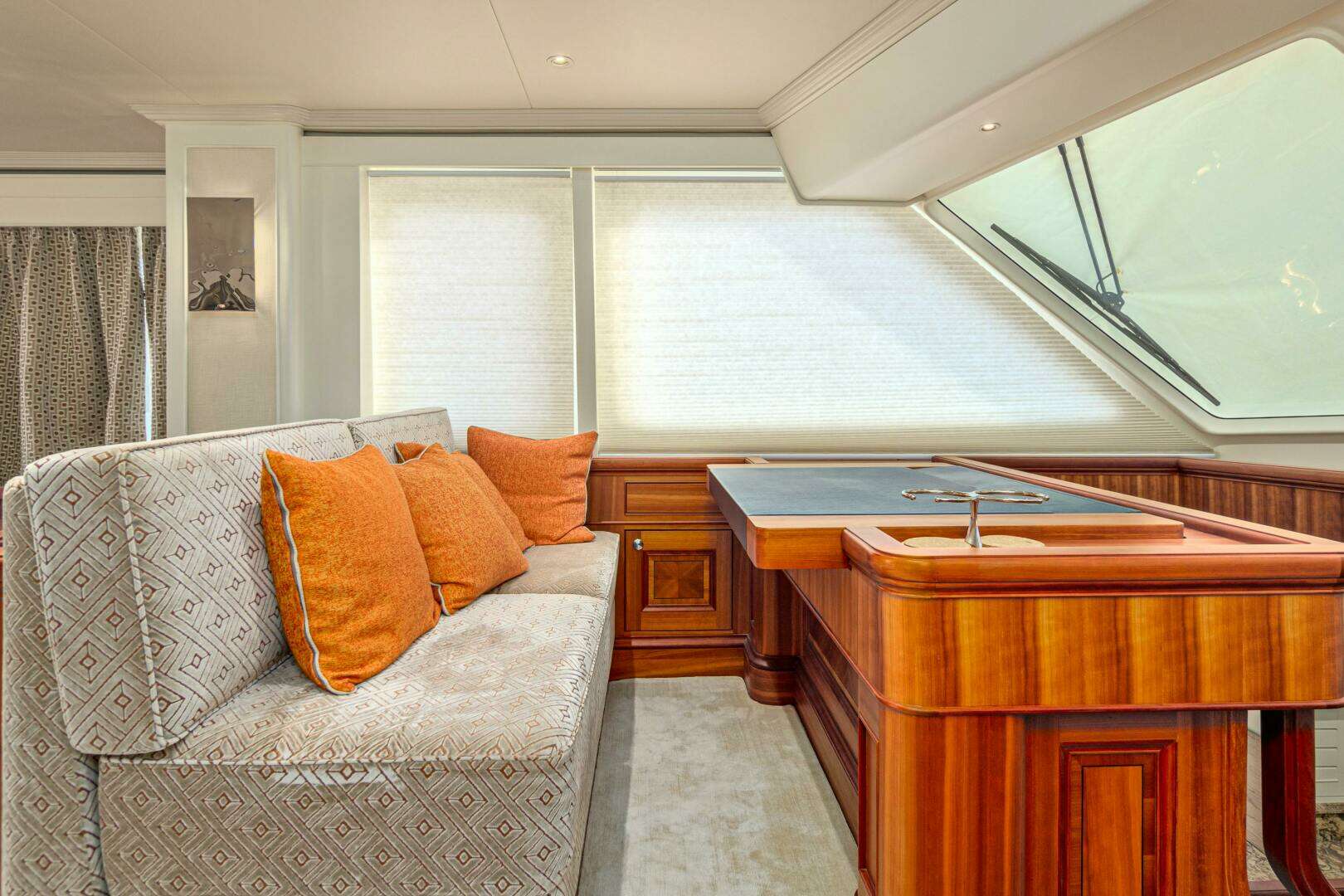

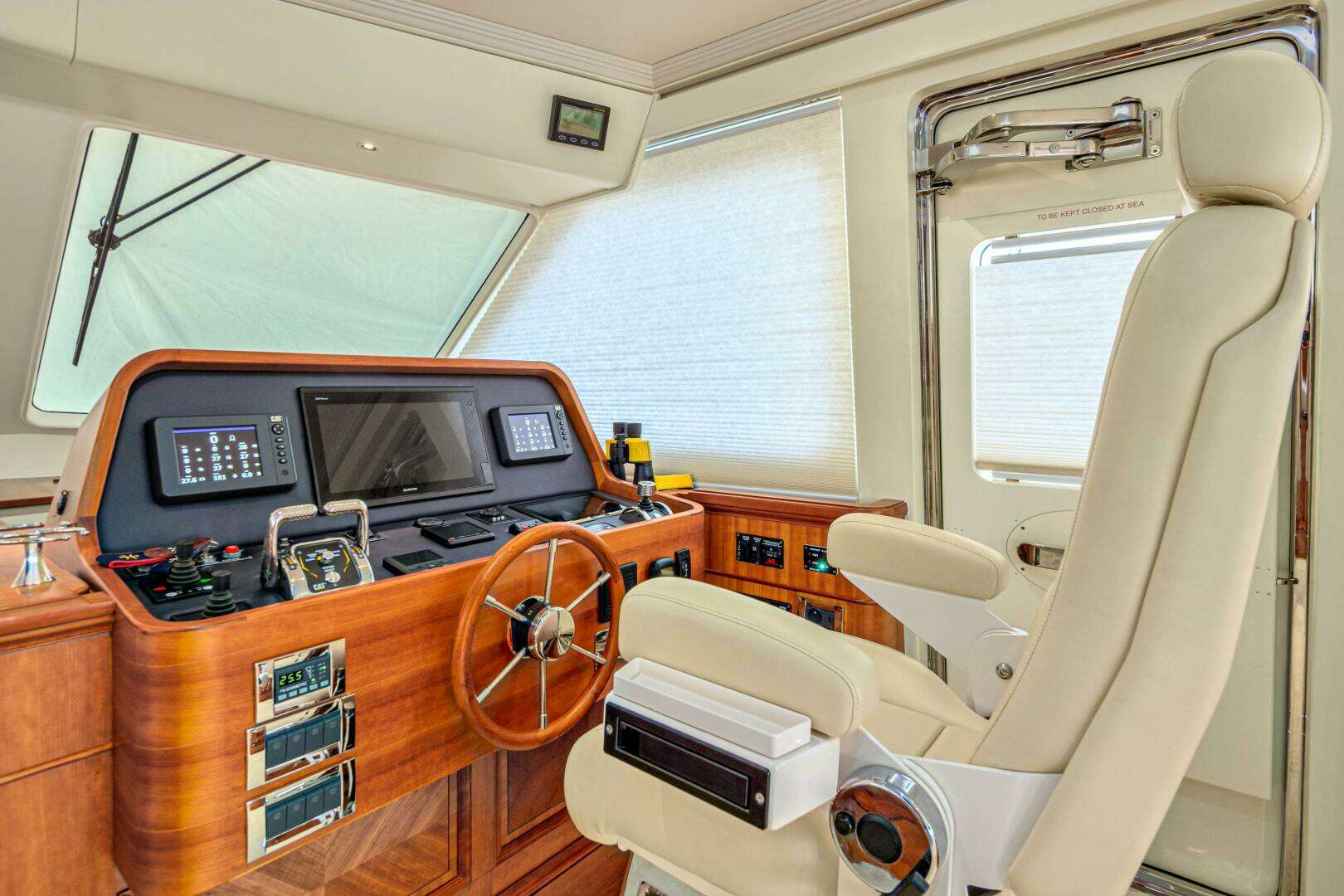

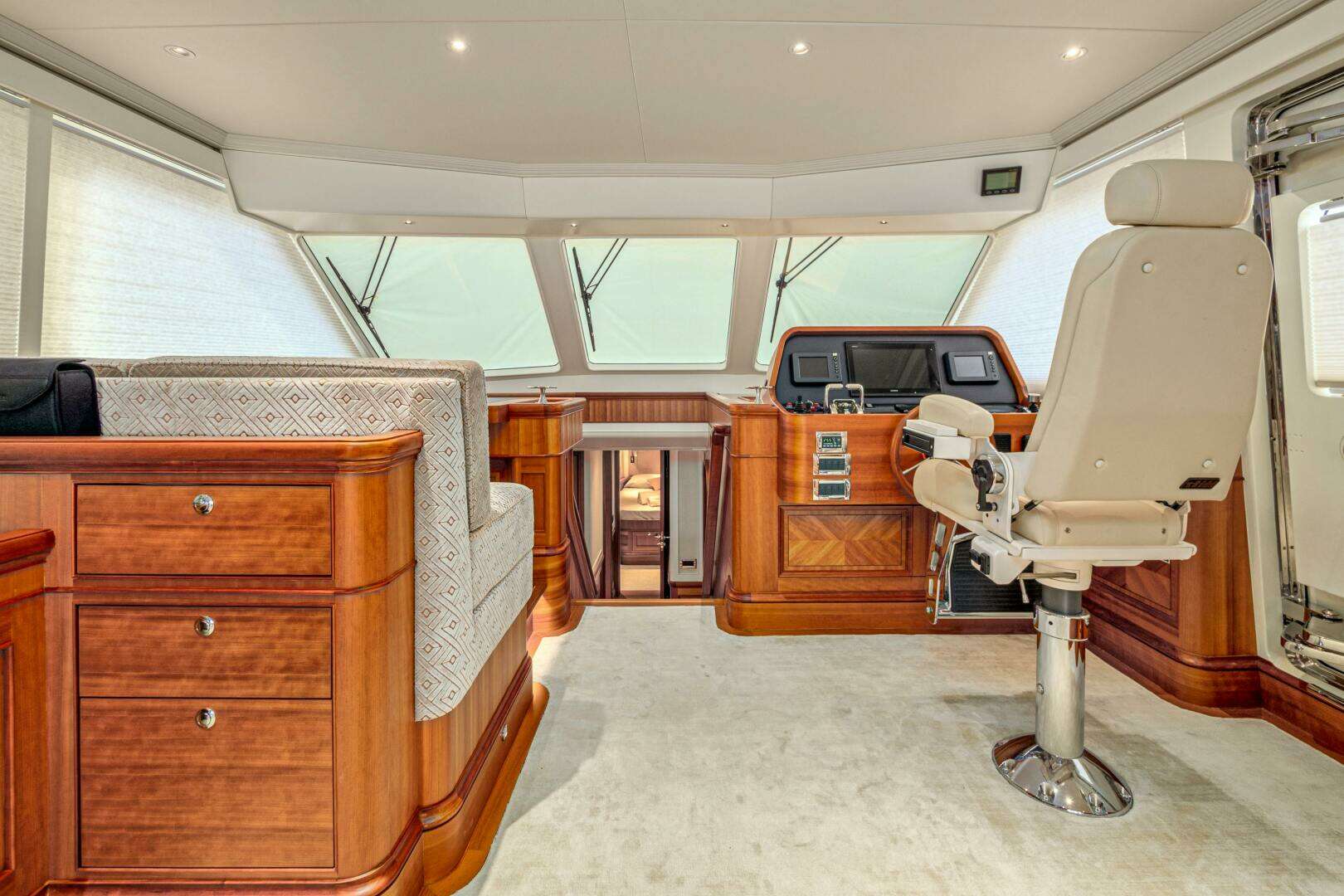

SALOON AND HELM AREA

• Navigation electronics per owner's specifications below

• Sofa seat length and foam to be determined

• Chairs to be provided by the owner

• Table, with manual high/low mechanism and high gloss finish Marquetry per RYD

• Door, watertight side deckhouse, stainless steel, hinged pantograph

• Door and aft bulkhead straight and electric opening

• Windows, tempered, glass, direct glazing

• Windows, forward clear, side tinted, aft curved tinted

• Sole, teak, semi-gloss

• Two vertically opening powered windows in the pilothouse

• Chart locker, wood with cover in-board of the helm station

• Circuit breaker panel, 12 and 24 VDC, 230 vac.

• Helm seat, one Stidd® high back with chrome pedestal, footrest

• Helm and electronics consoles- Cherry

• Controls at the helm: engine controls, joystick system, VHF, trim tabs

• Helm outlet, 12 VDC. UBS Port

• Ritchie Compass, 5-degree card

• Steering wheel, stainless steel with Teak rim

• Windshield wipers, triple, 24 VDC with speed control, auto parking, and freshwater wash.

• Fit overhead speakers in the saloon per RYD

• Glass panel over owner's entrance to be clear

SALOON AND HELM AREA

• Navigation electronics per owner's specifications below

• Sofa seat length and foam to be determined

• Chairs to be provided by the owner

• Table, with manual high/low mechanism and high gloss finish Marquetry per RYD

• Door, watertight side deckhouse, stainless steel, hinged pantograph

• Door and aft bulkhead straight and electric opening

• Windows, tempered, glass, direct glazing

• Windows, forward clear, side tinted, aft curved tinted

• Sole, teak, semi-gloss

• Two vertically opening powered windows in the pilothouse

• Chart locker, wood with cover in-board of the helm station

• Circuit breaker panel, 12 and 24 VDC, 230 vac.

• Helm seat, one Stidd® high back with chrome pedestal, footrest

• Helm and electronics consoles- Cherry

• Controls at the helm: engine controls, joystick system, VHF, trim tabs

• Helm outlet, 12 VDC. UBS Port

• Ritchie Compass, 5-degree card

• Steering wheel, stainless steel with Teak rim

• Windshield wipers, triple, 24 VDC with speed control, auto parking, and freshwater wash.

• Fit overhead speakers in the saloon per RYD

• Glass panel over owner's entrance to be clear

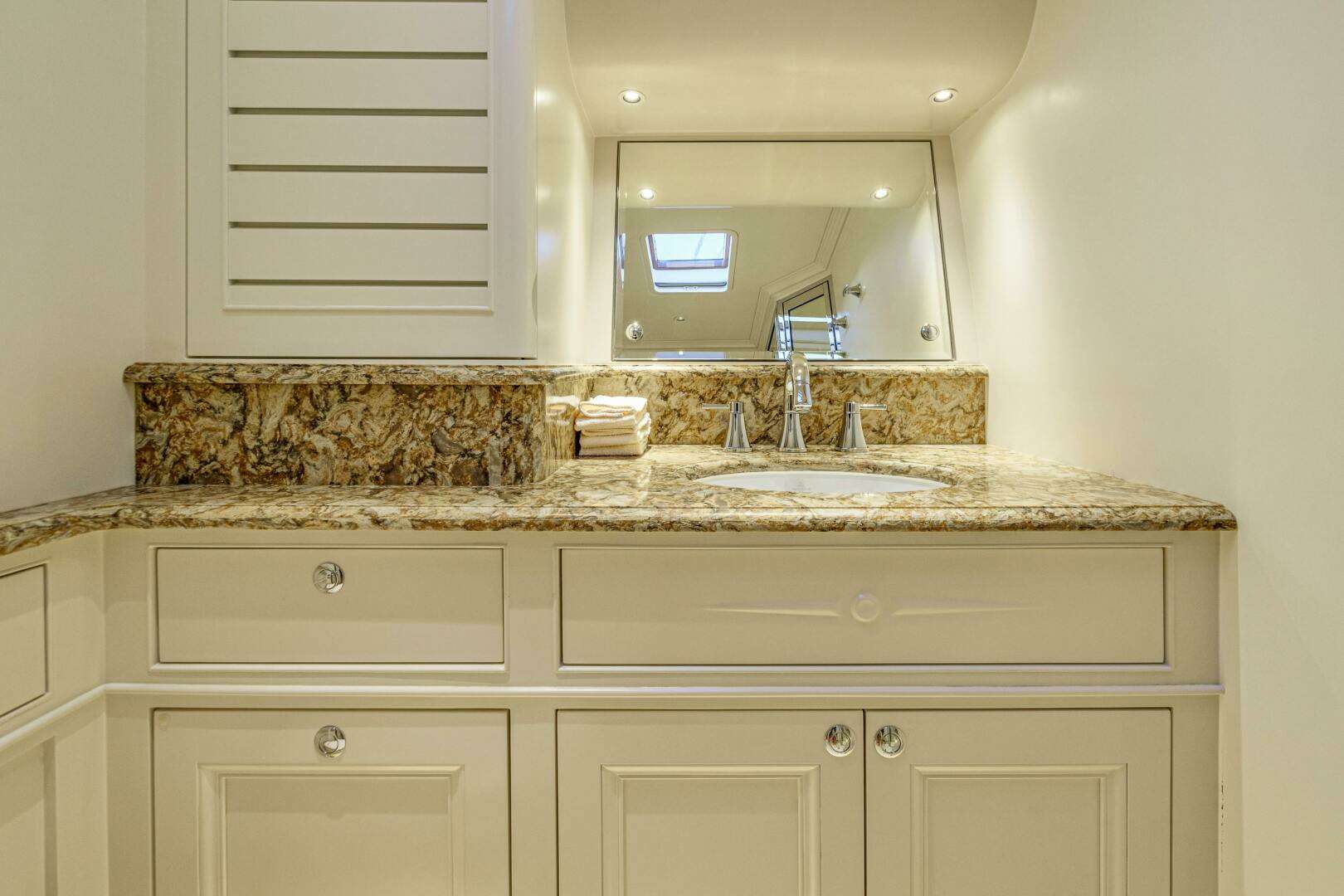

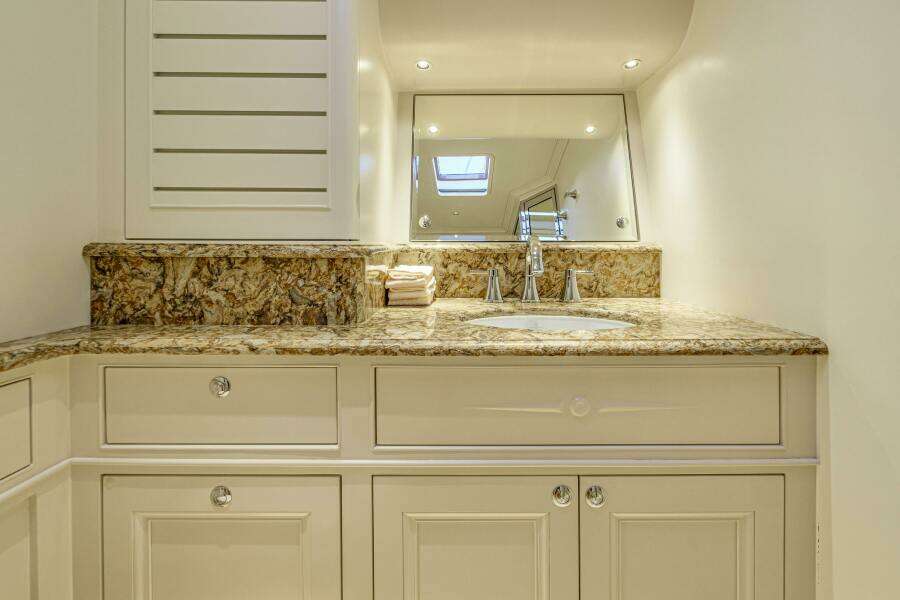

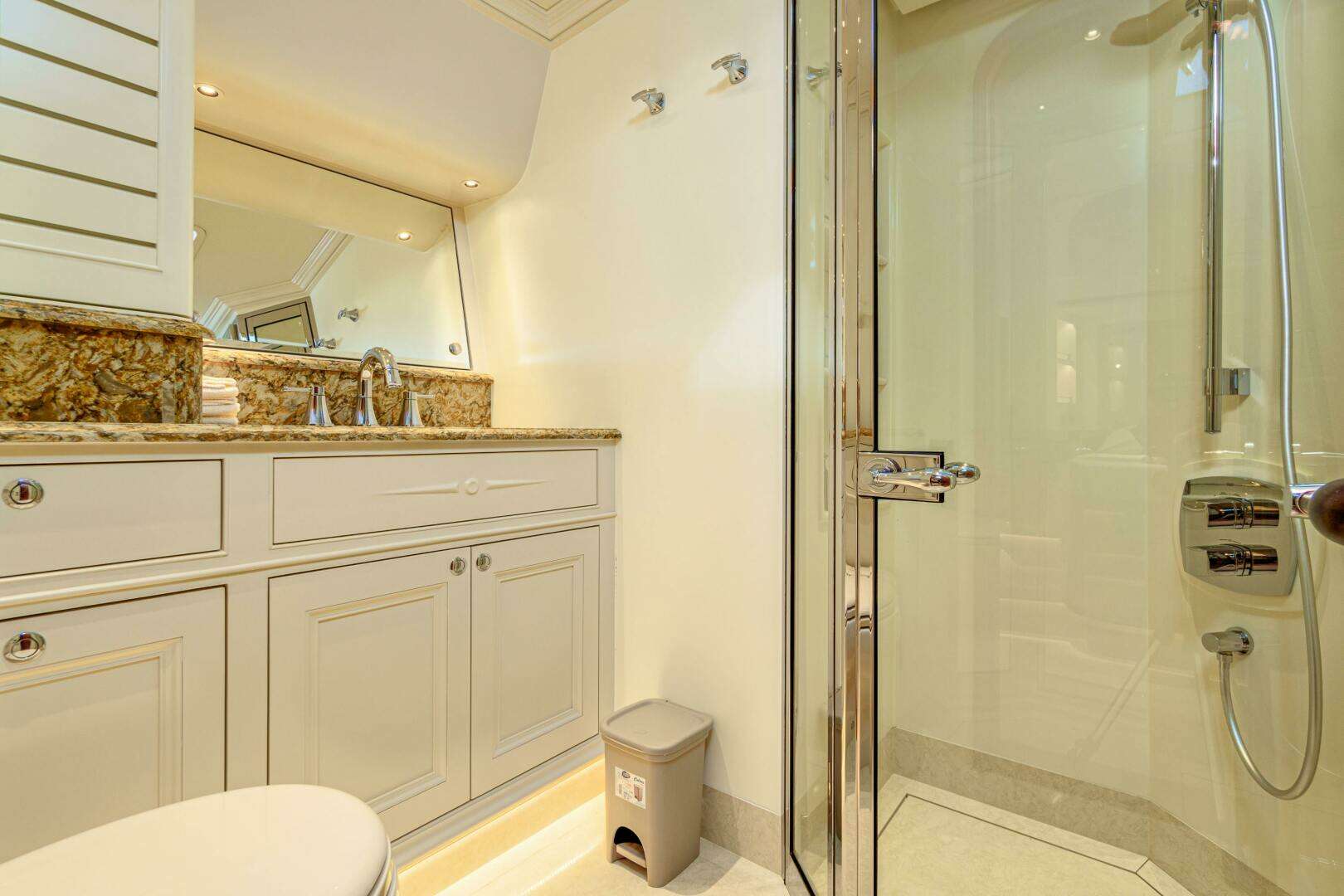

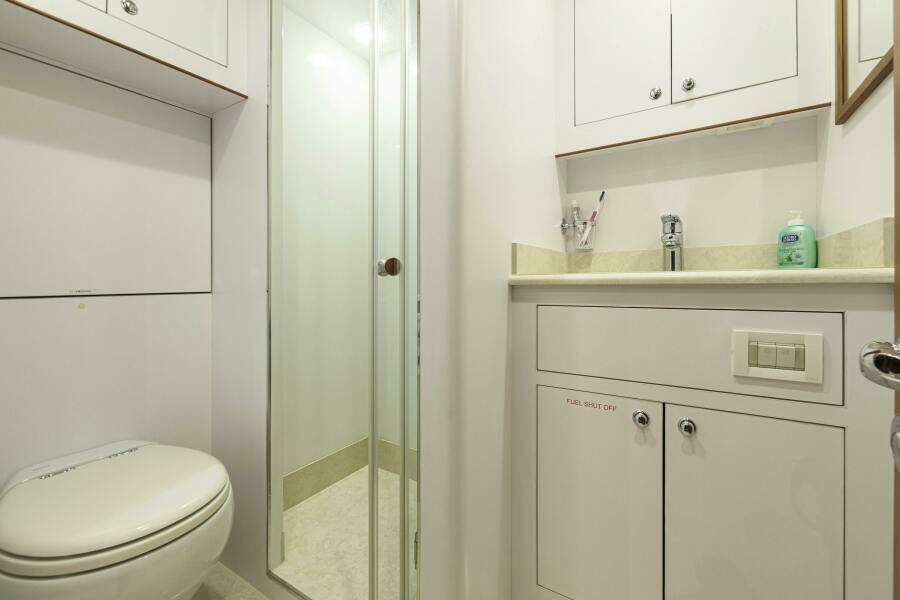

DAY HEAD

• Storage in the head with lockers and drawers

• Sink, vitreous china under sink mount

• Toilet accessories, paper holder

• Tecma Toilet, marine, electric 24 VDC

• Countertop and flooring granite as per RYD

DAY HEAD

• Storage in the head with lockers and drawers

• Sink, vitreous china under sink mount

• Toilet accessories, paper holder

• Tecma Toilet, marine, electric 24 VDC

• Countertop and flooring granite as per RYD

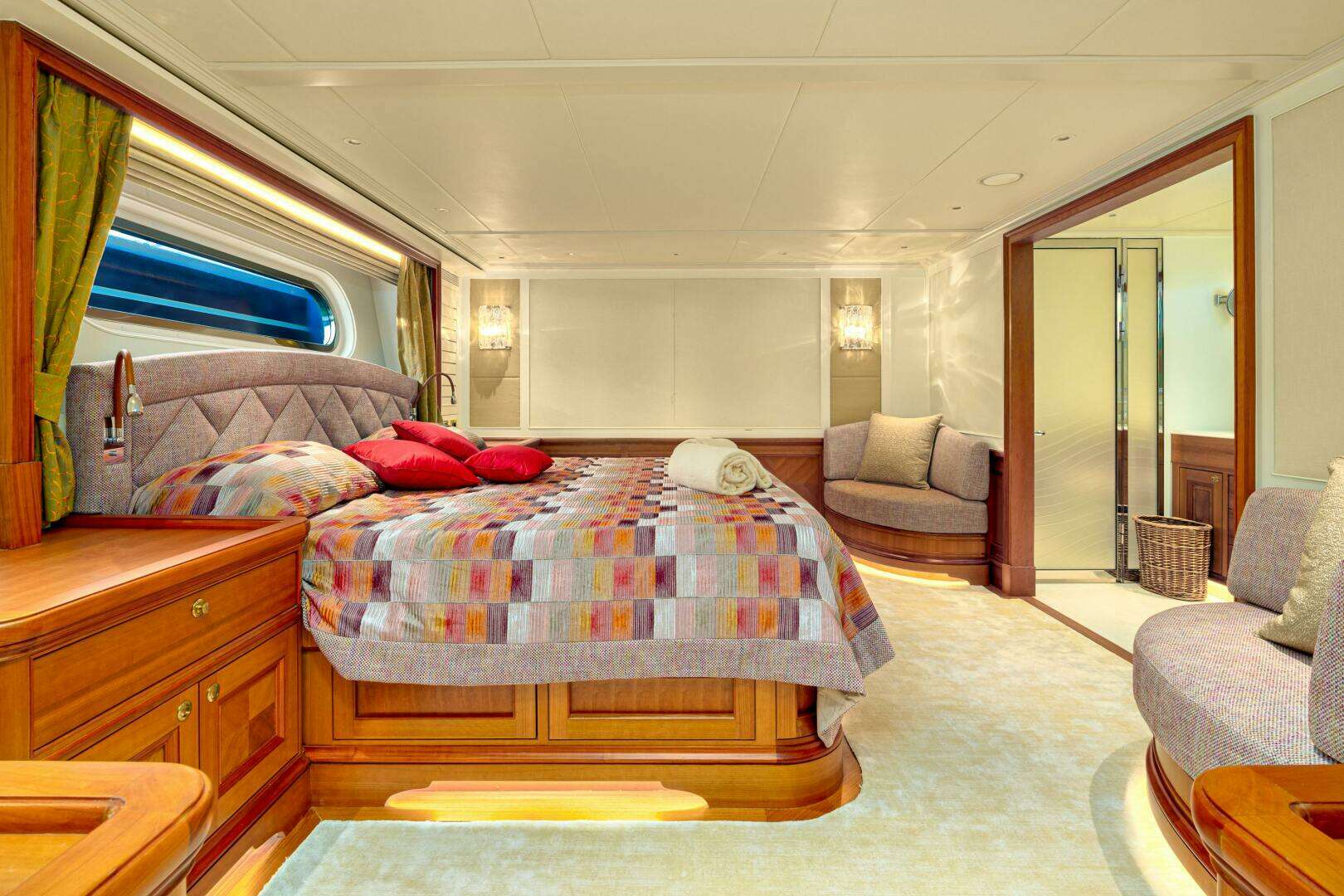

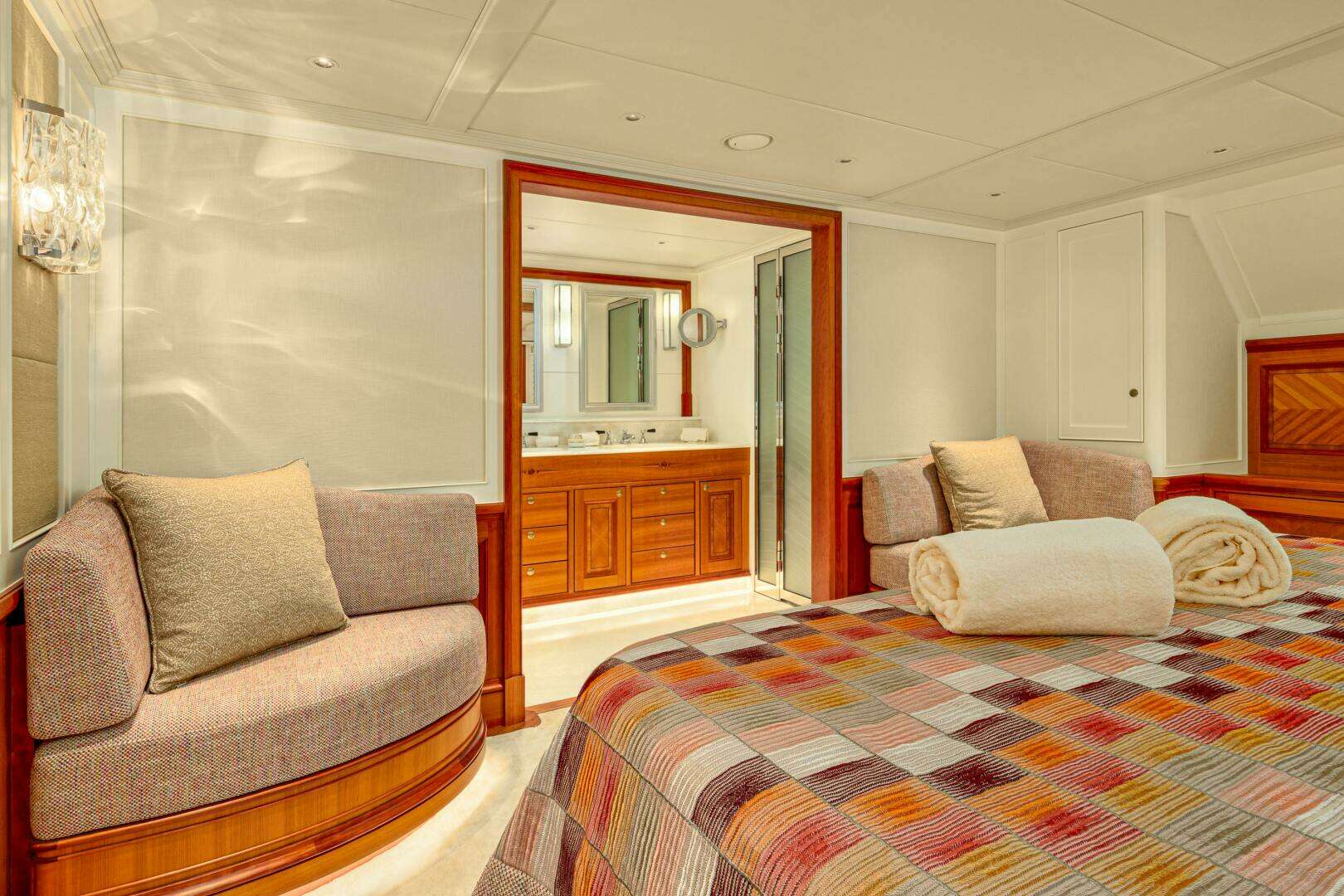

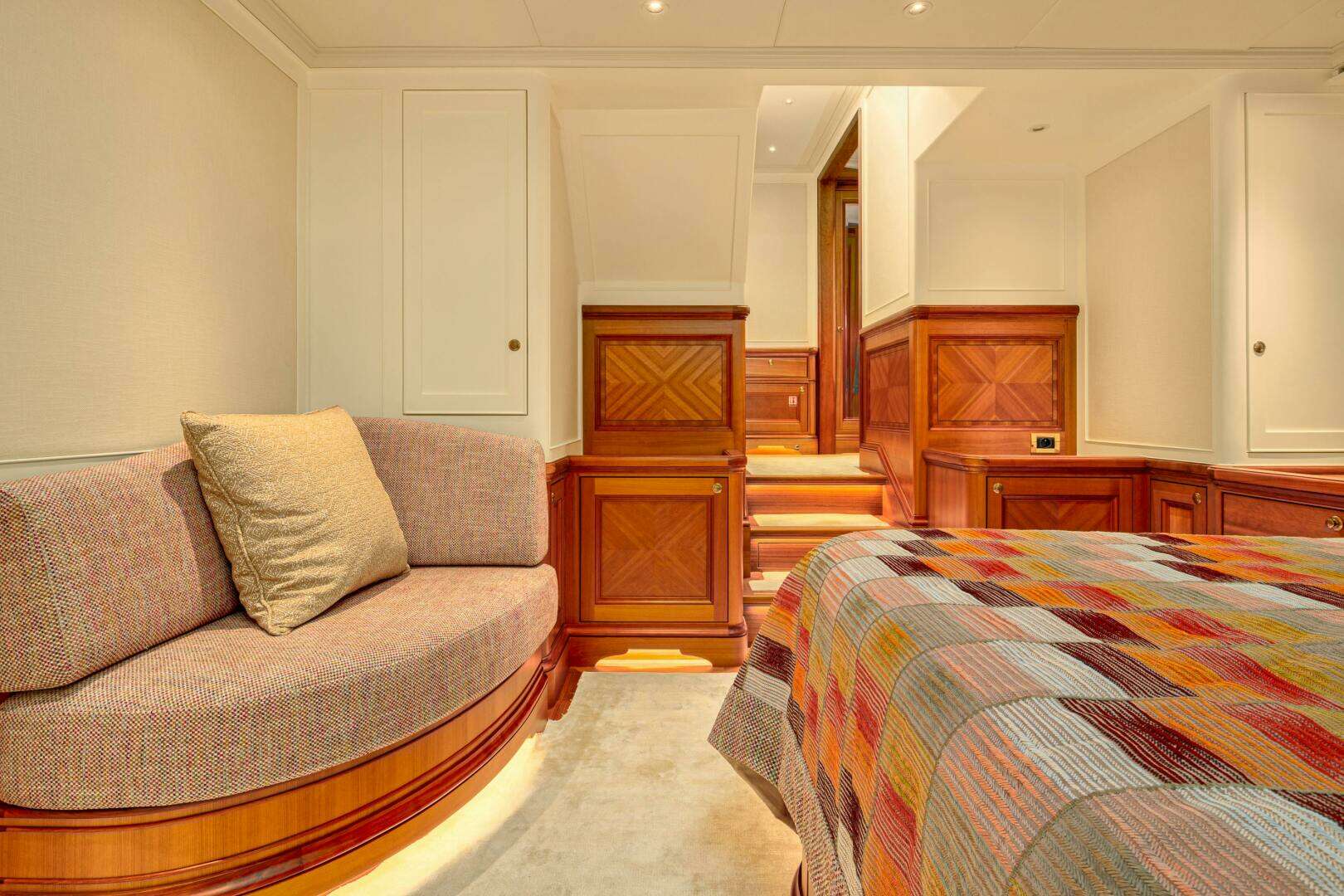

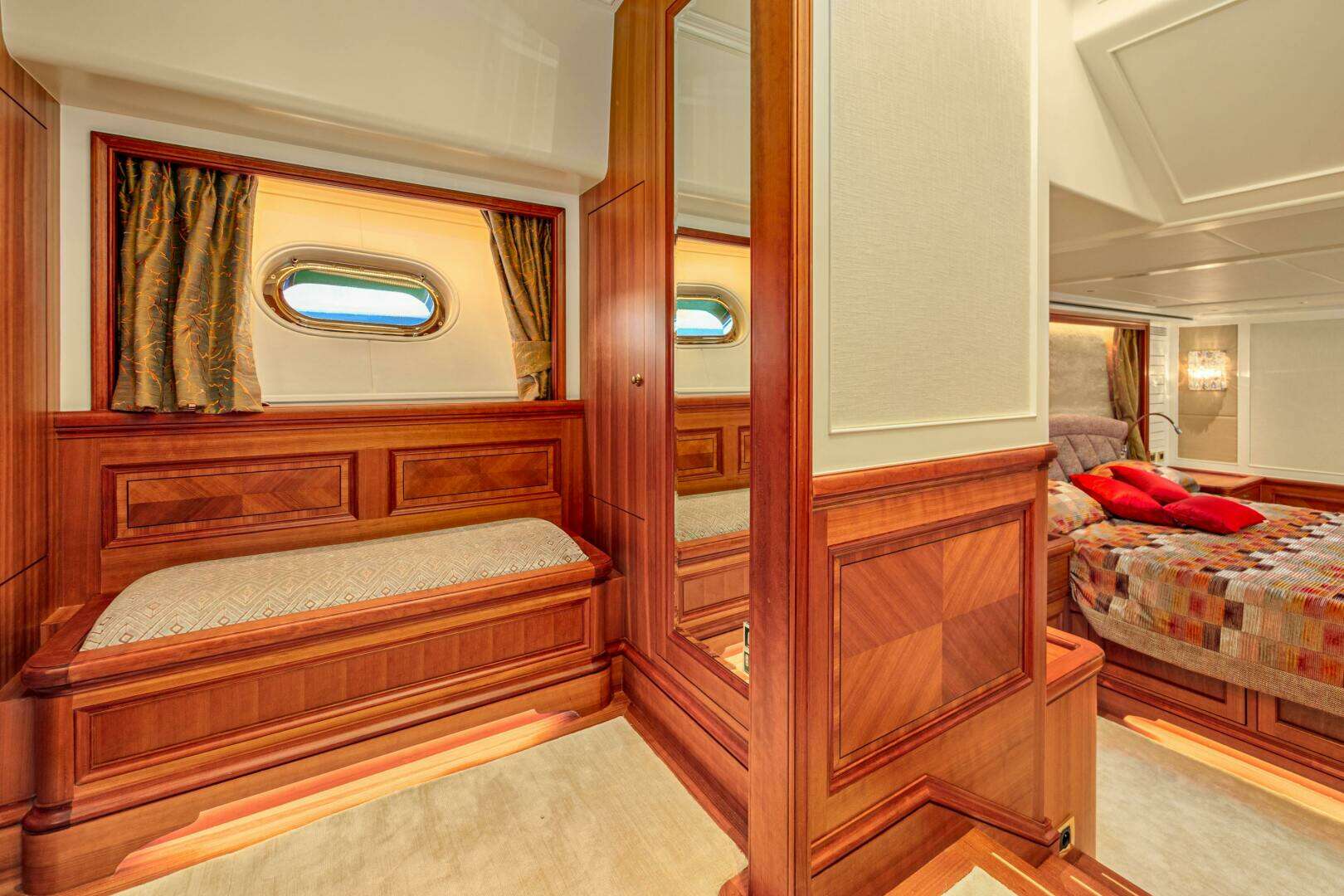

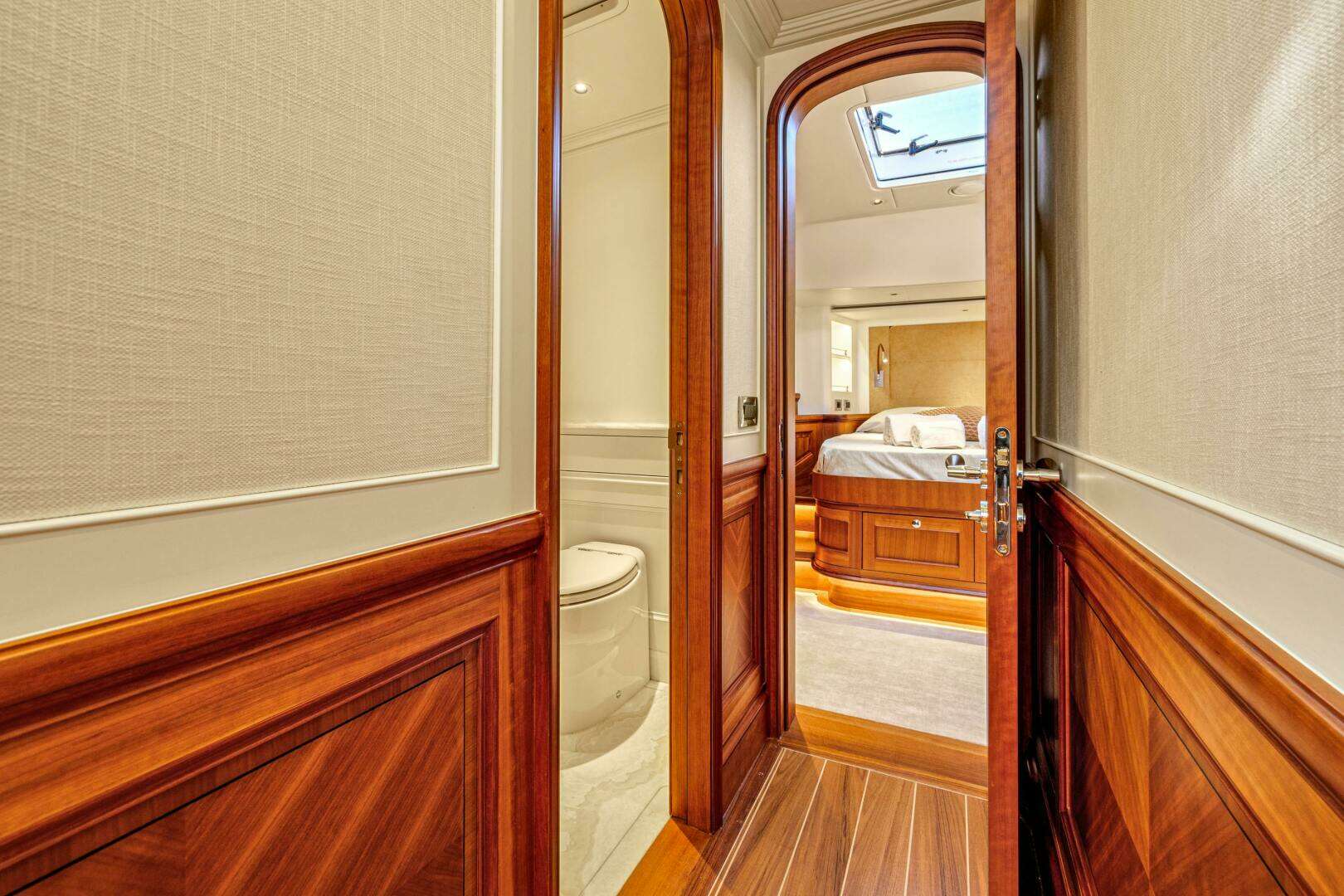

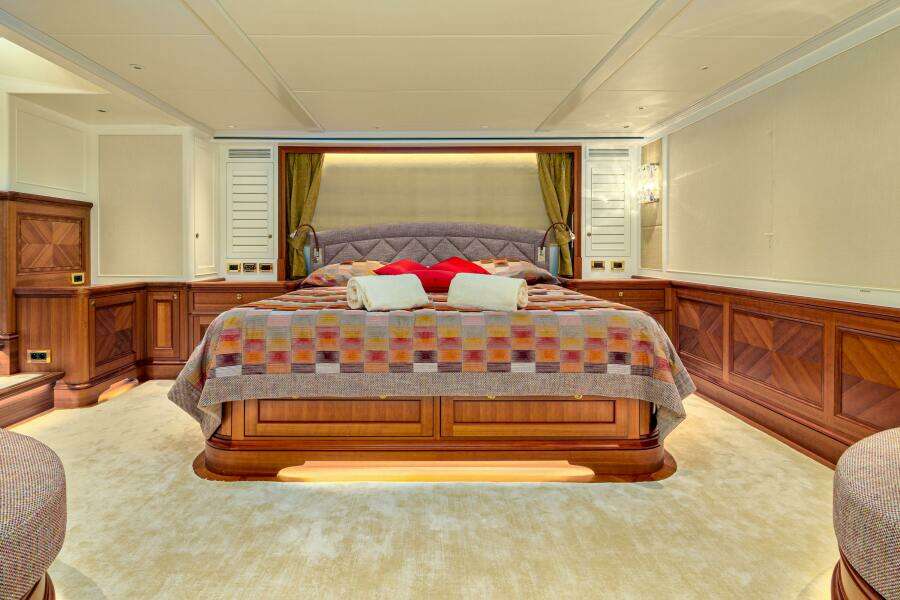

MASTER STATEROOM ENSUITE HEAD SHOWER

• Berth, 84 X 84 with drawer storage below

• Berth, décor fabric headboard

• Bureaus with drawers and lockers, wooden countertops

• Mattress: Owner supplied

• Walk-in closet cedar-lined

• Mirror, framed

• Settee

• Sole, Teak

• Soundproofing, overhead, and engine room bulkhead

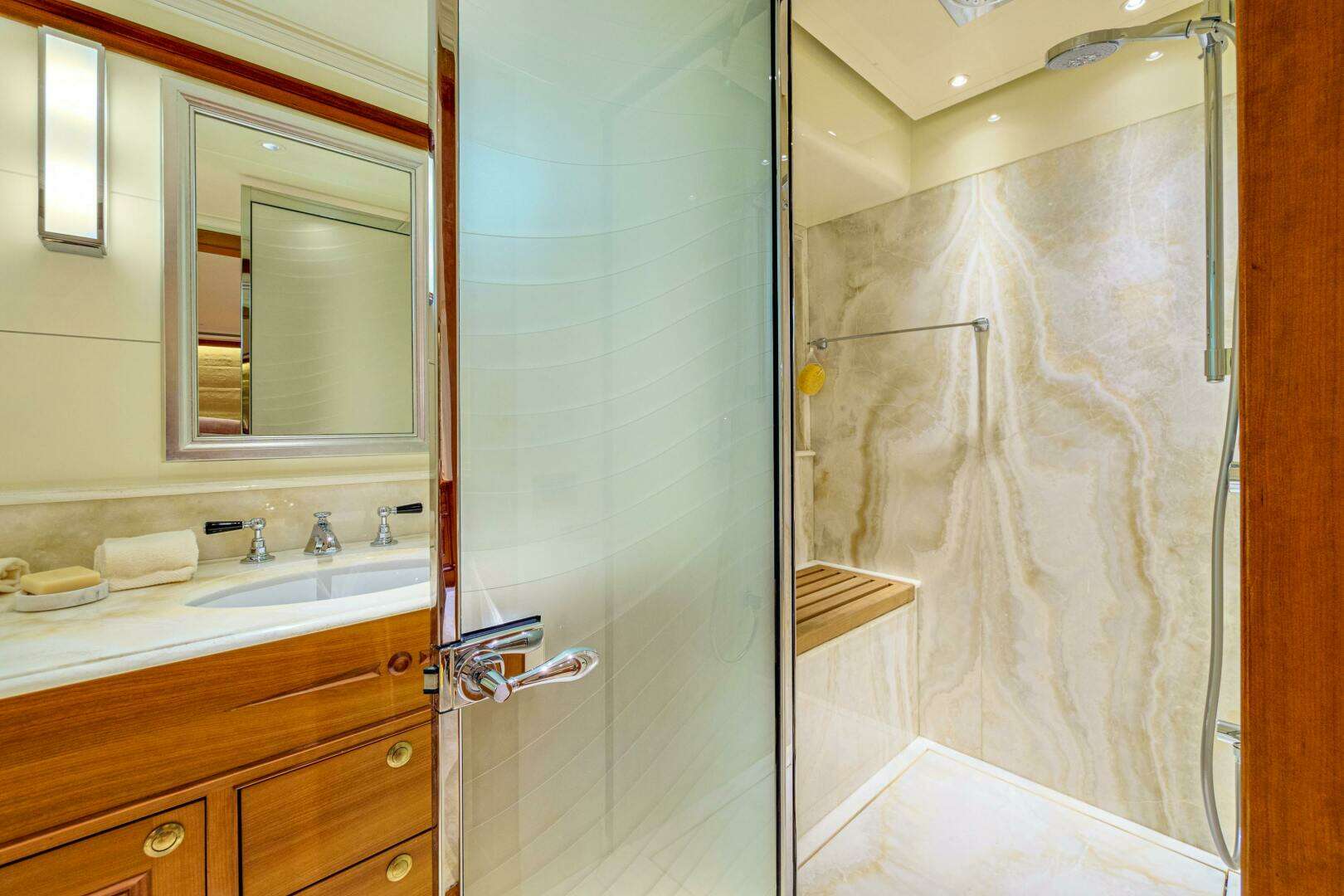

• Countertop, marble, for head and shower

• Faucet, sink, twin lever, chrome

• Faucet, shower, single lever, w/hand-held shower, rail, wall union fixed top shower

• Double Sink Vanity, vitreous china, under counter mount

• Shower with a drain pump, 24 VDC

• Storage in the head, with lockers, drawers

• Shower stall, stone floor, no visible drain, storage lockers

• Exhaust vent blower, 24 VDC

• Tecma® Toilet, marine, 24 VDC

• Toilet accessories, paper -Owner supplied

• Towel rack, rings, hooks,- Owner supplied

• Head soles, stone

• Large hull port at master berth starboard, fixed

• No port in the master head

MASTER STATEROOM ENSUITE HEAD SHOWER

• Berth, 84 X 84 with drawer storage below

• Berth, décor fabric headboard

• Bureaus with drawers and lockers, wooden countertops

• Mattress: Owner supplied

• Walk-in closet cedar-lined

• Mirror, framed

• Settee

• Sole, Teak

• Soundproofing, overhead, and engine room bulkhead

• Countertop, marble, for head and shower

• Faucet, sink, twin lever, chrome

• Faucet, shower, single lever, w/hand-held shower, rail, wall union fixed top shower

• Double Sink Vanity, vitreous china, under counter mount

• Shower with a drain pump, 24 VDC

• Storage in the head, with lockers, drawers

• Shower stall, stone floor, no visible drain, storage lockers

• Exhaust vent blower, 24 VDC

• Tecma® Toilet, marine, 24 VDC

• Toilet accessories, paper -Owner supplied

• Towel rack, rings, hooks,- Owner supplied

• Head soles, stone

• Large hull port at master berth starboard, fixed

• No port in the master head

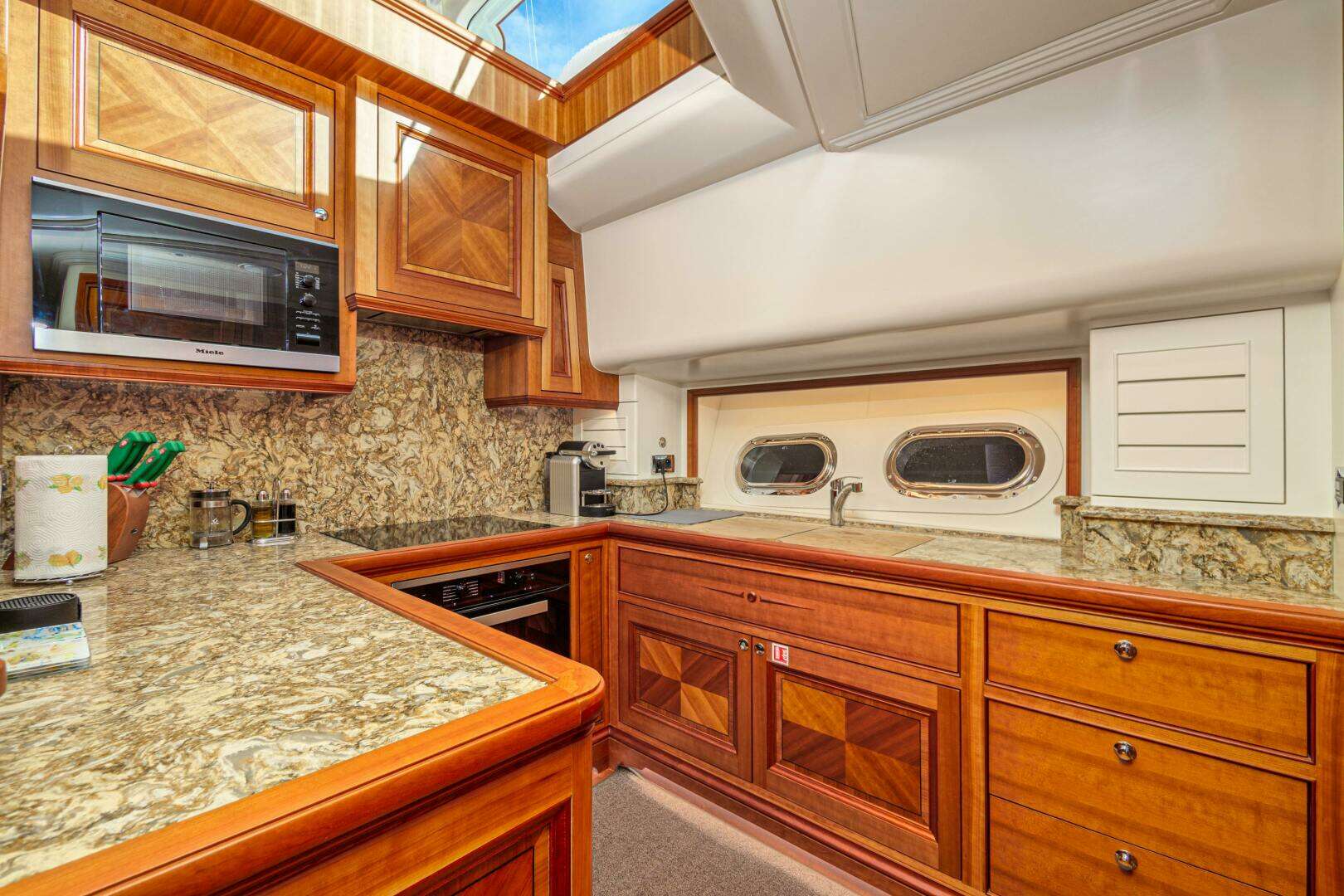

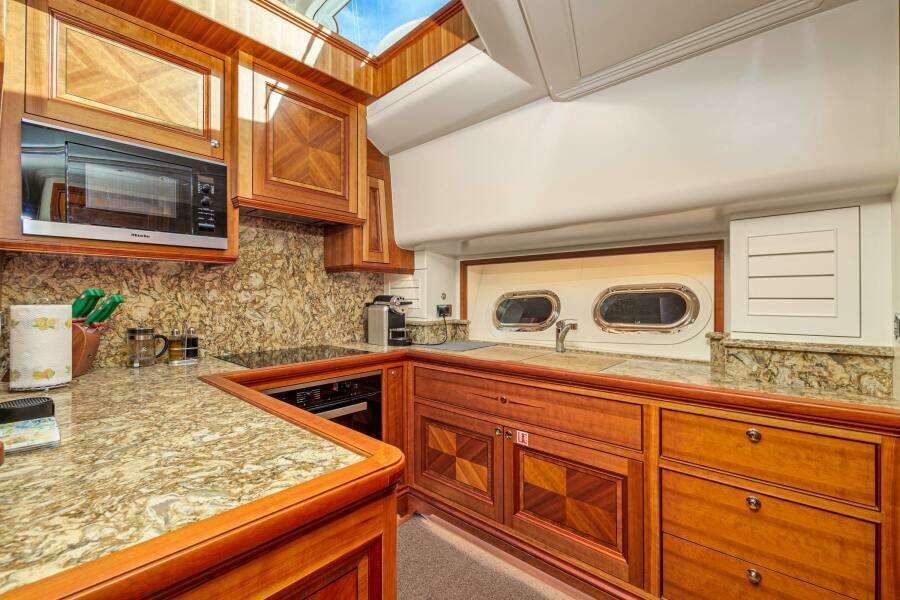

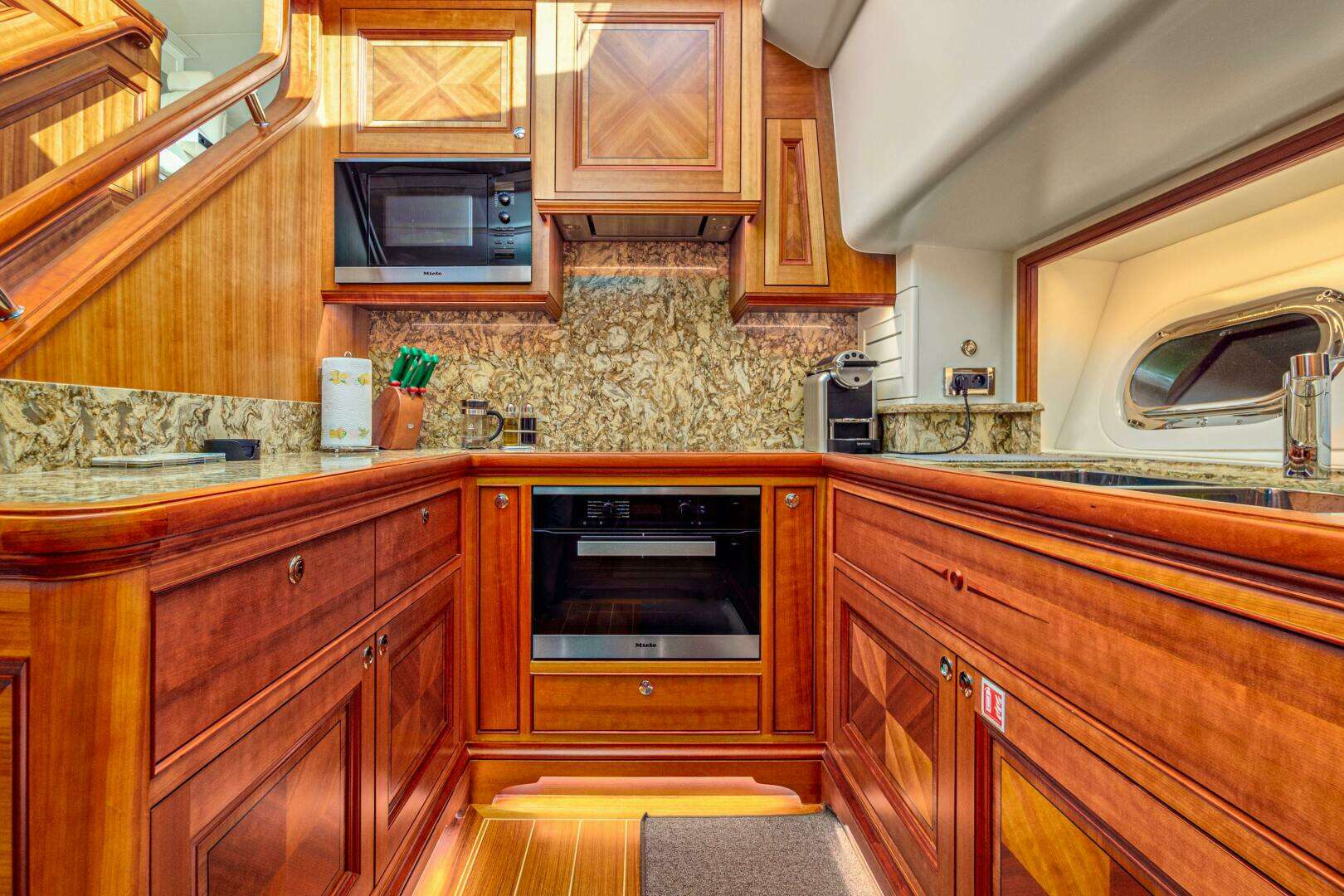

GALLEY

• Refrigerator, Sub Zero®, under-counter mounted 230 vac, double drawer

• Cooktop, Miele, 230 vac, 4-burner induction

• Galley vent, painted steel, telescoping exhaust blower vent, 230 vac.

• Microwave oven, stainless steel, 115 vac. Miele

• Faucet, single lever with pull-out head and hose, Grohe chrome

• Sink, double stainless steel, polished

• Drawers with cutlery and crockery storage

• Countertop locker, lift-up for storage lockers

• Trash container

• Plate storage in lockers

• Sole, teak

• Countertop, Granite

• Dishwasher, Fischer / Paykel

GALLEY

• Refrigerator, Sub Zero®, under-counter mounted 230 vac, double drawer

• Cooktop, Miele, 230 vac, 4-burner induction

• Galley vent, painted steel, telescoping exhaust blower vent, 230 vac.

• Microwave oven, stainless steel, 115 vac. Miele

• Faucet, single lever with pull-out head and hose, Grohe chrome

• Sink, double stainless steel, polished

• Drawers with cutlery and crockery storage

• Countertop locker, lift-up for storage lockers

• Trash container

• Plate storage in lockers

• Sole, teak

• Countertop, Granite

• Dishwasher, Fischer / Paykel

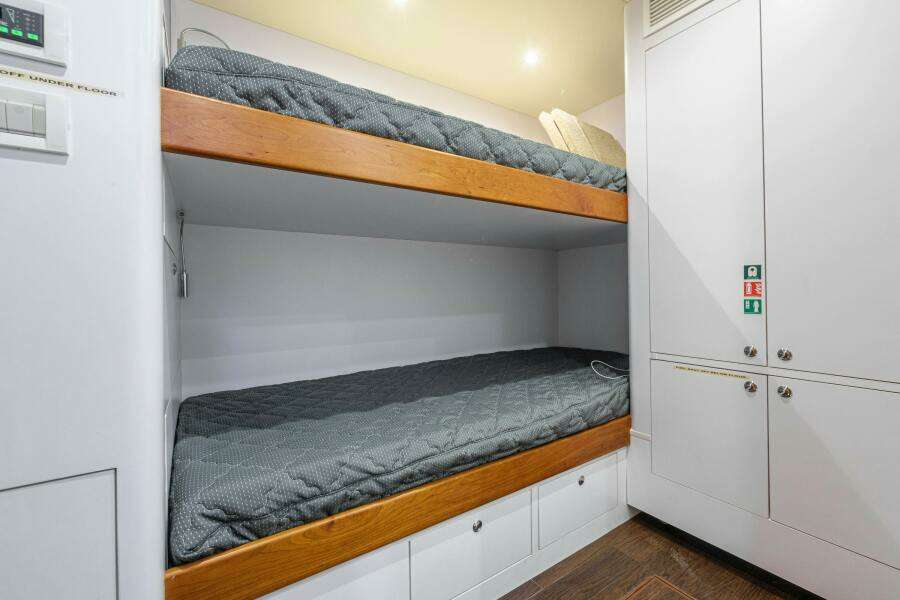

CREW QUARTERS

• Access, the primary is from the sliding hatch on the aft deck

• Berth, single with Pullman. Work desk

• Mattress, foam with cover

• Exhaust blower, 24 volt.

• Countertop

• Faucet, sink / shower combo, drain stopper, and P-trap. Grohe

• Shower faucet, wall holder, chrome. Grohe

• Headlining sound-deadening foam-backed fabric panels, removable

• Sink, round, Ceramic

• Shower, fiberglass non-slip

• Shower with a drain pump, 24 VDC

• Sole, Amitico RYD to provide specification

• Storage in the head, with lockers, drawers

• Tecma® Toilet, marine, 24 vdc, electric

• Toilet accessories, paper holder, chrome

• Towel rack, rings, hooks, chrome

• Partitions and bulkheads, coverings in Formica®, veneer

• Shower to have Perspex door

CREW QUARTERS

• Access, the primary is from the sliding hatch on the aft deck

• Berth, single with Pullman. Work desk

• Mattress, foam with cover

• Exhaust blower, 24 volt.

• Countertop

• Faucet, sink / shower combo, drain stopper, and P-trap. Grohe

• Shower faucet, wall holder, chrome. Grohe

• Headlining sound-deadening foam-backed fabric panels, removable

• Sink, round, Ceramic

• Shower, fiberglass non-slip

• Shower with a drain pump, 24 VDC

• Sole, Amitico RYD to provide specification

• Storage in the head, with lockers, drawers

• Tecma® Toilet, marine, 24 vdc, electric

• Toilet accessories, paper holder, chrome

• Towel rack, rings, hooks, chrome

• Partitions and bulkheads, coverings in Formica®, veneer

• Shower to have Perspex door

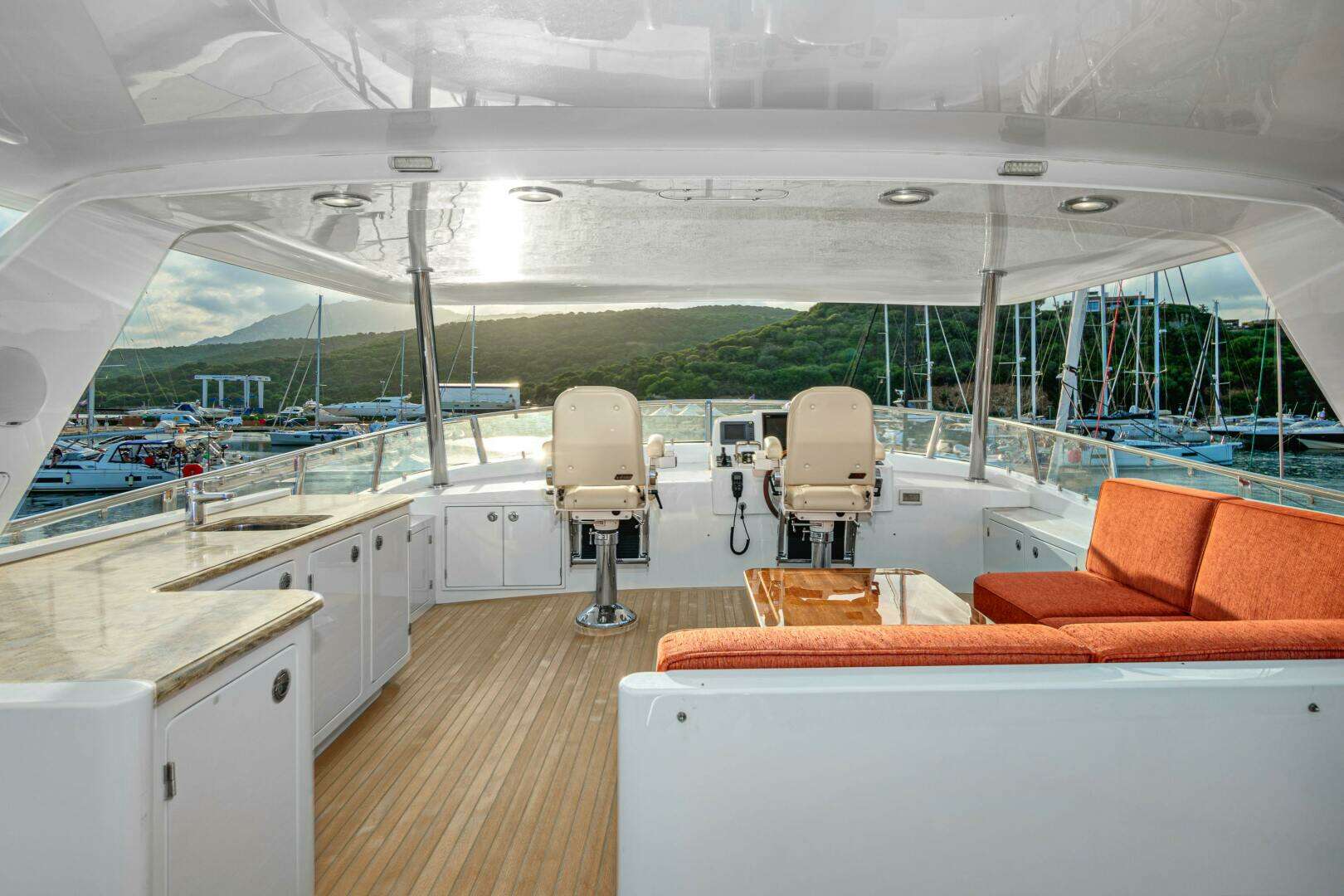

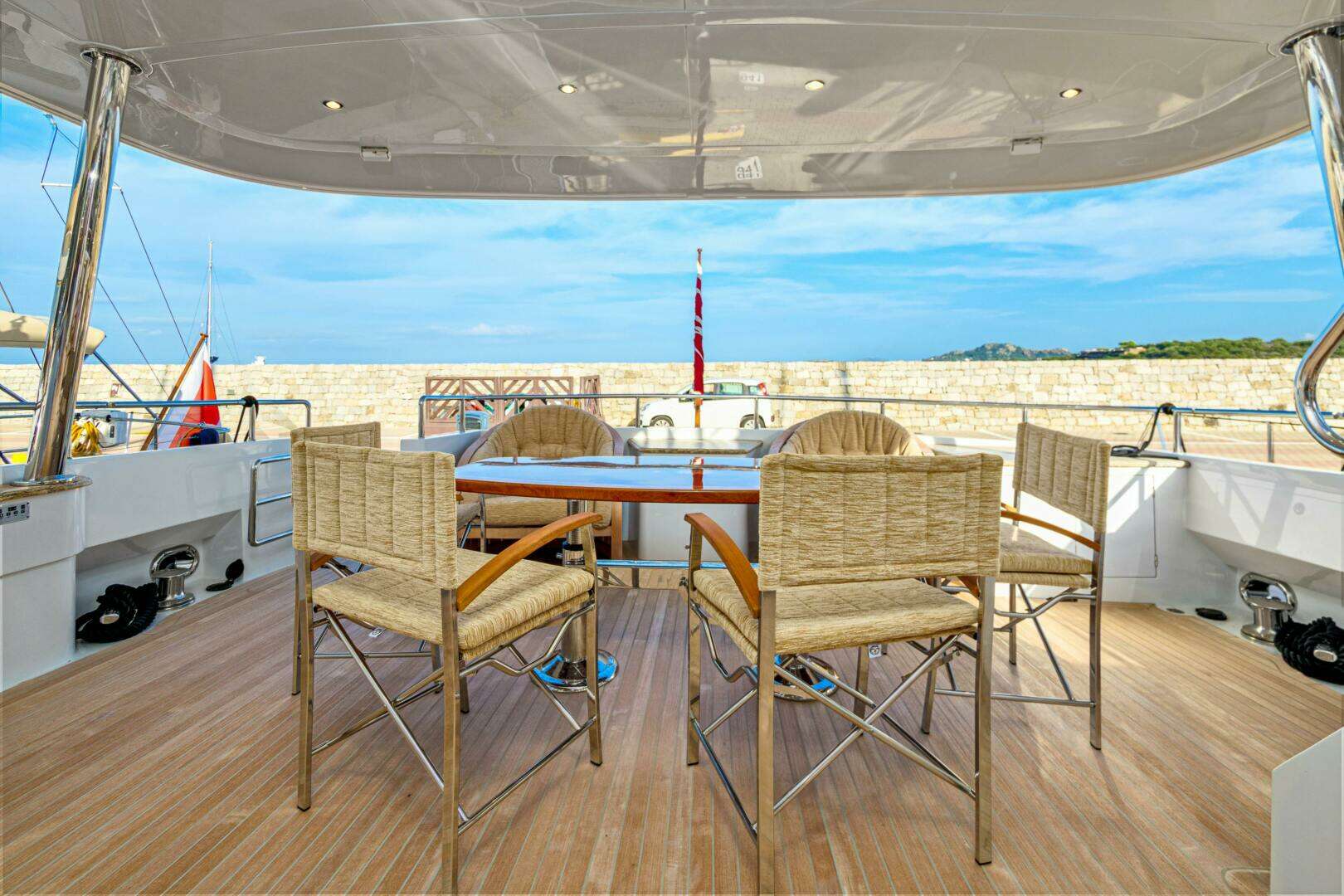

FLYBRIDGE

• Custom extended flybridge

• Access via aft deck stairs

• Fiberglass hard top w/ aluminum supports and stainless steel hatches

• Molded fiberglass fastened to the pilothouse

• 1" stainless steel railing and ladder surrounding the passenger area

• 3/8 custom acrylic windshield with welded stainless steel support brackets

• Two manual Stidd® helm seats with chrome pedestals

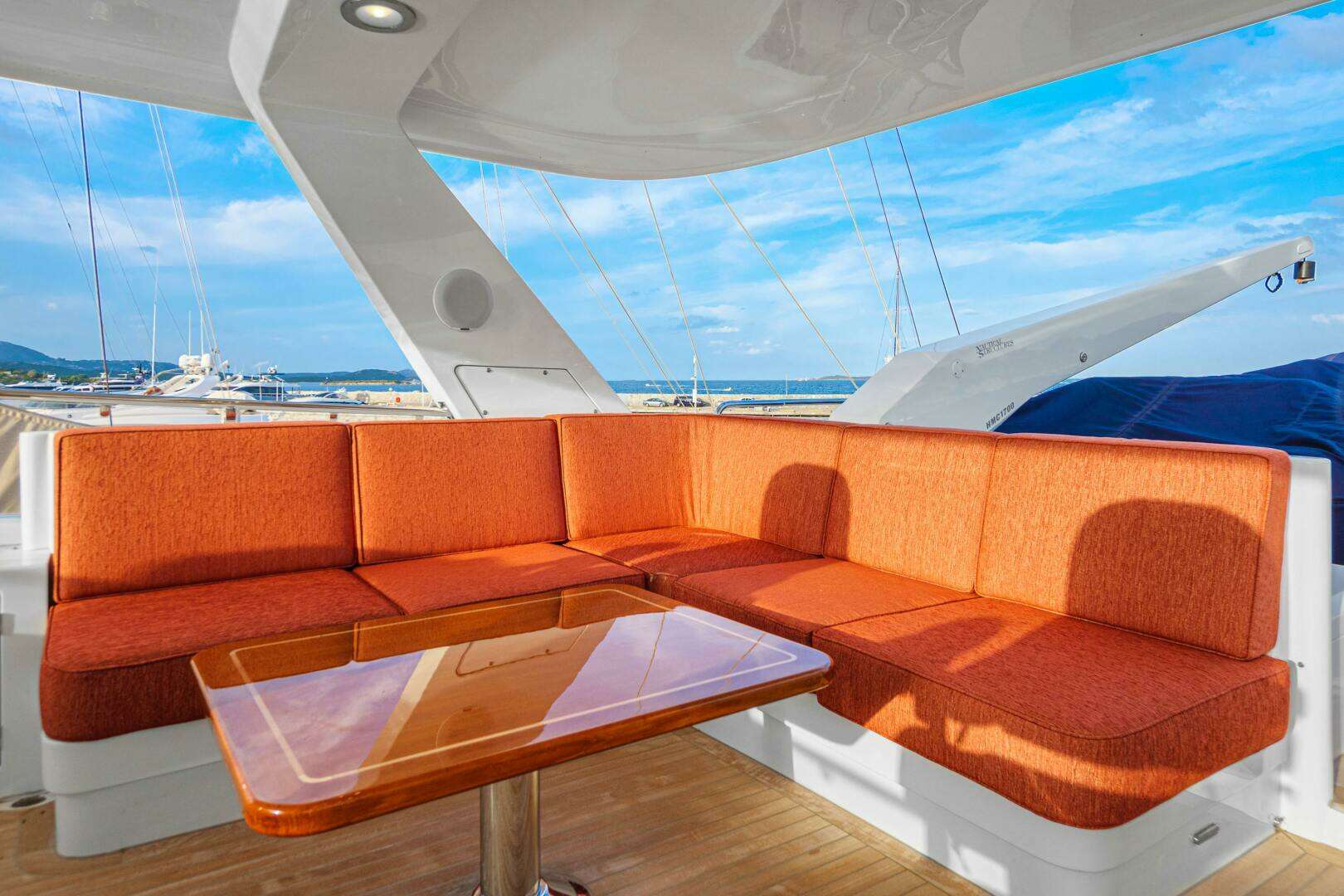

• L-shaped settee

• Rectangular varnished teak table to be moveable up and down, expandable

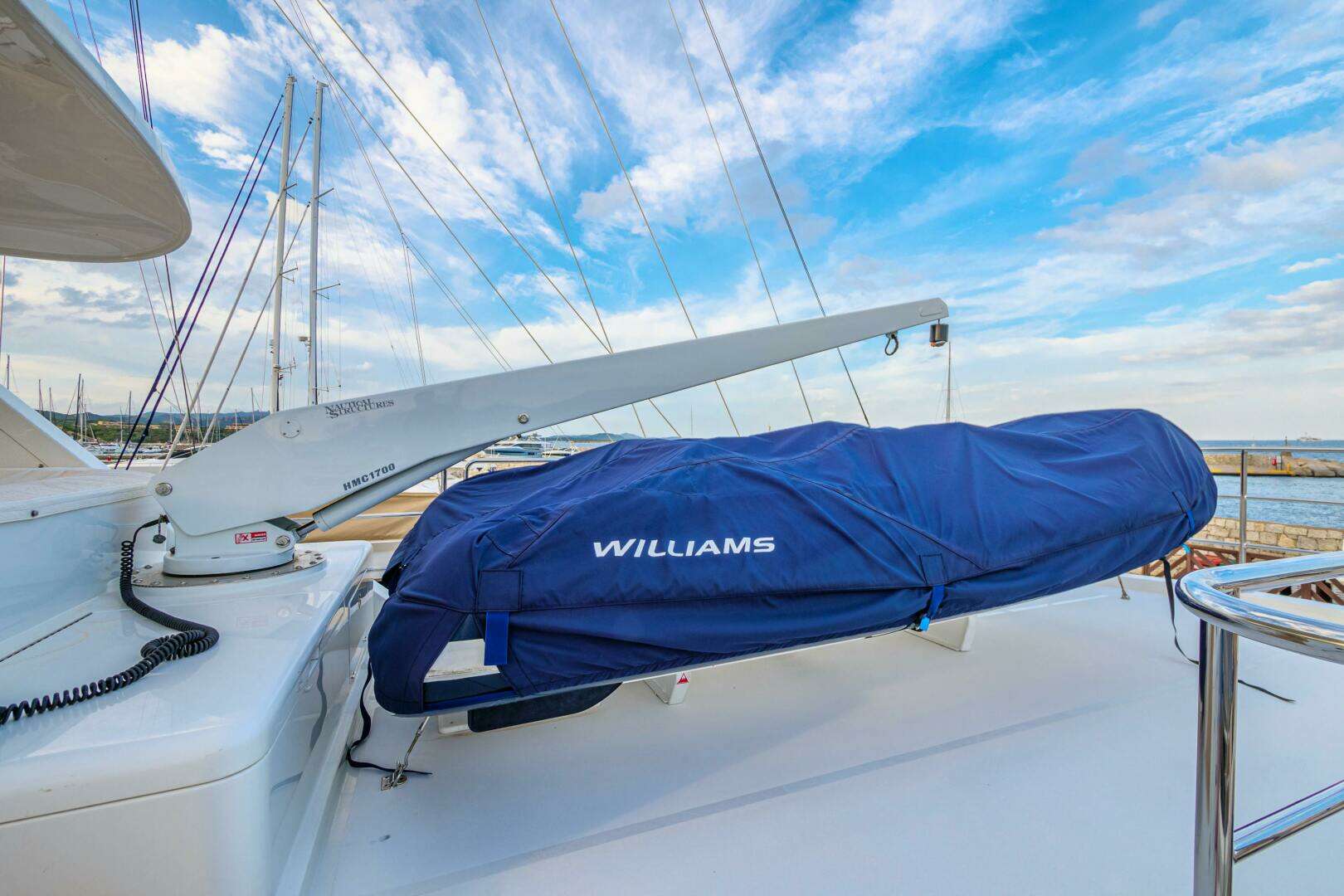

• Tender lift crane with remote 2000lbs capacity

• Sink with fridge under

• Space for 4 M tender

• Tender and chocks owner supplied to be fitted in Europe

• Custom fabricated aluminum mast on hard-top aluminum support structure for navigation equipment

• Fiberglass dash with varnished teak trim. Teak steering wheel

• Lighting in overhead

• Gauges, full duplicate engine controls, trim tabs, and engine gauges

• Flybridge sole, Teak decking at the helm, Non-skid aft

• Reverse angle of FRP flybridge support

FLYBRIDGE

• Custom extended flybridge

• Access via aft deck stairs

• Fiberglass hard top w/ aluminum supports and stainless steel hatches

• Molded fiberglass fastened to the pilothouse

• 1" stainless steel railing and ladder surrounding the passenger area

• 3/8 custom acrylic windshield with welded stainless steel support brackets

• Two manual Stidd® helm seats with chrome pedestals

• L-shaped settee

• Rectangular varnished teak table to be moveable up and down, expandable

• Tender lift crane with remote 2000lbs capacity

• Sink with fridge under

• Space for 4 M tender

• Tender and chocks owner supplied to be fitted in Europe

• Custom fabricated aluminum mast on hard-top aluminum support structure for navigation equipment

• Fiberglass dash with varnished teak trim. Teak steering wheel

• Lighting in overhead

• Gauges, full duplicate engine controls, trim tabs, and engine gauges

• Flybridge sole, Teak decking at the helm, Non-skid aft

• Reverse angle of FRP flybridge support

OWNER SUPPLIED ITEMS NOT INCLUDED IN PRICING

Items to be sent and fit upon arrival

• Tender

• Tender chocks

• All safety equipment

• Mattresses for Master and VIP

• Linens, Towels, Crockery, Cutlery, loose galley equipment

• A/V and Television except for speakers in the saloon. TV lift to be installed by Global

• All loose chairs

• All non-built-in fabrics

• Carpet

Items to be shipped to Taiwan and installed during the build

• All faucets, towel rails, and bathroom pieces. Engine room sinks and faucets supplied by Global

• Built-in fabrics owner supplies

• Door furniture for staterooms Serdaneli, owner supplied

Items of note

• Integrate Plisse blinds to be fitted and supplied by GYB

• Global to fit curtain tracks but not dress curtains

• Hunt to supply and install all navigation equipment

• Commissioning location TBD-Malta or Olbia (Sardinia)

• Global to provide teak joined planks throughout

• Crew and galley faucets provided by Global

OWNER SUPPLIED ITEMS NOT INCLUDED IN PRICING

Items to be sent and fit upon arrival

• Tender

• Tender chocks

• All safety equipment

• Mattresses for Master and VIP

• Linens, Towels, Crockery, Cutlery, loose galley equipment

• A/V and Television except for speakers in the saloon. TV lift to be installed by Global

• All loose chairs

• All non-built-in fabrics

• Carpet

Items to be shipped to Taiwan and installed during the build

• All faucets, towel rails, and bathroom pieces. Engine room sinks and faucets supplied by Global

• Built-in fabrics owner supplies

• Door furniture for staterooms Serdaneli, owner supplied

Items of note

• Integrate Plisse blinds to be fitted and supplied by GYB

• Global to fit curtain tracks but not dress curtains

• Hunt to supply and install all navigation equipment

• Commissioning location TBD-Malta or Olbia (Sardinia)

• Global to provide teak joined planks throughout

• Crew and galley faucets provided by Global

NAVIGATION LIST INCLUDED WITH BUILD

• Flybridge helm

• Garmin 7412

• Garmin GMI 10

• Garmin VHF 110

• Autopilot control in helm seat arm

• Saloon helm

• Garmin 7412

• Garmin GMI 10

• Garmin VHF110

• Autopilot control in the helm seat arm

• Operational items

• Airmar B60 transducer

• AIS 600

• GA 38 GPS antenna for AIS

• GPS 19X N2K GPS antenna

• VHF antenna w mount x 2 ( 1 antenna for AIS, 1 antenna for radio)

• Garmin GRF 10 rudder feedback sensor

• Garmin autopilot pump

NAVIGATION LIST INCLUDED WITH BUILD

• Flybridge helm

• Garmin 7412

• Garmin GMI 10

• Garmin VHF 110

• Autopilot control in helm seat arm

• Saloon helm

• Garmin 7412

• Garmin GMI 10

• Garmin VHF110

• Autopilot control in the helm seat arm

• Operational items

• Airmar B60 transducer

• AIS 600

• GA 38 GPS antenna for AIS

• GPS 19X N2K GPS antenna

• VHF antenna w mount x 2 ( 1 antenna for AIS, 1 antenna for radio)

• Garmin GRF 10 rudder feedback sensor

• Garmin autopilot pump

Notes to specifications:

• Finish detail as per Rhoades Young Design 251

• The general arrangement as per Rhodes Young Design 251

• Furniture details as per Rhodes Young Design 251

Notes to specifications:

• Finish detail as per Rhoades Young Design 251

• The general arrangement as per Rhodes Young Design 251

• Furniture details as per Rhodes Young Design 251
