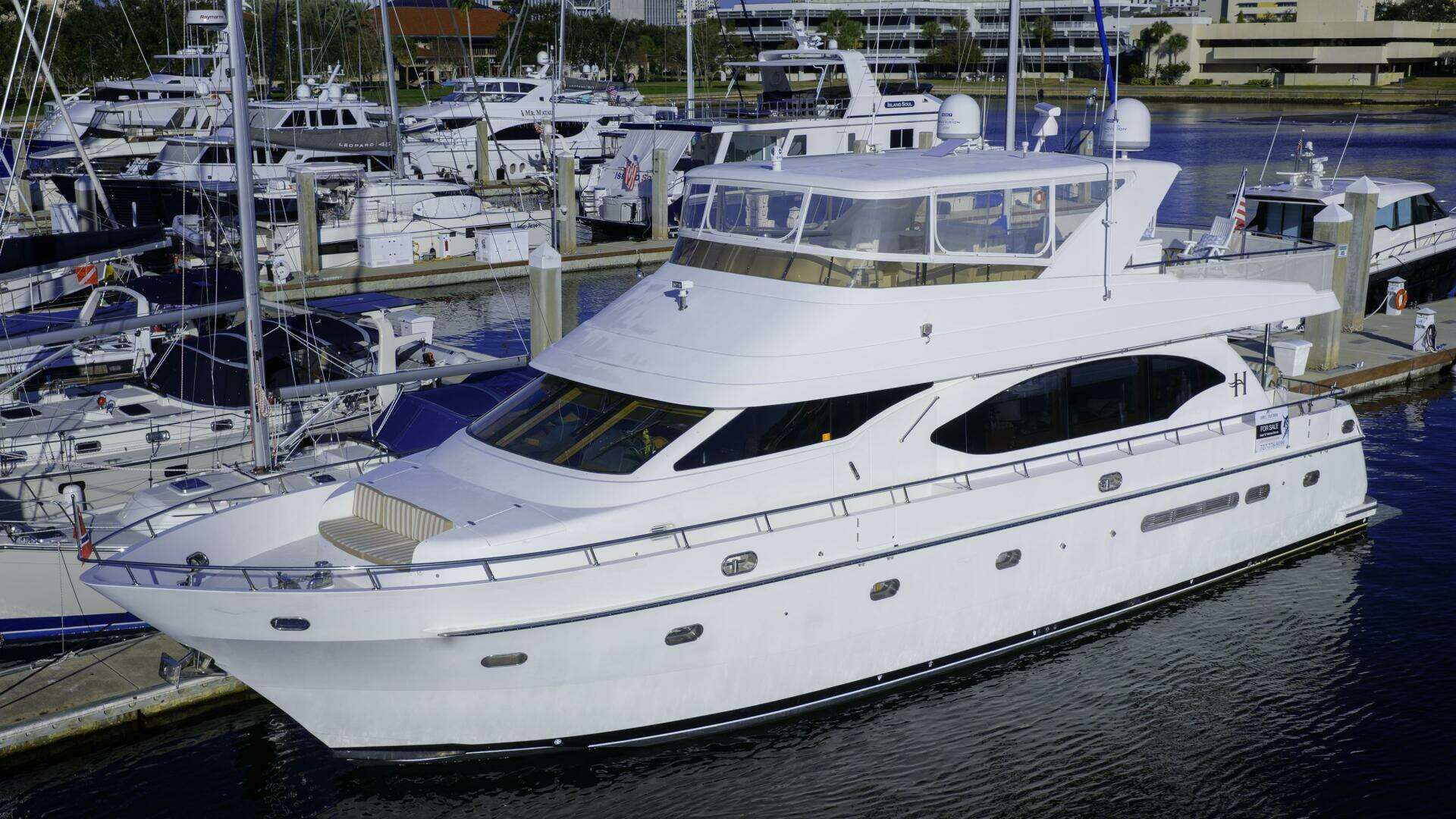

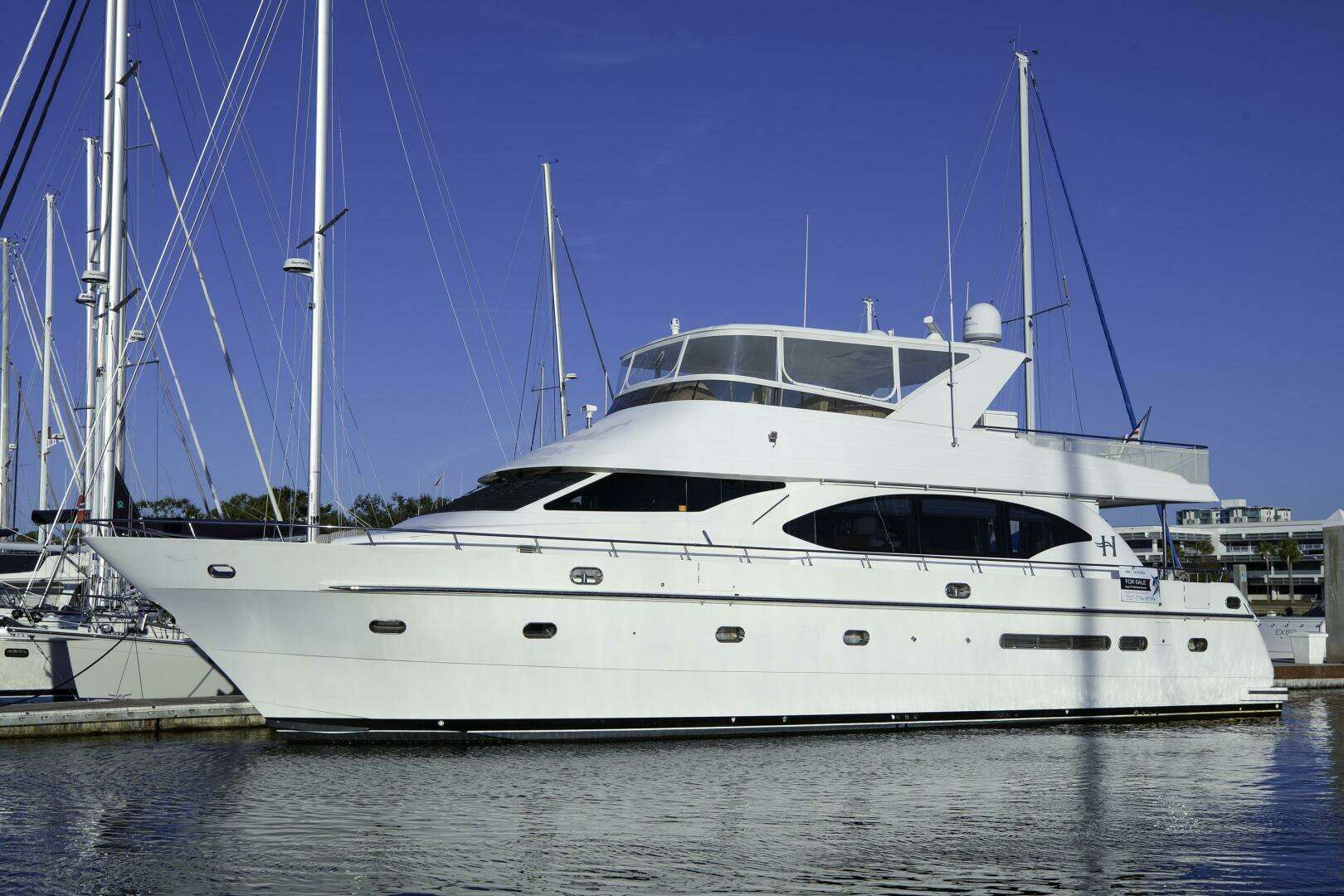

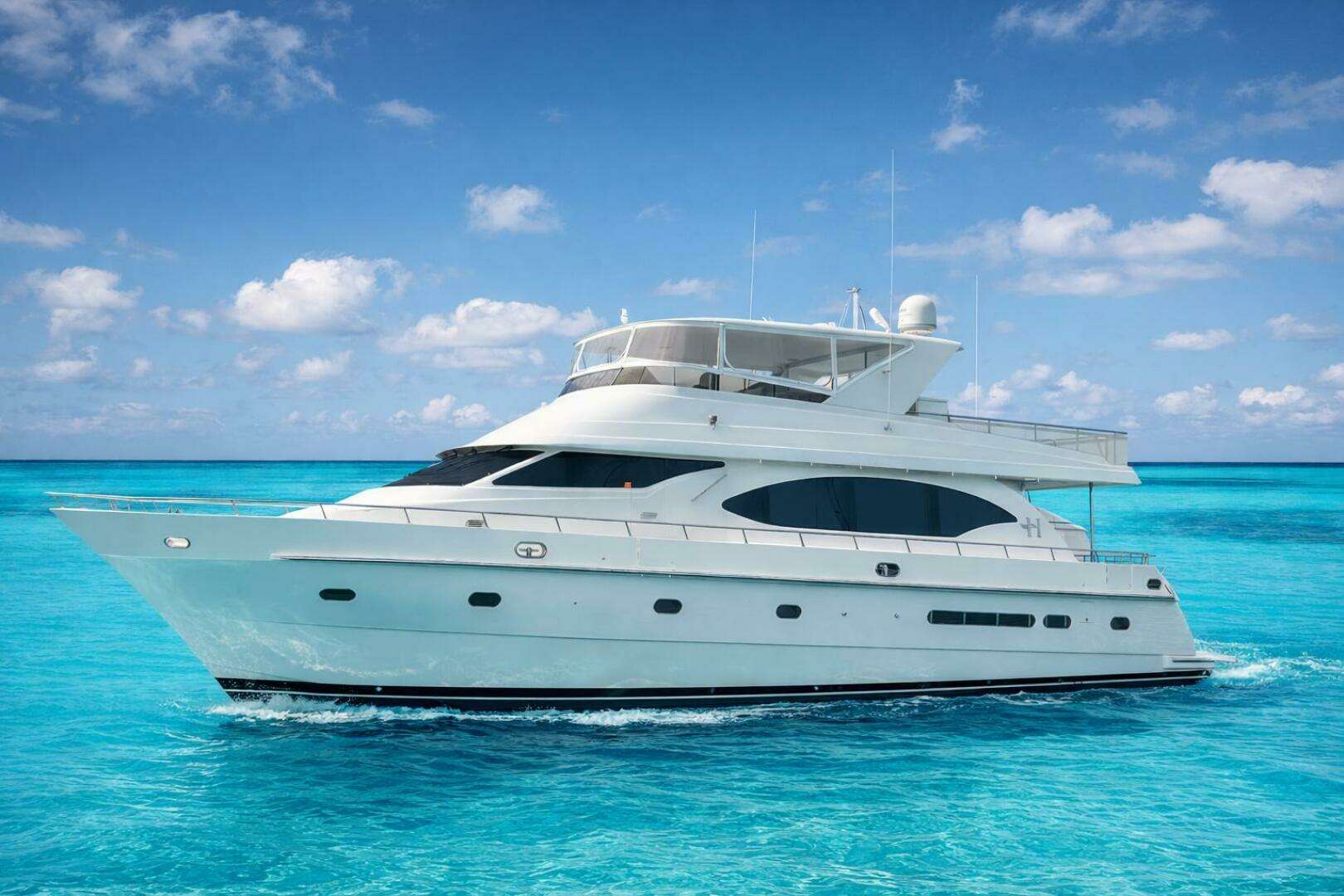

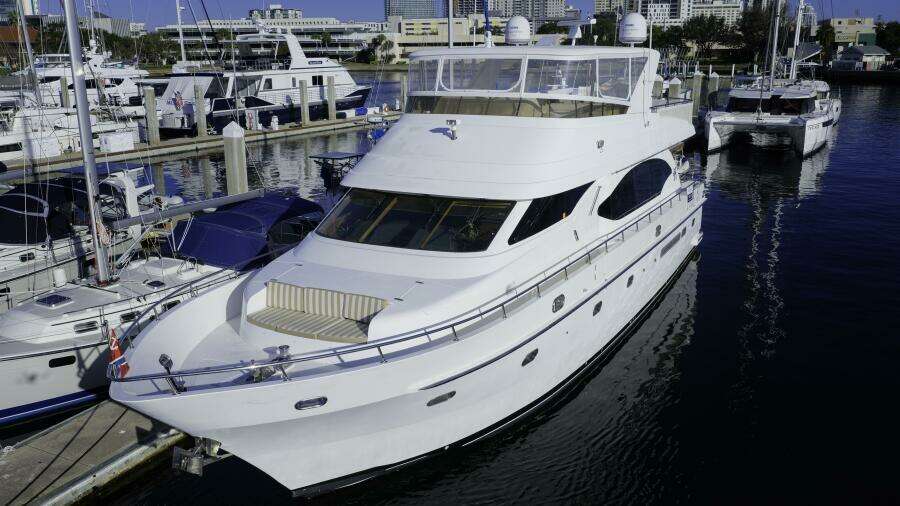

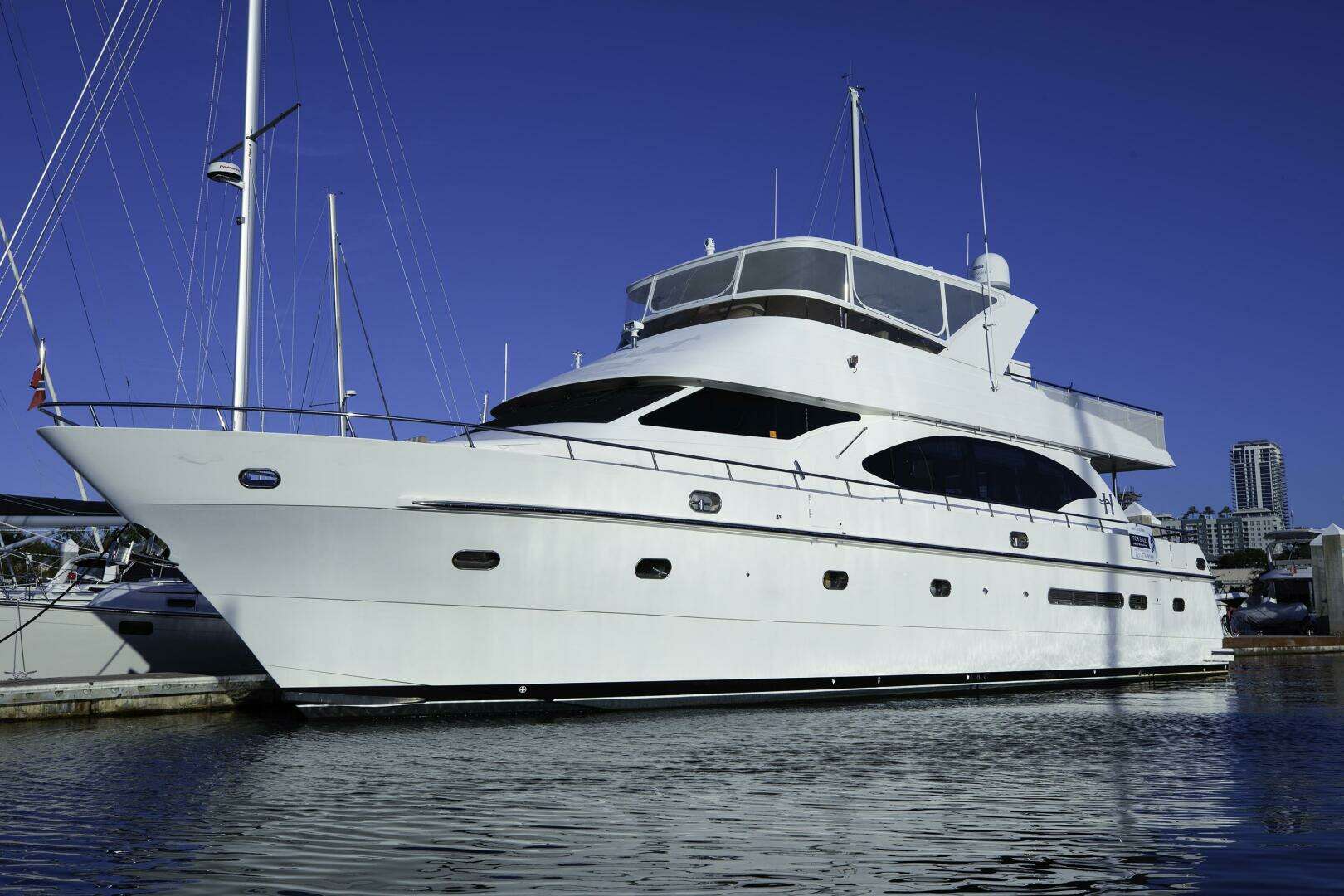

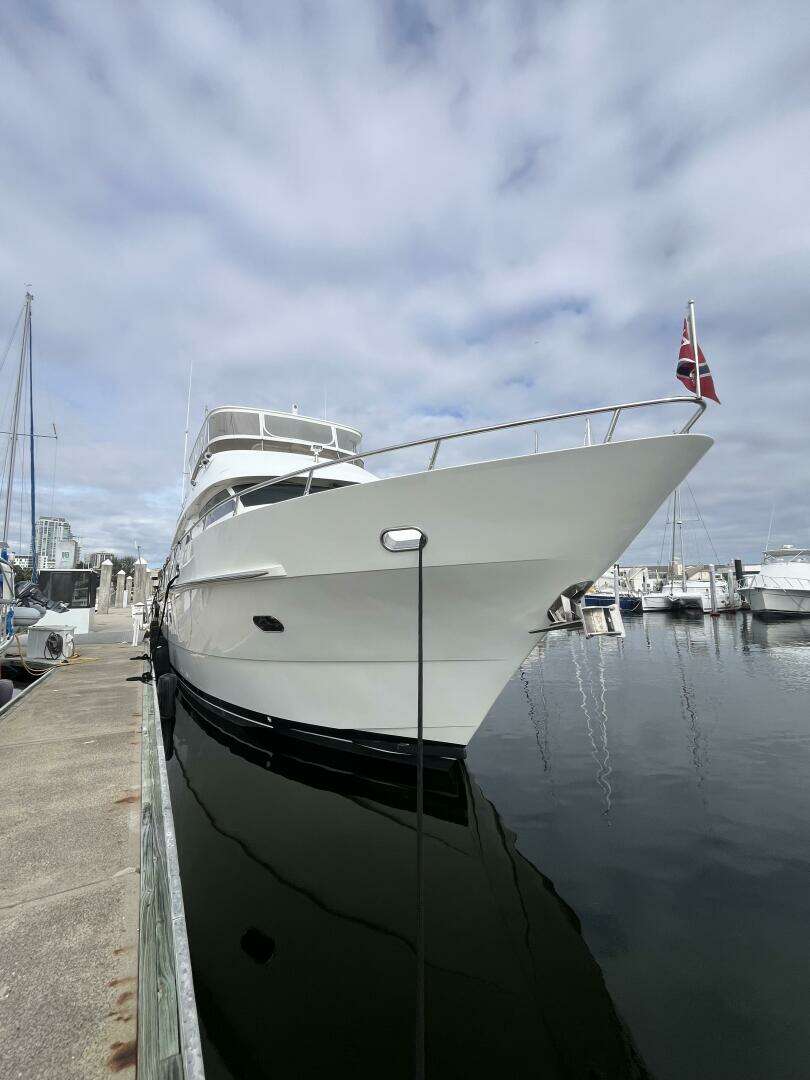

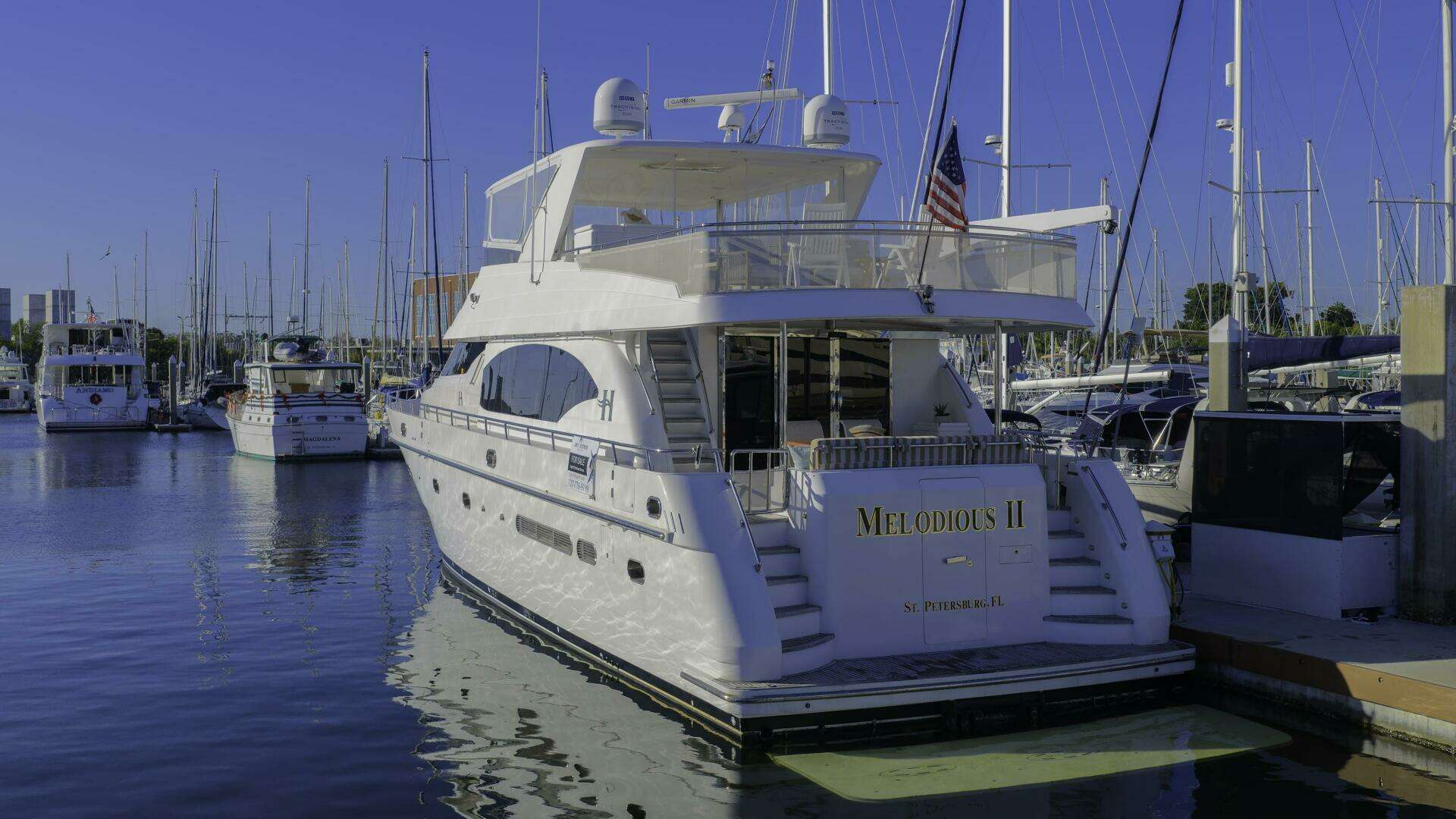

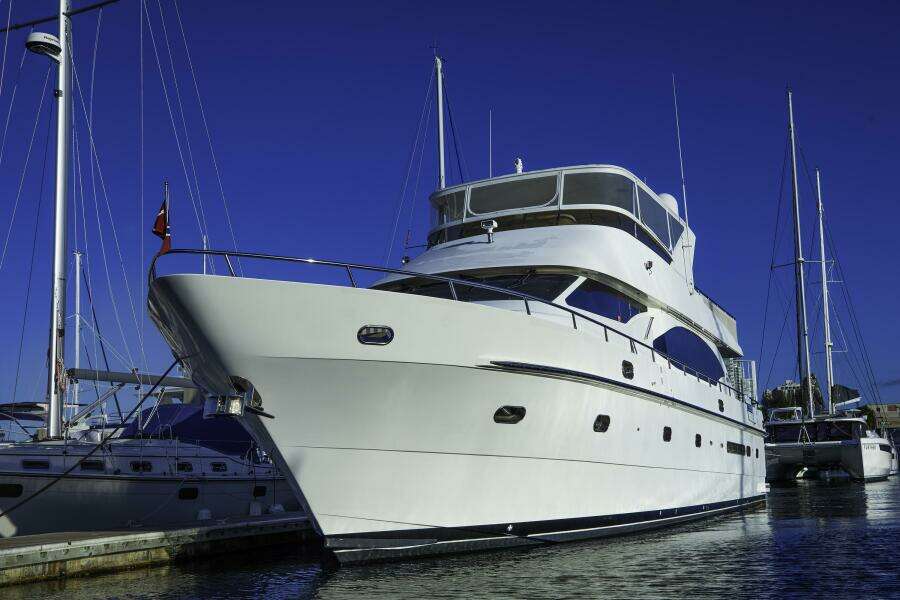

68' Hargrave Open Bridge 2004 68' HARGRAVE Motor Yacht

Melodious II  is ready to cruise at moments notice. Well Equipped and a long list of maintenance and upgrades along with her vast interior and exterior spaces make Melodious II a comfortable cruising yacht.

Additional Specs, Equipment and 'Information:

Builder /Designer

Builder: Hargrave

Engines

Engine Power: 1600 HP

Dimensions

LOA: 68 '0" (20.73m)

Beam: 18' 6" (5.64m)

Max Draft 5' 6"

Engines

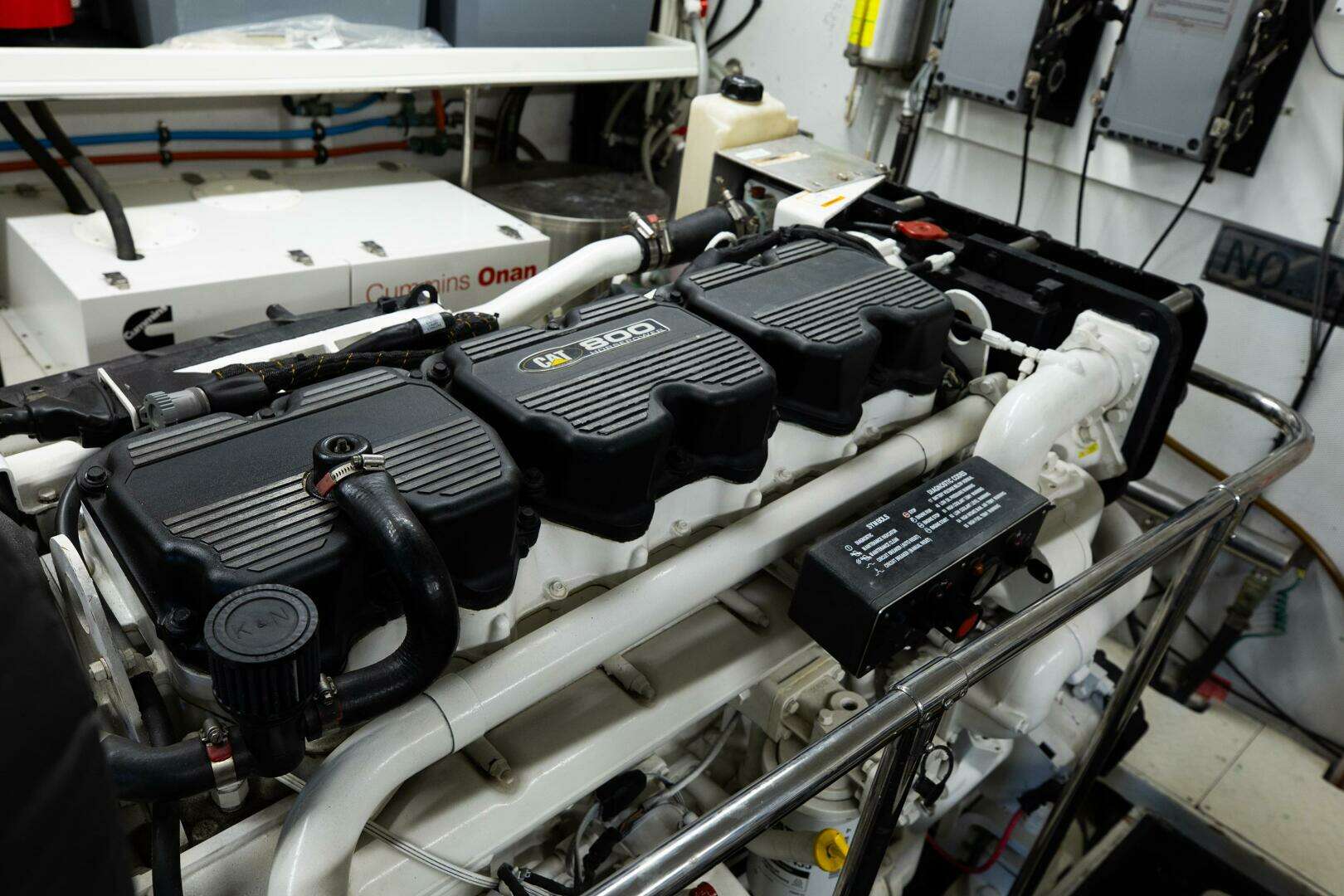

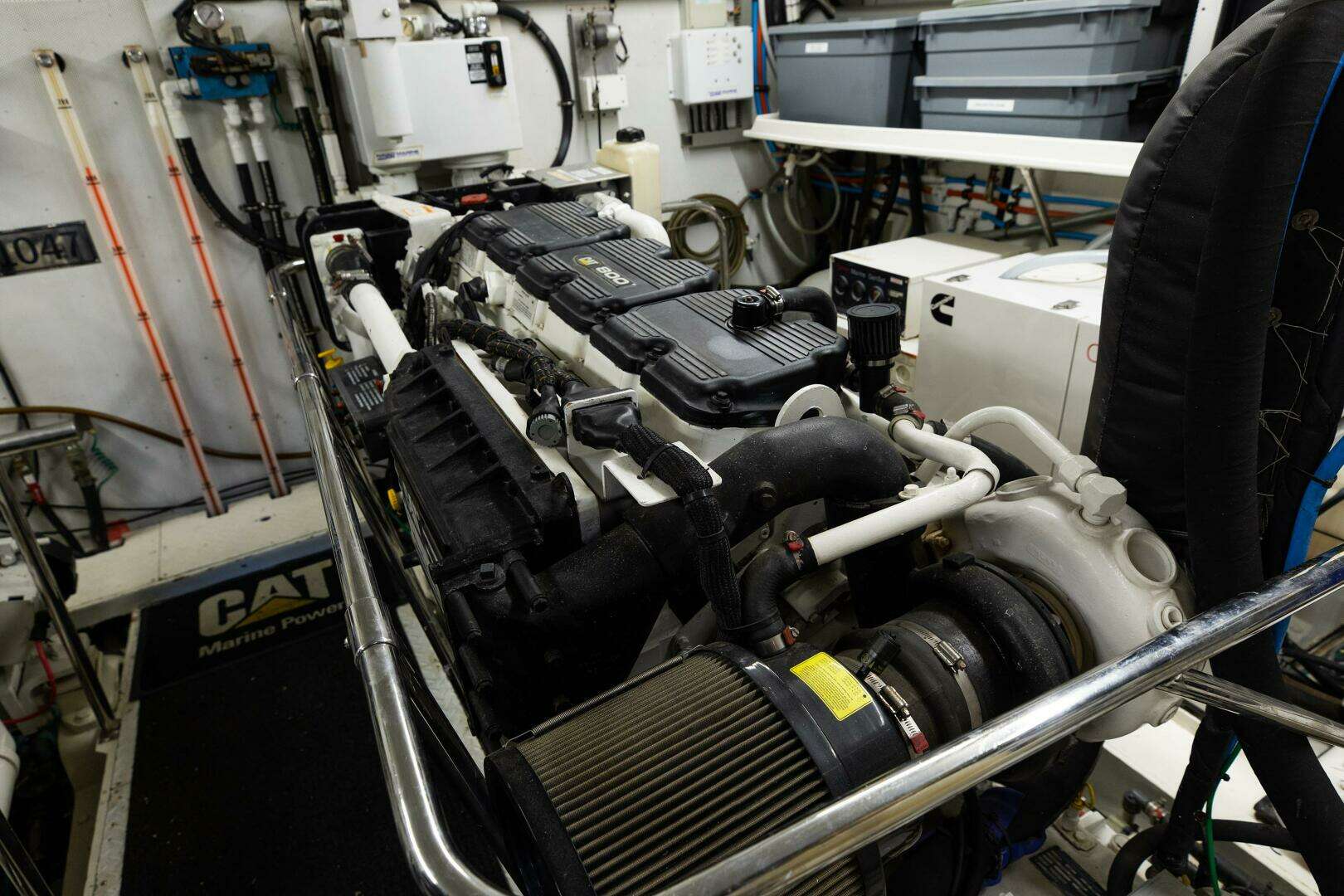

800HP twin CAT Port 3406E TA 3125 hours

800HP twin CAT Starboard 3406E TA 3190 hours

Twin Onan 27.5 Generators 3240 hours (port) 3498 hours (stbd)

Tankage

Fuel Capacity: 1,500 gallons (5678 liters)

Water capacity: 250 gallons (946 liters)

Holding Tank 130 Gallons (492 liters)

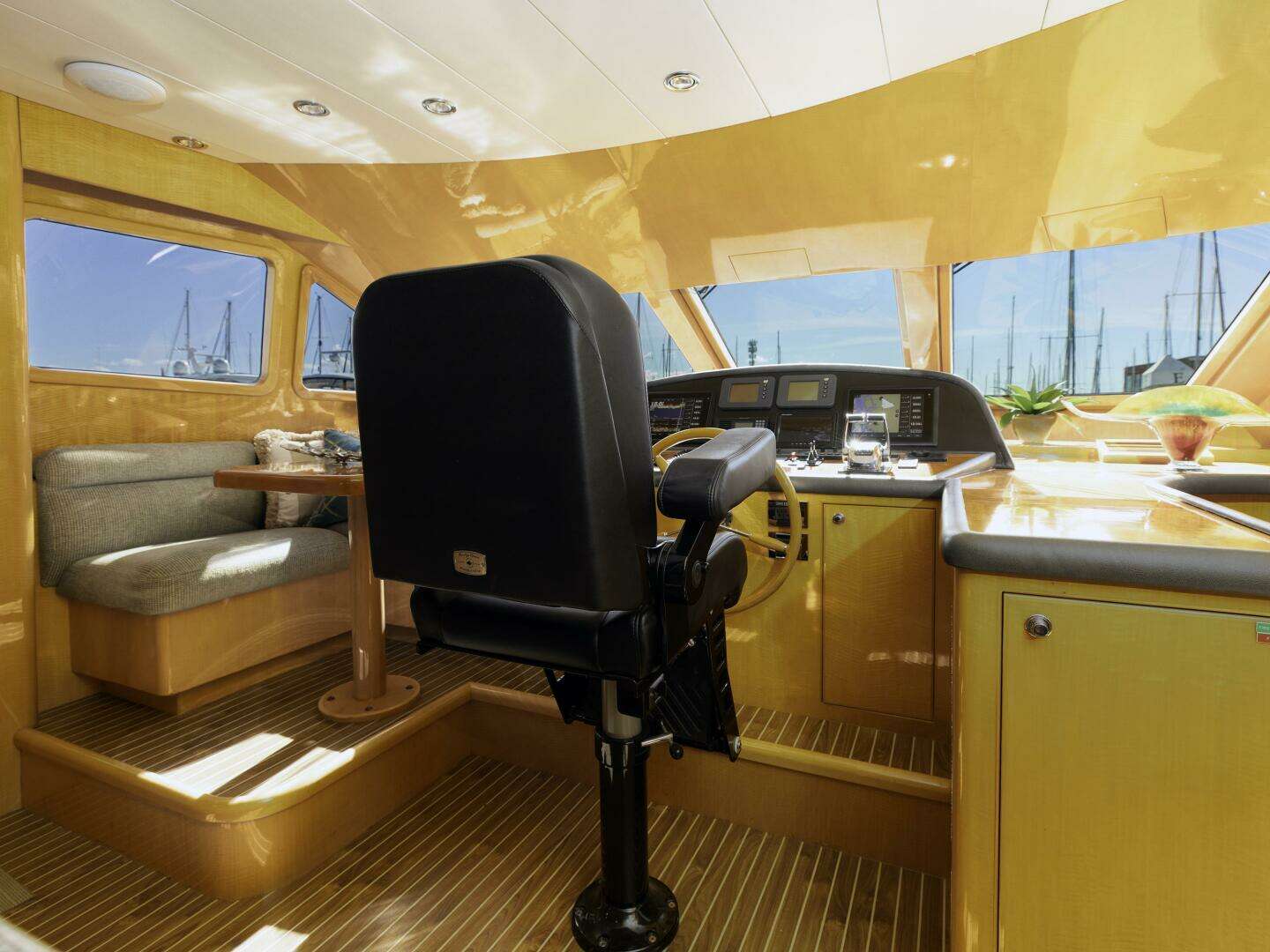

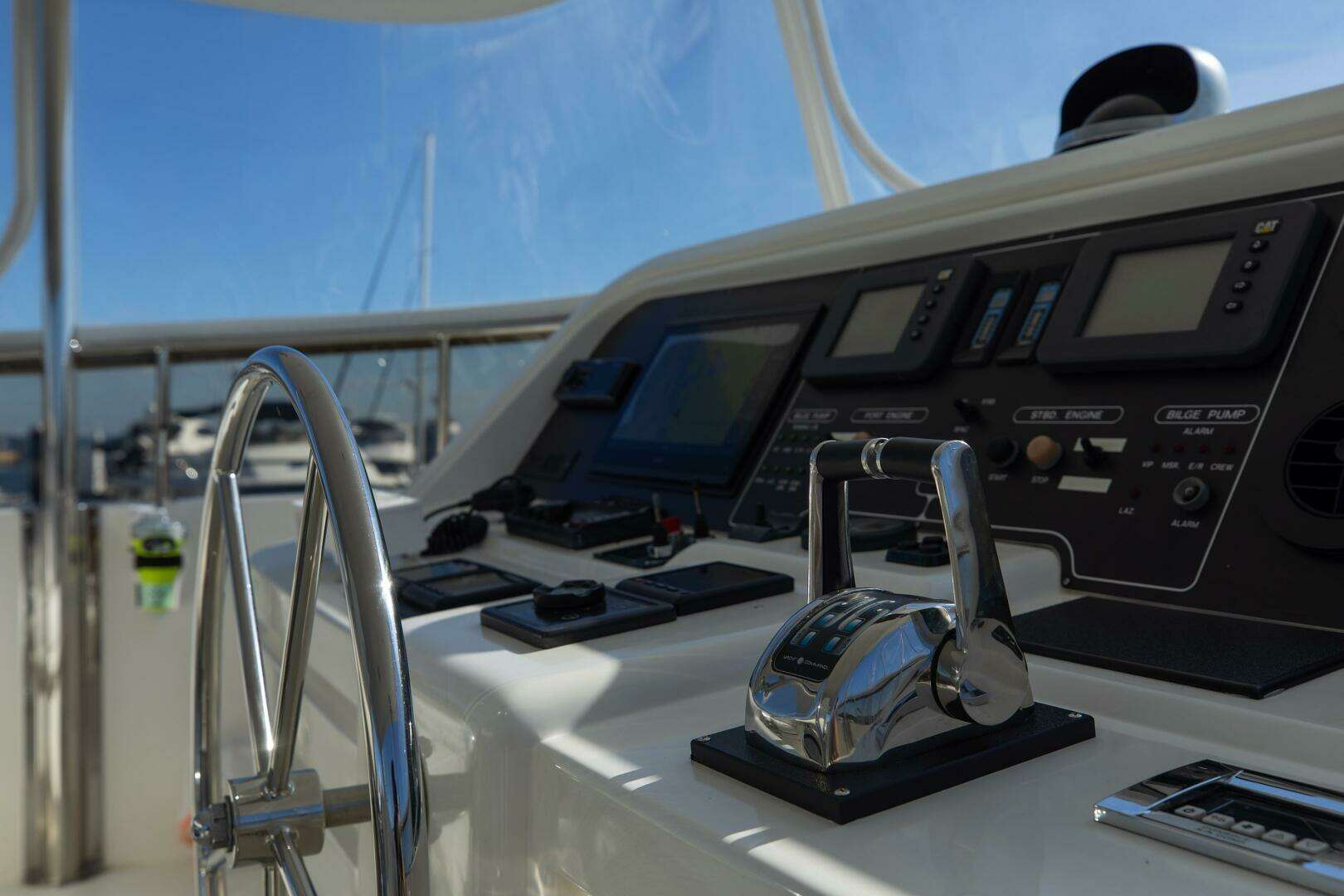

Pilothouse and Electronics

Wood trimmed stainless steel steering wheel. Hynautic hydraulic clutch and throttle controls Furuno 12" Nav Net 3D plotter/radar/depth Garmin 8212 12" touchscreen plotter/radar/depth Simrad AP20 autopilot

Raymarine ST60 digital depth (2CAT) LCD Gauge panels Icom M604 VHF

Naiad Multisea II stabilizer controls VDO rudder angle indicator Maxwell windless controls Tankwatch 4 holding tank monitor

(6) bilgepump control switches w/indicator lights & alarm

Naiad Joystick bow thruster controls (3)windshield washer/wiper controls Wema fuel tank gauges

Wema water tank gauge

(2) Seafire system monitors

Start/Stop switches for both main engines and generators Bose stereo speakers

(11) overhead LED light fixtures Low RPM switches.

KVH Tracvision 4

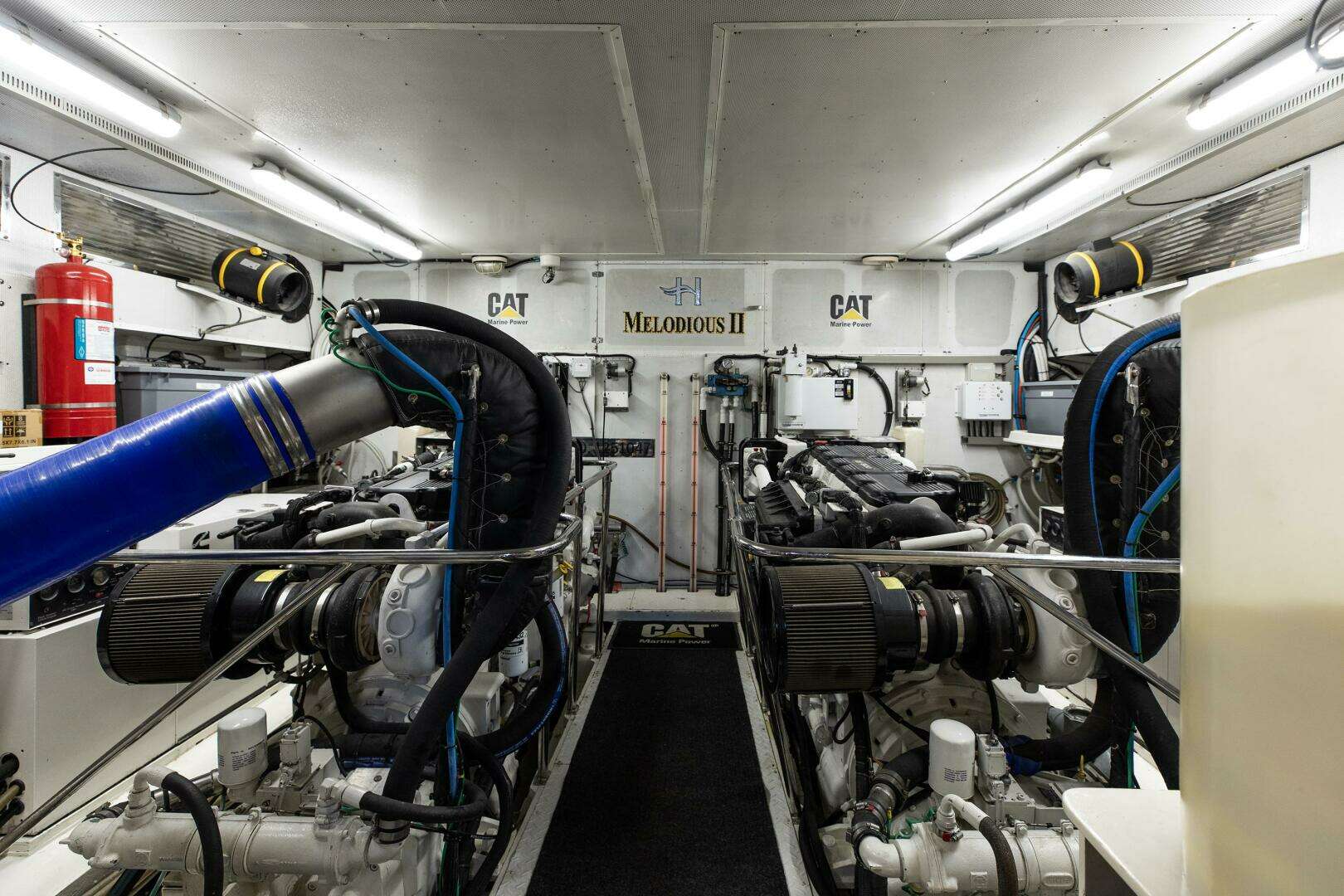

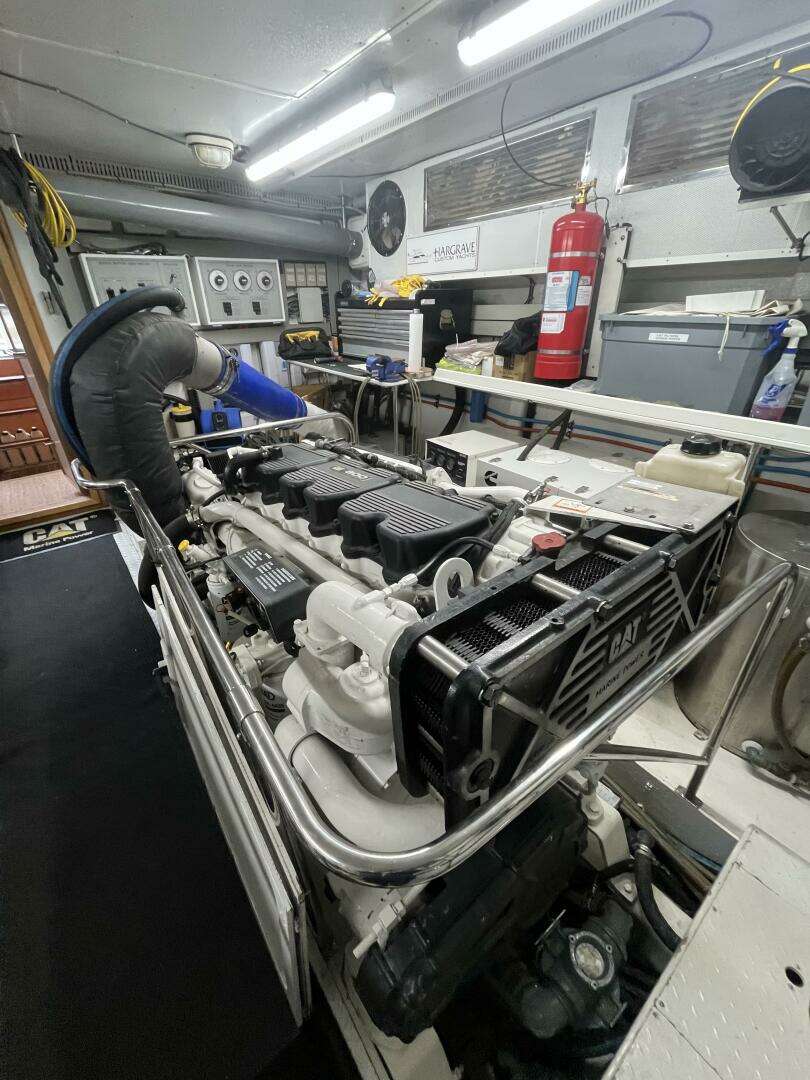

Engine Room

(1) 33.8 lb FE241 Seafire Engine room fire suppression systems Recently Certified 10/25

(4) AC intake blowers

(2) AC extractor blowers

Aftercooler sent out, cleaned and pressure tested. Reinstalled with new gaskets. 2/23.

Hynautic hydraulic steering reservoir w/pressure gauge Autopilot drive pump

Reverse 6 point oil change pump and manifold Glendenning 220v 100 AMP cablemaster and storage bin Sea Recovery Aquawhisper water maker 1400 gpd

PTO ran off Stbd engine for stabilizer/bow thruster

(4) AC LED fluorescent lights

(4) DC incandescent lights

Air Compressor for horn/ships service Deck wash down pump

Dripless shaft seals Engine hour meters

Head hunter Machl AC freshwater pump

Groco DC backup freshwater pump Torrid 30 gallon water heater Freshwater spigot with hose

(2) AC raw water circulation pumps for HVAC system

(6) Cruiseair air condition compressors units: Salon 24,00 BTU, Galley 16,000 BTU, Master 16,000 BTU, Master 7,00 BTU, VIP 7,000 BTU, Crew 7,000 BTU.

(2) 750 gallon aluminum fuel tanks w/manifold Davit electro/hydraulic power pack

Stabilizer Raw water cooling pump

Dual Racor 1000 fuel filters w/vacuum gauge for both engines Racor 500 fuel filters for generators

Kiddie dry chemical fire extinguisher Removable diamond deck plates Hand operated bilge pump

(2) fuel sight gauges

ZF 350A transmissions w/2.077 to 1 gear ratio AirSep carnkcase ventilation system

shower sump

Five blade propellers

2 3/4 inch stainless steel shafts 125 gallon waste tank

Stainless steel grab rails around engines Naiad HPS 25hp bowthruster

Y valve and macerator for dockside/seaside pumps High temp and low oil alarms

Naiad 254 stabilizer system with 7.5 sq ft fins Bennet trim tabs

( 4) coolant recovery bottles

Custom port and starboard shelving with storage. Chest style tool storage with workbench and vice Overhead rod holders (6)

Lazarette

Steering activator

Rudder angle feed back sensor Freshwater distribution manifold

(2) overhead lights

Acces area to stbd rudder for emergency tiller operation High water alarm

crew shower sump

(5) Blue Ocean LED underwater lights

Electrical System

12/24 volt DC electrical system 110/220 Volt AC electrical system

( 4) 8D batteries for ships service ( 4) 8D batteries for engine bank

(2) separate 31 series batteries for generators Acme shore power isolation transformer

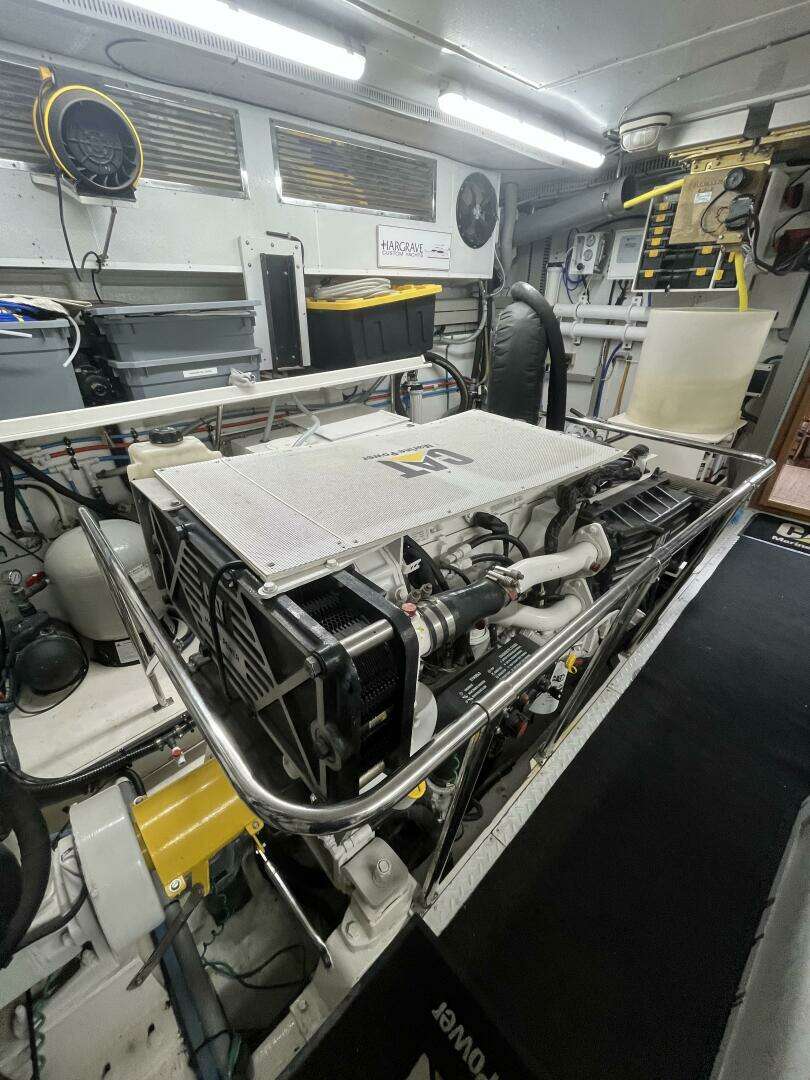

Port side Onan 27.5 KW generator in sound box

Starboard Onan 27.5 generator in sound box Shore power inlet breaker, engine room aft Dolphin 24volt 80 amp ships service charger

Dolphin 24volt 80 amp engine bank battery charger Dolphin 12 volt generator battery charger

( 4) battery cutoff switches Battery parallel switch

(2) 80 maintenance free gell cell windlass batteries under VIP berth Galvanic isolator system

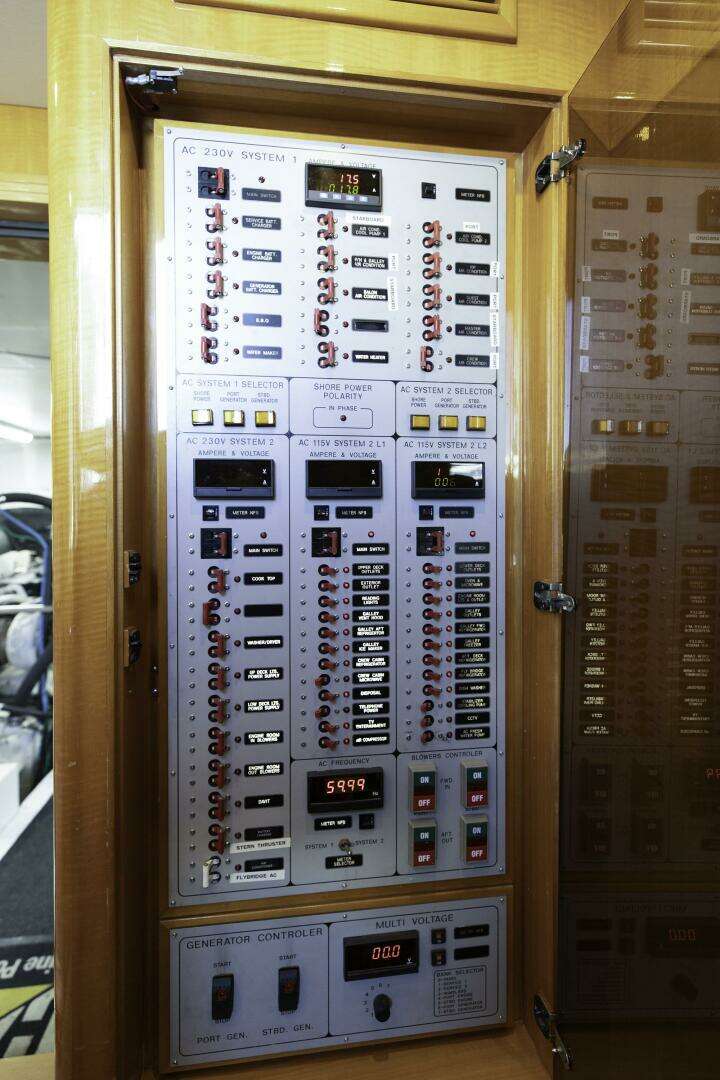

100 AMP Glendening cable master w/100 foot cord Main crew area AC electrical panel

AC 230 volt system 1 w/digital amp & voltmeter & (15) breaker protected circuits AC 230 volt system 2 w/digital amp & voltmeter & (10) breaker protected circuits AC 115 volt system 2 Ll w/digital amp & voltmeter & (12) breaker protected circuits AC 115 volt system 2 L2 w/digital amp & voltmeter & (12) breaker protected circuits Digital frequency meter

Blower switches

Generator start/stop switches

Digital battery voltmeter w/7 positions

Main pilothouse DC electrical panel w/digital amp & voltmeters battery selector switch for monit?ring condition and load

(39) breaker protected 24 volt circuits

(9) breaker protected 12 volt circuits

(2) sump pump manual/auto selector switches Main service battery disconnect switch.

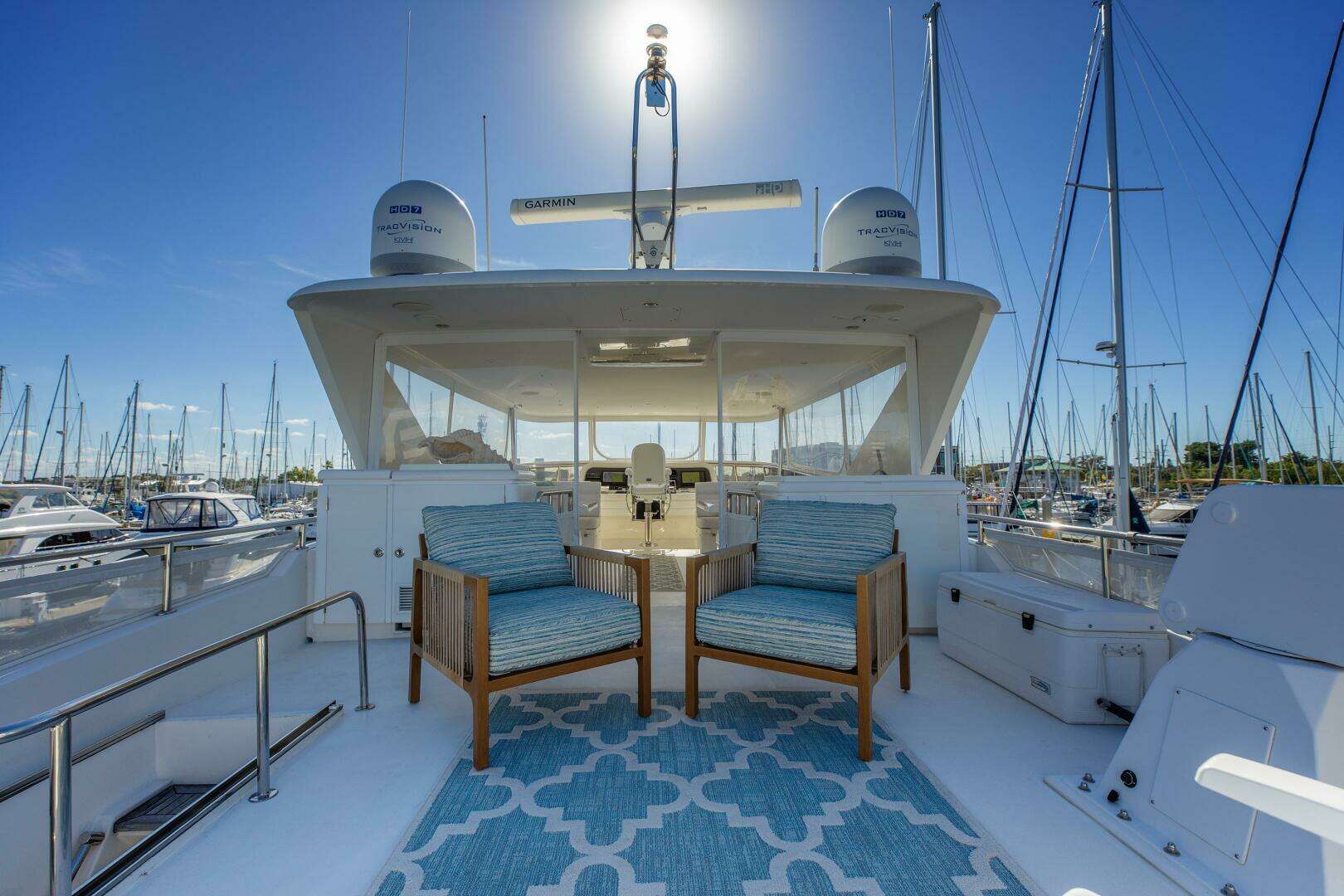

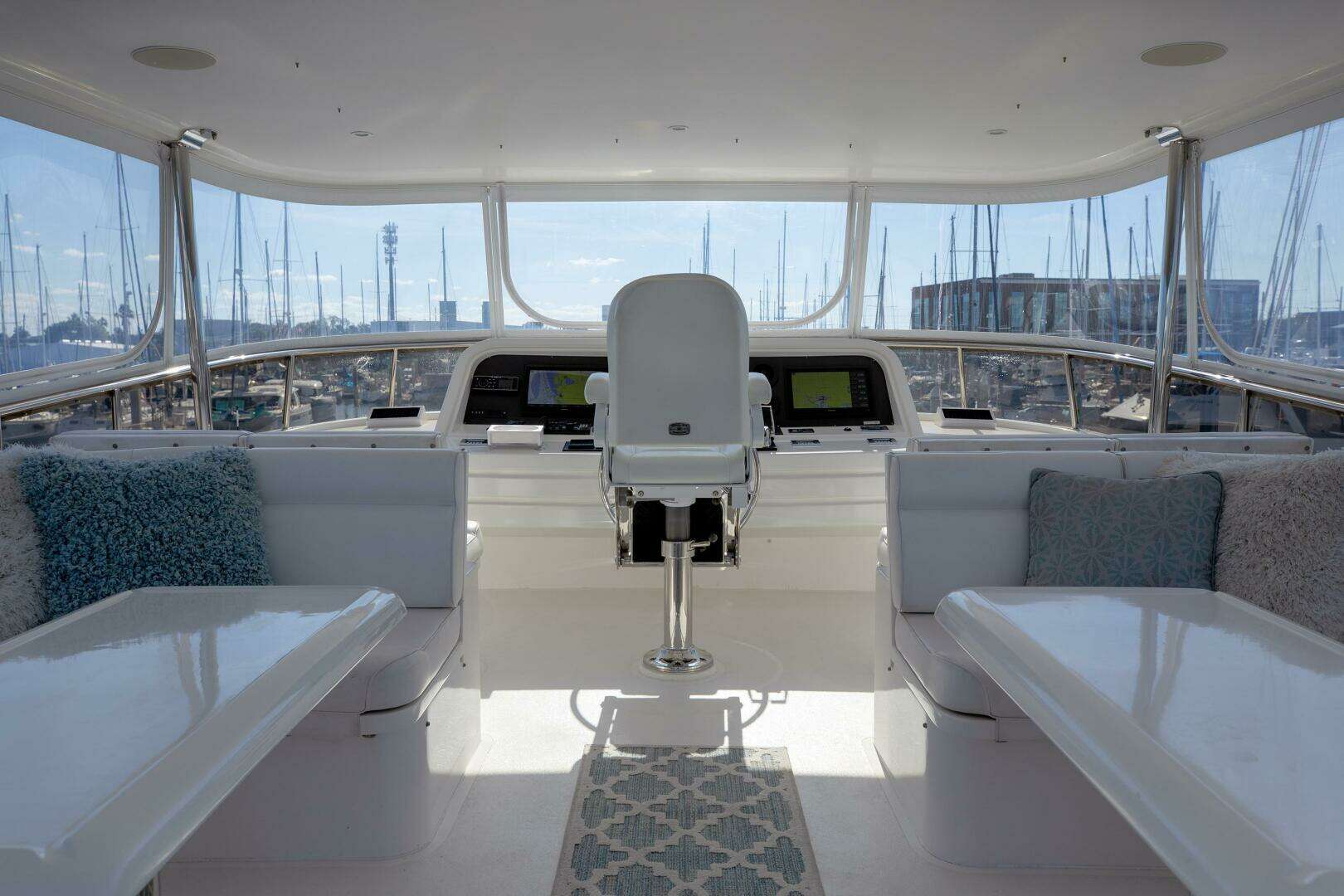

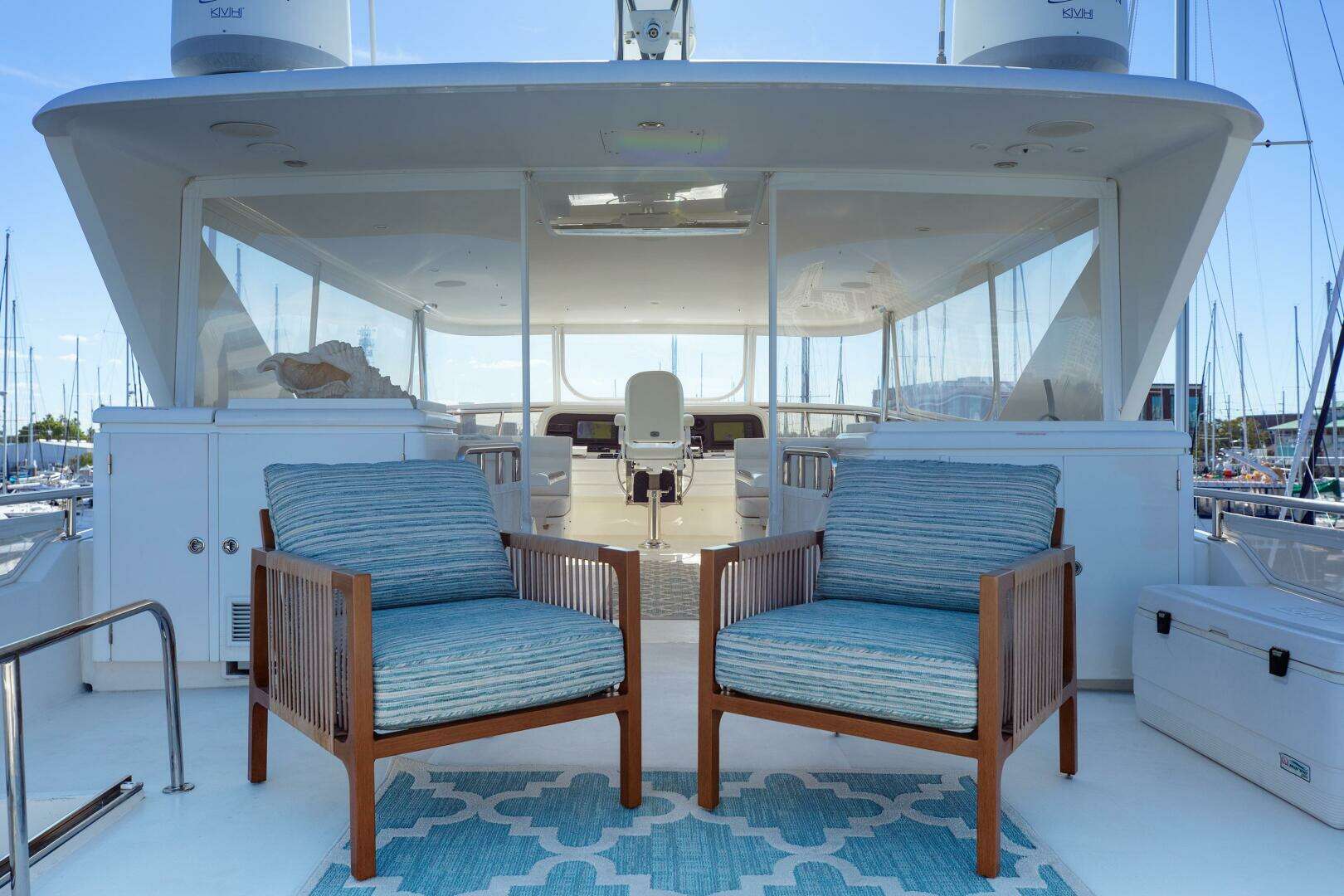

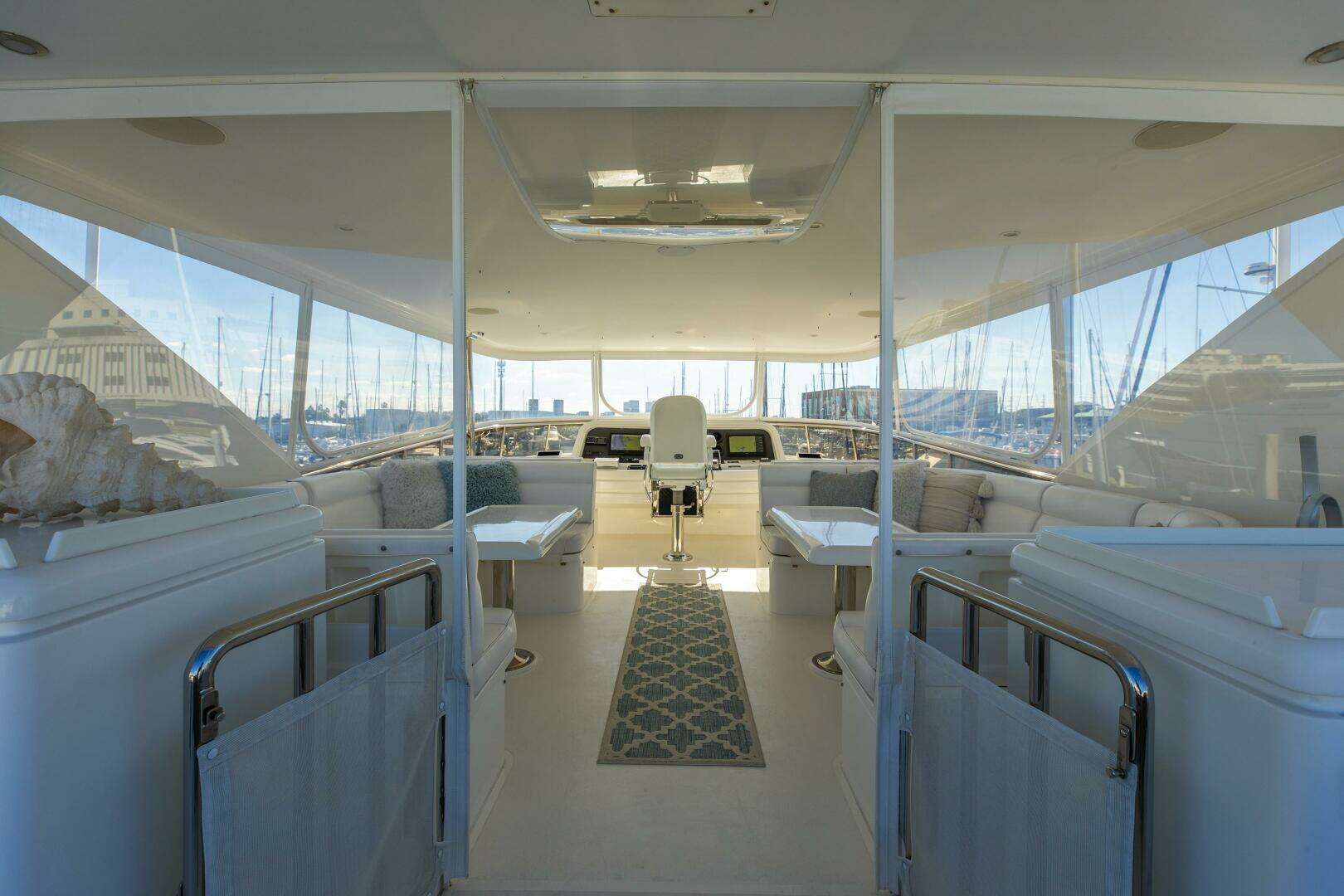

Flybridge Equpipment

Fiberglass Nonskid decks

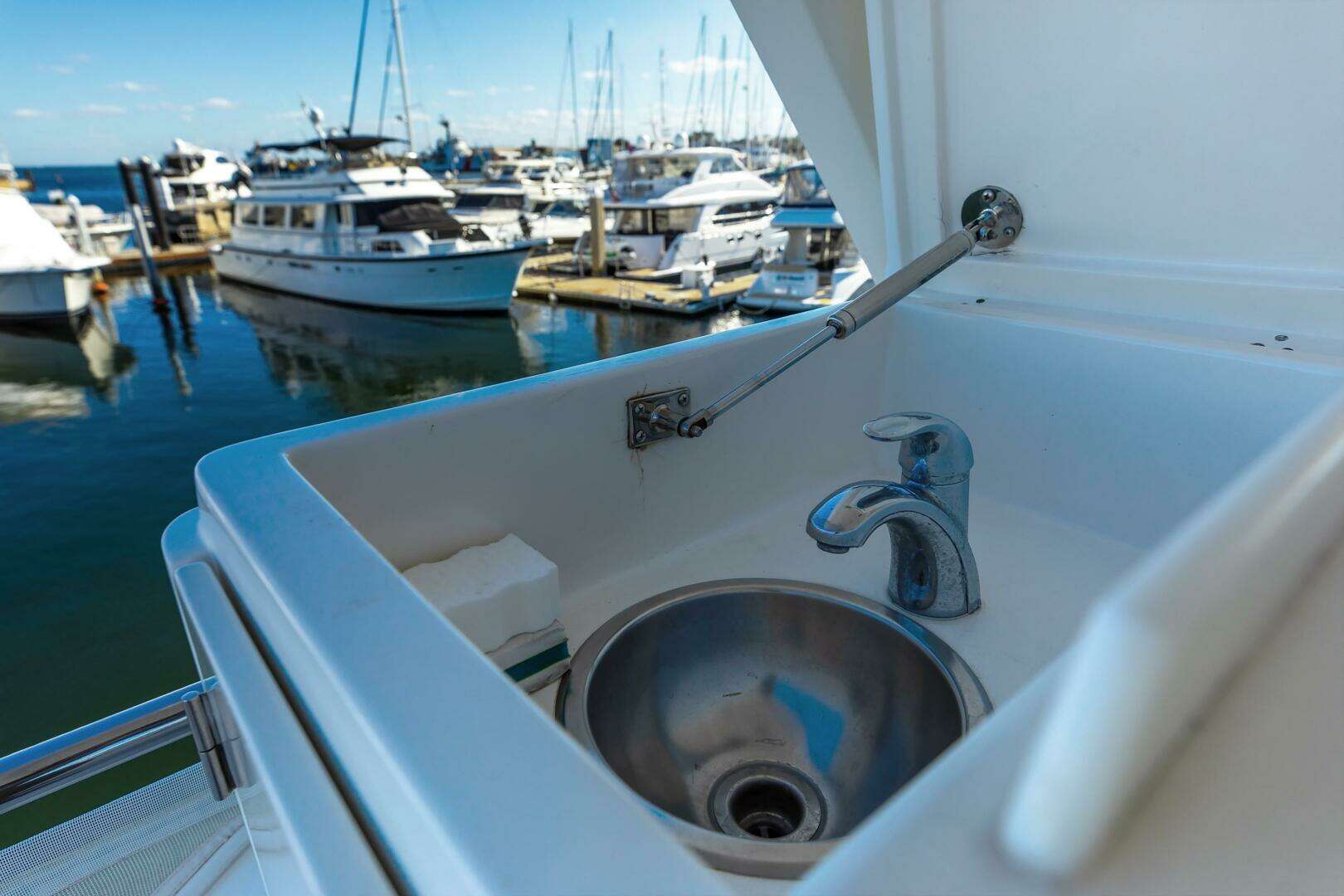

Aft facing port side wet bar w/Uline refrigerator ,stainless sink & single lever faucet under hinged top w/3 shelf storage cabinet

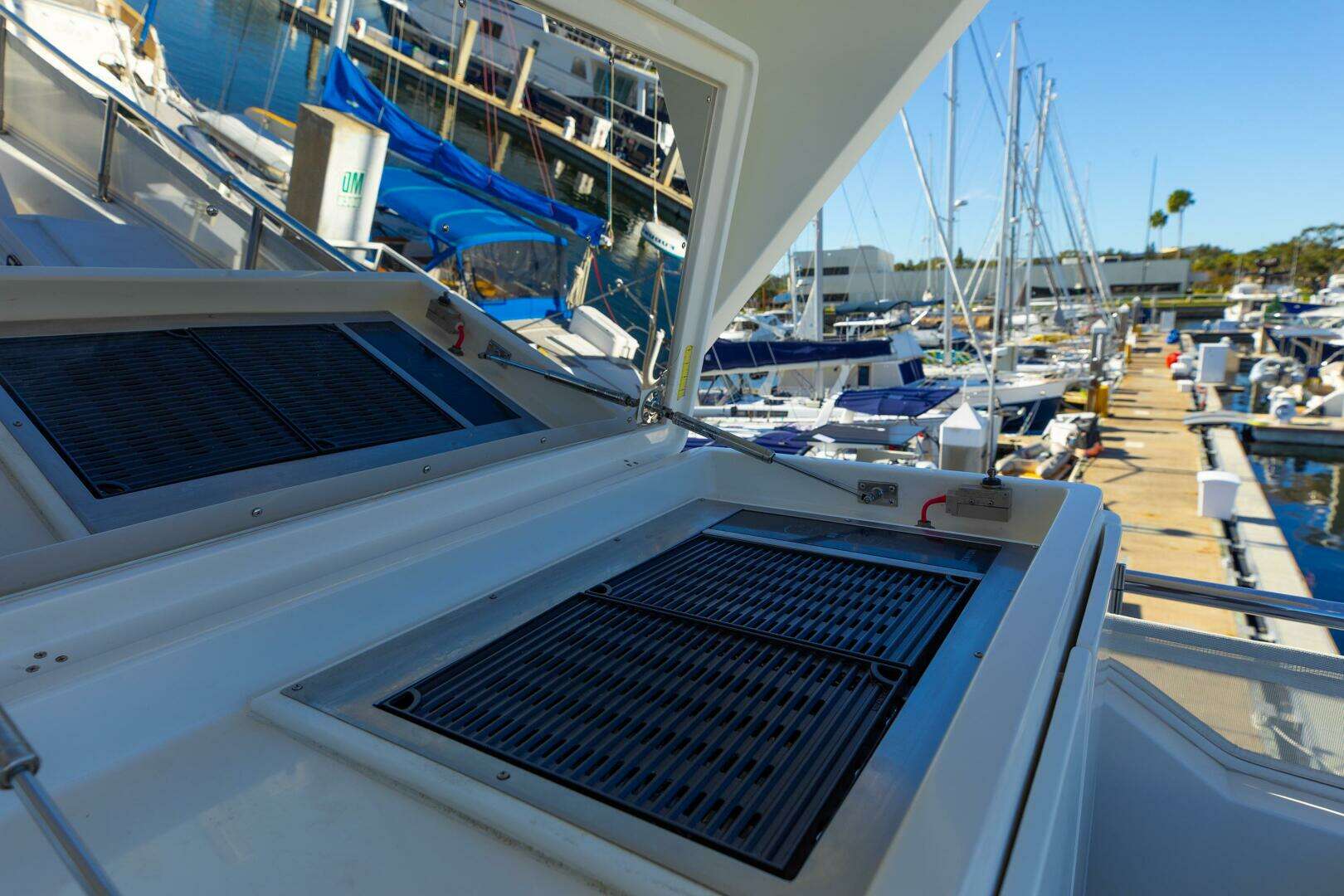

Aft facing starboard side Jenn Air grill under hinged top q/storage below Full stainless steel railing around boat deck

1000 pound Quicklift davit on pyramid base mount Rail type tender chocks

Integral arch & fiberglass hardtop

(4) sided stratoglass enclosure

(9) recessed overhead lights in hardtop

recessed speakers

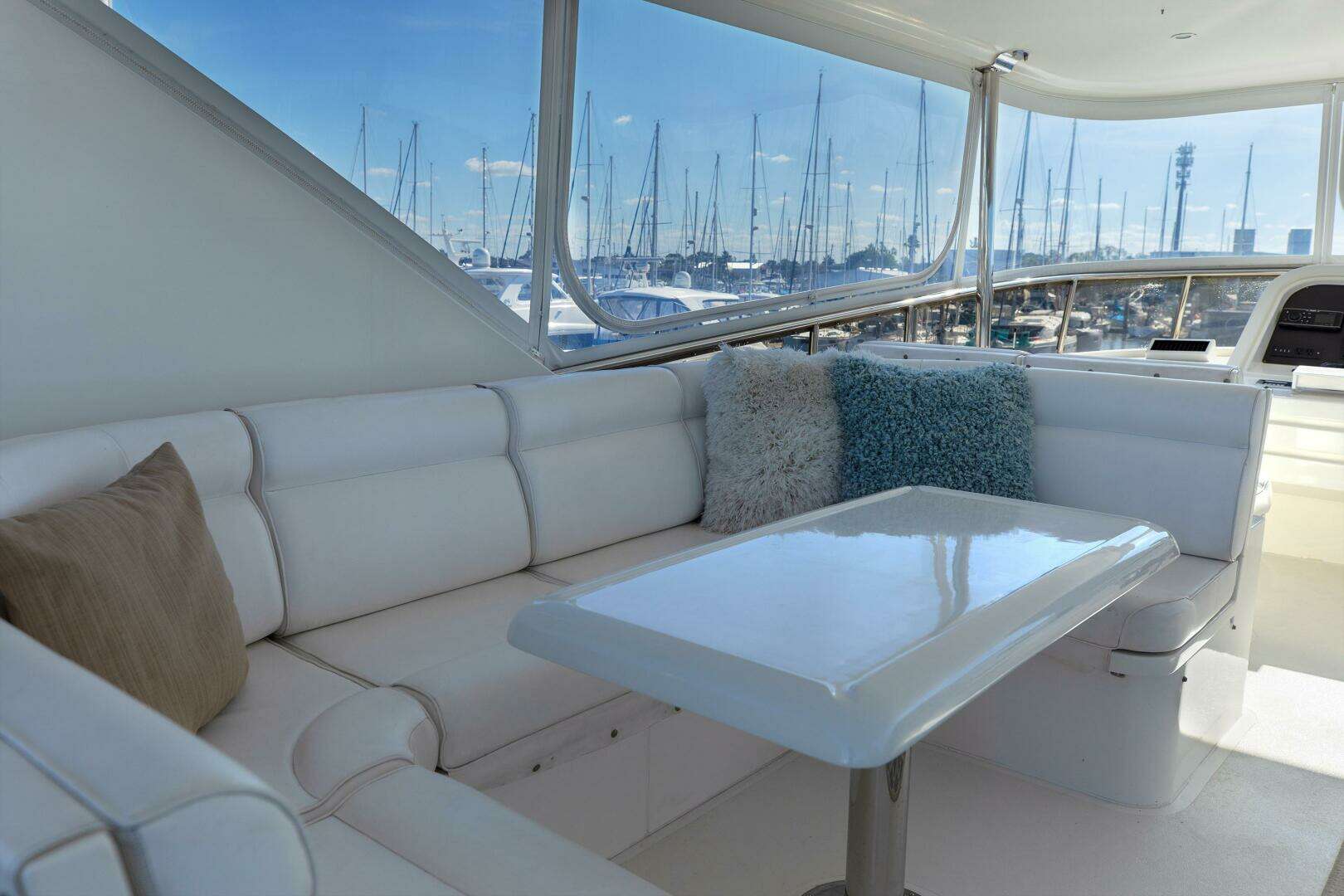

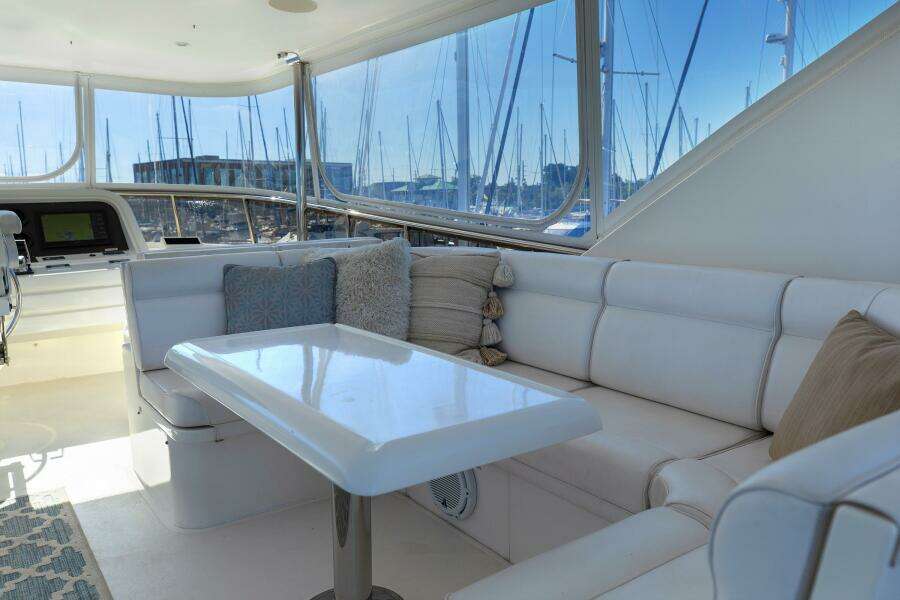

Twin U shaped fiberglass seating groups with removable cushions and storage underneath Fiberglass table at each seating group with stainless steel pedestal

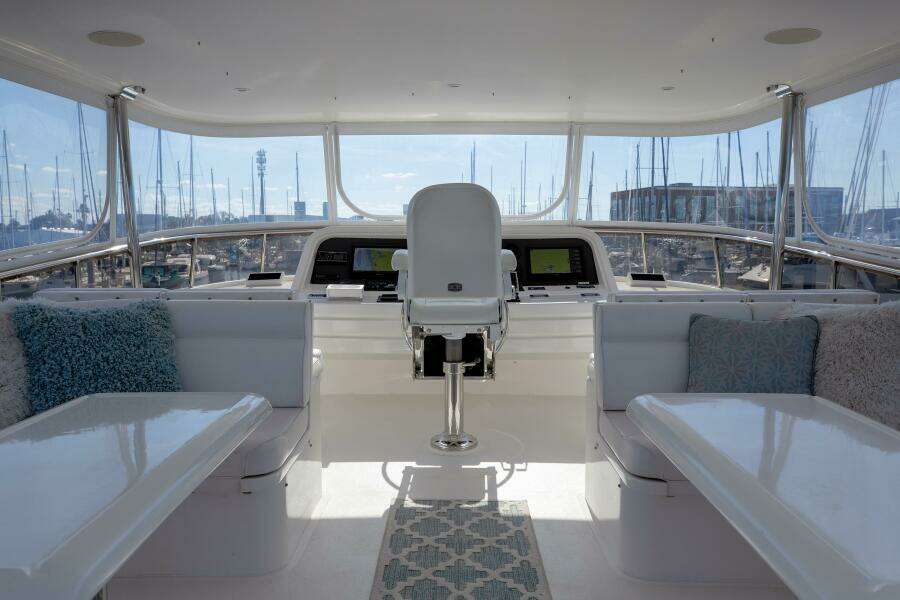

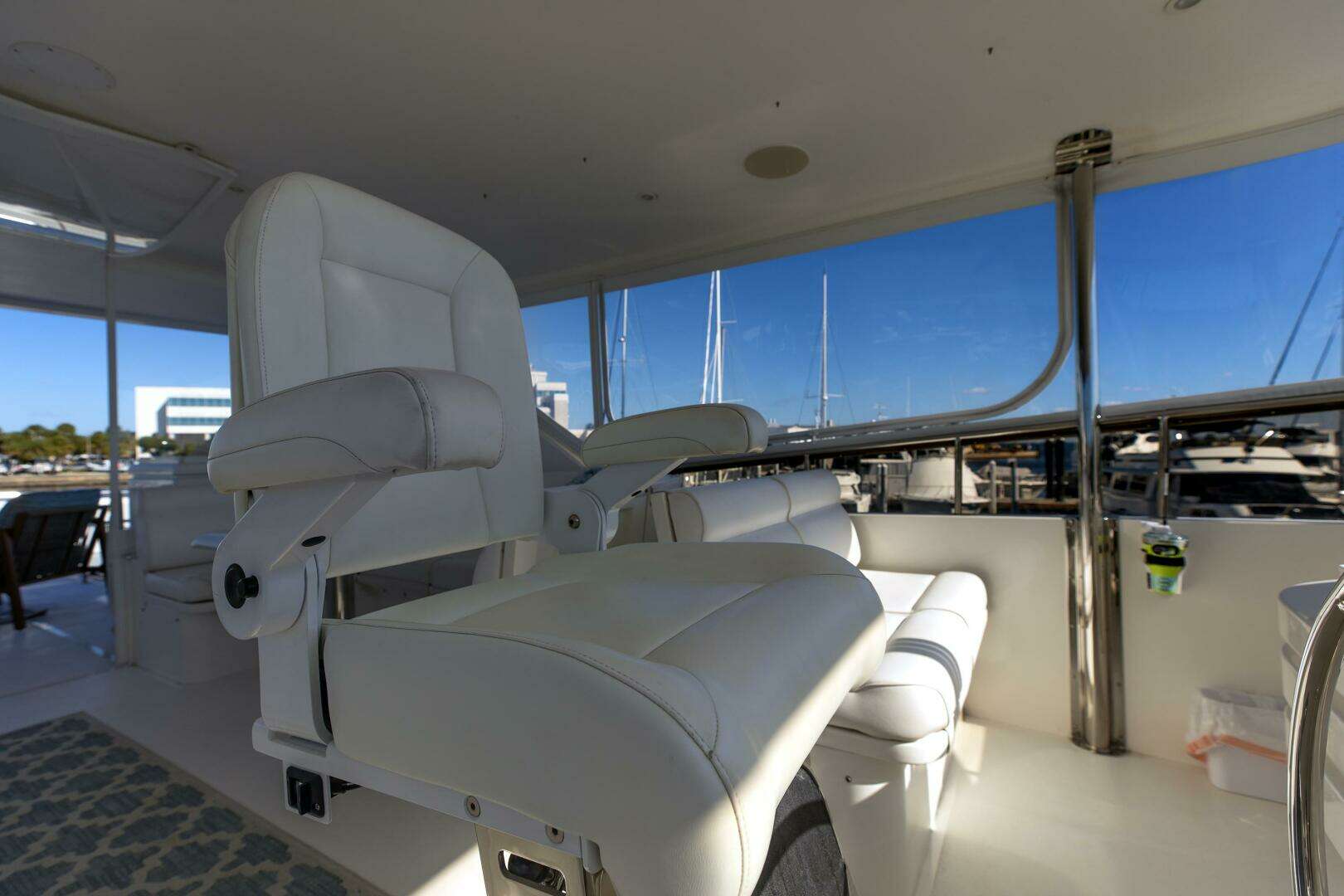

Pompanette Platinum series helm chair with folding footrest

Port and starboard forward facing bench seats with storage and removable cushions Storage under helm

Sliding lexan access hatch per bridge stairs w/safety rail Heavy duty Lexan Venturi windscreen w/stainless rail Stainless rod holder on aft flybridge rail

Custom stainless steel Flagstaff from boatdeck

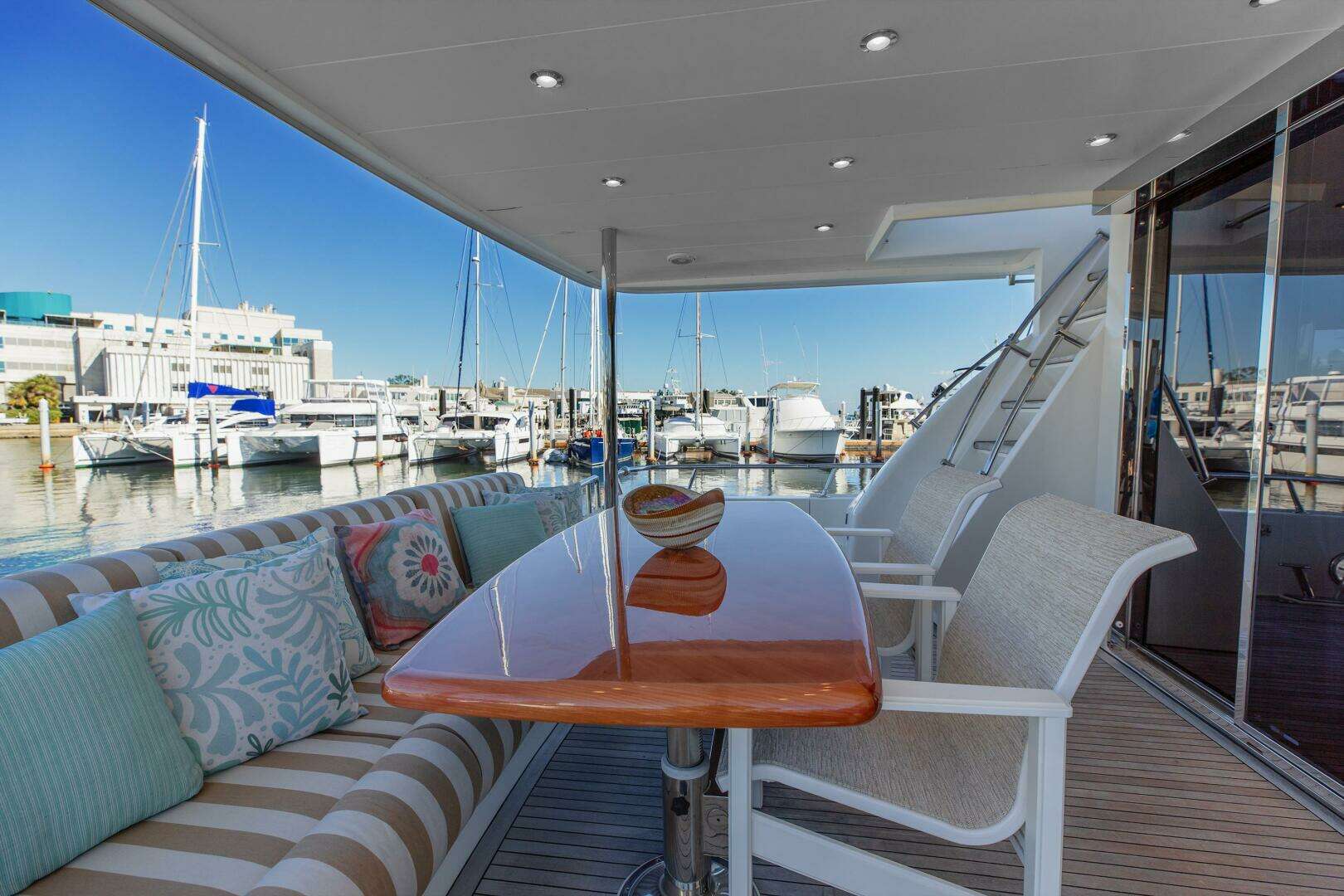

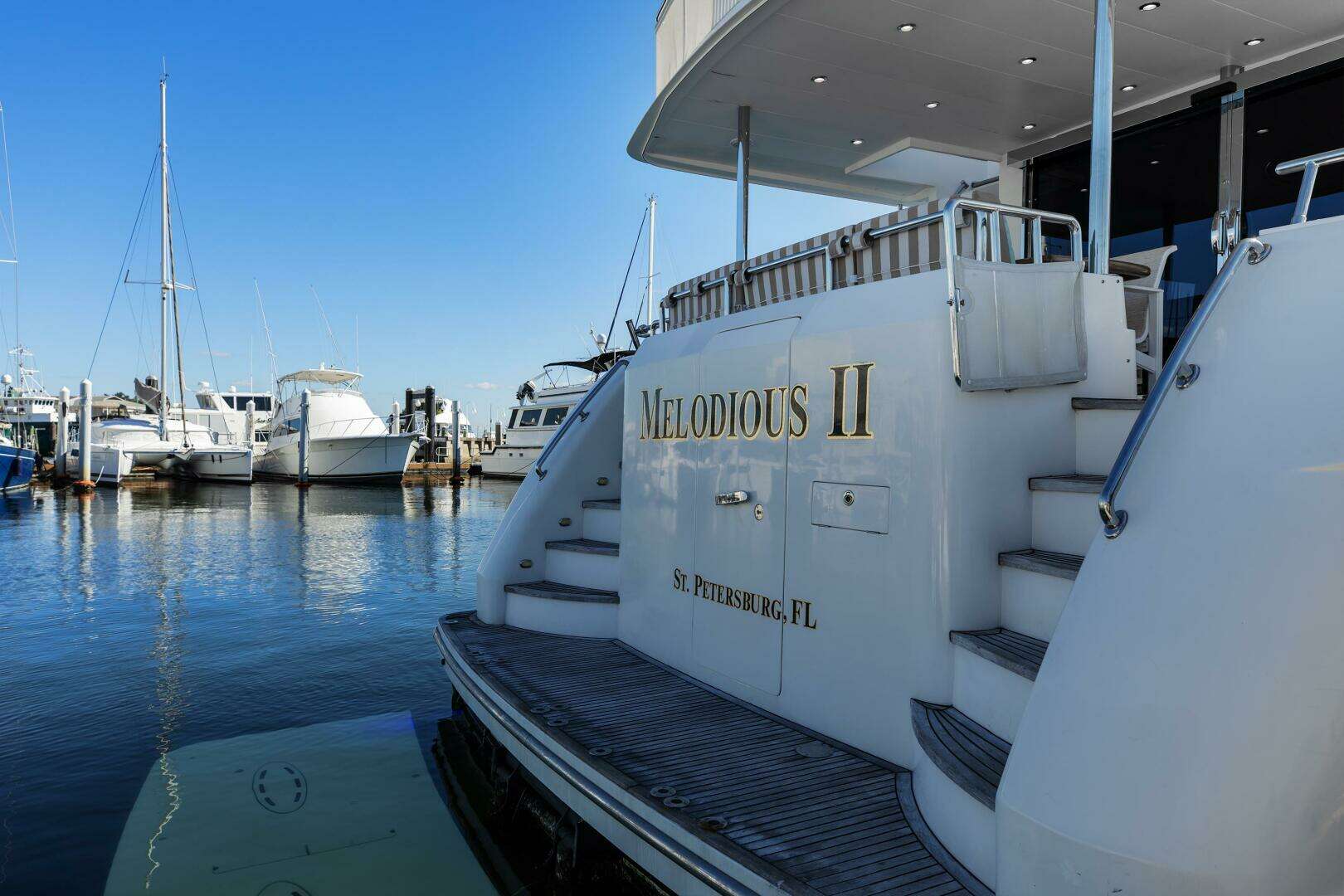

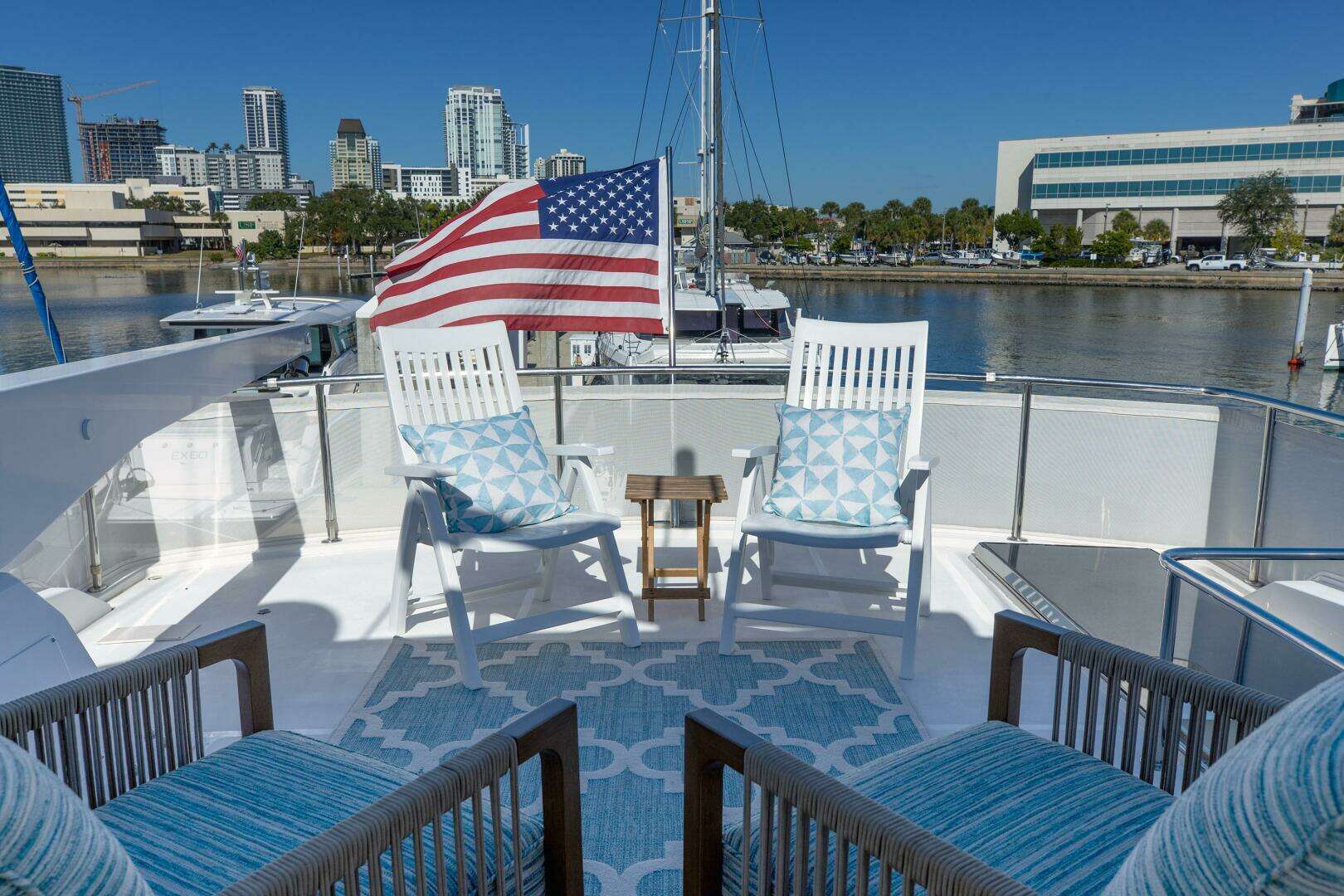

Aft Deck

Fiberglass deck w/teak overlay

Built in seating for 4-5 people w/removable cushions

folding teak deck chairs w/sunbrella cushions Dual pedestal hi/lo teak table

(11) recessed overhead lights

(2) fusion overhead speakers

(4) teak tread steps leading to swim platform with hinged stainless safety gates

(9) teak tread steps to flybridge with stainless hand rail Starboard side fiberglass cabinet with Uline icemaker Integral fiberglass sworn platform with teak overlay

(4) Port and starboard courtesy lights on swim platform to aft deck steps Starboard side transom shower with hot/cold freshwater and dockside water inlet Custom Marquipt tide ride storage cabinet

step Marquipt boarding ladder

Large bollard type cleats w/stainless fairleads on aft deck

(2) Stainless steel rod holders Textulene aft deck sunshade (3) sides

(4) stainless steel hoop style rails at swim platform

Foredeck

Fiberglass nonskid decks

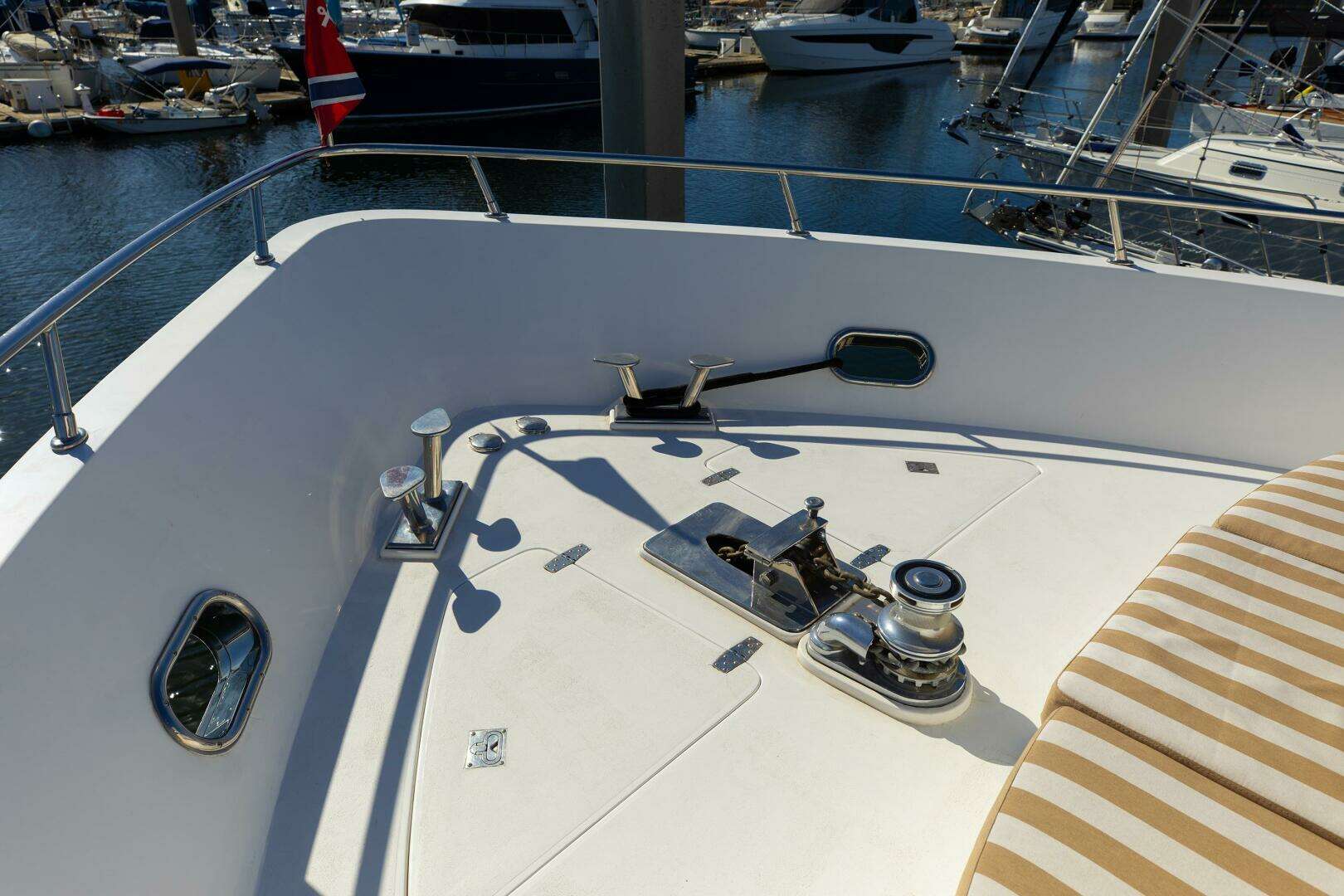

Maxwell 3500 anchor windless w/110 pound custom stainless navy anchor 200 feet of chain

Up and down foot control switches

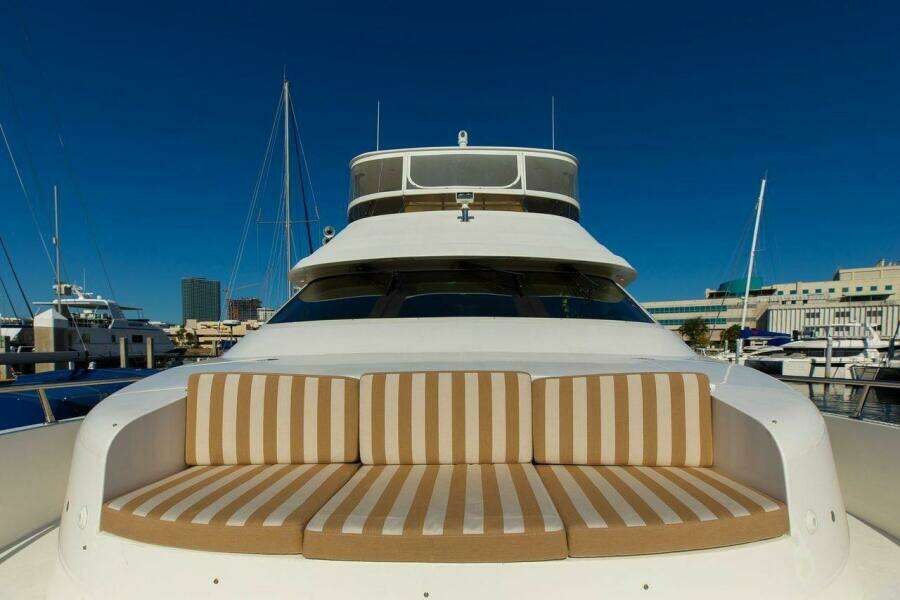

hinged anchor locker deck hatches Bow bench seat w/removable cushions Bow Sunpad made out of sunbrella

Port and starboard storage lockers in cabin trunk Deck fuel fills port and starboard

Deck water tank fills port and starboard

Deck waste pump out on port side Raised fiberglass bullworks

Welded stainless steel handrail above brow and side decks

Welded stainless steel handrail at house side above windows

windshield wipers w/washers International navigation lights

Port and starboard Pantograph style pilothouse doors Port and starboard rail & gunwale gates for boarding

(2) fusion bow area speakers Dual spring line cleats

Overhead LED courtesy lights in bridge overhead Frameless cabinside and pilothouse windows Kalenburg air horns

Custom stainless steel rub rails 4" offset from hull

Galley Equipment

Granite counter tops

Franke oversized stainless sink w/drrain board Grohne faucet w/pullout hose

GE profile ceramic 4 burner cooktop

GE profile stainless steel microwave/convection oven Fisher Paykel stainless steel drawer style dishwashers (2) GE stainless steel range hood w/exhaust fan

GE garbage disposal

Sub Zero stainless refrigerator drawers

(2) Sub Zero stainless freezer drawers Edgstar dual zone wine chiller w/glass door Teak and holly sole

cabinets below countertop

(11) cabinets above countertop

storage drawers

Open storage cuddly with stainless rail

Audio/Video

Samsung 40" LED flatscreen TV on automatic lift Bose 3 zone surround sound system w/subwoofer Blueray player

Sonos music player system Ipod dock

Recent Upgrades

Intercoolers - 12k

Flybridge Enclosure - 20k

Upper Deck Enclosure -3k

Hydraulic Tender Deck - 60k

Single Level Controls With Yacht Controller - 27k

New Bosch Benchmark Dishwasher / Wolf Induction Cook Top / GE Speed Oven -7k

Salon Hunter Douglas Shades - 12k

New Carpet - 10k

4 of 6 A/C Units Replaced - 34k

Both A/C Pumps Replaced - 2k

Reupholstered The Outside Cushions Bow & Stern - 6k

Rebuilt Center Sub-Zero Drawer - 3k

New Compressor in Freezer $1500

New Beverage Fridges Top Deck & Crews Quarters

New Barbecue

2-8D Batteries - Stern Thruster

4-8D Batteries

Melodious II

Accommodations

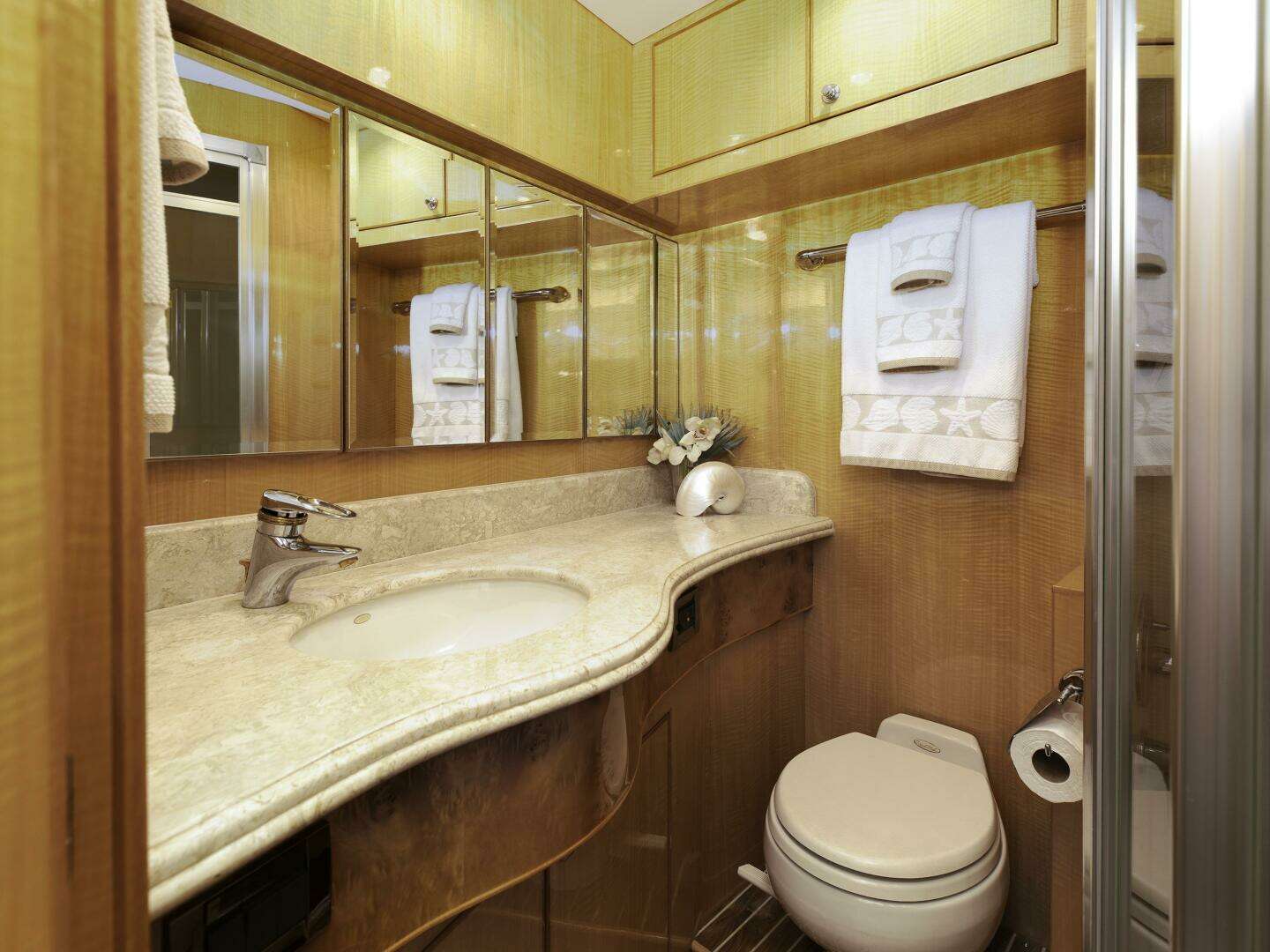

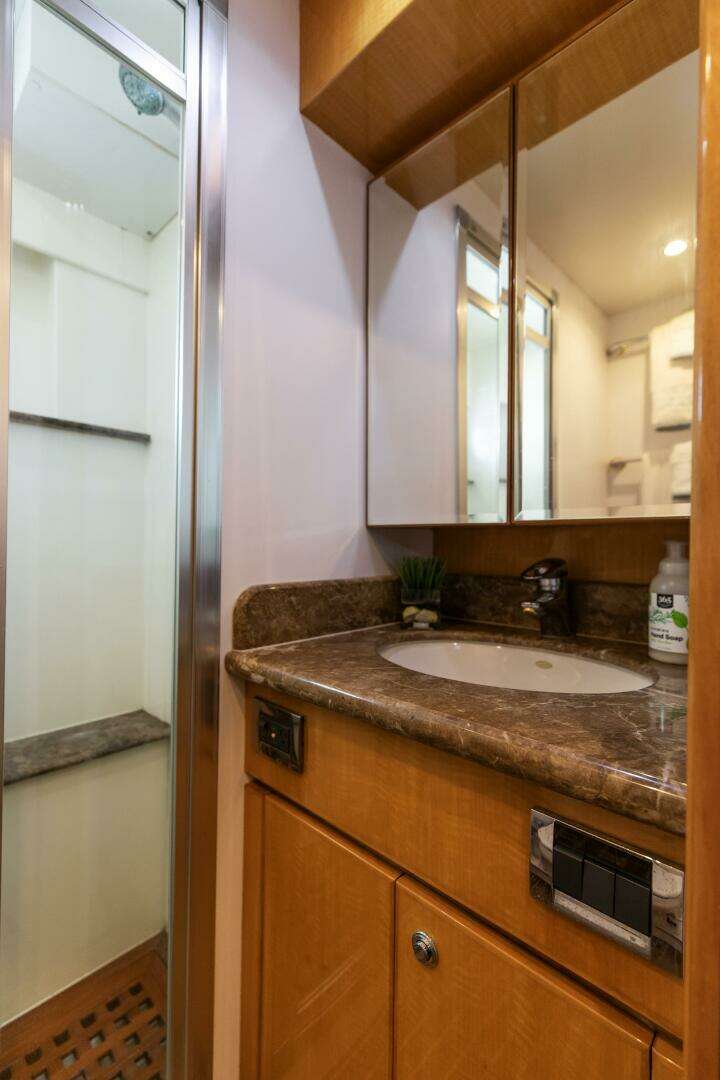

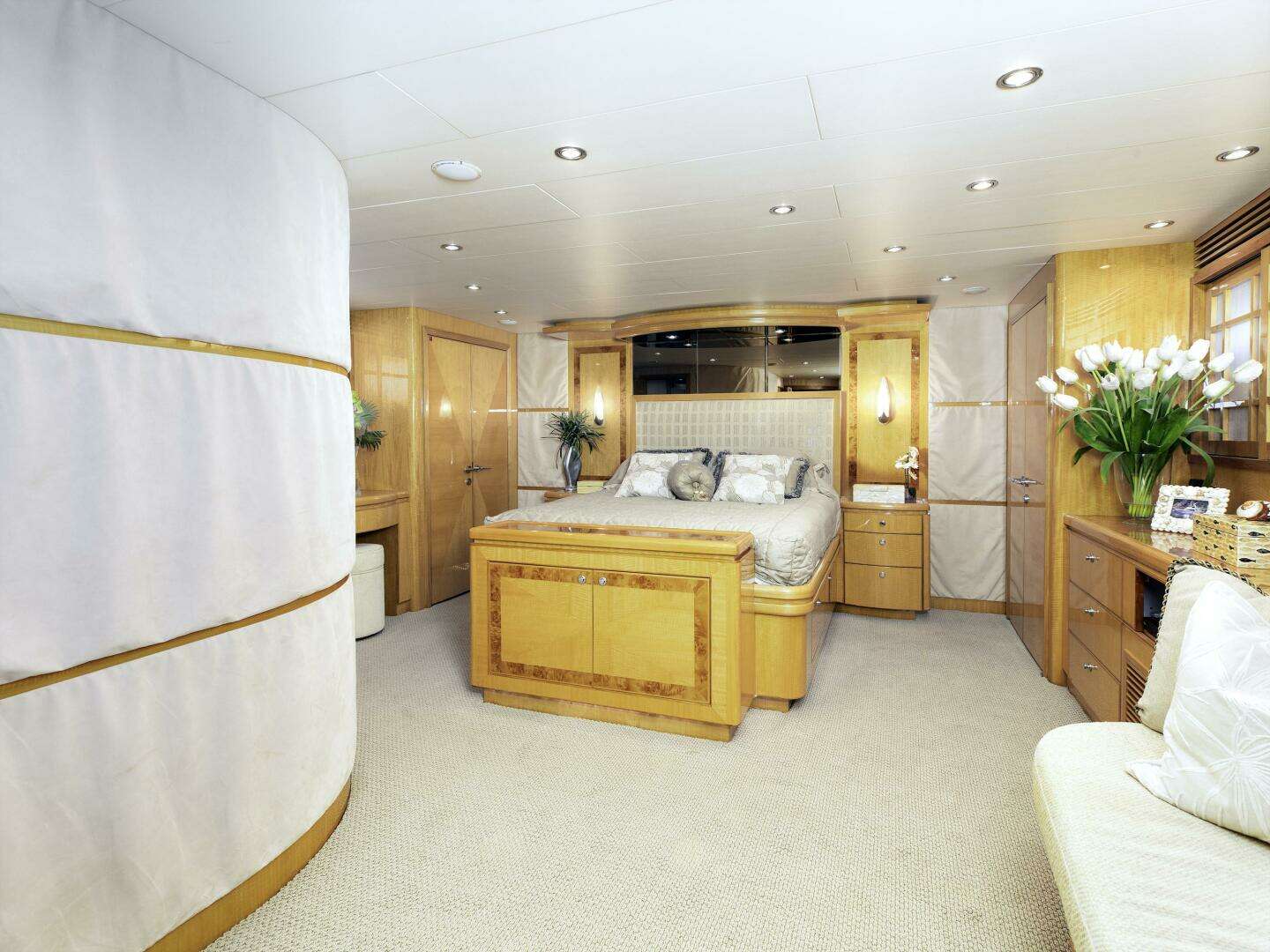

This family friendly yacht was built to accommodate 4-6 overnight guests. The main staterooms are comprised of an exceptionally large master suite and a VIP stateroom with a queen berth. (Please note that the guest accommodations can be easily converted into a 3-stateroom layout; please call for details.) There are 3 heads below deck. A third stateroom is located aft, and features twin beds and a private head that is suitable for either two crewmembers or additional guests. Every creature comfort was considered on this remarkable boat.

Vessel Walkthrough

NEW Carpet Through Out Vessel!

Imagine fun, adventure and island hopping with your family and friends aboard Melodious II. This vessel has a striking, European style profile. Inside the decor is as impressive and chic. The aft deck sets you on a path toward the main salon through large sliding glass doors. This aft deck has seating and entertainment features and is open and airy. The upper bridge deck extends over the aft deck and provides excellent shade and protection from the elements. The main living space seems to be endless and your first impression is of a flawless space. Your eyes are able to take in the beauty of the entire main deck without stopping on any single design feature. This seamless flow is accomplished with the thoughtful, open layout and the use of neutral colors and light colored Anigre wood. This main deck is comprised of a large salon, galley and forward helm with a port side dining table. Below deck, the master suite extends across the entire width of the beam and is incredibly spacious for a yacht of this size range. Several closets, his and her heads, a central king berth, seating and entertainment features complete this space. The VIP stateroom is also very accommodating with a queen berth and en suite head. Outdoor space is found on the large fly bridge. This fly bridge has plenty of seating and entertainment options, and is fully protected by a custom fiberglass hardtop. Whether venturing out as an owner/operator or navigating blue waters with an experienced crew this is the vessel for you.

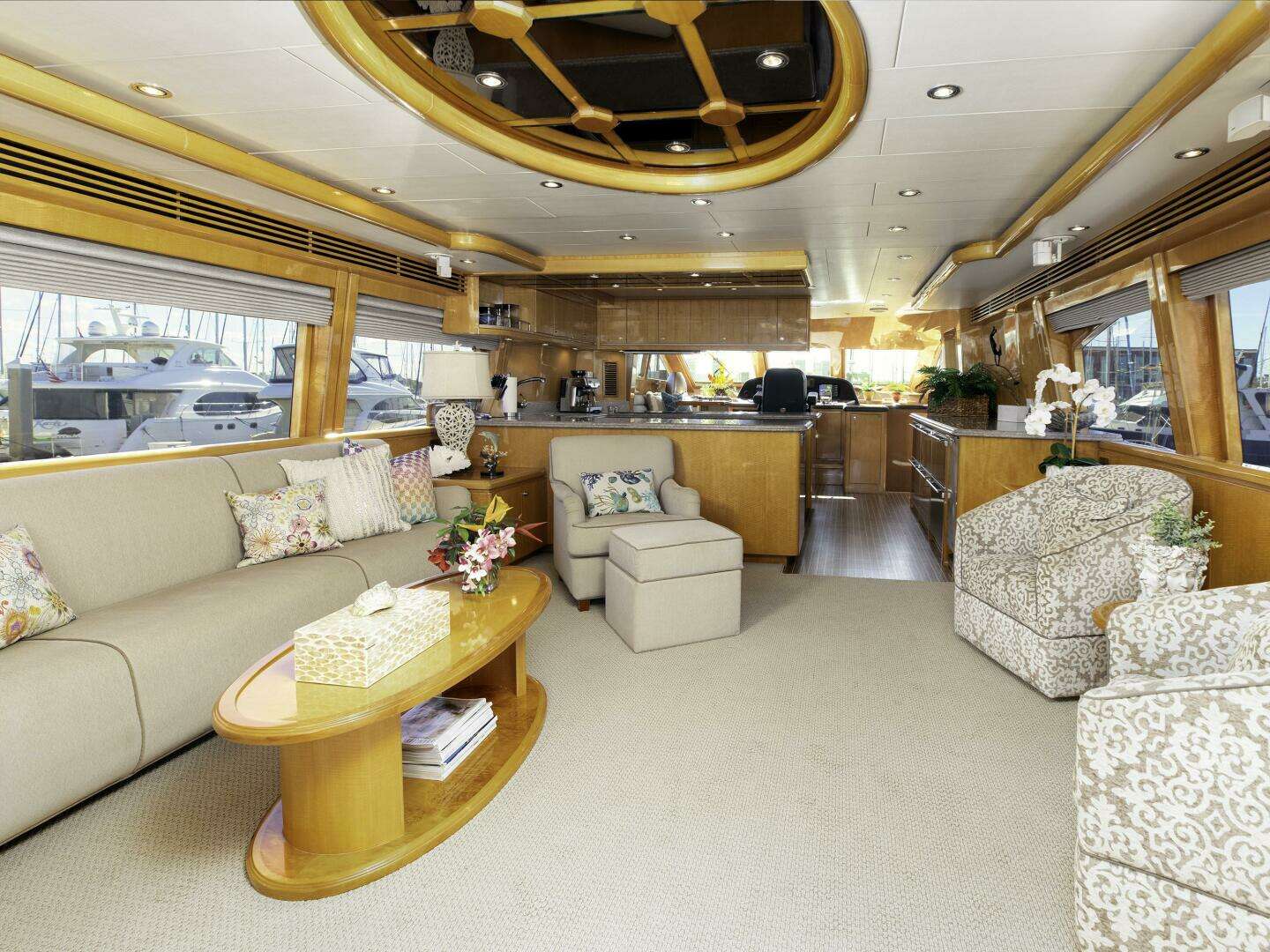

Salon

The main salon offers seating, entertainment and elegant interior appointments. Entering the space through large sliding glass doors aft, your eyes are immediately drawn forward and you are able to take in most of the main deck. To port is a substantial settee done in a soft cream-colored fabric and set beneath large windows. A coffee table and a pair of chairs with ottomans are also found to port. The coffee table is constructed of wood, with a soft top comprised of the same elegant fabric as found on the settee, chairs and ottomans. Across from here is an additional seating area to starboard. This conversation area is made up of two barrel chairs and a small table that sits between them. This is an excellent spot to relax and catch up with your family and guests. The salon feels very spacious, and has important design details such as an abundance of headroom and light colored Anigre wood.

Entertainment is satisfied with an advanced audio/visual package. As you move forward from the salon, the NEW lush carpeting gives way to a warm teak and holly floor that marks the beginning of the galley.

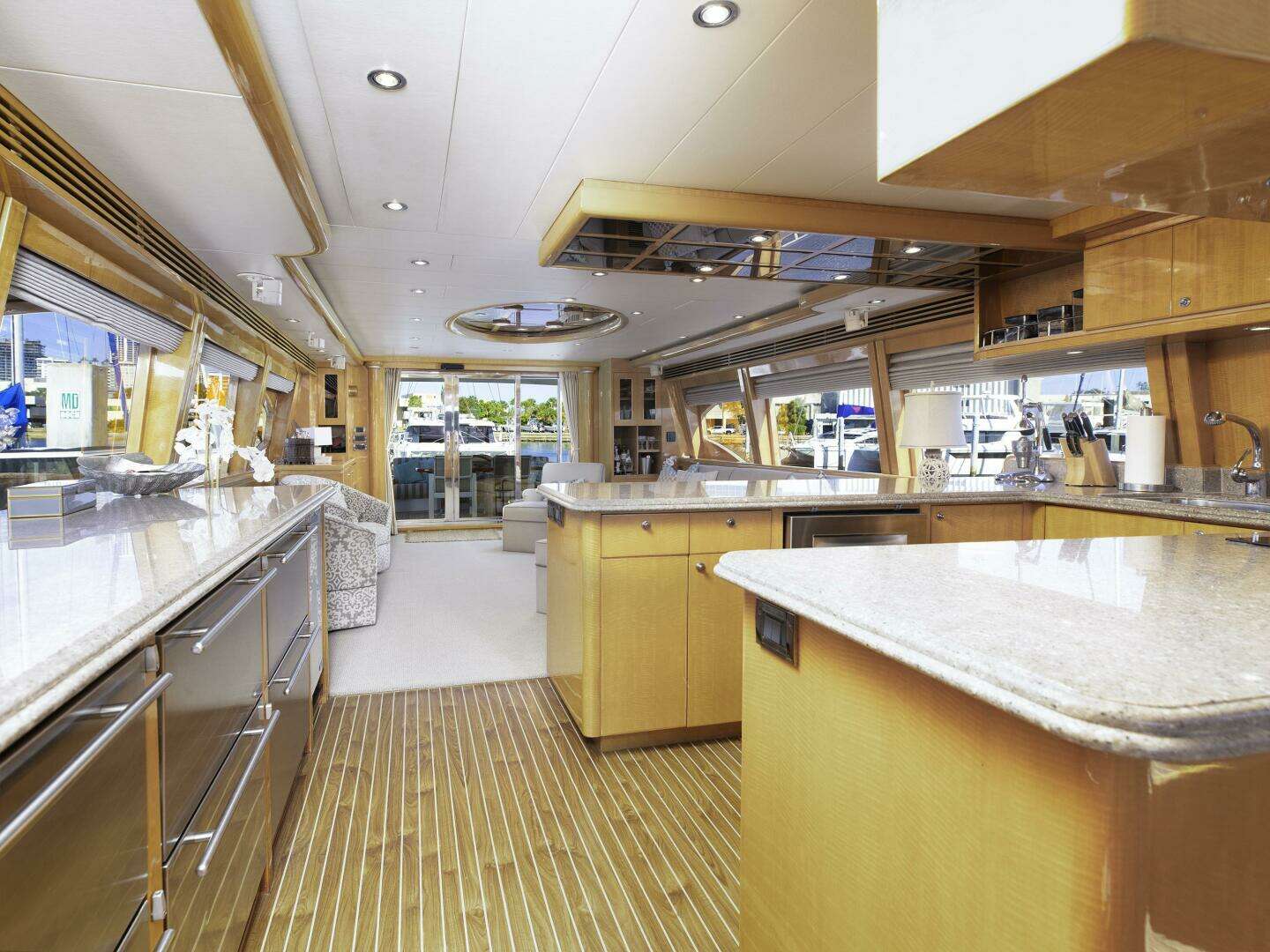

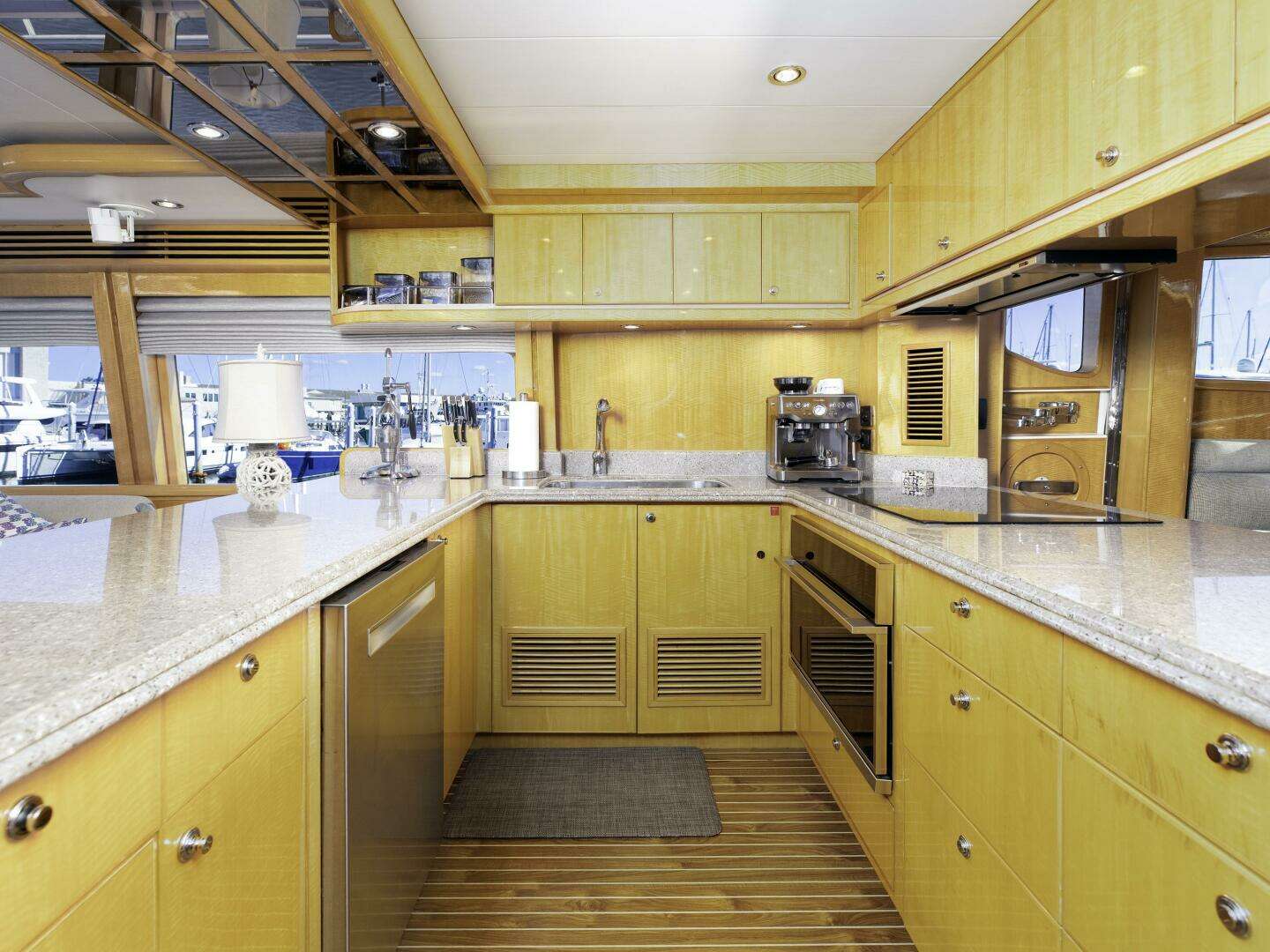

Galley

An extension of the main salon, the galley is truly inviting and spacious enough to accommodate you or a large party.

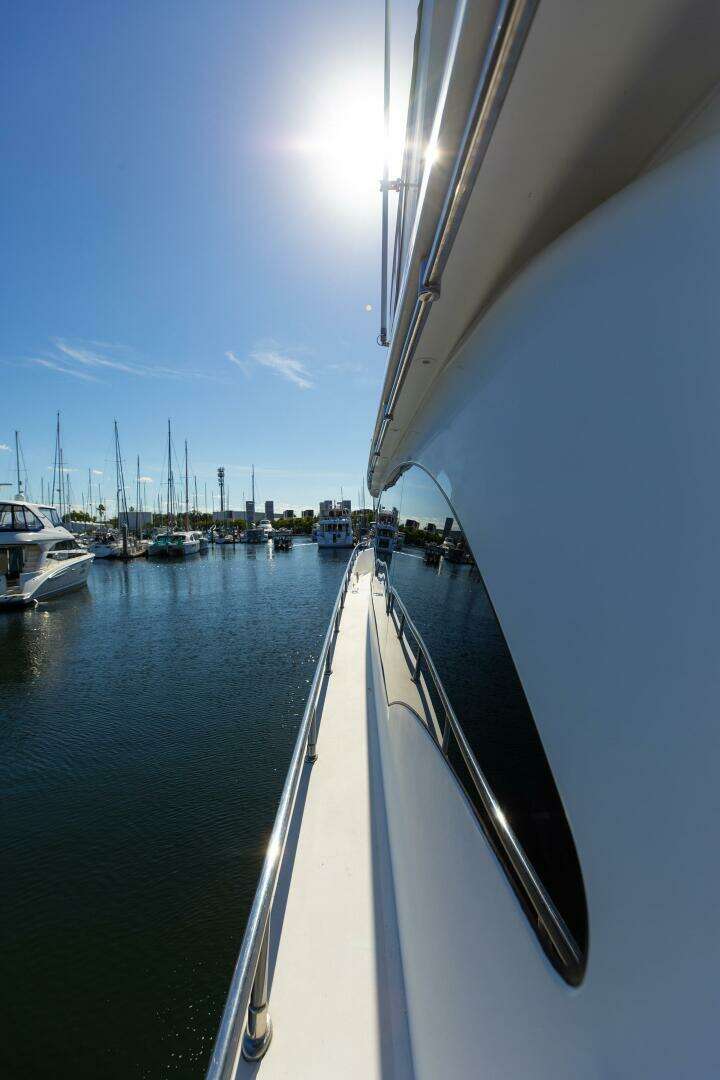

Decks

Spacious deck areas from flybridge to both forward & aft decks ready to relax or entertain.

You will quickly notice that no two Hargrave yachts are exactly alike. Unlike leading production yacht brands like Westport, Hatteras, and Lazzara, our custom boats are all different when they are new and so they are all different when they are presented in the resale market. Hargrave's ability to build fully custom yachts means more choice and variety for you when shopping for a pre-owned yacht. With production buiff boats when you've seen one, you\le seen them all, but not with Hargrave.
