2001 CROSSWATER 49'
15.21 m
2001 CROSSWATER 49' Crosswater Passagemaker 49
- 15.21 m
- Diesel
- Power
- Catamaran
2001 CROSSWATER Crosswater Passagemaker 49
49' (15.21 m) ISLAND HOPPER
Used Power Catamaran for sale
Flag of Registry: United States
Port of Registry: Gloucester Point, VA
| FEATURES: |
|---|
| Tenders: Dinghy Model: Highfield; Dinghy Length: 10; Dinghy Model Year: 2019; Dinghy Hull ID Number (HIN): HFM08348J819; Dinghy Outboard Manufacturer: TOHATSU; Dinghy Outboard Horsepower: 15; Dinghy Outboard Year: 2019 |
2001 CROSSWATER 49' Crosswater Passagemaker 49
- 15.21 m
- Diesel
- Power
- Catamaran
$ 349,000 USD
$ 0 CAD*€ 0 Euros*£ 0 GBP*
Description
ISLAND HOPPER

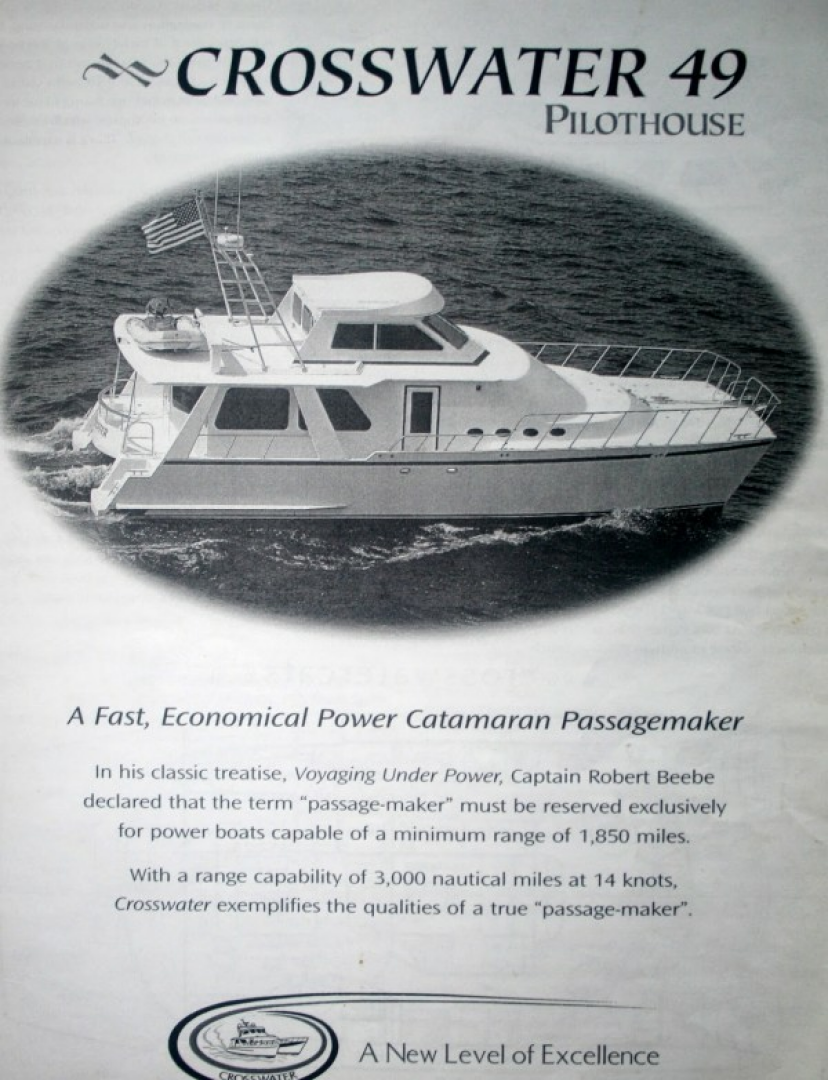

Crosswater 49

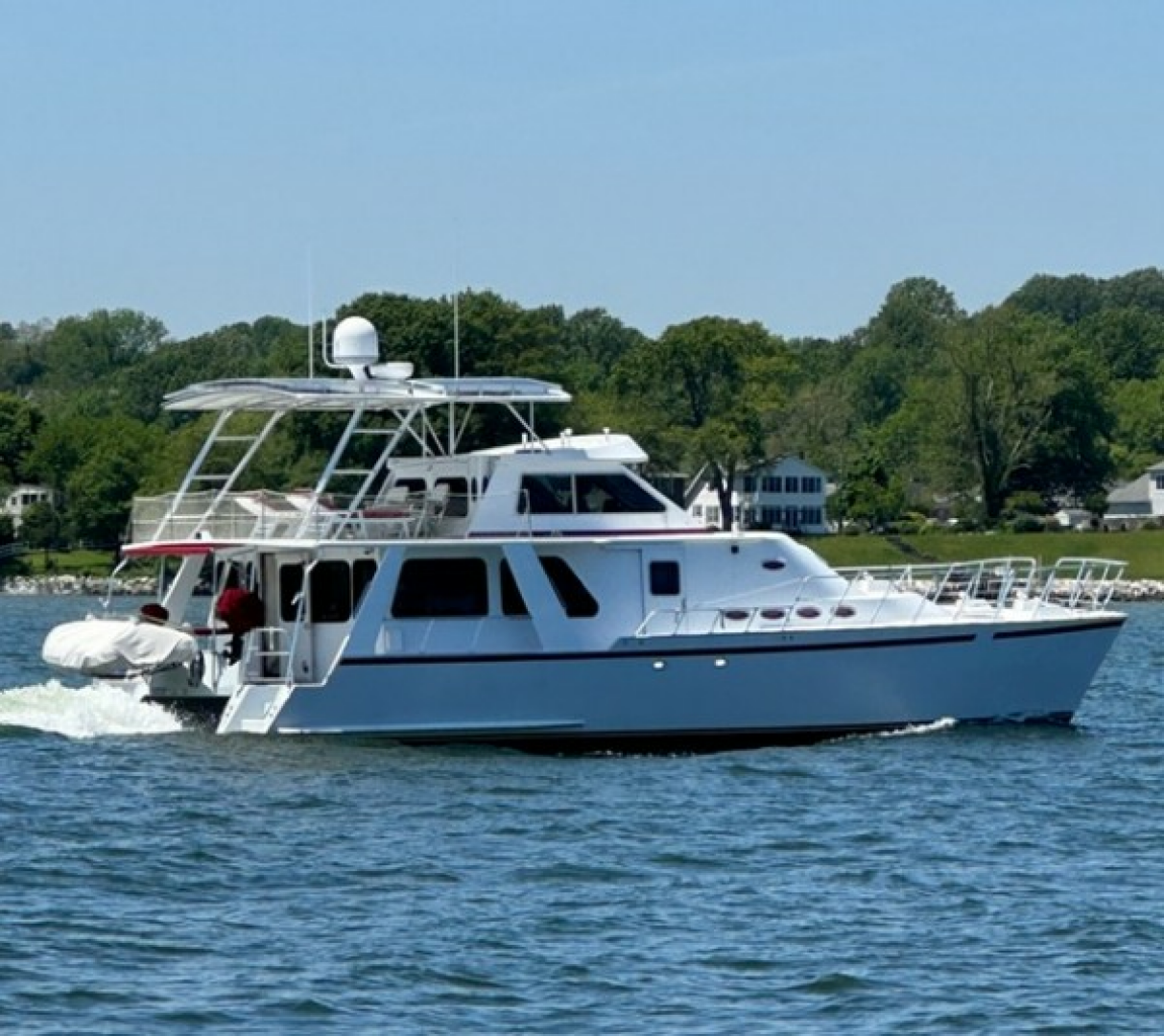

An economical power catamaran passagemaker. With a range capability of 5000 nautical miles at 8 knots, Crosswater exemplifies the qualities of a true "passage-maker".

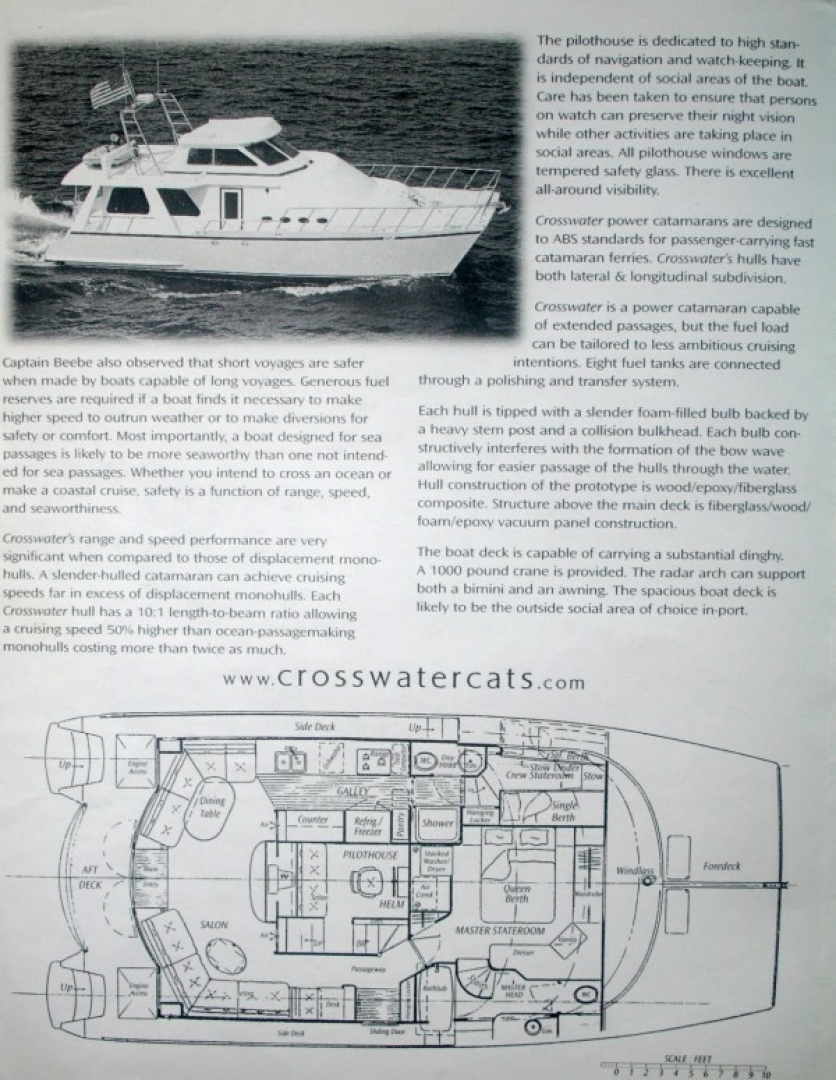

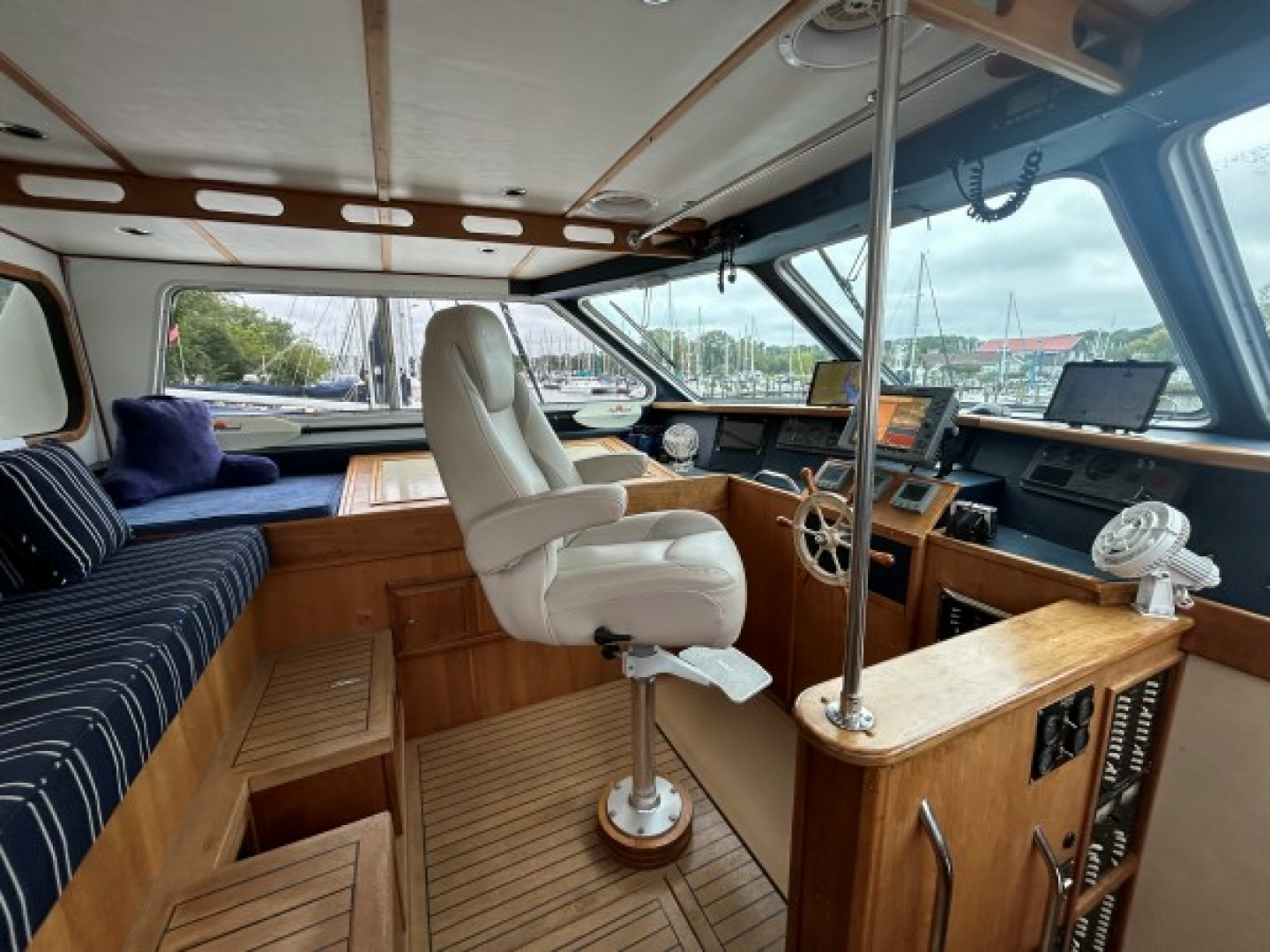

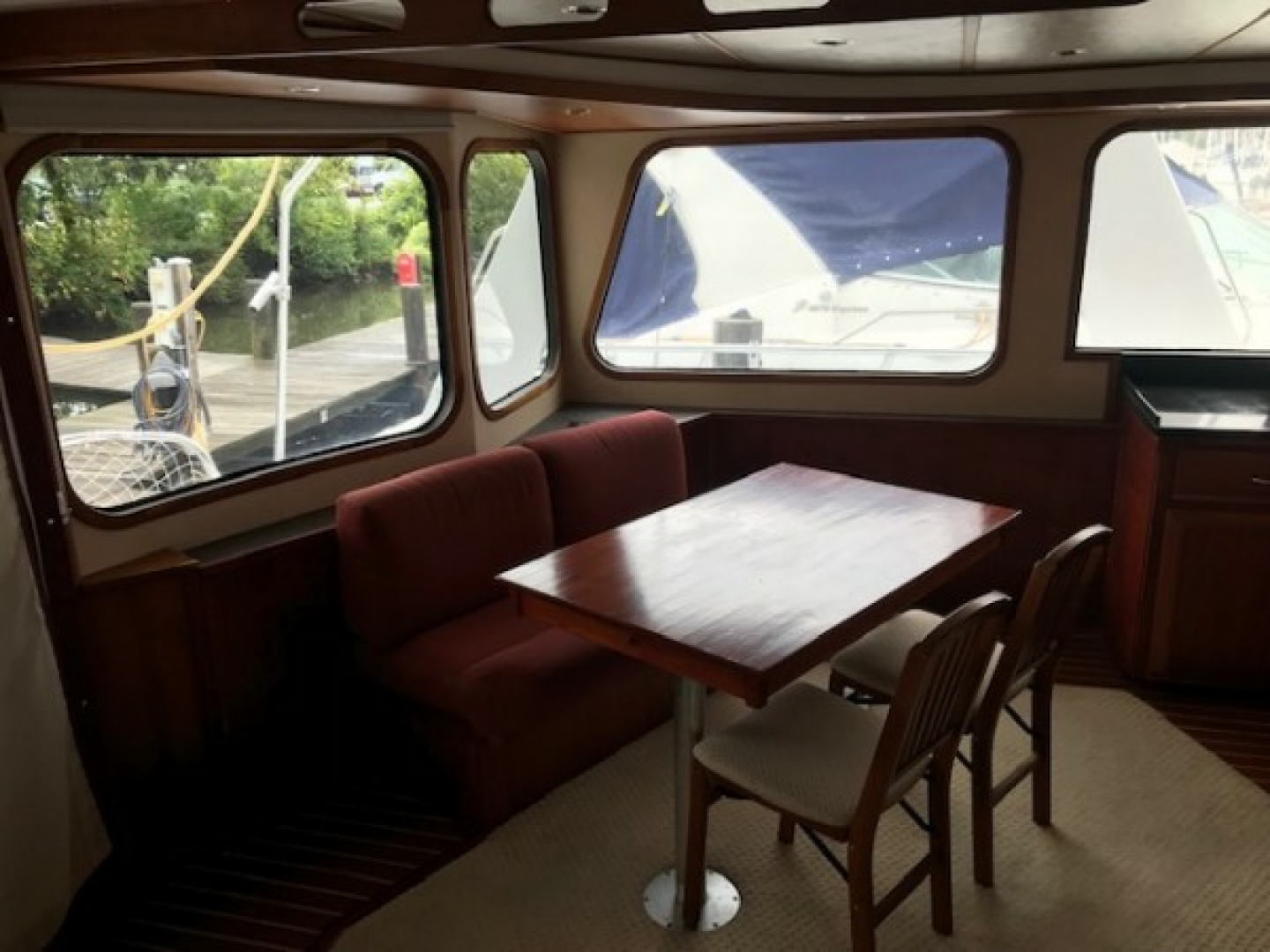

The pilothouse is dedicated to high standards of navigation and watch-keeping. It is independent of social areas of the boat. Care has been taken to ensure that persons on watch can preserve their night vision while other activities are taking place in social areas. All pilot house windows are tempered safety glass, there is excellent all-around visibility.
Crosswater is a power catamaran capable of extended passages, but the fuel load can be tailored to less ambitious cruising intentions. Eight fuel tanks are connected through a polishing and transfer system. This system can provide the two rear most tanks wit fuel for the engine on each side.
Each hull is tipped with a slender foam-filled bulb backed by a heavy stern post and a collision bulkhead. Each bulb constructively interferes with the formation of the bow wave allowing for easier passage of the hulls through the water. Hull construction is wood/epoxy/fiberglass composite. Structure above the main deck is fiberglass/wood/foam/epoxy vacuum panel construction.

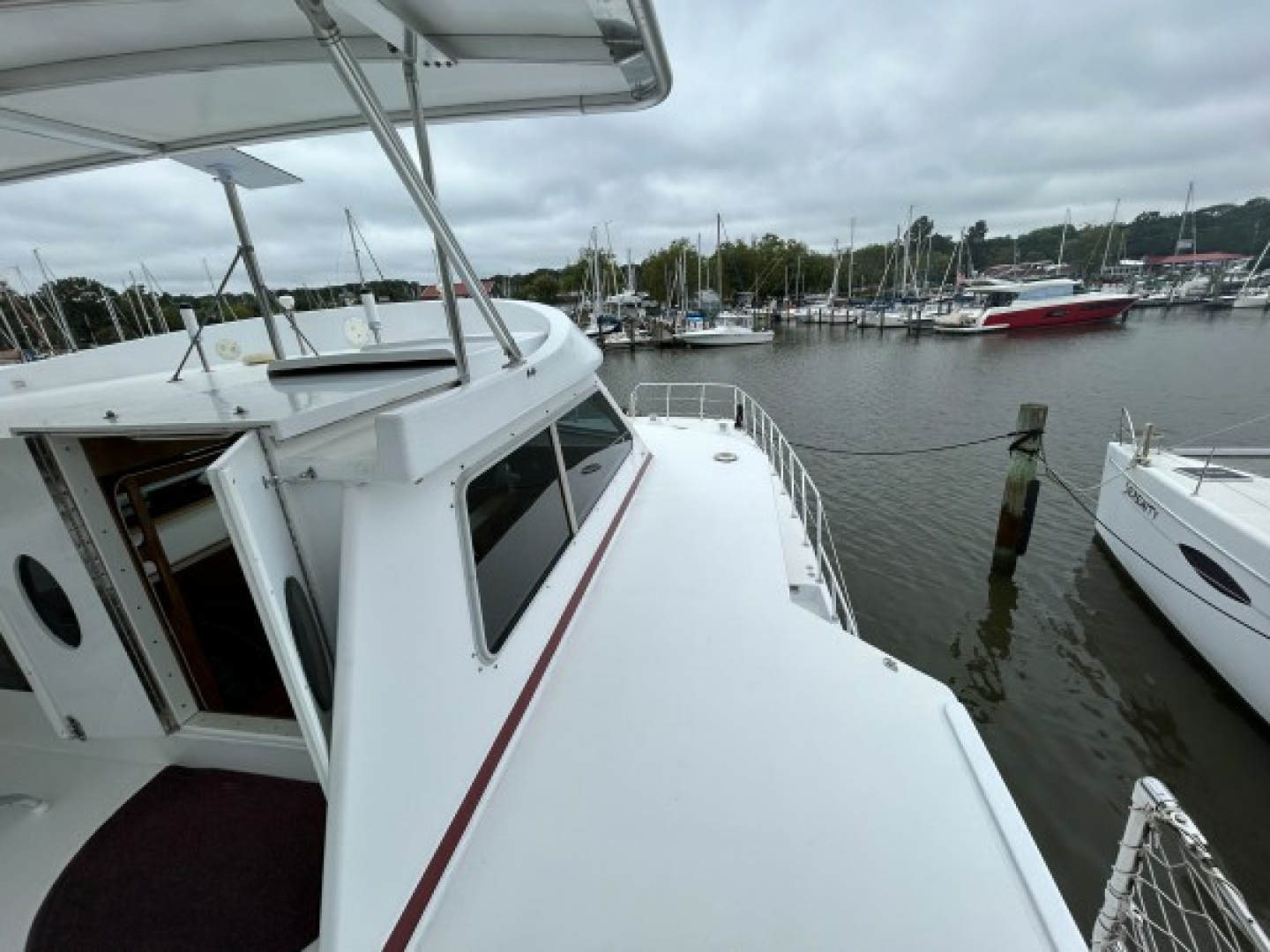

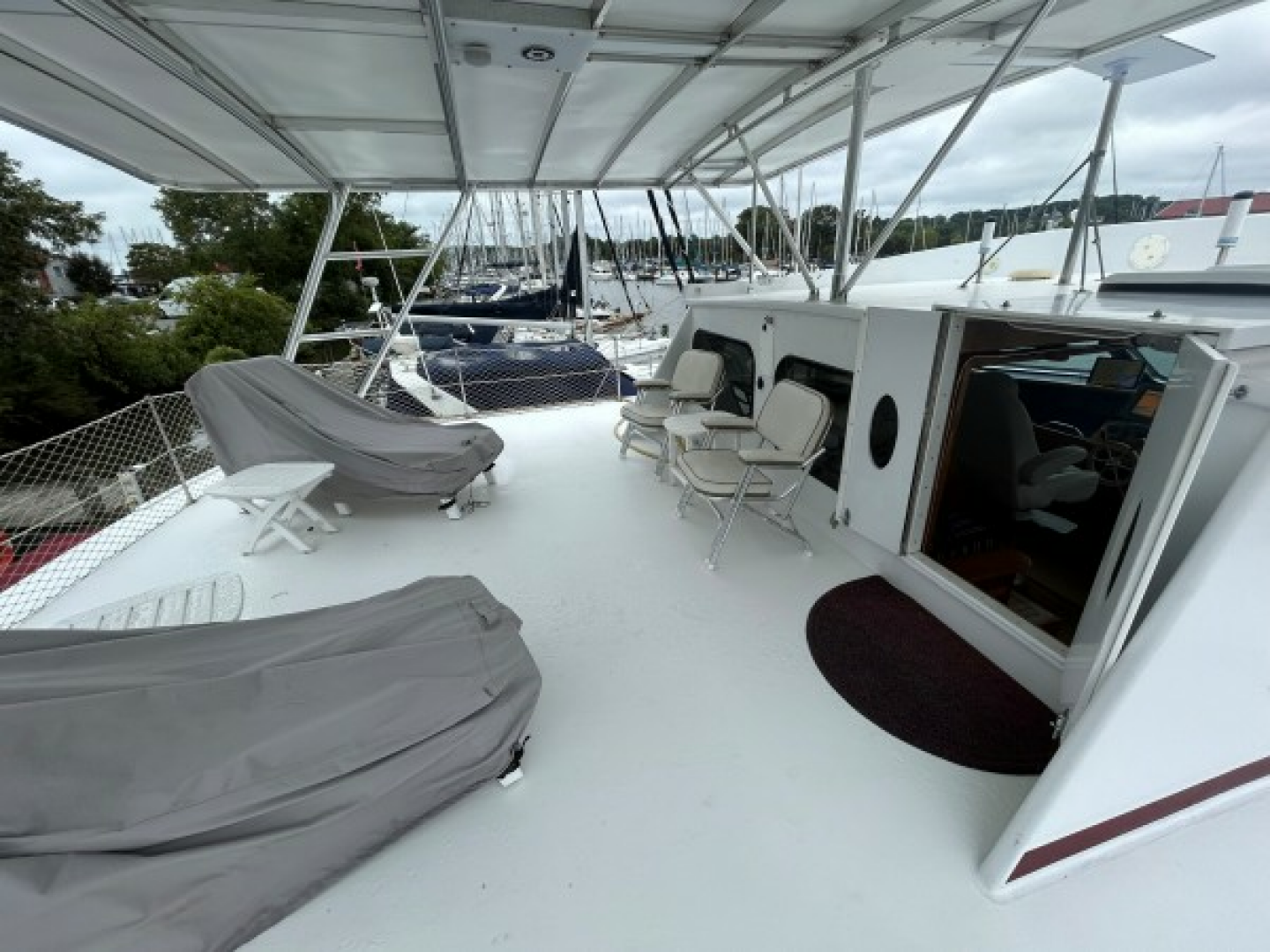

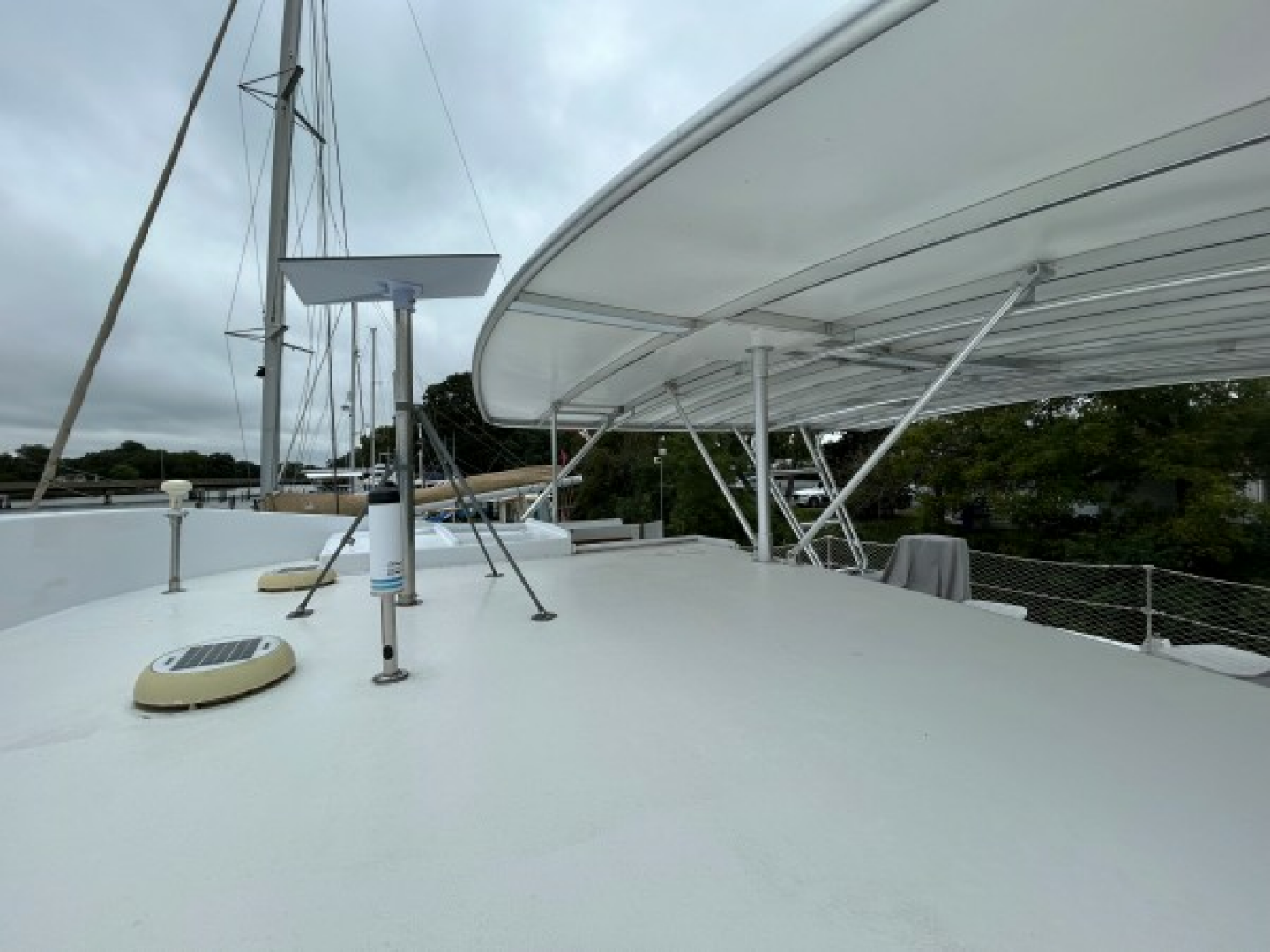

The boat top deck supports Atlantic Towers fiberglass and aluminum top, carrying 10 solar panels, radar and KVH HD7 dish. The spacious boat deck is likely to be the outside social area of choice at anchor or in port.
LOA49'
LOA Inch11''
LOA15.21''
Beam23'
Draft Max Feet3'
Draft Max Inch6''
Fuel Tank (Gallons)4
Fresh Water (Gallons)220
Holding Tank (Gallons)4
TypePower
ConditionUsed
Specifications
ISLAND HOPPER
UCCCWC01H101
573639
49'11" (15.21 Meters)
Power-Used
2001
44'11"
3'6"
2
5
5
2
Diesel
Other
4 Gallons
220 Gallons
4 Gallons
20
Engines
Engine 1
- Engine Make: YANMAR
- ModelEngine Model: 4LHADTE
- YearEngine Year: 2001
- Engine TypeEngine Type: Inboard
- Power HPPower HP: 190.00
- Feul TypeFeul Type: Diesel
- HoursHours: 5768.00
- Engine LocationEngine Location: Port
Engine 2
- Engine Make: YANMAR
- ModelEngine Model: 4LHADTE
- YearEngine Year: 2001
- Engine TypeEngine Type: Inboard
- Power HPPower HP: 190.00
- Feul TypeFeul Type: Diesel
- HoursHours: 5655.00
- Engine LocationEngine Location: Starboard
Generators
Generator 1
- Generator Model: Phasor 12.5kw
- Generator Hours: 524
Full Details
Layout & Accommodations

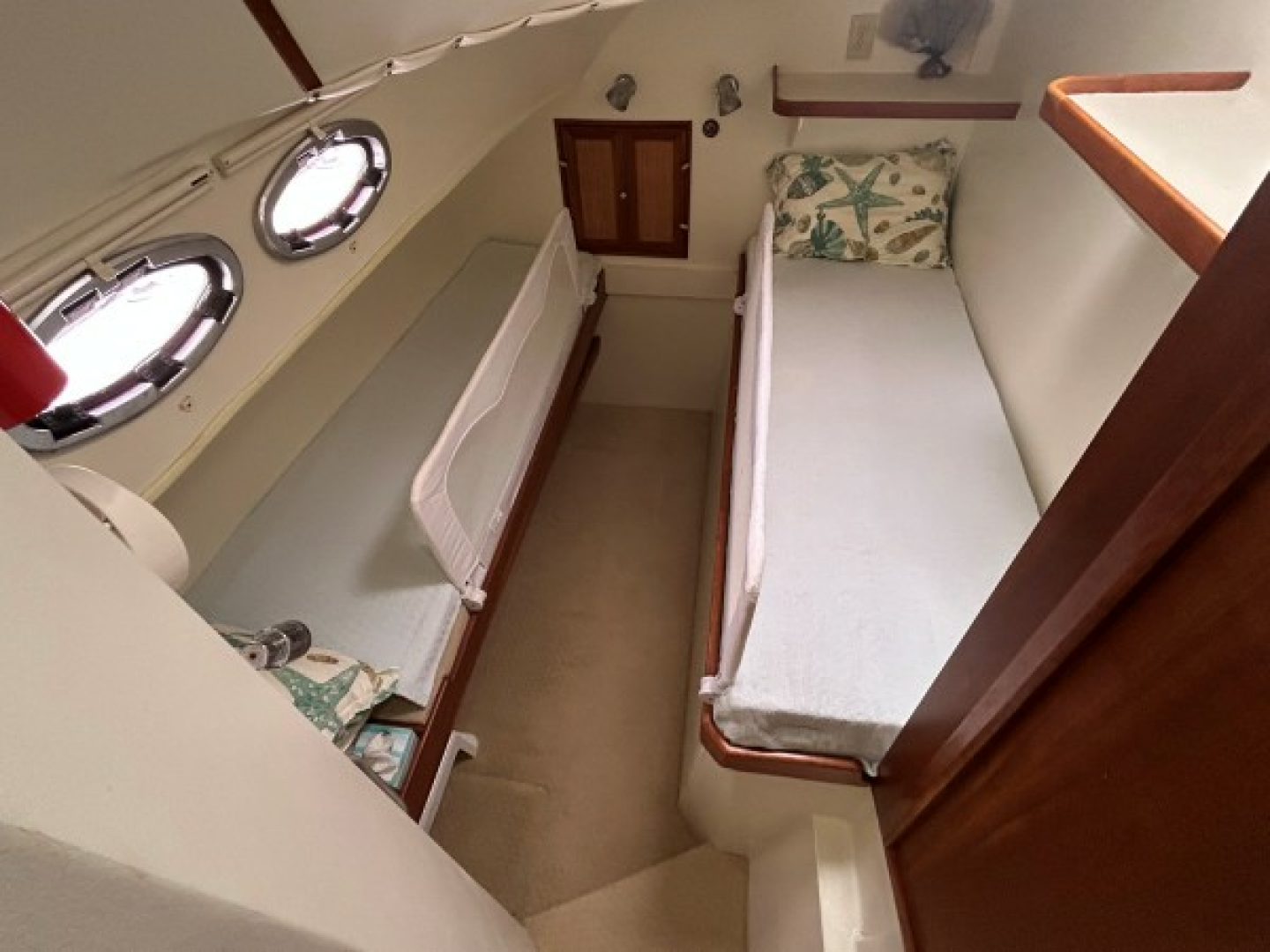

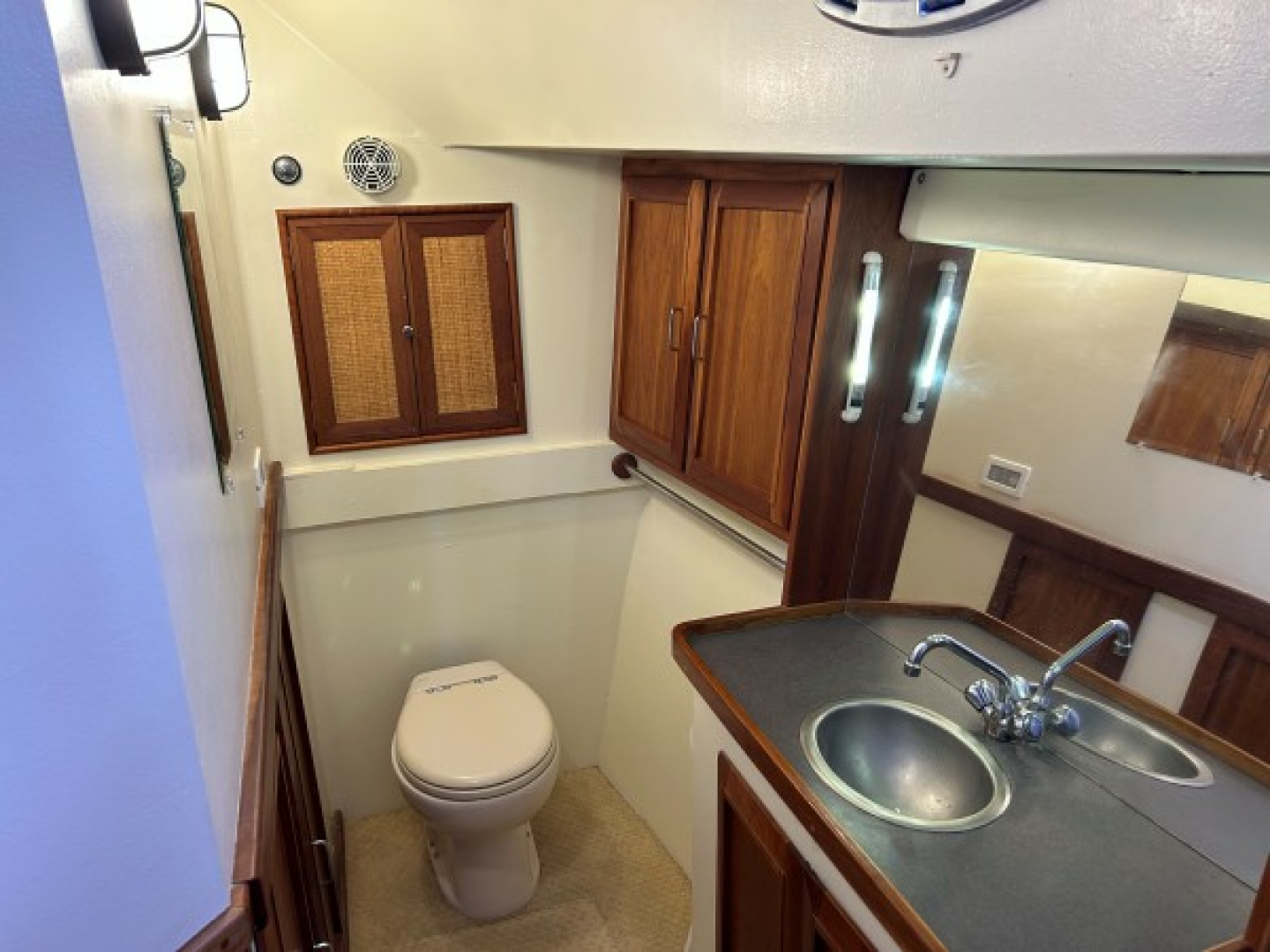

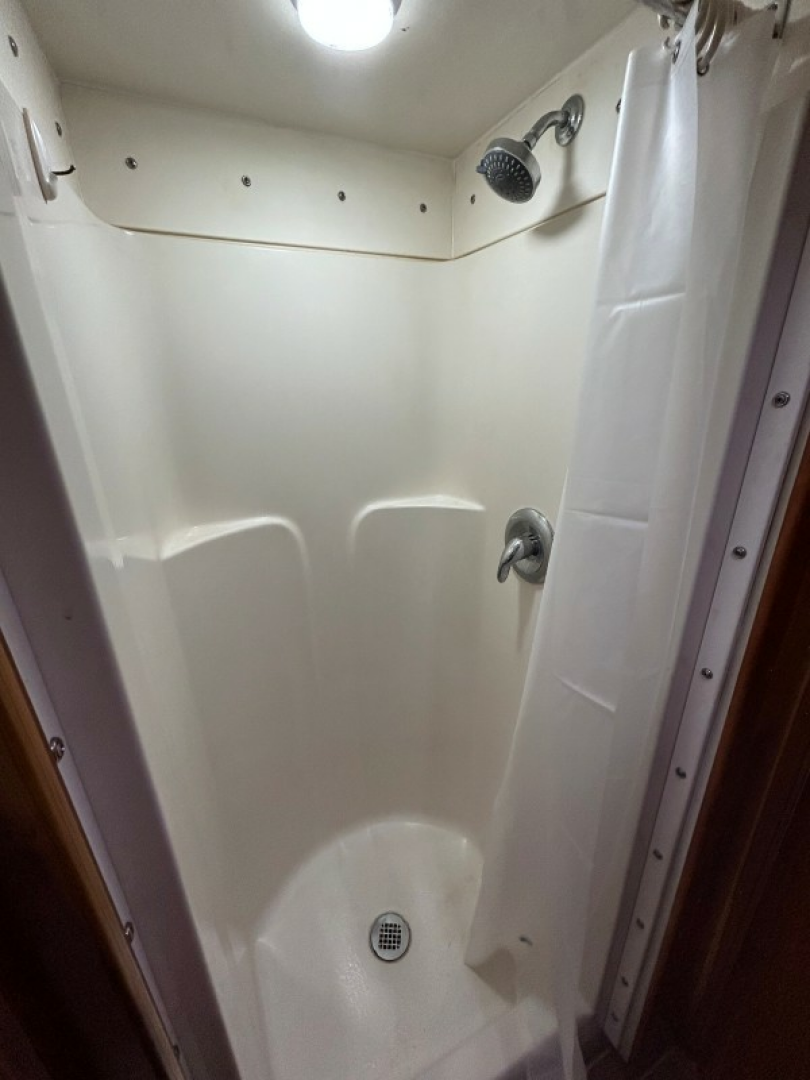

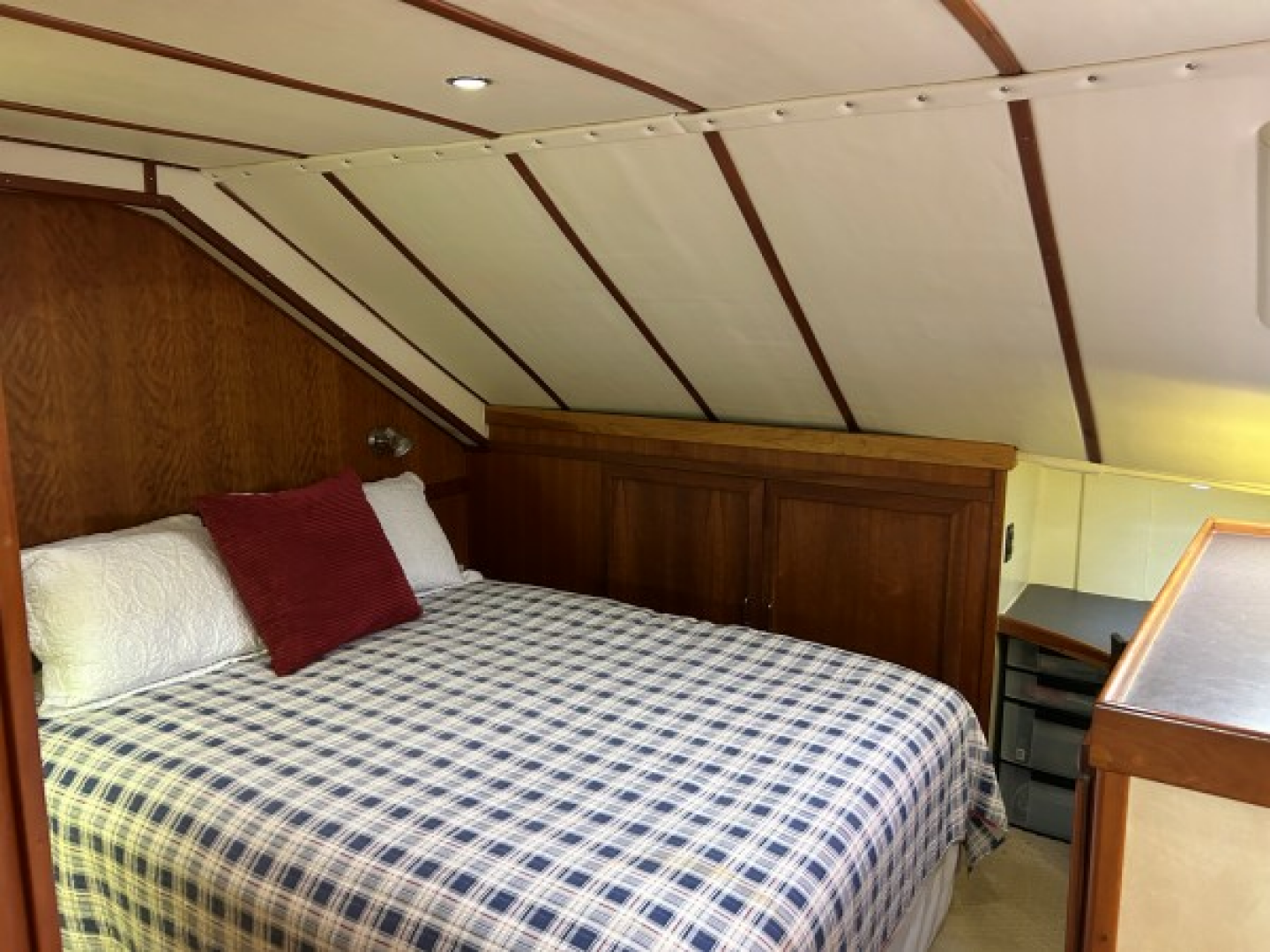

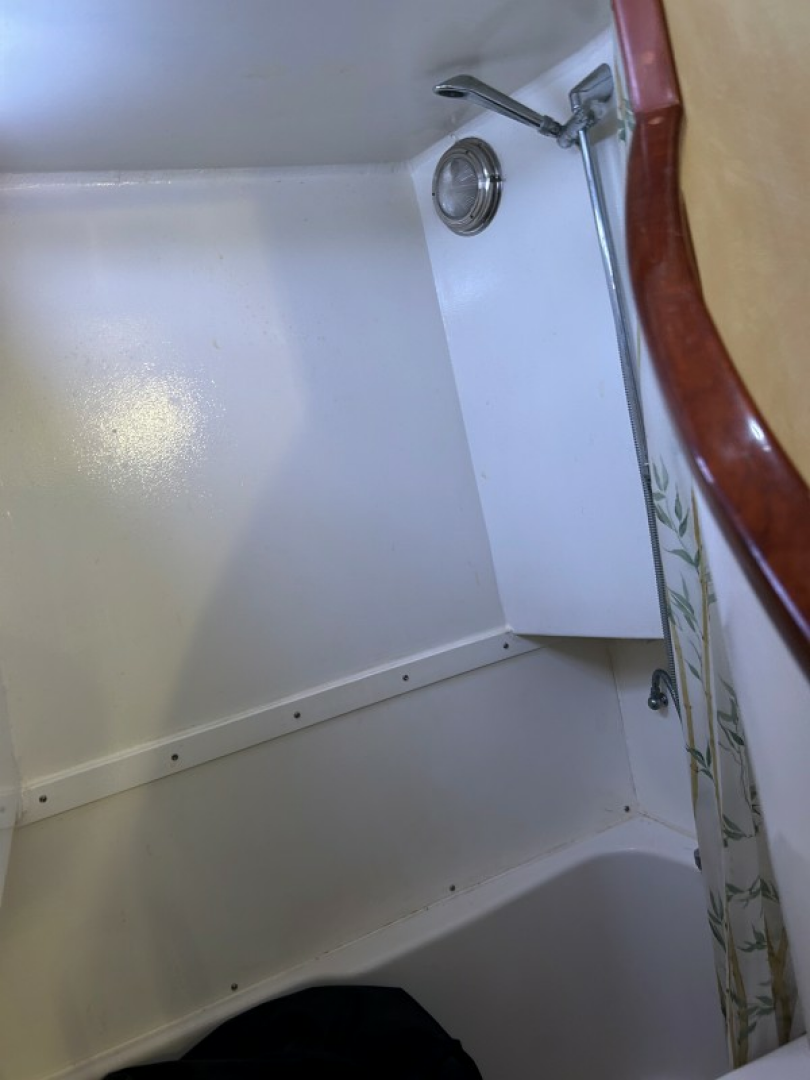

Master Stateroom: Queen-size Select Comfort bed, ensuite head, tub & showerGuest Stateroom: two single berth converts to queen size ensuite head & shower
Additional berth on couch in salon

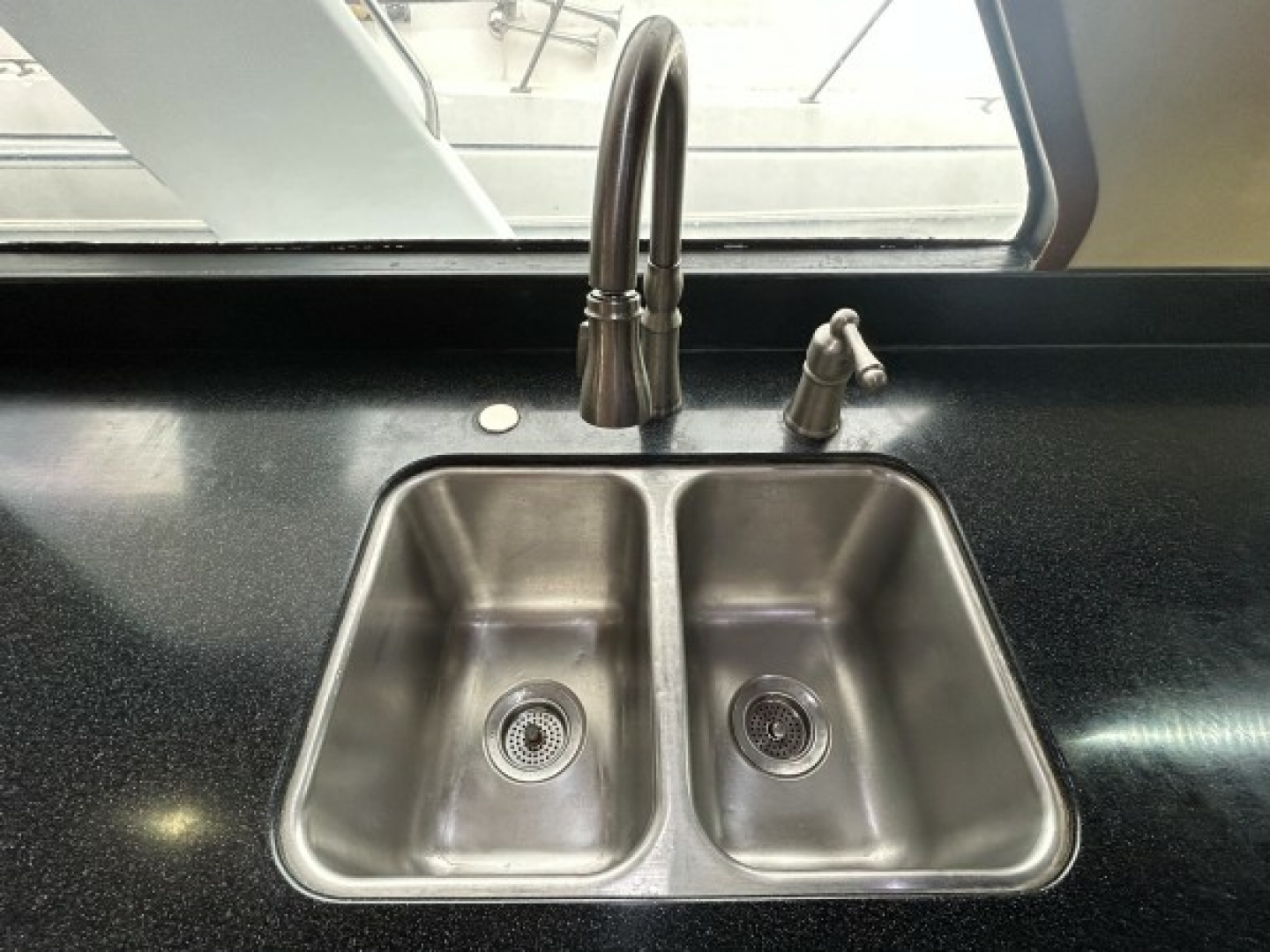

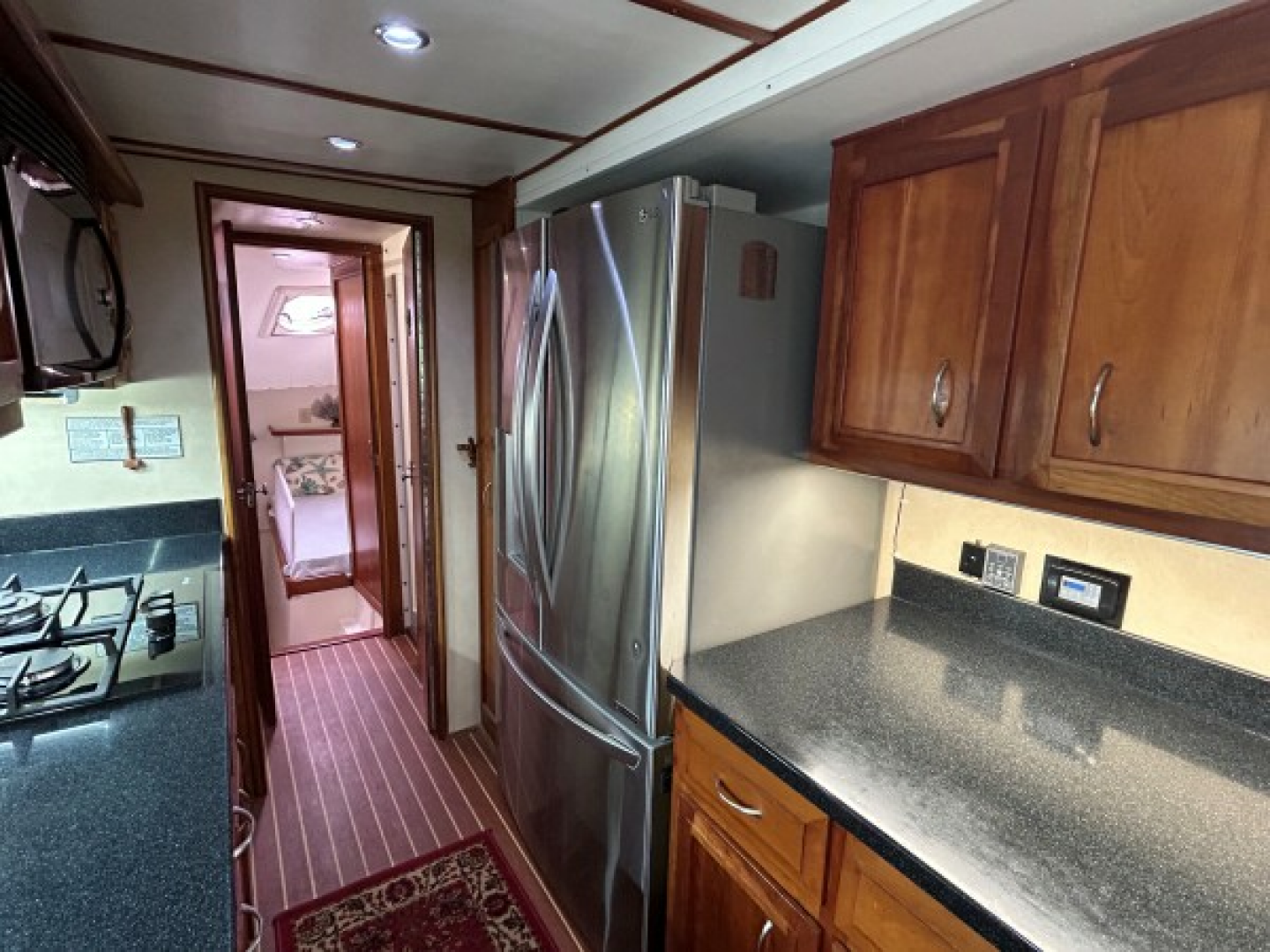

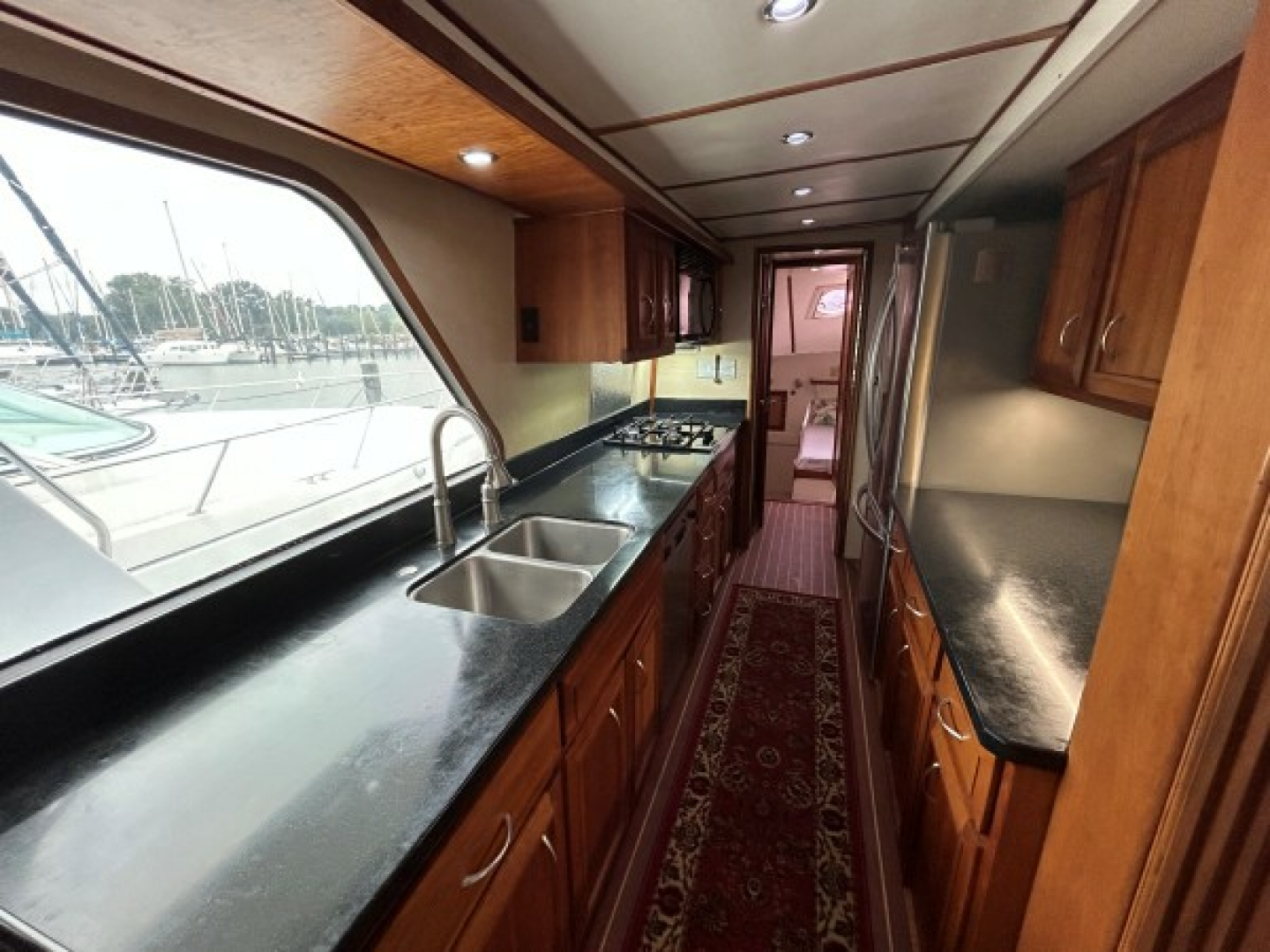

Galley

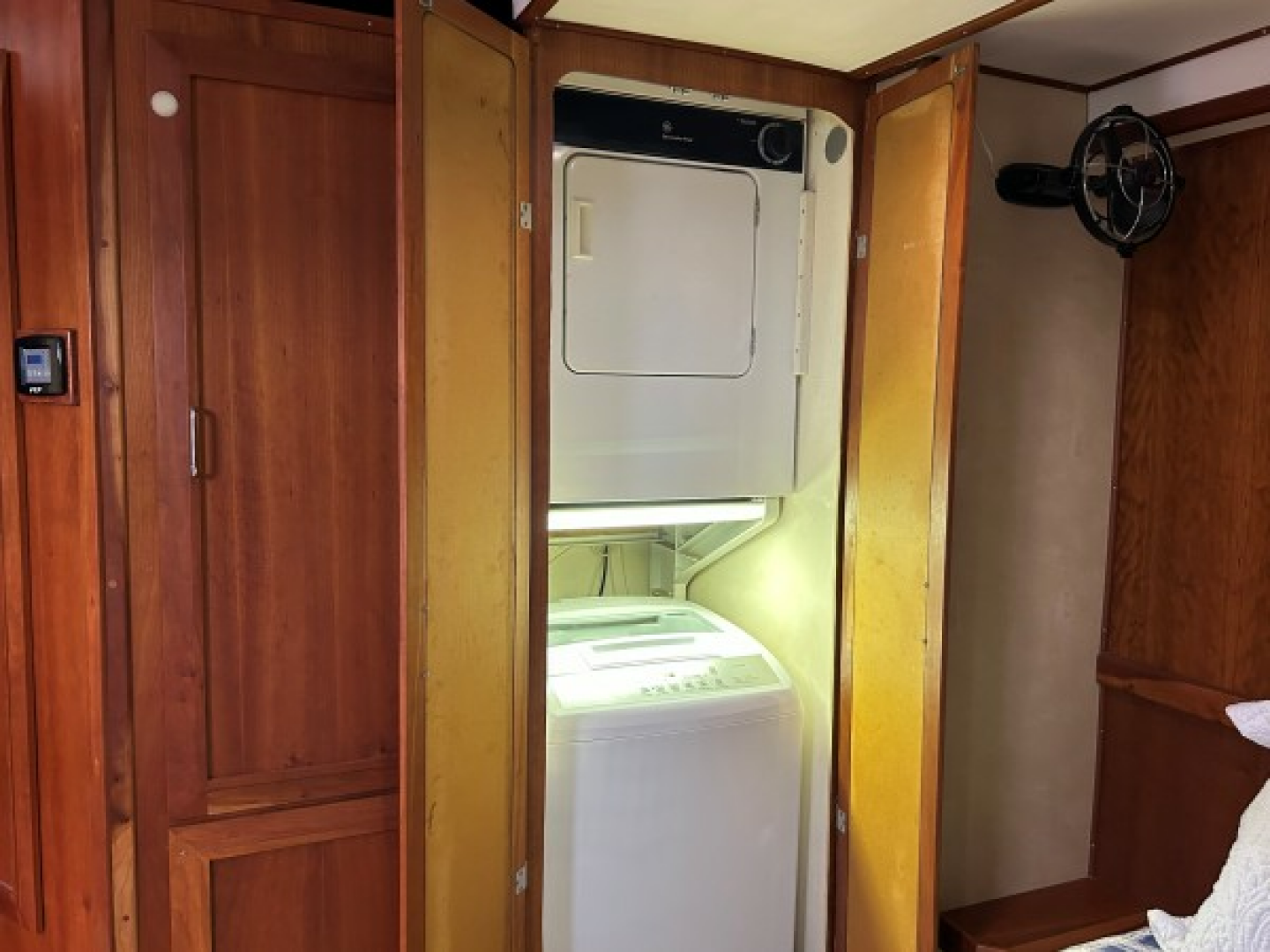

GE dryer and Panda washerGE trash compactor

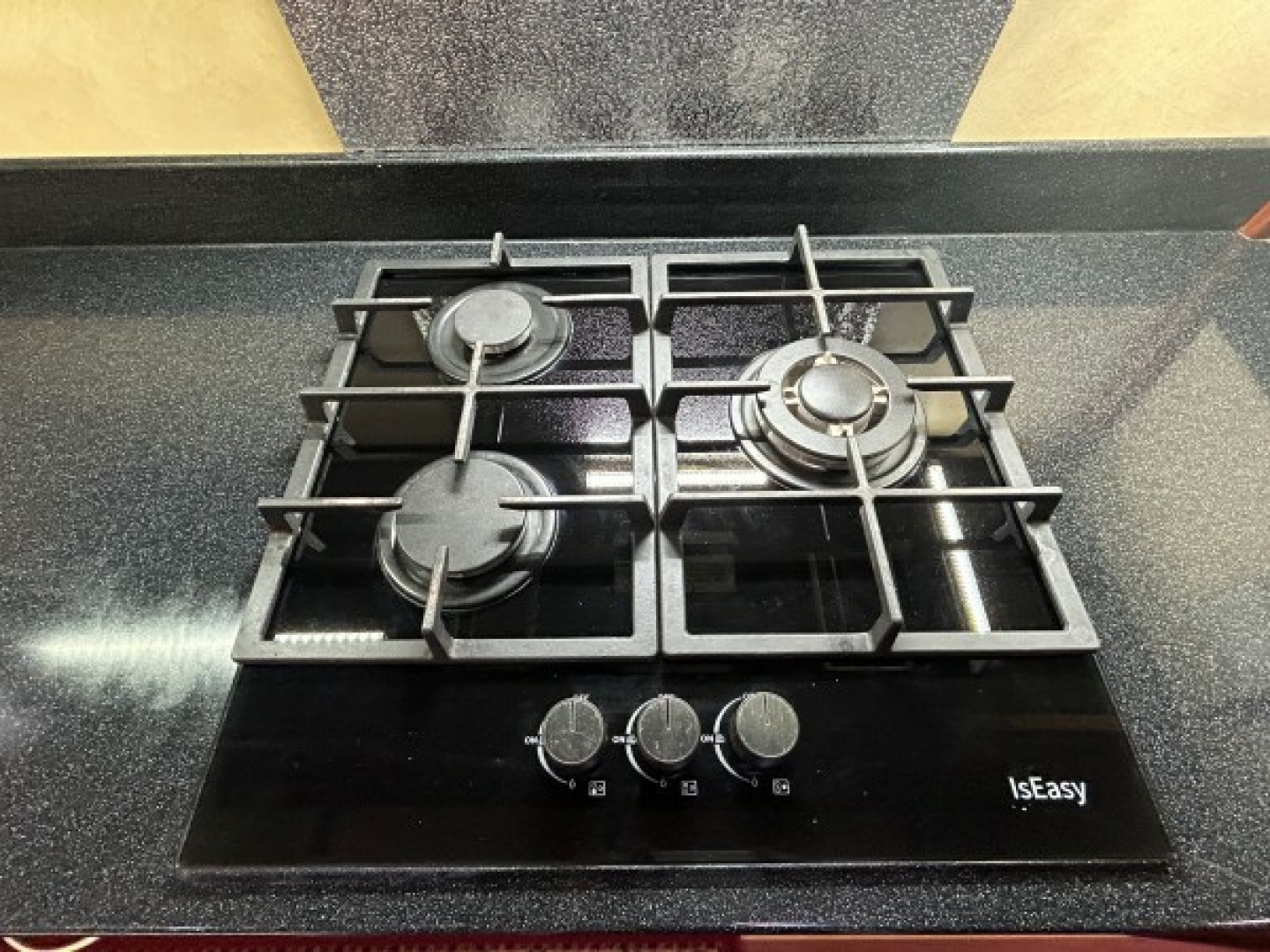

IsEasy 3-burner propane cooktop with 2 – 20lbs propane tanks
GE Advantium 120 microwave/convection oven
LG 23 cu. ft. French door refrigerator/freezer with ice maker
Miele dishwasher
Magma outdoor grill with 20bls propane tank
Deck & Equipment

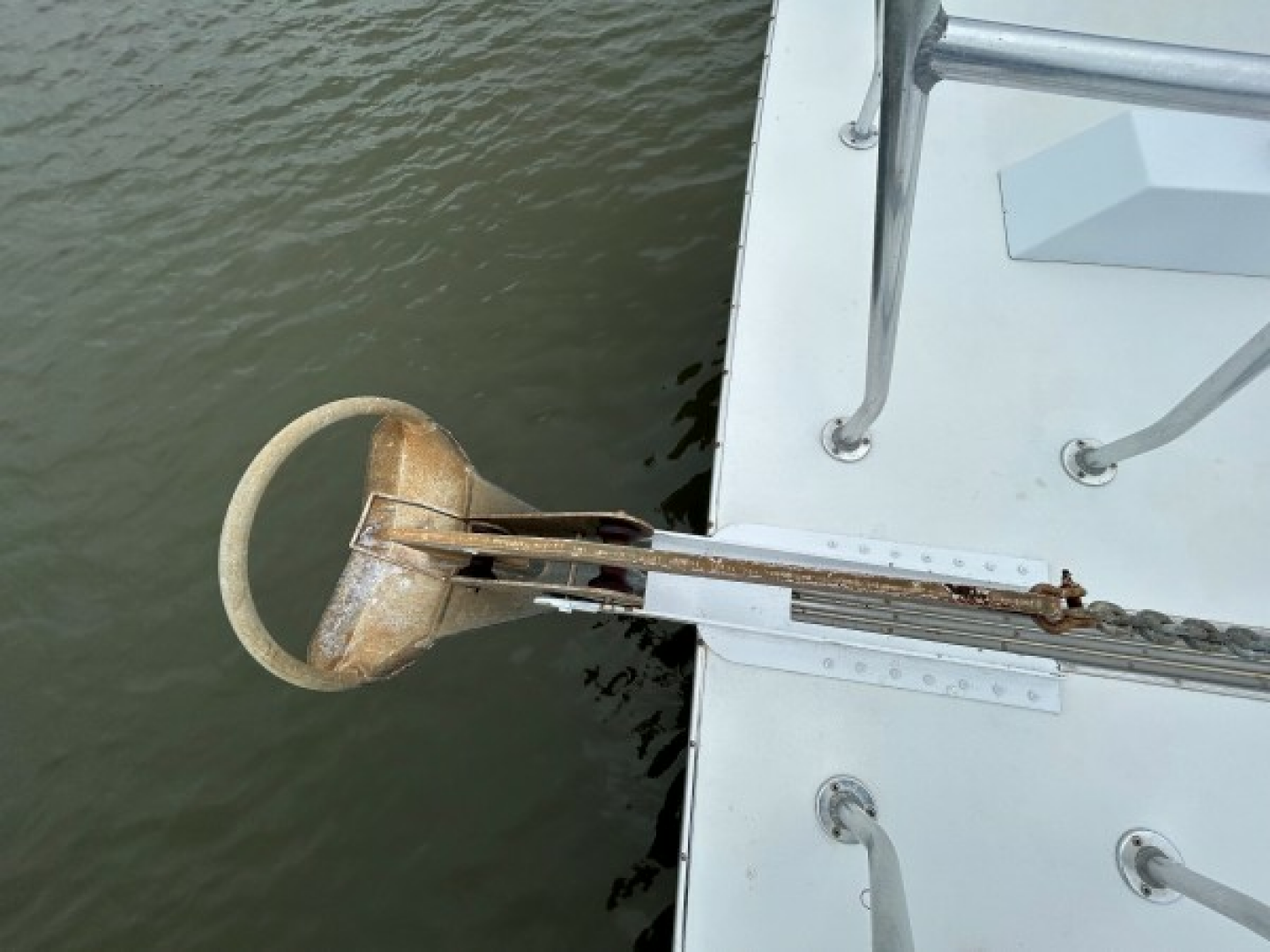

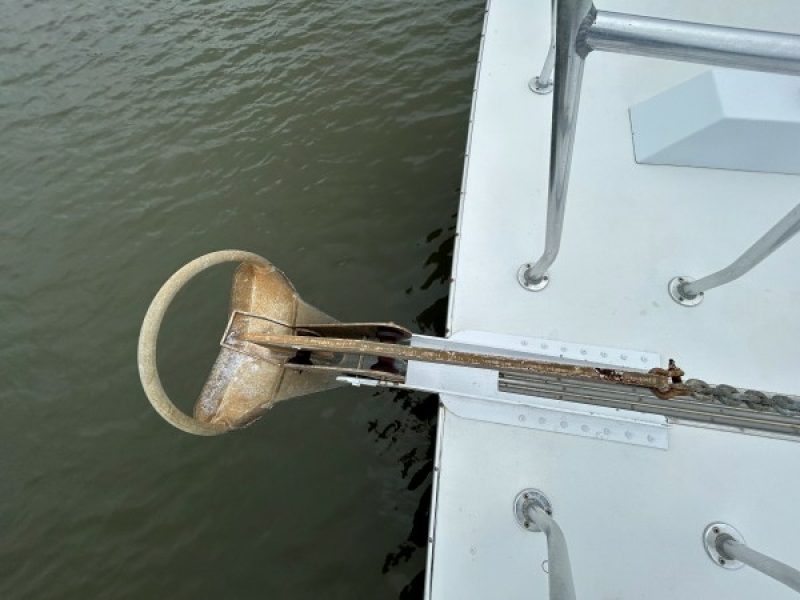

(10) heavy duty stainless steel cleats (15" & 18")88 # Rocna anchor on tilting bow roller
200 feet of 3/8" chain
Fortress 55 anchor w/ 50’ chain and 200’ nylon rode
Lewmar Concept 3 vertical axis anchor windlass

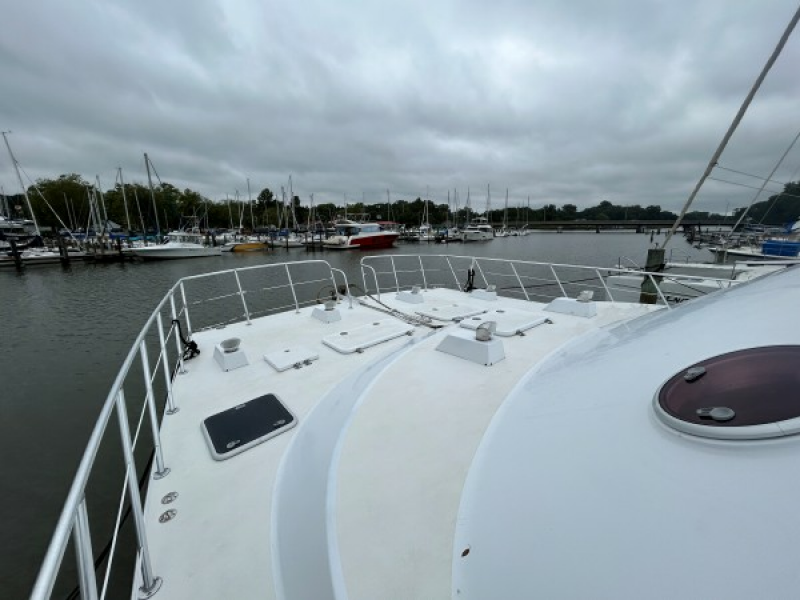

Bow rails and side rails with safety lines
Safety lines across aft steps to swim platform
Mooring lines and fenders
(3) large storage lockers in fore deck for mooring lines, fenders, spare anchor, and gas can for dinghy
Winslow Inflatable Life Raft, Model 60SL/0
(6) life jackets
EPIRB
Life ring
Jim Buoy horseshoe life ring
ACR Strobe light
Flares/bell/horn
Ditch Bag
First aid Bag
Manual bilge pump

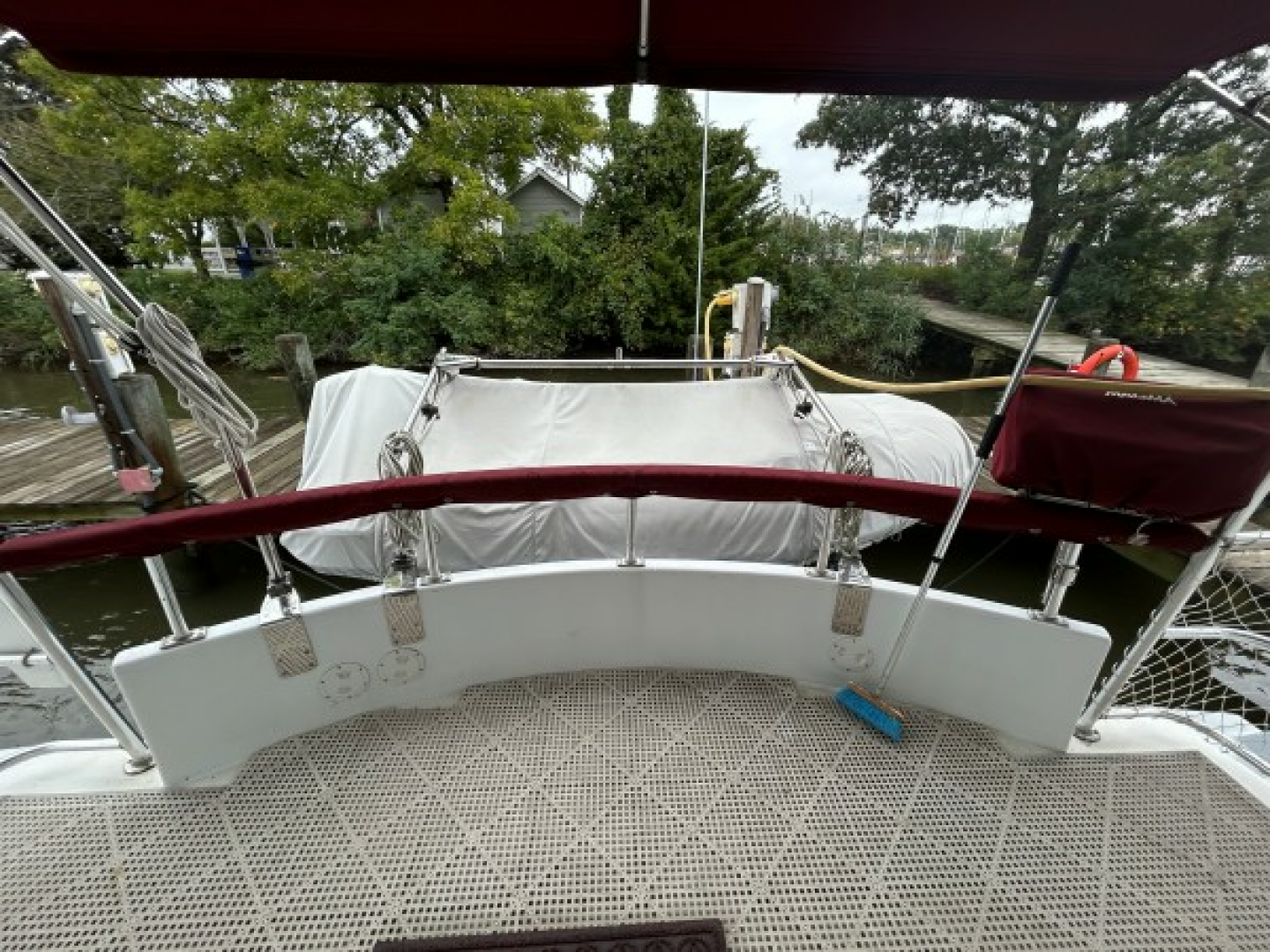

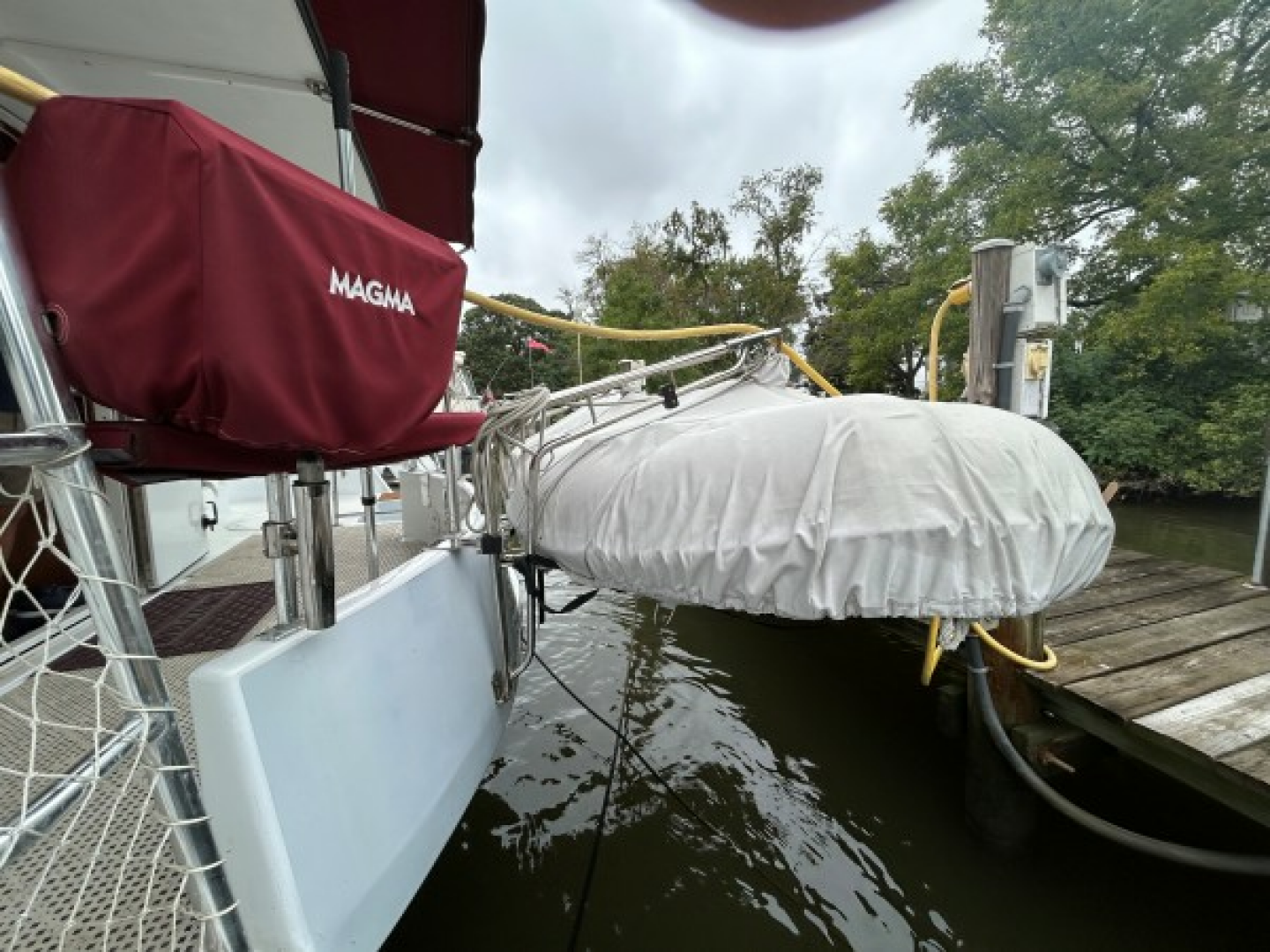

Dinghy
2019 10’ Highfield
2019 15 hp Tohatsu 4-stroke engine with transom lift
Lifting Sling
Anchor

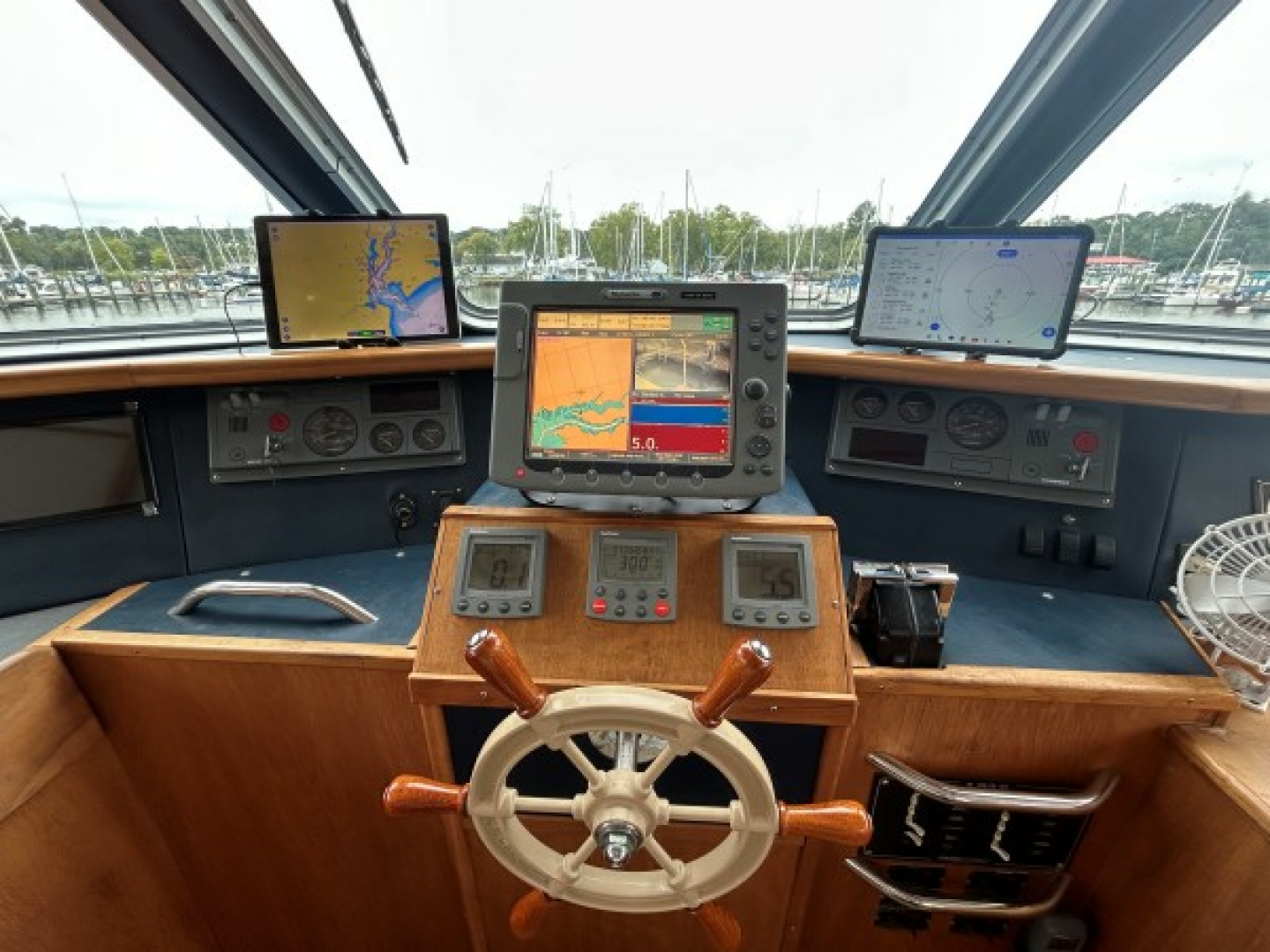

Electronics & Navigation
Raymarine E120 Classic PlotterRaymarine 4 kw radar with 24" radome
Raymarine ST6000 Autopilot with remote
Raymarine Depthfinder x 2
Raymarine ST60 Speed
Raymarine GPS
ICOM VHF Radio x 2
ICOM IC-M88 Handheld Radio
Compass
Vesper Watchmate XB-8000 Class B AIS with Monitor, GPS and VHF AIS Antenna
Horn
PA Horn
Flood Lights x 2
Starlink Gen 3
MOFI cellular modem
Aigean WIFI extender modem
Raymarine LifeTag Man-Overboard Alarm System

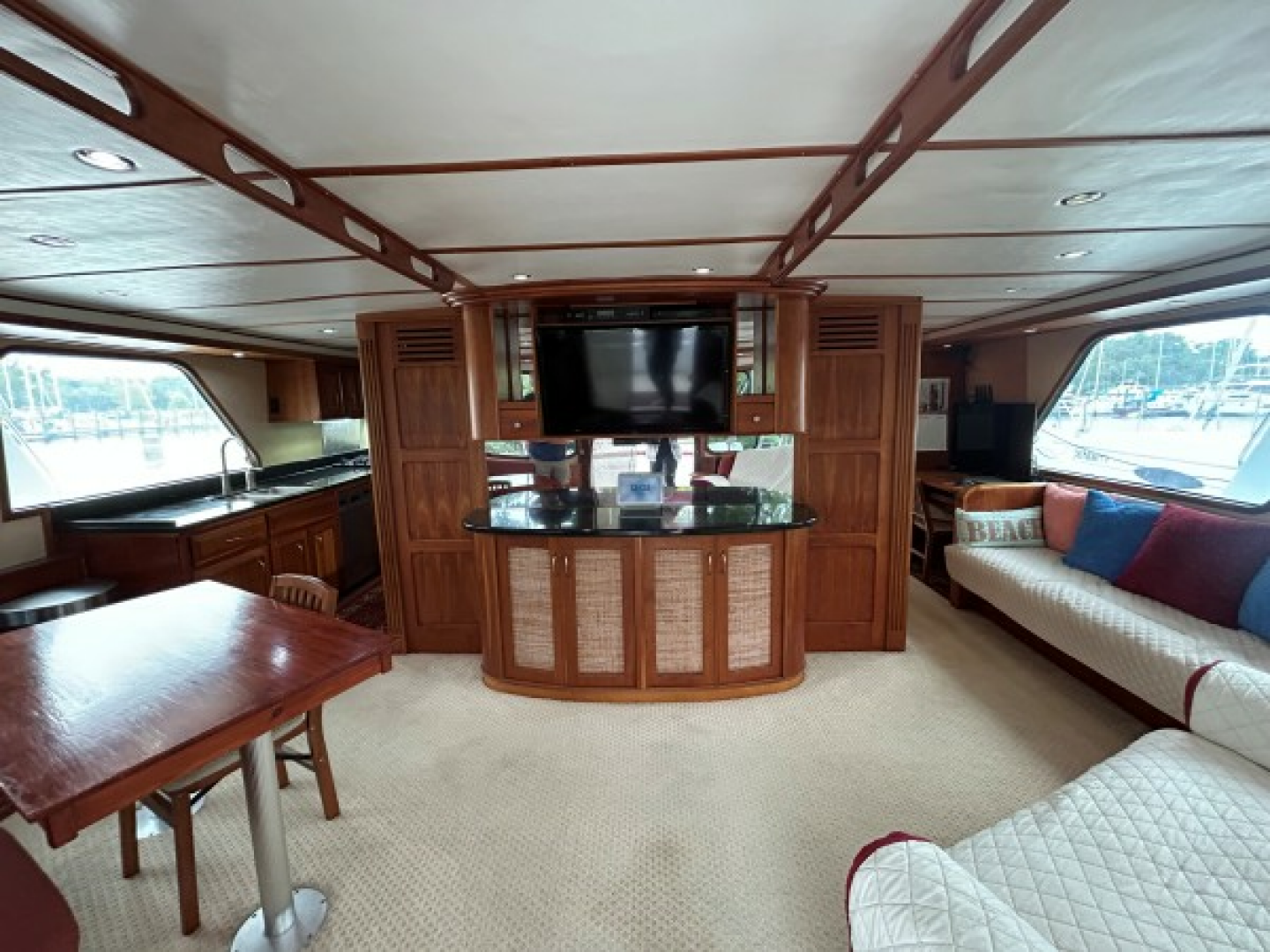

Main Salon: 40” Samsung smart TV w/ Sony DVD player
KVH HD7 TrackVision with DirecTV satellite TV receiver

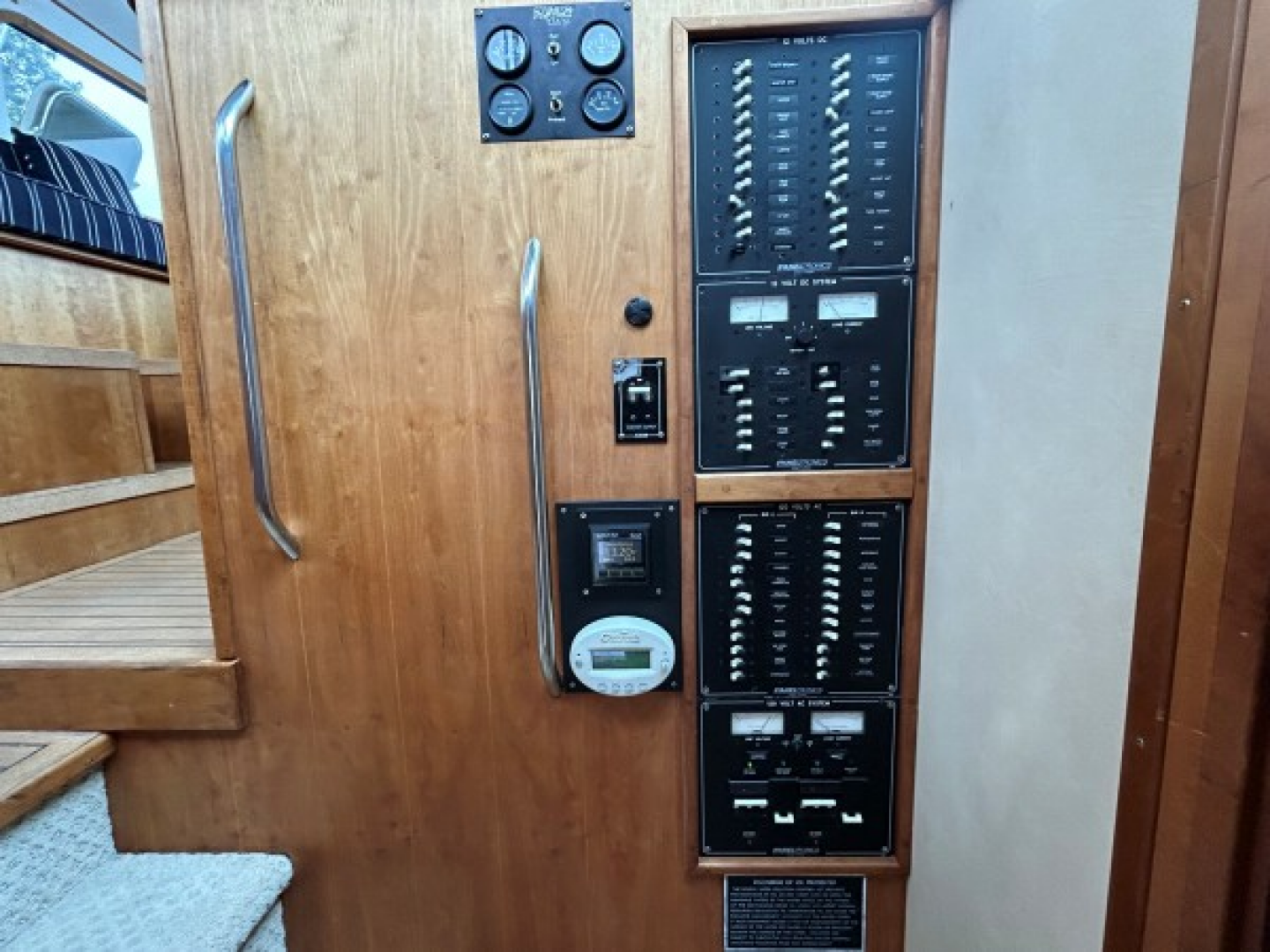

Electrical, Power & Plumbing
Power Diesel: 12.5 kw Phasor with sound coverSolar: 3000w - (4) 450w panels, (6) 200w panels
(7) Victron charge controllers, Victron CerboS
Inverter/Charger: Outback 2800w with remote panel
House Batteries: 1200 amp-hrs at 12v with (6) L16 Lifeline AGM
Engine Start: (2) Group 24 Batteries AGM with Victron Smart Sense Monitors,
Balmar Duo Charge, Balmar Max Charge MC-614
Shore Power: 50 amp, 220 v with 50 ft cable/connections, spare 50 amp and 30 amp cables
Air Conditioning & Heating: Four reversible heat pumps totaling 64,000 btu
Water System
Tankage: Total of 220 gallons in 4 tanks
Water Heater: 20 gallon
Waste System

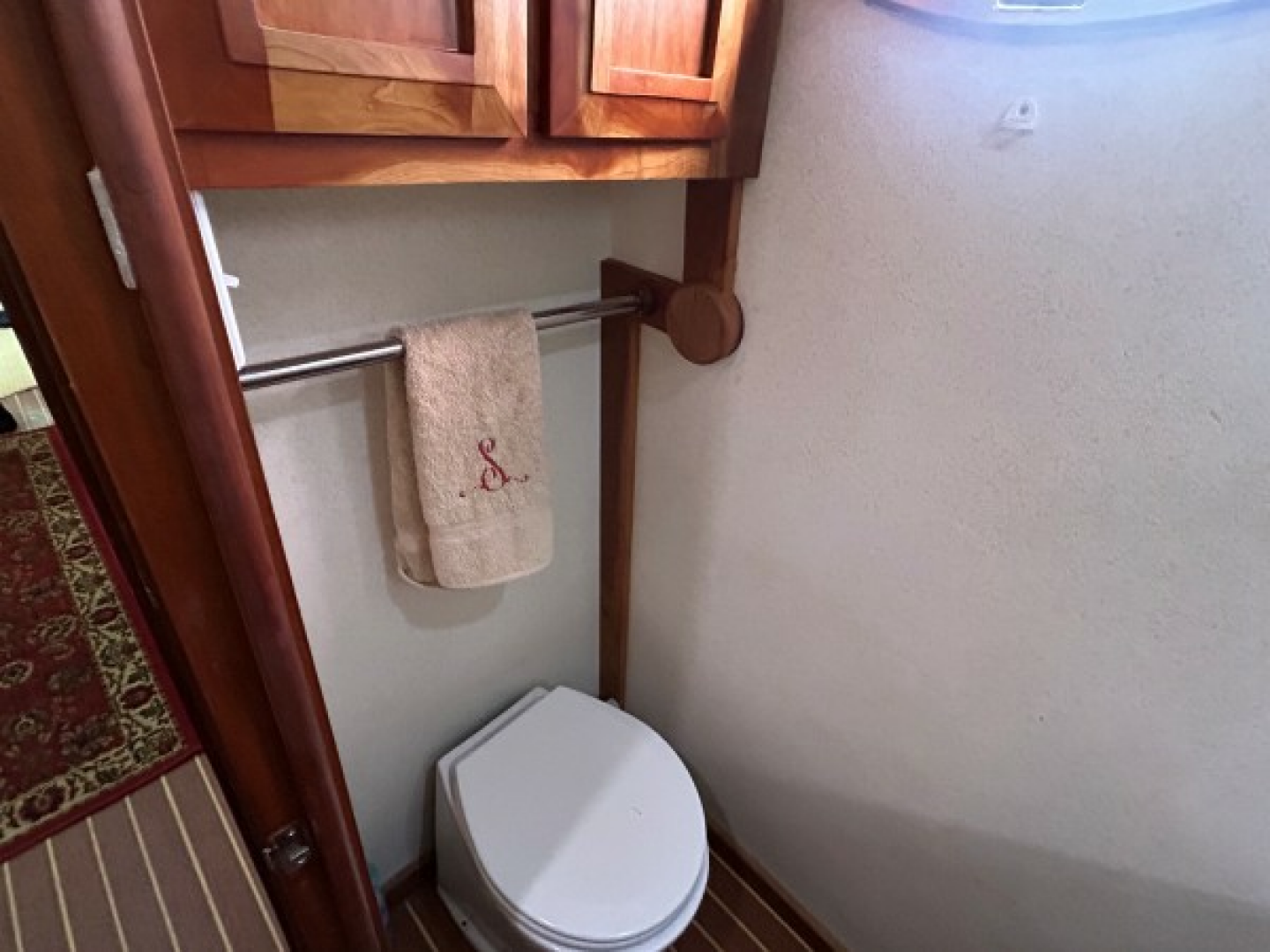

Commodes: (2) electric fresh water plumbed directly to waste tanks
Black Water Tanks: (2) 35 gallon tanks with deck pumpout & lockable overboard discharge
Gray Water Tanks: (2) 52 gallon tanks with deck pumpout & pumped overboard discharge

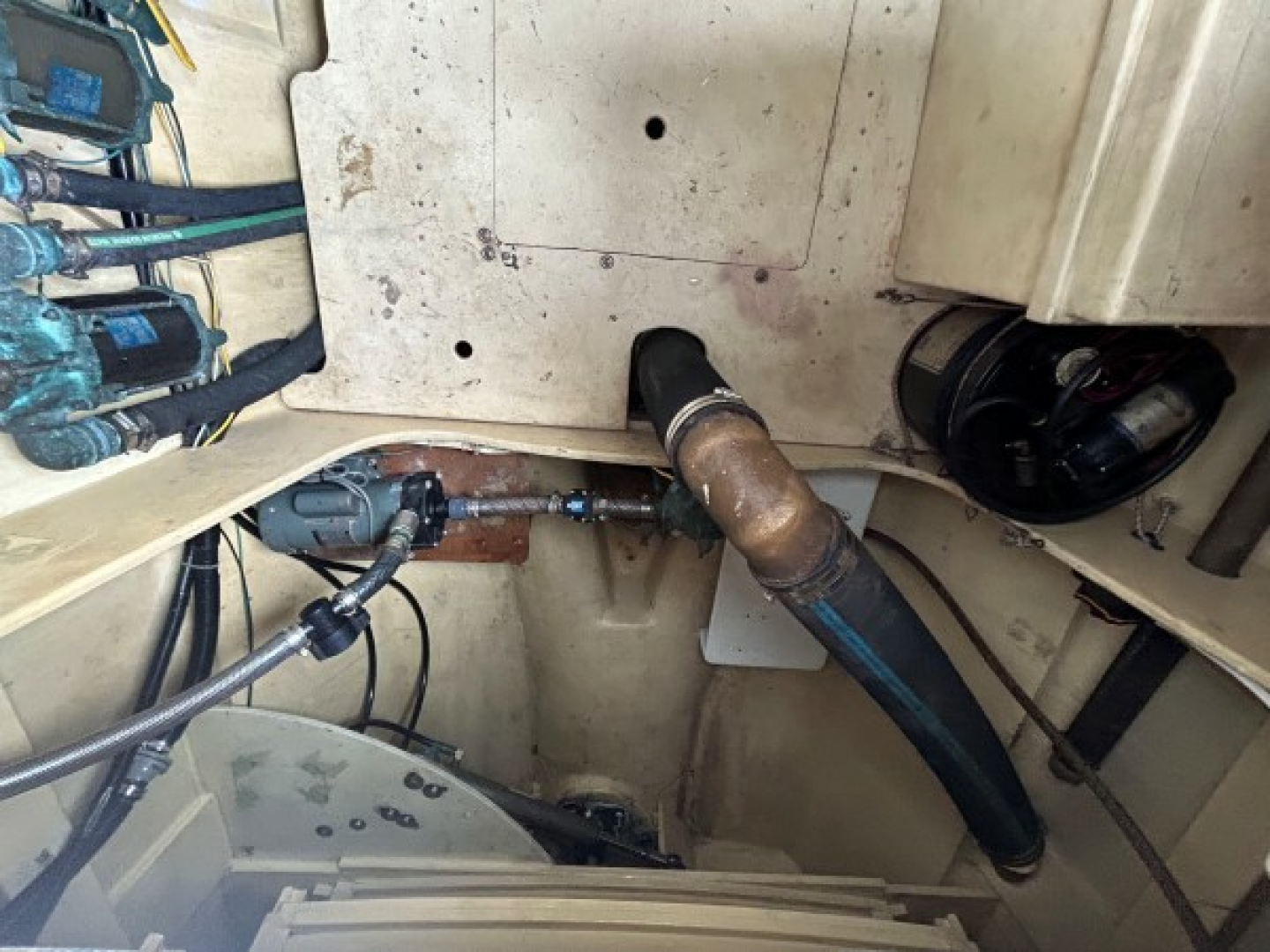

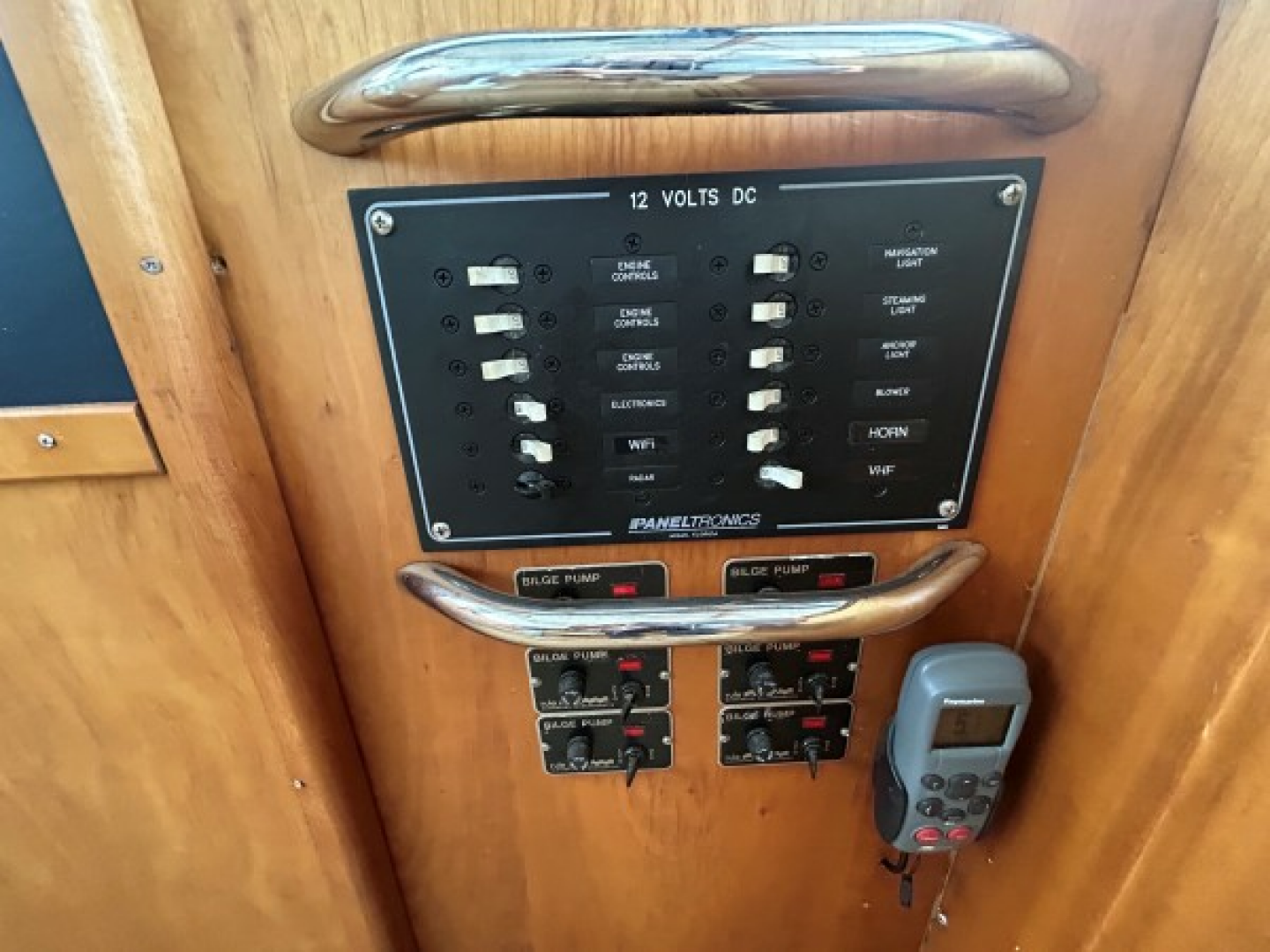

Bilge
(4) 2000 gph bilge pumps
(2) shaft sumps with pumps

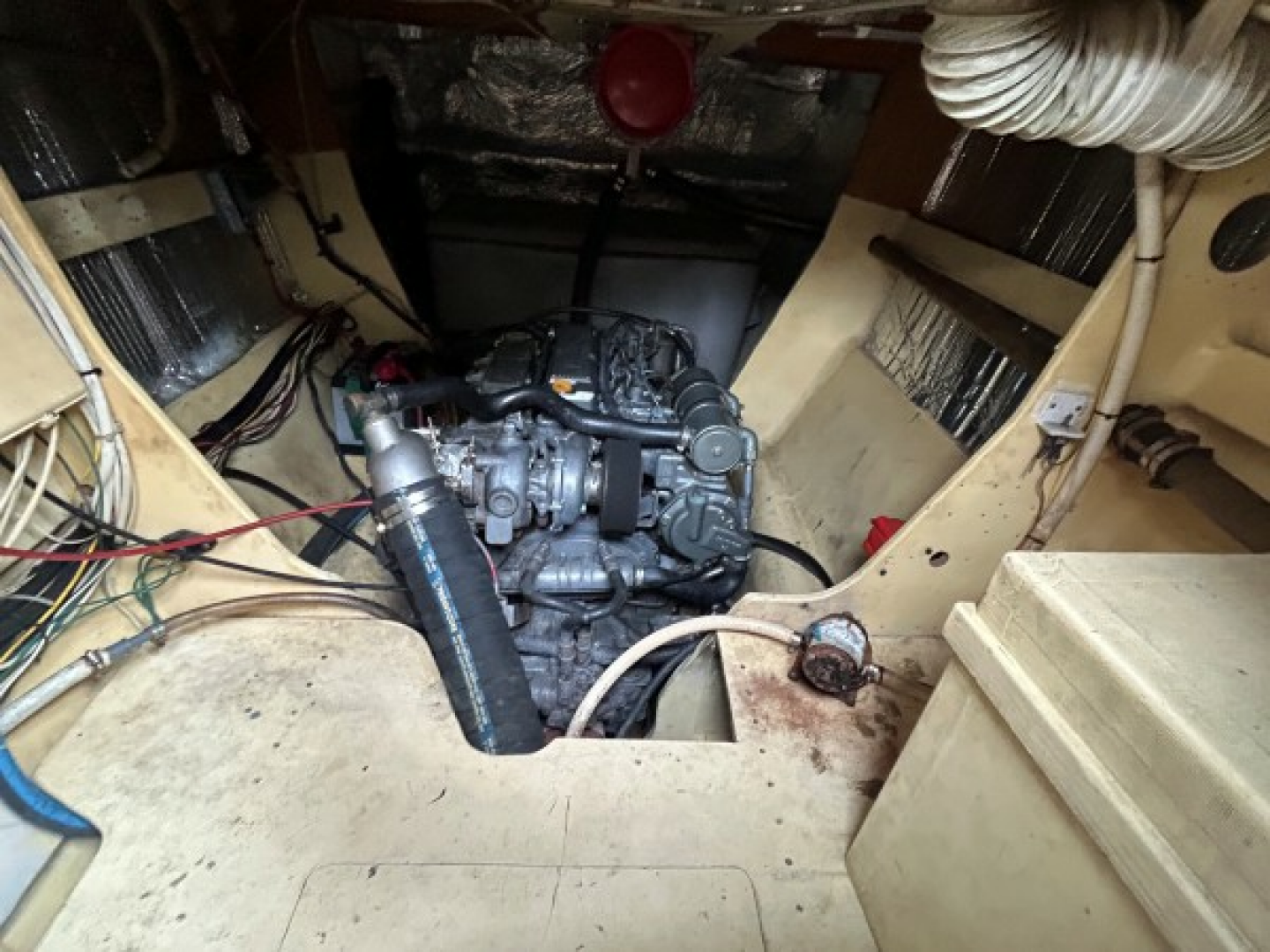

Engine & Mechanical

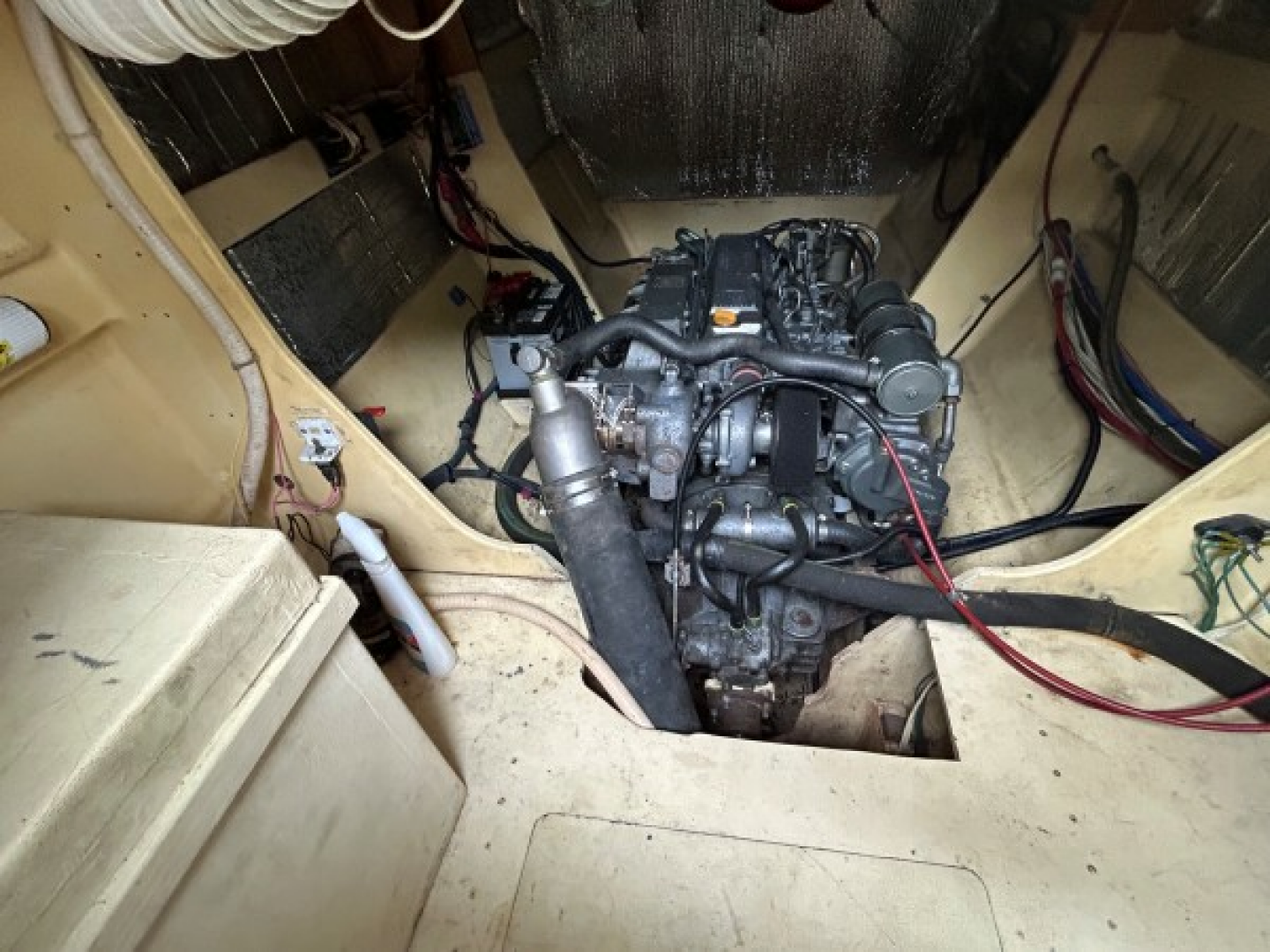

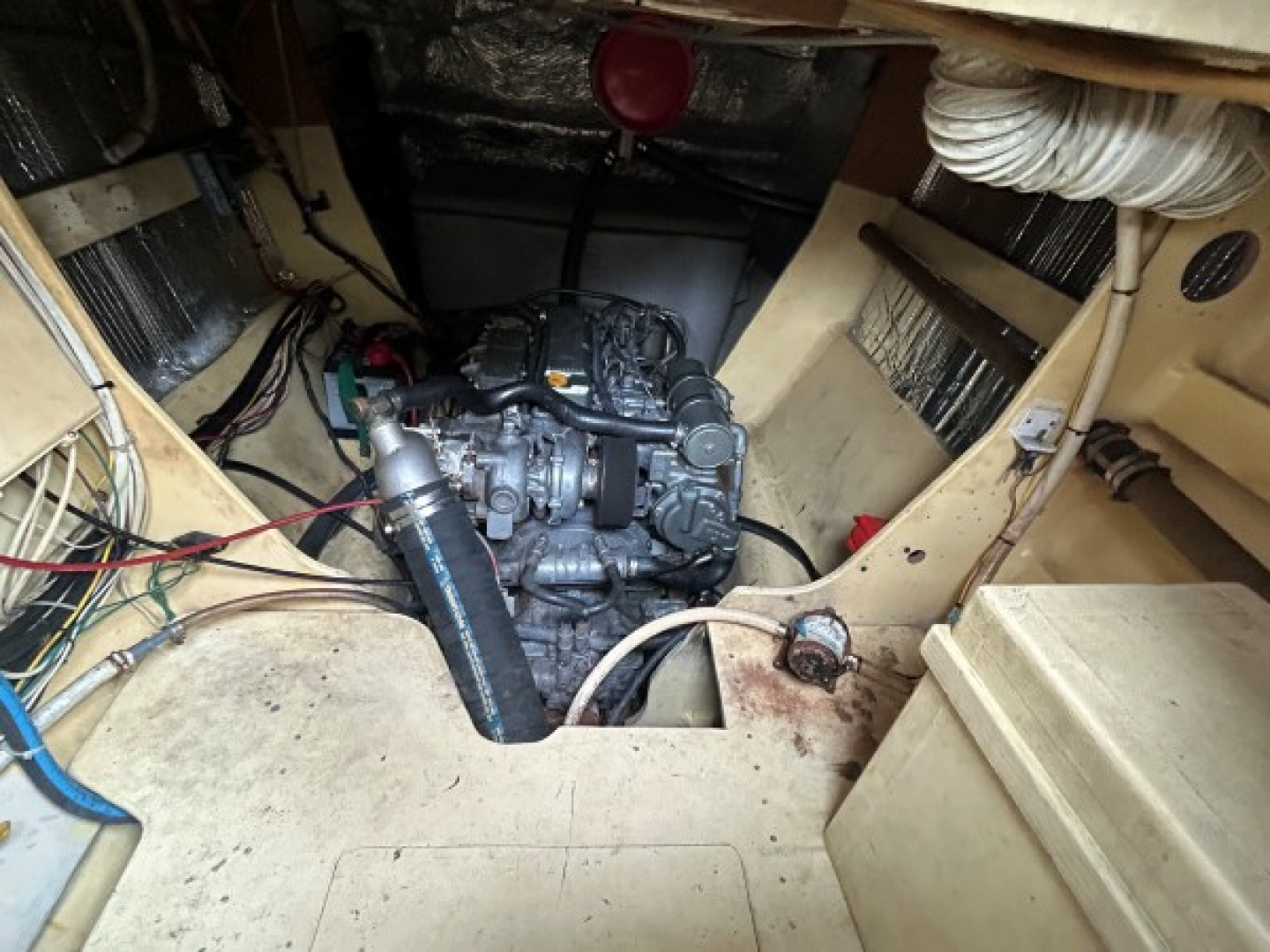

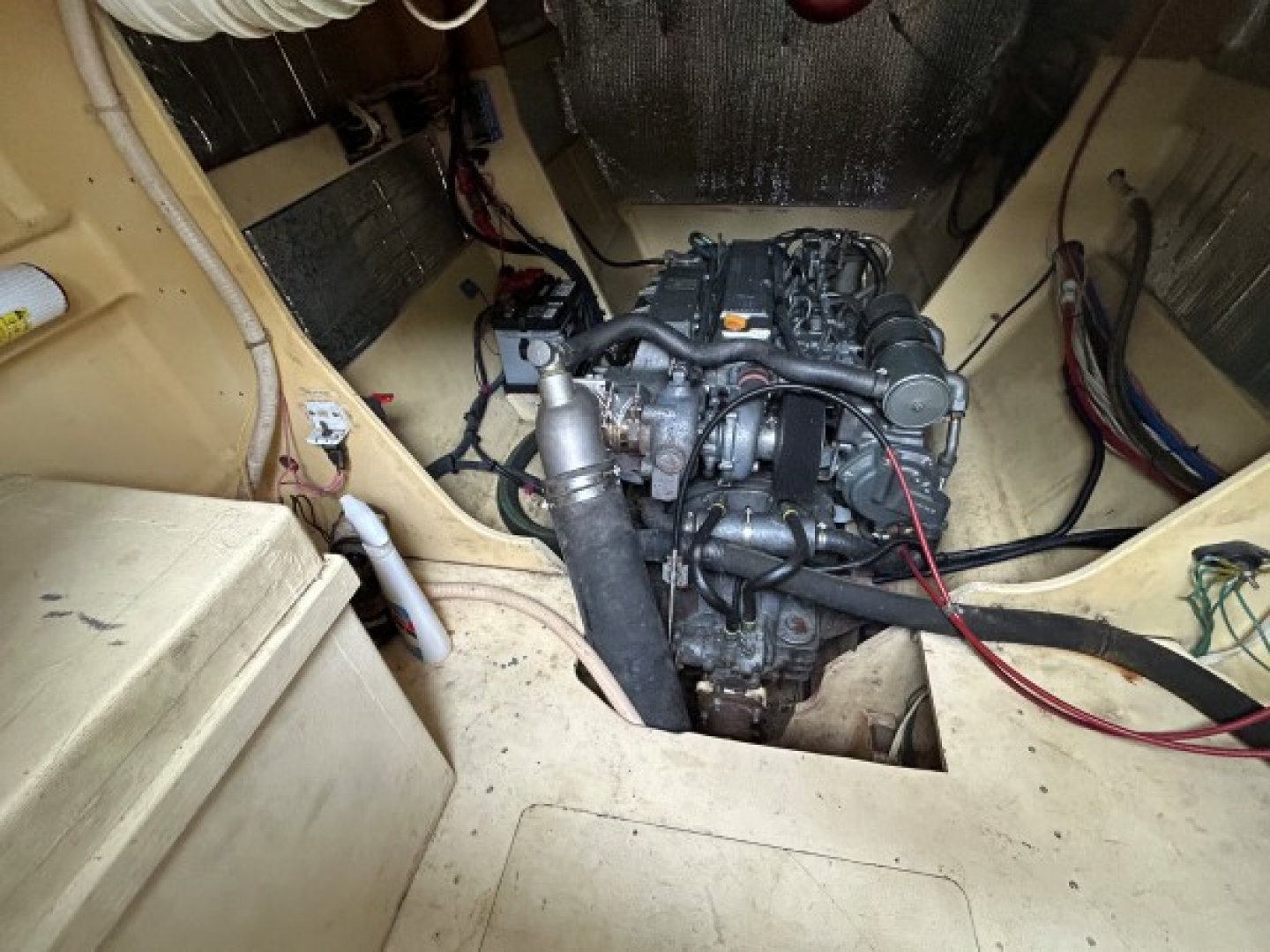

Engines: Twin Yanmar 4LHADTE Diesels (190 Hp each)ZF Mathers MicroCommander control station
Four remote control input stations for ZF Mathers wired remote control.
PSS Shaft Seals
Hynautic Hydraulic Steering
Fire Protection
Engine Rooms: Automatic fire suppression system
Living Spaces: (5) fire extinguishers
Fuel System
Fuel Capacity: 2260 gallons
Tankage: (4) 430 gallon tanks, (4) 135 gallon tanks
Tank Construction: .25 inch aluminum baffled with sumps
Fuel Cleaning/Polishing System: Centrifugal filter and permanent magnet
Fuel Transfer System: Any tank to any tank through the polishing system
Final Fuel Filtering: Racor filters in engine room
Additional Information

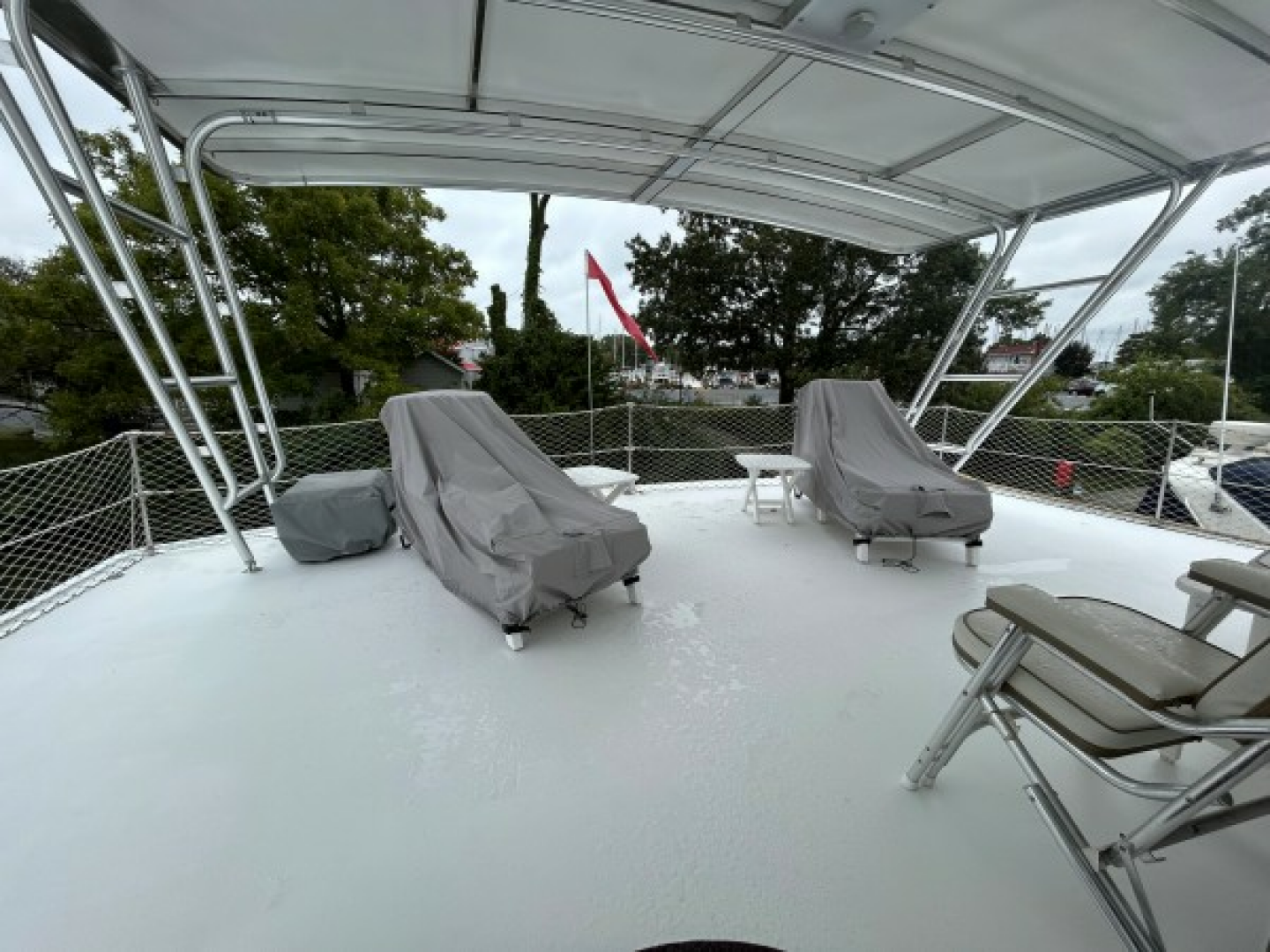

Top deck lounge chairs with pads and coversWest Marine folding lounge chairs
Floating lounge mats
2 person inflatable towable with rope
