Variable Draft Swing Keel and Steering

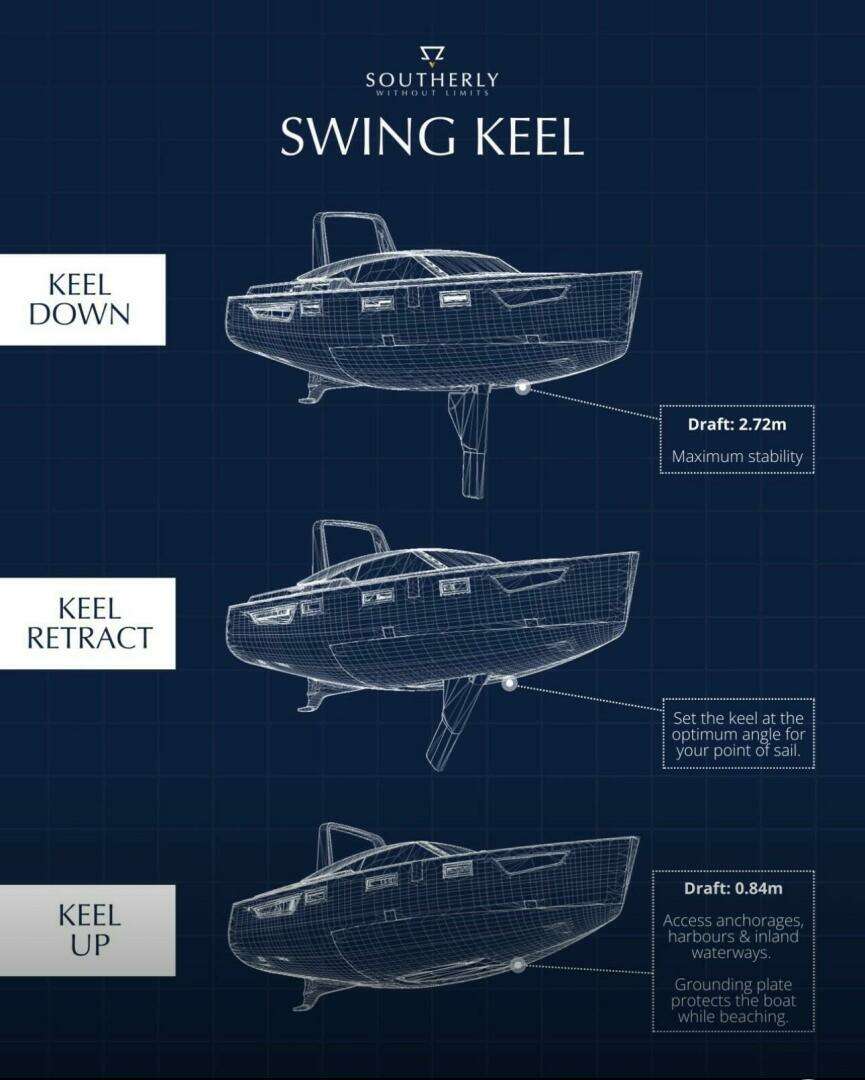

The fixed ballast is an iron casting that acts as a grounding plate and stiffener for the keel and housing assembly. It is fitted into a recess in the hull in the area of the keel box with stainless steel bolts. The aerofoil-shaped keel is cast iron and incorporates a stainless-steel pivot at the leading edge. The keel is raised and lowered by a Dyneema pennant and hydraulic ram powered by an electrically driven pump with a hand-operated backup. All hydraulics are easily accessible for maintenance.

The steering is direct with minimum backlash and semi-balanced twin rudders, giving instantly responsive steering and precise directional stability. The transom is open with integral steps to give easy access to the cockpit.

·      Semi-balanced twin rudders

·      Twin 30" stainless steel cockpit wheels

·      Single-level engine control

·      Emergency steering system

Interior

The interior features two private cabins, two heads, a raised salon, a linear galley to starboard, and a nav station forward of the galley.

·      Aft cabin with a centerline bed and an en-suite head

·      Forward cabin with a center line bed and direct access to the forward head

·      Raised salon seating area with a dining table

·      Nicely equipped linear galley on the starboard side with a front-loading refrigerator and freezer

·      Electric flush toilets

·      The Galley has a double sink, a two-burner stove with an oven, a front-opening freezer, and a front-opening refrigerator.

·      (3) AC units (aft cabin, salon, and forward cabin)

·      (3) Fans

·      Lee cloths for all berths

·      LED lighting and red courtesy lighting

·      The owner modified the configuration of the forward head following delivery. The shower stall was removed, and the floor was modified to create a large wet head.

Sails and Rigging

The Southerly 420 boasts an impressive sail plan for powerful windward performance. The tall fractional rig, with swept-back double spreaders, combines a self-tacking jib and in-mast furling mainsail. The Code 0 and Tradewind Runner can be flown from the bowsprit for off-wind sailing.

·      Sanders mainsail made of HydraNet

·      Selden electric in-mast furling system

·      Sanders self-tacking jib made of HydraNet

·      Furlex below deck headsail furling drum

·      Sanders HydraNet Code-O

·      Sanders HydraNet Tradewind Runner with Karver KR2.5 bottom-up furler

·      Aluminum whisker pole mounted on a mast track

·      Stainless steel bowsprit

·      Solid kicker with gas strut

·      Double swept back spreaders

·      1x19 stainless steel wire standing rigging with swage toggle-fork chrome bronze rigging screws

·      Split Backstay

·      Self-tacking foresail track with sheets led to the cockpit

·      Mainsheet led to both helm stations

·      Rope clutches as required for running rigging

·      One electric Harken winch at companionway

·      Two electric Harken winches for mainsheet/jib sheet

Electronics

·      Raymarine Axiom 12 Pro-S Hybrid touch, RVM at the Nav

·      Autopilot: Raymarine Evolution Autopilot with a Jefa DD2 drive and Raymarine P70s autopilot control heads mounted at the port helm and Nav.

·      Raystar 150GPS Sensor

·      VHF: Ray 90 VHF with wired handset, passive speaker cable, and antenna

·      Loud Hailer

·      AIS 700 Class B Transceiver

·      Radar: Quantum Q24D Doppler 18" radar

·      Echomax Active XS RTE

·      (3) Raymarine i70 instrument displays

·      Raymarine Axiom 9 Pro MFD at the port helm

·      Raymarine Axiom 9 Pro MFD at the starboard helm

·      Ray 90 VHF second station, including wireless handset and active speaker at the starboard helm

·      FLIR Thermal camera (M232)

·      AR200 IP Camera stabilization module

·      CAM 220

·      RV200 Sonar Transducer

·      Pepwave Max-TST-5GD-T-PRM Max Transmit 5G router

·      IridiumGo exec with antenna and datahub

Cockpit

The aft cockpit is deep and wide, with comfortable seating and a cockpit table. The table has two leaves and storage. There are twin helm stations, with seats outboard and behind each wheel.

·      Dodger and bimini with a connector

·      Cockpit cushions

·      Self-draining with two Stainless drains at helm positions

·      The transom is open with integral steps to give easy access to the cockpit

·      Telescopic stern boarding ladder

·      Cockpit locker to port

·      Large aft locker

·      Gas bottle storage

·      Liferaft/fender stowage in cockpit locker

·      Perspex main hatch with washboard

·      The instrument panel above the companionway

·      Two winch handle pockets

·      Three safety harness eyes

Deck Fittings and Loose Goods

·      Flexiteek on the deck and cockpit (seats, sole, and transom step)

·      Cleats forward and aft raised with stainless chafe guard

·      Spring cleats amidships with stainless steel chafe guard

·      Stainless steel stem head fitting with twin bow roller and fairing

·      GRP foredeck anchor locker with re-enforced shelf to take anchor windlass

·      Stainless steel pulpit incorporating navigation light bracket

·      Stainless steel stanchions and guard wires

·      Stainless steel aft pulpit incorporating stern gate, navigation light bracket, and ensign staff socket

·      Fuel and water deck fillers

·      Waste pump-out deck fitting

·      Stainless steel grab handles on either side of the coach roof

·      External sunshades for the pilot house windows

·      Anchor windlass with a control and chain counter at the helm

·      Lewmar Epsilon Stainless Steel Anchor

·      Anchor Chain: 262'

·      (6) Fenders

·      Mooring lines

·      Dinghy: Takacat LX 260

·      Outboard Motor: Epropulsion Spirit 1.0

·      Liferaft: Ocean ISO - greater than 24-hour pack canister - 6 person with a hammer hydrostatic release and a cradle fitted to the pushpit

·      Safety equipment

Mechanical

·      Yanmar 4JH57 – (57 HP) 4-cylinder, fresh water-cooled, diesel engine (approximately 350 hours)

·      50-hour engine service completed

·      250-hour engine service was completed by Sopromar Centro Nautico in Lisbon, Portugal, in September 2024.

·      125-amp alternator

·      Racor fuel filter

·      GRP stern tube with water-lubricated stern gland

·      Stainless steel propeller shaft

·      Propeller: Four-blade Darglow Featherstream (feathering prop)

·      Substantial skeg fitted on the centerline to protect propeller and rudders when the yacht is dried out

·      12-volt electric ventilator

·      Sound deadening to the engine box

·      Integrated engine access panel

·      Generator: WhisperPower M-GV5 Picollo 3.5 kW diesel generator

·      Sopromar Centro Nautico in Lisbon, Portugal, completed the generator service in September 2024.

·      Bow and Stern thrusters

Electrical

·      110-volt AC system

·      12-volt DC system

·      24-volt DC system

·      C-Zone digital control and monitoring network

·      Volt and ammeter on the main panel

·      50 Amp shore power connection

·      16 Amp shore power connection and cable

·      120V AC outlets throughout the boat

·      USB outlets in all cabins

·      Generator: WhisperPower M-GV5 Picollo 3.5 kW diesel generator

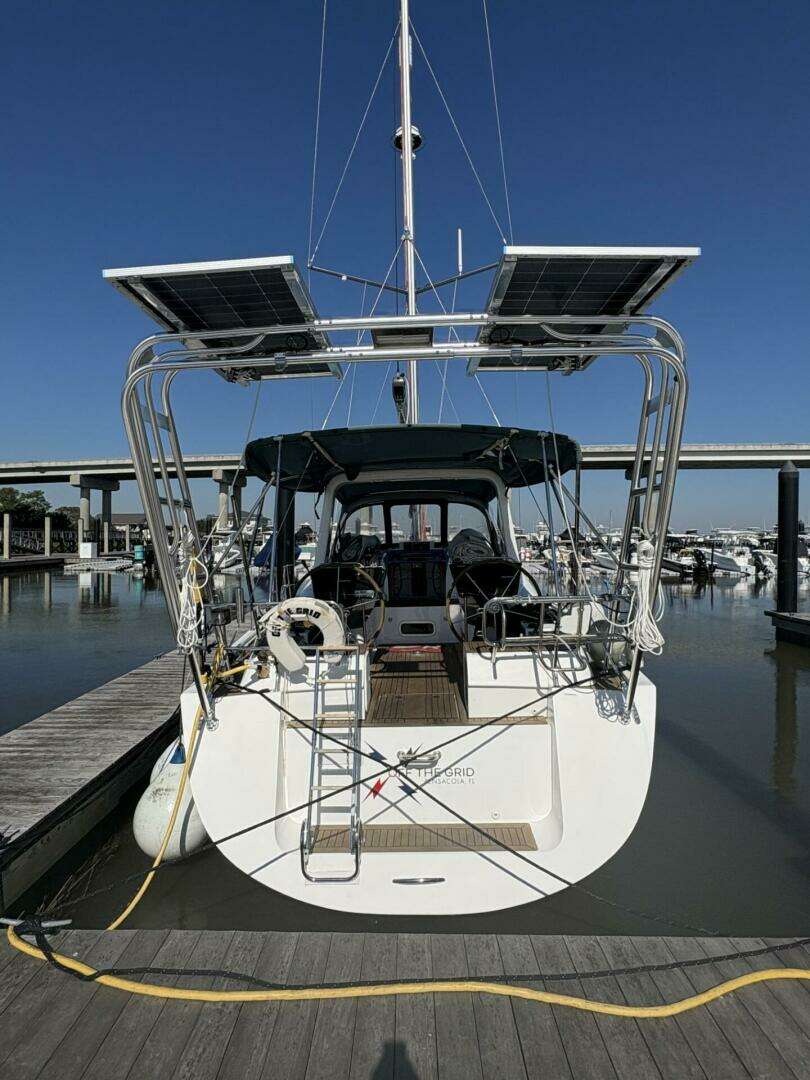

·      Solar: (2) 100W flexible EcoFlow panels with a Victron Energy SmartSolar MPPT charge controller

·      LED cabin lighting

·      Red courtesy lights along the cabin sole and in the heads

·      House Battery: Mastervolt Lithium-ion with 460AH of capacity

·      (1) AGM engine start battery

·      (1) AGM generator start battery

·      Mastervolt Chargemaster and Mastervolt Combimaster allow batteries to be charged by shore power, generator, or the engine.

·      Isolating switches

·      LED cabin lighting throughout

·      Reading lights over bunks

·      Chart light over navigation table

·      Full LED navigation lights

Plumbing

·      Water Maker: Parker H20 ECO A012C-121

·      Pressurized hot and cold water system

·      Seagull water filter

·      Mixer tap to the galley sink

·      Mixer tap in head compartments

·      Transom shower

·      Freshwater deck wash and saltwater anchor washdown on the bow

·      Non-metallic freshwater tank

·      Hot water is provided by an engine calorifier unit with an immersion heater

·      Electric sump pumps to shower trays

·      Two manual bilge pumps

·      Five electric submersible bilge pumps

·      Two holding tanks

·      Electric sump pumps in the heads
