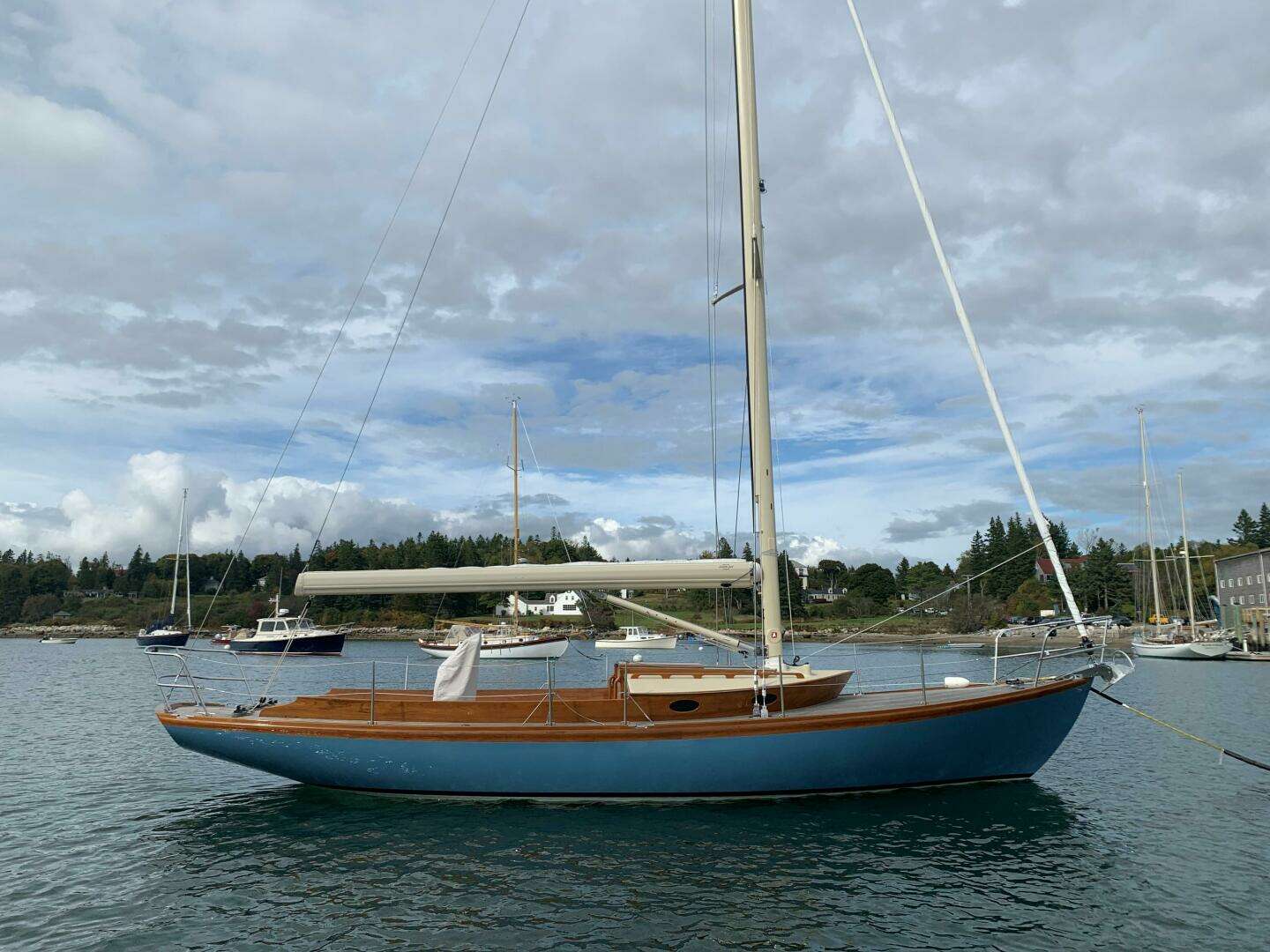

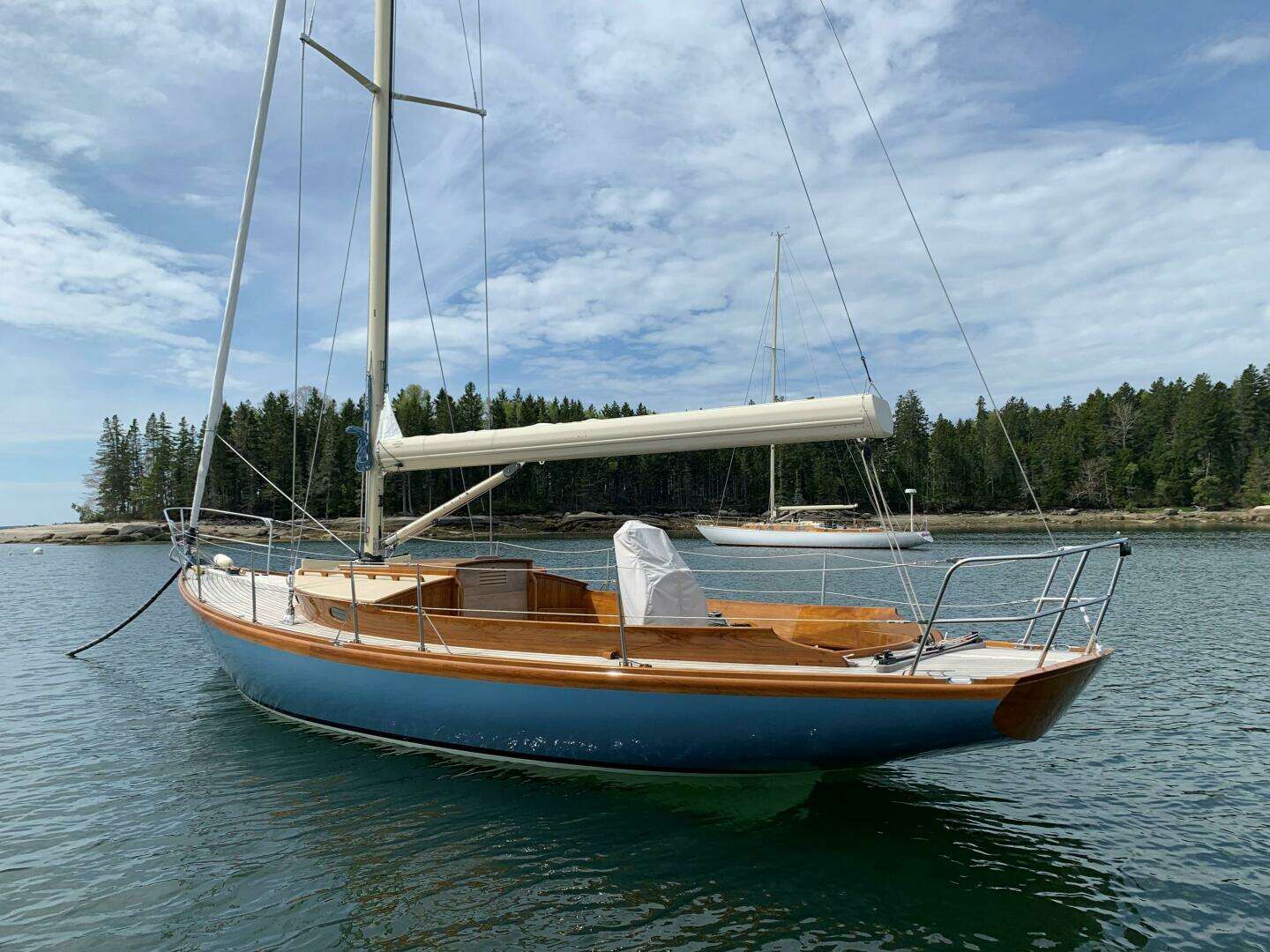

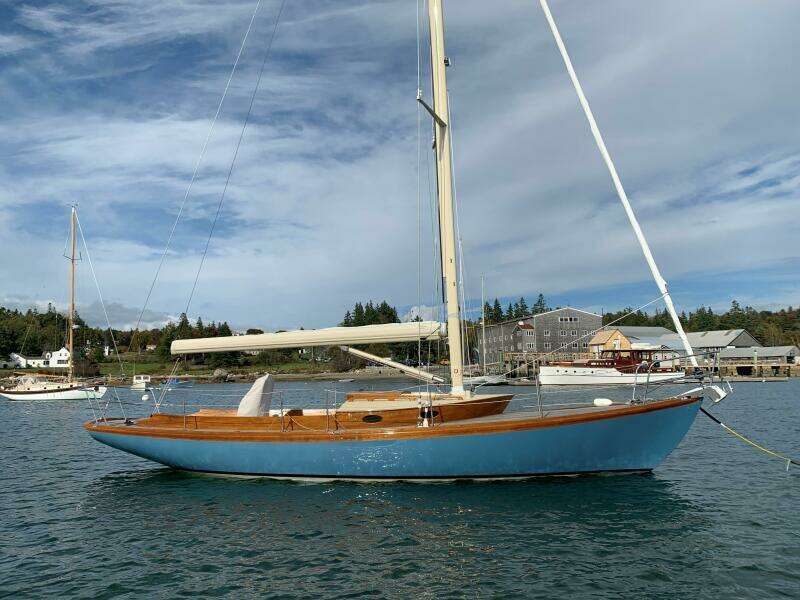

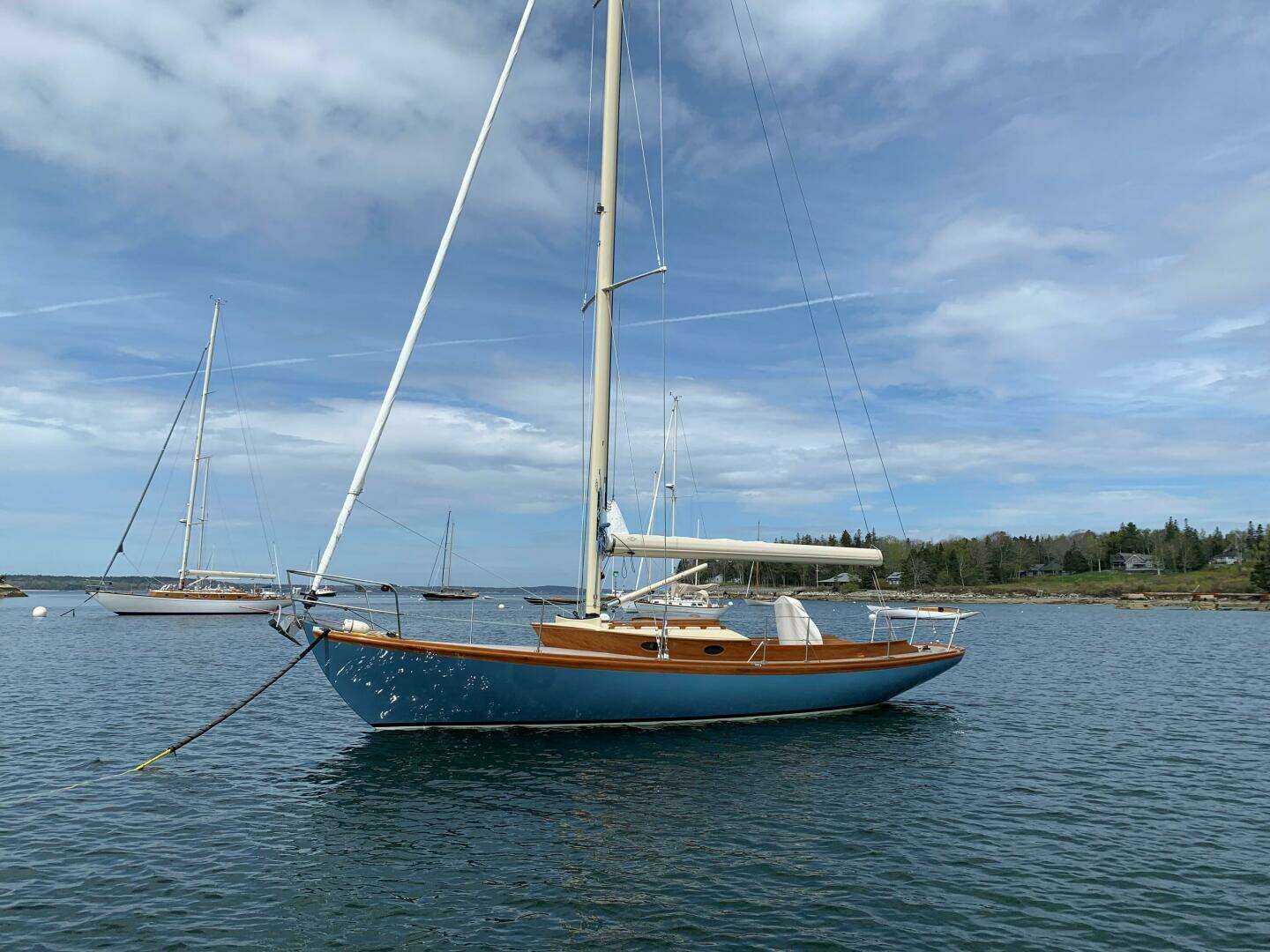

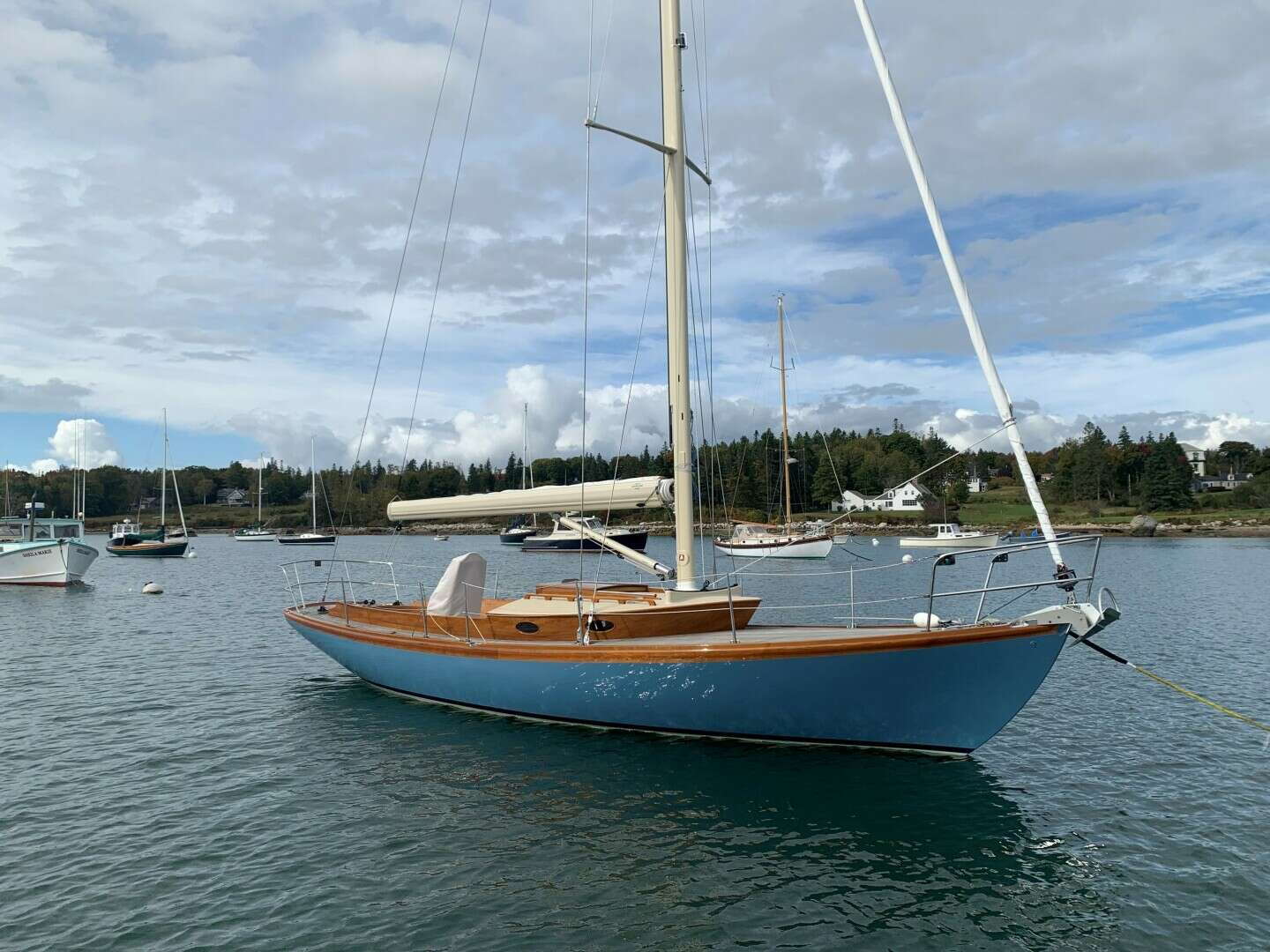

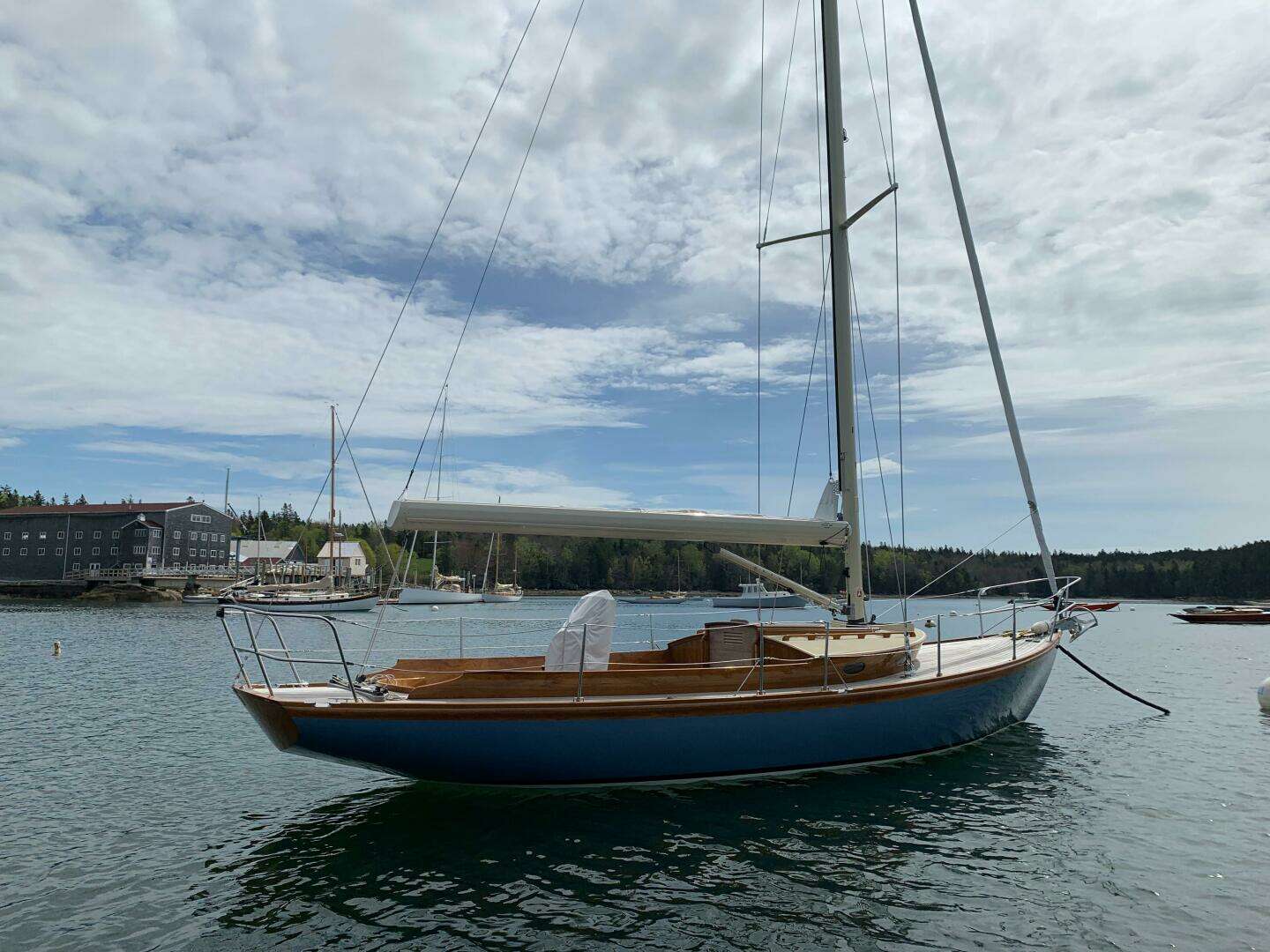

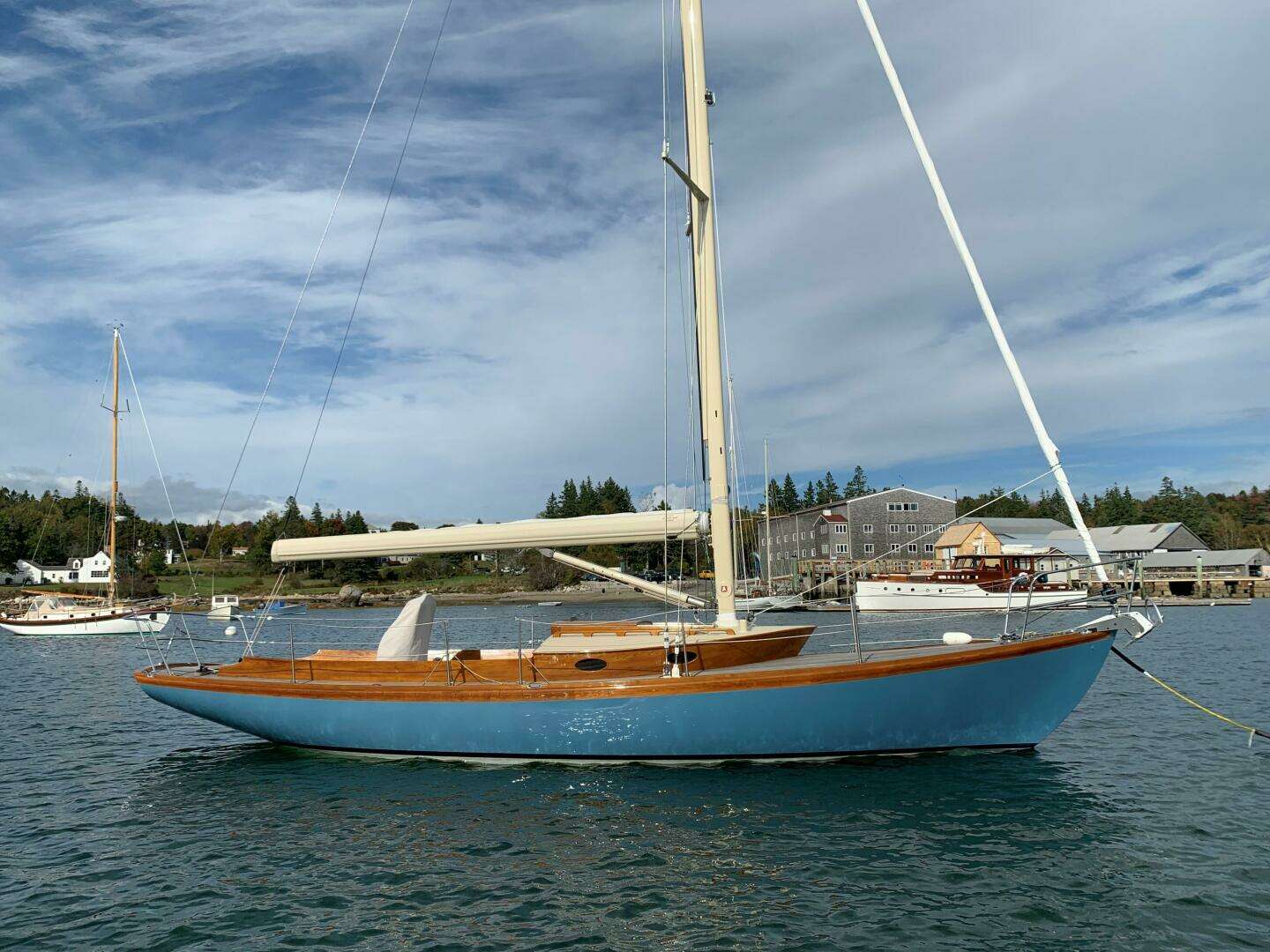

Principle Dimensions and Information

Designer: Brion Rieff

Builder: Brion Rieff Boat Builder

Year Launched: 2023

Construction Type: Cold-molded / Wood-epoxy

Rig Type: Fractional Sloop

LOA: 33’, 9”

LWL: 25’, 6”

Beam: 9’, 6”

Draft: 5’, 0”

Displacement: 11,900 lbs.

Ballast: 5,950 lbs.

Sail Area: 630 sq. ft.

Air Draft: 53’, 6”

Auxiliary Propulsion: Nanni Marine 3-cylinder, 30HP, inboard diesel

Fuel Capacity: 25 Gallons / Aluminum tank

Freshwater Capacity: 10 Gallons

Blackwater Capacity: 10 Gallons

Hull, Deck and Cockpit Construction

Vacuum-bagged, cold-molded, wood-epoxy hull construction

Full keel with keel hung rudder underwater configuration

Exterior lead ballast keel

Stem, keelson, keel deadwood, horn timber, sheer clamps, frames and floors are of epoxy-coated Douglas Fir

Hull laminate schedule (inner to outer layers): Single tongue and grove Sothern White Cedar

planking in longitudinal orientation followed by four (4) layers of 1/8” Fir veneers in +/- 45 degree orientation with outer layer of 1708 iaxial fiberglass cloth and final painted (AwlGrip) finish of Stars & Stripes Blue topsides with single Dark Blue boot stripe and White anti-fouling bottom paint

Douglass Fir deck beams and carlins

Subdeck of one (1) layer of 3/8” V-matched marine plywood with a second (2^nd) layer of ¼” of marine plywood and two layers of 6 oz. fiberglass cloth with a final deck surface of  3/8” bare teak epoxy glued in place.

Toe rails, taff rail, cockpit coamings and cabin sides and aft cabin bulkhead are of varnished Teak

Cabin top construction same as deck construction with the exception of exterior surface(s) which is Dynel cloth set in epoxy with Desert Sand painted (AwlGrip) finish

Cockpit sole and cockpit seating surfaces are of bare Teak

Sail / storage lockers of epoxy-costed V-match marine plywood with Tan (AwlGrip) painted finish

Deck, Cabin and Cockpit Hardware and Features

Deck: Polished stainless steel bow and stern pulpits with integral navigation lighting

Polished stainless steel life line stanchions, double life lines and opening gates port and starboard

Stainless steel bow anchor roller with Rocna 15 anchor, chain and rode

Stainless steel stem iron

Polished stainless steel bow line chocks and cleat port and starboard

Rocna 15 anchor with appropriate chain and rode

Lewmar low-profile electric anchor windlass with foot controls

Windlass foot controls to starboard

Anchor / chain wash-down bib to port

Furling line fairleads along port deck by stanchion bases

Polished stainless steel WATER deck fill starboard side deck

Polished stainless steel WASTE deck fill port side deck

Polished stainless steel chain plates port and starboard side decks

Polished stainless steel spring line closed chocks at max-beam port and starboard

Jib furling line turning block on post side deck outboard of cockpit

Polished stainless steel FUEL deck fill on starboard side deck outboard of cockpit

Harken main sheet traveler on aft deck

Polished stainless steel stern line cleats and closed chocks port and starboard

Polished stainless steel backstay tang

Polished stainless steel ensign flag staff socket

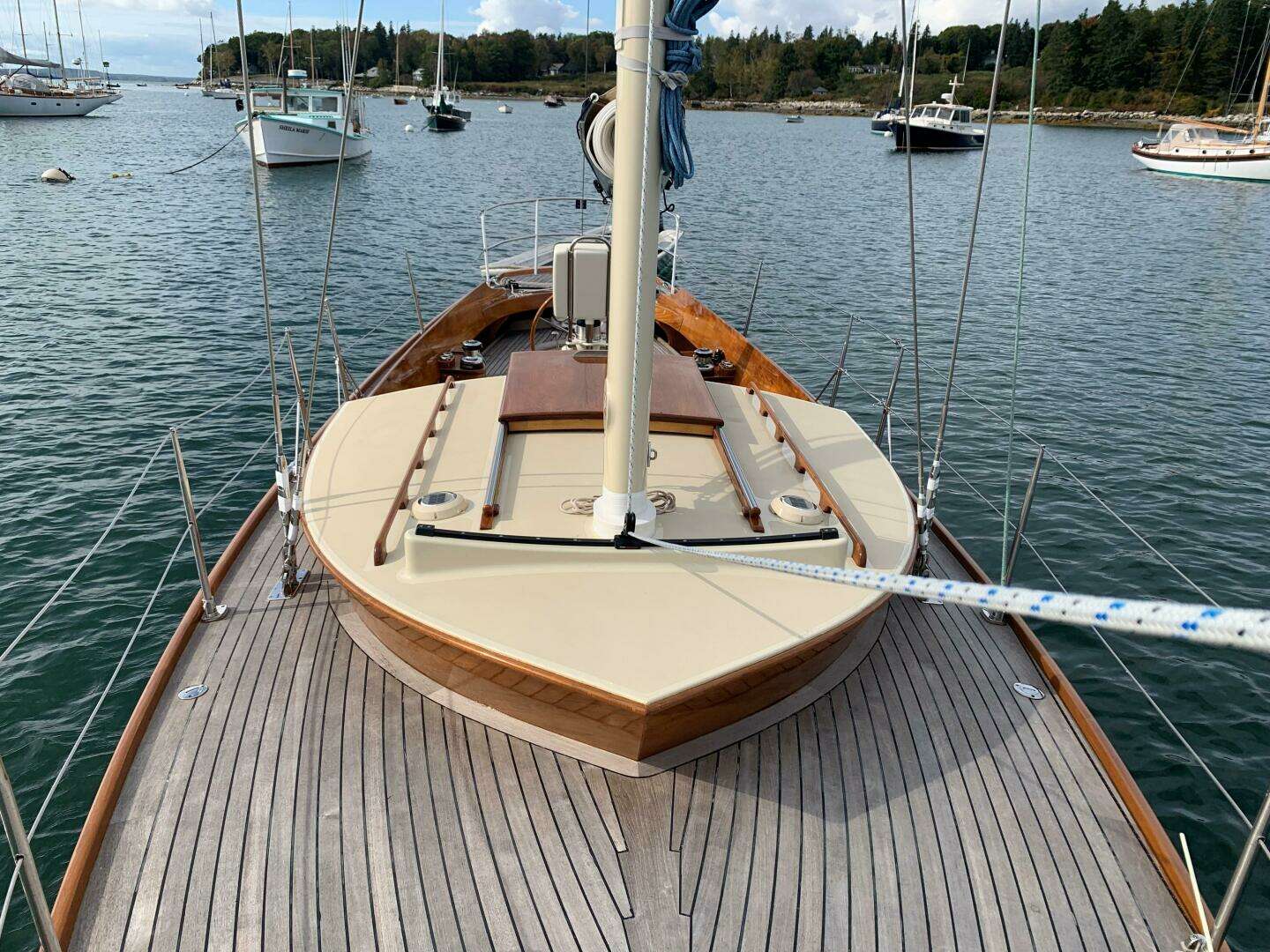

Cabin Sides and Top: Varnished Teak cabin sides

Cabin top is of marine plywood over laid with Dynel cloth set in epoxy with painted finish

Oval shaped fixed port lights in cabin sides port and starboard (2ea / side)

Vanished Teak companionway hatch slide

Varnished Teak handrails port and starboard

Solar vent / fans inboard of handrails port and starboard

Mast collar / partners on centerline

Harken self-taking jib track forward of mast

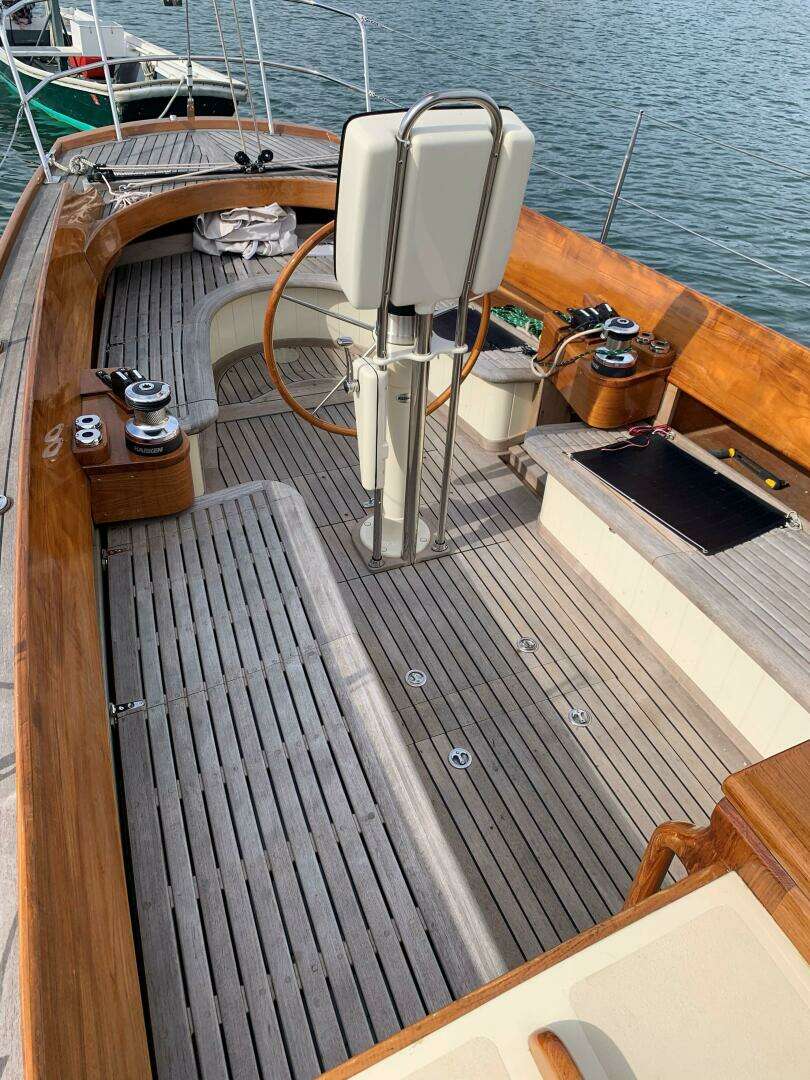

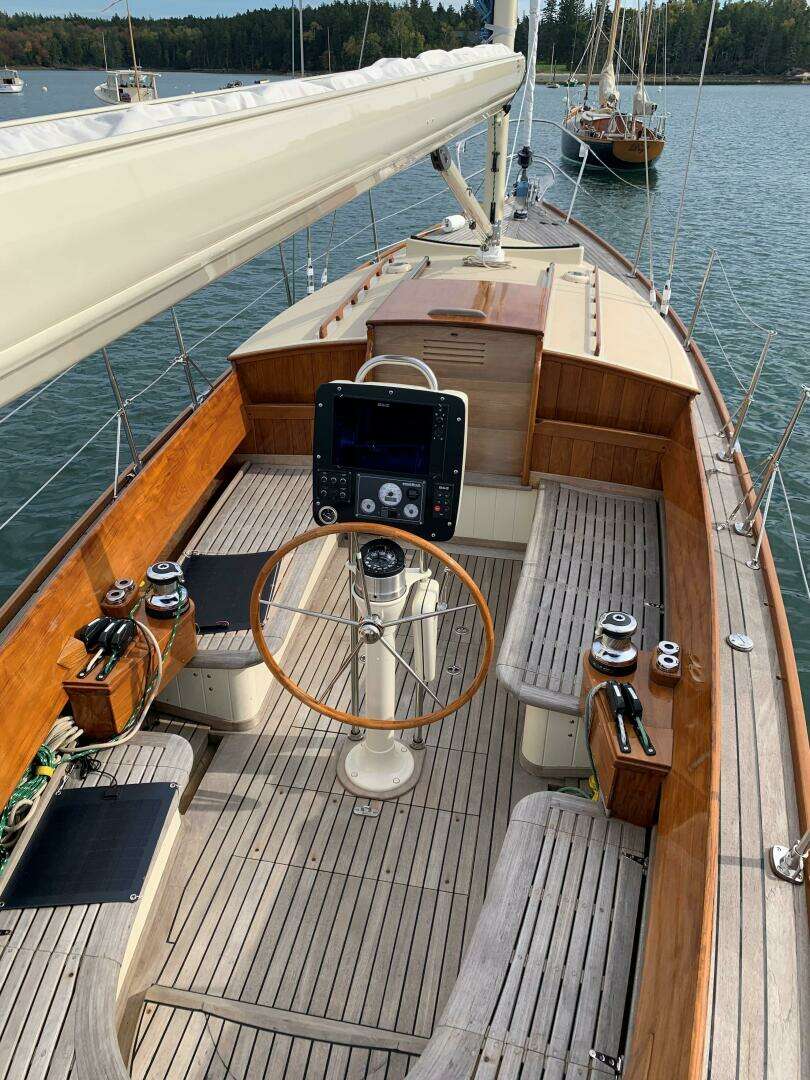

Cockpit: Varnished Teak cockpit coamings, aft bulkhead of cabin, companionway handrails and winch islands.

Bare teak cockpit seat tops and cockpit sole

Storage and equipment lockers under cockpit seating port and starboard

Cockpit sole hatches allow for access to engine, fuel and steering systems and equipment

All sail controls lines led to winches and rope clutches port and starboard of helm

Edson steering pedestal with nav pod, engine ignition panel, engine controls and steering wheel

Emergency tiller access aft

Manually operated Whale gusher bilge pump in cockpit

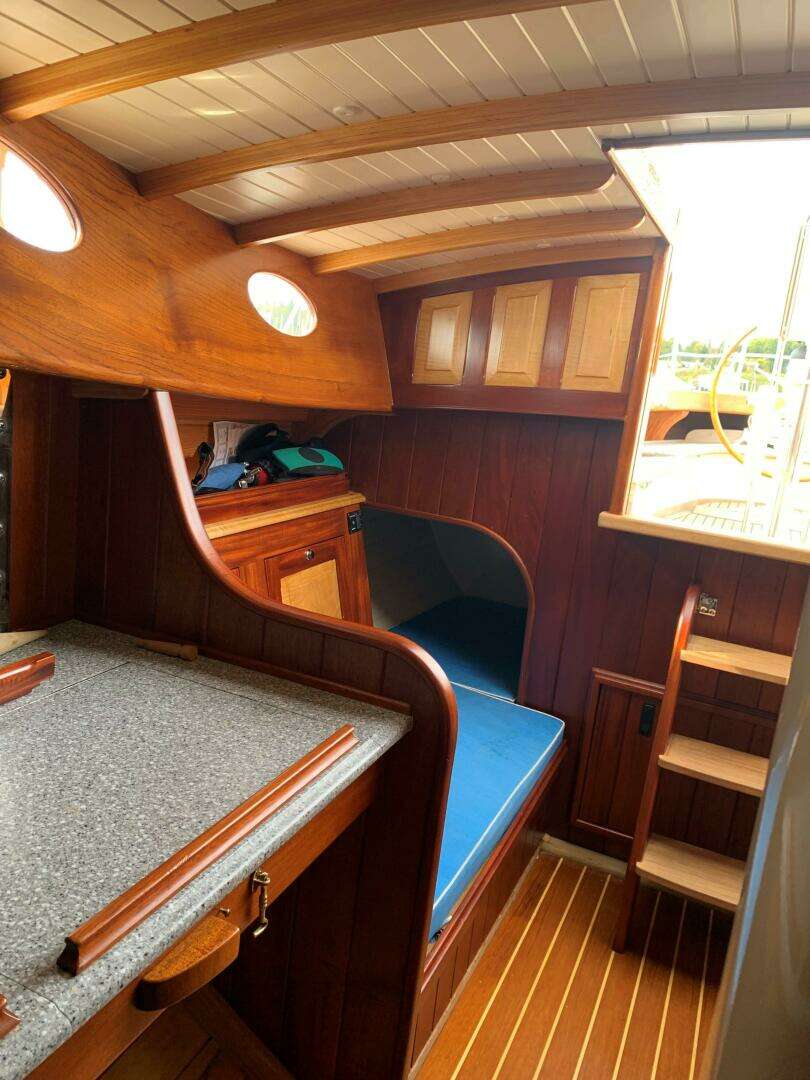

Interior Arrangement and Features

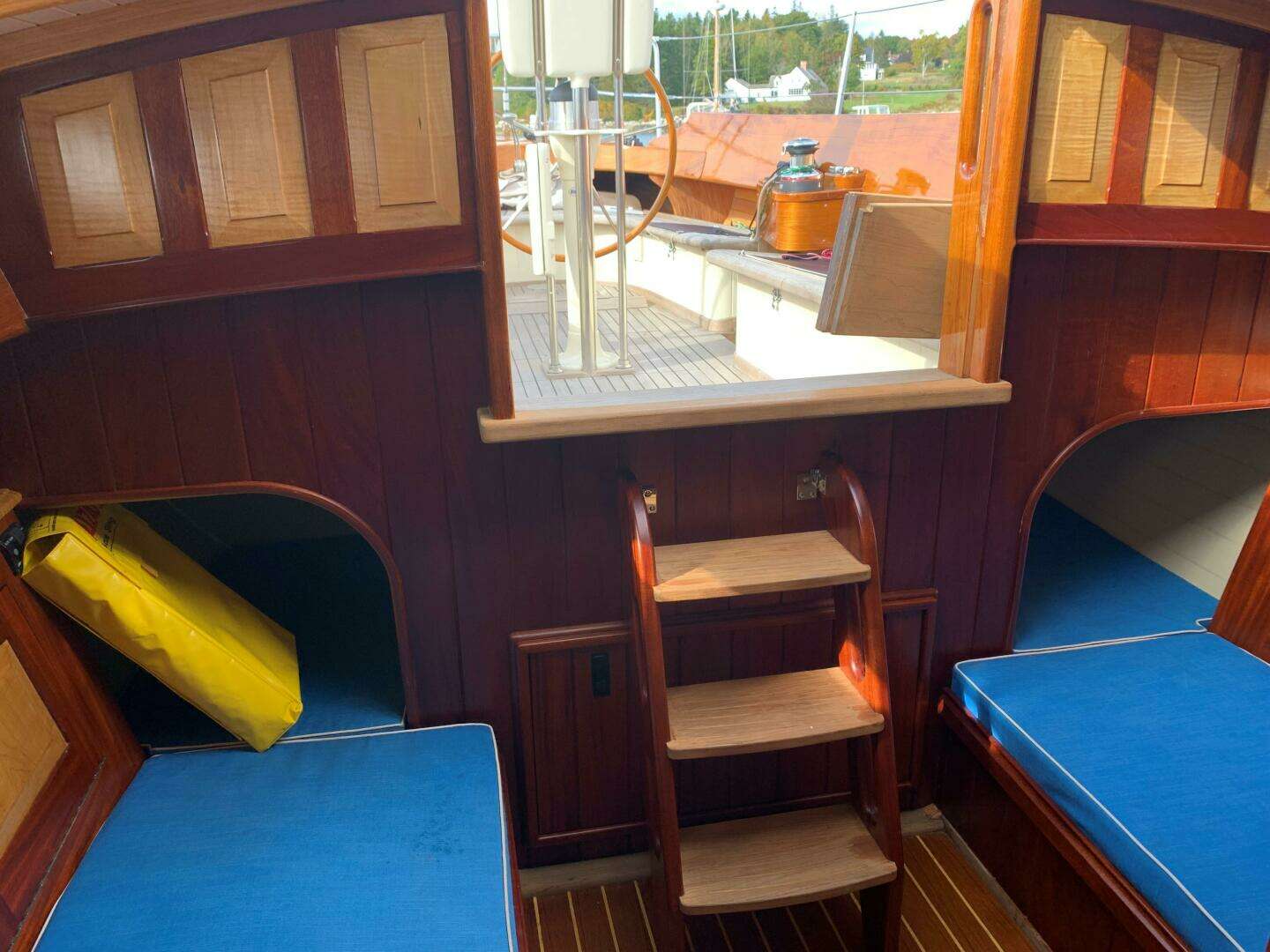

Three steps down from cockpit to interior spaces

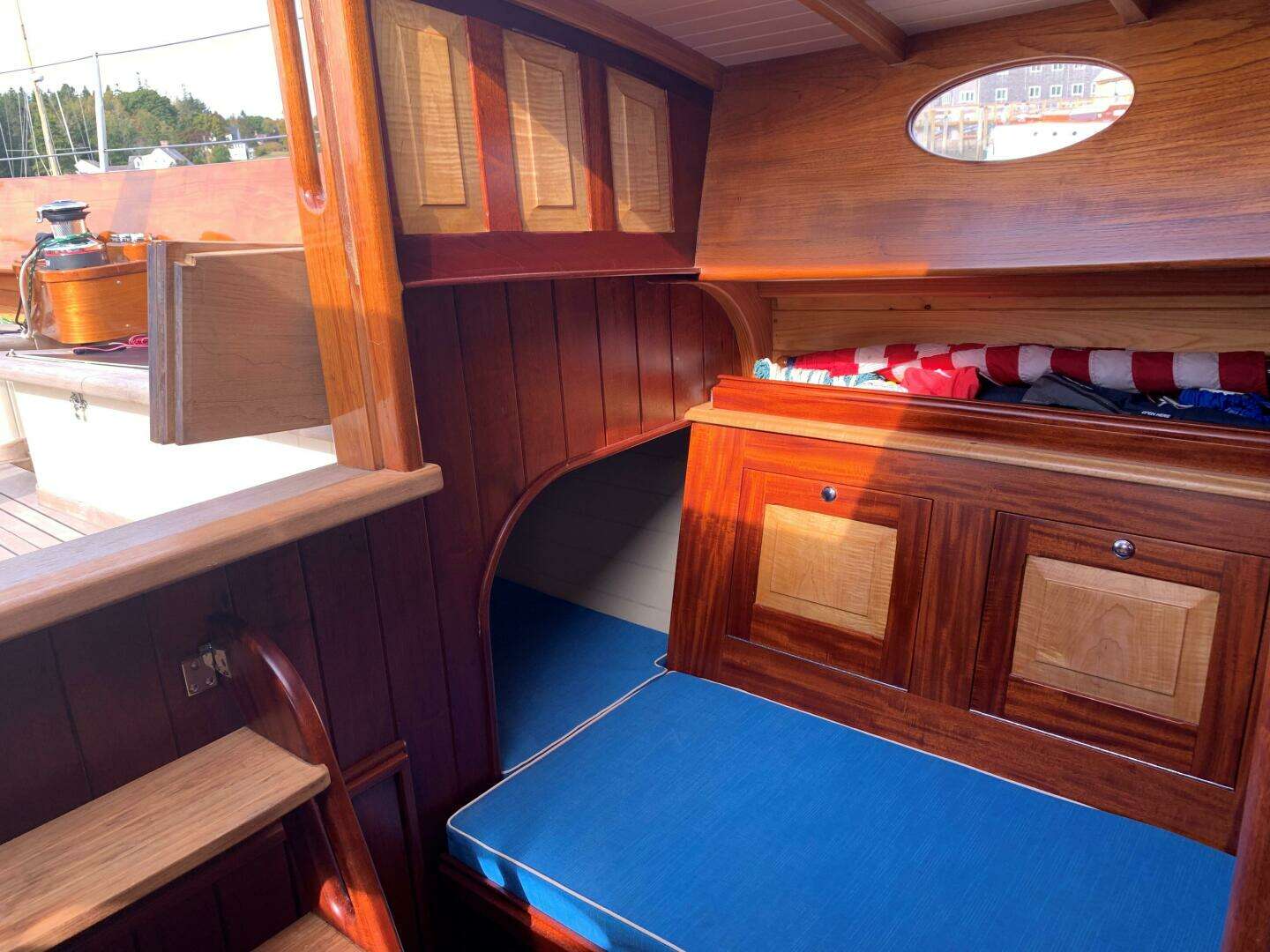

Quarter berths port and starboard of 3-step companionway ladder

Forward end of quarter berths have storage under berth and behind seat backs

Next forward (to port) is an enclosed head area with marine toilet, pressure water supplied to stainless steel sink basin set in granite vanity counter top.

Opposite the private head area is a navigation station / desk with chart storage under granite counter top and drawer storage under desk.

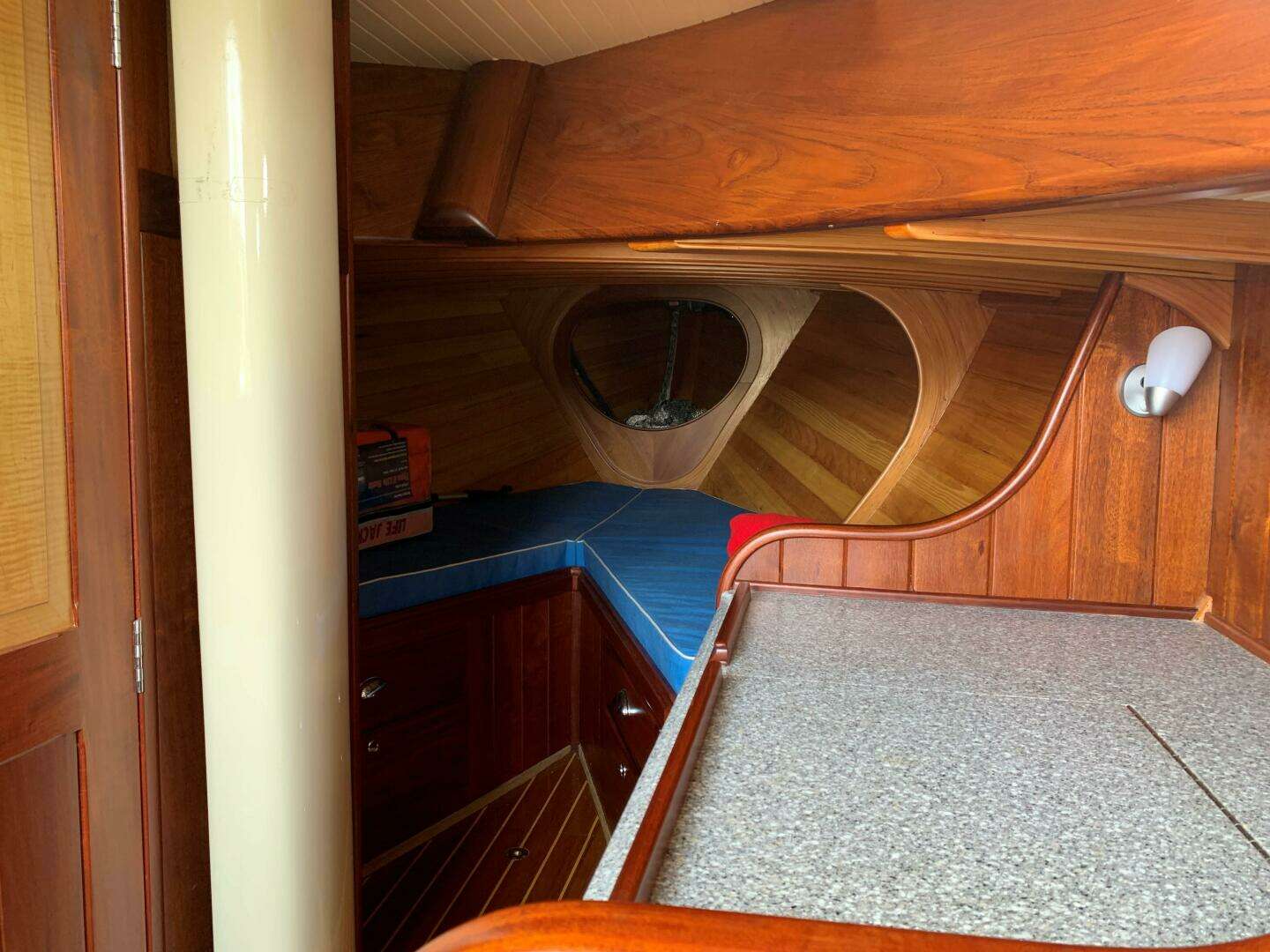

There is a V-berth sleeping area forward of head and nav areas with drawer and bin storage under berths port and starboard.

Furthest forward is chain locker accessed from V-berths by way of opening in forward bulkhead

Interior cabin sole is varnished Teak and Holly

Raised panel interior furniture is of satin varnished Mahogany with figured Maple accent panels

Overhead deck and cabin beams are of varnished Fir

Overhead panels are of V-matched marine plywood with White painted finish

Interior lighting consists of well-placed reading lamps by seats and berths

Interior spaces well-ventilated by solar fans.

Spars and Rigging

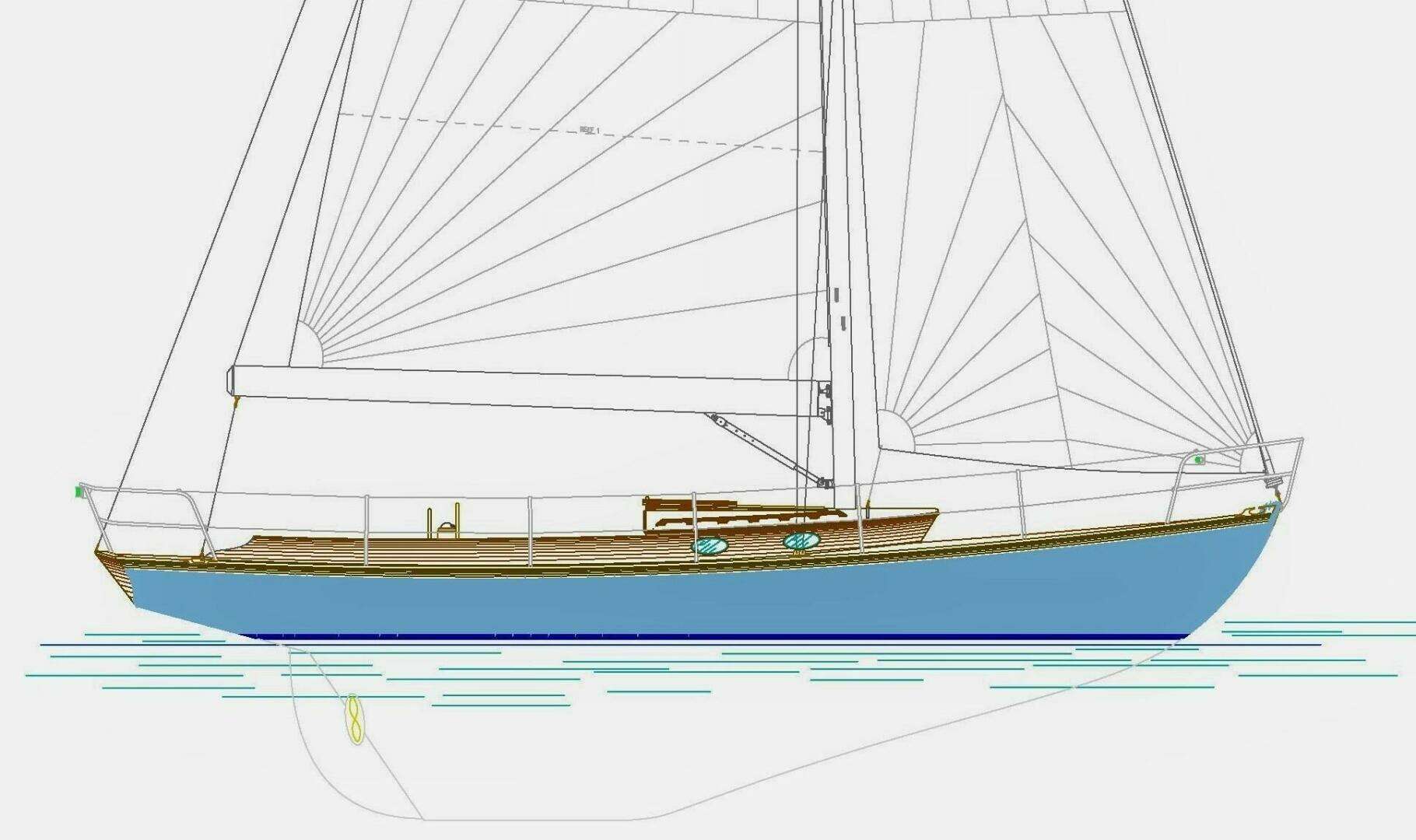

Fractionally-rigged sloop configuration

Keel-stepped, double-spreader, tapered aluminum mast

Windex, lightning brush and anchor light at masthead

Steaming and deck light on mast

1x19 Stainless steel wire standing rigging (shrouds and stays) with polished stainless stee turnbuckle adjusters

Leisure-Furl boom

Forespar solid vang

Harken MKV / Ocean roller-furling headstay

Furling line fairleads along port deck to cockpit by way of stanchion bases

Harken main sheet traveler and blocks with control lines led forward to cockpit

Harken self-tacking jib track, car and block

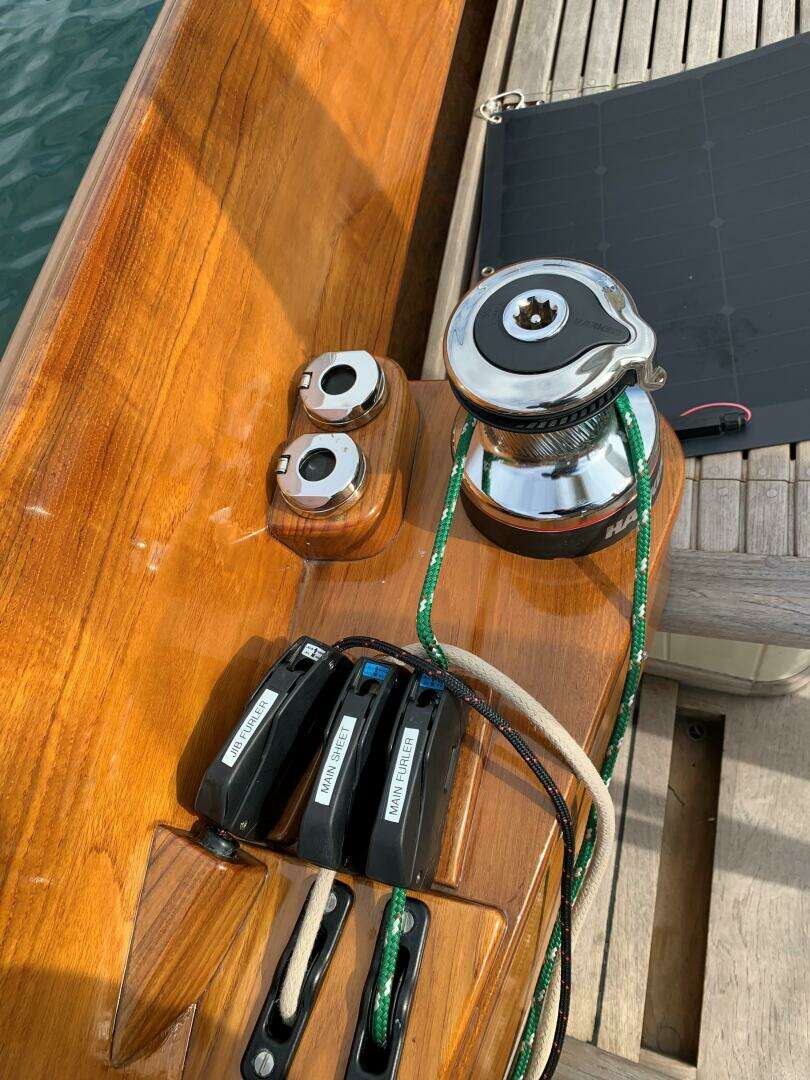

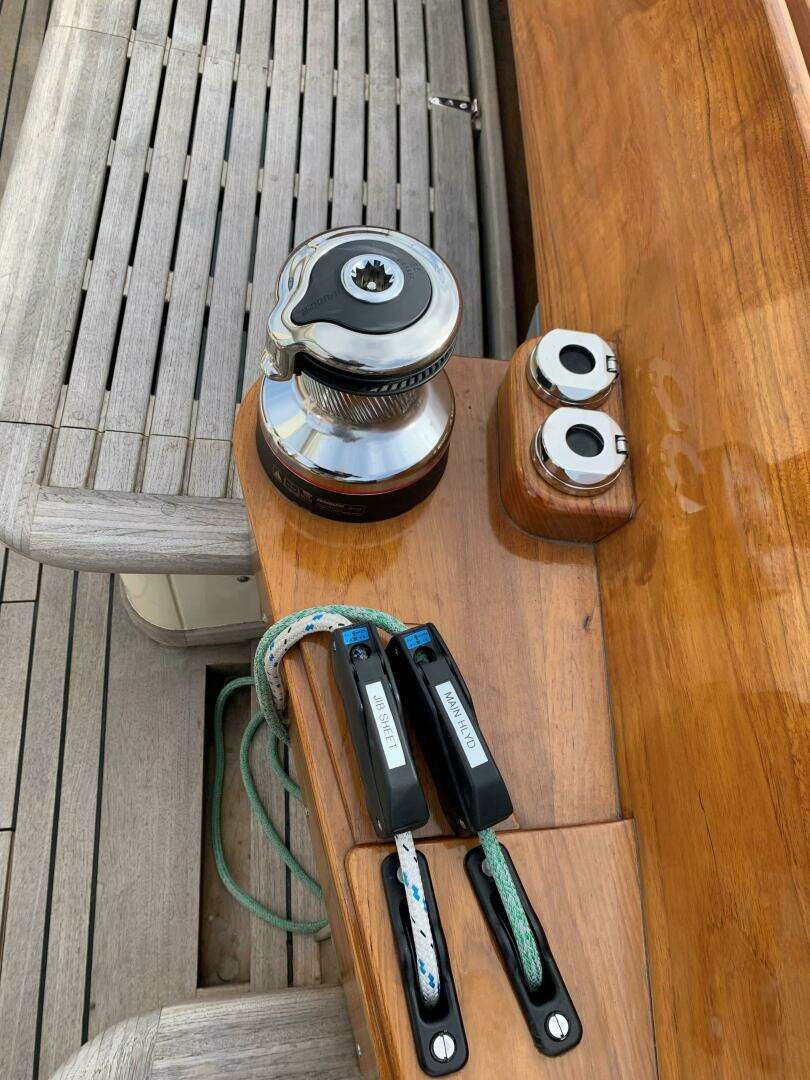

All sail control line led to cockpit with rope clutches and winches on varnished Teak winch islands to port and starboard of helm

Harken #35, 2-speed, self-tailing, electric winches port and starboard

Rope clutches for jib furling line, main sheet and main furling line to port

Rope clutches for jib sheet and main halyard to starboard

Sails and Canvas

Full-battened main sail

Self-tacking jib

Sail bags (2ea.)

Pedestal cover

Interior cushions

Electronics and Navigational Equipment

Ritchie helm compass

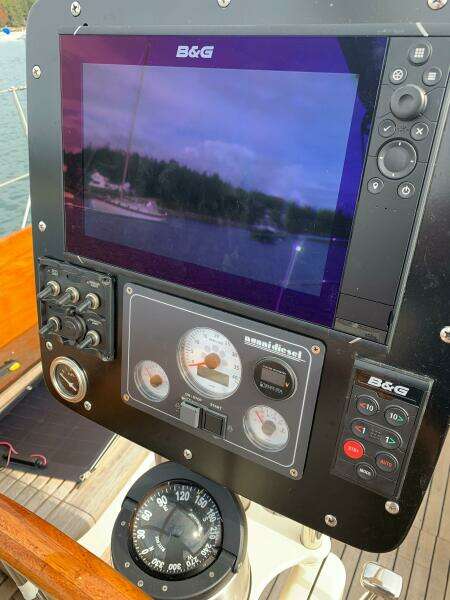

B&G GPS chart plotter / multi-function display

B&G autopilot

Uniden hand-held VHF radio

Auxiliary Propulsion and Fuel Systems

Nanni Marine / 3-cylinnder / 30 HP inboard diesel

Nanni ignition panel with tachometer and engine status gauges (oil pressure & engine temp.)

Single lever throttle and transmission control

1 1/8” Stainless steel prop shaft

Dripless shaft seal

2-Blade folding propellor

Vetus raw-water filter

Water-lift style exhaust muffler

25 Gallon fuel capacity in aluminum tank

Racor fuel filter

Fuel gauge at helm

Engine and drive train access by way of cockpit hatch and access panel behind companionway

Steering Systems and Equipment

Stainless steel and varnished Teak Destroyer-style steering wheel

Edson steering pedestal with stainless steel binnacle guard and nav pod

Edson chain / cable and quadrant steering

Keel hung rudder

G-10 rudder post with wood / FRP constructed rudder blade

B&G Autopilot

Emergency tiller

Electrical Systems and Equipment

12-Volt DC ship’s electrical system

Separate battery banks for engine start and ship’s lighting

Rotary style main selector switches (on-off) for engine start and ship’s lighting

Blue Seas 12-Volt circuit panel

Battery charging by engine alternator

Nature Power solar panels and charge controllers

Freshwater Plumbing and Sanitation Systems

Freshwater Capacity: 10 Gallons

Stainless steel sink basin in head area

Cold pressure water supplied to head sink basin stainless steel faucet

Jabsco manually operated MSD / marine toilet

Head system plumbed for discharge overboard or to holding tank for shore-side pump-out

Blackwater Capacity: 10 Gallons

Ground Tackle Equipment

Stainless steel bow anchor roller

Rocna 15 anchor with appropriate chain and rode

Lewmar low-profile electric anchor windlass with foot controls

Anchor / chain pressurized water washdown system

Deck wash hose and hose nozzle

Dewatering Equipment

Manually operated Whale Gusher bilge pump (cockpit location)

Johnson electric / automatic cockpit sump bilge pump

Rule electric / automatic main bilge pump

Safety Equipment

PFD’s Type II in storage bag (4ea.)

PFD’s Type IV cushions (3ea.)

SOSpenders inflatable harness

Crew Saver inflatable harness and tether

First Aid kits (2ea.)

Wichard jack lines

Search Light (12 Volt plug-in)

Mustang Rescue Stick

ACR locator beacon

Emergency tiller access

Life Link man-overboard sling

Emergency whistle

Additional Equipment

Dock lines and fenders

Telescoping aluminum boat hook

Ensign and flag staff

Red fleece blankets (2ea.)

Tool kit

Miscellaneous cleaning supplies

Manuals

Mask and snorkel

Hand-held vacuum
