CONSTRUCTION

• Steel hull and aluminum superstructure

• Teak decks on all decks

• Full exterior paint job completed in 2021 by Progressive Yacht Refinishing at Lauderdale Marine Center

CONSTRUCTION

• Steel hull and aluminum superstructure

• Teak decks on all decks

• Full exterior paint job completed in 2021 by Progressive Yacht Refinishing at Lauderdale Marine Center

DIMENSIONS

General
Length Overall (LOA): 143 feet (43.58 meters)
Length Water Line (LWL): 121 feet (36.88 meters)
Beam (molded): 26 feet (7.92 meters)
Draft (loaded): 8.50 feet (2.59 meters)
Tonnage: 420 gross (125 net tons)

Capacities
Fuel Capacity: 15,500 US Gallons (58,600 liters)
Water Capacity: 4,200 US Gallons (15,900 liters)
Watermakers: (2) @ 2,500 US GPD each (9,463 liters each)
Lube Oil: 430 US Gallons (1,625 liters)
Waste Oil: 430 US Gallons (1,625 liters)

Engine Performance Details
                          Speed    RPM    Range            Fuel Burn
Maximum:    15 knots    1,700    2,550 nm        90 USG/hr
Cruising:       12 knots    1,500    3,100 nm       660USG/hr
Economical:    9 knots    1,200    4,000 nm       35 USG/hr

DIMENSIONS

General
Length Overall (LOA): 143 feet (43.58 meters)
Length Water Line (LWL): 121 feet (36.88 meters)
Beam (molded): 26 feet (7.92 meters)
Draft (loaded): 8.50 feet (2.59 meters)
Tonnage: 420 gross (125 net tons)

Capacities
Fuel Capacity: 15,500 US Gallons (58,600 liters)
Water Capacity: 4,200 US Gallons (15,900 liters)
Watermakers: (2) @ 2,500 US GPD each (9,463 liters each)
Lube Oil: 430 US Gallons (1,625 liters)
Waste Oil: 430 US Gallons (1,625 liters)

Engine Performance Details
                          Speed    RPM    Range            Fuel Burn
Maximum:    15 knots    1,700    2,550 nm        90 USG/hr
Cruising:       12 knots    1,500    3,100 nm       660USG/hr
Economical:    9 knots    1,200    4,000 nm       35 USG/hr

ACCOMMODATIONS

Owner's Suite:

Located forward on the main deck, the full‐width master suite has a king size bed. There are twin, cedar‐ lined (covered with laminate), hanging lockers in the forward bulkhead. A small vanity on the port side with a telephone on either bedside table. There are under‐bunk drawers available for storage as well as generous space on both port and starboard sides. Separate his and her baths, both with Crema Marfill marble and small built-in desk.

Guests:

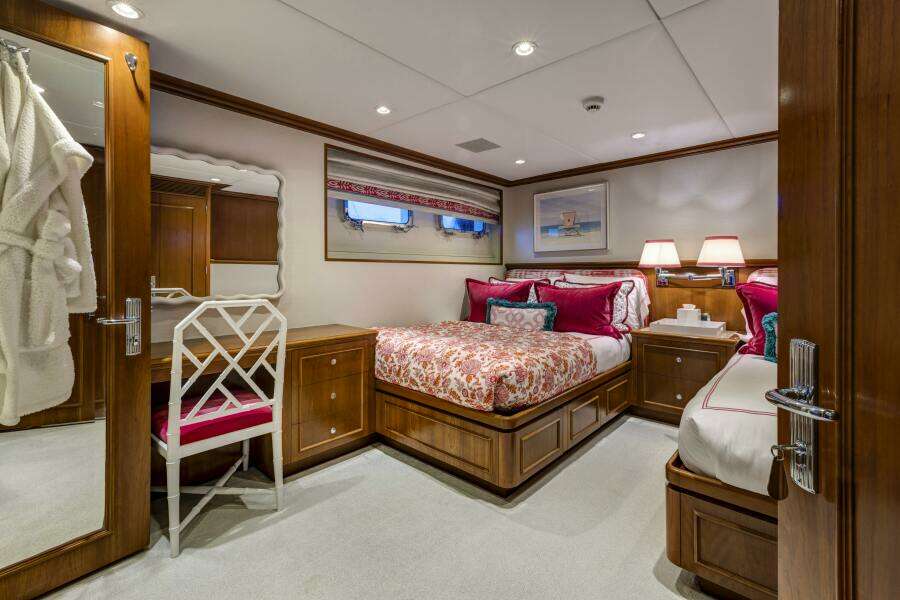

Located on the lower deck aft, there are four generous guest staterooms totaling sleeping accommodations for 14. One cabin features a queen sized bed, another features a queen, a twin and a Pullman.  The other two guest staterooms feature a full sized bed, a twin bed and a Pullman in each. All guest staterooms feature flat screen TVs and full entertainment systems as well as private en‐suite bathrooms with Crema Marfil marble and mirrored vanities.

Crew:
The captain's cabin is located on the boat deck just aft of the wheelhouse and features an en suite bath with shower. Crew accommodations are located all the way forward on the lower deck level and are separated from the guest staterooms by the mid‐ships engine room.  Crew accommodations include a double engineer's cabin and three double crew cabins, each with upper and lower berths. All crew cabins have private heads with shower facilities. An expansive crew mess/lounge accommodates a full compliment of crew.

ACCOMMODATIONS

Owner's Suite:

Located forward on the main deck, the full‐width master suite has a king size bed. There are twin, cedar‐ lined (covered with laminate), hanging lockers in the forward bulkhead. A small vanity on the port side with a telephone on either bedside table. There are under‐bunk drawers available for storage as well as generous space on both port and starboard sides. Separate his and her baths, both with Crema Marfill marble and small built-in desk.

Guests:
Located on the lower deck aft, there are four generous guest staterooms totaling sleeping accommodations for 14. One cabin features a queen sized bed, another features a queen, a twin and a Pullman.  The other two guest staterooms feature a full sized bed, a twin bed and a Pullman in each. All guest staterooms feature flat screen TVs and full entertainment systems as well as private en‐suite bathrooms with Crema Marfil marble and mirrored vanities.

Crew:
The captain's cabin is located on the boat deck just aft of the wheelhouse and features an en suite bath with shower. Crew accommodations are located all the way forward on the lower deck level and are separated from the guest staterooms by the mid‐ships engine room.  Crew accommodations include a double engineer's cabin and three double crew cabins, each with upper and lower berths. All crew cabins have private heads with shower facilities. An expansive crew mess/lounge accommodates a full compliment of crew.

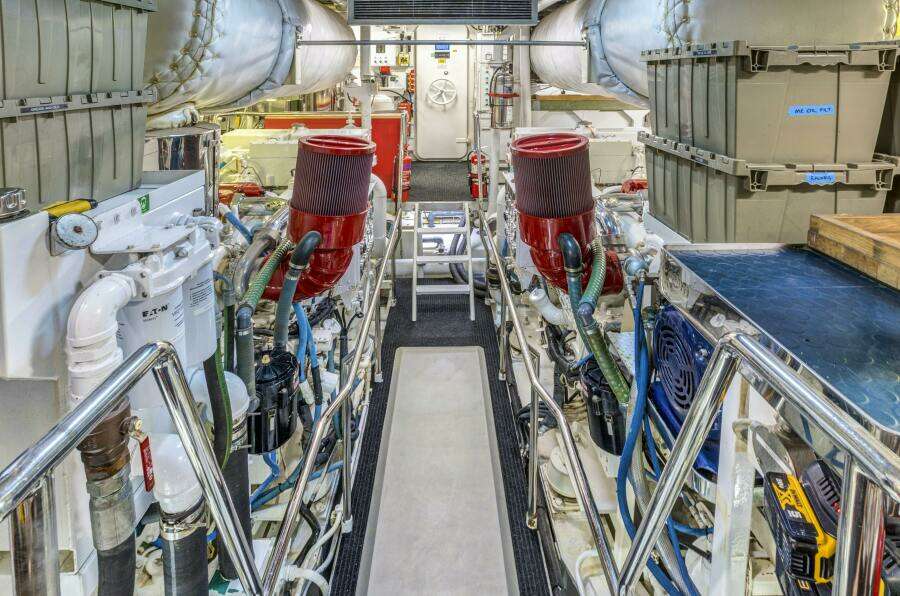

MACHINERY

Main Engines

• Engine Type:    (2) Caterpillar 3508 DI-TA diesels @ 775 HP each
  Main Engine Hours (8.2024):

  • Port:10,300

  • Starboard: 10,200

• Gearboxes for Main Engines:  Reintjes WAV640 4:!

• Drive:     Propeller


Generators & Electricity

• Generators: (2) 99kW Northern Lights, 60 Hz

• Generator Hours (8.2024):

  • Port: 32,400

  • Starboard:33,400

• Output:    110/220V/3-phase/60 Hz

• Shore Power: 208 V/3-phase/60 Hz/100amp

• Atlas Shore Power Converter 75 kW

Batteries:


• Main engine starting:(2) 24 V DC  banks of (4) Powertech 12 V 1450 CCA 8A8D AGM cell batteries

• Generator starting:(2) 24 V DC banks of (2) Powertech  12 V, 1110 CCA 8A4D AGM cell batteries

• Emergency:(2) 24 V DC banks of (2) 12 V, 970 CCA, AGM cell batteries

• Service Batteries:

  • (4) x 24v DC

  • (4) Powertech 12v 970CCA 864D AGM cell batteries

• Electrical Control Panel: Woodward

• AMS Monitoring System: RH Marine

• Watermakers: (2) Watermakers, Inc. 2500 GPD each

• Stabilizers: Quantum Zero-Speed Stabilizers; 2 fins, hydraulic

• Bow Thruster: Keypower, hydraulic

• Steering System: Tenford, electric/hydraulic

• Emergency Steering: Steering wheel with pump in the lazarette

• Fuel Separator & Filtration: Alfa Laval #MAB103B

• Sewage System: Headhunter Tidal Wave

• Hot Water:

  • (1) 80-gallon heaters in the ER

  • (1) 50-gallon heater in ER

MACHINERY

Main Engines

• Engine Type:    (2) Caterpillar 3508 DI-TA diesels @ 775 HP each
  Main Engine Hours (8.2024):

  • Port:10,300

  • Starboard: 10,200

• Gearboxes for Main Engines:  Reintjes WAV640 4:!

• Drive:     Propeller


Generators & Electricity

• Generators: (2) 99kW Northern Lights, 60 Hz

• Generator Hours (8.2024):

  • Port: 32,400

  • Starboard:33,400

• Output:    110/220V/3-phase/60 Hz

• Shore Power: 208 V/3-phase/60 Hz/100amp

• Atlas Shore Power Converter 75 kW

Batteries:


• Main engine starting:(2) 24 V DC  banks of (4) Powertech 12 V 1450 CCA 8A8D AGM cell batteries

• Generator starting:(2) 24 V DC banks of (2) Powertech  12 V, 1110 CCA 8A4D AGM cell batteries

• Emergency:(2) 24 V DC banks of (2) 12 V, 970 CCA, AGM cell batteries

• Service Batteries:

  • (4) x 24v DC

  • (4) Powertech 12v 970CCA 864D AGM cell batteries

• Electrical Control Panel: Woodward

• AMS Monitoring System: RH Marine

• Watermakers: (2) Watermakers, Inc. 2500 GPD each

• Stabilizers: Quantum Zero-Speed Stabilizers; 2 fins, hydraulic

• Bow Thruster: Keypower, hydraulic

• Steering System: Tenford, electric/hydraulic

• Emergency Steering: Steering wheel with pump in the lazarette

• Fuel Separator & Filtration: Alfa Laval #MAB103B

• Sewage System: Headhunter Tidal Wave

• Hot Water:

  • (1) 80-gallon heaters in the ER

  • (1) 50-gallon heater in ER

COMMUNICATION, NAVIGATION & ENTERTAINMENT SYSTEMS

Communication Systems

• SATCom:

  • (1) MiniM

  • (1) Seatel 4009 VSAT

• Internet: Starlink

• Telephone System: Panasonic digital PABX with Panasonic Hybrid

• SSB: (1) Furuno FS-2570C

• VHF:

  • (1) Furuno FM-8900S

  • (1) Sailor 6216

• Ships Computer: Dell Intelcore i3

• Network Printer:

  • HP multifunction fax / scanner / copier

  • Officejet Pro 6978

Navigation Systems


• Radar:

  • (2) Furuno FR-2105B

  • (2) Furuno FR-2125B

• Gyrocompass: (1) Anschutz Digital Gyro Standard 20/AnschutzBSH/46/33G/94 Gyro repeater

• Magnetic Compass: (1) Decca MK3 Observer

• AutoPilot: Anschutz Pilotstar D

• Depth Sounder:(5) B&G 20/20

• Sat Gyro:(1) Furuno FSN-70 Satellite Gyro

• GPS:

  • (2) Furuno GPS GP-33

  • (1) Northstar

  • (1) Furuno F-150

• Chart Plotters:

  • (1) Nobletech Admiral, Furuno Time Zero

  • (1) Transas

• Wind & Speed Indicator: (1) B&G 20/20 Displays and B&G Hercules II

• AIS: (1) Furuno FA-170

Entertainment Systems


• TV's:

  • (2) HD 46" 3D Main Salon

  • (1) HD 46" 3D Master Stateroom

  • (2) HD 26" Guest Staterooms, Crew Mess, Captain's Cabin

  • (1) HD 46" 3D Skylounge

  • (1) 48" Guest Stateroom

  • (1) 32" Guest Stateroom

• Satellite TV Systems: (2) Sea Tel 48" dish with Sea Tel arbitrator switchover with 9 DirectTV receivers for U.S. reception.

• Video on Demand:  (9) Apple TV units providing full video on demand

• Amplifiers:

  • (9) Marantz NR1604 5.1 AV receivers

  • (2) Devon AVR x 4700H (Skylounge & Salon

  • (2) RTI controllers XP-65 (Skylounge, Main Salon, & Master)

  • (1) Pro Controllers (Crew & Guest)

  • (2) Sonos DSP 8-130 MKII Amplifiers (Skylounge & Skydeck)

  • (6) Receivers NR 1403

  • (1) Receiver NR1711 (master)

• Music: Full boat SONOS amplifiers

• Apple Airplay

COMMUNICATION, NAVIGATION & ENTERTAINMENT SYSTEMS

Communication Systems

• SATCom:

  • (1) MiniM

  • (1) Seatel 4009 VSAT

• Internet: Starlink

• Telephone System: Panasonic digital PABX with Panasonic Hybrid

• SSB: (1) Furuno FS-2570C

• VHF:

  • (1) Furuno FM-8900S

  • (1) Sailor 6216

• Ships Computer: Dell Intelcore i3

• Network Printer:

  • HP multifunction fax / scanner / copier

  • Officejet Pro 6978

Navigation Systems


• Radar:

  • (2) Furuno FR-2105B

  • (2) Furuno FR-2125B

• Gyrocompass: (1) Anschutz Digital Gyro Standard 20/AnschutzBSH/46/33G/94 Gyro repeater

• Magnetic Compass: (1) Decca MK3 Observer

• AutoPilot: Anschutz Pilotstar D

• Depth Sounder:(5) B&G 20/20

• Sat Gyro:(1) Furuno FSN-70 Satellite Gyro

• GPS:

  • (2) Furuno GPS GP-33

  • (1) Northstar

  • (1) Furuno F-150

• Chart Plotters:

  • (1) Nobletech Admiral, Furuno Time Zero

  • (1) Transas

• Wind & Speed Indicator: (1) B&G 20/20 Displays and B&G Hercules II

• AIS: (1) Furuno FA-170

Entertainment Systems


• TV's:

  • (2) HD 46" 3D Main Salon

  • (1) HD 46" 3D Master Stateroom

  • (2) HD 26" Guest Staterooms, Crew Mess, Captain's Cabin

  • (1) HD 46" 3D Skylounge

  • (1) 48" Guest Stateroom

  • (1) 32" Guest Stateroom

• Satellite TV Systems: (2) Sea Tel 48" dish with Sea Tel arbitrator switchover with 9 DirectTV receivers for U.S. reception.

• Video on Demand:  (9) Apple TV units providing full video on demand

• Amplifiers:

  • (9) Marantz NR1604 5.1 AV receivers

  • (2) Devon AVR x 4700H (Skylounge & Salon

  • (2) RTI controllers XP-65 (Skylounge, Main Salon, & Master)

  • (1) Pro Controllers (Crew & Guest)

  • (2) Sonos DSP 8-130 MKII Amplifiers (Skylounge & Skydeck)

  • (6) Receivers NR 1403

  • (1) Receiver NR1711 (master)

• Music: Full boat SONOS amplifiers

• Apple Airplay

GALLEY & LAUNDRY EQUIPMENT

Main Galley Equipment


• Cooking Equipment:

  • (2) Miele 4x burner cooktops

  • (2) Miele ovens

  • (1) Miele microwave

  • (1) Custom range hood

• Refrigeration/Freezer:

  • (2) stainless steel built-ins (galley)

  • Fisher & Paykel refrigerator/freezer (Stew Pantry)

• Dishwasher: (1) Miele Futura Dimension

• Other:(1) Kitchen-Aid garbage disposal

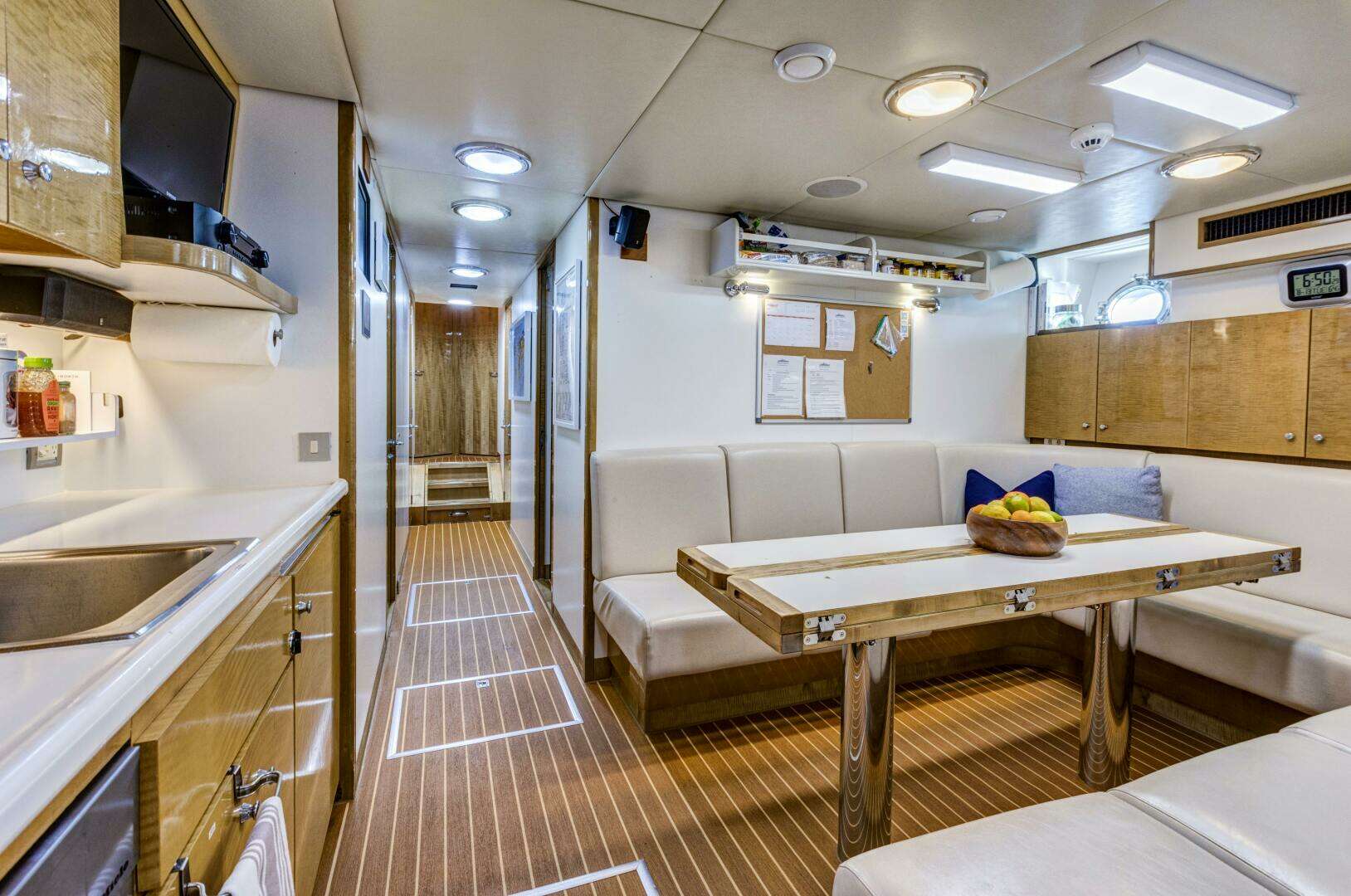

Crew Galley/Mess Equipment


• Cooking Equipment:(1) GE Microwave oven

• Refrigeration:

  • (1) Sub-Zero under counter beverage refrigerator

  • (4) True Refrigerator Fridge/Freezer

  • (1) Continental Freezer

• Dishwasher: (1) Miele Optima Series

Additional Equipment


• Refrigeration/Freezer:

  • (4) x Subzero undercounter refrigerators(Sky Lounge, Lower Guest Foyer, Sun Deck, Main Deck Aft)

  • (1) x Fisher & Paykel refrigerator/freezer(Stew Pantry Main Deck)

• Icemakers:(4) x Scotsman (Sky Lounge, Stew Pantry Main Deck, Sun Deck, Main Deck Aft)

• Dishwasher:(1) x Miele Optima Series (Stew Pantry Main Deck)

• Wine: (1) x Sub-Zero Wine Refrigerator (Stew Pantry Main Deck)

Laundry Equipment

• (2) x Miele Washers (Crew Laundry Room)

• (2) x Miele Dryers (Crew Laundry Room)

GALLEY & LAUNDRY EQUIPMENT

Main Galley Equipment


• Cooking Equipment:

  • (2) Miele 4x burner cooktops

  • (2) Miele ovens

  • (1) Miele microwave

  • (1) Custom range hood

• Refrigeration/Freezer:

  • (2) stainless steel built-ins (galley)

  • Fisher & Paykel refrigerator/freezer (Stew Pantry)

• Dishwasher: (1) Miele Futura Dimension

• Other:(1) Kitchen-Aid garbage disposal

Crew Galley/Mess Equipment


• Cooking Equipment:(1) GE Microwave oven

• Refrigeration:

  • (1) Sub-Zero under counter beverage refrigerator

  • (4) True Refrigerator Fridge/Freezer

  • (1) Continental Freezer

• Dishwasher: (1) Miele Optima Series

Additional Equipment


• Refrigeration/Freezer:

  • (4) x Subzero undercounter refrigerators(Sky Lounge, Lower Guest Foyer, Sun Deck, Main Deck Aft)

  • (1) x Fisher & Paykel refrigerator/freezer(Stew Pantry Main Deck)

• Icemakers:(4) x Scotsman (Sky Lounge, Stew Pantry Main Deck, Sun Deck, Main Deck Aft)

• Dishwasher:(1) x Miele Optima Series (Stew Pantry Main Deck)

• Wine: (1) x Sub-Zero Wine Refrigerator (Stew Pantry Main Deck)

Laundry Equipment

• (2) x Miele Washers (Crew Laundry Room)

• (2) x Miele Dryers (Crew Laundry Room)

DECK EQUIPMENT

• Anchor Windlass:(2) Steen 208 volt AC

• Anchors:(2) Poole, 530 lb (240 kg) each, galvanized steel anchors

• Anchor Chain:(2) 450' of 19mm galvanized chain

• Davit: Nautical Structures #HMC1100, hydraulic (Foredeck)

• Boarding Ladders: Stainless Steel

• Passerelle: Nautical Structures, 550lb (250 kg) (port transom)

• Swim Ladder: (1) stainless steel

• Deck Shower: Yes, Swim Platform

• Jacuzzi: Yes, Sun Deck

• Side Boarding Ladders: (2)

DECK EQUIPMENT

• Anchor Windlass:(2) Steen 208 volt AC

• Anchors:(2) Poole, 530 lb (240 kg) each, galvanized steel anchors

• Anchor Chain:(2) 450' of 19mm galvanized chain

• Davit: Nautical Structures #HMC1100, hydraulic (Foredeck)

• Boarding Ladders: Stainless Steel

• Passerelle: Nautical Structures, 550lb (250 kg) (port transom)

• Swim Ladder: (1) stainless steel

• Deck Shower: Yes, Swim Platform

• Jacuzzi: Yes, Sun Deck

• Side Boarding Ladders: (2)

SECURITY, FIRE FIGHTING & SAFETY EQUIPMENT

Security Equipment

• CCTV System: CCTV with (4) x cameras (Mast facing aft, port and starboard side main deck, main deck aft)

• Monitors: (2) x monitors (Pilothouse and Crew Mess)

Fire-Fighting Equipment

• Fire Control System: BSCO FE25 fixed system

• Fire Hydrants and Hoses: Throughout vessel

• Fire Extinguishers: Throughout vessel

• Fire Monitoring System:  New control panel in Pilothouse installed in 2019

SECURITY, FIRE FIGHTING & SAFETY EQUIPMENT

Security Equipment

• CCTV System: CCTV with (4) x cameras (Mast facing aft, port and starboard side main deck, main deck aft)

• Monitors: (2) x monitors (Pilothouse and Crew Mess)

Fire-Fighting Equipment

• Fire Control System: BSCO FE25 fixed system

• Fire Hydrants and Hoses: Throughout vessel

• Fire Extinguishers: Throughout vessel

• Fire Monitoring System:  New control panel in Pilothouse installed in 2019

REFIT WORK UNDER CURRENT OWNERSHIP- VESSEL PURCHASED IN JULY 2019

Highlights

• Full exterior paint job completed in 2021 by Progressive Yacht Refinishing at LMC in Fort Lauderdale

• New headhunter system aboard, all new toilets

• Every single air handler replaced (26 total) and new a/c chiller plant by Beard Marine

• Replated the engine room bulkhead

• Resurfaced all water tanks

• Full interior refit- wall coverings, headliners, linens, interior and exterior cushions

• A/V and I/T- installed Starlink, replaced all televisions, Apple TV's, new wiring, etc.

• Navigation- redid Pilothouse console, new AIS, new VHF's, new single side band, new GPS (2)

• New teak on bridge deck aft

Survey Status

• Bureau Veritas special 35 year survey completed in 2022

• Annual survey valid until January 2025

• Currently Caymen Island flag

Hull


• All new threw hull valves in 2022

• New hull paint

• Engine room bulkhead replated

• Main Engines & Gear Boxes:    STBD and Port injectors replaced

• Vale adjustments

• Borescope inspection

• New vibration dampeners

• Replaced seawater pipework

• Full rebuild of both gearboxes

• New heat exchangers on both gearboxes

• Shafts removed for 35 year survey and shaft seals replaced

• New engine mounts

Quantum Stabilizers: Complete overhaul completed - removed shafts, new cylinders, pumps serviced

Generators:


• New wiring harness on port and stbd. generators

• New fly wheel on port generator

• Sensors and switches health checks

Water makers: New water maker membranes

Air conditioning and Refrigeration


• All new air handlers

• Old air conditioning system replaced with (3) new Dometic chillers

• (5) New True Refrigeration fridge/freezers with stand alone compressors

• Regular inspection of ductwork and cleaning of galley, laundry, and interior ventilation and of the air handlers ducting

Tankage:


• All tanks cleaned and painted

• Regular hyperchlorination of fresh water tanks

• New gaskets on tank lids

• Replaced all fuel tank senders and calibrated

Blackwater System:


• New grey water pumps

• New black water discharge pump

• Tank vents cleaned

• New media

• System calibrated and tested

Oily Water Separator: Full service

Interior: Full interior refit

Galley and Pantry


• Install (2) new Meile induction combo cook tops

• Install (2) new Meile ovens

• (2) New Icemakers

Wheelhouse:


• New fire detection panel

• Rebuilt air control valves

• (3) New monitoring screens with HDMI switch's

• Hydraulics, bow thruster, and windlass

• All oils replaced

• New hydraulic filters

• Bow thruster hoses replaced

• Full service of anchor windlass and breaks, including oil change

• New electric motor for windlass

• New anchor swivels

• 5-year load testing of the crane

• Replaced rotary actuator and slew bearing on the forward crane

• Replaced the electrical control system of the forward crane

• Replaced the electrical system of the passarelle

• Replaced step hydraulic cylinder of the passarelle

Electrical


• New starter banks

• All banks load tested

Fresh water


• New head hunter fresh water pumps

• New hot water boiler installed

• New water softener installed in Lazarette

REFIT WORK UNDER CURRENT OWNERSHIP- VESSEL PURCHASED IN JULY 2019

Highlights

• Full exterior paint job completed in 2021 by Progressive Yacht Refinishing at LMC in Fort Lauderdale

• New headhunter system aboard, all new toilets

• Every single air handler replaced (26 total) and new a/c chiller plant by Beard Marine

• Replated the engine room bulkhead

• Resurfaced all water tanks

• Full interior refit- wall coverings, headliners, linens, interior and exterior cushions

• A/V and I/T- installed Starlink, replaced all televisions, Apple TV's, new wiring, etc.

• Navigation- redid Pilothouse console, new AIS, new VHF's, new single side band, new GPS (2)

• New teak on bridge deck aft

Survey Status

• Bureau Veritas special 35 year survey completed in 2022

• Annual survey valid until January 2025

• Currently Caymen Island flag

Hull


• All new threw hull valves in 2022

• New hull paint

• Engine room bulkhead replated

• Main Engines & Gear Boxes:    STBD and Port injectors replaced

• Vale adjustments

• Borescope inspection

• New vibration dampeners

• Replaced seawater pipework

• Full rebuild of both gearboxes

• New heat exchangers on both gearboxes

• Shafts removed for 35 year survey and shaft seals replaced

• New engine mounts

Quantum Stabilizers: Complete overhaul completed - removed shafts, new cylinders, pumps serviced

Generators:


• New wiring harness on port and stbd. generators

• New fly wheel on port generator

• Sensors and switches health checks

Water makers: New water maker membranes

Air conditioning and Refrigeration


• All new air handlers

• Old air conditioning system replaced with (3) new Dometic chillers

• (5) New True Refrigeration fridge/freezers with stand alone compressors

• Regular inspection of ductwork and cleaning of galley, laundry, and interior ventilation and of the air handlers ducting

Tankage:


• All tanks cleaned and painted

• Regular hyperchlorination of fresh water tanks

• New gaskets on tank lids

• Replaced all fuel tank senders and calibrated

Blackwater System:


• New grey water pumps

• New black water discharge pump

• Tank vents cleaned

• New media

• System calibrated and tested

Oily Water Separator: Full service

Interior: Full interior refit

Galley and Pantry


• Install (2) new Meile induction combo cook tops

• Install (2) new Meile ovens

• (2) New Icemakers

Wheelhouse:


• New fire detection panel

• Rebuilt air control valves

• (3) New monitoring screens with HDMI switch's

• Hydraulics, bow thruster, and windlass

• All oils replaced

• New hydraulic filters

• Bow thruster hoses replaced

• Full service of anchor windlass and breaks, including oil change

• New electric motor for windlass

• New anchor swivels

• 5-year load testing of the crane

• Replaced rotary actuator and slew bearing on the forward crane

• Replaced the electrical control system of the forward crane

• Replaced the electrical system of the passarelle

• Replaced step hydraulic cylinder of the passarelle

Electrical


• New starter banks

• All banks load tested

Fresh water


• New head hunter fresh water pumps

• New hot water boiler installed

• New water softener installed in Lazarette
