2026 Custom 85'
25.91 m
2026 Custom 85' AES 85
- 25.91 m
- Diesel
- Power
- Motor Yachts
2026 Custom AES 85
85' (25.91 m) AES

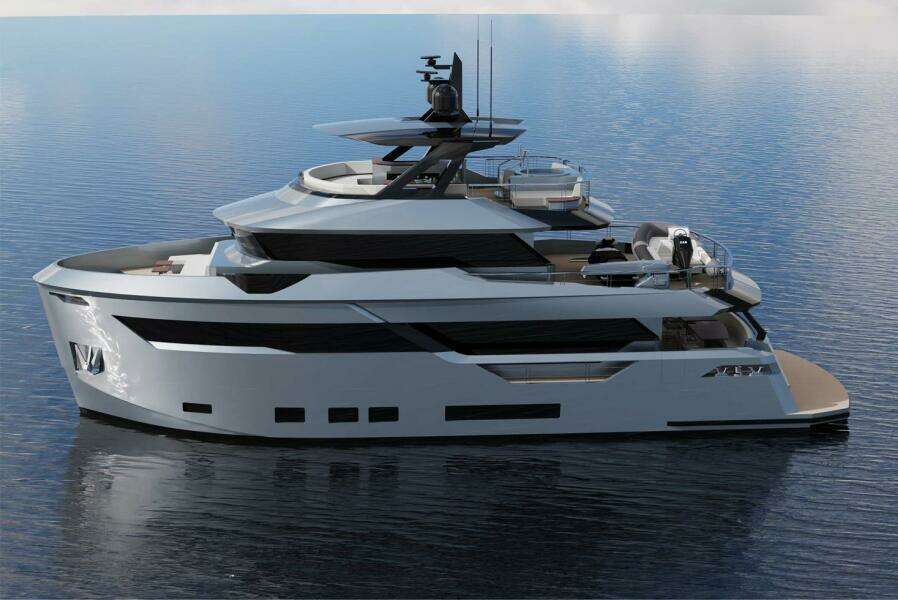

The AES 85 is a substantial pocket explorer which features a full displacement steel hull and aluminum superstructure.
Flag of Registry: Malta
| FEATURES: |
|---|
2026 Custom 85' AES 85
- 25.91 m
- Diesel
- Power
- Motor Yachts
€ 9,950,000 Euro
$ 15,618,542 CAD*£ 8,471,983 GBP*$ 11,492,250 USD*
Description
The AES 85 is a substantial pocket explorer which features a full displacement steel hull and aluminum superstructure. Twin Cummins give her a trans-Atlantic range while zero speed stabilizers assure comfort both underway and at anchor. A fully bespoke interior by Milan based Hot Lab sleeps 8 guests in 4 cabins with accommodations for 4 crew in 2 cabins.
The hull and superstructure are completed with construction will underway. Delivery is scheduled for mid-2026 so you can have her dully ready for the 2026 Mediterranean summer season.
The buyer still has the ability to customize the interior décor with Hot Lab to suit their personal style and taste.
Excellent opportunity with a fast delivery date.
Full presentation available upon request.
LOA85'
LOA25.91''
Beam26'
Beam Inch2''
Draft Max Feet8'
Draft Max Inch2''
Fuel Tank (Gallons)9247
Fuel Tank (Liters)35003.69
Fresh Water (Gallons)924
Fresh Water (Liters)3497.72
Holding Tank (Gallons)951
Holding Tank (Liters)3599.92
TypePower
ConditionNew
Specifications
AES
PENDING
B94558
Power-New
2026
26'2"
78'7"
8'2"
4
8
5
2
4
11 Knots
8 Knots
Diesel
Aluminum
Steel
9247 Gallons (35003.69 Liters)
924 Gallons (3497.72 Liters)
951 Gallons (3599.92 Liters)
Hot Lab
AES Yachts
Engines
Engine 1
- Engine Make: Cummins
- ModelEngine Model: QSM 11
- Engine TypeEngine Type: Inboard
- Power HPPower HP: 455.00
- Power KWPower KW: 339.29
- Feul TypeFeul Type: Diesel
- Engine LocationEngine Location: Port
Engine 2
- Engine Make: Cummins
- ModelEngine Model: QSM 11
- Engine TypeEngine Type: Inboard
- Power HPPower HP: 455.00
- Power KWPower KW: 339.29
- Feul TypeFeul Type: Diesel
- Engine LocationEngine Location: Starboard
Generators
Generator 1
- Generator Make: Kohler
- Generator KW: 35.00
Generator 2
- Generator Make: Kohler
- Generator KW: 35.00
Full Details
Technical Details
Builder: AES Yachts
Year: 2026
Exterior Design: AES Yacht
Interior Design: Hot Lab
Naval Architecture & Engineering: AES Yacht/Endaze Engineering
Length Overall: 26.0 m/85 ft
Length at Waterline: 23.95 m/78.5 ft
Breadth Max: 8.0 m/26.2 ft
Draft: 2.5 m/8.2 ft
Gross Tonnage: 235 gt
Hull Material: Steel
Superstructure Material: Aluminum
Class: RINA, CE Category A, Module G
Flag: Maltese
Engines: (2) Cummins QSM 11 455 hp
Max Speed: 11 knots
Cruising Speed: 8 knots
Range at Cruising Speed: 6,000 nm
Generators: (2) Kohler 35 kW @1,500 rpm 50 Hz, 400V
Fuel Tank Capacity: 35,000 liters/9,247 gallons
Fresh Water Tank Capacity: 3,500 liters/924 gallons
Sewage Tank Capacity: 3,600 liters/951 gallons
Staterooms: 4; sleeps 8 guests
Crew Cabins: 2; sleeps 4 crew
PROPULSION & AUXILIARY MACHINERY
- ZF Gearbox
- F51 Duplex stainless steel shaft
- (4) Control stations
- Aluminum bronze propeller
- Bow Thruster: (1) Sleipner SH550, hydraulic
- Stern Thruster: (1) Sleipner SH550, hydraulic
- Data hydraulic steering system
- Stabilizers: Sleipner, zero speed, vector fin kit 1.95 sqm
- Danfoss PTO pumps
- Water Makers: 460 liters(121 gallons)/hour total, duplex, Idromar
- Idromar fresh water systems
- Air Conditioning: Mediterranean Climate - Webasto
- Engine Room Inlet & Outlet Fans: (2) Gianneschi
- Fuel Filtration: (1) Alfa Laval
- Sewage Treatment System: Hamann, HL compact 3,000 liters (792 gallons)/day
- Tecma toilet system
- Gianneschi pumps
- (1) Alfa Laval fuel separator and filters
- (1) Atlas Copco compressor
- Kahlenberg air horn
ELECTRICAL SYSTEMS
- Electrical Supplies: 230/400V - 50hz
- Batteries Starter & Service: Mastervolt or Victron
- Service Generator: (2) Kohler 35 kW with Sound Encloser
- Shore Power: (1) Glendenning Cable Master
- AV & IT Automation System: KNX, ABB
DECK EQUIPMENT & COATING
- (2) Data hydraulic anchor winches (windlasses)
- (2) Data hydraulic mooring winches (capstans)
- (2) Data hydraulic anchor & anchor chain
- Tender Crane: (1) Opacmare - Loading capacity 1,000 kg
- Transformer: (1) Opacmare 5 steps - Lifting capacity 420 kg
- Passarelle: (1) Opacmare - Length 5.040 mm
- Electrical Sliding Doors: (2) Besenzoni or Makro Yachts
- (8) Underwater lights or Oceanled
- Awl Grip top coat (topsides & superstucture)
SAFETY SYSTEMS
- Sliding Watertight Doors: Winel or equal
- Fire Fighting: Fire Pro FP 1200
- Fire Detection & Alarm: Tyco T2000 or Consilium
- Security (CCTV): Samsung
NAVIGATION & ELECTRONIC EQUIPMENT
- Furuno navigation equipment
- Navigation lights
- (1) Intellian TV antennas
- Network IT system
- 4G/WiFi system
