Overview

Exterior

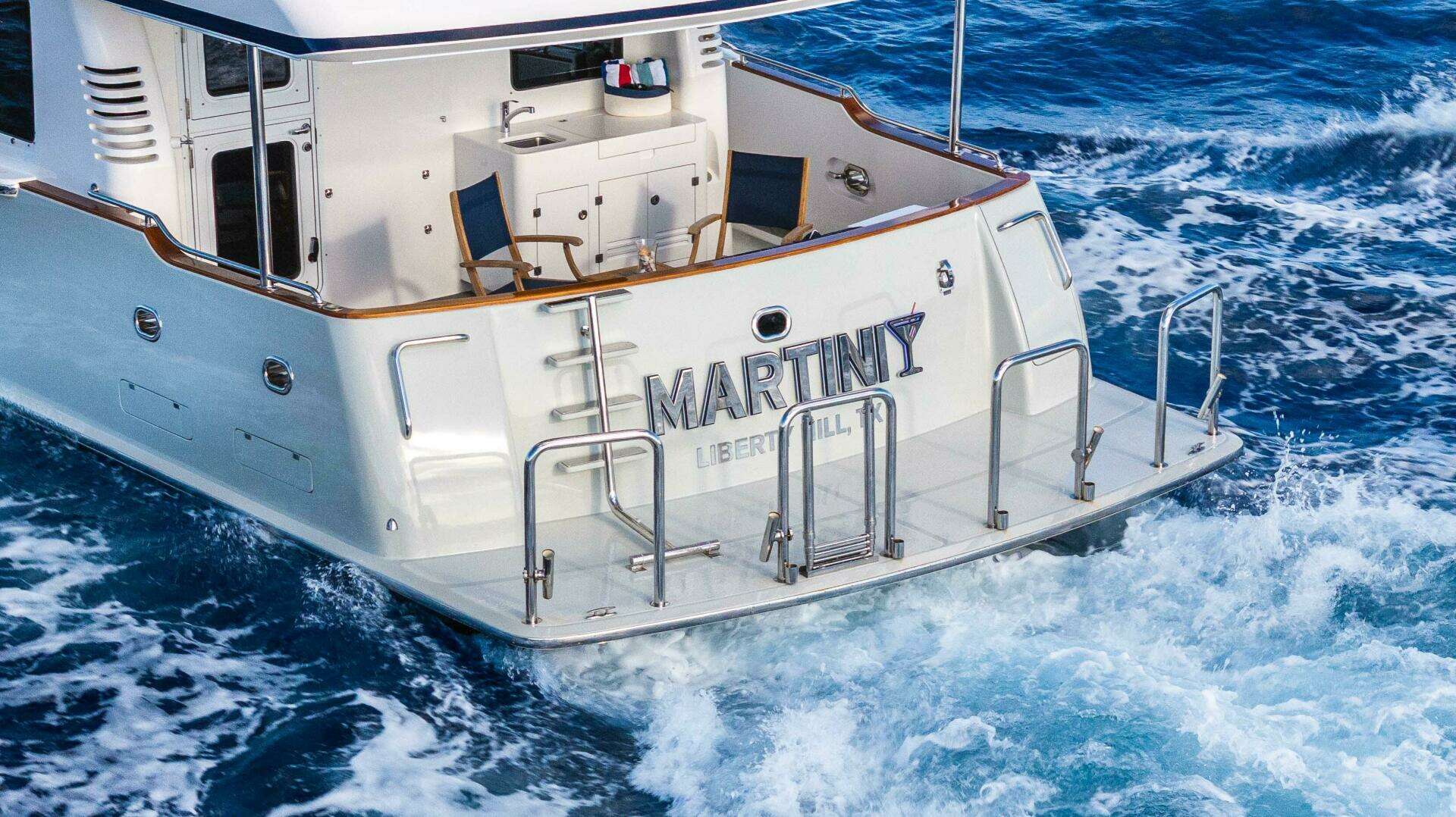

Swim platform extended from factory features

• Staple rails
• Custom MOB ladder
• Large folding down swim ladder with custom securing pin (more robust than factory)
• Glendinning shore power cord system (50amp plug – 65ft length)
• Bimini Shade with carbon fiber poles can be set up for shade or buttoned down for privacy

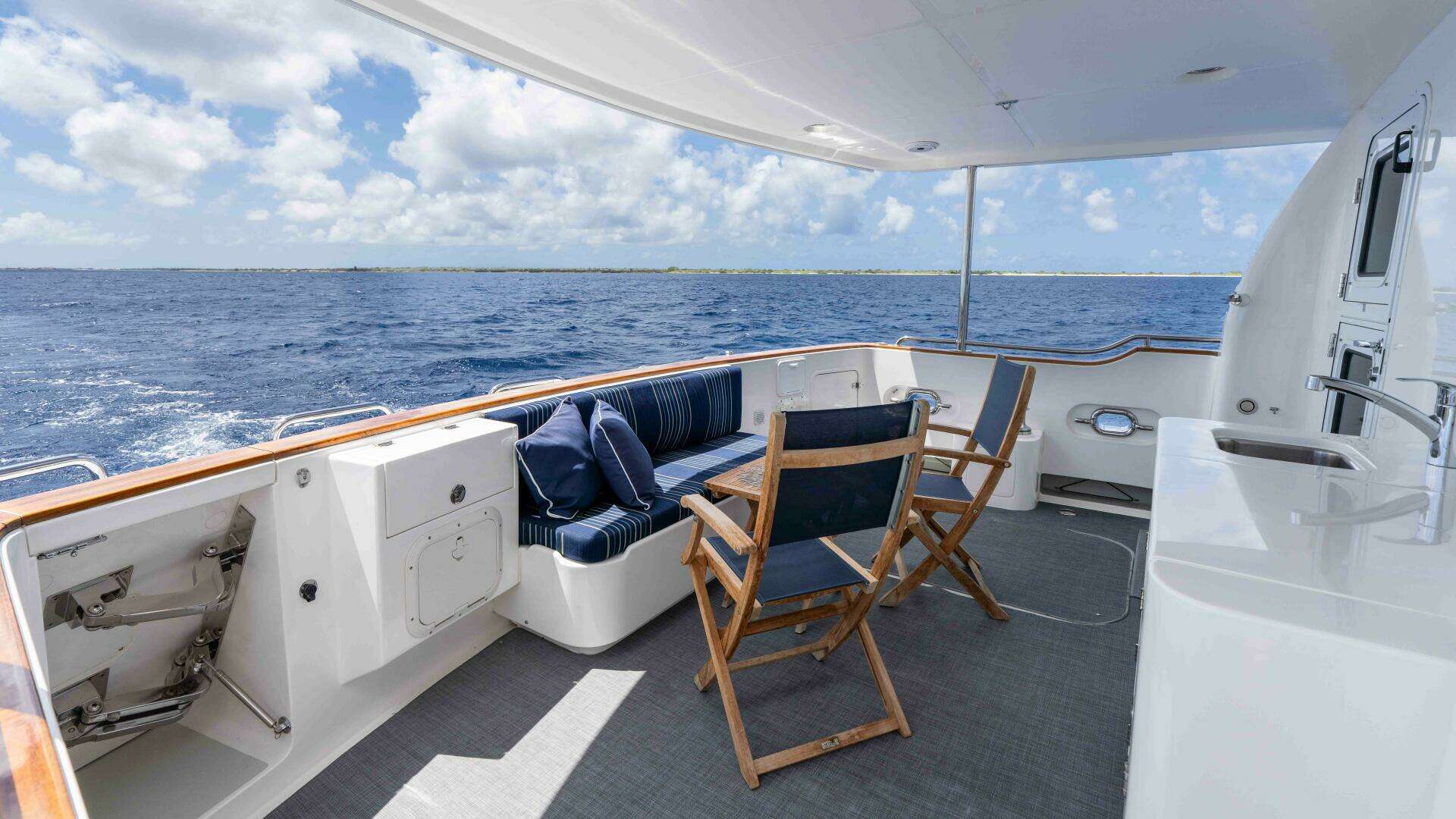

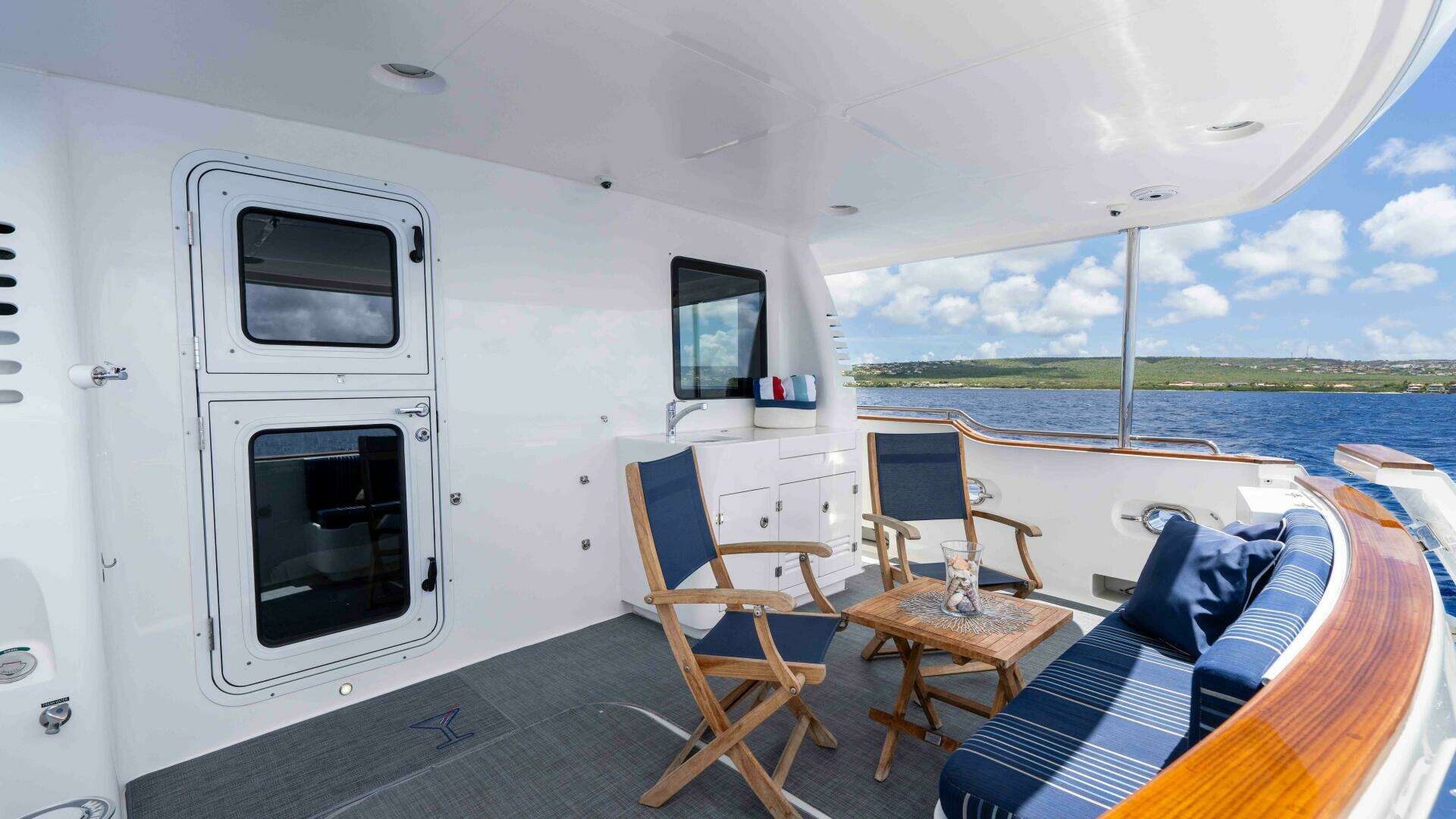

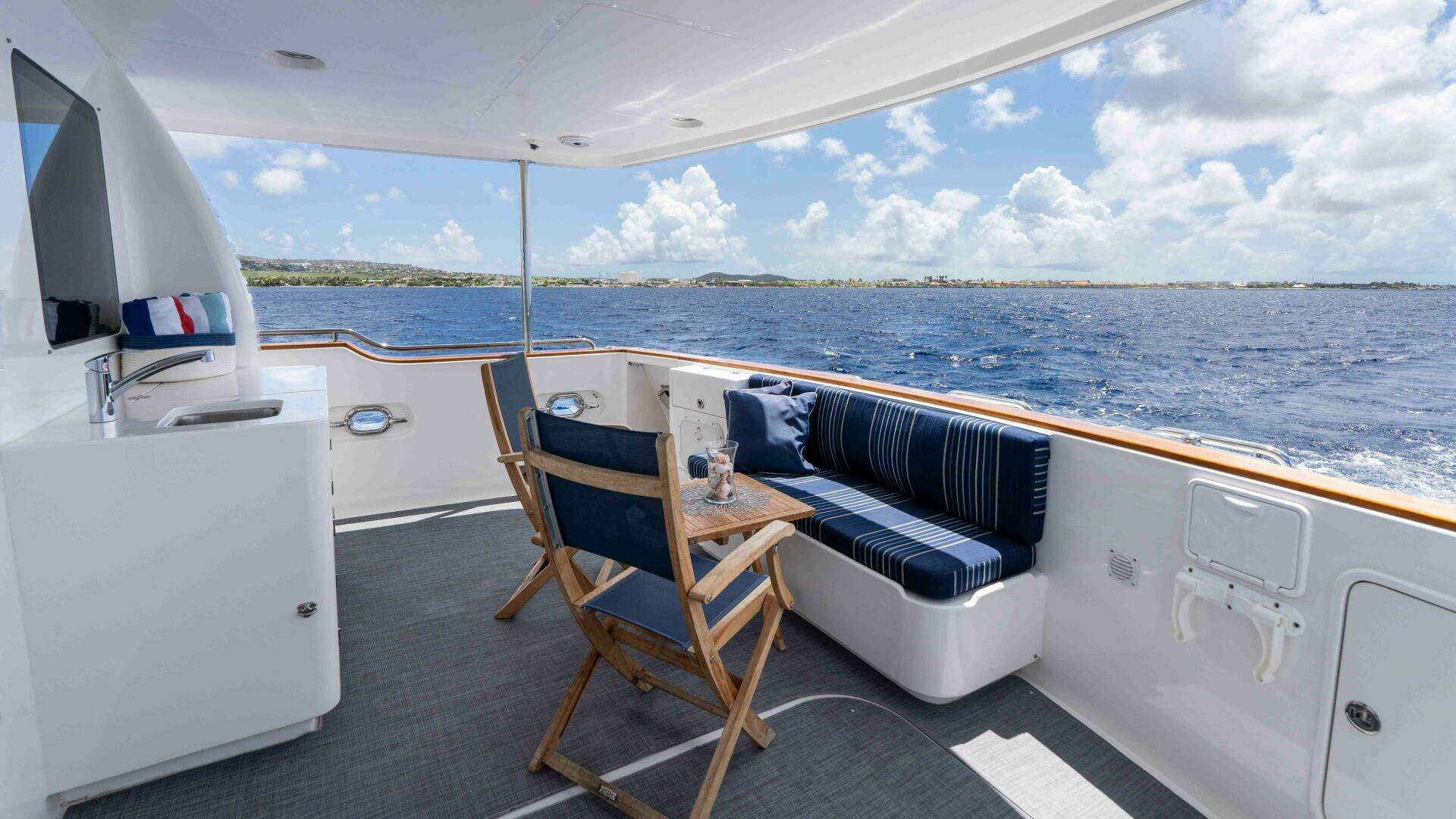

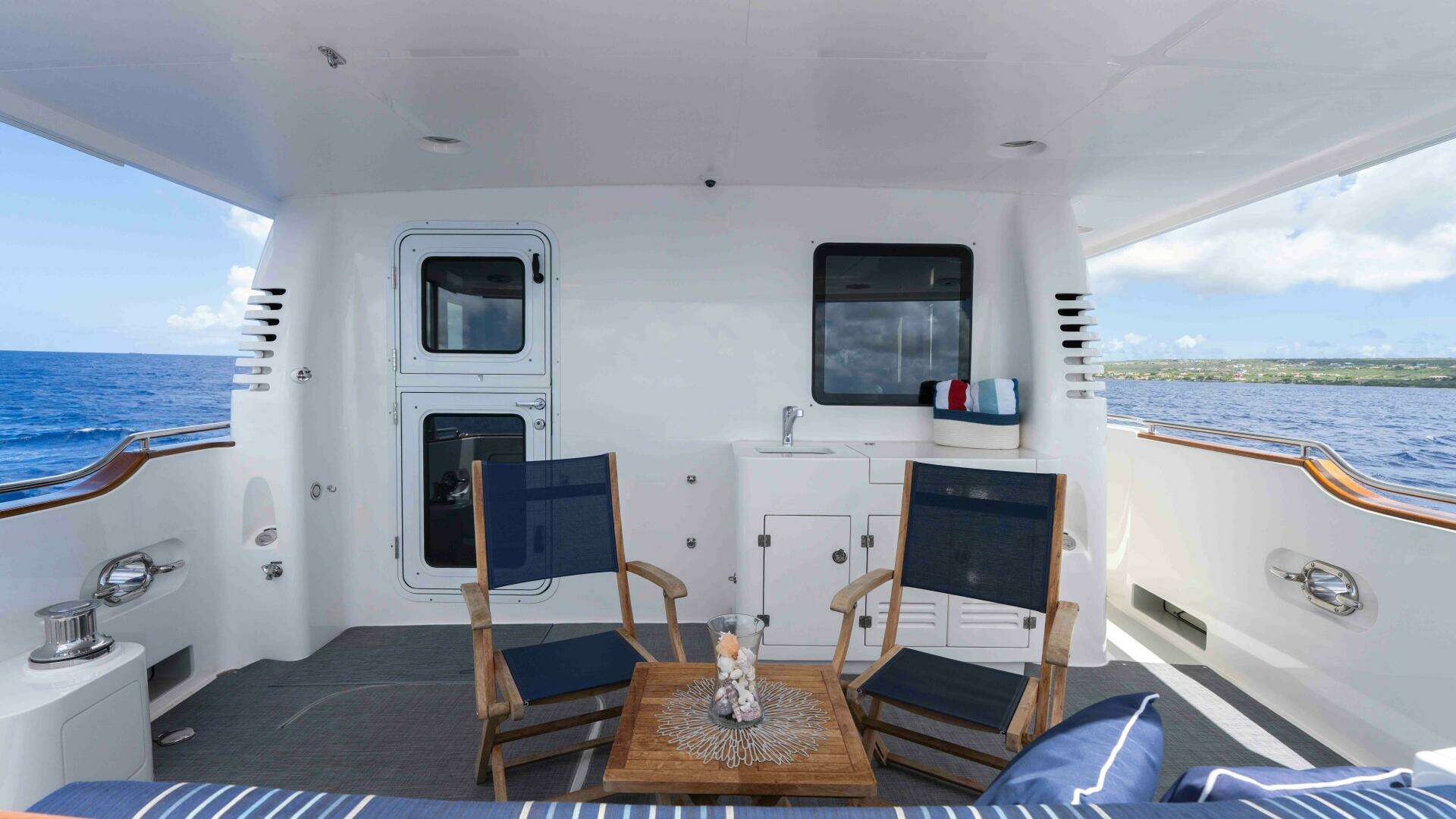

Aft Deck

• Side shade curtains
• Soft infinity decking throughout
• Wet-bar with sink
• Isothem refrigerator
• Miele BBQ grill
• Tackle drawer storage
• WiseNet Aft Facing Camera
• JL Audio Stereo Speakers
• Drink table which mounts into rod holder
• Hamock chair with eye to clip in on the deck head which doubles up as a lifting point for removing heavy items out of lazarette
• Soft infinity decking throughout
• Comfortable seating with additional teak table and chairs which have a stow away spot for heavy weather
• Hot & Cold Shower hose
• Maxwell VC2000 stern capstan
• Power lift for lazarette hatch

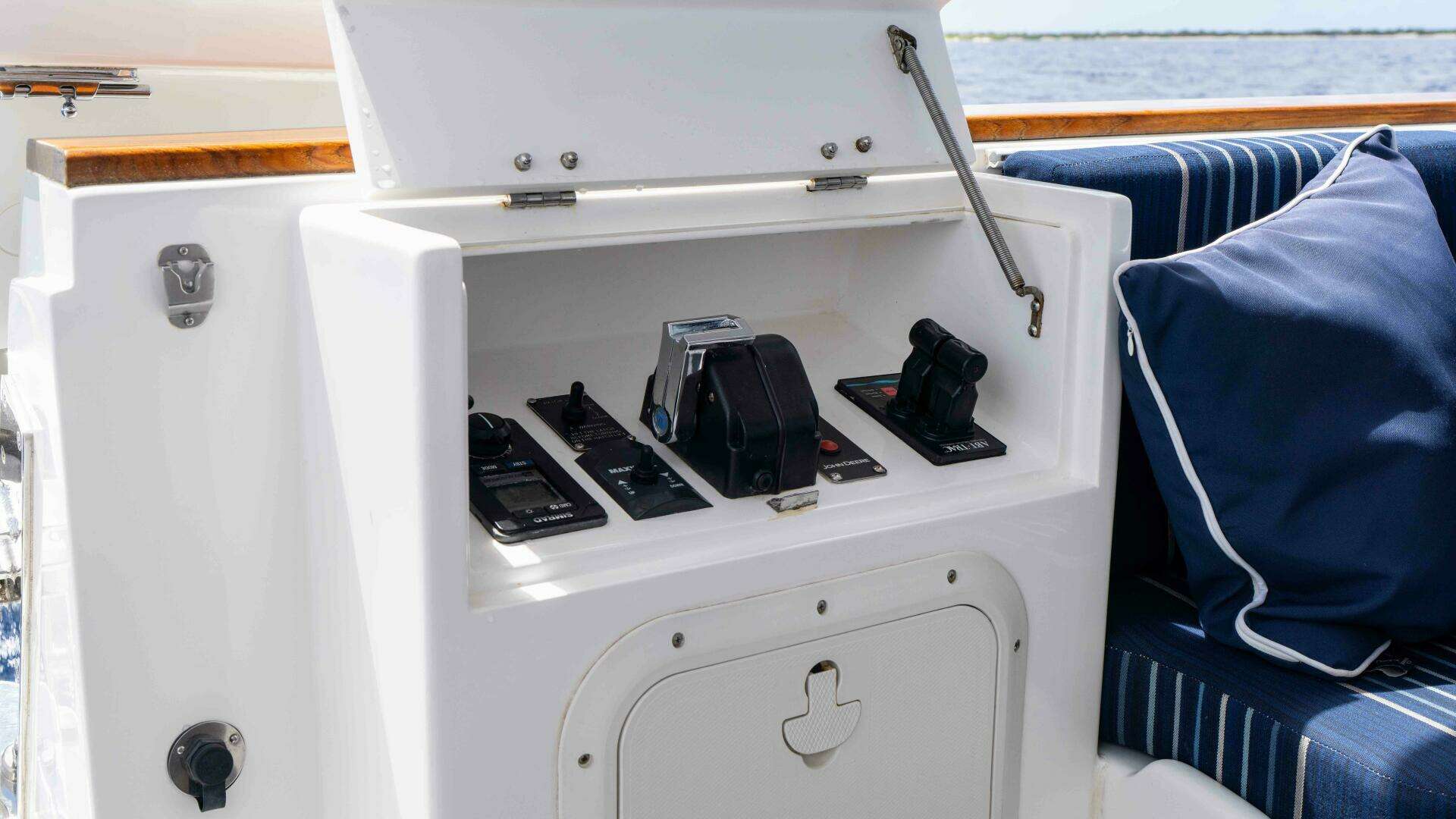

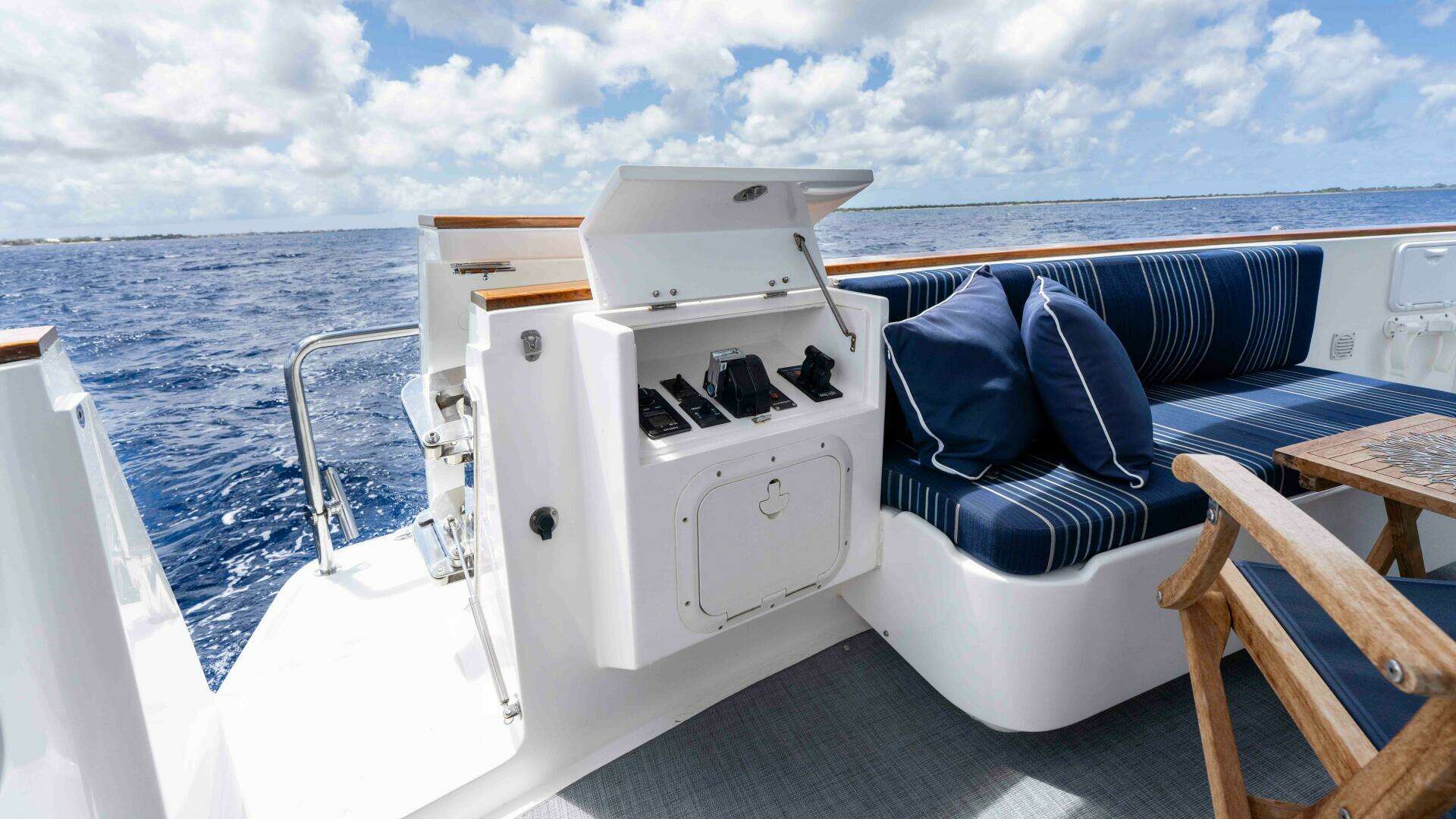

Aft docking station

• Electronic gear controls
• Icom HM-195GB VHF radio
• Bow & Stern thruster controls
• Windlass control
• Steering control

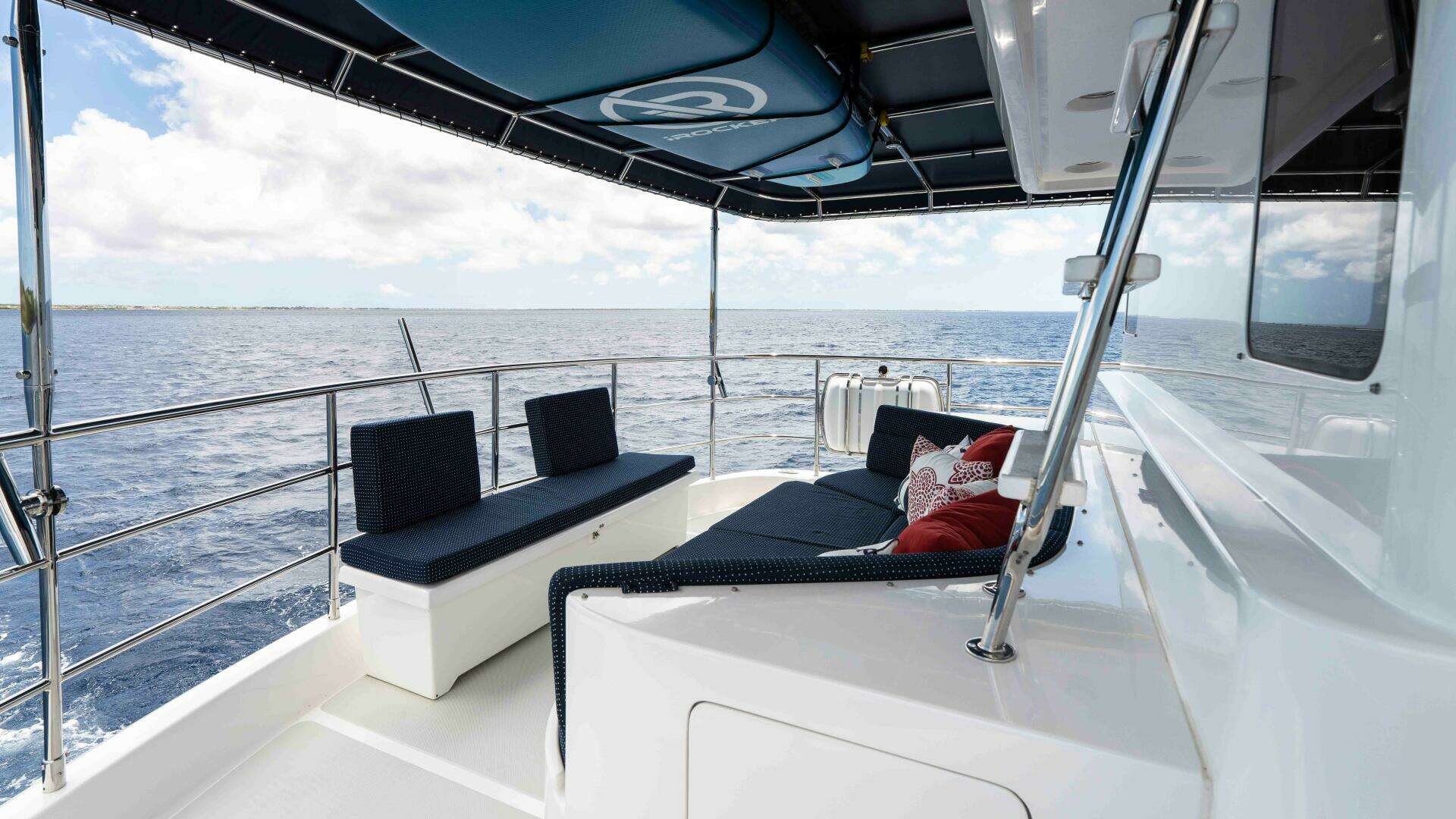

Bridge deck

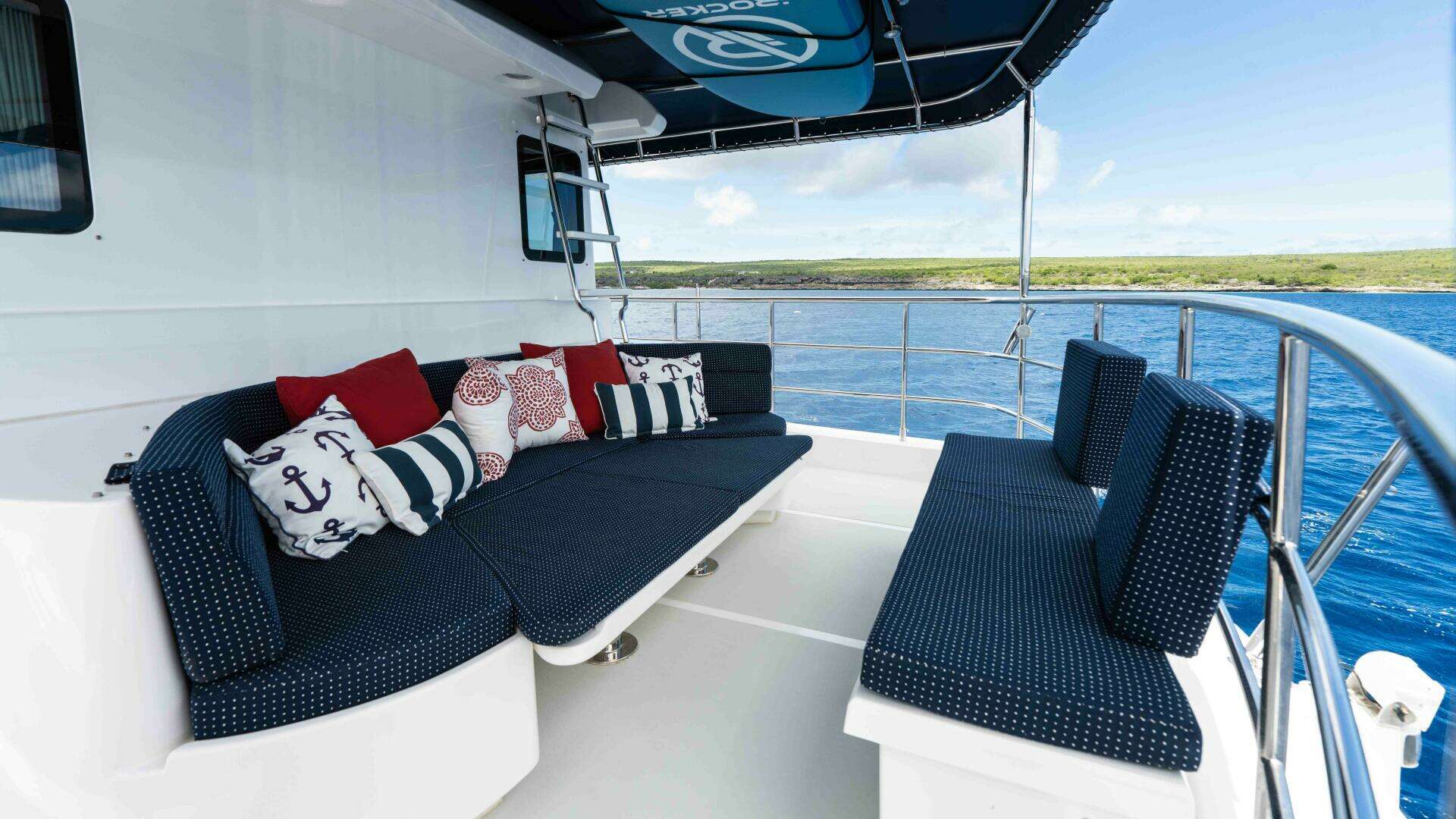

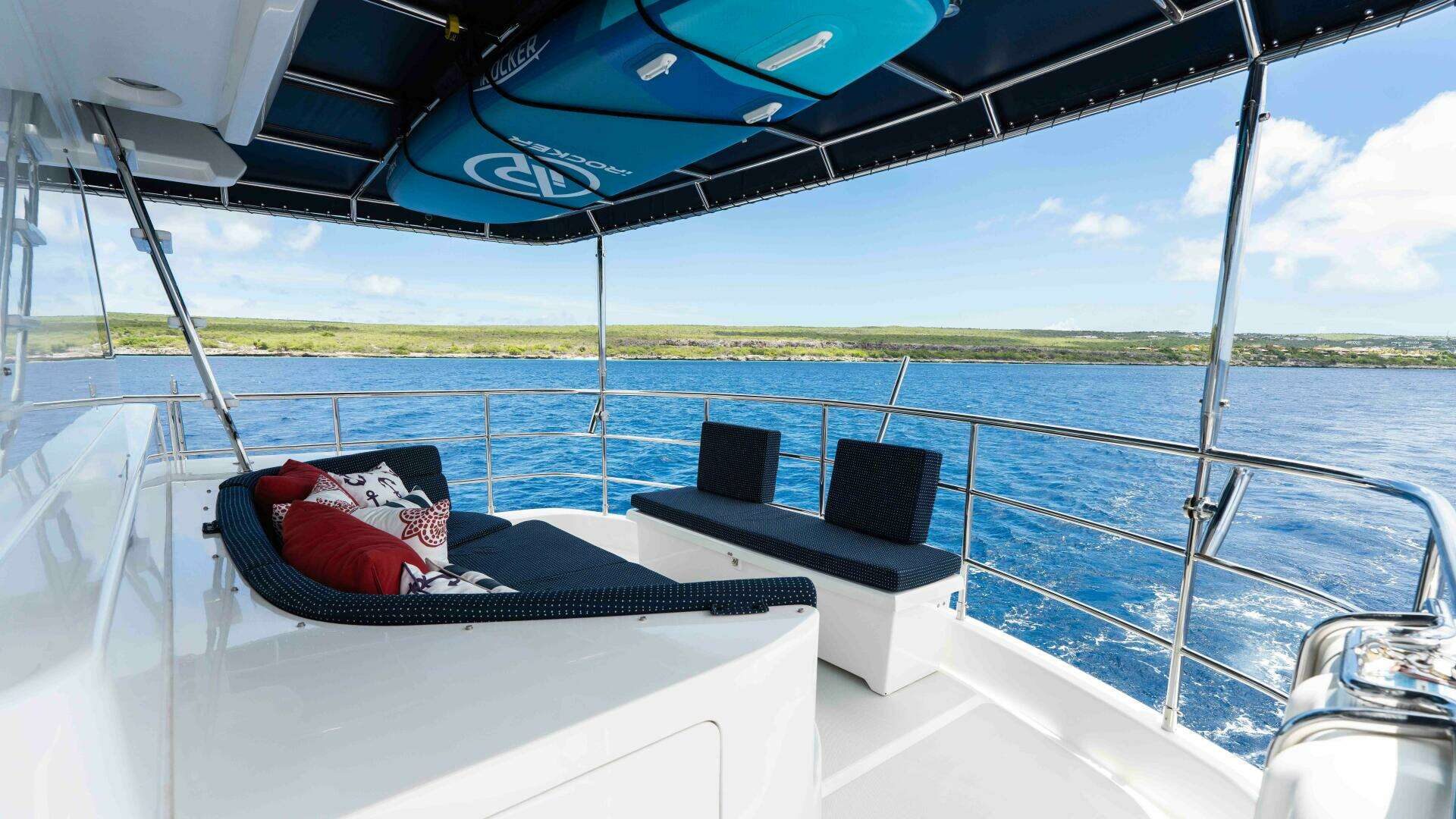

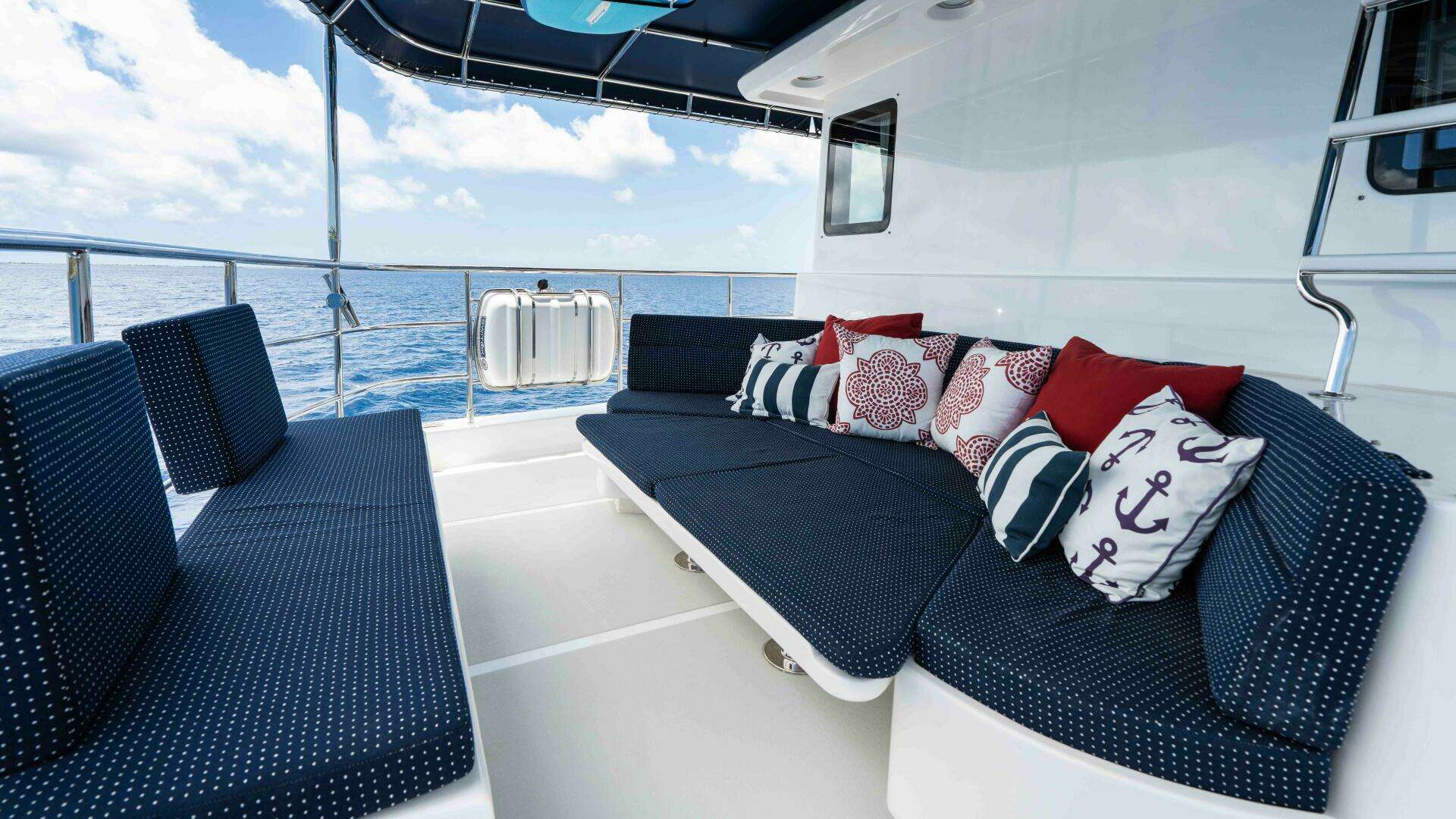

• Comfortable U-shaped settee with dining table which drops to convert the seating into a day bed
• Opposing is a custom bench seat with storage
• Rod holders mounted to stainless rails plus additional rod storage rack on deck head
• Stainless steel awning over bridge deck aft which wraps around the sides with built-in lights as well as a custom stainless steel pully system and stainless steel racks for kayaks
• Wing stations to both port and starboard for easy docking that feature: Electronic gear controls, Icom HM-195GB VHF radio, Bow & Stern thruster controls, Windlass control & Steering control as well as upgraded bracket to hold hatch open in strong winds
• Life Raft
• Life Ring
• Sea anchor and drogue for extreme weather conditions
• ACR EPIRB (mounted on monkey island)

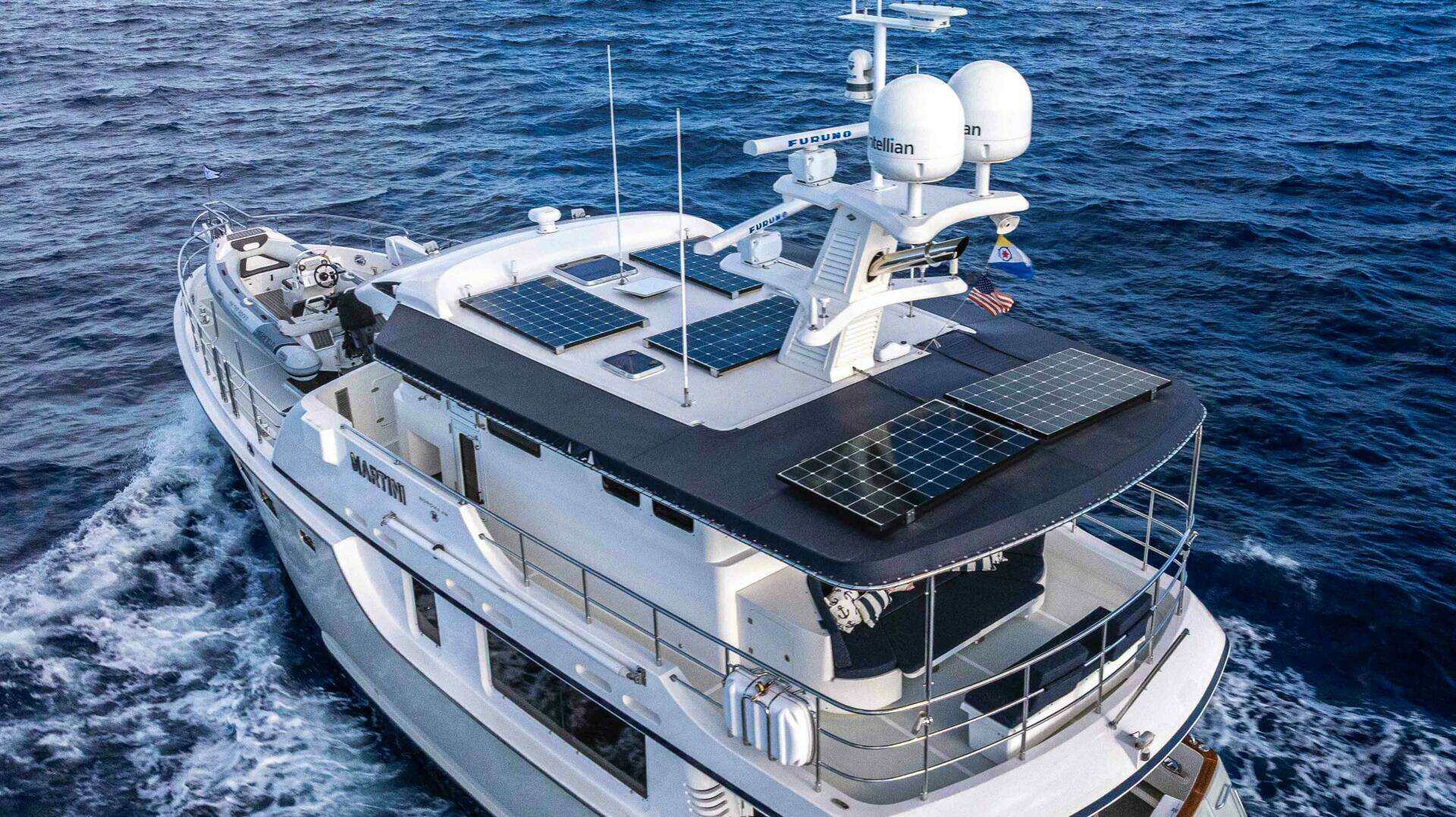

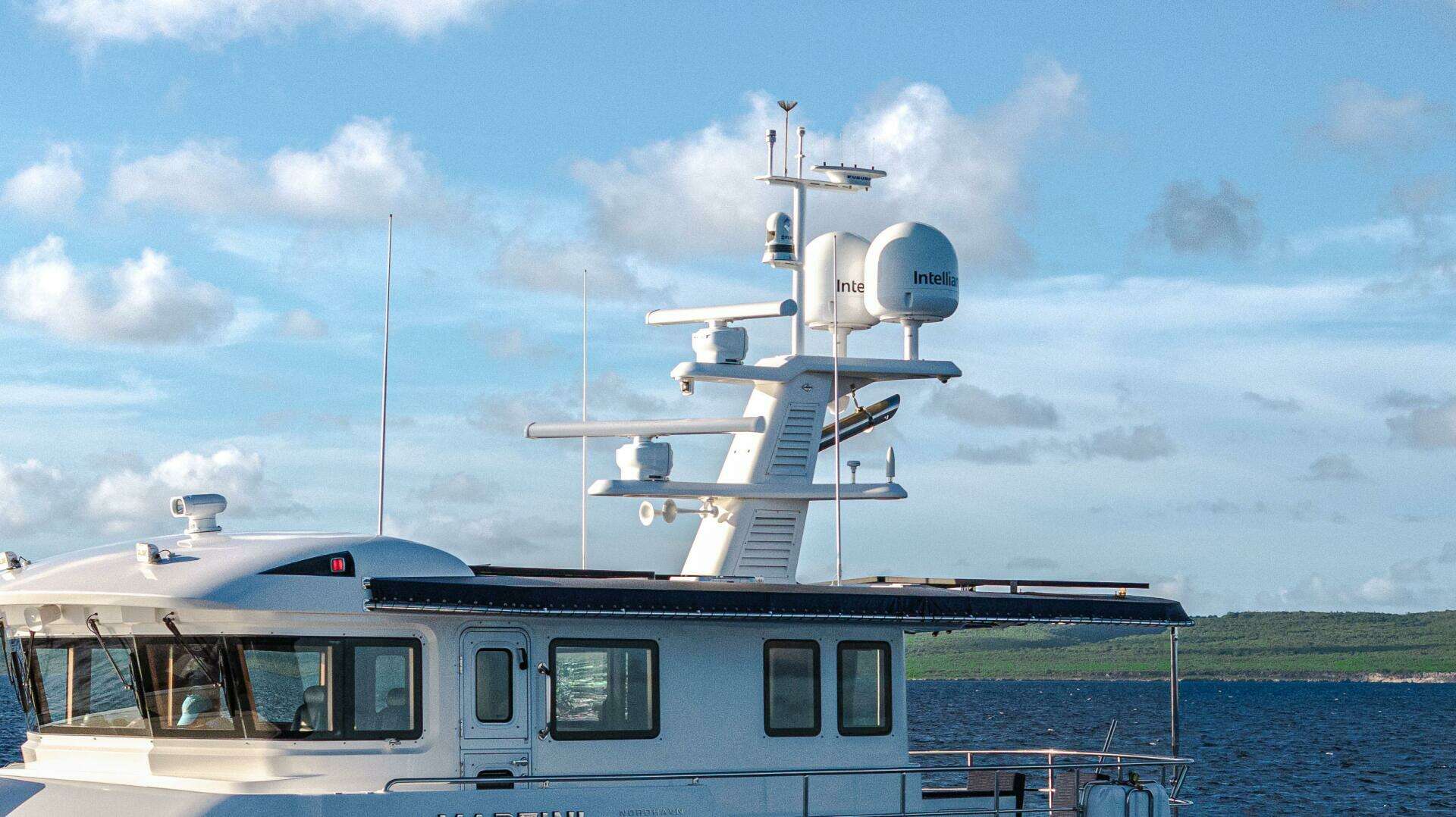

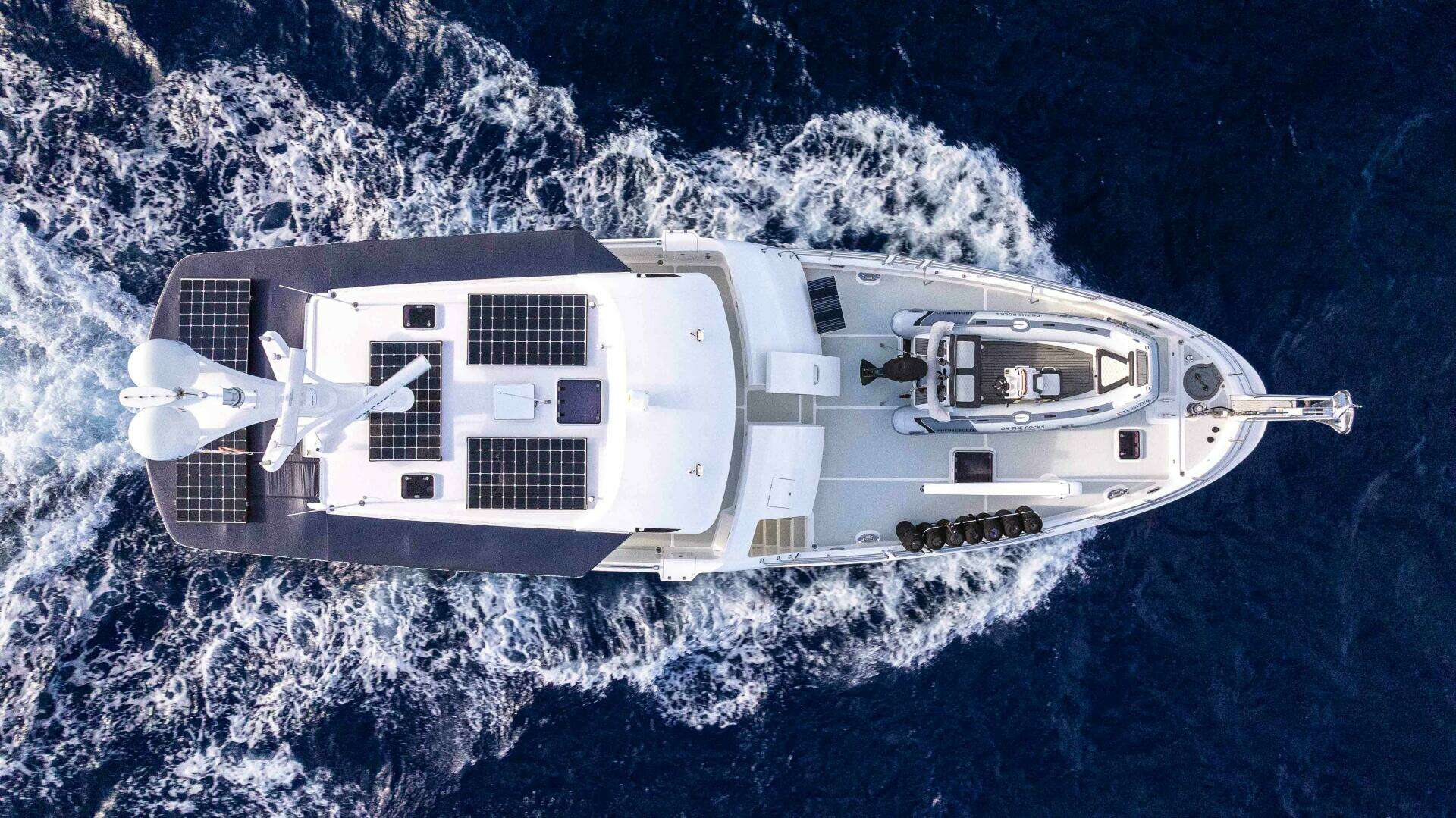

• 5 x Solar Panels (mounted on monkey island)

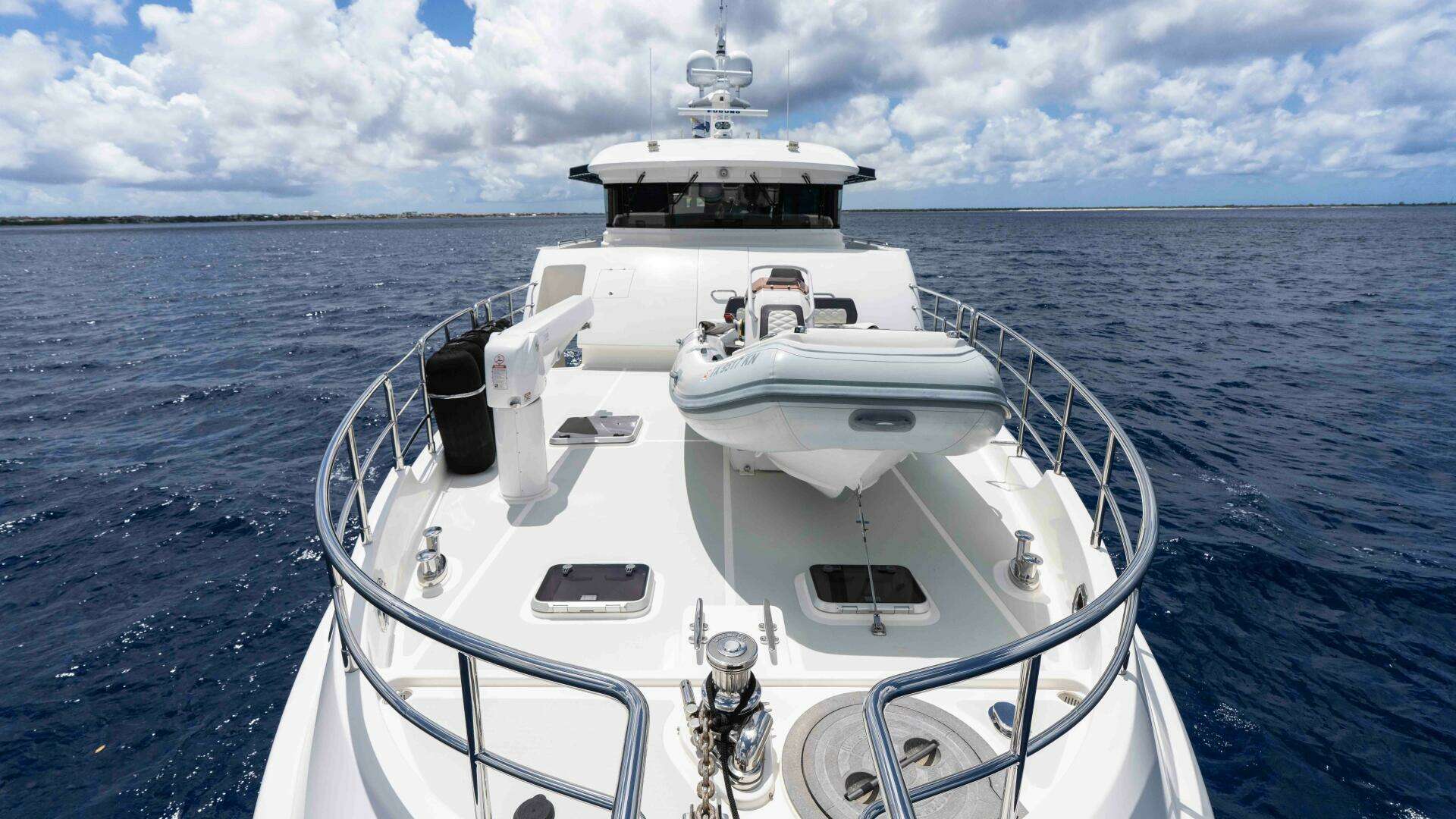

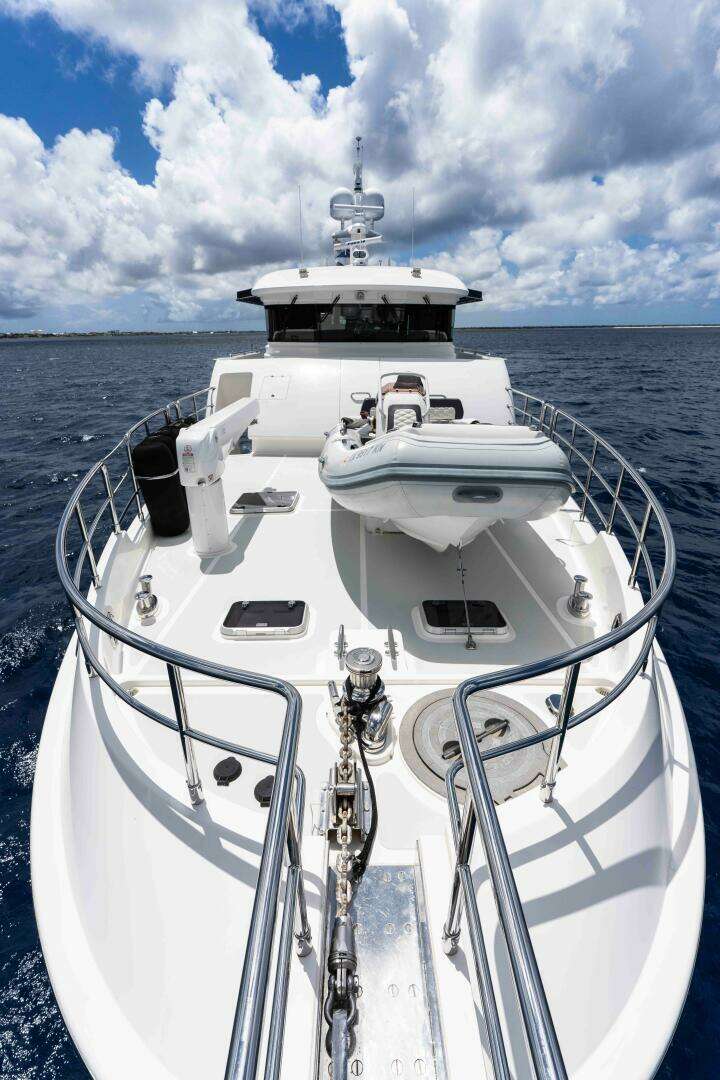

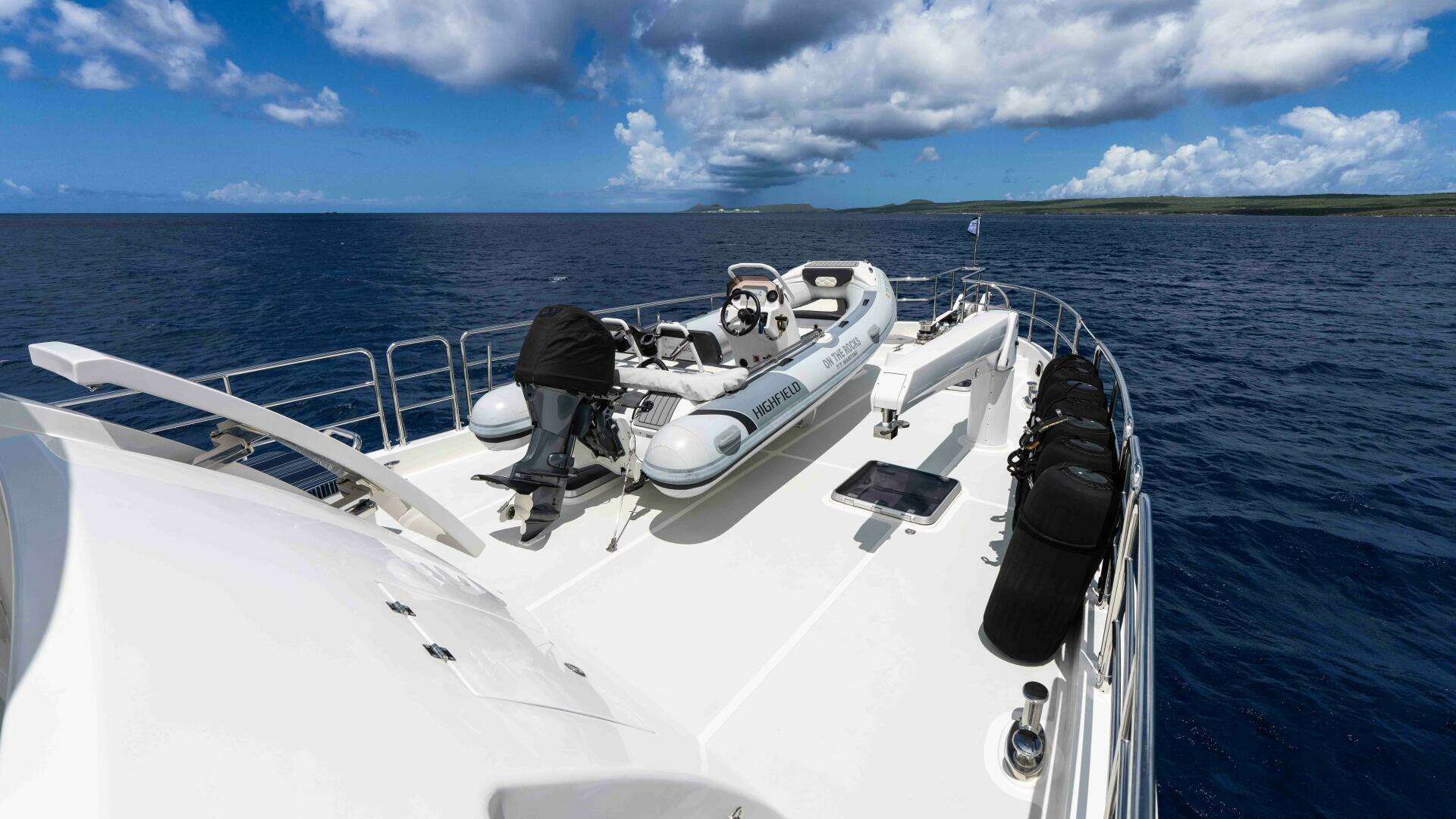

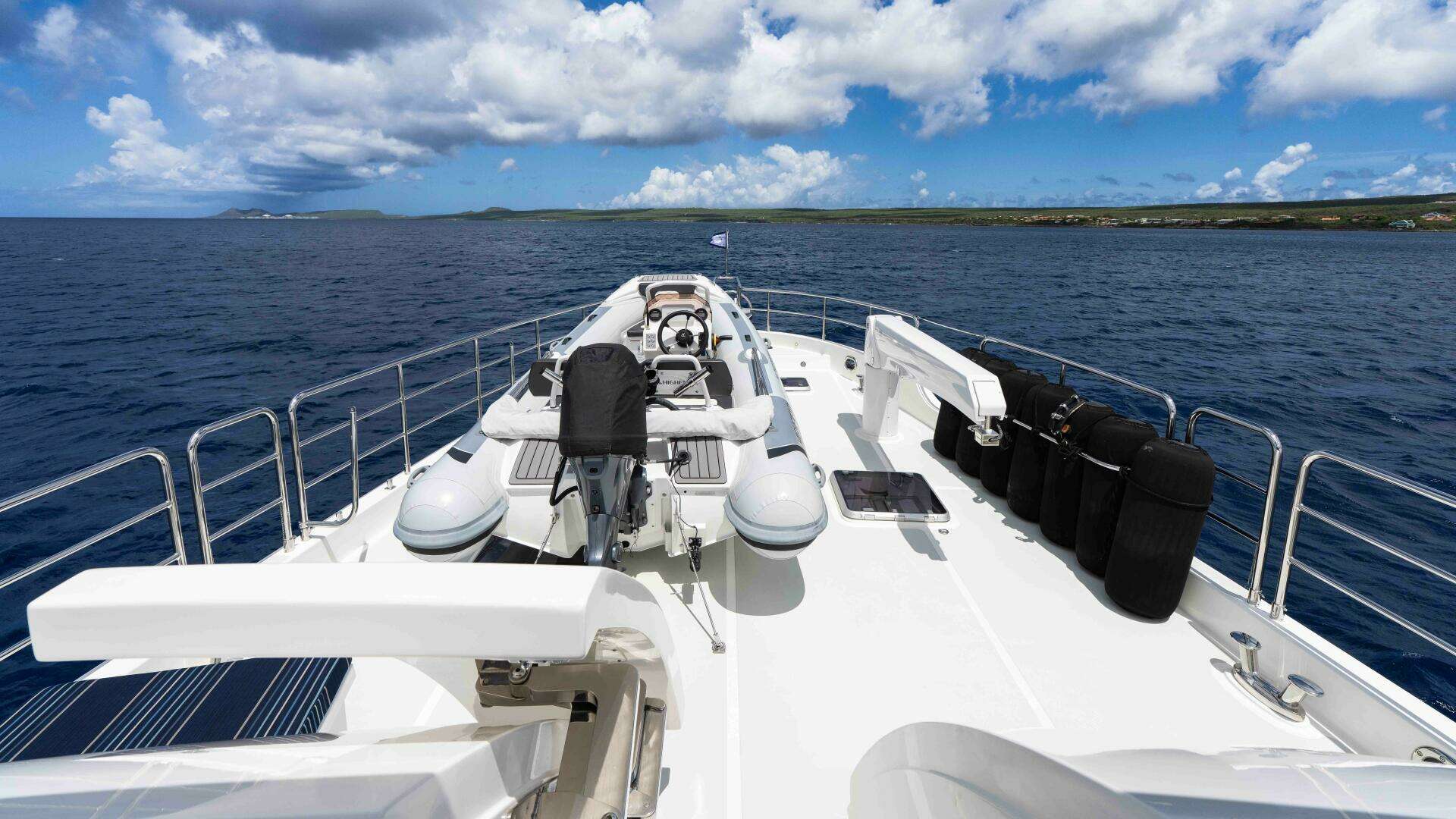

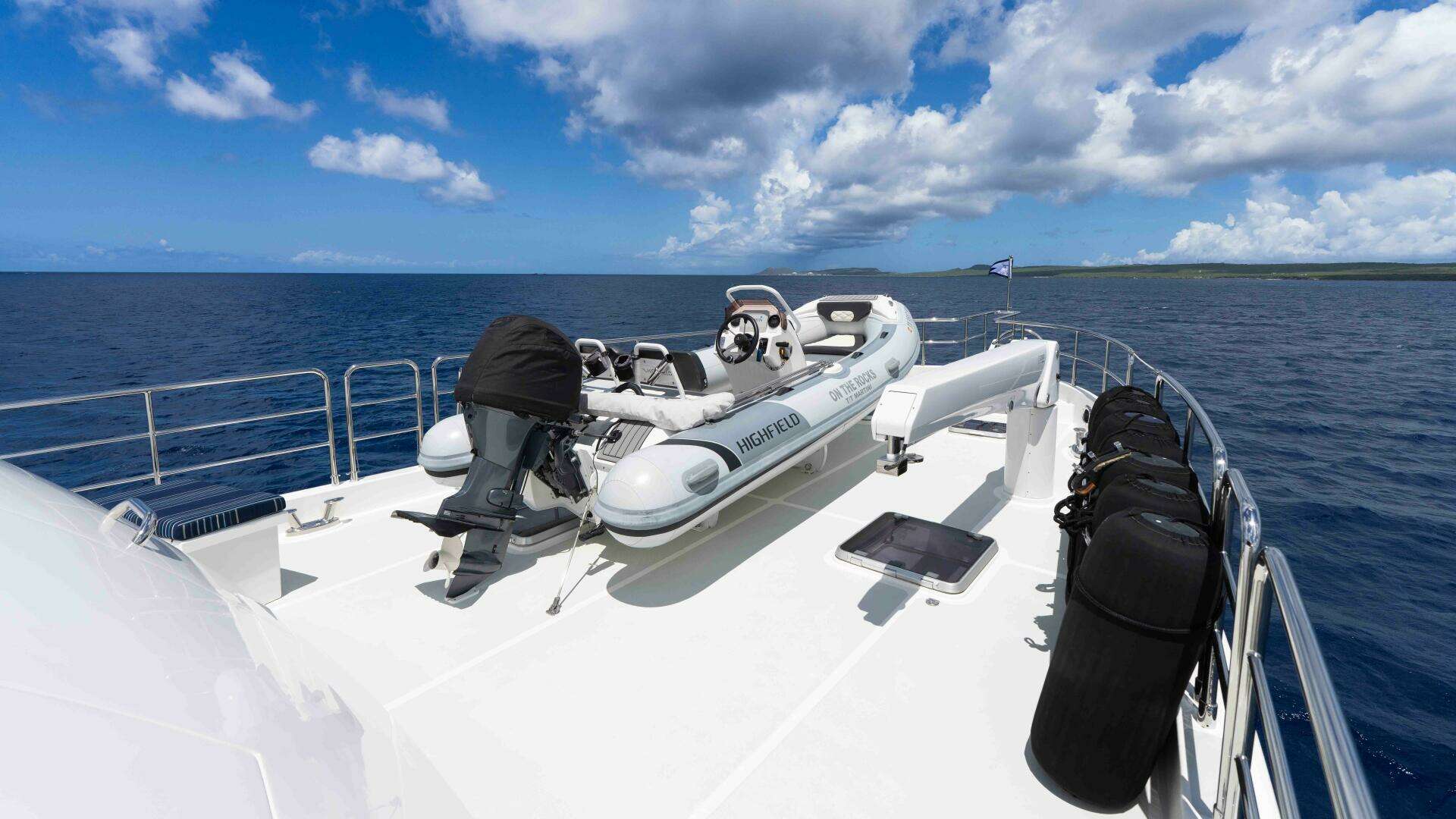

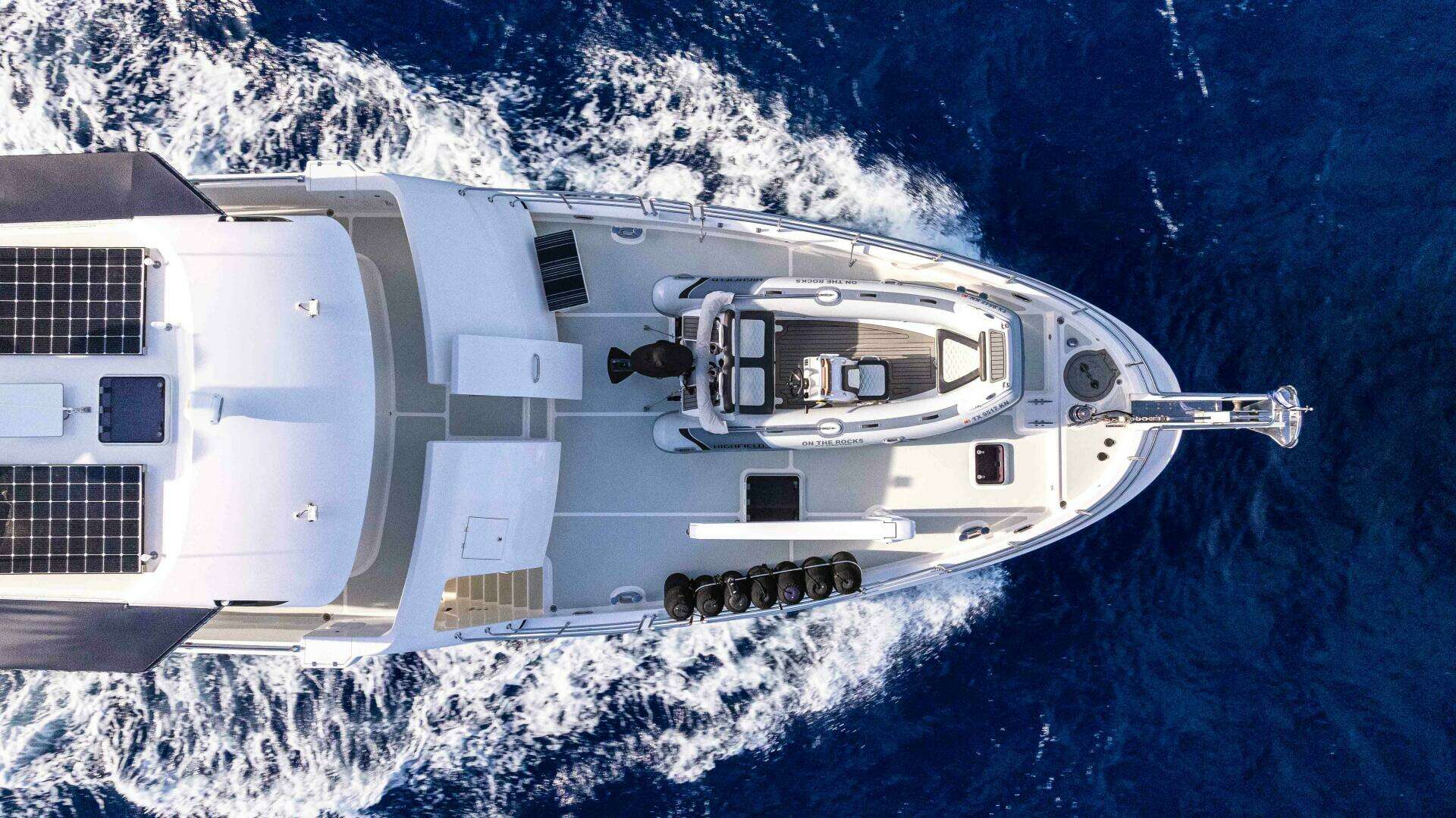

Foredeck – accessed via large door in the Portuguese bridge or via the starboard side exterior stairs from the main deck

• Glendinning shore power cord system (50amp plug – 75ft length)
• Smart Plug 50amp & 30amp
• Stainless steel fender storage rack for six fenders for Polyform HTM-4 fenders – note: some of the fenders also come with custom wool and leather fender hooks to protect paint and for easy fender adjustment
• Stainless steel Kayak rack

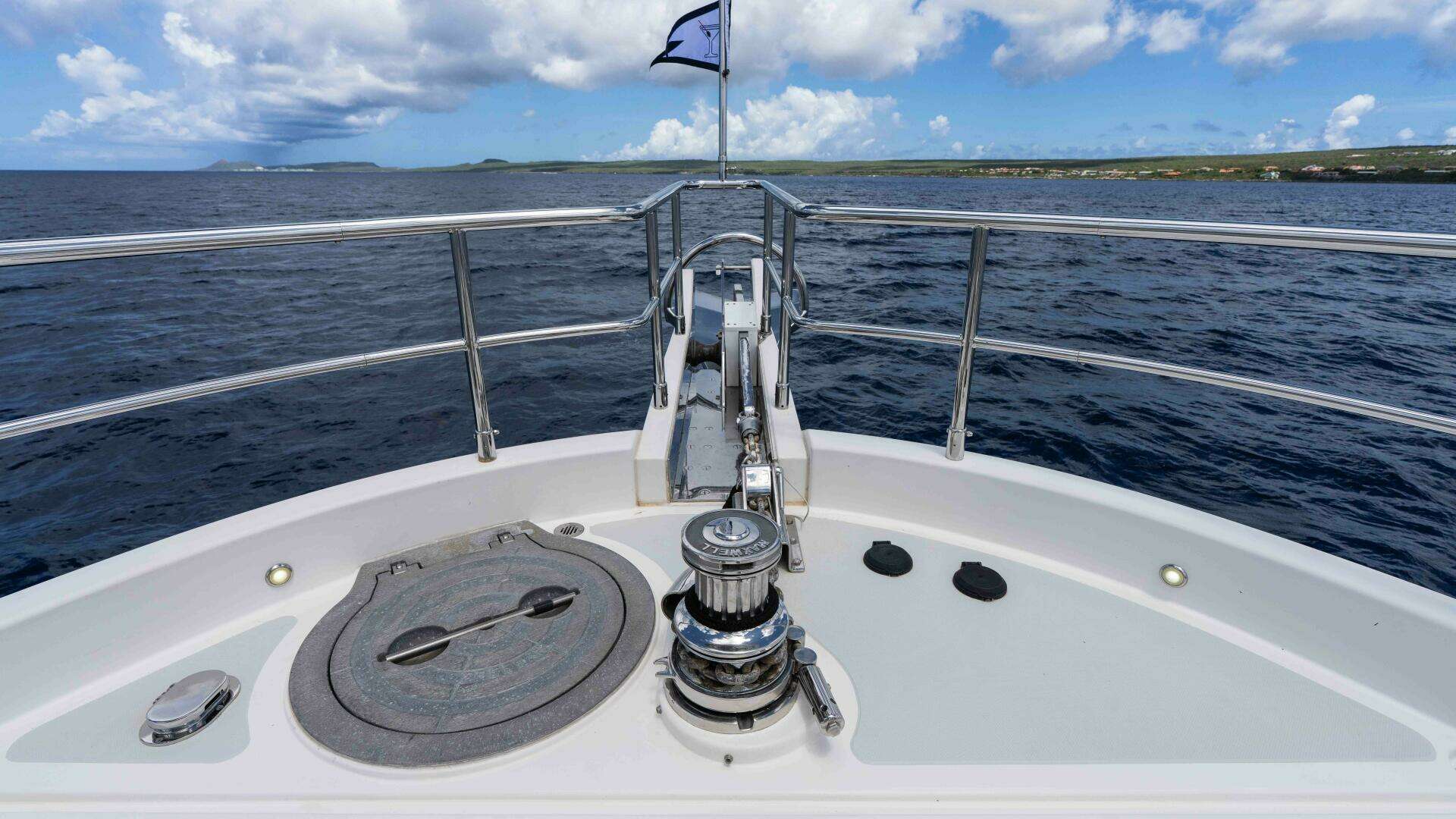

• Maxwell Hydraulic Windlass with cover. Control with foot pedal controls as well as controls at all four helm stations
• Rocna 110 (243lbs) Anchor with swivel

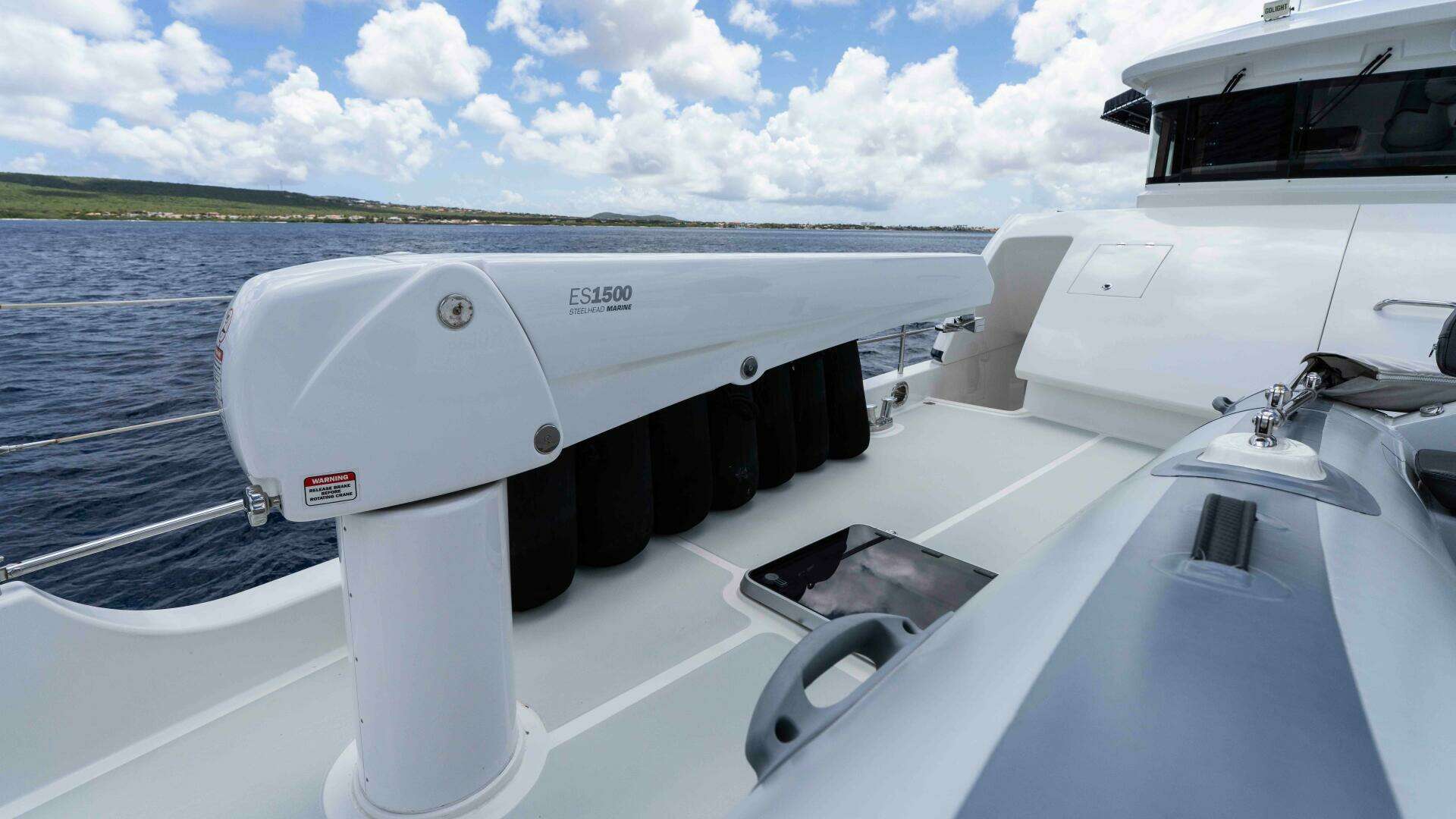

• Steelhead Marine ES1500 Telescopic Davit with wireless remote – full spare kit onboard for redundancy

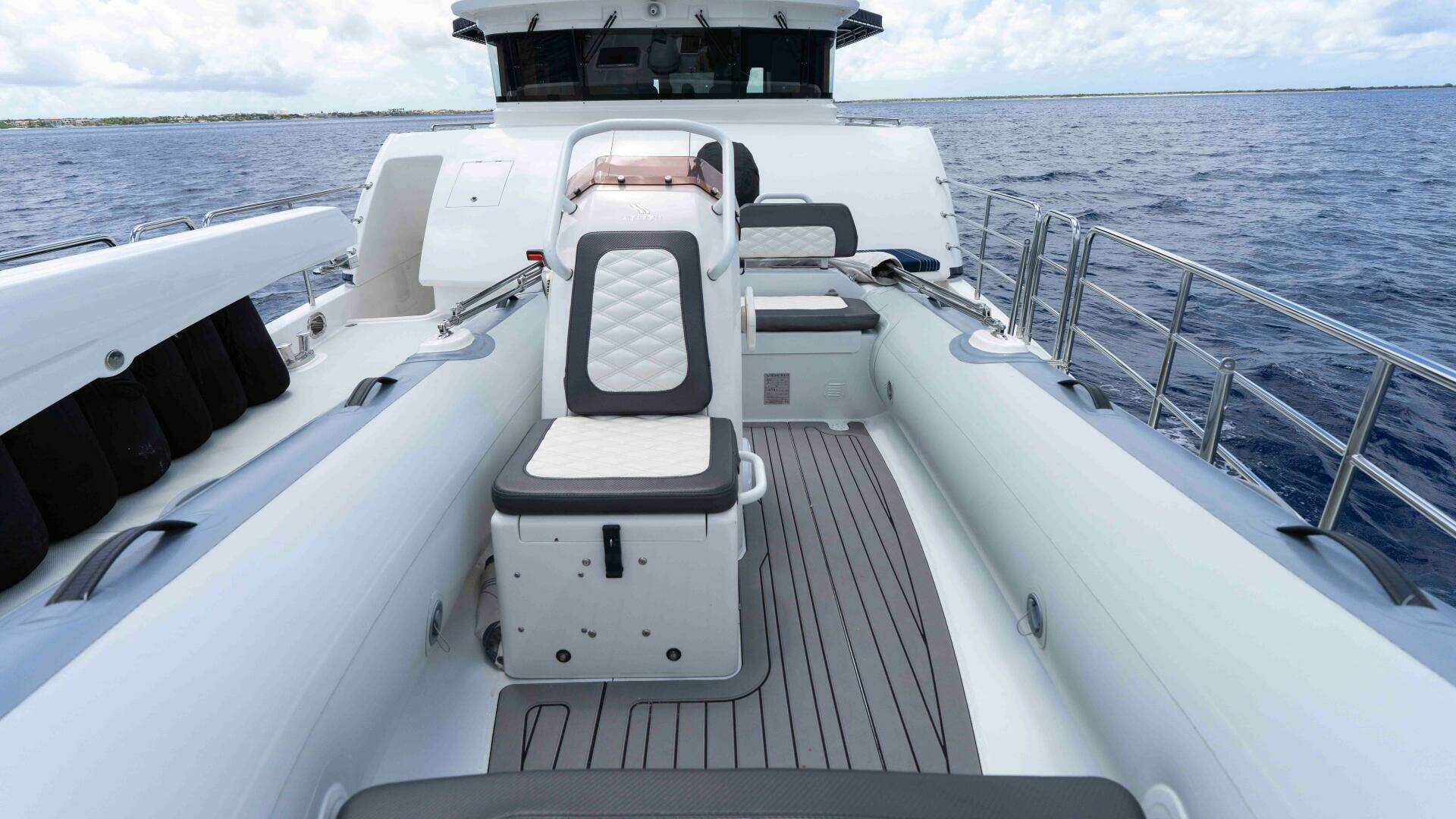

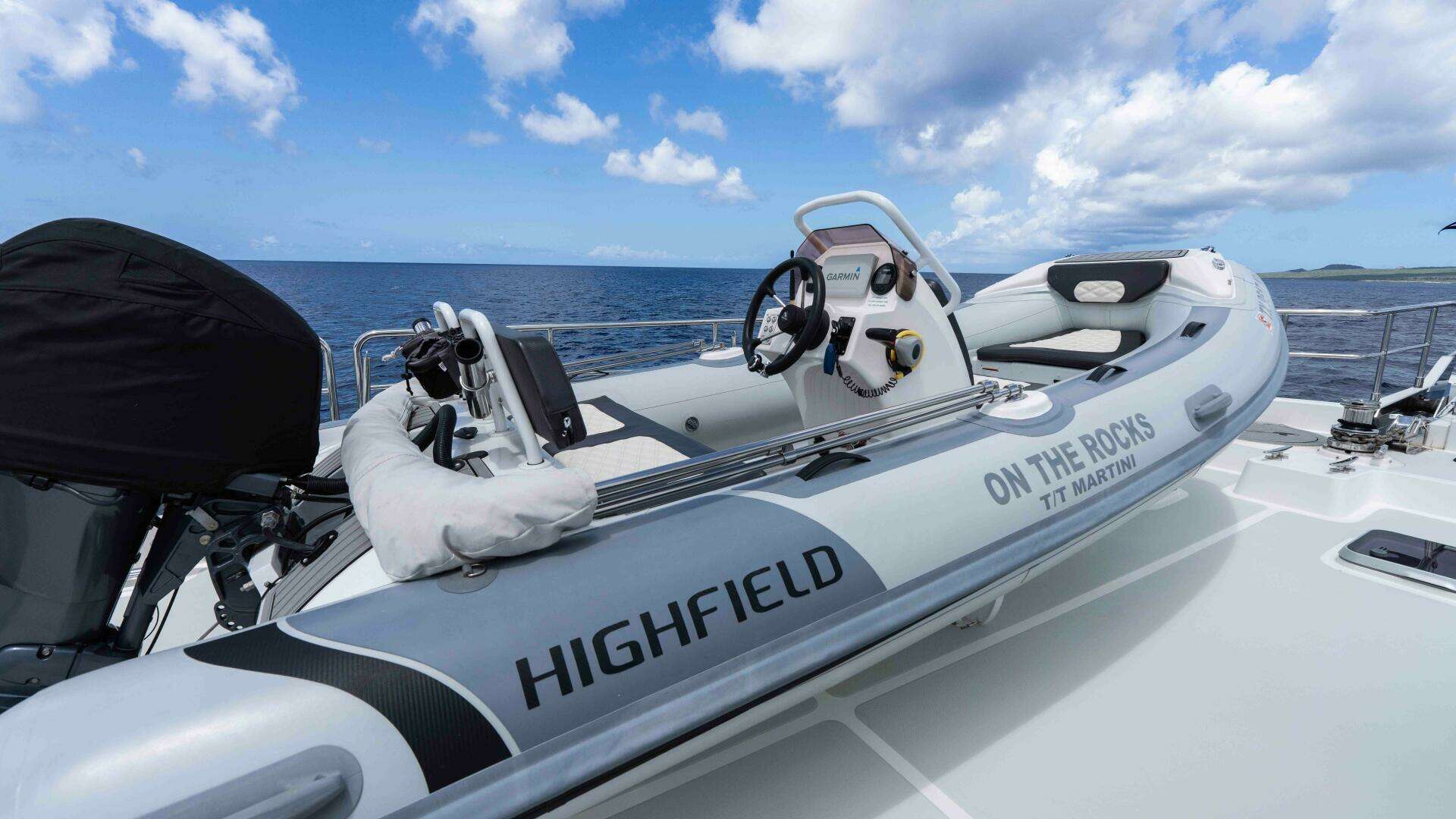

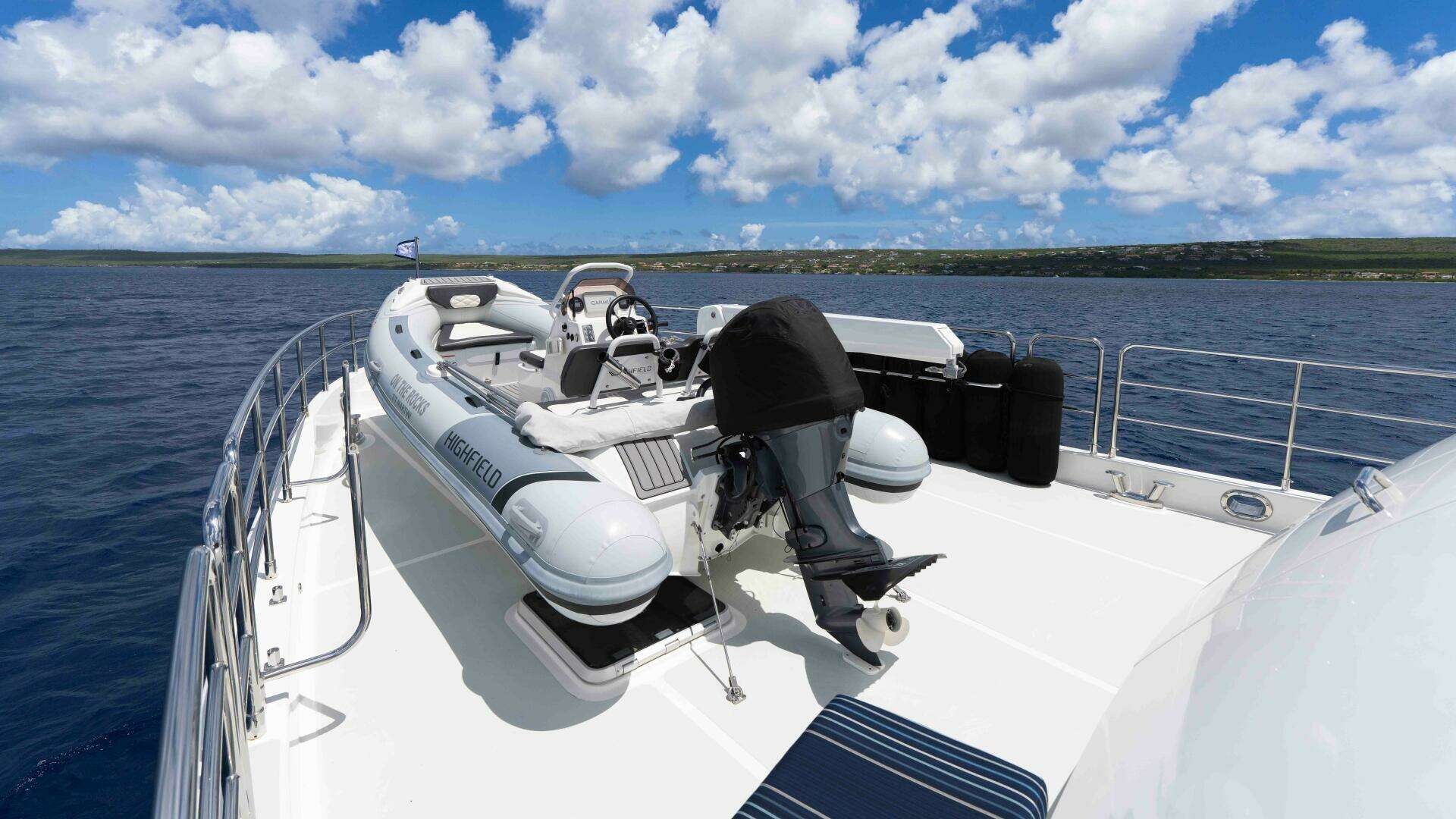

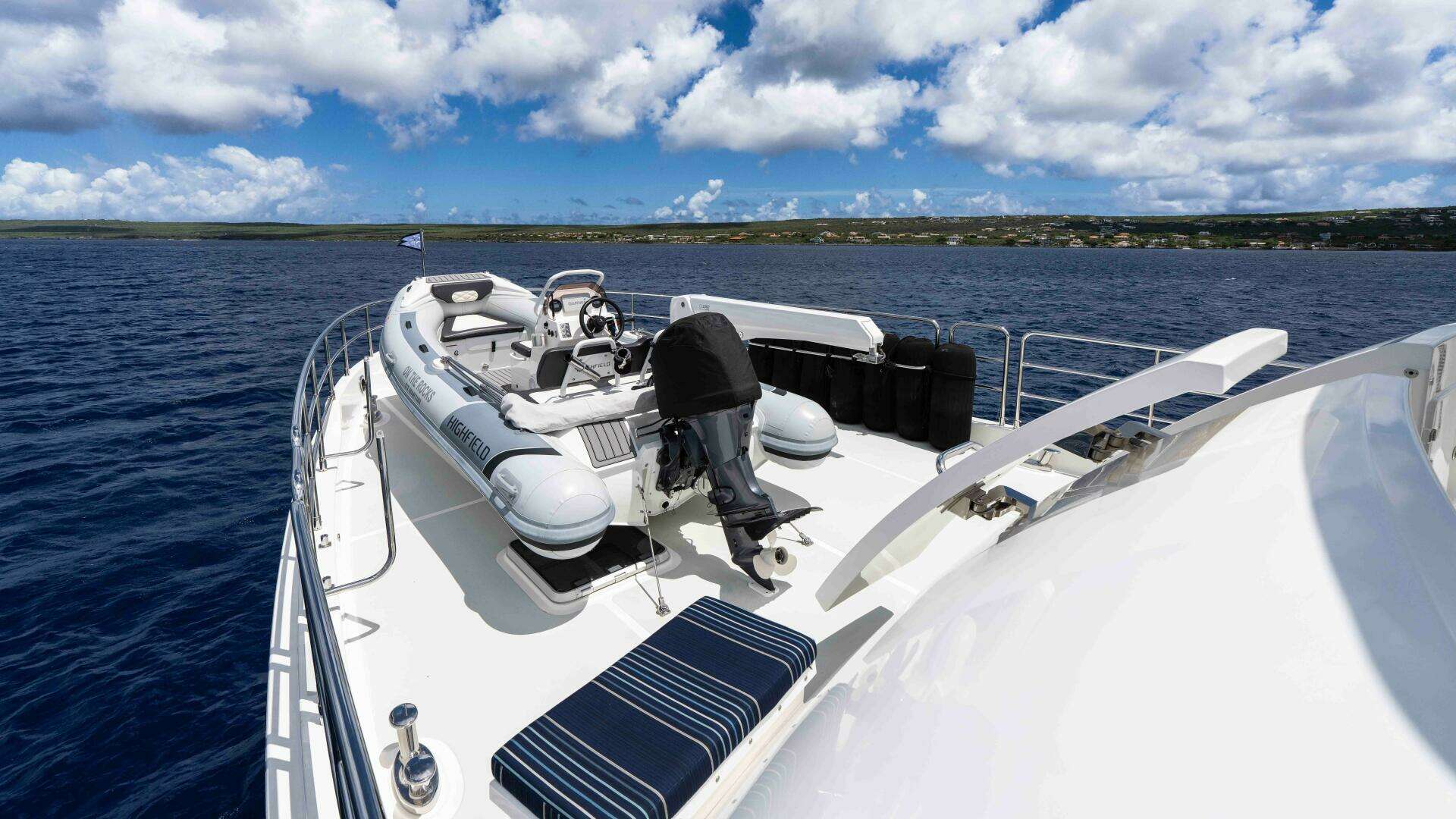

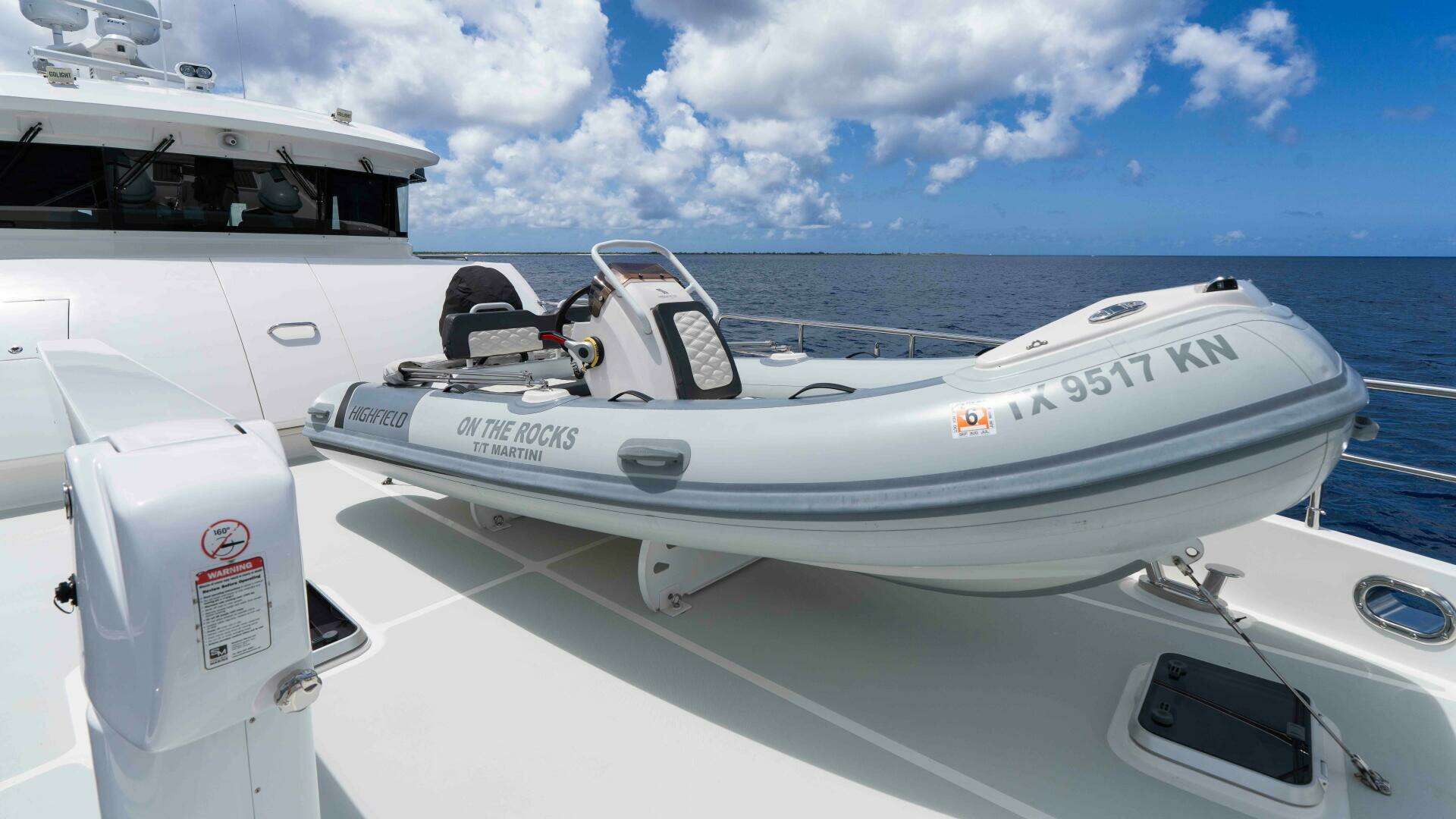

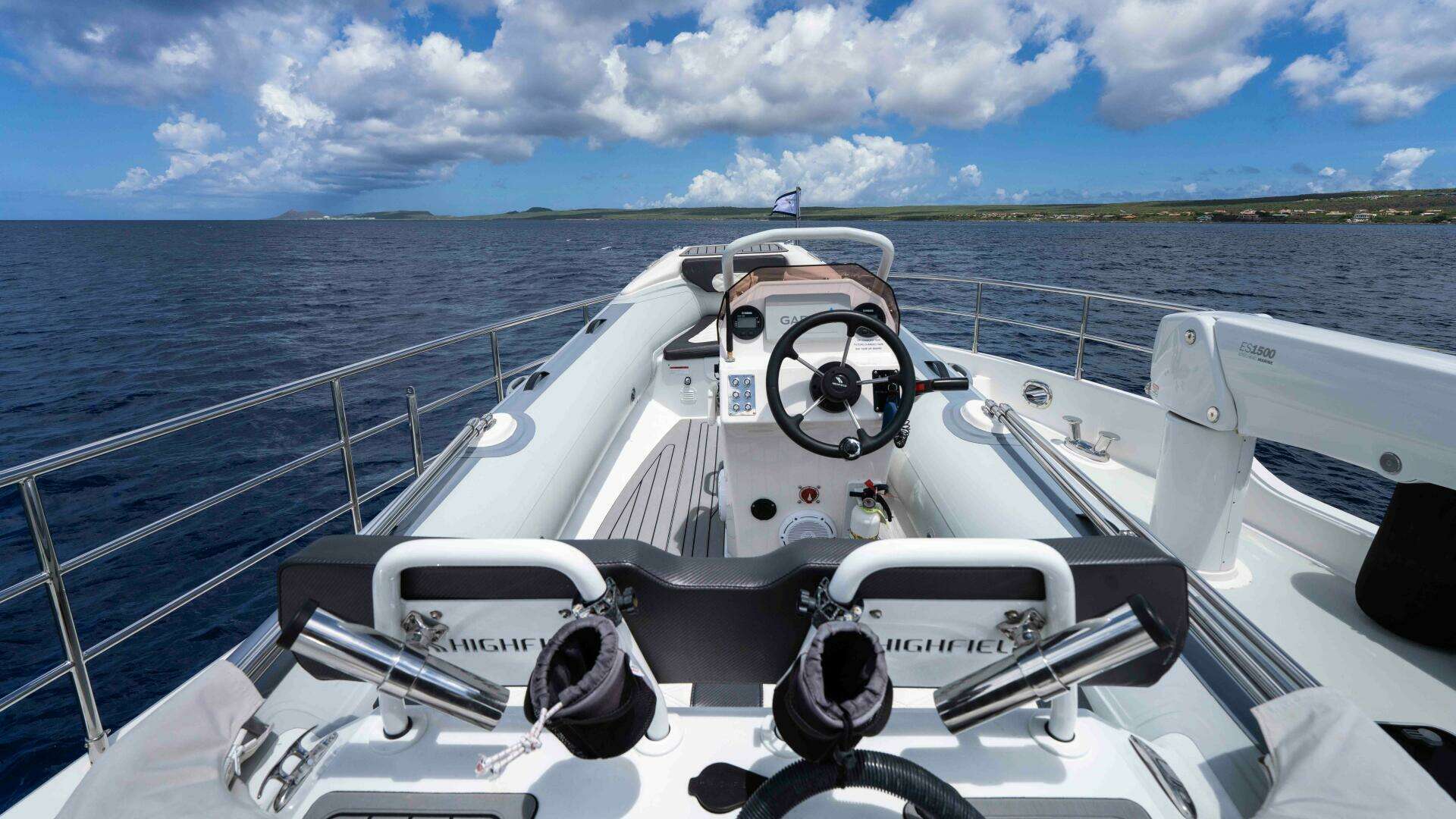

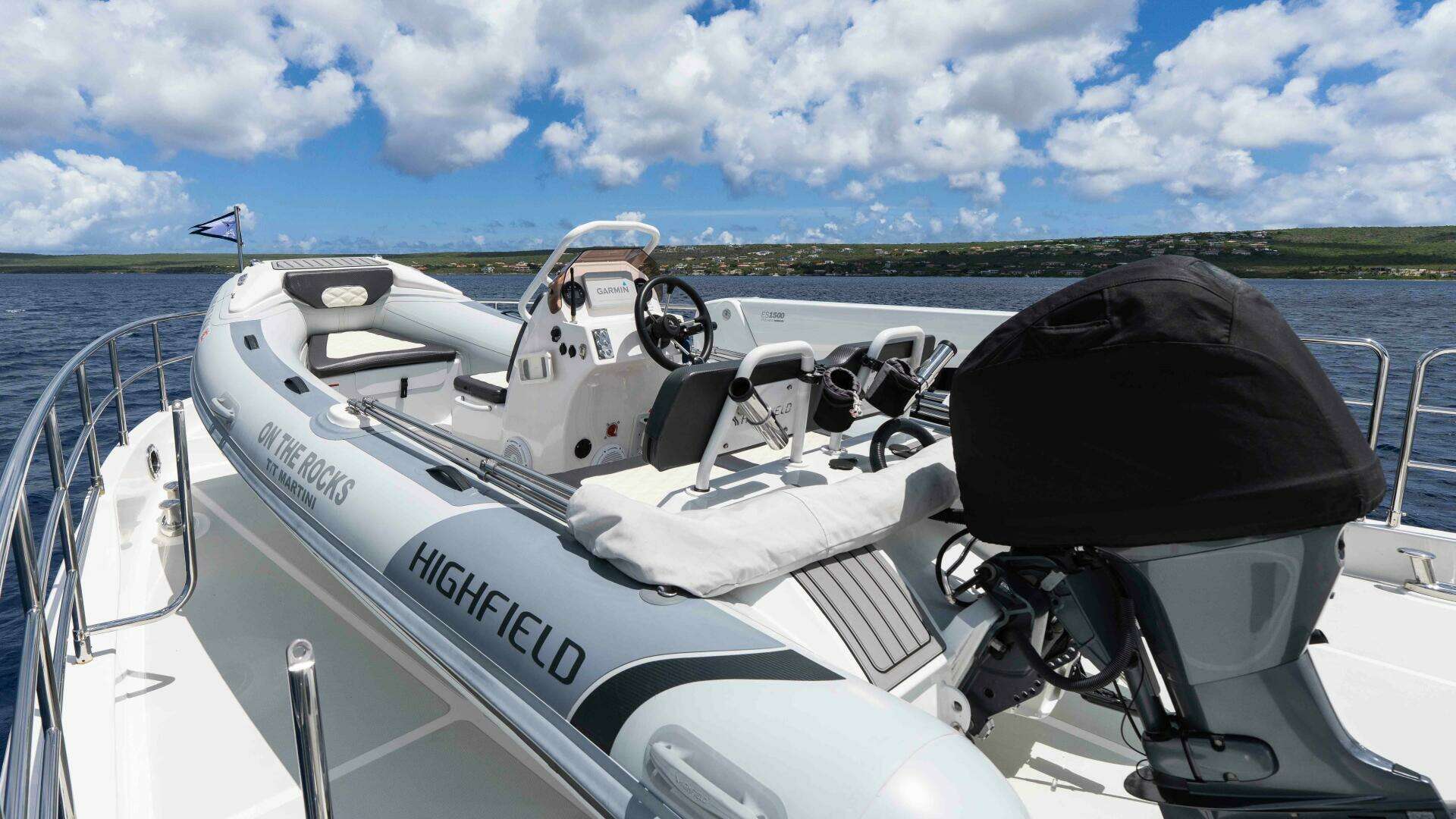

Tender - Highfield SP420 RIB with Aluminum hull featuring

• 8 person capacity
• Garmin Navigation Display
• Depth sounder
• Seadeck
• Diamond stitched upholstery
• Rod holders
• Cup holders
• Bimini top which stows easily
• 110V outlet charger inbuilt as well as solar panels for charging in built into tender cover
• ICOM VHF radio
• USB 12V charging outlet
• 12V outlet
• JL Audio Stereo Speakers
• Nav Light
• Tool kit
• Safety kit including flares
• Spare propeller
• Retractable water ski tow pole
• Yamaha F60LB 60hp outboard engine (SN: 6C5 L 1100150) with cowling cover. Also have spare lower unit for engine.

Interior

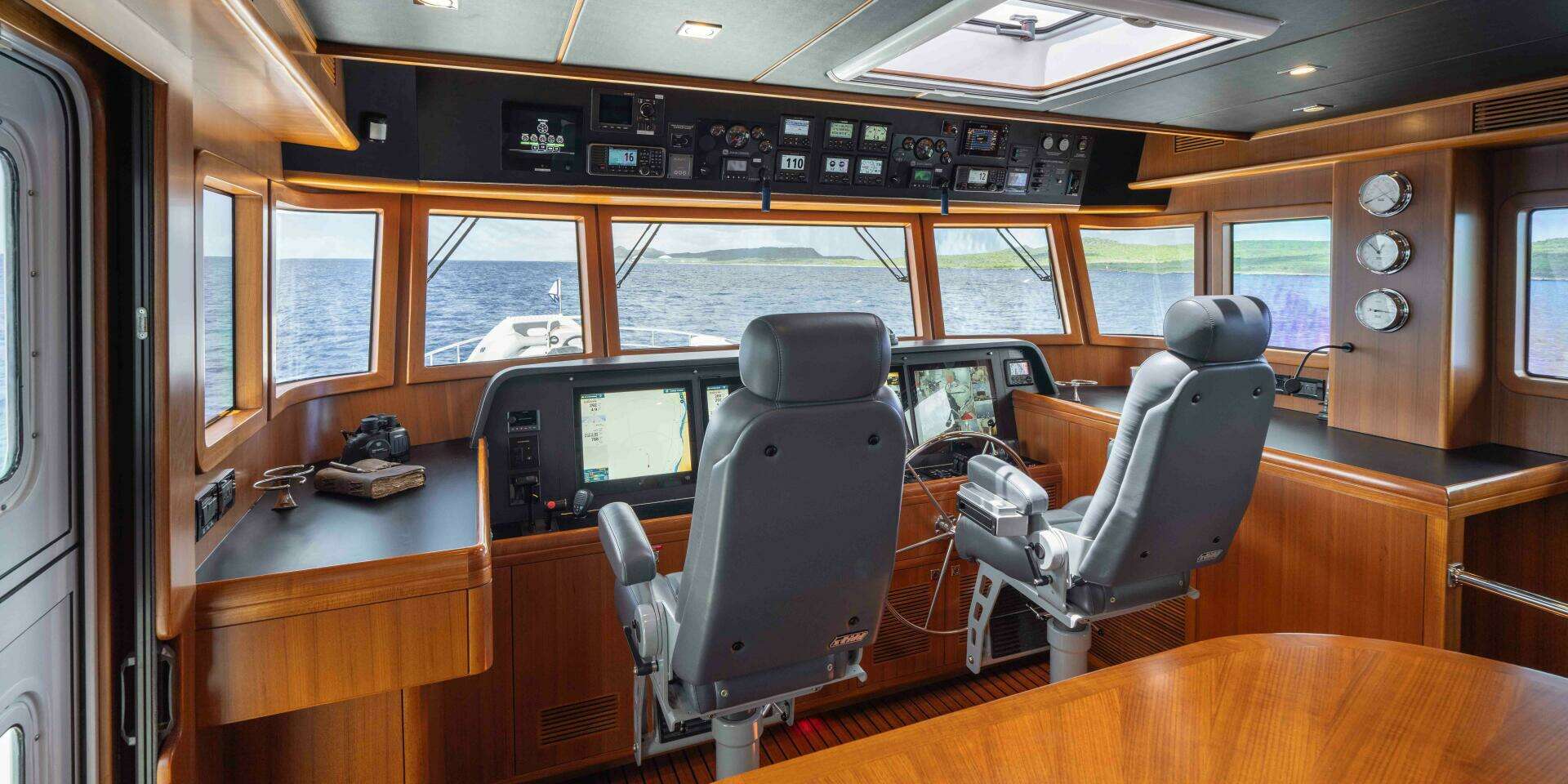

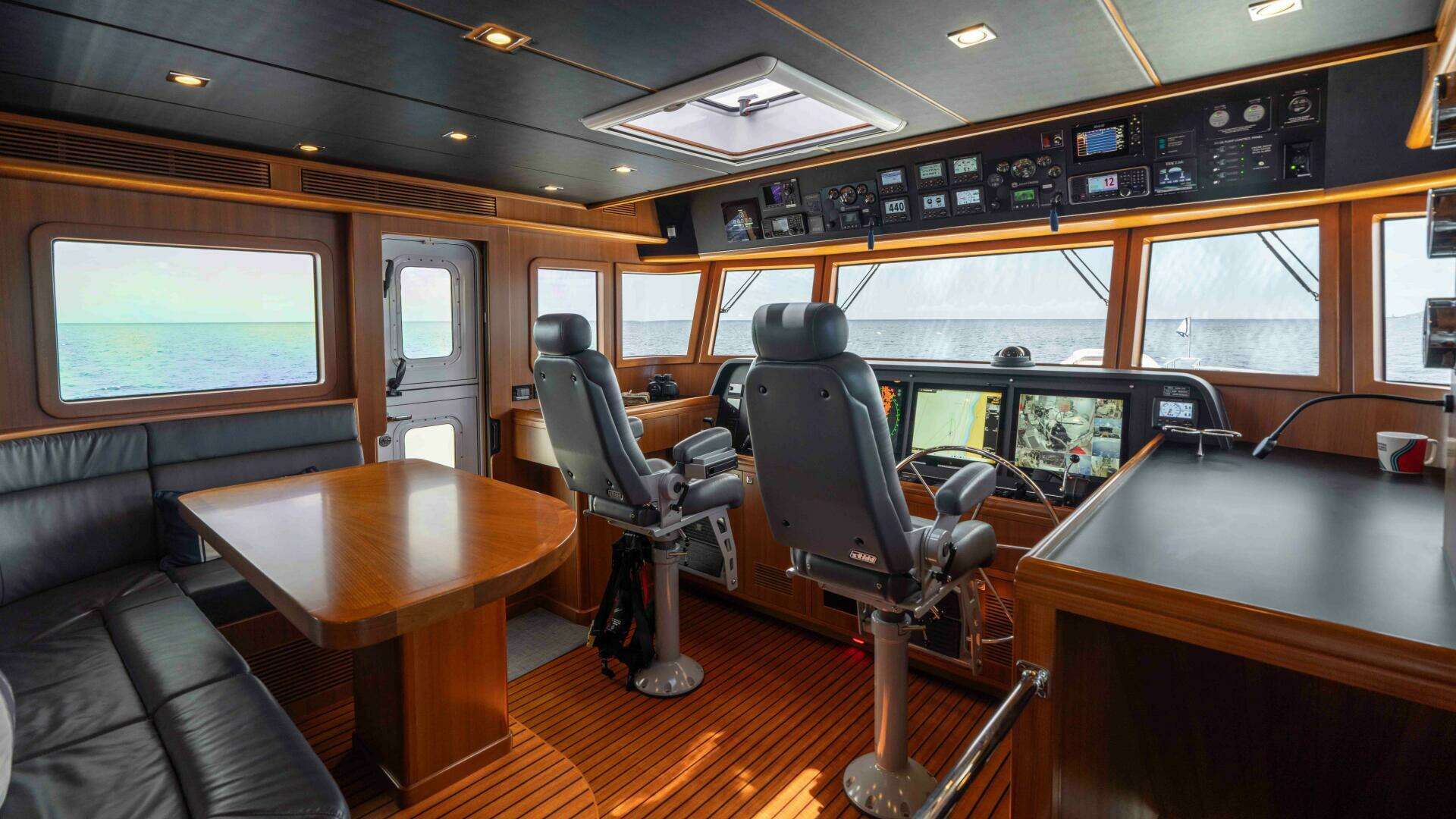

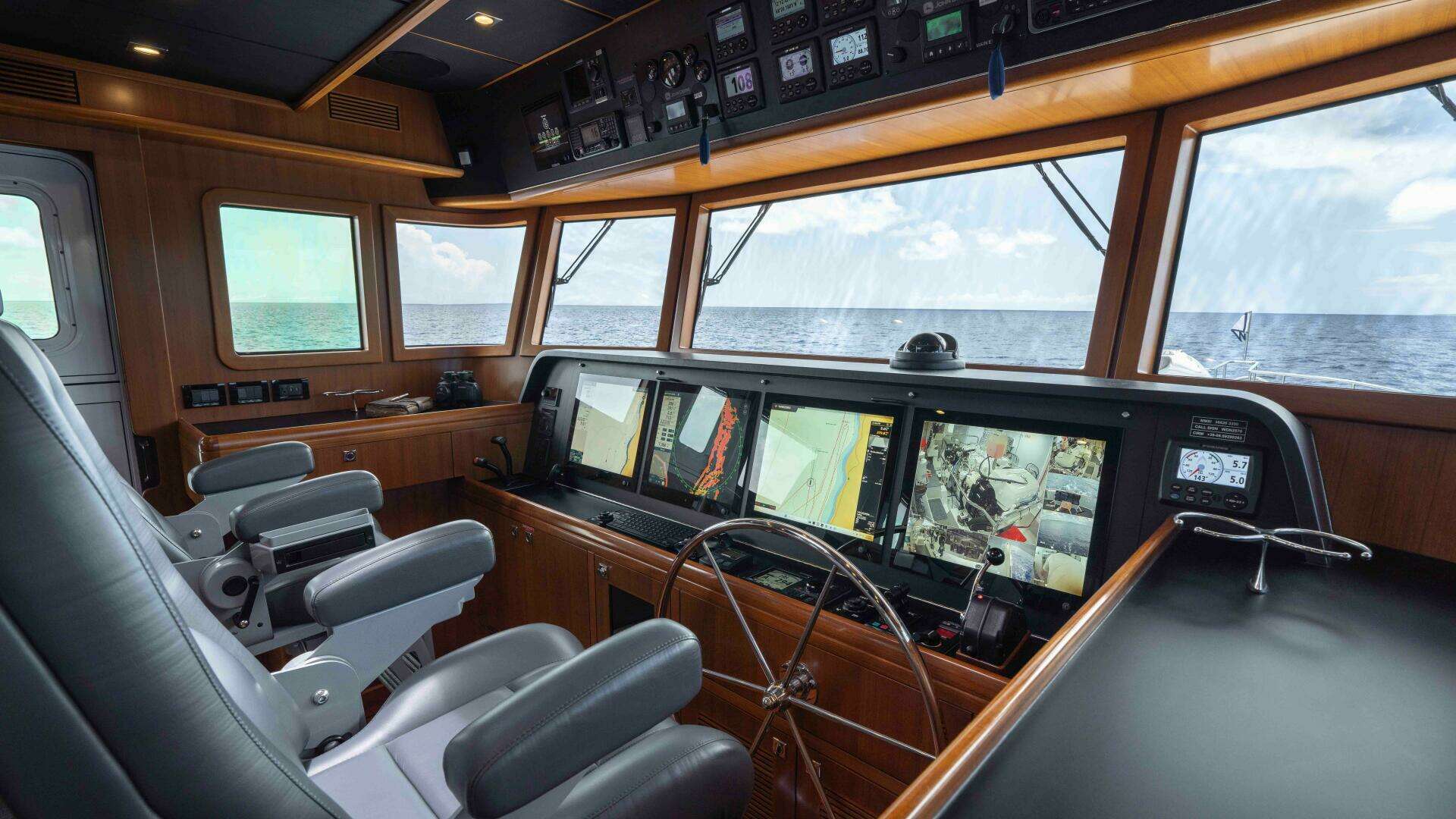

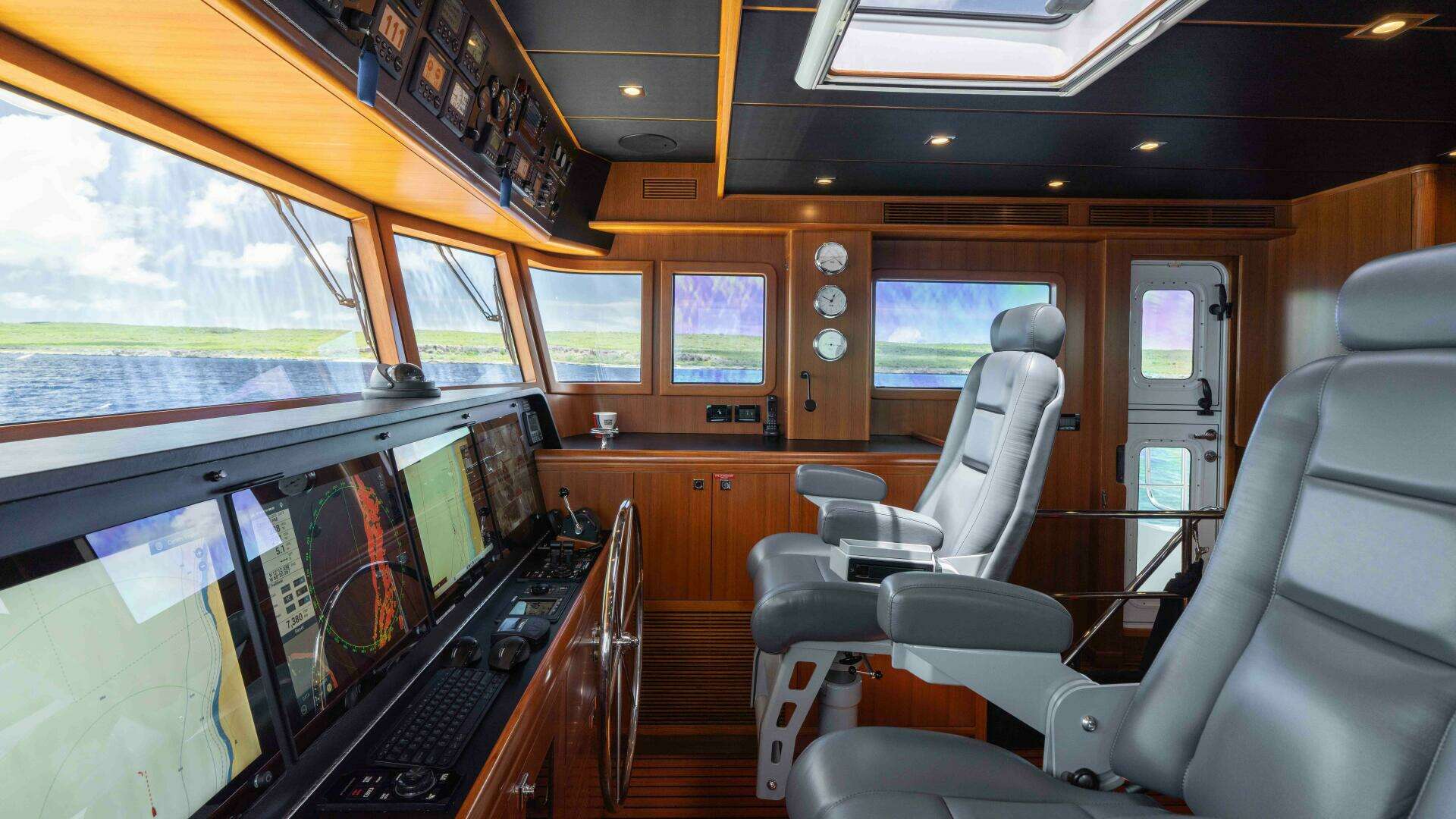

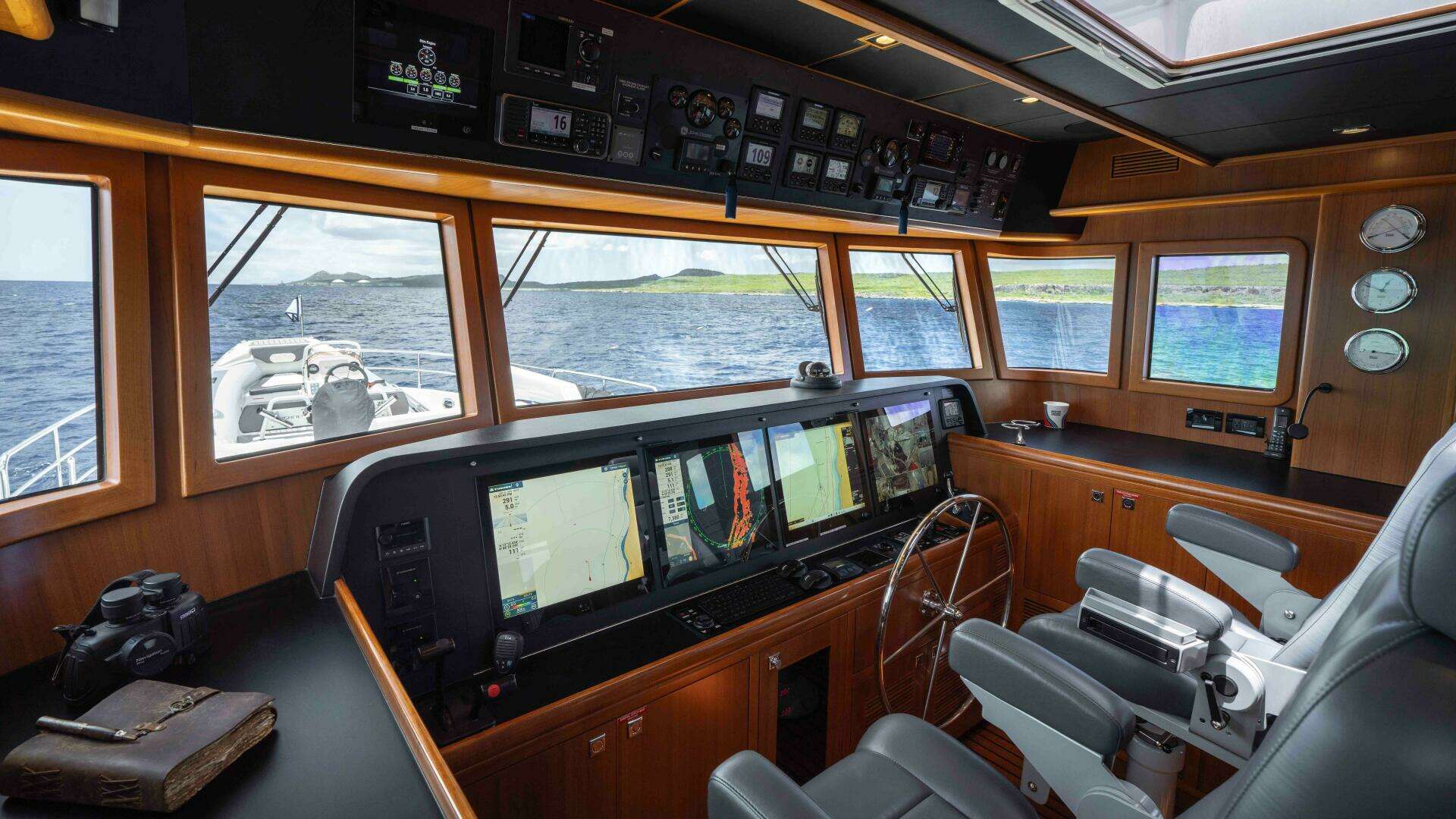

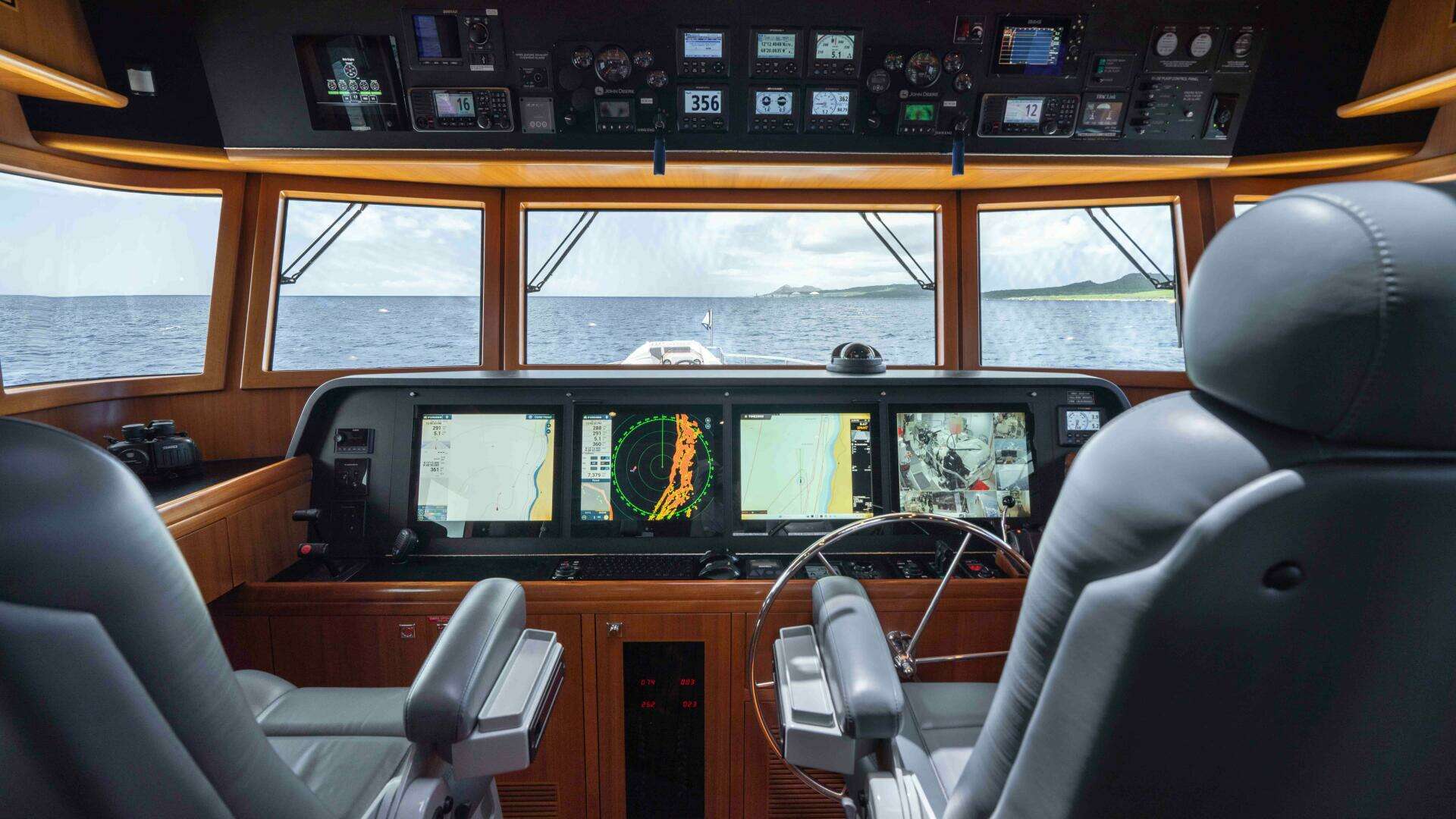

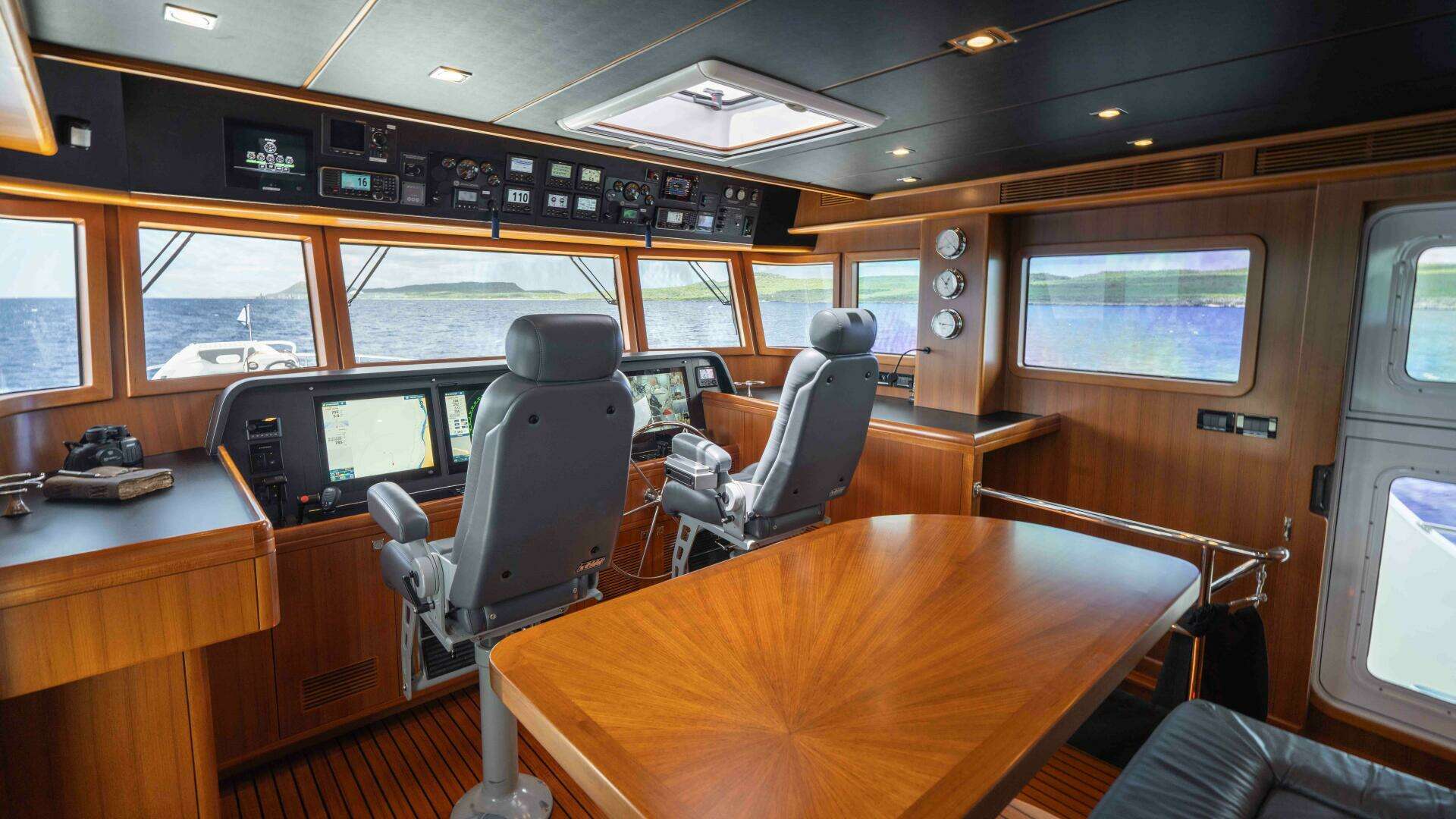

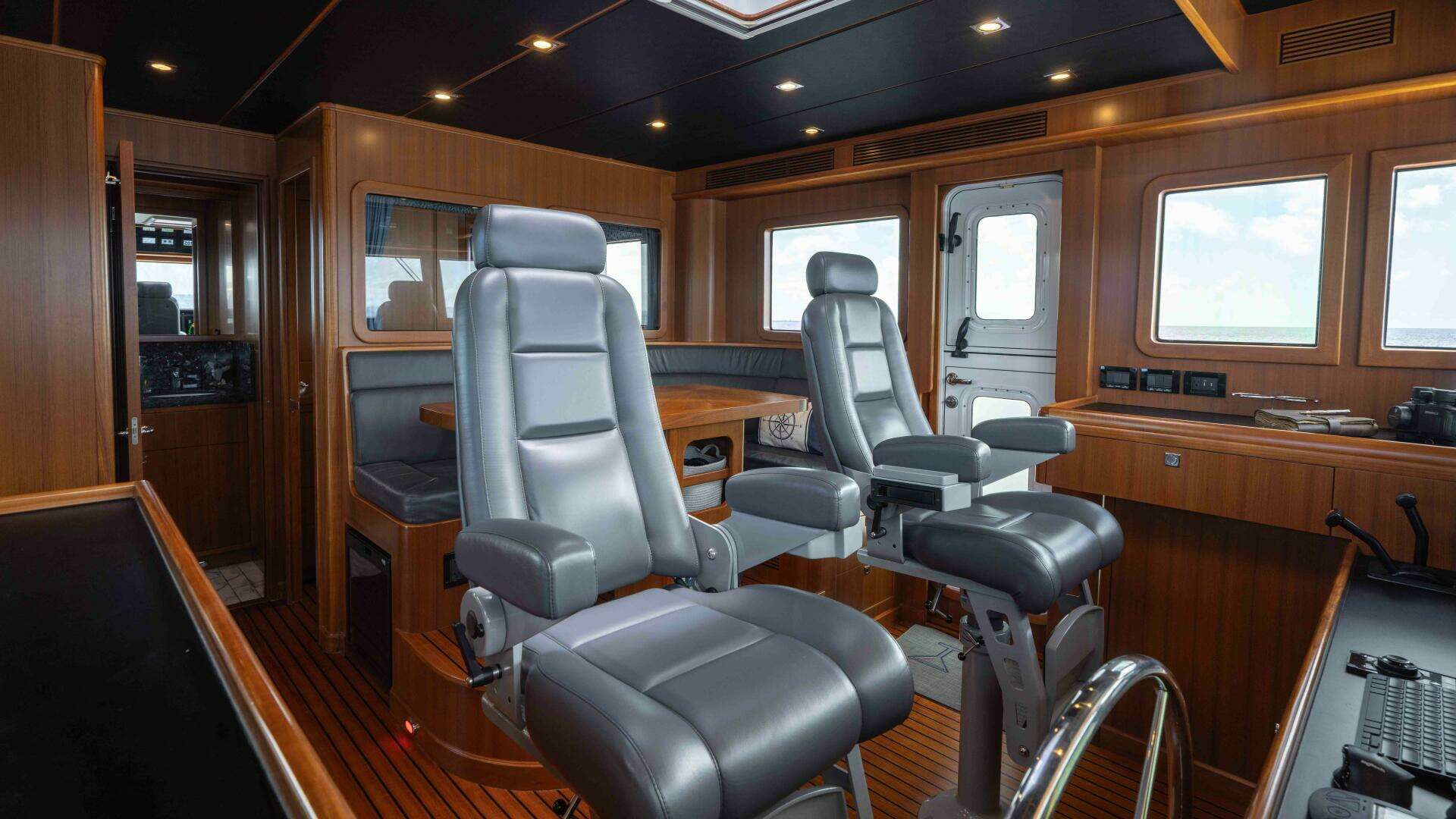

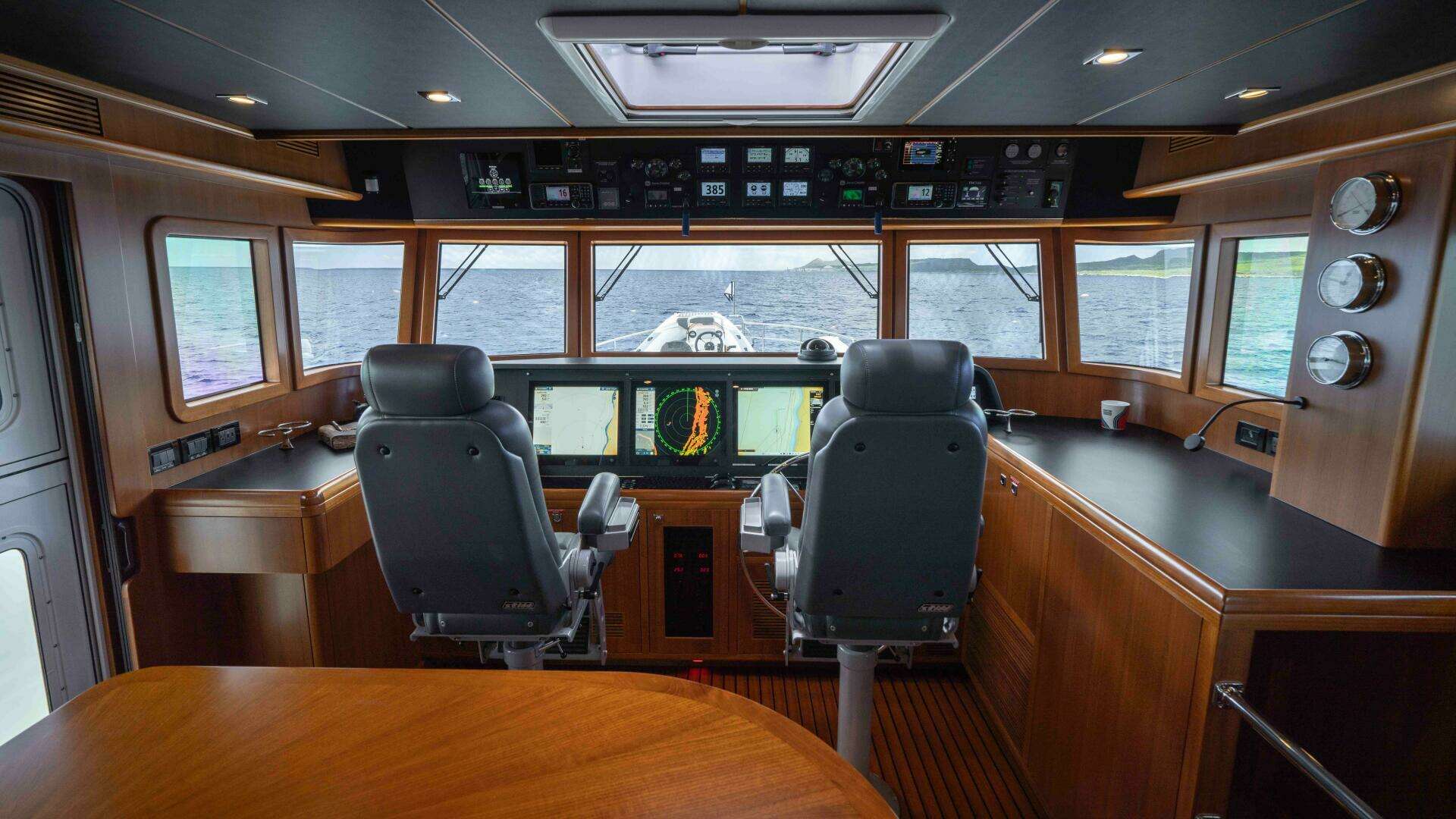

Bridge

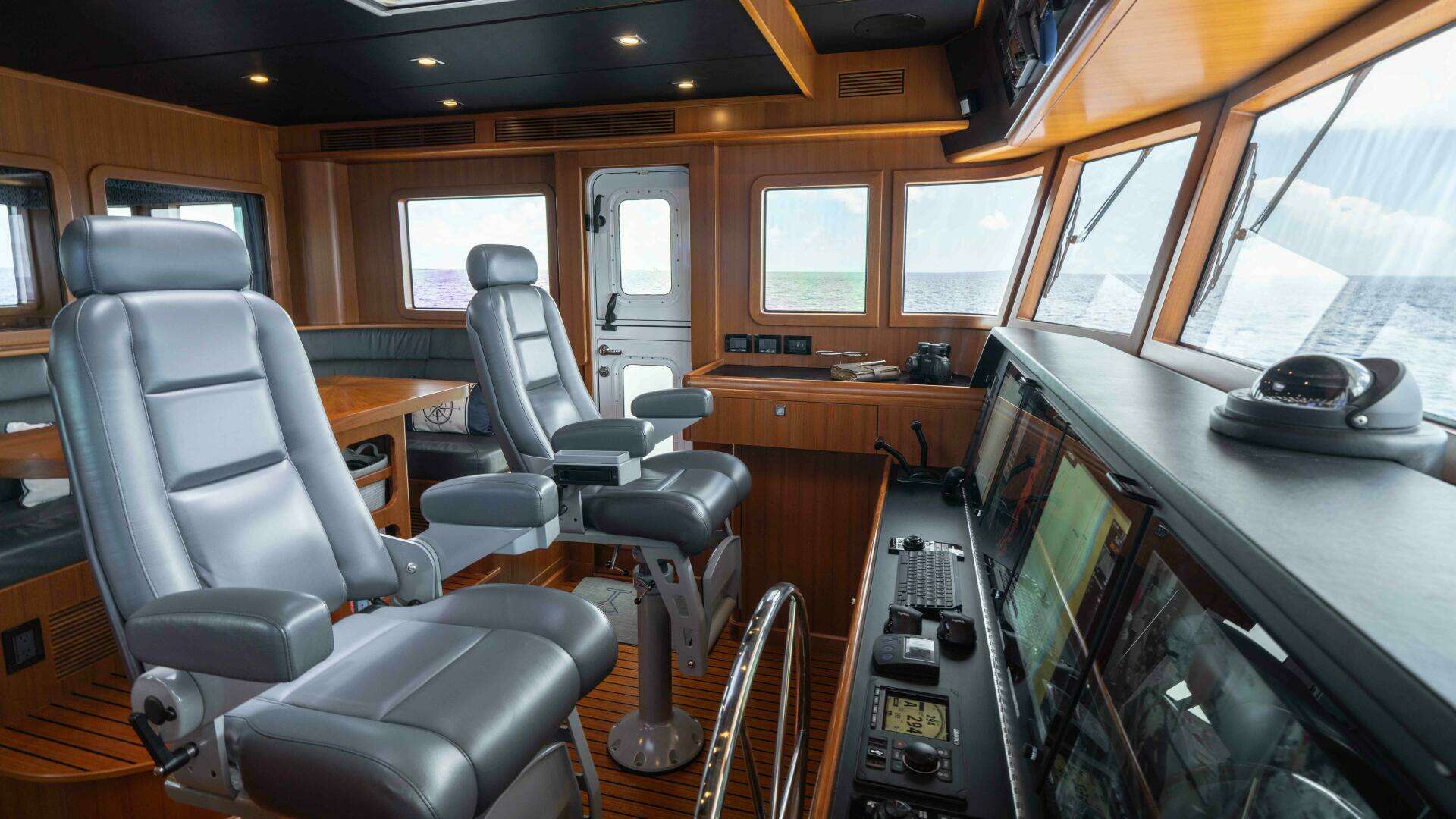

• Two Stidd helm chairs in soft and comfortable Ultraleather

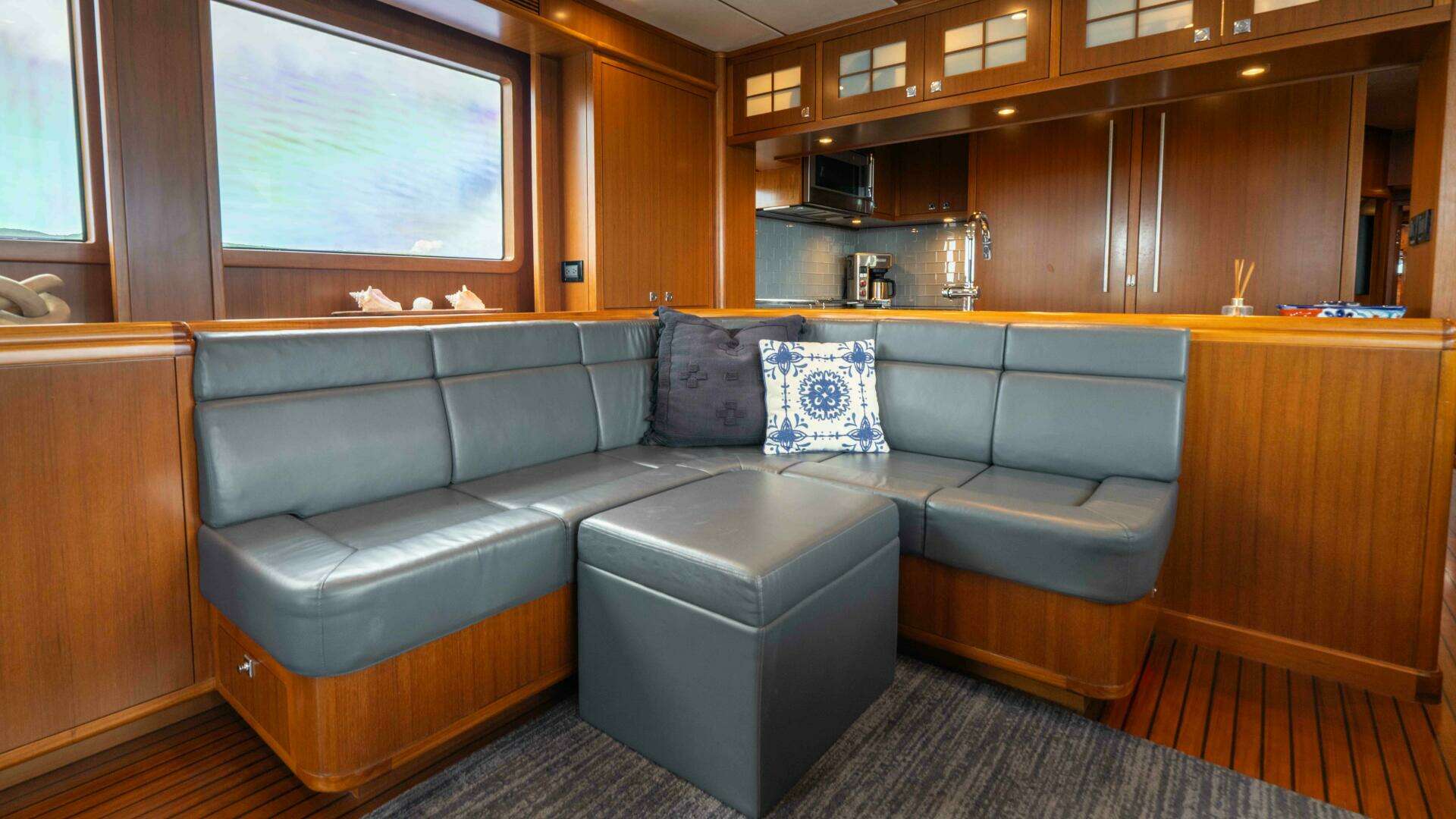

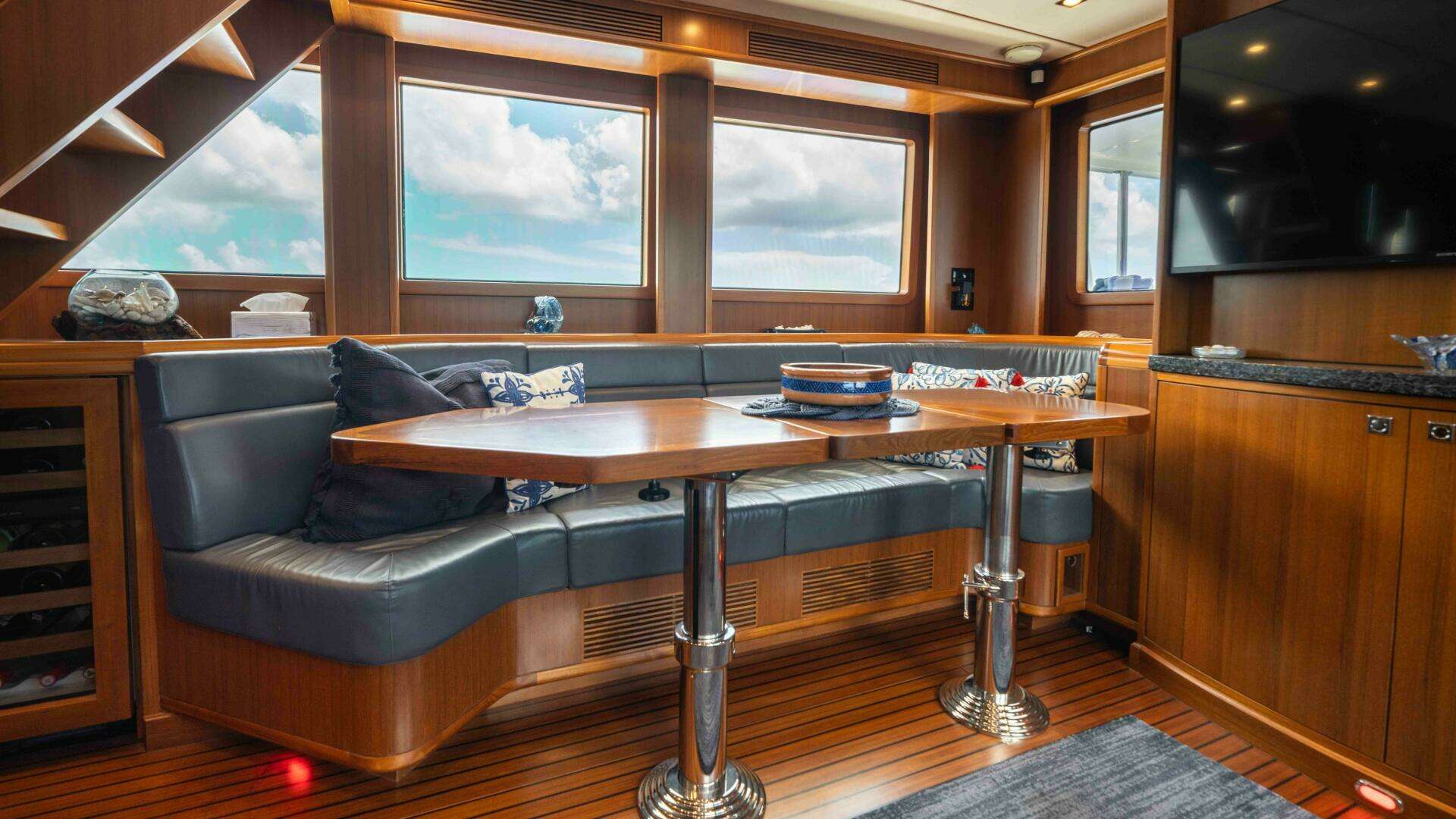

• Large raised L-Shaped Settee wraps around a teak table

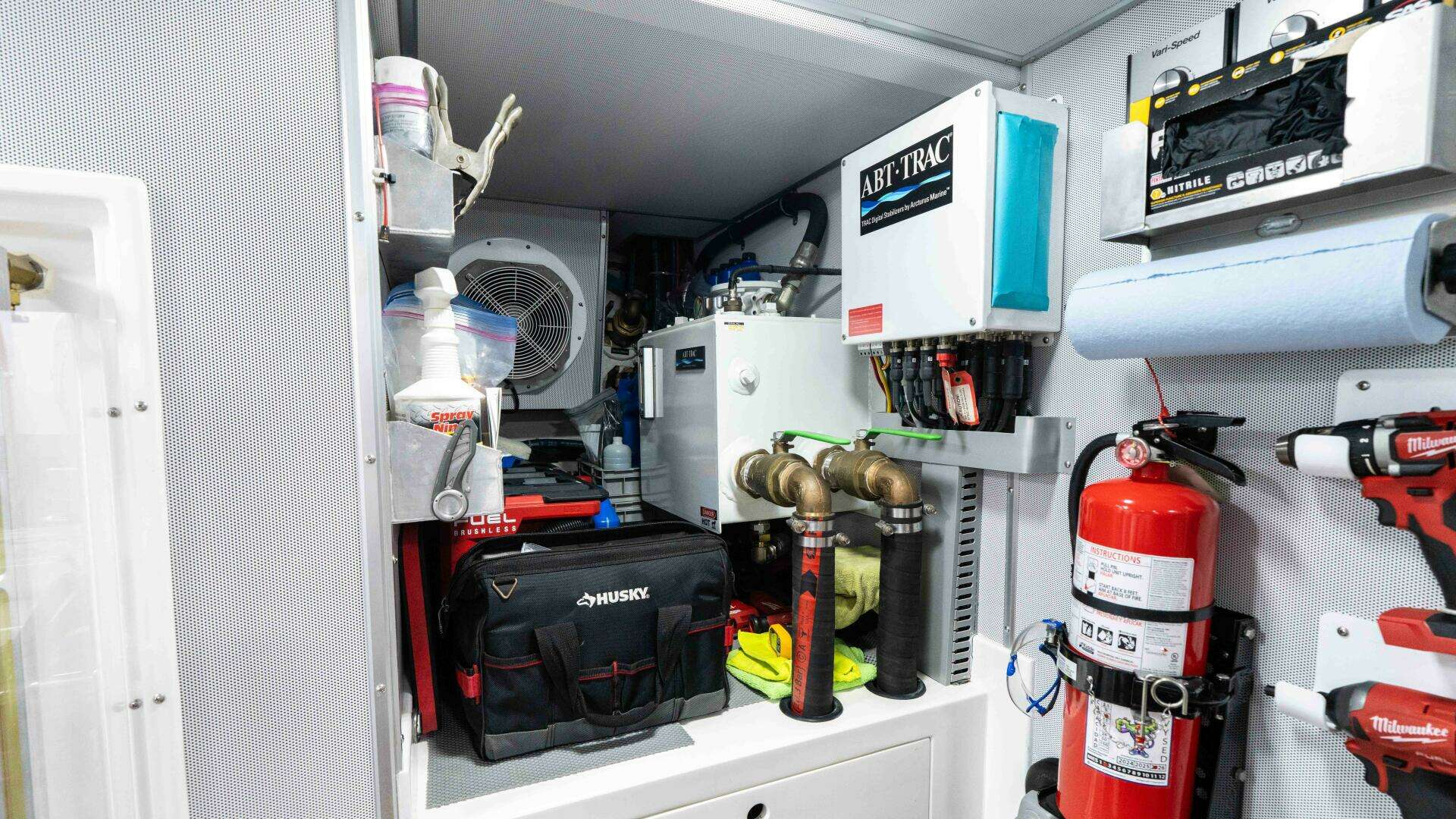

• TRACLink ABT-Trac stabilizer control
• Paravane Roll Stabilizers as a redundant system
• Sea Fire alarms for both engine room and lazarette
• 2 x Icom IC-M605 VHF radios with AIS transceiver
• B&G High frequency forward facing sonar
• Furuno ECS
• 4 x large screens plus additional screens for Maretron & sonar
• Maretron vessel monitoring system features remote monitoring, hydraulic pressure monitoring, shaft temp sensors and much more
• 2 x Furuno Open Array Radars
• Simrad AP70MK2 Autopilot with Simrad Back up autopilot
• Simrad non-follow-up steering control
• Maxwell windlass AA560 chain counter
• Furuno Compact Dome Satellite Compass for highly accurate attitude information for navigation equipment such as radar, plotter, autopilot, fish finder and sonar
• Timezero ECS running off Dell computer
• FLIR Night vision camera gyro-stabilized
• CCTV cameras throughout include: steering gear view, forepeak view of water systems, mast, main deck aft, starboard side main deck walkway, forward facing engine room, aft facing engine room and portable engine room camera which can clip on to things for monitoring specific parts
• Electronic engine gear control for main engine and mechanical gear and throttle control for wing engine
• ABT Trac Bow and Stern thruster controls for hydraulic thrusters
• Hynautic wheel steering
• Custom rack for nav computer
• IRIDIUM Sat phone
• Intellian Sat
• ACR Spotlight control
• Ritchie 4.5" compass
• Fusion Stereo control
• Intertek drinks refrigerator (NR751BB)
• 30000 BTU Dometic Reverse Cycle heating and air-conditioning
• Cup holders
• USB outlets as well as 110V outlets
• Weems & Plath Barometer, Clock & Comfort meter (temp & humidity)
• Motorola Intercom Phone

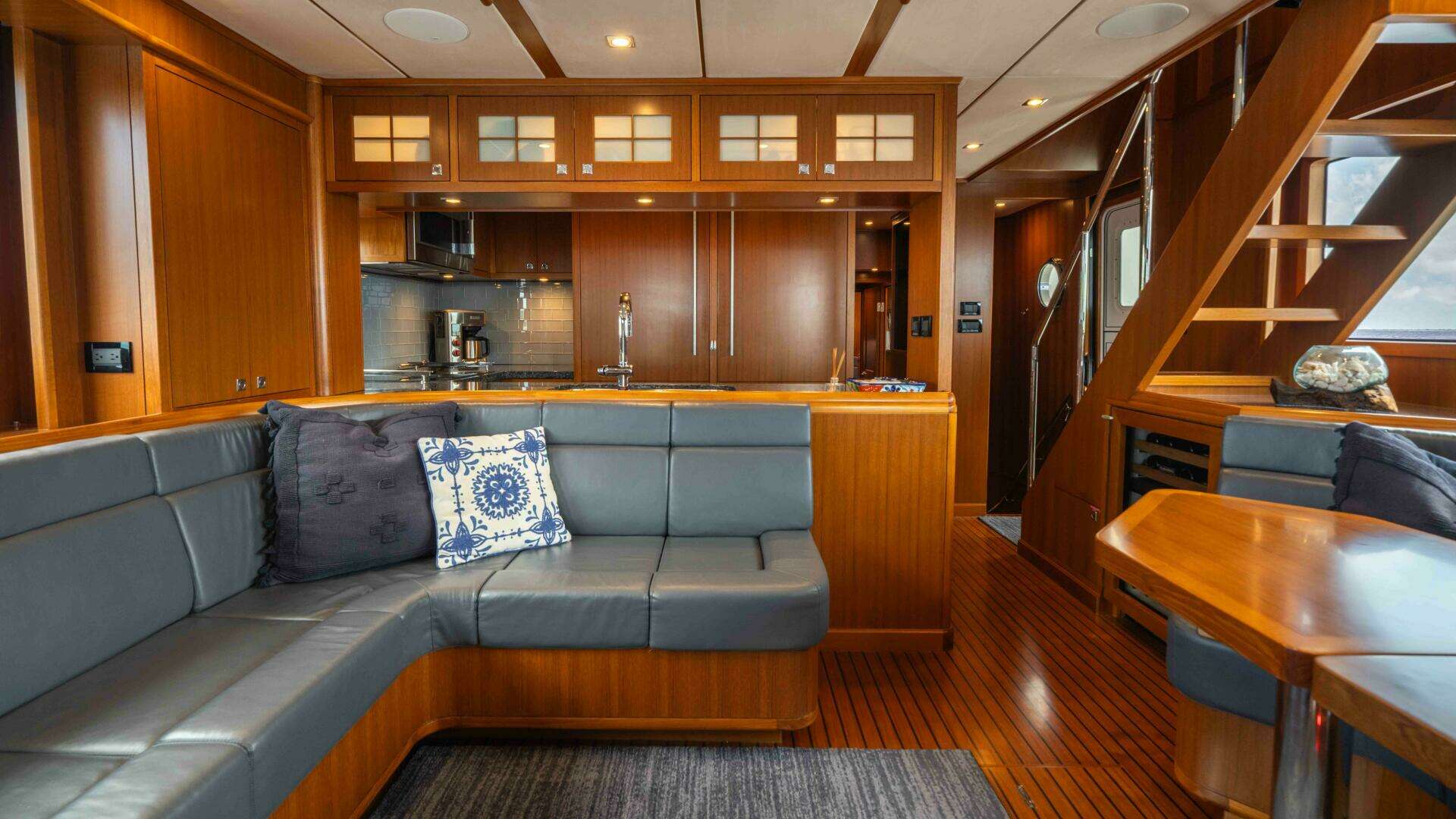

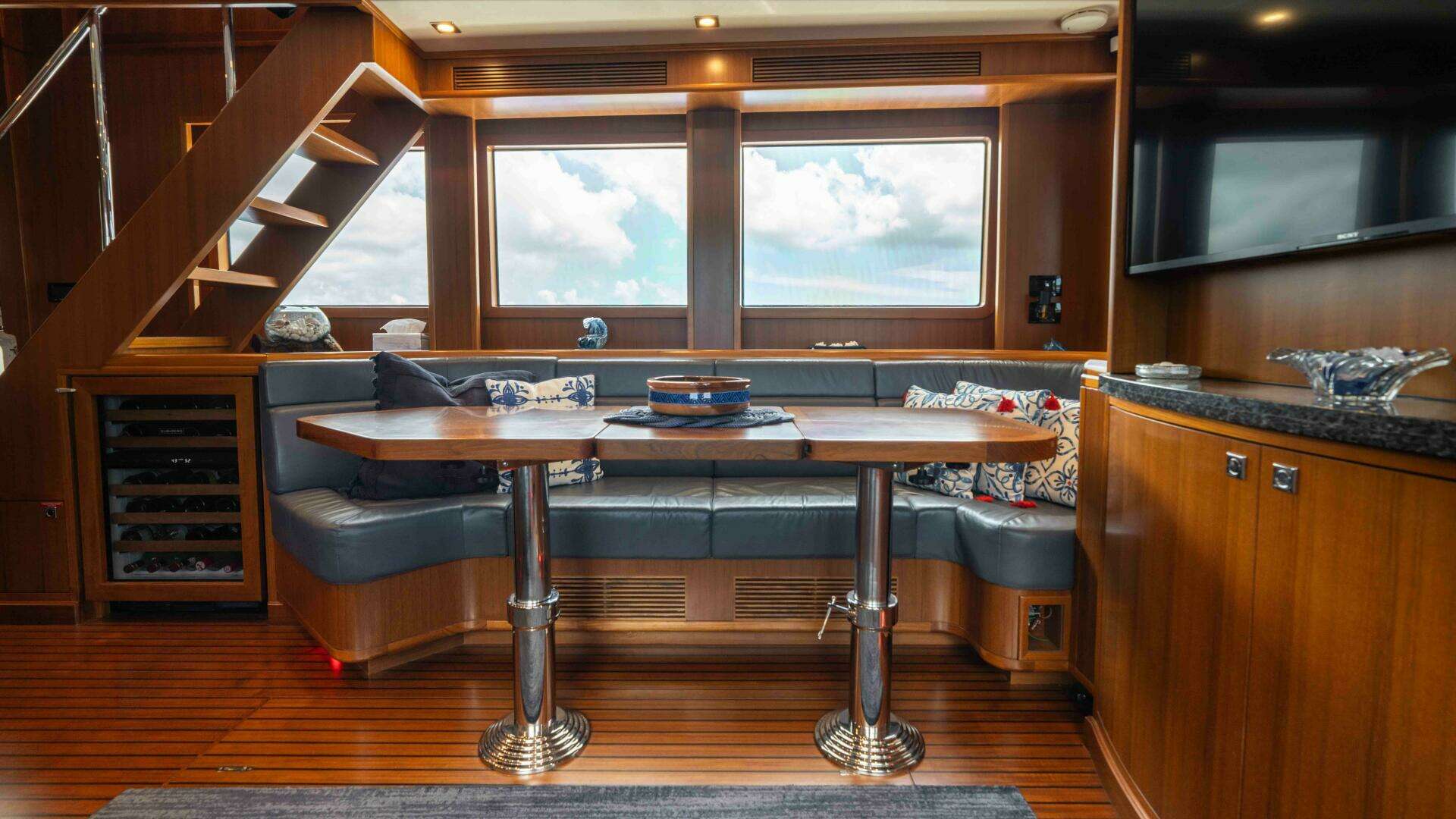

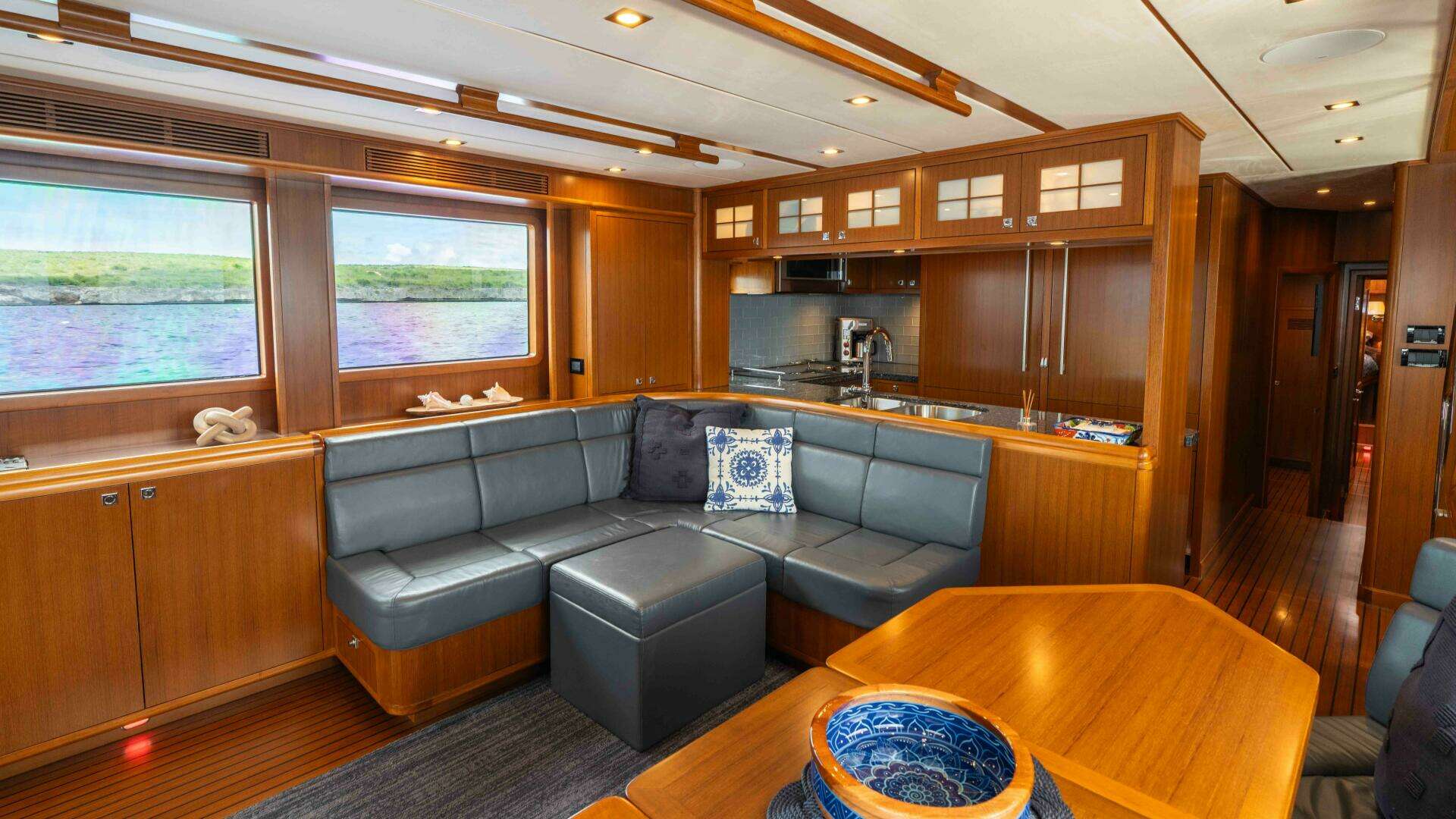

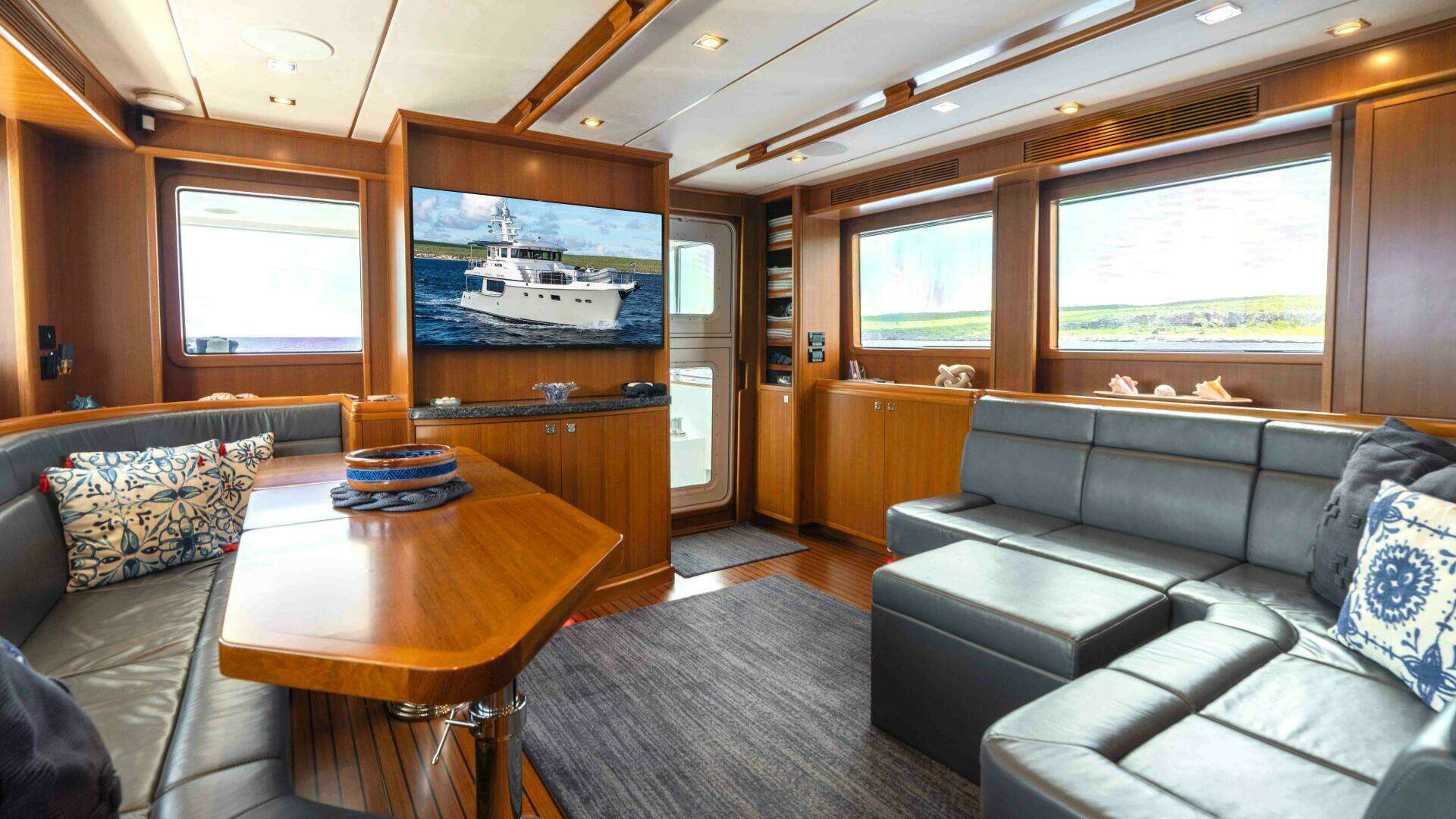

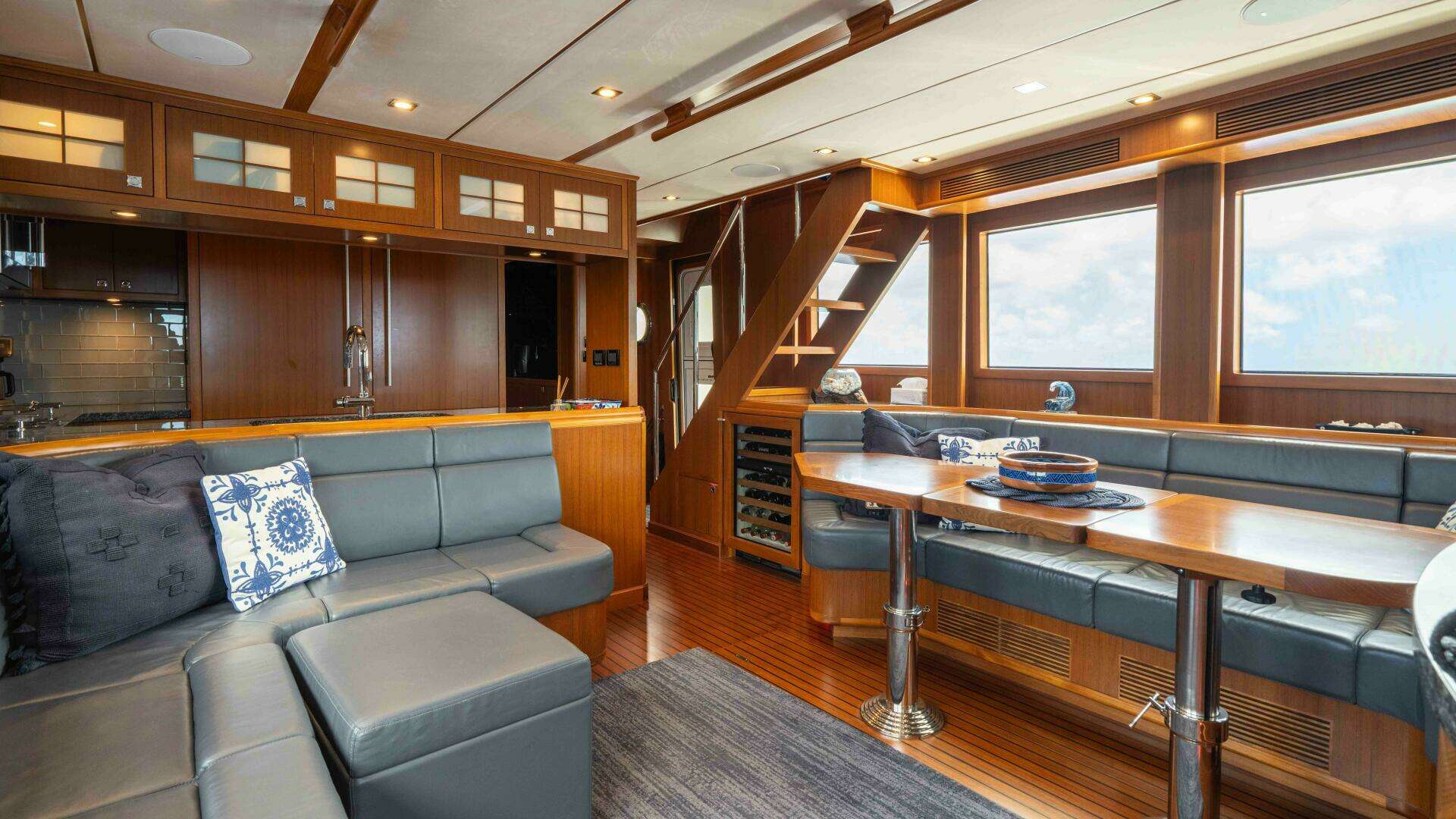

Salon

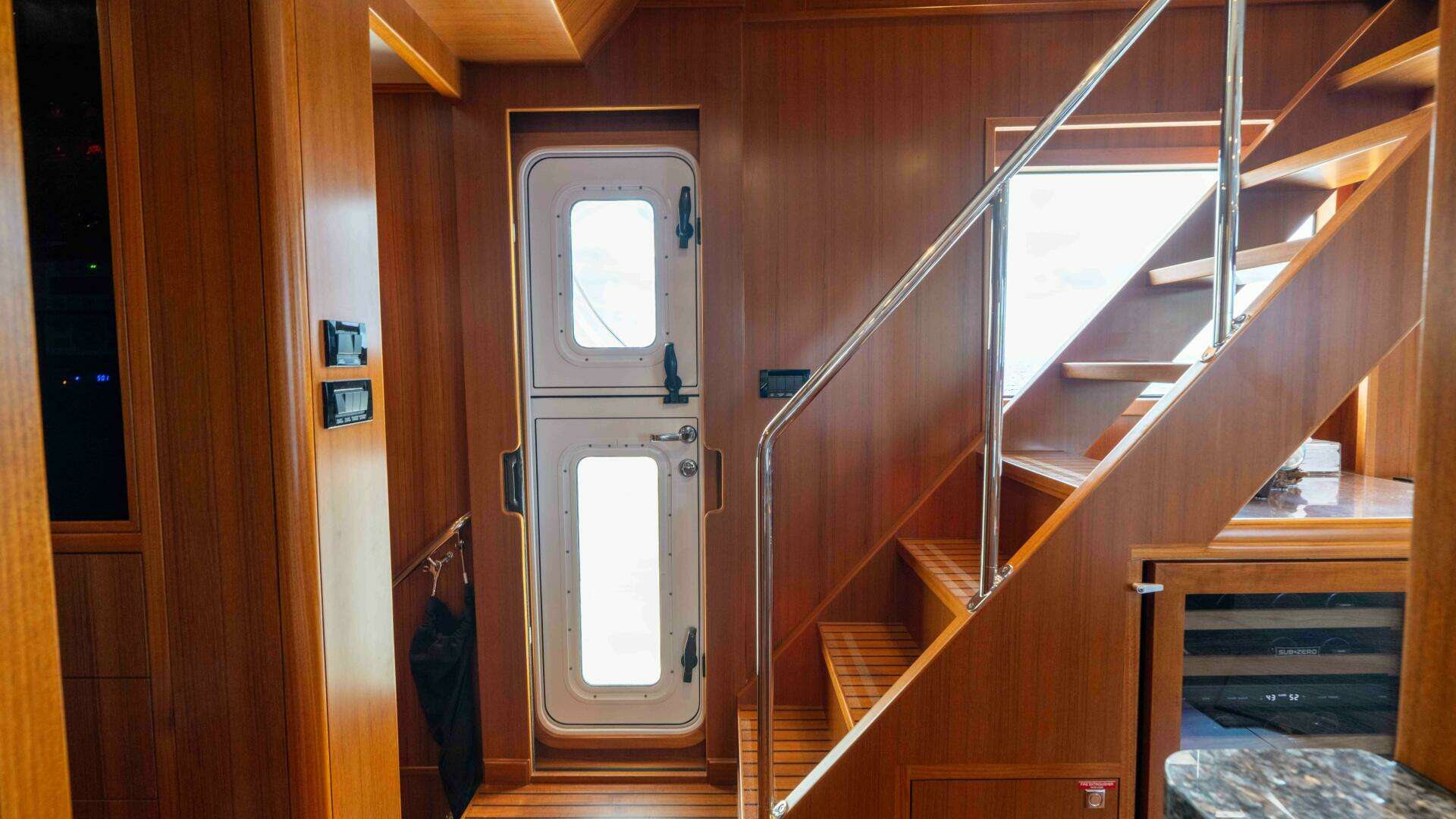

• Dutch door entrance with phantom bug screen is featured at all 4 entrances to the boat
• Wet locker on entry for coats
• Additional factory built custom cabinet
• 50inch Sony Smart TV with Apple TV
• 48000 BTU Dometic Reverse Cycle heating and air-conditioning
• Custom bottle and glassware storage
• 2 dining tables which turns into one large dining table with a leaf insert
• 2 large sofa couches giving you ample space for entertaining and dining

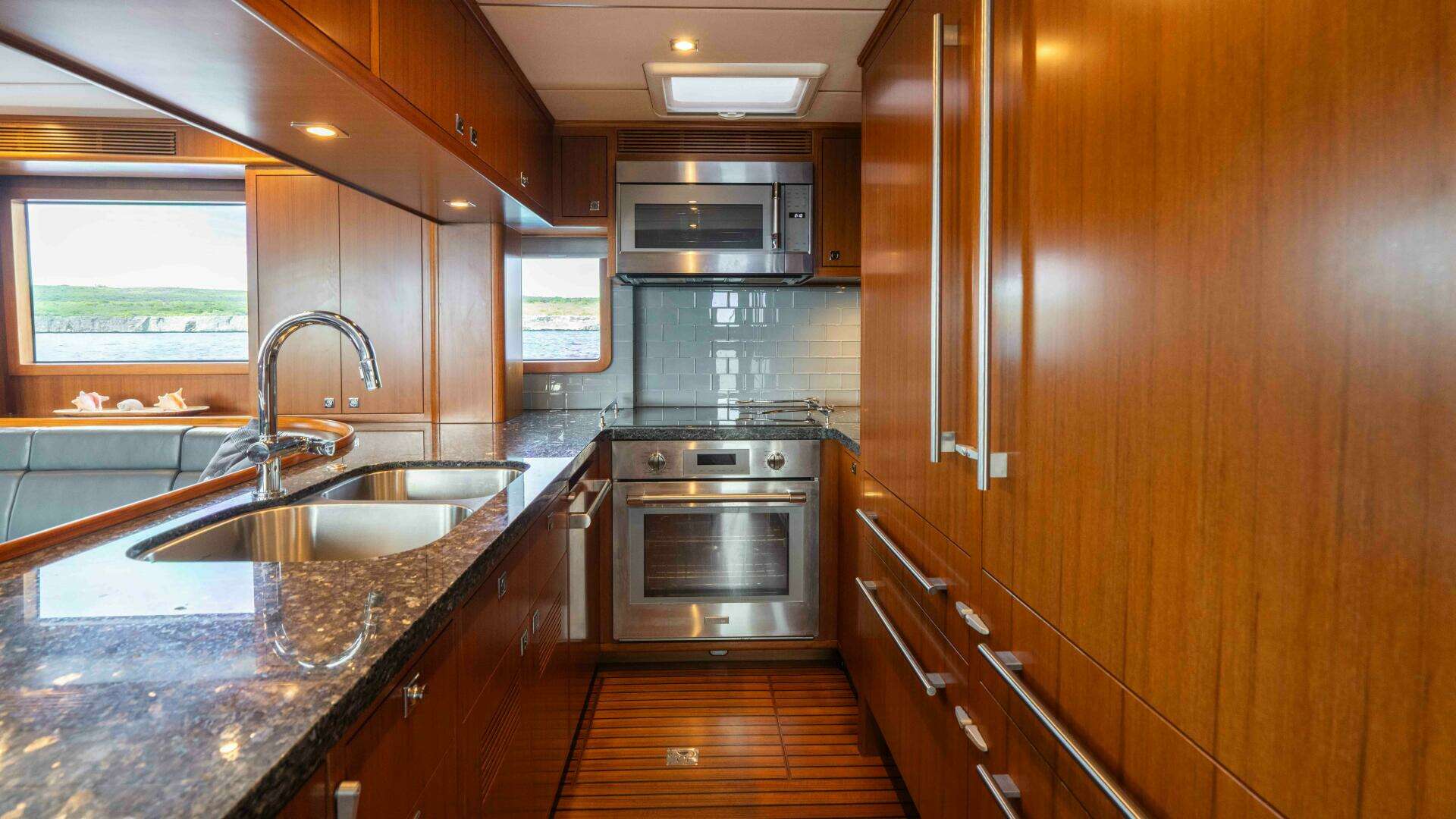

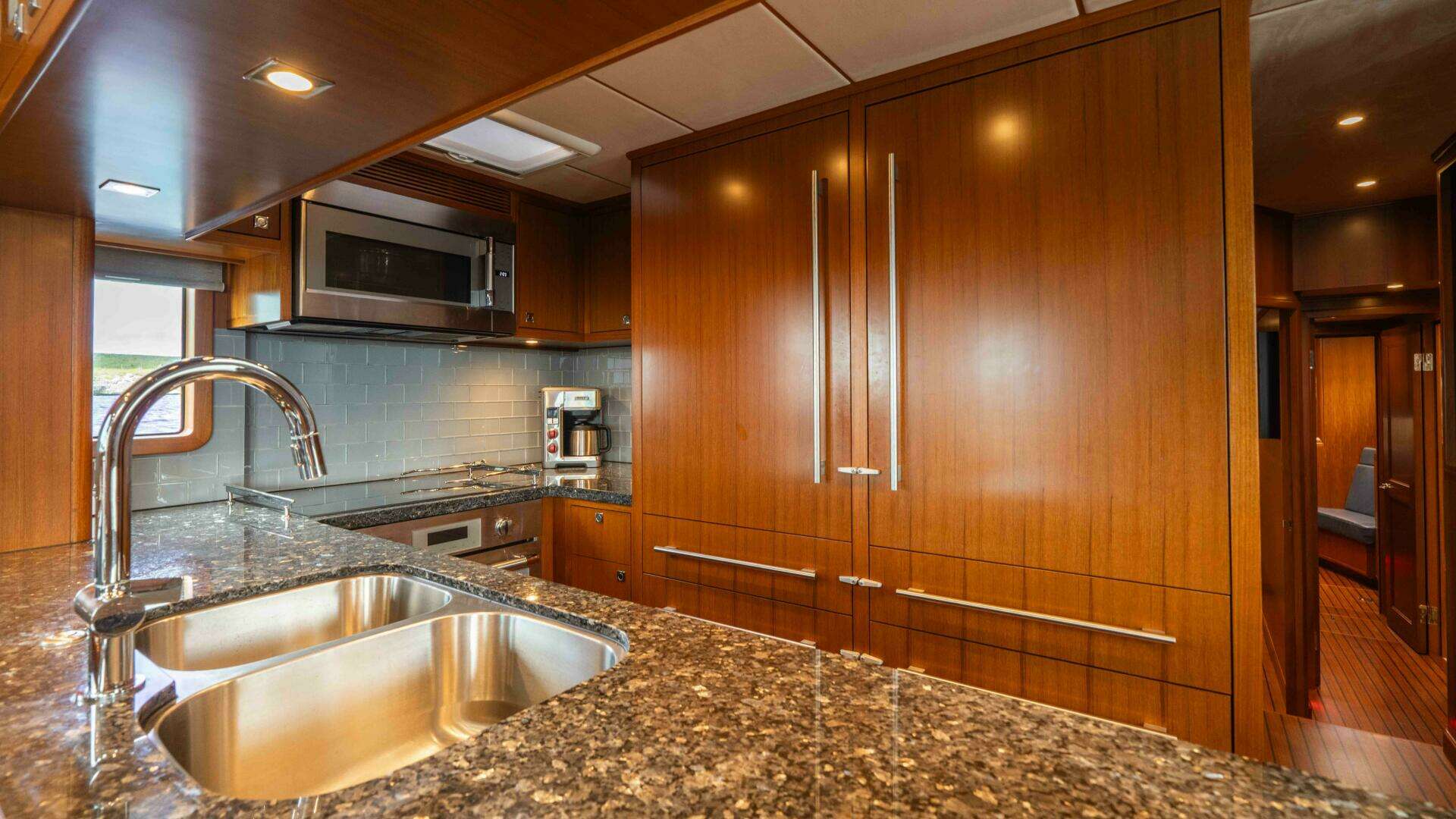

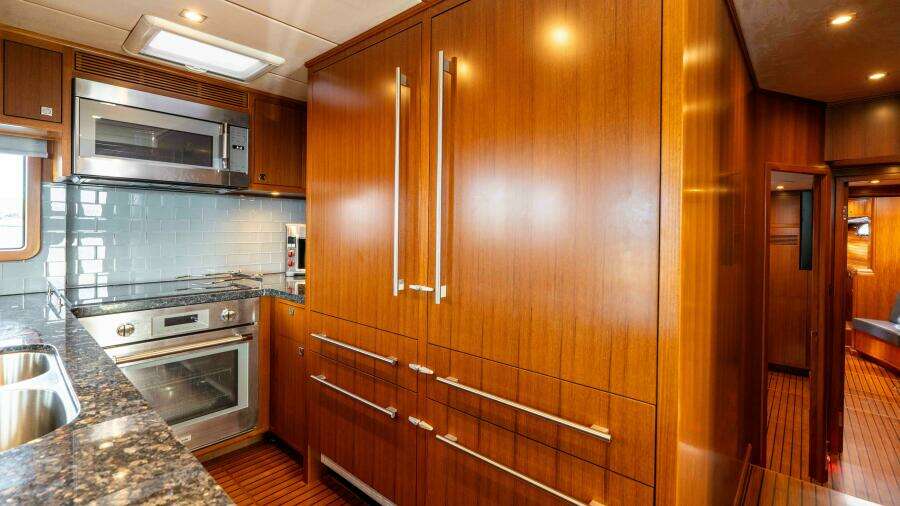

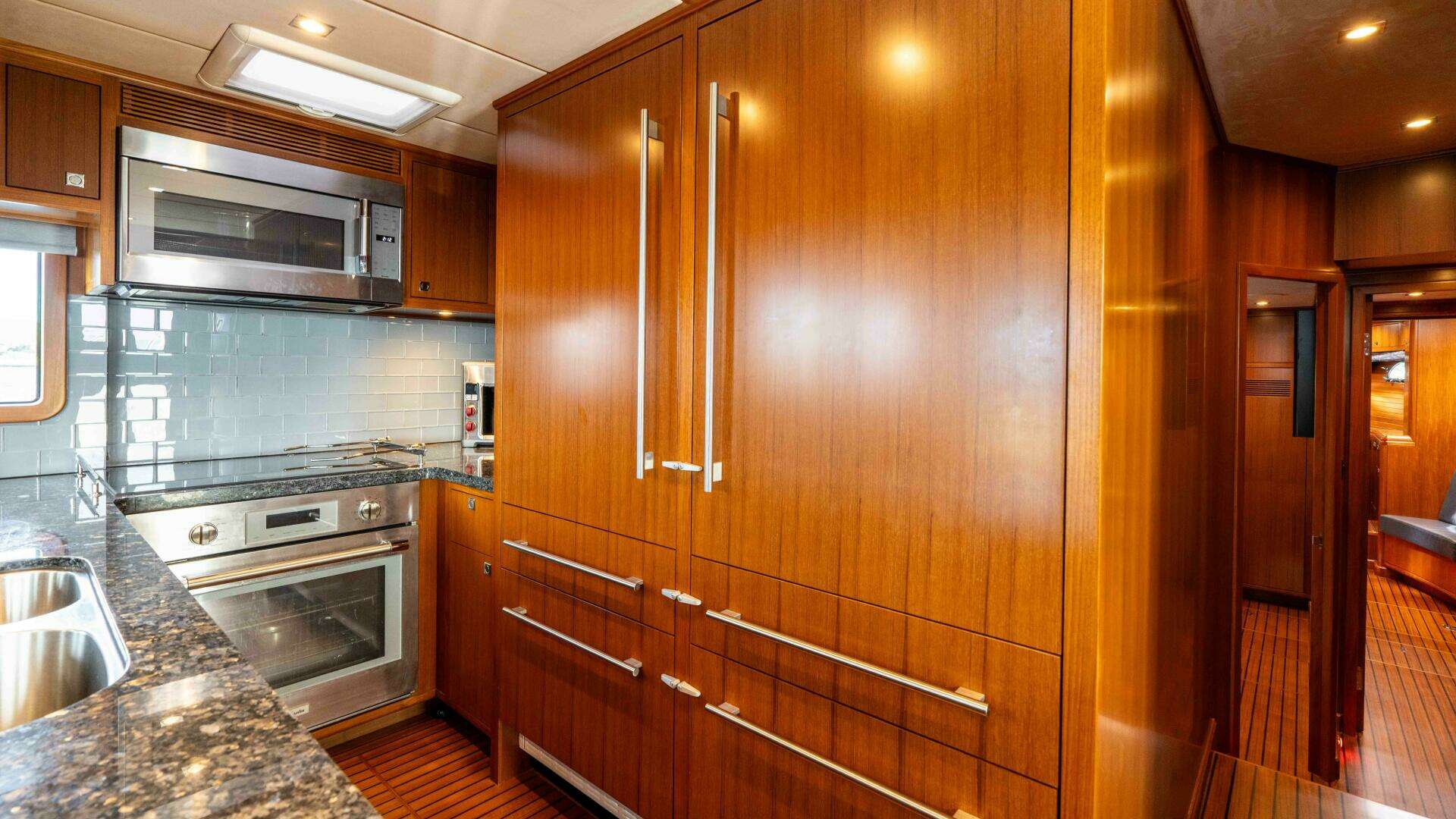

Galley

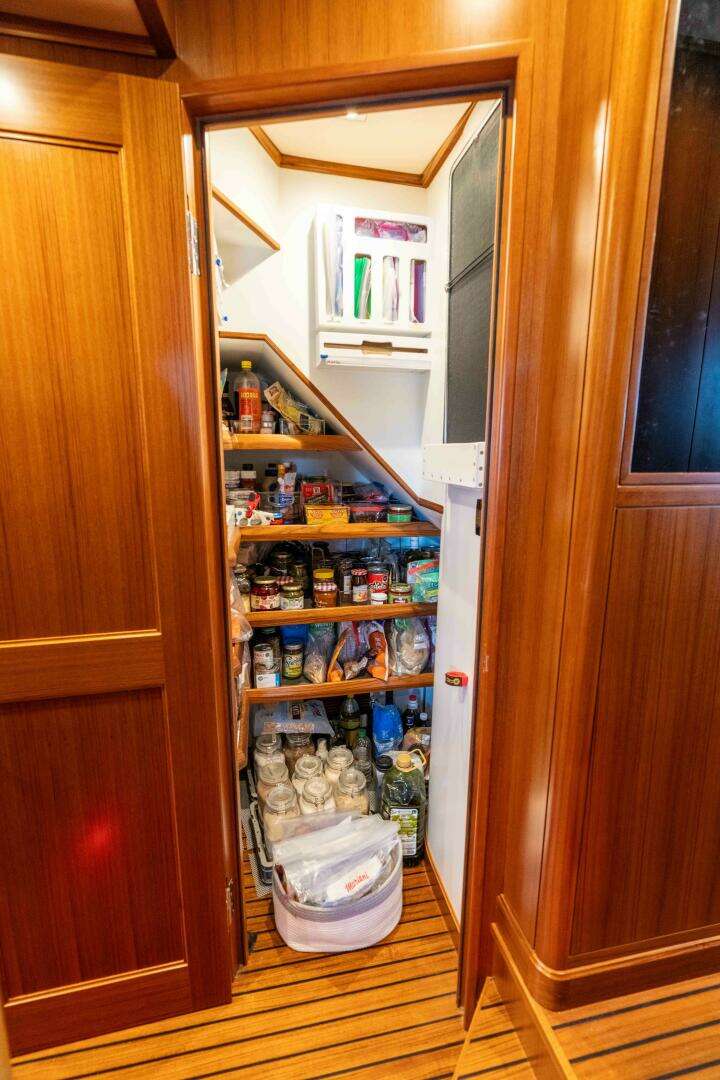

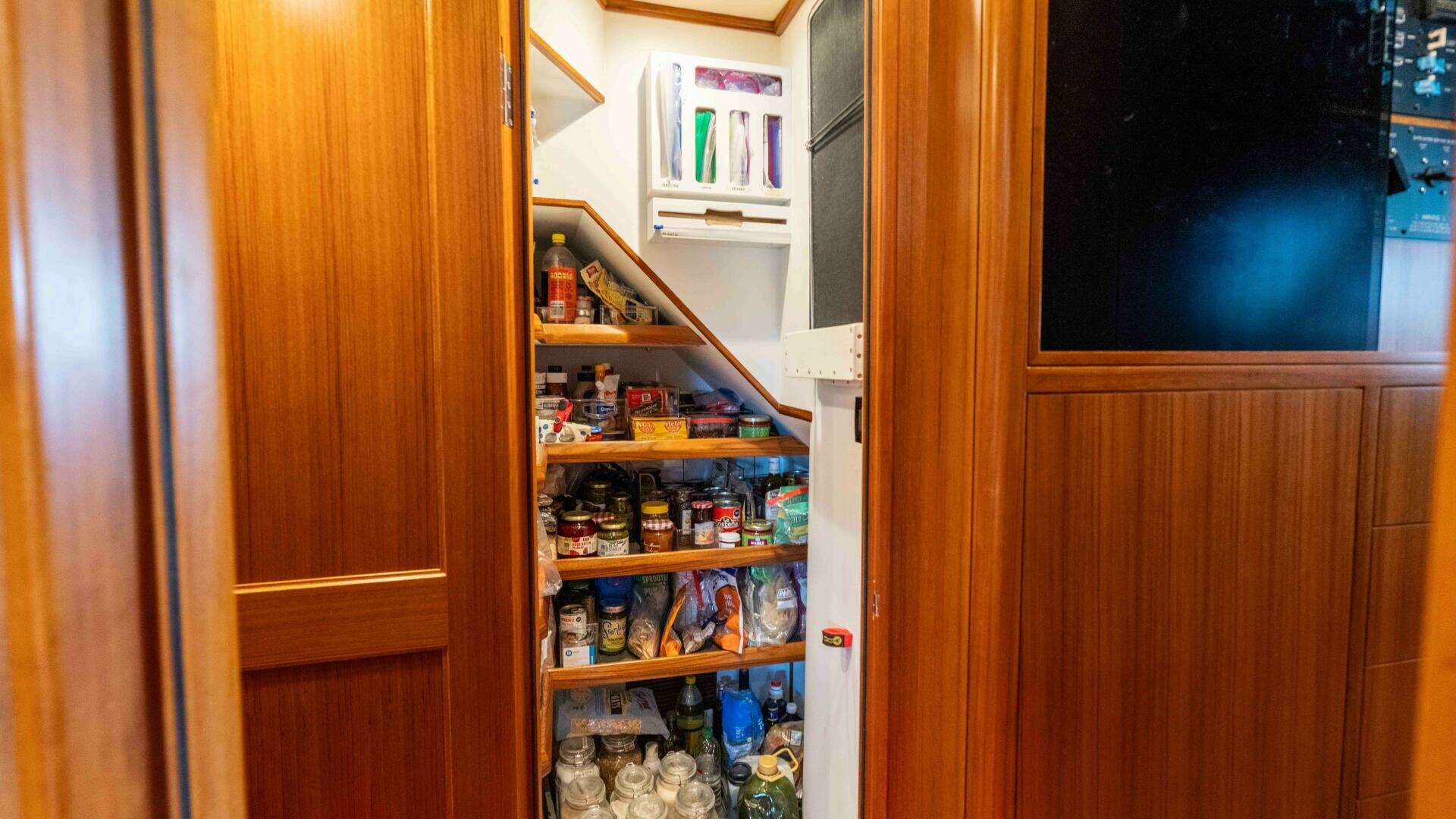

• Large Pantry storage
• Thermador Professional Series MU30WSU 30 Inch Over-the-Range Microwave with 2.1 cu. ft. Capacity, 4-Speed, 385 CFM, Sensor Cooking, 1100-Watts Power – have spare internals as a redundancy
• Thermador Professional Single Wall Oven 30'' Stainless Steel POD301W/01
• Thermador Professional safe induction cooktop
• 2 x GE Monogram 20.2 Cu. Ft. Integrated Bottom-Freezer Refrigerator with Convertible Drawer and ice-maker
• Trash compactor
• Dual stainless-steel sinks with granite covers for extra counter top space
• Sub-Zero 46 bottle wine refrigerator (UW-24/O-R)
• Bosch integrated dishwasher 18" (SPV68U53UC)

Accommodation

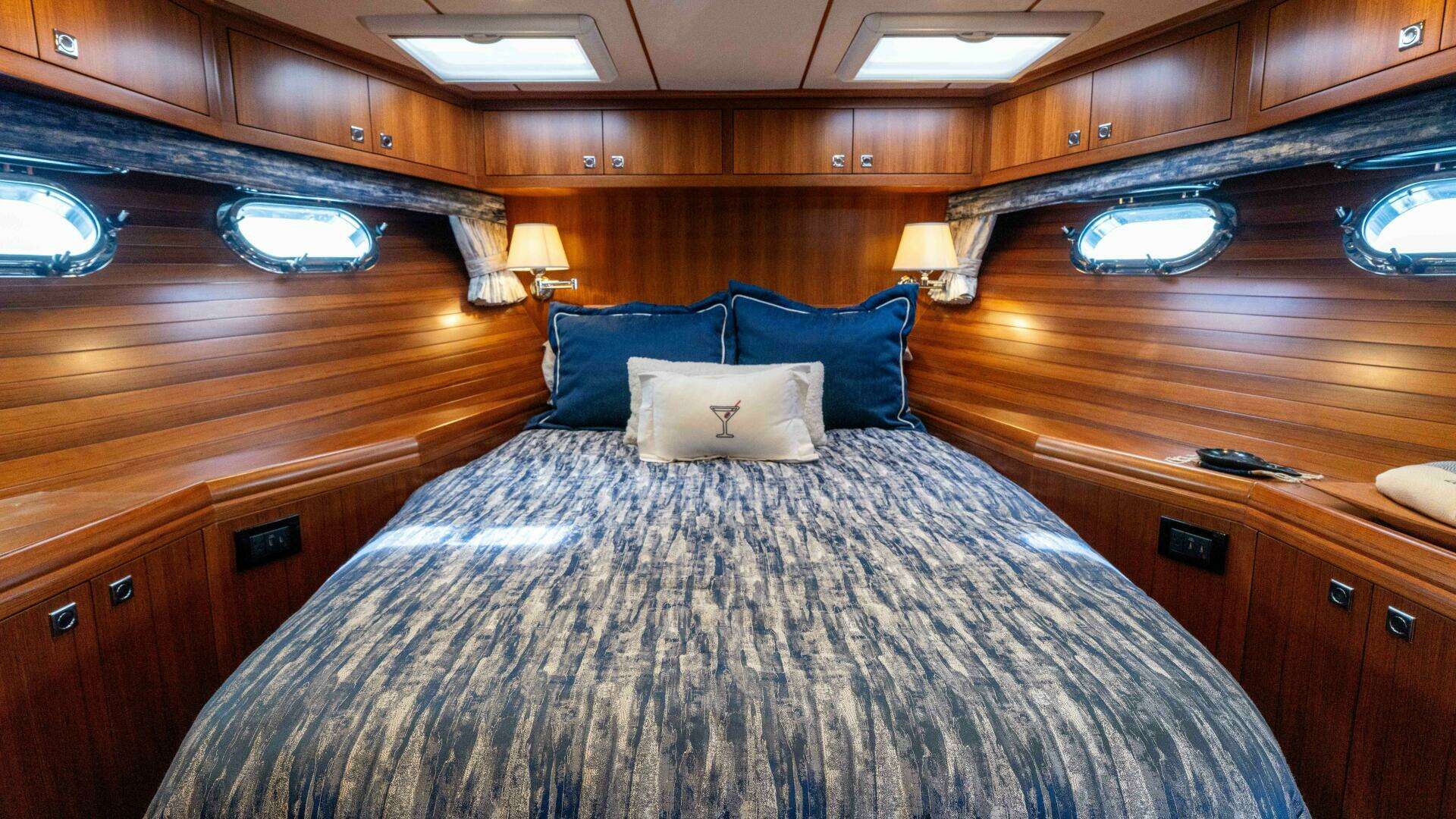

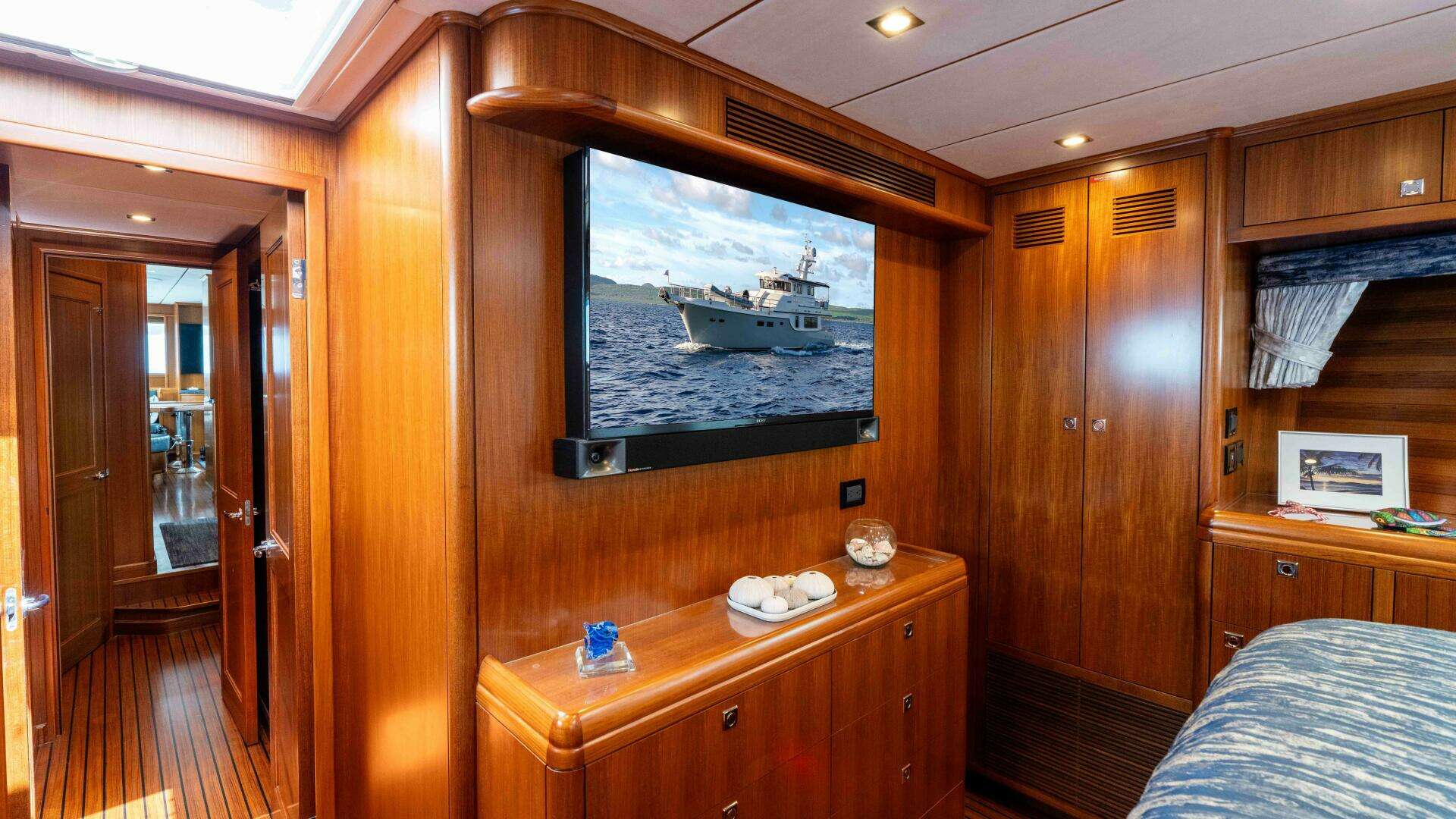

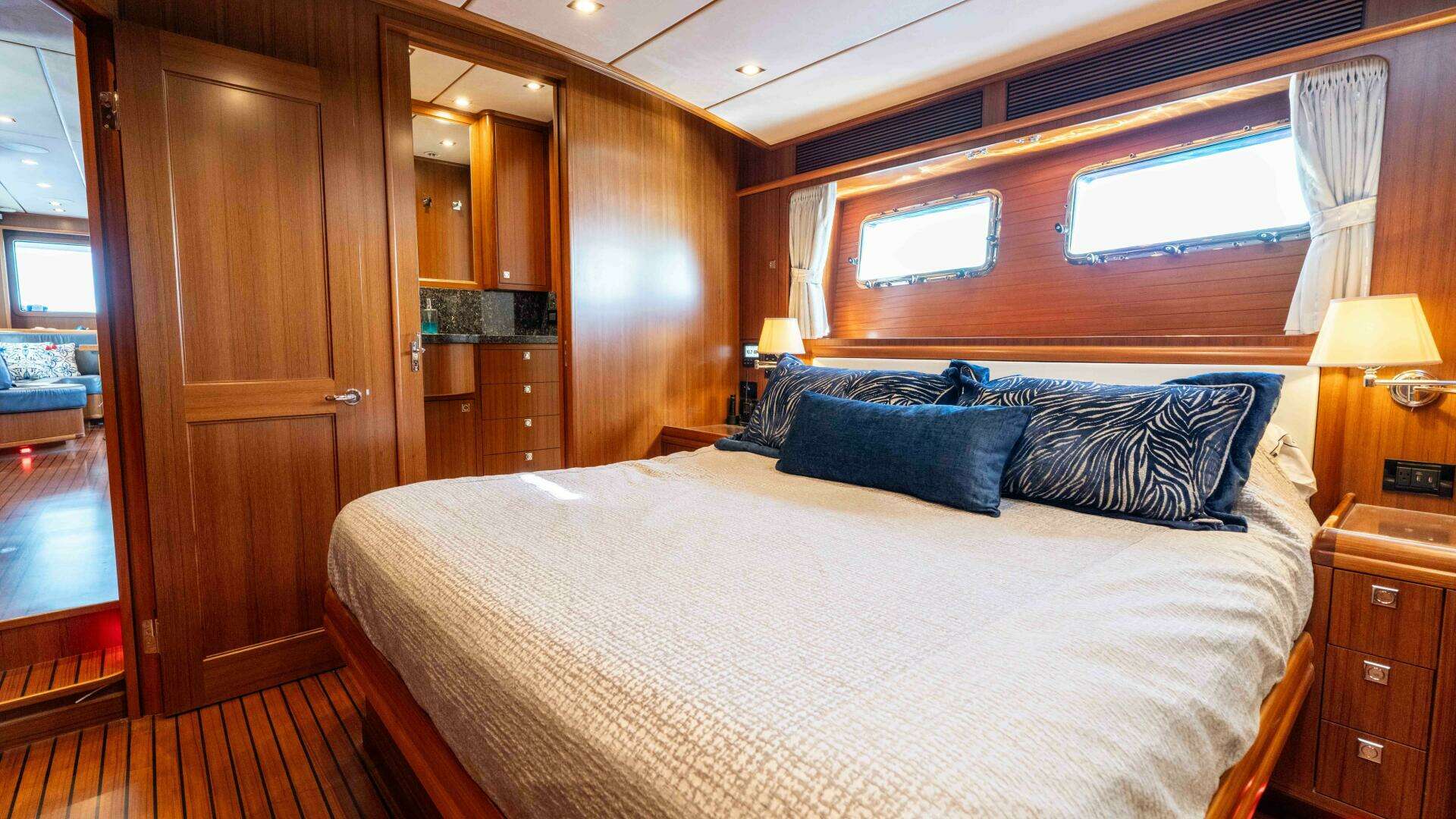

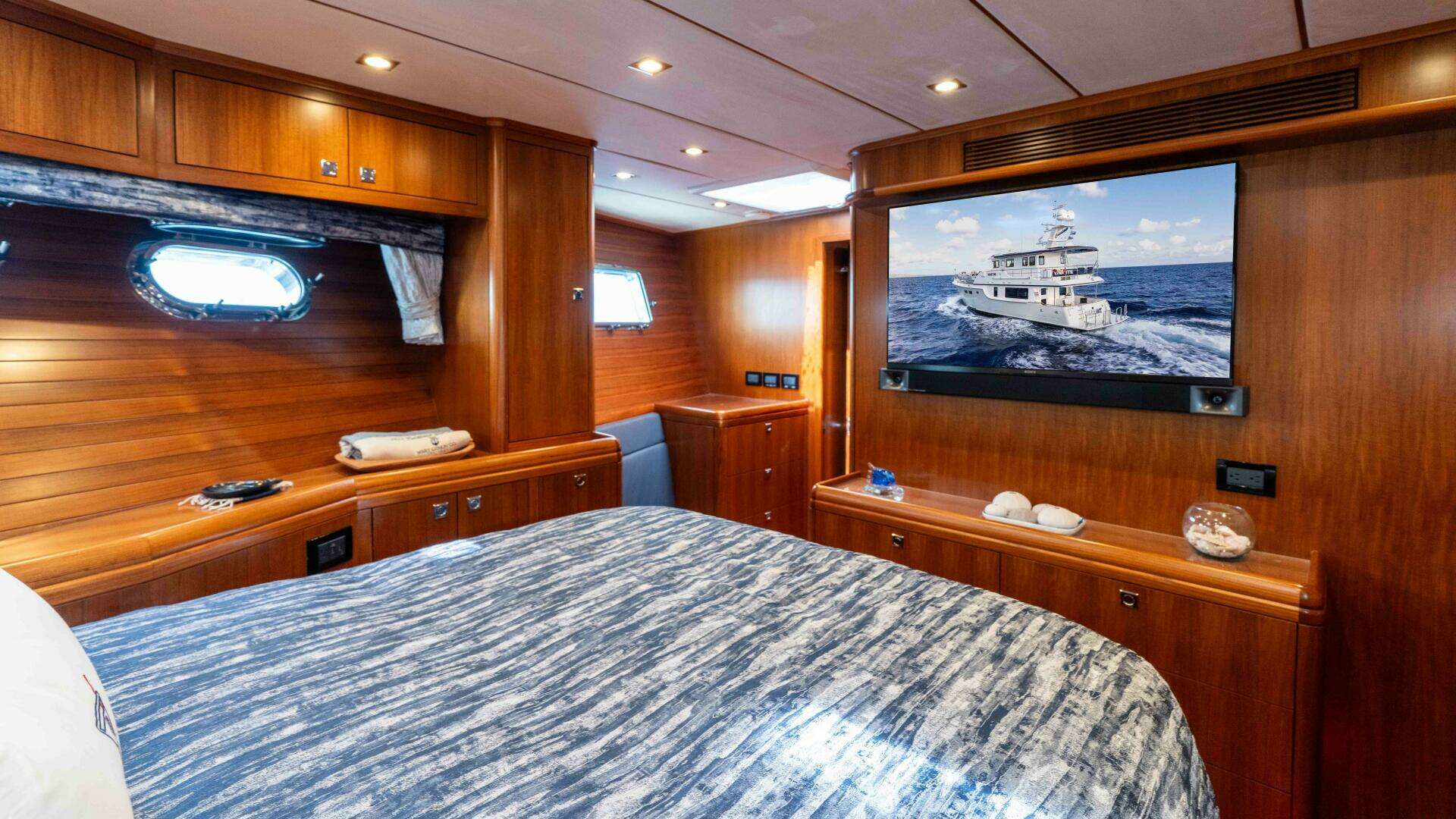

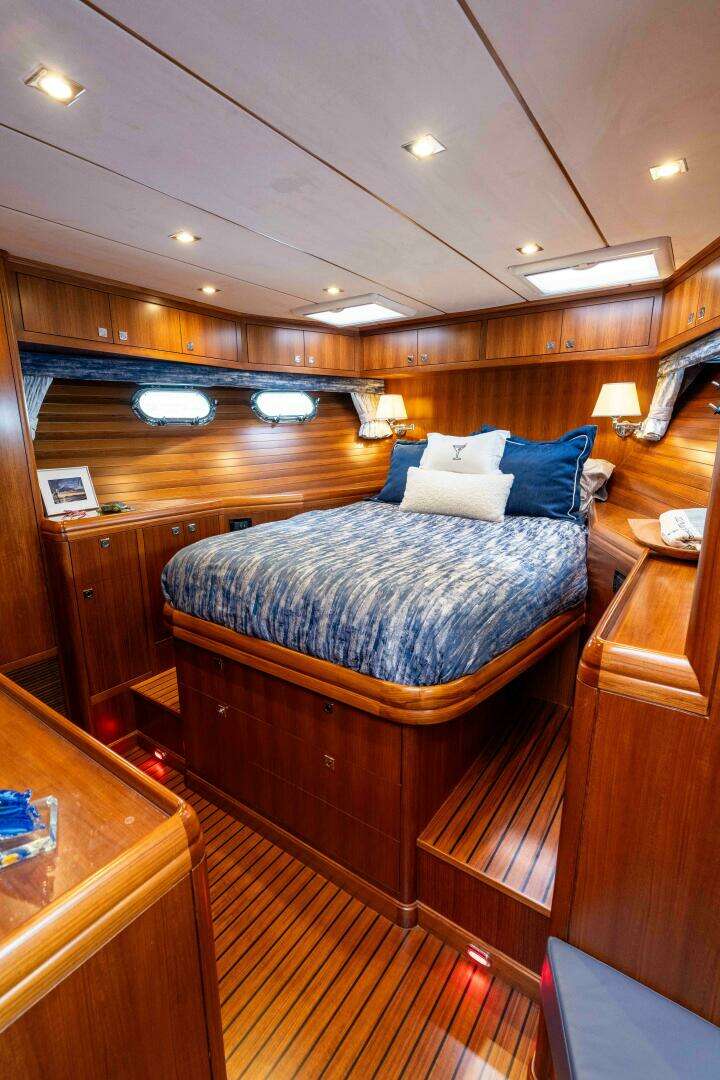

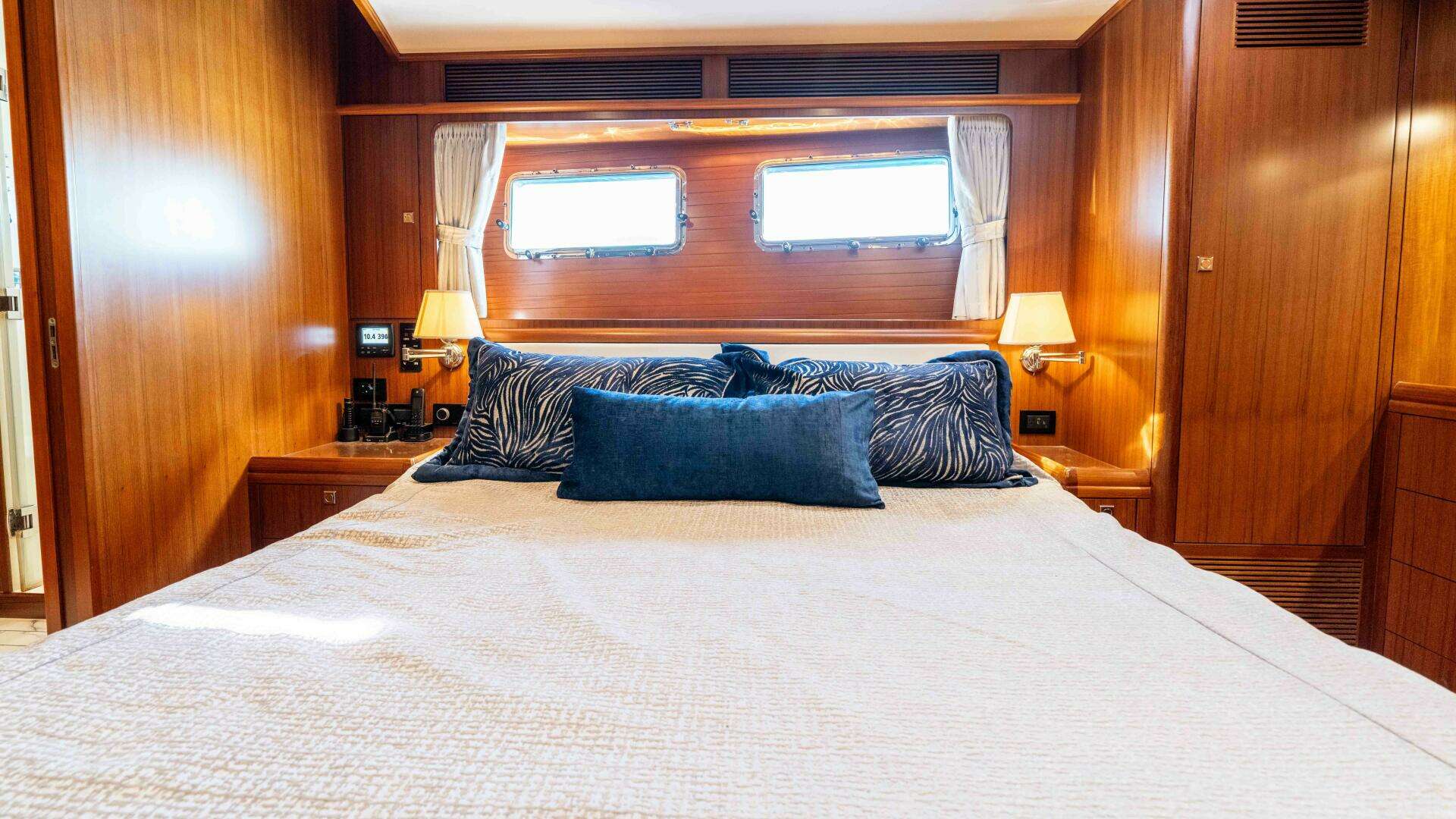

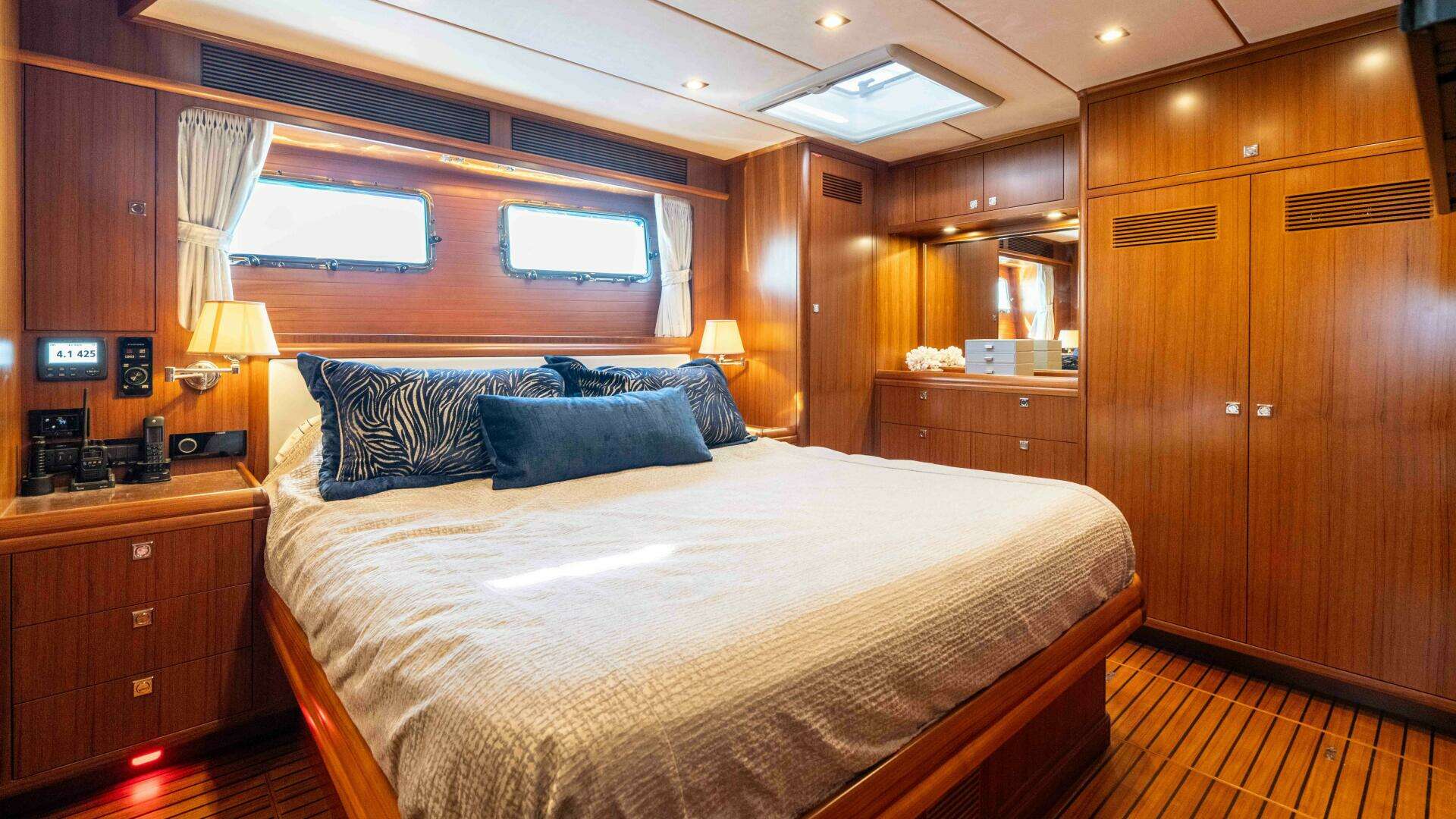

Master Cabin

• 16000 BTU Dometic Reverse Cycle heating and air-conditioning
• 42inch Sony TV
• Furuno multi-function display
• Furuno Vertical Remote Control for Navigation (used when displayed on TV in cabin)
• Motorola Intercom Phone
• Mirror above dresser with upgraded larger storage drawers

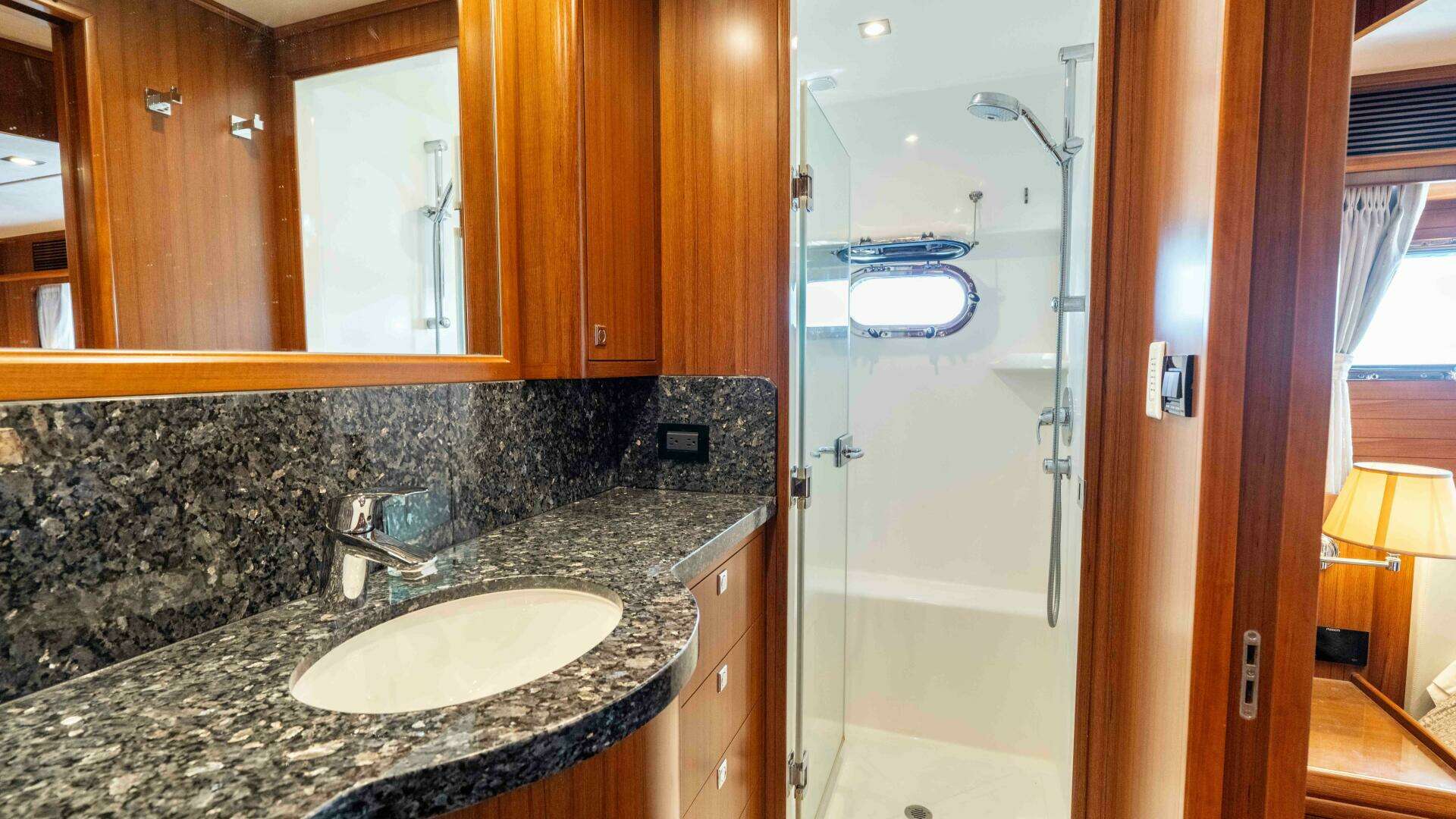

Master Cabin Ensuite

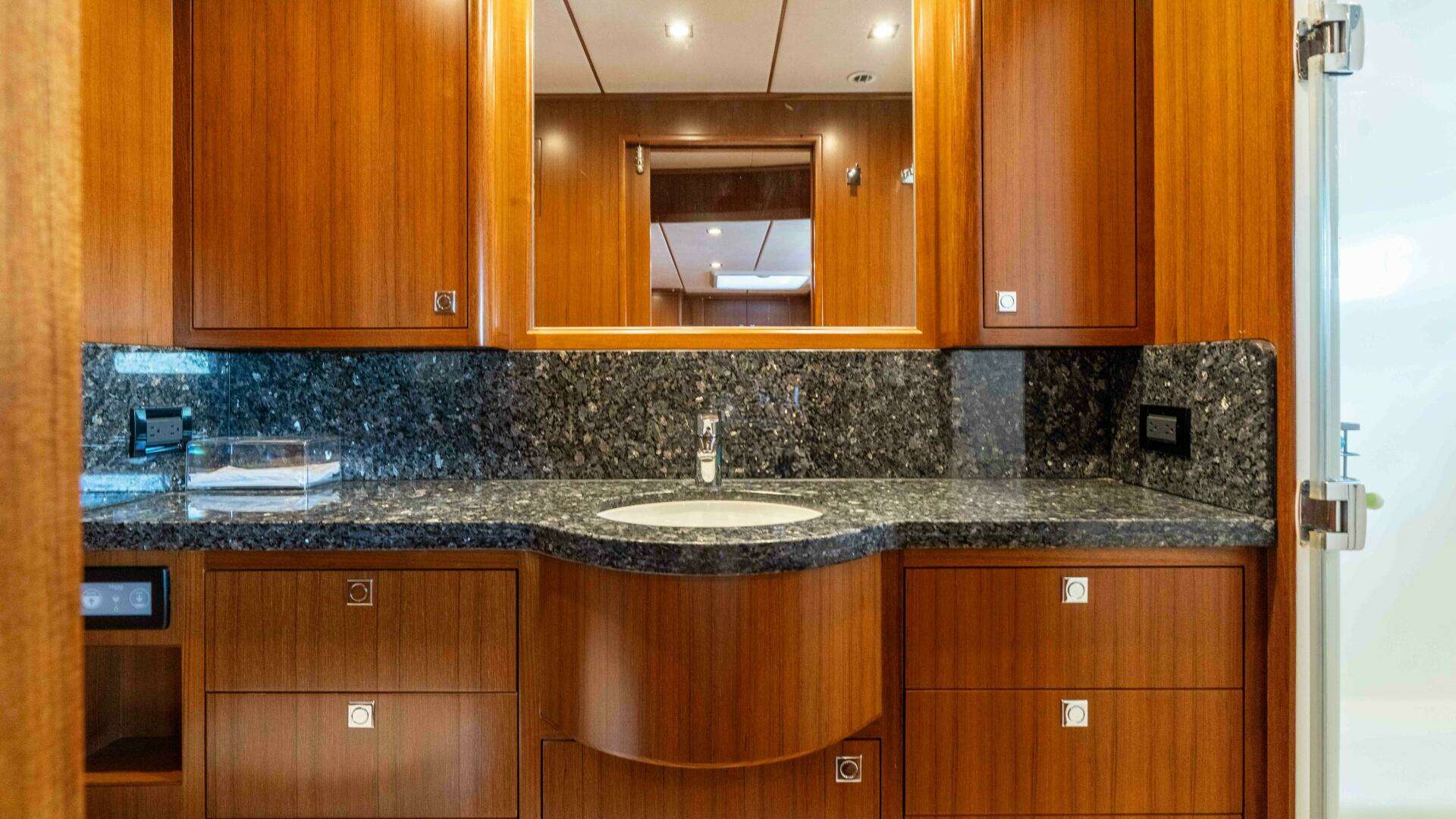

• Granite counter top with sink

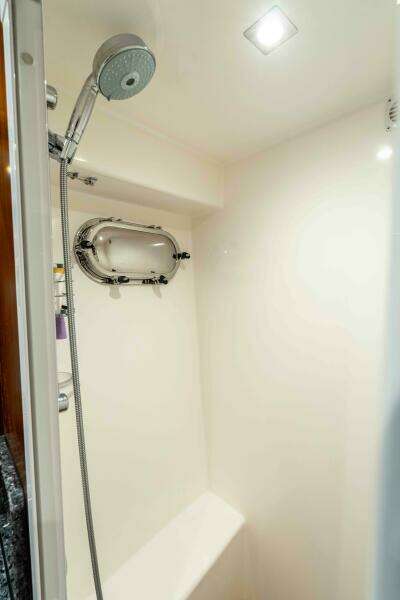

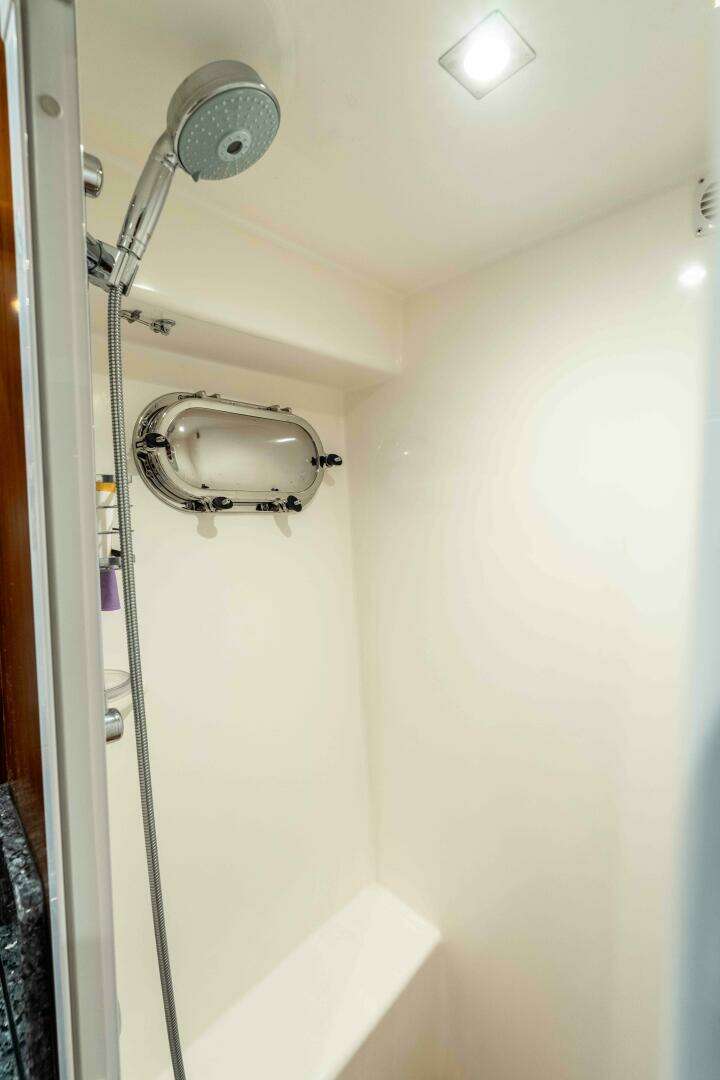

• Shower with seat and custom teak grate
• Tecma Macerating Electric Head

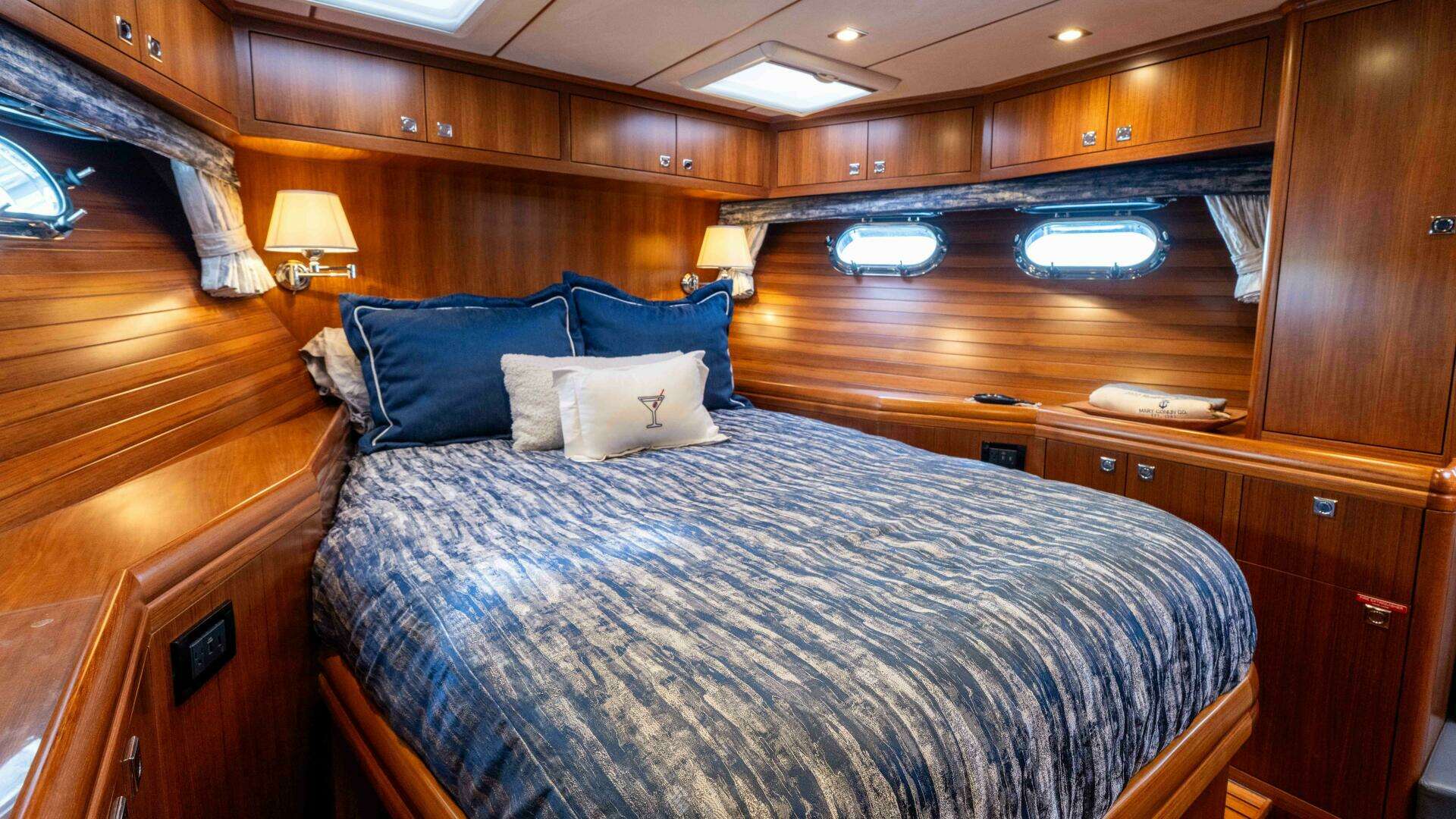

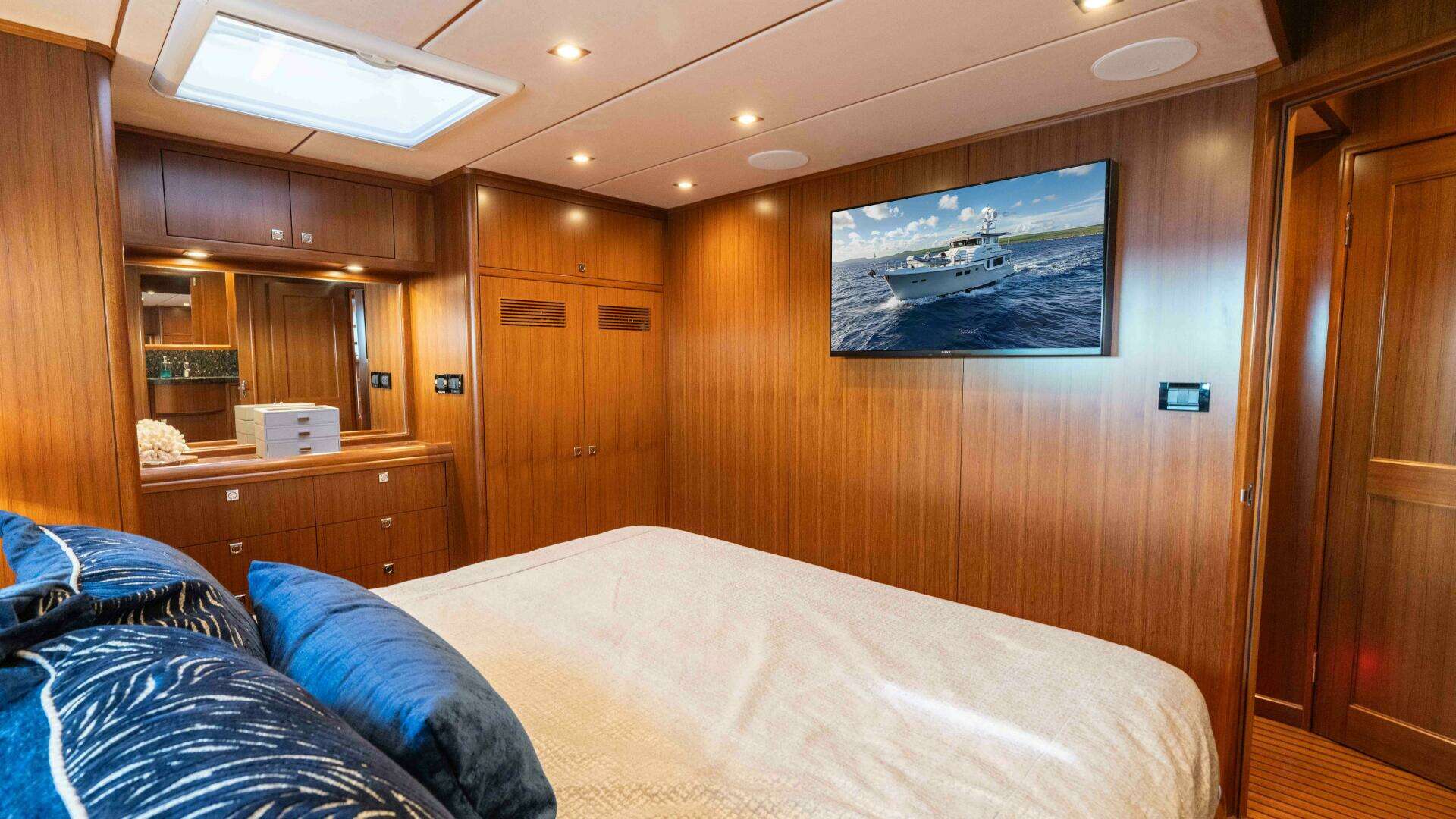

VIP Cabin

• Cedar lined closet
• Bed side USB charging outlets
• 8 opening portholes
• Emergency escape ladder
• Sony 42inch Smart TV with Klapsch Reference sound bar

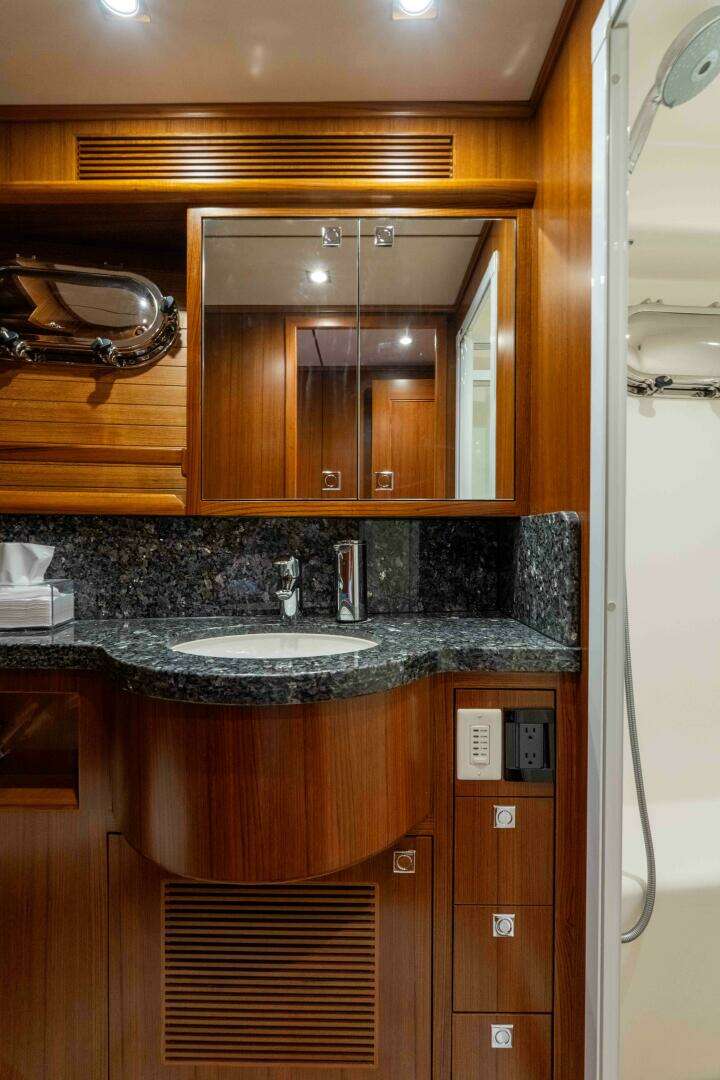

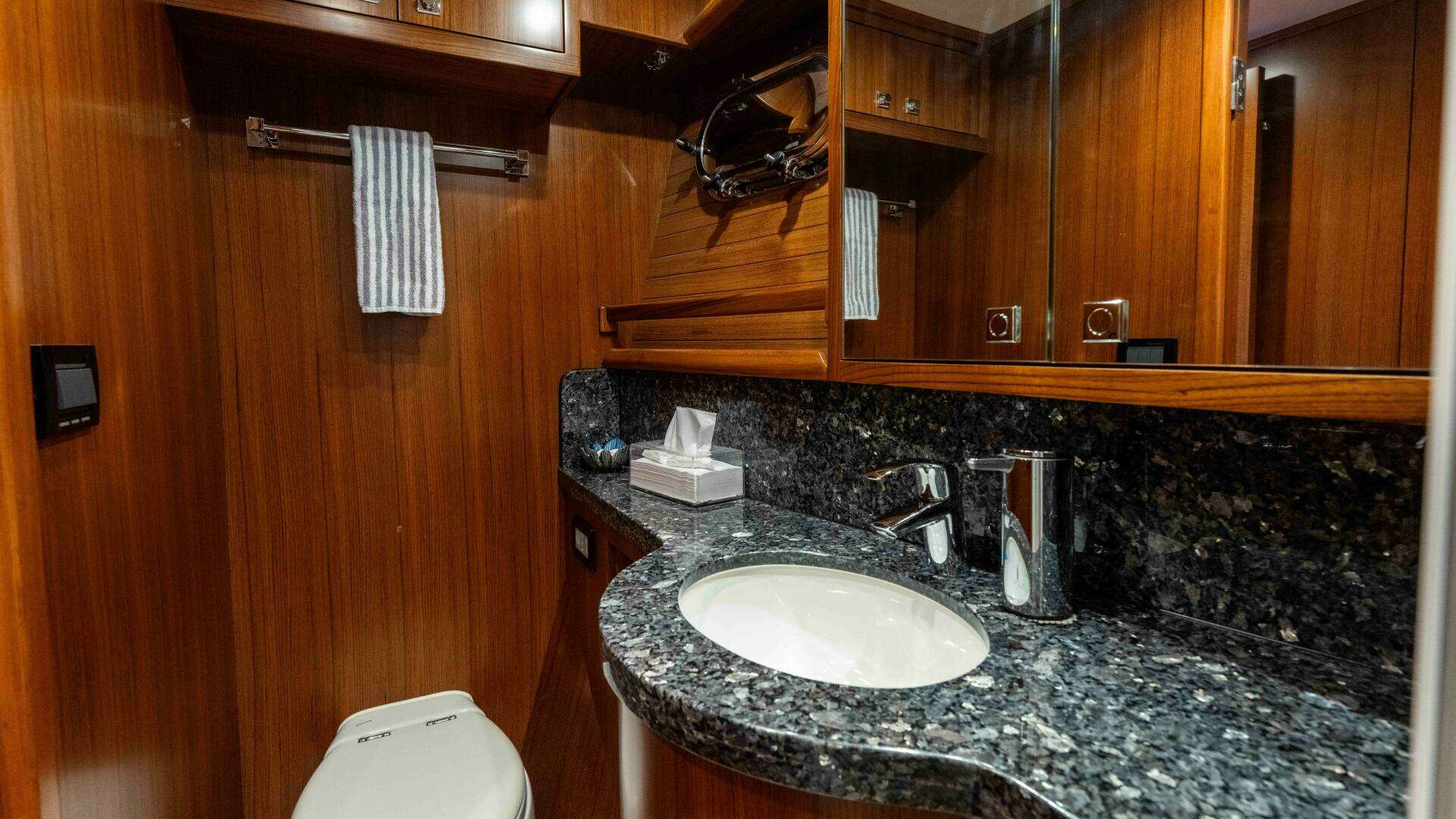

VIP ensuite / Main deck day head

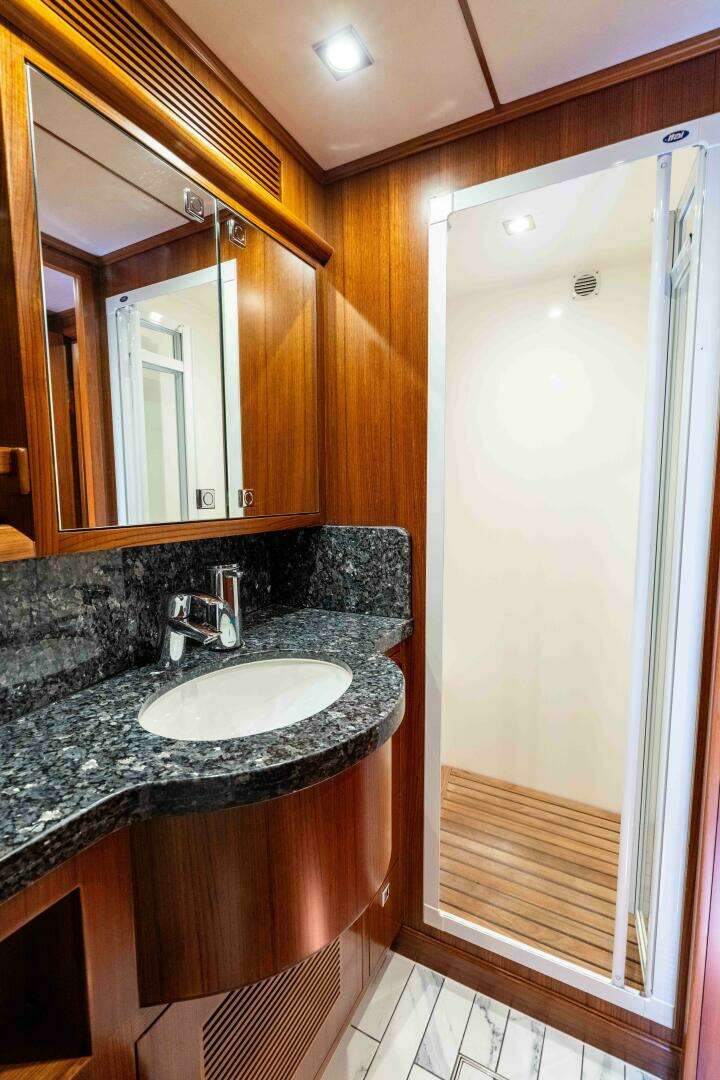

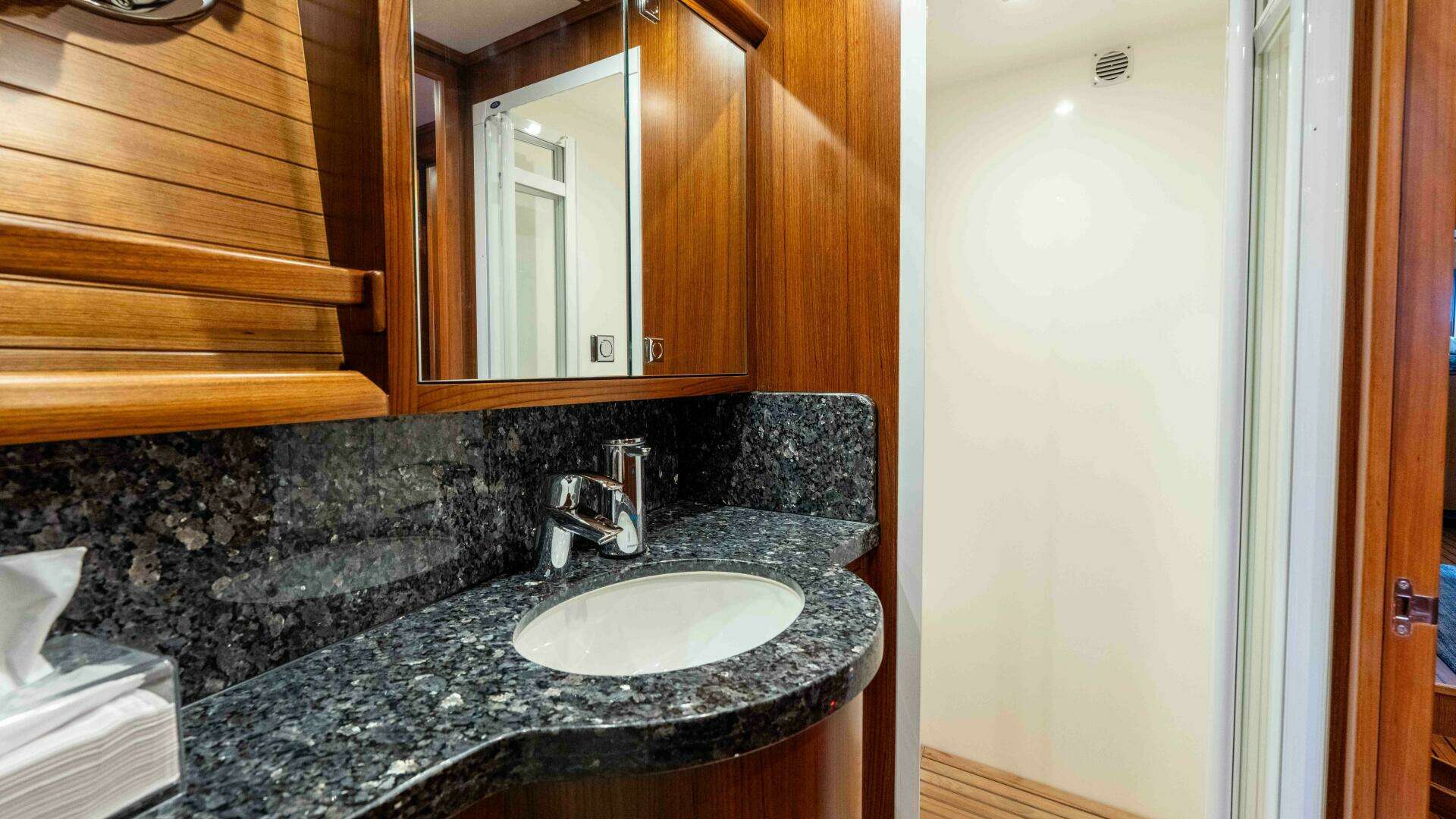

• Granite counter top with sink
• Shower with seat and custom teak grate
• Tecma Macerating Electric Head

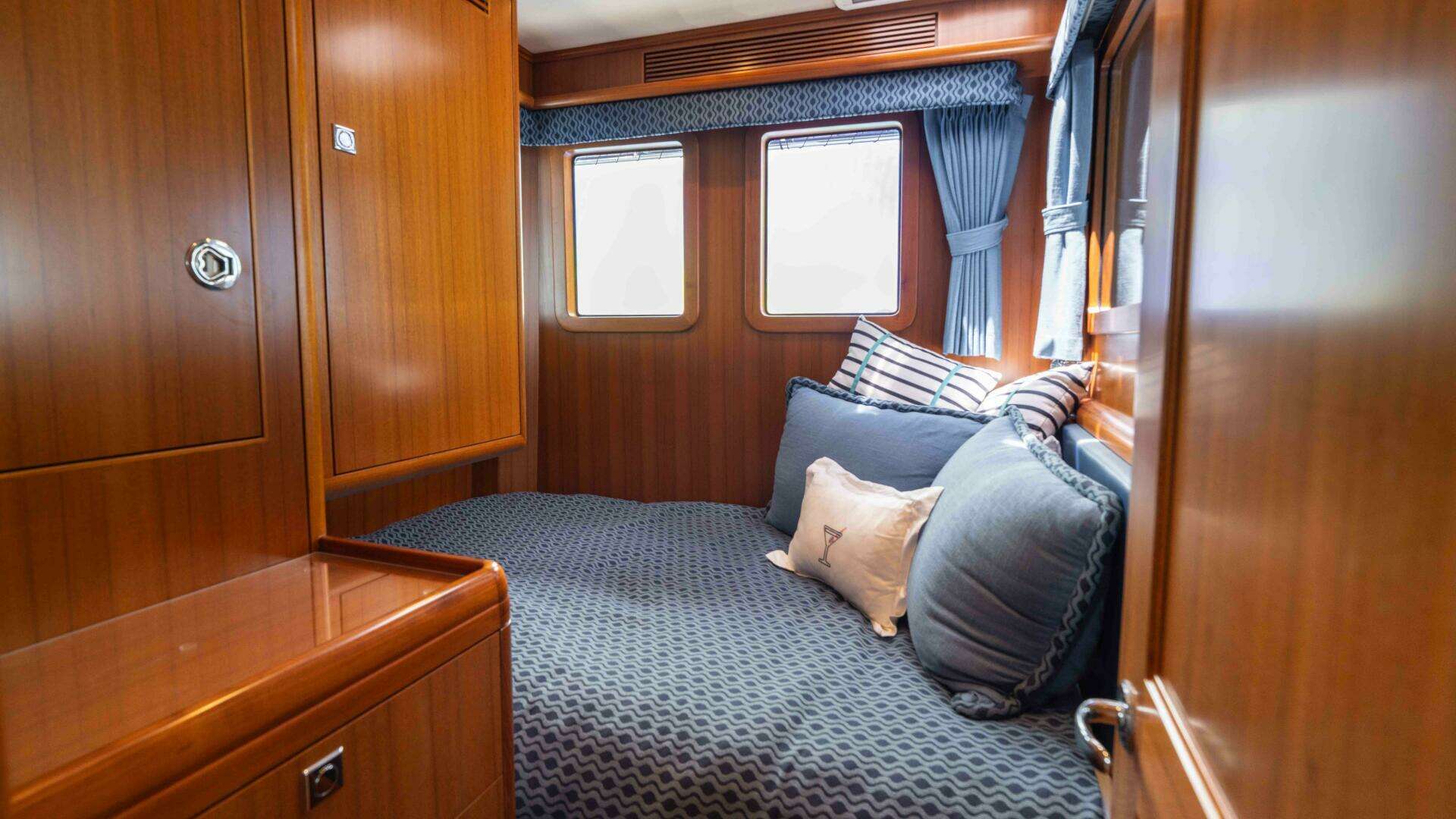

Bridge Deck Guest Cabin / Captain Cabin Upper

• Double Berth
• Cedar lined closet
• Wifi Booster
• Windows throughout for quick response in emergency
• Storage drawers
• Bedside table
• 18000 BTU Dometic Reverse Cycle heating and air-conditioning

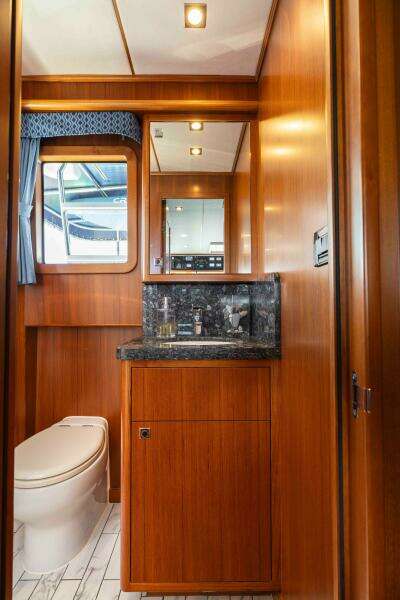

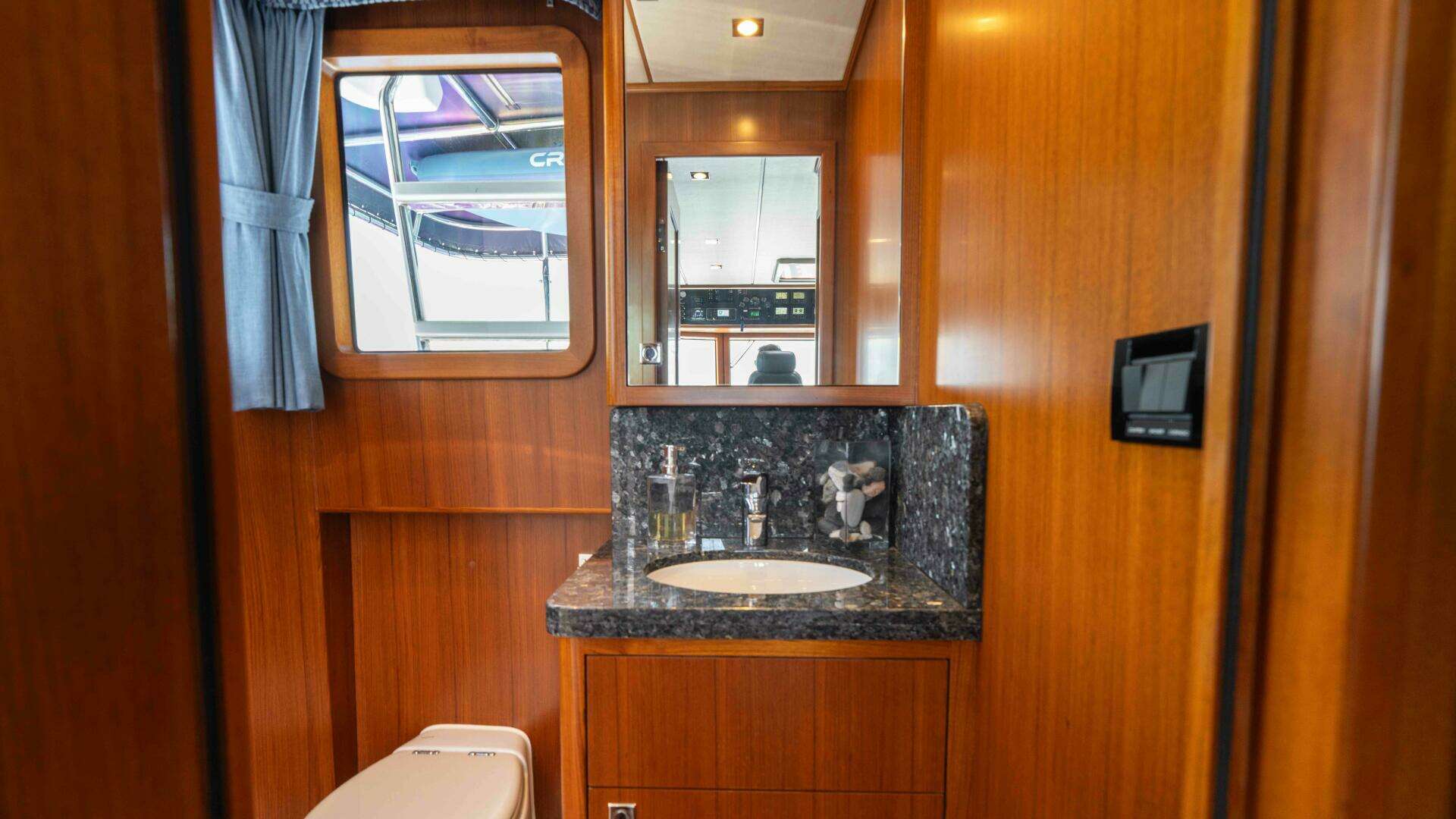

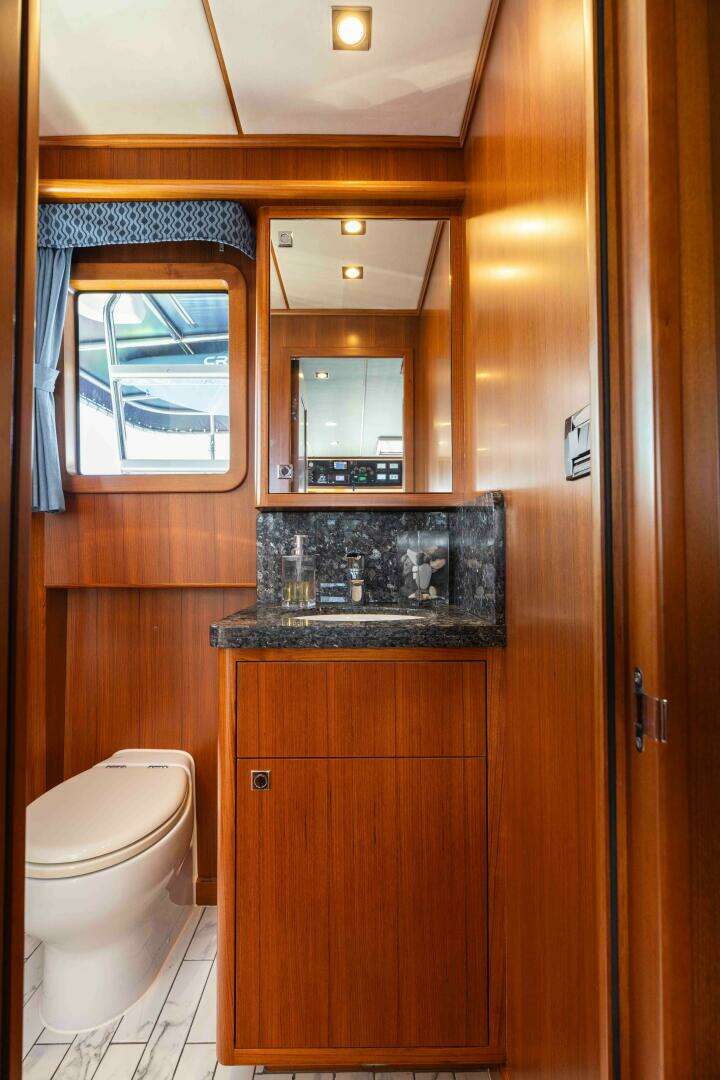

Bride Deck Day Head / Captain Cabin Ensuite

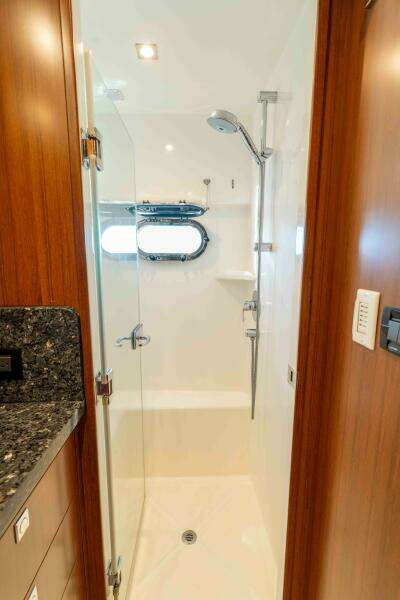

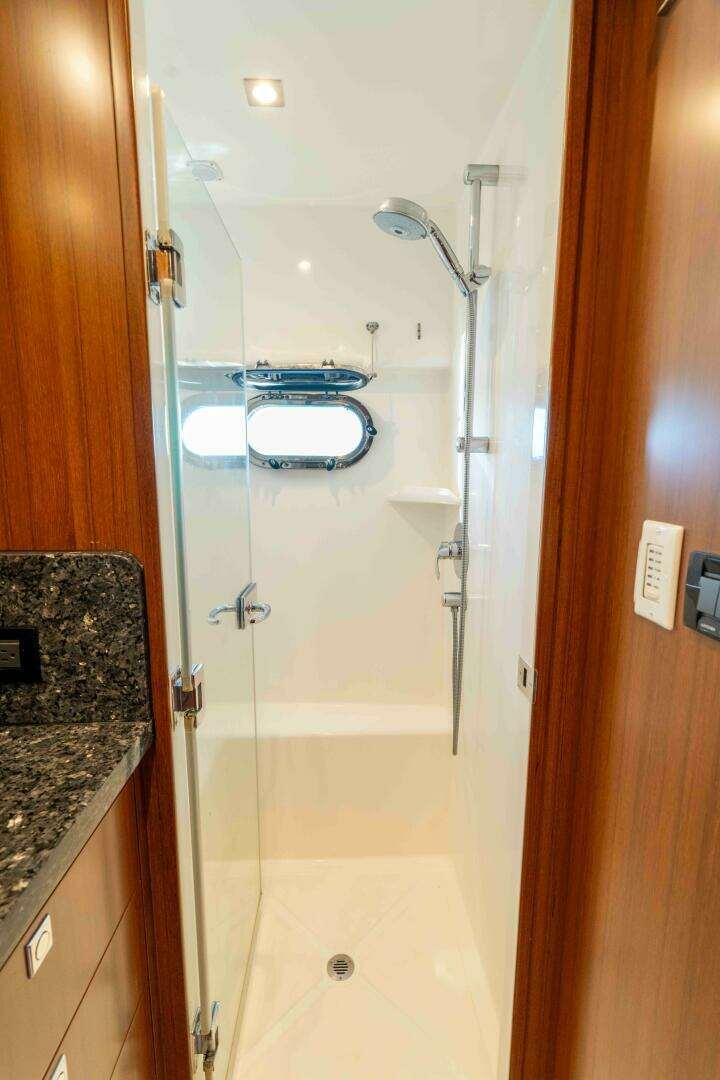

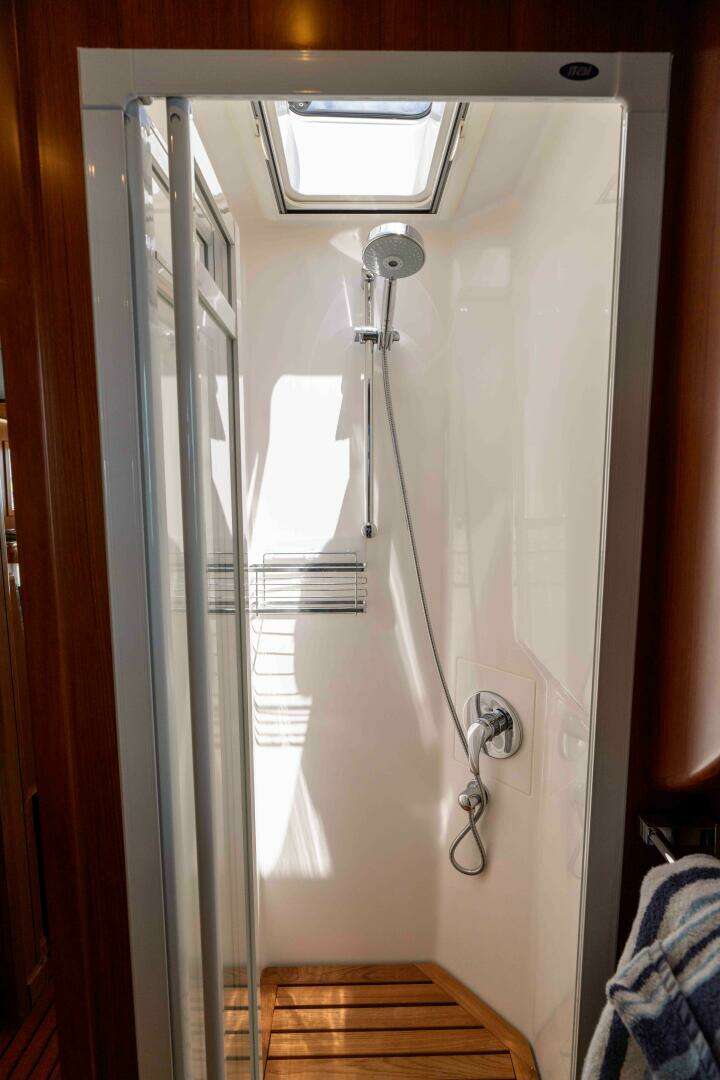

• Shower with upgraded glass shower door
• Tecma Head
• Sink with granite counter-tops

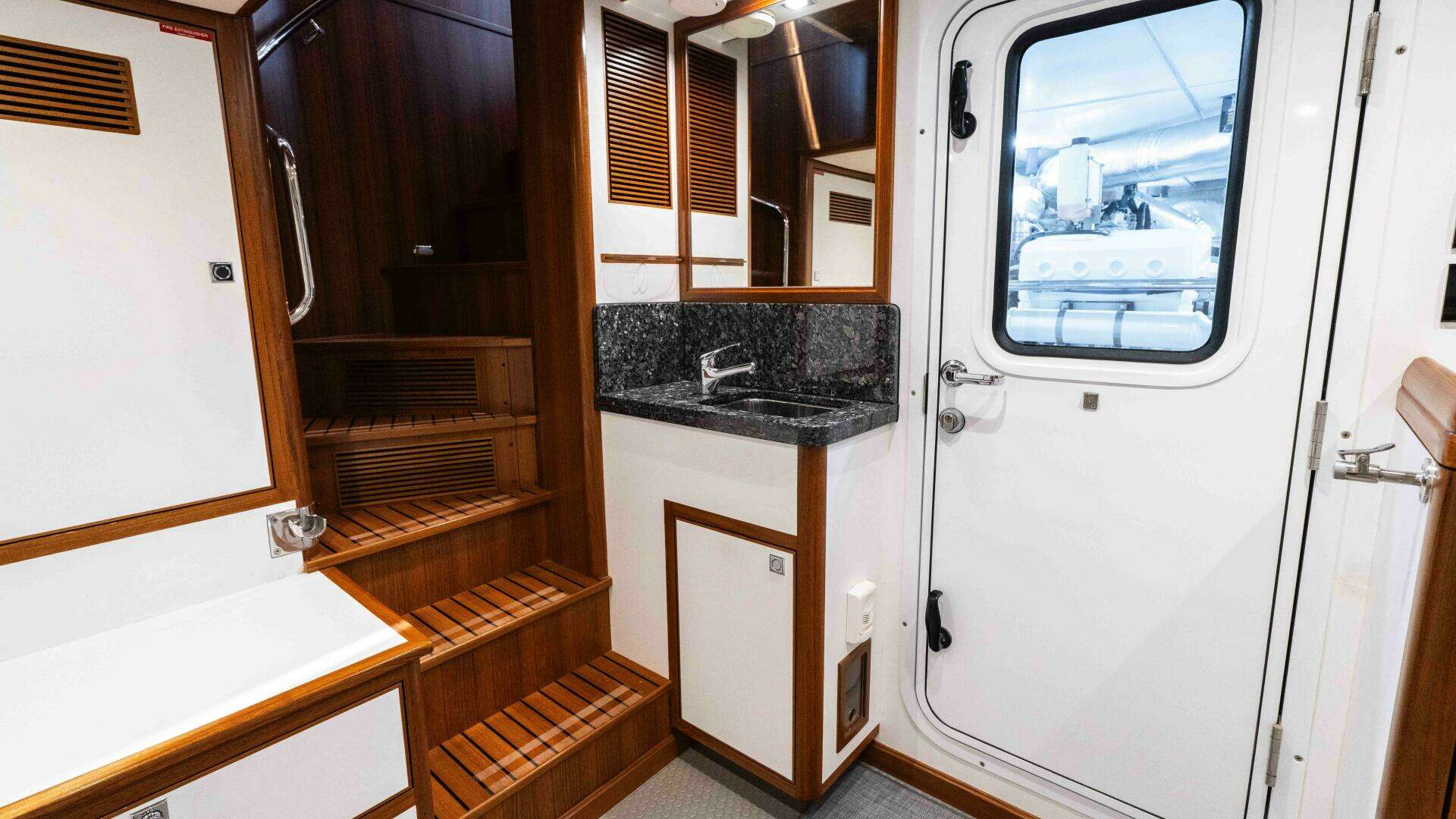

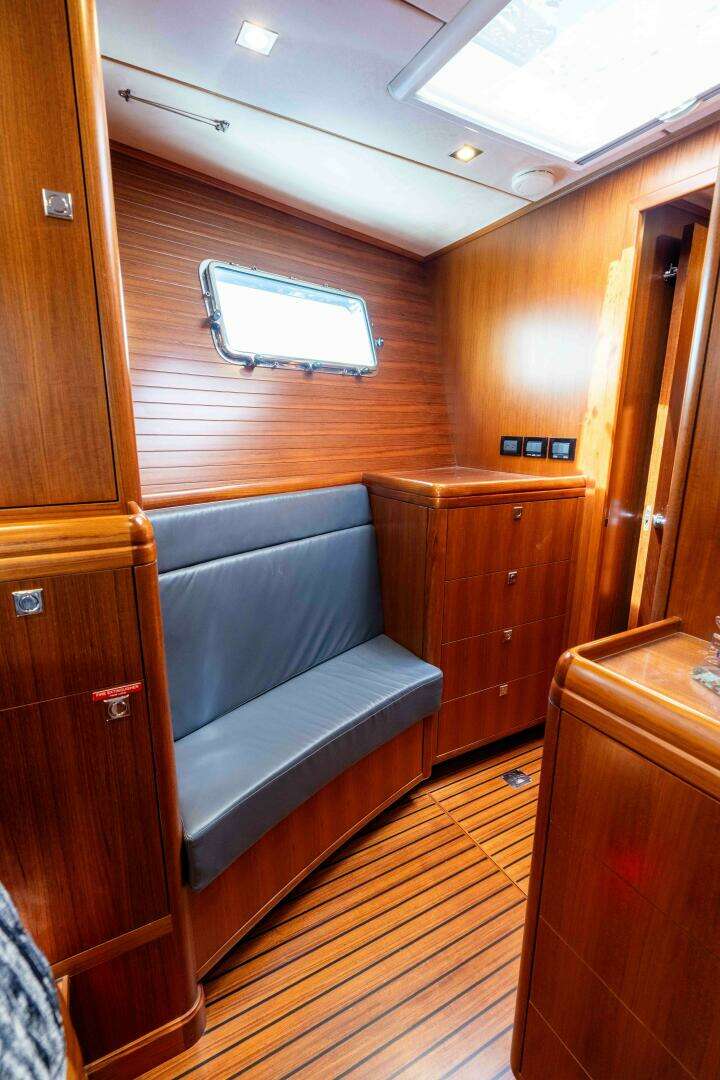

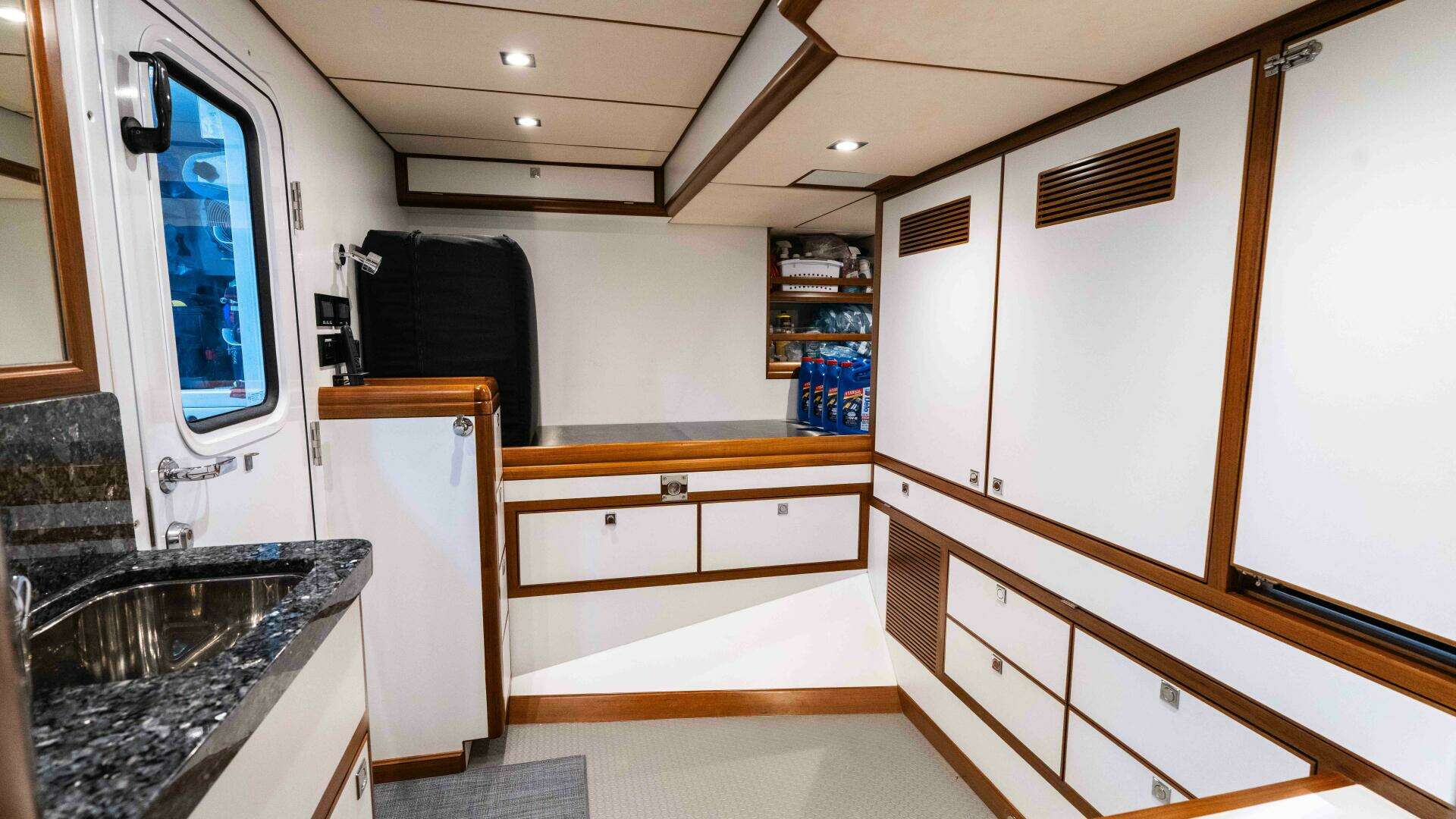

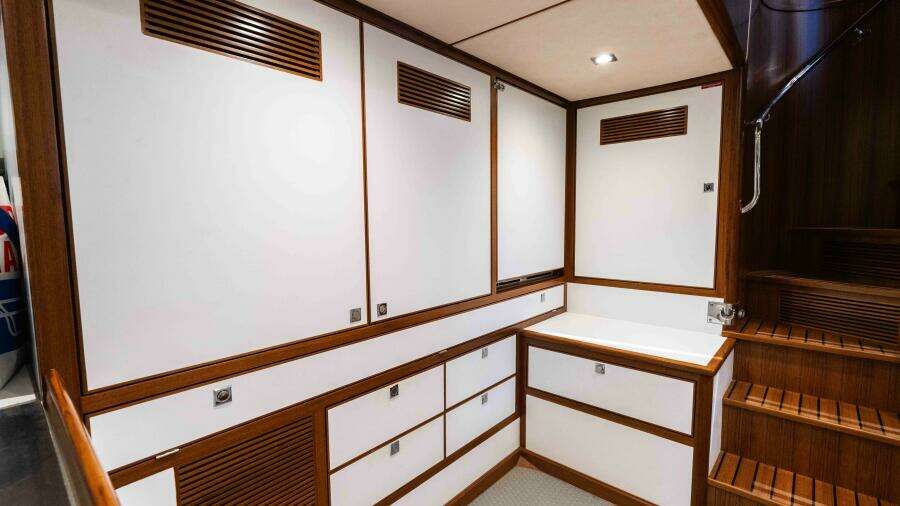

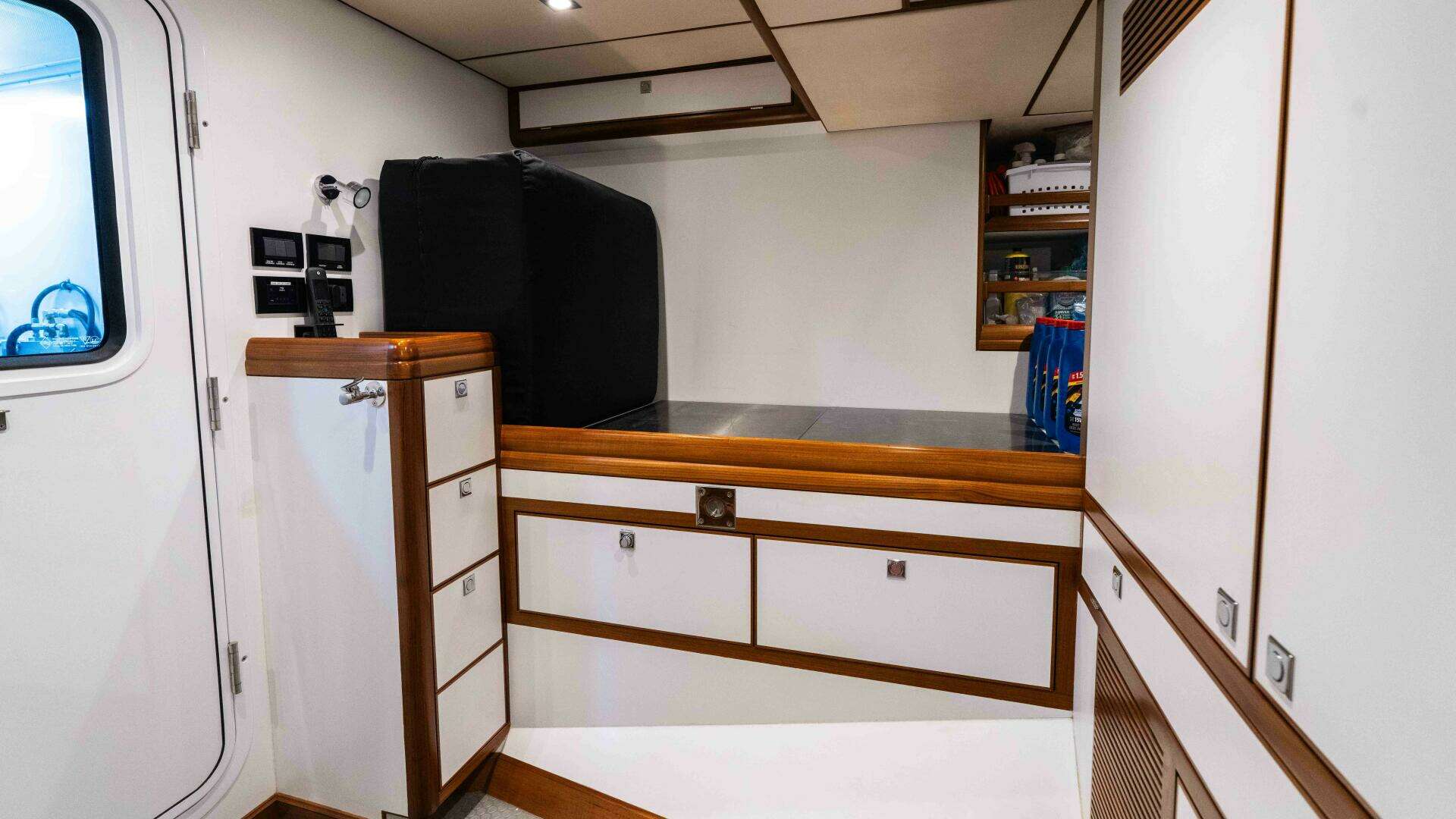

Crew Cabin / Laundry Cabin

• Fold out mattress which is kept in protected bag for when not in use
• Additional roll out Ley cloth hammock berth means this area has space for an additional 2 guests
• Motorola Intercom Phone
• Dometic Reverse cycle heating and air-conditioning controller
• Bedside table with 110 outlets
• Reading light
• Sink with granite counter and mirror
• Cedar lined closet and ample drawer and cupboard storage spaces
• Upgraded Perlick HP24FO4A-00-SRFLR commercial grade deep freezer (SN: 2108230017B)
• Stainless steel work bench which lifts up to uncover custom shelving for spare parts to ensure things aren’t moving around when underway
• Robust Lonseal (Loncoin) flooring

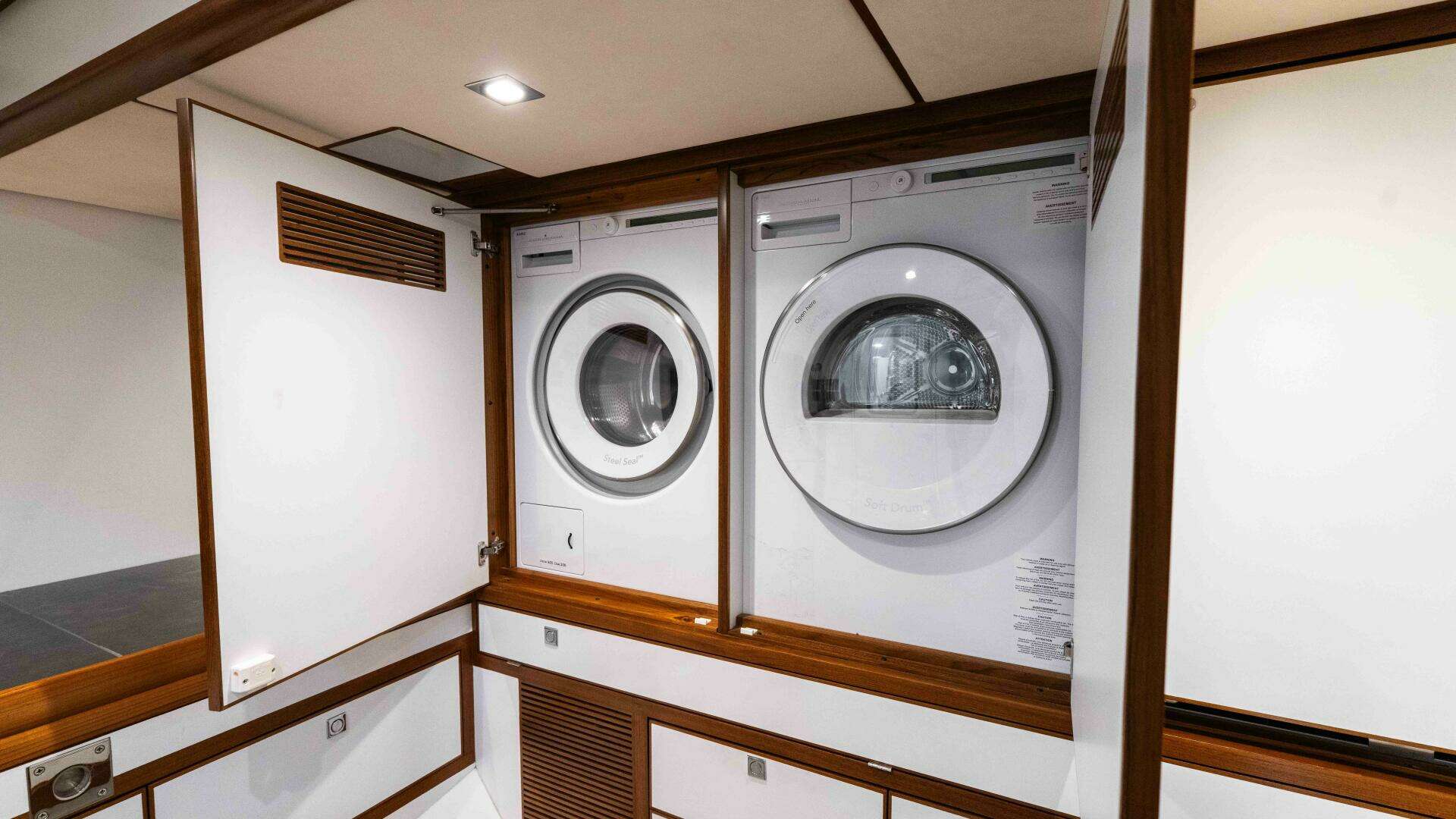

• ASKO Butterfly Drying Vented Dryer T208V.W.U (SN: 94530133)
• ASKO Quattro Construction 1400RPM Washing Machine W2084.W.U (SN: 95130160)

Mechanical Spaces

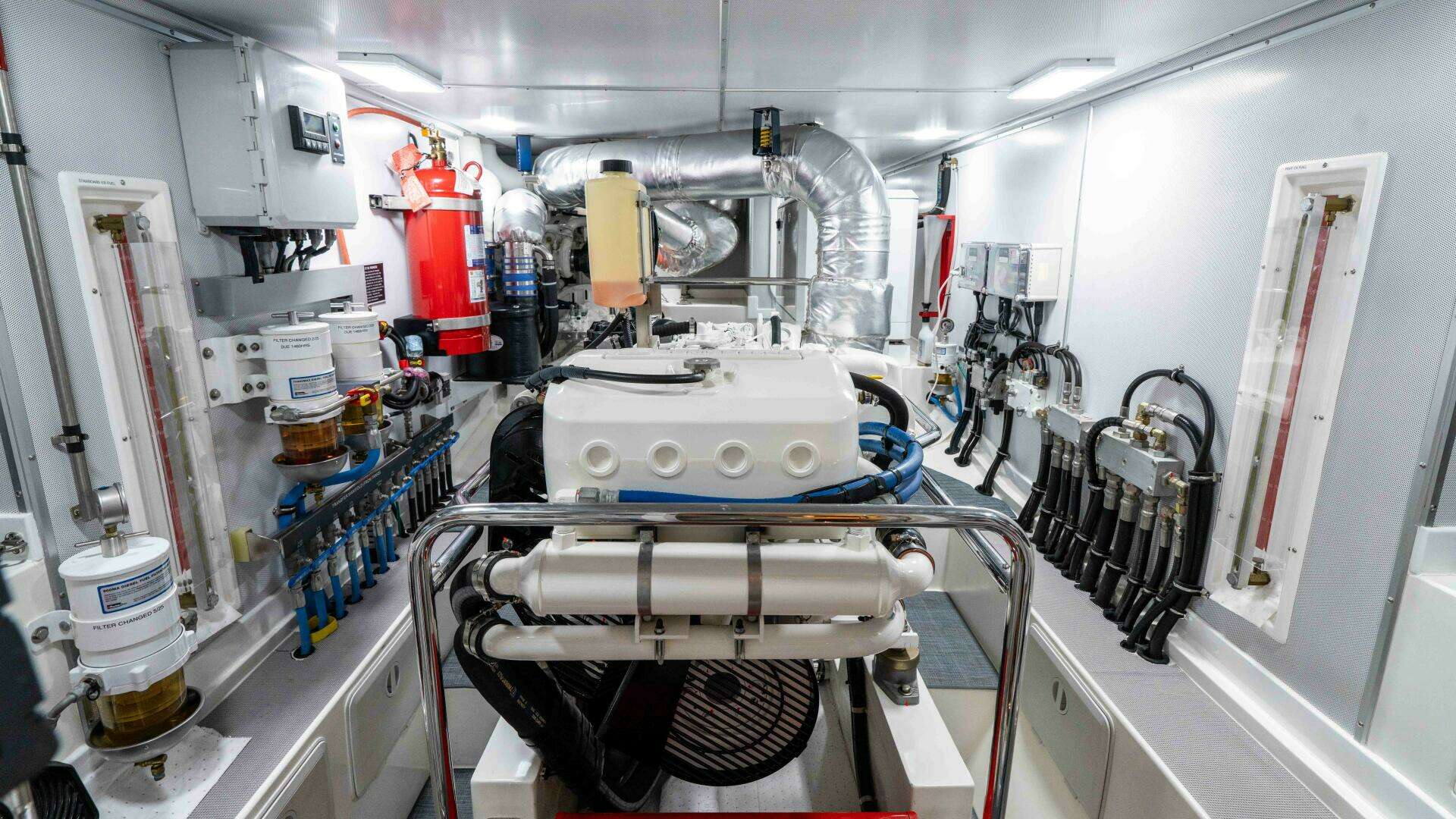

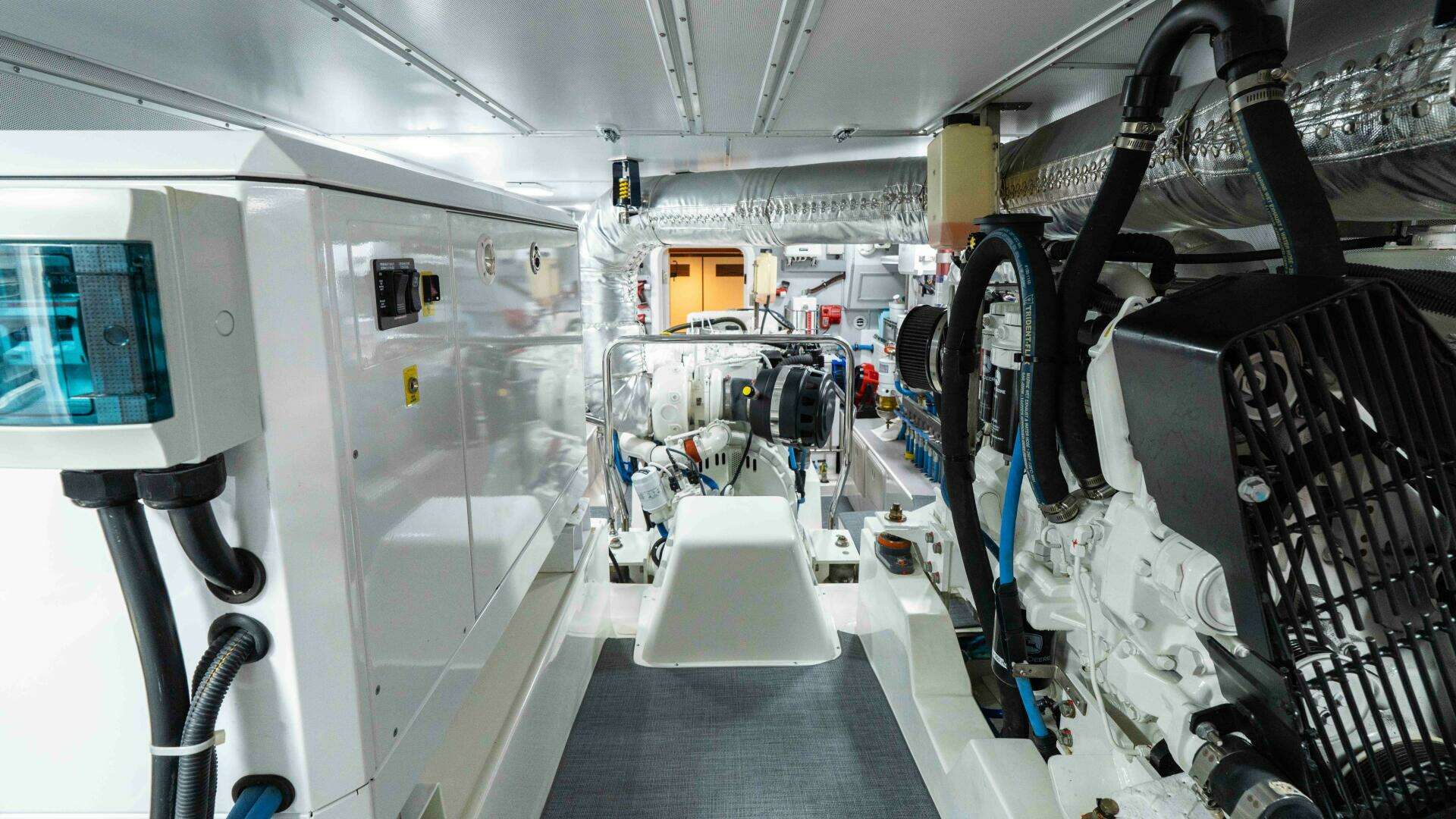

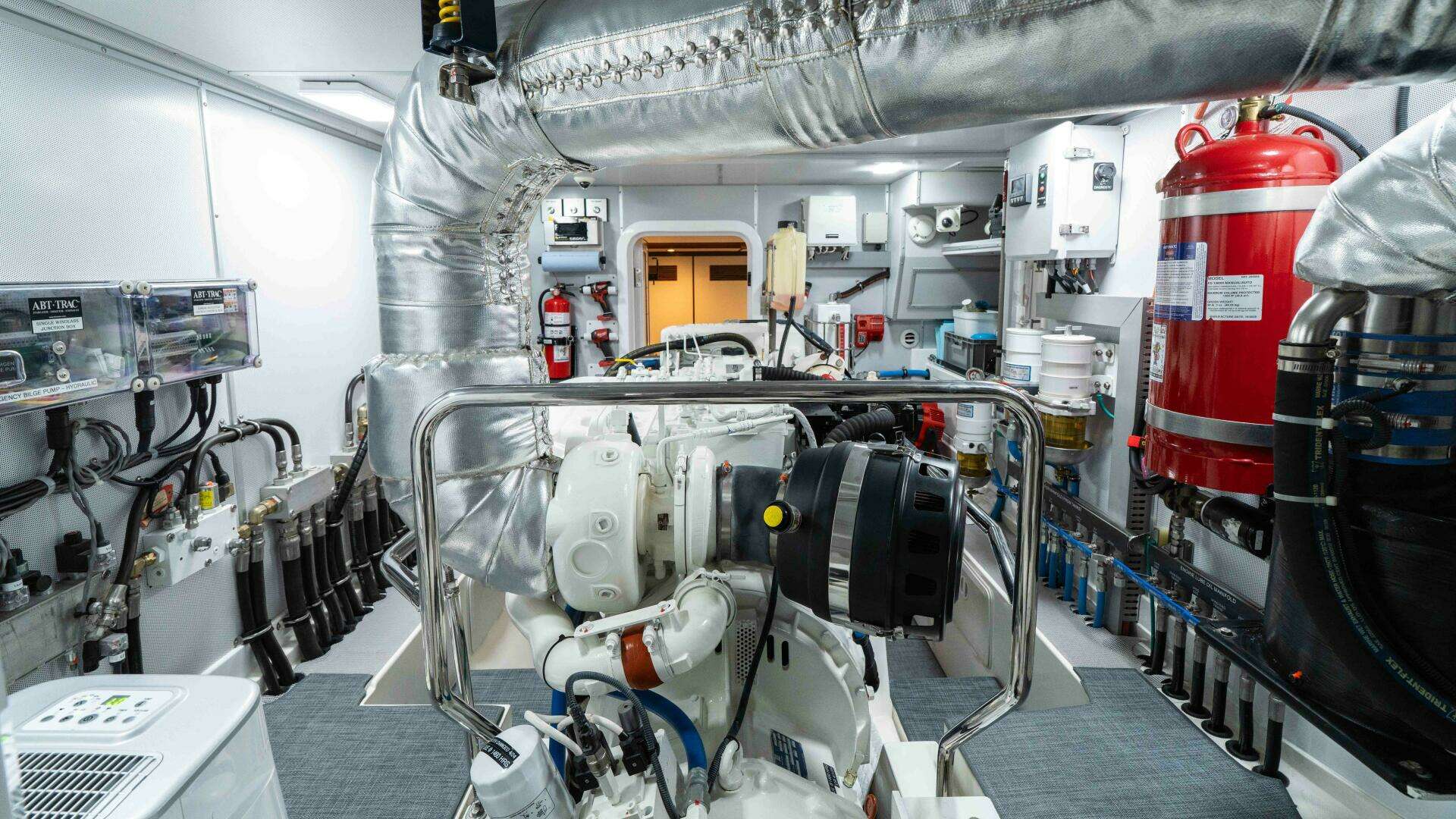

Engine Room

• Oil pump for easy oil changes connected to both generators, both engines and both transmissions

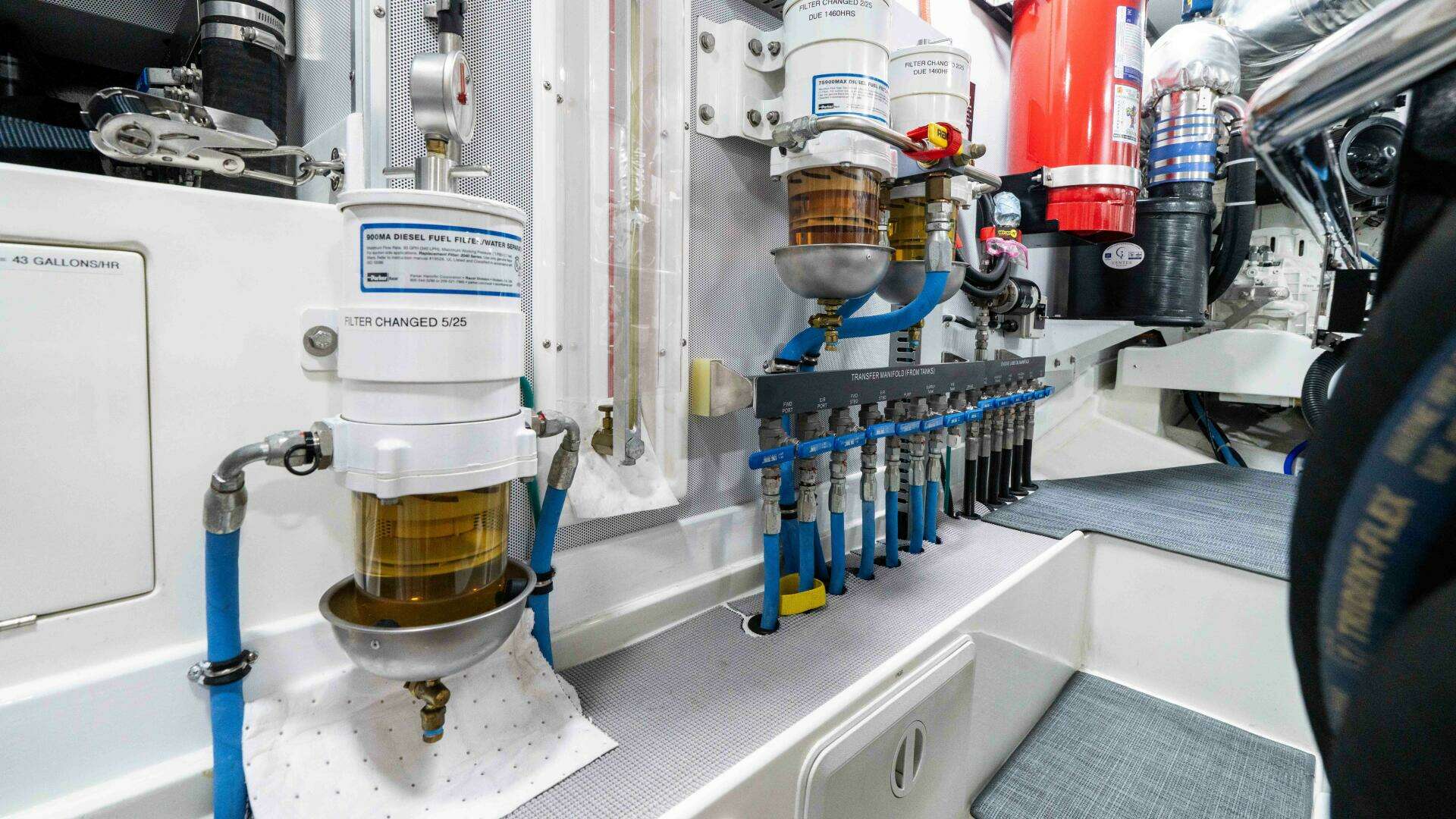

• Racor filters for both generators and both engines as well as additional Racor filters to run fuel through from the 4 main tanks to the day tank and wing engine tanks to ensure fuel used in all the machinery clean
• 5 drawer and 1 addition compartment Craftsman Tool Chest mounted with racing car clips to ensure it is secure at all times as well as being able to remove easily if needed
• Sea-Fire HFC227ea Fixed fire system (annual serviced completed)

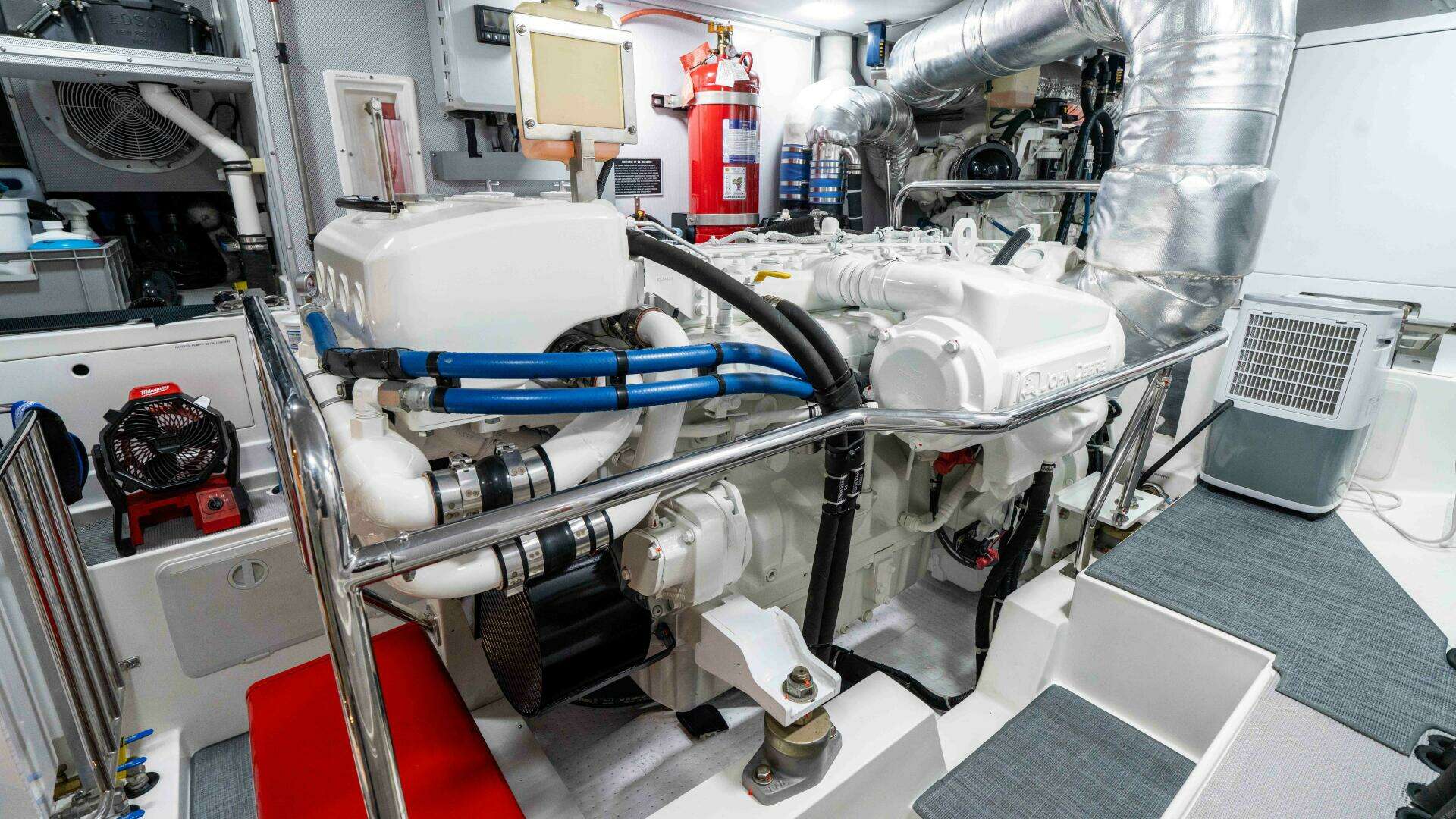

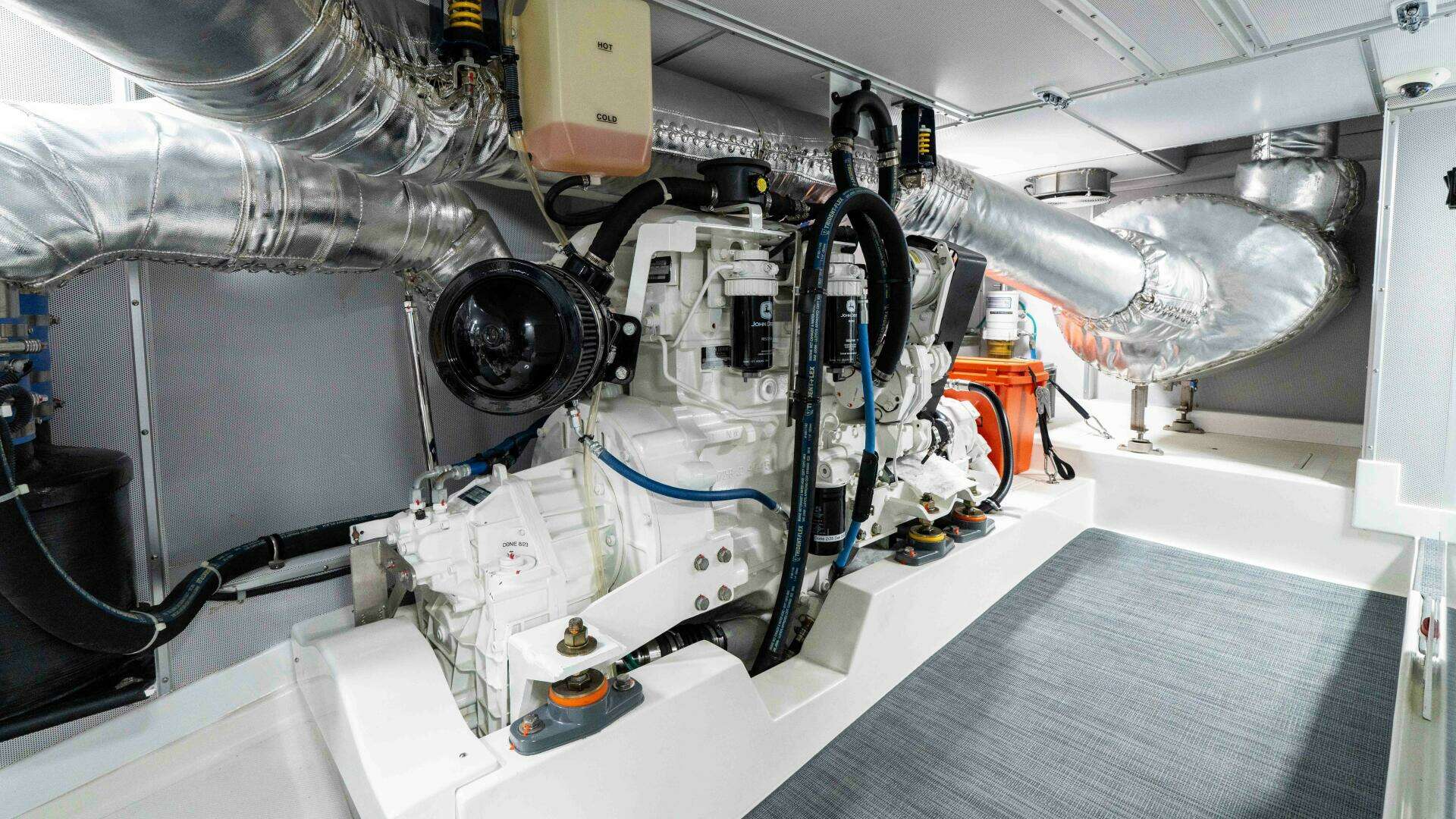

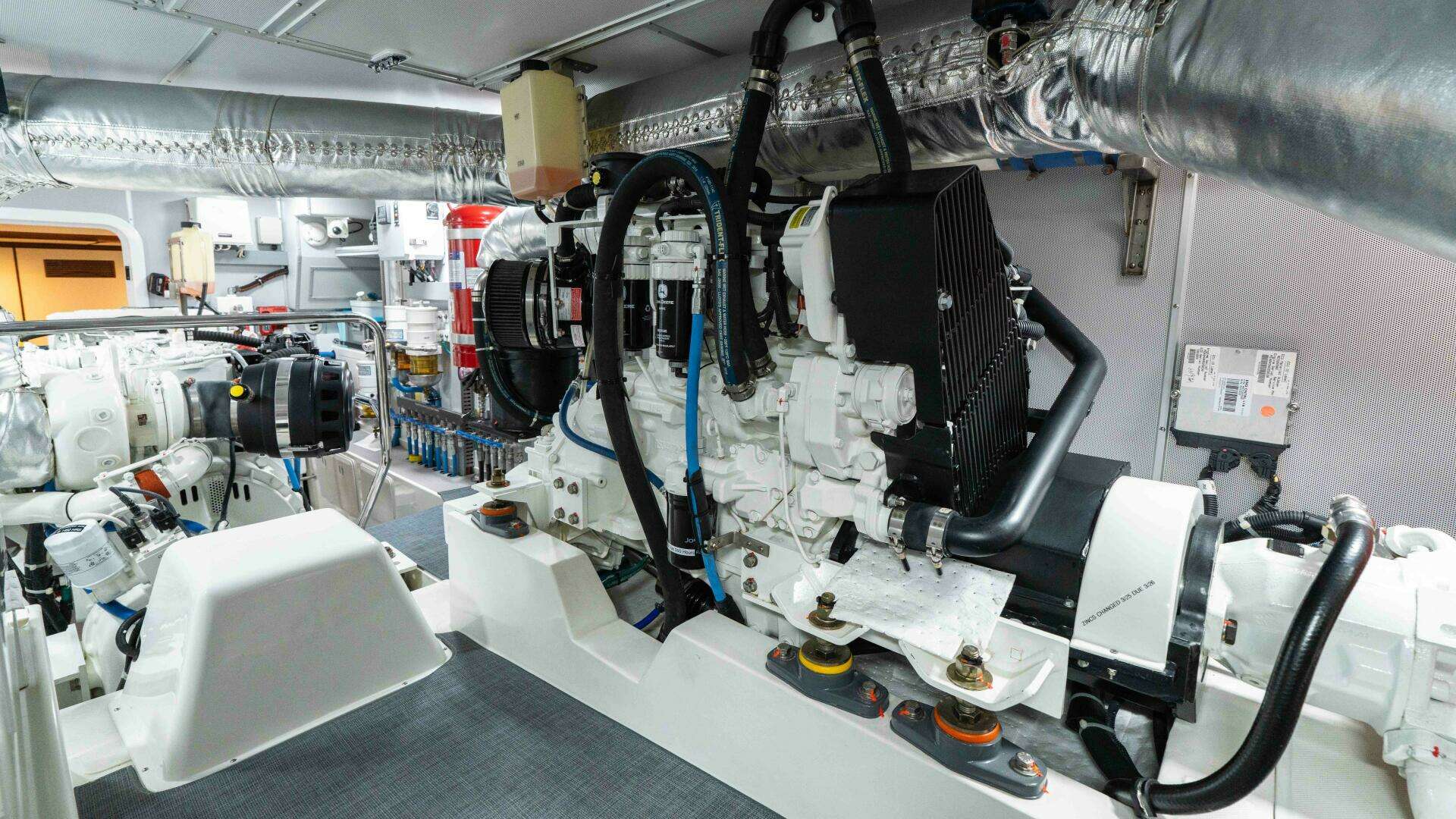

Main Engine

Even in the warm waters of the Caribbean her keel-cooler is able to keep her reliable John Deer main engine cool throughout the rpm ranges

• John Deere 325hp 6090AFM85 9.0L 3072RG (SN: RG6090L136952)
• Transmission
• ZF ZFW325 – 3214003003 3.958 Ratio (SN: 20374424)
• PSS dripless shaft seal
• Spurs line cutter on shaft
• Upgraded silicone engine hoses with tight-seal clamps

Wing Engine

• John Deere 100hp 4045TFM85 (SN: PE4045N025638)
• PYI Dripless shaft seal with added flow meter to ensure seal is cool at all times as well as added shut off values for easy cleaning
• Transmission – V-Drive Configuration
• ZF ZF68IV – 3312003210 2.477 – 2.528 Ratio (SN: 20326956)
• PSS dripless shaft seal
• Folding propeller to minimize drag when not in use

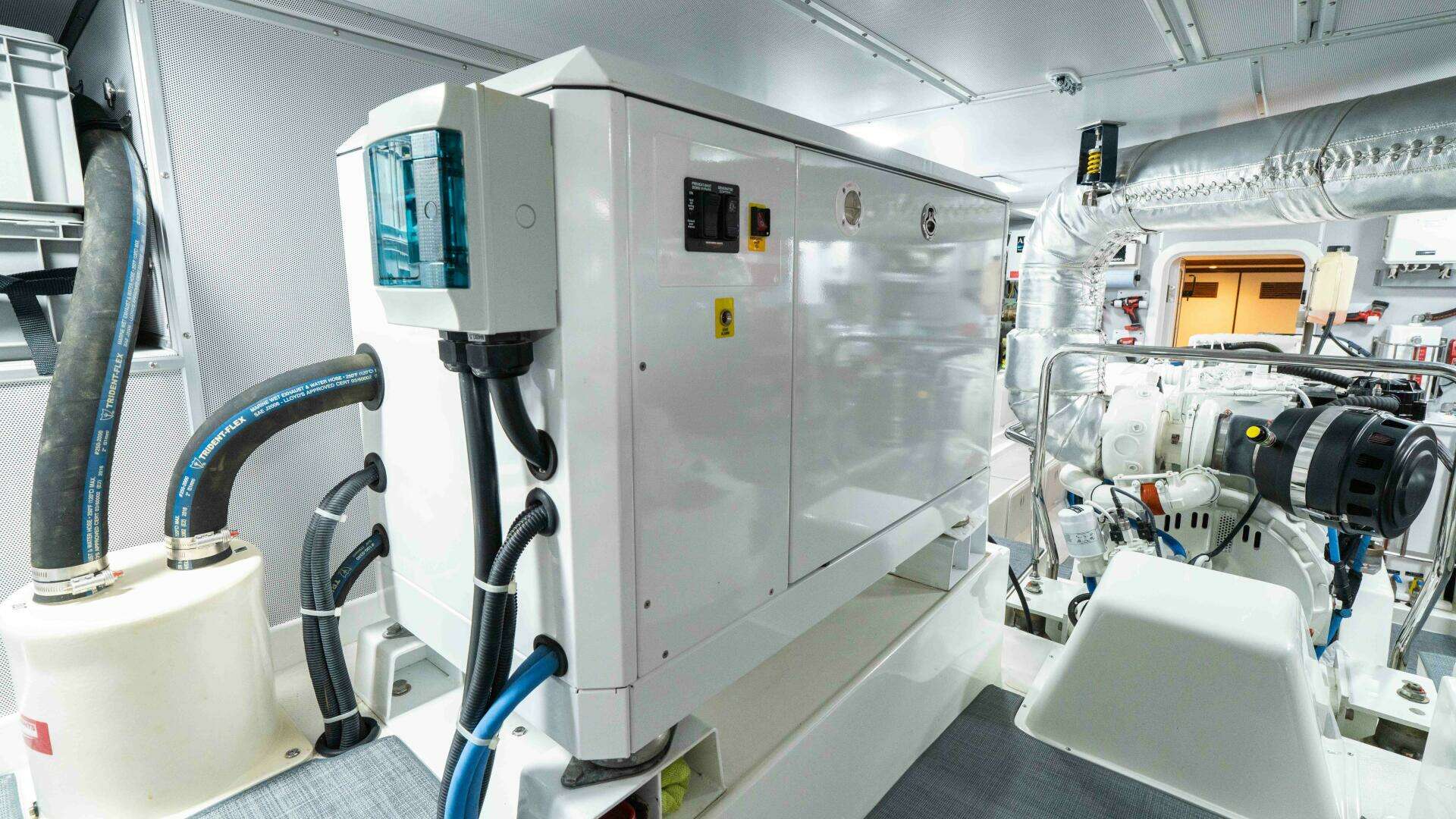

Generator

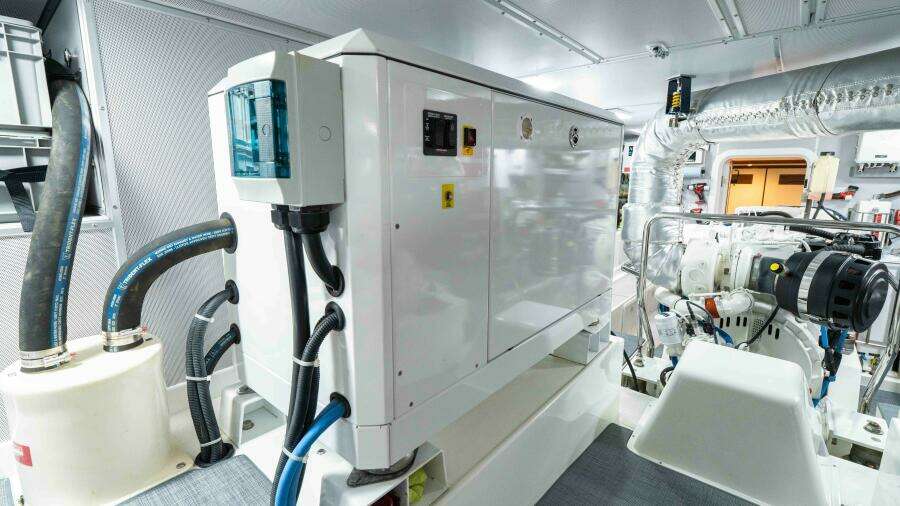

• Northern Lights M844LW3.3G 20kW generator with Shibaura Block (Feb/2020 mfd) (SN: 8442-58137) – 1290hrs

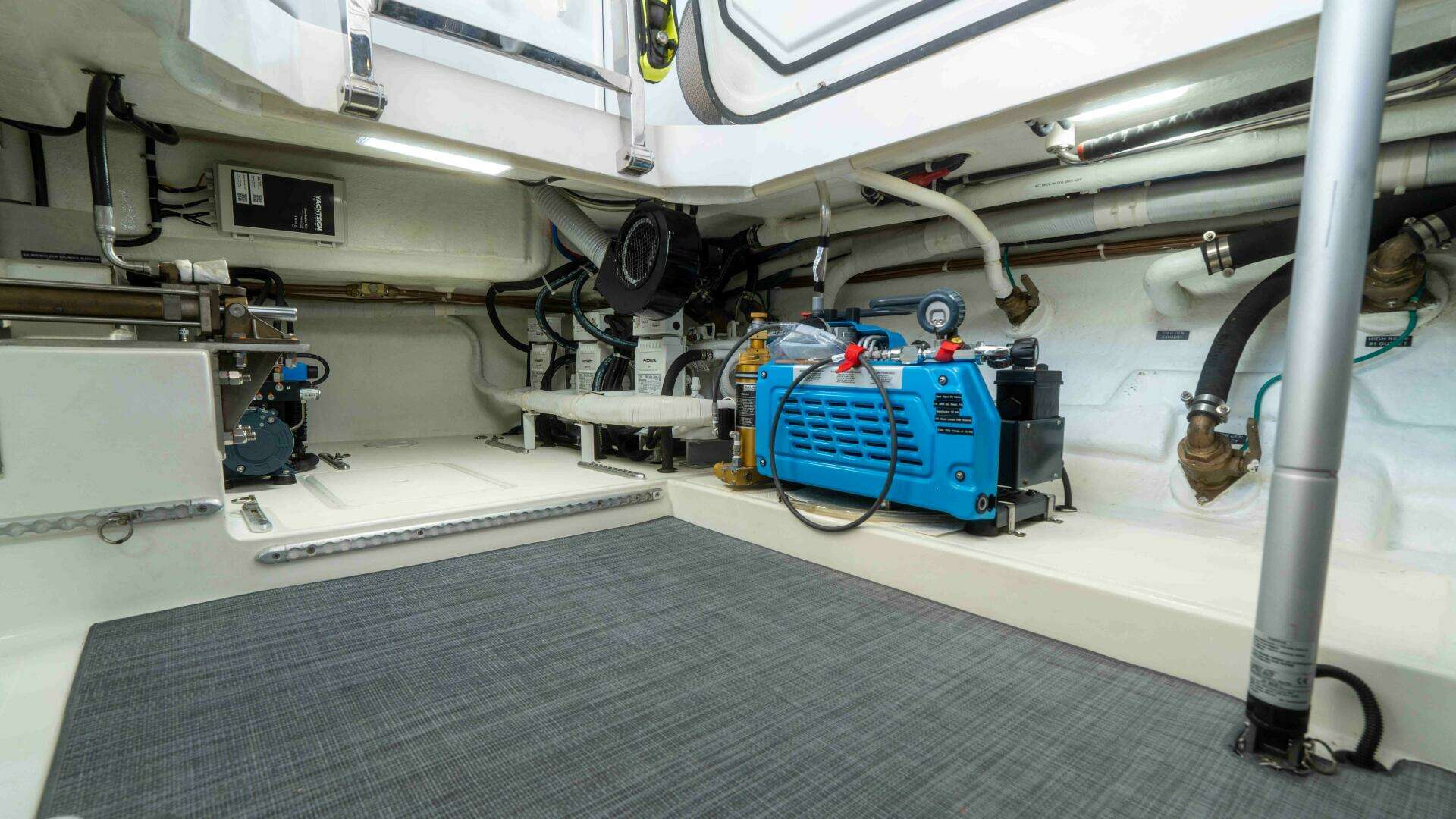

Lazarette

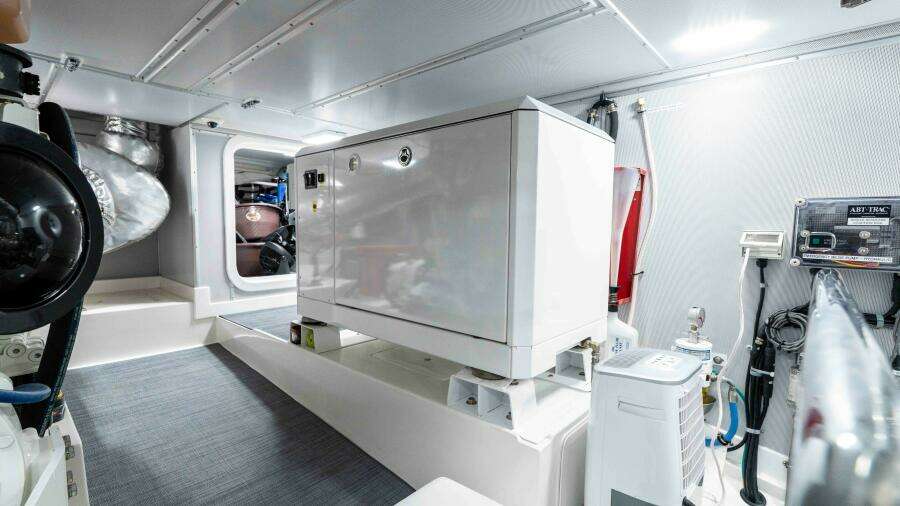

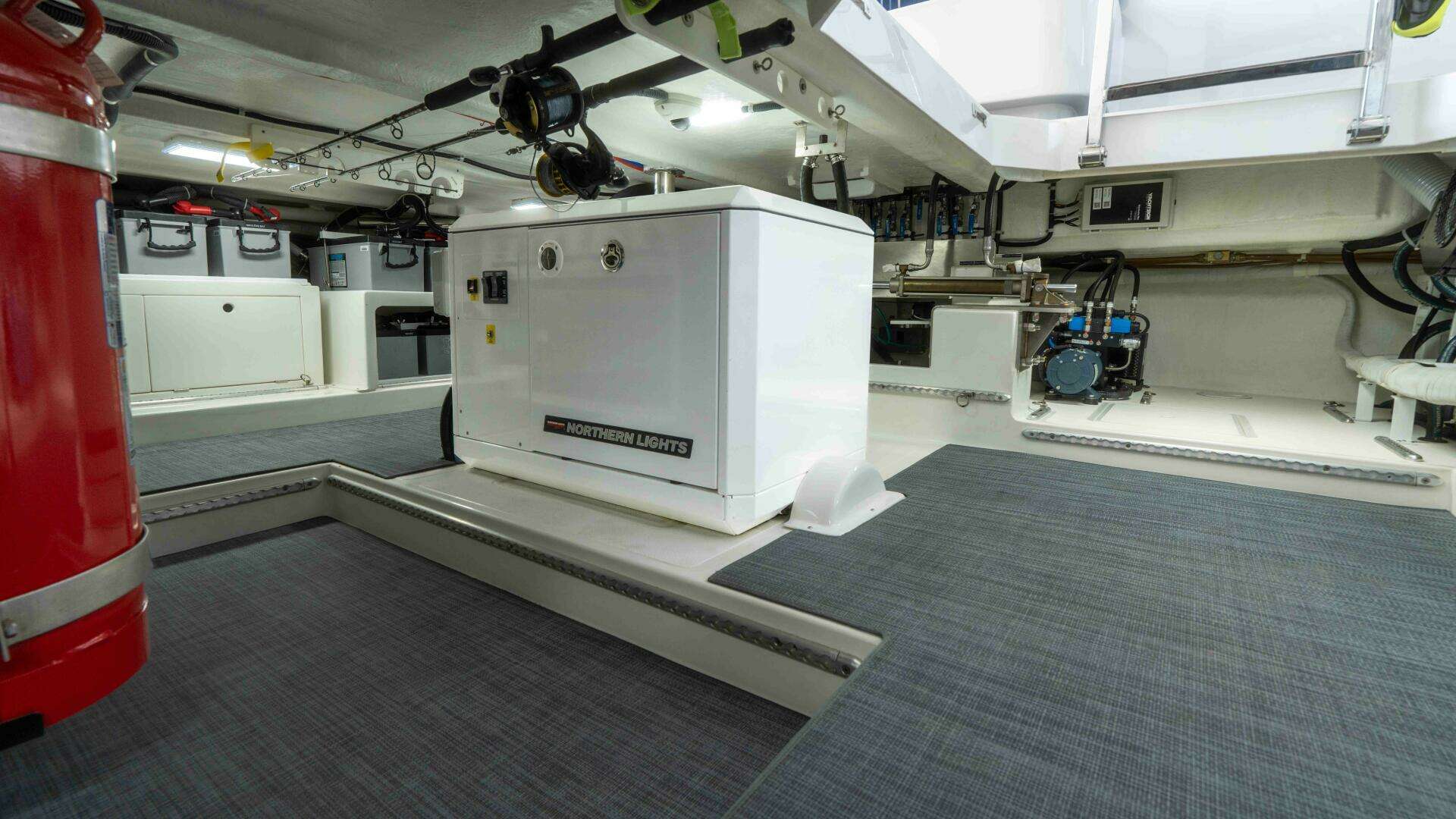

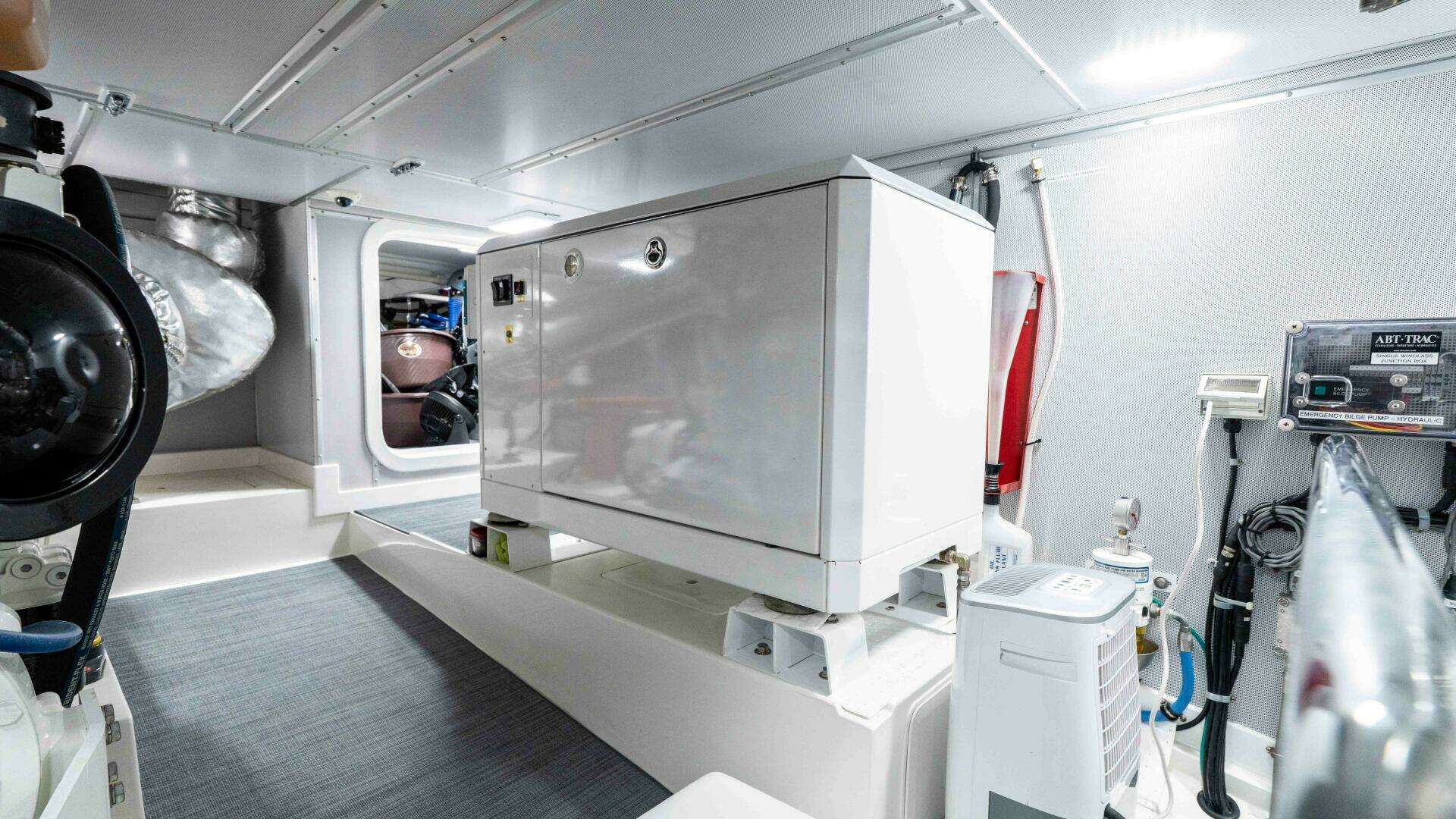

• Northern Lights M773LW3.3G 9kW night generator with Shibaura Block (Jan/2020 mfd) (SN: 7732-58458) – 900 hrs
• WiseNet Camera facing steering gear
• 4 x Fishing Rod Holders

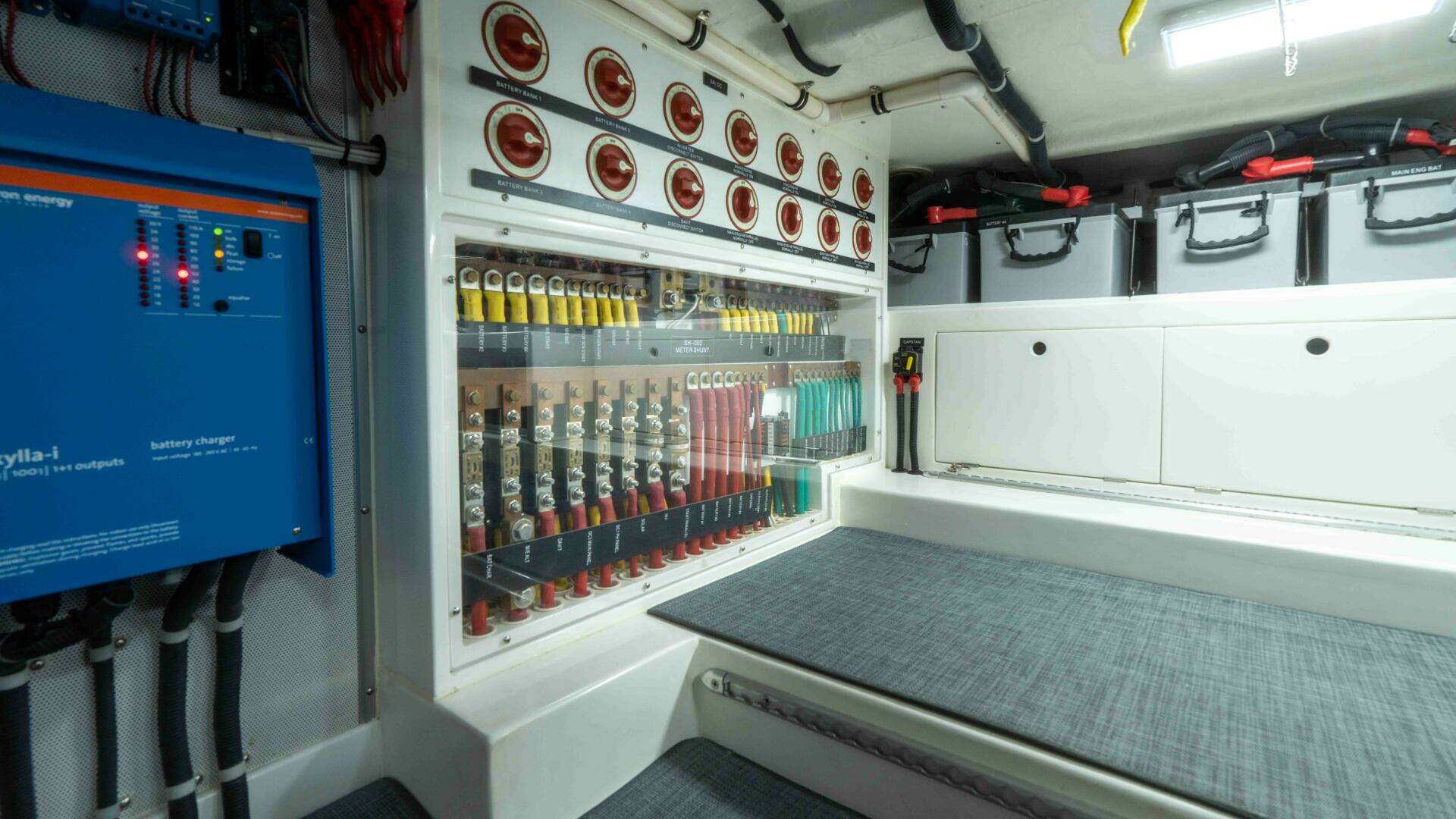

• Victron Energy Skylla-I 24V 100amp battery charger
• Out Back Power inverter

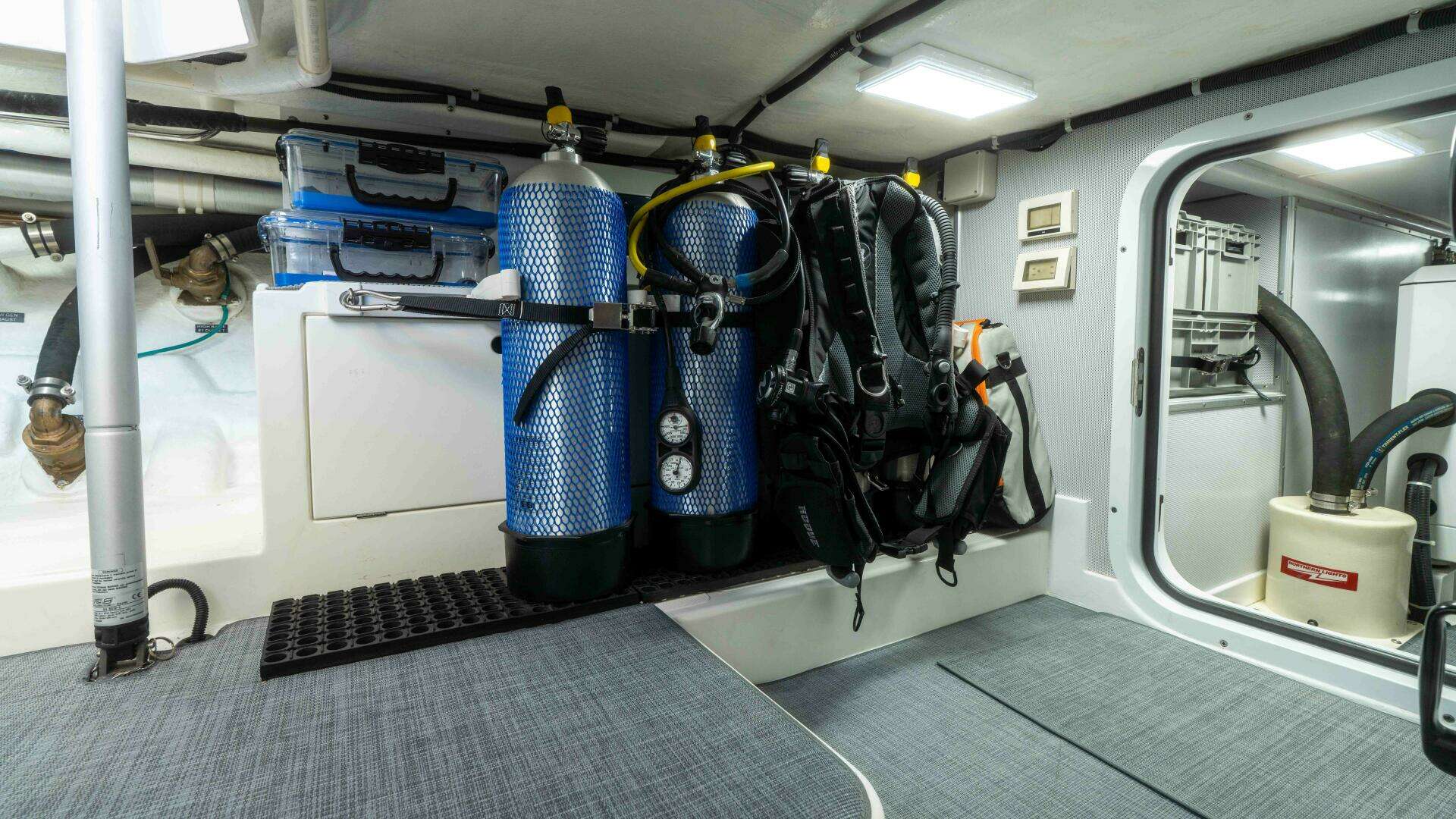

• Dive bottle storage
• Bauer Junior Dive Compressor

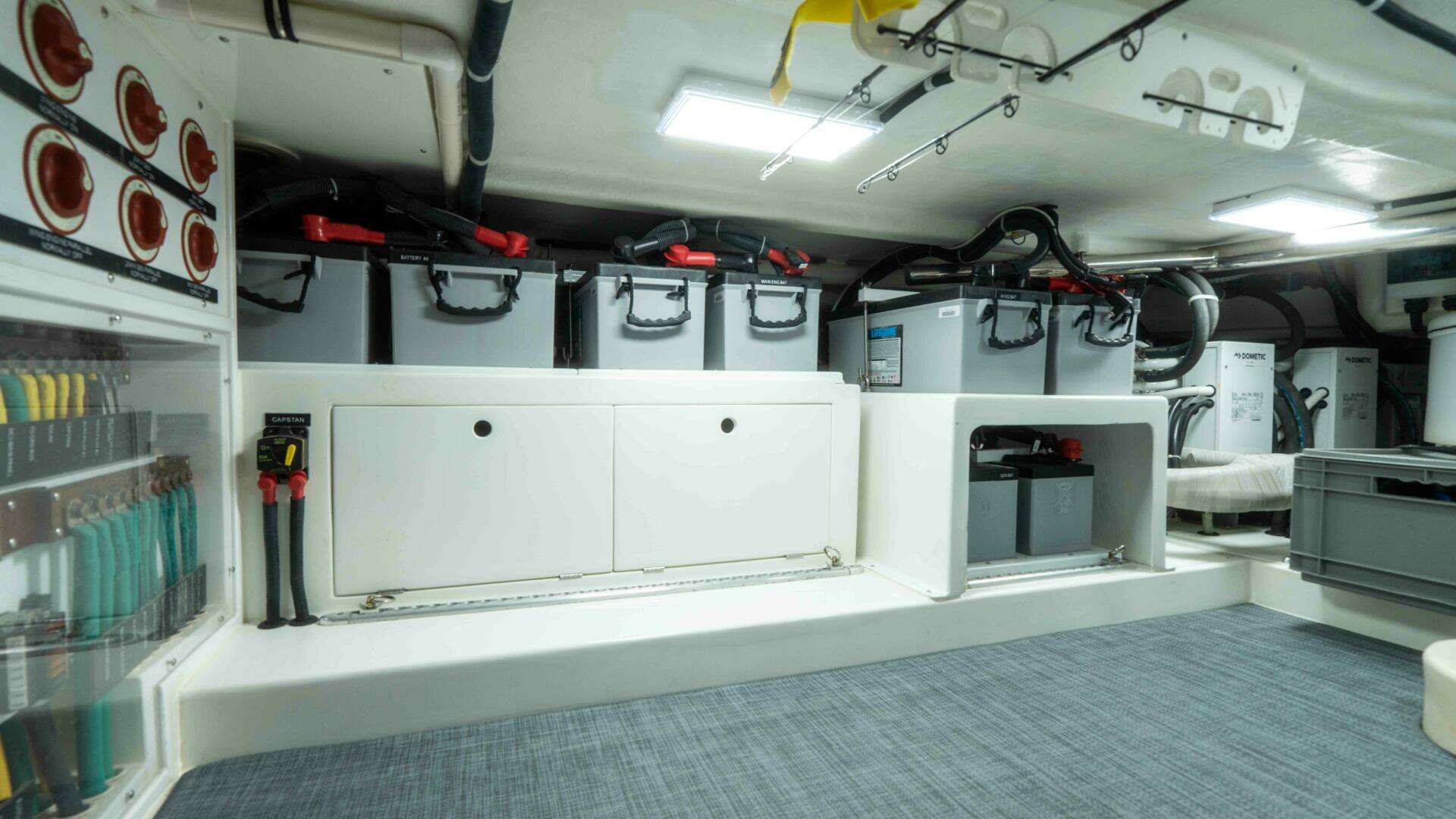

• LifeLine Batteries

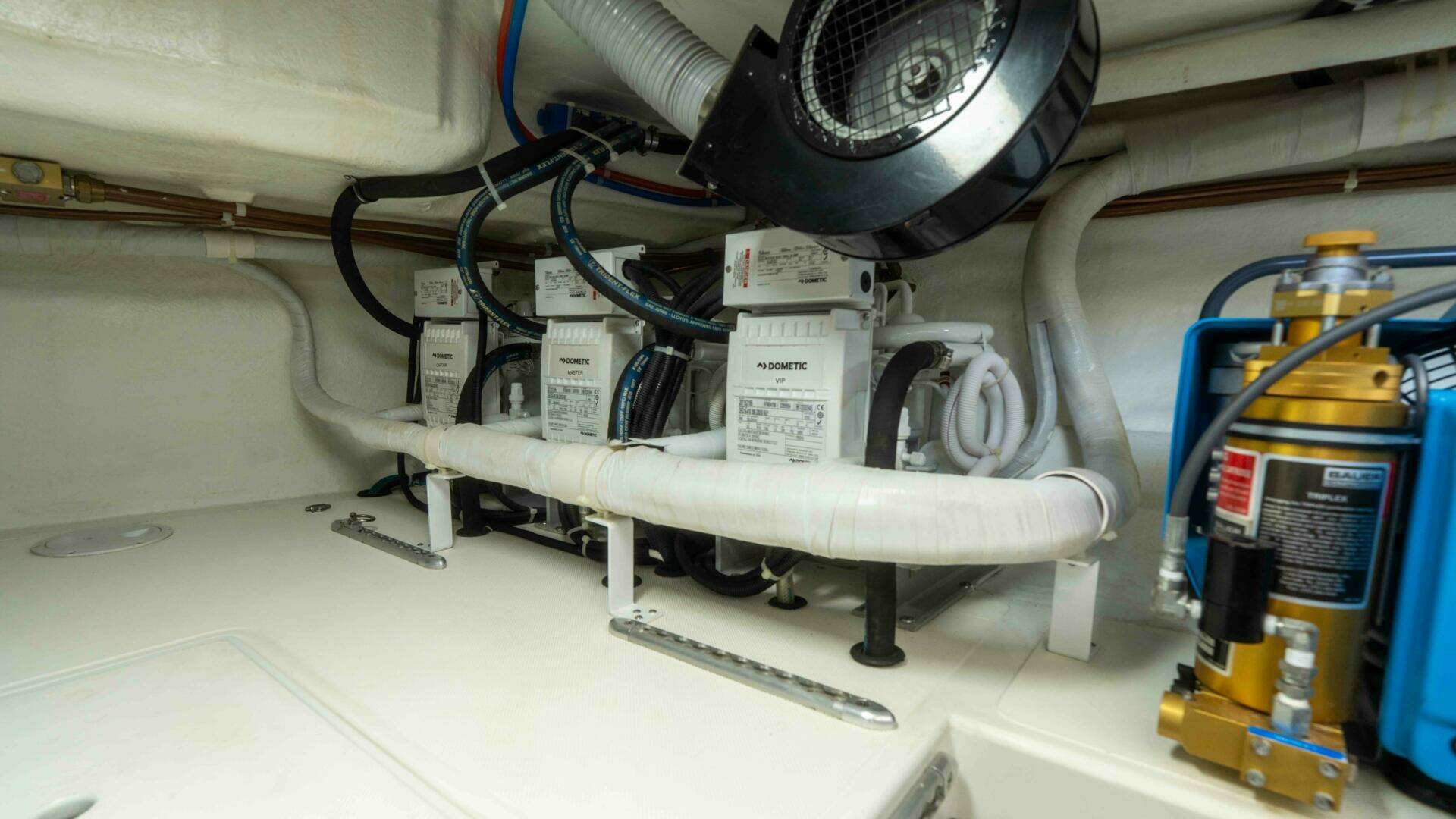

Forepeak

Accessed in the deck of the VIP stateroom, there is a ball mounted on the hatch lock to ensure nothing catches it when going in or out.

• Custom acrylic shelving with bungee and carbon fiber rods to hold water filters
• Dometic SeaXchange sea water reverse osmosis Water-maker with SpotZero Fresh water reverse osmosis water filtration XZII – Note: vessel has remineralization system to ensure clean drinking water
• Addtional redundant Dometic SeaXchange sea water reverse osmosis Water-maker 24.6gal/hr SXII600Z (SN: 080820188)
• Mighty Pure Ultra Violet water purifier MP36C
• Stainless steel Hot and Cold water manifolds with pex water hoses connected into them for quick and easy system isolation
• 2 x Mach5 Water pumps
• Torrid MVW402IX 40gal Water Heater
• Rexroth 20W15 Bow Thruster (SN: 15909110)

Mechanical Disclaimer

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.

Disclaimer

** Sellers personal items not included in sale. **

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
