Features

1. Hull

 “Super Yacht ” portholes Master and VIP

 Antifouling

 Awlgrip Paint on Hull

 Core infused sandwich Vinylester Hull

 Hull stiffened with stringers supported by

transverse bulkheads and floors

 Stainless steel rub rail

 Bronze seacocks on all underwater tru-hull

fittings

 2 Xenon “head-lights” in the bow

 Volvo QL Trim Tabs

2. Superstructure

 Awlgrip Paint on Superstructure

 Deck is in sandwich construction with core

supported by bulkheads and frames

 316 Oval SST hand rails all around

 Radar Arch with Dome, SST Mast

 Lopolight LED navigation lights

3. Deck

 All decks, steps and cockpit in Esthec

composite decking

 Zeelander Design Flagpole with flag

 Zeelander Design custom oval, railing and

bollards

 Sundeck or Seating Group including lounge

cushions

 Anchor windlass with 70 ft chain and

polished 20 kg anchor

 8 Mooring lines 5/8 x 30 with 12” eye

 8 Fenders with lines and fender covers with

“Zeelander logo” or “Boat Name”

 Two pairs of spring cleats each side deck

 Two bow cleats

 Two aft cleats

 Stainless steel bow roller with anchor stop

 Stainless steel bow plate

 Chain locker and fender stowage

 3 x windscreen wipers and washers

 Safety hand rails

 Deck wash outlets

 Self-draining cockpit

 Round Escape hatch Master cabin

 Entrance hatch to storage area

 Engine room hatch - electrical controlled

 Cockpit lighting

 Kahlenberg chrome trumpet horn with air

compressor

 8 Life jackets USCG approved

 USCG safety and medical kit

4. Platform and Garage

 Remote controlled Stern Platform with

emergency button to open from in the water

 Integrated swimming ladder in platform

 Swimming platform in Esthec Composite

Decking

 Deck wash outlet

 Dockside water inlet

 50 amp Shore Power Connection

 Emergency Engine Room Bilge Pump

operated from deck

5. Wheelhouse

 Outside seating area (6 persons)

 Wet bar and sink with hot and cold water

 8 person seating and dining area in

wheelhouse

 Helmsman’s chair (adjustable and available

in different options)

 Wheelhouse locker

 Electric sliding sunroof with composite panel

 Dash board with system control switches

 Volvo electronic engine controls

 Volvo electronic steering

 Volvo Joystick control

 Volvo engine monitoring

 Volvo alarm panel

 Volvo QL trim tabs control

 Compass

 CD player with four speakers

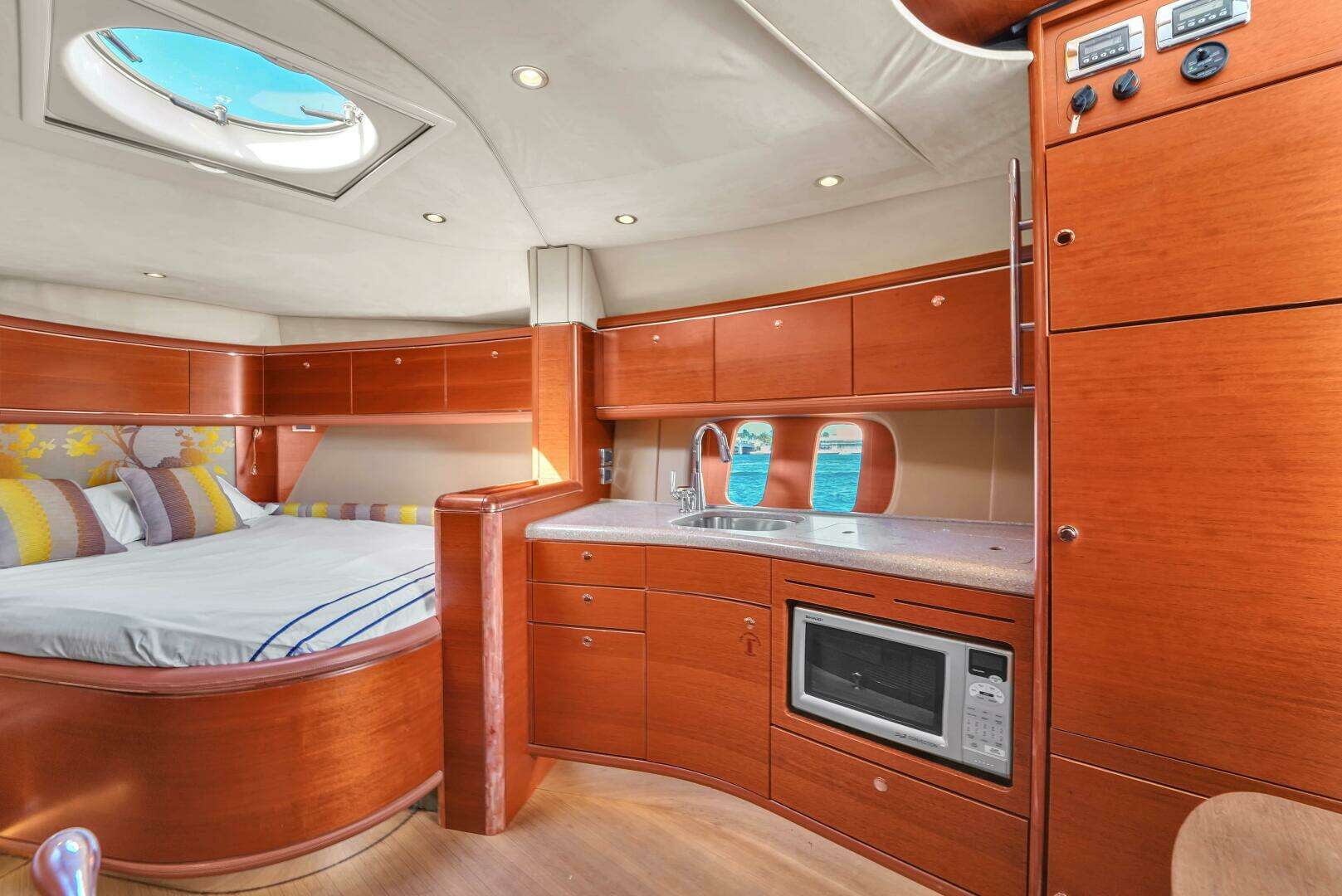

6. Master cabin

 Queen-size bed

 Air condition with reversed cycle heating

 Storage under berth

 Storage lockers above bed

 Ceiling and wall covering

 Ocean Air screen and privacy cover

 Reading lights

 AC power points

 Teak flooring

 10 ? gallon water heater

 Fire extinguisher

 Smoke detector

 CD player with two speakers

 TV with Radio, CD, DVD and IPod / MP3

USB compatible

7. Kitchen

 Refrigerator and freezer

 “ Superyacht “ Portholes

 Main control panel AC/DC, battery charger

and generator control

 AC power points

 Storage lockers above and below counter

top

 Recessed Ceramic hob 2-burner with

extractor fan

 Combination Microwave

 Sink with hot and cold water mixer tap

 Corian counter

 Special built in garbage storage

 50 gallon holding tank with deck discharge

and monitoring

 Teak flooring

 Fire extinguisher

 Carbon monoxide and Smoke detector

8. Bathroom

 Sink with hot and cold water mixer tap

 Storage lockers above and below counter

top

 Mirrors on above counter lockers

 Corian counter

 Teak floor

 Vacuum Water Flushed Electrical operated

Toilet

 Composite enclosed shower with glass door

 Rain Shower with thermostat

 Ventilation (fan)

 AC power points

 “ Superyacht “ Portholes

9. VIP Cabin

 Queen-size bed

 “ Superyacht “ Portholes

 Storage lockers beside bed

 Reading lights

 AC power points

 Teak flooring

 One 2000 GPH automatic bilge pump with

control at helm

 One fresh water tank 150 gallons with

monitoring

 Variable speed fresh water pump and filter

system

 Fire extinguisher

 Smoke detector

 Radio with CD and IPod / MP3 compatible

10. Storage Room

 Fire Extinguisher

 One Composite Fuel Tank with Vents

 Volvo Fuel Tank Level Senders

 Storage-room Lights

 DC main fuse box

 Battery Charger 80 Amp.

 12V Service Batteries

 Tool Box

 Silent Line Group sound insulation

bulkheads and ceiling

 Silent Line Group special mounts for engines

and generator

 Two diesel engines Volvo Penta IPS 600

 Volvo galvanic corrosion system for IPS

 Volvo high output alternators

 12V Start batteries one set for each engine

 Emergency battery interconnect

 Generator in sound cover

 Electrical bonding system

 Sea strainer filter for A/C and generator

 Water-cooled exhausts

 Bronze seacocks on all under water through

 Stainless steel hull side engine room

 One 2000 GPH automatic bilge pump with

 FE-227 automatic / manual fire extinguisher

 Racor fuel filters for main engines and

 Engine room lights

 By Pass Exhaust System

 Compressor Airhorn

12. Safety & Equipment

 8 x Life Jackets

 2 x Child Life Jackets

 Life Ring with 100 ft floating line

 Flare set with hand, parachute and smoke

Upogrades

Twin Volvo IPS 600 435 H.P. with Joystick Control + 7 Inch Monitor

Volvo IPS Dynamic Positioning System ( DPS )

A/C Upgrade Florida Package

Split System with extra Air handlers in VIP and Wheelhouse

Underwater Lights ( 3 )

Helm Wet Bar Options, Icemaker, refrigerator

Aft Seat Table and Support

Ultra LUxe Helmseat

Extra Refrigerator in Galley

Dishwasher

Granite Counter Tops

Solid Teak and Holly cabin sole

Bimini Top with drop Curtain .

Aft Deck Enclosure

Windshield Cover

Electronics

Garmin 16 XSV Electronics Package updated in 2022

17X High Sensitive GPS

200 VHF Radio

GSD22 Digital Sonar

1kw B260 Transducer w/ Fairing

GMI-10 Graphic Color Display

GHC-10 Autopilot Control Head w/ GHP 10V Autopilot System

6kw GMR604 x HD Digital Array Radar

Inverter in Storage Room
