CONSTRUCTION, HULL & DECK:

Hull is solid hand-laid fiberglass below the waterline and coremat above. Athwartships reinforcement enhanced by bulkheads, bonded/ tabbed to the hull by fiberglass. Hull to deck joint is “shoe box” type bedded by elastomeric poly compound with stainless fasteners. Deck and deck house are molded seamlessly. Cored fiberglass decks with white gelcoat and Tiara’s signature diamond textured molded non-skid patterns. Molded in-hull engine ventilation and toe rails. Black composite compression rub rail with stainless steel striker strip. Fiberglass hard-top with pipe-welded aluminum support and window enclosure curtains.

Color Layout:

Hull: Off-White Gelcoat

Boot Stripe: Gold single stripe above black double

Bottom: Black (West Marine CPP, 2025)

• (3) Bomar S/S deck hatches
• (6) Opening oval-shaped ports
• S/S cleating: (2) 12” bow, (1) 12” anchor tie-down, (2) 8” mid-ship, (2) 12” transom gunwales via fairleads
• Rod holders: (16) aluminum hardtop, (6) Lee Marine S/S flush mount on aft cockpit
• (2) Lee Marine outriggers: polished S/S mounting bases, internal Carbon fiber upper poles
• Lewmar Concept 12v windlass w/ foot switches & helm control (Re-built, 2023)
• Galvanized plow anchor w/ 40’ft 10mmm galvanized chain & 200’ft  ¾”  braided nylon rode
• (3) AFI 16” windshield wipers
• Tan Seadek on stepping areas
• Transom door to starboard
• Cockpit flood & courtesy lighting
• Jabsco raw & freshwater washdowns in the aft cockpit
• (2) flush insulated deck fish boxes, (1) removable w/ discharge pump
• Raritan Icerette ice maker w/ sink above
• In-deck live bait well
• Exterior upholstery in white vinyl
• Exterior covers in white
• Cockpit bolsters
• Aft facing bench seat to port w/ footrest
• Hot & cold cockpit shower
• Hydraulic “garage” style lifting engine access
• Perko underwater lights

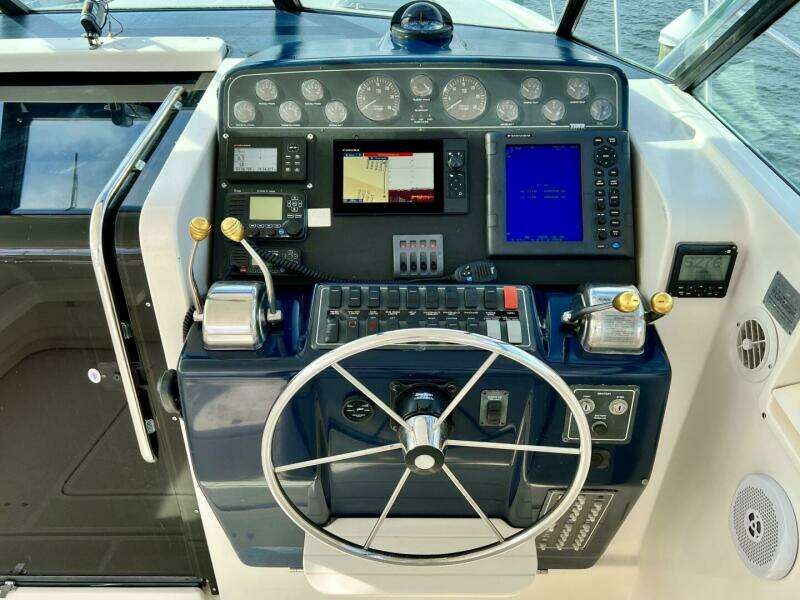

NAVIGATION EQUIPMENT & ELECTRONICS:

• Furuno Navnet 12” TZtouch hybrid MFD w/ single channel CHIRP sonar (2021)
• Furuno 4.2” GP-39 GPS/ WAAS Navigator
• Furuno 1935 48 mile radar w/ Open Array antenna on a Seaview modular mount
• Simrad AP24 Autopilot
• Icom IC-M506 VHF
• Icom IC-M330 VHF
• (2) 8’ Shakespeare antennas
• Ritchie 4” powerdamp compass
• Rudder angle indicator
• Golight Spotlight w/ helm control
• ACR GlobalFix V4 EPIRB
• Sony MEX-M70BT AM/FM/CD stereo w/ Fusion speakers

INTERIOR & ACCOMMODATIONS:

The 3700 Open style interior accommodations are very deluxe. Satin stained cherry joiner work and cabinetry, interior upholstery is black leather. The Owner’s Stateroom is forward featuring a pedestal queen berth with storage below, outboard shelves and two cedar-backed hanging lockers. The Fully-Enclosed Head follows the starboard and can be accessed from either the salon or the owner's stateroom. The Head also features a separate stall shower with a seat/ curtain, vanity with Corian countertop, mirror and medicine cabinet. The Salon features a huge U-shaped settee and dining table to port that can convert to a double berth with a single “Pullman” style berth above. Roomy L-shaped Galley to starboard with white corian countertops.

• 6’7” headroom
• Blanco S/S dual basin sink w/ adjustable faucet head
• Trash receptacle
• Drawer & cabinet storage
• Norcold refrigeration
• Electric 2-burner cooktop
• Samsung microwave
• Vacuflush head
• Tobisha TV in master
• Nautopedic custom matress
• Wempe ships clock
• Xintex CO detectors
• Black floor covers
• GFCI’s
• Recessed & dome lighting
• Electrical panel & large hanging locker on port aft bulkhead

ELECTRICAL, PLUMBING & MECHANICAL SYSTEMS

• Bennet electro-hydraulic trim tabs
• 12V engine room blowers
• (7) Group 31 lead acid batteries (2019)
• Charles-C 5000 Series Battery Charger
• (2) Marine Air Systems AC/ Reverse cycle heating units, 7K BTU & 10K BTU w/ digital controls
• 50 AMP Glendinning cablemaster reel
• 30AMP Marinco shore power inlet
• (2) Quicksilver galvanic isolators
• Sealand Vacuflush 12v head system
• Dometic 12v service pumps
• (3) Rule 2000 gph bilge pumps w/ float switches
• Atwood 10.5 gallon hot water heater

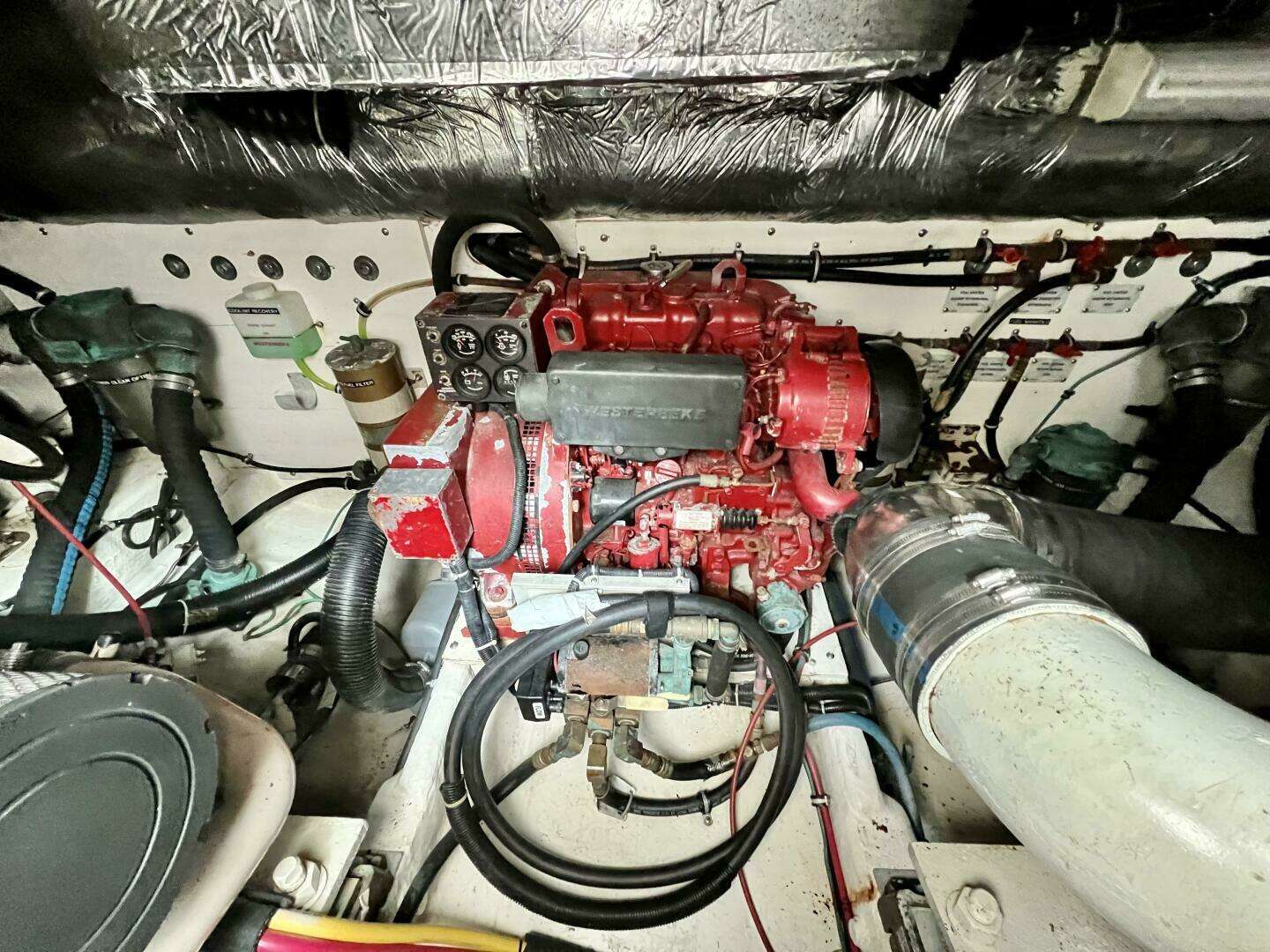

• Westerbeke 8KW BTD Generator w/ 250 hrs
• Twin 430HP Cummins 6CTA8.3’s turn 4-bladed Acme propellers @ 24” x 26.5  on 2” stainless shafting through Twin Disk 2.5:1 reduction gears
• (2) nibral cup propellers (2024)
• Engine Hours as of 11/2022-  Port: 1612 / Starboard: 1607
• Schmitt Ongaro dual lever engine control throttles
• Glendinning electro-mechanical synchronizer
• Seastar 2.0 helm teleflex hydraulic steering
• Fireboy halon suppression system
• (2) Racor 1000MA fuel filters for engines
• Racor R20P fuel filter for generator
• PYI Inc PSS shaft seals
• Oil transfer pump for machinery space
