ACCOMMODATIONS & WALKTHRU

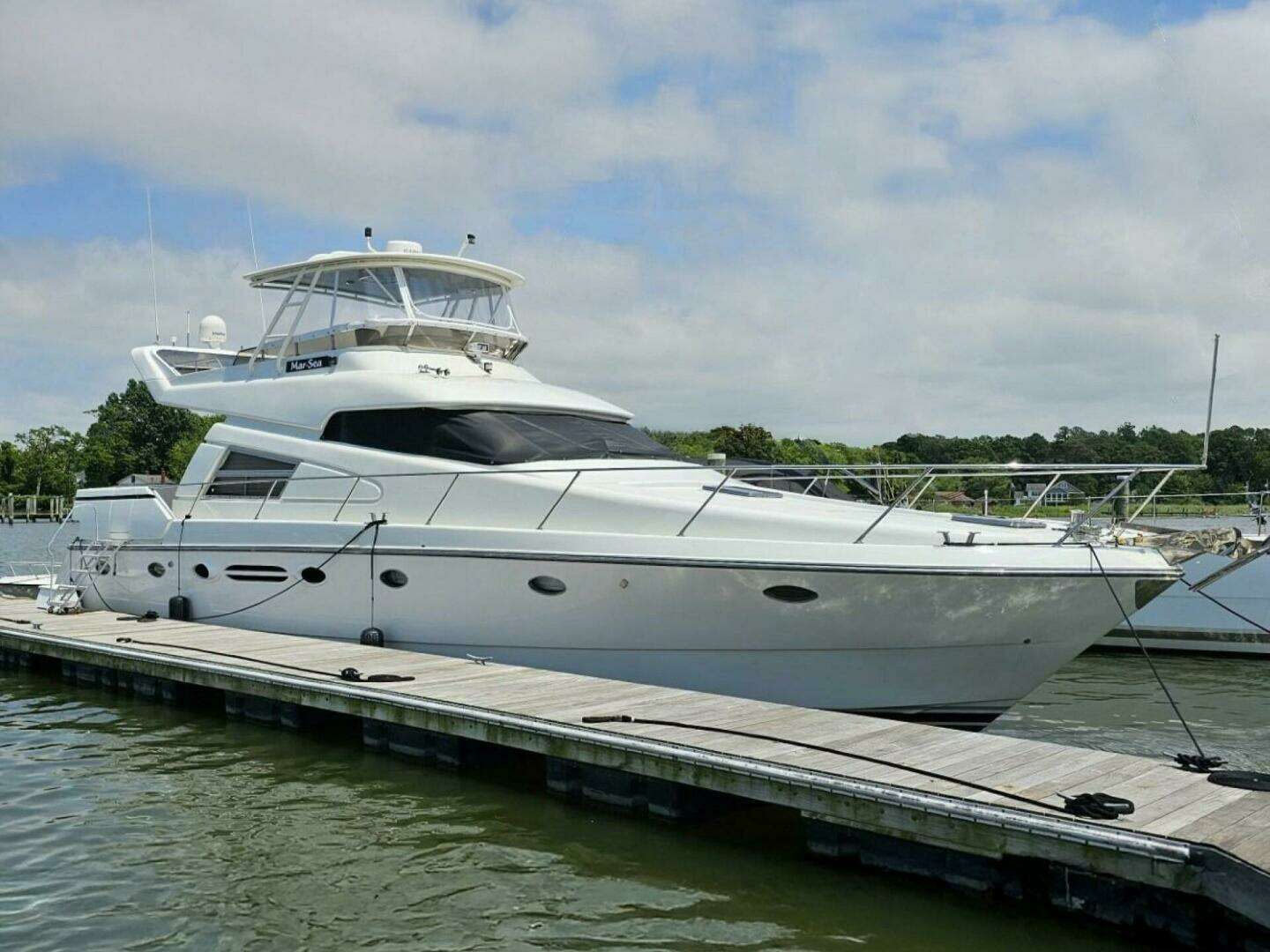

The Johnson High-Tech 56' Euro Motor Yacht has amazing, well thought out interior that perfectly serves the CRUISER and the LIVEABOARD with an efficient layout that sleeps 6 in 3 private cabins with additional room in the Saloon and in good weather on the Flybridge. The Master Stateroom is aft and entered down a magnificent spiral staircase. The Guest Berth is forward and mirrors the Master in size and features. "Mar Sea" has the storage space to support guests and crew, family and friends. The Saloon is large and comfortable with a long "U" shaped sofa. There is plenty of room for additional seating. The raised dining area nicely accommodates you and your guests. The spacious, lower, "U" shaped Galley makes entertaining easy and efficient!!!

INTERIOR EQUIPMENT

A 96000 BTU CRUISAIR-DOMETIC HVAC/AIR CONDITIONING SYSTEM remote expansion system with 2 AC seawater pumps supplying water to 4 compressors which then supply refrigerant gas to Air Handlers. The system can be run through shorepower receptacles or generator which makes it very "cool" to anchor out on a hot summer night!

3-BURNER STOVETOP

GE MICROWAVE

EXHAUST FAN OVER SINK

GE DISHWASHER

U-LINE GALLEY REFRIGERATION

SUB-ZERO GALLEY FREEZER

ADDITIONAL REFRIGERATOR ON FLYBRIDGE

SPLENDIDE 2000 COMBO WASHER/DRYER

NUTONE CENTRAL VACUUM

BROAN TRASH COMPACTOR

Electrical

The 56 Hi Tech Euro has both a Ship's 120 Volt and a Shorepower110 Volt Electrical Systems.ER

NORTHERN LIGHTS GENERATOR PX-0

2-125/250 VOLT 50AMP SHOREPOWER RECEPTACLES W/ITH BREAKERS

50' SHOREPOWER CABLE

GALVANIC ISOLATERS

HVAC/AIIR SYSTEM (SEE ACCOMMODATIONS)

12-8D GEL TYPE BATTERIES

SENTURY 12v, 60AMP BATTERY CHARGER

PROMARINER 12v, 20AMP BATTERY CHARGER

NEWMAR 24v, 50AMP BATTERY CHARGER

6- GUEST ROTARY BATTERY SWITCHES

12v ELECTRIC PANEL AT PILOTHOUSE HELM

Mechanical

MECHANICAL EQUIPMENTT

TWIN DETROIT FWC, 8-CYLINDER MODEL 8V92TA DIESELS (PORT 1139 HRS & ST11ARRBOARD 1138 HRS)

Bow Thruster 24v WITH SINGLE 3-BLADE PROP IN 12" TUBE

Trim Tabs Electro-Hydraulic 12"X54" SS

STEERING SYSTEM BY HYNAUTIC WITH Hydraulic Single Ram

SS SPADE RUDDERS 11"x27"

WATER SYSTEMS & PLUMBING

200 GALLON SS FRESHWATER TANK WITH ACCUMULATOR TANK & HEADHUNTER EXCALIBER 12v PUMP

RARITAN 20 GALLON WATER HEATER

FRESHWATER WASHDOWN

DECK SHOWER AT TRANSOM

60 GALLON WASTE TANK WITH Y VALVE

2 RULE 12V SUMP PUMPS & FLOAT SWITCHES

2-ALUMINUM 300 GALLONS EACH FUEL TANKS WITH 12V FUEL TRANSFER PUMP

REVERSO OIL TRANSFER PUMP WITH MANIFOLD

4 - RULE SUMP PUMPS SUBMERSIBLE 12v W/FLOAT SWITCHES

MANUAL BILGE PUMP IN ENGINE ROOM

AUDIO & VISUAL BILGE ALARMS AS PER ABYC

Electronics and Navigation

The fully equipped and Maintained Inside Helm is across from the Dining area on port. and at Flybridge Helm is centered with great 360 degree vision. In addition, there are two sets of engine controls in the cockpit: one on starboard and one on port.

UPPER STATION (FLYBRIDGE)

4" Ritchie Compass

Simrad AP20 Autopilot

Garmin GPS Map 942xs

Northstar GPS/LORAN 800

CHART PLOTTERS

GARMIN 36 MILE RADAR

AUTOHELM TRIDATA: KNOTMETER, DEPTHSOUNDER, WATER TEMPERATURE

STANDARD HORIZON VHF RADIO AND HAILER

ENGINE MONITORING GAUGES

LOWER STATION (WHEEL HOUSE)

4" Ritchie Compass

Simrad AP20 Autopilot

Garmin GPS Map 942xs

Northstar GPS/LORAN 800

CHART PLOTTERS

GARMIN 36 MILE RADAR

AUTOHELM TRIDATA: KNOTMETER, DEPTHSOUNDER, WATER TEMPERATURE

SEA VHF RADIO

ENGINE MONITORING GAUGES

ENTERTAINMENT ELECTRONICS

INTELLIAN SATELLITE SYSTEM

SAMSUNG TV/DVD/MEDIA PLAYER IN MASTER

SAMSUNG TV IN GUEST CABIN

SONY TV/DVD/MEDIA PLAYER IN SALOON

PIANOLA CASSETTE/TUNER SOUND SYSTEMS IN EACH STATEROOM

Hull & Deck Build and Equipment

Johnson Yachts and designer Bill Dixon have put together a superb PILOTHOUSE MOTOR YACHT with Modified V Planing Solid glass hull and Cored Fiberglass Decs with Non-Skid and laid Vinyl Teak

Fiberglass Bow Sprit with SS Anchor Roller Bracket

SS Bow Pulpit

SS Rubrails

Molded Fiberglas Hardtop

DECKS WERE PRIMED AND PAINTED WITH AWLGRIP TO MATCH PREVIOUSLY PAINTED TOPSIDES FROM BOW TO JUST INSIDE COCKPIT AND FROM RUB RAIL TO PAINTED AREA AROUND BRIDGE

Muir Electric, Vertical, Anchor Windlass with remote controls

Danforth polished 55 lb ANCHOR

DOCKLINES AND FENDERS

TELESCOPING SS SWIM LADDER ON GOOD SIZED SWIM PLATFORM

Mechanical Disclaimer

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.

Disclaimer

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
