Machinery

Machinery

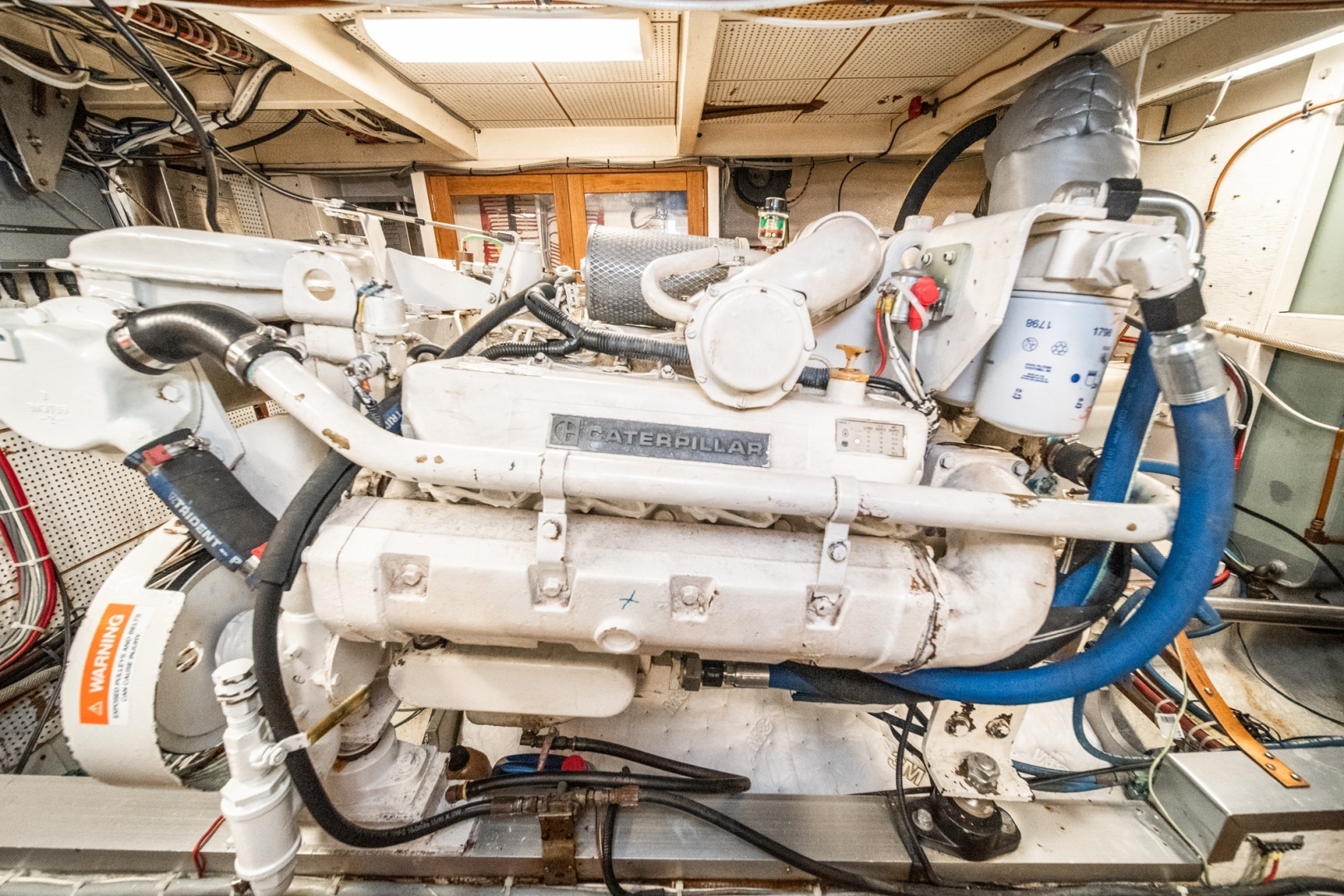

Main engine: Twin Caterpillar 3208T

Built: Original to vessel

Serial: Port-01Z07848 and Starboard-01Z07754

Type: Diesel. Marine high speed. Fresh water exchange cooled. Twin Disc

hydraulic reverse 2.54:1 reduction gear. P-5W 1653 and S-5W 0196

Location: Amidships

Foundation: Molded stringers. Resilient mounts.

HP: 350 each

RPM: 2800

Engine hour meters: P= 5189. S= 5180

Engine control: Cable twin station.

Engine room ventilation: Blowers, adequate.

Exhaust cooling: Water jacket manifold, spray riser wet to stern discharge.

Propeller: 30 CR 25 three blade bronze (From file)

Shafting: Stainless 2”

Dose propeller extend below keel?

Skeg or Strutted: Strut

Steering gear: Twin wheel, cable to quadrant.

Auxiliary Engines: Northern Lights 8.5 Kw motor light plant. Serial No.

753240747C. Service hour meter =1982

Generators: Alternators. Output 12-volts, fractional KW.

Other: Wesmar active fin stabilizers. Flo Scan fuel meters.

ACCOMODATIONS

ACCOMODATIONS / BERTHS

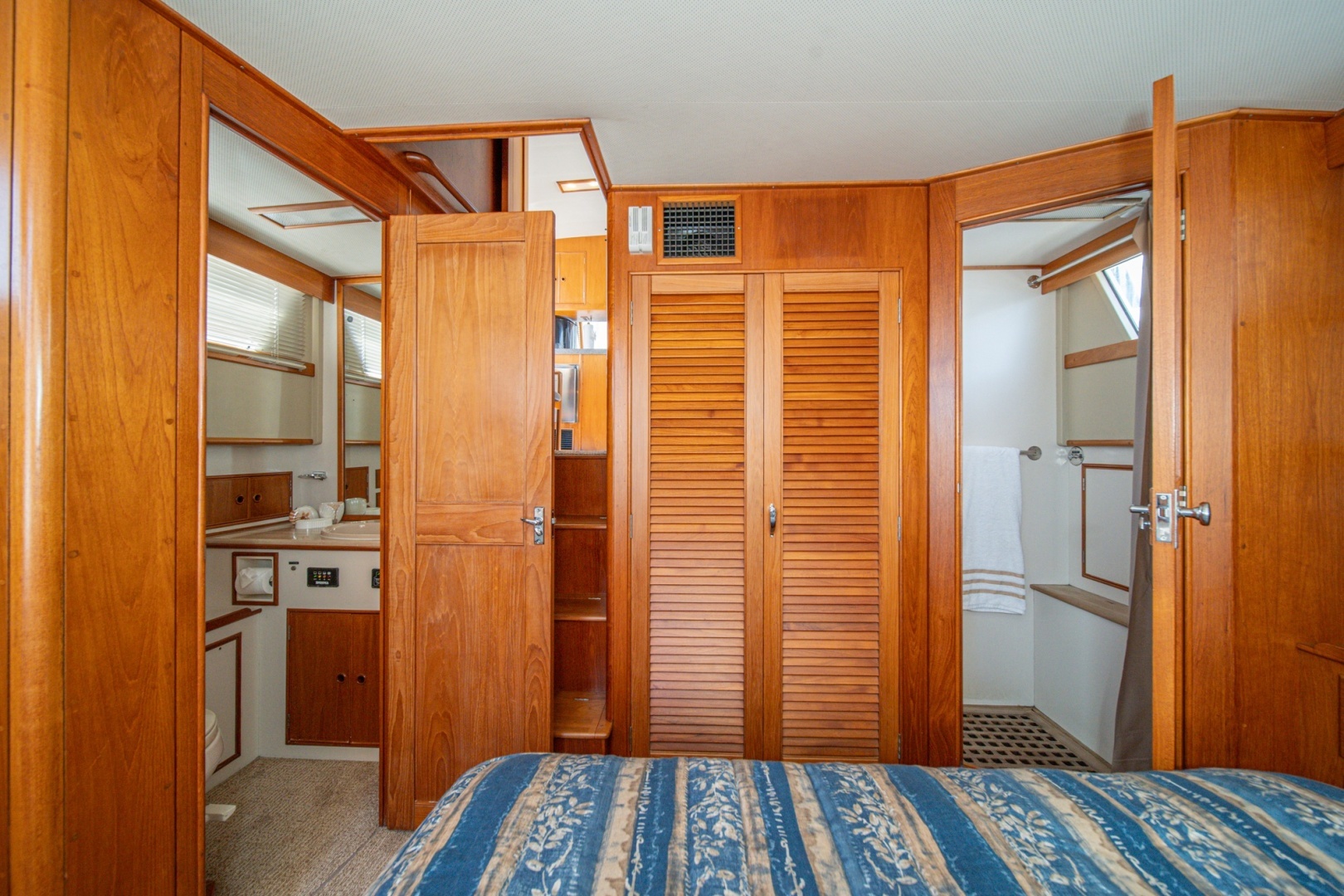

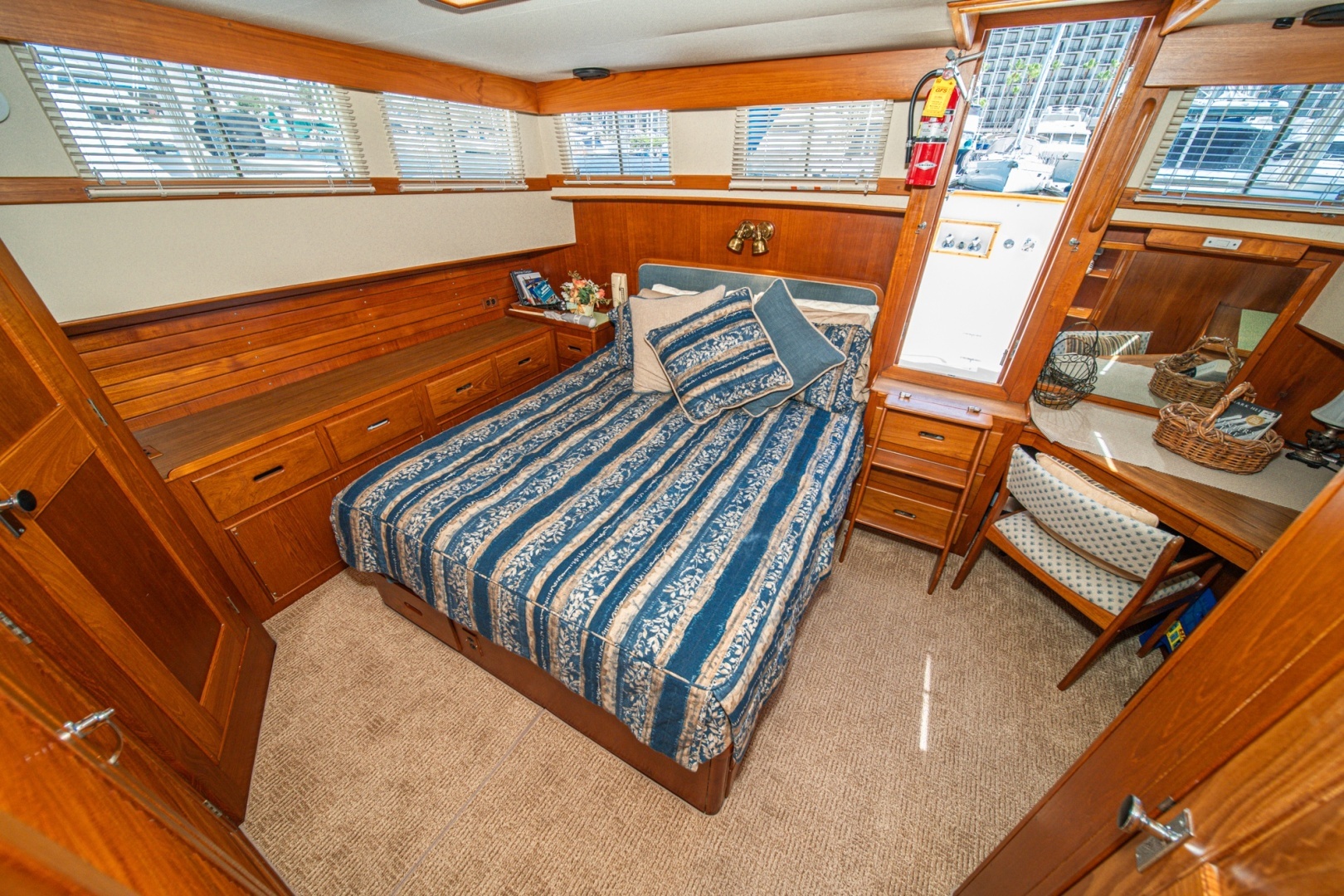

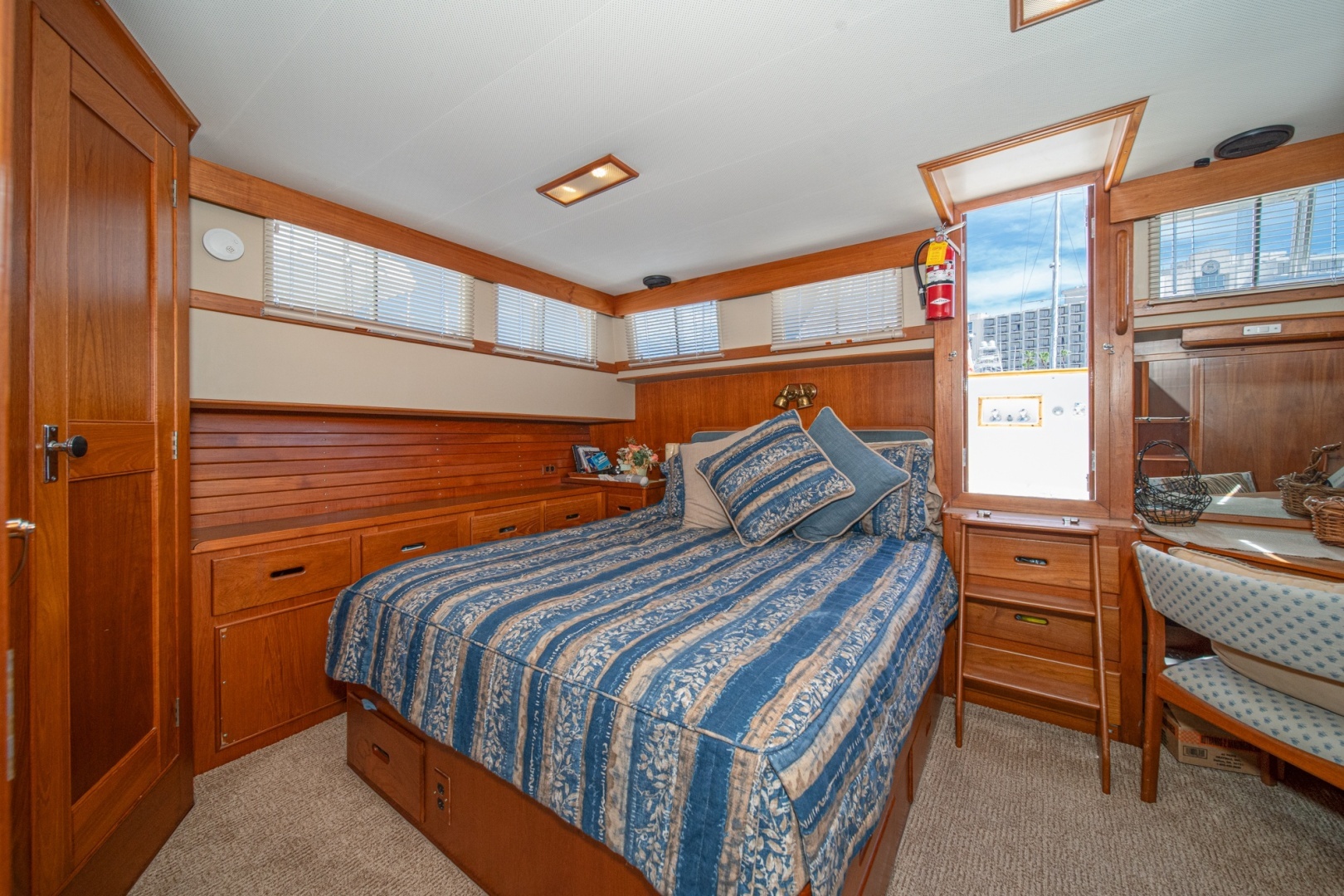

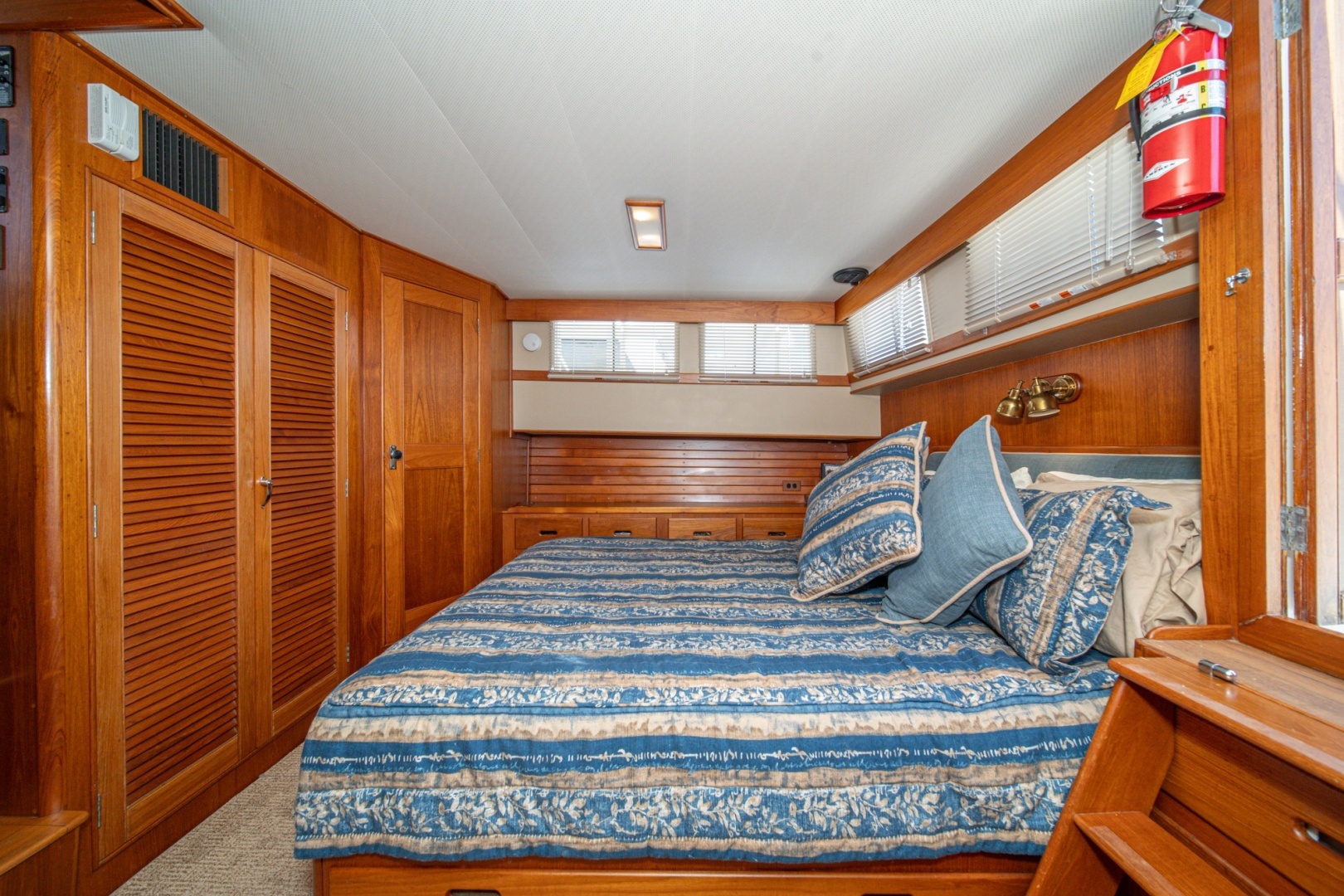

OWNERS SUITE - AFT

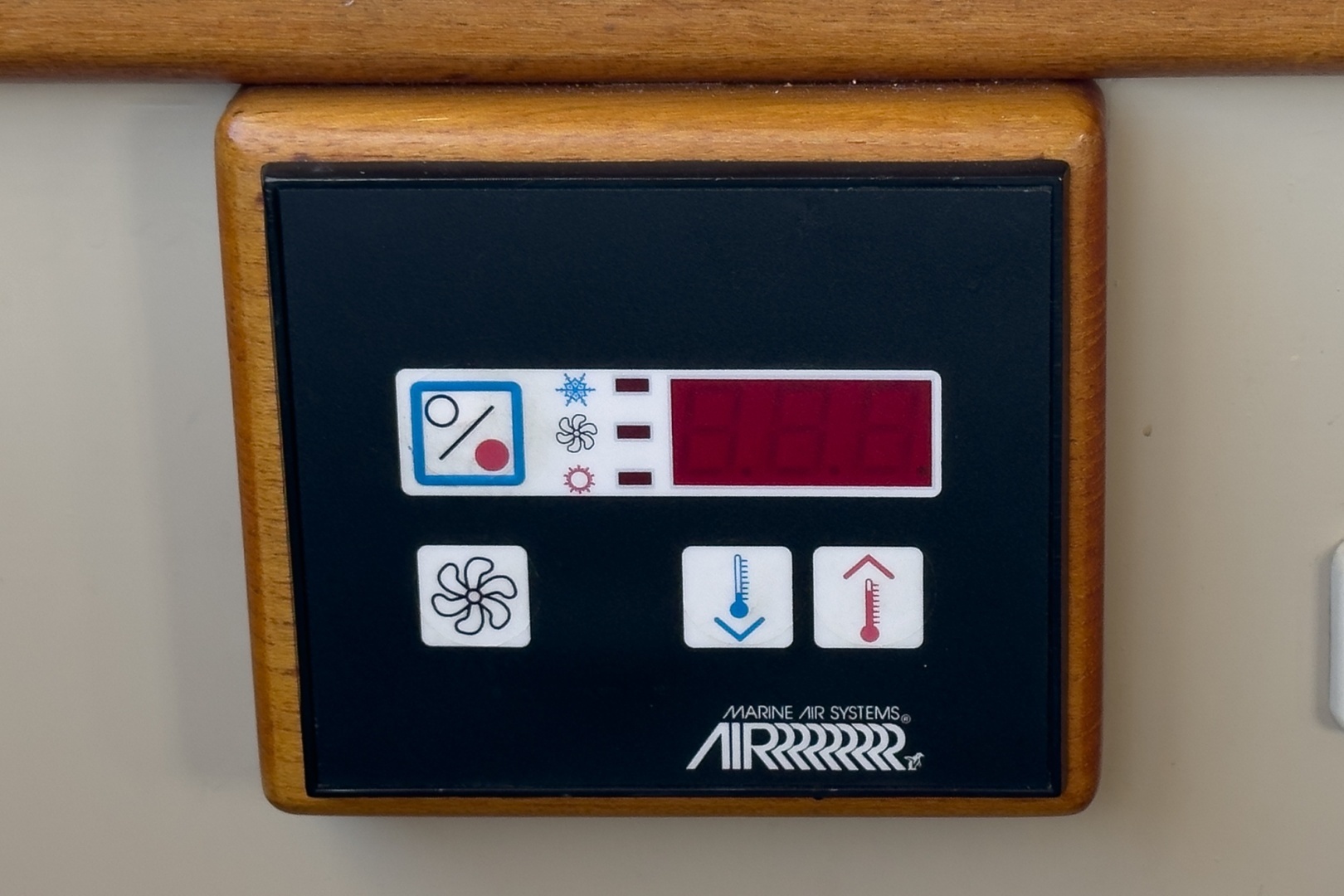

Air Conditioning

Island Queen Berth

Ensuite Head with Sink and Storage to Port

Vacuflush Head (Fresh Water Flush)

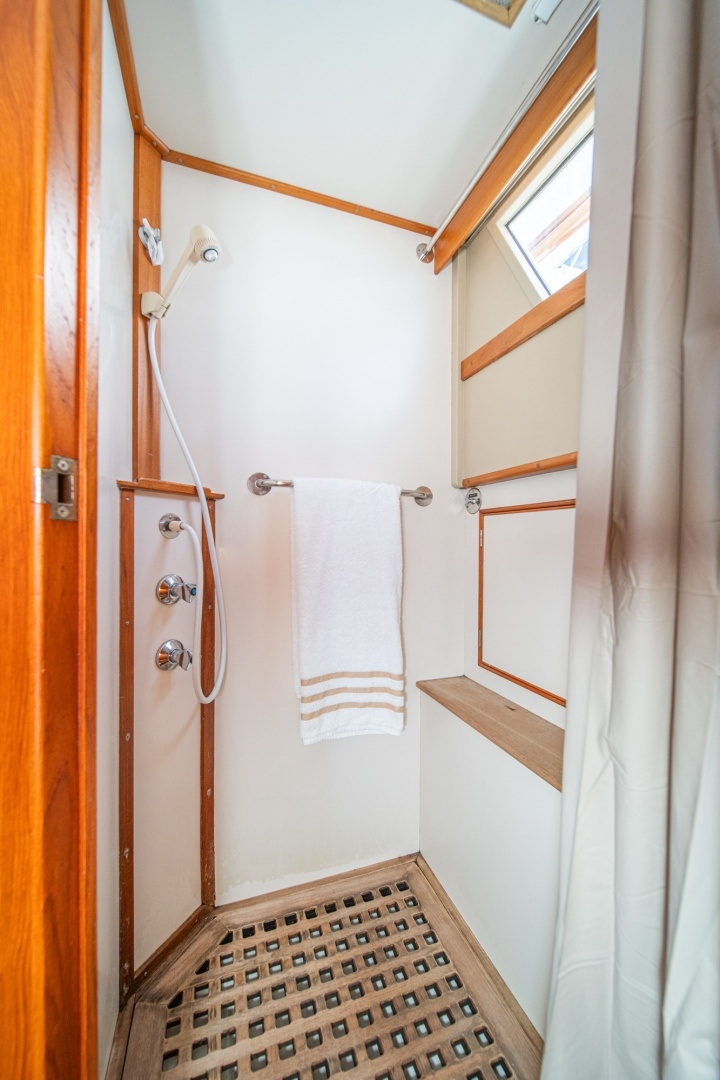

Ensuite Shower with Storage to Starboard

Large Hanging Locker with Double Louvered Doors

Storage Drawers to Starboard

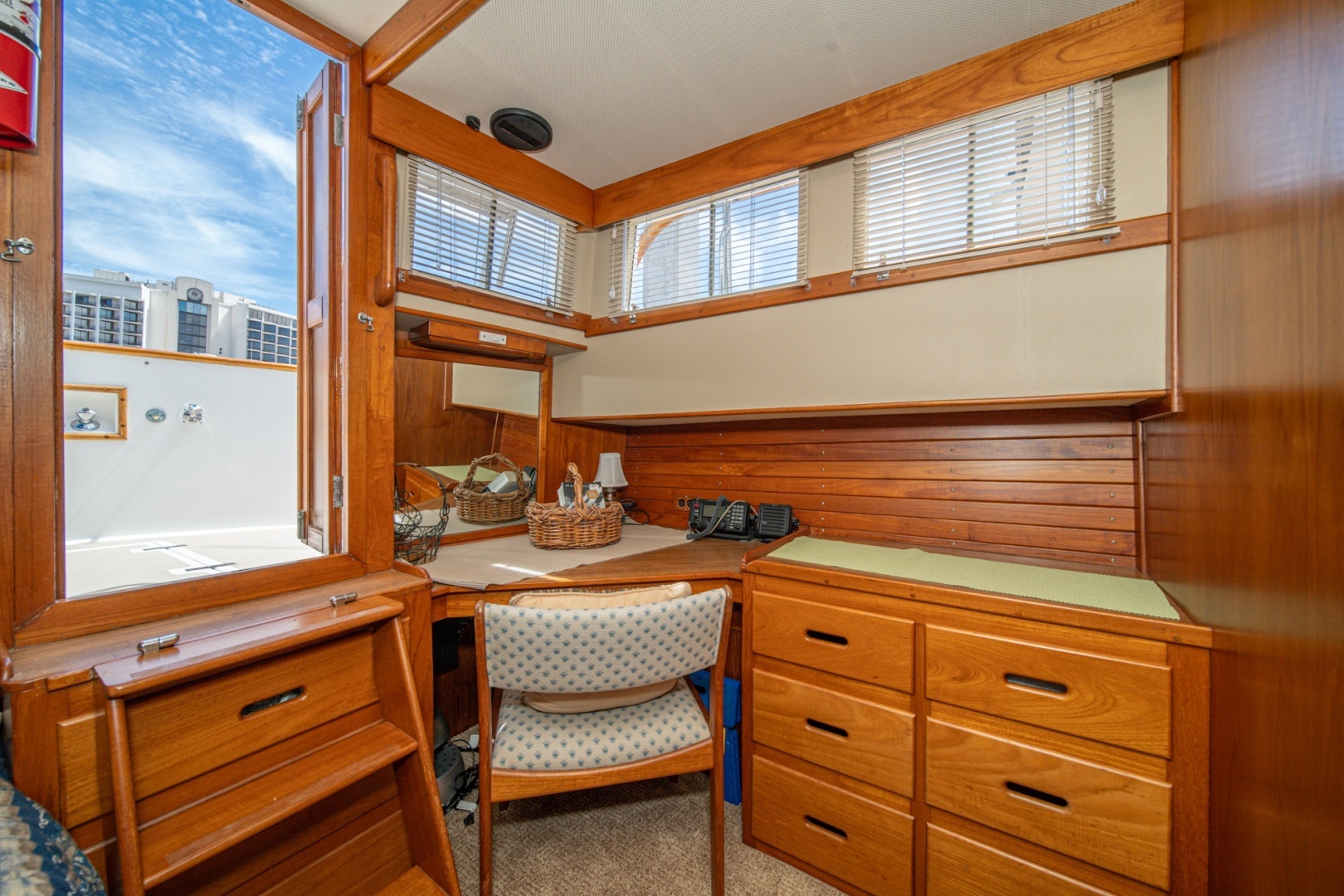

Vanity / Desk w Chair to Port

110VAC Outlets

Dual Headboard Reading Lamps

Stairs and Private Aft Entry/Exit to Aft Deck/Cockpit

Speakers Overhead 2

Bedding and Decor Items

Icom SSB Radio w/Antenna, Abandon Ship Bag, Epirb

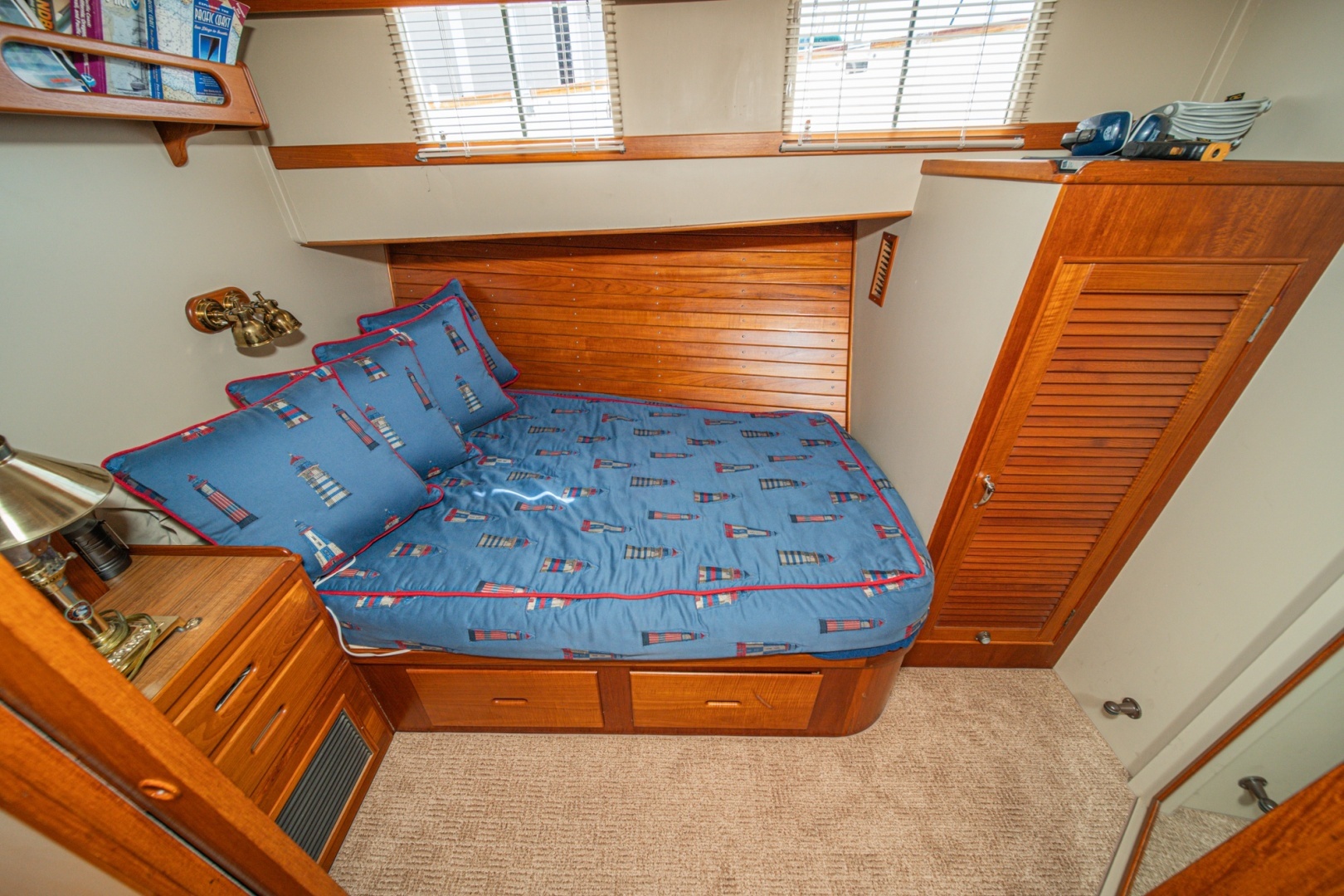

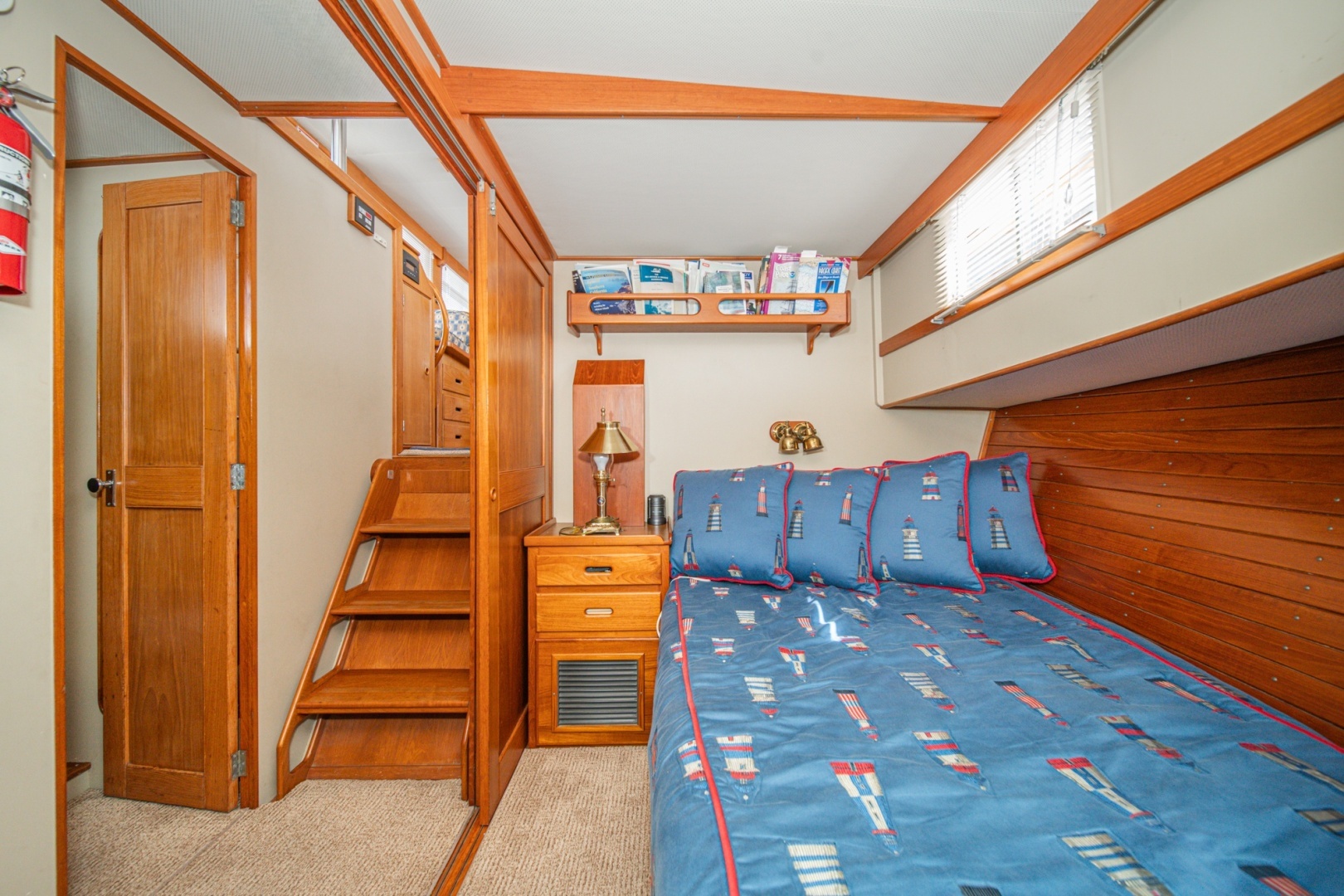

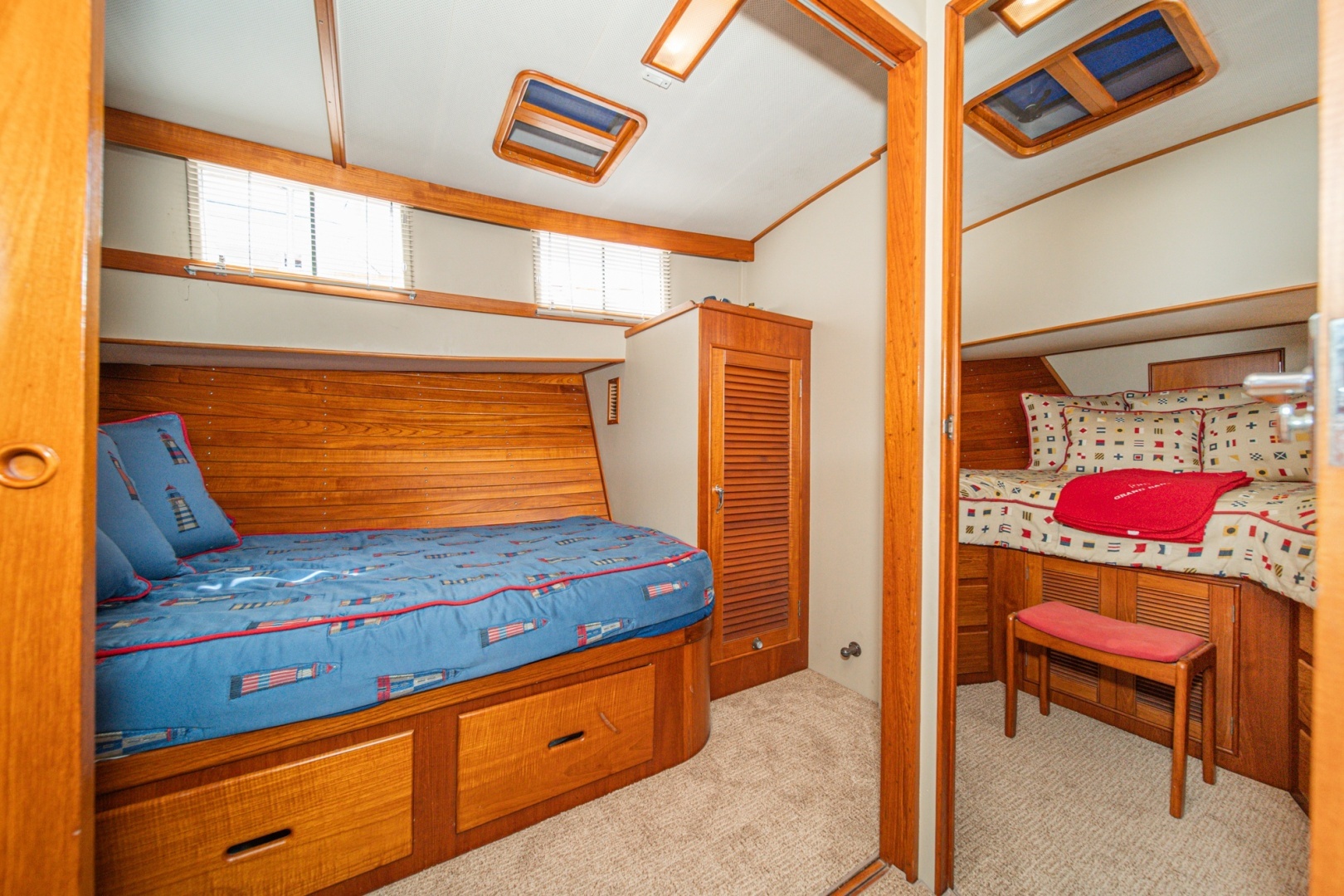

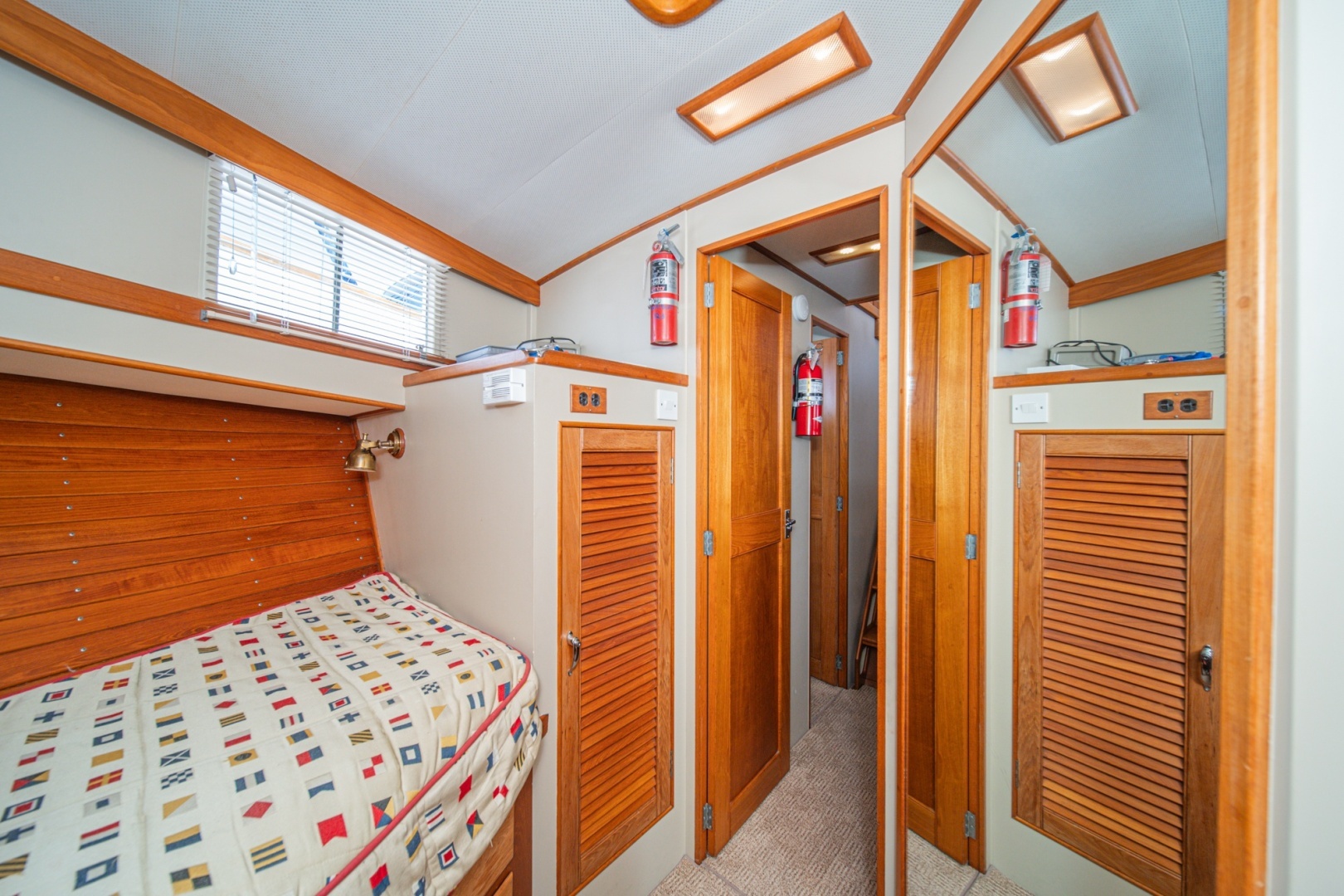

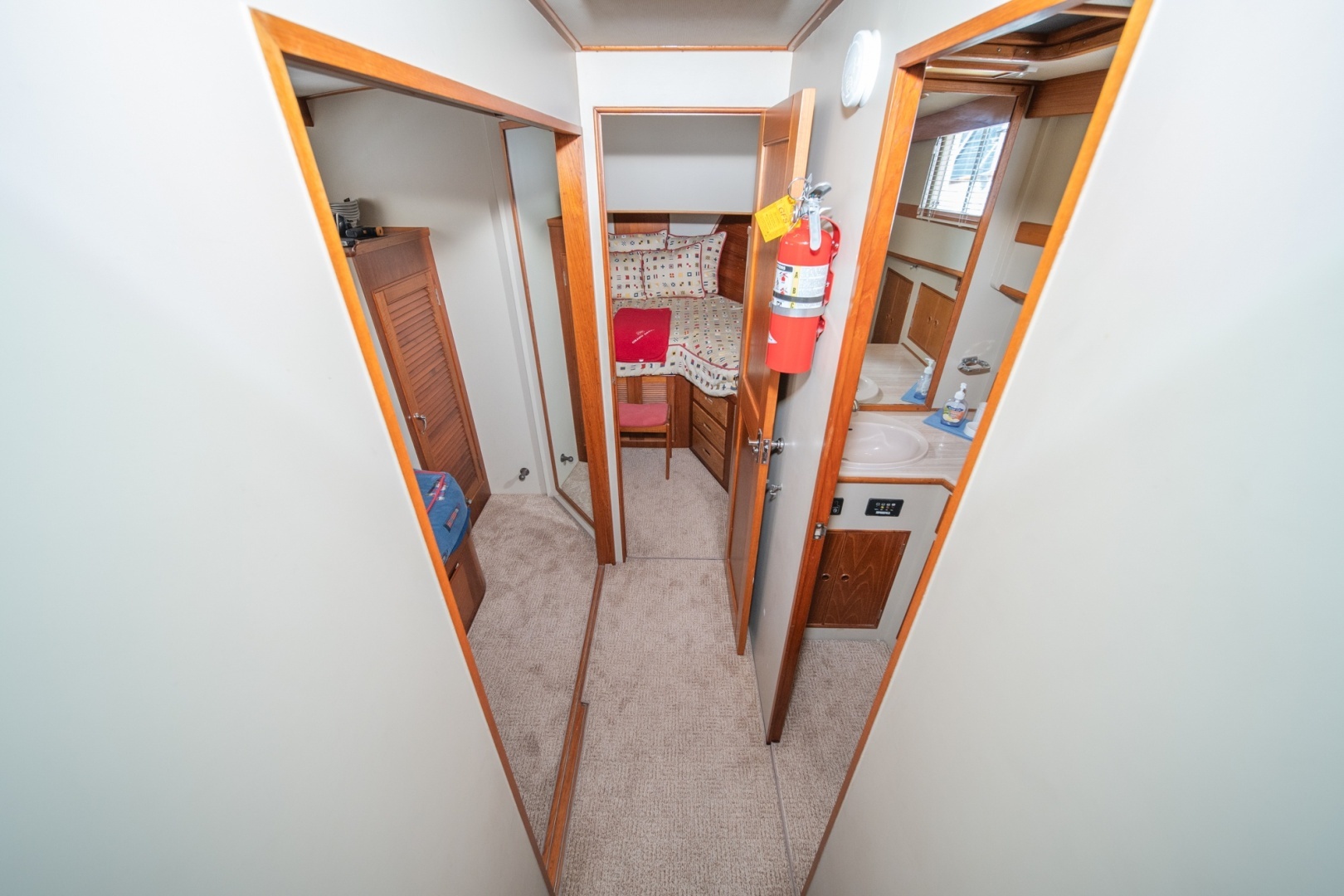

PORT SIDE FORWARD BERTH (Down 3 Stairs)

Air Conditioning

Full size Pullman Style Berth w Storage Drawers Below

Night Stand with Storage Drawers and Aircon Vent

Overhead Book Rack

Hanging Locker w Louvered Door

Bedding and Decor Items

Mirror on Wall

Sliding Pocket Style Doors

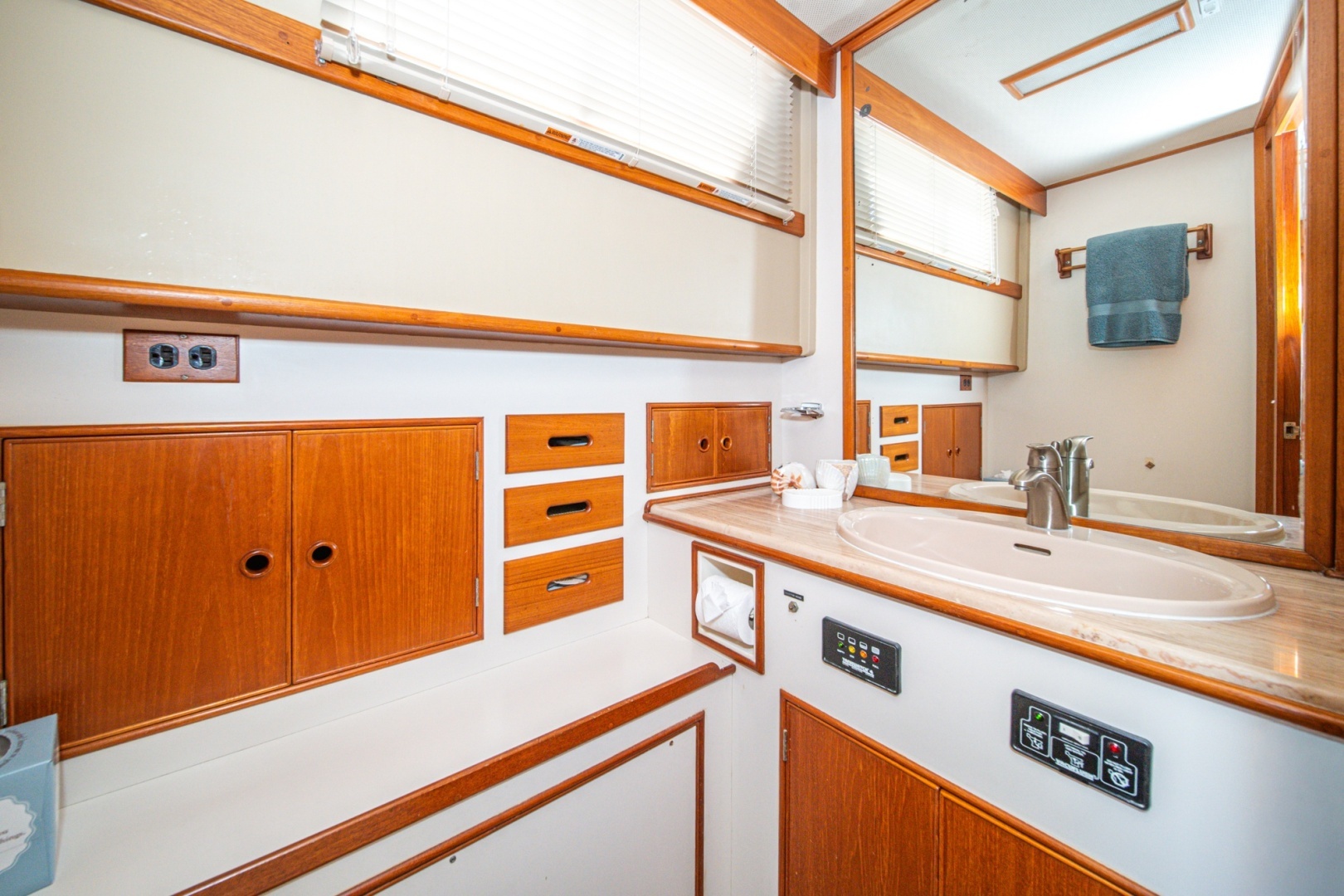

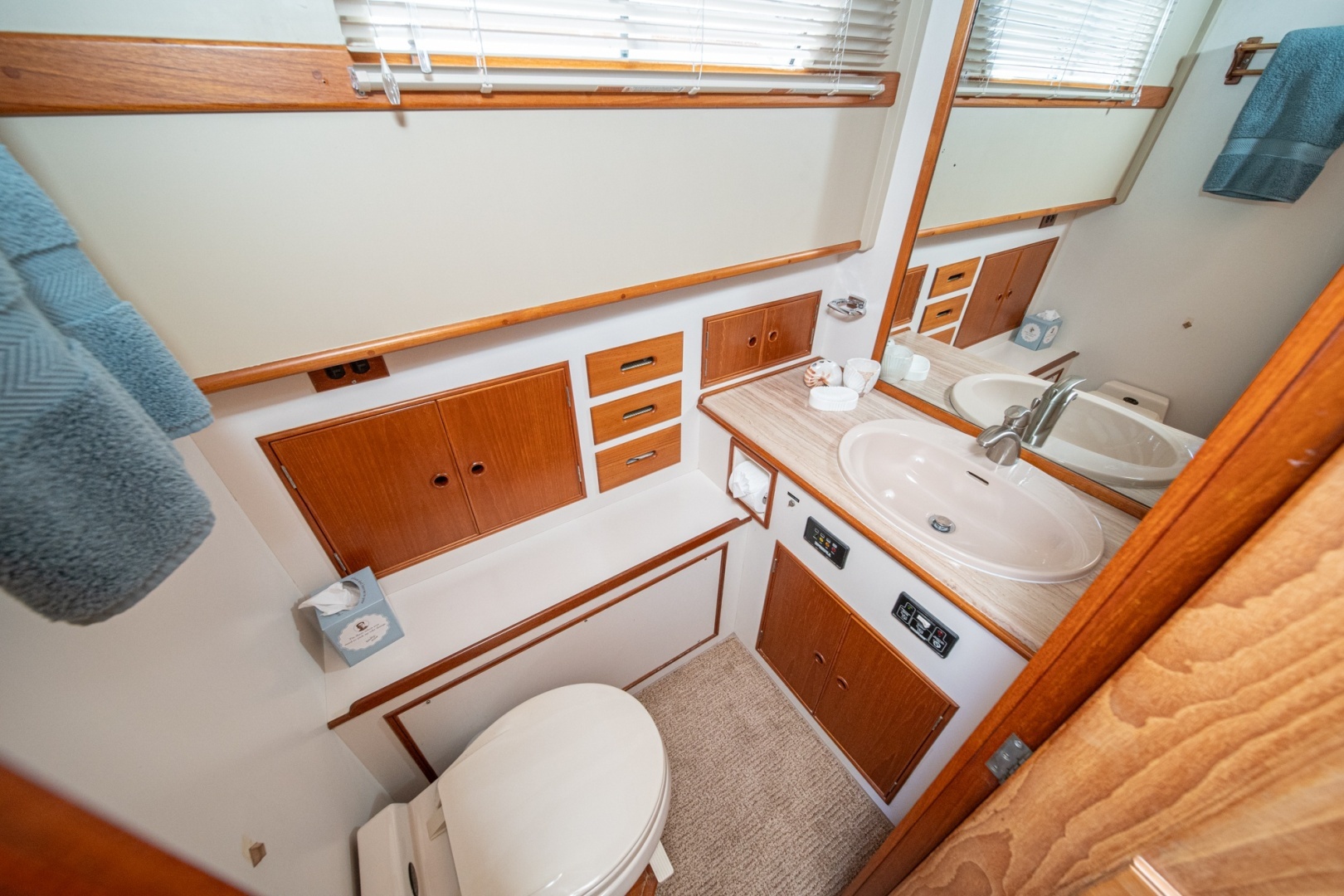

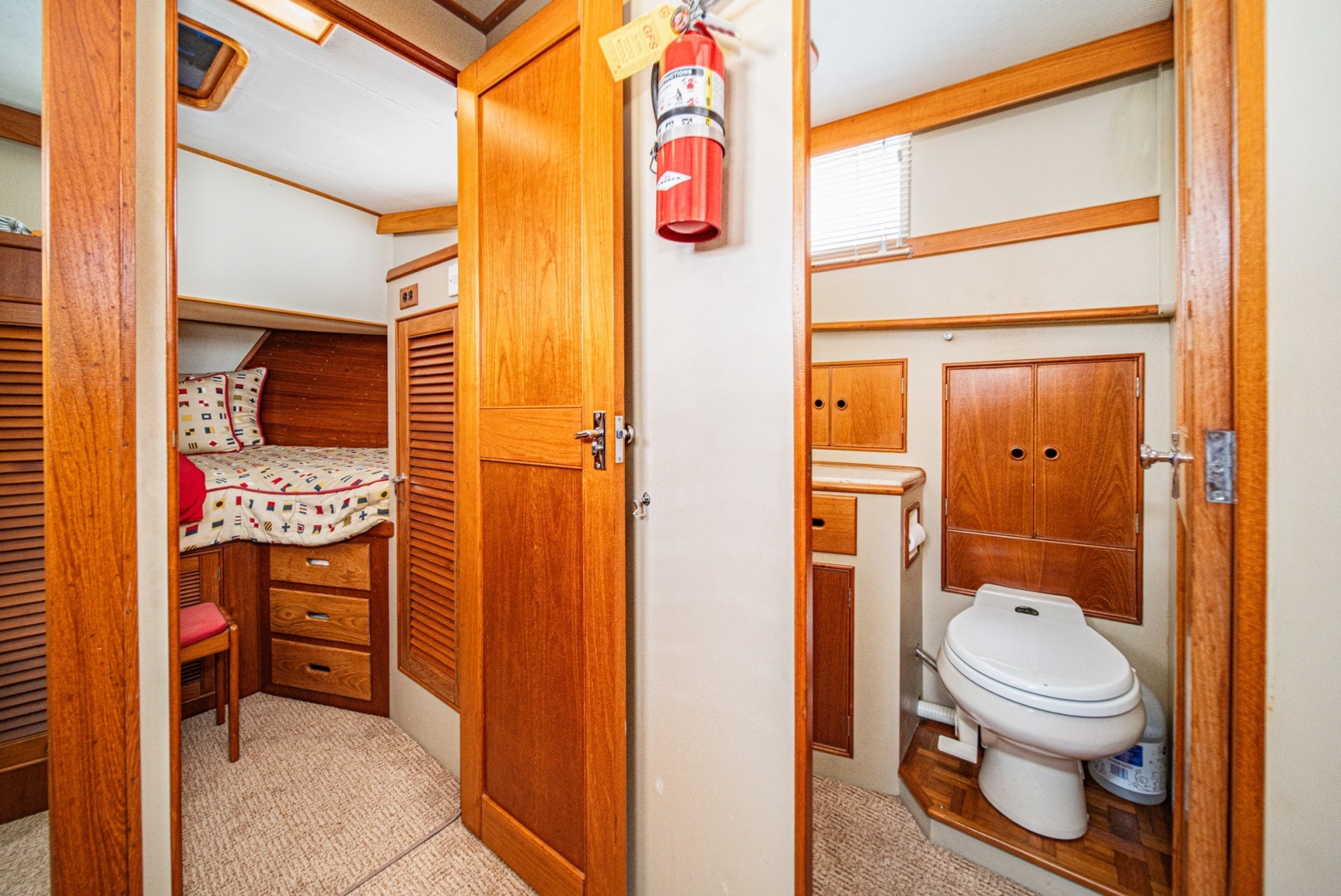

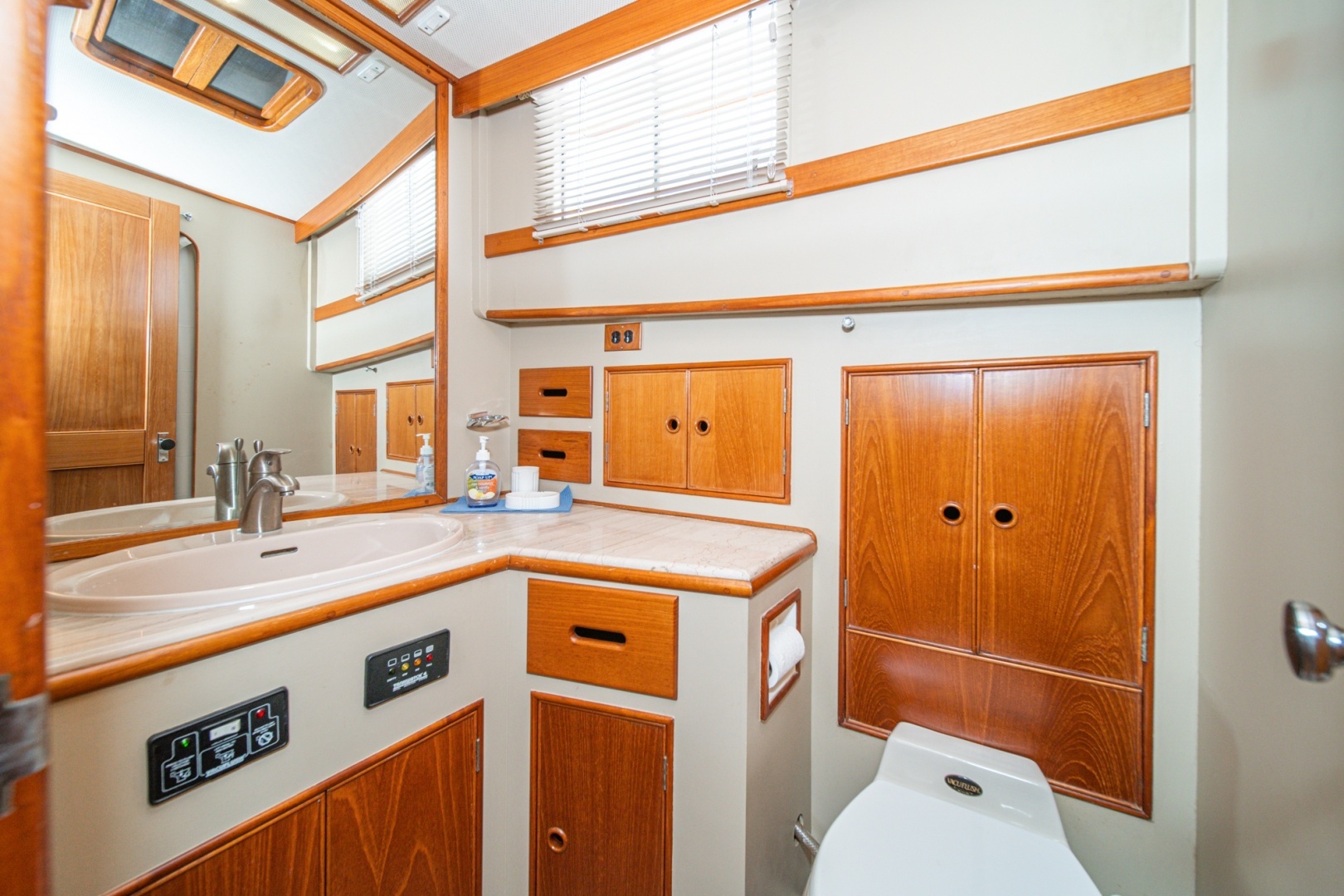

FORWARD HEAD

Vacuflush Head (Fresh Water Flush) with Control Panel

Holding Tank Monitor

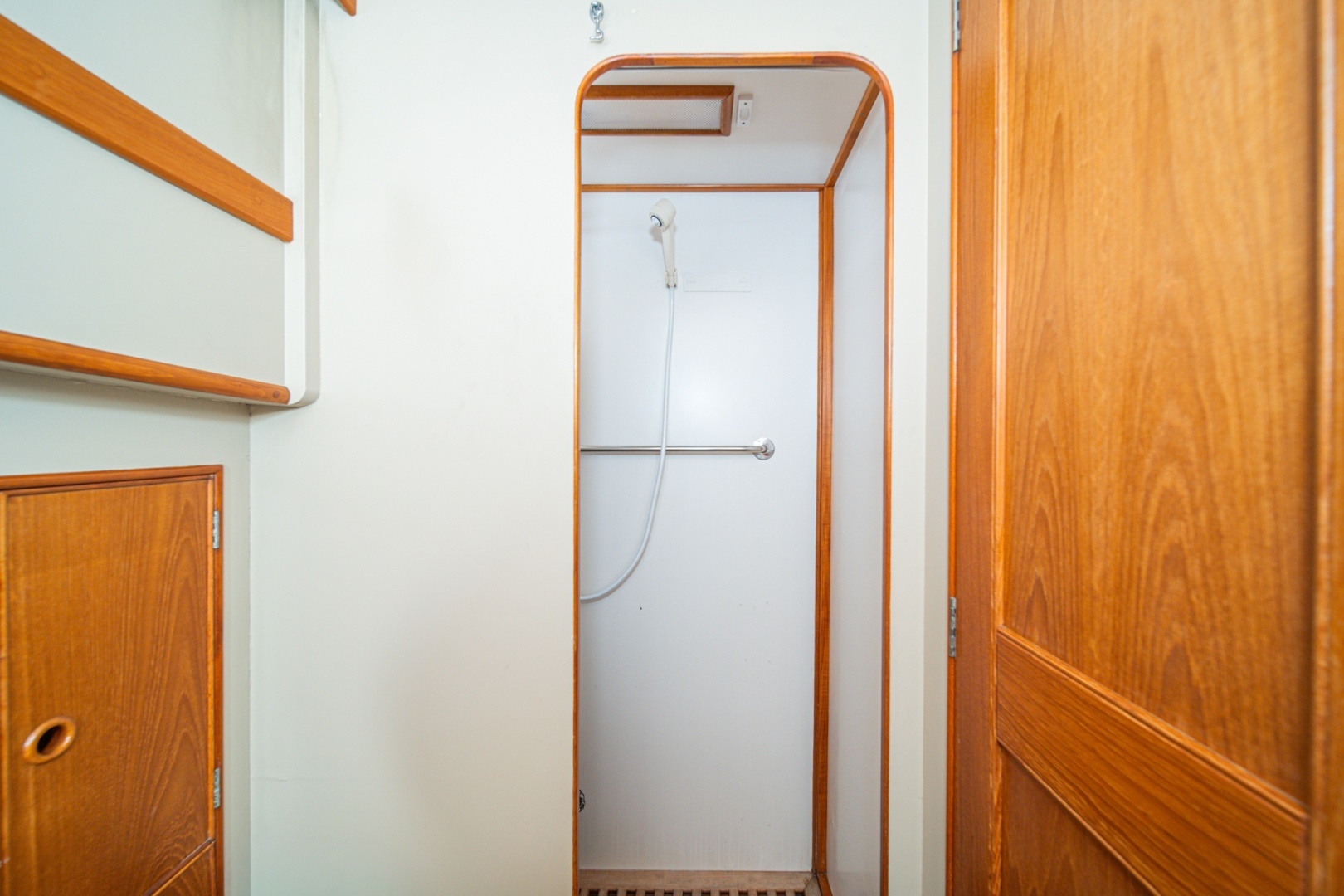

Separate Shower Stall

Storage Cabinets 4

Storage Drawers 3

SIngle Sink w Single Lever Faucet

110 Outlet

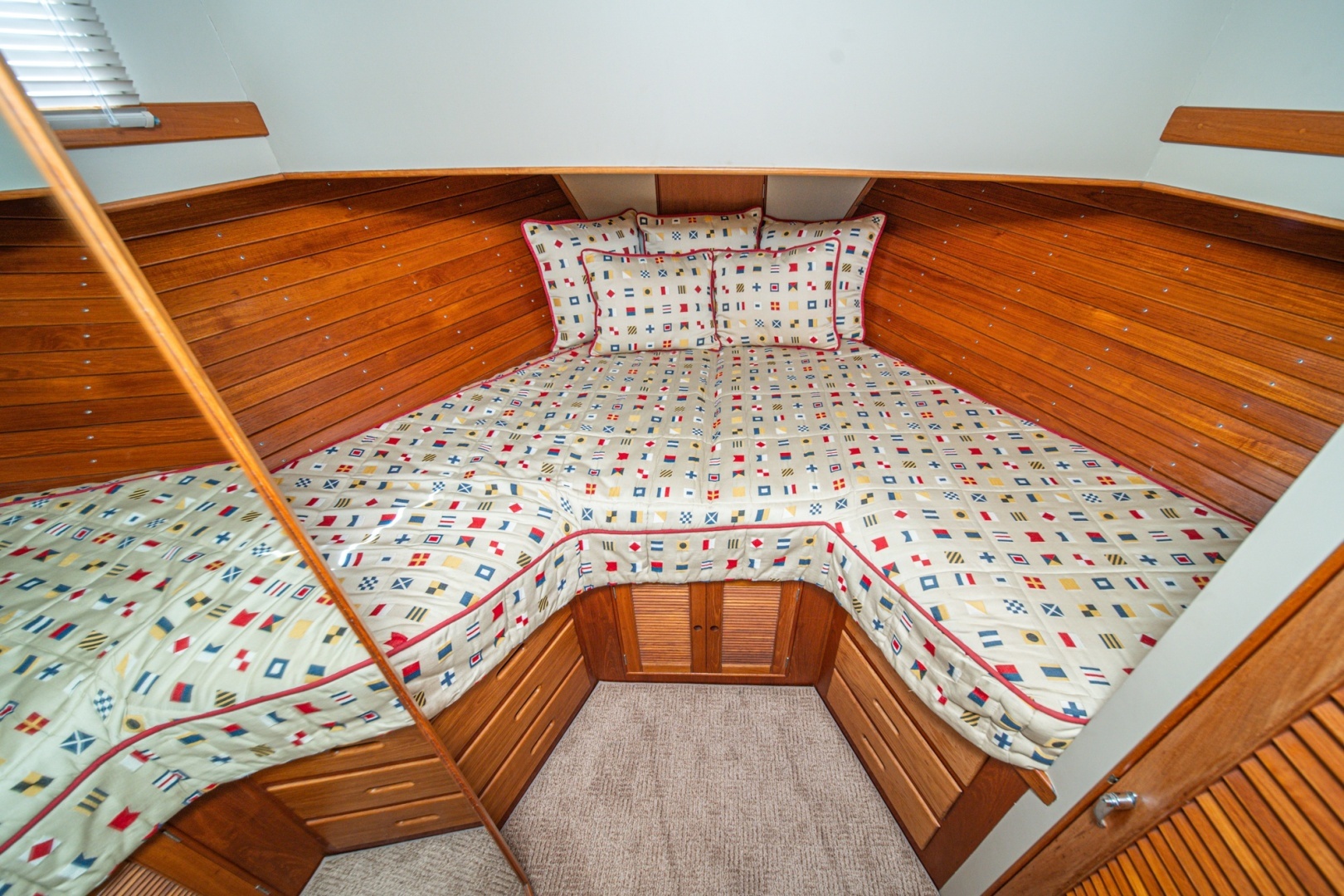

FORWARD STATEROOM

Large V-Berth

Overhead Hatch

Port and Starboard Port Lights.

Hanging Locker

Under Bed Storage

Bank of Drawers 6

Large Mirrror On Wall

Dual Reading Lamps

110VAC outlet

Bedding and Decor Items

Chain Locker Access

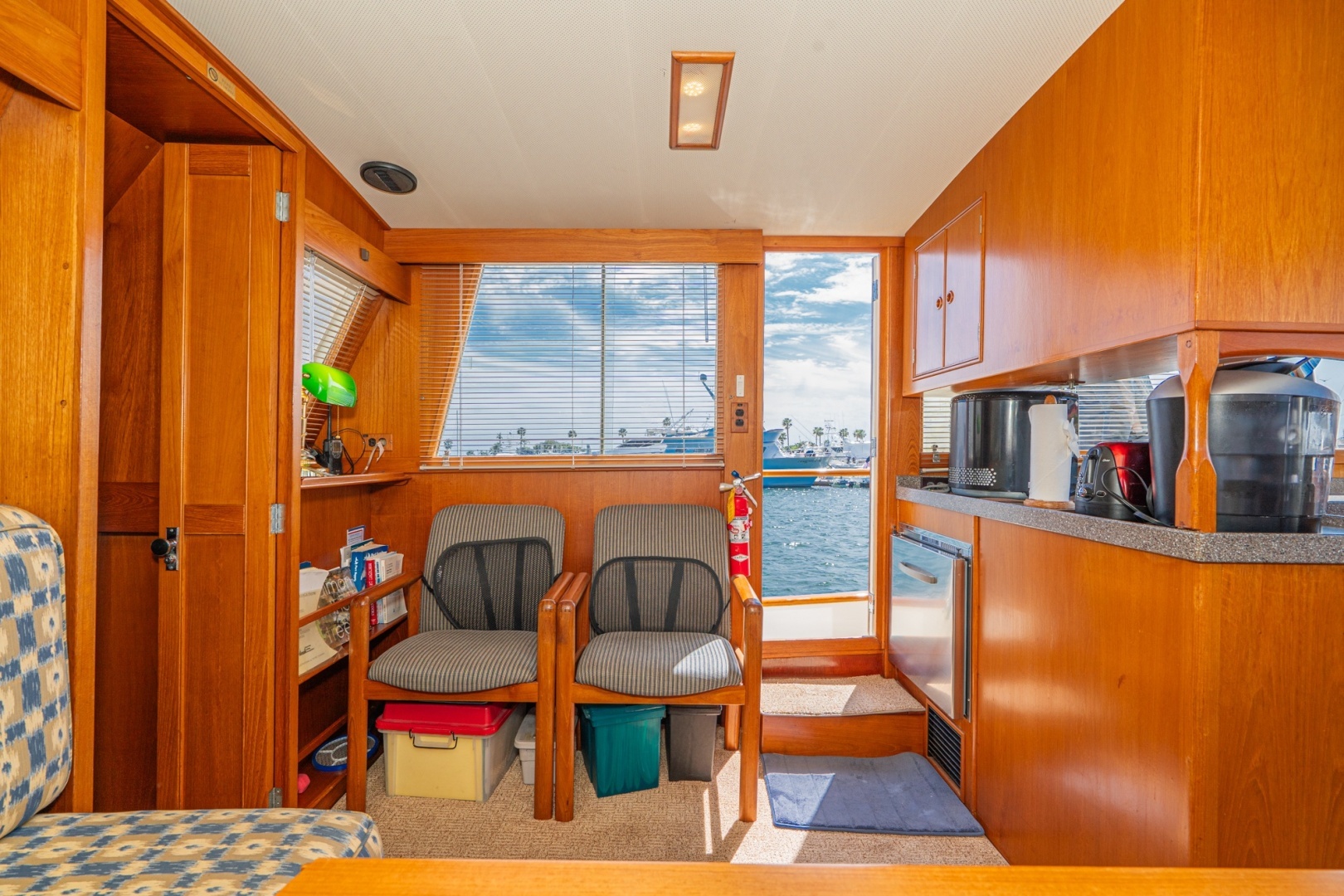

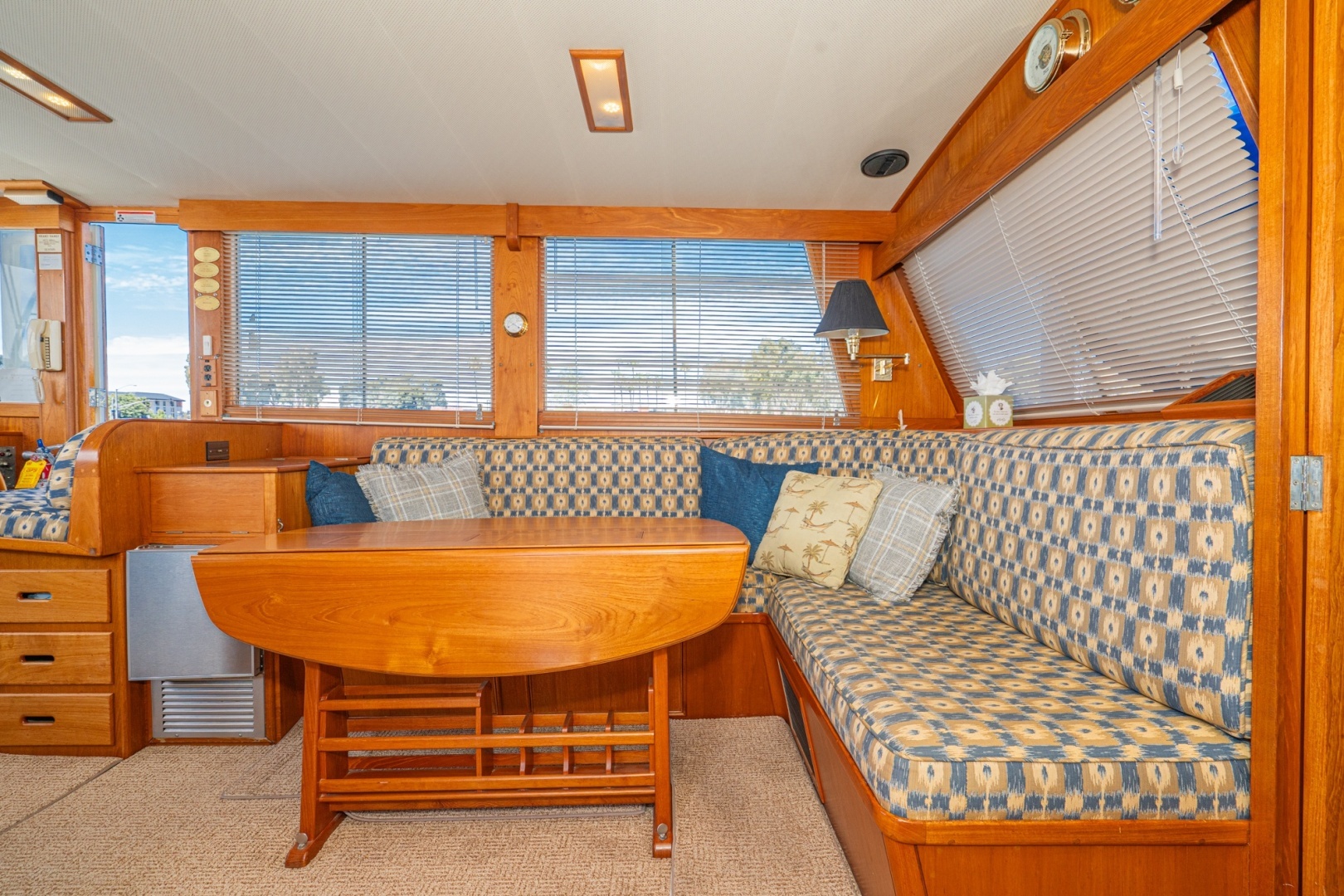

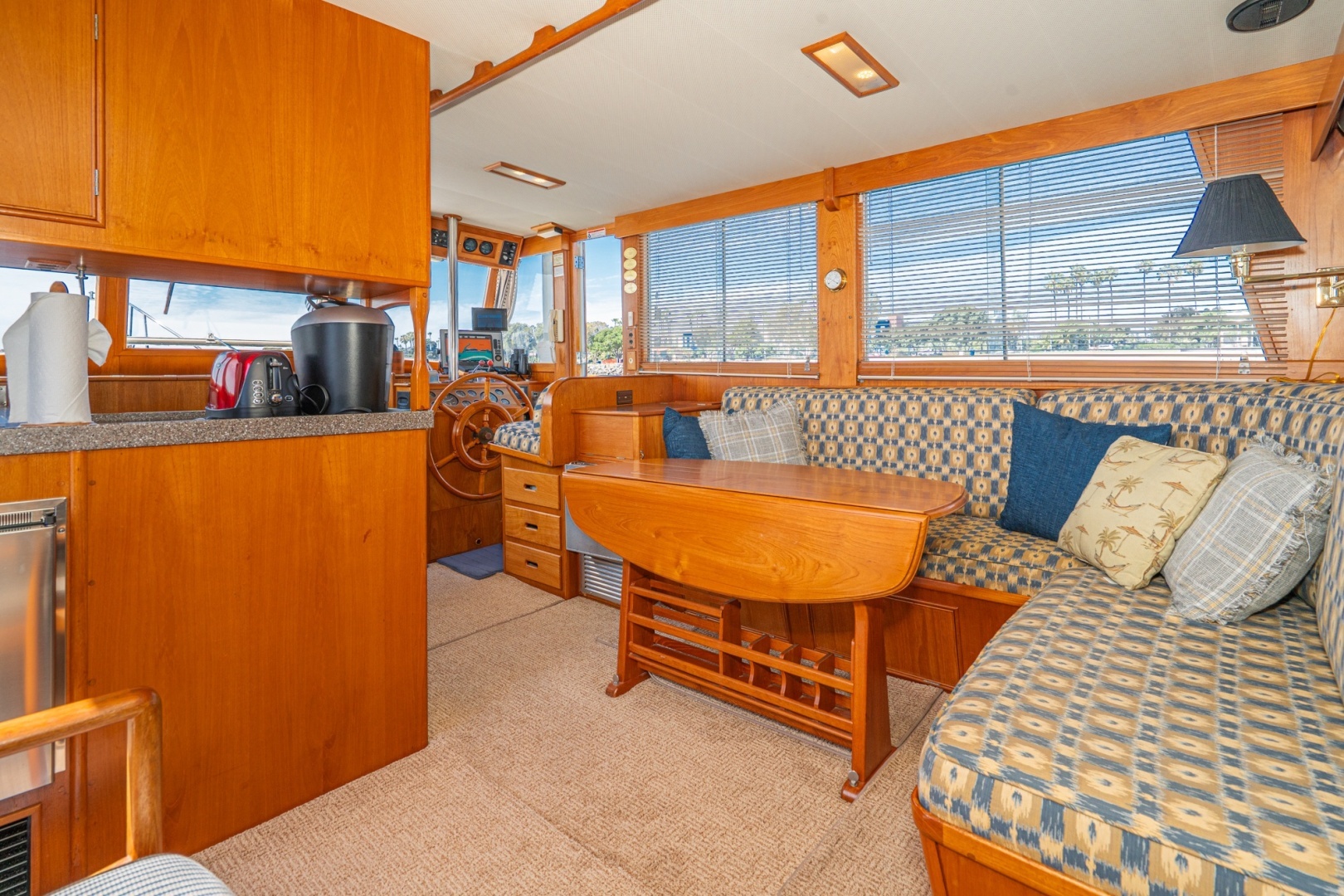

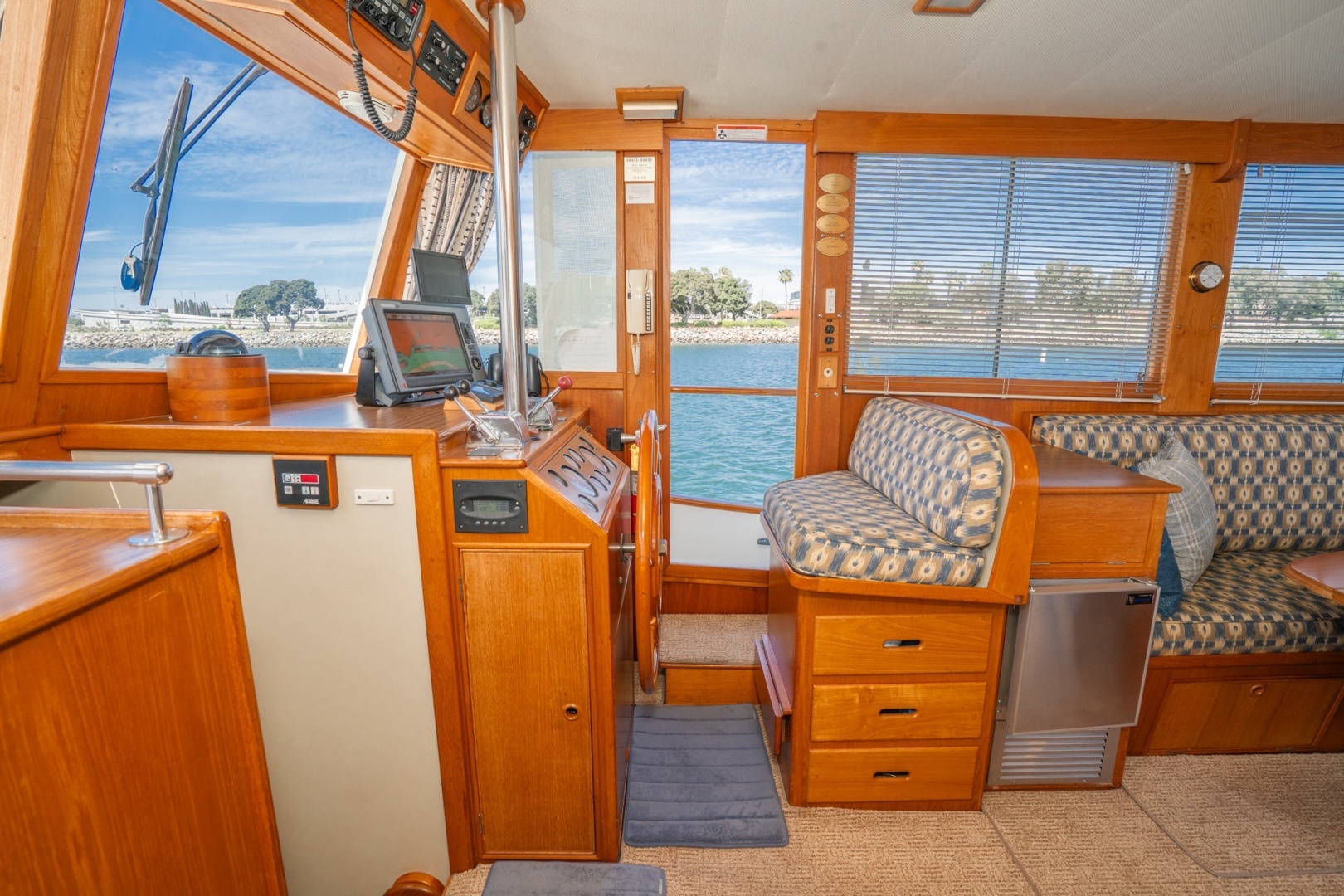

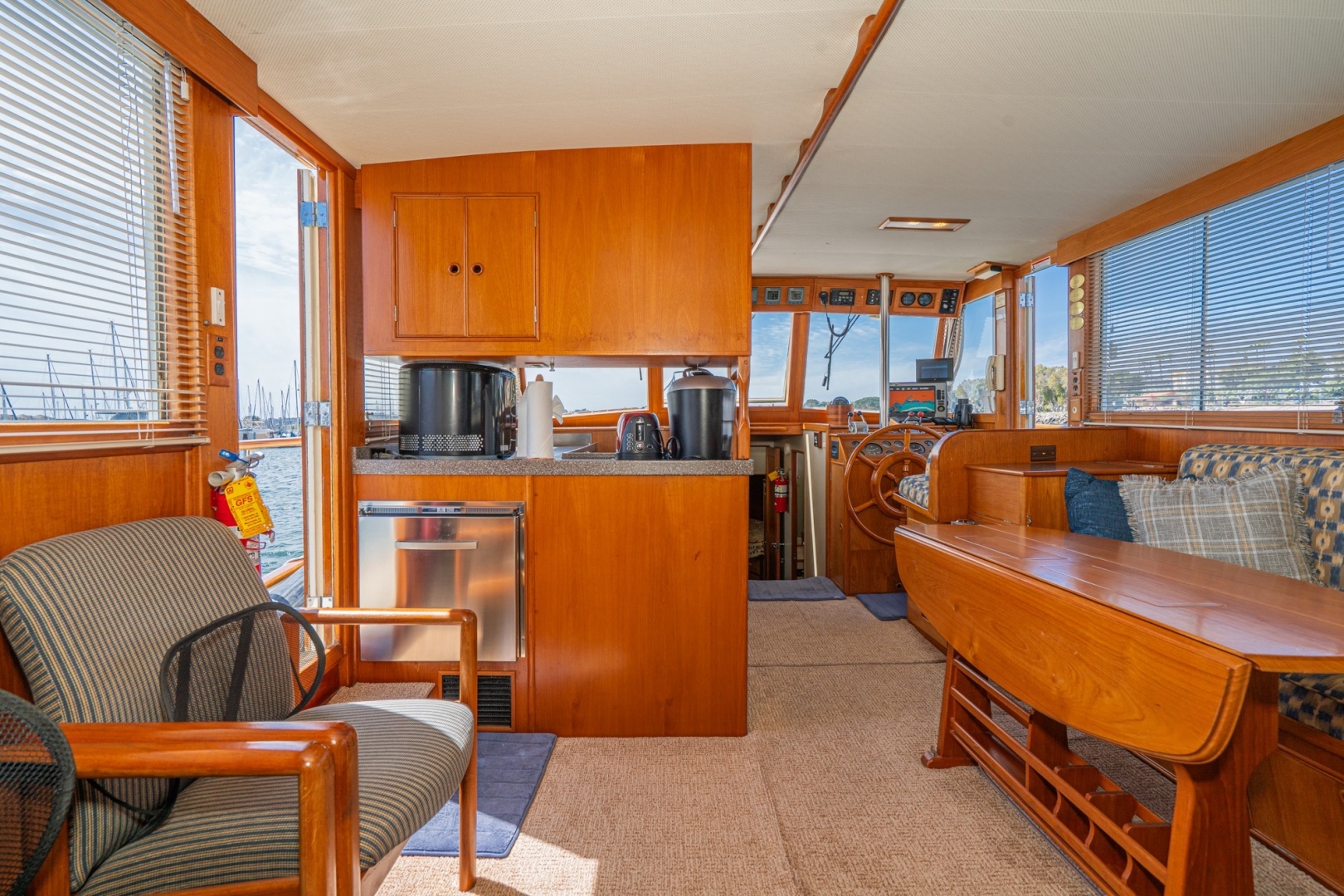

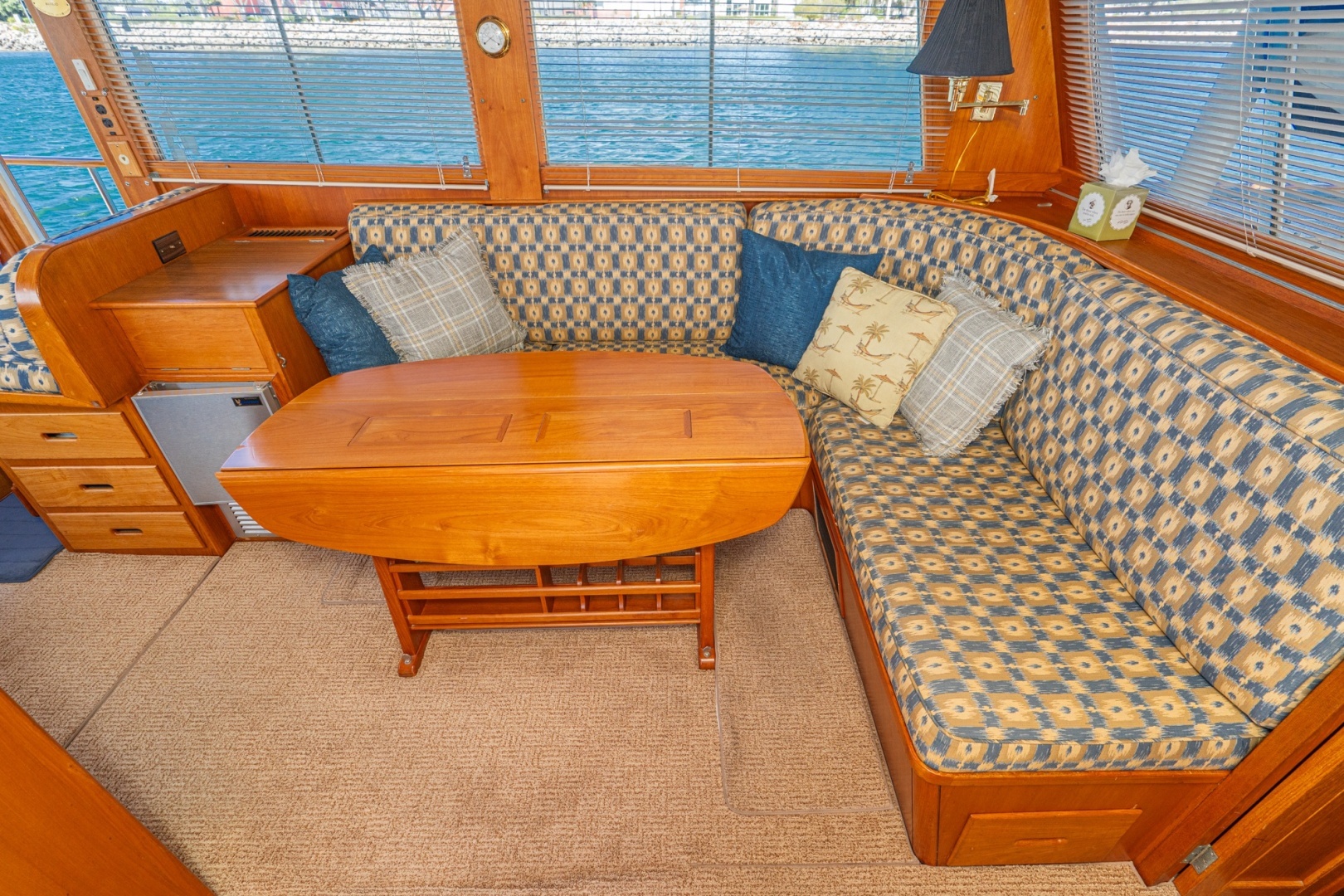

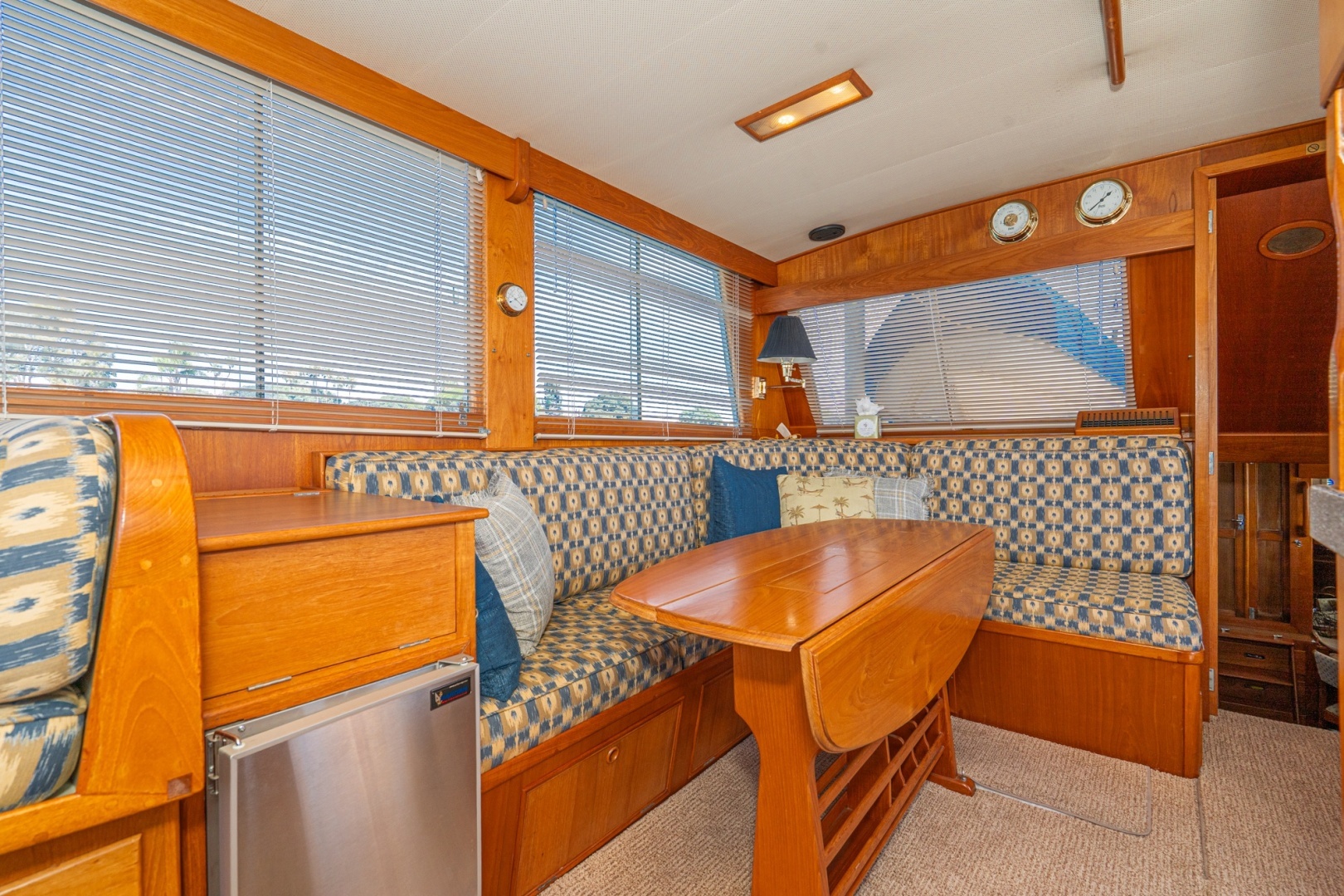

SALON

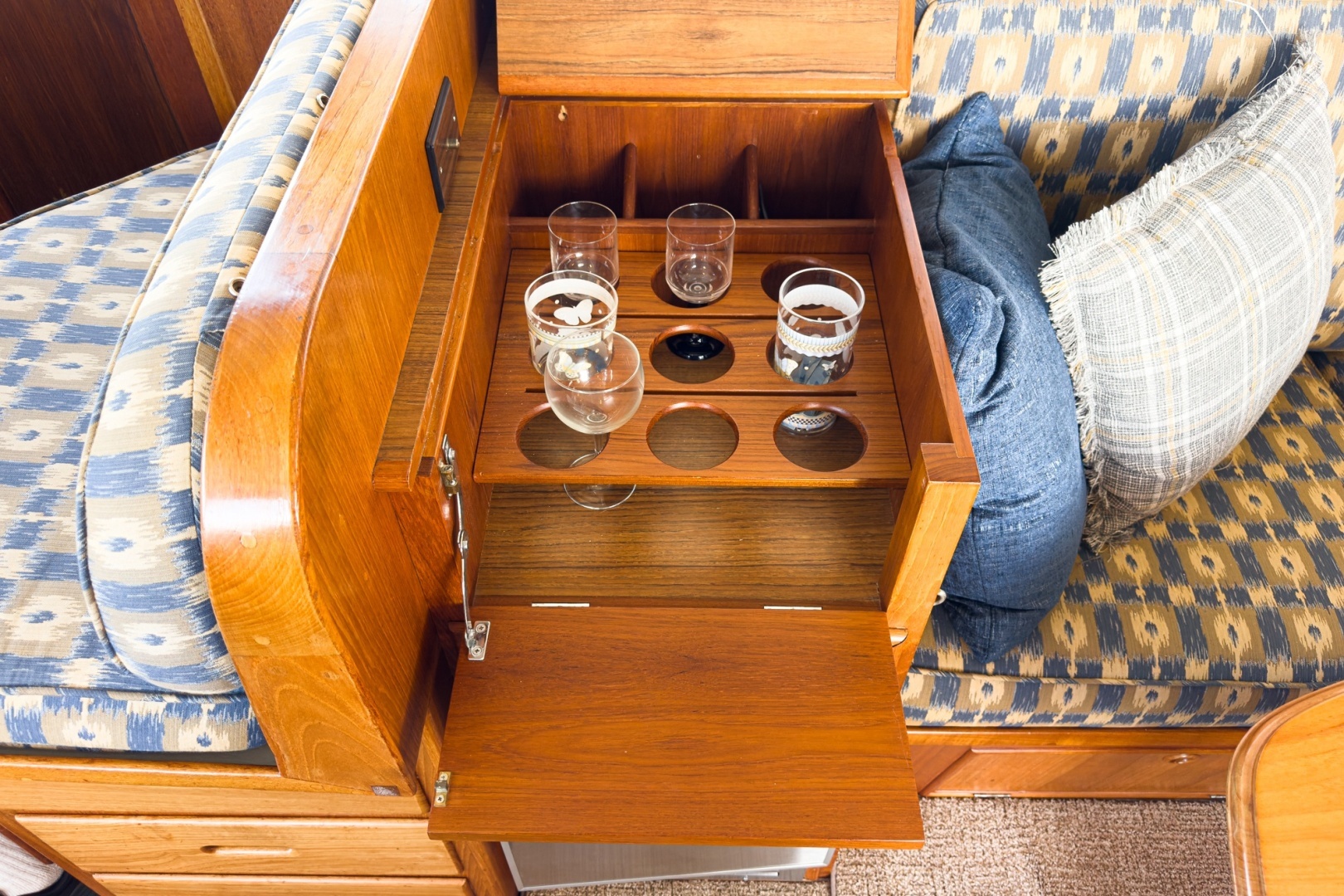

L-shaped Settee w Bottle Storage and Ice-maker at Forward End

Helmseat w 3 bank of Drawers Below

Folding Table w Bottle Storage Below

Mini-Blinds Window Covers Throughout

Lower Helm Station

Salon Entry Doors to Starboard (Helm/Pilot Door) and to Port (Aft of Galley)

Two Unmounted Chairs

Book Storage Rack

Brass Clock and Barometer

Teak Parquet Flooring - Carpet Throughout the Vessel

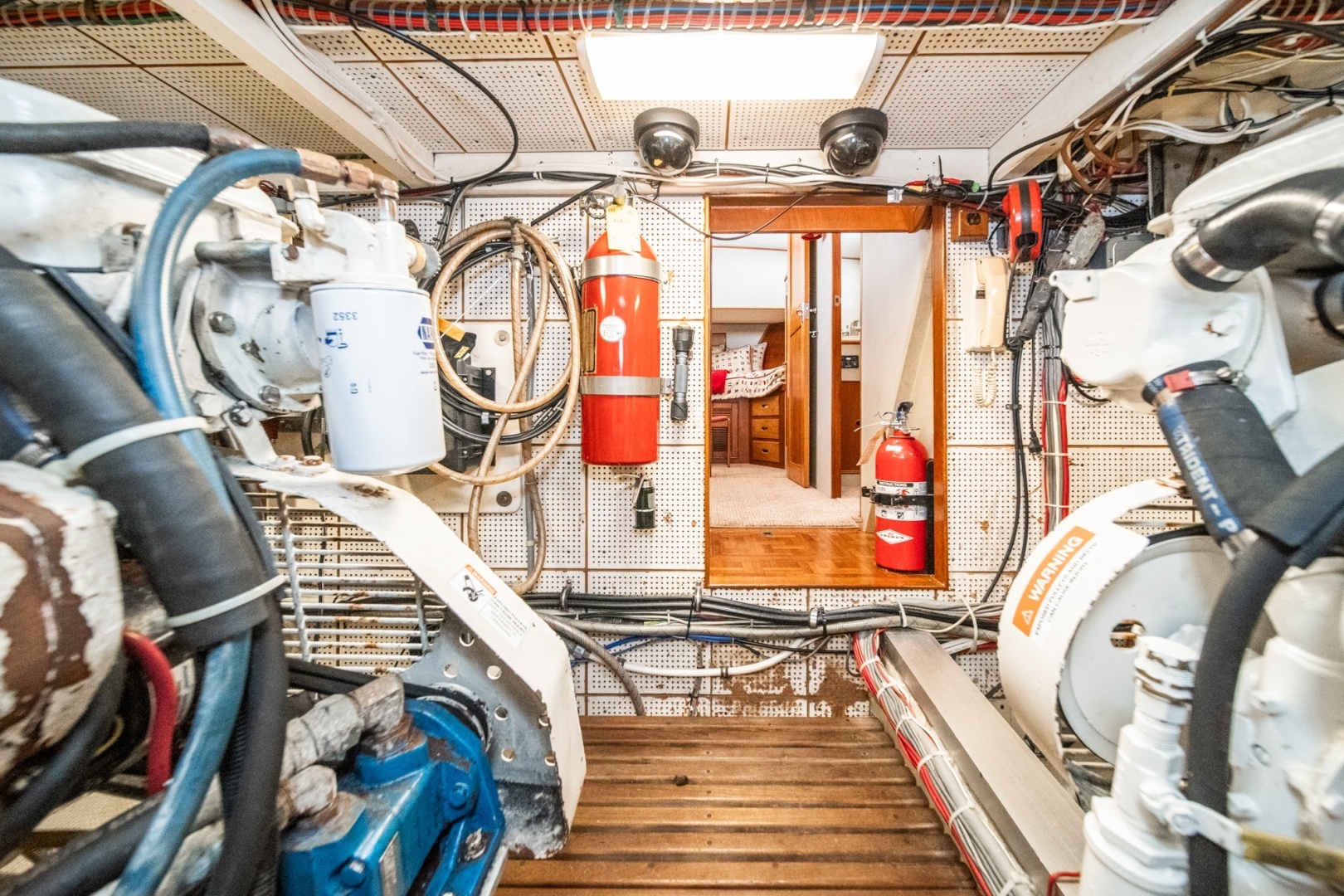

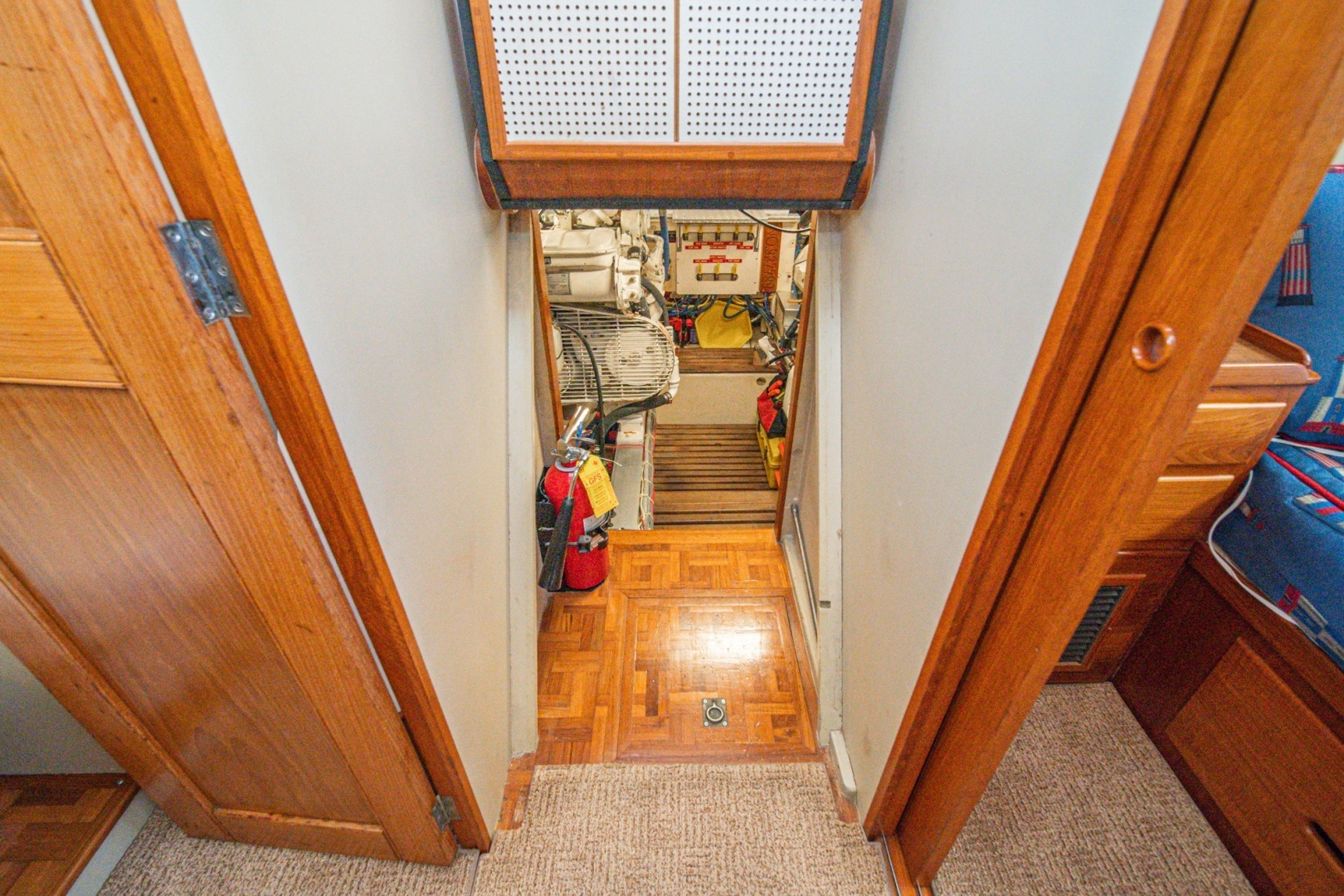

Engine Room Access

Forward Center Opening Window

Port side U Shaped Galley

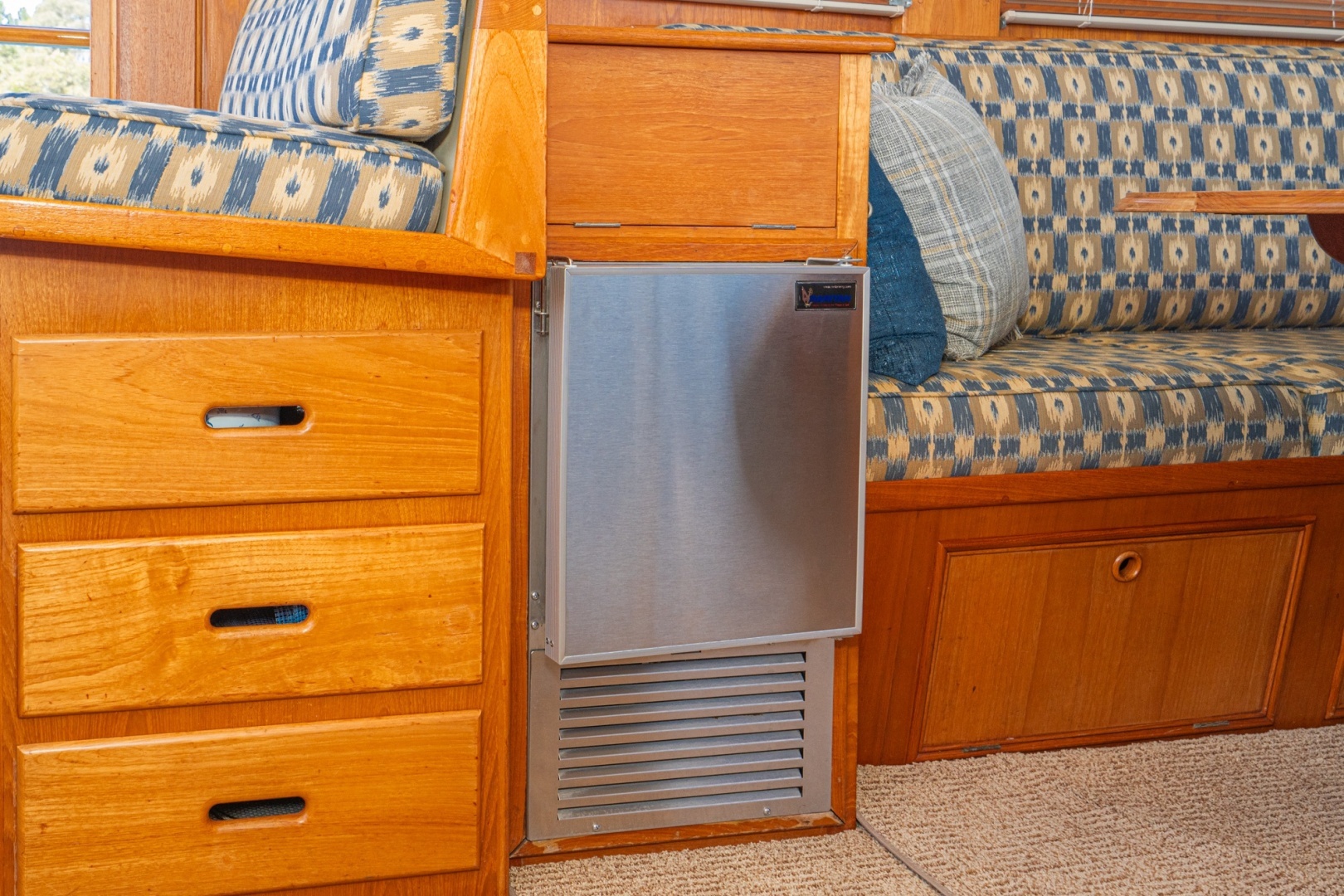

Ice-maker Under Helm Seat

LOWER AFT DECK & FLYBRIDGE ACCOMODATIONS

LOWER AFT DECK & FLYBRIDGE ACCOMODATIONS

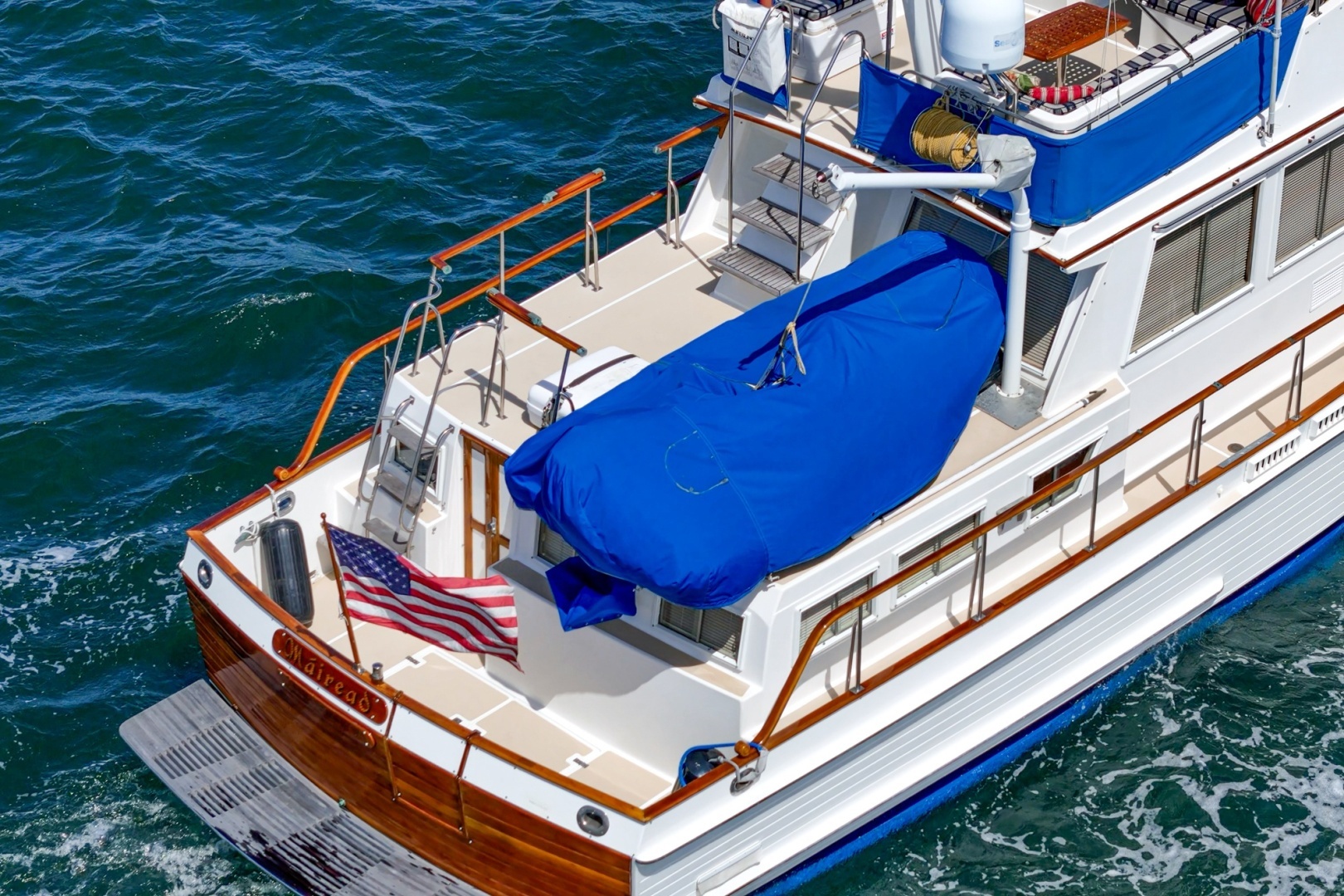

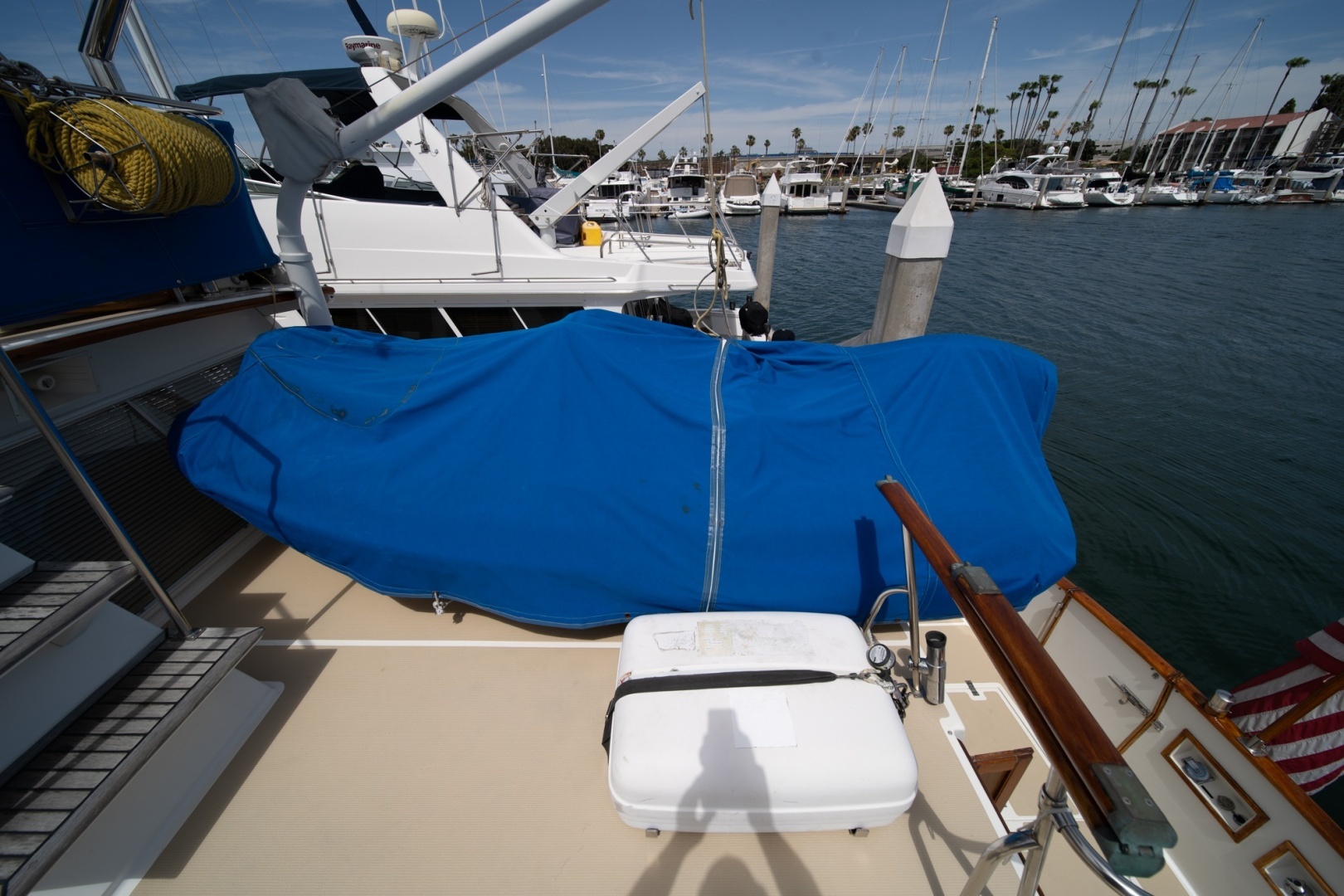

LOWER AFT DECK

Rack For Dinghy

Inflatable Dinghy with Outboard Motor

Davit

Aft Teak Rail

Stairs to Upper Flybridge

Line Real For Tying Offto a Tree (Pacific Northwest Thing)

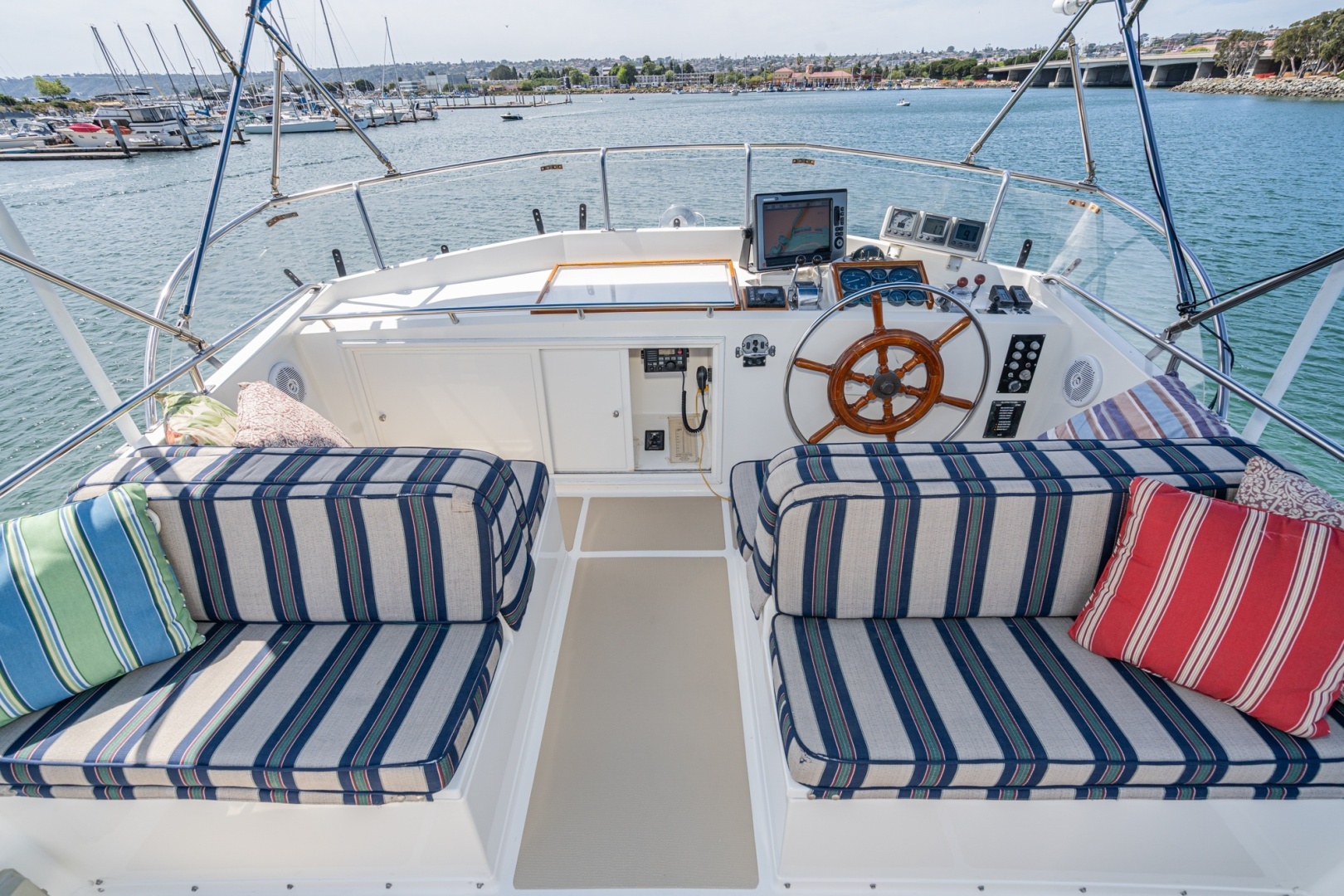

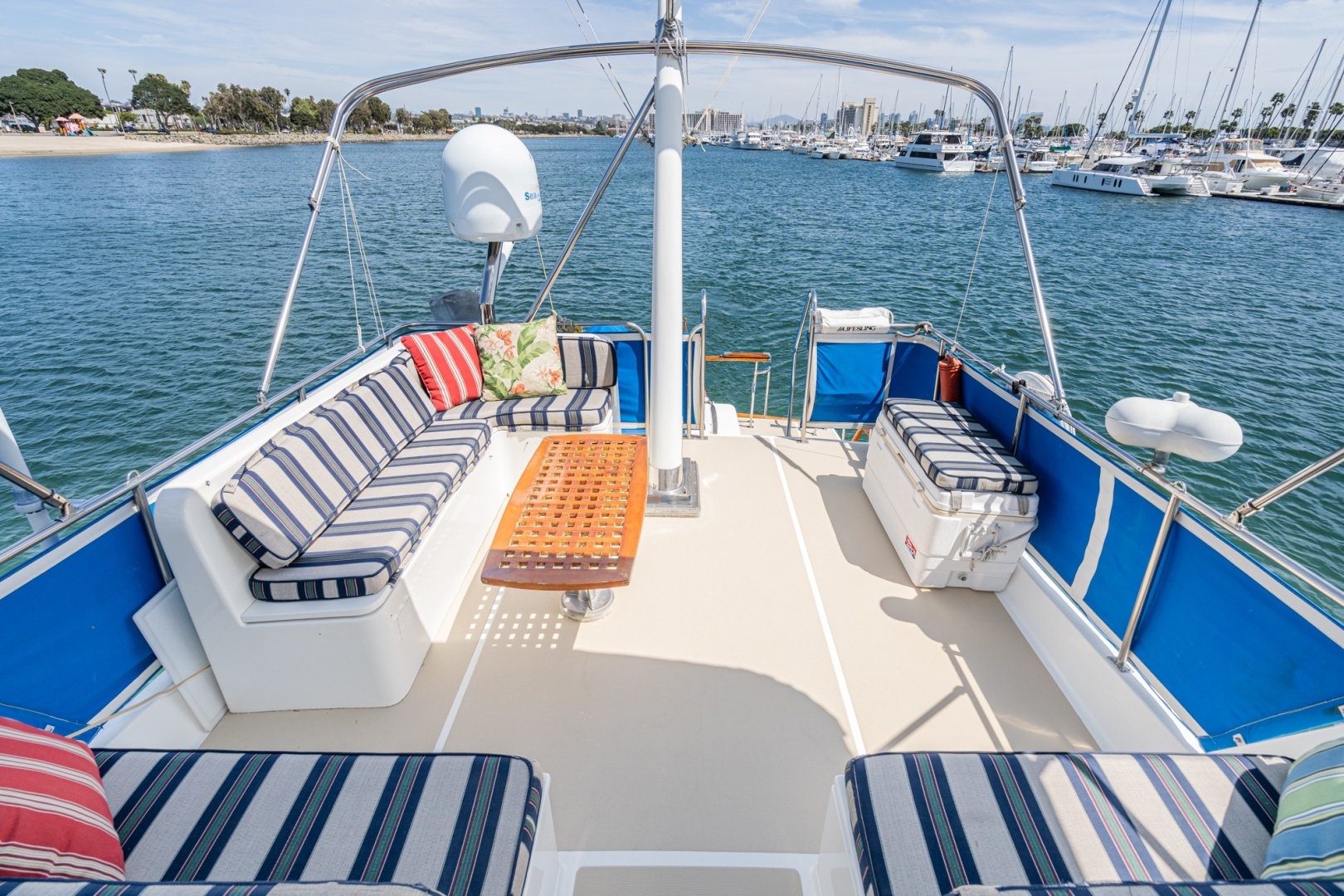

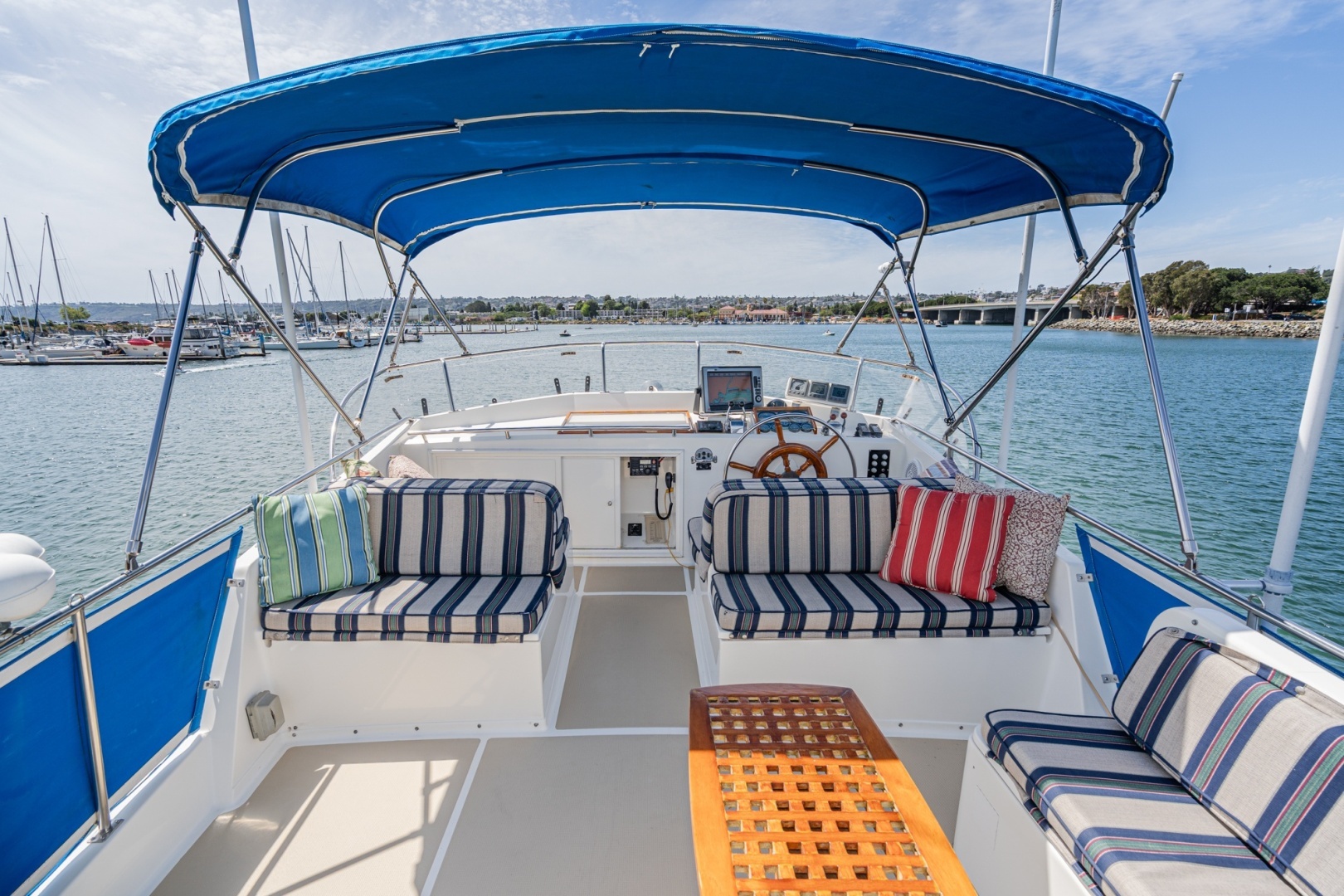

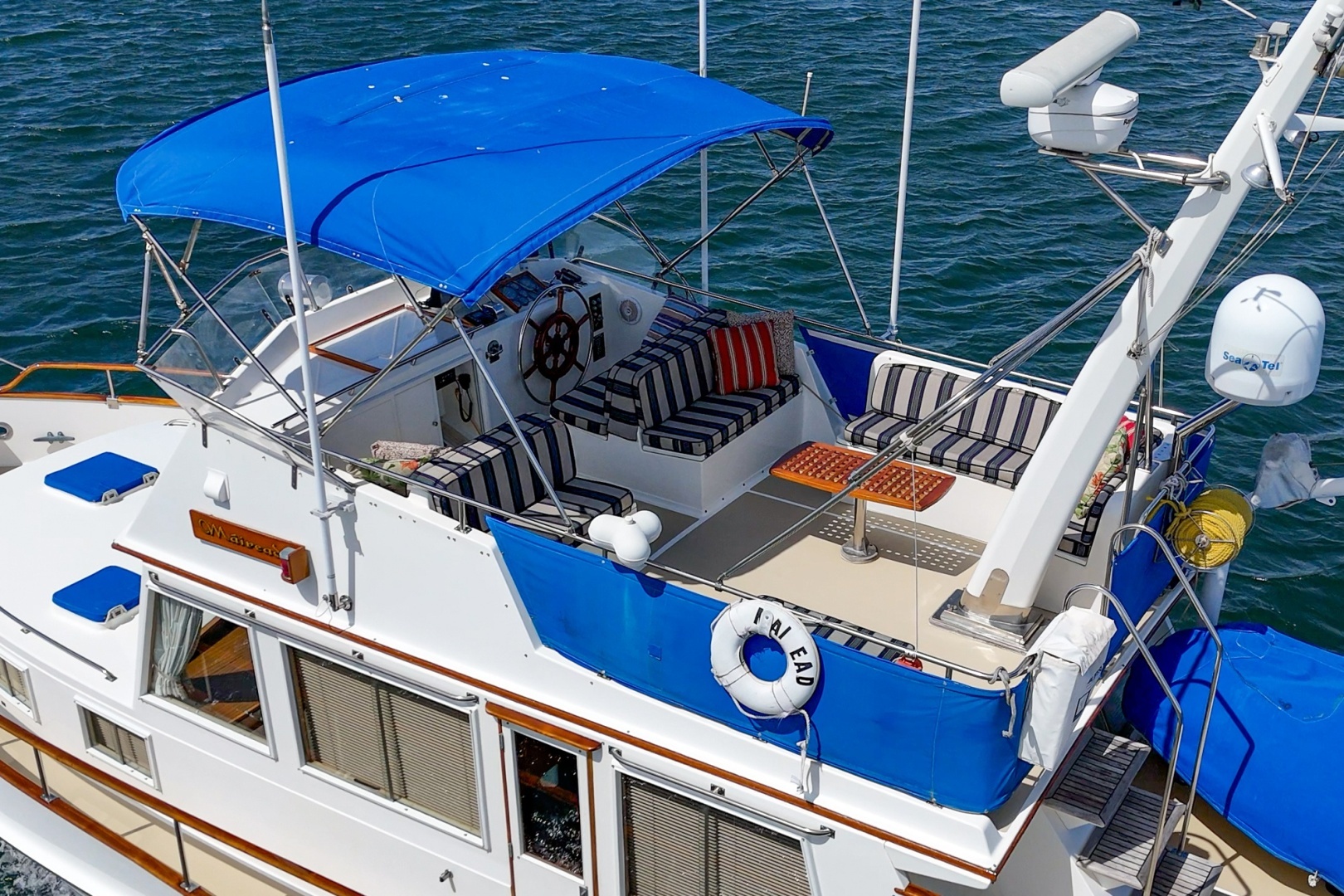

FLYBRIDGE

L-shaped Settee to Starboard w Storage

Teak Coffee Table

Large Igloo Cooler w Cushion

Back to Back Seat w Cushions Forward by Helm

Forward Helm Area with storage

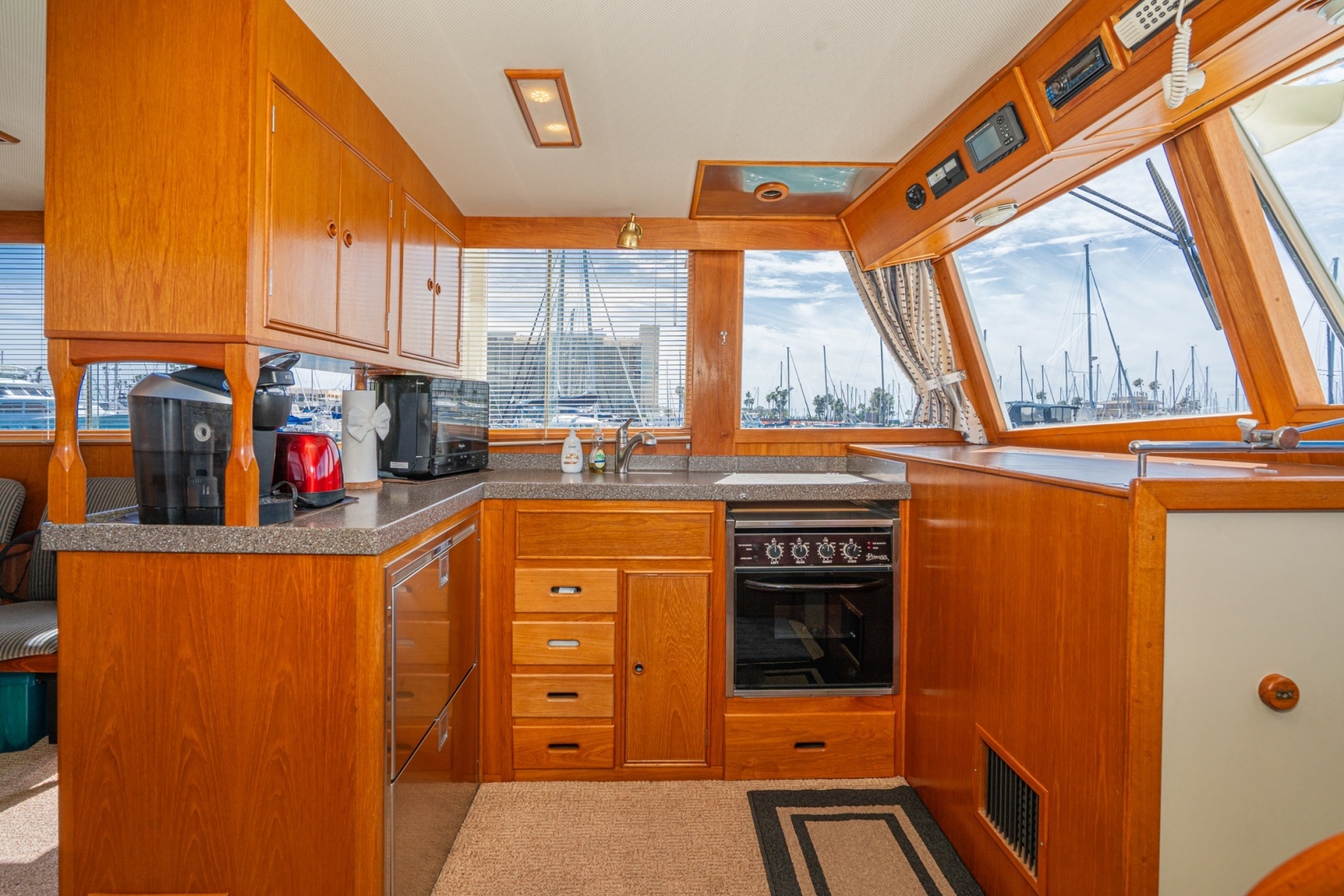

GALLEY

GALLEY

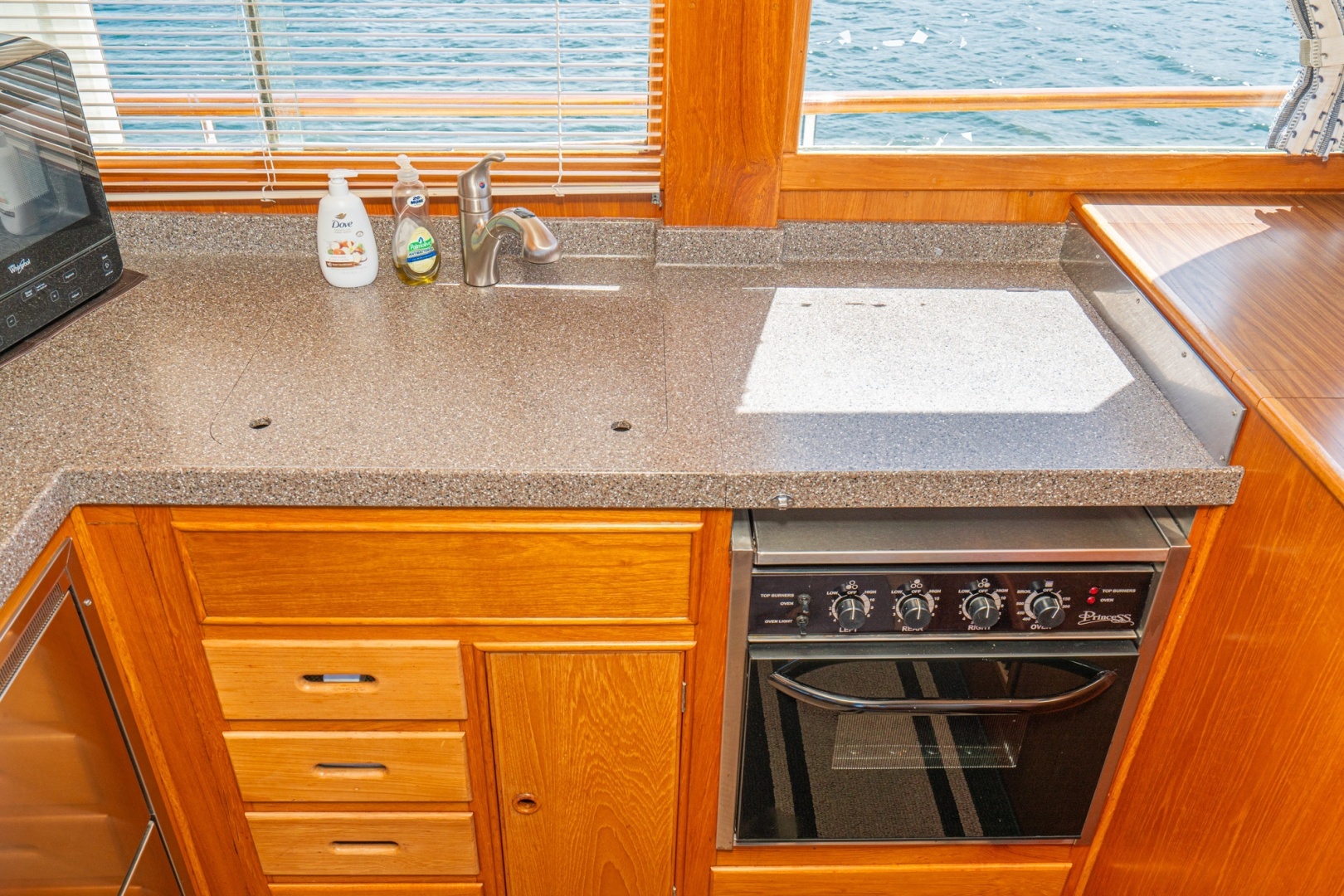

UPDATED GALLEY

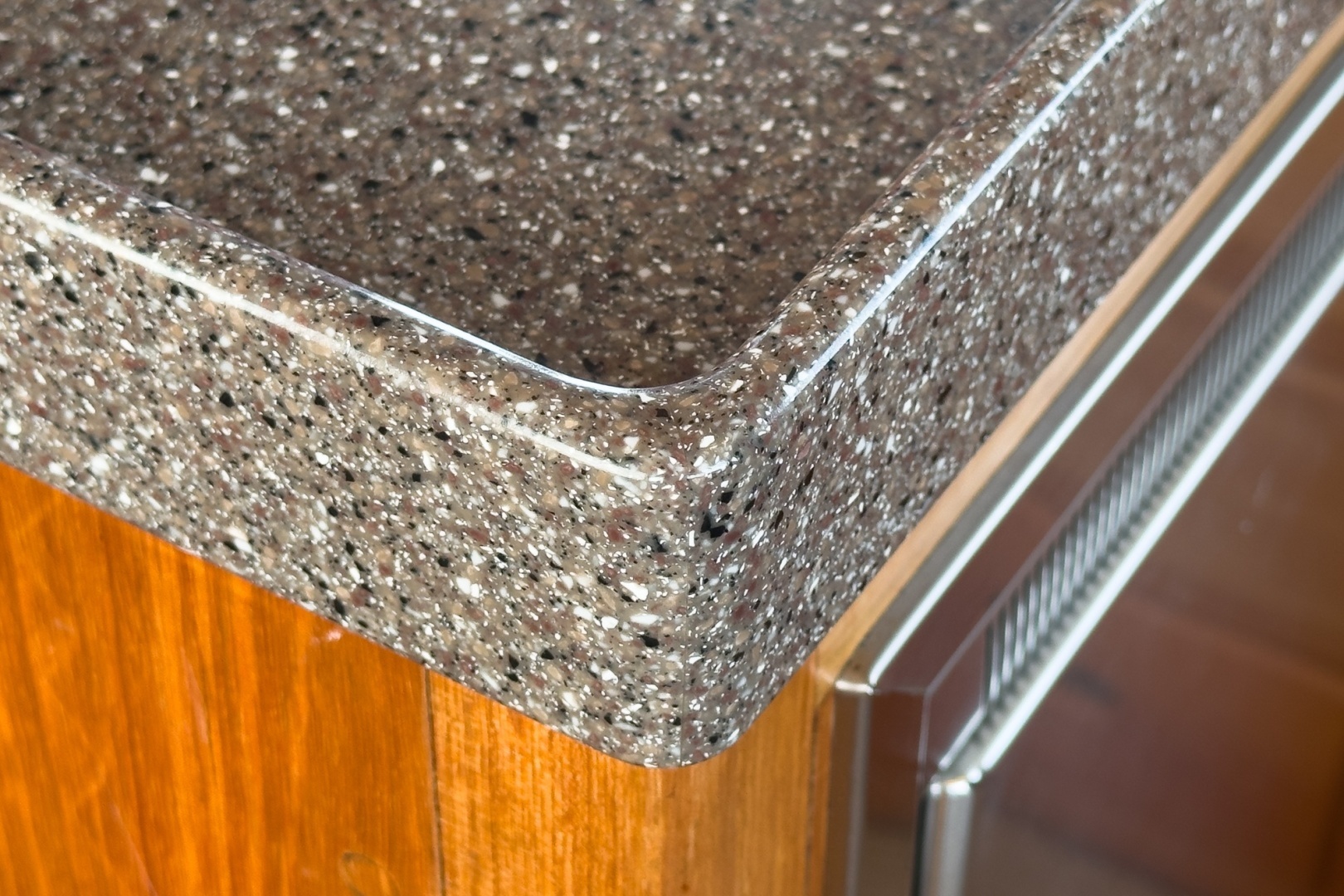

New Corian Countertops w Corian Sink cover

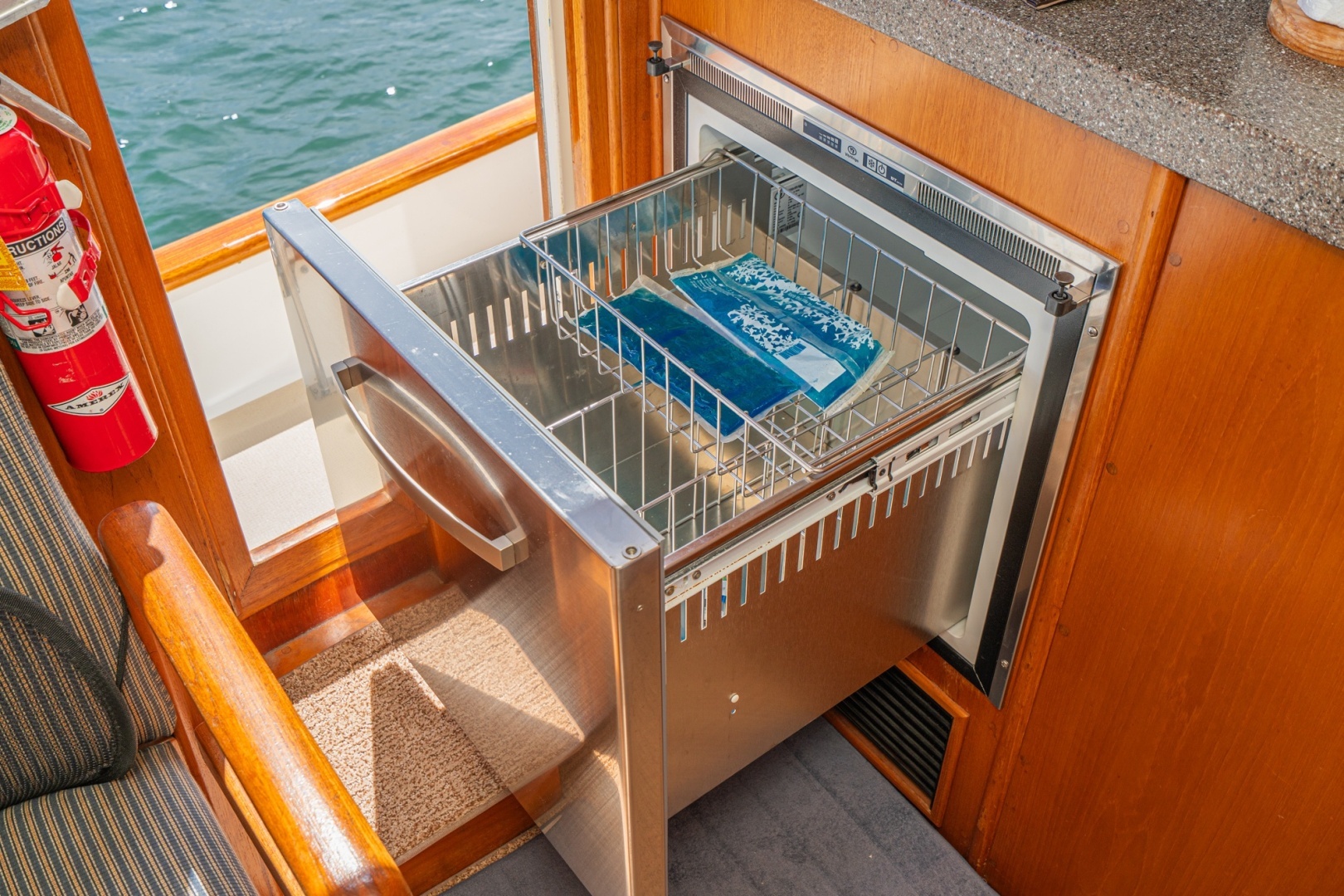

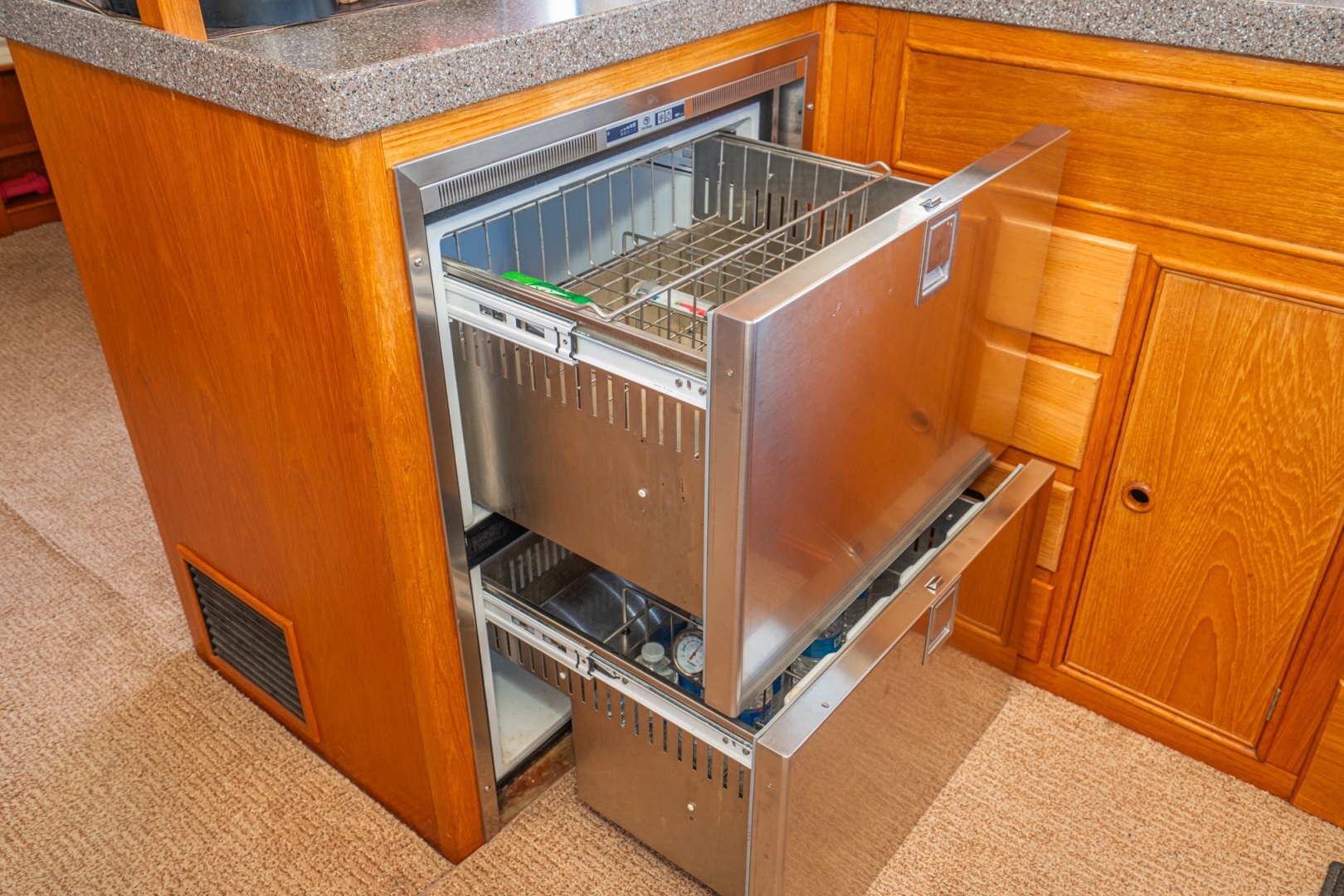

New Vitrafrigo Double Refrigerator Drawer Style

New Vitrafrigo Single Freezer Drawer Style

SS Sink

Single Handle Faucet w Hot & Cold Pressurized Water

110v electrical outlets

New Princess 4 Burner Stove with Oven

Microwave Oven

Coffee Maker

Toaster

5 Storage Drawers

1 Storage Cabinet Lower

2 Storage Cabinets with Double Doors upper

HELM(s) ELECTRICAL / NAV

HELM(s) ELECTRICAL / NAV

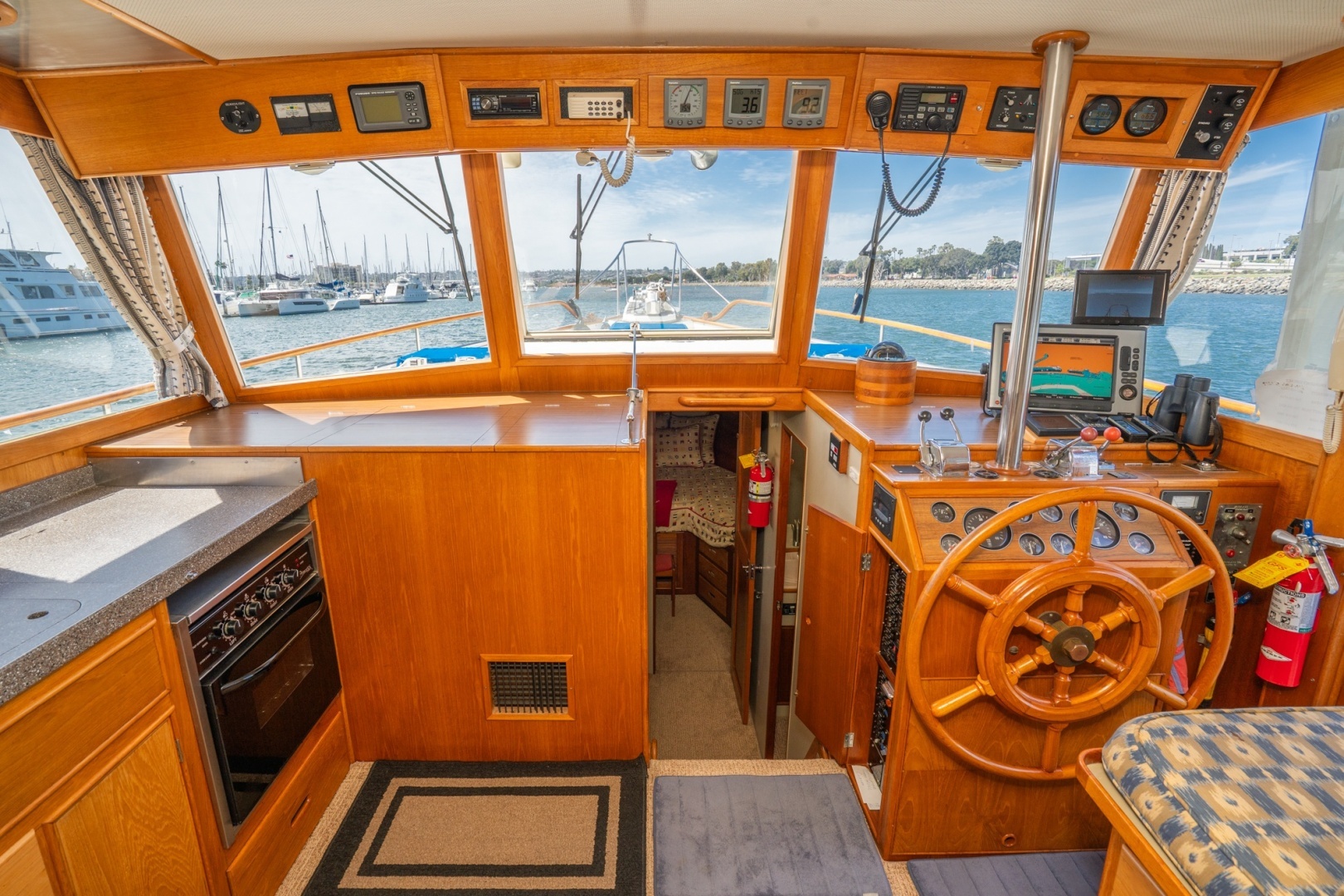

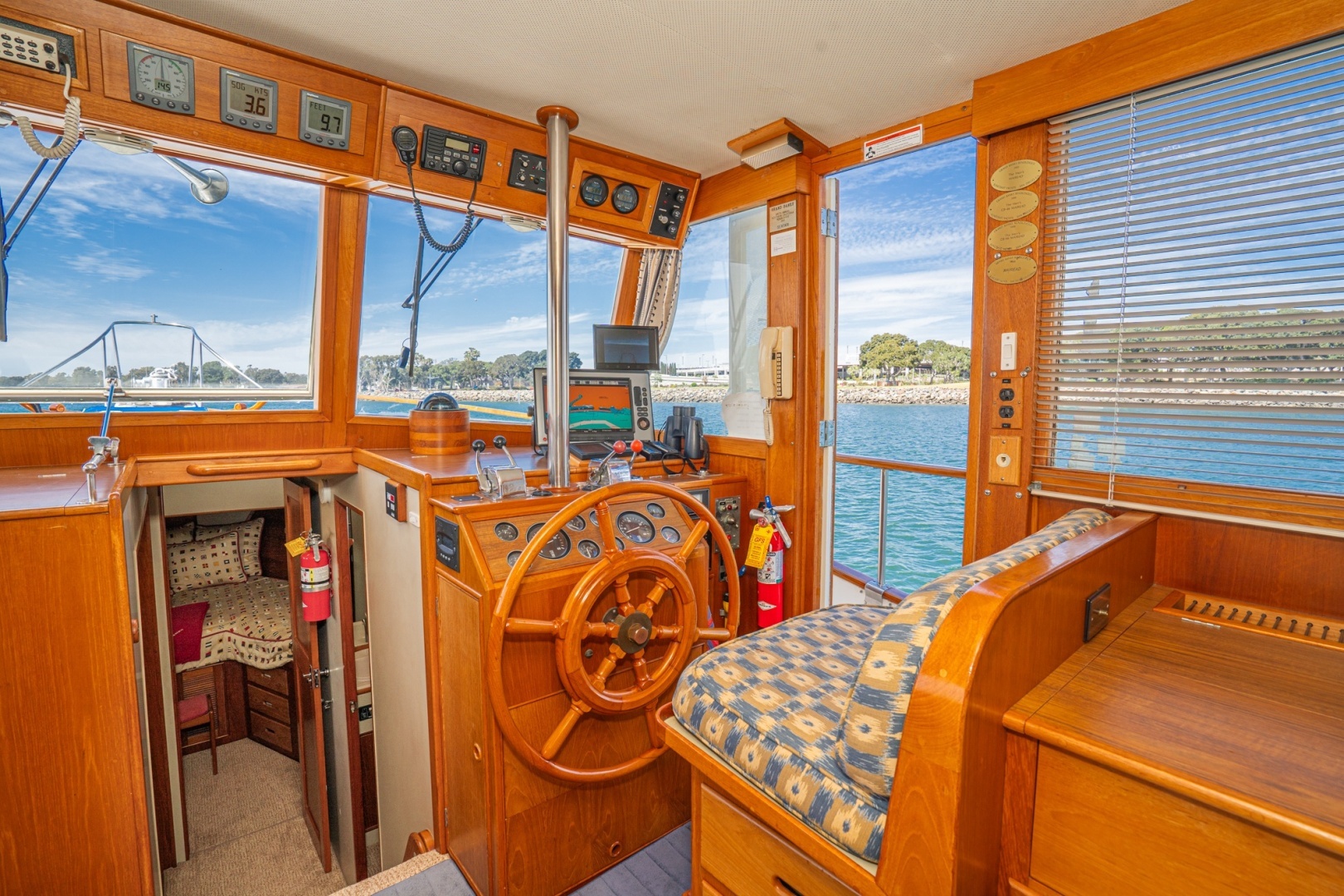

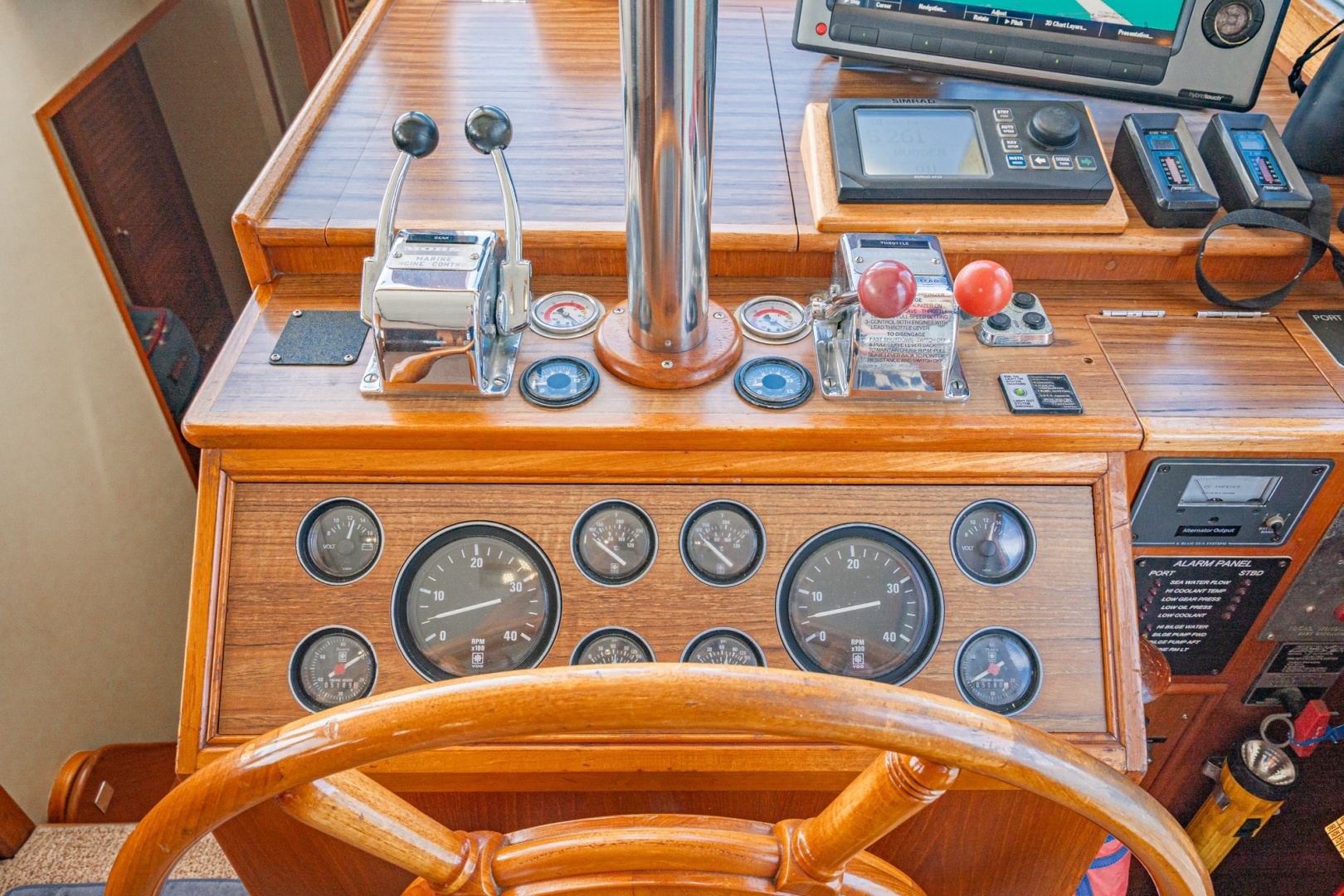

LOWER HELM

Manual Cable Driven Throttle Gear Selector Binnacles

New Cables from Shift and Throttle to Engine

Teak Wood Wheel

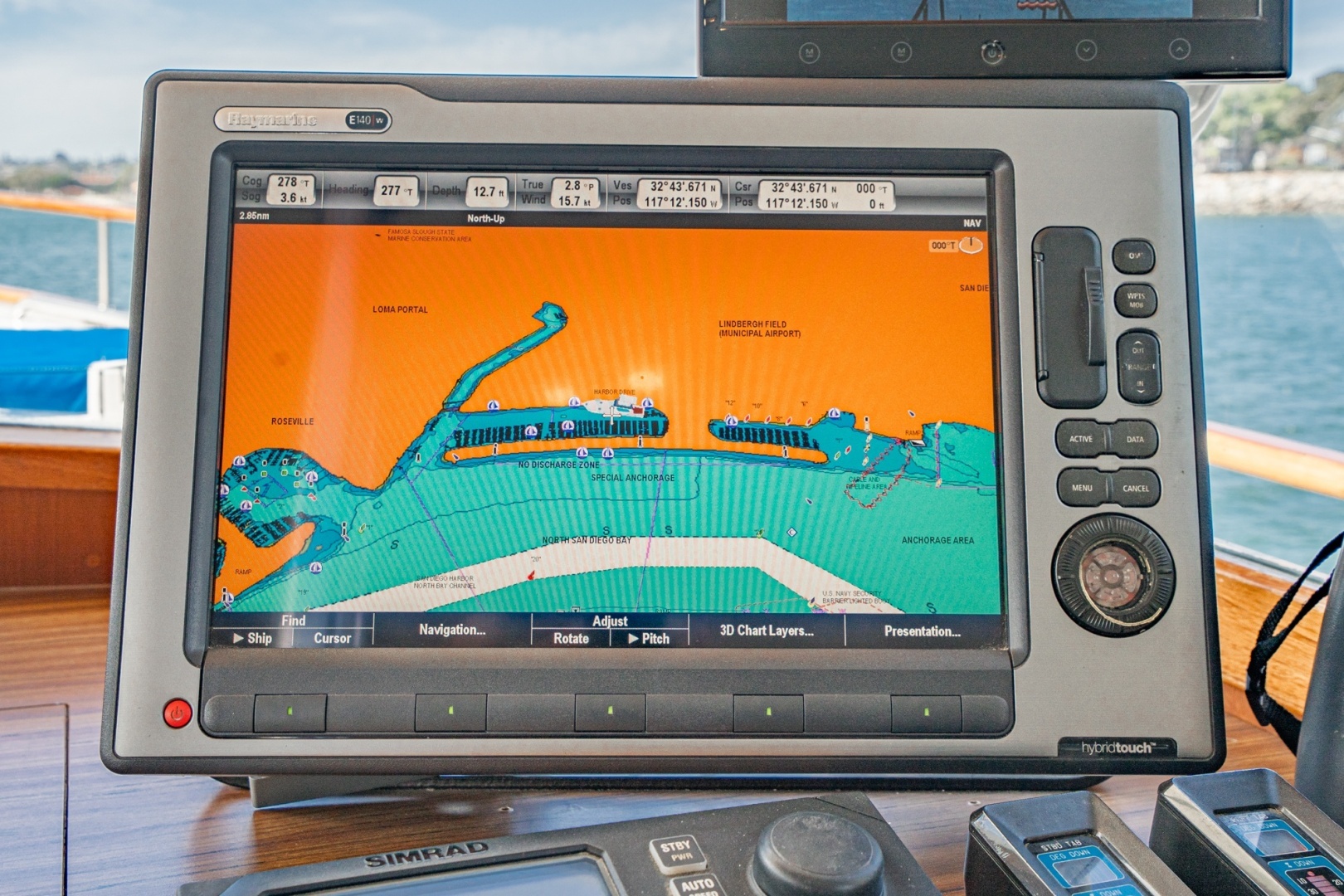

Raymarine 12" E140w Hybrid Touch GPS Chartplotter

Raymarine Open Array Radar

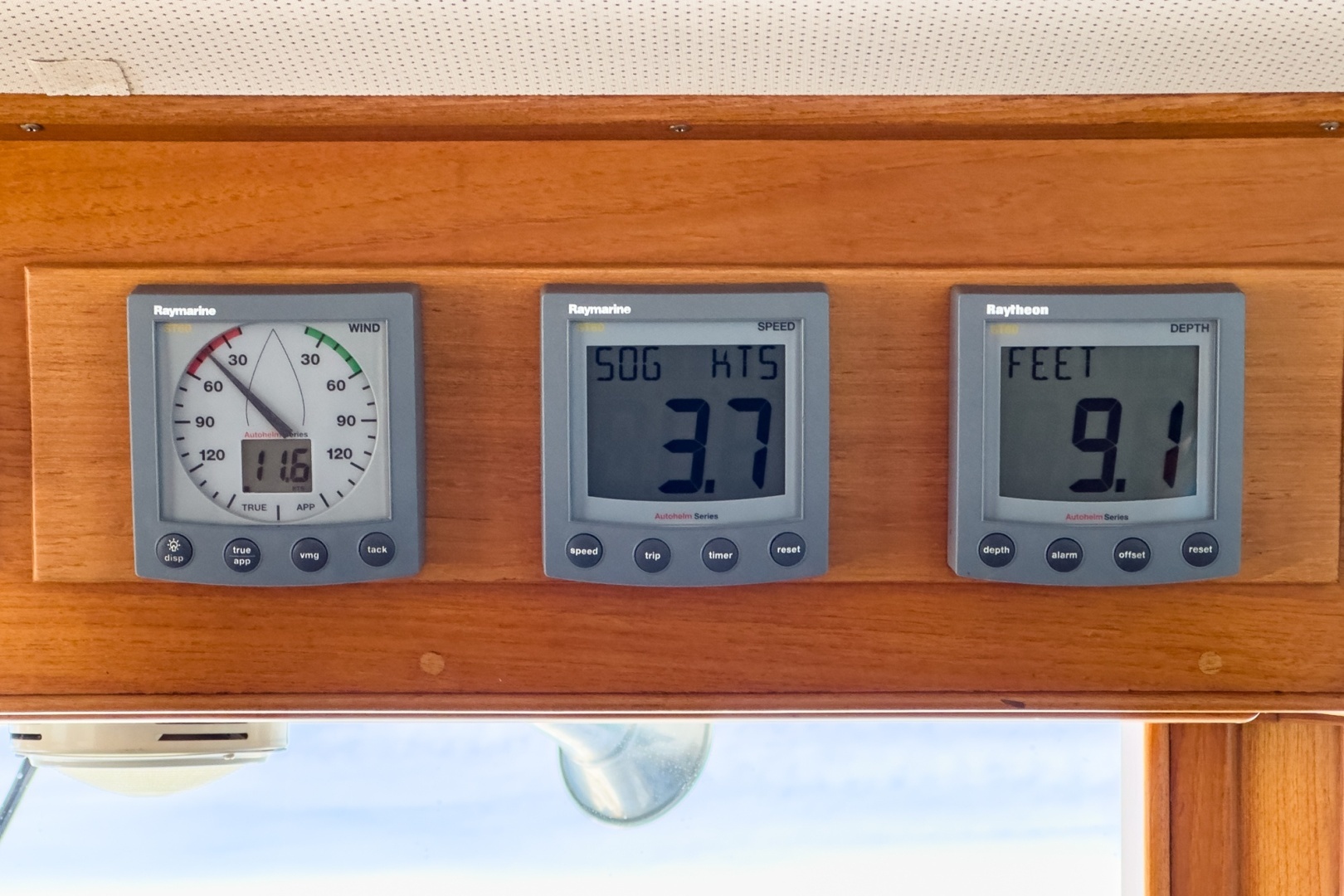

Raymarine Wind speed / Wind angel / Wind direction

Raymarine Depth

Raymarine Boat Speed

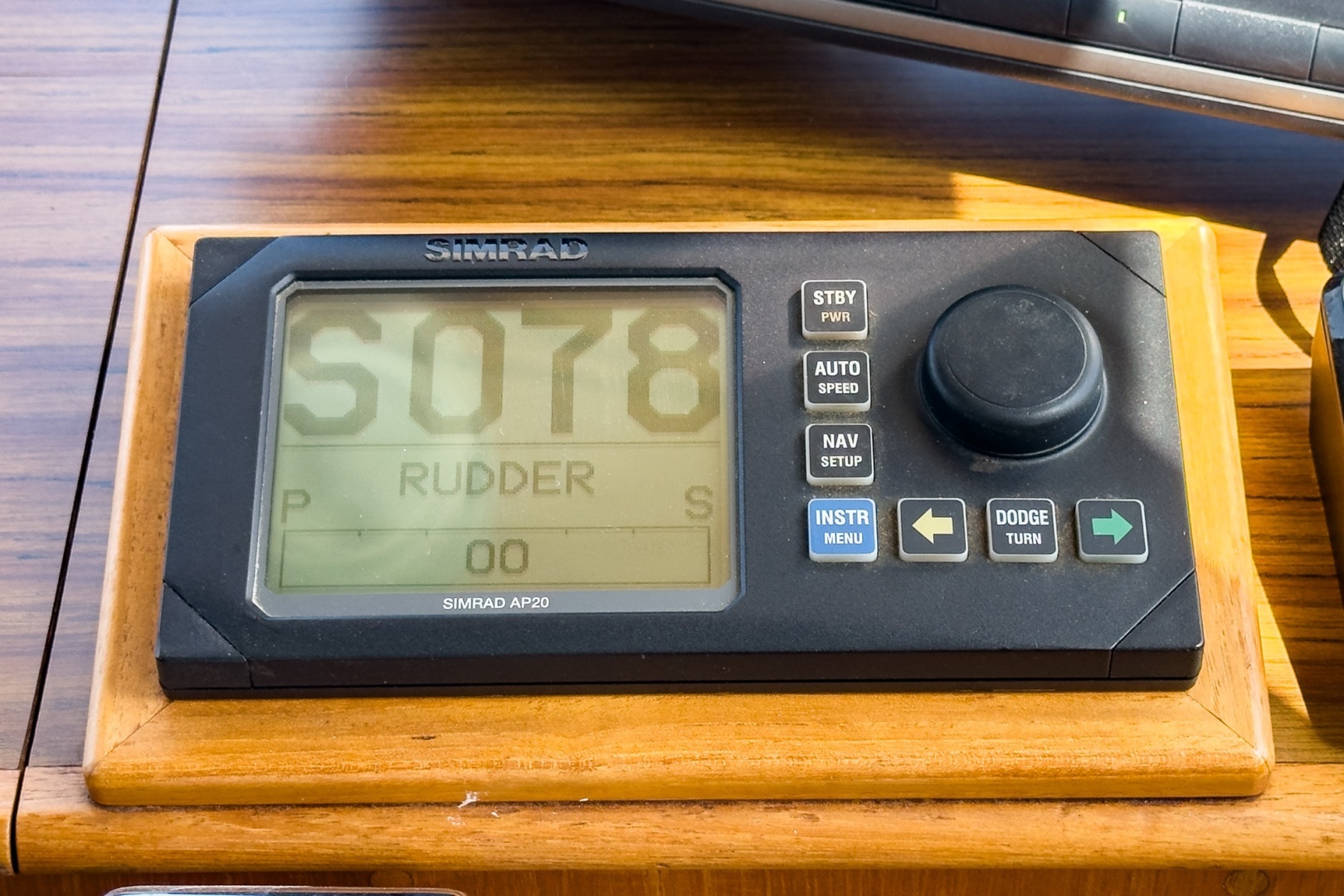

SIMRAD AP20 Autoplot Control

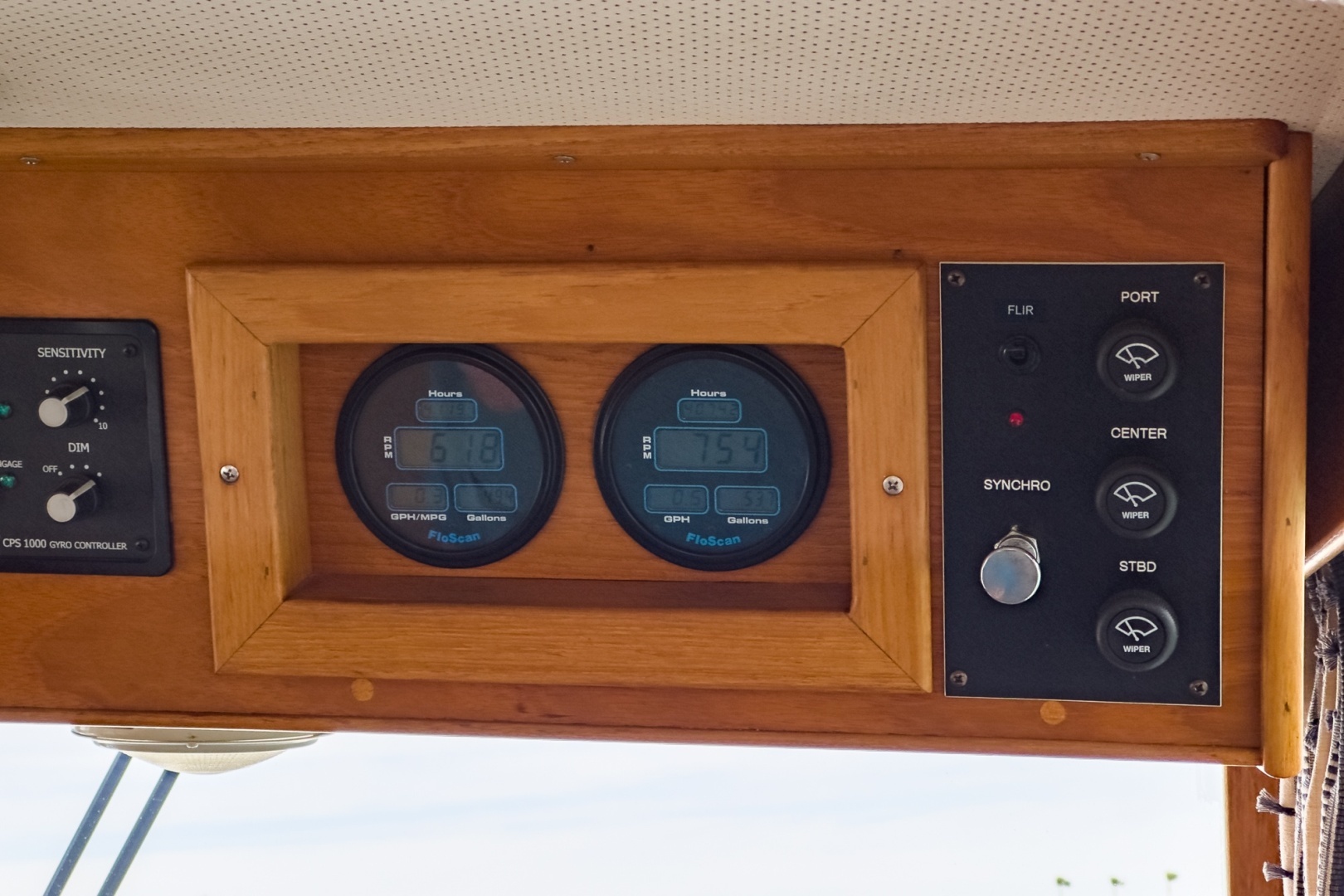

FloScan Displays 2 - Fuel Usage

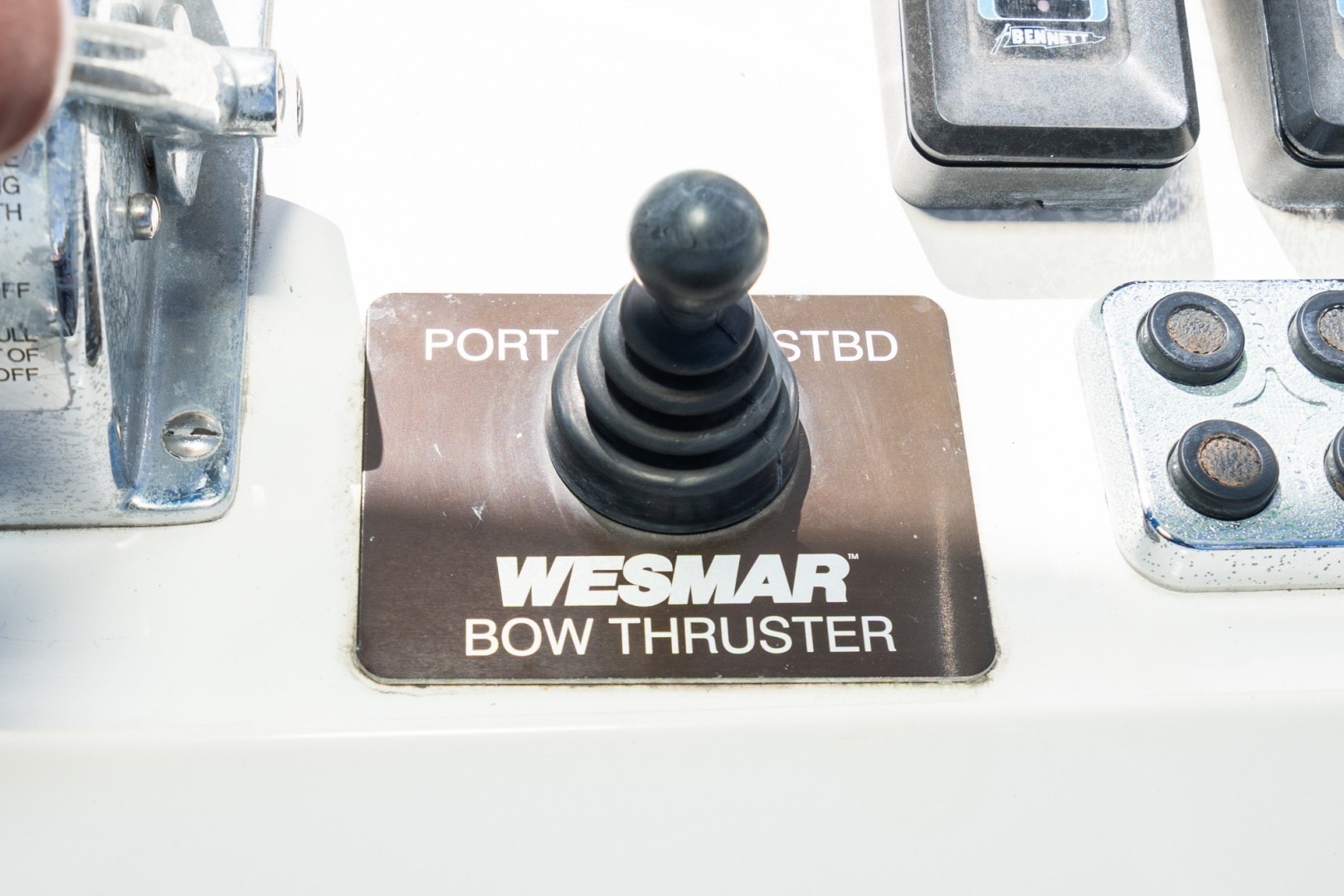

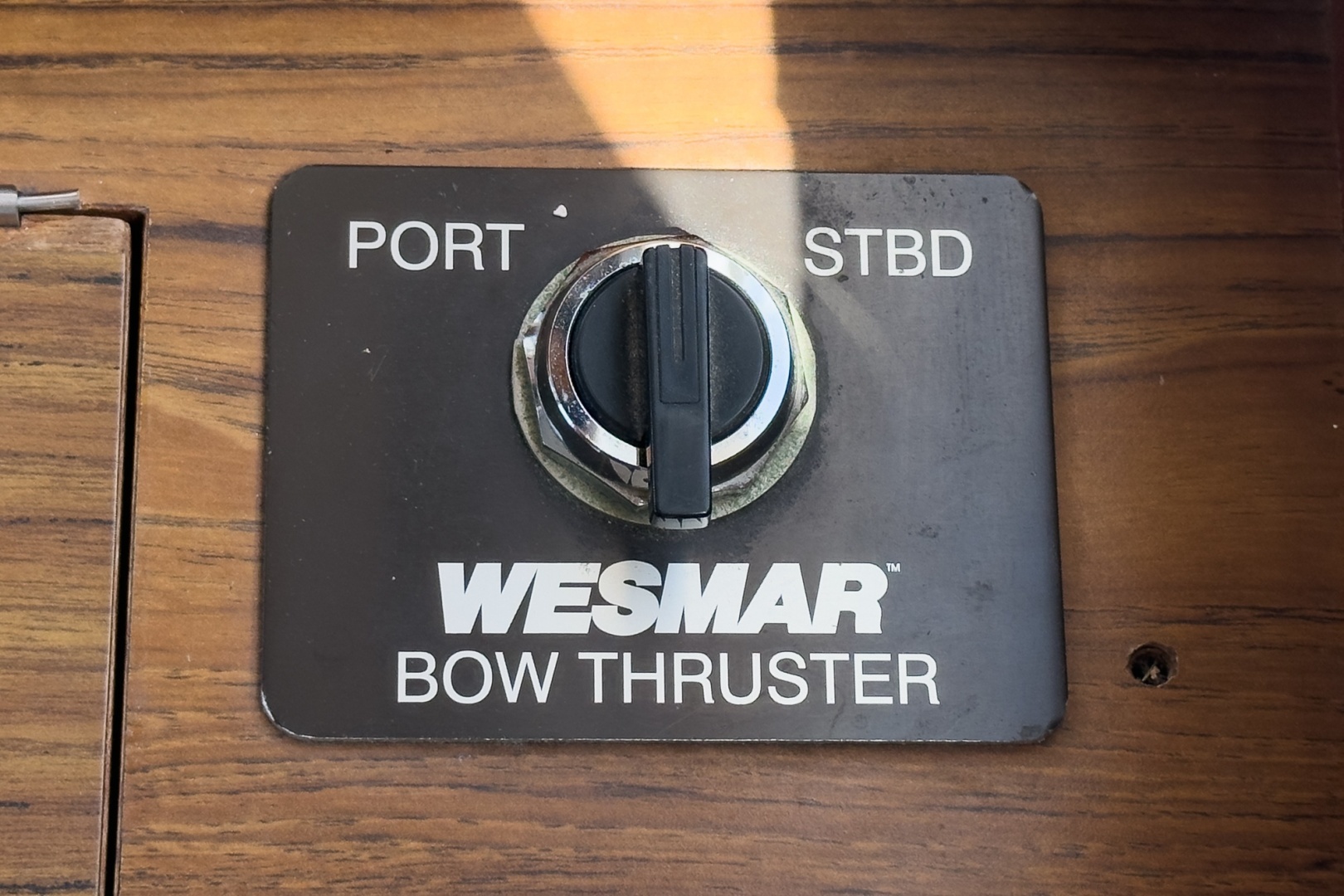

WESMAR Bow Thruster Control

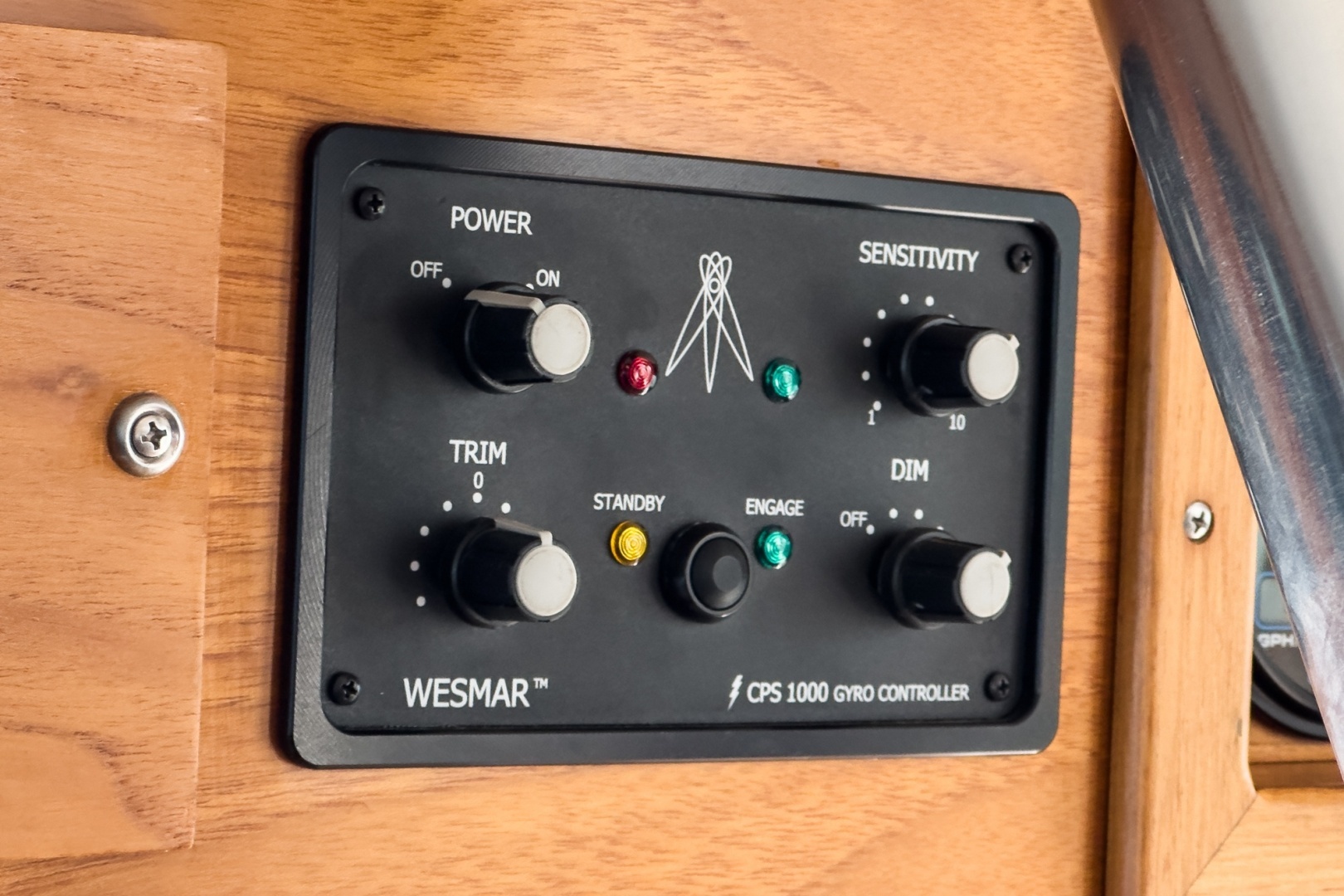

WESMAR Fin Stablizers CPS 1000 Gyro controlled

Bennett Trim Tabs

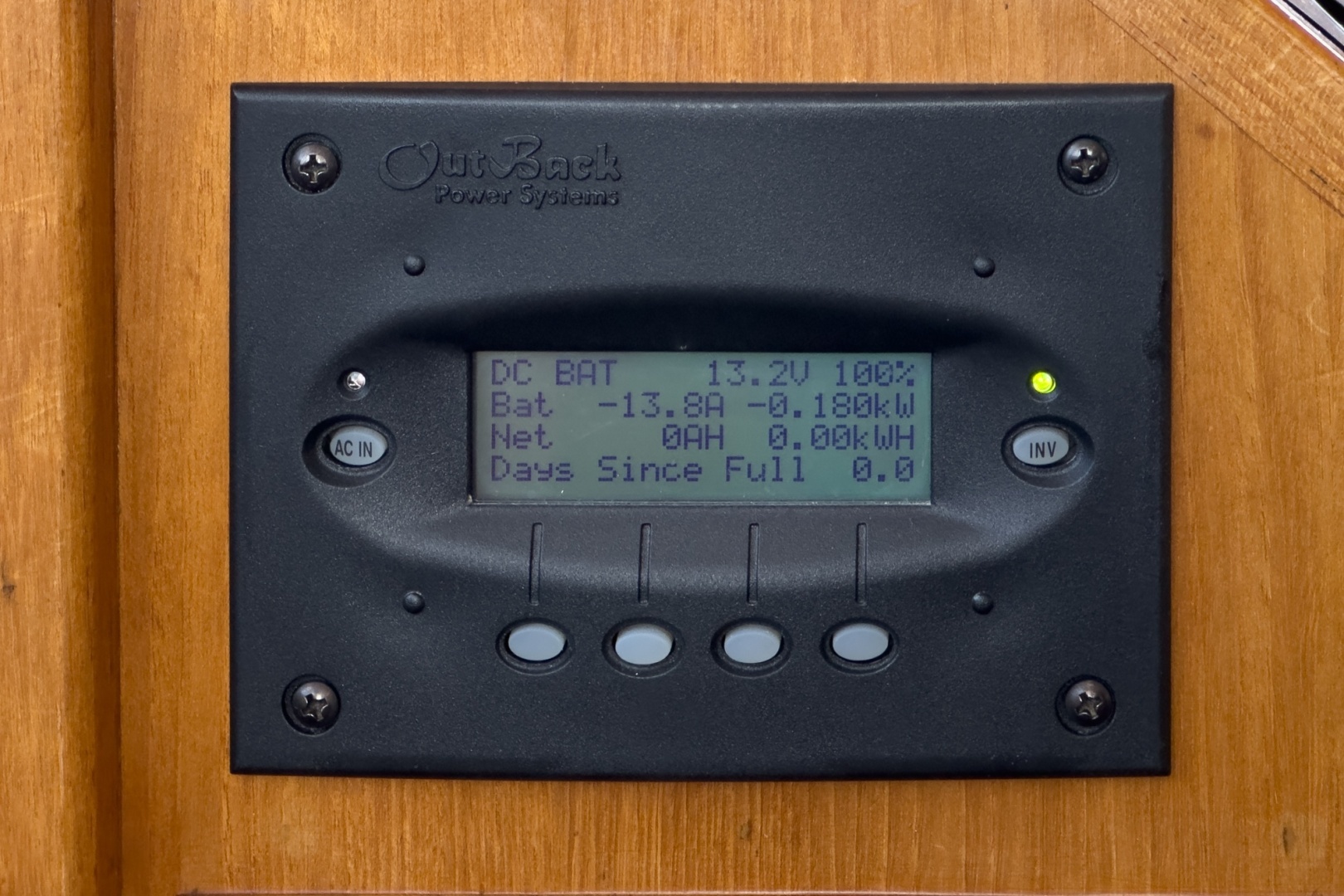

Out Back Battery Inverter Display

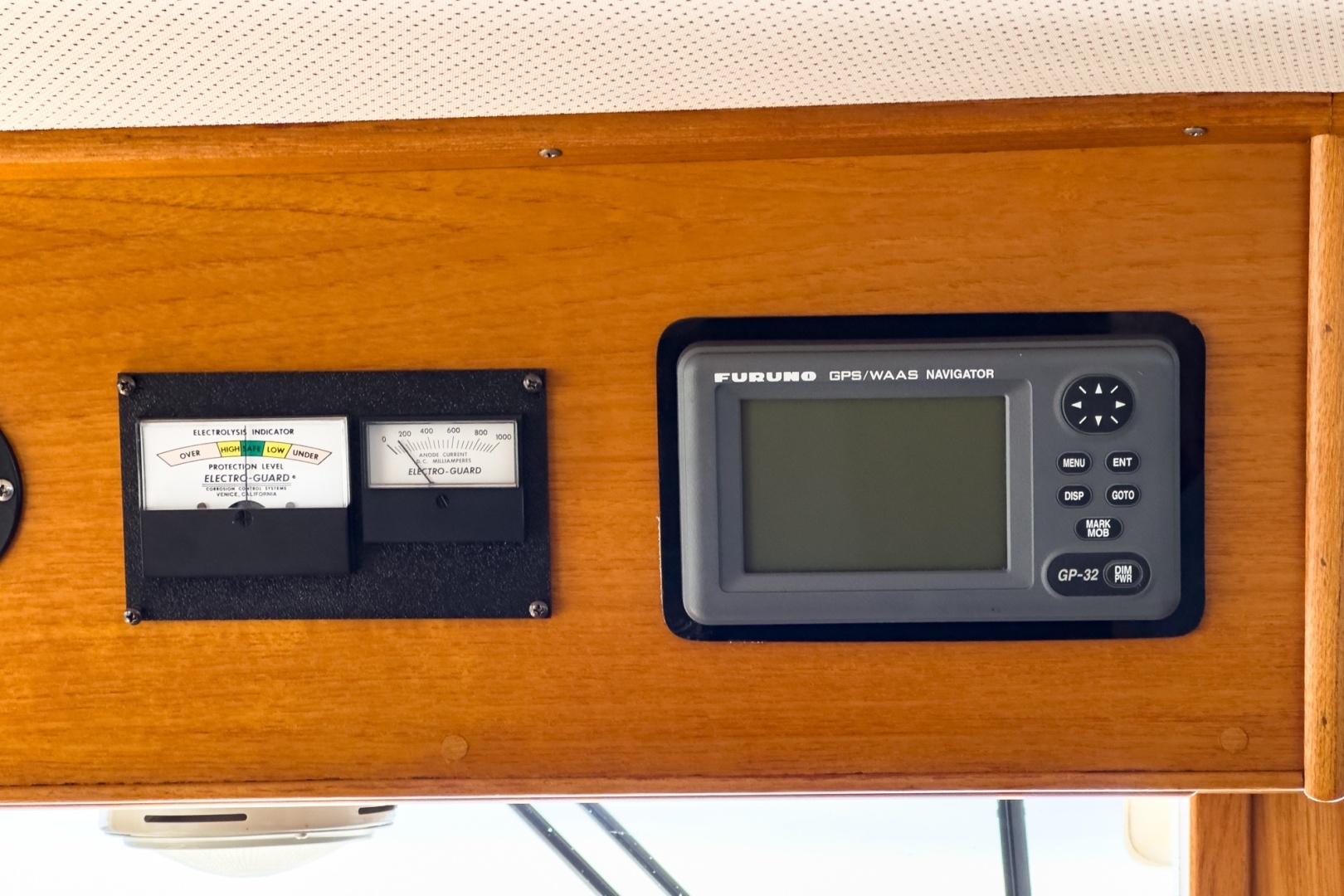

Electro Guard - Electrolysis Display

Furuno GPS GP2 Display (redundant can be connected to a Laptop)

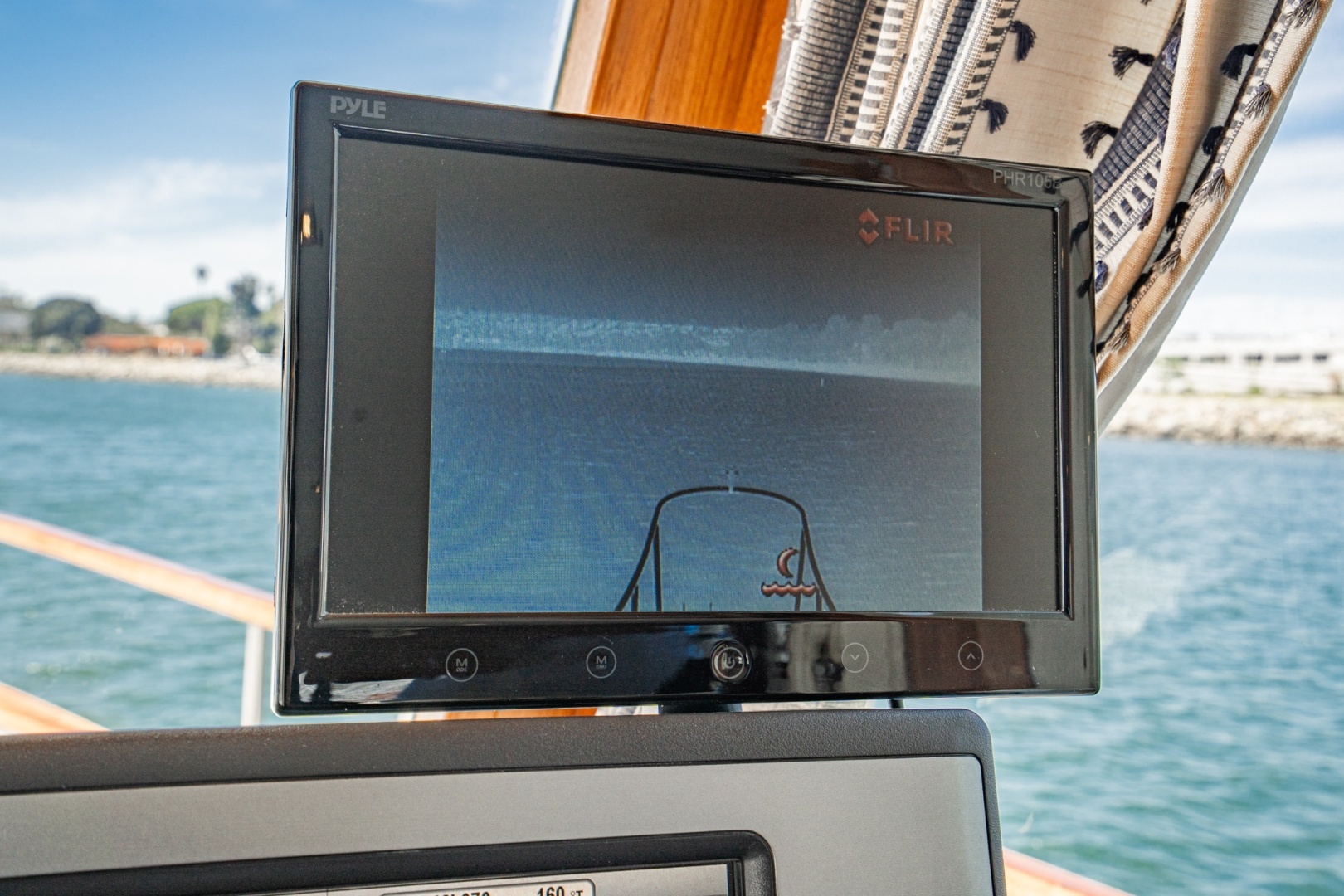

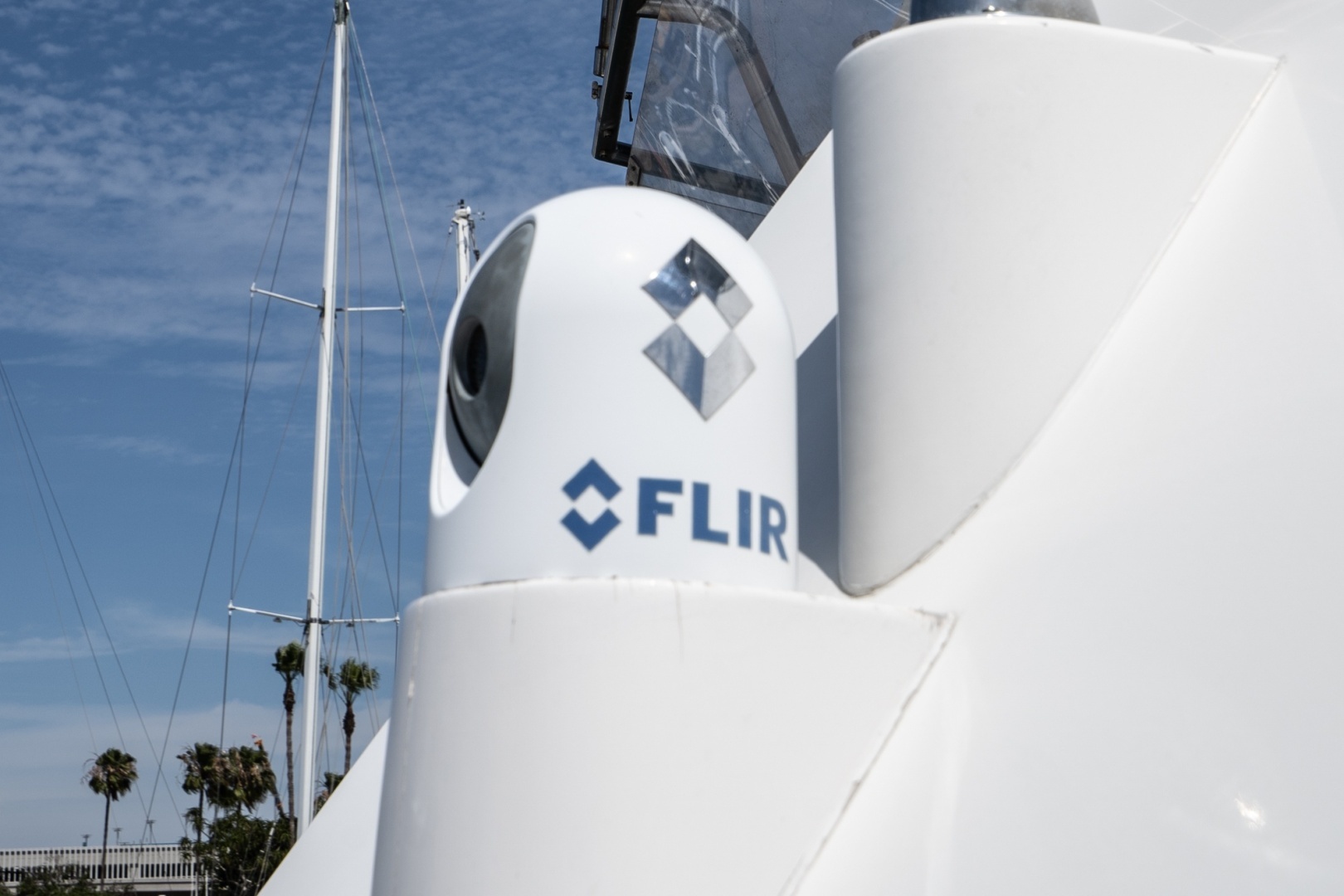

FLIR Night Vision Camera with Display Pyle PHR105B Screen Above Chartplotter

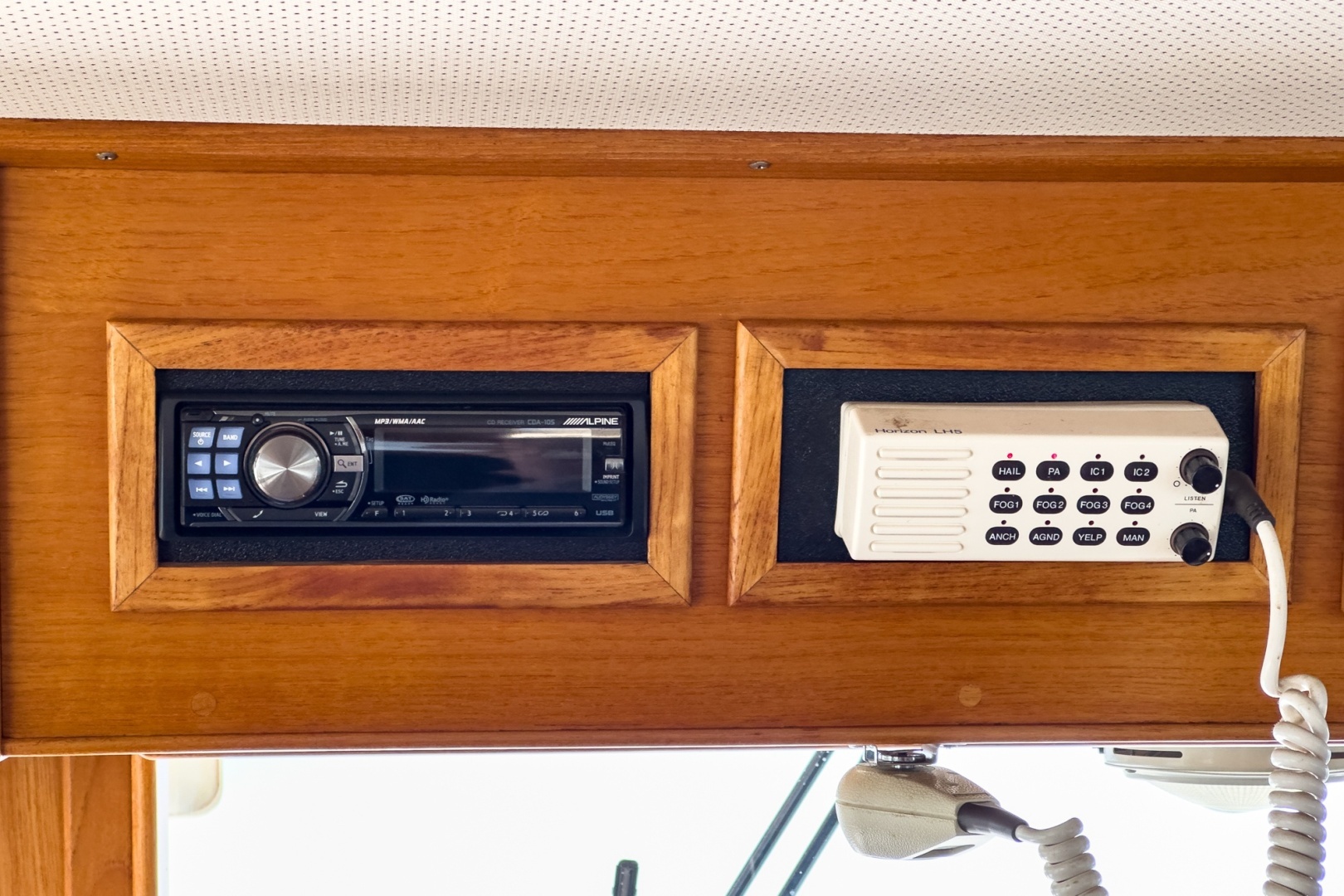

Horizon LH5 Loud Hailer with Presets

Danforth 5" Magnetic Compass

ICOM VHF Radio w/Antenna

Spotlight Control

Alpine Stereo/CD player

OTHER

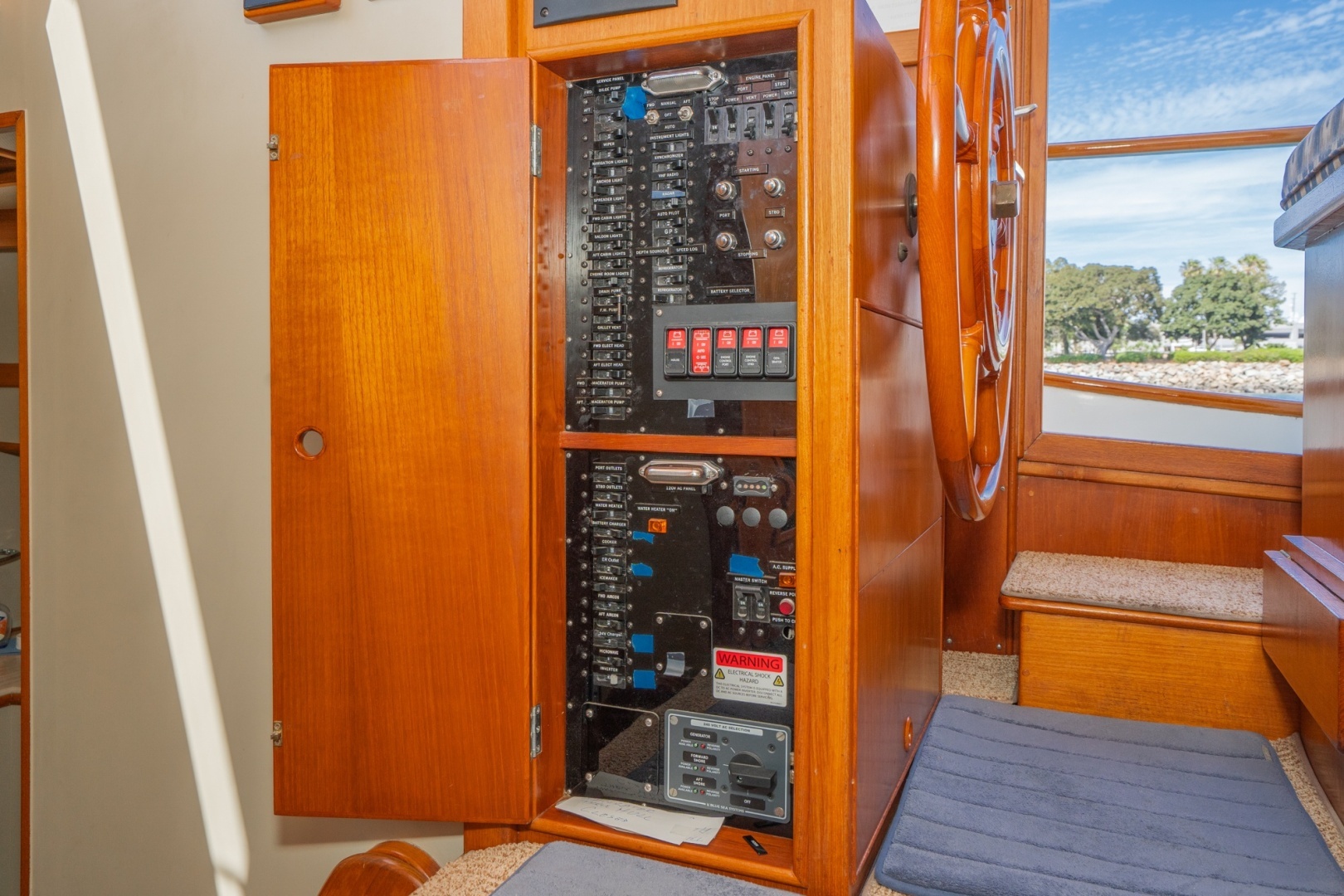

AC/DC Breaker Panel

Alternator Output Display

Alarm Panel w Warning Lights

Windlass Control

Fireboy Manual Release for Engine Room and Lite Indicator Display

LOWER HELM GAUGES

RPM Gauge 2

Engine Temp Gauge 2

Oil Pressure Gauge 2

Voltage Gauge 2

Engine Hour Gauge 2

Exhaust Temp Pyrometer Gauge 2

Fuel Vacuum Gauge 2 (Indicated When a Filter May be Clogged)

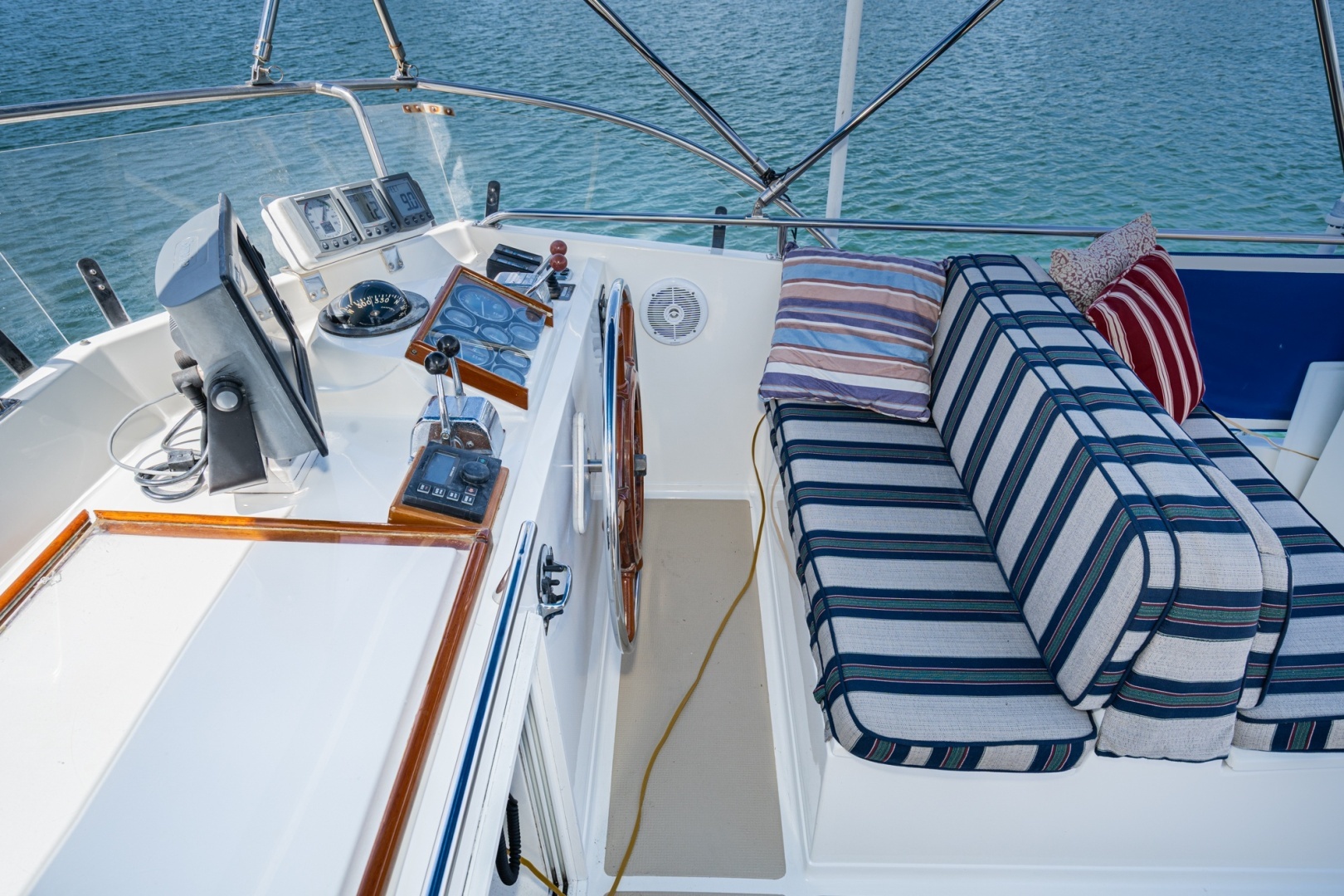

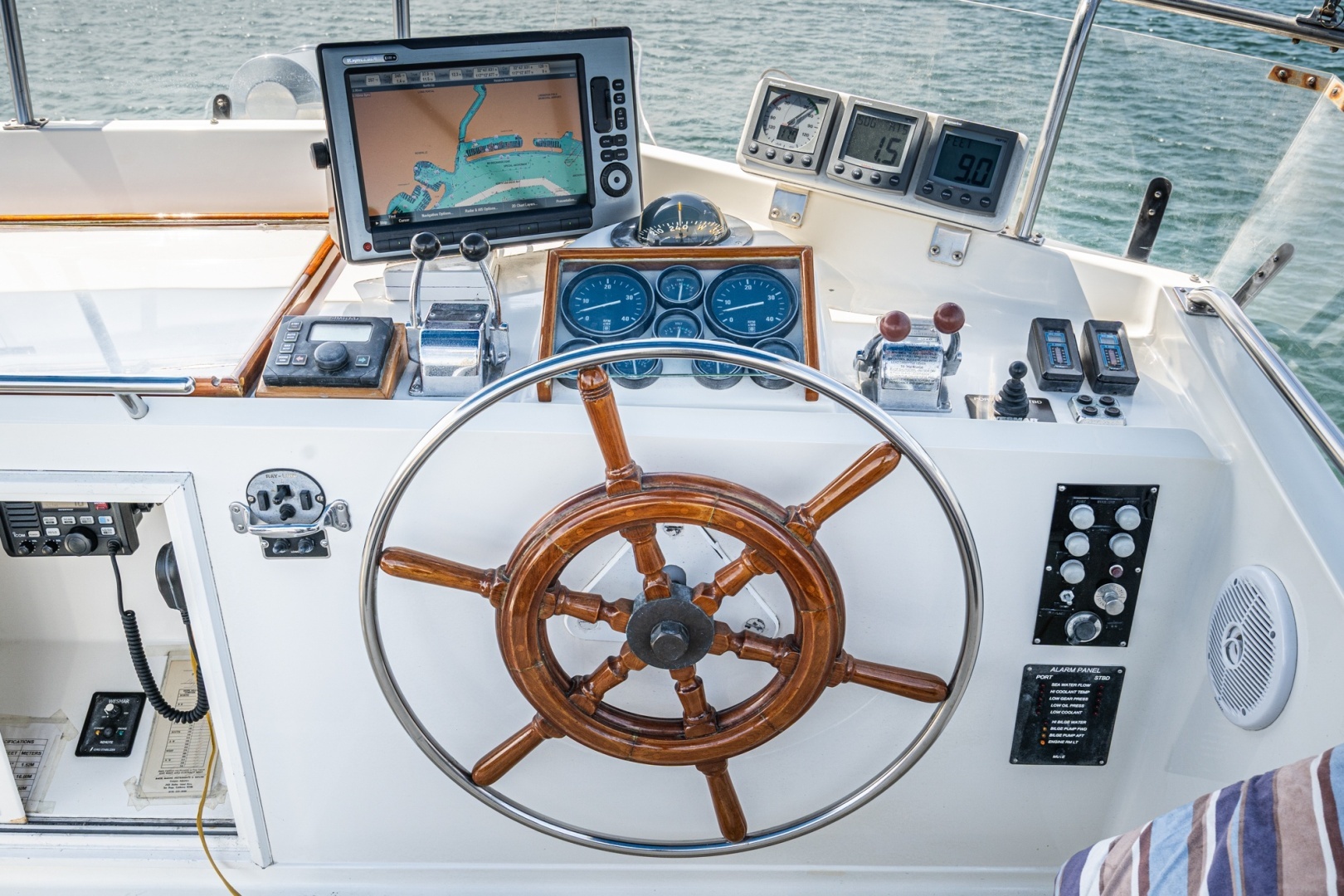

FLYBRIDGE HELM

Manual Cable Driven Throttle Gear Selector Binnacles

Teak Wood w Stainless Rim Wheel

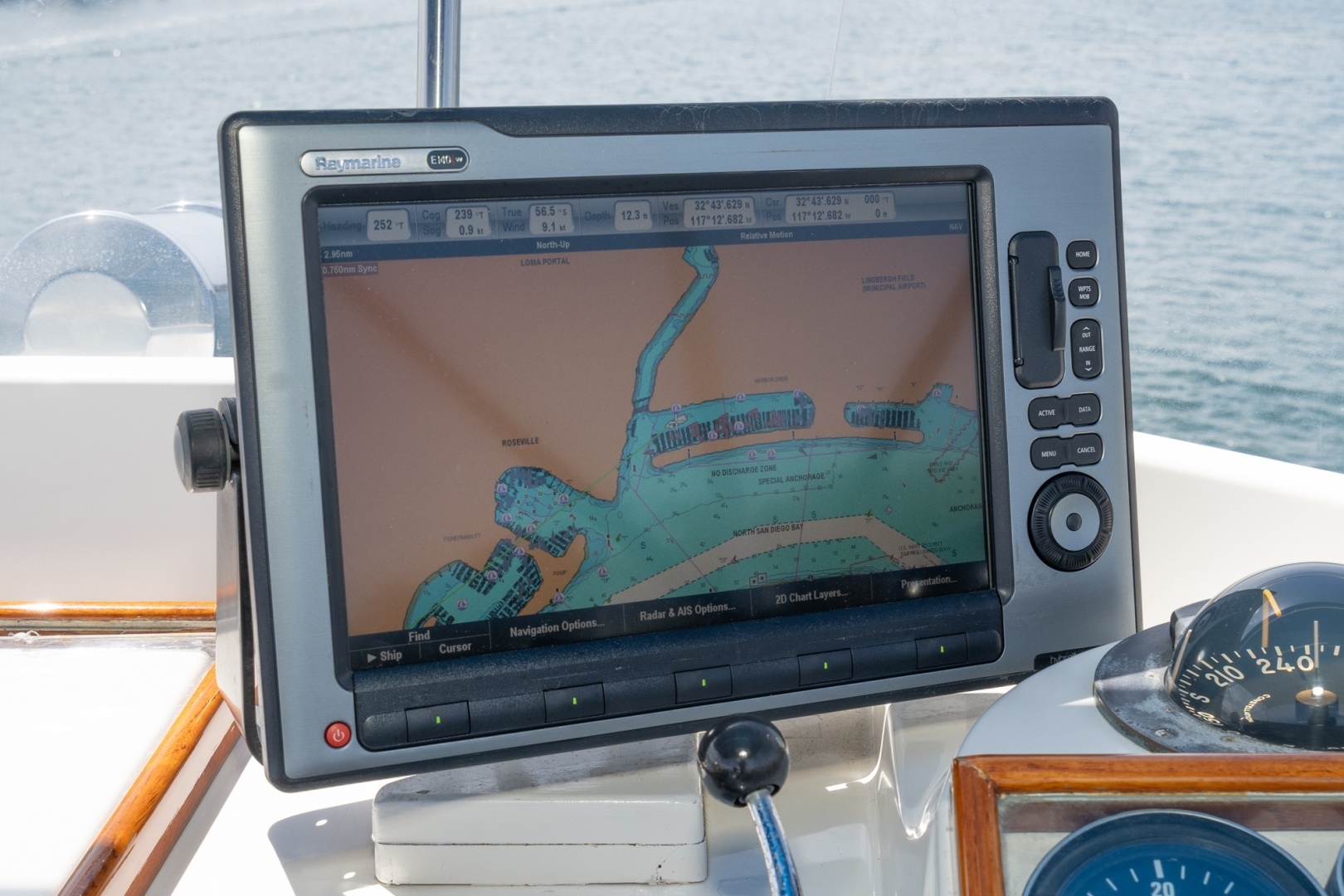

Raymarine 12" E140w Hybrid Touch GPS Chartplotter

Raymarine Open Array Radar

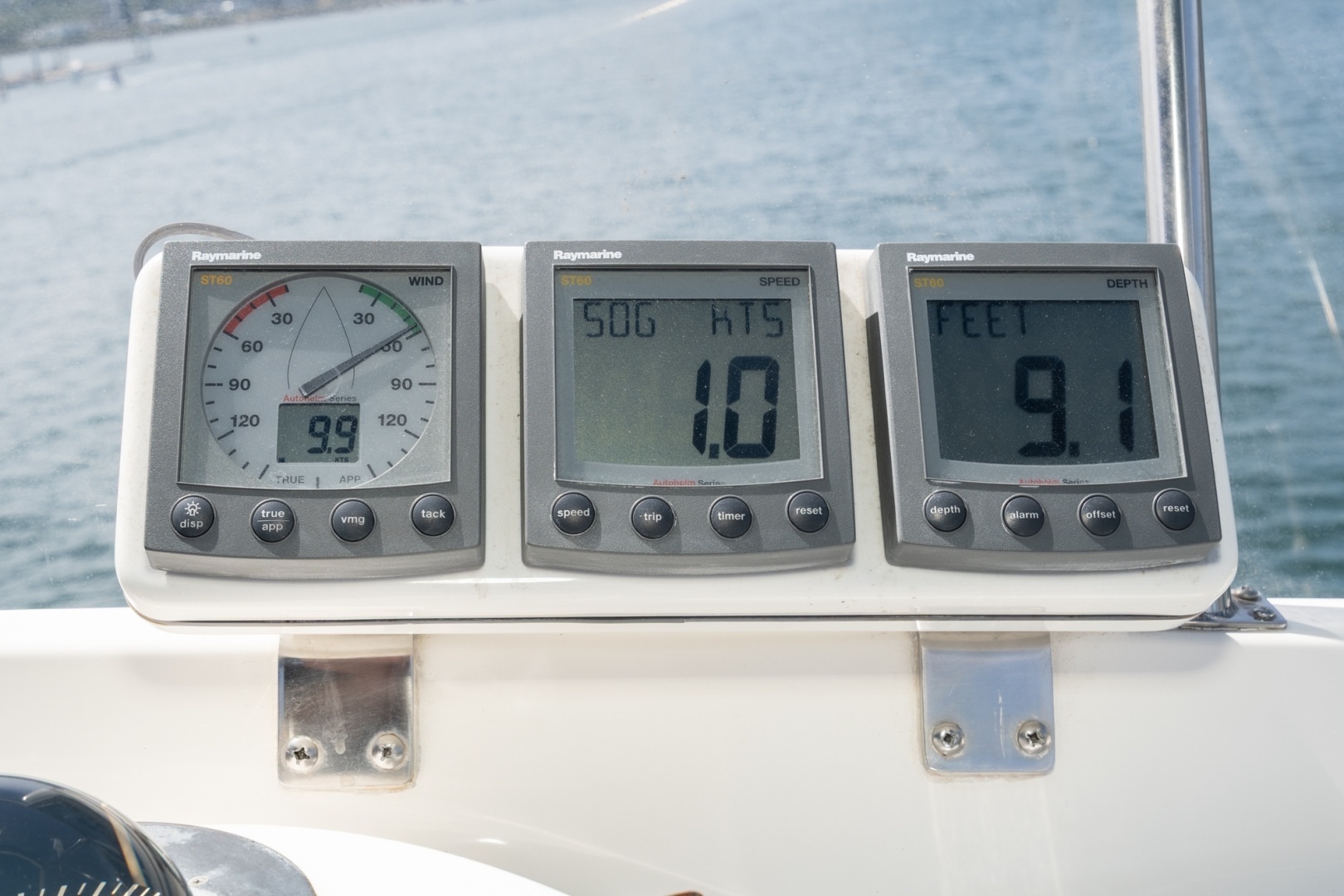

Raymarine Wind speed / Wind angel / Wind direction

Raymarine Depth

Raymarine Boat Speed

SIMRAD Autoplot Control

WESMAR Bow Thruster Control

WESMAR Fin Stabliizers CPS 1000 Gyro controlled

Bennett Trim Tabs with Indicator Displays

Danforth 5" Magnetic Compass

ICOM VHF Radio w/Antenna

Spotlight Control

FLYBRIDGE GAUGES

RPM Gauge 2

Engine Temp Gauge 2

Oil Pressure Gauge 2

Voltage Gauge 2

Engine Hour Gauge 2

OTHER

Stereo Speakers 2

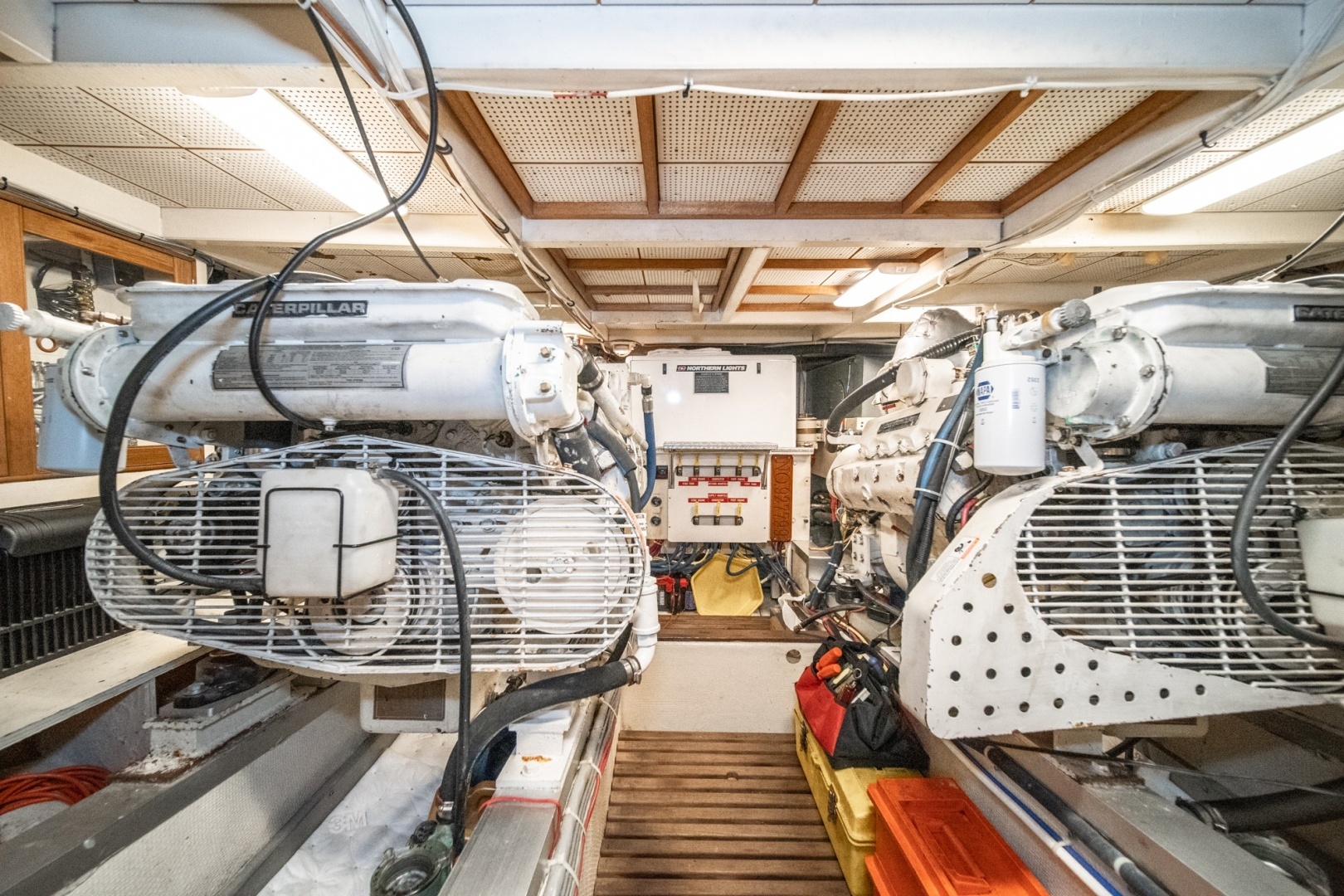

ENGINES / GENERATOR / SYSTEMS

ENGINES / GENERATOR / SYSTEMS

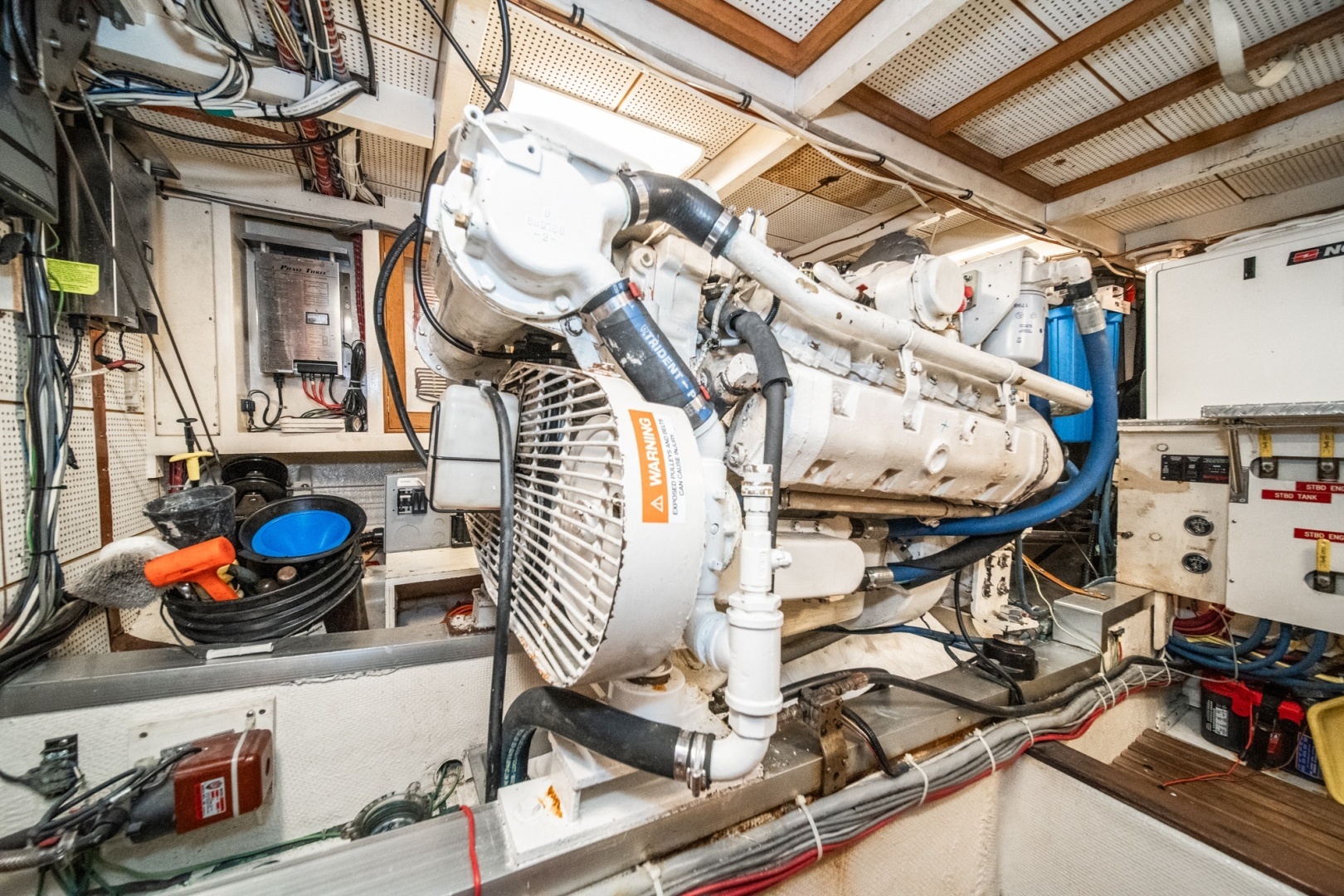

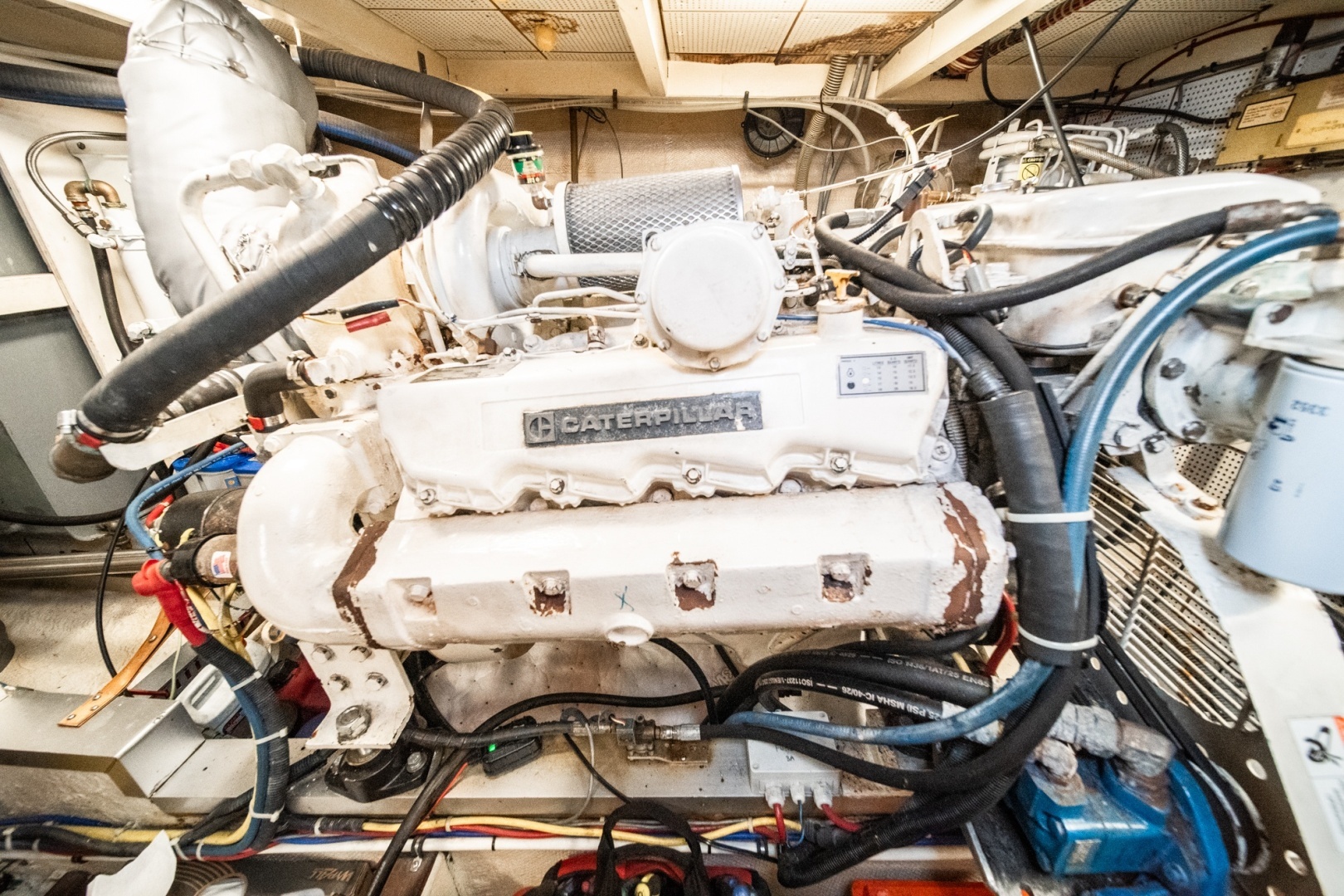

Twin CAT 3208's 350 hp, 2800 rpm Fresh Water Cooled Port 5189 hrs Starboard 5180 hrs Port CurrentOwner Bought Boat with Approx 600 hr

Engine Sync System

65 Amp Alternator

2"SS Shafts w 30x25 Three Blade Props (New 5 years ago) old as Spares

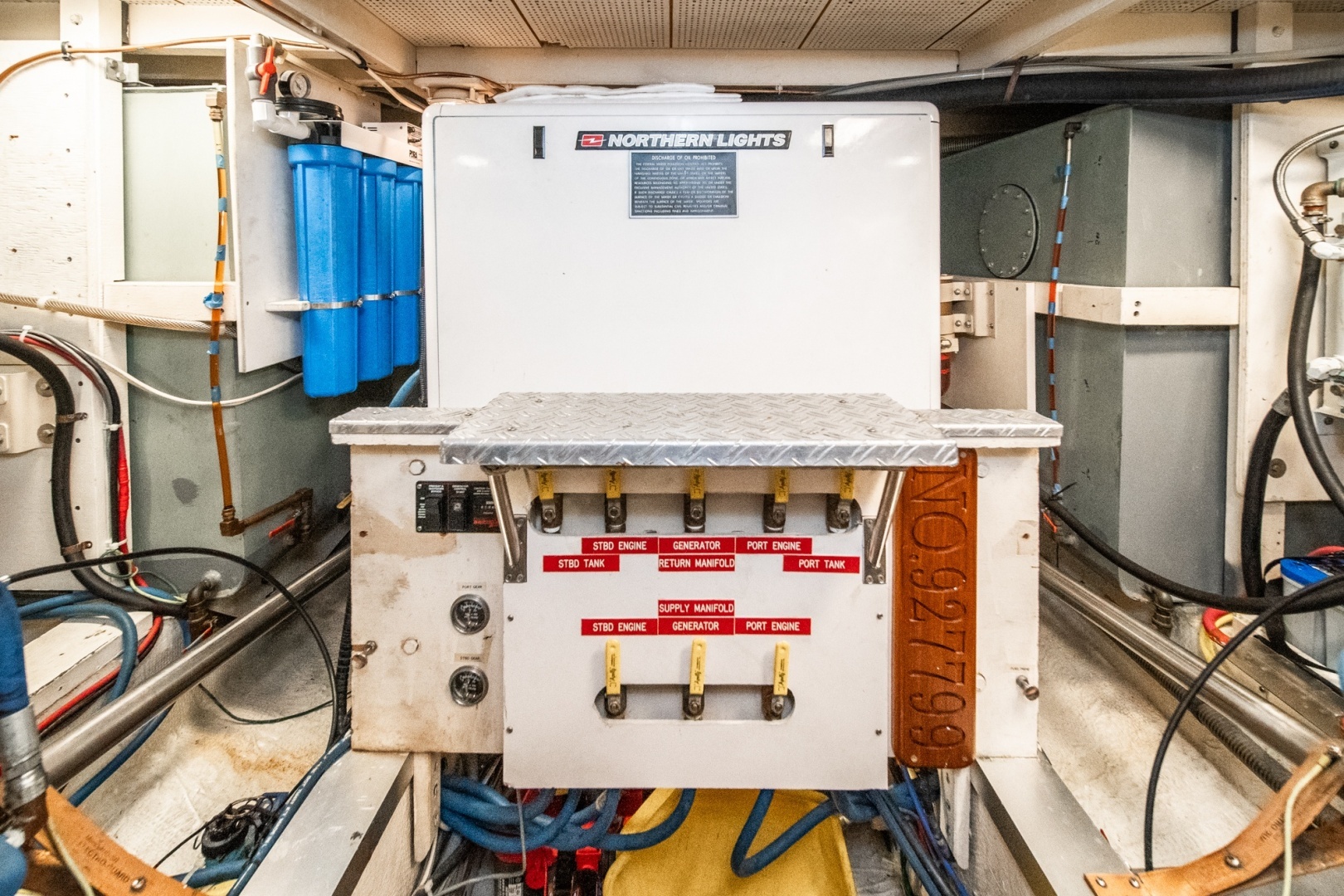

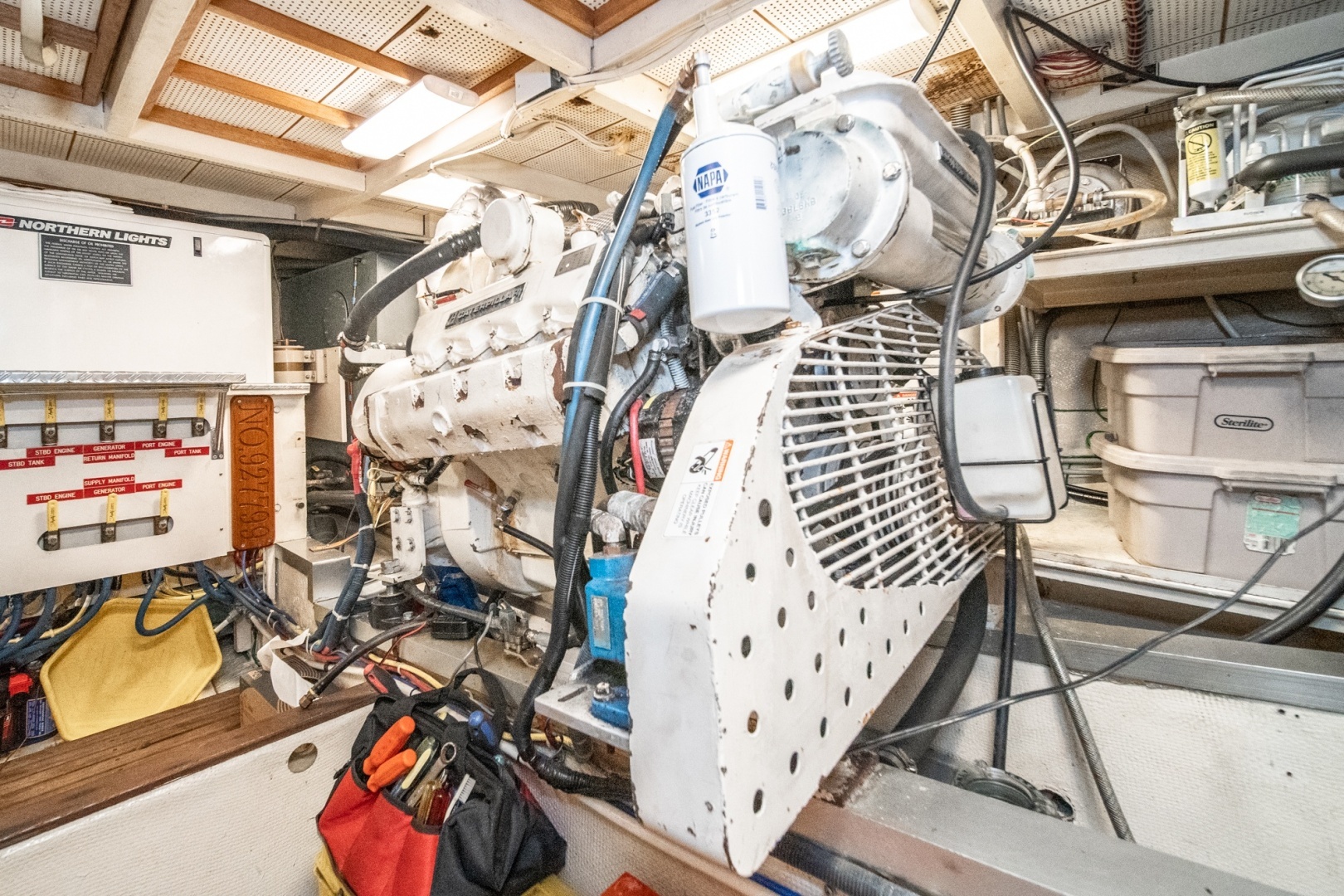

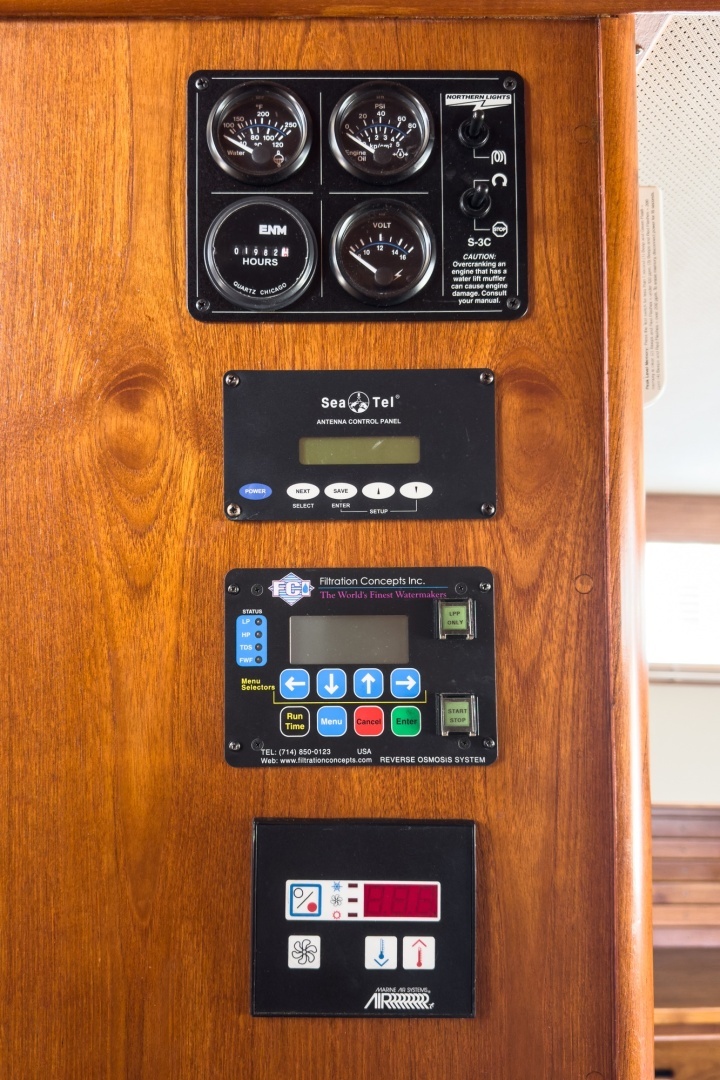

Northern Lights 8.5Kw Marine Generator 1982 hrs (Remote Start Panel In Owner Suite)

Pull / Pull Steering to Rudder Quadrant

Fireboy Fire Suppression System

Battery Charger 24v (For 24v Batteries and Thruster) and Second 12v Charger

Dual Racor Fuel Filtration on Main Engines

Racor Fuel Filtration on Gensets

2 - 300Gal Painted Steel Fuel Tanks (Tops in Great Shape no Rust as Associated with Boats with Teak Decksthat Where Know to Leak On Top of Fuel Tanks)

Wesmar Active Fin Stabilizers (1998 larger)

Wesmar Bow Thruster (1998)

SERVICE / MAINTENANCE

Maintenance Records for Past 20+Years ( Boat was used lightly past 4 Years )

Turbos Replaced approx 15 years ago

Injectors Replaced

Exhaust System Replaced

Shift and Throttle Cables from Lower Helm to Engine Replace

EXTERIOR / DECKS / ELECTRICAL / PLUMBING

EXTERIOR / DECKS

New Bottom Paint (March 2026) Pettit Trinidad

White Gelcoat Hull and Top Sides (Polished & Waxed late 2025)

Varnished Teak Rails

Varnished Teak Transom

Varnish Work in Great Shape (Done Dec 2025)

Teak Swim Platform (Replaced not Original)

Decks Finished at Factory Non-Skid (Not Teak / No Leaks) Contrast Color Tan Non-Skid

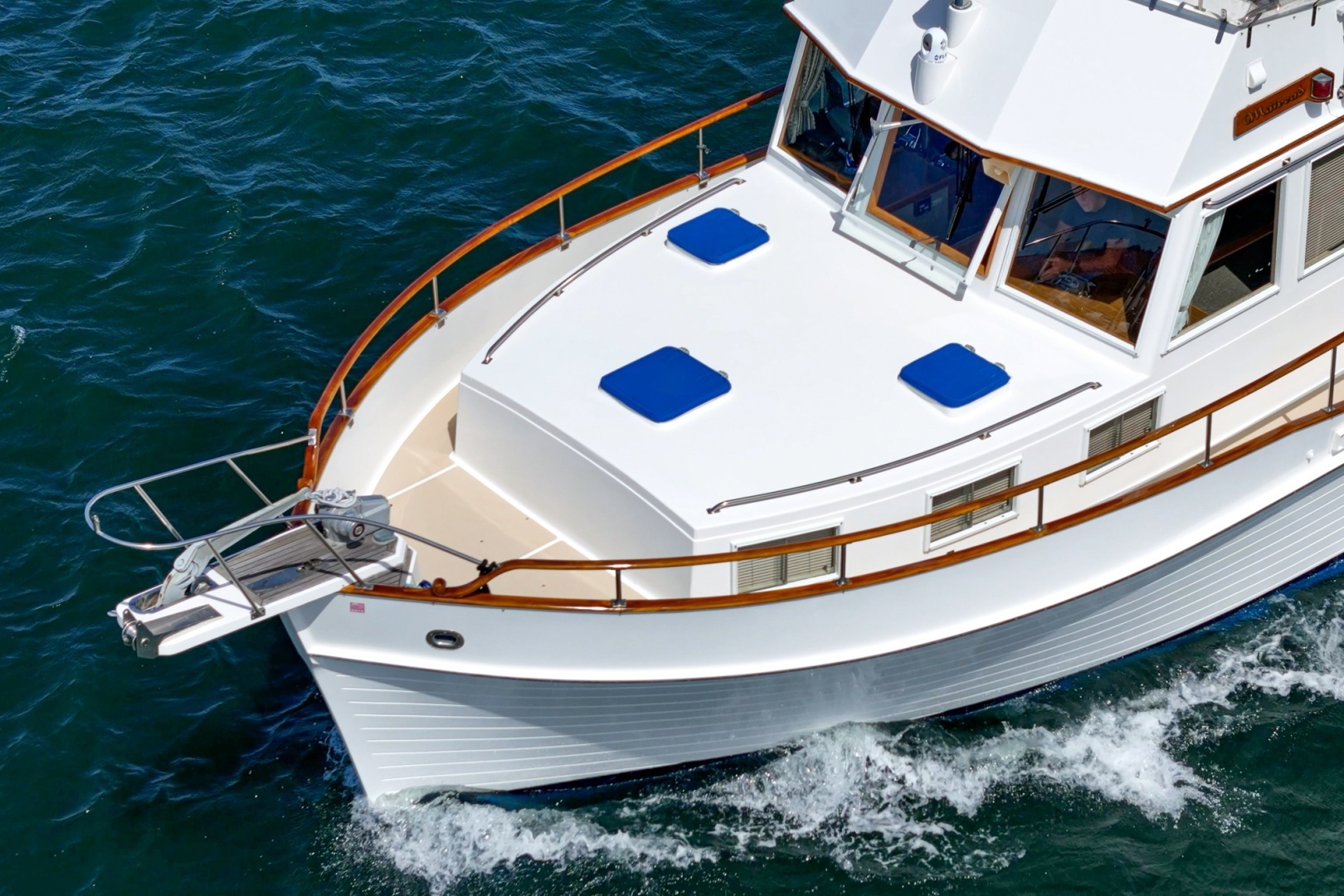

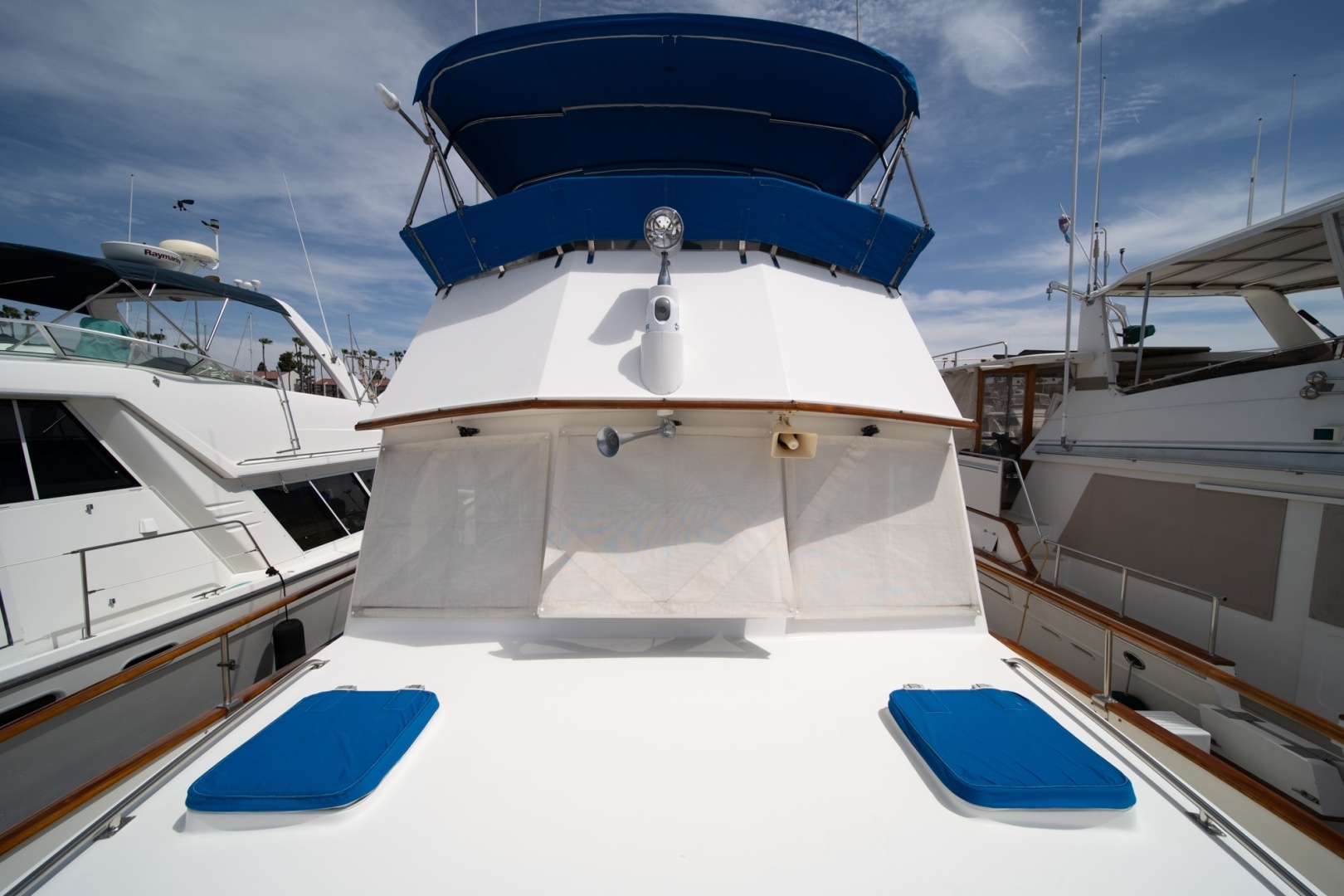

3 Forward Openable Plexiglas Deck Hatches - (Replaced not Original)

Bottom was Stripped and Redone with Vinylester in 1998

ELECTRICAL

Life Line Batteries 4 - 6V DeepCycle Wired to 12v 4 years old - little use

Optima Batteries 2 Engine Start - 4 years old - little use

12v DC and 120/240v AC Panels Located at Lower Helm

Outback Inverter

12v battery Charger / Inverter

24v Battery Charger for Thruster Batteries

Blue Sea Battery Switches at Lower Helm for Fast Disconnect. ACR Blue Sea for Auto Separation House to StartBank.Entire Engine Room Wiring and Switches Replaced Including Blue Seas Remote Battery Disconnect.

PLUMBING

FCI 35 GPH Water Maker 110v (In Cockpit Locker / Remote Panel in Owner Suite)

Water Filtration 2 Filters 1st Carbon, 2nd Standard and Infrared Light UV Filter

Marine Heads Vacuflush - Fresh Water Flush

Sanitation Hoses replace 10 years ago

10 US Gal Hot Water Heater

Hot & Cold Water Faucets in Galley, Heads, Showers, Aft Cockpit Shower

3 Auto Bilge Pumps w High Water Alarm

Manual Bilge Pump

Fresh Water Pump

Shower Sump Pumps 2

Sea Water Wash Down Pump

Macerator Pump - Sewage

Tank Watch Holding Tank Level Indicator

Sea Strainer - Raw Cooling Water Intake

ALL Thru Hull Fitting - Replace 5 years ago = Bronze

DINGHY / CANVAS / COVERS

DINGHY

2006 11 ft Novurania RIB W Helm

Yamaha 25hp Outboard

Full Canvas Cover (Pacific BLUE)

Lower Unit Motor Cover (Pacific BLUE)

Nick Jackson Davit

CANVAS / COVERS

Entire Boat Cover Down to Water (3 piece construction, Used Once)

Bimini Canvas w SS Frame (Pacific BLUE)

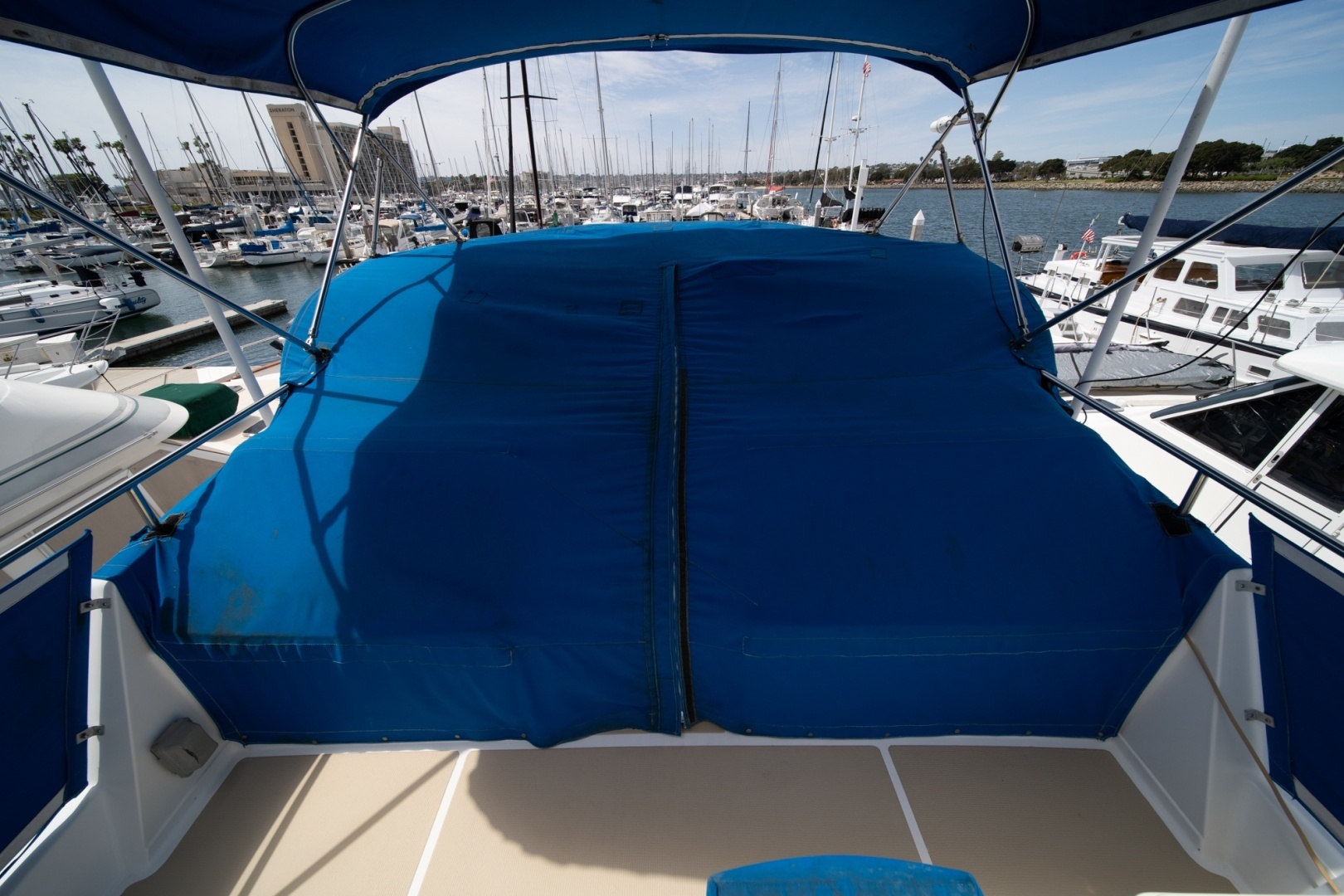

Fly Bridge Forward Seating area Canvas Cover (Pacific BLUE)

Fly Bridge Front Windscreen Canvas Cover (Pacific BLUE)

Fly Bridge Aft Section Wrap Around Rail Canvas (Pacific BLUE)

Teak Rail Canvas (Pacific BLUE)

Transom teak Canvas (Pacific BLUE)

Forward Hatches 3 Canvas (Pacific BLUE)

Saloon Window White Mesh Window Covers

SAFETY / SPARES

SAFETY / SPARES

SAFETY GEAR

105 lb CQR Anchor w 400ft Galvanized Chain

Spare Anchors 65 lb CQR and 45 lb CQR

Reel with Floatling Line to Stern Tie Vessel

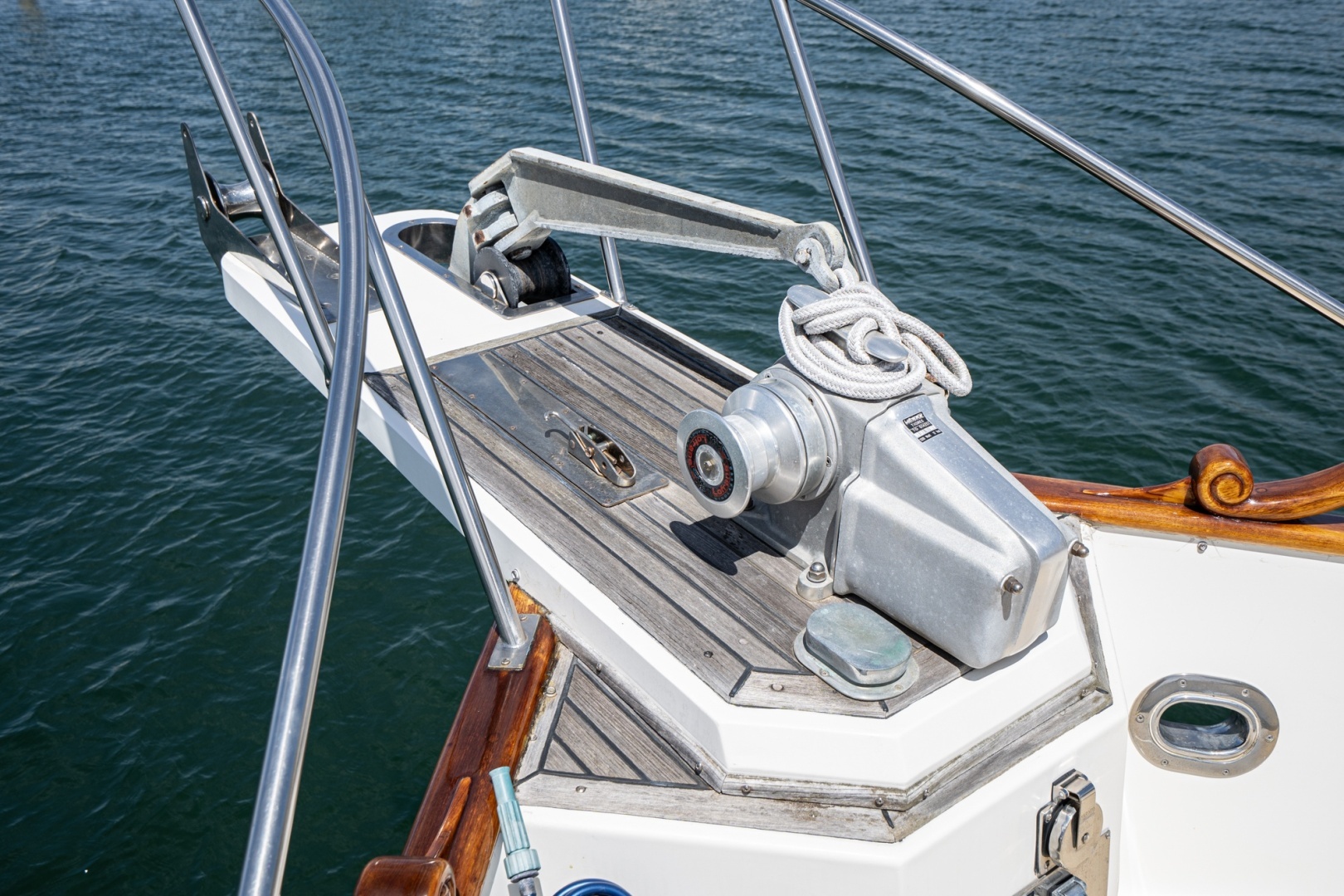

Lofrans Tigres Electric WIndlass w Bow Roller

Life Jackets Adult and Children

Life Ring

MOM

2-CO2 and Smoke Detectors

Flares

5-Fire Extinguishers

Fireboy Auto Fire Extinguisher in Engine Room

Paratech Sea Anchor

USCG Discharge Plaques

USCG Doc Number

Spot Light

Air Horn

Swim Ladder offTeak Swim Platform

Flir CameOa (Night Vision)

Nav Lights

Fenders and Dock Lines

SPARES / OTHER

Spare Props 2

Spare Autopilot RAM and Brain

Spare Alternator

Spare Pumps Float Switches

Spare Part for Vacuflush Heads

Many Spare Engine Parts

Belts / Hoses
