Sound Reduction

• Mylar faced acoustical foam engine box insulation. Varying densities depending on location
• Double gaskets on engine box cover
• Baffled and insulated engine airtake
• Custom water drop muffler
• Sound absorbent material in pilothouse overhead

Structural

Hull: Hinckley DualGuard composite construction-kevlar/E-glass outer skin with aircraft grade end grain balsa core below the waterline, and a carbon fiber inner skin. Laminated with Vinylester resin using Seaman Composite Resin Infusion Molding Process (SCRIMP).

Deck: E-glass outer and inner skin with aircraft grade end grain balsa and closed cell foam core. Laminated with Vinylester resin using SCRIMP.

Deck

• Gelcoat deck with molded non-skid pattern
• Tapered, varnished, teak toe rail with Hinckley profile

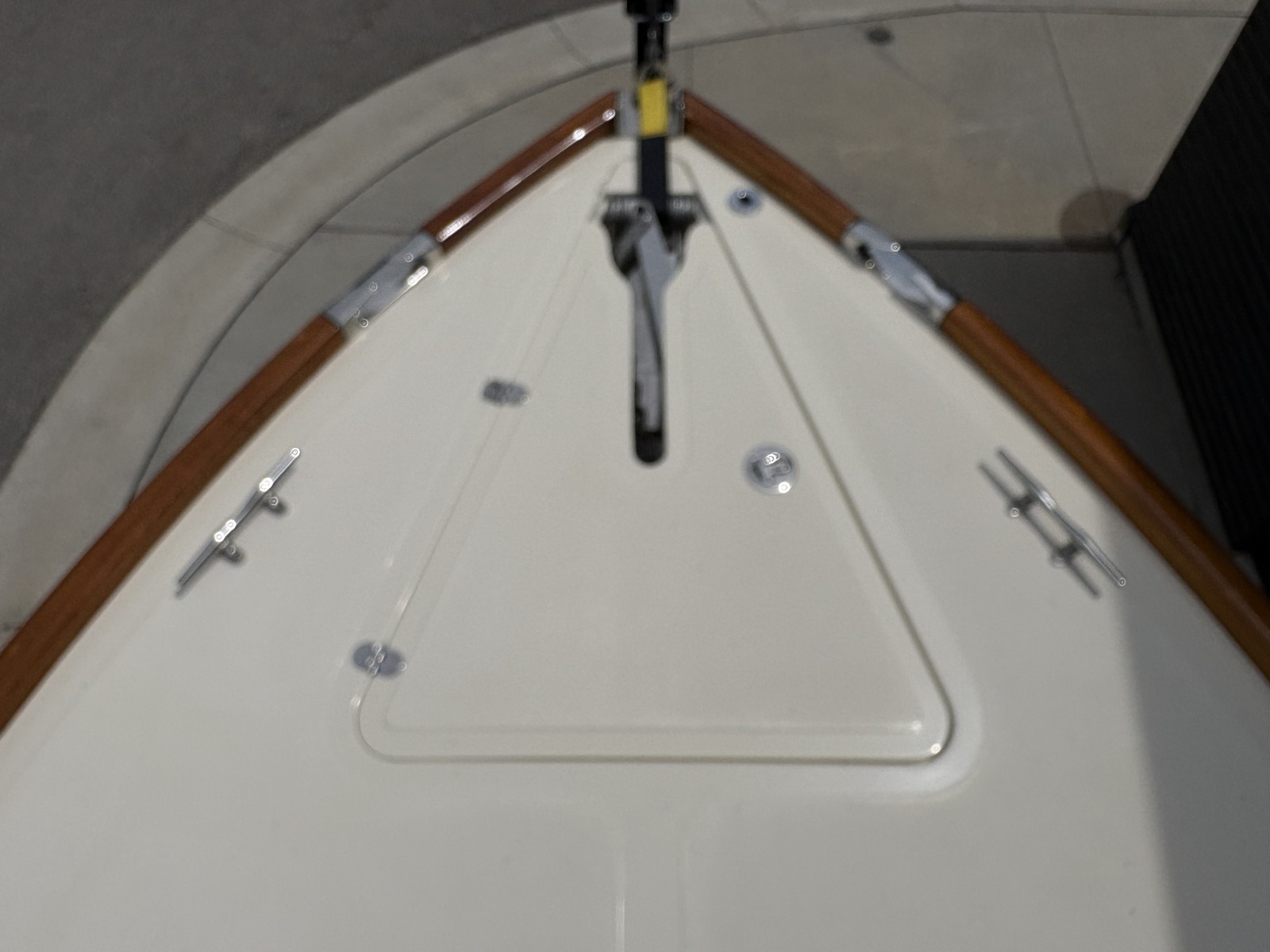

• Anchor locker molded into the foredeck with hinged hatch
• Stainless steel half-round on solid fiberglass molded rubrail
• Type 316L stainless steel bow chocks
• Two 10" bow cleats, two 10" stern cleats, four 8" spring cleats amidship, all type 316L stainless steel
• Varnished teak molding around cabin top
• Five varnished teak handrails on house top, cabin and aft end of pilothouse

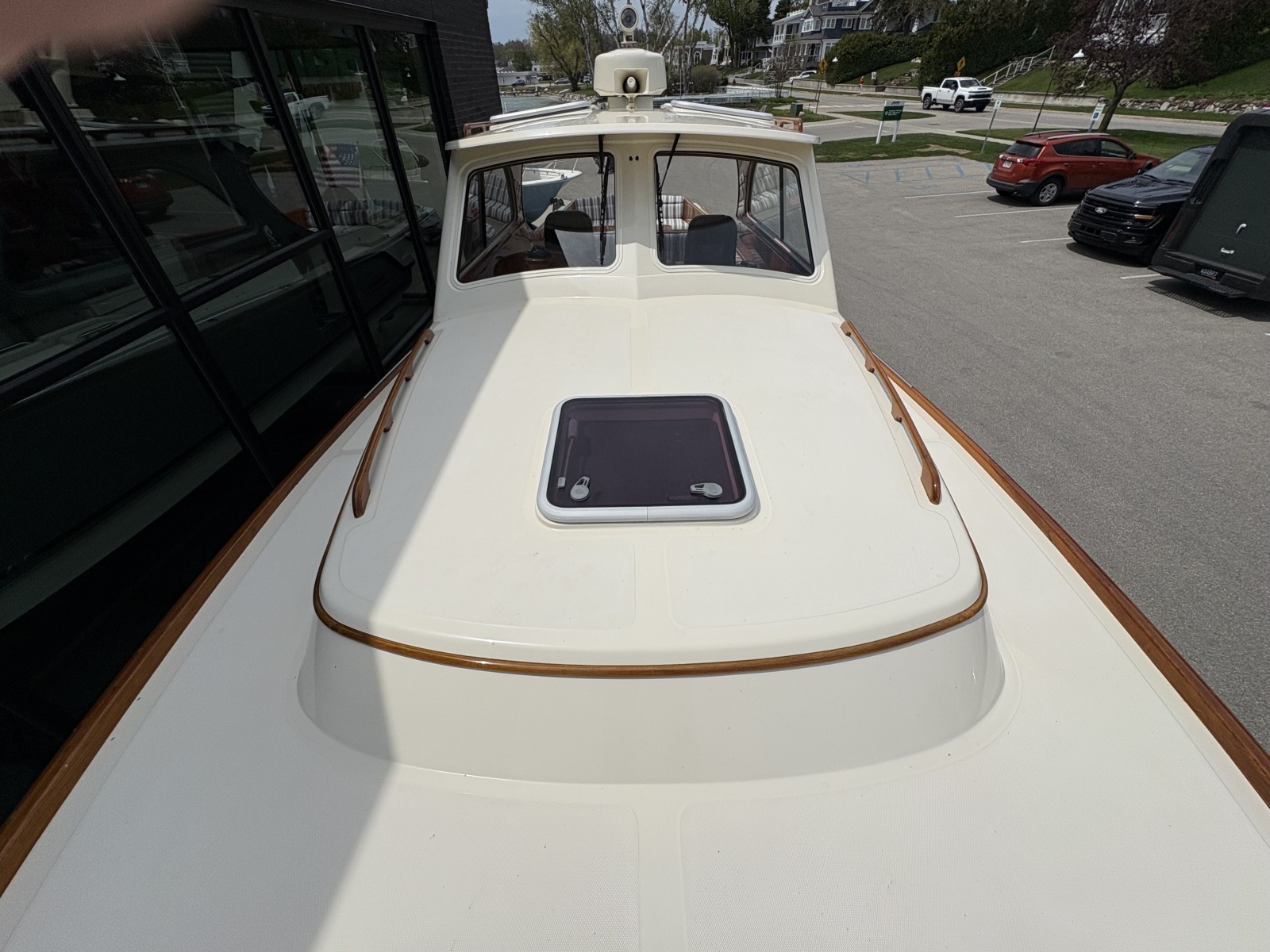

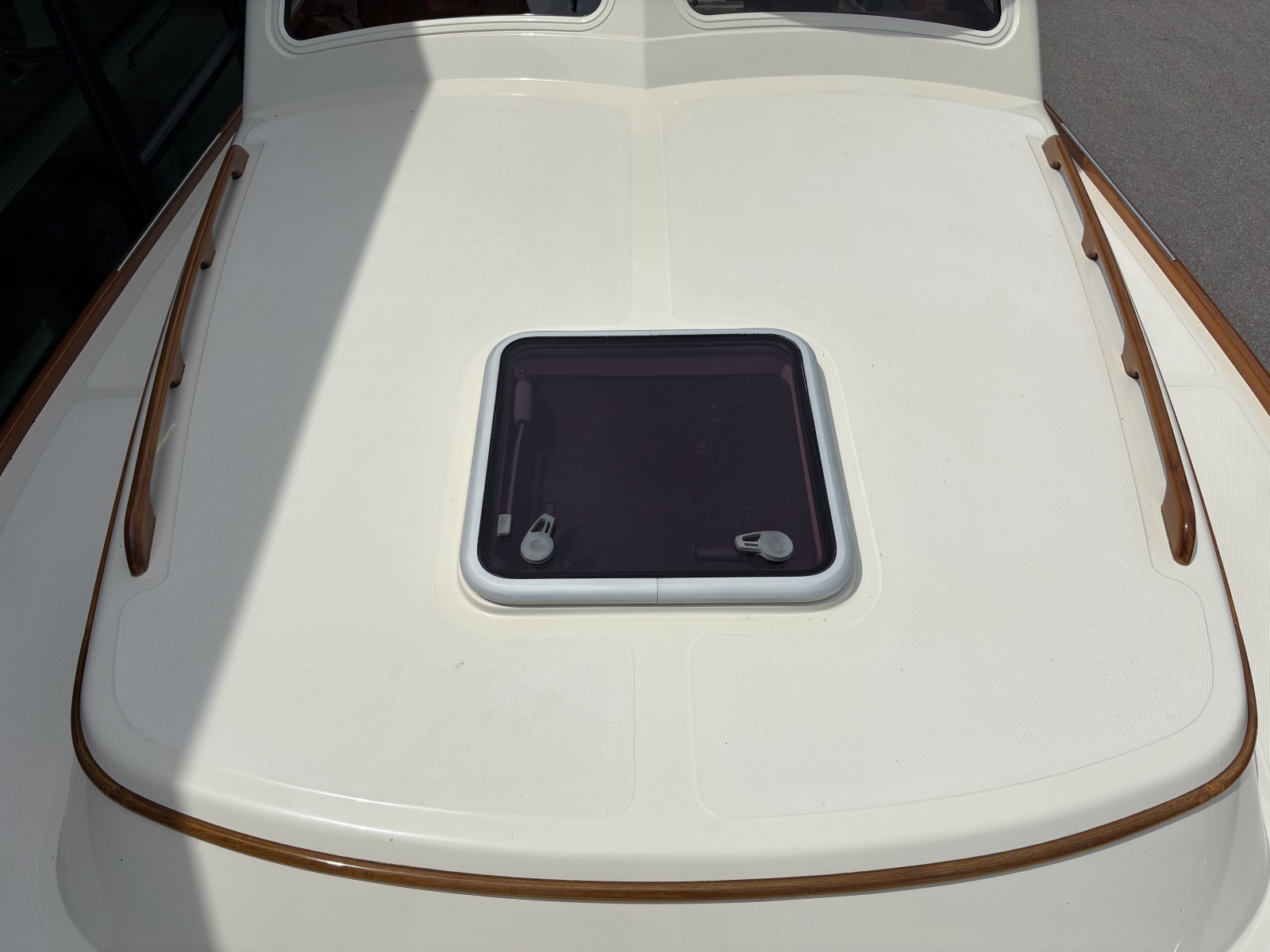

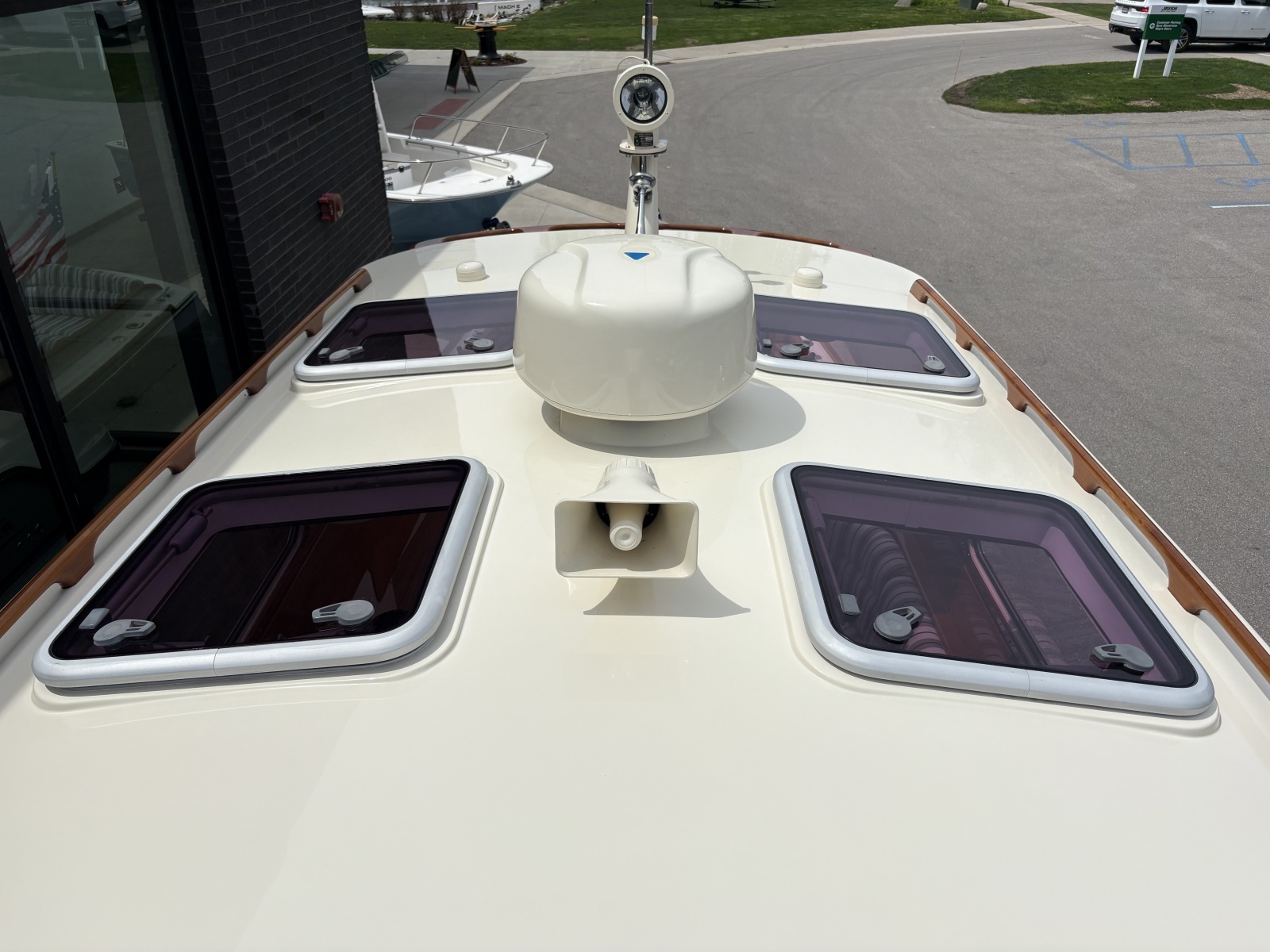

• Five low profile opening aluminum hatches with Ocean Air Sky Screens
• Four opening ports on cabin top sides with removable screens

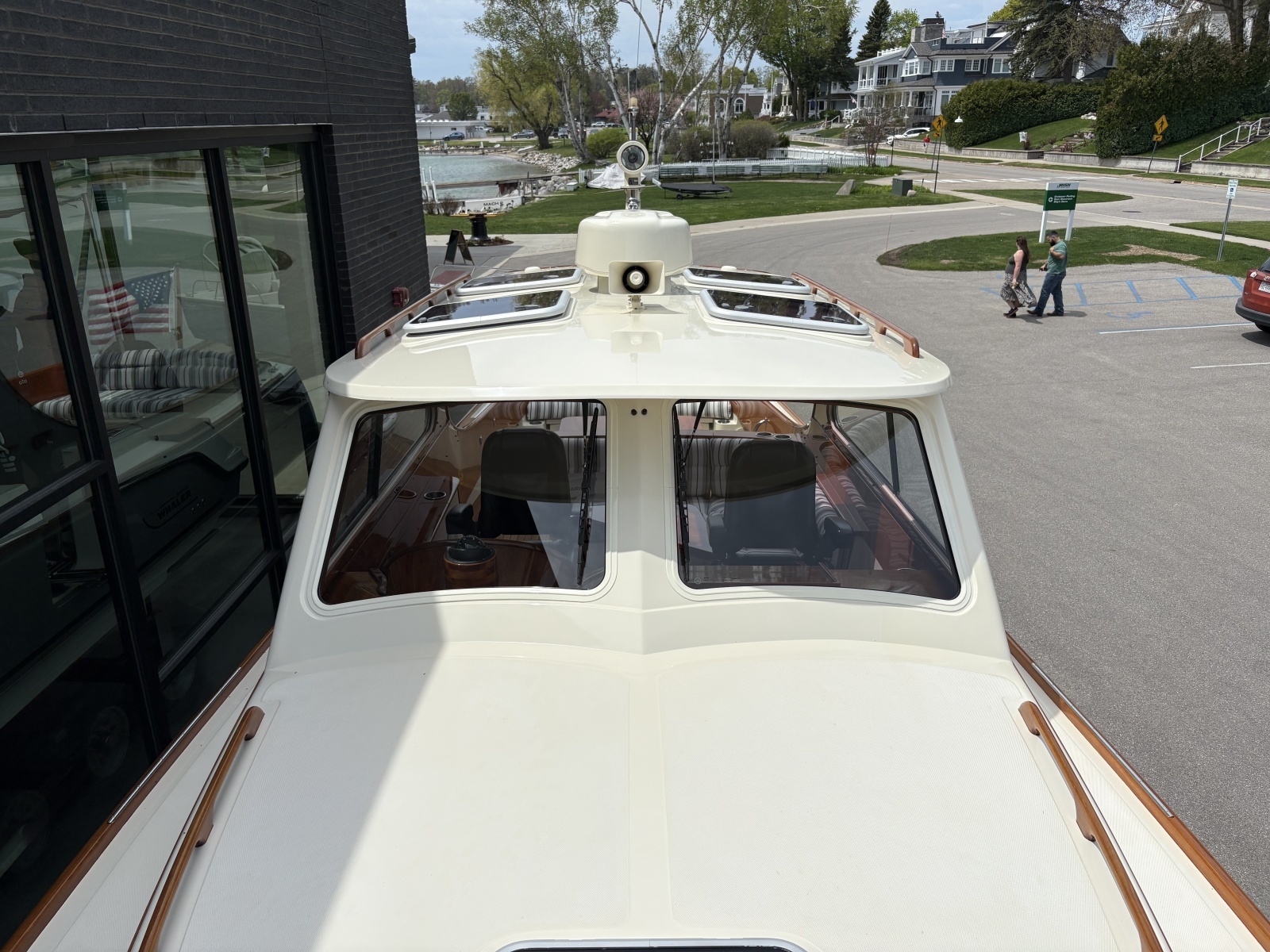

• Two fixed forward facing windows and two sliding side windows
• Stern-mounted 4' varnished teak staff with flush socket
• Hinckley mast on pilothouse top
• Varnished teak bow burgee with flush socket
• Three fender pad-eyes each side; two on trunk cabin side, one on coming aft, for hanging fenders

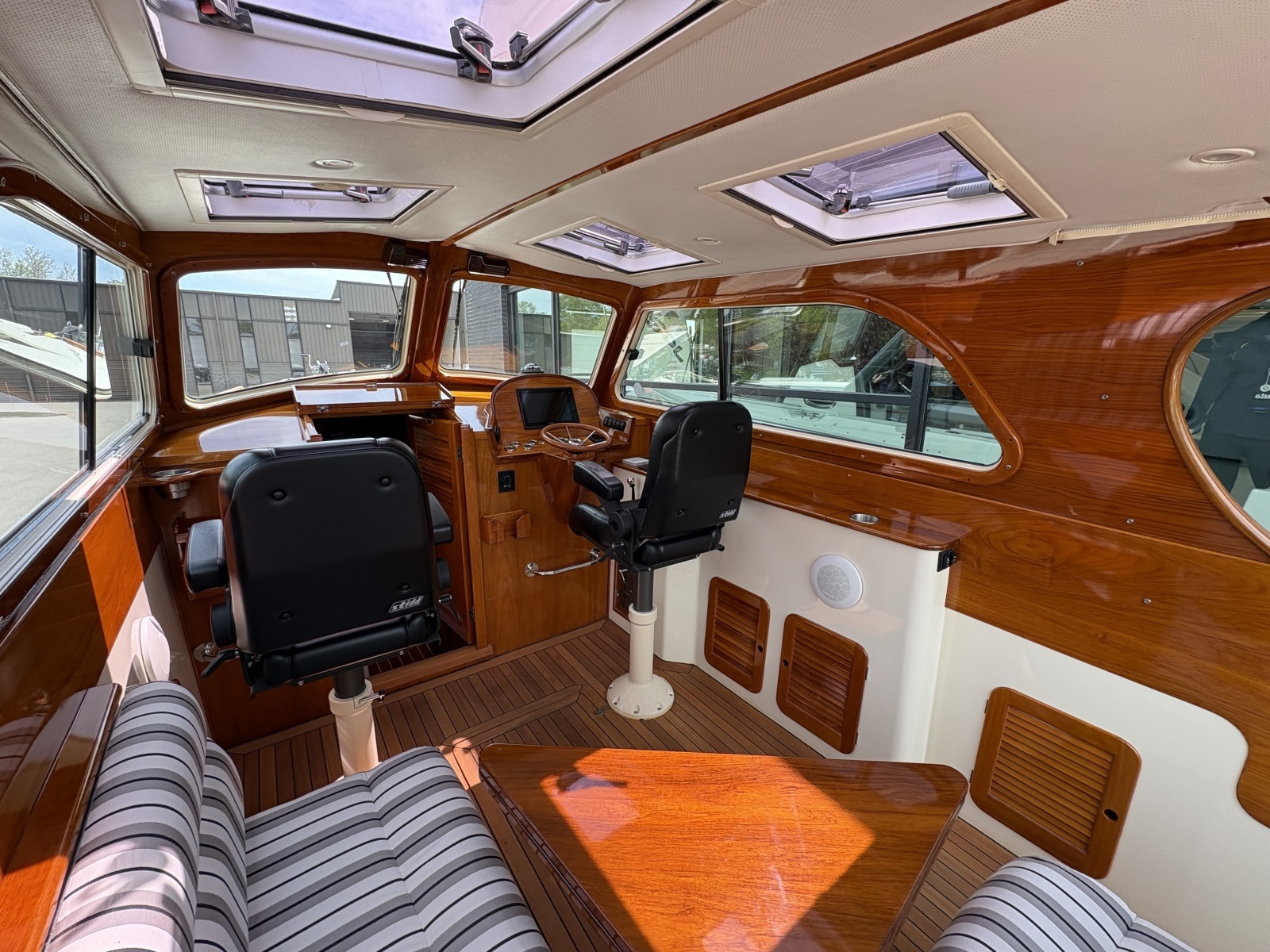

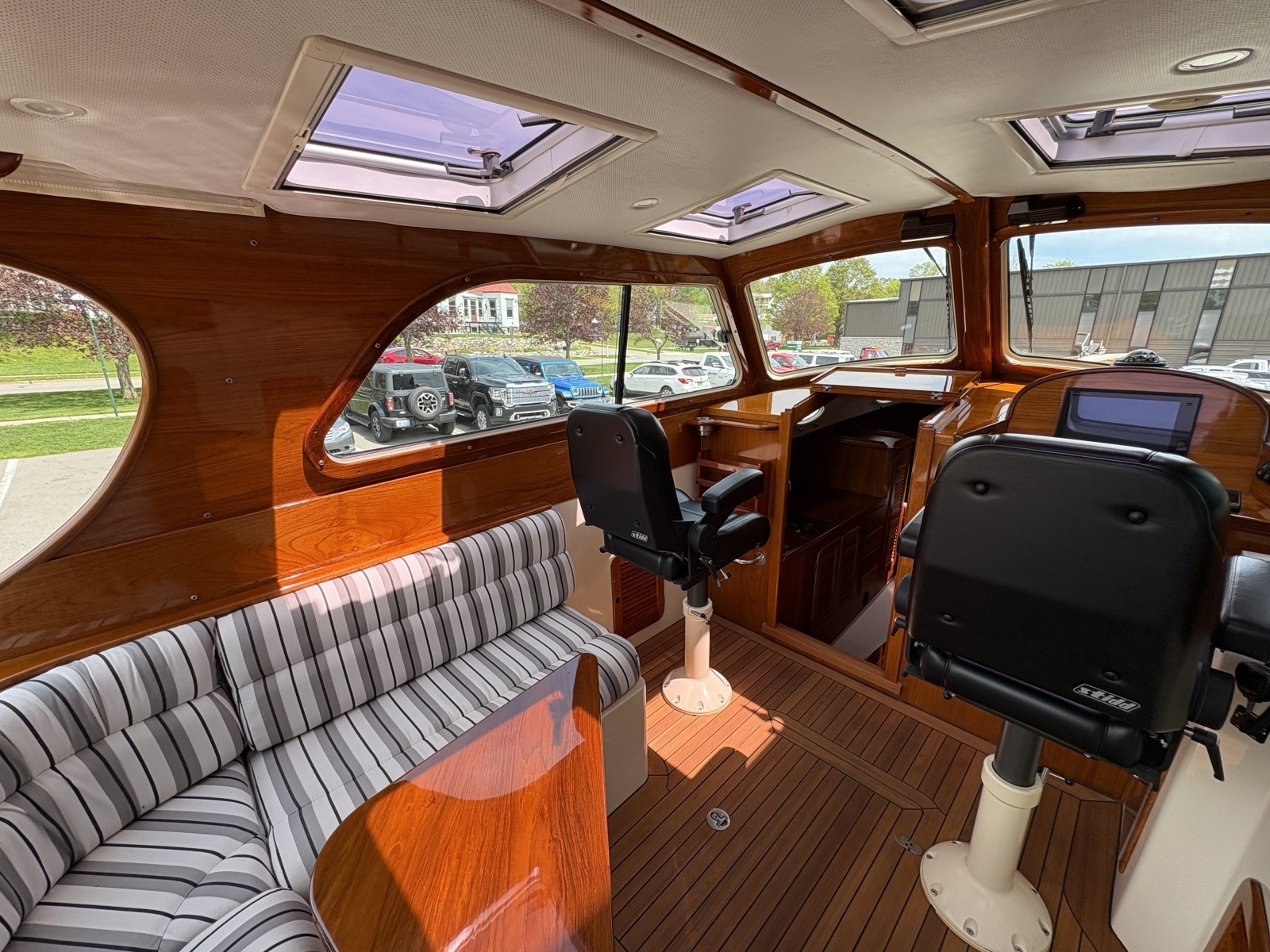

Pilothouse and Cockpit

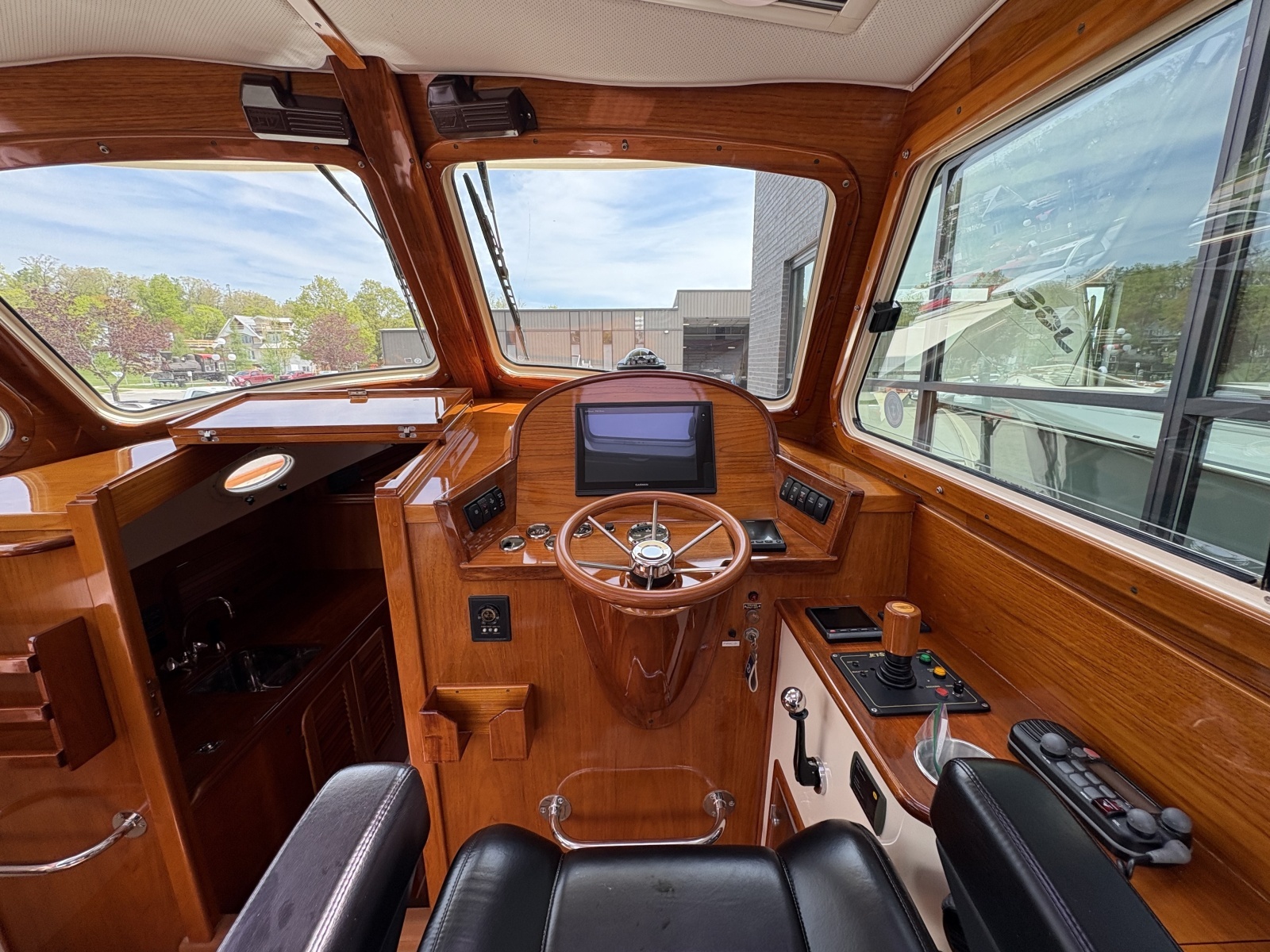

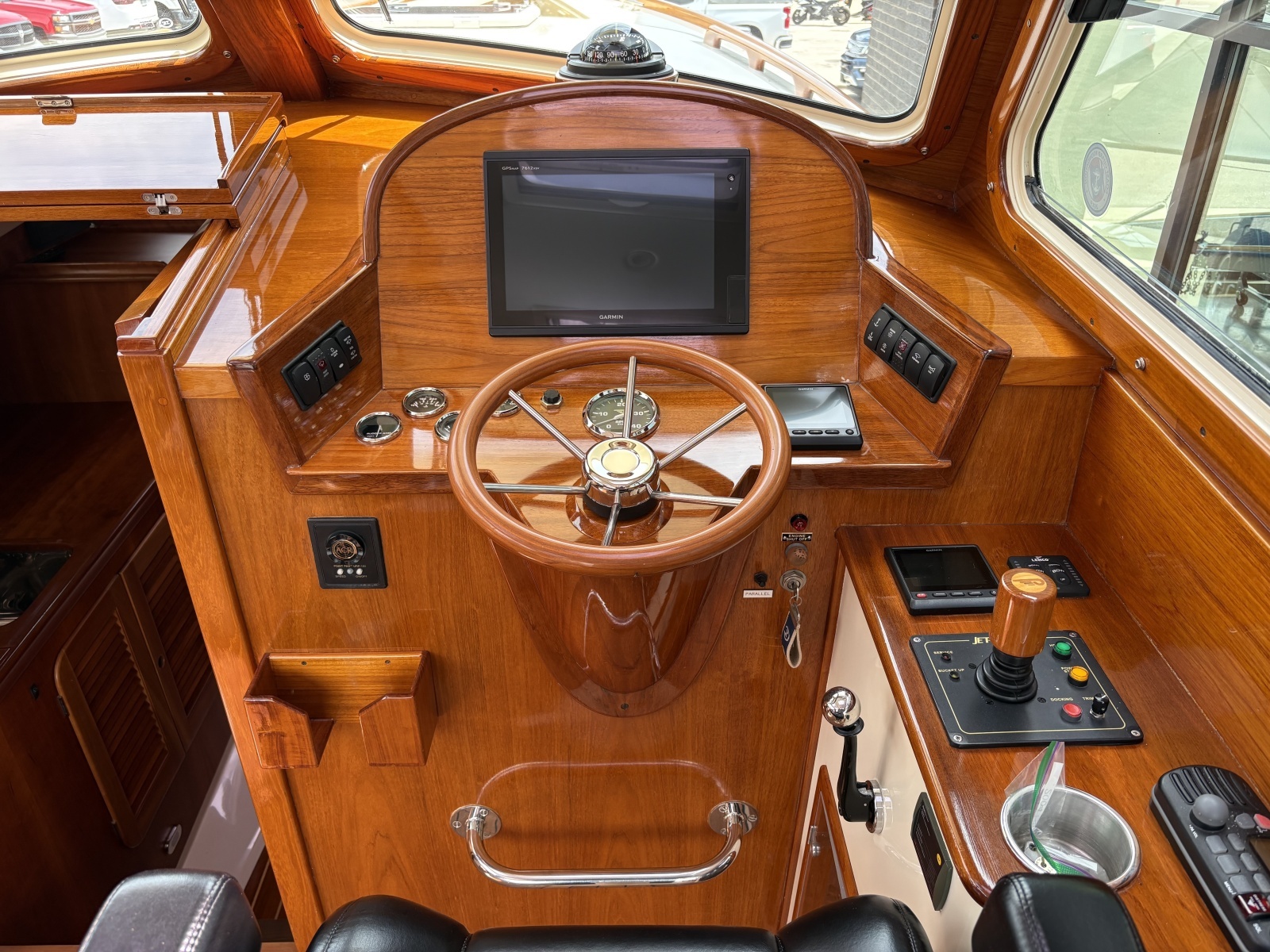

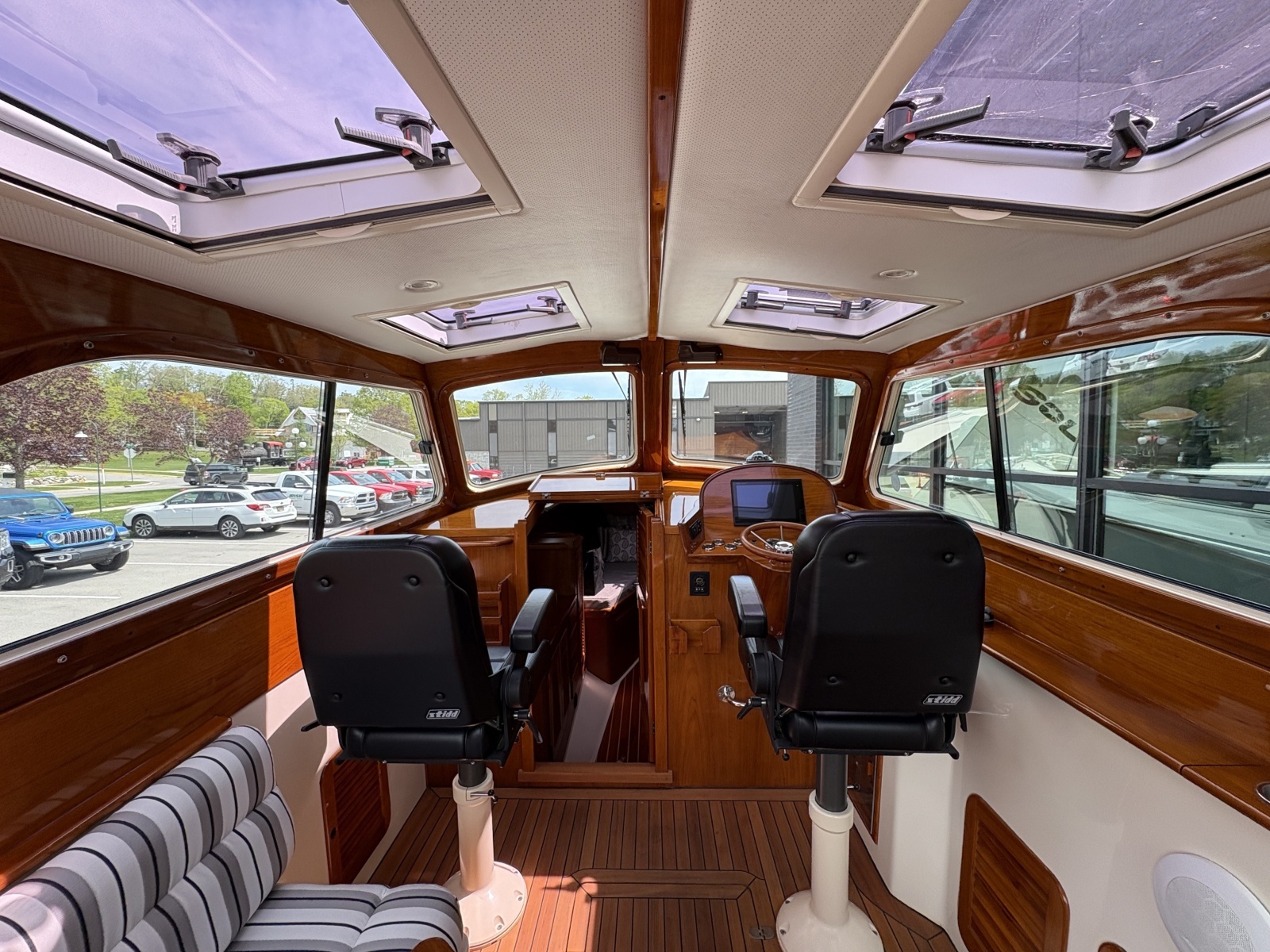

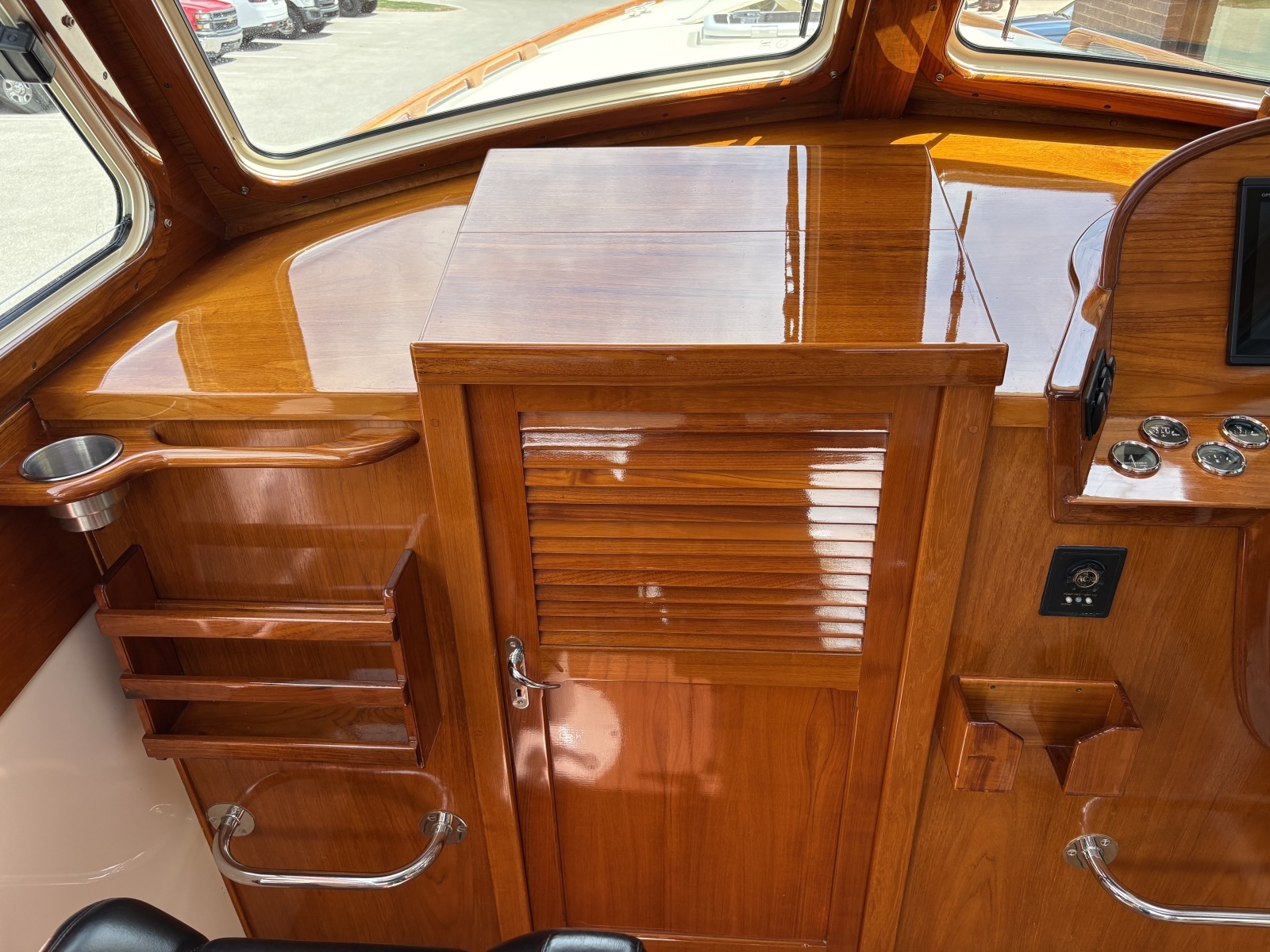

• Varnished teak pilothouse, instrument pod, dash and teak coamings and coaming caps with teak fiddle on port side dash

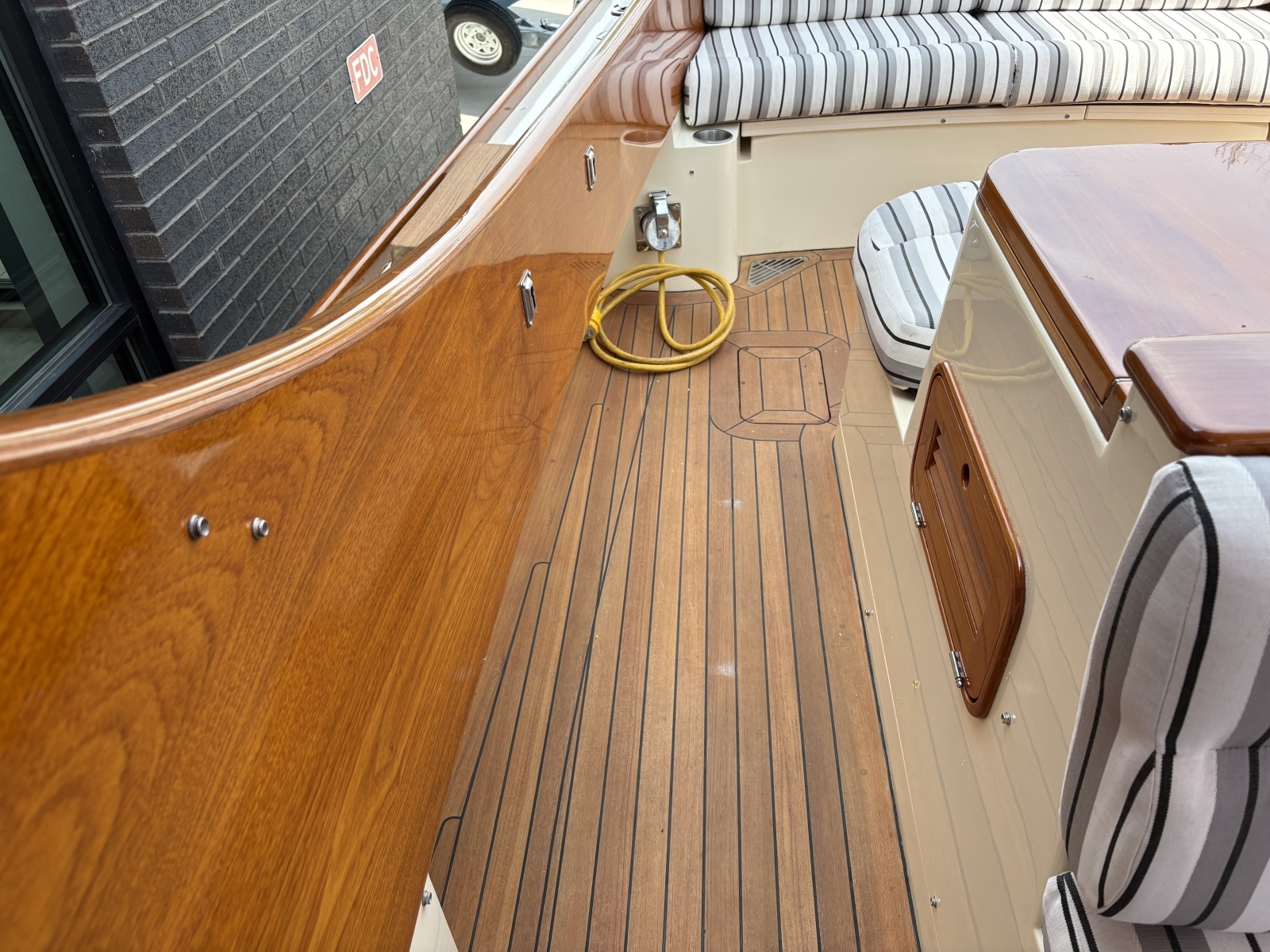

• Teak cockpit sole
• 14" stainless steel wheel with varnished teak rim

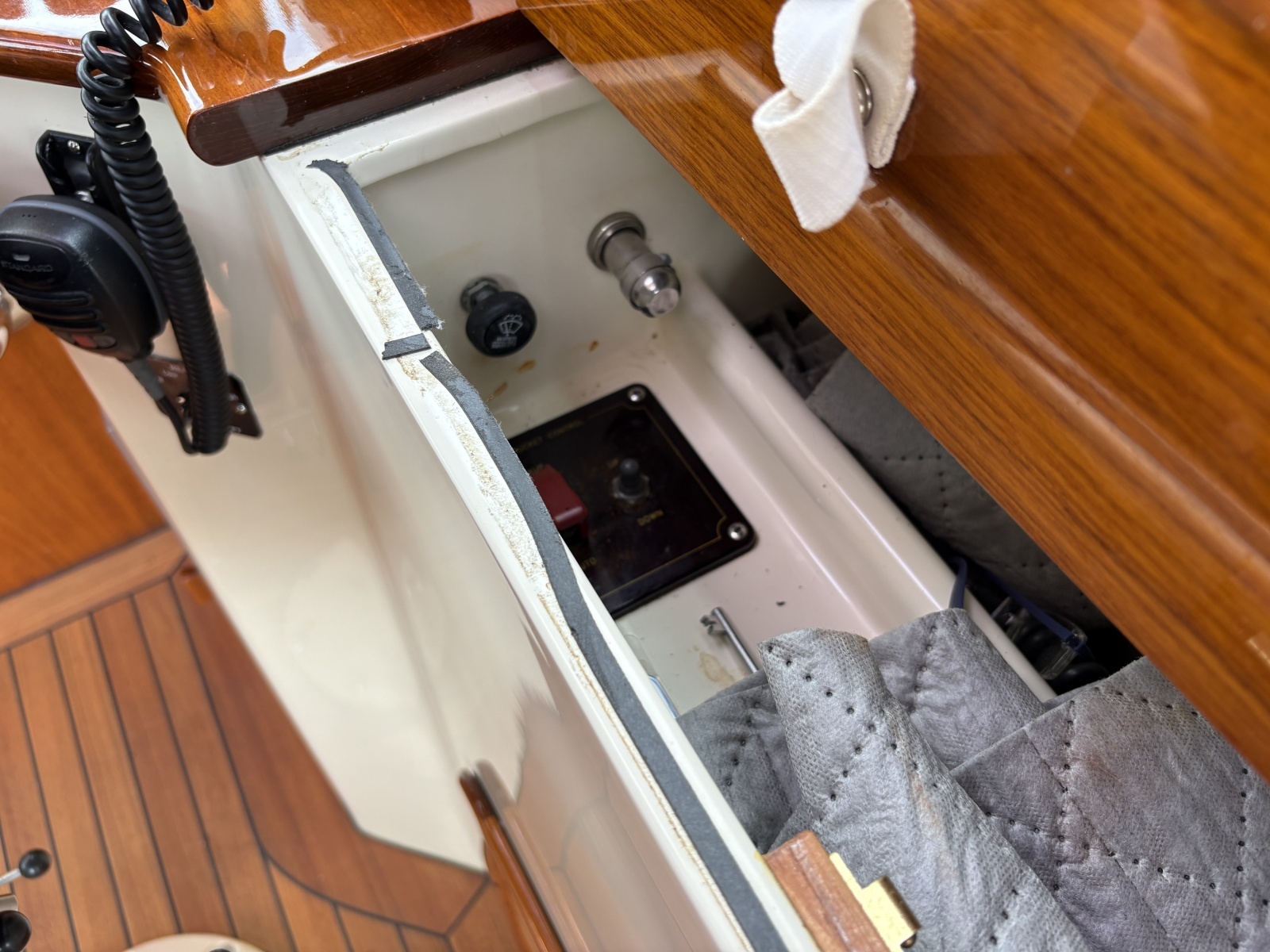

• Top-opening locker with chart bin

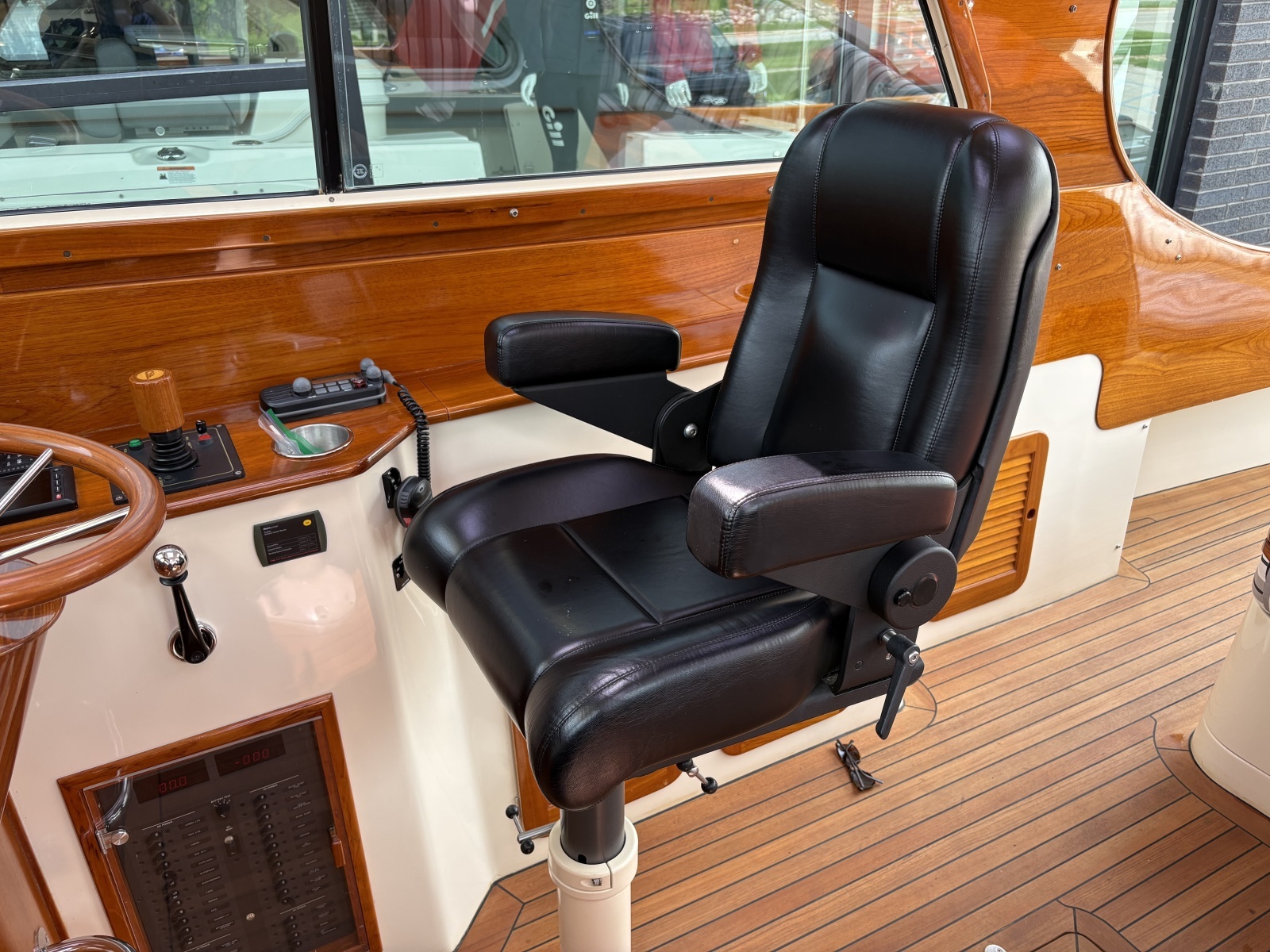

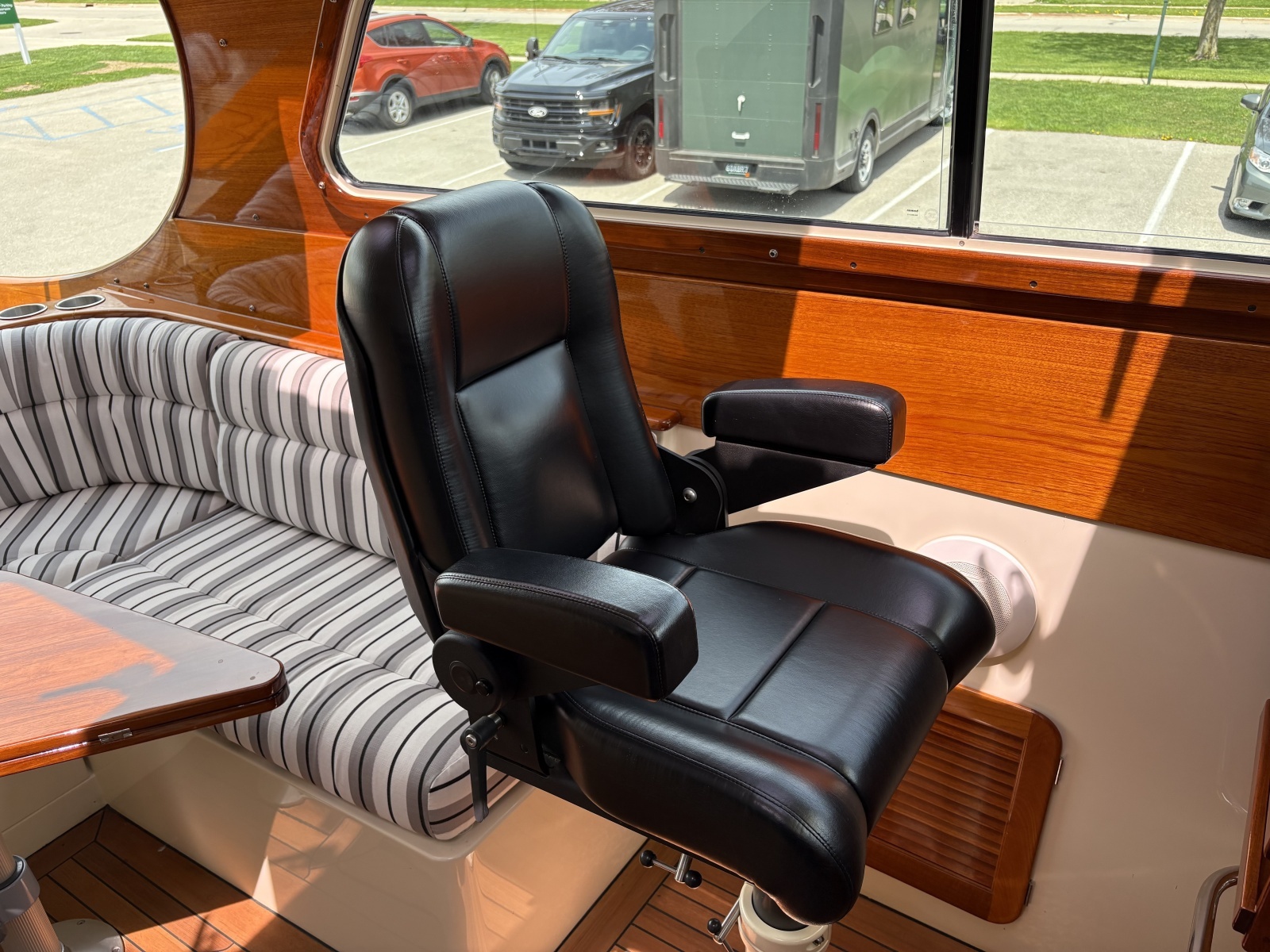

• Two Stidd Systems 500N Admiral Slimline manually adjustable helm seats. X2 footrests and powder coated pedestals, Black Ultraleather fabric
• Two varnished teak handrails under aft end pilothouse cabin top

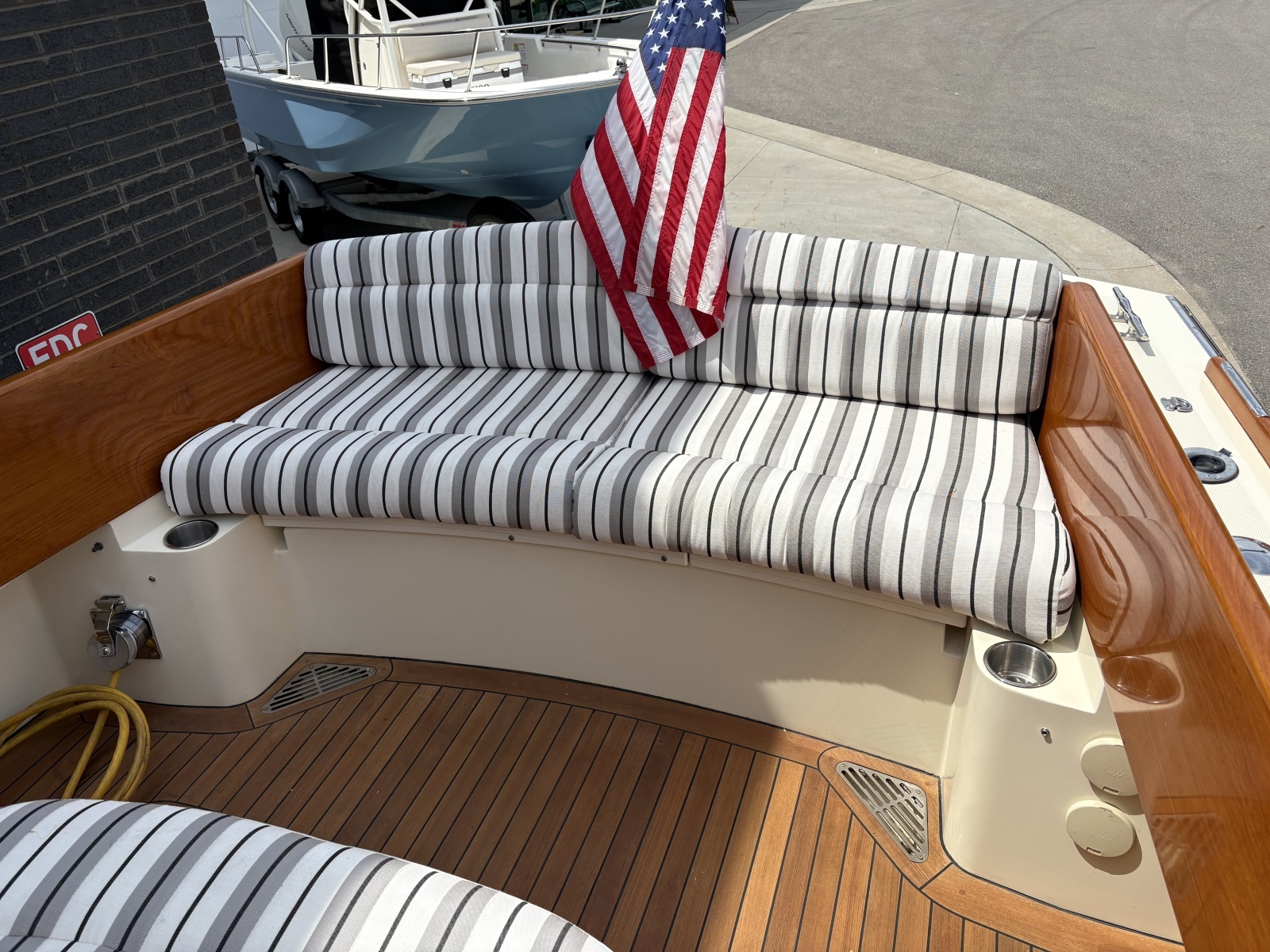

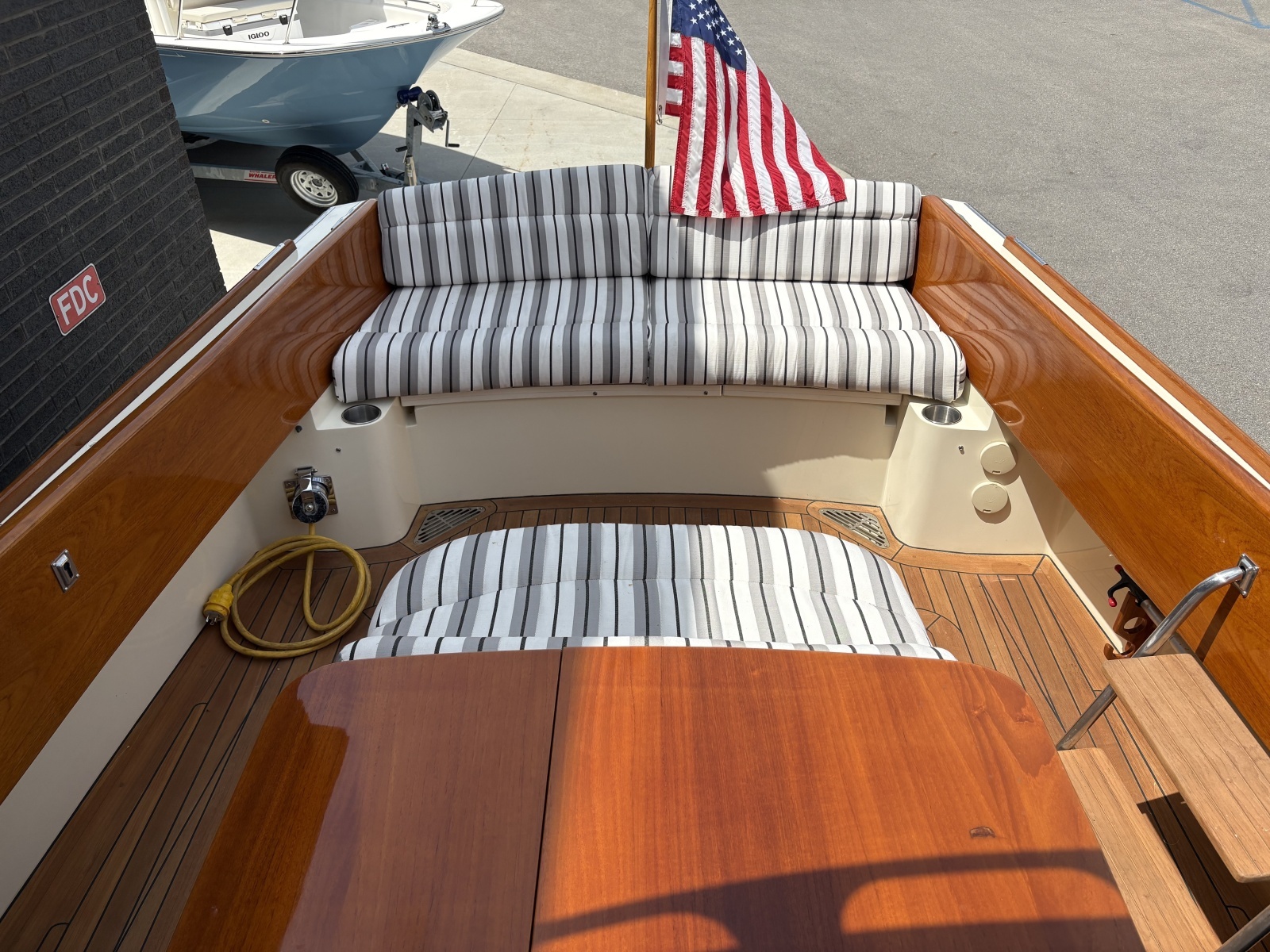

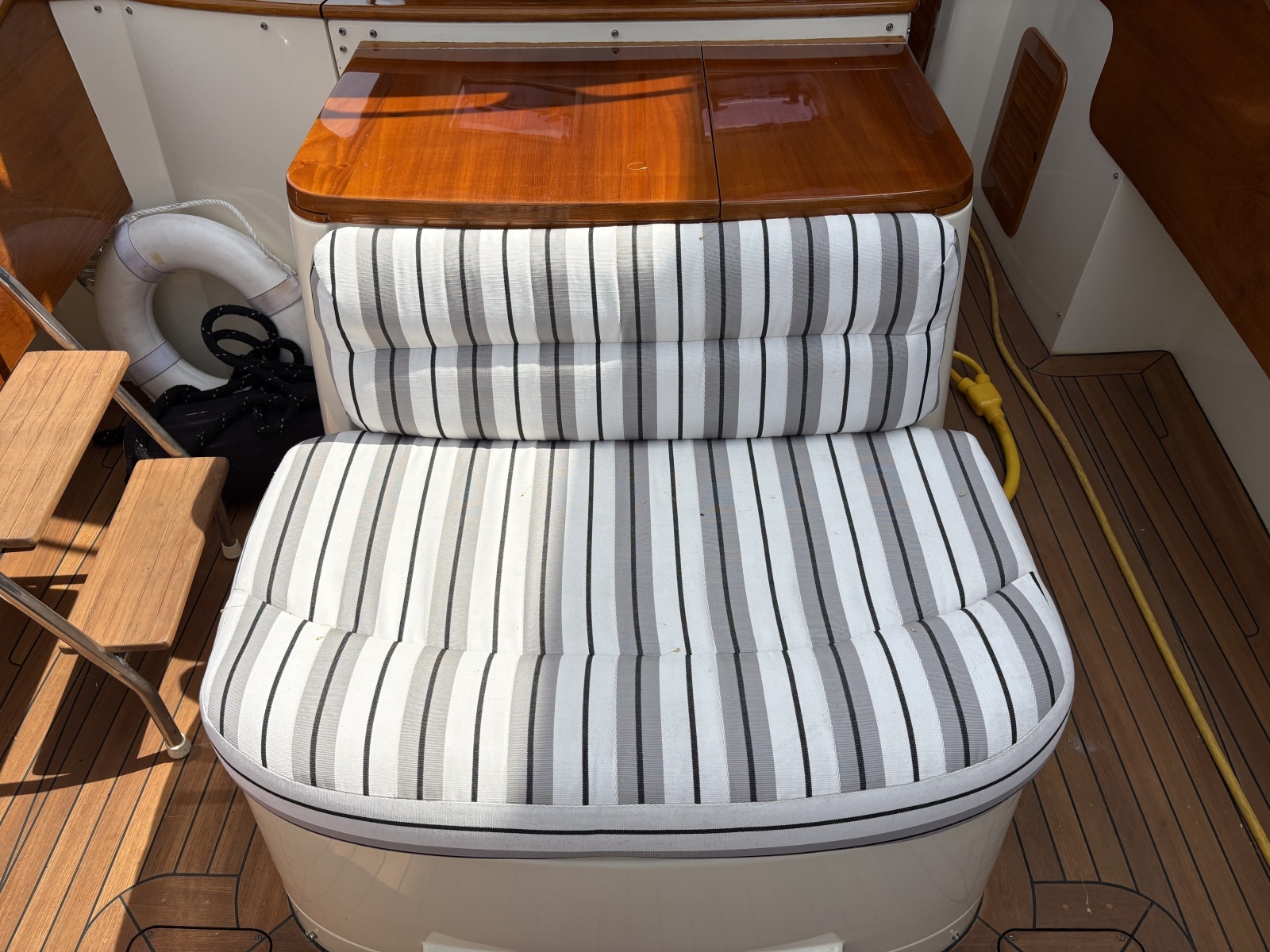

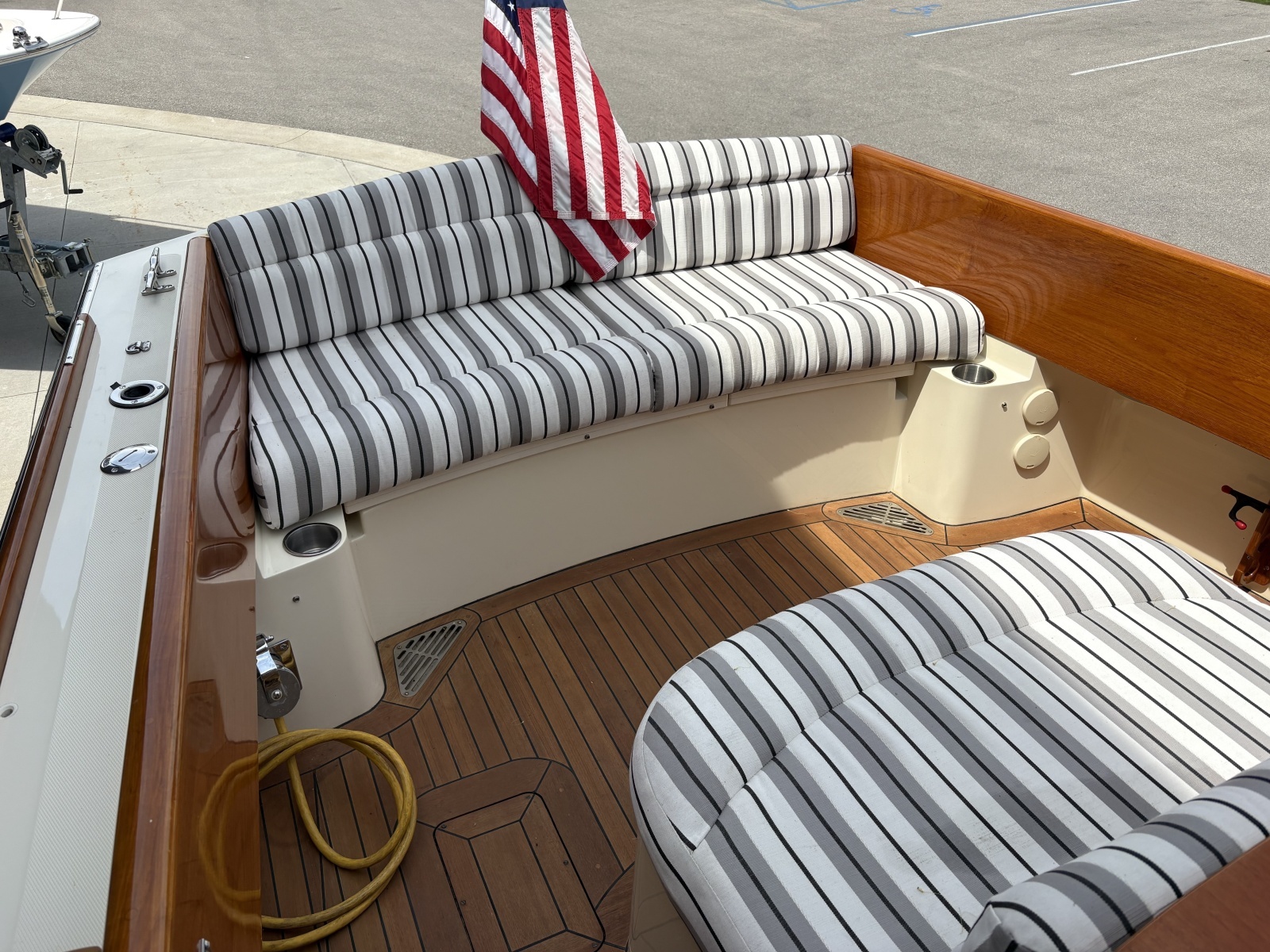

• Full width aft bench seat with upholstered seat and back cushions
• Teak companionway door with hatch and lock

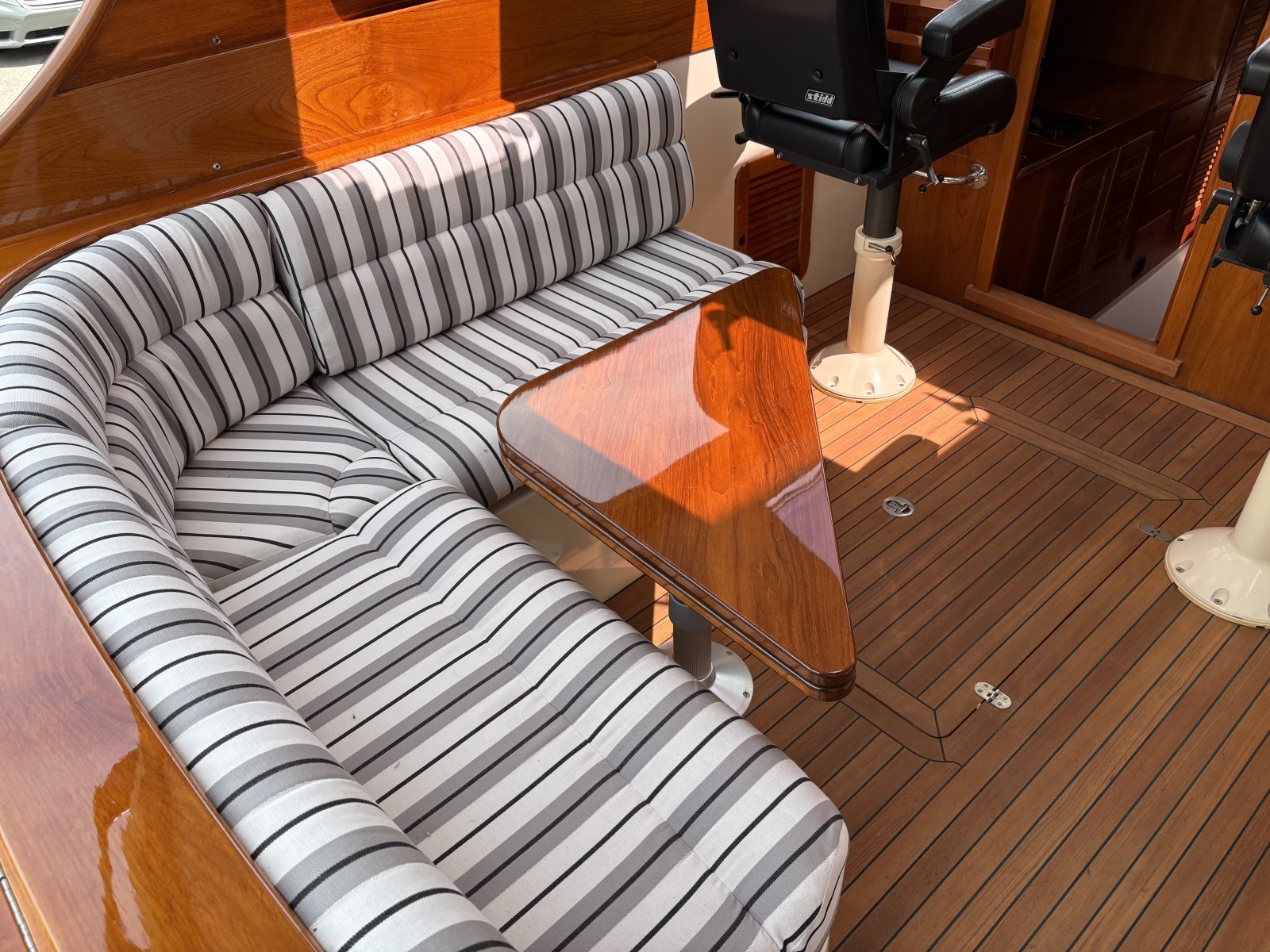

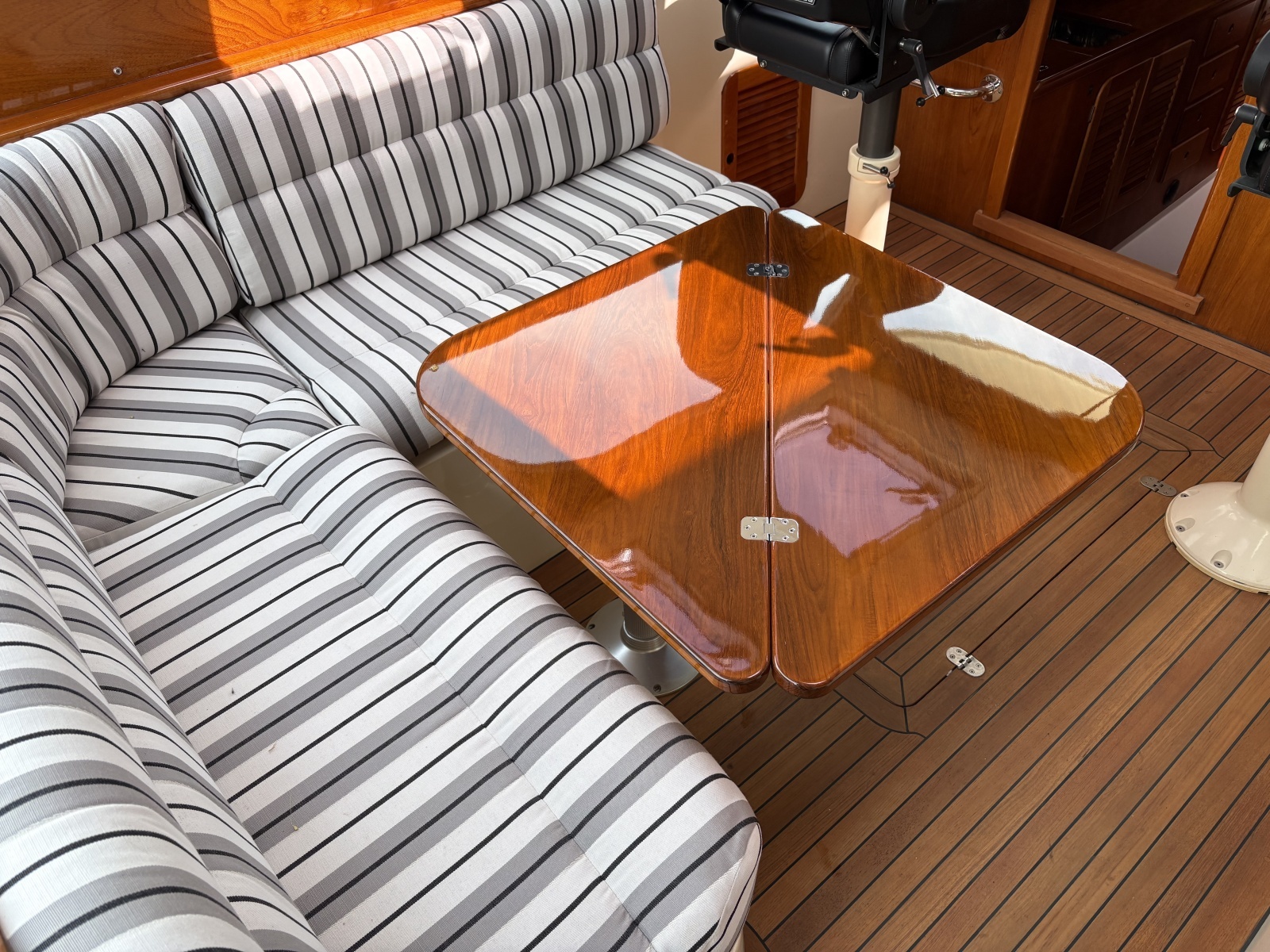

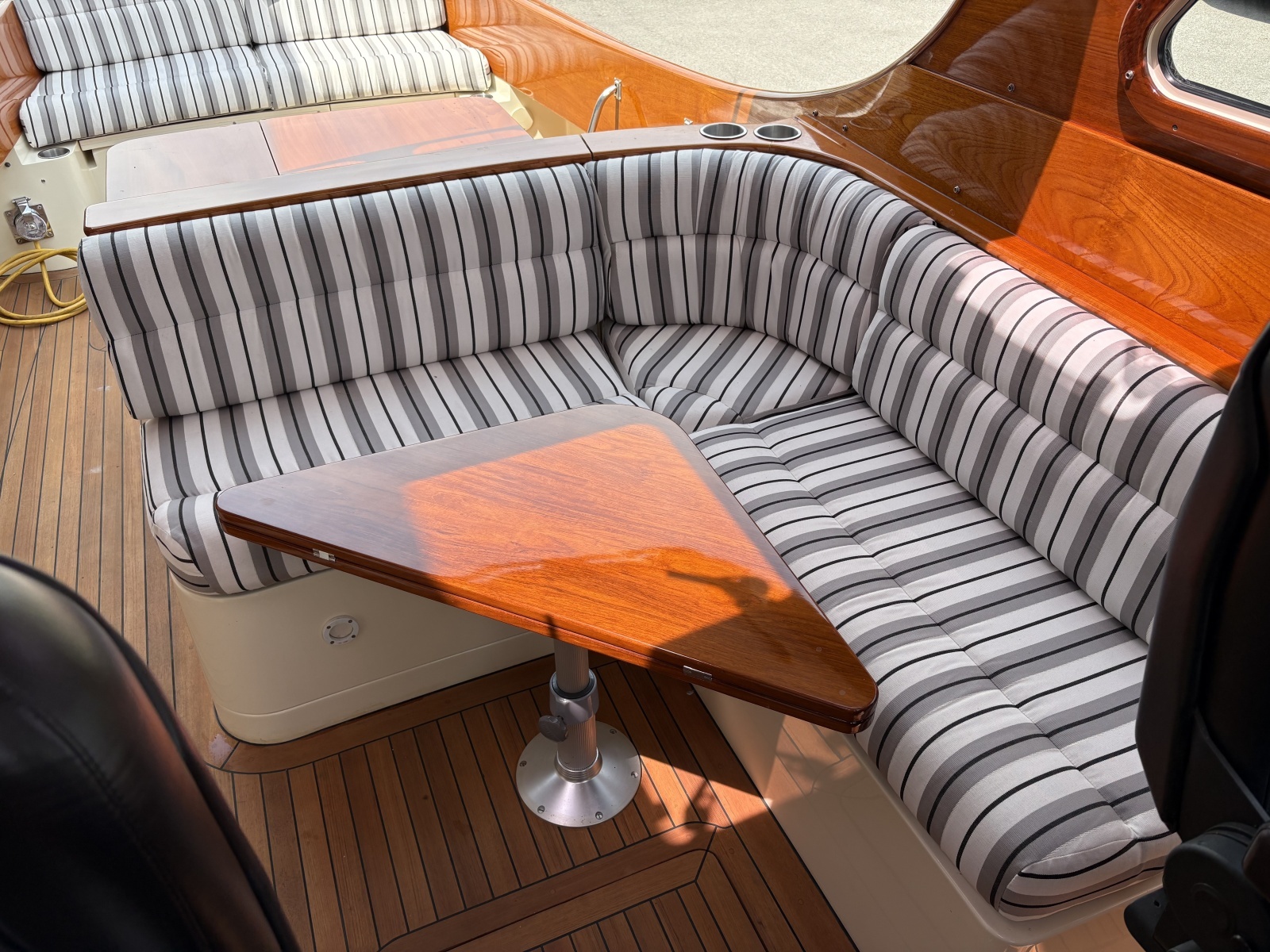

• L-shaped settee with upholstered seat and back cushions

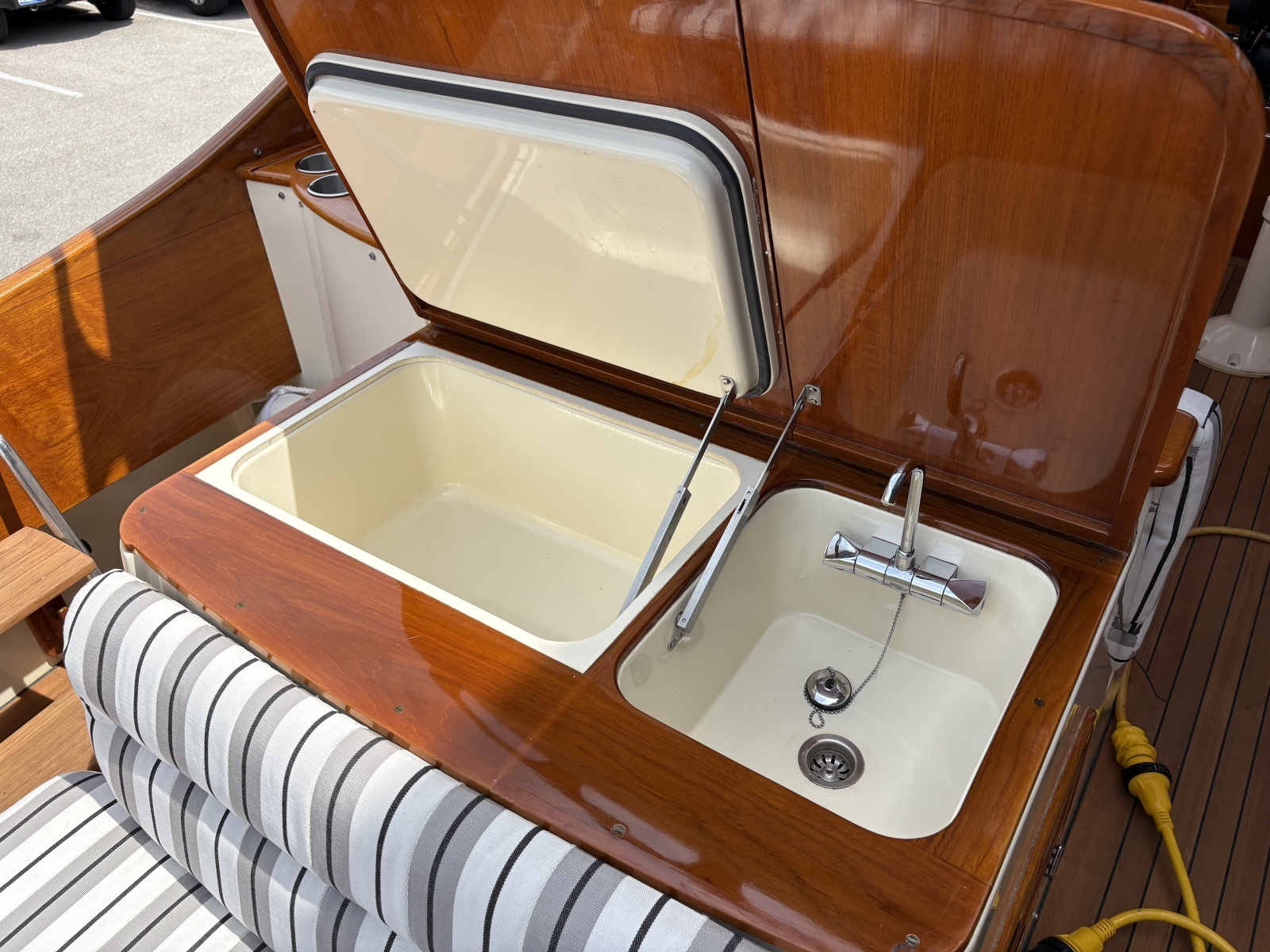

• Engine box with molded sink, hot and cold water and folding faucet
• Engine box cooler, insulated and self-draining icebox
• Three piece Stamoid/Eisenglass material that encloses the pilothouse area
• Gelcoat sole with molded non-skid pattern
• Hinckley designed 316L stainless steel cockpit ladder with teak treads. Mounting brackets installed on port and starboard cockpit coamings

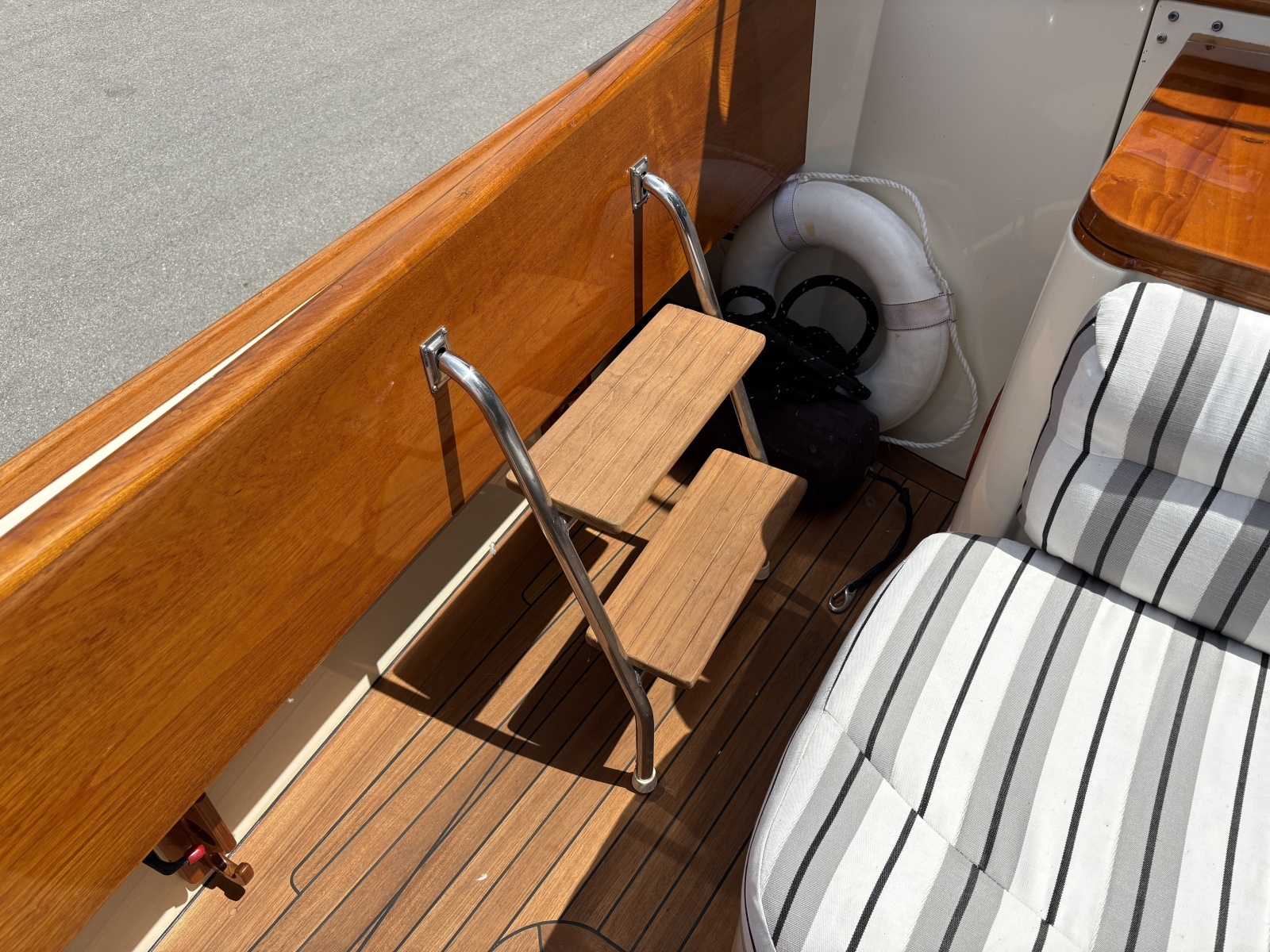

• Teak side deck step

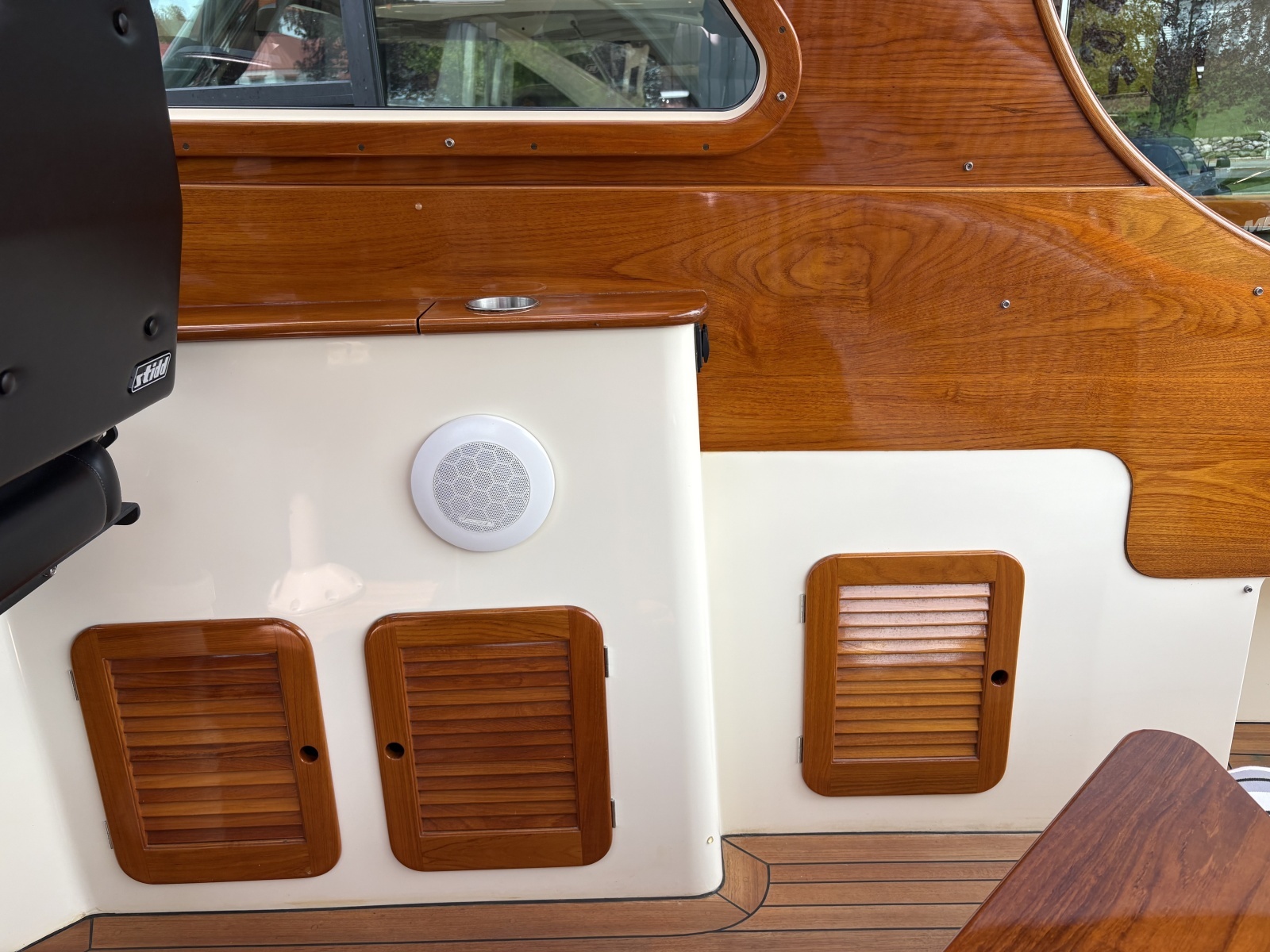

• Four cockpit lockers with varnished teak doors, with two storage bins under aft settee and a storage area under the pilothouse settee
• Two scuppers with direct overboard drainage and stainless steel grated covers

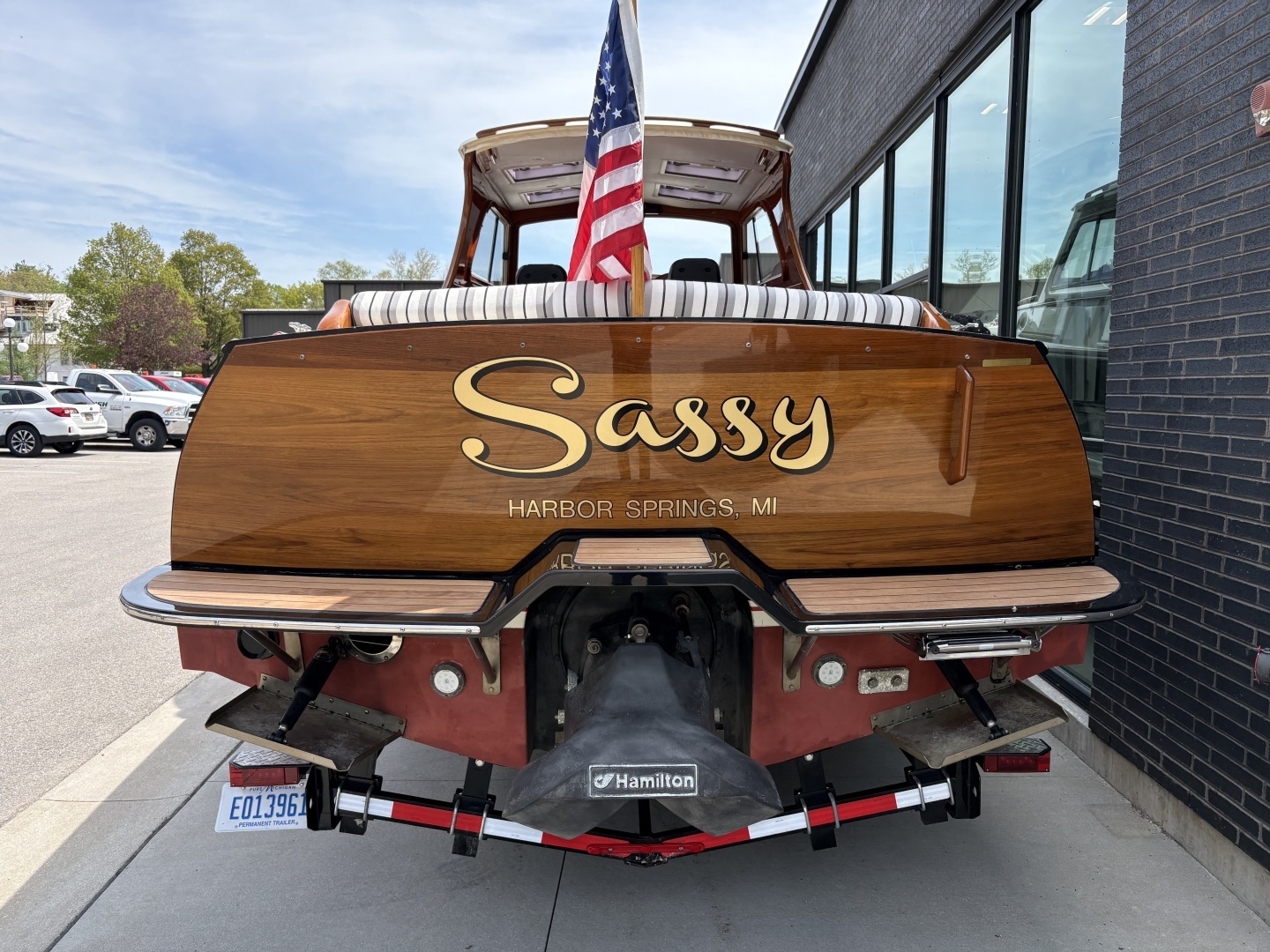

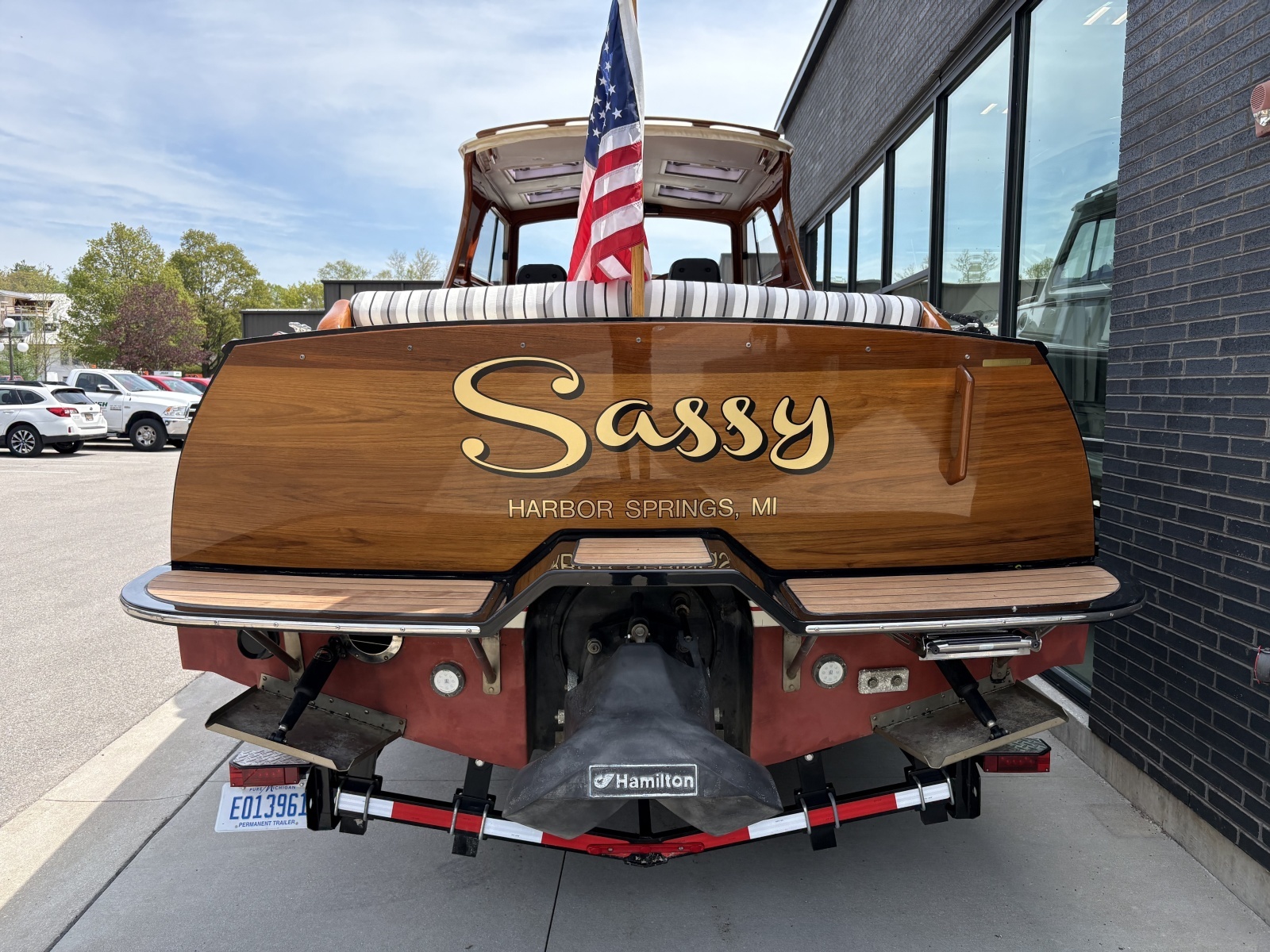

• Hinckley designed fiberglass swim platform with teak treads and stainless steel half round
• Telescoping three-step stainless steel ladder, stores under swim platform
• Shower with hot/cold mixing valve at stern seat
• Varnished teak pilothouse table with fixed height removable brushed aluminum pedestal with flush mount base
• Interior Stamoid window sun covers for pilothouse windows
• Stamoid cockpit cover attaches to pilothouse top and covers to transom fastened with snaps

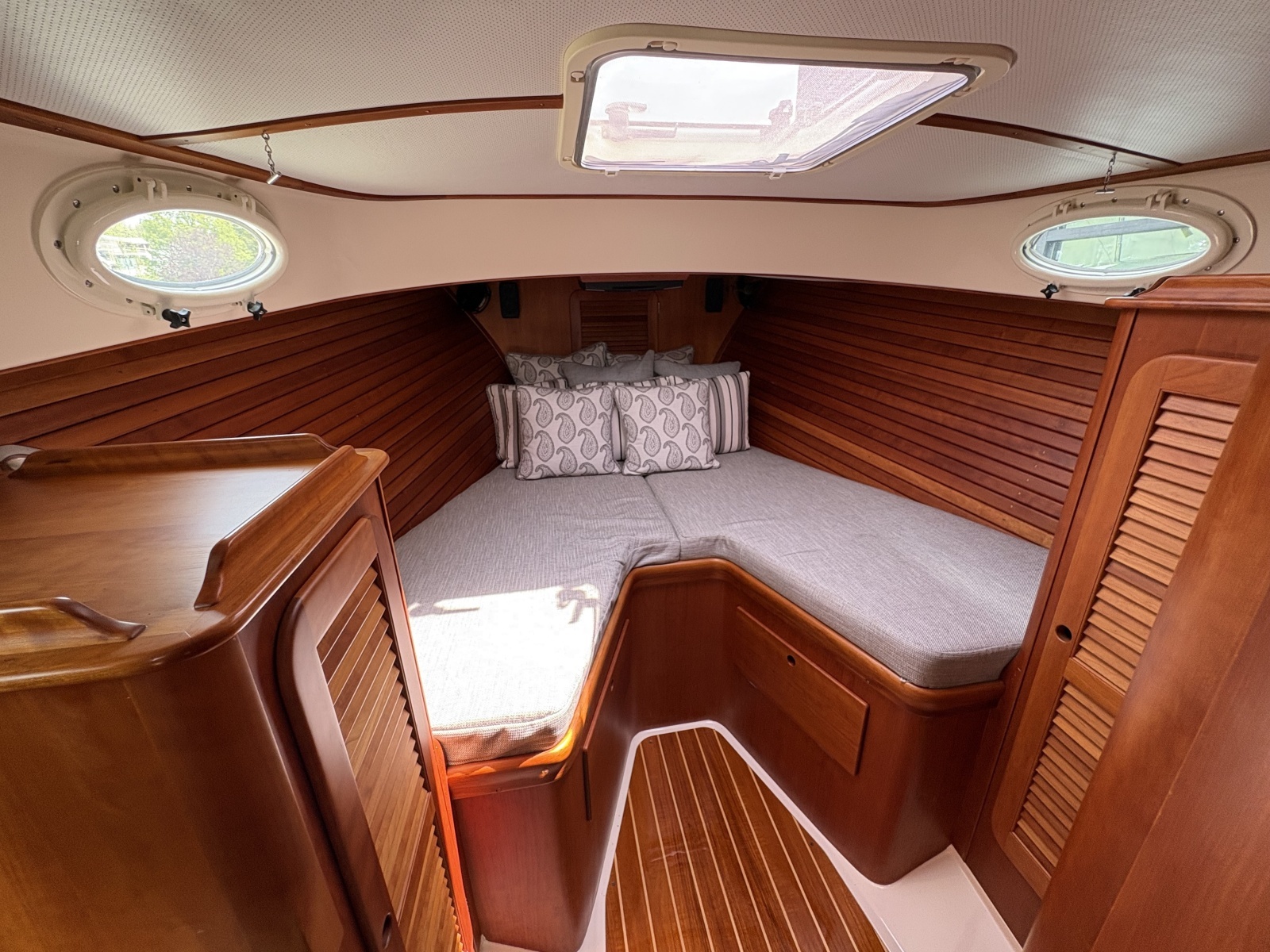

Interior

• Satin varnished cherry interior finish
• Satin varnished cherry hull sheathing
• Varnished teak and tulipwood cabin sole

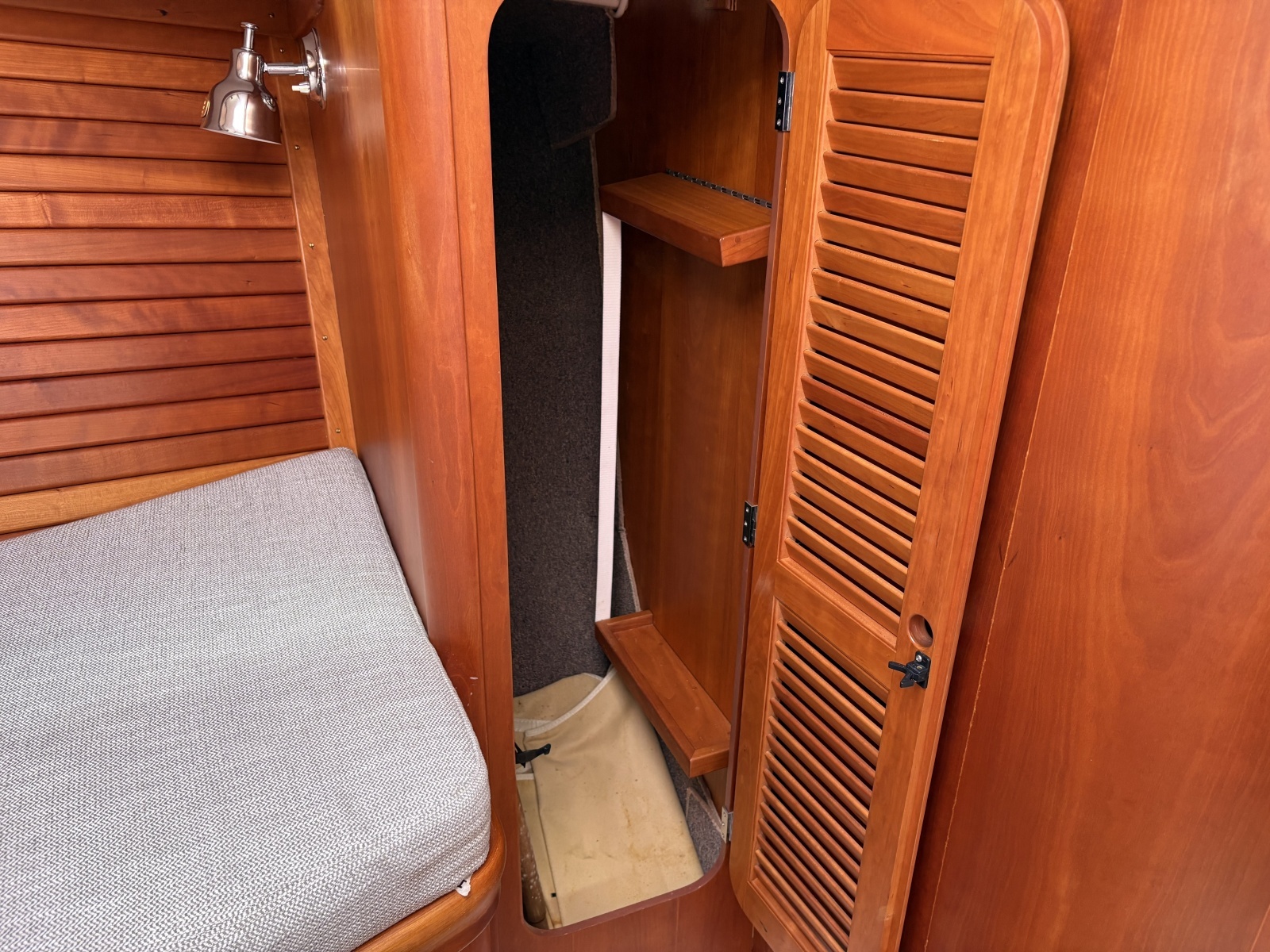

• Cedar lined hanging locker to starboard; dry food/dish storage to port; compartments under V-berth and in forepeak

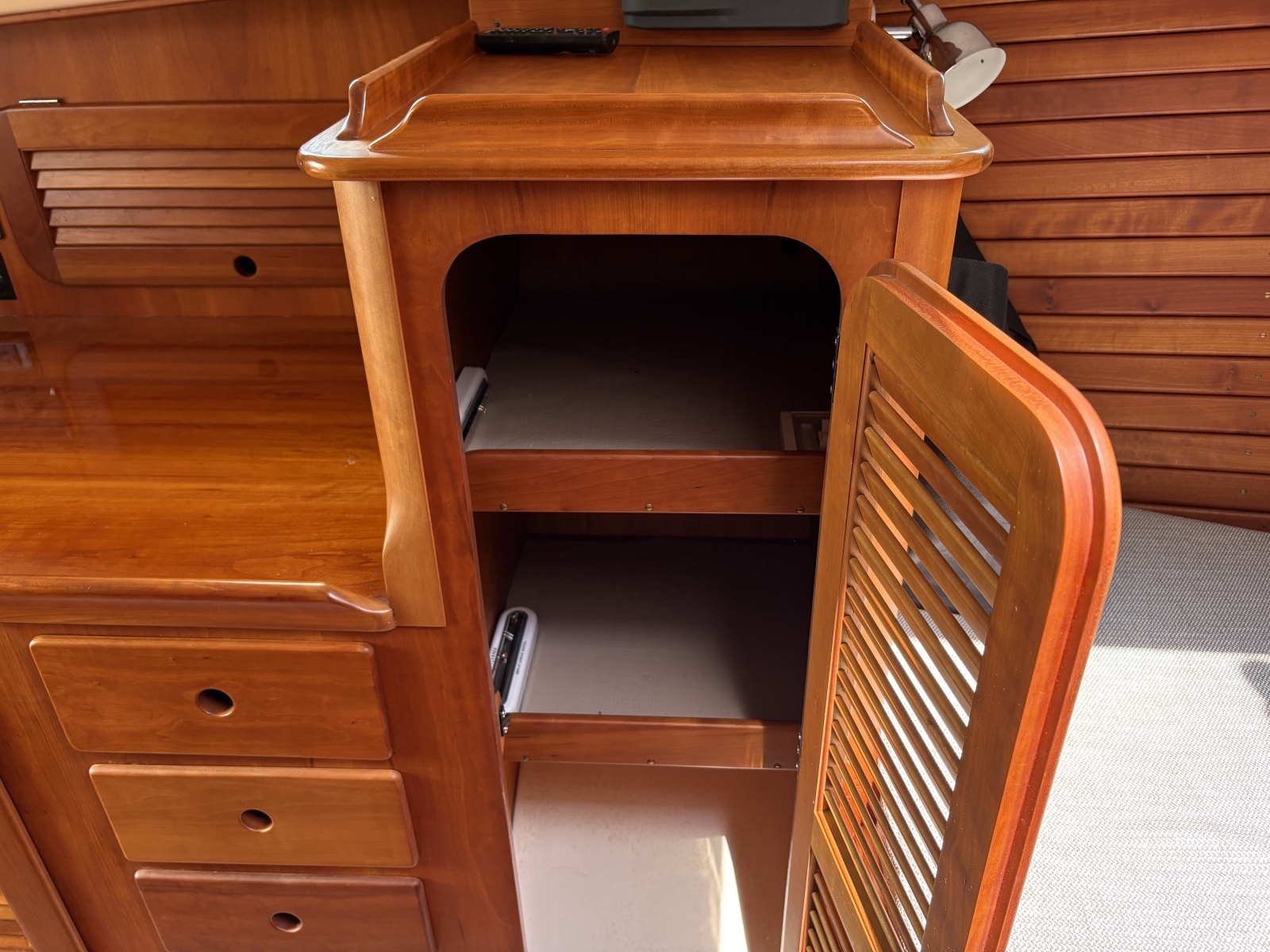

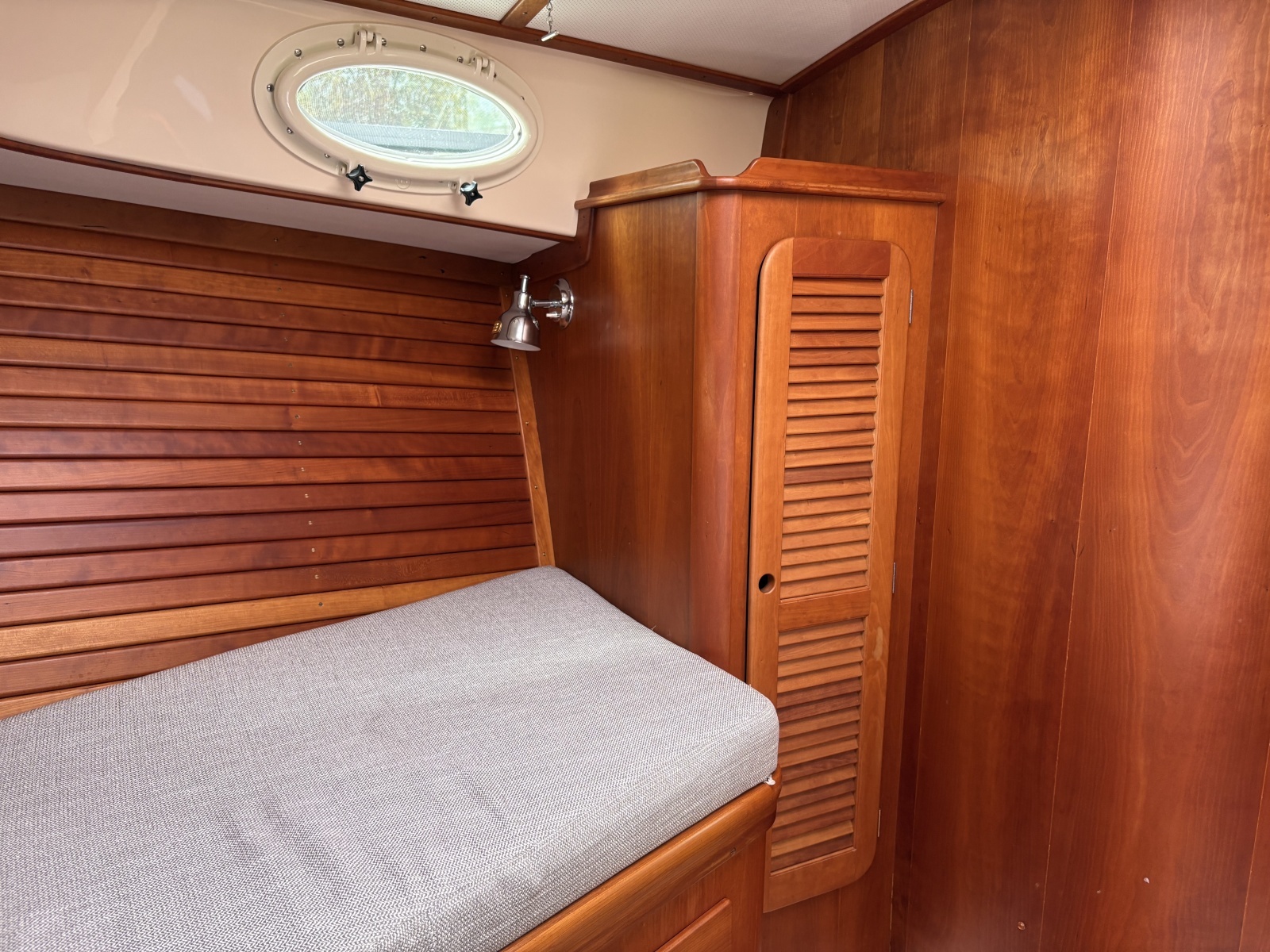

• All locker doors are cherry and have louvers

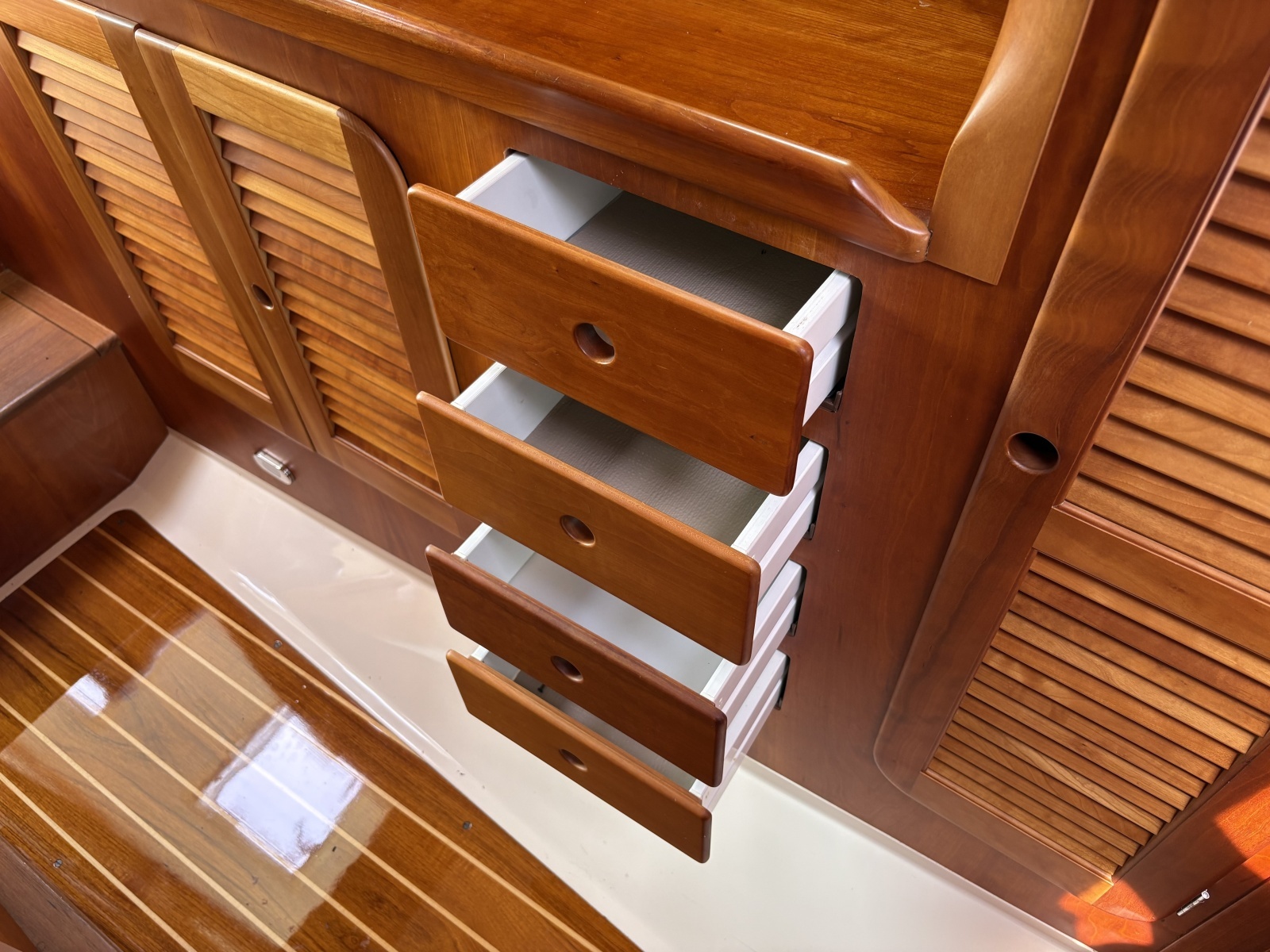

• Lightweight box drawers with solid cherry faces

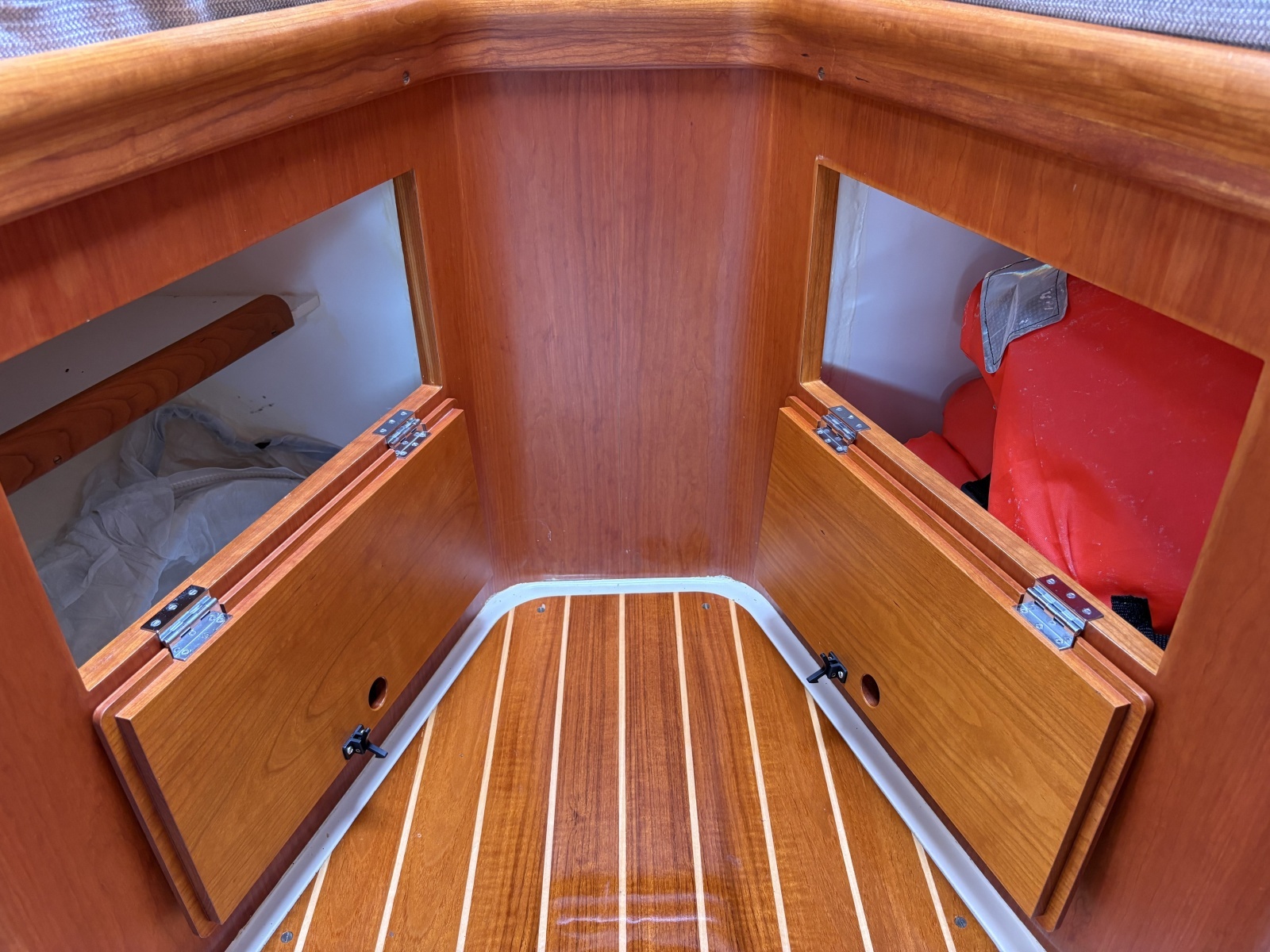

• Two drop front doors port and starboard with shelves in the V-berth storage area

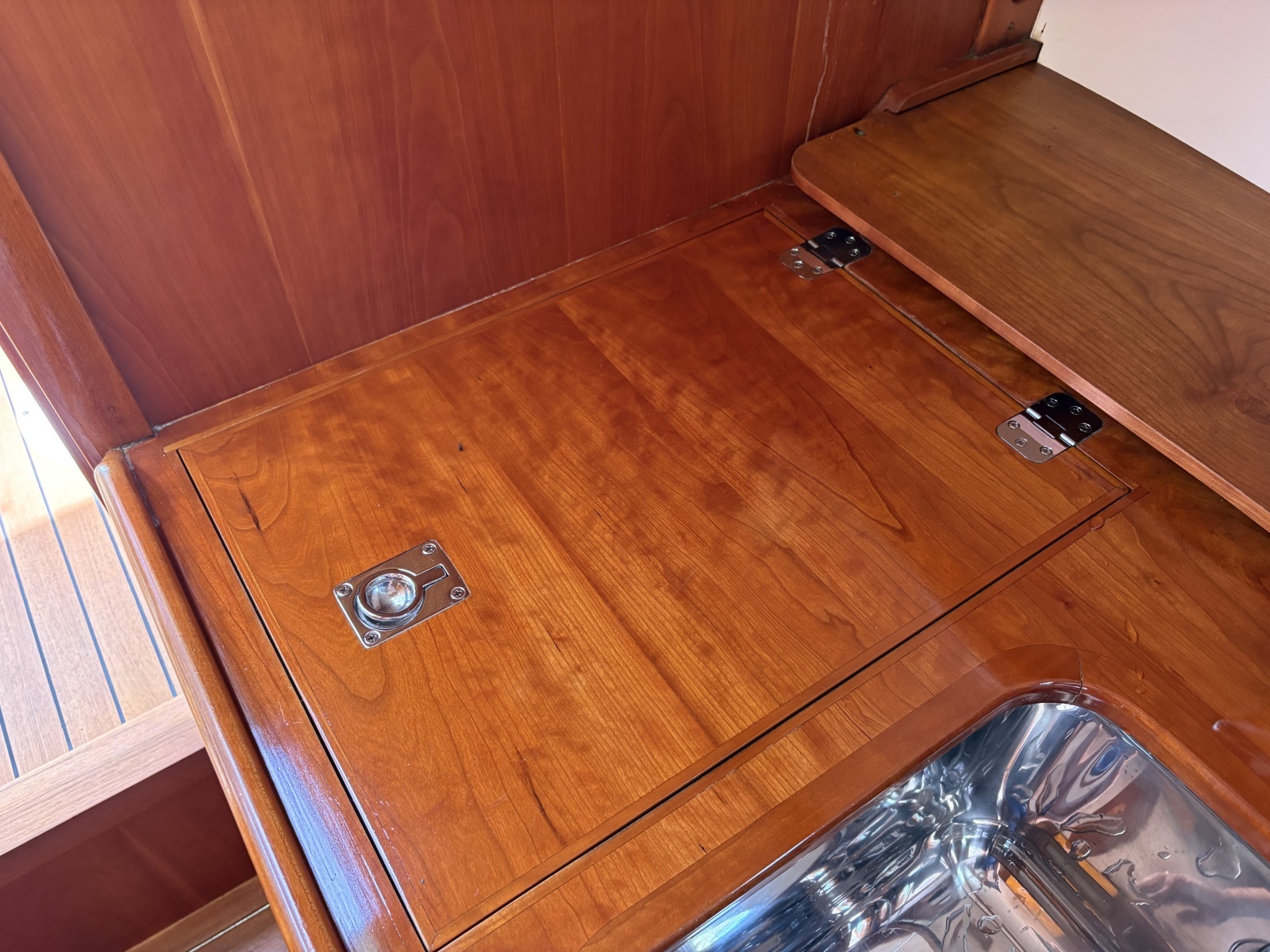

• Galley counters in Gloss Cherry
• Head counter in Gloss varnished Cherry

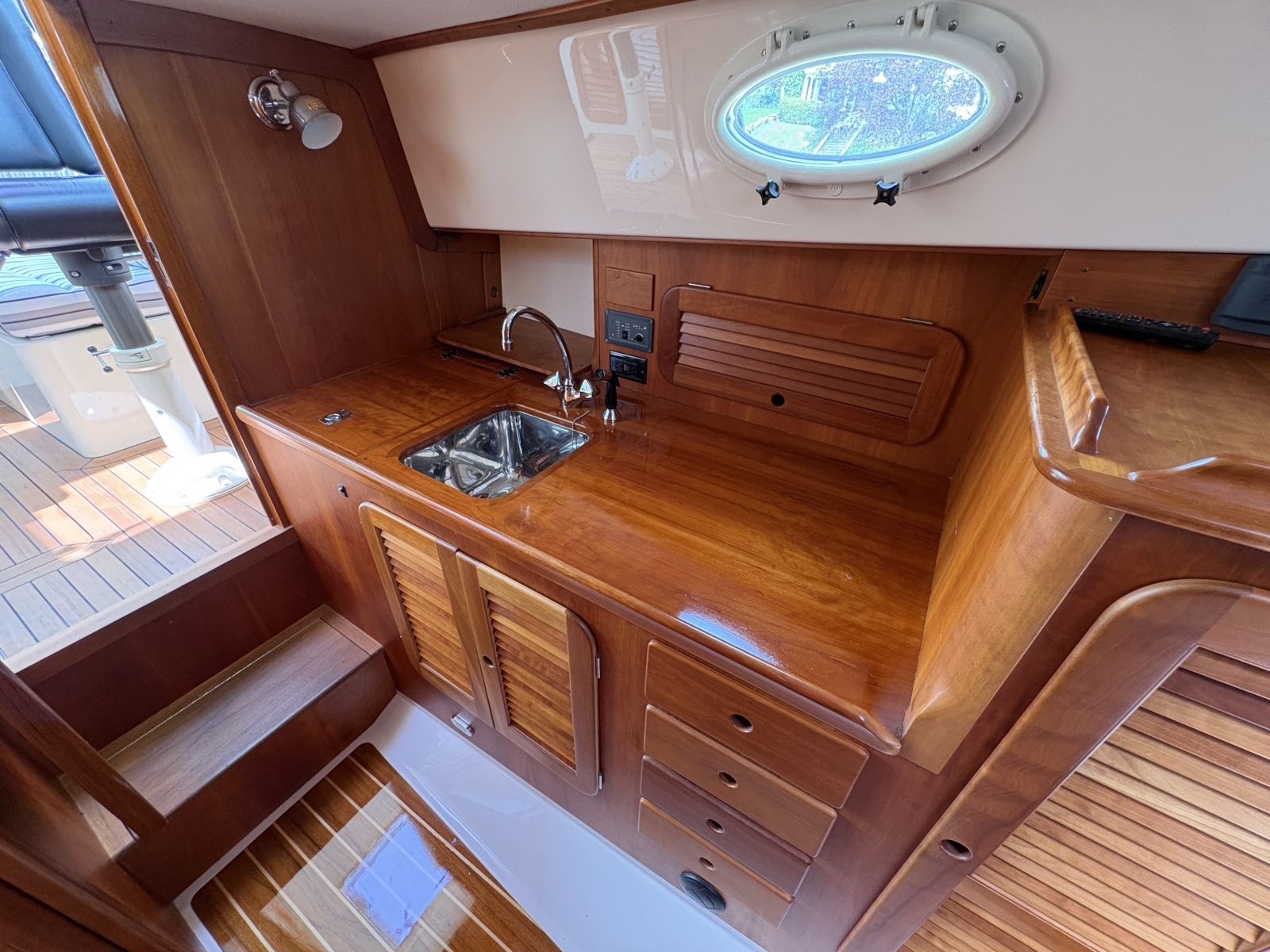

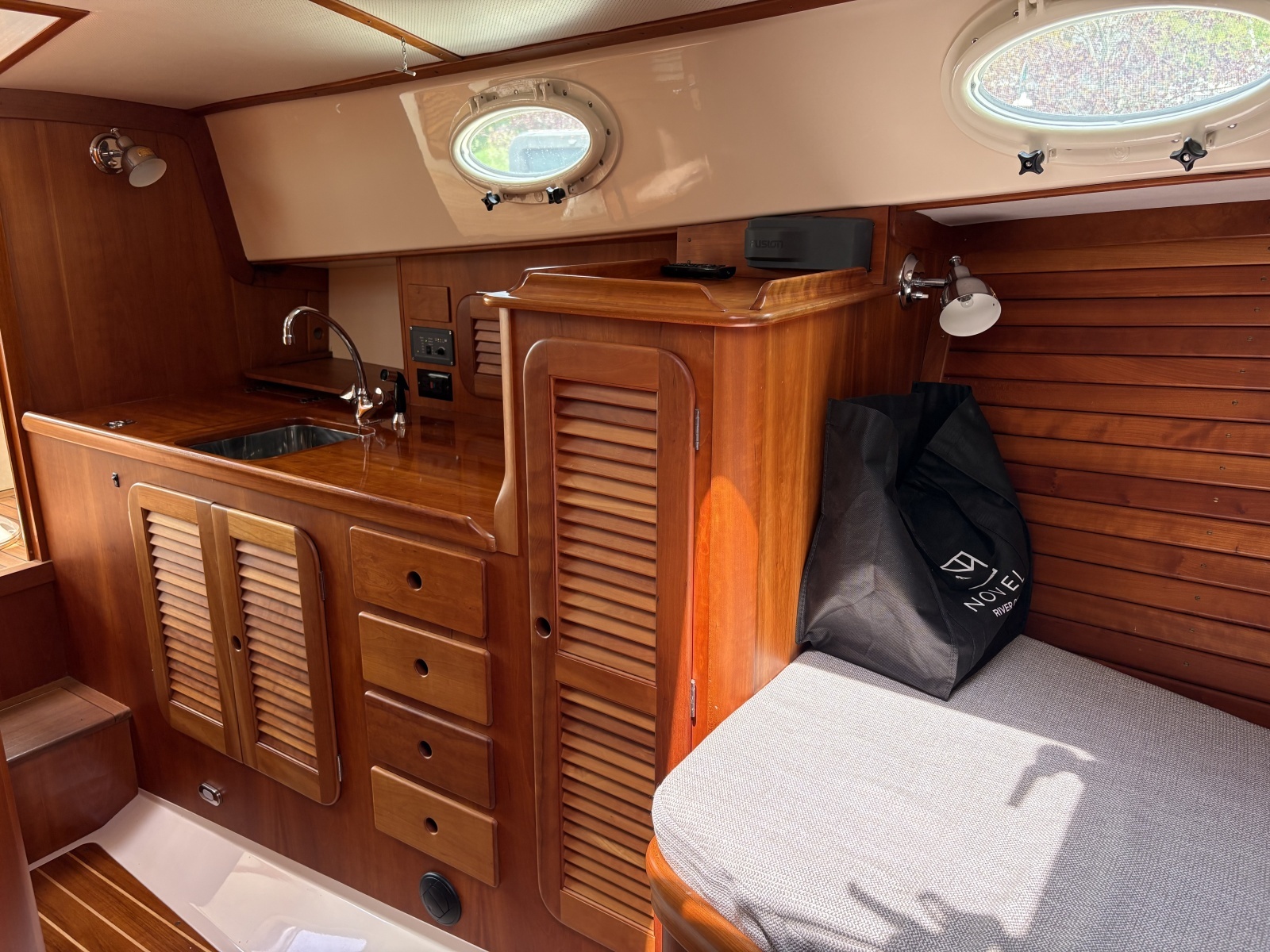

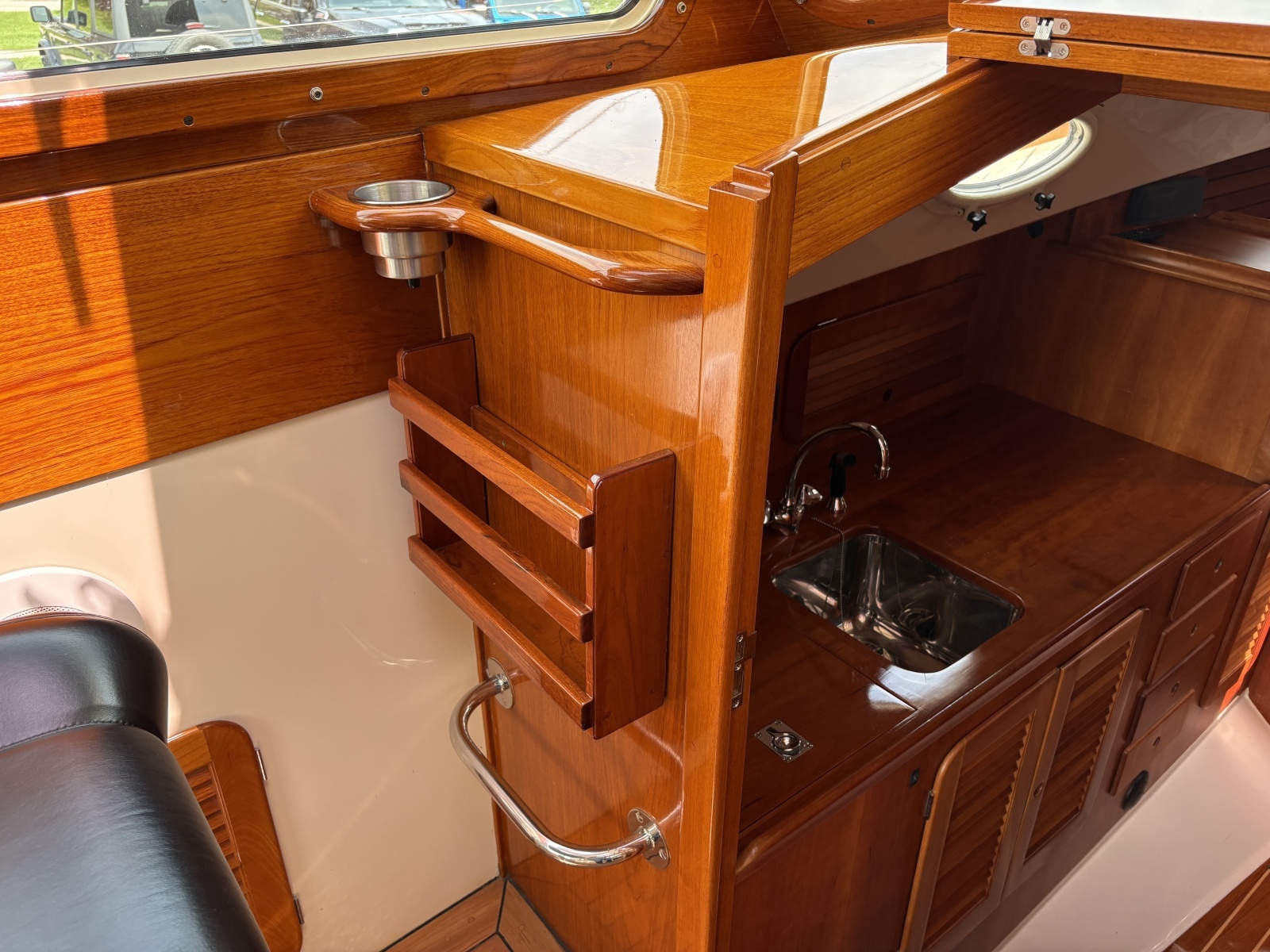

• Galley; Single stainless steel bowl sink with spray nozzle

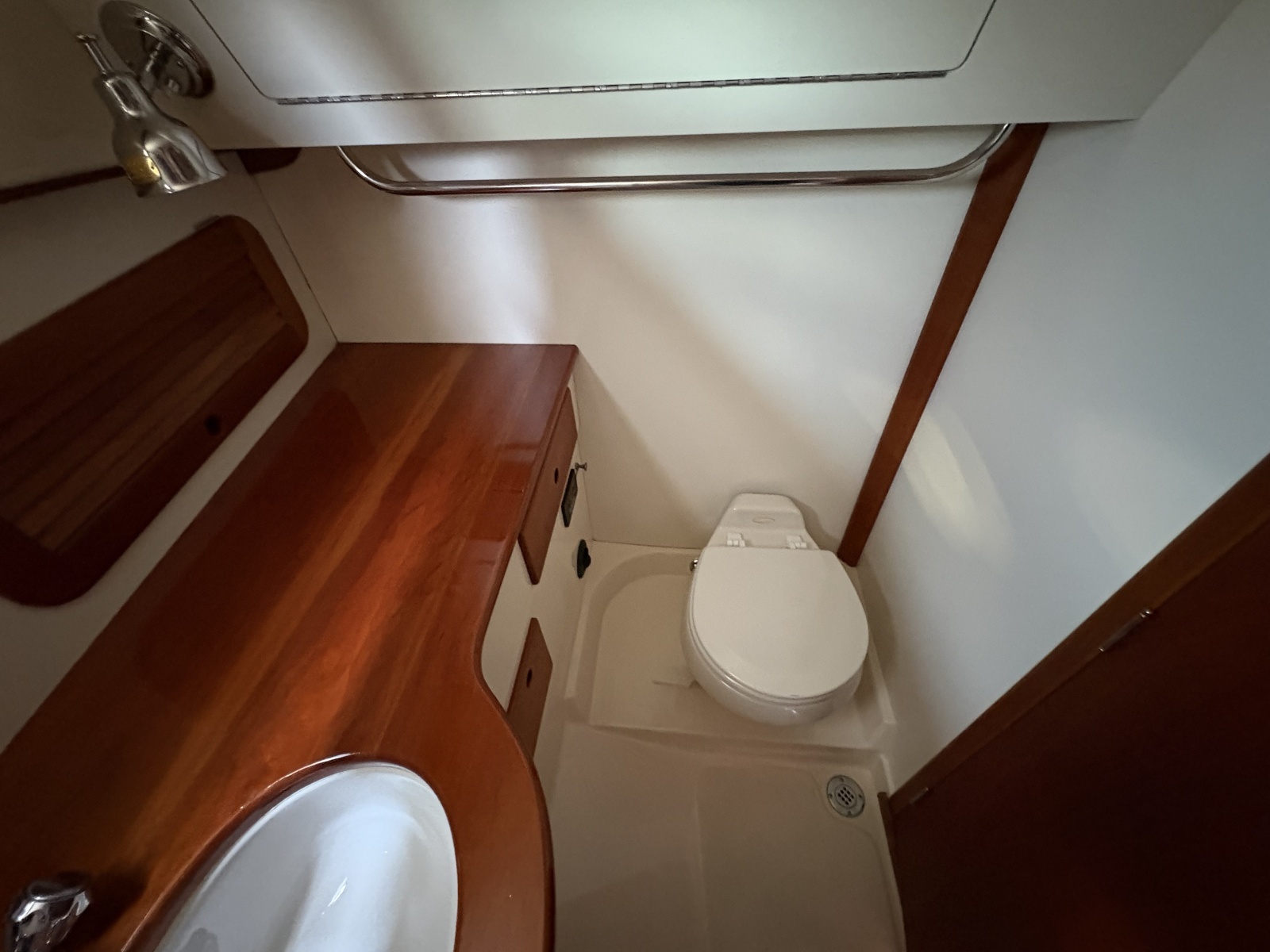

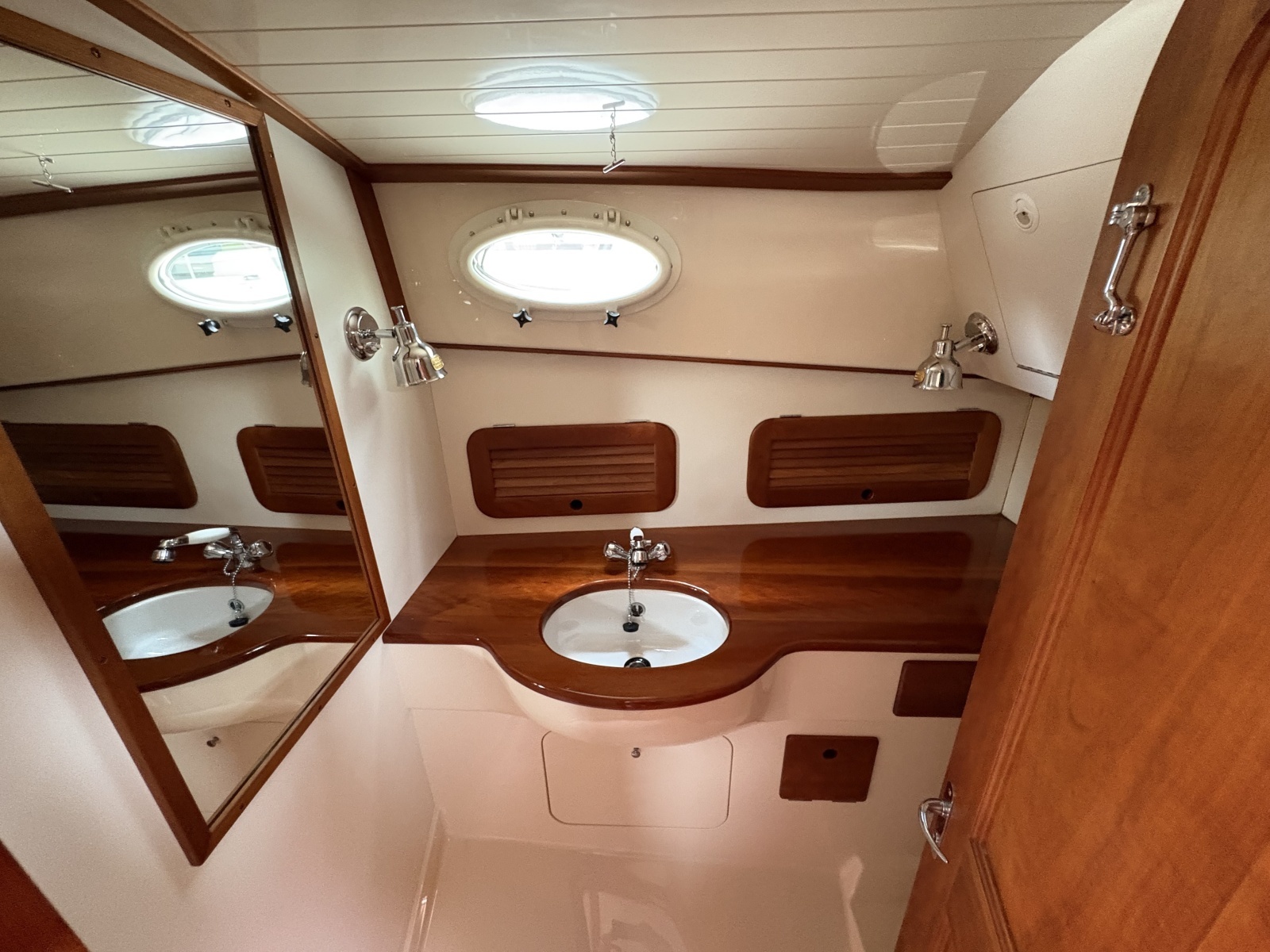

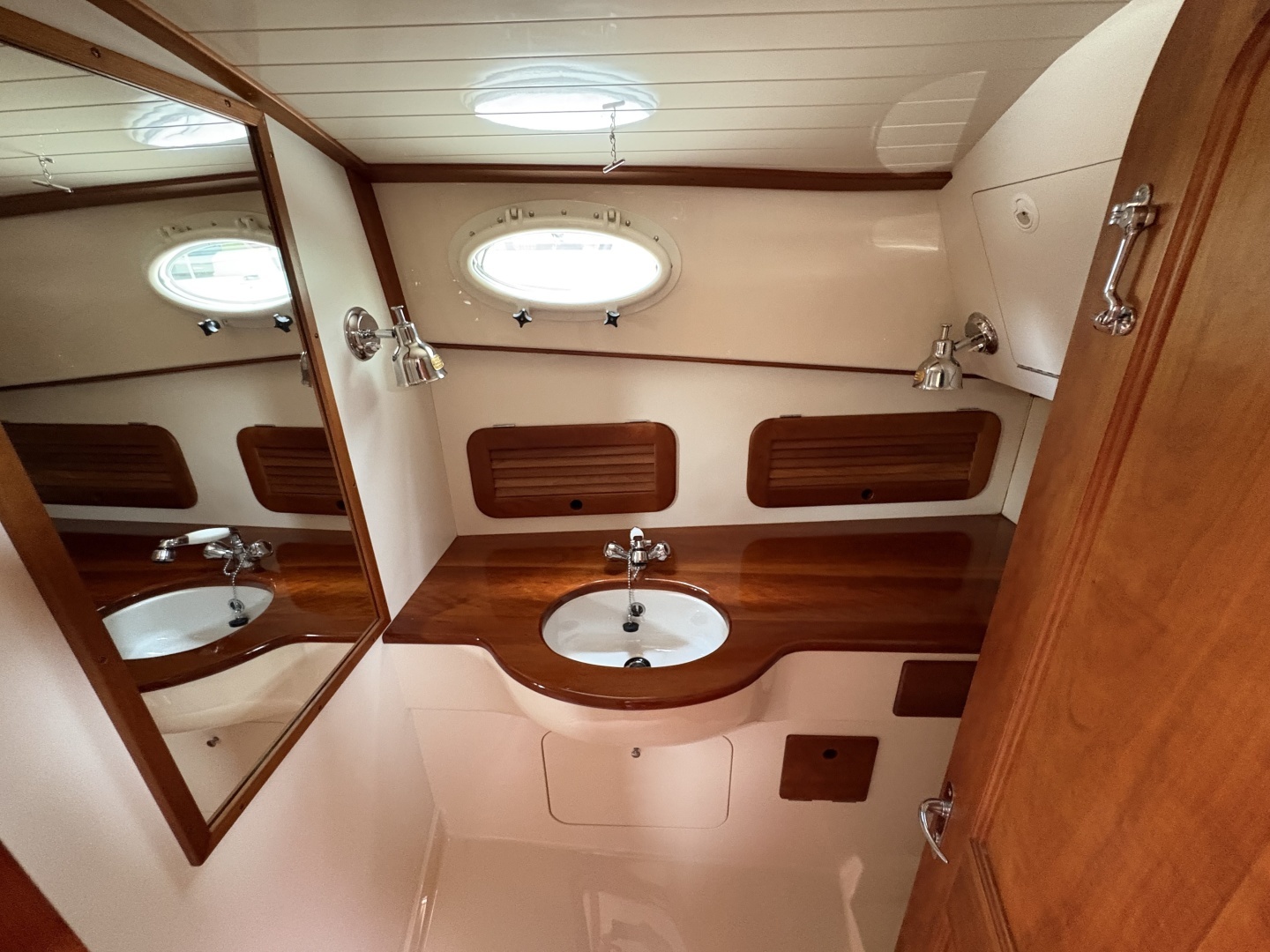

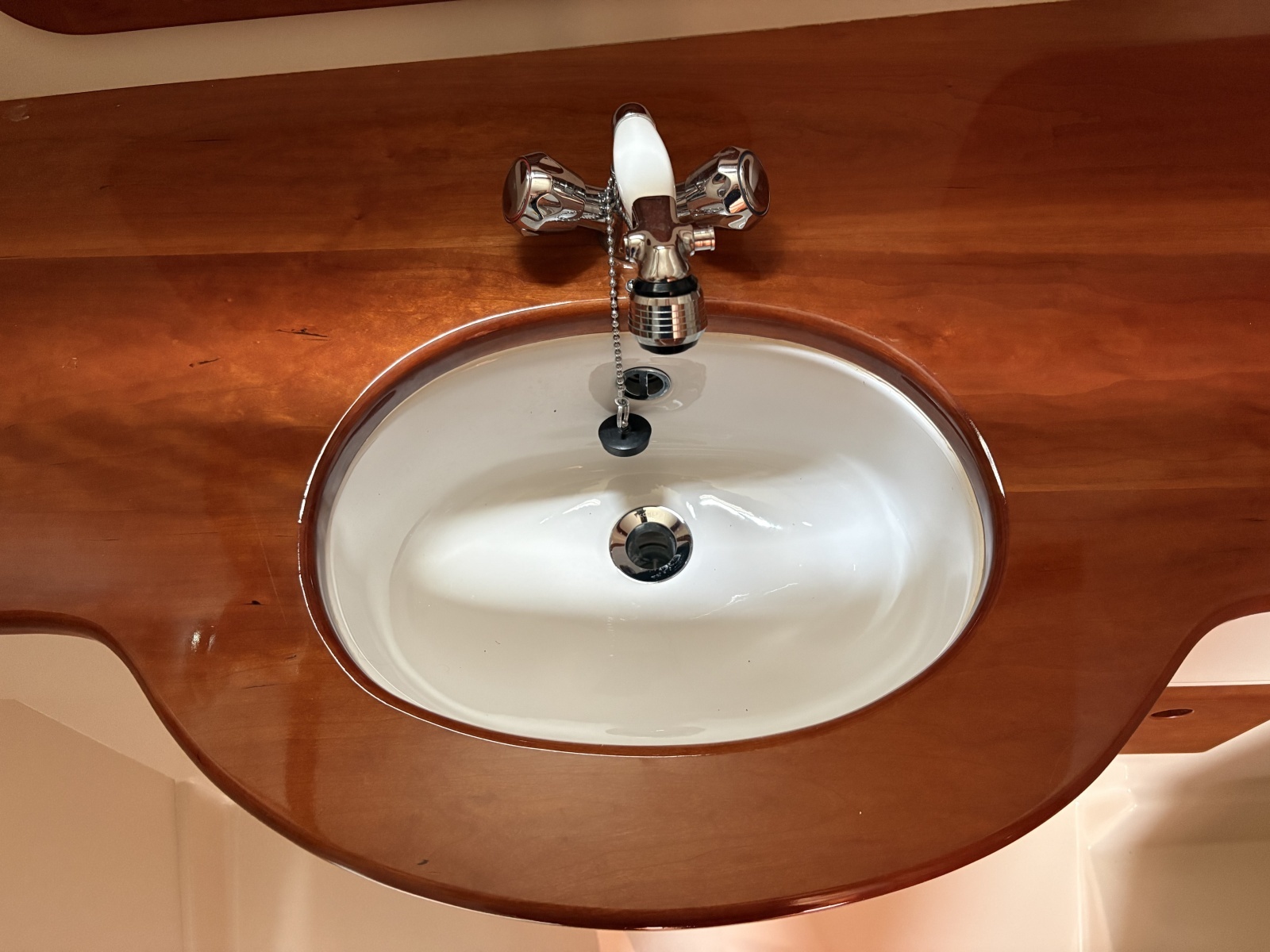

• Head; Under mounted porcelain sink
• Grohe single lever galley and head/shower fixtures

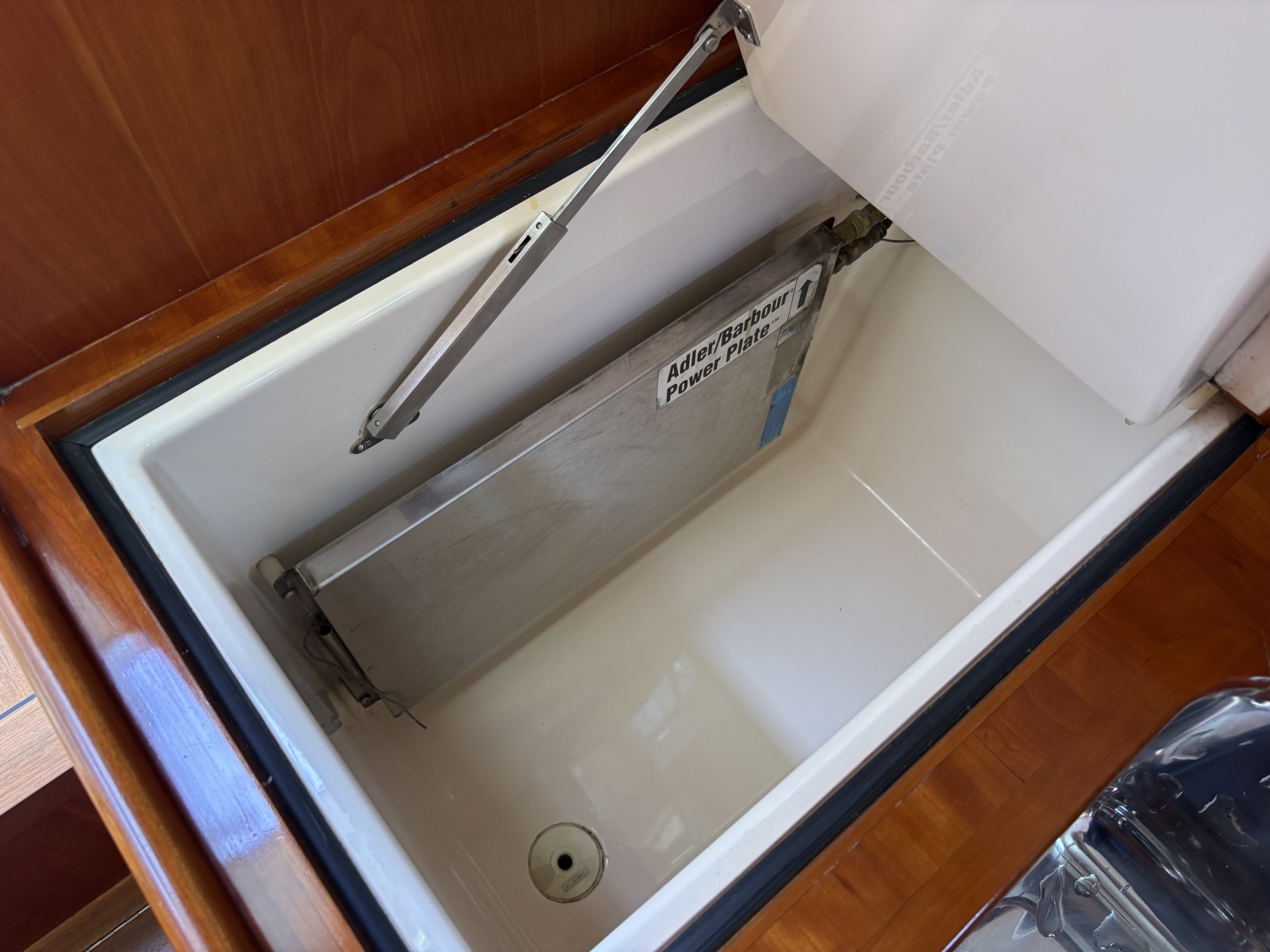

• Fully insulated refrigerator and self-draining icebox with 12-volt cold machine
• Pull-out trash container under galley counter
• Built-in bin on top of dry food locker for dish storage

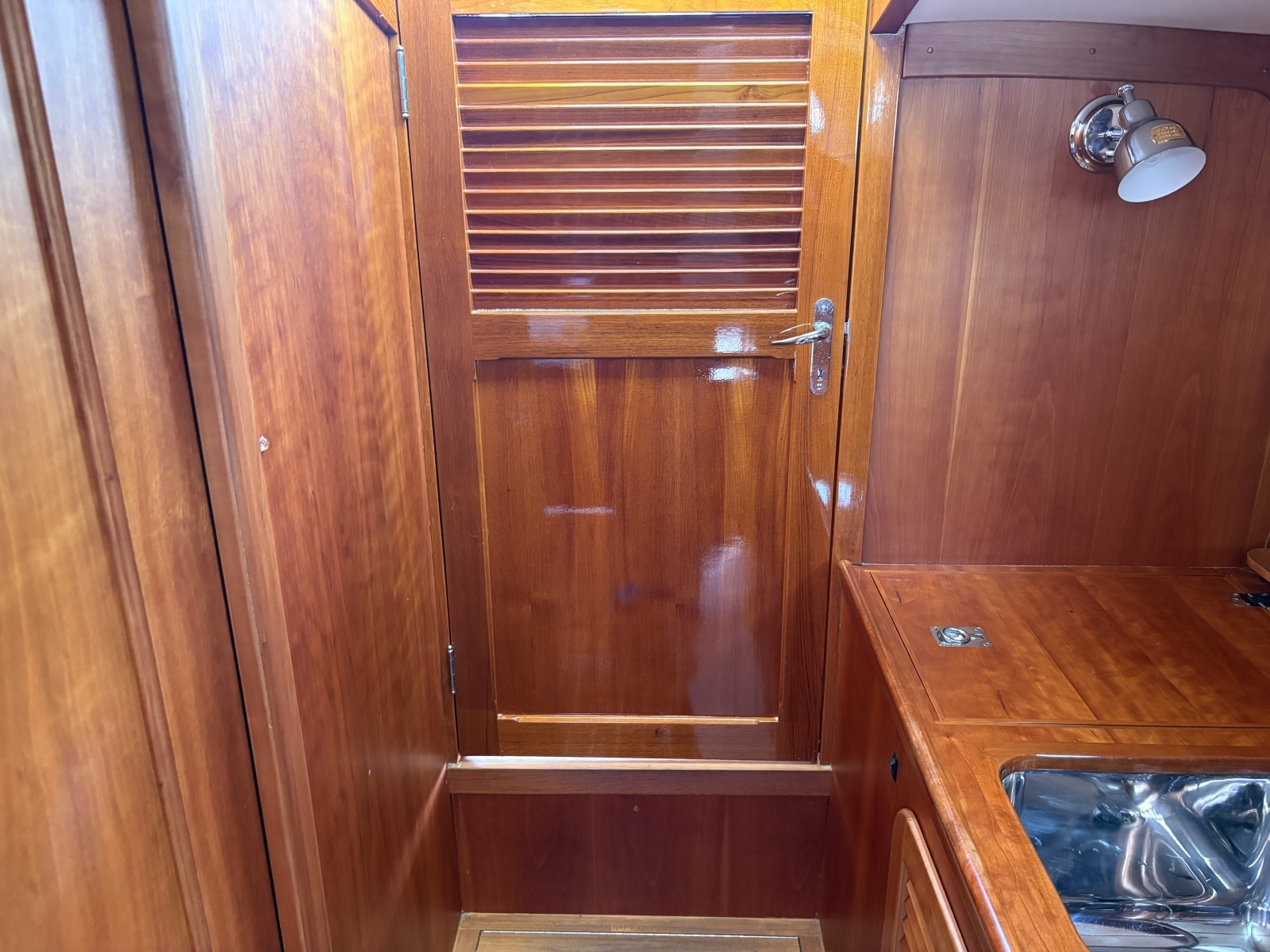

• Solid cherry paneled head door
• Gelcoat shower with molded non-skid pattern
• Cherry framed mirror located on forward head bulkhead
• Acoustic foam headliner with cherry trim

Mechanical

• Hamilton 292 Jet drive
• Yanmar 6LY2A-STP six cylinder 440 HP diesel
• ZF IRM220PL transmission with 1.231:1 reverse/reduction gear
• Garmin- Interfaced to GPS.

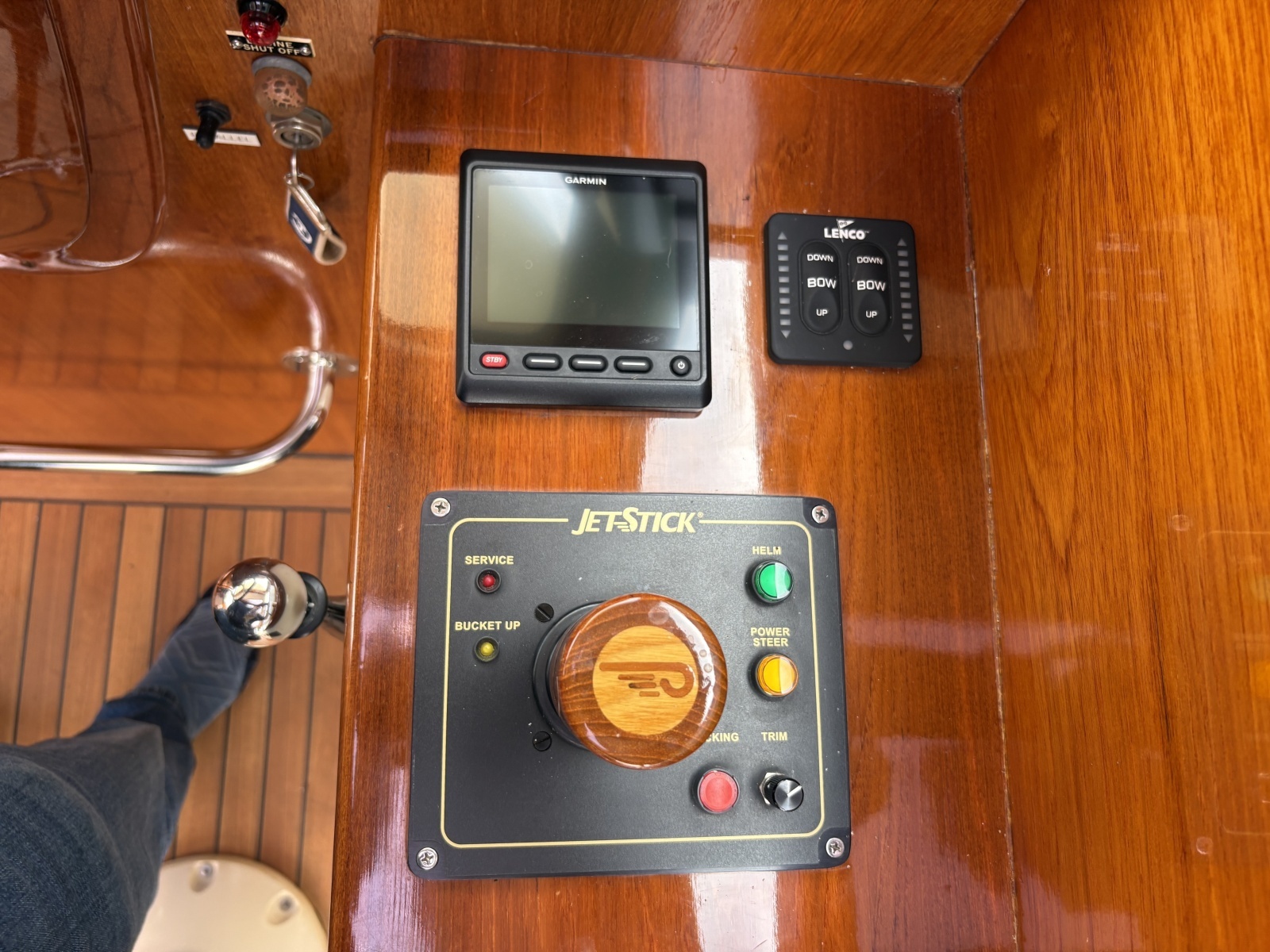

• Hinckley's integrated steering and control system. Joystick control of steering, forward and aft motion and bow thruster
• 12-volt DC powered bow thruster 7" reversible propeller
• Electric engine box lift with switch at chart locker
• Manual hydraulic pump steering

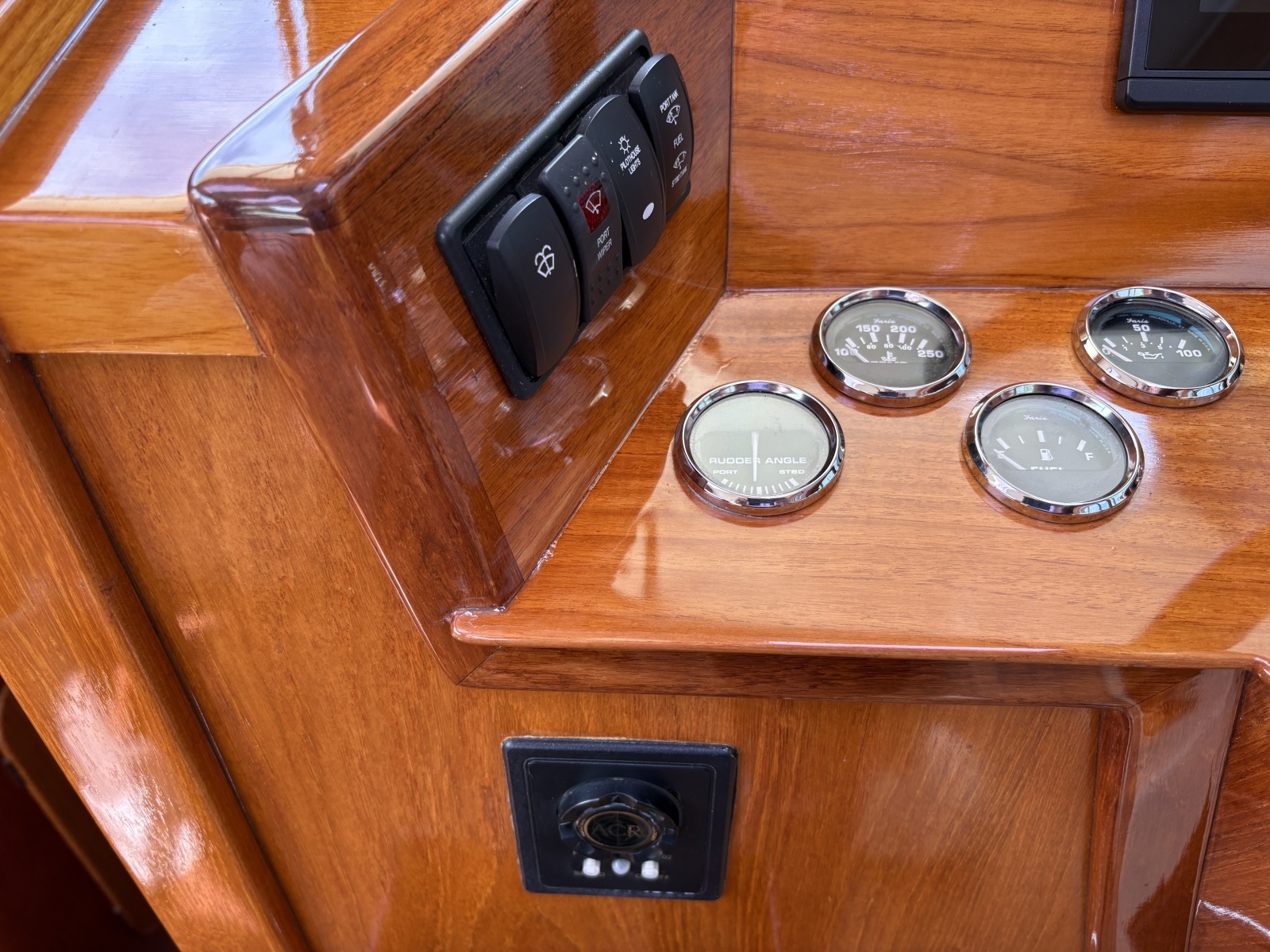

• Tachometer with engine hours display, oil pressure, engine coolant temperature, fuel gauge, jet steering angle indicator and voltmeter
• Buzzer for low oil pressure, high engine coolant temperature and high hydraulic pressure
• Two 80 gallon heavy-gauge aluminum fuel tanks with flush mount vents
• Yanmar fuel filter/water separator
• Forced-air blower in engine box

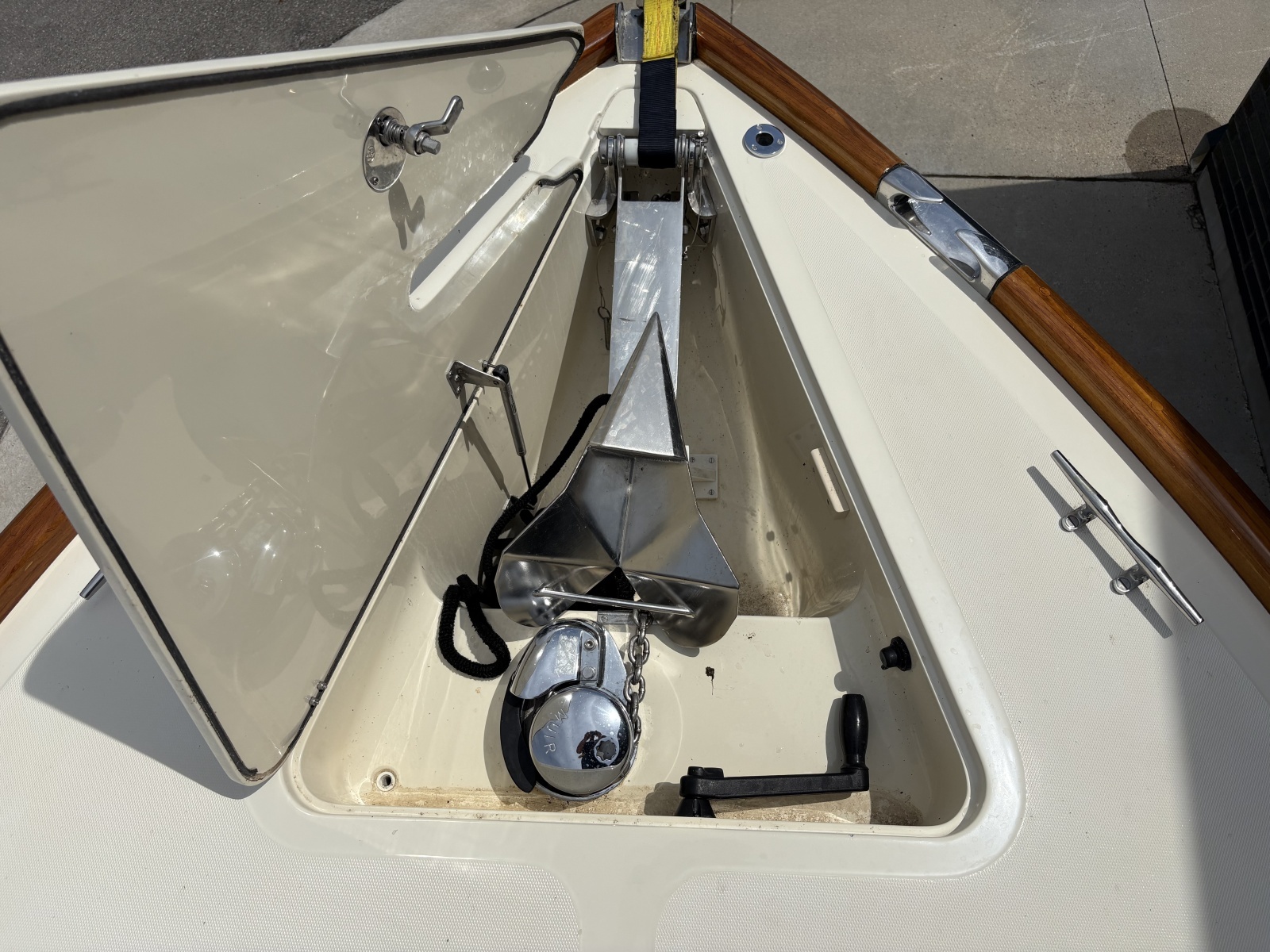

• Polished S.S. 22 lb. Delta anchor with 15' S.S. chain, and 150' anchor rode
• Hinckley designed polished S.S folding anchor roller with Muir windlass. Windlass controls at helm and wired remote at anchor locker
• Accu-point heater with outlets in pilothouse, main cabin and head
• Automatic fire extinguisher system for engine compartment, with automatic engine shut-down

Electrical and Electronics

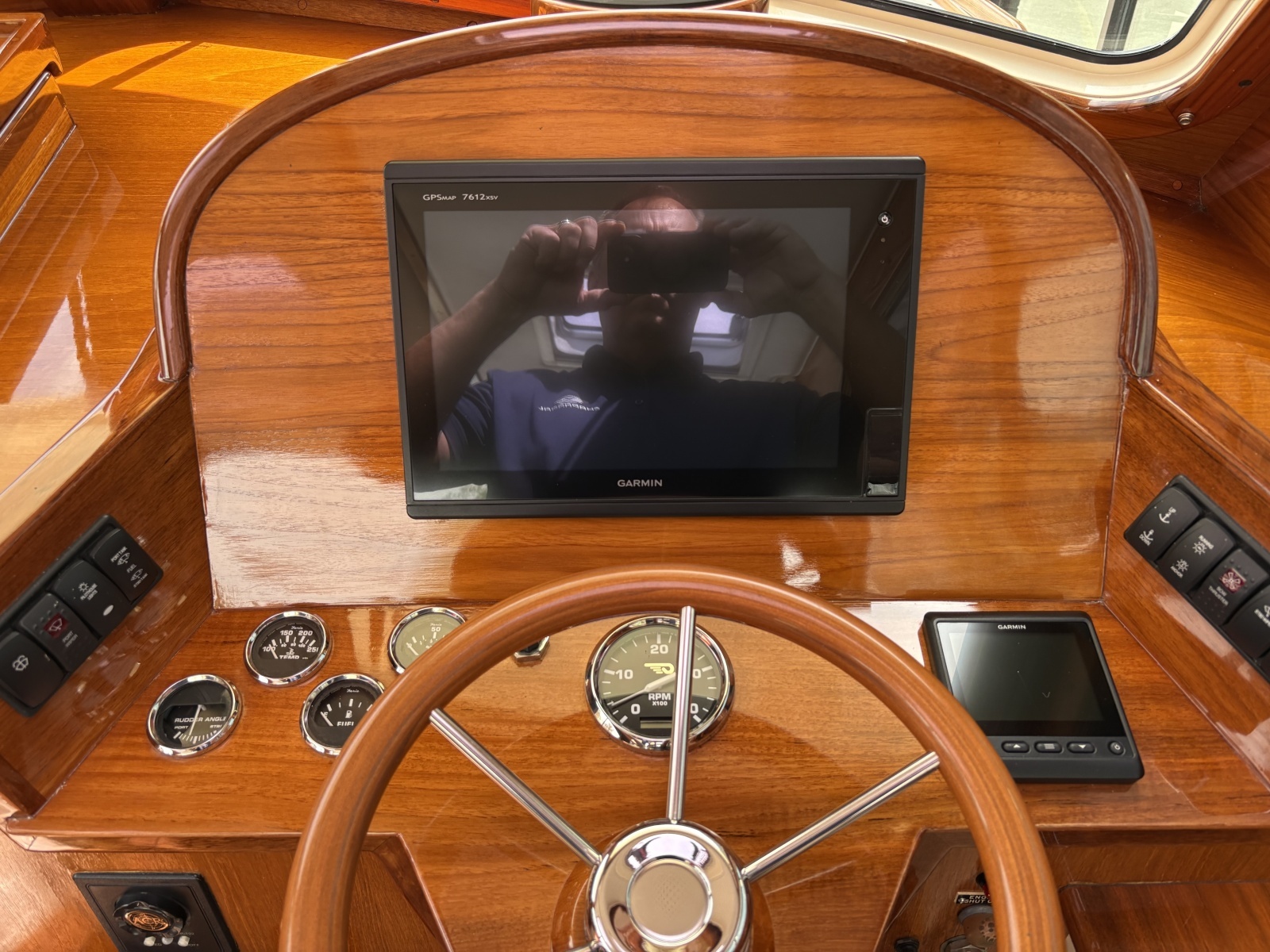

• Garmin GPS map 7612 XSV Chartplotter/Radar with 2KW Radome painted to match deck
• Garmin sounder module

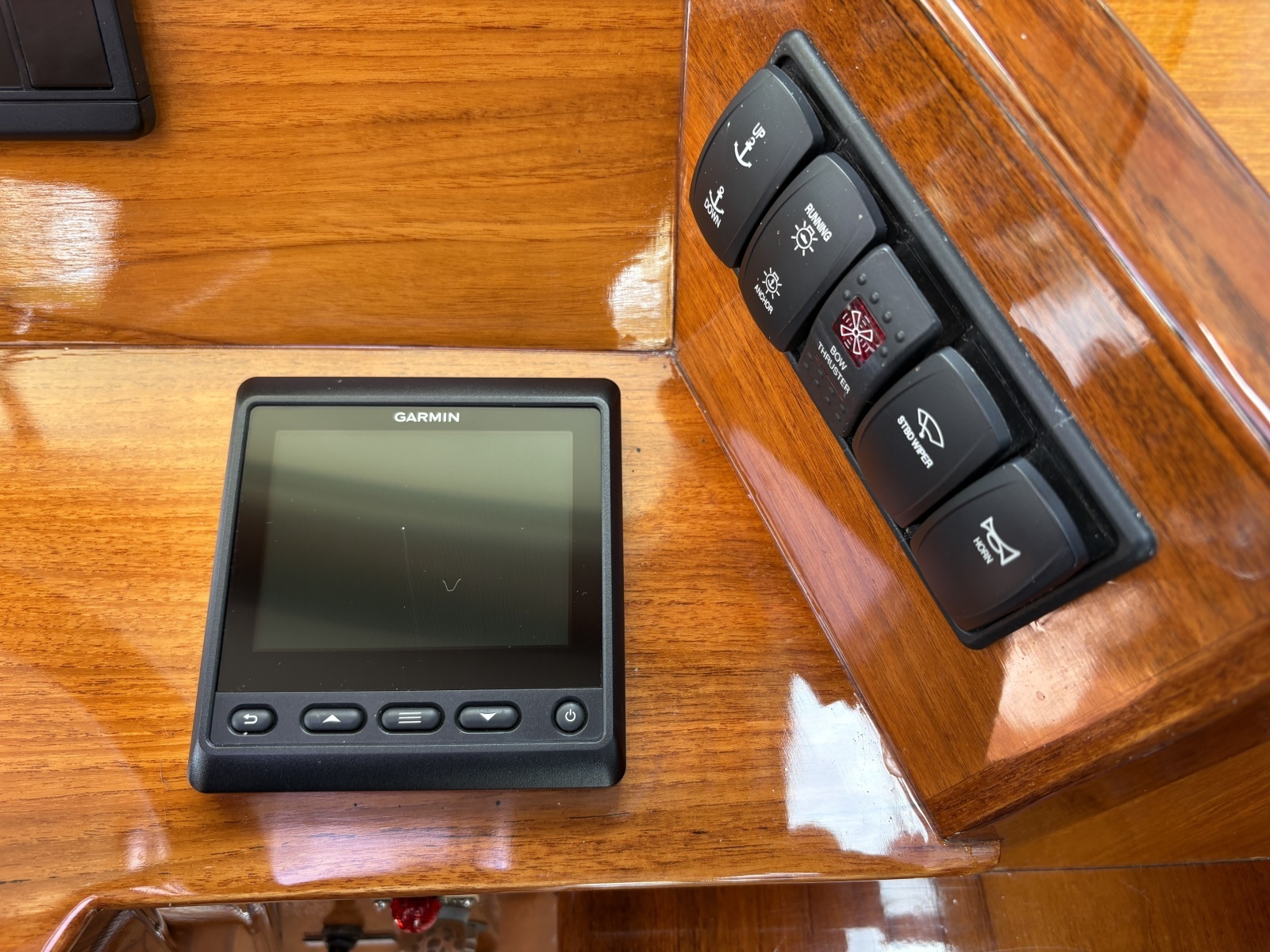

• Garmin repeater at helm
• Garmin auto-pilot display at helm

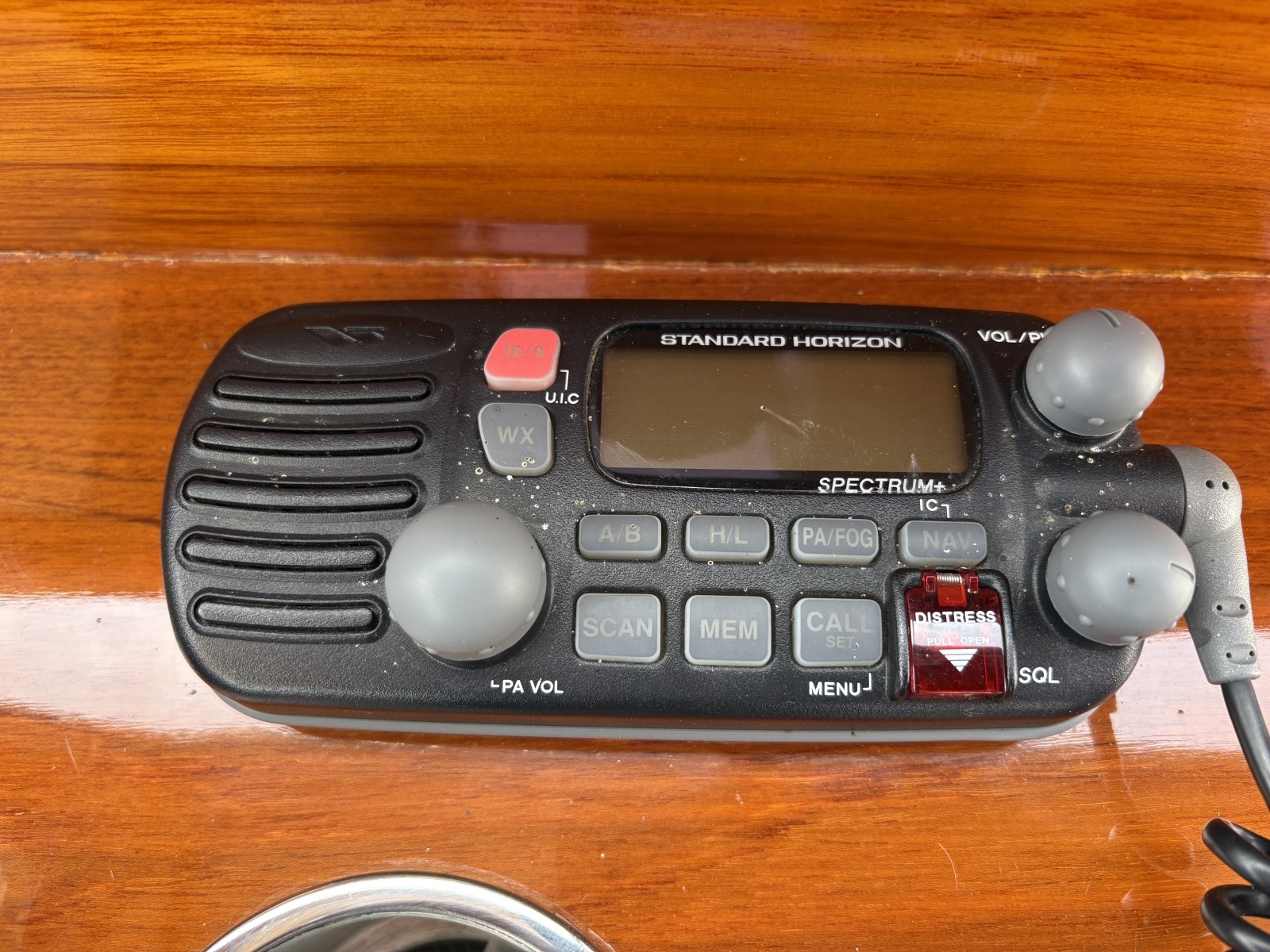

• Standard Horizon PS 1000 VHF radio with RAM mic

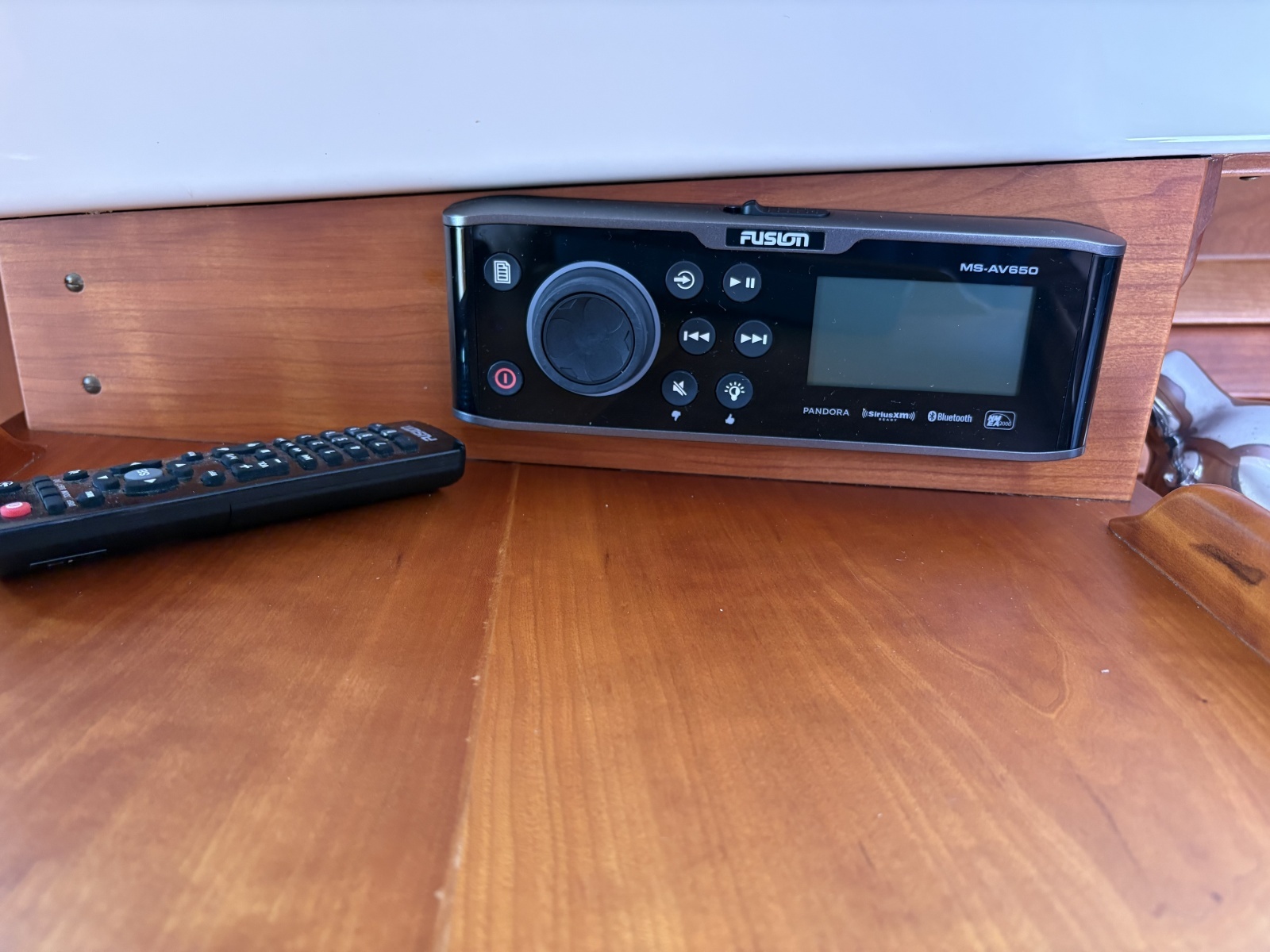

• Fusion MS-AV650 stereo with remote and two SA-1 amplifiers
• Bulk-head mounted box speakers in the cabin
• Flush mount speakers in the cockpit

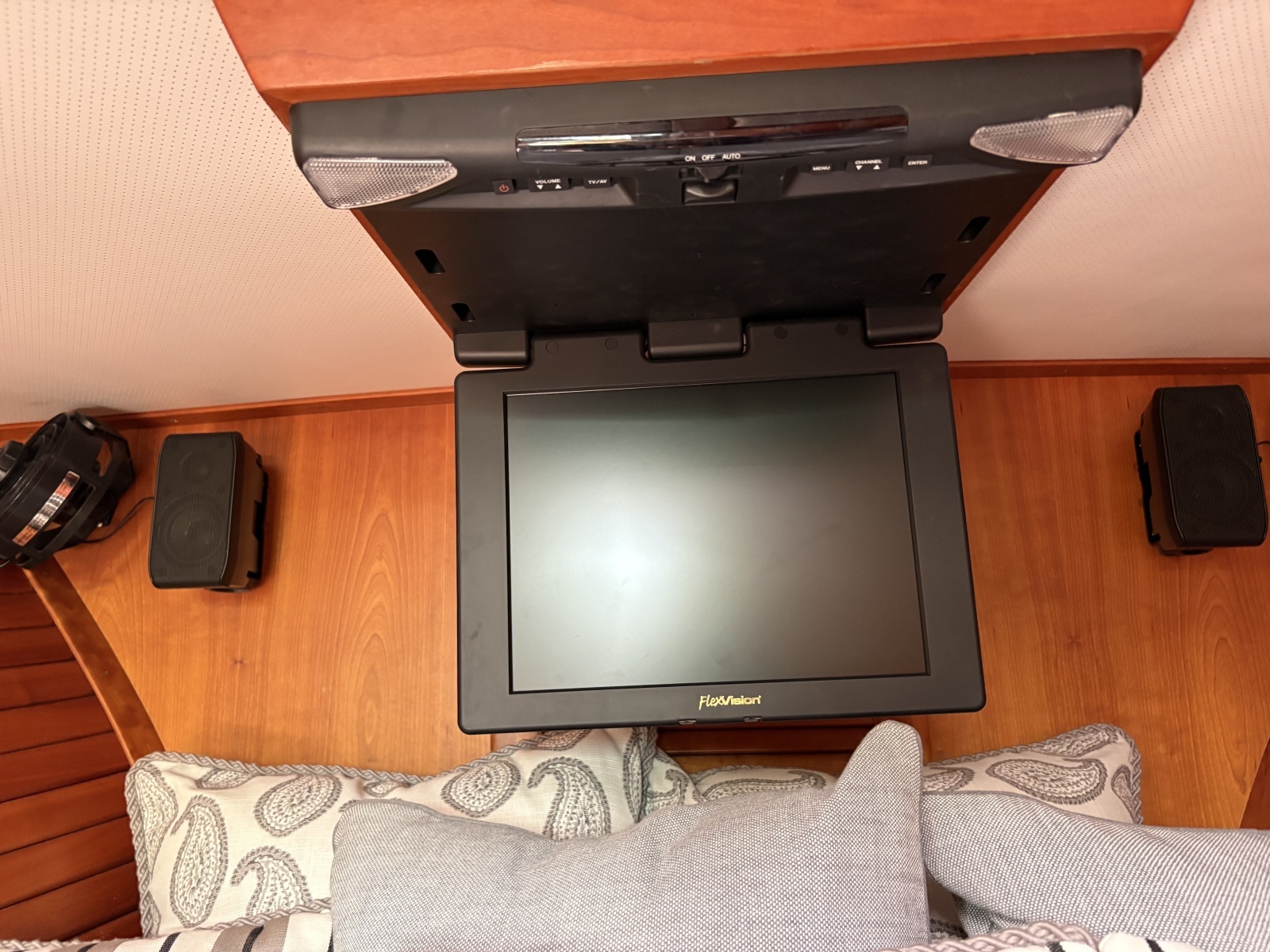

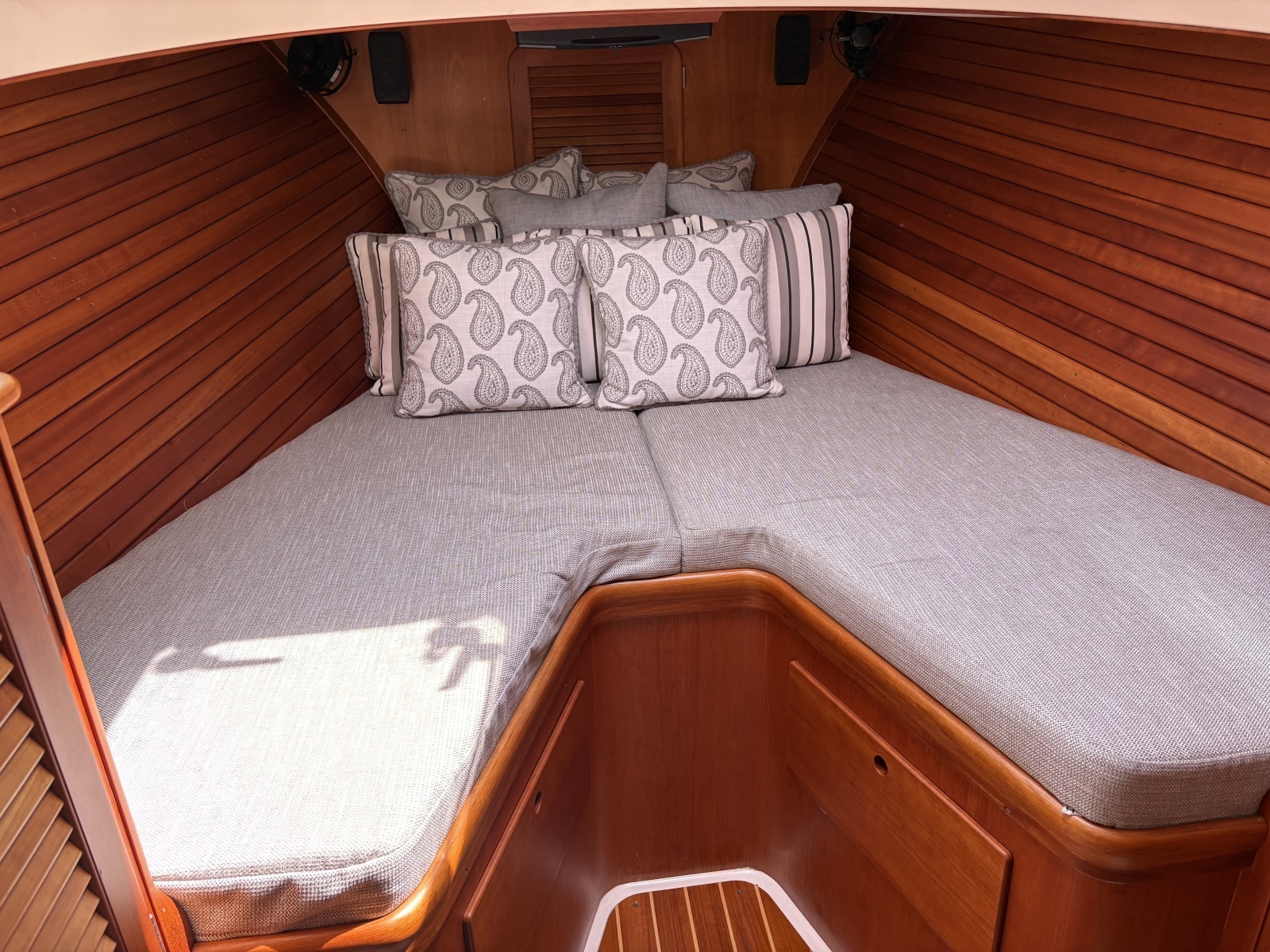

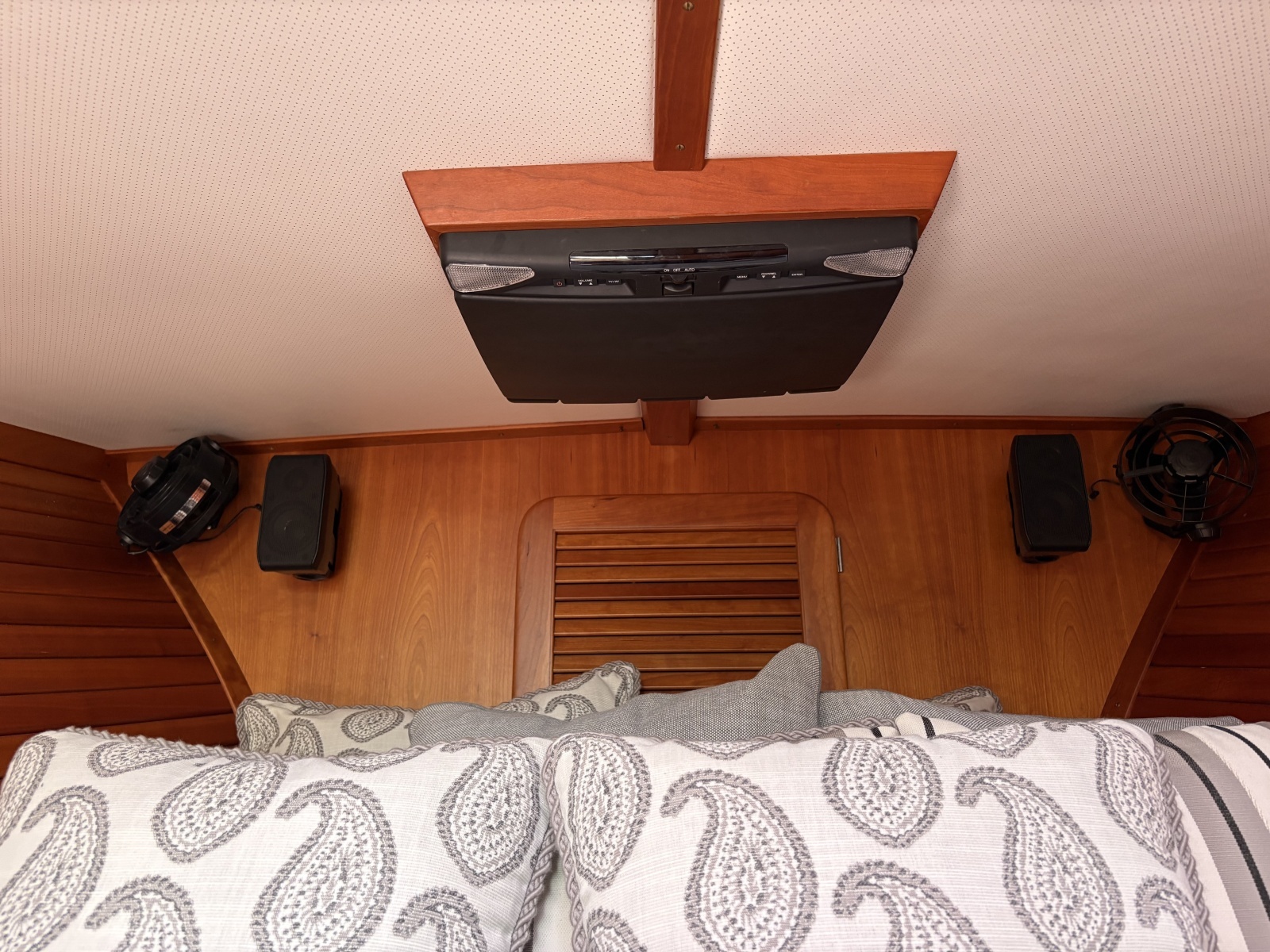

• ASA 15" flat-panel, fold-down TV in the headliner over the V-berth

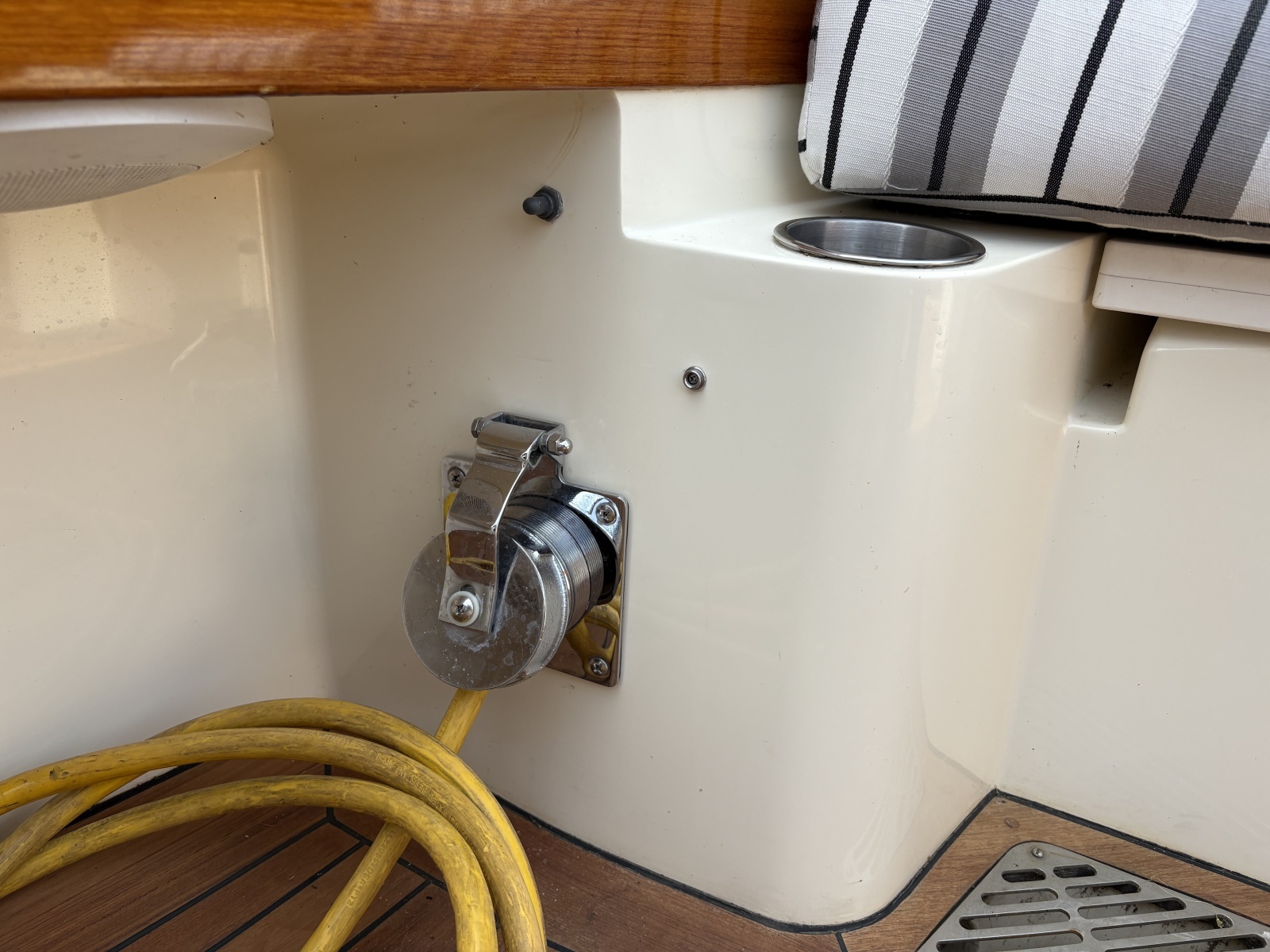

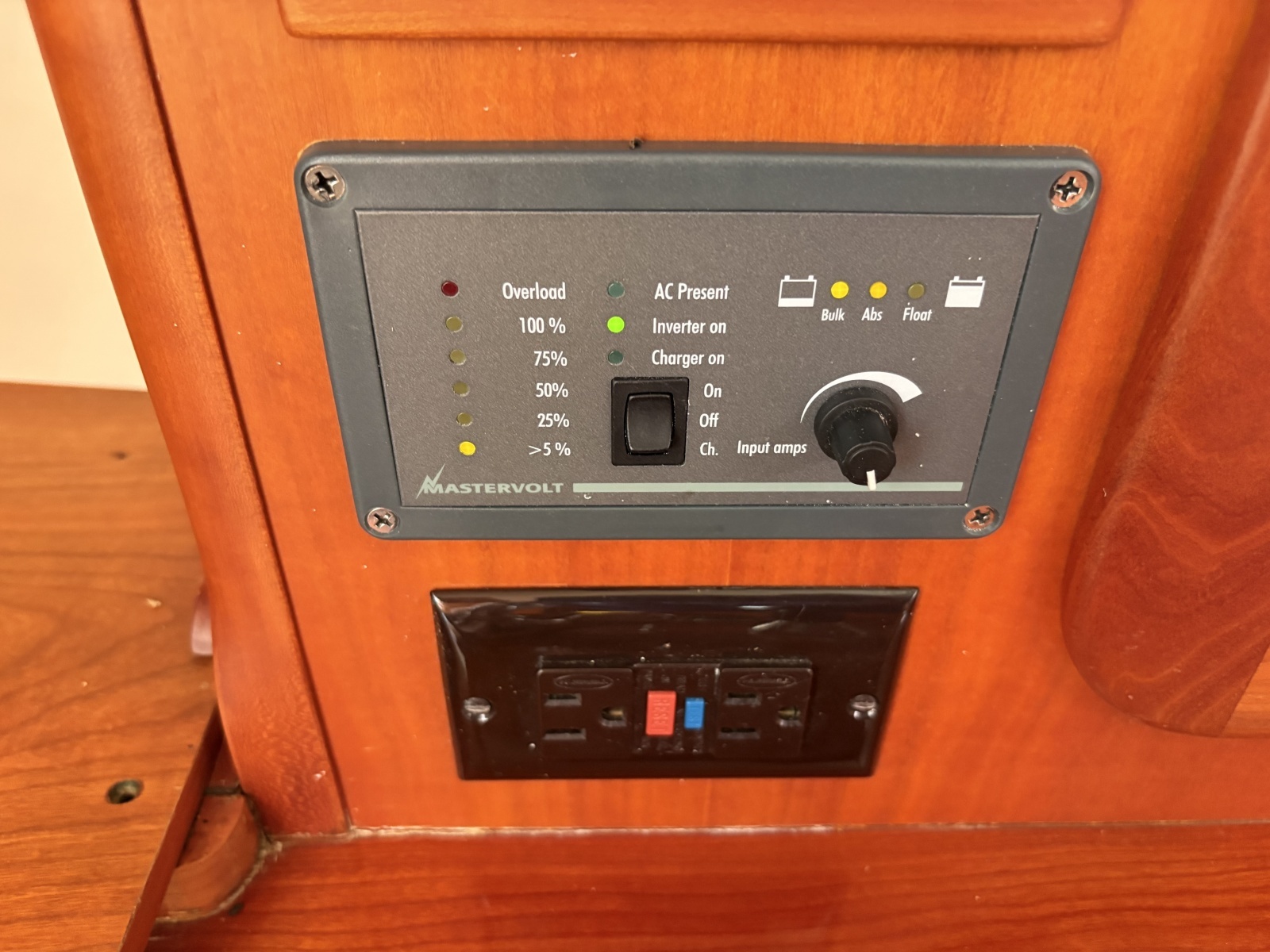

• Mastervolt Dakar Combi 1500 pure sine wave inverter/charger with 65 amp 12 volt multi-stage batte1Y charging capability. 30A shore power cord with power indicator light
• Batteries: House - (2) two 12-volt AGM Group 4D with 210 amp hours each, Start - (1) one, 12-volt AGM Group4D with 1100 CCA capability

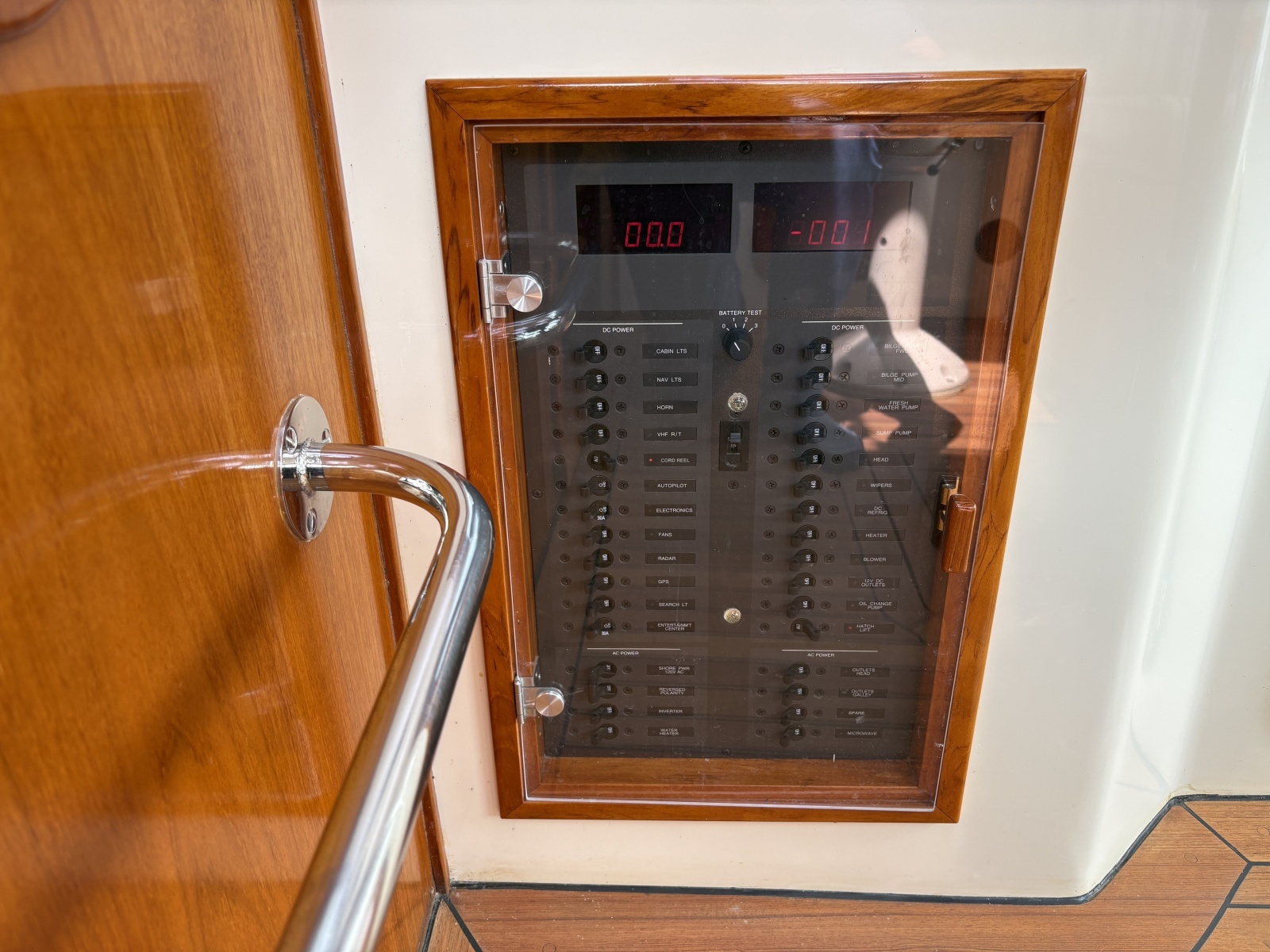

• 12-volt distribution panel using thermal-magnetic breakers with volt and amp meters
• 80-amp alternator
• Heavy-duty battery switch with parallel capabilities for emergency starting
• Five Frigast stainless steel bulkhead lights, switched at the fixture
• Four halogen overhead lights in pilothouse on a dimmer switch
• White courtesy lights, two per side, in the cockpit footwells on a dimmer switch
• Low-resistance, copper wire and sacrificial zinc anode, Zinc saver
• Two heavy-duty electric, self-parking wipers on pilothouse windows, with intermittent wiper control. Fresh water windshield washer on separate switch on dash
• Cigarette-style outlet in chart locker

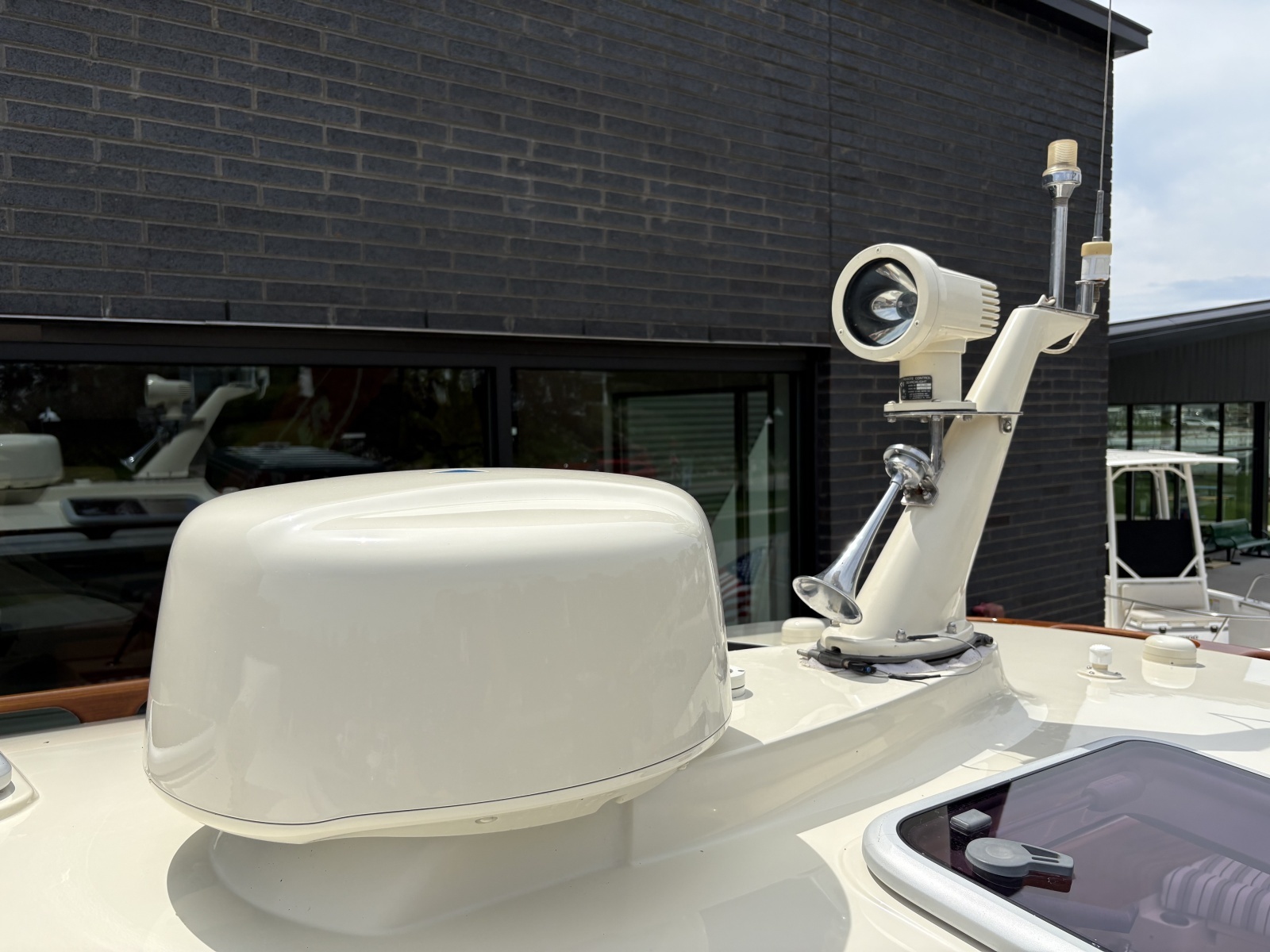

• ACR spotlight mounted on mast with remote control pad mounted in helm station, spotlight painted to match deck
• 12-volt Kahlenberg air horn with switch on dash
• Approved running/navigation lights and masthead lights
• Glendinning shore cord reel

Plumbing

• Hot and cold pressure water system
• 35 gallon stainless steel water tank, Flush mount vent
• Six-gallon stainless steel hot water tank, heated either via shore power or engine

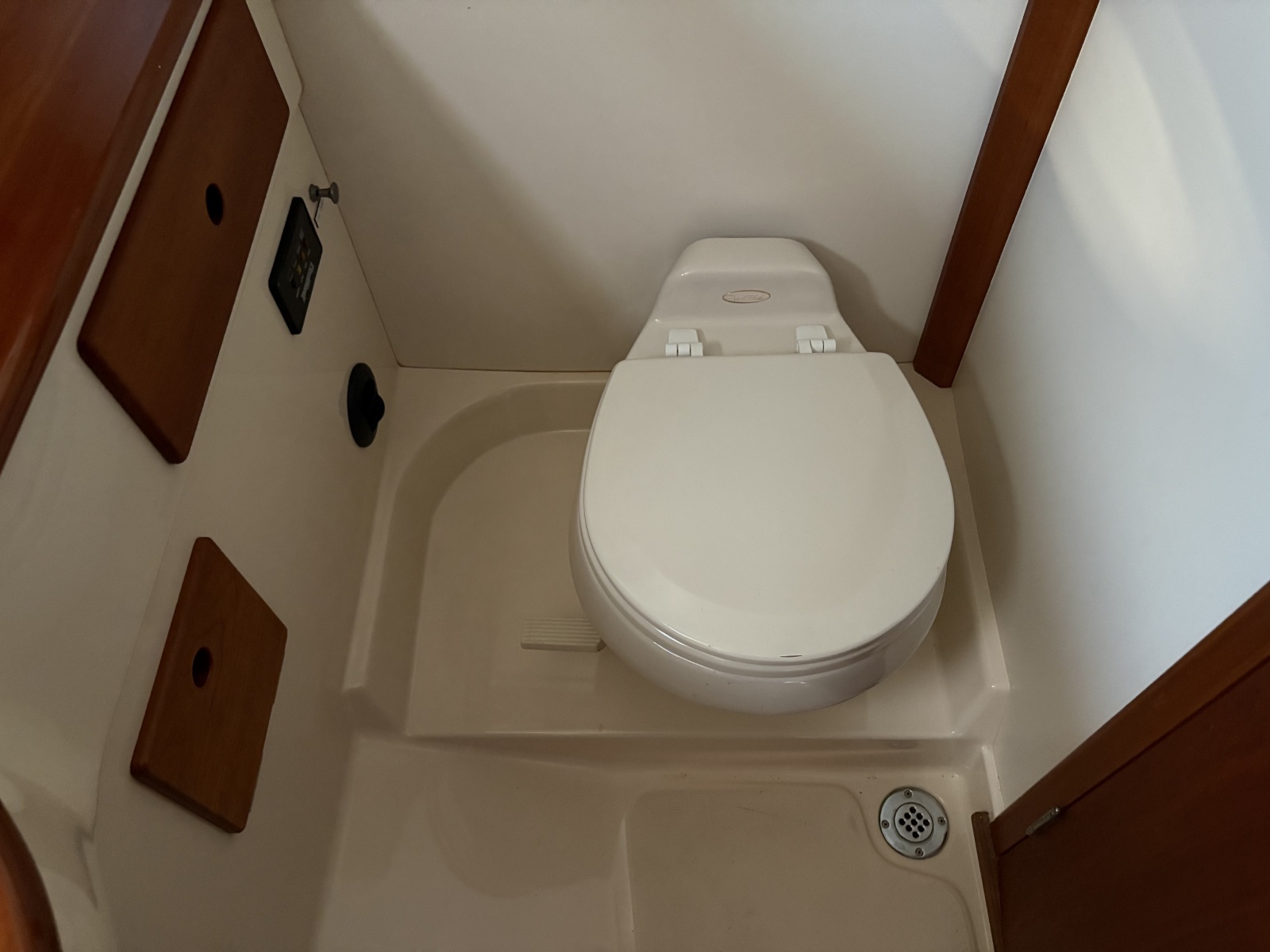

• 12-volt DC Vacu-Flush marine head with a 27-gallon aluminum holding tank and overboard discharge, flush mount vent
• 12-volt DC automatic shower sump pump
• Two 1500 gph, 12-volt bilge pumps with float switches
• Whale emergency bilge pump mounted in cockpit locker
• Oil transfer pump for engine and transmission
• Thru Hulls: Marelon ball valve seacocks with thru hulls below water line and Marelon thru-hulls above waterline
