Vessel Overview & Layout

This awesome vessel  boasts all of the features of a 100 plus ft motor yacht in a 90 ft package. The 3 huge owner and guest staterooms are located forward and mid ship The full width master suite, The 2 additional guest staterooms have walk around Queen berths, in suite private heads & showers, flat screen TV & cedar lined closets. 2 Additional Staterooms  with private head for crew. Twin  MTU 12V2000M94 Engines with extended warranties to June 2018 , Twin 53 KW Generators, Zero Speed Stabilizers, Bow & Stern Thrusters, Eskimo Ice Chipper & Bauer Scuba Compressor make this turn key vessel ready to go

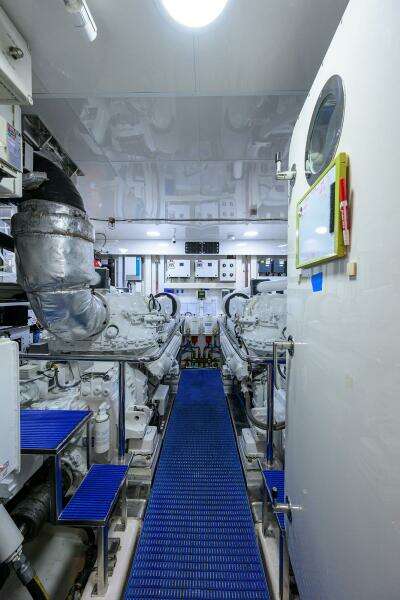

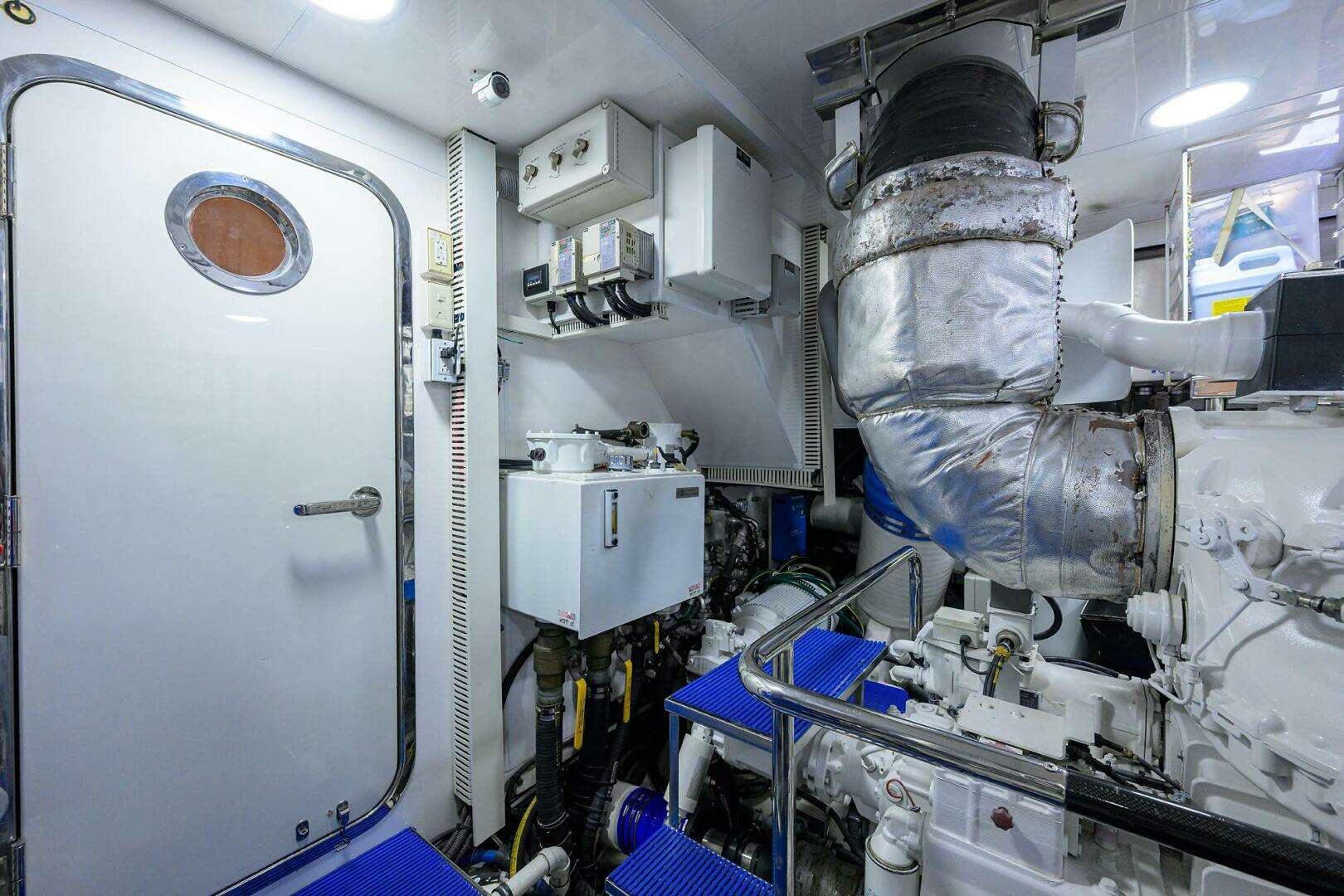

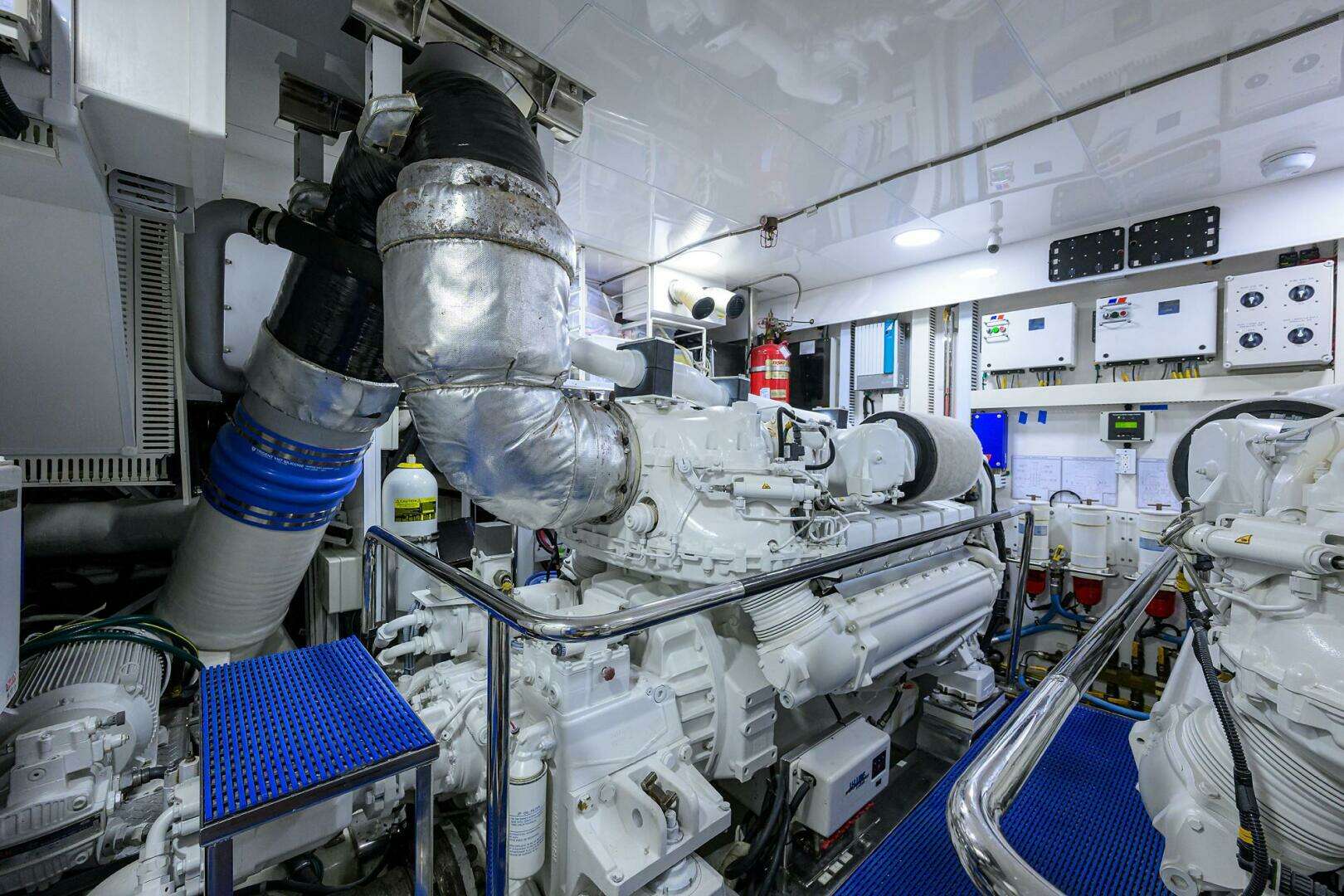

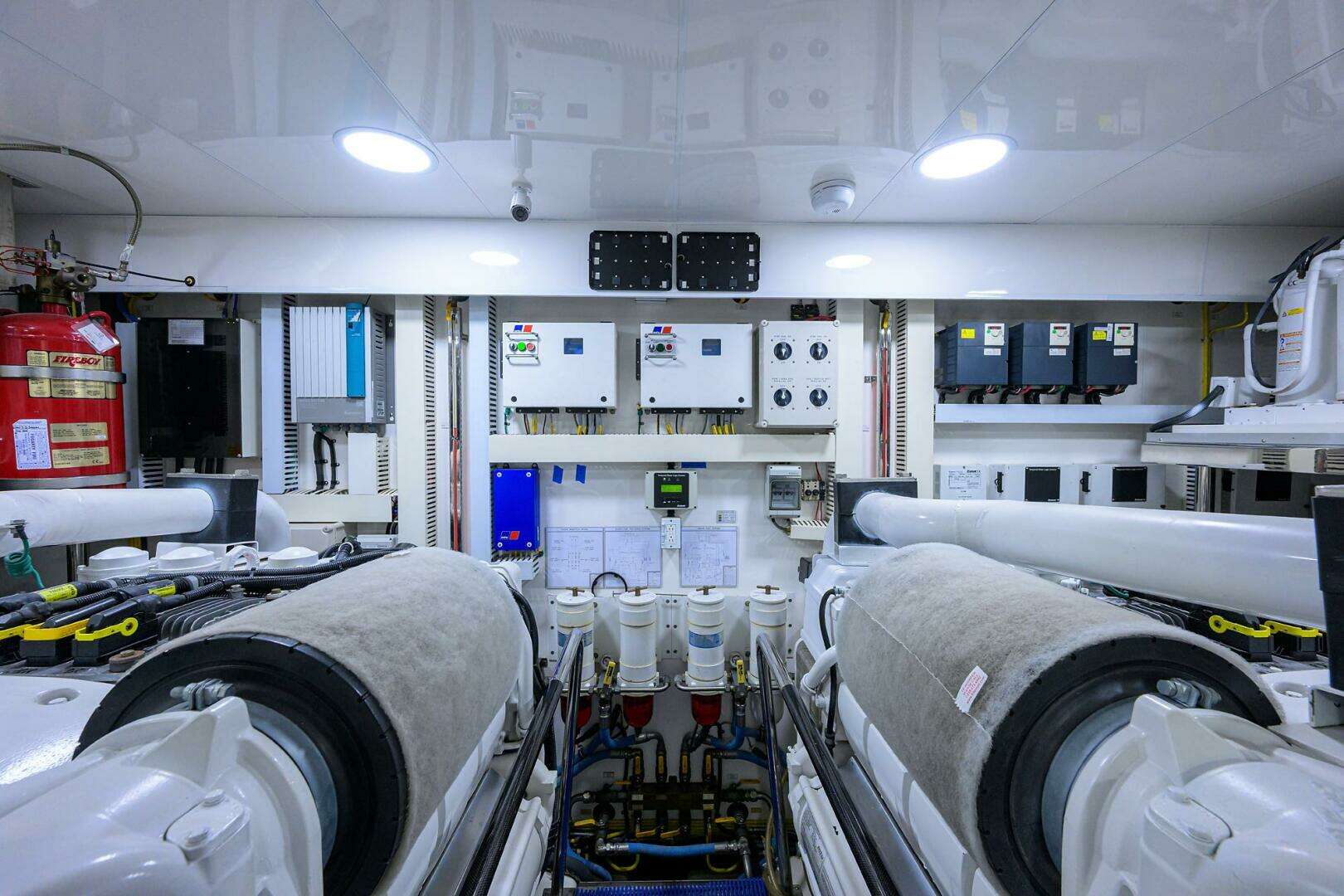

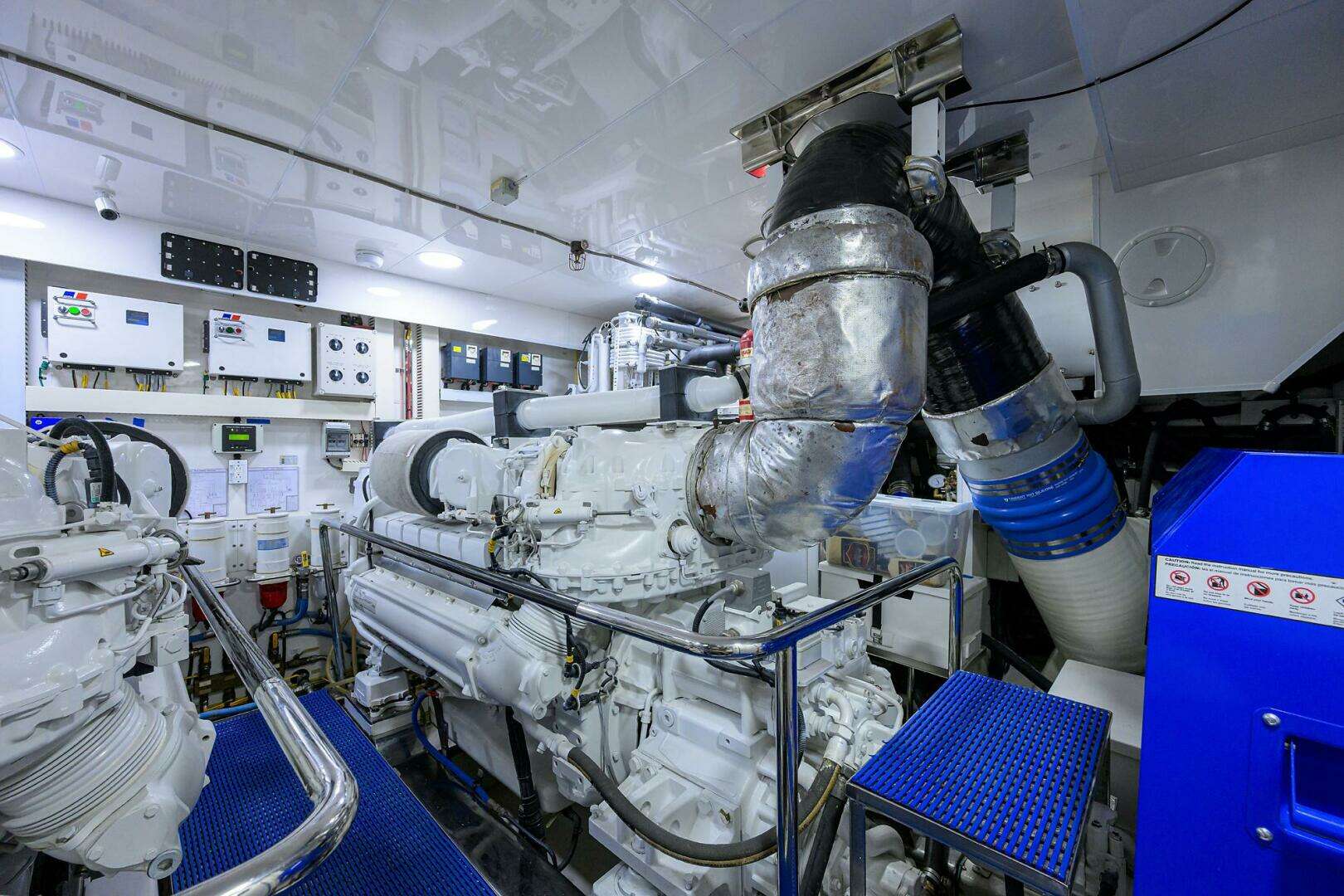

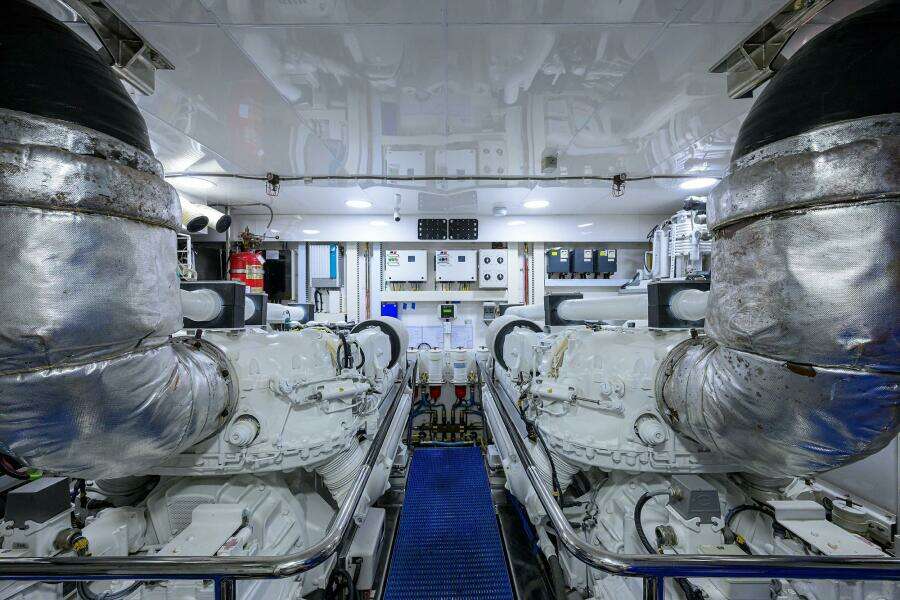

Main Engines, Mechanical & Equipment

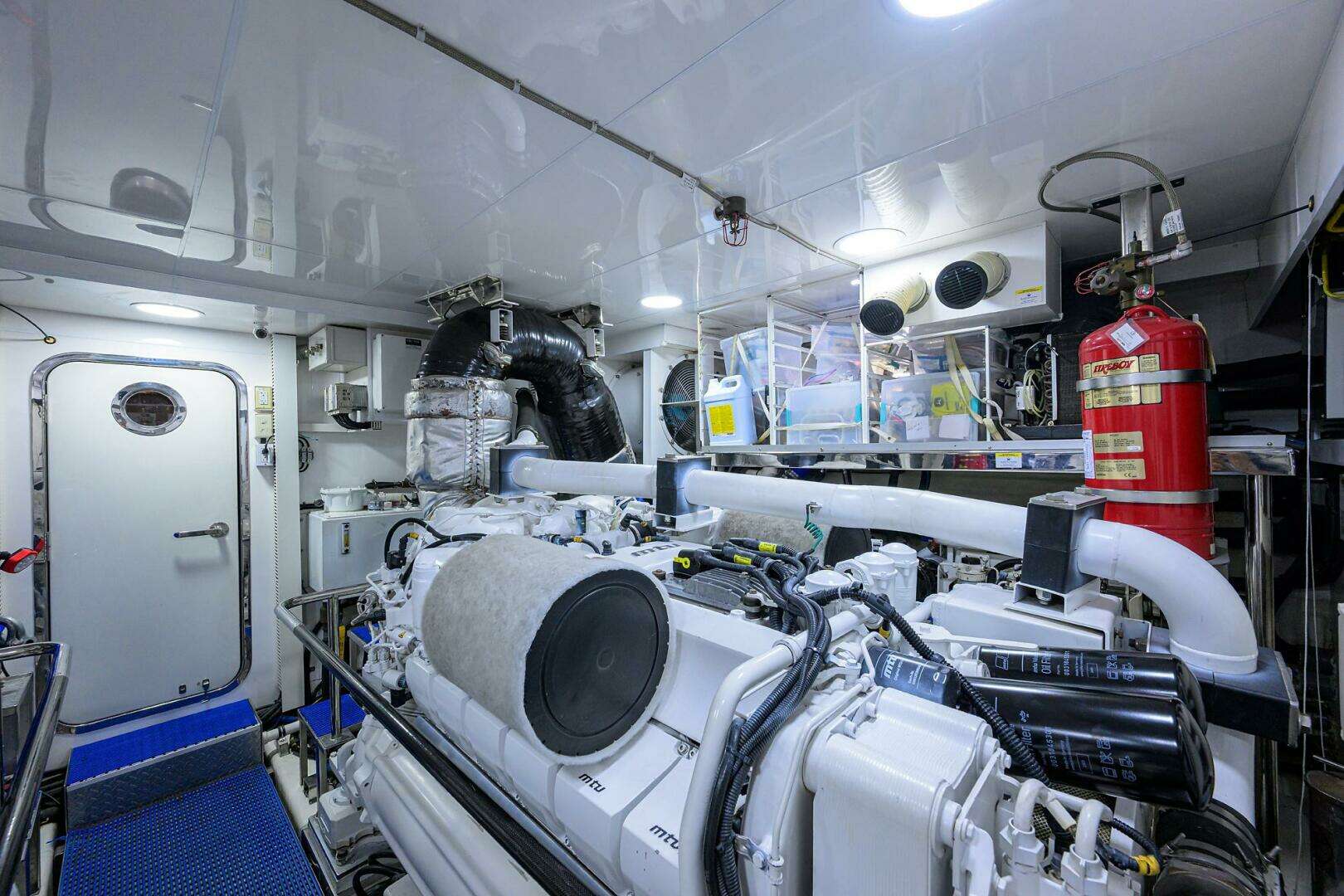

• MTU® 12V2000M94 - 1920 HP engine with extended warranty until June 2018
•  Twin 53 Kw Kohler generators (1000 Hrs.) with 'Super Quiet " water drop exhaust
•  All new AGM batteries installed March 2016
•  Custom “Two Fin” (12 sq. ft. x 2) hi-performance ABT® stabilizer with              ZERO  SPEED
• (2)Kohler 53KW marine generators with sound shields Port & Starb 1000hrs

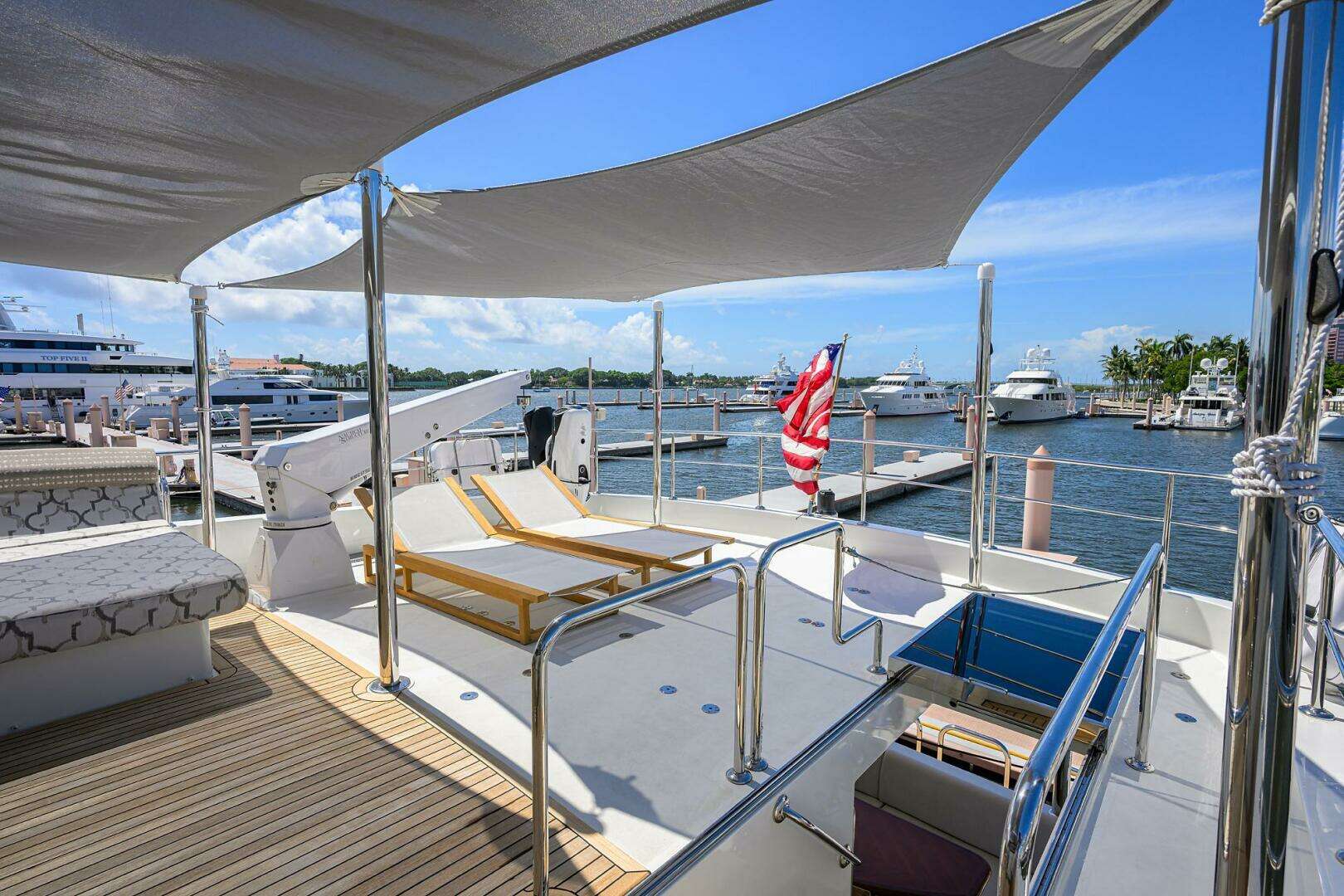

• Hydraulic 1750lbs yacht crane / 3 function retracting boom, rotation and extension

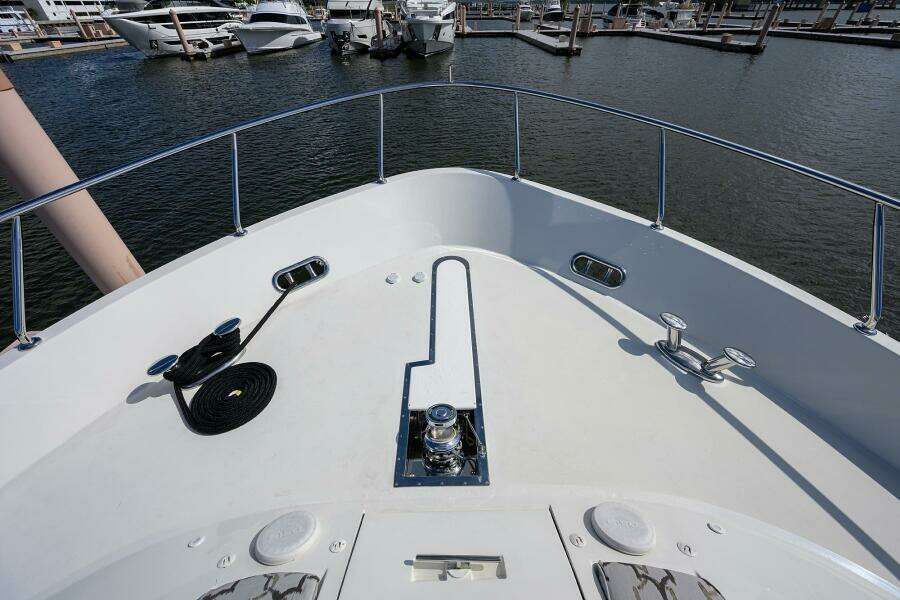

• Hydraulic windlass, Maxwell® VWC4000C with Chain Counter Stainless steel plow anchor 350 lbs. w/ 300ft anchor chain (1/2) & chain stopper Integral roller and chain stopper with Maxwell® anchor winch
• Two Maxwell® VC2500 vertical electric rope winches for aft deck
• Hydraulic steering system by Hynautic / Teleflex power steering system

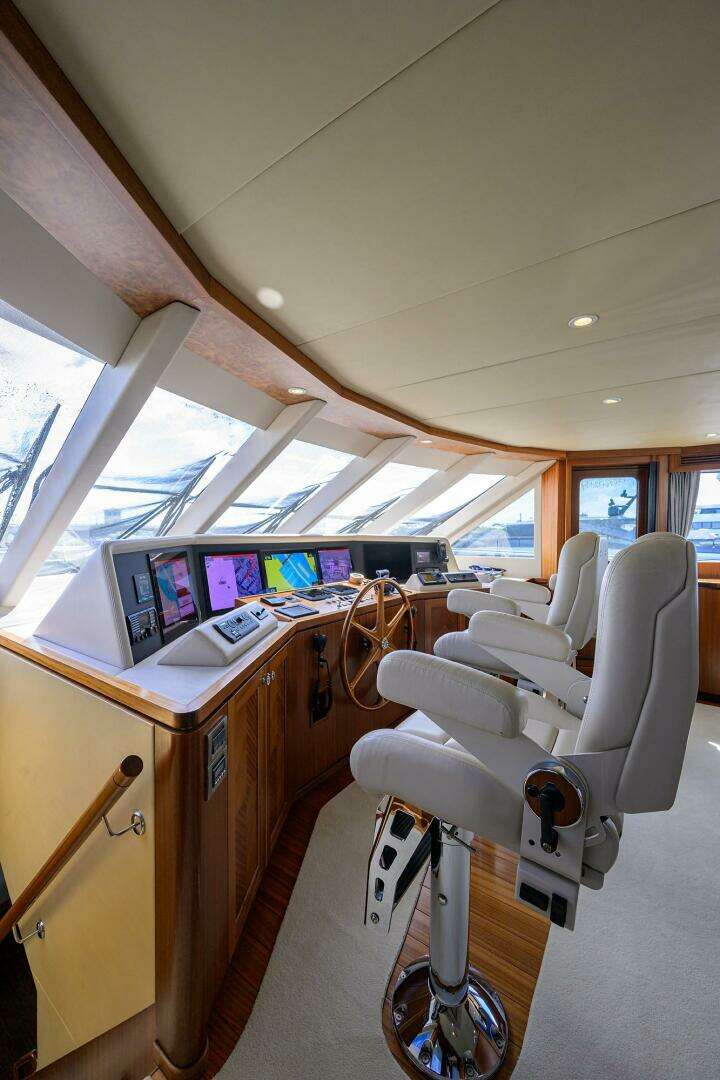

• Steering control station with complete instrumentation S/S rudders w/integrated zinc plates & Drip-less seal for rudder post
• Aqua HS. high-grade alloy stainless steel propeller shafts w / NiBrAl propeller - Class “S”
• 2HP air compressor in engine room with multiple quick disconnect outlets
• Extensive Spare Parts Inventory for vessel systems and maintenance

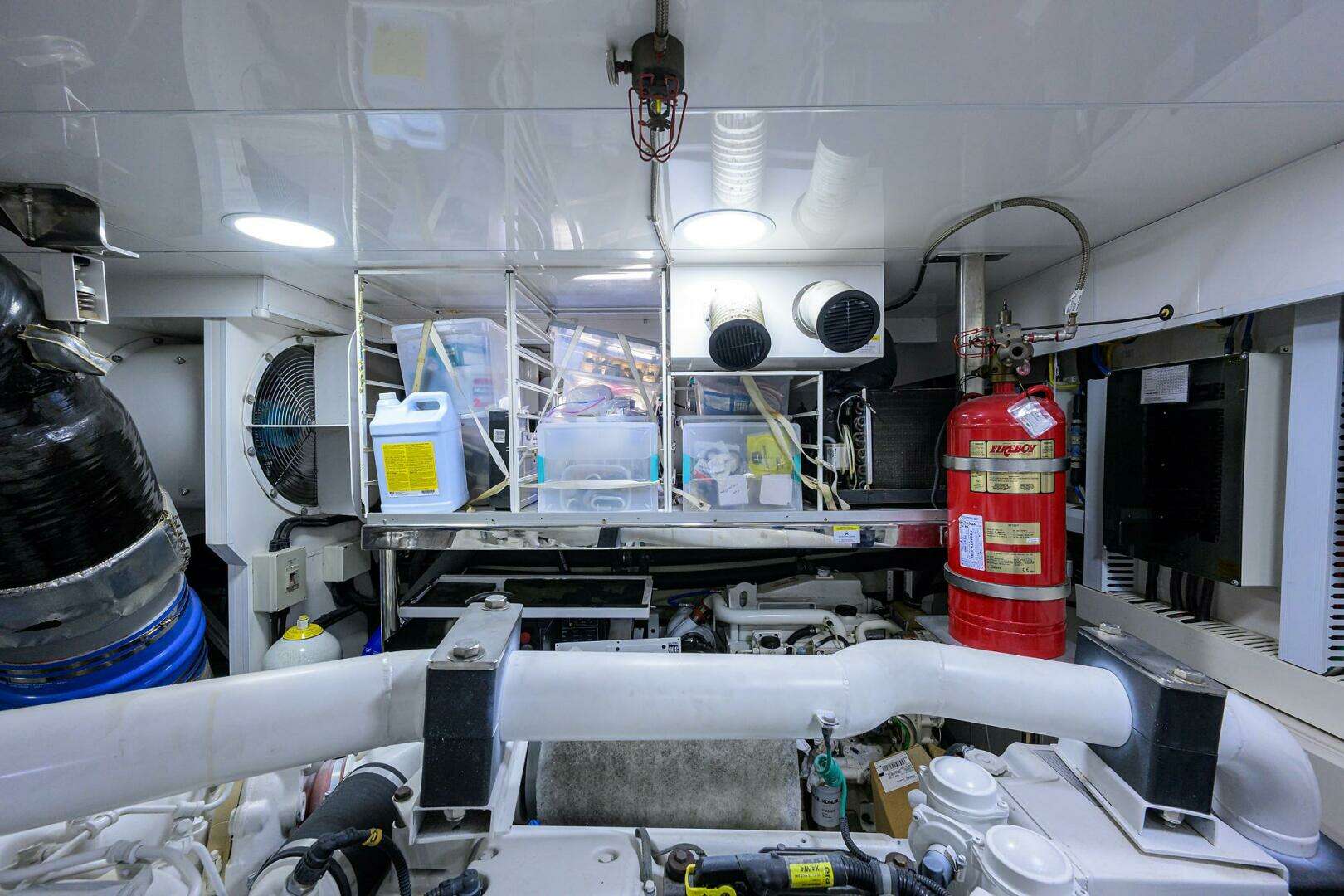

•  Fire Boy™ Fire extinguisher system with engine shutdown feature
• Kahlenberg™ triple heavy-duty horn

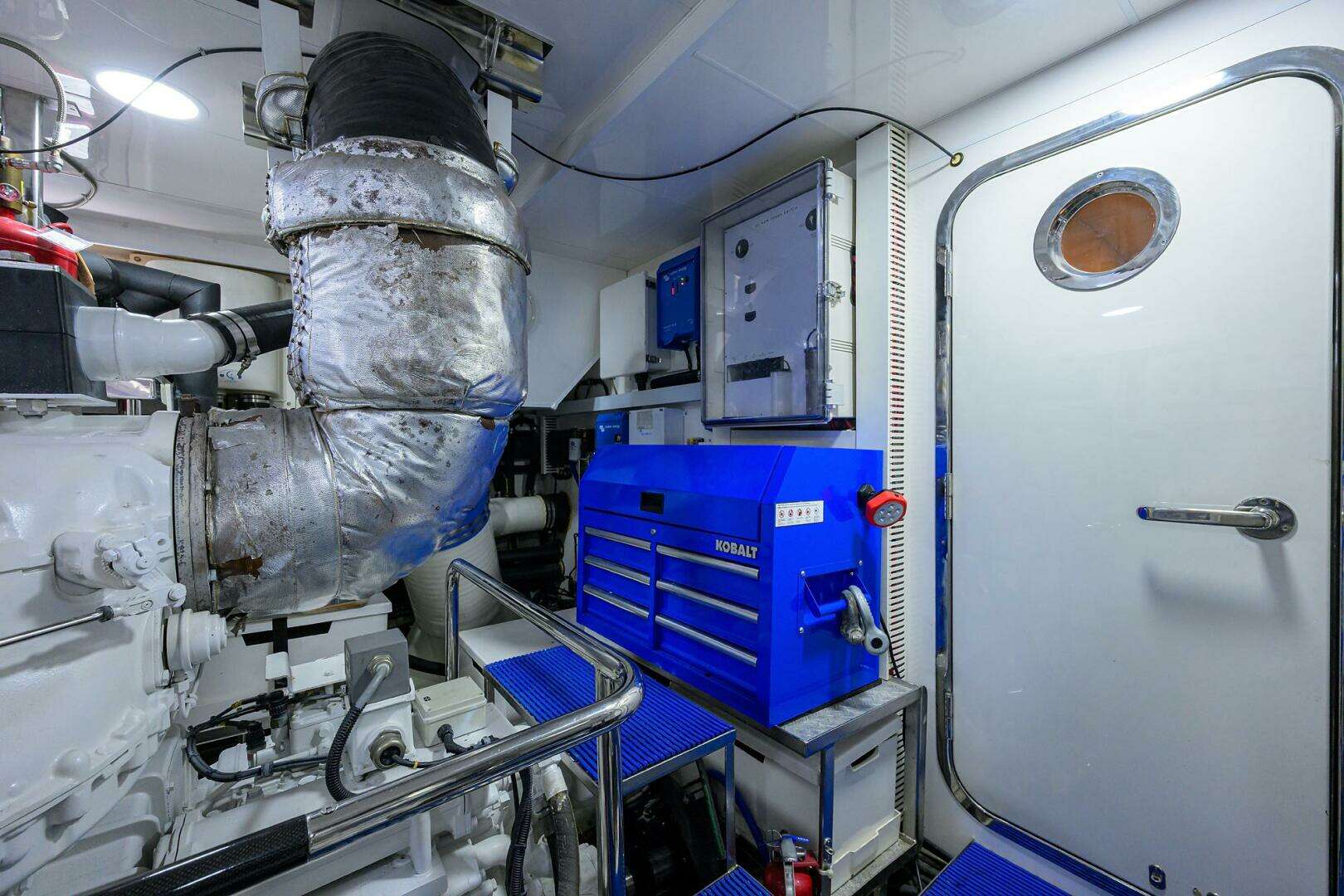

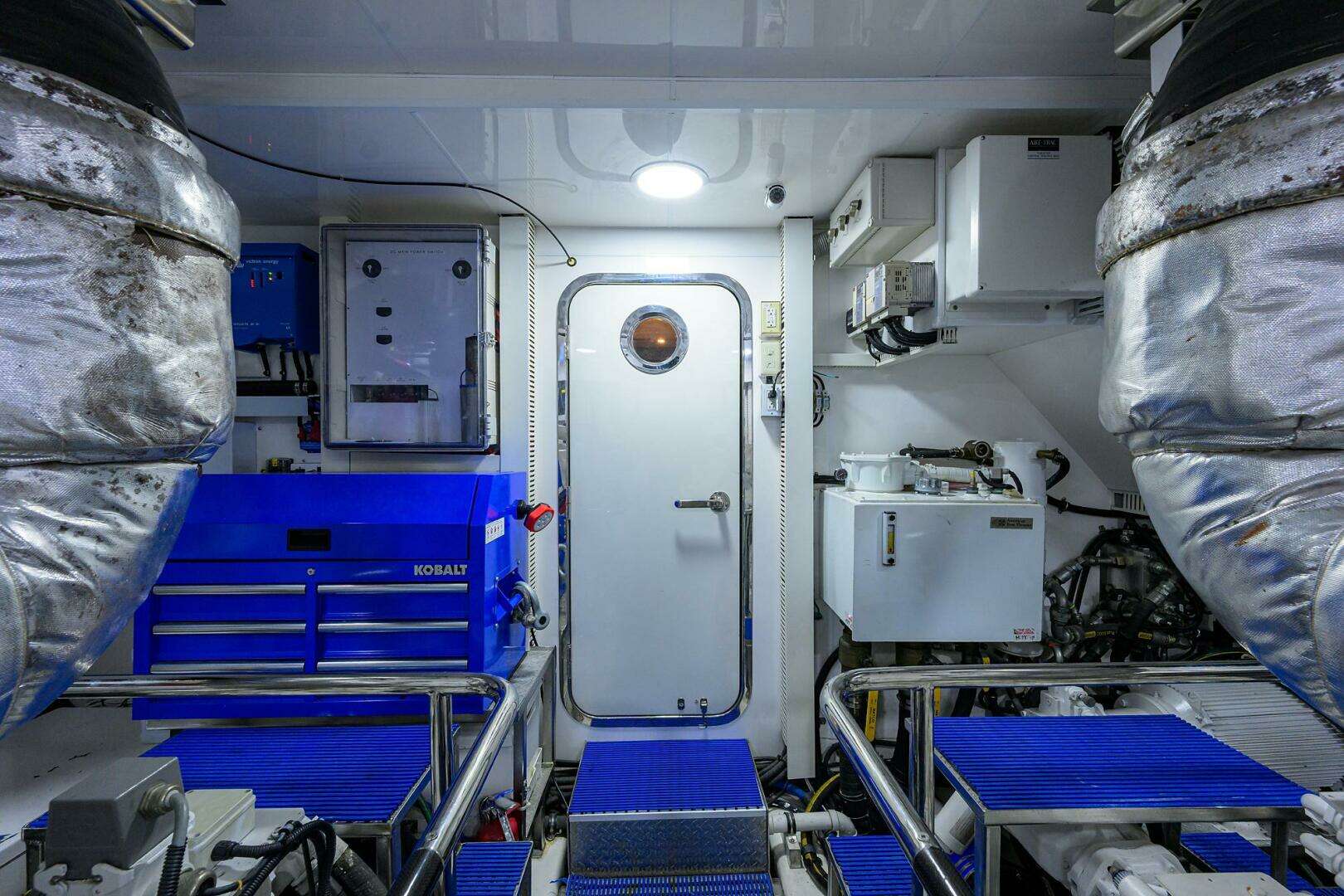

• All engine room and machinery spaces are painted and top coated with Awlgrip
• Hepworth ® heavy-duty commercial grade panto-graph windshield
•  Cruisair chilled water air conditioning 3 units total 201K BTU with Reverse Cycle
• Dedicated engine room air conditioning
•  BRAND  NEW BOTTOM PAINTING COMPLETED OCTOBER 2016
• Dual 40 Gallon Hot Water Heaters
• Headhunter MSD Automatic Waste Treatment System (50 Gallon / Day)
•   Super quiet & efficient “ Planus” toilets
•  Sea Recovery1400 G/Day water maker w/auto fresh water flush operation, PH Neutralizer, UV sterilizer, Commercial Pre-filter. Remote Operation from Fly-bridge via Maretron Computer System

Deck and Pilot House Construction

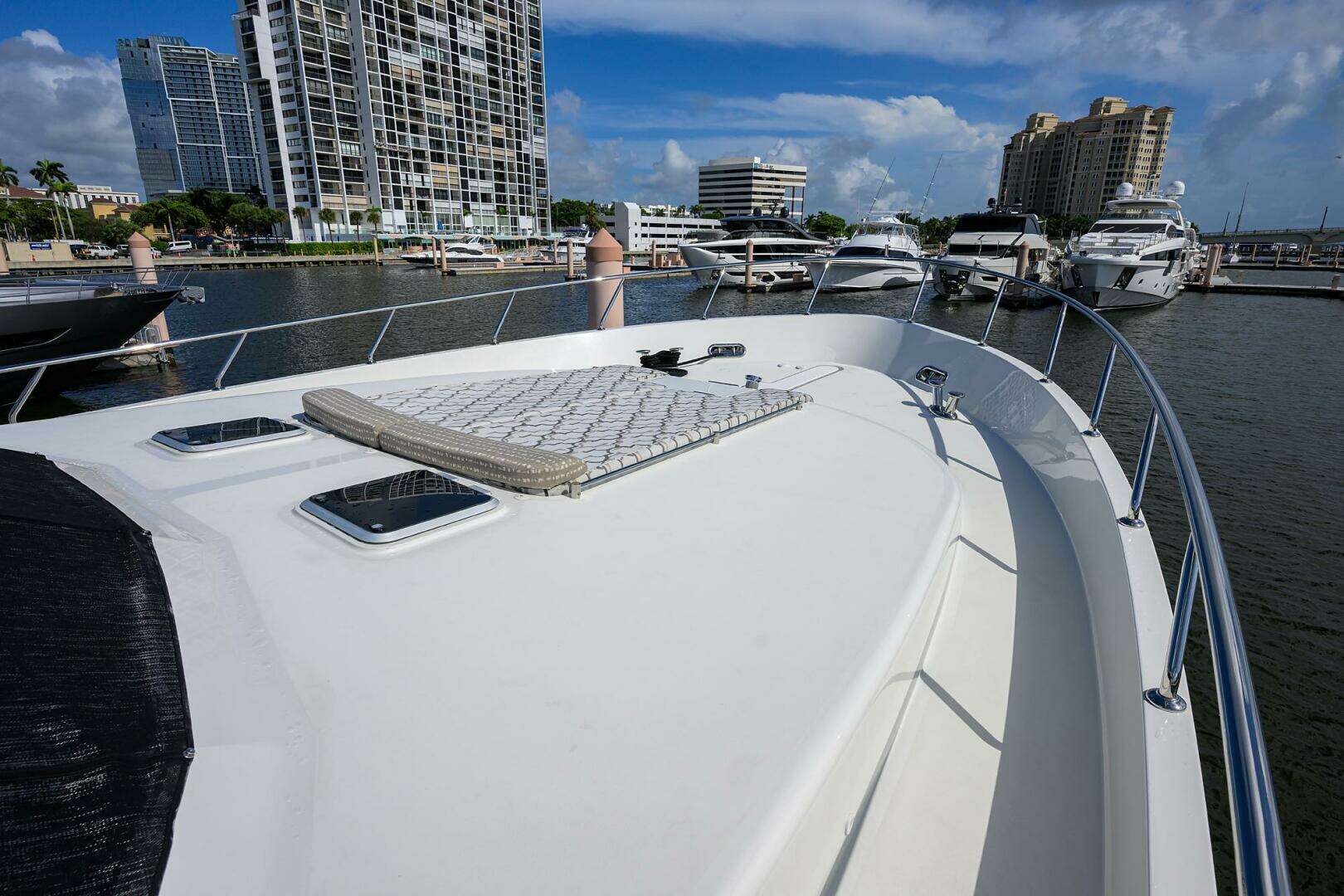

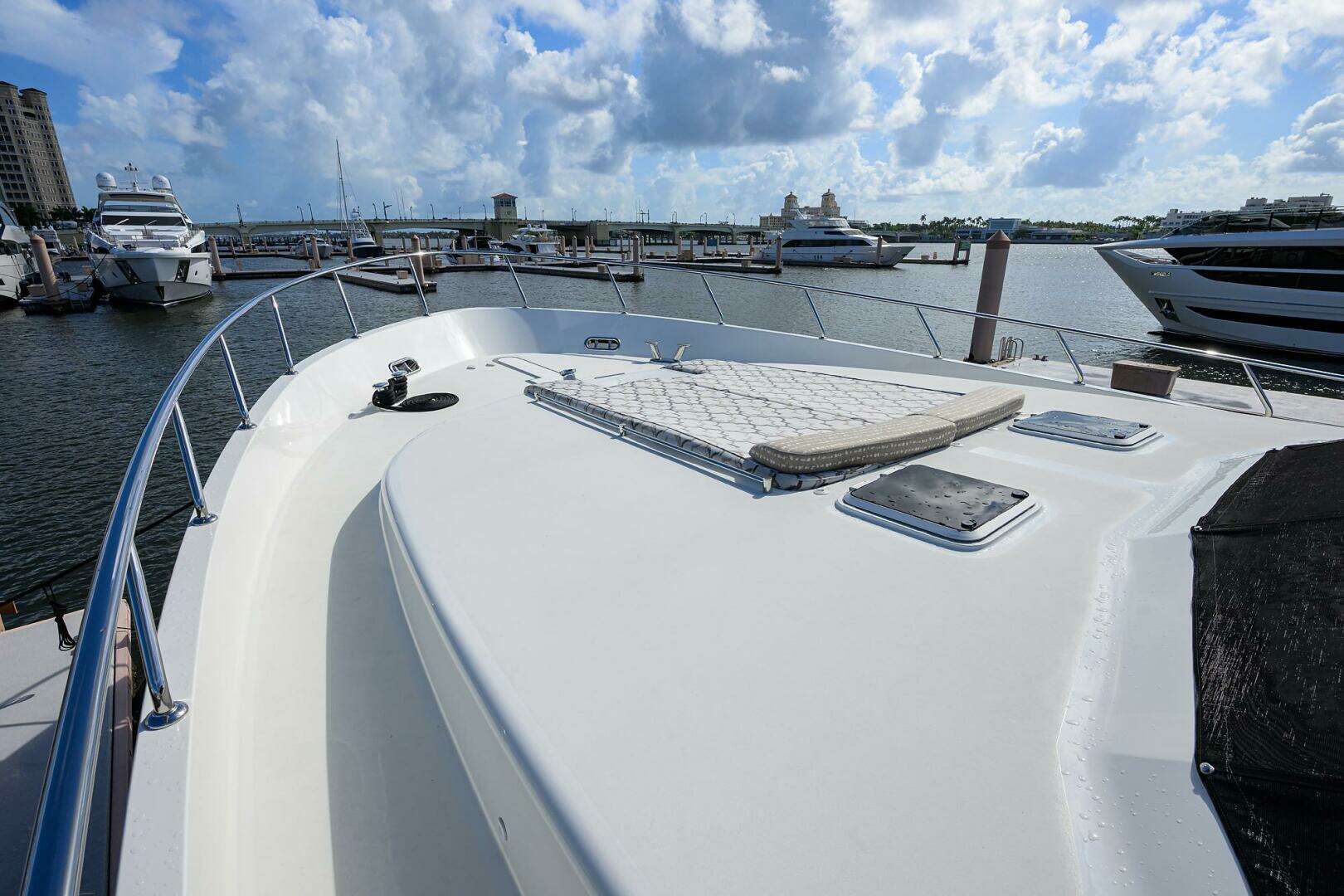

• White non-skid fiberglass decks  forward

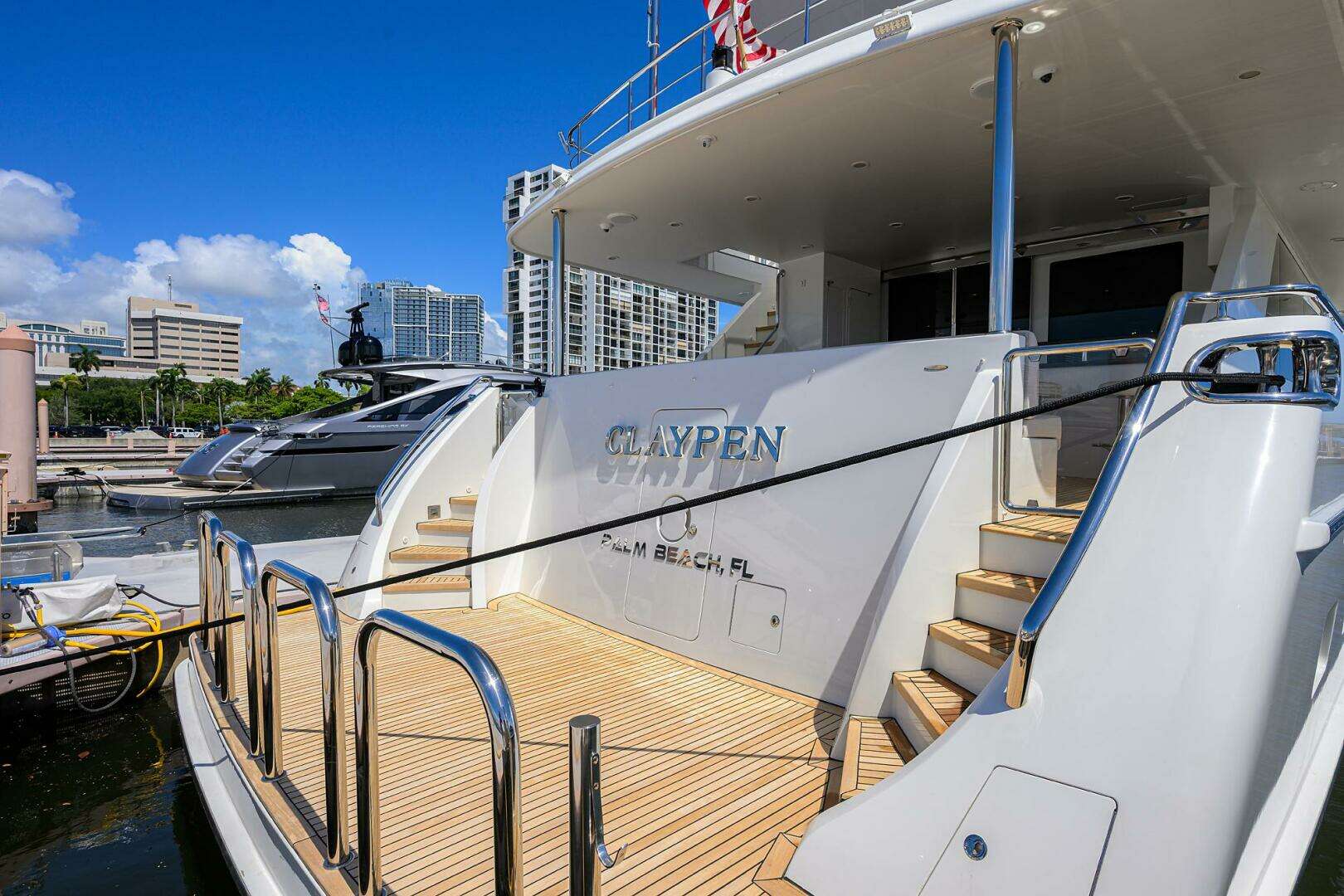

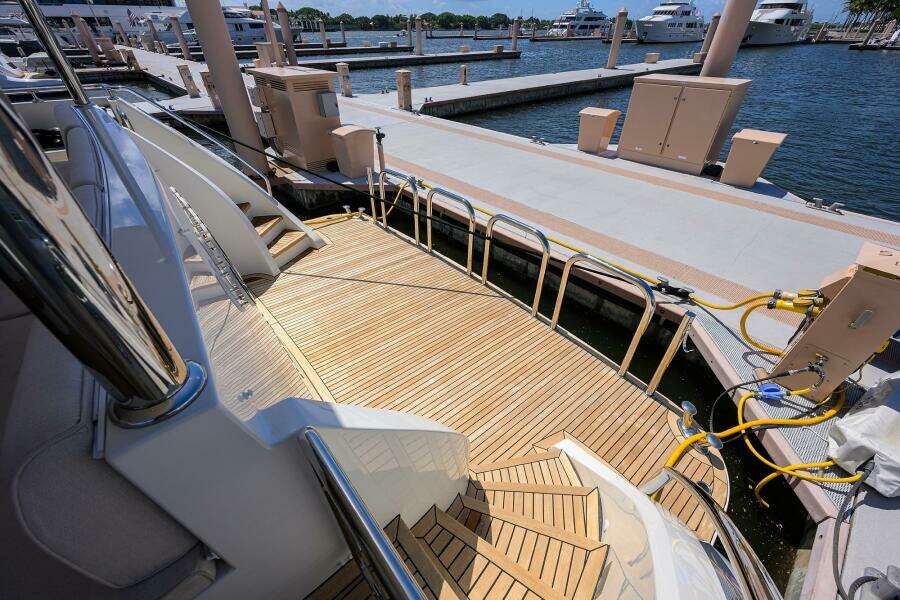

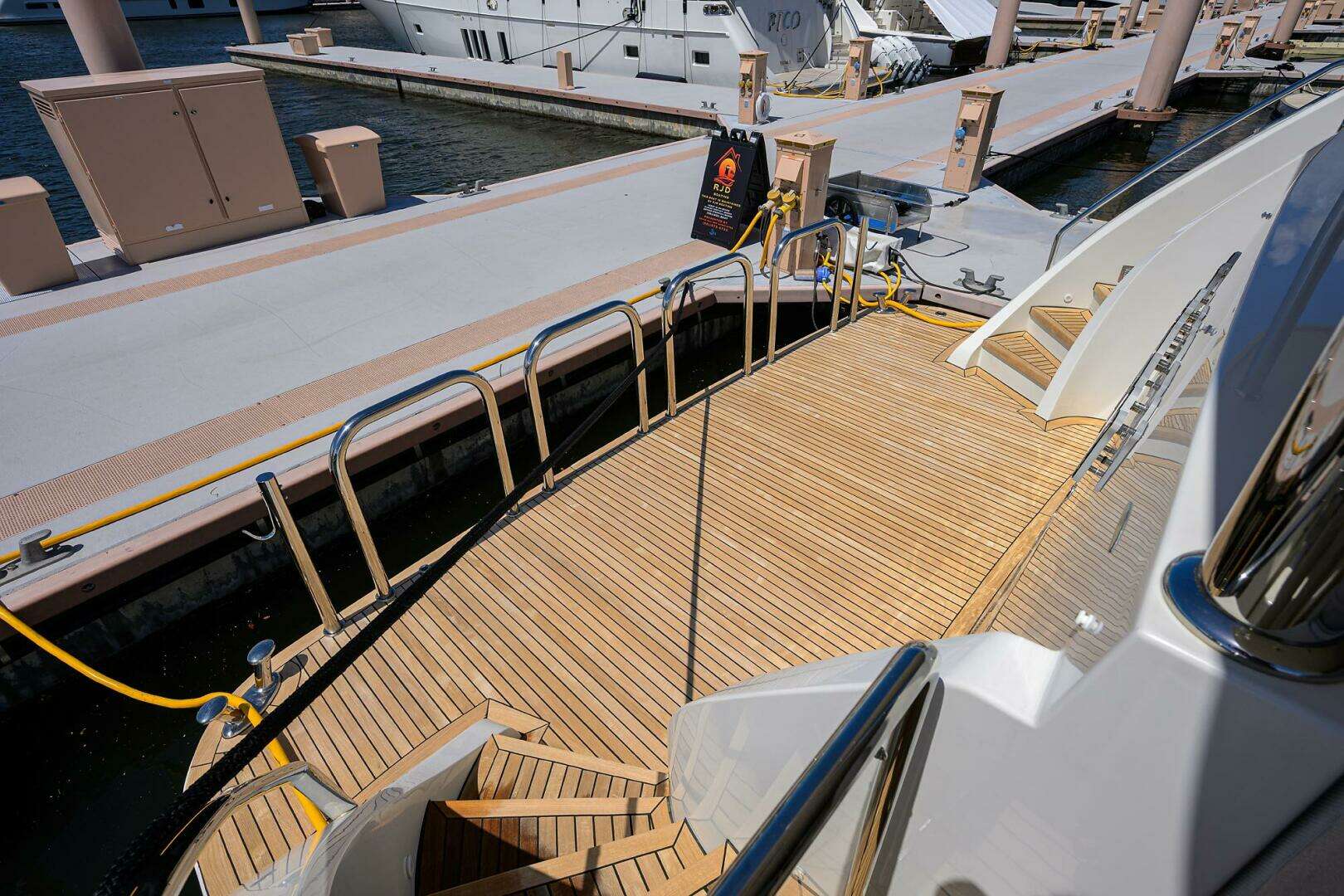

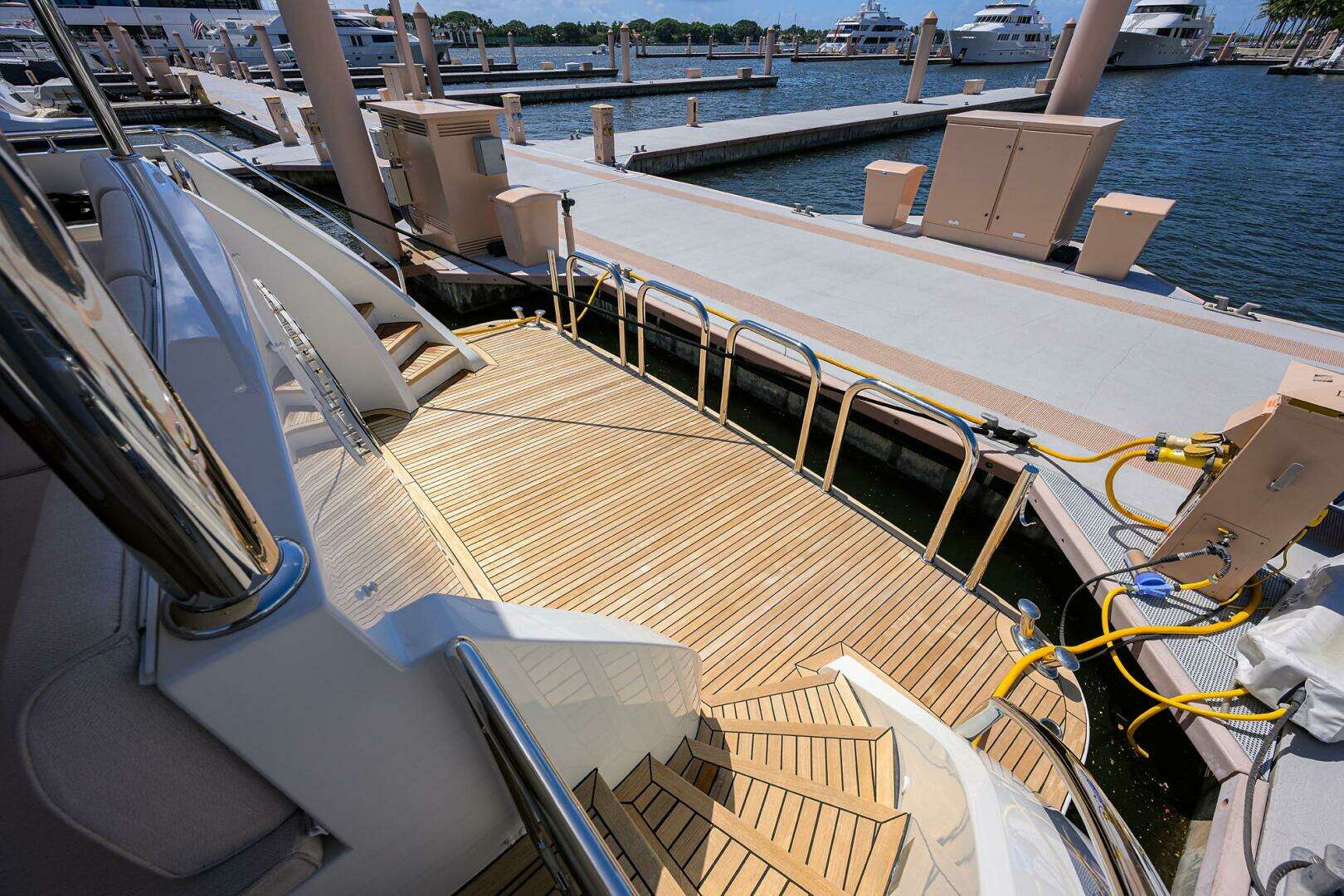

• Teak swim platform w/ teak steps & swimming ladder

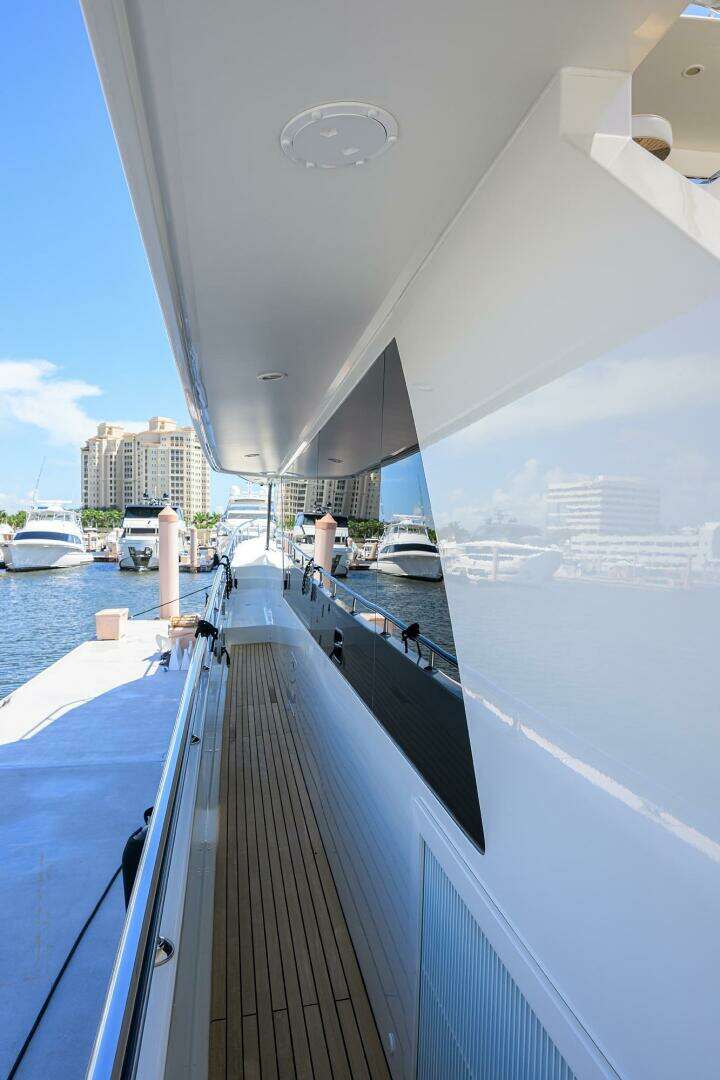

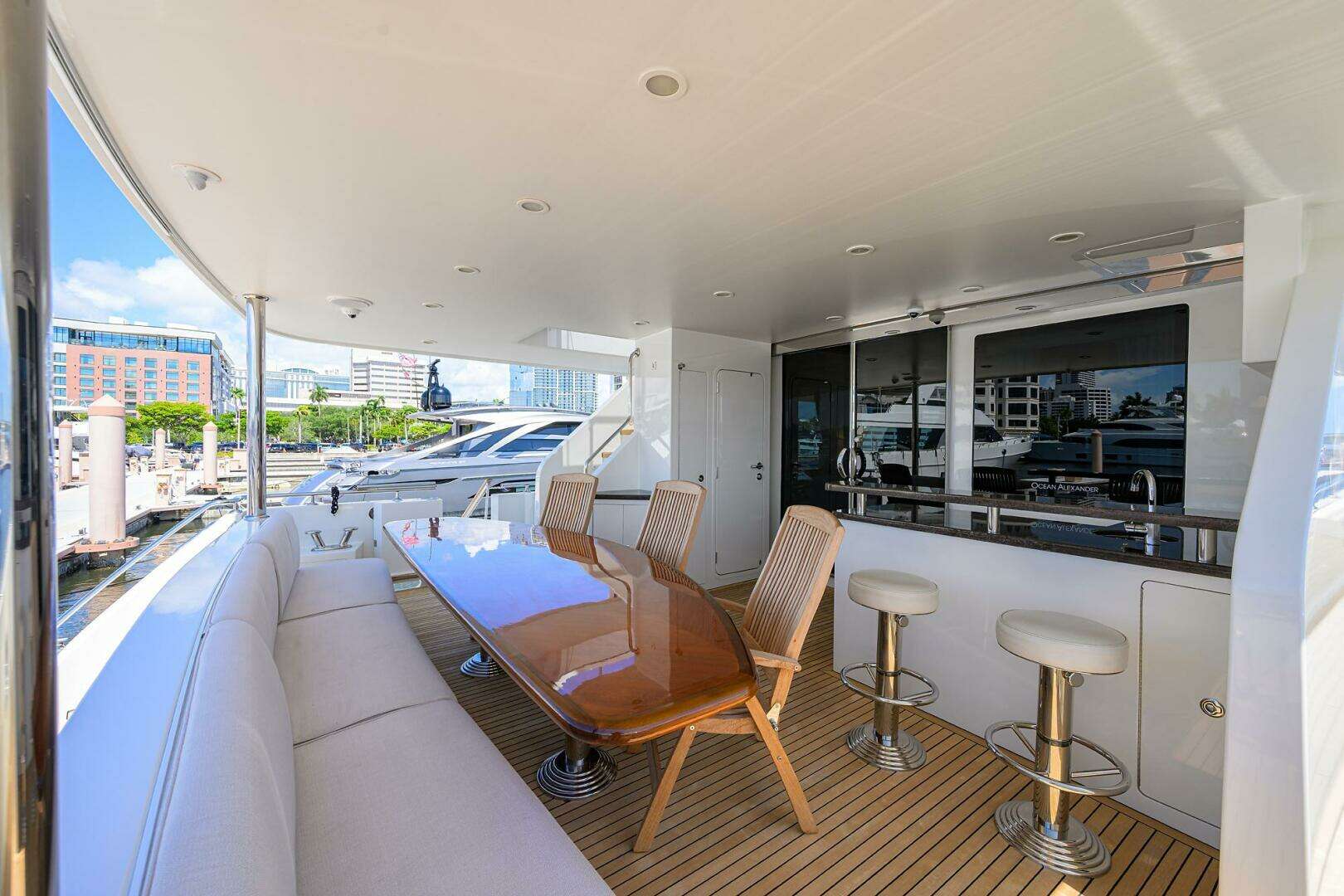

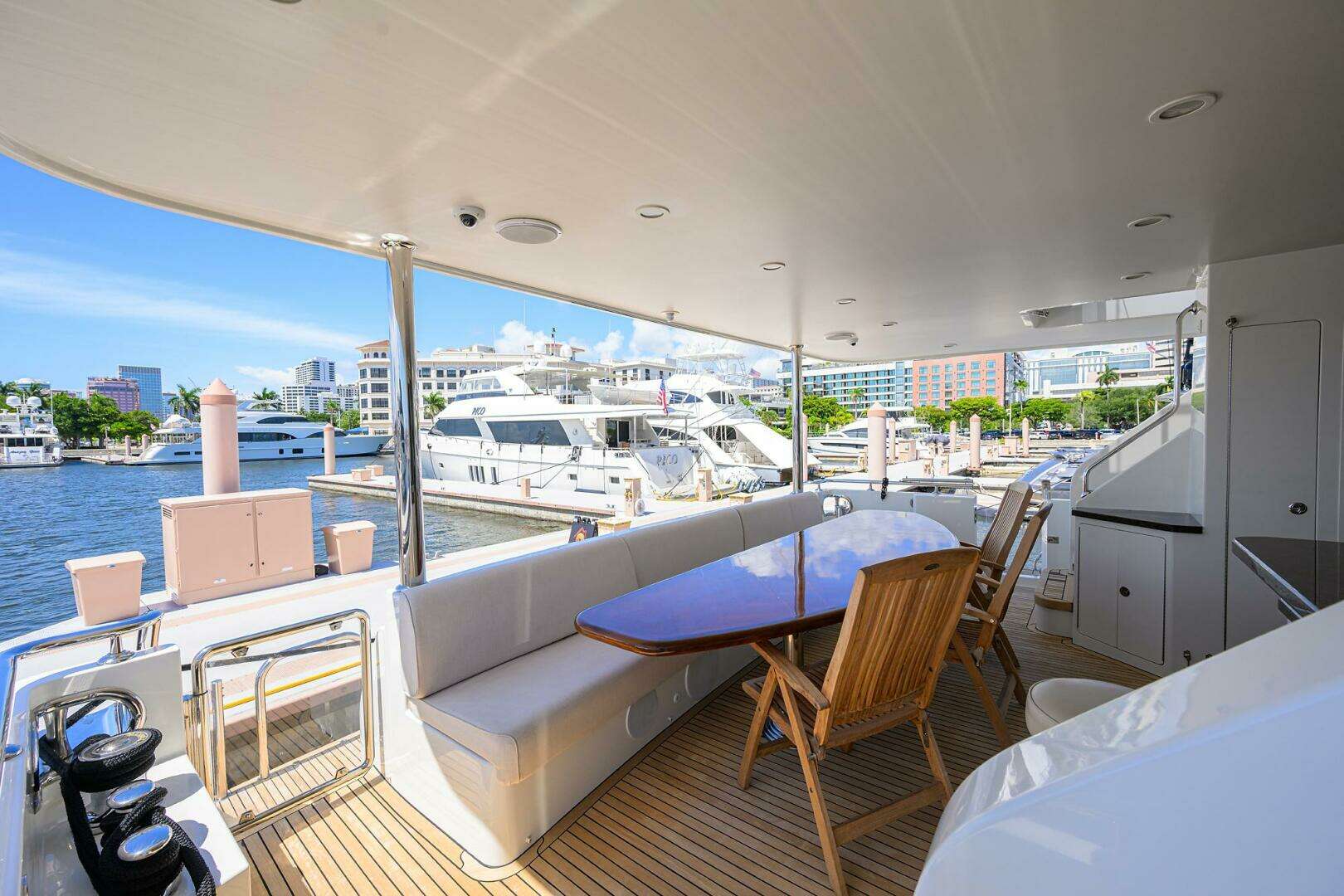

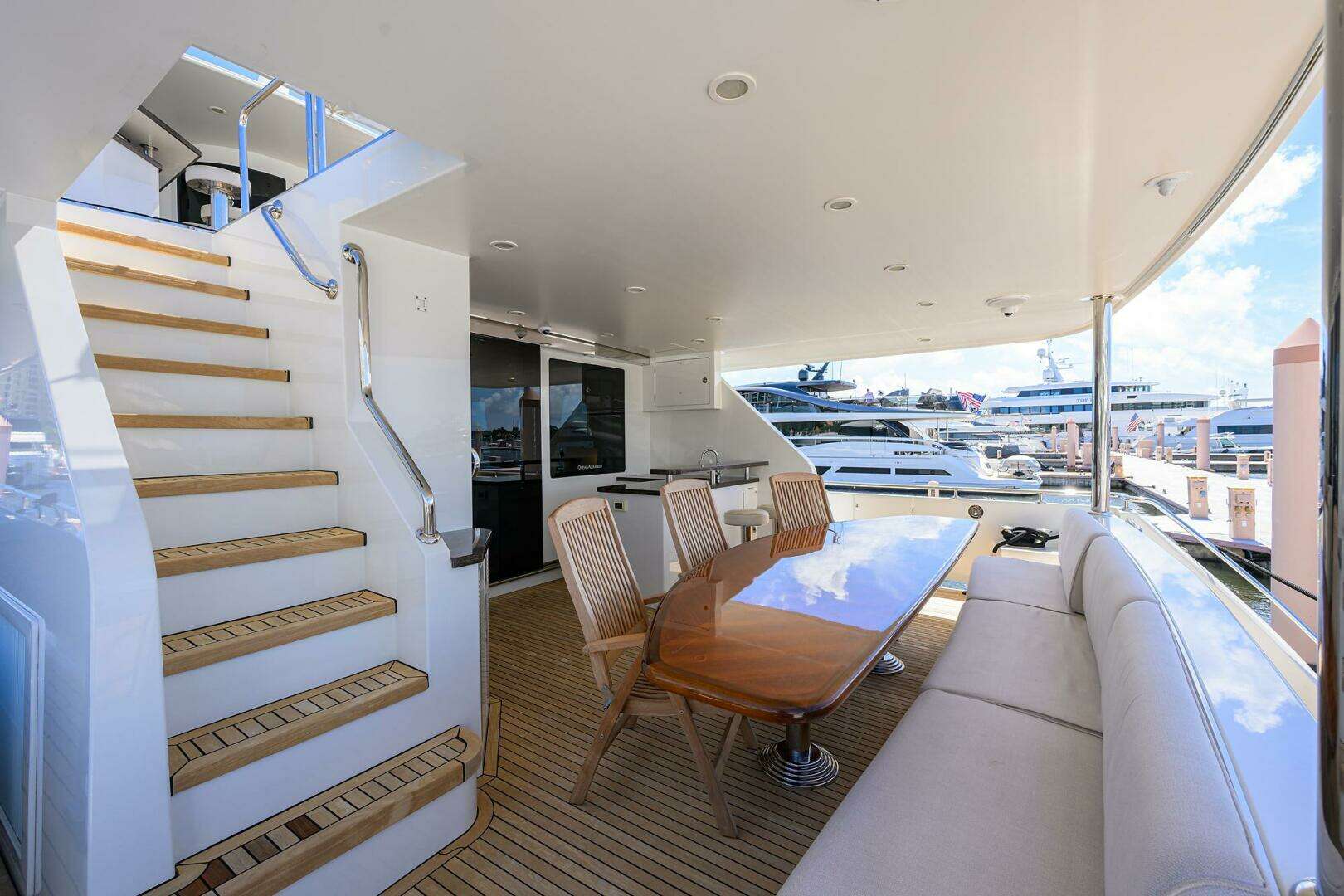

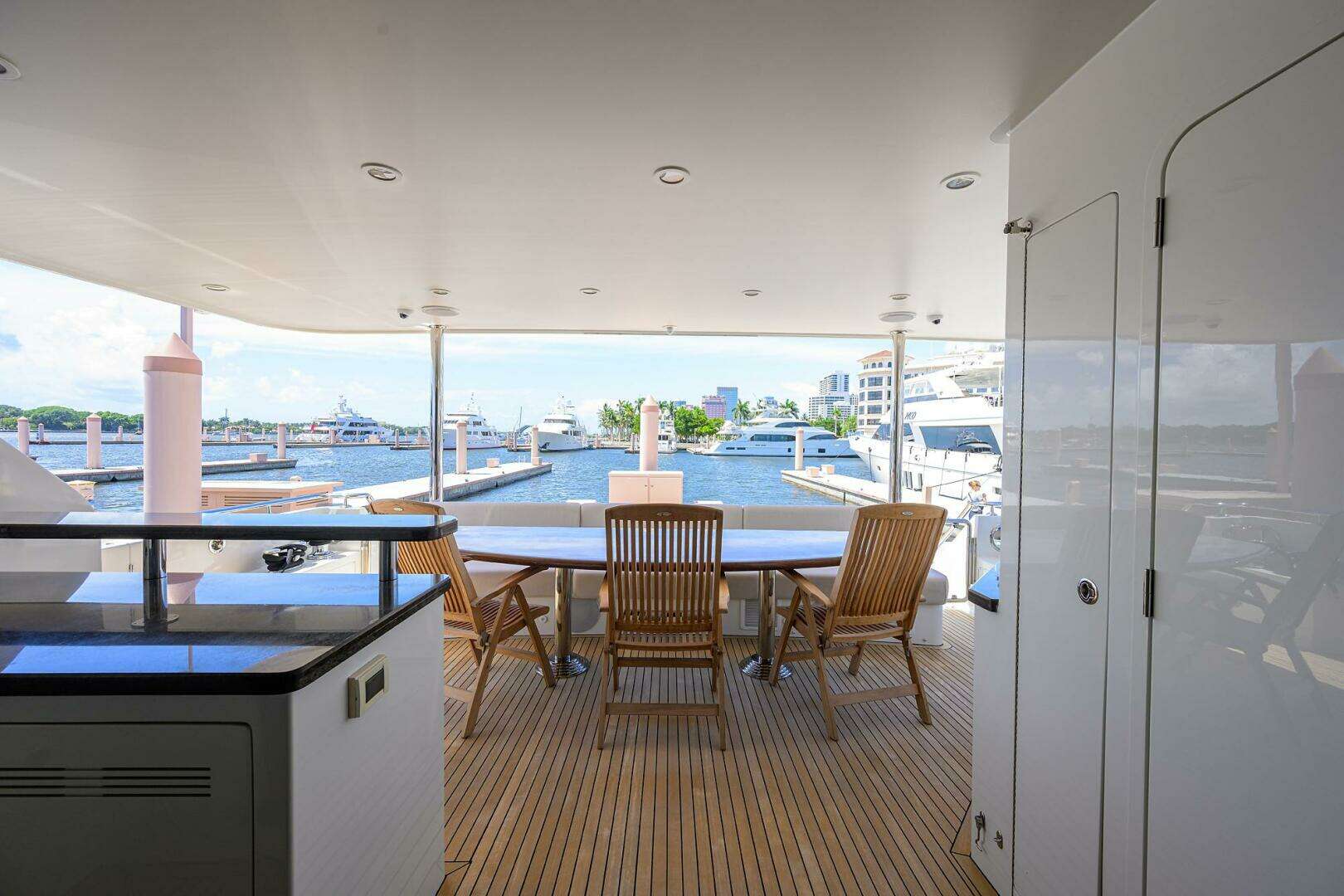

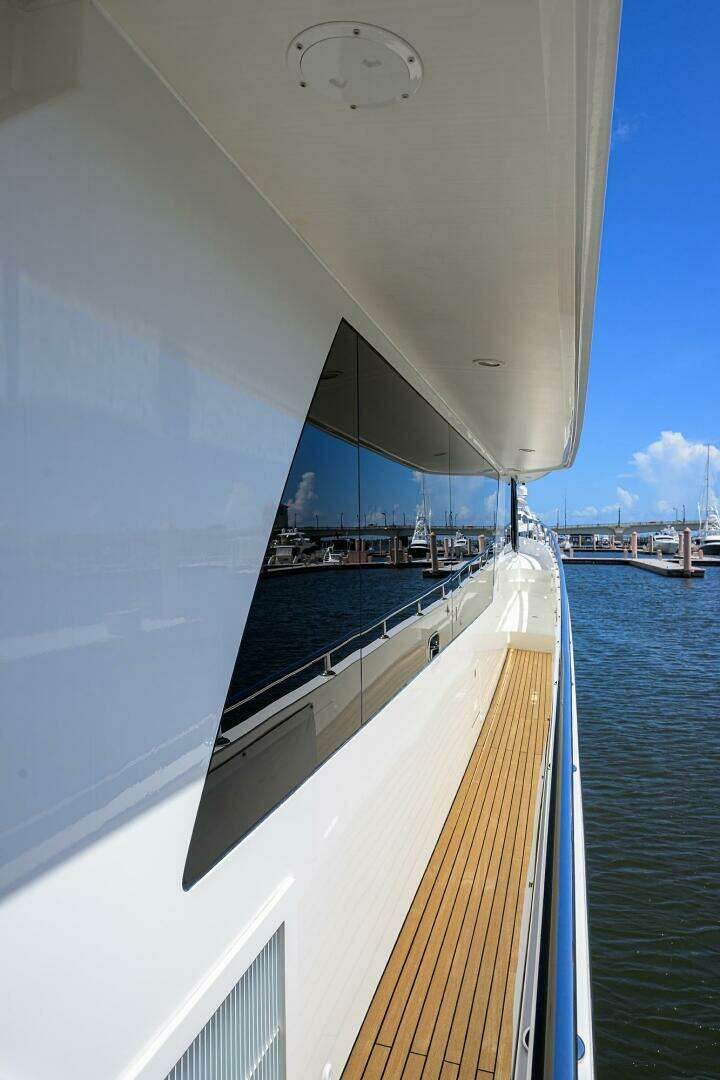

• Teak deck for aft deck and side walkway to mid ship
• S/S transom gates for pets & children protection
• Deck, superstructure and Fly-bridge with aluminum I-beam reinforcements
• Sunbrella® fabric (Daponi Sand) on outside cushions

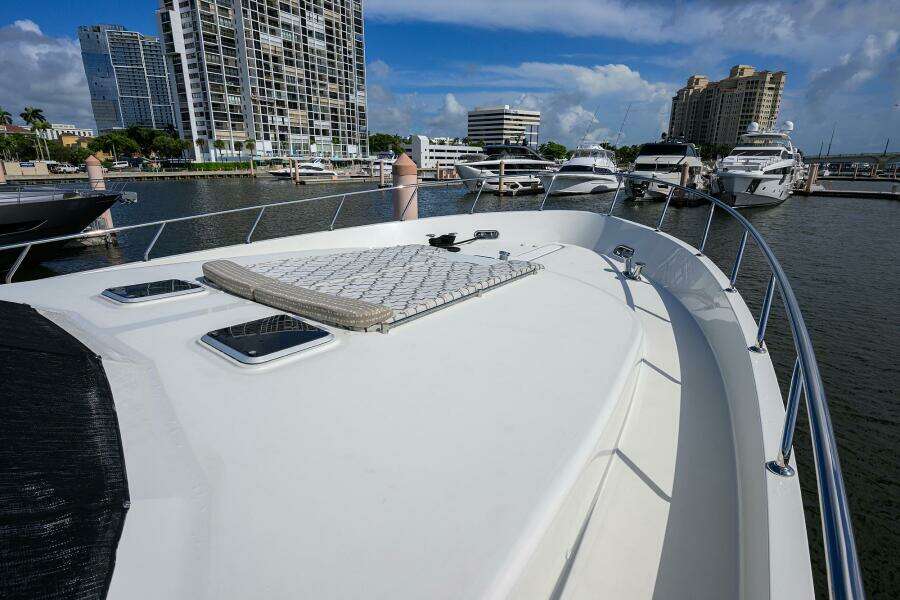

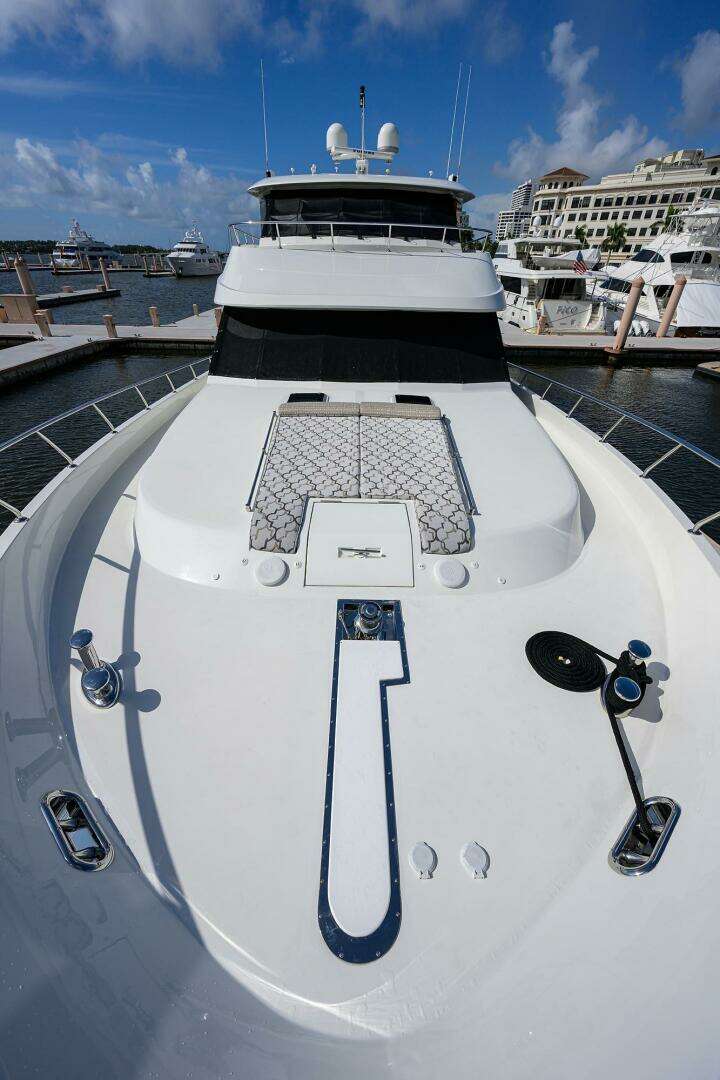

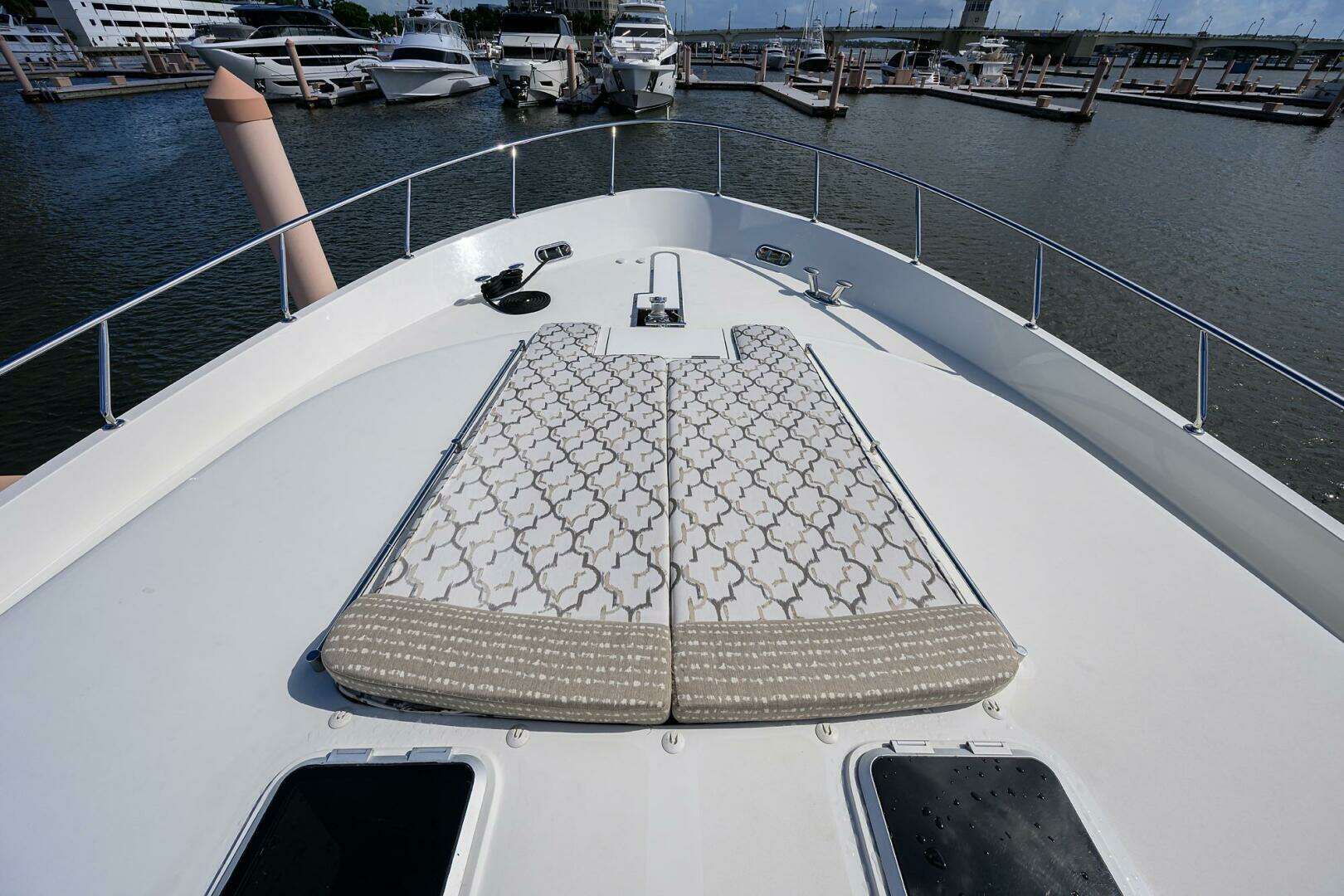

• Removable Custom sun pad in fore deck
• Large watertight hatch with climb-in storage from forward deck

Fuel System

• 4.5mm thickness 5052 Aluminum fuel tanks with sight gauges and tested to International Standards 33CFR 510(a) w/ high and low fuel level alarm system
• Total Fuel Capacity 3000 Gallons in 3 Tanks
• Main Tank 1400 Gallons / Port Tank 800 Gallons / Starboard Tank 800 Gallons
• Dual Racor® fuel/water separator with Y-valves for engine & generator
• Gulfcoast™ Fuel polishing system based on US Military Abrahams-M1 Tank design
• All Fuel Tanks Can Be Filled From Port Or Starboard Side

Fresh Water System

• Twin High Volume Headhunter 120V AC fresh-water pumps
• 2mm thickness 316 S/S water tank w/ sight gauge
• Fresh-water outlet with hose for engines & generator
• Cold fresh-water wash down at bow, stern and boat deck
• Sea Recovery1400 G/Day water maker w/auto fresh water flush operation, PH Neutralizer, UV sterilizer, Commercial Pre-filter. Remote Operation from Fly-bridge via Maretron Computer System
• Dual  40 Gallon Hot water Heaters
• Water Tank Can Be filled from Port or Starboard Side

Sewage / Waste Treatment System

•  Headhunter™ MSD Automatic Waste Treatment System (50 Gal / Day)
• Dual Grey water tanks for showers
• Super Quiet " Planus " toilets

Electrical - AC/DC System

• AC outlets throughout
• Octoplex NMEA 2000 electrical control system. Based on military technology for remote activation, control and status reporting of all AC and DC breakers. Monitors all power sources (AC and DC) for voltage, frequency and amperage abnormalities and provide visual and audio alerts. Includes enhanced circuit breaker functionality with no-load indication, dimming and usage information with touch screen monitors that is user re-configurable. Brown-out configurable control through auto load shedding is included where operator designated equipment (eg navigation and other essential systems) remains powered-on while automatically switching other systems off. Octoplex NMEA 2000 Vessel system monitor system. Provides main access doors, tank level, bilge level and battery monitoring of current, voltage and temp, It is networked into NMEA 2000
• Octoplex® system AC/ DC sub panels in galley, fly-bridge helm  &  crew area

• All primary AC & DC electrical wiring is appropriately labeled throughout the yacht
• GFI (110V) AC outlet with SmartLock feature for operation error protection which exceeds UL requirements
• AC duplex receptacles throughout the boat with GFI protection in dedicated areas
• 24V DC system throughout boat
• 12V DC generator starting system
• 12V & 24V DC electronic system

Plumbing-Bilge/Discharge

• Over-sized drains to overboard
• Automatic bilge pumps - The vessel is outfitted with automatic bilge pump with manual and automatic switches in each space as divided by watertight bulkheads. High water alarms are mounted in each of these bilge zones
• High water bilge alarm at every Rule® bilge pump station
• One manual bilge pump
• Dry bilge area arrangement in center engine room

Electrical - Air Conditioning

• Cruisair® chilled water system air conditioning with  air handlers for central air conditioner, 3 units, total 201K BTU (Reverse Cycle capable for operating down to 40 degree temperatures
• Electric heater coils in entire air conditioning system for operation in below 40F water
• Refrigerant type is accepted worldwide under the Montreal Protocols
• Dedicated engine room air conditioning

General Description , Construction & Overview

Construction - General

• Carbon fiber infused composite hull and decks
• Airex® C70.90 PVC foam sandwich construction above water line (closed cell, cross-linked polymer foam w/ highest elongation in its class for great impact strength. Sound and temperature insulation w/ self extinguishing properties)
• Longitudinal and lateral fiberglass stringers filled with high-density foam
• Ocean Alexander employs various techniques to reduce sound and vibration. Focusing on providing a quiet and comfortable yachting environment through various proprietary techniques of controlling sound and noise transmission. Some of these techniques include, multiple insulation barriers including reflective materials, absorptive materials, dampening materials, air pockets and flexible and isolation mounts. Ultimately resulting in vibration/sounds levels that are industry leading and at times 1/2 to 1/10 of ISO-6954 requirements
• Fiberglass with infusion and “vacuum bag technology”
• Reinforced collision bulkhead
• Reinforced aluminum I-beam
• Complete Alexseal White T9130 exterior paint in lieu of white gel-coat
• Frame-less windows
• All exterior hardware to be S/S 316 or better and to manufacturer requirements
• Watertight bulkheads with further sound and temperature insulation

Electrical - Shore Power Connector

•  Shore power receptacle 2 x 100 AMP on transom w/ 115ft cablemaster

Electrical - Lighting

• 24V lights in all compartments
• 24V LED lights (Aerospace quality , specially tuned color temperature for Ocean Alexander that last over 100,000+ hours)
• Marine explosion-proof fluorescent lights in AC and DC configurations
• Convenience lights, lower deck and FB
• Flood lights at back of boat deck
• Reading lights in VIP headboard
• International navigation lights
• All staterooms, salon, dinettes and skylounge w/ indirect lighting
• ACR searchlight (RCL100D/24V) with remote in skylounge, PH
• Spreader lights under wing mast
• Four Underwater lights
• Color change light on skylounge

Electrical - Chargers

• Victron battery charger (engine: 24V/60A, genset: 12V/25A)

Electrical - Battery

• Heavy-duty batteries (house banks: 1100 AH, engine batteries: 550AH, genset batteries: 490AH)
• Battery paralleling system with control switches
• All New AGM Batteries replaced March 2016

Electrical - Bonding System

• Bonding system throughout
• The vessel's bonding and grounding systems shall include copper straps secured to the hull and running the full length of the vessel parallel to centerline. Engines, generators, metallic through hulls, strainers, and pump bodies shall be connected to the bonding strap using 8 AWG wire minimum or equivalent

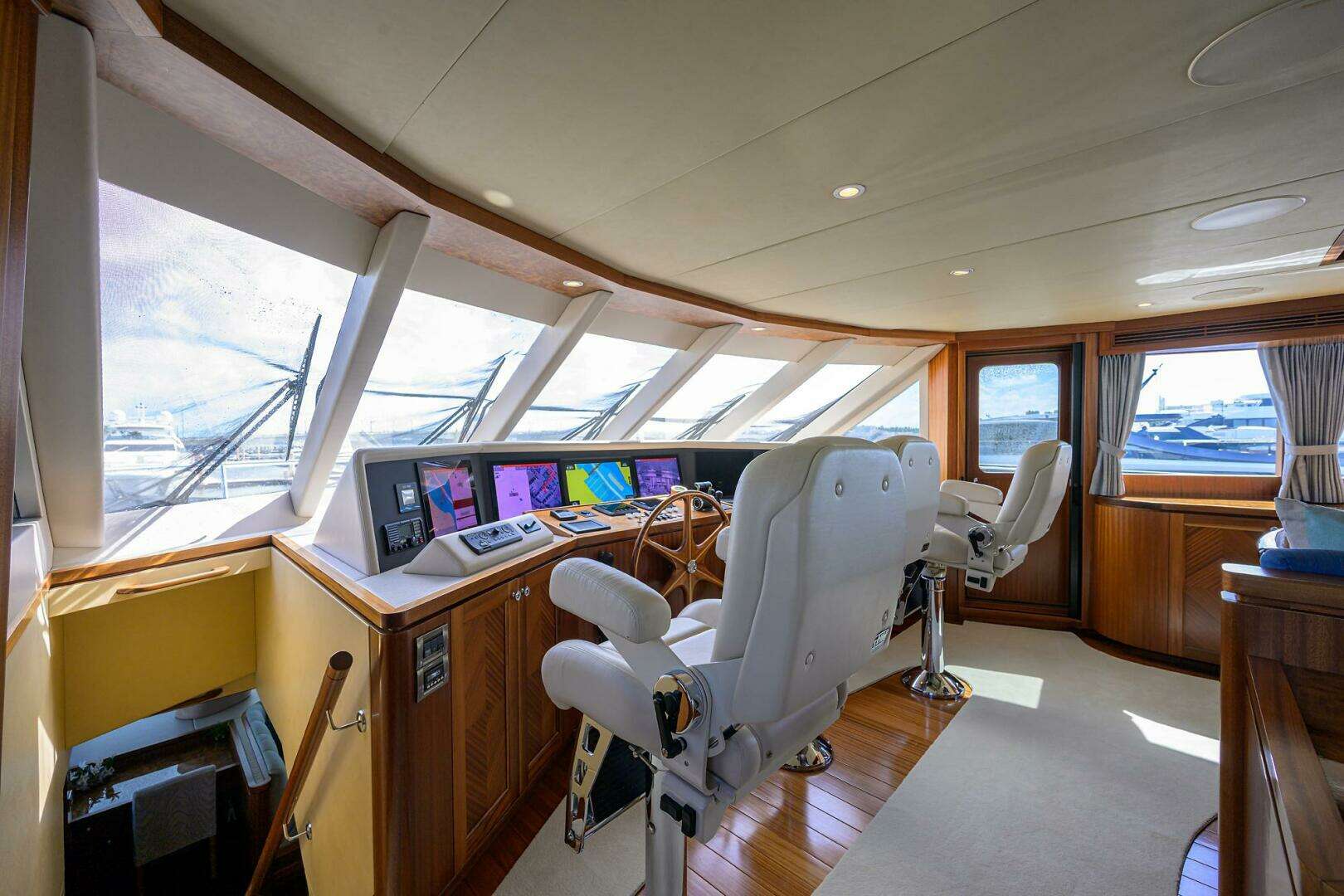

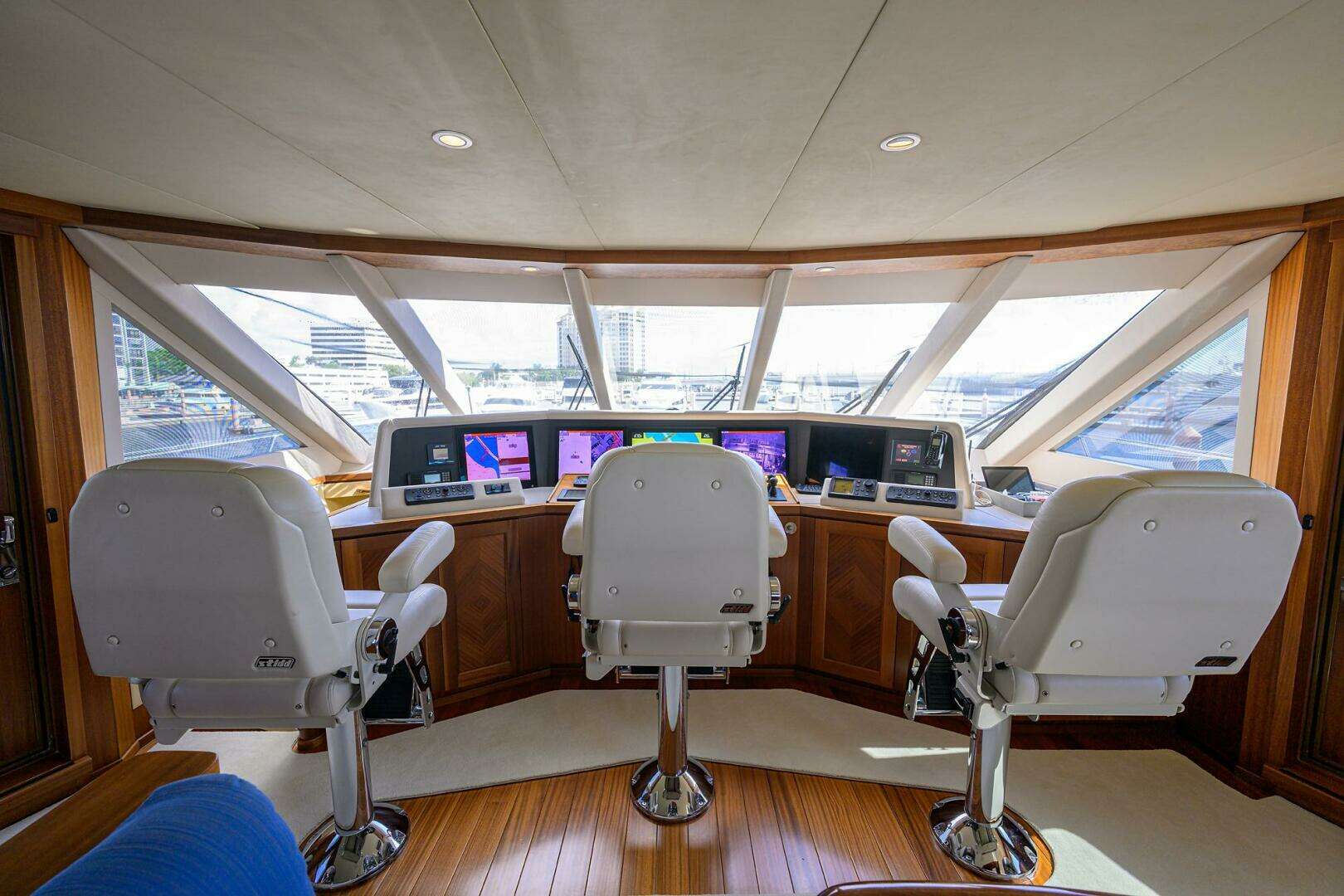

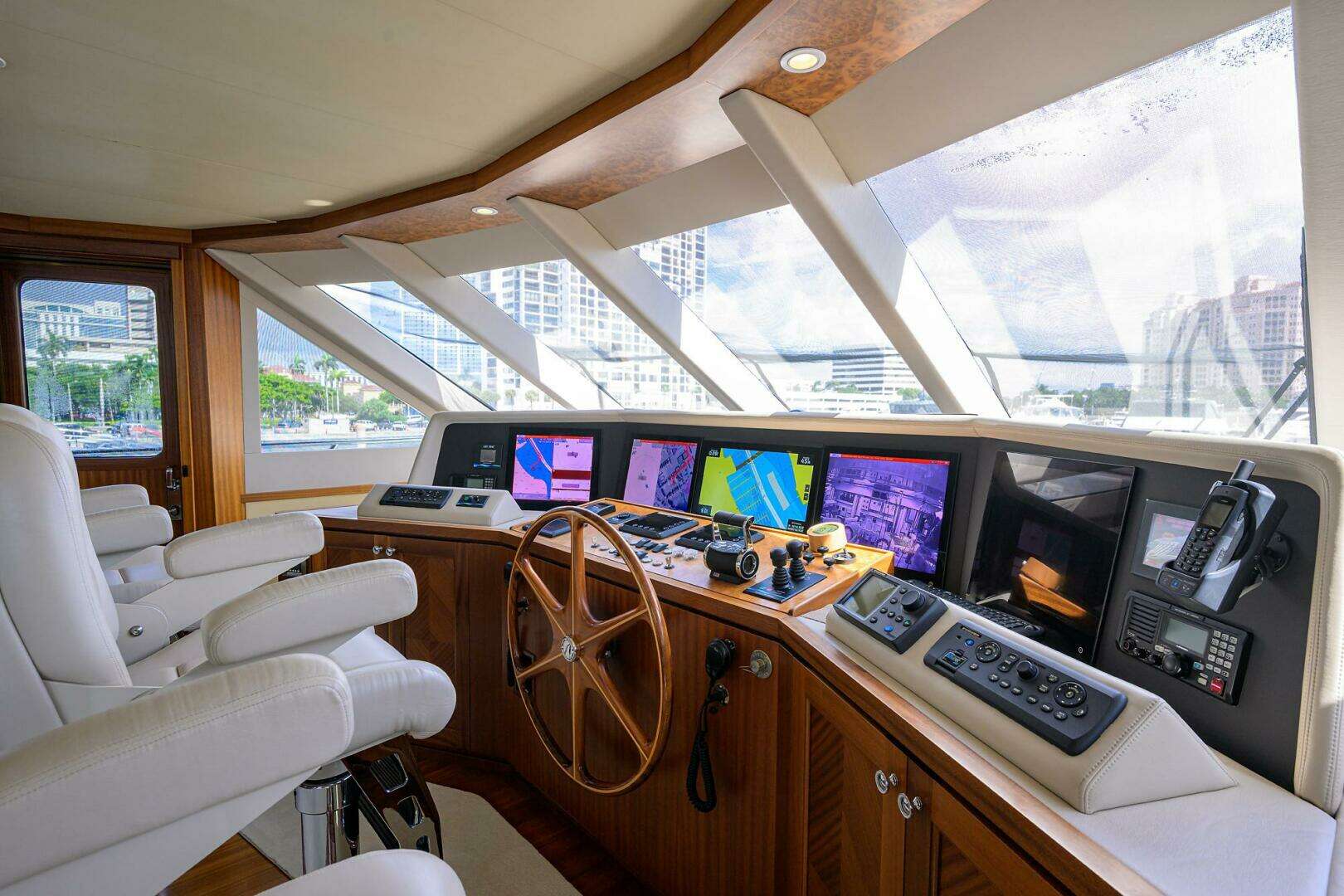

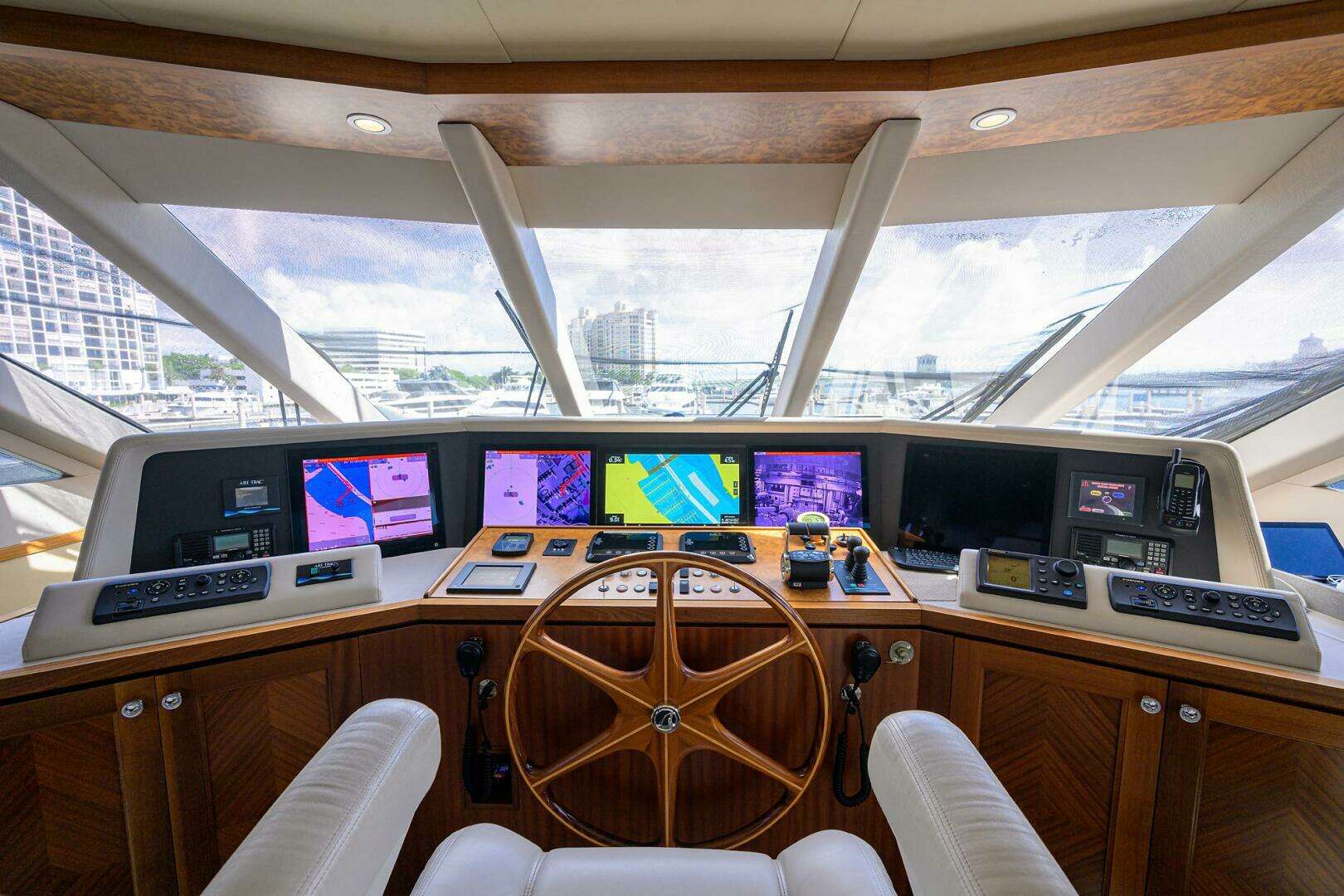

Electrical - Furuno Navigation Package

• FURUNO MFD Black Box Processors
• FURUNO 6Kw 6ft Open Array Dual Ranging Radar
• FURUNO Class B AIS Integrated into Radar and Chart Plotter
• FURUNO Digital Sounder with 1Kw B260 Broadband Transducer
• 19” Marine Monitors
• AXIS IP Camera in Engine Room and Aft Deck
• ICOM 604 VHF skylounge
• Simrad AP28 Autopilot System at skylounge
• KVH HD7 Control Panel Satellite HDTV System
• Maretron DSM250 NMEA 2000 Display skylounge, galley and MSR
• Maretron NMEA 2000 GPS, Depth Sounder and Weatherstation
• Computer Software - Maxsea Times O
• UPS electrical protection for navigation computer
• Direct TV receiver with UPS

Electrical - Other

• Marine-grade, tinned copper wiring with Vimar switches & outlet
• Isoboost package (100AMP+100AMP)
• N2KView Vessel and Security Monitoring Package
• Additional telephone system

Audio / Visual - Master Stateroom

• LCD 42” TV with Professional A/V System with IR repeater (Dolby true HD DTS-HD XM/Sirius capable w/multiEQ that provides virtually perfect acoustical environment for up to six individual seating locations, also detects “out of phase inner” auto compensable to match w/ subwoofer & speakers. HDMI 1.3 provides high bandwidth HD video output) for true color HD reproduction.
• One Subwoofer

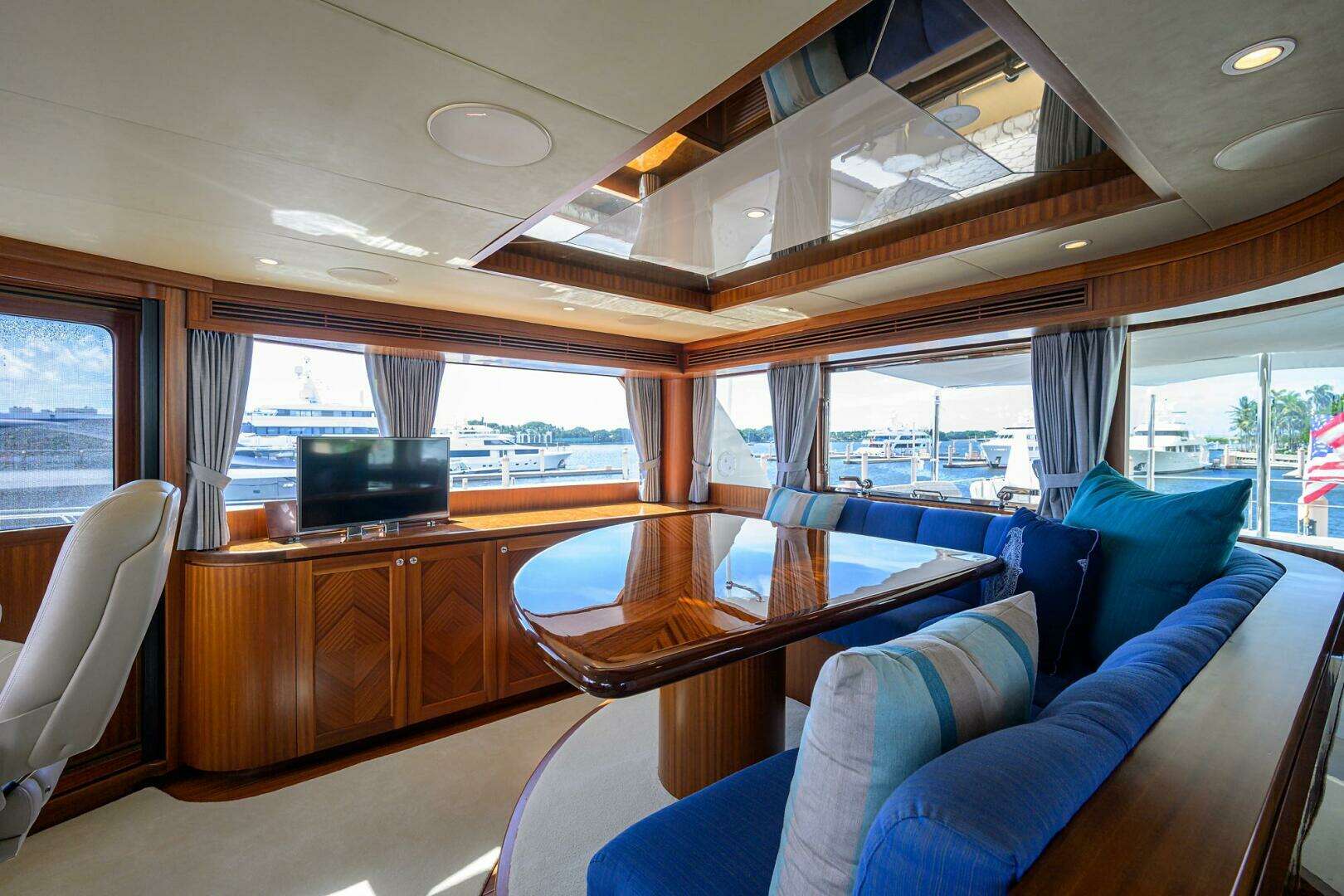

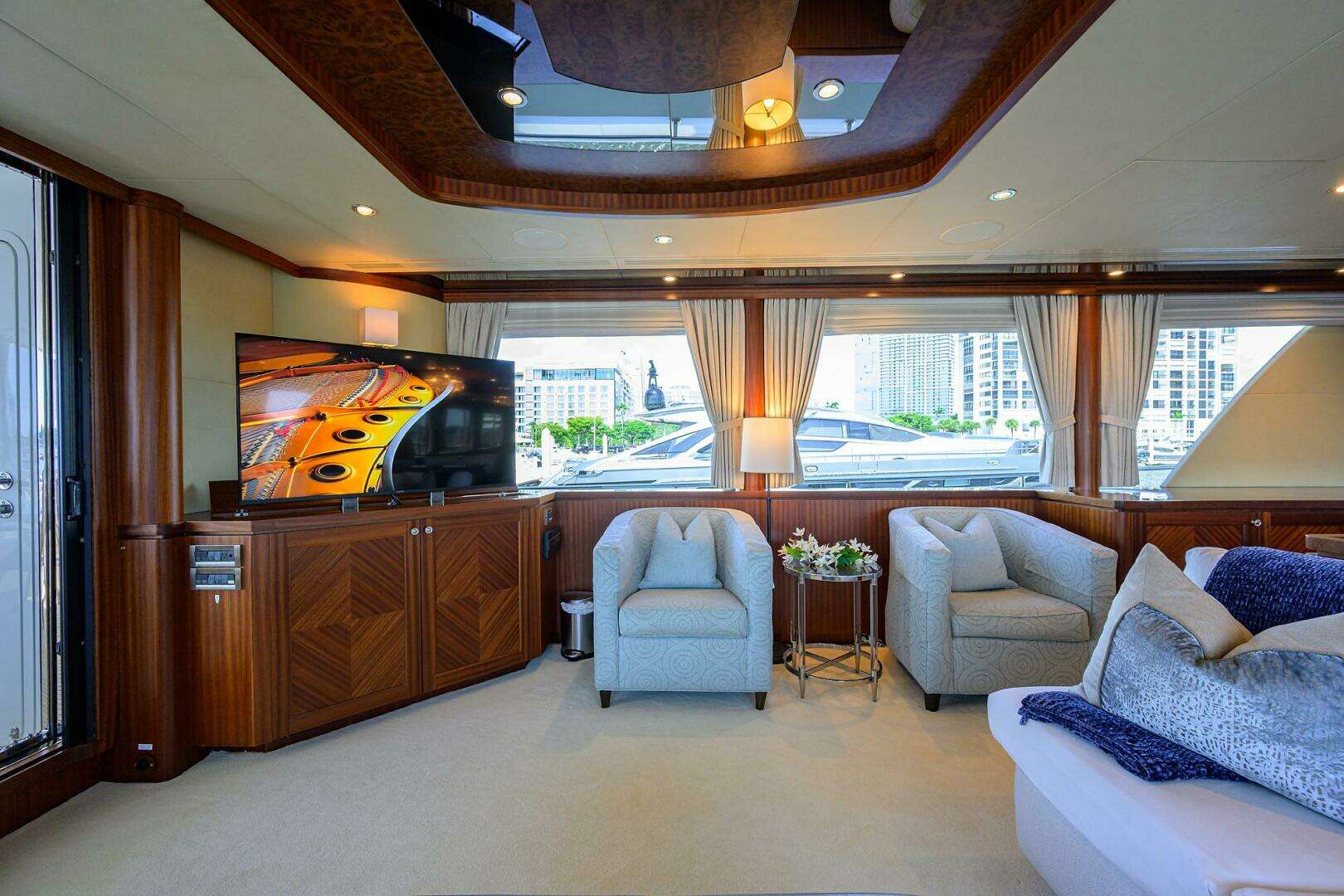

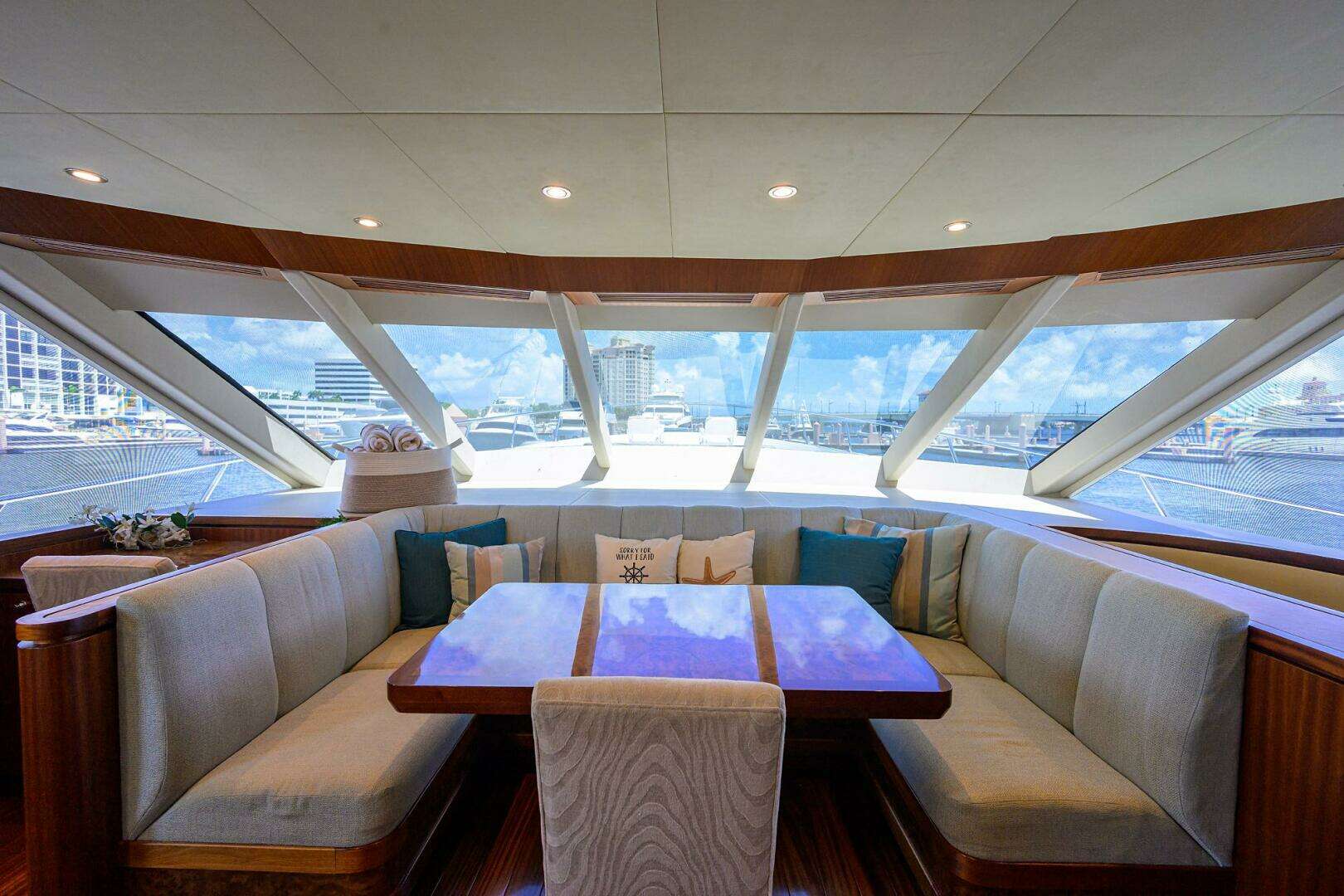

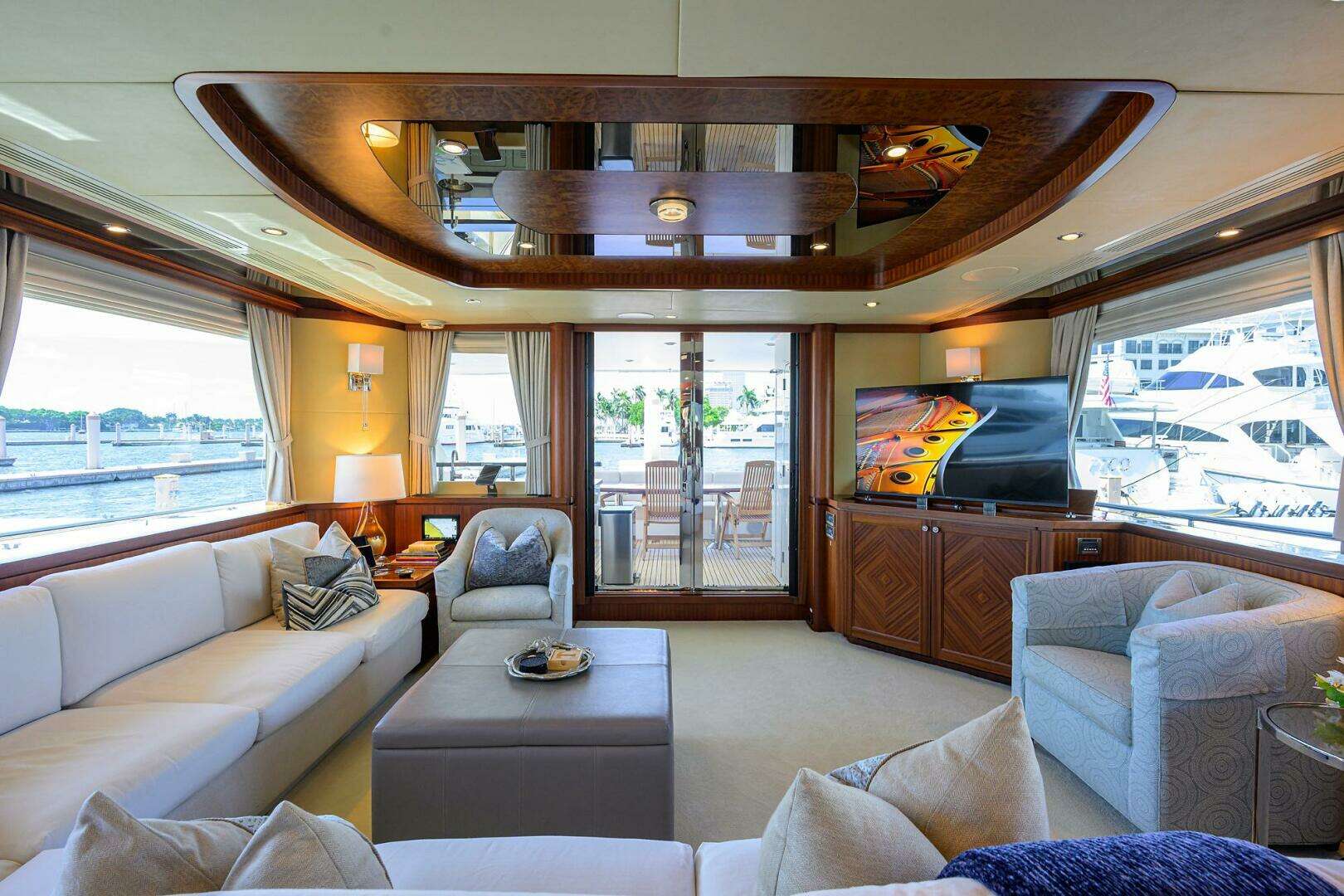

Audio/Visual - Sky Lounge

• LCD 42” TV with Professional A/V System with IR repeater (Dolby true HD DTS-HD XM/Sirius capable w/multiEQ that provides virtually perfect acoustical environment for up to six individual seating locations, also detects “out of phase inner” auto compensable to match w/ subwoofer & speakers. HDMI 1.3 provides high bandwidth HD video output) for true color HD reproduction.
• Middle-Atlantic Media Rack for A/ V equipments (Professional Studio quality rack provides ease in accessing various A/V equipment. Reduces labor, damage w/ heavy duty 13-gauge S/S and interlocking corners)
• Furman power conditioner (featuring multi-stage linear amplifier tech & extreme voltage shutdown for yacht's unstable shore/genset power)

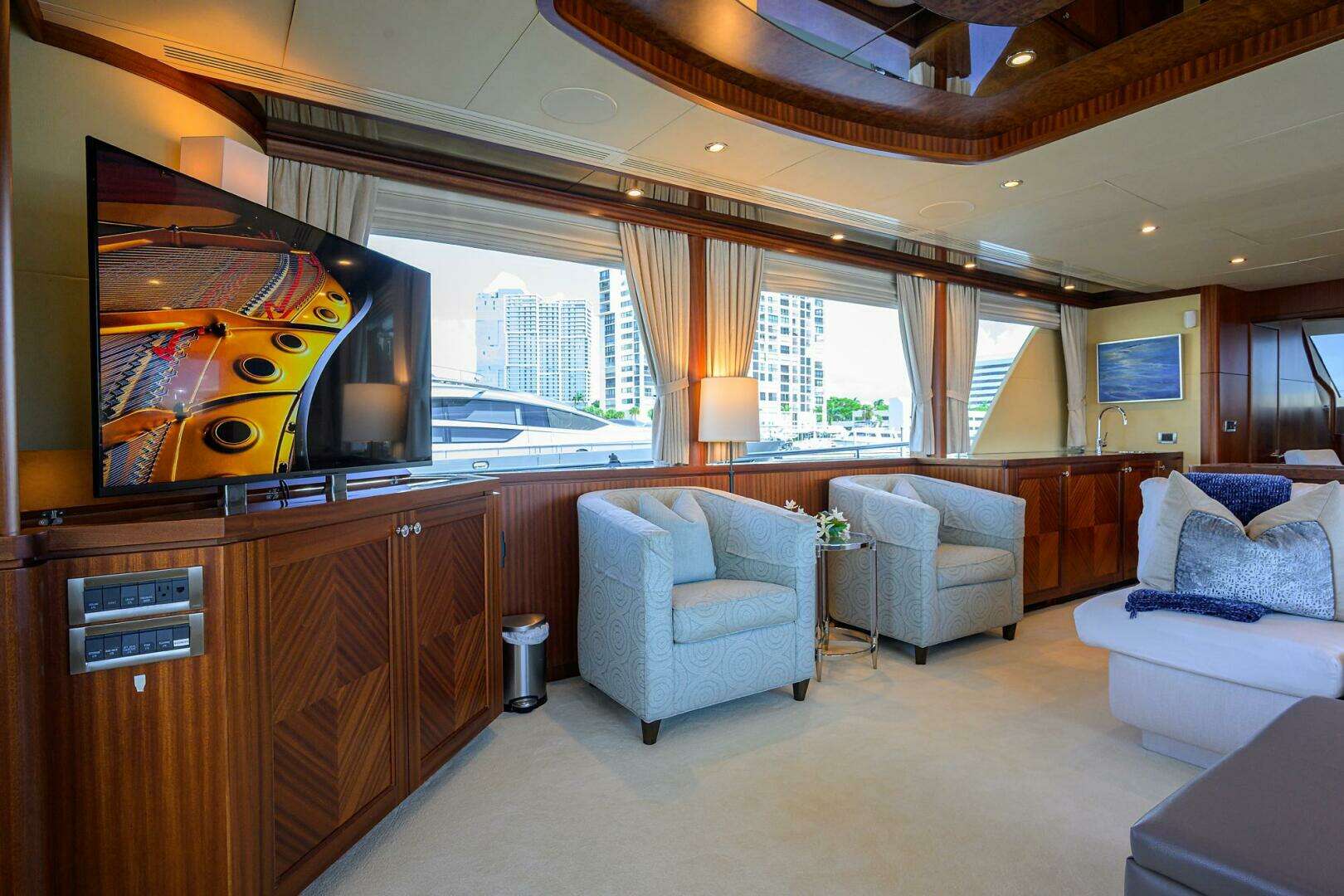

Audio/Visual - Salon

• Upgraded LCD 50” TV with Professional A/V System with IR repeater (Dolby true HD DTS-HD XM/Sirius capable with Subwoofer
• Middle-Atlantic Media Rack for A/ V equipments (Professional Studio quality rack provides ease in accessing various A/V equipment. Reduces labor, damage w/ heavy duty 13-gauge S/S and interlocking corners)
• Furman power conditioner (featuring multi-stage linear amplifier tech & extreme voltage shutdown for yacht's unstable shore/genset power )

Audio/Visual - Crew Quarters

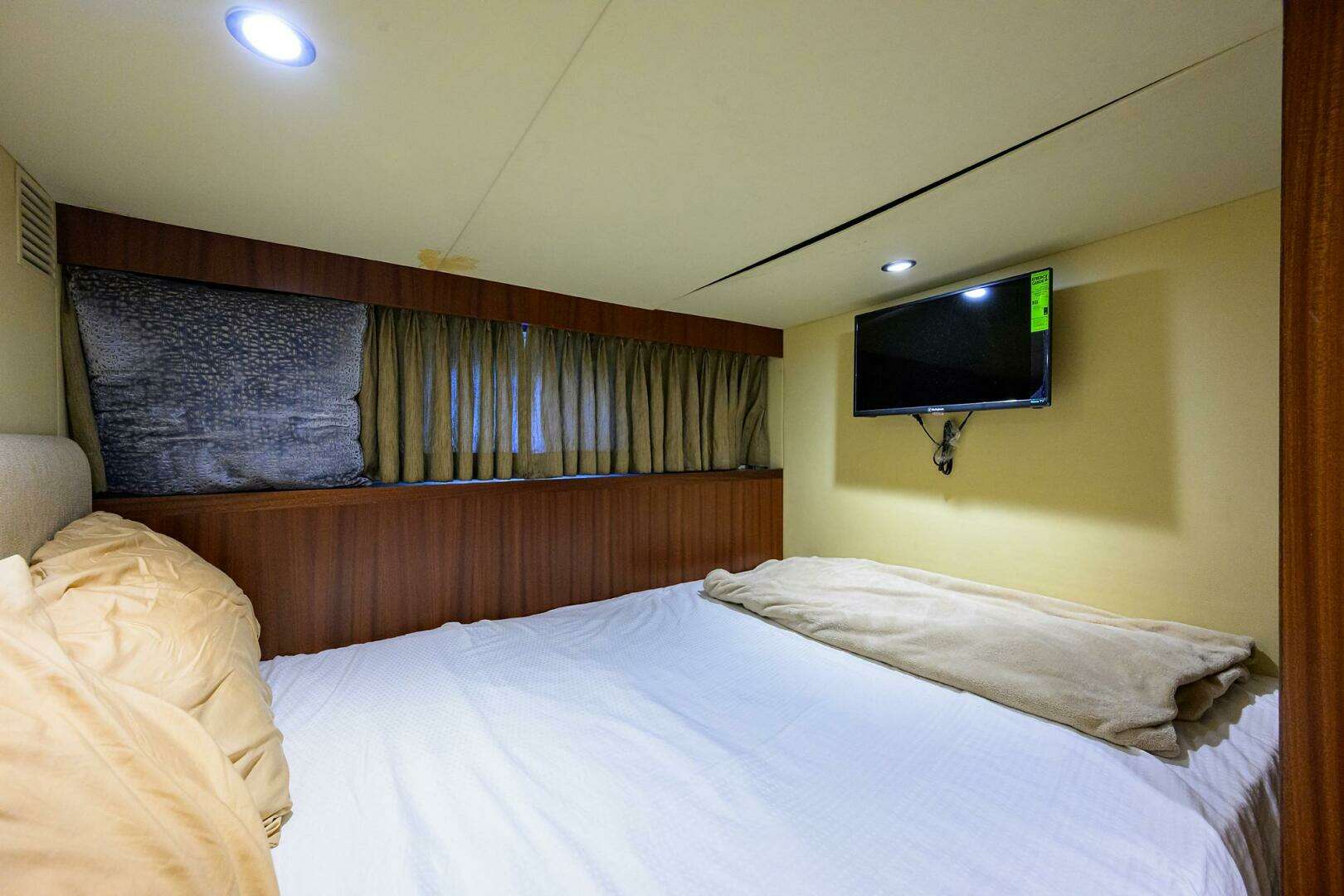

• LCD 22” TV & Blu-Ray disc player on Capt. & crew cabins wall
• Audio stereo and video system w/ IR repeater eye

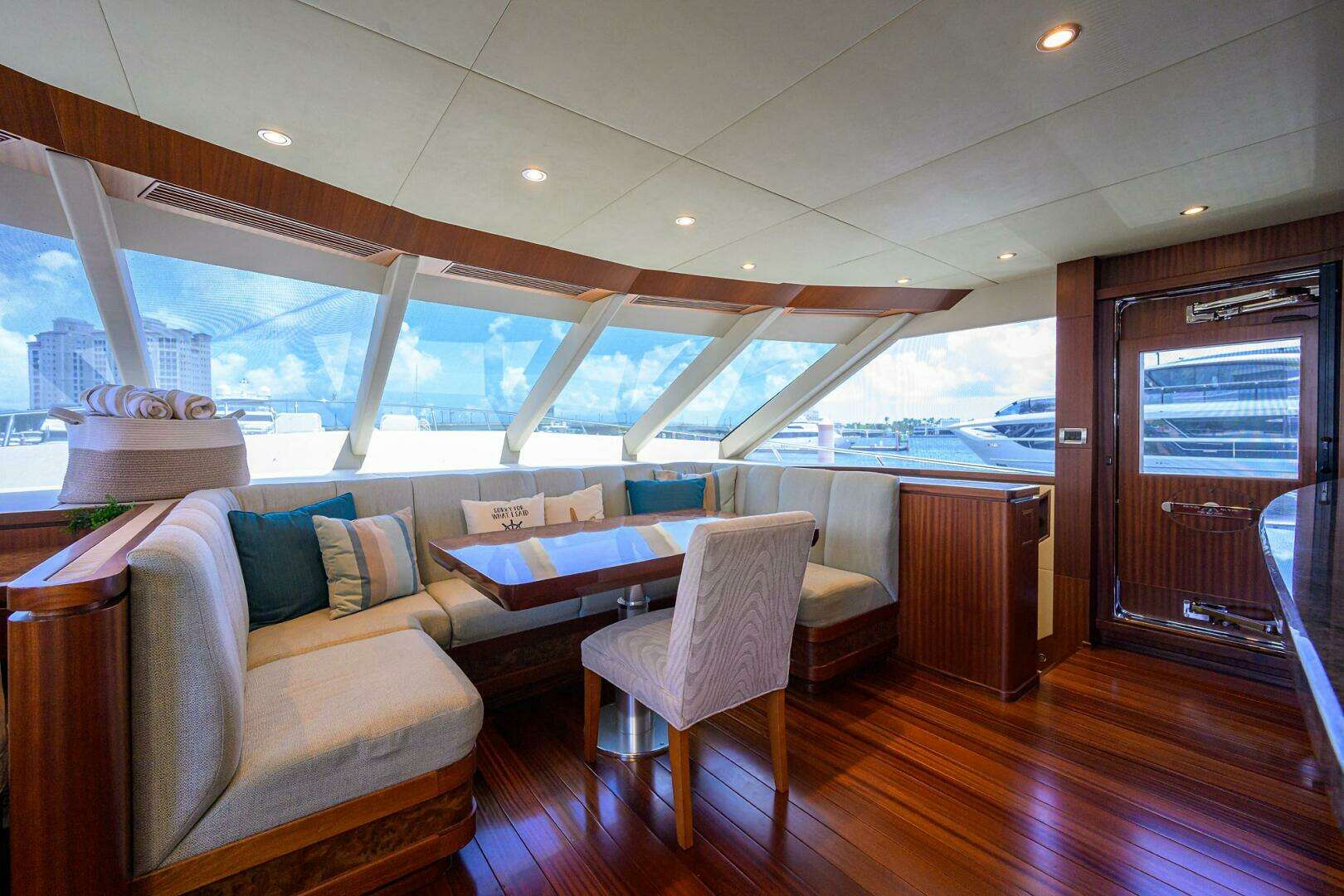

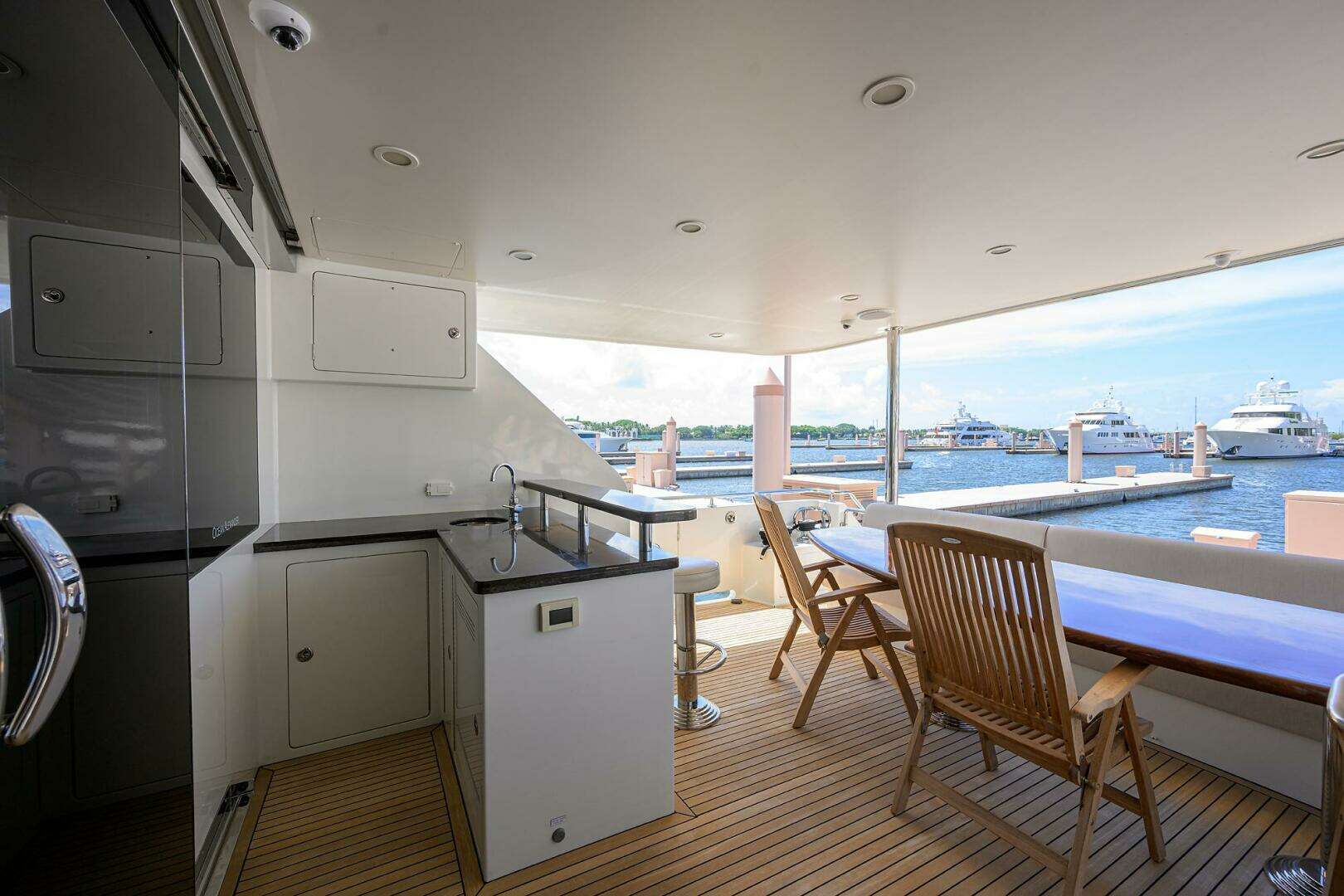

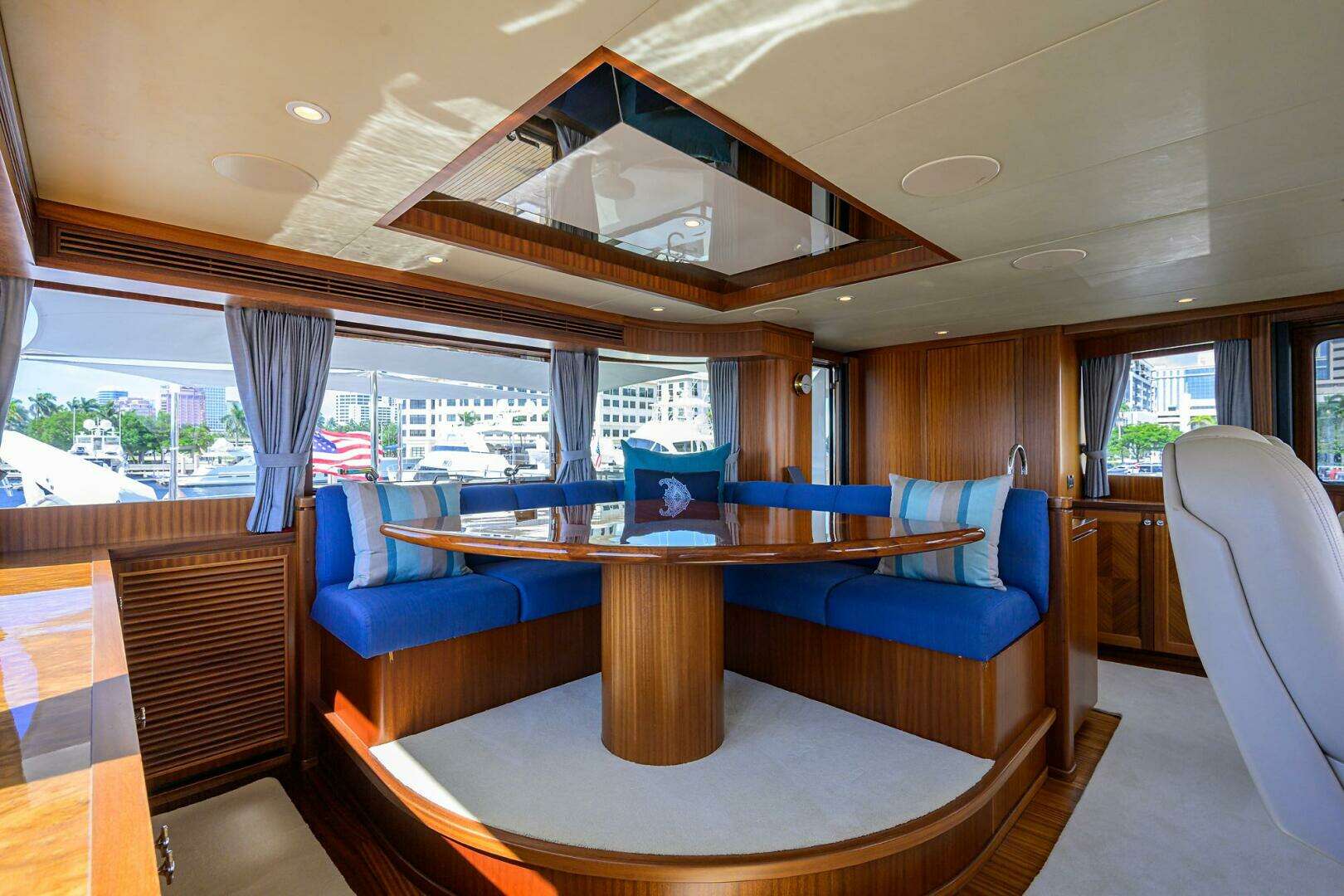

Audio/Visual - Dinette/Aft Deck

LCD 26” TV for  dinette Galley

LCD 22” TV on wall (Aft Deck)

Audio/Visual - VIP / Guest Stateroom

• LCD 22” TV & Blu-Ray disc player on port wall (VIP)
• LCD 22” TV on wall and Blu-Ray disc player (Port Guest)
• Audio stereo and video system

Accommodations/Interior Decor

• Walnut paneling and cabinetry in semi-gloss
• High quality European door locks
• Cedar-lined, hanging locker with auto lighting
• Majilite Fabric for lower walkway walls
• Painted plywood flooring prepared for carpet, except wood flooring in skylounge & fore dinette
• Concealed hinges throughout interior cabinets w/ auto soft-closing function that prevents a kitchen cabinet door from slamming, as it slowly and silently brings the door to a closed position
• Ergonomically designed mattresses and settees
• Mattresses for berths (independent his/her construction allowing for disturb free movement during sleep)

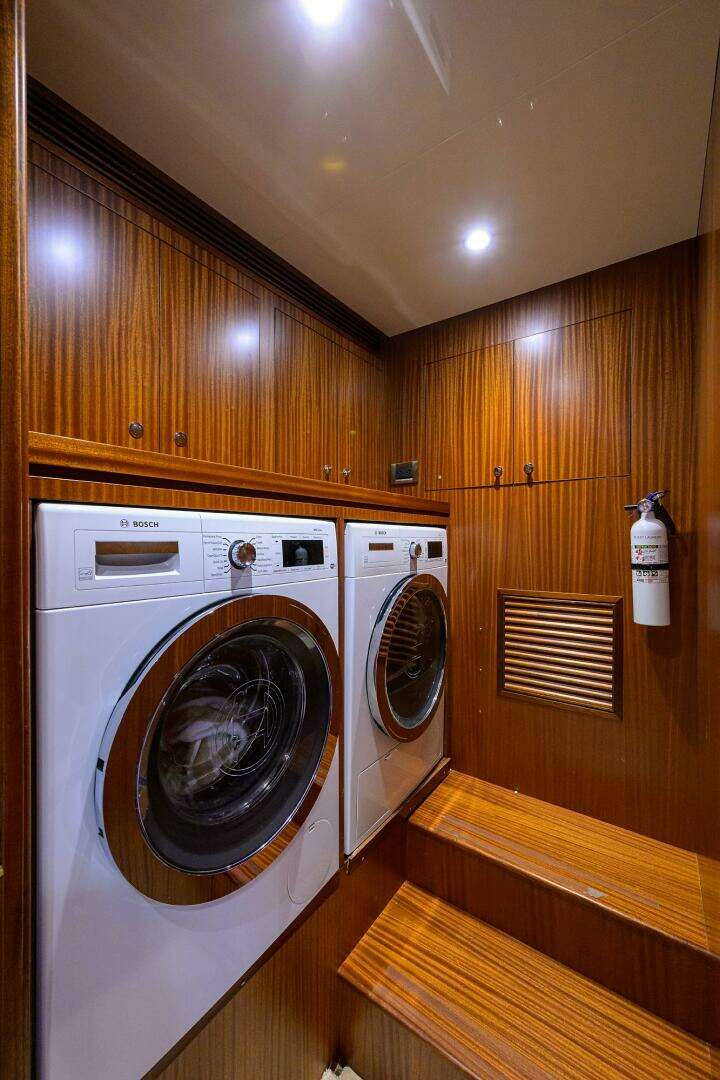

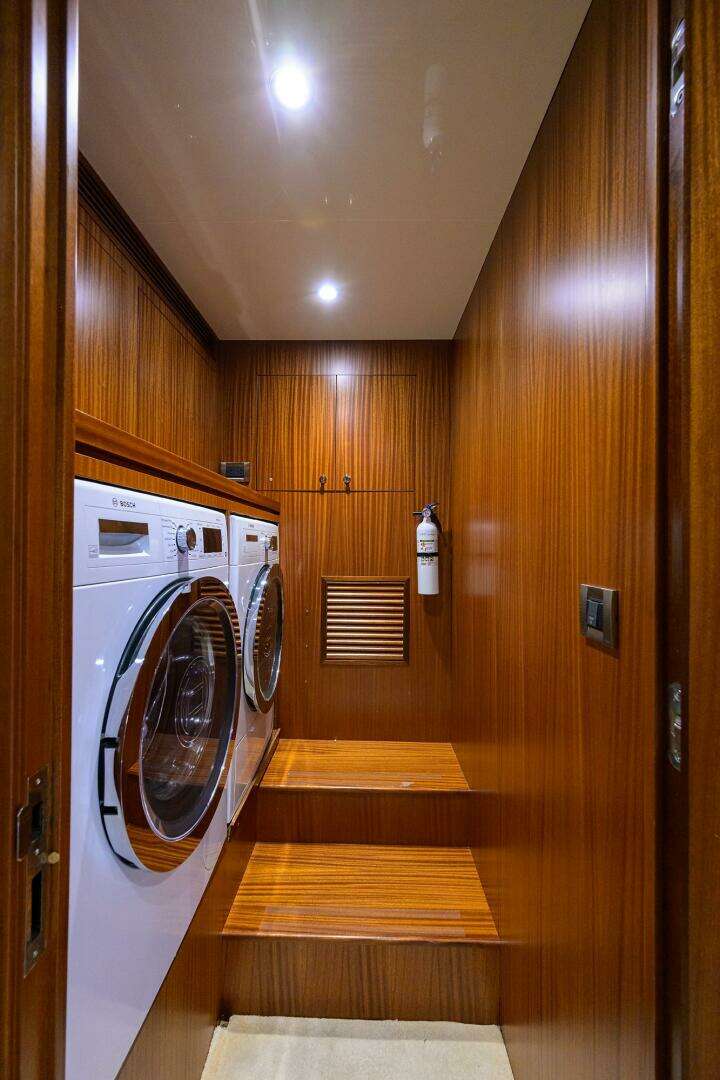

• Maytag™ 2400AWW stacked washer/ dryer (Commercial quality, Energy star washer/dryer w/ generous 2.4 cu. ft. capacity) in lower foyer
• Refrigerator and icemaker in lower foyer

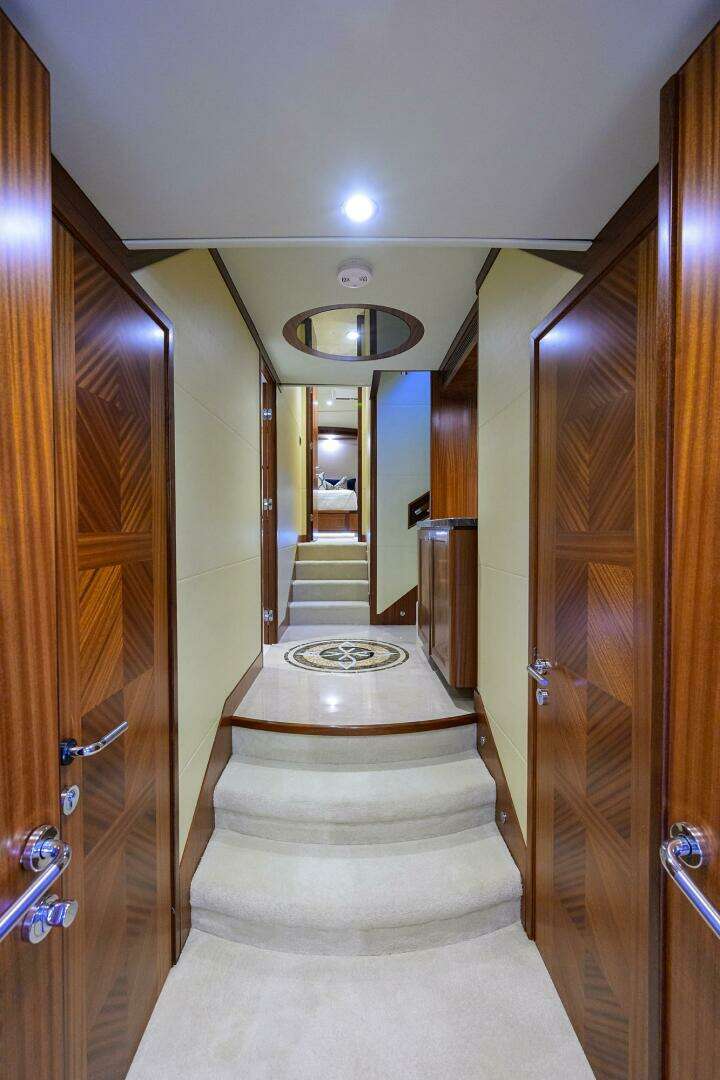

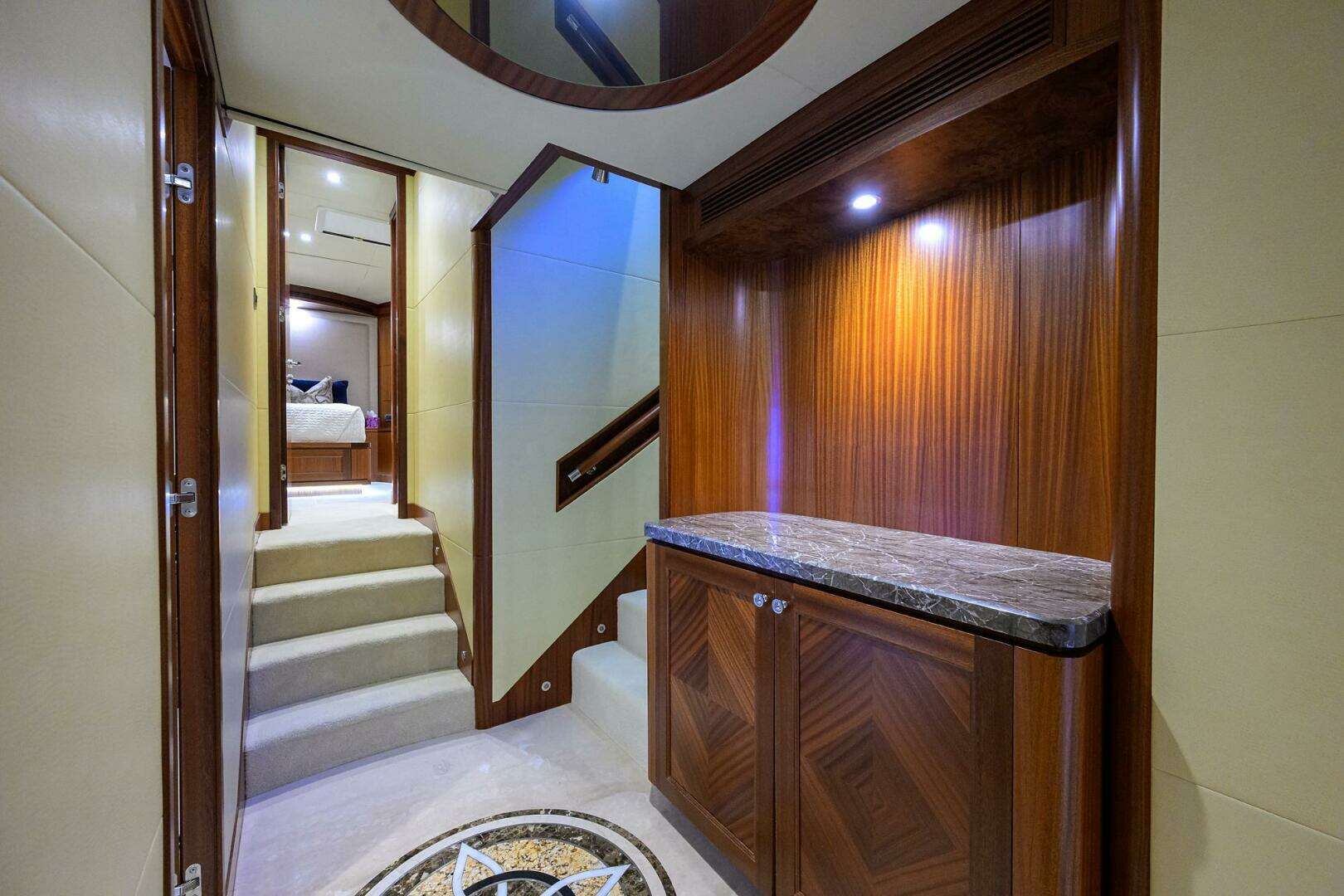

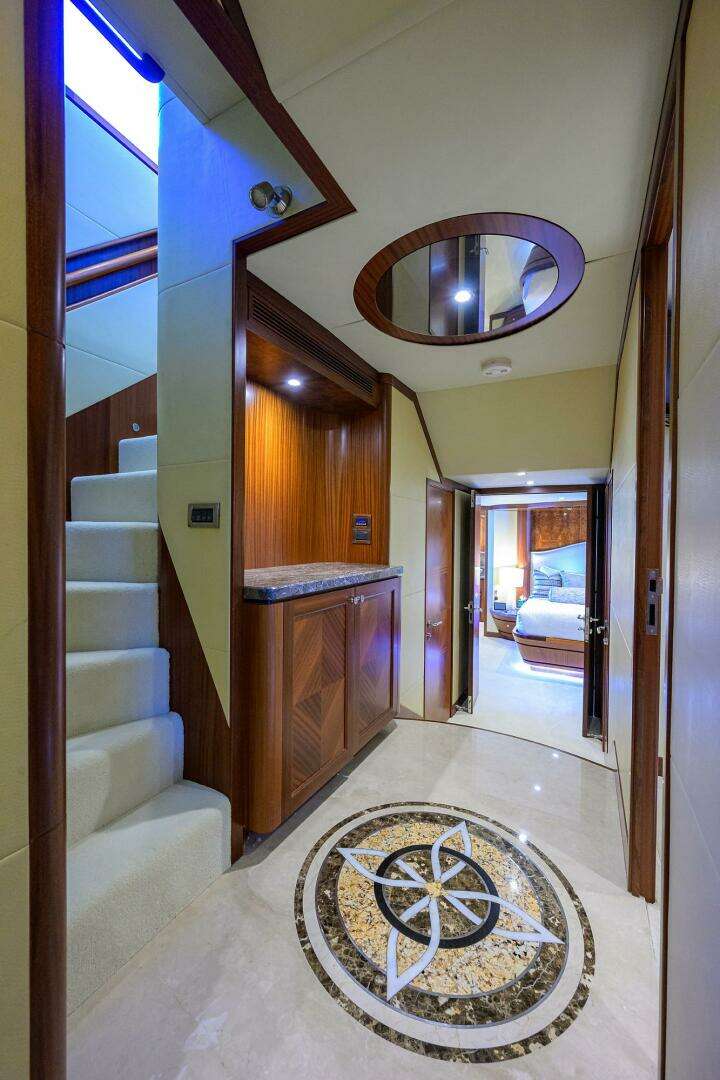

• Granite and marble floor in inlay with custom pattern in lower foyer
• Granite counter top for cabinet in foyer

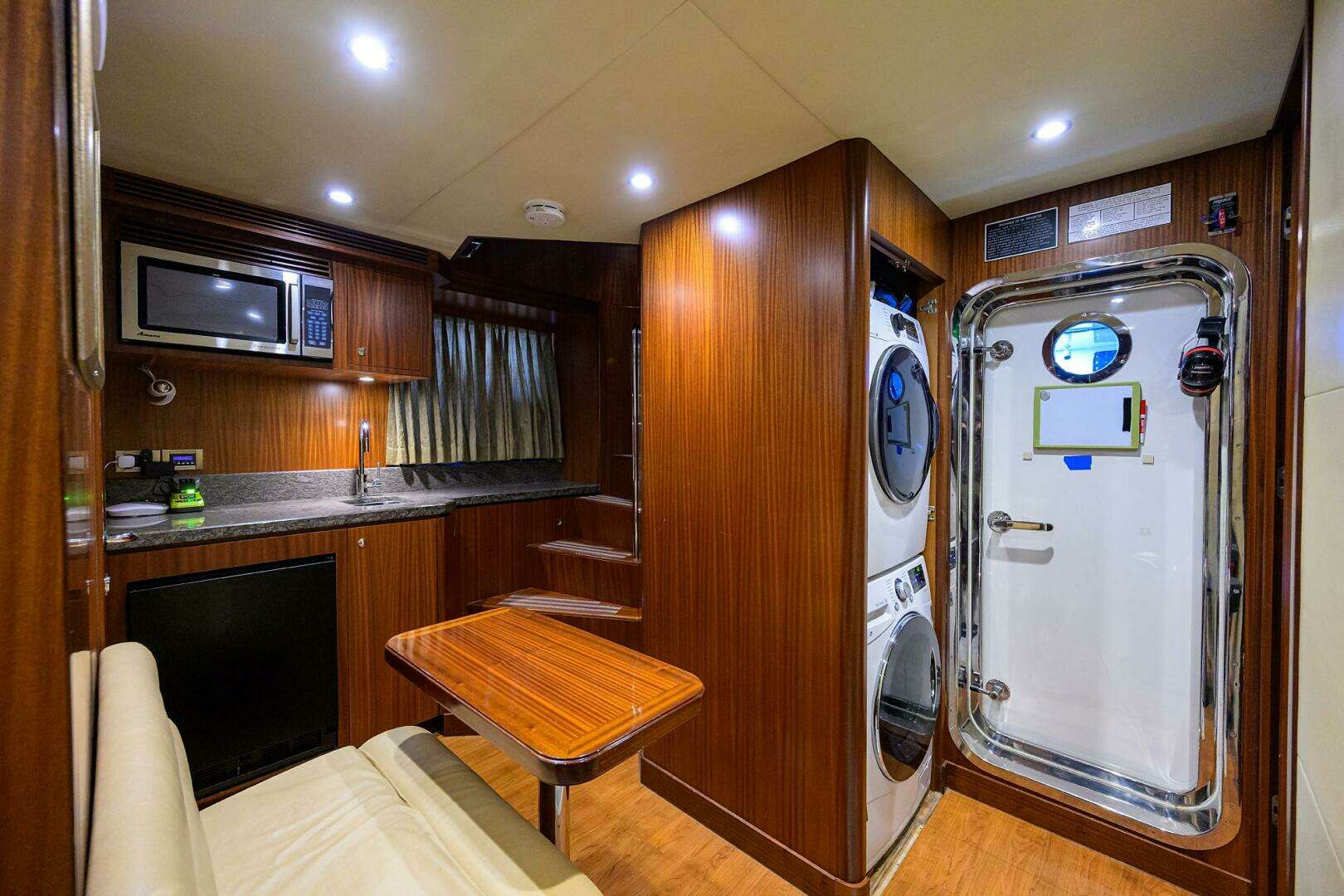

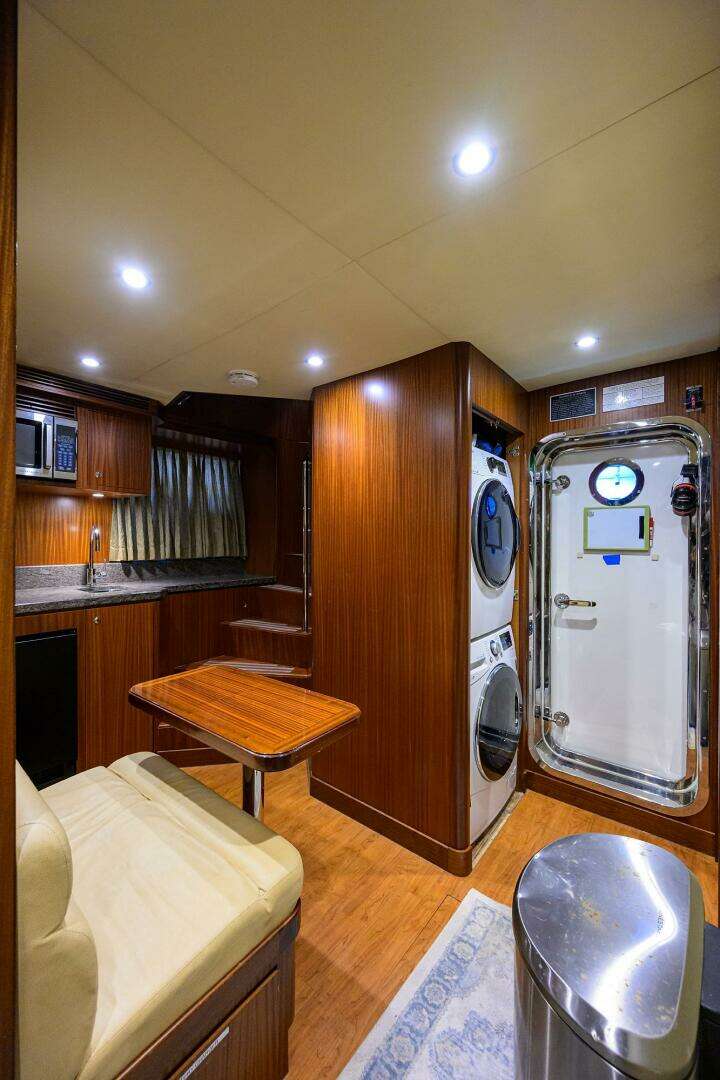

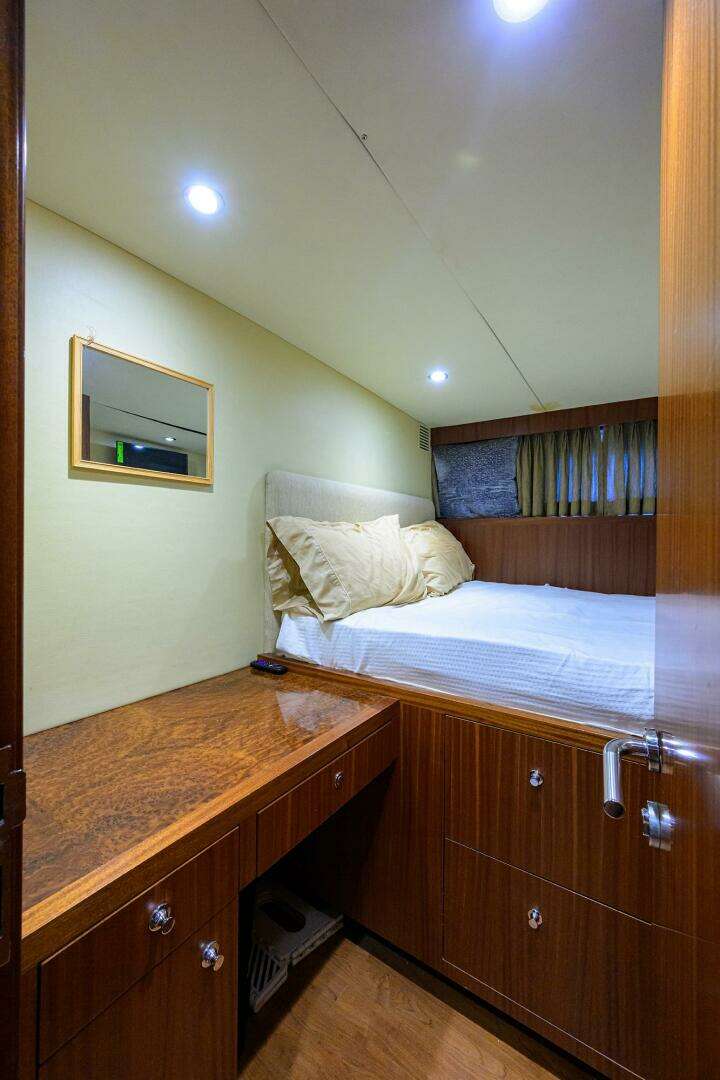

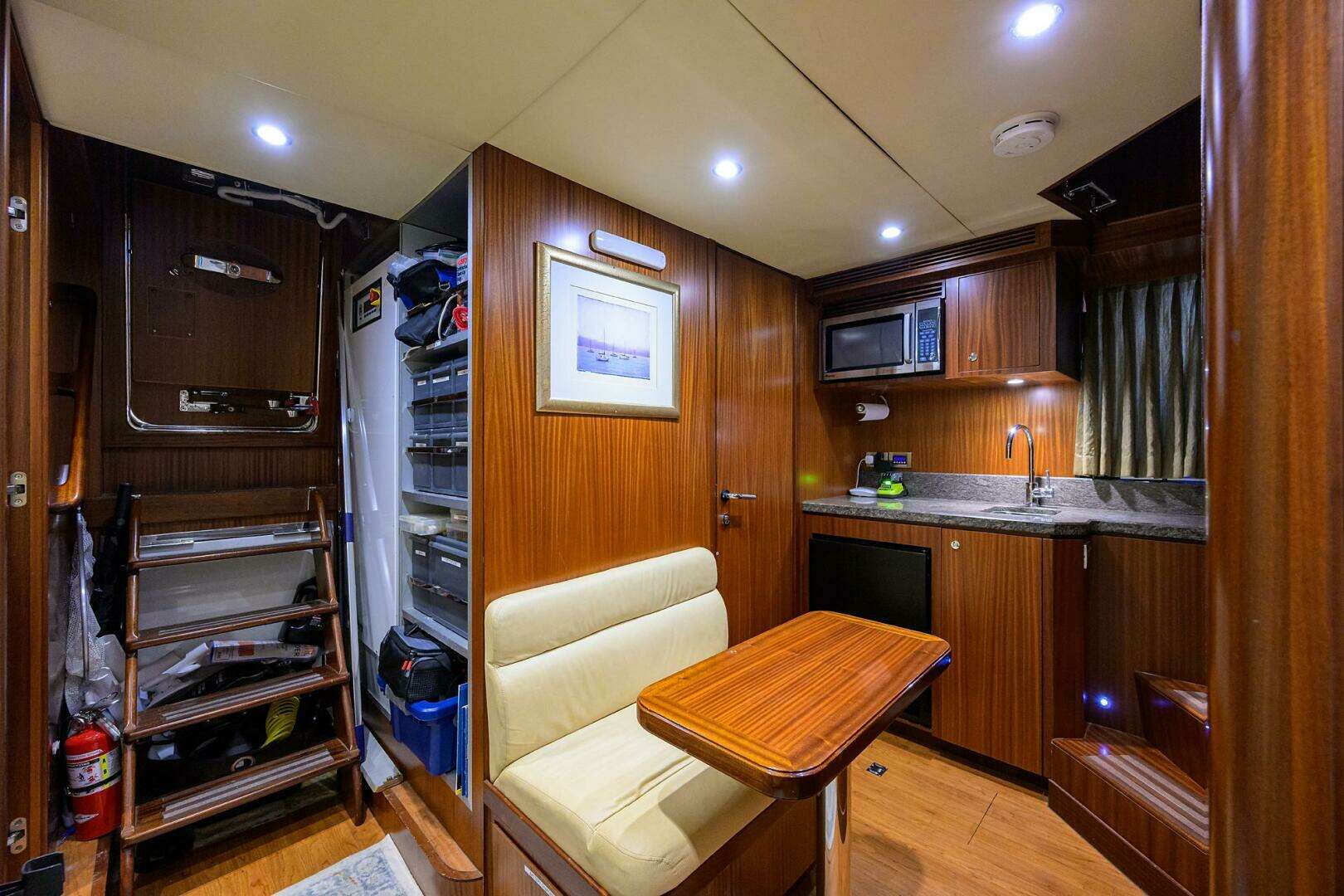

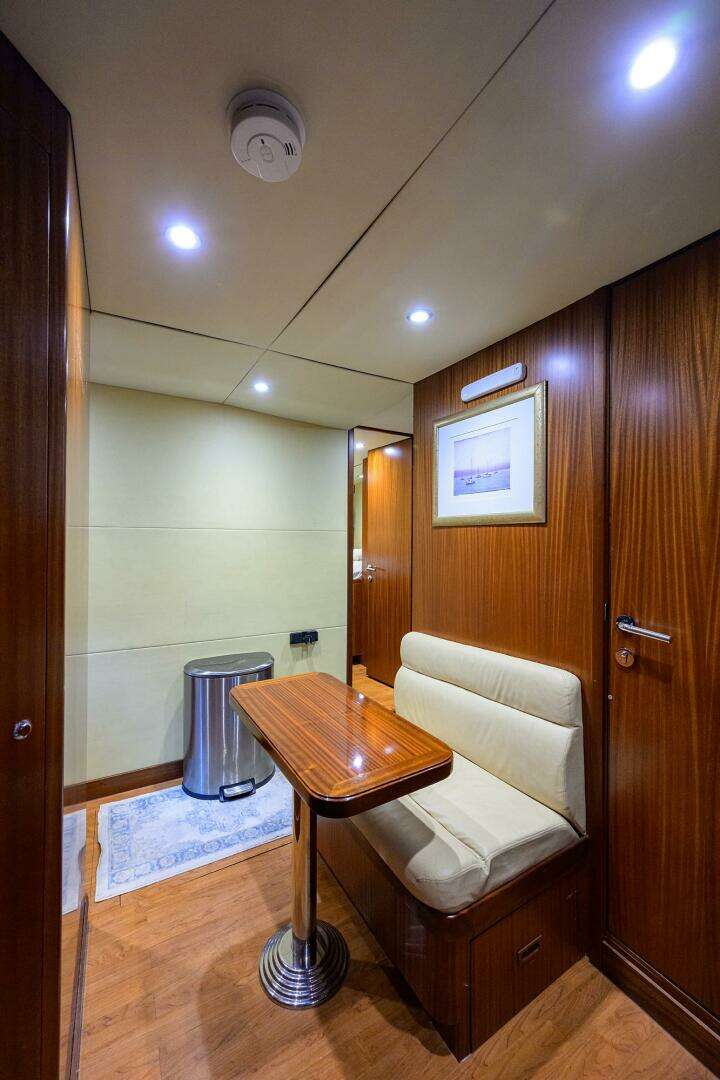

Accommodations/Interior Decor - Crew Quarters

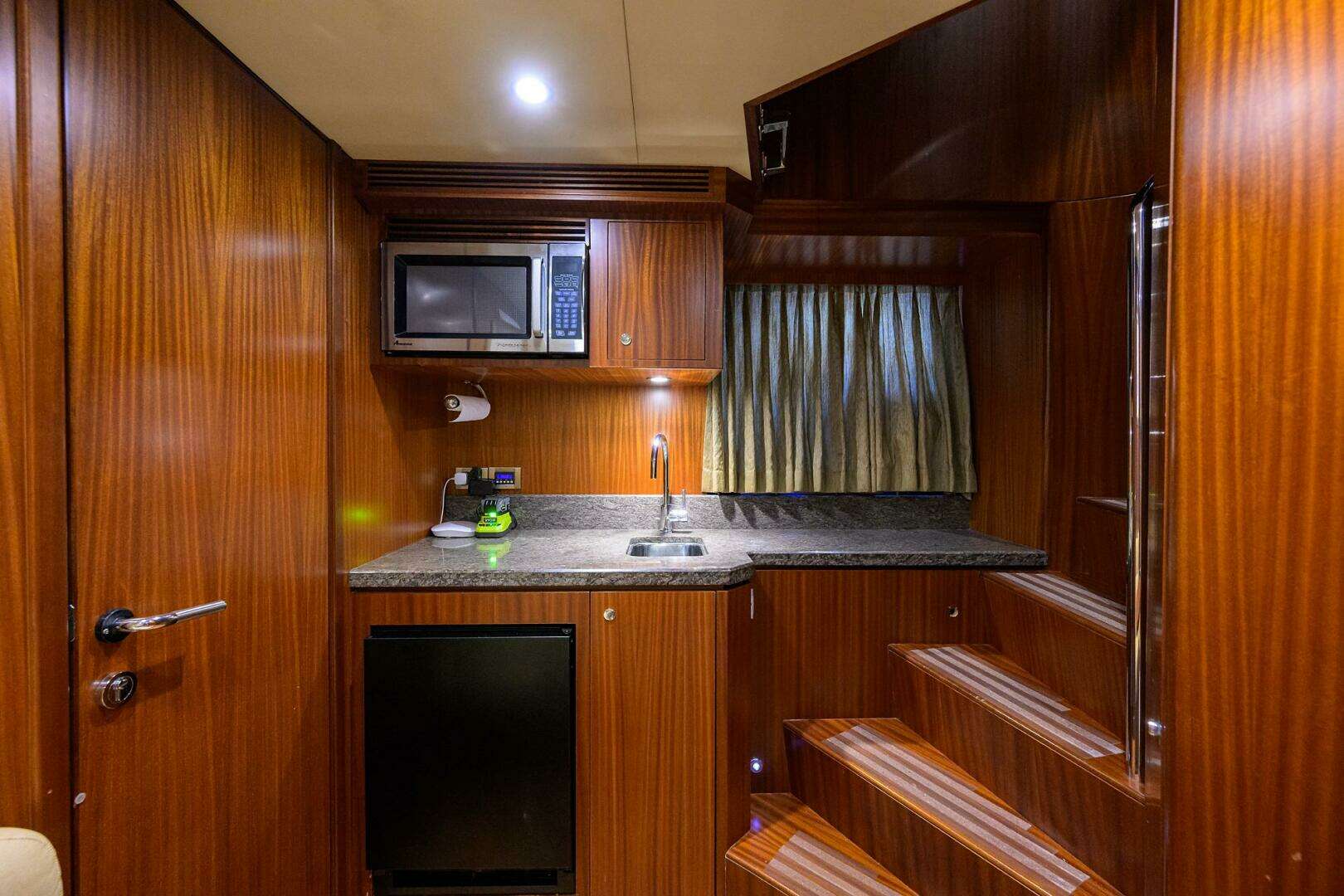

•  Kitchenette (microwave & refrigerator)
• Walnut paneling and cabinetry
• Crew quarters include one captain room & one double bunk cabin
• Cedar-lined hanging locker with automatic lighting
• Granite or marble countertop in lounge
• Storage locker
• Amtico flooring
• Working Bench in lieu of lower berth on crew cabin (upper still pullman berth), Custom crew layout: 1. S/S Bench top with two shelves cabines & three drawers underneath. 2. Plumbing the drain inside closet. 3. Remove built lower berth and underneath drawers replace with new working bench

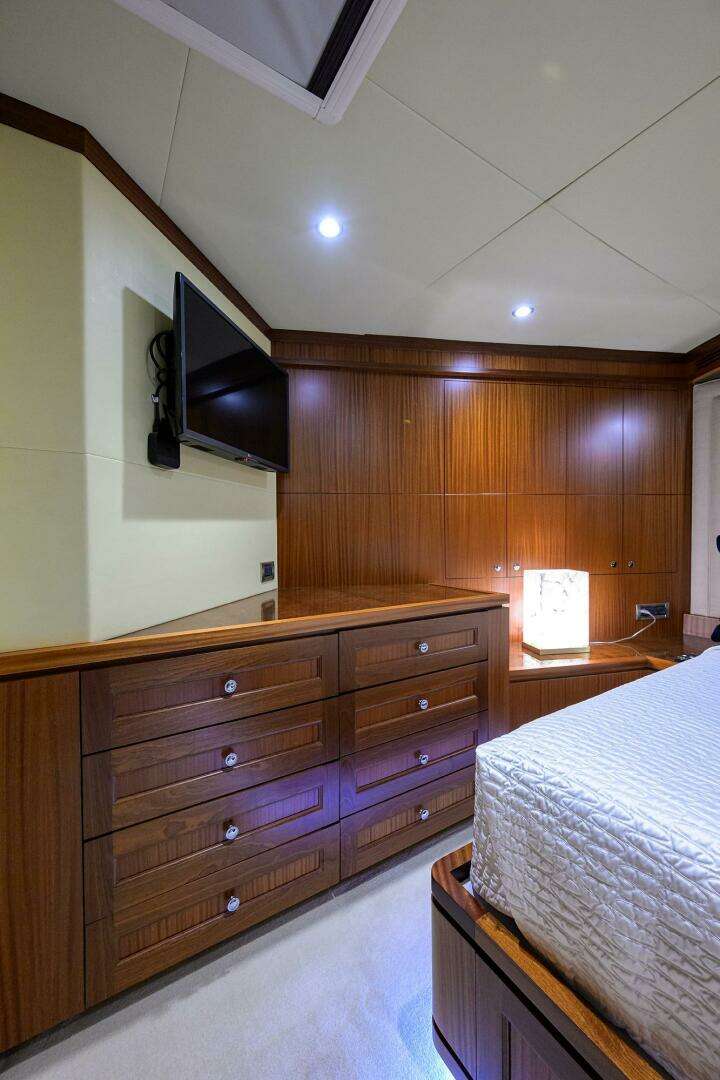

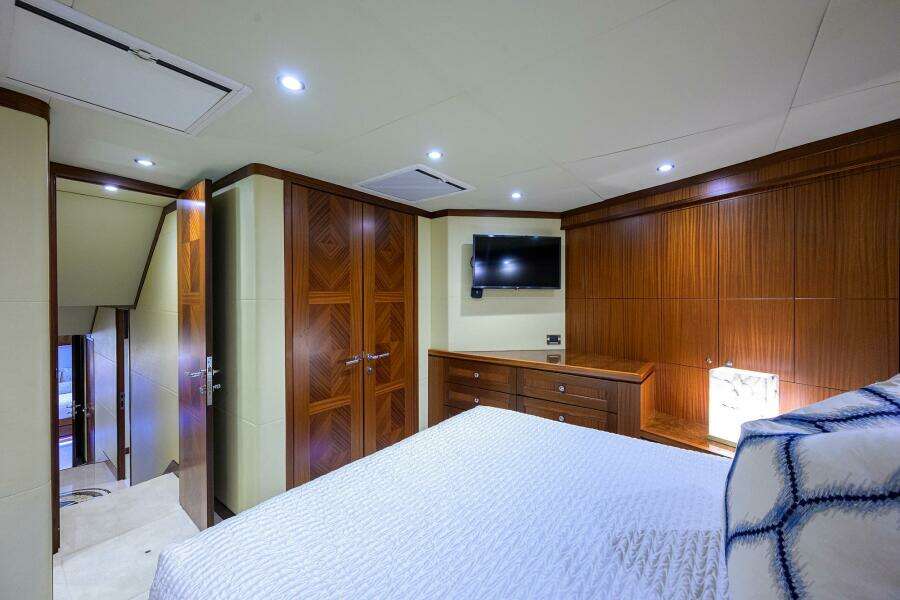

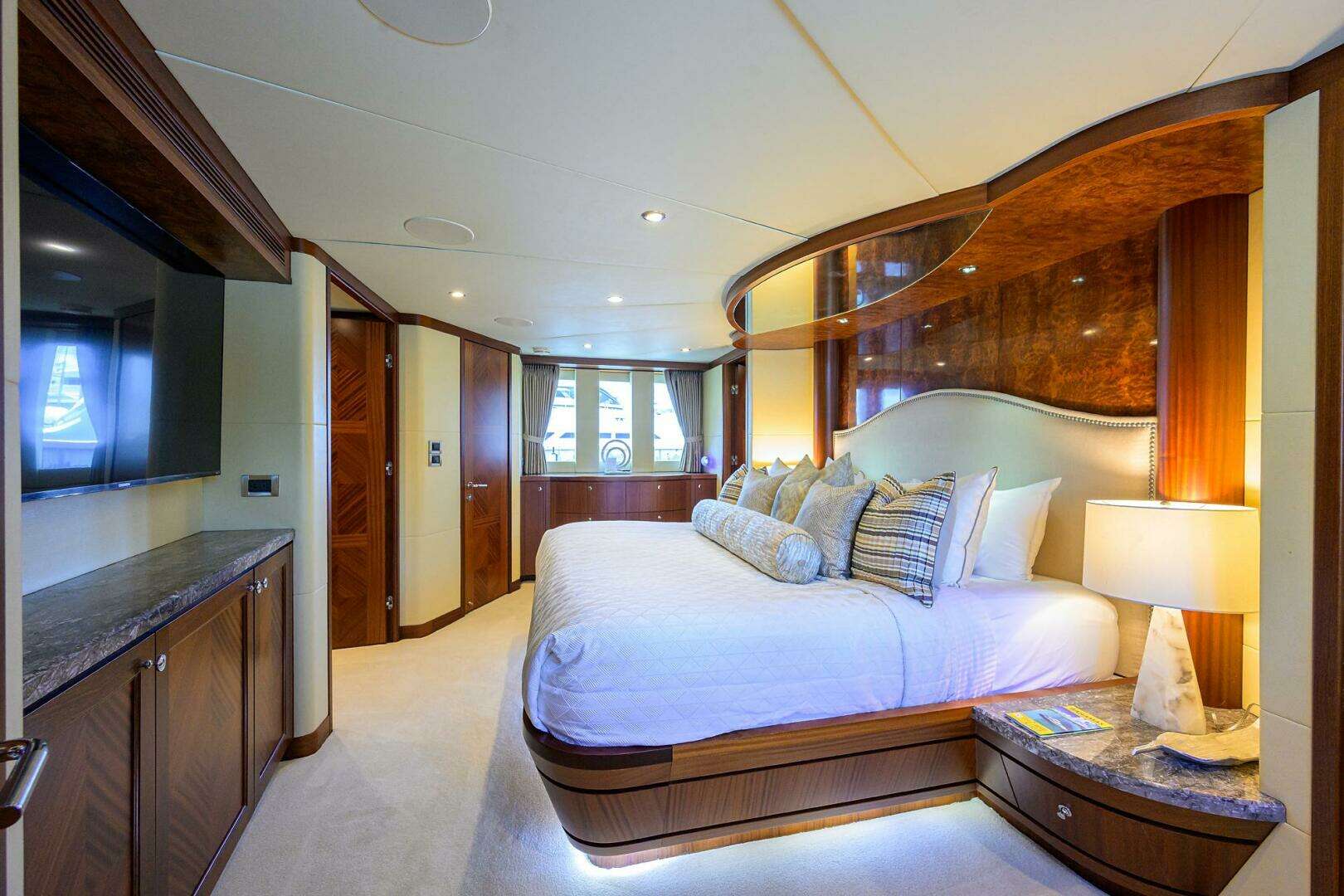

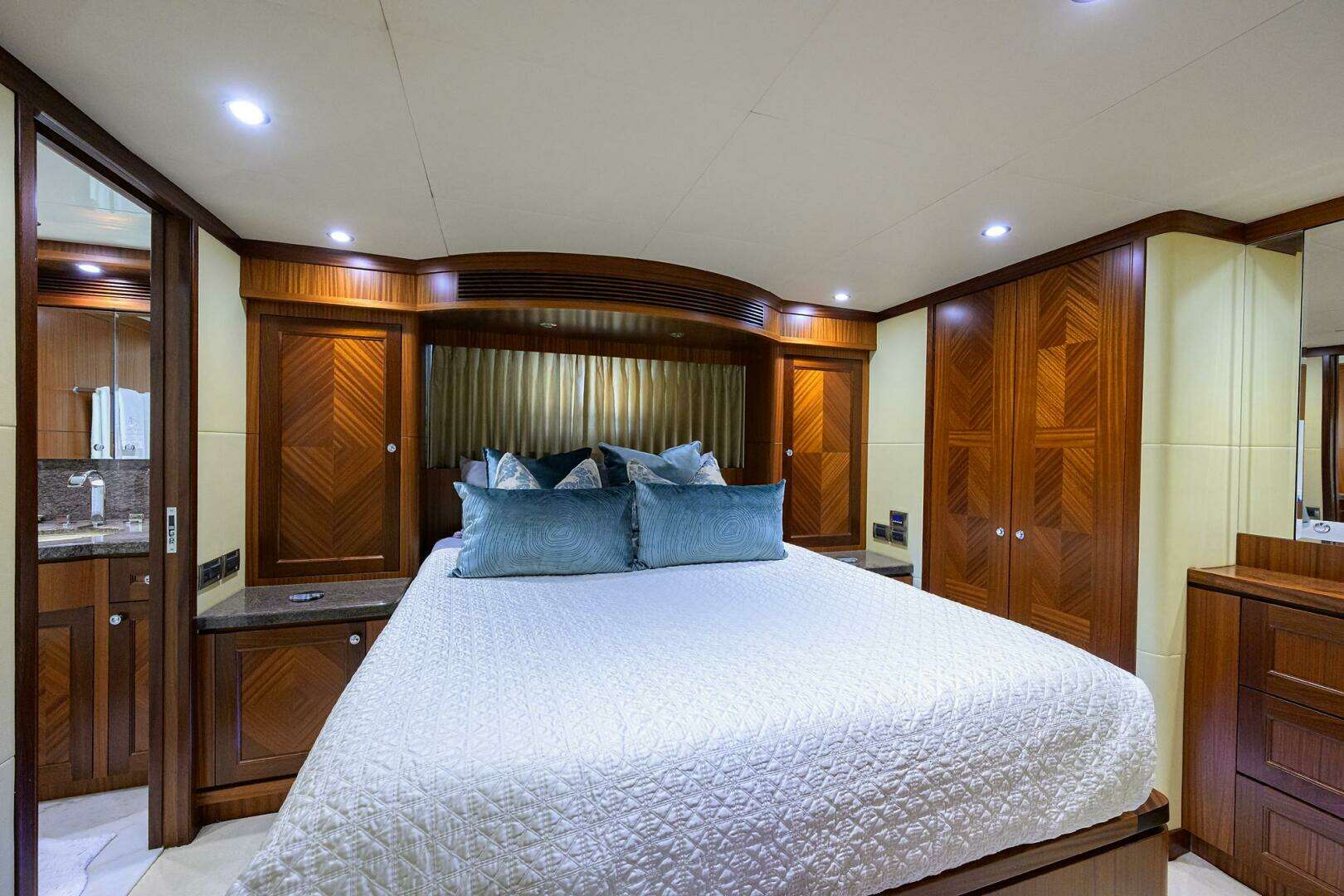

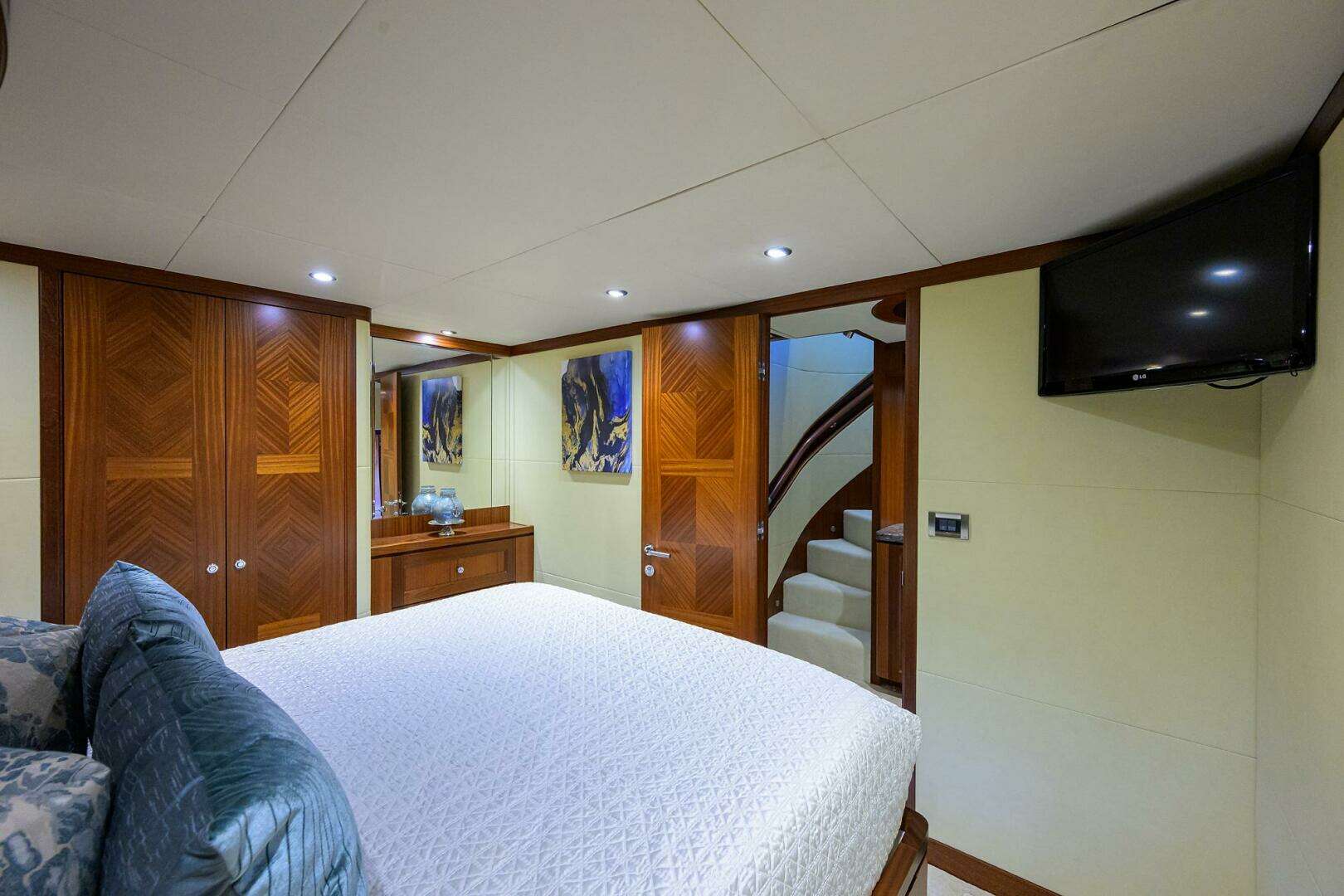

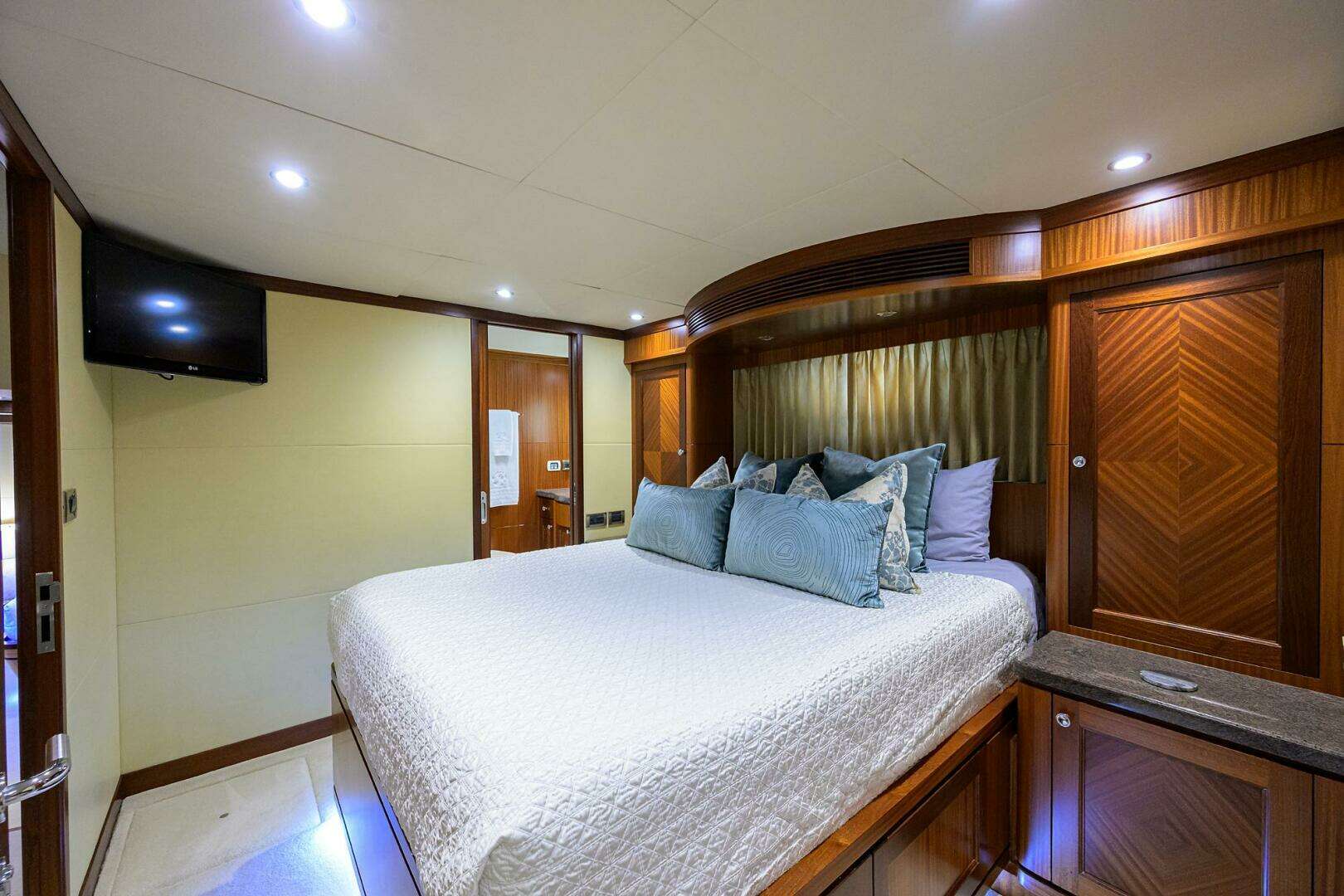

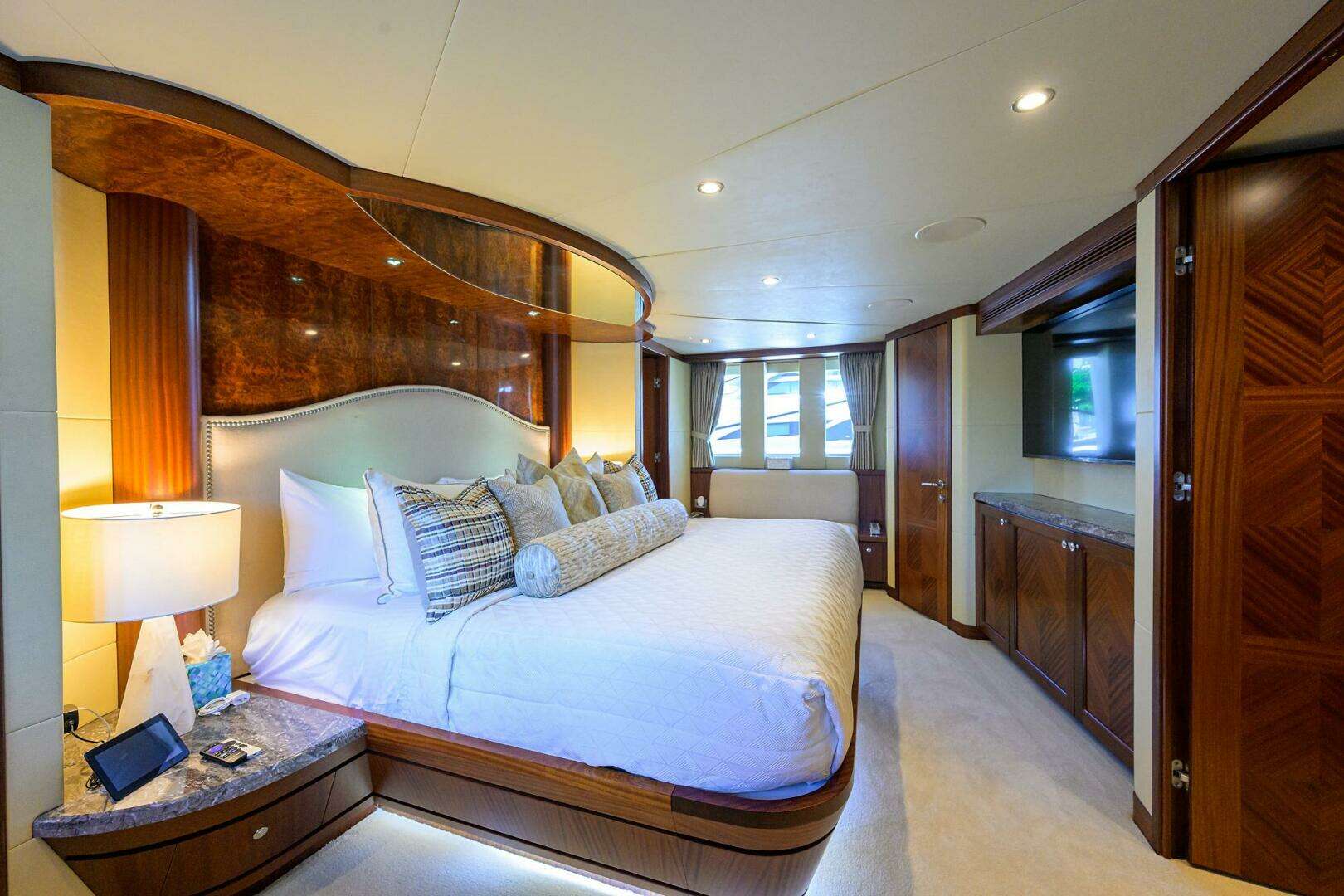

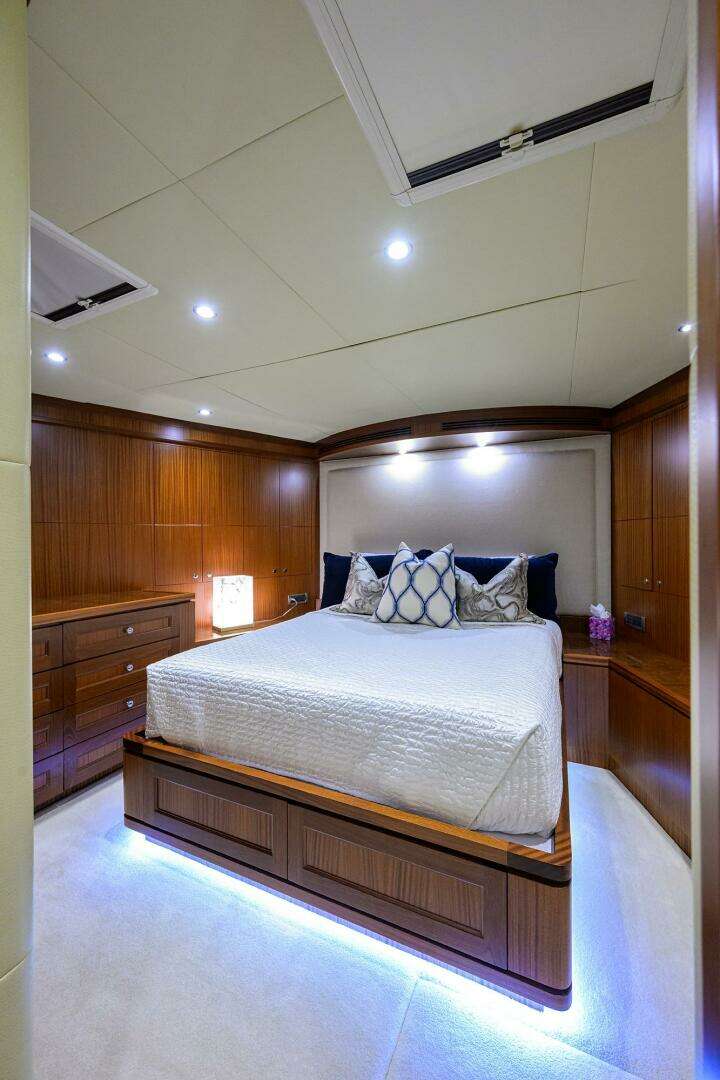

Accommodations/Interior Decor - Master Stateroom

•  “Floating” King-sized berth
• Two “floating” nightstands with granite or marble countertops
• Bureau w/ chest of drawers at starboard side
• Hidden safe in hanging locker
• Fixed windows on hull side
• Custom headboard with recessed indirect lighting
• Cedar-lined, twin full-height hanging locker with automatic lighting
• Granite or marble counter-top for AV cabinet

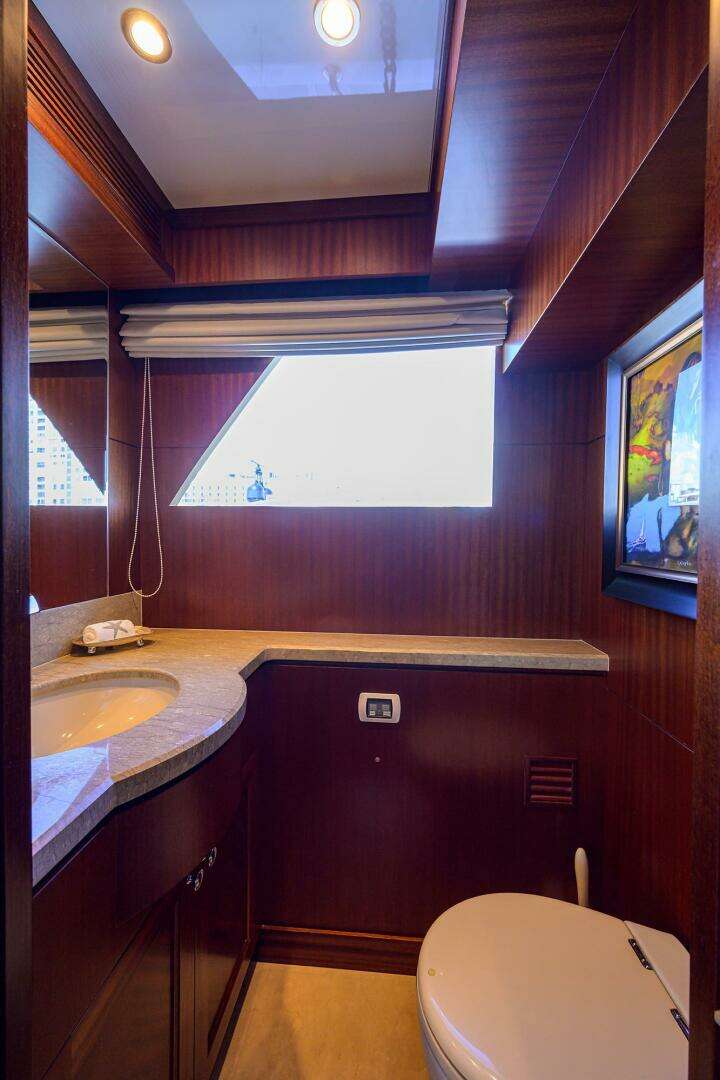

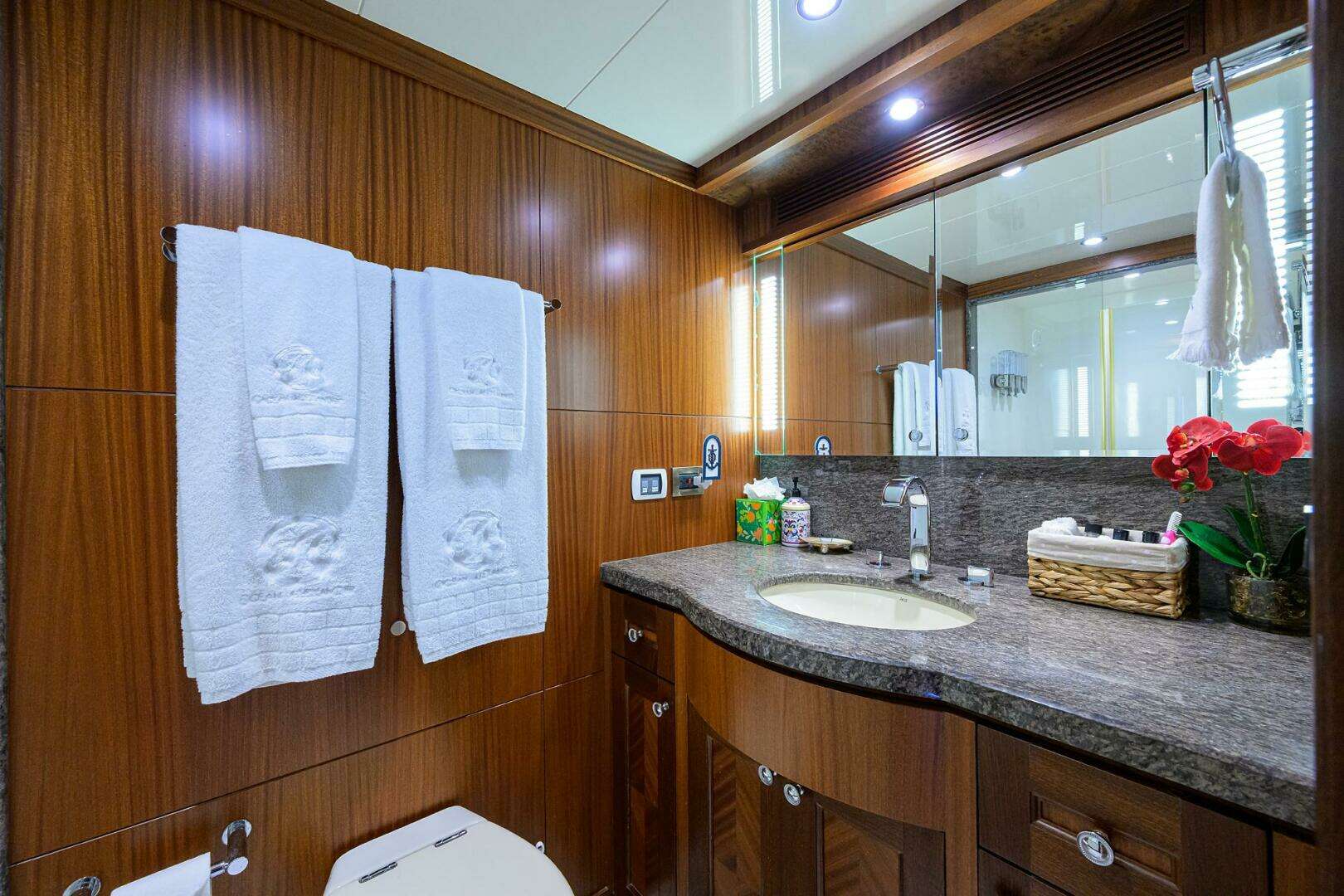

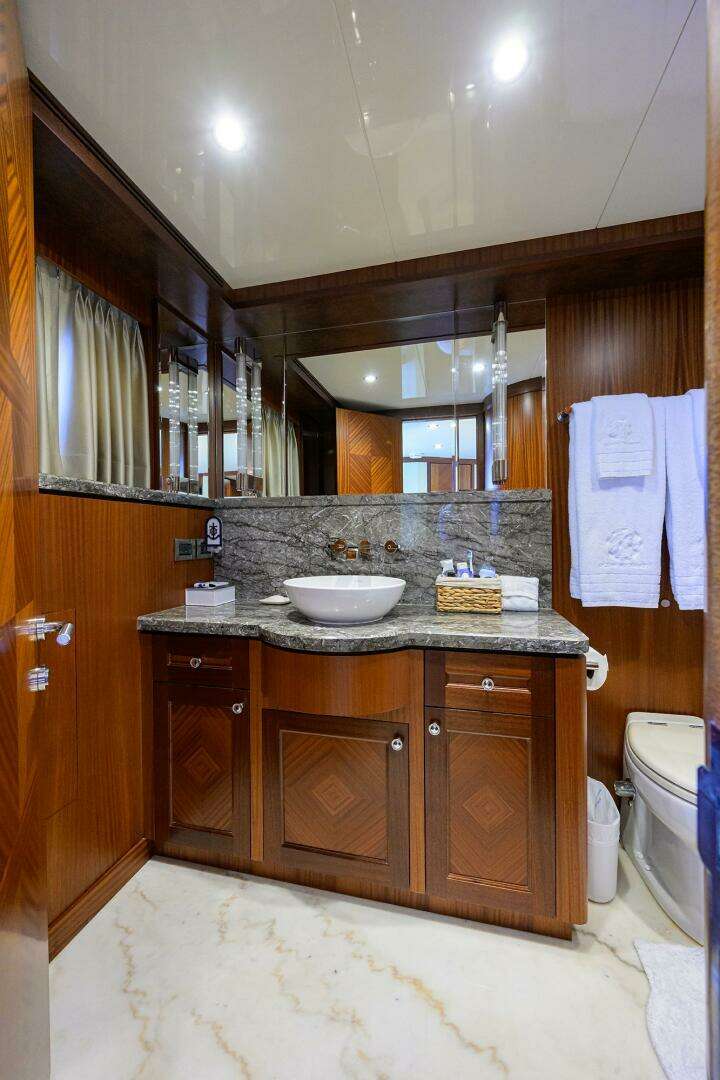

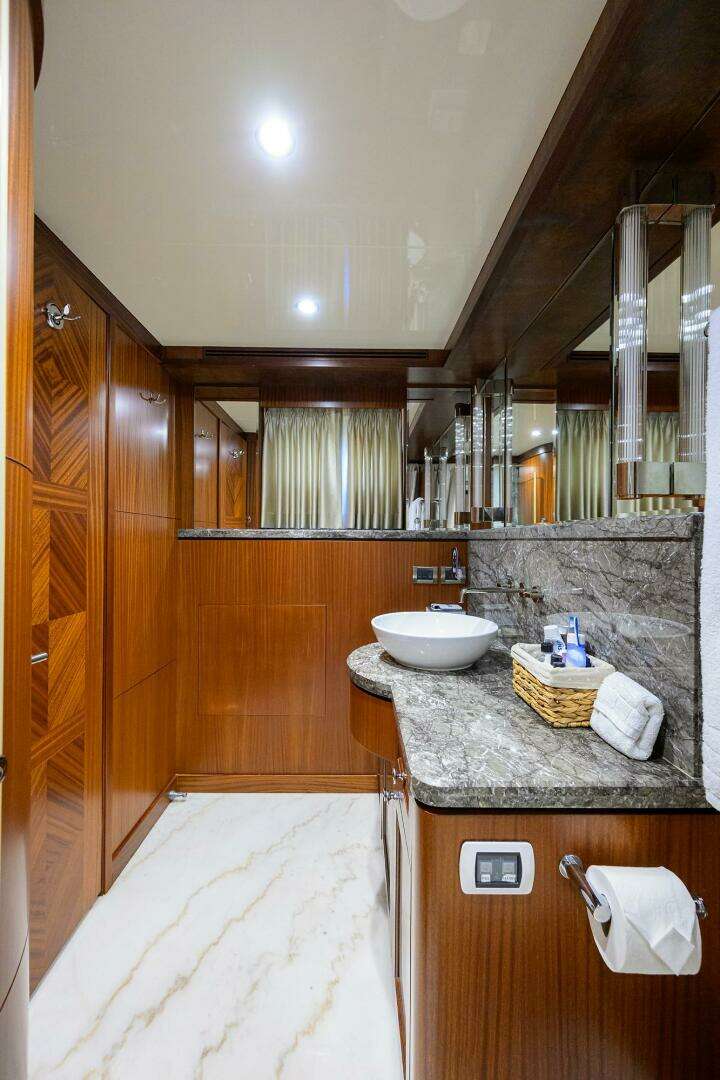

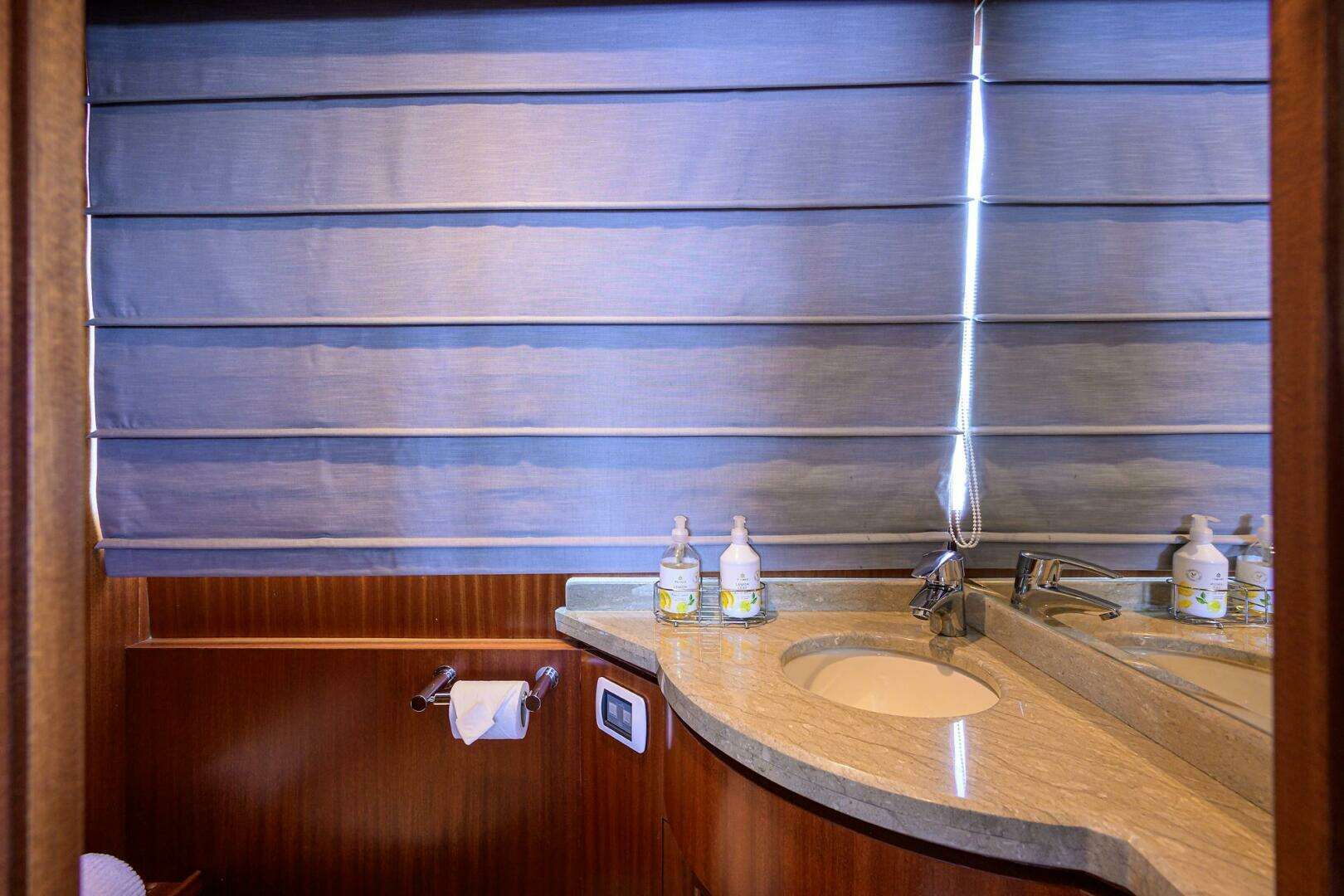

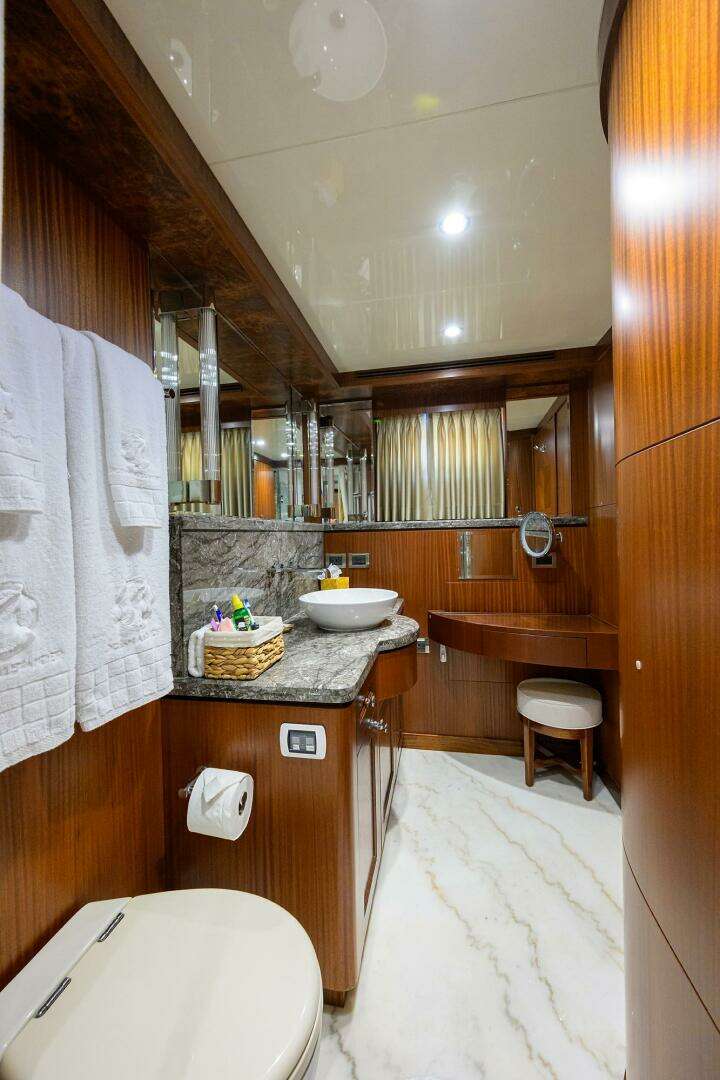

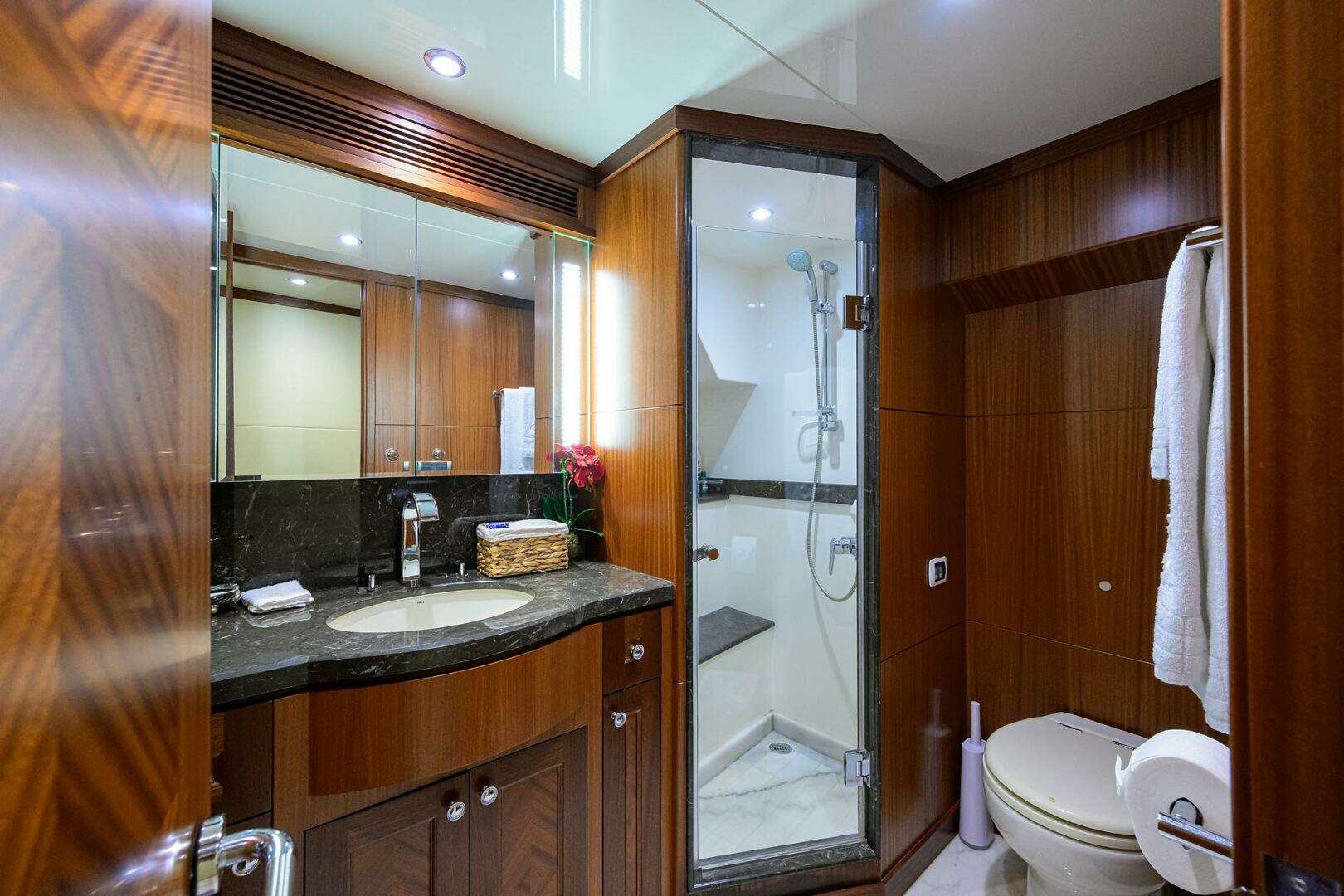

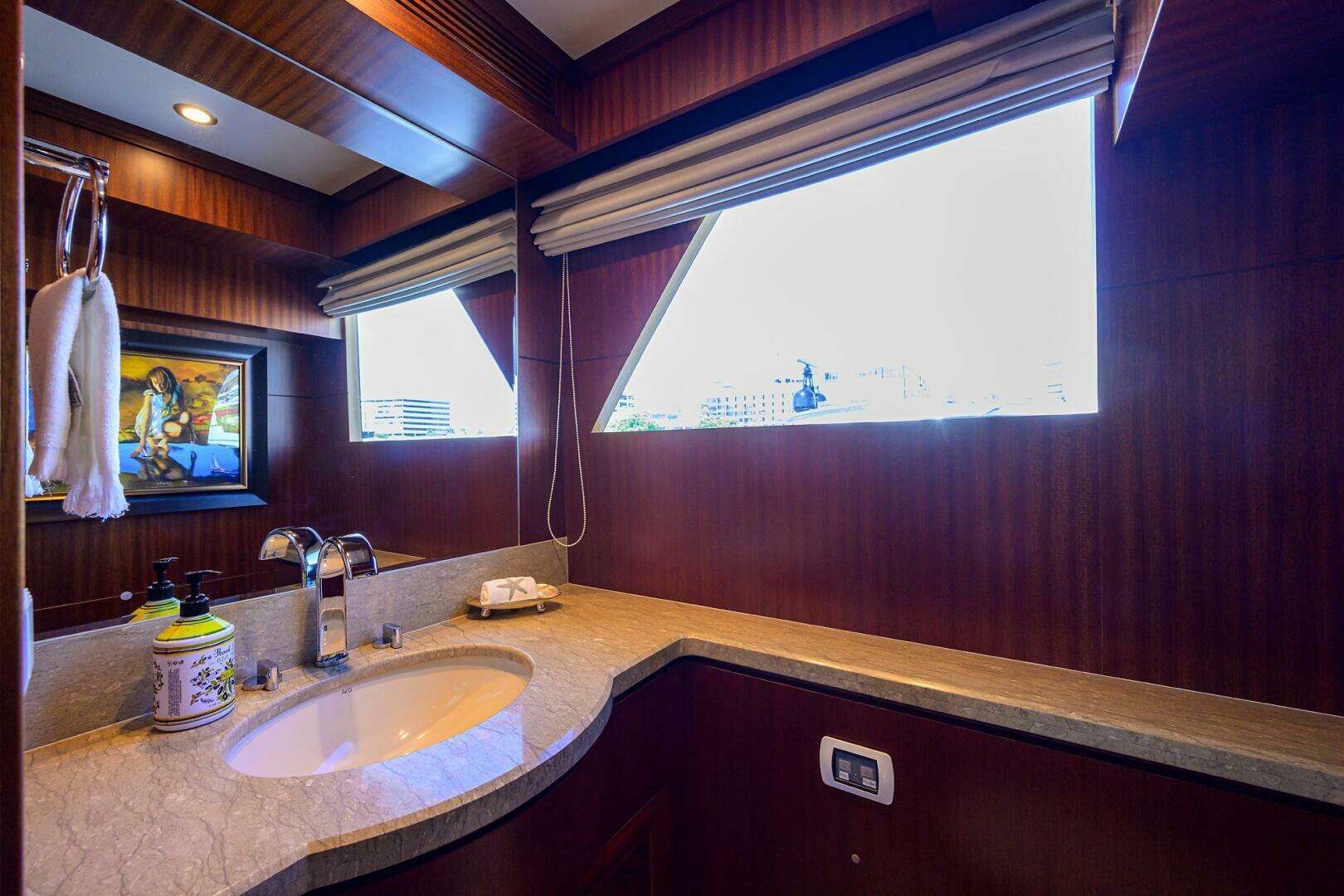

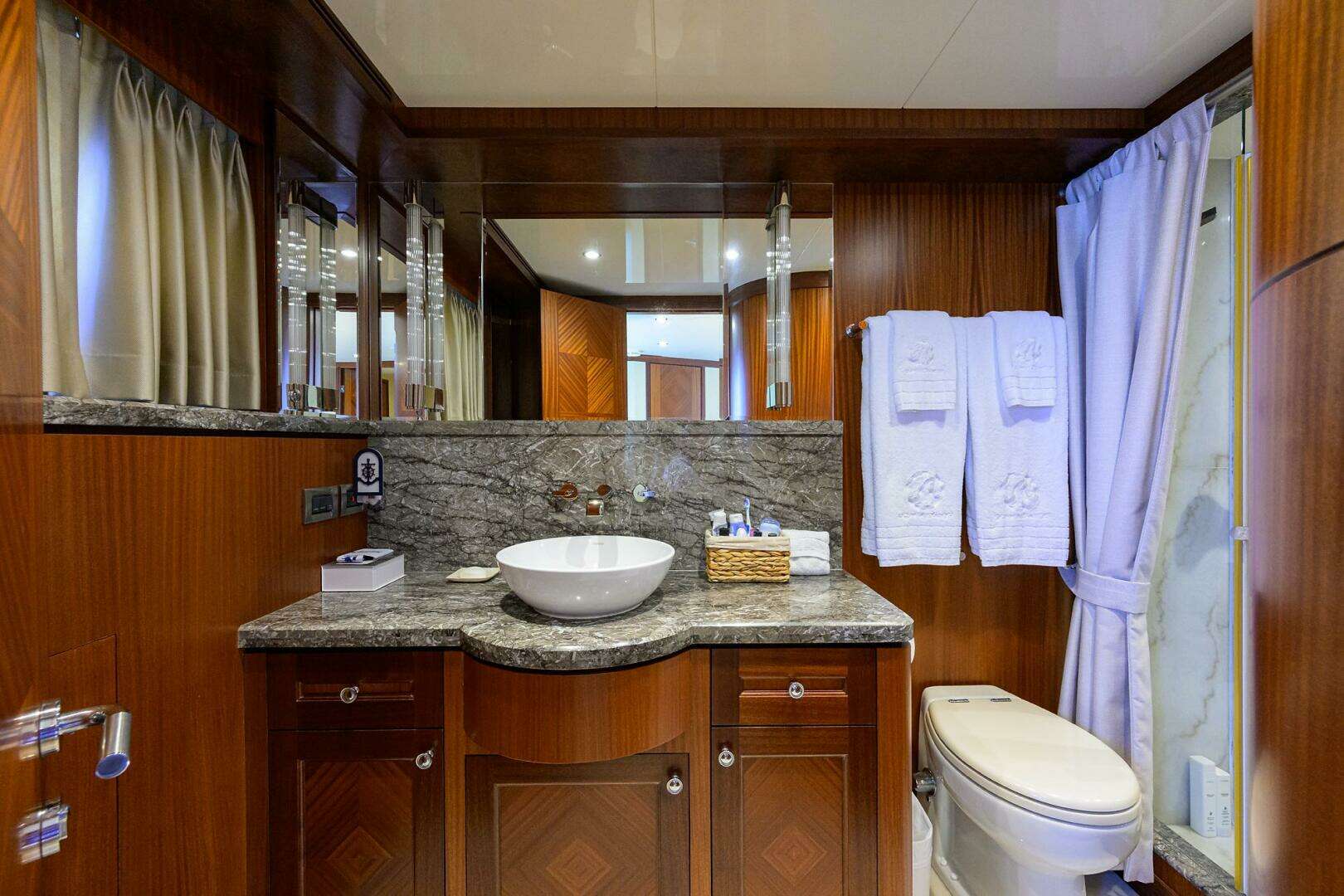

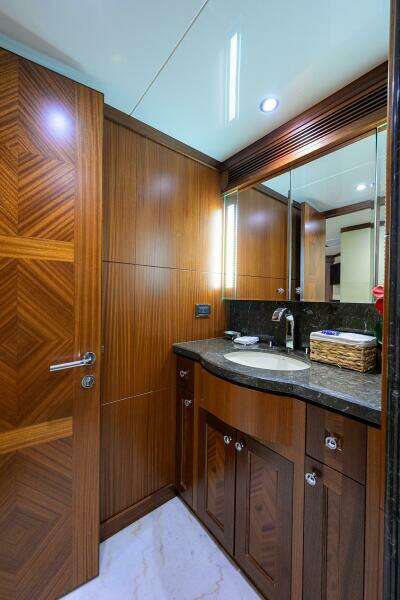

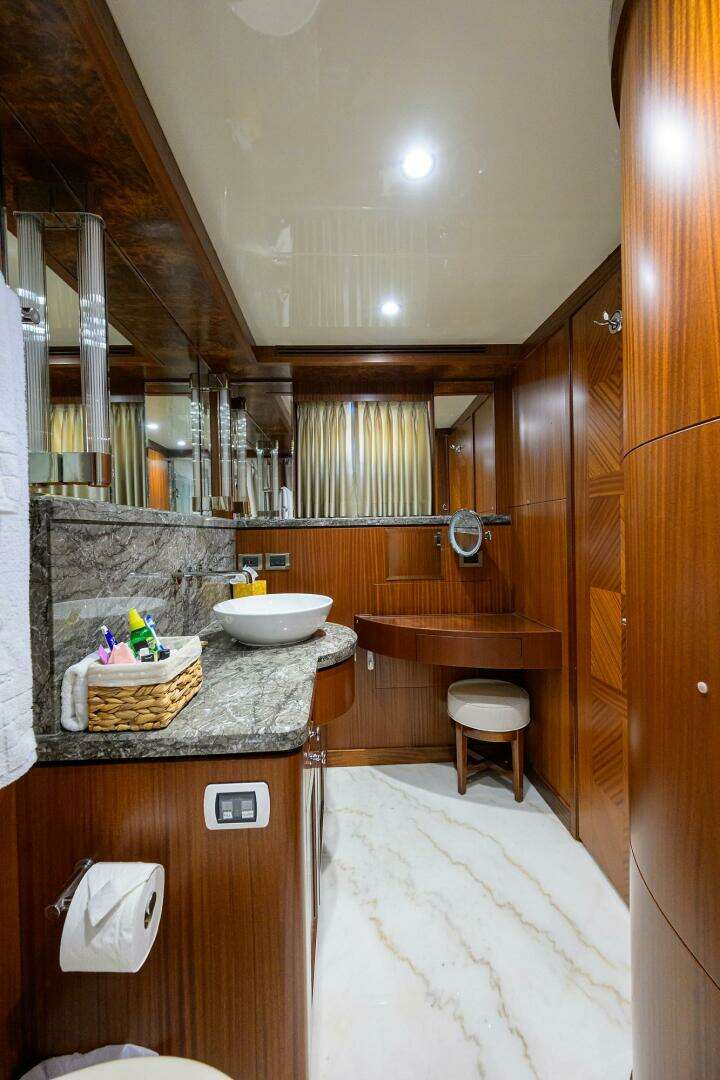

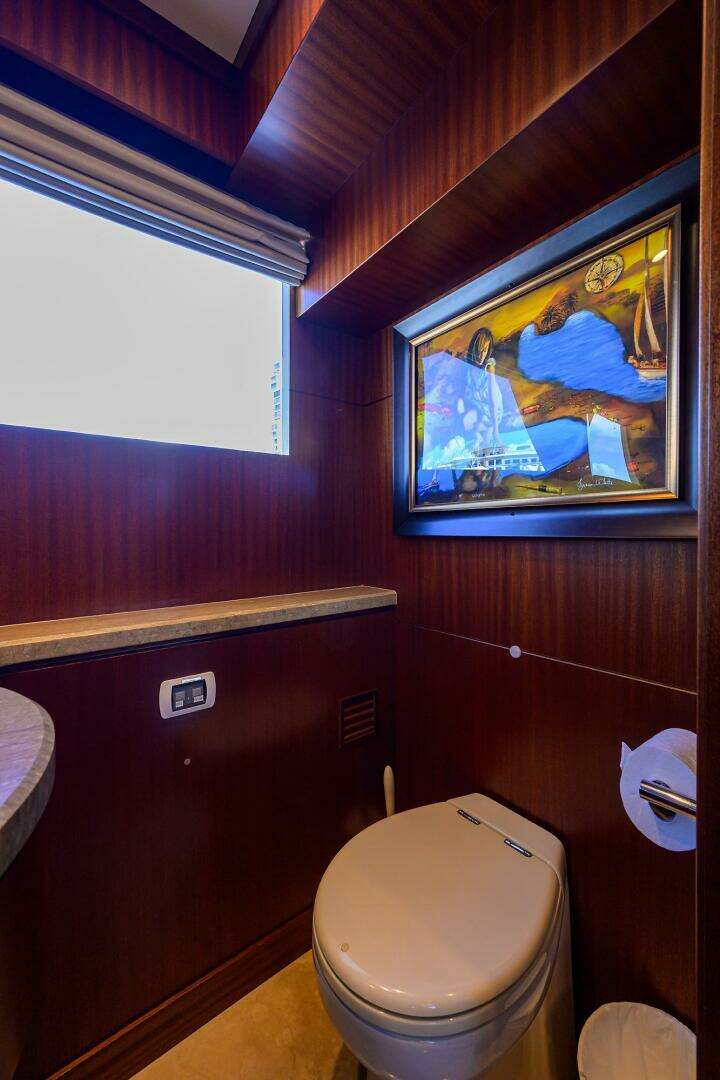

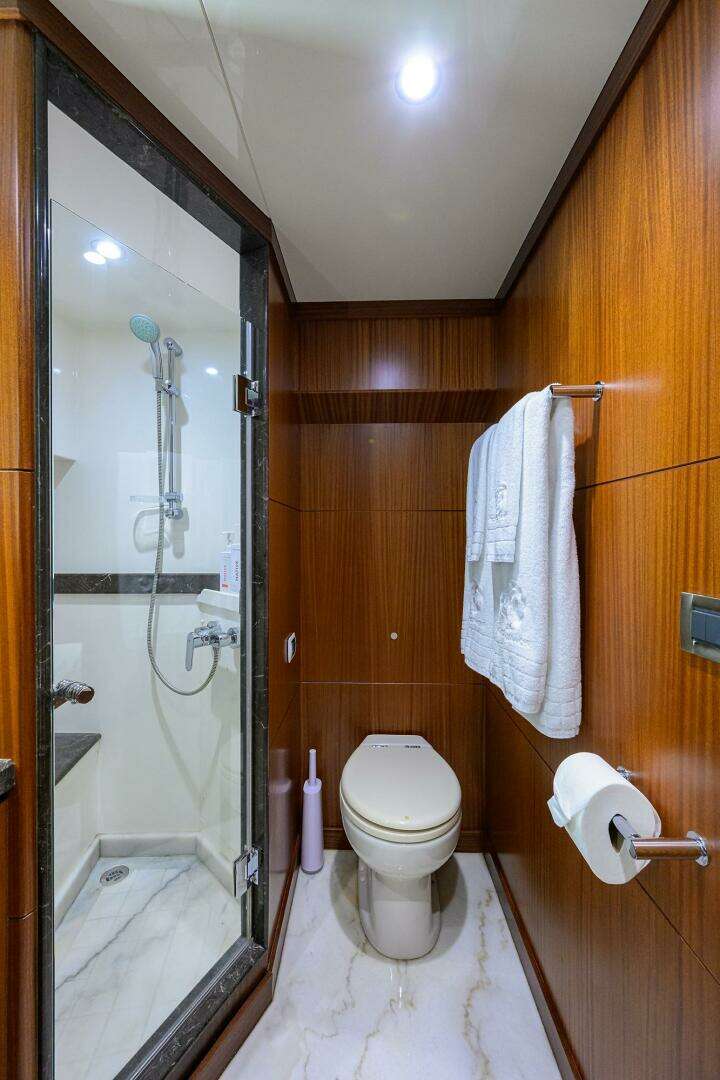

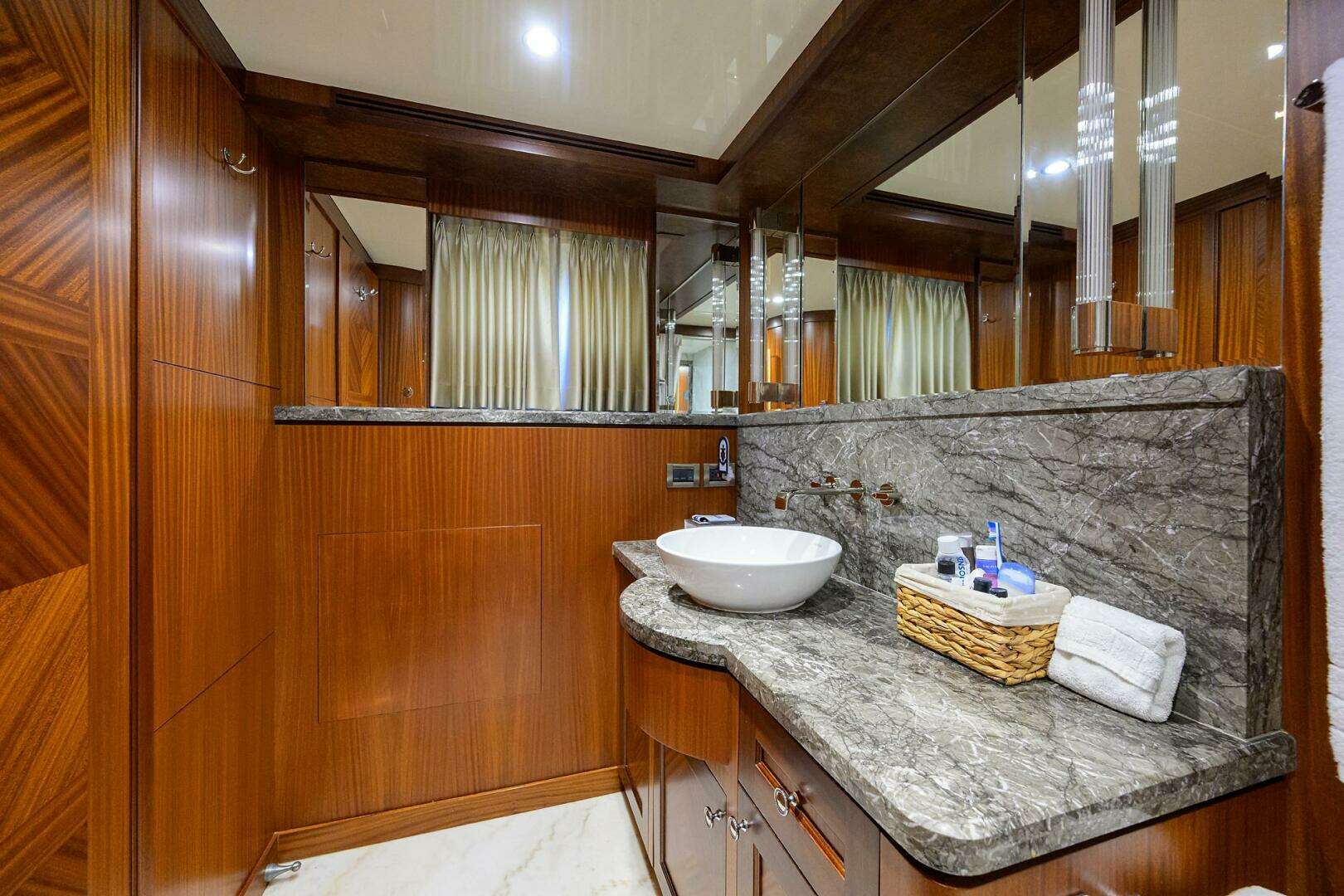

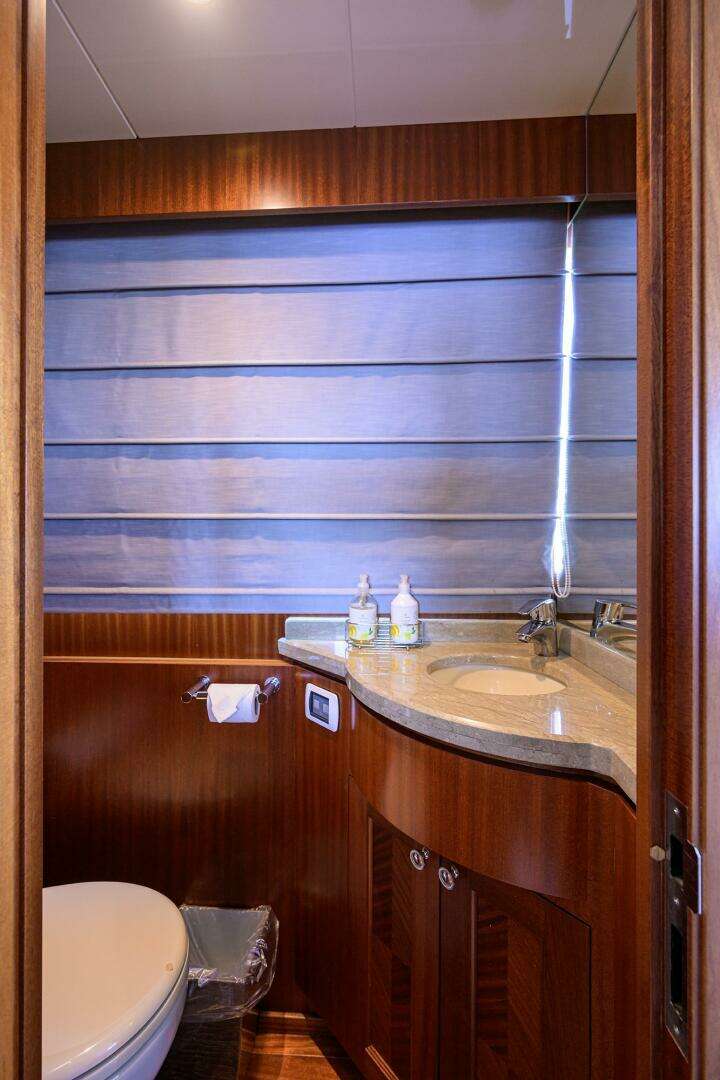

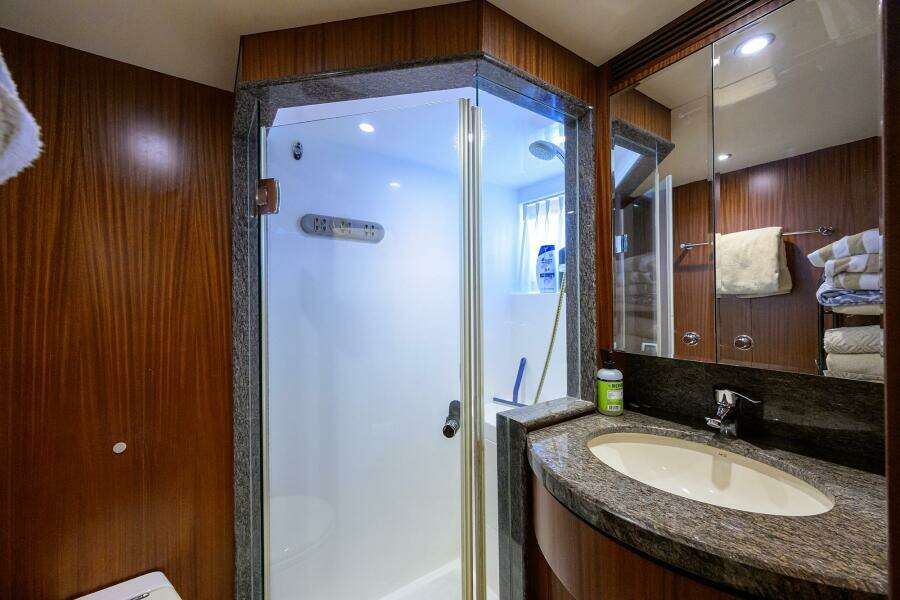

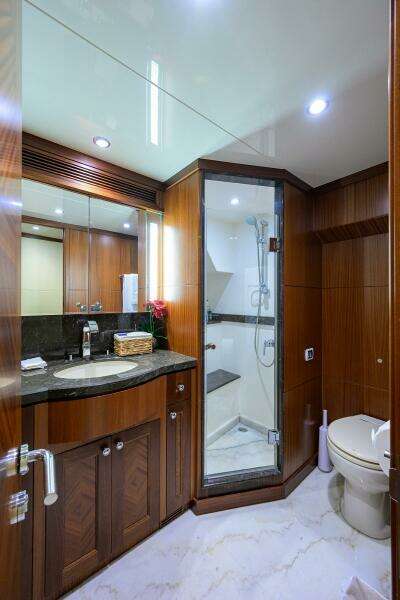

Accommodations / Interior Decore - Heads

• Walnut paneling and cabinetry
• Granite or marble heated flooring in VIP & port guest

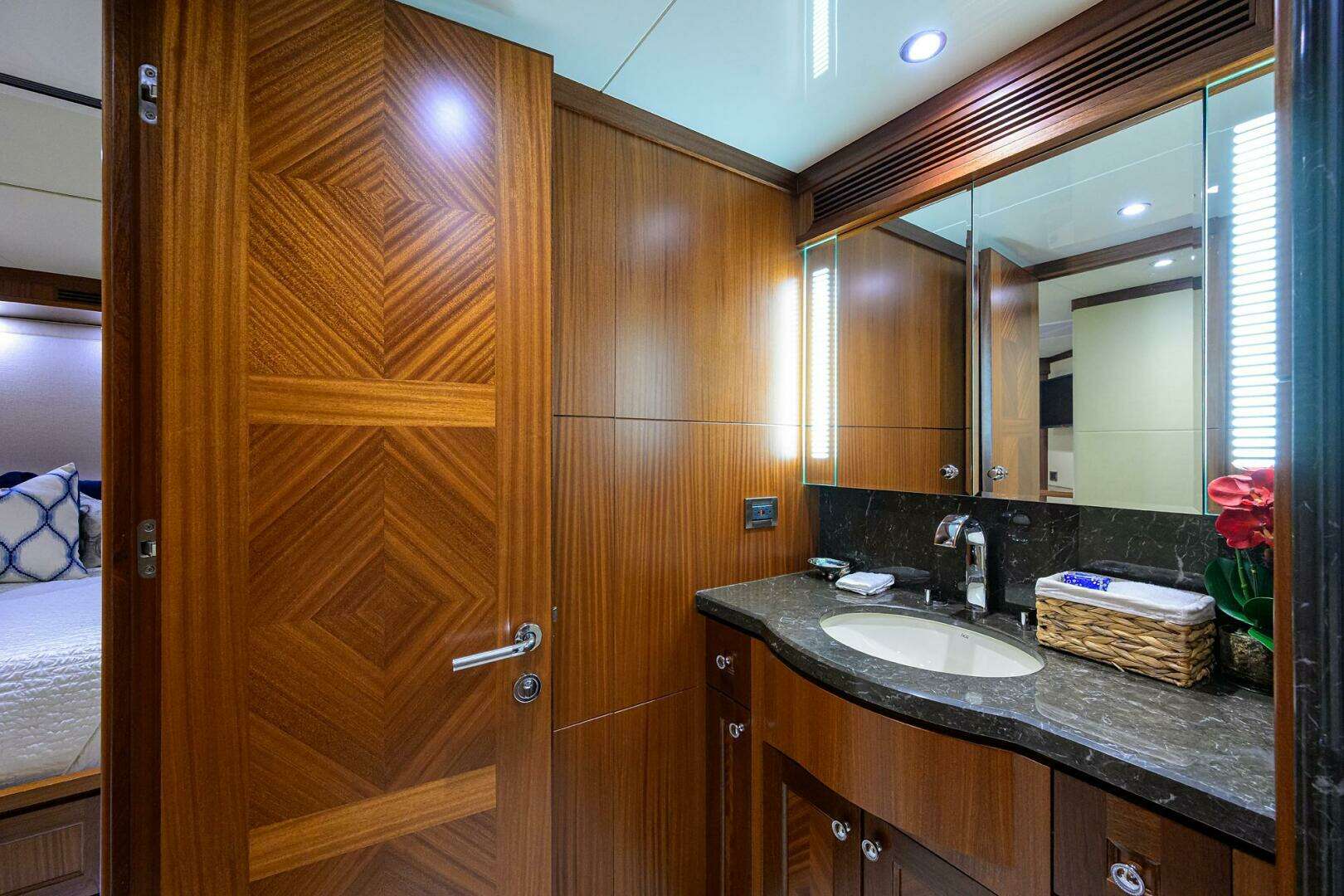

• Granite or marble countertops with china sink
• Cifial™ & Grohe™ sink faucets and Grohe™ for shower

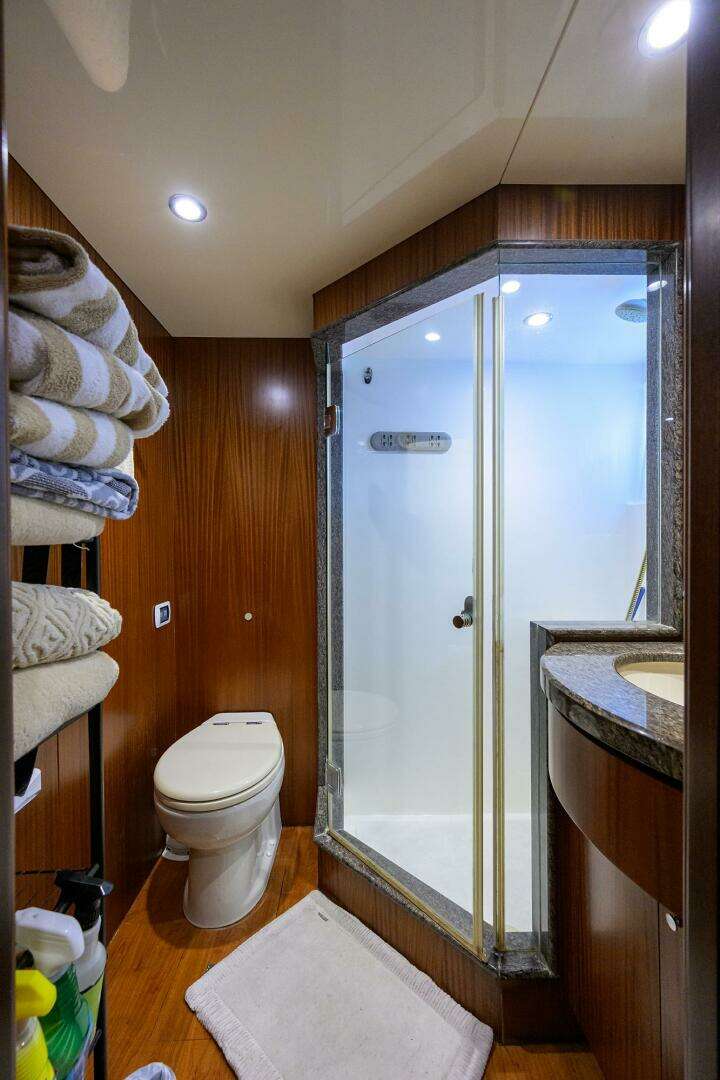

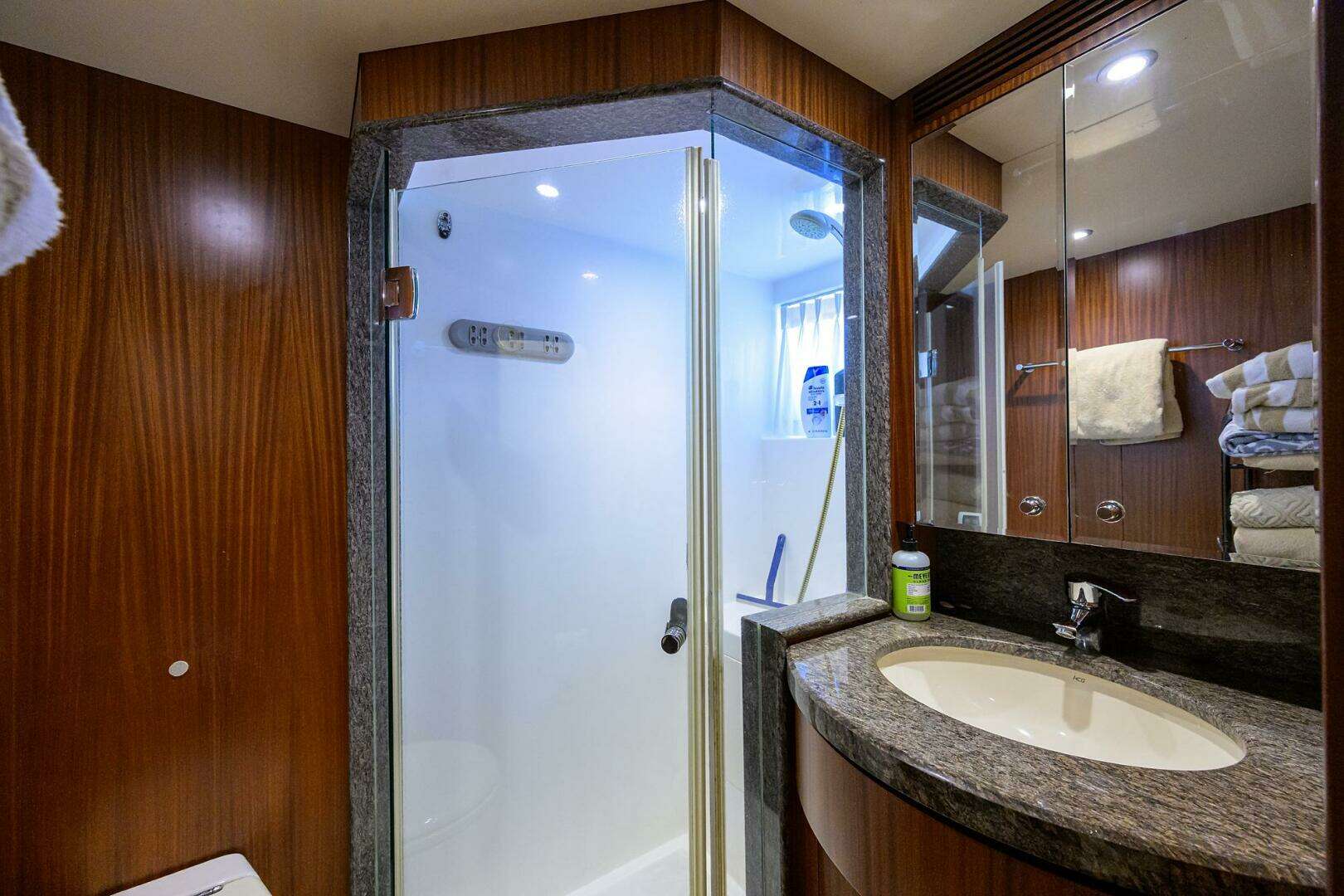

• Seamless fiberglass stall shower w/ one-piece glass door. Industry leading seamless one-piece shower stall design provides long term protection against moisture, water intrusion behind the shower panels - leading to foul odors and water damage
• Cabinet with mirror door above sink
• Air extraction in each head shall be by low noise extraction fans
• Tecma™ toilet system throughout
• Custom bathroom fixtures
• S/S rectangular port lights w/screens
• Granite or marble countertops and back splash in heads with Cifial™ & Grohe™ faucets and bone china sink

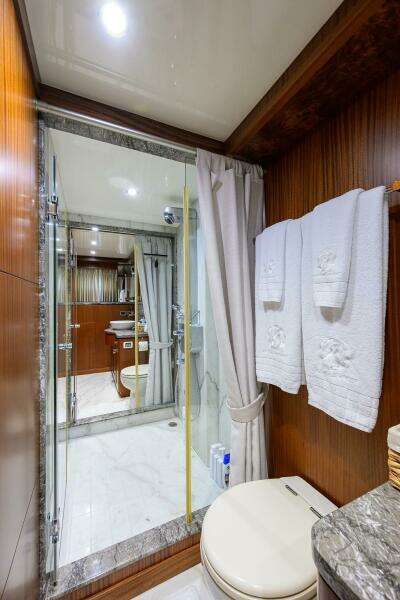

• Fiberglass seamless stall shower w/one-piece glass door
• Crew quarters w/private head, shower and refrigerator

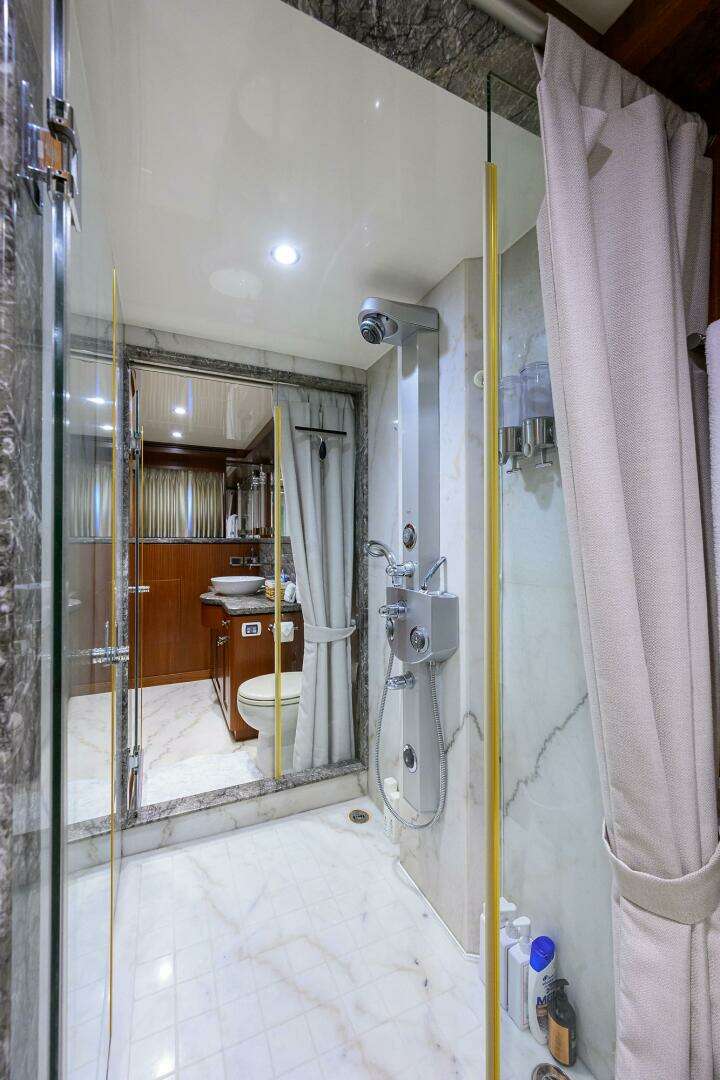

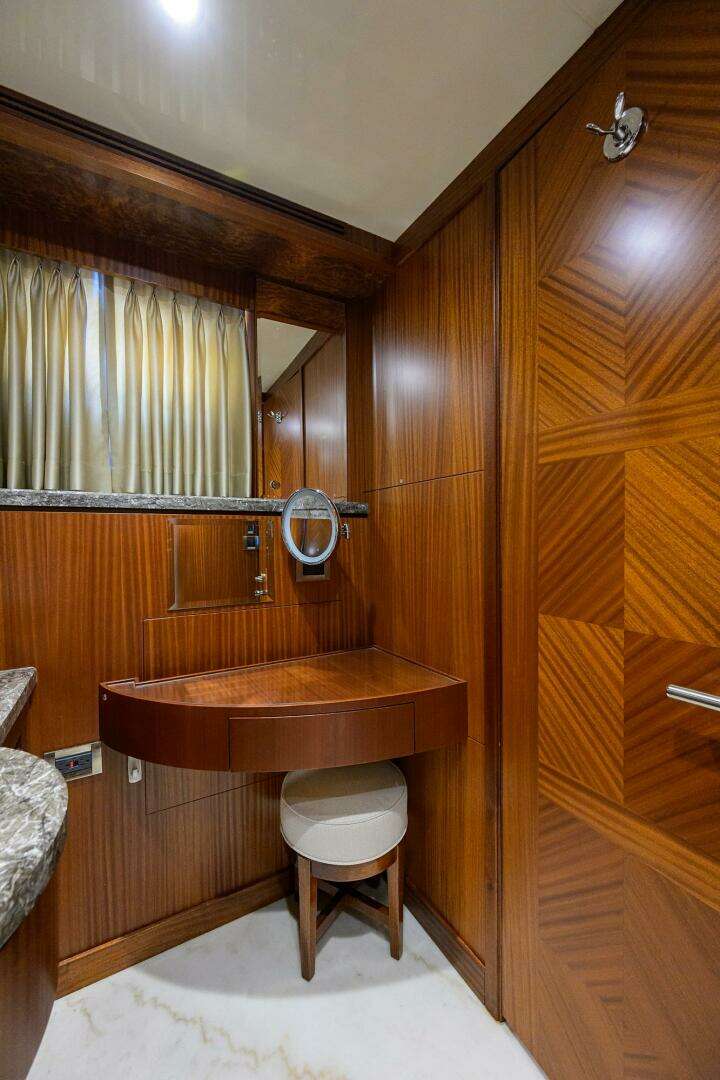

Accommodations / Interior Decor - Master Head

• Twin his-and-hers heads
• Sconces with dimmers above sink
• Lockers beside heads
• Clear glass wall between shower room and head
• Granite or marble wall in shower and heated floor in head

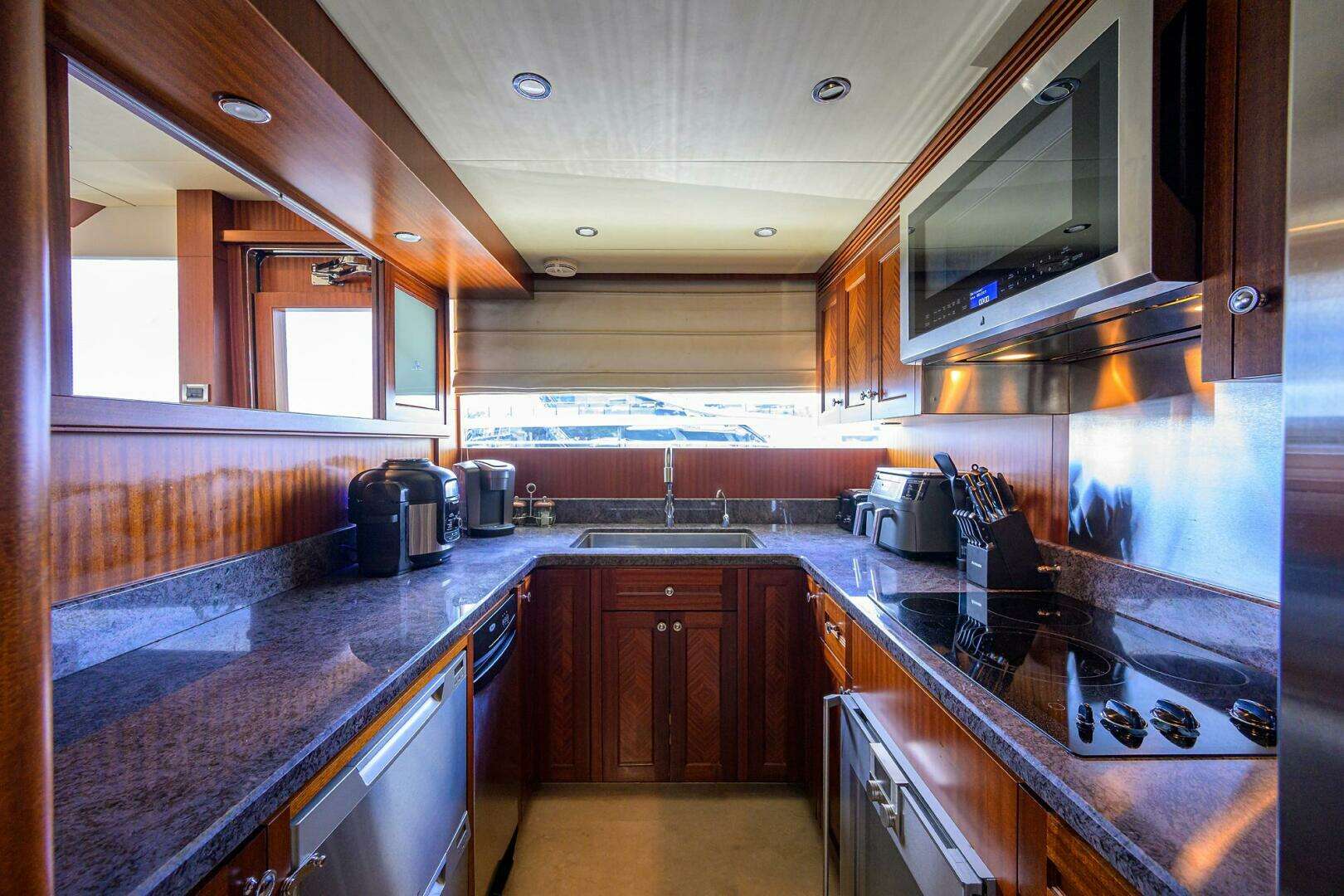

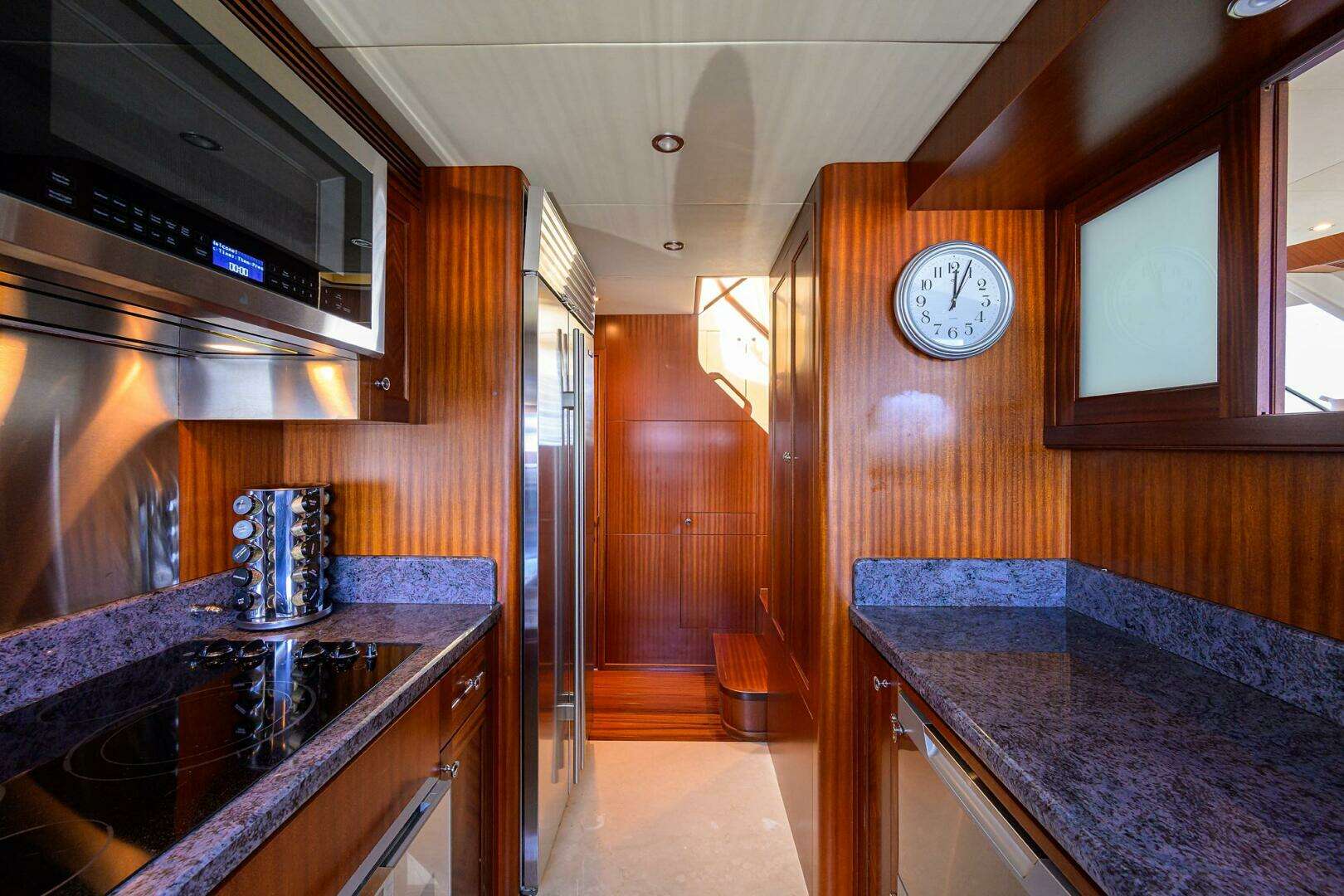

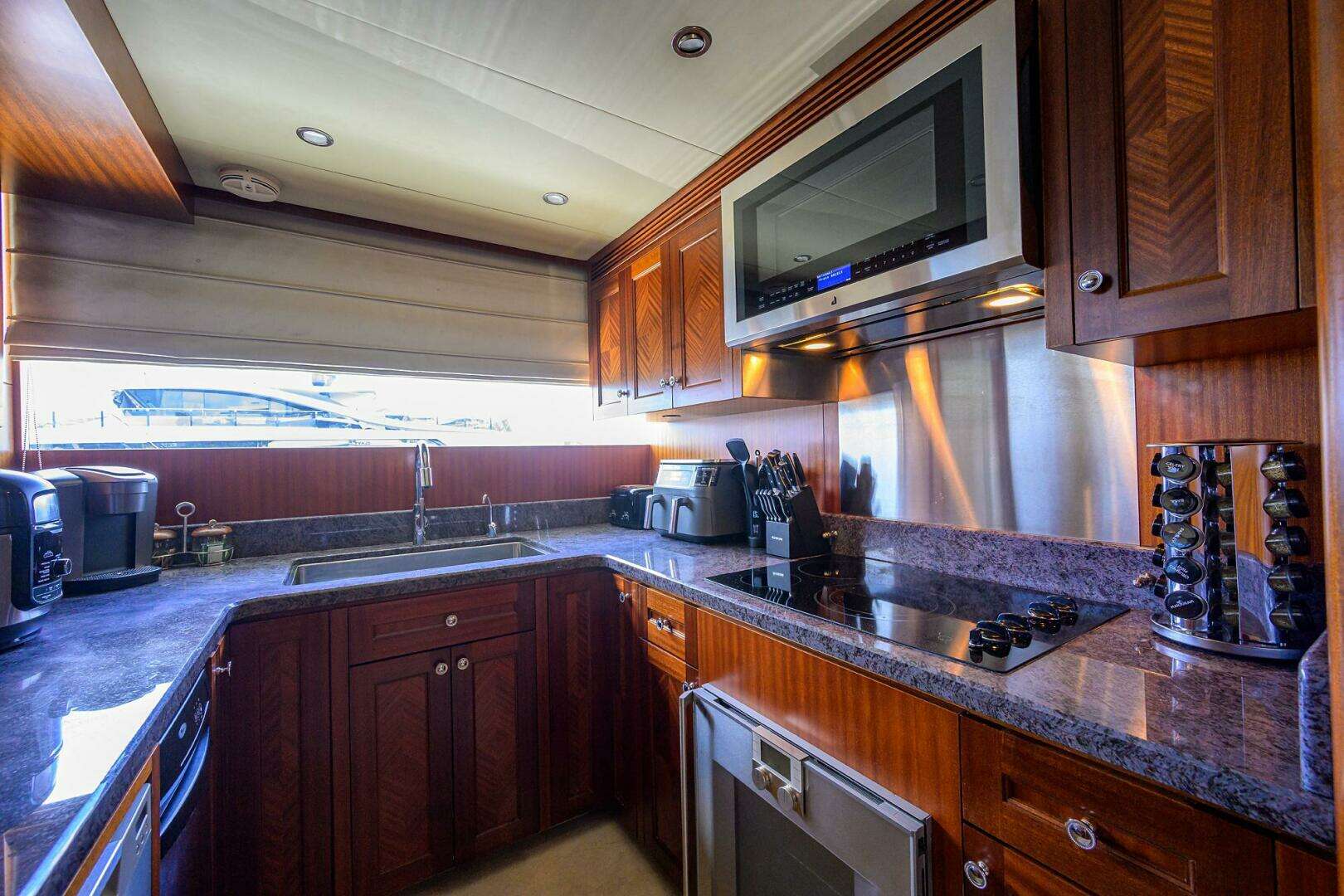

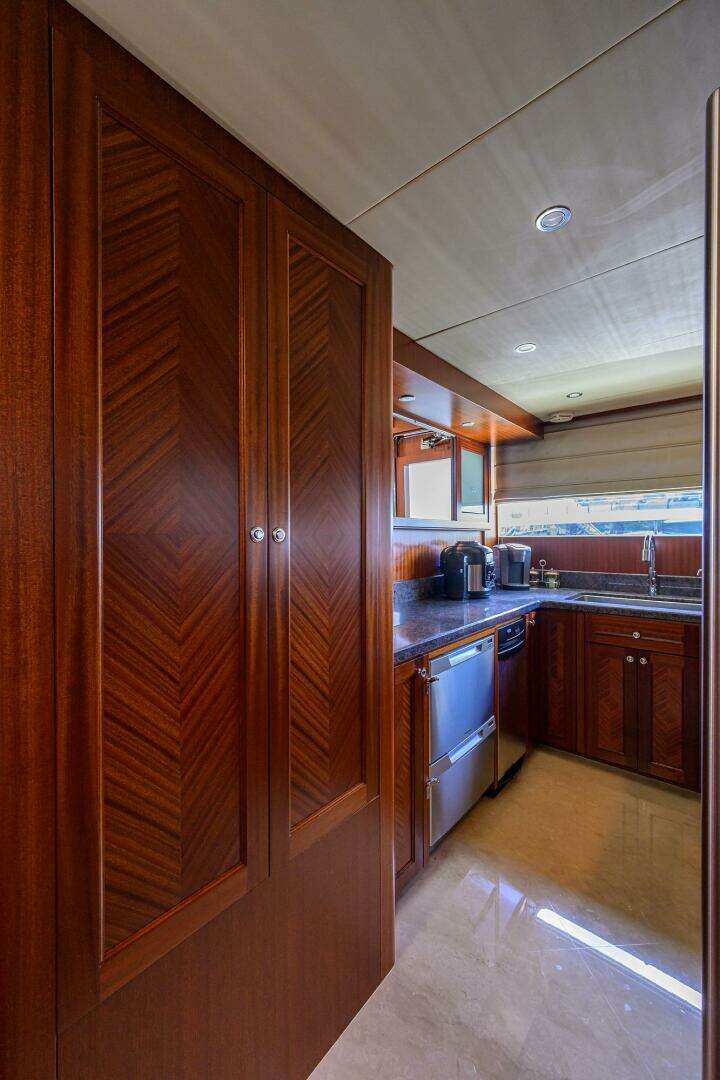

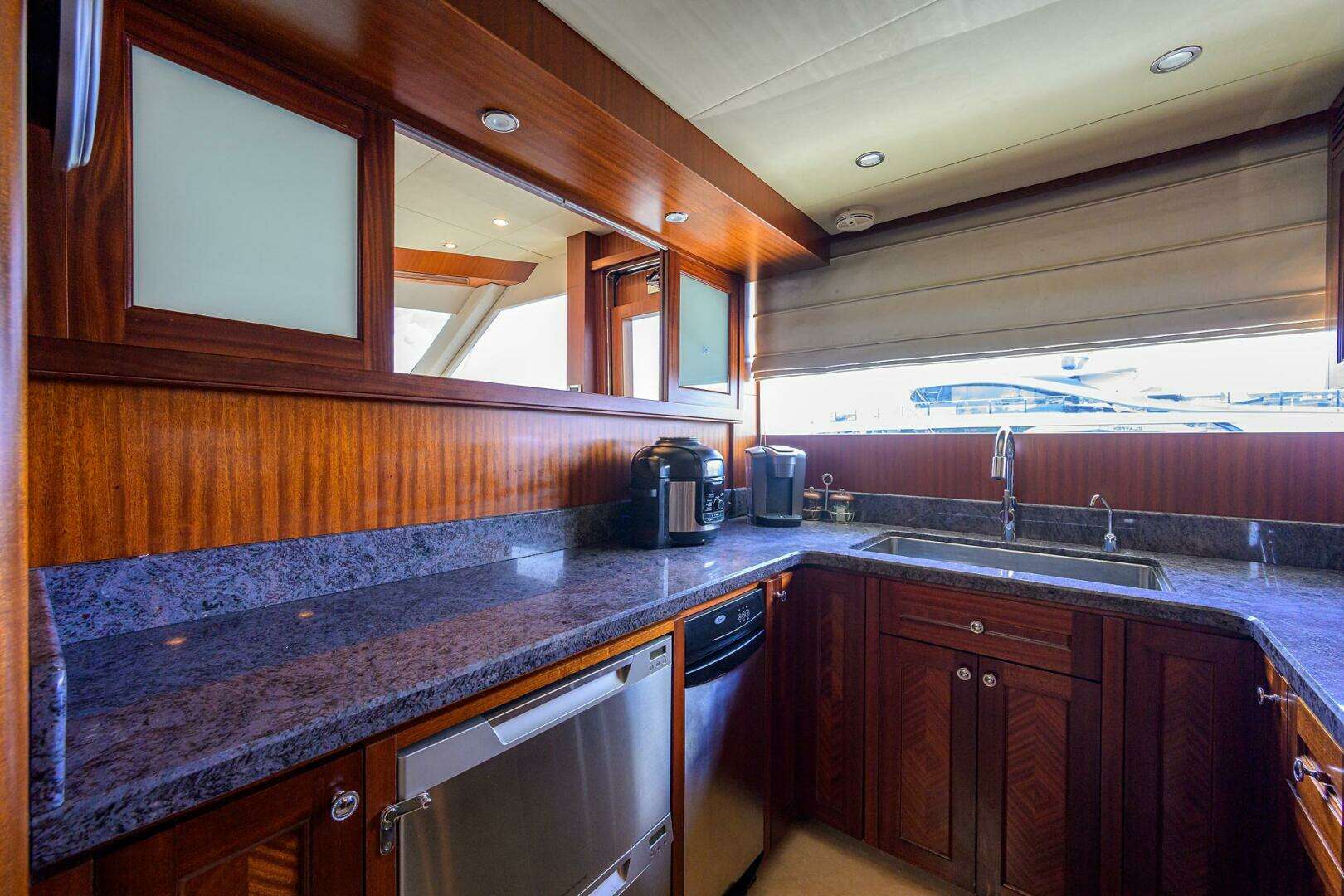

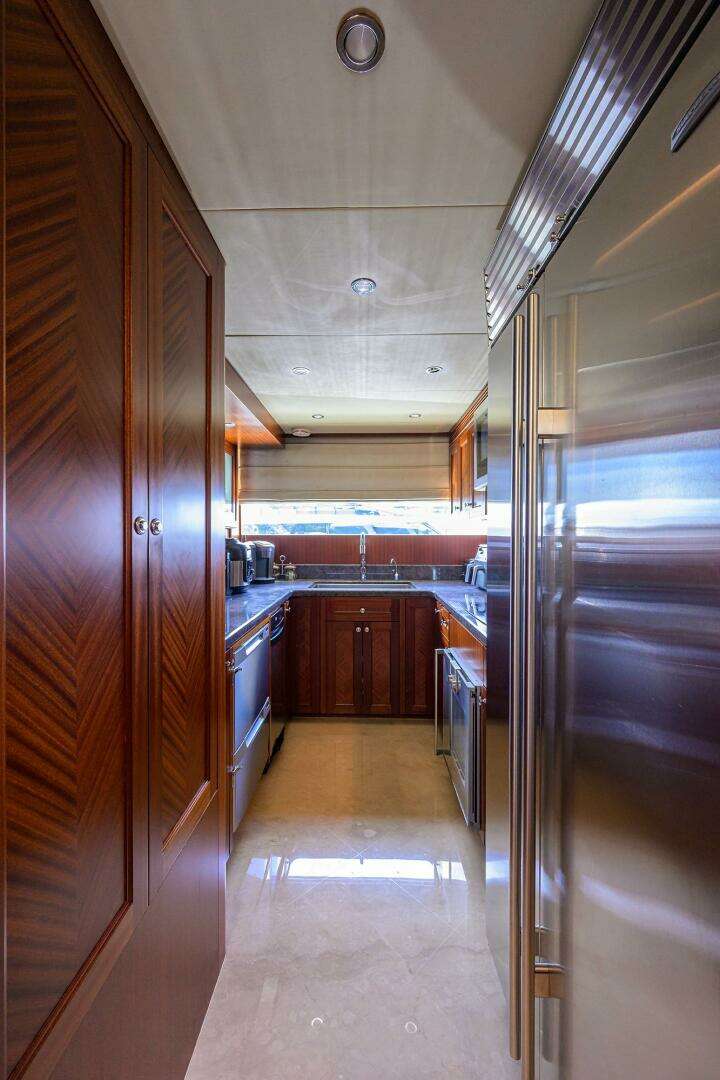

Accommodations / Interior Decor - Galley

• Walnut panel and cabinetry
• Galley storage cabinetry w/hidden hinges
• Granite countertops
• Marble flooring
• Franke™ professional series kitchen sink w/ pull out tap
• Exhaust blower
• Overhead dish locker fwd & aft
• 27” General Electric electric cook top
• 24” Gaggeneau™ electric oven
• Sub-Zero® Refrigerator/ freezer
• Whirlpool™ garbage disposal
• 30" JennAir Over-the Range Microwave with Speed- Cook Convection oven with exhaust blower
• 24” Fisher/ Paykel ™ dishwasher
• 15” Whirlpool™ trash compactor
• Seagull™ water purifier

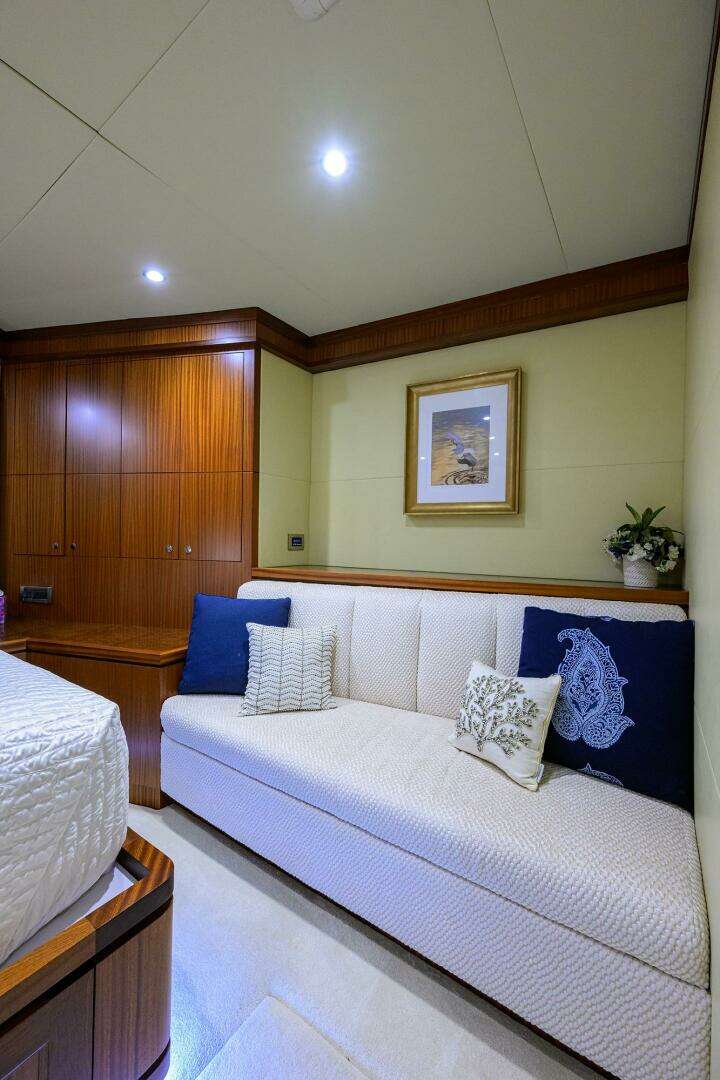

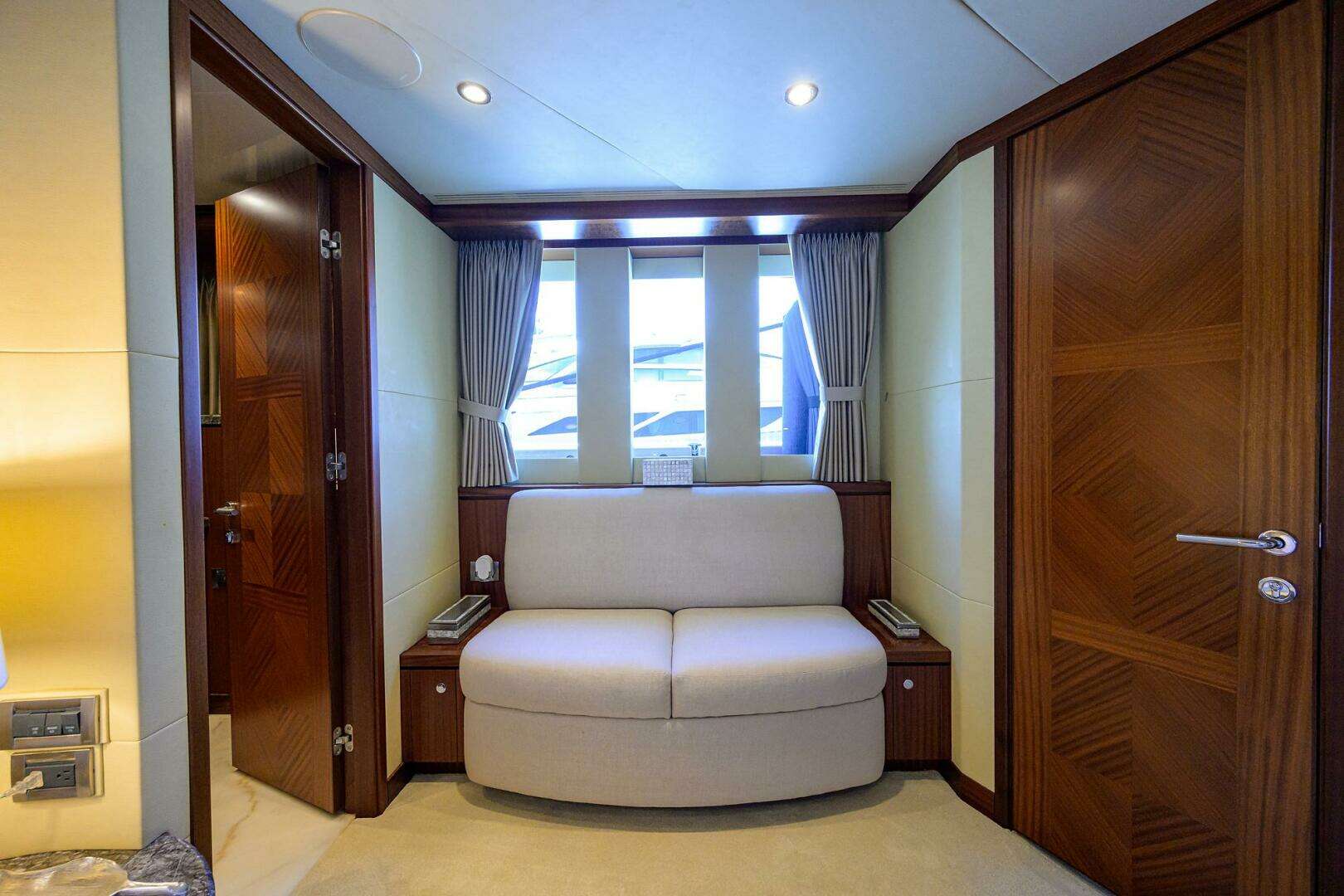

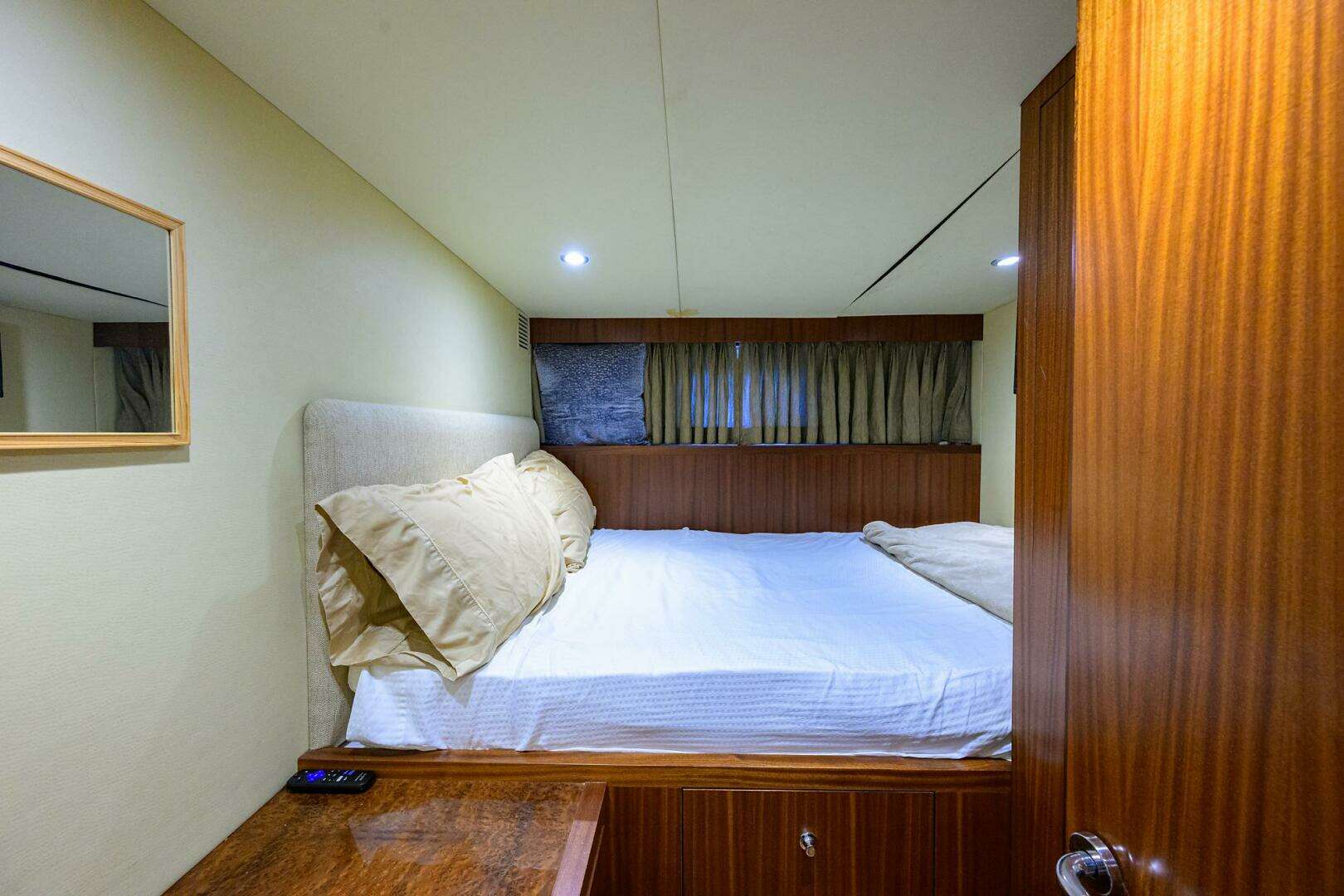

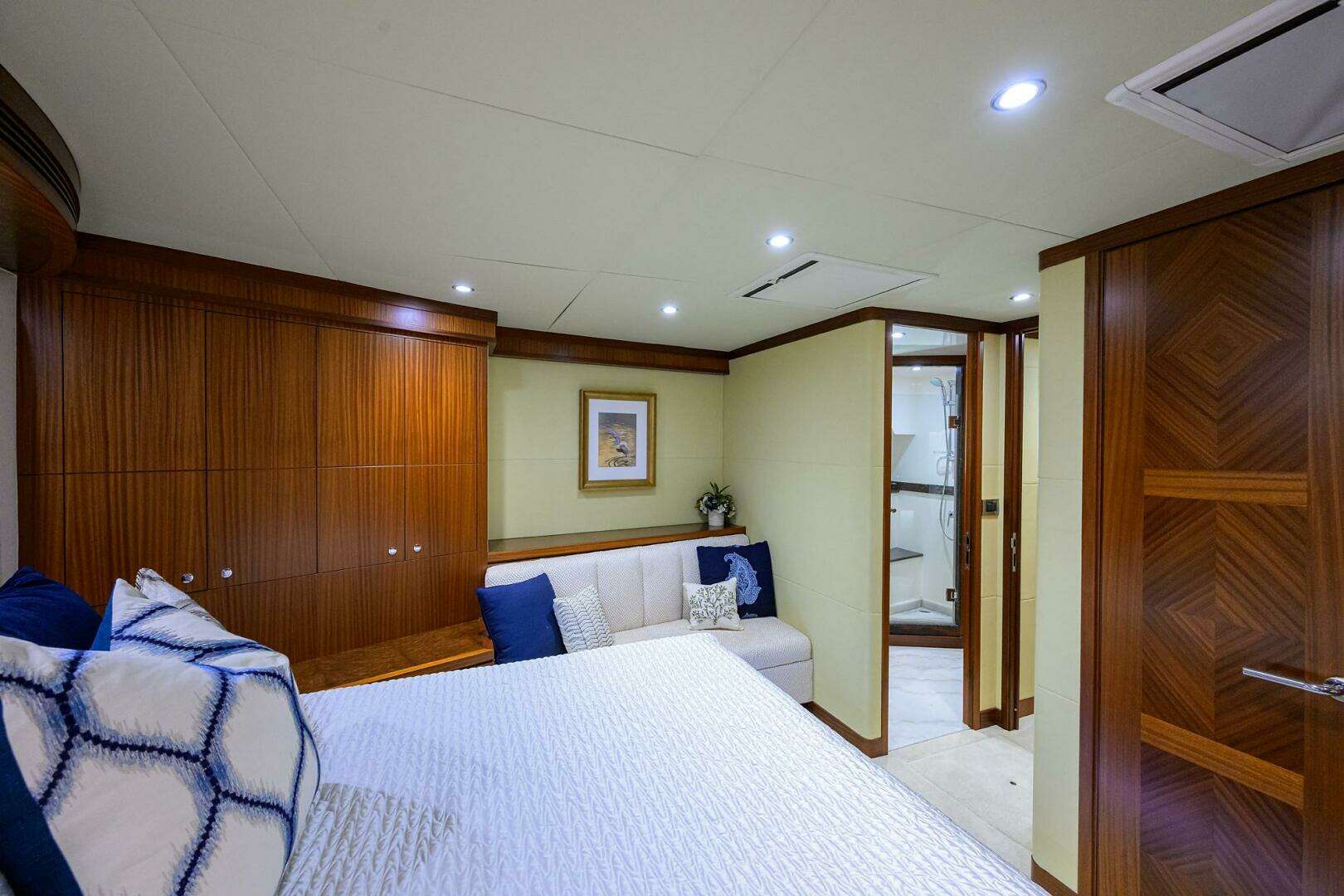

Accommodations / Interior Decor - VIP / Guest Staterooms

• Queen-sized berth with  inner spring mattress
• Walnut paneling and cabinetry drawers with luggage storage under berth
• Cedar-lined hanging locker with automatic lighting
• S/S rectangular port light w/screen in port guest
• Two nightstands with granite or marble tops in port guest

Main Deck/Bridge - Main Deck

•  2” elliptical 316 Stainless steel handrails & stanchions, main deck 1-1/2” on FB
• 316 stainless-steel cleats and port lights
• Fiberglass stairs to boat deck from aft deck

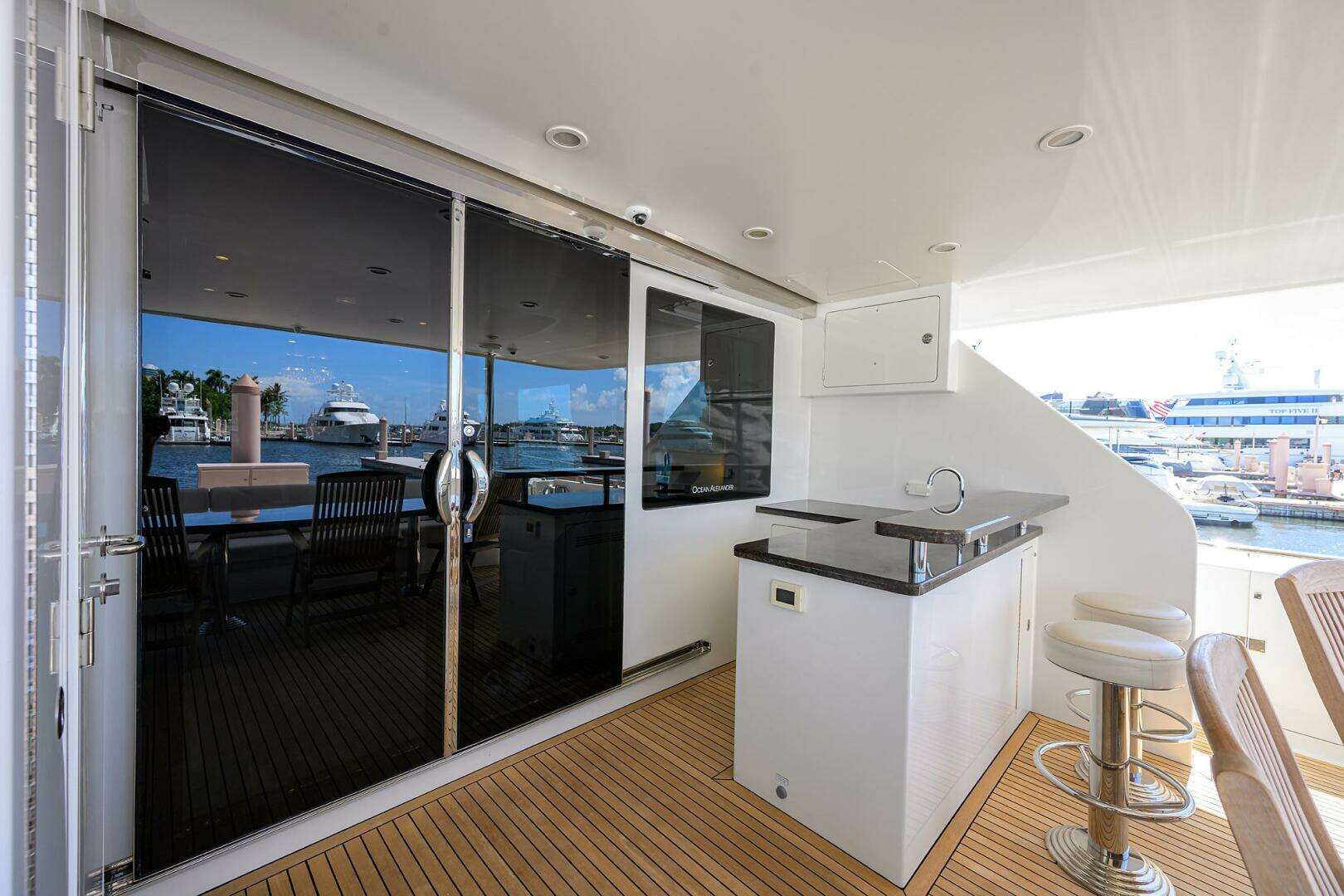

• Elec. stainless-steel sliding doors for salon
• Two teak flag poles, fore and aft.

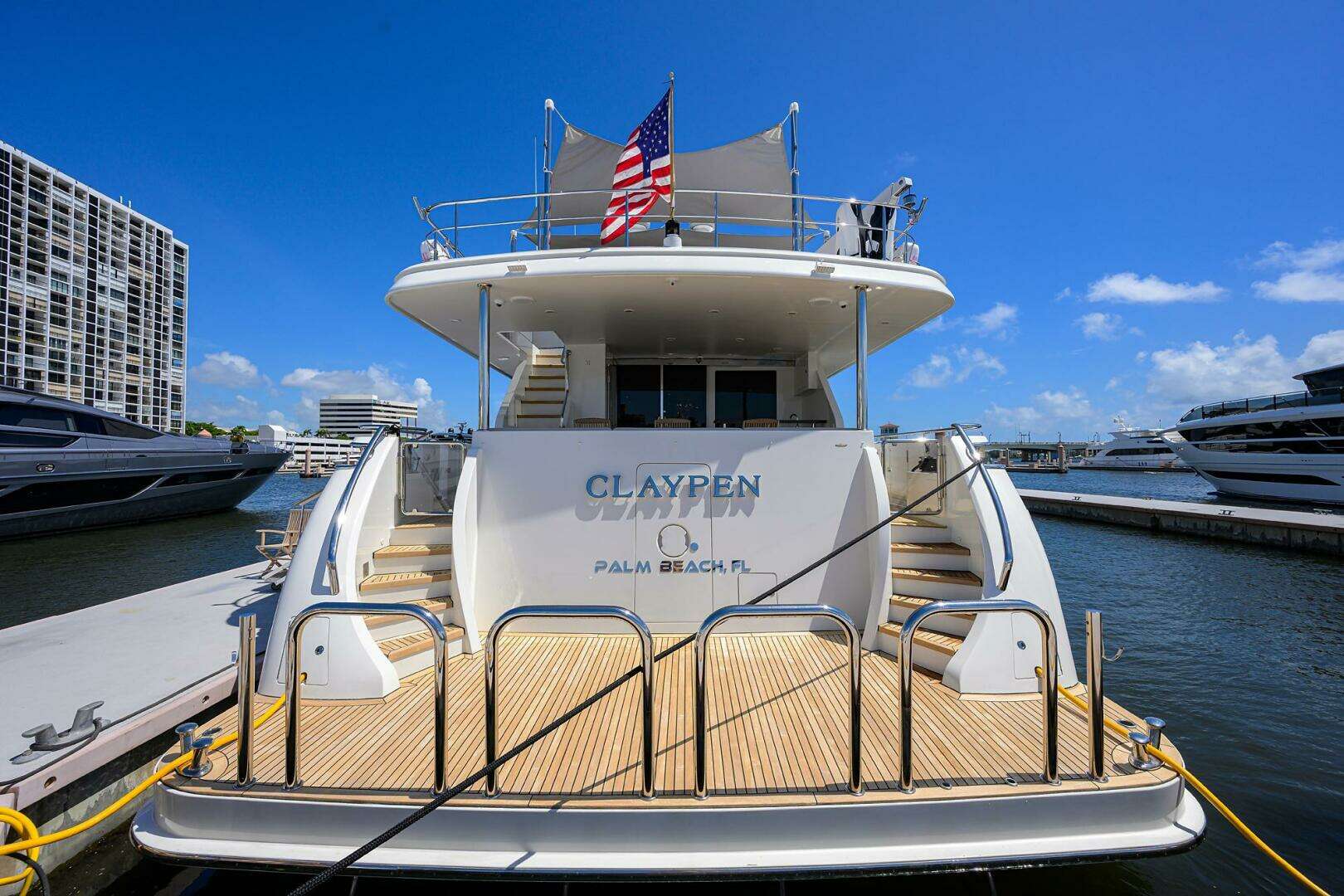

• Teak and stainless swim ladder, foldable
• Watertight door on transom for access to engine room/ crew quarters
• Cabinet for storage wet bar refrigerator and LCD 22” TV
• Side boarding doors
• Aft deck docking control
• High bulwark w/ flush-mounted deck lights, bulwark side doors for boarding ! Side boarding gates in aft deck and midship
• Tempered and safety glass (1/2” in fwd PH, 3/8” other areas) which is 80% stronger than normal glass and with a safety sandwich for protection against broken shards. Glass is Low-E glass which increase energy efficiency by 25%+ and is UV stabilized for reduction of fading and degradation of a yacht's interior and health of occupants due to harmful UV rays
• Humphere Interceptor
• Recessed boarding ladder on starboard gunnel

Main Deck / Fly Bridge - Fly Bridge and Sky Lounge

• Skylounge w/ dual hatches for ventilation and color change light
• Skylounge w/ day head & air condition and full size Stidd electric admiral series seats) x3

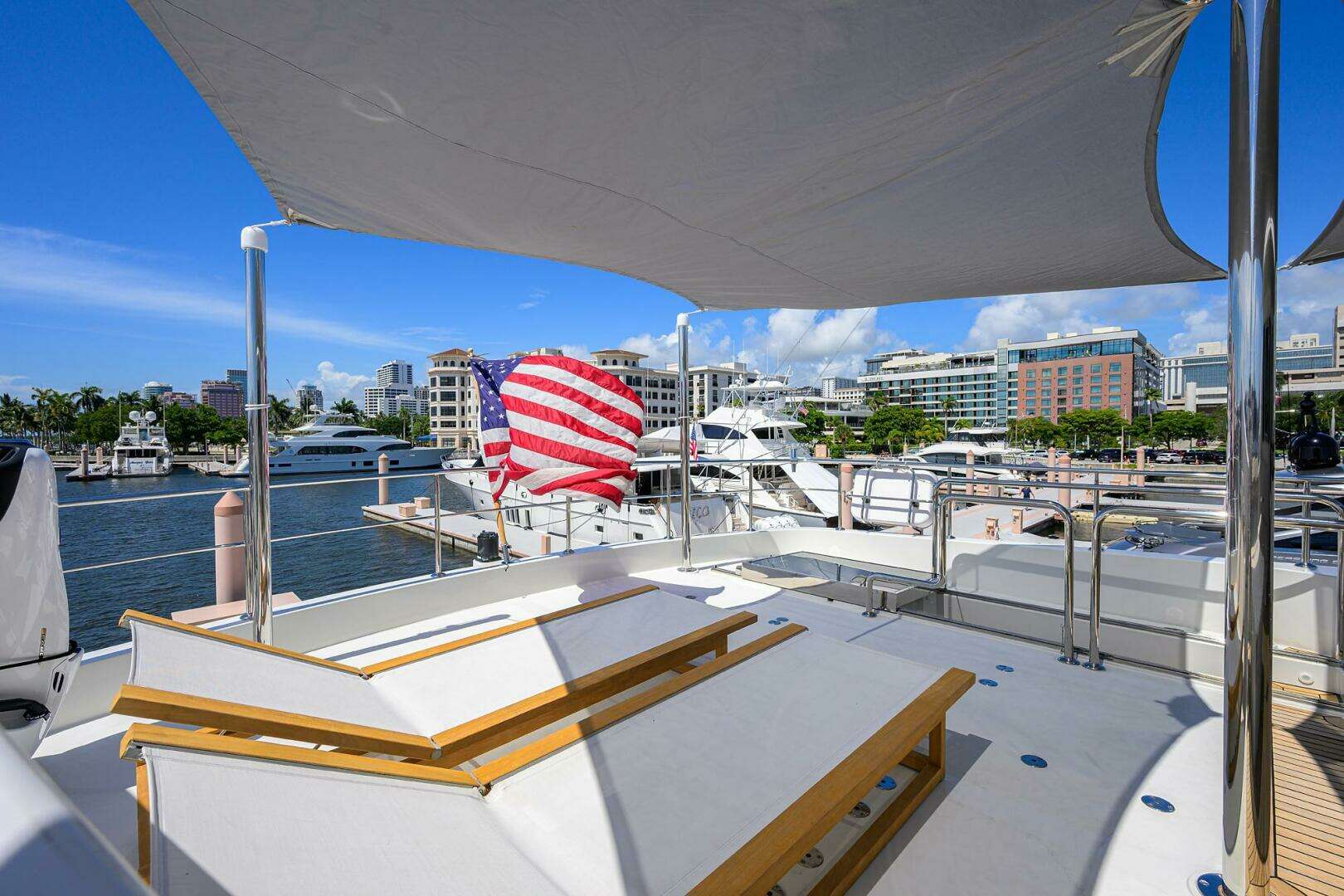

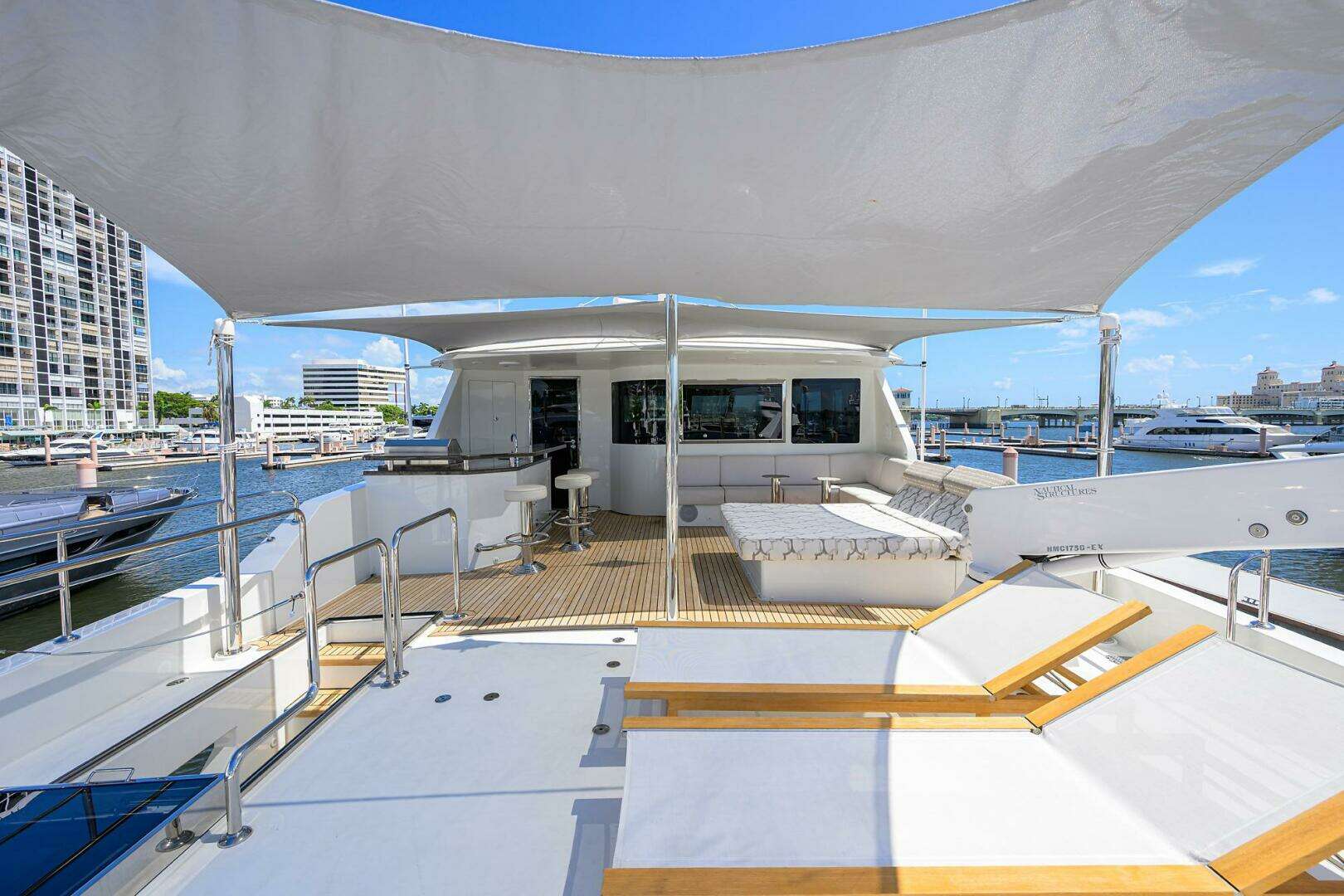

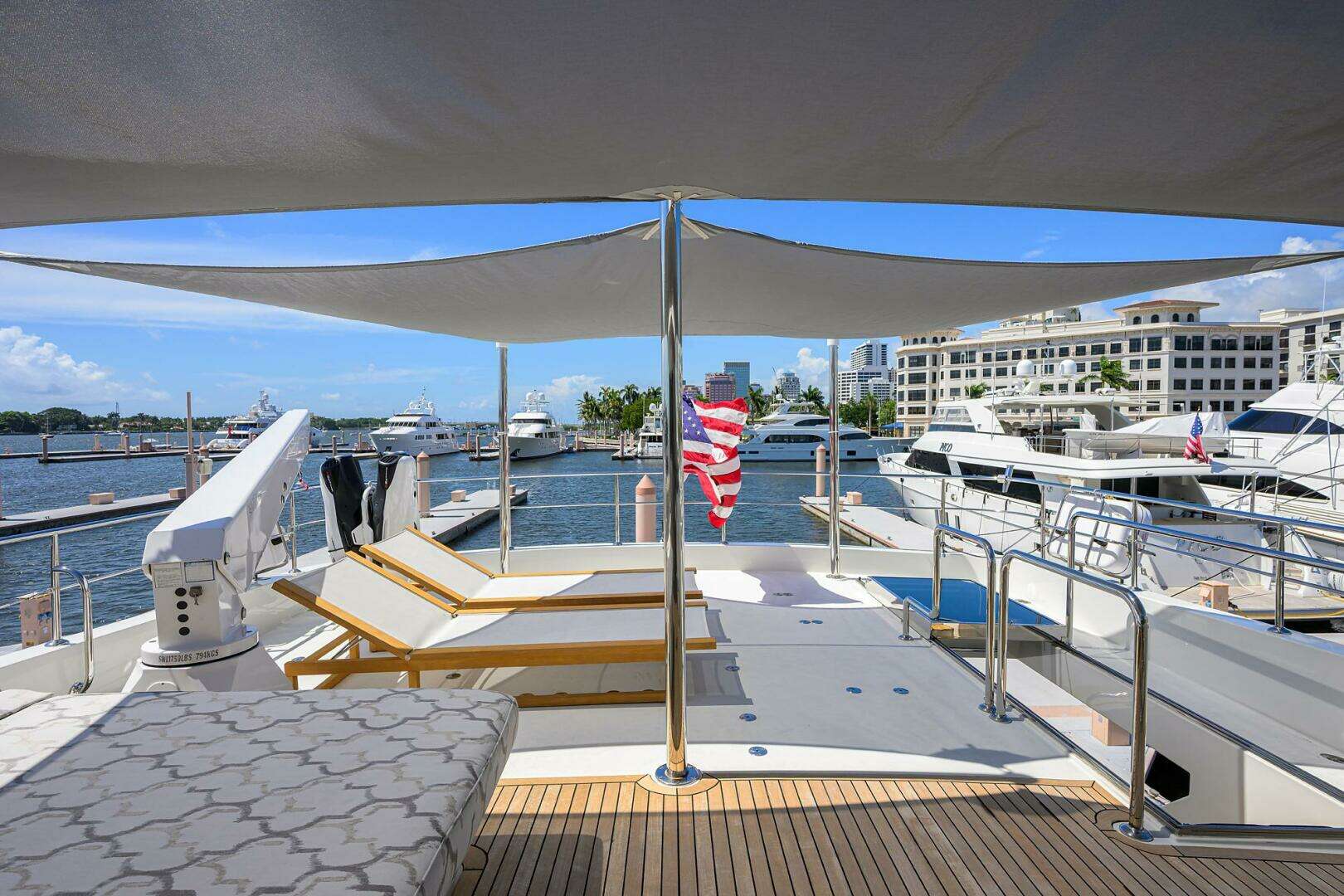

• White non-skid boat deck

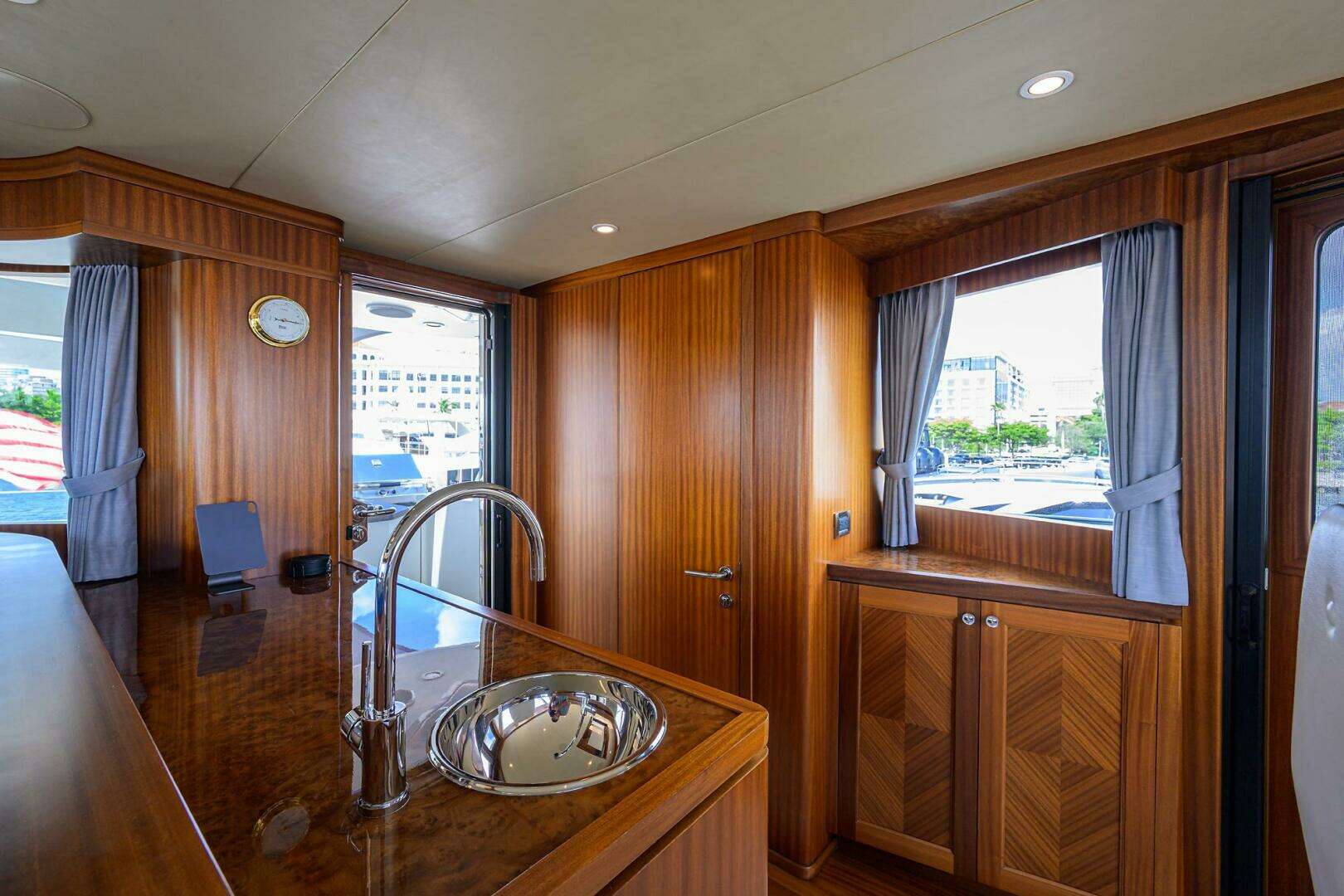

• Cabinet including wet bar, Sub Zero™ wine cooler w/ solid panel door and storage (Skylounge)

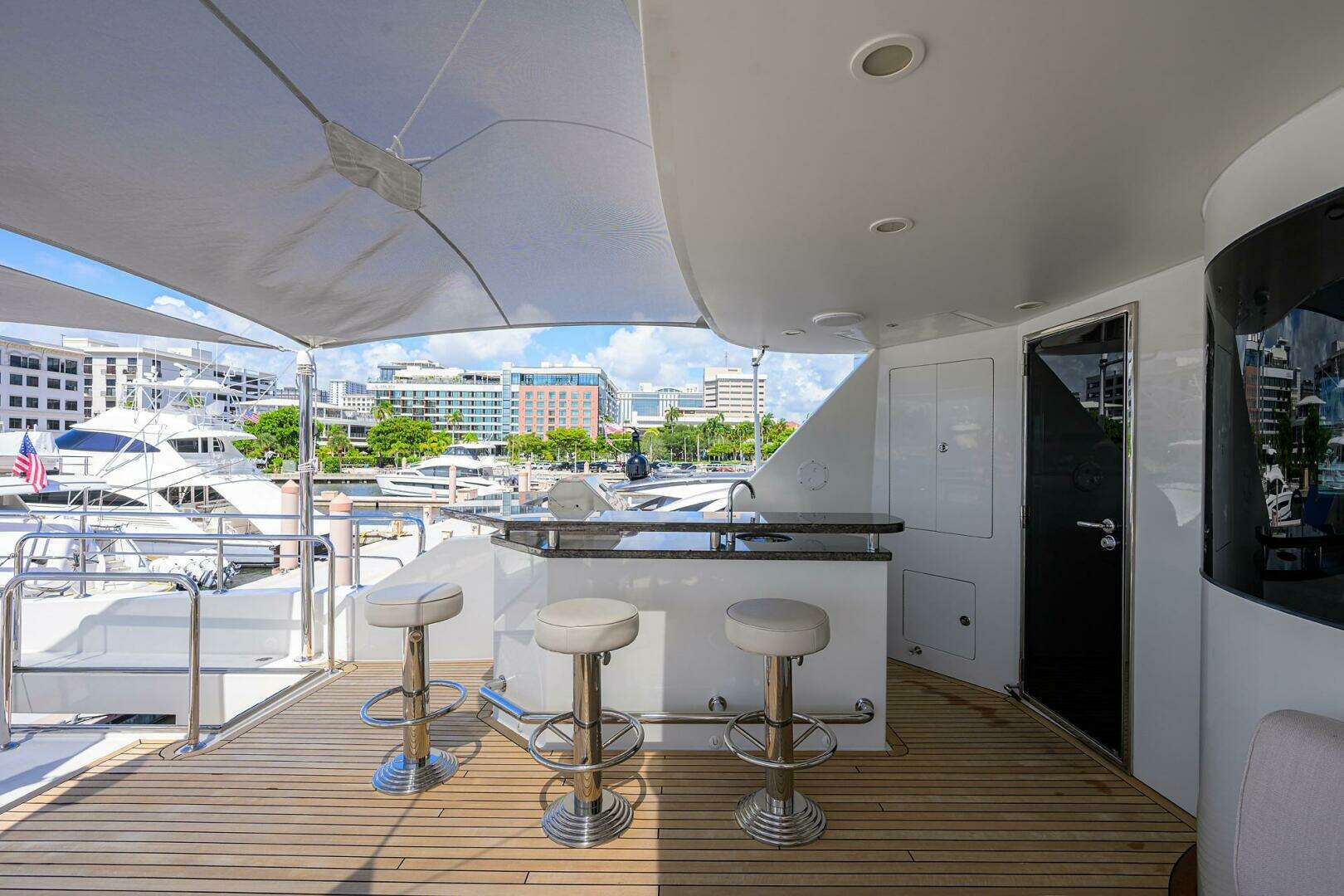

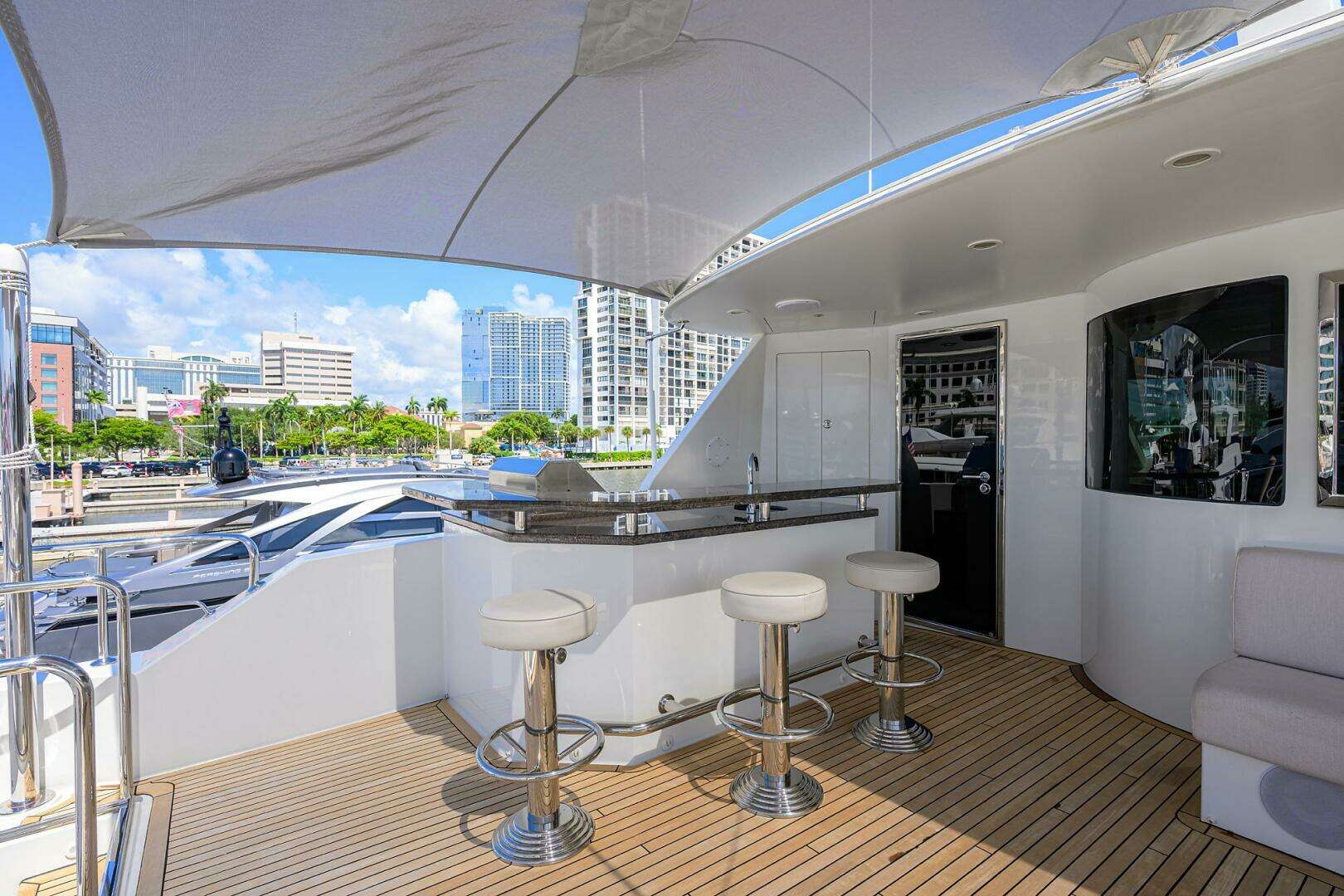

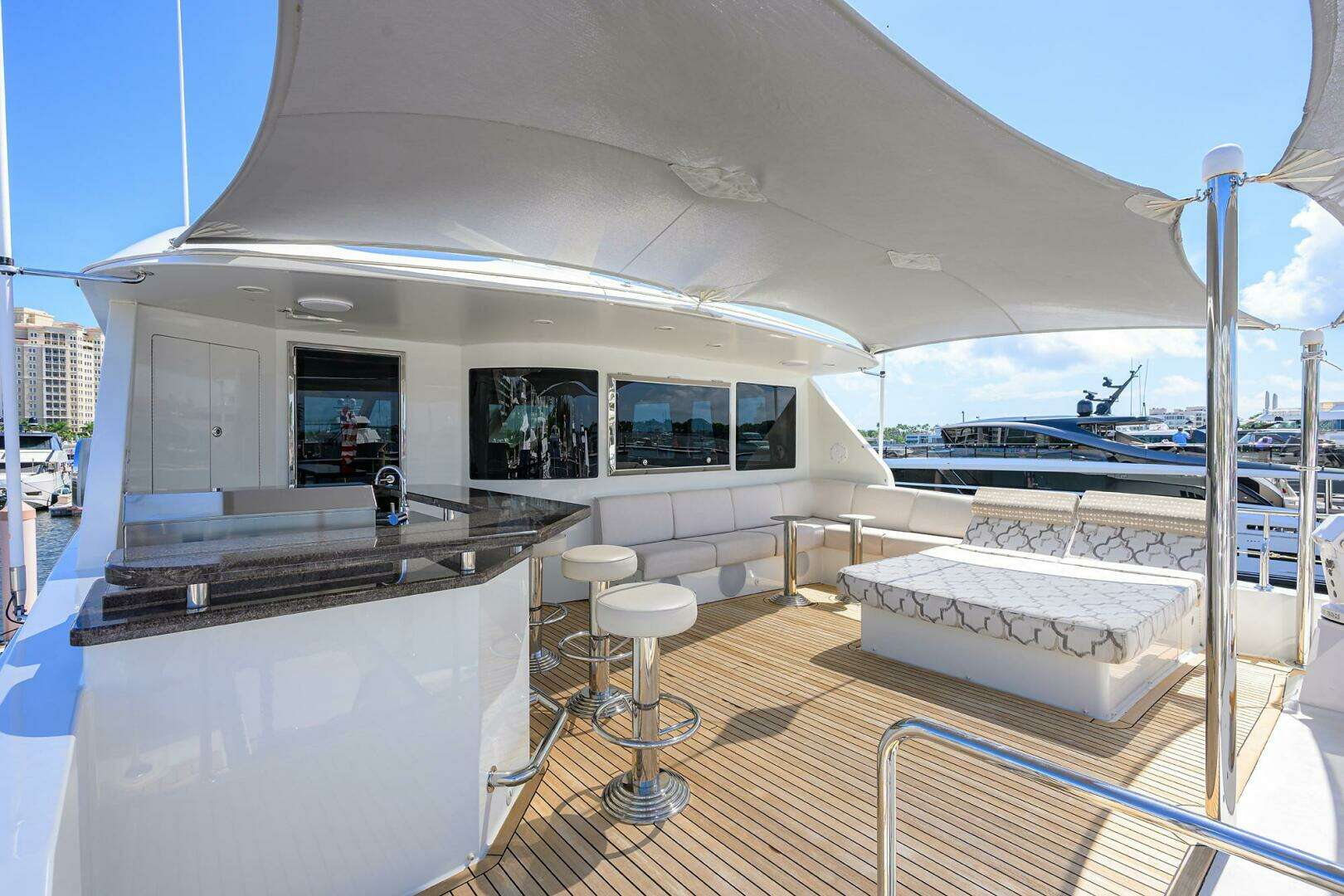

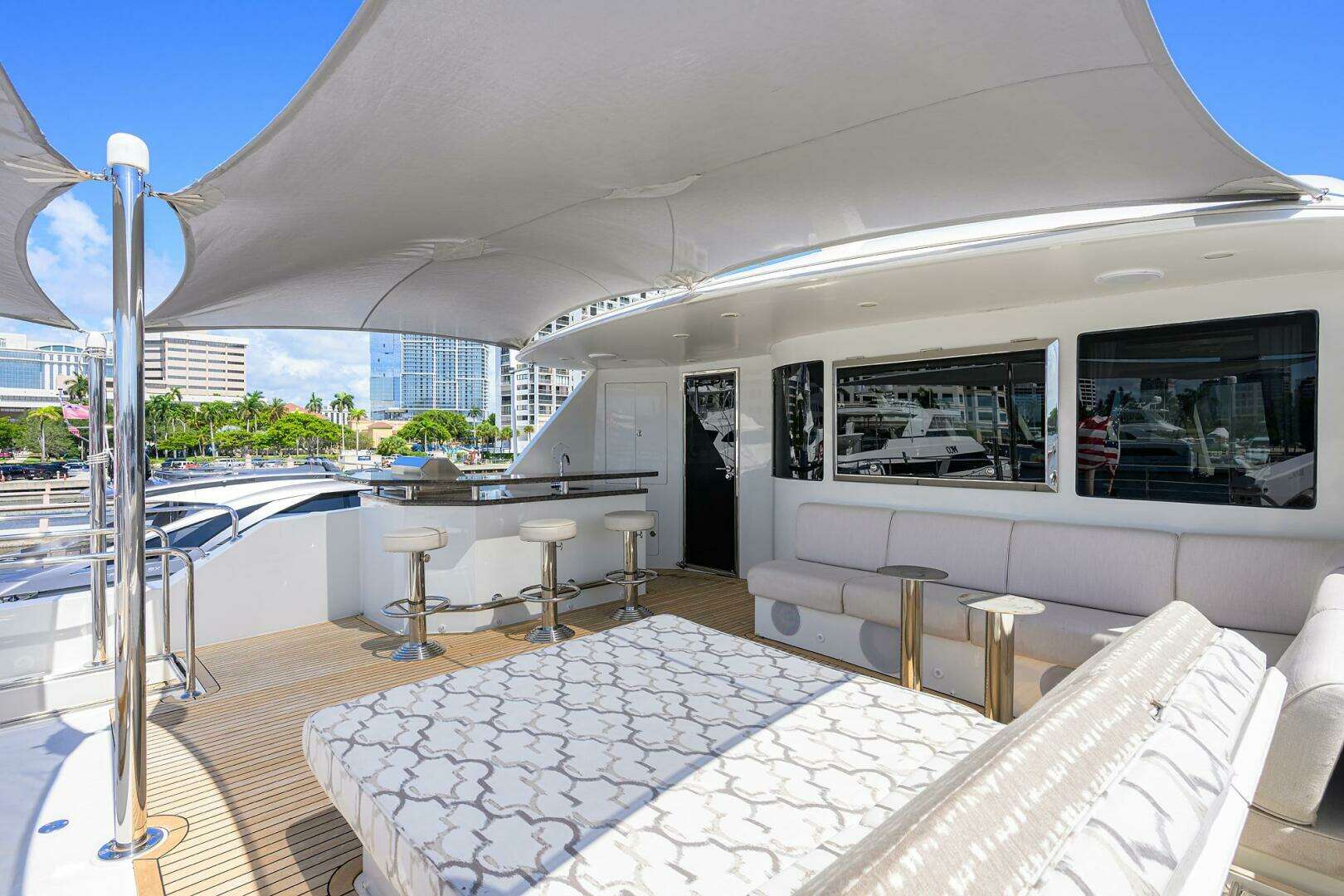

• Wet bar w/ 24” Electri-Chef™ electric barbecue on boat deck

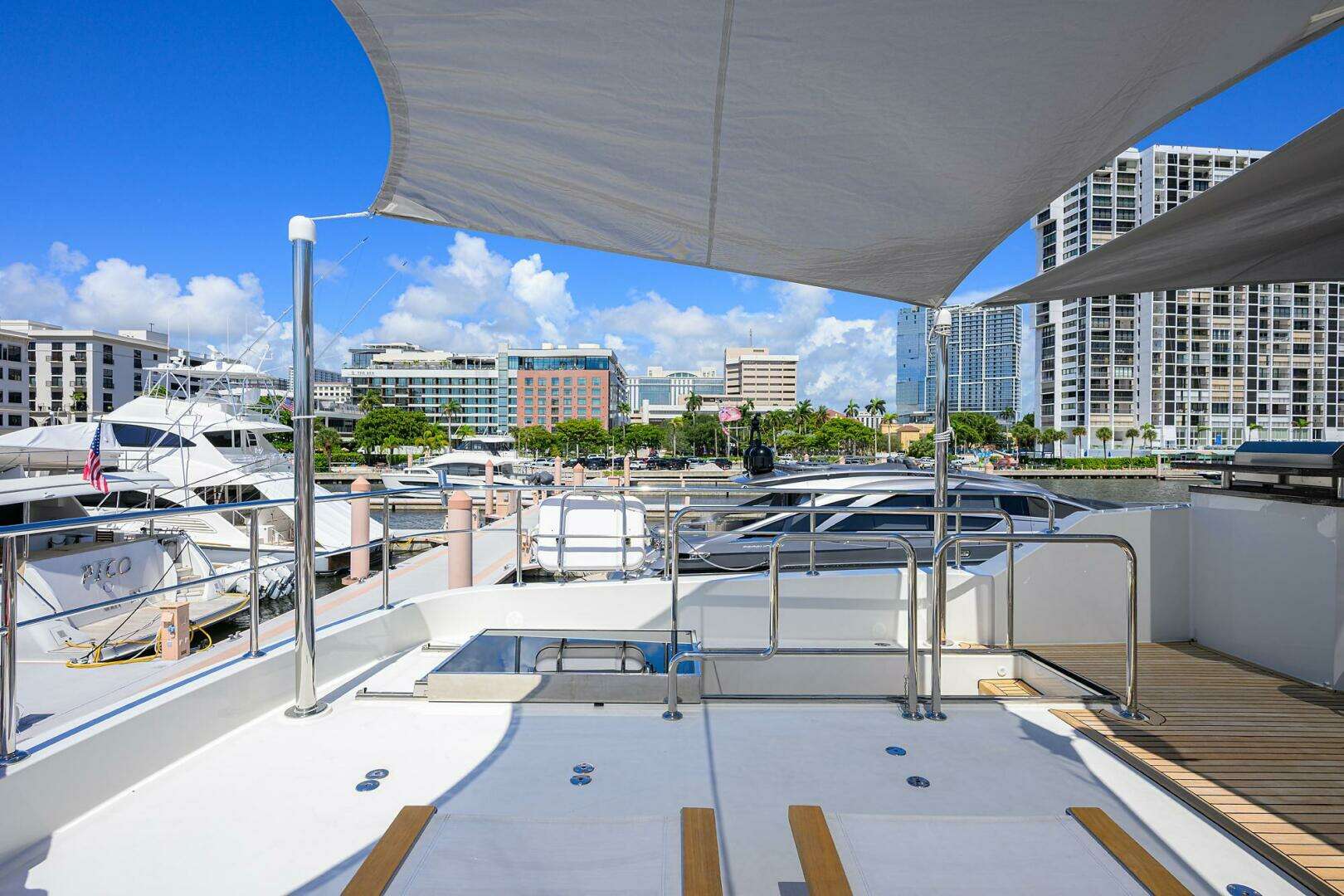

• Boat deck sliding hatch
• Wood valance board
• Wood table x2

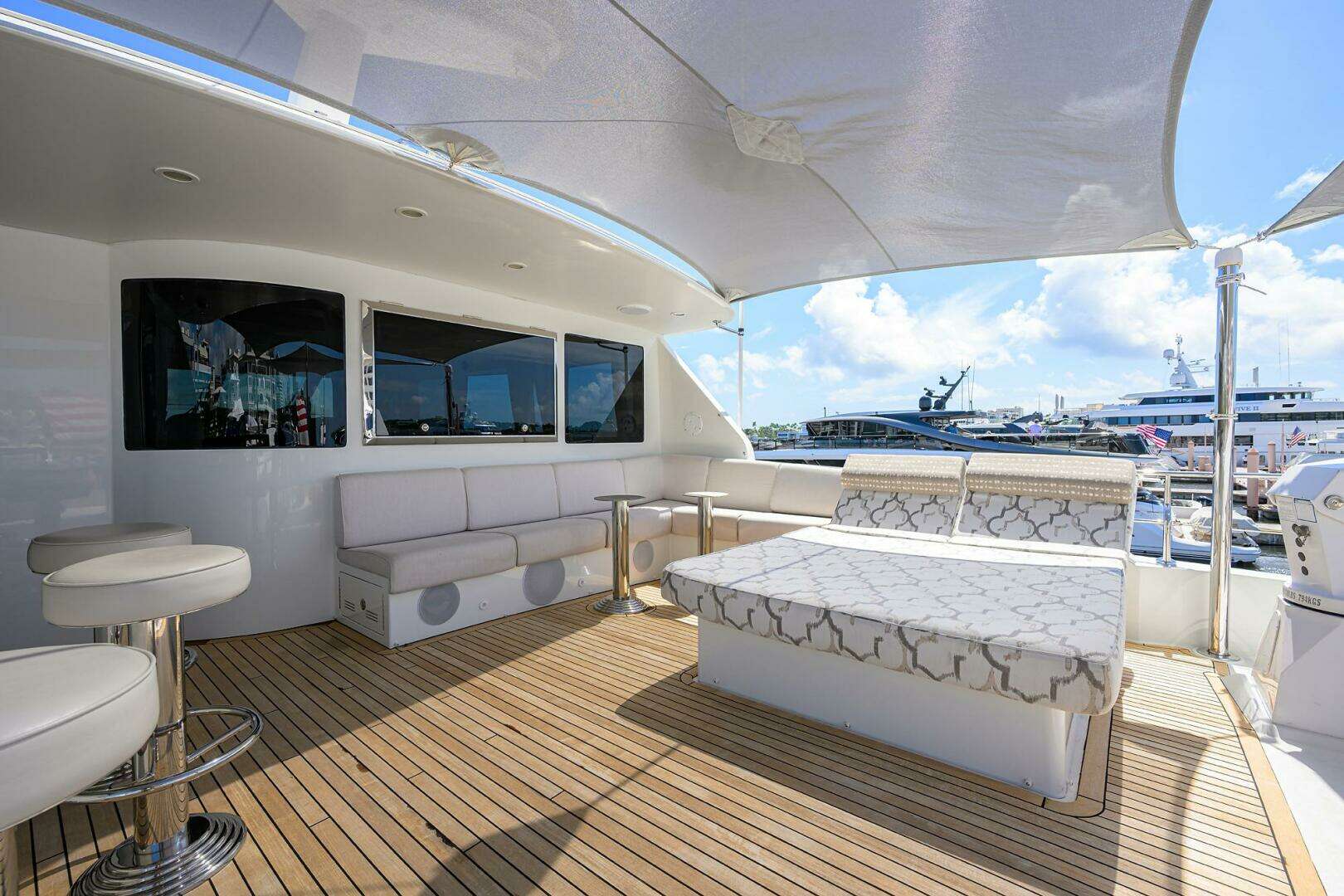

• Raised settee with table
• Manual awning on boat deck

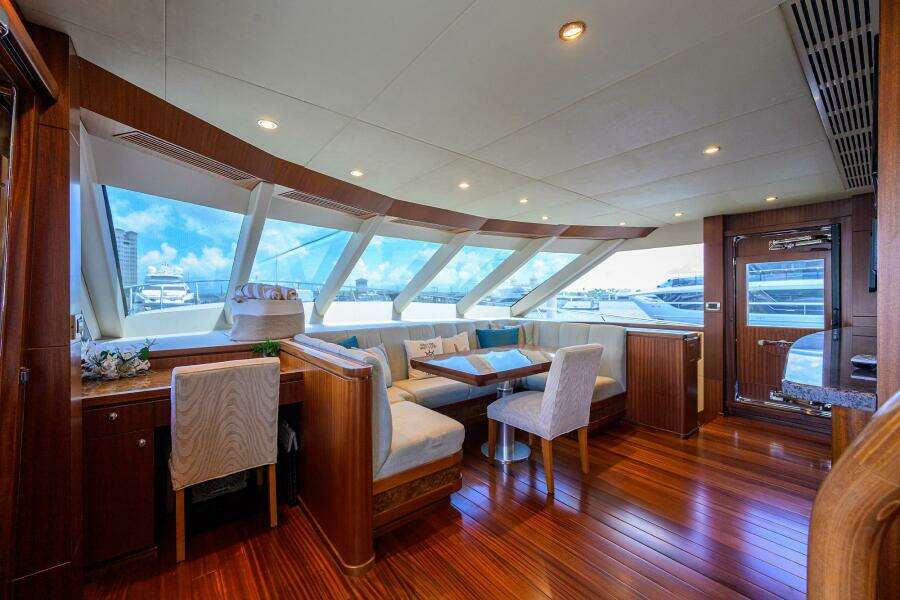

Sky Lounge / Dinette

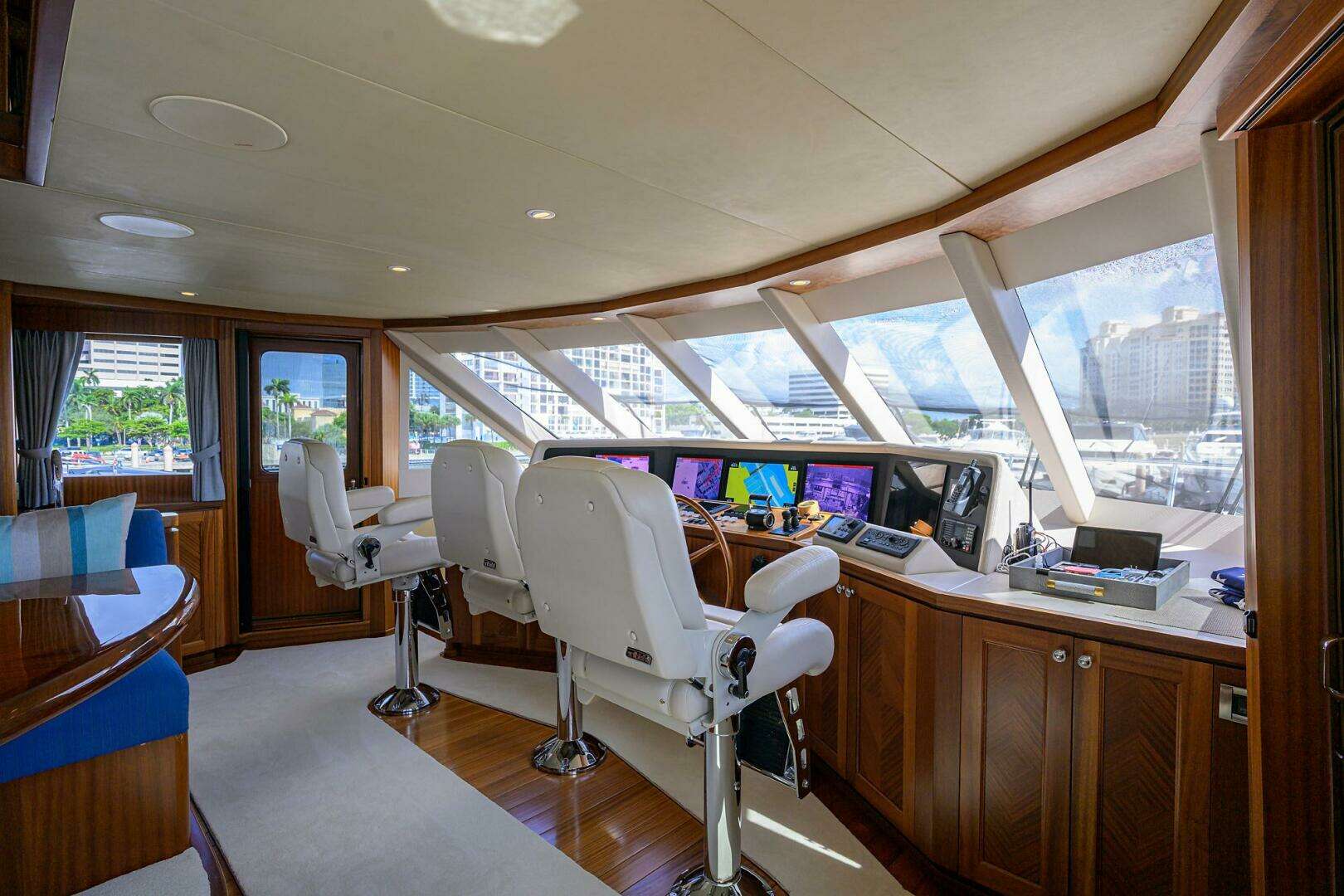

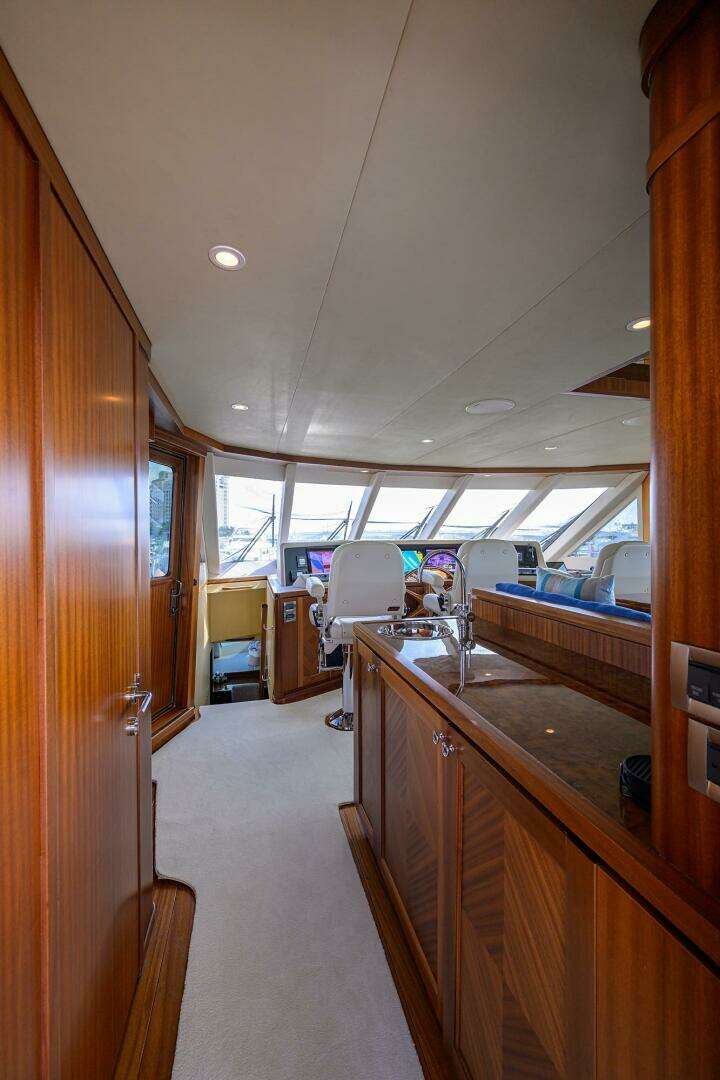

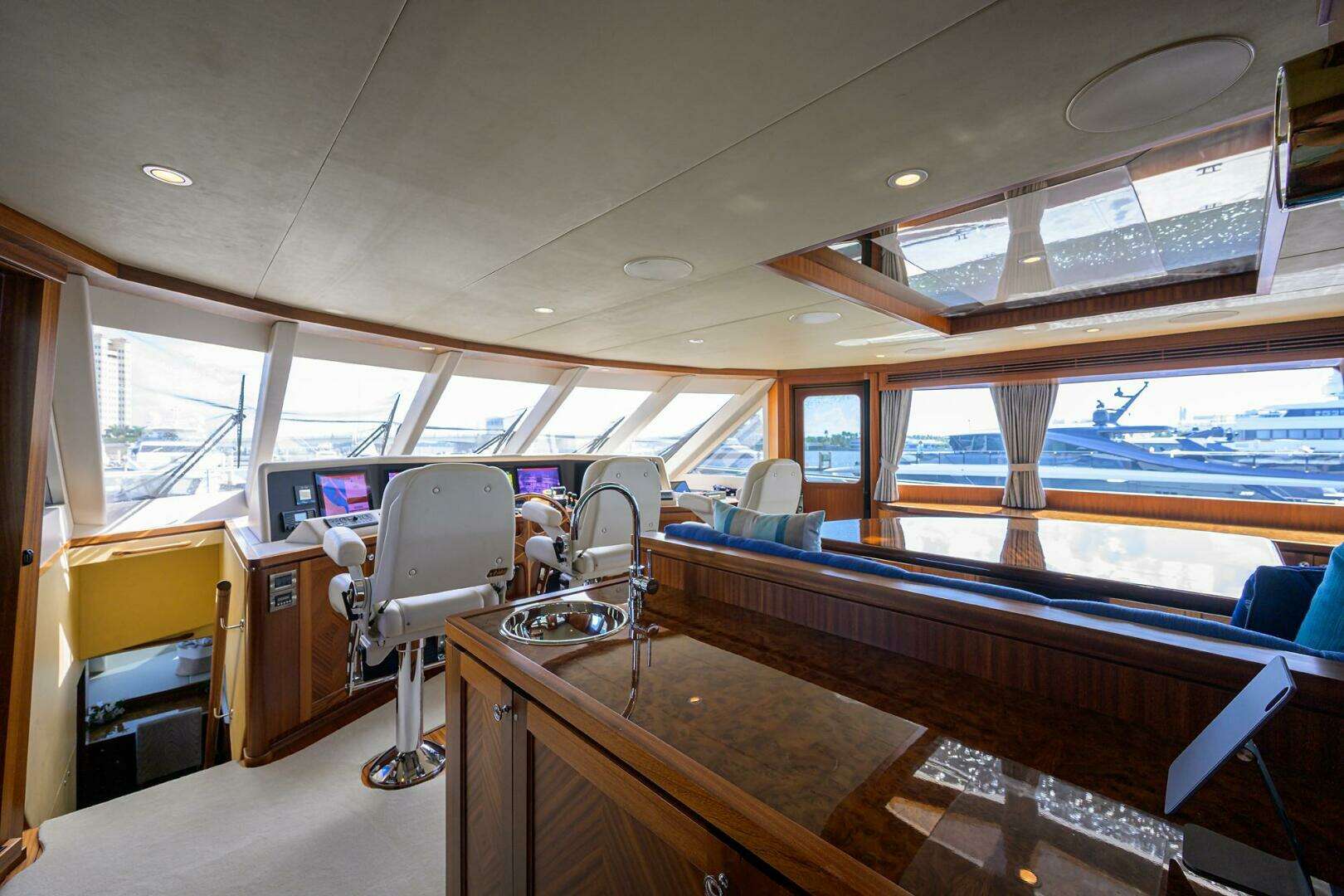

• Sunken and extended dash with instrumentation (Skylounge)
• U-shaped dinette (Skylounge)

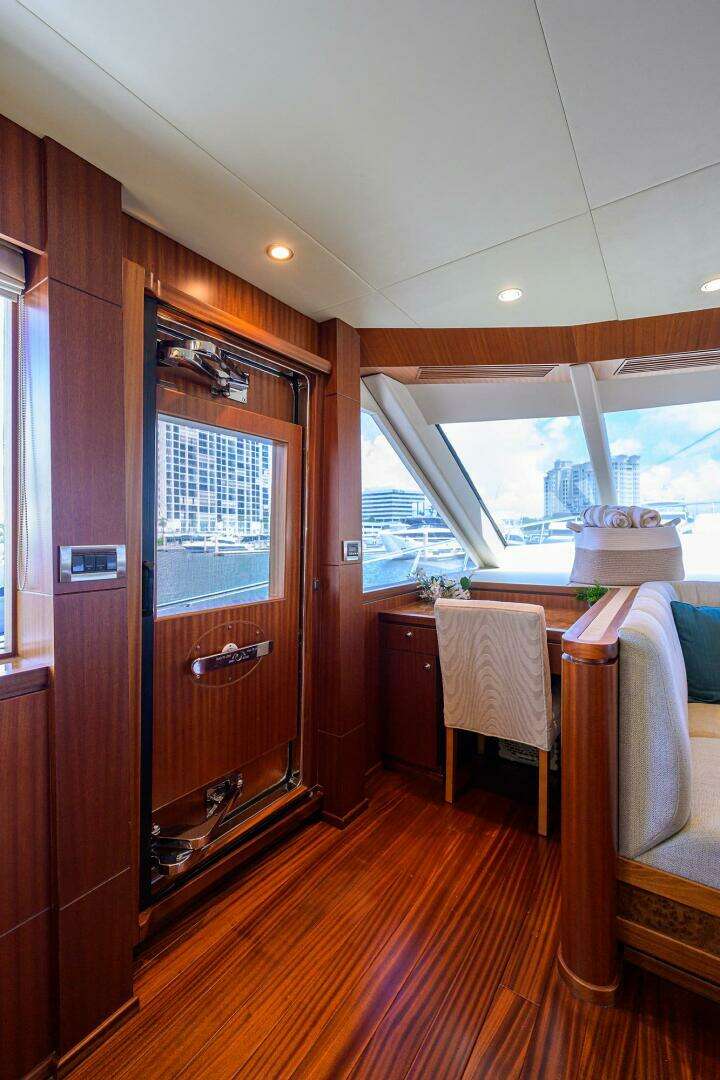

• Dinette table & computer desk in main deck
• Windshield defrosters
• Phantom screen (for insects + pollen protection) with dedicated wood box for door
• Watertight doors to side deck from dinette
• Wood flooring in forward dinette
• Weather tight doors in Skylounge

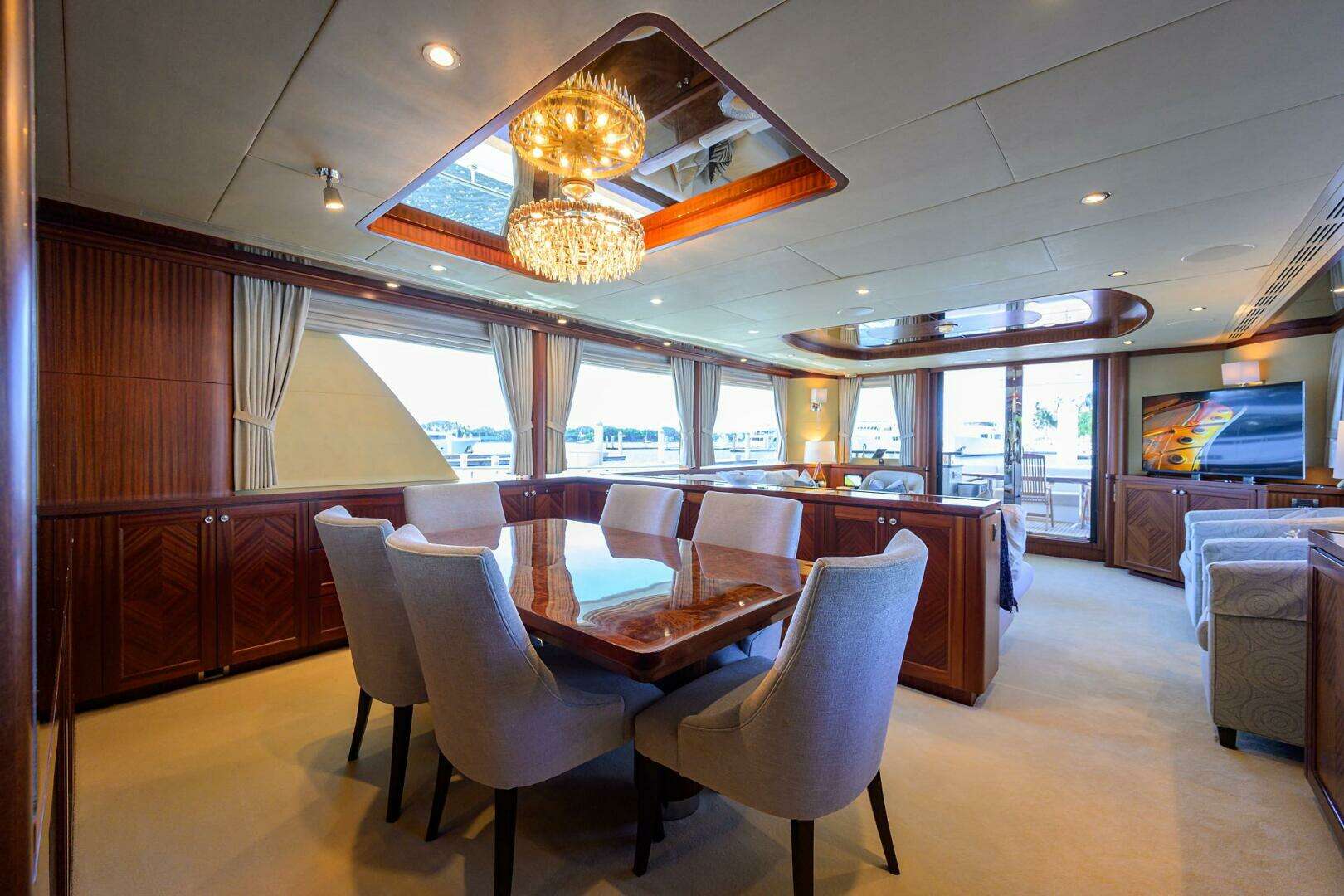

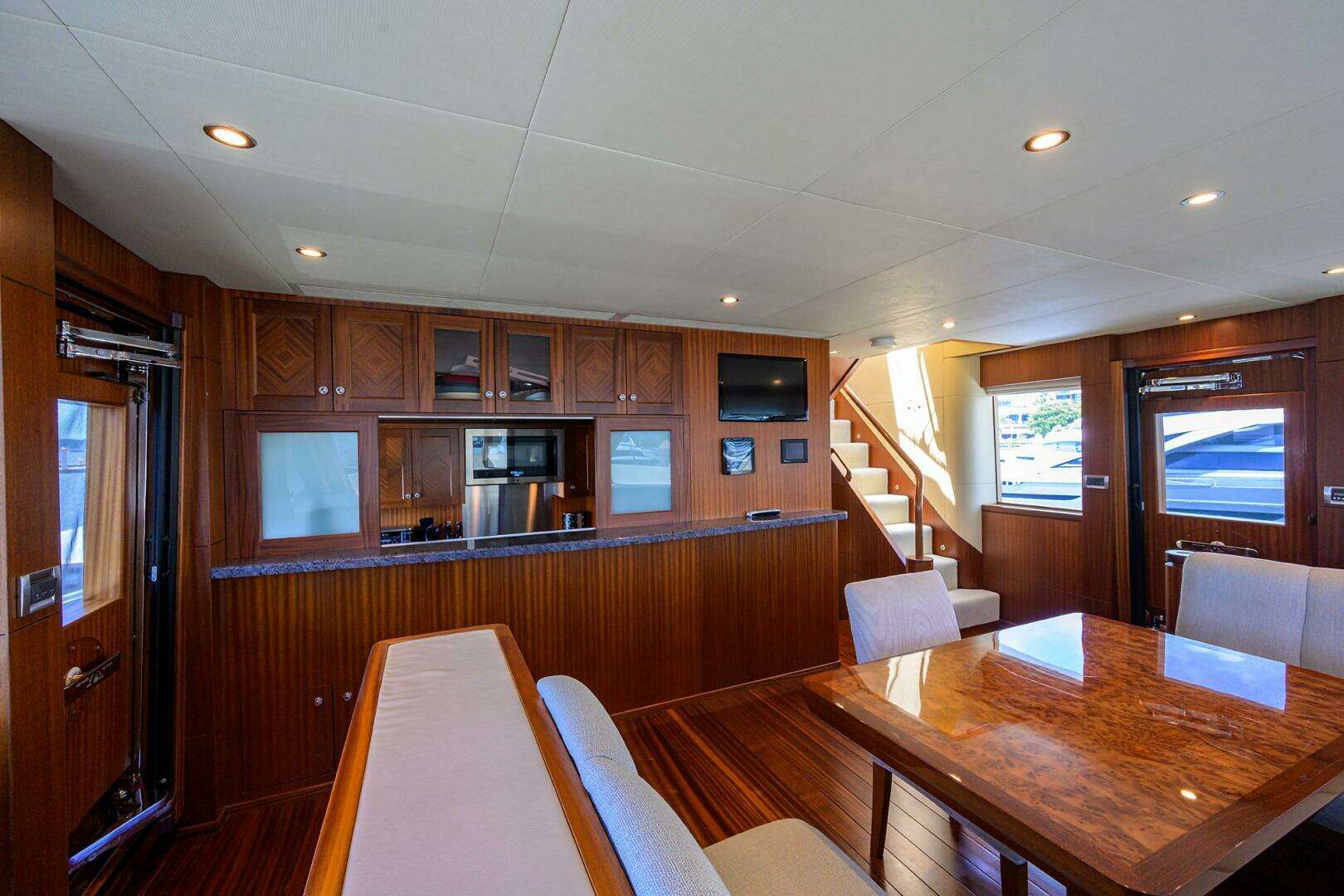

Salon

• Walnut paneling and cabinetry
• Cabinets port and starboard of salon
• Custom designed window mullion
• Decorative ceiling treatment's
• Phantom screen (for insects + pollen protection) with dedicated wood box for door
• Sub Zero™ wine cooler
• Sub Zero™ freezer drawers

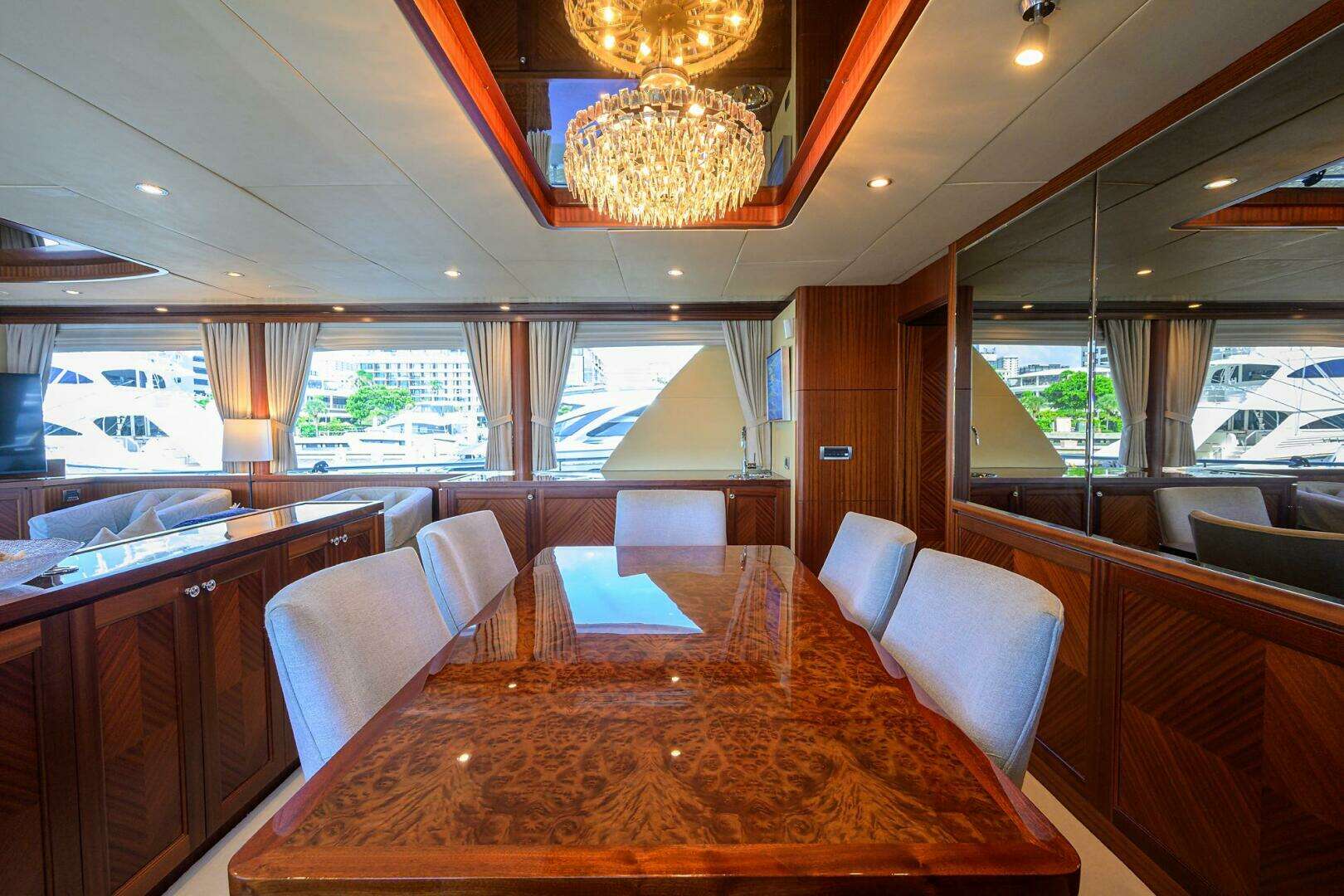

• Crystal Chandelier
