2020 Azimut 88'

26.78 m
$ 5,931,000 USD
Le Panorama, 57 Rue Grimaldi, Bloc A/B 7e Ă©tage98000Monaco 98000 Monaco
+33 6 07 93 73 93

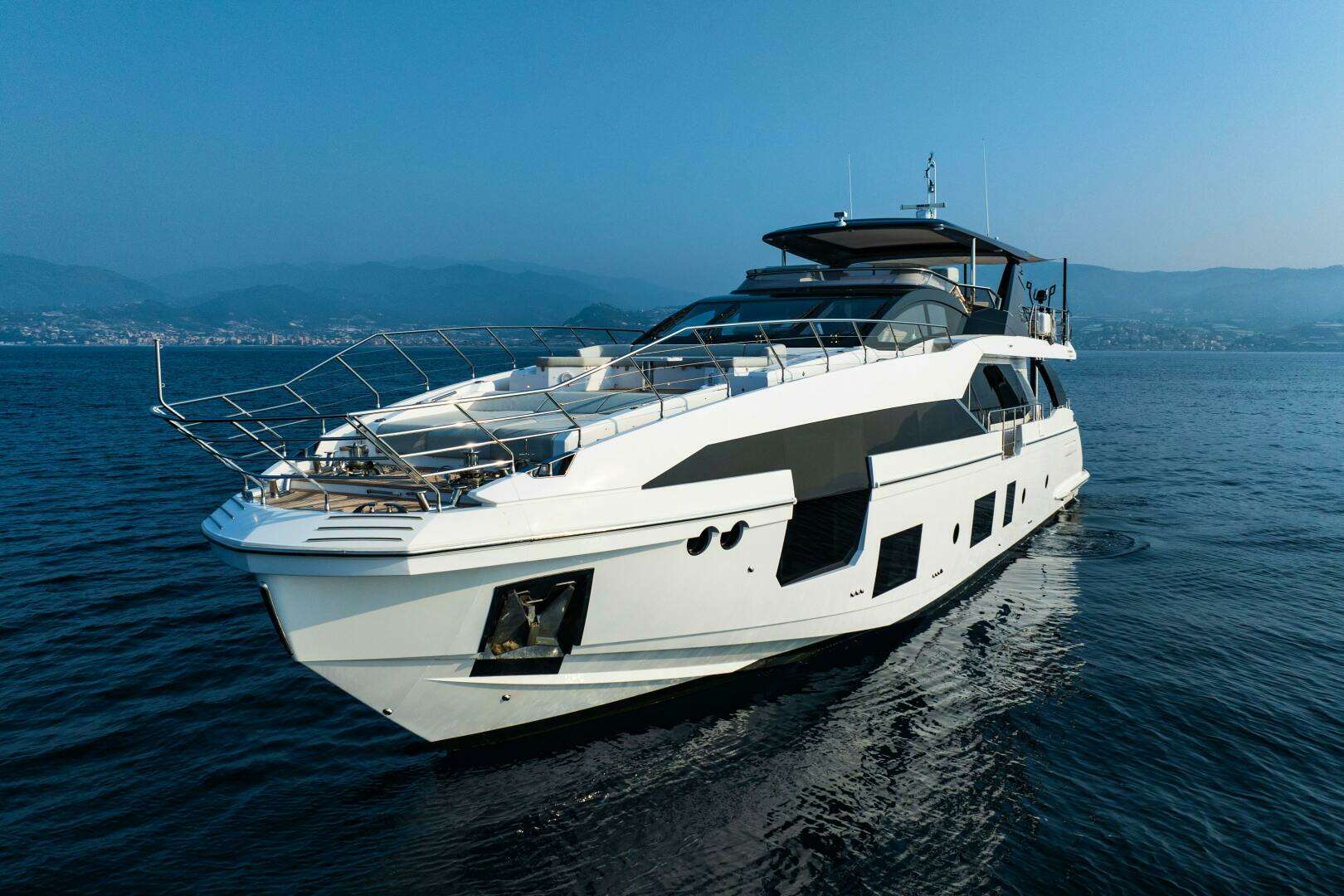

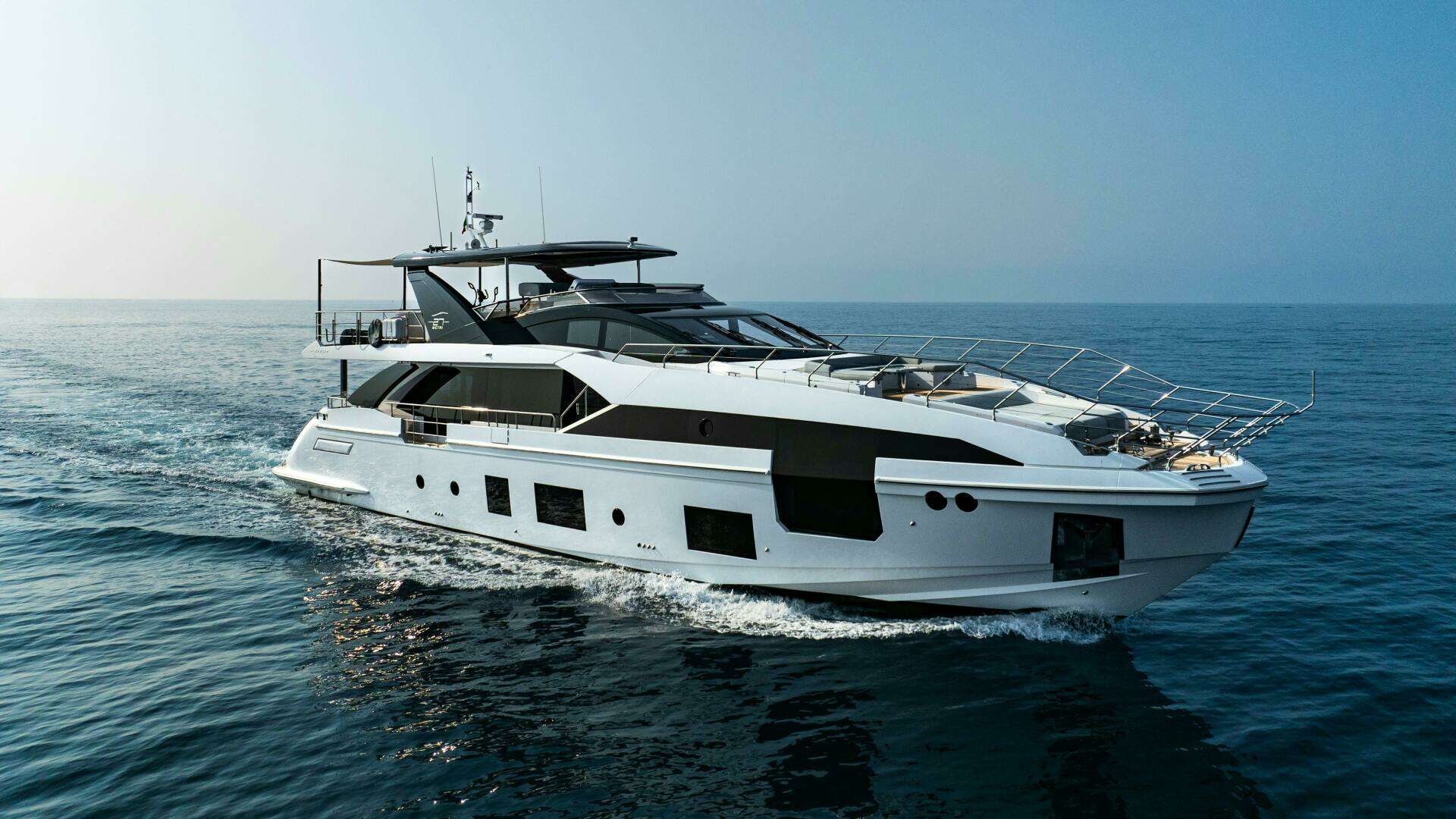

2020 Azimut

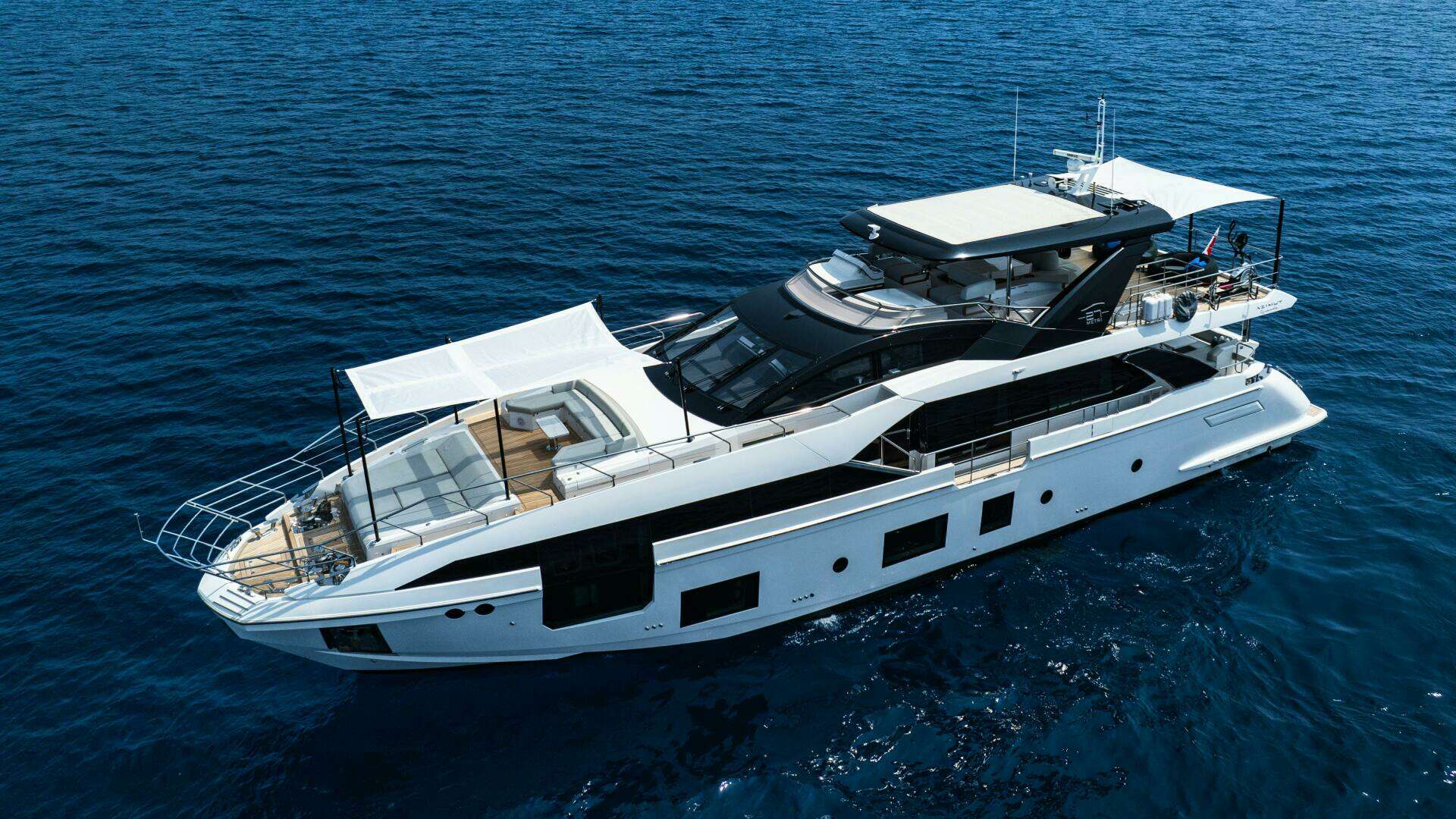

88' (26.78 m) Azimut Grande 27M - CHILLIN’

-

Tax Not Paid

Flag of Registry: Croatia

Port of Registry: sibenik

Tivat, Montenegro

$ 5,931,000 USD

€ 5,750,000 Euros
$ 8,527,000 CAD
ÂŁ 4,799,000 GBP

LOA88'

LOA Inch10''

LOA26.78''

Beam21'

Beam Inch9''

Draft Max Feet4'

Draft Max Inch9''

Fuel Tank (Gallons)2510

Fuel Tank (Liters)9500

Fresh Water (Gallons)2000

Fresh Water (Liters)2000

Holding Tank (Gallons)449

TypePower

ConditionUsed

Specifications

Name

CHILLIN’

Stock Number

6e2b4391-57a0-ef11-8a6a-000d3a342398

88'10" (26.78 Meters)

Power-Used

Year

2020

21'9"

4'9"

Cabins

5

Sleeps

10

Twin Berths

2

King Berths

1

Crew Cabins

2

Crew Sleeps

4

Maximum Speed

28 Knots

Cruise Speed

24 Knots

Fuel Type

Diesel

Hull Material

GRP

Air Conditioning

Yes

Stabilizers

Zero Speed

Stabilizers Brand

CMC HS60

2510 Gallons (9500 Liters)

2000 Gallons (2000 Liters)

449 Gallons

Gross Tonnage

145

Classification

CE, A

MCA Certified

Yes

Interior Designer

Achille Salvagni

Builder

Azimut

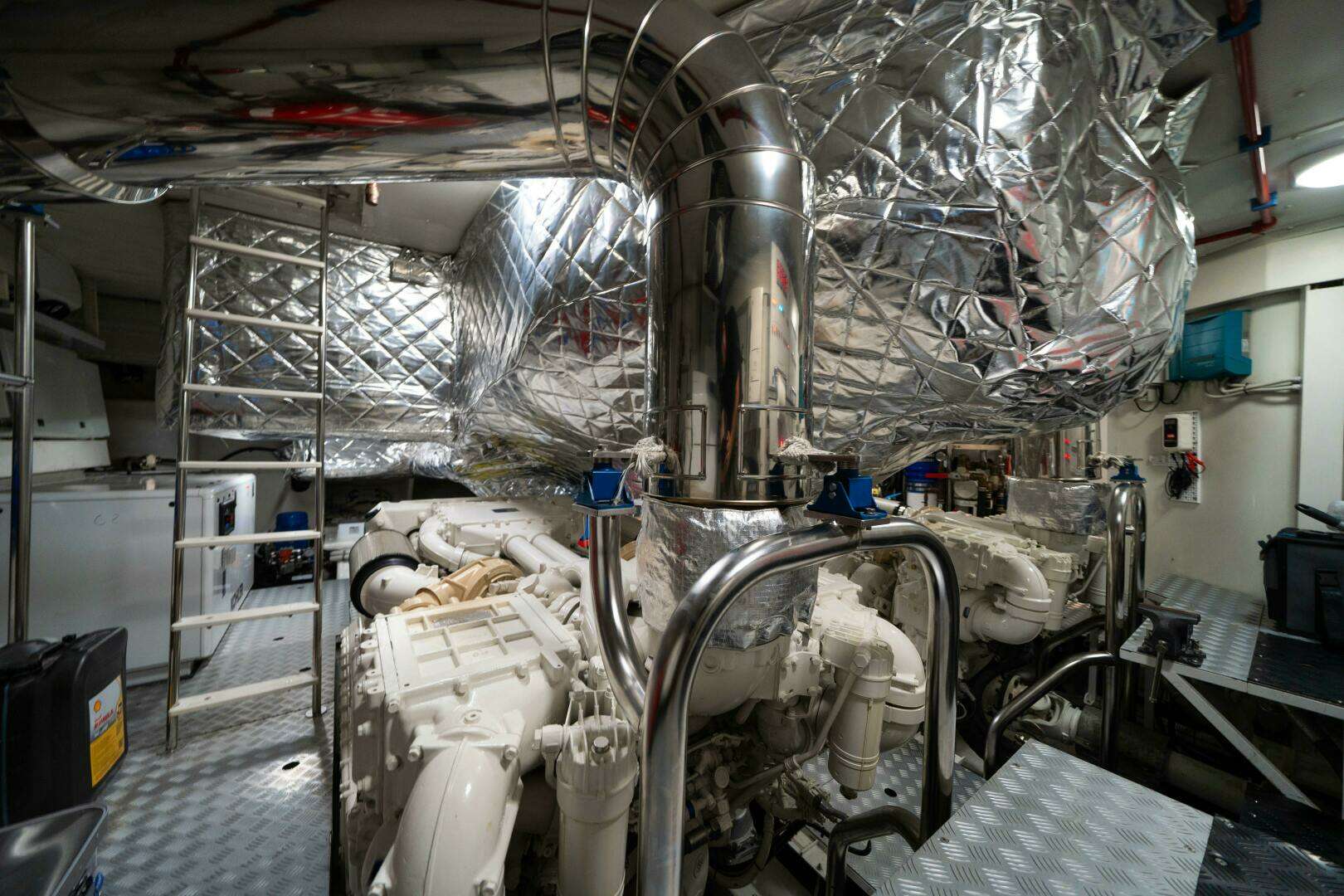

Engines

Engine 1

  • Engine Make: MAN
  • ModelEngine Model: V12-1900
  • Power HPPower HP: 1900.00
  • Feul TypeFeul Type: Diesel
  • HoursHours: 877.00
  • Engine LocationEngine Location: Port

Engine 2

  • Engine Make: MAN
  • ModelEngine Model: V12-1900
  • Power HPPower HP: 1900.00
  • Feul TypeFeul Type: Diesel
  • HoursHours: 876.00
  • Engine LocationEngine Location: Starboard

Engine 3

  • Power KWPower KW: 29.00
  • HoursHours: 1950.00
  • Engine LocationEngine Location: Starboard

Engine 4

  • Power KWPower KW: 29.00
  • HoursHours: 2350.00
  • Engine LocationEngine Location: Port
  • Engine Quantity4
  • Full Details

    KEY FEATURES

    •    Excellent condition
    •    Five-cabin layout
    •    Best interior volume of her class
    •    Advanced options and upgrades
    •    Registered below 24 meters
    •    Low engine hours
    •    Bright and modern Salvagni interior design
    •    Full beam master cabin

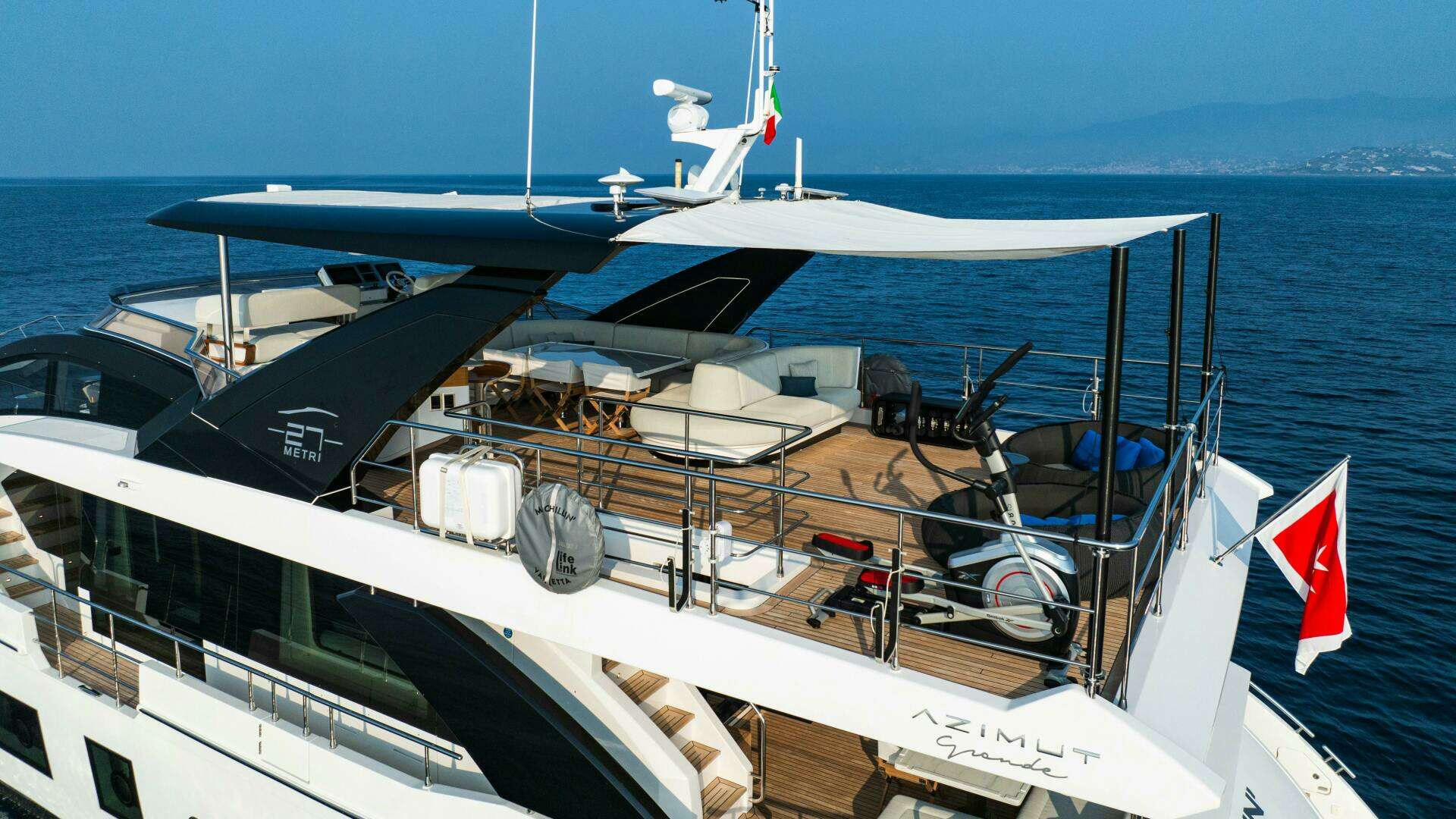

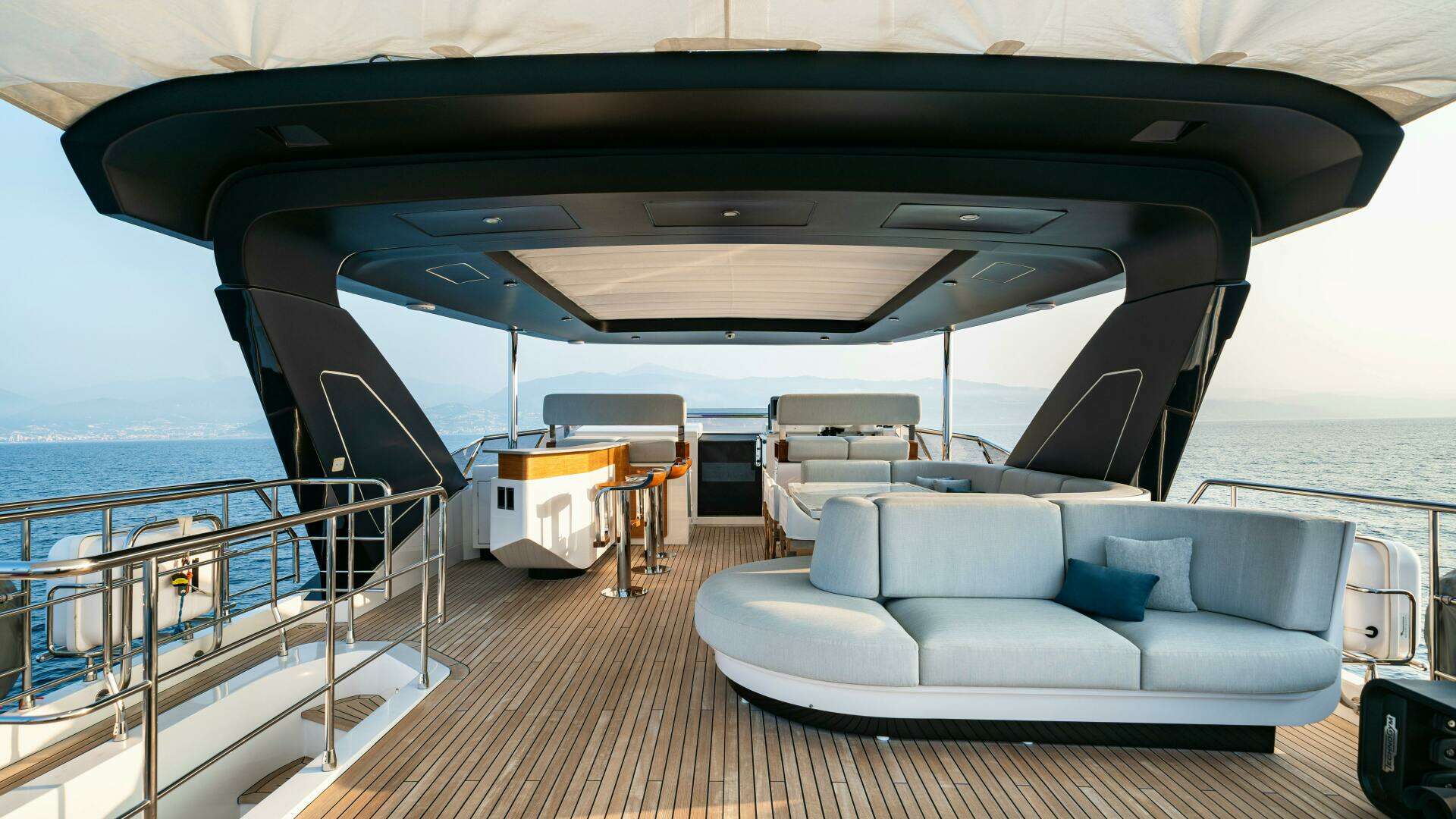

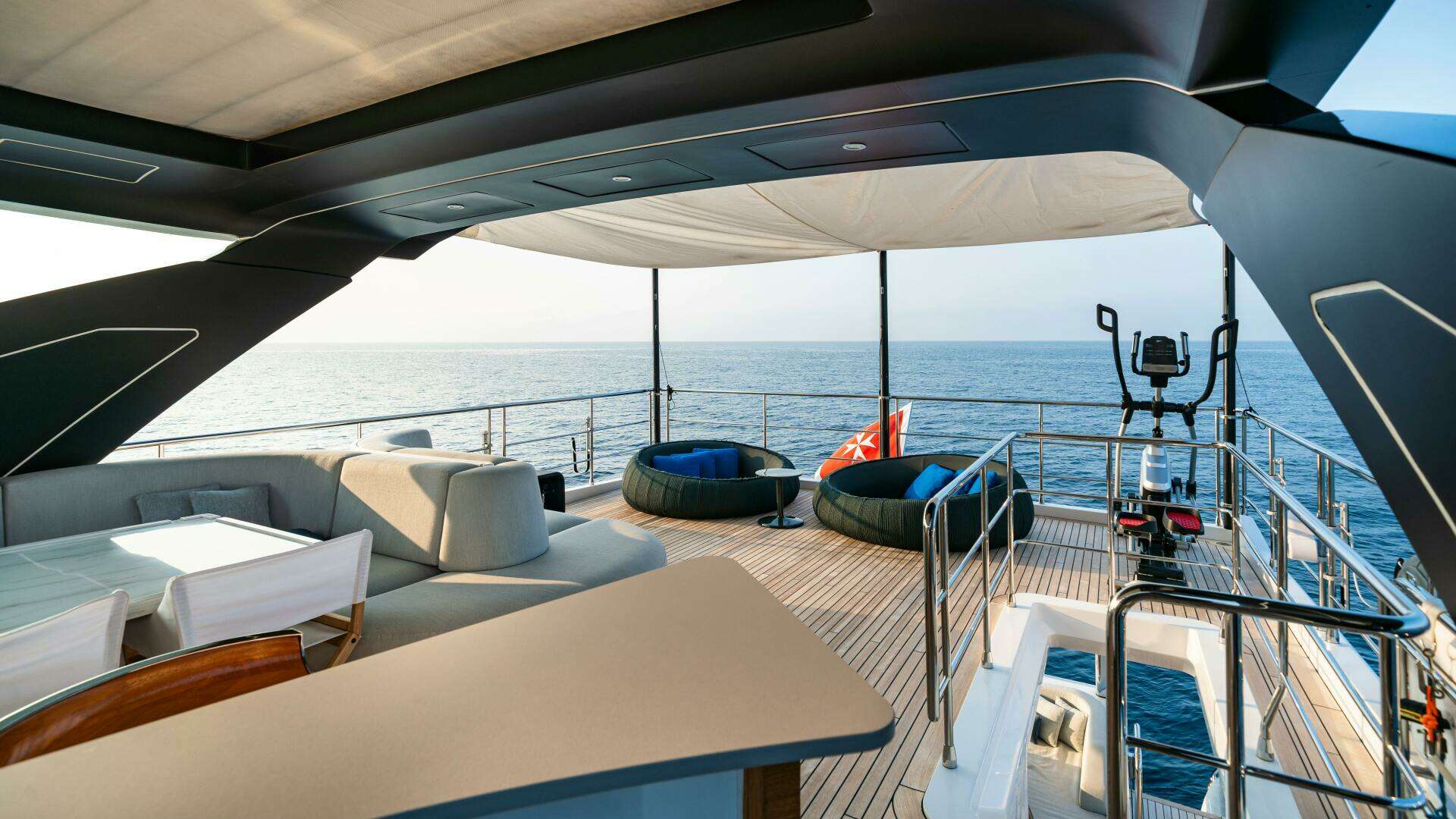

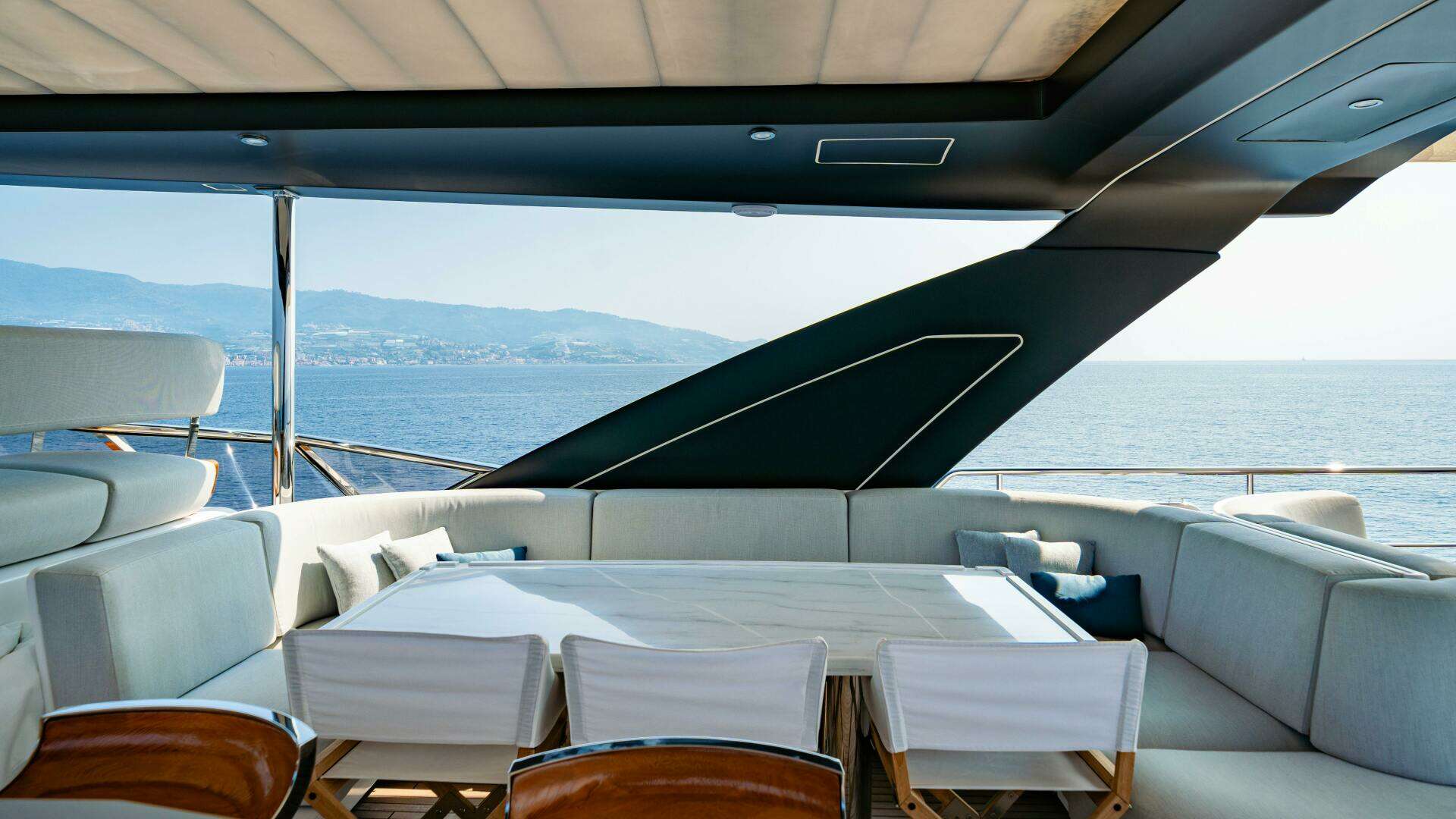

    •    Large flybridge
    •    Beach-club style aft platform
    •    New Jacuzzi Fitted
    •    Commercially Compliant

    OTHER MACHINERY

    Electricity:
    Onboard voltages:
    • 230 V - 50 Hz AC
    • 24 V DC from battery set
    • 12 V DC from battery set and AC/DC voltage reducer
    • Shore-powered power supply
    • DC electric panel: Installed on fore bulkhead of the engine room
    • AC electric panel: Installed on fore bulkhead of the engine room
    • Auxiliary electric panel: Installed in the wheelhouse
    • Emergency control panel: Installed in the wheelhouse
    • Battery cut-out/emergency/fire extinguishing system control panel:
    • located in the cockpit
    • Dimmable lights in the interior, cockpit and flybridge (option)
    Shore power:
    • EU 2 sockets, 3P 63A
    • USA 2 sockets, 4P 100A and 4P 50A
    • The AC power sources terminate on the main electric panel in the engine room, provided with a voltmeter and ammeter for the 230 V power supply. The AC power sources are protected by suitably sized fuses, and introduced into the network by means of remote control switches
    • 2x electrical shore power cable entry (option)
    Batteries:
    • Services: 12x 10.90 Ah@12 V
    • Engines: 6x 6.90 Ah@12 V
    • Generator: 2x 2.90 Ah@12 V
    • Service battery charger / service backup: 2x Mastervolt 80 Ah - 24 V
    • Engine start-up battery charger: 1x Mastervolt 30 Ah - 24 V
    • Genset start-up battery charger: 1x Mastervolt 10 Ah - 12 V
    Air Conditioning:
    • Air conditioning type: The system is of the thermally-treated water circulation type, with fancoils located in various rooms
    • Compressor unit in engine room, total 180,000 BTU with inverter technology
    • One seawater pump
    Distribution:
    • Wheelhouse: three fancoils of which two AP5 (9,200 BTU) and one AP10 (16,000 BTU)
    • Owner’s cabin: two fancoils AP8 (12.500 BTU)
    • Owner's head: one fancoil AP3 (6.200 BTU)
    • Galley: one fancoil AP8 (12.500 BTU)
    • Dining: two fancoils AP8 (12.500 BTU)
    • Saloon: two fancoils AP8 (12.500 BTU)
    • VIP cabin: two fancoils AP5 (9.200 BTU)
    • Port guest cabin: one fancoil AP5 (9.200 BTU)
    • Starboard guest cabin: one fancoil AP5 (9.200 BTU)
    • Commander's cabin: one fancoil AP1 (4.480 BTU)
    • Crew cabin and crew dinette: one fancoil AP3 (6.200 BTU)
    • Each area has its own control panel making it independent
    • Underwater lighting at the stern - oceanLed Explore (4x) (option)
    • Underwater lighting lateral - oceanLed Explore (2x each side, total 4) (option)
    • Watermaker 180L hour HP (option)

    ACCOMMODATION

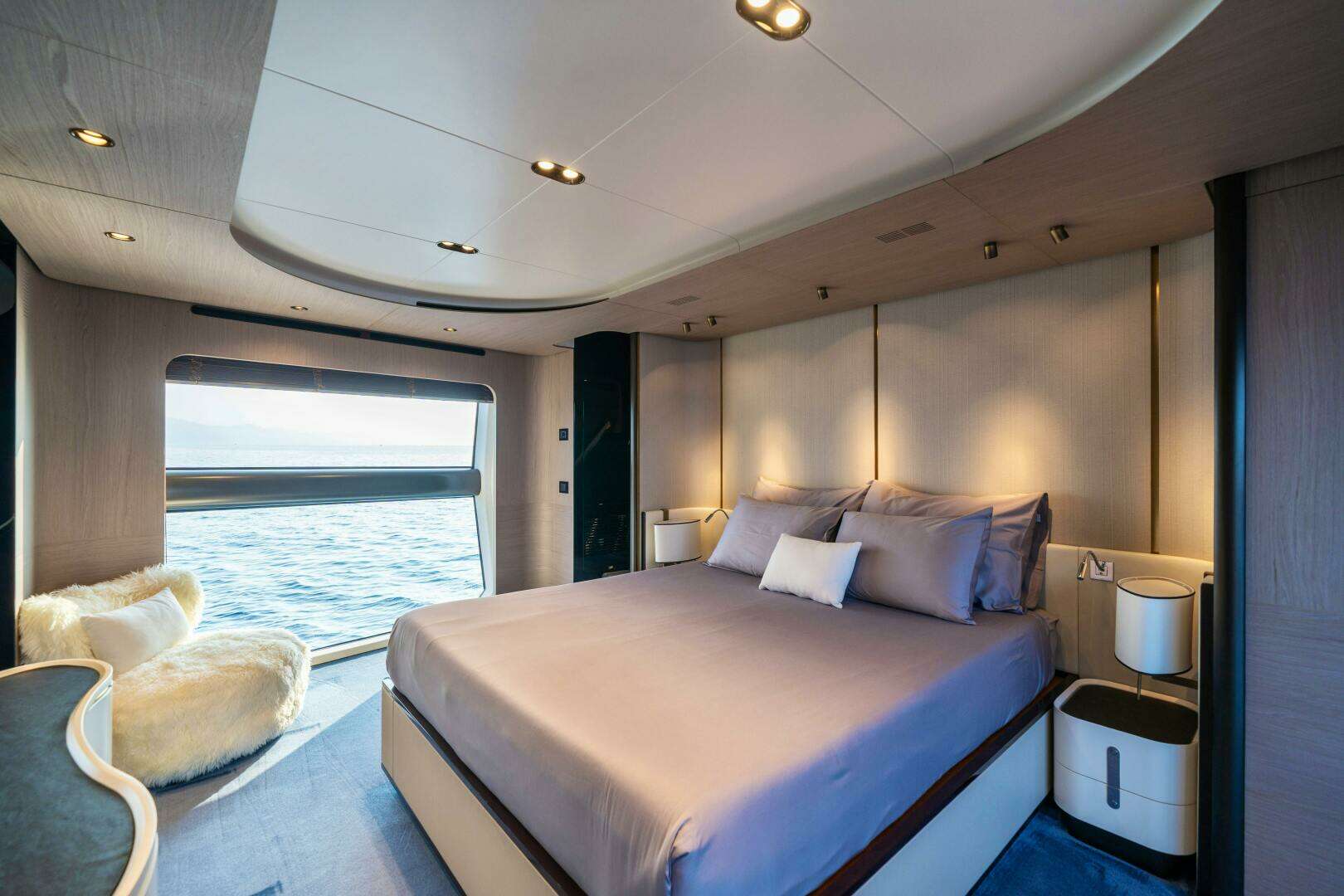

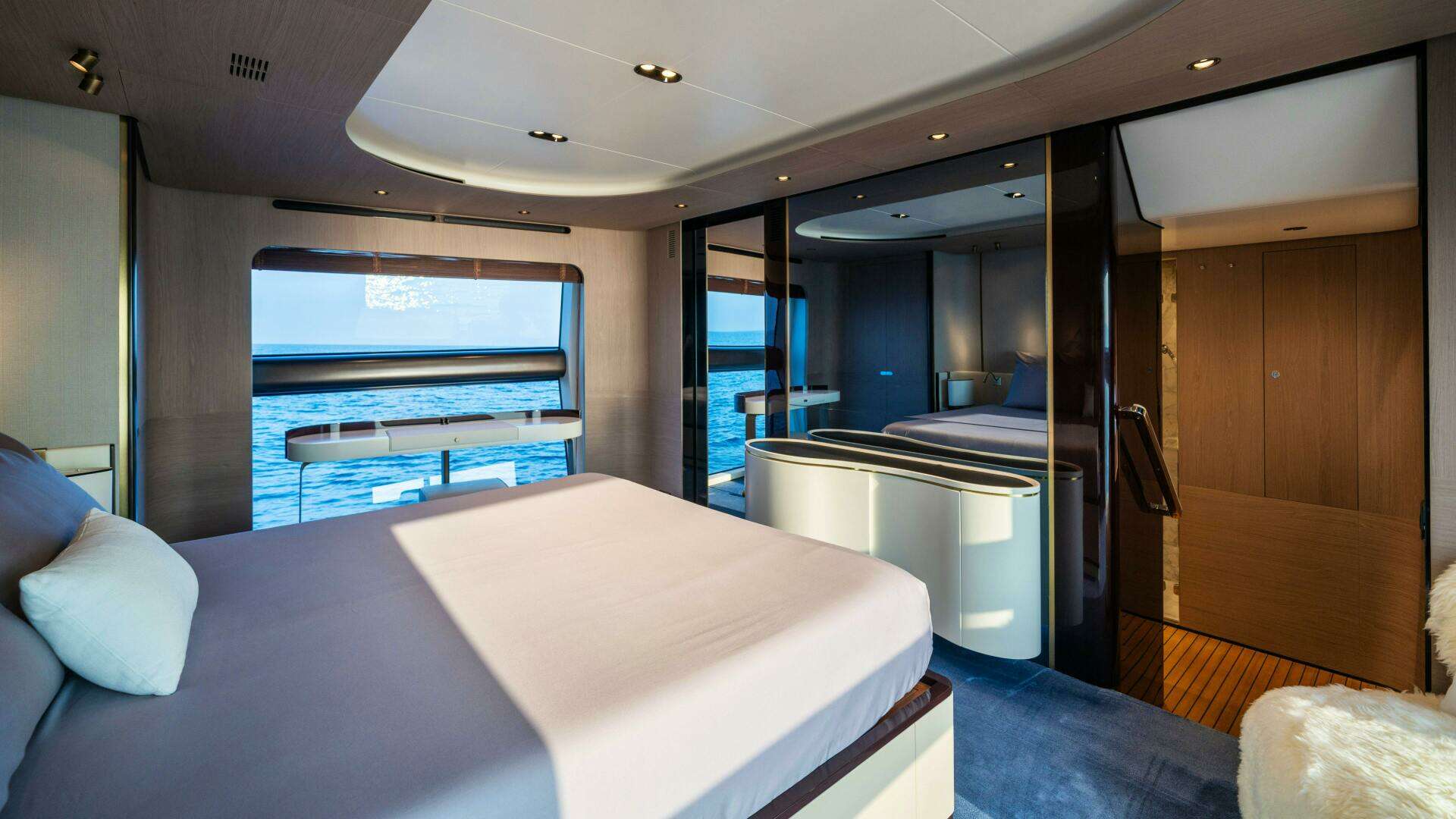

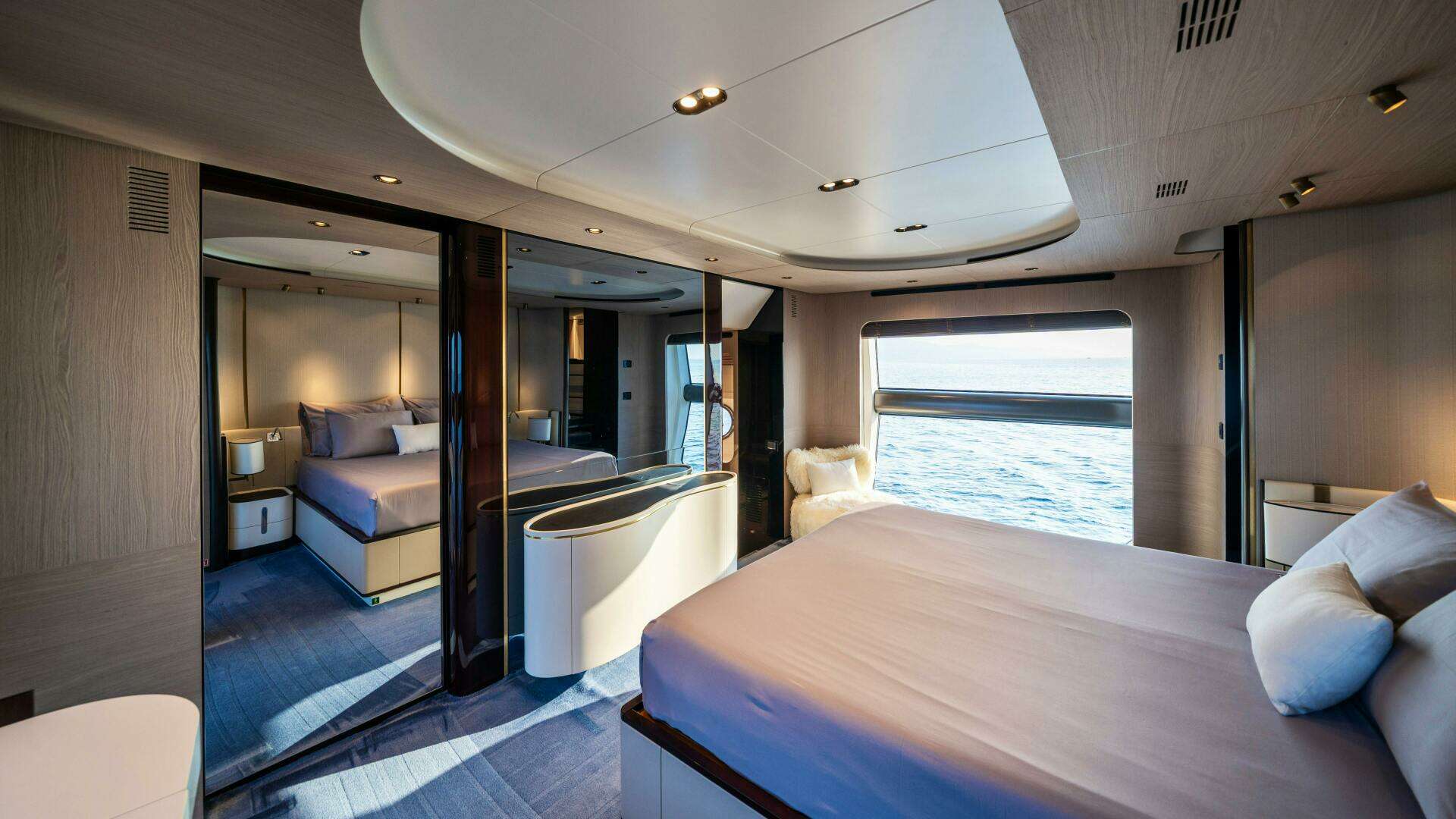

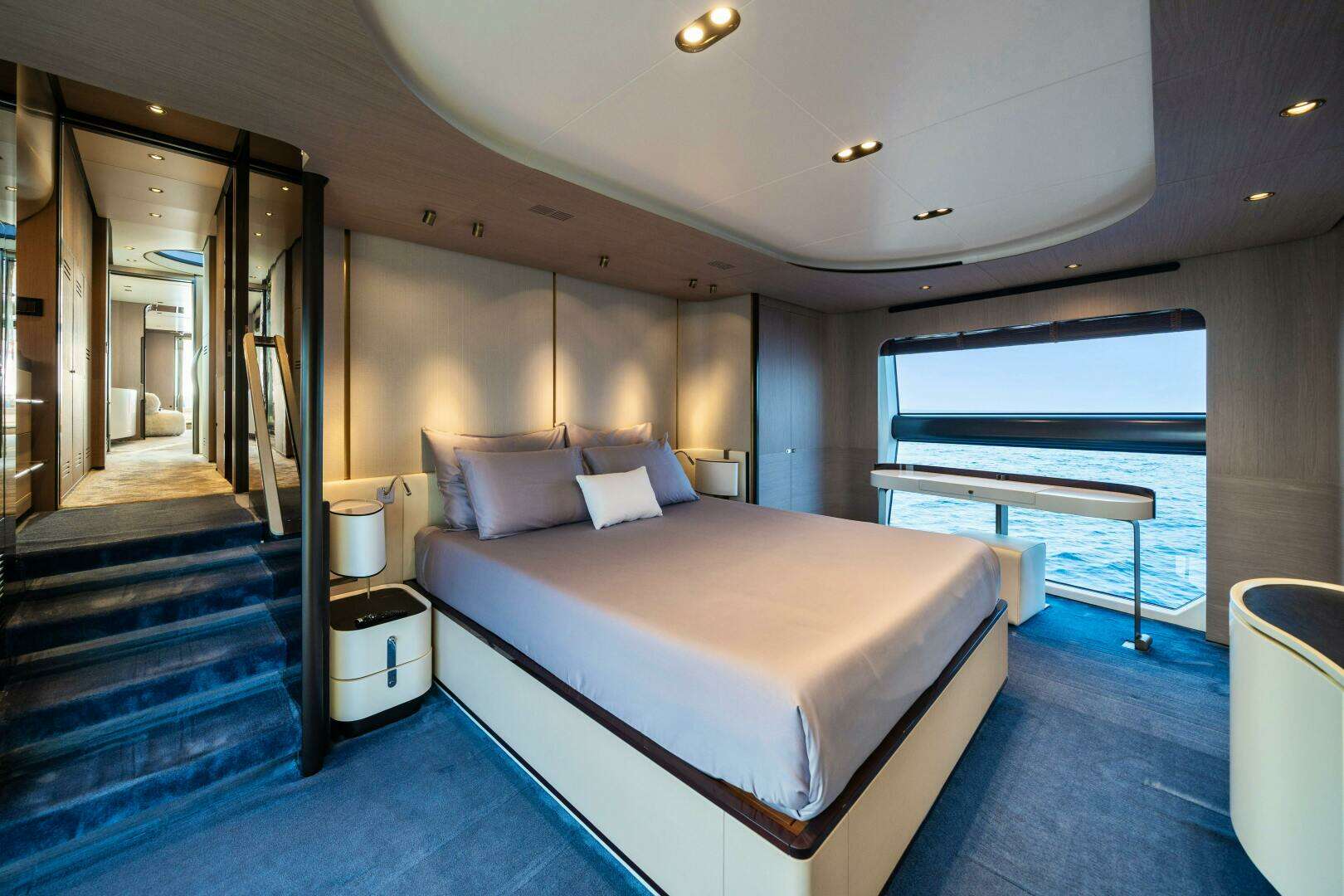

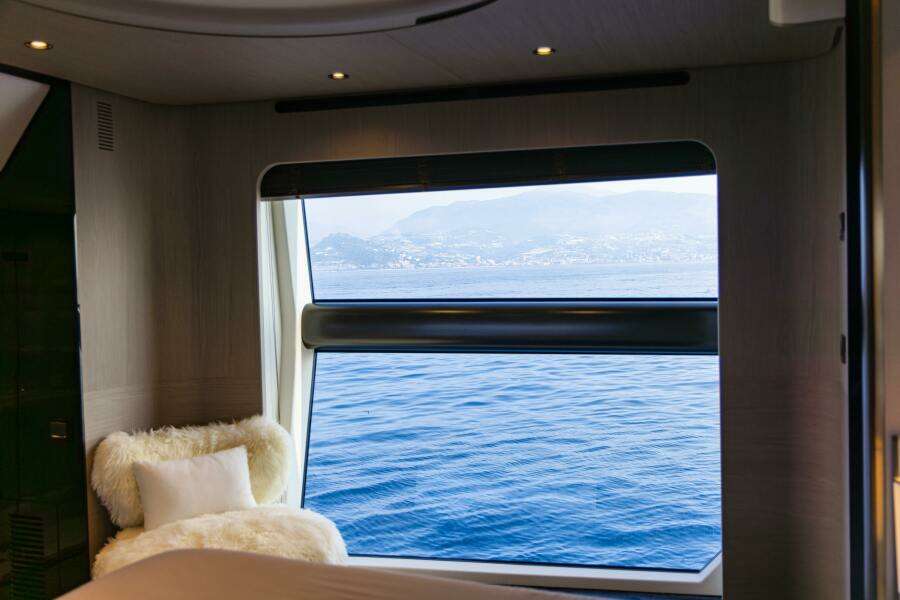

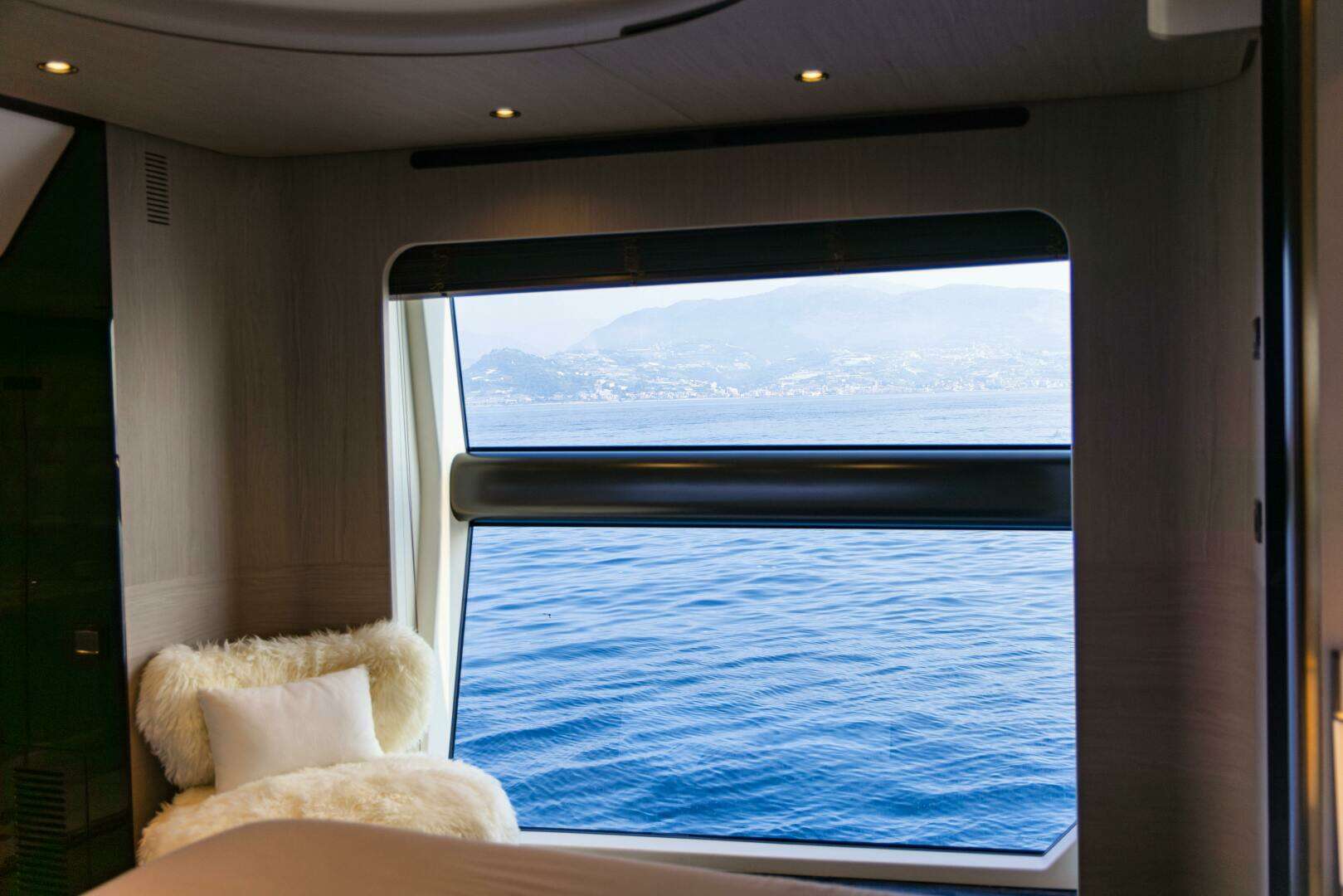

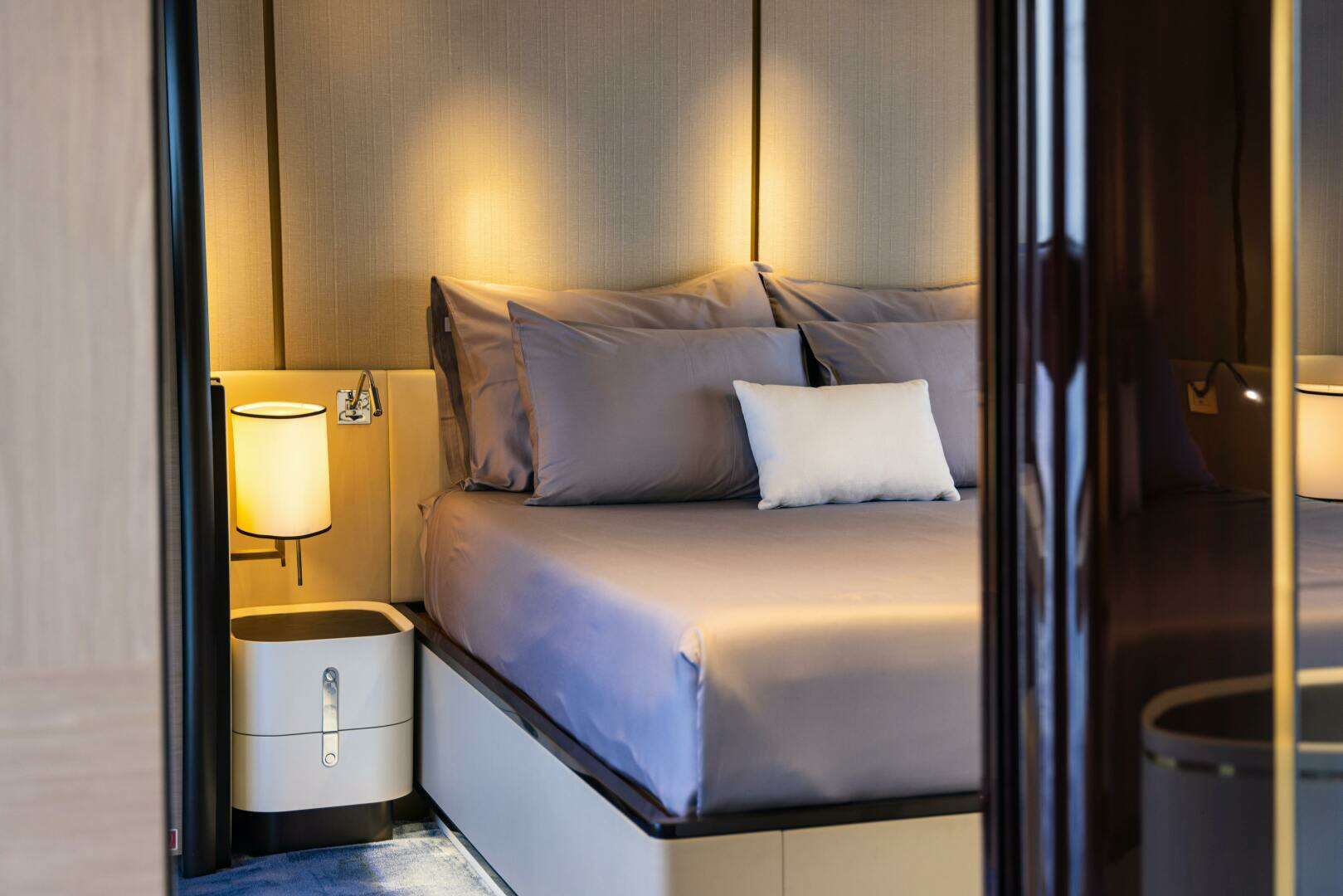

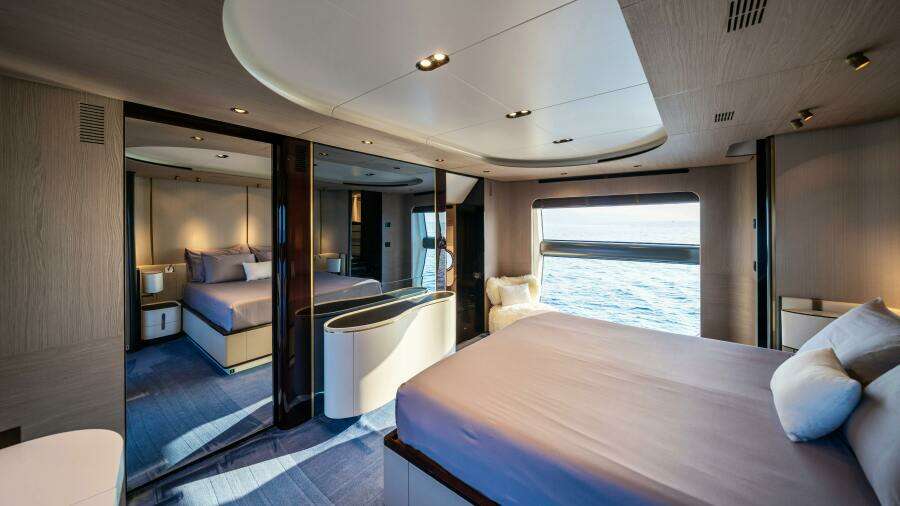

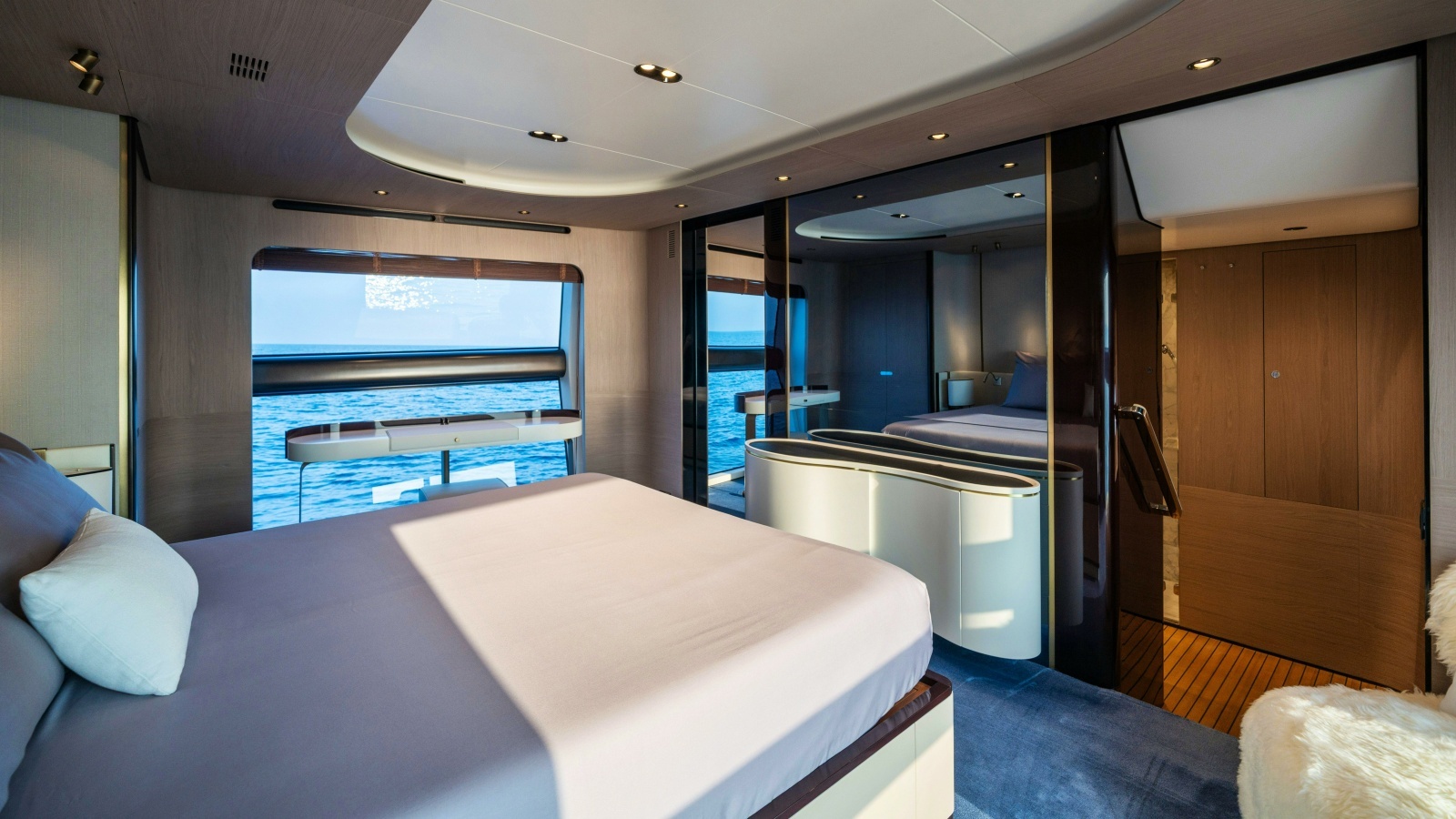

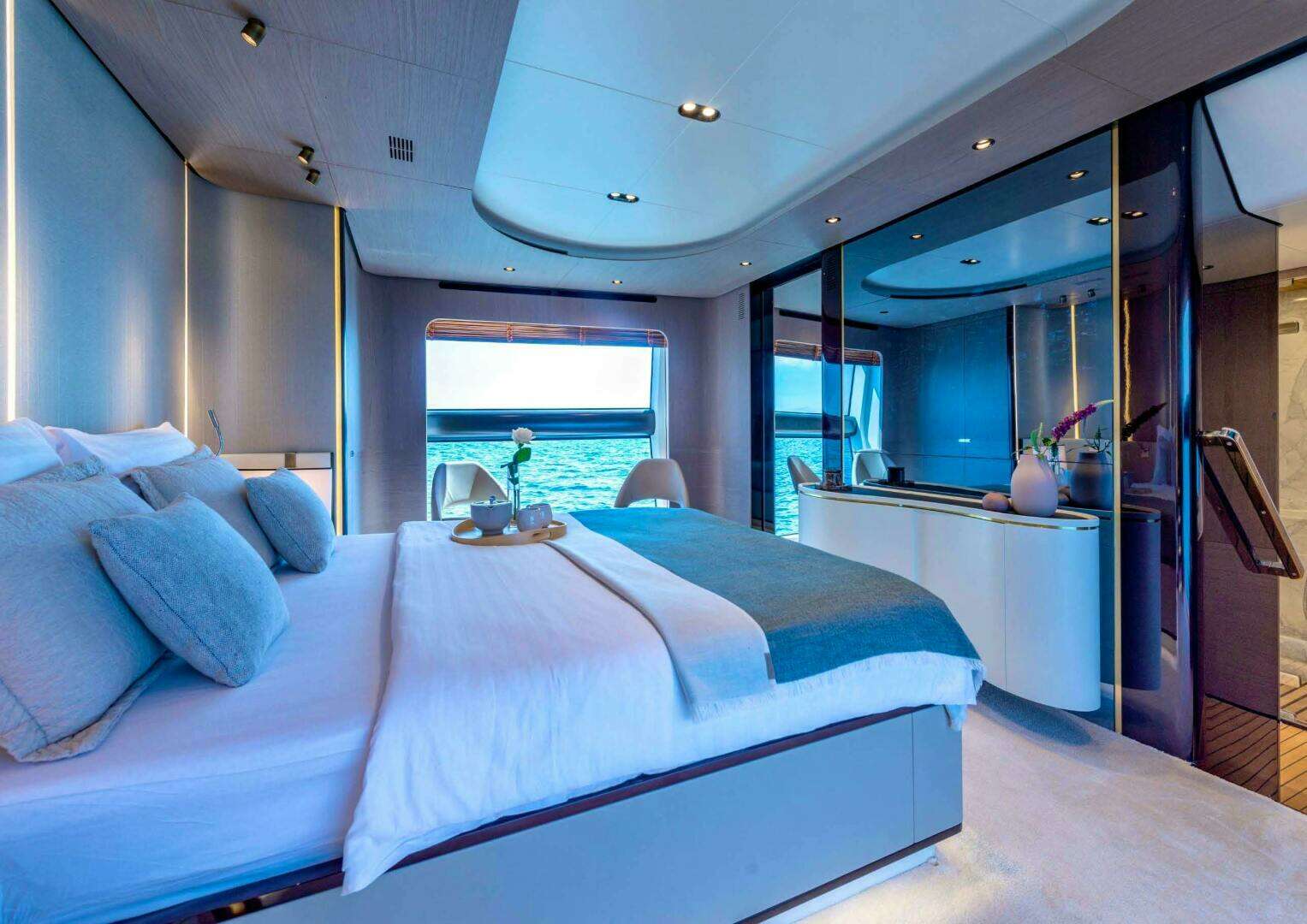

    Owner’s cabin:
    • Double bed at the center of the yacht, with foldaway bed base and locker Access to service
    • compartment under the bed

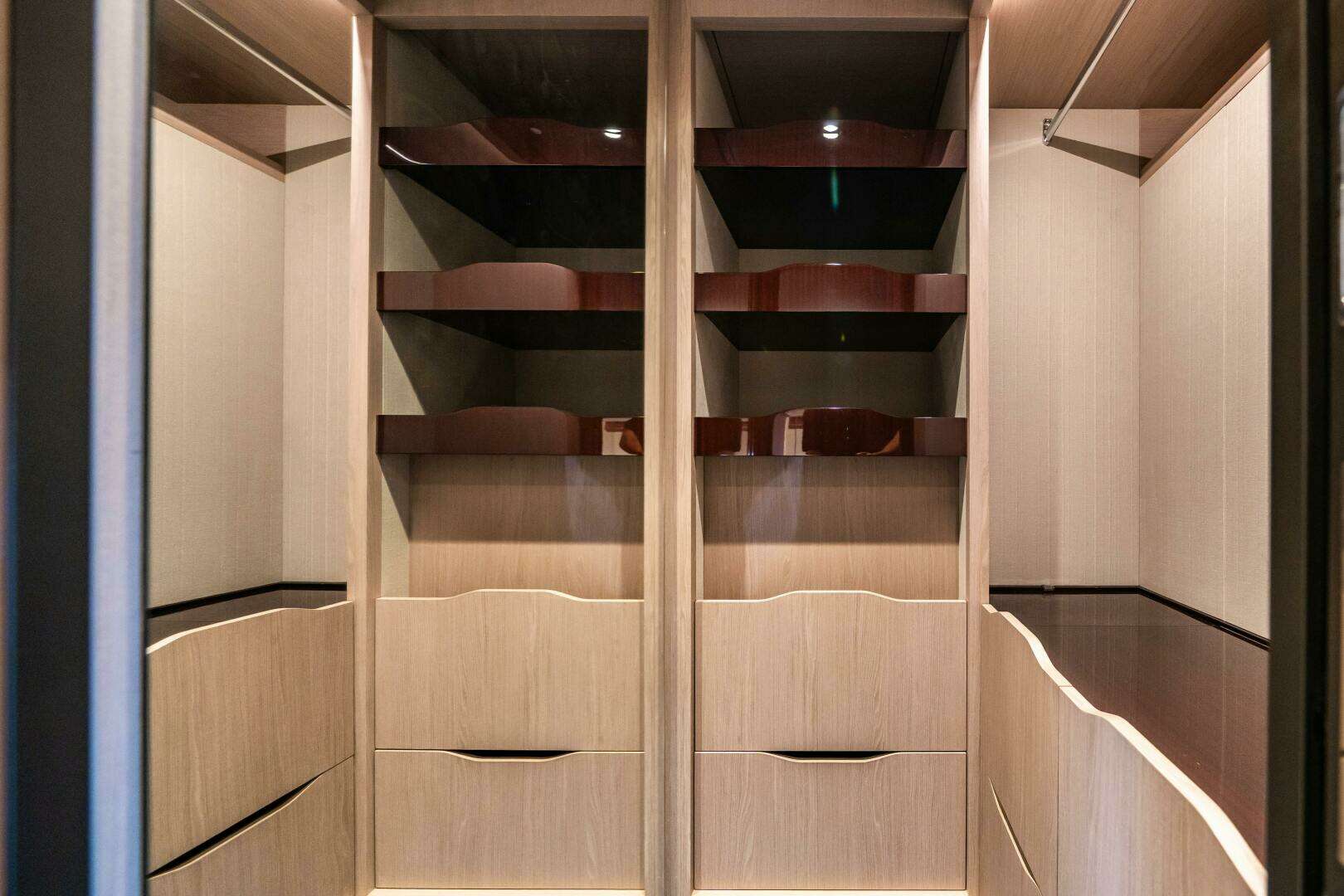

    • Walk-in wardrobe with wardrobes equipped with hanger bar, internal lighting, chest of
    • drawers, full-height mirror with concealed sliding door
    • Two bedside tables with drawer
    • Fix side windows on each side of the cabin, full height
    • Chest of drawers, forward of the owner's bed
    • Main lighting with dimmer, LED technology
    • LED technology courtesy lighting
    • Full-length mirror
    • Venetian blinds
    • Wood-upholstered bulwarks
    • Lacquered and wood ceiling
    • Carpeted floor
    • Air conditioning system control panel

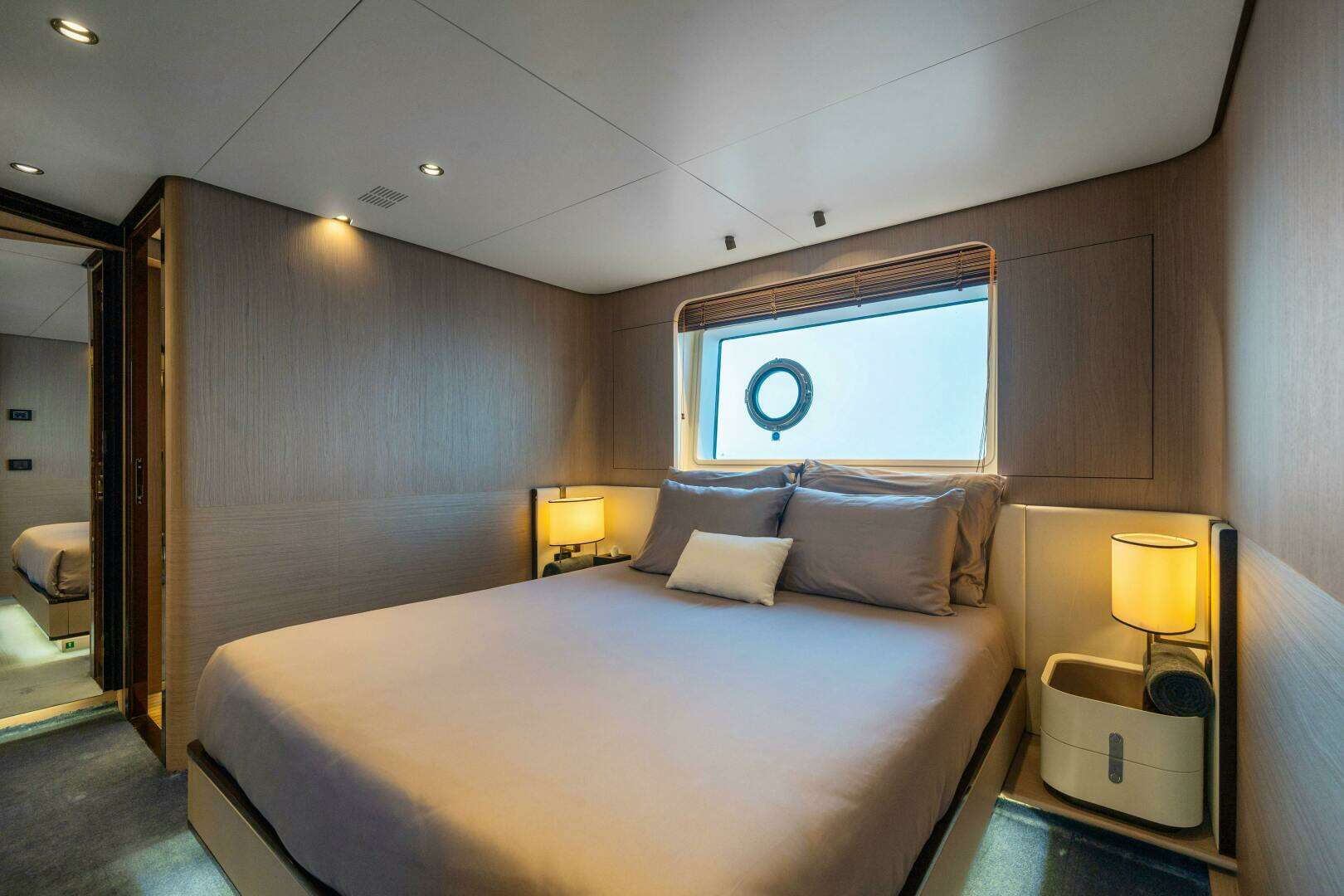

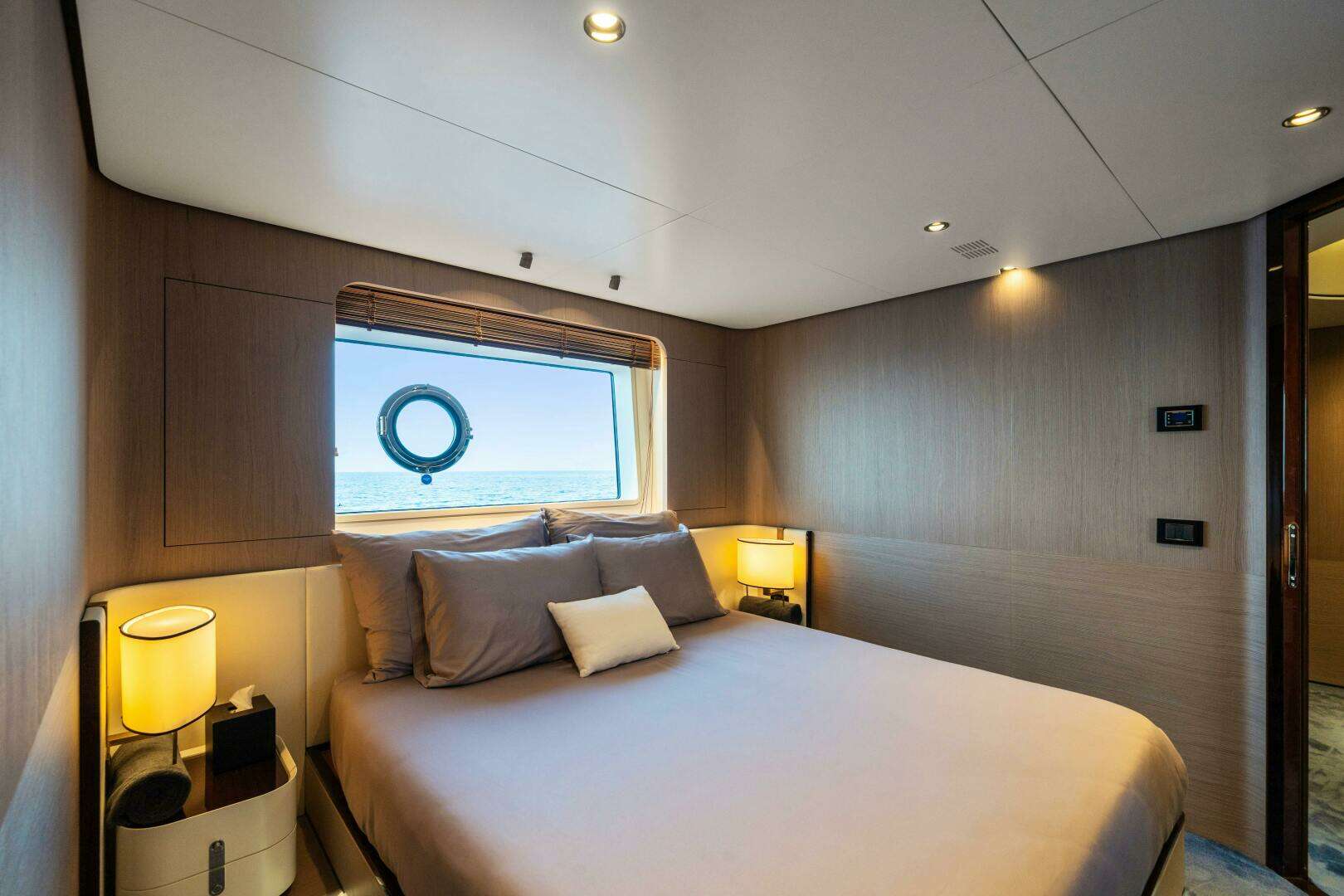

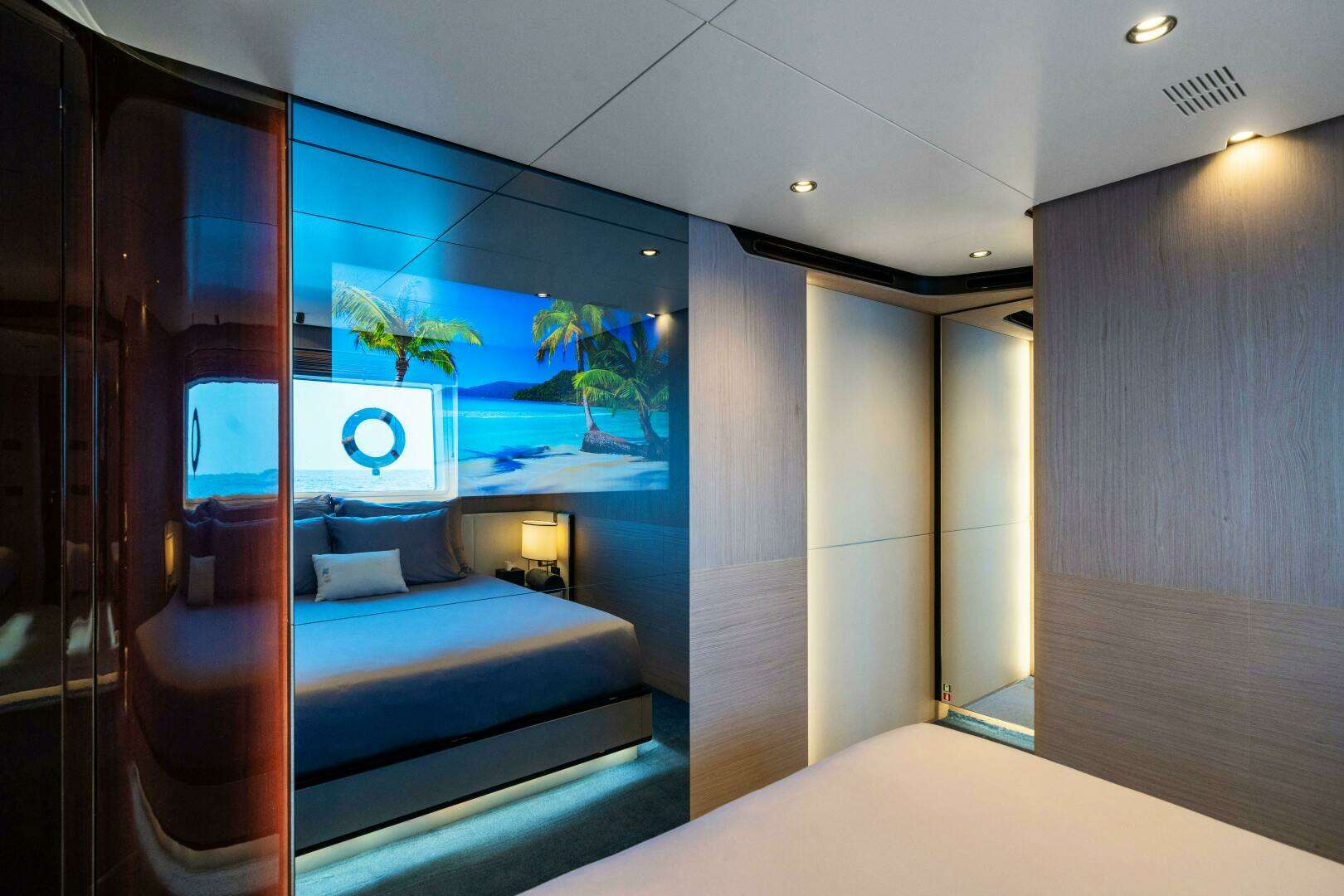

    Two double cabins:
    • Double bed with foldaway bed plane and locker below, headboard
    • Two bedside tables
    • Wardrobe on port side with hanger bar and internal lighting
    • Chest of drawers
    • Two wall units with storage above side panoramic windows
    • Lighting with recessed LED spotlights
    • Two LED wall lights on headboard
    • Fixed panoramic windows
    • Openable round portlights built-in the panoramic windows
    • Wooden Venetian blinds
    • Lacquered and wood ceiling
    • Wooden/fabric upholstered bulwarks
    • Lacquered/fabric-upholstered headlining
    • Carpeted floor
    • LED courtesy lights
    • Air conditioning system control panel

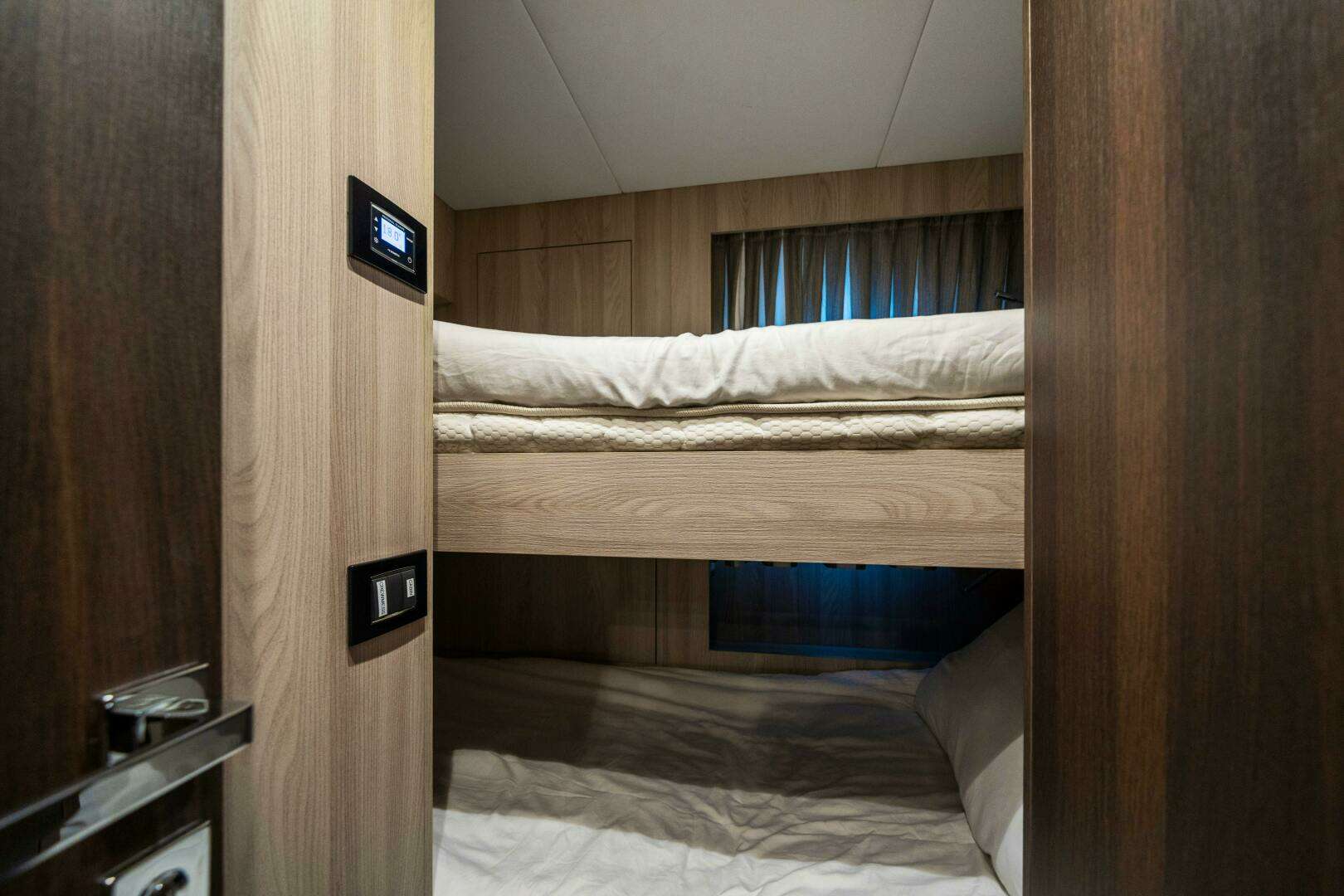

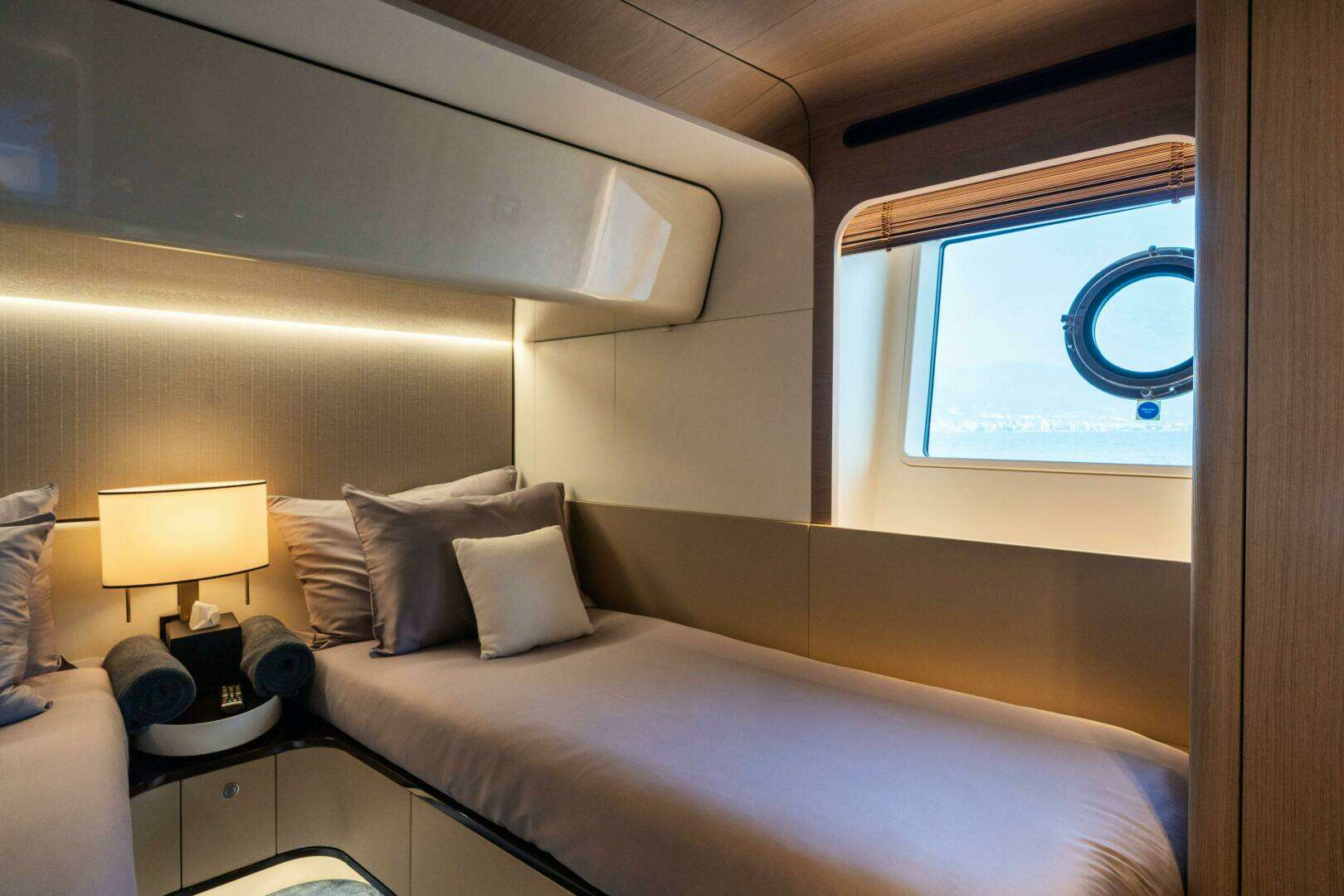

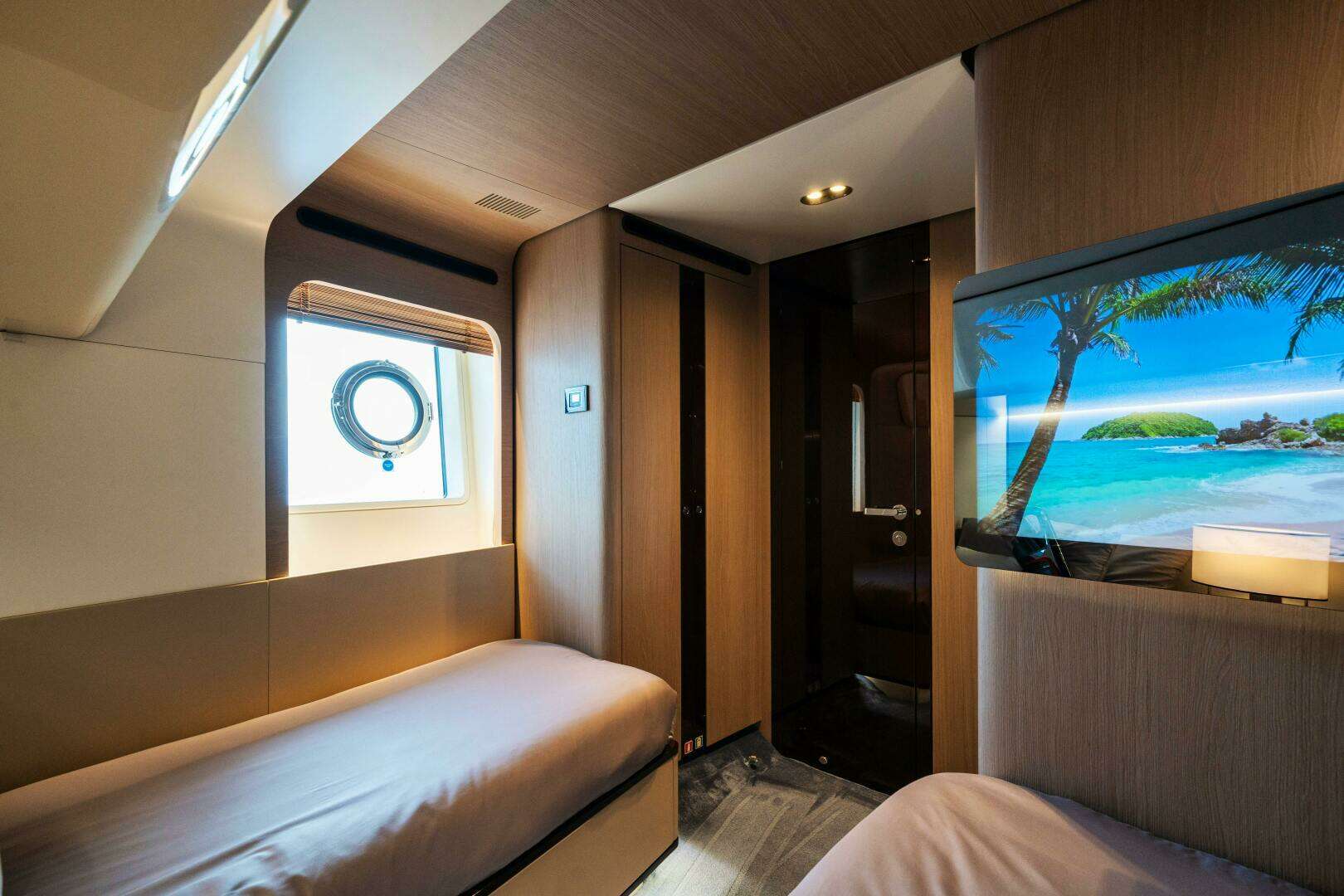

    Two twin guest cabins:
    • Double bed placed transversally on
    • bulwark, with foldaway bed plane and
    • locker below, headboard
    • Two bedside tables with drawer
    • One wardrobe with a hanger bar and shelves
    • Lacquered ceiling
    • Upholstery on bulwark in wood essence
    • Full-length mirror
    • Panoramic fixed window with built-in
    • portlight
    • Venetian blind
    • Carpeted floor
    • LED technology lighting
    • Headboard light
    • Air conditioning system control panel
    Custom options :
    • Flybridge U-bench extension, curved furniture
    • Stainless Steel Teak Bar Stool on flybridge 3 pieces

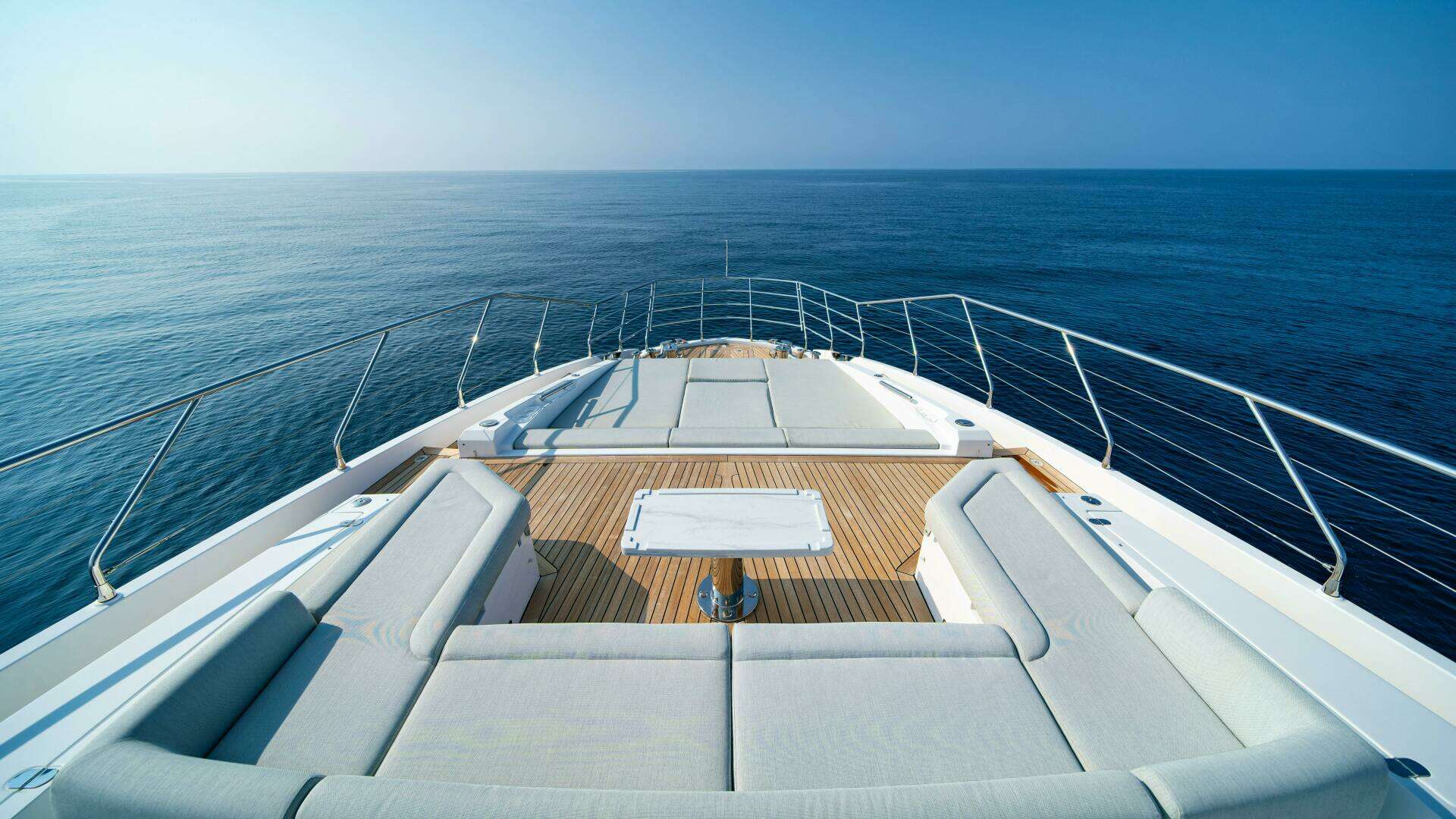

    • Teak table on bow
    • Mosquito nets for portholes

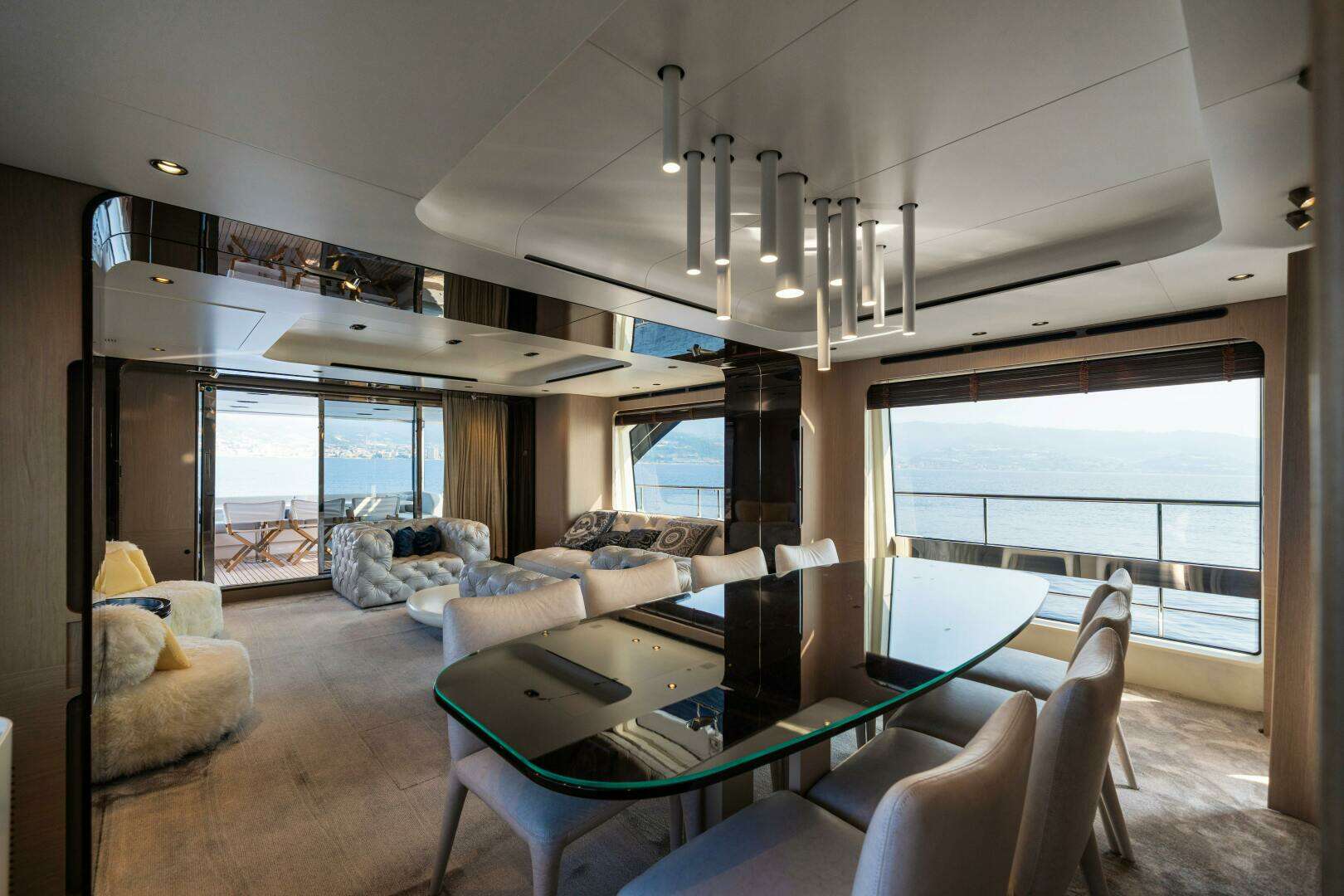

    • Salon round table
    • Wooden floor in salon/couch area
    • Lacquer table

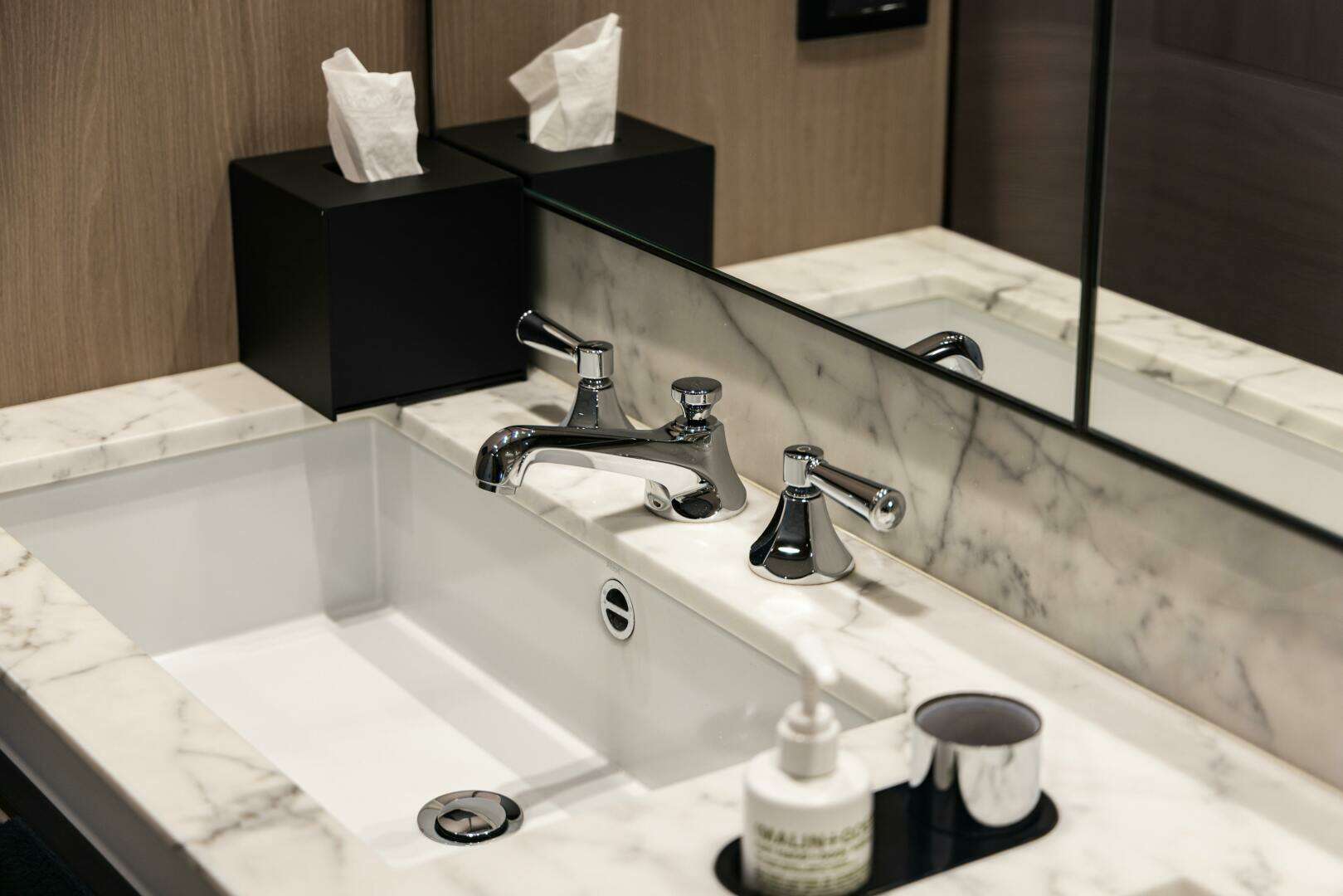

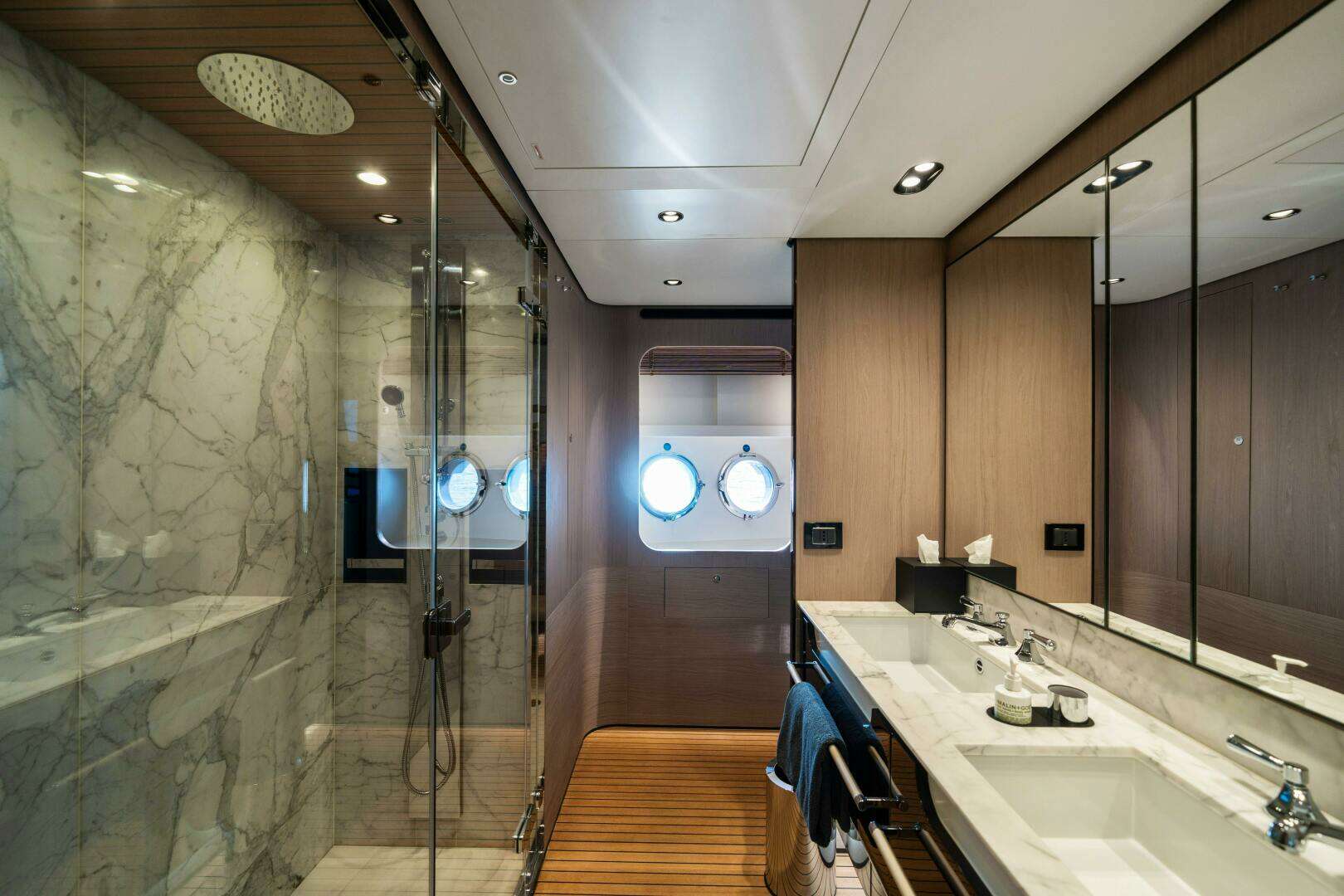

    • Marble washbasins, shower cubicle floor and wall and kitchen exchange
    • Reading lights flexible installation in owner's cabin
    • Glass top fixed on dining table in salon

    GALLEY & LAUNDRY EQUIPMENT

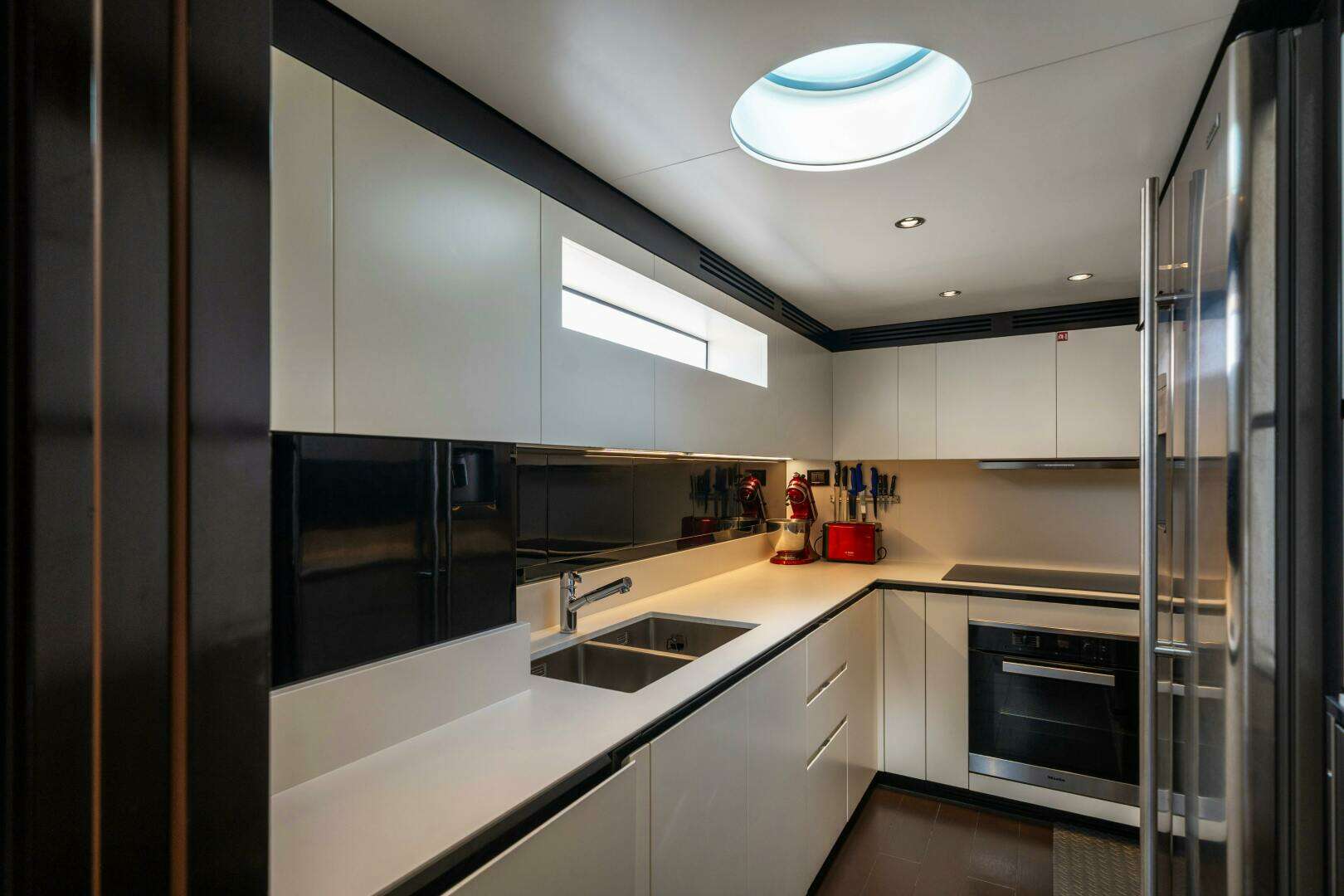

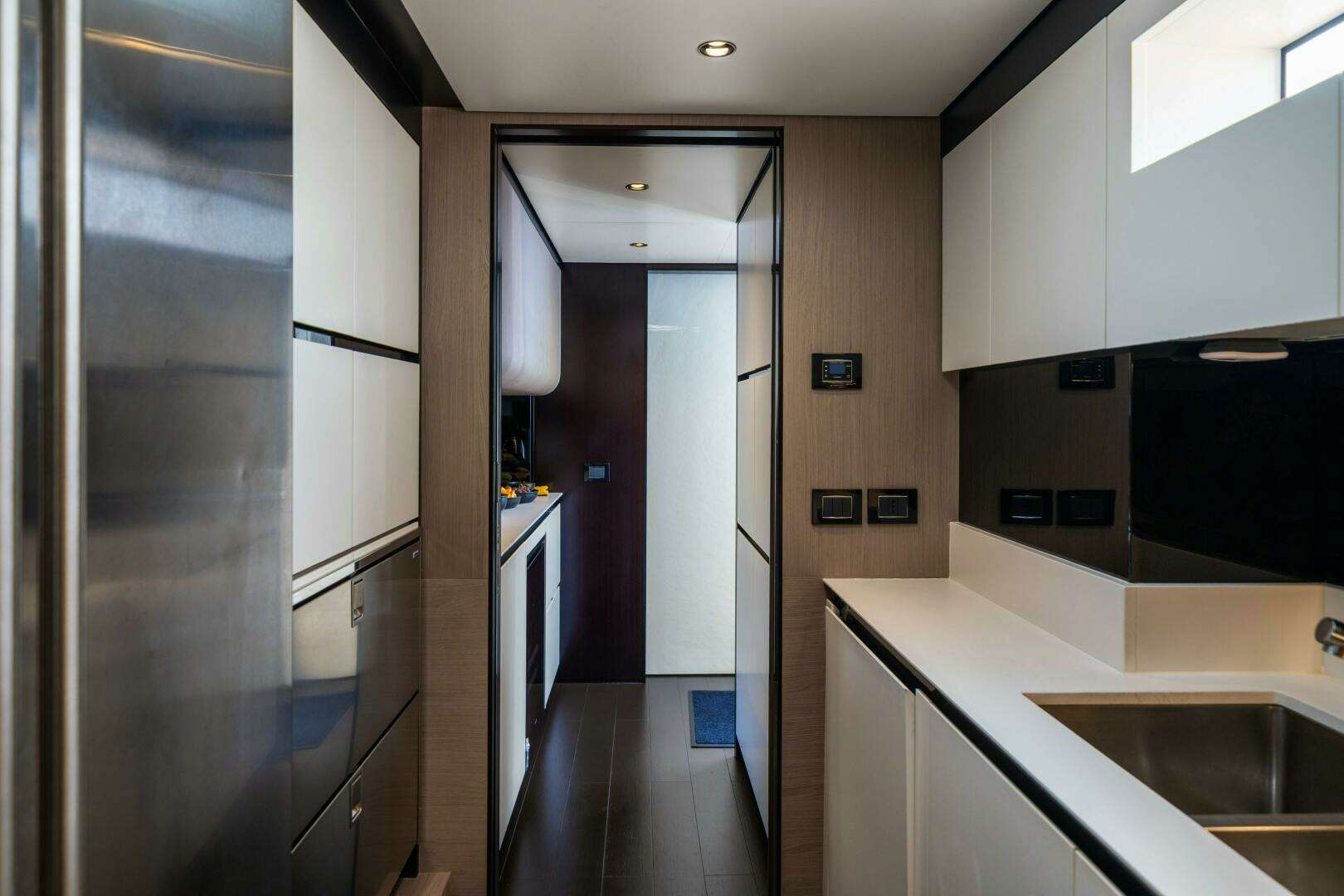

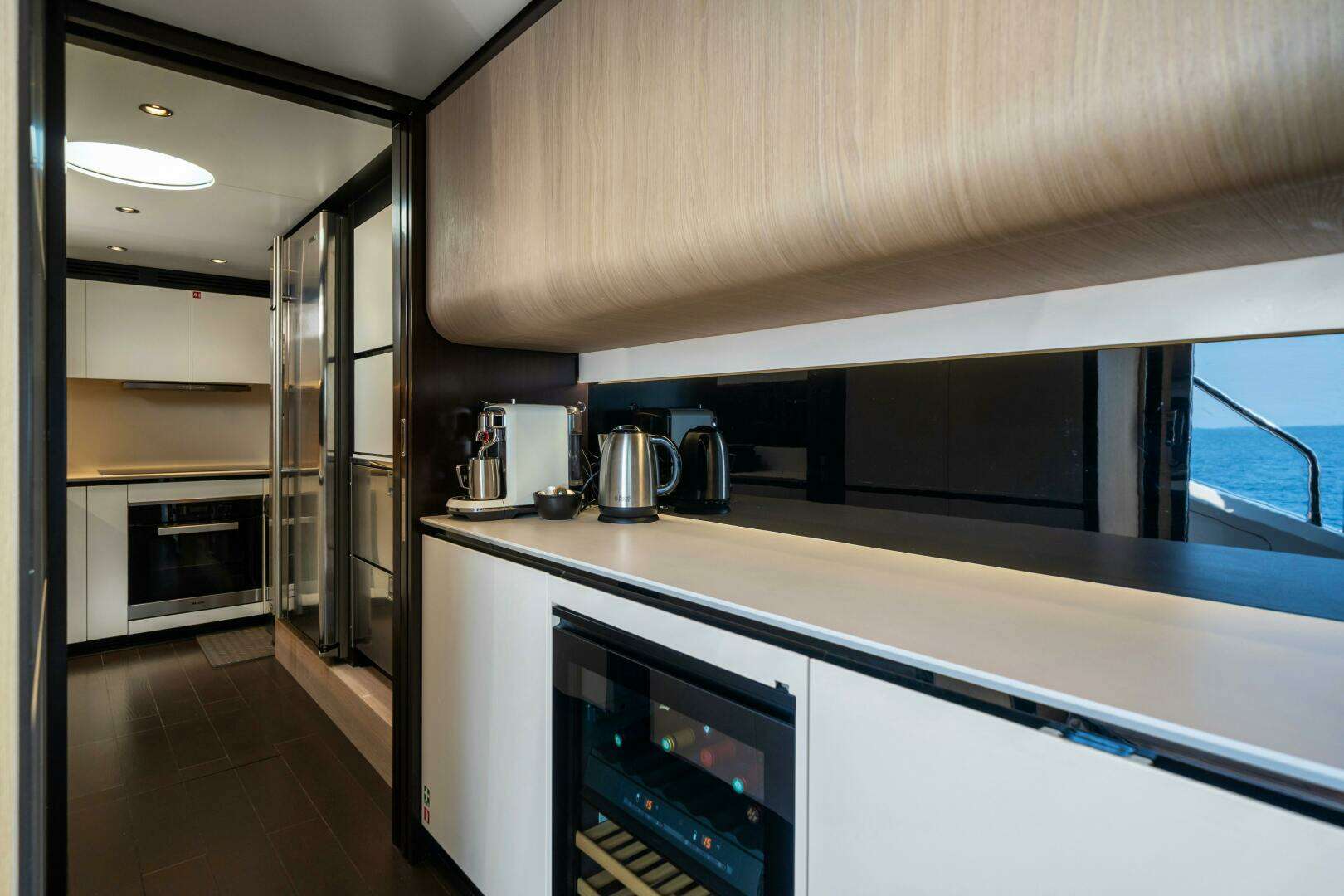

    Galley
    • Located on port side, the access is through concealed sliding door located forward of the pantry. This layout allows full isolation of this area from the saloon and dining area reserved for the owner and his guests.
    • 419 l (14.8 cu.ft) refrigerator + 247 l (8.7 cu.ft) freezer
    • Dishwasher
    • Stainless steel sink with faucets Extractor hood
    • 76 l (2.68 cu.ft) oven Four-burner induction range
    • Flooring in vinyl
    • Composite material worktop
    • Storage wall units on port bulwark
    • LED technology spotlights
    • Sockets
    • Air conditioning outlet grating
    • Wine cooler in galley (option)
    Laundry:
    • Washer-dryer in crew cabin (option)
    Exterior appliancies:
    • Icemaker flybridge (option)
    • Refrigerator in cockpit furniture (option)

    COMMUNICATION EQUIPMENT

    • Communication systems (VHF)
    • Profesional Wifi system (option)
    • Pre-insertion for SAT antenna KVH TV6/TV8

    NAVIGATION EQUIPMENT

    Simrad gold package:
    Roll bar:
    • RADAR HALO3 VHF ANTENNAS (x2)
    • GPS ANTENNAS - GS 25
    Flybridge:
    • Display multifunction NSS-16 EVO 3 (x2) VHF Station RS90
    • Remote controller OP50

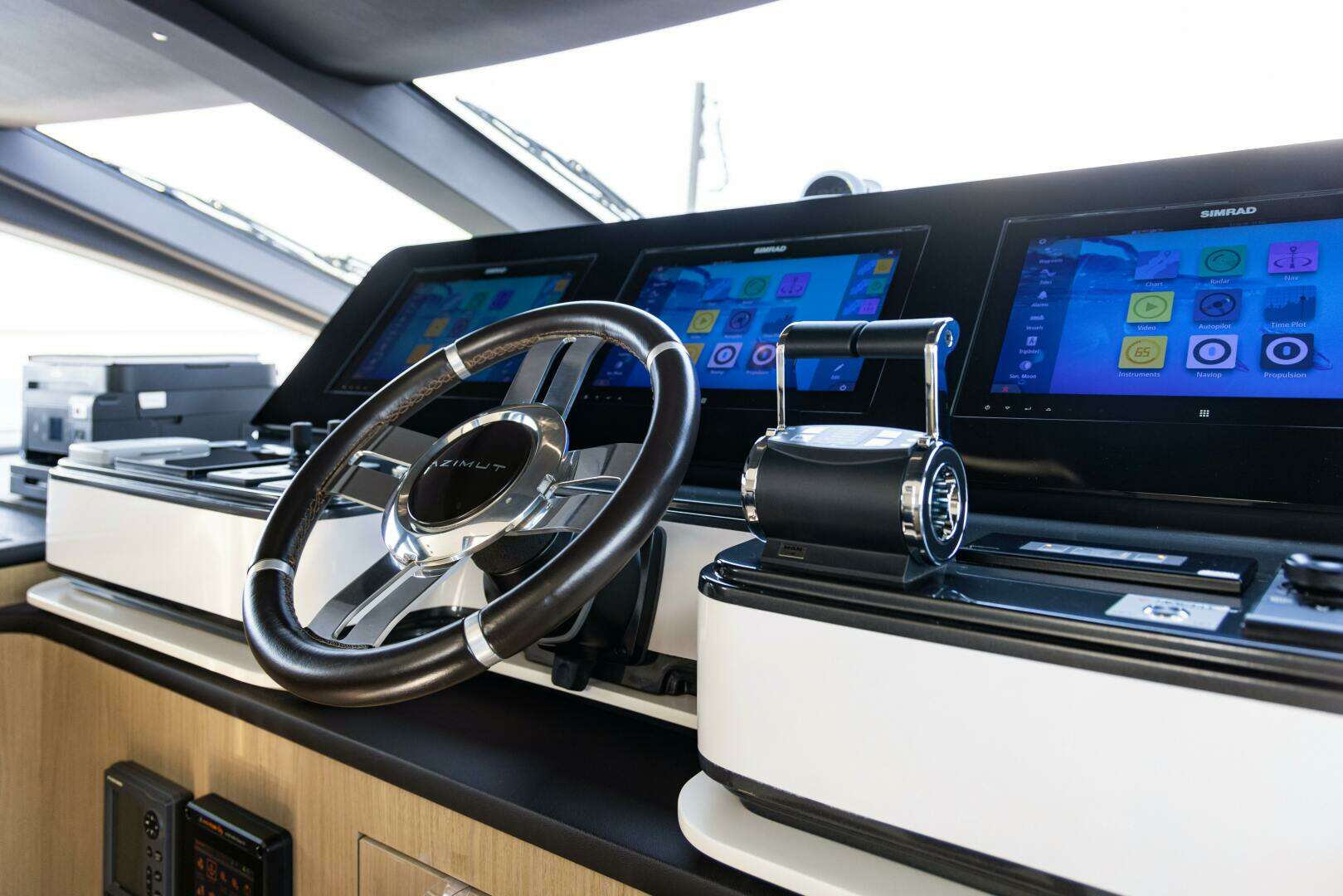

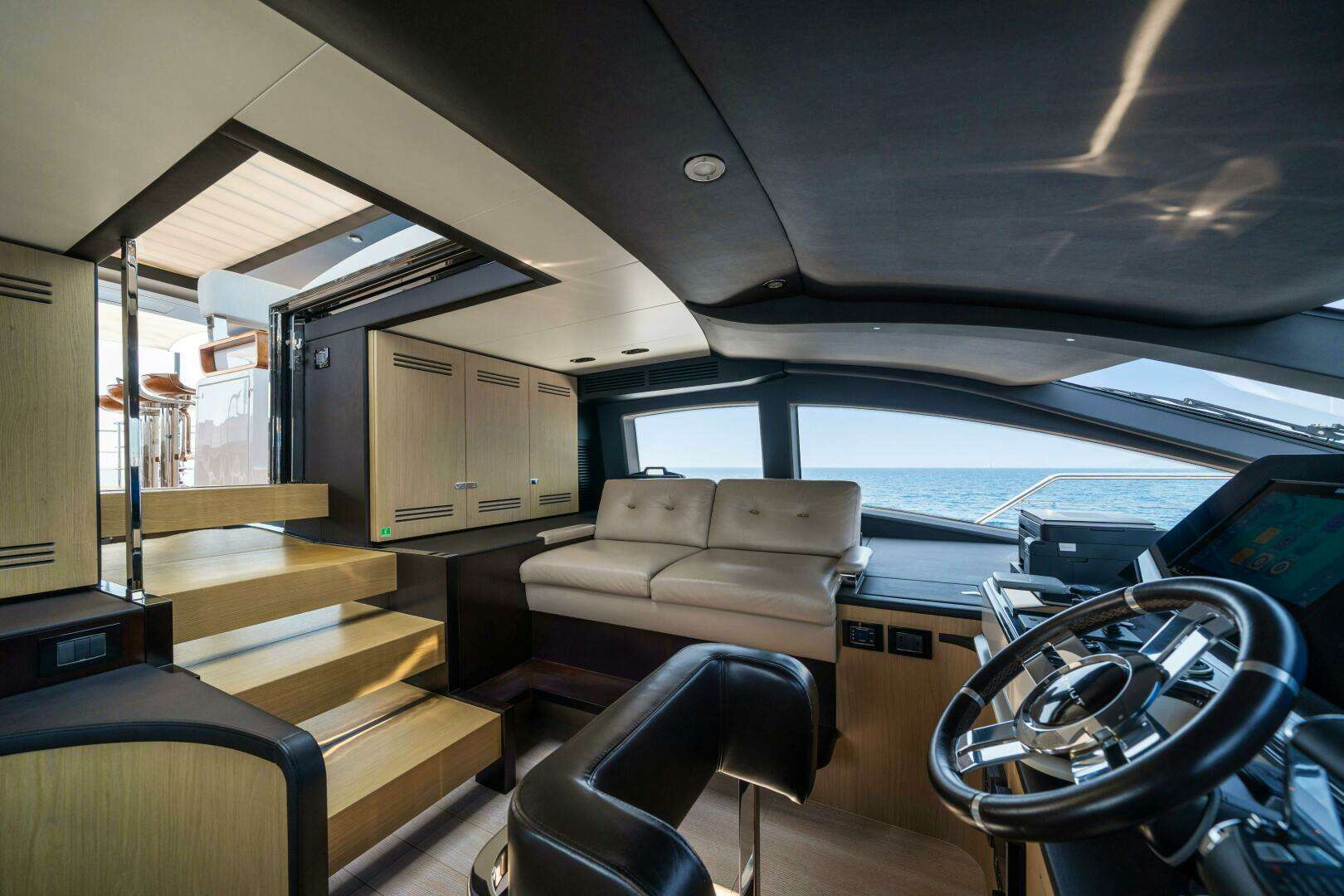

    Wheelhouse :
    • Display multifunction NSS-16 EVO 3 (x3) VHF Station RS90
    • Remote controller OP50 Radar interface module
    • VHF transreceiver RS90 (with integrated AIS receiver)
    • Autopilot computor for optimus SG05
    • Compass precision-9 Multisensor DST800
    Other:
    • Panasonic video cameras (x4) Electric searchlight
    • Bow spotlight Stern spotlight on spoiler from flybridge

    ENTERTAINMENT EQUIPMENT

    Audio/Video Gold Package
    Guests cabins:
    • Smart TV LED LG 43" 50/60 Hz
    • Amplifier FUSION APOLLO
    • Speakers FUSION 6“ – 2 WAY FULL RANGE
    • USB & 3.5 mm AUX CONNECTOR
    • AUDIOVIDEO GOLD PACKAGE
    • SMART TV LED LG 32" 50/60 Hz
    • APPLE TV 4 HD 32GB

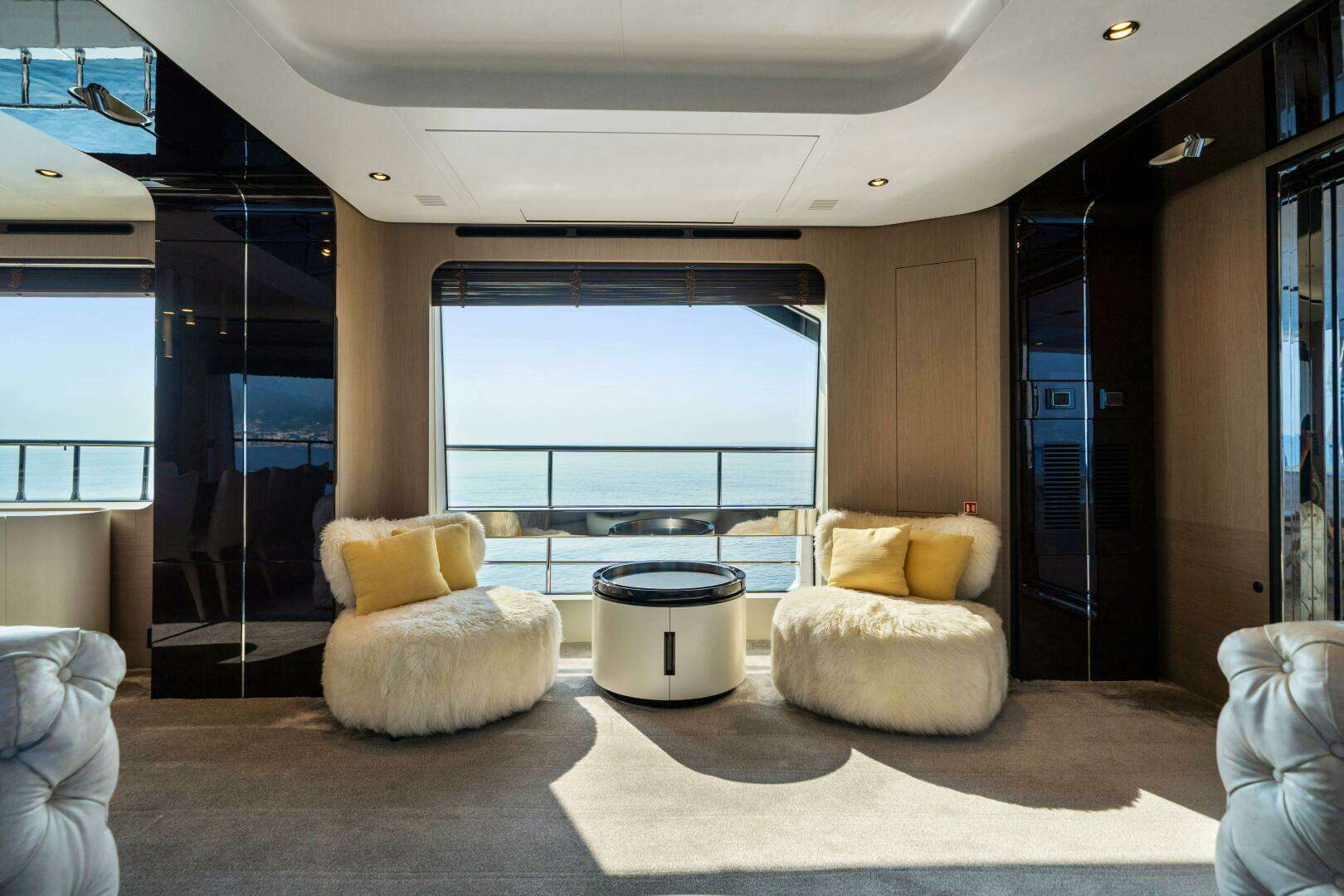

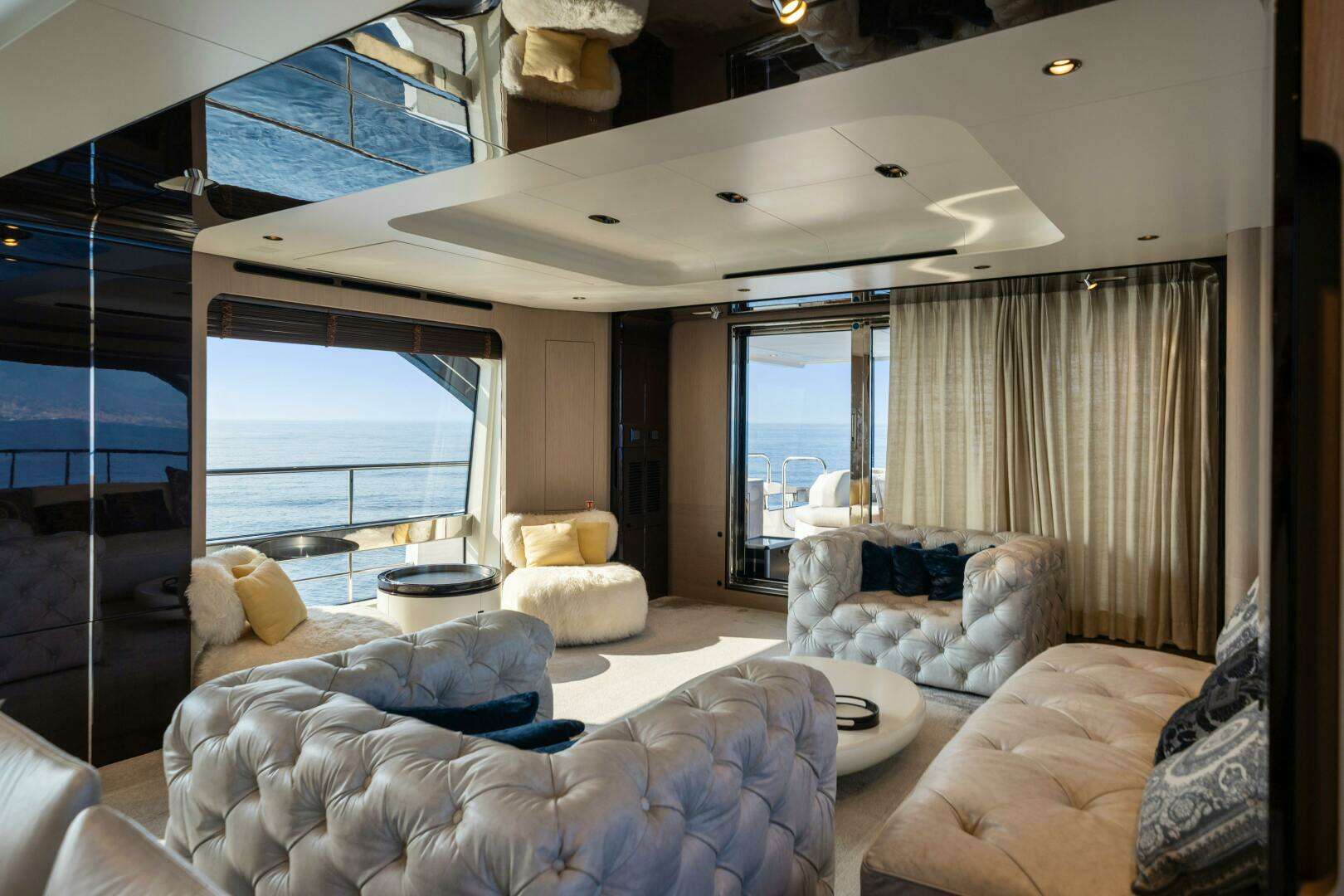

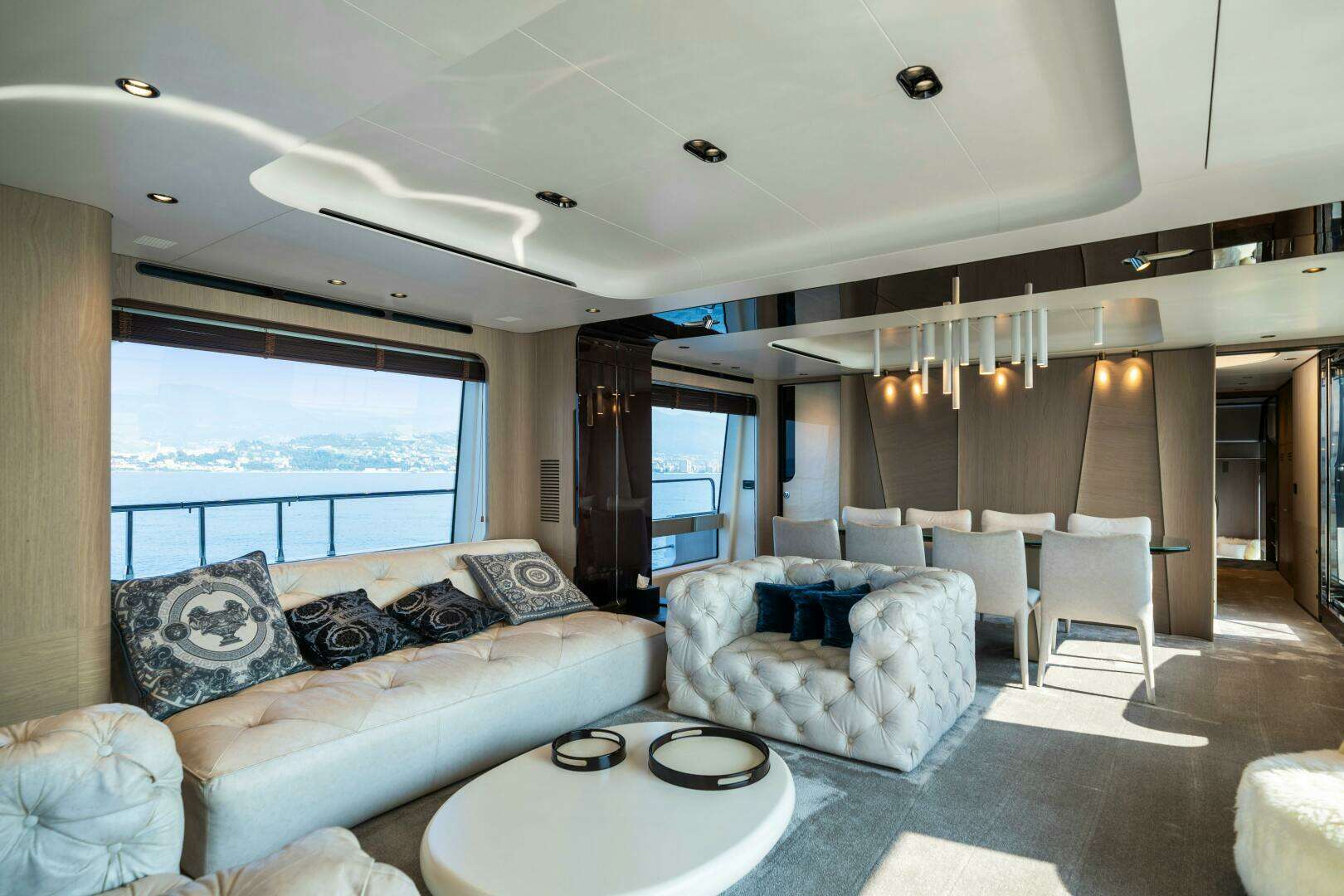

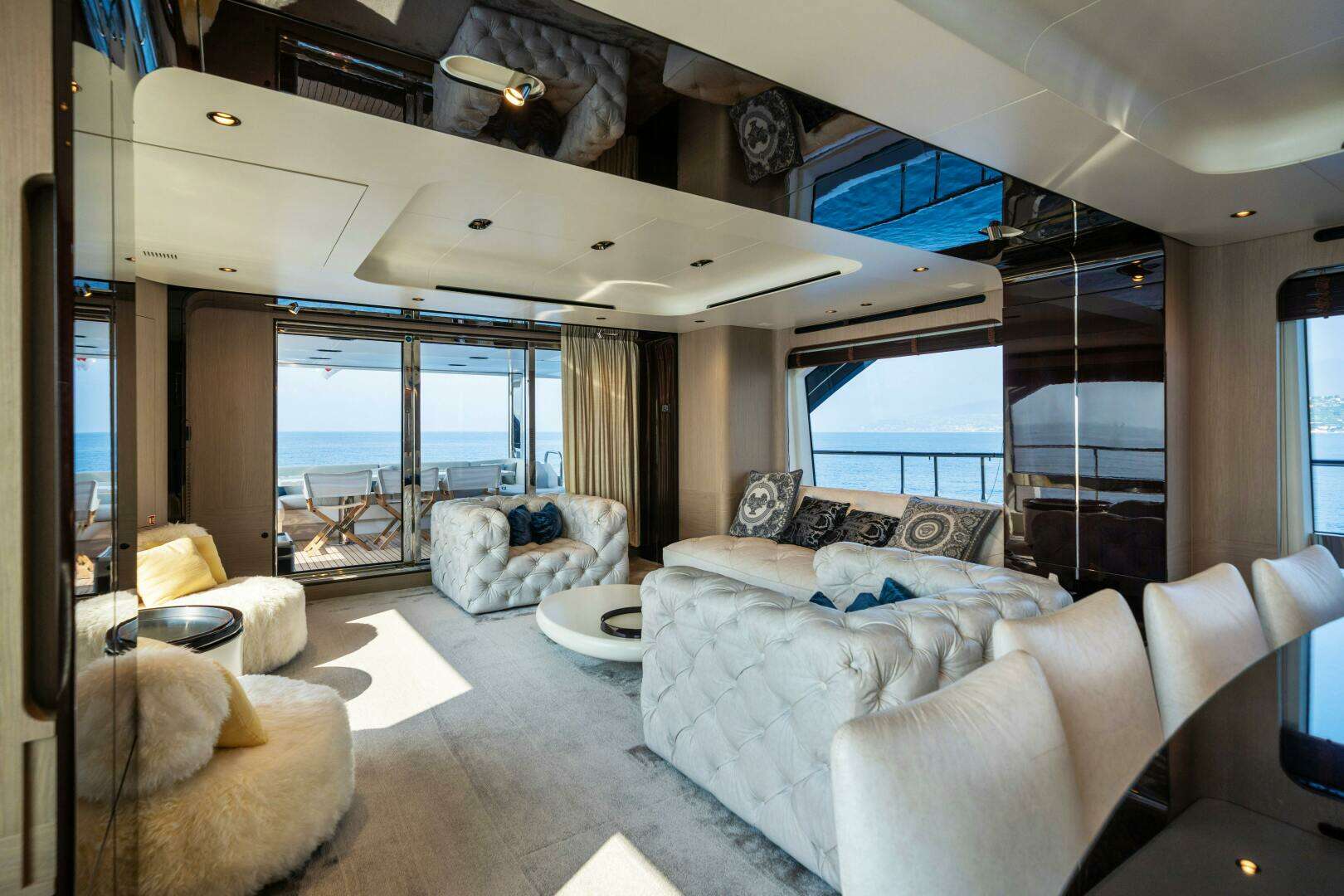

    Salon:
    • Speakers BOSE LIFESTYLE 600
    • Smart TV LED LG 55" 4K 50/60 Hz
    • Subwoofer BOSE LIFESTYLE 600
    • APPLE TV 4 HD 32GB
    • SONOS CONNECT AMP
    Master cabin:
    • Subwoofer BOSE LIFESTYLE 550
    • Speakers BOSE LIFESTYLE 550
    • Smart TV LED LG 55" 4K 50/60 Hz
    • APPLE TV 4 HD 32GB

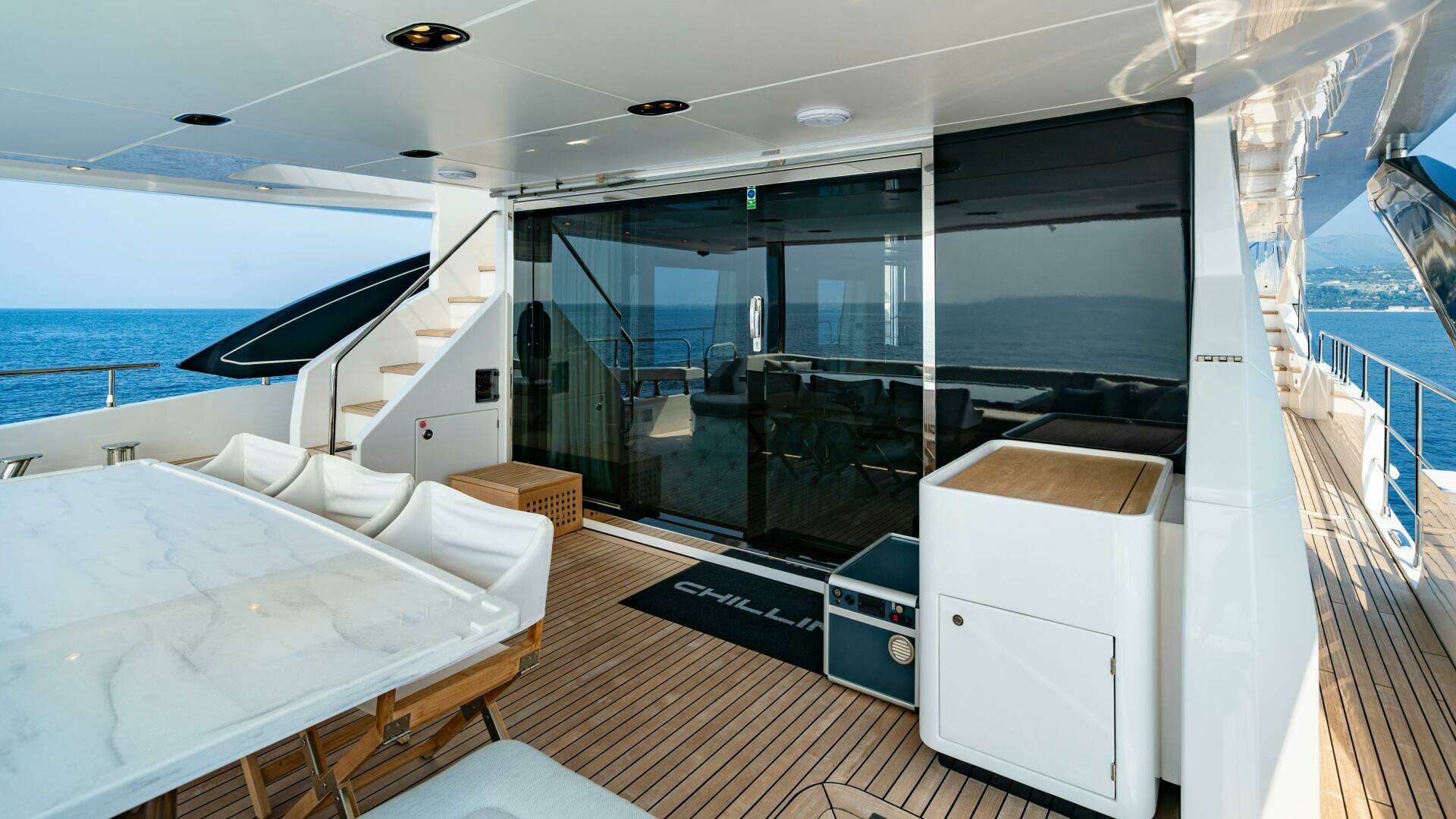

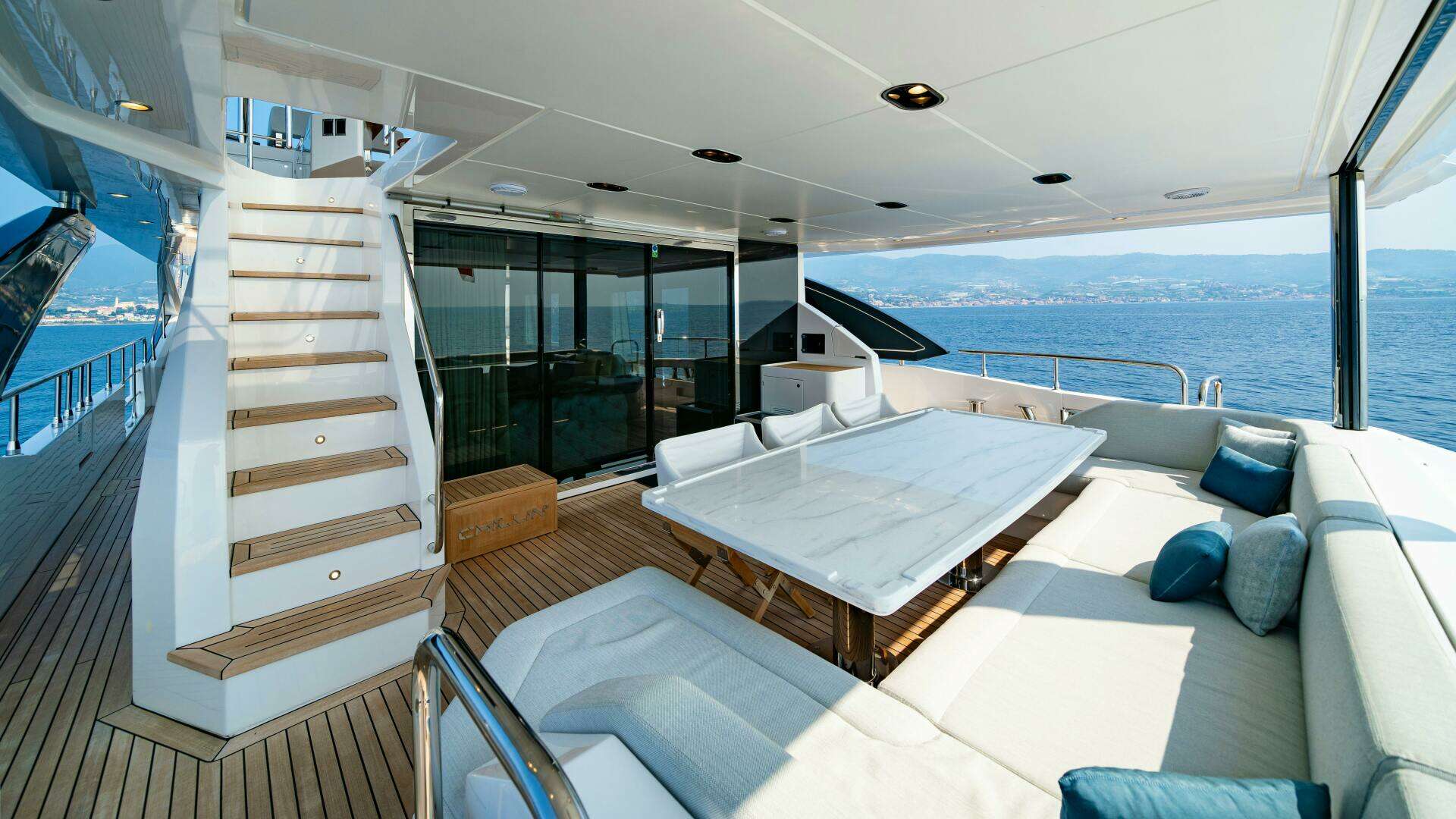

    Aft cockpit:
    • Speakers JL 7.7” MX-770
    Flybridge and bow area:
    • Speakers JL 7.7” MX-770
    • Subwoofer JL 10“ M6-10IB-S

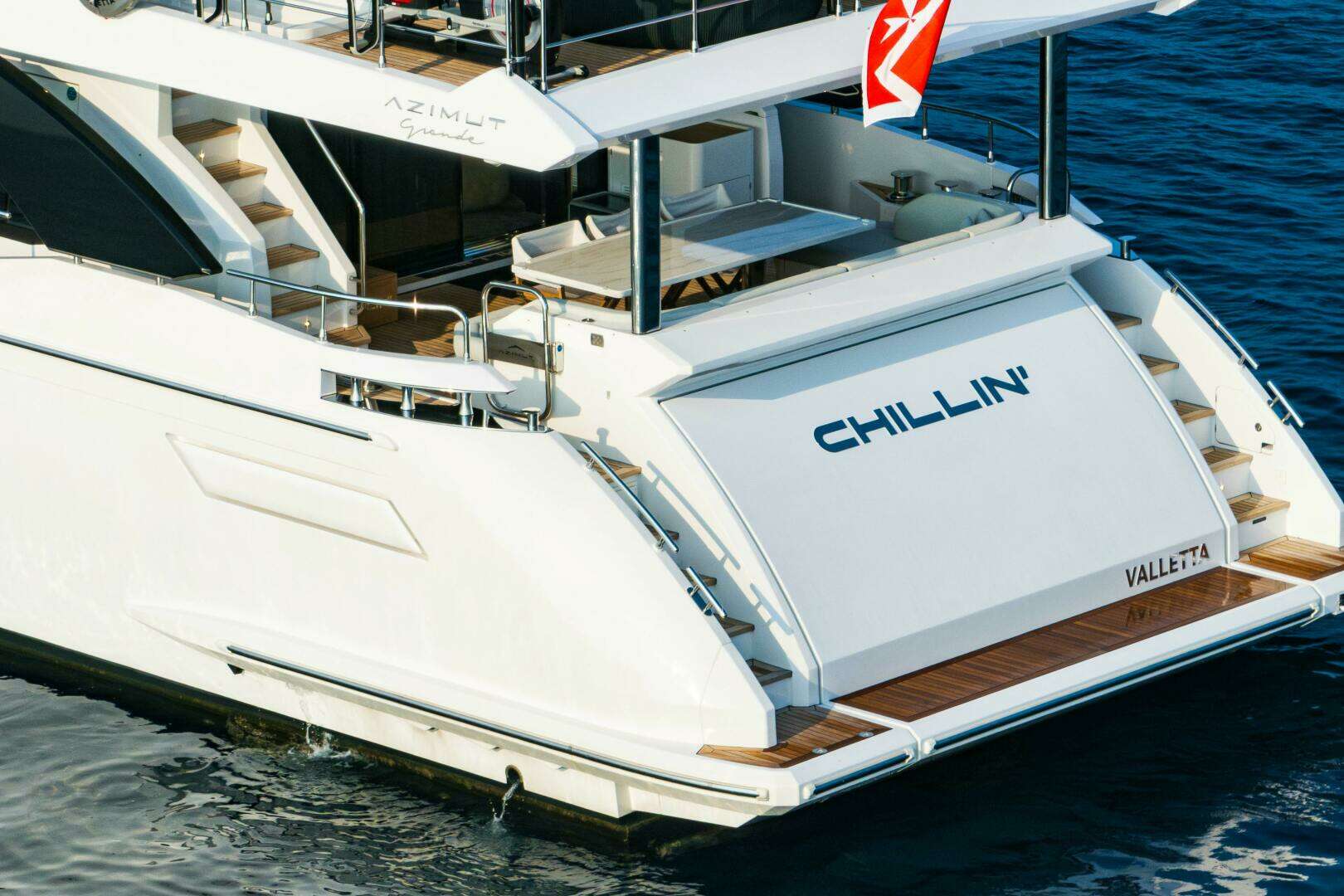

    TENDERS & TOYS

    • Tender is not included in the sale, below the possible option:
    • MAXIMUM DIMENSIONS OF TENDER - GARAGE: 4.50 x 2.00 m (14' 9'' x 6' 6.7'')
    • RECOMMENDED TENDER - GARAGE: WILLIAMS DJ445

    DECK EQUIPMENT

    Anchor
    • Two anchors 135kg
    Anchor chain
    • Quantity: 2
    • Diameter 12 mm (0.47 in)
    • Length (each) 130 m (328’ 1”)
    • Material: galvanized steel
    Hawse plate
    • Quantity: 2
    • Thickness 3 mm (0.12 in)
    • Material: stainless steel
    Anchor winch
    • Quantity: 2
    • Engine power 4000 W
    • Engine voltage 230 V - 50/60Hz threephase
    Mooring winch
    • Quantity: 2
    • Engine power 3600 W
    • Engine voltage 230 V - 50/60Hz threephase
    Chocks
    • Quantity - bow: 4 Quantity - stern: two (with rollers)
    • Material: stainless steel
    Cleats
    • Quantity - bow: 4 (mushroom type) Quantity - midship: 2
    • Quantity - stern, on mooring station: 2 Material: stainless steel
    Options
    • Deck washing system at bow, on fly and at stern
    • Fixed fresh water connection
    • Cockpit cover sunshade electric Preparation for electric awning flybridge to stern
    • Preparation (power) for additional BBQ furniture Flybridge to stern
    • Preparation for recording bow bimini with carbon poles and sail

    SAFETY & SECURITY EQUIPMENT

    Fire extinguishing system
    • System manual activation control in the cockpit
    • System indicators/reset on internal and flybridge dashboards and also in the crew room
    • One 106-liter (3.74 cu.ft) gas extinguisher in the engine room with nozzles located above the engines
    • Two hoses located in the compartment under the cockpit's ladder and in the chain locker at the bow
    • All safety equipment requested by current commercial regulation.

    REFIT HISTORY

    • All maintenance/services performed in line with highest standards.

    • Year-round crew on board.

    Upgrades performed in 2022/2023/2024:


    • Two anchors 135kg

    • Additional 30 meters of anchor chains Installed 5G Router + Antenna Peplink 4 + Starlink membranes on the Idromar

    • Induction hob 90cm (60cm as standard) Additional fridge in the lobby

    • Second grill at the flybridge

    • Diesel pump in the garage for tender

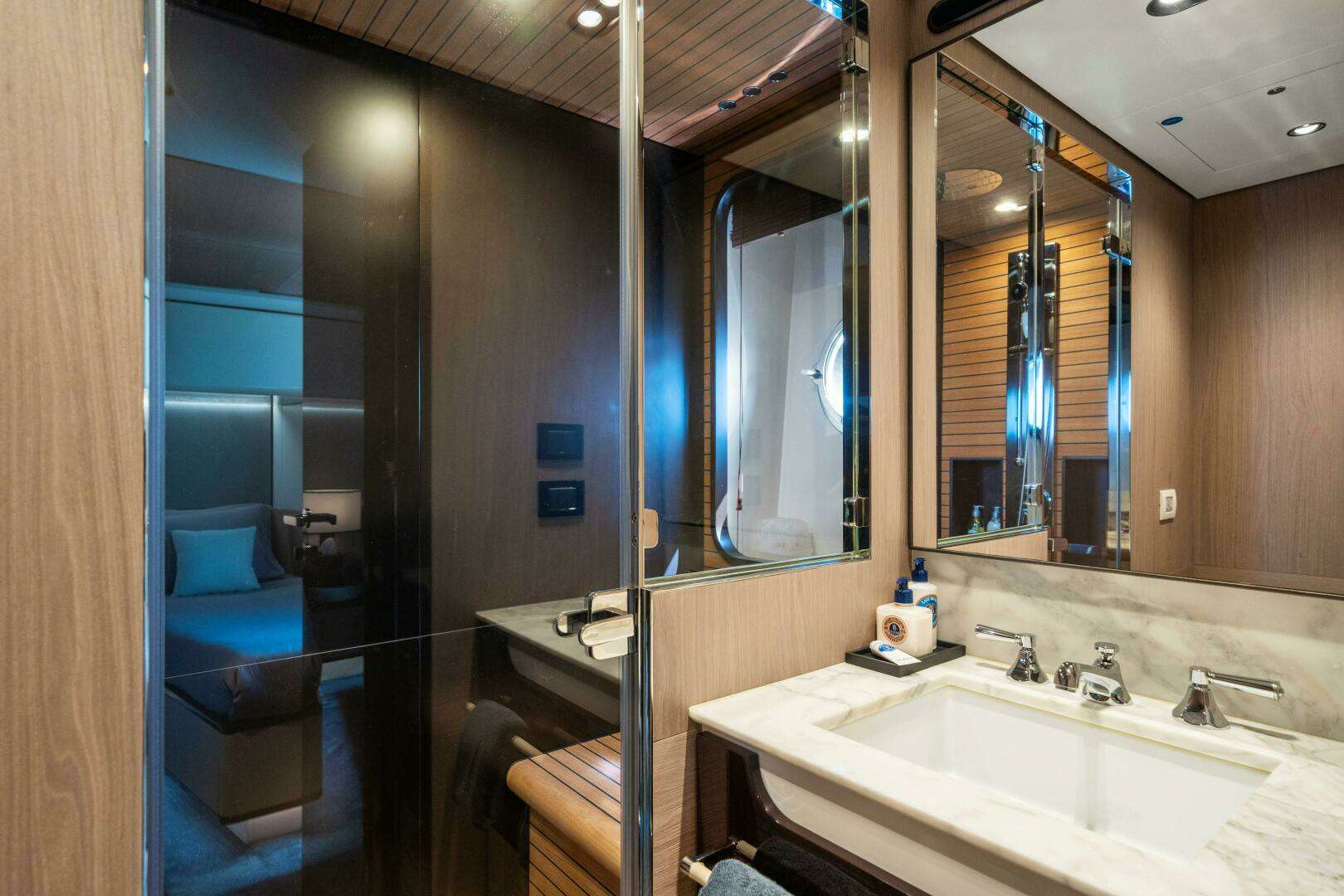

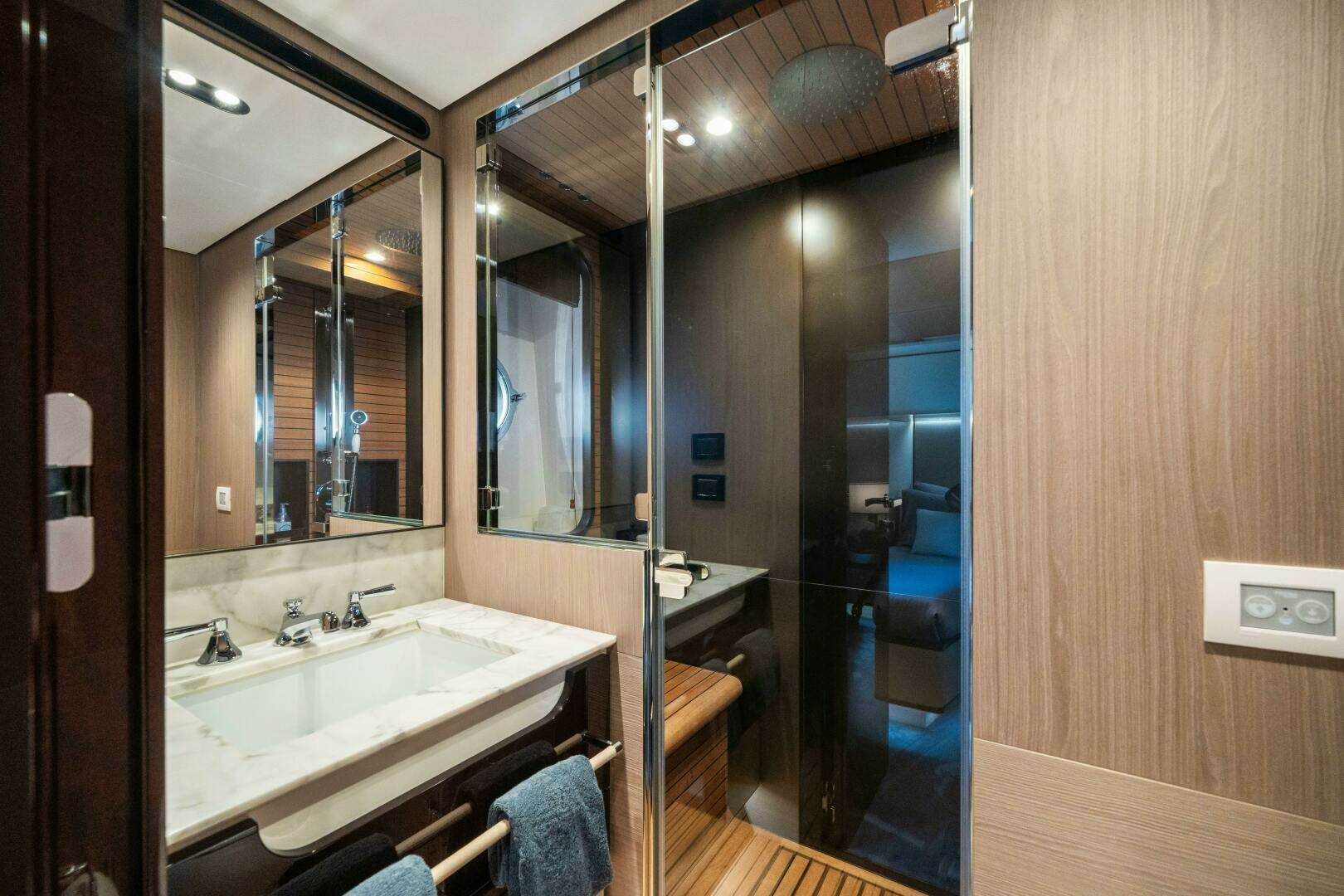

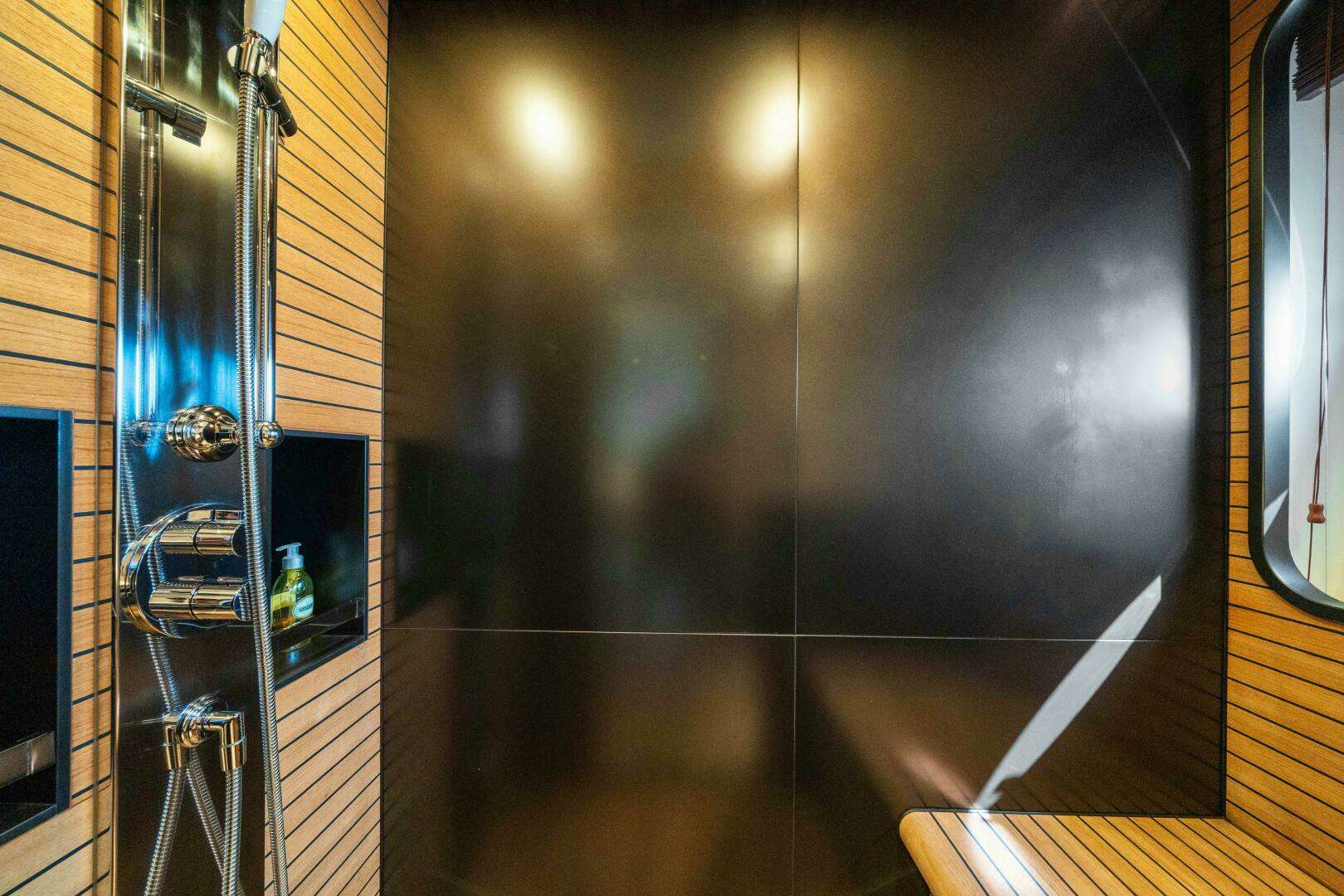

    • Shower refit

    • Hard-top/coaming/coach roof Wrap in Black

    • Jacuzzi and Sun-pads installed on aft of Flybridge

    • Timothy Oulton, London Saloon/Dining Furniture
