1994 Nautor Swan 77'
23.50 m
1994 Nautor Swan 77'
- 23.50 m
- Diesel
- Sail
- Schooner
1994 Nautor Swan
77' (23.50 m) DAG
-
Flag of Registry: United Kingdom
Port of Registry: London
| FEATURES: |
|---|
1994 Nautor Swan 77'
- 23.50 m
- Diesel
- Sail
- Schooner
€ 1,100,000 Euro
$ 1,790,000 CAD*£ 972,000 GBP*$ 1,279,000 USD*
LOA77'
LOA Inch1''
LOA23.50''
Beam19'
Beam Inch8''
Draft Max Feet11'
Draft Max Inch1''
Draft Min Feet3'
Draft Min Inch1''
Fuel Tank (Gallons)460
Fuel Tank (Liters)1740
Fresh Water (Gallons)367
Fresh Water (Liters)1390
TypeSail
ConditionUsed
Specifications
DAG
5006d6ea-107c-f011-b4cb-000d3a36ad6f
77'1" (23.50 Meters)
Sail-Used
1994
19'8"
11'1"
3'1"
4
8
Yes
4
1
3
1
12 Knots
10 Knots
Diesel
GRP
Yes
460 Gallons (1740 Liters)
367 Gallons (1390 Liters)
57
51
Nautor Swan
Nautor Swan
Brown (Varnished teak)

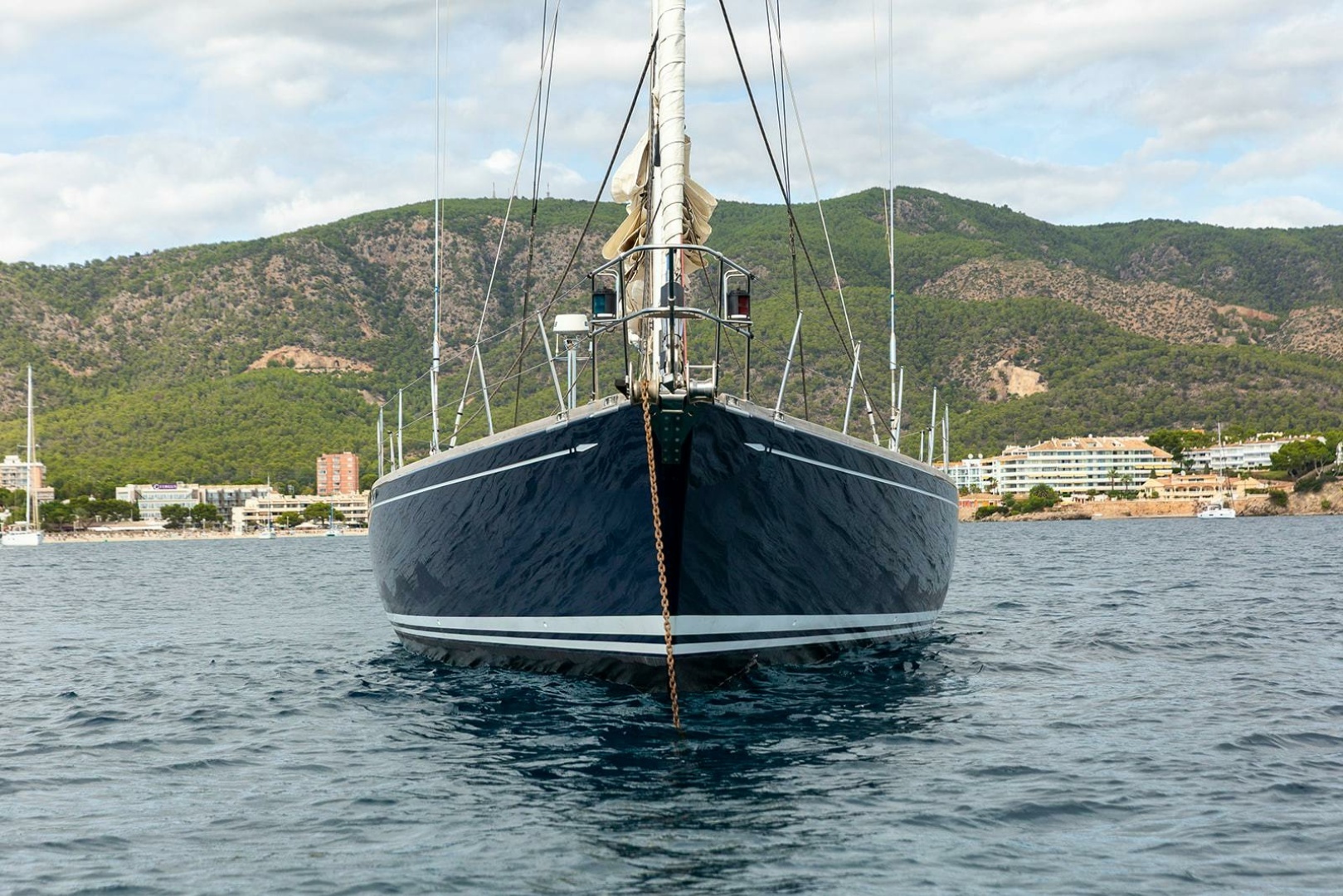

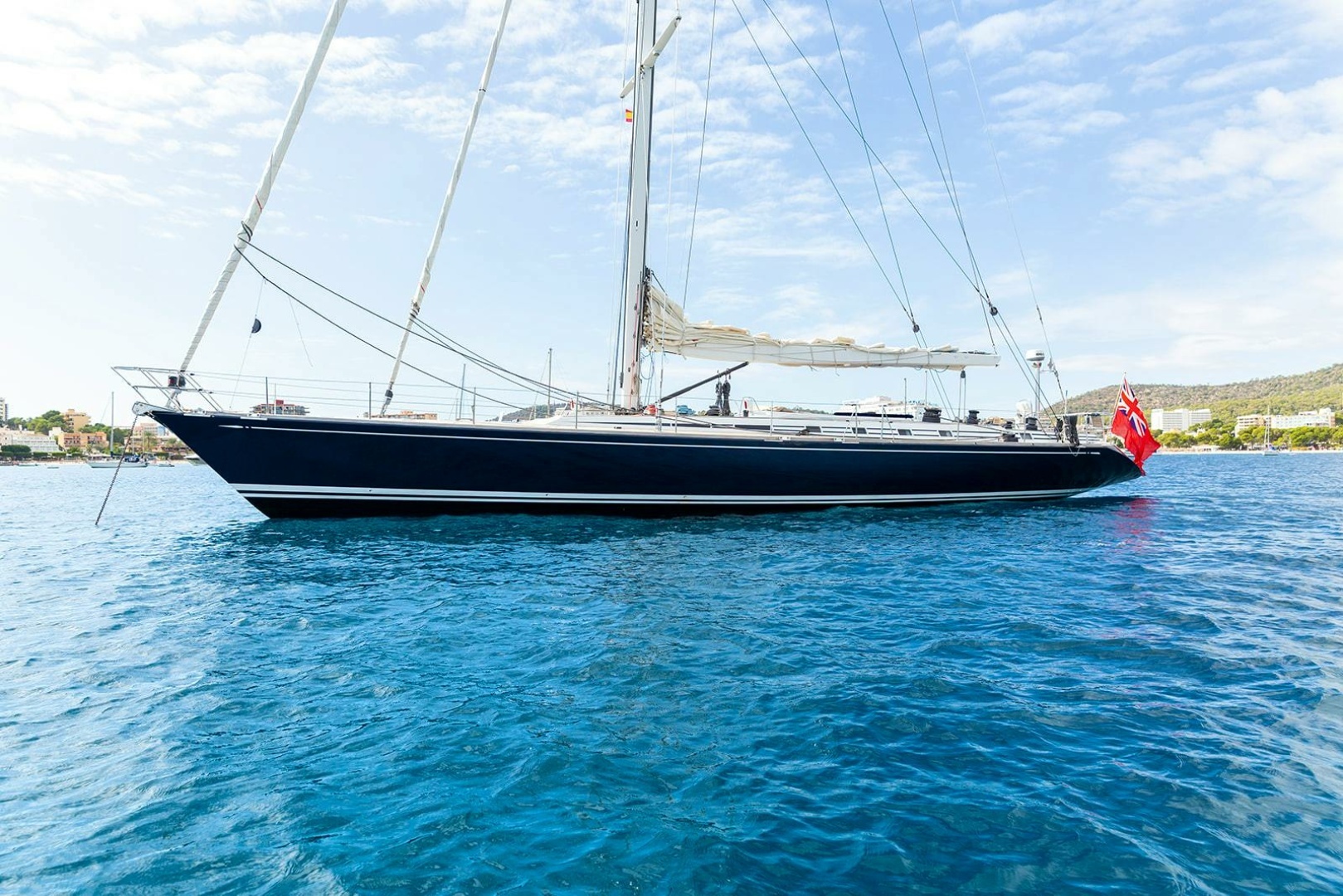

Dark Blue Hull with white superstructure
Engines
Engine 1
- Engine Make: Cummins
- ModelEngine Model: QSB 6.7
- HoursHours: 0.00
Engine 2
- Engine Make: Cummins
- ModelEngine Model: QSB 6.7
- HoursHours: 0.00
Full Details

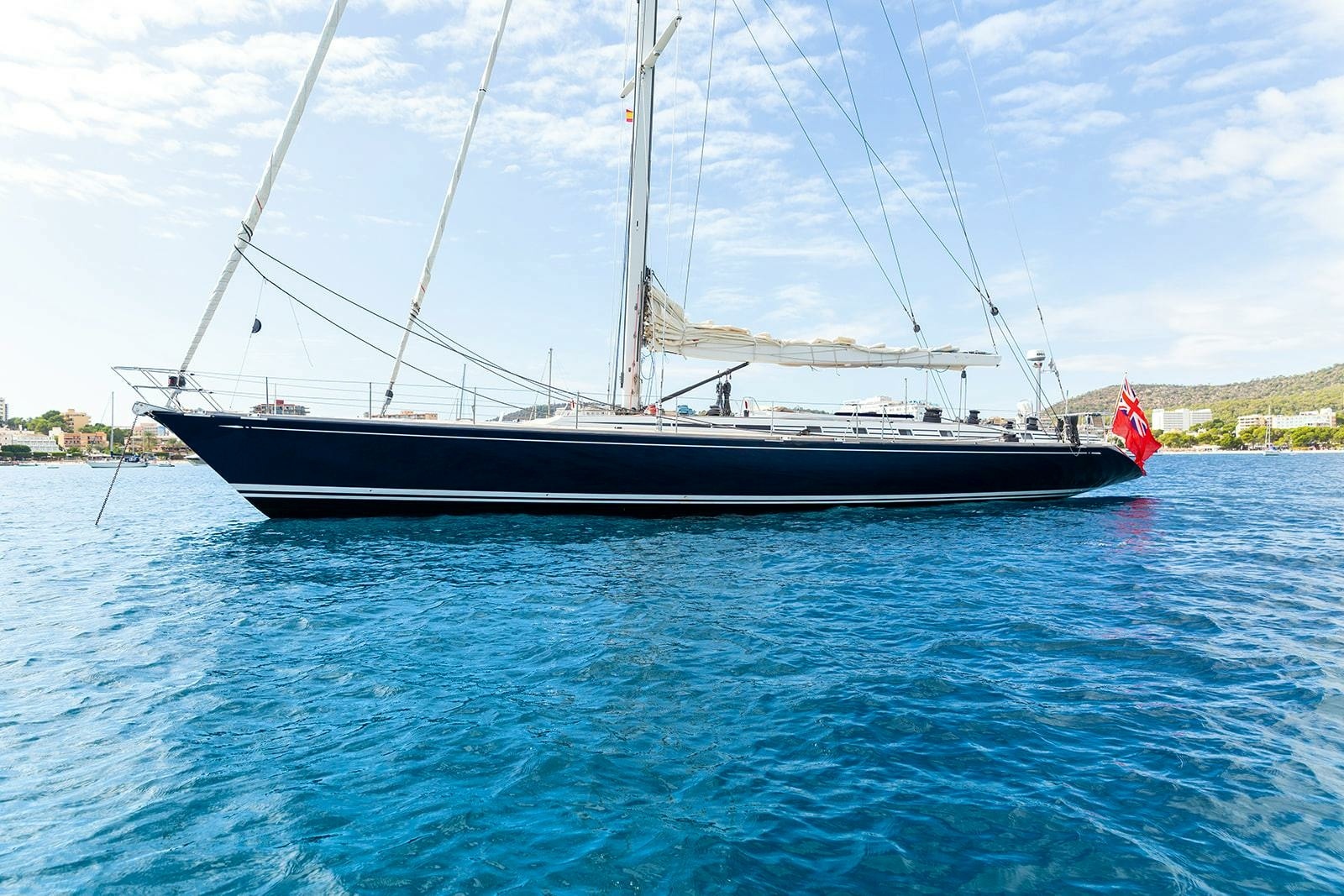

GENERAL DESCRIPTION

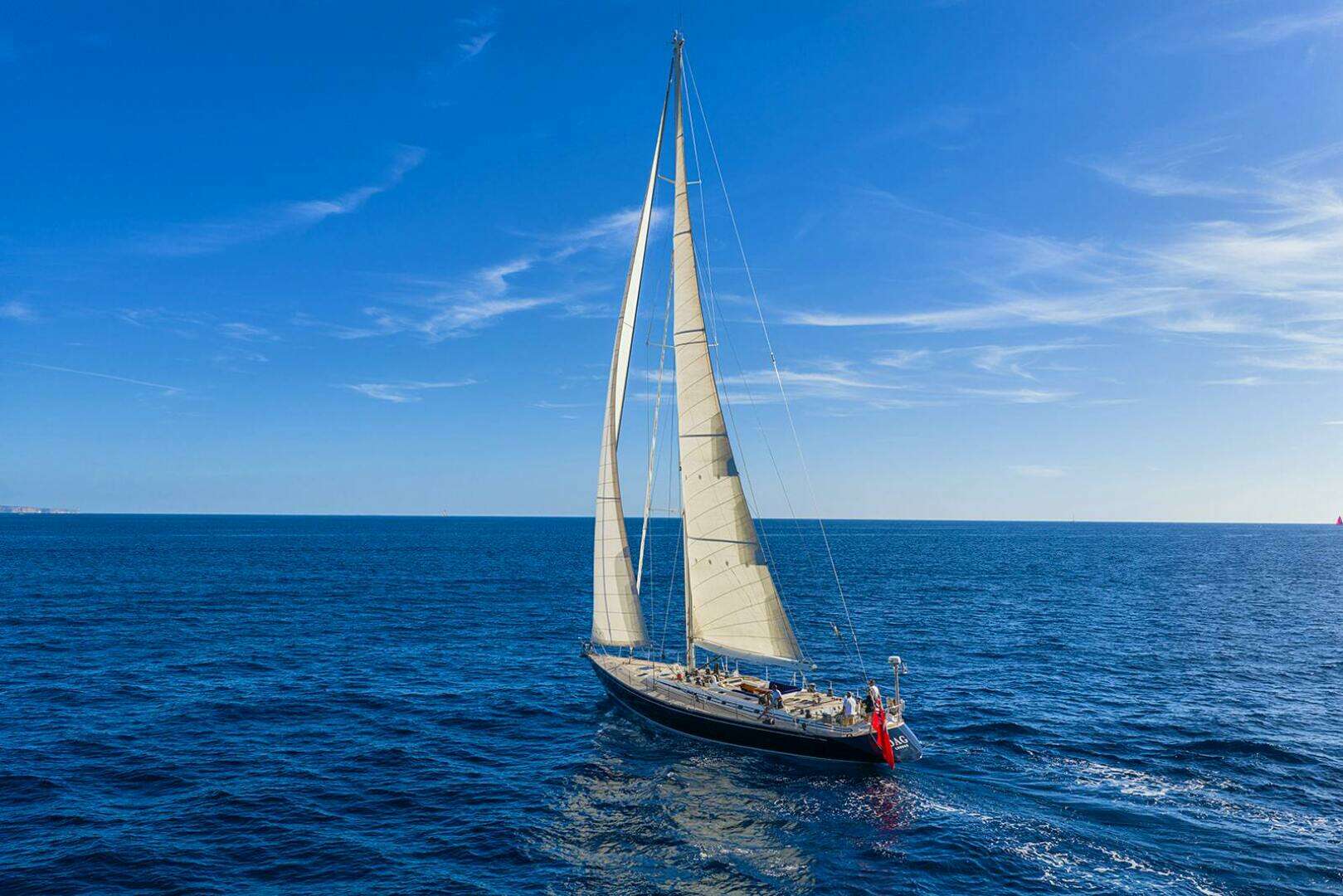

DAG, the 23.60-metre Nautor Swan 77, is hull 4 of the acclaimed 77 Swan series. She was built in 1994 and is celebrated as a potentially most elegant Swan crafted by designer Frers. It boasts numerous recent upgrades including a new engine in 2022, and new generator and teak deck in 2023 and 2024 respectively. Further improvements made in 2024 include new rod standing rigging and overhauled winches and a new teack deck. The yacht is equipped with a carbon mast and boom, and features a sophisticated navigation and communication system by B&G, including chartplotter, radar, and AIS. With a VAT fully paid status, the Swan 77 also includes a variety of modern amenities such as air conditioning throughout, high-end galley appliances, internet Wi-Fi, an entertainment system with a flat-screen LCD TV, and several audio options. Cabin comforts are accentuated with features like a refrigerated wine cellar, a washing machine, dryer, and dishwasher. She accommodates 8 guests in 4 cabins.GENERAL DESCRIPTION
DAG, the 23.60-metre Nautor Swan 77, is hull 4 of the acclaimed 77 Swan series. She was built in 1994 and is celebrated as a potentially most elegant Swan crafted by designer Frers. It boasts numerous recent upgrades including a new engine in 2022, and new generator and teak deck in 2023 and 2024 respectively. Further improvements made in 2024 include new rod standing rigging and overhauled winches and a new teack deck. The yacht is equipped with a carbon mast and boom, and features a sophisticated navigation and communication system by B&G, including chartplotter, radar, and AIS. With a VAT fully paid status, the Swan 77 also includes a variety of modern amenities such as air conditioning throughout, high-end galley appliances, internet Wi-Fi, an entertainment system with a flat-screen LCD TV, and several audio options. Cabin comforts are accentuated with features like a refrigerated wine cellar, a washing machine, dryer, and dishwasher. She accommodates 8 guests in 4 cabins.DECK EQUIPMENT
Bow stainless steel pulpit with sit and gateStainless steel stanchions with port and starboard gates
Stern radar and tv antennas stainless steel pole
6 ballards (2 stern, 2 amidship, 2 bow)
2 stern openable fairleads
8 bulwark fairleads

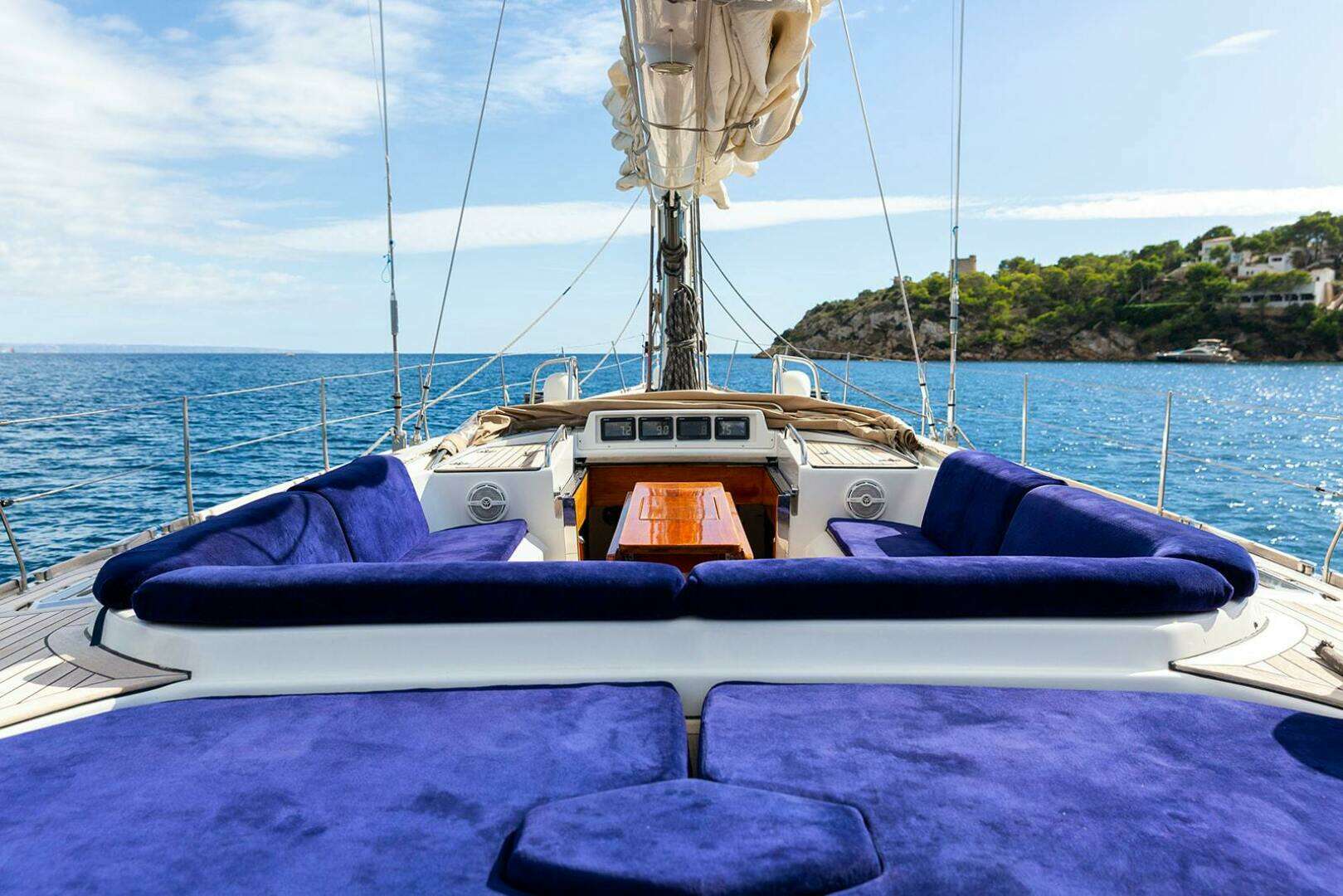

Fore cockpit folding table
Dodger

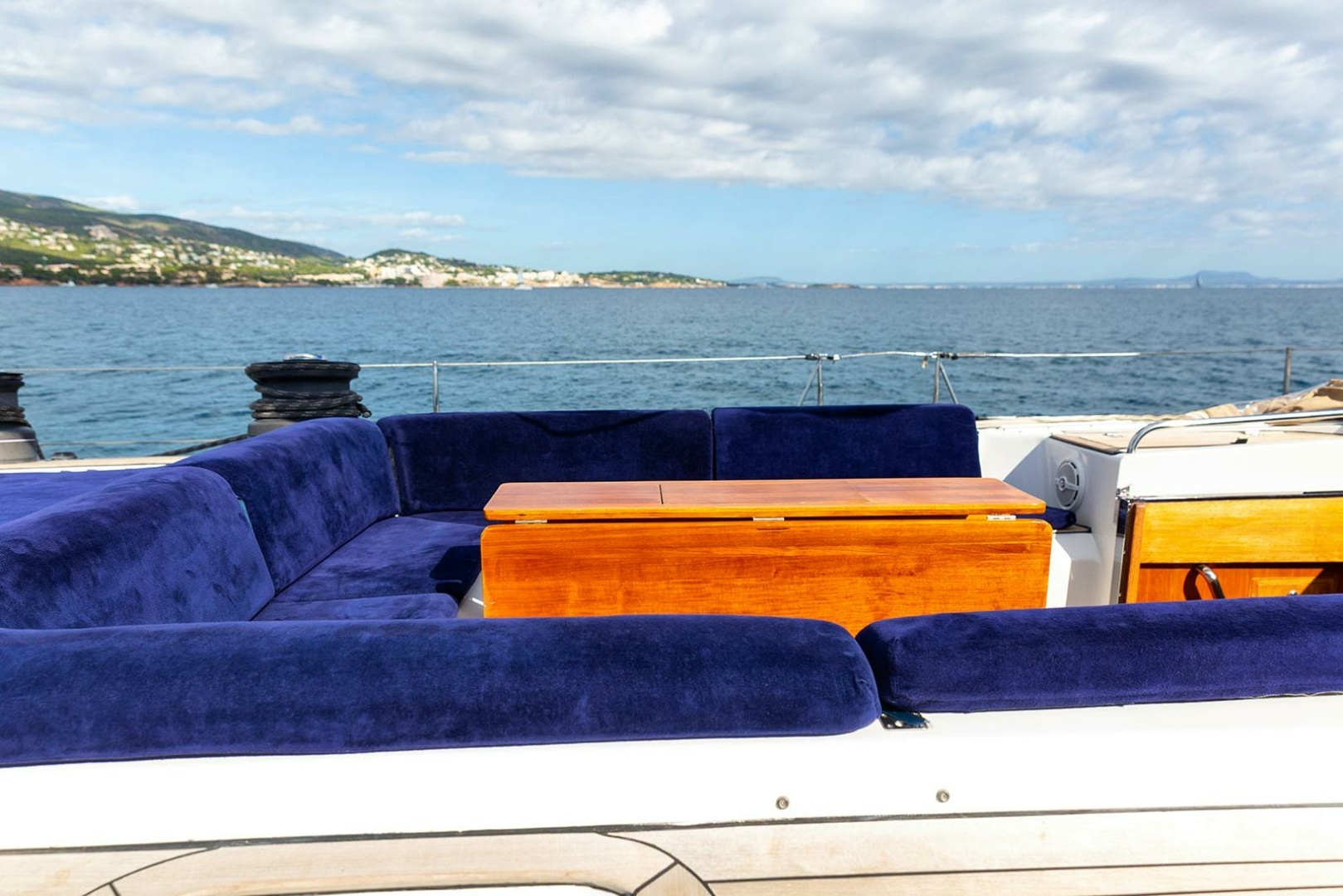

Fore cockpit cushions

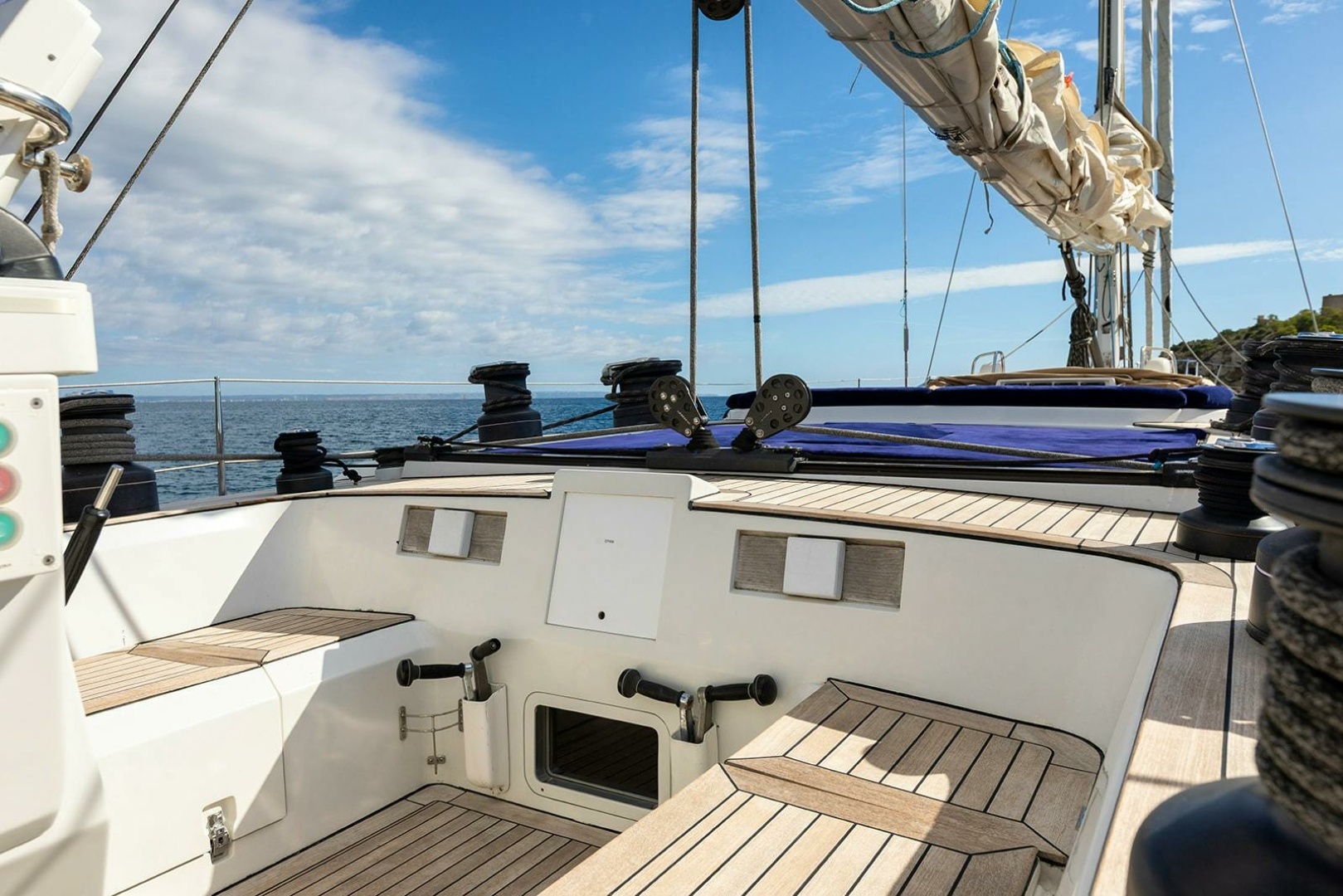

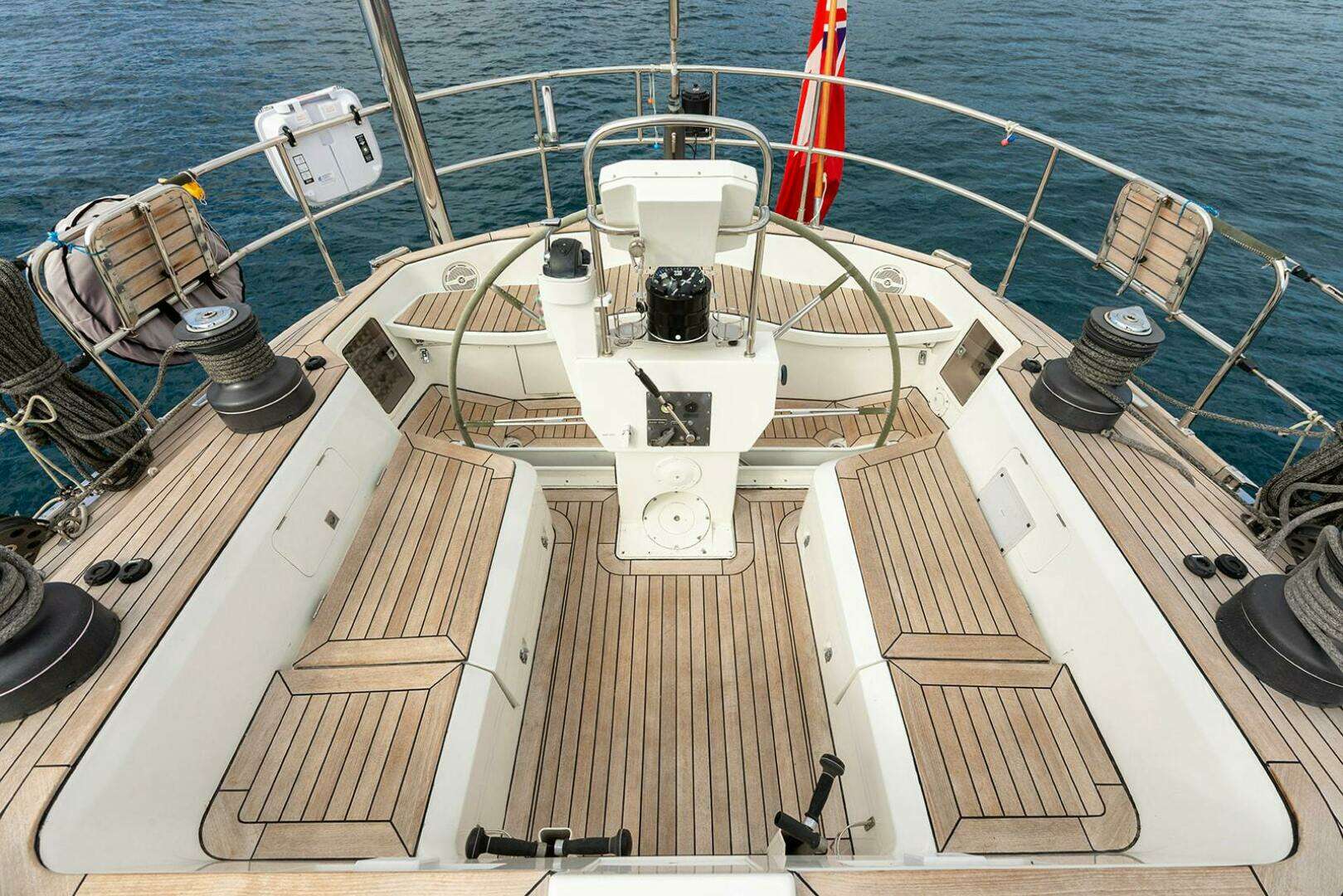

Aft cockpit cushions Wheel Cockpit: Instrument dashbord with plotter/radar display, autopilot control, bow thruster control, electronic engine trottle, engine display, hydraulic fore furlers controls
70 inches wheel elk leather covered
GRP rudder filled with foam, hardened rudder shaft
Stern ventilated gas locker
Hydraulic transom hatch Instruments on deck: 4 B&G H2000 displays above the companionuccio di entrata
Simrad NSE 8, B&G FFD plotter/radar

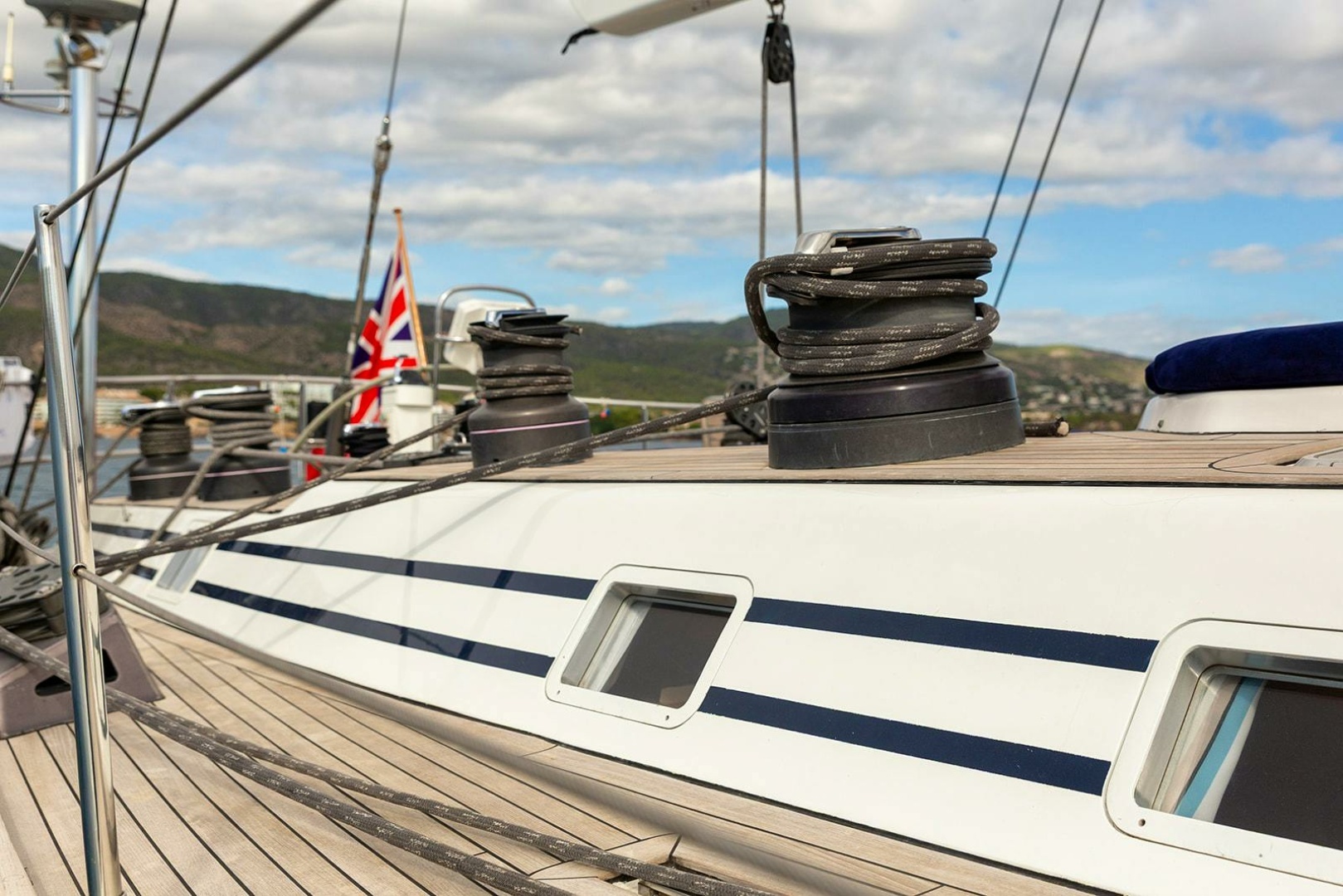

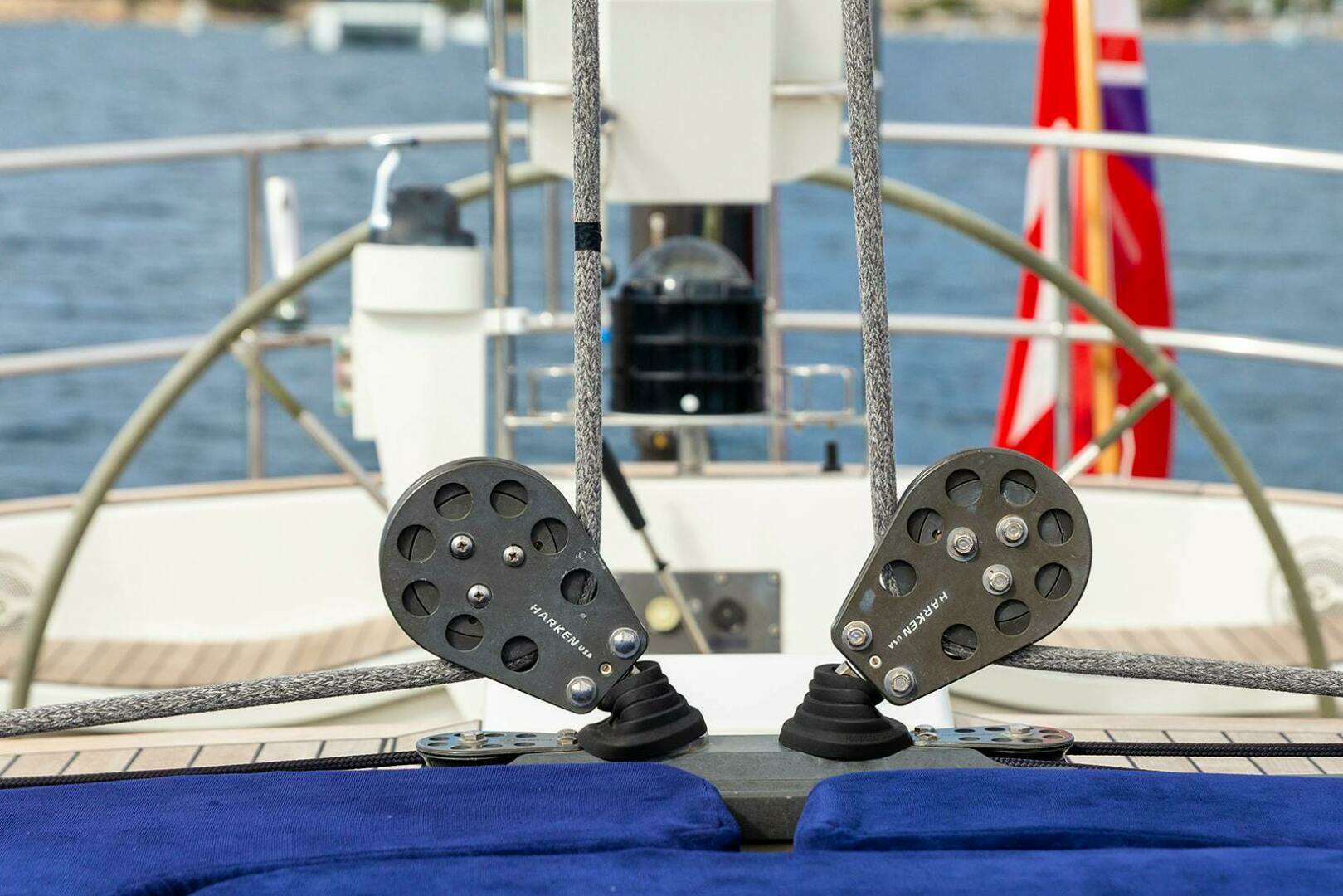

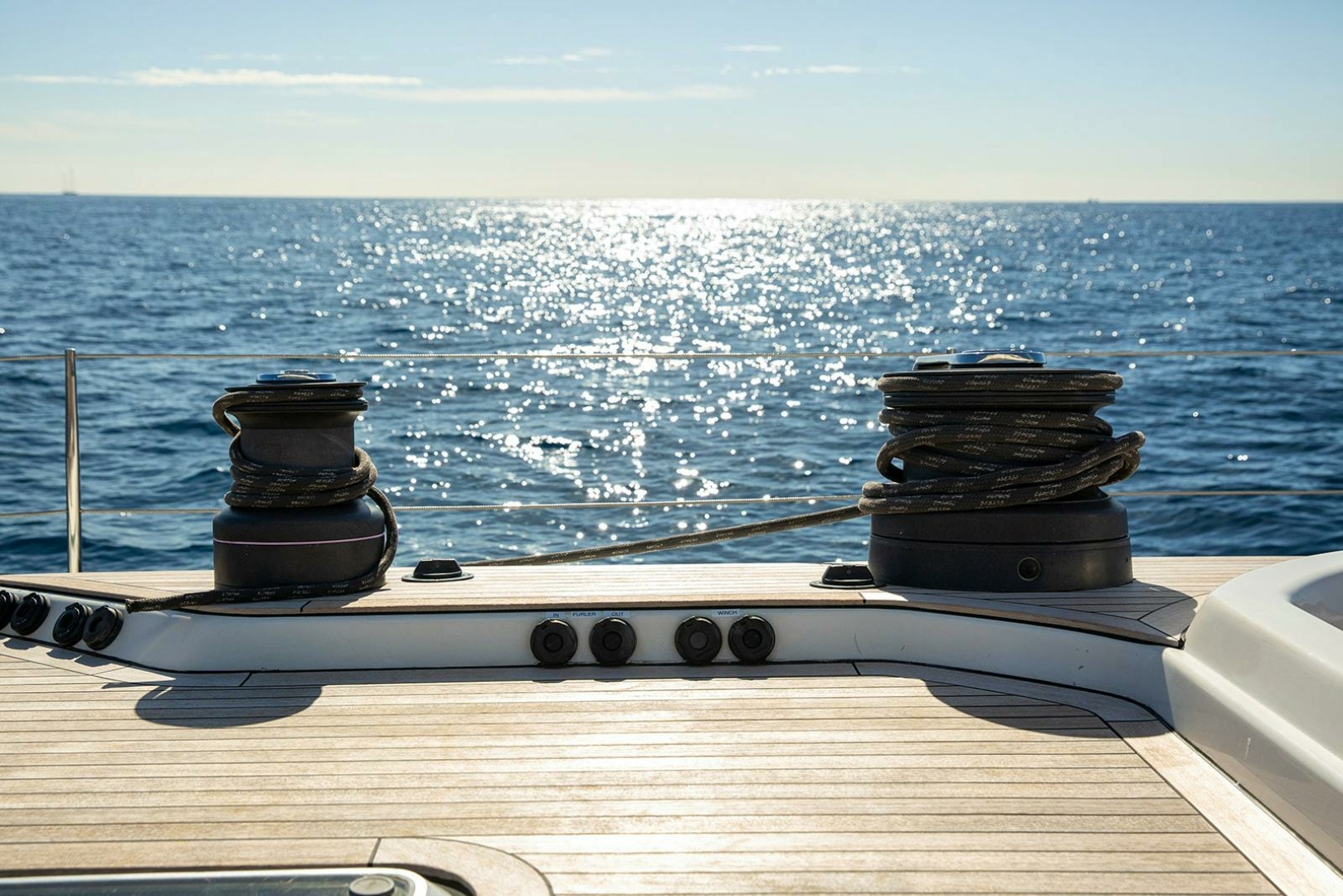

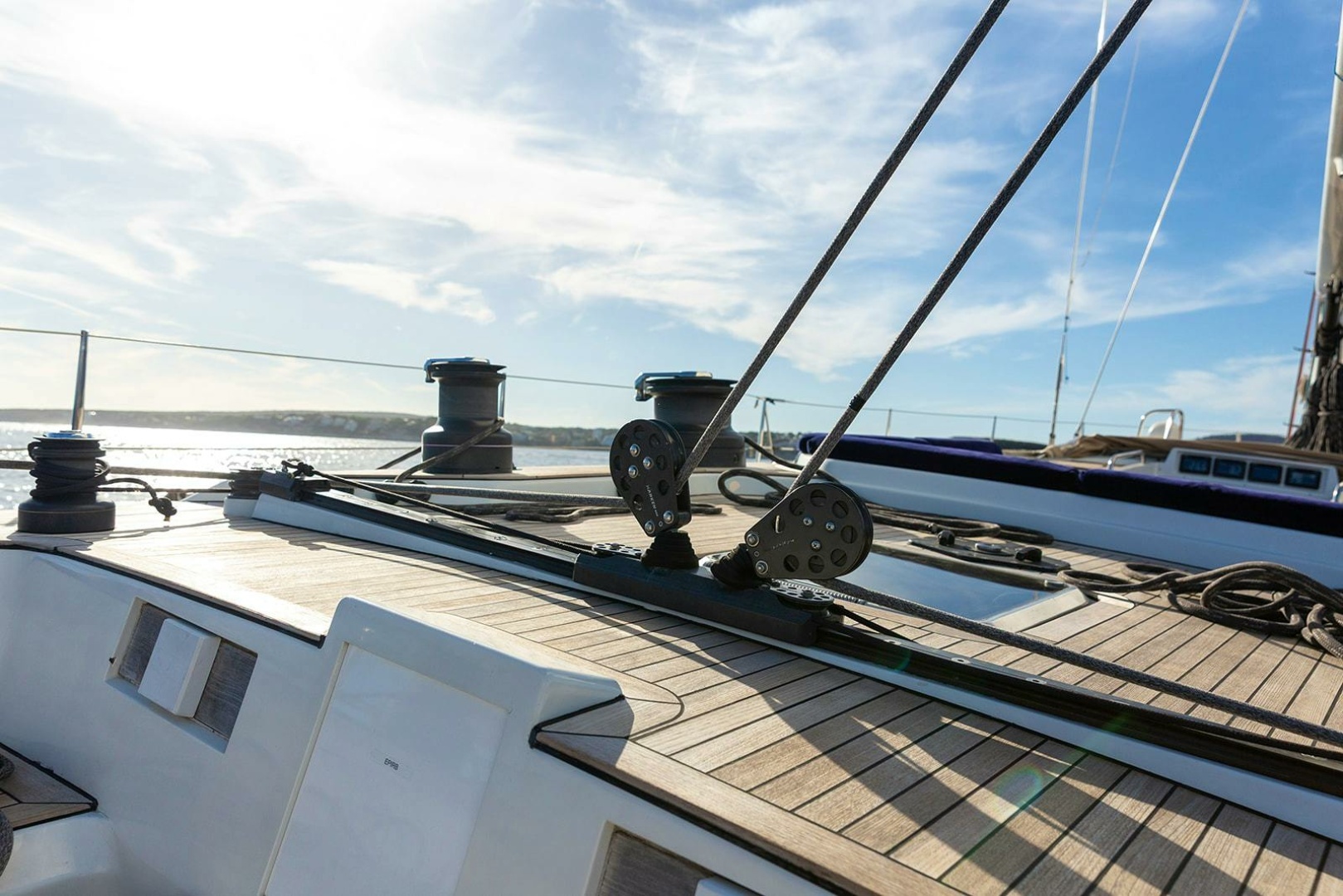

Electric panel Winches: 2 mainsail Harken 42.2 ST
2 downhaul Harken 53.2 ST
4 reef Harken 66.2 ST

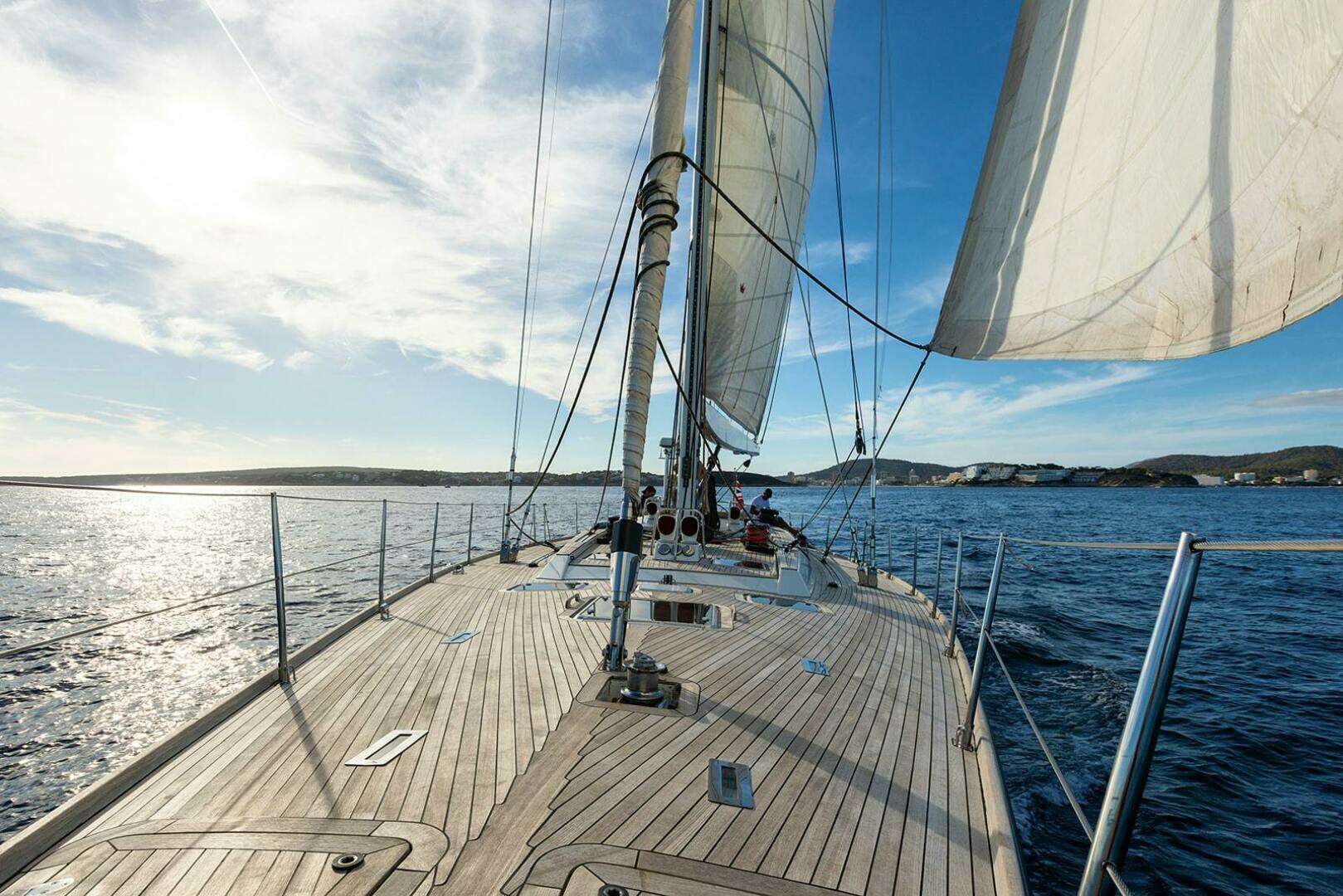

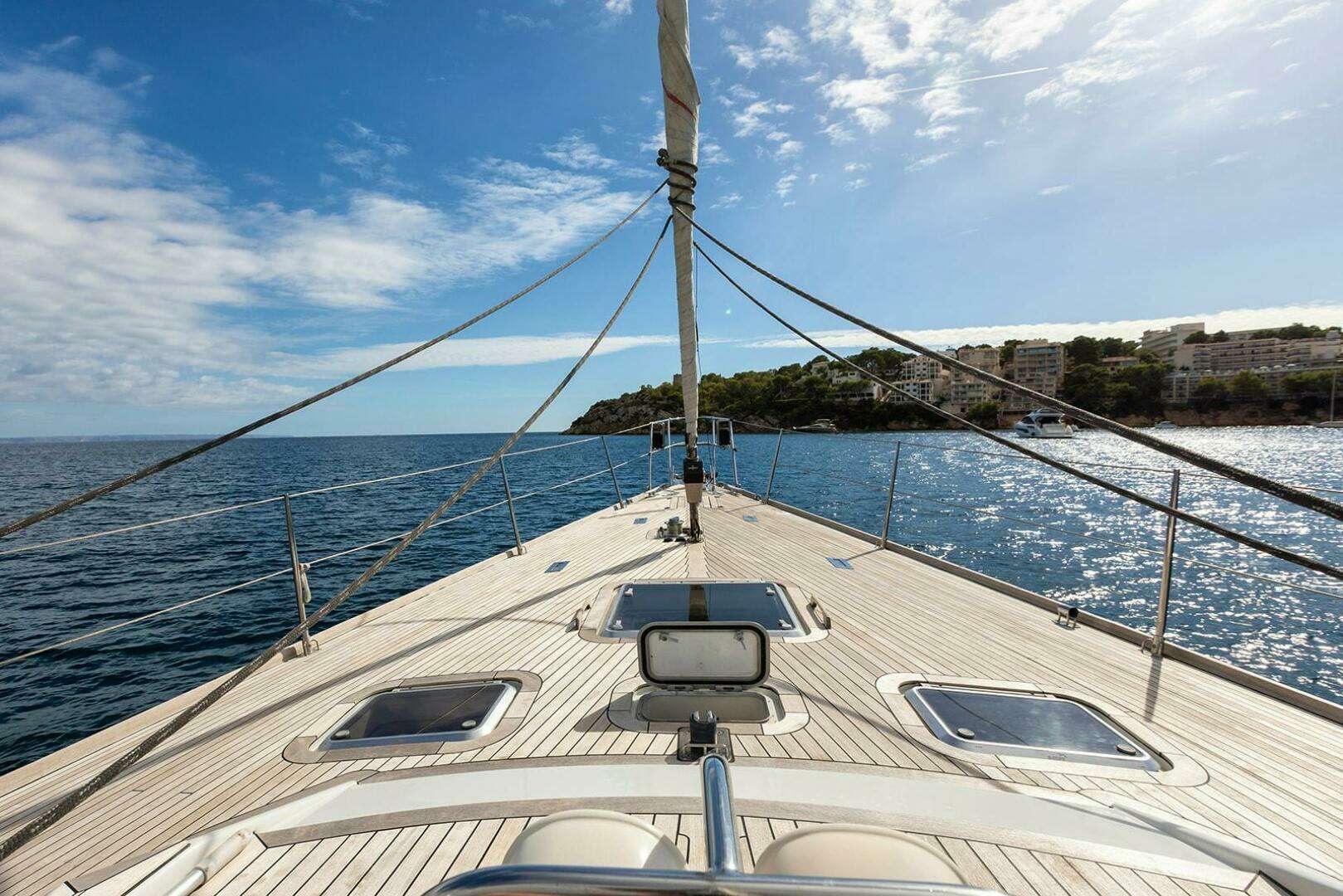

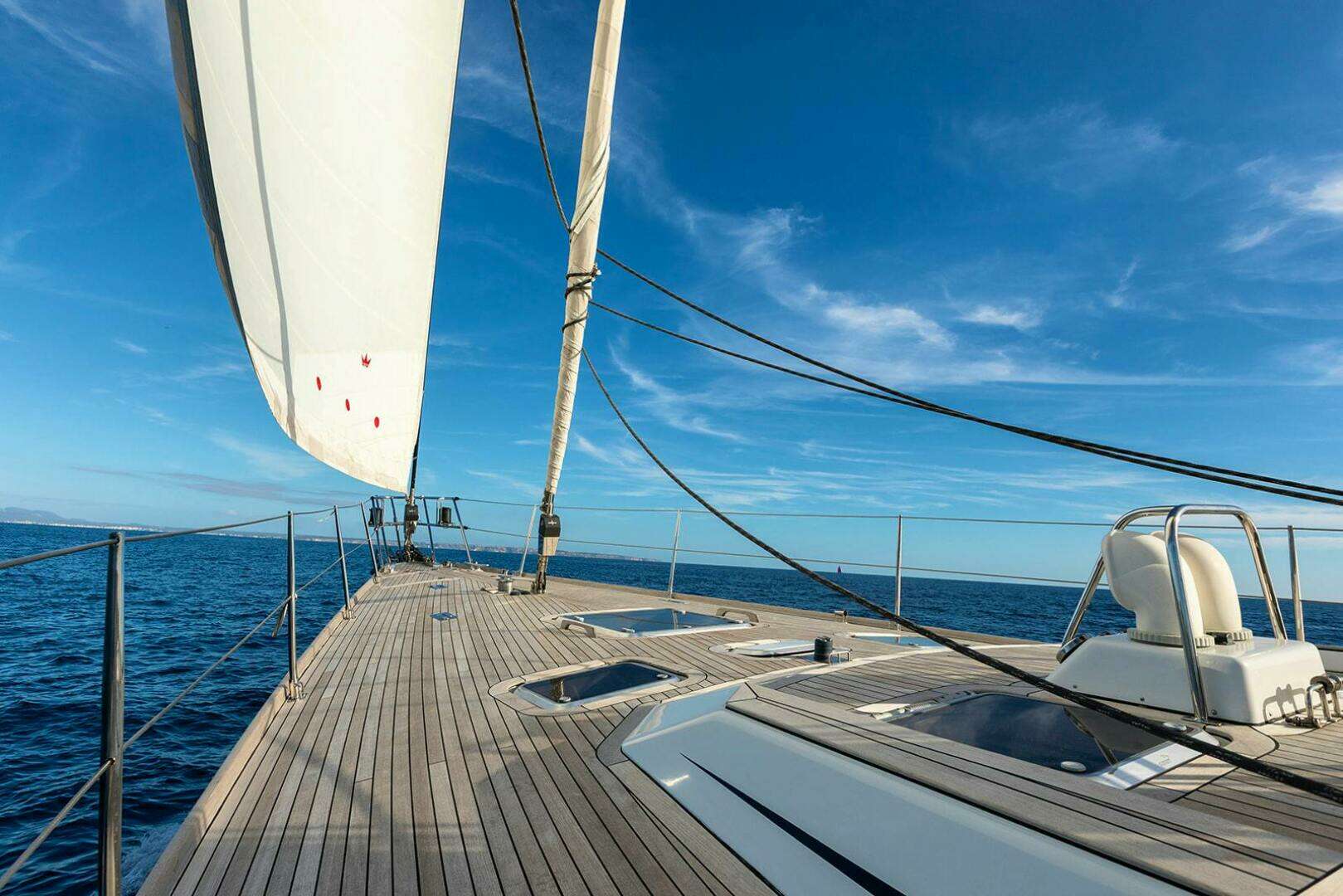

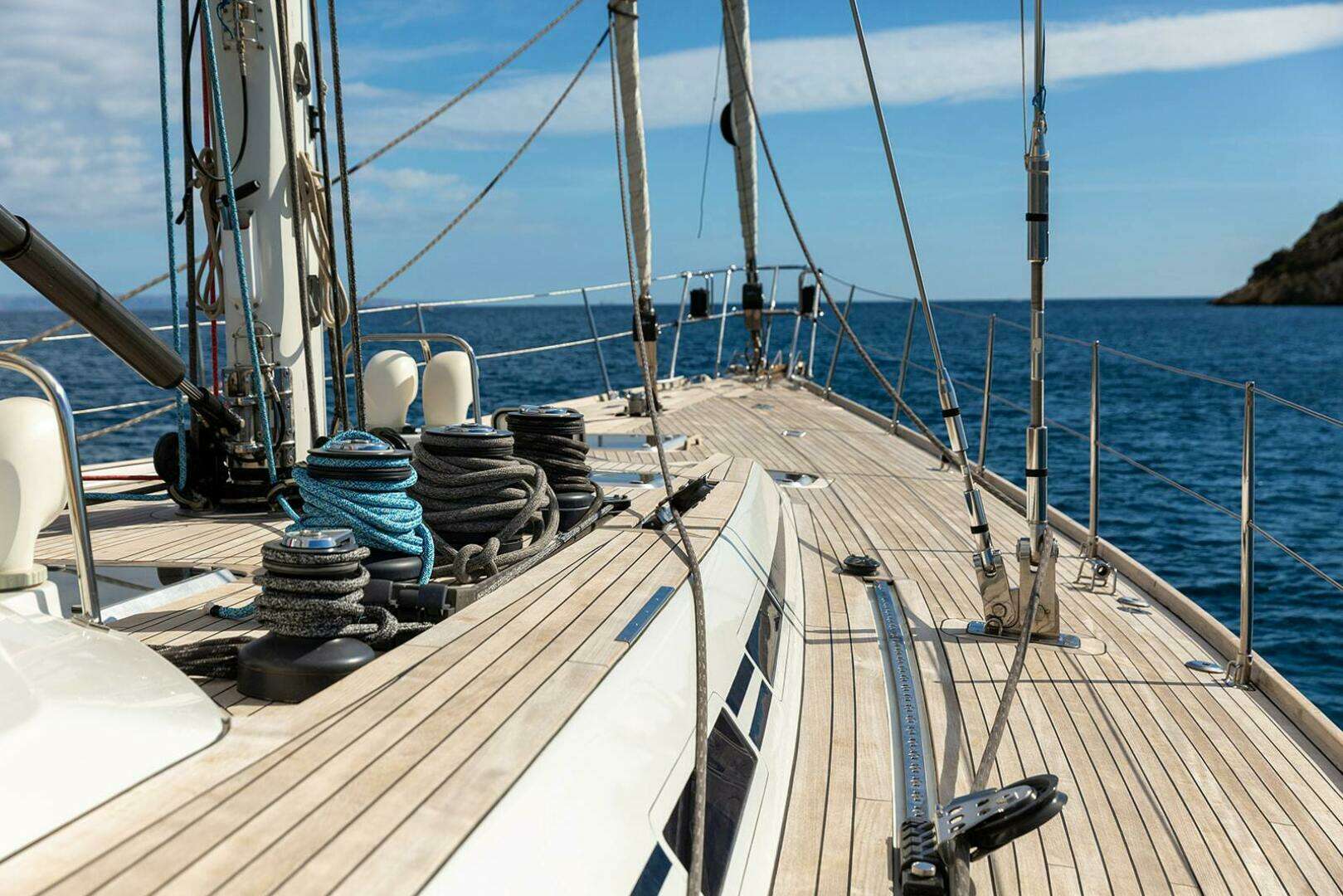

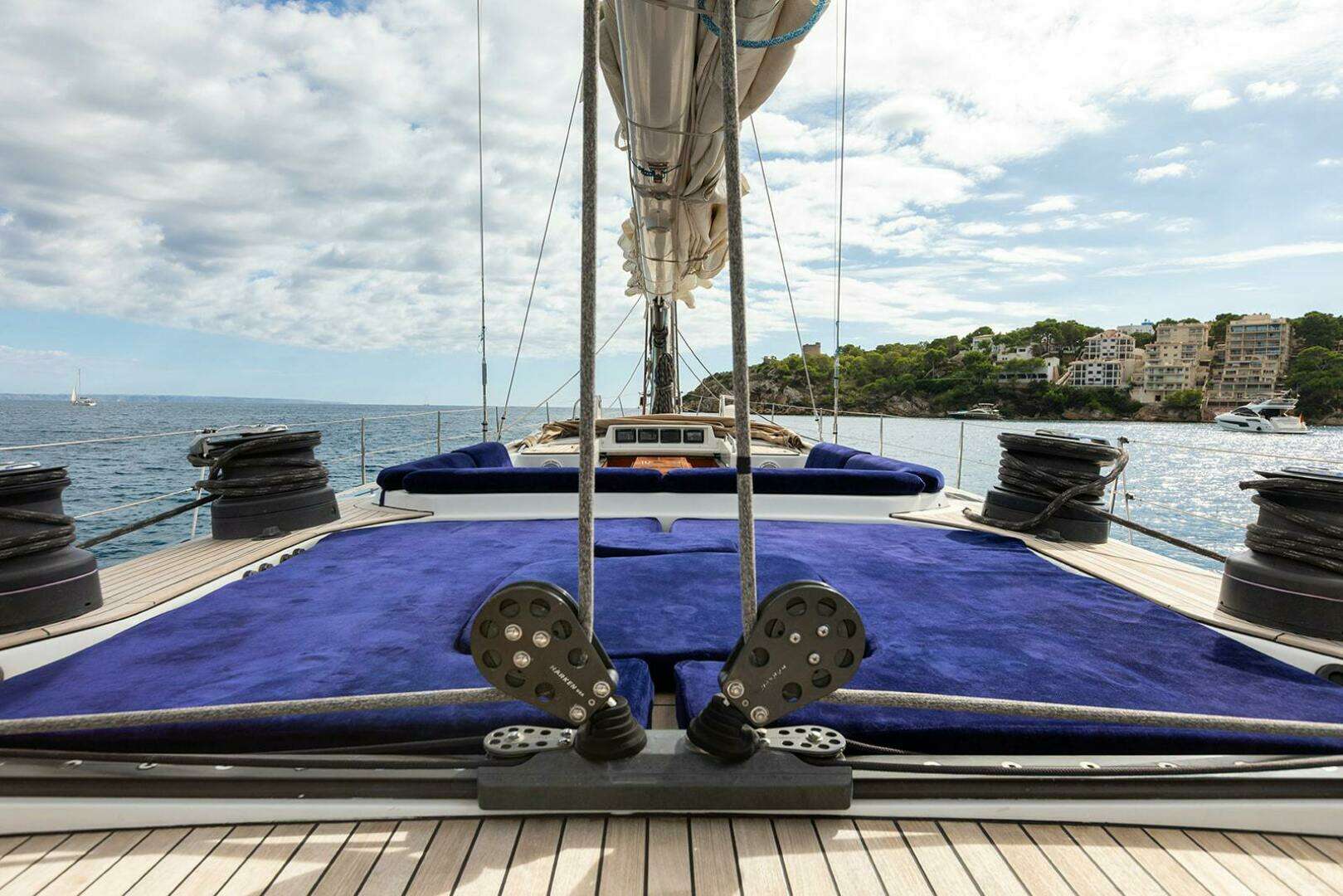

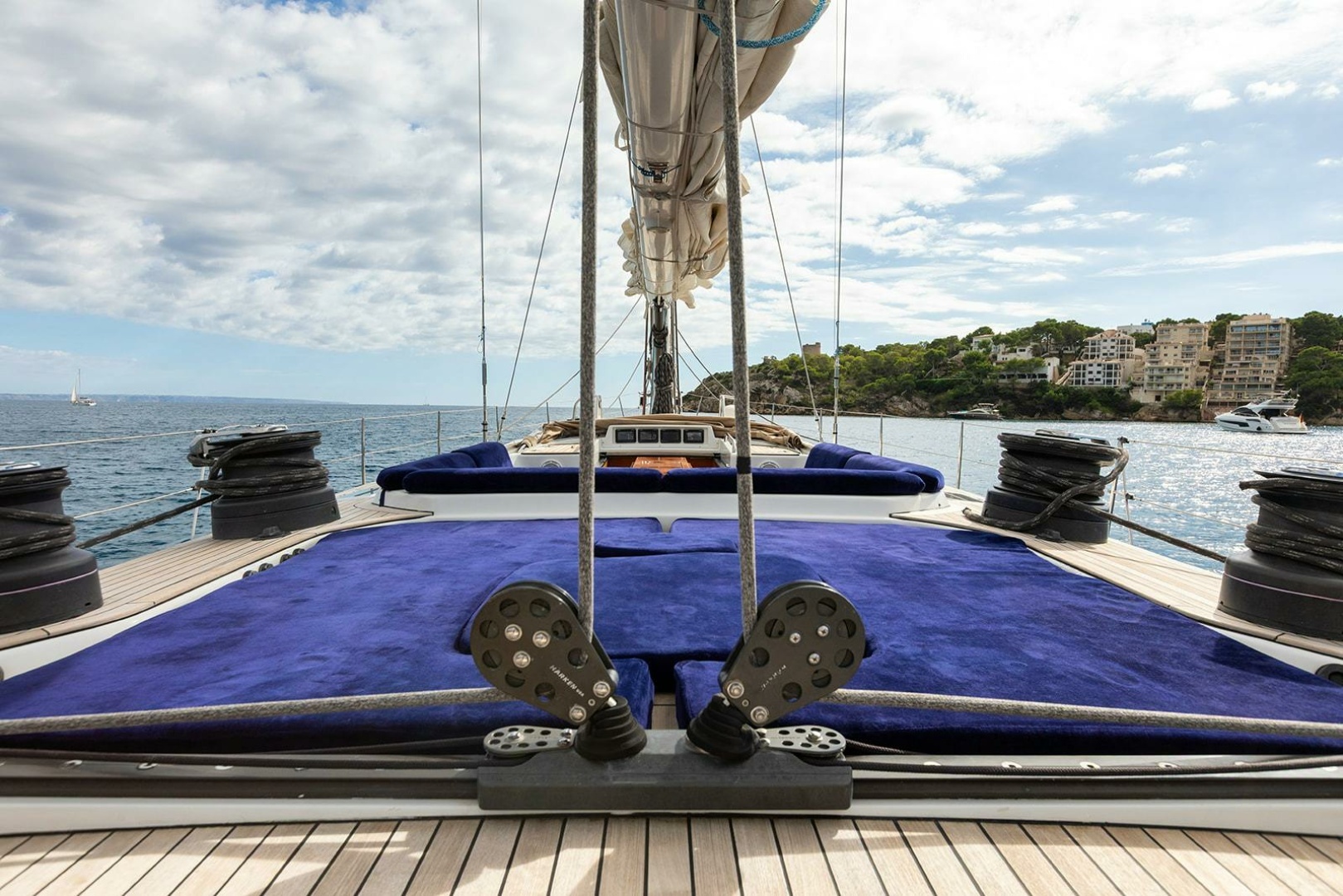

DECK EQUIPMENT
Bow stainless steel pulpit with sit and gateStainless steel stanchions with port and starboard gates
Stern radar and tv antennas stainless steel pole
6 ballards (2 stern, 2 amidship, 2 bow)
2 stern openable fairleads
8 bulwark fairleads

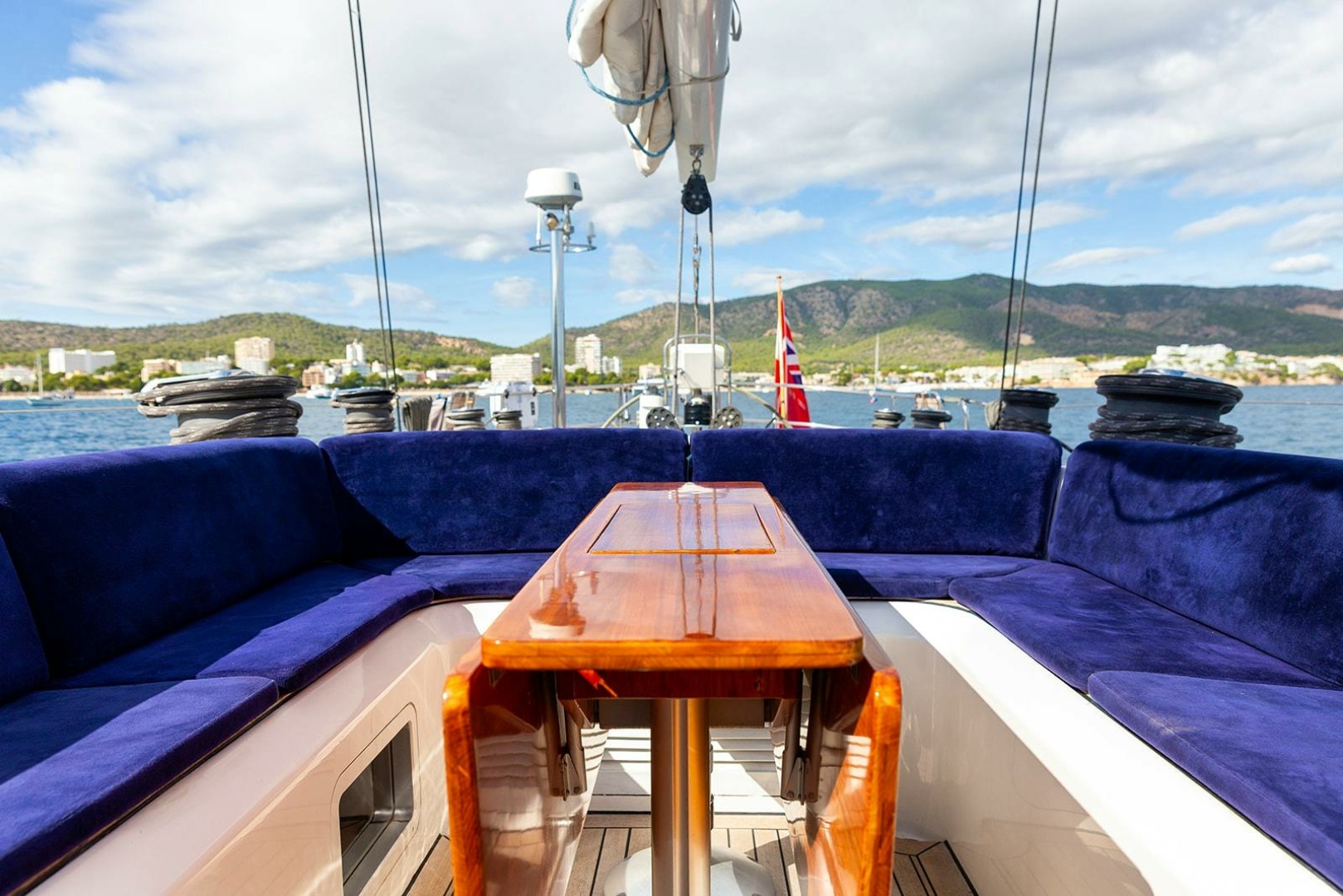

Fore cockpit folding table
Dodger
Fore cockpit cushions
Aft cockpit cushions Wheel Cockpit: Instrument dashbord with plotter/radar display, autopilot control, bow thruster control, electronic engine trottle, engine display, hydraulic fore furlers controls
70 inches wheel elk leather covered
GRP rudder filled with foam, hardened rudder shaft
Stern ventilated gas locker
Hydraulic transom hatch Instruments on deck: 4 B&G H2000 displays above the companionuccio di entrata
Simrad NSE 8, B&G FFD plotter/radar
Electric panel Winches: 2 mainsail Harken 42.2 ST
2 downhaul Harken 53.2 ST
4 reef Harken 66.2 ST
RIGGING, MAST AND SAILS
Rigging and mastCarbon mast
Triple spreader with led lights
Separated storm mainsail Harken rail
Nitronic 50 stainless steel rod shrouds (replaced in May 2015)
Carbon boom Standing rigging
Brands: Harken, Spinlock, Nautor.
Genoa jib and staysail sheet stainless steel Harken rails
Main sail Harken rail
3 + 3 + 2 reef Spinlock jammers

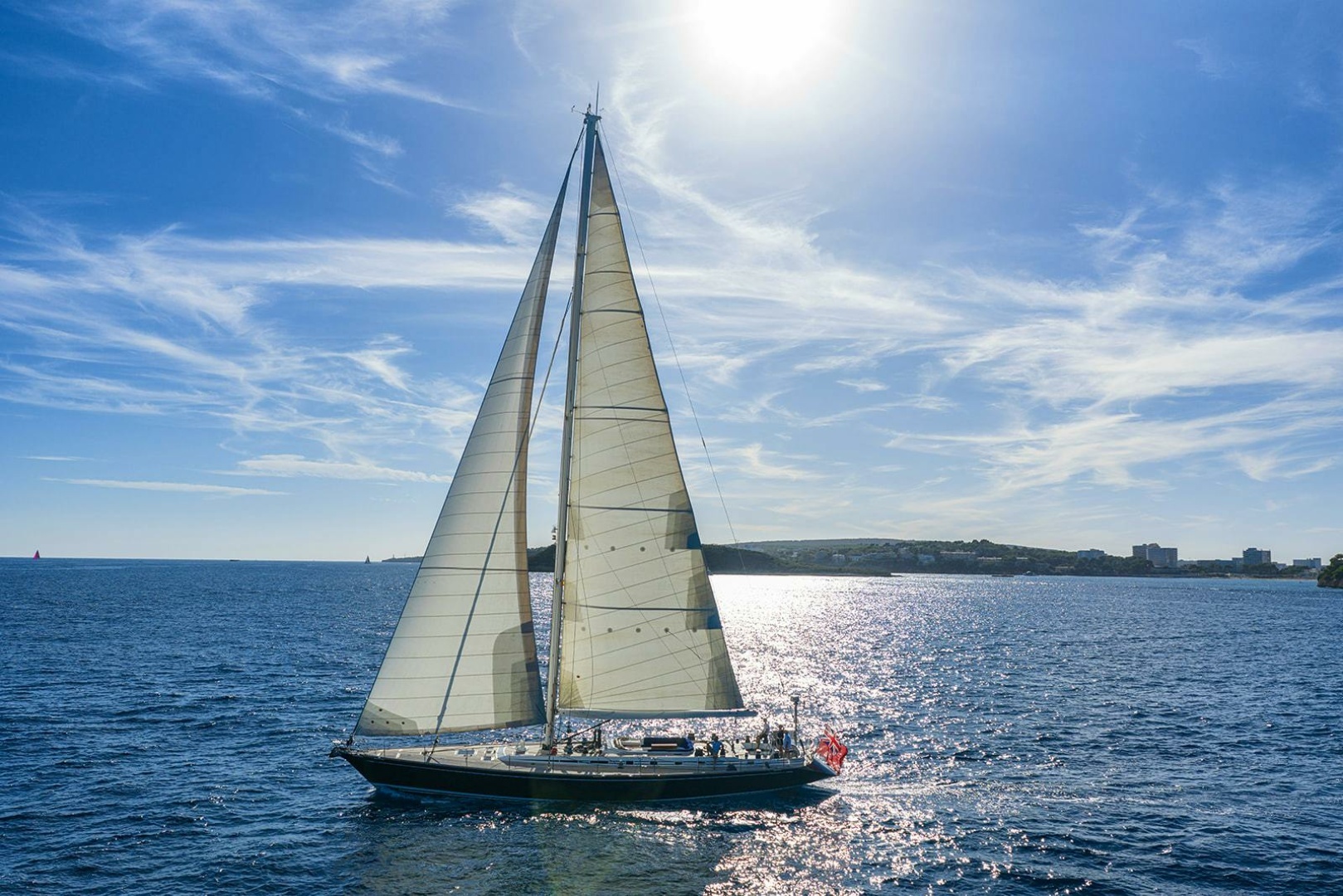

Sails (cutter rig)
1 dacron Elvtröm full batten mainsail
1 dacron Elvtröm jib
1 dacron Elvtröm staysail
1 gennaker Elvtröm with sock
1 dacron Elvtröm storm mainsail
I = 30,00 m
J = 9,10 m
P = 27,40 m
E = 9,10 m
Fore triangle = 136,5 m²
Main sail = 124,7 m²
100% jib = 136,5 m²
Spinnaker = 491 m2
RIGGING, MAST AND SAILS
Rigging and mastCarbon mast
Triple spreader with led lights
Separated storm mainsail Harken rail
Nitronic 50 stainless steel rod shrouds (replaced in May 2015)
Carbon boom Standing rigging
Brands: Harken, Spinlock, Nautor.
Genoa jib and staysail sheet stainless steel Harken rails
Main sail Harken rail
3 + 3 + 2 reef Spinlock jammers
Sails (cutter rig)
1 dacron Elvtröm full batten mainsail
1 dacron Elvtröm jib
1 dacron Elvtröm staysail
1 gennaker Elvtröm with sock
1 dacron Elvtröm storm mainsail
I = 30,00 m
J = 9,10 m
P = 27,40 m
E = 9,10 m
Fore triangle = 136,5 m²
Main sail = 124,7 m²
100% jib = 136,5 m²
Spinnaker = 491 m2

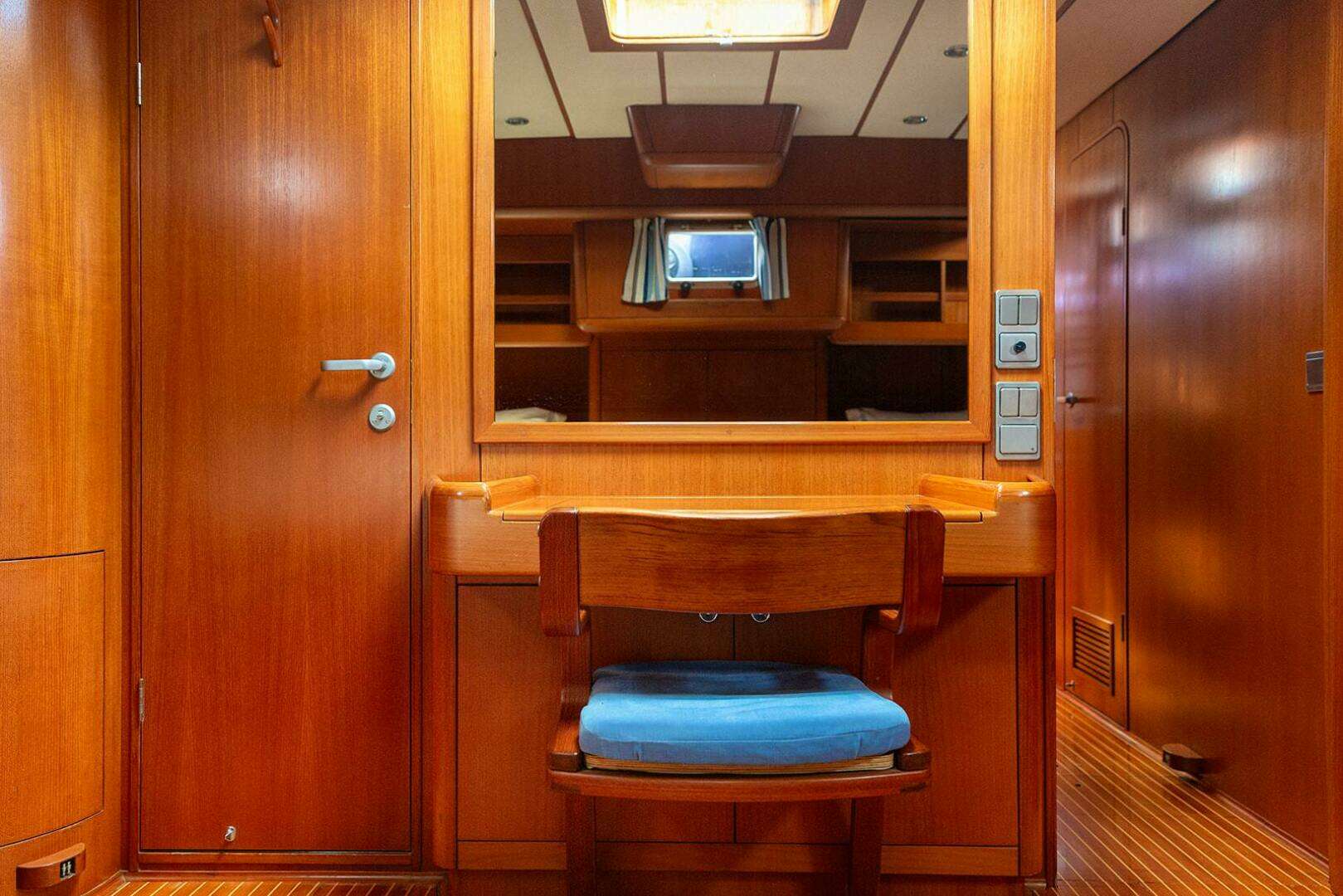

ACCOMMODATIONS & INTERIOR
Owner:- Master cabin aft with two queen doubles. Forward facing sofa. Owners study with classic Nautor Swan chair and desk. Lots of natural light through three portholes. Two hanging wardrobes and lots of additional storage in drawers under beds and head height cupboards.

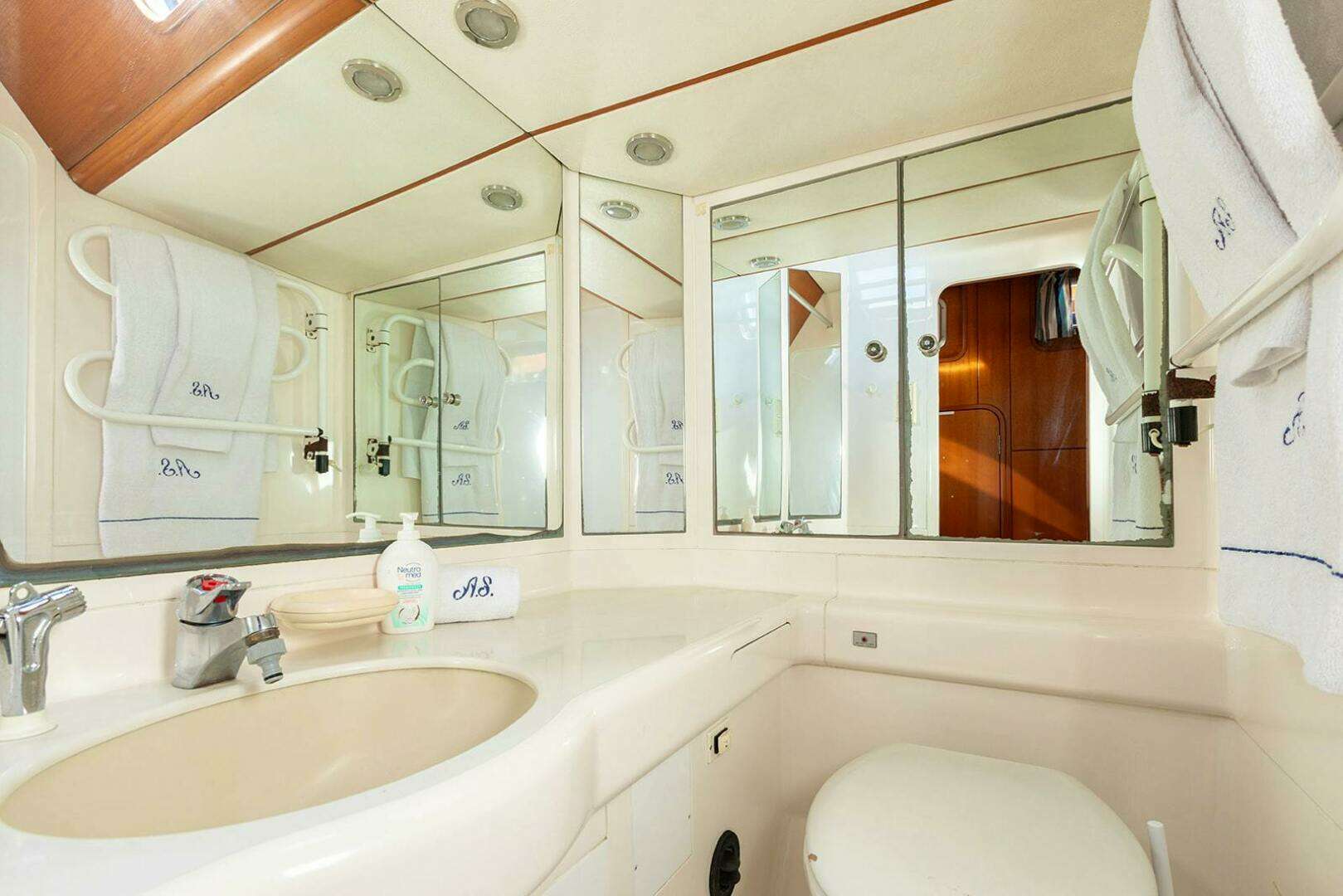

- Ensuite with large shower.

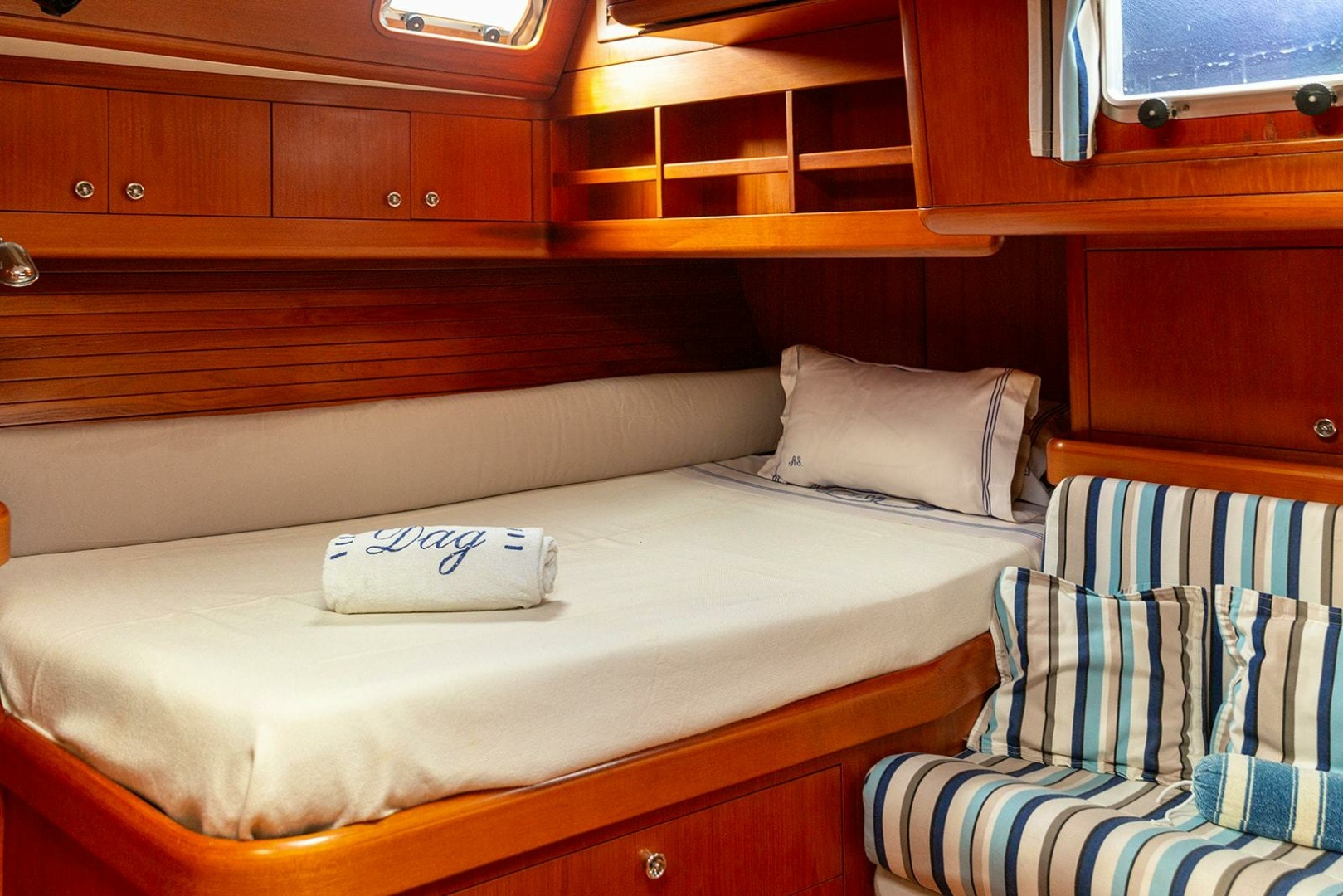

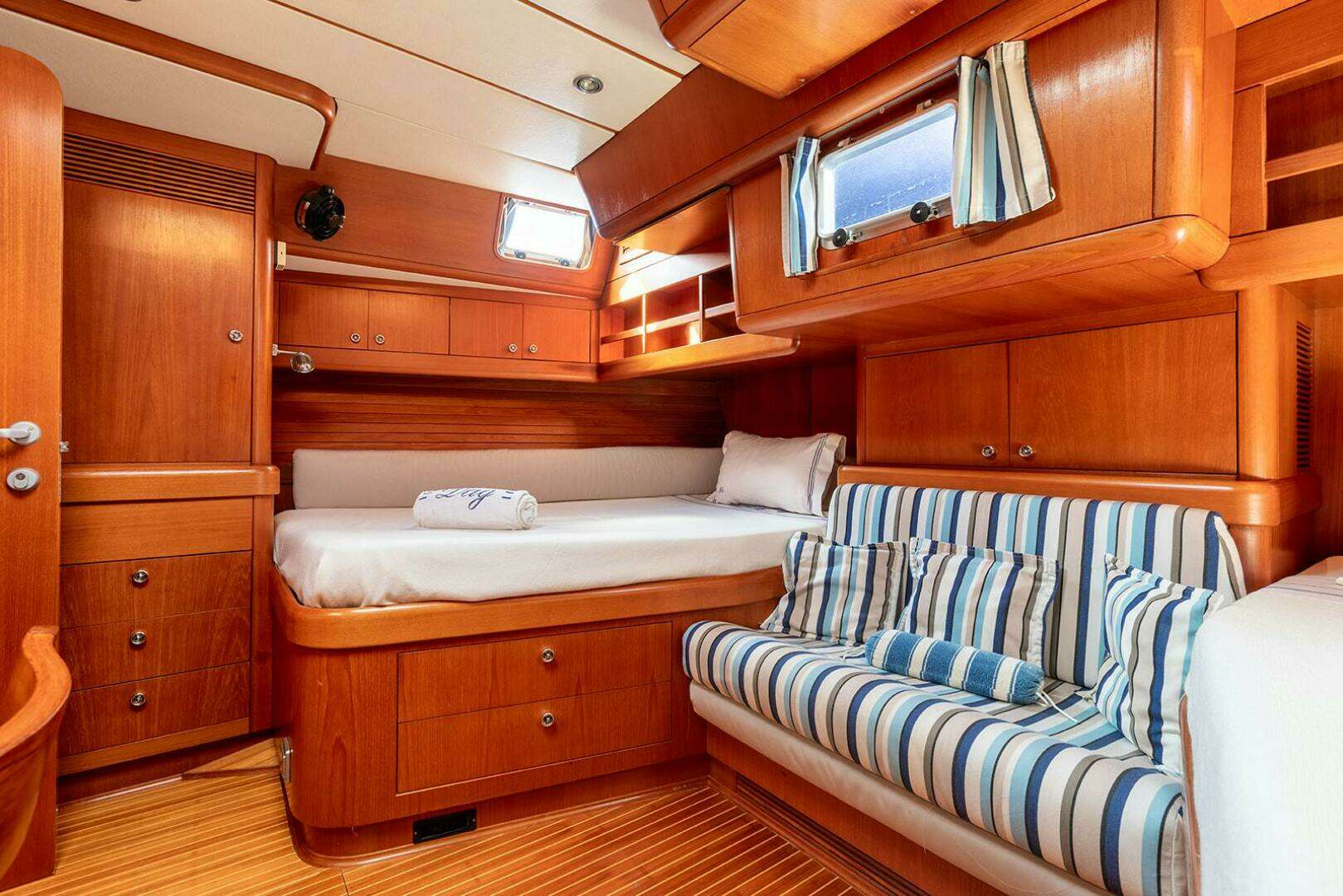

Guests:

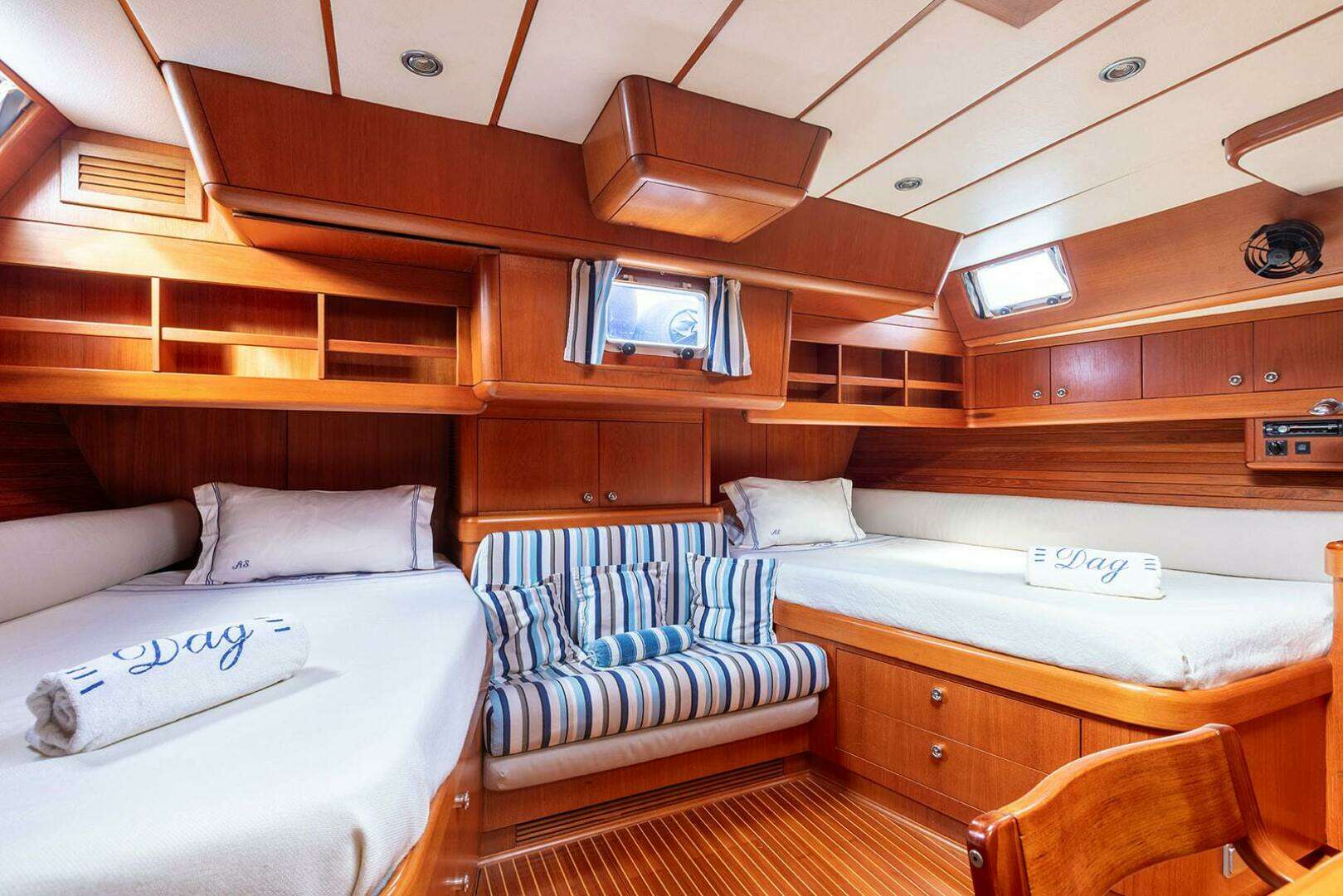

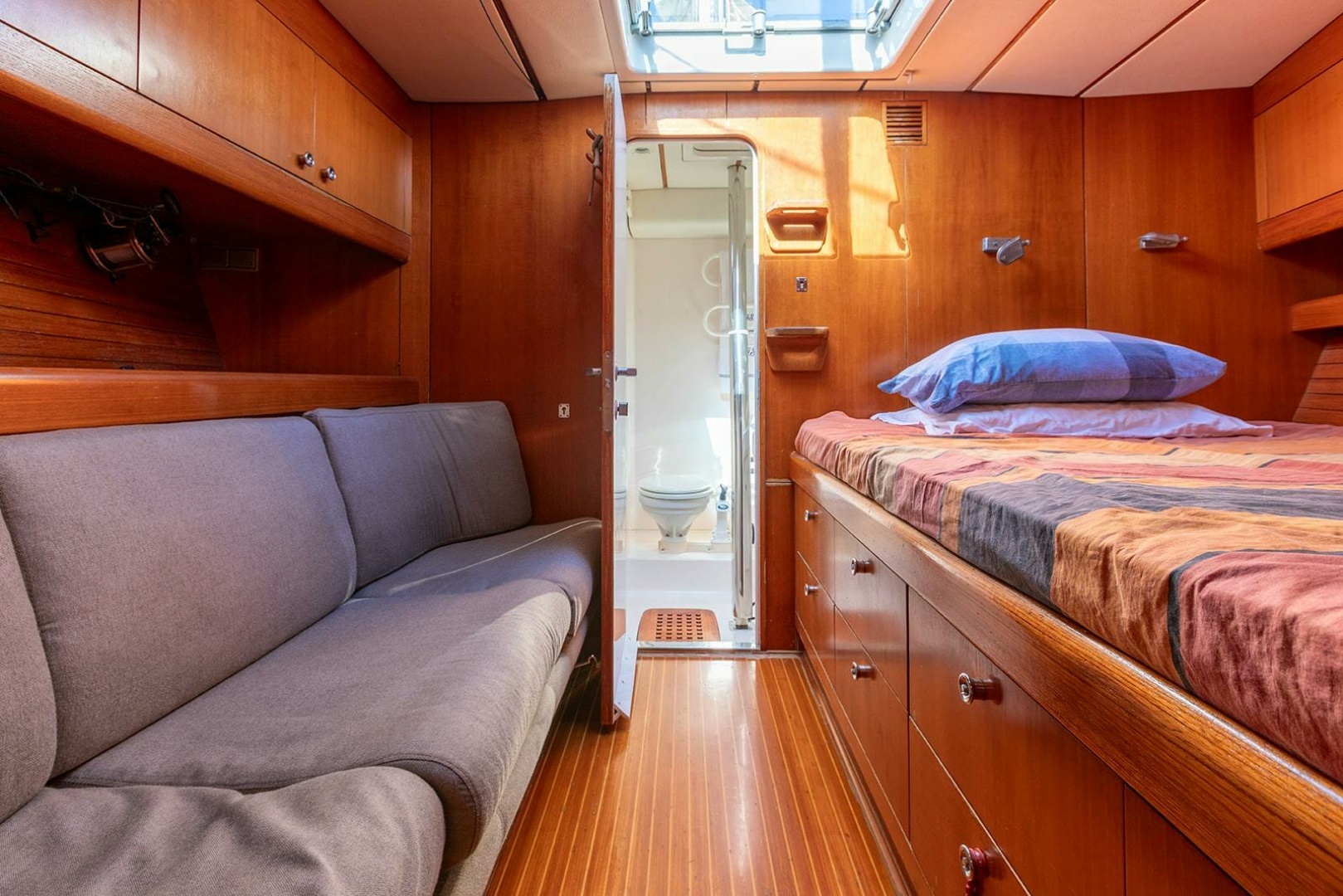

- Two mirror image ensuite guest cabins midship with large lower beds and upper bunks. Hanging wardrobes, large dress mirror and sofas. Lots of natural light through large deck hatch.

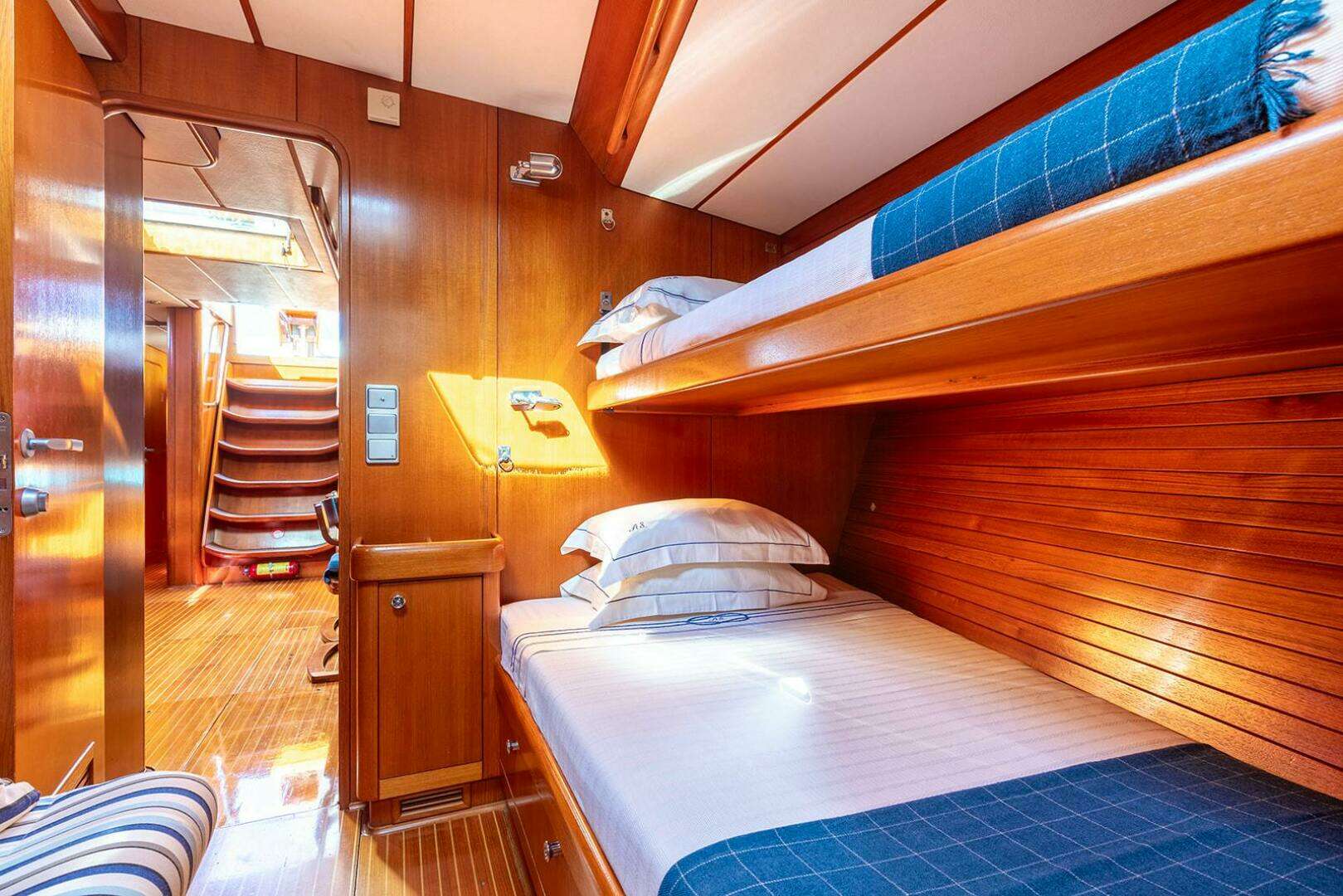

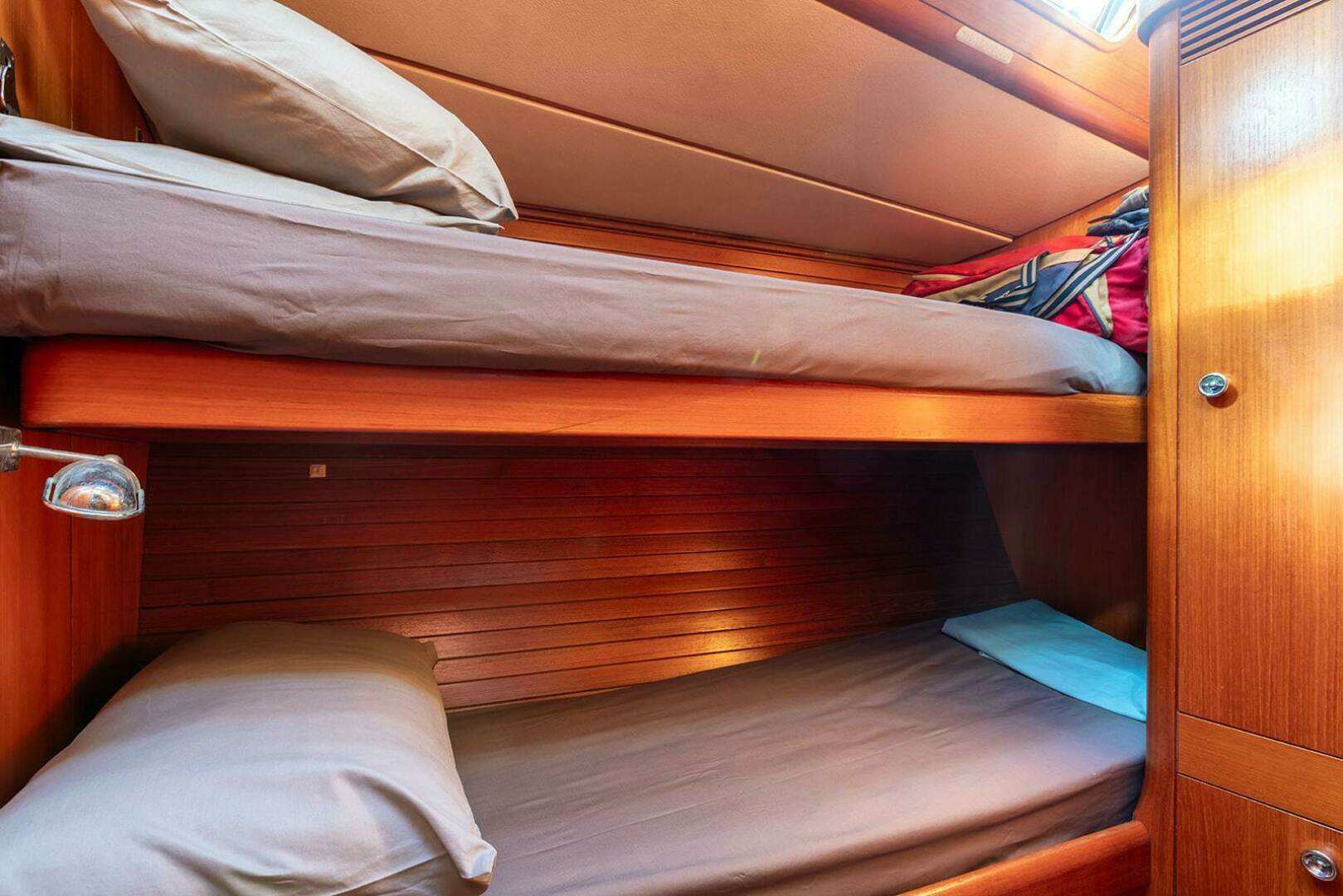

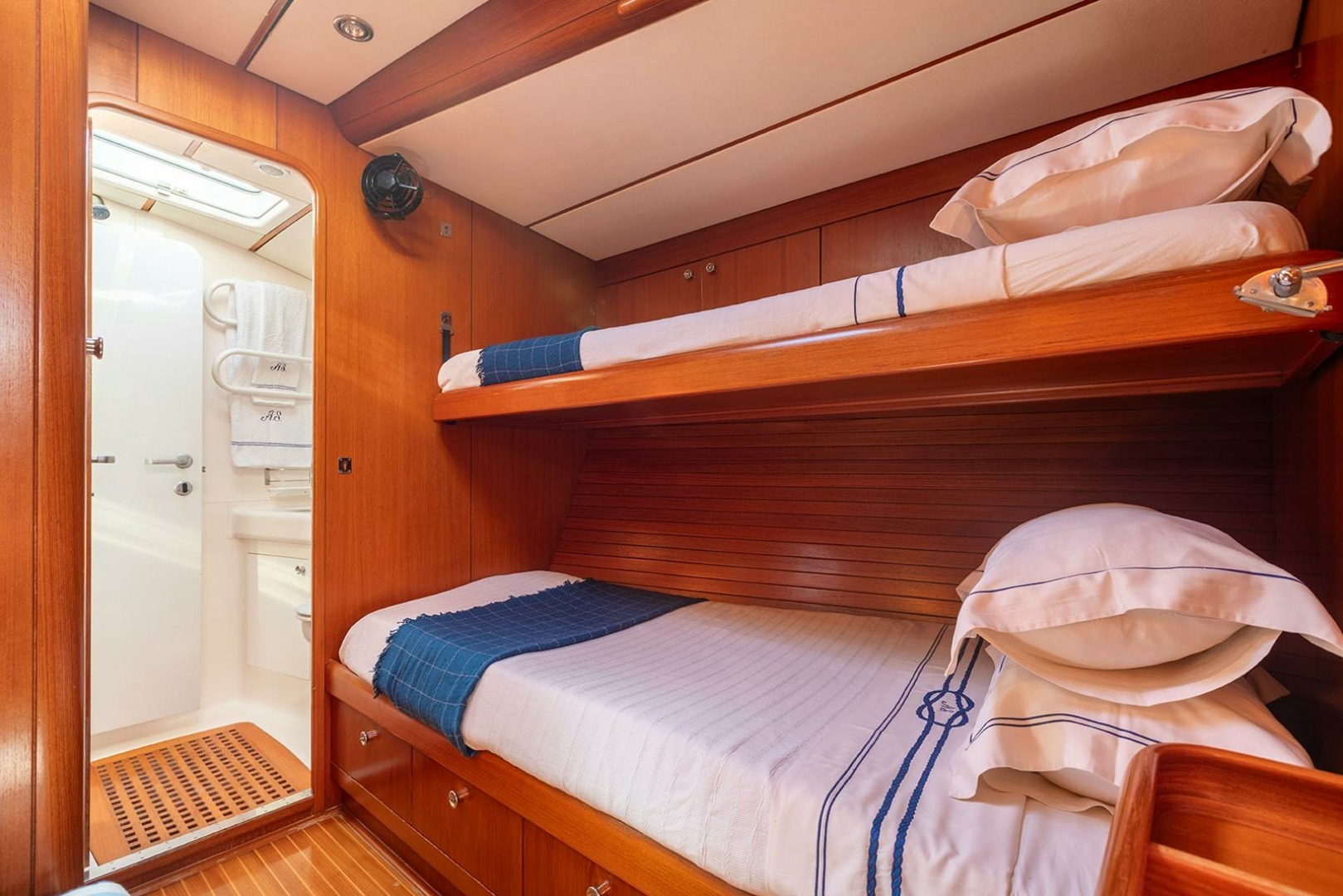

- One smaller bunk cabin aft-starboard. Uses day-head as it’s ensuite.
- Crew area forward with large double bed and sofa. Hanging wardrobe and lots of extra storage forward. Main entrance through ensuite and second entrance through foredeck hatch via teak steps.
- Classic Nautor Swan varnished teak interior with exceptional workmanship.

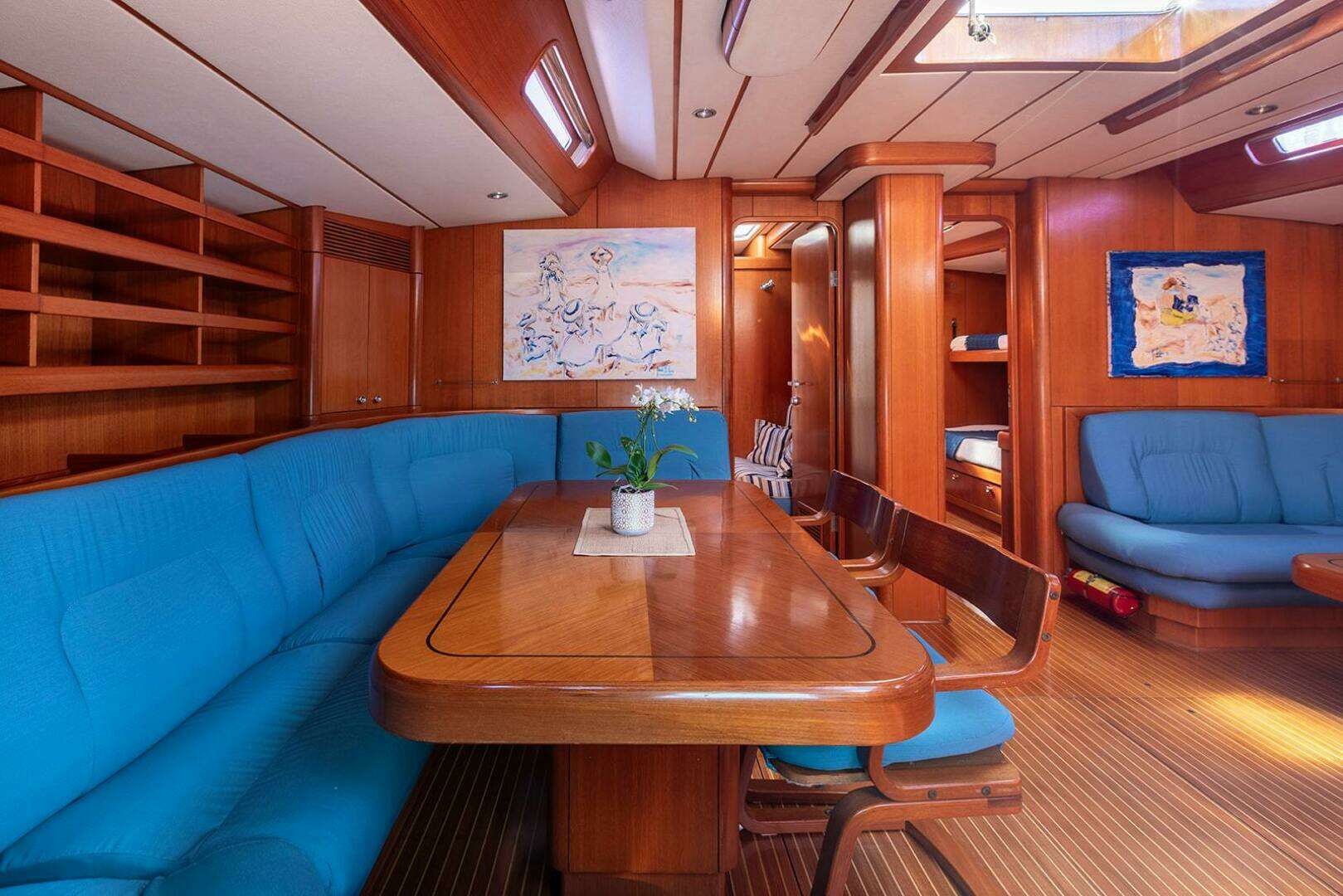

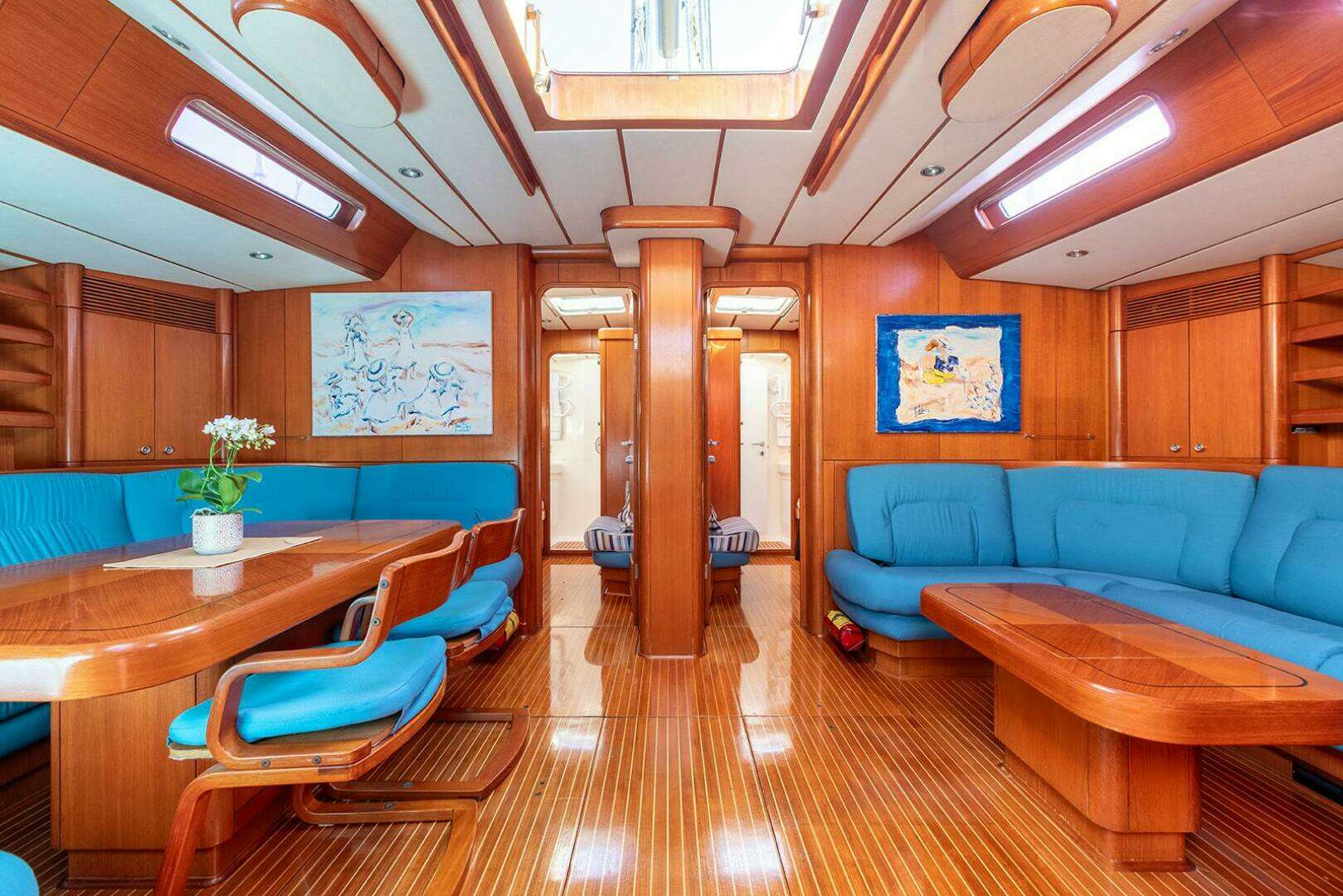

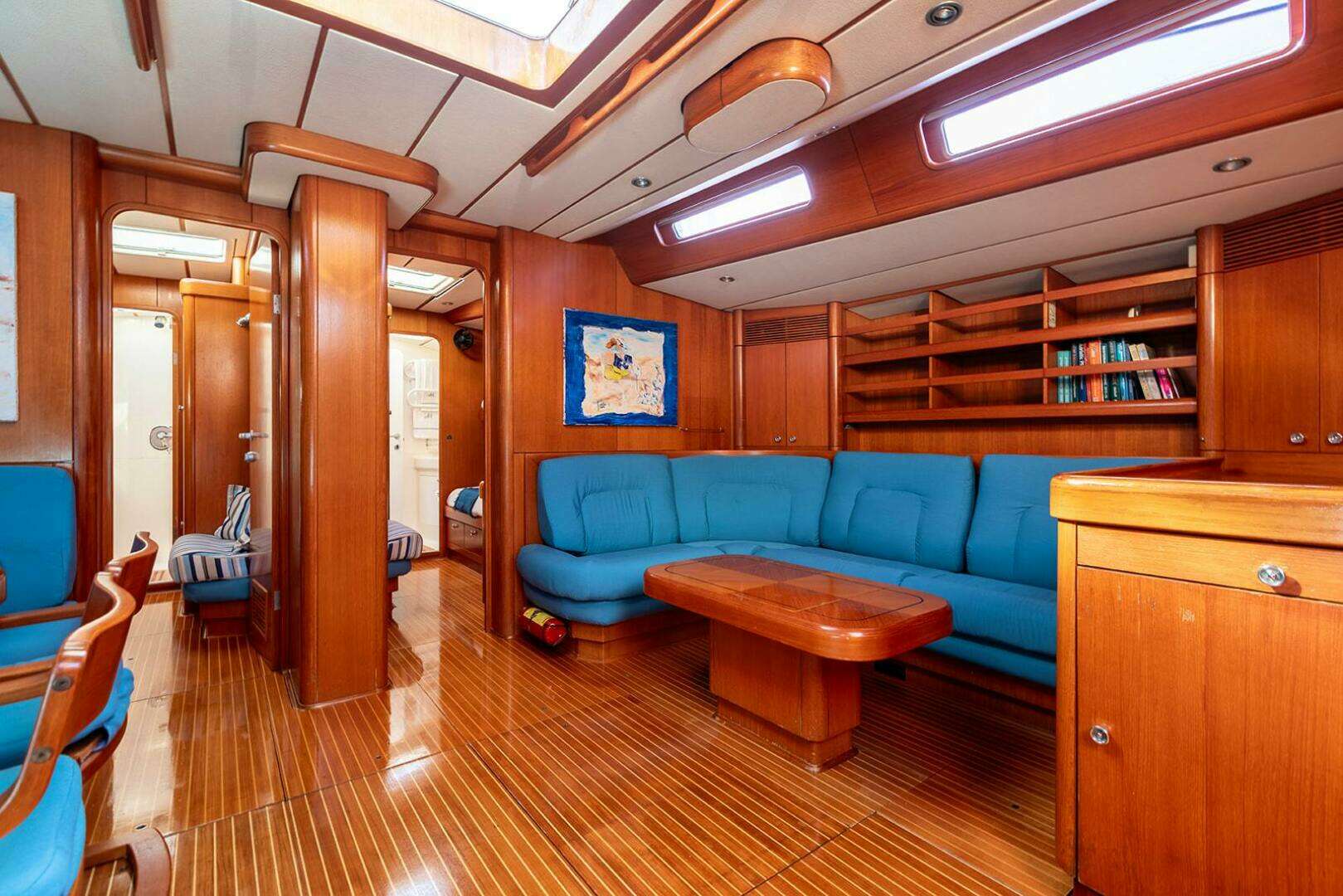

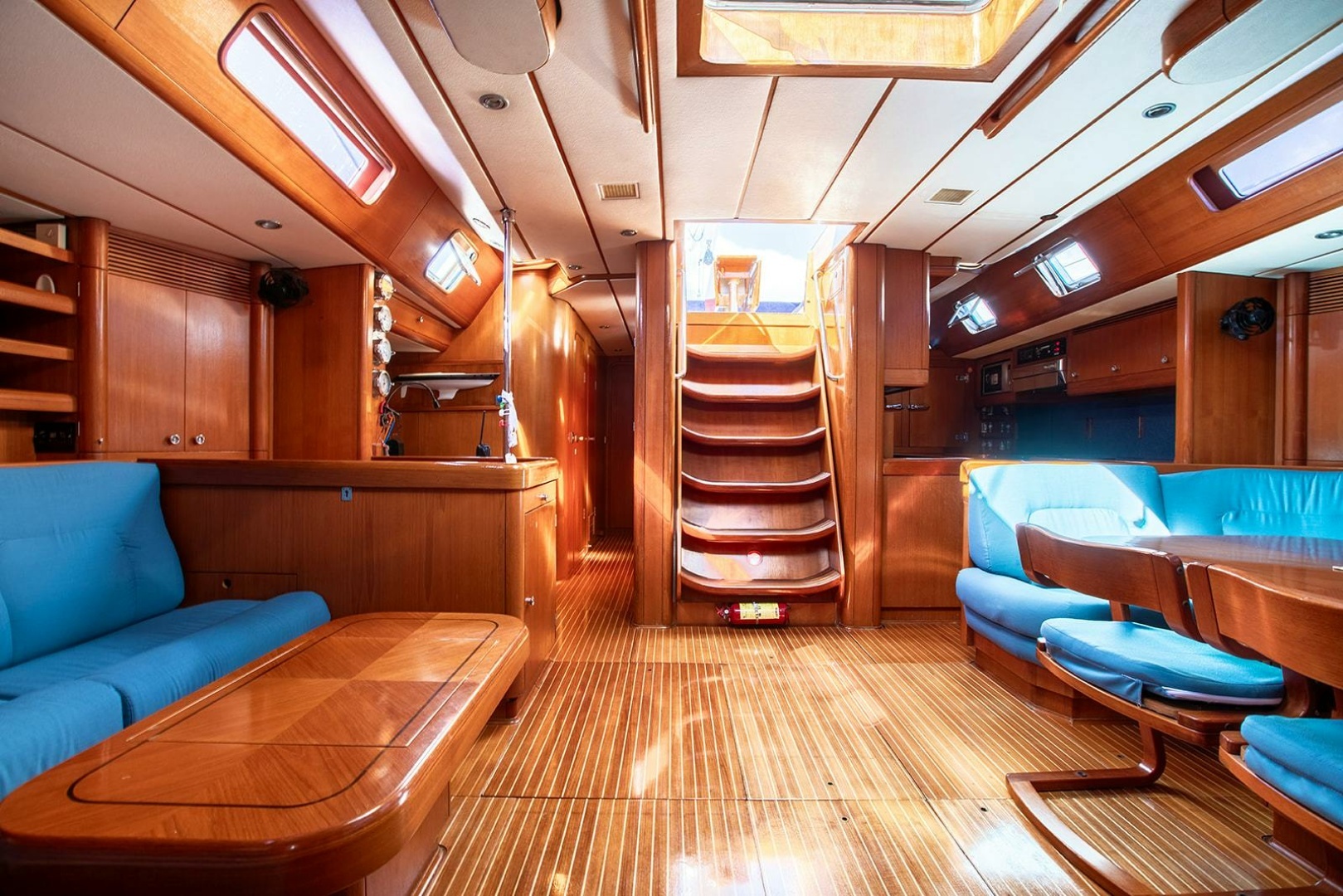

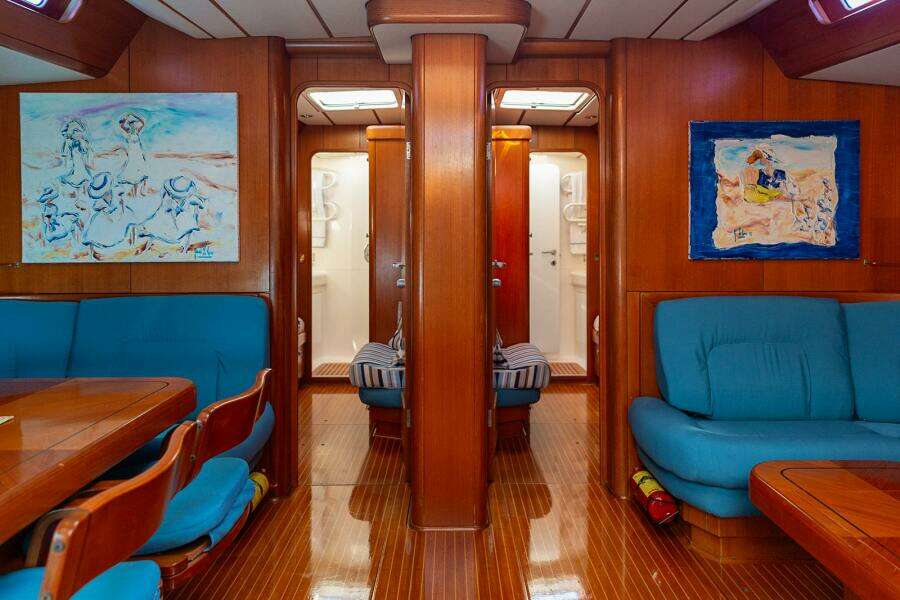

Main Salon/dining:

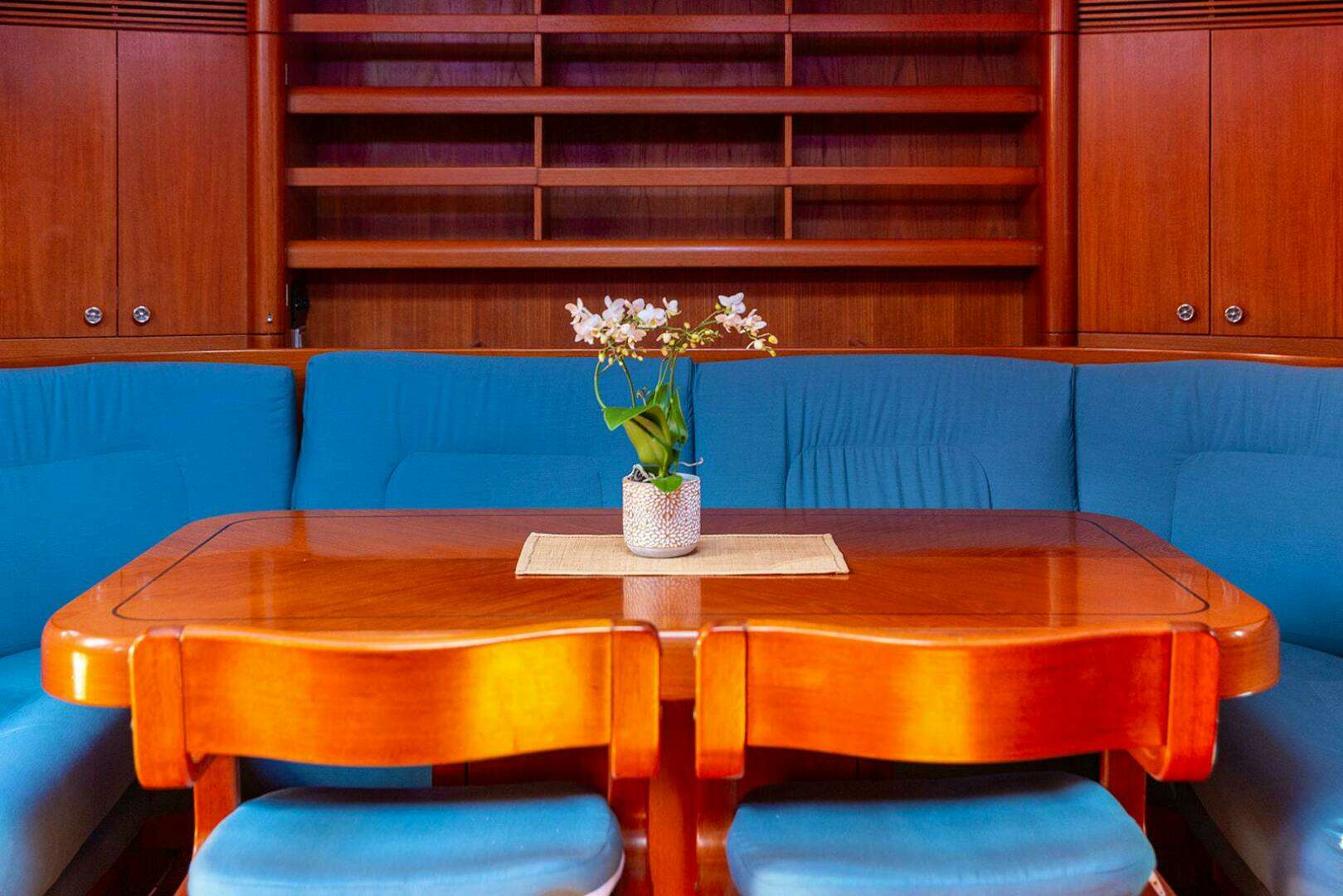

- Large saloon split with dining table to port and lounging sofa to starboard. Flat screen TV, audio and wi-fi. Navigation desk aft-starboard side facing forward. Wine fridge and ice maker.

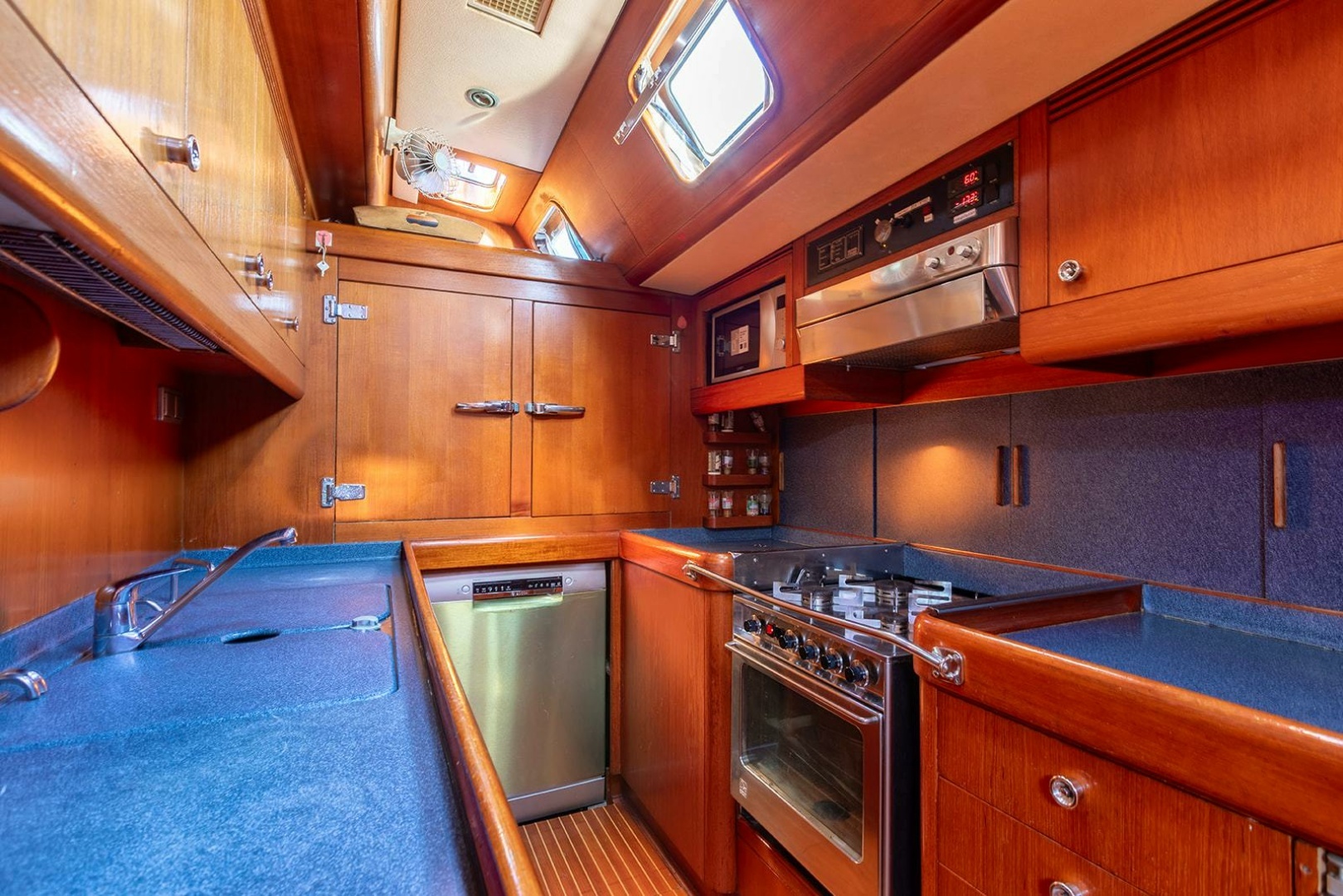

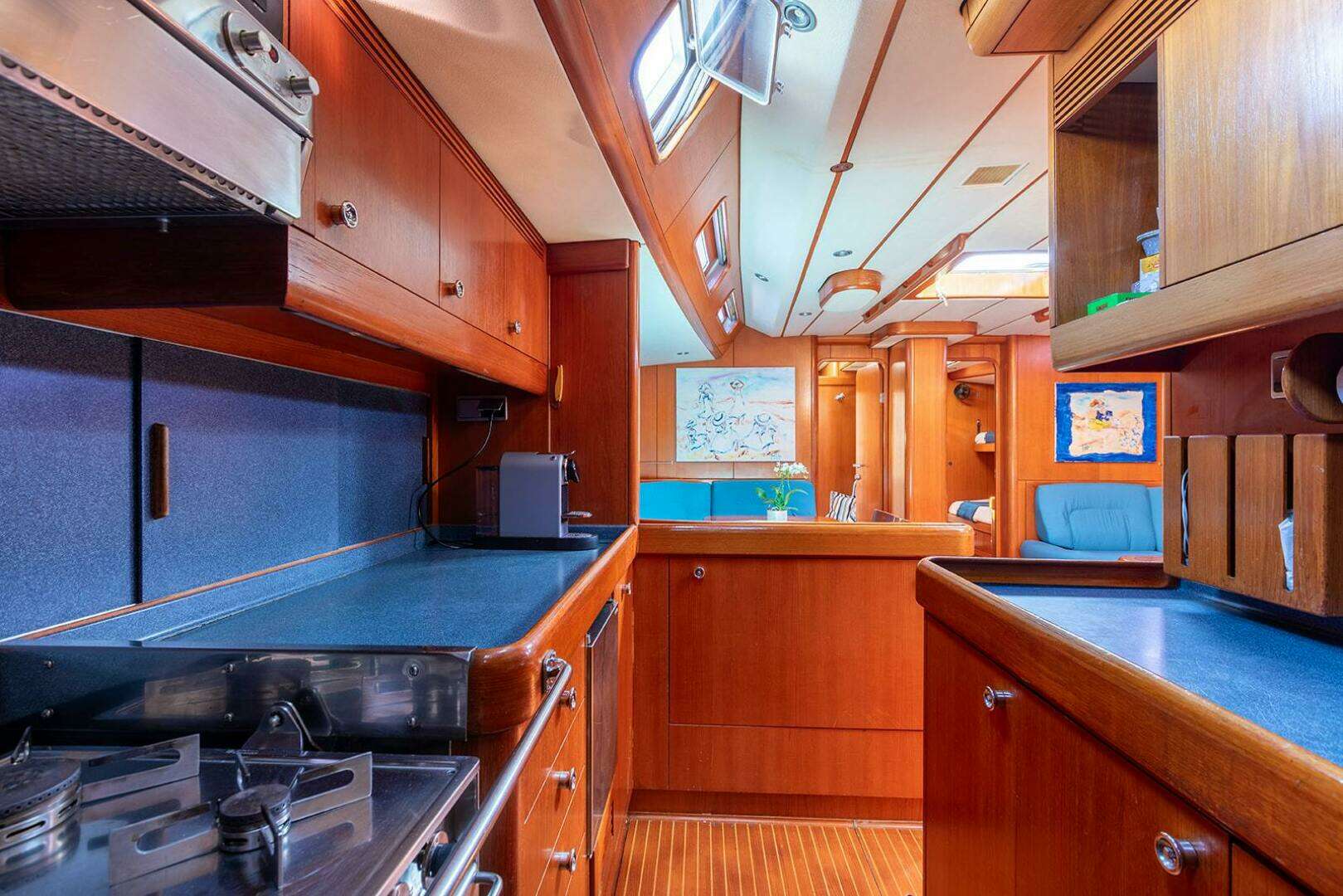

- Spacious and functional U-shaped galley well laid out with modern amenities and plenty of fridge and freezer space. 5 burner gas hob. Bosch Dish washer, Miele Washer drier.
ACCOMMODATIONS & INTERIOR
Owner:- Master cabin aft with two queen doubles. Forward facing sofa. Owners study with classic Nautor Swan chair and desk. Lots of natural light through three portholes. Two hanging wardrobes and lots of additional storage in drawers under beds and head height cupboards.
- Ensuite with large shower.
Guests:
- Two mirror image ensuite guest cabins midship with large lower beds and upper bunks. Hanging wardrobes, large dress mirror and sofas. Lots of natural light through large deck hatch.
- One smaller bunk cabin aft-starboard. Uses day-head as it’s ensuite.
- Crew area forward with large double bed and sofa. Hanging wardrobe and lots of extra storage forward. Main entrance through ensuite and second entrance through foredeck hatch via teak steps.
- Classic Nautor Swan varnished teak interior with exceptional workmanship.

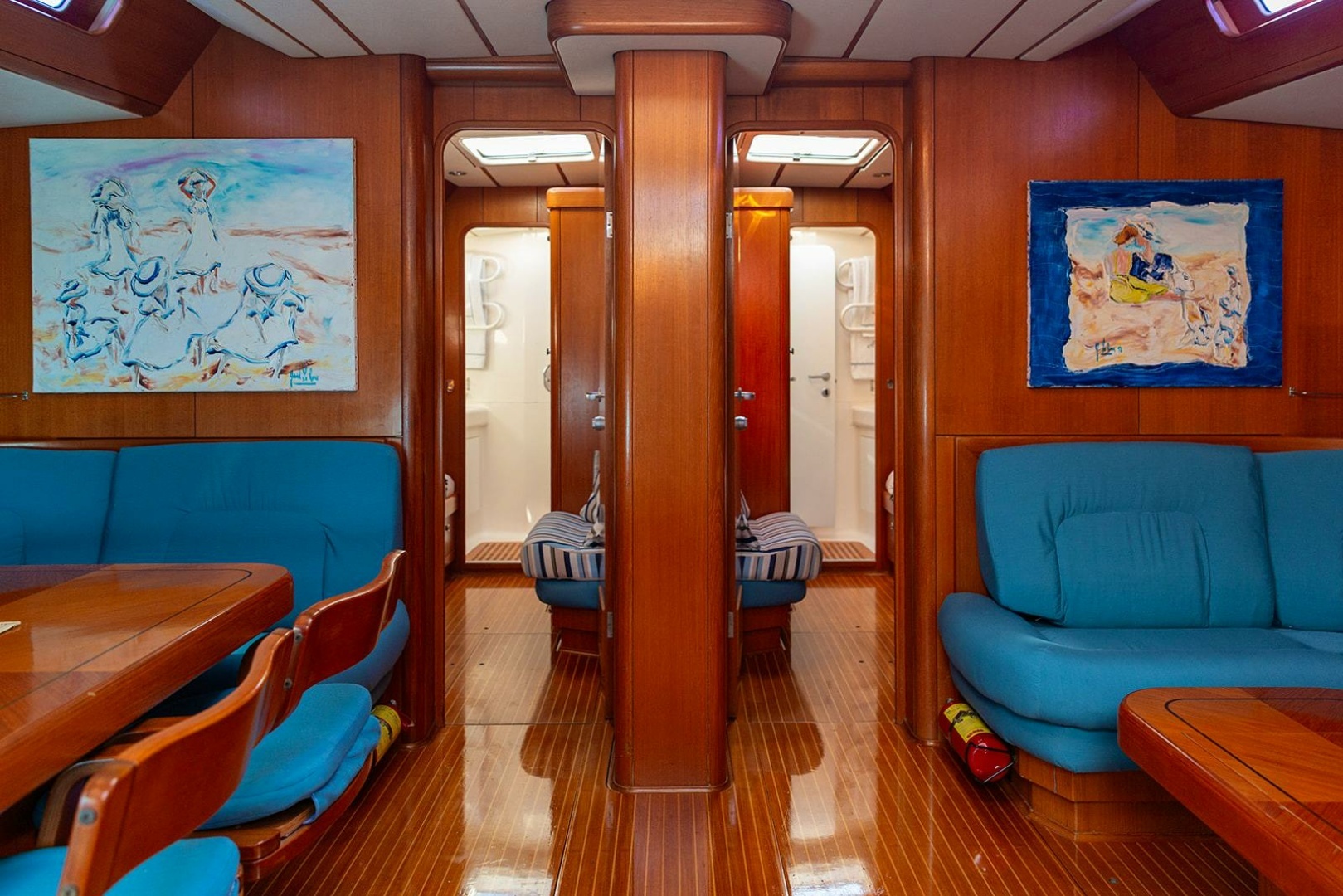

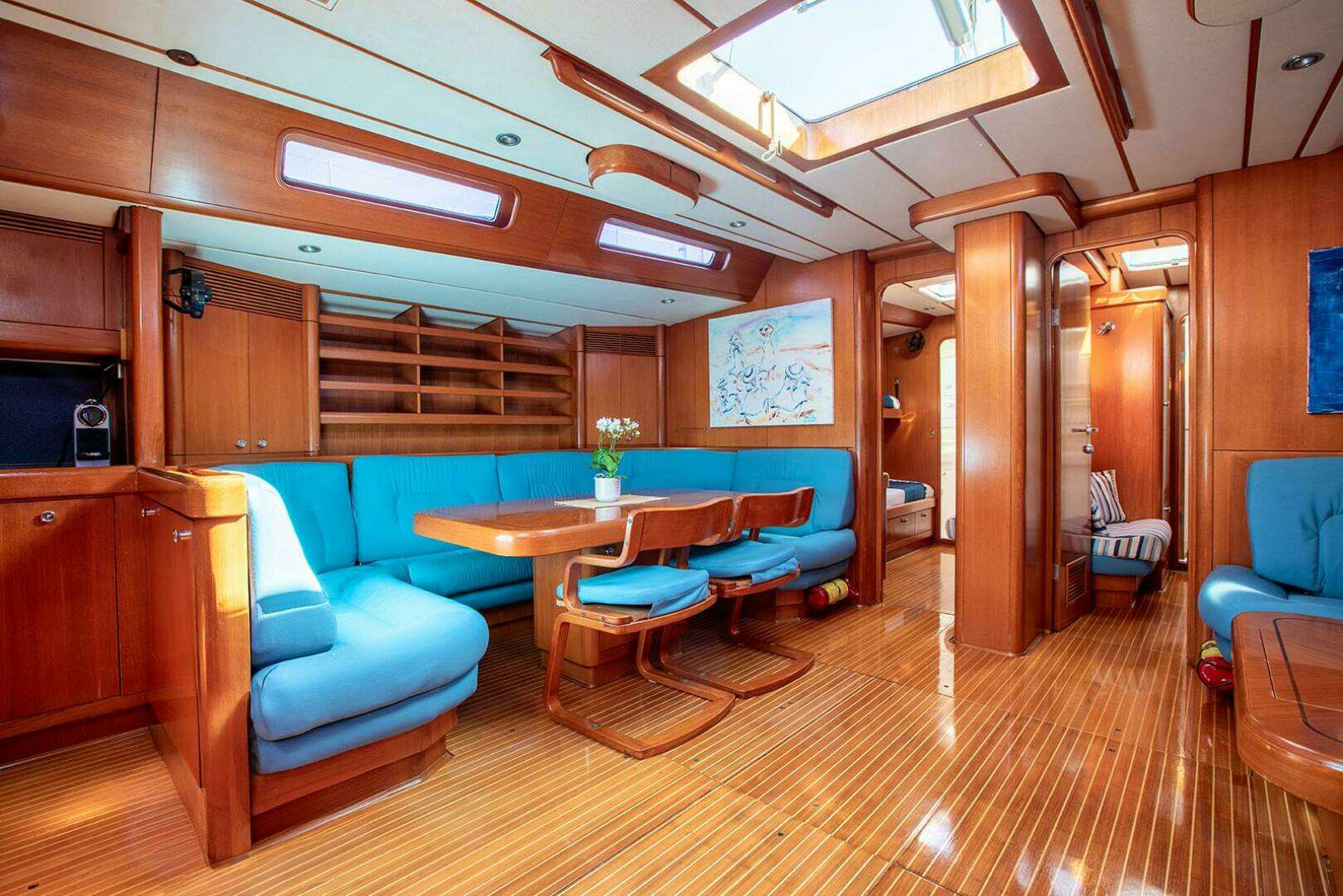

Main Salon/dining:
- Large saloon split with dining table to port and lounging sofa to starboard. Flat screen TV, audio and wi-fi. Navigation desk aft-starboard side facing forward. Wine fridge and ice maker.
- Spacious and functional U-shaped galley well laid out with modern amenities and plenty of fridge and freezer space. 5 burner gas hob. Bosch Dish washer, Miele Washer drier.

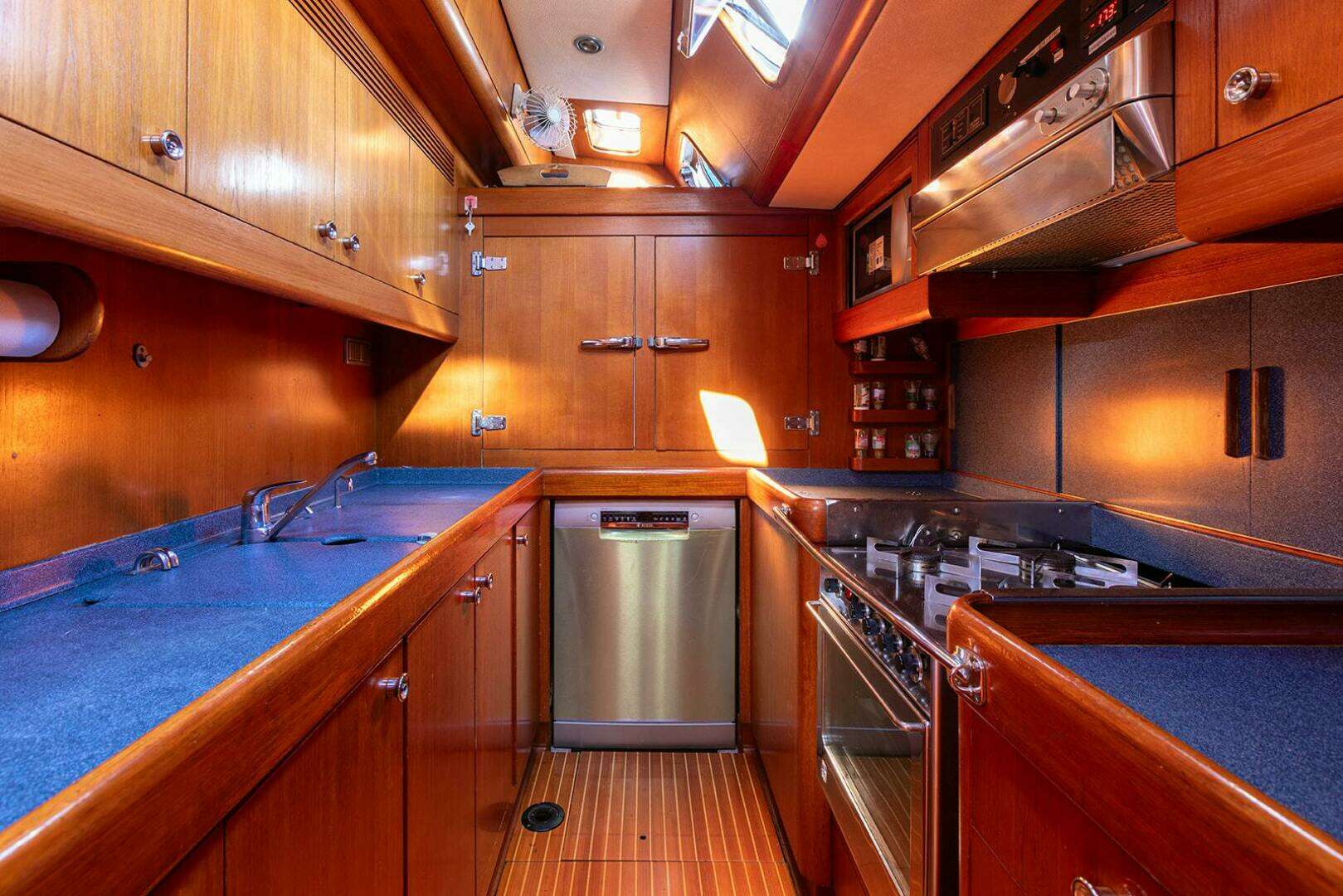

GALLEY & LAUNDRY EQUIPMENT
AppliancesMiele washing machine
Miele dryer
Bosh dish washer
GALLEY & LAUNDRY EQUIPMENT
AppliancesMiele washing machine
Miele dryer
Bosh dish washer
MACHINERY
Engine
Cummins QSB6.7355HOI 355 hp (replaced in December 2020)
ZF trottle (replaced in December 2020)
Brunton 4 blades propeller (replaced in May 2021)
Generator
Onan MDKDV 19 kw (replaced in October 2022)
MACHINERY
Engine
Cummins QSB6.7355HOI 355 hp (replaced in December 2020)
ZF trottle (replaced in December 2020)
Brunton 4 blades propeller (replaced in May 2021)
Generator
Onan MDKDV 19 kw (replaced in October 2022)
NAVIGATION & COMMUNICATIONS
Navigation electronic equipment
B&G 2000 Hercules power unit
3 B&G GFD displays
4 B&G 20/20 displays
2 analogic displays
B&G Hercules Pilot
Barometer
Angle of helm display
B&G stanilized compass
B&G MHU wind station
b&G Chartplotter/Radar
4G B&G radar
B&G AIS
Computer
1 ASUS MINIVIVO pc with MaxSea software
HP 15’ monitor
EPSON WIFI Deskjet printer
Internet WIFI
Communications
2 B&G DSC VHF
1 Icom handy VHF
MC MURDO epirb
NAVIGATION & COMMUNICATIONS
Navigation electronic equipment
B&G 2000 Hercules power unit
3 B&G GFD displays
4 B&G 20/20 displays
2 analogic displays
B&G Hercules Pilot
Barometer
Angle of helm display
B&G stanilized compass
B&G MHU wind station
b&G Chartplotter/Radar
4G B&G radar
B&G AIS
Computer
1 ASUS MINIVIVO pc with MaxSea software
HP 15’ monitor
EPSON WIFI Deskjet printer
Internet WIFI
Communications
2 B&G DSC VHF
1 Icom handy VHF
MC MURDO epirb
ELECTRICAL SYSTEMS & BATTERIES
DC electric plant
Service batteries 24 V 800 Ah
Rdio batteries 24 V 400 Ah
Engine batteries 24 V 135 Ah
Generator battery 12 V 90 Ah
AC electric plant
Shore power 115 V 50 A 60 Hz tramite (with 6 kVA transformer)
Shore power 230 V 50 A 50 Hz tramite (with step up / step down 12 kVA transfromer)
3000 W 230 V 50 Hz MASTERVOLT inverter (installed in 2019)
Batteries charger
2 Mastervolt 24/75 220 V for servce batteries
1 Mastervolt 24/50 220 V 50 A for radio batteries
1 220 V for main engine
1 220 V for generator
ELECTRICAL SYSTEMS & BATTERIES
DC electric plant
Service batteries 24 V 800 Ah
Rdio batteries 24 V 400 Ah
Engine batteries 24 V 135 Ah
Generator battery 12 V 90 Ah
AC electric plant
Shore power 115 V 50 A 60 Hz tramite (with 6 kVA transformer)
Shore power 230 V 50 A 50 Hz tramite (with step up / step down 12 kVA transfromer)
3000 W 230 V 50 Hz MASTERVOLT inverter (installed in 2019)
Batteries charger
2 Mastervolt 24/75 220 V for servce batteries
1 Mastervolt 24/50 220 V 50 A for radio batteries
1 220 V for main engine
1 220 V for generator
PLUMBING SYSTEM AND TANKAGE
Fuel tankage
2 stainless steel tanks 870 liters each (1,740 litres total)
Fresh water
1,390 litres in 2 stainless steel tanks
SPECTRA 24 V watermaker (120/130 l/h)
2 24 V Jabsco fresh watre pumps
220V 100 liters boiler
Hot water also from main engine
Hot and fresh water shower on swimming platmorm and aft cockpit
Bilge pumps
2 electric submerged with alarm
1 bilge pumps in the fore bilge
2 Whale Titan emergency manual pumps
1 emergency manual pump in the chain lock
PLUMBING SYSTEM AND TANKAGE
Fuel tankage
2 stainless steel tanks 870 liters each (1,740 litres total)
Fresh water
1,390 litres in 2 stainless steel tanks
SPECTRA 24 V watermaker (120/130 l/h)
2 24 V Jabsco fresh watre pumps
220V 100 liters boiler
Hot water also from main engine
Hot and fresh water shower on swimming platmorm and aft cockpit
Bilge pumps
2 electric submerged with alarm
1 bilge pumps in the fore bilge
2 Whale Titan emergency manual pumps
1 emergency manual pump in the chain lock
HYDRAULICS
HydraulicsHarken power pack 8.12 unit
2 running backstays Harken 66,2 ST winches
2 mainsail sheets Harken 66.3 ST winches
2 genaojibs Harken 980.3 ST winches
2 gennaker /spinnaker Harken 1120 ST winches
2 halyard Harken 66.3 ST winches
1 hydraulic transom haych control
2 fore sails hydraulic Reckmann furlers (overhauled in May 2015)
Hydraulic power from generator’s PTO
1 x Lewmar 300S bow thruster
1 Navtec control unit
1 mainsail base hydraulic Navtec piston
1 backstay hydraulic Navtec piston
1 forestay hydraulic Navtec piston
1 vang
HYDRAULICS
HydraulicsHarken power pack 8.12 unit
2 running backstays Harken 66,2 ST winches
2 mainsail sheets Harken 66.3 ST winches
2 genaojibs Harken 980.3 ST winches
2 gennaker /spinnaker Harken 1120 ST winches
2 halyard Harken 66.3 ST winches
1 hydraulic transom haych control
2 fore sails hydraulic Reckmann furlers (overhauled in May 2015)
Hydraulic power from generator’s PTO
1 x Lewmar 300S bow thruster
1 Navtec control unit
1 mainsail base hydraulic Navtec piston
1 backstay hydraulic Navtec piston
1 forestay hydraulic Navtec piston
1 vang
ENTERTAINMENT
Flat screen LCD TVSony DVD/CD player with 4 loudspeakers in salon, 2 in central cockpit, 1 aft
ENTERTAINMENT
Flat screen LCD TVSony DVD/CD player with 4 loudspeakers in salon, 2 in central cockpit, 1 aft
SAFETY EQUIPMENT
2 life rafts1 JON BUOY
ADK 1000 BMC Medical kit
SAFETY EQUIPMENT
2 life rafts1 JON BUOY
ADK 1000 BMC Medical kit
MAINTENANCE AND REFIT WORK FROM 2022 TO 2024
2022- New Rexroth Generator hydraulic pump
- Full main engine service
- Full generator service
- New Onan 19 MDKDV 50Hz 12 v 1500 rpm service generator
2023
- Restoration and polishing of stanchions
- Restoration of bow railings
- Restoration of stern pulpit stanchions
- New shore power cable
- New Rule 3700 pump
- New Rule bilge level alarm
- New Generator
2024
- New teak deck
- Mast – Dismantle, reassemble and center.
- Cleaning of all shrouds
- Cleaning of genoa and trinchett
- Miscelaneous repairs on sails
- Anchor restoration and galvanising
- Cleaning of all frames
- Relamination, filling and painting of aft Hatch
- Ultrasonic rigging check
- Service and mainteinance of all winches
- New rod rigging (same as original)
- New chiller
2025
- Painting of starboard hatch
- Replace all sacrificial anodes
- Service and maintenance of all seacocks
- Gelcoat of exhaust cap and starboard Hatch.
- Antifouling (Hempel Mille)
- Transom repair and painting including NDT test
MAINTENANCE AND REFIT WORK FROM 2022 TO 2024
2022- New Rexroth Generator hydraulic pump
- Full main engine service
- Full generator service
- New Onan 19 MDKDV 50Hz 12 v 1500 rpm service generator
2023
- Restoration and polishing of stanchions
- Restoration of bow railings
- Restoration of stern pulpit stanchions
- New shore power cable
- New Rule 3700 pump
- New Rule bilge level alarm
- New Generator
2024
- New teak deck
- Mast – Dismantle, reassemble and center.
- Cleaning of all shrouds
- Cleaning of genoa and trinchett
- Miscelaneous repairs on sails
- Anchor restoration and galvanising
- Cleaning of all frames
- Relamination, filling and painting of aft Hatch
- Ultrasonic rigging check
- Service and mainteinance of all winches
- New rod rigging (same as original)
- New chiller
2025
- Painting of starboard hatch
- Replace all sacrificial anodes
- Service and maintenance of all seacocks
- Gelcoat of exhaust cap and starboard Hatch.
- Antifouling (Hempel Mille)
- Transom repair and painting including NDT test
Contact
For more information about this yacht, please contact Sean McCarter We look forward to working with you!
For more information about this yacht, please contact Sean McCarter. We look forward to working with you!
For more information about this yacht, please contact Sean McCarter.
Sean McCarter
Yacht Broker
Edificio Dux Calle Porto Pi 4, 1
Palma de Mallorca Baleares 07015 Spain
