CONSTRUCTION

• Fiberglass hull and superstructure

• Hull Material: FRP with PVC core sandwich and carbon fiber reinforcements

• Engine Beds: FRP with laminated steel reinforcement

• Decking: Teak covered floor

• Superstructure: Open flybridge

• Hull/Deck Joint: “Shoe box” type with chemical and mechanical bonding

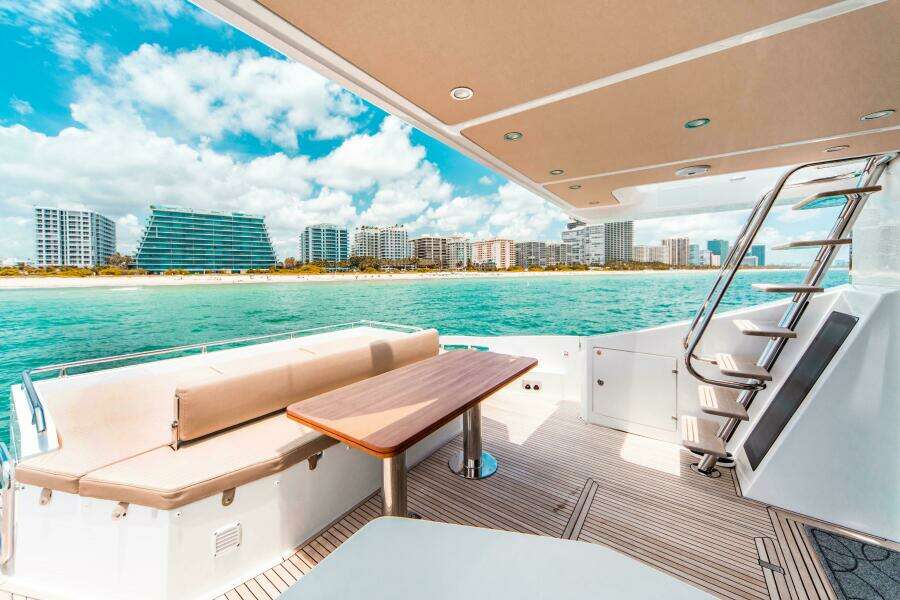

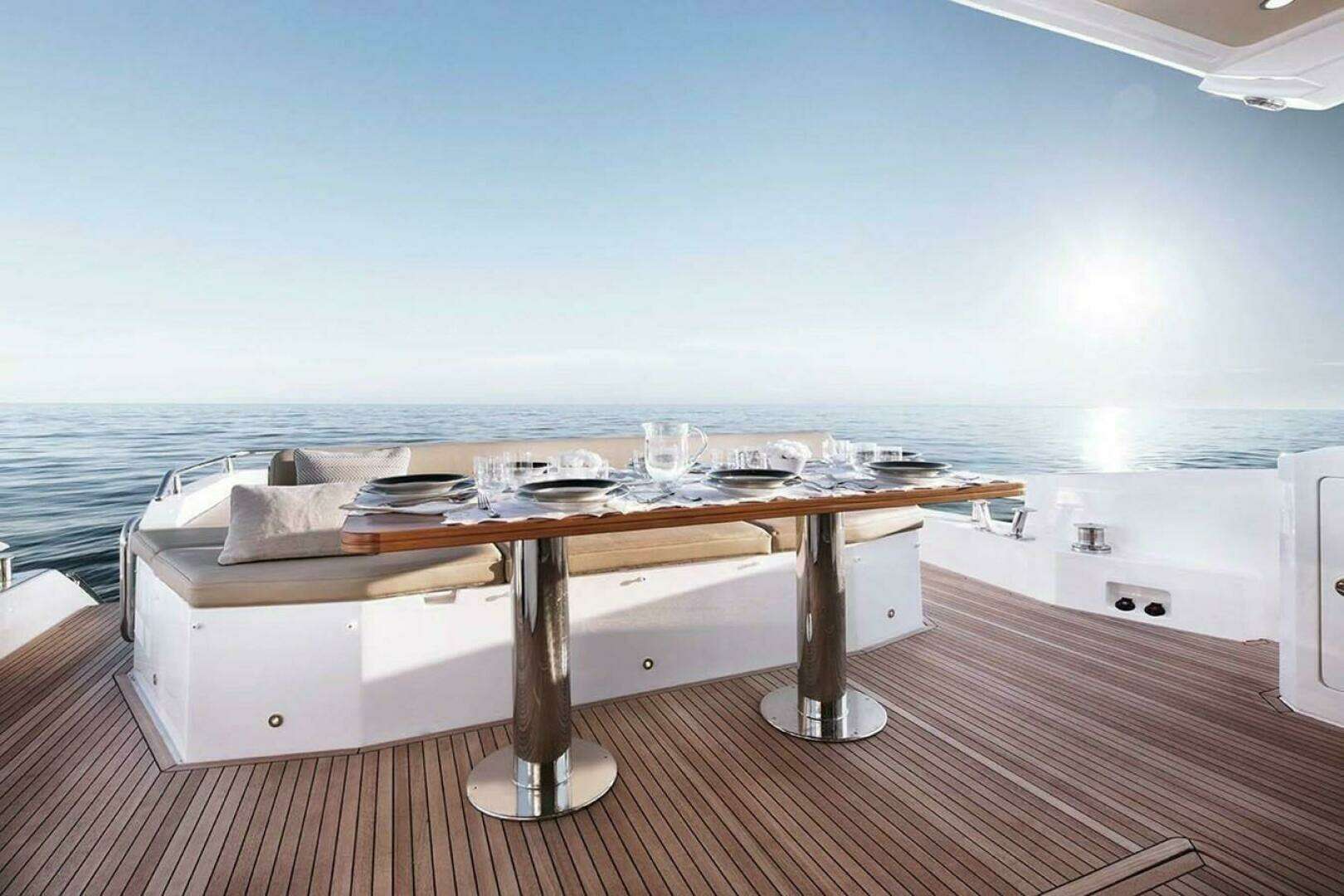

• Cockpit: Aft with teak-covered floor

• Bottom: Antifouling bottom paint, black color

• Hull number: AZ177S44819 (This vessel is a 2019 model, manufactured in 2018)

• Official number: 749619

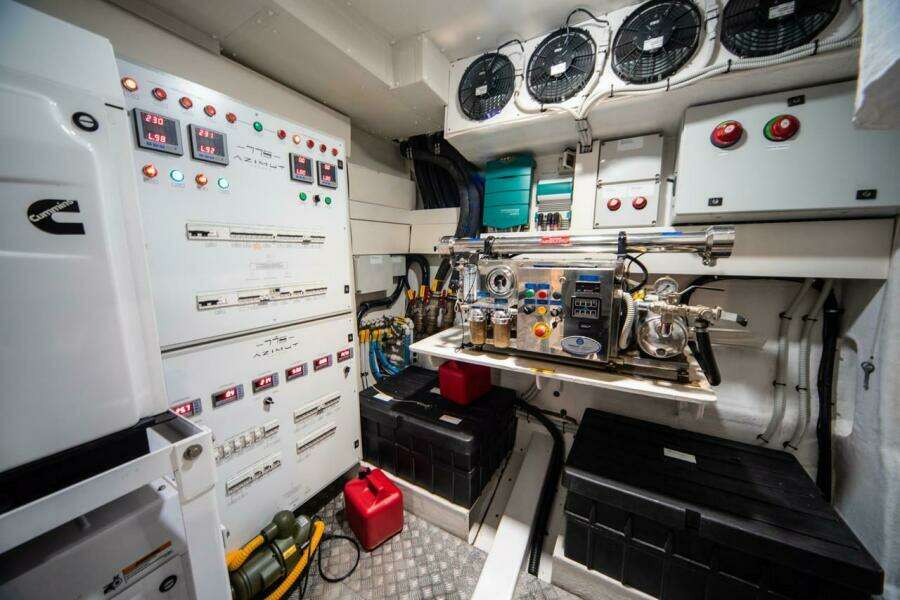

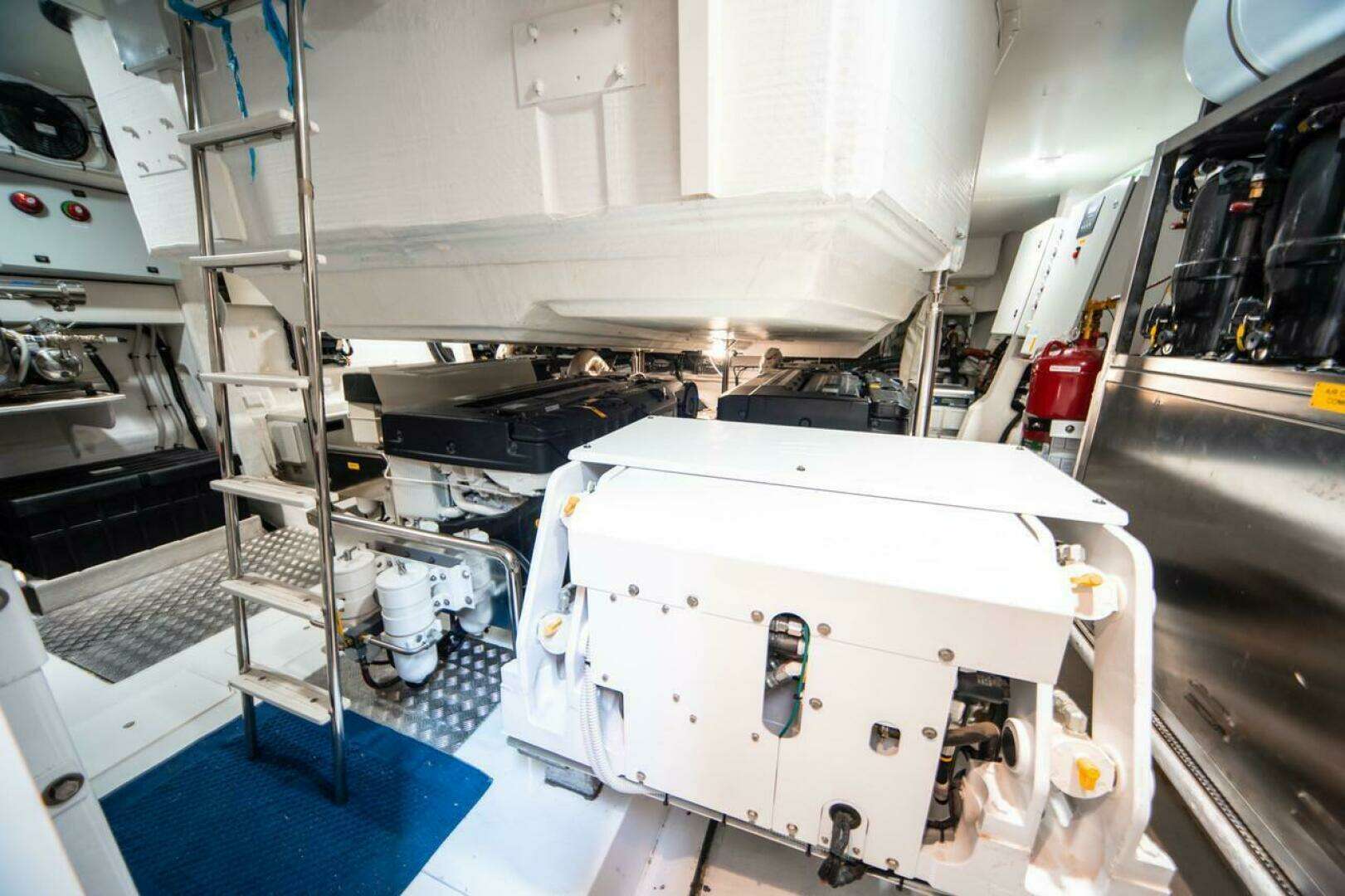

MACHINERY

MAIN ENGINES

Location: Port

Manufactured: Volvo Penta

Model: D13-IPS1350

Engine Type: In-line 6-cylinder Diesel

Serial/Number: 2013774439

Rated HP: 1,000 Hp (735 kW)

Gear Mfg.: Volvo Penta

Gear Model No.: IPS30D

Hours: 1,574 Hrs. (02/20/2026)

Location: Center

Manufactured: Volvo Penta

Model: D13-IPS1350

Engine Type: In-line 6-cylinder Diesel

Serial/Number: 2013774440

Rated HP: 1,000 Hp (735 kW)

Gear Mfg.: Volvo Penta

Gear Model No.: IPS30D

Hours: 1,574 Hrs. (02/20/2026)

Location: Starboard

Manufactured: Volvo Penta

Model: D13-IPS1350

Engine Type: In-line 6-cylinder Diesel

Serial/Number: 2013773286

Rated HP: 1,000 Hp (735 kW)

Gear Mfg.: Volvo Penta

Gear Model No.: IPS30D

Hours: 1,574 Hrs. (02/20/2026)

Engine Cooling System

• (2) x separate cooling circuits
• Engine coolant
• Raw water with dedicated raw water intake (one per engine) with strainer
• Coolant cooling by raw water-cooled plate-core heat exchanger

Ventilation and Blower

• (4) Aspirating blower on E/RSTBD side vents located on E/R hull sides

GENERATORS

• No. of sets:       (2) Generators
• Manufacturer:     ONAN             ONAN
• Model:           27MDKDU-8208A    27MDKDU-8208A
• Serial No.:        K170261426        D170177358
• Hours:           3632 (02/20/2026)    3625(02/20/2026)
• Rating:          27kVA @50Hz       115/230V - 1Ph

AIR CONDITIONING

• Chilled water system

• (4) Dometic compressors

• Model: Condaria PCWM36004co1.16

• Circulating pump: Calpeda

• Model: NMM25/12A/A- R

• Raw water pump Gianneschi

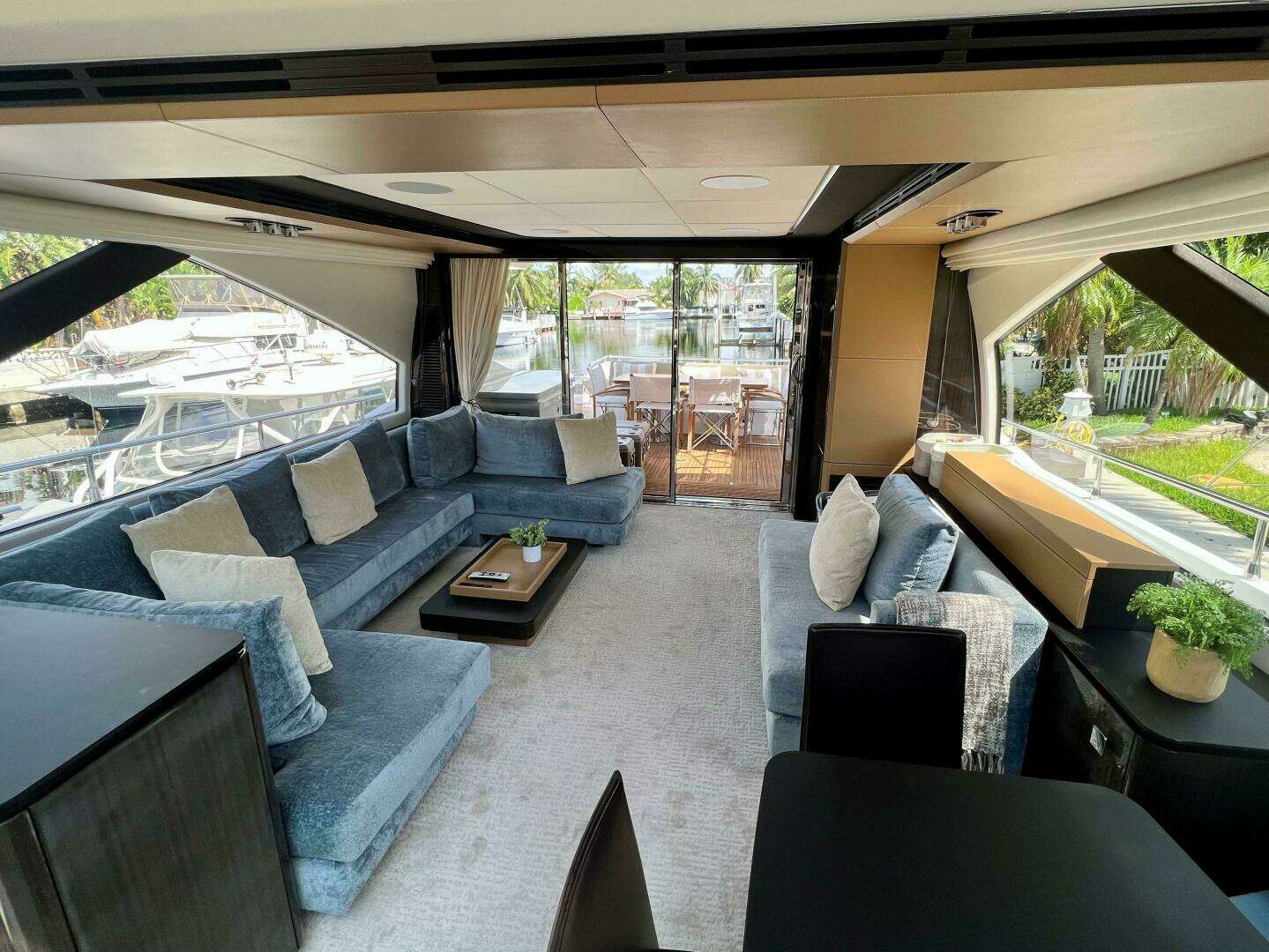

• (2) Salon air handlers

• (1) Helm-station air handler

• (1) Port crew cabin air handler

• (1) Stbd. crew cabin air handler

• (1) Port guest stateroom air handler

• (1) Stbd. guest stateroom air handler

• (1) VIP guest stateroom air handler

• (2) Master stateroom air handlers

• Galley air handler

HEATING SYSTEM

• Reverse A/C system

FUEL SYSTEM

• Fuel Lines: Predominantly fire-insulated flexible hoses with copper fittings

• Tanks: (1) FRP tank laminated forward in bilge FWD of E/R.

• Total capacity is 4,000 Liters (1,056 US Gal.) (Diesel) mechanical indicator at valves in crew bilge

• Filtration: (6) Total Volvo Penta - (2) per engine

• Model: 877770 filters, 1 Parker Racor

• Model: 2 R12T filters for each generator

• Shut-off Valves: (5) Total

• (1) Shut of electro-valve per line located on top of the tank in the crew bilge

RUNING GEAR

• Steering: Electro-hydraulic system 24Vdc by Volvo Penta

• Rudders: (3) IPS pods

• Propellers: (6) Total

• (4) Volvo Penta – (2) on each drive

• (1) Four-blades

• (1) Three-blades

• Trim Tabs: Interceptor-style by Volvo Penta

• Bow Thrusters: Side Power 24Vdc

• Model: SP240TCi

• Serial Number: 1736408

PUMPS

E/R

• (3) Whale 3000GPH 24V automatically operated by an electronic switch

• (3) Whale manual pump – located in cockpit port side pilaster Emergency engines crash pump from center engine raw water intake valve

Crew Quarters

• (2) Whale 3000GPH 24V automatically operated by electronic switch

• (1) Whale manual pump – located under Stbd. crew bunk

Fwd. Bilge

• (1) Whale 3000GPH 24V automatically operated by electronic switch

ELECTRONICS, COMMUNICATION AND NAVIGATION

Communication Systems

• Satellite internet

• Marine Radio:

  • Helm-station: Raymarine

  • Flybridge: Raymarine

Navigation Systems

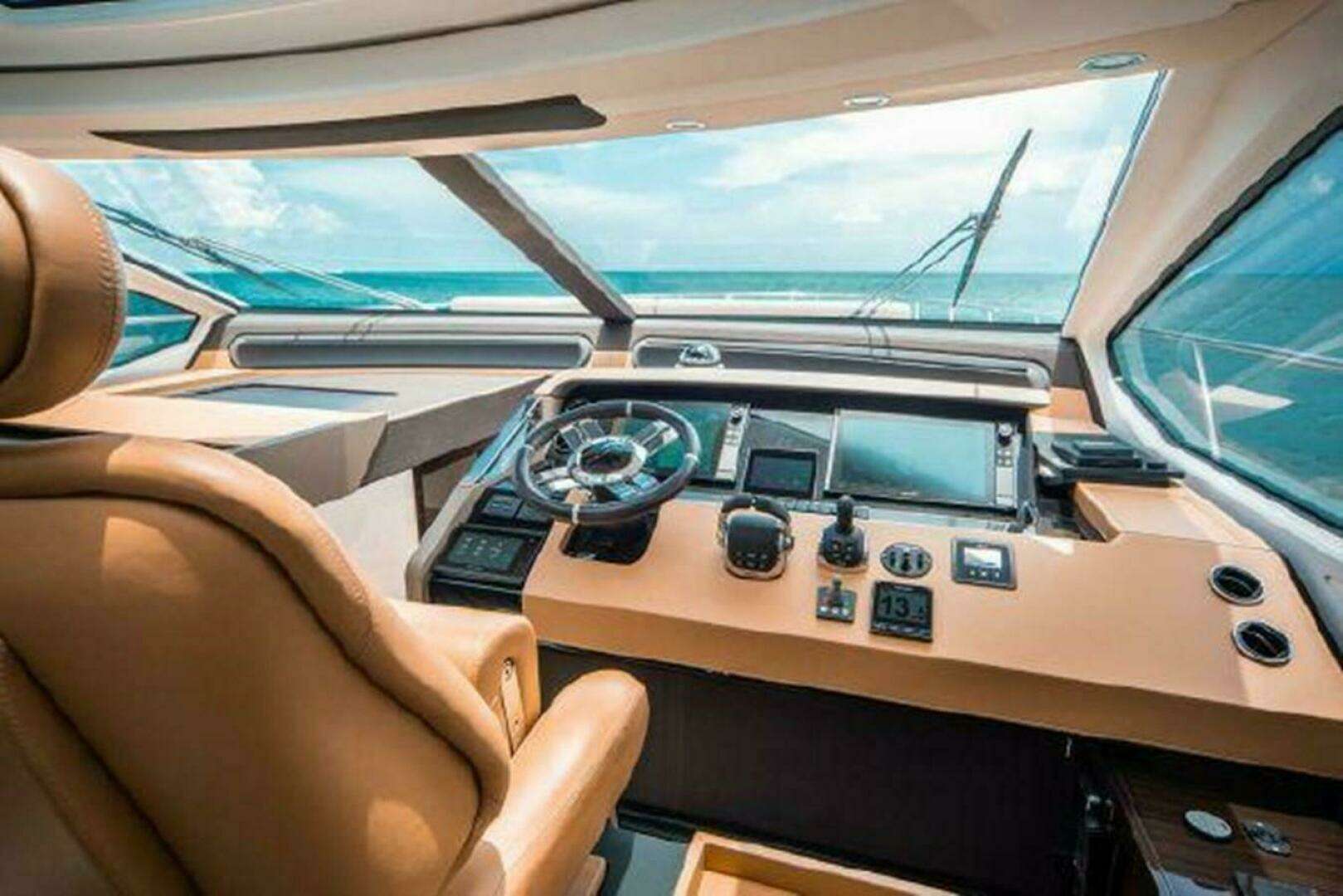

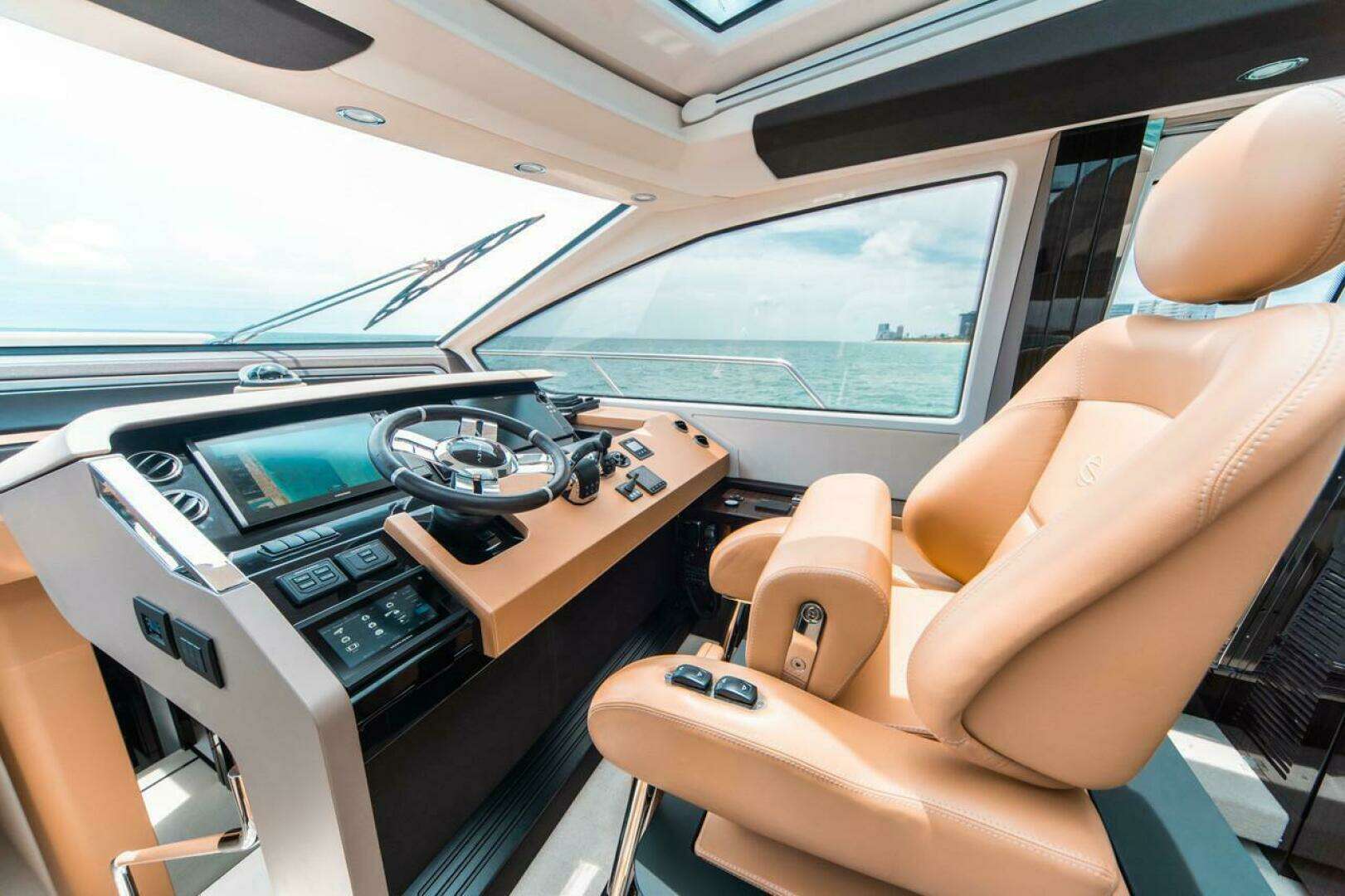

• Chart Plotter:

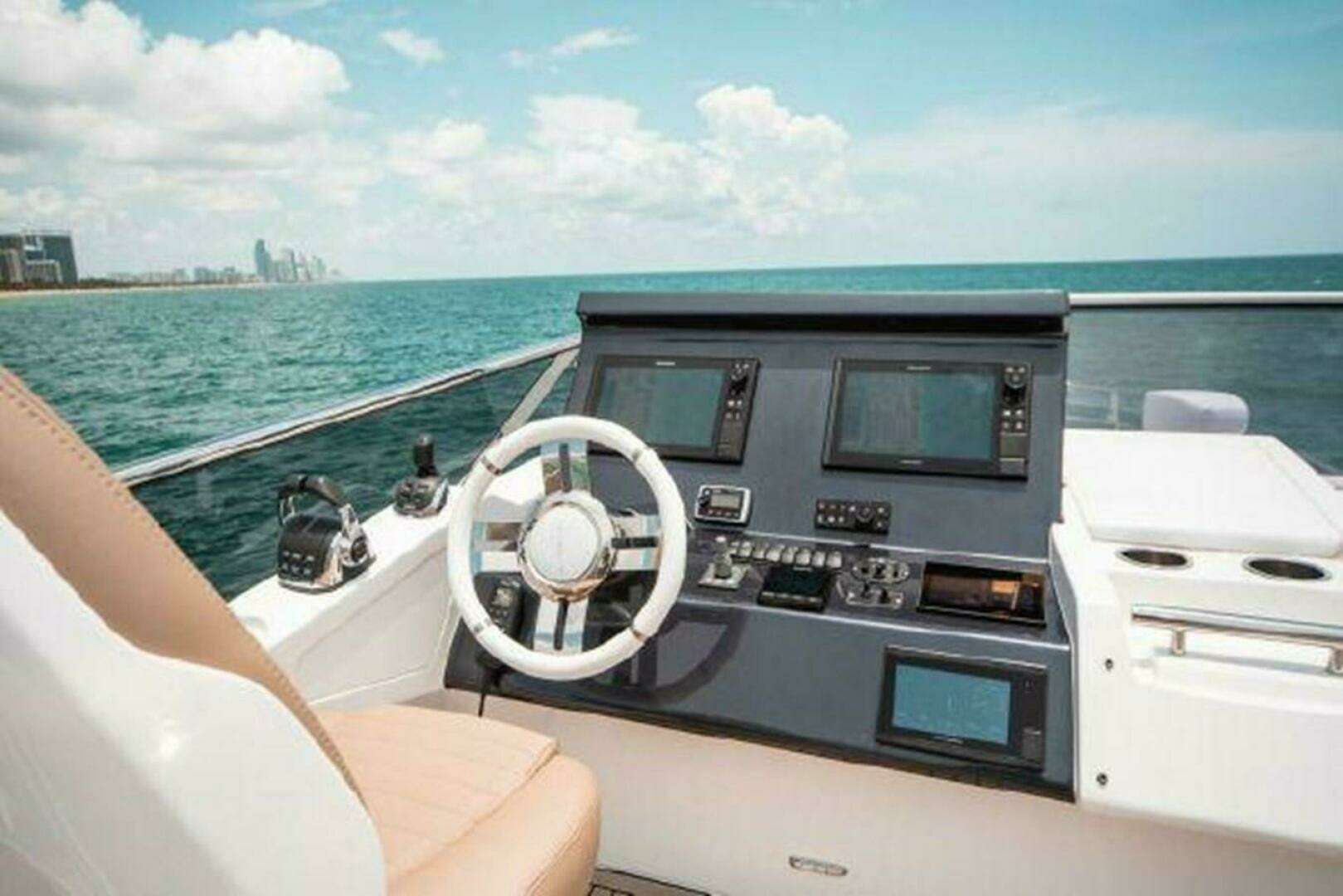

• Helm-station: (2) Raymarine Axiom Pro 16S - 16” touchscreens

• Flybridge: (2) Raymarine Axiom Pro 12S - 12” touchscreens

• Raymarine gold package

• Raymarine automatic identification system - AIS650 transceiver

• Radar: Raymarine 4kW HD Color Array

• Depthsounder: Airmar transducer

• Compass: Helm-station - Ritchie

• Speed Log: Airmar sensor

• Autopilot: Volvo Penta integrated

• Wipers: (2) Wipers blades

• Spotlight: ITT Jabsco operable from wheelhouse and flybridge

• Monitoring System: Naviop system at helmstation and F/B station

Entertainment Systems

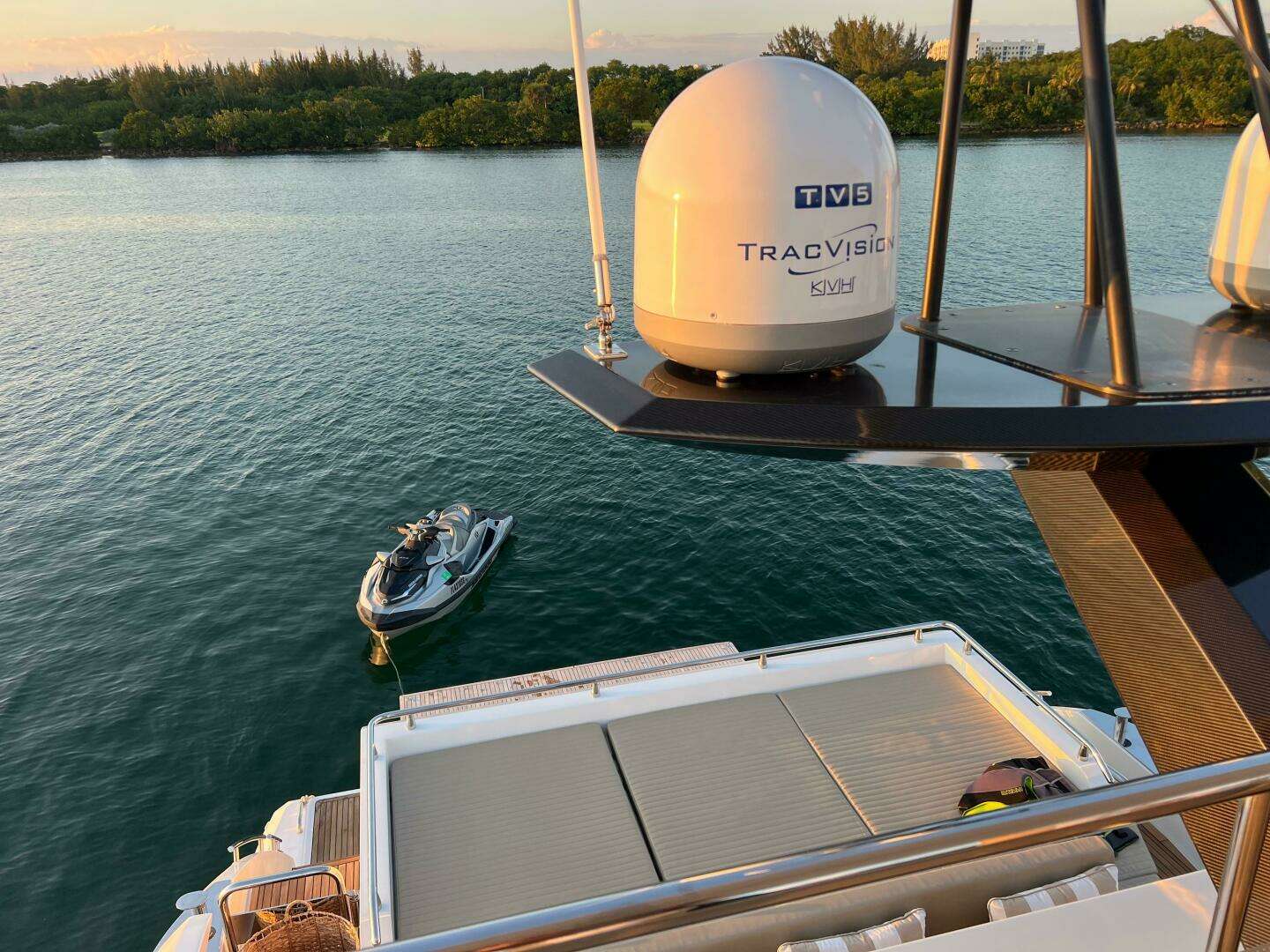

• Satellite antenna

• Salon: TV LG 50'' retractable

• Master Stateroom: Radio Fusion

• Model MS-RA70

ELECTRICAL

AC Systems:

• AC Panel: Main AC 240V-50HZ (Panel located in E/R – secondary panel in companion way landing)
• Outlets: 110V throughout boat

Battery chargers:

• (1) MASTERVOLT model: CHARGERMASTER 24/12-3 - 24V battery charger for engine battery bank
• (1) MASTERVOLT model: CHARGERMASTER 24/60-3 - 24 V for service battery bank
• (1) MASTERVOLT 12V battery charger for generator batteries

Source:

• (2) 50 amp shore power inlets
• (2) ANG Converter model: SPC16 (Converts 50HZ to 60HZ)

DC System:

• DC Panel: Main DC 24V panel is located E/R – secondary panel in companion way landing
• Battery Switches Port, center, Stbd engine and parallel
• Batteries: (10) URANIO model: SELENE VR900

Other Electrical:

•  Additional electric conduits

ENTERTAINMENT

• Salon: TV LG 50'' retractable

• Master cabin: Radio Fusion model: MS-RA70

OTHER MECHANICAL

• (5)Underwater lights on transom

• (1) Water-maker: IDROMAR

• Passerelle: Electro-hydraulic 24V OPACMARE

  • Model1103.34.07.24

  • S/N: 18B12-110334-RNNW

  • Load capacity: 150Kg

• (1) Stabilizer: Seakeeper

  • Model: NG16

  • Serial Number: 445

  • Cooling pump GIANNESCHI 230Vac

• Hard top: Sliding electric 24Vdc

• Garage: Electro-hydraulics 24Vdc garage door

• (2) Windlass 24Vdc

• Watermakers 55 liters/hour

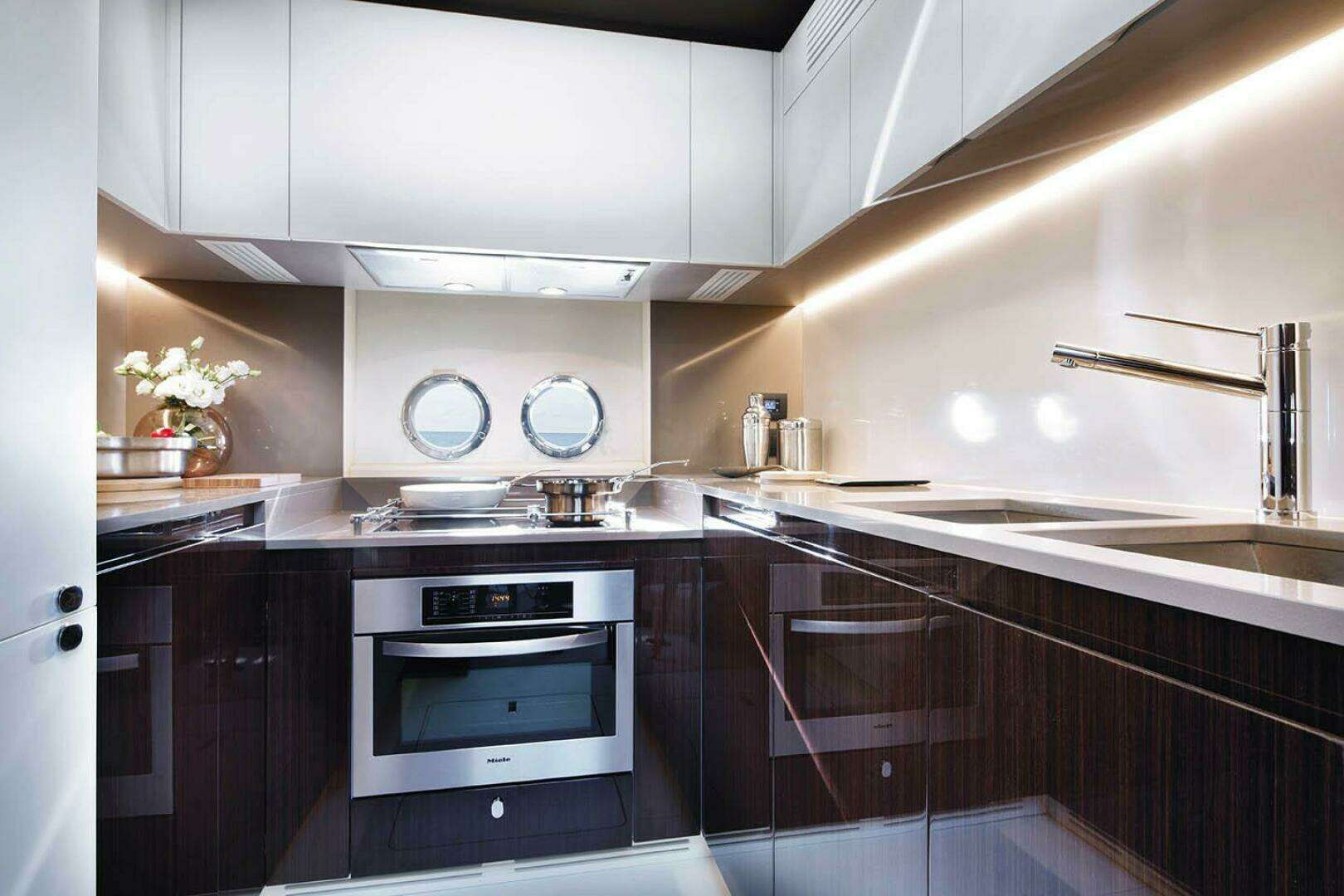

GALLEY

Main Galley:

• Refrigeration: Top/bottom refrigerator/freezerby Miele
• (2) Water Heaters: Ariston 1500W – 230Vac
• Stove: (4) Ceramic burners cooktop by Miele
• (1) Oven by Miele

Crew Galley:

• Washer: Bosh Ecosilent Drive
• Dryer: Miele Honeycomb Care T8822C

Cockpit:

• Electric grill by KENYON
• Refrigerator by VITRIFRIGO
• Ice-maker by VITRIFRIGO

TENDERS

(1) Tender

• Length Overall: 10’ (3.05 meters)

• Manufacturer: Williams

• Model: Turbojet 325

• HIN #: WMRT2842I718

DECK EQUIPMENT

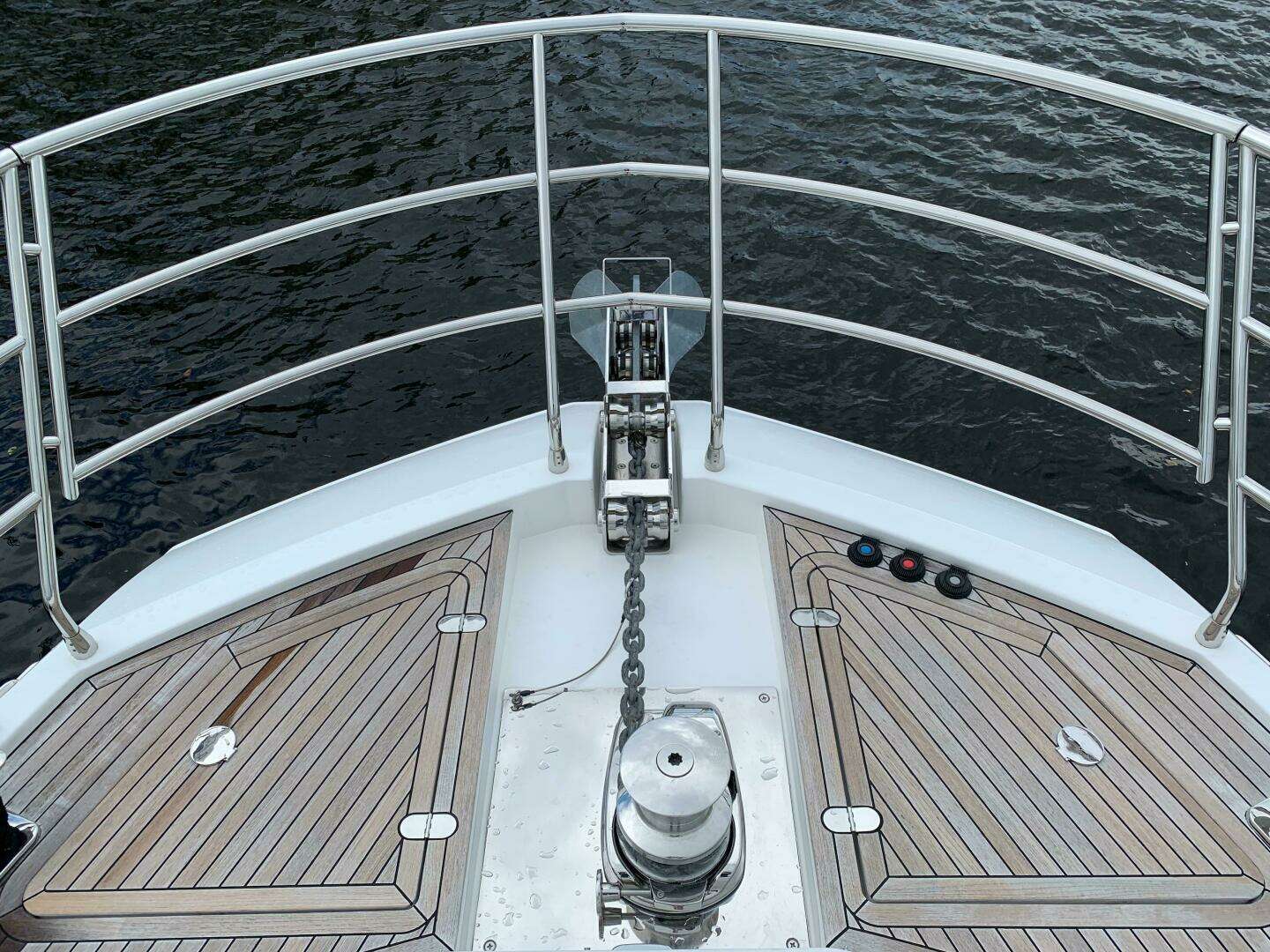

• Windlass: (1) Quick - 24V – 3500W

• Anchors: (1) Delta style – galvanized

• Rode: Chain

• Other Ground tackle/deck gear:

  • Cleats:

     • (2) At bow

     • (4) At mid-ship - (2) per side

     • (2) At aft cockpit - (1) per side

• (2) Swim platforms - (1) per side

• Hauling-launching system for tender and jet ski

SAFETY EQUIPMENT

• International running light

• Adjustable search light

• Sound Signals: Horn

• (2) Bow control lights

Fire Suppression (Fixed)

• (1) 41.94Kg HFC-227 fixed tank in engine room

Fire Suppression (Portable)

• (1) 2Kg ABC powder fire extinguisher in the galley

• (1) 2Kg ABC powder fire extinguisher in the port guest stateroom

• (1) 2Kg ABC powder fire extinguisher in the VIP guest stateroom

• (1) 2Kg ABC powder fire extinguisher in the master stateroom

• (1) 2Kg ABC powder fire extinguisher in the port crew stateroom

• (1) 2Kg ABC powder fire extinguisher in the Stbd. crew stateroom

• (1) 1Kg ABC powder fire extinguisher in the cockpit

• Re-boarding Ladder

ACCOMMODATIONS

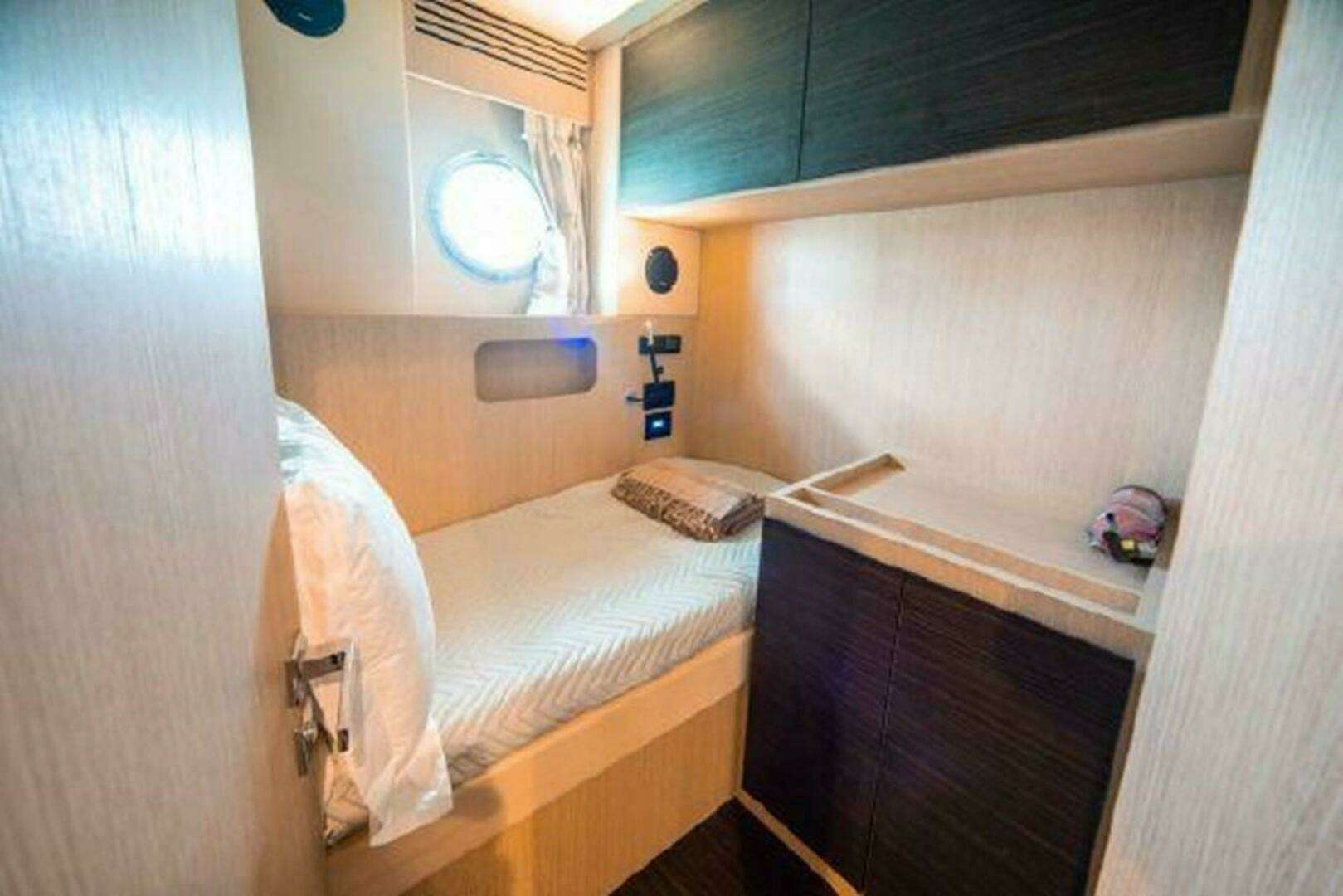

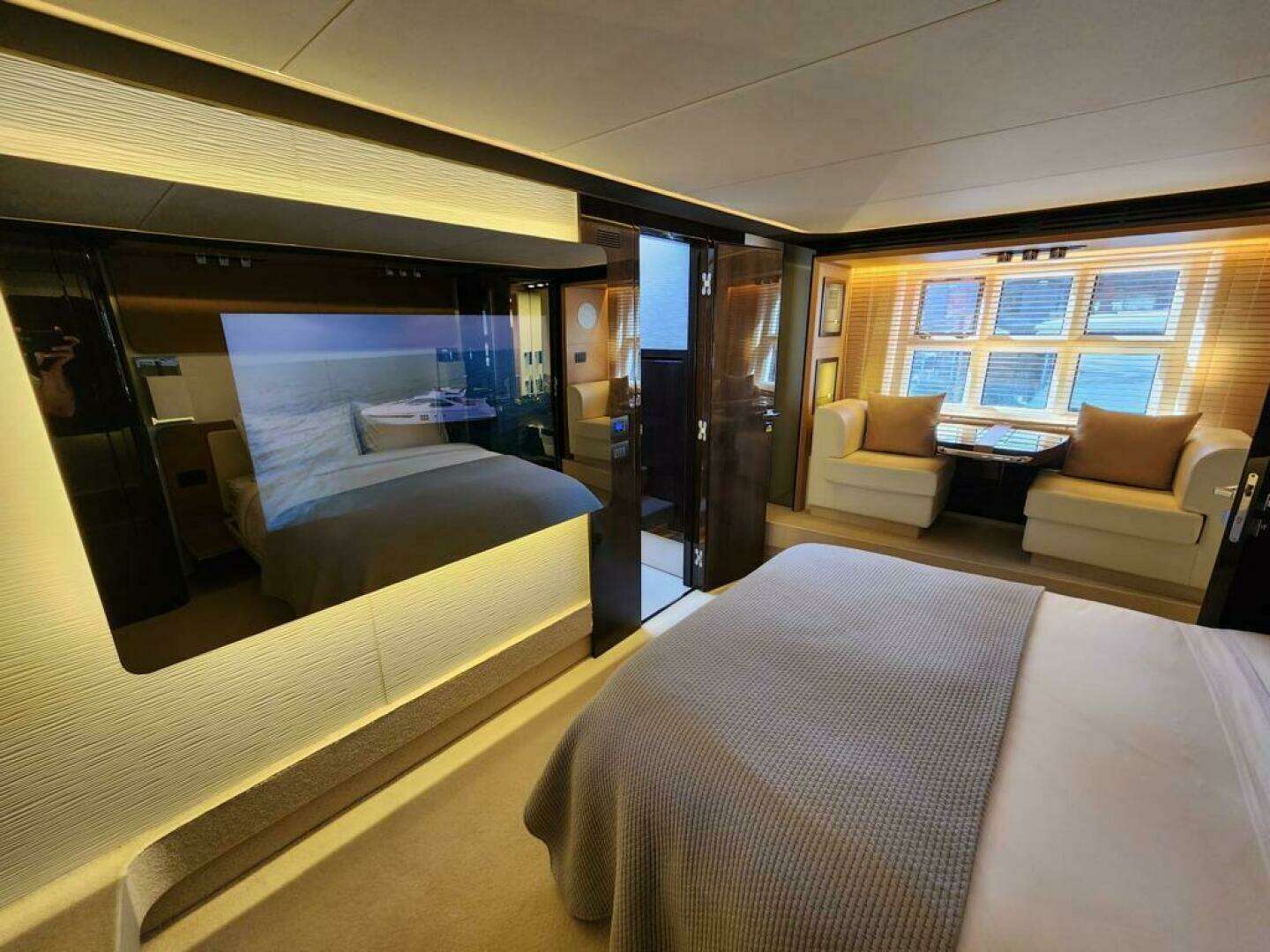

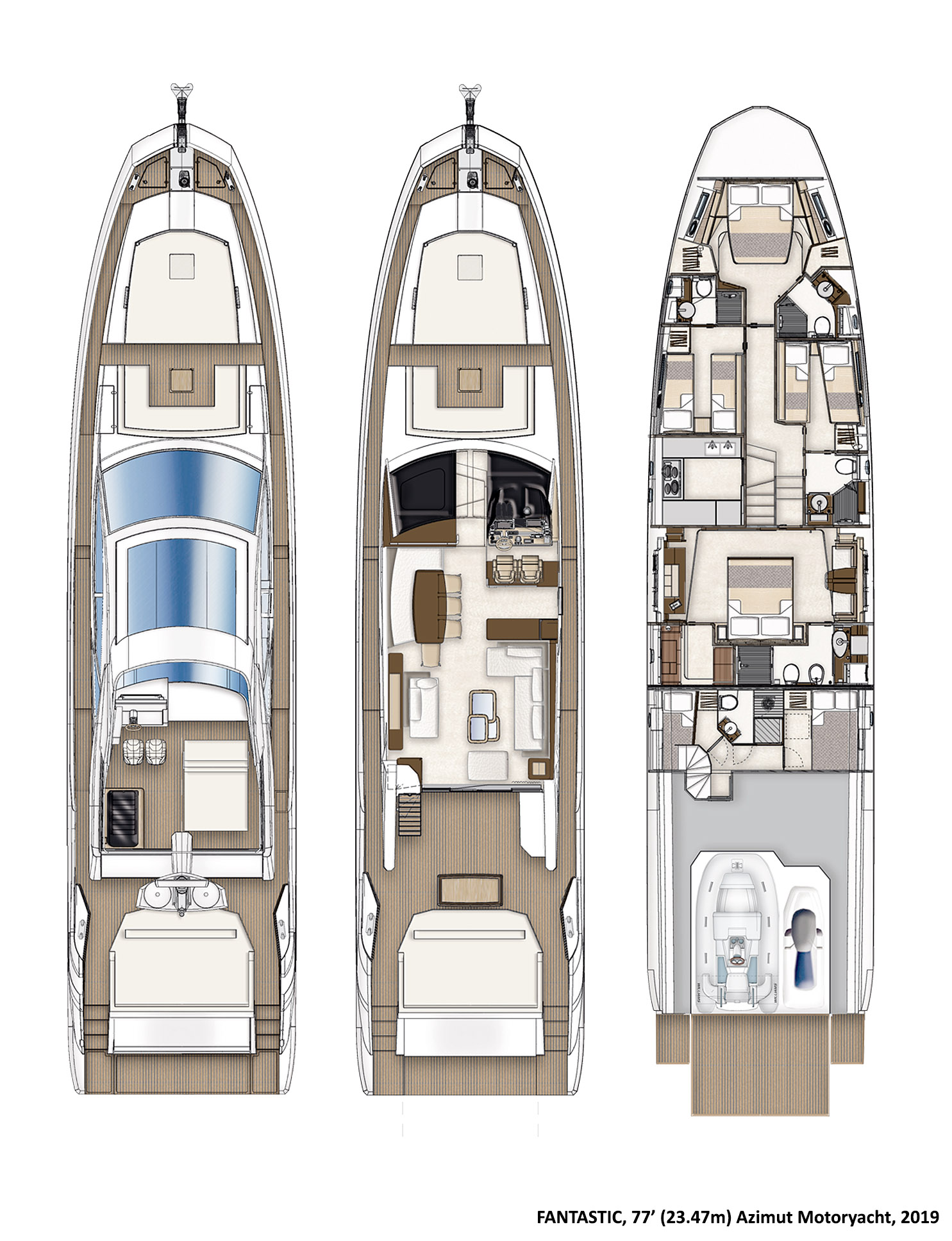

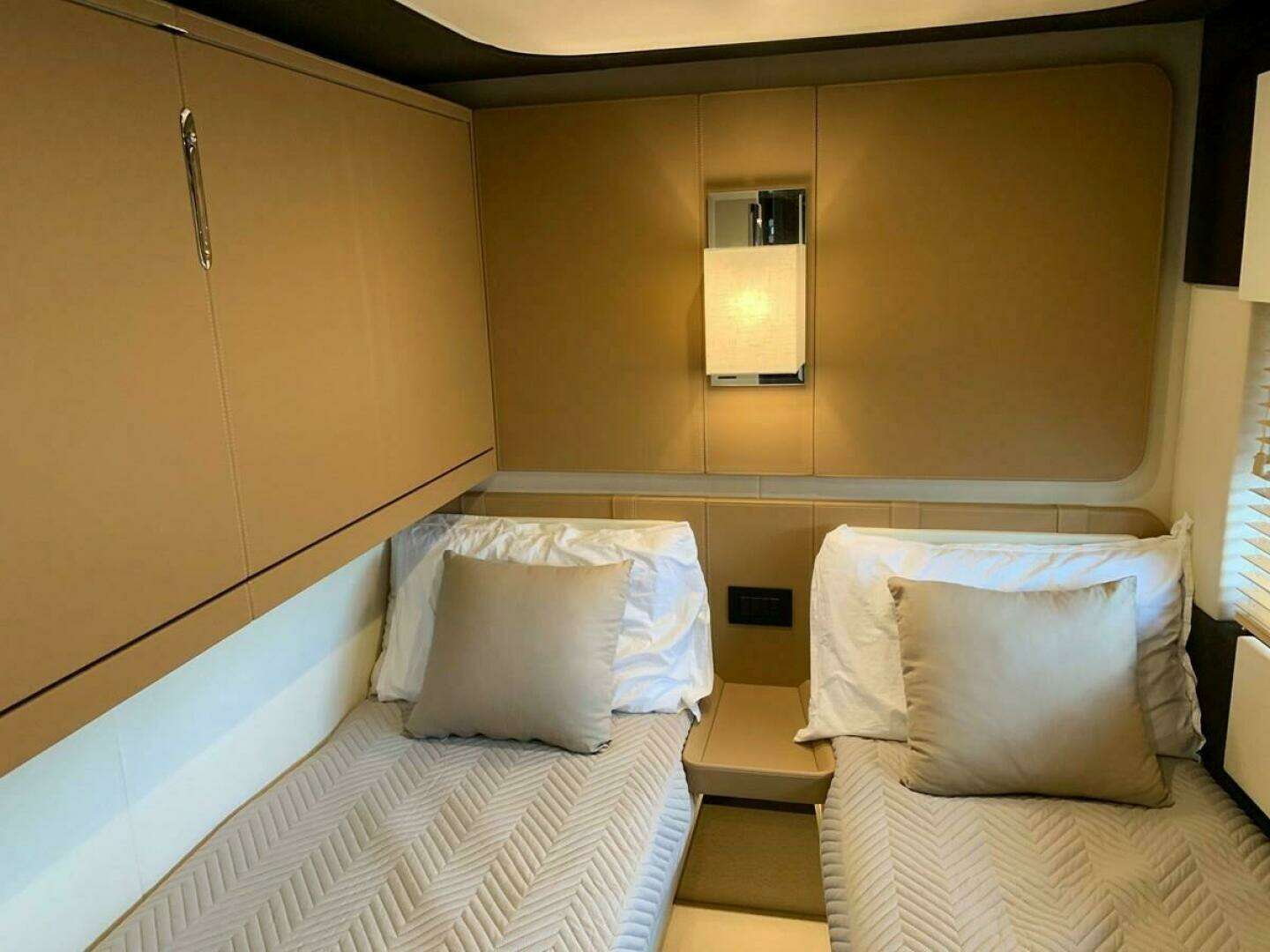

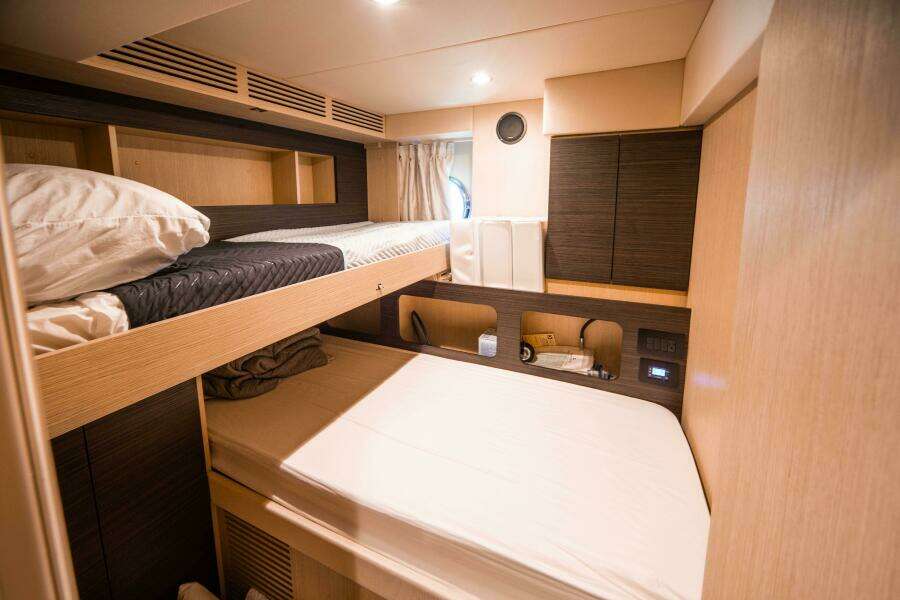

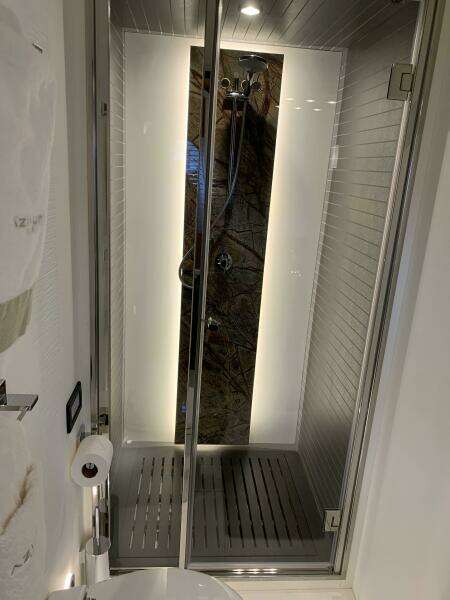

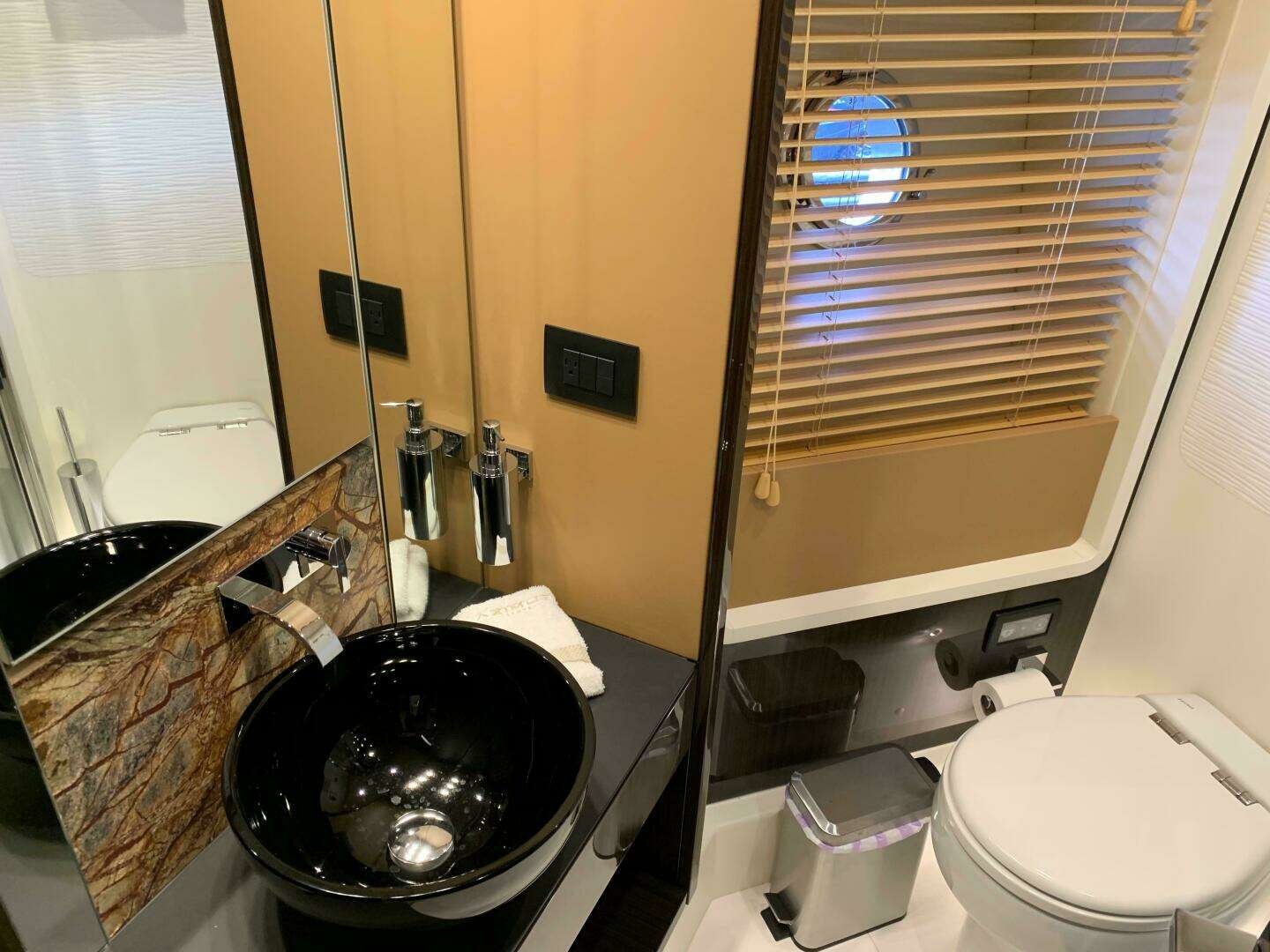

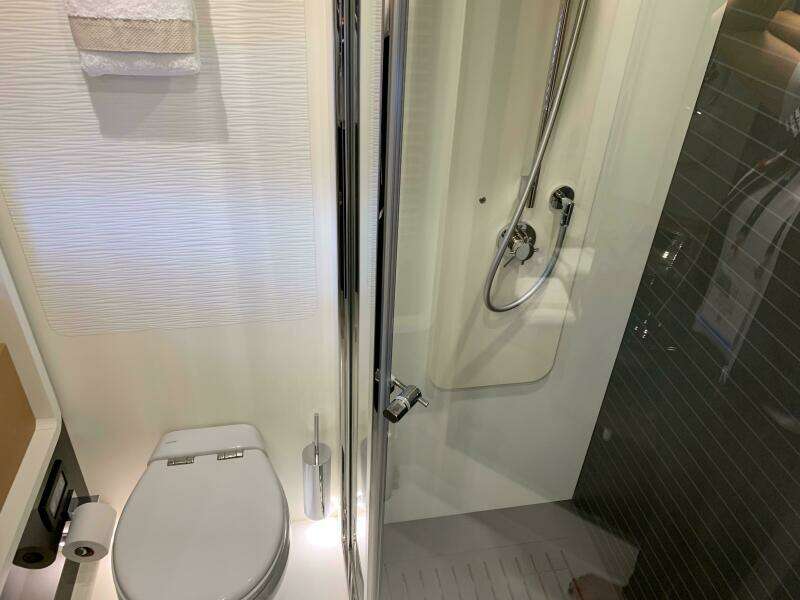

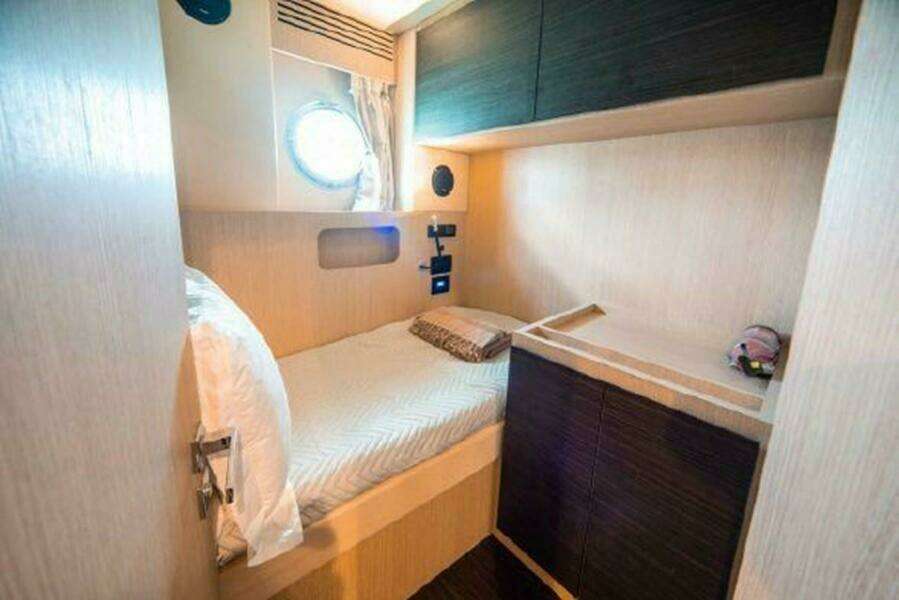

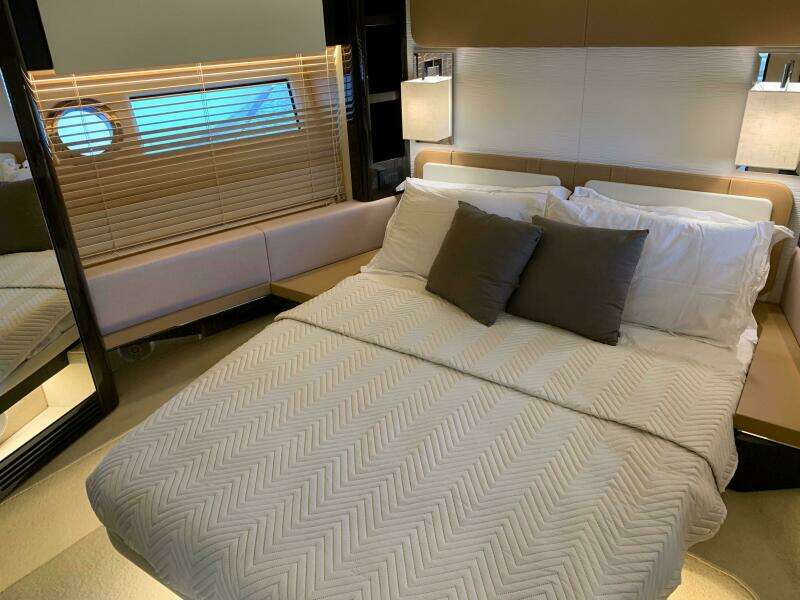

Accommodations include a four (4) stateroom layout on the lower deck, comprising a full beam aft master stateroom, port and starboard guest staterooms with two single berths, plus Pullman on starboard, and a forward VIP stateroom with a double berth. Each stateroom has its own en-suite head. The crew quarters are positioned aft with cockpit access and two (2) cabins: port Captain’s single and starboard two (2) single bunks, and one (1) head.

Notes:

• The total number of slip-on board is twelve (12)

• Folding bed in guest stateroom

• Crew cabin third bed (folding bed)

Sanitation:

• (5) Heads. Tecma 24V fresh water flush system

REMARKS

Carbon-Tech Generation

The use of carbon fiber is a construction choice that allows volumes and surfaces to be increased in size while keeping the same weight, therefore maintaining excellent levels of dynamic stability.

Carbon fiber lamination is applied to:

• Superstructure

• Flybridge

• Mast

• Transom/platform

Triple IPS Propulsion

Triple Volvo IPS propulsion system installed on hydro-dynamically optimized hull shape:

• Superior maneuverability

• Minimum noise and vibration level

• Best fuel efficiency (up to 25% reduction compared to shaft line)

Active Trim Control

Interceptor technology provides a smooth, precise auto mode that automatically takes care of all trim adjustments. It delivers trouble-free handling and a system without corrosion or leaking oil.

Naviop Advanced Monitoring System

State-of-the-art solution for displaying and controlling main onboard systems: engine data, fuel consumption, generators, trim, interceptor, navigation lights, batteries, air conditioning.

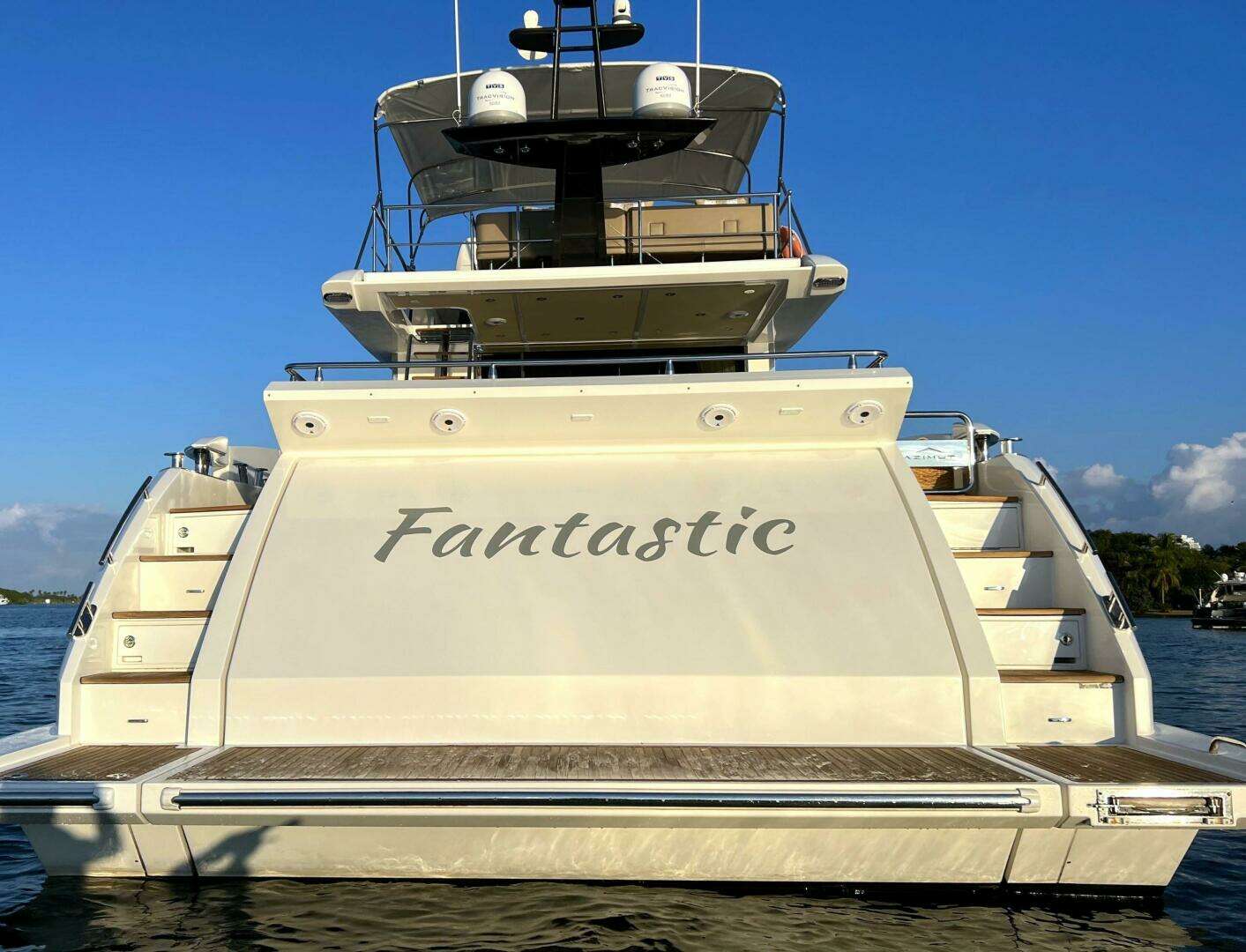

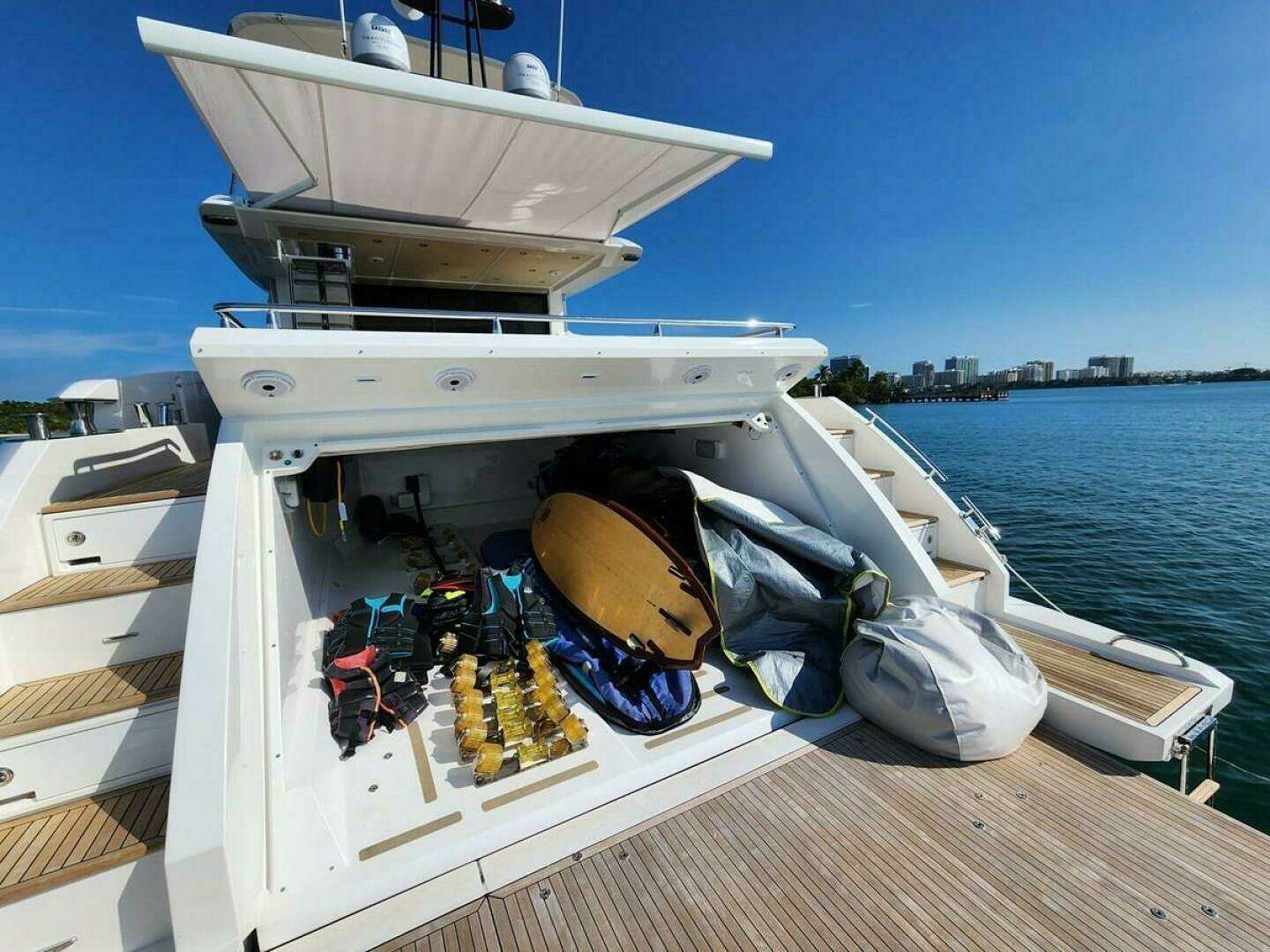

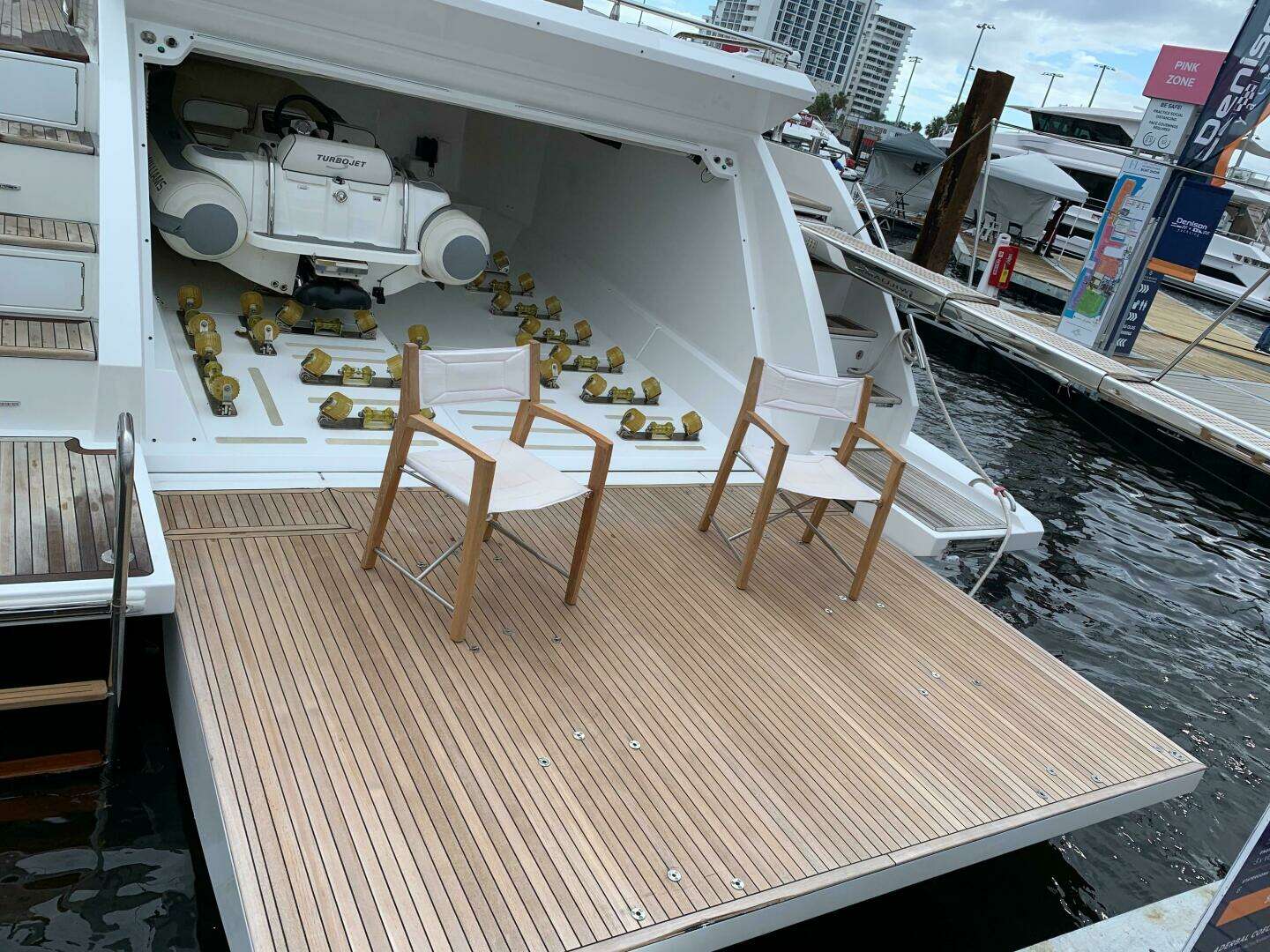

Aft Pivoting Platform and Garage

Innovative mechanism. Large beach area, garage for 385 tender and jet ski, easy launch mechanism.

HTS High Technical Standard Declaration

Azimut 77S has been designed and engineered according to the highest standards applied in the recreational industry for production boats. With CE Class A and NMMA certification, the boat is in compliance with the two major safety codes for boats under 24 meters.

Joystick Driving

Joystick driving offers an easy way to maneuver with precision and at the same time, it allows the driver to steer comfortably at all speeds with only one hand. When joystick driving is activated, the autopilot turns on simultaneously.

The driver steers the boat by moving the Joystick. When the joystick is released, the autopilot is engaged and keeps a forward course.

RECENT UPDATES

2025

• Garage door: Rebuilt and reinforced

• Sunroof: Rebuilt

• IPS: Serviced

• Bottom: Painted

• Batteries: New

• New Bimini Top

• Some new ceiling and wall panels

2023 - July

• Chillers serviced, new raw water pump

• Seakeeper serviced @ 1689 hours

• Teak sanded and stained

• Entire vessel waxed

2023 - February

• New salon carpet

• Fire suppression system

• New window trim

• Bow table refinished

• New wall fabric

• A/C chillers serviced

• Seakeeper pump repaired

2022

• Sound system upgraded

• Updated interiors

• New custom seating on flybridge

• ANG power converter system repaired

• Completed new GL audio speakers, amps, and wiring with four (4) individual remote systems

• KVH TV

• All new custom seating on bridge

• (5) Underwater lights

• Engines serviced - June

EXCLUSIONS

• Jet Ski
