Accomodations

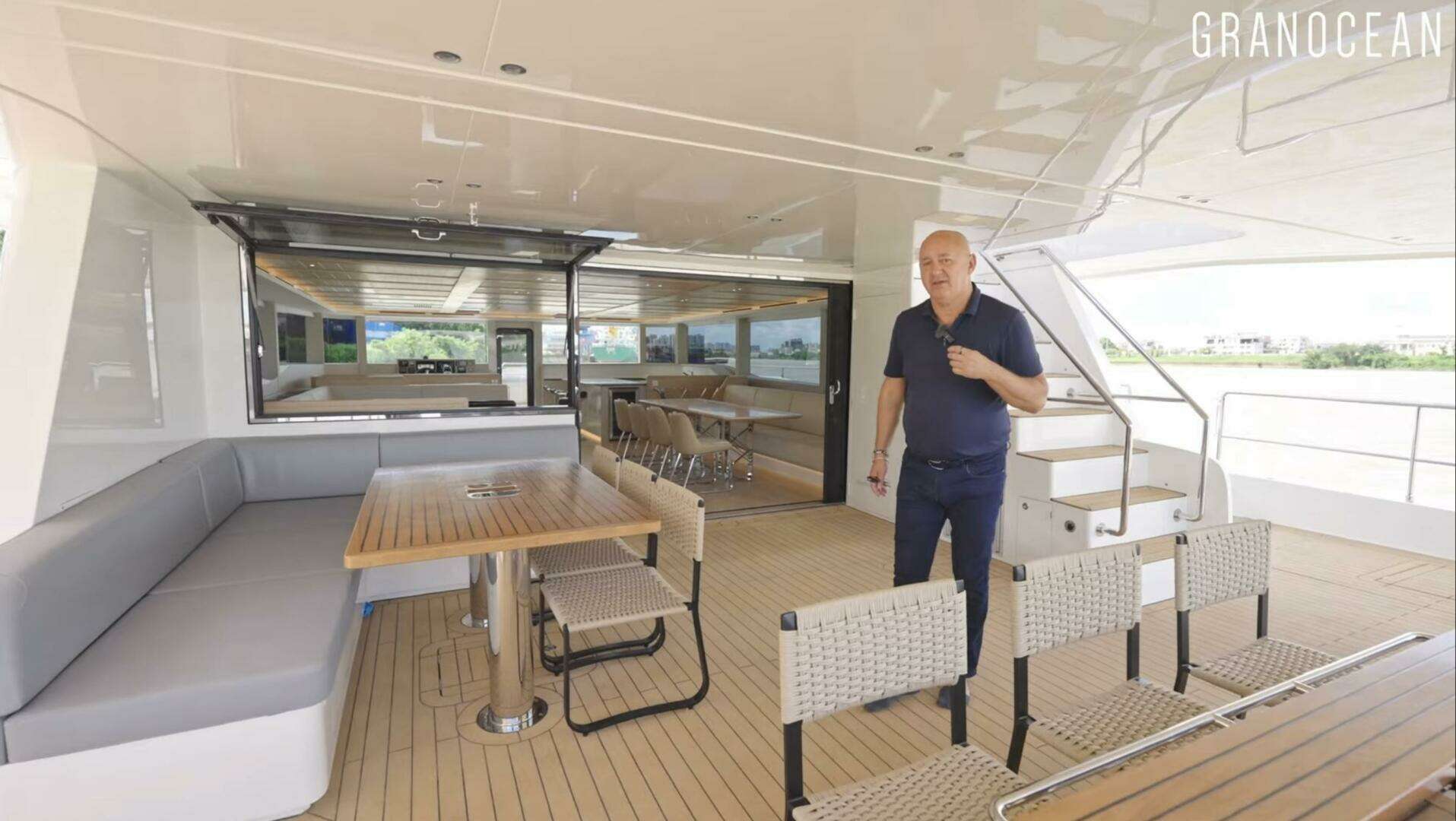

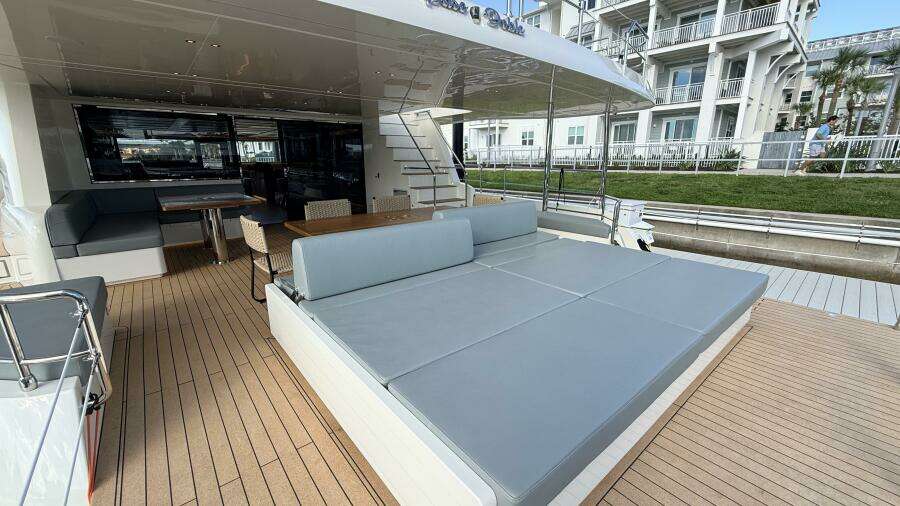

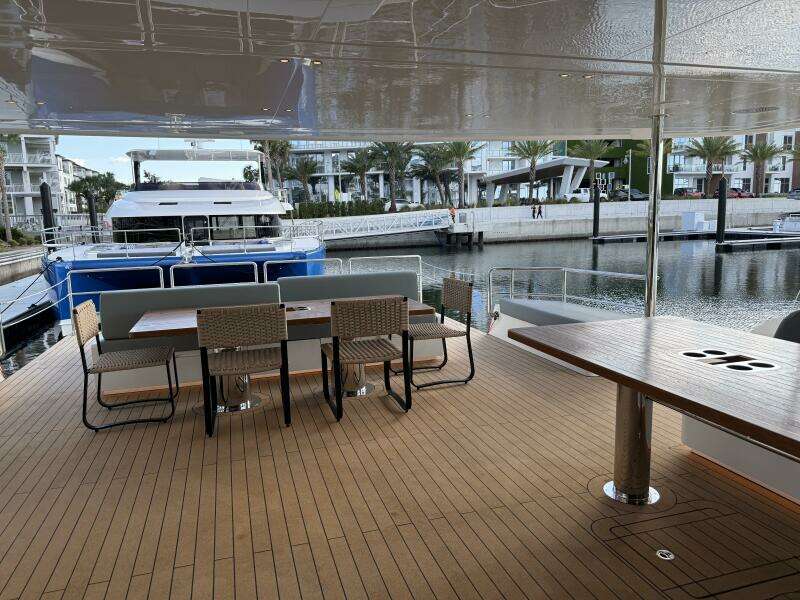

Cockpit

1. Covered aft deck with overhead lights

2. Large C-shaped flip-able backrest settee with Soffkin Kalmin marine vinyl cushions

3. Two (2) Teak cockpit dining tables

4. L-shaped settee with Soffkin Kalmin marine vinyl cushions

5. Teak coffee table

6. Storage under seating

7. Watertight engine access hatches

8. Custom shoe/sandal storage locker

9. Storage lockers on deck

10. Teak grate at entry to salon

11. Day Head below molded staircase

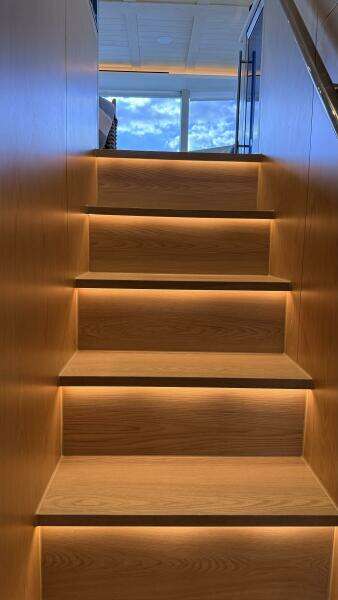

12. Molded Staircase with teak steps to flybridge

13. LED Courtesy floor lighting throughout

14. LED Flood lights for transom platform

15. Vimar water-proof sockets

16. Two (2) waterproof Fusion FR6021 6 inch speakers connected to inside helm stereo

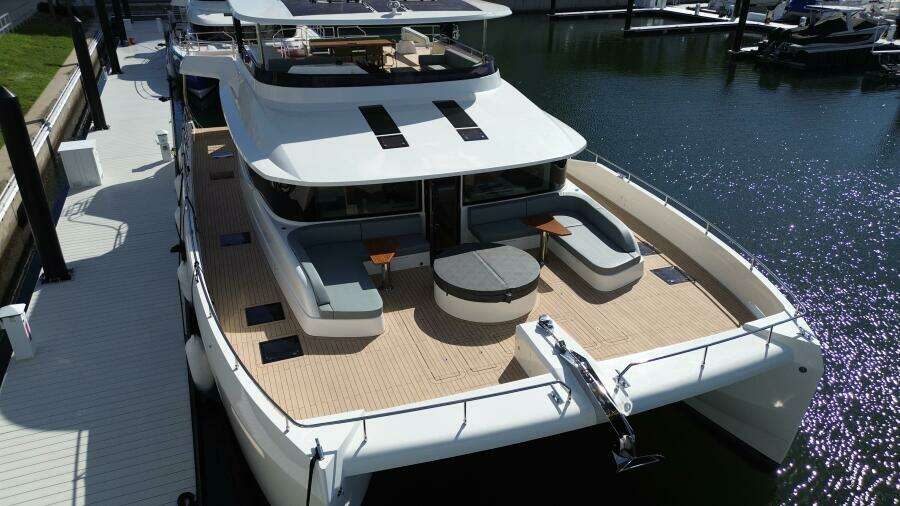

Foredeck

1. Weathertight door built to CE Area IIA to bow lounge

2. Two (2) large sunbathing L shape settee with Soffkin Kalmin marine vinyl cushions

3. Cup holders integrated into settee

4. Anchor chain locker

5. Insulated icebox locker under settee

6. Two large fender lockers under deck

7. Two (2) waterproof Fusion FR6021 6-inch speakers connected to inside helm stereo

8. Vimar water-proof sockets

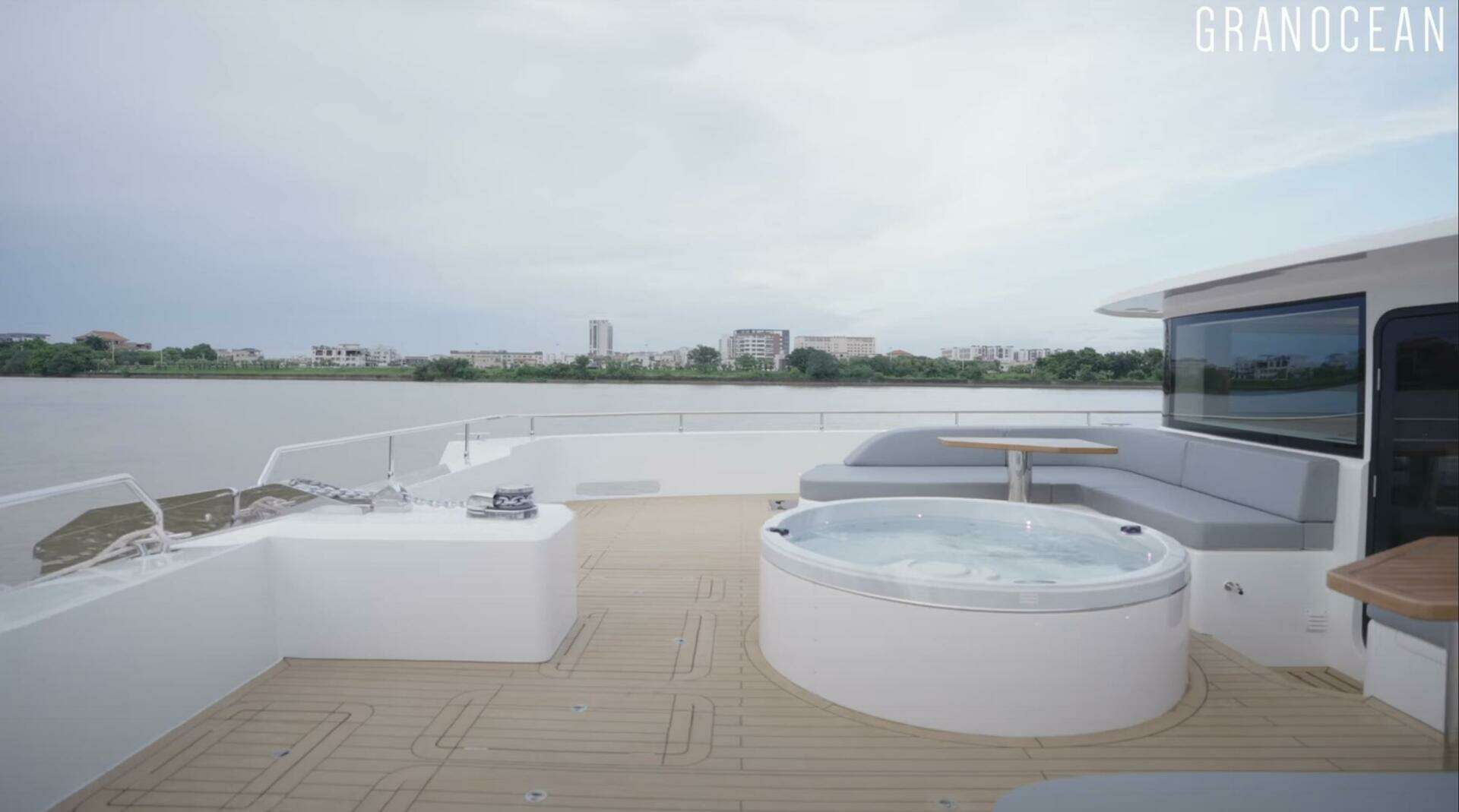

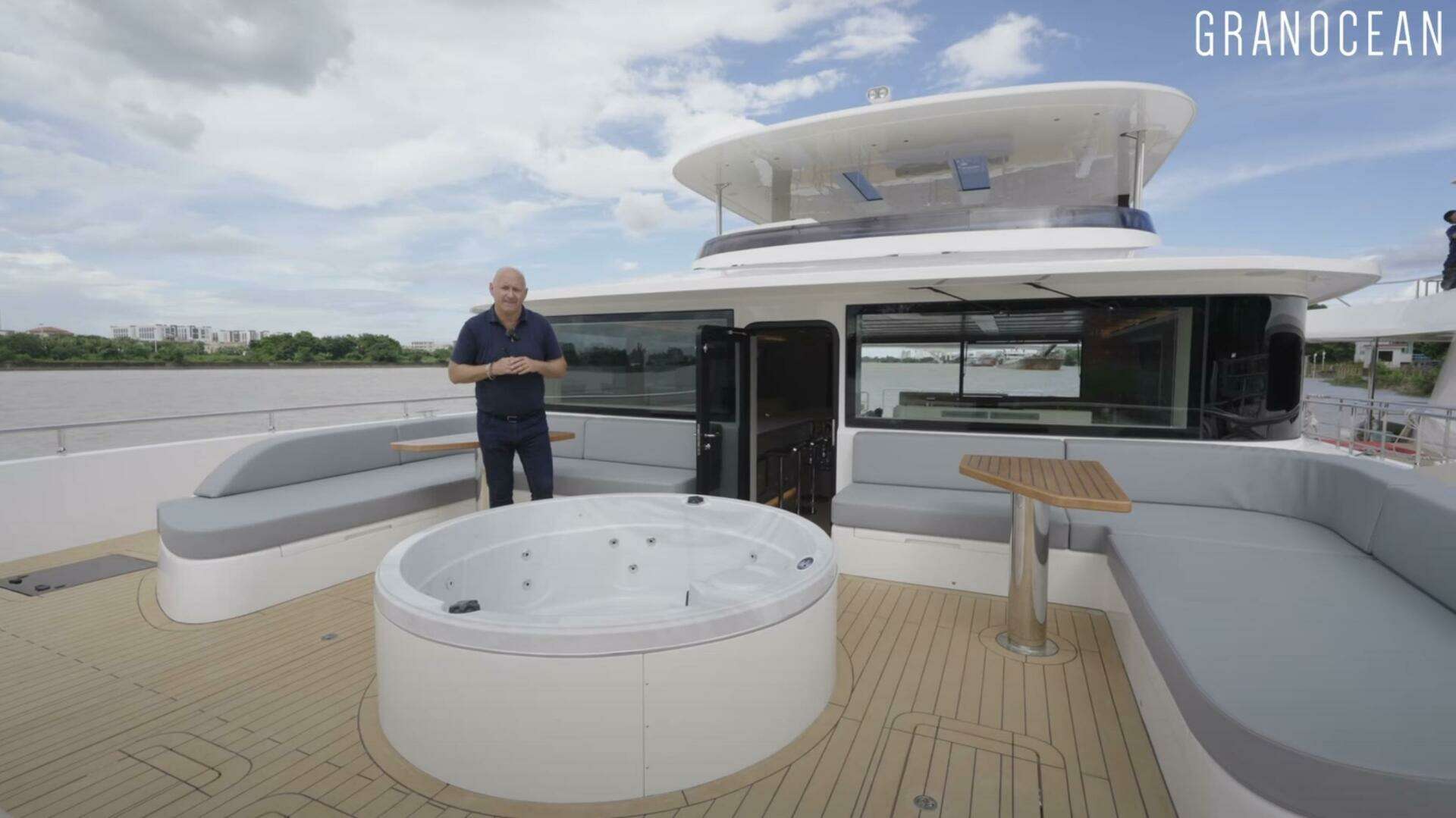

9. Upgrade to SPA

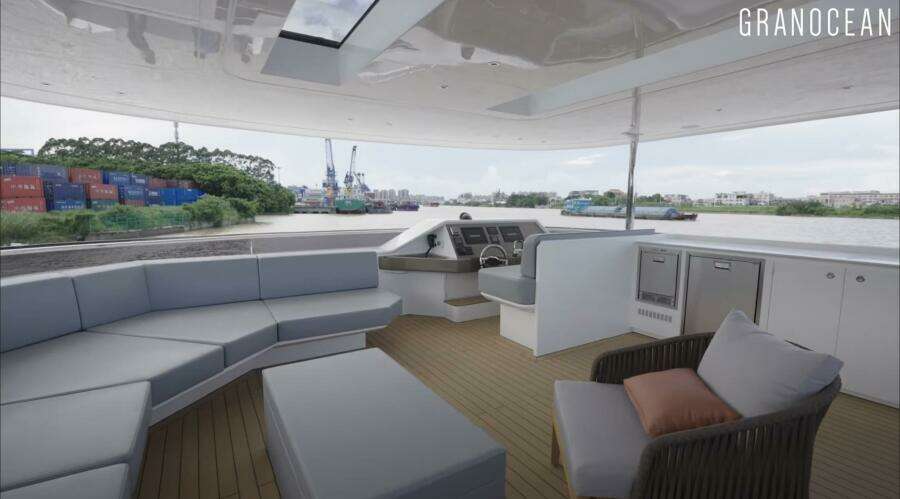

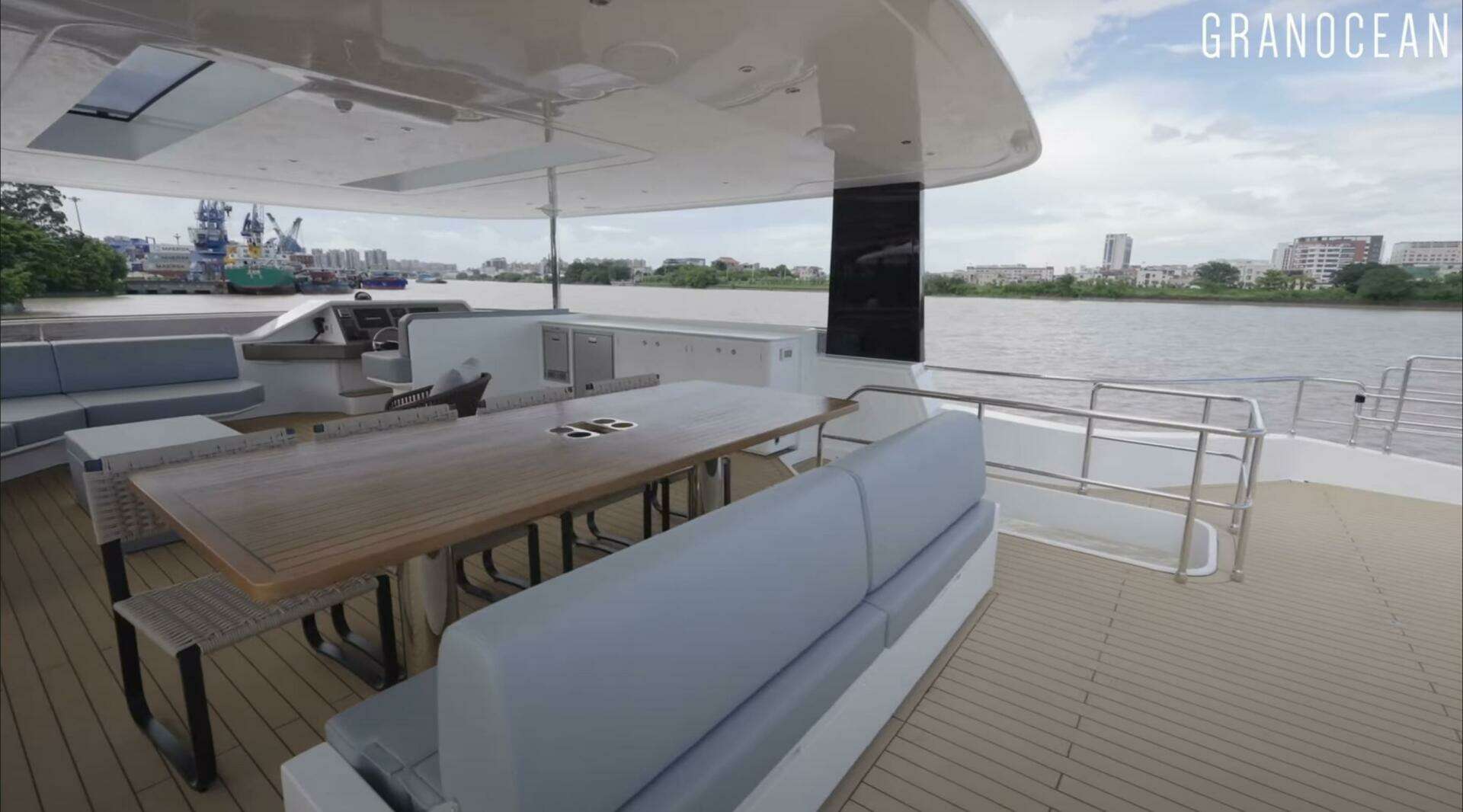

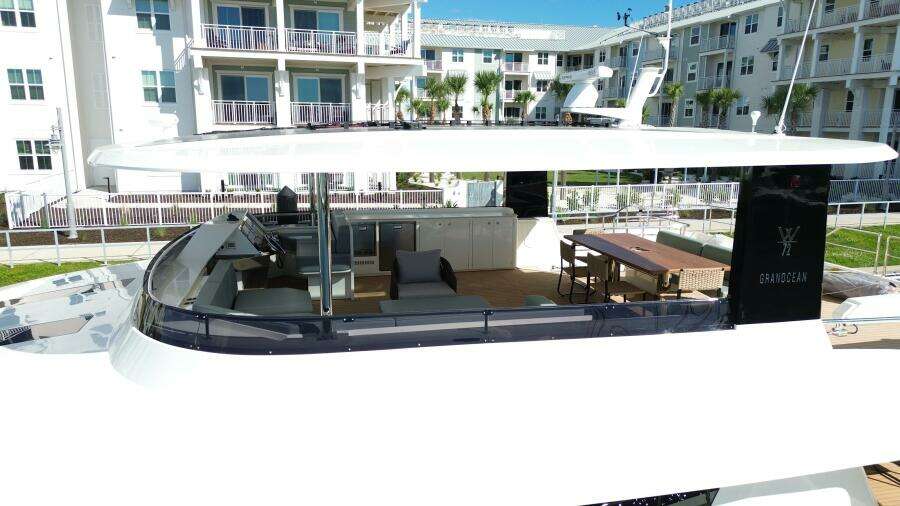

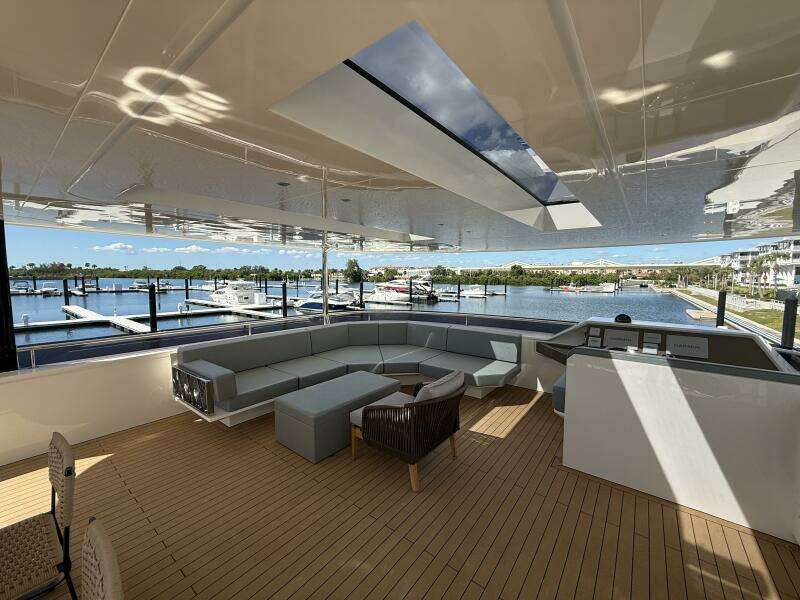

Flybridge:

1. Molded stairs with teak steps to flybridge with SS handrail

2. Hatch cover over staircase opening

3. Hard top covered flybridge with LED overhead lights

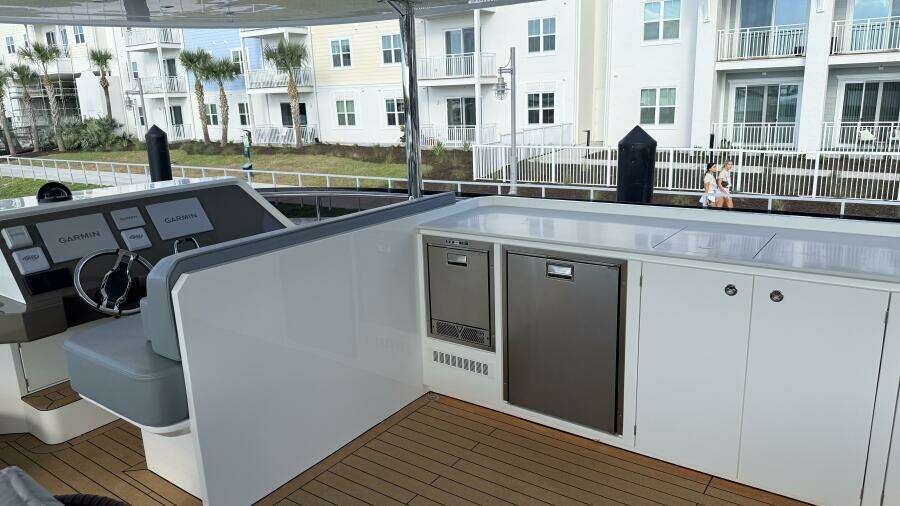

4. Wet bar including Corian top with built-in sink, tap

5. Large C-shaped settee with Soffkin Kalmin marine vinyl cushion and storage underneath

6. Two (2) Teak dining tables

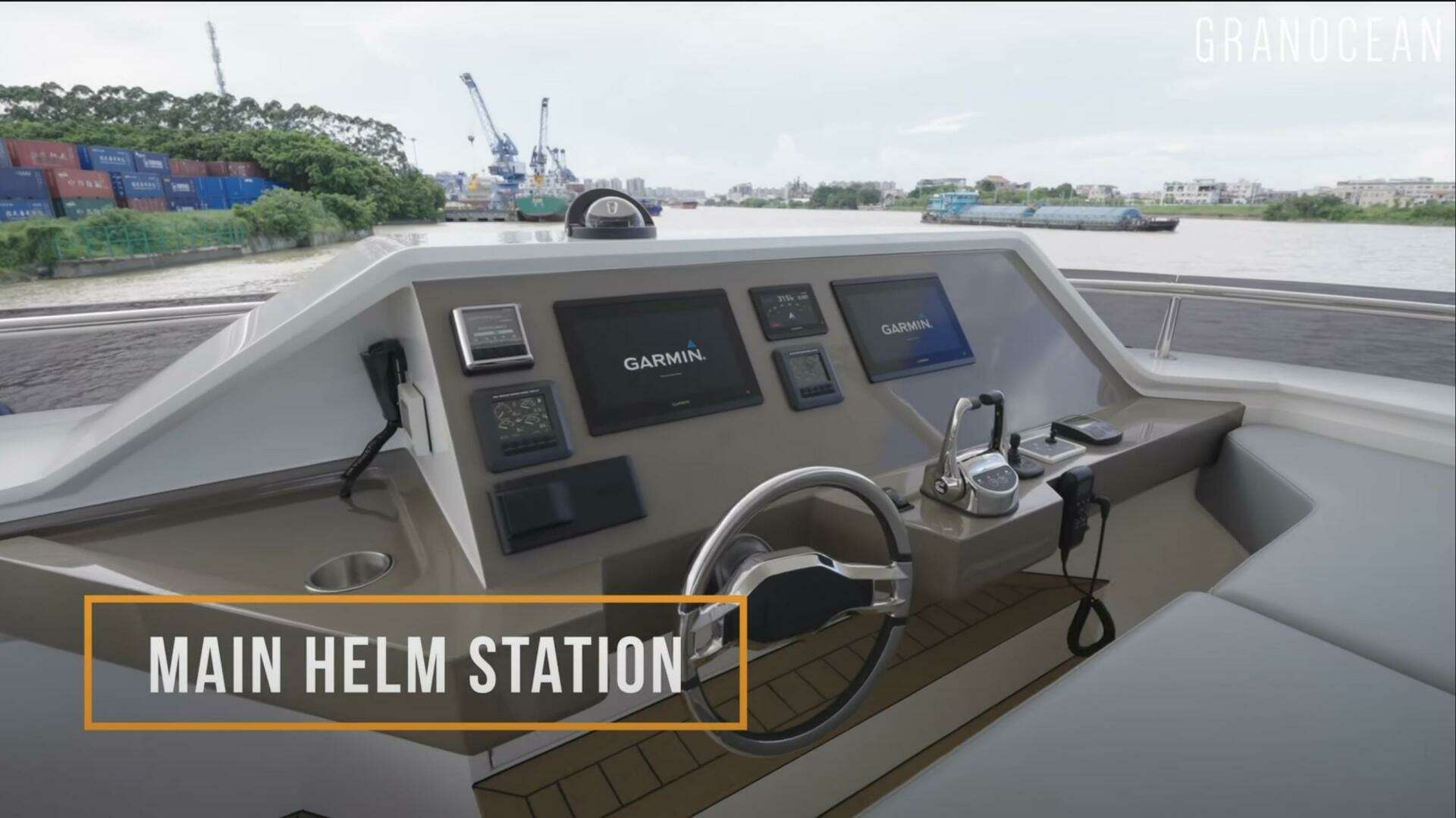

7. Helm with double seats complete with steering, throttle, VHF and chart-plotter

8. Acrylic windshield

9. Sun lounges with Soffkin Kalmin marine vinyl cushions next to helm

10. Large storage locker

11. Vimar water-proof sockets

12. LED Courtesy floor lighting throughout

13. Instrument mast on hard top

14. Two (2) waterproof Fusion DR6021 6 inch speakers connected to inside helm stereo with separate volume controller

15. Extendable Steelhead hydraulic Crane capacity 680 KG with 3.7m reach upgrade

16. Marinedeck 2000 decking upgrade

General Interior Finishes

1. General interior finishing in soft vinyl leather and wooden veneer with satin finish

2. Furniture is a combination of solid wood and veneer with satin finish

3. Overhead finished in soft Soffkin vinyl leather panels

4. Composite non porous membrane flooing with non-slip stripes for staircases

5. Cedar wood for all hanging closet?s backing panel

6. Upgrade: Removable custom shaped carpet in cabin areas

7. Upgrade: Granite countertops with honeycomb backing in galley and heads

8. High quality entrance chrome door lock and stainless steel cabinet door locks to shipyard's standard selections

9. High quality Lamp interior hardware

10. DC LED ceiling and courtesy lighting throughout. Lighting fixtures to shipyard's standard selections

12. Roll down shades for all cabins and heads

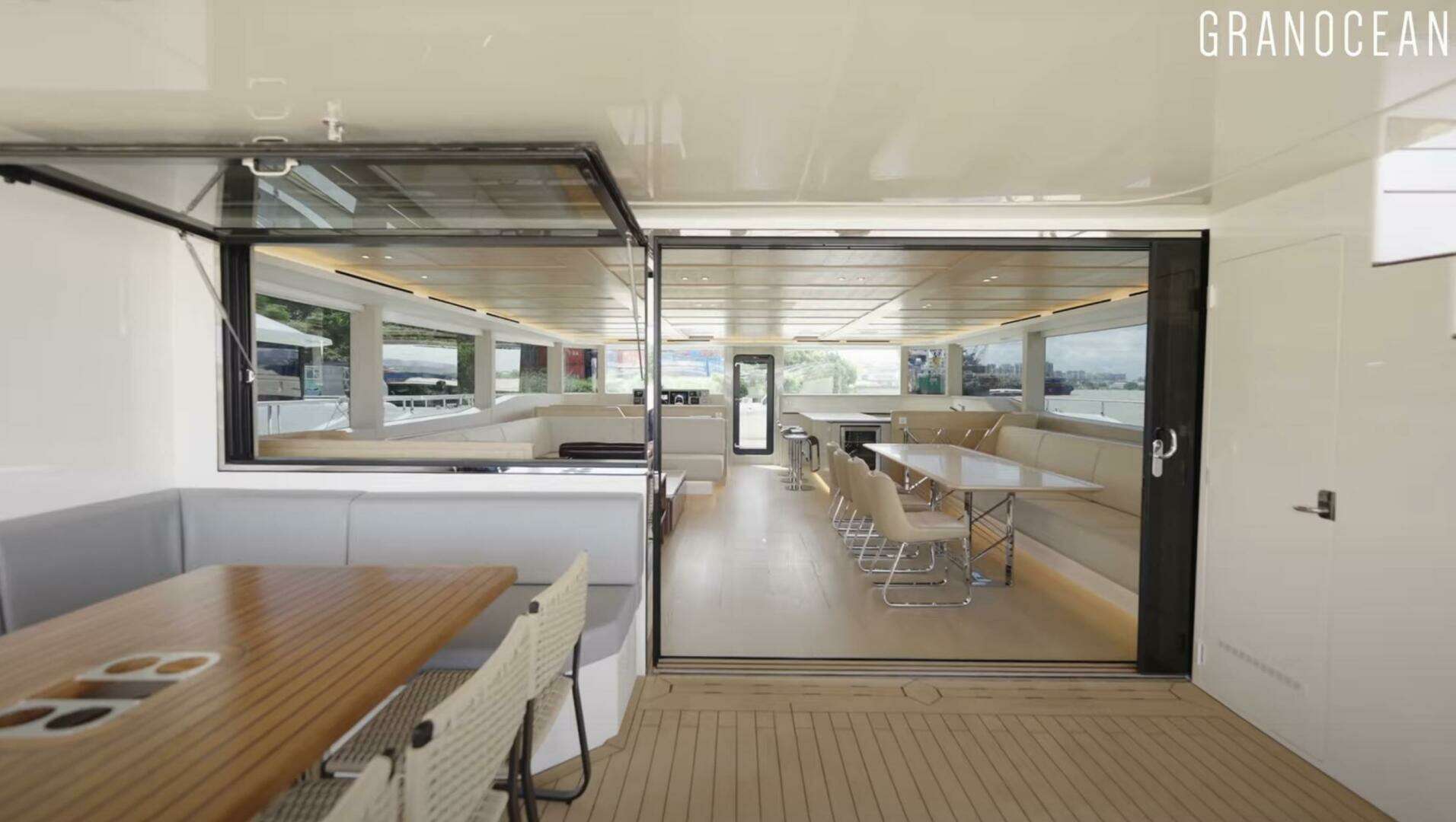

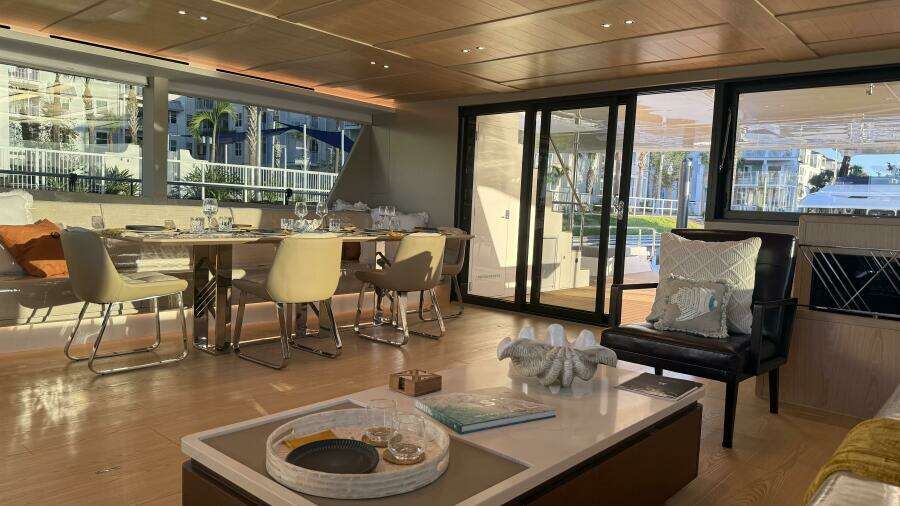

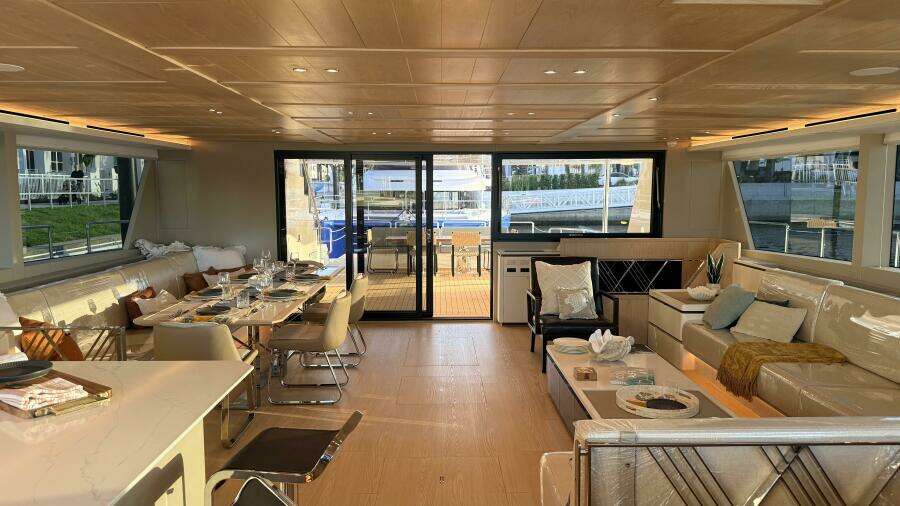

Salon

1. Panoramic view through large laminated fixed windows

2. Wide open triple stainless steel sliding salon doors

3. Roca windscreen wipers with spray wash, on/off/3 speeds function

4. Large C-shaped settee on stbd side

5. Two (2) coffee tables on port side

6. Dining tables on stbd side

7. Two (2) observation settee facing forward

8. 50 inch Samsung salon flip down or pop up TV subjected to final GA

9. Cabins access companionways with SS handrails

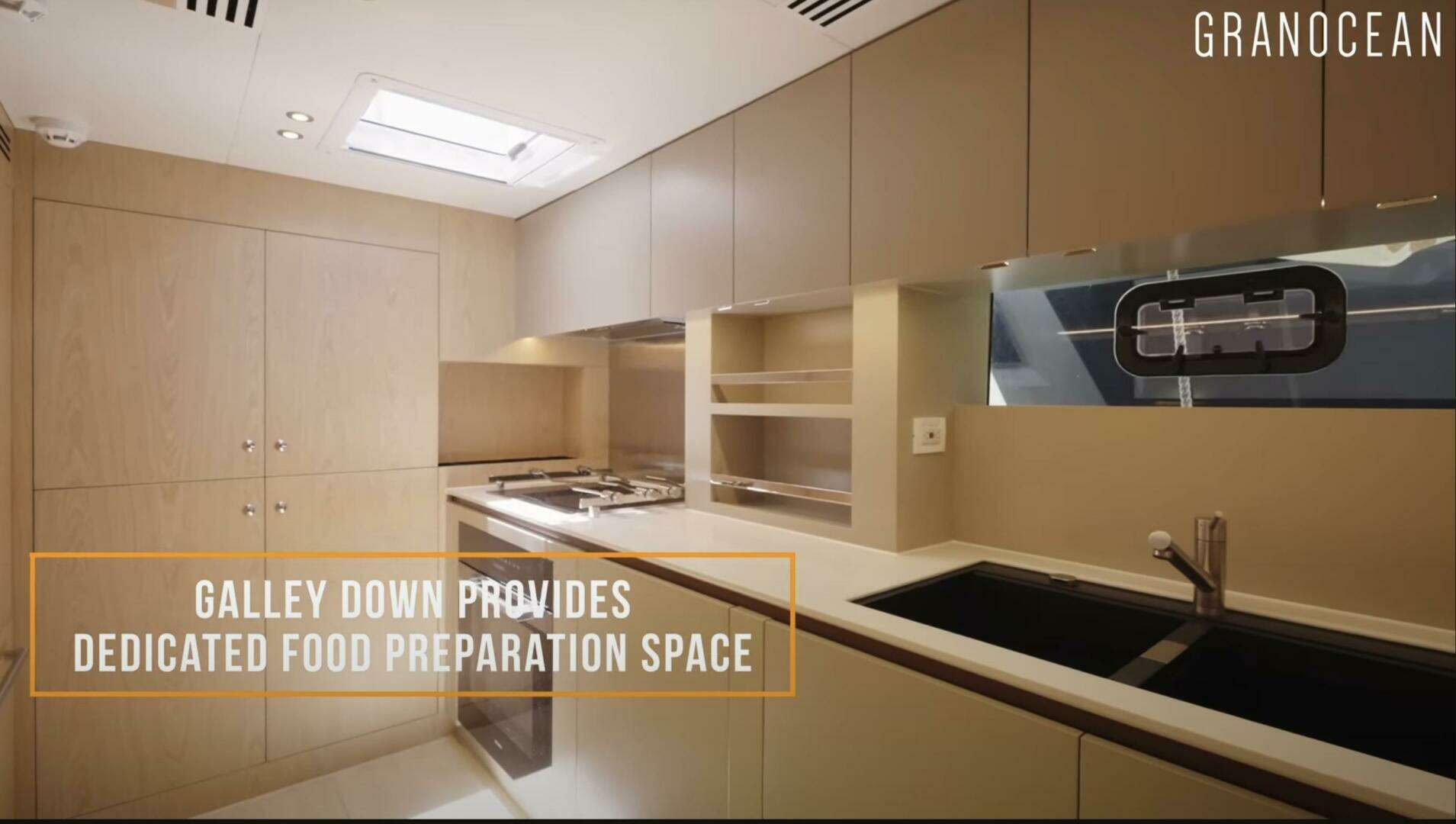

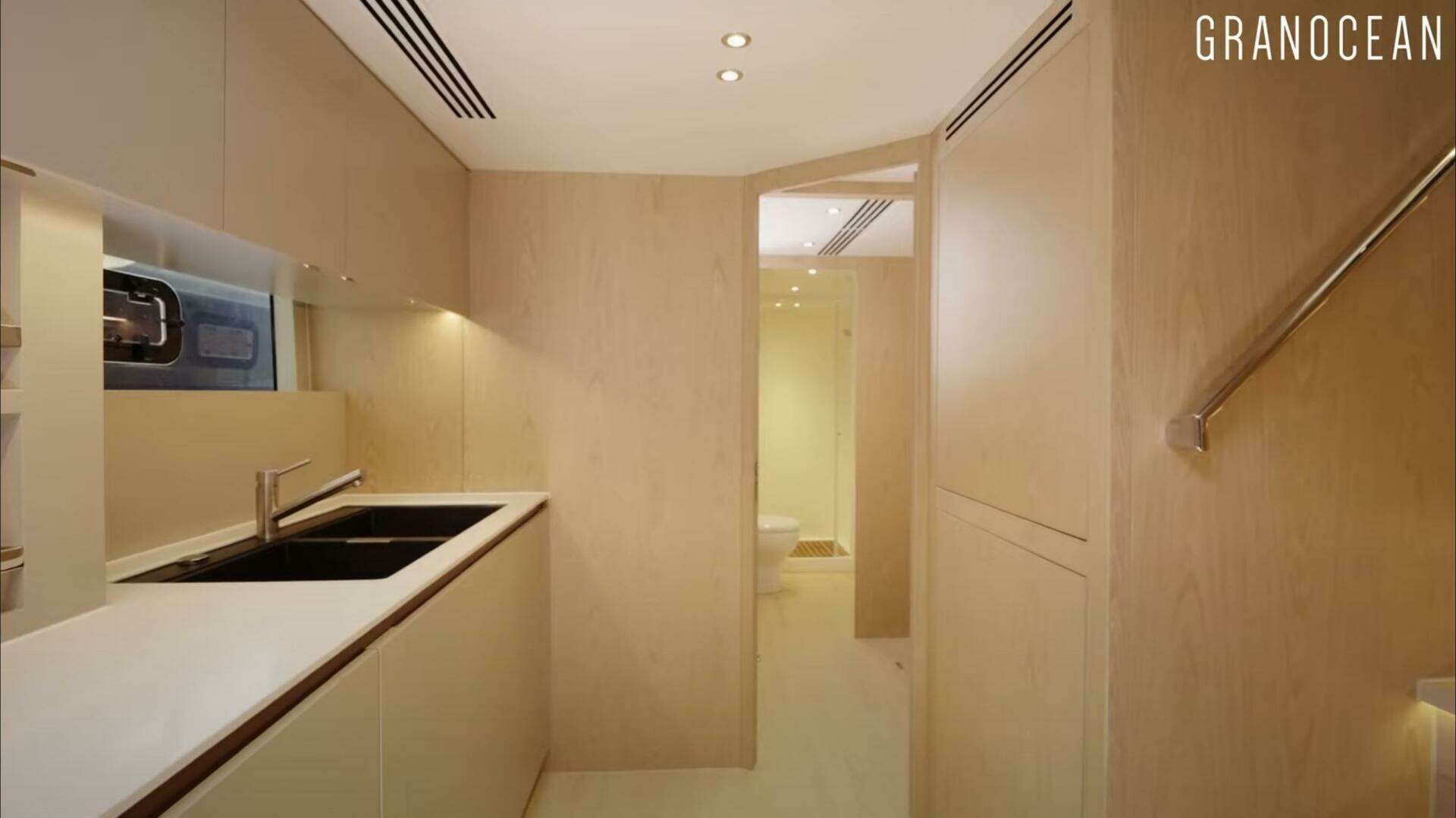

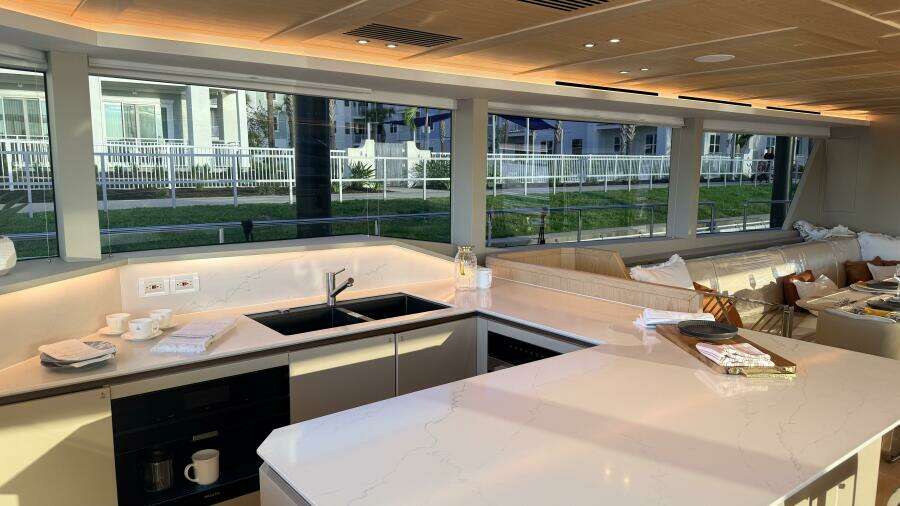

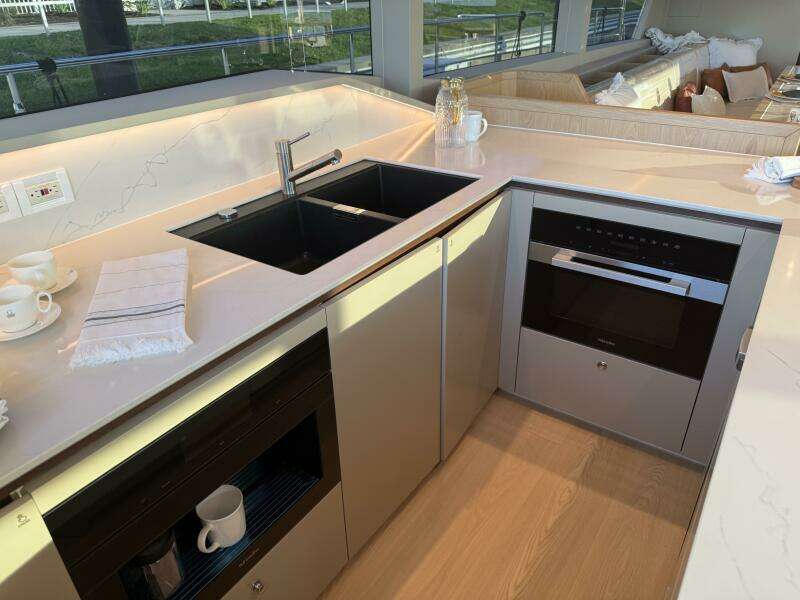

10. U-shaped Galley adjacent to cockpit on aft stbd side

11. Corian countertops with storage

12. Double Kohler stainless steel sinks

13. Siemens full height fridge and freezer unit

14. Siemens three burner electric convection cooktop

15. Siemens Extraction hood

16. Siemens Oven and microwave combination under counter

17. Fusion RA770 player entertainment system with two FR6021 6 inch Fusion speakers

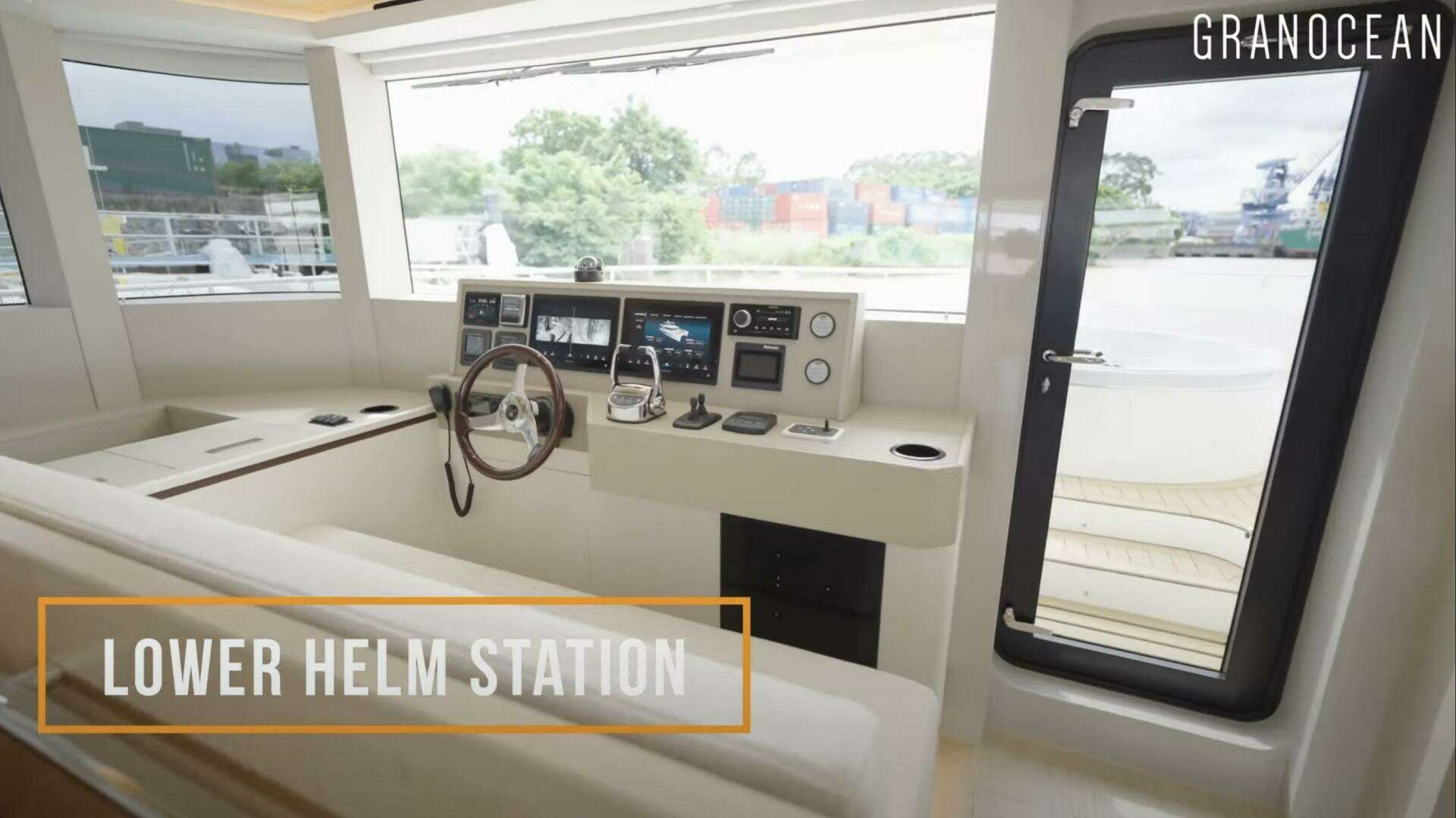

18.Upgrade: Indoor helm with double seats complete with steering, throttle, VHF and chart-plotter) 3 x additional Garmin 12" chart plotters. 4Kw radar array Garmin. AIS Garmin. CCTV camera for fly, cockpit and engine room.

19.Upgraded appliances: 3 x external undercounter fridges, icemaker , Siemens washer with separate dryer, dishwasher, microwave, cooktop, coffeemaker, wine cellar x 23 bottles, combination lock safe.

Lower deck

Standard Layout upgraded to:

Portside

i. VIP suite forward

ii. Crew Cabin with head, crew galley with built in 36" fridge, dishwasher and laundry with stacked washer/ drier

Starboard Side

i. Master Suite aft

ii. VIP suite

ii. One ensuite head and one shared head

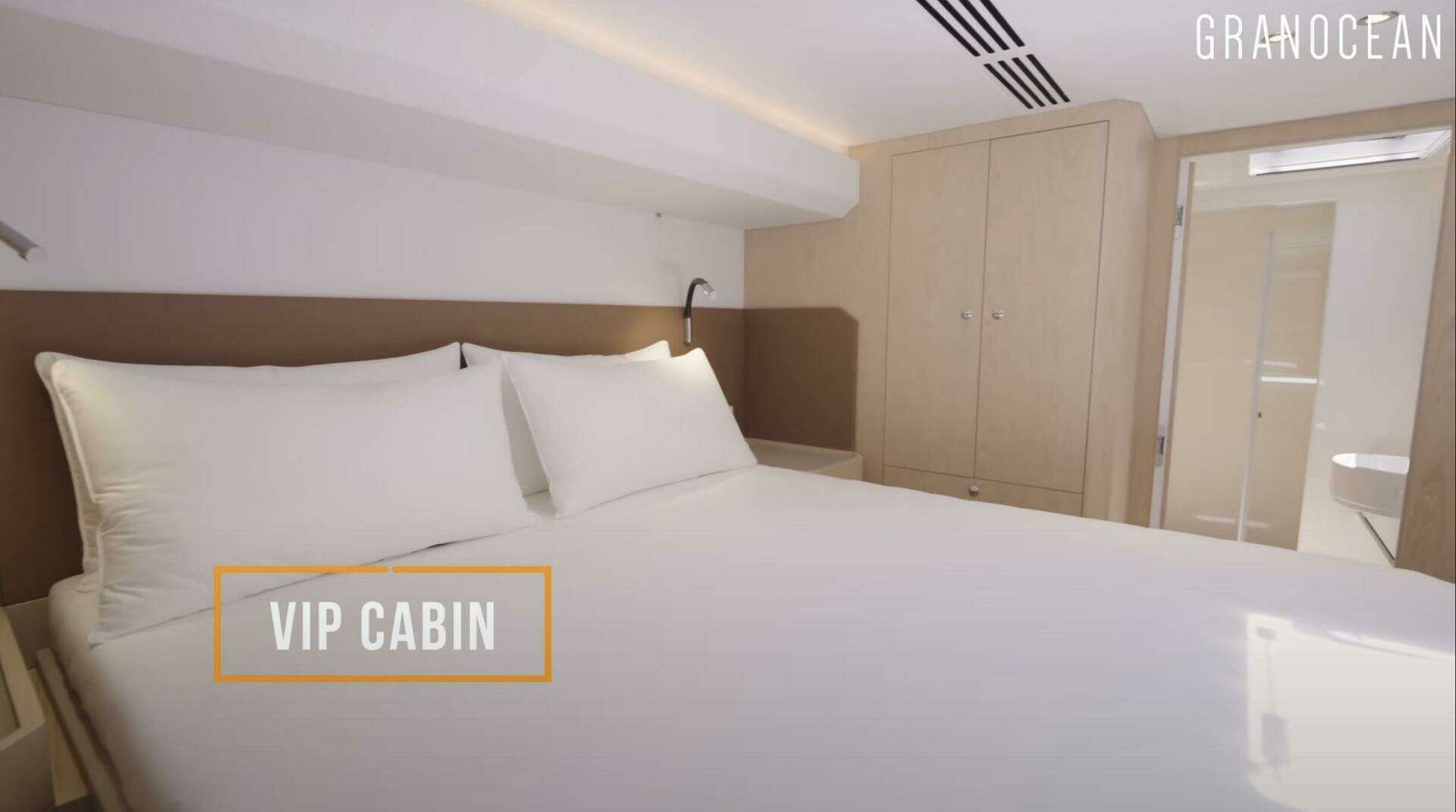

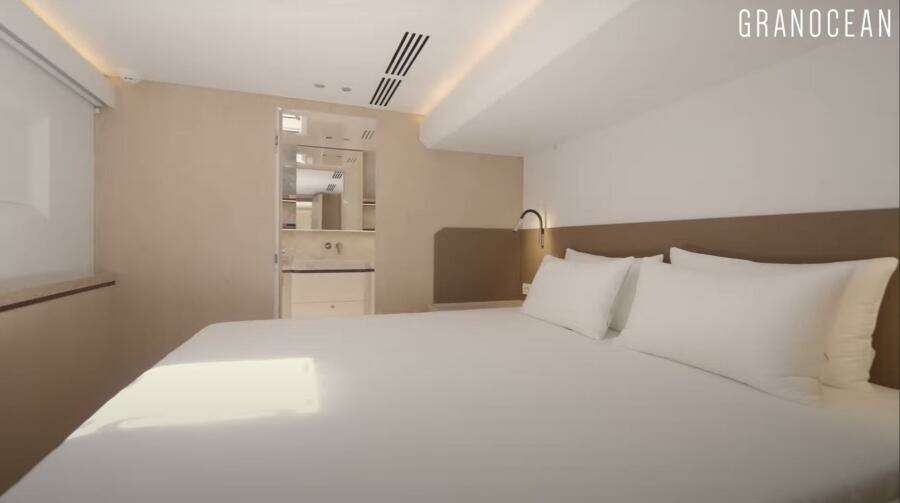

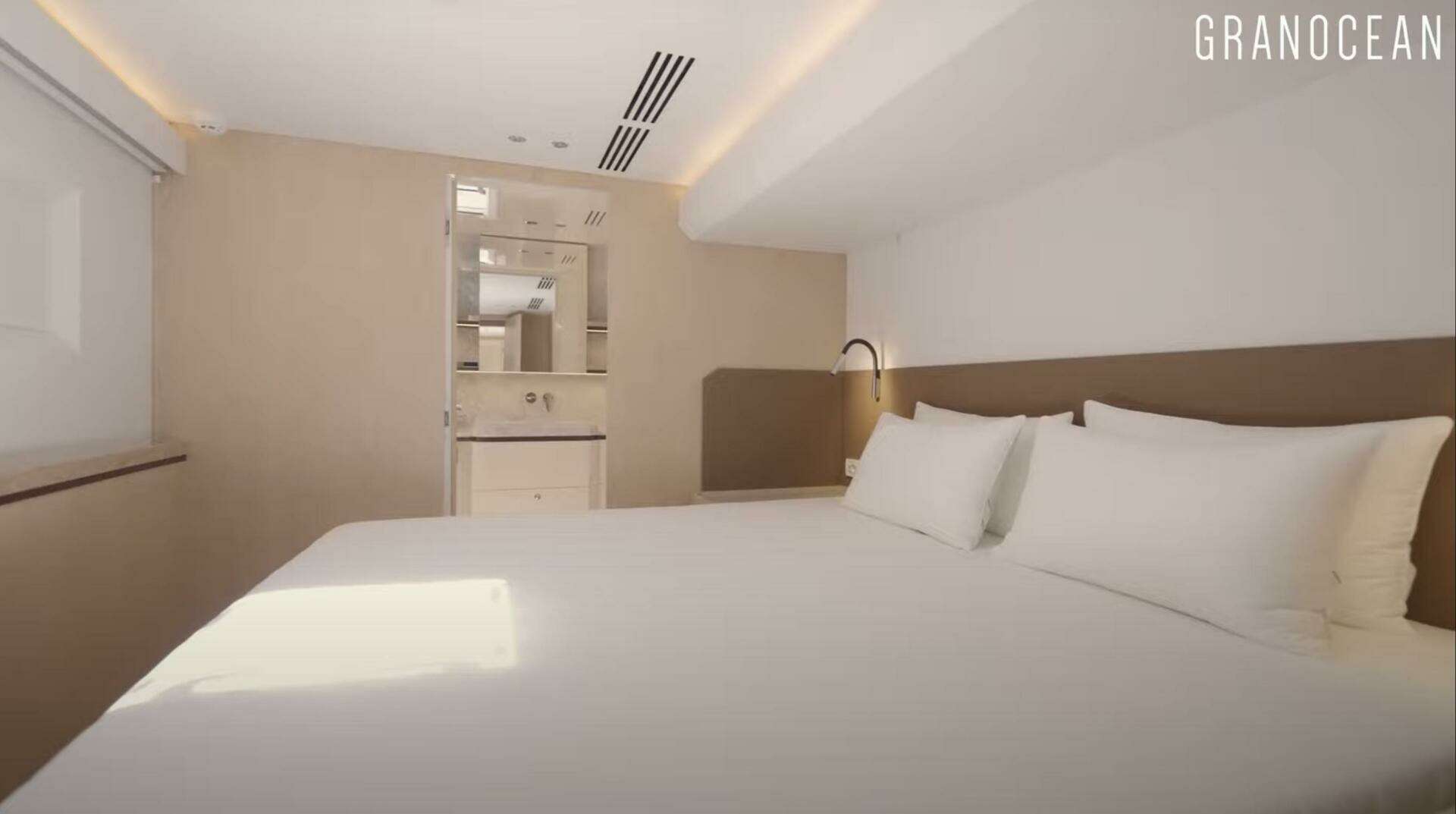

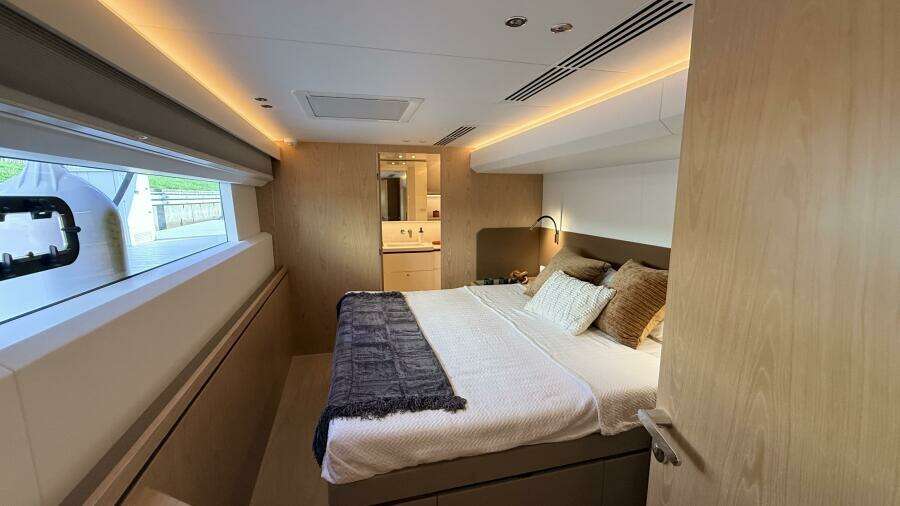

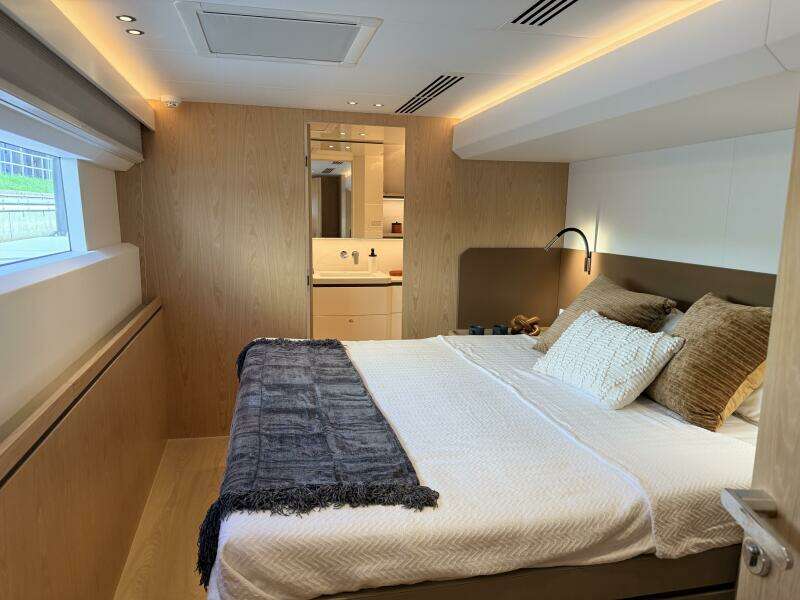

All Staterooms

1. Queen size berth (153cm x204cm)

2. Single or Hi-low bunks for crew cabin

3. Large closet with drawers and closed shelving

4. Vanity desk with seat and flip up mirror

5. Wall/reading LED lamps on both side of headboards

6. Pull-down blinds over portlights

All Heads & Showers

1. Corian counter tops with Kohler ceramics sinks (Double sinks for master suite, choice of top

mount or undermount sinks)

2. Storage unit below counter

3. Separate shower compartment

4. Standard size Tecma toilets with electric freshwater flushed

5. Kohler faucet and shower unit

6. Chrome towel bars and toilet paper holders

7. Exhaust fan in all heads

8. Teak grates in all shower stalls

9. Mirrors above countertop

Engines & Mechanicals

Engine & Equipment

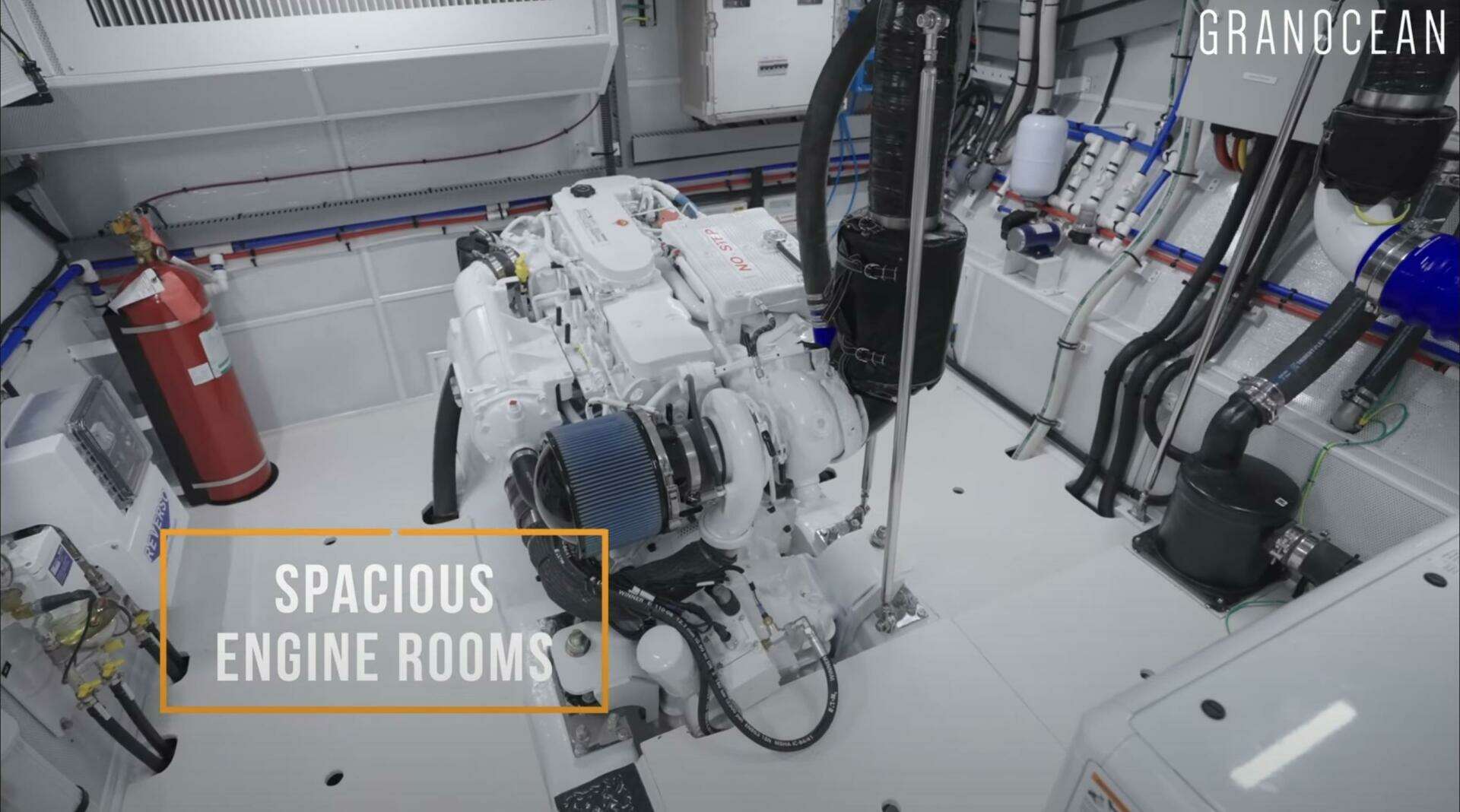

1. Two Cummins QSB 6.7 550hp 3300rpm inboard diesel engines with instrument panels & throttle at flybridge helm

2. Two (2) Hungshen four blade bronze propellers

3. Aqua 17 high tensile direct transmission shafts

4. Hydrive electrical hydraulic Steering system, compatible with autopilot system

5. Stainless steel emergency tillers

6. Fiberglass rudders with stainless steel shaft & reinforcement

7. Manship engine compartment ventilation natural intake of air with mechanical extraction of air

8. Engine room with sound insulation materials

9. Engine alarm system for low oil pressure and high-water temperature

10. Cruisair air-conditioning system total 88,000 BTU (Salon with 48,000 BTU in total, lower deck with 20,000 BTU in total for each hull)

11. Upgrade to 2 Lewmar 15HP electric bow thrusters

Plumbing

1. Two (2) integral FRP fuel tanks total volume 5000L with electrical gauge

2. Racor 500 series fuel filter/water separators for each engine

3. Diesel emergency shut off valve

4. Jabsco fuel transfer pumps between fuel tanks

5. Two (2) integral FRP water tanks total 1000L with electrical gauge

6. Two (2) 24V Electric Jabsco freshwater pump and pressure accumulator

7. Freshwater crossover back up system with control valves

8. Two (2) 80L Quick water heater

9. Two 72L PVC holding tanks

10. All black water discharge overboard directly from holding tank or pump-out from deck

11. Shower drain to greywater sump pump

12. Six (6) RULE#2000 electric bilge pumps with separate flow switches

13. One manual Jabsco bilge pump for emergency in each hull

14. Upgrade: Two Reverso 80GPH Fuel polishing system with fuel conditioner

15. Upgrade: Schenker Watermaker 100L/h with commercial filters

Electrical

1. 24V/230V or 24V/110V electrical system

2. Two (2) Kohler 12KW/50HZ/1PH with Decision Maker 3500 Paralleling system)

3. Wiring - marine cables approved by Lloyds and ABS

4. Czone NMEA 2000 network backbone system ready for connection to 3rd party navigation engine systems and other NMEA 2000 network equipment.

5. Batteries - house and engine starting

6. House: 6 deep cycle total 24V 1000AH

7. Two extra 24V 200AH batteries for electric windlass

8. Engine Start: 2 set 24V ? 200 AH lead acid batteries

9. Generator start: 12V 120AH battery

10. Separate Victron chargers for starting batteries

11. Victron Quattro 24V/5000W/120A battery inverter/charger Combo

12. LED Lighting throughout 24V DC

13. 63 amp single phase shore power inlet with galvanic isolator

14. Power circuits protected by circuit fuse and breakers

15. Main AC/DC electrical distribution panels

16. 24V monitoring alarm panel

17. Electrical gauge with indicator at chart table

18. Electrical Vimar outlets located throughout including engine room

19. Electrolysis bonding system via copper strap

20. Upgrade: Four (4) Aqualuma underwater lights two at each stern

21. Upgrade to Flexible solar panels on hard top (one is 100W each) x 37

22. Extra Lifeline D8 250Ah battery for Solar panel

Navigation & Electronics

1. One (1) 4-1/2" Ritchie compass

2. One set of Hella navigation lights include head, stern, port, starboard & anchor

3. 12? Garmin navigation chart plotter at main helm (Option: upgrade size to 16? and/or dual plotters)

4. Garmin 20nm-36nm Radome upgraded to 42nm 4Kw Garmin Radar array

5. Garmin depth/speed/fishfinder combo transducer

6. Garmin VHF

7. Garmin Autopilot

8. Garmin Wind Meter

9. Two (2) rudder indicators

10. Roca Wiper system

11. Engine console with all gauges

12. Jabsco remote control searchlight

13. Marco single stainless steel ship horn

1. Upgrade: Garmin AIS

16. Upgrade: Garmin CCTV cameras in engine rooms / cockpit / flybridge)

17. Indoor secondary helm station as per standard flybridge configuration

18. Upgrade to Yacht Master wireless docking control system

Safety

1. Automatic Seafire fire extinguishers in engine room

2. Hardwire Smoke/heat detectors

3. High water alarm in all water-tight bilge area

4. Engine & generator with high water temp/ low oil pressure alarm

5. Fuel shut-off valve fitted with additional control outside of engine space

6. Portable CE approved 2kg fire extinguishers throughout

7. Twelve (12) ISO Life Jackets



Optional Upgraded Equipment

Upgrades Summary to standard specification:

1. MarineDeck 2000 decking - cockpit including transom platform

2. MarineDeck 2000 decking - side decks & foredecks

3. MarineDeck 2000 decking - upper deck (open flybridge version)

4. Boat name in custom designed 316L Stainless Steel (back lighted)

5. Two Cummins 550HP Diesel Engines (Upgrade)

6. Steelhead flybridge extendable hydraulic crane, 680kg, 3.7m reach

7. Change from 20.5kw to two 12.5 kw 240V Kohler gensets in parallel (14kw at 110V)

8. 2 Lewmar 15HP electric bow thrusters

9. Reverso fuel polishing system 80GPH with fuel conditioner x2

10. Flexible solar panels on hard top (one is 100W each) x 37

11. Extra Lifeline D8 250Ah battery for Solar panel

12. Yacht Master wireless docking control system

13. Schenker Watermaker 100L/h with commercial filters DC power

14. Rope cutter

15. Anchor Bridle Pads

16. Indoor secondary helm station as per standard flybridge configuration

17. Additional Garmin chart plotter (12") X 3

18. 4 KW 72nm Garmin Radar array

19. AIS - GARMIN or VESPERMARINE or Similar

20. CCTV Camera - per location - ( Eng Room, Cockpit, Flybridge)

21. SPA on foredeck

22. Kenyon electric BBQ grille

23. Siemens separate washing machine + separate dryer

24. Siemens dishwasher

25. Vitrifrigo Ice maker (galley / cockpit / flybridge)

26. Wine cellar 23 bottles capacity

27. Combination lock safe

28. Granite tops with honeycomb backing (galley and heads)

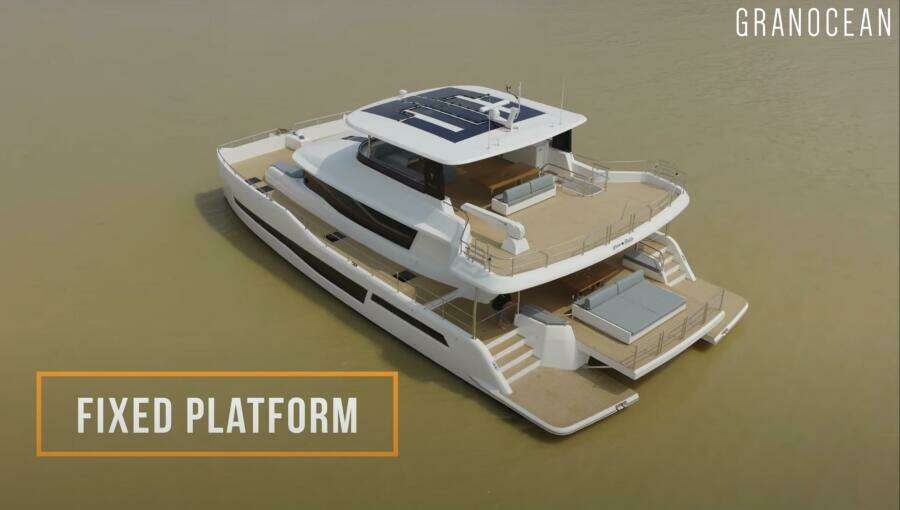

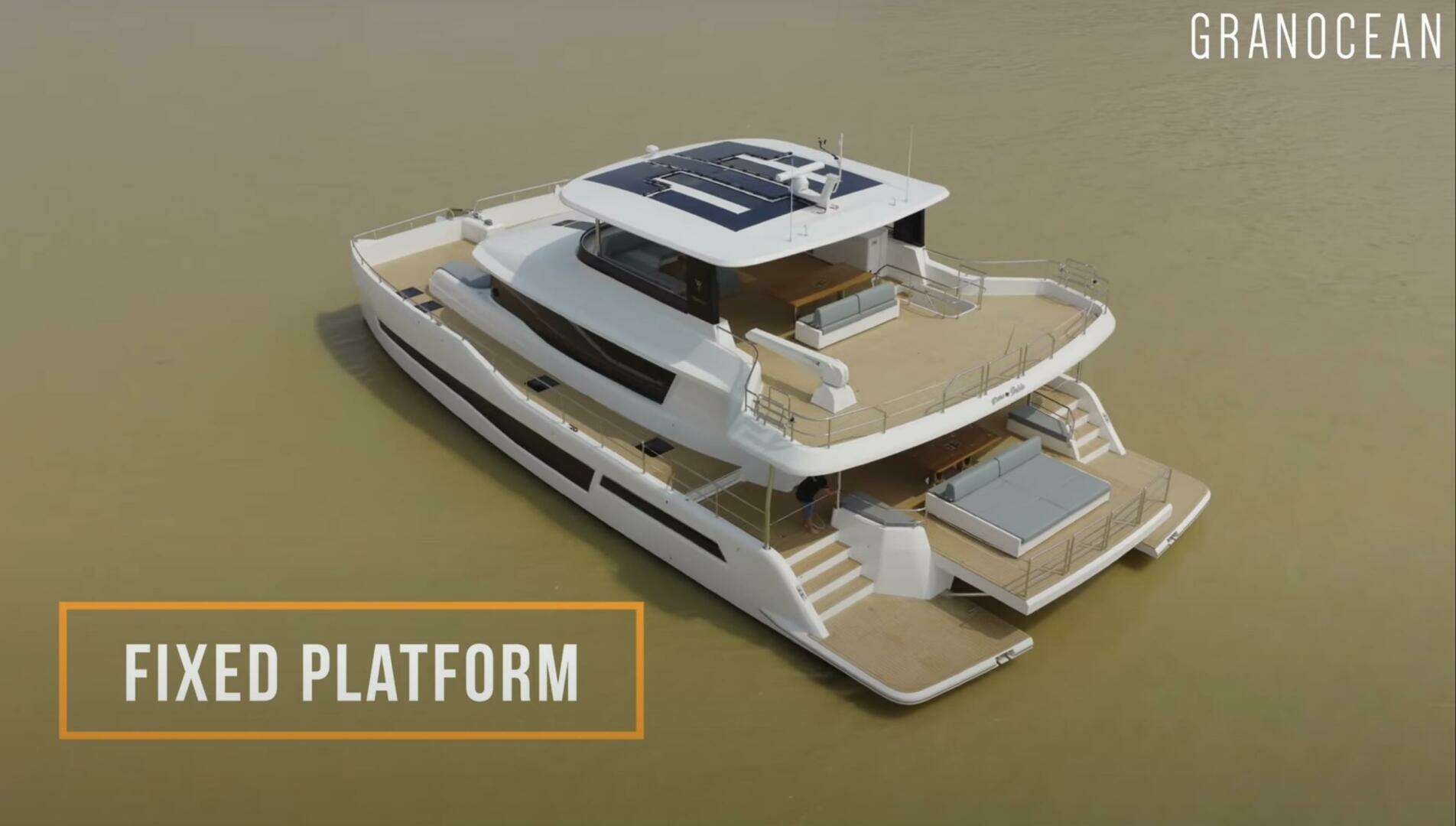

29. Fixed platform aft of cockpit

30. Extendable Steelhead hydraulic Crane capacity 680 KG with 3.7m reach upgrade

31. Exterior Undercounter fridge X 3

32. Icemaker

33. Microwave

34. Cooktop Oven

35. Dishwasher

36. Coffeemaker

37. Revision to portside hull- additional cabinetry / additional bathroom / Guest Cabin and Galley furnishings. Portside forward hull as storage area. Crew Cabin relocated to Starboard hull

38. Reinstate stbd foredeck settee

39. Change of fuel access tank hatch location

40. Engineering / Gurit - Patch and reopen portside bulkheads, plus deck engineering re deck hatches alteration

41. Electrical double up / down table pedestal at cockpit

42. Four Aqualuma underwater lights Series 12

Structure & MSE

Structure

1. Hull lamination according to EN ISO 12215-5 structure standard

2. Built in accordance with HPI Verification services

3. Composite fiberglass infused hull & deck

4. Hull, deck & superstructure built of light weight fiberglass composite with closed cell PVC foam/honeycomb as core material

5. Interior structural components all properly bonded to hull & deck

Hull & Deck Exterior General

1. White gel coat on all superstructure and hull (Option: coloured gelcoat / painted hull)

2. International Interlux antifouling paint

3. Main deck non-skid deck

4. Electric windlass Lewmar V6 24V with chain counter & footswitches

5. One 80kg stainless steel Delta anchor fitting at bow with chain stopper

6. 100m 13mm din 766 galvanized anchor chain

7. 316 stainless steel safety stainless steel handrails throughout

8. Anchor bridle with shackle & pad eyes fitted

9. Eight (8) heavy duty 12? 316L stainless steel cleats

10. Two (2) pop-up 6? 316L stainless steel cleats on transom platform

11. One stainless steel Sampson post at bow

12. One stainless steel two ring at transom

13. Eight (8) fender locks

14. Double layer tinted safety glass windows

15. Two (2) Lewmar large low profile deck hatch

16. Fixed large portlights with safety glass fitted

17. Six (6) Lewmar flush openable portlights

18. Two (2) Vetus escape hatch underside

19. Wide opening triple stainless steel sliding doors to salon

20. Stainless steel rub rail along transom

21. Freshwater deck wash-down

22. Dual freshwater & seawater anchor chain wash down

23. Two (2) Whale transom shower with hot/cold water

24. Stainless steel folding swimming ladder

25. Two zinc anodes on transom for bonding system

26. Two (2) stainless steel deck water fillers

27. Two (2) stainless steel deck fuel fillers

28. Two (2) stainless steel deck waste pump outs

29. Stainless steel flag post on flybridge

30. 316 stainless steel thru hull fittings above waterline

31. Bronze through-hull fittings below waterline

32. Boat name in custom designed 316L stainless steel

33. Soffkin Marine vinyl exterior upholstery

34. Mooring kit includes six (6) fenders and five (5) 24mm Moorings lines
