ENGINE ROOM EQUIPMENT

ALL NEW ENGINE ROOM 2014-2016.

Engine room was stripped and sand blasted to bare metal, then Awl-craft white bilge paint system applied.

Entire yacht was Sound Down insulated to below waterline in 2014. Extra sound and fire insulation applied in the engineroom.

All 1st class marine equipment and installations.

Cummins 6BT 210 HP @ 2600 RPM.

523 Original engine hours

recorded Feb 1, 2025.

3 bladed 34” bronze prop & spare prop.

Balmar 140 amp alternator. New in 2015.

Stainless steel exhaust. New in 2015

Mabru DHK air conditioning 2 x 18,000 BTU units in a sound box and ducted throughout. New in 2015.

You can run Master Stateroom A/C overnight on silent DC lithium battery power.

Reverso Fuel transfer pump/polisher. New in 2015.

5 Rule Marine 2000 bilge pumps w float switches and alarms throughout the bilges. New in 2015.

Arid dry bilge system monitors and dries all bilges. New in 2015.

Crash/fire pump Gianneschi, plumbed, not attached. New in 2015.

Sealand Grey & black water pumps x 3. New in 2015.

Center board Tiger Shark 24v 10,000 lb Winch on dyneema for center board operation, wired remotely.

2 Maralon Seacocks + strainers for the main engine and generator raw water intakes.

1 additional Maralon seacock each forward and aft.

Total of 4 sea cocks thru the entire bottom of the yacht. New in 2014.

Access to the engine room is through a hatch on gas shocks in the main salon. There is complete access and lightingaround the main engine and all other engine room equipment. Although it is not a stand up engine room, there is plenty ofroom for comfortable, extended engine room activities. This is not a tight engine room!

ACCOMODATIONS

The yacht was totally refitted and customized between 2014 to 2016 to have a spacious and wide open interior, inspiringan expansive beach house villa. When the original motorsailer salon house was removed, the deck house profile andsalon floor were lowered 3 feet to create a one step deck level Irioko hard wood floor throughout the interior. Sweepingcabin-side windows, 5 opening deck hatches,14 opening port lights, and 16 hull windows flood the interior with endlesslighting hues of the bamboo and Irioko finishes.

All the way forward is the

chain locker

with a water tight bulkhead. Access is from a foredeck hatch and from theforward guest shower forward bulkhead.

The ensuite

guest head

is aft of the chain locker with shower, a Techna electric flush fresh water toilet and sink, new in2016 port and starboard with storage locker. The full width private

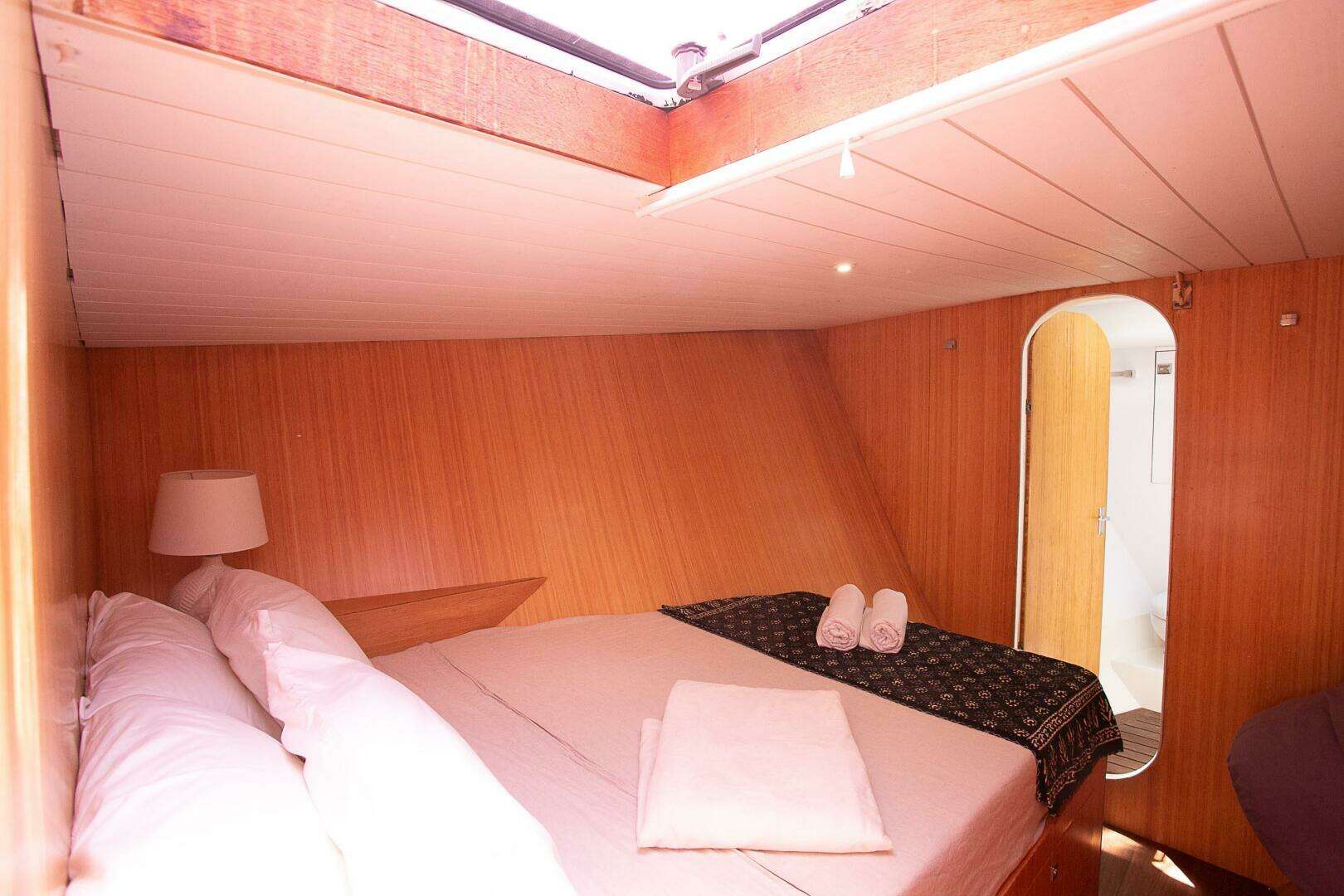

forward guest stateroom

has a queen bed to portwith reading lamp and a settee/bunk to starboard, and full height linen/medical locker.

In the main cabin forward to port is the U-shaped

dining salon

with teak dining table and storage underneath the seats.To starboard is a settee/ single berth/music nook. Two overhead opening hatches with Oceanaire shade/screens and 4opening portlights provide copious cross-ventilation.

To port, aft of the dining area in the

main salon

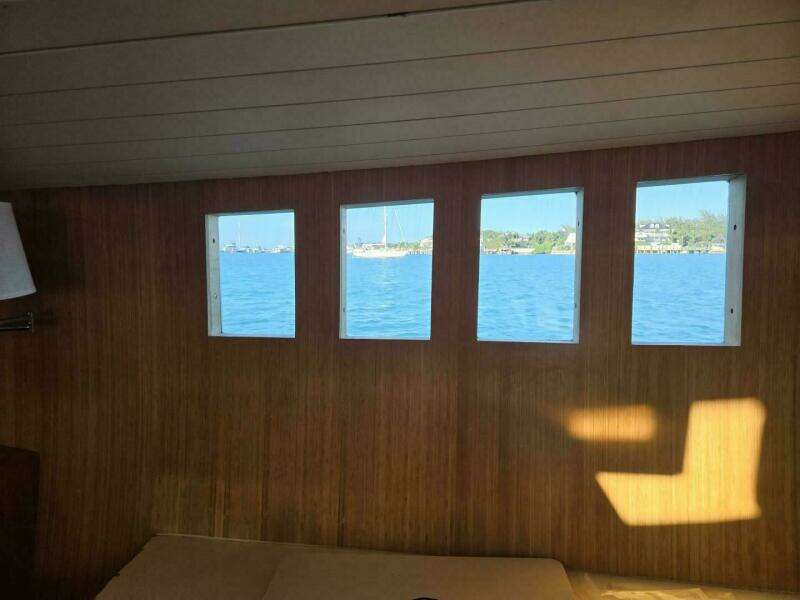

is the L-shaped 8' settee and a slatted teak coffee table with a Benqmovie projector system under the coffee table. The starboard main salon is similarly arranged with a 10' roll down moviescreen overhead. There are 8 fixed hull windows in the hull sides of the main salon. The main companionway stairs fromthe cockpit gently decend to the center line of the aft end of the main salon. Outboard to port of the companionway stairsis a full length equipment locker. On the aft side of the equipment locker is the main electrical switchboard and monitoringpanel.

One step down, to port, aft of the main salon is the

fully modern galley

. There is an 8' bamboo countertop outboardwith 2 hull windows and 2 opening port lights for light and ventilation. Forward below the counter are 2 Isothermrefrigerator drawers, 7 cu. ft. total, new in 2016. Aft of the refrigerators are 8 under counter drawers full of quality pots,pans, cutlery, table settings, utensils, etc, etc. Inboard to port, the galley forward has the stainless steel galley sink withMoen telescoping faucet. There is a cutaway to tuck into and get out of the galley traffic while using the sink. Aft of thegalley sink there is a dish rack. Aft of the dish rack is the Force 10 3-burner/broiler/oven, also new in 2016 with a foldaway stove cover.

To starboard, aft of the main salon outboard is a work counter with an under-counter 3.5 cu. ft. Isotherm freezer drawer,new in 2016.

Aft of the work counter is a hanging locker. Inboard, aft of the galley sink are the separate Miele washer anddryer units under the bamboo galley counter.

Inboard, aft of the galley is the

master head

with walk in rainwater shower (with peek-a-boo window-light), DometicMaster Flush 8600 electric freshwater toilet, sink with full linen/medicine locker and opening port light to the main cockpit.This is a spacious hotel-like bathroom with equivilent ammenities.

The full-beam

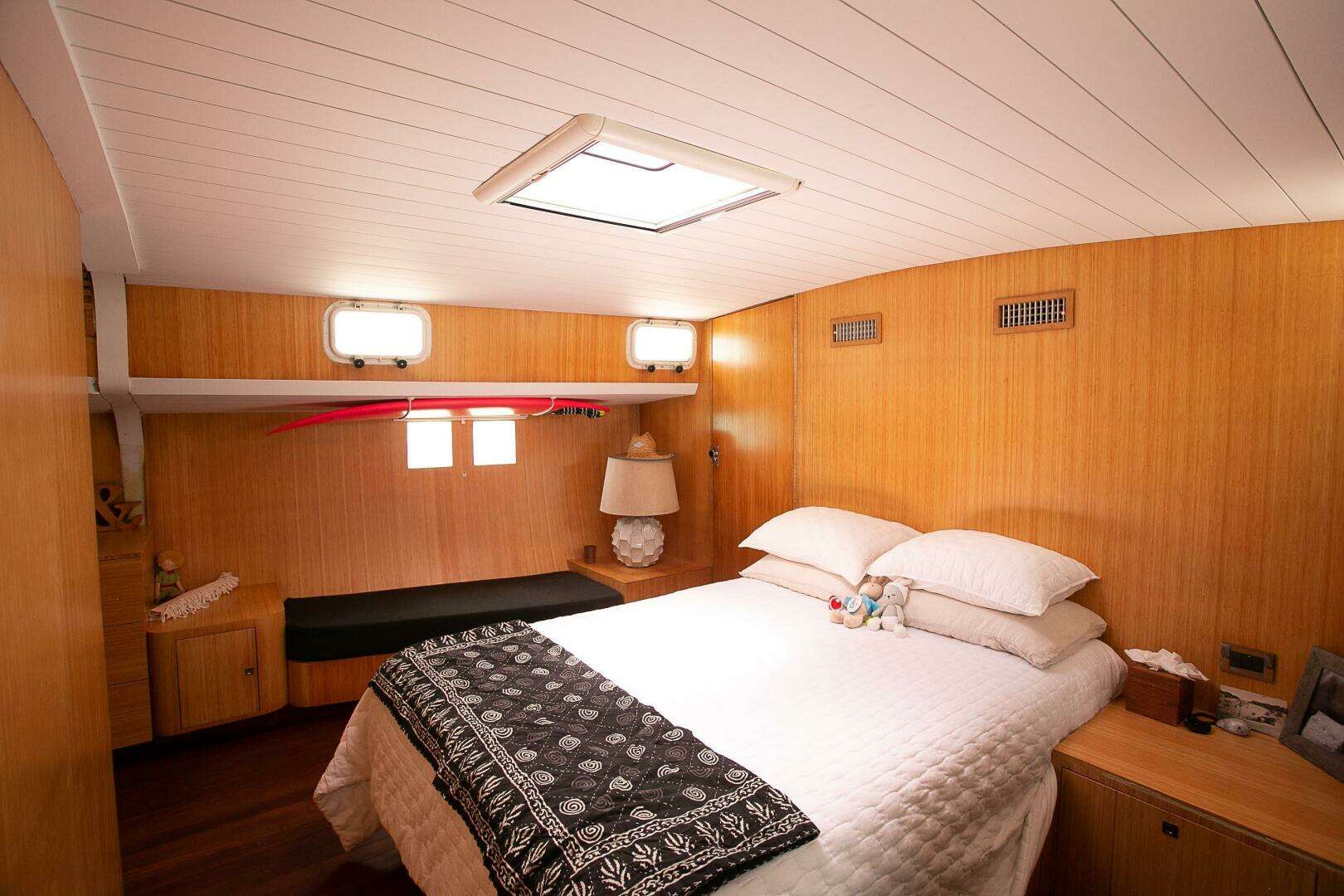

master stateroom

aft has port and starboard entrances. It features a full queen sized bed with port andstarboard access to the over-stuffed bed. To port are a full height hanging locker and more then ample clothing drawers.To starboard is a settee with end tables and lamp. There is an overhead opening hatch with 4 opening port lights and 4hull lights beautifully bathing this spacious master stateroom in natural light. There is a third access door aft to starboardthat leads through the lazerette/work room to the aft cockpit, to the water.

ELECTRICAL EQUIPMENT

ALL WIRING NEW IN 2014 - 2016.

12/24DC 110/220VAC systems.

Generator Kohler 9EKOZD 9kw with sound shield. New in 2014. 3884 hours recorded Feb 1, 2025.

Solar 3000w bifacing panels on aft cockpit bimini. New in 2022.

Magnum MS 4024-PAE inverter with 4000w/charger 100amp. New in 2024.

Lithium Ion Simpliphi 3.5 batteries. 8 x 12v house batteries, 300 amps each in series to make a 1200 amp 24 volt batterysystem. New in 2022.

Engine & generator batteries 2 x AGM 12v. New in 2022.

Potent Lewmar Bow Thruster 300TT 24v with remote control in aft cockpit. New in 2016.

Pro Sport Engine and generator battery charger and spare.

Isolation transformer. New in 2014.

Galvanic Isolater. New in 2014.

LED lighting thruout. New in 2016.

PLUMBING

ALL PLUMBING NEW IN 2014-2016.

Water heater Isotherm 10 gallon. New in 2016.

Watermaker Safari SFC 1400-2 110/220v

60 gph.

New membranes, pump and block installed in 2024.

Headhunter Excalibur freshwater toilet pump + spares.

Aft head Dometic Master Flush 8600 , electric freshwater toilet. New in 2016.

Forward head Techna electric flush, fresh water. New in 2016.

3 Sealand Grey + black water pumps. New in 2015.

2 Water tank monitors. New in 2016.

2 Fuel tank monitors. New in 2016

2 Grey water tank monitors. New in 2016

2 Black water tank monitors. New in 2016

GALLEY & ENTERTAINMENT

ALL GALLEY & ENTERTAINMENT NEW IN 2014-2016

Isotherm D190 2 drawer 7 cu ft refrigeration. DC or AC air cooled. New in 2015.

Isotherm freezer 3.2 cu ft single drawer new 2014. DC or AC air cooled. New in 2015.

Force 10 3 burner stove/oven/grill. New 2015.

Propane 2 x 10 lb. fiberglass tanks mounted in aft cockpit. New in 2015.

Miele 3038 Washer. New in 2015

Miele T8023

Dryer. New in 2015.

Deep stainless steel sink with telescoping Moen faucet. New in 2015.

Digital card swipe safe. New in 2016.

2023 Fushion MS-RA 770 Bluetooth, 8 speakers and sub-woofer throughout the yacht.

Sufficient to entertain most anchorages.

Movie system Benq projector with

10 FOOT

Elite roll up screen in salon. New in 2018.

Full set of quality pots, pans, cutlery for living aboard. Cuddle Down bedding, never used, new in 2024.

EXTERIOR

EXTERIOR

Double owner and guest teak center cockpit deck layout. Aft cockpit has drop down transom door with stainless steelswim ladder with alfresco rainforest shower. Excellent access for tender operations and for swimming, snorkeling, scuba,hooka, snuba, windsurfing, kite boarding, paddleboarding, kayaking, foil boarding, kite foiling, sea-bobbing etc. Lewmar60" Stainless steel, leather bound main helm steering system. New in 2016.

Aft cockpit bimini cover made with solar panels that also absorb from underneath, bi-facial.

Raymarine Chart Plotter, with wind, depth, speed pods. New in 2016.

Access from the aft cockpit to starboard is the entrance to the lazarette/shop and then master stateroom. Outboard, port+ starboard are teak steps to the full walk around teak main deck . There are 3 aft cockpit winches installed in 2016.Propane storage to port. Storage locker to starboard.

At the center cockpit, a full canvas awning measures 11’ x 12’ with a 3.5’ x 6.5’ honeycomb teak table for 12 guests, newin 2016. Center cockpit cushions are weathered.

Teak decks replaced around 1996 with massive 1 ¼” Burmese teak decking. Over ¾” thickness currently remains withmany years life left on the decks. The teak decks need refreshing.

Hull & BOTTOM

About 30% of the aluminum hull bottom was replaced in 2014 after survey recommendations. The exterior and interiorwere sand blasted, 8 barrier coats of epoxy, fairing and more epoxy again. Awlcraft primer and paint systems wereapplied. During the same yard period all tanks were sand blasted, tested, repaired + replaced as needed and properlycoated. She needs to be hauled + bottom painted.

The bottom configuration is a predecessor to Ted Hood's Whale Bottom with center board and a flanking rudder for finetuning and enhancing reverse control (not currently connected). "A real sweet boat to sail. Beautiful sea motion, beautifullines." From a super experienced Captain who sailed her for 3 years.

The hull sides and house were painted in 2016 with Awlgrip/Awlcraft paint system. It needs compound and wax.Aluminum rub rail is robust. Toe rail is teak. Main deck hand rails are removed and stored on board.

SAILS 7 RIG

SAILS & RIG

ATN designed and constructed sails.

Genoa is 2016 dacron 90% tri-radial on Profurl furling.

Staysail is 2016 dacron, tri-radial on Profurl furling. Sun shield needs repair.

Main is 2016 dacron, tri-radial full batten; 3 reefs.

Mizzen is 2016 dacron, tri-radial fully battened.

Asymmetrical spinnaker is blue + white in good condition.

Mizzen staysail not observed.

Sail sun shield covers on furlers.

Lazy jacks and bags for main and mizzen.

Both masts on tabernacles to fold down for lower bridge clearance than 64 feet!

Awlcraft painted aluminum twin spreader main mast and main boom.

Single spreader mizzen with Selden boom.

Standing rigging stainless steel most new in 2022

Main + mizzen spreader lights.

Aluminum spinnaker pole on main mast, rigged for tender launch + retrieval.

TENDER

The 14' NOVURANIA 430 DL, new in 2010, had new tubes installed in 2024. The Yamaha 60hp 4 stroke outboard haselectric start and tilt was new in 2010, recently serviced. There is a tender lifting harness that attaches to the spinnakerhalyard and is remotely controlled with a 24v tender lifting motor.

Removable teak chalks for mounting the tender are onthe starboard bow.

This monster 14' rigid, inflatable rib will comfortably plane with 6 adults and supplies, will pull water skiers, wakeboarders etc. She will handle much rougher seas than your typical tender, will keep you much dryer and take you muchfurther.

SUMMARY

~MiSCHKA~ has an impeccable build pedigree! She was

REBUILT

between 2014 and 2016 using the finest equipmentand materials available. ~MiSCHKA~ is a classic yacht with thoroughly modern equipment, materials and greatcontemporary style.

She will need some attention to her decks, need bottom painted and some interior detailing. This being said, where canyou find a pedigreed 70'+ sailing yacht with all this new equipment and a thoroughly fresh modern interior for under$500,000 USD!

This liveaboard yacht broker who has logged over 40,000 sea miles was skeptical at first, until I stepped aboard andrealized how big and beautiful and reliable she is, and what a completely cool interior with all this new stuff! She will makesuch a fantastic long range liveaboard cruising yacht that can tuck into many anchorages that many 50'ers cannot!

~MiSCHKA~ appeals to the gutsy, experienced sailor that has no intention of being tied to a dock (or does, and wants todo it big) and is looking for big adventures. Take a deeper dive into these specifications, then please equire further if~MisSCHKA~ turns you on. Thx. Enjoy ~~
