Covers

• Cockpit cover

Electrical Equipment

• Generator
• Shore Power Inlet

Electronics

• AIS
• Autopilot
• Cockpit Speakers
• Compass
• Depthsounder
• Flat Screen TV
• GPS
• Navigation Center
• Plotter
• Radar
• Radar Detector
• Radio
• TV Set
• VHF
• Wi-Fi
• Wind Speed and Direction

Inside Equipment

• Air Conditioning
• Battery Charger
• Bow Thruster
• Dishwasher
• Electric Bilge Pump
• Electric Head
• Fresh Water Maker
• Heating
• Hot Water
• Manual Bilge Pump
• Microwave Oven
• Oven
• Refrigerator
• Sea Water Pump
• Washing Machine

Outside Equipment / Extras

• Cockpit Cushions
• Cockpit Shower
• Cockpit Table
• Davit(s)
• Electric Winch
• Fin Stabilizer
• Liferaft
• Swimming Ladder
• Teak Cockpit
• Teak Sidedecks

Pilothouse and Lower Helm Electronics

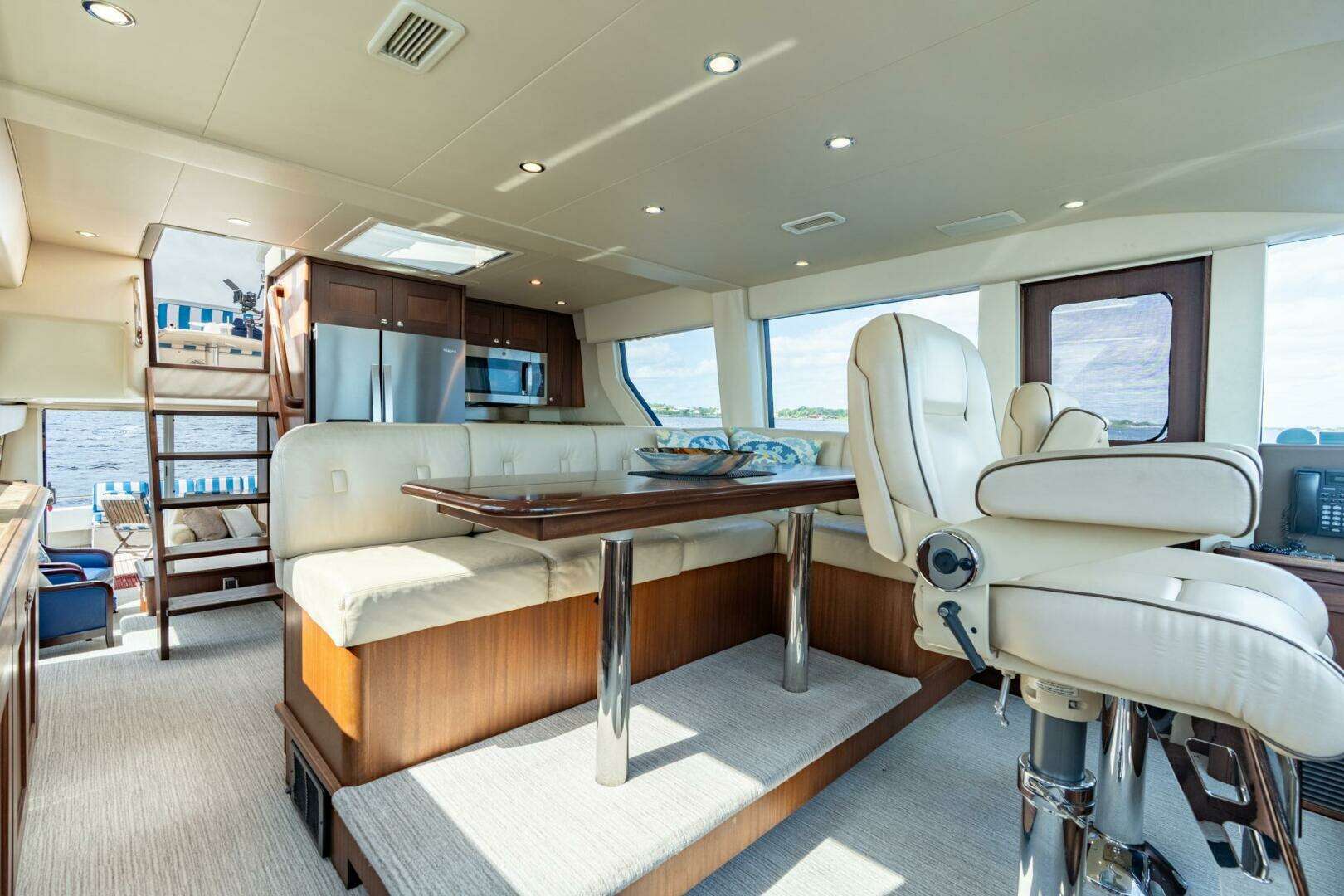

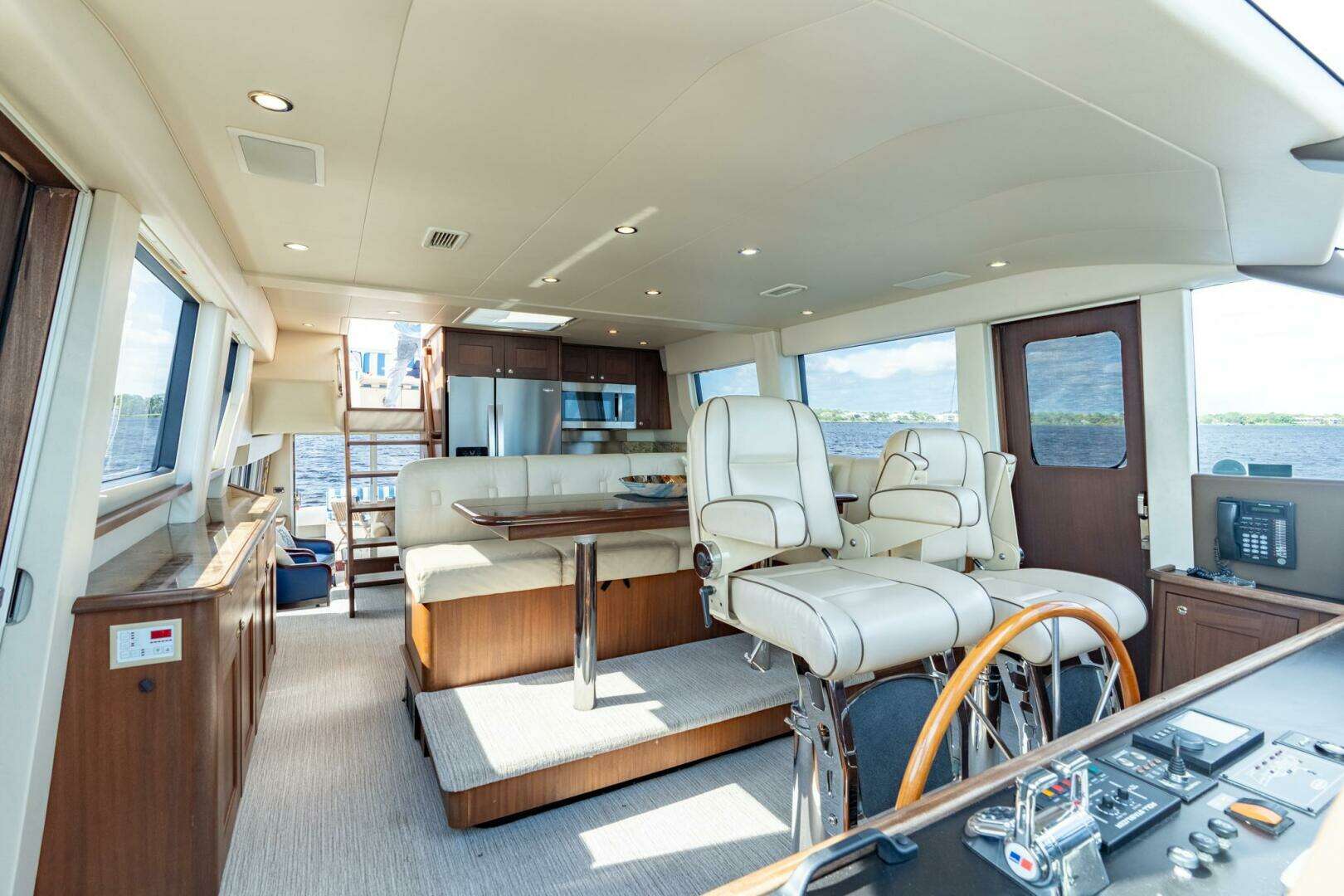

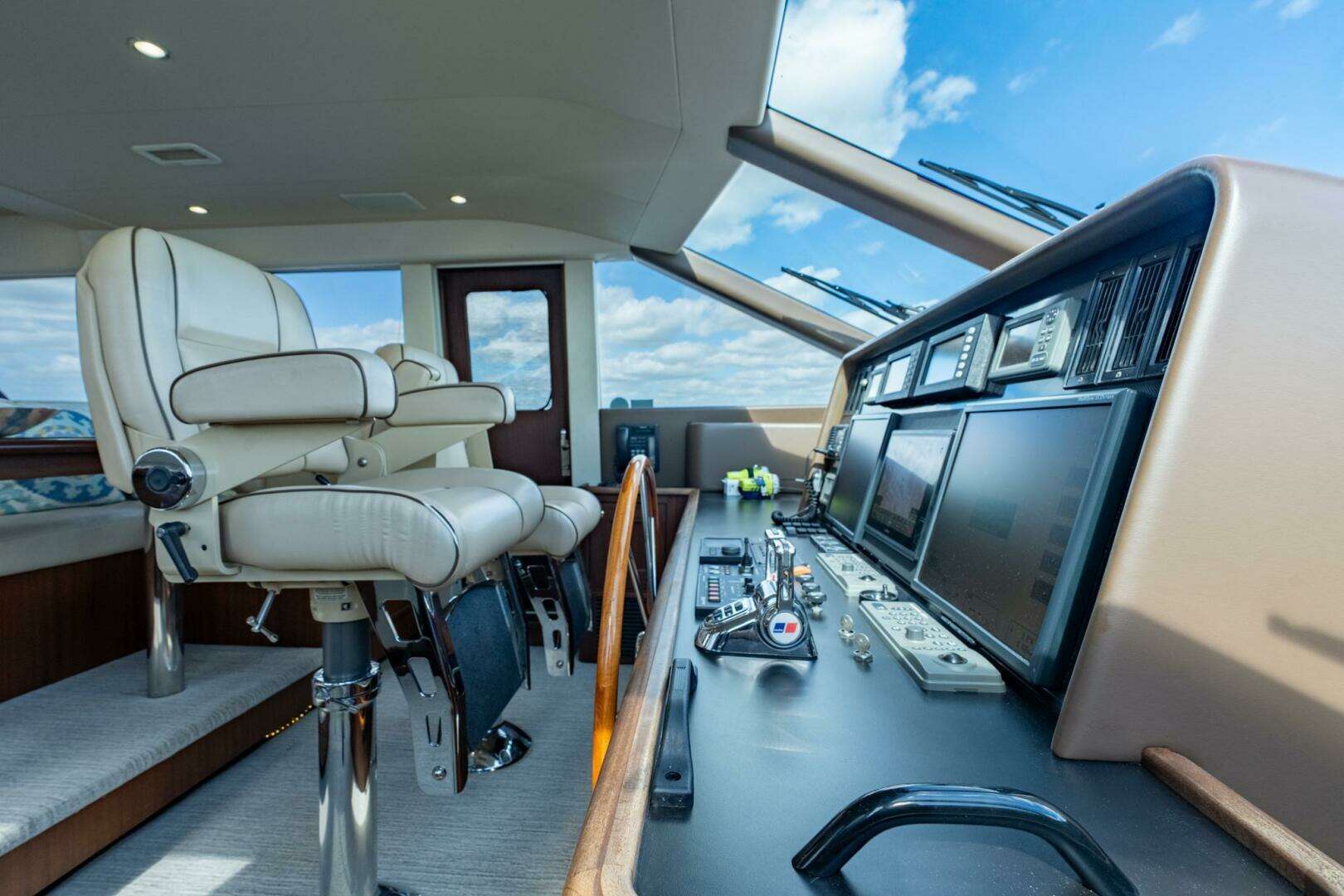

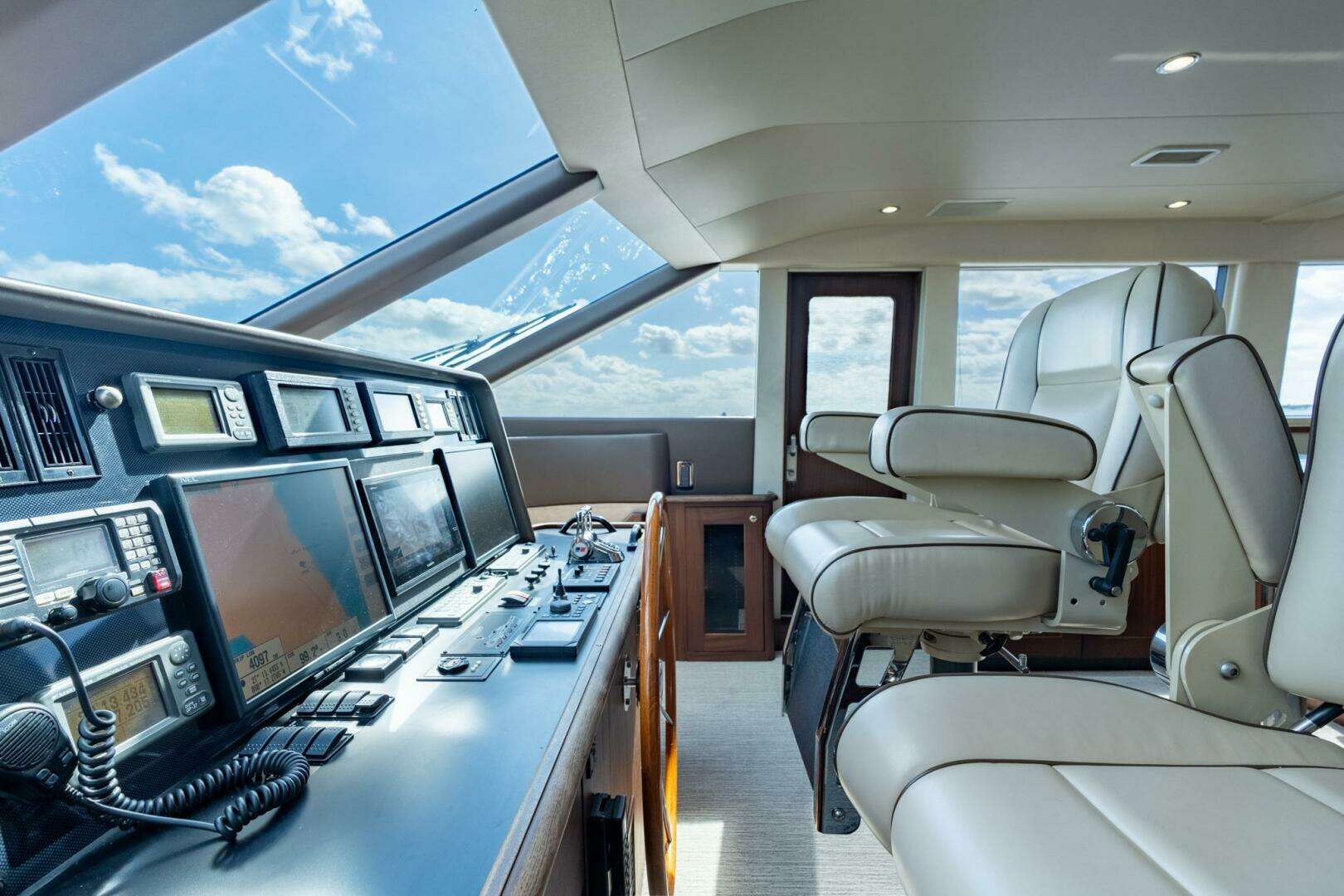

Pilothouse & Lower Helm:

• Headroom 6’8”
• Custom Wool carpet - New 2024
• Overhead LED lights
• Port and stbd. sliding Pilothouse doors with retractable screens
• 3 Window forward Pilothouse windshield ½” thick
• (3)-39” Windshield wipers variable speed with washers
• 2x Windshield covers (white/black)
• Ships breaker panel 24v loc. stbd. side top of lower deck stairwell
• Electronics 12v breaker panel
• TankWatch Holding tank monitor with empty, low, medium, full indicator
• Stidd Helm and companion seats adjustable with arm and footrest
• Digital A/C controls
• “L” shaped settee - raised for easy viewing
• Storage below Pilothouse settee
• Dining table with center leaf and cover 30” H x 68” L x 25” W
• Stidd seats swivel for additional seating at dining table
• 5” Ritchie PowerDamp Compass - flush mounted
• Centerline Helm with 30” destroyer style with Teak rim - hydraulic with power assist
• MTU single lever clutch and throttles – electronic with synchronizer and high/low idle
• MTU engine monitors
• Naiad Stabilizer digital control with roll rate control, 4.5 square foot fins
• Naiad Bow thruster control - hydraulic 25 HP
• Chart flat with chart light and chart drawers below
• Weems & Plath Barometer 5” chrome
• Engine back up controls for gears and throttles
• Engine gauges and start/stop switches
• Ships system monitor - navigation lights and bilge pumps
• Kahlenberg Dual Trumpet Air Horns, with air compressor
• Fuel gauges - port and starboard tanks
• Water gauge - (1) tank
• Fireboy FE241 built in Fire system & control – recertified 5/2024
• Bilge pump controls - auto & manual (8)

Pilothouse - Lower Helm Electronics:

• GPSMAP 7612
• Furuno NavNet radar
• 2x NEC MultiSync LCD1770VX displays
• Furuno GP-37
• Simrad AP25 Autopilot
• GARMIN AIS 300
• VHF RADIO Icom IC-M604
• STARLINK SO7-721048 HIGH PERFORMANCE PANEL

Flybridge Helm and Electronics

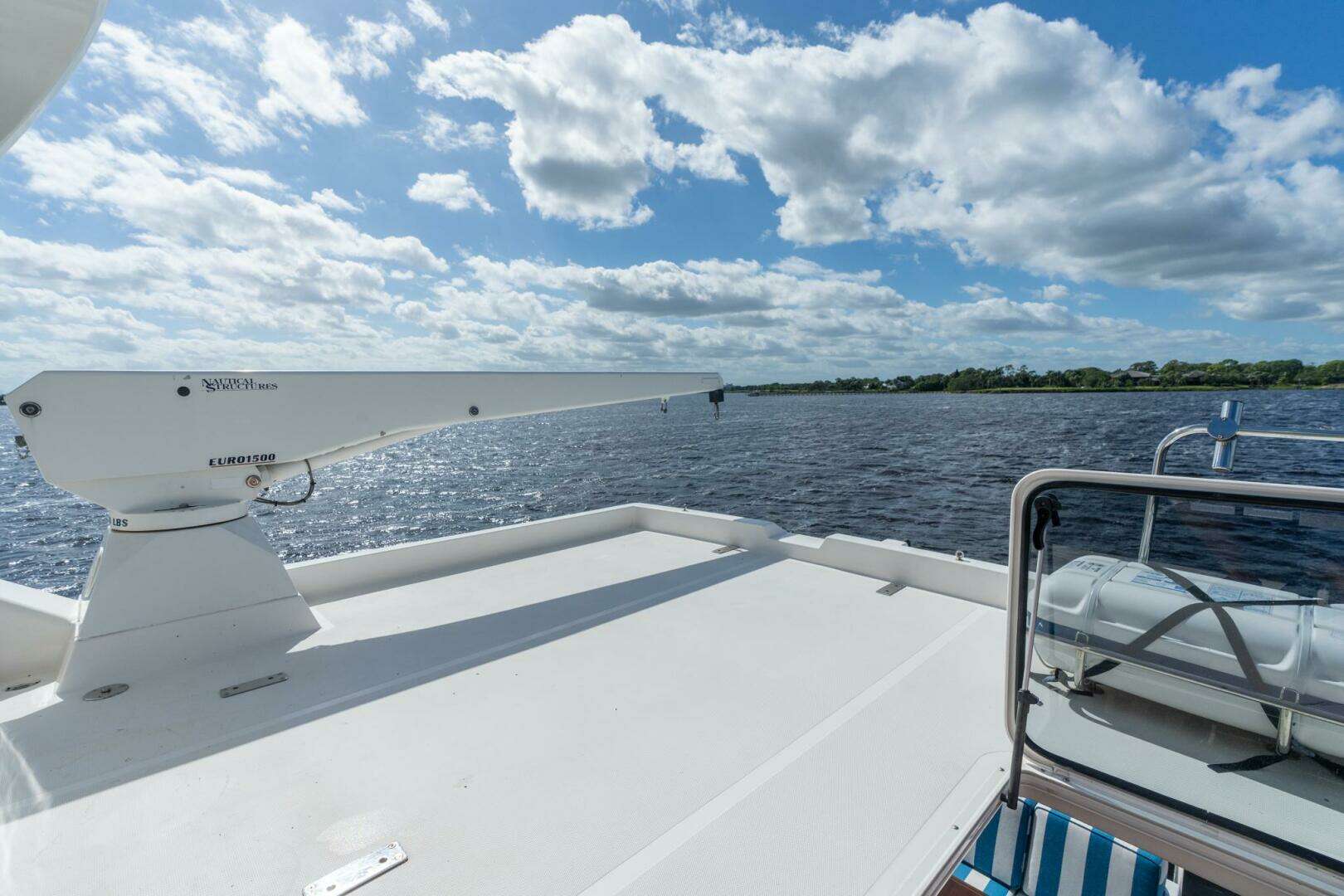

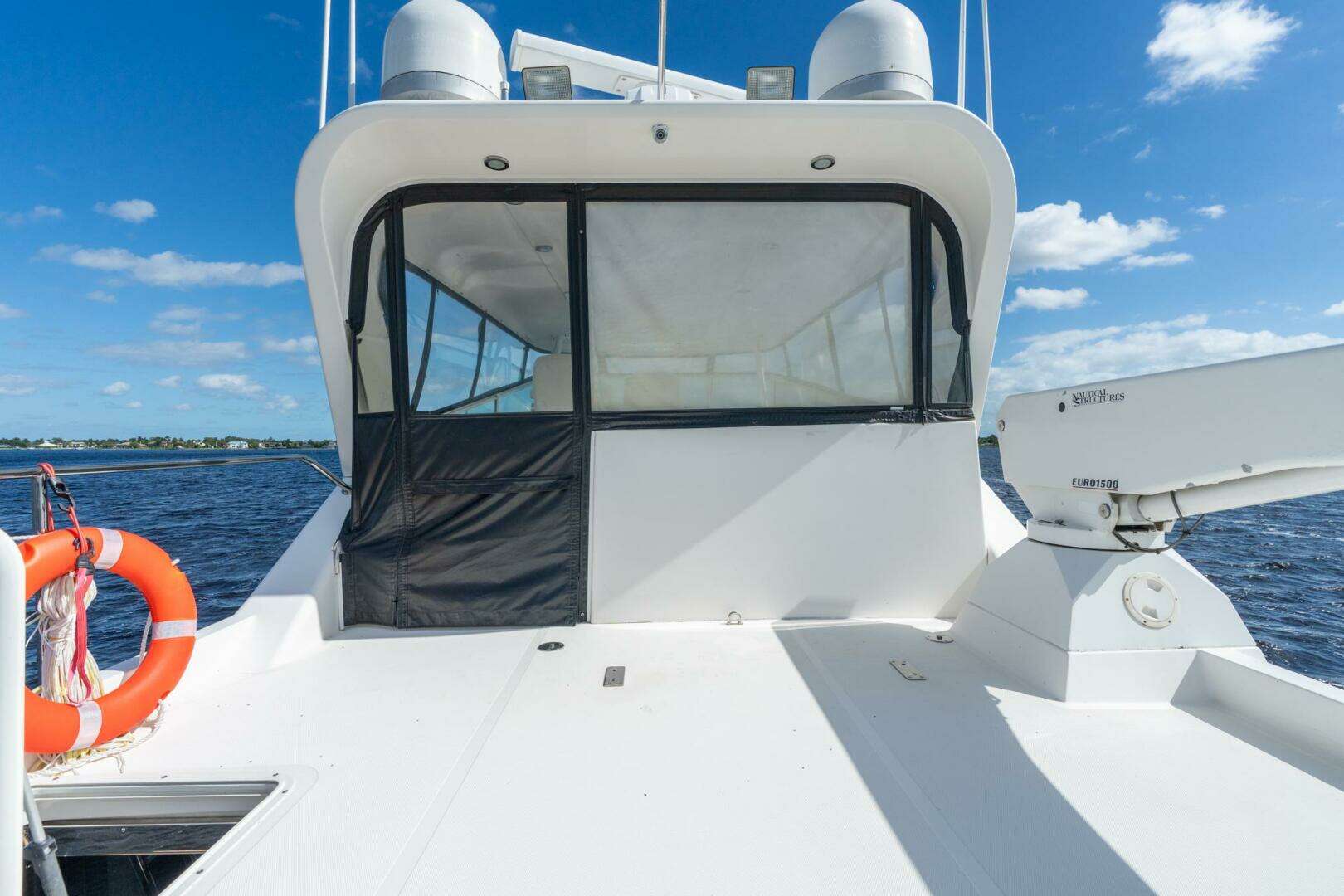

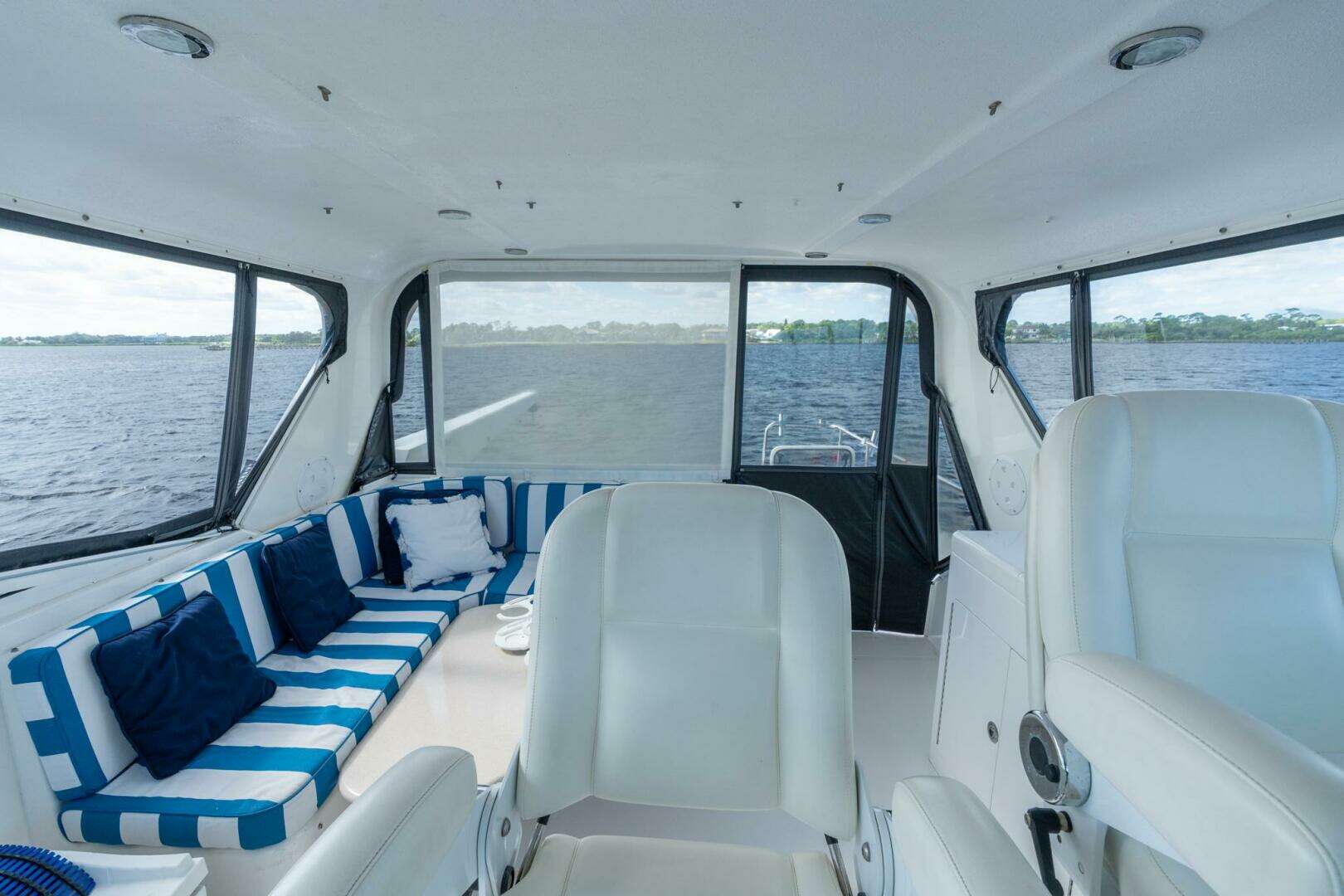

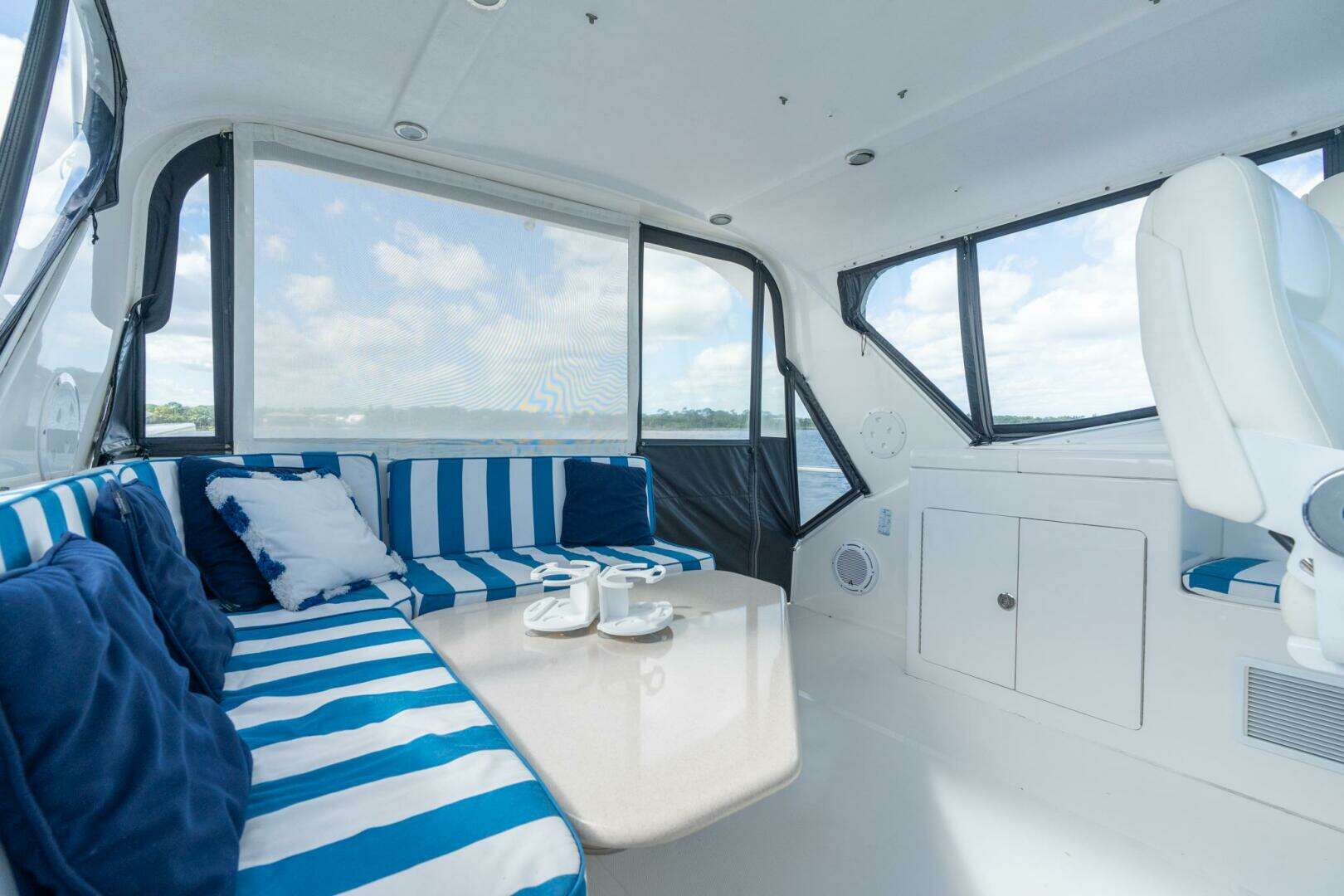

Flybridge:

• Headroom 6'6"
• Accessed from Galley, Pilothouse, and Aft Deck ladder
• Hardtop with recessed overhead lighting
• Fiberglass arch
• Glass Windshield
• Three sided panel enclosure
• “L” shaped settee with new cushions, covers and storage below
• TV in Custom mount
• Cocktail & dining table
• Fiberglass nonskid deck with Deck courtesy lights
• Access hatch with ladder from Aft Deck
• Cabinet with storage
• EPIRB (ACR) located boat deck

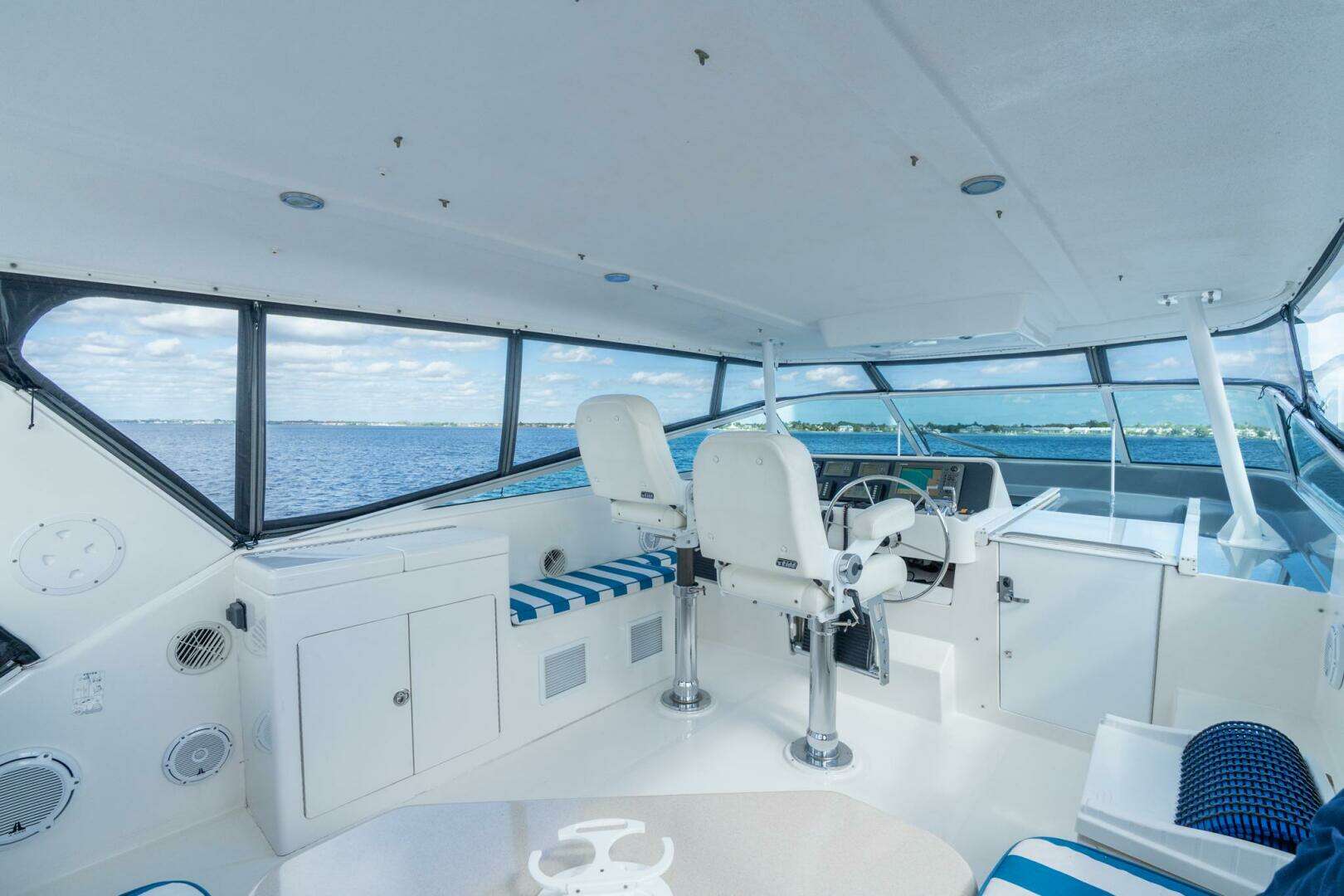

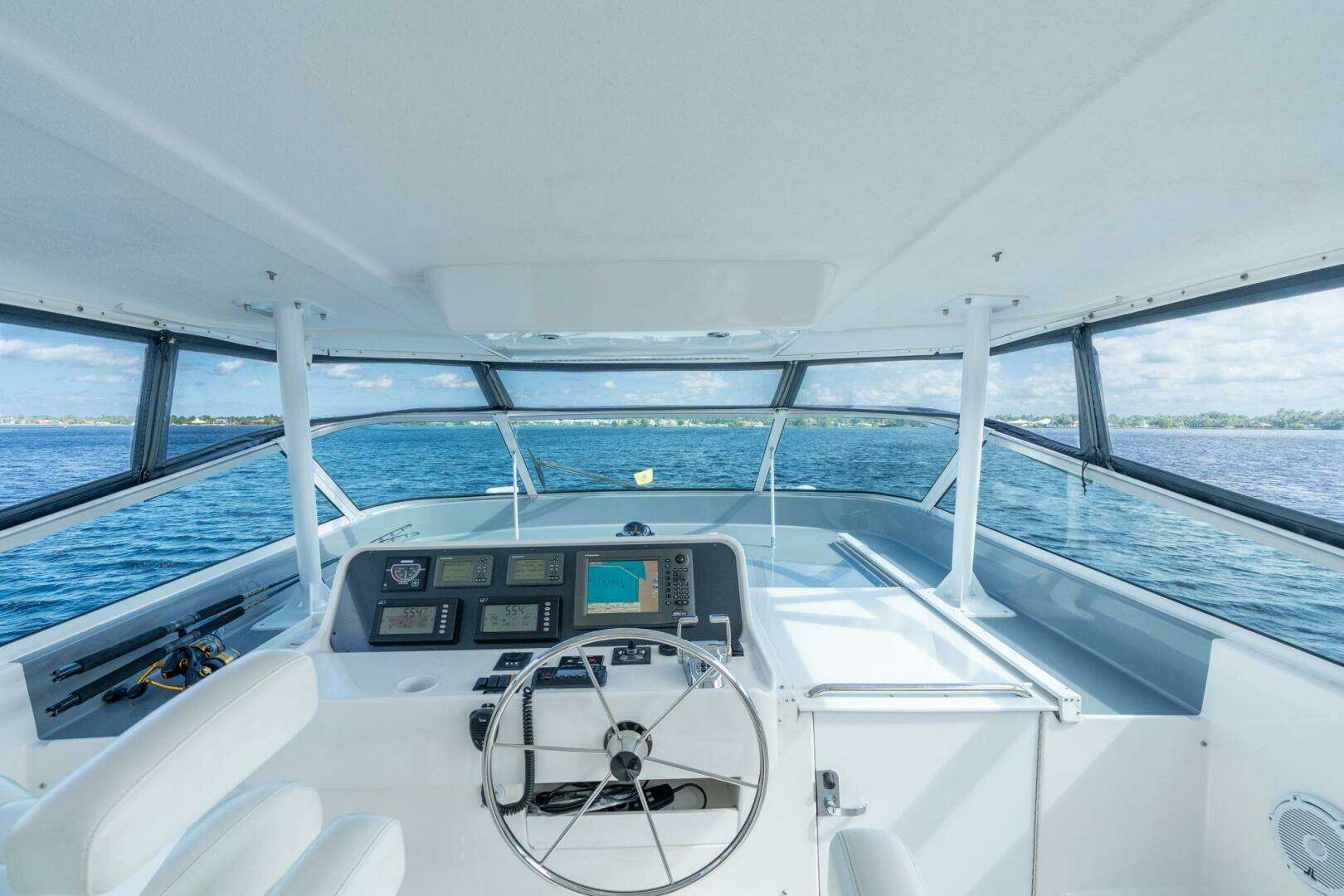

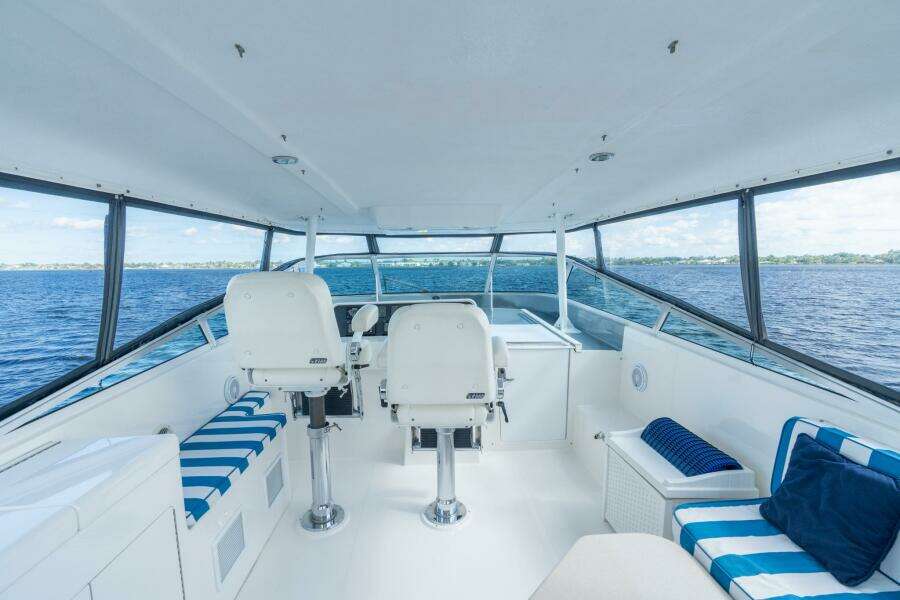

Flybridge Helm:

• MTU single lever clutch and throttles with synchronizer and low/high idle
• MTU engine monitors
• Naiad Stabilizer control with roll rate control
• Bow thruster control
• Stidd Helm and companion seats with foot-armrest

Flybridge Electronics:

• Furuno NavNet Plotter
• 2x Furuno DGPS GP-37
• NAIAD Marine BOW Thruster control
• Icom VHF
• Simrad Rudder indicator
• RITCHIE 3.5 MAGNETIC COMPASS
• ACR SEARCHLIGHT REMOTE CONTROL PAD
• STABILIZER REMOTE CONTROL PAD

Galley, Salon and Wet Bar

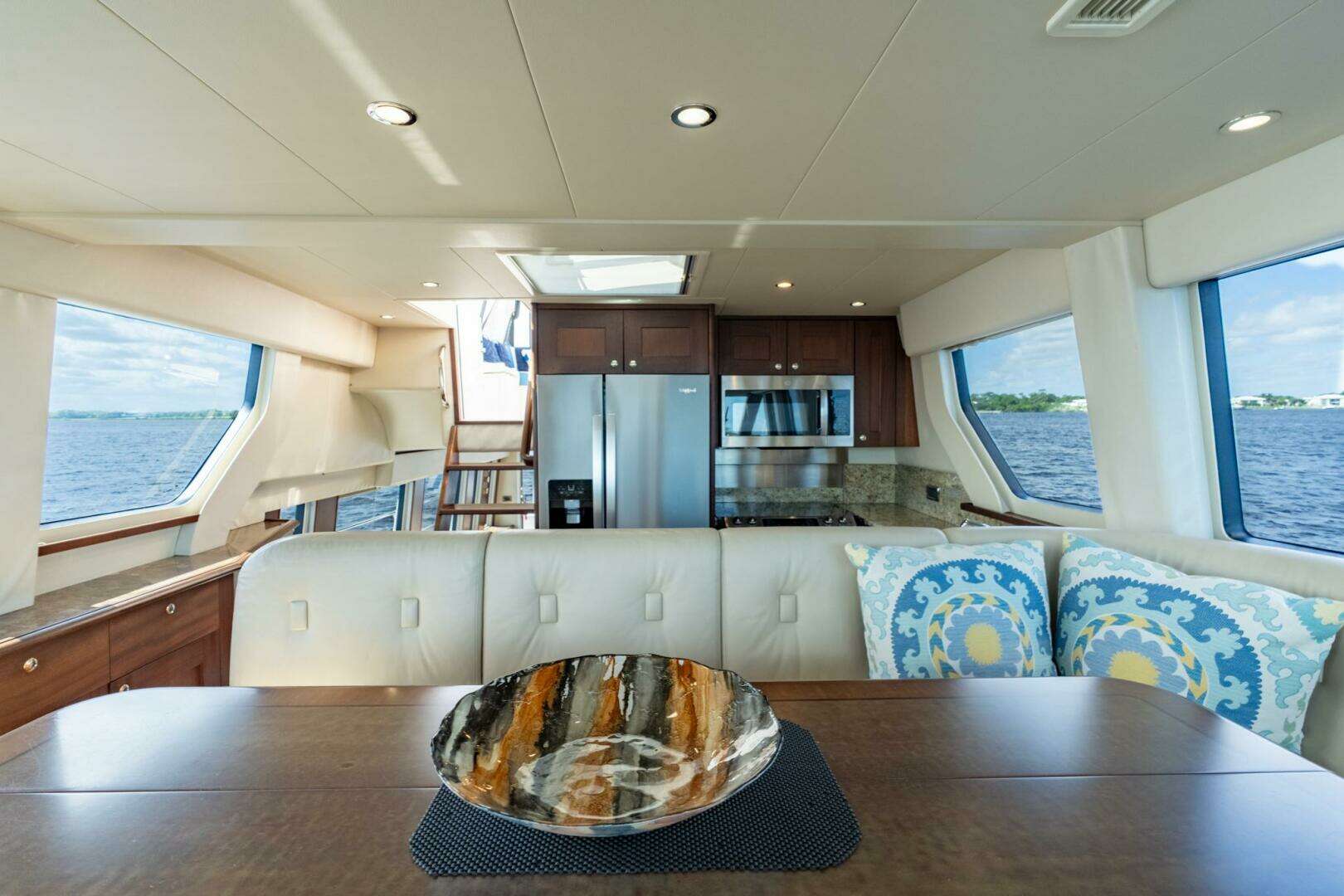

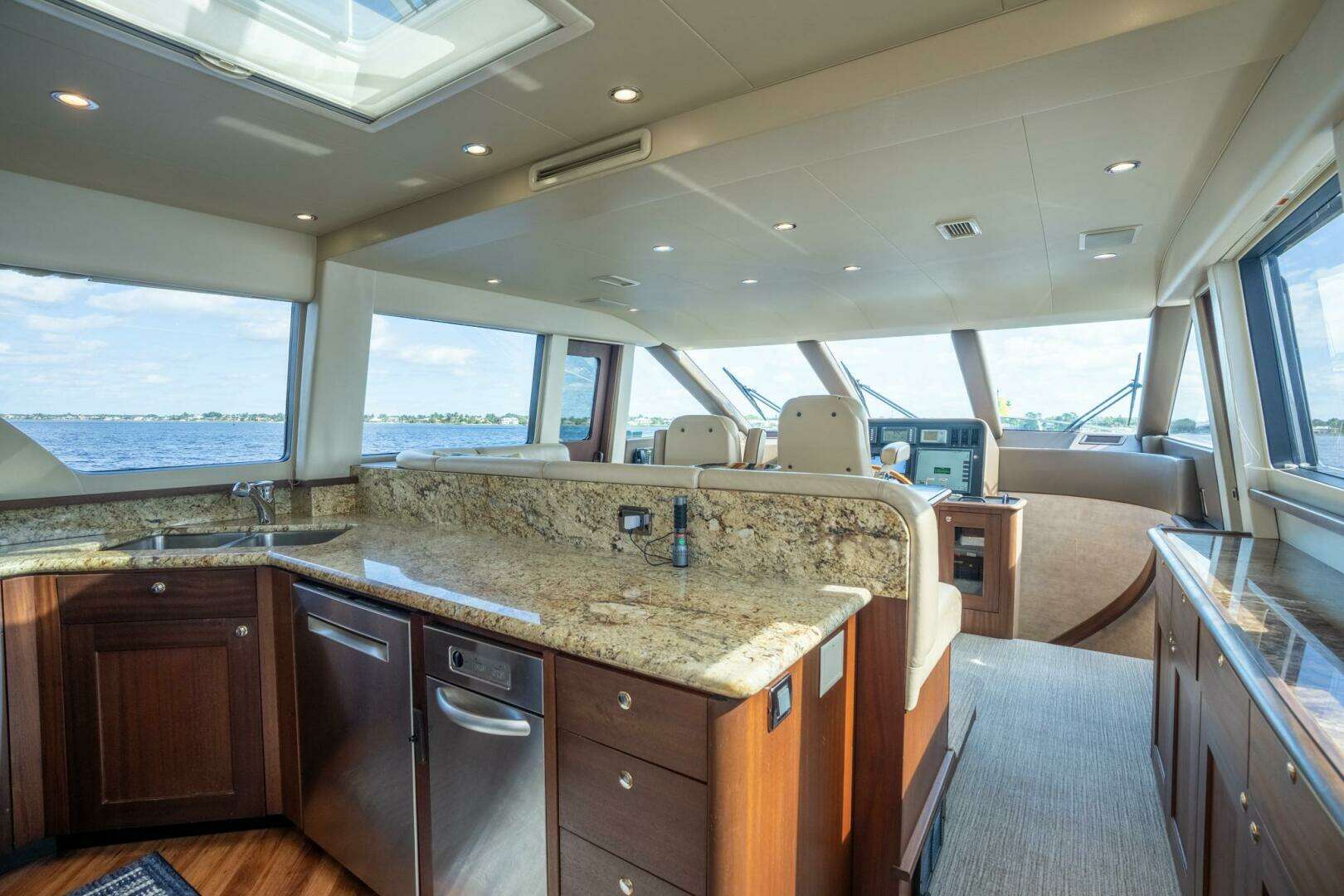

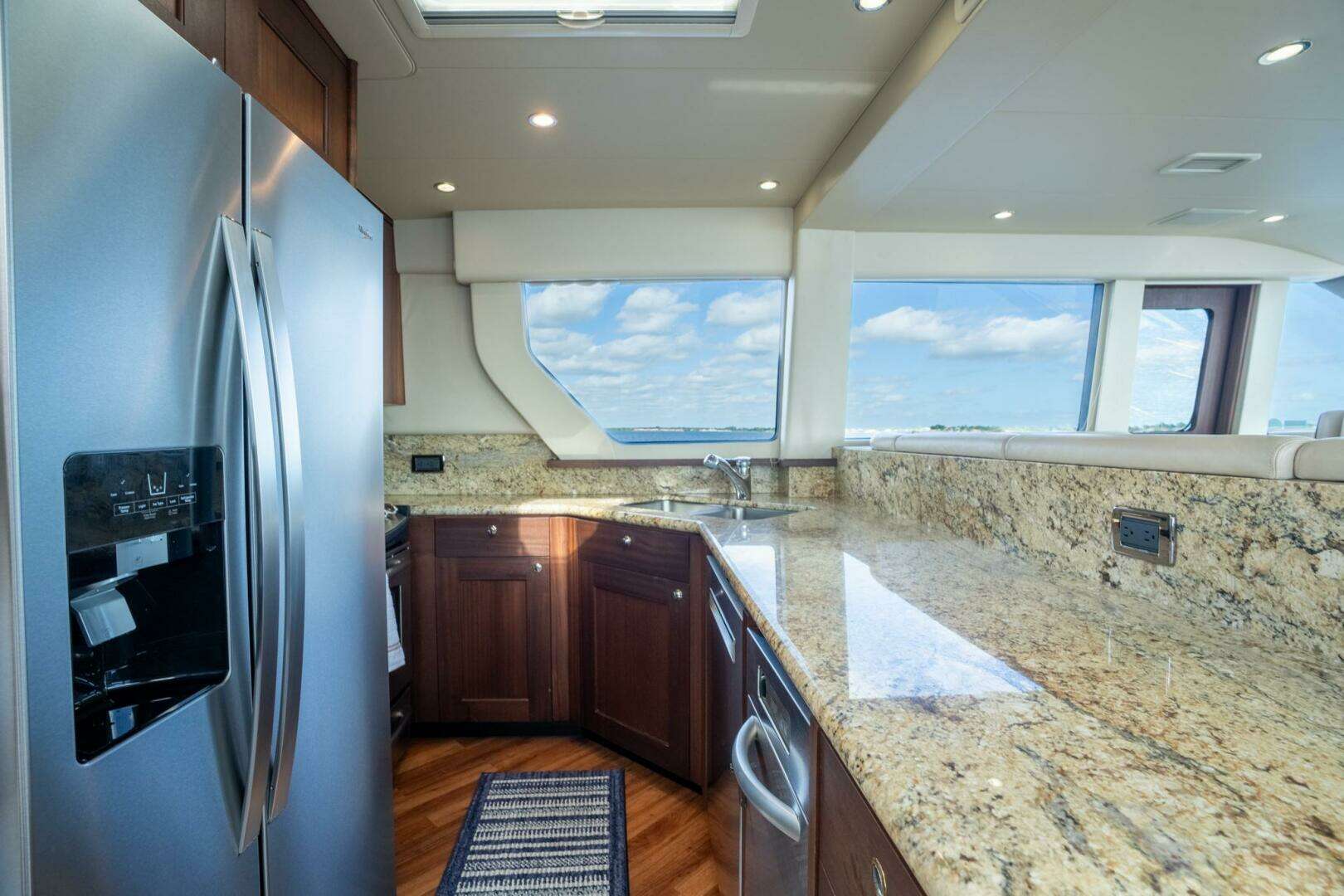

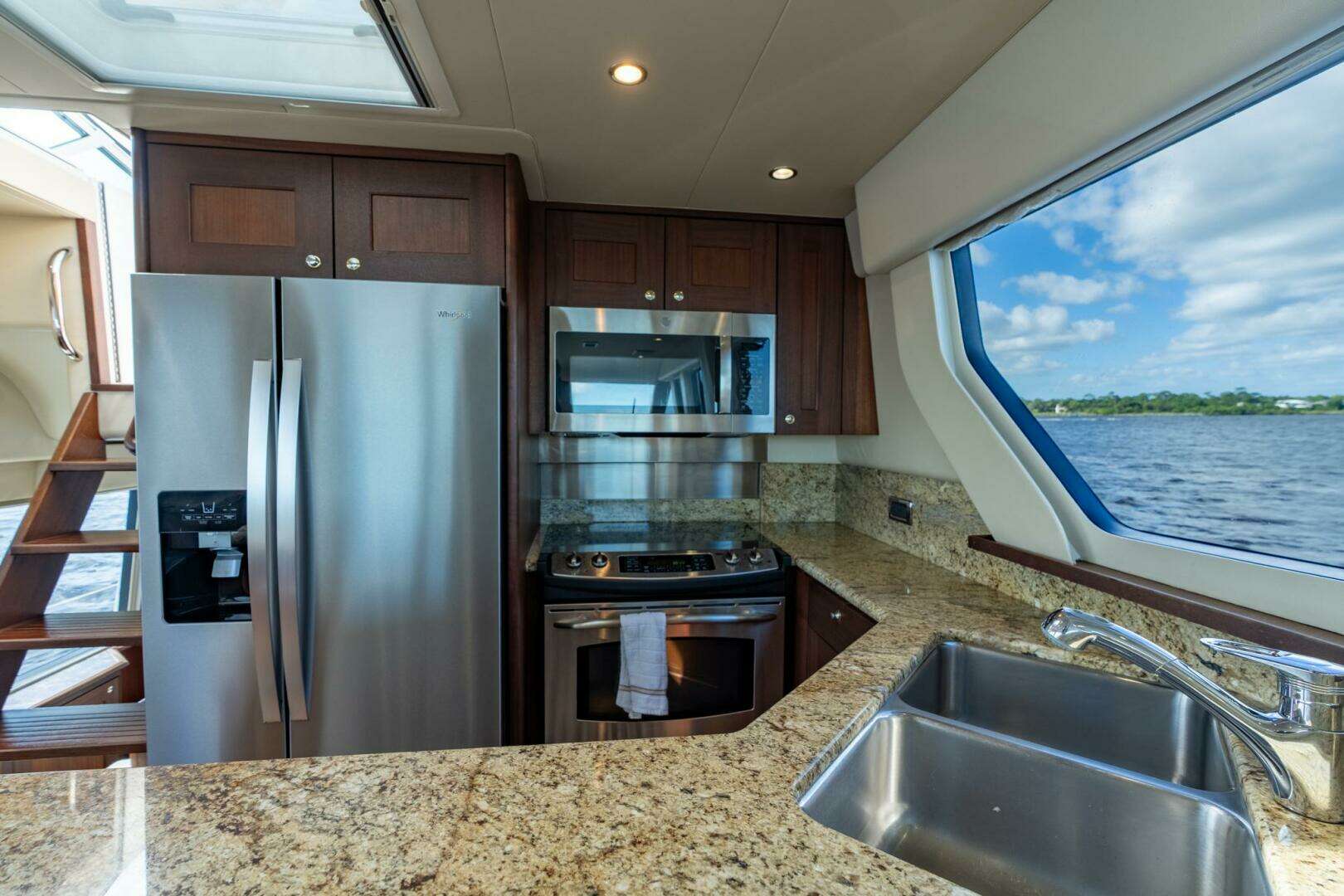

Galley:

• Headroom 6’9”
• Same level open to Pilothouse
• Overhead opening hatch / skylight with screen and blackout shade
• Overhead LED lights
• Custom Wood flooring
• Port and starboard windows with dropdown
• Granite counter tops
• Digital A/C control
• Double stainless-steel sink with garbage disposal
• Grohe Single lever faucet with pullout sprayer
• GE Profile Stove with Oven - 4 burner glass cooktop with warmer
• GE Profile Microwave & Convection oven JVM7195SKGSS New 2025
• Bosxh Dishwasher - Stainless Steel
• Whirlpool Refrigerator WRS321SDHZ13 New 2025
• KitchenAid Trash compactor - Stainless Steel
• Overhead storage cabinets and Starboard side dish storage buffet

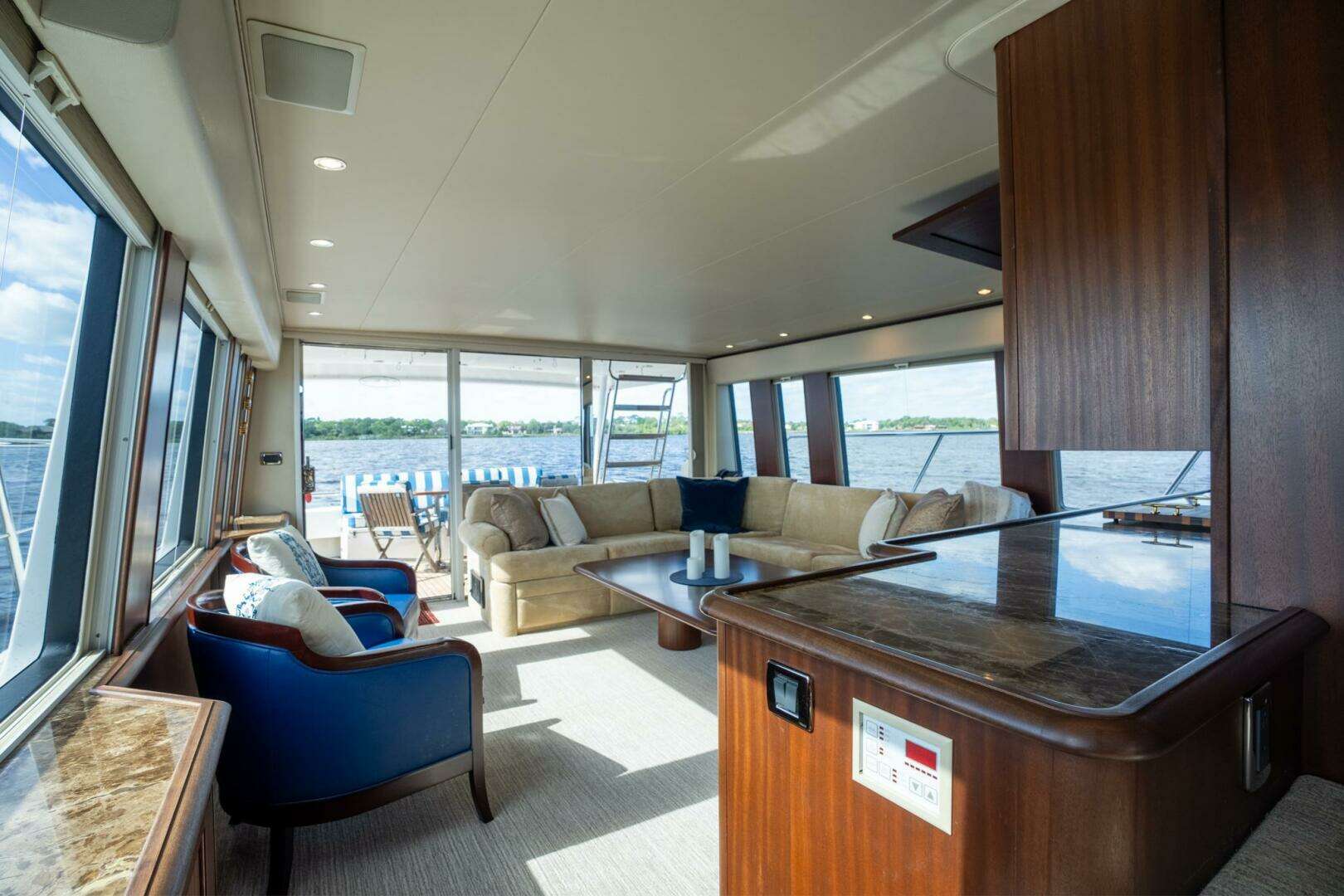

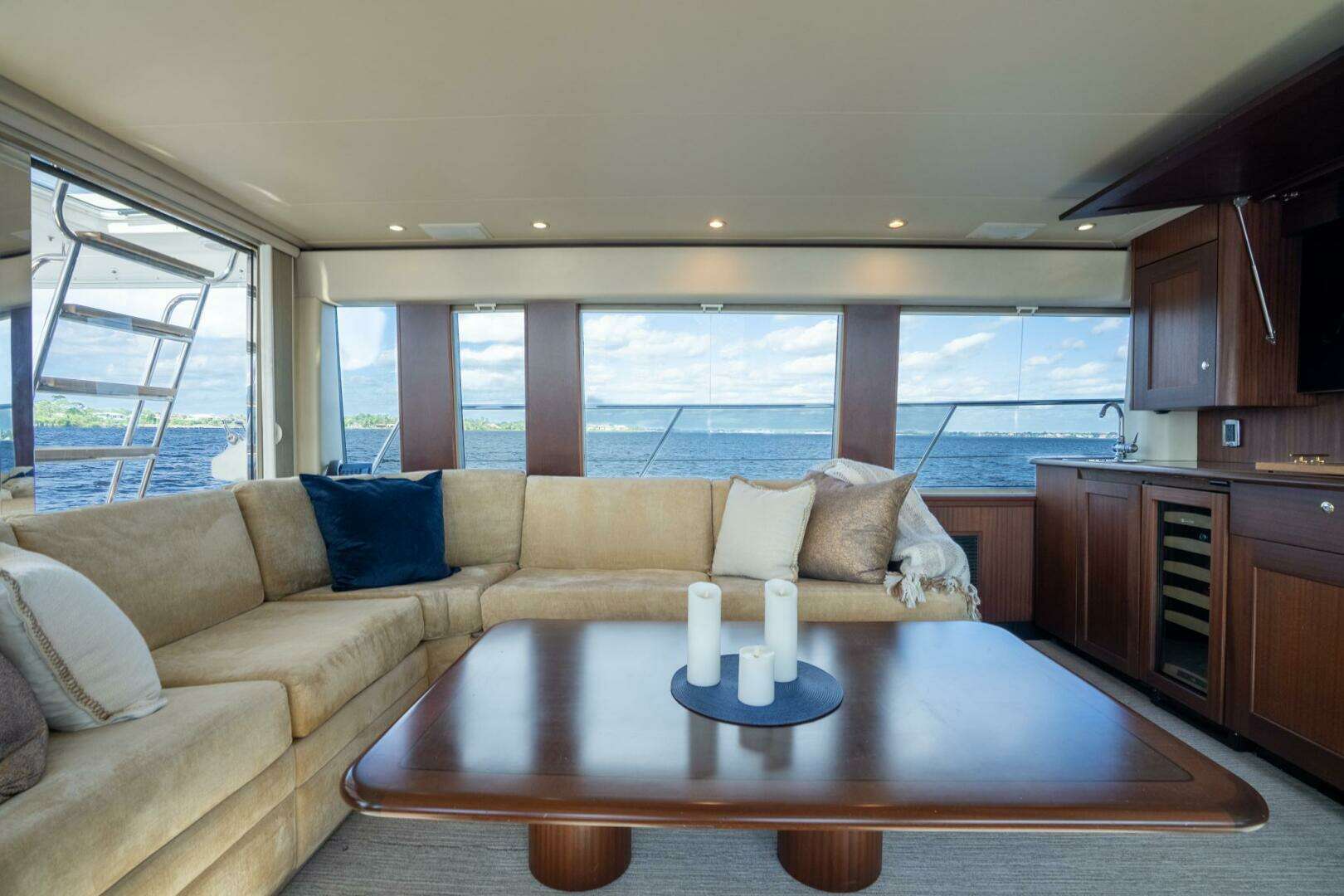

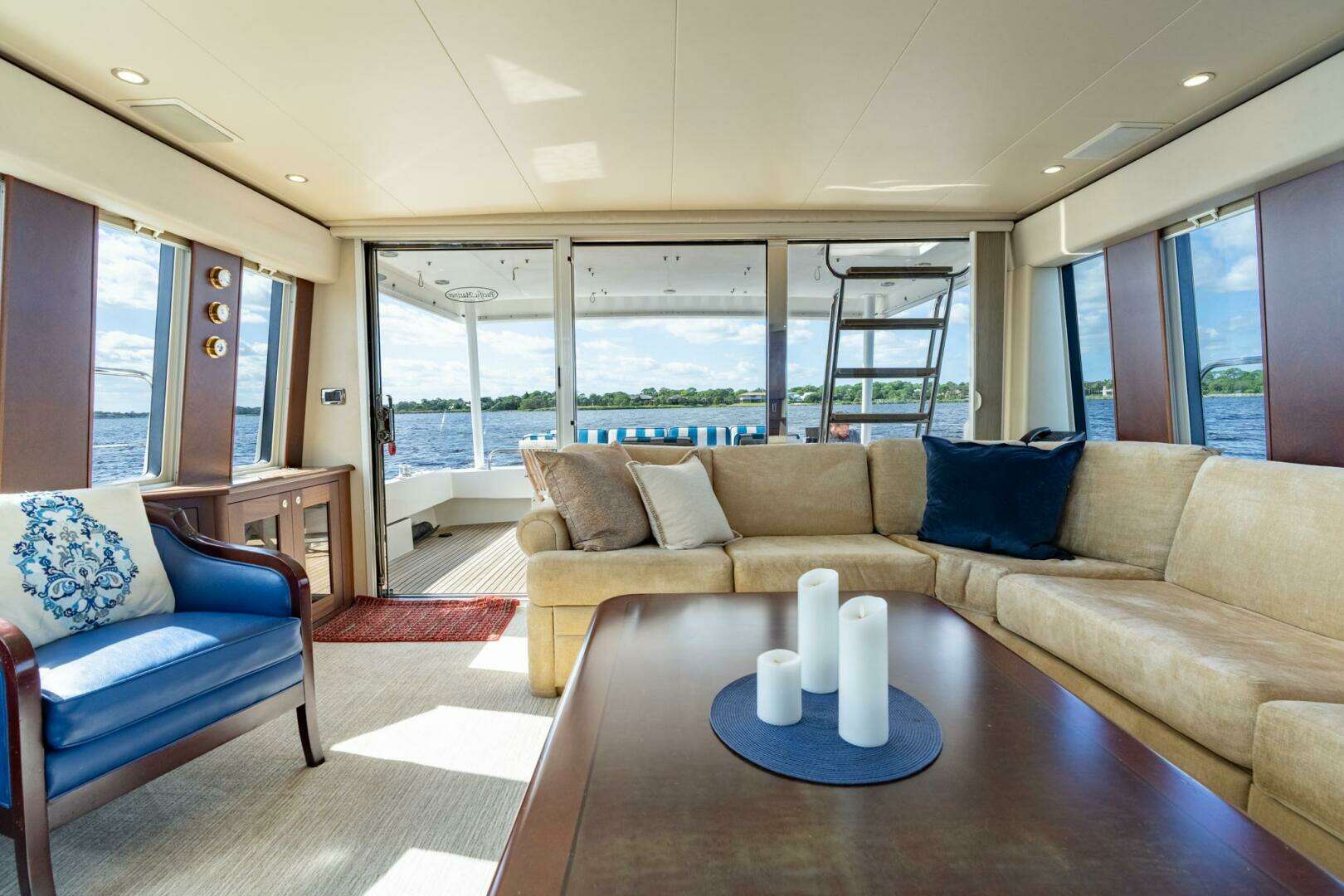

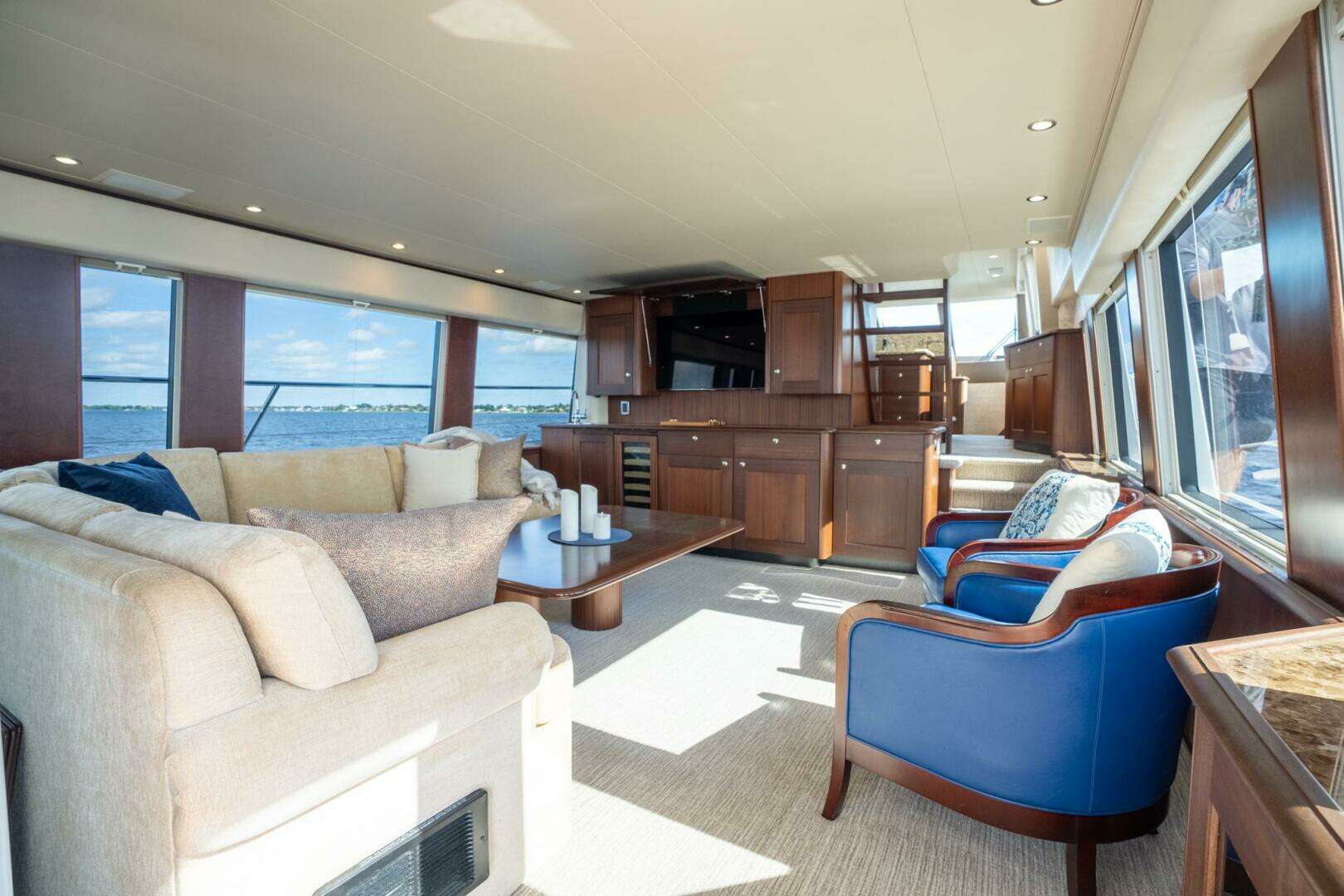

Main Salon:

• Headroom 6'6"
• Furniture quality “L” shaped sofa with storage under sofa
• Custom Hi/Lo table adjusts electrically - cocktail to dining.
• Stainless steel framed sliding door to aft deck with retractable screen
• AC distribution panel, Generator control panels, complete gauges, hour meters
• 42’ Samsung Smart TV
• Surround sound speaker system

Wet Bar:

• U-line Wine cooler
• Scotsman Icemaker SCCP50MA-!SU
• Stainless steel sink
• Isotherm mini fridge CR65EL
• Storage cabinet for Crystal wine glasses
• Bottle storage cabinet with pullout drawer

Accommodations and Crew

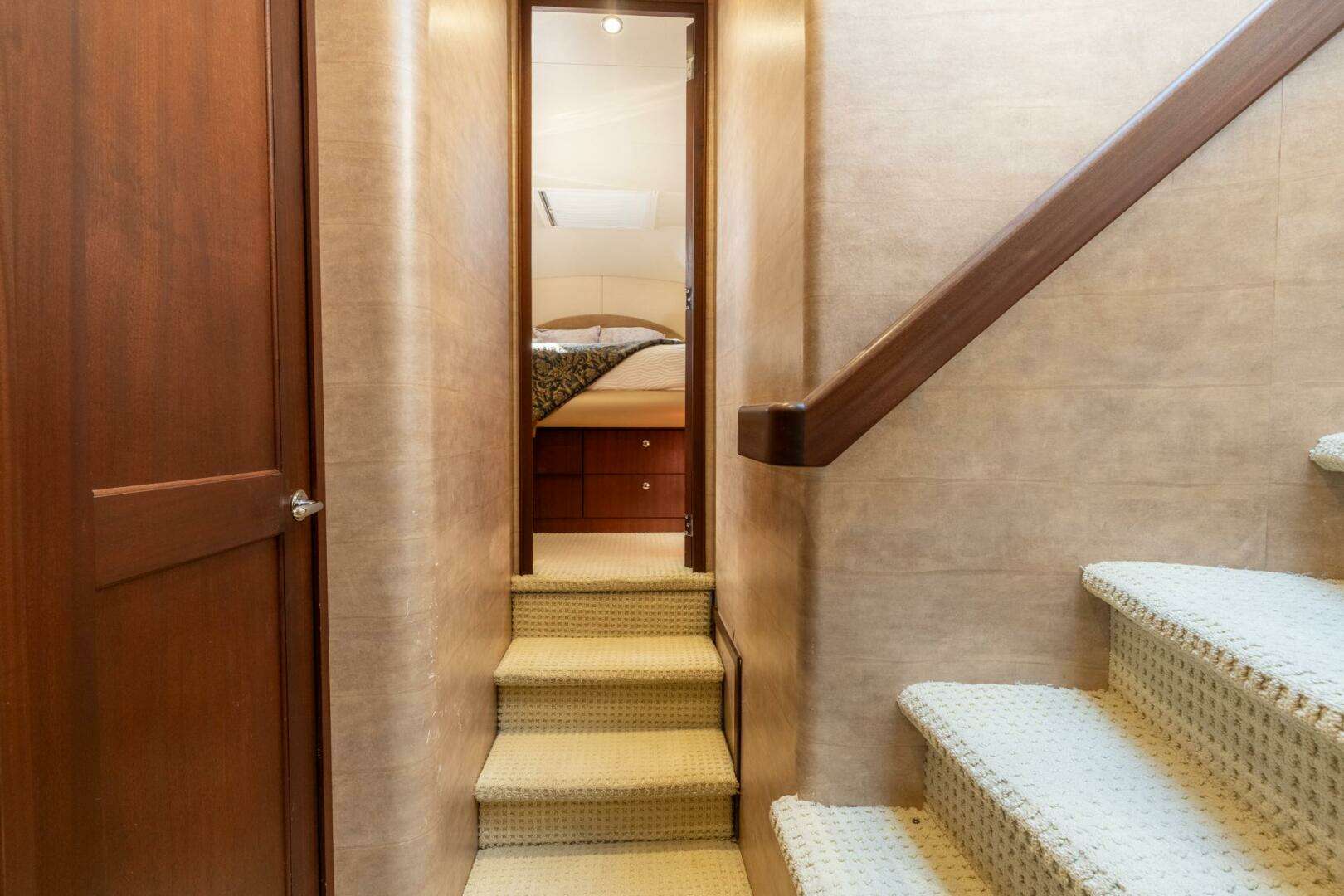

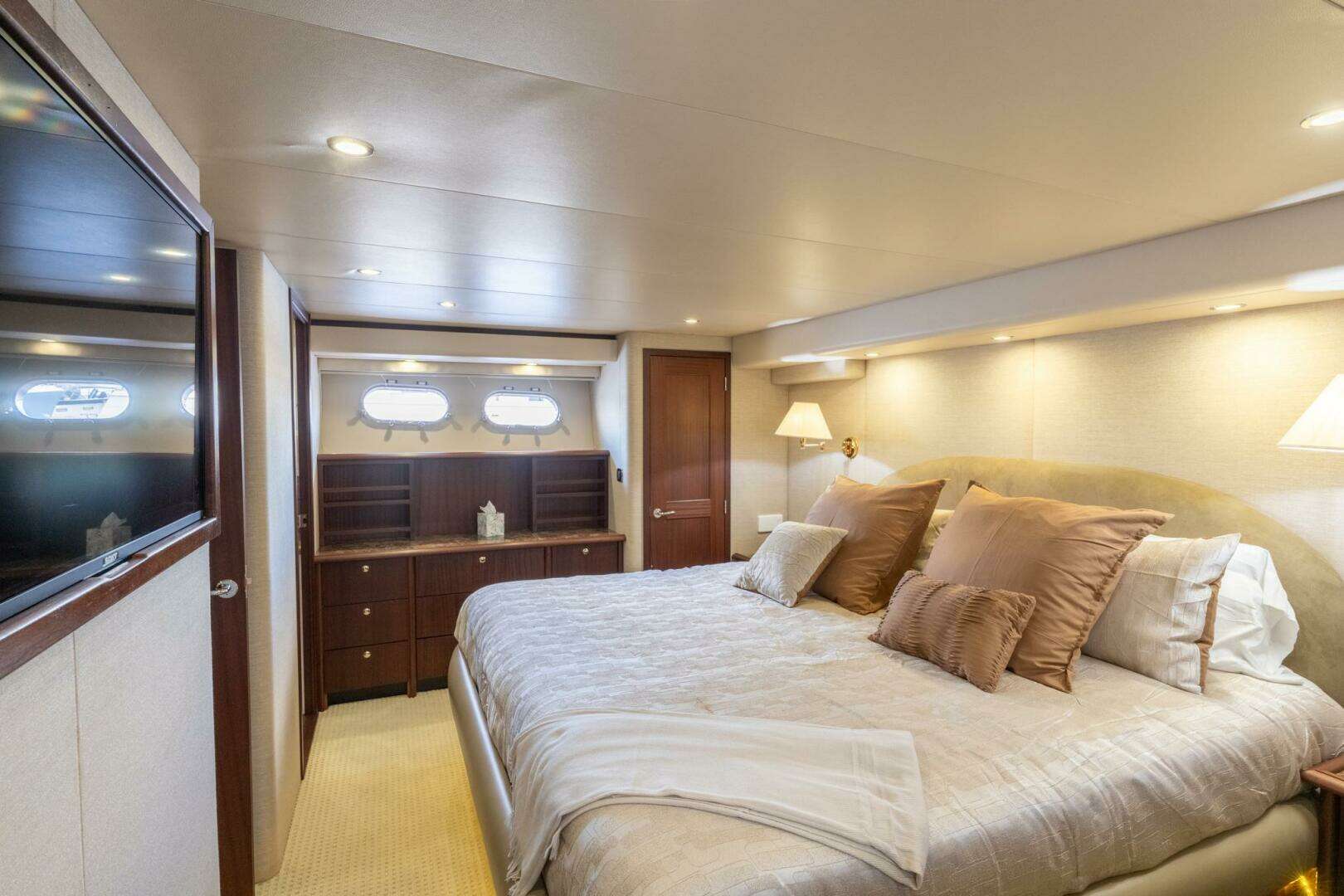

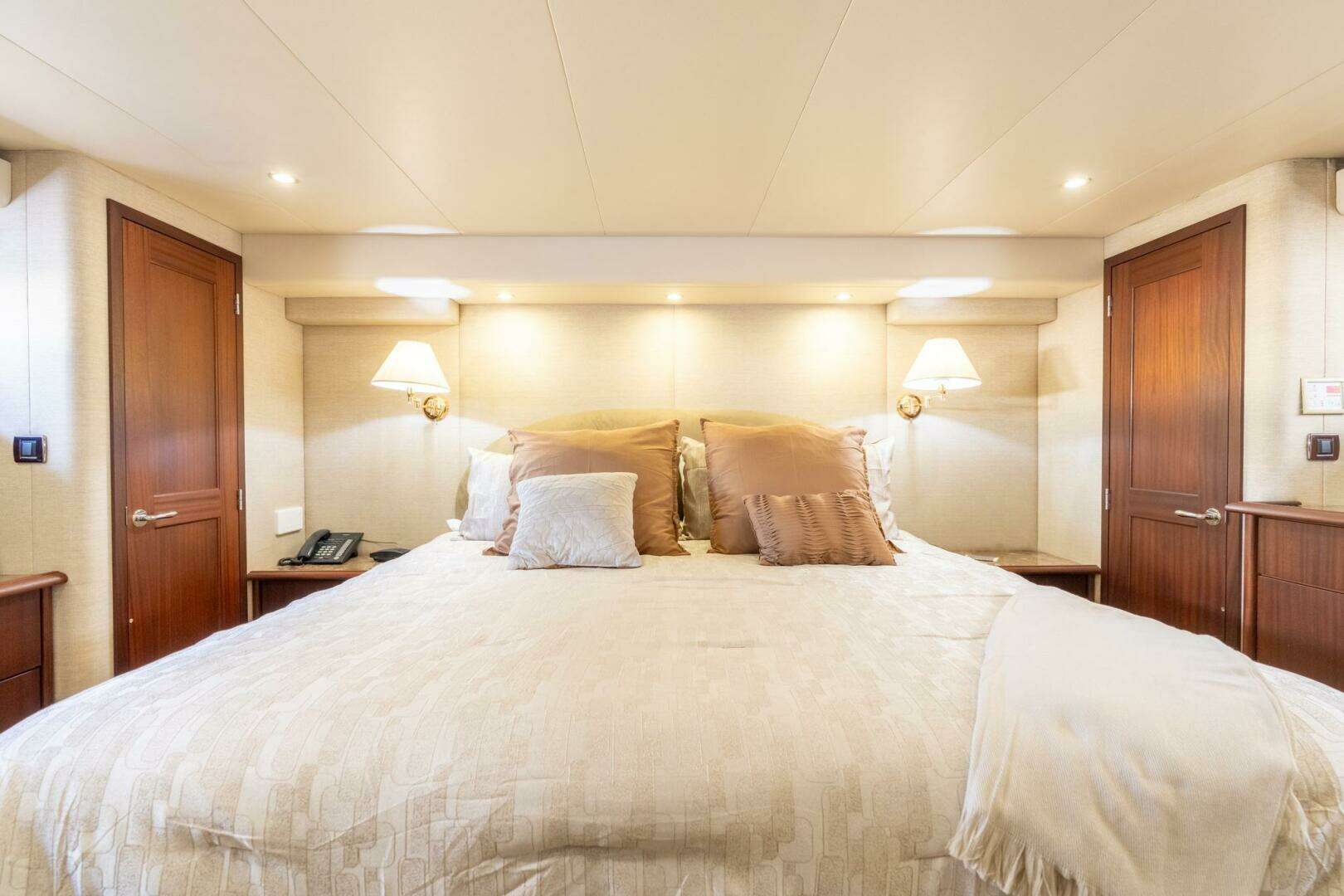

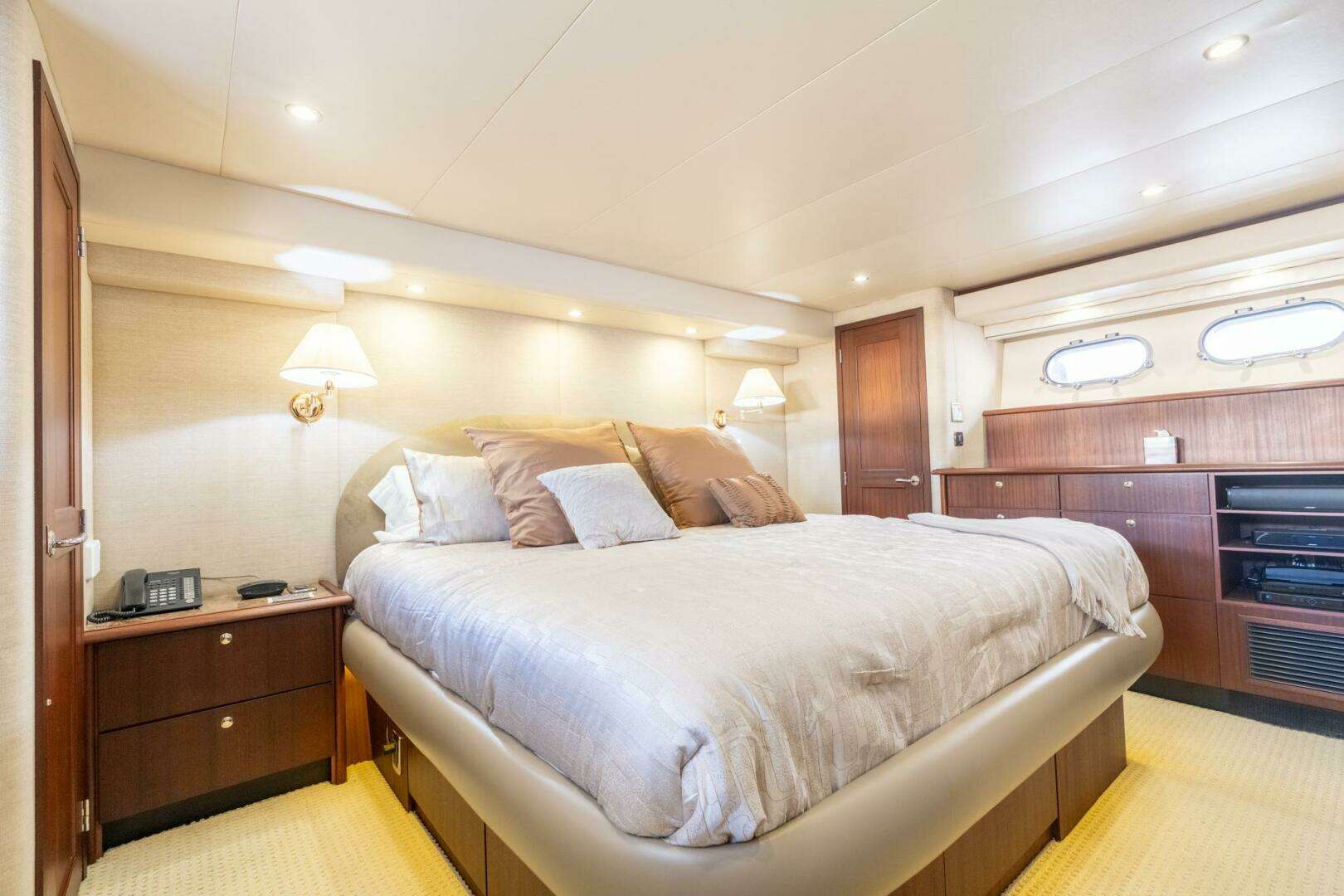

Master Stateroom:

• Headroom 7'5"
• King size walk around bed on centerline with drawers underneath
• Sony 32” LED HDTV
• Two Cedar-lined, lighted hanging lockers with full length mirror on door
• Desk with bookshelves, storage drawers and chair
• Dresser with 7 large drawers to port
• Four stainless port lights with screens
• Privacy shades

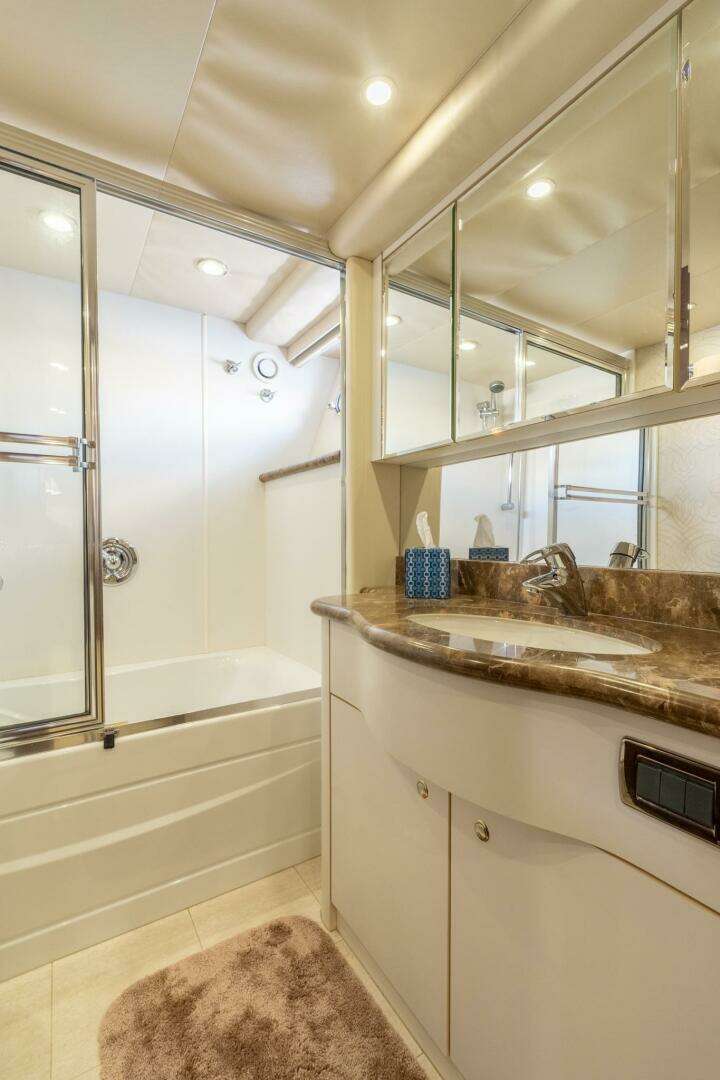

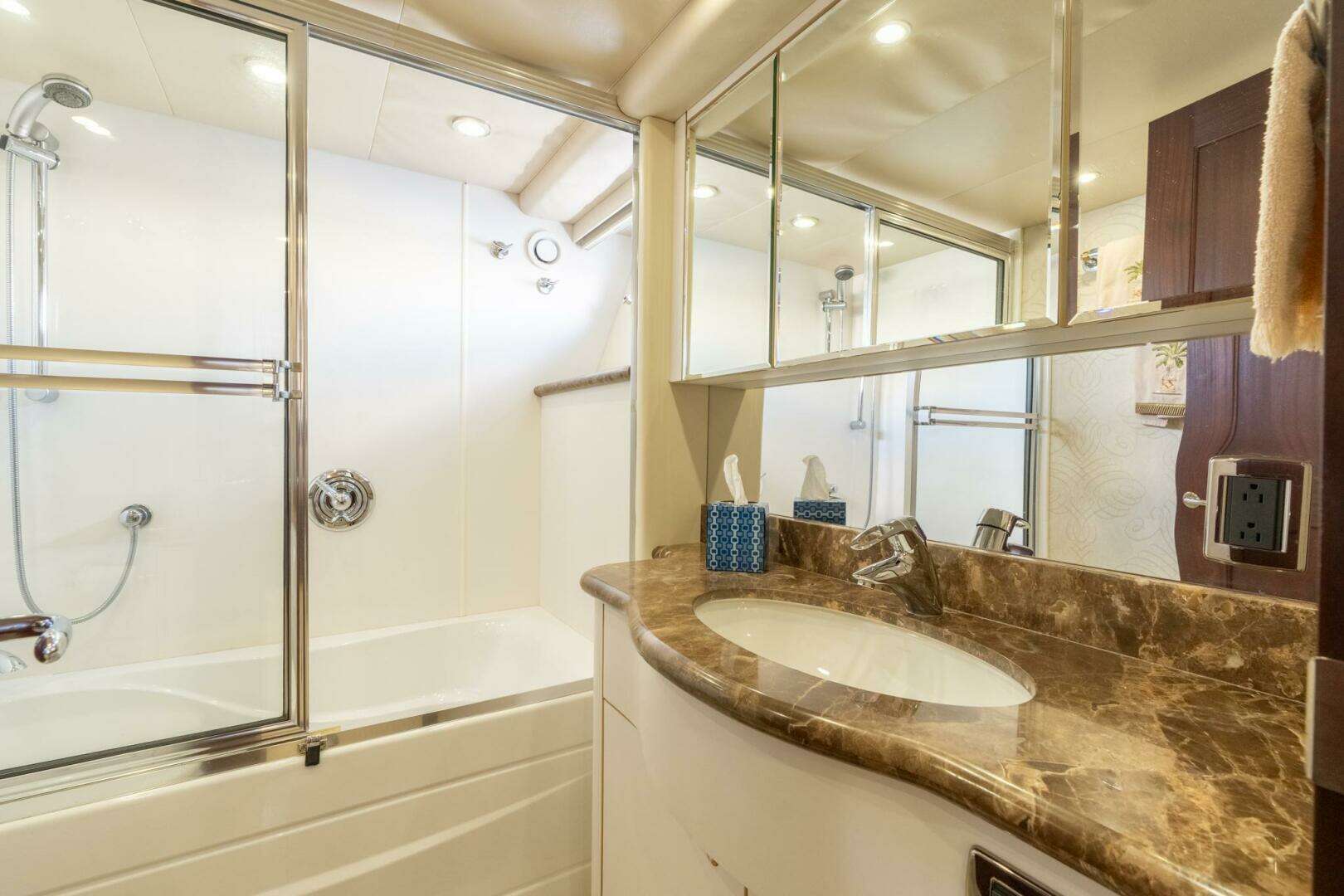

Master Head – Ensuite:

• Marble countertop with sink
• Grohe single lever faucet
• Headhunter Jet type marine toilet freshwater
• Marble flooring
• Towel storage cabinet
• 5' Bathtub with shower
• Mirrored vanity with storage
• Stainless port light with screen

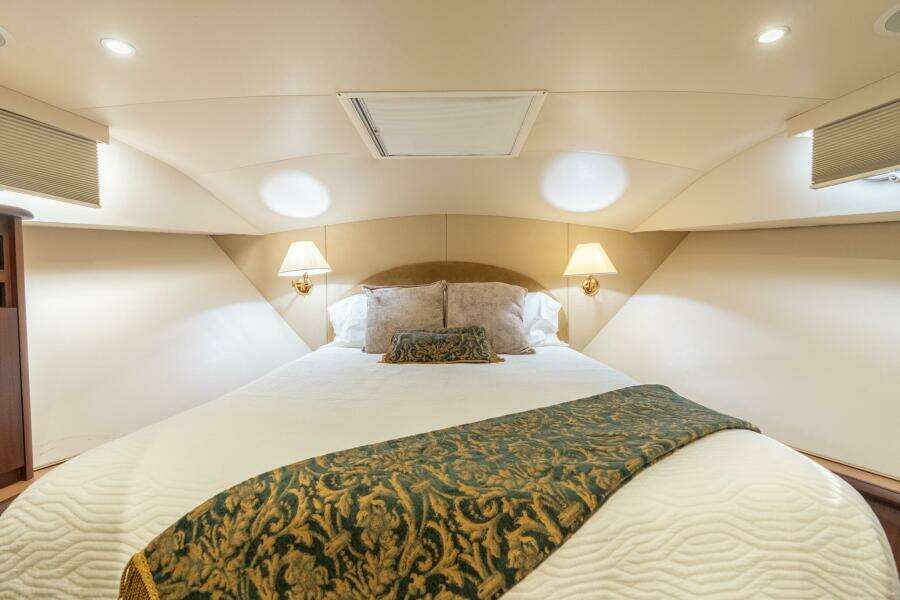

VIP Stateroom:

• Headroom 6'5"
• Queen size bed with swing arm reading lights and drawers underneath
• Smart TV
• Cedar lined, hanging locker
• Ventilation hatch with screen and privacy cover
• Two stainless port lights with screens

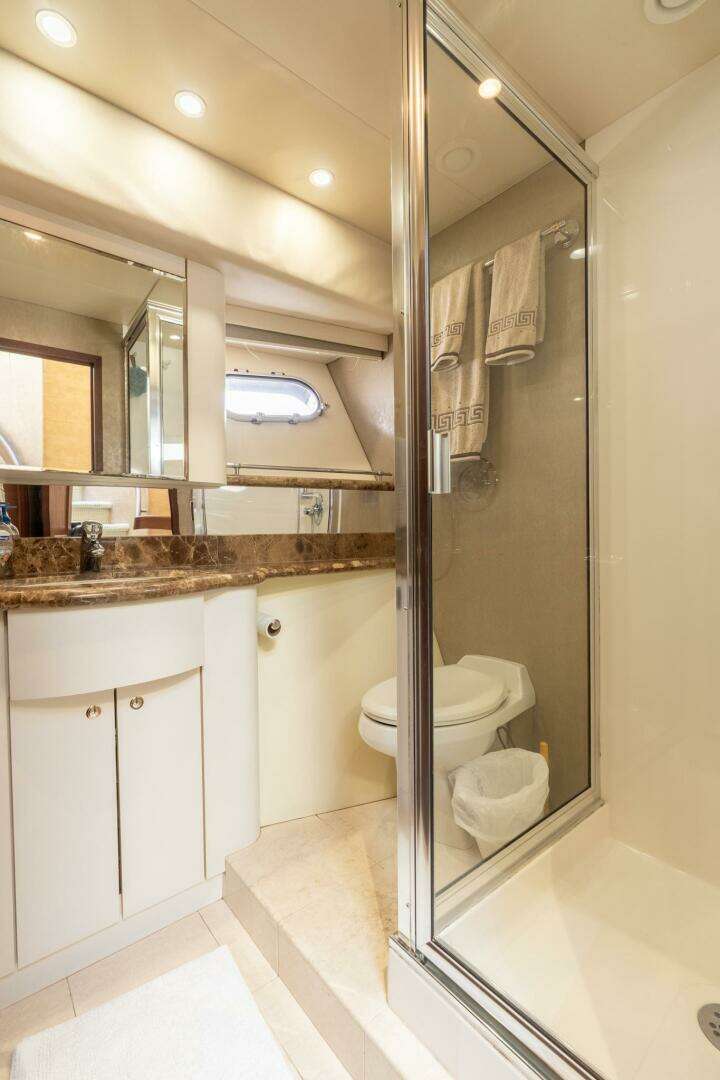

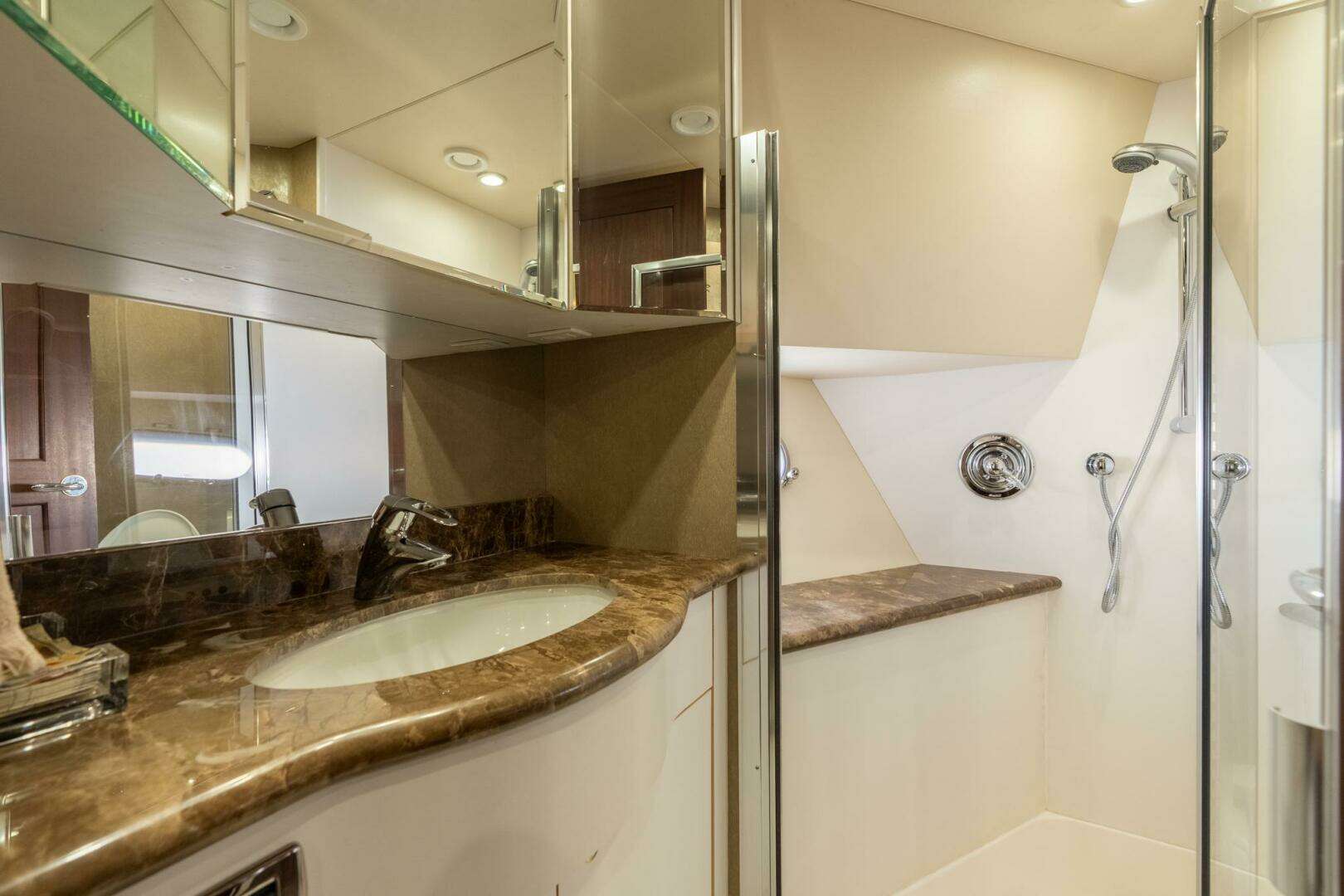

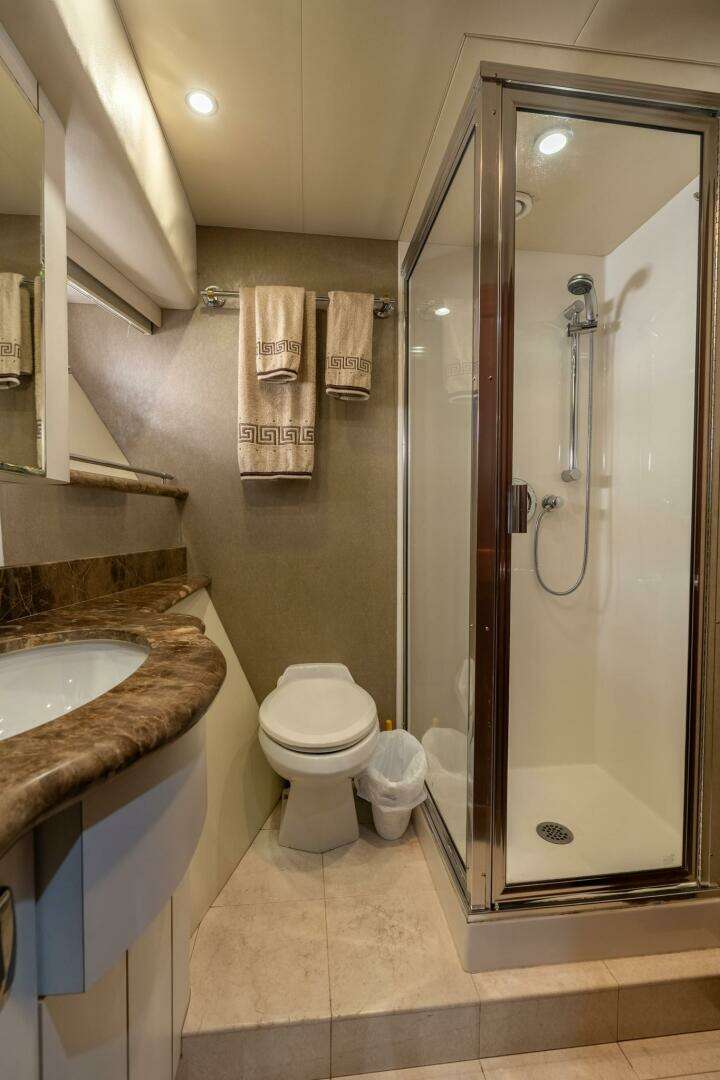

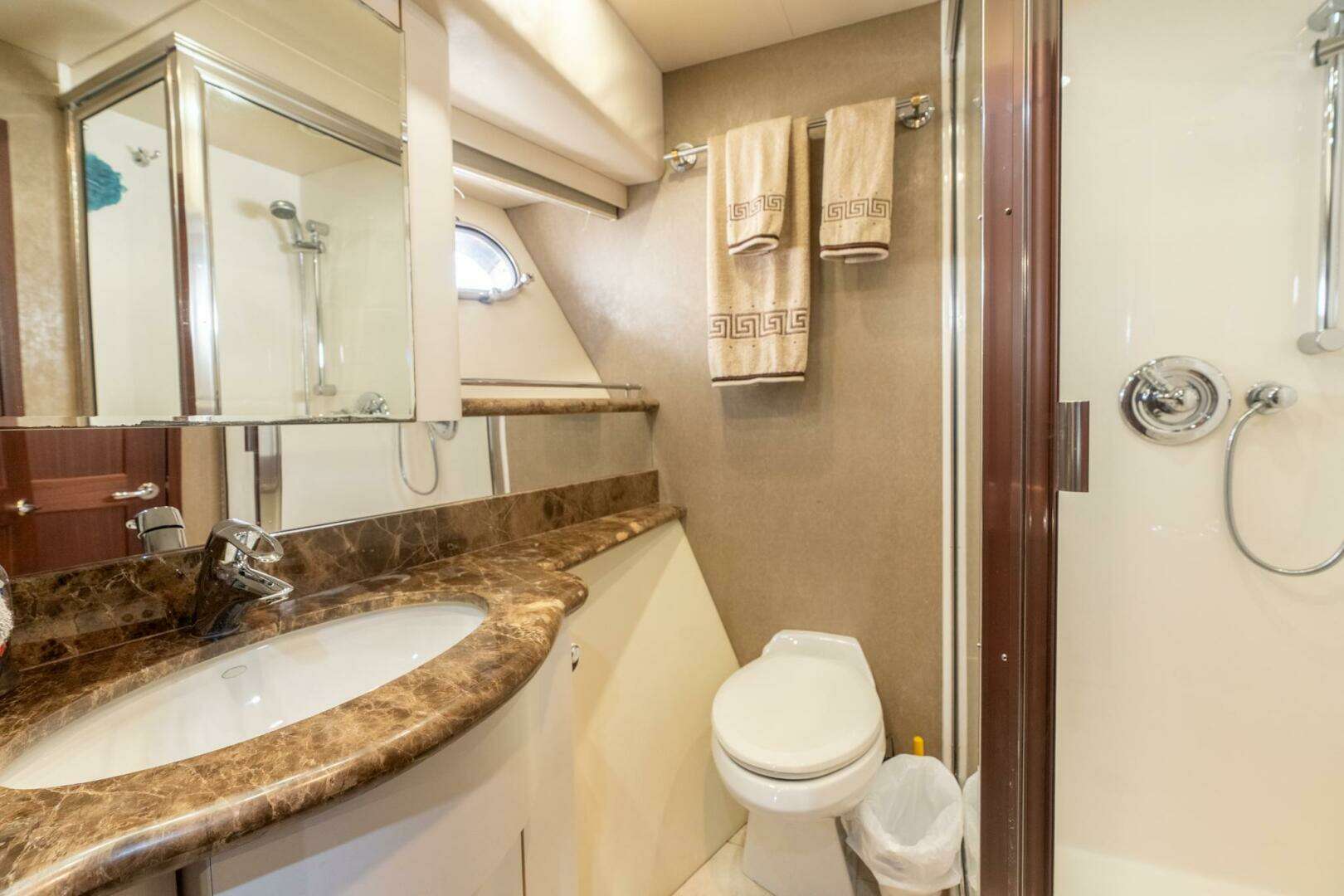

VIP Head – Ensuite:

• Marble countertop with sink
• Grohe single lever faucet
• Headhunter Jet type marine toilet freshwater
• Sunken shower with safety glass door
• Pressure balanced shower valve
• Mirrored vanity with sink
• Power ventilation
• Air conditioning outlet
• Stainless port light with screen
• Marble flooring
• Stahl Shower

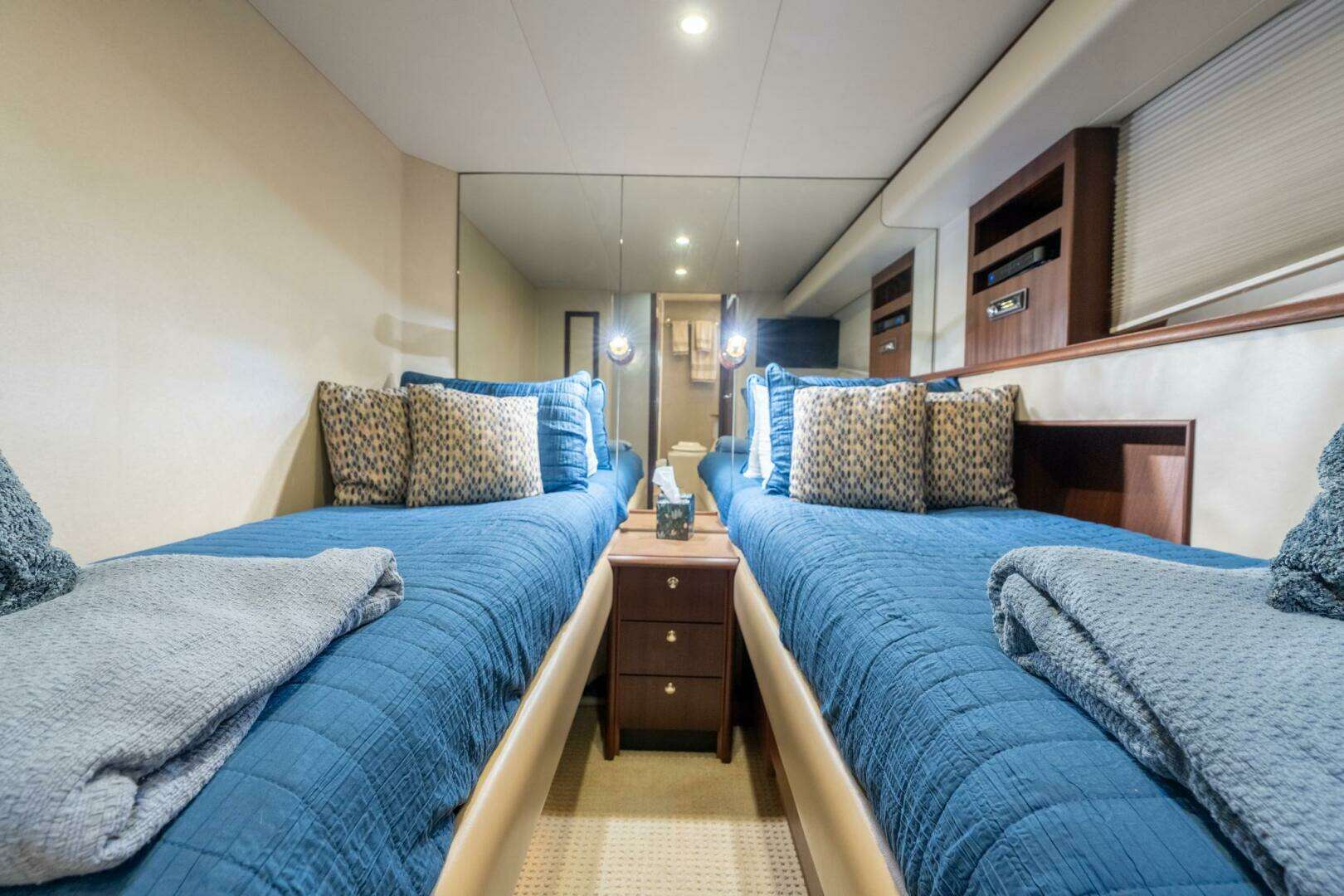

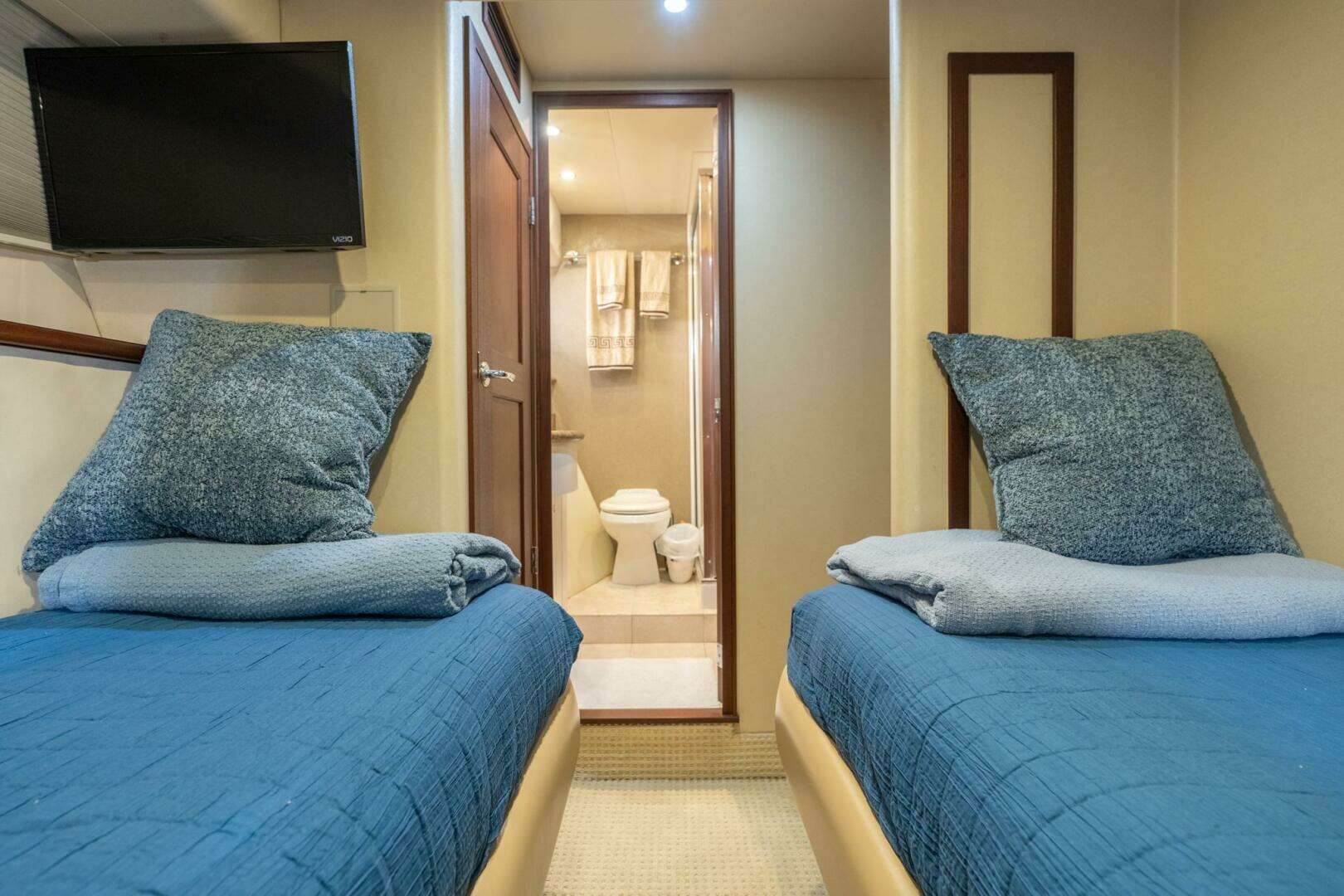

Guest Stateroom:

• Headroom 6'5"
• Twin berths (Insert to make single berth)
• 32” LED HDTV
• Cedar lined, lighted hanging locker
• Built-in drawers under berths
• Reading lights
• Stainless port light with screen

Guest Head – Doubles as the Day Head:

• Ensuite
• Marble flooring
• Entry from foyer or guest stateroom
• Marble countertop with sink
• Headhunter Jet type marine toilet freshwater
• Mirrored vanity with storage
• Stainless port light with screen
• Stahl shower

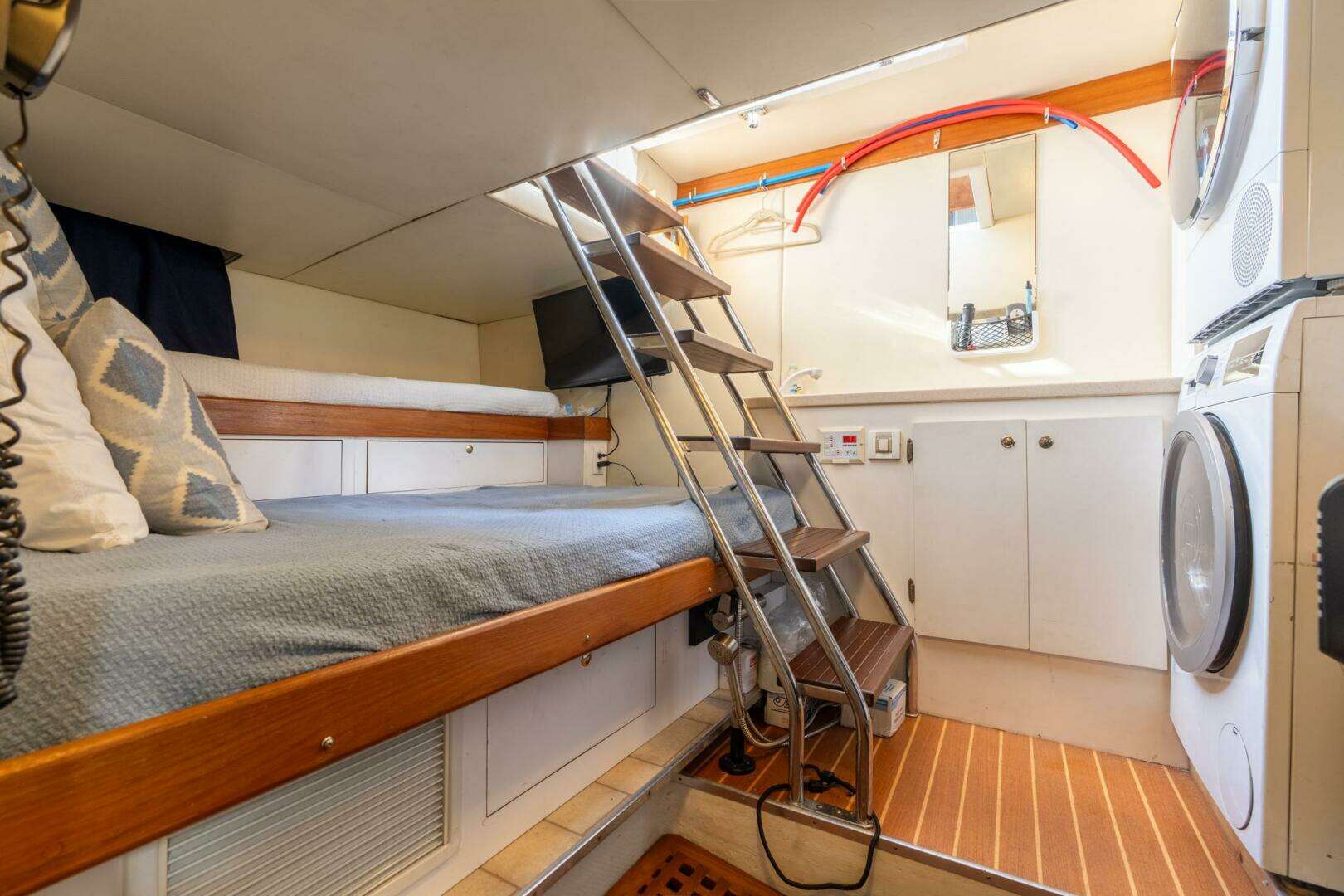

Crew Quarters:

• Access from Aft Deck settee via 6 step stairway
• Engine Room access is from the Crew Quarters
• Overhead light, Portside parts cabinets and aft storage lockers
• Upper and lower berths to starboard – now used for additional storage
• Handheld fire extinguishers
• Digital A/C control
• Countertop with sink with hot & cold pullout sprayer faucet
• (1) 110v outlet with GFI
• Small refrigerator and stacked Bosch Washer & Dryer (Dryer new 2025)
• Commercial watertight door to engine room, with dog down latches

Crew Head – Ensuite:

• Wired for electric head with macerator pump
• 20-gallon FRP holding tank
• Y Valve with overboard pump
• Holding tank with tank watch level indicator
• Dockside pump out fitting - located port Aft Deck

Deck Features

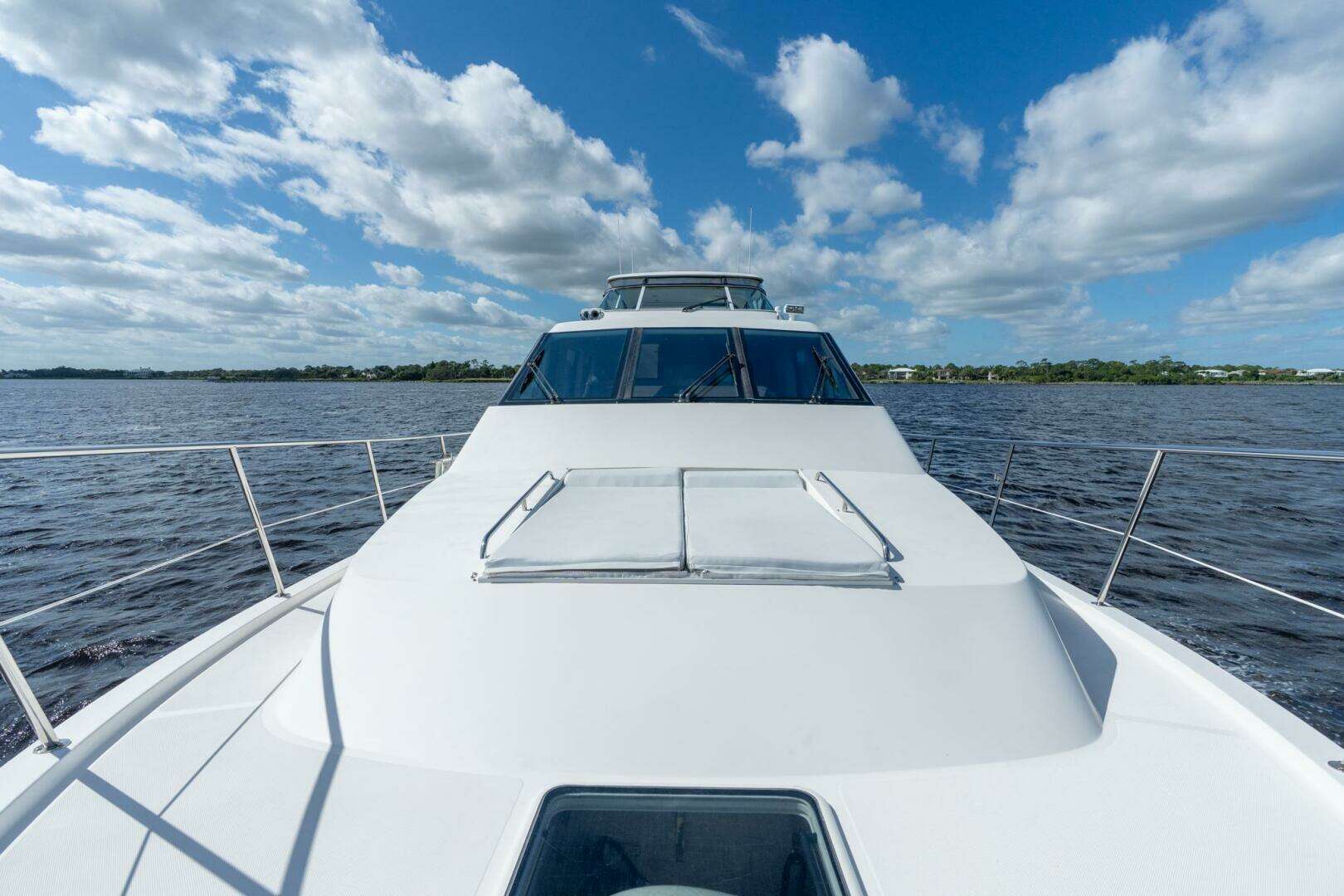

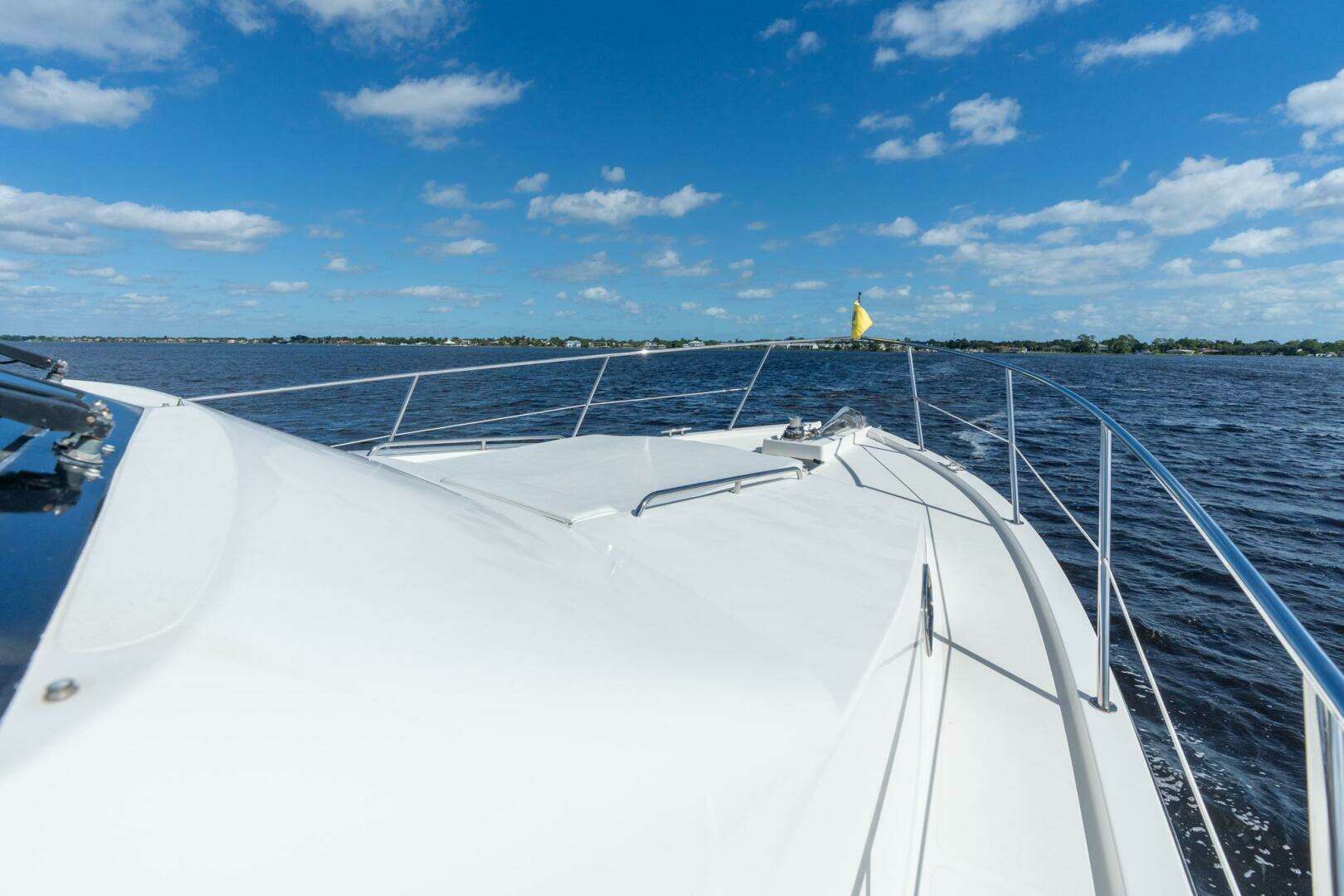

Foredeck:

• Fiberglass non-skid decking
• Stainless steel Bow rail
• Stainless Steel Bow cleats - 12” with chafe guards
• Lewmar Windlass - 3000 lb. capstan with chain wildcat 24v
• 300’ x 3/8” high test chain
• Windlass foot up & down switches with covers
• Lewmar 110 lb. Claw Anchor
• Stainless steel anchor mount
• Fender / storage locker
• Fresh & sea water washdowns

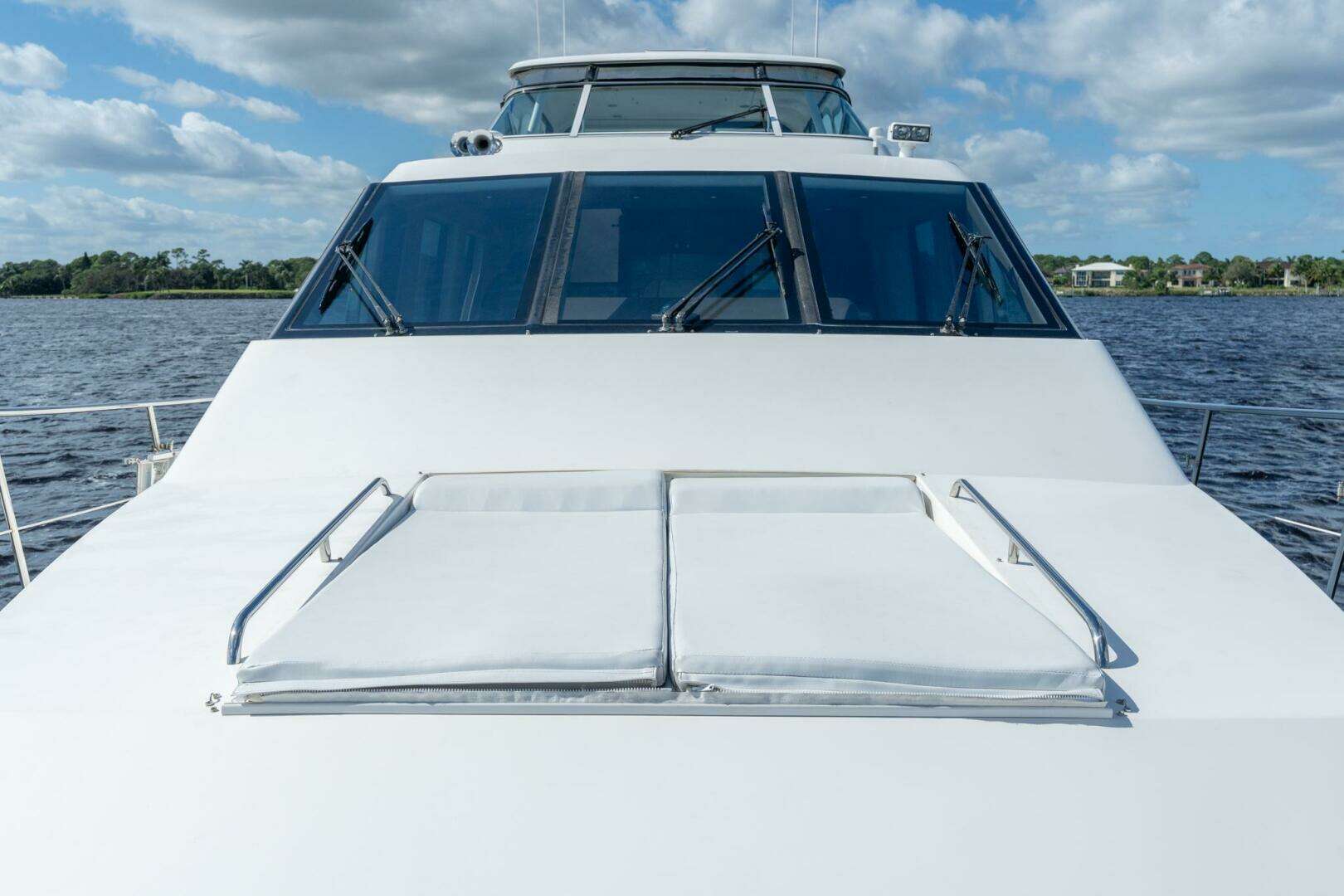

• Sun pad - grab rails – new Sun pads - 2022

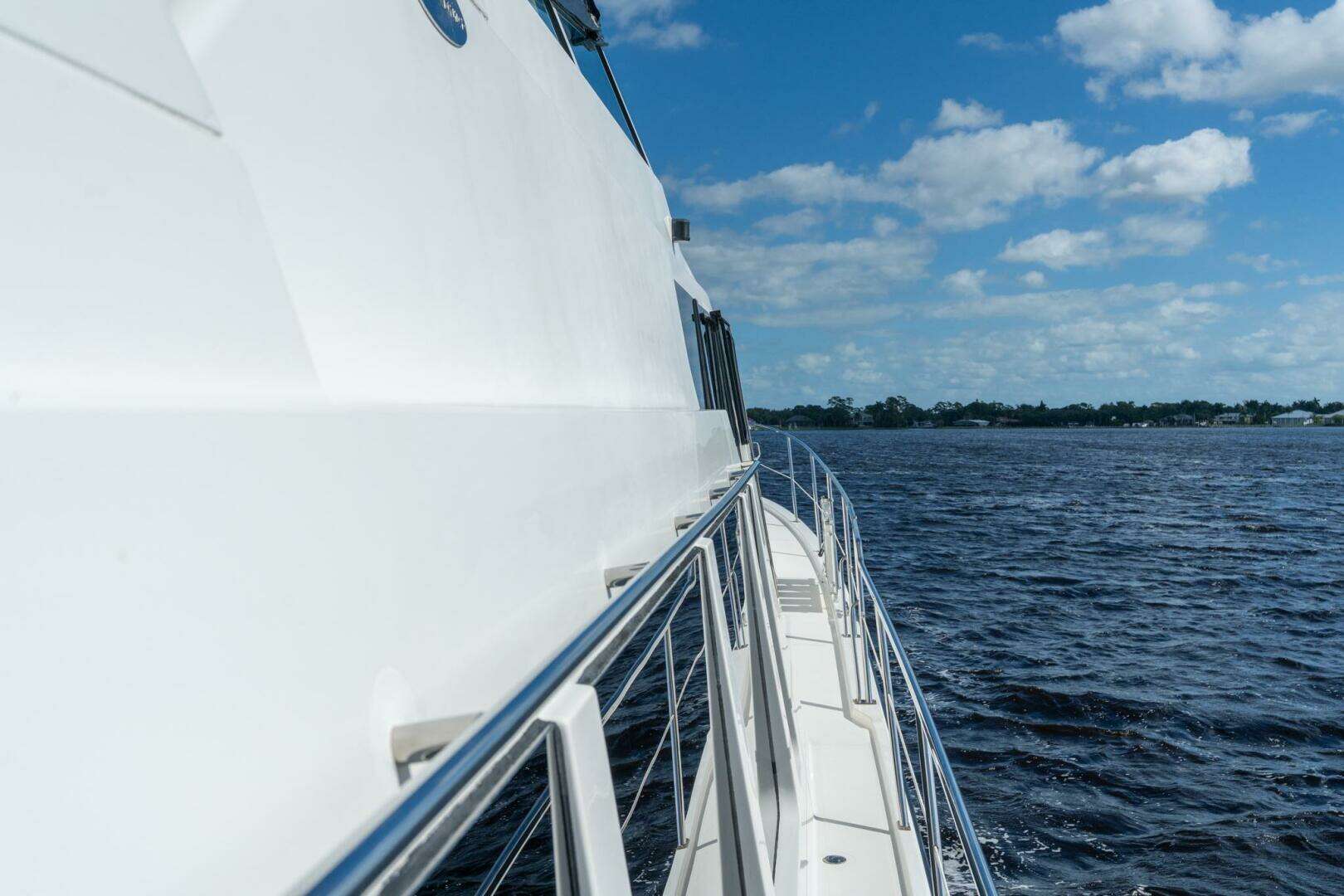

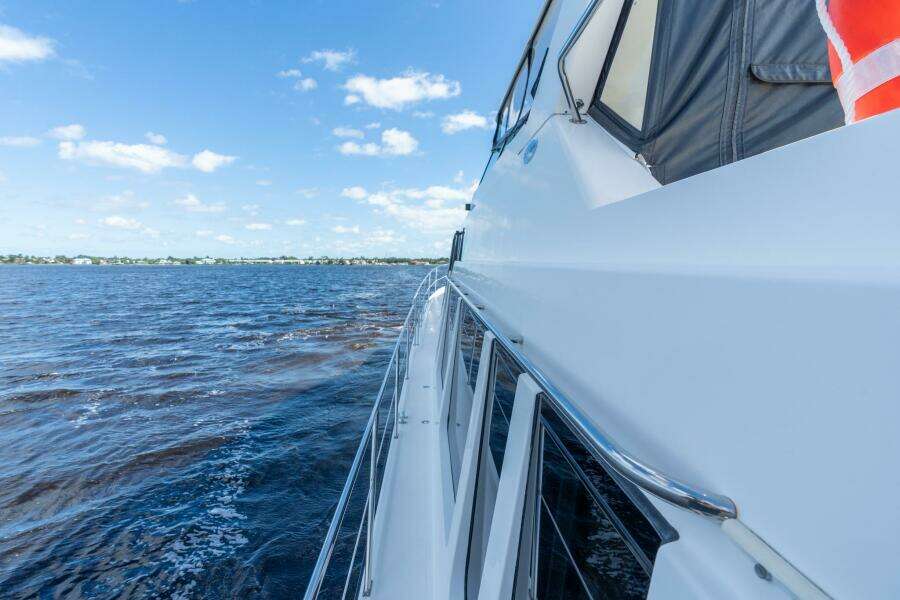

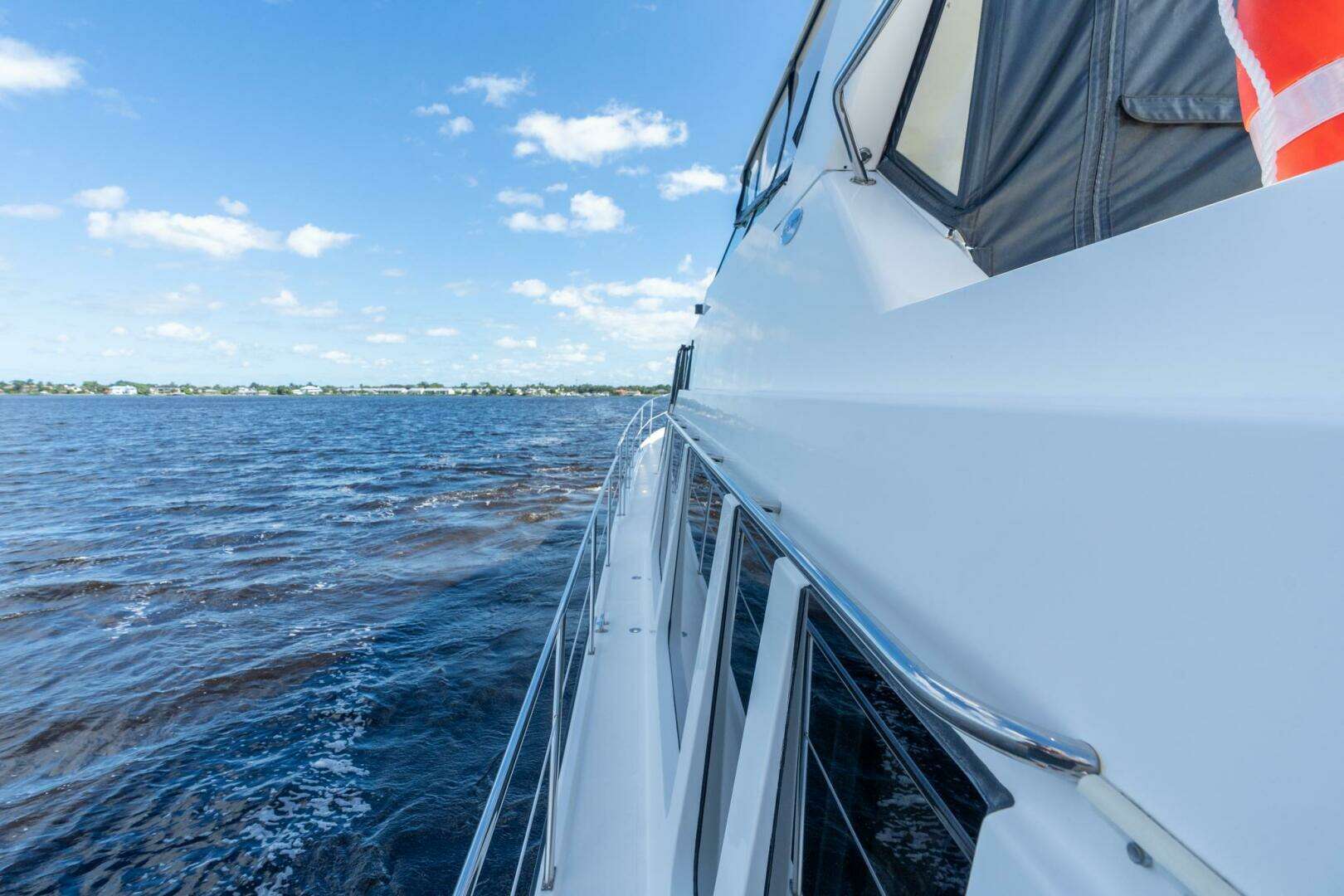

Side Decks:

• Full walkaround 12” wide non-skid decking
• Stainless Steel Port and Starboard spring line cleats - 12” with chafe guards
• Stainless Steel handrails with Cabin side grab rails and Toe rail safety rail
• Port & Starboard ladder mounts at Pilothouse handrail gates

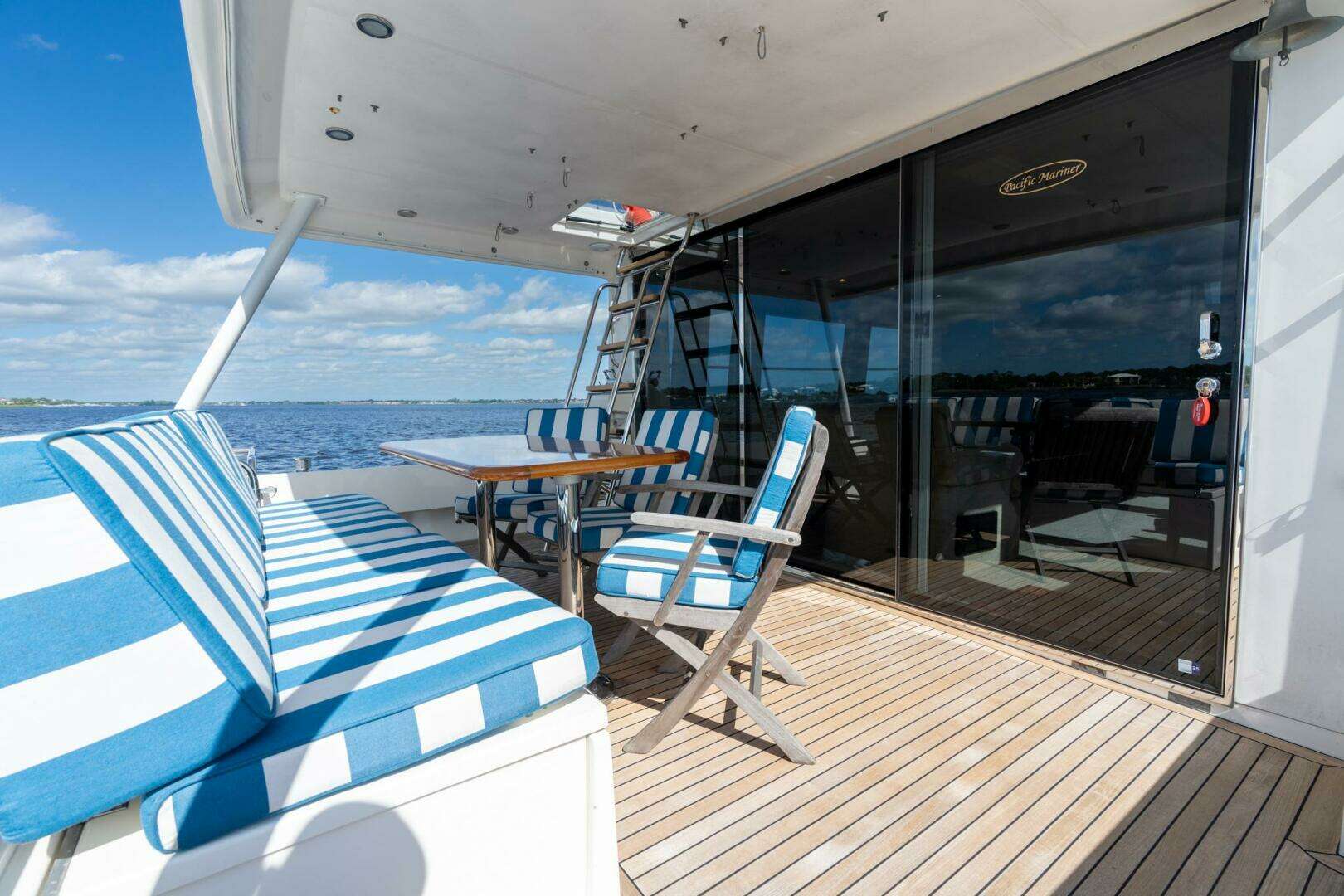

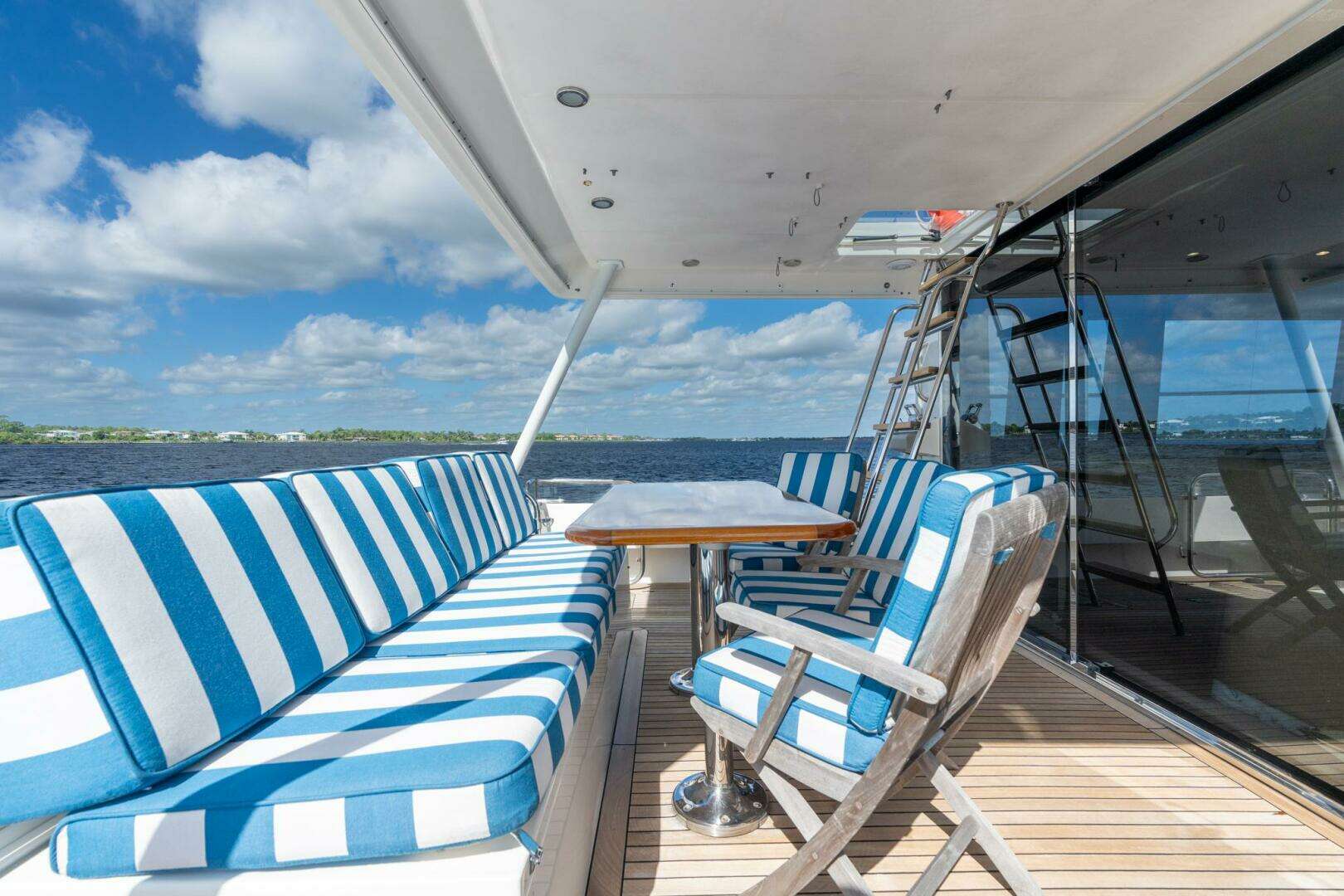

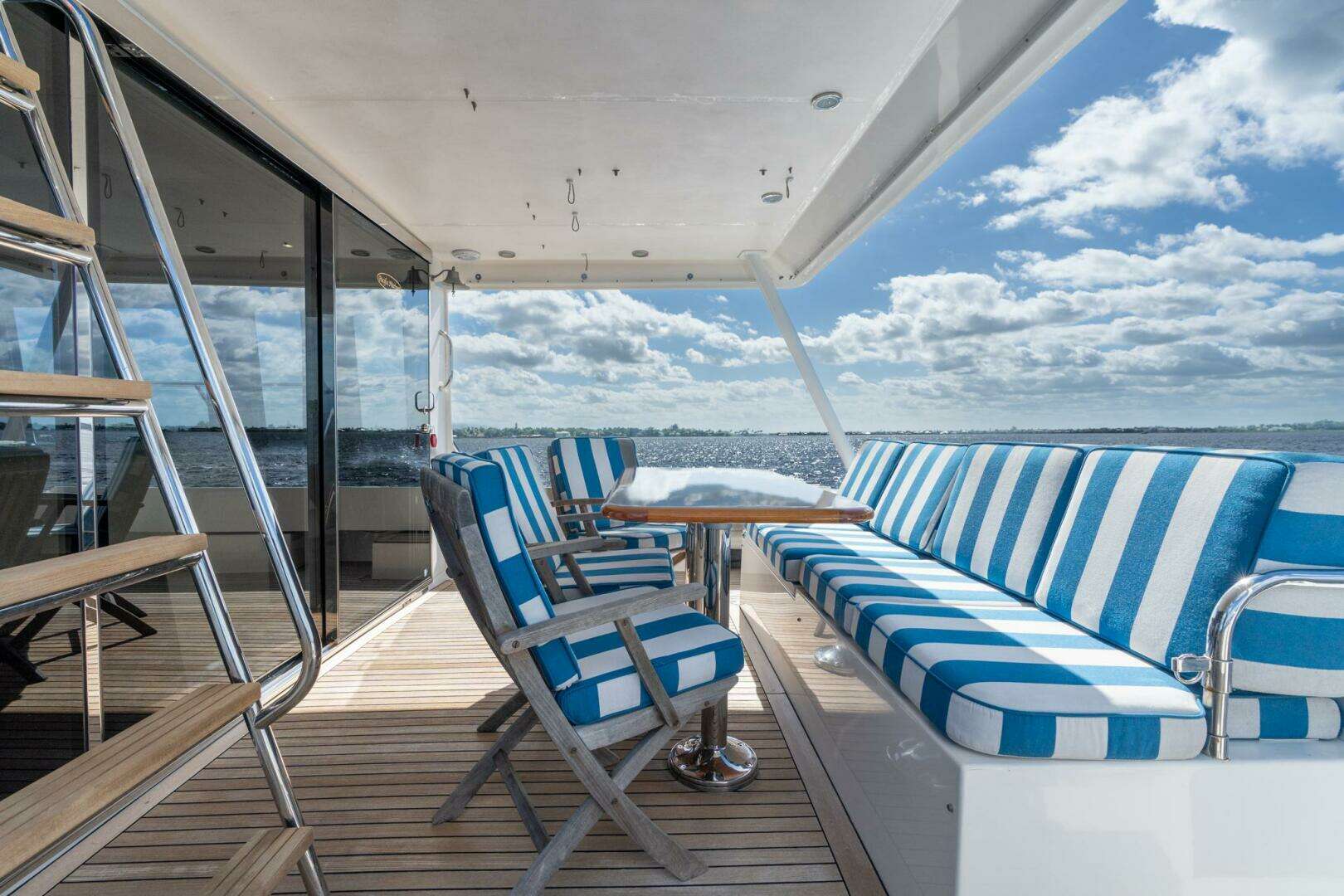

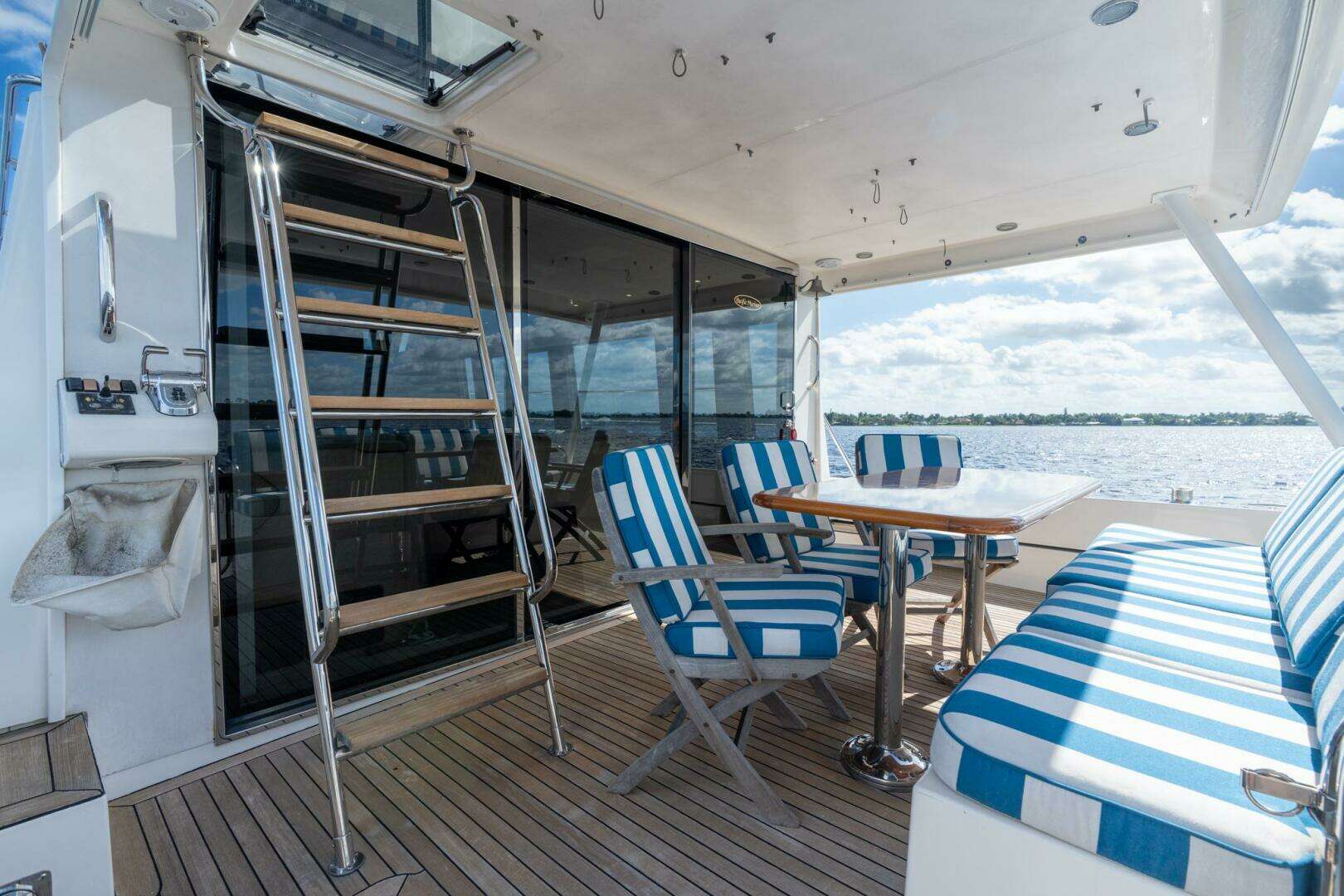

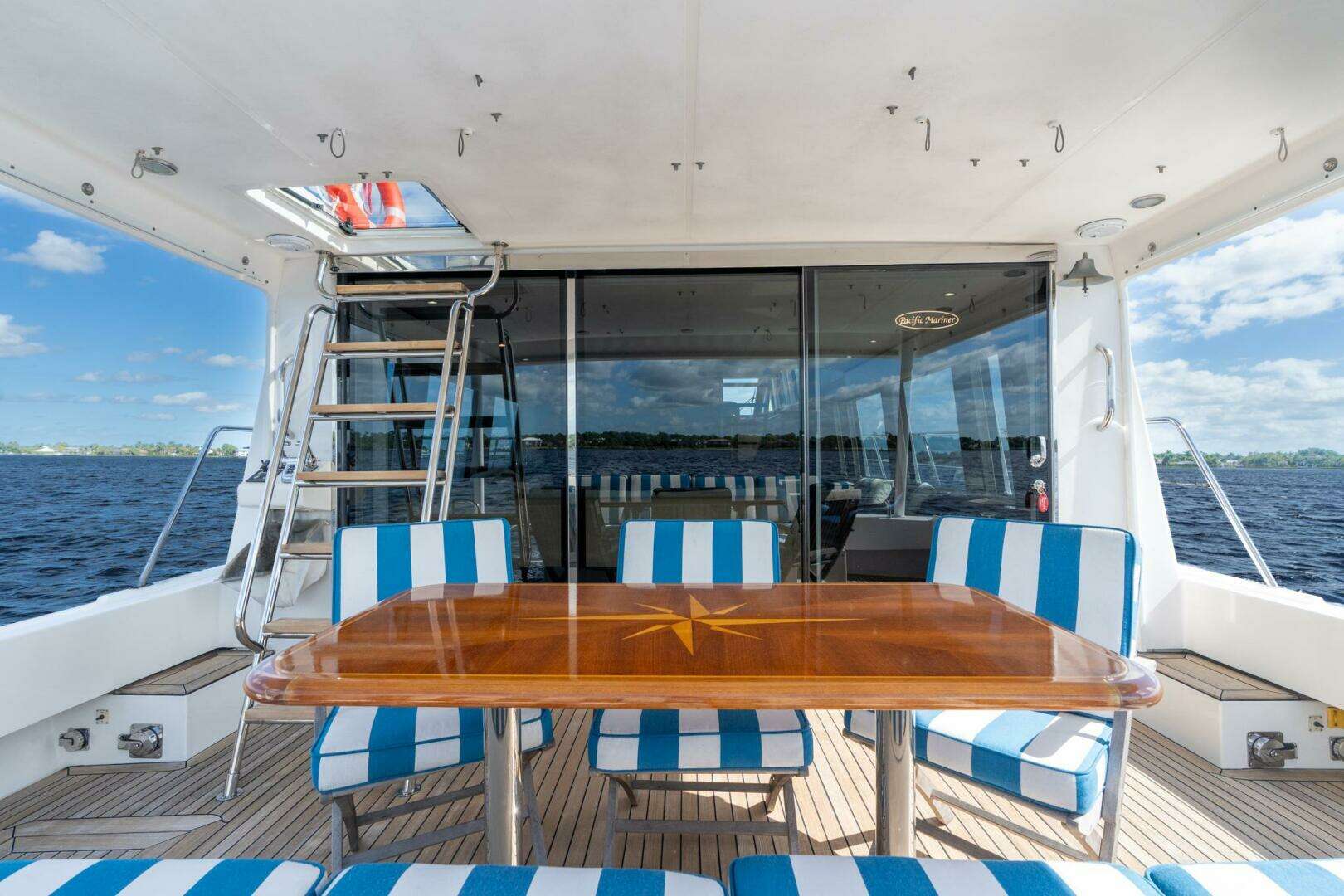

Aft Deck:

• Headroom 6'8"
• Fiberglass deck with Teak overlay
• Fiberglass overhead with recessed lights
• Port and starboard steps to gunwale
• Teak table with pedestal & storage cover
• 2 Cablemaster retractable 50-Amp shore cords on aft deck
• Warping winches on Port and Starboard aft corners, with foot switches 24v
• Stainless Steel Port and Starboard Aft cleats - 12” with chafe guards
• Dockside water connector, Port aft deck with pressure regulator
• Freshwater washdown, Port aft deck
• 7-Step ladder to bridge with teak steps, port forward

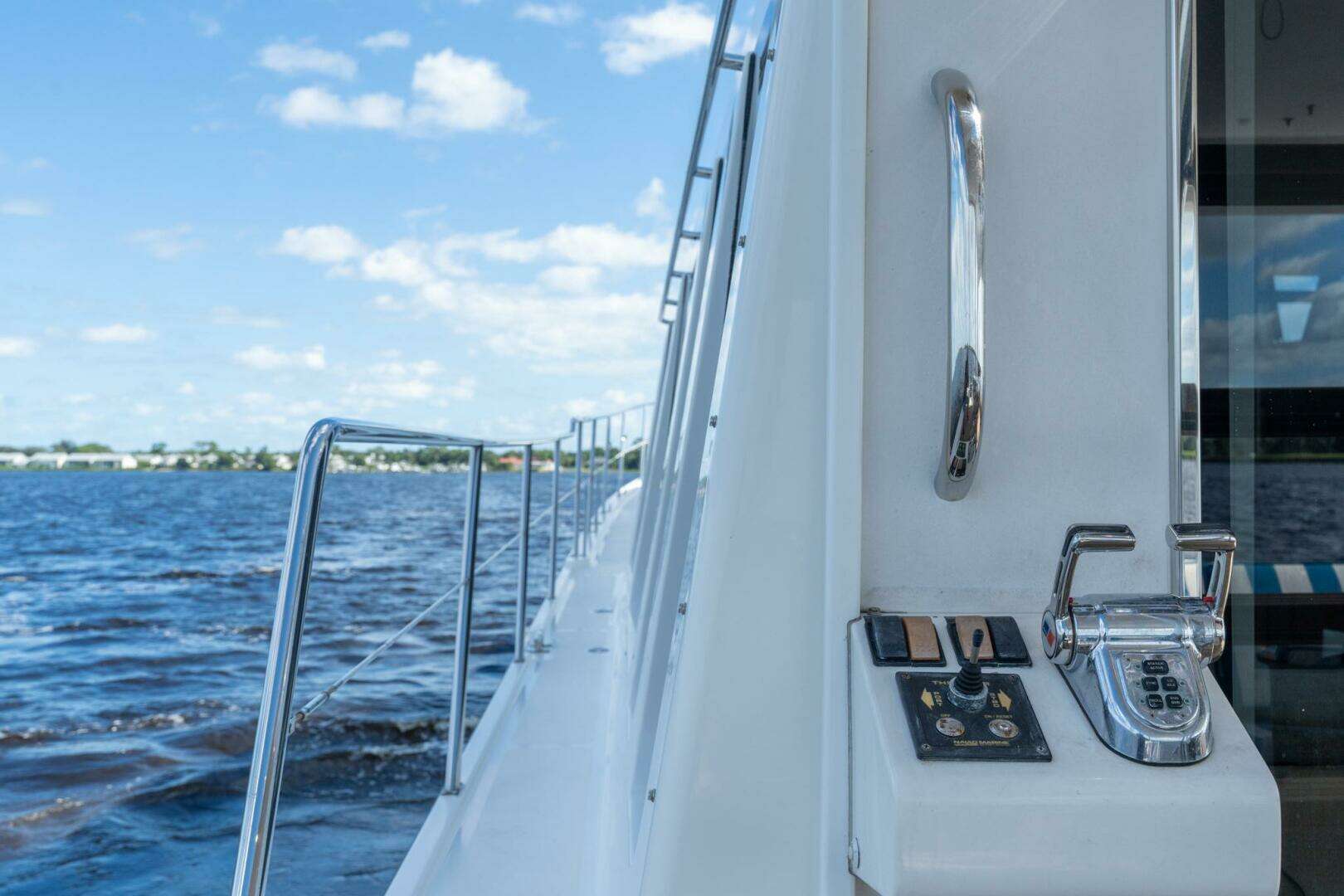

• Helm station, Aft bulkhead to Port, with MTU clutch/throttle controls, Bow thruster control, Port and Starboard engine start and stop switches
• Recessed storage, Port side in-deck
• Bench seat aft, lifts for access to Lazarette and Crew's Quarters
• Marinco 30-Amp shore power connector, starboard outboard

Swim Platform:

• 5' boarding platform with storage
• Large storage locker with 2 access hatches (Spare Props)
• Stainless steel swim ladder
• Stainless Steel pop-up cleats
• Hot and cold shower with pullout sprayer
• (3) Euro style hoop rails, which are removable

Systems - New and Upgraded

Air Conditioning:

• 2 New Dometic A/C Chillers, Reverse cycle system
• Stern underwater discharge for quiet Aft Deck
• Digital thermostats - Pilothouse, Galley, Salon, Master Stateroom, VIP Stateroom, Twin Guest Stateroom, Crew Quarters
• 240V raw water pump with sea strainer

Freshwater System:

• Water tank 285-gallon 316 L stainless steel / Loc. under master berth
• Headhunter 110-volt Freshwater pump with 24 volt back up pump (New 2025)
• Accumulator tank 10 gallon
• Shut off valves at each fixture
• Hot and cold outlet Engine Room
• Dockside water inlet with pressure reducing valve
• Freshwater wash downs Fore and Aft Decks
• Freshwater shower - hot and cold, located on Aft Deck at swim platform
• Hot water heater-30 gallons
• Cannister freshwater prefilters

Water Maker:

• Sea Recovery – AquaWhisper (new control board 2025)

Head System:

• Headhunter freshwater jet style Heads (3)
• 125-gallon FRP holding tank, Y Valve, 24 volt overboard discharge pump
• Deck pump-out fitting located port side deck

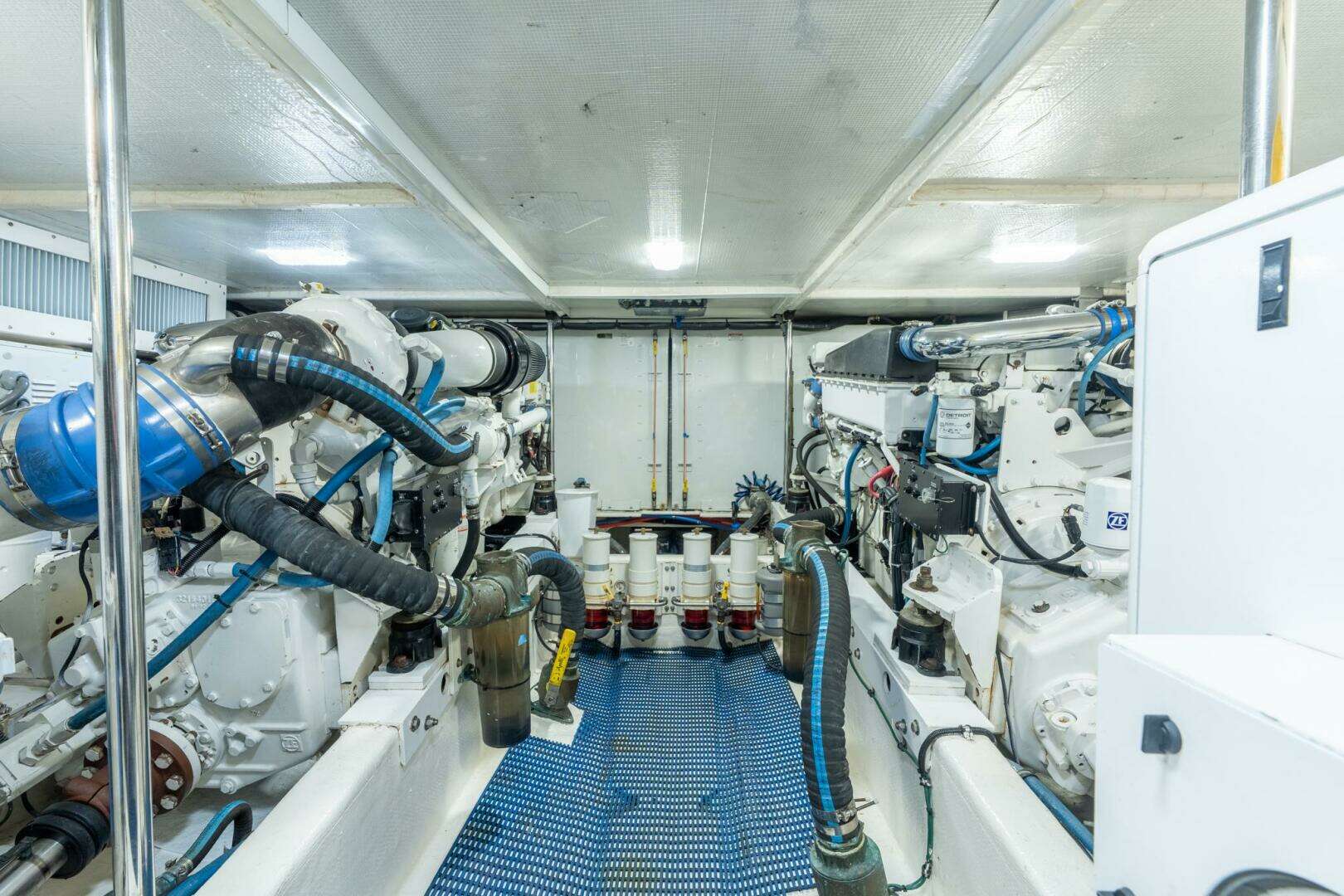

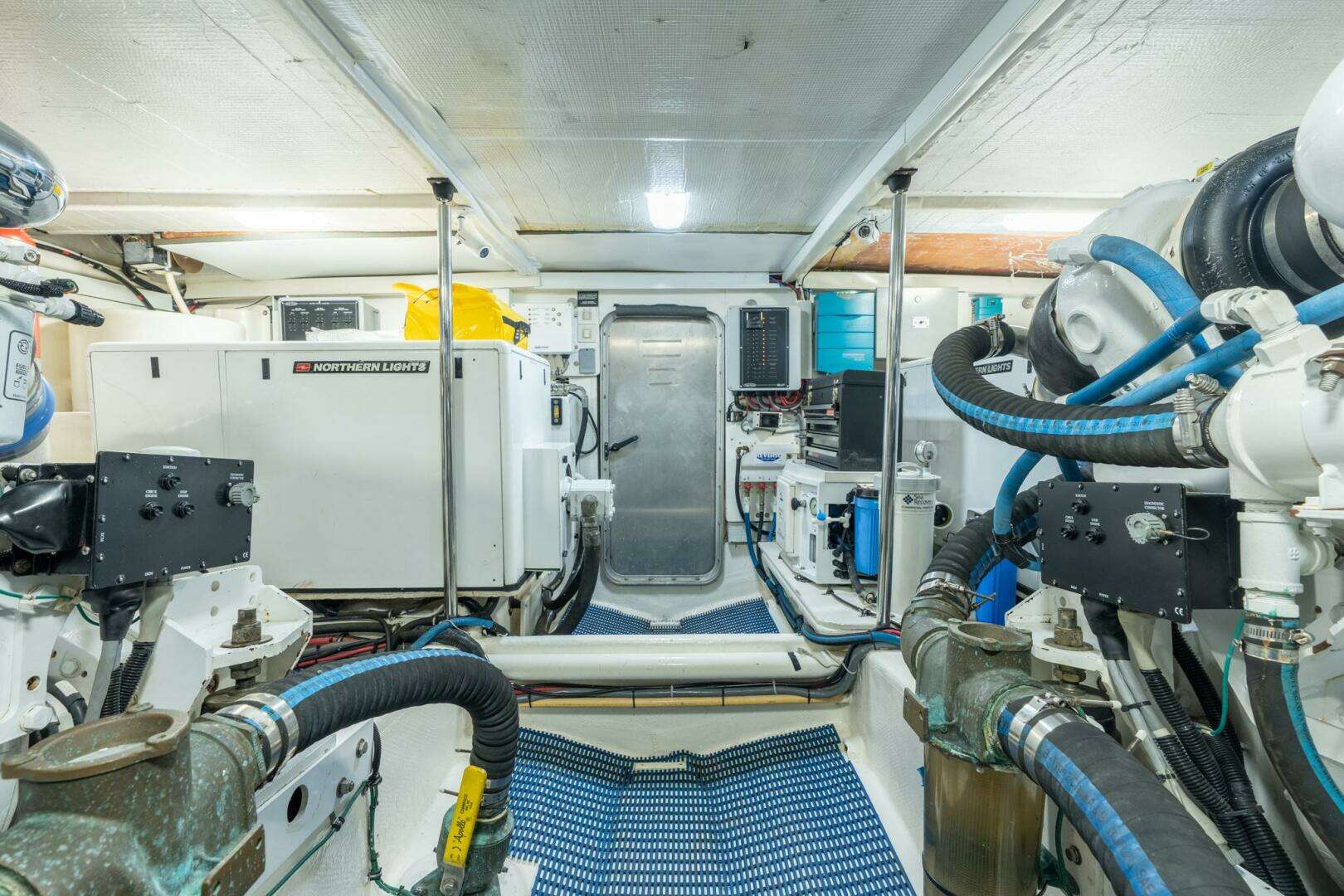

Electrical:

• 20 kW Northern Lights generator with sound shield
• Racor 500 fuel filter with glass bowl
• Power take off for 25 HP bow thruster
• Battery with battery box and battery shut off switch
• Reverso oil change system
• All wiring ABYC standards
• 16 kW Northern Lights generator with sound shield
• Racor 500 fuel filter with glass bowl
• Battery with battery box and battery shut off switch
• Auto oil change system

Shore Power:

• Charles Isolation transformers port and stbd. 50-amp cords
• Port cord has 10% boost on transformer (voltage stabilizer)
• Battery shut off switch start/ house batteries
• Battery parallel switch / stbd. side Engine Room
• Battery charger / house and start / 40 amp
• Battery charger / generator batteries / 20 amp
• (1) 110v outlet with GFI
• 2 Cablemaster retractable 50-Amp shore cords P&S aft deck - 75’ Port and 65’ Starboard

Stabilizers

• NAIAD Digital MultiSea II with 4.5 sq. ft. fins
• Control heads at Lower Helm and Flybridge
• Model #254 system

Engine Room, Engines, Controls, Notes, Etc.

Engine Room:

• Headroom 5’7”
• Access from Crew Quarters / watertight door
• Overhead lights 24v (5)
• Fuel tanks (2) aluminum painted with sight gauges total 1100 gallons
• Racor fuel filters - dual 1000 / 30-micron filters with vacuum gauge
• Fuel tanks can be filled from port or stbd. side decks & Fuel tank auto-level
• Fire system / Fireboy FE241
• Delta T air intake system – P & S 24v intake blowers with new Fans - 2023
• Reverso Oil change system / 24v / mains and gensets
• Hot water heater and Hot & Cold water faucet
• Craftsman 4- drawer toolbox
• Naiad Stabilizer / Reservoir, Model #254 system
• 24v distribution breaker panel
• Batteries - (4) 8D’s wet cell with battery boxes
• Batteries - (2) GRP 27 generator start batteries with boxes
• Port and Starboard shore power cords breaker panel

Engines:

• DDC/MTU Series 60 825 HP engines with 2,600 hours
• Gears ZF / Model 350 A with spin on filters
• Shafts 2.5” stainless high strength
• Dripless shaft seals with spares
• Crossover plumbing on shaft seals
• Stainless steel exhaust elbows
• Props - 5 blade 31" x 37"- “S” Class
• Engine stringers foam cored - No Balsa or Wood

Docking Stations - Total of 4:

• Pilothouse, Flybridge, Starboard Main Deck at Pilothouse and Aft Deck Portside
• Electronic clutch / throttles, main engine start and stop, Bow thruster joystick

Boarding Ladder:

• MarQuipt 4 Step vertical - stows in Foredeck locker

Notes on Service and Maintenance Items:

• All headliners, wall coverings, valances – New 2025
• All pumps, engines, generators on rubber isolation mounts
• Solid fiberglass bottom - all deck, cabin sides, hull sides are Airex Cored (No Balsa Core)
• (4) Piece mold, Hull, Cabin, Aft Deck, Swim platform - eliminates stress cracks & leaks
• Bottom paint & wax hull and superstructure & sand teak deck
• Replace rudder bearings and seals, rebuild steering ram & stabilizer system serviced
• Port & Starboard engine start and 2 house batteries (6) 2022
• Complete set of available Operator / Equipment Manuals & Notebooks
• Complete set of owners manuals

Davit

Davit (Davit rebuilt 2024):

• Nautical Structures 1500 lb. - hydraulic boom & rotation – Completely rebuilt 2021
