Overview

PROPULSION SYSTEM

• Twin Cummins 715 hp with ZF 305A 1.964:1 gears
• Two 24V alternators start banks
• 316 stainless (w/316-L rod) exhaust risers with zinc plugs connecting to FRP underwater exhaust system w/bypass pipes to Aqua Quiet mufflers
• Seatorque M4-250 enclosed shaft system with Aquamet 22 HS shafts
• Bronze V struts
• Expanded ratio, computer-designed NIBRAL propellers
• 54" trim tabs with controls at the pilothouse and flybridge
• Hydrodynamic 316 stainless steel rudders
• Tides rudder shaft seal and bearings

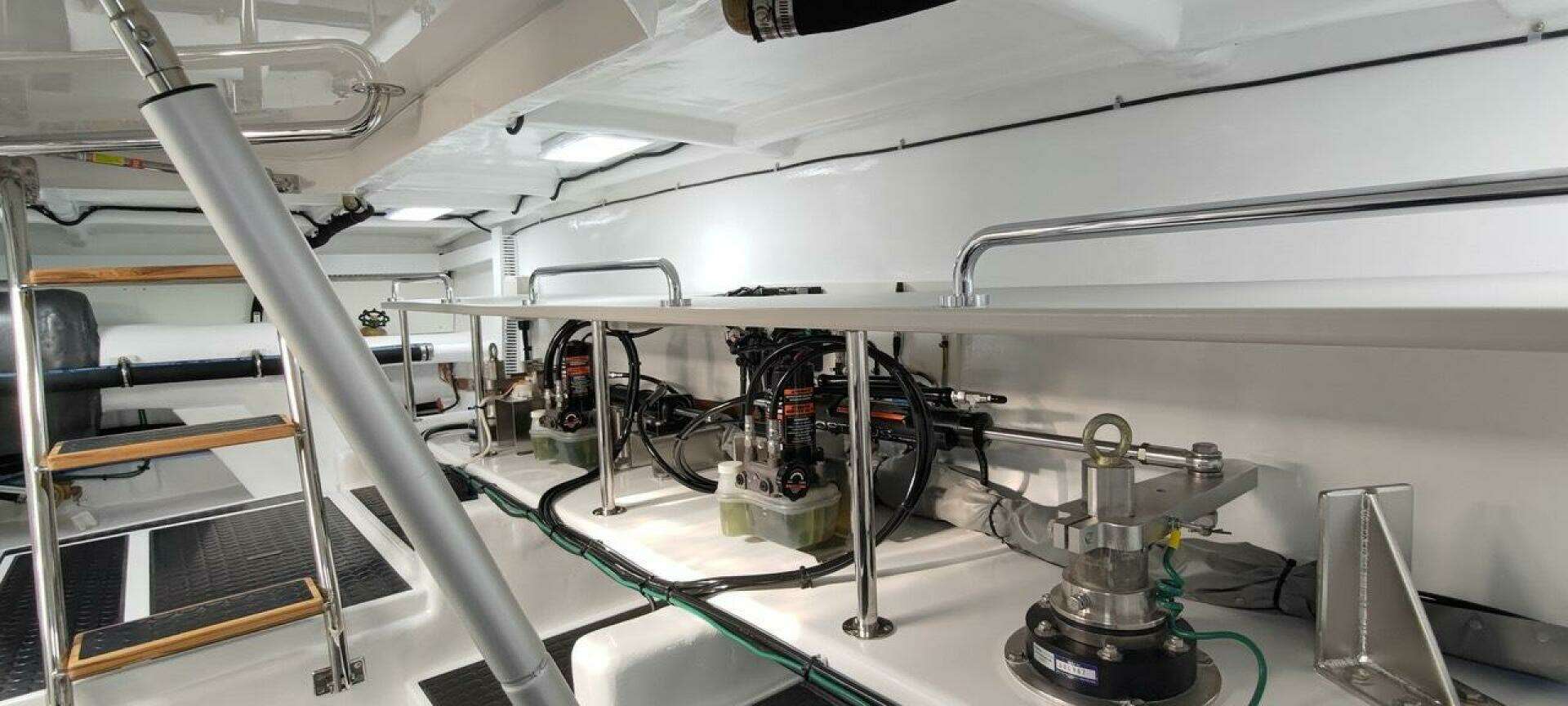

• American Bow Thruster Trac 220/6' hydraulic stabilizer system with pto
• American Bow Thruster 25 hp hydraulic bow/stern thruster system with pto
• Proportional ABT thruster controls
• 3 Station ZF Smart Command electronic controls
• ZF Joystick Maneuvering System with i-anchor and 3 joysticks
• Optimus EPS electronic power steering
• Engine room start & stop panels with engine gauges

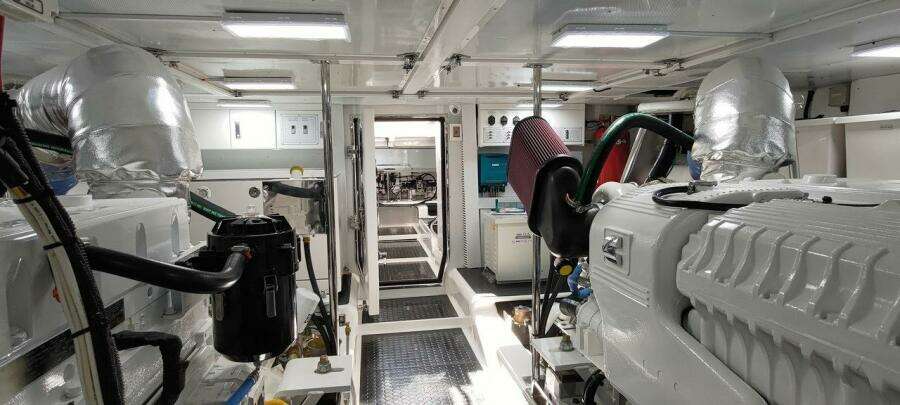

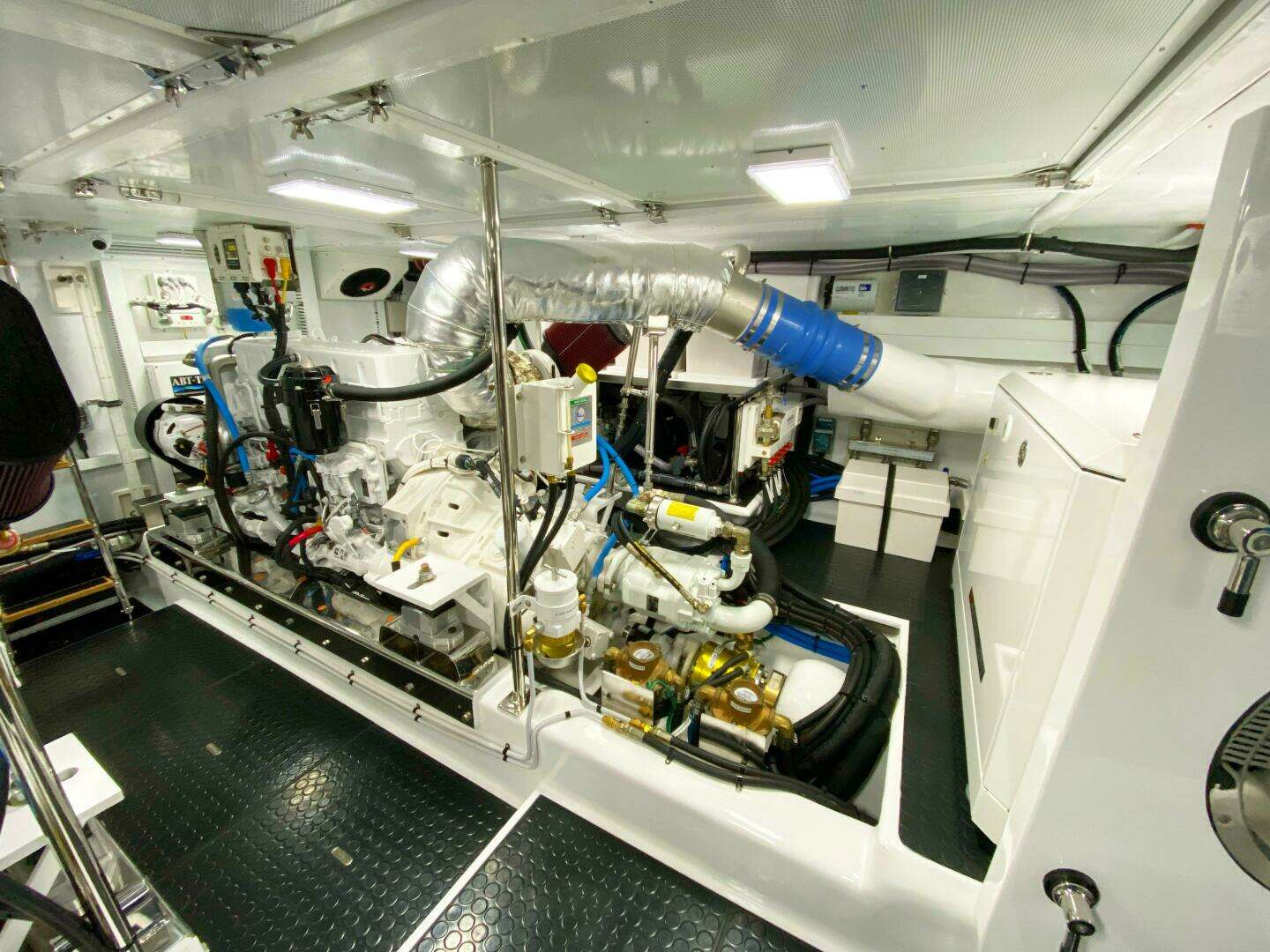

ENGINE ROOM AND BILGE

• White aluminum perforated covering on overhead, side, fwd, aft engine room bulkheads covering multiple layers of the latest technology sound dampening & insulation
• Floorboards covered with non-skid vinyl
• Smooth finish polyester painted bilges
• High-polished welded stainless engine beds bedded in chockfast
• Three marine-grade aluminum fuel tanks, epoxy-painted, interconnected
• Aluminum fuel tanks are insulated to minimize condensation and noise transfer
• Fuel manifold system for supply & return management with 2" crossover for port or starboard fuel fill
• Sight gauges (marine grade w/protective guard) at fwd bulkhead fuel tanks
• Copper fuel system plumbing with shut-off valves at all tank supply fittings
• Marine-grade bronze sea cocks for through-hull skin fittings, labeled
• Groco sea strainers at all raw water intakes
• Main seawater intakes plumbed for emergency bilge pump use
• Full flow stainless ball valves for all piping systems
• Dual Racor marine filter system with vacuum gauge for main engines
• Single Racor marine filter system with vacuum gauge for generator
• Two high-output 24V sump pumps with Rule super switches
• Six high-output 24V bilge pumps with Ultra Systems automatic switches and check valves
• Ultra Systems high water bilge alarm with warning lights at the pilothouse
• High-output Whale 40 manual bilge pump
• 4 Delta T engine air intakes to control water induction
• Two 11" 24v DC engine room blowers
• 24v DC LED lights in the engine room & bilges
• Fire Boy automatic fire extinguishing system with engine shut-down system
• CO/smoke detectors
• Fresh water wash down faucet in the engine room
• Trident blue silicone exhaust hose
• Multiple layer insulation at fore & aft engine room bulkheads & overhead
• Heavy-duty aluminum dog down engine room door
• Labeled through hulls
• Rise brand sealant for bulkhead penetrations at the fwd eng room and overhead
• Rudder storage shelf

EQUIPMENT

• Maxwell 3,500 lb windlass, dual direction, 3 station control, chain stopped & anchor roller.
• Single 316 stainless 120lb Ultra bow anchor with 400 ft 3/8" high test grade 43 chain and chain stopper
• Marine Air 65,000 BTU A/C system with four compressors, six air handlers
• Emergency tiller
• Buel dual low-profile air horns w/120v compressor, compressor outlets @ lazaret & engine room
• Exalto stainless articulating windshield wipers with a washer system
• 3 Tecma silent flush heads
• Ventilation system at each head
• 2 Sealand macerator pumps
• 2 holding tank vents with filters
• Deck discharge for holding tank
• Stainless ball valve at each watertight structural bulkhead
• Headhunter Mach V 120v fresh water pressure pump with filter and accumulator tank
• Headhunter 24v standby water pressure pump
• Torrid 30-gallon stainless steel 220V water heater
• Easy access clean-outs on all tanks
• Stainless lazarette water tanks
• Water maker
• Flojet saltwater washdown system with seawater strainer
• FRP under the forward sole water tanks & holding tank
• All high-grade fresh water plumbing with brass fittings
• High water sensors on the fwd & master bulkheads and the laz bulkhead
• Water/gas separator for generator exhaust
• Asko washer & dryer (110v/220v)
• Washer & dryer overflow drain to bilge
• Two shower sump tanks are designed for convenient access
• Bilge pumps set in bilge wells
• Dockside water pressure connection
• Central drain system minimizing through-hull fittings
• Electric assist shocks for lazarette

ELECTRICAL SYSTEM:

• Northern Lights 20 kW diesel generator, 24v start with sound shield & gas/water exhaust separators and E-A-R anti-vibration mounts
• Four Lifeline 8D glassmat main engine start batteries (24v)
• One Lifeline 4D glassmat generator start battery (24v)
• Five Mastervolt Lithium batteries for the ship's 24V system
• Battery crossover for main engines and generator batteries
• ANG 12.5 KVA 50 amp isolation transformer
• Mastervolt Mass Combi 24/3000, 120/240v 60 HZ inverter charger with interface cable and high temp shut down with remote panel at the pilothouse
• Mastervolt battery systems charger - 24/60-3
• Mastervolt engine start battery charger - 24/20-3
• Battery Mate 1602 @ each main engine
• 24v & 12v LED back-lit distribution/circuit breaker panels with amp & volt meters
• 120v & 240v led back-lit distribution/circuit breaker panels with amp & volt meters
• Two 50-amp Mastervolt 24V to 12V converters
• Glendinning Cablemaster
• Marinco Shore power 125/250v-50A inlets port & stbd side (or fore & aft)
• ELCI breakers at shore power inlets
• IMTRA 24v LED overhead lighting throughout the interior
• IMTRA 24v LED overhead lighting throughout the exterior
• 24v LED interior safety lights
• 24v LED exterior safety lights
• Vimar interior switches, dimmers, and outlets
• GFI breaker protection as appropriate @ deck, galley, heads, engine room & lazarette
• Electrolysis bonding & grounding system with two sacrificial zinc plates
• Tinned, UL-approved, high-temperature wiring
• LED dome lights in the bow thruster compartment
• Hella LED navigation lights
• Cameras located in the engine room and cockpit
• NEMA 2000 cable installed

MAIN DECK

• Walkaround decks with high midship bulwarks
• Two-tone non-skid @ all decks. White non-skid @ pilothouse roof
• Molded in multiple facet & plank lines for appearance and strength
• Exterior 316 stainless screws, bolts & nuts, welds ground & polished
• 1 1/4" 316 stainless steel handrails with welded joints @ forward deck & boat deck.
• Molded foredeck seat with storage and a custom Teak table
• Port and starboard bulwark doors
• Manship overhead hatches with Oceanair sliding screens & shades
• Manship 316 stainless port lights
• 316 stainless hawse holes with cleats, bow chocks & deck cleats
• Aluminum-reinforced exterior doors, exterior covered w/FRP & gel coated, interiors covered with matching interior wood, stainless steel door frames
• Bow & stern flag staffs with 316 stainless sockets
• Rode locker for optional 2nd anchor
• Provision for 2nd anchor with dual 316 stainless channels and rollers
• Forward deck hatches at the bow
• Fresh and saltwater wash downs at the bow
• Stainless latches at all exterior cabinet doors

COCKPIT & SPORT DECK

• Cockpit engine & thruster controls, JMS joystick, rudder indicator with engine start-stop switches
• Starboard cabinet with a lift top to cover engine controls, thruster, and JMS joystick
• Port aft deck storage cabinet with covered sink
• Ventilation grates for exterior cabinets
• 316 Stainless cockpit to boat deck ladder with 316 stainless Manship hatch
• Lazarette access hatch with electric/hydraulic lift and ladder
• Handheld shower @ cockpit
• Fresh water wash down @ cockpit
• Salt water wash down @ cockpit
• TNT hydraulic Swim platform/Tender lift
• Rope ladder @ sport deck for emergency re-boarding
• Dockside fresh water connector & regulator
• Dual transom doors
• Two LED 24V cockpit flood lights
• Cockpit storage bins w/drains
• Custom pop-up Quickmarine lights at the cockpit corners

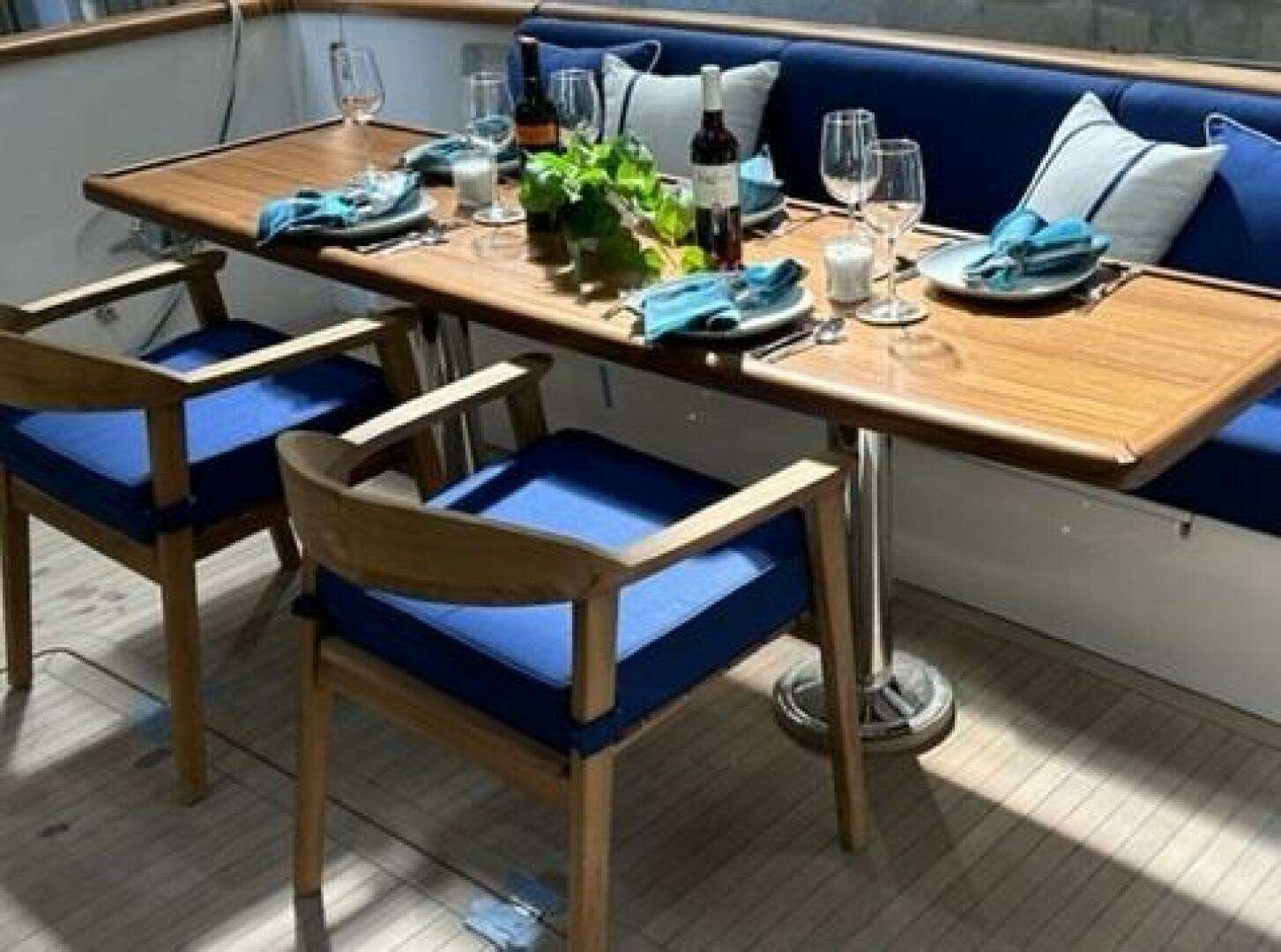

• Custom extended cockpit with built-in seating and a custom table

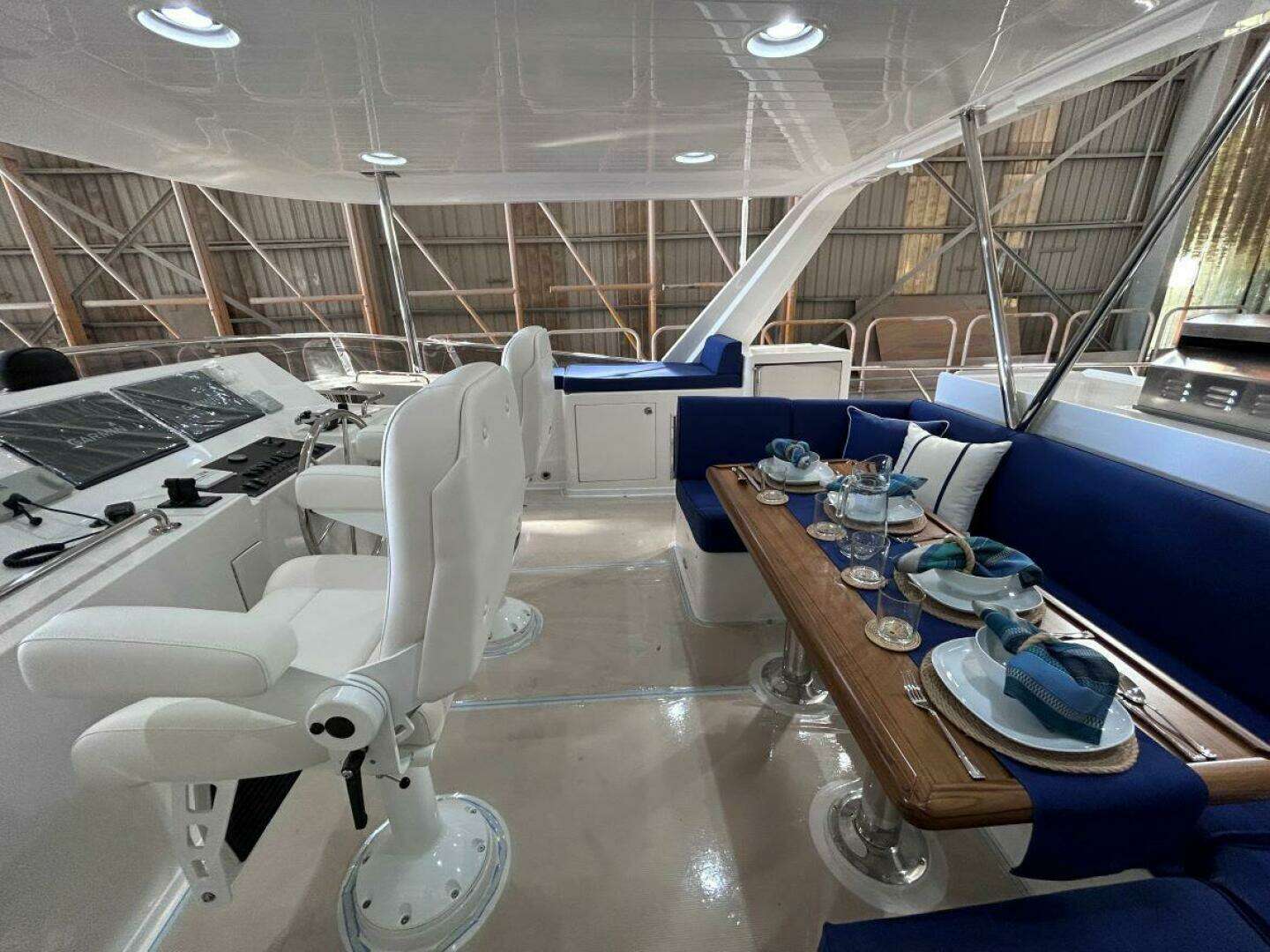

FLYBRIDGE AND BOAT DECK

• New Offshore flybridge design
• An extended boat deck and flybridge for more space
• Manship hatch access to & from the pilothouse
• Helm station with complete engine instrumentation, function alarms & rudder indicator
• Stainless destroyer-type wheel
• Venturi windshield with 316 stainless frame
• Two Stidd Helm chairs with stainless bases
• FRP “U” settee with storage underneath
• Custom table with 316 stainless support post
• Starboard cabinets with sink, stainless steel Isotherm 85 refrigerator, and Icemaker
• FRP radar arch with down lights
• Boat deck drained to waterline with integral drains and scuppers
• 1 ¼” 316 stainess handrails @ boat deck w/welded s/s life lines
• Manship s/s hatch and s/s ladder to cockpit with s/s safety rail
• Fresh water wash down outlet
• AFI dual air horn

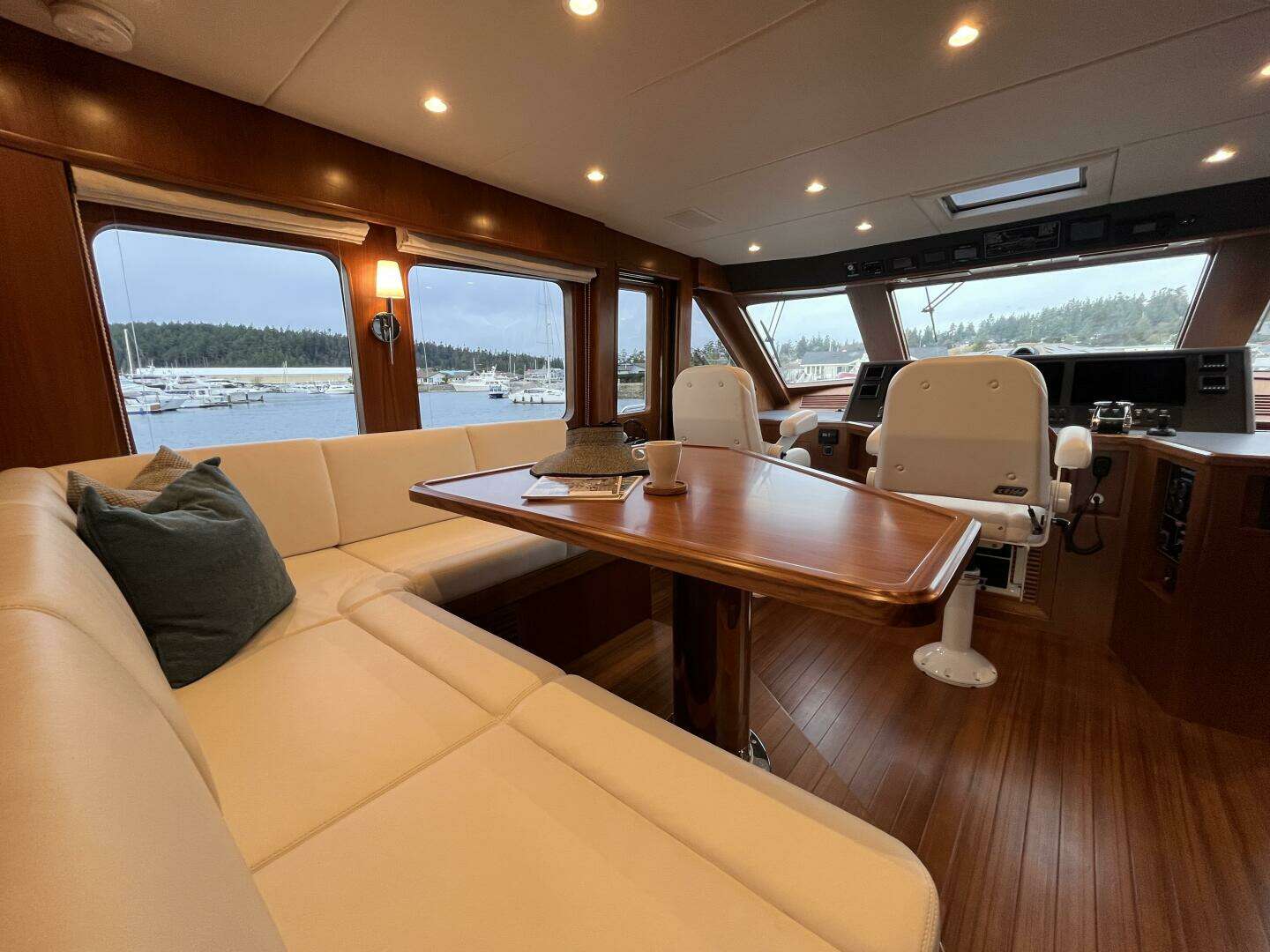

PILOTHOUSE

• Three extra-large 12mm clear-view forward windows

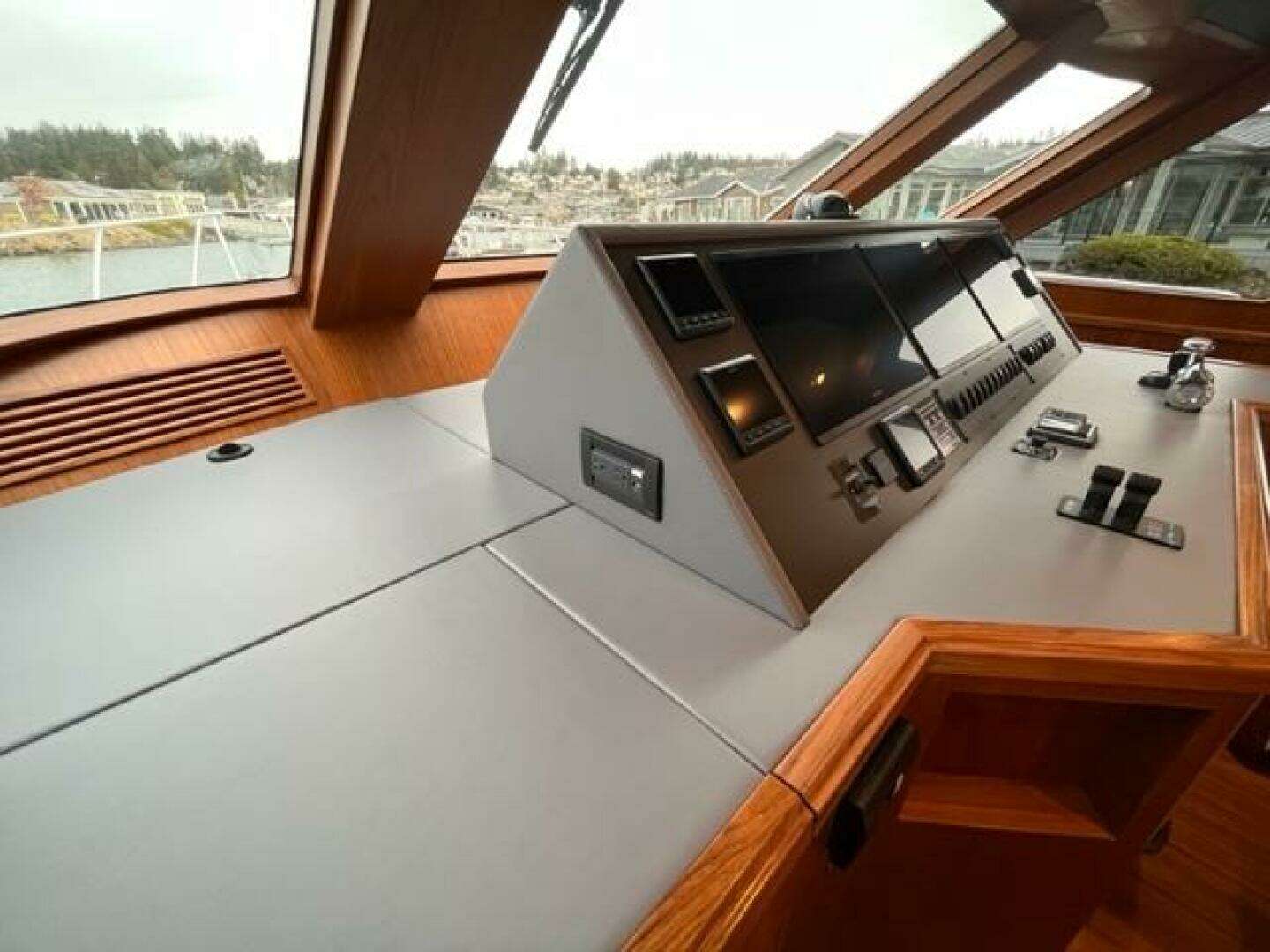

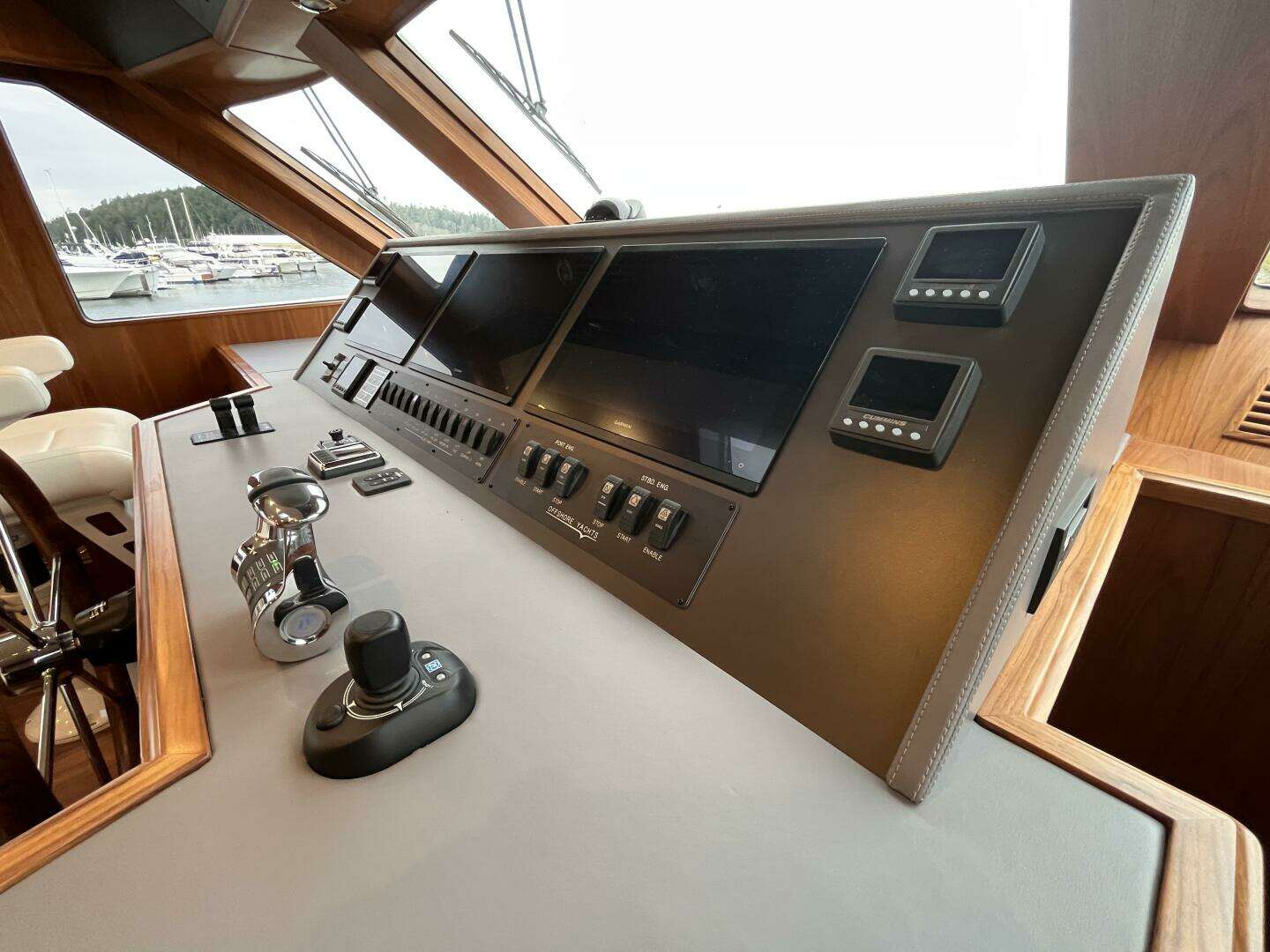

• Helm station with complete engine instrumentation, function alarms & rudder indicator
• Teak & stainless steel destroyer-type wheel
• Pilothouse indicator panel for systems readiness
• Maretron tank indicator sensors for fuel, water, and holding tanks 5.7" monitor
• Back-lit AC & DC distribution/breaker panels
• Rocker switches with indicator lights for bilge pumps, lighting & other functions.
• Three stainless Exalto articulating windshield wipers with a washer system
• Interior stairway to flybridge with 316 stainless steel Manship hatch
• Port and stbd FRP doors with 316 stainless frames
• One ventilation overhead hatch with “Oceanair” sliding screen/shade
• Two Stidd 500-200 helm chairs upholstered in Ultraleather and matching powder-coated bases

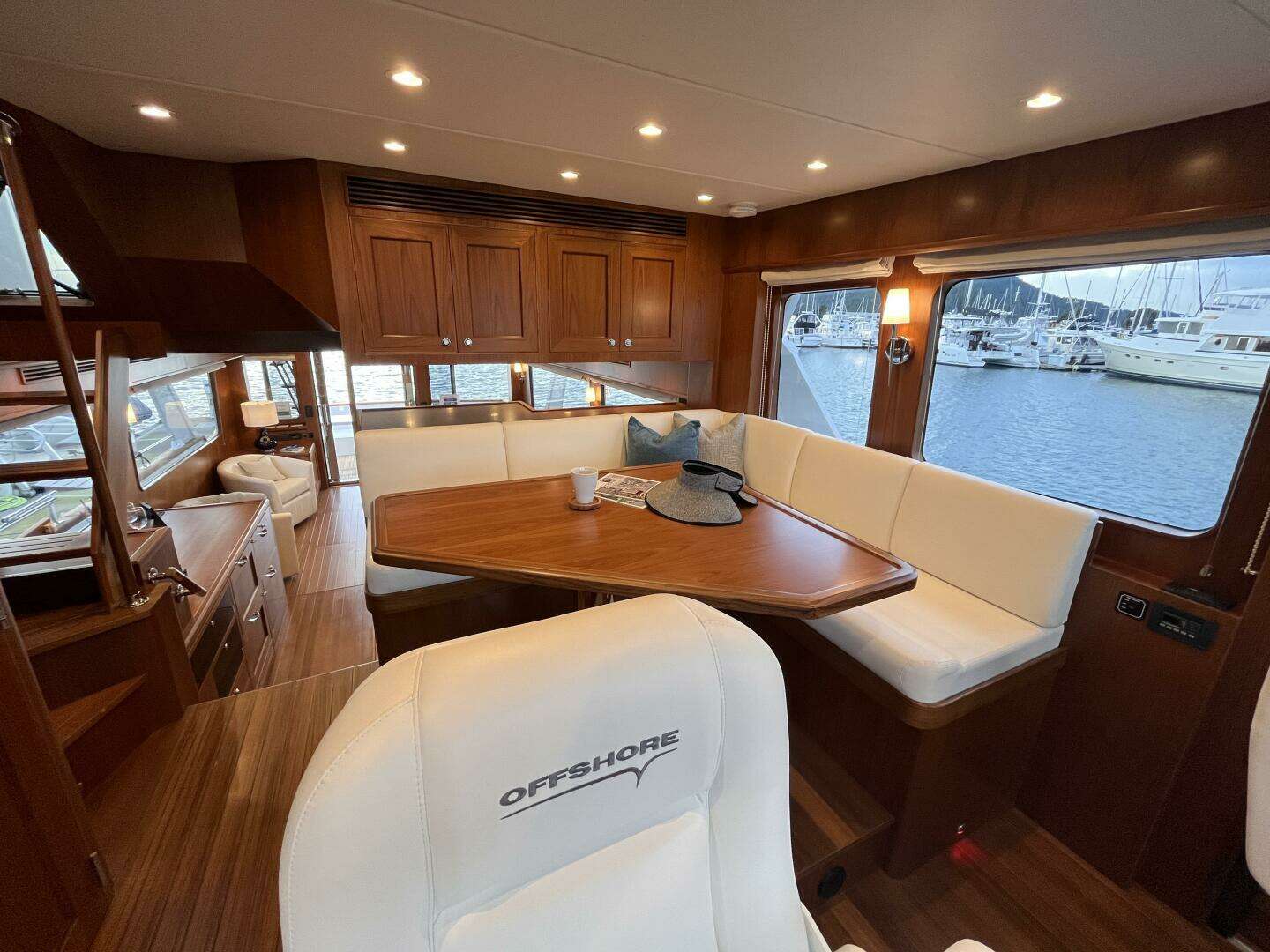

• Raised “L” settee with manual high-low table
• Upper storage cabinets above the settee
• Padded vinyl at the forward helm console counter top
• Engineered hardwood sole
• UV protectant varnish on all console veneers
• Padded soft vinyl removable headliner
• Custom starboard day head
• U-Line 3024R 24" undercounter refrigerator
• Solid wood compass base

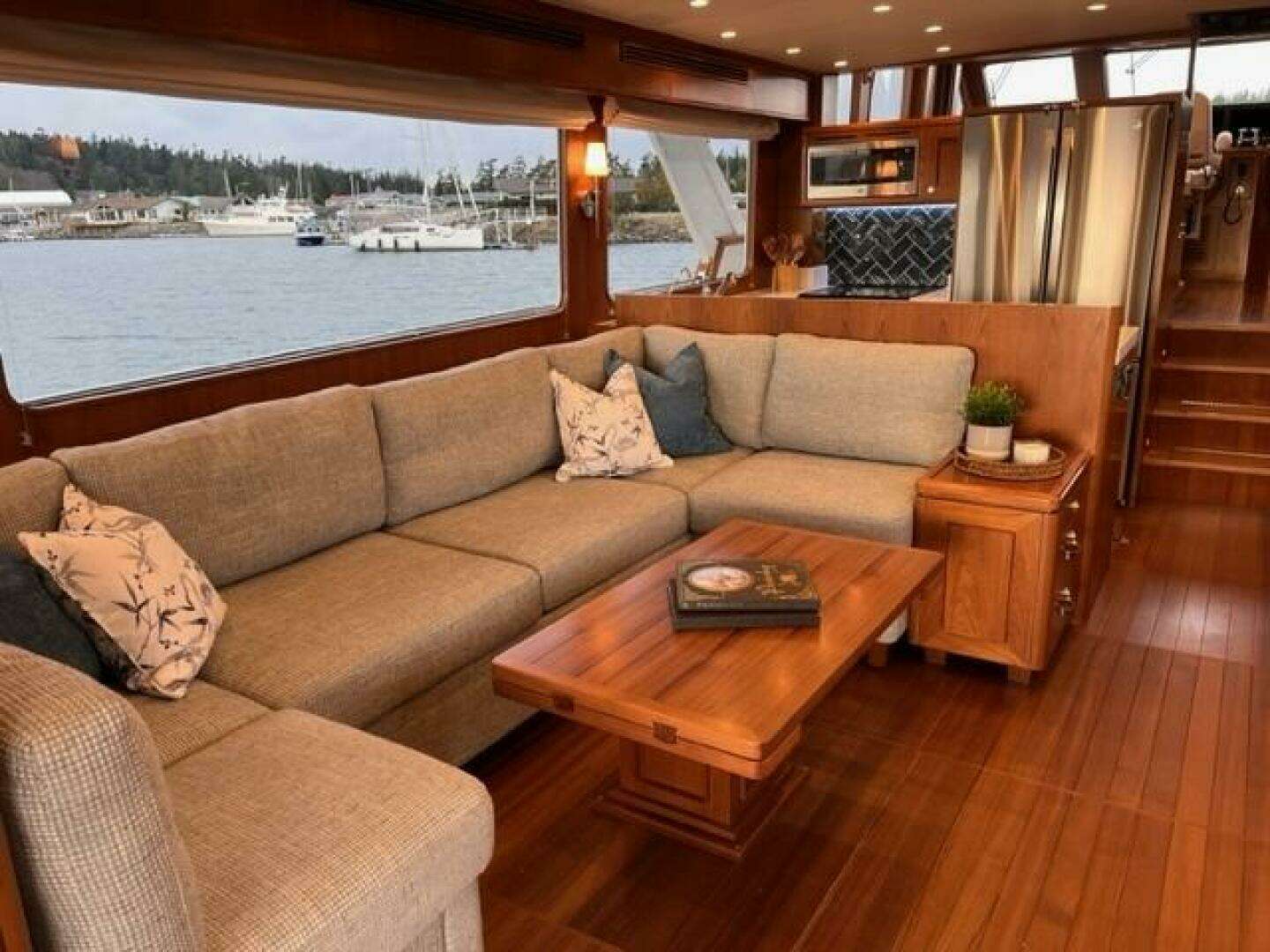

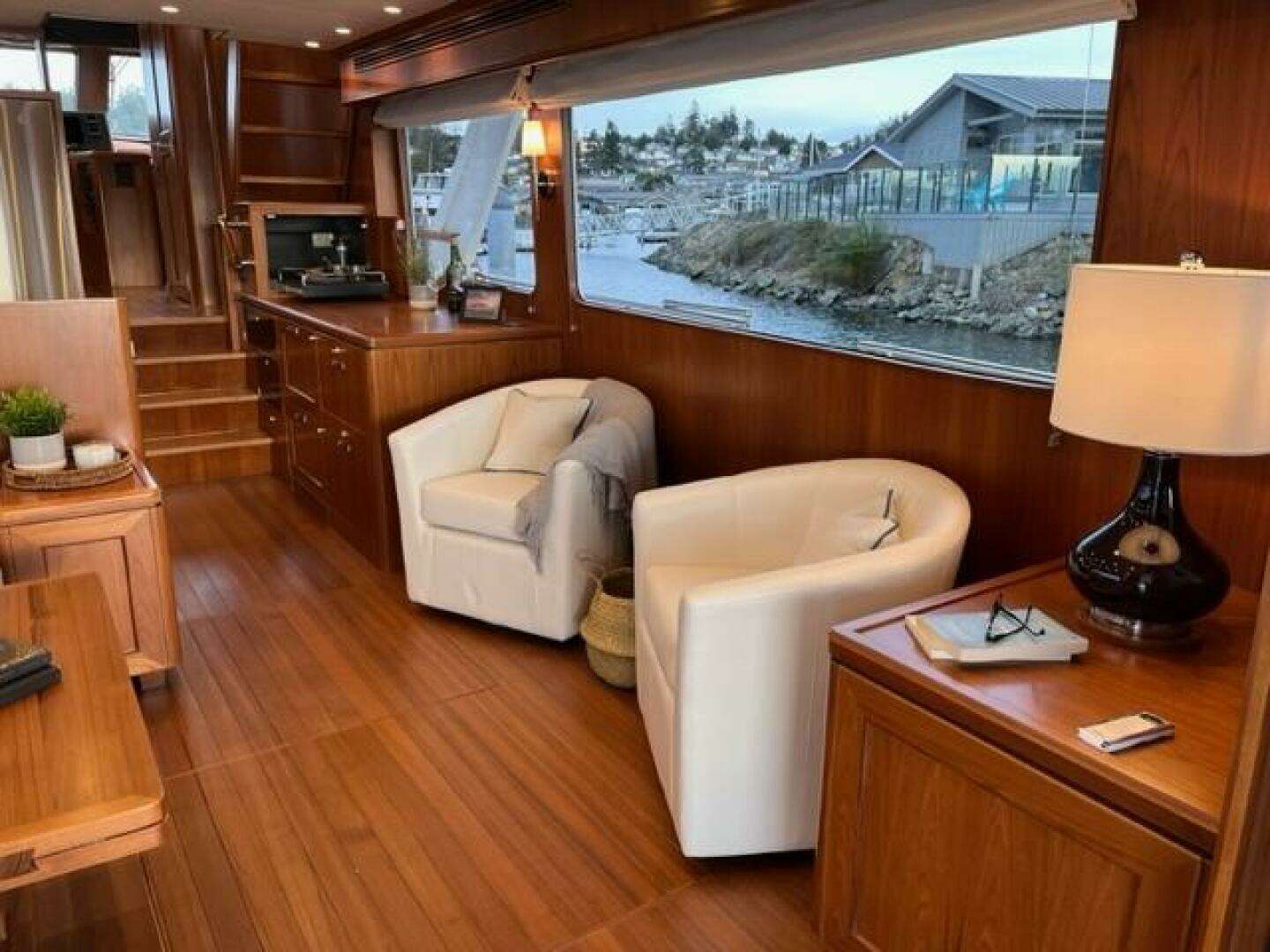

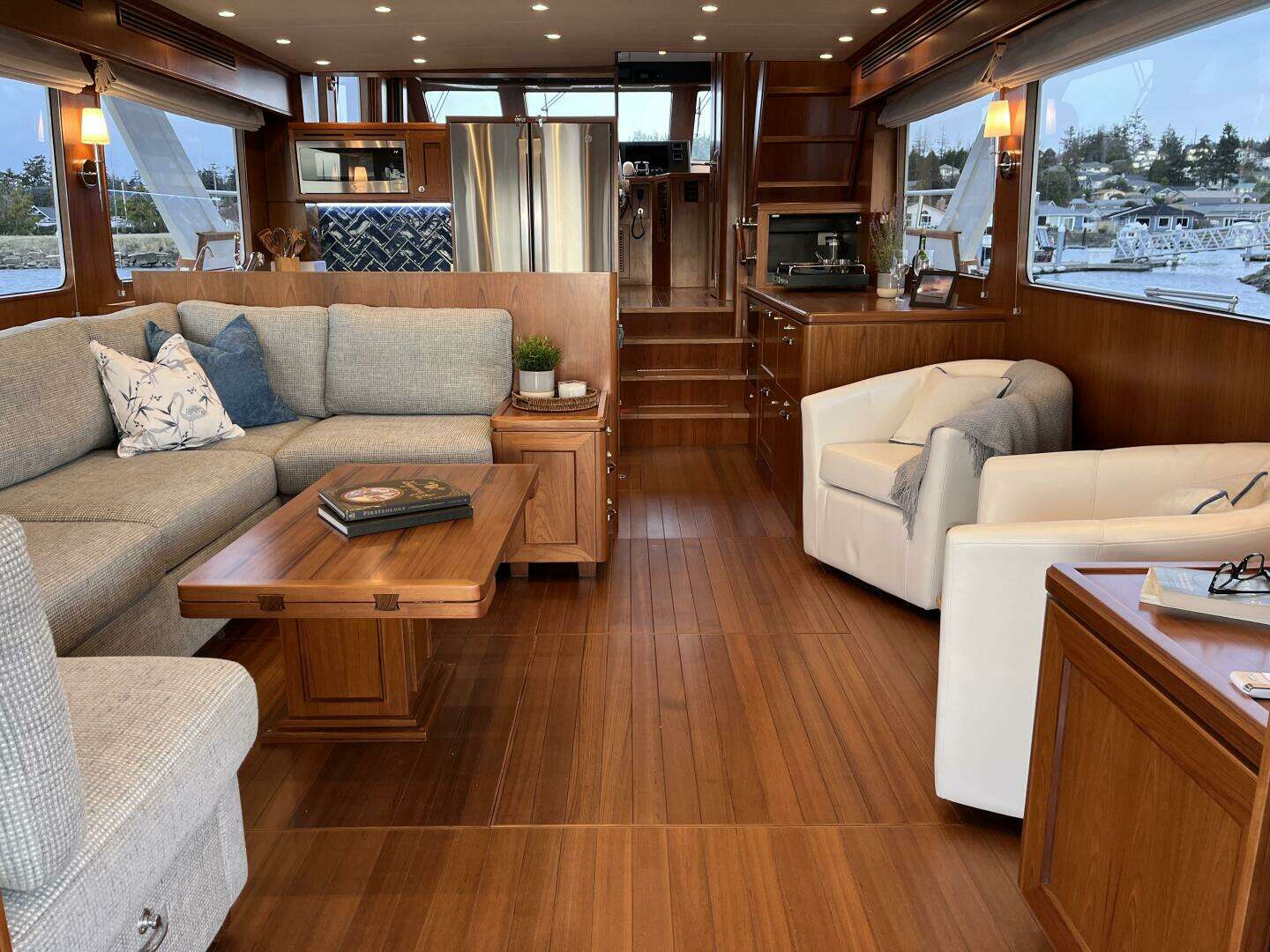

• SALON:
• Upgraded SS large aft salon sliding doors with full-height glass panel
• Low/large windows for sit-down visibility
• "U" settee in salon
• Electric high-low table with leaves
• 50" custom fold-down LED TV
• Solid wood crown molding surrounds the salon
• Padded soft vinyl removable headliner
• Secondary engine room access from galley hatch/ladder

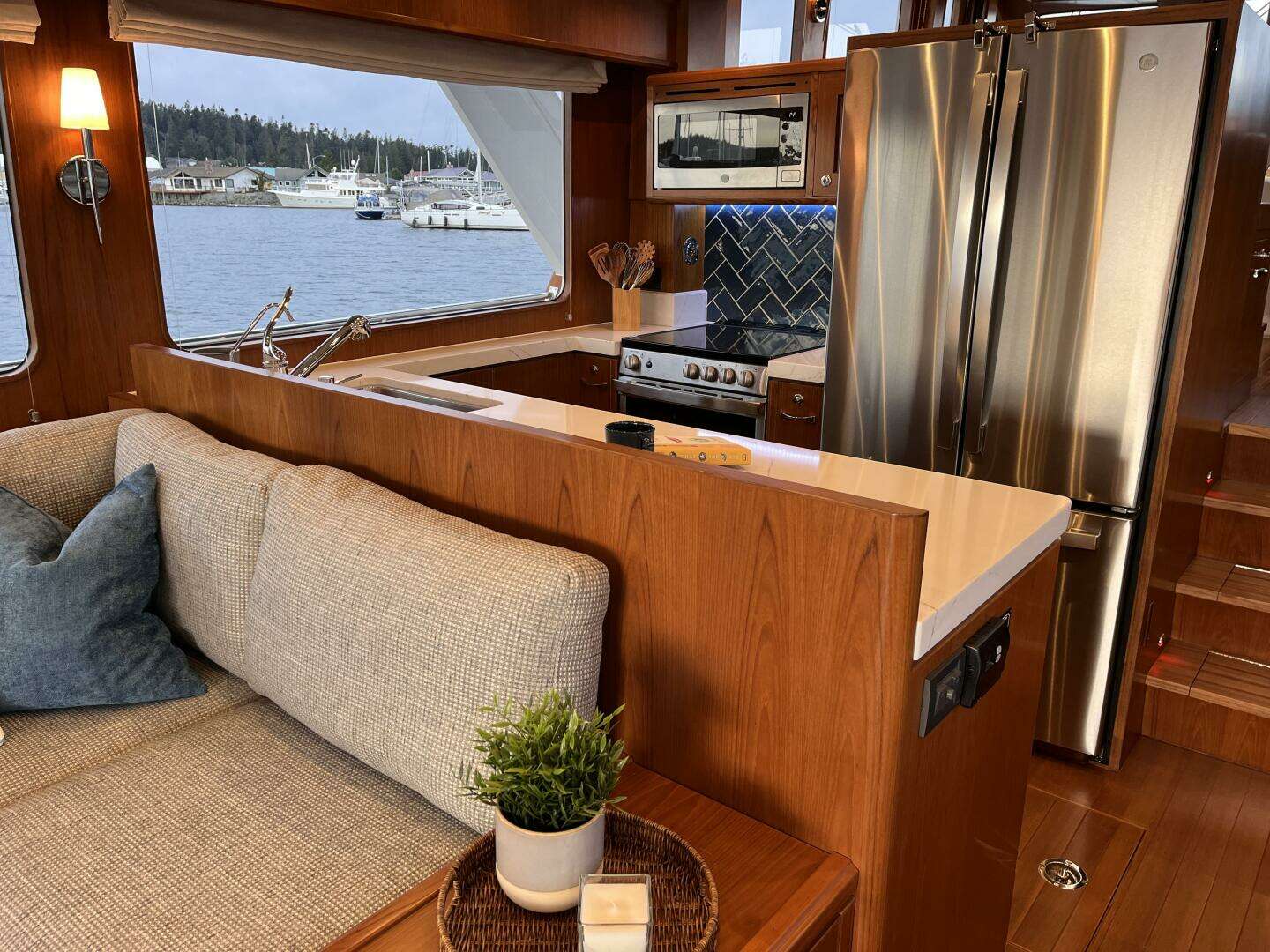

GALLEY AND APPLIANCES:

• Granite countertops with overhead storage cabinets
• Single basin Franke PRX11021
• Grohe sink faucet
• InSinkErator 1hp stainless steel garbage disposal with top switch
• GE full-size refrigerator/Freezer with SS doors
• U-line refer drawer with teak face to starboard
• Force 10 65336 220V oven/cooktop
• GE trash compactor
• GE stainless microwave/convection oven with cooktop exhaust
• Drawers & cabinets fitted with push lock latches & lined with Formica
• Padded soft vinyl removable headliner
• Engineered hardwood sole

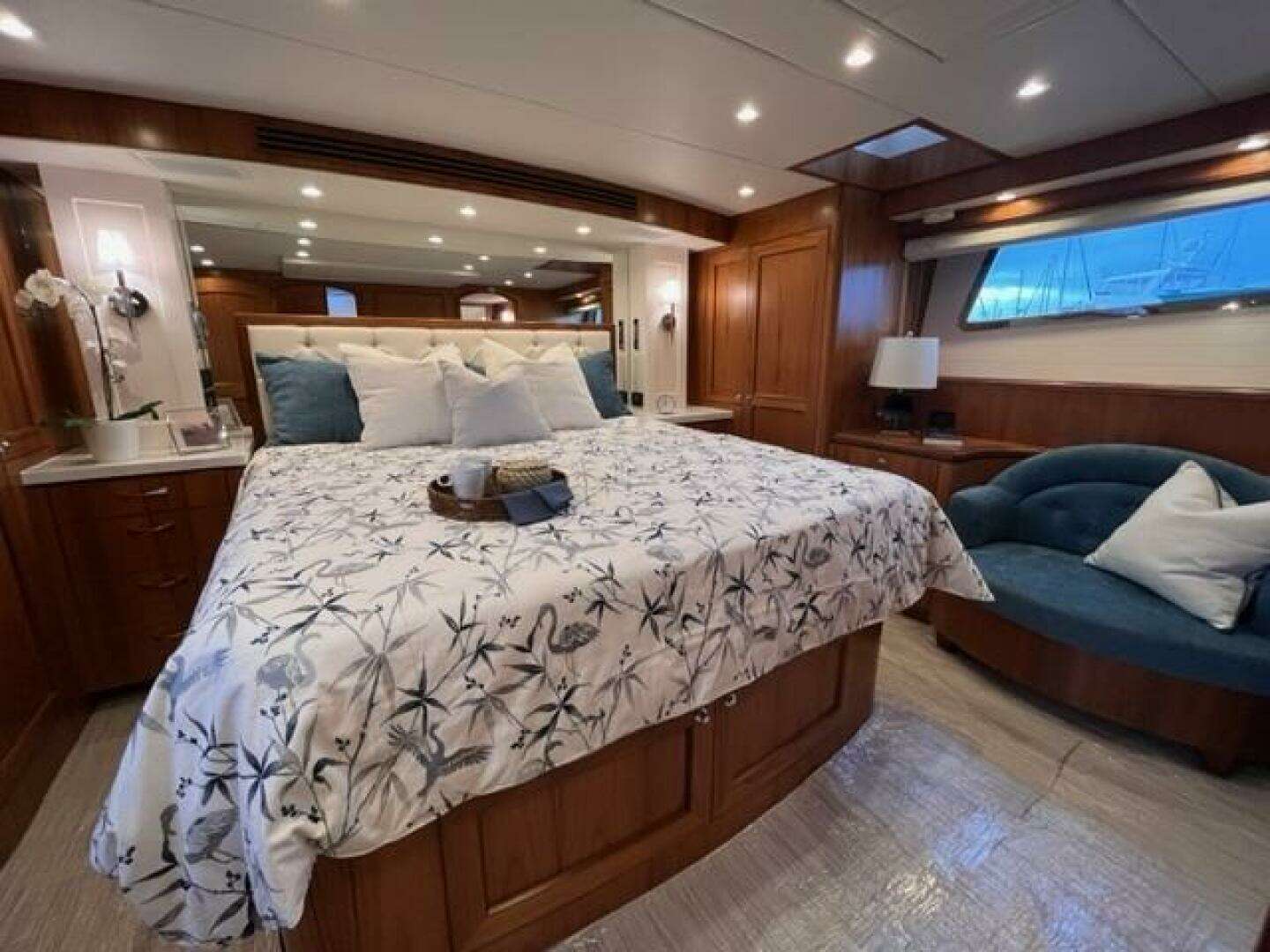

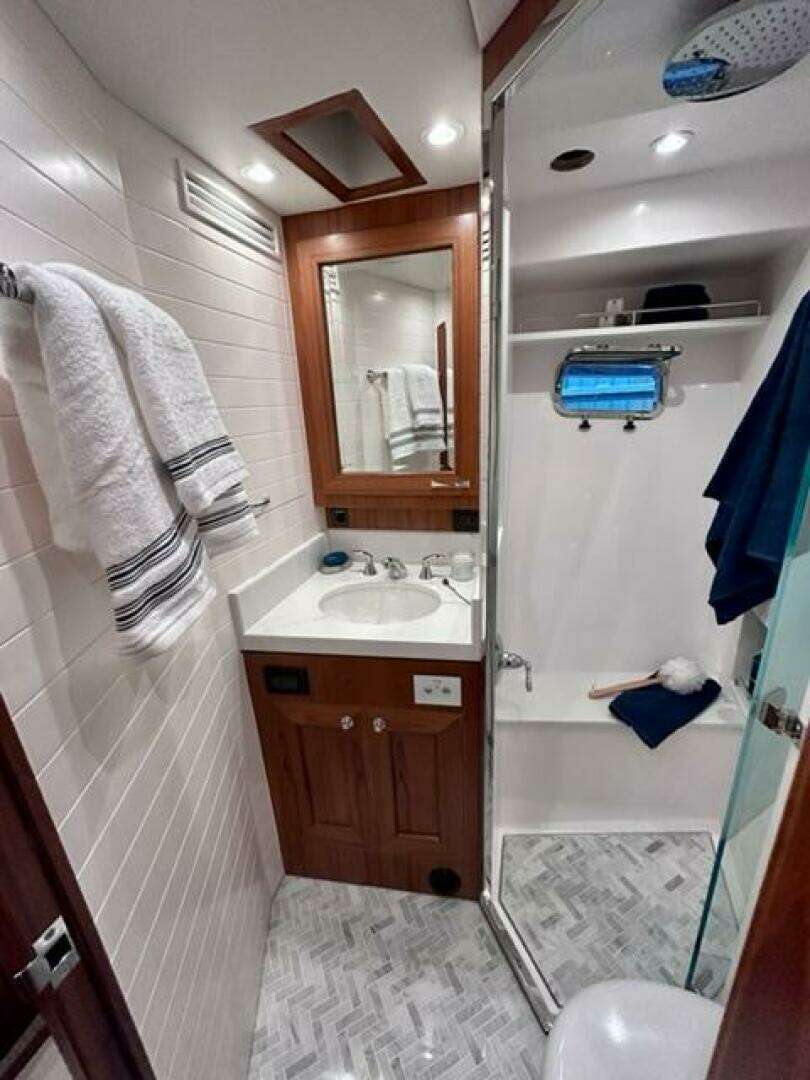

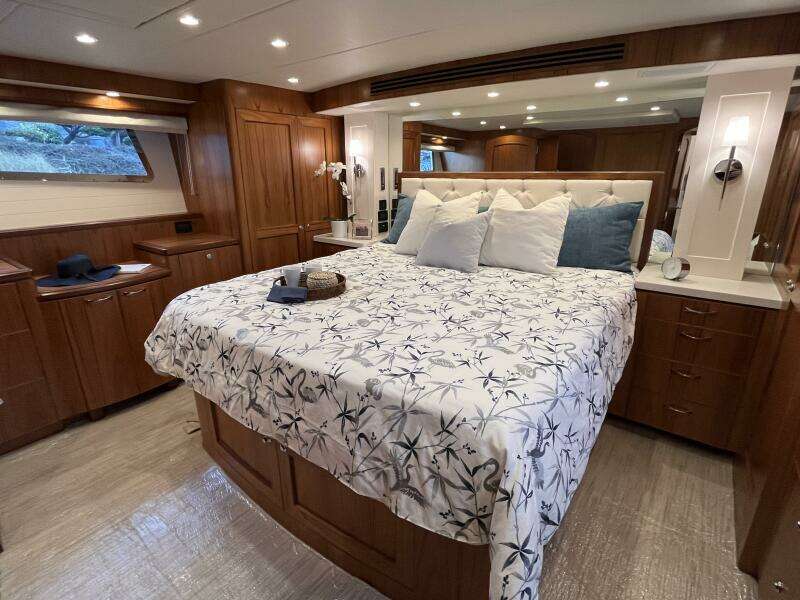

OWNER'S STATEROOM & HEAD:

• Custom “full beam” master cabin
• King-size walk-around bed with drawers & lockers under
• Cedar-lined hanging lockers with automatic lighting
• Custom LED fold-down TV
• Two LED reading lights over the berth with dimmers
• Safety escape hatch at overhead
• Padded soft vinyl removable headliner
• Xtra large view window port and starboard
• Full-length mirror
• Grohe faucets, towel bars, and towel rings
• Shower with a frameless glass door and an integrated towel bar
• Head ventilation blower

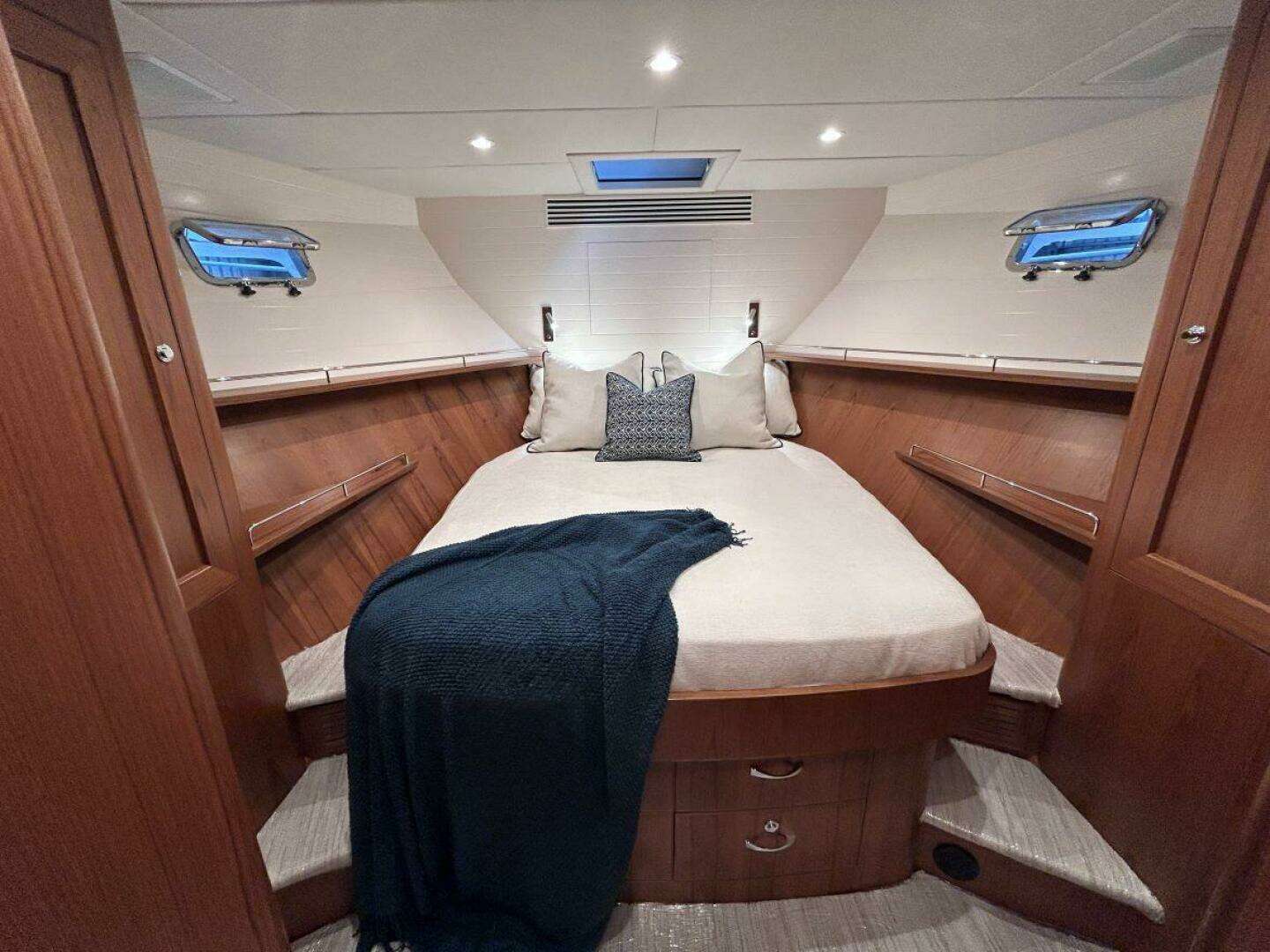

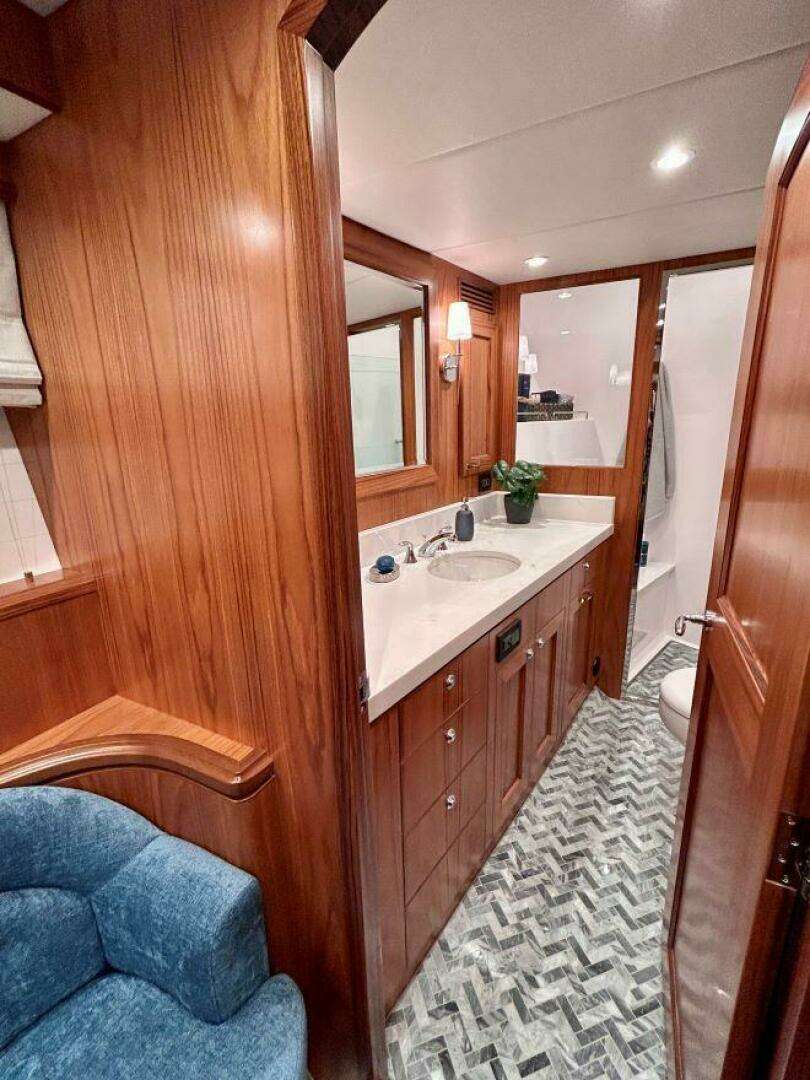

FORWARD GUEST STATEROOM & HEAD

• Queen-size berth, hinged for storage and drawers below
• Cedar-lined hanging lockers with automatic lighting
• 24” LED TV
• Two LED reading lights over the berth with a dimmer
• Opening 316 stainless port lights
• Padded soft vinyl removable headliner
• Grohe faucets and towel rings
• Shower with a frameless glass door and an integrated towel bar
• Full-length mirror
• Head ventilation blower
• One Manship overhead ventilation/escape hatch with Oceanair sliding screen

UPGRADES

• Twin Cummins QSM11 engines
• 20Kw Northern Lights generator to replace the Std 12Kw
• "Extended Stay Package" Upgrade to 5 Mastervolt MLI Duty-Extreme lithium  batteries, Mastervolt battery management system, and 80amp Delstar       24v/200A alternator
• 2nd Mastervolt Charger
• Extended Cockpit with built-in seating
• Extended Salon and galley
• Extended Pilothouse
• Extended Boat deck
• Custom Kayak lift at the Boat Deck
• TNT tender lift/ Swim platform
• Hard top with full enclosure
• Kabola diesel heating system
• Reverse cycle heat and air
• (4) Stidd Helm seats (2 PH and 2 FB)
• Day Head in the Pilothouse
• Flybridge BBQ cabinet
• Watermaker
• Reverso oil change system
• QuickKutters shaft cutters
• SeaTorque shaft system
• ABT Stabilizers
• ABT hydraulic bow and stern thrusters
• JMS joystick controls at three stations with iAnchor
• Electric roman shades throughout
