Descriptions

Standard Equipment

Specifications

Hull Length: 63’ (19.2m)

Length Overall: 70’-6” (21.49m) with swim platform

Waterline Length: 57’ – 3” (17.45m)

Molded Beam: 18’ – 2” (5.54m)

Draft with Props: 4’ – 10.5” (1.49m)

Height (waterline to top of mast): 25’ 2”

Deadrise at Transom: 20.2°

Displacement (Half Load): 87,000 lbs. (39.46MT)

Fuel Capacity: 1,070 gal. (4,050 L)

Water Capacity: 255 gal. (965 L)

Performance

Power: Twin Volvo Penta D13 1000hp IPS 1350

Maximum Speed (Half Load): 32 kts.

Fast Cruise (Half Load): 27 kts.

Range (Fast Cruise): 342 nm (10% reserve)

Range (Max Range): 1,540 nm (10% reserve)

Generator: 1 x Northern Lights 20KW

Interior Outfit - Common Interior Features

Blinds: Salon side windows and owner cabin, Oceanair Skysol

Classic Décor package: Allowance for fabrics, seat cushions, mattresses, shades, and blinds Décor package: 40 hrs with interior stylist.

Doors, cabin: Teak veneer and solid

Doors, locker: Teak veneer and solid

Drawers: Teak faced

Grab rails: Custom Stainless/ teak

Hanging lockers: Cedar lined in master stateroom

Hardware: Stainless steel blind catches for drawers and cabinets.

Headliner: Fabric with foam backing in cabins, white V-groove panels in salon

Hull Ceiling: White V-groove panels

Insect screen/blinds: Blinds and screens on overhead hatches

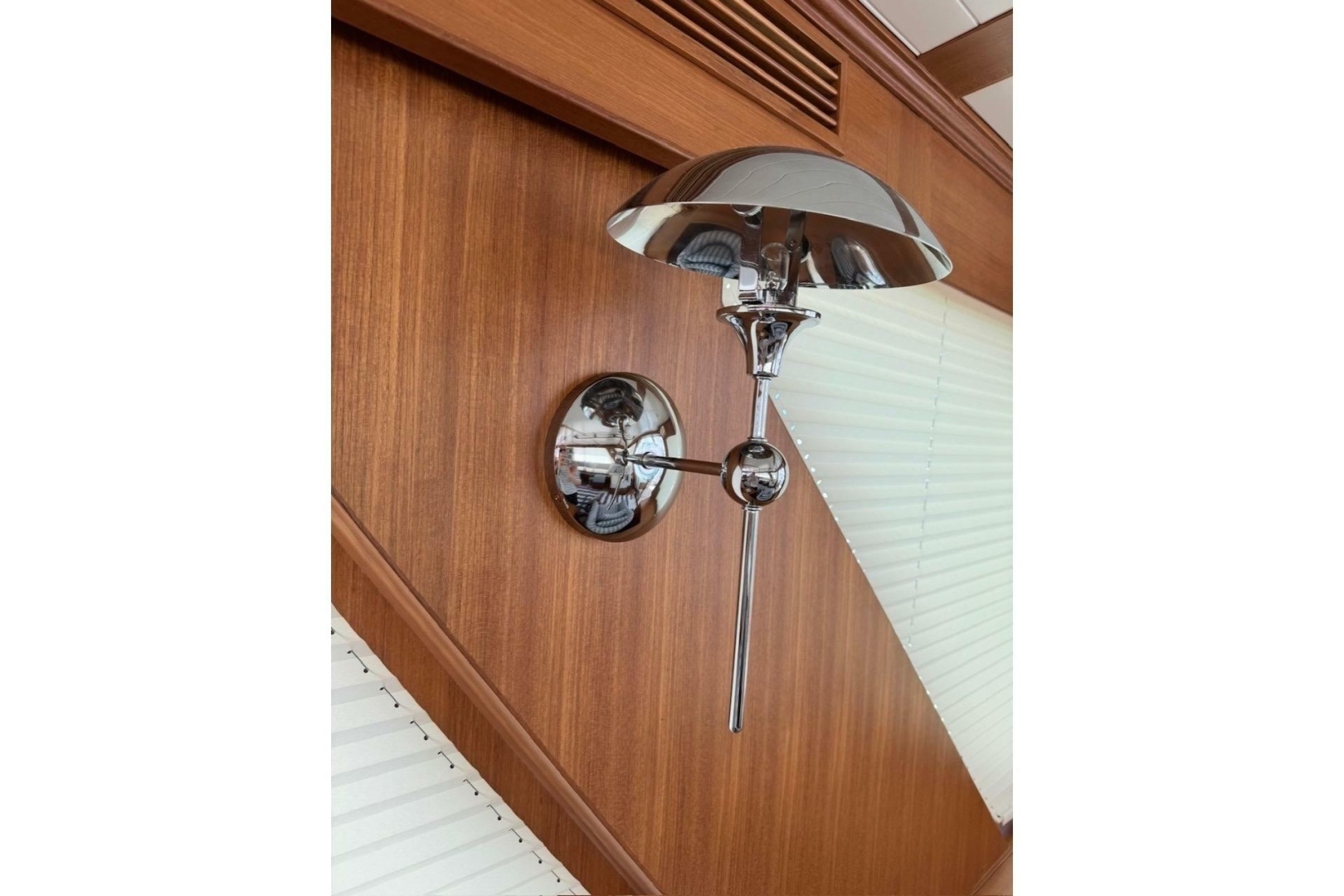

Lighting: All lights LED

Outlets and switches: VIMAR® switches and outlets

Soles, deckhouse: Teak and holly with semi-gloss varnish

Soles, heads: Ceramic tile, teak and holly with semi-gloss varnish

Soles, staterooms: Teak and holly with semi-gloss varnish

Stairs: Teak tread with rubber non-skid inserts

Veneer & Trim finish: Satin varnish

Wall coverings: Teak veneer with fabric above chair rail

Interior Gelcoat: Match to Awlgrip Egg Shell White #H8015

Wood, interior: Teak veneer and solid

Windows: Tempered, fritted direct glazed

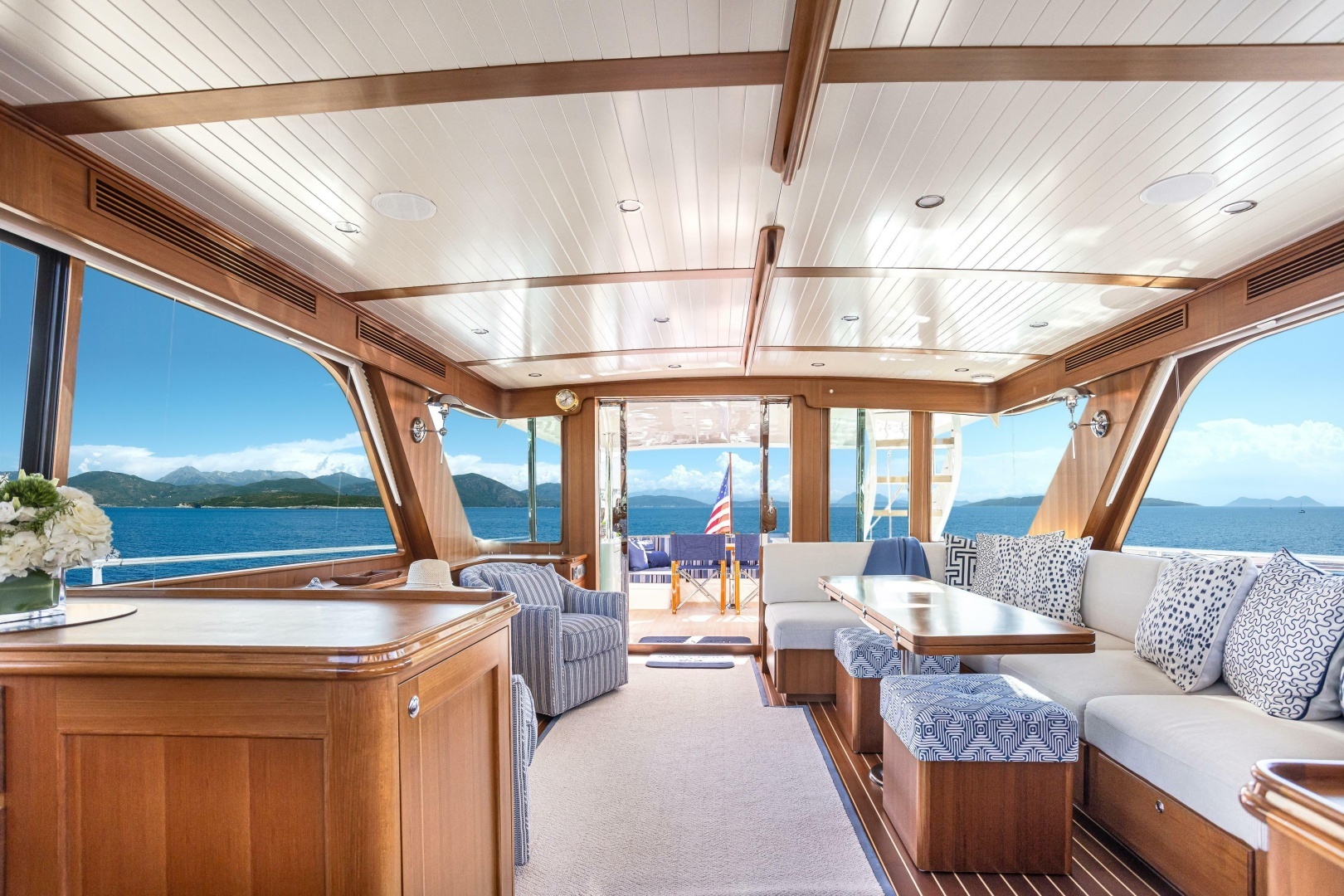

Salon

Settee: Straight settee with storage under

Chair: Fabric, barrel x 2

Ottoman: Fabric with internal storage x 2

Table: Pneumatic hi-lo, expandable cocktail to dining

Countertops: Wood

Aft Sliding Glass Door: Straight, weather tight, stainless-steel frame, handle and hardware

Electric Window: Drop-down to port with screen

TV: 50” Smart LED with lift

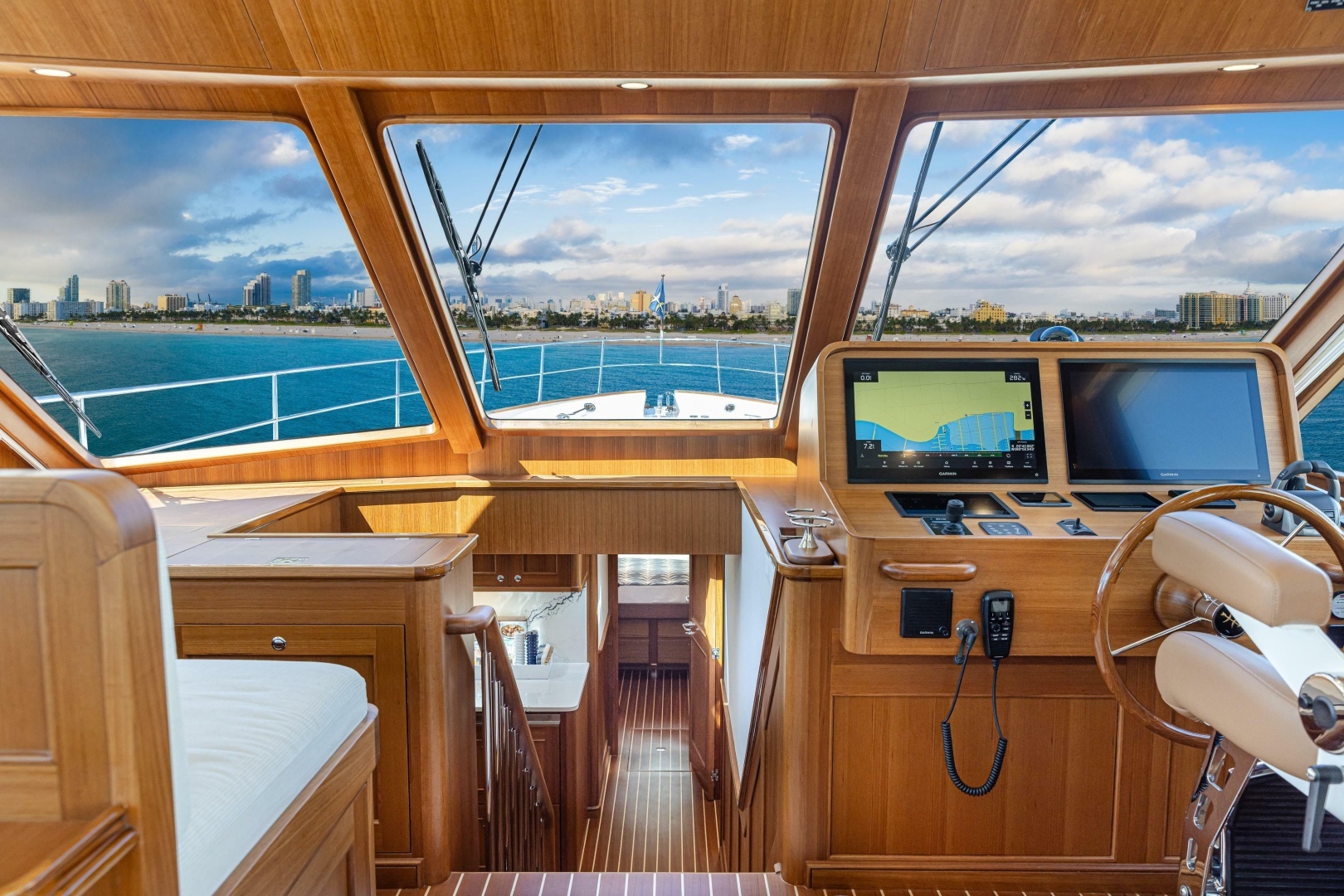

Helm

Seat: Single Stidd® Admiral low back manual seat with powder coated pedestal

Chart Drawer: Teak covered

Circuit-Breaker Panel: 12 & 24 vdc, 120 & 240 vac

Console: Custom teak

Electronics Console: Custom teak, removable

Controls: Steering, engine start/stop, gearshift, throttles, horn, bow thruster, wipers, bilge pumps, exterior lighting running lights

Windshield Wipers: Pantograph, 24 vdc, speed control, auto parking, fresh-water wash

Windshield Defroster: Starboard side in front of helm

Windshield covers: Forward exterior

Door: Stainless steel pantograph, watertight, hinged

Compass: Ritchie® Power damp, 5” card, flush mount,

Steering Wheel: Stainless steel and teak

Navigation Seat: Fixed with cushion

Down Lights: 3 red / warm white LED lights in way of helm area

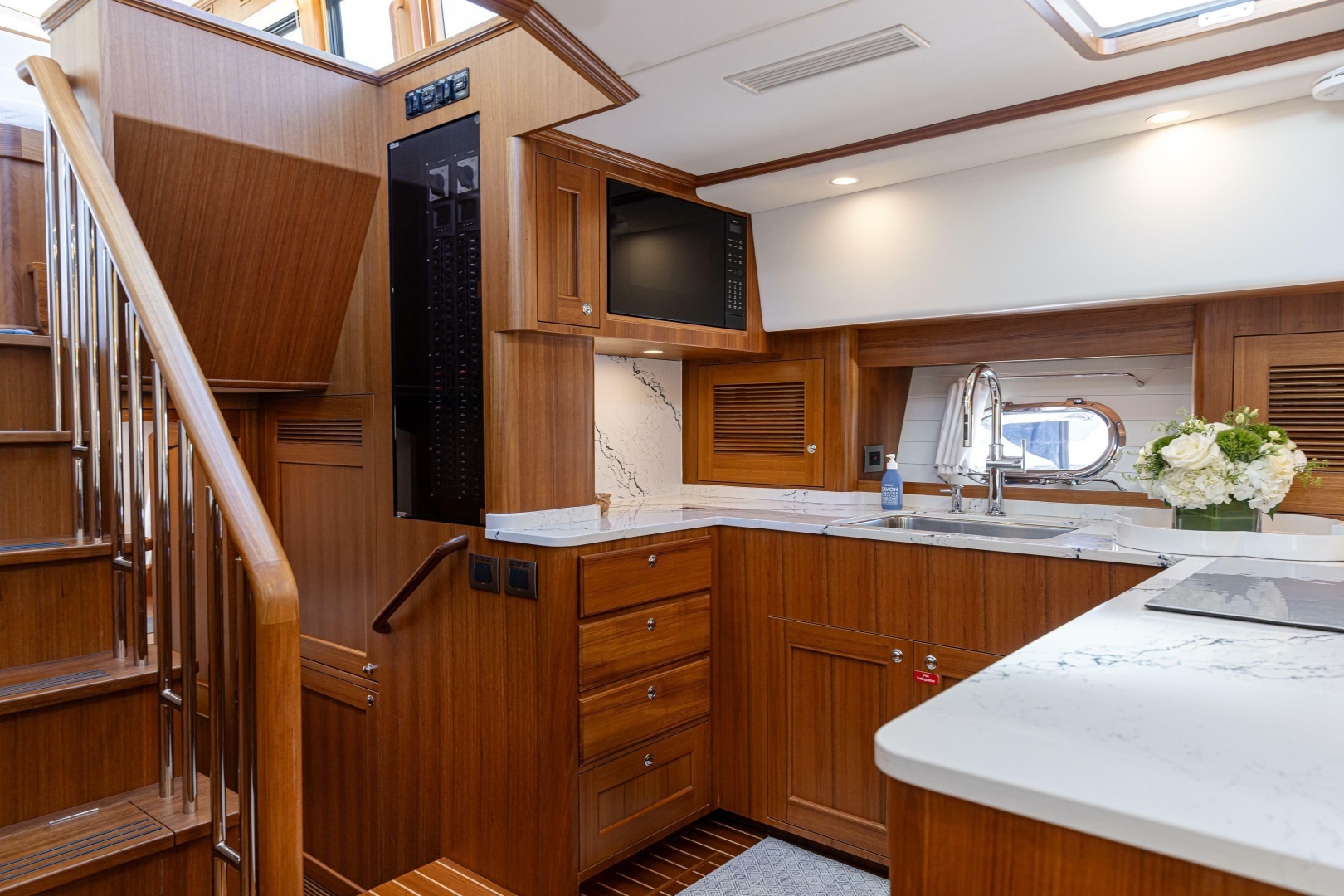

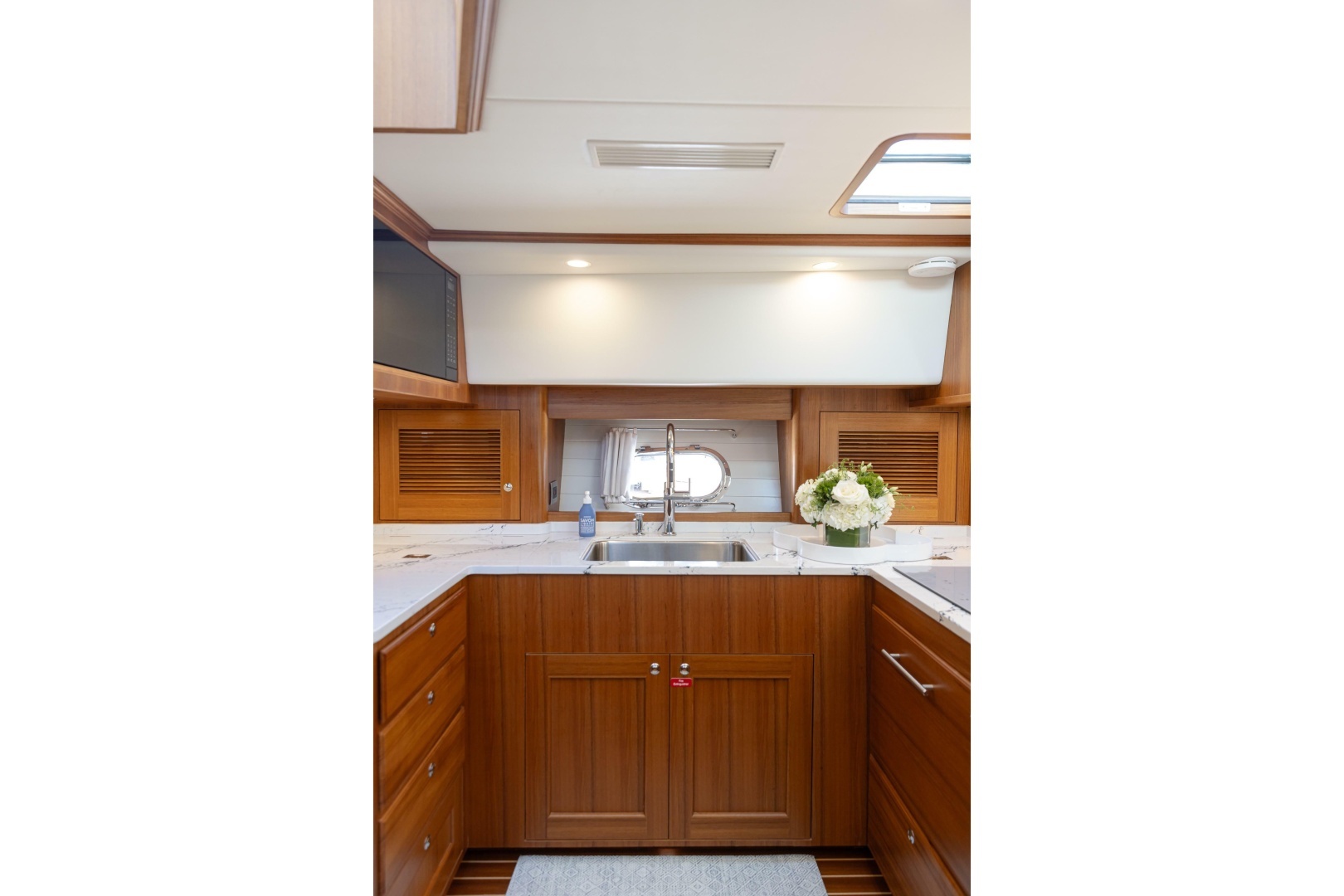

Galley (Below deck)

Cabinets: Teak panels

Countertops: Silestone®

Sink: Polished stainless steel, flush teak cover

Cabinets: Teak finish; cutlery & storage drawers, storage lockers under

Soles: Teak and Holly

Faucet: Single lever, chrome

Refrigerator: Vitrifrigo® stainless steel under-counter mount, 120 vac

Stove: Wolf® 3-burner induction cooktop, 240 vac

Microwave: GE® stainless steel, convection, gourmet, 120 vac

Trash Bin: Cabinet slide-out

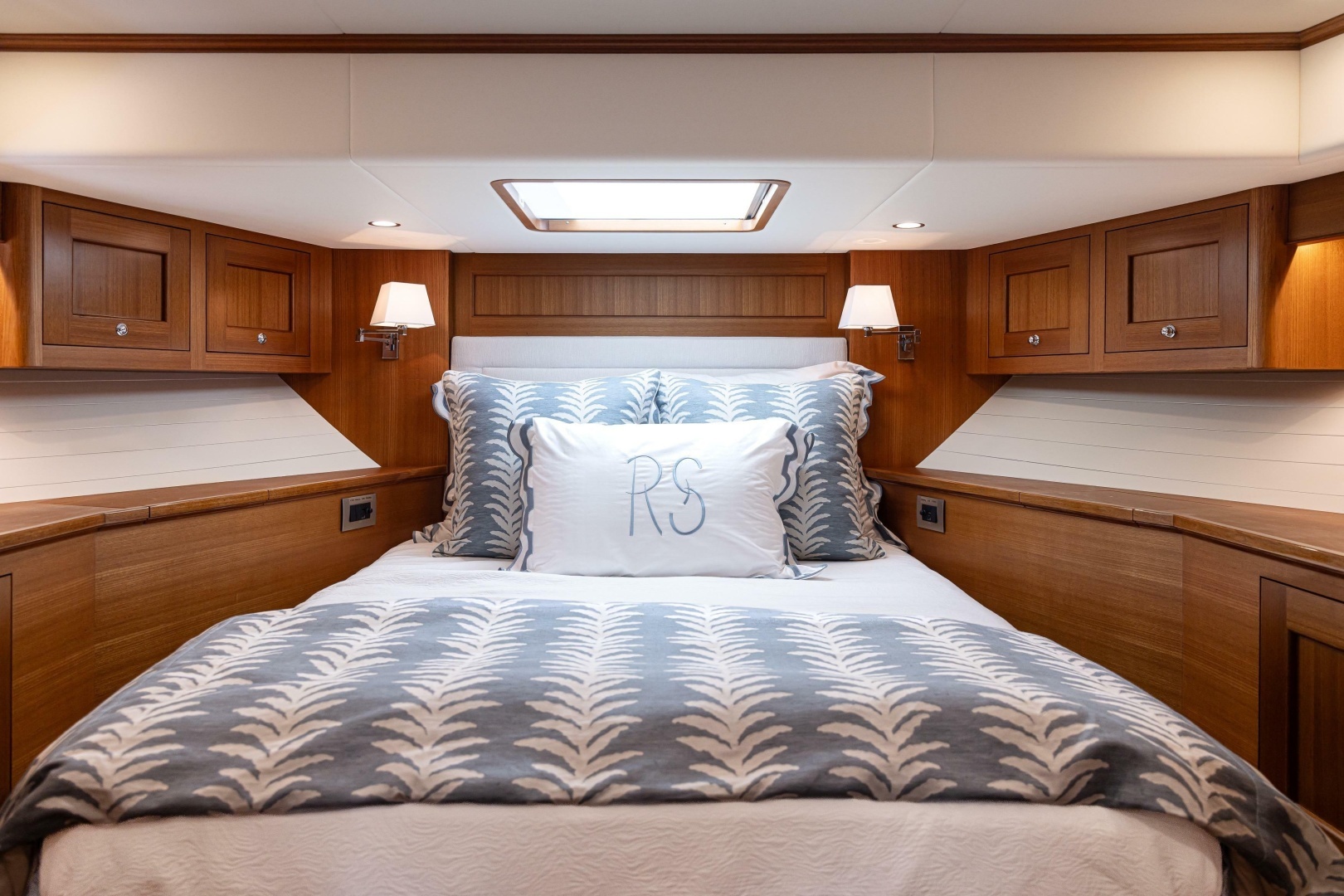

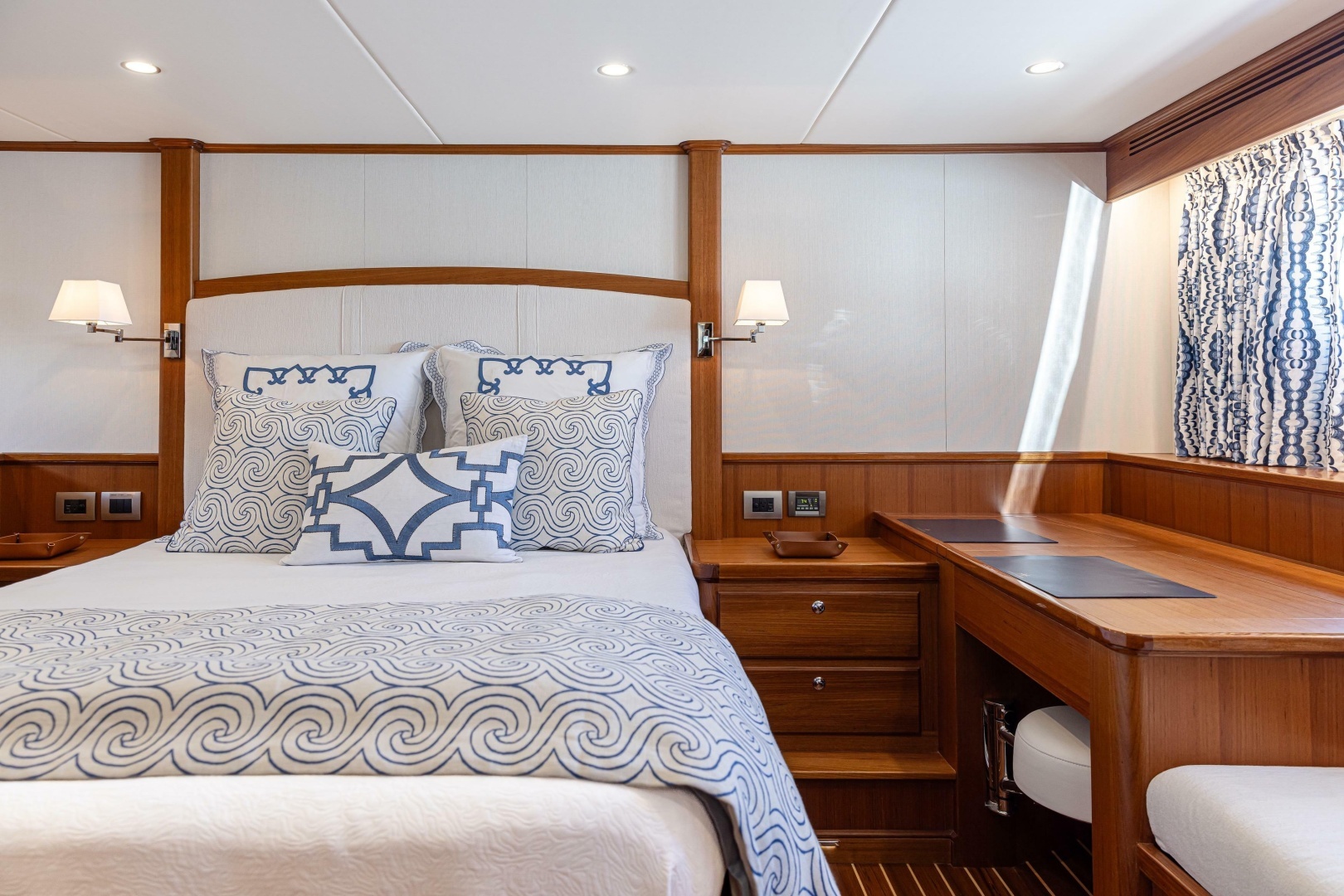

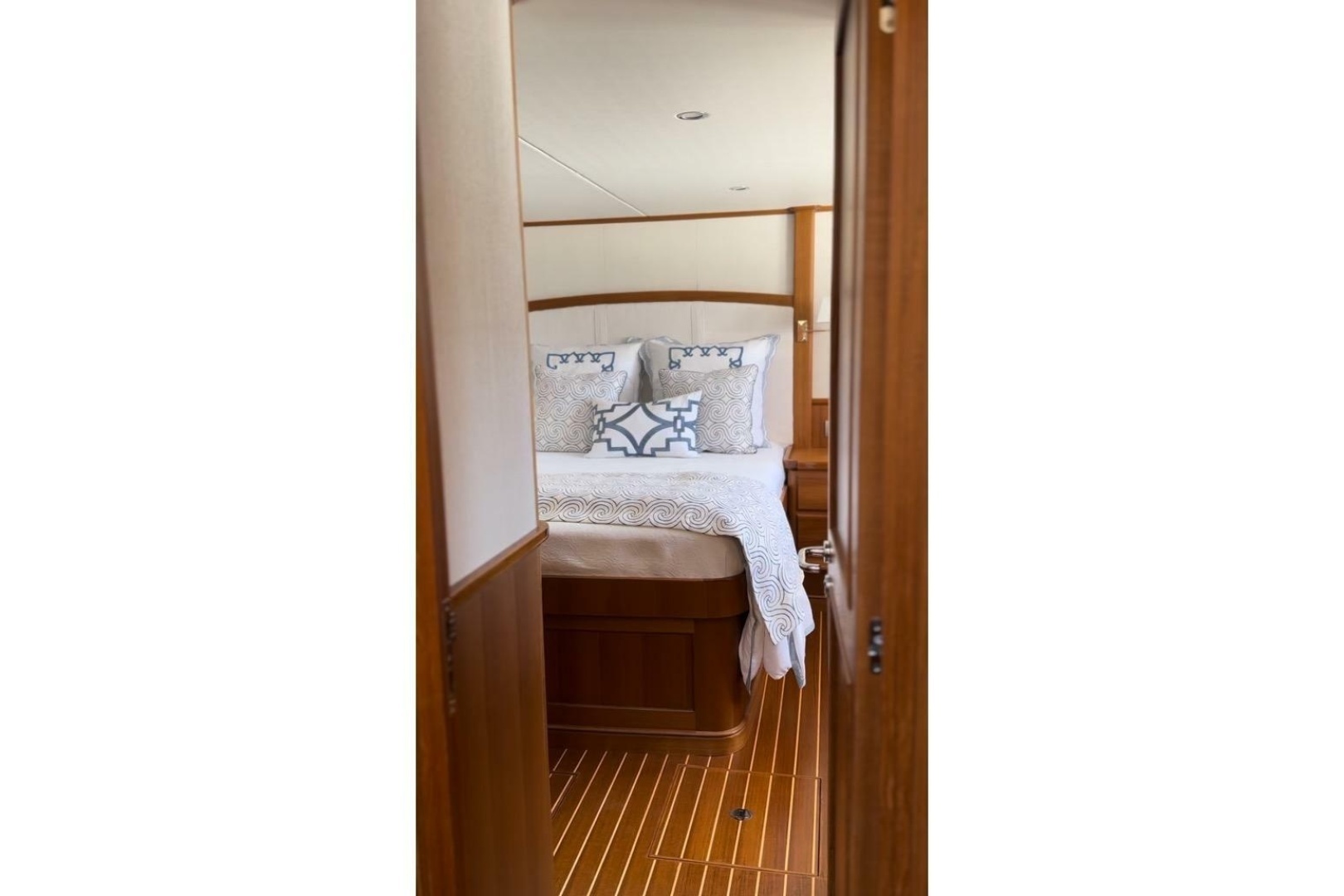

Master Stateroom (Ensuite)

Cabin: Full beam

Berth: Island California king, lift-up storage, drawers at front

Mattress: Premium grade

Hanging Lockers: Teak panel, cedar-lined, shelves, micro-switch LED

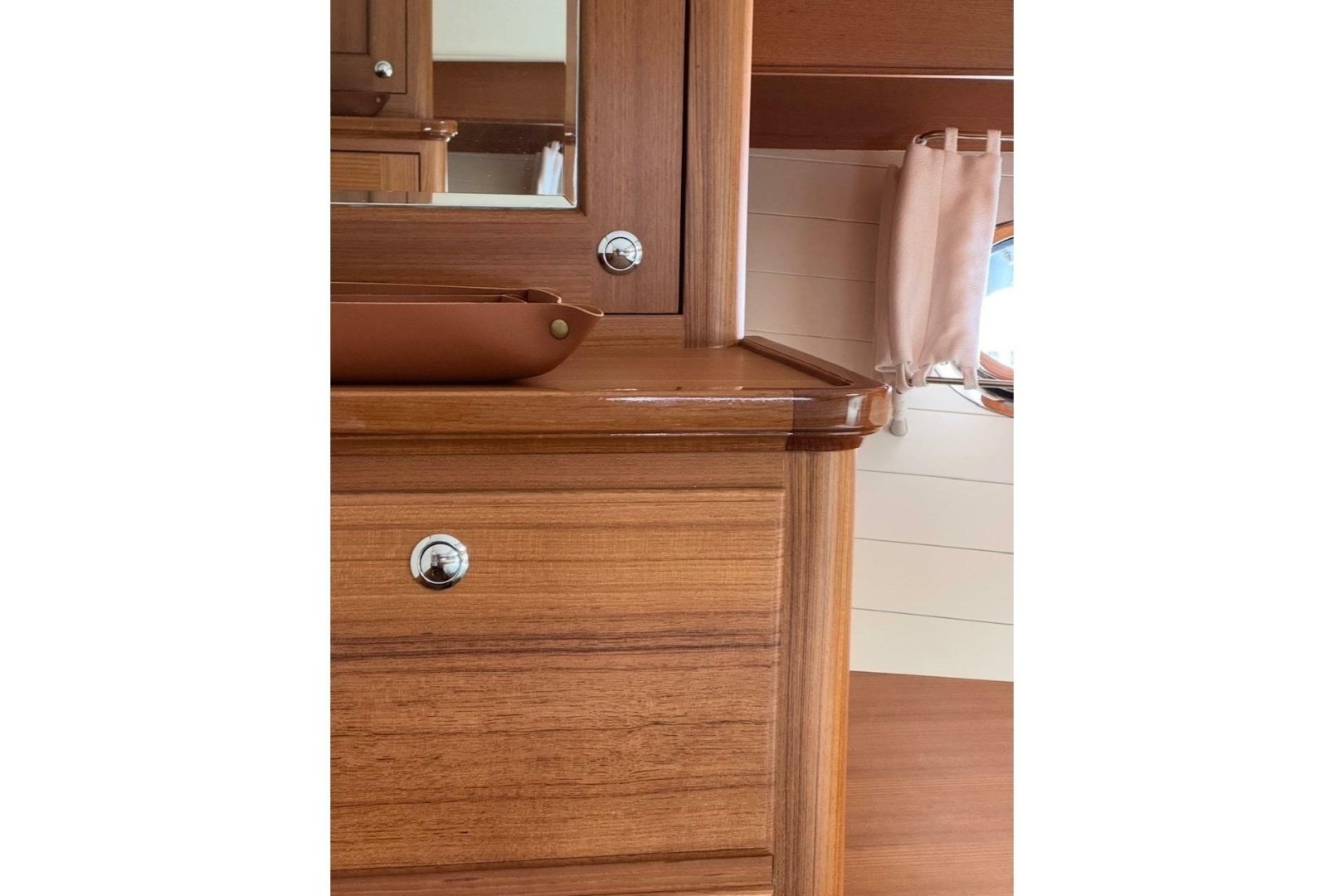

Bureaus: Teak veneer

Mirror: Full-length

Hull ports: Stainless steel

Settee: Fabric with cushion

Shower: Kohler® faucet, single lever, hand-held shower, chrome shower rail & wall union; glass door, molded FRP,soap bottle shelf, sump pump 24 vdc

Sink: Vitreous china, Kohler faucet, single lever, chrome pop-up drain & P-trap

Toilet: Tecma®, electric, fresh water, 24 vdc

Countertop: Corian

Sole: Varnished teak & holly with natural teak grate in shower stall

Storage: Varnished Teak, FRP cabinets

Accessories: Chrome toilet-paper holder, towel racks, rings, hooks

Exhaust Vent Blower: 24 vdc

TV: 32“ Smart LED

VIP Stateroom (Ensuite)

Berth: Island queen, lift up storage, teak drawers beneath

Mattress: Premium quality

Pocket Doors: Teak veneer and solid

Hanging Locker & Drawers: Teak, cedar lined

Lockers: Teak

Shower: Kohler faucet, single lever, hand-held shower, chrome shower rail & wall union; folding glass door, moldedFRP, sump pump 24 vdc

Sink: Vitreous china, Kohler® faucet, single lever, chrome pop-up drain & P-trap

Toilet: Tecma, electric, freshwater, 24 vdc

Countertop: Corian

Sole: Varnished teak & holly with natural teak grate in shower stall

Hardware: Stainless steel & chrome

Headliner: Fabric, foam backed, removable

TV: 24“ Smart LED

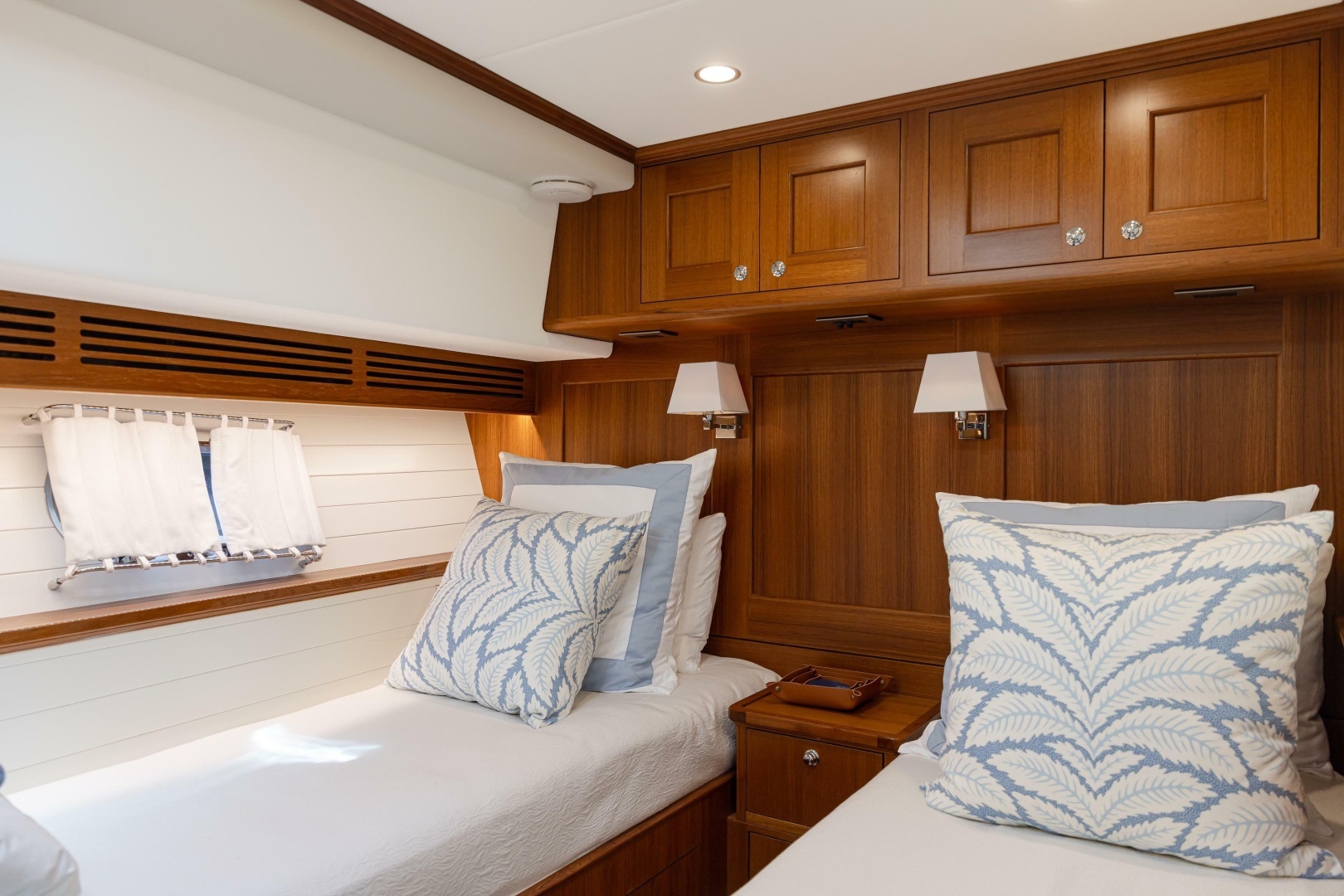

Mid Cabin (Ensuite)

Hanging locker: Cedar lined, micro switch for LED closet light

Bureau: Teak with drawers

Berths: Twin berths or convertible settee

Shower: Kohler faucet, single lever, hand-held shower, chrome shower rail & wall union; sump pump 24 vdc

Sink: Vitreous china under mount, Kohler® faucet, single lever, chrome pop-up drain & P-trap

Toilet: Tecma, electric, freshwater, 24 vdc

Countertop: Corian

Cabin Doors: Teak with solid frame, chrome hardware, door stops

Hardware: Stainless steel & chrome

TV: 24“ Smart LED

Crew cabin (Ensuite)

Access: Aft entry through transom engine room door

Deck entry: Hatch and door with fixed glass inserts

Berth: Single Pullman with storage and Pullman above

Mattress: Foam with cover

Doors: Teak veneer and solid Hanging Locker & Drawers: Teak, cedar lined

Lockers: TeakShower: Kohler faucet, single lever, hand-held shower, chrome shower rail & wall union; wet head with tile sole, sump pump 24 vdc

Sink: Vitreous china, Kohler® faucet, single lever, chrome pop-up drain & P-trap

Toilet: Tecma, electric, freshwater, 24 vdc

Countertop: Corian

Hardware: Stainless steel & chrome

Headliner: Fabric, foam backed, removable

Sole: Premium vinyl flooring

Wall coverings: Coverings are in Formica

TV: 24“ Smart LED

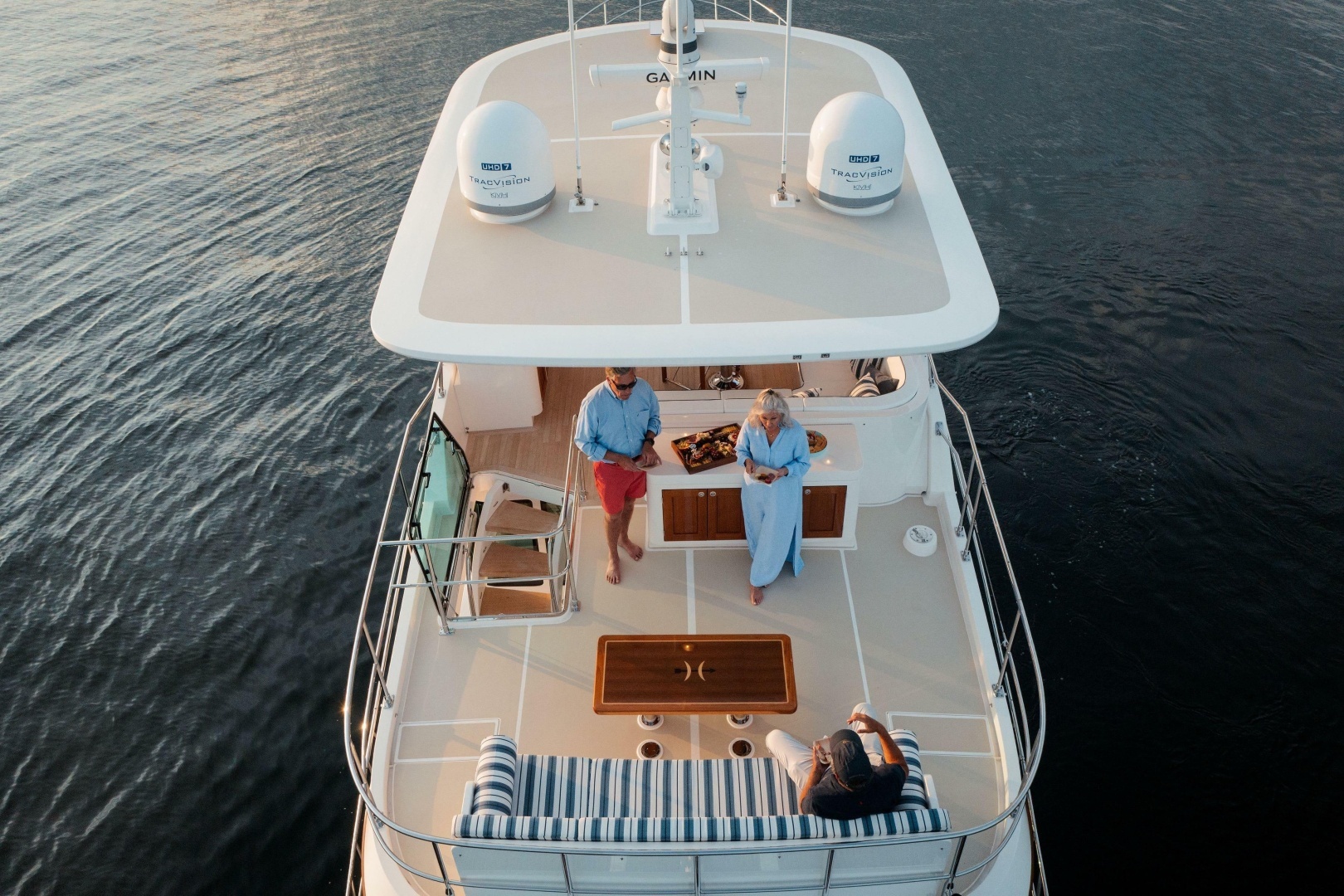

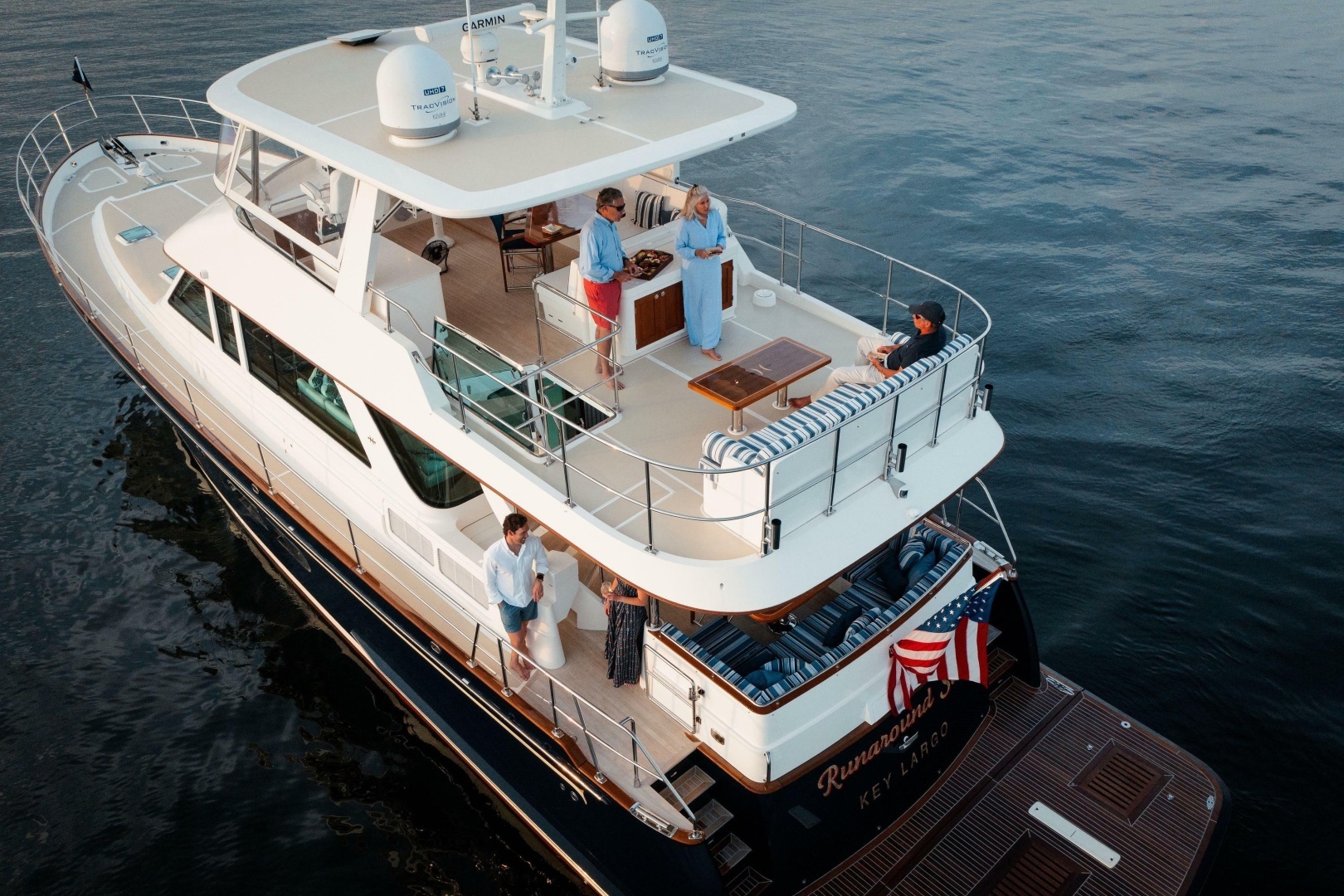

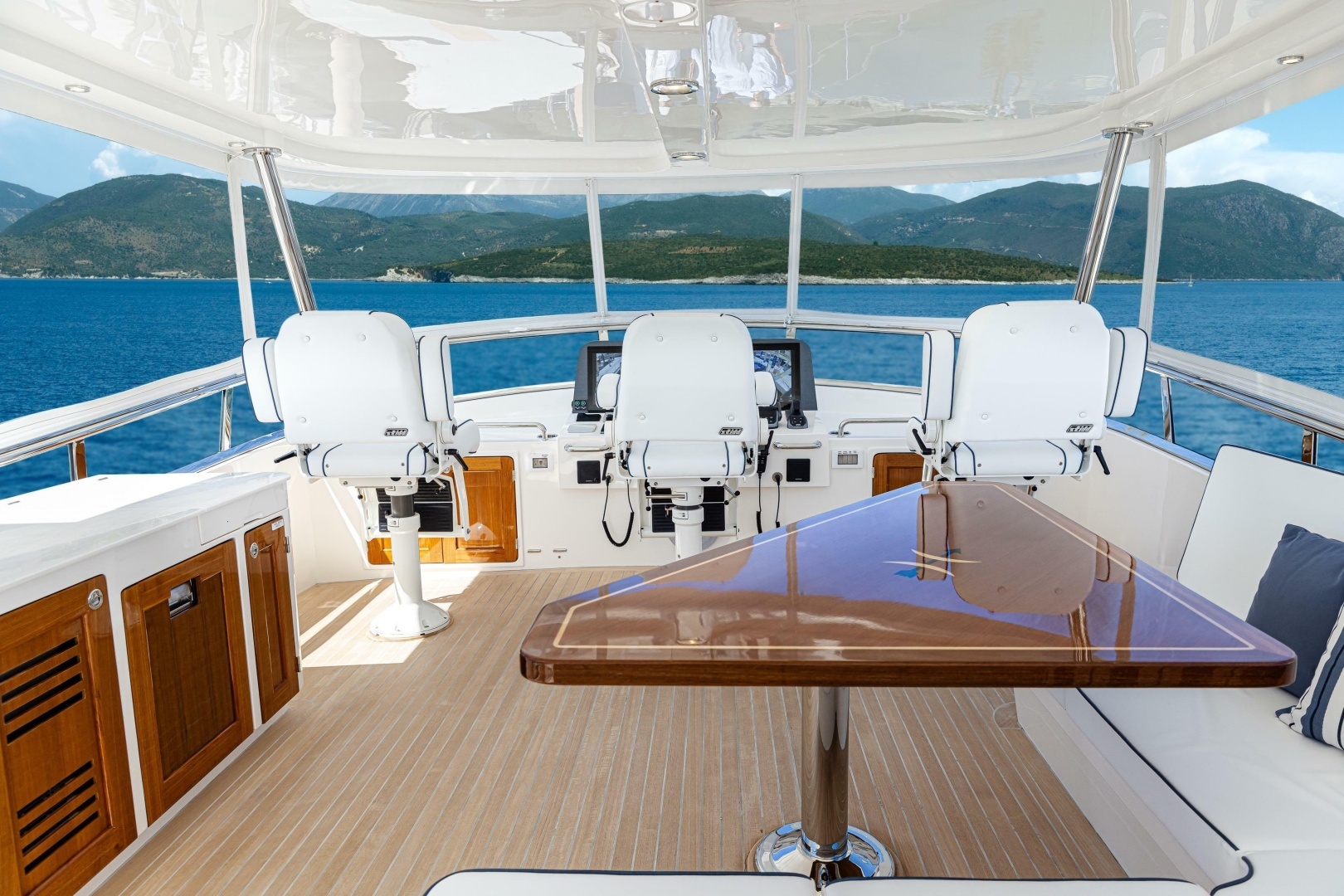

Flybridge

Deck: Extends over cockpit seating

Helm seating: 2 x Stidd Admiral low back manual seats with powder coated pedestals Settee forward: L-shaped Molded fiberglass with storage under

Settee aft: Molded fiberglass bench seat with storage under

Table forward: Triangular varnished teak with fixed stainless steel pedestal

Table aft: Rectangular varnished teak with fixed stainless steel pedestal

Washdown: Fresh water, pressure

Electronics: 2 x Garmin® GPSMAP 9219 multifunction navigation displays, Volvo Glass Cockpit 1 xGarmin GMI20 Digital Marine Instrument display (depth and speed)

1 x Garmin GHS 11 wired VHF handset with speaker

Hardtop: Fiberglass with supports

Stairs: Curved with teak treads and stainless steel railings from aft deck

Construction

Hull Lamination: Vinylester-infused foam-cored laminate above and below water line Hull Structure: Lightweight composite FRP stringers and webs

Engine-Bed Structure: Stringer design with high-density foam

Deck Lamination: Vacuum-bagged foam core for vertical and horizontal areas.

Deck and Housetop Structure: CompositeFRP beams and frames

Deck-Hardware Installation: High-density core in way of hardware Deck-Hull joint: Fully bonded and mechanically fastened Bulkheads, Structural: Vacuum-bagged cored composite

Bulkheads: Fully laminated bulkheads

Cabin Soles, Structural: Vacuum-bagged cored composite

Deck gelcoat: Match to Awlgrip® Oyster white

Bottom paint: Antifouling color of choice

Underwater component paint: PropOne® non-stick release coating on all hardware without bottom paint Hull Identification: Mark & logo

Hull: Awl-Grip color of choice with clear coat

Mechanical And Plumbing

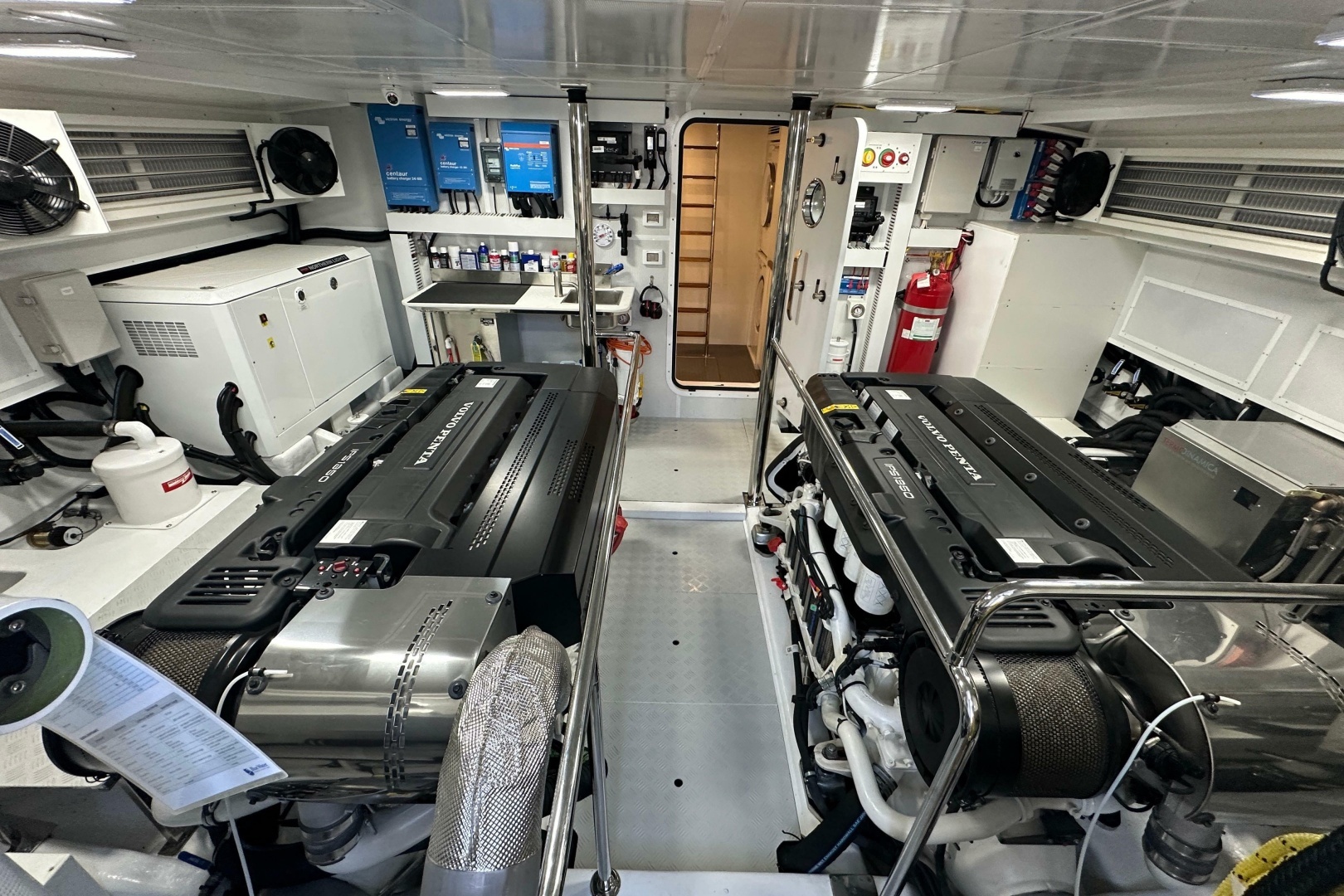

Engines: Twin Volvo Penta D13 1000hp IPS 1350 engines

Gear Shift Controls: Volvo, electronic, with synchronizers

Engine Mounts: Heavy-duty isolation mounts

Engine instrumentation: Start/stop with electronic digital displays

In engine room: Start/stop analog controls for each engine

Exhaust system: Volvo IPS exhausts

Trim tabs: Volvo interceptors

Steering: Volvo IPS electronic steering

Thruster: Sidepower® SE210/250TC 24V at bow

Engine room, insulation: Composite panels of dampening, barrier and absorption layers Fire protection: Sea-Fire® engineered automatic system, with manual override

Engine-removal: Soft patch in cockpit

Engine-room flooring: FRP composite panels with non-slip surface

Engine-room faucet: Fresh water

Engine-room finish: White perforated wall and ceiling panels, white polyurethane bilges

Exhaust: Generator system with water separator

Oil pans: FRP composite, under engines

Engine Air Intakes: Mist Eliminators and custom water separators

Fuel tanks: (3) Aluminum, 2 x 425 gallon saddle & 1 x 220 gallon forward

Fuel hose: Fill, supply, return, approved Type A1 and A2

Fuel filters: Racor® twin water separators for each engine

Fuel vent filters: Anti-spill device for each tank

Oil change kit: For engine, gear and generator, 24 vdc

Tank gauges: For fuel, water, and waste 24 vdc

Tank level senders: Maretron® pressure monitor with submersible pressure transducers for water and fuel, Dometic®tank monitor system for waste tank

Seacocks: Groco® with exterior hull strainers for engines, air conditioning, generator.

On thru-hulls below waterline with double-clamped hoses. Raw-water strainers for pumps and intakes. Valves on thru-hulls above waterline with double-clamped hoses

Fresh & saltwater washdown: Variable pressure, 24 vdc

Water tank: 1 x 110 & 1 x 145 gals, stainless steel

Black water tank: 1 x 125 & 1 x 35 gals

Tank fills: Stainless steel

Tank: Vents for Tanks stainless steel

Discharge pump: For waste water tank, 24 vdc

Water heater: 240 vac, 20 gallons

Hot Water Circulation: Jabsco® magnetic drive DC pump

Bilge pump: Whale® manual. (3) Rule® 3700 gph, zoned, automatic, 24 vdc

Air Conditioner: Remote compressor, separate air handlers and controls for the salon, galley and heads, guest cabinand owner’s stateroom

Toilets: Tecma 24 vdc electric system

Fresh-water system: Engineered plastic piping and fittings. Fresh-water pump - variable, 24 vdc

Fresh-water regulator - city water. Fresh-water filter

Electrical

DC electrical system: 12 vdc, 24 vdc

AC electrical system: 120 vac, 240 vac

Batteries: AGM: Engine start - 4 x 8D, house – 4 x 8D, generator – 1 x 4D

Stainless steel bracket. Victron battery chargers: 3 output 60 amp 24V and 20 amp12V.. Battery-condition indicator. Battery isolation. Battery switch, emergency paralleling

AC circuit: Breaker panel under chart drawer

Inverter / charger: Victron® 24 vdc to 120 vac, 3000 watts with 70A charge

Alternator: Engines, 24 vdc, 80 amp. Generator, 12 vdc

Engine room fans: Axial, 24 vdc

Engine room lights: 24 vdc LED

Carbon monoxide detector: Each stateroom and salon, 24 vdc

Generator: Northern Lights®, 20 KW, with sound enclosure, gas water separator

Isolation transformer.

Shore-power cable: Glendinning® Cablemaster with 75 ft. cable for shore power with inlet and with Hubbell® cord, 50A x120 / 240 vac

Bonding system: Common wire bonding with #8 AWG conductors per ABYC E-11.

Circuit breakers: 12 vdc, 24 vdc, 120 vac, 240 vac. DC circuit-breaker panel - in passageway Navigation lights: Hella NaviLED®PRO Series, 24VDC

Outlets: Galley, engine room and heads, GFCI circuit protection

USB Combination A&C Outlets: 2 in master, 2 in salon, 1 each in VIP, Guest & crew, 1 at helm

Outlet: 12 vdc, aft in engine room

Wiring: Marine-grade, tinned copper.

Wire fittings: Marine grade, terminals, connectors

Lighting: Imtra® lighting with VIMAR® switches

Stereo System: Fusion® components: 1 receiver with remote controls in salon & flybridge, 4 speakers, 1 sub-woofer and24vdc amp with 4 additional speakers in cockpit and flybridge. 1 receiver with remote control and 2speakers in master

Exterior Outfit

Anchor & Rode: Stainless steel 75lb CQR w/ 75’ galvanized 3/8” G4 chain & 225’ x 3/4” line

Anchor Chain Locker: Self draining, access hatches with gas spring support

Anchor Roller: Single anchor storage, stainless steel

Windlass: Maxwell® RC12-12, dual function for chain & rode

Anchoring Equipment: Stainless-steel chain stopper, hawser, deck chafe plate, single cleat Scuppers Stainless steel, Hunt logo

Cleats: Stainless steel, mooring & deck

Chocks: Custom, cast stainless steel

Boot Top: Single, Awl-Grip

Decks & housetop: Non-skid gelcoat finish

Cabinet counters: Corian

Bulwark: Bulwark with varnished teak cap rail

Courtesy Lights: Stainless steel

Portlights: Stainless steel opening in hull with screens & curtain rods

Engine Room Air Grilles: PVC, with louvers painted to match deck

Flagstaffs/Flagstaff Holders: Custom varnished teak & stainless steel, bow burgee, stern ensign

Rubrail: Heavy-duty vinyl, stainless-steel half-round

Quarter Guard: FRP molded, stainless-steel half-round

Safety Rails: Stainless steel, intermediate wire, integrated access gates, port & starboard

Grab Rails: Stainless steel

Skylight Hatches: Screens/blinds on lower forward cabin top

Air Horn: Dual-chromed Kahlenberg® horns, 24 vdc

Electronics: Conduit, prep for optional electronics

Mast: Aluminum, Awl-Grip, color to match deck

Teak cap rail: Varnished

Aft deck

Decking: Teak decking with black seams on aft deck and swim platform

Settee: FRP with storage

Cushions & Seating: Marine grade, non-absorbing soft foam, premium upholstery

Aft Table: Custom varnished teak, hi-low mechanism, stainless-steel pedestals

Stairs: Starboard steps to swim platform

Exterior Covers: Stamoid® “Top” white or cream for seating, chairs & tables

Gates: Port and Starboard stainless-steel gate

Swim Platform: Teak decking, 6” & 12” pull up cleats, stainless steel swim ladder

Transom Shower: Hot/cold, retractable hose

Washdown: Fresh water, pressure

Outlets: (1) exterior, 120 vac

Locker Storage: Port and Starboard Lockers

Navigational Electronics Main Deck

2 x Garmin GPSMAP 9219 multifunction navigation displays, Volvo Glass cockpit

2 x Garmin GPS 24XD position receiver/antenna (1 as a backup)

1 x Garmin GMI20 Digital Marine Instrument display (depth and speed)

1 x Airmar® DT800 depth/temperature smart transducer

Garmin GHP Reactor Autopilot System integrated to Volvo Glass Cockpit

1 x Garmin GMR 434 xHD3 4 ft Open Array 4kw high-definition radar

Engine displays integrated into Garmin MFD

1 x Garmin VHF 315 radio with hailer

Commissioning Package

Docking: (4) Dock lines (3/4” x 30’ bow and stern) and (2) Dock lines (3/4” x 40’ spring), (4) fenders (12 x 29”), fender air pump, boat hook

Safety: 3 Fire Extinguishers (3B-1 or B-I & B-II), 3 Large Life Jackets, 1 Set of 4 Life Jackets, Throwable

type IV, First Aid Kit, Flares, Horn

Signage: Pollution Placard, MARPOL garbage placard, Copy of USCG navigation rules

Commissioning: Included

Freight: FOB USA Eastern Seaboard, Port TBD

*Standard Equipment list subject to change

Mechanical Disclaimer

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.

Disclaimer

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
