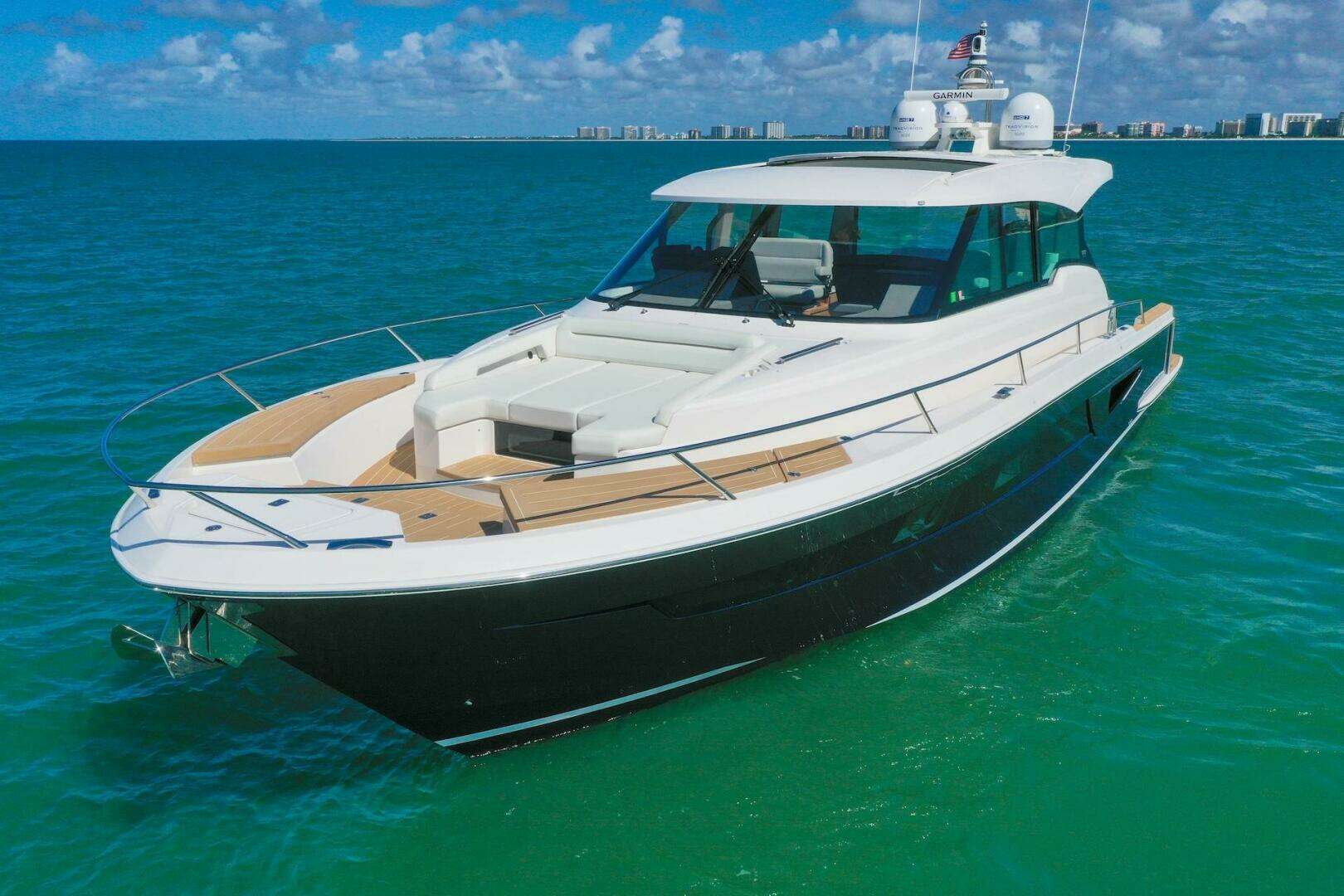

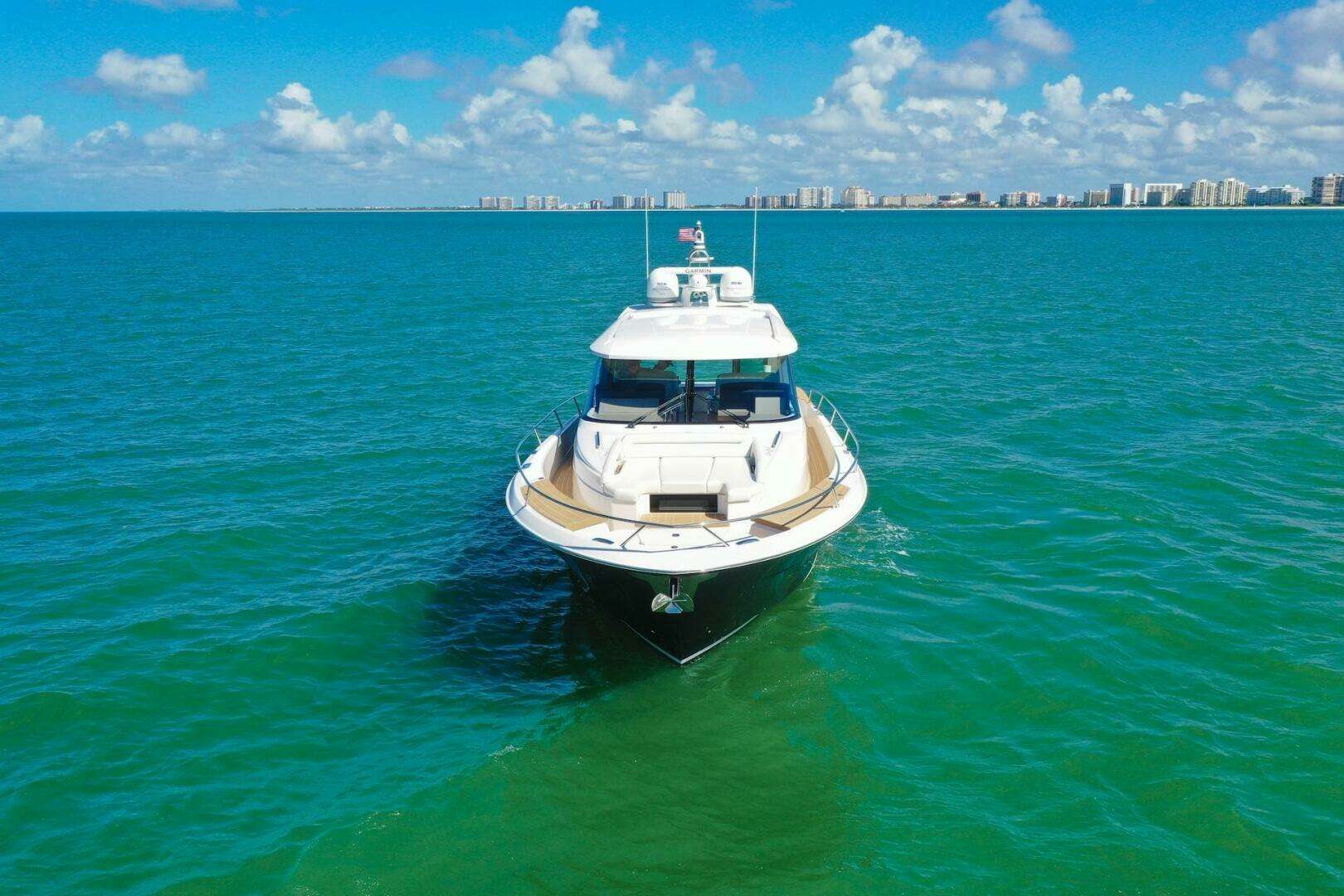

Hull & Deck

• Tiara Yachts' transferable limited warranties: five years on hull and deck; two years on accessories
• Axalta® painted hull and bootline
• Fresh white gelcoat deck
• Two coats of black anti-fouling bottom paint
• Infused hull with gelcoat outer layer, structural foam cored hullsides and bottom, reinforced with carbon fiber, engineered fabrics and premium resin
• Infused fiberglass structural grid system with molded finish and integrated bilge water management system
• Hull side engine air intake system
• Bronze seacocks on all underwater thru-hull
• Stainless clad stalon fittings on all above waterline thru-hulls
• Sound and vibration dampening insulation
• Tiara custom diamond pattern non-skid deck and cockpit surfaces
• Gelcoat and fiberglass lined bilge areas
• Poly rubrail with 316L SS cap
• Ten 13" stainless steel pop-up cleats for lines, including two on transom
• USCG approved LED navigation lights
• LED courtesy lights
• Underwater lights, (6) multi-color LED

Hardtop

• Molded fiberglass hardtop with integrated visor
• Custom framed windshield system with tempered curved windshield, tempered side glass and portside sliding window
• Windshield cover
• Two windshield wipers with spray nozzle wash system
• LED navigation/anchor lighting mast with rings for flag and burgee
• Webasto® electrically actuated sunroof
• Multicolor LED dramatic lighting with Shadow-Caster® control
• Red/White LED lights
• TACO Marine® electric folding antenna mounts

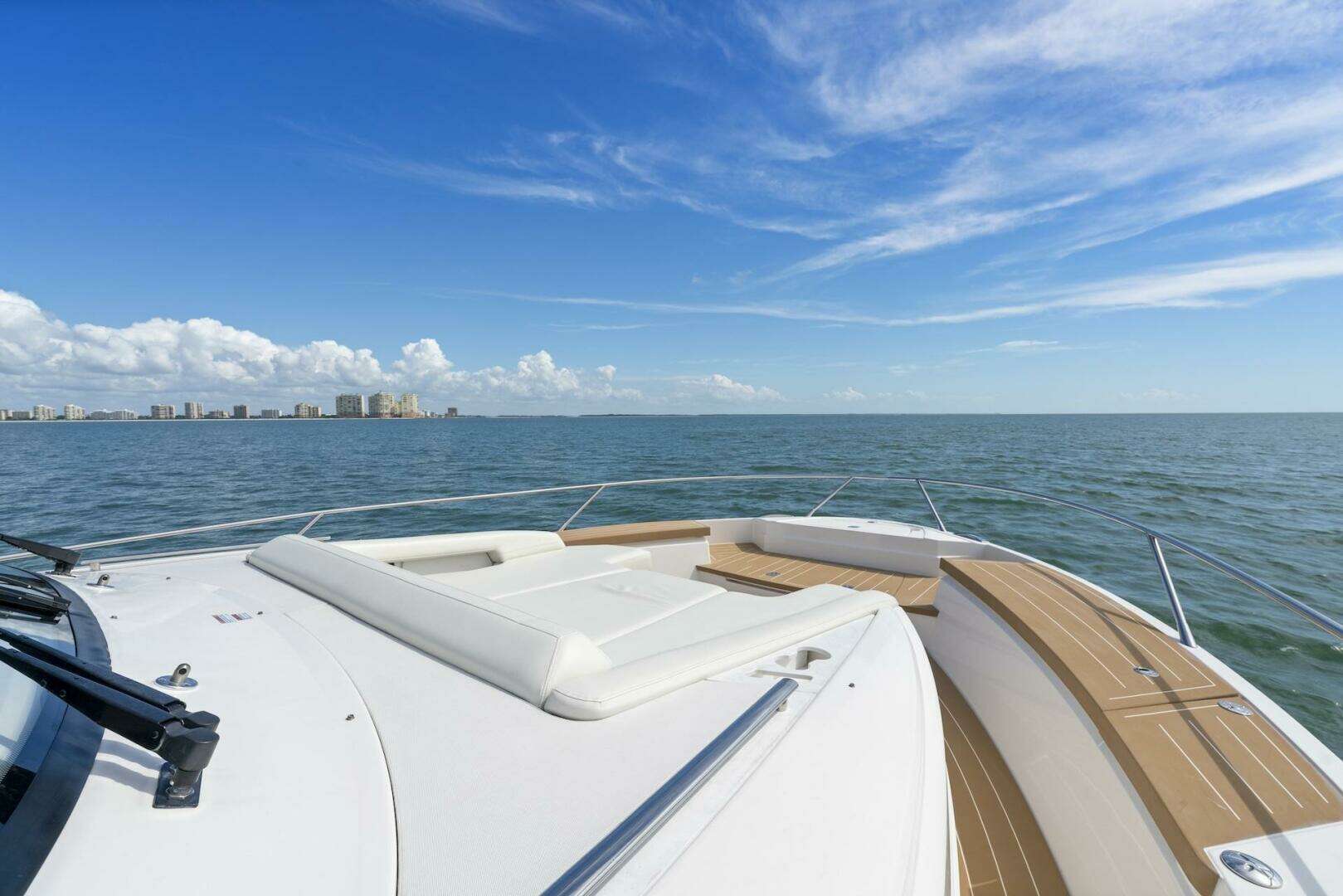

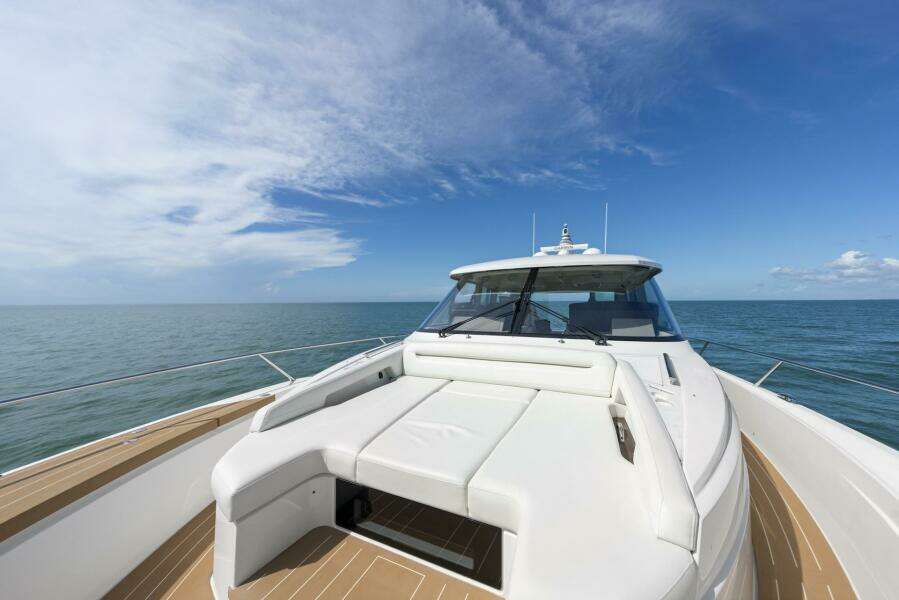

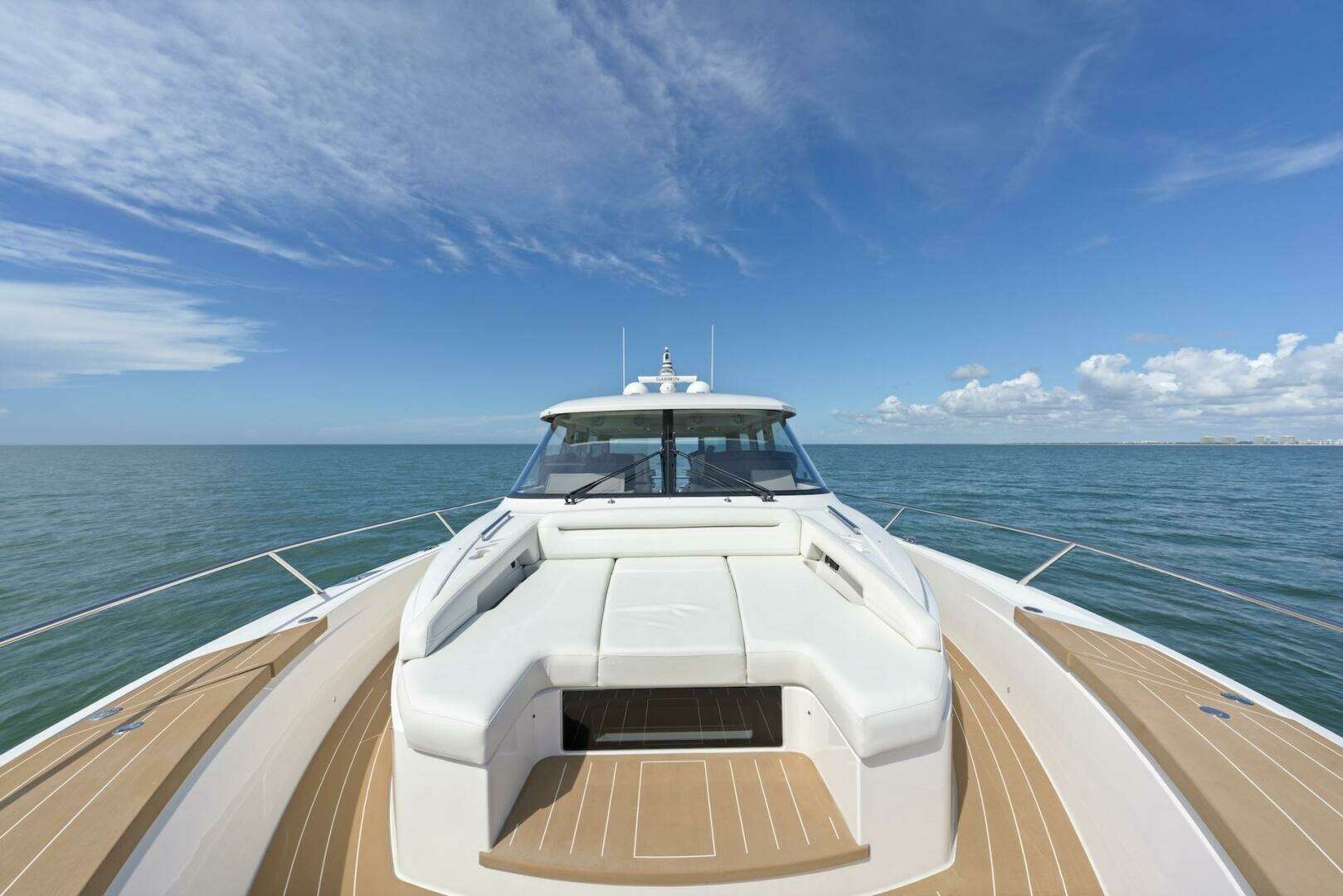

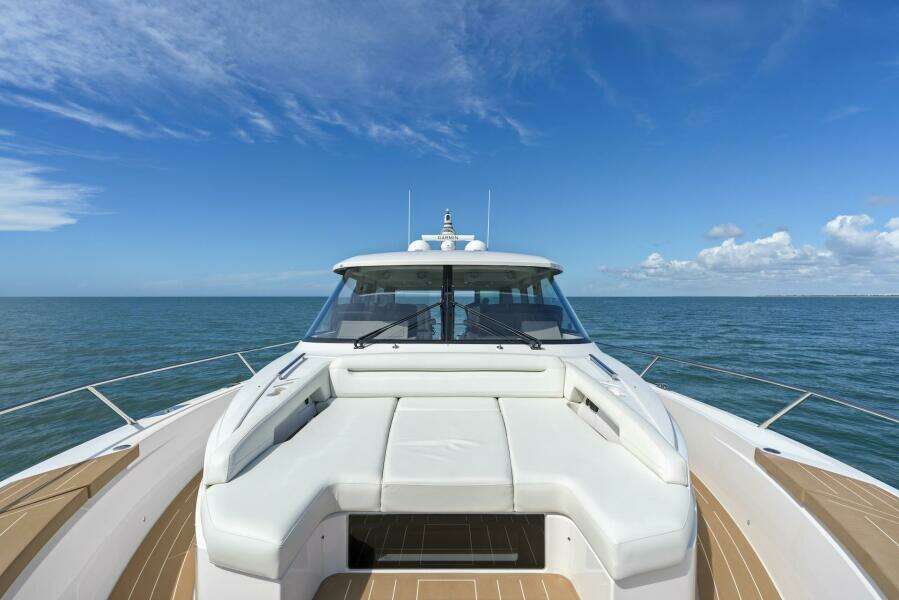

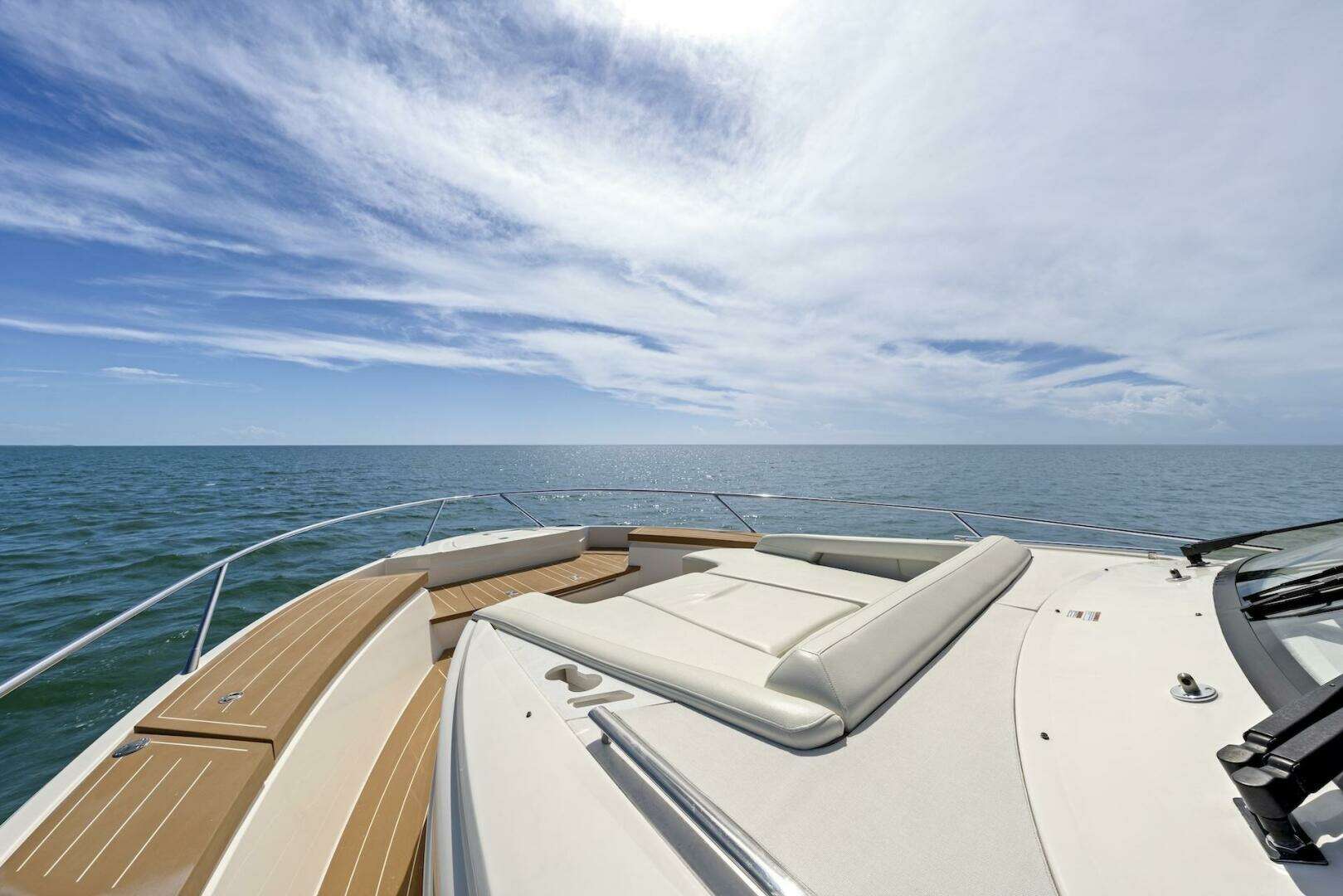

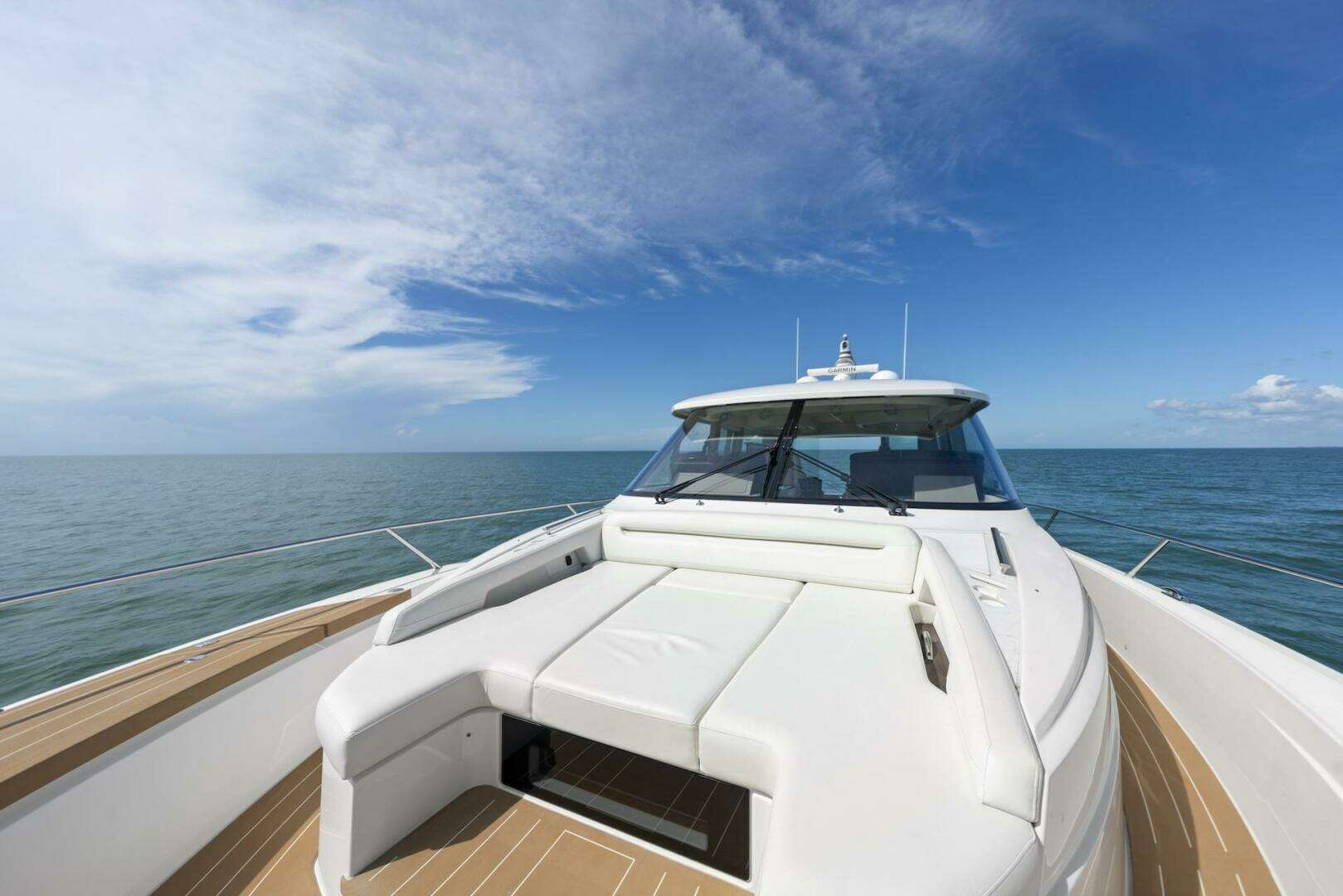

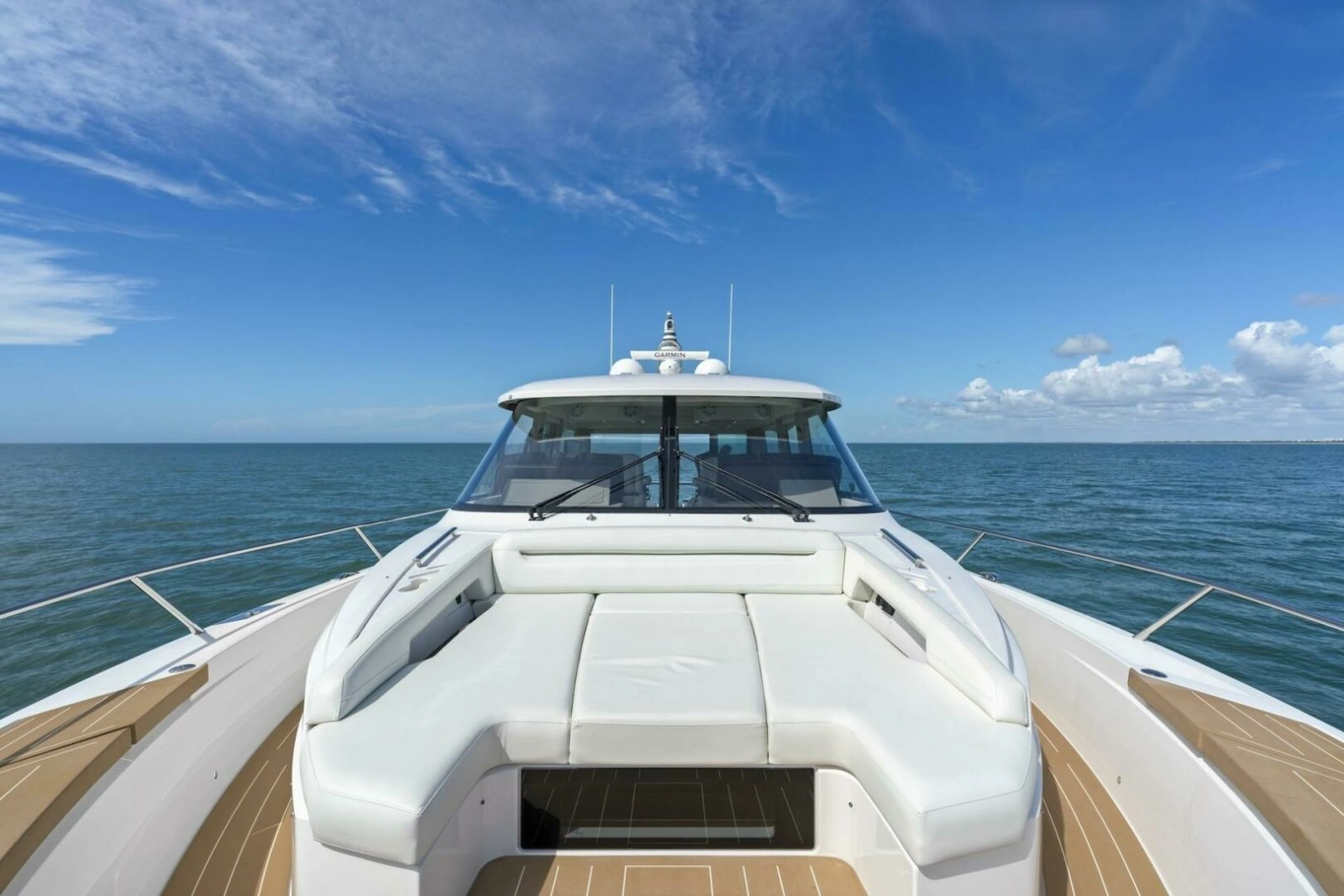

Foredeck

• 316L SS 1-1/4" low grab rail system
• Forward anchor locker with overboard drain and courtesy lighting
• Concealed Lewmar® V5 automatic rope/chain anchor windlass system with Lewmar's handheld tethered deluxe remote control and switch at helm; includes one 12" stainless steel foredeck cleat, 40' chain rode, 200' rope rode, 70 lb. Lewmar® DTX stainless steel anchor and Ultra Flip swivel

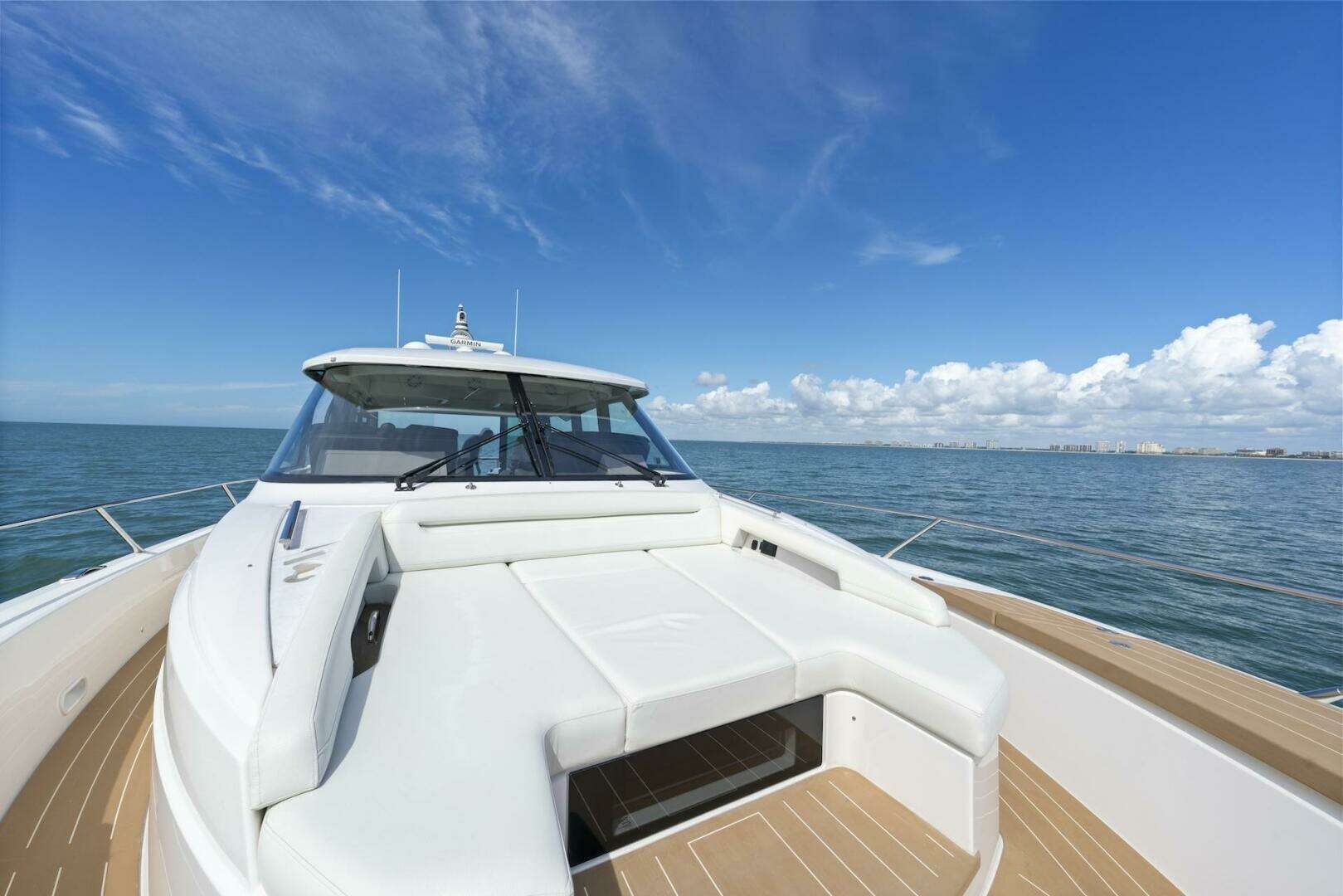

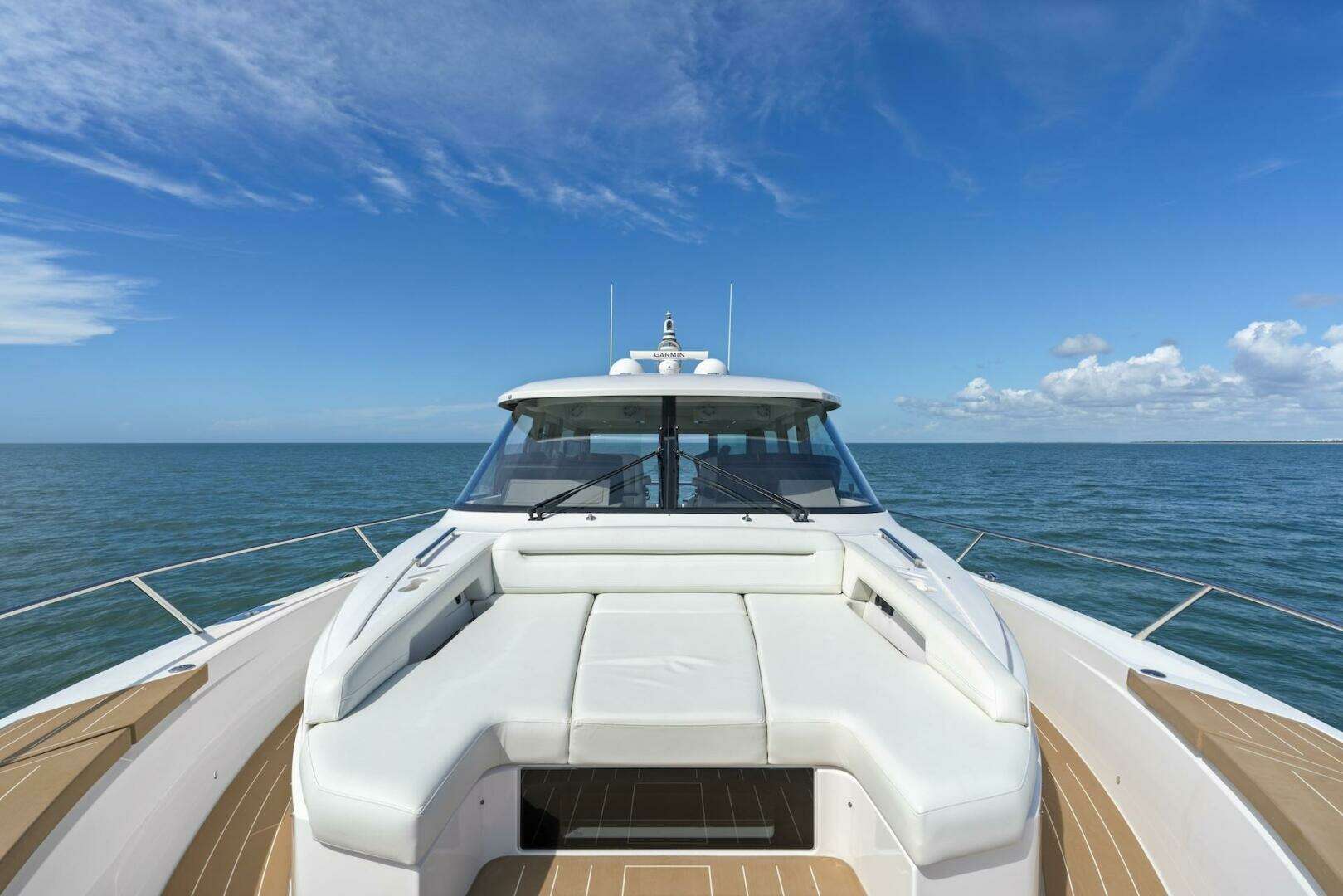

• Forward-facing chaise lounge with reversible pad/table with integrated drink holders, USB-A/ USB-C charging outlets and weather covers
• Storage compartments in port and starboard bow with dedicated locations for fenders, lines and equipment
• Four 6.5" JL Audio® coaxial speakers and Fusion® remote
• Fresh and raw water washdowns in anchor locker
• Two five-gallon buckets with rope handles and designated storage in bow
• Herculan® synthetic teak flooring and accents in bow seating area

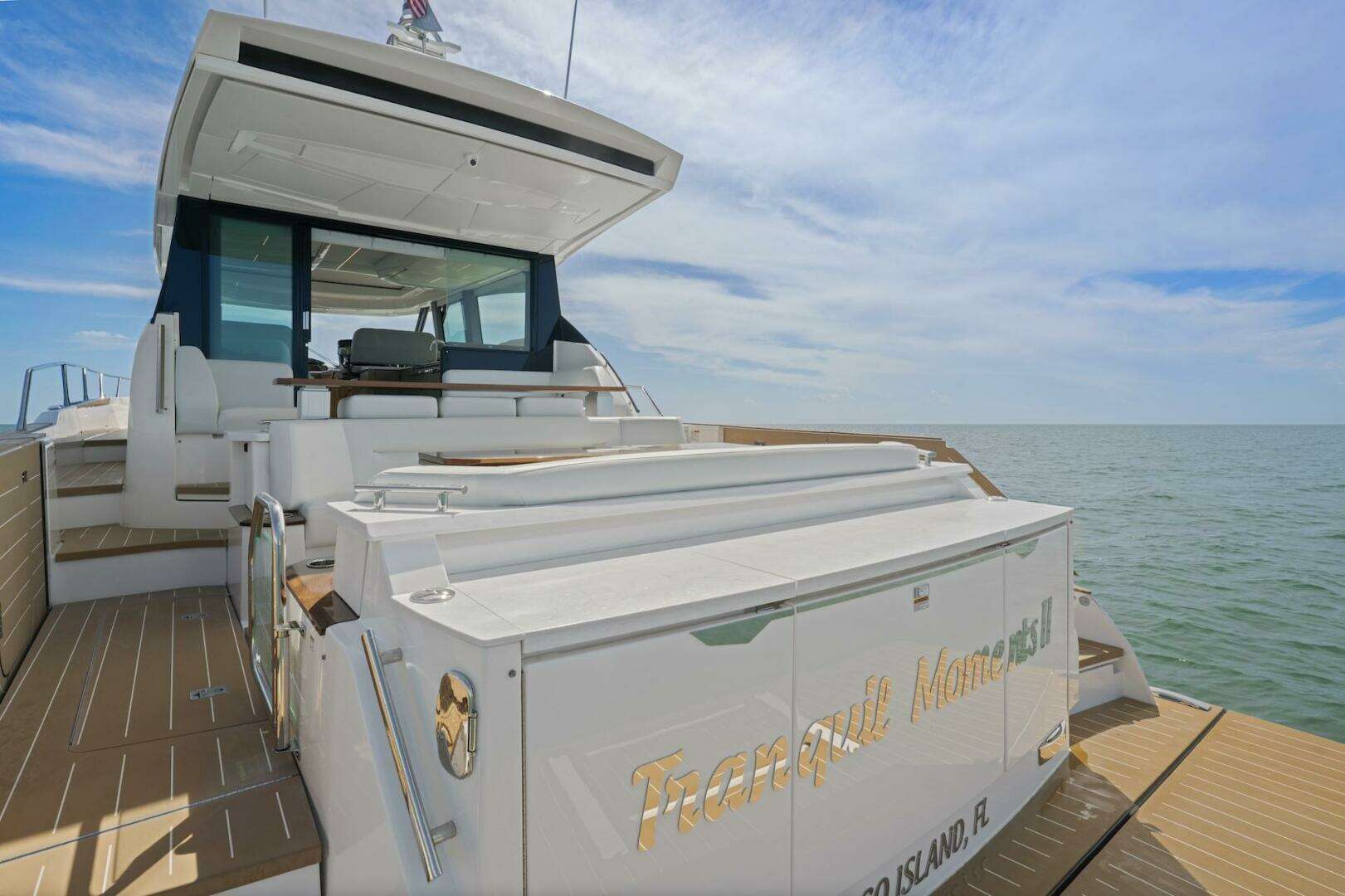

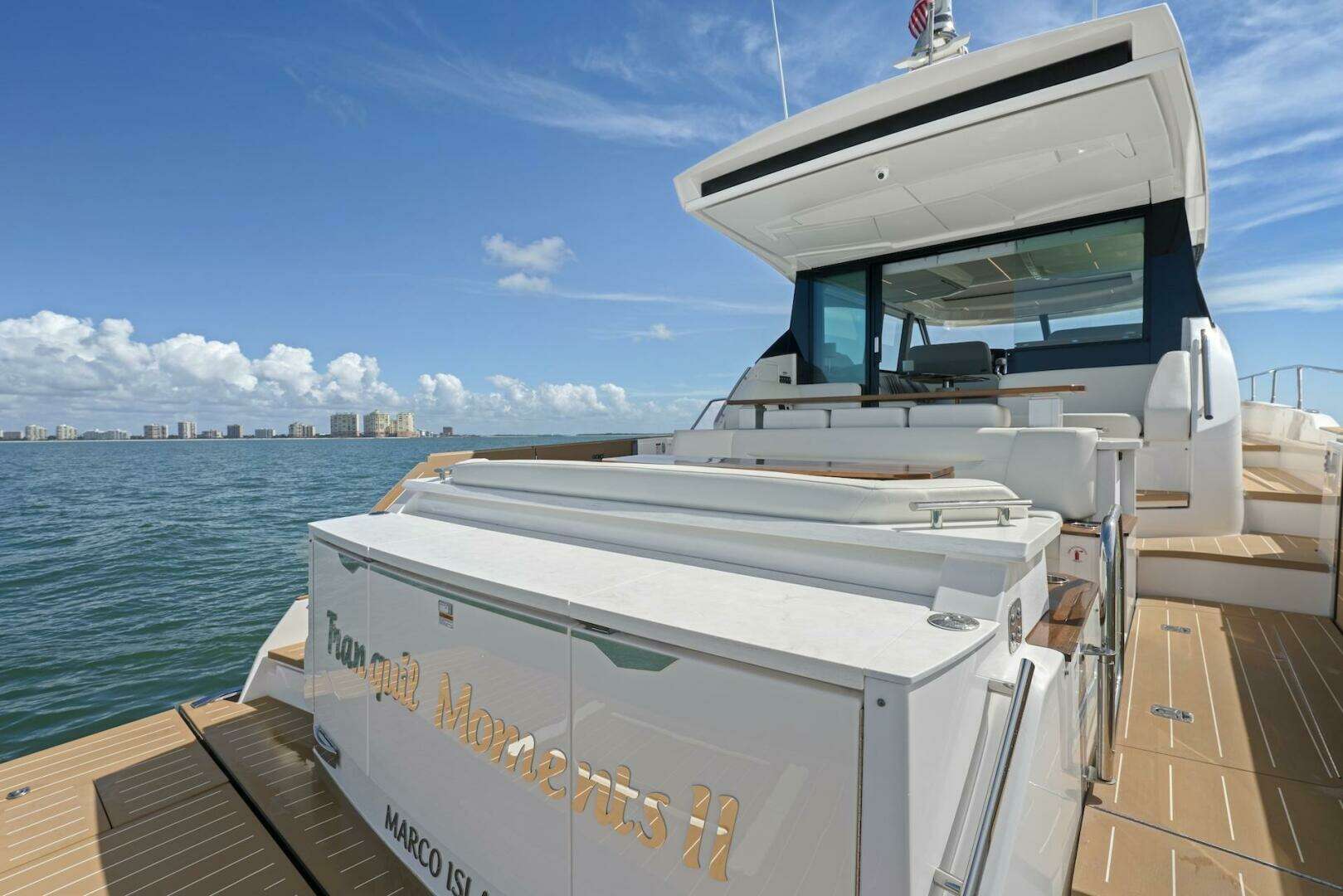

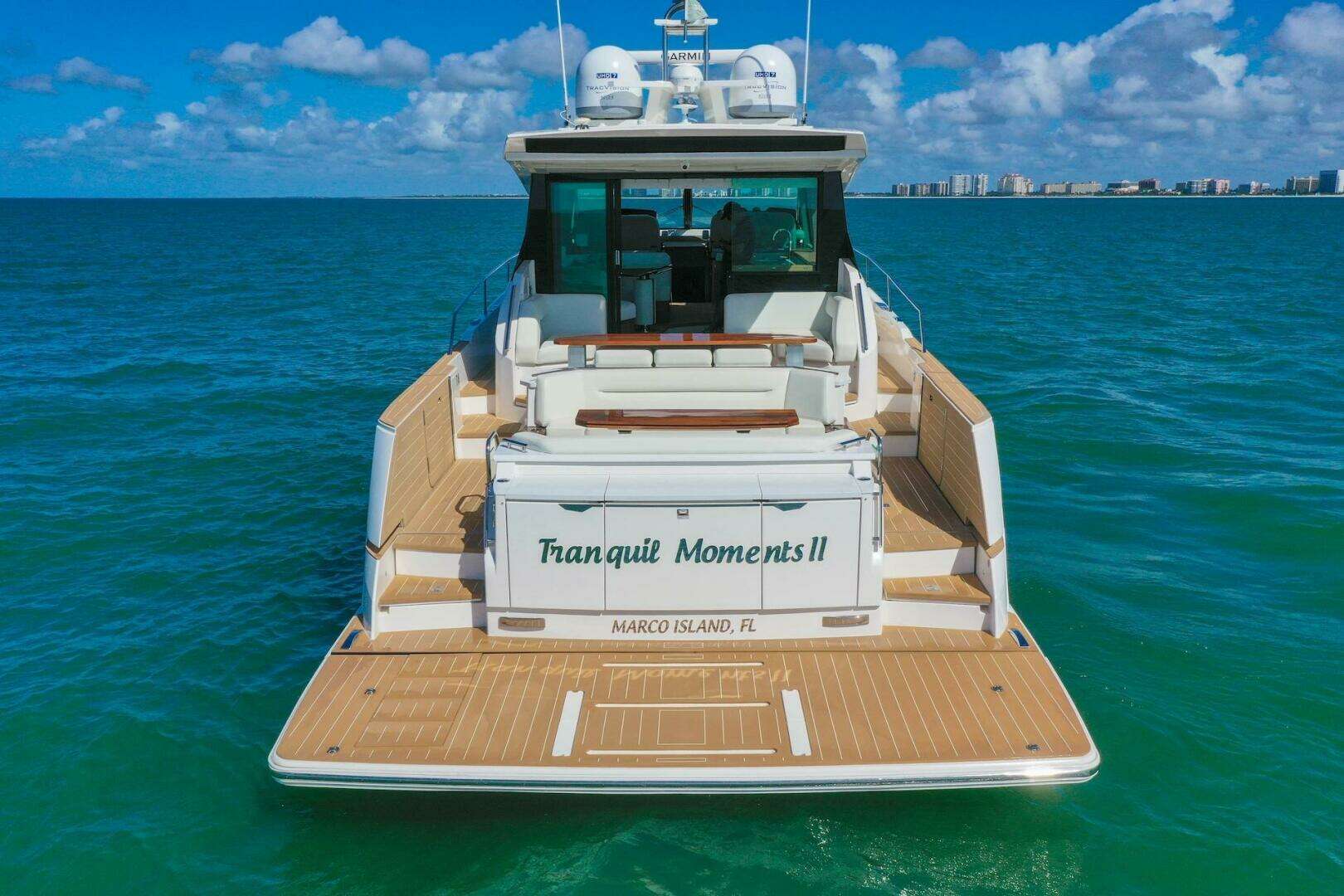

Transome Area

• Dual transom entry doors
• Stainless steel grab rails on transom
• Two 13" stainless steel pop-up cleats
• 60" hydraulic lift swim platform with integrated disappearing stairway, telescoping stainless steel reboarding ladder, recessed dinghy/PWC chocks and four pad eyes
• Trunk storage with electric actuation, accessible from platform or thru deck hatch in cockpit
• Recessed transom shower, hot and cold water
• Raw and fresh water washdown outlets with hoses

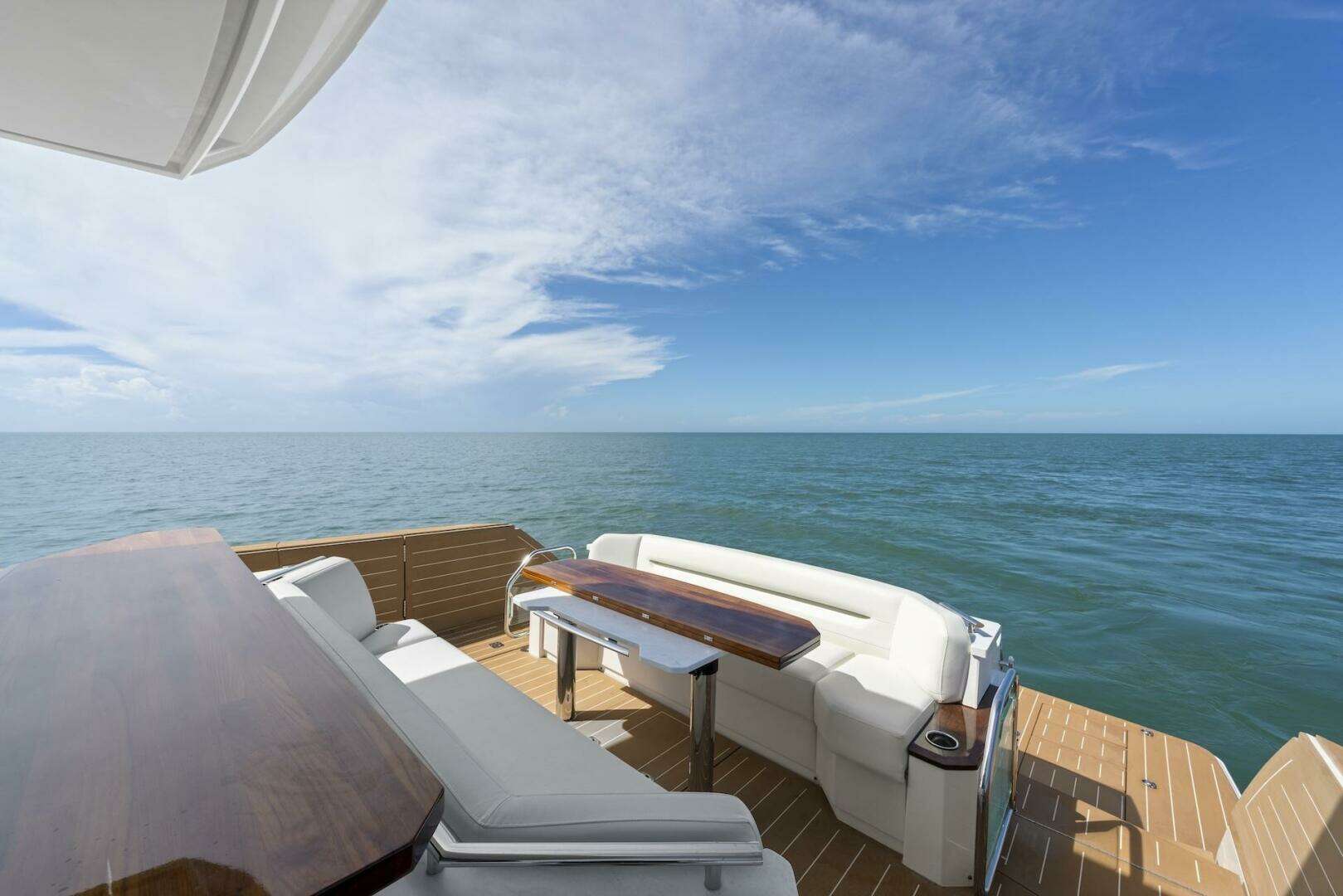

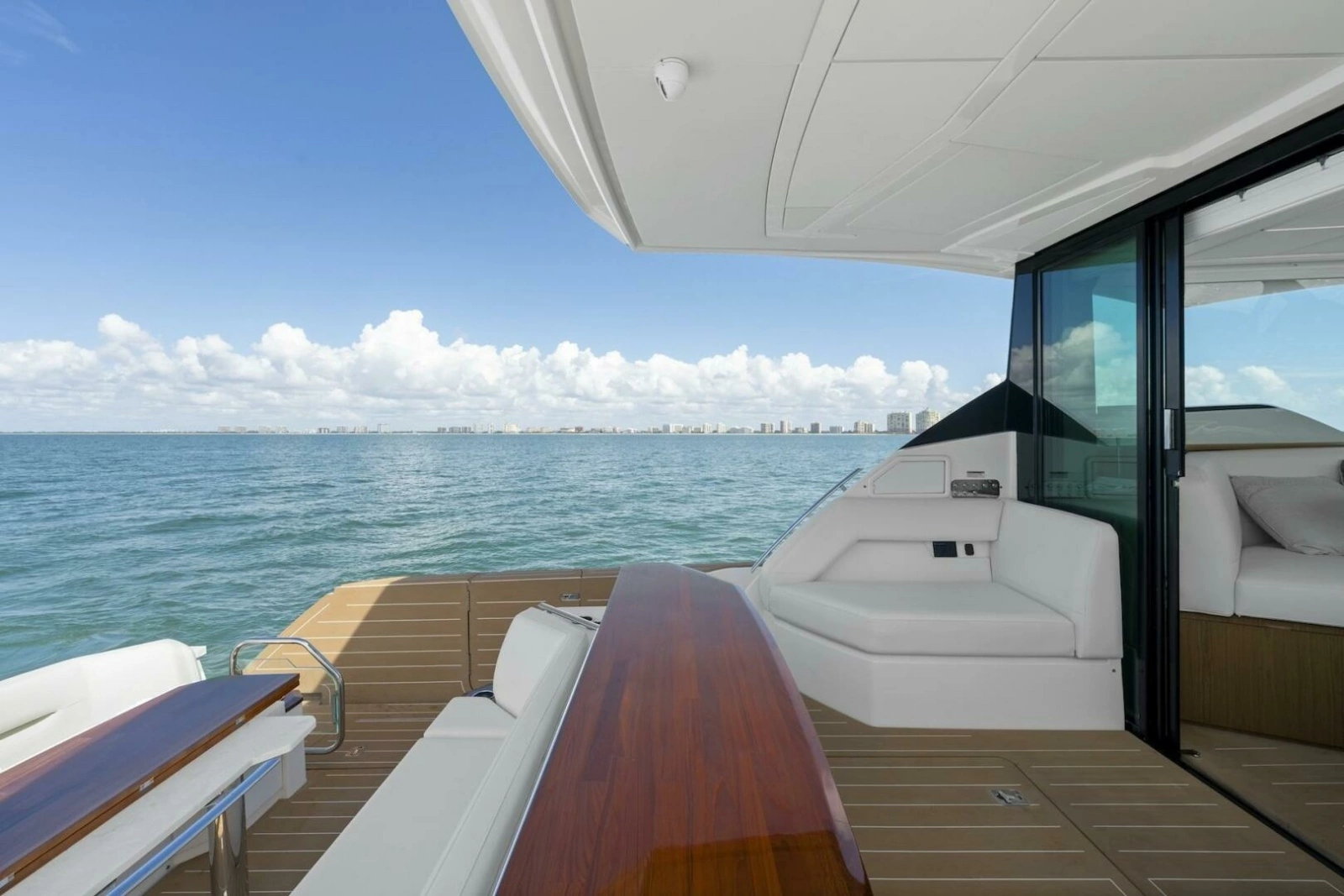

Aft Cockpit

• Adventure Module; see Optional Equipment page for details
• Port and starboard hullside terraces with Herculan® synthetic teak flooring and integrated boarding doors
• Makefast Marine® powered sunshade
• Two JL Audio® 6.5" coaxial speakers
• Molded in steps to recessed deck walkways and swim platform
• Weather covers for cockpit furniture
• Port and starboard insulated cockpit floor storage/fish wells with macerators, 80 gallons each
• Port and starboard deck storage wells

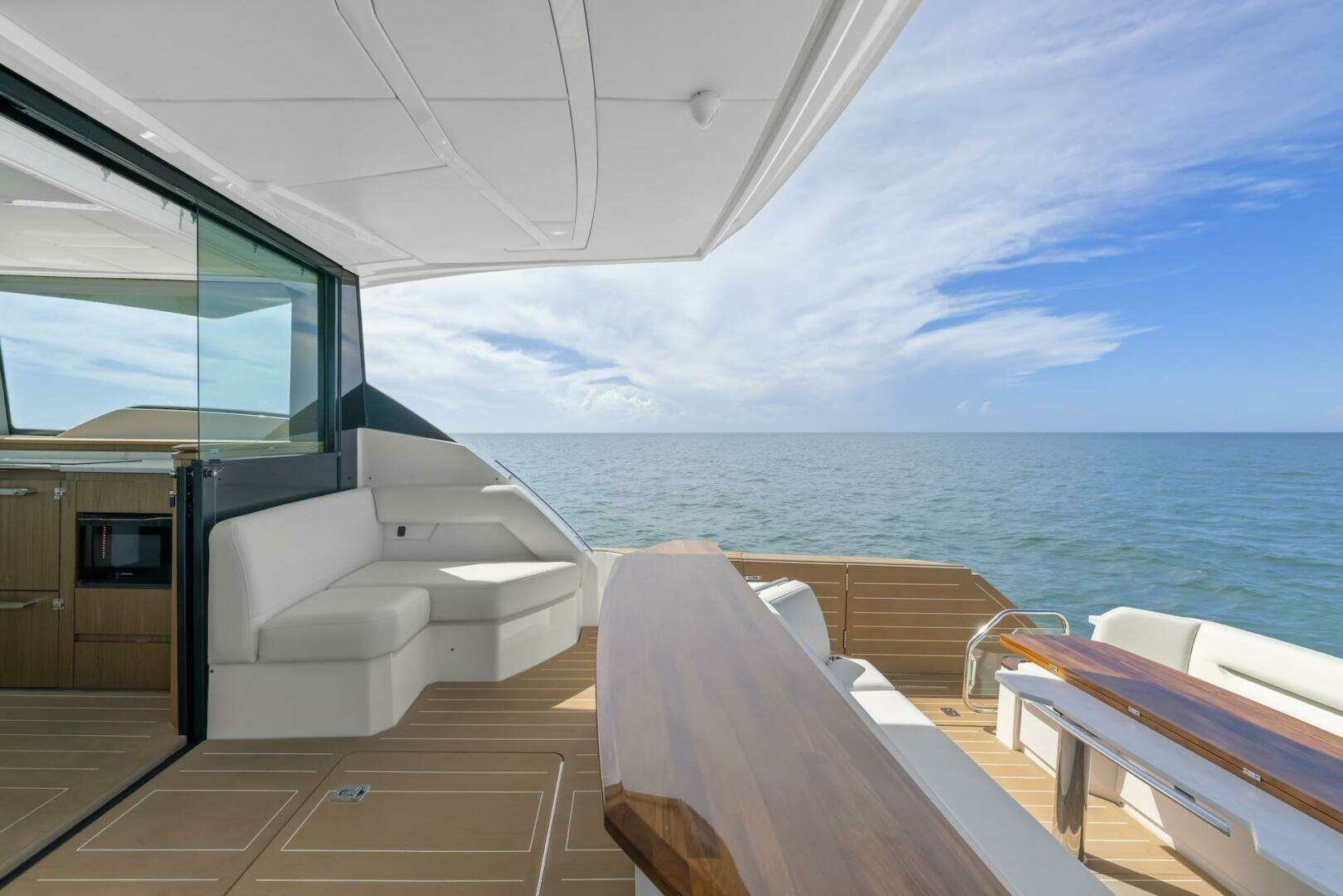

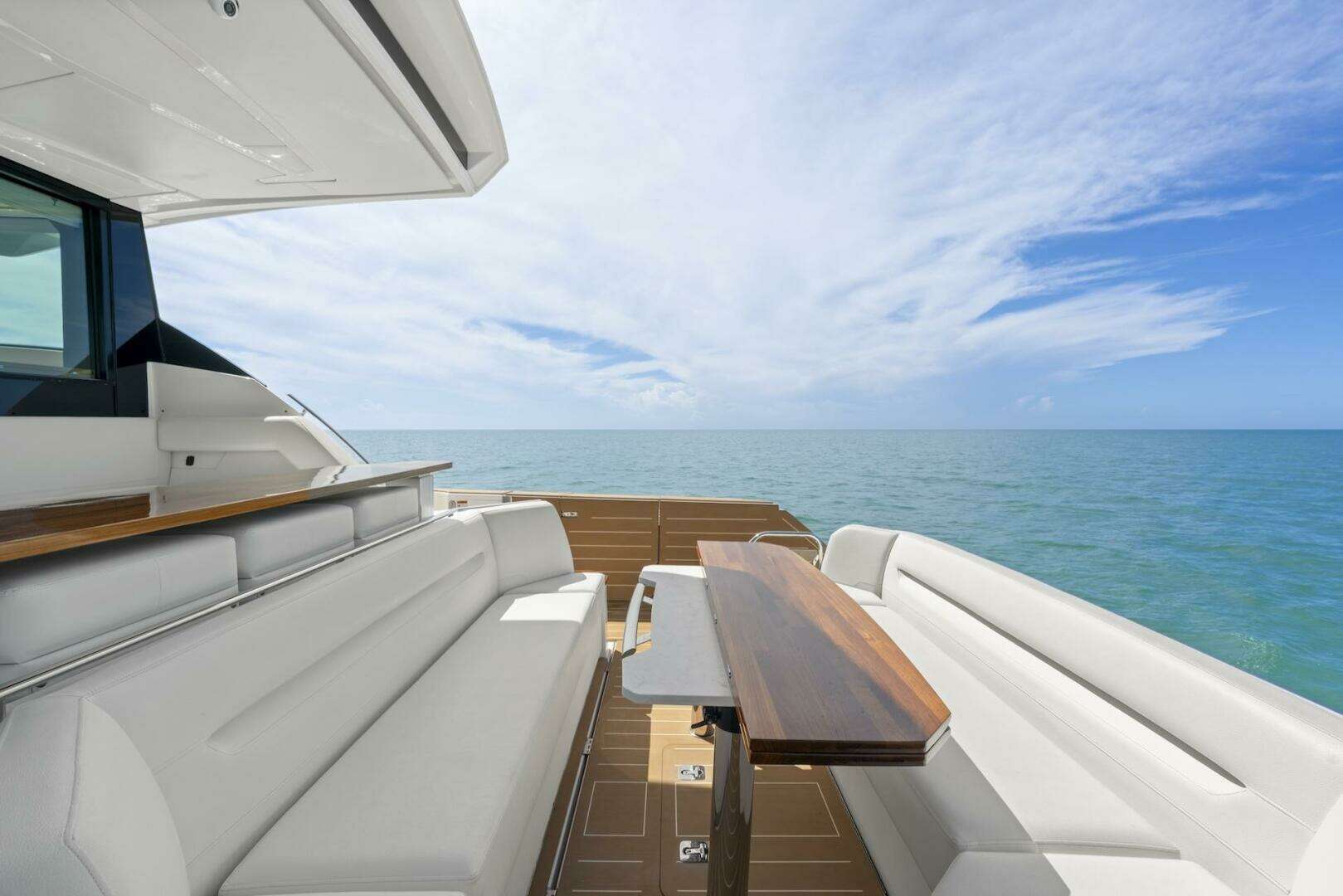

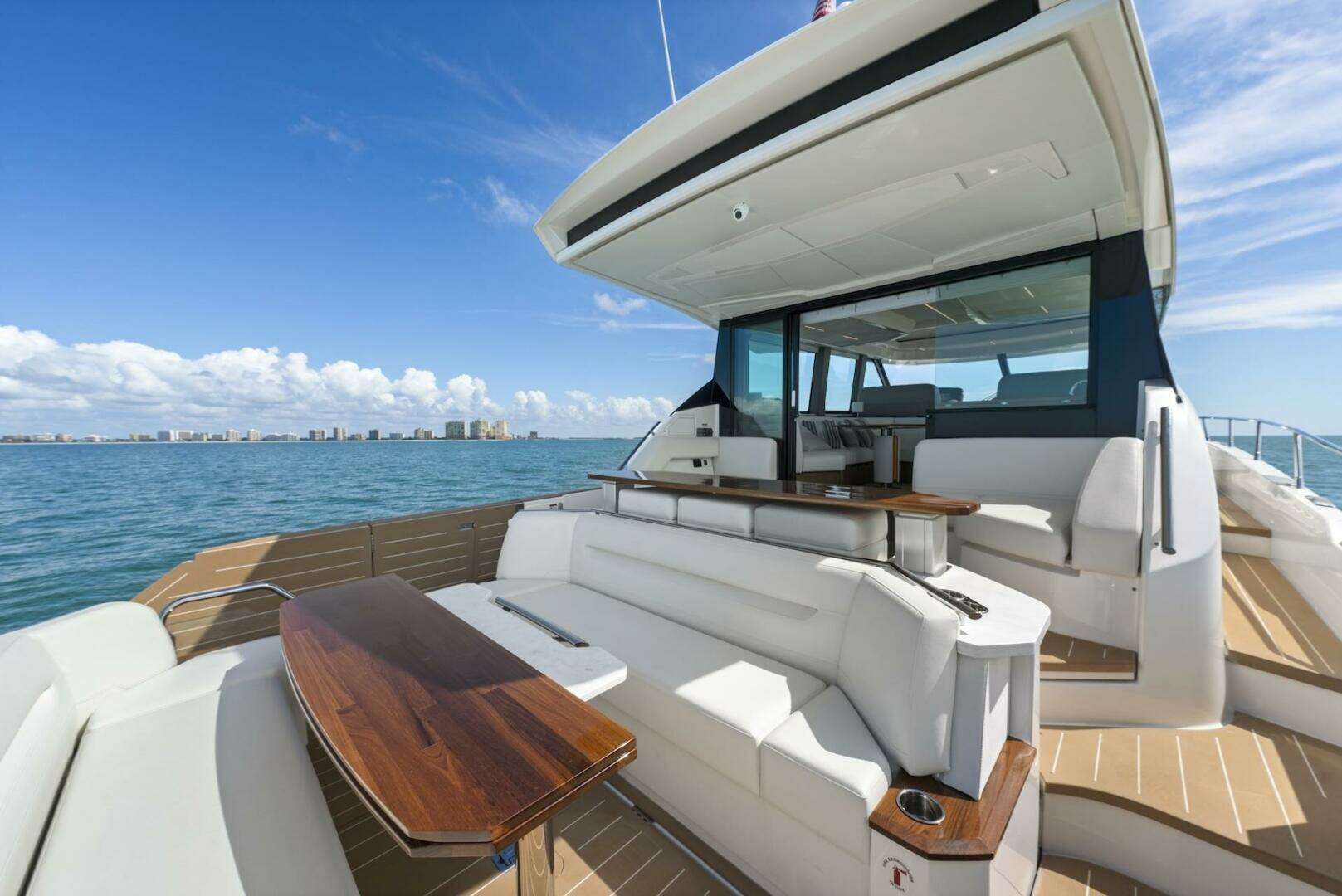

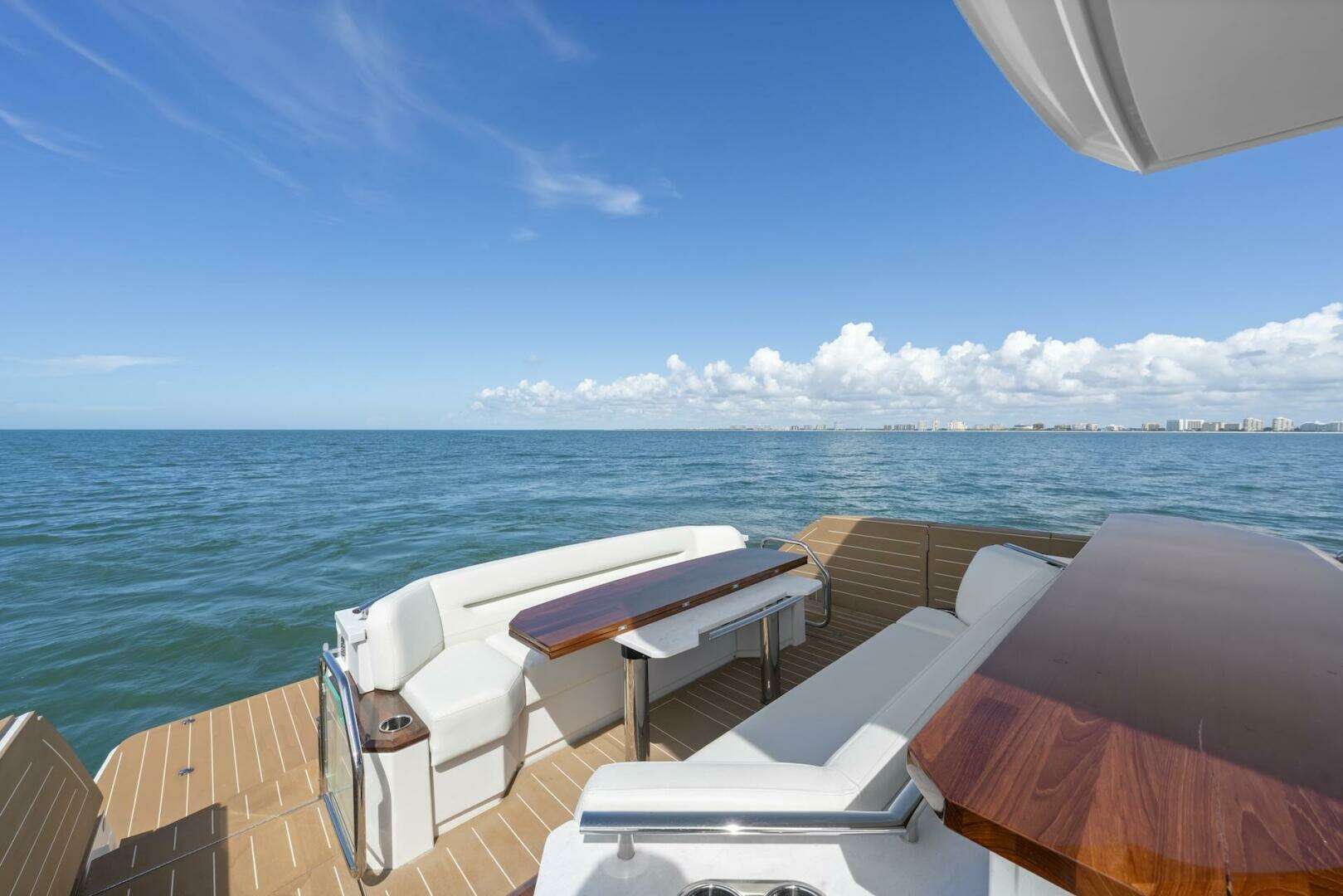

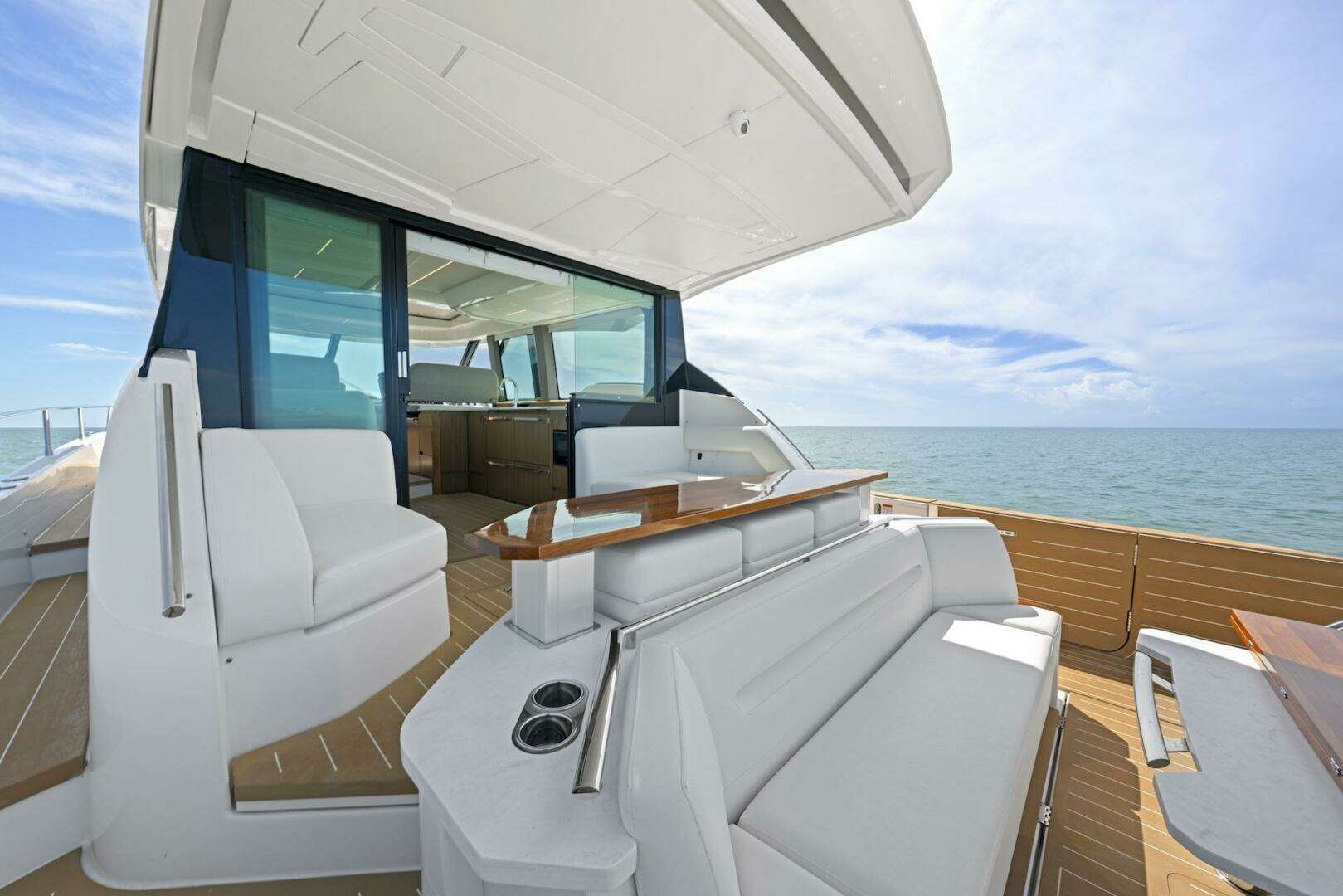

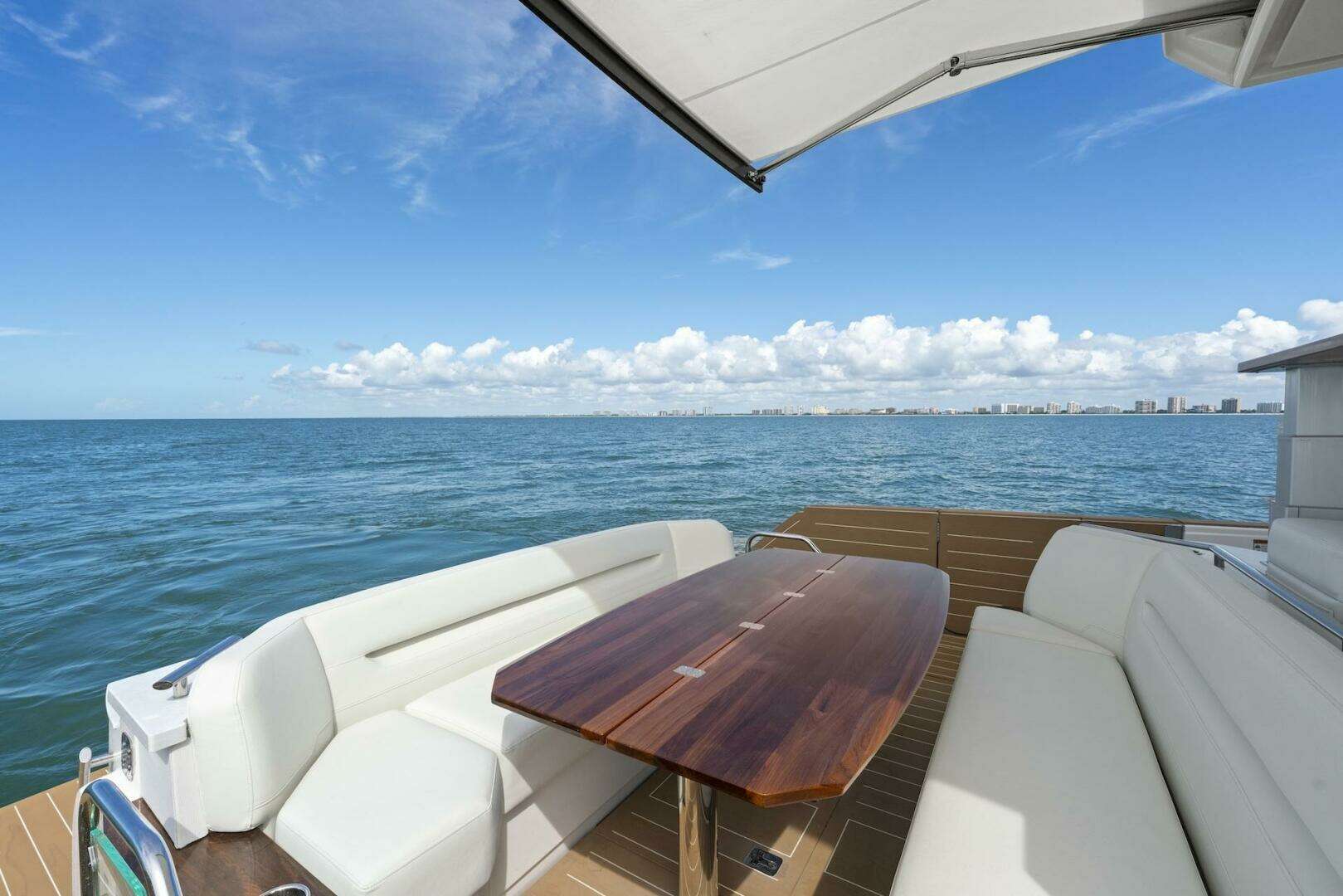

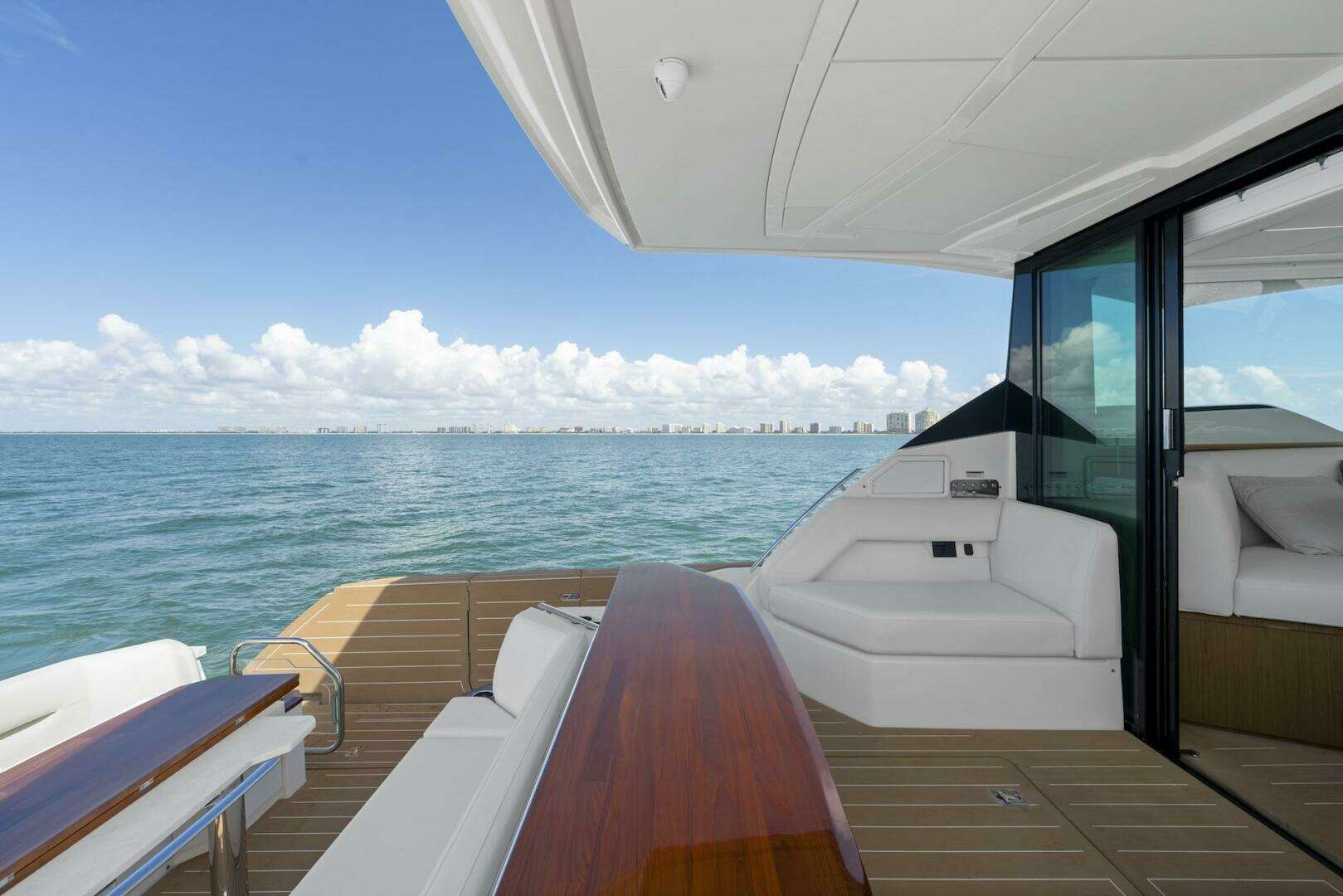

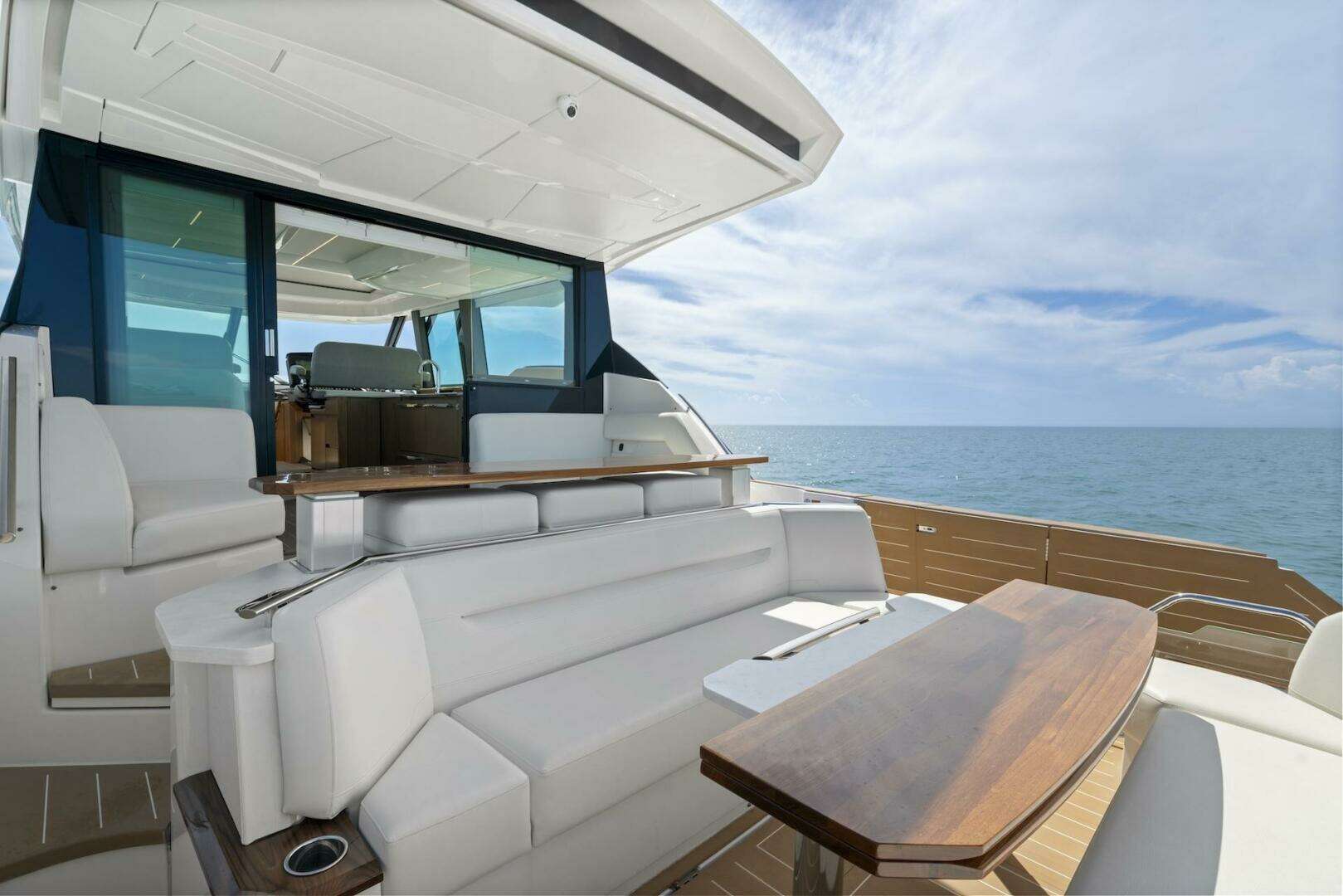

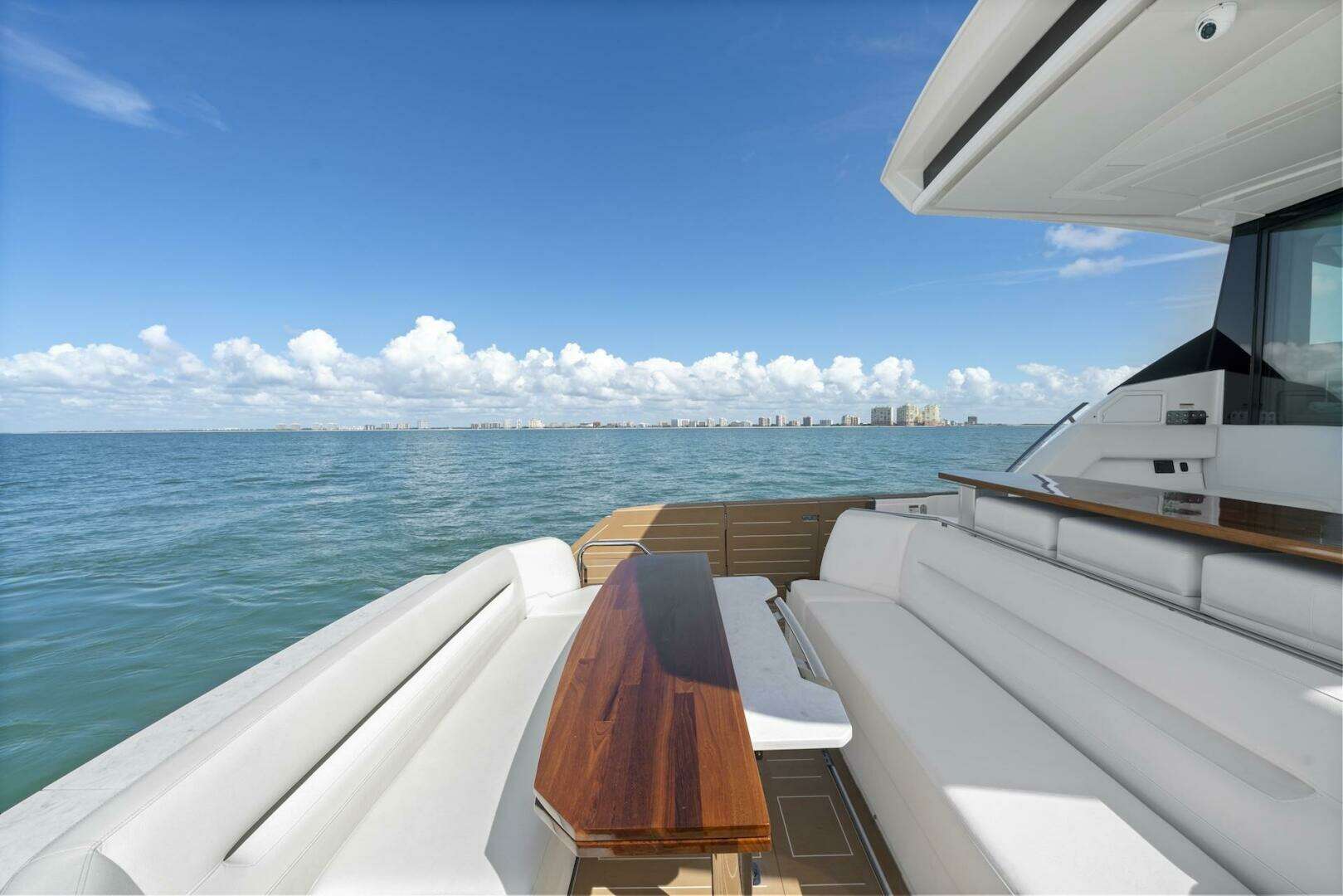

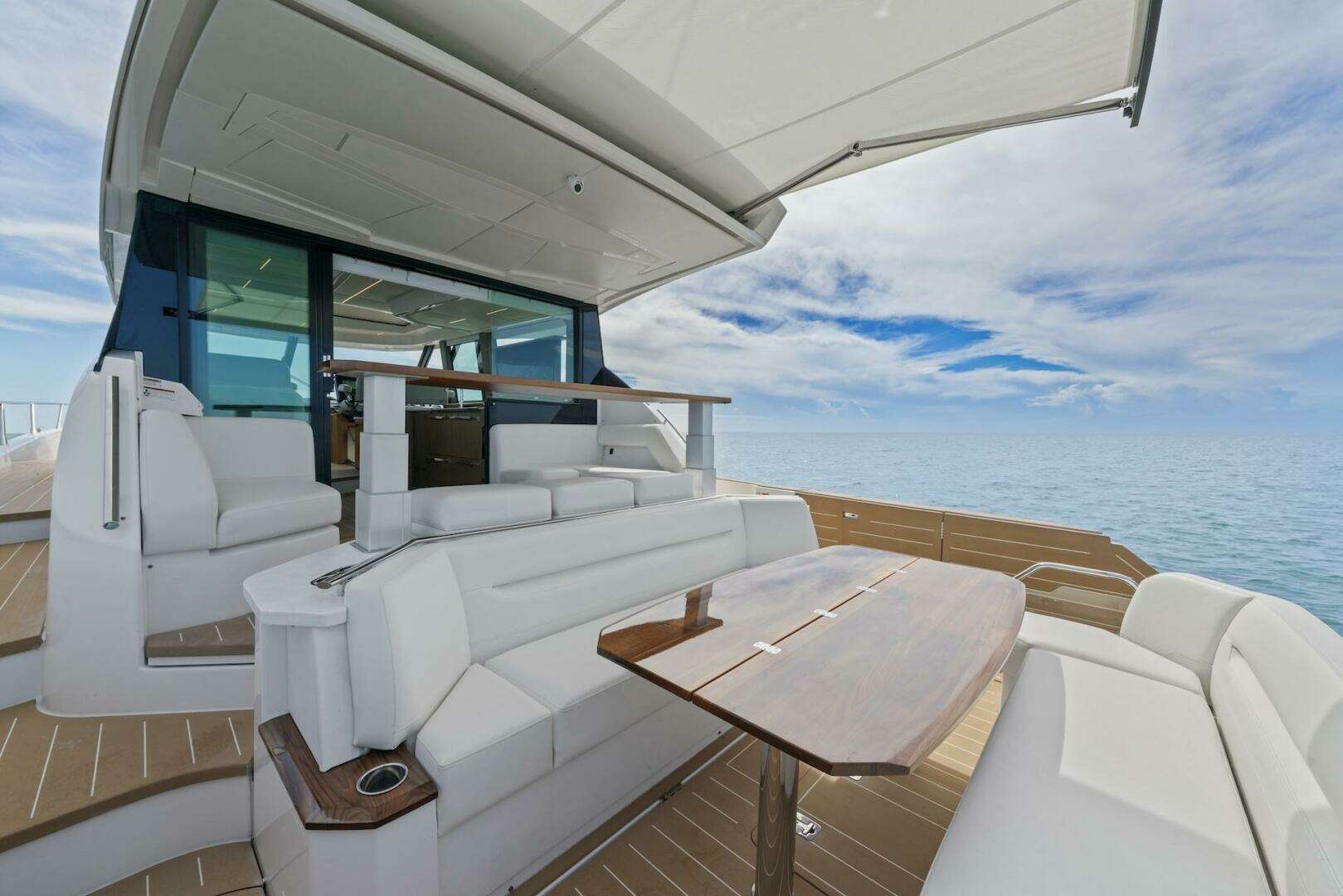

Alfresco Cockpit Zone

• Starboard side L-Lounge with insulated cooler
• Port side chaise lounge with insulated cooler box
• Four JL Audio® 6.5" coaxial speakers with two 8" JL Audio® subwoofers in tuned enclosures and Fusion® remote
• Machinery access hatch
• Herculan® synthetic teak flooring

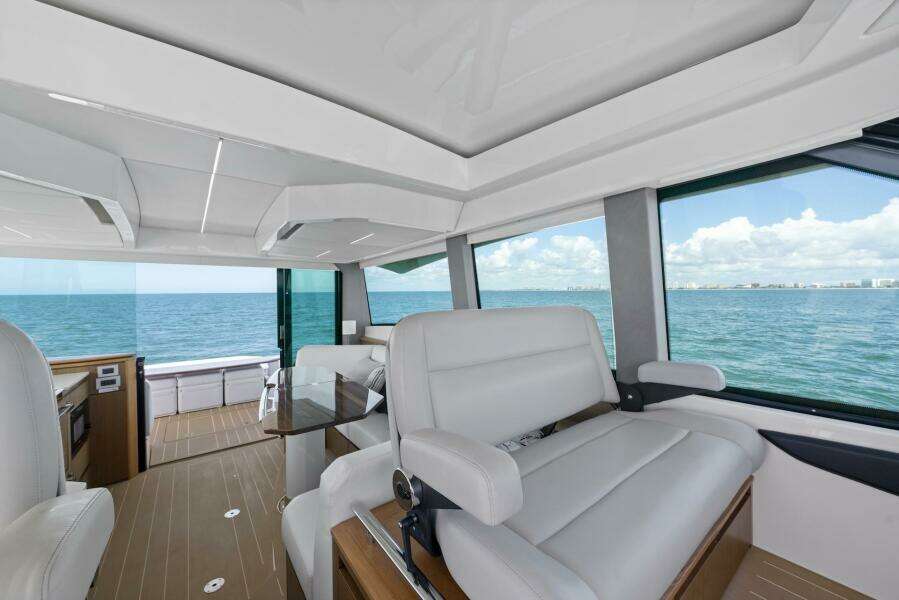

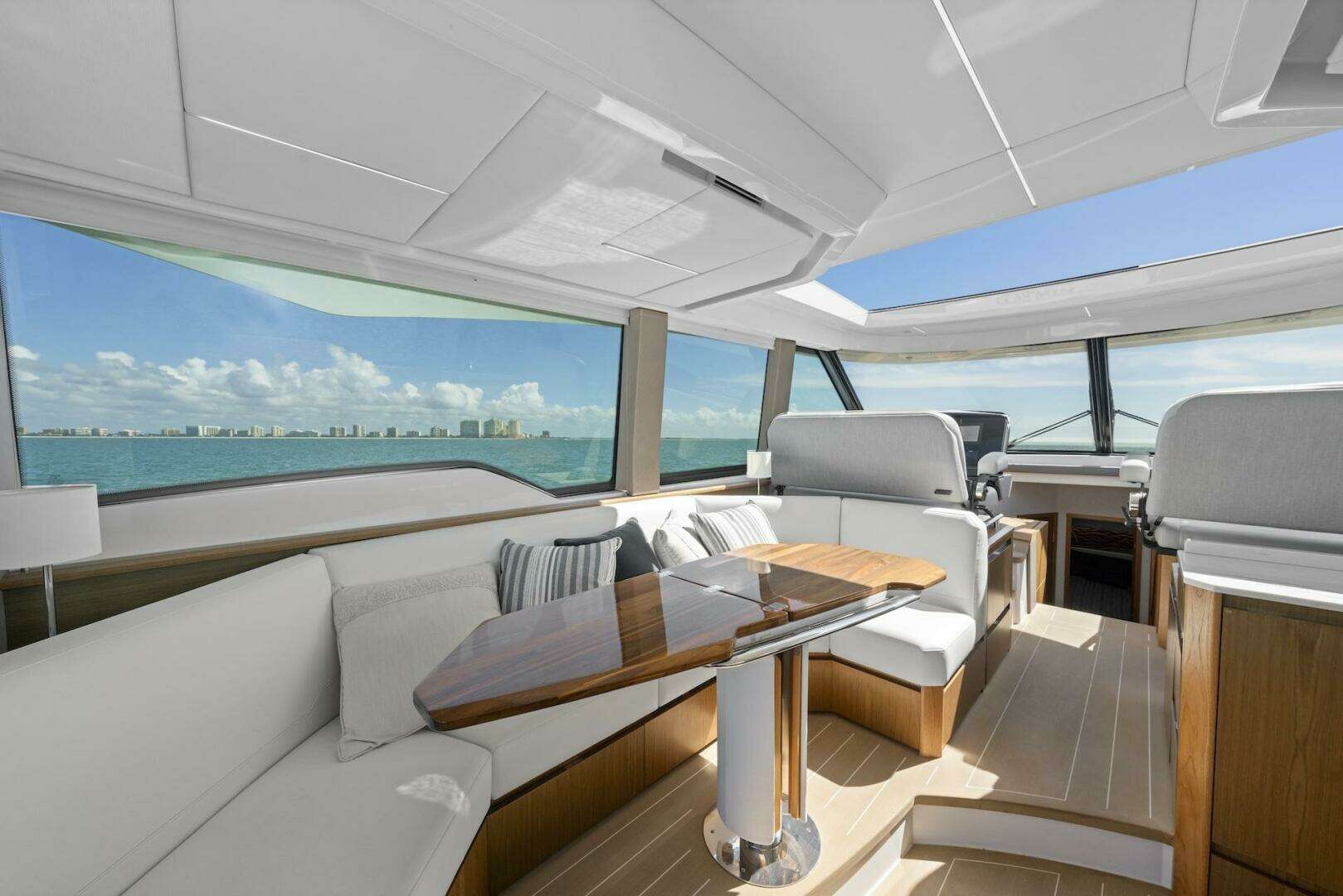

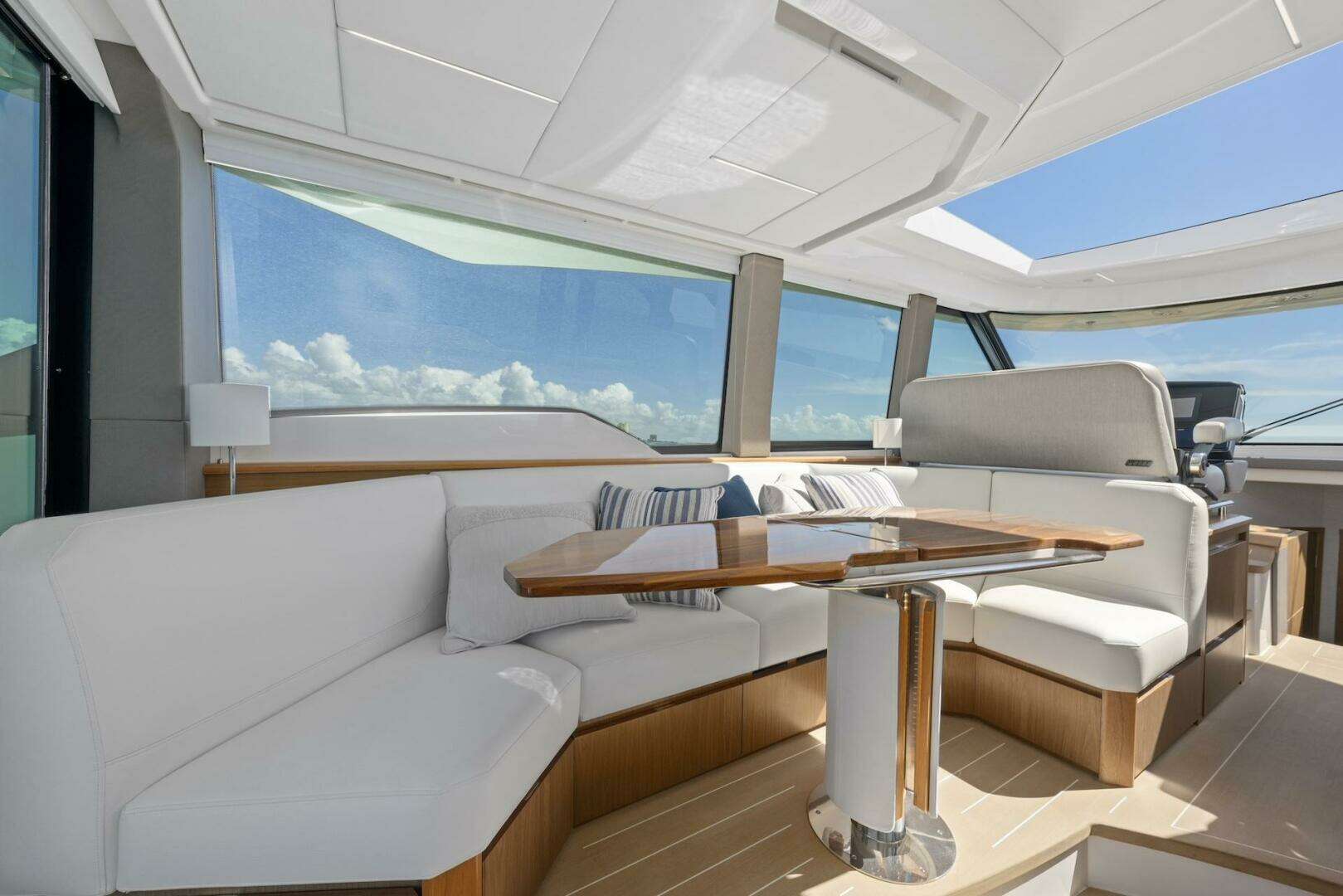

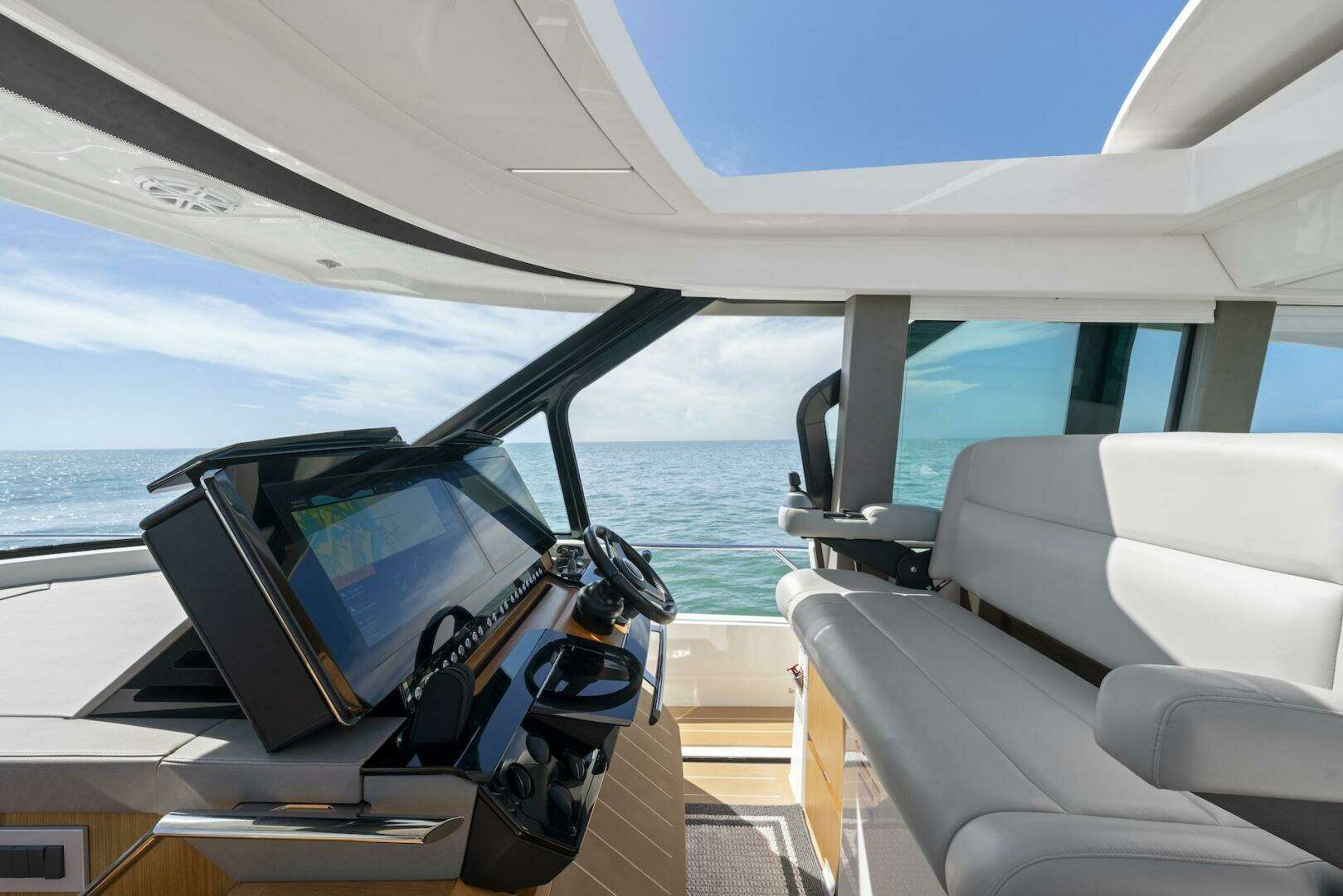

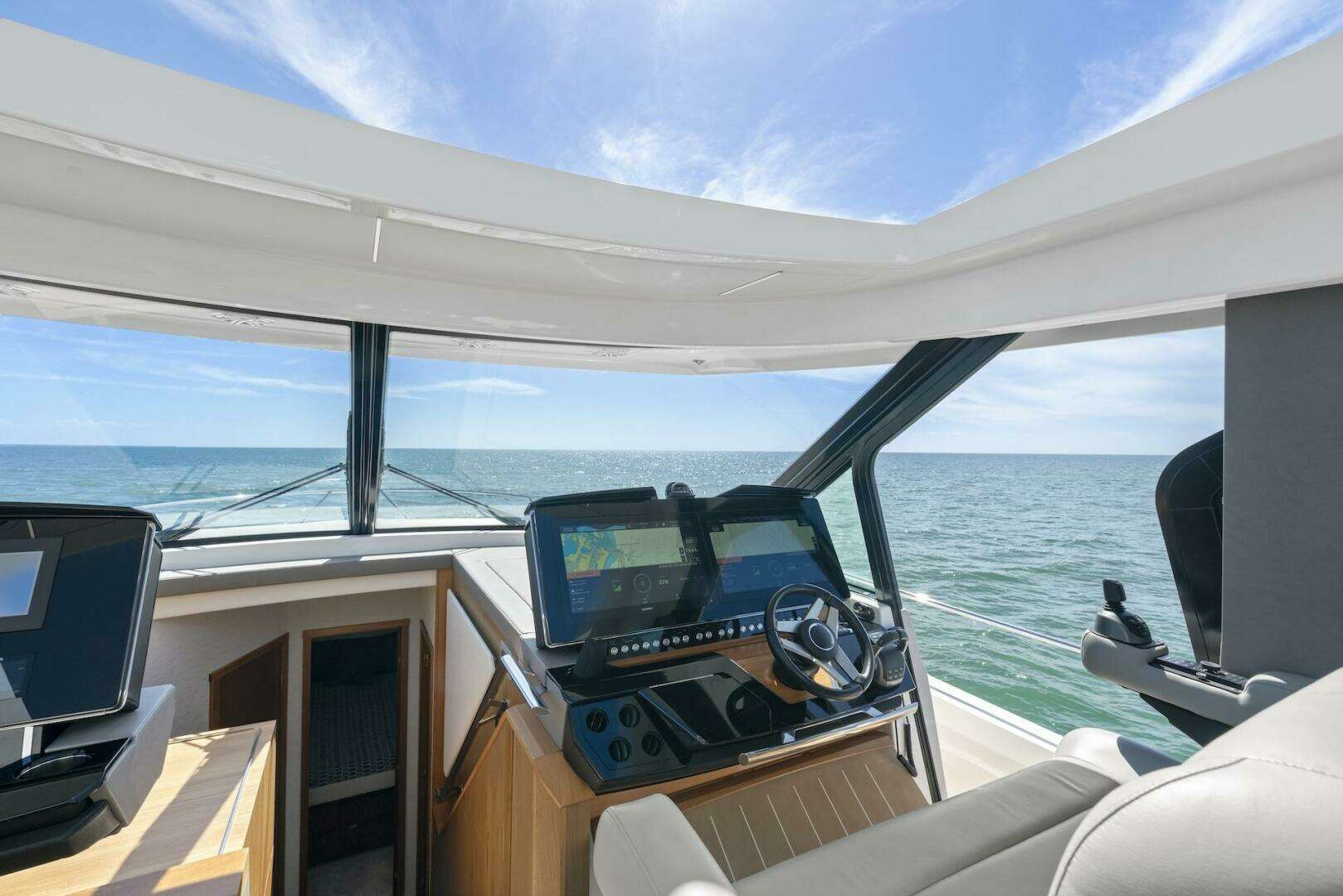

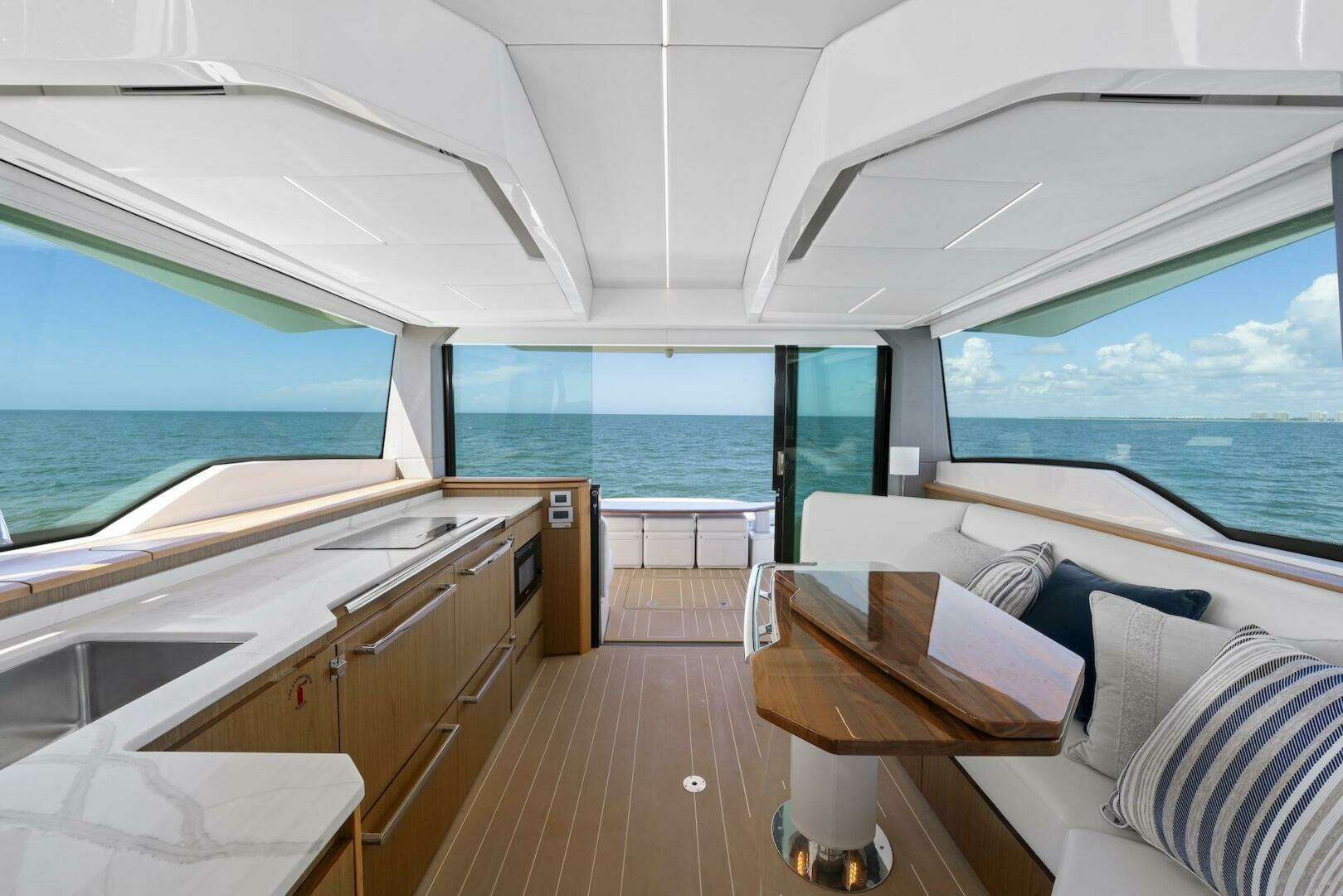

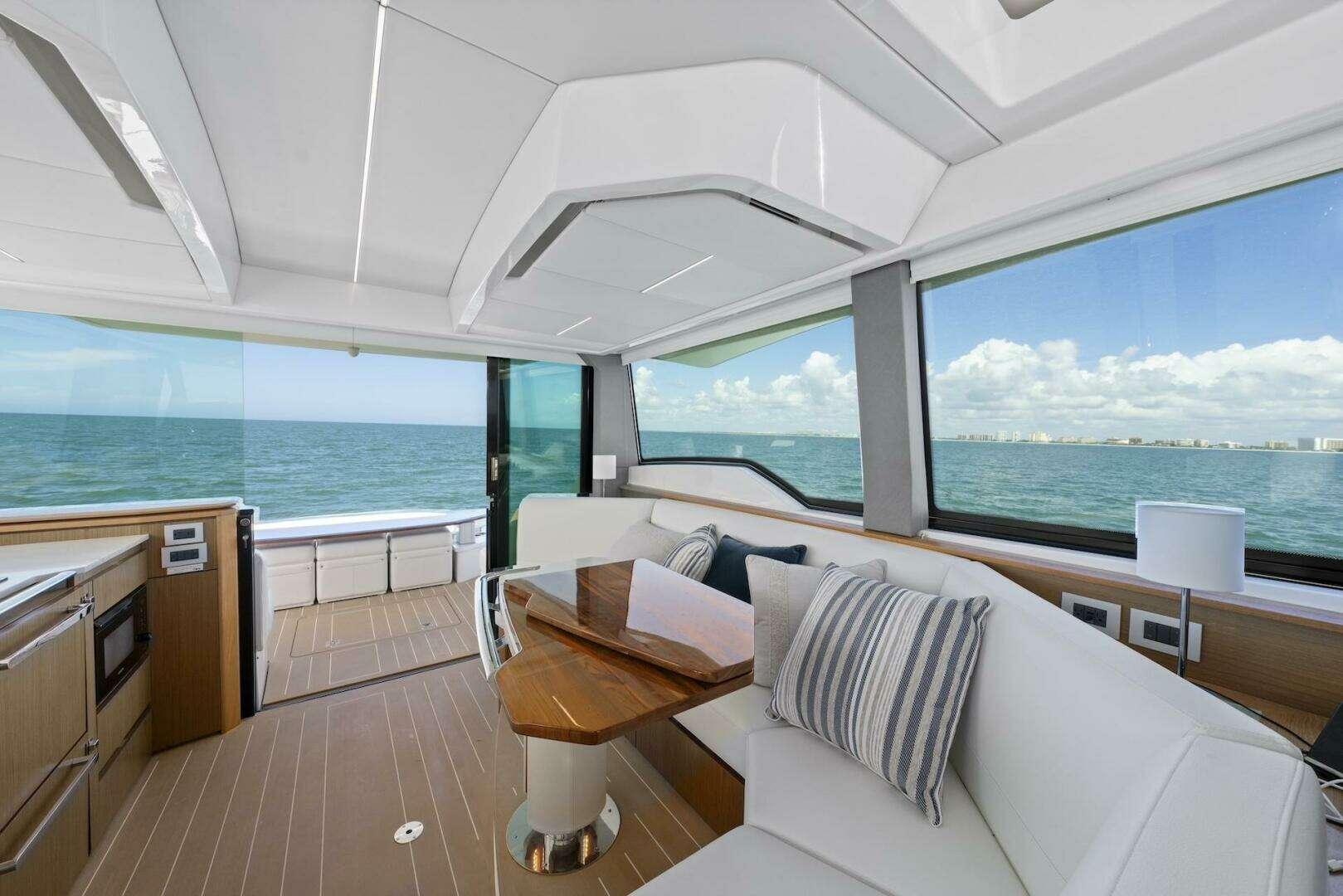

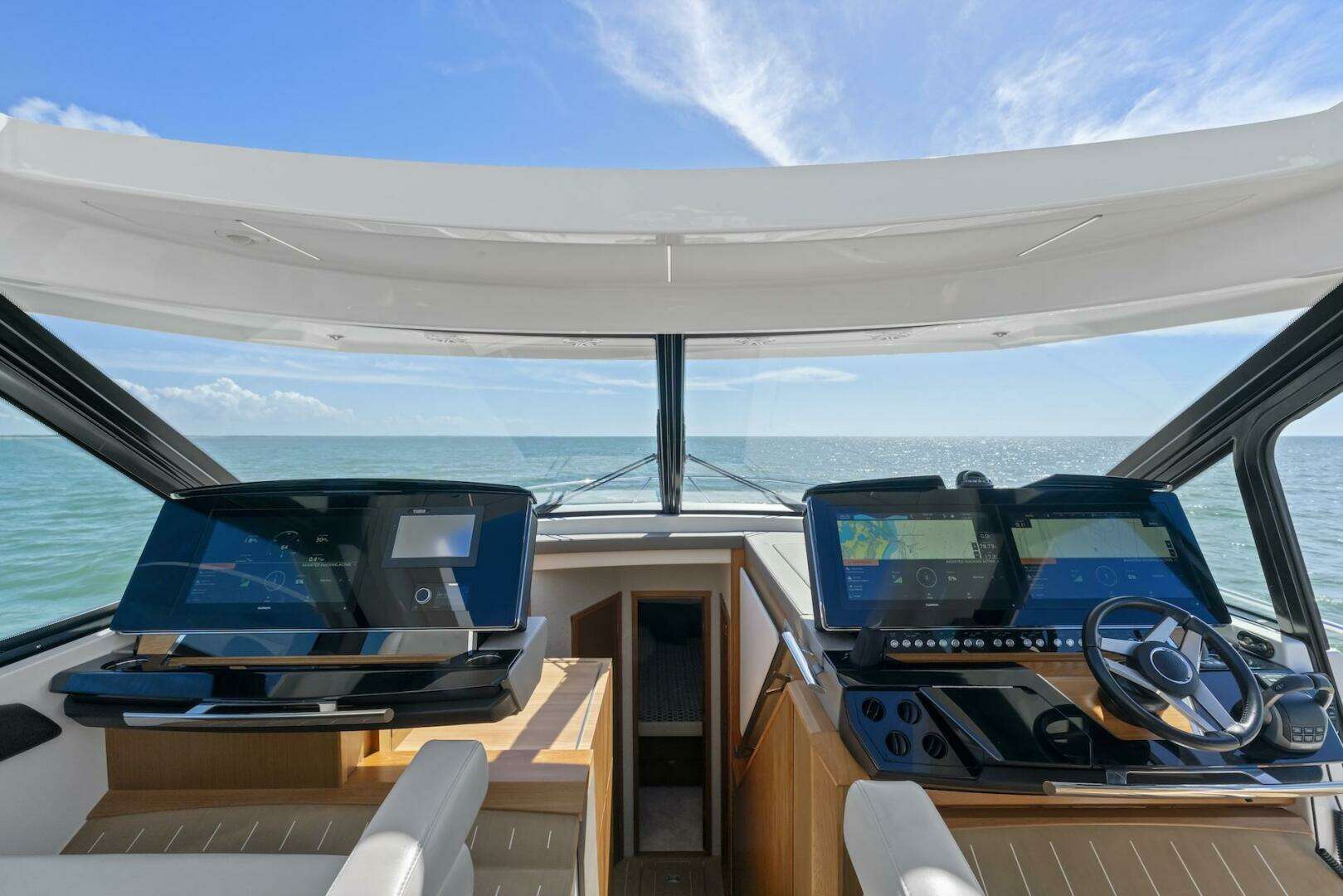

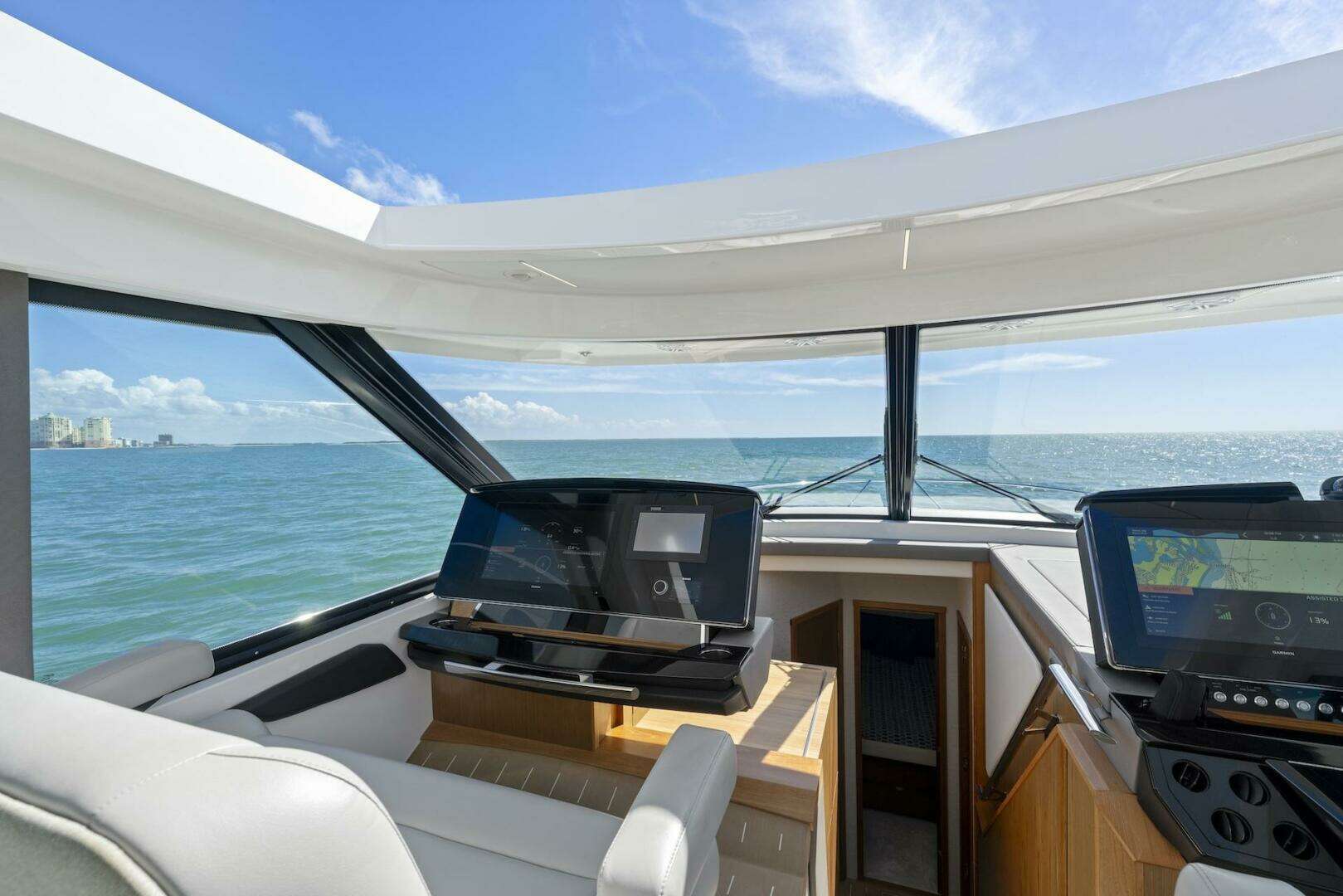

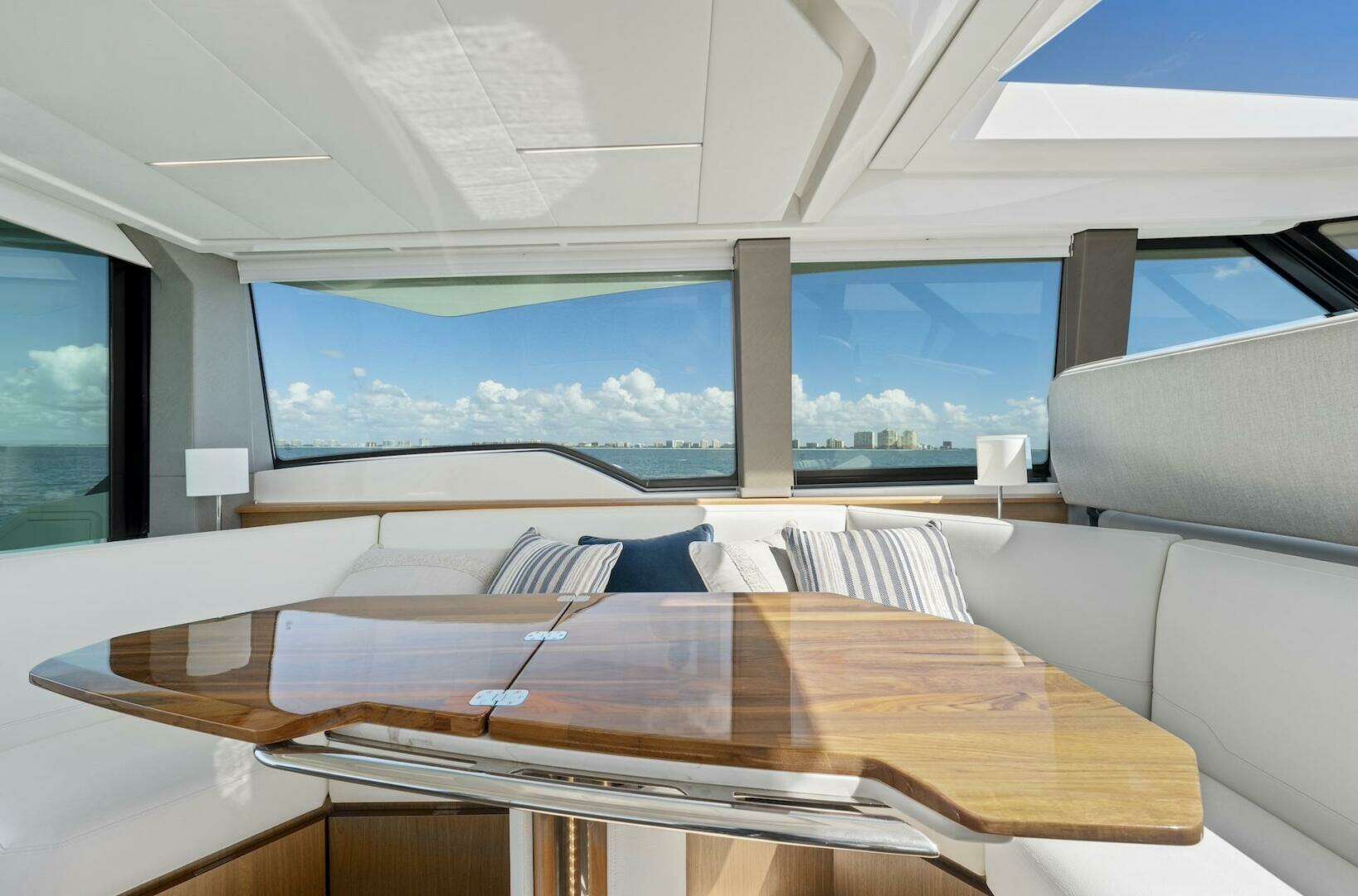

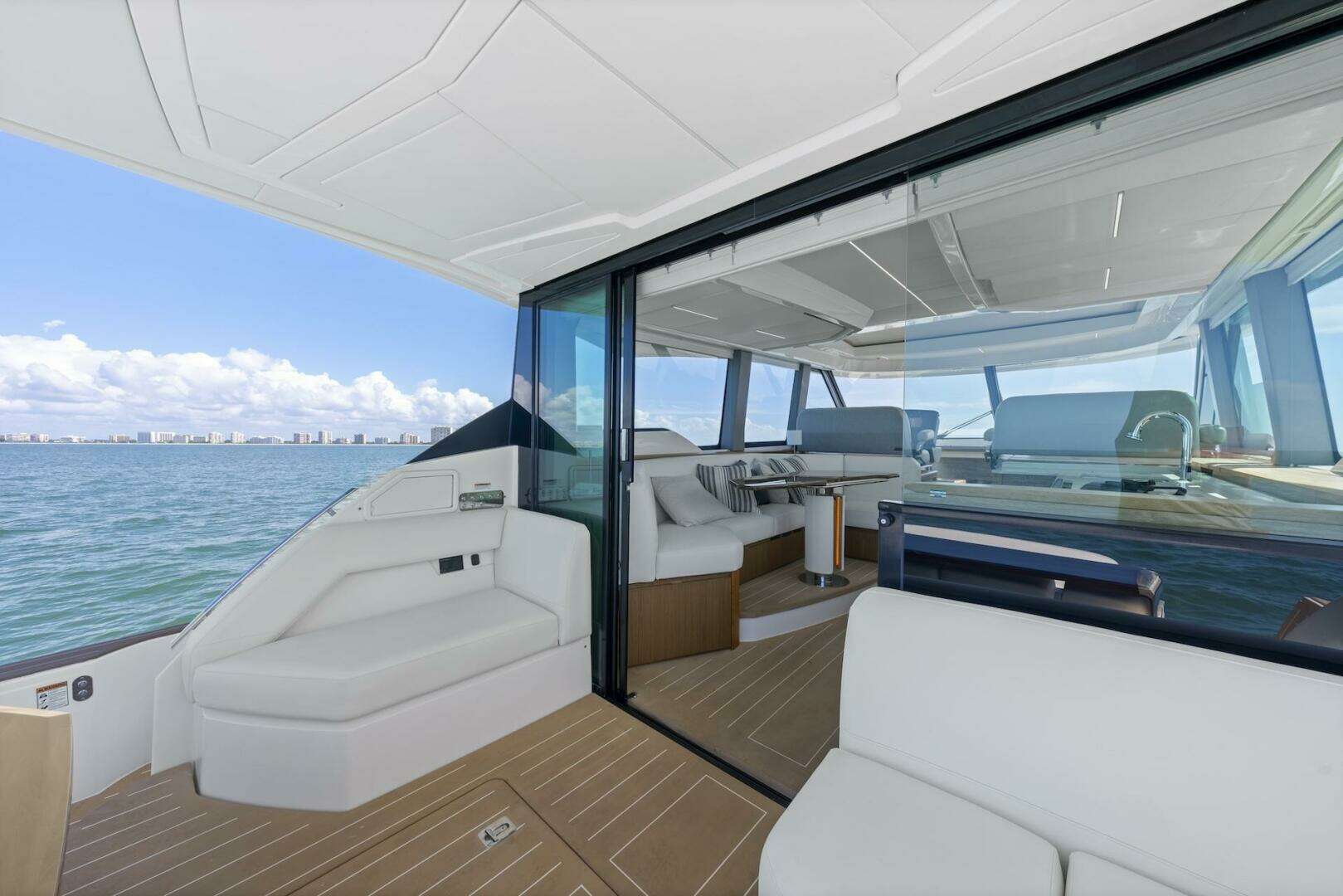

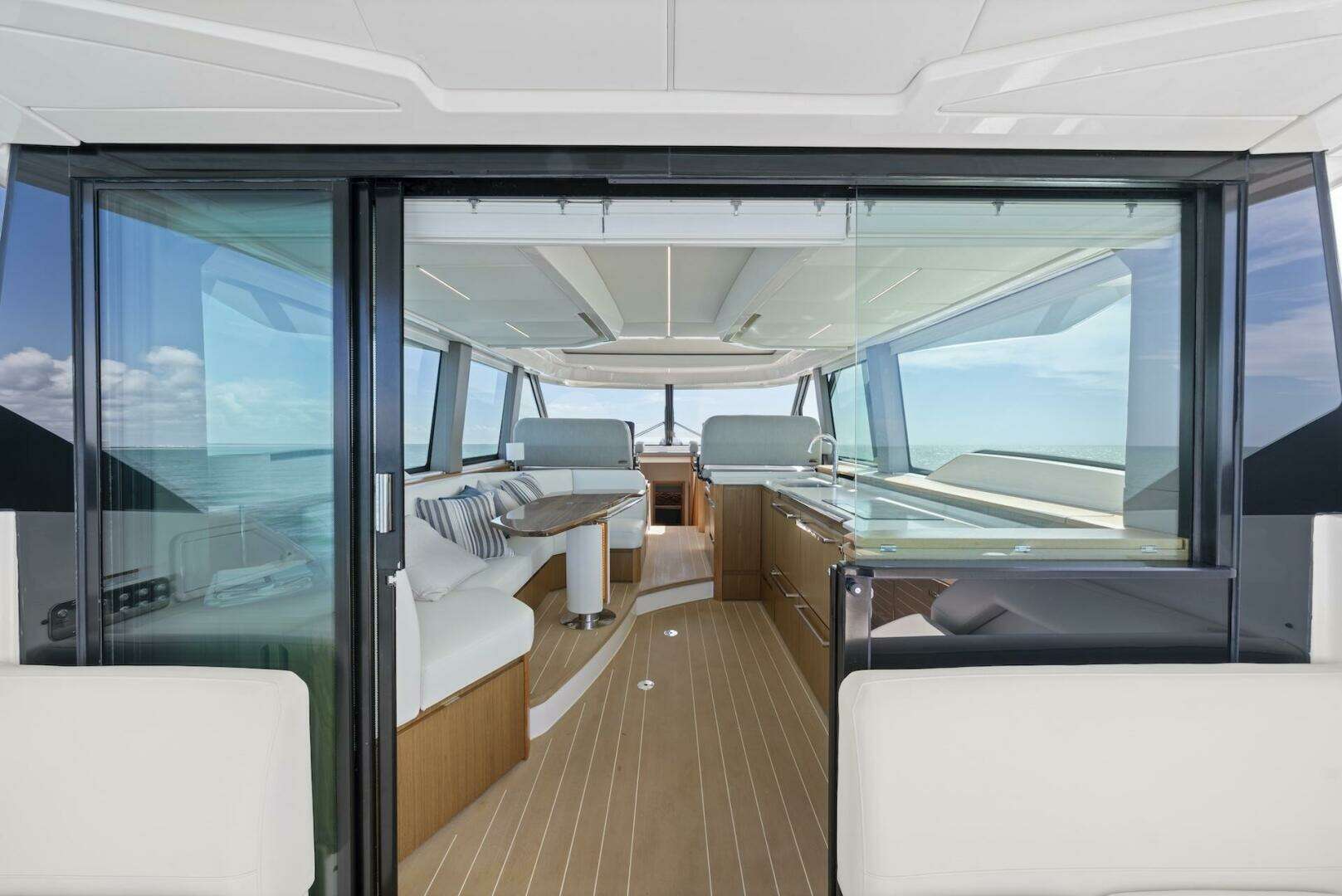

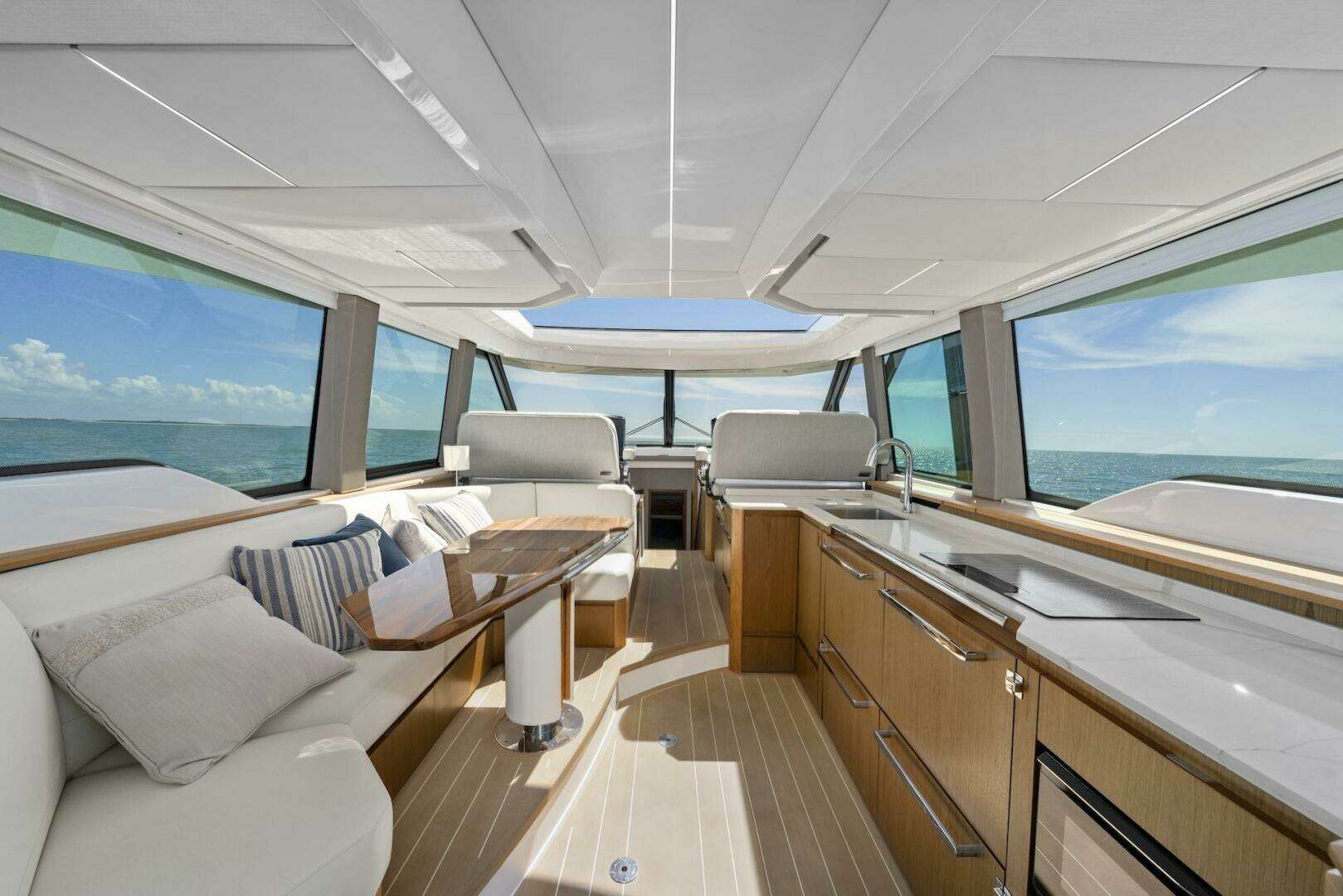

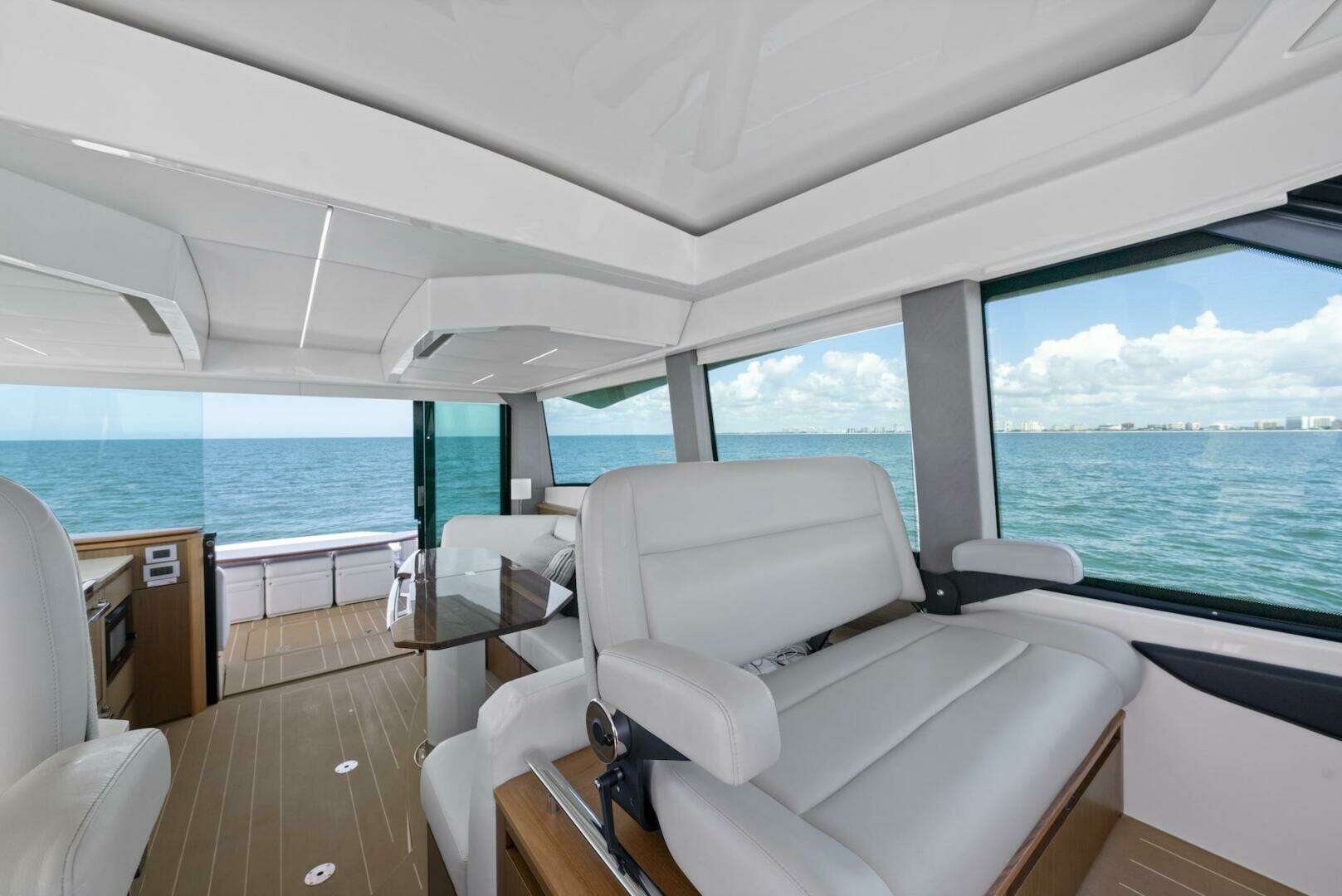

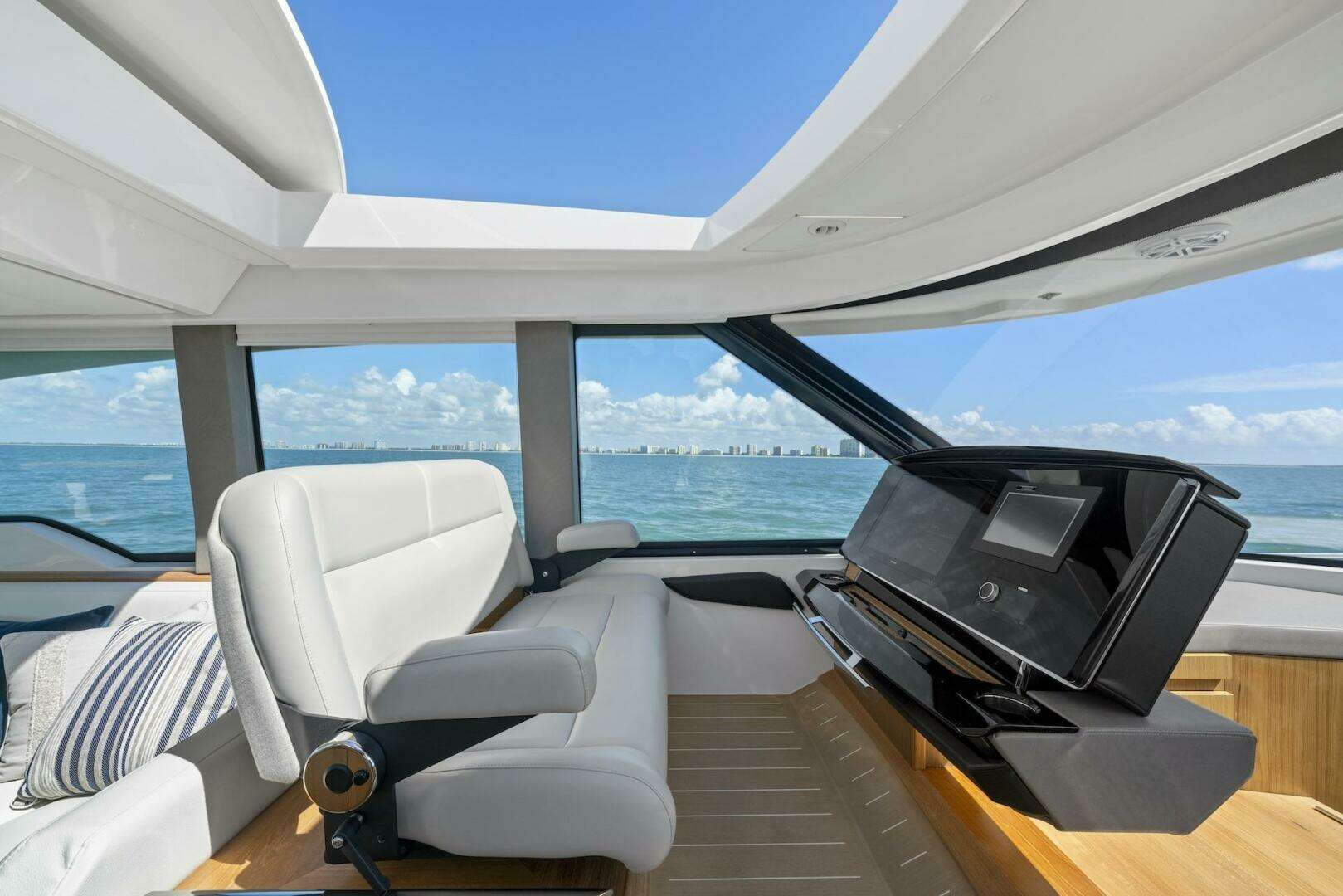

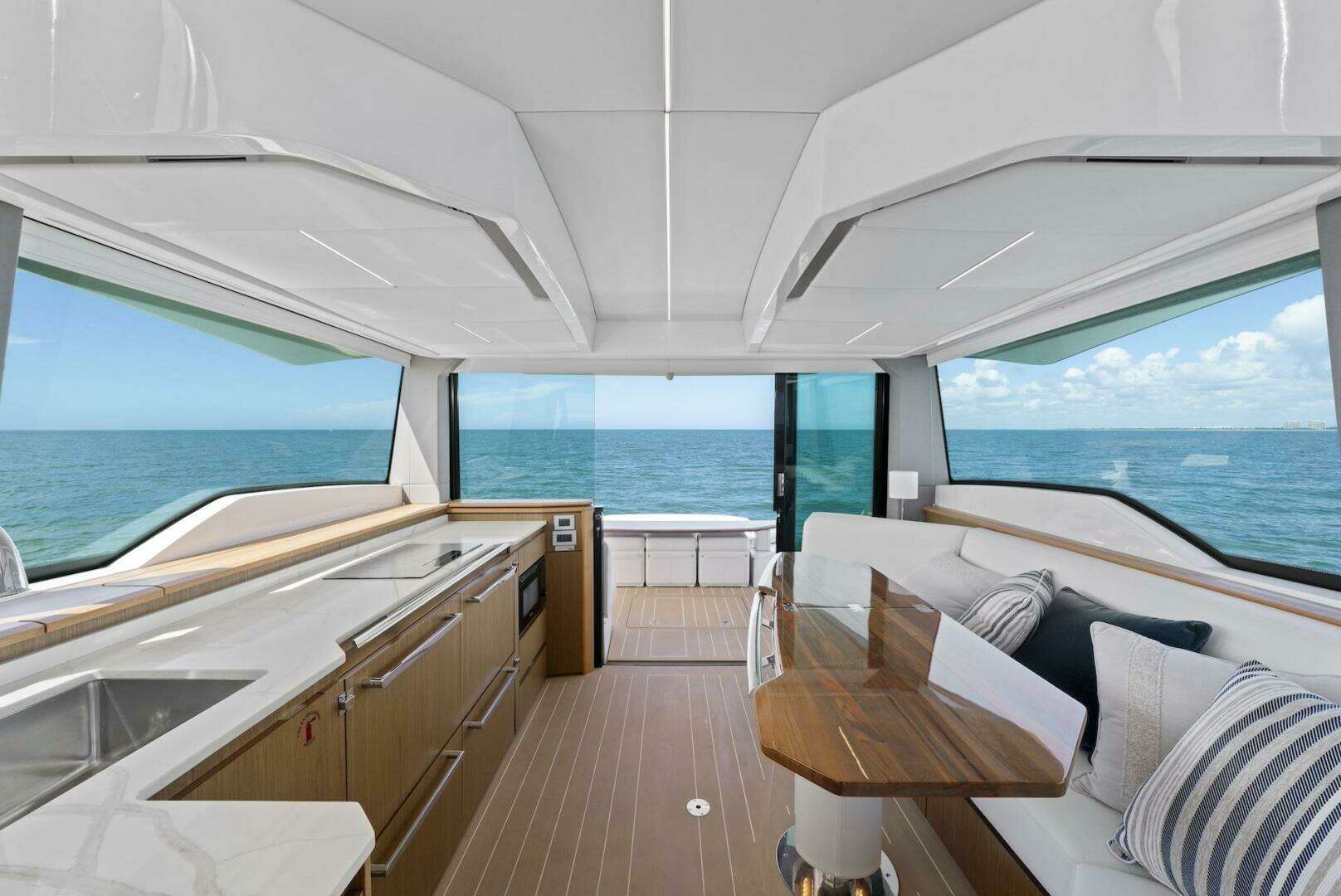

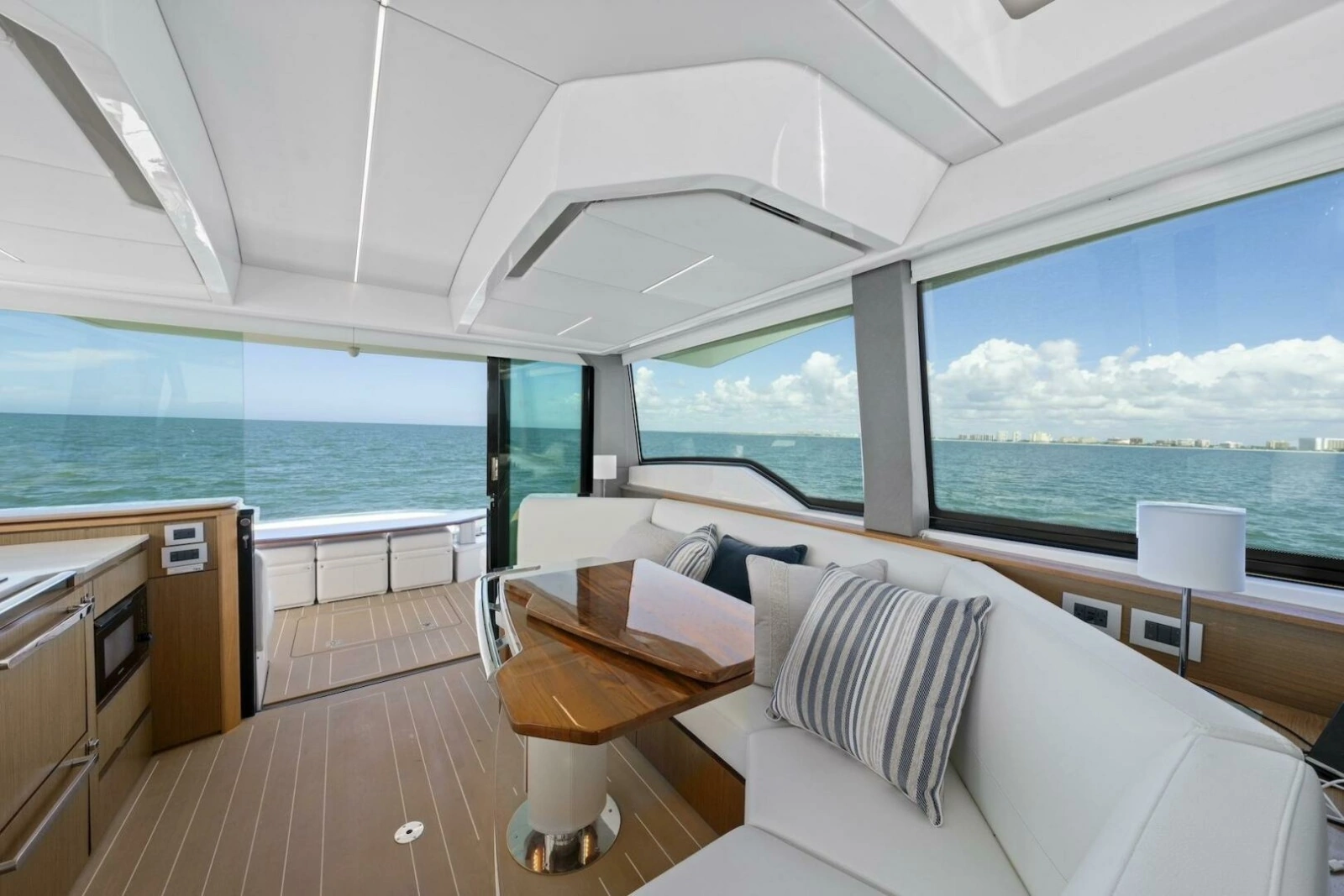

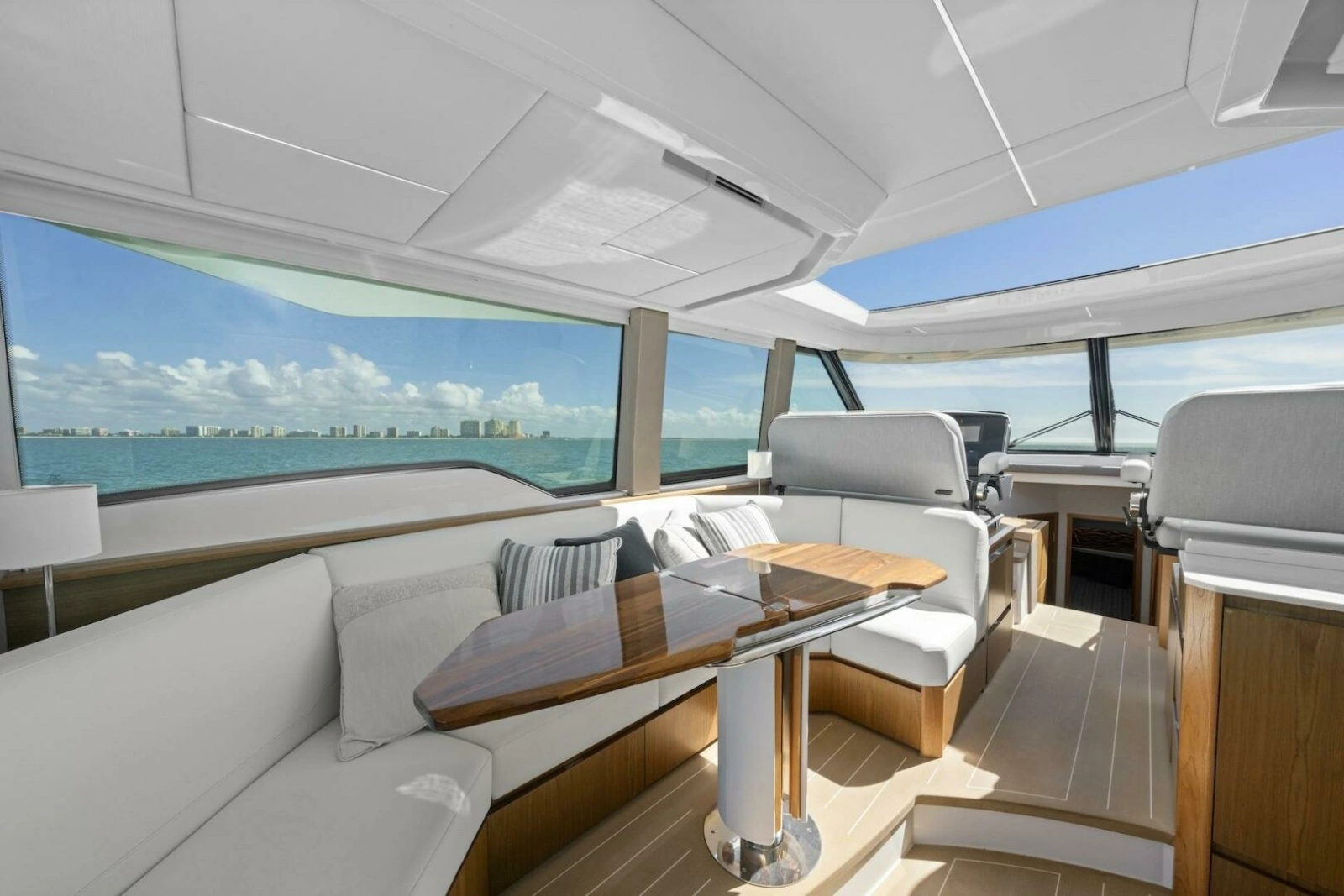

Salon & Helm Area

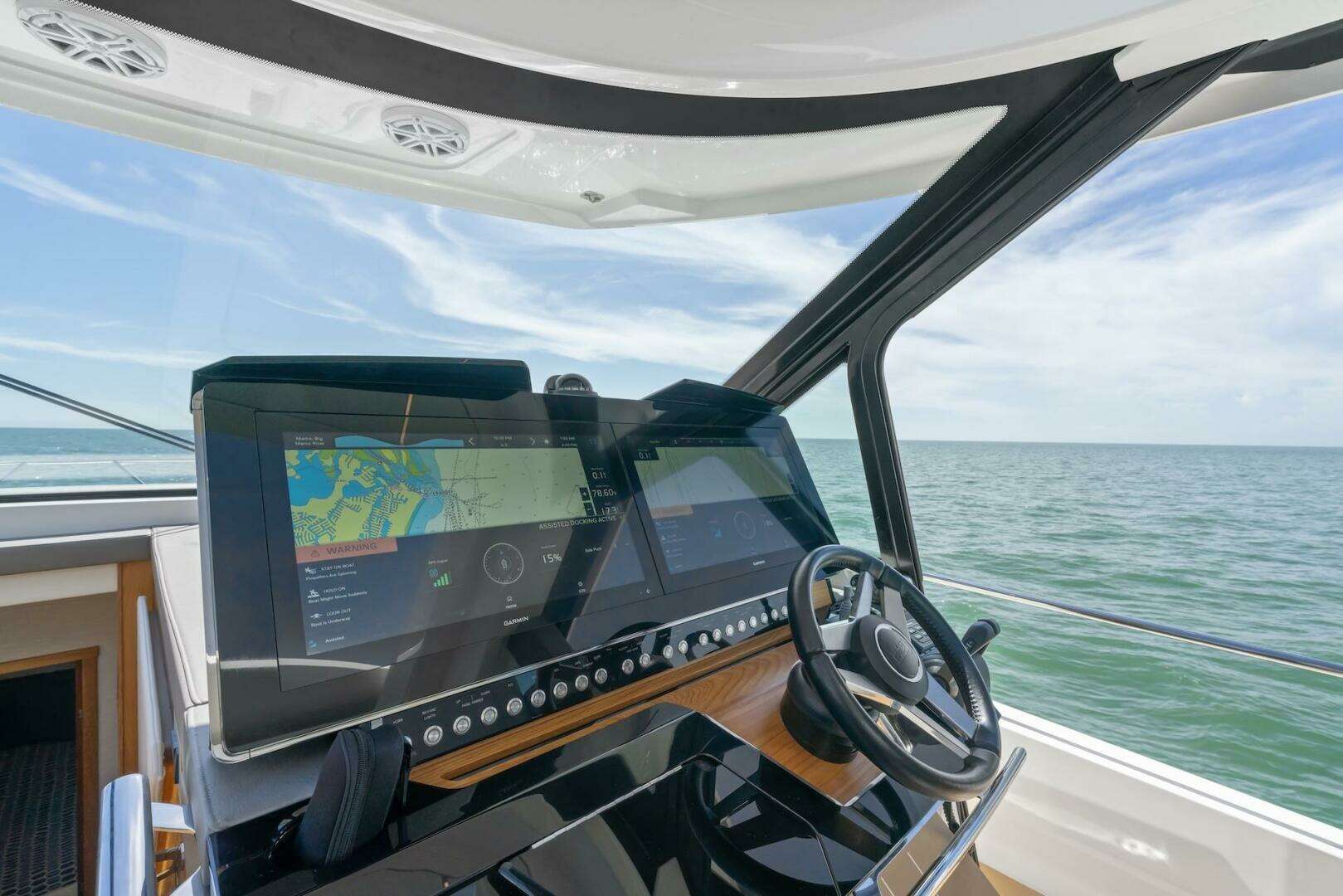

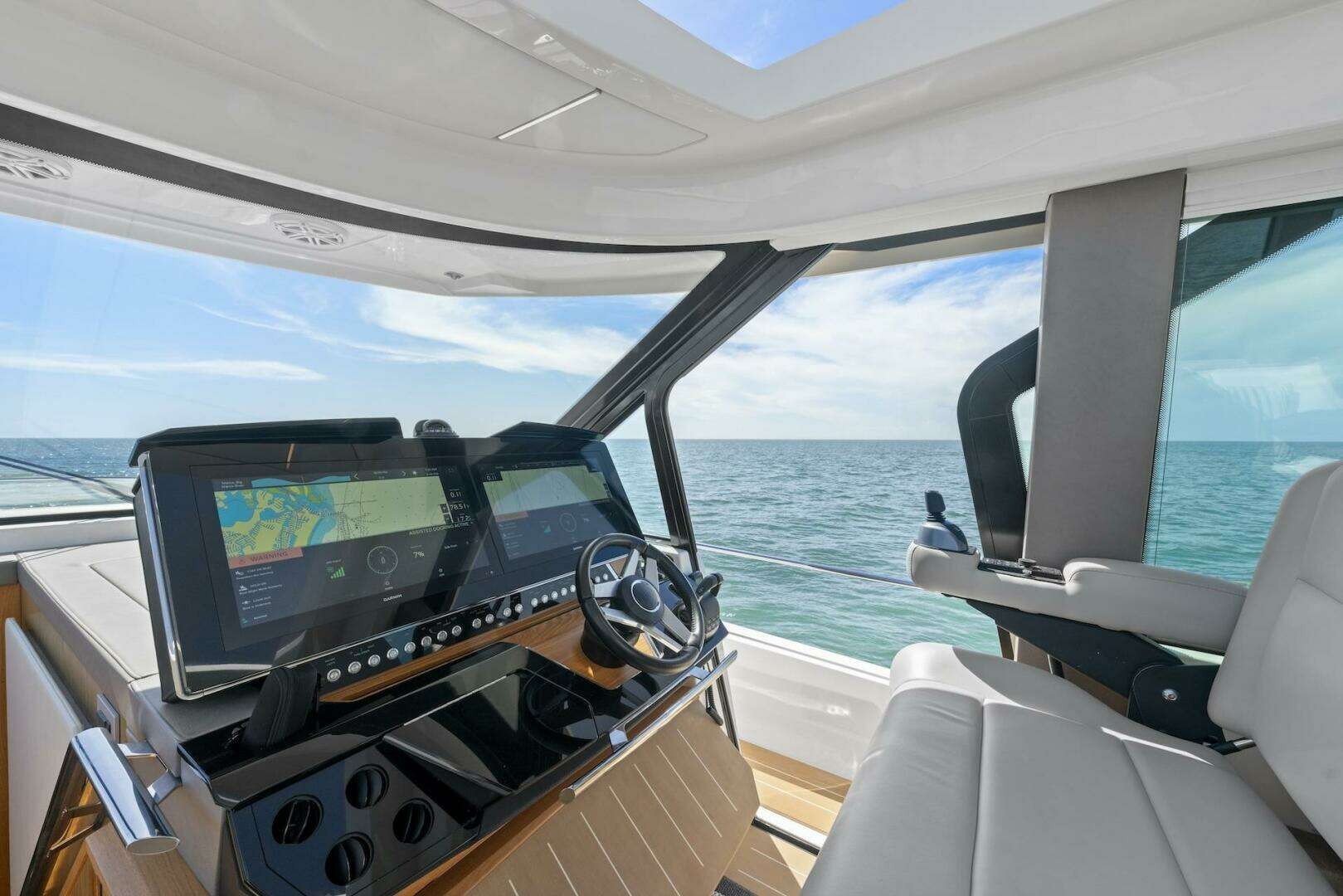

• Helm with Volvo® Glass Cockpit, drink holders, dual USB-A/USB-C charging outlets, steering wheel and powered footrest underneath
• Two Stidd® 1200W double helm chairs; starboard chair electrically adjusts fore and aft and includes armrest with built-in joystick and Garmin® GRID remote
• Leafing, high gloss, solid teak dinette table

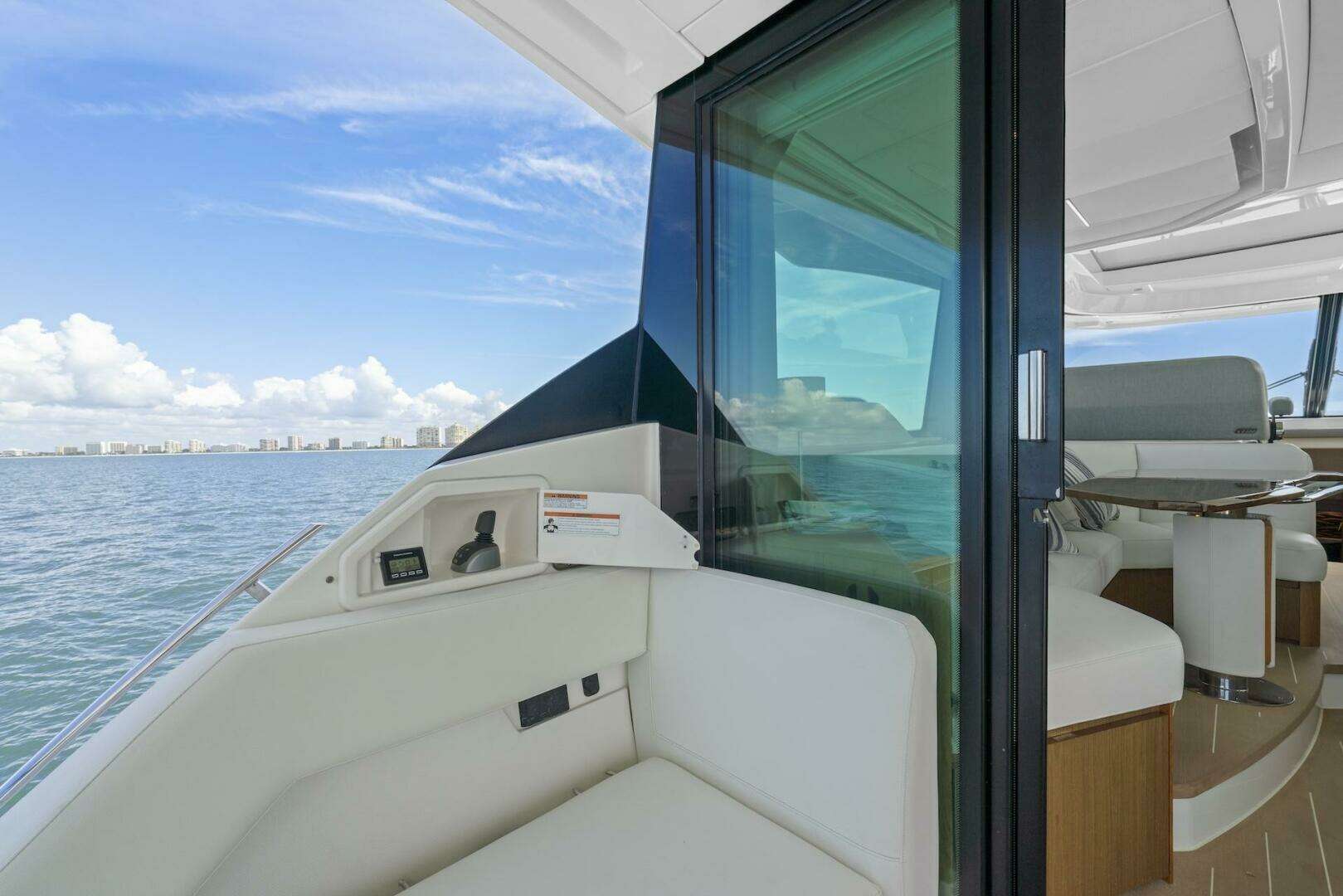

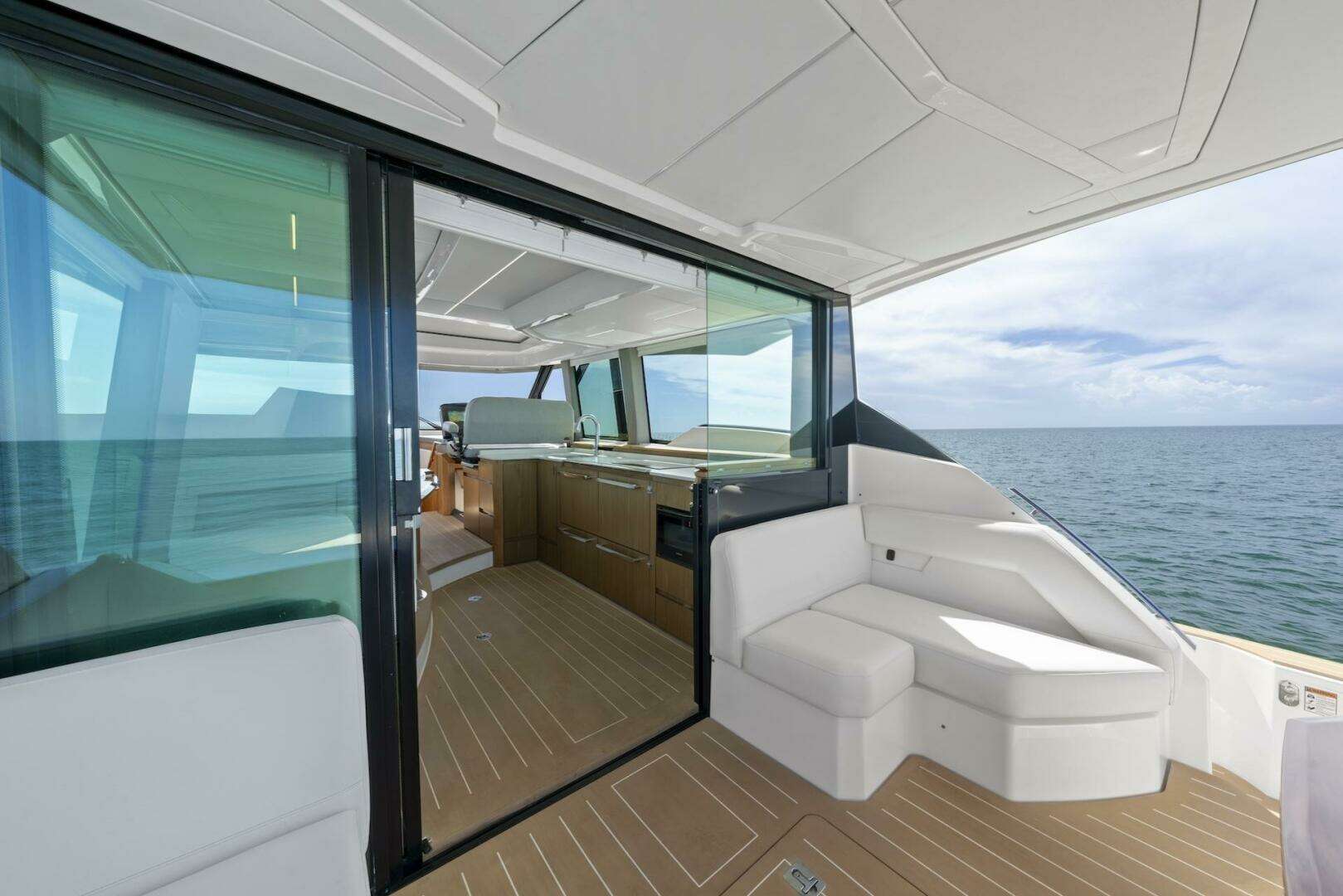

• Sliding pilothouse door starboard of helm, electrically actuated; provides passive ventilation and access to recessed walkway
• Fusion® Apollo multi-zone stereo system powered by JL Audio® digital amp with four JL Audio® speakers and one JL Audio® 8" subwoofer in tuned enclosure
• Webasto® BlueCool V-Series 36,000 BTU air conditioning system in galley/salon and 4,000 BTU at helm
• Port side lounge with storage below and glass end-table surfaces with fixed lamps

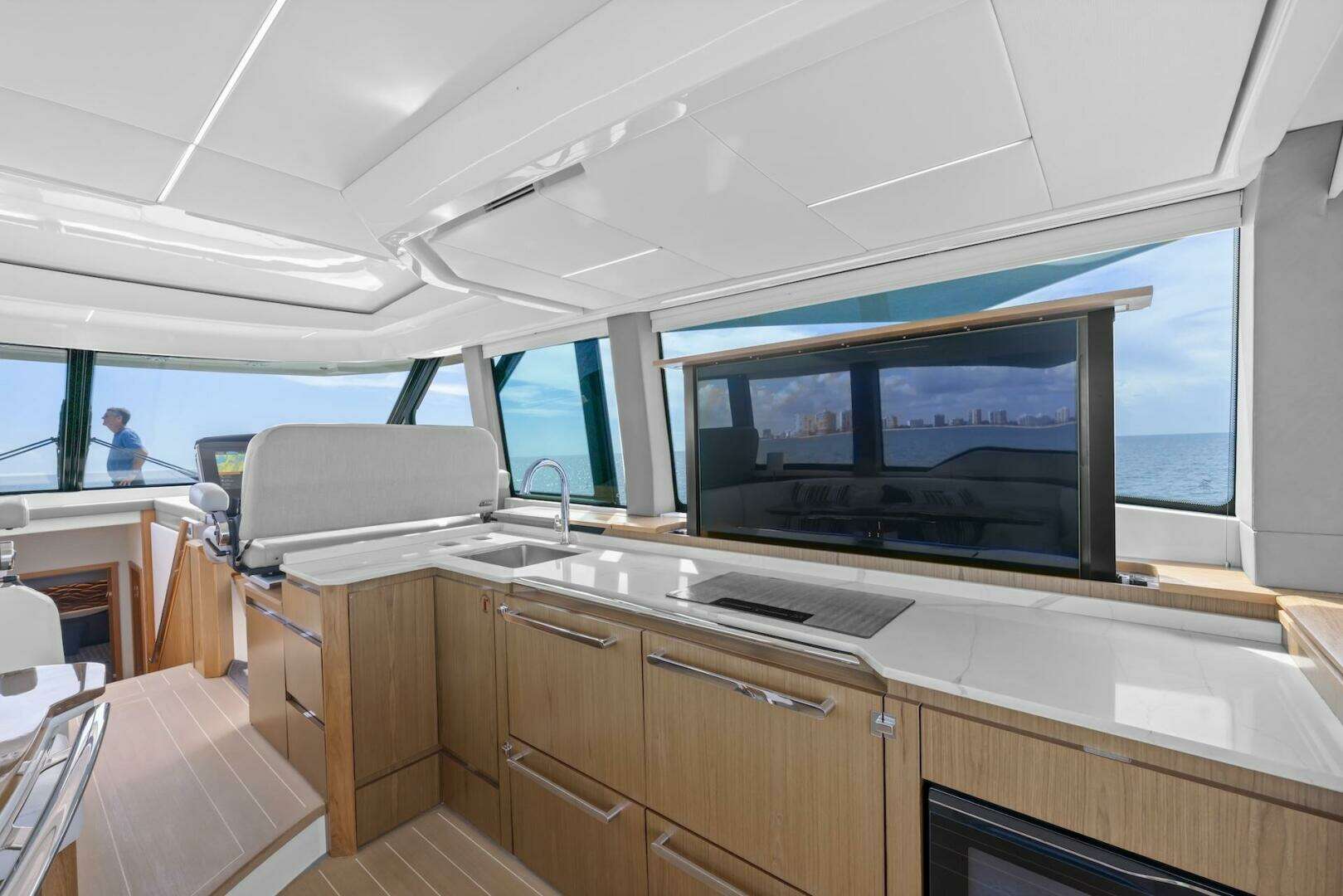

• 55" TV mounted on hi-lo actuator in starboard galley, concealed when not in use; includes soundbar and remote subwoofer

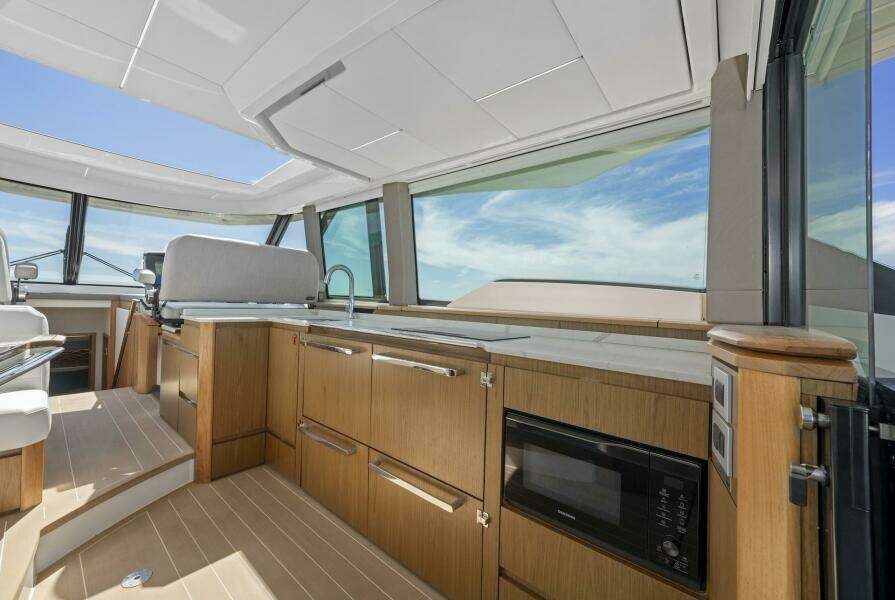

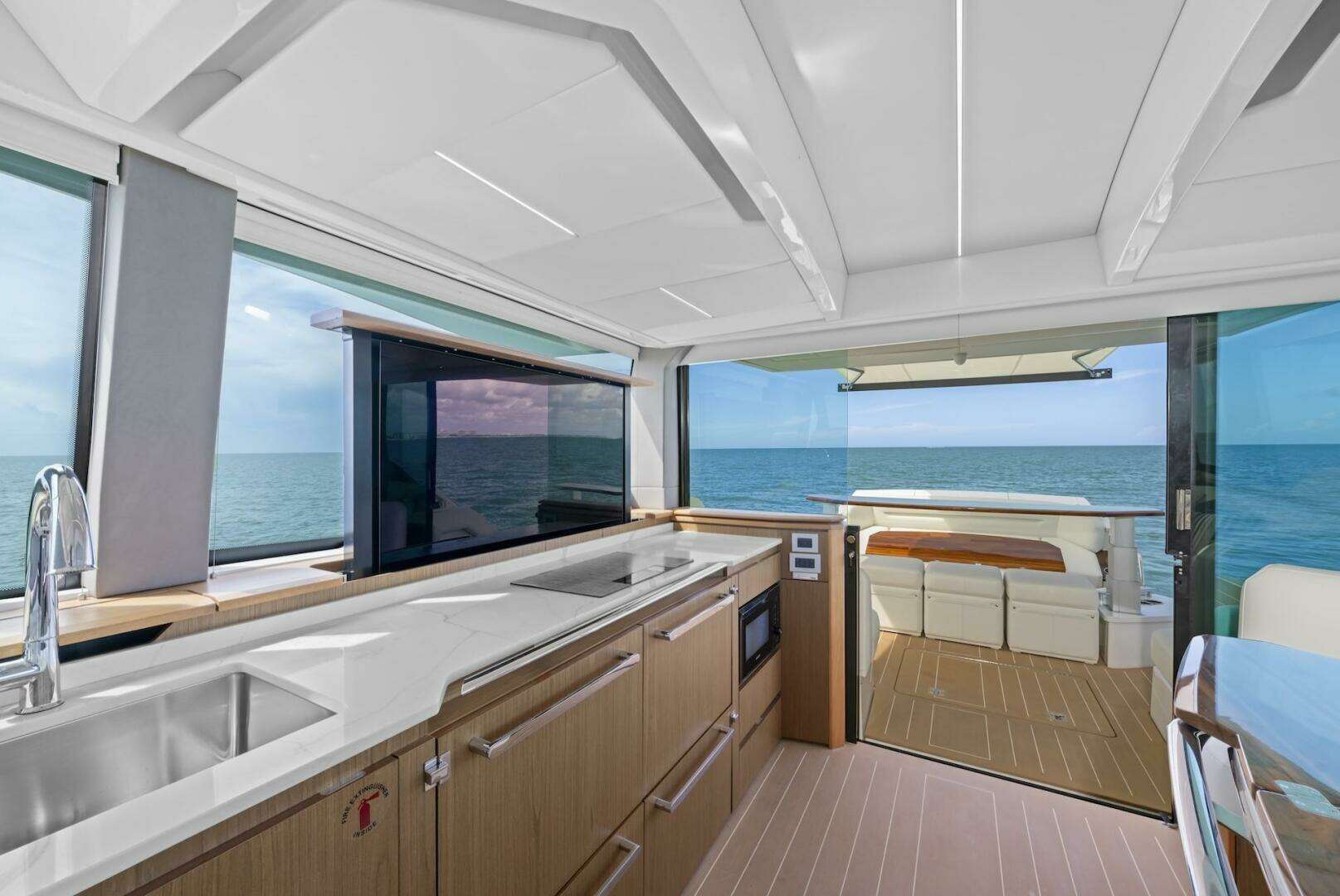

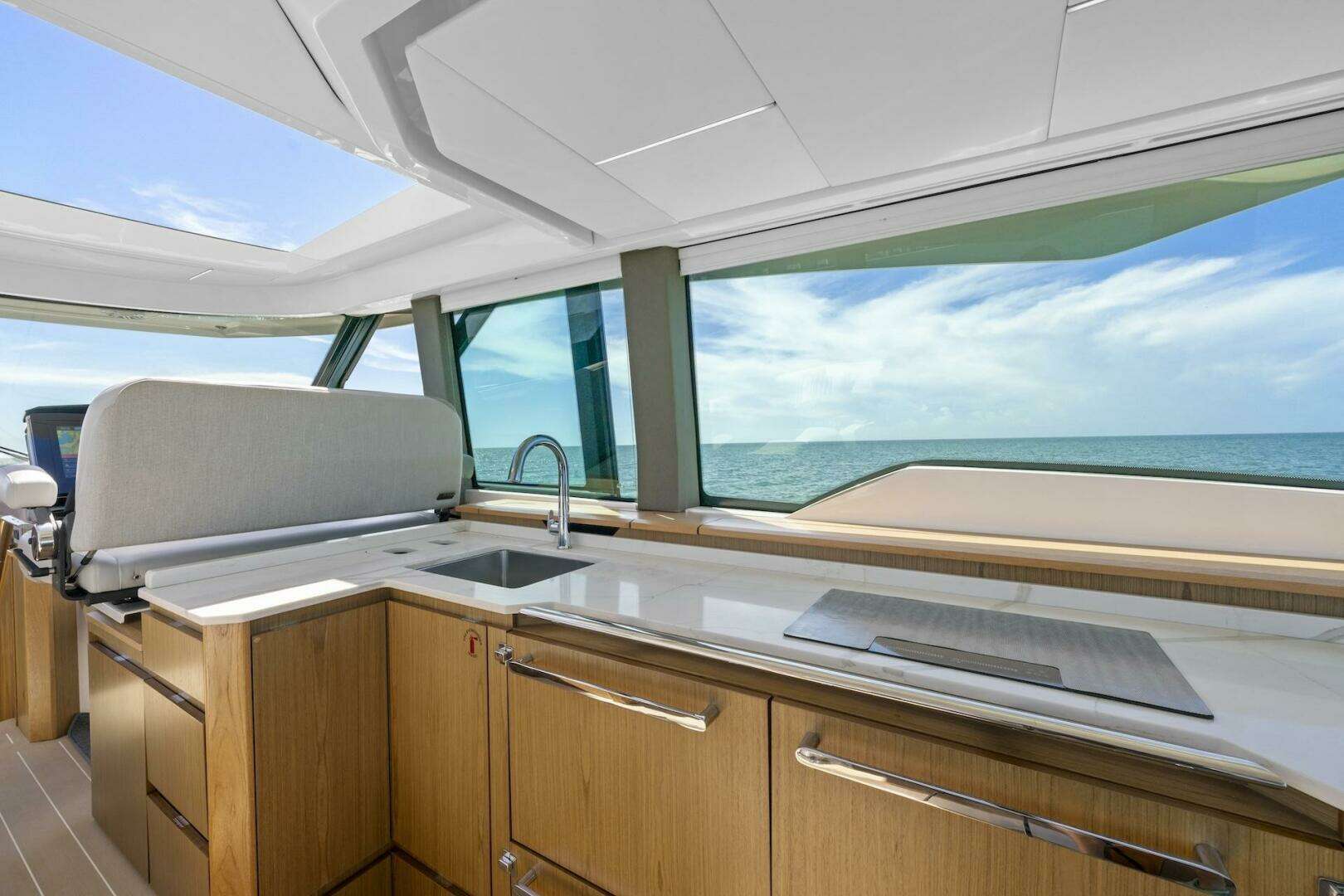

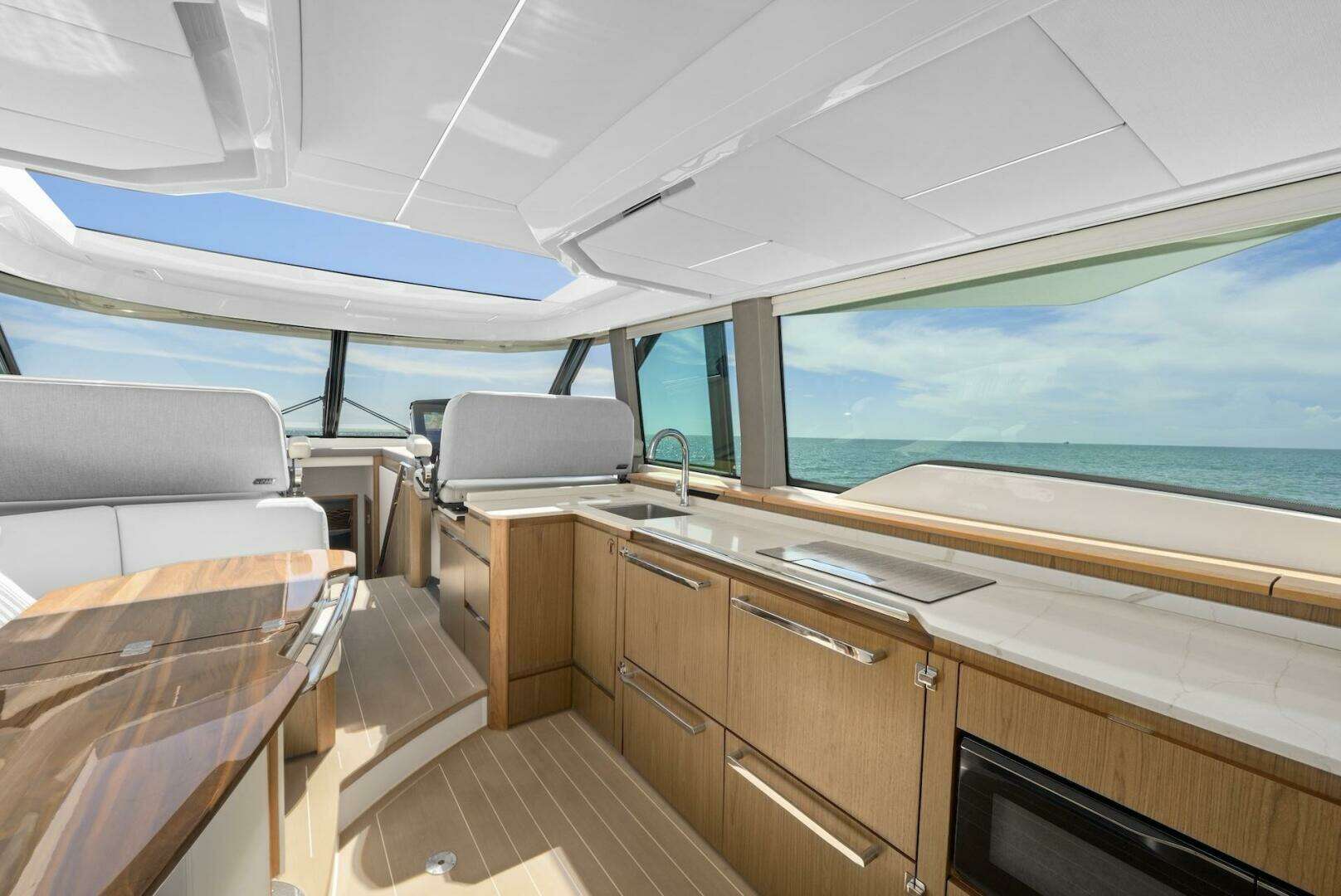

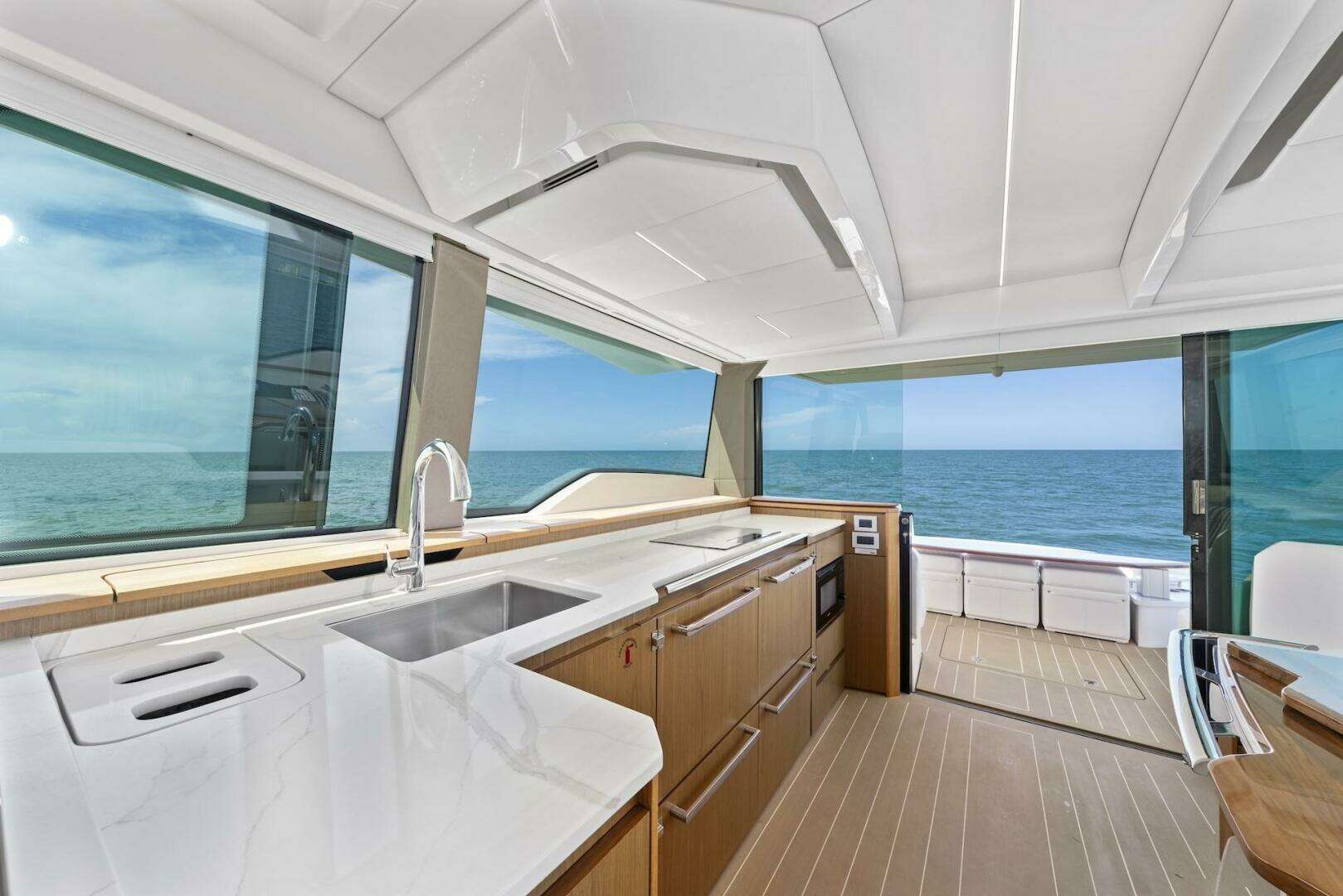

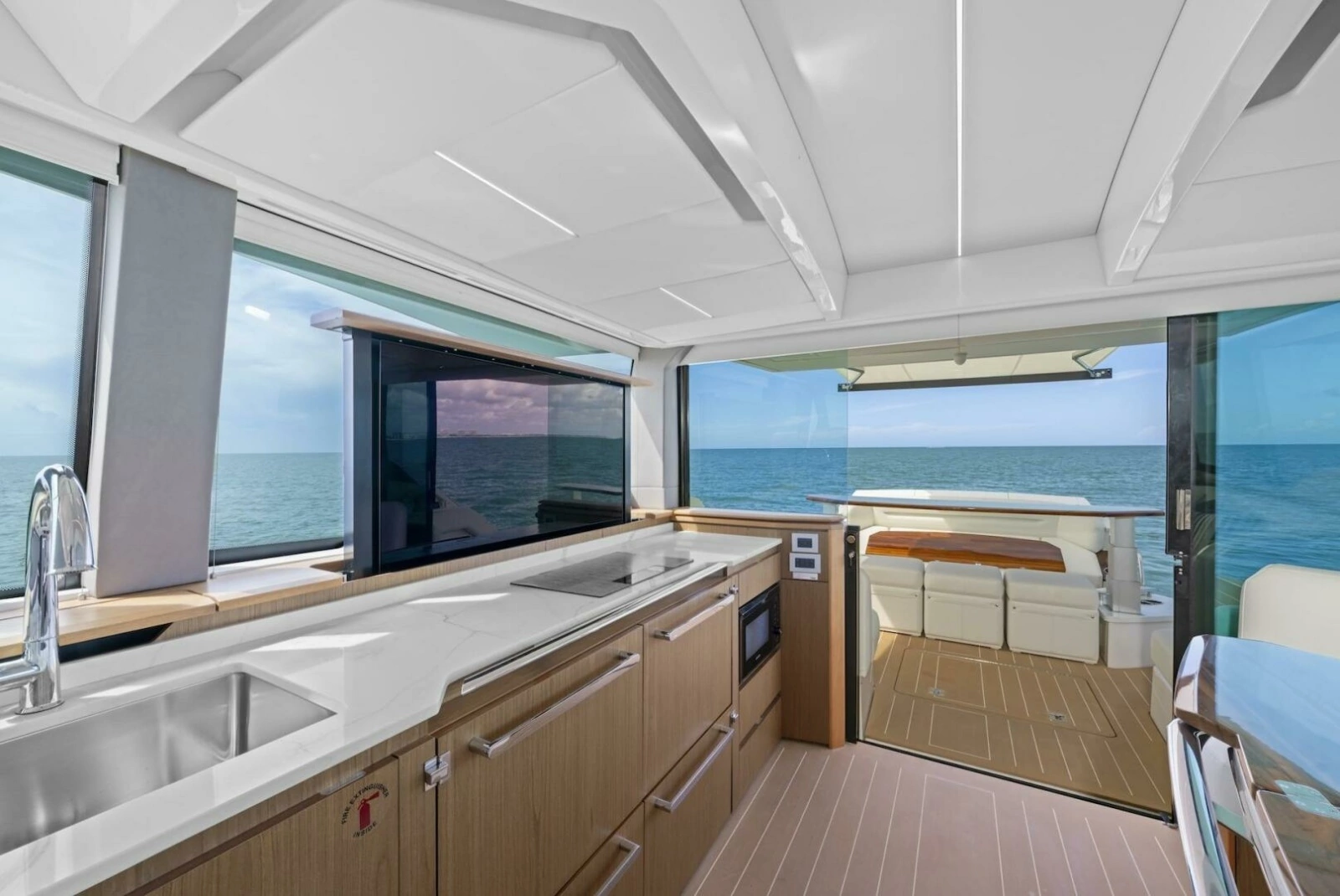

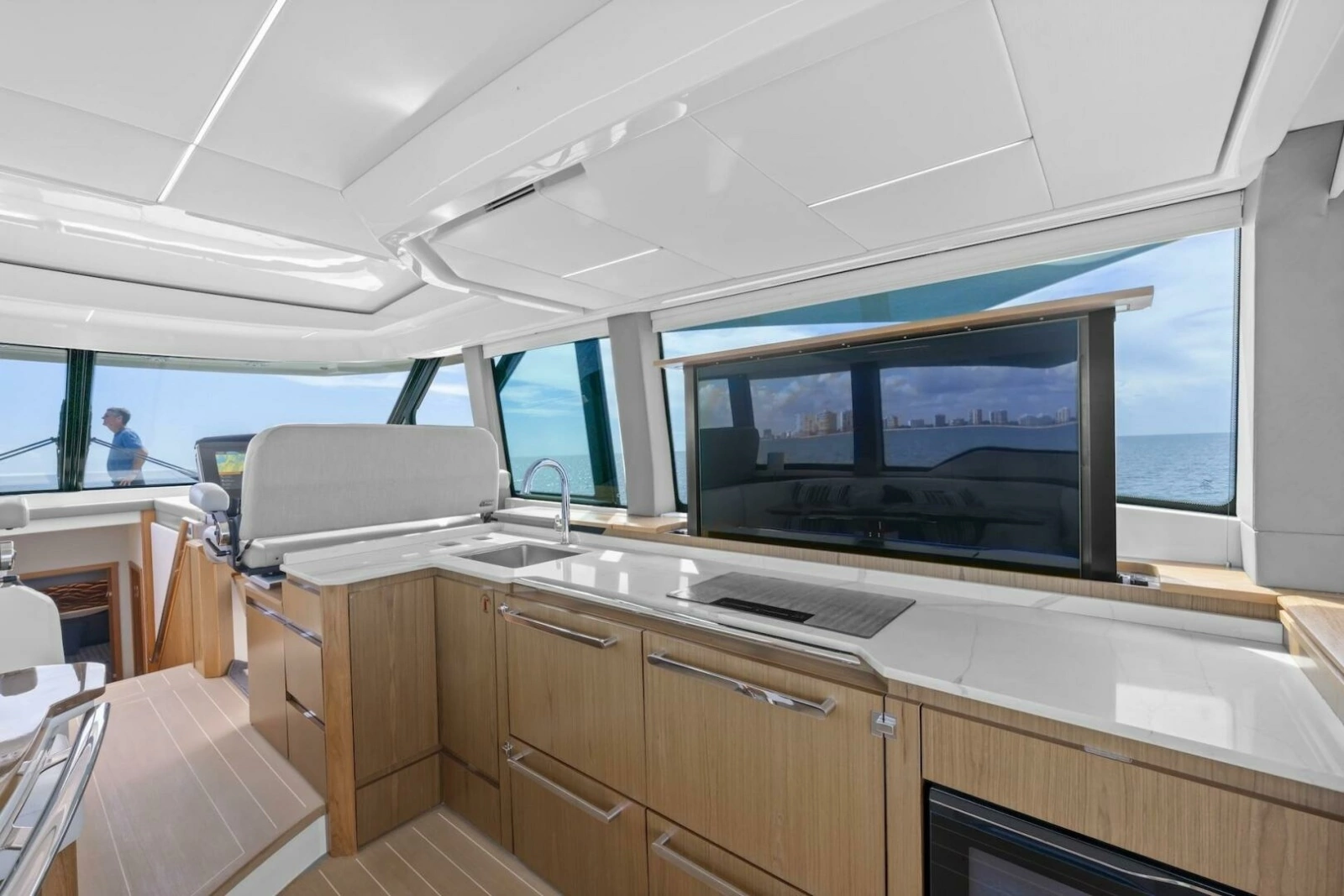

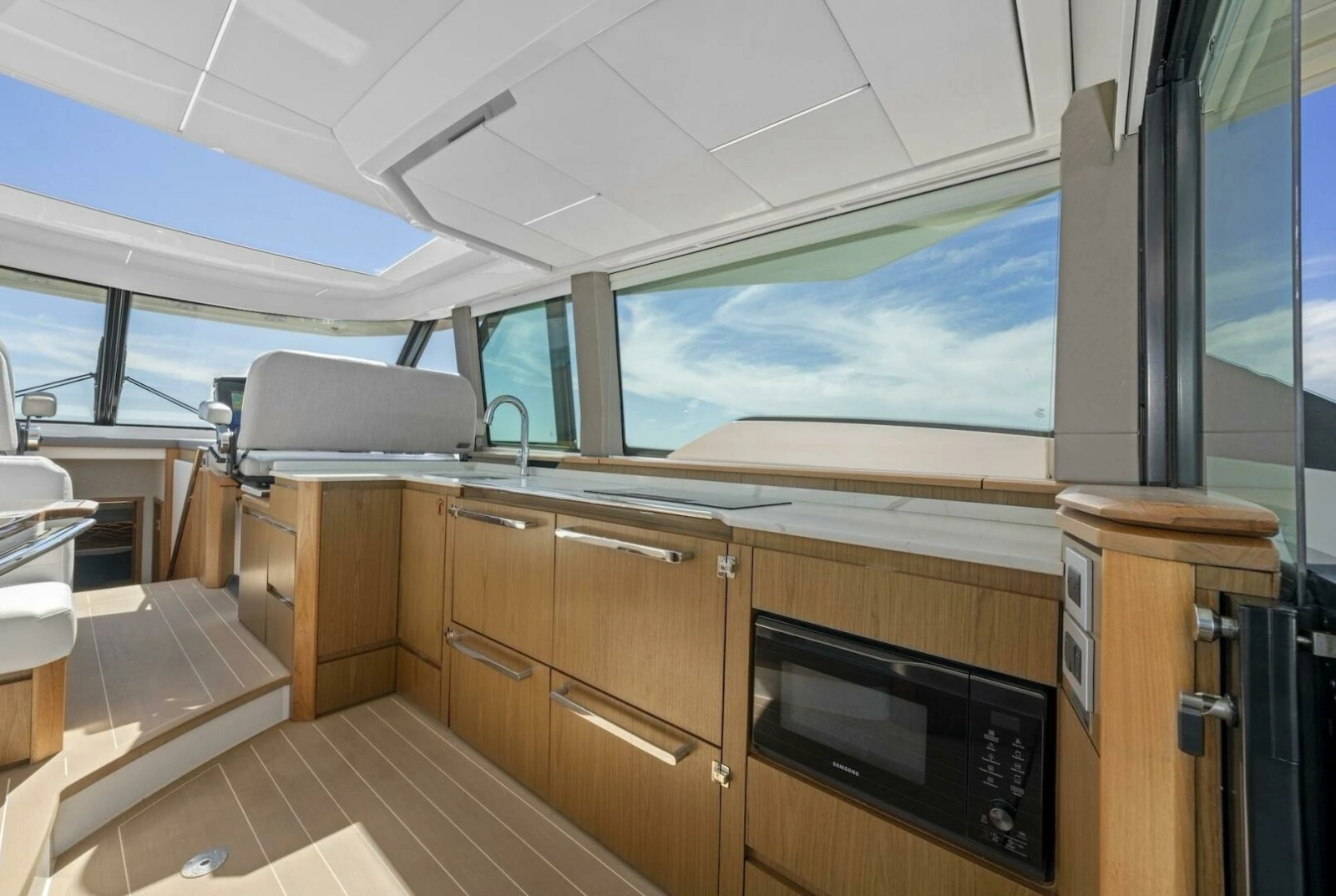

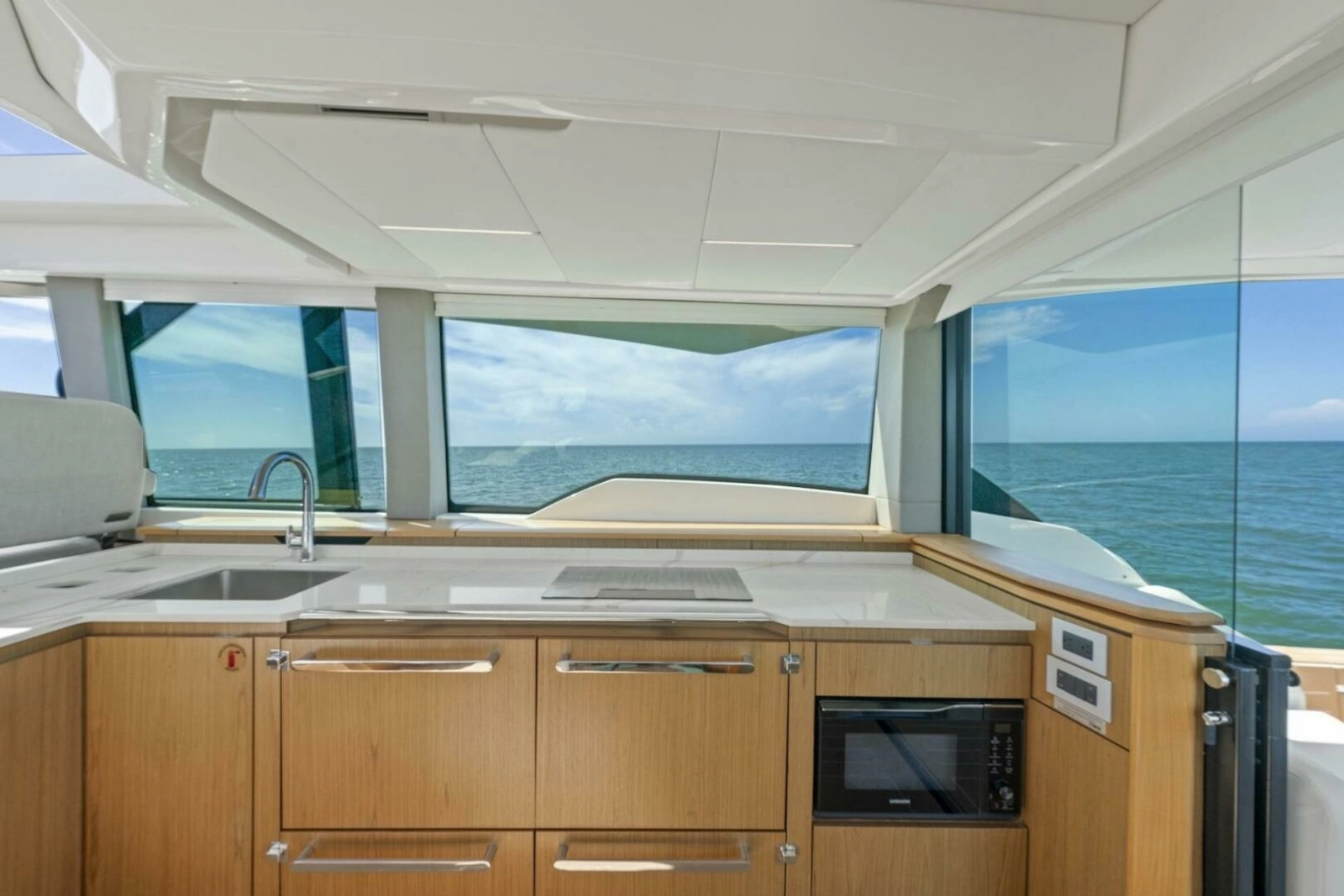

• Starboard galley includes:
• Stainless steel under mount sink with hot/cold touchless water faucet
• Microwave/convection oven
• Two-burner Kenyon® induction cooktop with induction cookware set
• Two dual-drawer refrigeration units, both configured as fridge and freezer
• Waste receptacles (4)
• Stainless steel grab rail
• Quartz countertops
• Disappearing bulkhead; electrically actuated dropping glass to starboard and three panel centerline doors
• Herculan® synthetic teak flooring throughout salon, helm and galley

Interior Group

• Architectural teak interior and Chilewich® wall covering with Ultraleather panels
• 120V outlets throughout
• 12V LED lighting throughout

Atrium

• Herculan® synthetic teak flooring and steps with solid teak risers
• Recessed handrail
• Indirect lighting

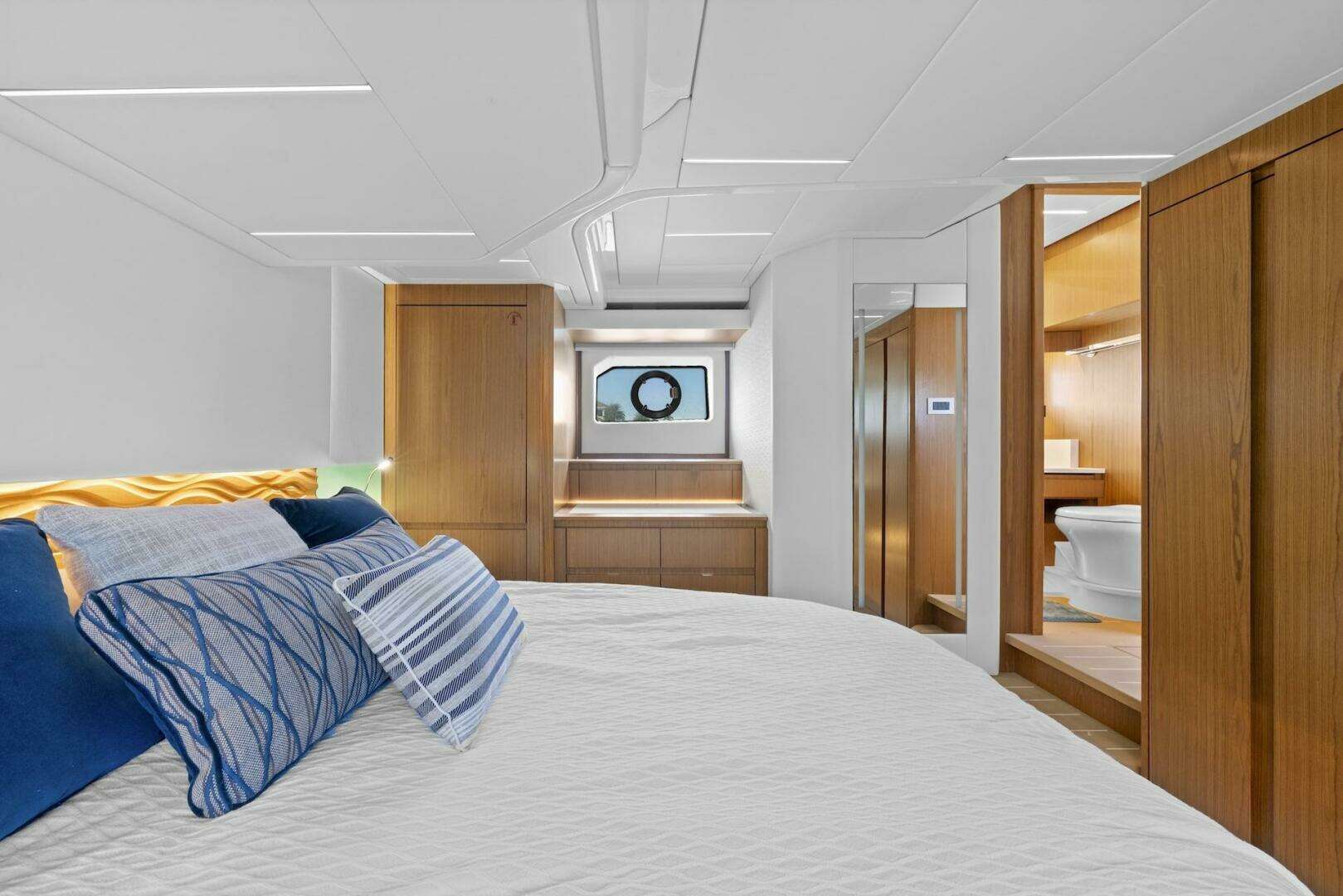

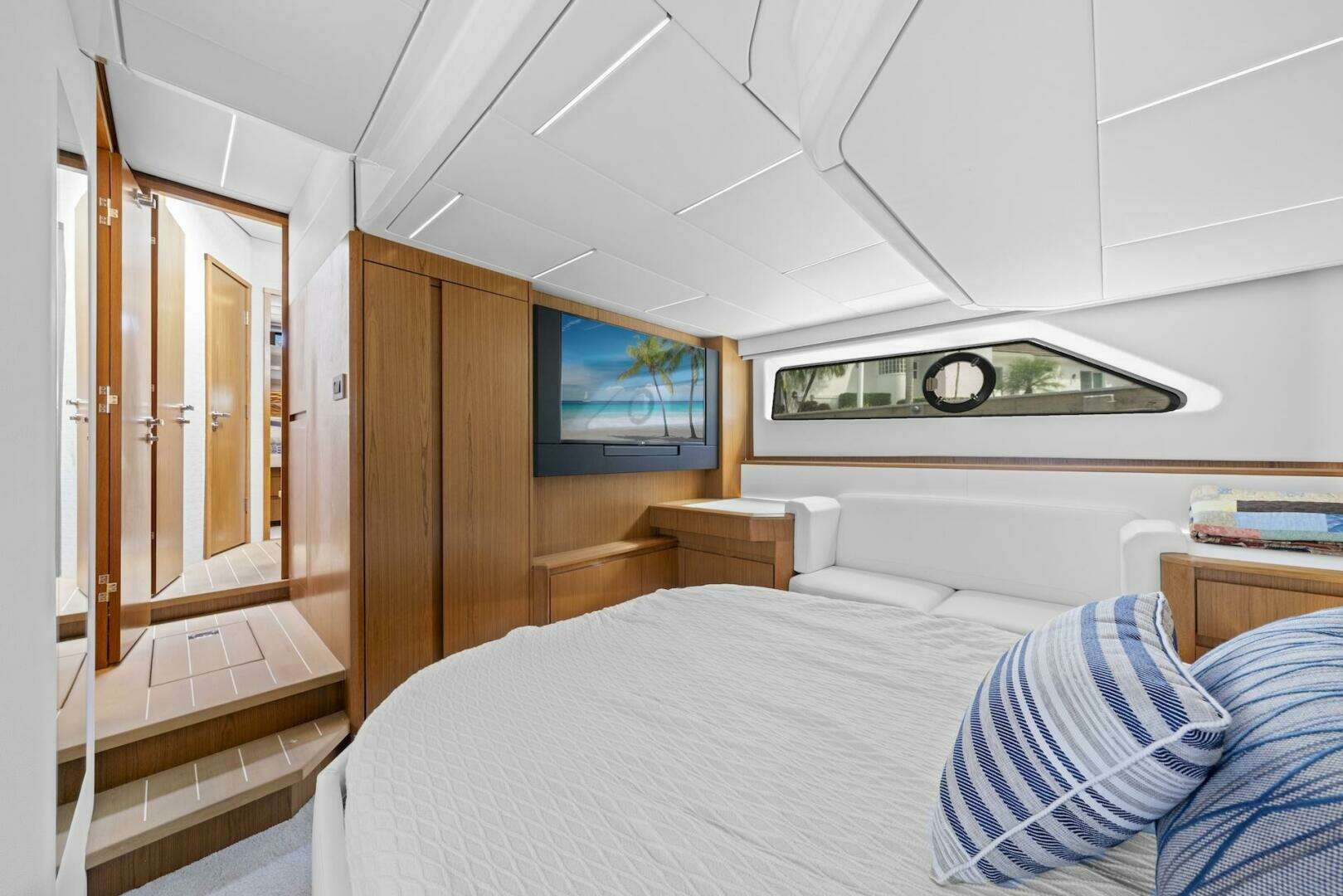

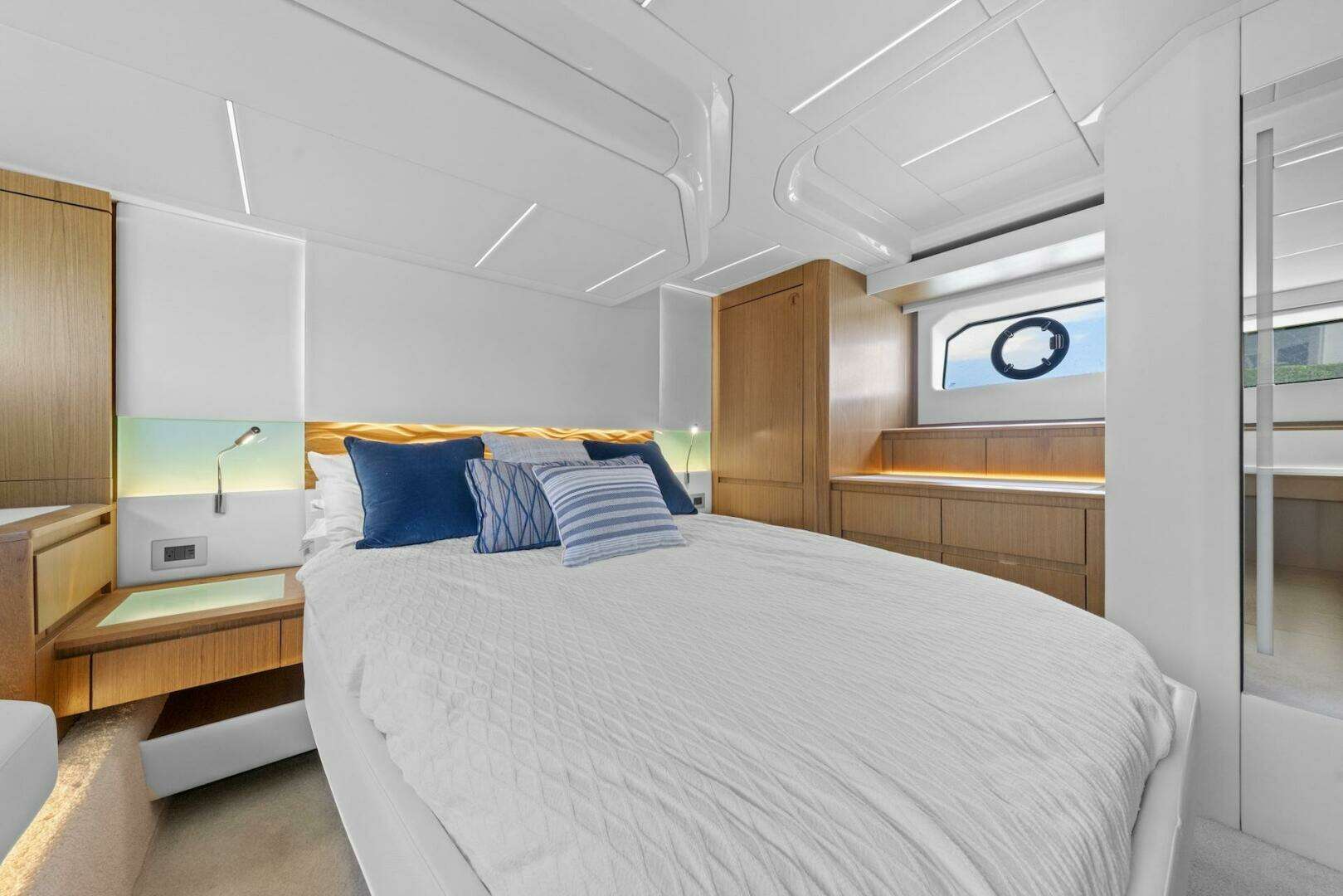

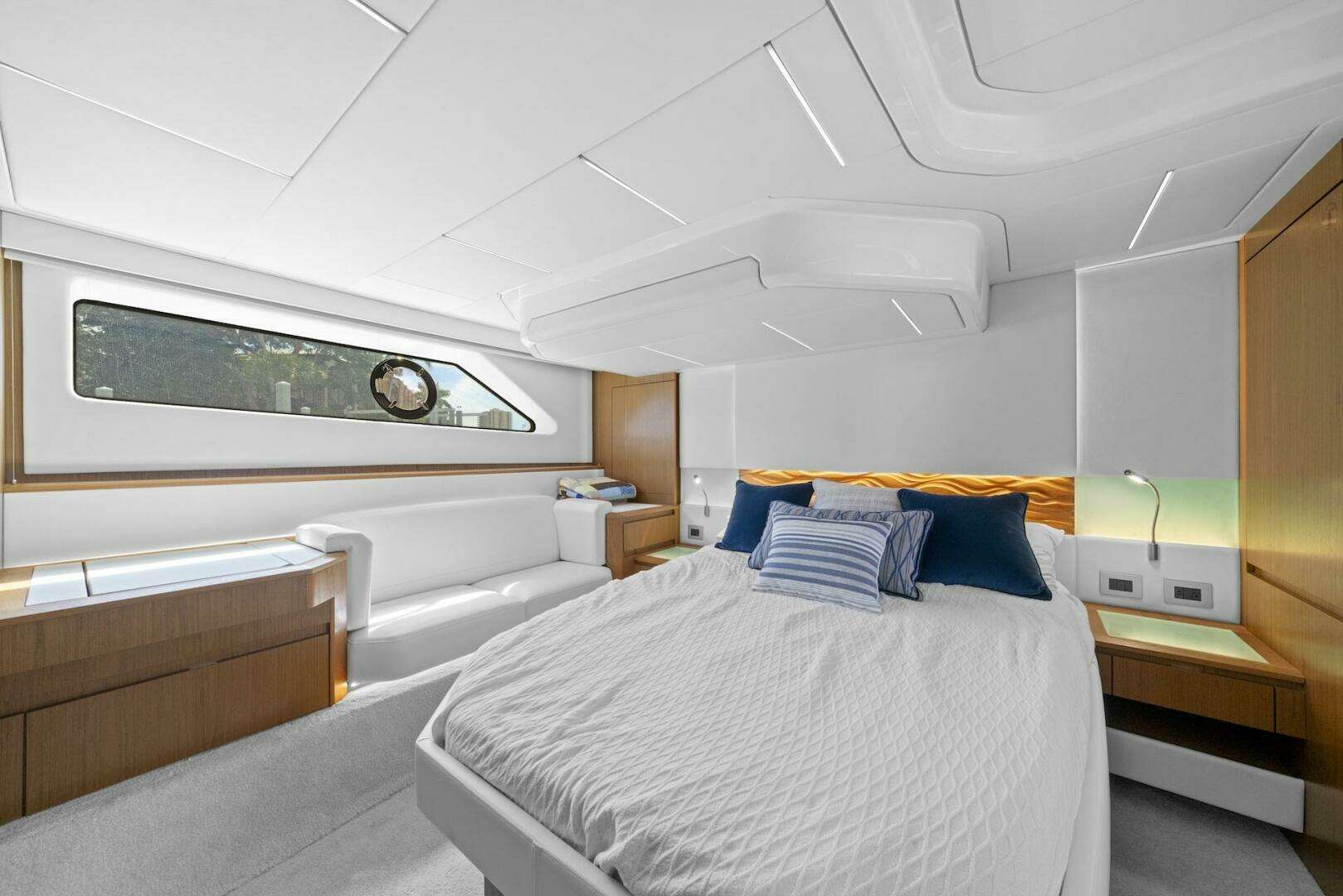

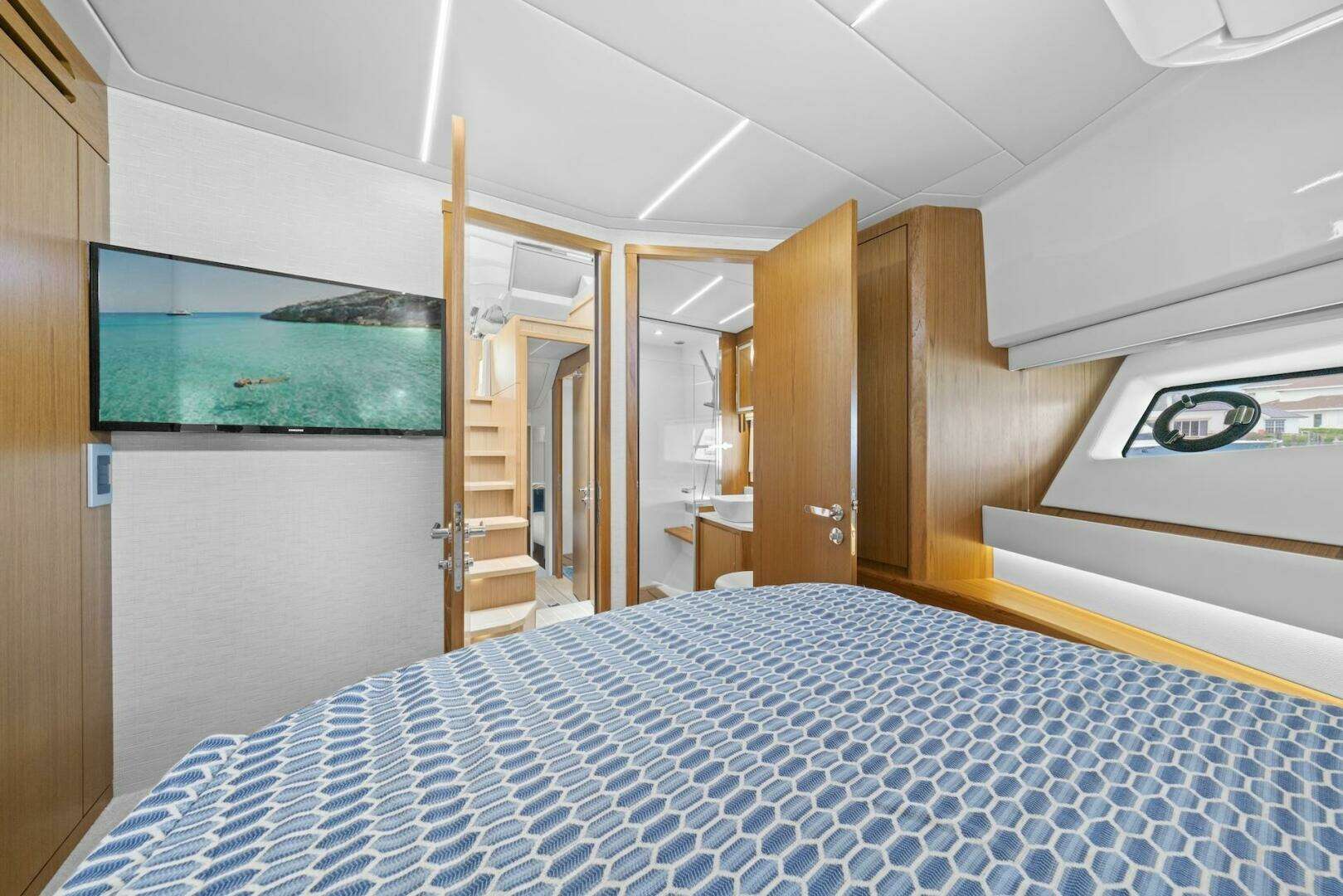

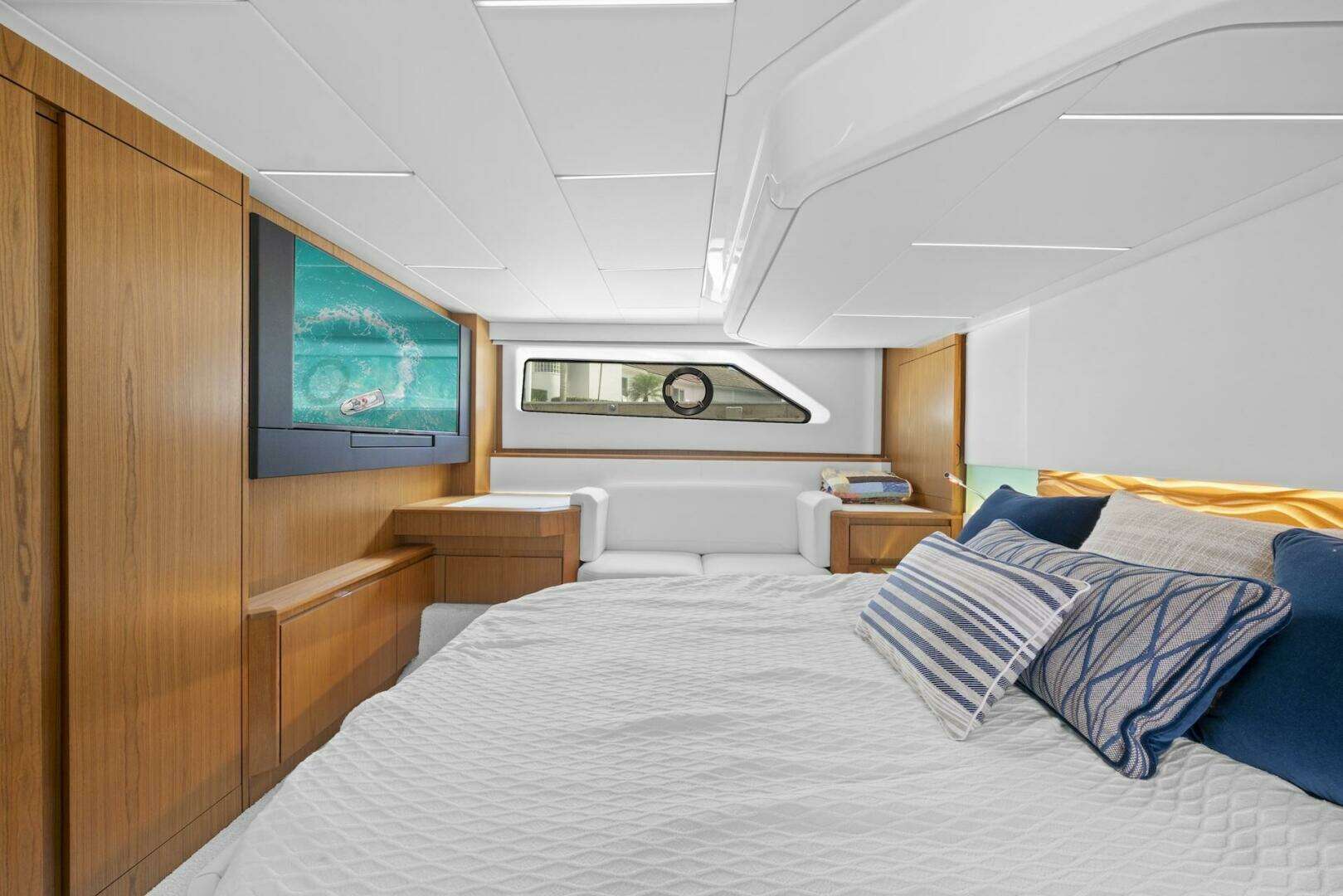

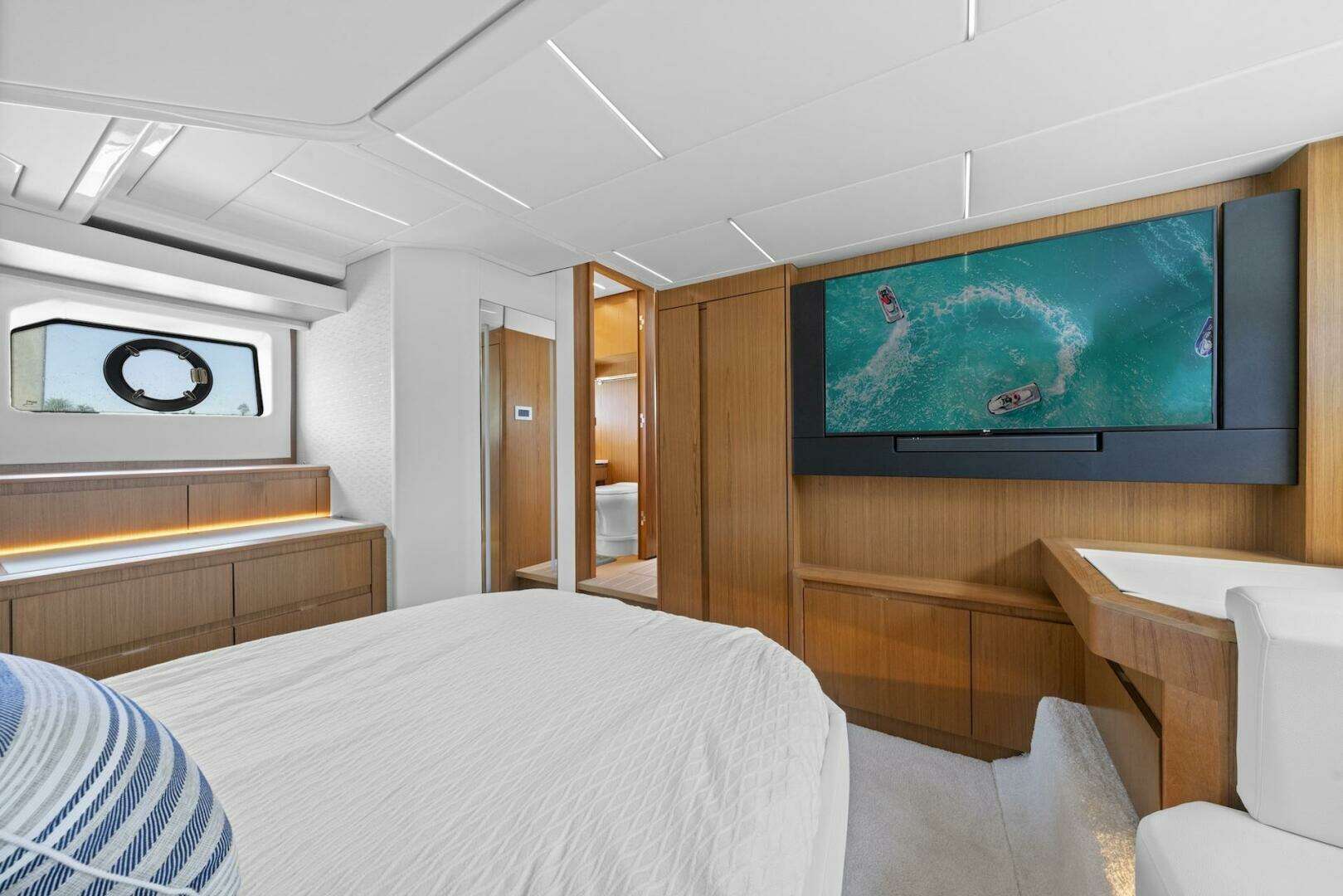

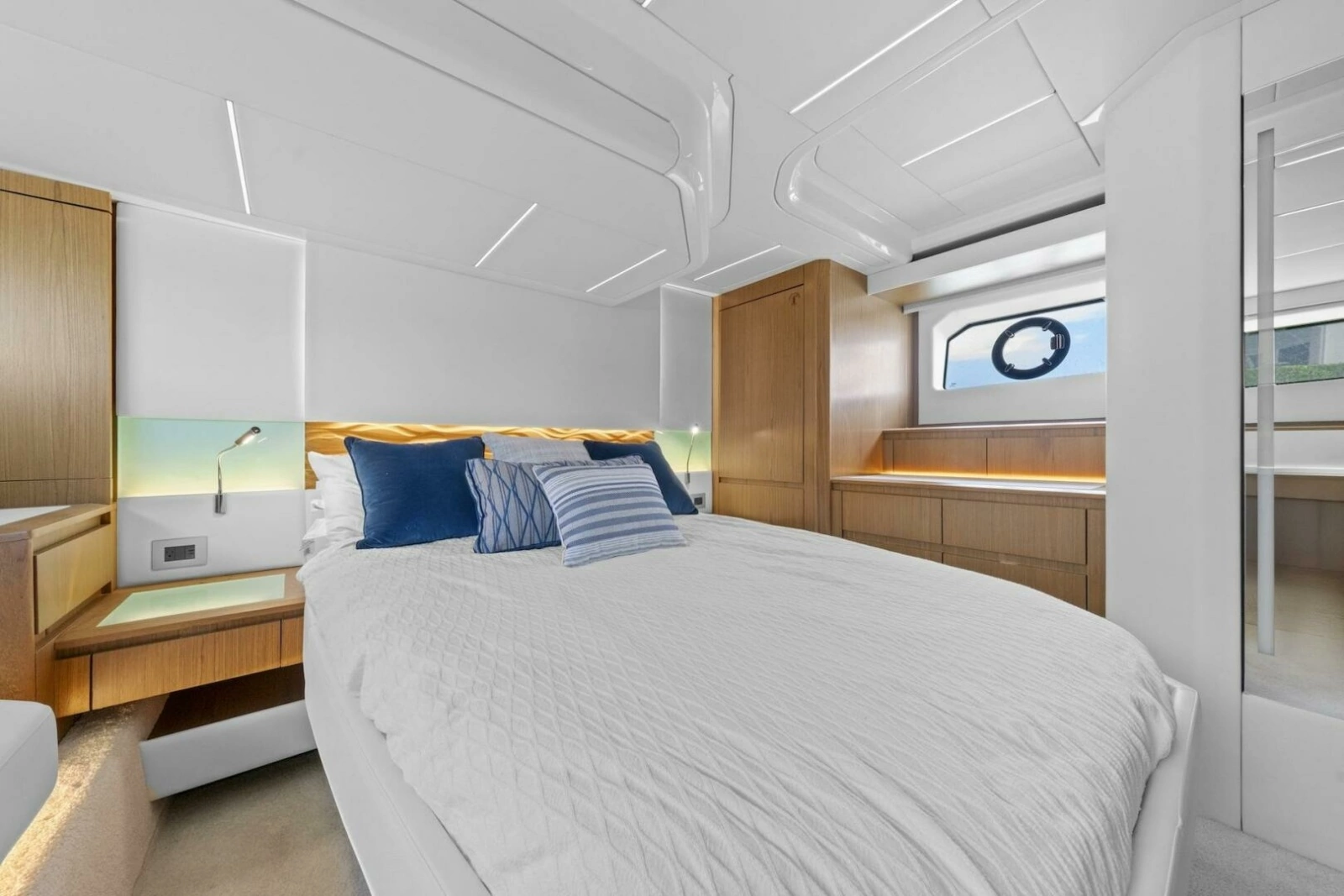

Owner's Stateroom

• Full-beam, mid-ship owner's stateroom with private entrance, hullside windows with powered blinds and opening ports with screens for ventilation
• Queen pedestal berth on centerline with lighted storage below; innerspring mattress, carved teak and Ultraleather headboard, mattress pad and sheets
• Nightstands with glass top and inductive cellphone charger
• Two reading lights
• Carpeted flooring
• Starboard side settee and single-drawer storage unit
• Starboard side table with flip-up mirror, tray and storage drawer below; includes dedicated compartment for electronic cord management
• Port side cedar-backed hanging locker
• Port side dresser drawer storage
• Full-length, backlit mirror
• Centerline cedar-backed hanging locker and drawer storage
• Linear LED lighting in headliner with discrete indirect lighting
• Dyson® stick vacuum with dedicated storage
• Webasto® BlueCool V-Series 18,000 BTU air conditioning system with controls for owner's stateroom and both owner's and day heads
• 50" TV with Bose® soundbar
• Fusion® stereo system with four 4" JL Audio® speakers

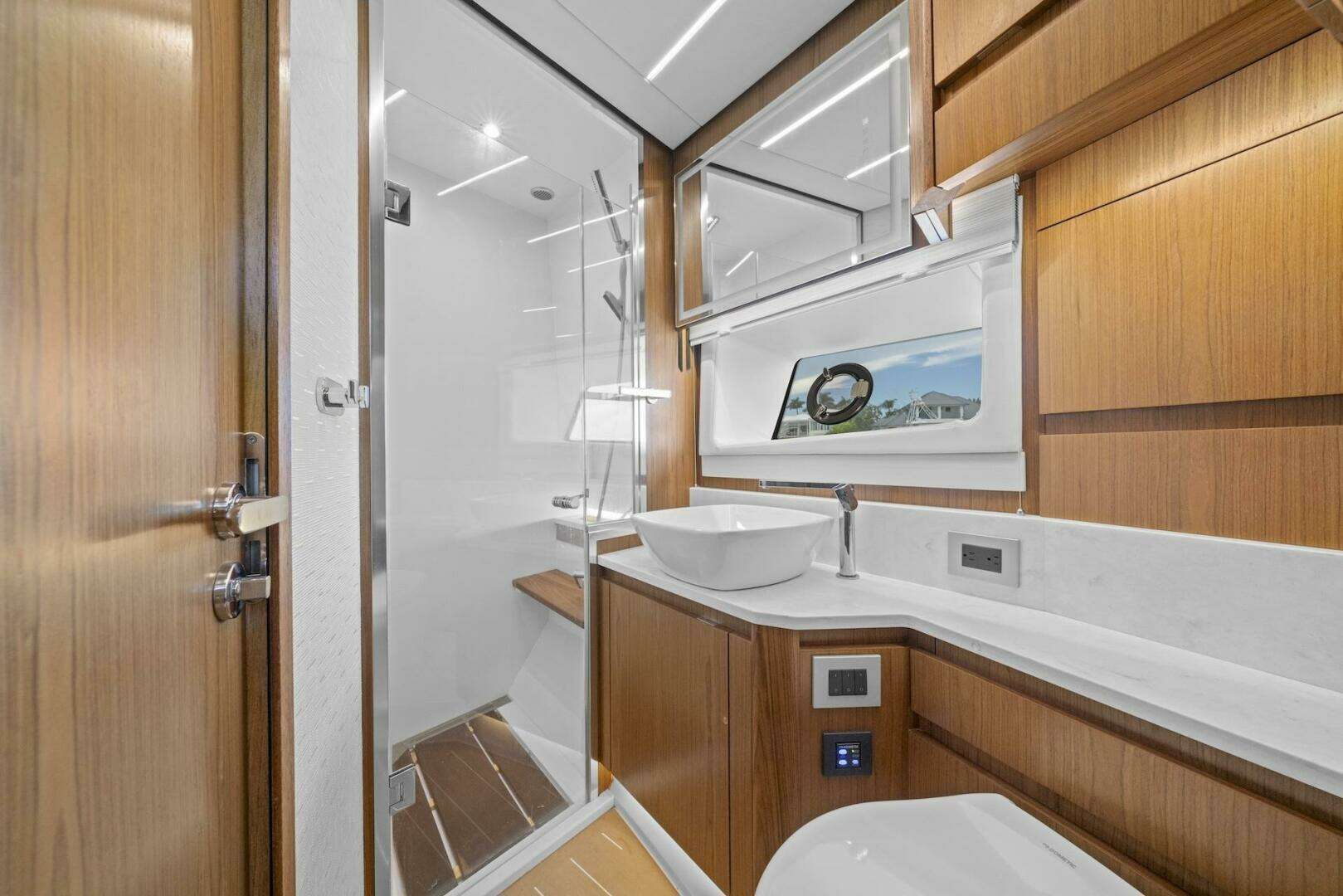

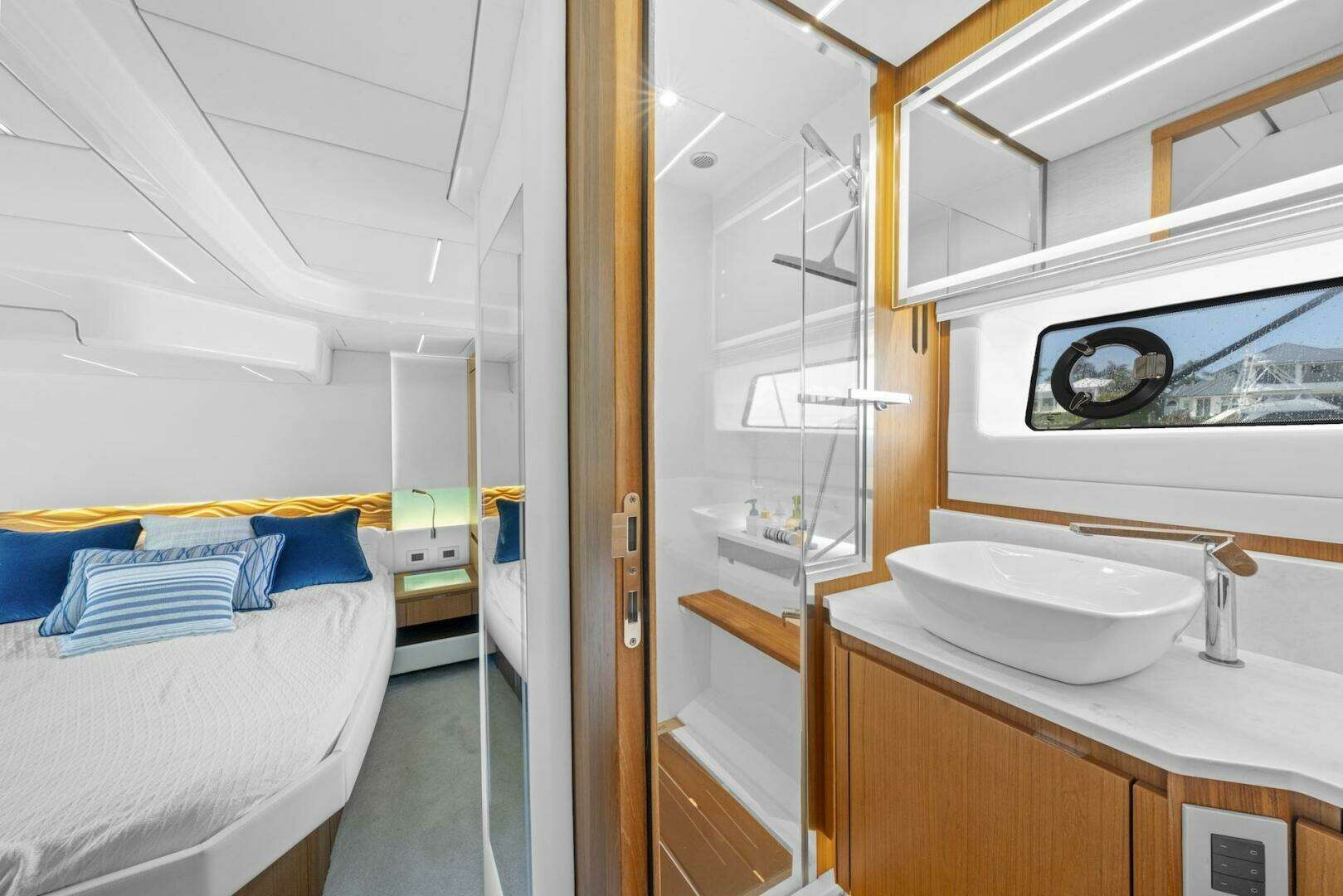

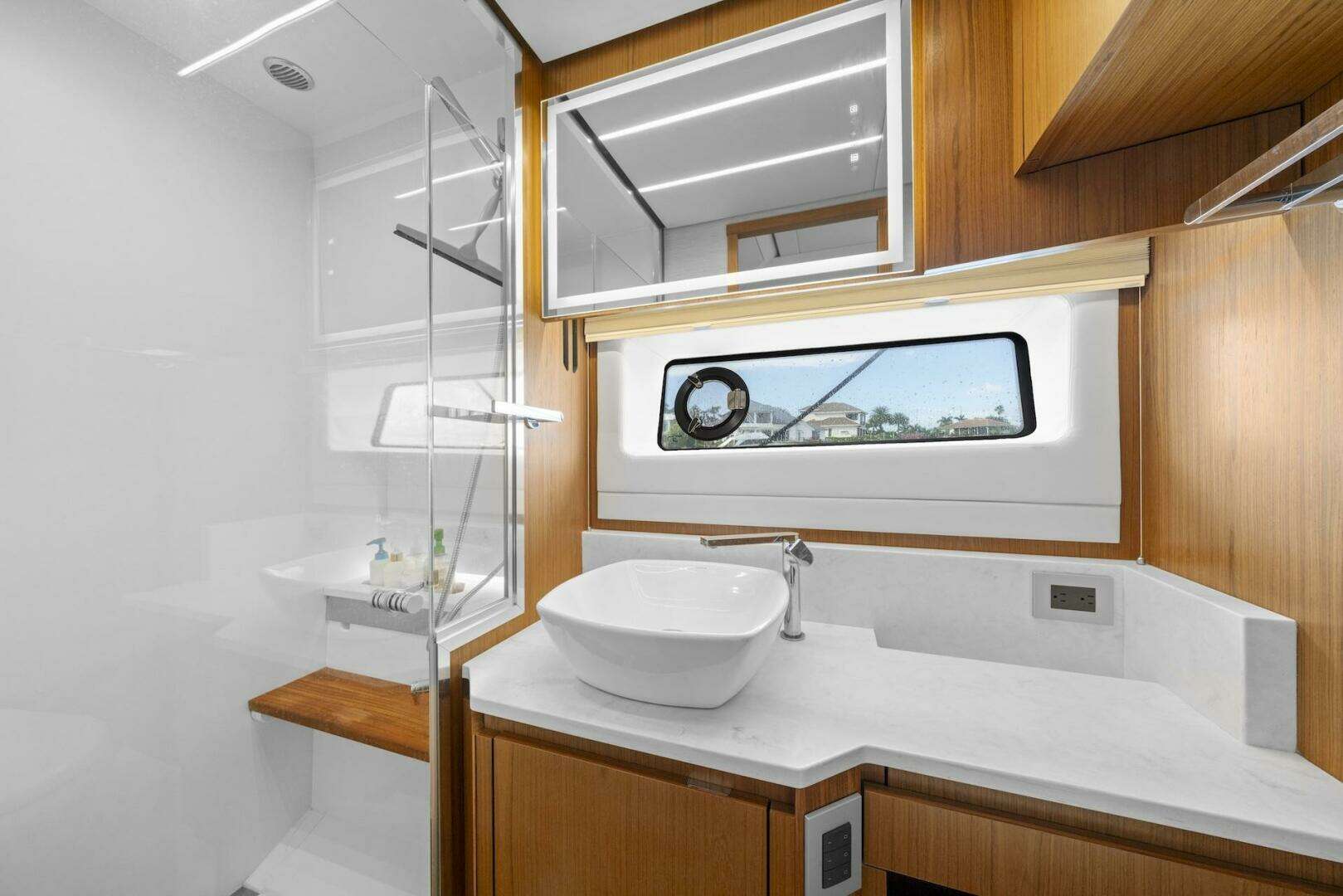

Owner's Head

• Full frame door with private owner's stateroom entry
• Fiberglass stall shower with teak floor grate and glass shower door
• Solid surface countertop and accents, vessel sink, hot/cold water faucet
• Hullside window with opening port, screen and manual shade
• Backlit and defogging mirror and upper storage cabinet
• Lower vanity storage
• Indirect lighting
• VacuFlush® toilet with electric flush operation
• Air conditioning vent with controls in owner's stateroom
• GFI protected outlets
• Herculan® synthetic teak flooring
• Waste receptacle
• Exhaust fan

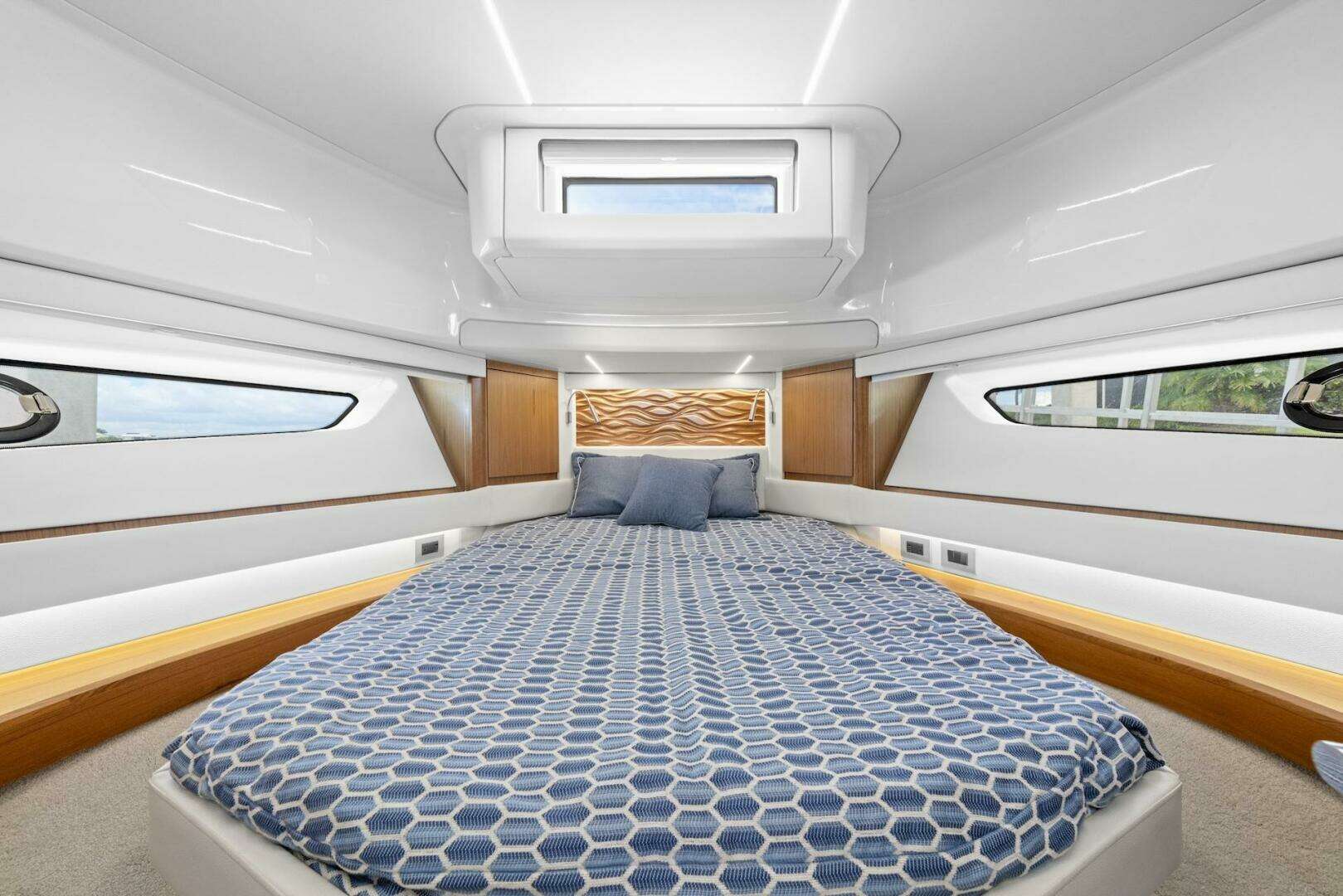

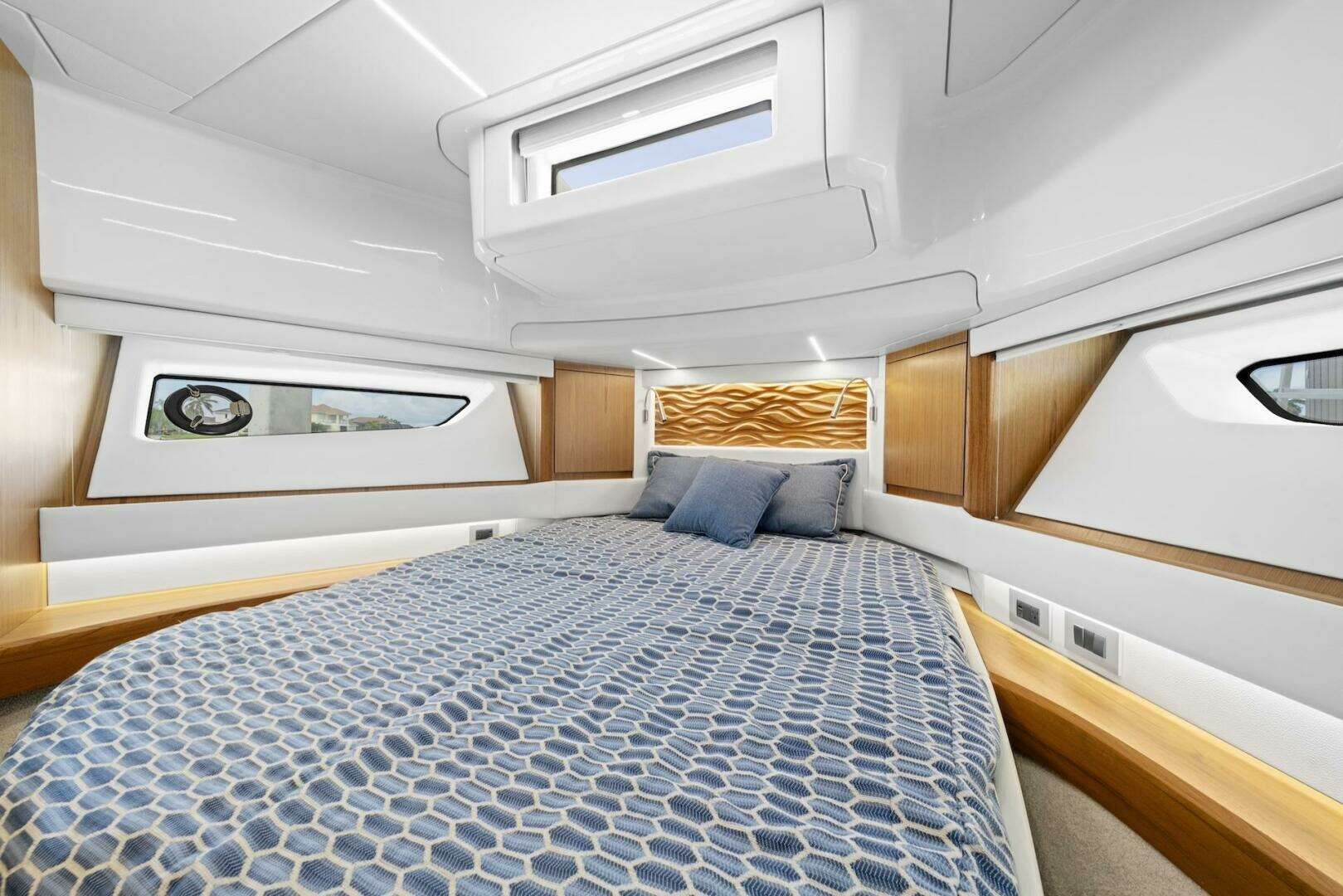

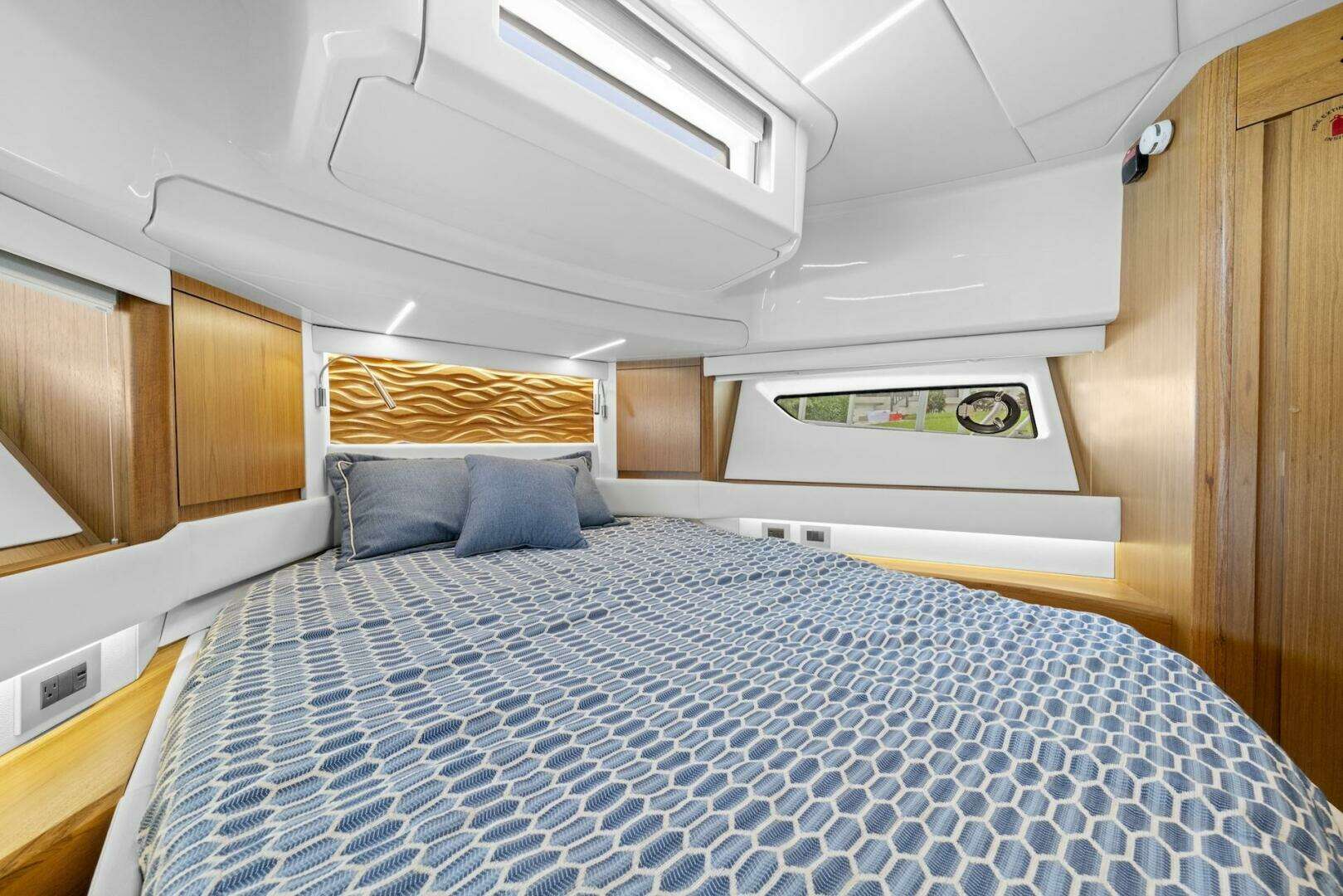

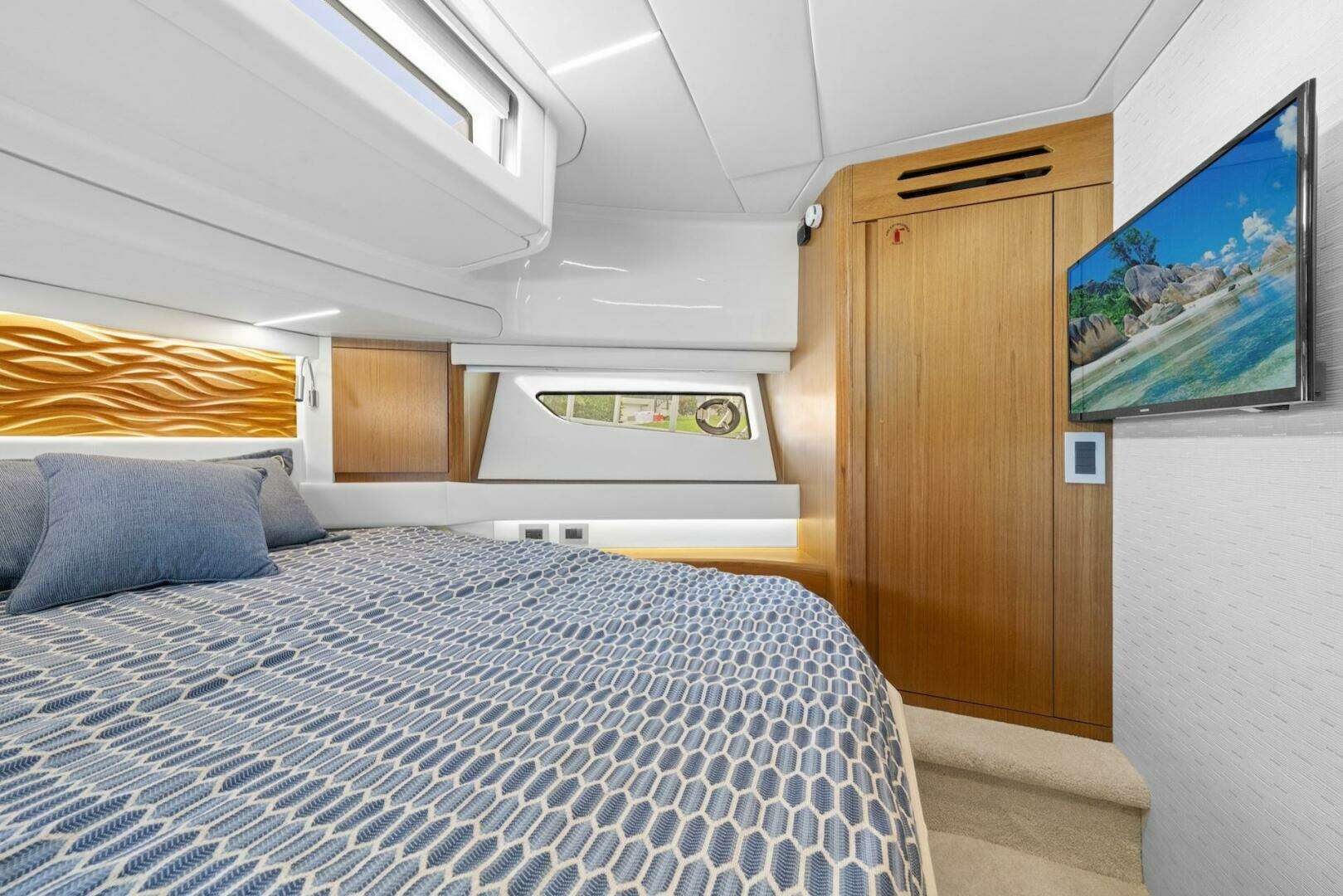

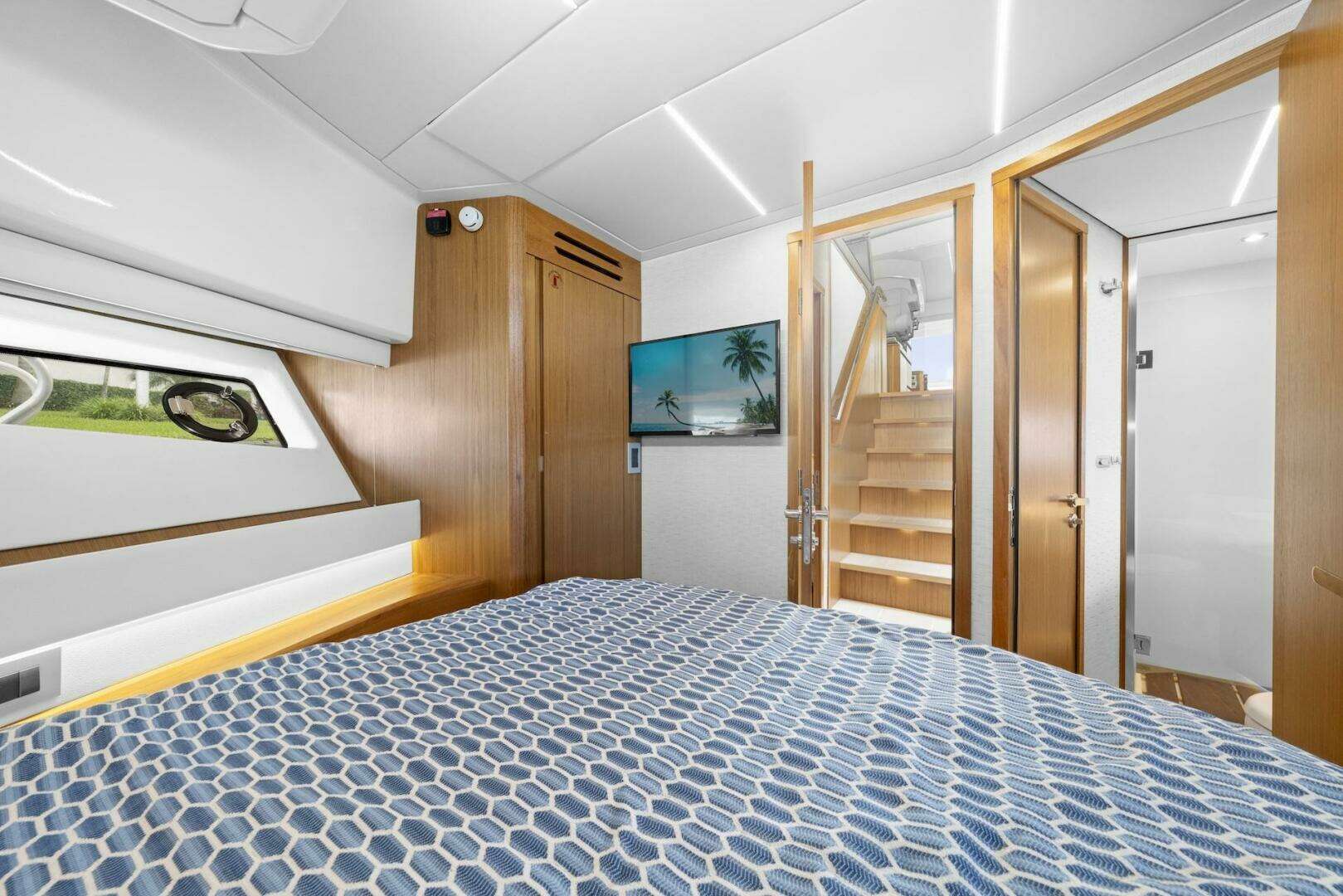

Guest Stateroom

• Island queen berth with innerspring mattress, carved teak and Ultraleather® headboard, mattress pad and sheets
• Lighted storage compartment below berth
• Port storage locker with shelves
• Starboard hanging locker with additional storage
• Fiberglass headliner system with wrapped panel inserts
• Skylight forward with shade
• Port and starboard hullside windows with manual shades and opening ports and screens for ventilation
• Overhead linear LED lighting with discrete indirect lighting
• Two reading lights
• Webasto® BlueCool V-Series, 12,000 BTU air conditioning system for guest and third staterooms
• 32" HDTV
• Fusion® stereo system with two 4" JL Audio® speakers
• Drawer storage
• Carpeted flooring
• Built-in inductive cellphone chargers

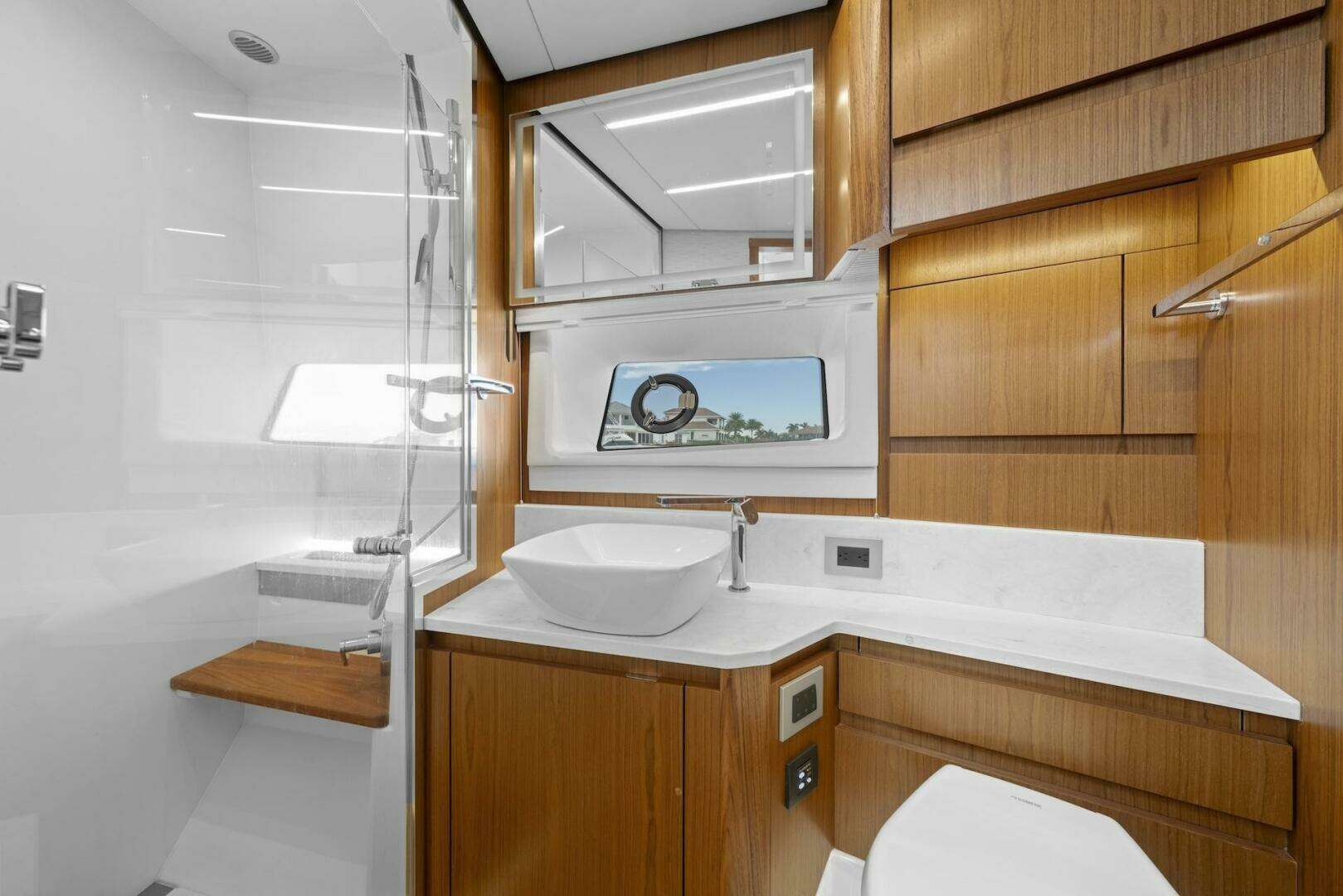

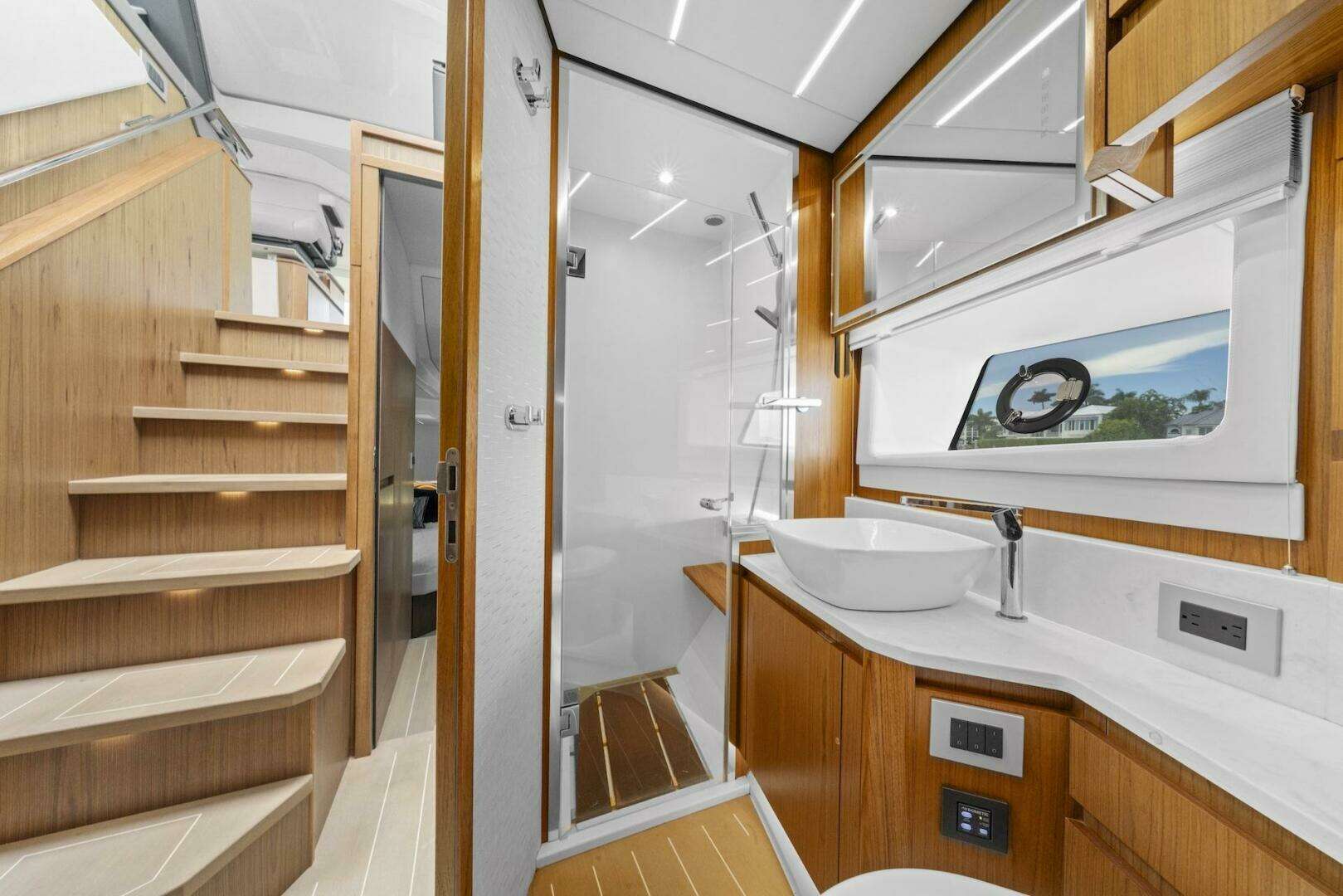

Guest/Day Head

• Full frame doors with entry from mid-cabin stateroom and atrium
• VacuFlush® toilet with electric flush operation
• Fiberglass stall shower with teak floor grate, glass shower door
• Solid surface countertop with sink, hot/cold water faucet
• Backlit and defogging mirror and upper storage cabinet
• Lower vanity storage
• Herculan® synthetic teak flooring
• Port hullside window with opening port, screen and manual shade
• Exhaust fan
• Air conditioning vent with controls in owner's stateroom
• Waste receptacle

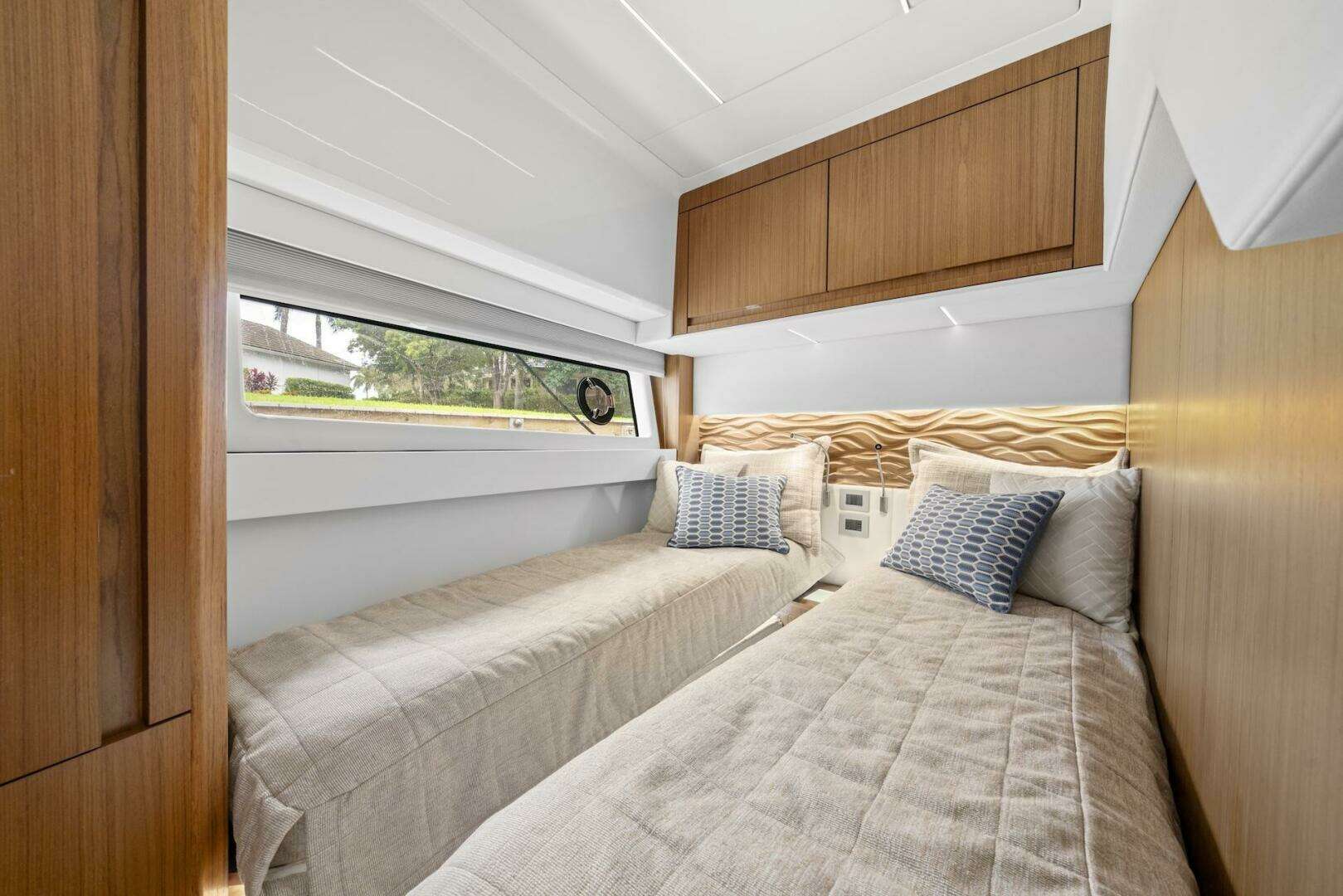

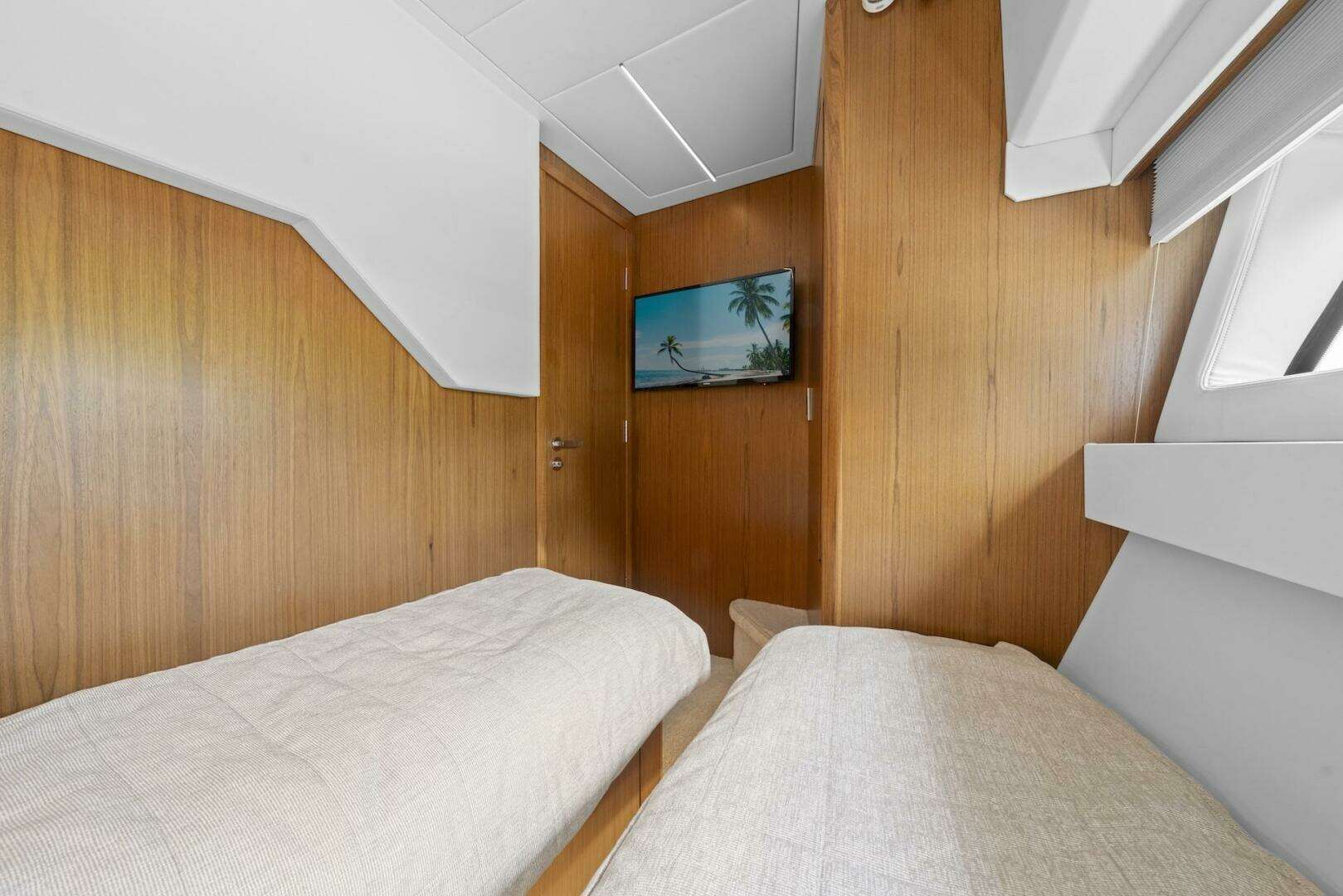

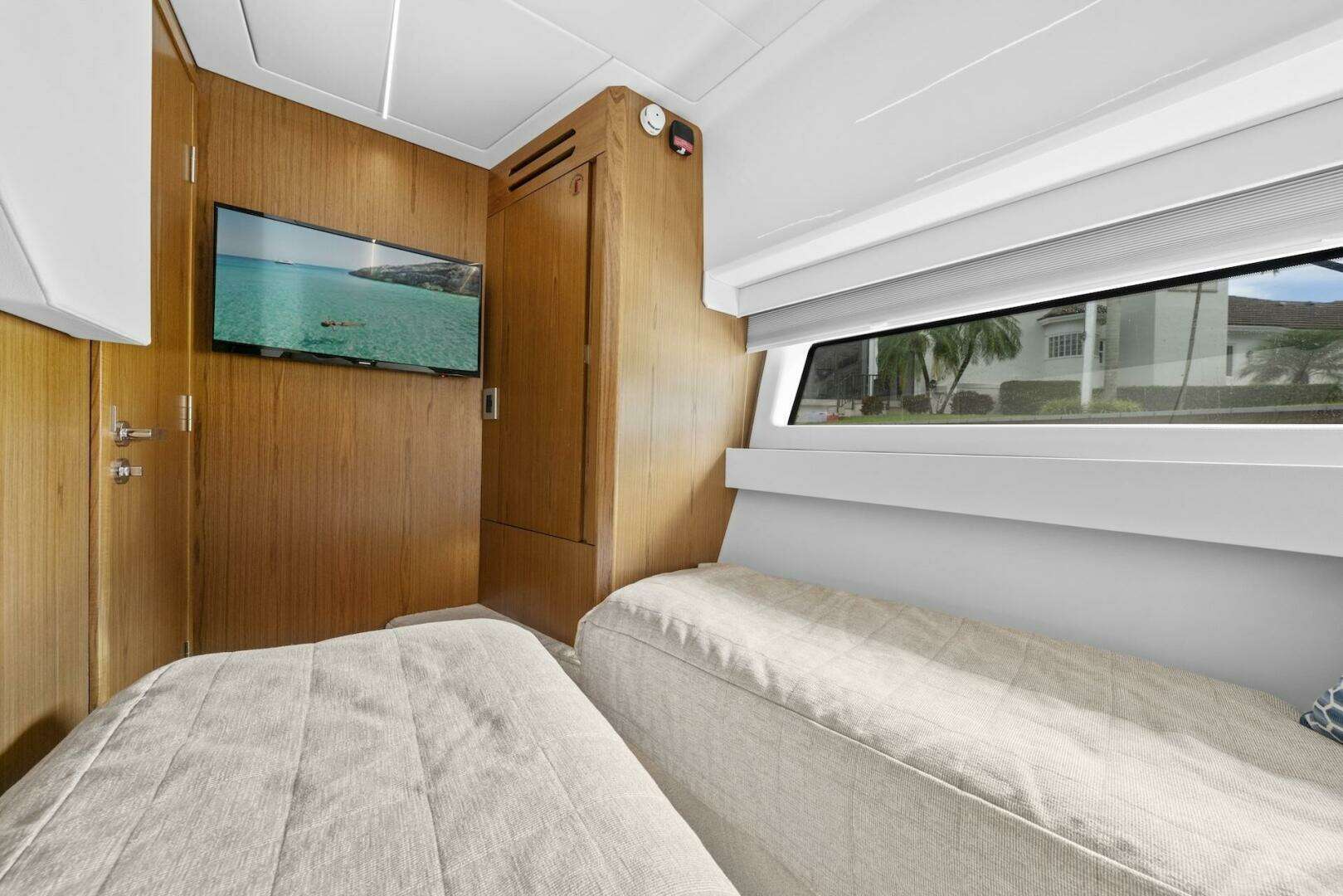

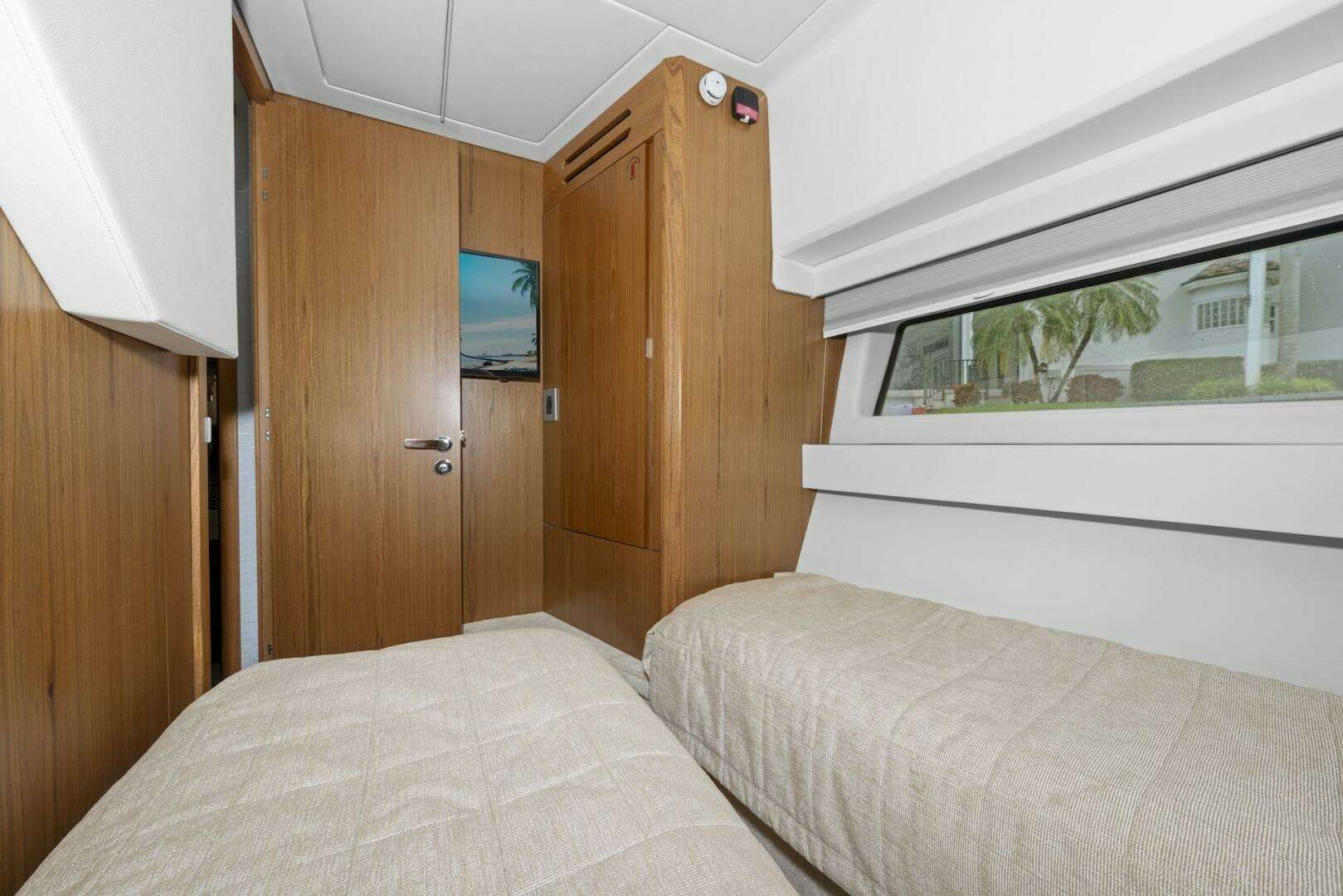

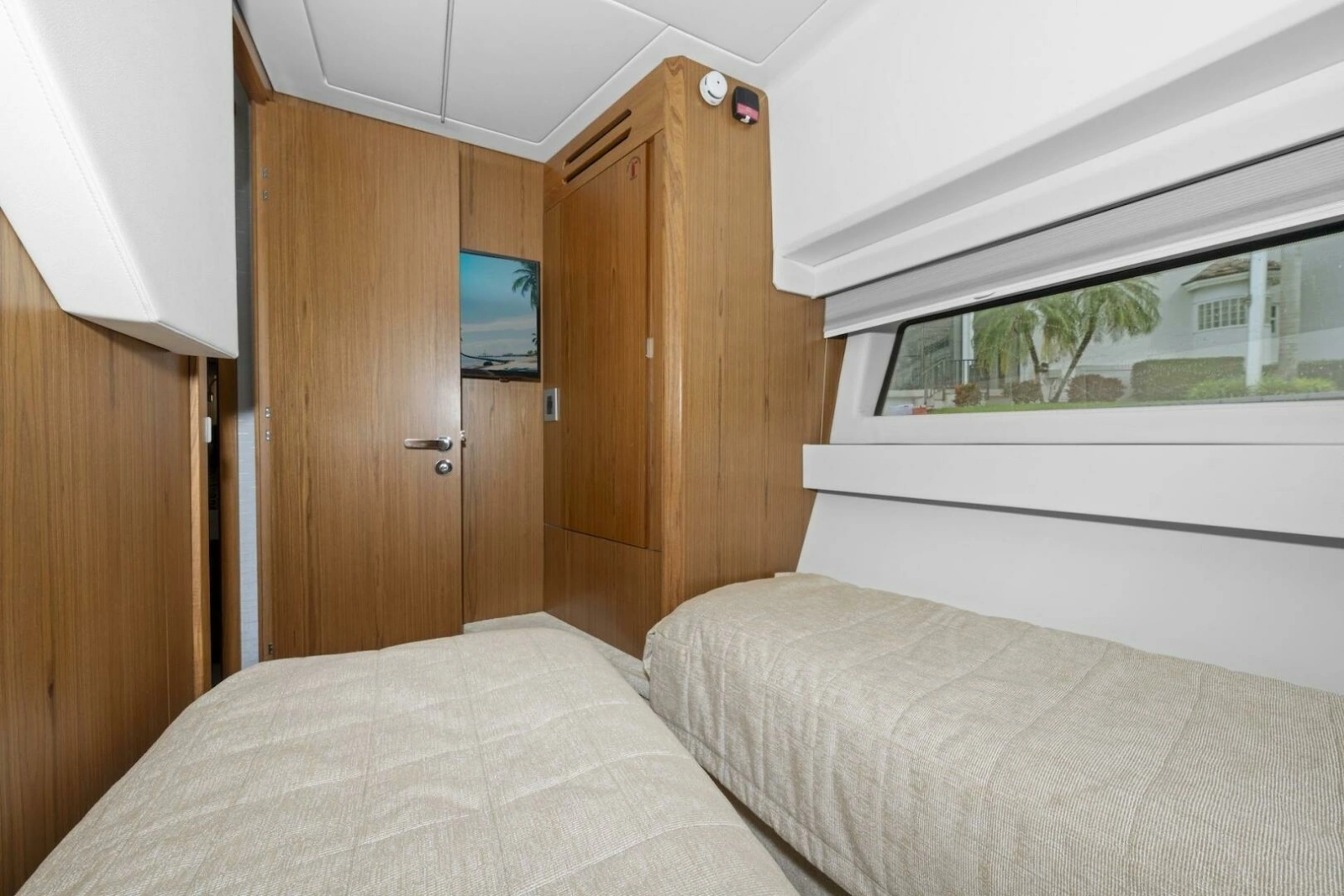

Third Stateroom

• Two twin berths that slide together to form full-size berth; berths include reading lights, innerspring mattresses, mattress pads and sheets
• Storage compartment below berth
• Cedar-backed hanging locker with additional storage
• Fiberglass headliner system with wrapped panel inserts
• Overhead LED lighting
• Starboard hullside window with manual shade and opening port with screens for ventilation
• AC/DC electrical panel in overhead cabinet
• Carpeted flooring
• Nightstand with glass top and inductive cellphone charger
• 32" TV

Instrumentation, Safety & Equipment

• Tiara custom 12V/24V DC and 240V AC electrical system with Tiara powerup/ system monitoring panel
• TV, VHF and AM/FM radio antennas

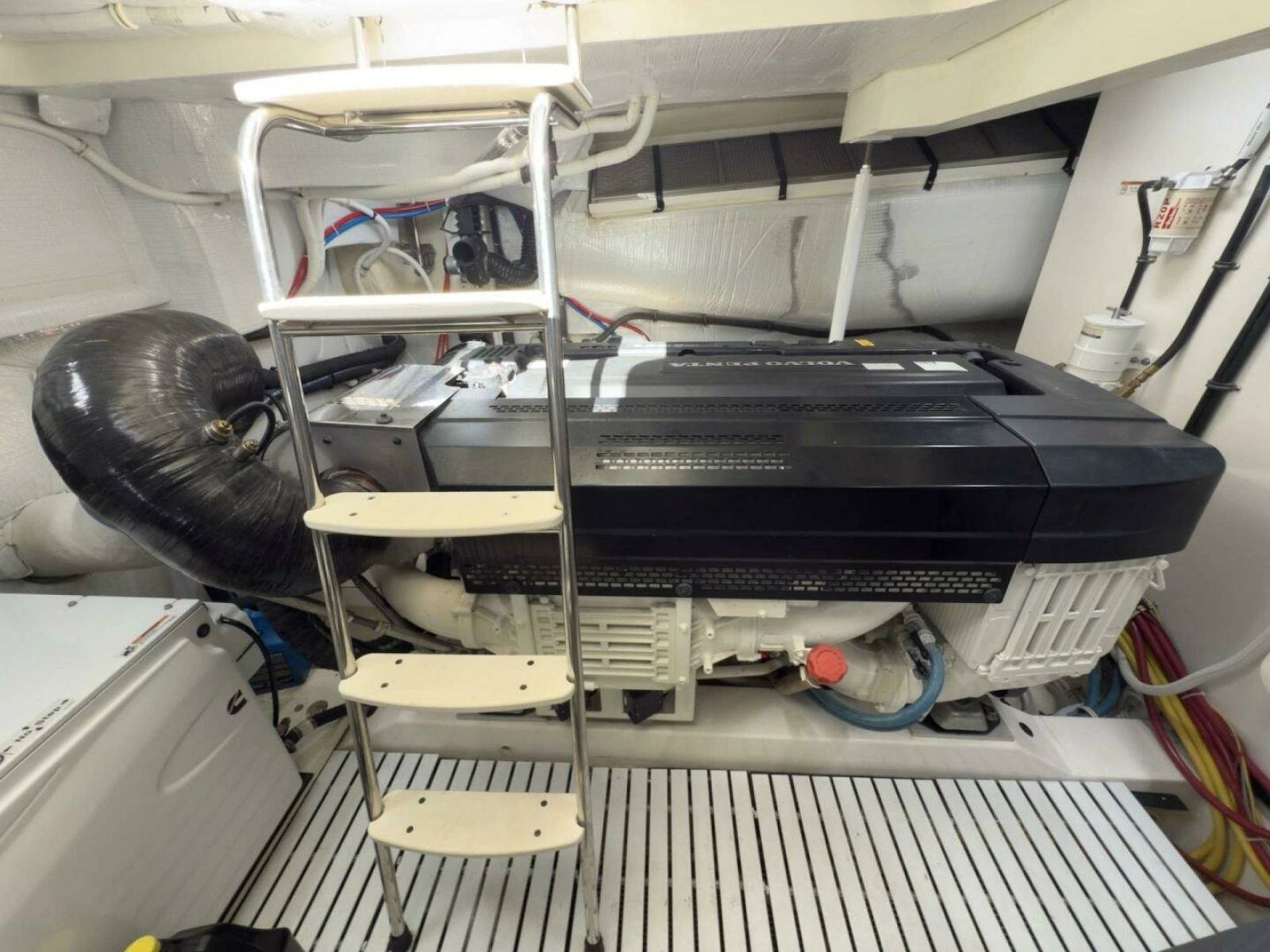

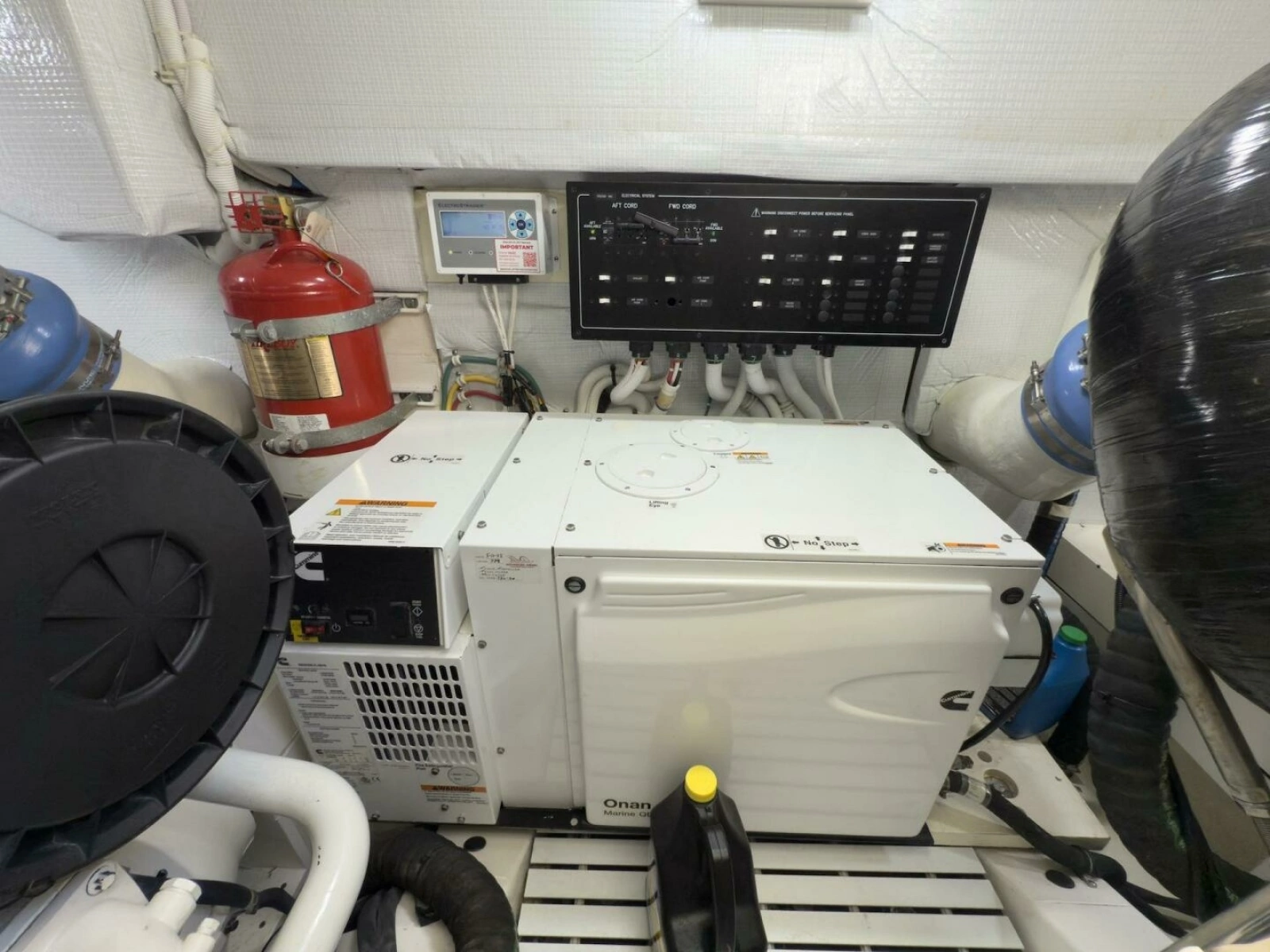

• Onan® 13.5 kW diesel generator with sound shield
• 12V/24V multiple AGM bank battery system with batteries and remote battery switches
• 80-amp battery charger with built-in 2000-watt inverter
• Electrical bonding system
• One 240V AC 50-amp 65' dockside power cord with Glendinning® Cablemaster recoiler system
• Volvo® EEC electronic engine controls and steering system
• Volvo® Glass Cockpit integrated electronics package includes:
• Joystick driving
• Two Volvo®/Garmin® 22" GPSMAP displays
• Volvo®/Garmin® GRID 20 remote
• Volvo®/Garmin® autopilot
• GPS antennas
• Garmin® 54 Fantom Array Radar
• Garmin® VHF315 radio
• Garmin® GSD24 sounder
• 1 kW transducer
• Aft facing HD cockpit camera
• Standard mast for radar and navigation light
• Pre-wiring for satellite TV and Starlink internet
• High output alternators
• Volvo® Interceptor trim tabs with Active Ride Control
• Volvo® Active Corrosion Protection System
• Zinc sacrificial anodes

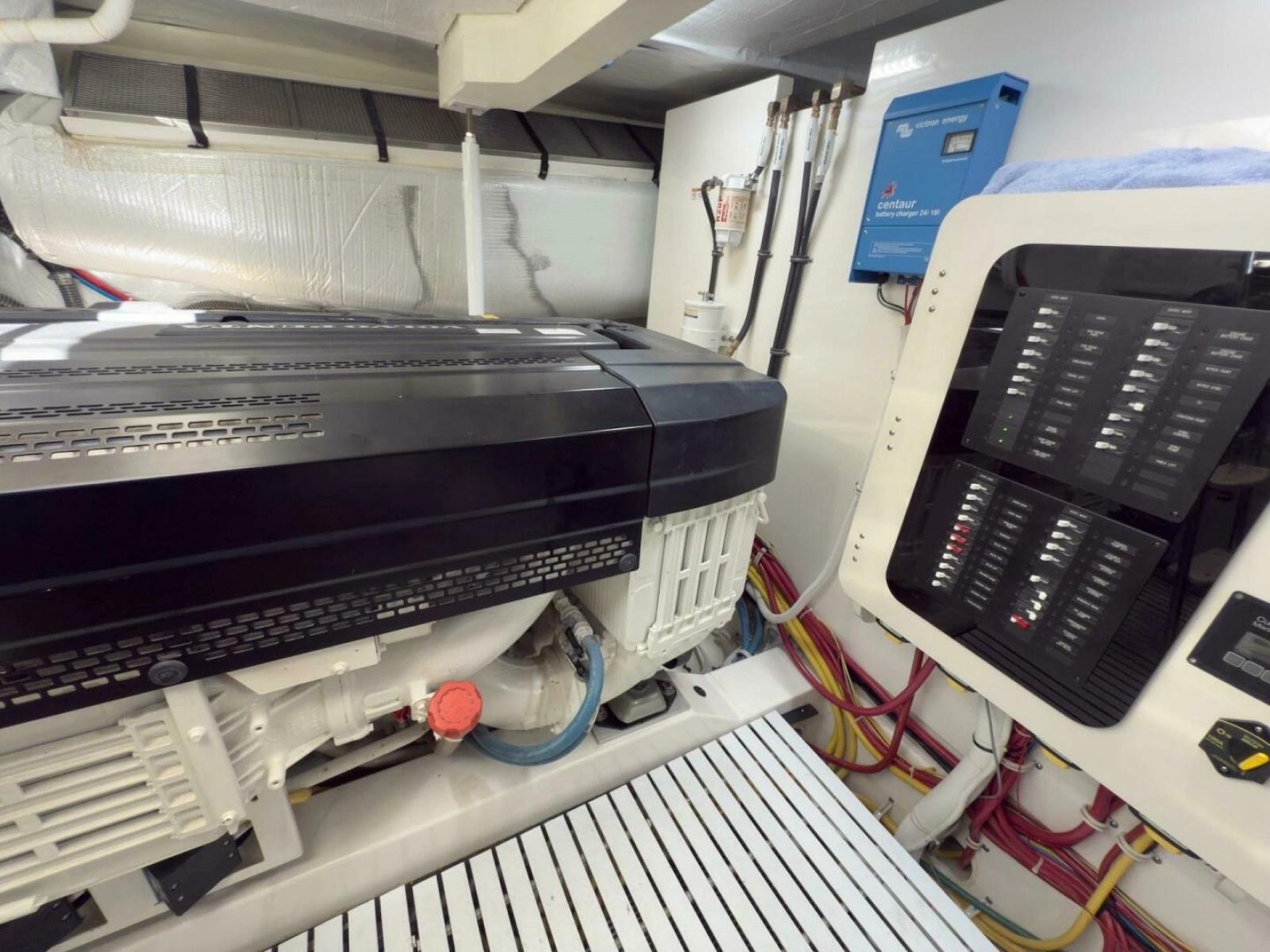

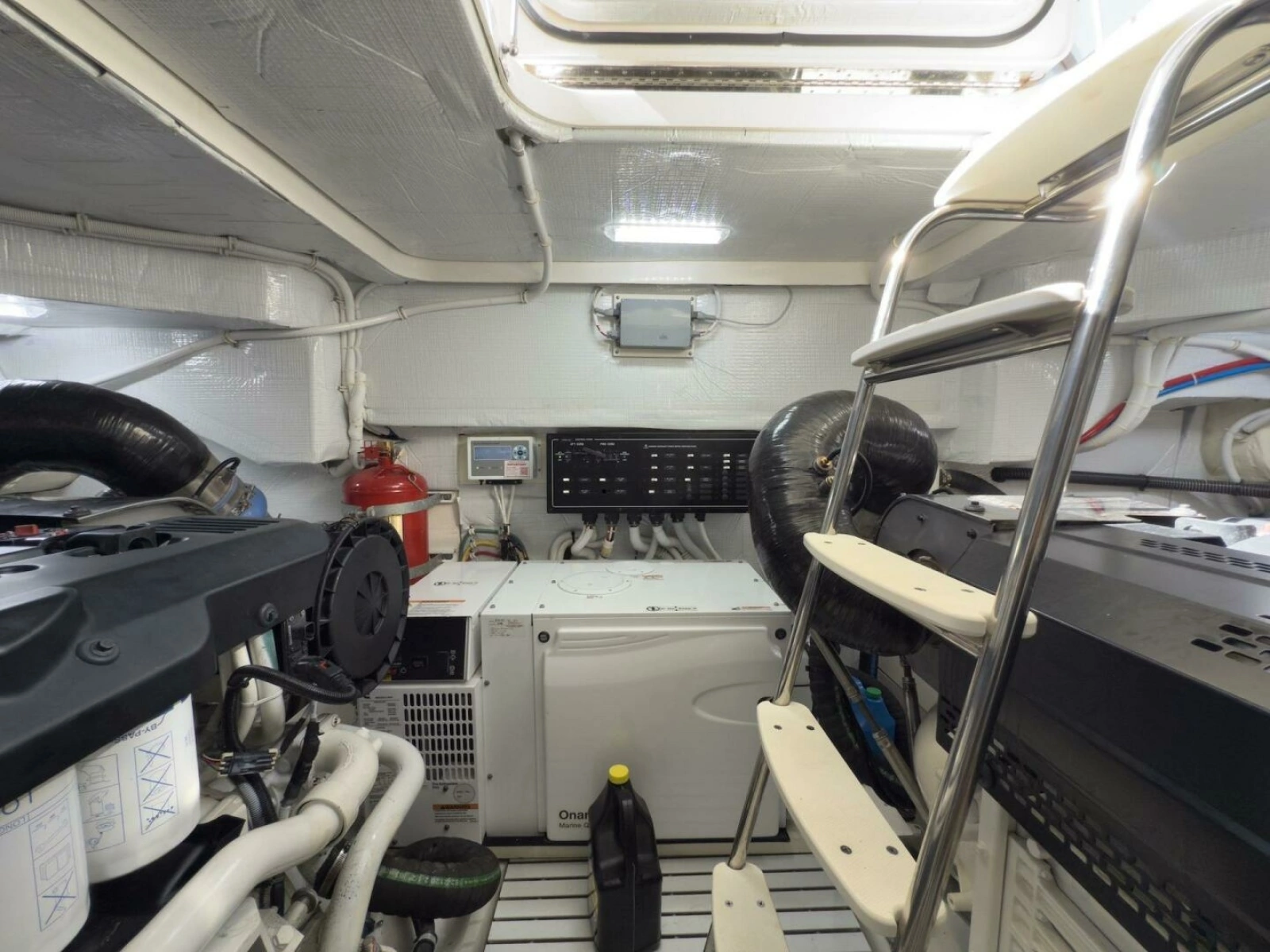

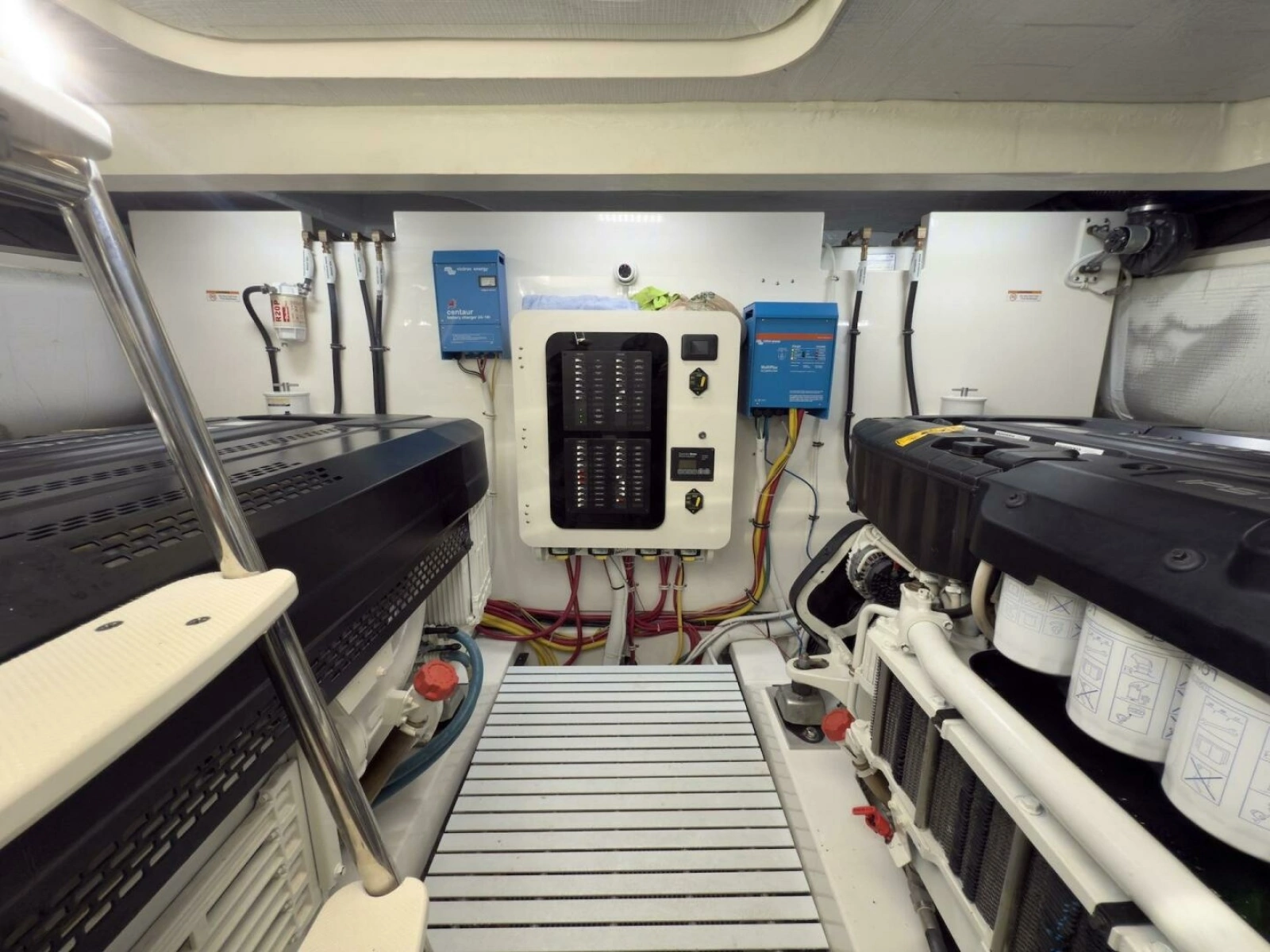

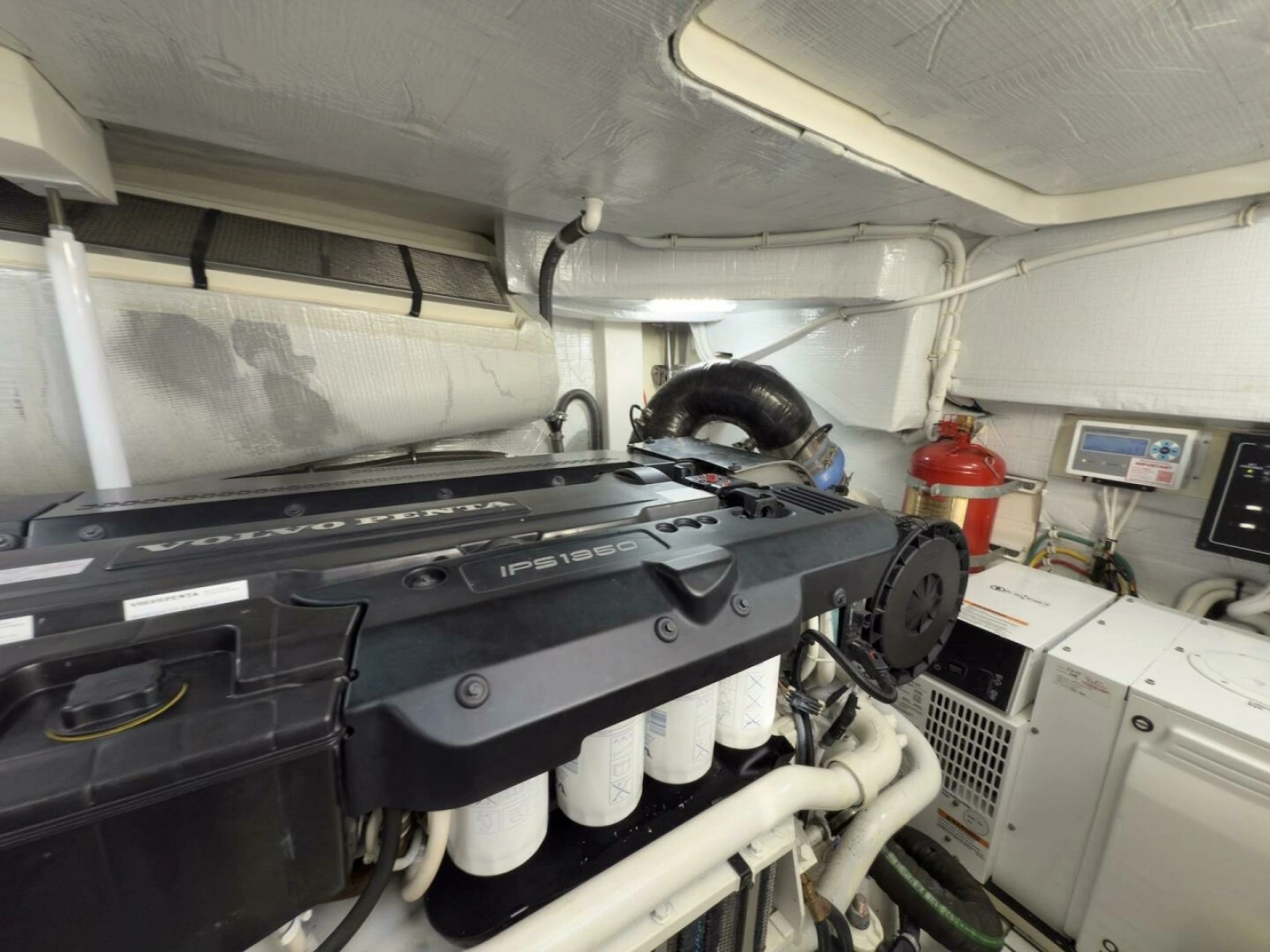

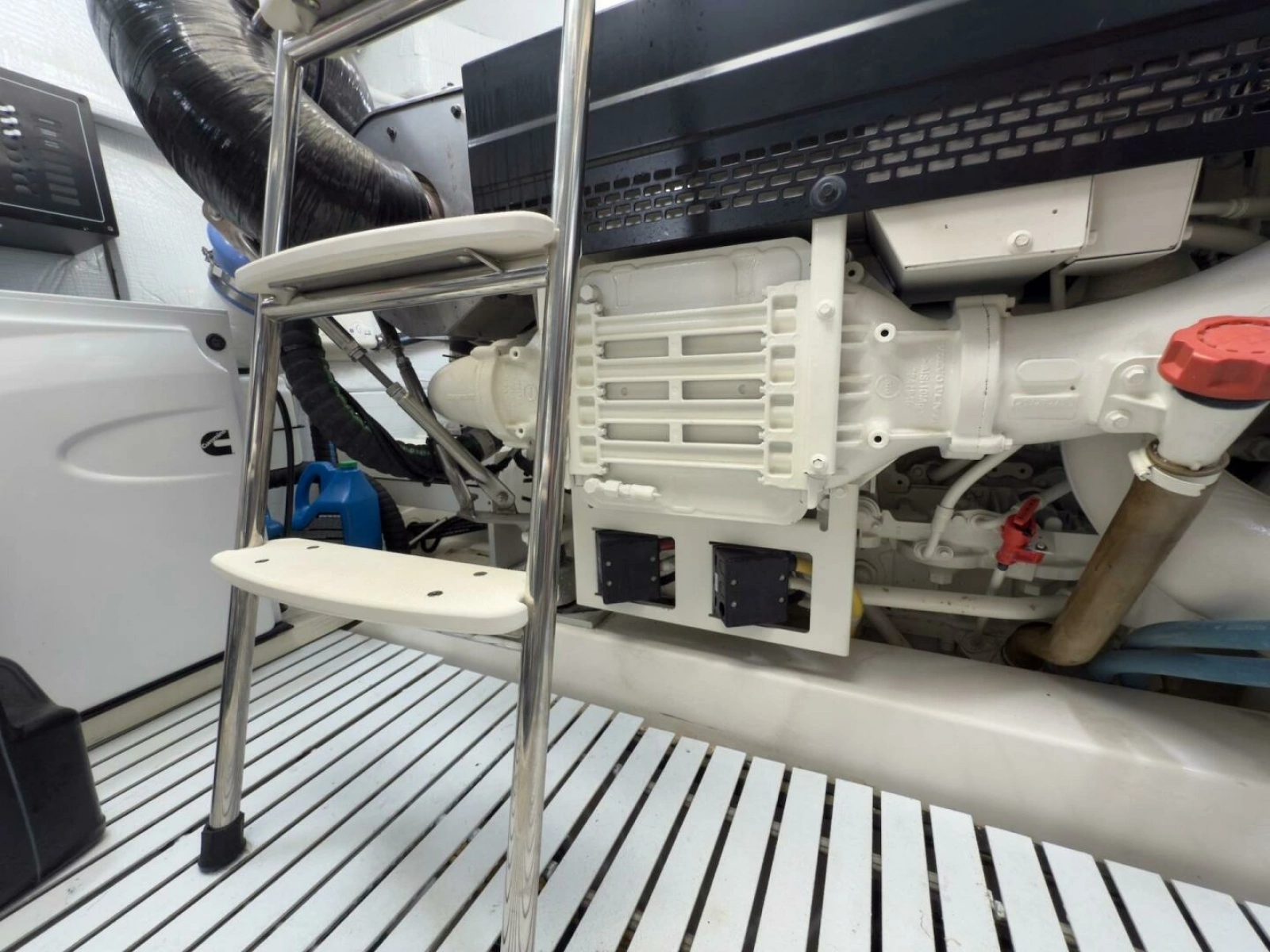

• Engine room with lighting and acoustical insulation
• Racor® fuel filters/water separators for engines and generator
• Raw water intake strainers for engines, air conditioners, generator and optional gyro
• Anti-vibration mounts for engines and generator
• Ritchie® compass
• Three automatic/manual electric bilge pumps with LED monitors at helm, 2,000 GPH each
• Aluminum fuel tank, total capacity 700 gallons, with in-line fuel vent filters and fuel shut-off valves on top of tank
• Dockside water inlet, aft deck
• Stainless steel freshwater tank, total capacity 150 gallons
• Holding tank, 86 gallons with deck discharge and holding tank vent filter
• Fresh water tank/holding tank monitor
• Fresh water pressure system with 10 GPM pump
• Water heater, 20 gallons
• Kahlenberg® chrome dual trumpet air horn
• Fireboy clean agent fire extinguisher system for mechanical room
• Five handheld fire extinguishers
• Carbon monoxide and smoke alarms in all staterooms and salon
• Propspeed® applied to drives and props
• Oil changing system for main engines and generator
• Dedicated storage for dock lines and fenders
• Eight Tiara life vests (domestic boats only)
• Two fenders with covers
• USCG safety and medical kit
• USCG/International LED navigation lighting
• NMMA certified using ABYC standards

Engine Warranty

These engines have LXC until 1/2/28

Optional Equipment

Hull, Deck & Aft Cockpit Group:

• Swim Platform
• Aft Cockpit Floor
• Perimeter Walkway
• Mediterranean Style Forward Manual Shade with Carbon Fiber Poles
• Alfresco Zone Coiled Cooling System - Transforms cockpit cooler into a 3.5 cu ft. fridge/freezer
• Captains Package Includes YotStik with Chamois, brush and deck blade attachments, two fenders with covers
• Six 30' Dock Lines
• Two 50' Dock Lines
• Portable Water Deionizer
• Foaming Sprayer & Boat Hook

Electronics Group:

• Third 22" Garmin 8622 Display
• Cockpit TV
• FLIR Camera
• Engine Room Camera
• Mast Upgrade includes wing mounts for SAT TV Domes

Diesel Engine:

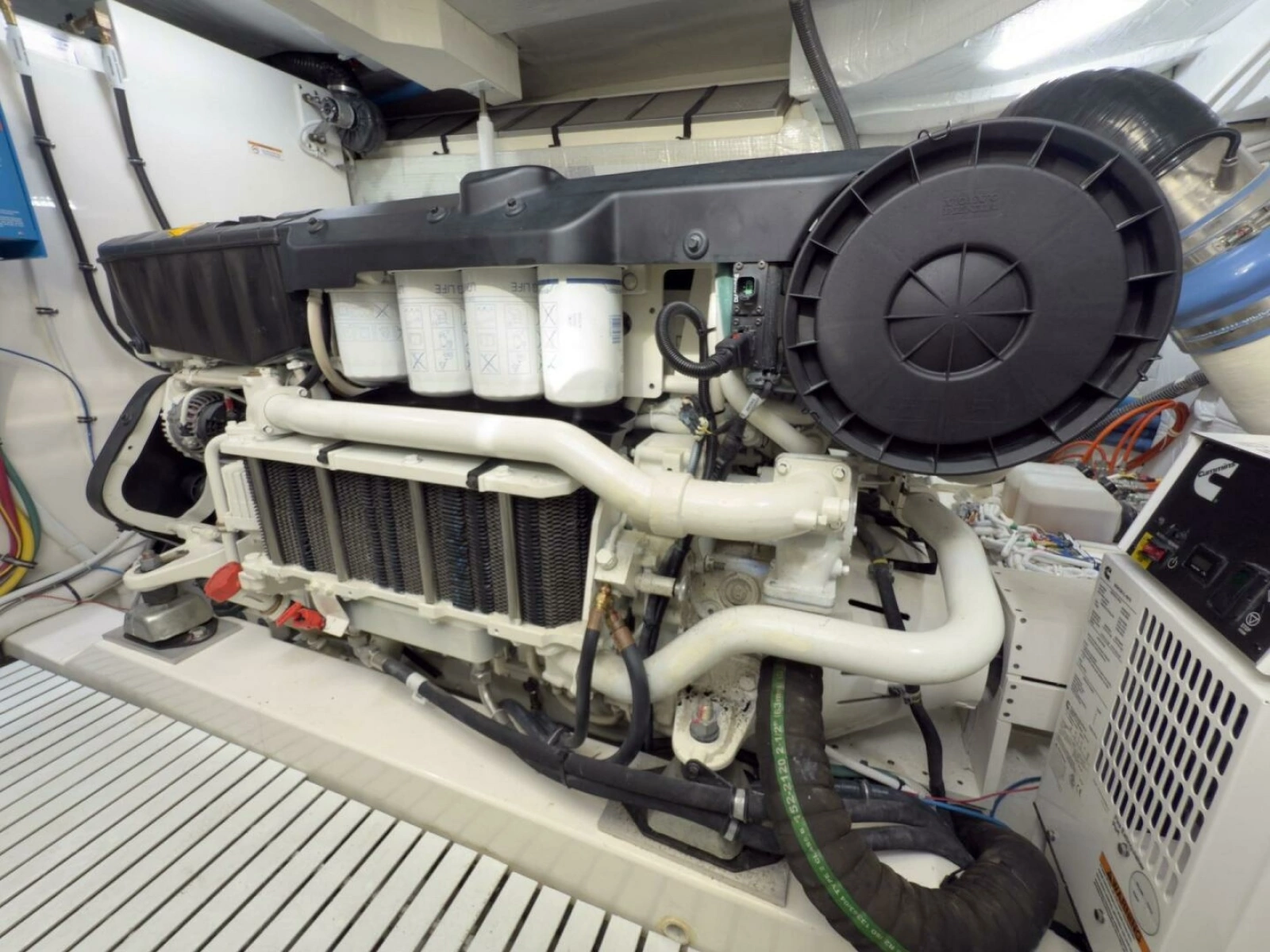

• Twin Volvo IPS3 1350
• Glass Cockpit
• Volvo Assisted Docking
• Joystick Plus Control

Mechanical Group:

• Forward Deck Shore Power
• All Chain Windlass with Remote at Helm
• Macerator System
• Second Joystick in Cockpit
• Seakeeper 9 Gyro

Alfresco Cockpit:

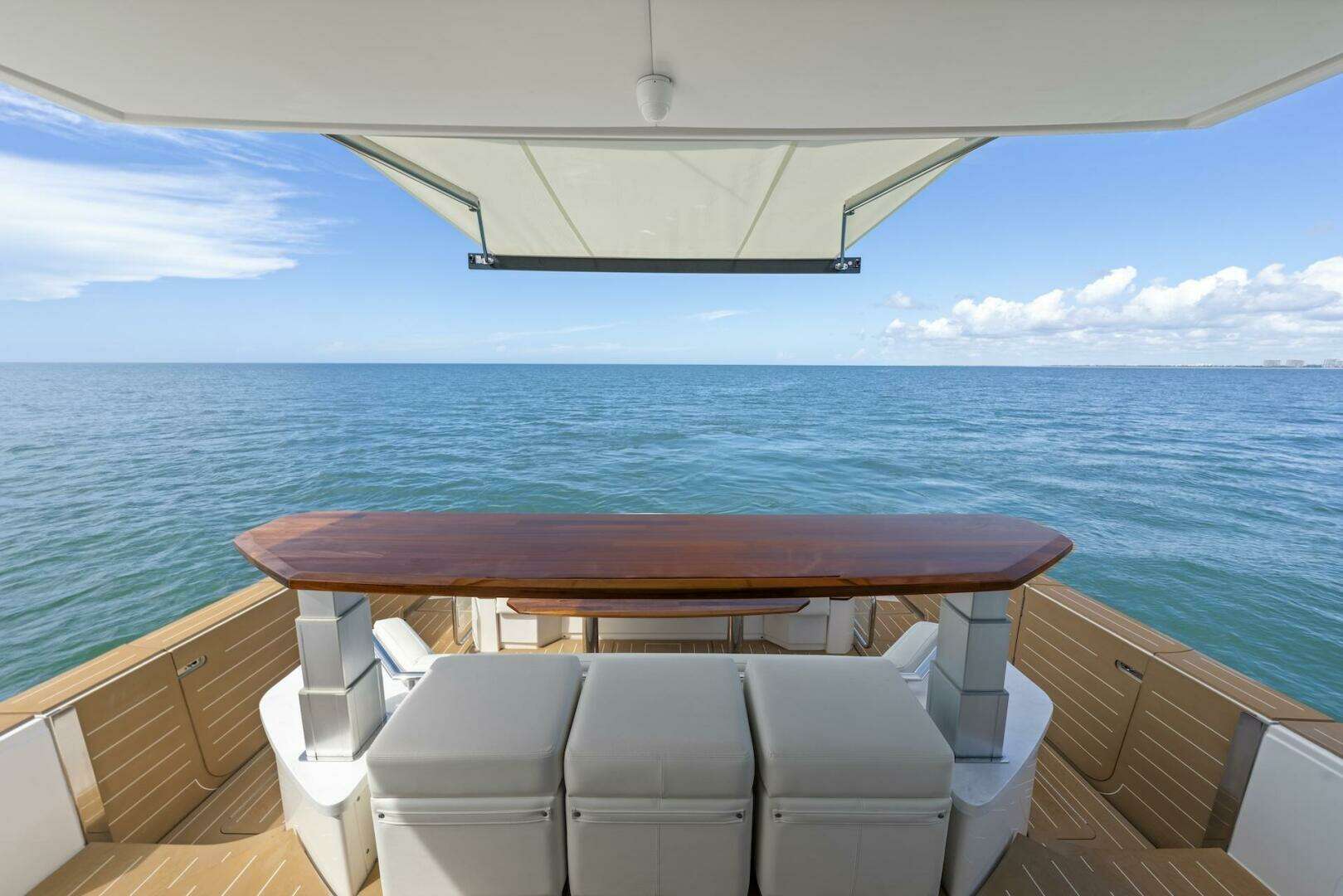

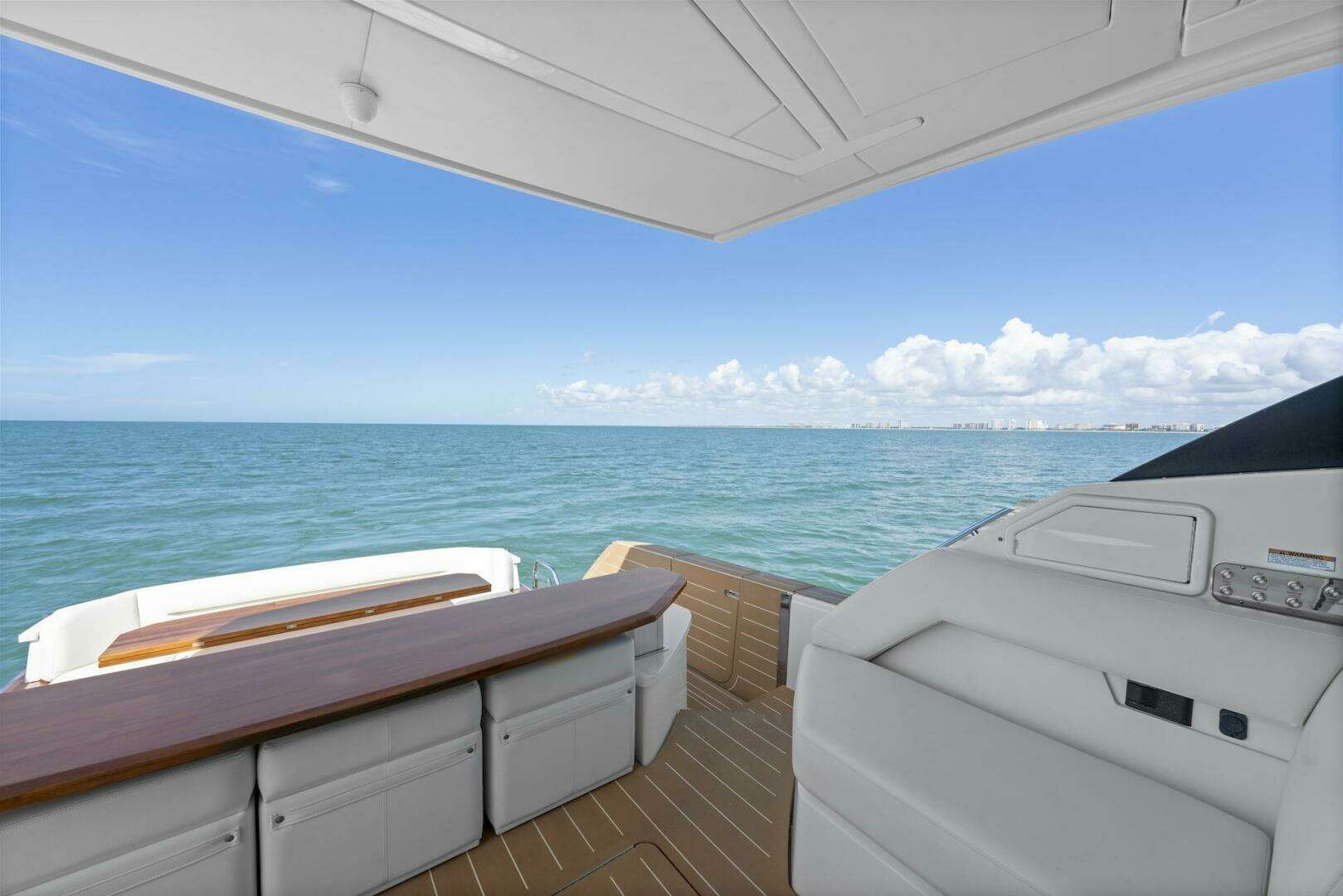

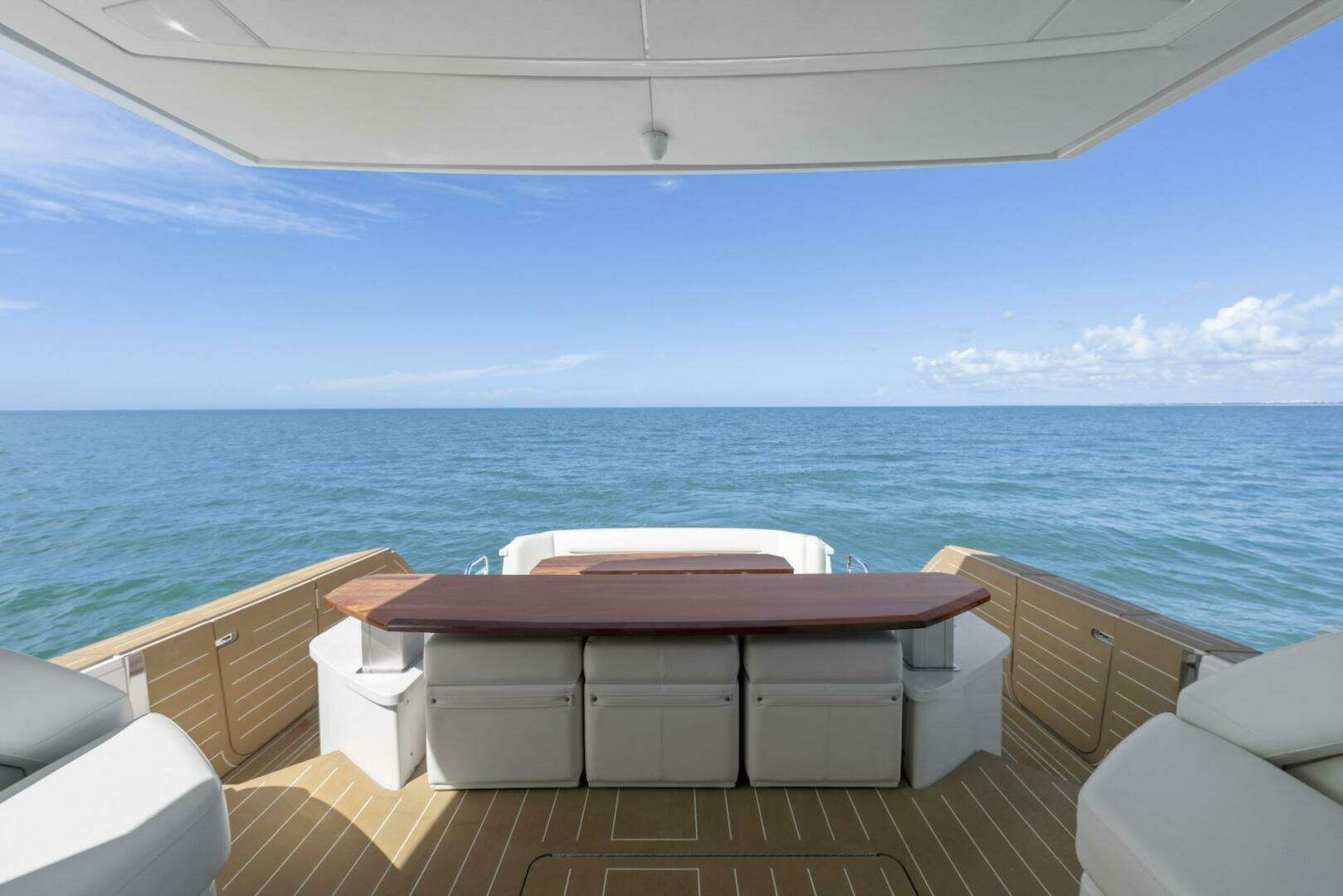

Breakfast Bar Module:

• High Gloss Teak Table, electrically actuated to elevate from table to bar height
• Three Ottomans with Storage

Forward & Aft Facing Seat Module:

• Forward Facing Lounge with Storage Below
• Removeable Cocktail Table, Handrails and Drink Holders
• Aft Facing Lounge with Storage Below, Handrails and Drink Holders
• USB Charging Ports

Aft Cockpit:

Lounge Module

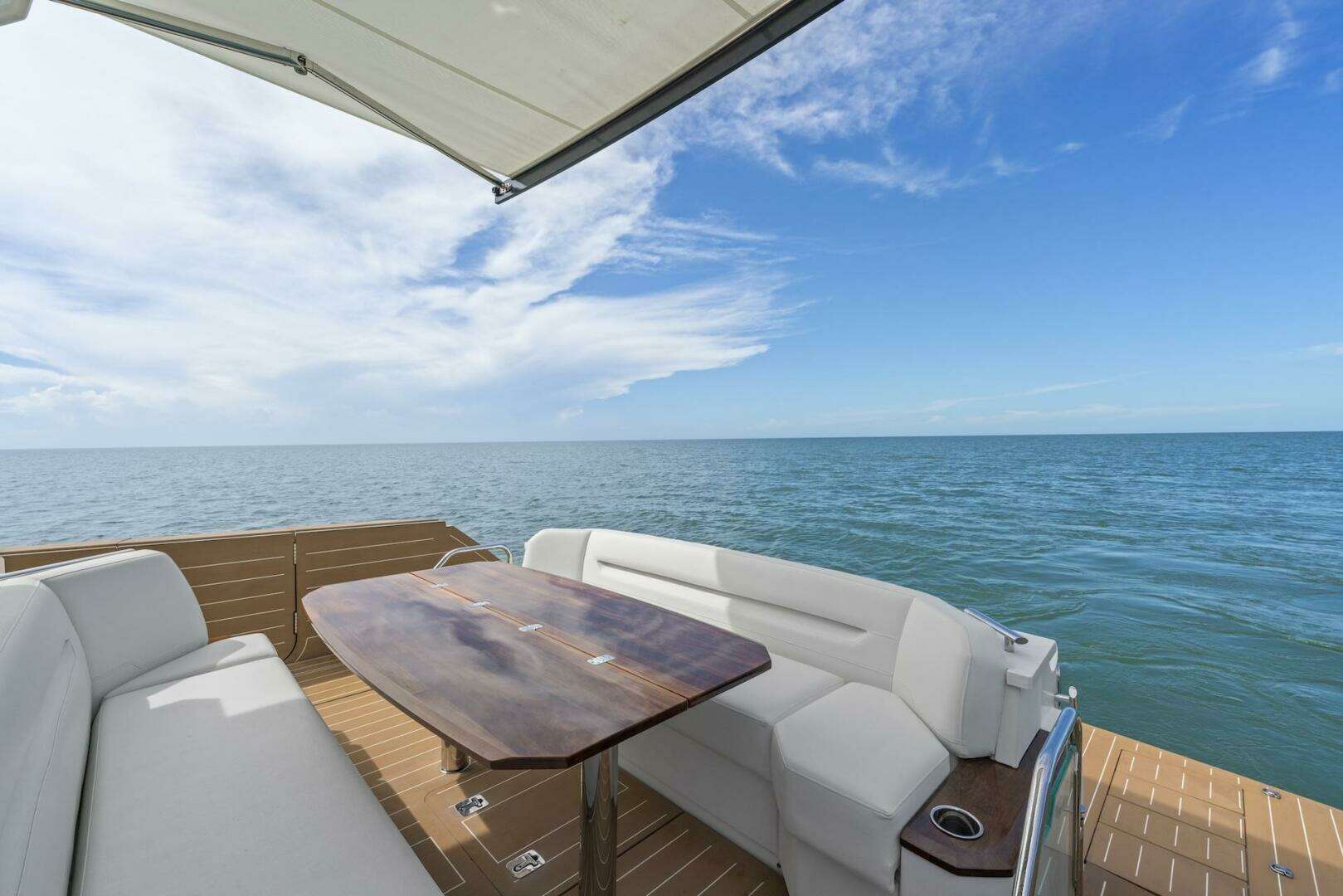

• Forward Facing U Lounge with Leafing Dining Table and Storage Below
• Solid Surface Countertop with Electric Grill and Wetbar Sink
• Quick Access Smart Storage for Dock Lines
• AC/DC Drawer Refrigerator

Interior Group:

Master Stateroom:

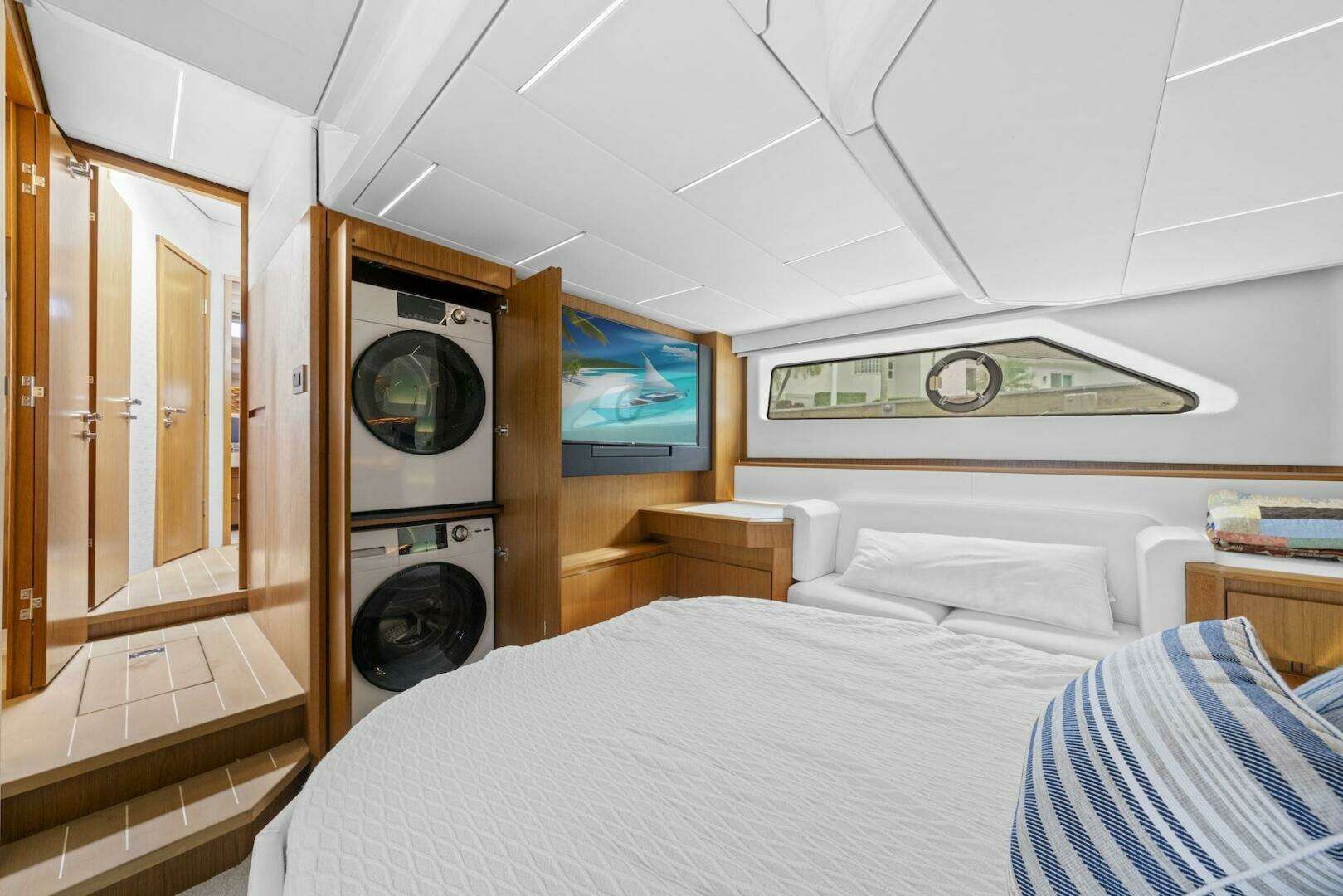

• Stackable Washer/Dryer
• Safe

Salon:

• 2 Stools
