Standard Equipment

SPECIFICATIONS:

Hull Length: 58’ (17.7 m)

Length Overall: 63’ – 1” (19.2 m) with swim platform

Waterline Length: 51’ – 7” (15.7 m)

Molded Beam: 15’ – 7” (4.7 m)

Draft with Props: 4’ – 2” (1.27 m)

Deadrise at Transom: 20°

Displacement (Half Load): 58,000 lbs. (26.3 MT)

Fuel Capacity: 780 gal. (2,953 L)

Water Capacity: 175 gal. (662 L)

PERFORMANCE:

Power: Twin Volvo Penta® IPS 950’s

Maximum Speed (Half Load): 30 kts.

Fast Cruise (Half Load): 27 kts.

Range (Fast Cruise): 315 nm (10% reserve)

Range (Max Range): 1080 nm (10% reserve)

Generator: 1 x Northern Lights 16K

INTERIOR OUTFIT -COMMON INTERIOR FEATURES:

Shades: Pleated blinds for side windows, and owner cabin

Décor package: Allowance for fabrics, seat cushions, mattresses, shades, and blinds

Décor styling: 40 hours with interior designer

Doors, cabin: Teak veneer and solid

Doors, locker: Teak veneer and solid

Drawers: Teak faced

Grab rails: Custom Stainless/ teak

Hanging lockers: Cedar lined

Hardware: Stainless steel blind catches for drawers and cabinets.

Headliner: Fabric with foam backing

Hull Ceiling Panels: White with v-groove

Insect screen/blinds: Blinds and screens on overhead hatches

Lighting: All lights to LED

Outlets and switches: VIMAR switches and outlets

Soles, deckhouse: Teak and holly with semi-gloss varnish

Soles, heads: Teak and holly with semi-gloss varnish

Soles, staterooms: Teak and holly with semi-gloss varnish

Stairs: Teak varnished with rubber non-skid inserts

Veneer & trim finish: Satin varnish

Wall coverings: Teak veneer with textured wall covering above chair rail

Wood, interior: Teak veneer and solid

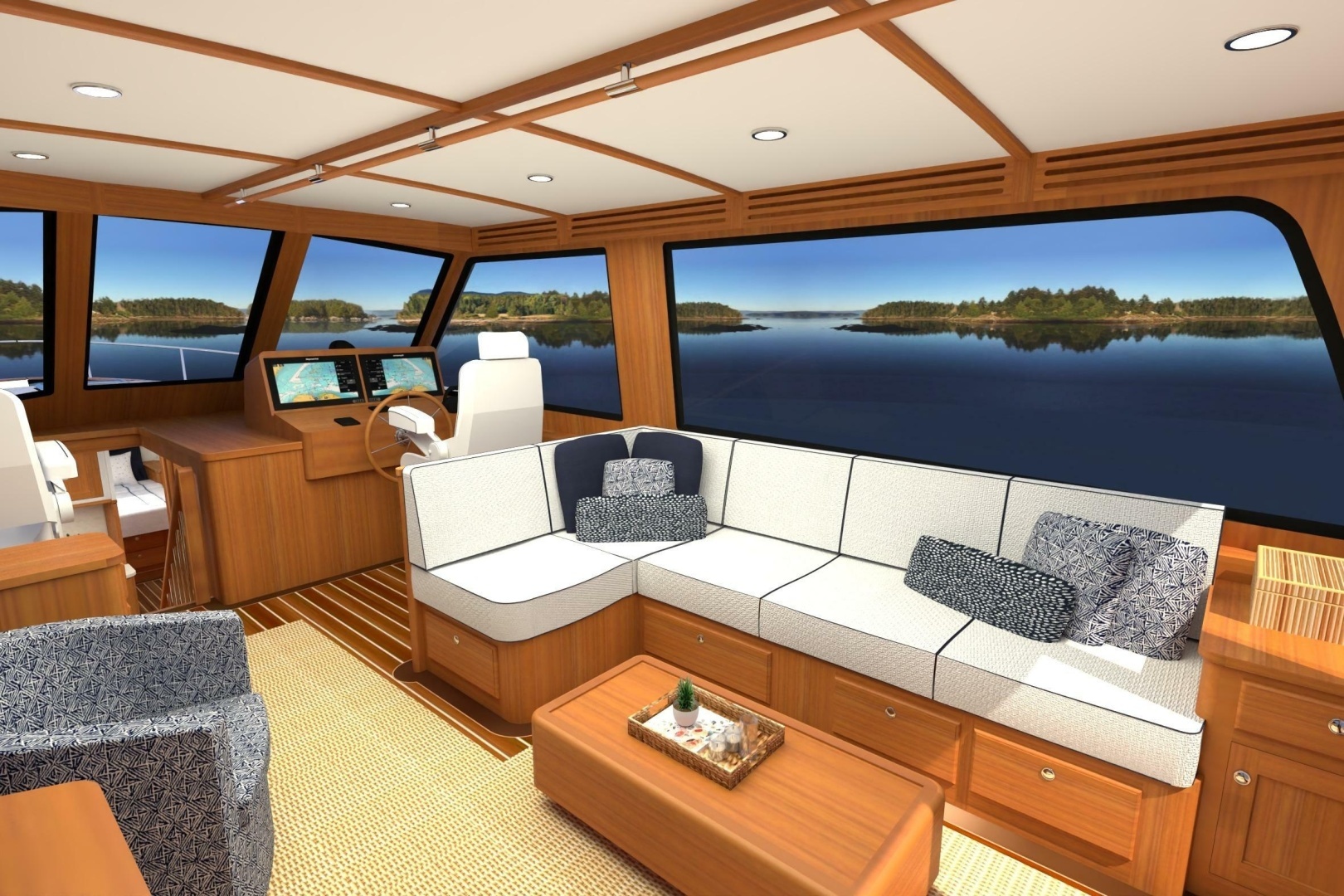

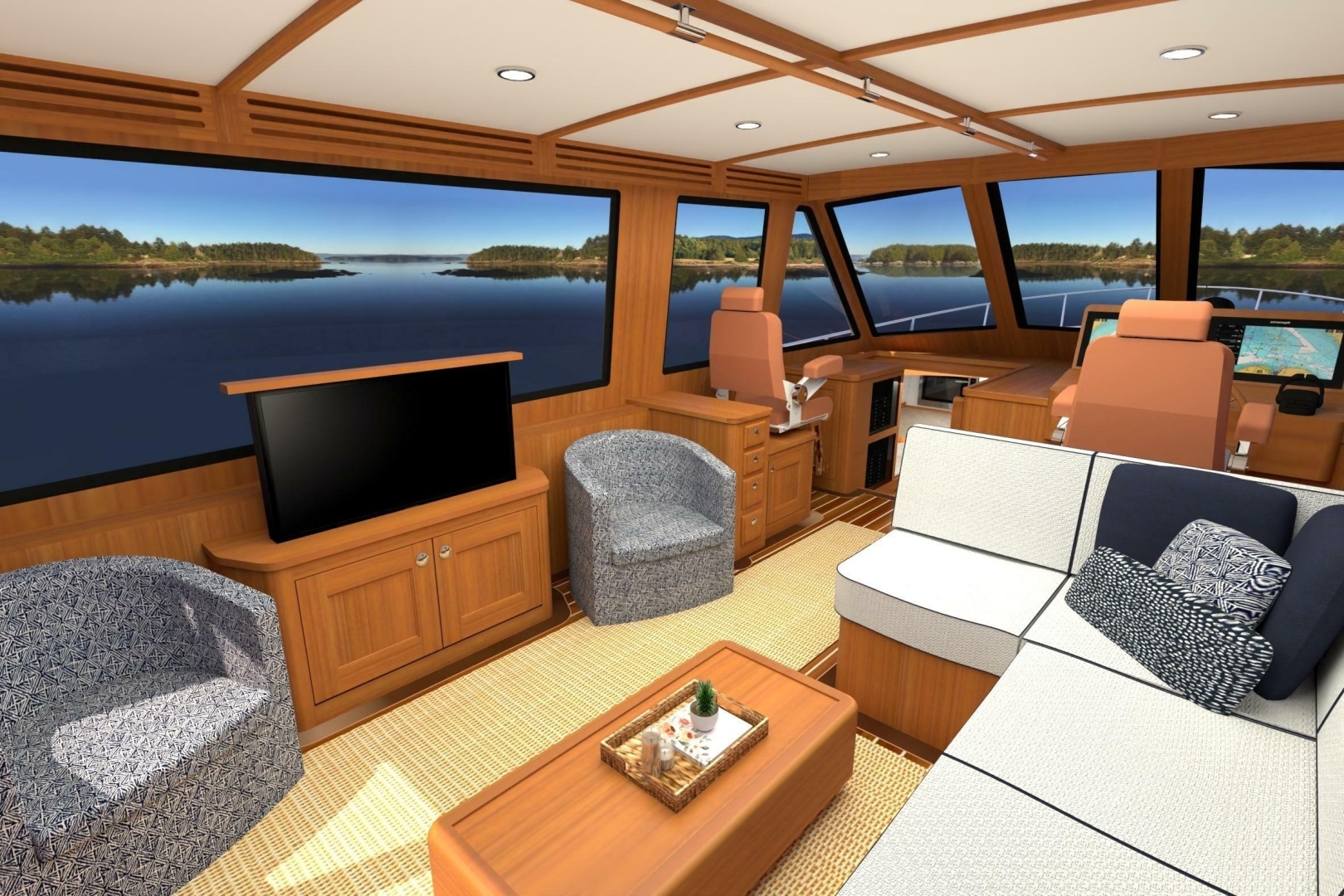

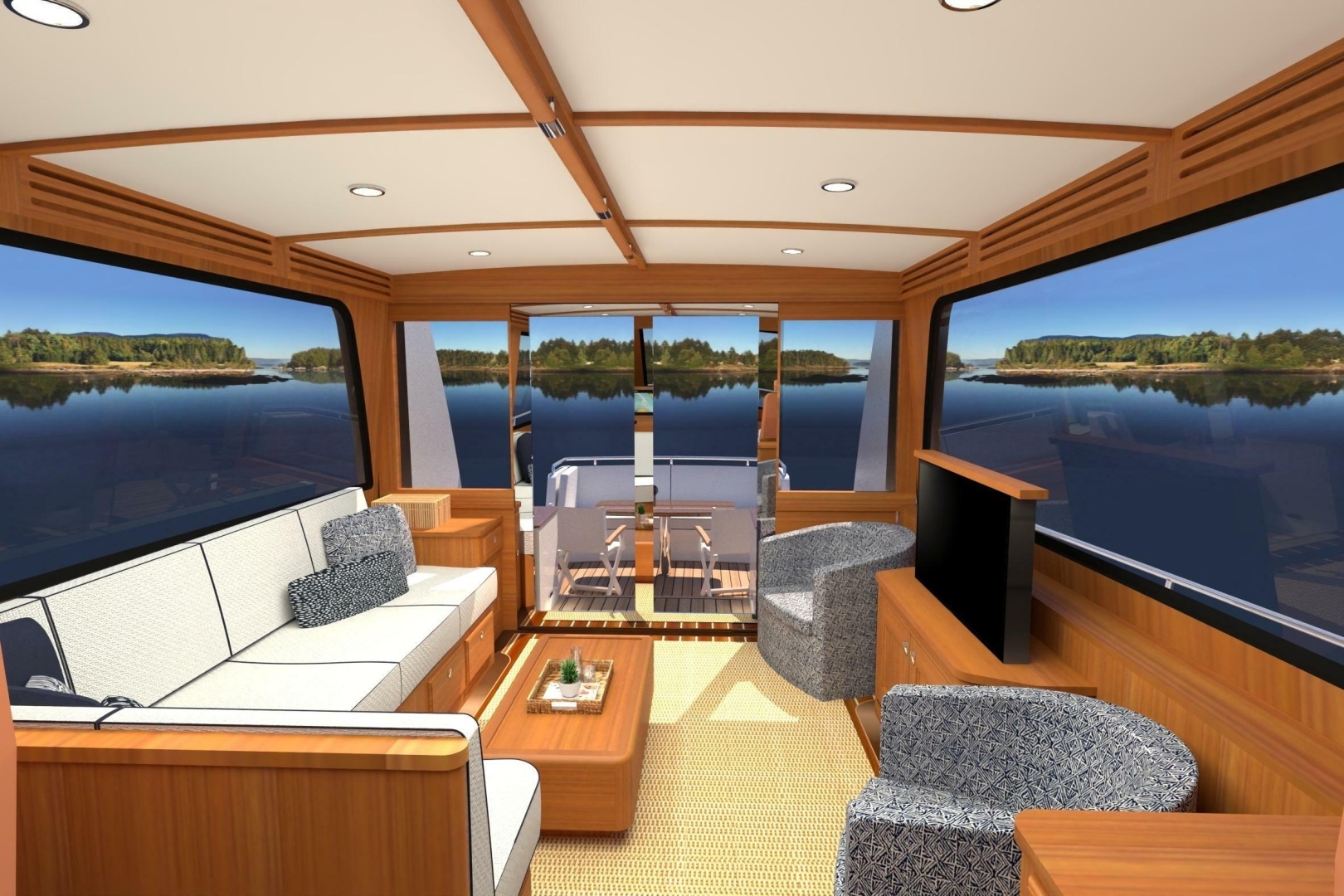

SALON:

Settee: L shape

Chair: Fabric, barrel x 2

Ottoman: Fabric with internal storage x 2

Table: Fixed, expandable cocktail to dining

Aft Sliding Glass Door: Weather tight, stainless-steel frame, handle and hardware

Electric Windows: Drop-down to port and starboard with screens

Headliner: white v-groove panels with varnished wood dividers

Companion seat: Fixed with cushion

TV: 43“ Smart LED with lift

HELM:

Seat: Single Stidd® Admiral low back manual seat with powder coated pedestal

Switch Panel: Control for bilge pumps, navigation lights, and helm lighting.

Console: Custom teak

Electronics Console: Custom, removable

Controls: Steering, engine start/stop, gearshift, throttles, horn, bow thruster, wipers, bilge pumps,

exterior lighting, running lights

Windshield Wipers: Pantograph, 24 vdc, speed control, auto parking, fresh-water wash

Windshield Defroster: Starboard side in front of helm

Windshield: Forward exterior covers – Stamoid® fabric

Compass: Ritchie SuperSport™ with Power Damp® with 4.5” dial

Steering Wheel: Stainless steel and teak

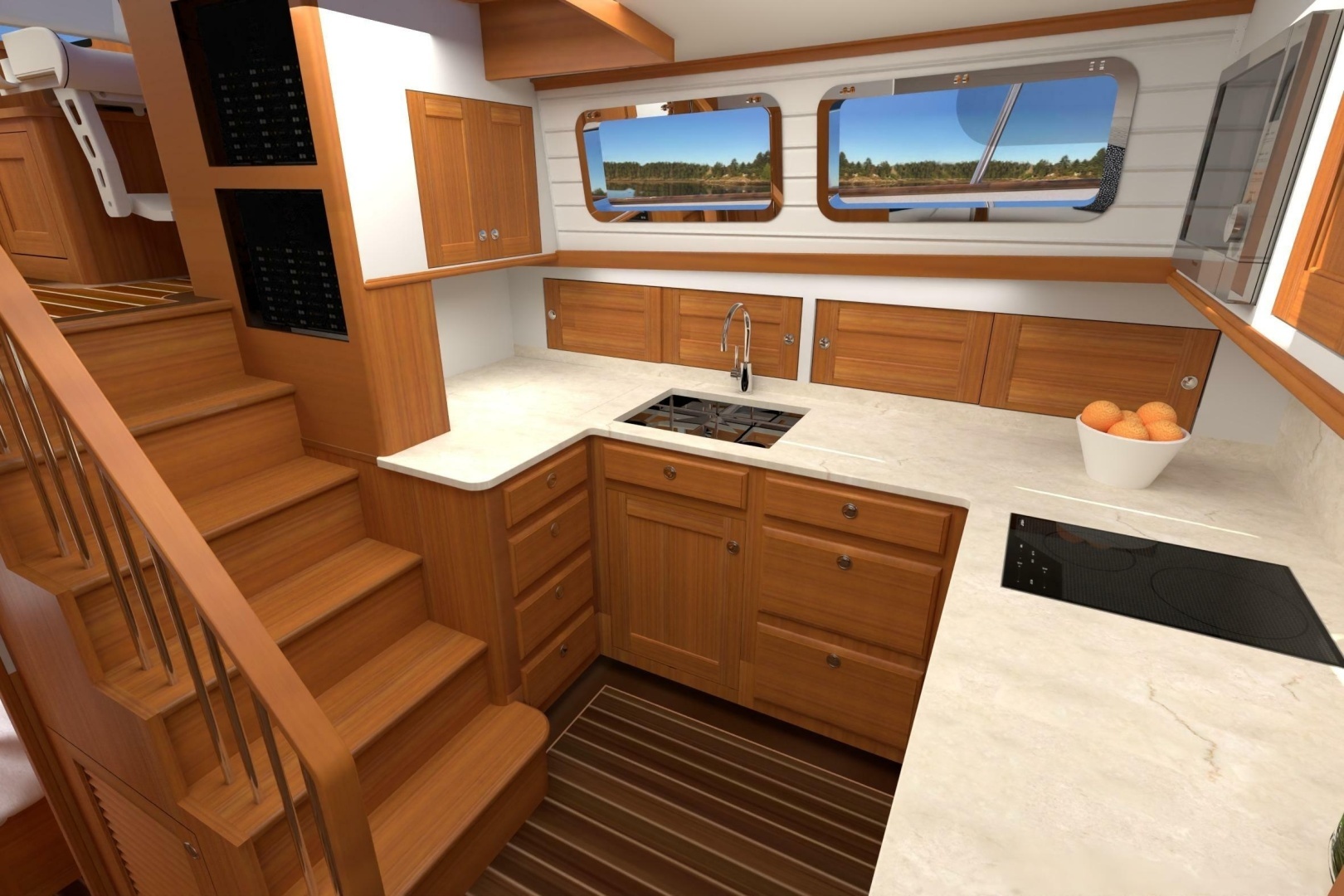

GALLEY (BELOW DECK):

Cabinets: Teak panels

Countertops and backsplash: Silestone®

Sink: Polished stainless steel, flush teak cover

Cabinets: Teak, satin finish; cutlery & storage drawers, storage lockers under

Pantry Lockers: Teak

Storage: Teak lockers and cabinets

Refrigerator: 2 drawer stainless steel under-counter mount, 120 vac

Stove: Wolf® 2-burner cooktop, 240 vac

Microwave: Panasonic® Multi-oven, microwave, convection, silver, 120 vac

Trash Bin: Cabinet slide-out

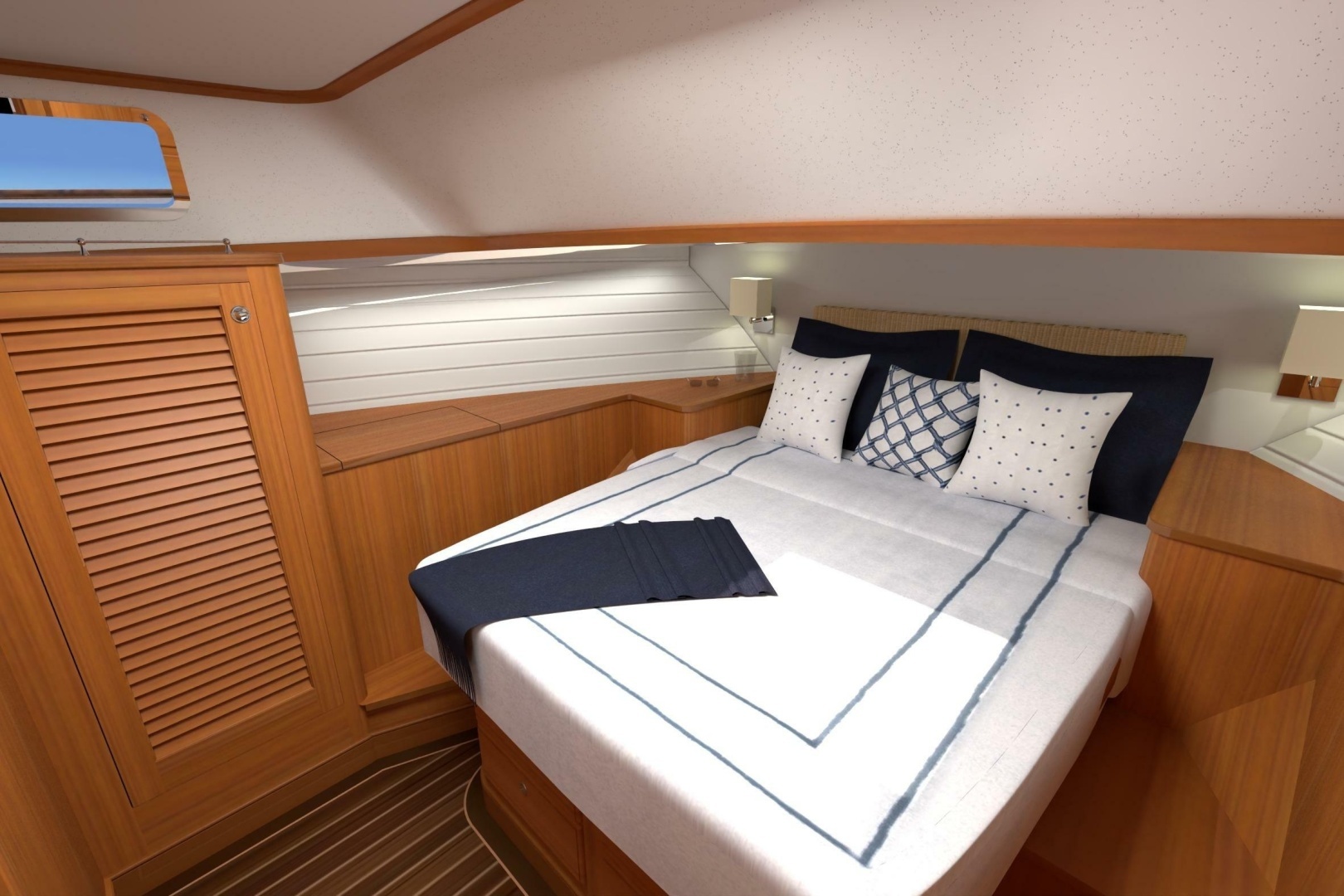

MASTER STATEROOM (ENSUITE):

Berth: Island queen, lift-up storage, teak drawers beneath

Mattress: Premium grade custom

Hanging Lockers: Teak panel, cedar-lined, shelves, micro-switch LED

Hunt Ocean 56XP - Standard Equipment List

Bureaus: Teak veneer

Mirror: Full-length

Hull ports: Stainless steel, opening with screens

Shower: Kohler® faucet, single lever, hand-held shower, chrome shower rail & wall union; glass door,

molded FRP, sump pump 24 vdc

Sink: Stainless steel under mount, Kohler faucet, single lever, chrome pop-up drain & P-trap

Toilet: Tecma®, electric, fresh water, 24 vdc

Countertop: Corian®

Floors: Varnished Teak & Holly with natural teak grate in the shower

Storage: Varnished cabinets

Accessories: Chrome toilet-paper holder, towel racks, rings, hooks

Exhaust Vent Blower: 24 vdc

TV: 32“ Smart LED with lift

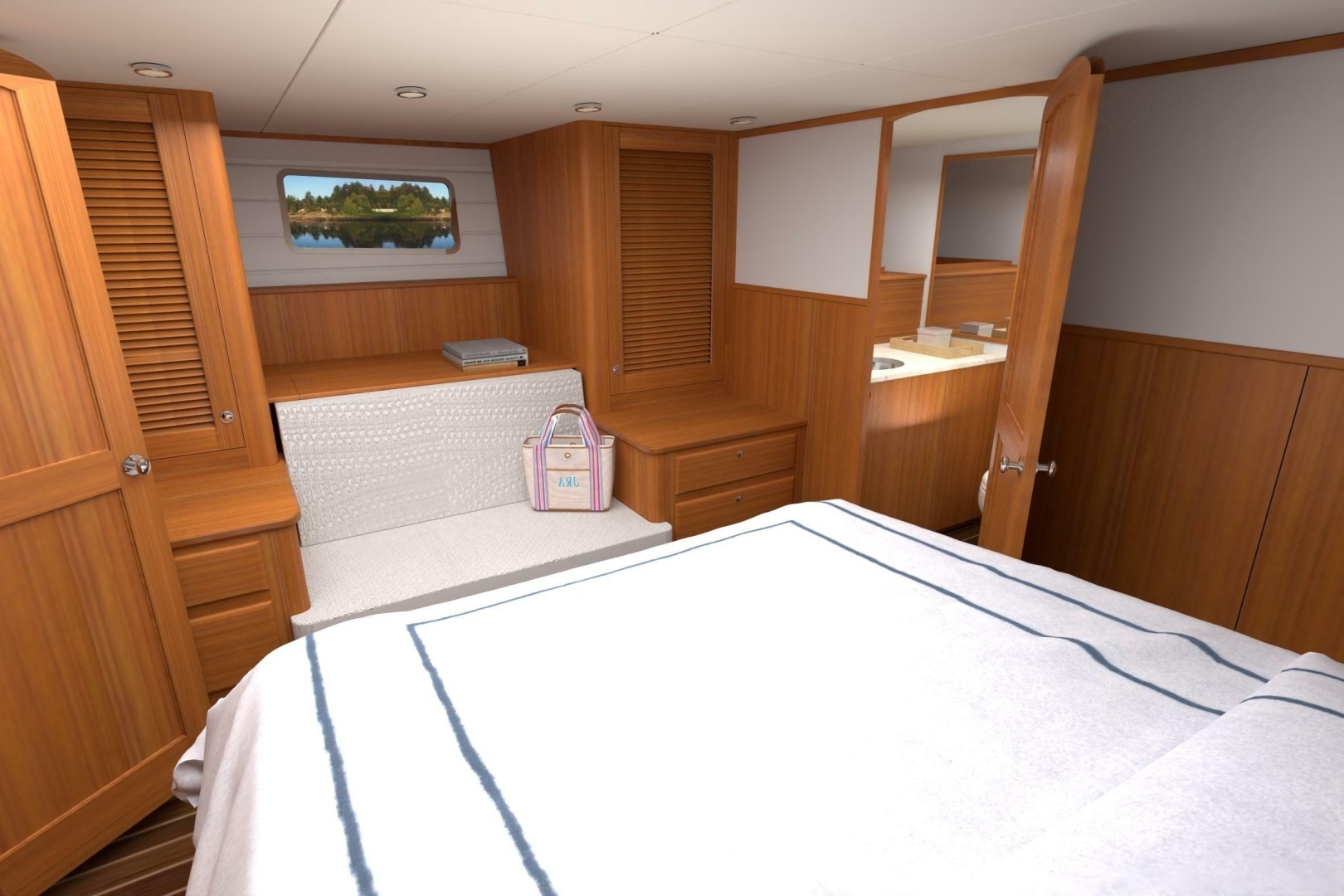

VIP STATEROOM (ENSUITE):

Berth: Island queen berth with gas-spring lift-up top and additional storage beneath

Mattress: Premium quality

Doors: Teak veneer and solid

Hanging Locker & Drawers: Teak panel, cedar-lined, micro-switch LED light

Drawers: Teak

Shower: Kohler faucet, single lever, hand-held shower, chrome shower rail & wall union; folding clear

door, molded FRP, sump pump 24 vdc

Sink: Stainless steel under mount, Kohler faucet, single lever, chrome pop-up drain & P-trap

Toilet: Tecma, electric, freshwater, 24 vdc

Countertop: Corian

Cabin Doors: Teak veneer and solid

Hardware: Stainless steel & chrome

TV: 24“ Smart LED

MID CABIN:

Hanging locker: Teak, cedar lined, micro switch for LED closet light.

Bureau: Teak with drawers

Berths: Settee converts to berth

Cabin Doors: Teak veneer and solid

Hardware: Stainless steel & chrome

Headliner: Fabric, foam-backed fabric, removable

TV: 24“ Smart LED

CONSTRUCTION:

Hull Lamination: Vinyl ester-infused foam-cored throughout

Hull Structure: Lightweight E-glass composite FRP stringers and webs

Engine-Bed Structure: Stringer design with high-density foam.

Deck Lamination: Vacuum-bagged foam core for vertical and horizontal areas. Deck and Housetop Structure:

Composite FRP beams and frames.

Deck-Hardware Installation: High-density core in way of hardware.

Deck-Hull joint: Fully bonded and mechanically fastened.

Bulkheads, Structural: Vacuum-bagged cored composite.

Bulkheads: Fully laminated bulkheads.

Cabin Soles, Structural: Vacuum-bagged cored composite.

Deck Gelcoat: Match to Awlgrip® Oyster white

Bottom paint: Antifouling color of choice

Underwater component paint: PropOne® non-stick release coating on all hardware without bottom paint

Hull Identification: Mark & logo

Hull: Painted, color of choice with clear coat

AFT DECK:

Decking: Teak decking with black seams on aft deck and swim platform

Settee: Curved, built in storage

Cushions & Seating: Marine grade, non-absorbing soft foam, premium upholstery

Aft Table: Custom varnished teak with fixed stainless-steel pedestal

Stairs: Port & starboard steps to swim platform

Gates: stainless steel Port & starboard

Swim Platform: Teak decking, folding cleats, stainless steel swim ladder with recessed storage

Transom Shower: Hot/cold, retractable hose

Washdown: Fresh water, pressure

Outlet: (1) exterior, 120 vac

Locker Storage: Port and starboard Lockers

MECHANICAL AND PLUMBING:

Engines: Twin Volvo Penta IPS 950 engines

Gear Shift Controls: Volvo, electronic, with synchronizers, trolling valve control.

Engine Mounts: Volvo, Heavy-duty isolation mounts.

Engine instrumentation: Volvo, Start/stop with electronic digital displays

Exhaust system: Volvo IPS exhausts

Trim tabs: Volvo interceptors

Steering: Volvo IPS electronic steering

Thruster: Sidepower® 24V at bow

Engine room, sound insulation: Composite panels of dampening, barrier and absorption layers.

Fire protection: Seafire® engineered automatic system, with manual override.

Engine-removal: Soft patch or hatch in cockpit

Engine-room flooring: FRP composite panels with non-slip surface.

Engine-room finish: White perforated wall and ceiling panels, white polyurethane bilges

Generator exhaust: Northern Lights, gas- water separator

Oil pans: FRP composite, under engines

Engine Air Intakes Manship® mist eliminators

Primary fuel tank: (2 x) Aluminum, 390 USG total=780 gals.

Fuel hose: Fill, supply, return, approved Type A1 and A2

Fuel filters: Racor® twin water separators for each engine

Fuel vent filters: Anti-spill device for each tank.

Oil change kit: For engine, gear and generator, 24 vdc

Tank gauges: For fuel, water, and waste 24 vdc

Tank level senders: Maretron® pressure monitor with submersible pressure transducers for fuel, water and waste

Seacocks: Groco® with exterior hull strainers for engines, air conditioning, generator.

On thru-hulls below waterline with double-clamped hoses. Raw-water strainers for pumps

and intakes. Valves on thru-hulls above waterline with double-clamped hoses.

Water Tank: (1) 175 gal – stainless steel

Tank vents, fills: Stainless steel

Discharge pump: For waste water tank, 24 vdc

Black water tank: (1) 115 gal

Toilets: Tecma 24 vdc electric system

Fresh-water system: Engineered plastic piping and fittings. Fresh-water pump - variable pressure, 24 vdc

Fresh-water regulator - city water. Fresh-water filter

Water heater: 240 vac, 20 gallons

Bilge pump: Whale® manual. (3) Rule® 3700 gph, zoned, automatic, 24 vdc.

Air Conditioner: Remote compressor, separate air handlers and controls for the salon, galley, VIP, guest cabin

and owner’s stateroom

ELECTRICAL:

DC electrical system: 12 vdc, 24 vdc

AC electrical system: 1 x 50A x 120 / 240 vac

Batteries: AGM: Engine start - 4 x 4D, house – 4 x 8D, generator – 1 x GPL-3100HC

Battery chargers: 60 amp 24V and 20 amp 12V. Battery-condition indicator. Battery isolation. Battery switch,

emergency paralleling

AC circuit: Breaker panel at companionway stairs

Inverter / Charger: 24 vdc to 120 vac (3000 watts) with 75A charger

Alternators: Engines, 24 vdc, 80 amp. Generator, 12 vdc

Engine room fans: Axial, 24 vdc

Engine room lights: LED, 24 vdc

Carbon monoxide detector: Each stateroom and salon, 24 vdc

Generator: Northern Lights®, 16 KW, with sound enclosure and exhaust water separator

Isolation transformer: Hubbell®

Shore-power cable: Glendinning® Cablemaster with 60 ft. cable for shore power with inlet and white

Hubbell cord, 50 amp

Bonding system: Common wire bonding with #8 AWG conductors per ABYC E-11

Circuit breakers: 12 vdc, 24 vdc, 120 vac, 240 vac. DC circuit-breaker panel - in passageway

Navigation lights: Hella NaviLED®PRO Series, 24VDC

Outlets: Galley, engine room and heads, GFCI circuit protection.

Combination USB A&C Outlets: 2 in master, 2 in salon, 1 each in VIP, Guest & helm

Wiring: Marine-grade, tinned copper

Wire fittings: Marine grade, terminals, connectors

Lighting: LED lighting with VIMAR® switches

Outlet: 12 vdc on inboard face of aft locker in engine room

Stereo System: Fusion® components: 1 receiver in salon with 4 speakers, 1 sub-woofer and amp. 2

additional speakers in cockpit. 1 receiver and 2 speakers in master.

EXTERIOR OUTFIT:

Anchor & rode: 60Lb stainless steel CQR® with 50’ x 3/8” G4 galvanized chain, and 250’ x 3/4” line

Anchor Chain Locker: Self-draining, access hatch

Anchor Roller: Single anchor storage, stainless steel

Canvas Material: Stamoid® “Top” Cream or White

Exterior Covers: Seating, tables, windlass, flag staffs, console, exterior cabinets and windshield

Windlass: Maxwell®, dual function for chain & rode

Anchoring Equipment: Stainless-steel chain stopper, hawser, deck chafe plate, single cleat

Scuppers: Stainless steel, Hunt logo

Cleats: Stainless steel, mooring & deck

Chocks: Custom, stainless steel

Boot Top: Single, Awl-Grip

Decks & housetop: Non-skid gel coat finish

Courtesy Lights: LED, stainless steel

Portlights: Stainless steel, opening with screens and curtain rod

Engine Room Air Grilles PVC, with louvers painted to match deck

Flagstaffs/Flagstaff Holders: Custom varnished teak & stainless steel, bow burgee, stern ensign

Rubrail: Heavy-duty vinyl, stainless-steel half-round

Quarter Guard: FRP molded, stainless-steel half-round

Safety Rails: Stainless steel

Grab Rails: Stainless steel

Skylight Hatches: Screens/blinds on lower forward cabin top

Air Horn: Dual-chromed Kahlenberg® horns, 24 vdc

Electronics: Conduit, prep for optional electronics

Mast: Aluminum, painted color to match deck

Teak cap rail: Varnished

NAVIGATION EQUIPMENT/ELECTRONICS:

2 x Garmin® GPSMAP 9219 multifunction navigation displays, Volvo Glass Cockpit

2 x Garmin GPS 24XD position receiver/antenna (1 as a backup)

1 x Garmin GMI20 Digital Marine Instrument display (depth and speed)

1 x Airmar® DT800 depth/temperature smart transducer

Garmin GHP Reactor Autopilot System integrated to Volvo Glass Cockpit

1 x Garmin GMR 434 xHD3 4 ft Open Array 4kw high-definition radar

Engine displays integrated into Garmin MFD

1 x Garmin VHF 315 radio with hailer.

Mechanical Disclaimer

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.

Disclaimer

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
