Specifications

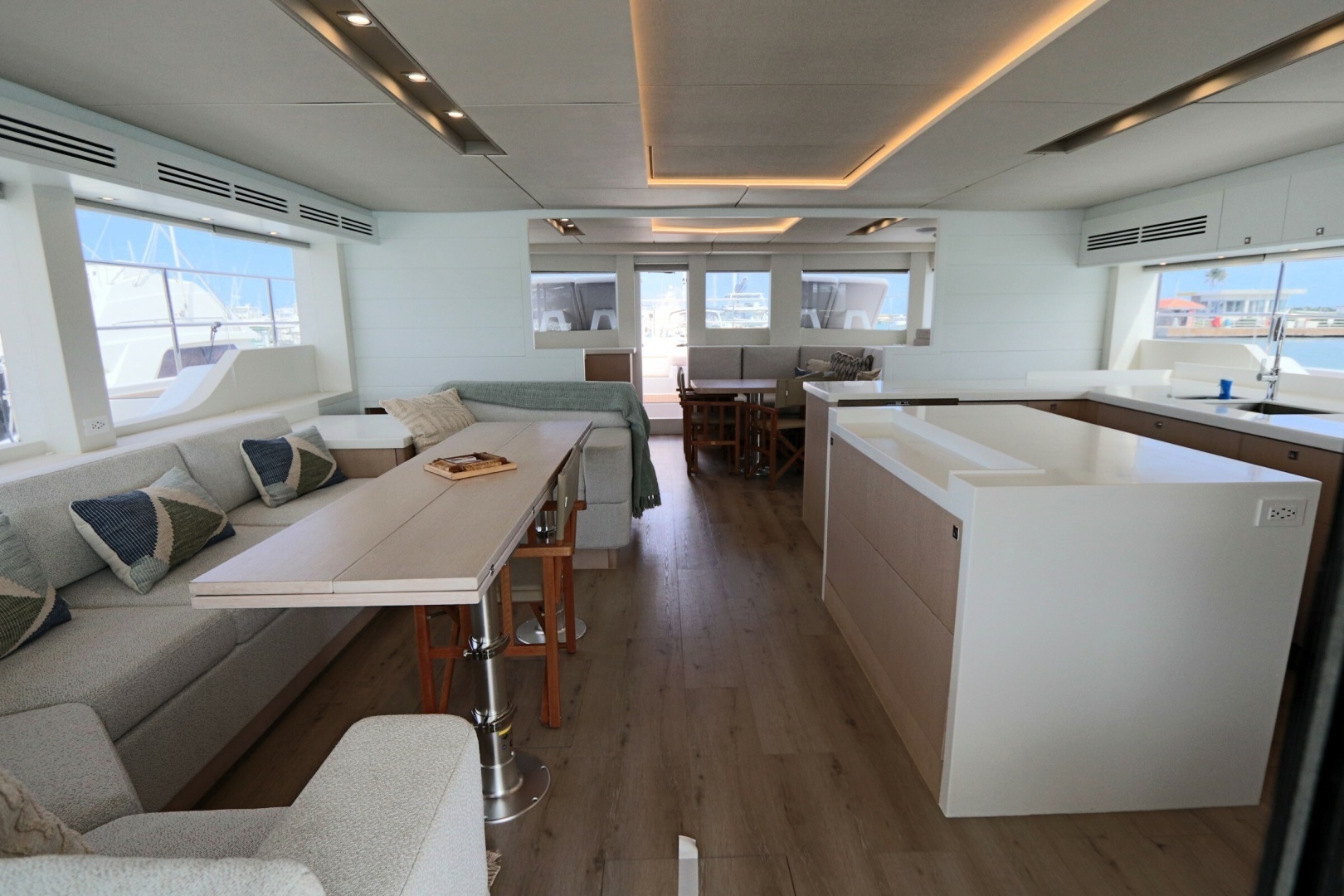

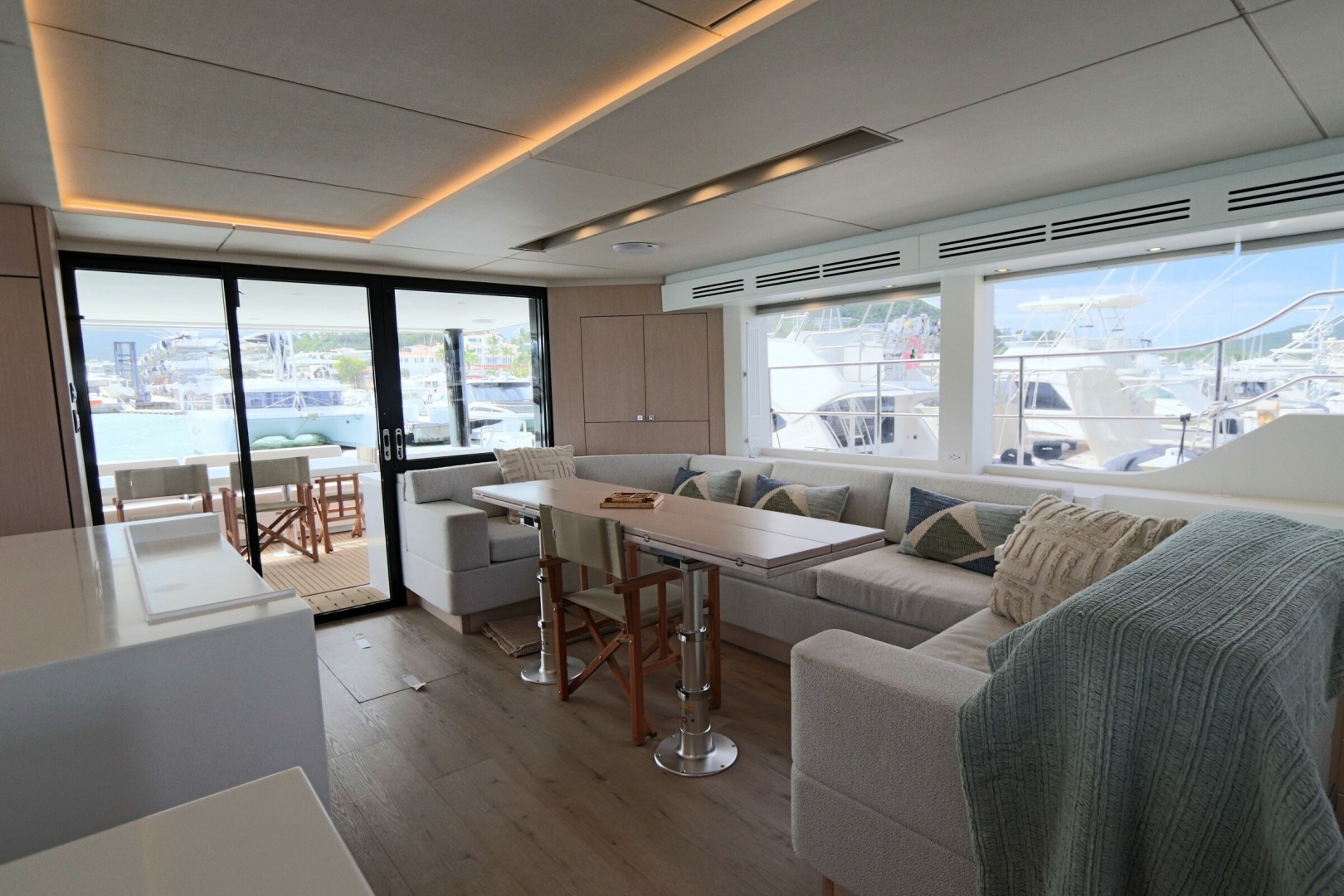

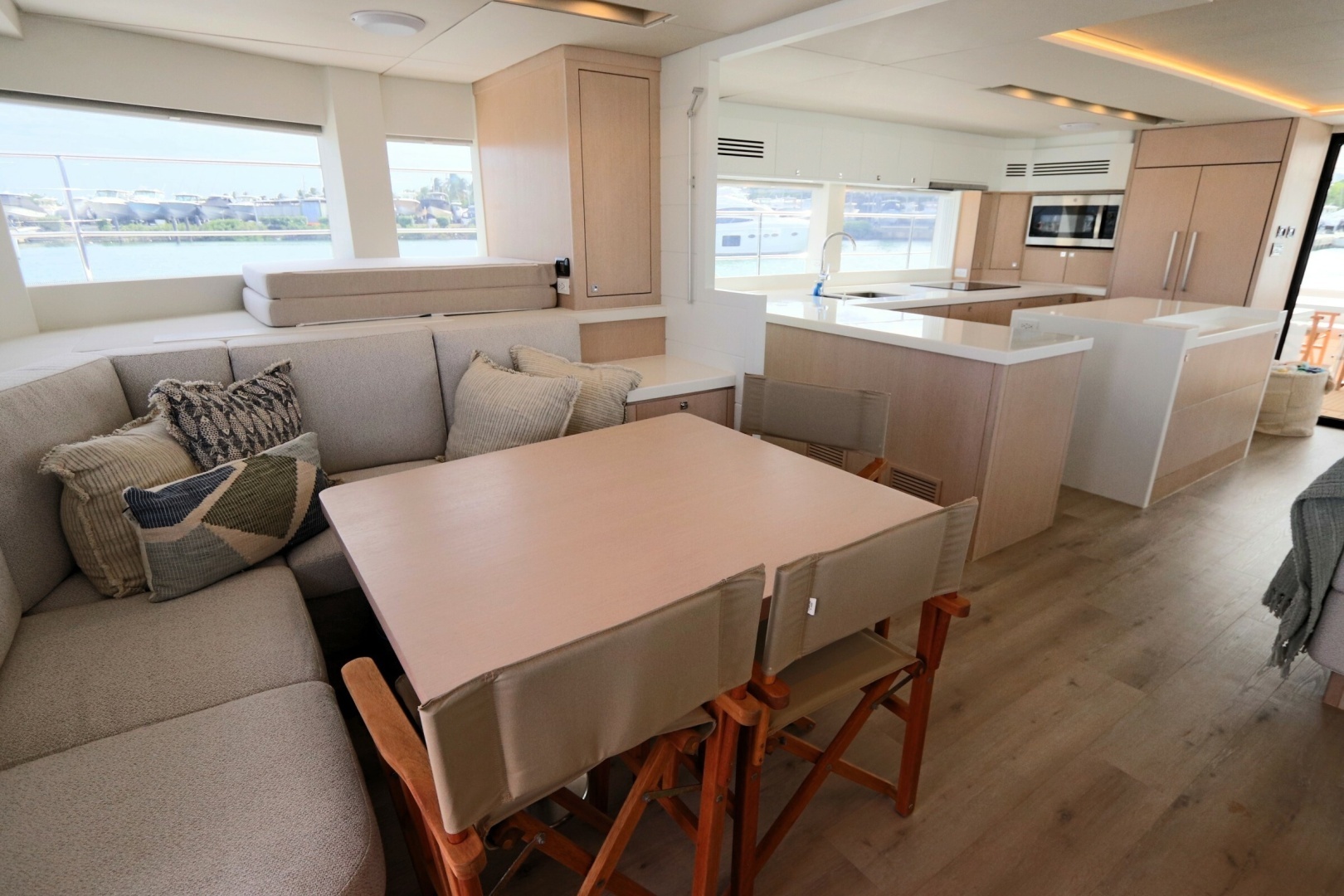

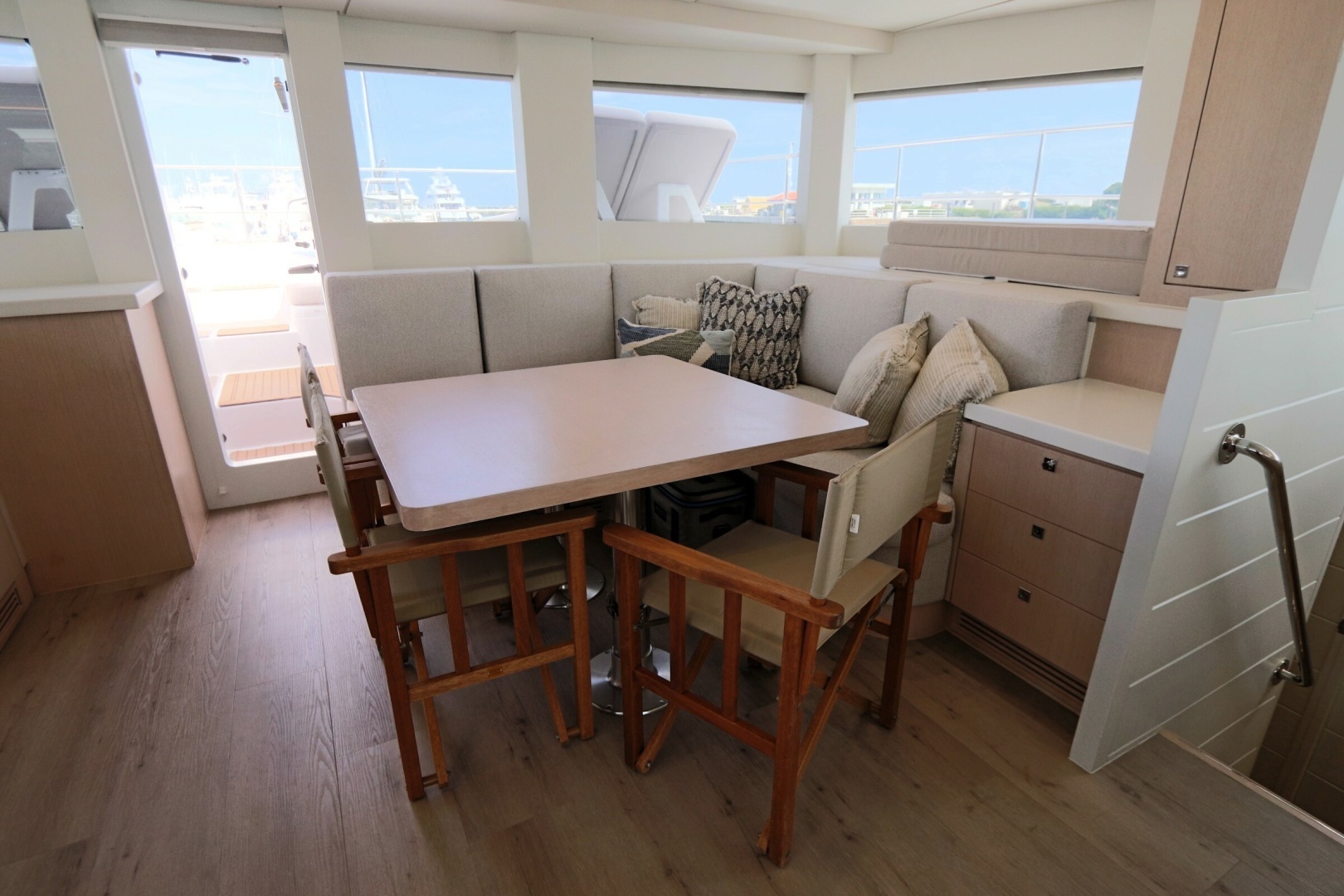

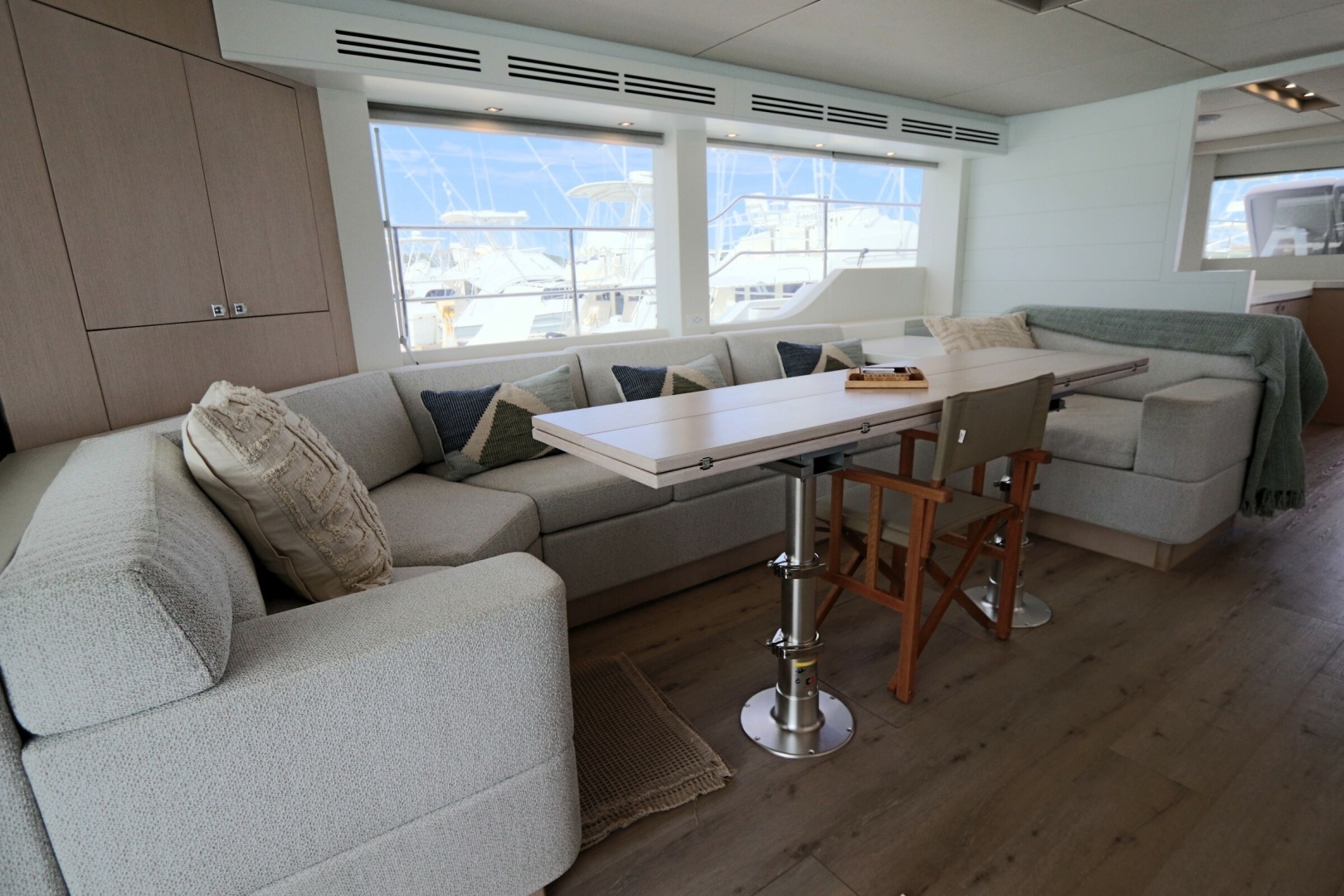

Saloon

Saloon to have plush fabric seating and table

Access stairs to lower hull cabin areas port and starboard.

50" Samsung LED Television on power lift with Samsung audio system.

Custom Aluminum sliding aft door with flush deck transition between Aft Deck and Saloon.

Storage unit for bottles and glassware.

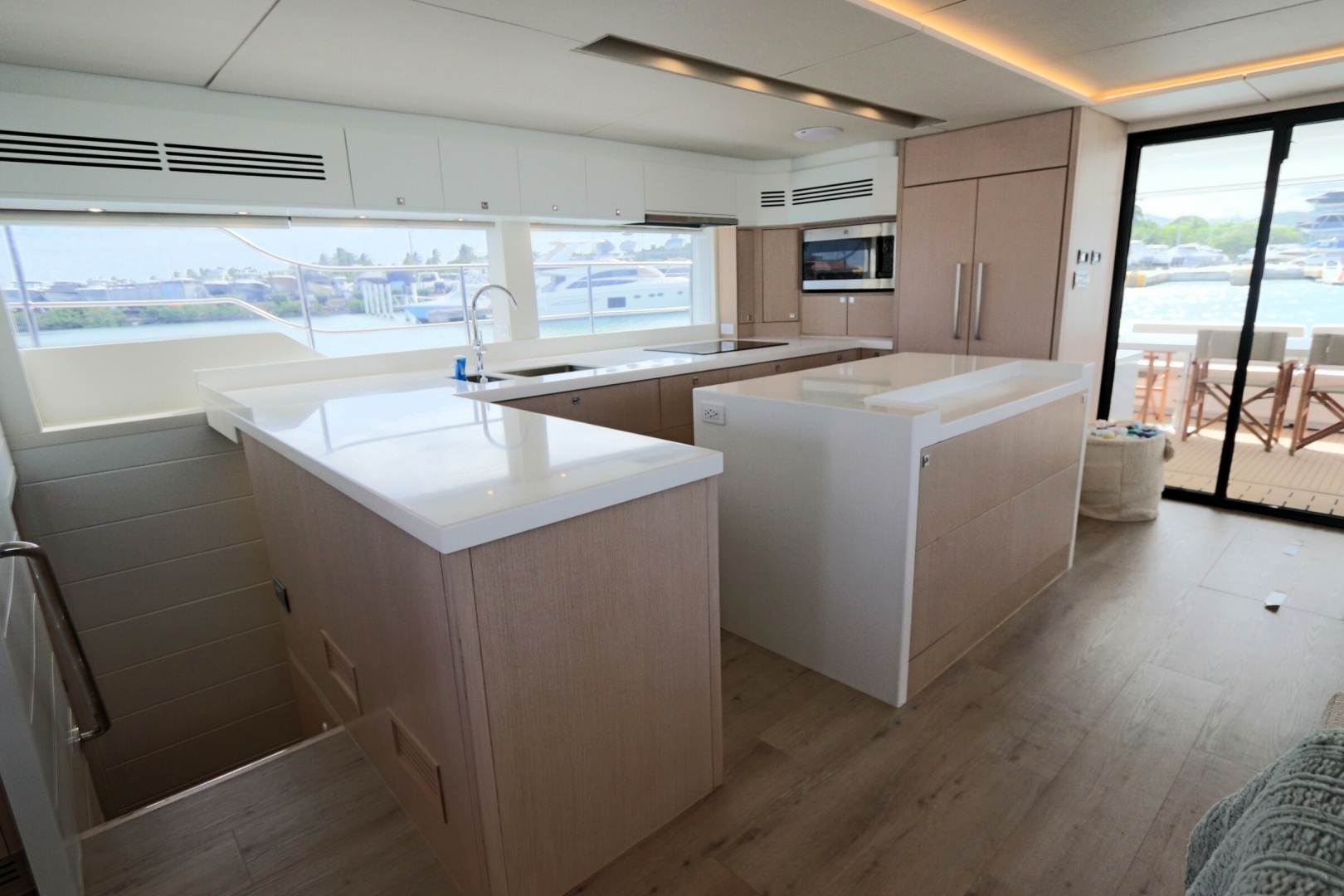

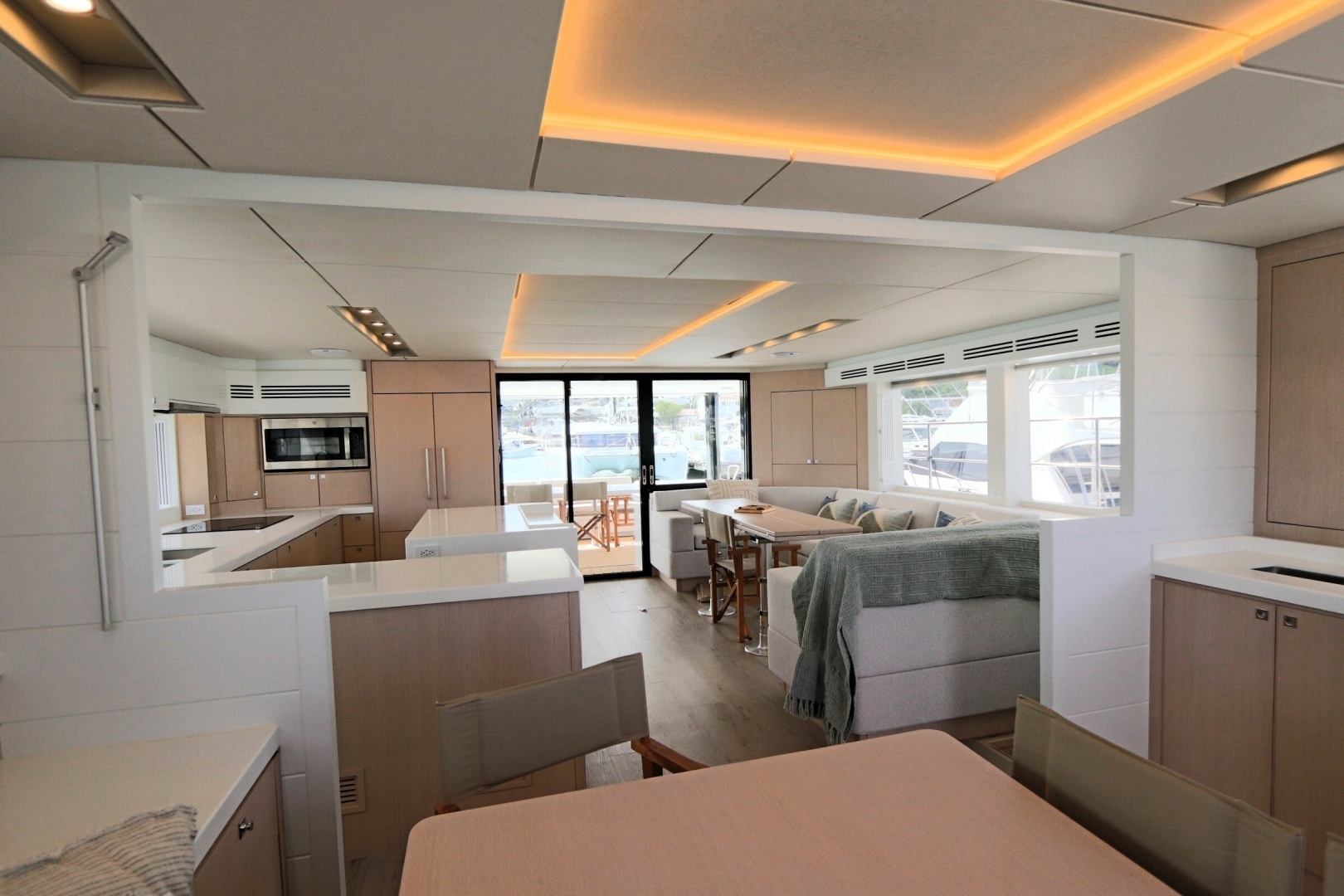

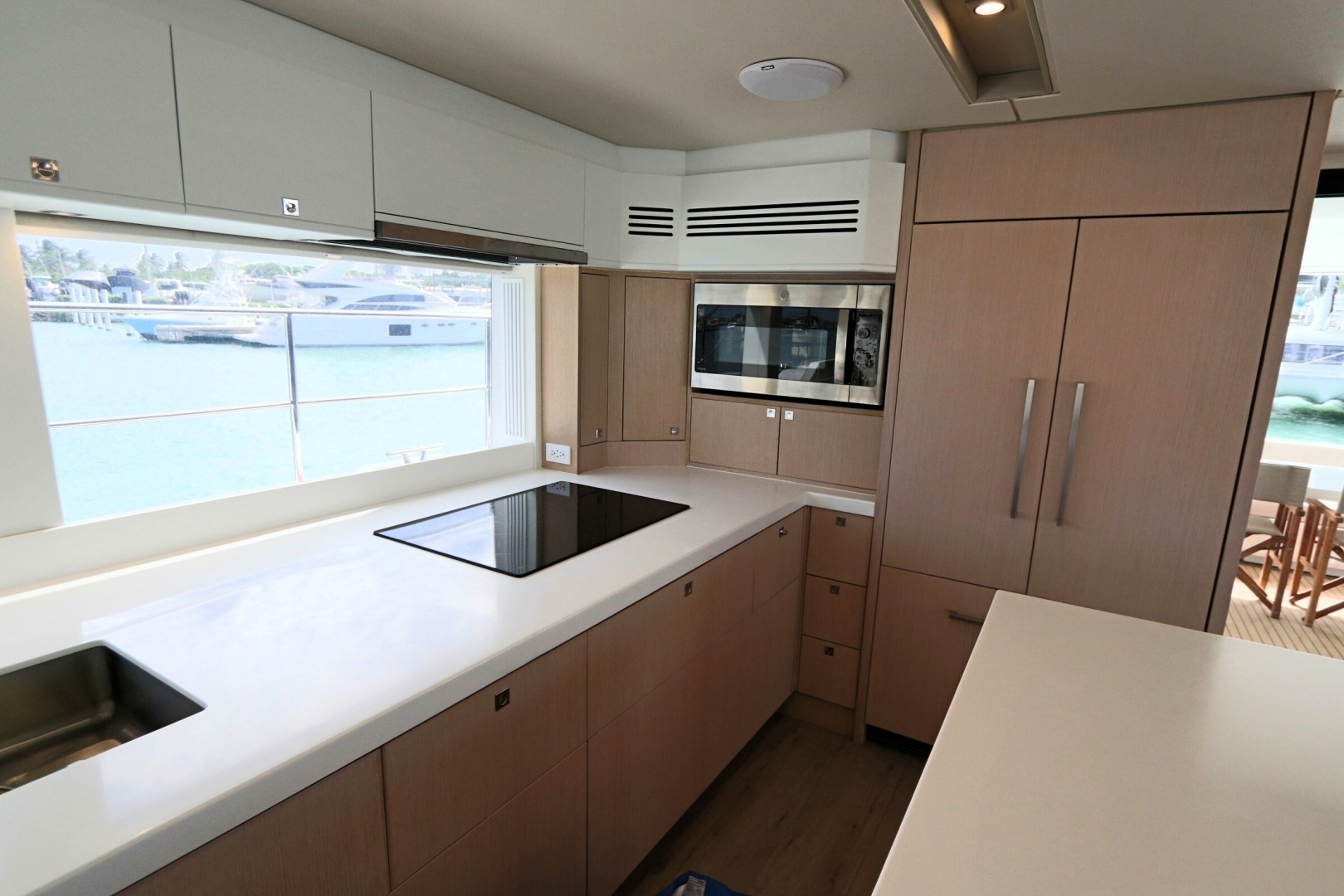

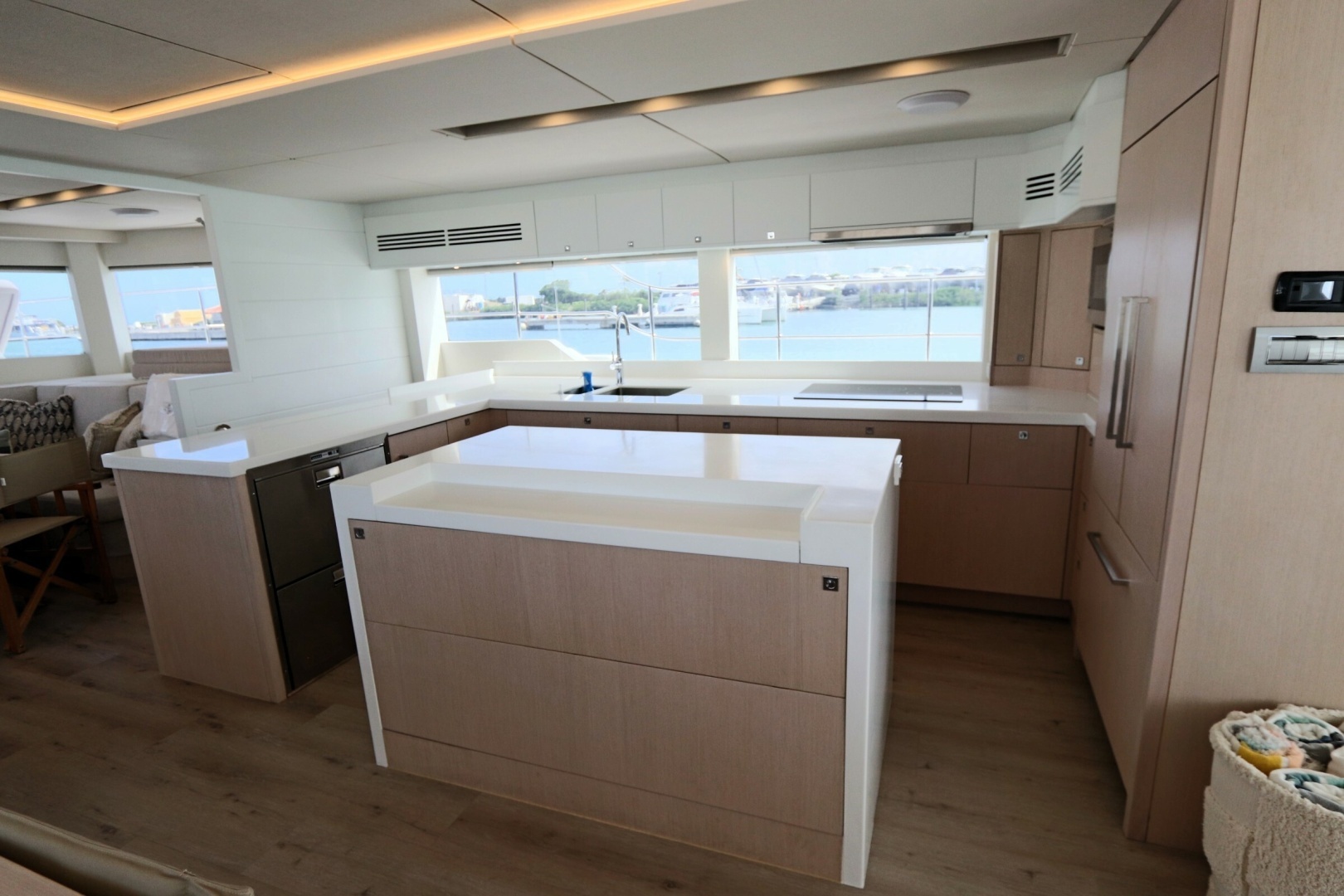

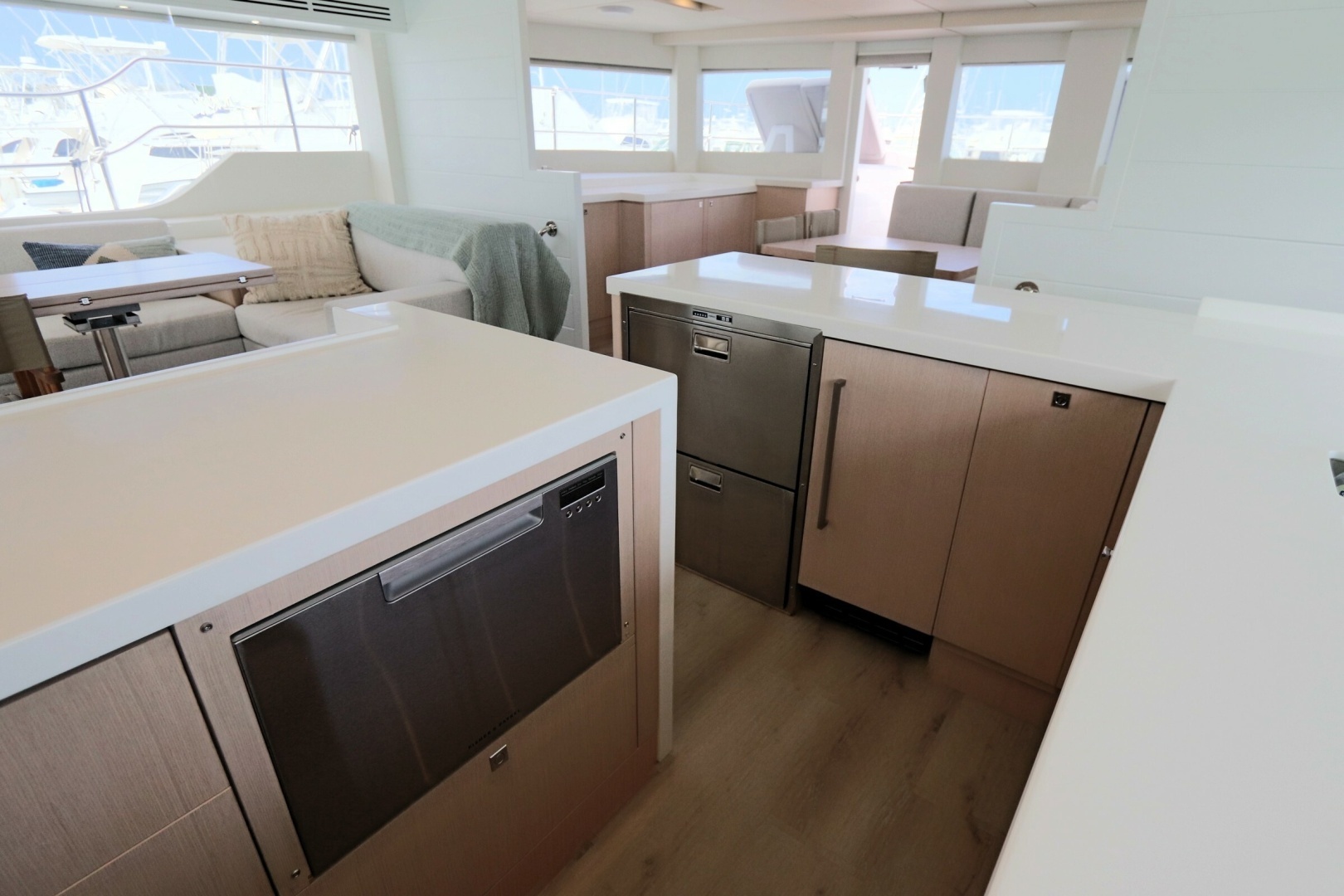

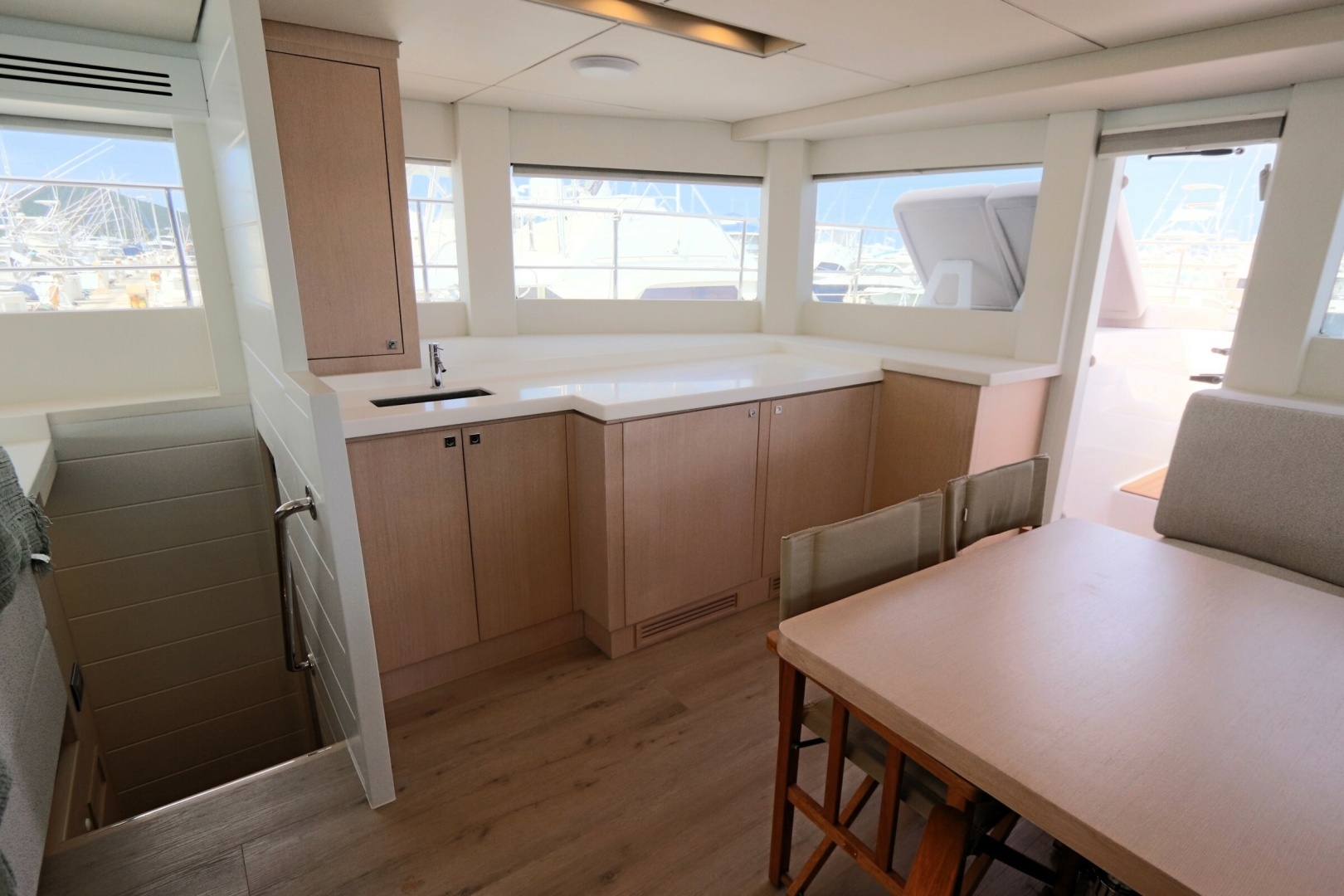

Galley

Acrylic counter tops.

Island with storage and television lift.

FRP modules for galley cupboards and counters.

4 burner cook top - electric

Power ventilation above cook top.

Convection microwave oven.

Refrigerator/freezer.

Cutlery and crockery drawers.

Pot drawer and spice drawers.

Double sinks with garbage disposal.

Under counter trash drawer.

Custom accent wood carpentry.

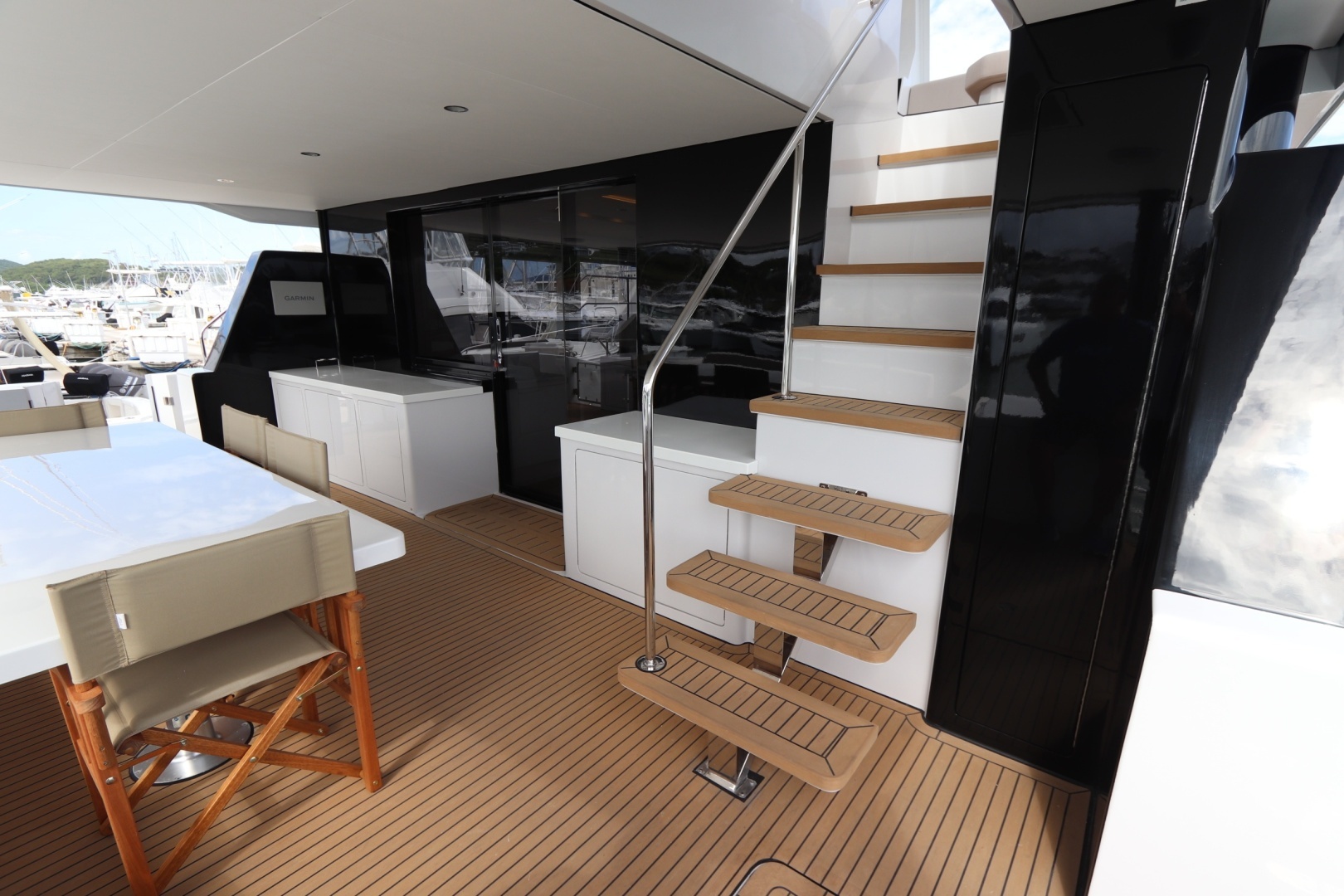

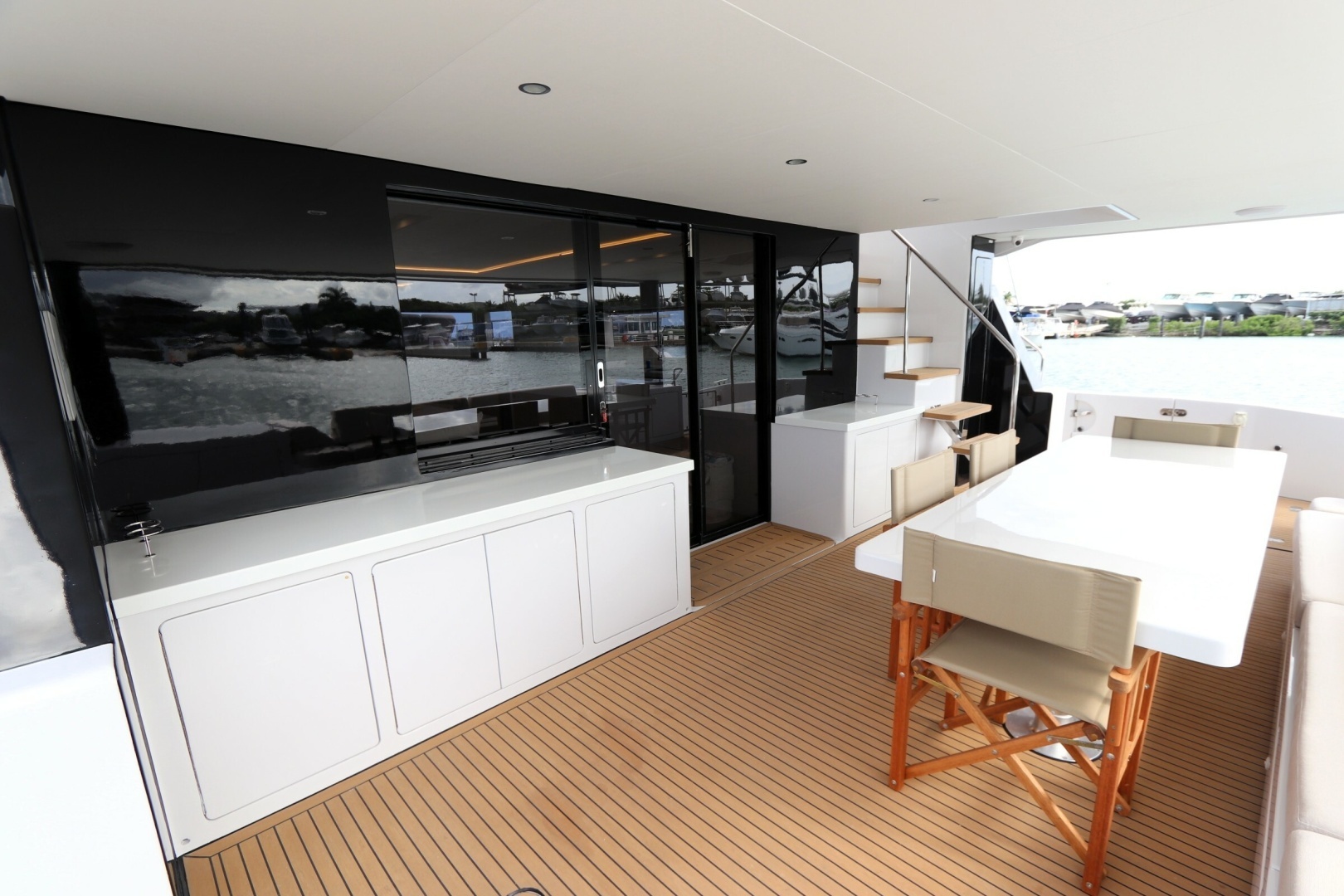

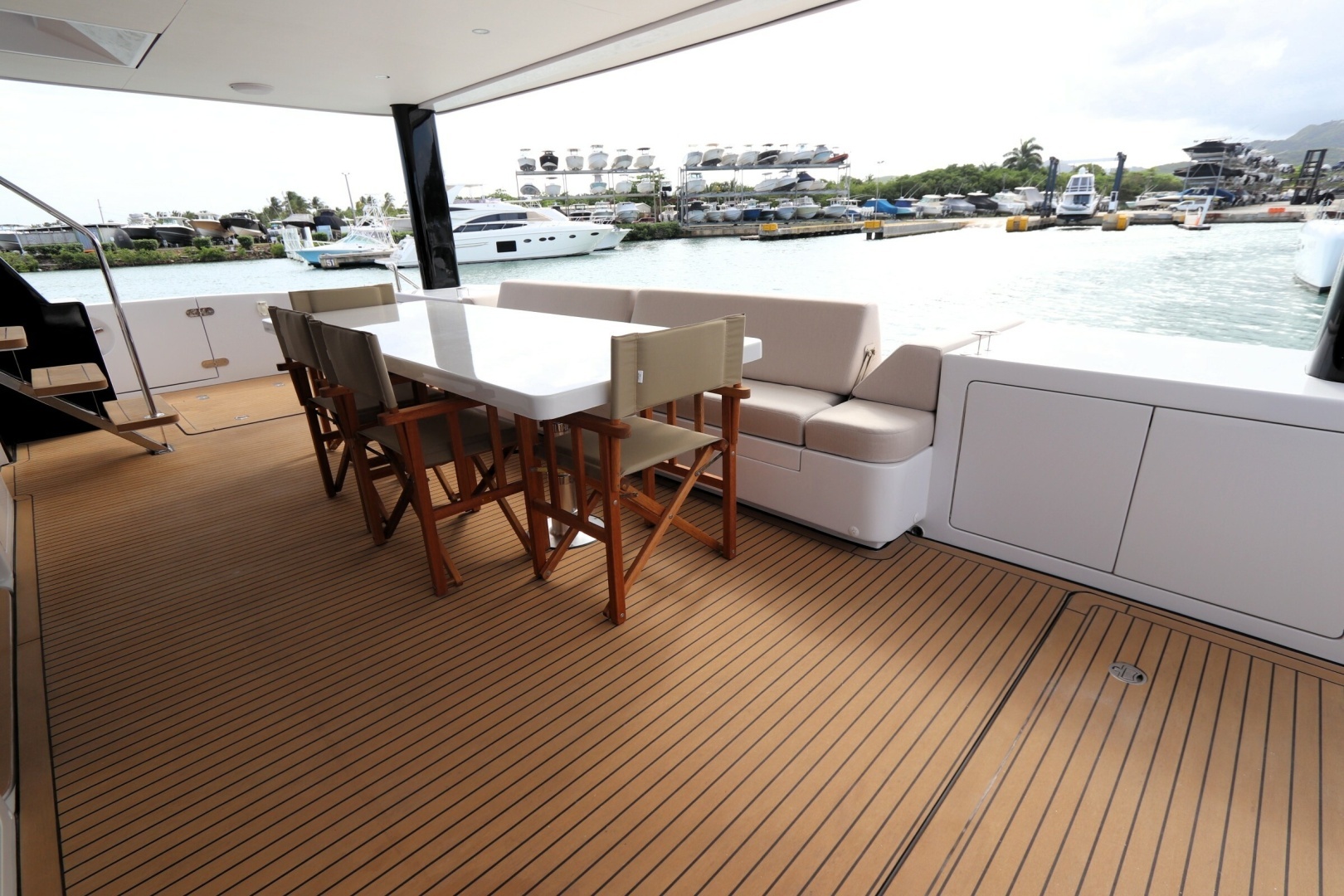

AFT MAIN DECK

Seating arrangement - Various options to suit client's needs.

(4”) thick EZ-Dry foam cockpit cushions covered in Sunbrella.

Cockpit table with wooden top.

Storage cabinets and full height locker.

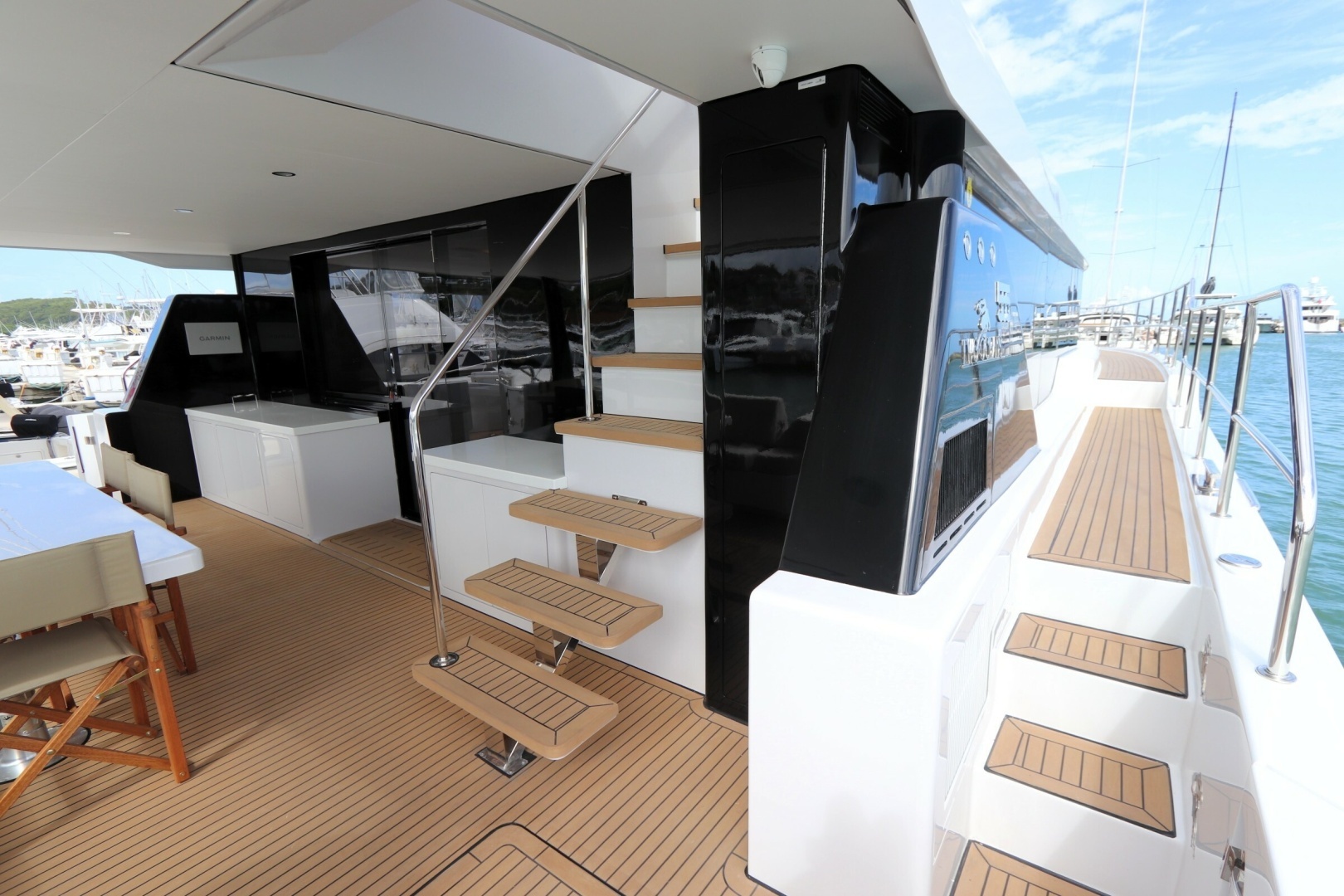

Stairs to Flybridge.

Engine access hatches.

Access doors.

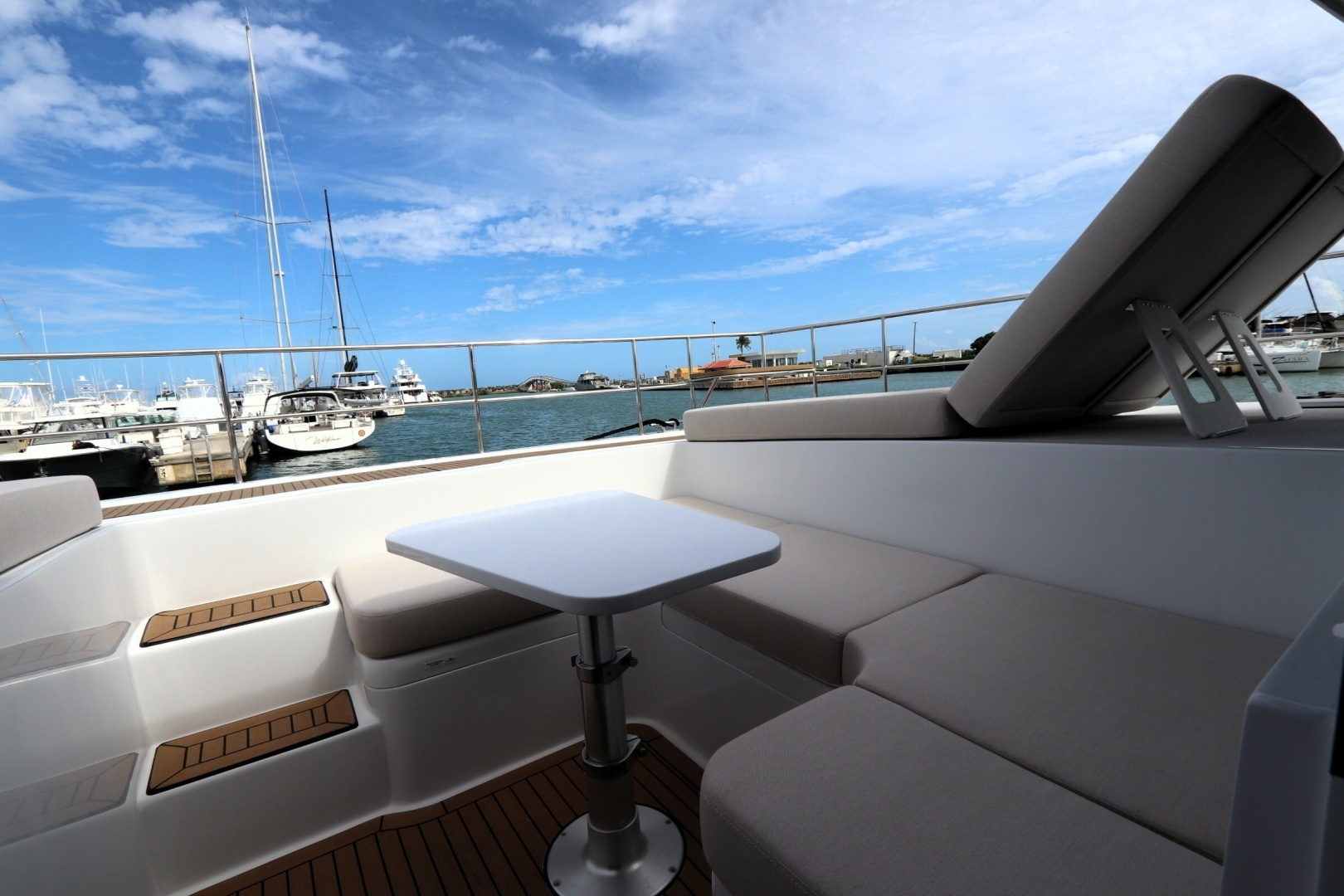

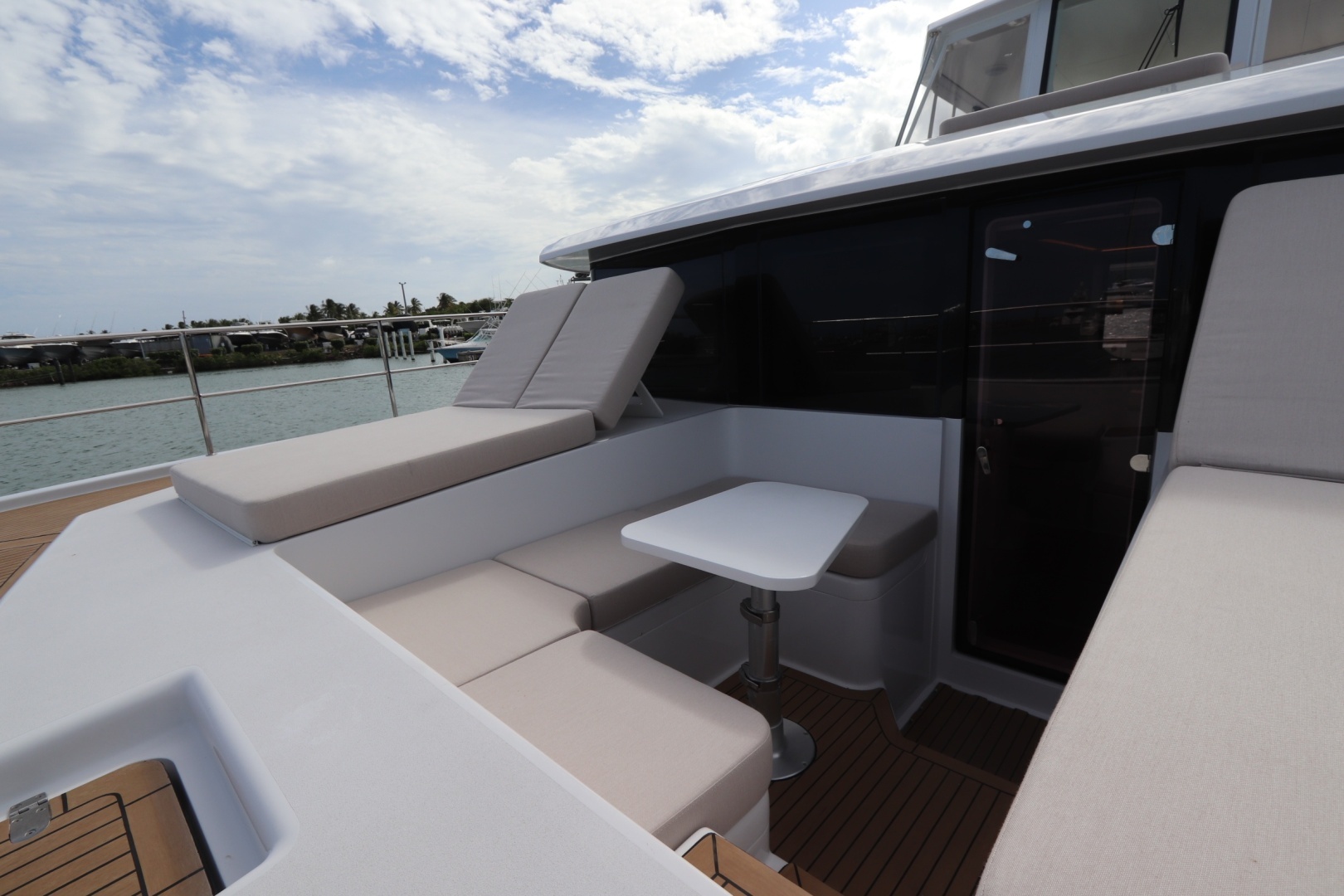

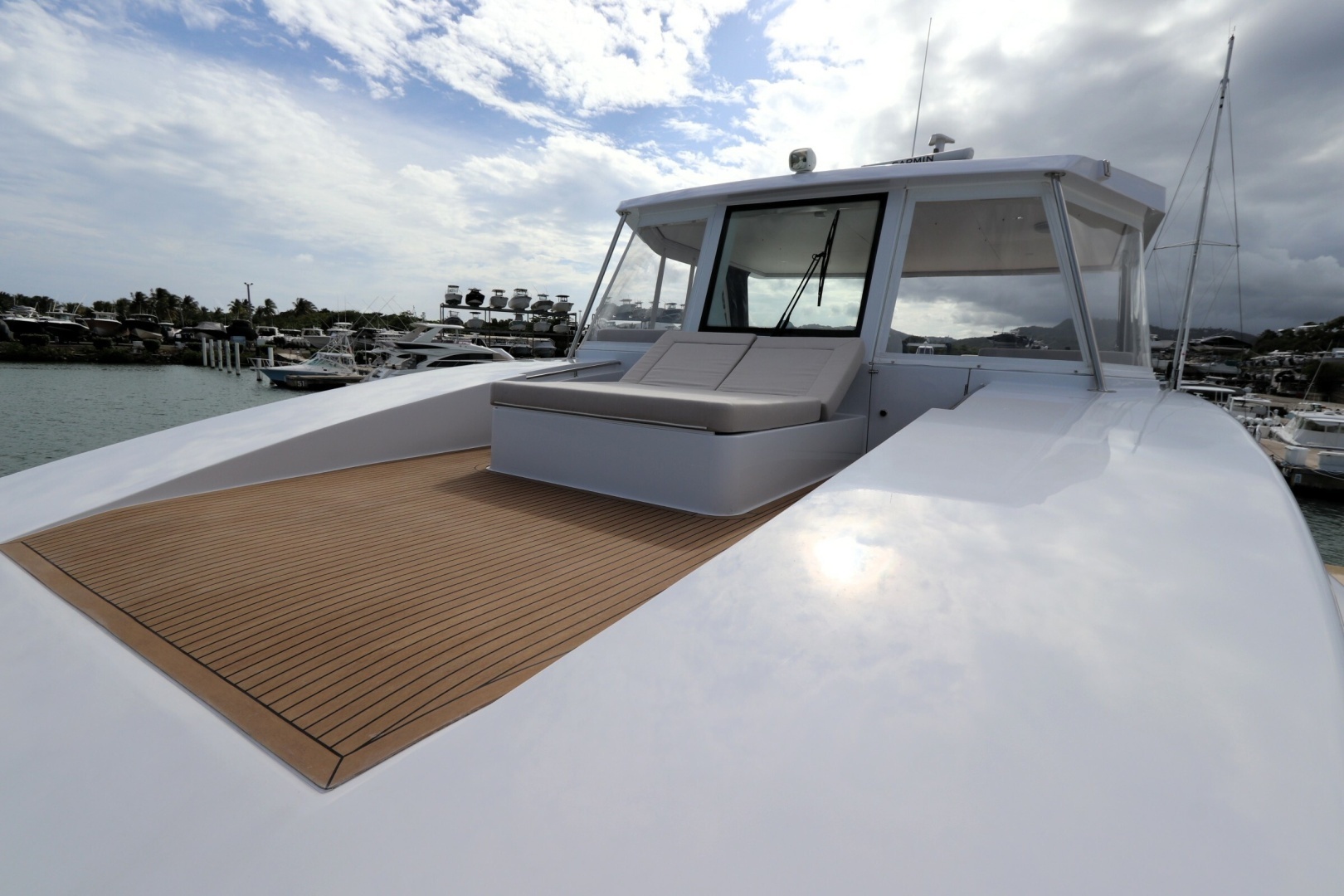

Forward lounge

Custom door opening into Saloon area.

U-shaped seating - storage within.

Composite table on fixed base.

Access to windlass.

4" Ez-Dry foam with Sunbrella covering.

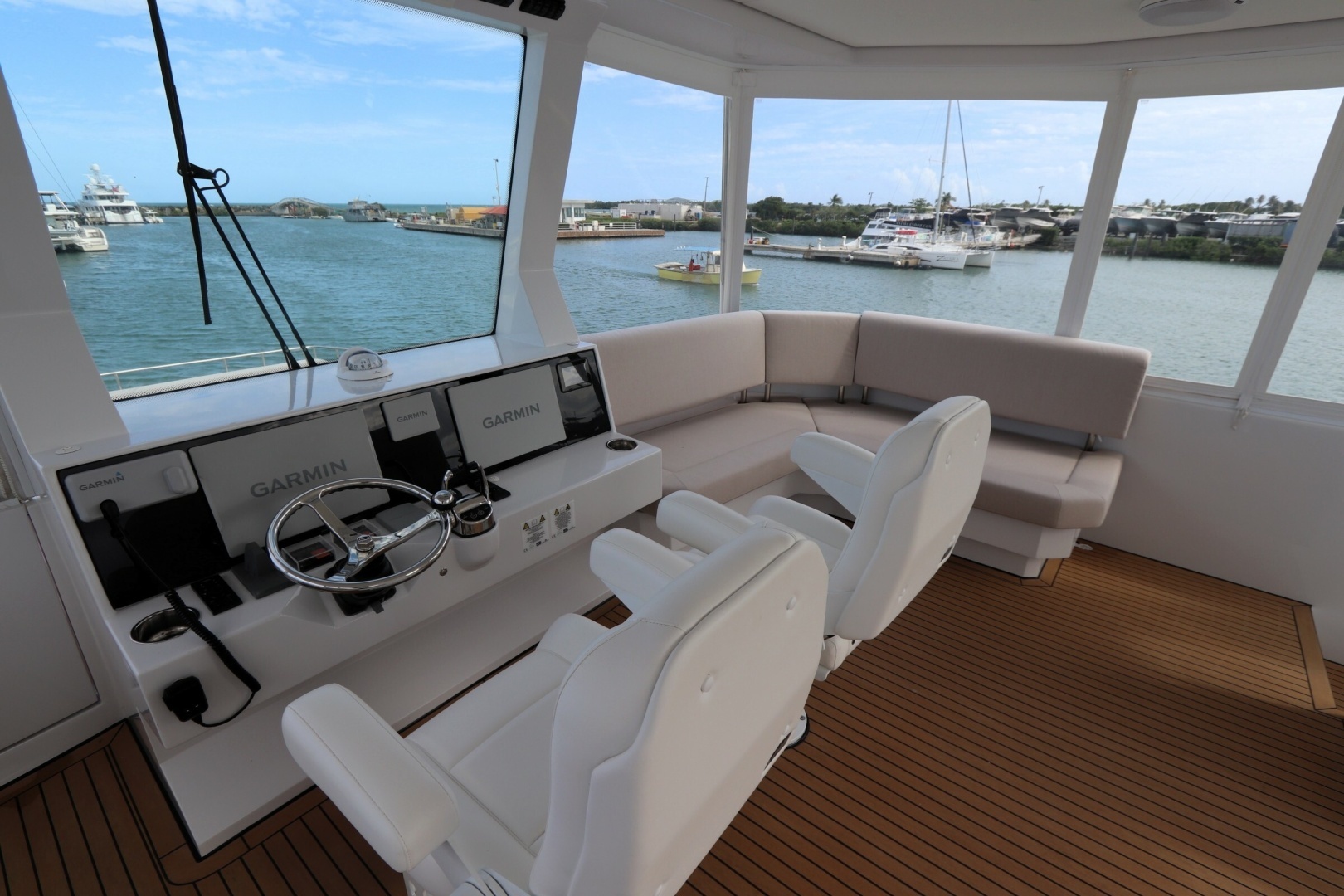

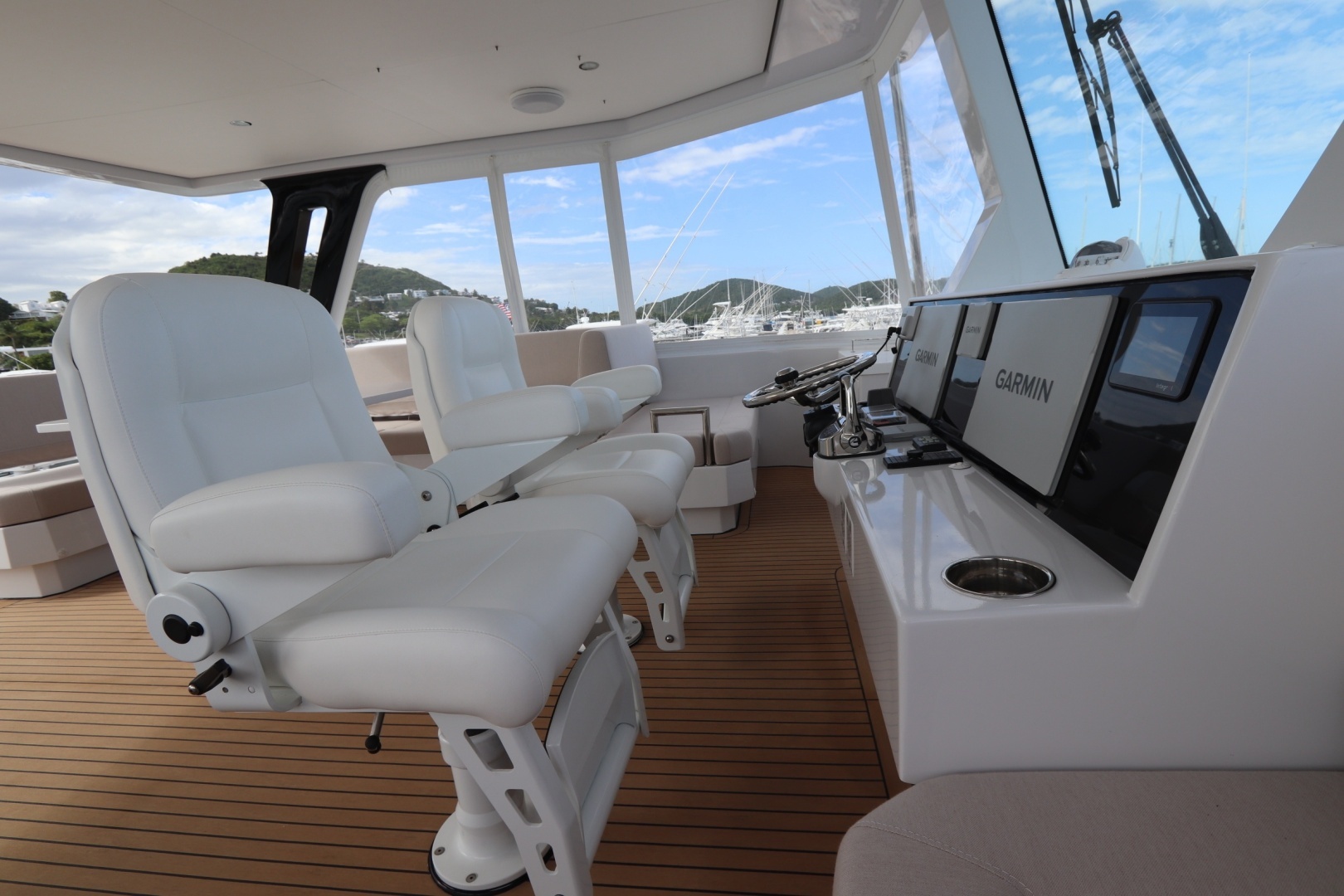

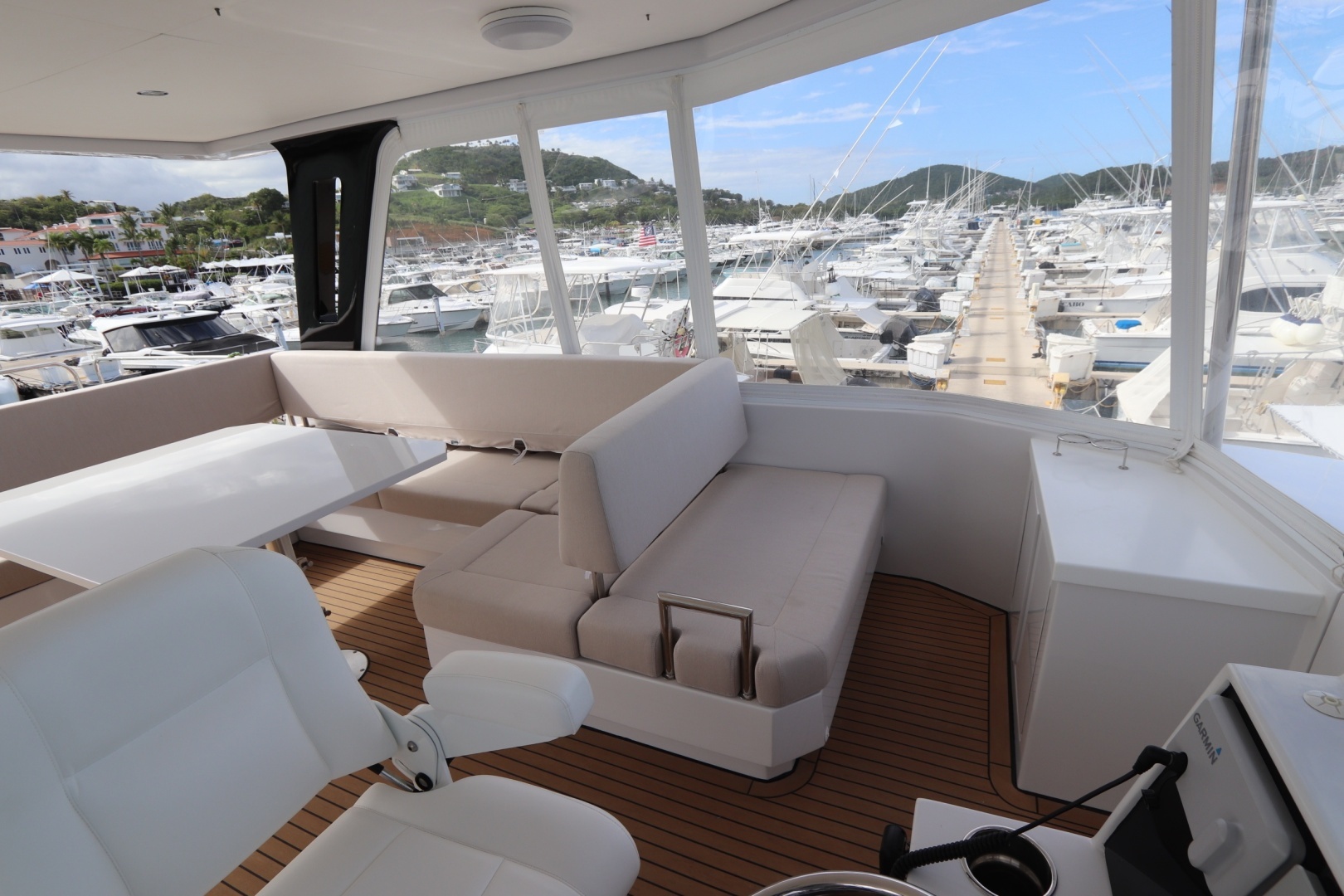

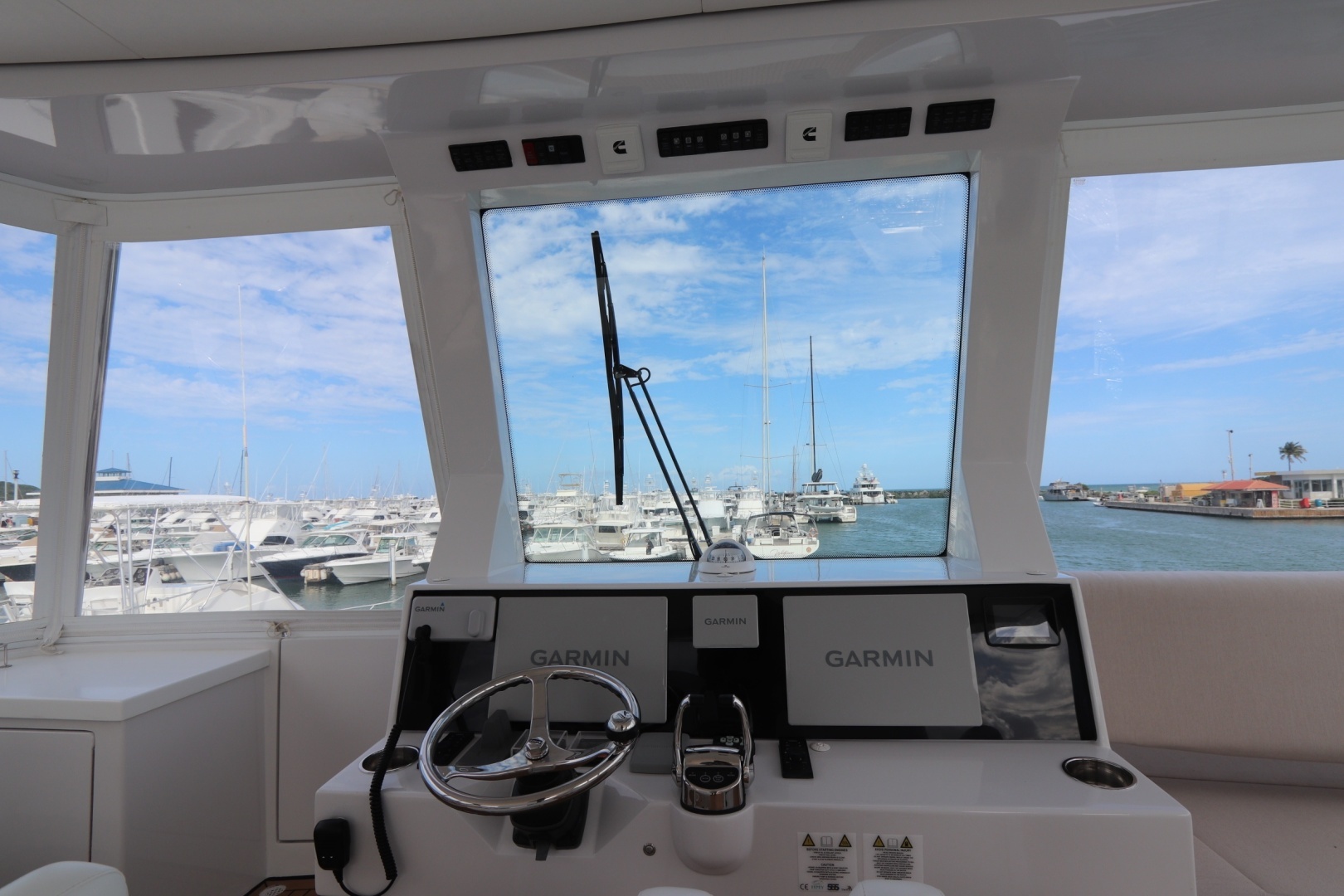

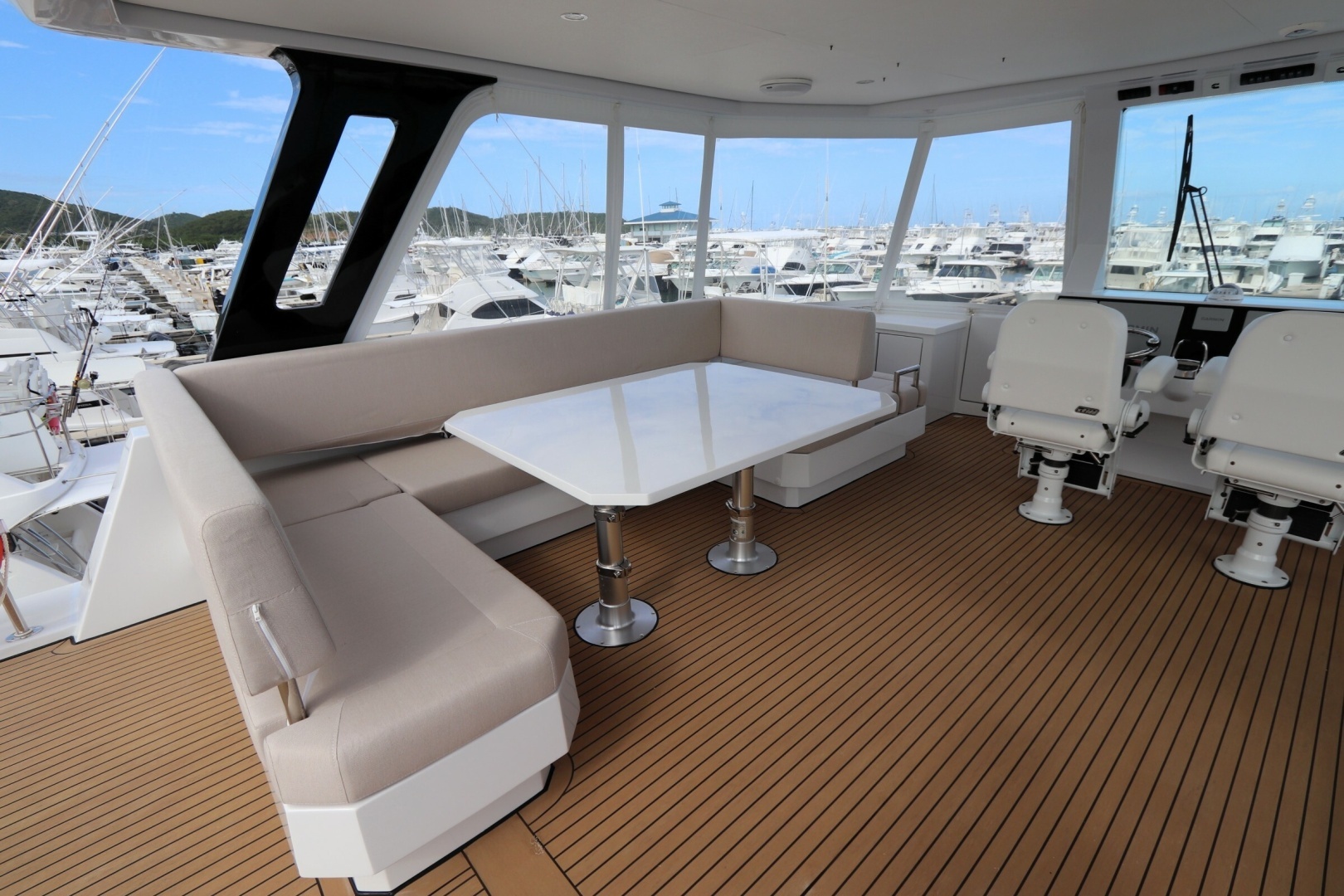

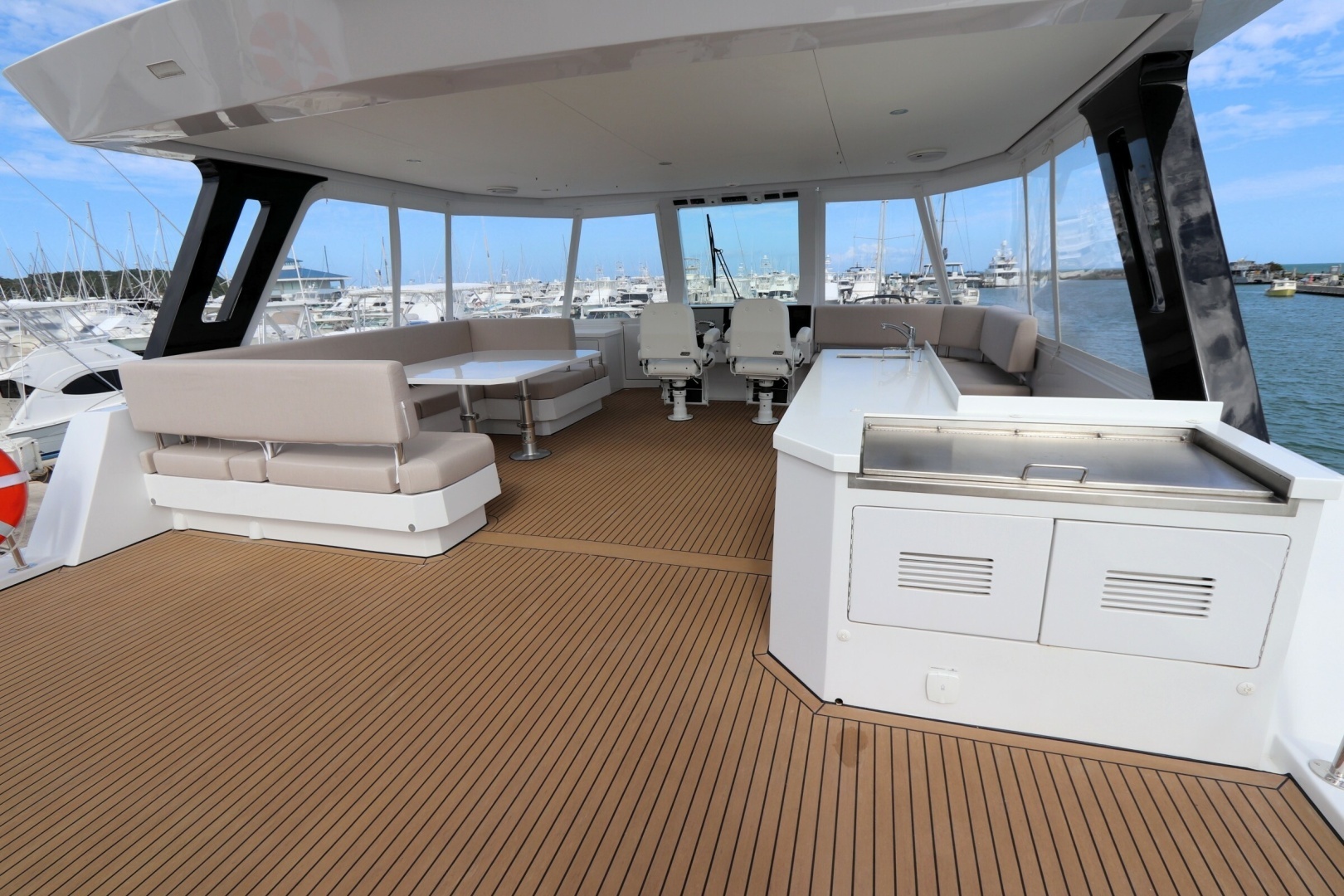

Flybridge Helm Station and Seating

Helm Station with console.

Glass windscreen with wiper and washer.

Engine instrument panels, gear shift/throttle control and cruising instruments located within easy reach of the wheel position.

Plastimo Offshore 115 compass located at Helm position.

Stainless steel steering wheel.

Steering system with power assist.

Storage lockers.

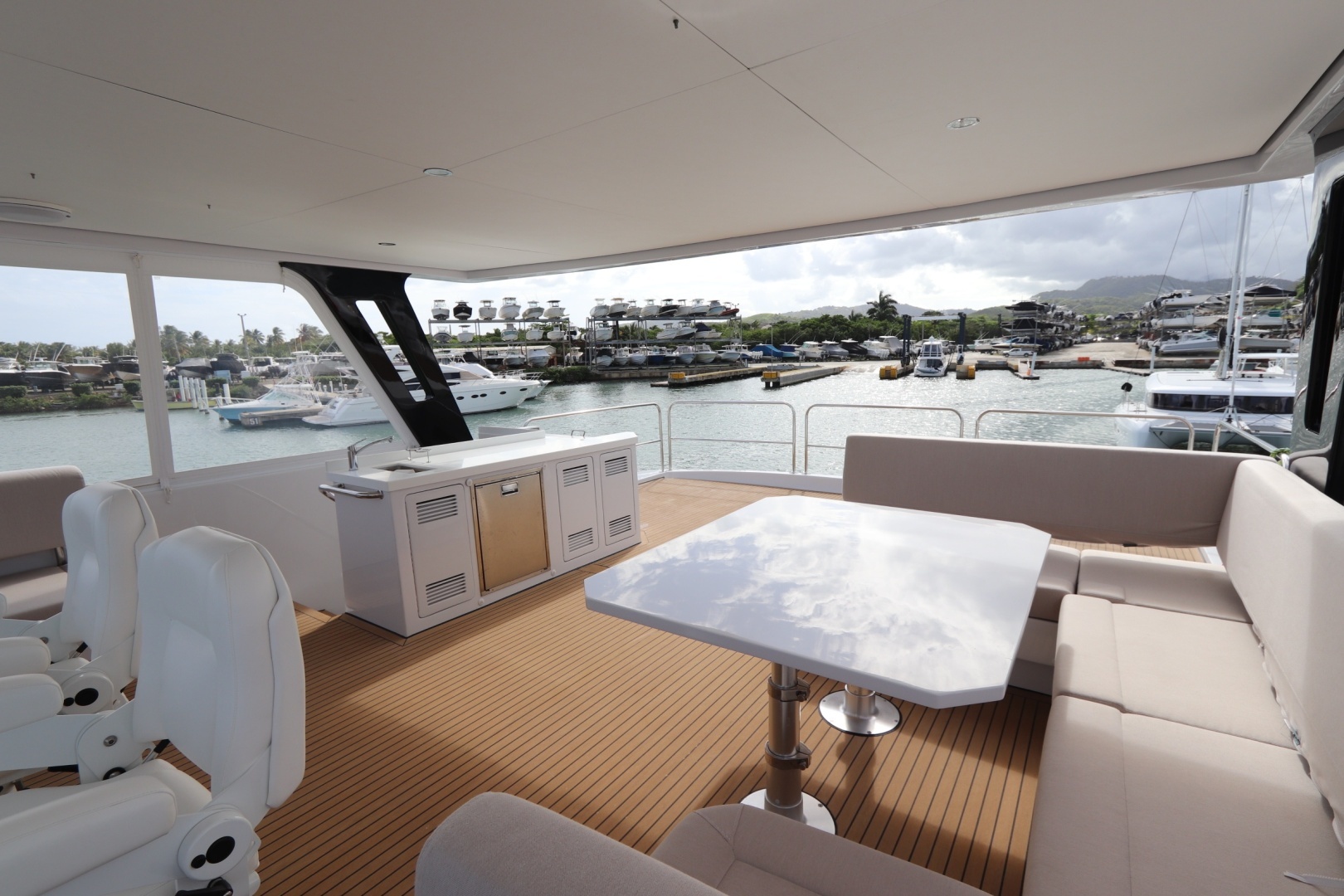

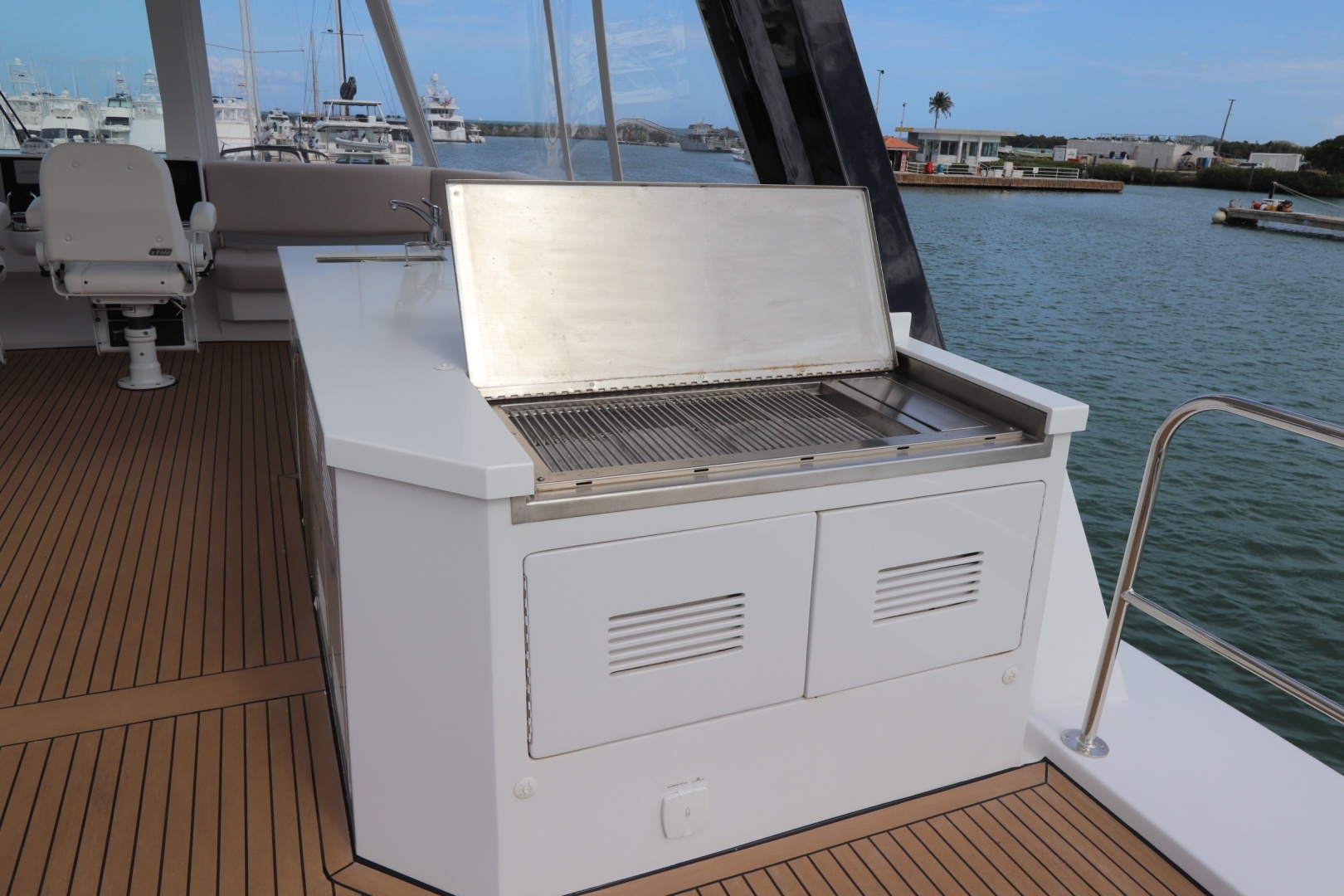

Flybridge wet bar unit with sink and drinks fridge.

Flybridge seating and table as per general arrangement.

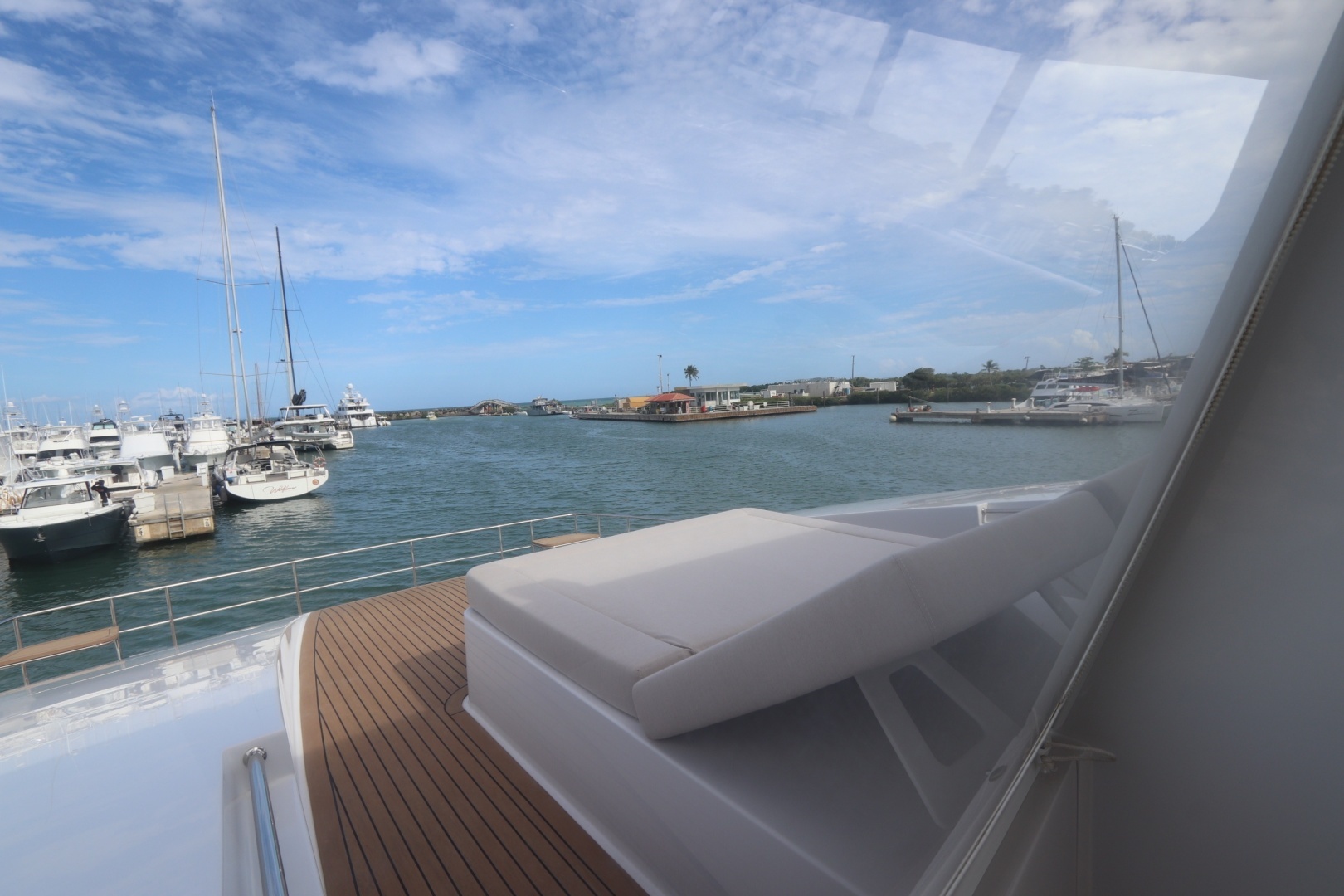

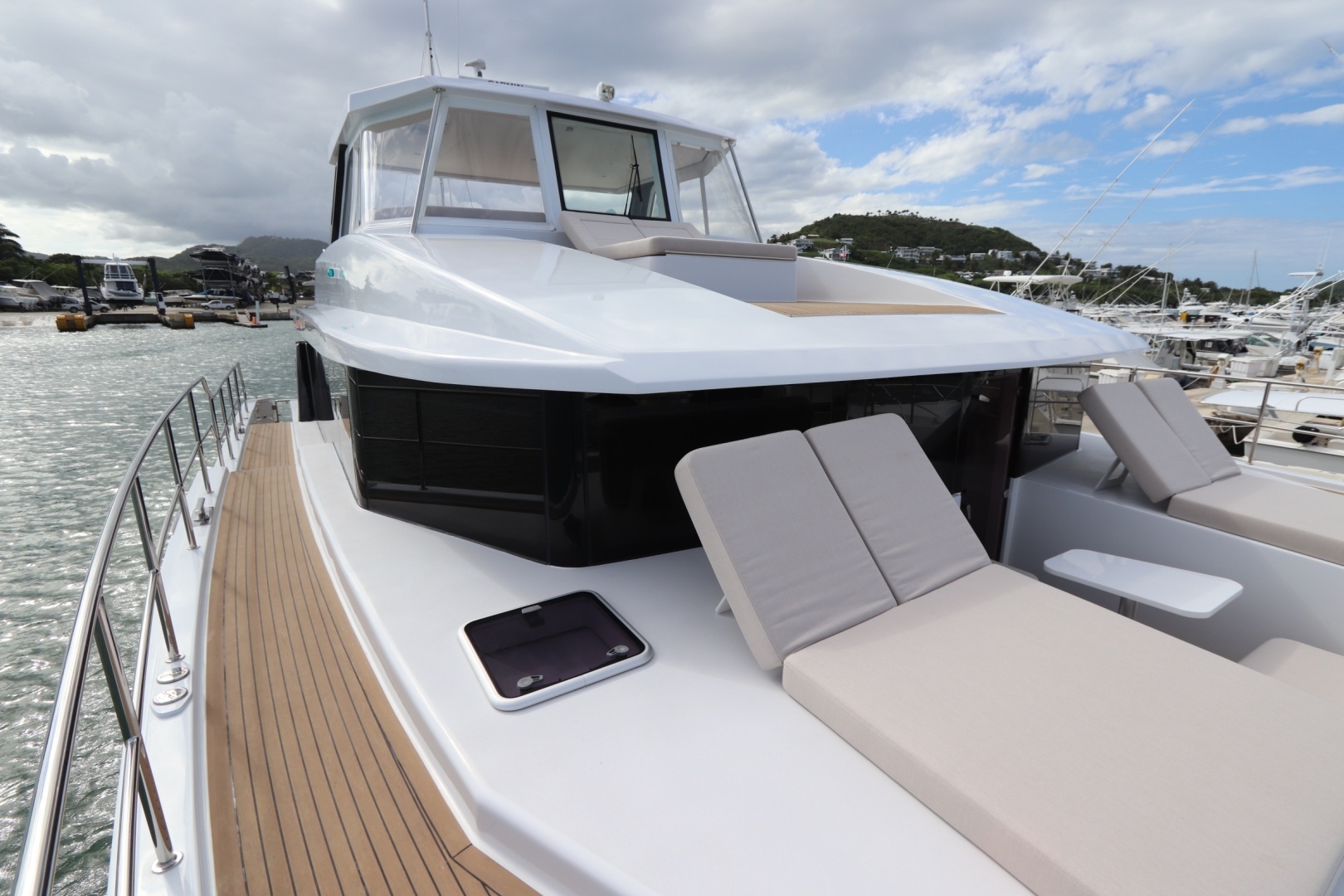

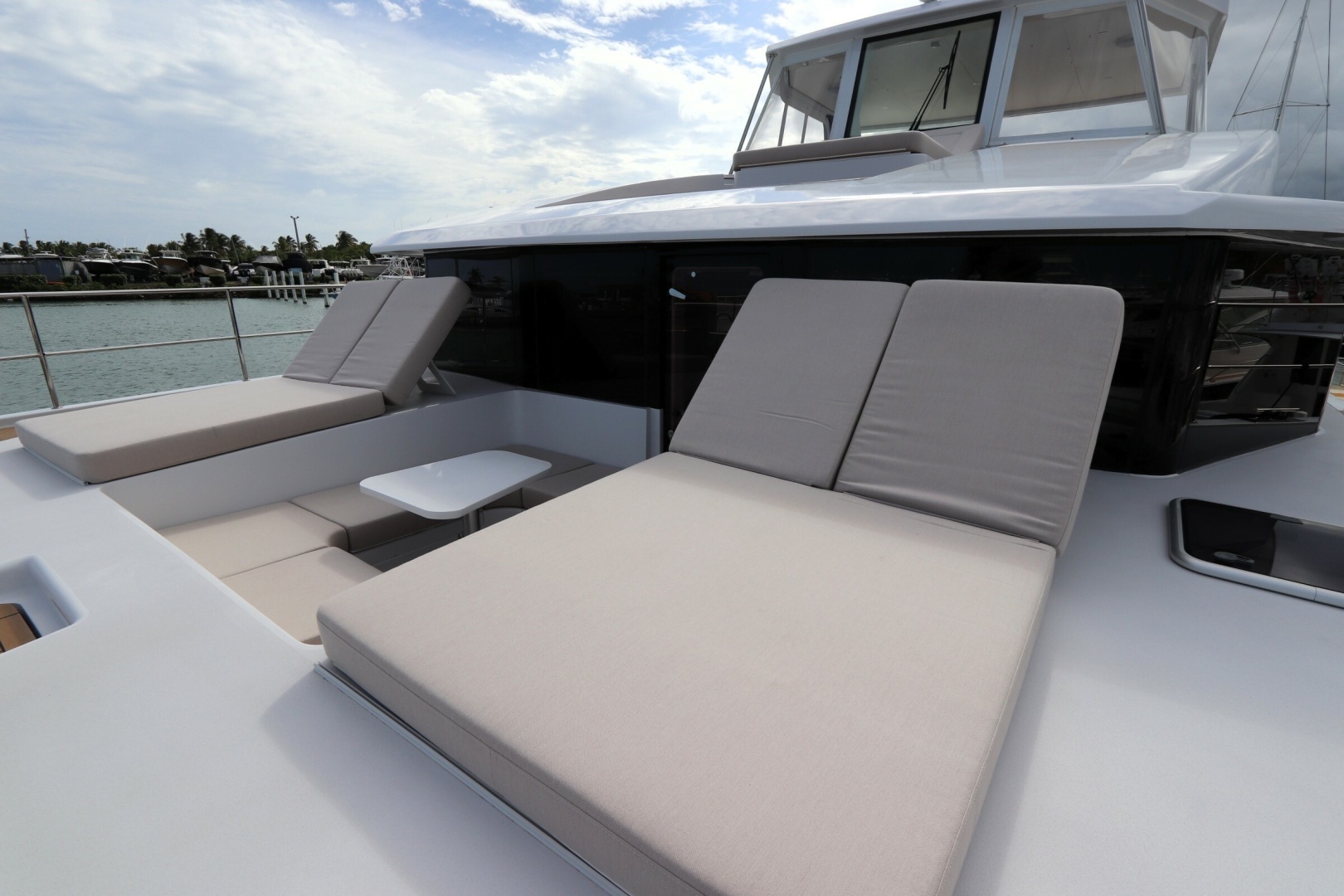

Door leading forward to sun lounge area with 4” EZ-Dry foam cushions and Sunbrella fabrics.

Fresh water outlet to flush tender.

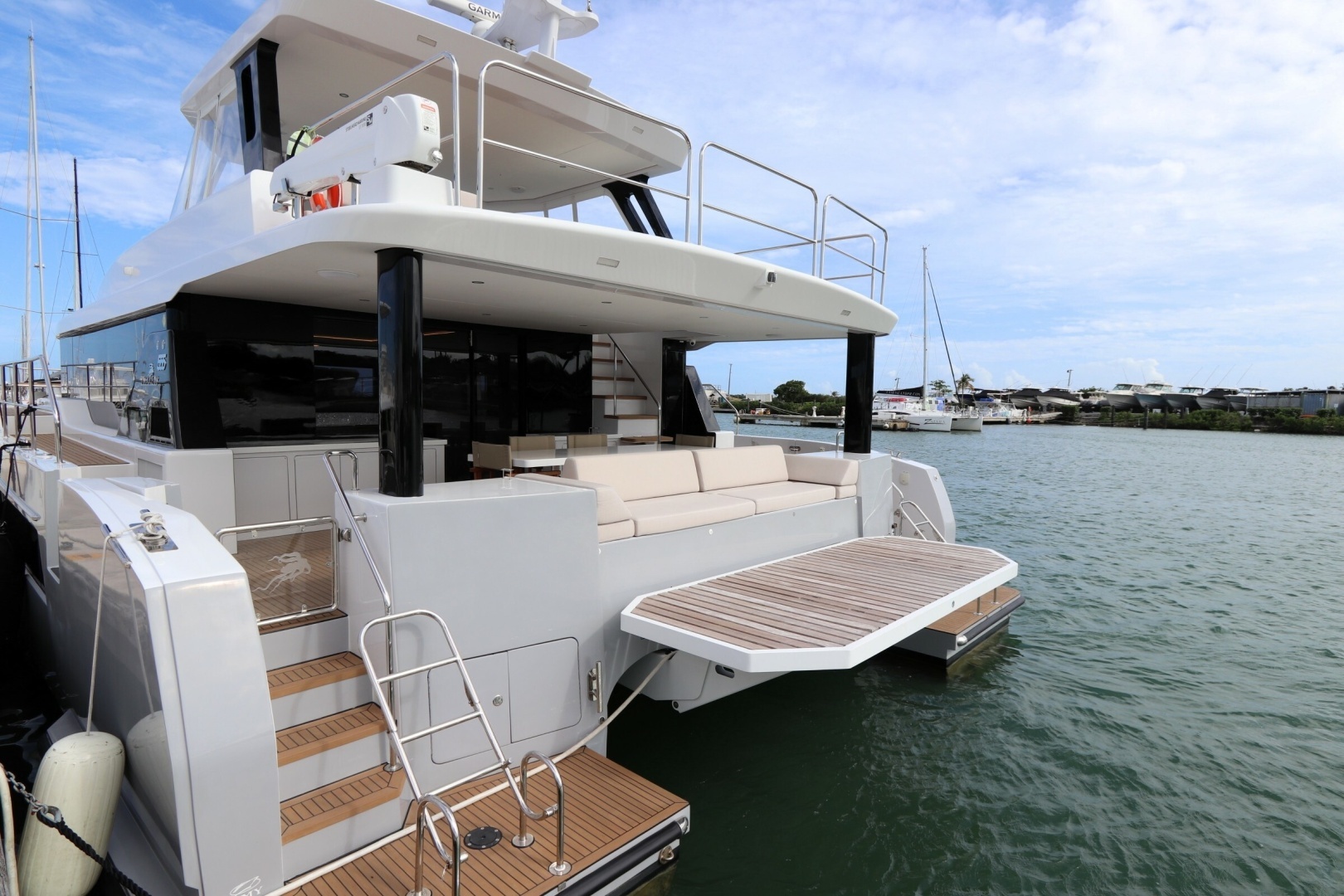

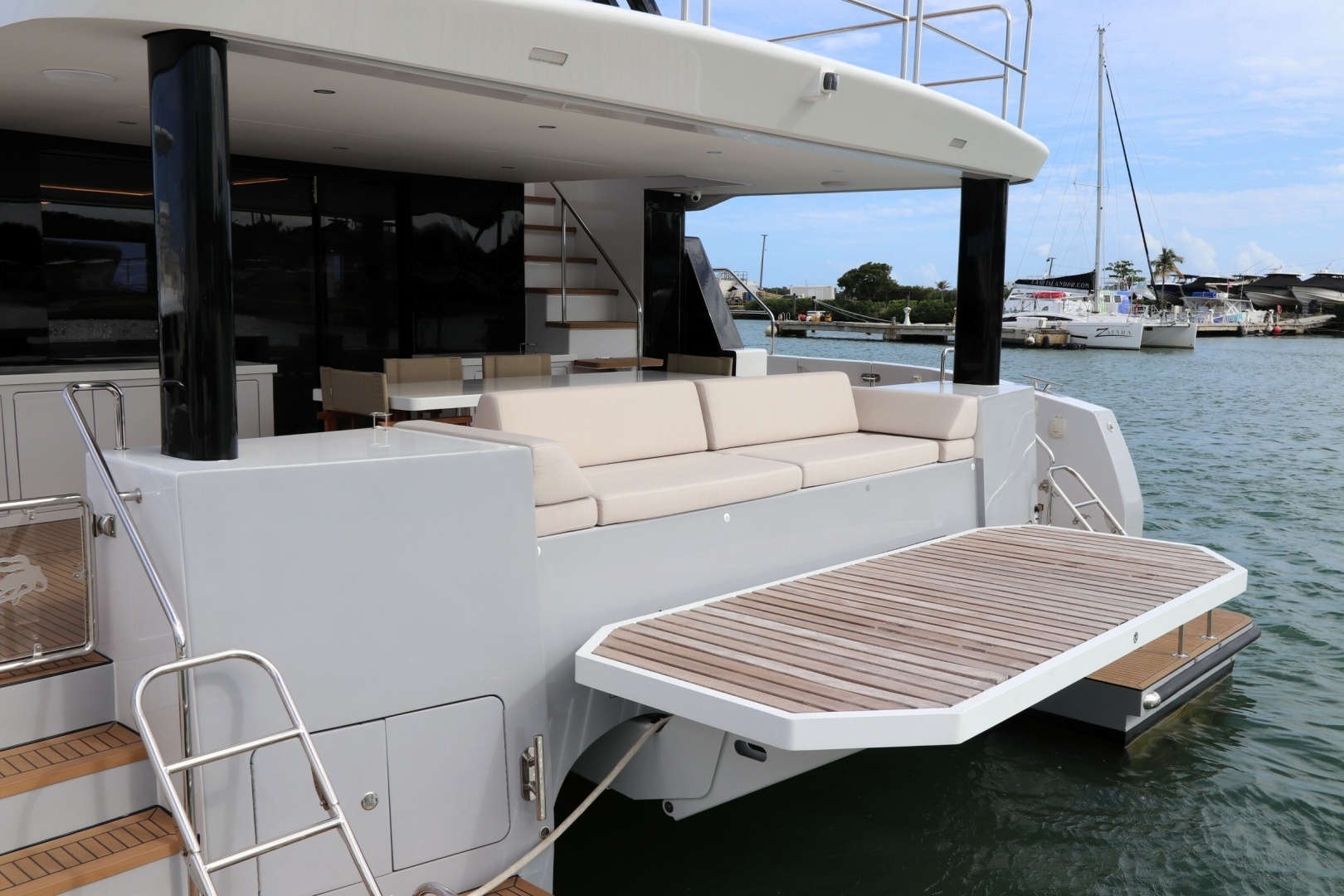

Transoms

Custom aluminum swim ladder on starboard Hull.

Starboard side transom; shower with pressurized fresh water hot and cold.

Handrails.

Access doors to storage areas for dive and fishing gear.

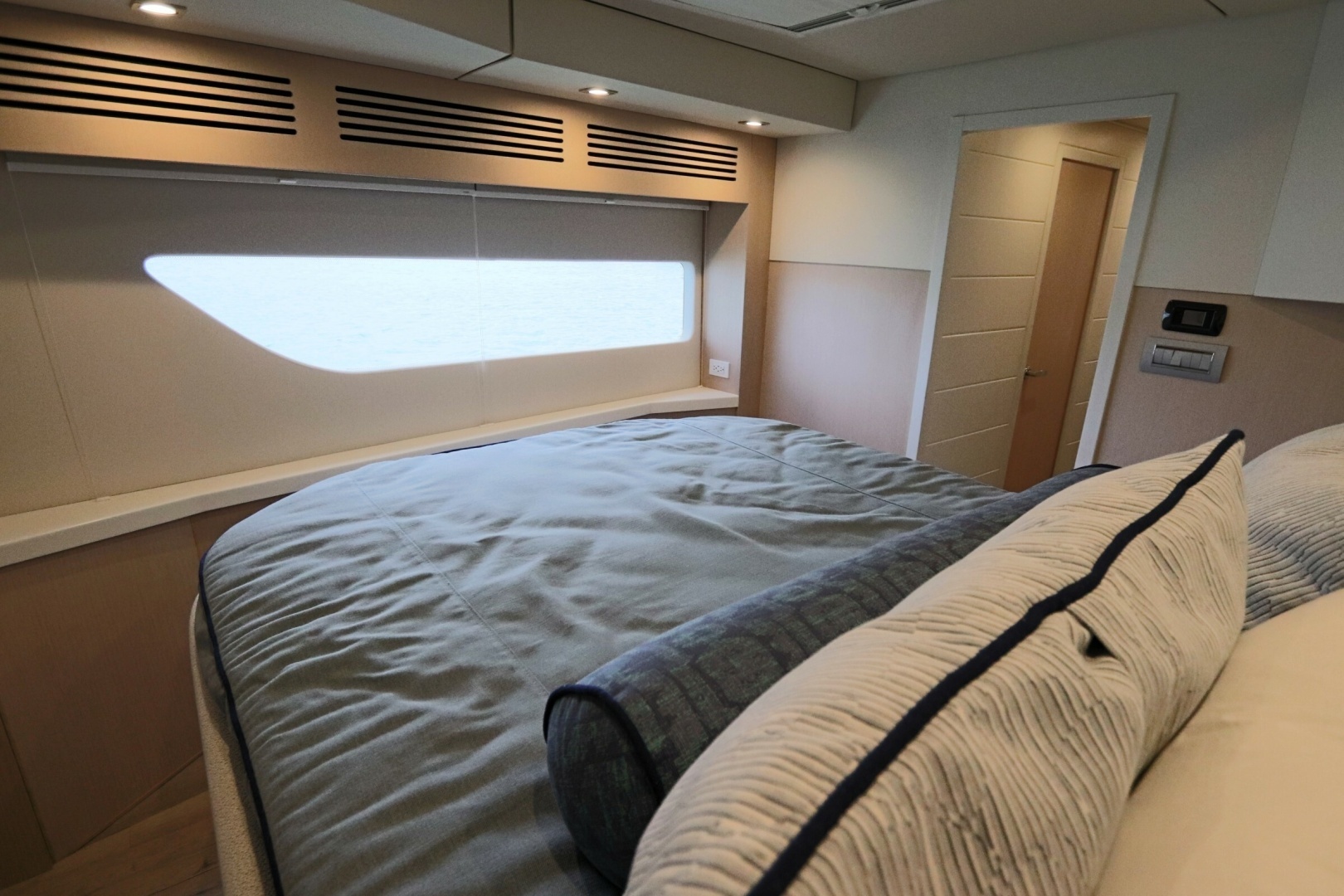

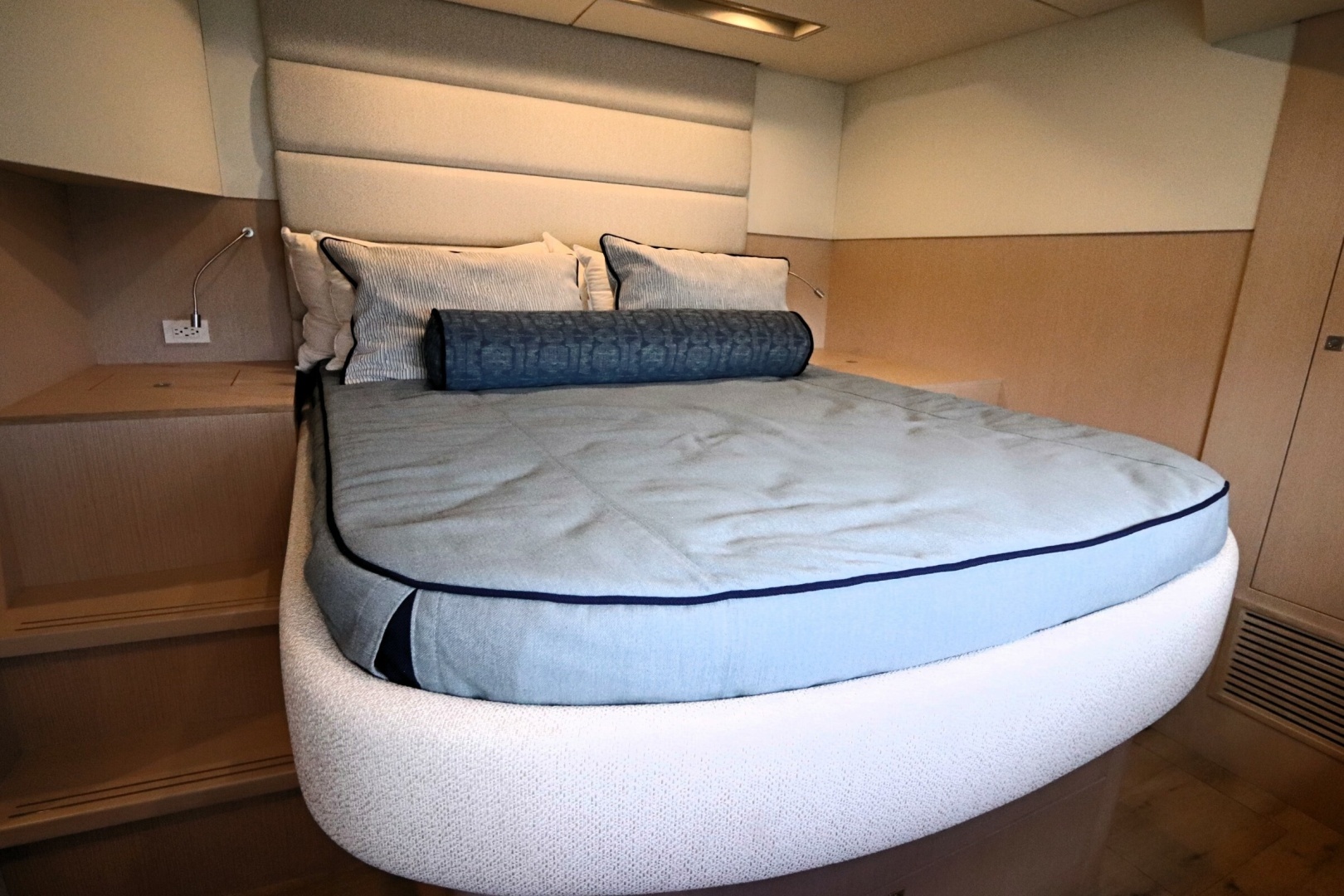

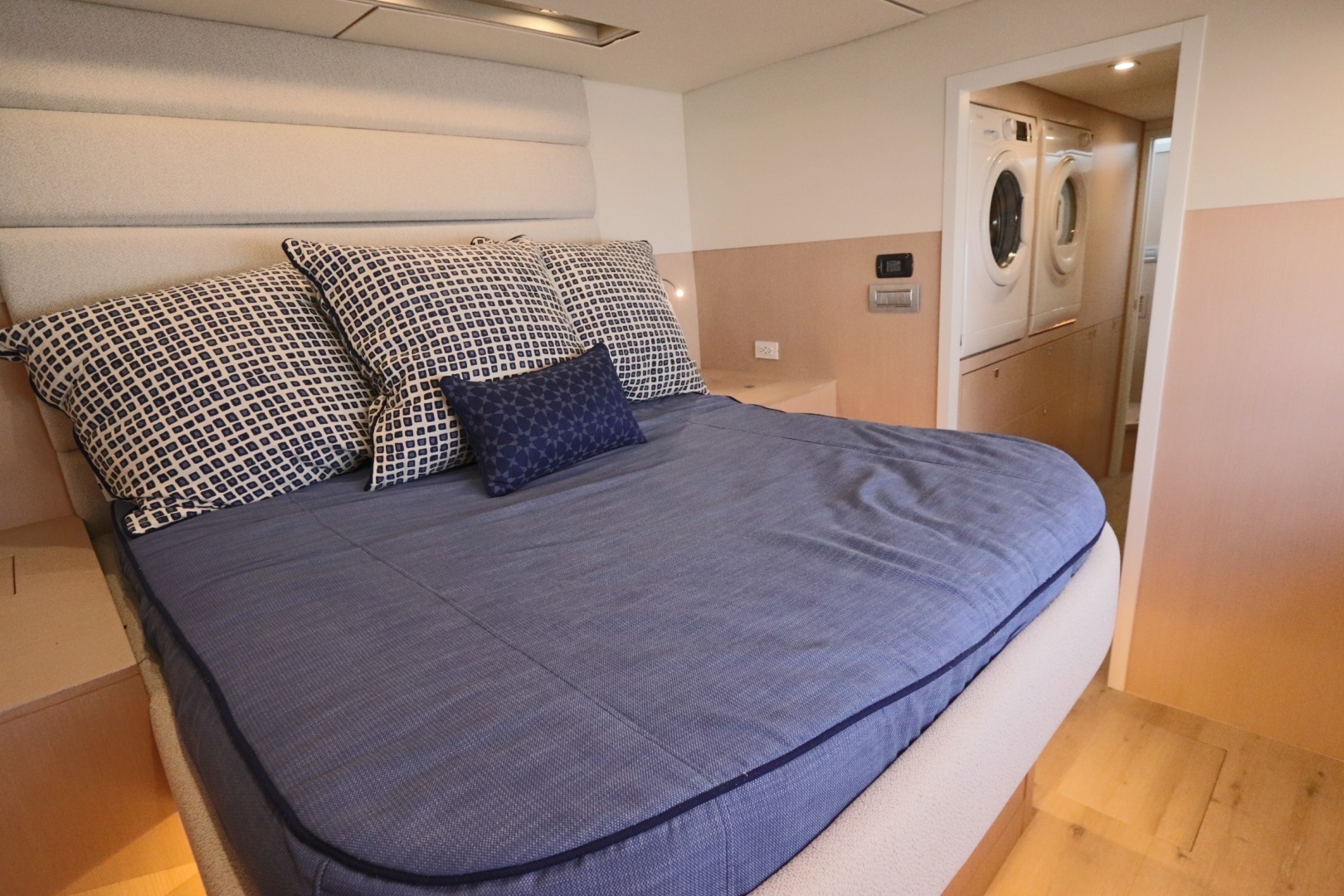

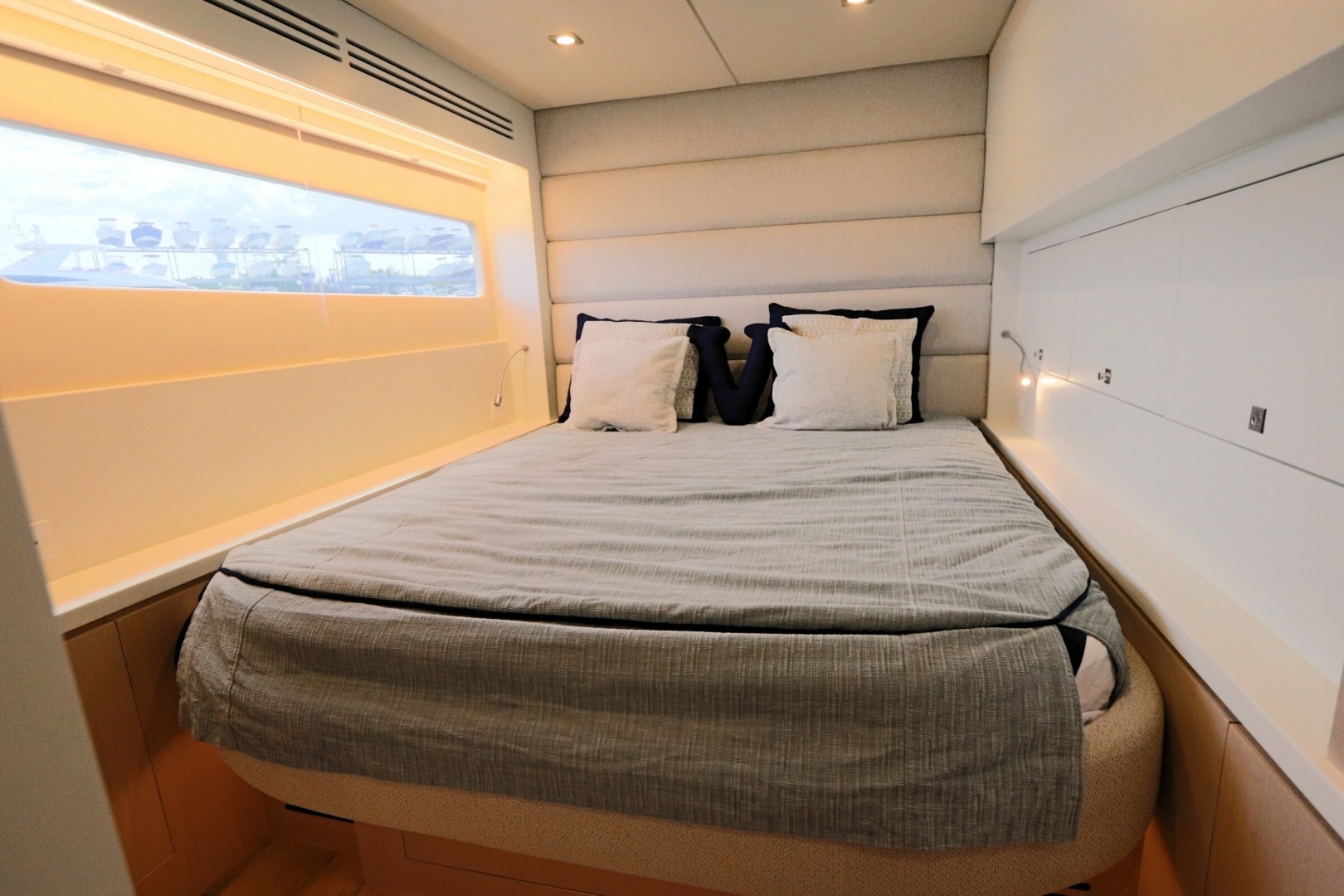

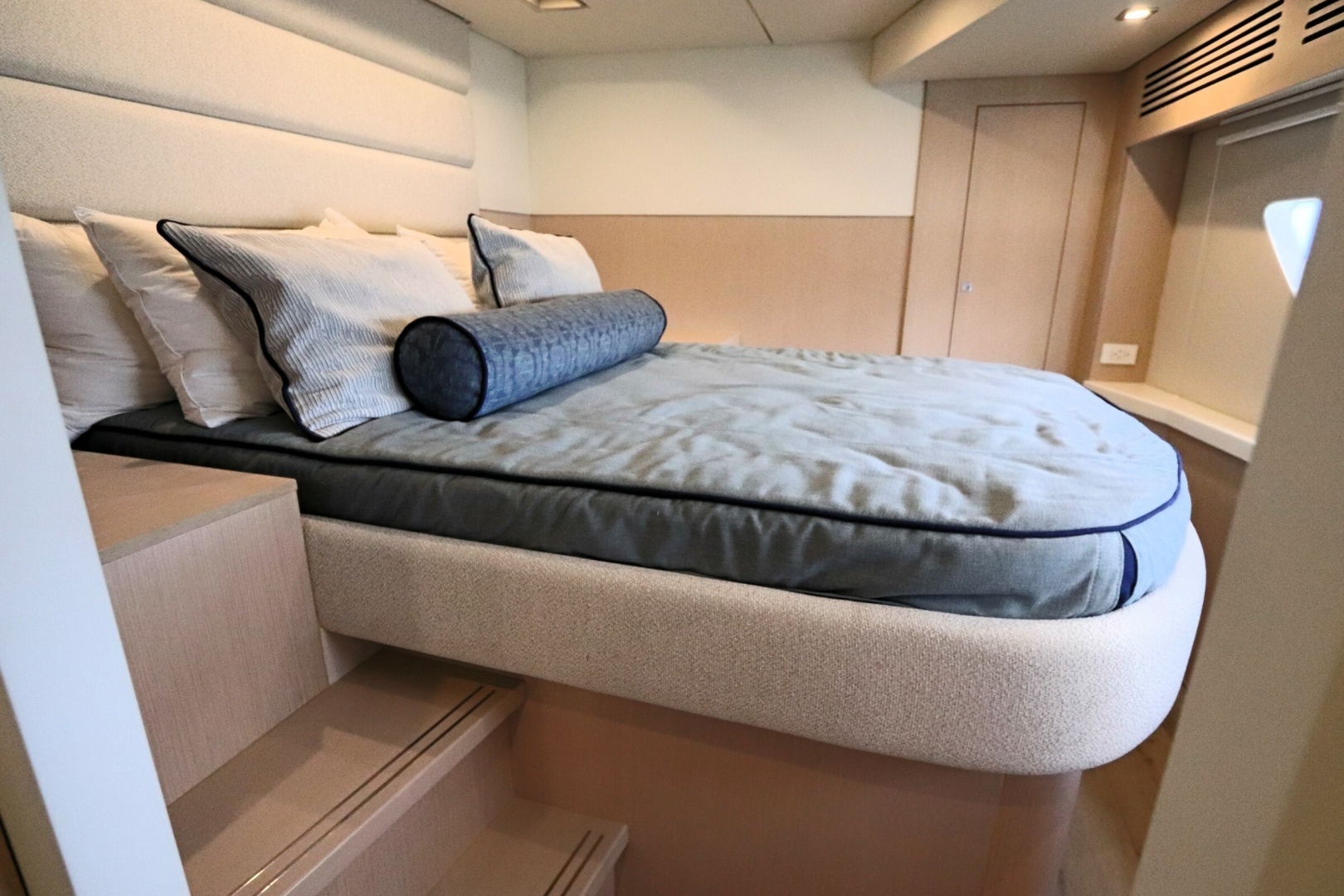

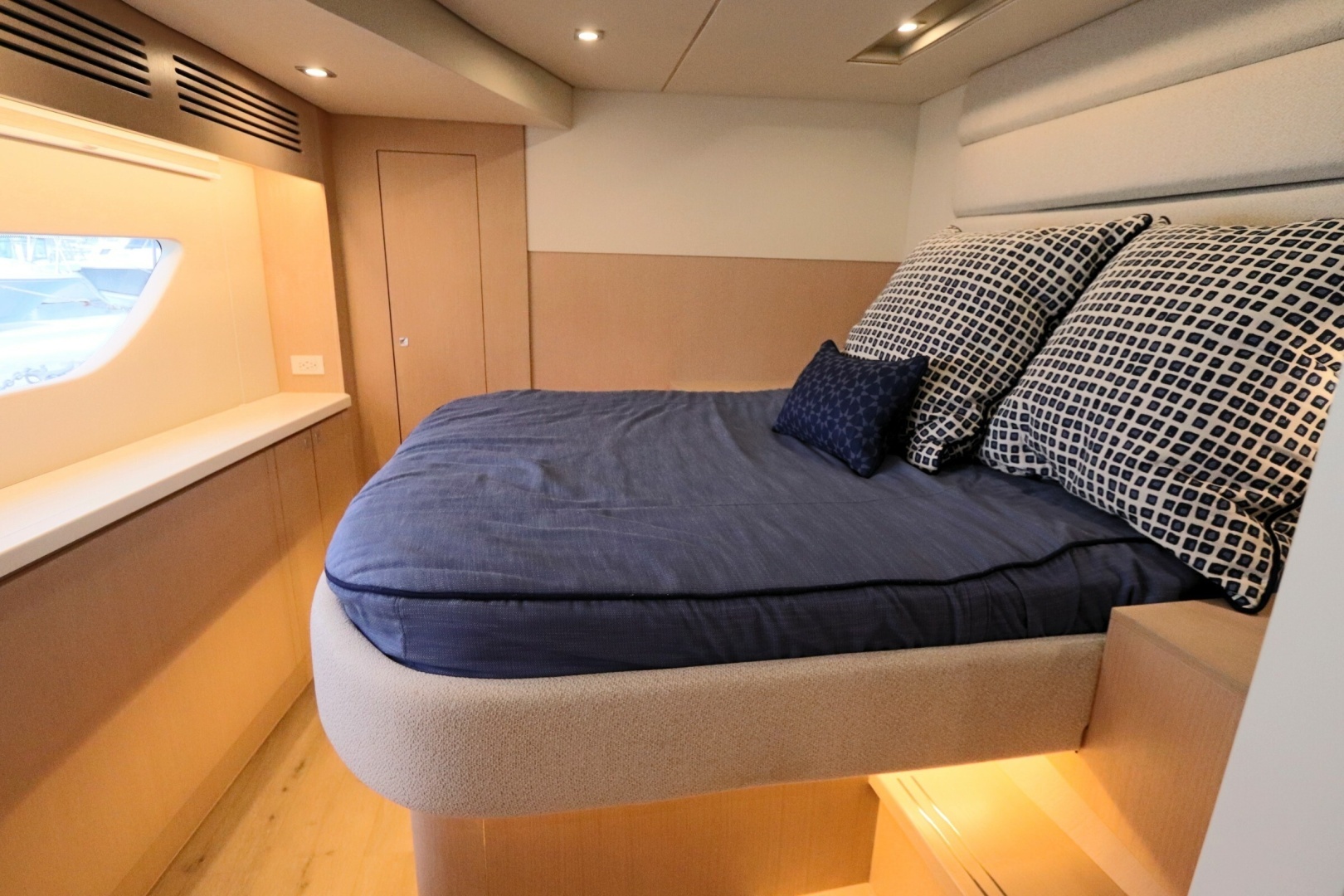

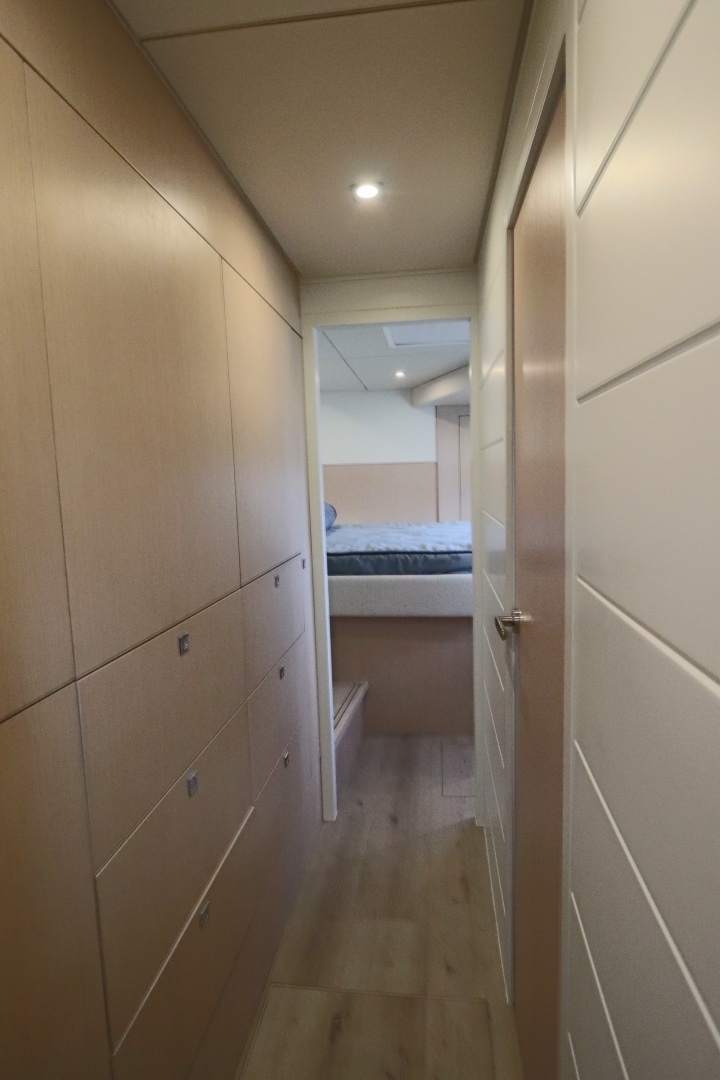

All guest cabins

FRP modules.

Queen bed.

Soft furnishings.

Custom wood accent carpentry.

Reading lights, cabin lights.

Opening port light in hull side.

Nightstands with light switches and outlets.

Closet.

Fabric headliner with recessed led lights.

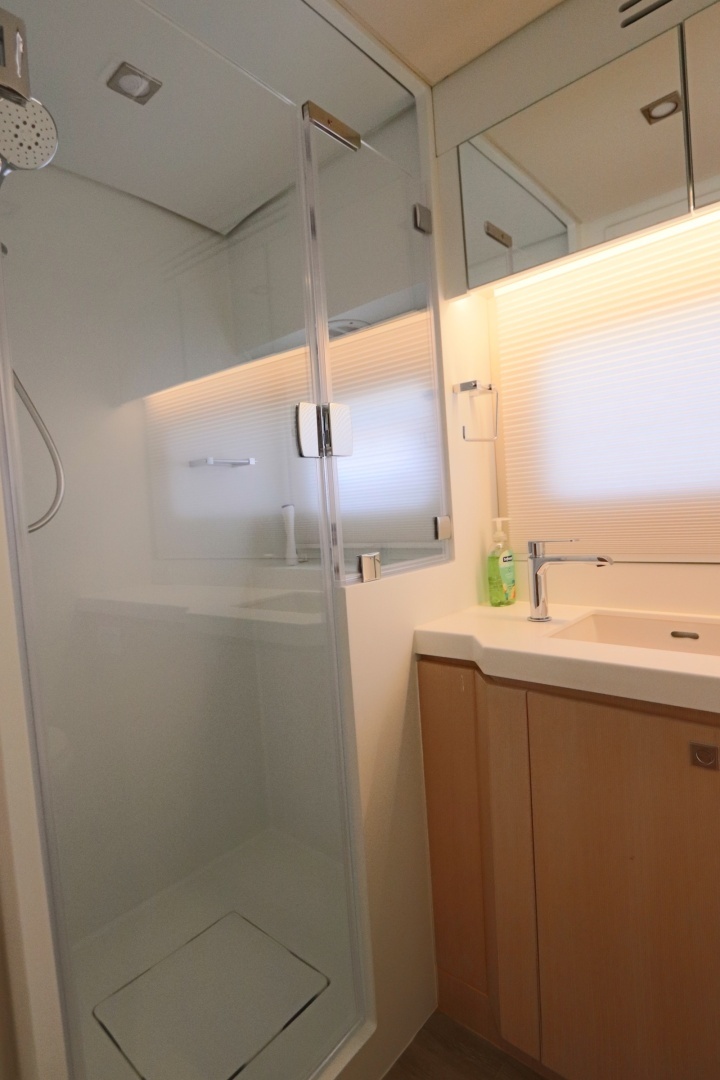

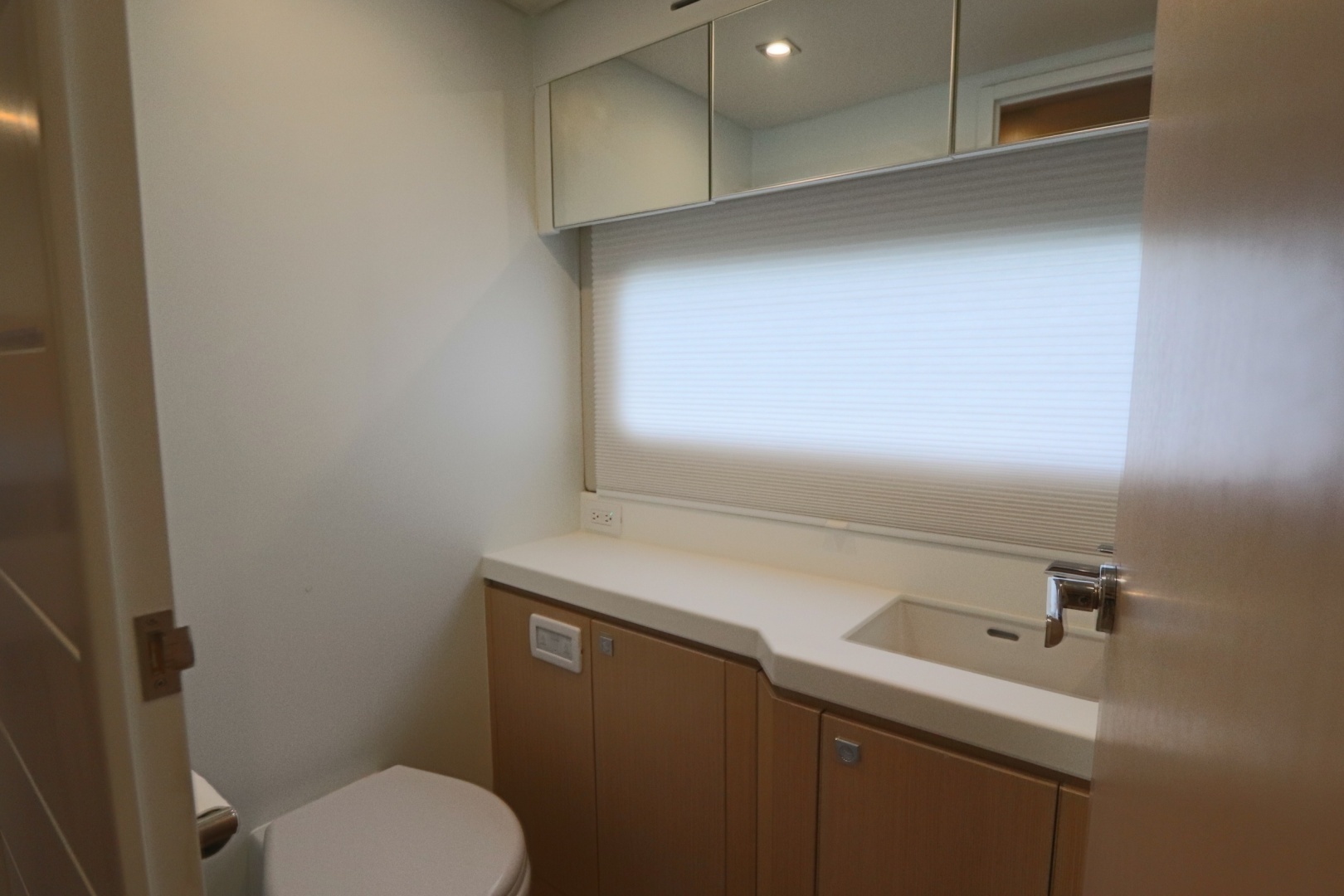

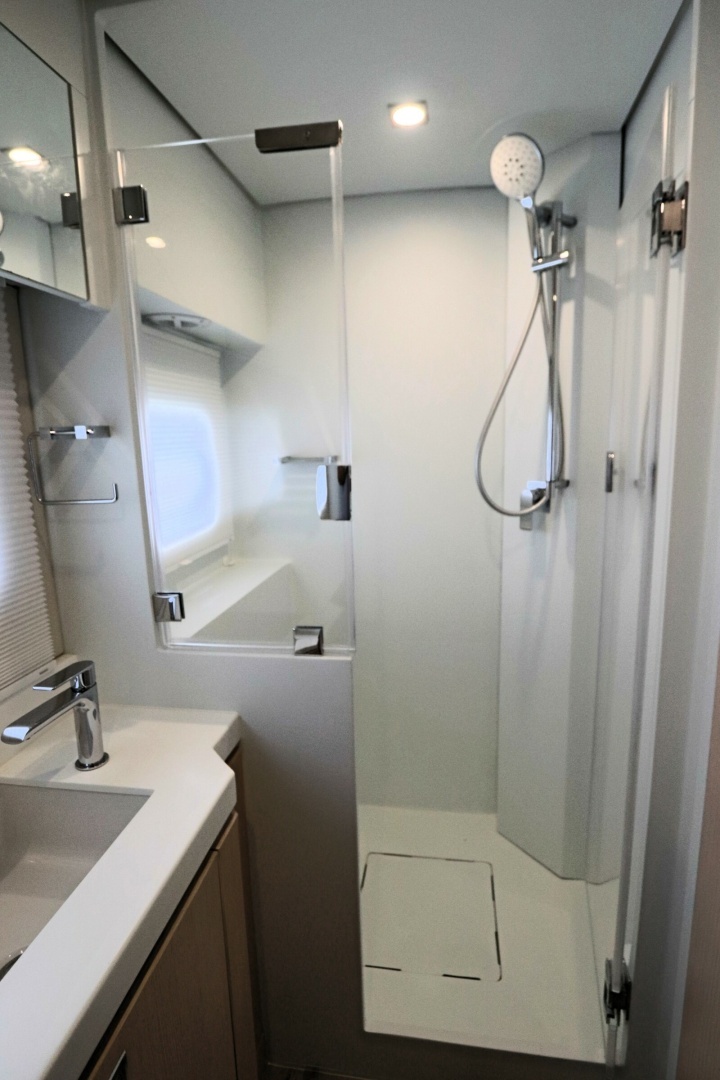

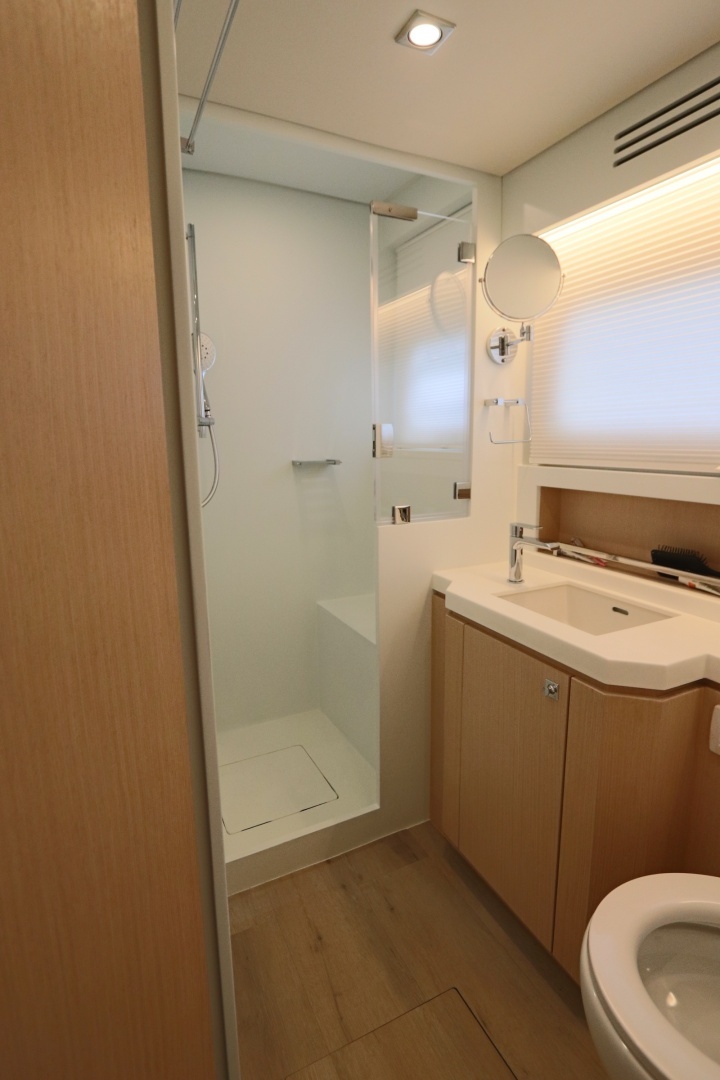

En-suite bathroom with separate walk-in shower, head, and basin.

Deck hatch in forward cabins only.

Blind over large window.

Tecma/Planus freshwater toilets.

Separate shower cubicle.

Mirror.

Storage.

Outlets.

Technical Equipment

The mechanical and systems hardware is distributed in the boat so as to concentrate weight as low as possible and to balance the vessel whilst allowing for easy access to hardware for inspection and maintenance. The main engines are in their own dedicated compartments aft between the aftermost bulkhead and the transom.

Bow thruster

Bow thruster with integral tube.

Plumbing

1 x 200-gal water tank with deck fill and vent, tank level display gauge on electric panel.

2 x freshwater pumps with accumulator tanks.

Plumbing piping and fittings to be John Guest Speedfit®.

2 x 60L Vetus black water holding tanks with gauge, buzzer, and visual alarm.

Black tank pump out for at sea or by deck drain for shore side pumping; breathers to have coal filters.

Tecma/Planus silent electric freshwater toilets in each hull, as per layouts.

Fresh water outlet for anchor/deck wash down.

Cold water outlets at transom – salt and fresh.

4 x Rule bilge pumps 1300GPH with mechanical float switches and auto/man alarms.

2 x Whale bilge pump Titan BP4410 manual bilge pump; located in Cockpit for emergency pumping.

Electric System

Service voltages: 24 VDC and 110V 60Hz.

Service Batteries – 400a/h @ 24V capacity.

Engine Start Batteries – 90a/h capacity, 2 x 12 Volt 90a/h.

Main electrical distribution panels 12V, 24V and 110V.

One custom made electrical control and display panel.

All service areas: LED service lights, switched at main panel.

8x 400w solar panels on Flybridge hard top.

110v plugs in all accommodation spaces, Saloon, Galley and Flybridge.

USB points in all accommodation spaces.

Air Conditioning system to all cabins and Saloon/Galley.

60 ft. 50 Amp Shore power cable.

Lighting

All Lighting LED Marine grade.

LED lighting to heads and below deck accommodation spaces.

LED low level lighting in cabins, Saloon, Cockpit and Flybridge.

2 x LED aft deck spotlights.

Courtesy lights (blue).

Aft deck transom steps x 1 on each step.

Courtesy LED light on each step on port and starboard hull companionway.

Service area – Dura LED, white (switched from main panel, 1 switch): 1 in each Engine Room.

Navigation Lights

All navigation lights LED (port, starboard, anchor and stern).

General

1 Seat on each pulpit.

Handrails on Transom coaming and aft Cockpit, as per general arrangement.

Stainless steel stanchions 28” high, on outer bulwark.

Stainless steel guard rails with wire intermediate.

9 Alloy mooring cleats - Goiot 340mm, 4 port, 4 starboard, 1 at anchor locker.

2 Goiot 260mm cleat at stern.

Access to storage areas in port and starboard forward hulls through Lewmar or equivalent size 70 deck hatch.

Anchor Handling

Anchor windlass; Maxwell, part no. HRC10 non-capstan version; with foot switches on the foredeck and remote switch on Flybridge helm.

Custom self-launching bow roller.

Self-bailing lockers for self-stowing chain and rope.

1 Ø24 mm Nylon bridle fitted to Stainless Pad Eyes on inboard hull sides.

Fresh water wash-down.

Ground Tackle

Primary anchor, Delta Type on 50m (164’) of 10mm (3/8”) G4 chain and 50m of Rode.

Hull and Deck Ventilation

All port lights and hatches to have blinds.

Port lights and hatches for light and ventilation (standard layout).

Hull portholes.

Port Hull Side: Lewmar Flush Mitre portlight, Size 3, x2.

Starboard Hull Side: Lewmar Flush Mitre portlight, Size 3, x2.

Deck Hatches: Lewmar Medium profile, Size 60, x4.

Navigation and Instrumentation System

2x Garmin gpsmap 8616 16” chart plotter with GPS antenna.

Garmin Auto pilot with version 2 smart pump.

Garmin 4' open Array GMR Phantom 54 radar.

1 kw Airmar B175 Depth transducer.

VHF 215 AIS on Flybridge.

Fusion Sound system with 3 zones - 4 speakers to Saloon, 2 to Cockpit and 2 to Flybridge.

1x Garmin camera in each Engine Room and 1x camera on Aft Deck bulkhead with view of Cockpit.

Mechanical Disclaimer

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.

Disclaimer

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.

Additional options

Additional options

Open plan Main Deck with Helm Station and wet bar. 4 Staterooms and 4 heads on lower deck (See layout options)

4 x blue underwater lights

Dishwasher - Fisher & Paykel

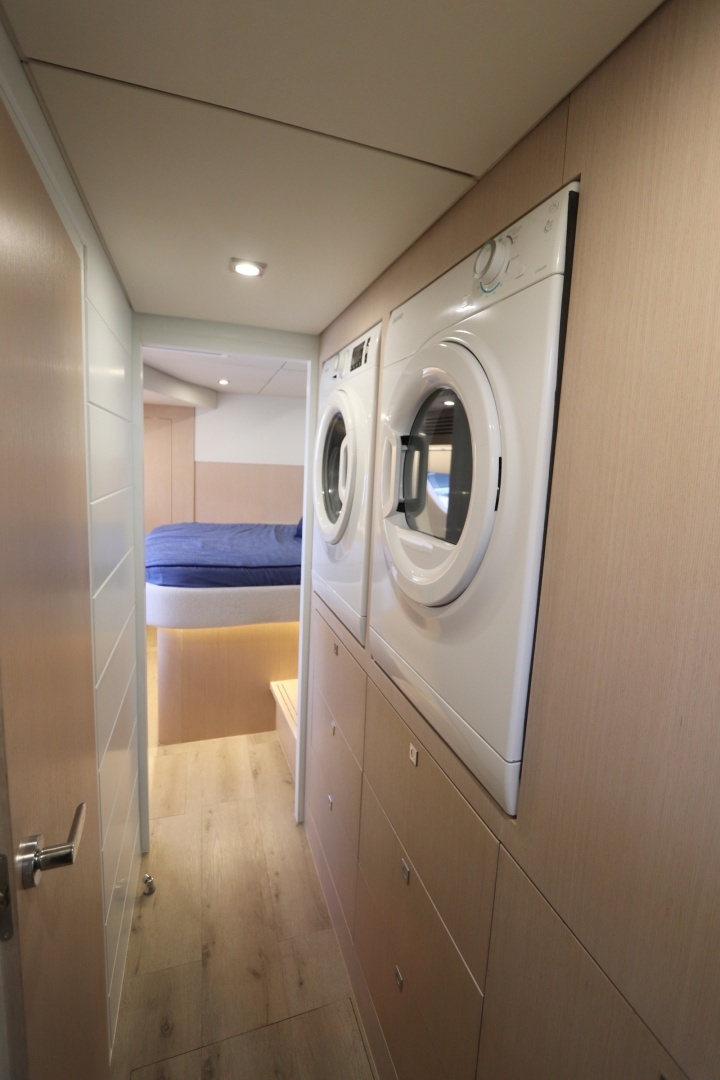

Splendide 110v washing machine

Splendide Dryer 110V

Dual Stidd Flybridge helm chair upgrade

Propane BBQ

Retractable shore power lead Glendinning cable master 50A 75ft cable

Remote motorized spot light on mast

Flood lights: Hella Marine 2x Aft deck and 2x Flybridge

Additional Transom Ladder and Shower

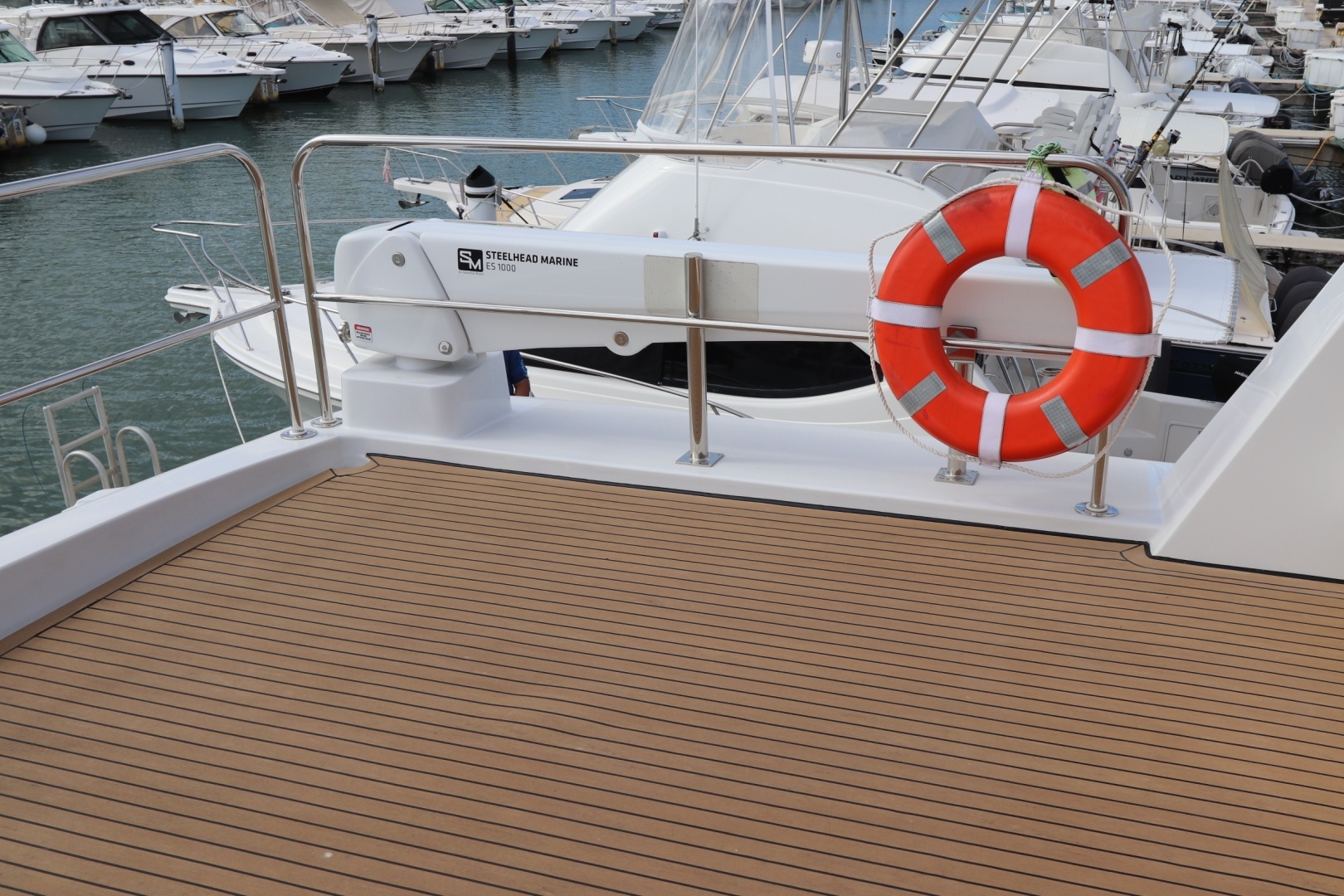

Optional davit and transom platform Steelhead E1000 Davit on upper deck

Tender lift on lower deck with custom platform

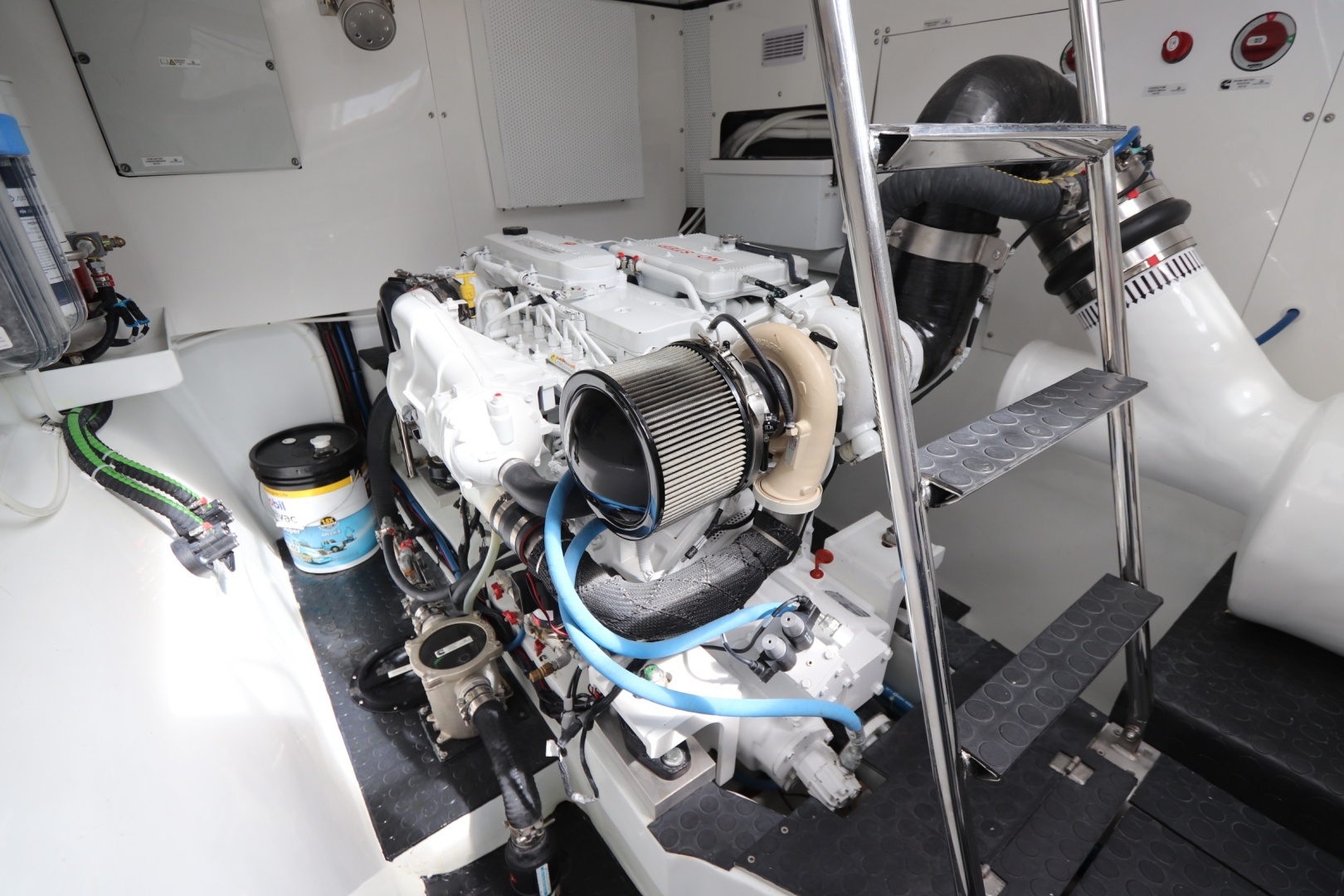

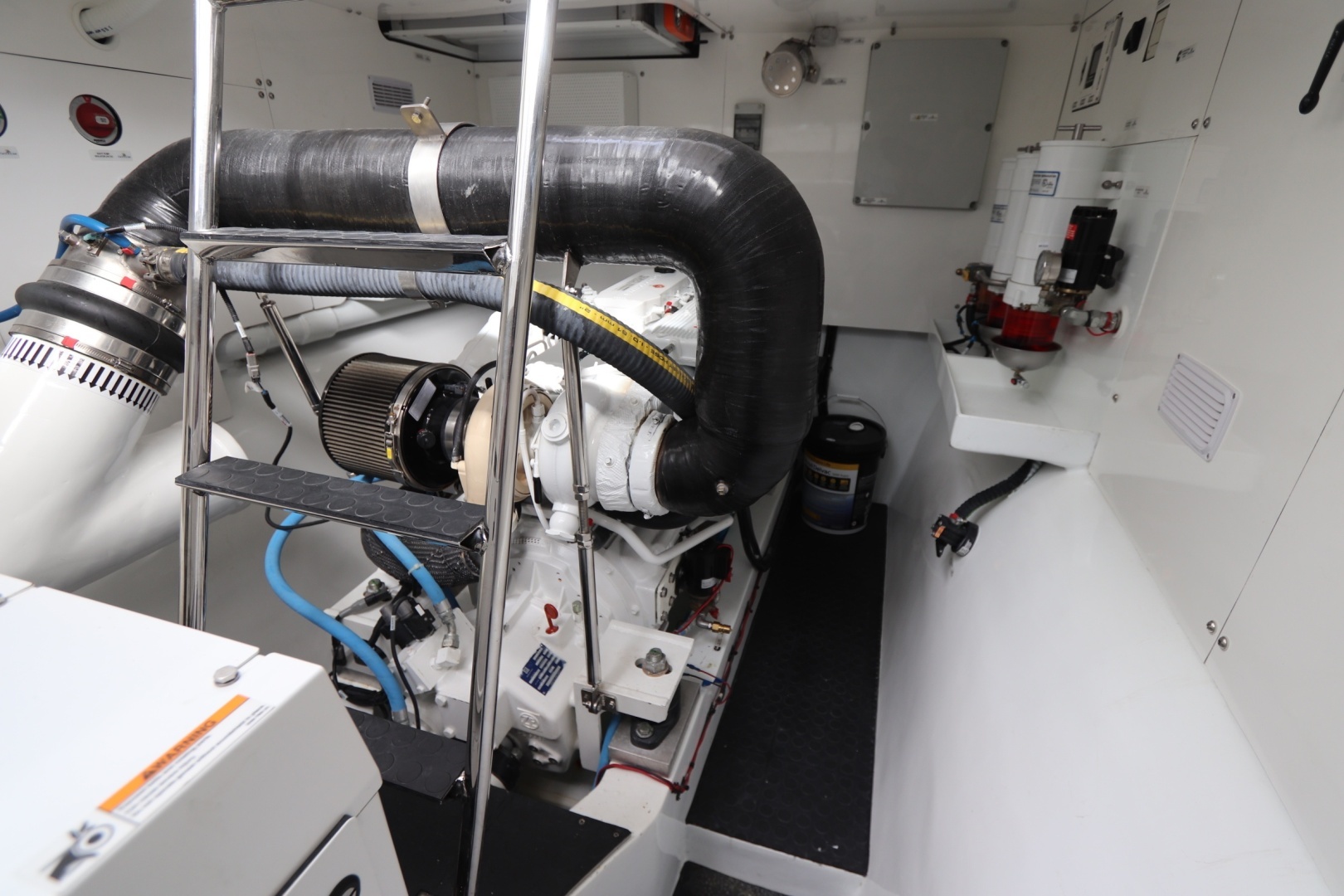

2 x Cummins QSB6.7 550 HP diesel motors coupled to KMH52 gearboxes, Temmet 25 shafts and fixed propellers with flex couplings

Cummins standard electronic engine controls and instrumentation panels at helm console

24v high amp alternators to charge house bank on each motor

Water locks and exhaust system to keep noise levels as low as possible

Dual Racor fuel filters for each motor

Fireport in each Engine Room

Grey paint finish below waterline on the interior of the boat and service areas

Sound seal for both engine compartments

Main Engine ventilation system: via remote operated fans and fire shut off system

Sea Fire system to both engine room spaces

Power assisted hydraulic steering system with emergency override

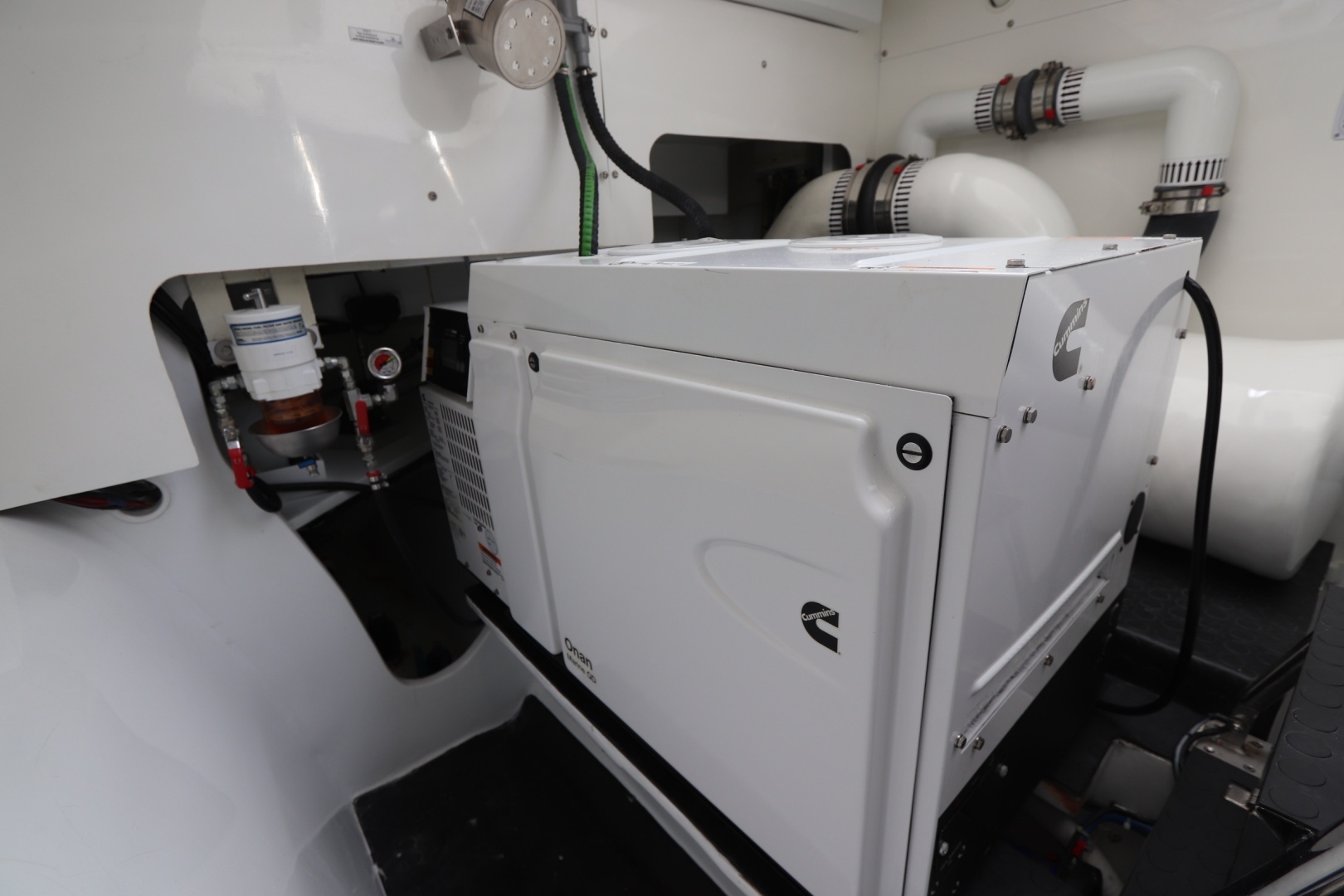

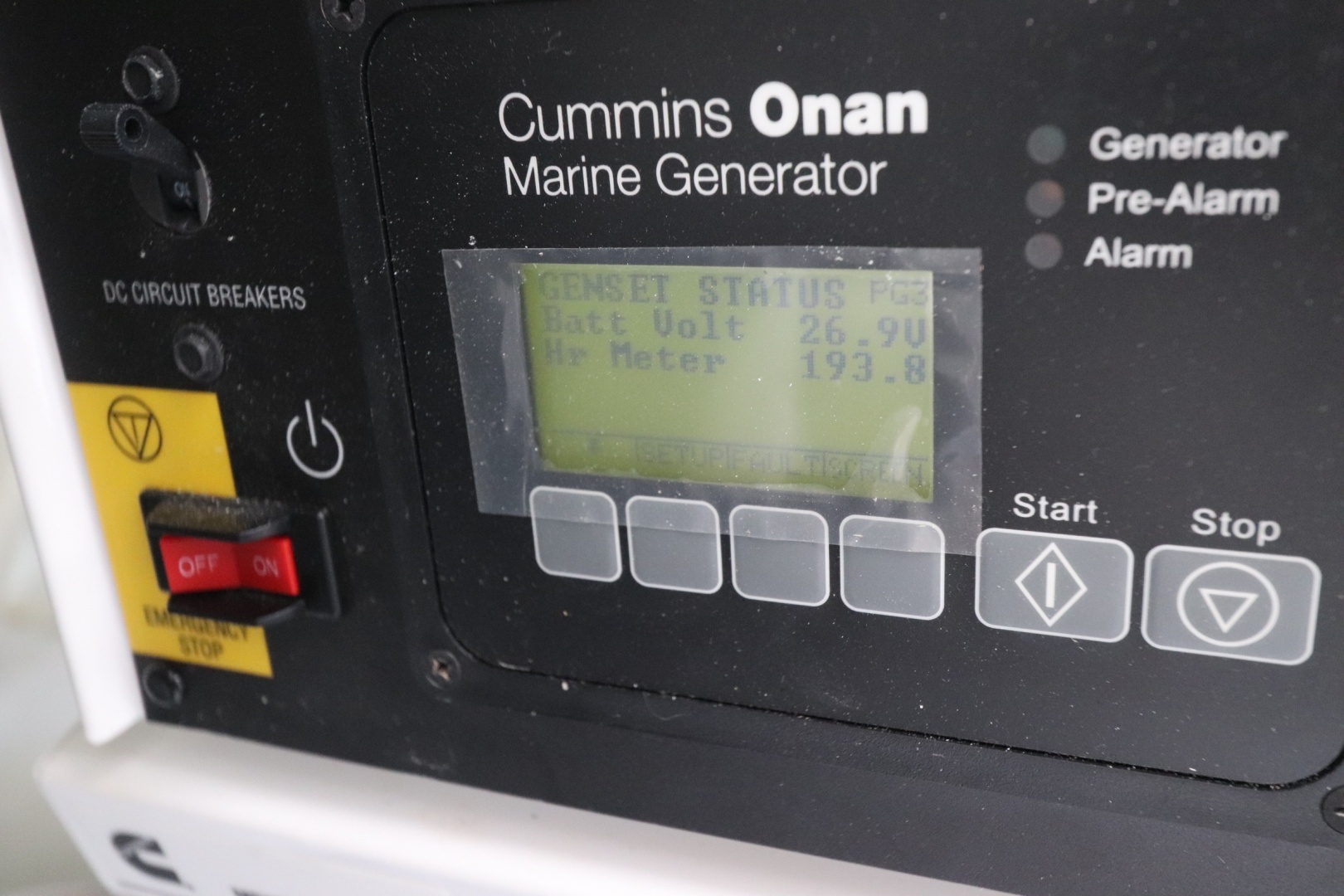

1 x Onan 19kw MDKDV Generator with sound shield, waterlock and dry exhaust

Off-grid upgrade package

(2) 9kw Integrel Solutions Generators coupled to main engines via flex shaft off PTO.

Upgrade battery bank to Victron Energy 48v lithium Ion 26000w total (10x 24v 5200w batteries)

Upgrade to (2) Victron Energy 110v 5kw inverter chargers and (1) Victron Energy 220v 5kw inverter charger, with Integrel Solutions smart switching and Victron Energy management

9x 400w solar panels on coach-roof (No sun bed ahead of Flybridge helm console)

Air conditioning system to be Integrel Solutions self-contained, 48v units capable of running throughout the night, off battery bank, in Eco Mode in cabins

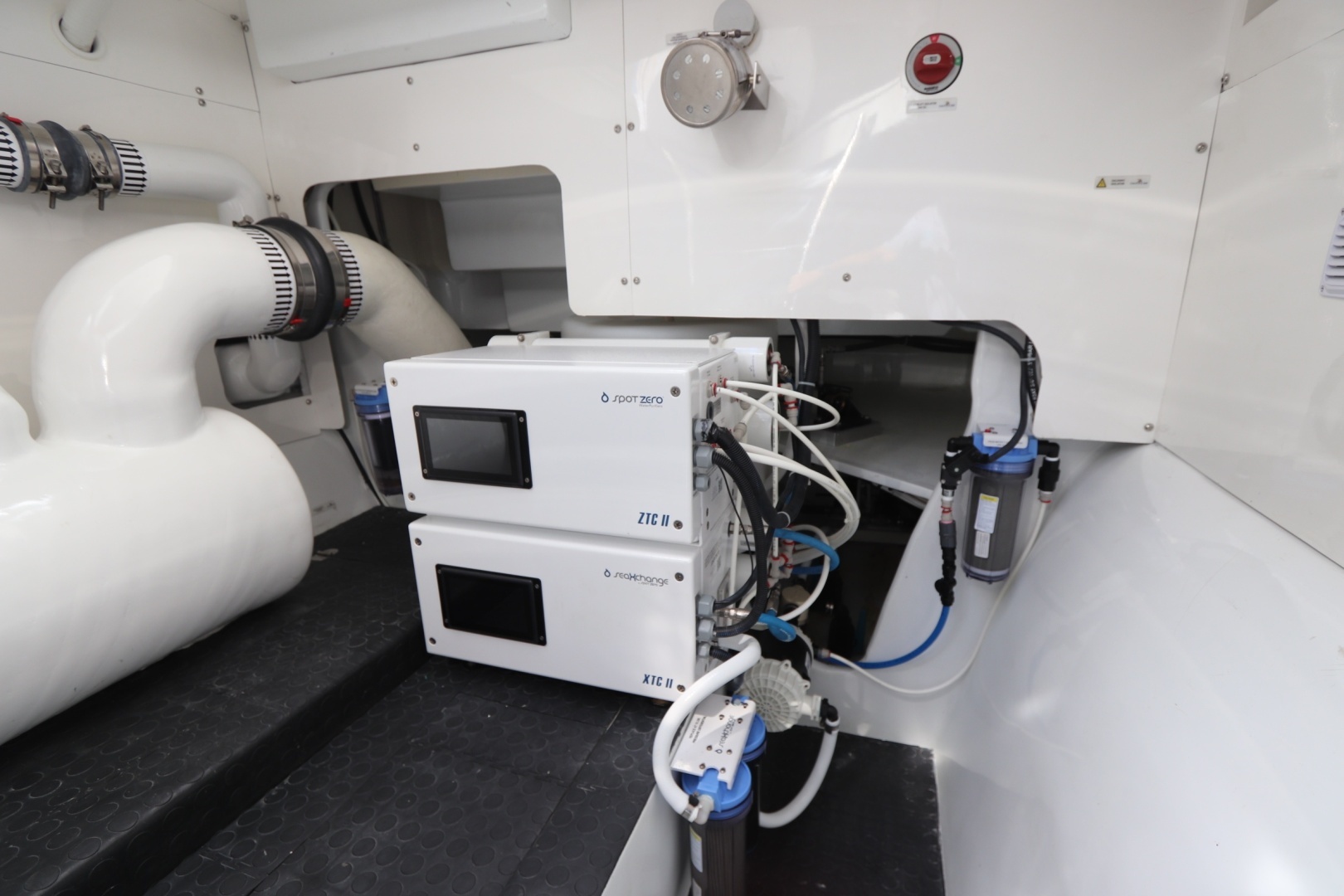

Watermaker Spot Zero XTCII and ZTC II

AIS send and Receive

sounder module

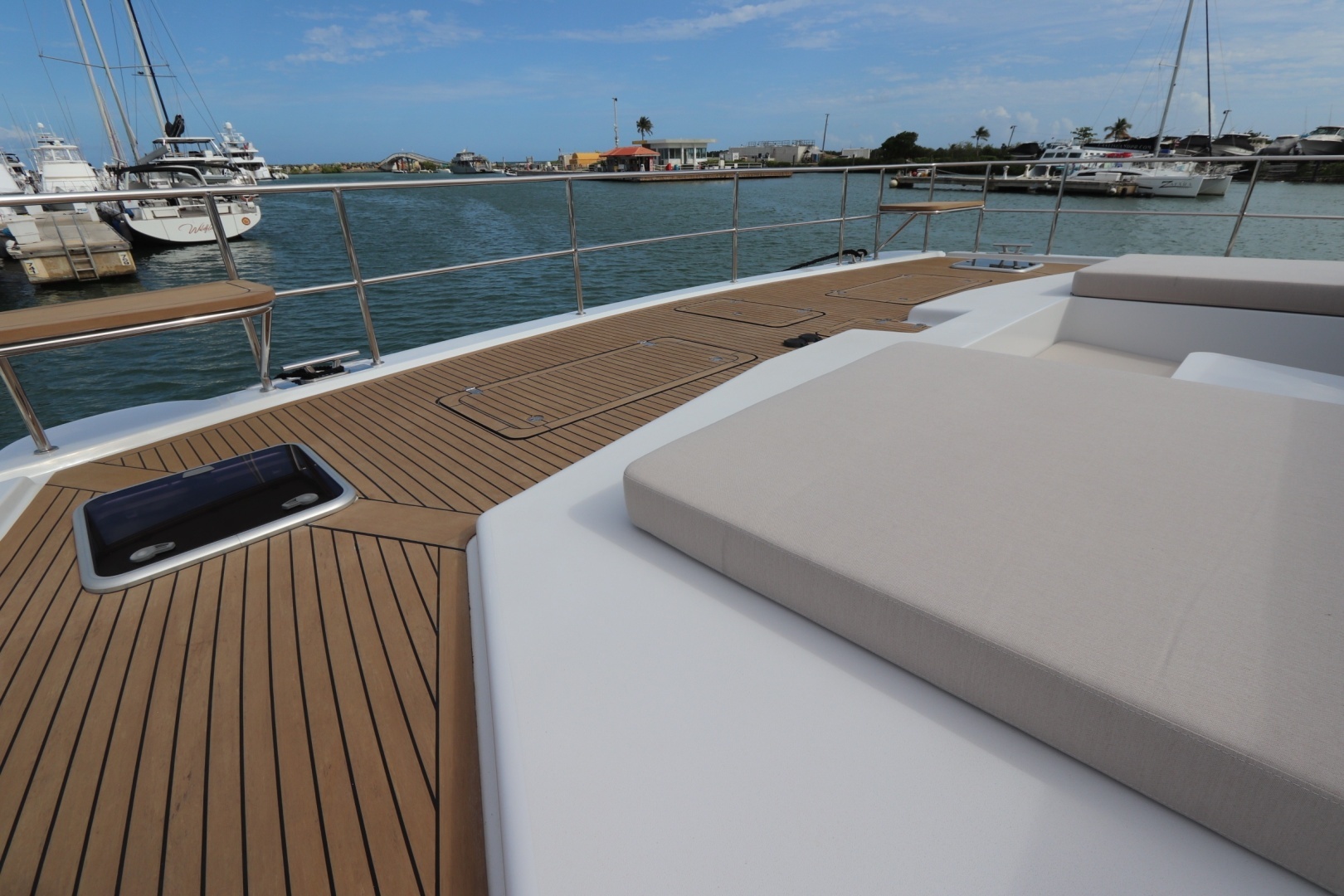

All exterior decks finished in Flexi Teak
