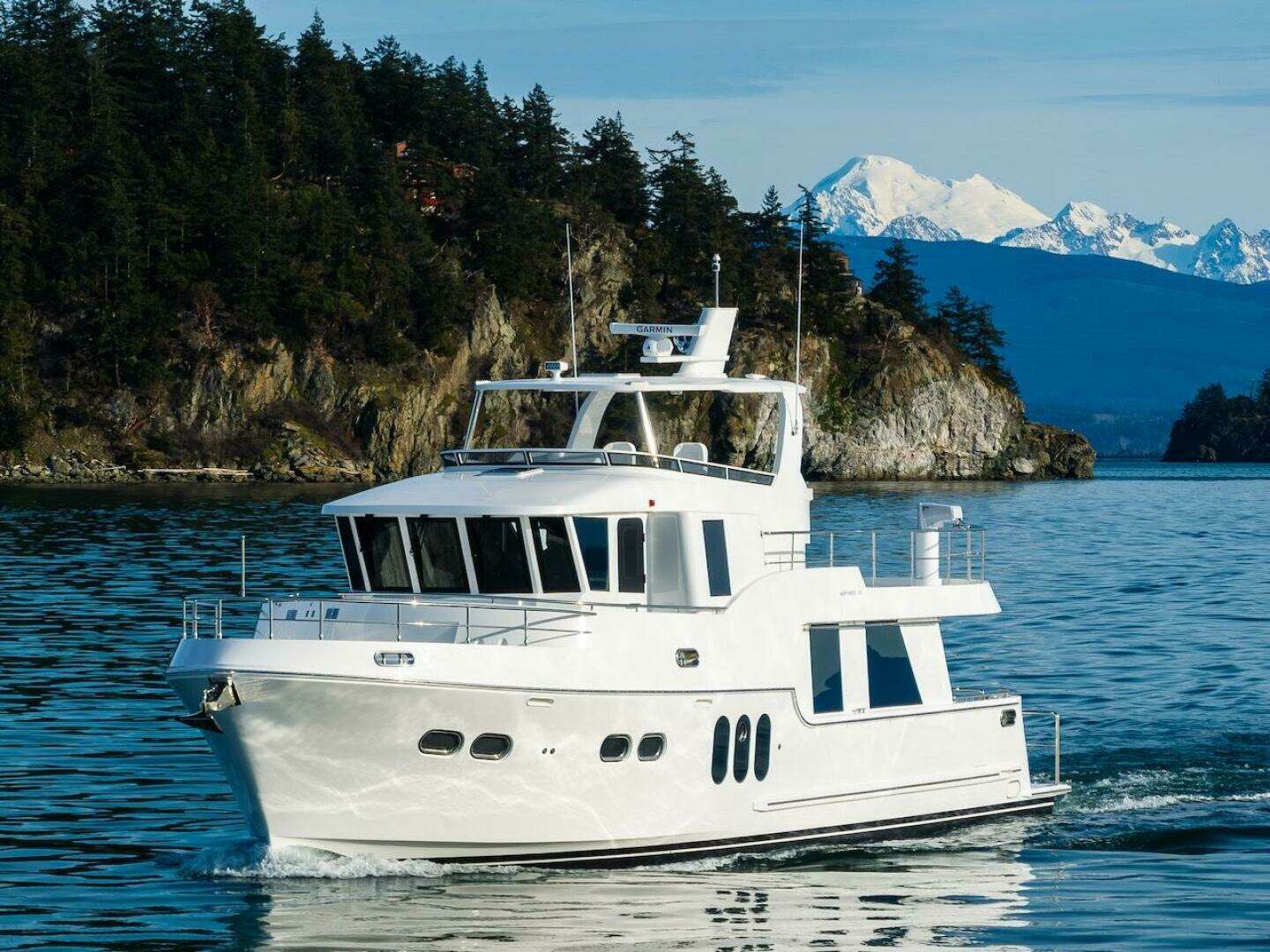

Hull & Superstructure

• Hull color - Ferro gelcoat, white
• Superstructure - Ferro gelcoat, white
• Scuppers on aft, starboard side, foredeck to common drain lines
• Watertight bulkheads (3)
• Floors, decks and major bulkheads are composite construction and laminated to hull
• Hull reinforced for optional stabilizers
• Four (4) layers of vinyl ester resins used in construction to minimize chance of blisters
• Black anti-fouling paint
• Painted boot stripe
• Cap rails of composite material and finished in choice of colors
• Rub rails - integral to hull with solid stainless half round strakes (2)

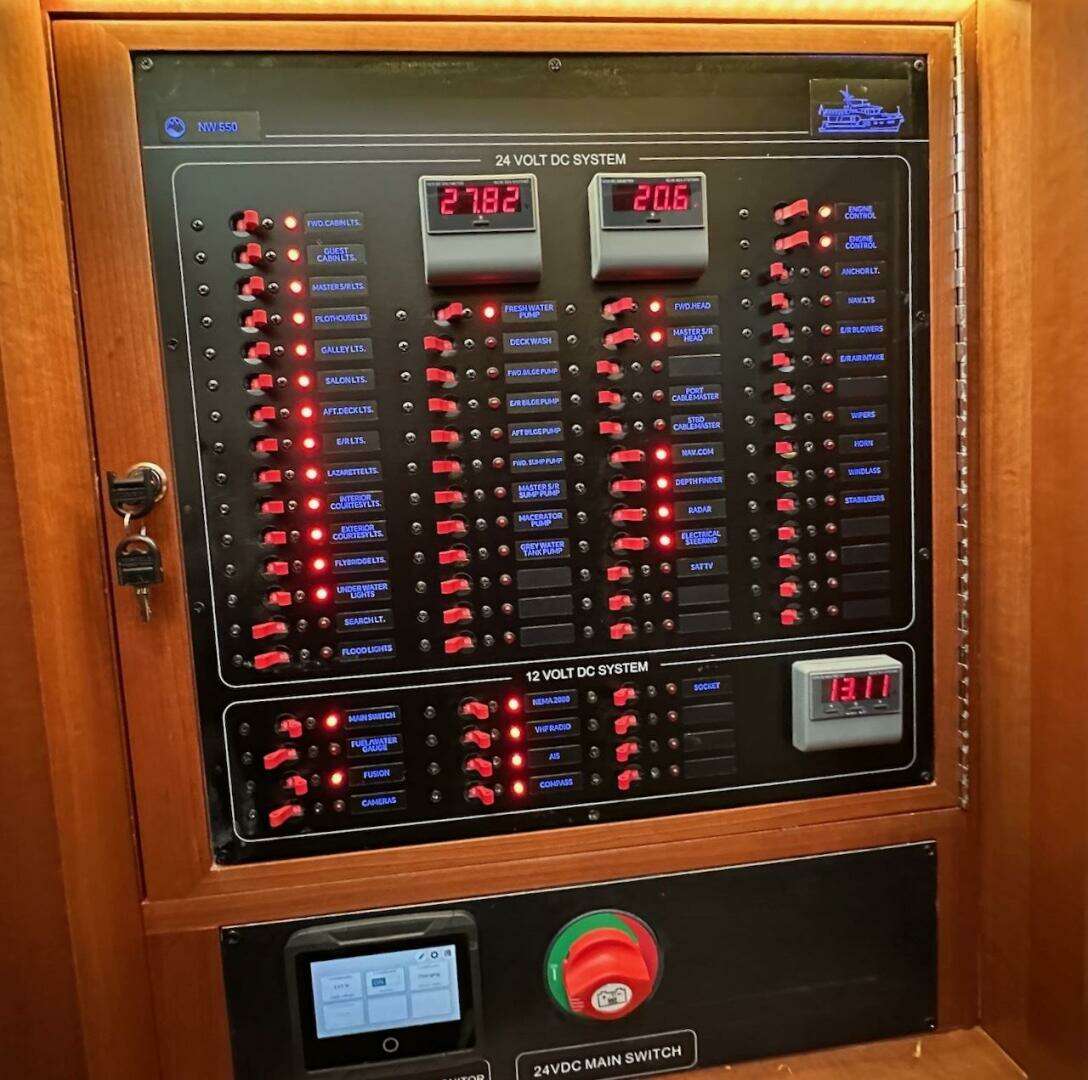

• Overhead LED deck lighting (24vdc) on exterior walk and outside pilothouse

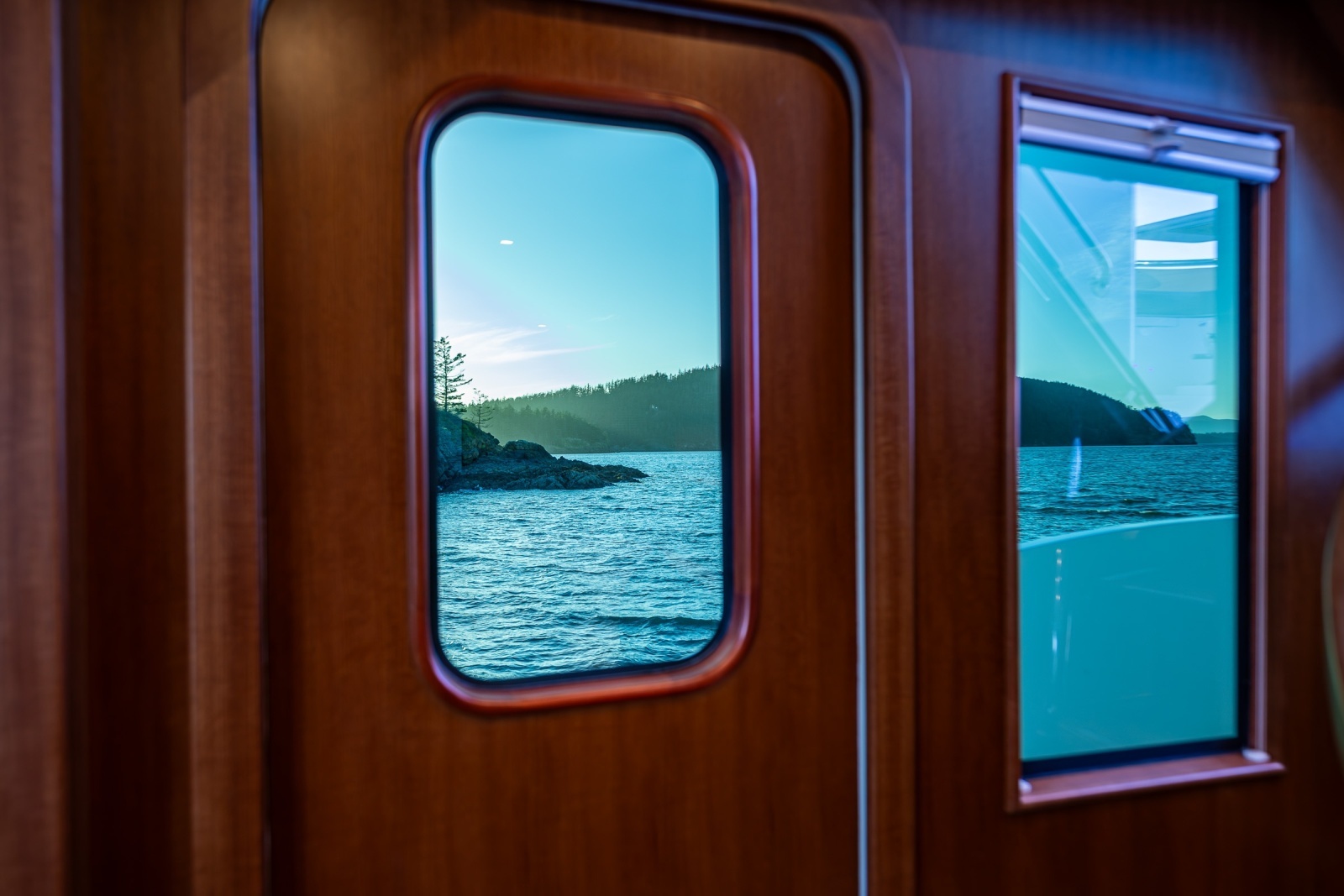

• Exterior doors - Diamond Sea Glaze (or equivalent), white with matching locks
• Equipment manuals include wiring and piping diagrams

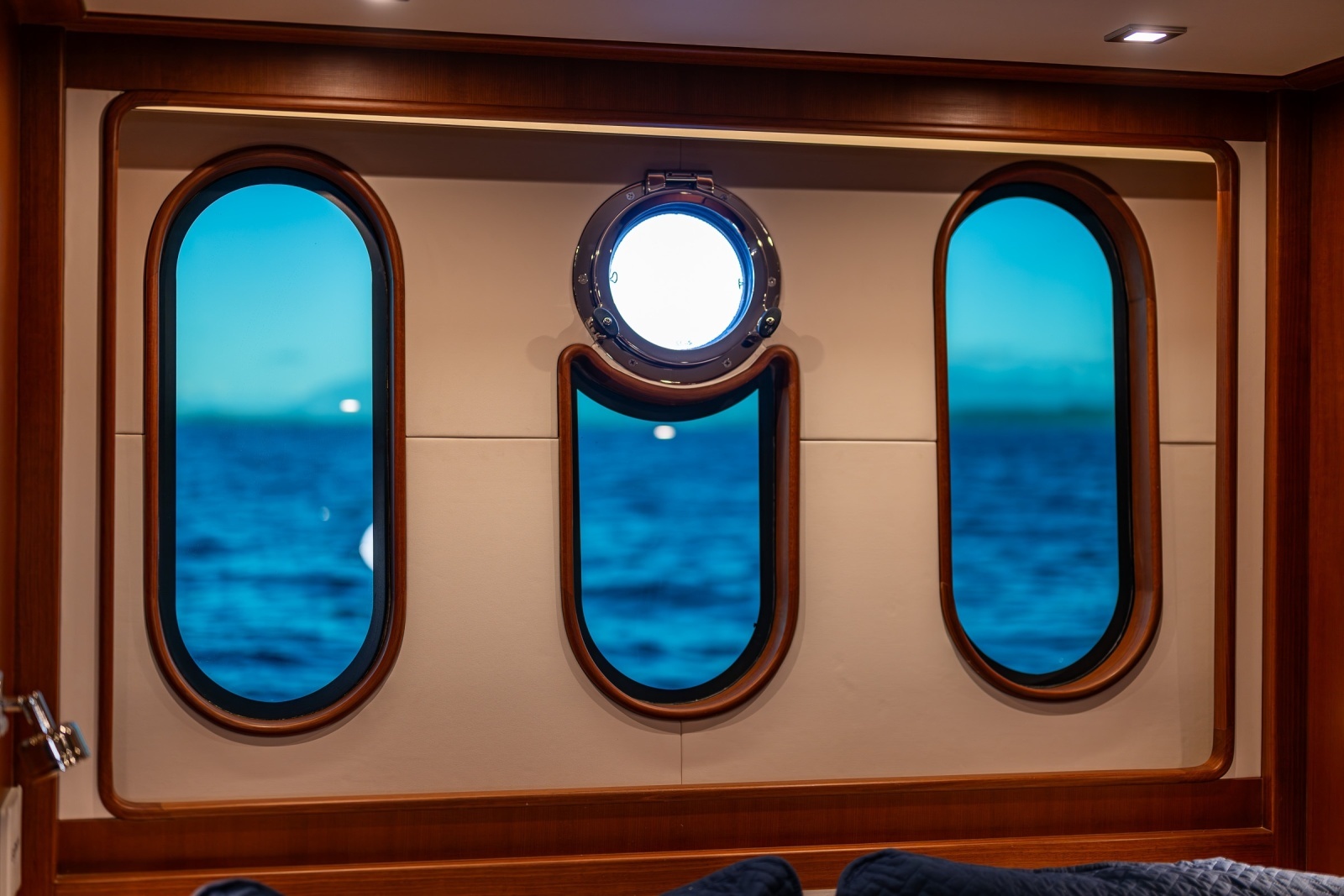

• All opening portlights to be stainless with screens Manship or equivalent

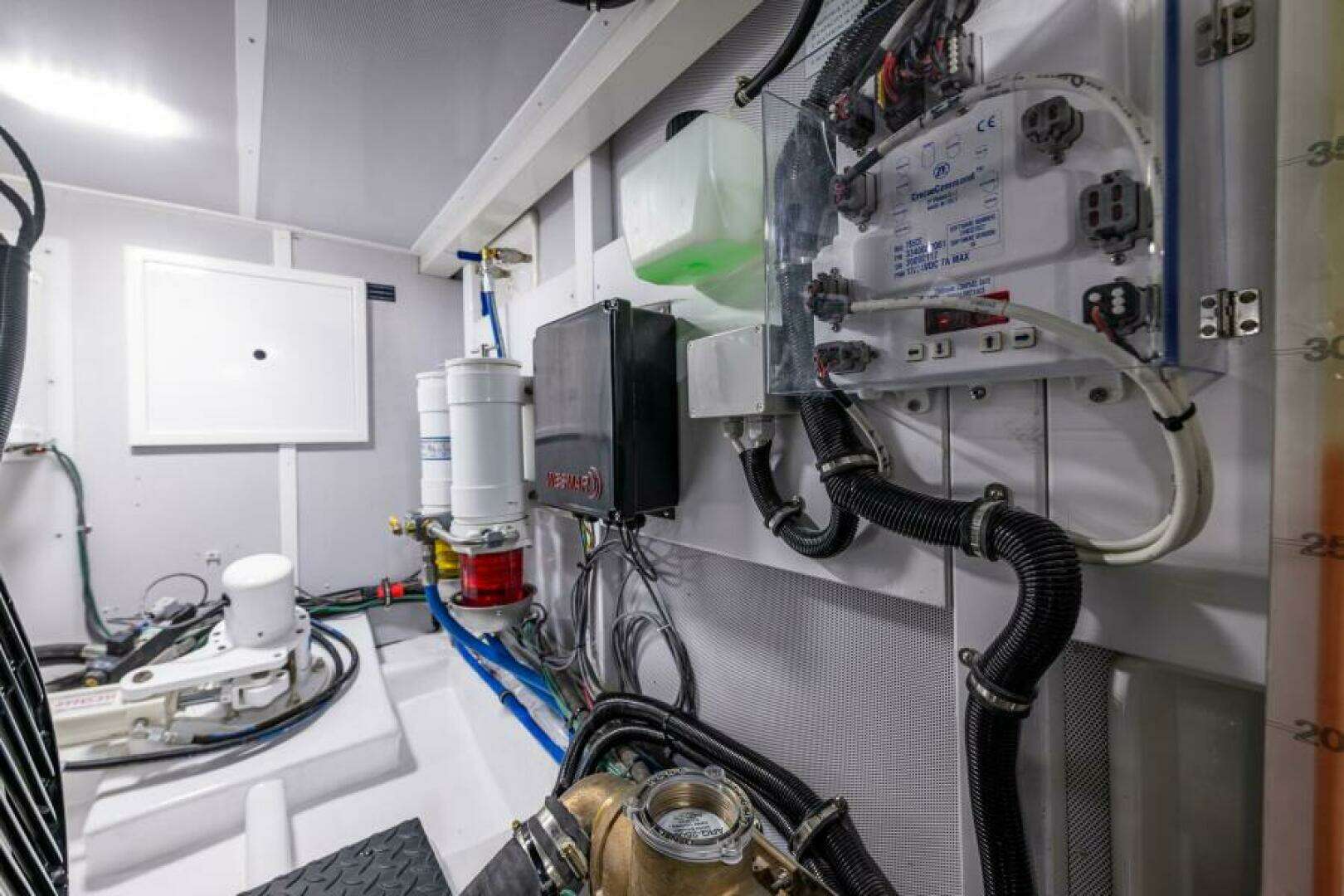

• Engine room fire suppression system

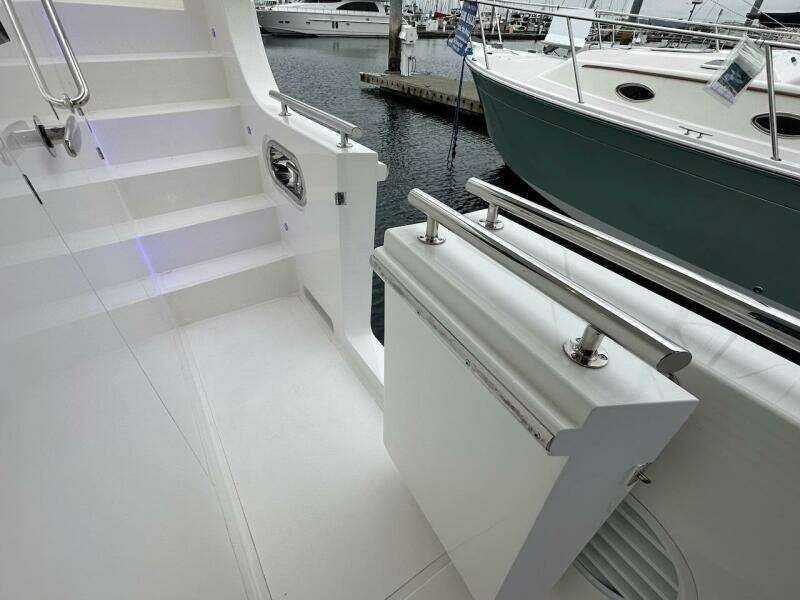

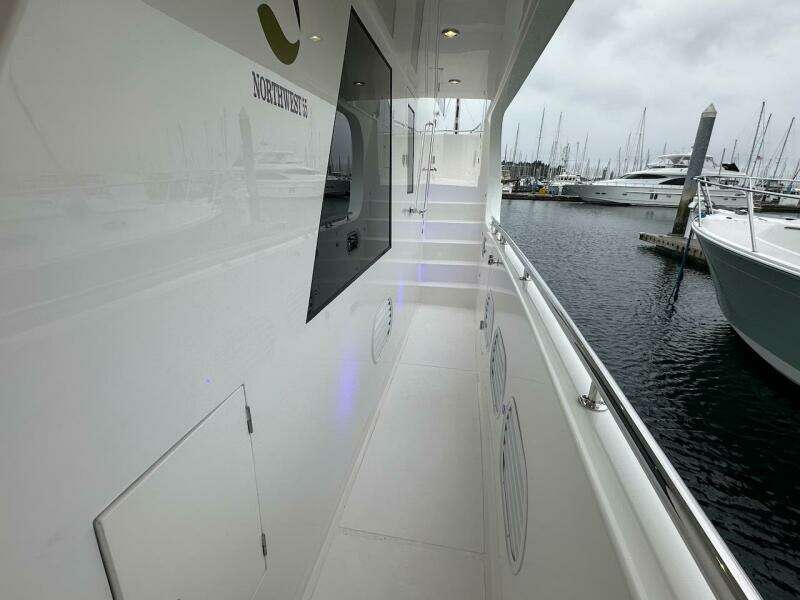

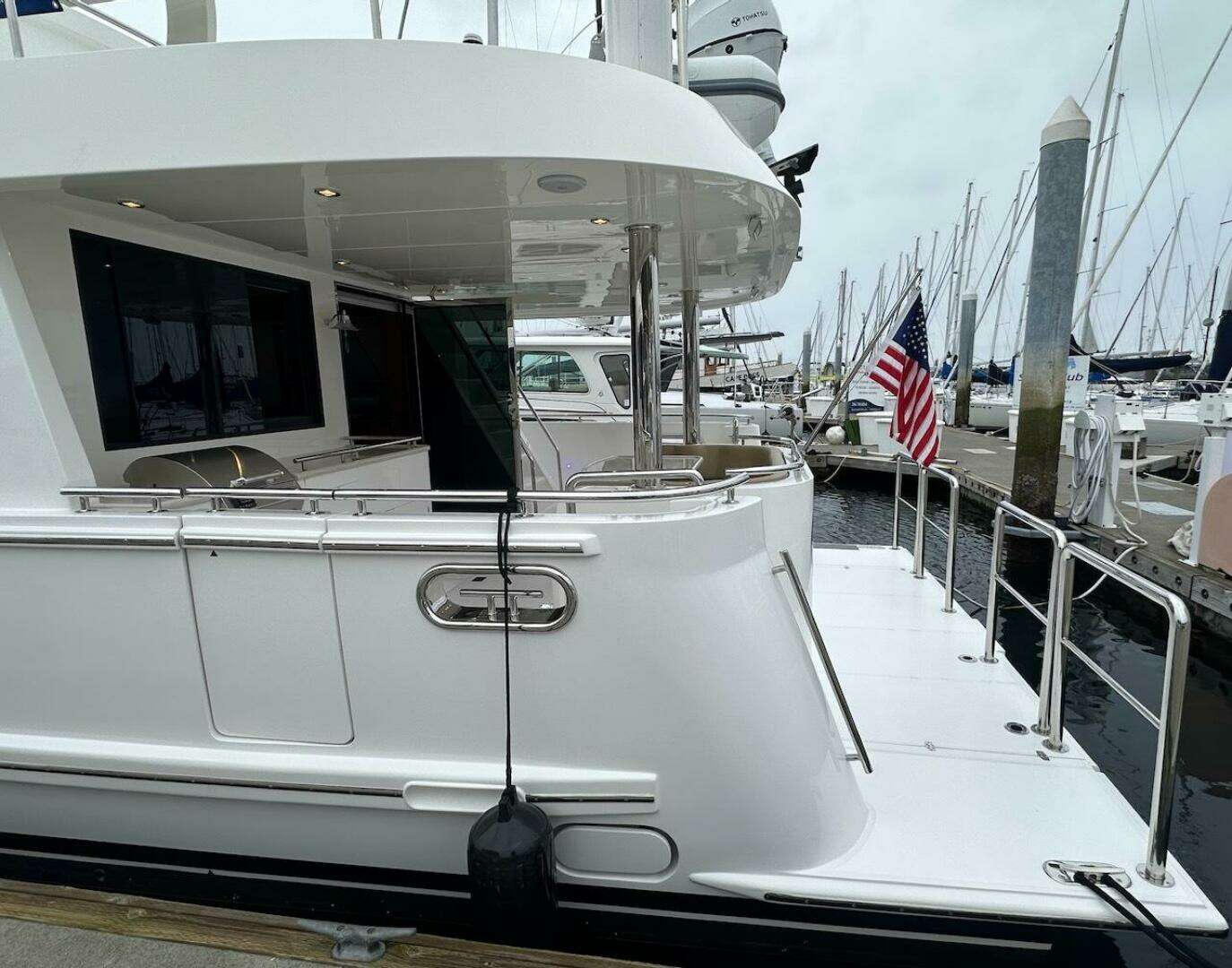

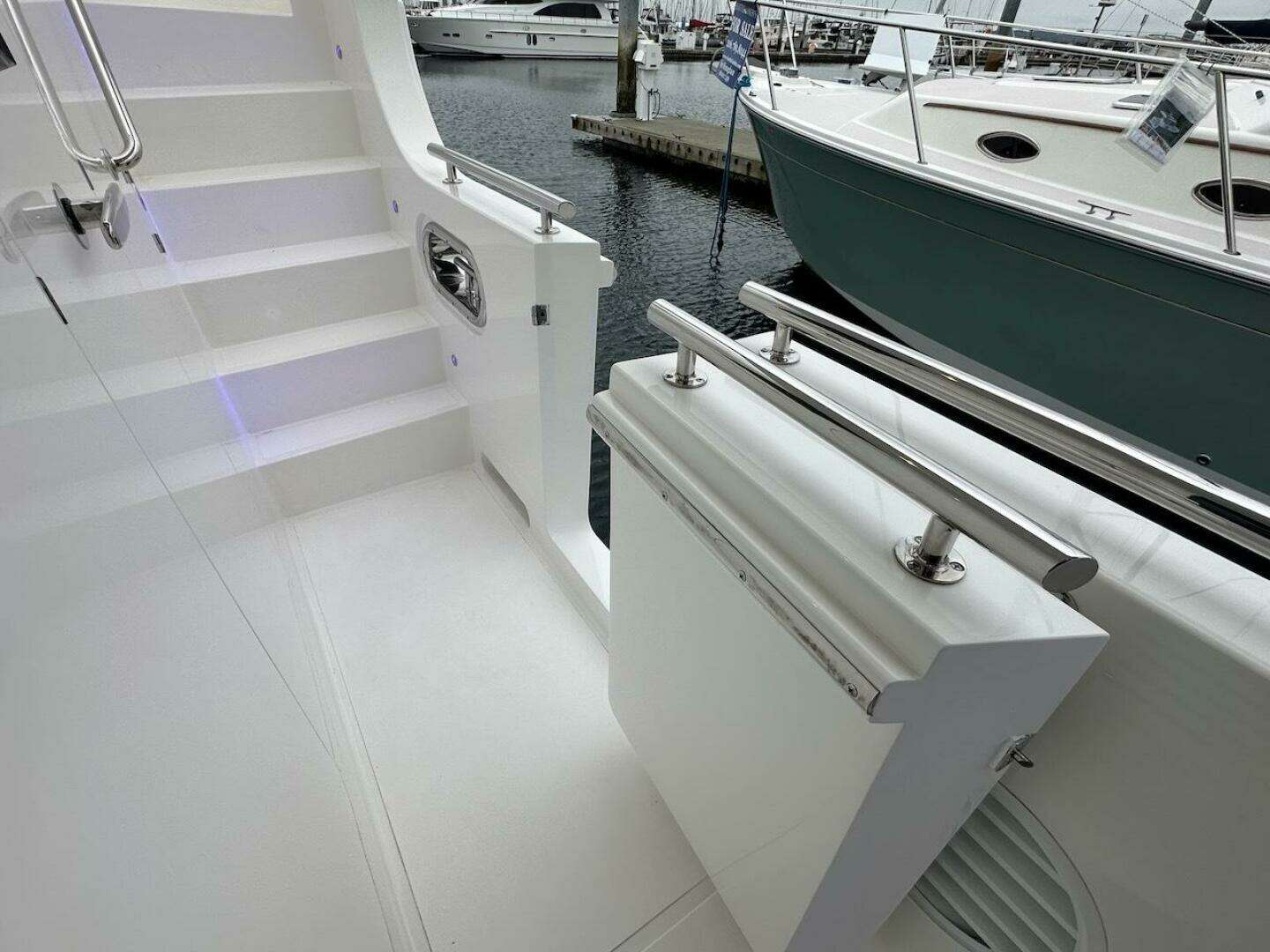

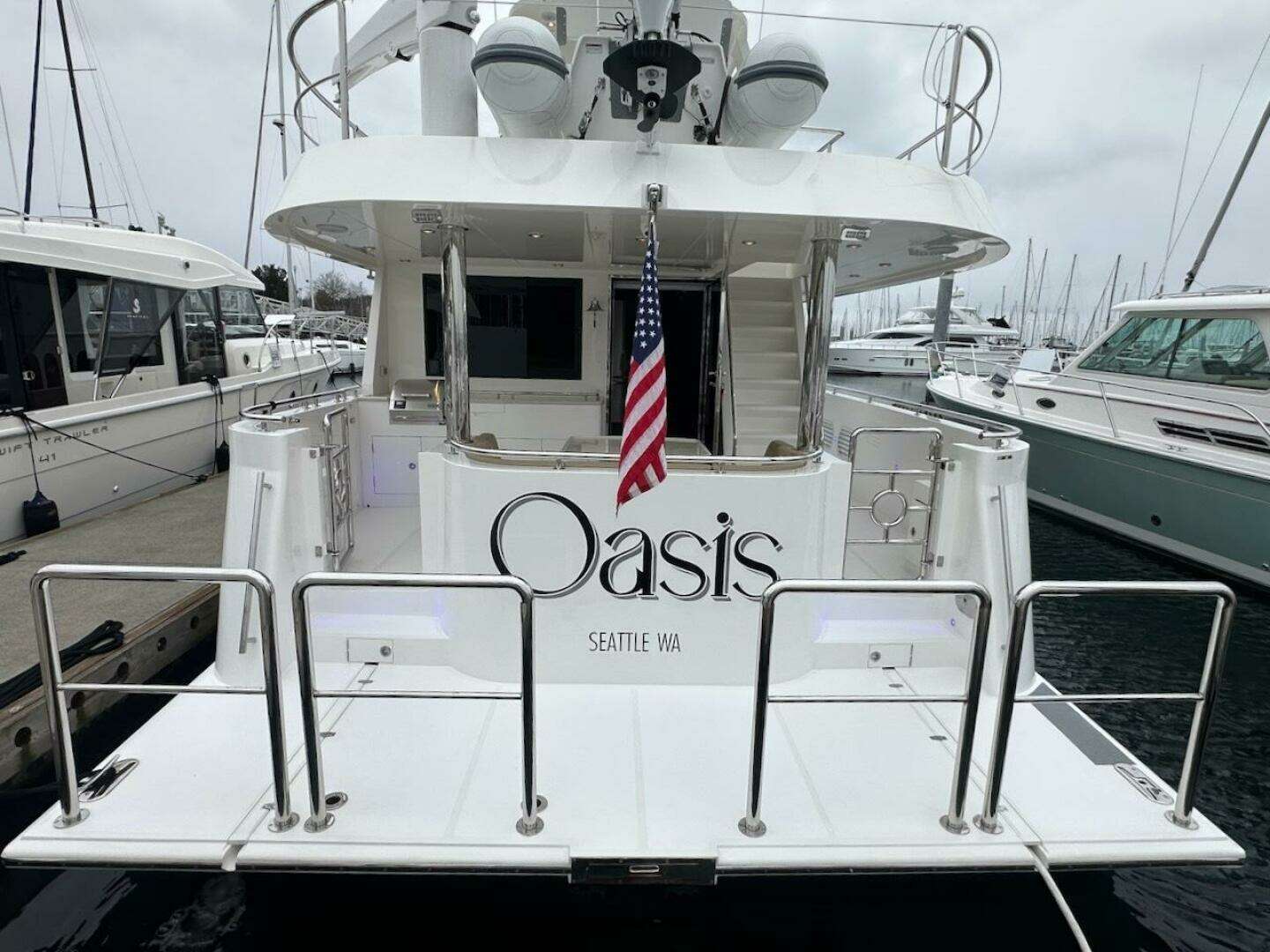

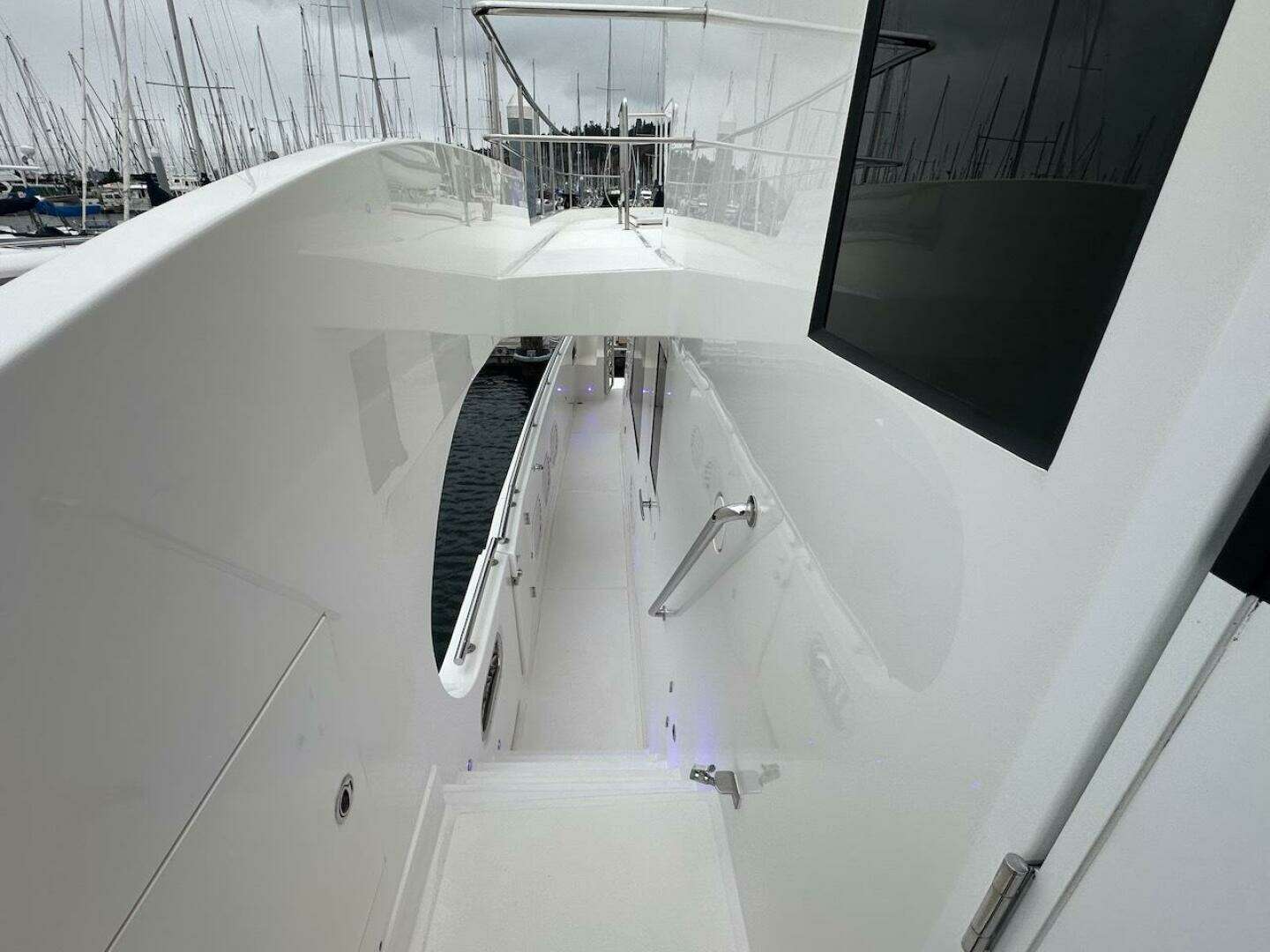

Aft Cockpit, Side Deck, & Swim Step

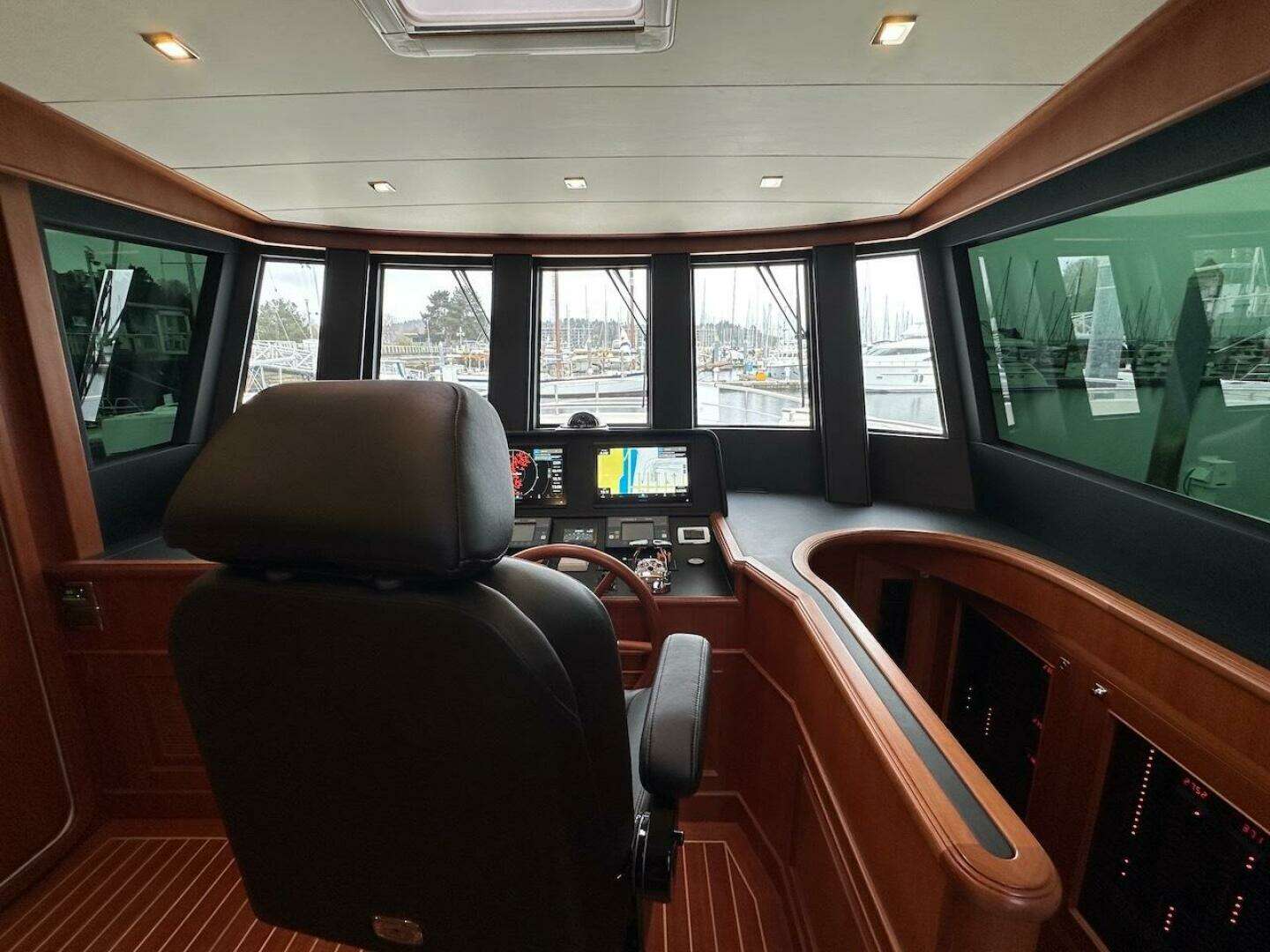

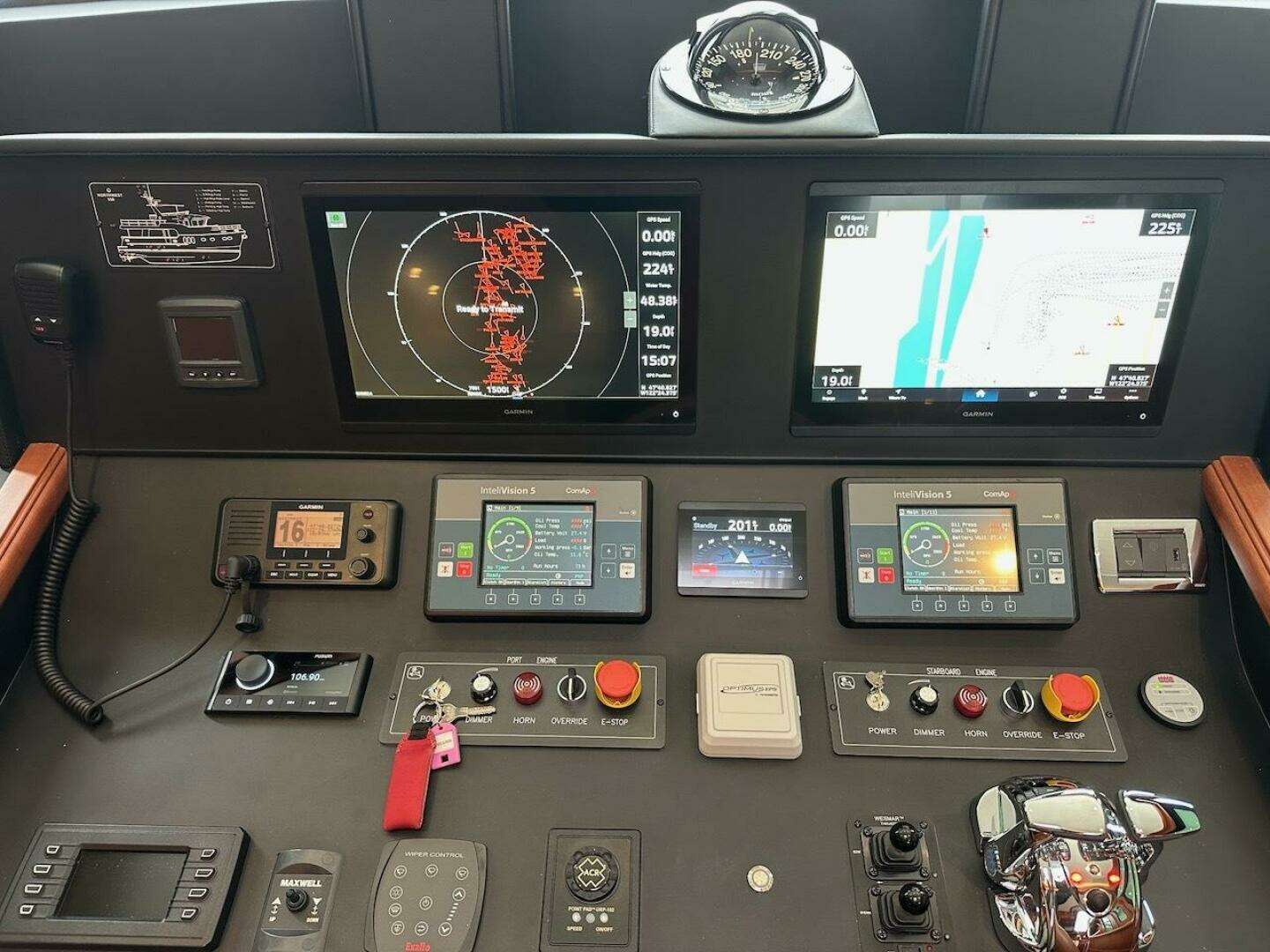

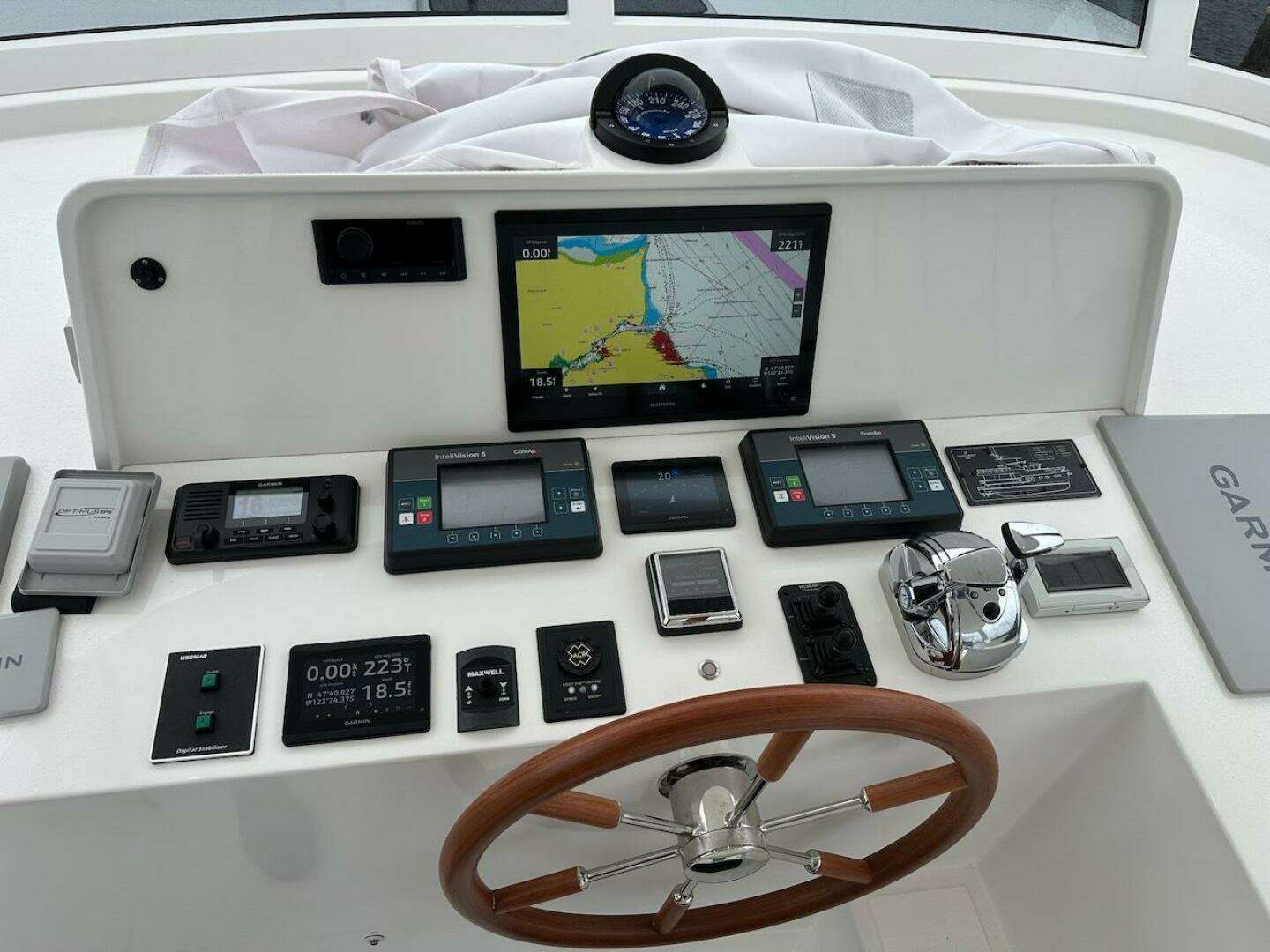

• Helm station control: Starboard side built-in helm station with enigne, transmission and thruster controls
• Hinged lazarette hatch with gas shock

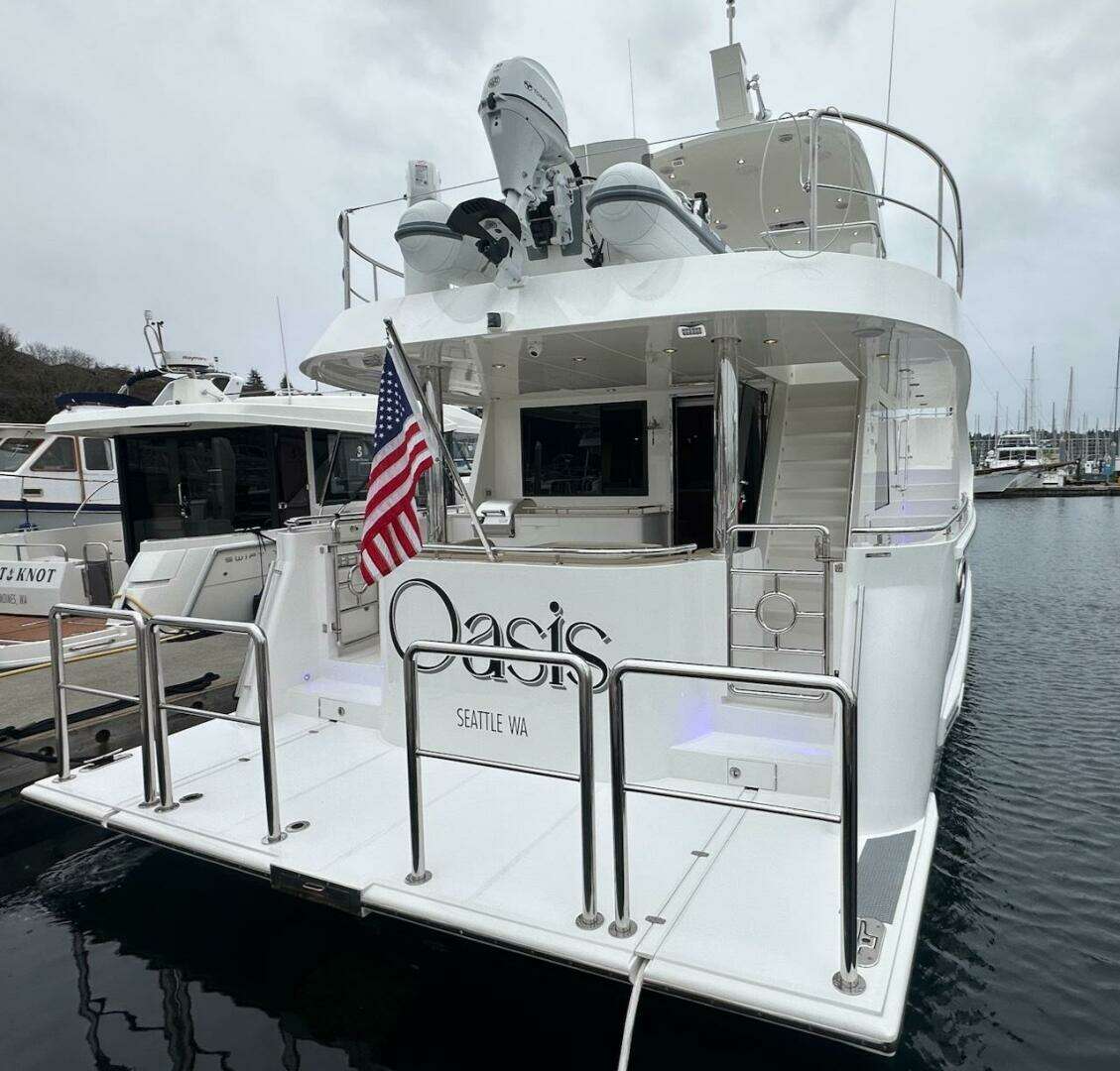

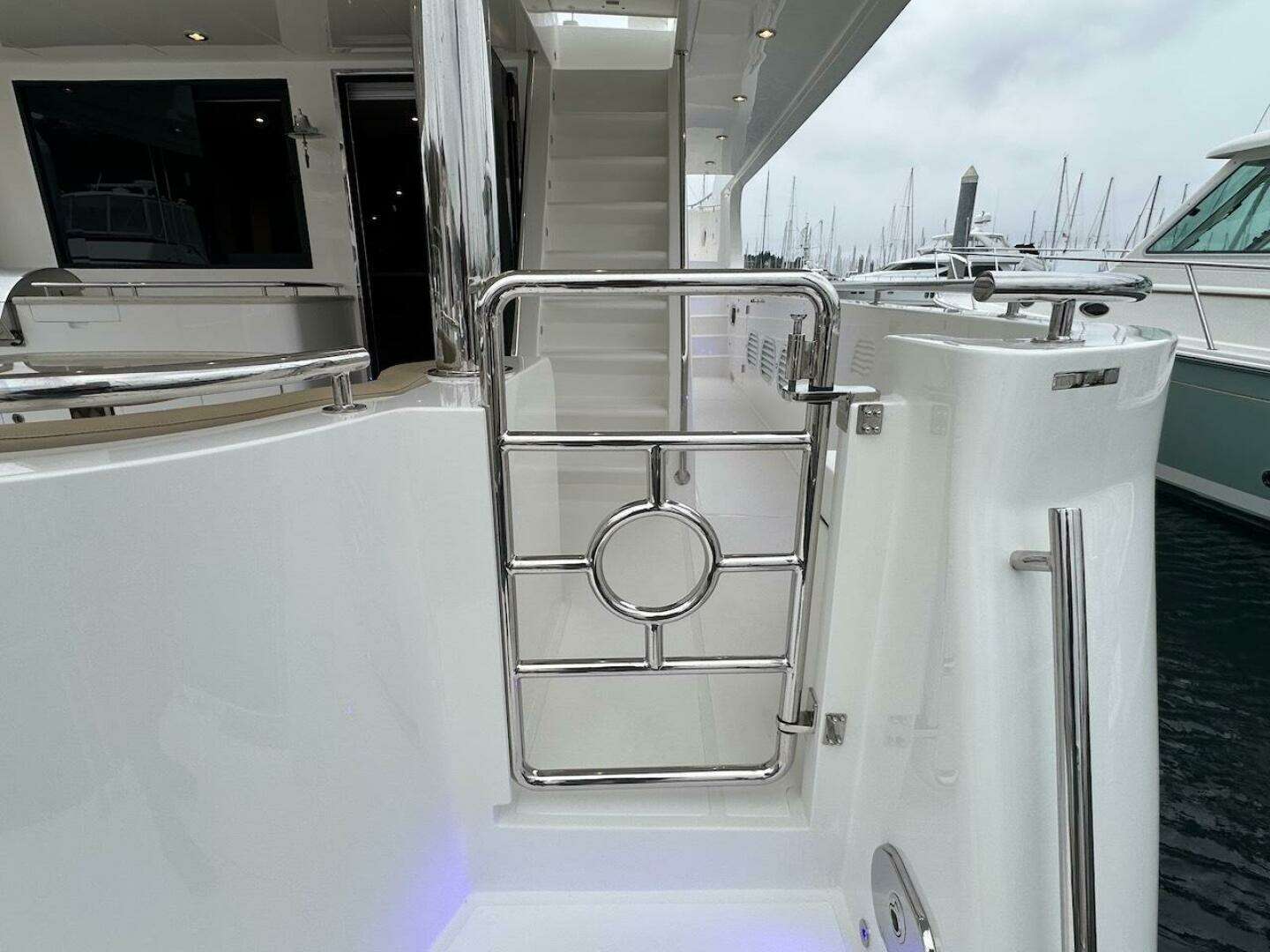

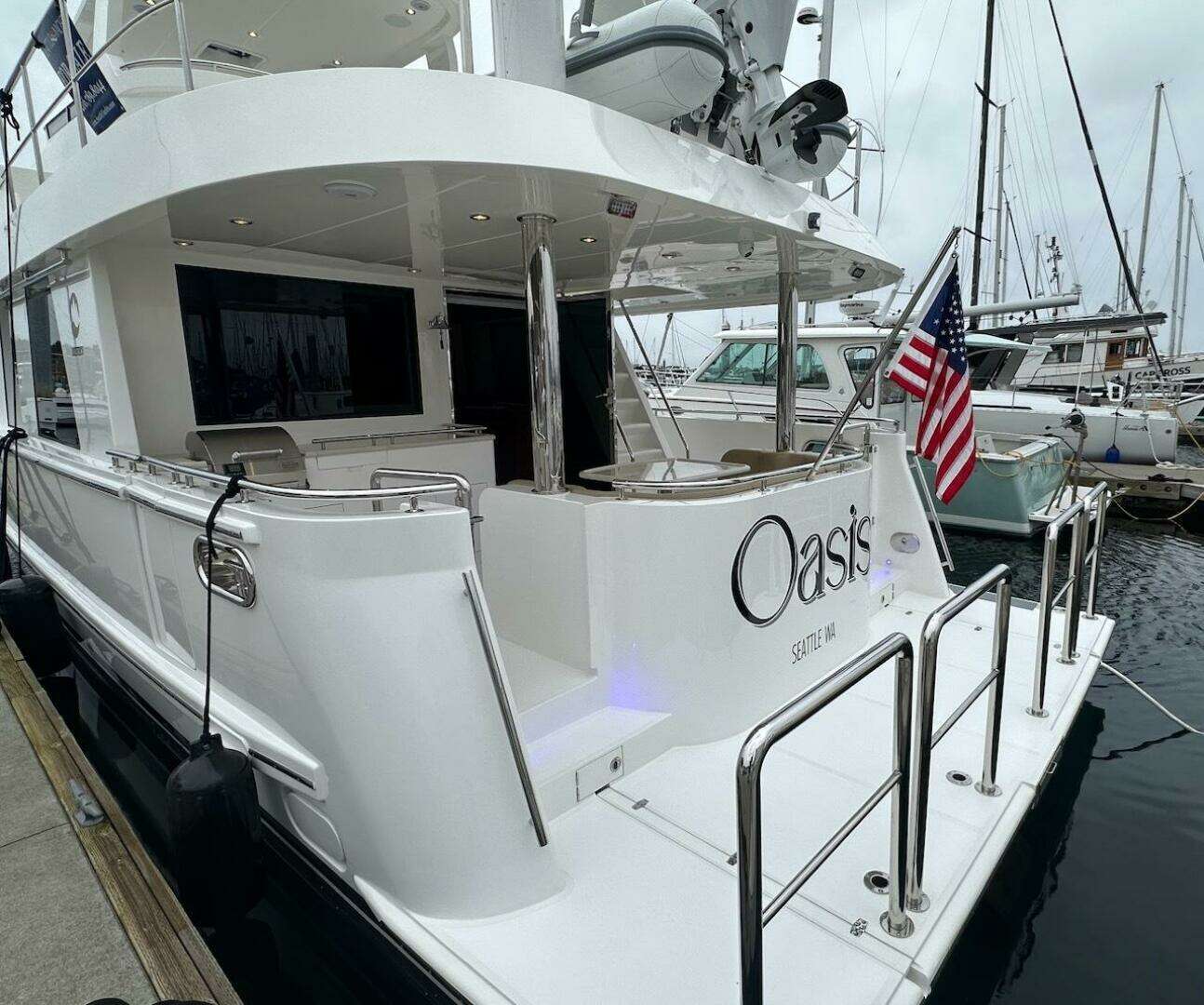

• Transom and side gate with hinge and latch assemblies

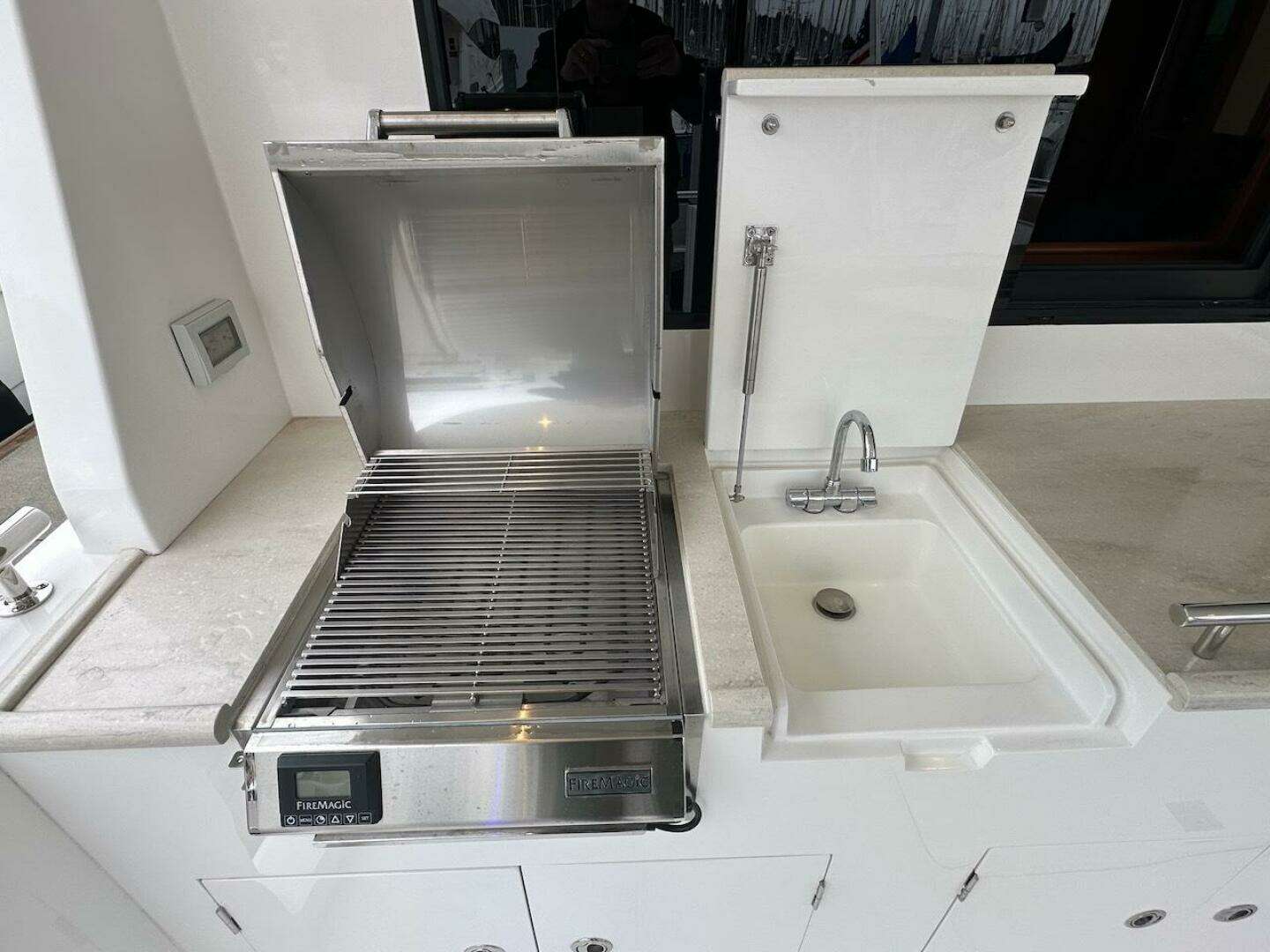

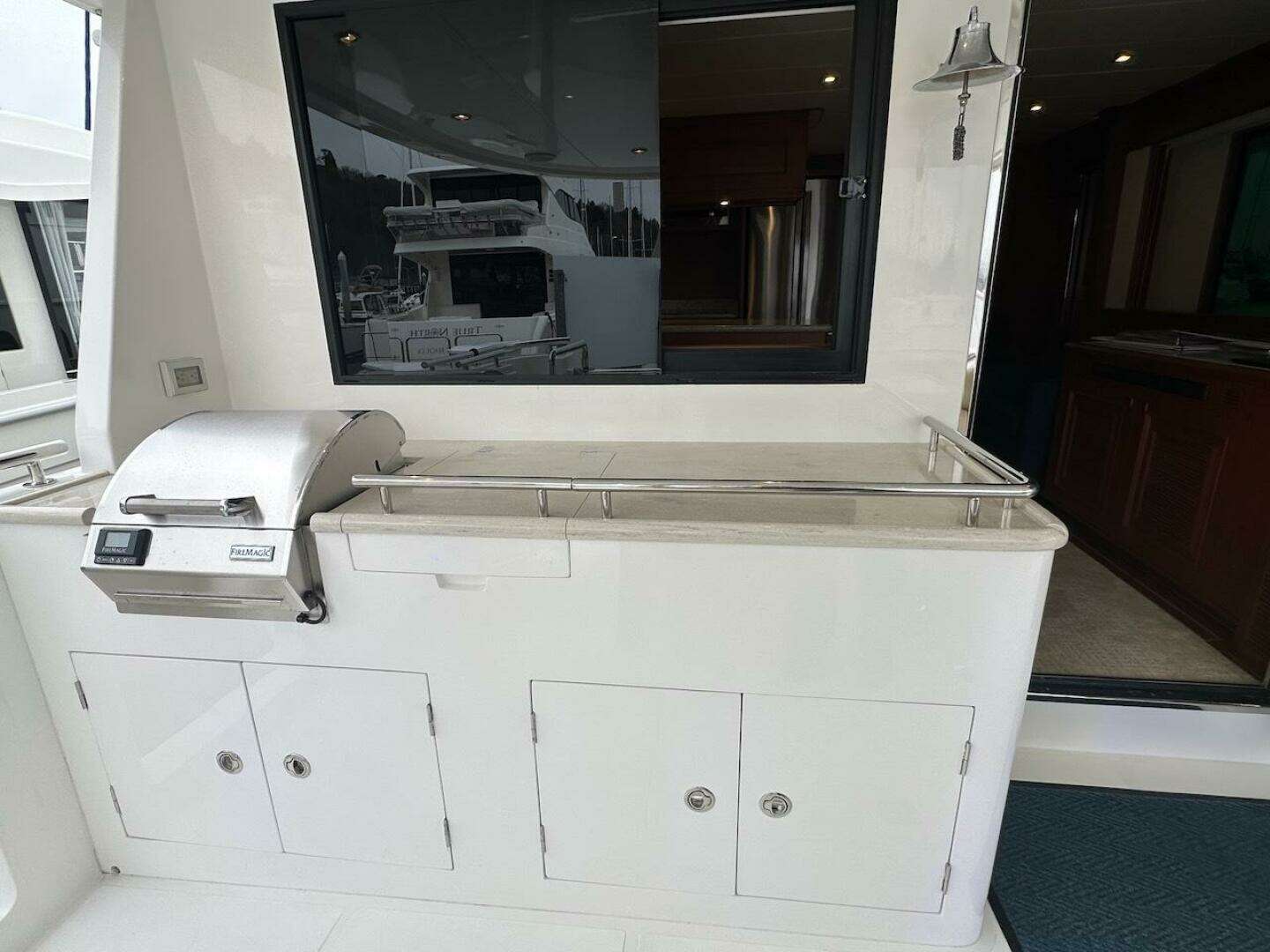

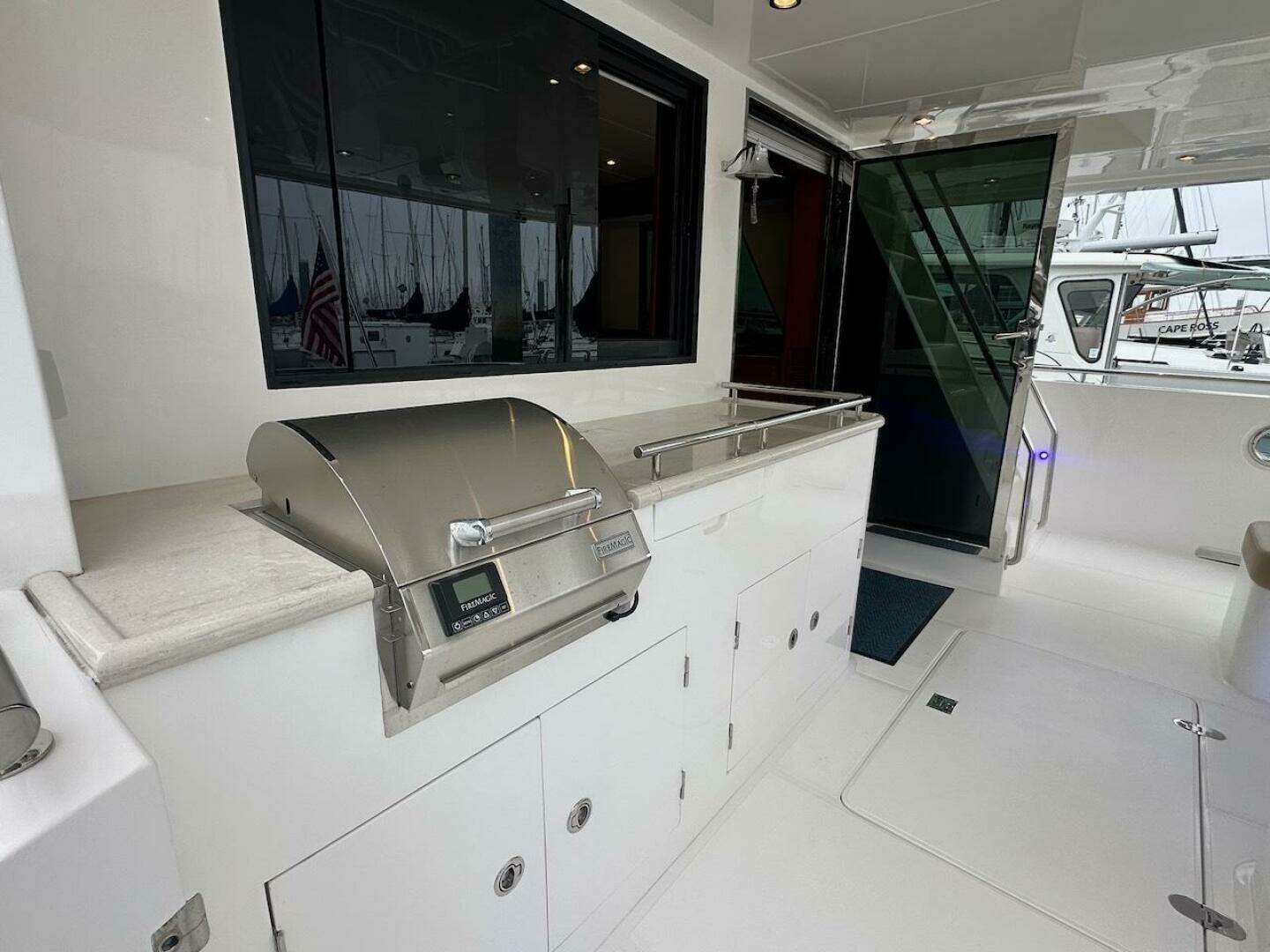

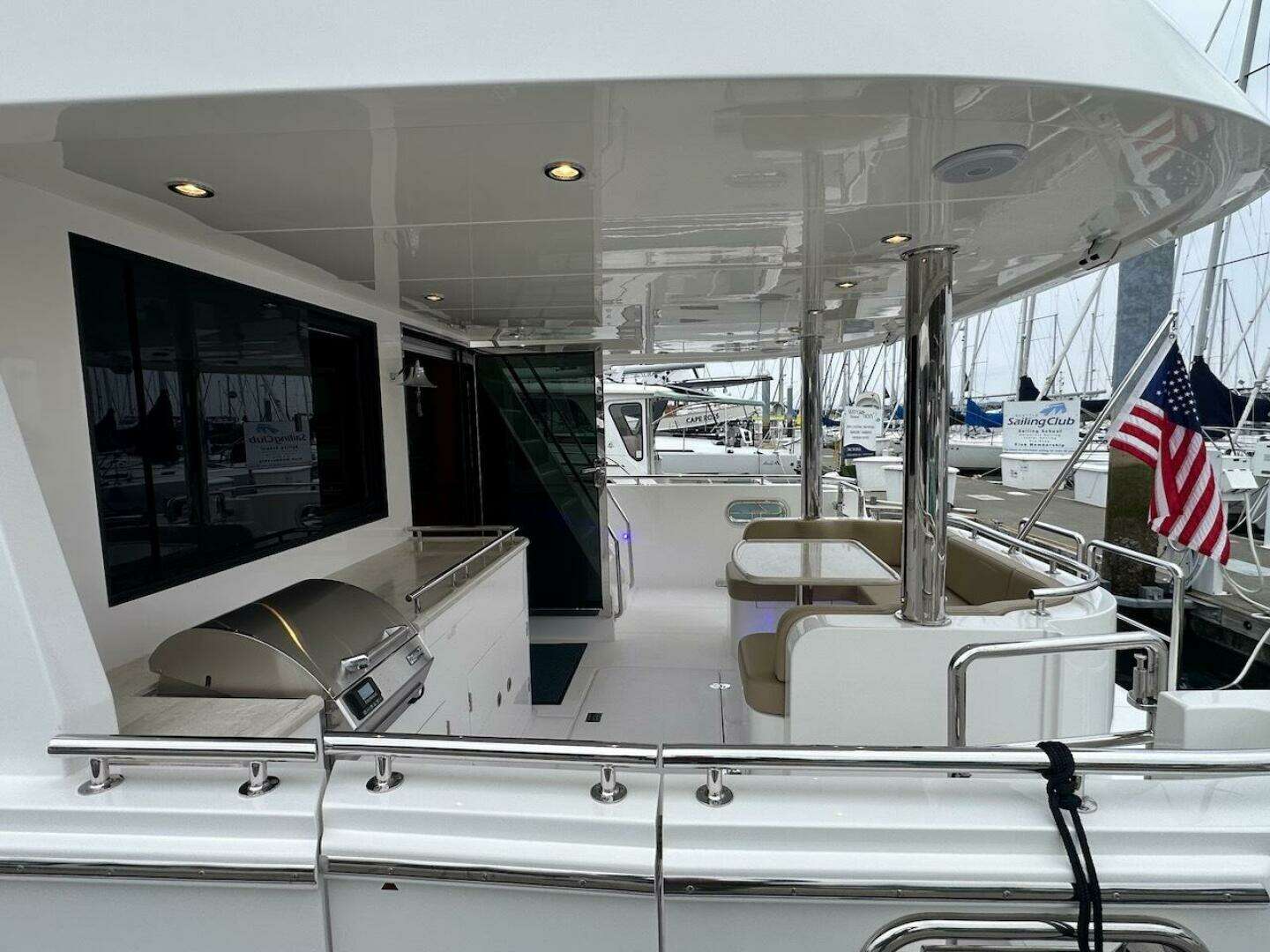

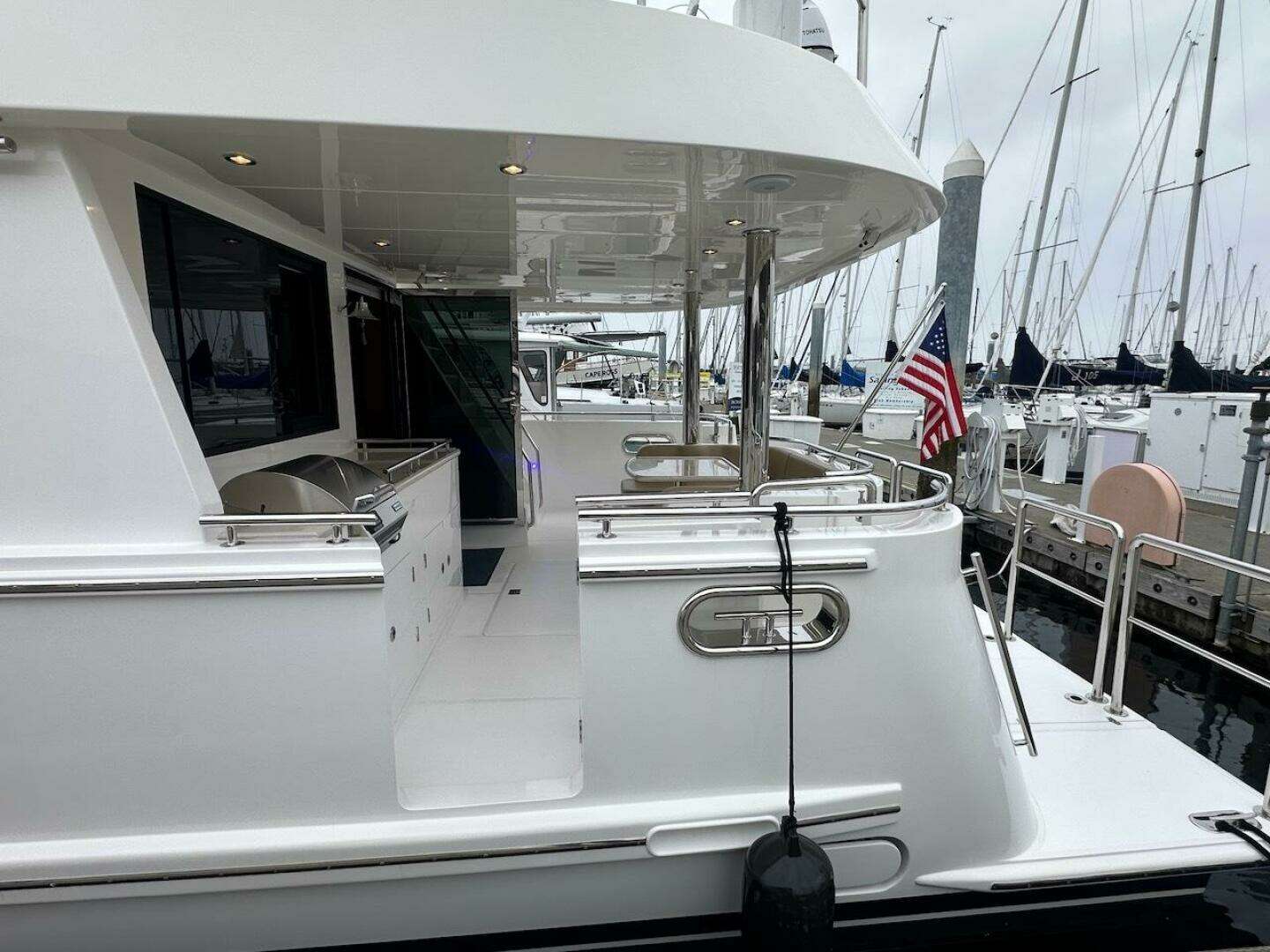

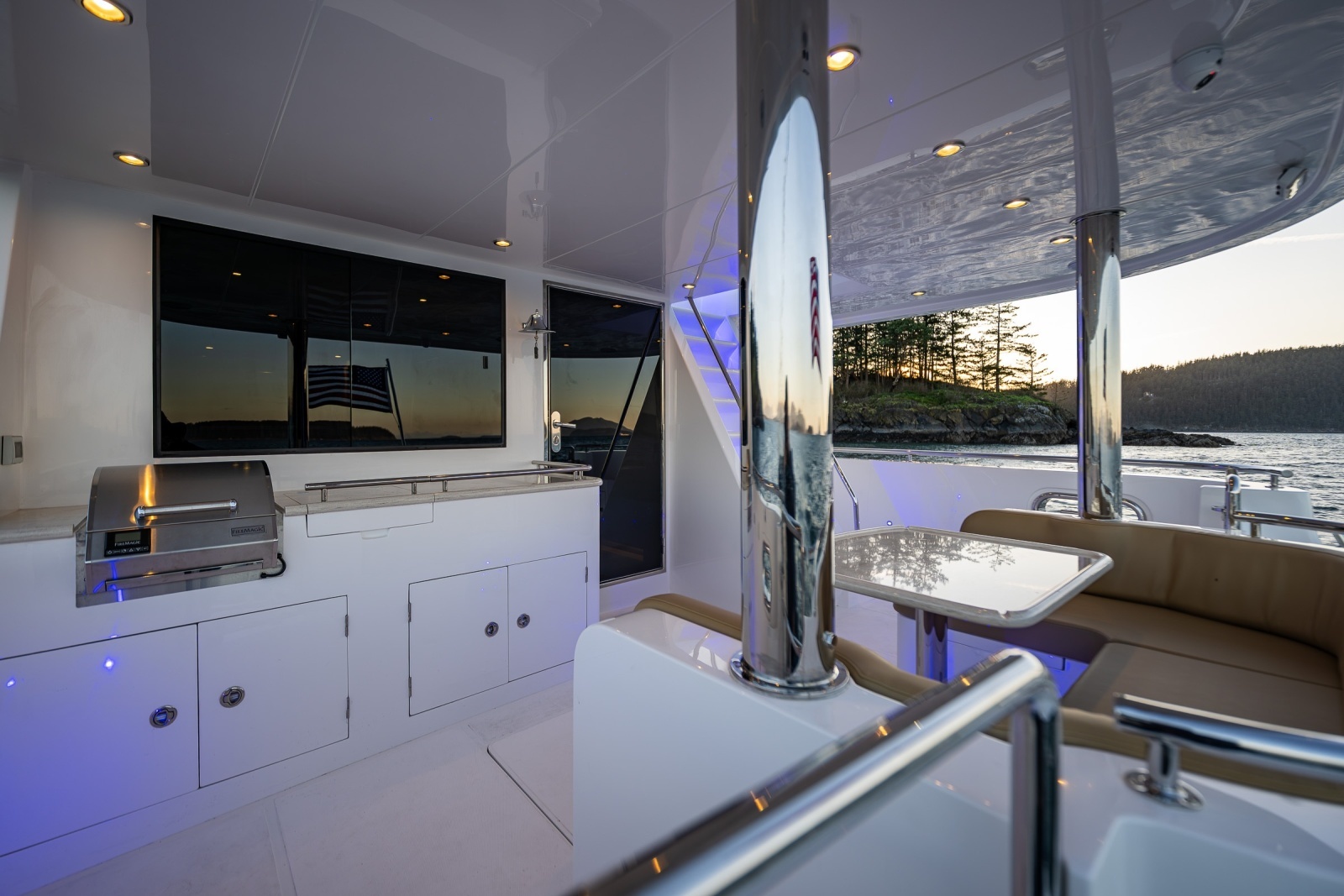

• Aft cockpit cabinet with solid surface counter top, stainless sink, extendable hot & cold sprayer, and 110 volt GFI duplex outlet

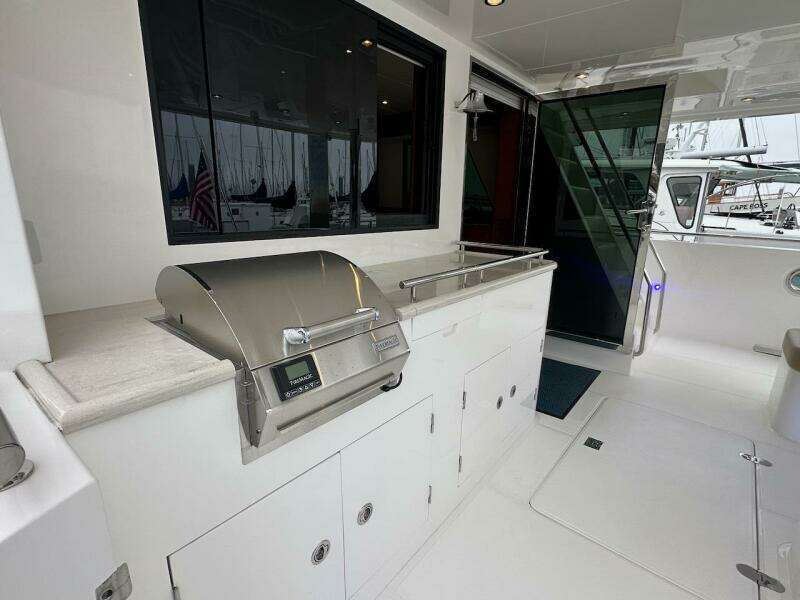

• BBQ - Magic electric stainless steel model

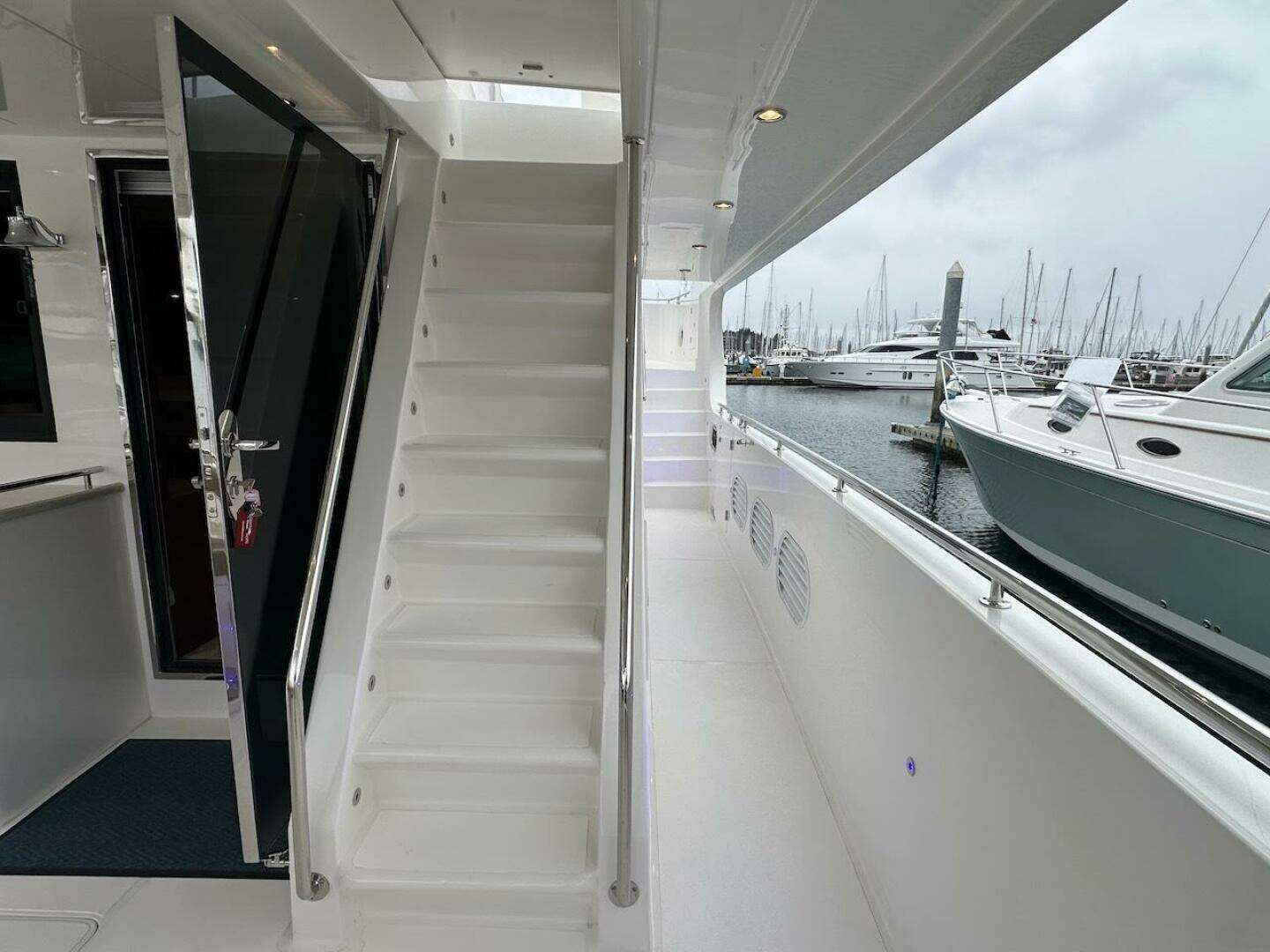

• Sliding starboard side salon door of Diamond Seaglaze (or equivalent)

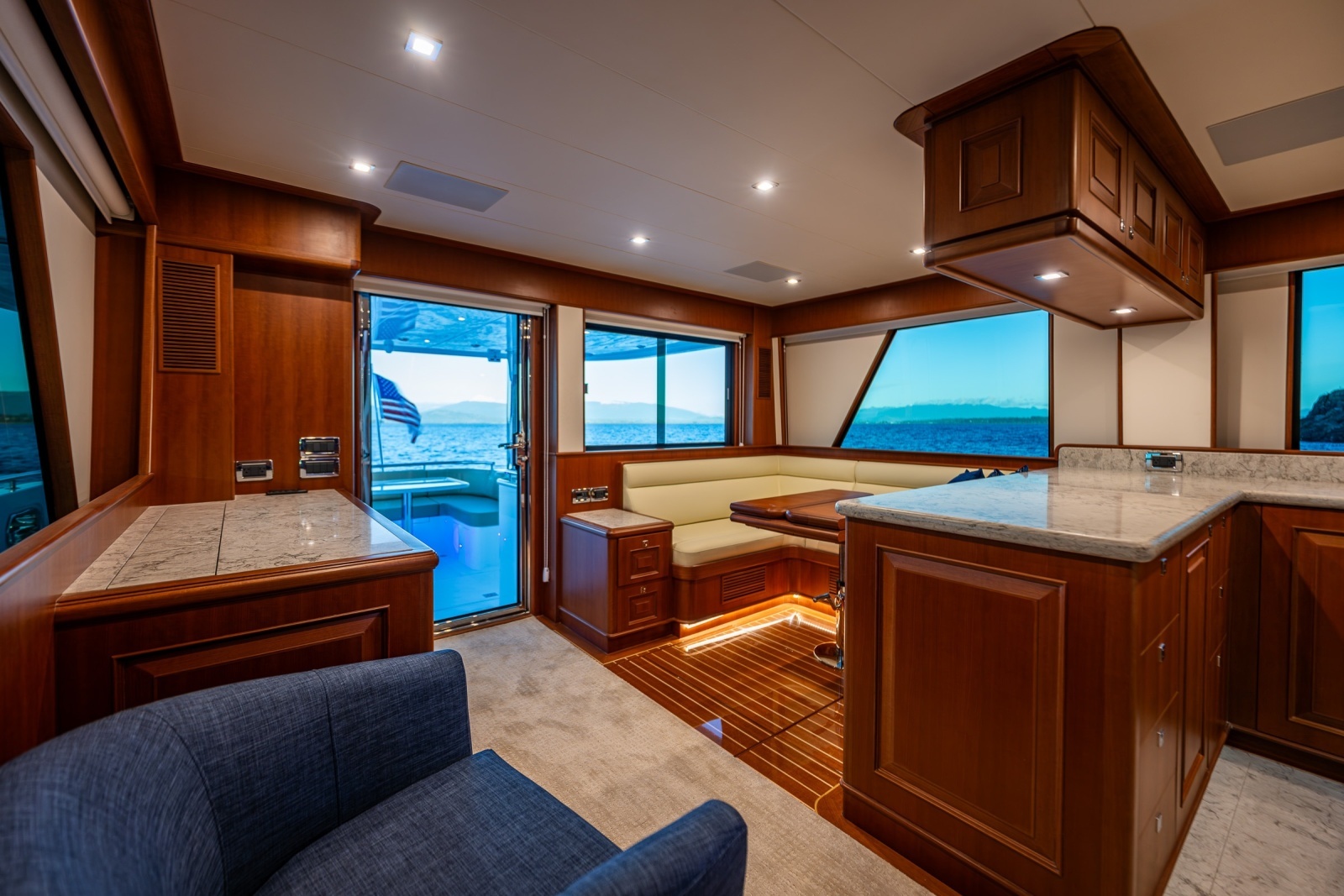

• Sliding aft salon door to cockpit of Diamond Seaglaze (or equivalent)
• Mooring cleat on port side of transom bustle
• Water fill
• Dual Glendinning Cablemaster 240V/50A shore power systems
• Hot/Cold shower at swim step

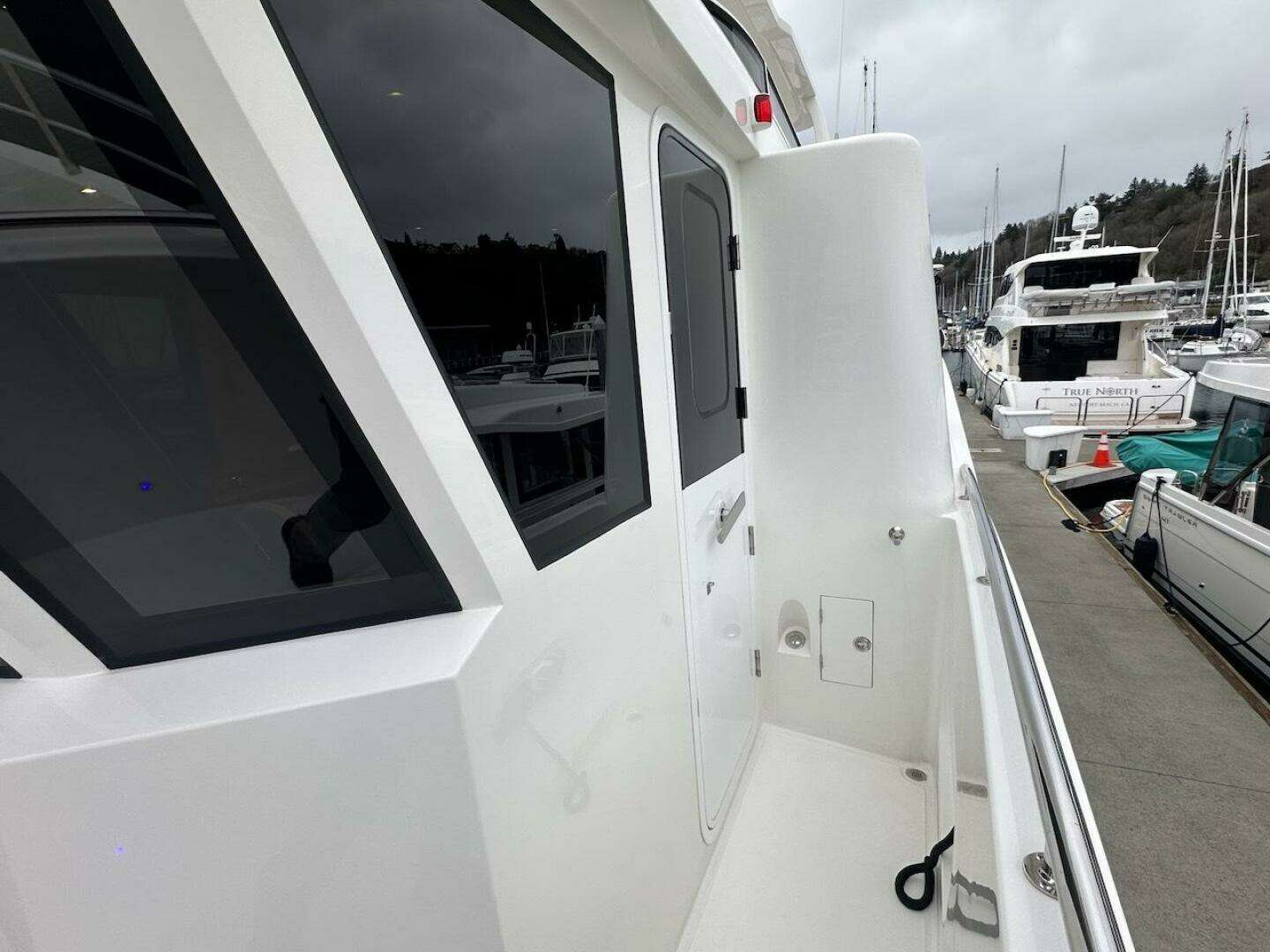

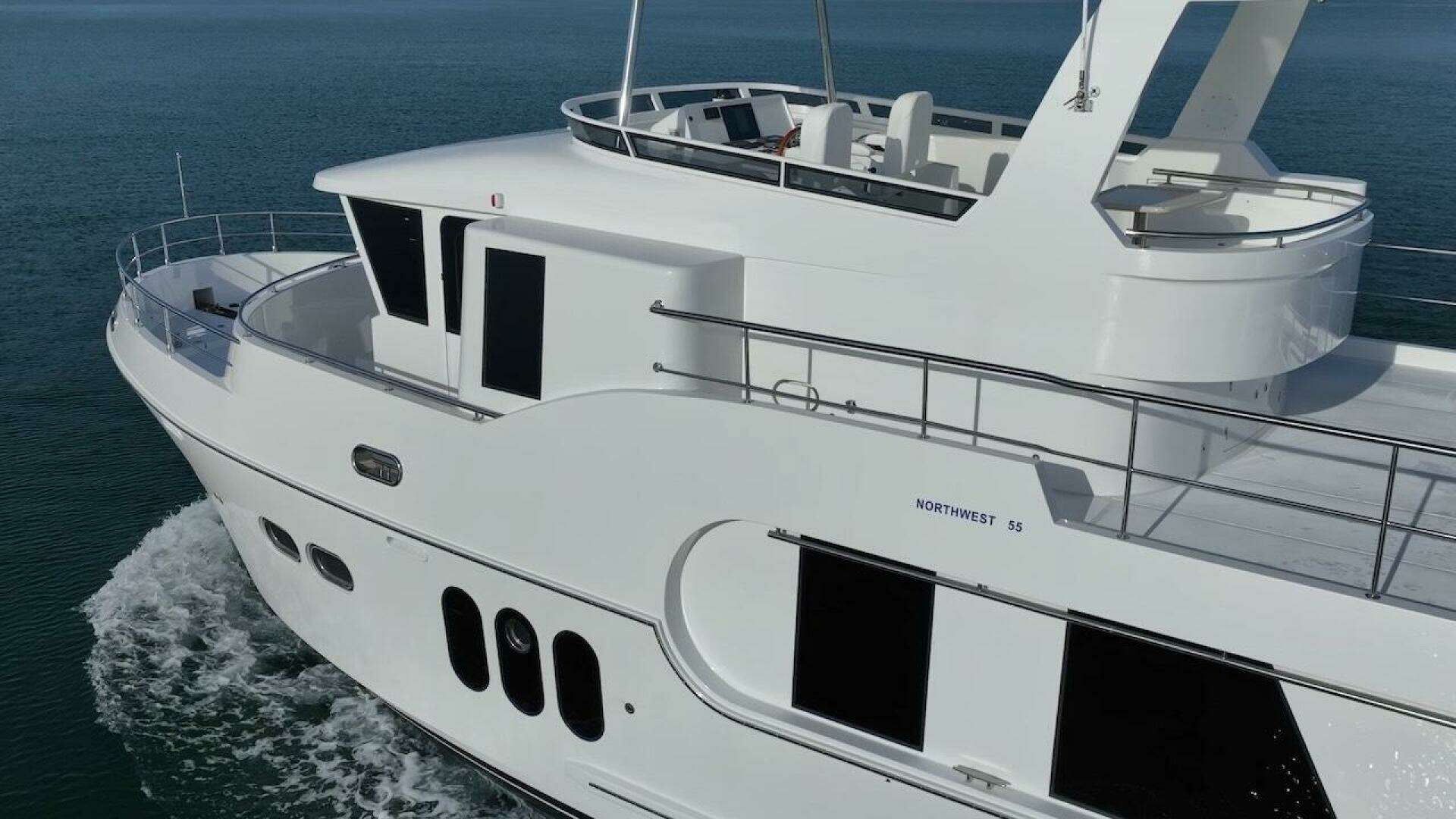

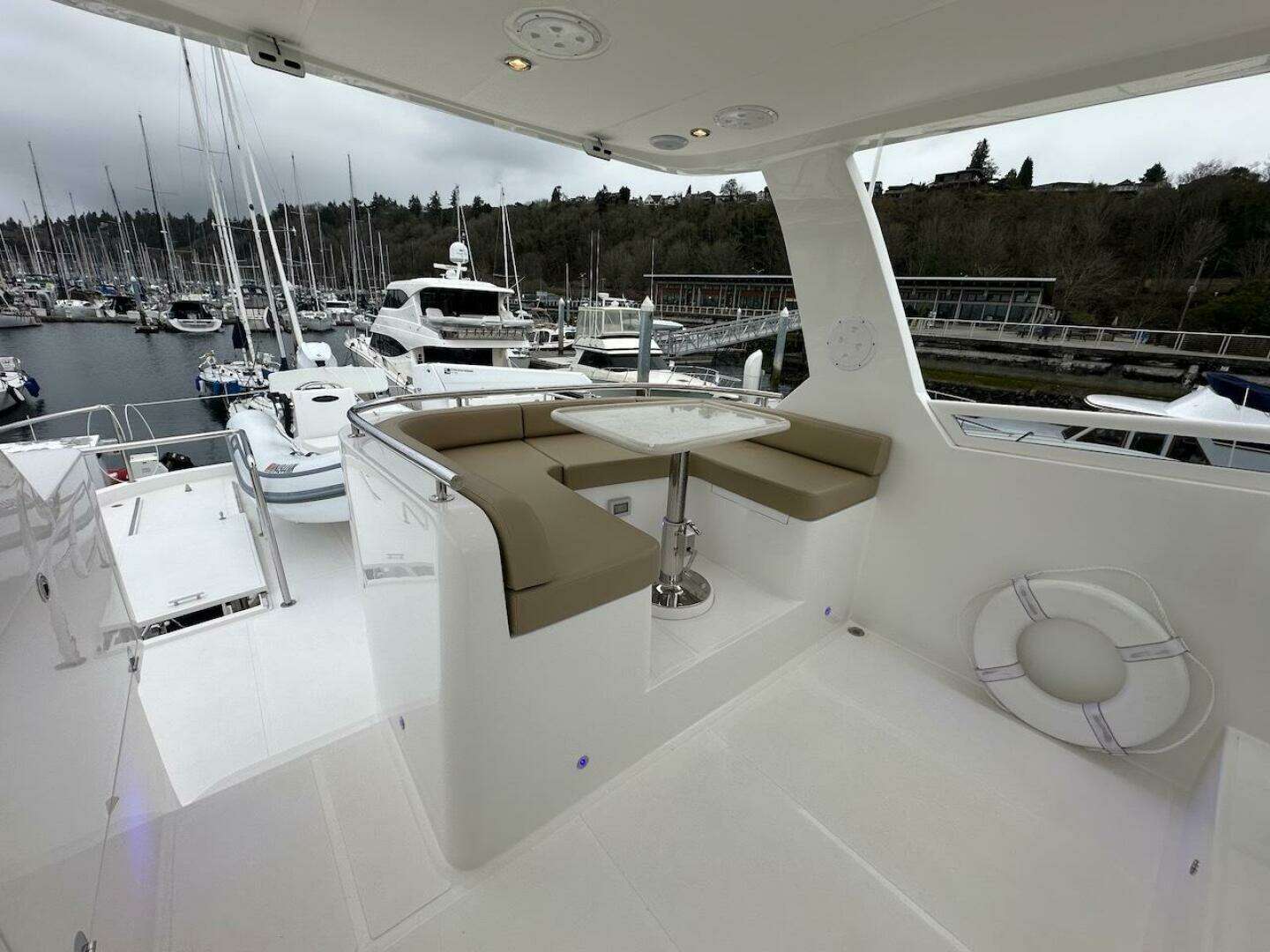

Boat Deck, Portuguese Bridge, & Foredeck

• Portuguese bridge includes storage locker and 110VAC GFI outlet

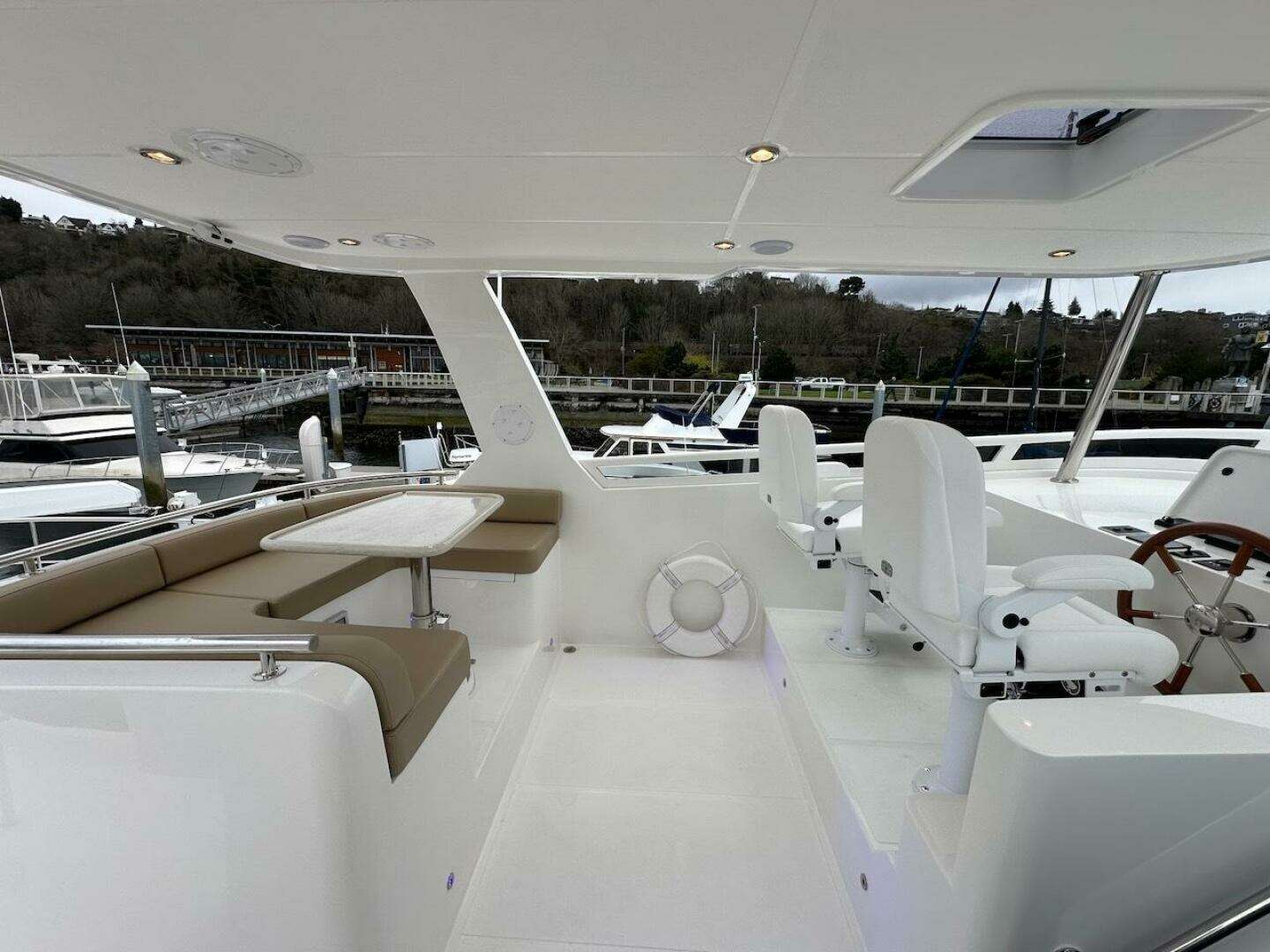

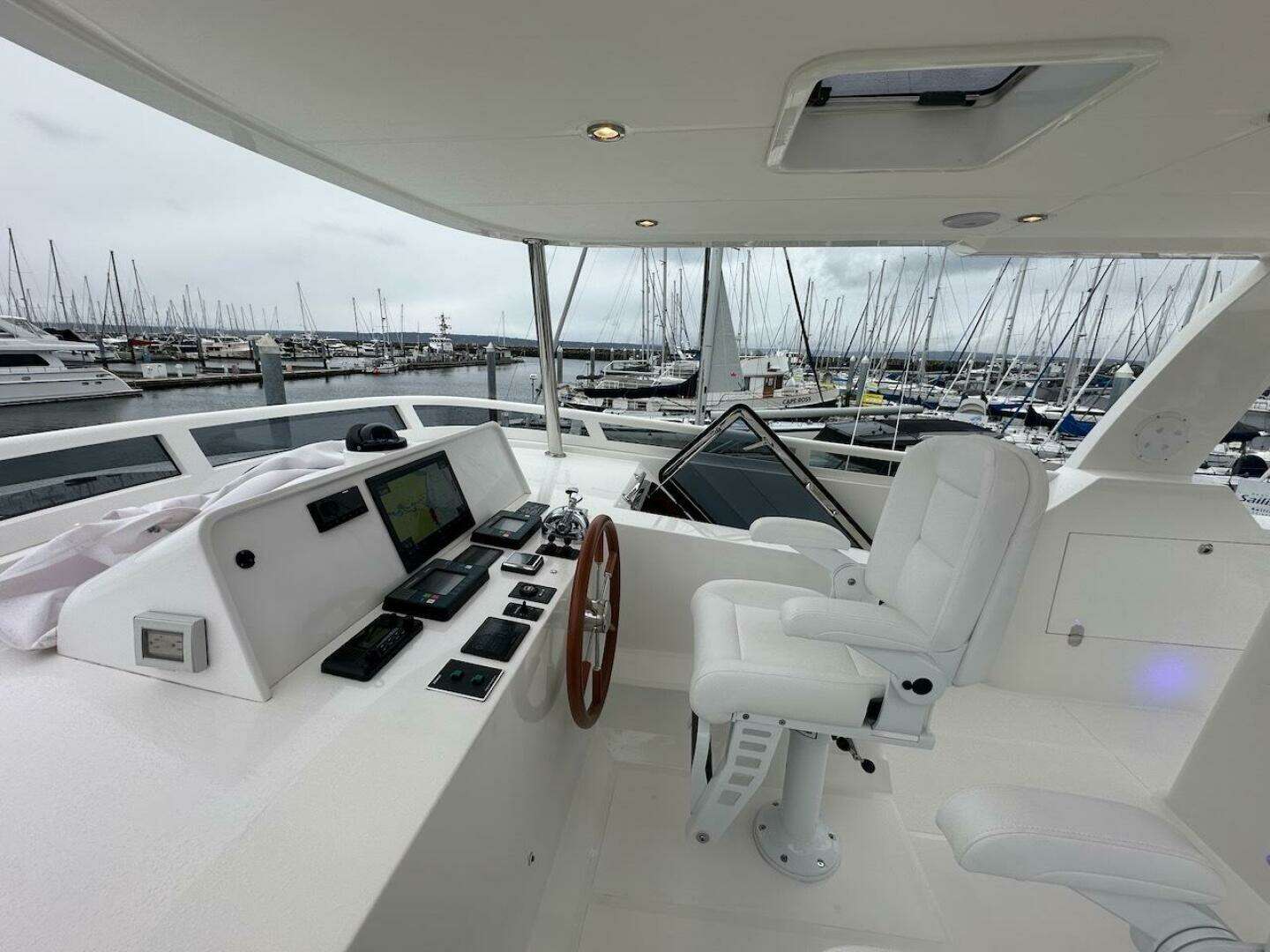

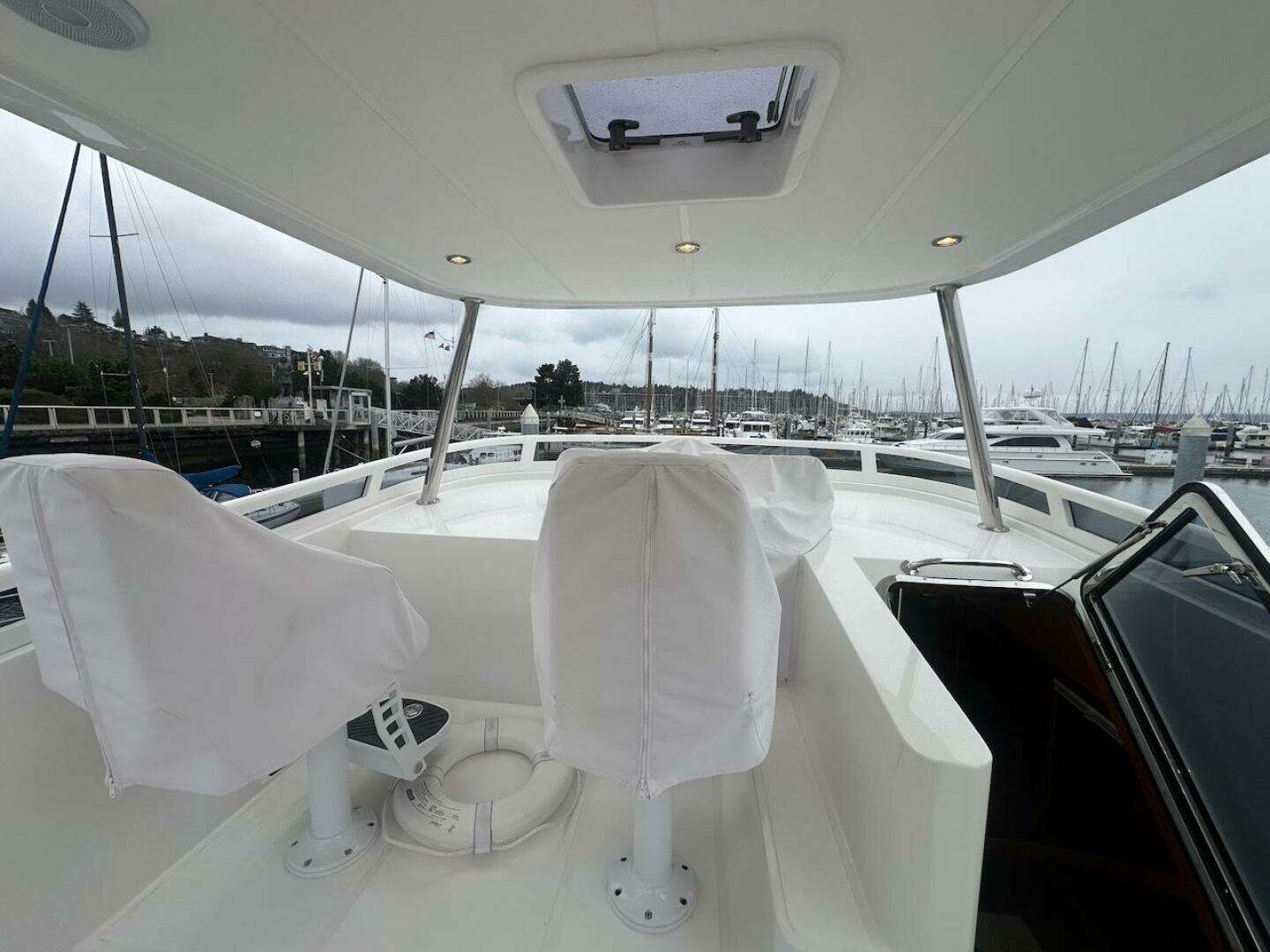

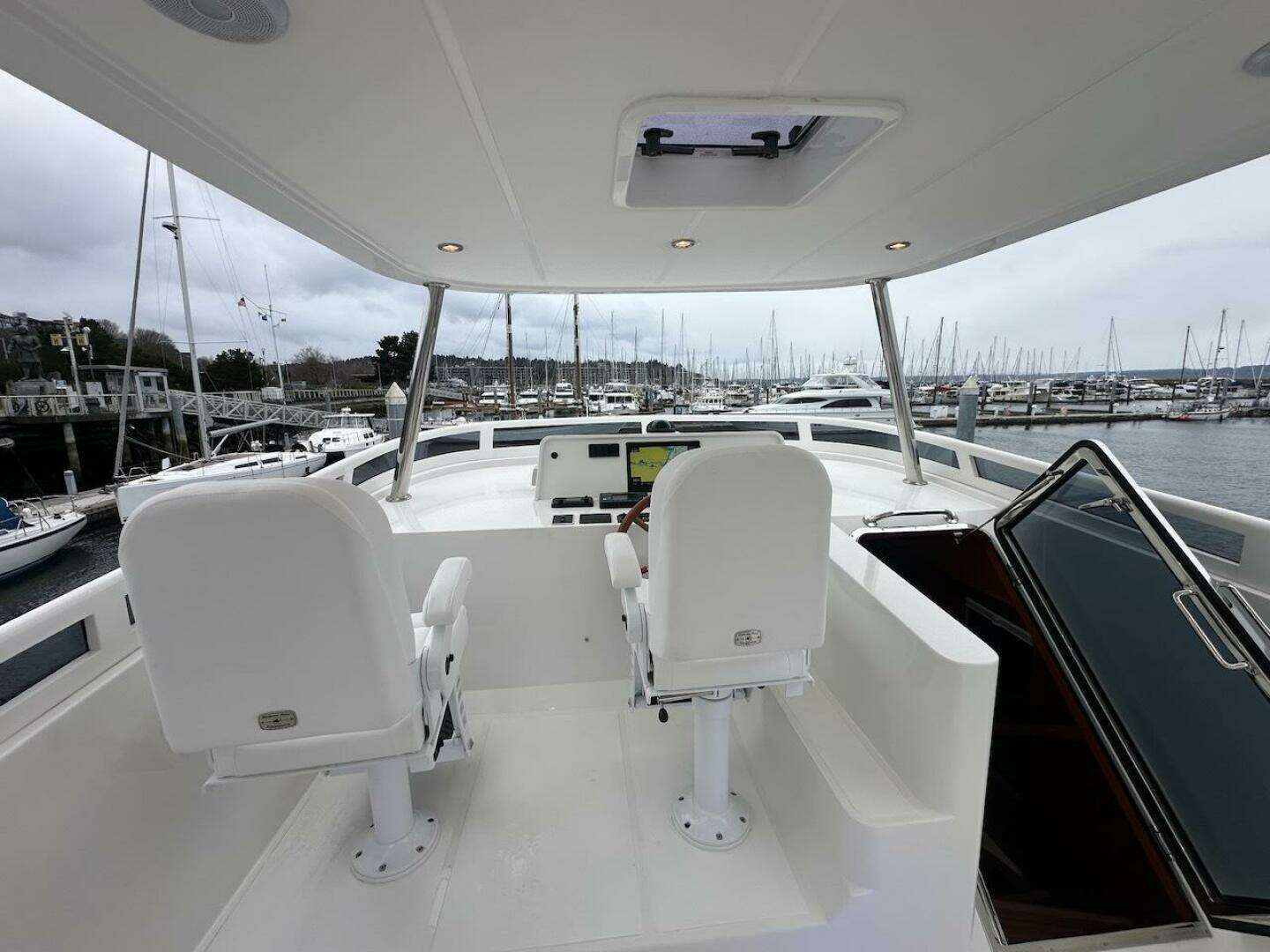

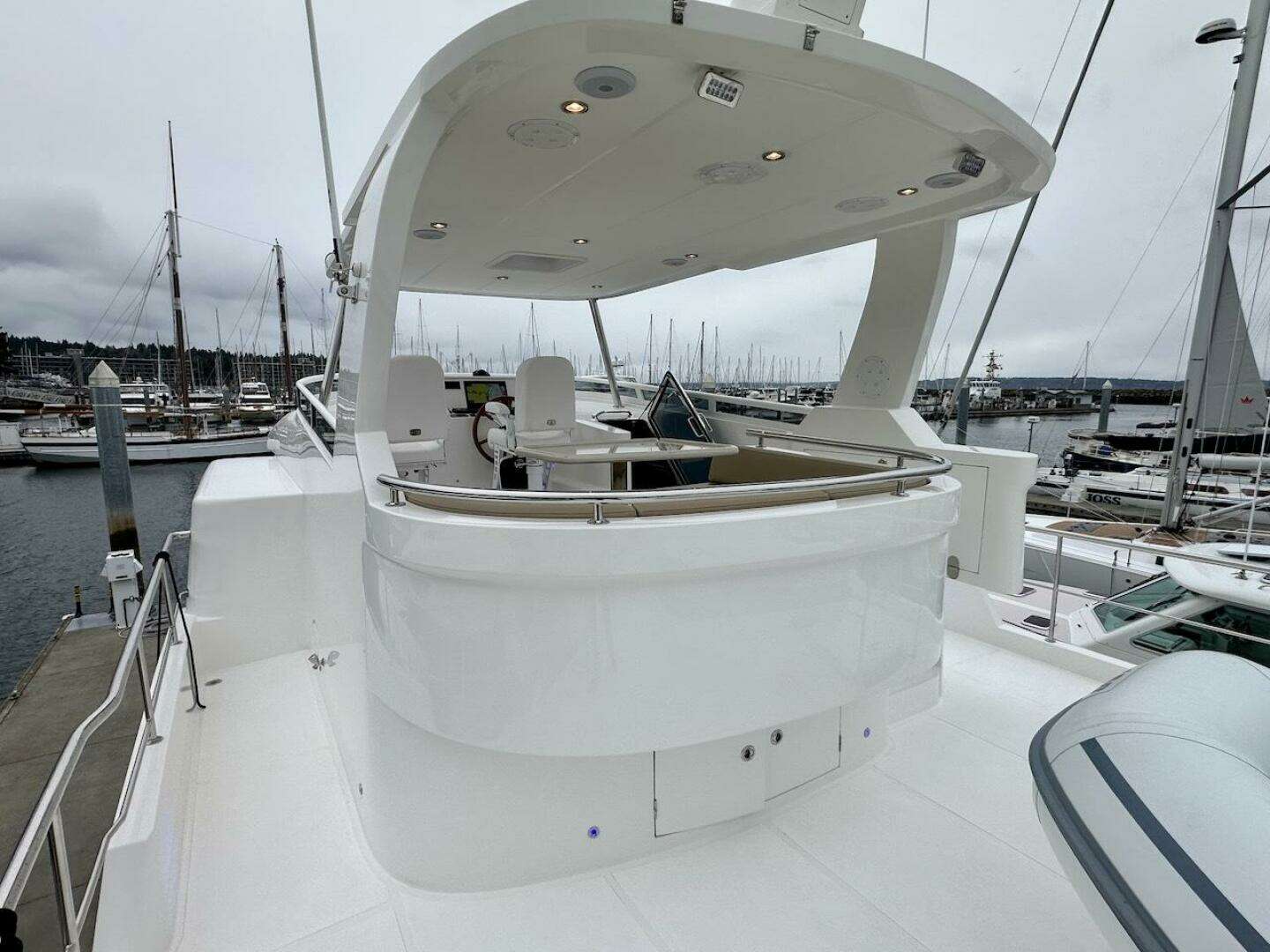

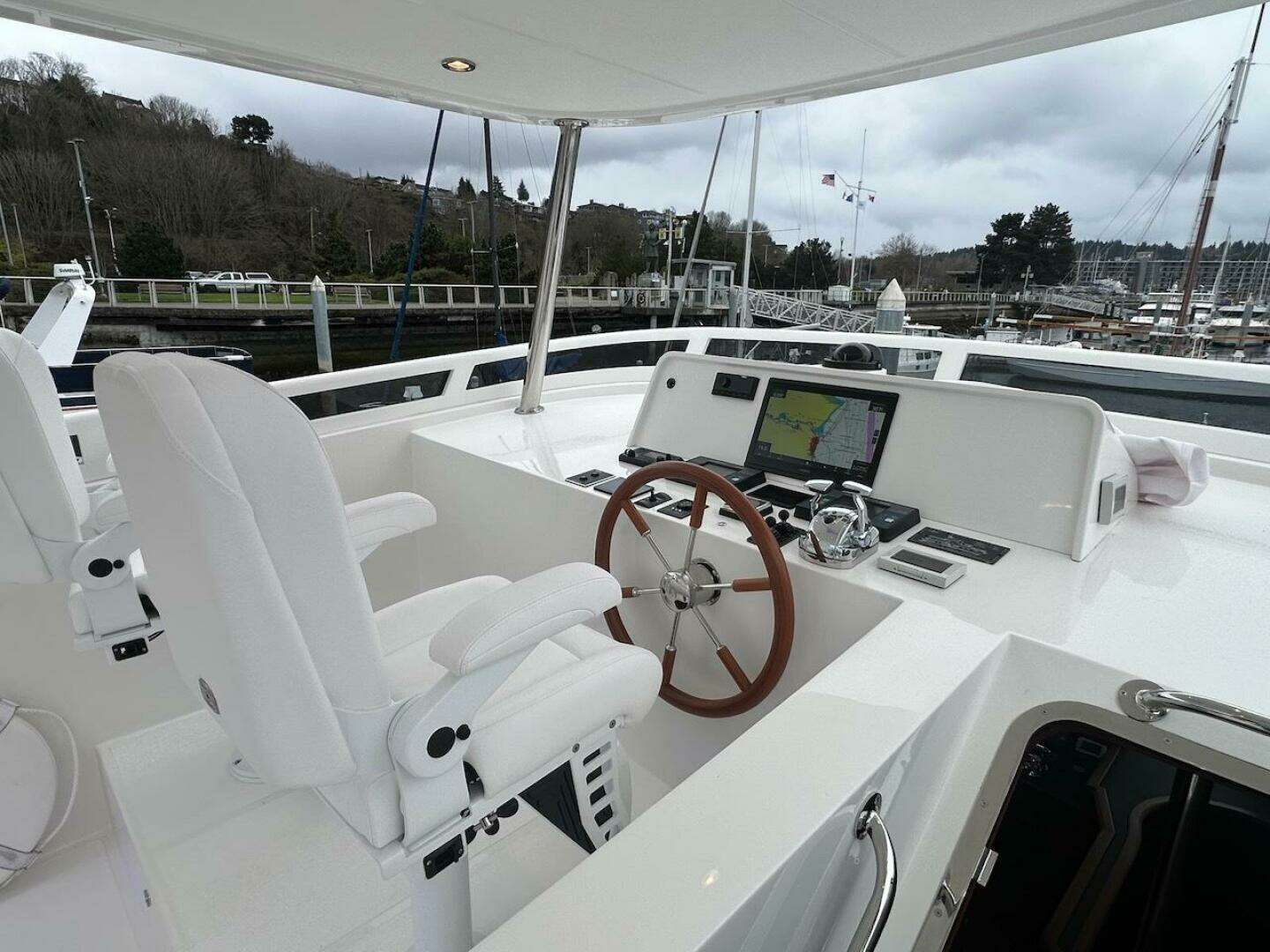

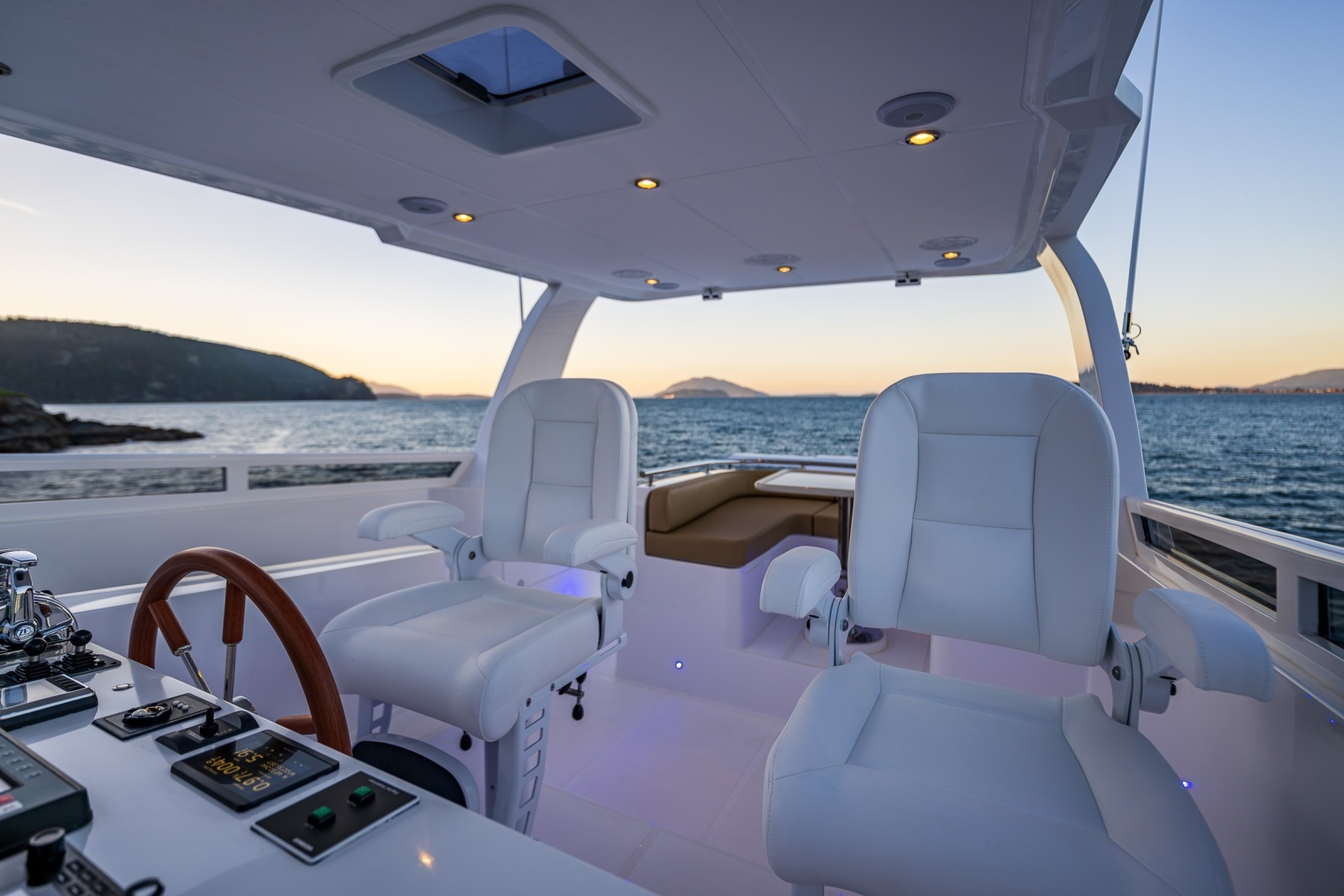

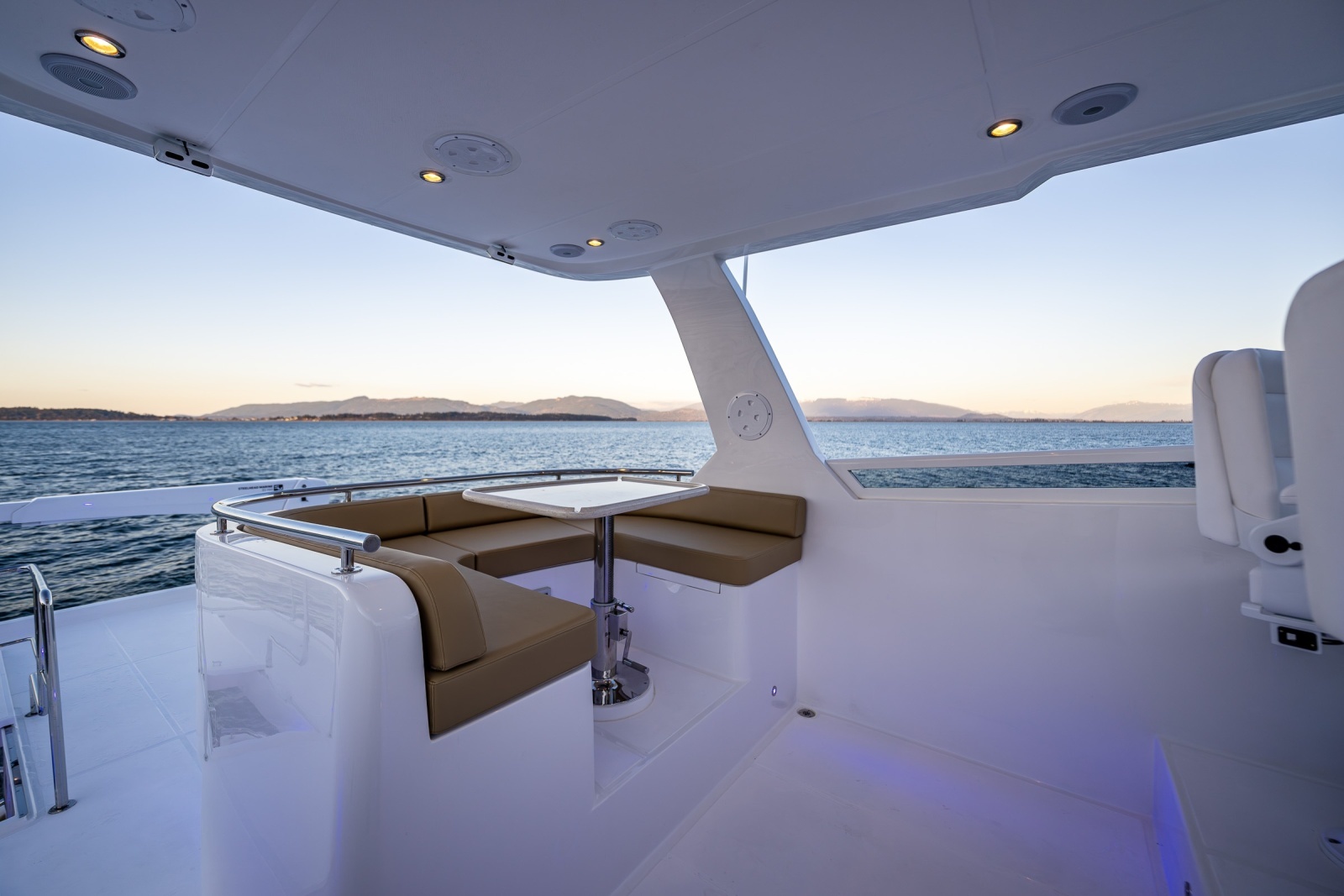

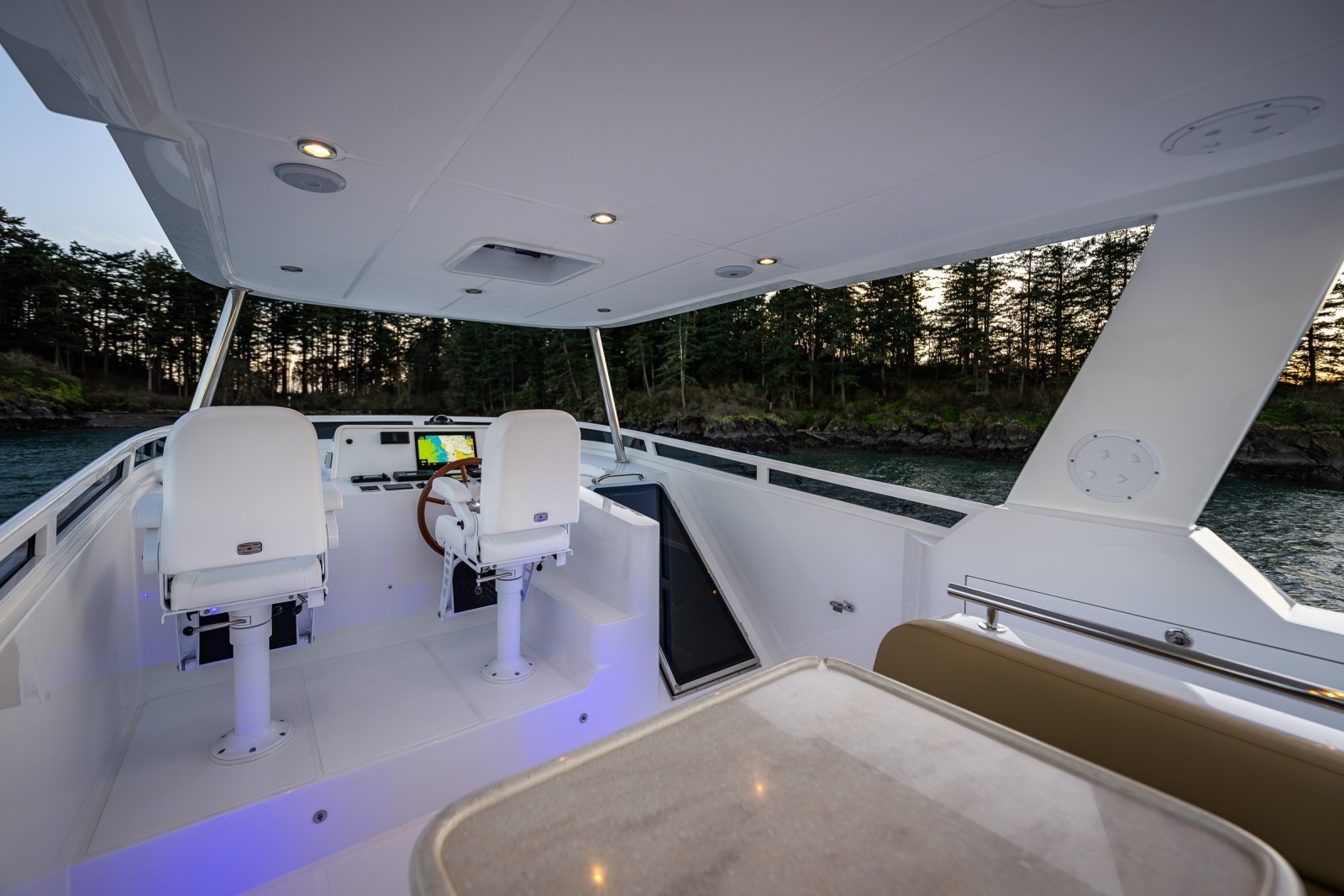

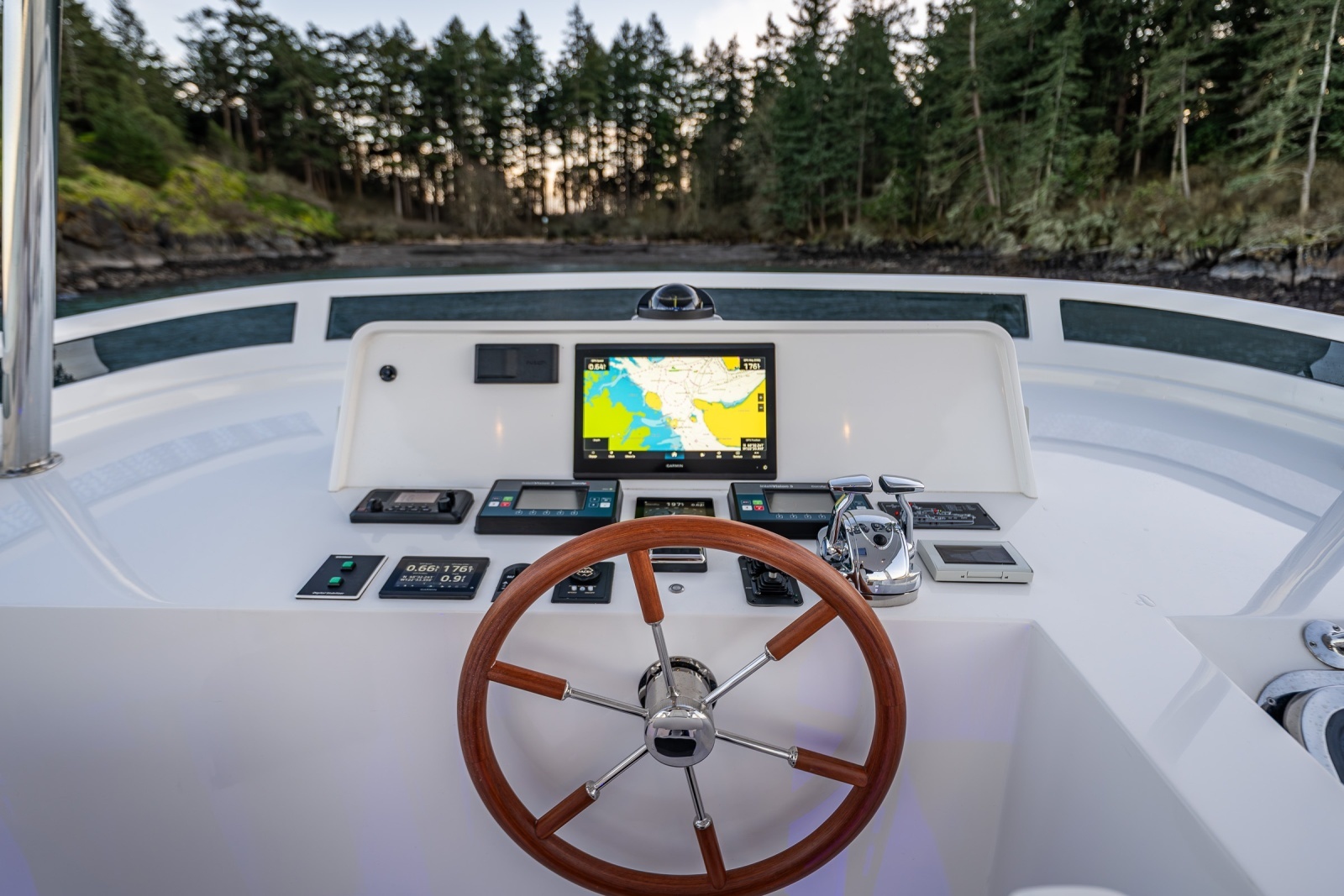

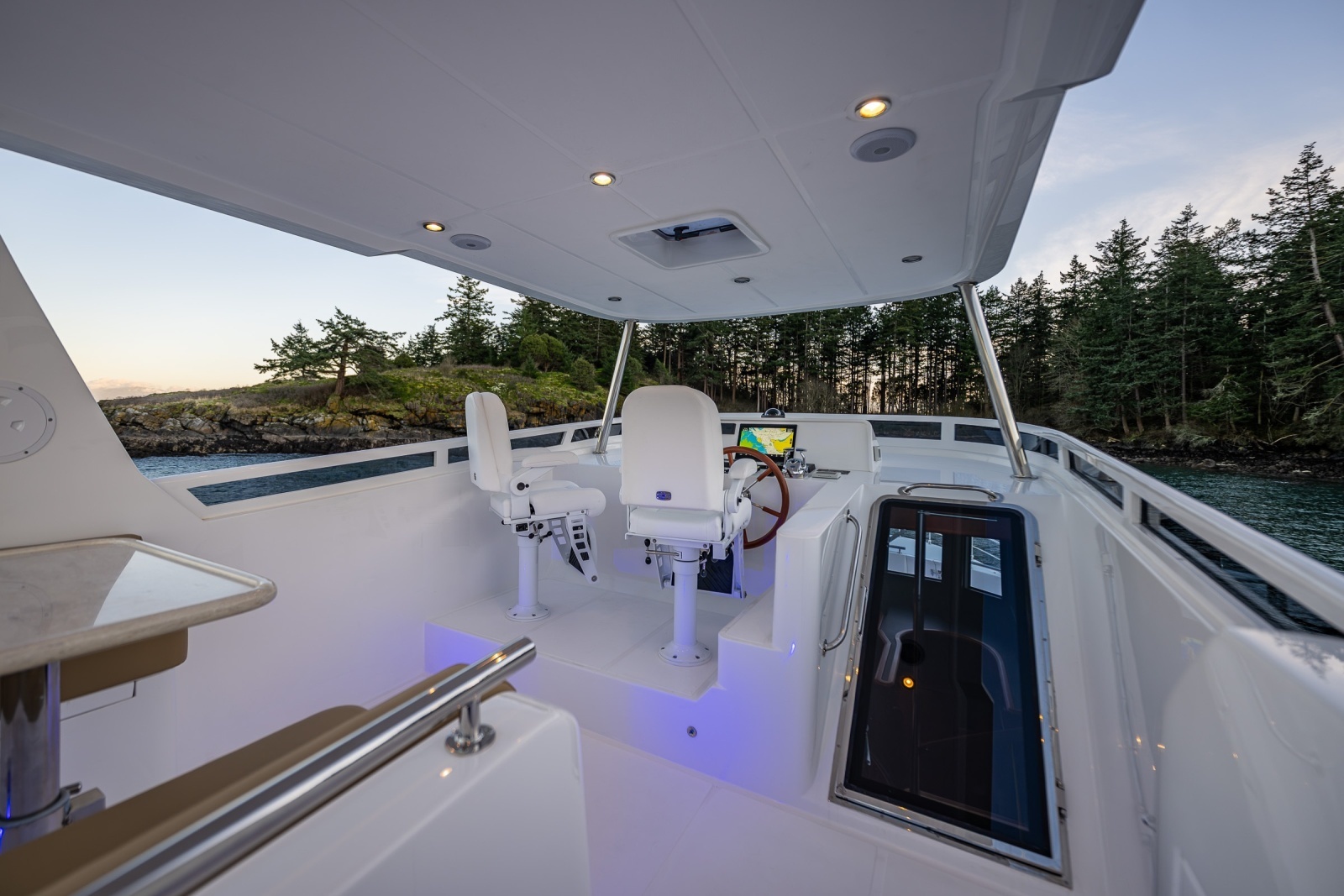

• Flybridge area over pilothouse with steering and engine controls

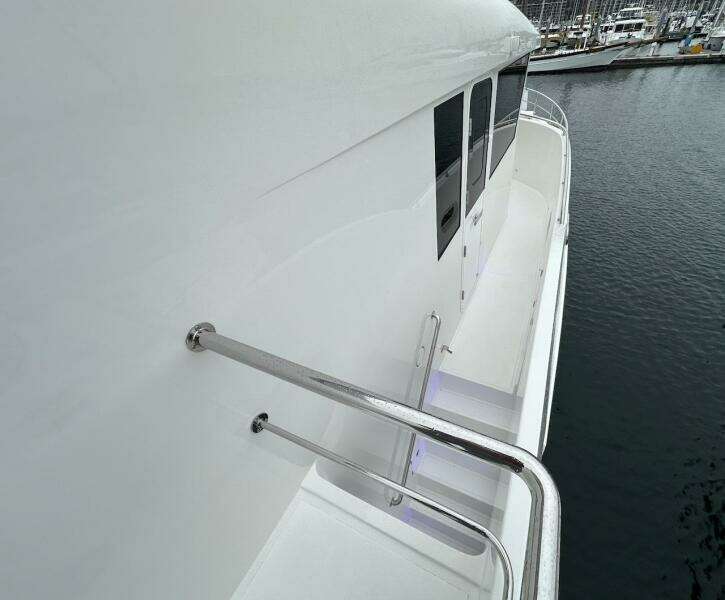

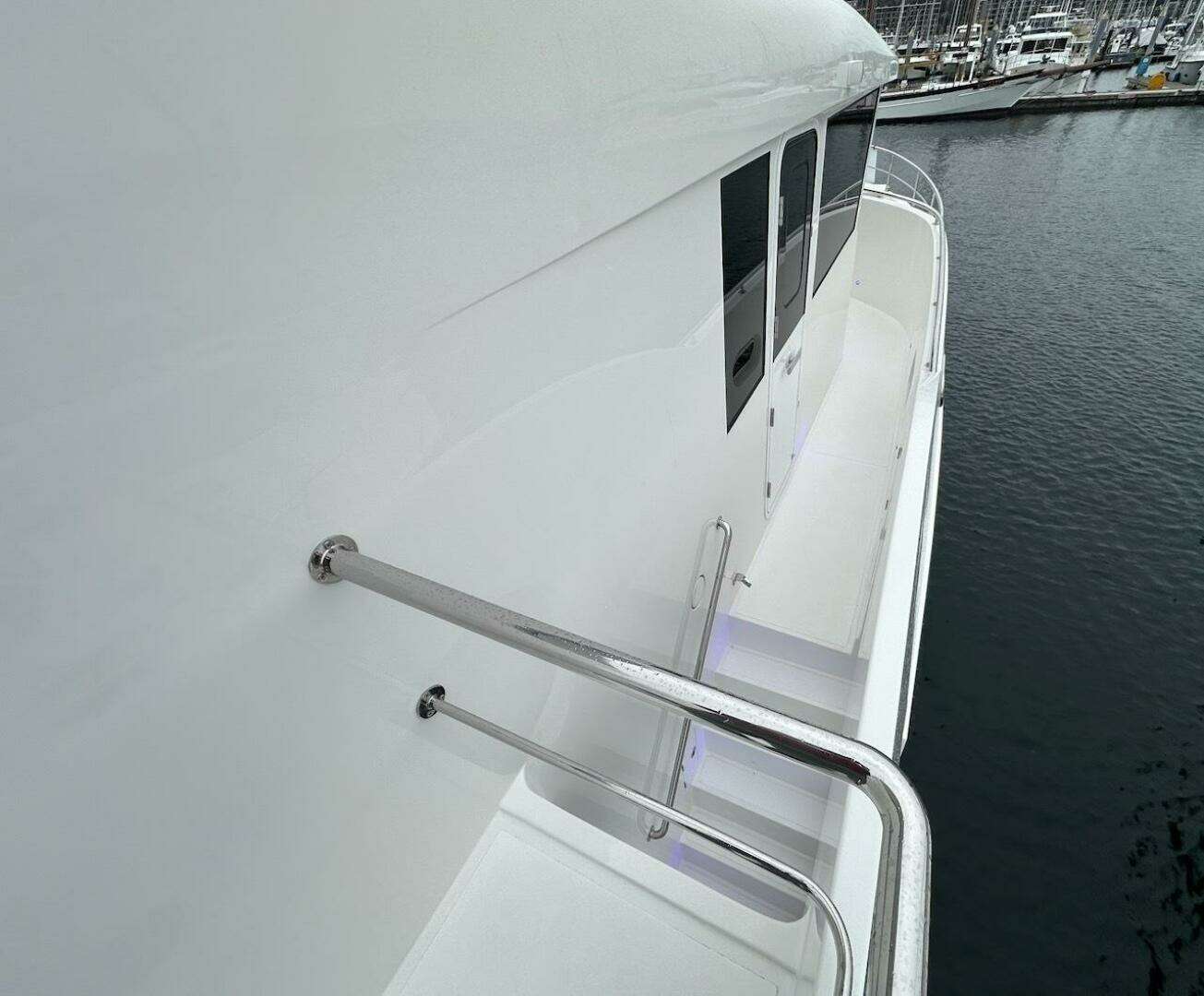

• Deck rails of 1.5" stainless steel with 1" stanchions on boat deck and foredeck
• Deck rails of stainless steel with stanchions around Portuguese bridge
• Radar Arch - FRP with provisions for electronic antennas

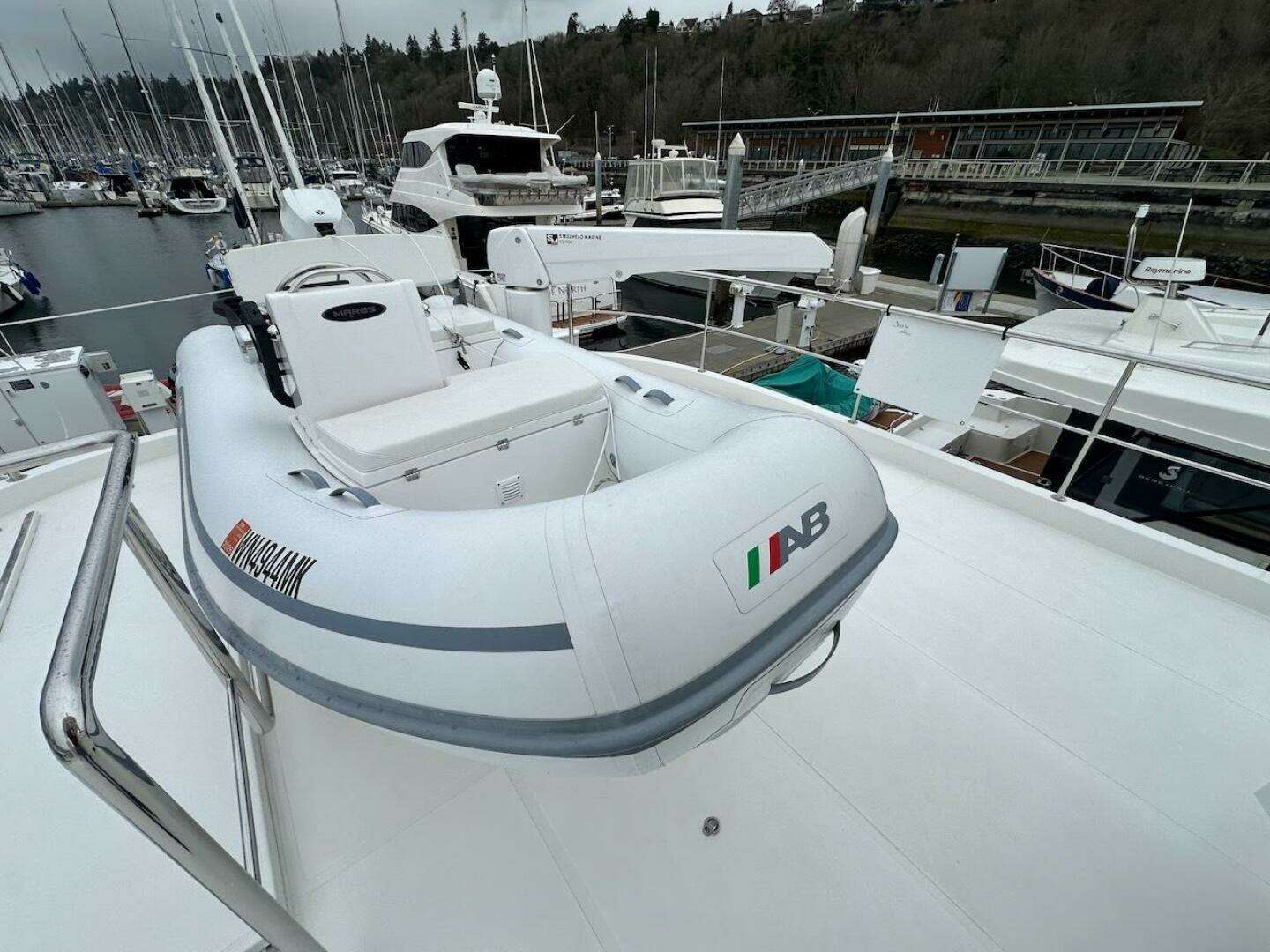

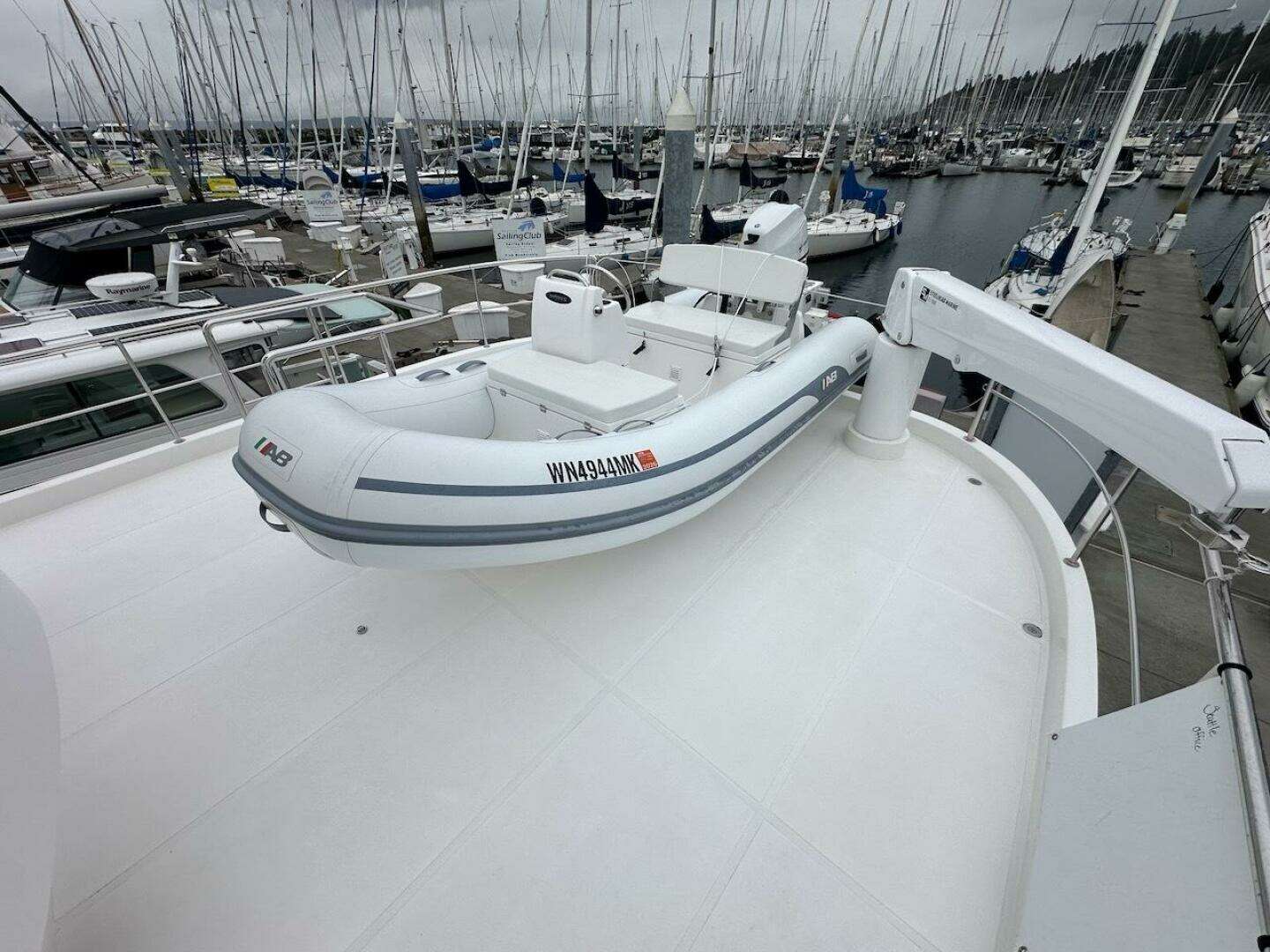

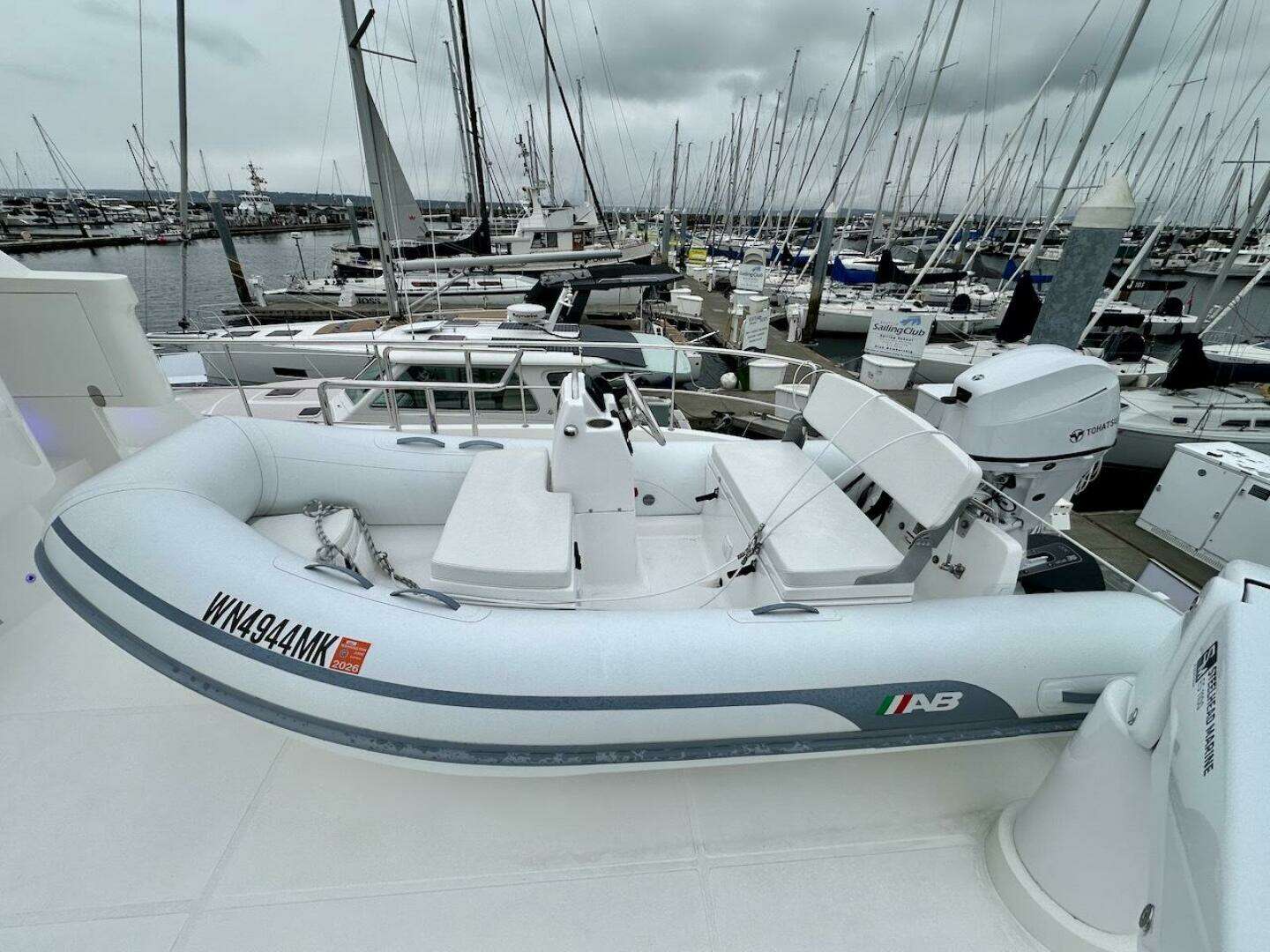

• Brower electric davit crane - 800lb capacity
• Dual chrome trumpet air horn
• Aqua Signal series 45 International navigation lights

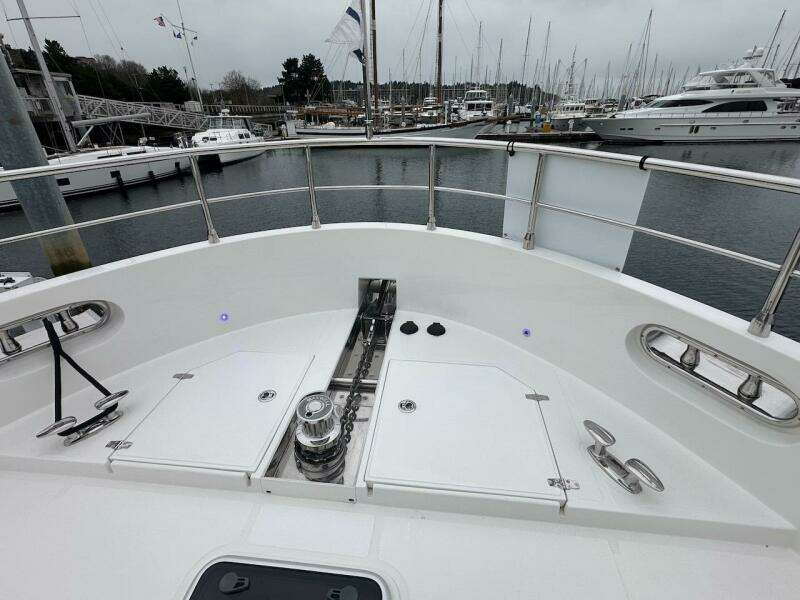

• Molded anchor shelf for stainless steel frame and bow roller
• Freshwater wash down on foredeck

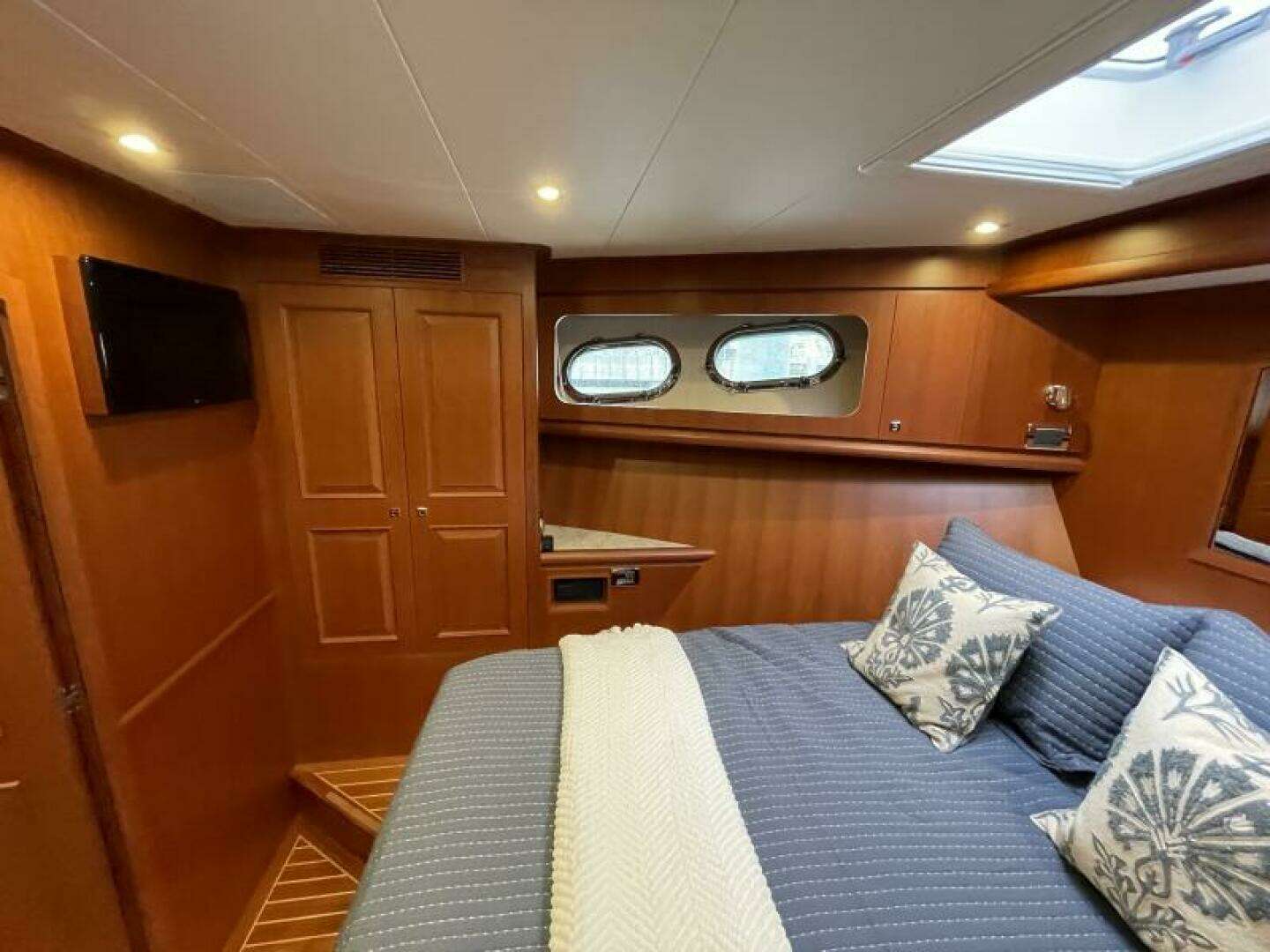

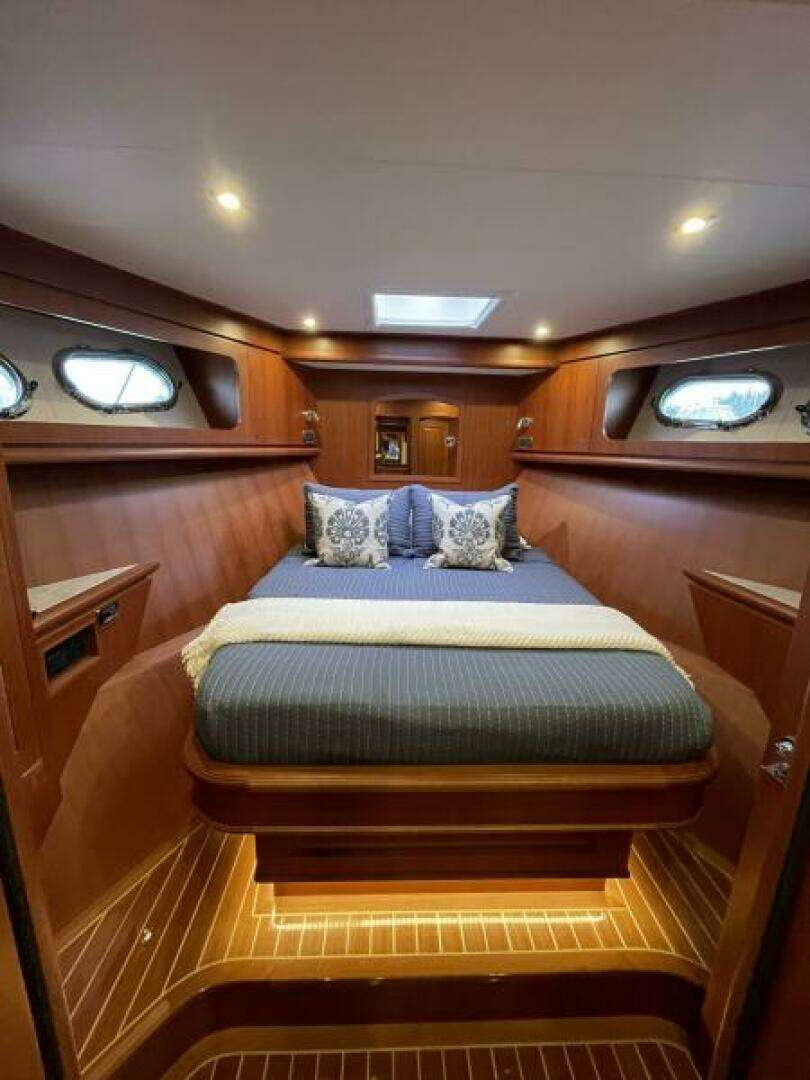

• Opening deck hatch over forward stateroom berth - Lewmar Ocean Series 60 or equivalent
• Maxwell RC2500 vertical windlass with up/down switch at bow and pilothouse
• Anchor - Rocna 88 lb.
• 300' of 3/8" HT galvanized chain

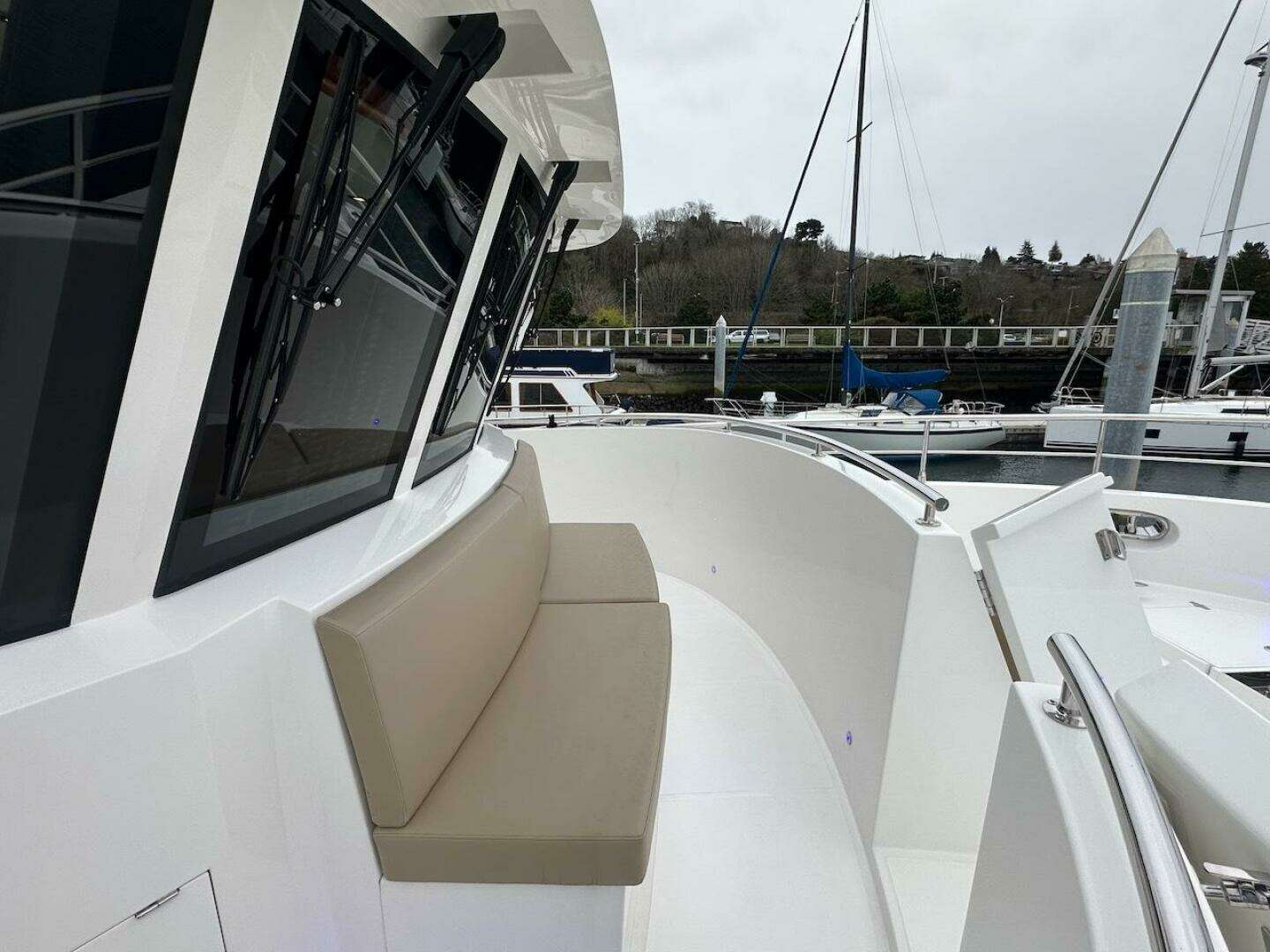

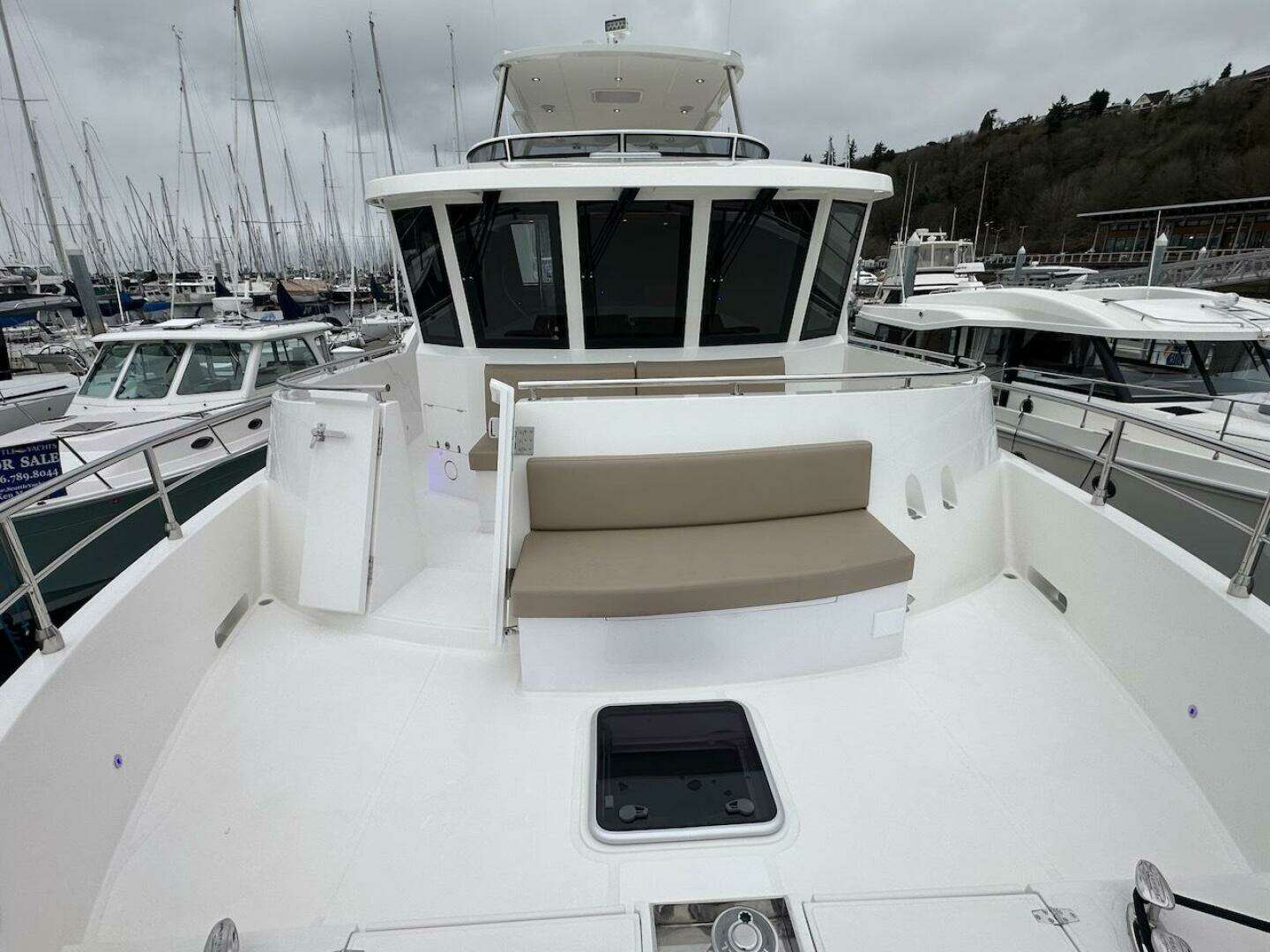

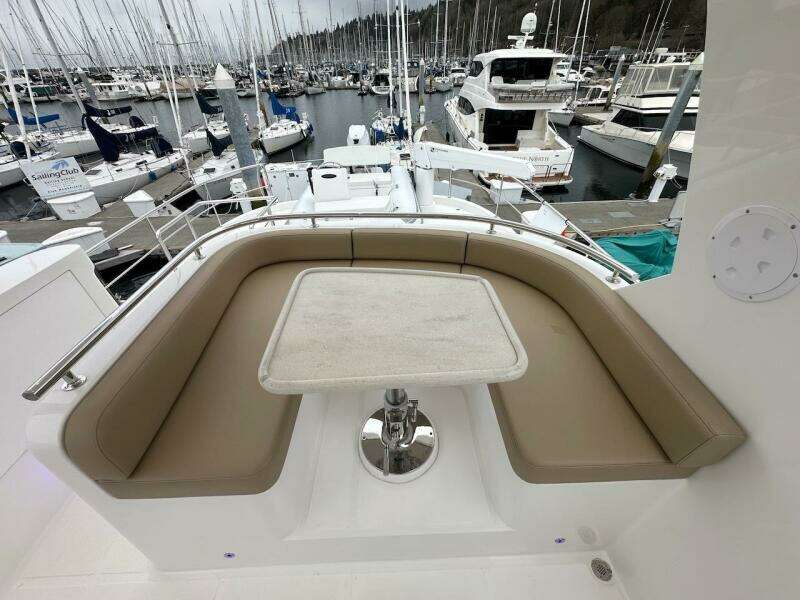

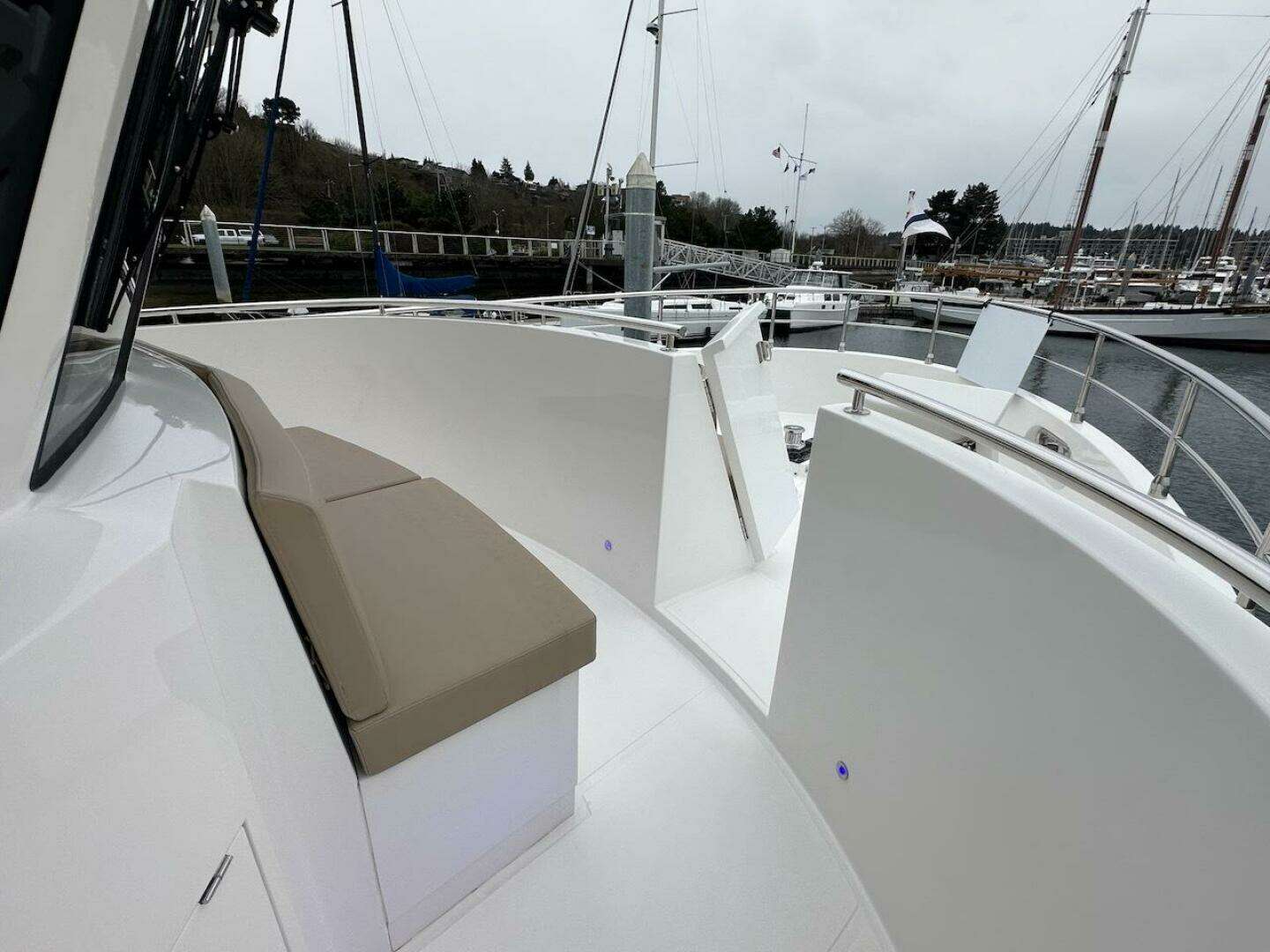

• Molded seat in center of Portuguese bridge with cushion

Exterior Finish & Hardware

• Molded non-skid surfaced decks in all walking area
• NW Yachts emblem of stainless with accent color background mounted on salon walls aft P&S
• NW55 emblems mounted on flybridge coaming P&S
• Hawes holes and cleats of stainless steel (4) bow, (2 amidships P&S) and (2) aft
• Stainless steel capped rub rails of (2) 1" stainless steel solid half rounds
• Bow and stern flag staffs
• Breast plate of 2" solid half rounds at bow

Running Gear

• ZF prop shafts
• PYI dripless shaft seal
• 34" 4-bladed class 1 props
• Shaft zinc and bonded transom underbody zincs

Plumbing System

• Black water tank - FRP (150 gal)
• Gray water tank - FRP (55 gal)
• Sanitary plumbing constructed of ABS Trident sanitary hose
• Macerator pump/discharge pump with separate deck discharge fitting
