Standard Equipment

STANDARD EQUIPMENT

CONSTRUCTION _________________________________

• Design made following European Directive requirements and

according to CE certification

• Vacuum infused hull (GRP / Sandwich balsa wood)

• Vacuum infused structural inner liner (Fabric - resin) bonded to the

hull

• Injected deck construction in fiberglass and Saerform foam

sandwich, covered with non-slip diamond pattern

• Cast iron keel fixed with bolts and stainless steel backing plates

• Twin rudders affixed with stainless steel stock

• White hull - Grey metal hull decoration

• 8 Hull portlights

DECK EQUIPMENT________________________________

RIGGING

• Anodized aluminum mast, deck stepped with in-mast furling

system, 2 Aft swept spreaders

• Anodized aluminum boom

• Discontinuous stainless steel standing rigging

• Split backstay

• Rigid boom vang

• Self-tacking jib with on-deck furler

• Mainsail stay rope on the roof

• 1 Self-tacking jib track with traveller

• All lines lead back to the helm stations (except boom topping lift and

genoa halyard)

• Complete running rigging: Main halyard, Genoa halyard with

tensionning track on the mast, Boom topping lift with cleat on mast,

Mainsheet, 1 Self-tacking jib sheet

• 6 Clutches

• Halyard covers

• 2 Flag halyards

WINCHES

• 1 Self tailing halyard winch (H46.2 STA) at each helm station

• 1 Aluminum Speed Grip winch handle

• 2 Winch handle holders

SAILS (Incidence)

• Furling mainsail Dacron, with UV protection Silver, horizontal cut

• Self-tacking jib Dacron with UV protection Silver, horizontal cut

MOORING - ANCHORING GEAR

• Self-draining chain locker - Clench bolt - Hatch cover

• Single roller stainless steel bow fitting with offset roller

• 12 V - 1 500 W vertical electric windlass - Remote control

• 6 Aluminum mooring cleats,

Length: 400 mm / 15’’3/4 - Stainless steel chafing plate

SAIL LOCKER

• Access through deck hatch T70, Passage width: 62 cm / 2’

• Stainless steel ladder

• Shelving unit

• Lighting

SAFETY ON DECK

• 1 Open stainless steel pulpit

• 2 Stainless steel aft pushpits

• 2 stainless steel handrails on coachroof

• 1 Ring lifebuoy bracket

• Welded ring on pushpit for flag

• Double life lines and stainless steel stanchions, 650 mm / 2’2’’

• Emergency ladder on pushpit

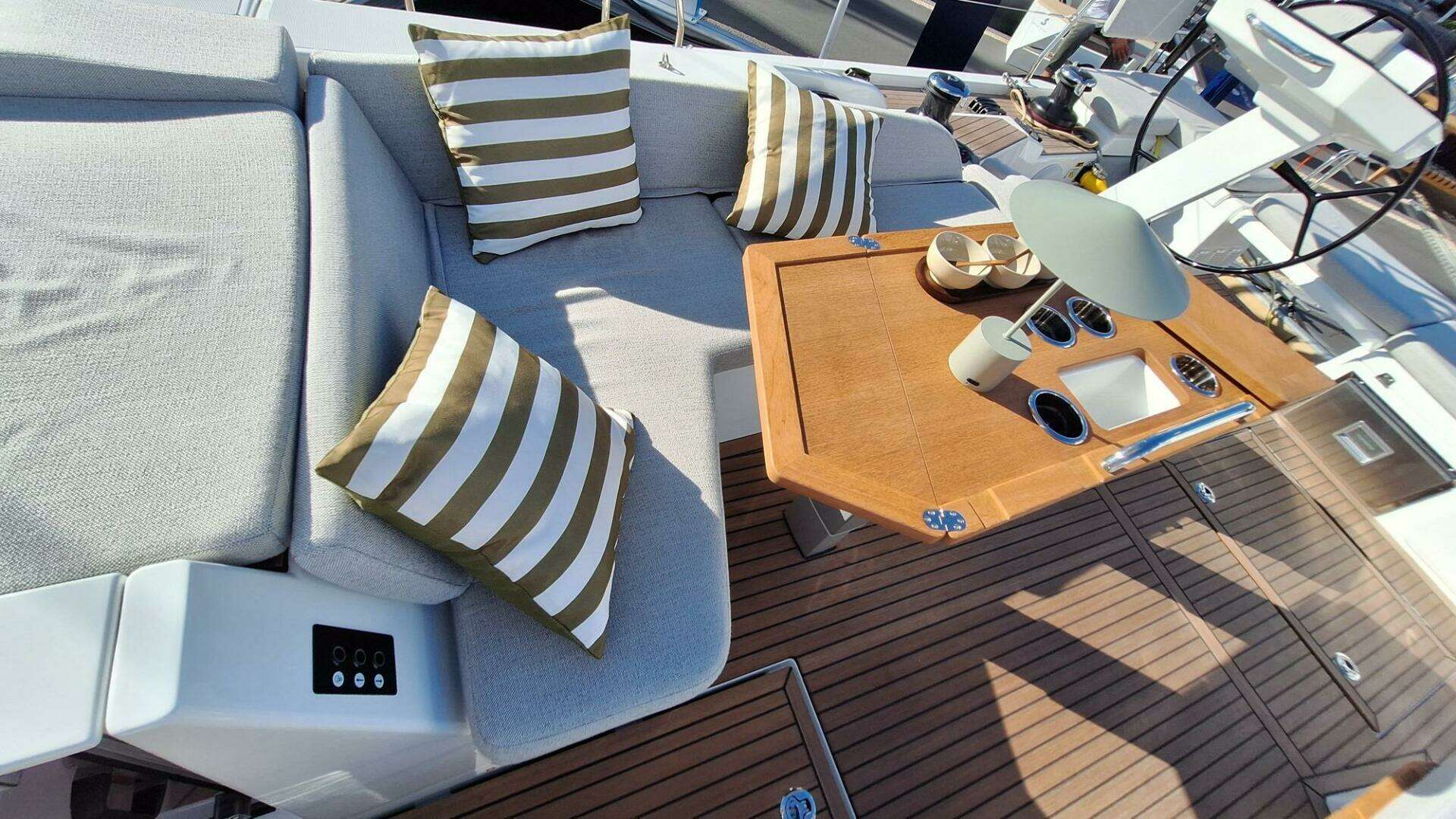

COCKPIT

• Self-bailing cockpit

• 4 Watertight lockers under the cockpit benches

• 1 Locker in cockpit bottom

• 1 Gas compartment under port helmsman seat

• 2 Iro-Deck slatted cockpit benches

• 2 Halyard lockers under the cockpit benches

• Iro-Deck slatted helm seats, with starboard storage locker

• 2 Foldaway helmsman foot chock

• 1 Starboard steering console with electric engine control

• Stainless steel steering wheels (900 mm diameter / 2’11’’) -

Anthracite leather covering - Steering gear at the helm station -

Steering line transmission system - Stainless steel handrail

• 2 Deck accesses for emergency tiller

• 1 Emergency tiller

• 1 Steering compass on the port side pedestal

• Starboard engine control panel

• 2 Cockpit tables: fixed legs, folding wooden top with 2 cup holders,

central stowage (for the 3 cabin 2 head version)

• 1 Cockpit shower with mixer tap

• 2 Hinged PMMA companionway doors - Sliding hatch made of

PMMA

• Liferaft location in front of companionway (Length 900 mm / 2’11’’ x

Beam 365 mm / 1’2’’ x Deep 535 mm / 1’9’’)

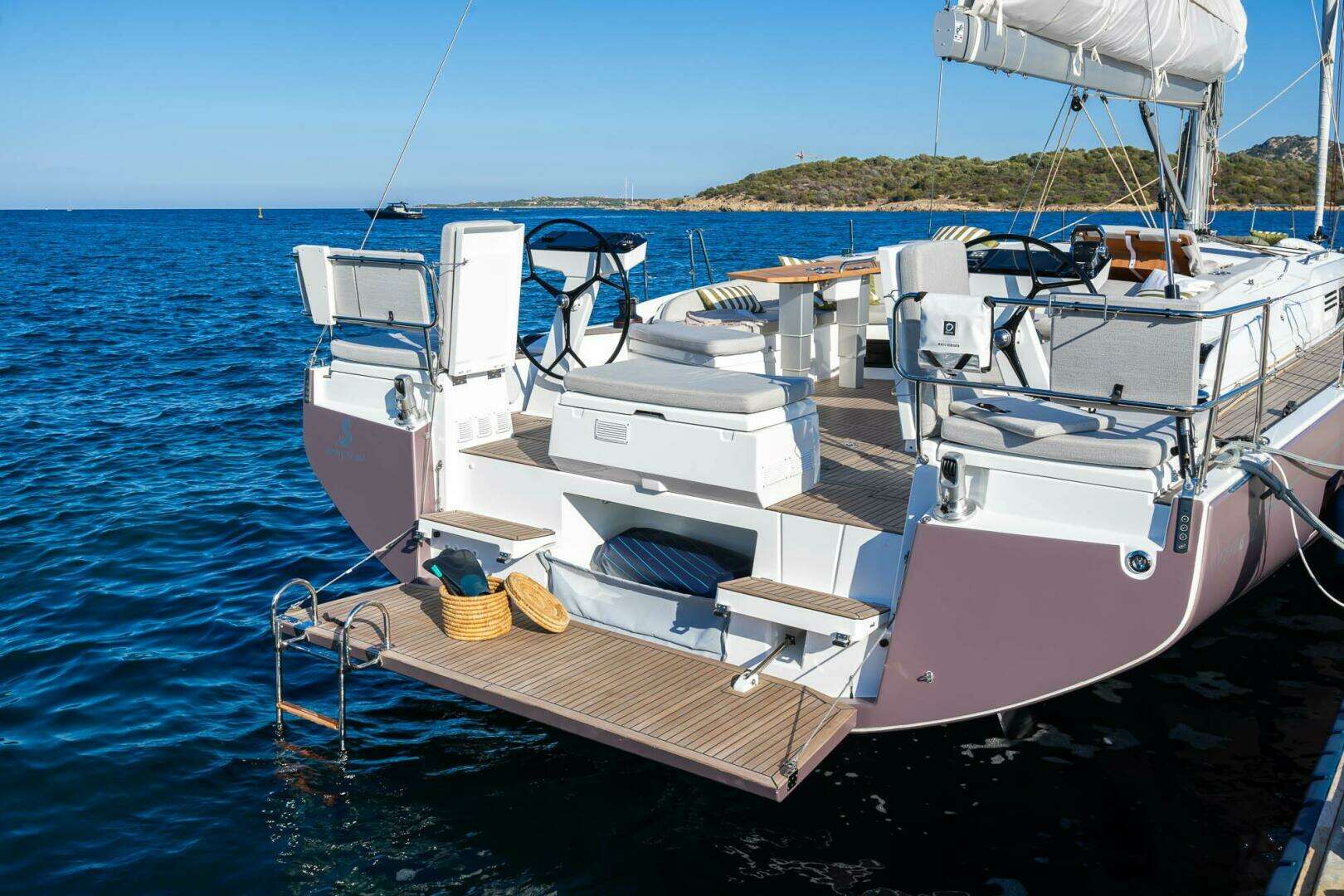

SWIM PLATFORM / AFT TRANSOM

• Fully opening transom, convertible into swim platform

(2,65 m x 0,80 m / 8’8’’ x 2’7’’)

• Intermediate cockpit access step

• Electrically operated

• Iro-Deck slatted swim deck

• 1 Stainless steel fixed swimming ladder with handrails

Interior

NTERIOR _______________________________________

Standard version: 3 cabins 2 heads version

• Sand oak alpi joinery

• Nordic Teak Parquet type laminated floorboards

• Interior upholstery: Noah 05 (thickness: 150 mm / 6’’)

• Padded upholstery in the saloon, cabins, at the base of the open

upper cupboards in the saloon and galley (Chalk)

• Mattresses in the cabins, HR35kg/m³ foam

• LED indirect lighting

• Pleated blinds on the coachroof windows

COMPANIONWAY

Headroom: 2,03 m / 6’8’’

• Wooden salon companionway with molded wood hanging steps

with non-slip surface • 2 Écru leather covered stainless steel handrails

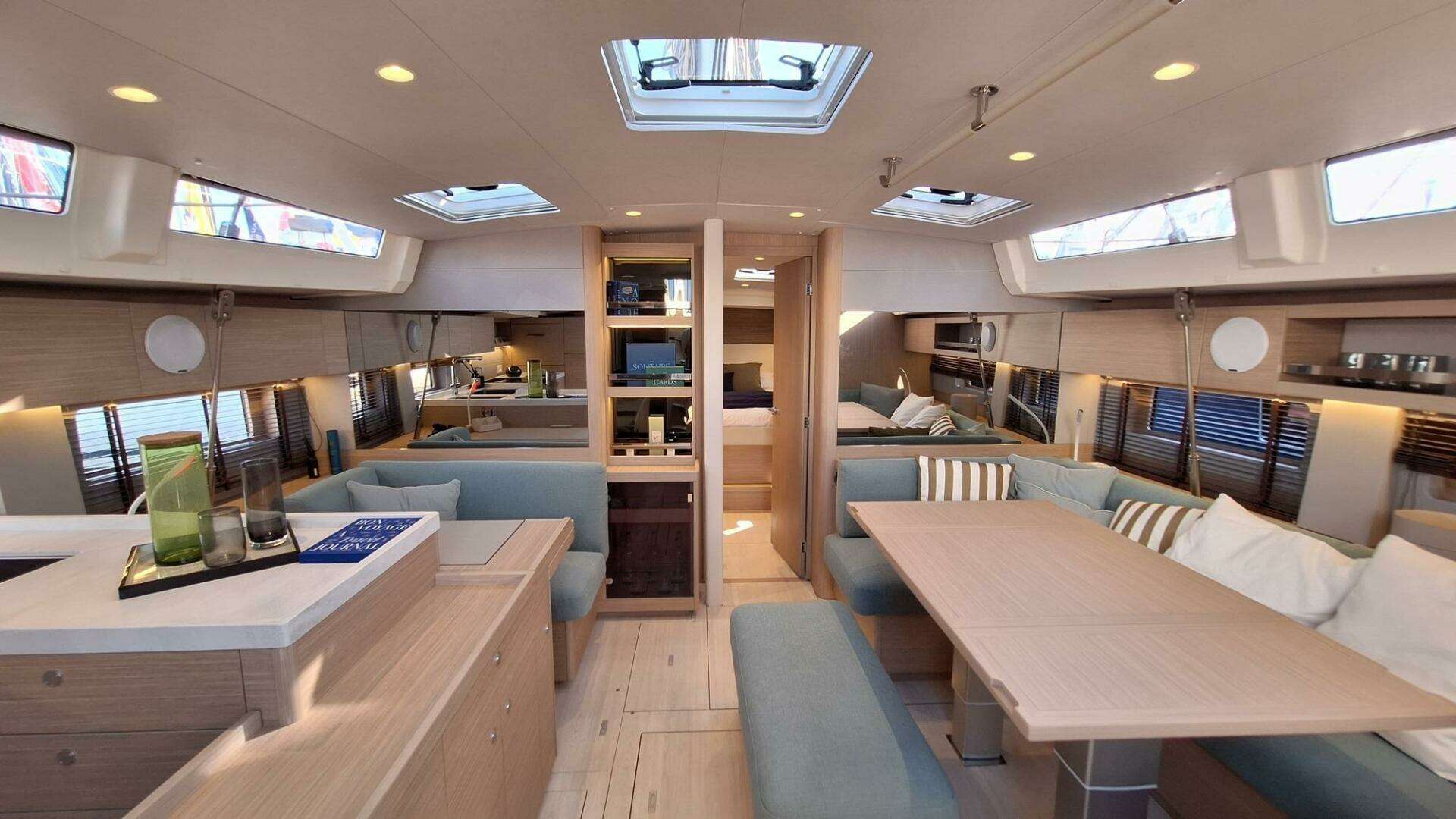

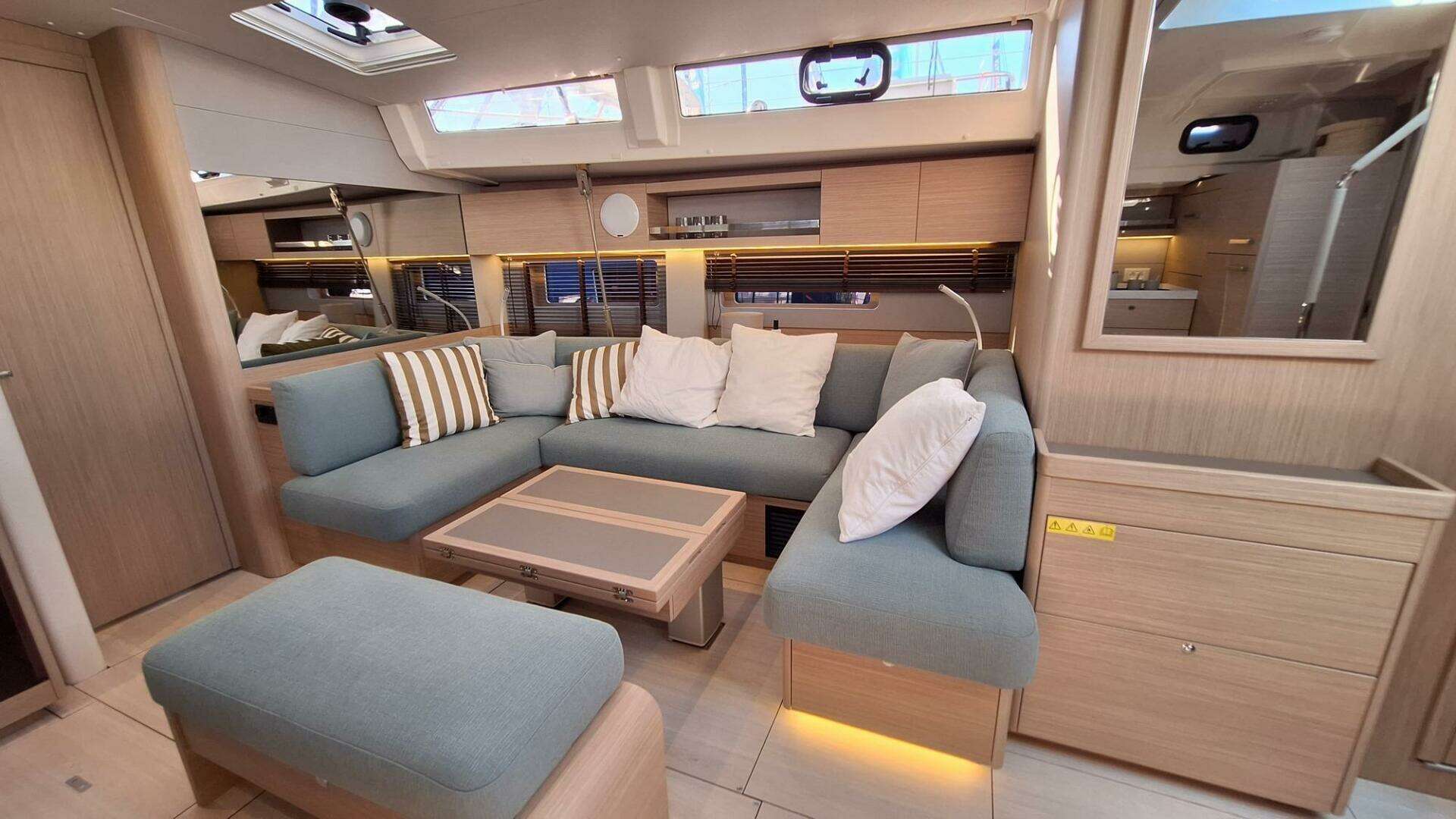

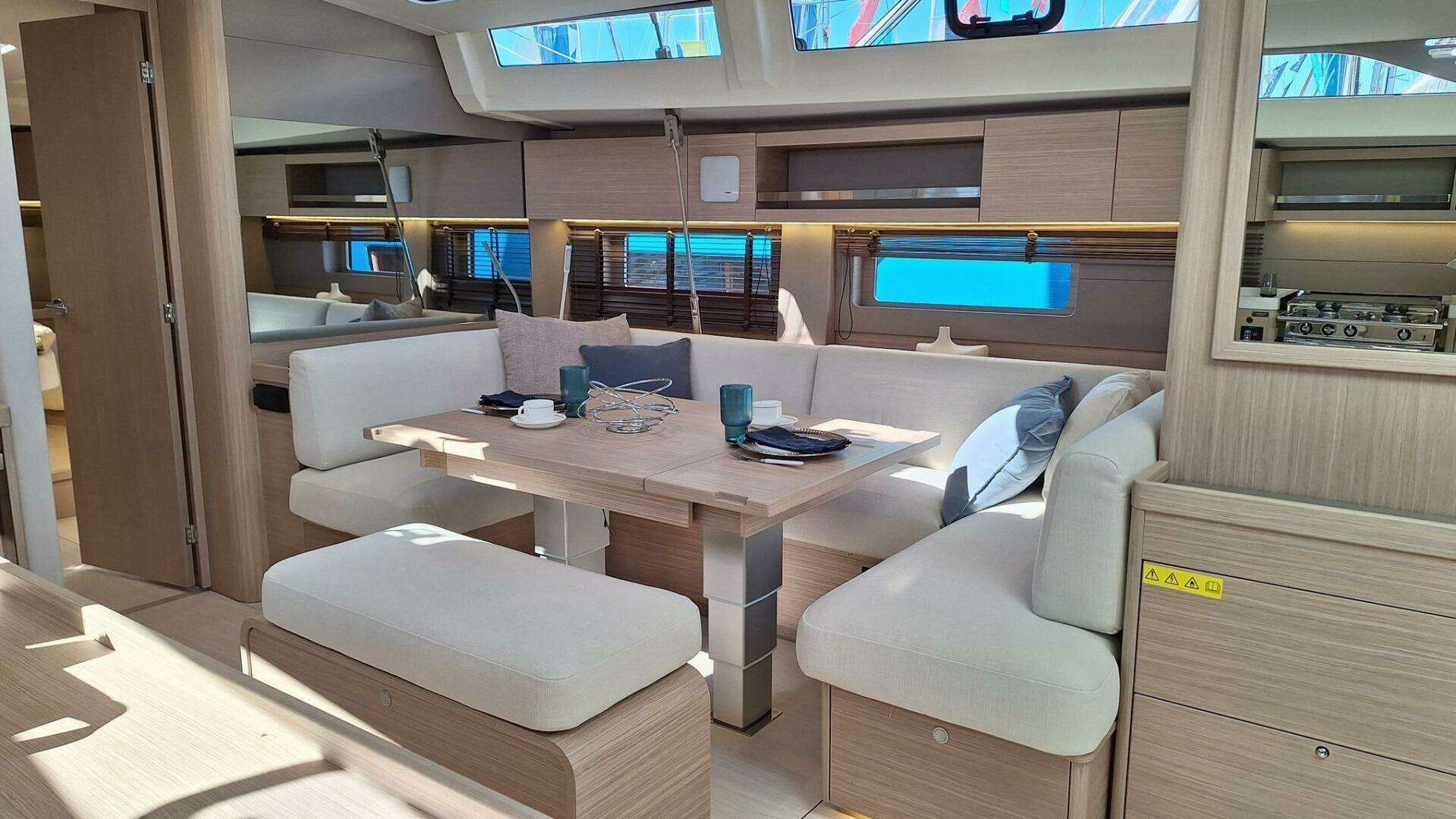

SALON - STARBOARD

Headroom: 2,03 m / 6’8’’

• U-shaped salon bench (Double density foam) - Fusion RA210 with

internal/external speakers

• 2 Flexible and adjustable reading light with built-in USB-C socket

• Table in the salon: solid Alpi wood edges, central stowage

• Lower cupboard on starboard side of companionway for: 12

electrical panel, Navicolor 3.5" screen, Mirror on bulkhead

• Storage under bench seats

• Bottle rack behind the bench against the forward bulkhead

• 2 Hull portlights

• 1 Opening portlight with curtains in the coachroof side window +

Mosquito screens

• 3 Opening deck hatches with mosquito screens/blinds

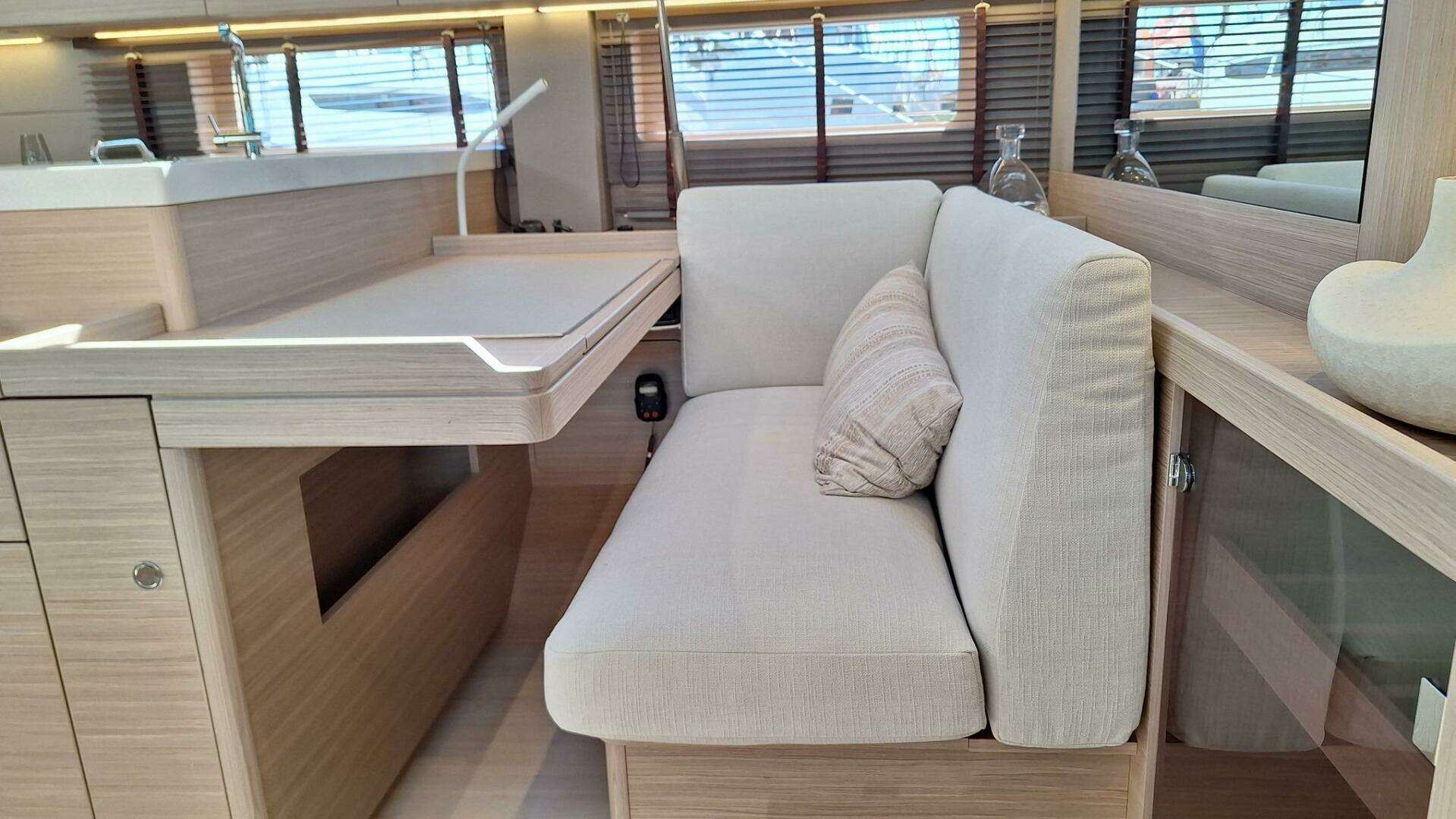

CHART TABLE - PORTSIDE

Headroom: 1,97 m / 6’6’’

• Table with storage - molded wood fiddle - Laminated covering

• 1 Low-level stowage accessible from the side

• 2 Open high shelves

• 1 Glove box

• Seat (adjustable to compensate for heel) with backrest

• Stowage under seat with power socket for vacuum cleaner stowage

• 1 Flexible and swivelling reading light

• Bookshelf against forward bulkhead + Bottle stowage with PMMA

door

• 1 Hull portlight

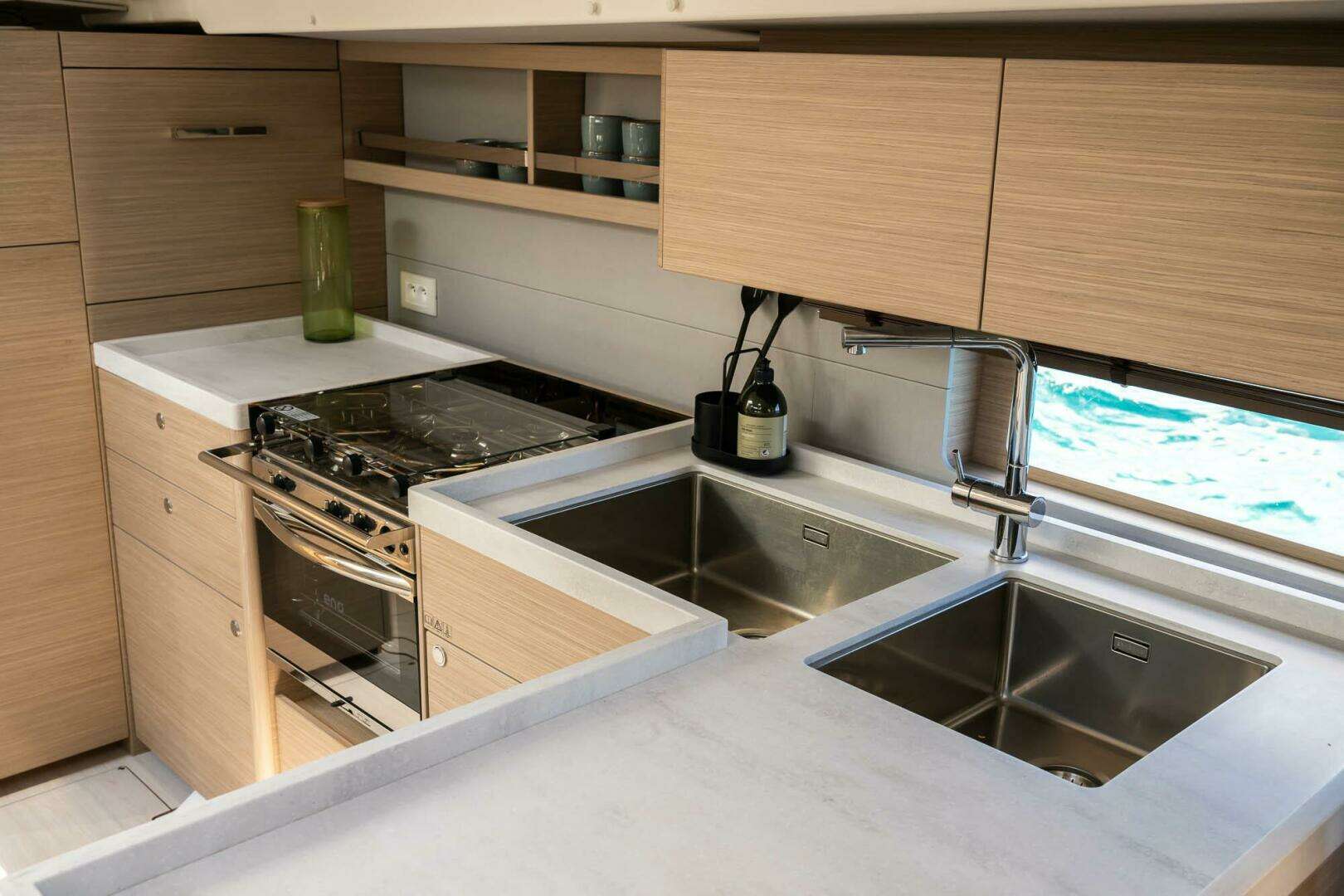

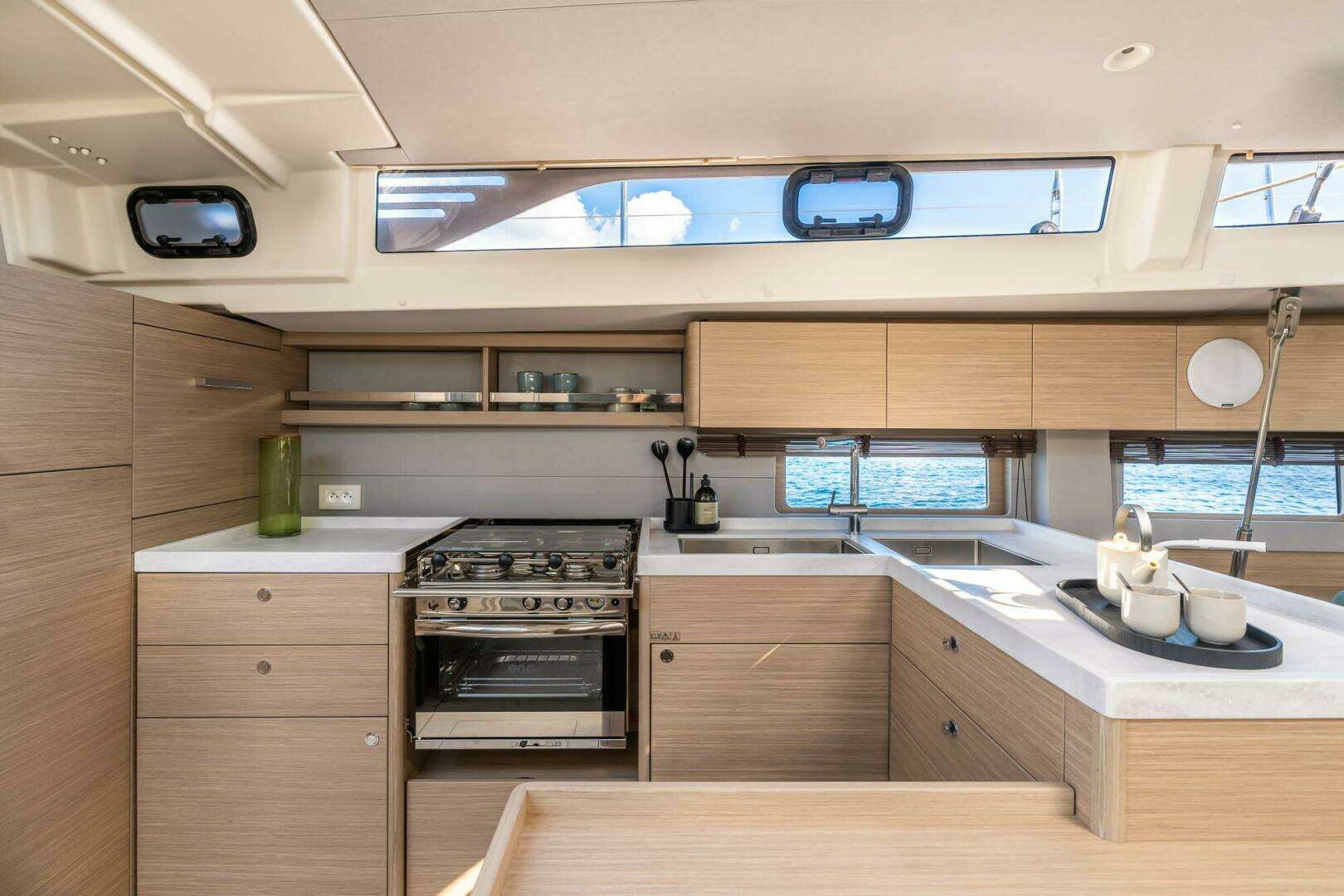

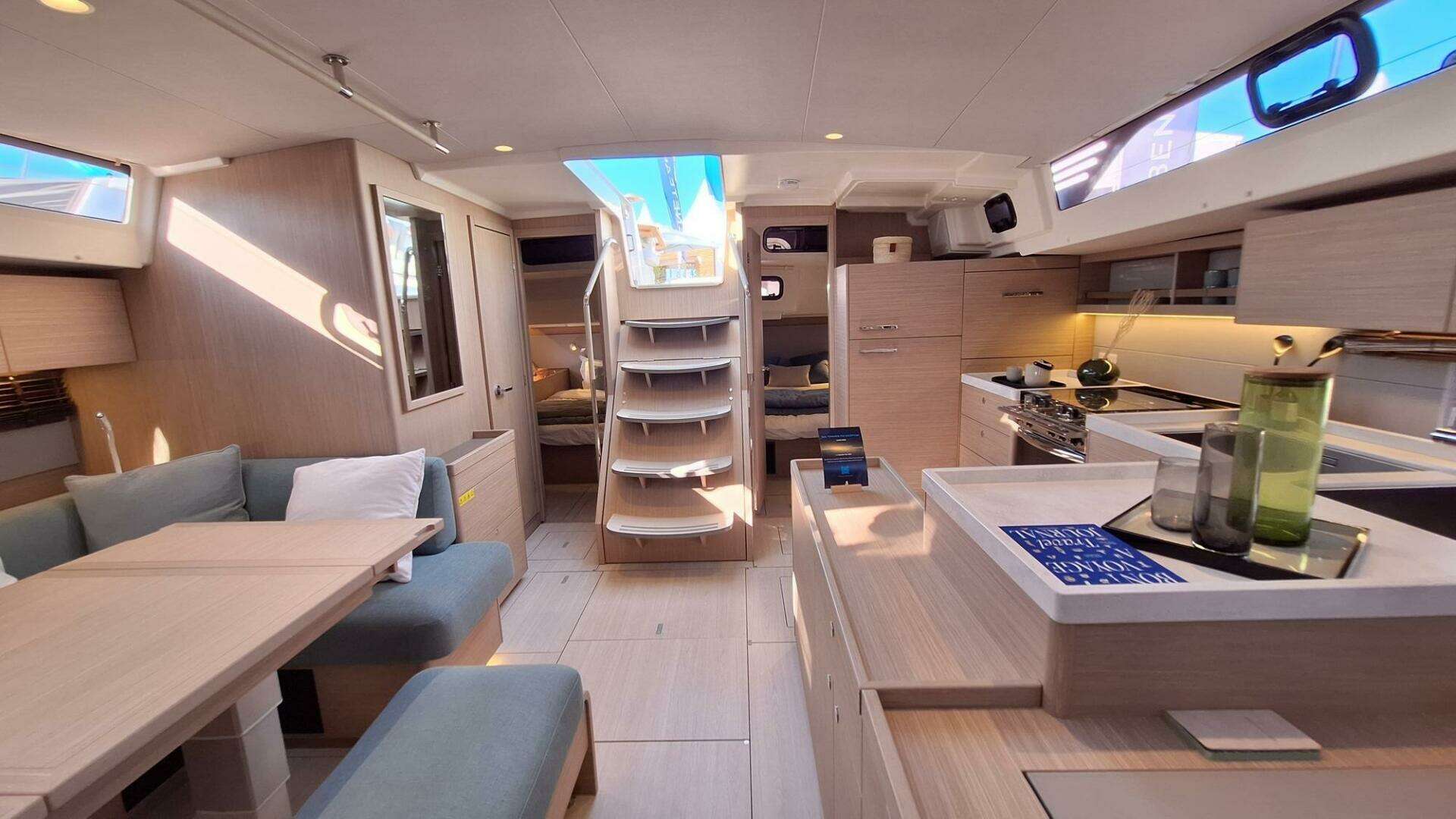

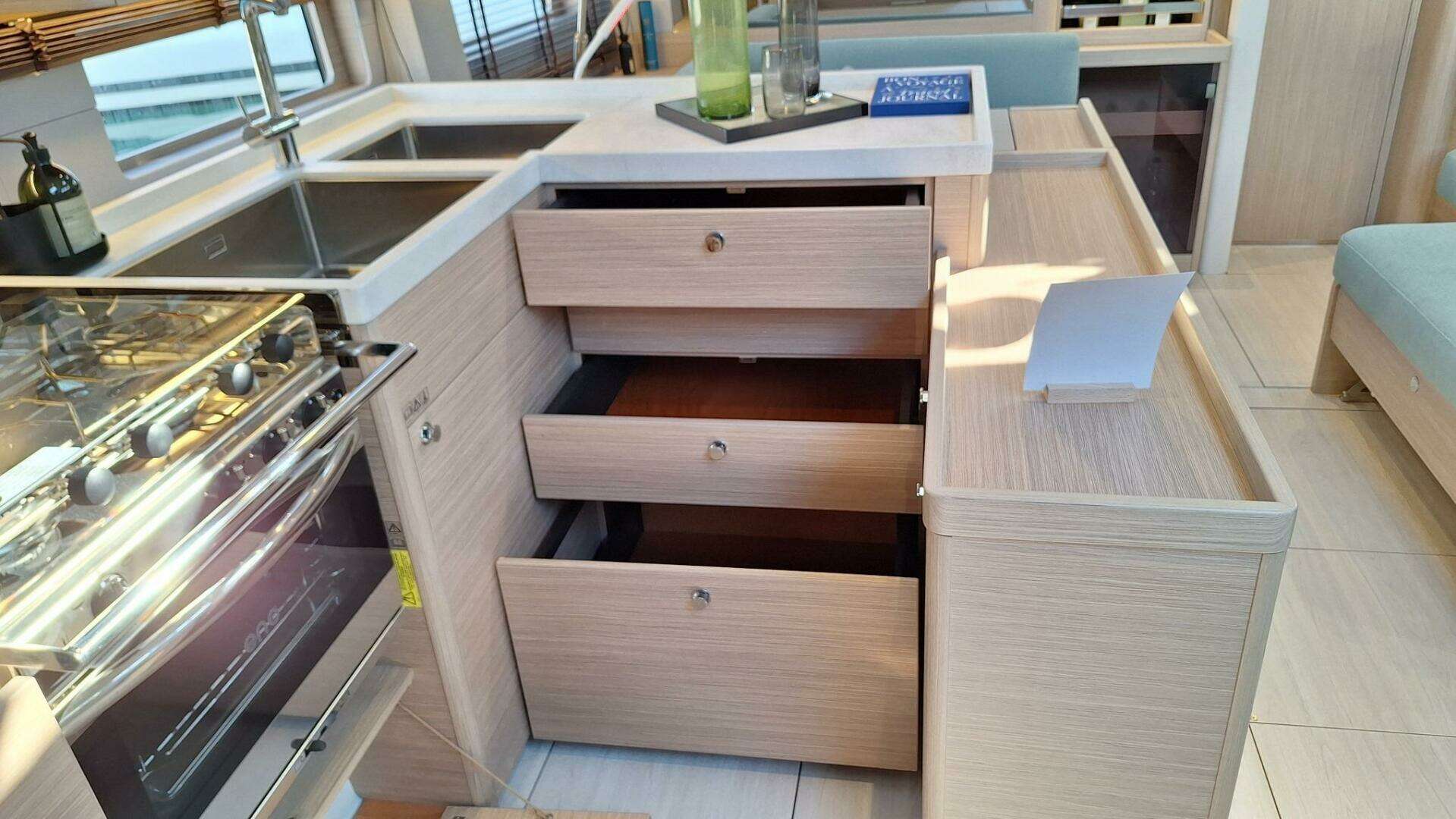

GALLEY - PORTSIDE

Headroom: 1,96 m / 6’5’’

• C-shaped galley

• Corian Rain Cloud countertop

• 2 Rectangular stainless steel sinks - 1 Faucet with hot/cold water

under pressure

• 1 Gas stove 2 burners - Stainless steel oven on gimbal - Stainless

steel protection handrail

• 1 12 V 176 L/46 US Gal fridge, front door, 1 43 L/11 US Gal icebox

(for sub-zero storage) with front door

• Fitted cupboards and closed cubbyholes

• 2 High shelves with doors, 2 Open high shelves

• 1 Central cupboard with:

- Sliding double 2 x 27 L/2 x 7 US Gal bin

- Large lower cupboard with 2 doors, 1 drawer accessible from the

salon

• 1 Stowage for 6 bottles accessible from the worktop (or position for

dishwasher option) + 1 Closed upper stowage

• 1 Closed cabinet on worktop for coffee machine (with 115 V socket)

• 1 Lower cabinet: 1 door, 2 drawers

• 1 Lower cabinet: 4 drawers

• 1 Opening portlight with curtains in the coachroof side window +

Mosquito screens

• 1 Hull portlight

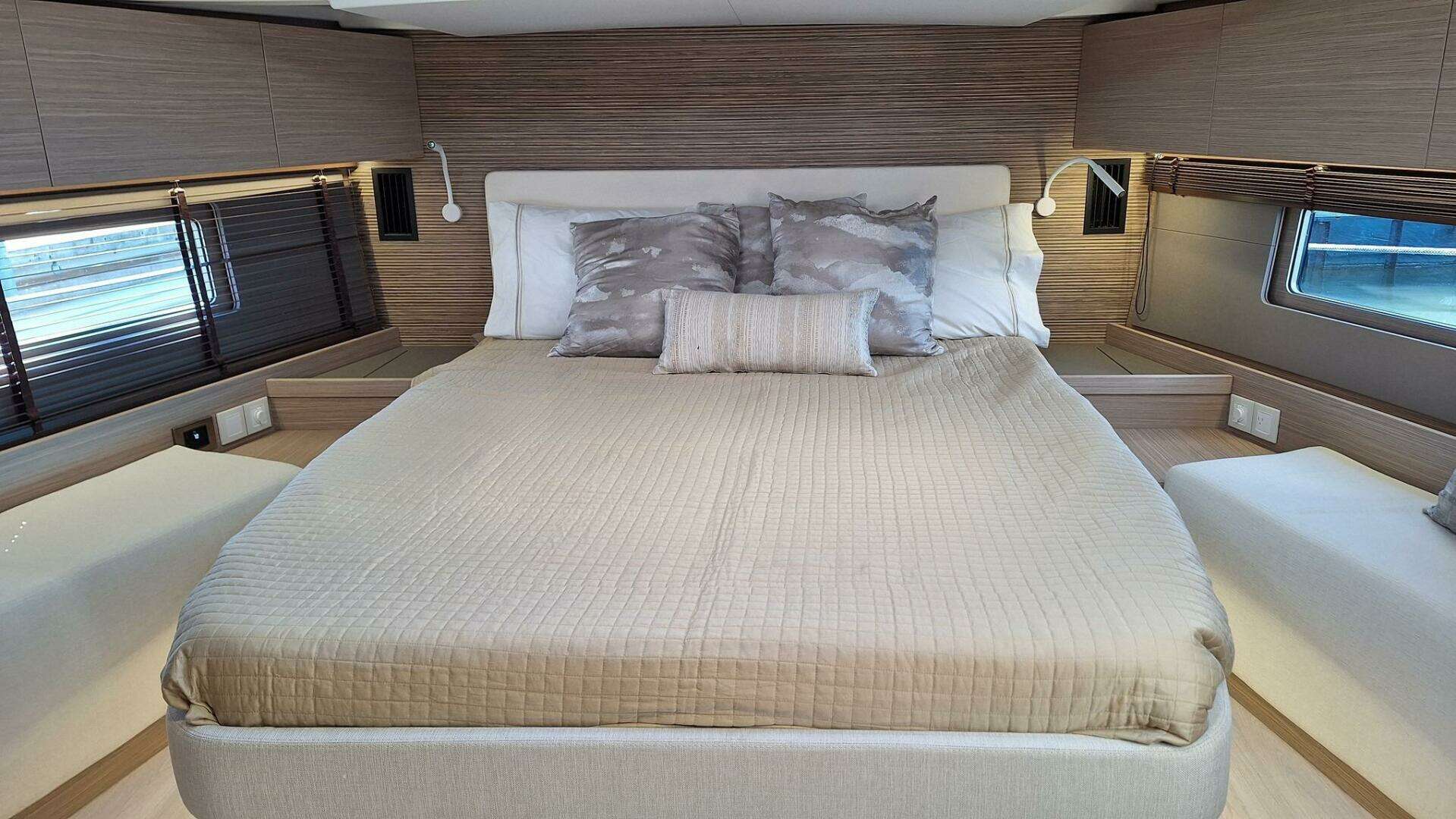

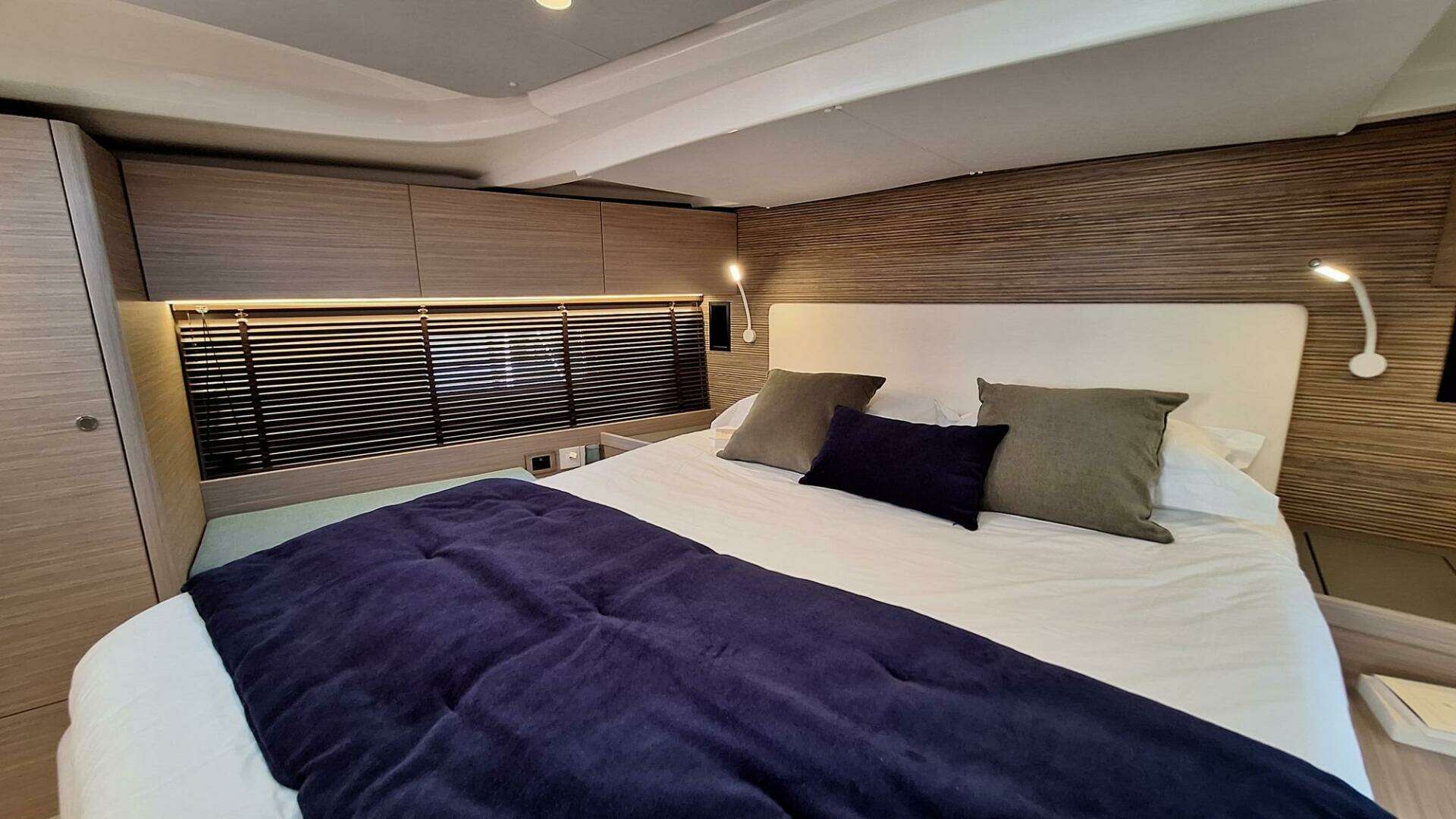

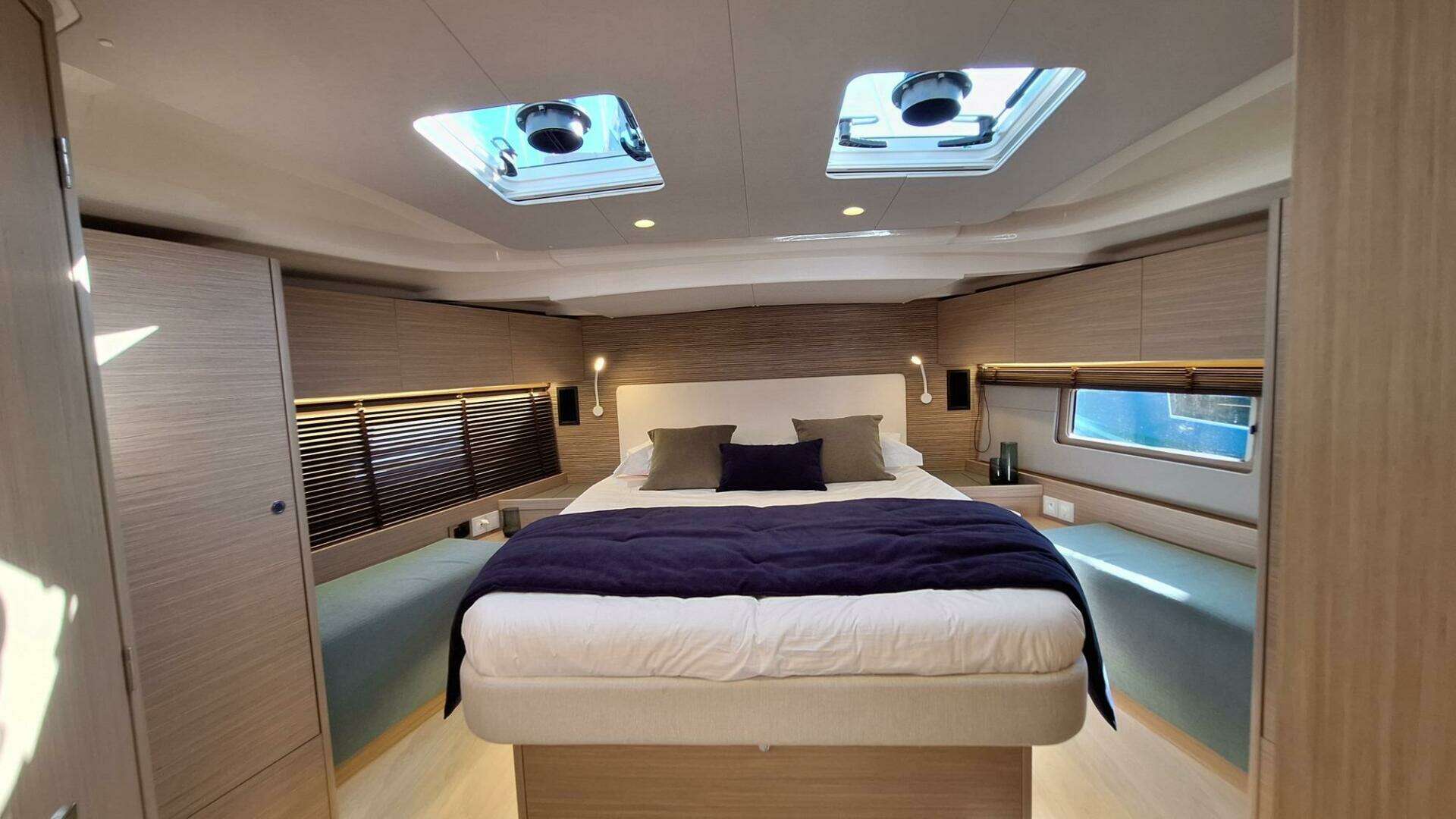

OWNER'S CABIN

Headroom: 1,99 m / 6’6’’

• Central double bed Island bed type, mounted on gas struts

(2,05 m x 1,60 m x 1,39 m / 6’9’’ x 5’3’’ x 4’7’’)

• 2 Hanging lockers, Open storage compartment along the hull,

6 Upper lockers, 1 Storage space under bed (Drawer under the bed

+ Central stowage under bed)

• 1 Seat on each side of bed

• 2 Bedside tables with seat

• 2 Flexible and adjustable bedside lights with built-in USB-C socket

• 1 Bookcase with 2 bottom drawers and indirect lighting

• Underfloor storage to starboard - Piston-assisted hinges opening

mechanism

• 2 Flush deck hatches with mosquito screen/blind

• 2 Hull portholes with sliding blind

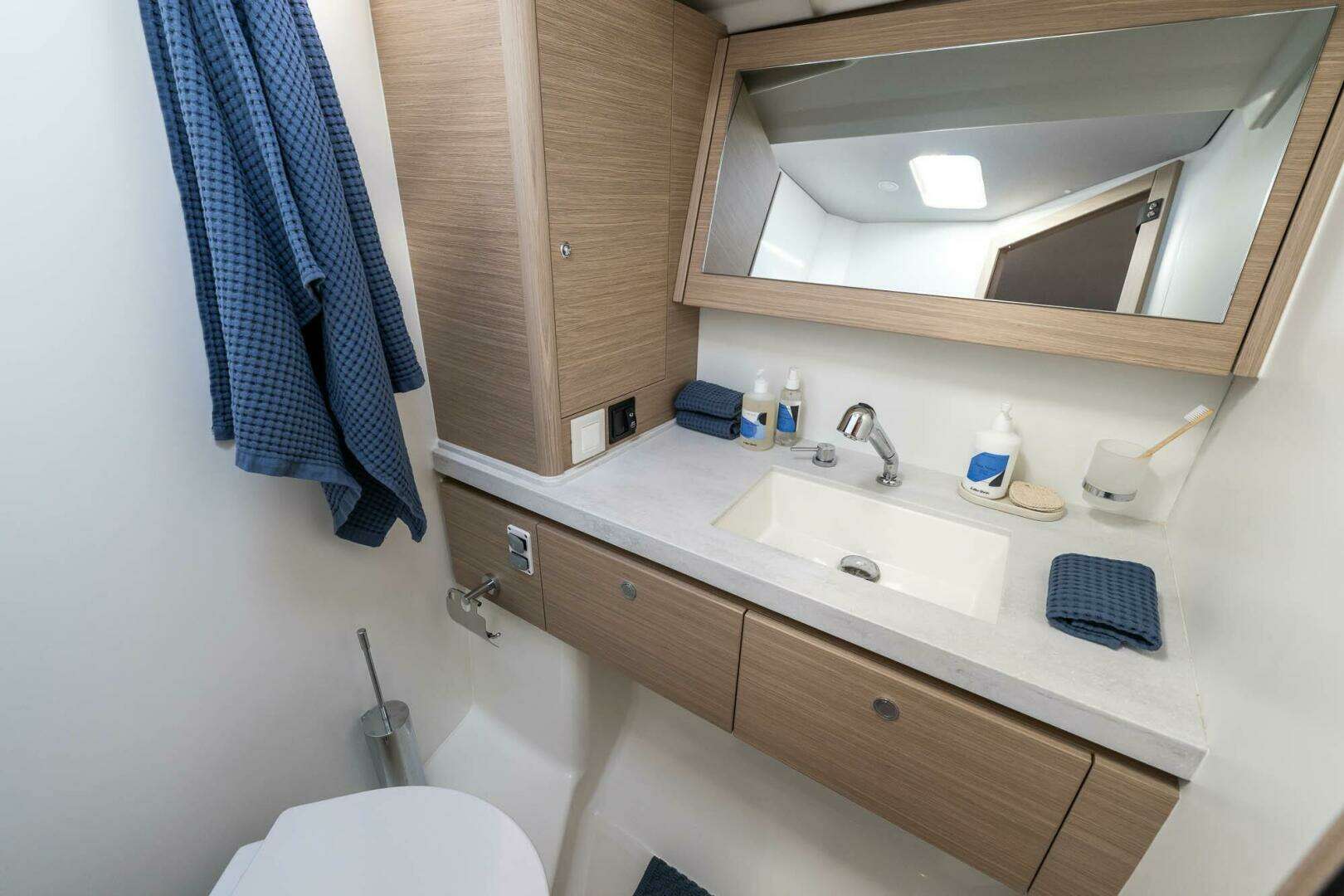

2 PRIVATE HEADS:

Headroom: 1,85 m / 6’1’’

to port:

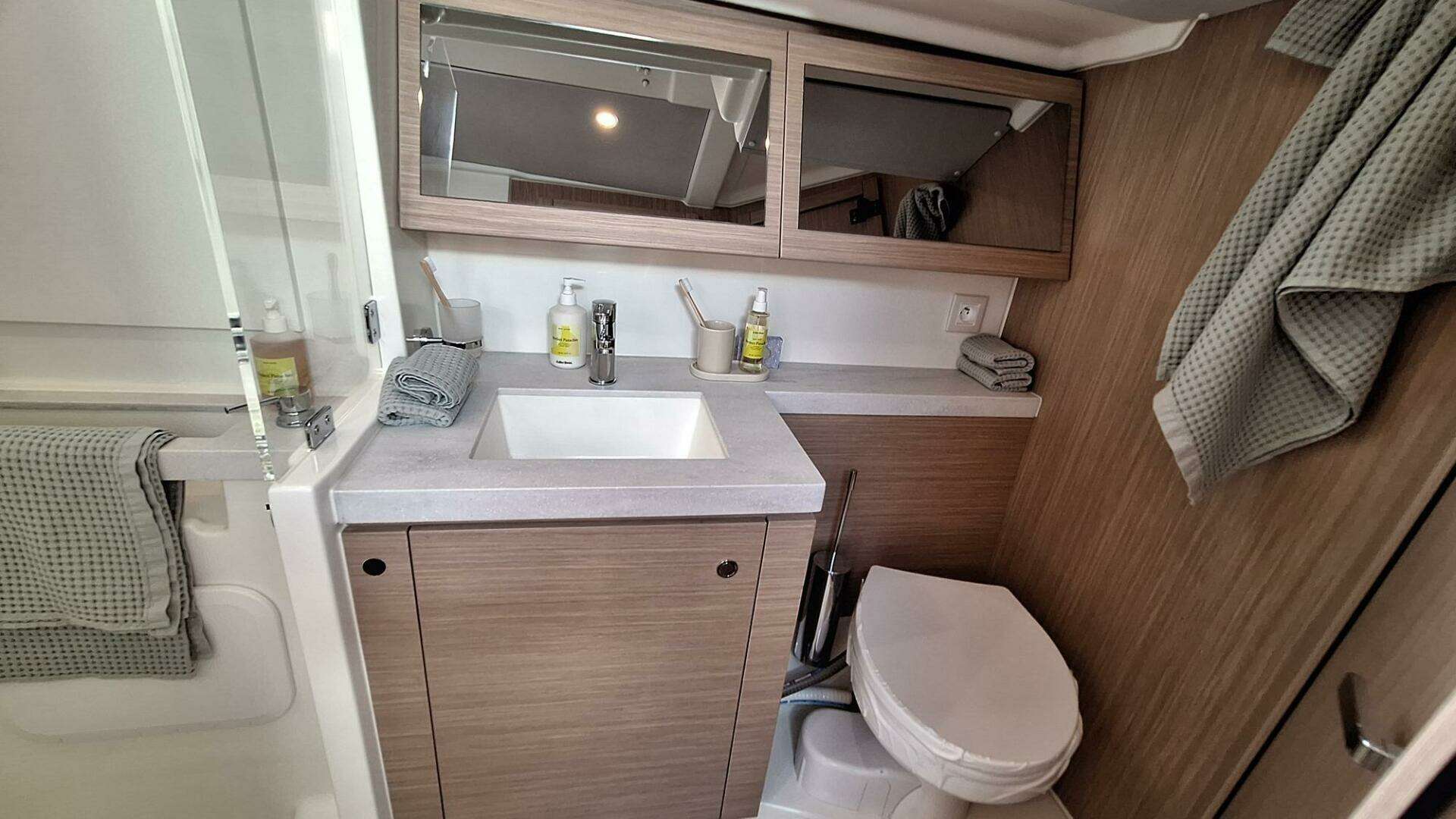

• Manual marine toilet

• 1 64 L / 17 US Gal Rigid holding tank

• White polyester basin built into the Corian Rain Cloud counter-top,

Mixer tap

• 1 Cabinet - Mirror

• Toilet accessories

• 1 Deck hatch with mosquito screen/blind

to starboard:

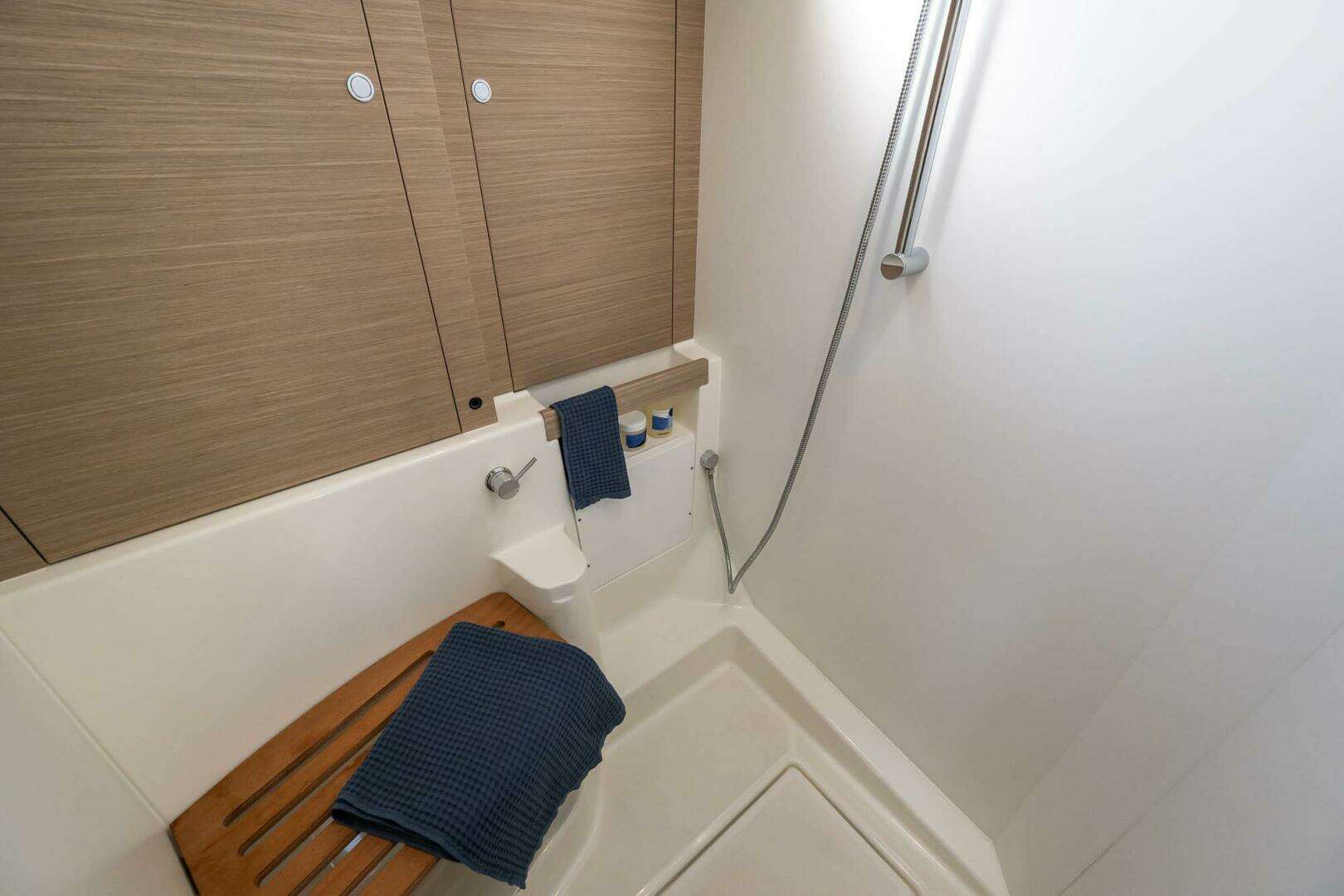

• Shower with wooden seat, white polyester shower base

• 2 Storage closets

• 1 Deck hatch with mosquito screen/blind

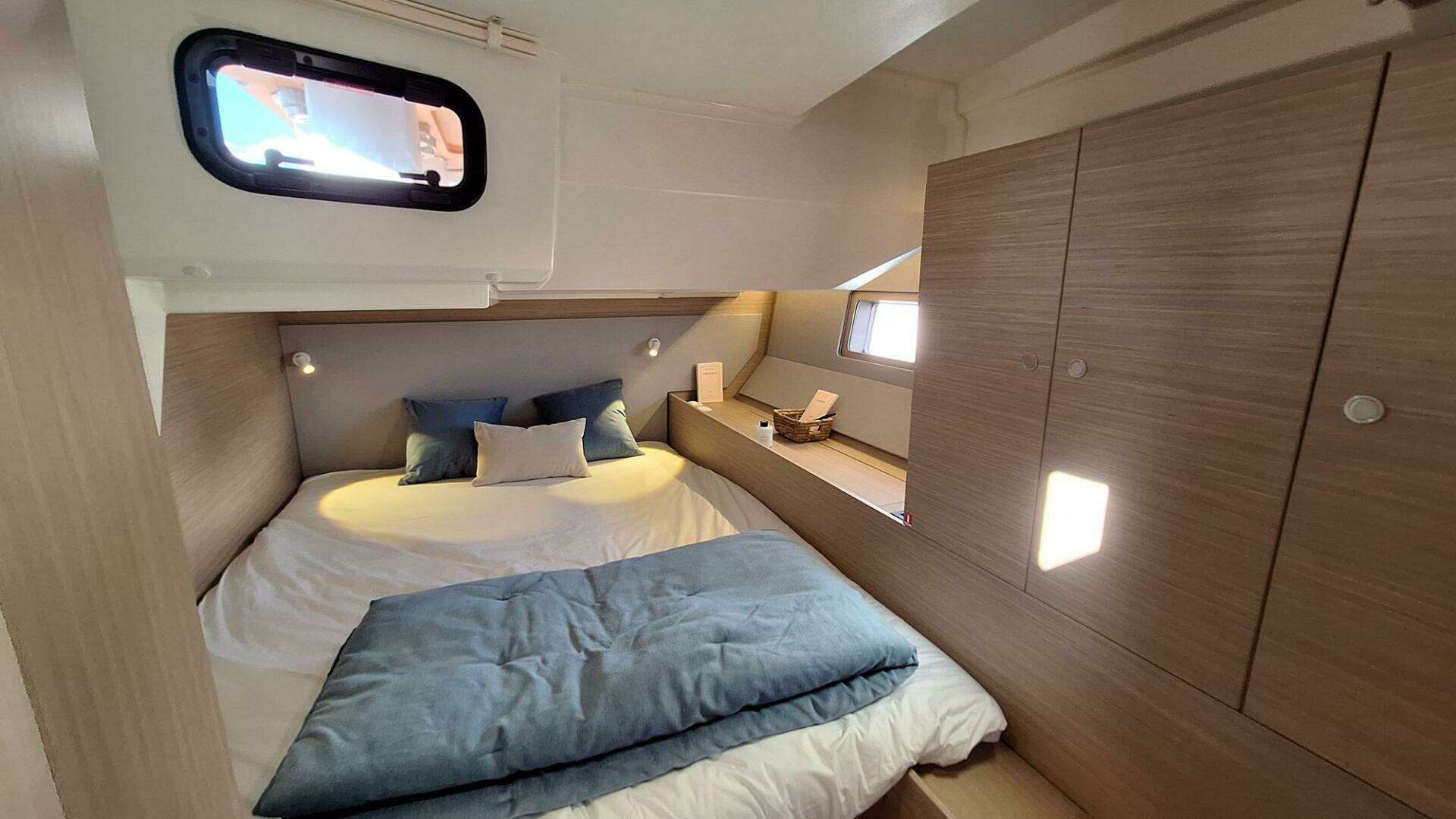

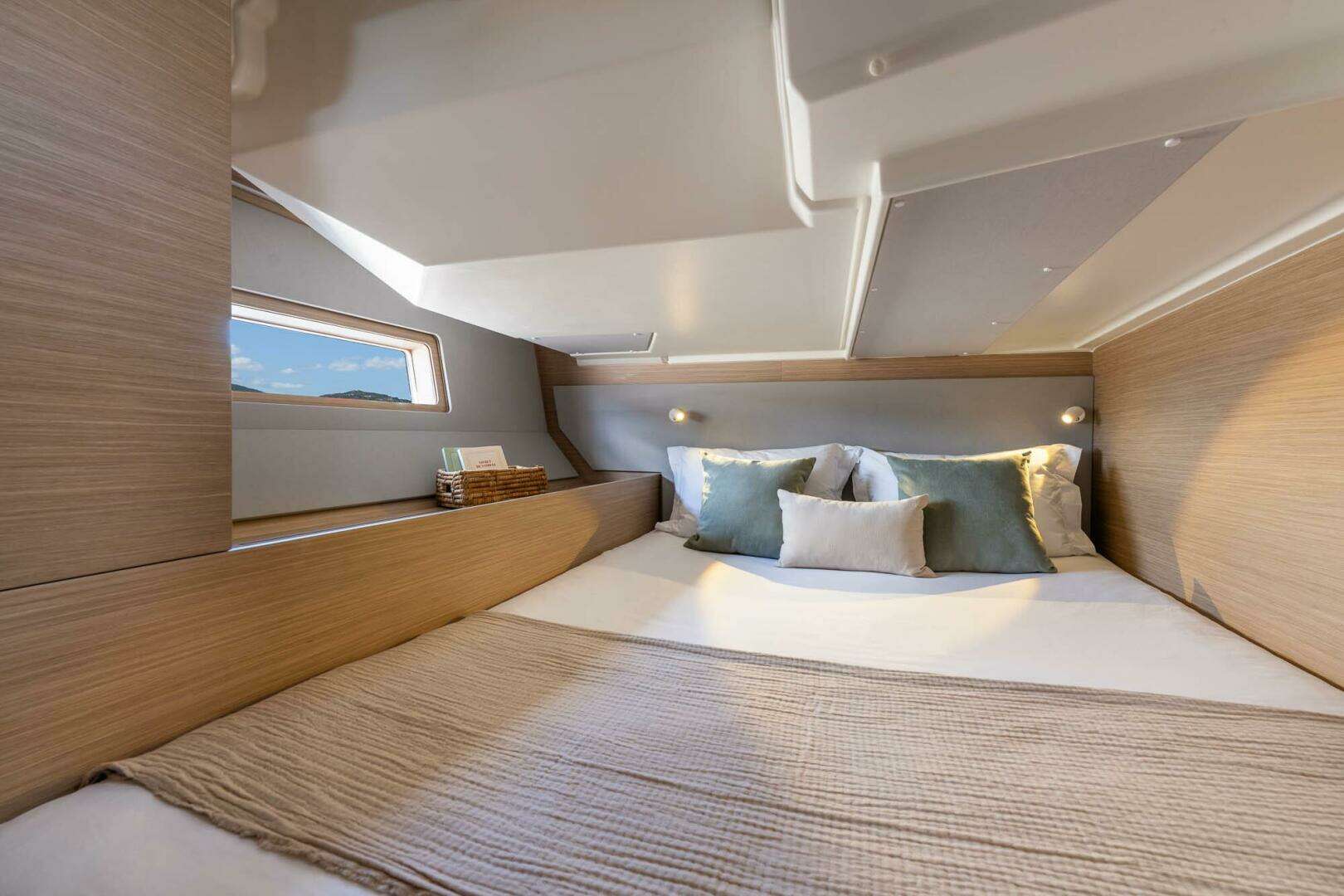

PORT AFT CABIN

Headroom: 1,97 m / 6’6’’

• Double bed (2,10 x 1,60 m/6’11’’ x 5’3’’) with stowage and foot of

the bed under the mattress for baggage

• 2 Hanging lockers - 1 Cupboard - Closed cubbyholes

• 1 Bed access sideboard

• 2 Flexible and multi-directional reading lights at headboard

• 1 Hull porthole with sliding blind

• 1 Cockpit opening window with curtain under cockpit seats +

Mosquito screens

• 1 Opening porthole in the cockpit (on the coaming) + Mosquito

screens

• 1 Fixed cockpit window with curtain on the coaming

STARBOARD AFT CABIN

Headroom: 1,97 m / 6’6’’

• Double bed (2,10 x 1,60 m/6’11’’ x 5’3’’) with stowage and foot of

the bed under the mattress for baggage

• 1 Hanging locker - 1 Cupboard - Closed cubbyholes

• 1 Bed access sideboard

• 2 Flexible and multi-directional reading lights at headboard

• Access door to aft head

• 1 Hull porthole with sliding blind

• 1 Cockpit opening window with curtain under cockpit seats +

Mosquito screens

• 1 Opening porthole in the cockpit (on the coaming) + Mosquito

screens

• 1 Fixed cockpit window with curtain on the coaming

OWNER'S HEAD - STARBOARD

Headroom: 1,89 m / 6’2’’

• Access from the salon or the starboard aft cabin

• Separate shower - 1 Mixer tap - White polyester shower base

• Corian Clay Cloud counter-top with self-draining storage

• 1 Manual marine toilet

• 1 80 L / 21 US Gal Rigid holding tank

• Washbasin - 1 Mixer tap

• 1 Cabinet + Mirrors + Storage space under the basin

• Toilet accessories

• 1 Opening portlight with curtains in the coachroof side window +

Mosquito screens

Mechanical and Electrical

ENGINE ______________________________________________________________________________________________

• Engine Yanmar Diesel:

- 110 CV/HP, Sail Drive, Common Rail

• Engine throttle and control panel on starboard

• Engine compartment: Soundproofing foam - Ventilation: 6 air intakes and 1 forced air outlets

• 1 Alternator 12 V / 125 Amp

• 1 Rotomolded diesel tank 200 L / 53 US Gal (under starboard aft berth) - Electronic gauge - Low level alarm - 1 Tank filling access

• Filters: Sea water - Diesel - Water separator

• Foldaway three-blade propeller

• 1 Engine access through companionway (opening with 2 gas pistons) - 2 Engine access through aft cabins

ELECTRICITY _________________________________________________________________________________________

• 12 V Circuit

• 5 AGM service batteries (140 Amp)

• 1 AGM engine battery (50 Amp)

• 1 40 Amp battery charger

• 1 60 Amp battery charger

• 1 Load balancer

• Battery charge display (Navicolor 3.5’’ screen)

• IBS sensor (only for the 3 cabin 2 head version)

• 12 V Electrical panel (Fuses - Voltmeter - Water gauge - Fuel gauge - Battery warning - Fuel warning - Water warning)

• 13 115V Sockets:

- 3 in galley

- 3 in the salon

- 1 at chart table

- 3 in the forward cabin

- 1 in the owner head

- 1 in the aft cabins

• 6 Dual USB socket (USB-A / USB-C):

- 1 in the salon

- 1 at chart table

- 2 in the forward cabin

- 1 in the aft cabins

• 1 Shore power socket (115 V)

• LED lighting: Overhead lights - Reading lights - Indirect light

• LED navigation lights: 1 Masthead light - 1 Steaming light - 1 Mooring light on masthead - 1 Deck searchlight

• LED cockpit lighting

PLUMBING ___________________________________________________________________________________________

• 1 Rotomolded freshwater tank 380 L / 100 US Gal, under berth in forward cabin - 1 Tank filling access

• Waterpressure system - Expansion tank - Inline filter

• 40 L / 11 US Gal Electric water heater (engine use)

• 1 80 L / 21 US Gal Rigid holding tank (owner's head)

• 1 64 L / 17 US Gal Rigid holding tank (Forward head)

• Electrical shower drain pumps

• 1 Electric bilge pump

• 1 Manual bilge pump

• 1 Electric pump for the ice box drain

GAS _________________________________________________________________________________________________

• 1 Box for 2 gas bottles in the cockpit, under port side helmsman's seat (diameter: 0,28 m/ 11’’ x Height: 0,44 m/ 1’5’’)

• Regulator and solonoid

• Gas leak detector

SMART BOARD _______________________________________________________________________________________

"SEANAPPS" smart technology:

• For monitoring the boat's status and receiving alerts as well as maintenance advice via the associated mobile application.

• The type of information collected (GPS position, batteries, engine info, navigation data, etc.) varies according to the boat's configuration.

Disclaimer

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
