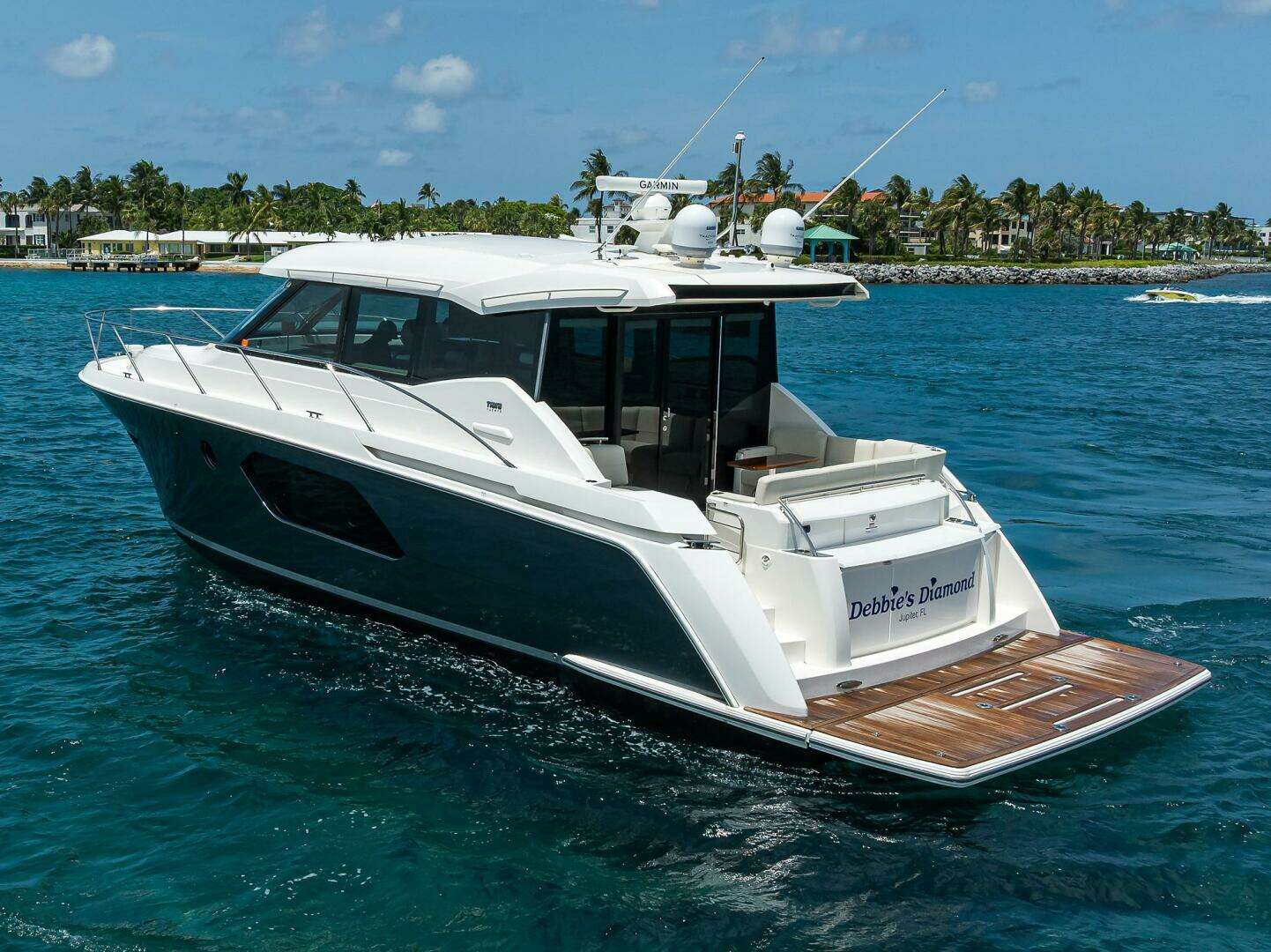

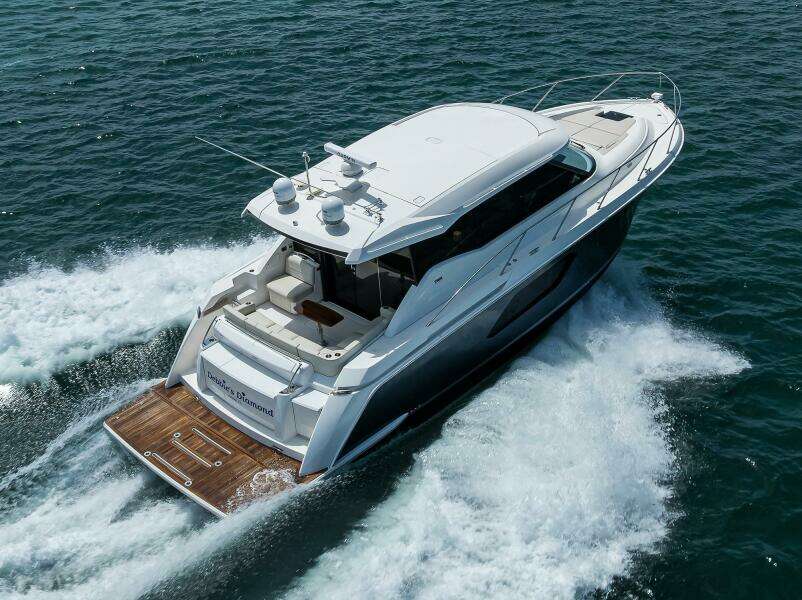

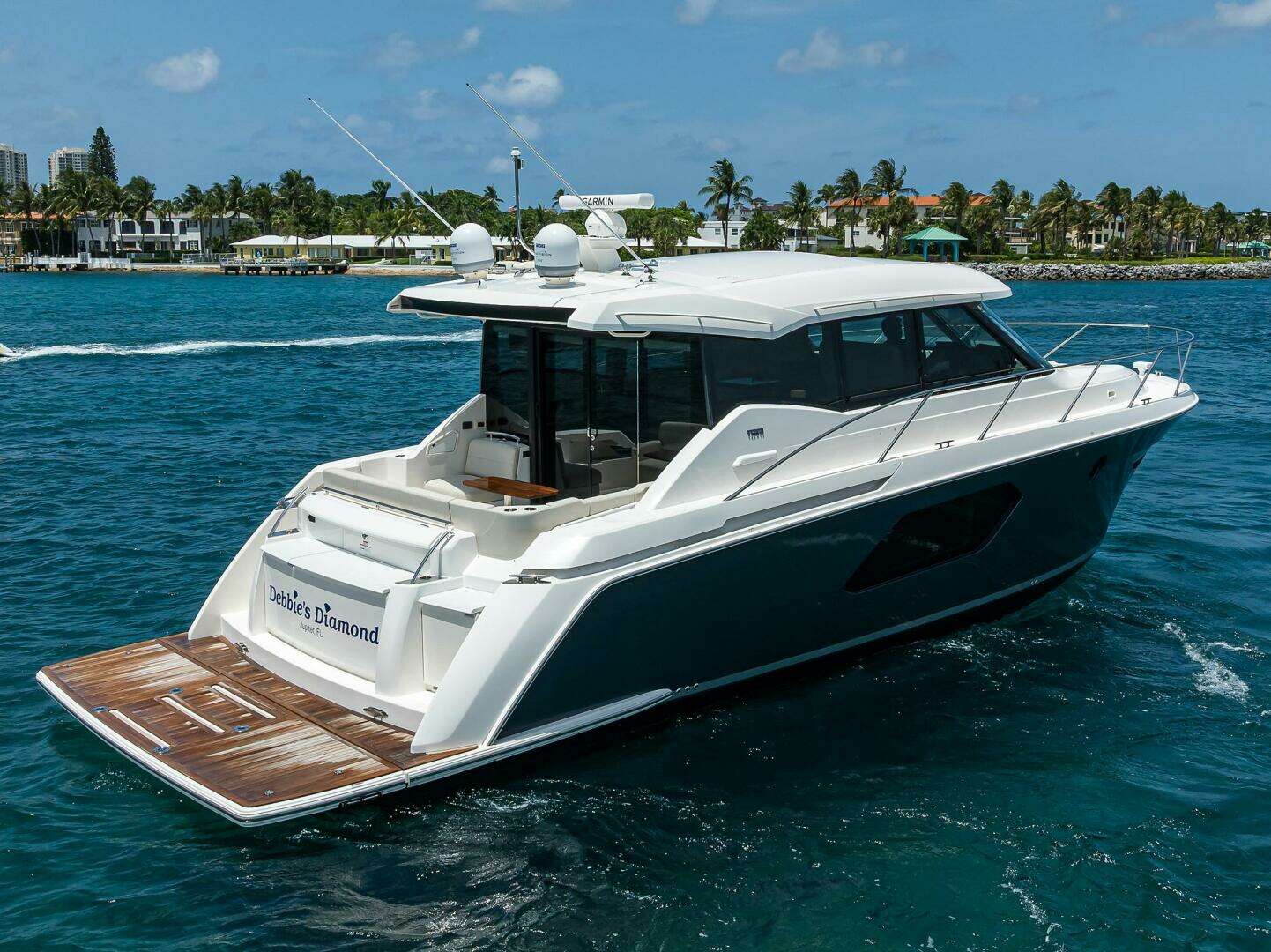

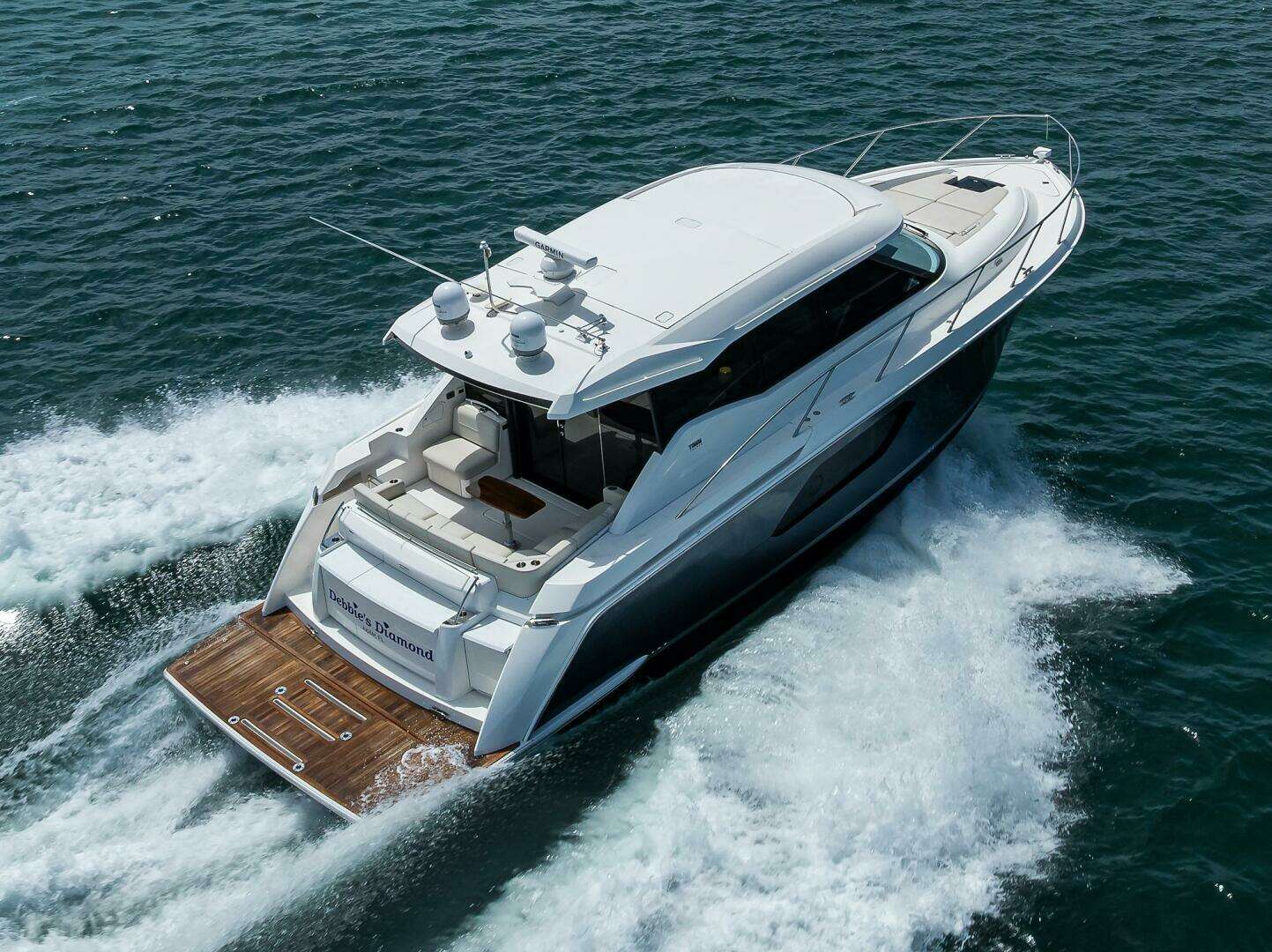

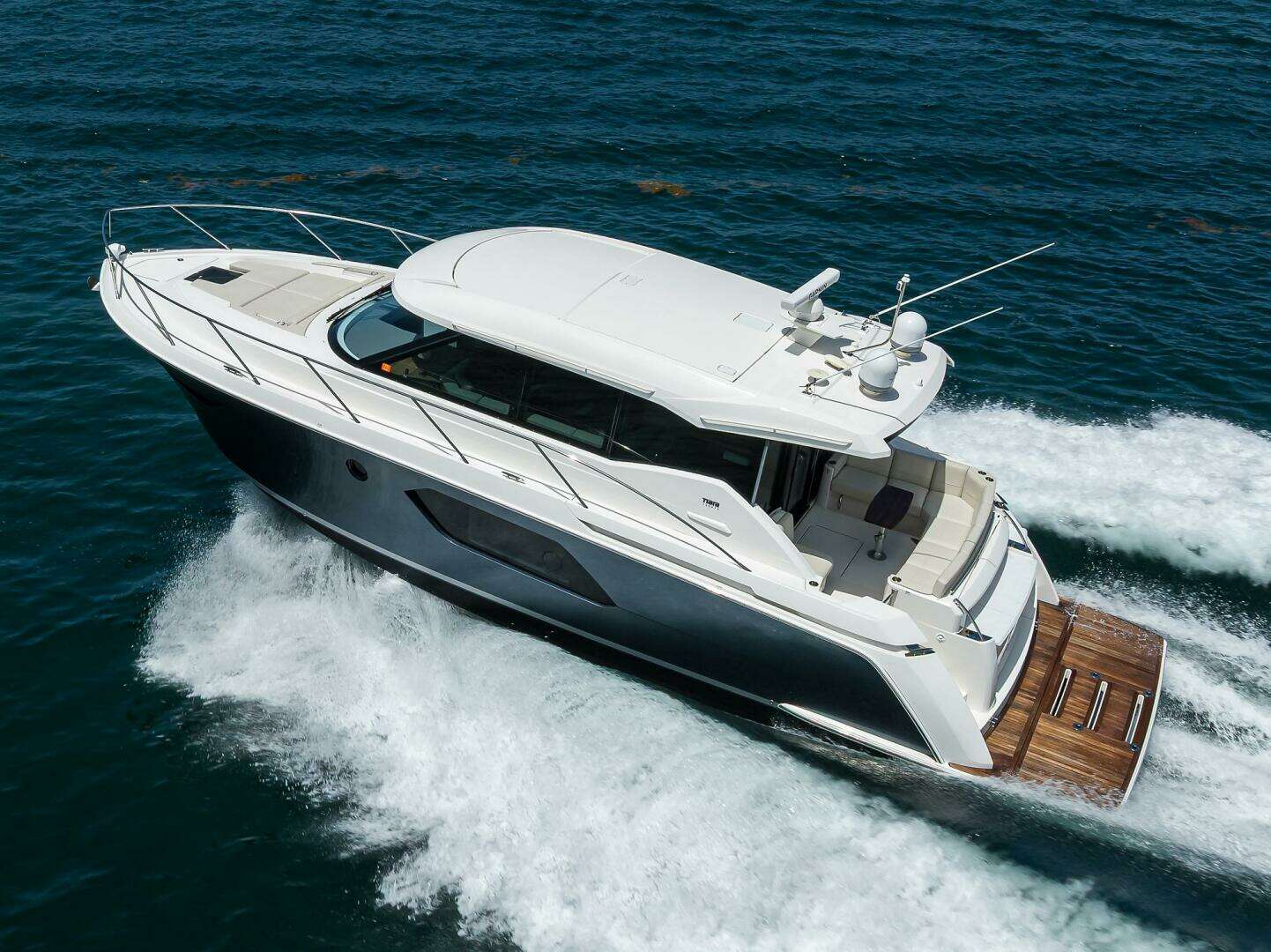

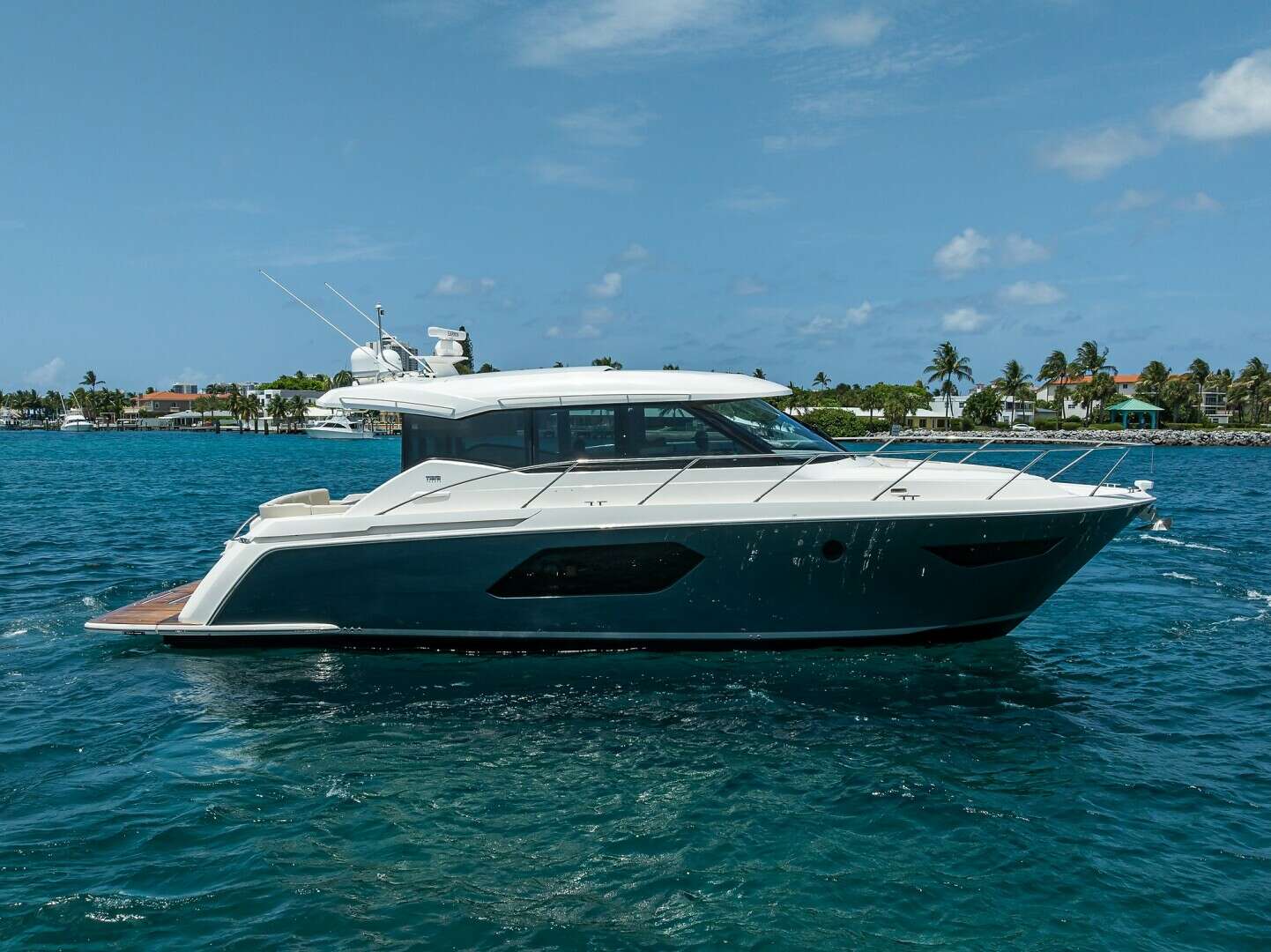

2023 C49 Tiara, Debbie's Diamond

Custom Options and Highlights

• Volvo IPS 15 800 with very low hours and under warranty
• Fresh bottom paint and PropSpeed (6/2025)
• Additional Volvo joystick in cockpit
• Seakeeper 9 Gyro stabilizer
• Nautical Structures hydraulic swim platform
• Teak decking on swim platform
• All chain windlass with remote and raw water washdown in anchor locker
• Removable TV for cockpit/aft deck
• ACR 100 LED remote spotlight
• Beverage cooler in galley and icemaker in galley freezer
• Phantom retractable screen door
• Washer/dryer combo in master
• Custom windshield cover with zipper in the middle for ease
• Transom refrigerator
• Upgraded ElectroSea strainer system

Hull and Deck

• Tiara Yachts transferrable warranty 5 years on hull and deck
• Fresh white gelcoat deck
• Axalta painted hull and boot stripe
• Hull and deck constructed with a gelcoat outer layer-balsa cored hull sides and hand laid fiberglass and premium resin
• Deck side engine air intake system with built in steps for boarding from sides
• Bronze Seacocks on all underwater thru-hull fittings
• Tiara custom diamond pattern non-skid deck and cockpit surfaces
• Wood and foam core stringers, encapsulated by hand- laid fiberglass, integrated to the hull
• Gelcoated and fiberglass-lined bilge areas
• Molded in hullside windows with opening ports
• (8) 12" stainless steel cleats for lines Poly rubrail with 316L stainless steel cap
• LED navigation and lighting

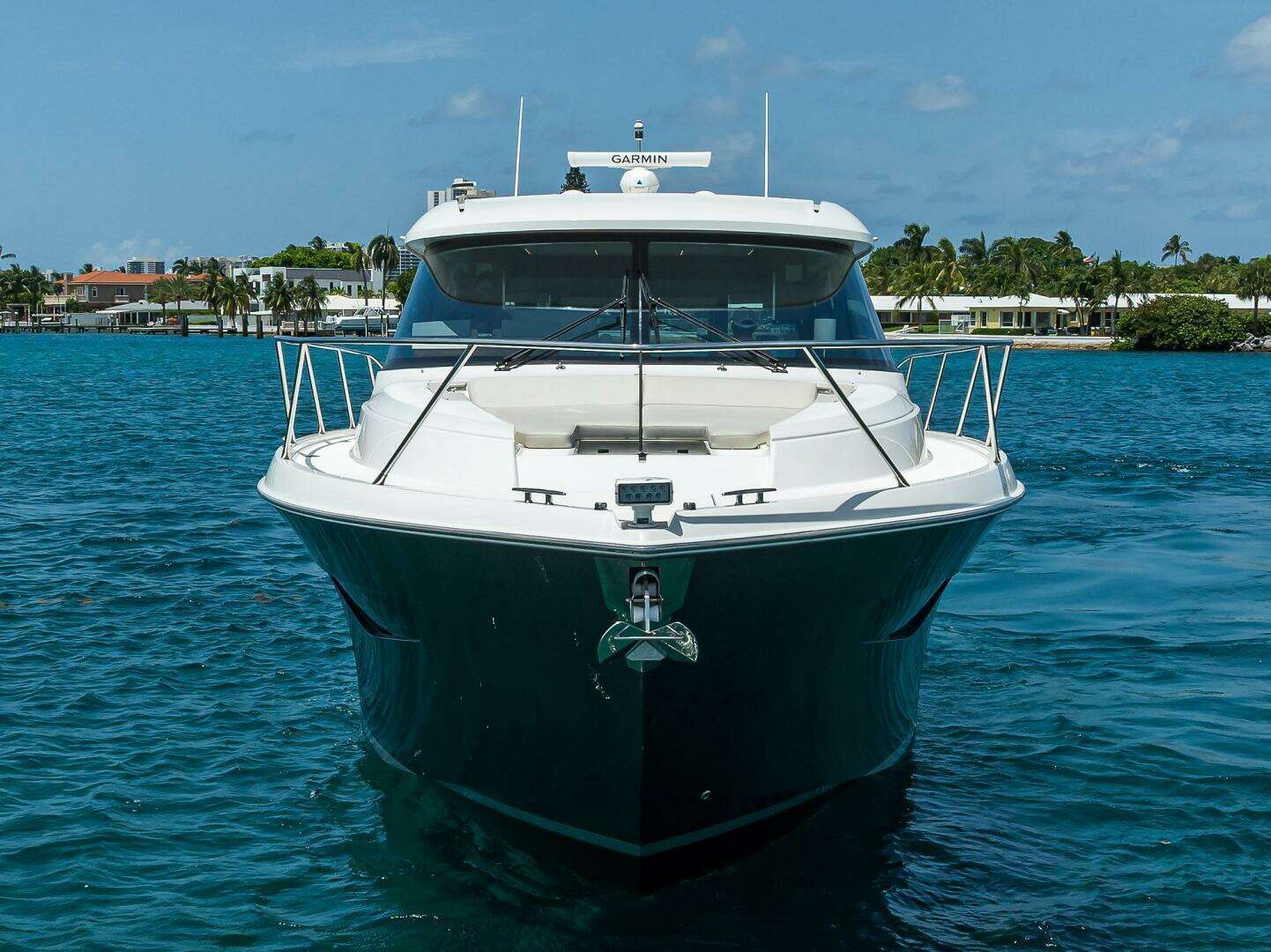

Foredeck

• Bomar extruded aluminum opening forward deck hatch with built-in OceanAir screens and privacy covers
• One-piece welded, 316LS.S.11/4" bow rail, staff and Tiara burgee
• Flush forward anchor locker with over board drain
• Concealed Lewmar CPX3 automatic rope/chain anchor windlass system with Lewmar's handheld tethered deluxe remote control & a switch at helm, includes (1) 12" stainless steel foredeck cleat, chain rode, 200' and 20kg/44lb, Lewmar DTX stainless steel anchor
• Recessed chaise lounge sunpad with cup holders and hand holds
• Custom split windshield cover

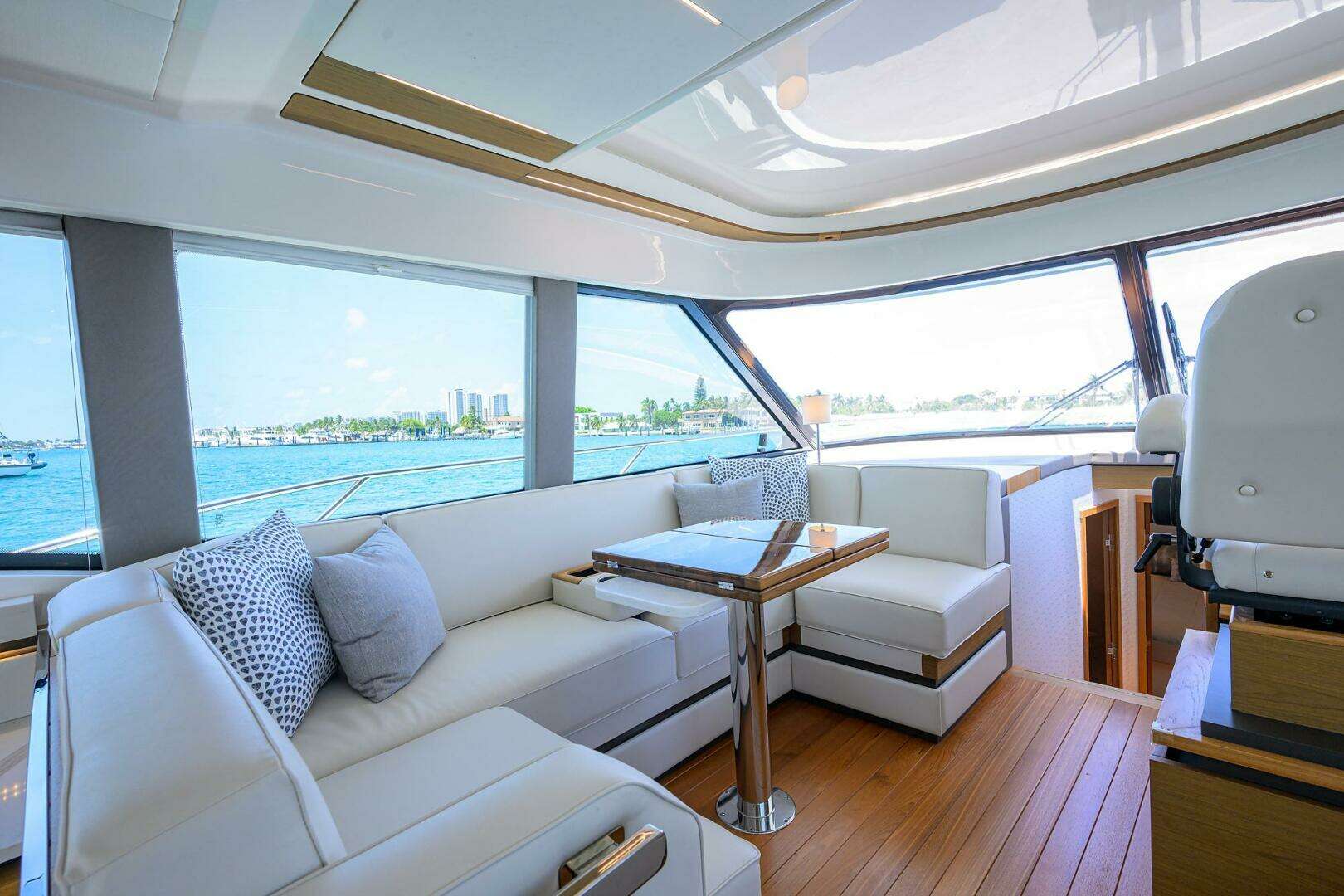

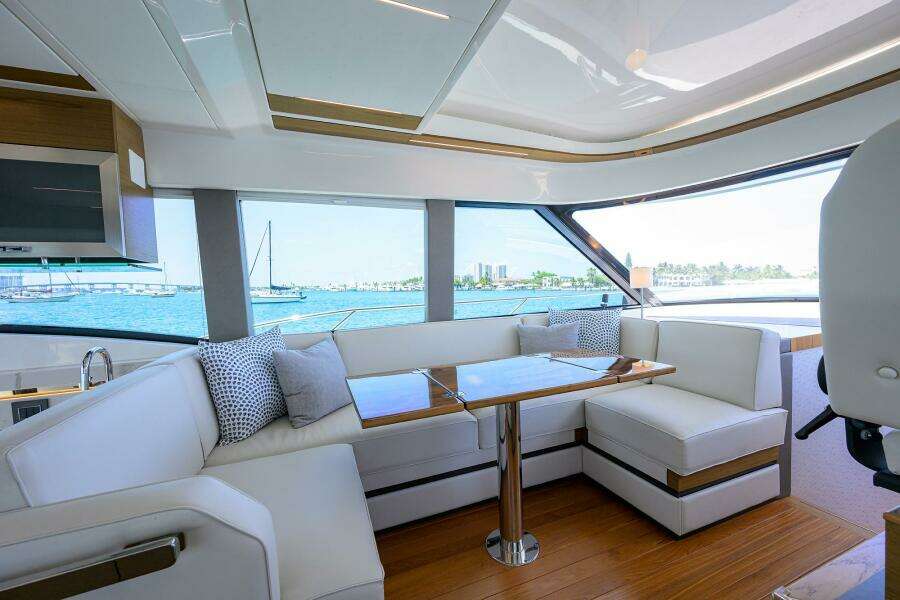

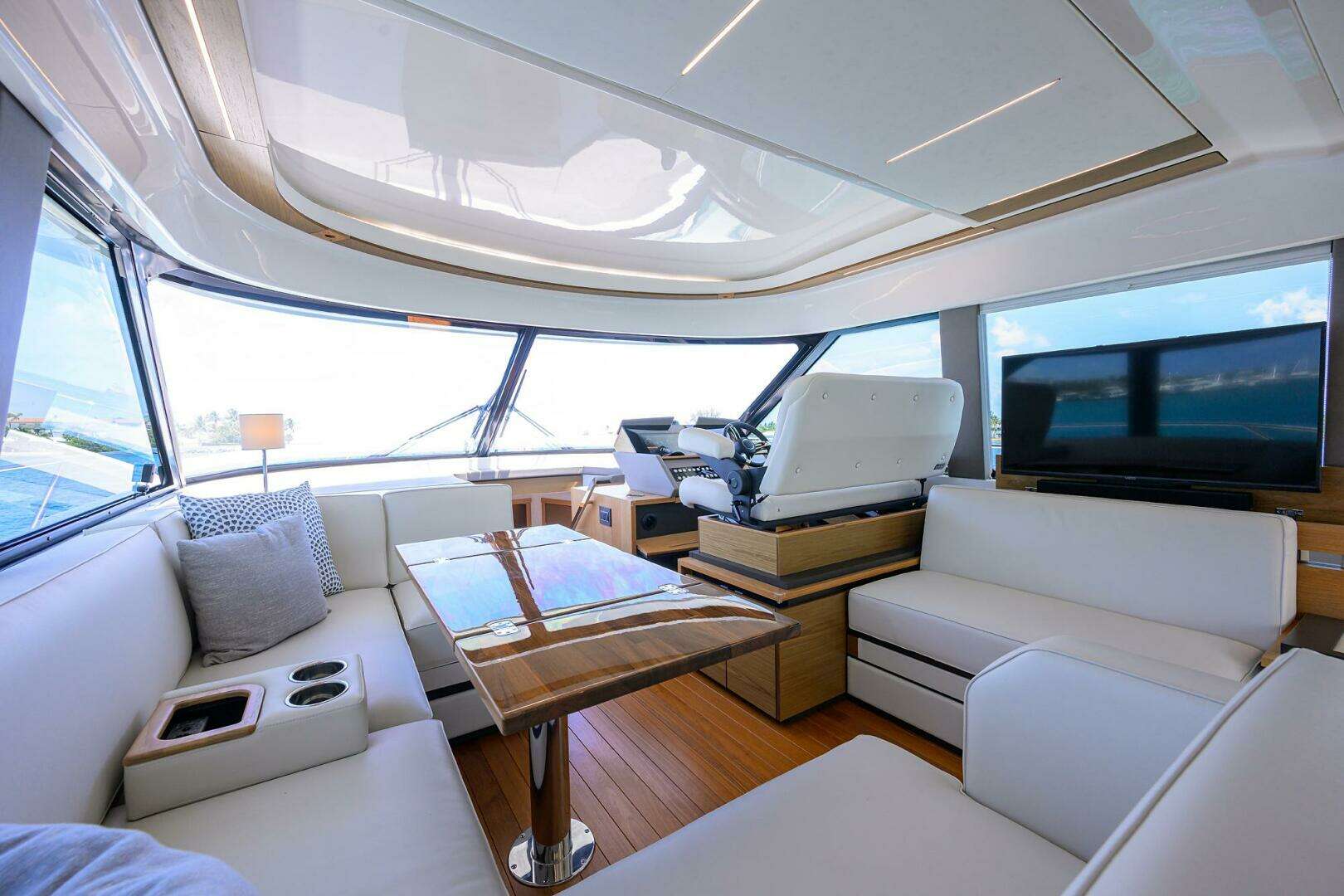

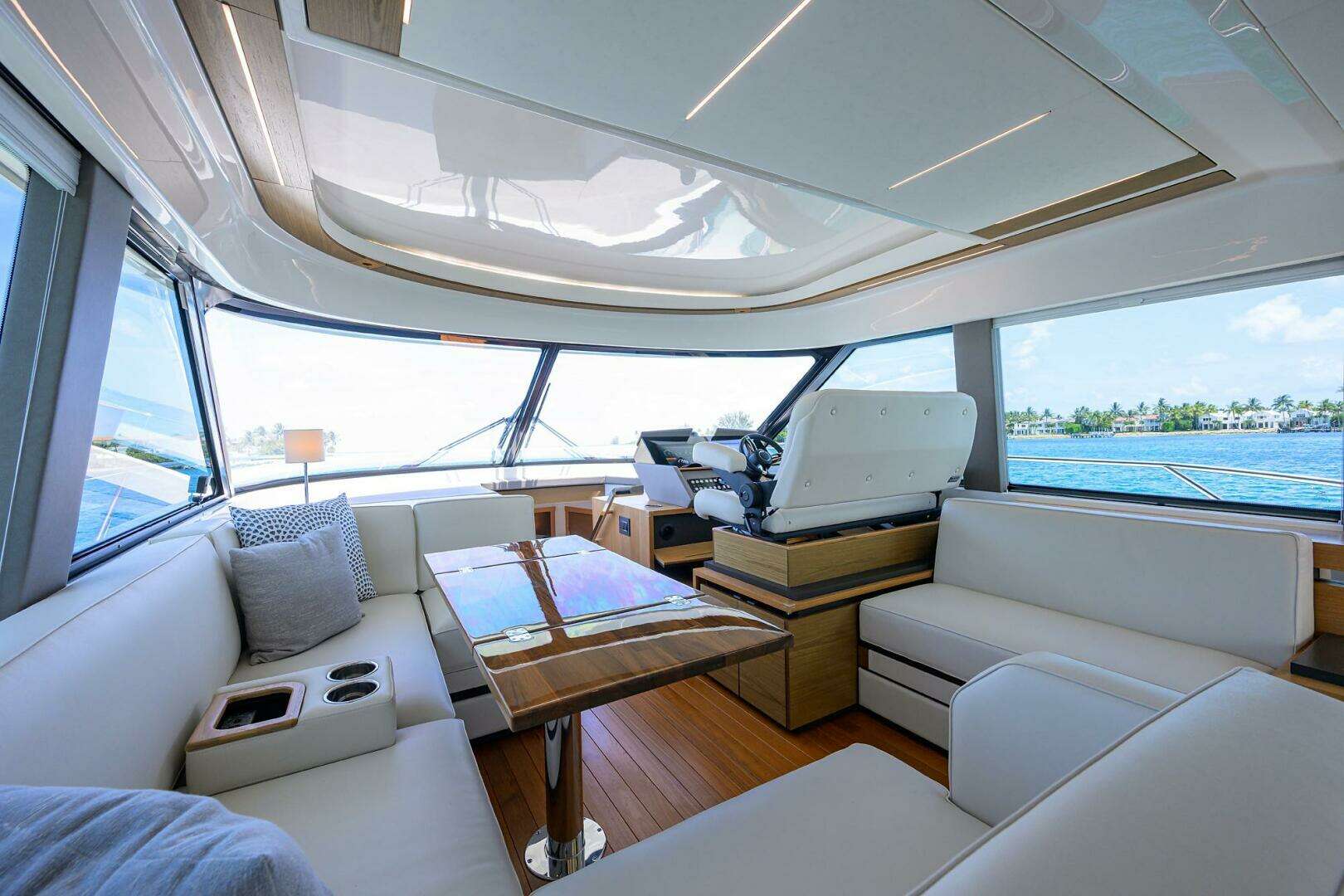

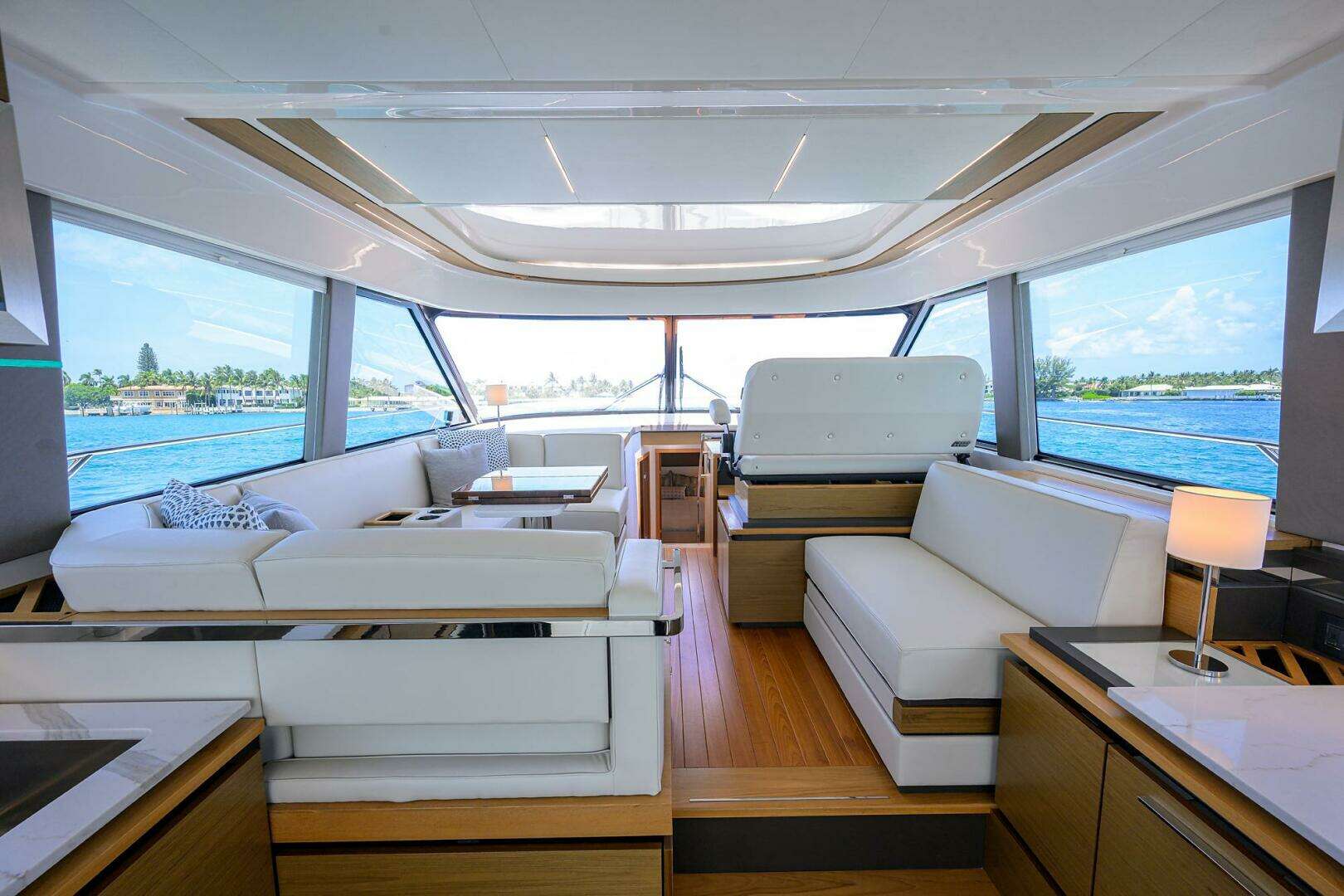

Salon

• Powered sunroof
• Aft window and sliding doors with duette blinds
• Duette blinds for port and starboard salon windows
• 40" Smart TV 4K mounted on a hi/lo actuator (concealed when not in use) and storage compartment
• Includes Soundbar and Blu-Ray player
• Fusion UD 755 multizone stereo system, powered by JL Audio M800 digital amp with (4) JL Audio interior speakers, (1) JL Audio 8" subwoofer speaker with tuned enclosure
• Marine Air Systems 32,000 BTU salon air conditioning system
• Opening port and starboard side windows

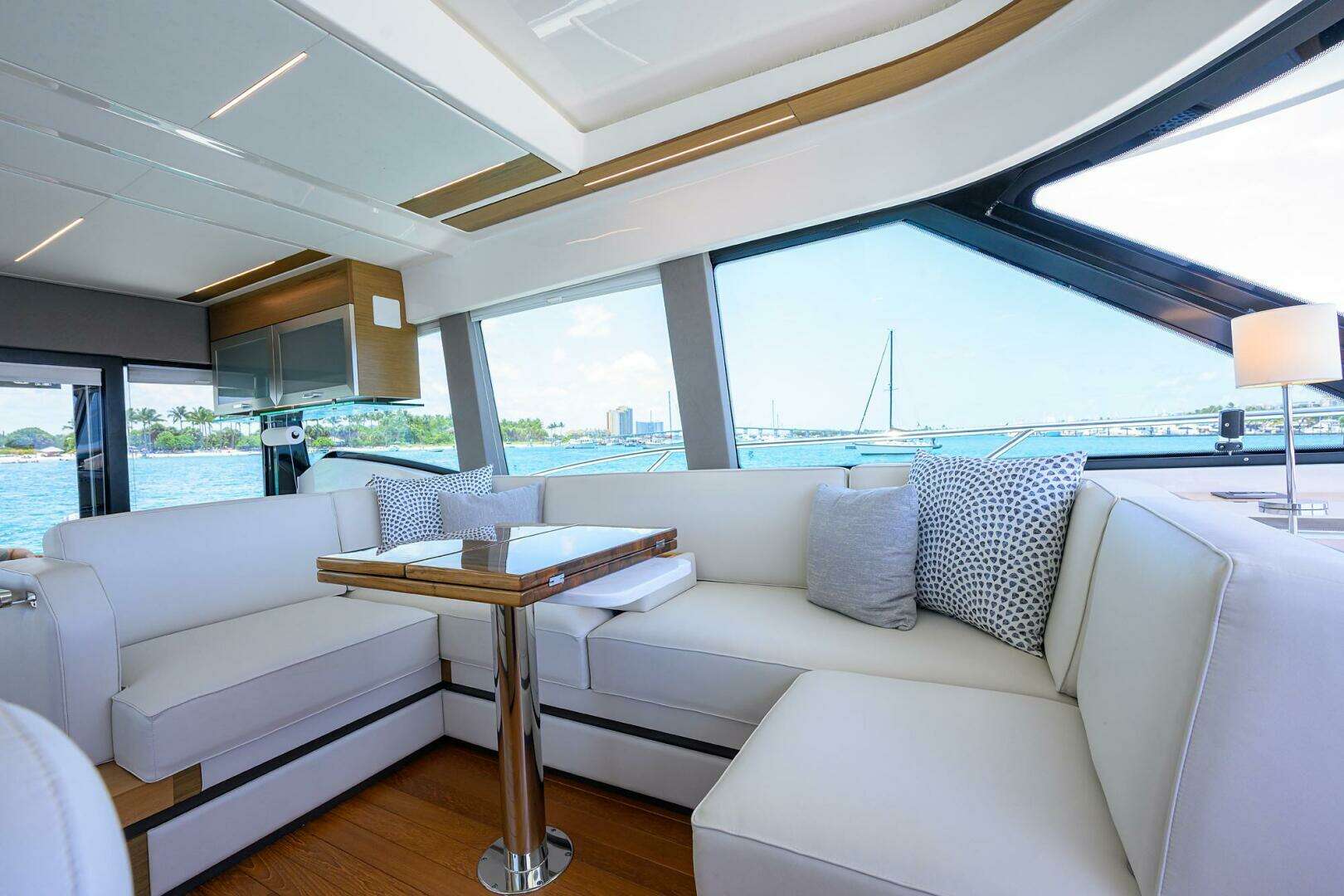

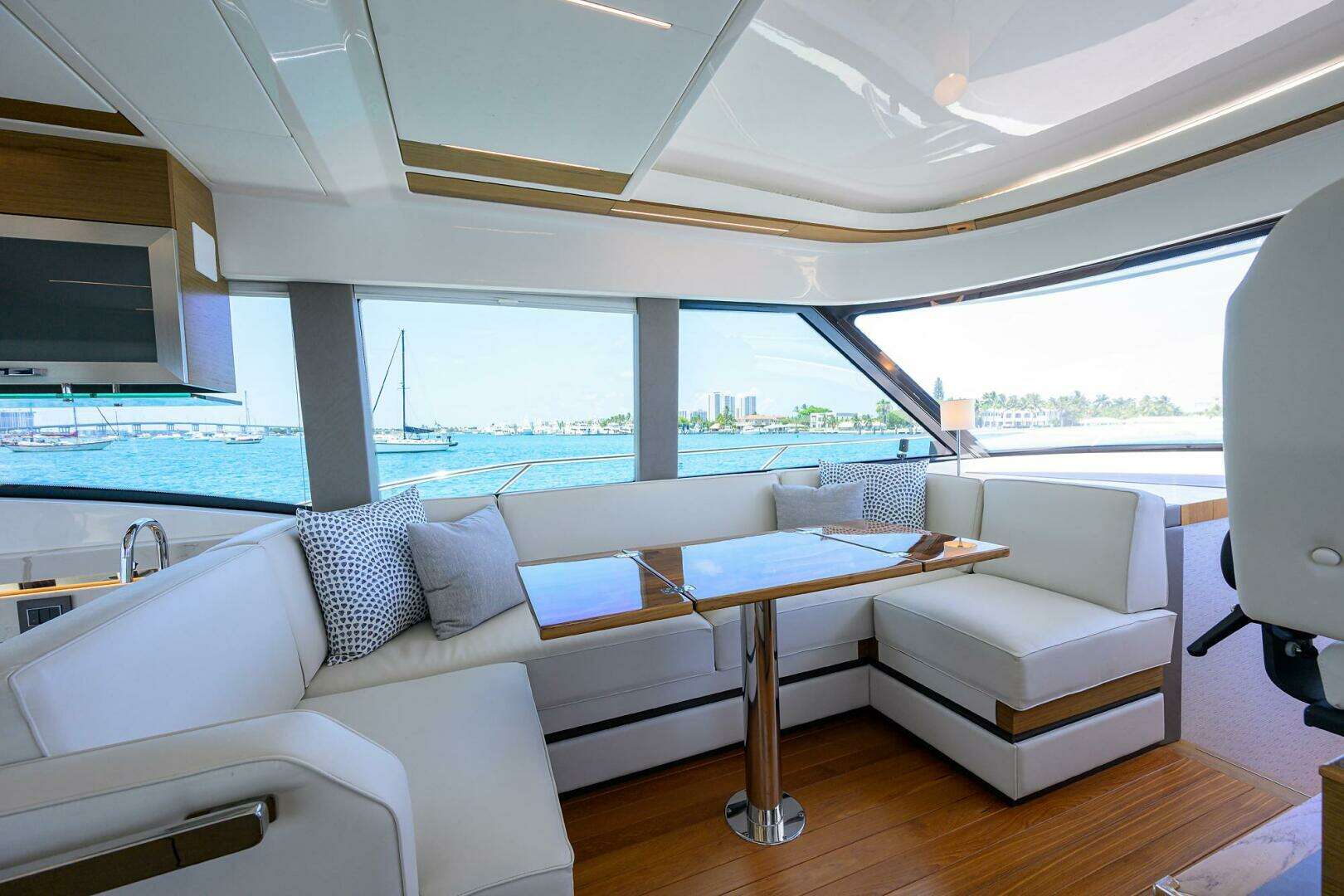

• Port U-lounge and high gloss teak table on stainless steal pedestal with seating for up to six
• Starboard side love seat

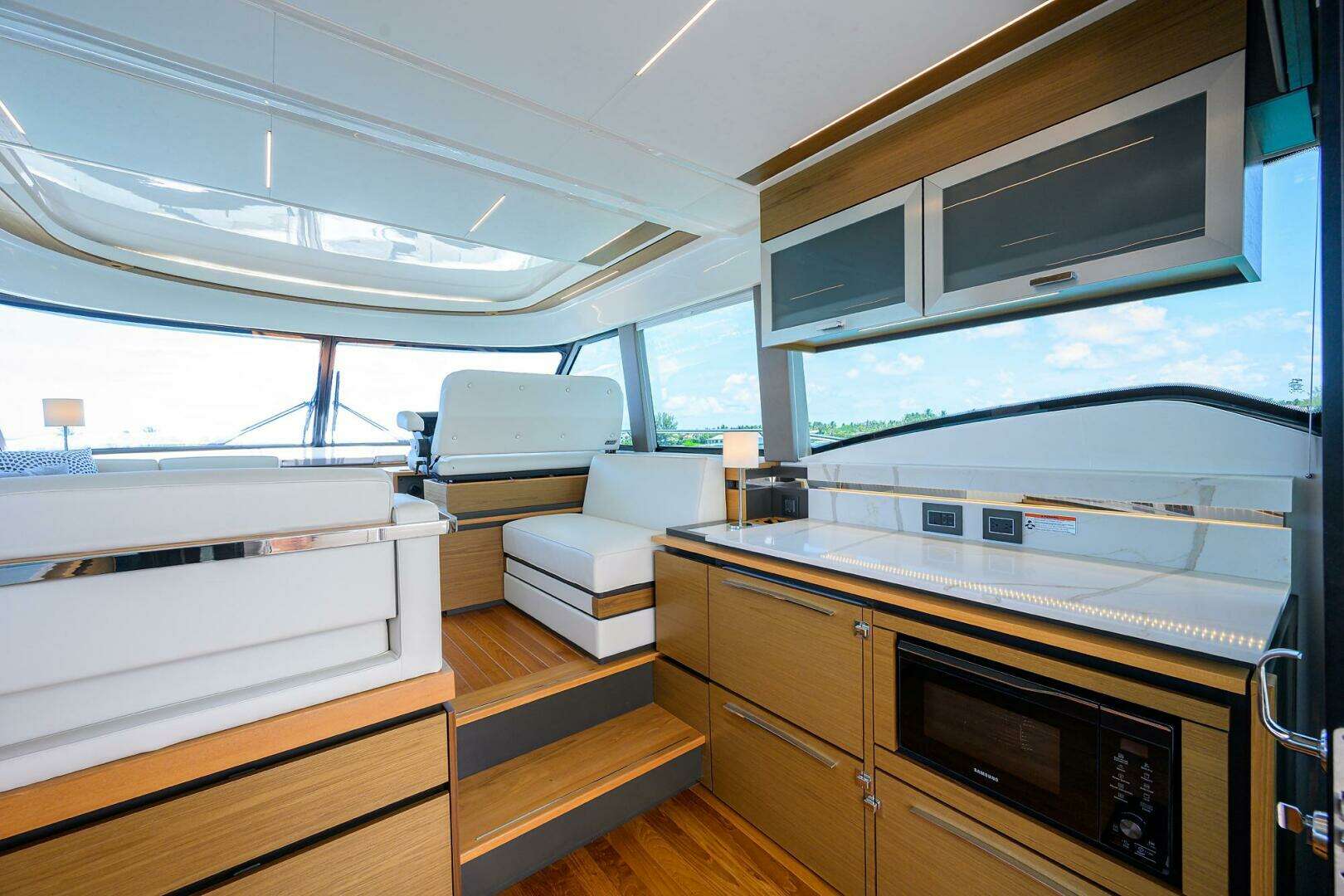

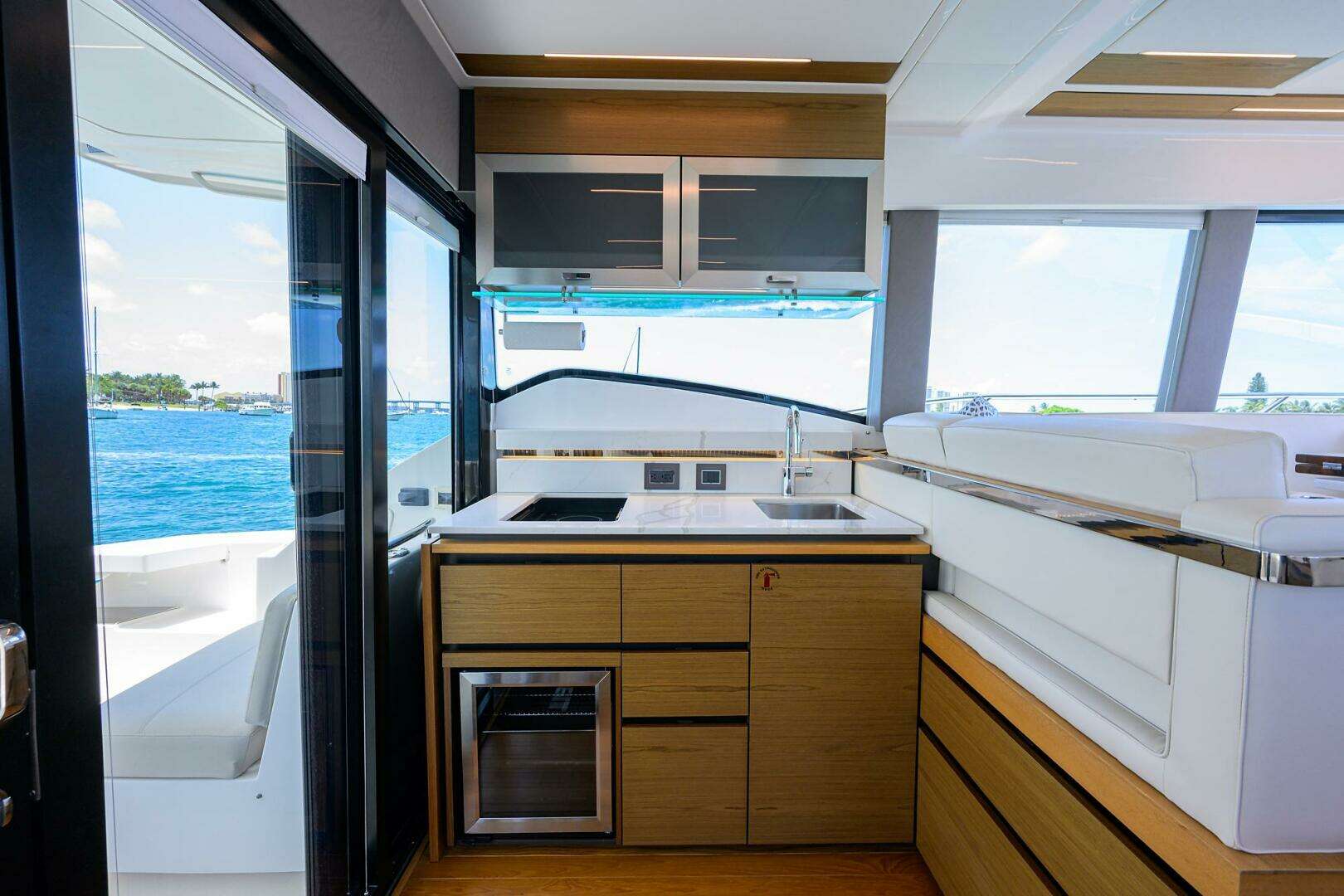

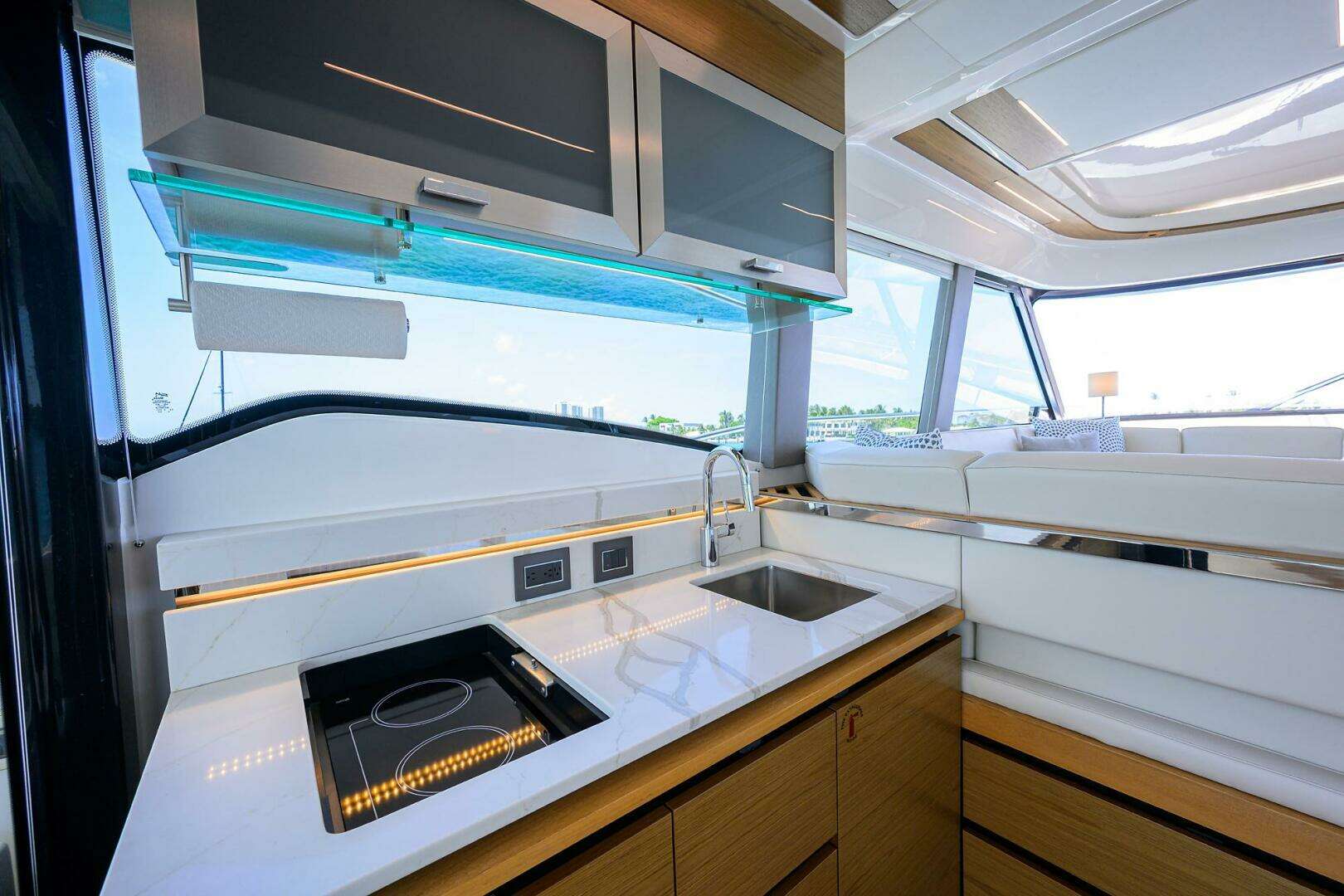

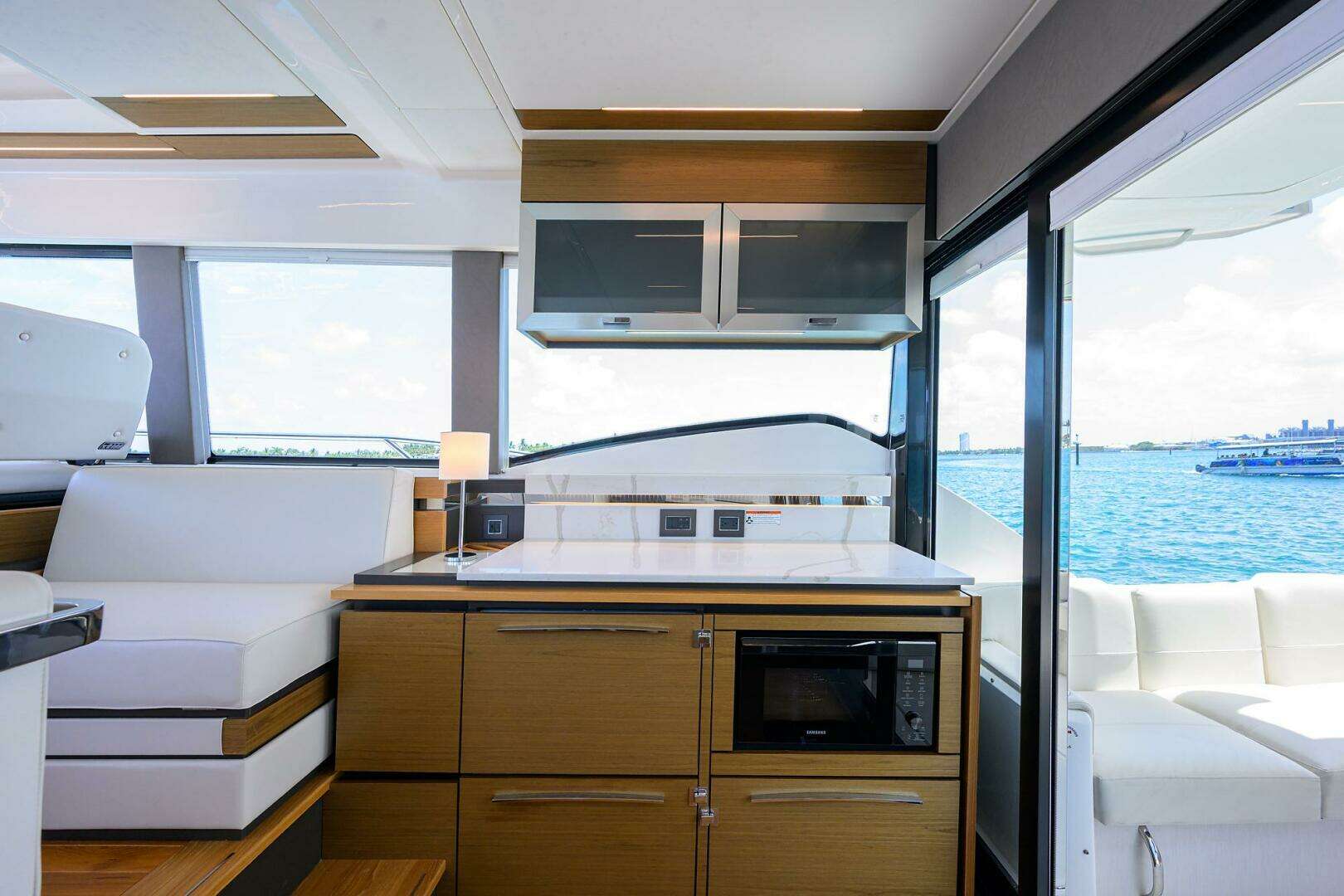

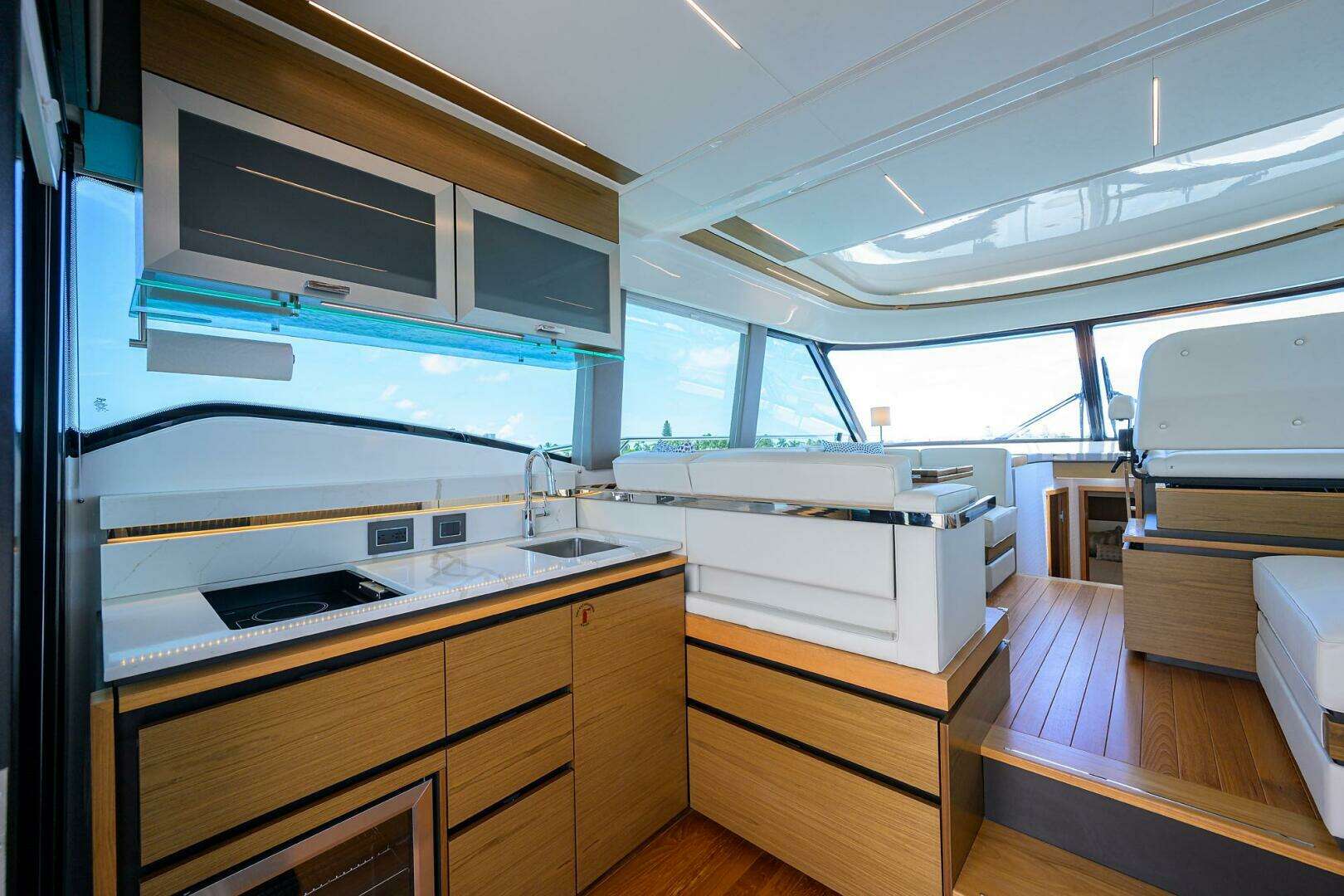

Galley

• Safety handrail at steps to upper salon
• Quartz countertops
• S.S. under mount sink with hot/cold water faucet
• Recessed two-burner electric cook top with exhaust fan and lid
• 120V drawer units- (1) two drawer refrigerator and (1) single drawer freezer
• Microwave/convection oven
• (6) Storage drawers on port side and (2) over head cabinets on both port and starboard sides
• Upper storage cabinets
• Waste receptacle

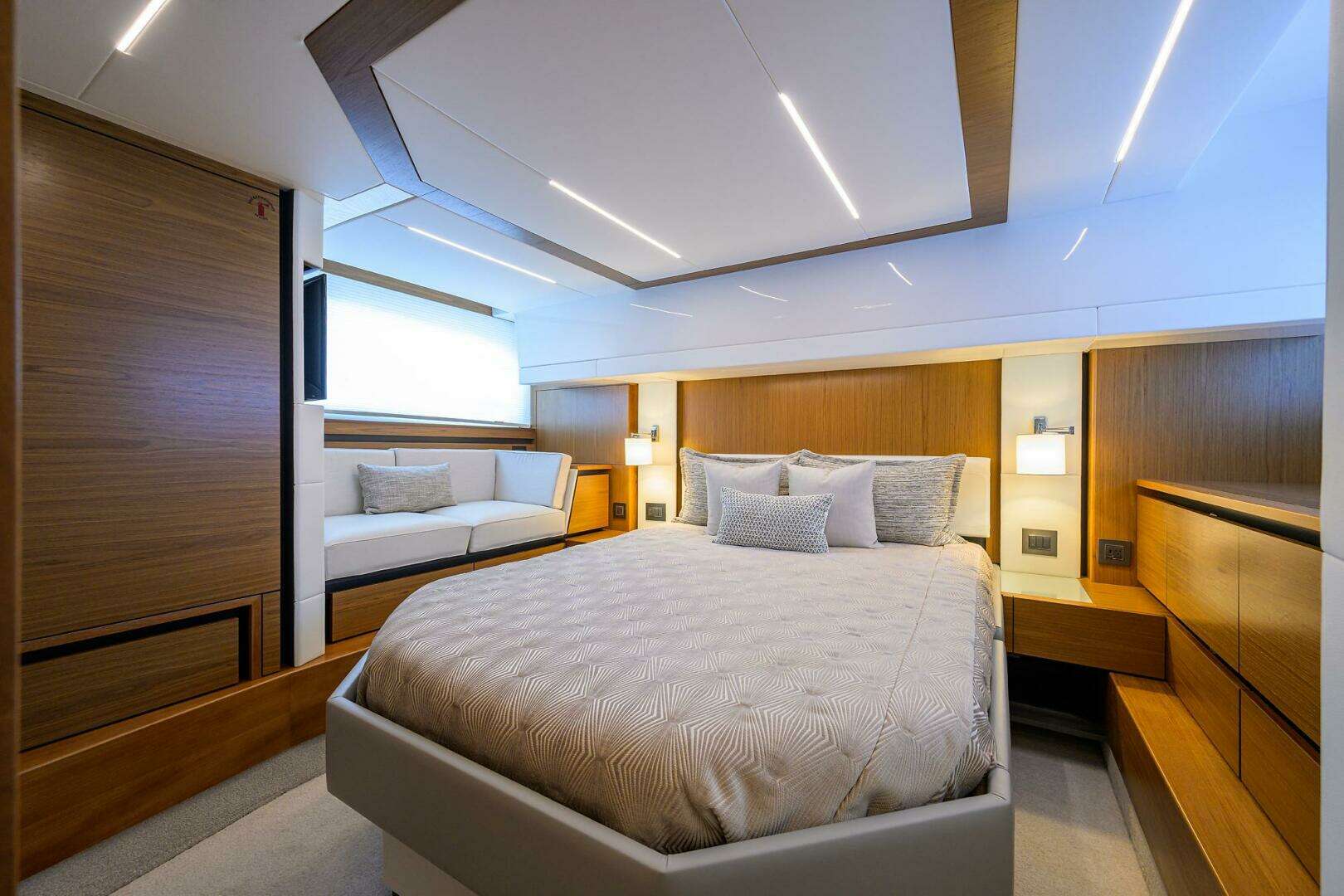

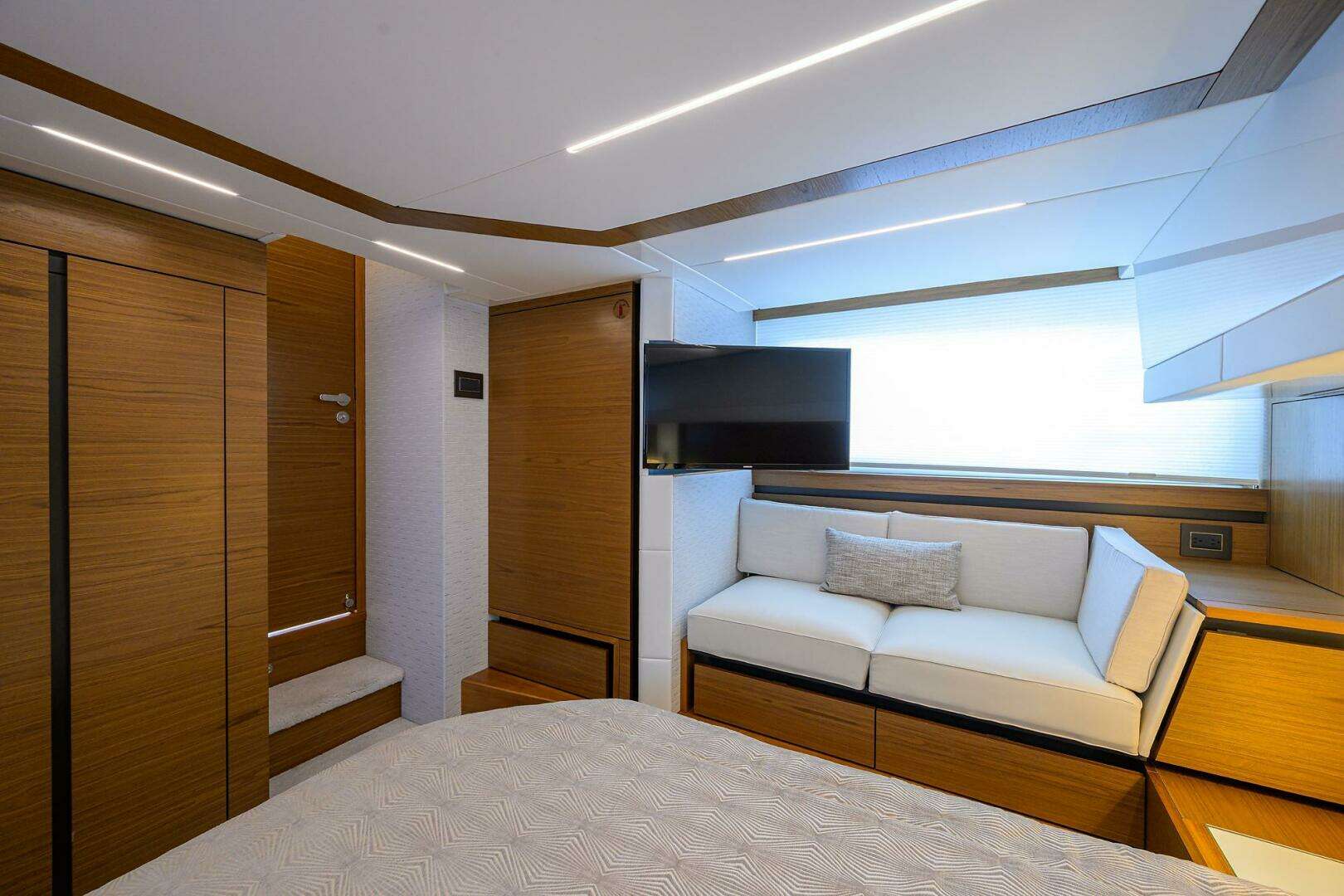

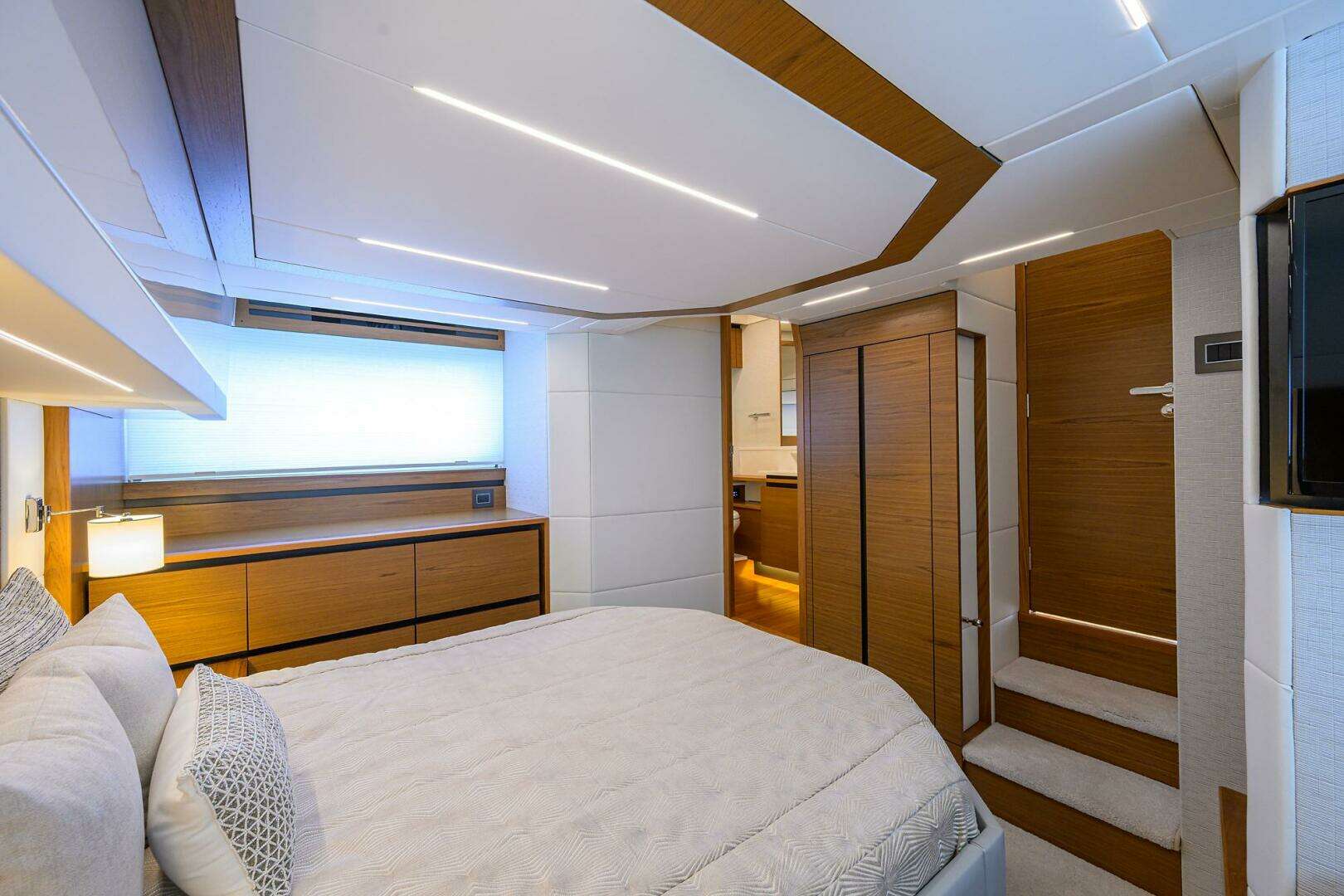

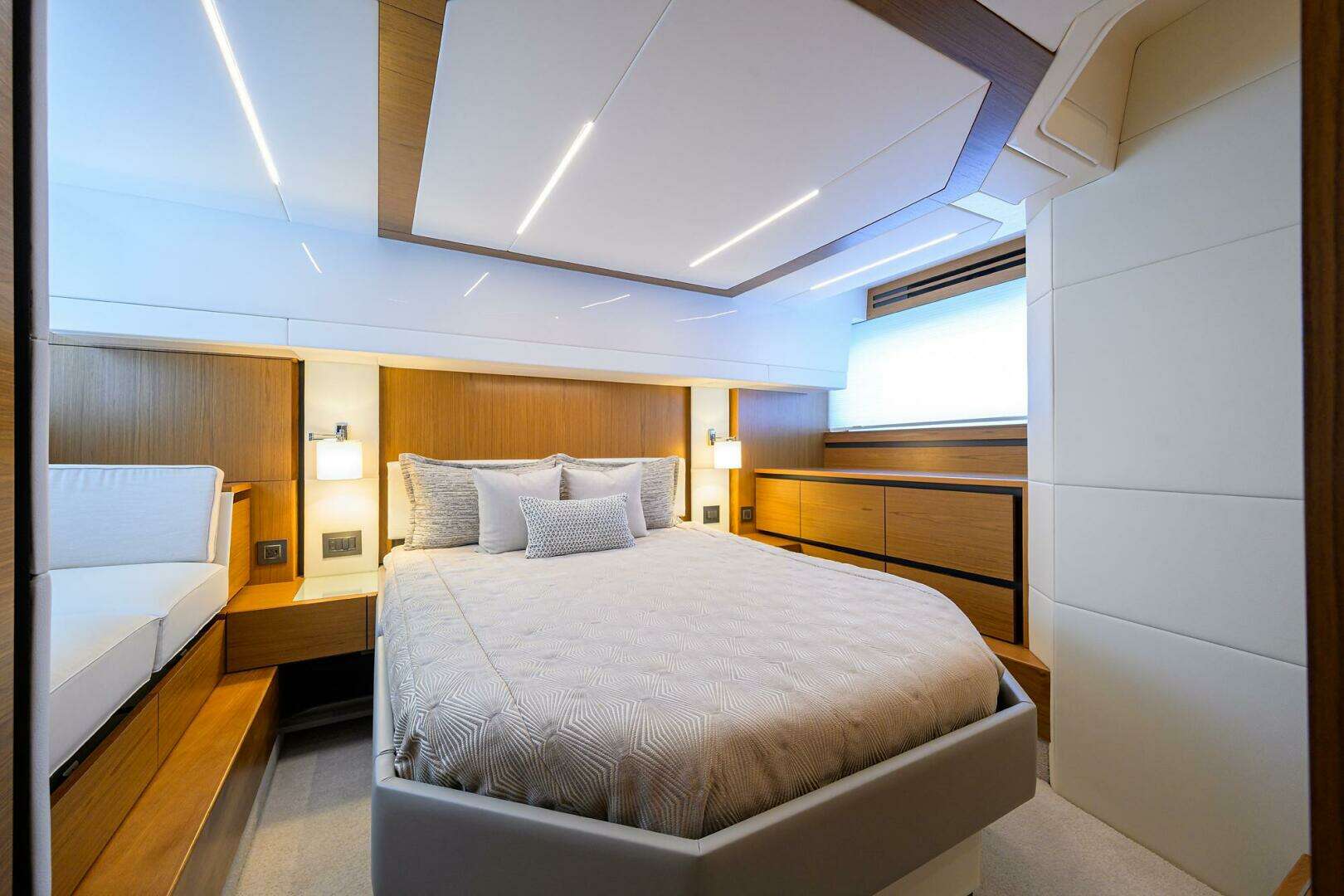

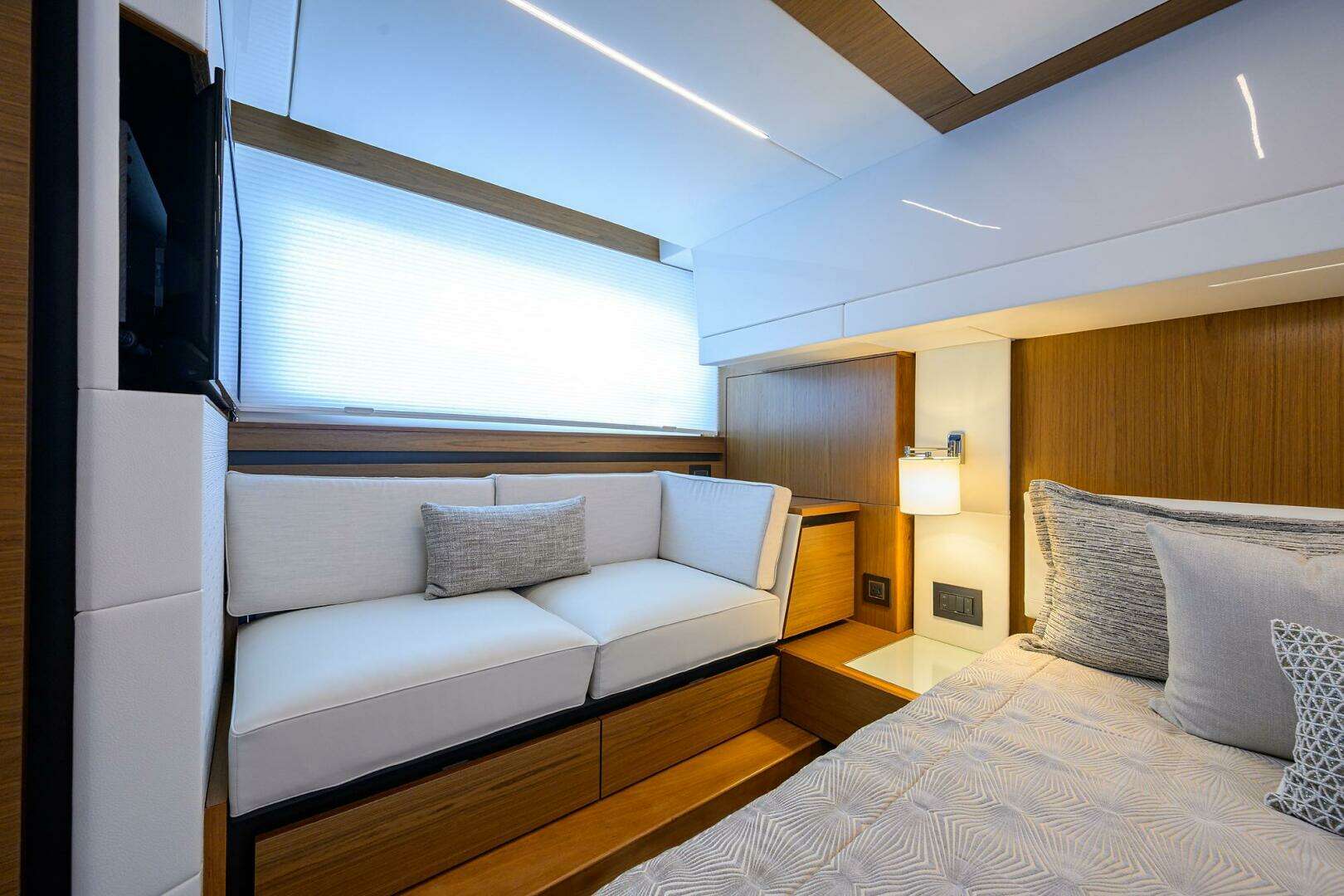

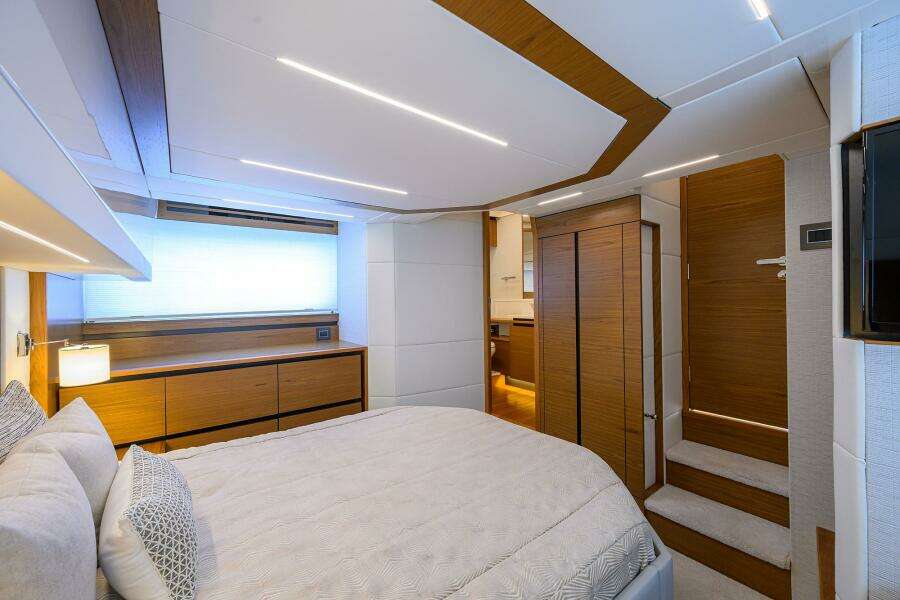

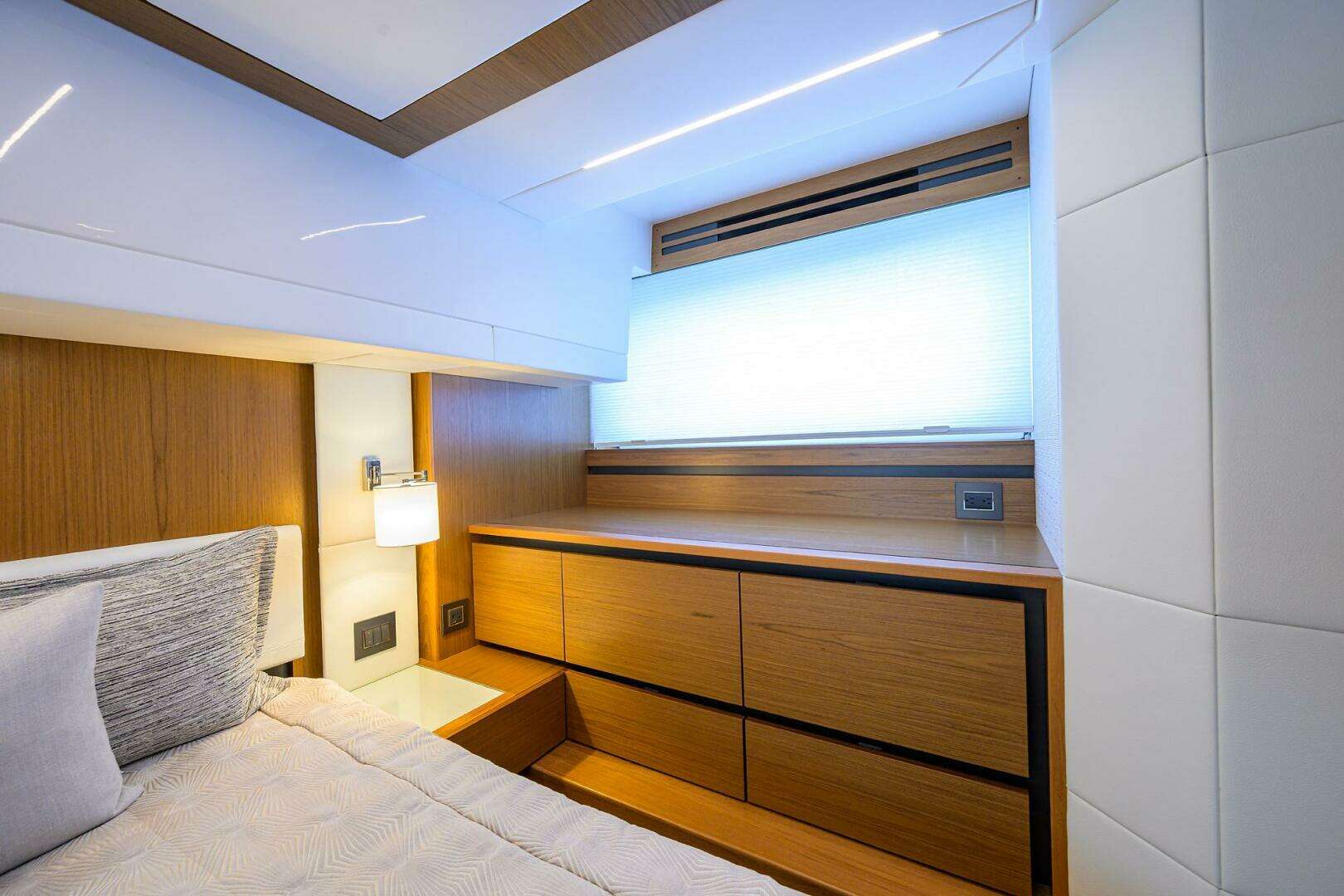

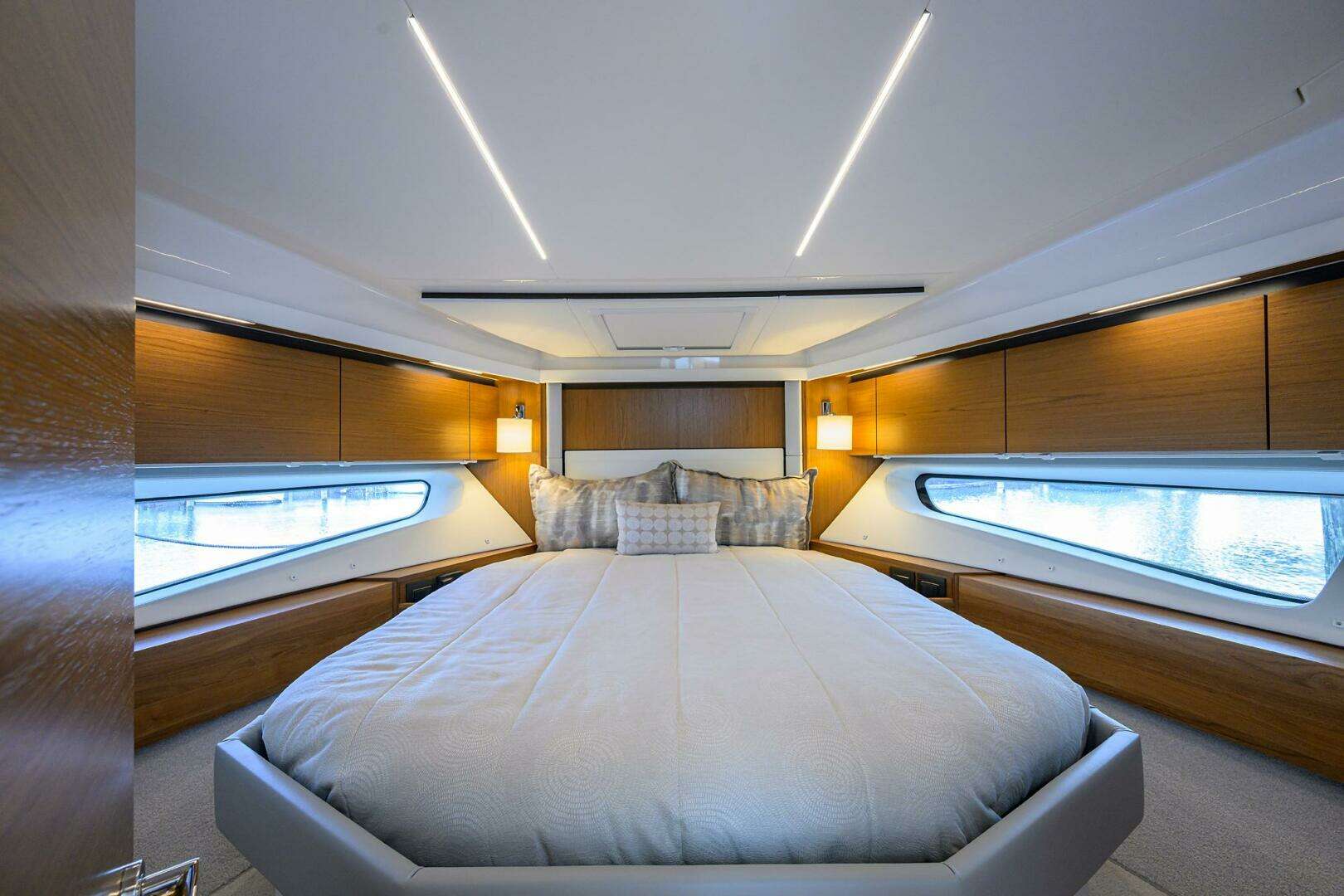

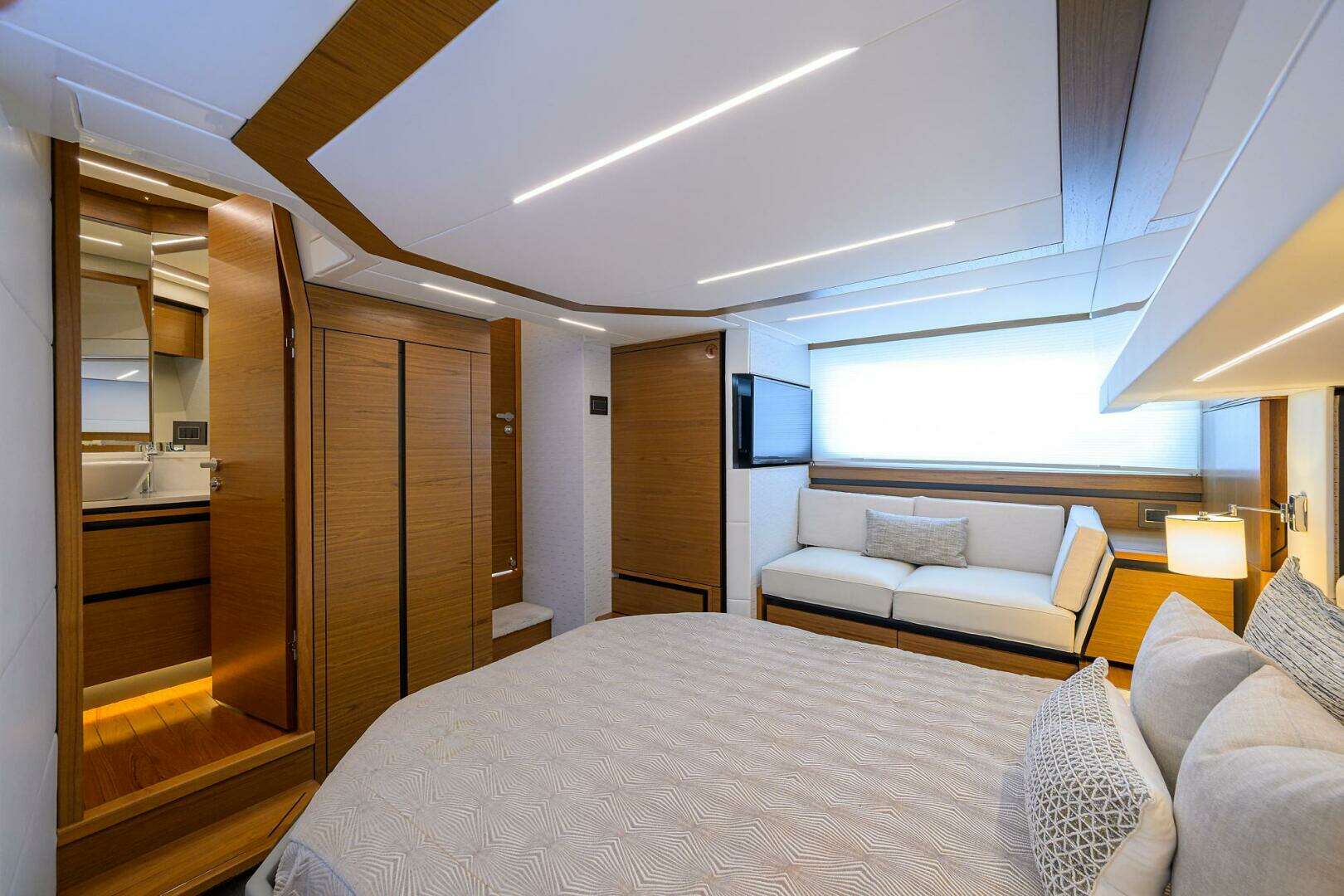

Master Stateroom

• Private entrance to master stateroom and head
• Full beam master stateroom with hull side windows for natural lighting and blinds for windows
• Opening ports for ventilation in master stateroom and head
• Carpeted floor
• Queen pedestal berth on centerline with pillow top inner spring mattress, coverlet, sheets, accent pillows and pillow shams
• Starboard side lounge
• Starboard side cedar backed hanging closet
• Port side dresser drawer storage
• Center line cedar-backed hanging locker
• In-direct lighting
• (2) LED reading lights, independently switched
• Marine Air Systems 16,000BTU air conditioning/heat system for master stateroom and master head
• 29"LED TV and Blu-Ray DVD player
• (4) JL Audio speakers with Fusion stereo

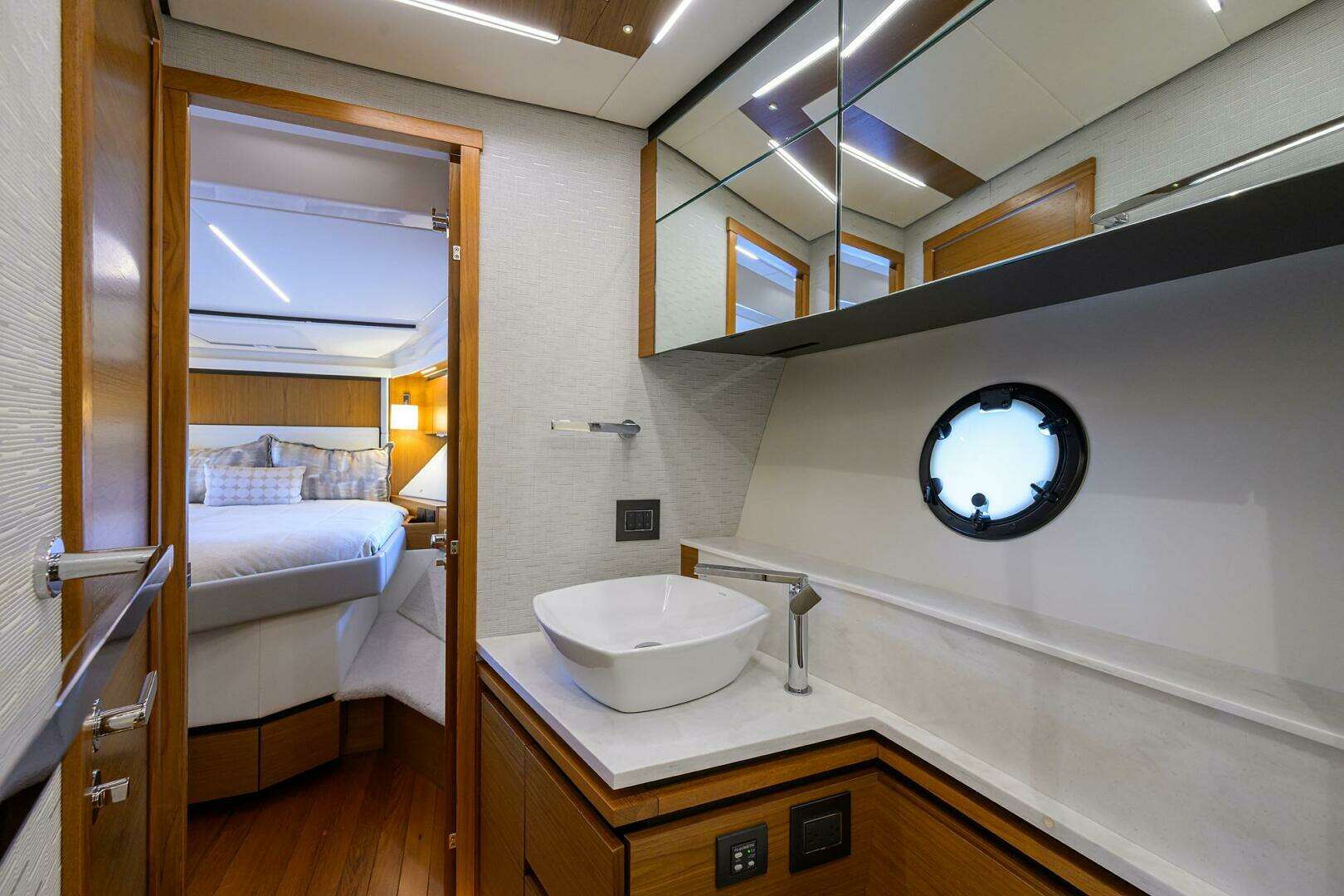

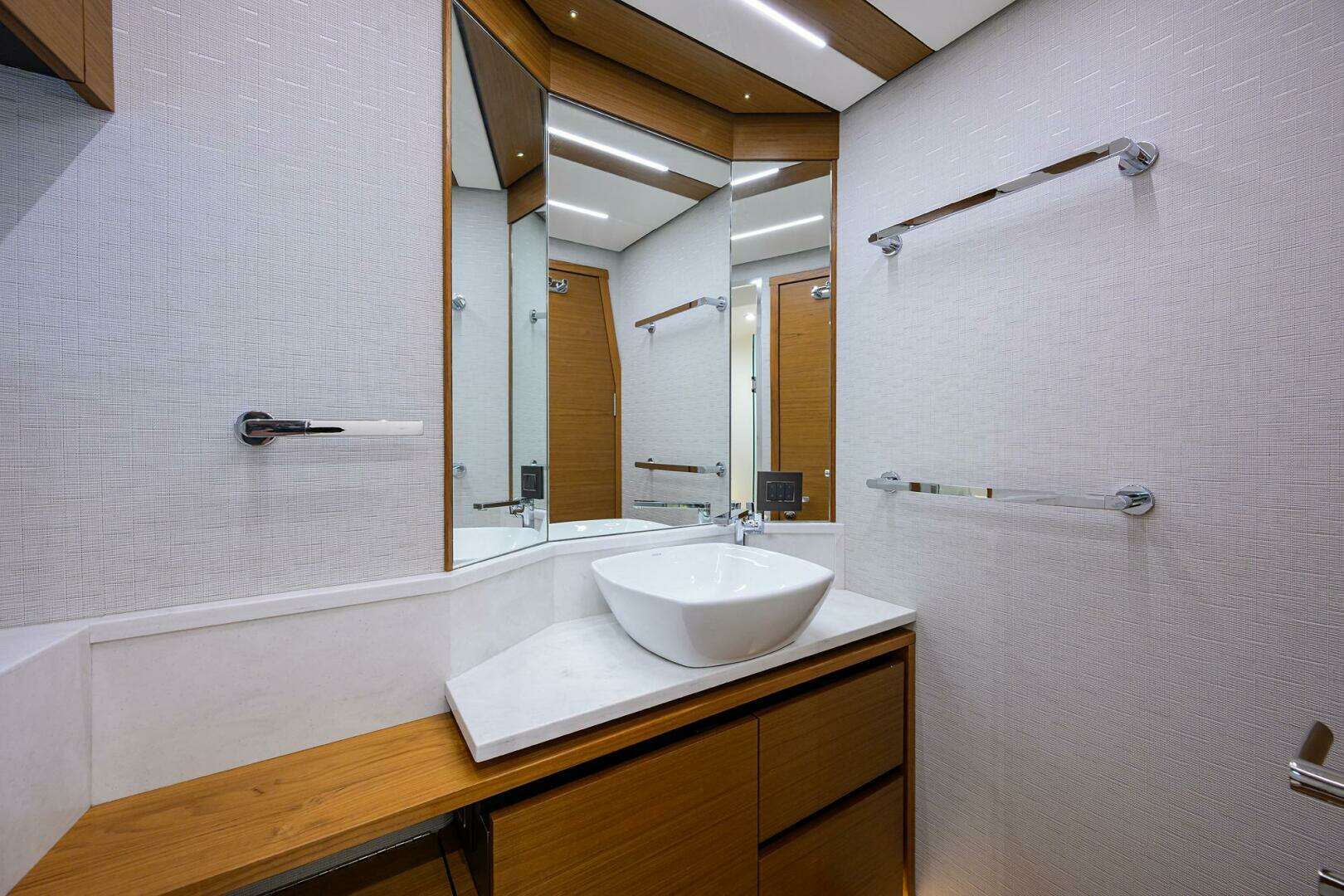

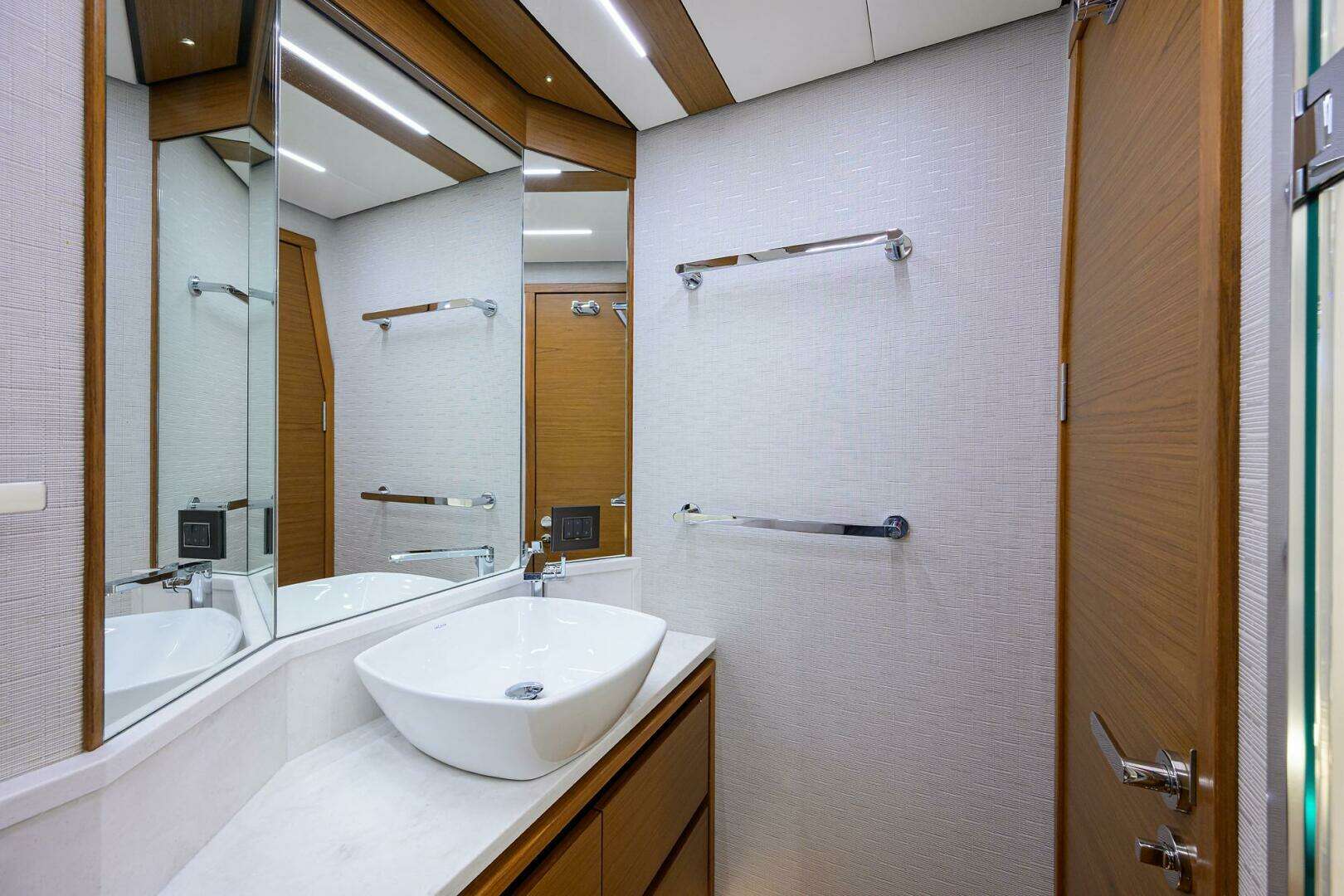

Master Head

• Full frame door with private master stateroom entry
• Fiberglass stall shower with sump pump, glass shower door and teak seat
• Solid surface countertop with solid surface accents, vessel sink and hot/cold water faucet
• Lighted mirror with upper storage cabinet to the side
• Lower vanity storage
• Indirect lighting
• Solid teak wood floor
• VacuFlush push button toilet
• Waste receptacle
• Exhaust fan
• Air conditioning vent (controls in master stateroom)
• GFI protected outlets

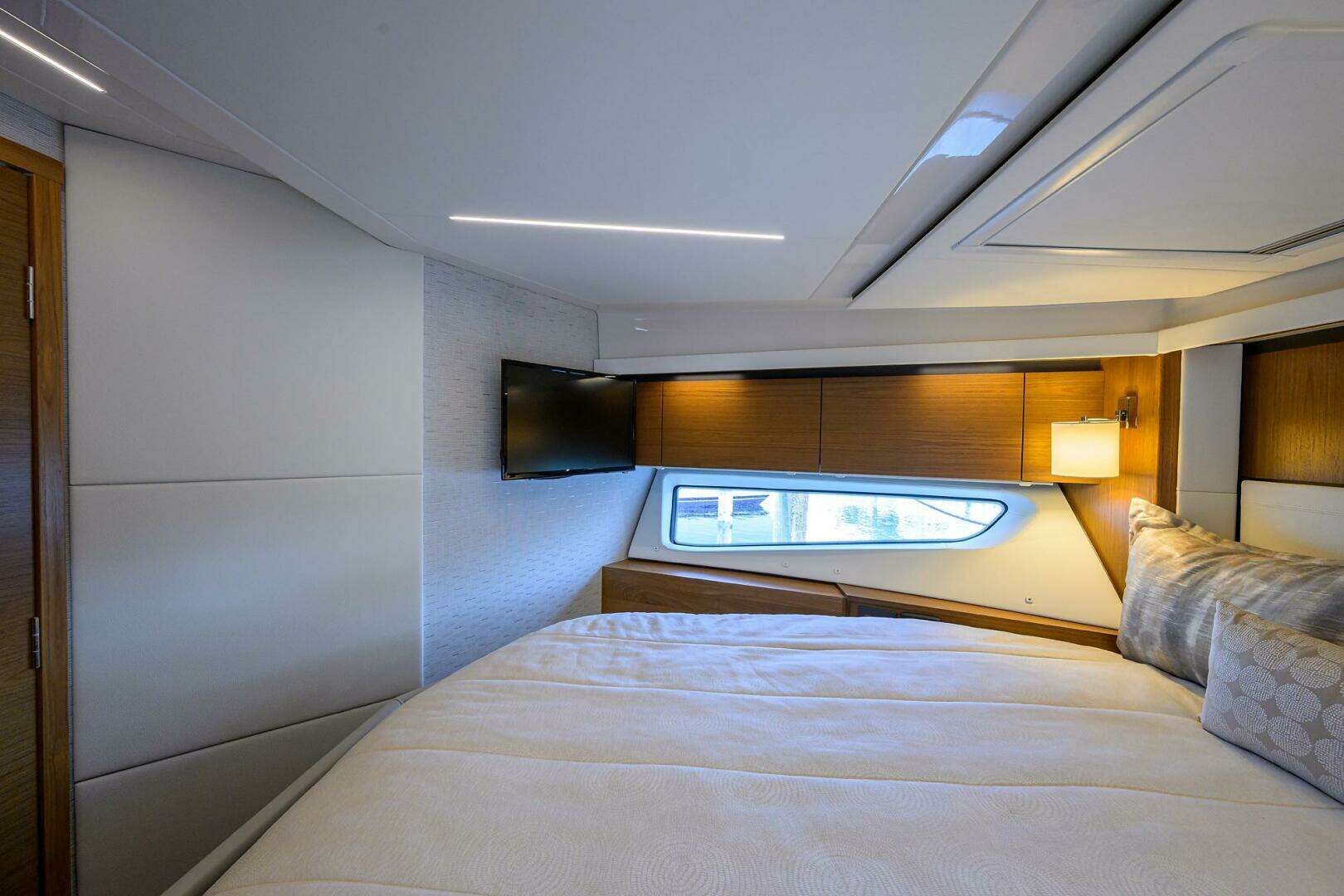

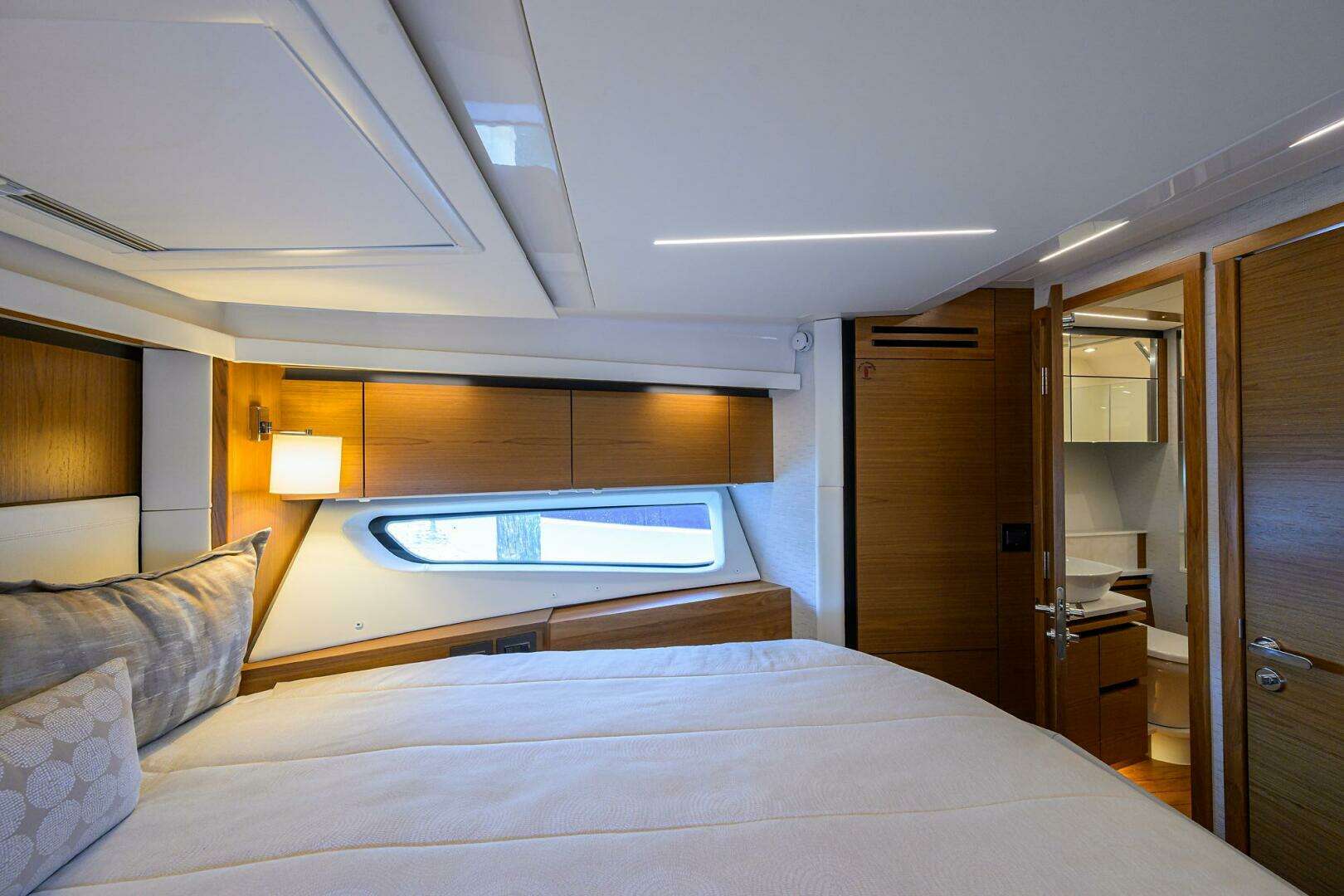

VIP Stateroom

• Private entry to VIP stateroom and head
• Solid teak floor with carpeted riser
• Queen size pedestal berth with Innerspring mattress, upholstered headboard, coverlets, sheets, accent pillows, and pillow shams
• Indirect LED lighting
• Cedar-backed hanging locker, starboard
• Upper hullside cabinets
• Hullside windows for natural lighting and blinds for windows
• Opening deck hatch
• (2) JL Audio speakers with Fusion remote
• (2) LED reading lights, independently switched
• LED TV and Blu-Ray player
• Marine Air Systems 10,000 BTU air conditioning system

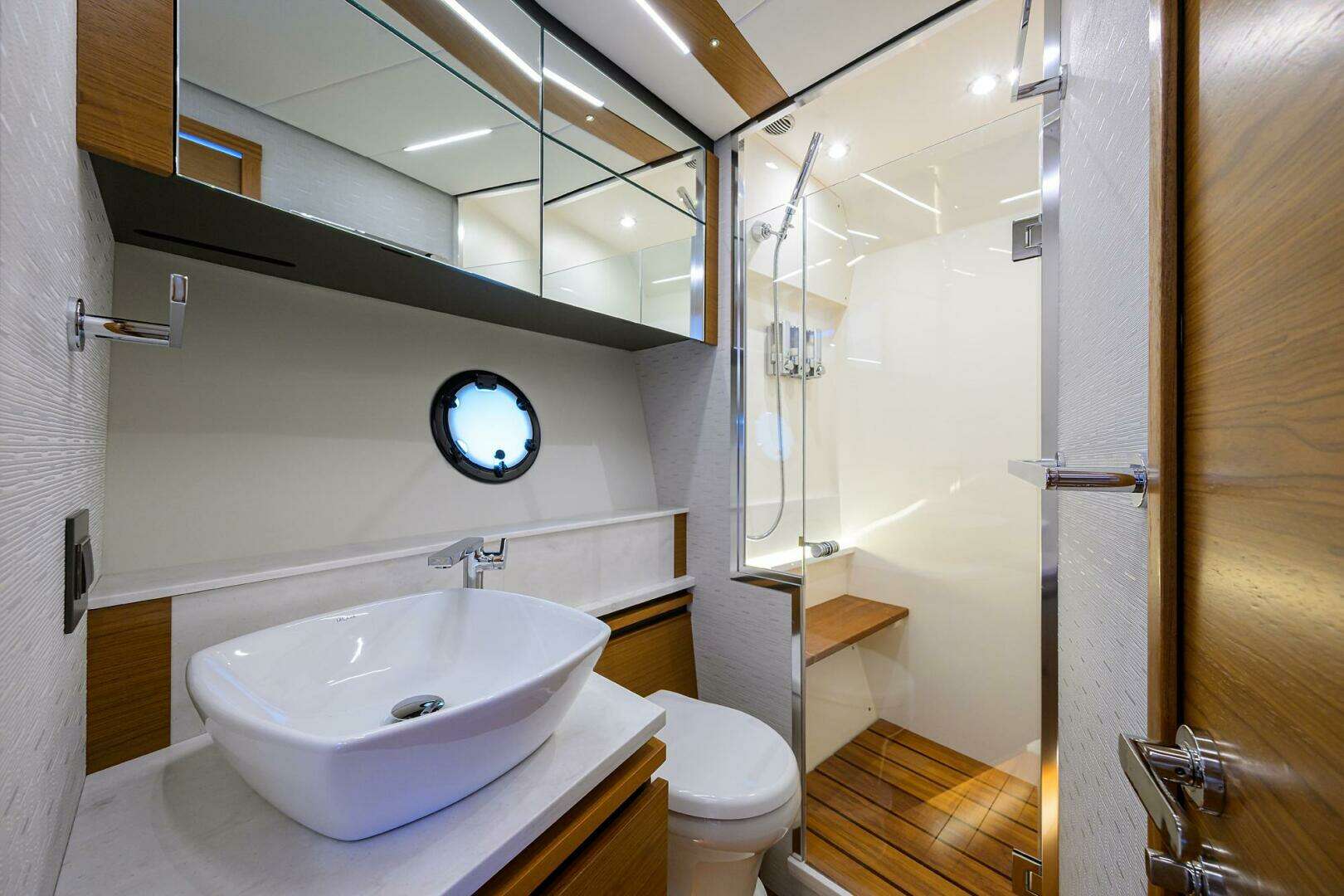

VIP/Day Head

• Full frame doors with entry from VIP stateroom and atrium
• Fiberglass stall shower with sump pump, glass door and teak seat
• Solid surface countertop with sink and hot/cold faucet
• Lighted upper medicine cabinet with mirror
• Lower vanity storage
• Indirect lighting
• Solid teak wood floor
• VacuFlush push button toilet
• Waste receptacle
• Exhaust fan
• Air conditioning vent (controls in VIP)

Atrium/Lower Lounge

• Lower lounge that converts to a pullman style upper berth and bunk style lower berth, with storage underneath
• Solid teak wood floor
• Indirect lighting
• Atrium door upgrade

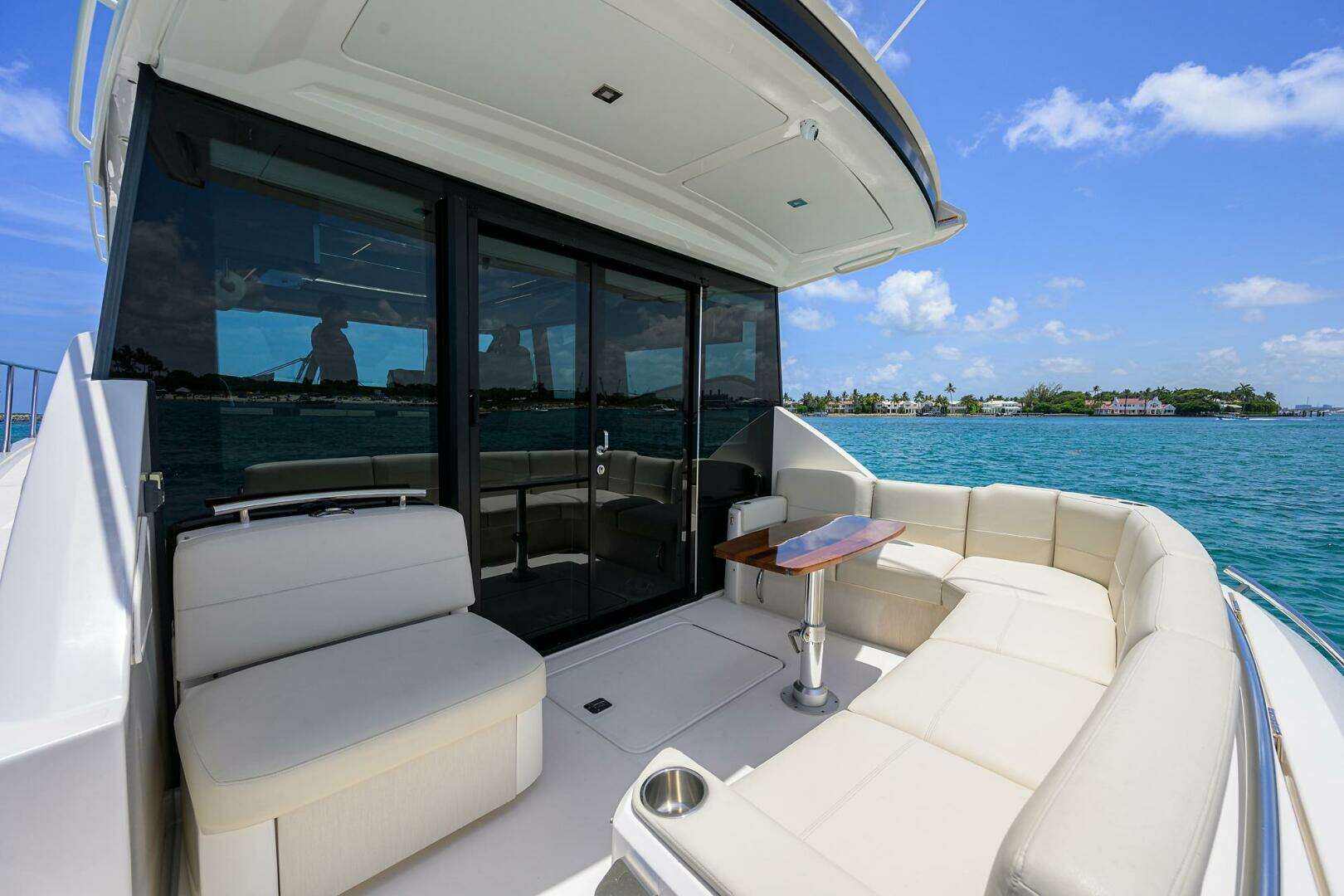

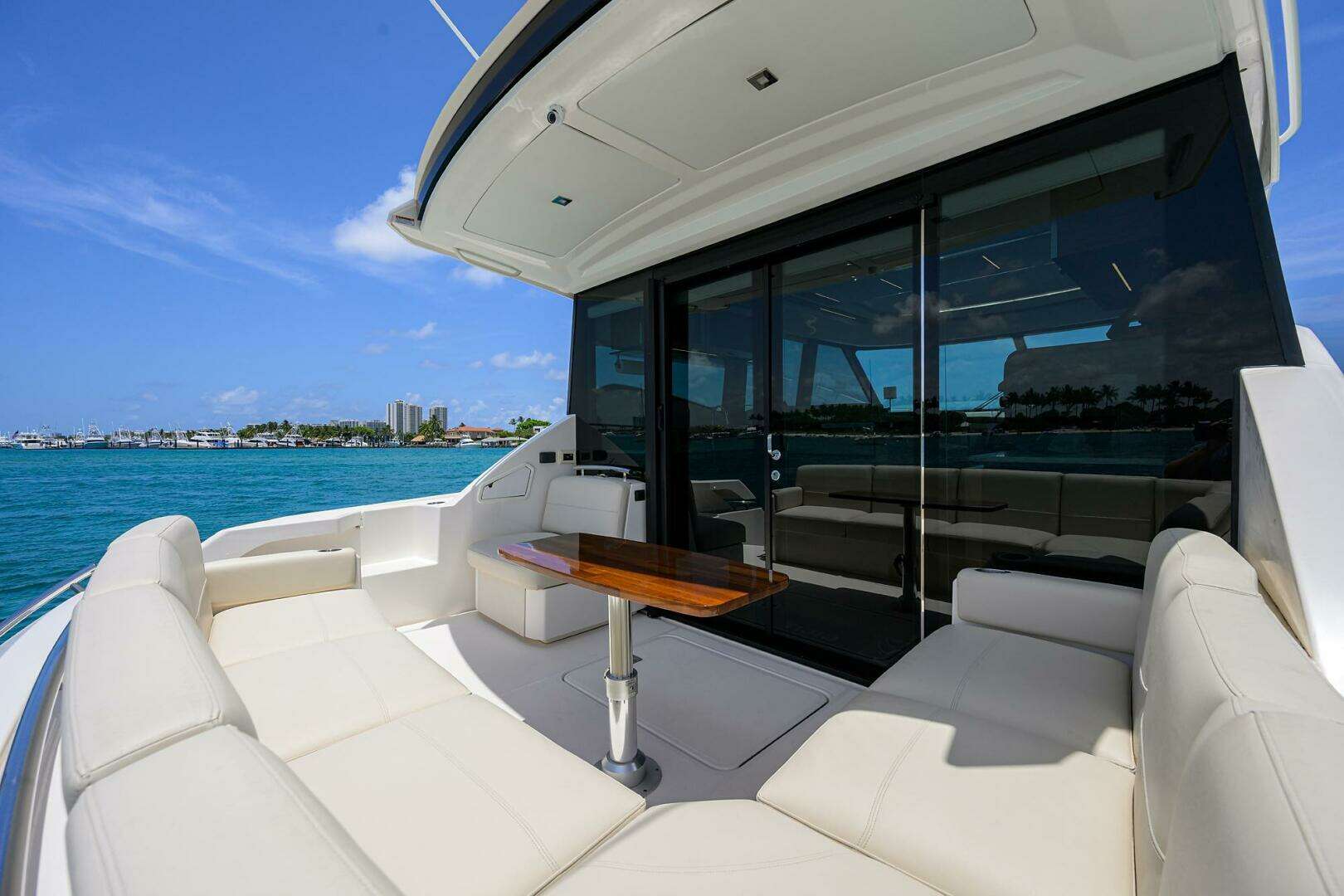

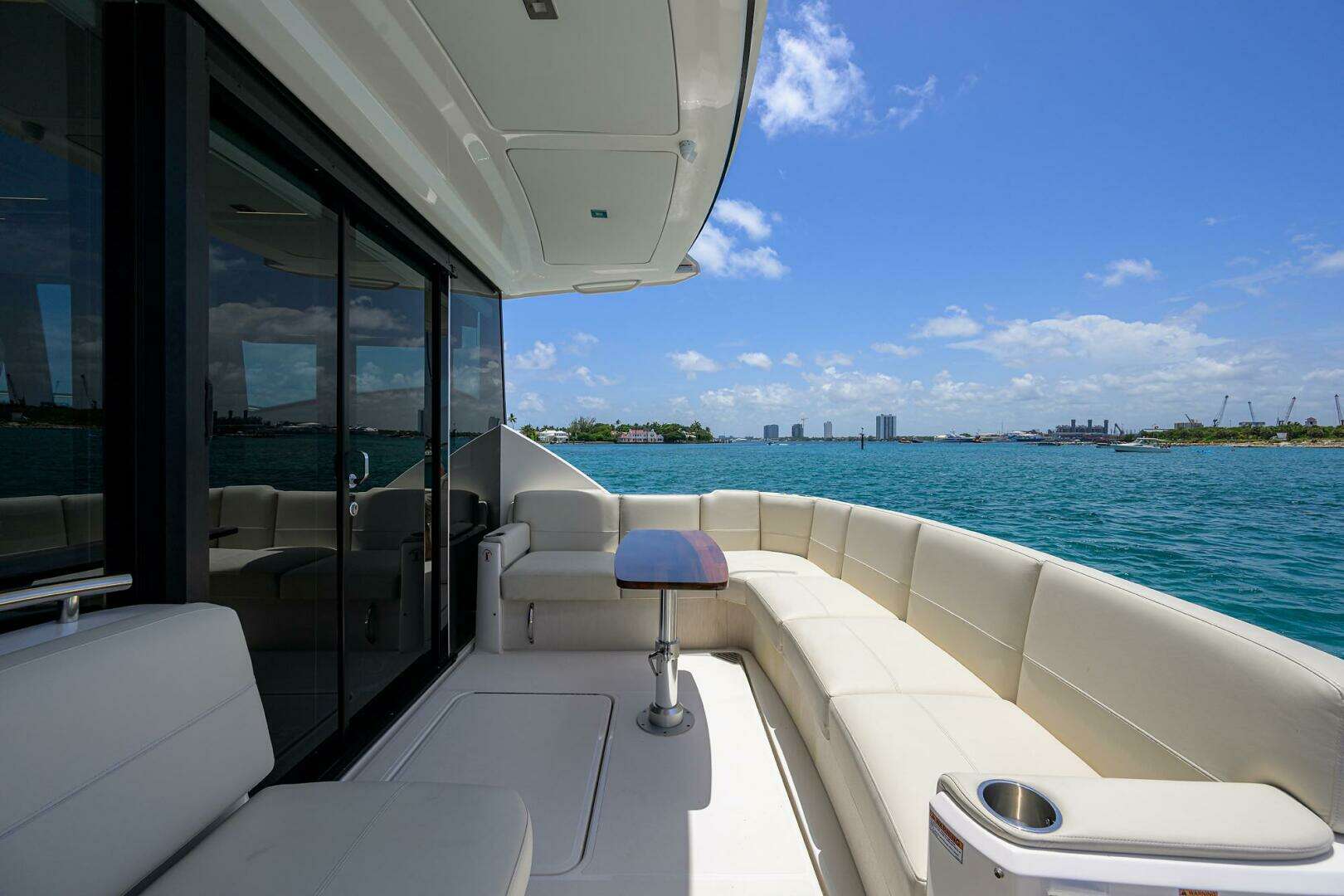

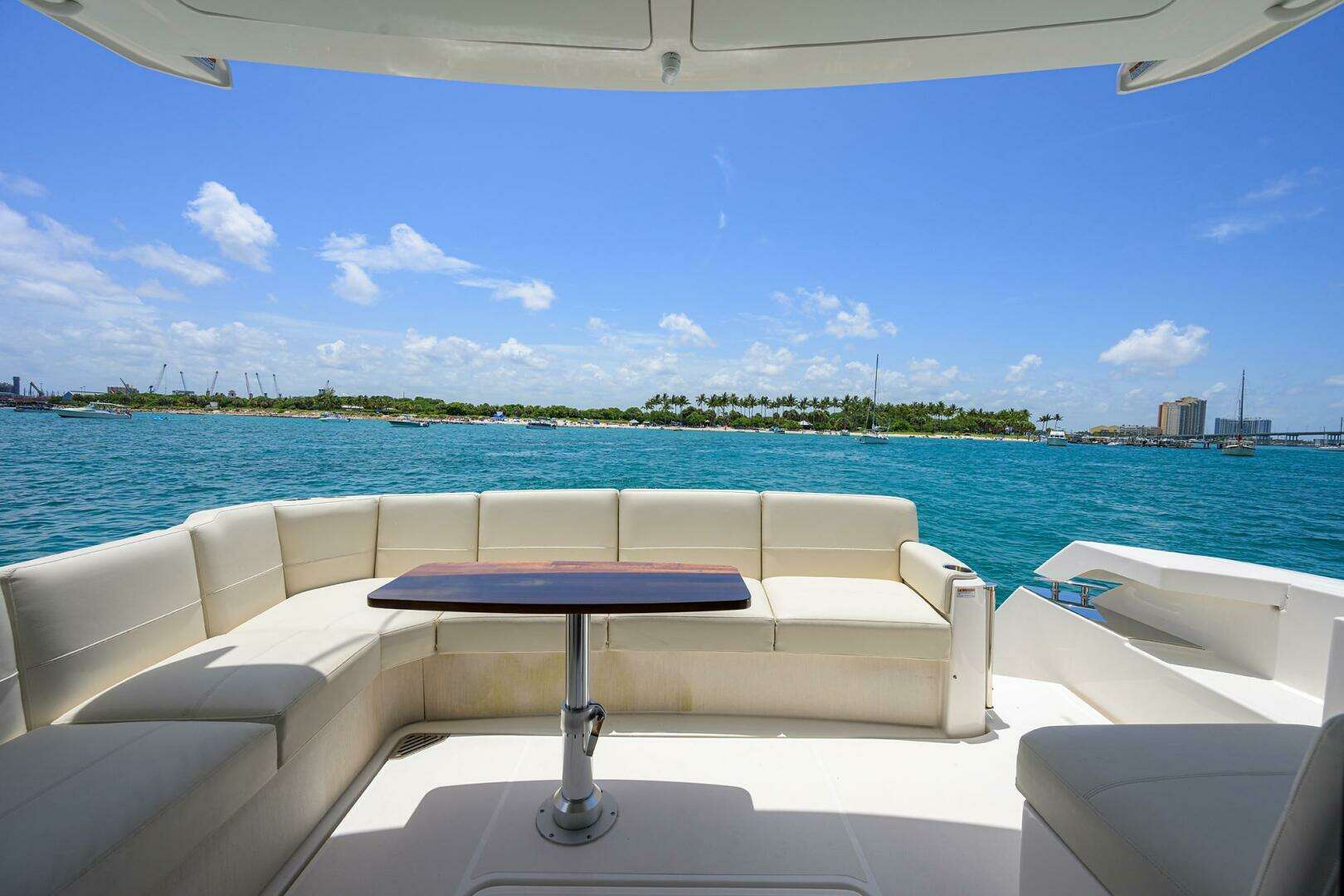

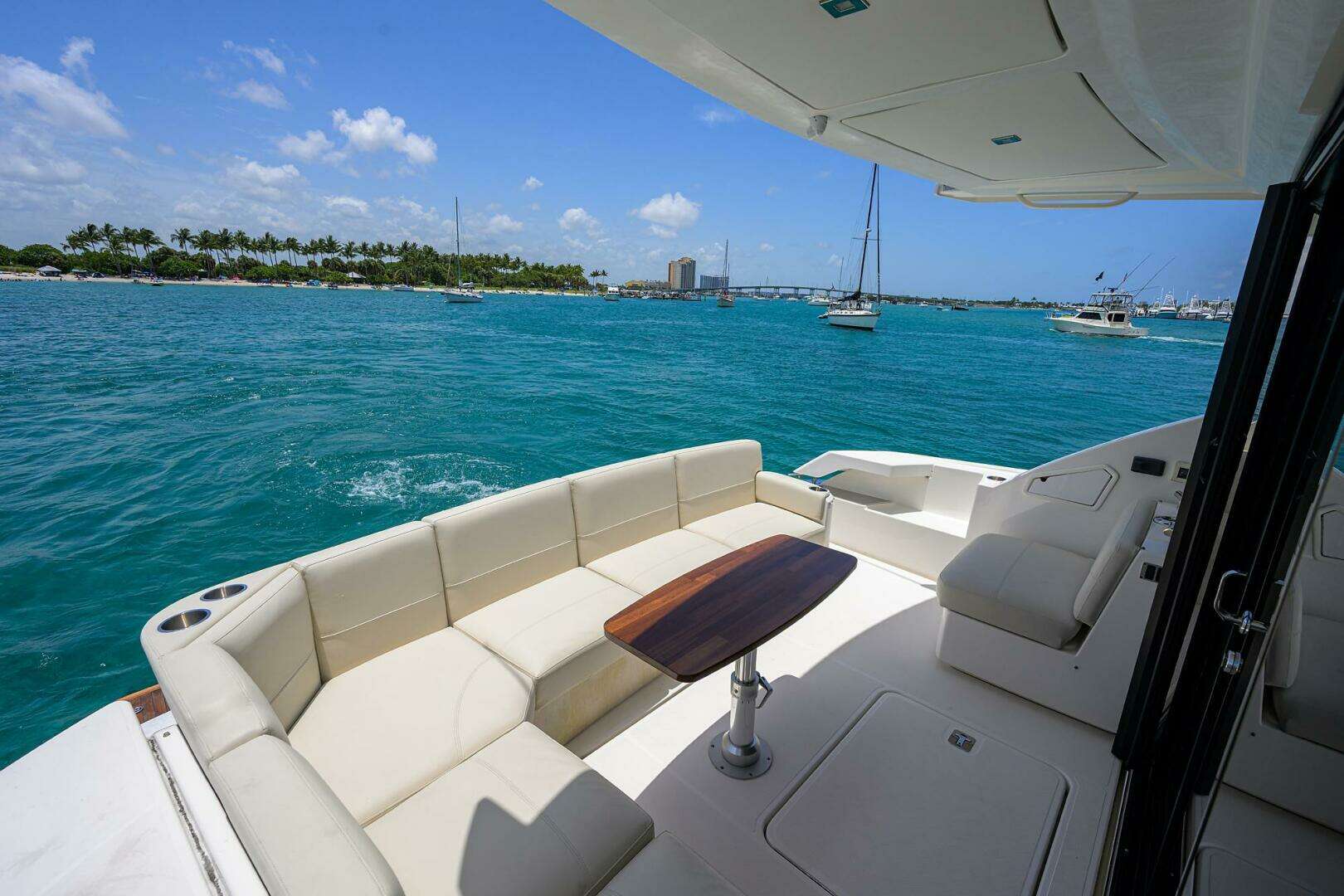

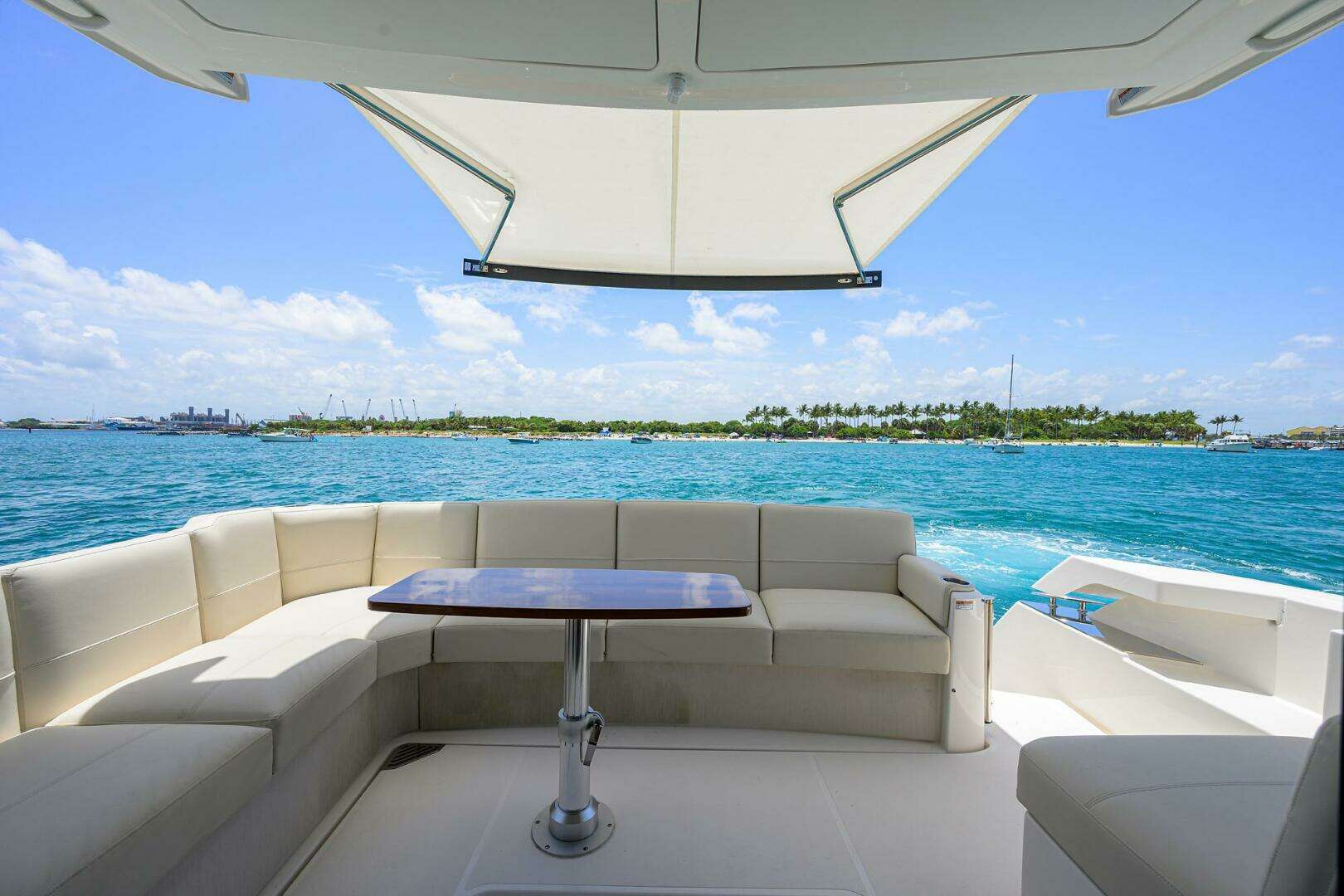

Aft Cockpit

• Powered retractable sunshade
• Engine access in cockpit sole
• Molded-in portside step to deck walk way
• Safety handrails above deck walk way
• Molded-in steps to swim platform-safety handrails above steps
• Cockpit LED courtesy lighting with remote control
• Portside aft facing seat with storage below
• See salon and helm area for main stereo component details. (2) exterior JL Audio component speakers, (1) Polk Audio subwoofer and Fusion remote
• High gloss teak aft cockpit table with adjustable base
• Upgraded Sunbrella weather covers for cockpit furniture and table
• Aft cockpit camera for Garmin touch screens
• Additional Volvo joystick
• Additional aft facing camera mounted on hardtop above sunshade

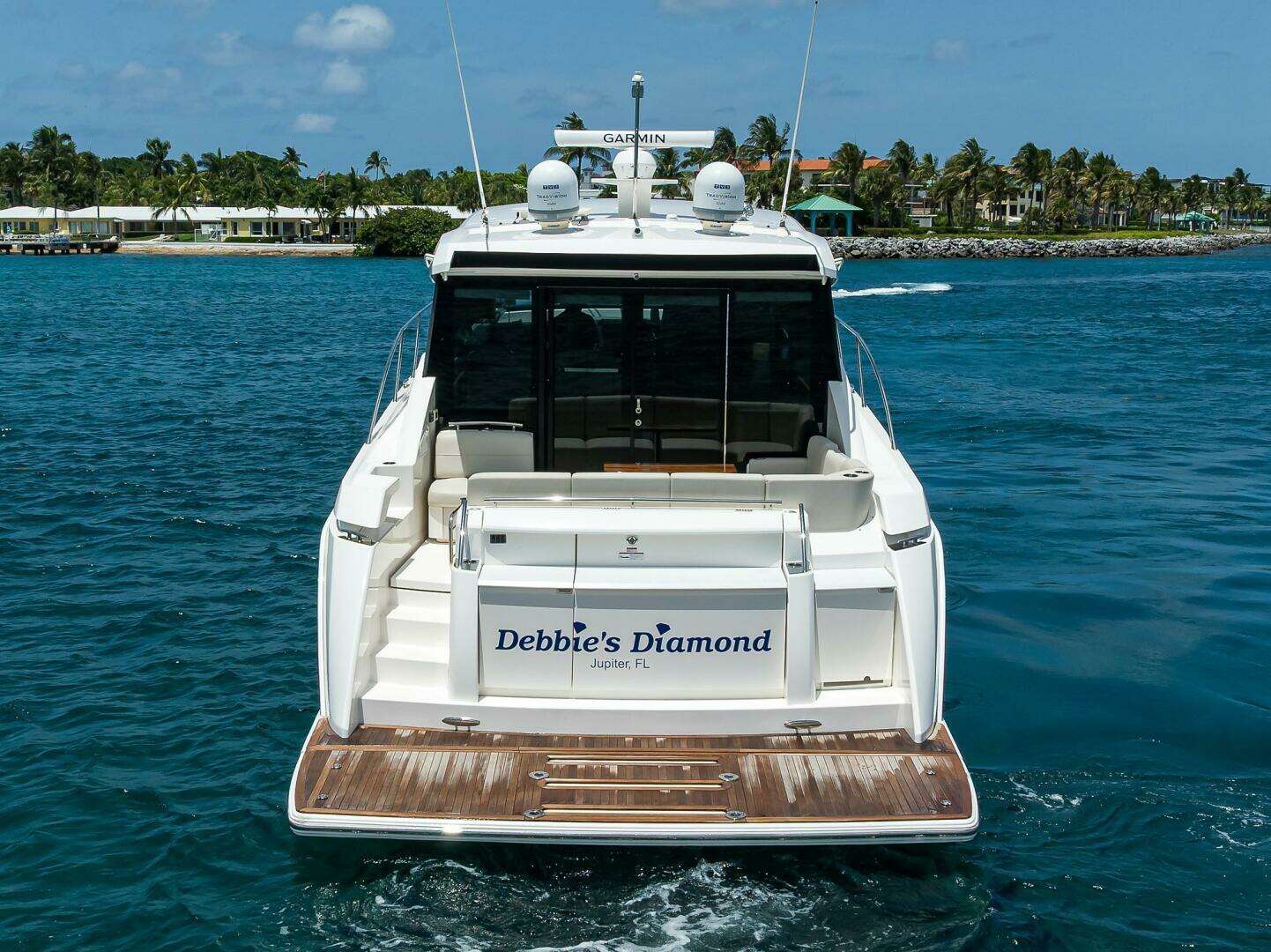

Transom

• Single transom entry door with stainless steel frame and hardware from swim platform
• Stainless steel grab rails on transom
• Transom storage compartment with fiberglass liner and one-piece actuated door
• Dedicated storage with easy access to items & large opening lid to trunk
• (2) 10" Stainless steel pop-up cleats
• 63" integrated swim platform with telescoping stainless steel swim ladder
• Recessed transom shower, hot & cold water
• Fresh water washdown
• Raw water washdown
• 120V GFI outlet
• Drink Refrigerator in Transom

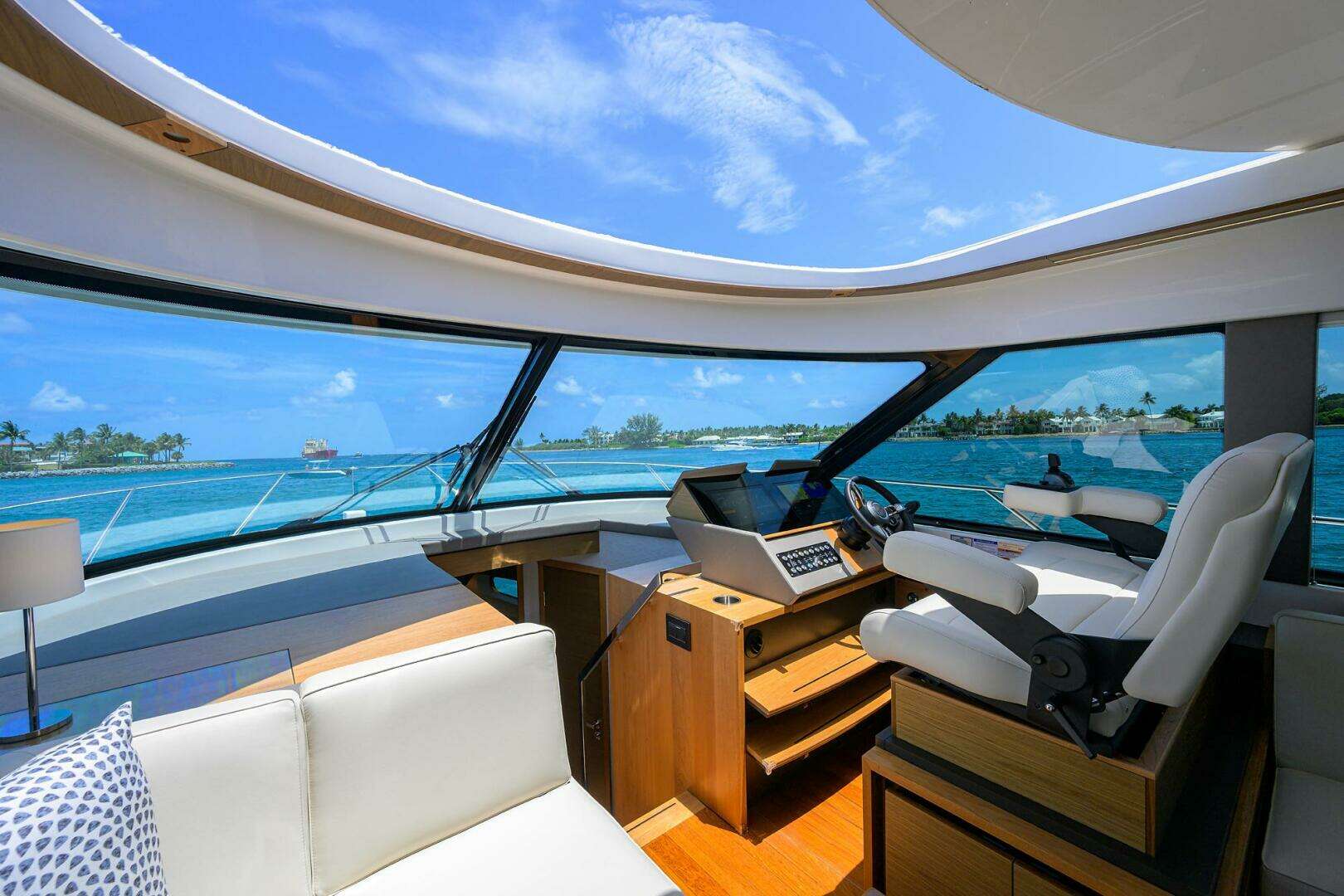

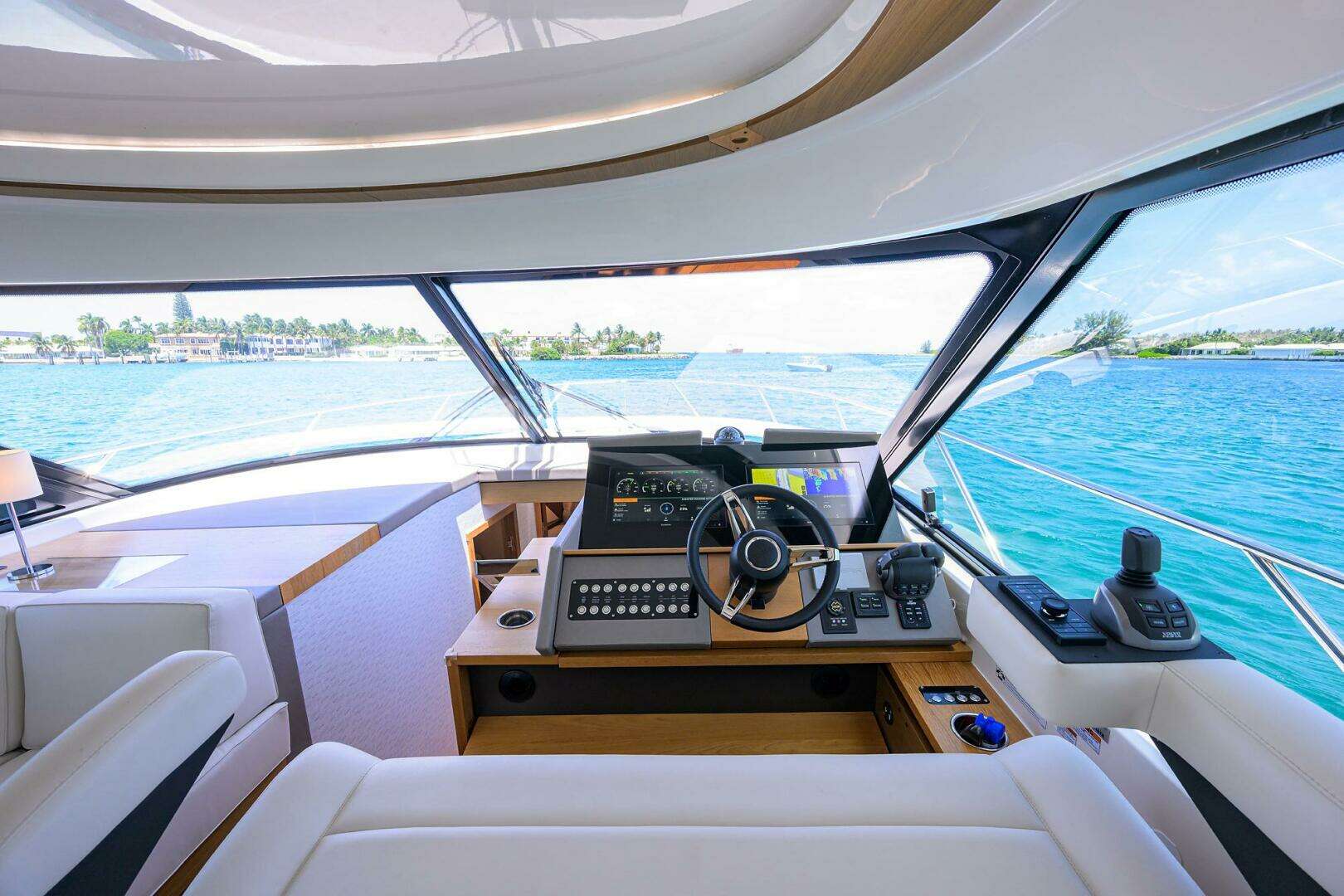

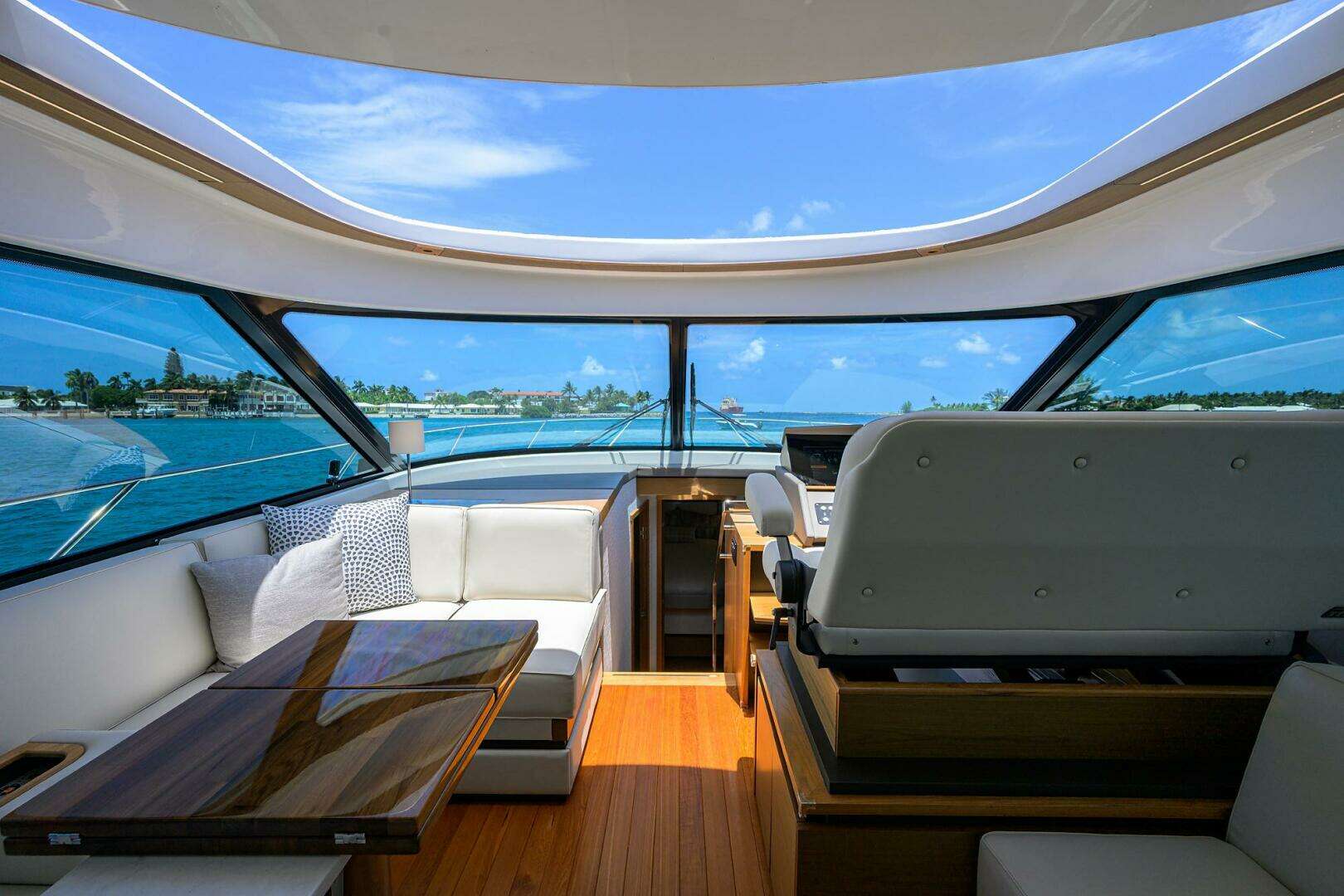

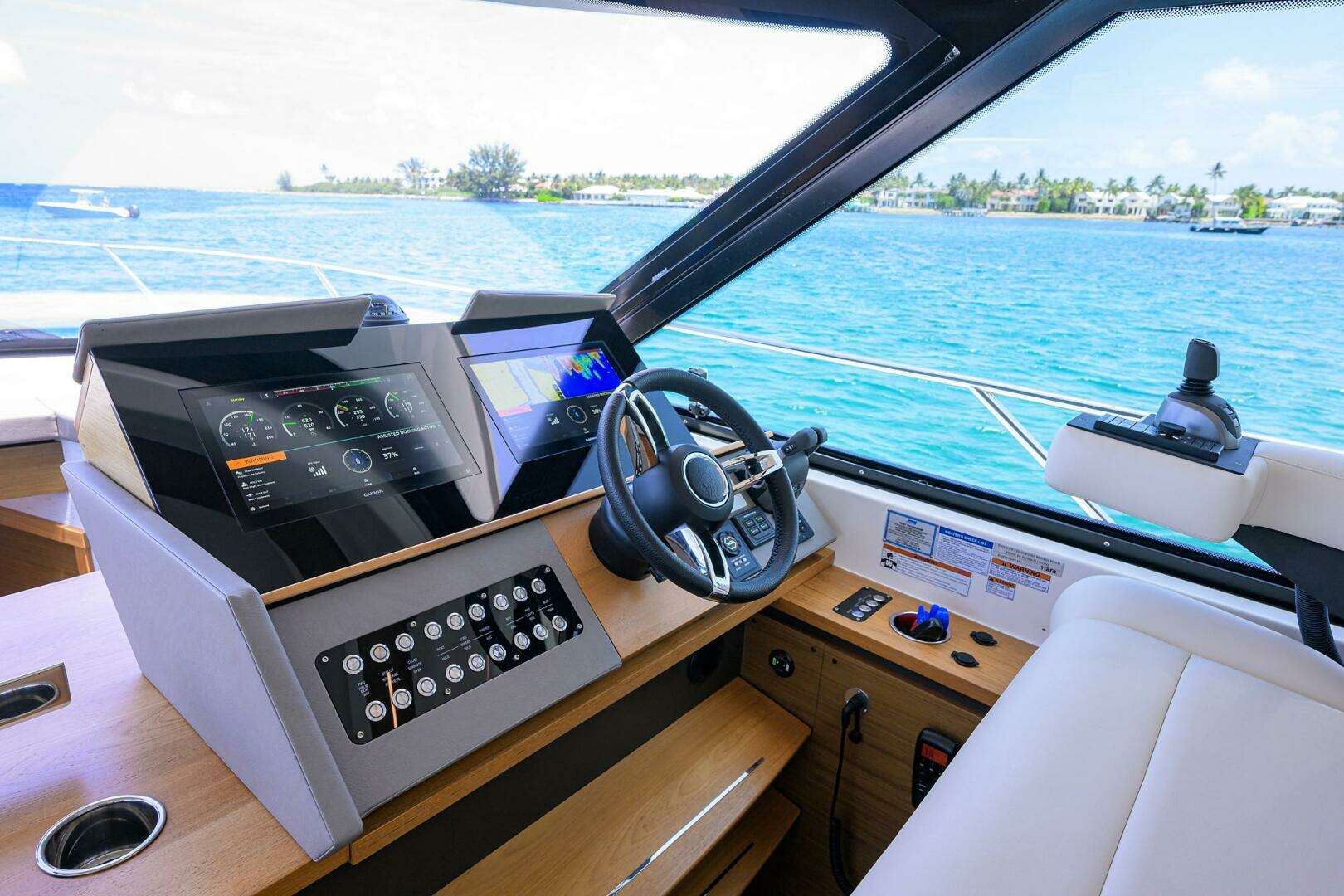

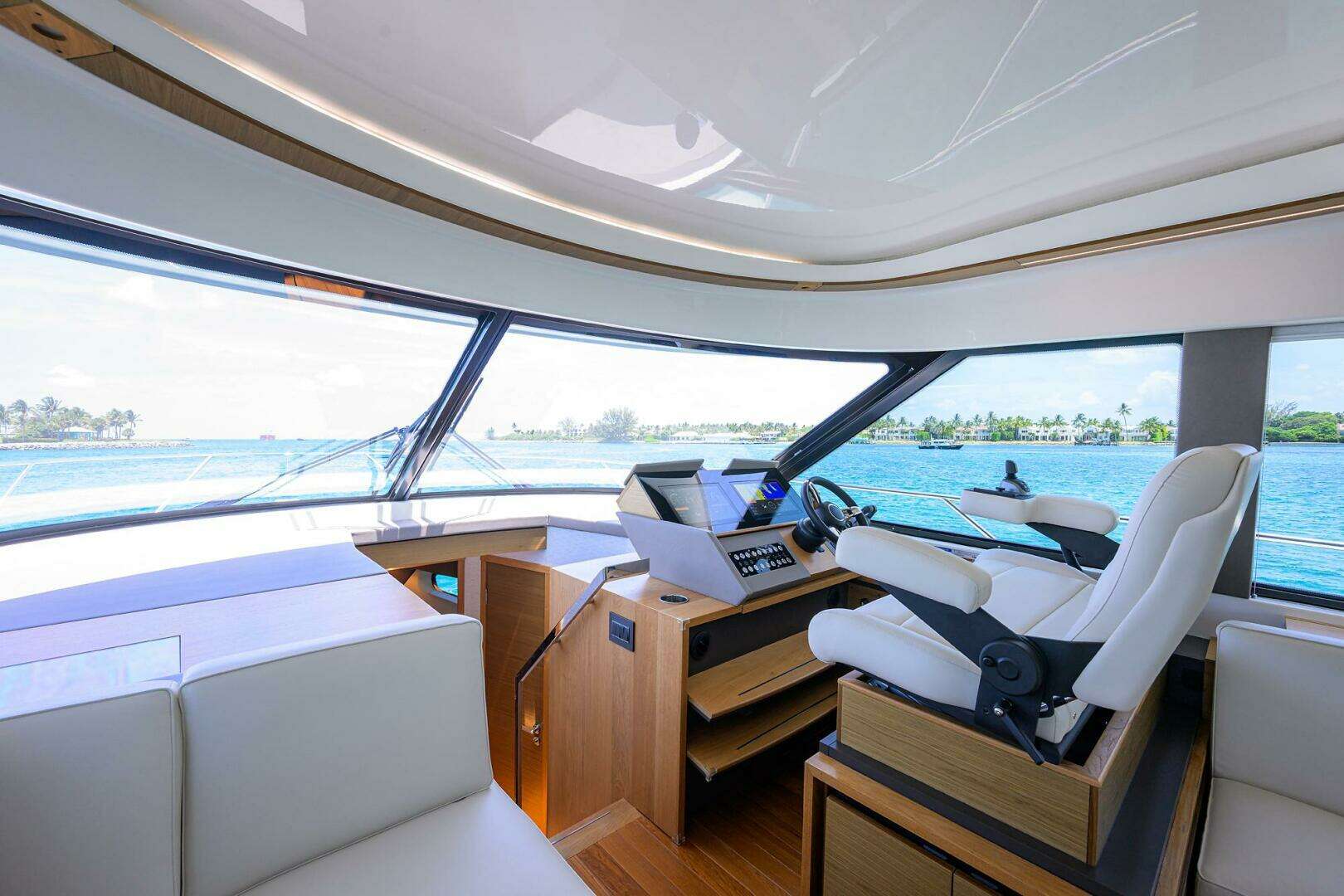

Helm and Instrumentation

• Volvo DPS (Dynamic Positioning System)
• Volvo assisted docking
• Active corrosion protection
• Volvo electronic engine controls and steering system
• Low speed, cruise control and trip computer software
• Ritchie SuperSport SS2000 compass
• Volvo IPS Joystick plus control
• Volvo exhaust bypass
• Volvo Glass Cockpit integrated electronics package:
• (2) Garmin GPSMAP 8616 Series 16" displays
• Garmin GRID remote and Volvo joystick steering in armrest
• Garmin autopilot
• Garmin Fantom 54, 48" open array radar
• Garmin VHF with handheld radios
• 1kW transducer
• Aft facing HD cockpit camera

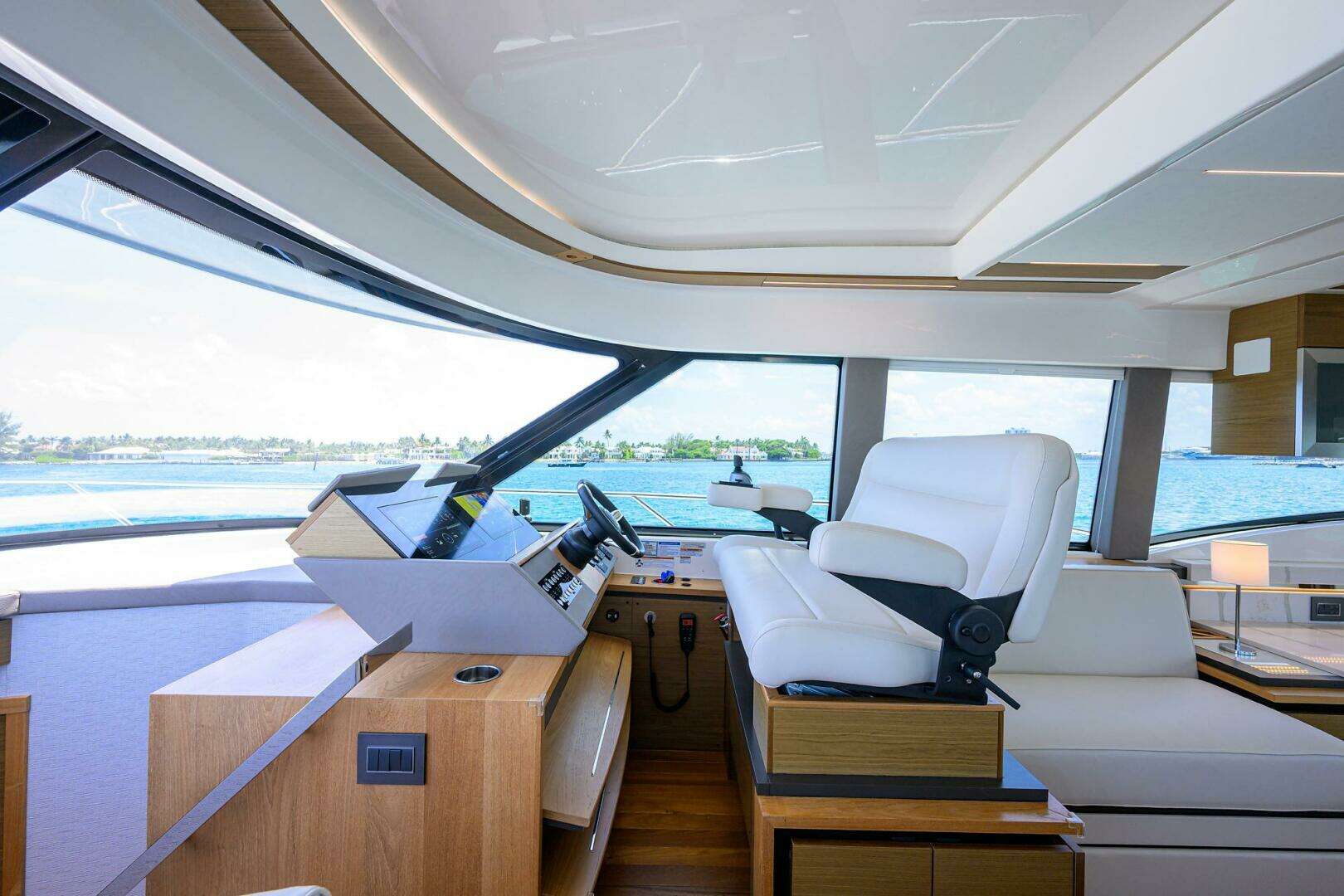

• Dual helm seat with ramped fore and aft adjustment. Includes Volvo Joystick and Garmin GridRemote in armrest
• Helm with drink holders, outlet, and leather-wrapped steering wheel

Mechanical and Safety

• Tiara custom 12V/24V DC and 120V/240V AC electrical system with monitor panel in the salon, master distribution panels in starboard salon loveseat
• 120V/240V AC 50 amp 65' dockside power cord with Glendinning cable recoiler and adaptor for 30 amp service
• Cable TV inlet and cabin outlets
• TV and AM/FM radio antennas

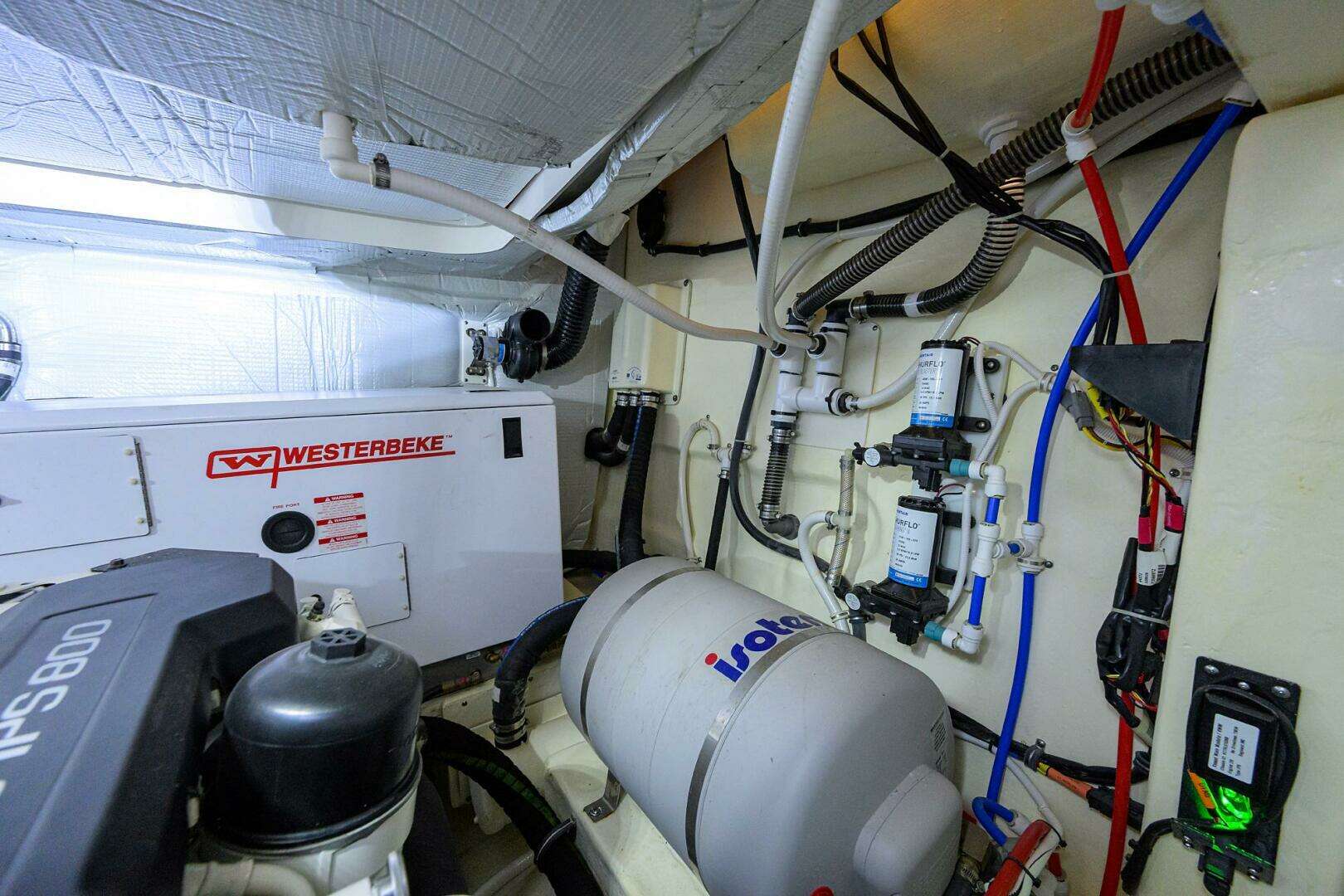

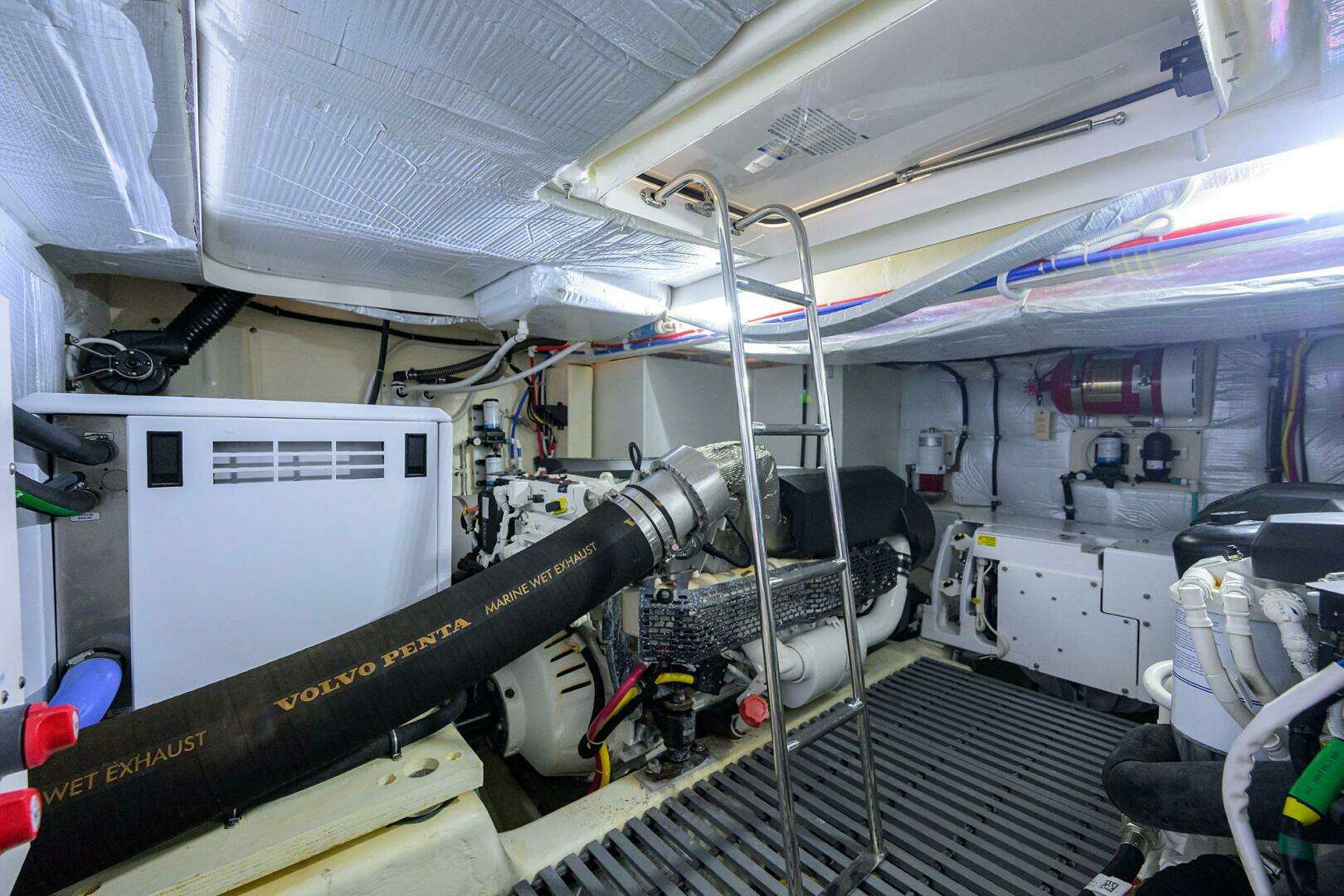

• Westerbeke 15kW diesel generator with sound shield
• Battery chargers, 100 amp and 16 amp
• 12V/24V multiple bank battery system with batteries and remote battery switches; (4) engine batteries, (2) 8D house batteries
• Electrical bonding system
• High output alternators, 115 amp
• Propellers
• Trim tabs
• Zinc sacrificial anodes

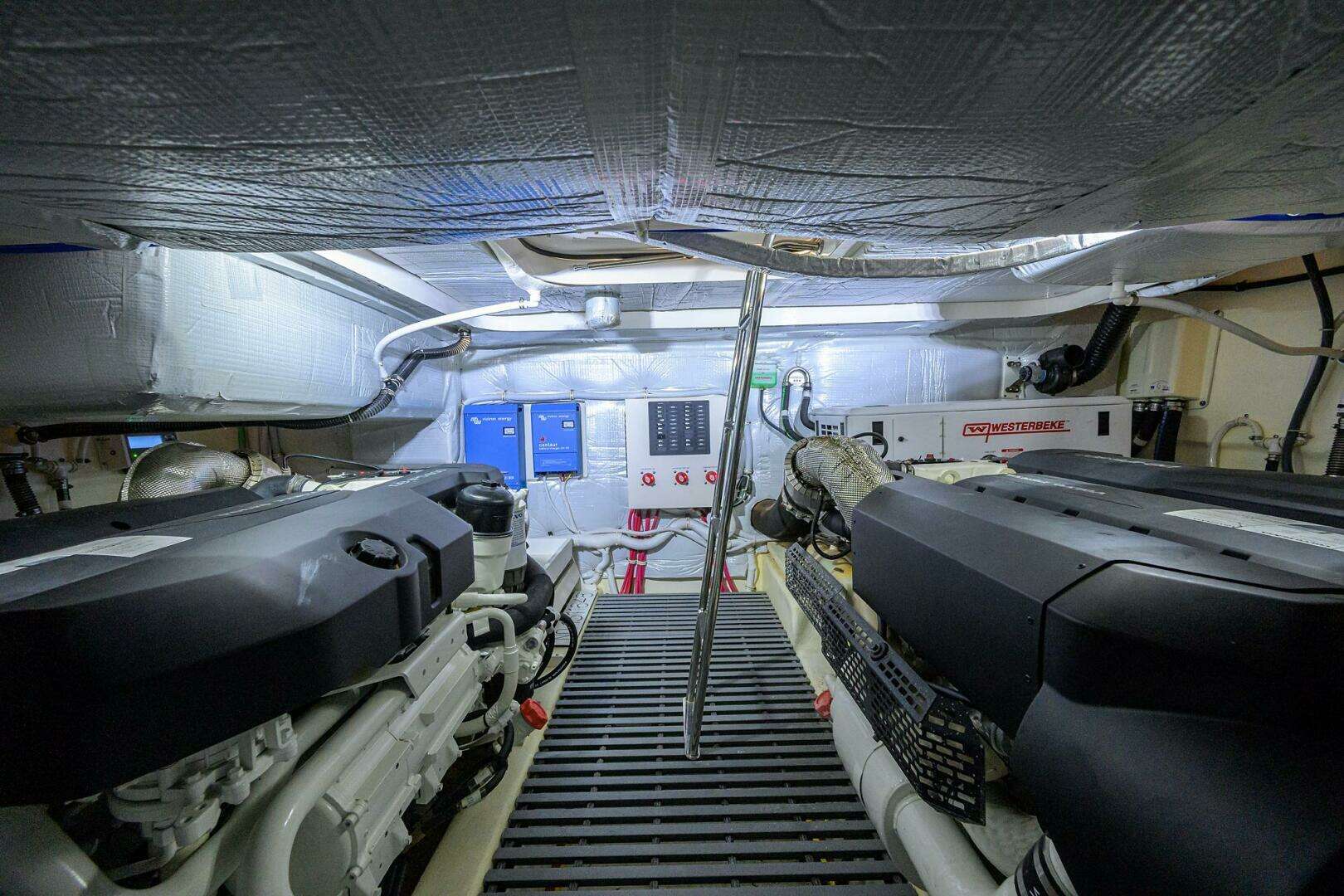

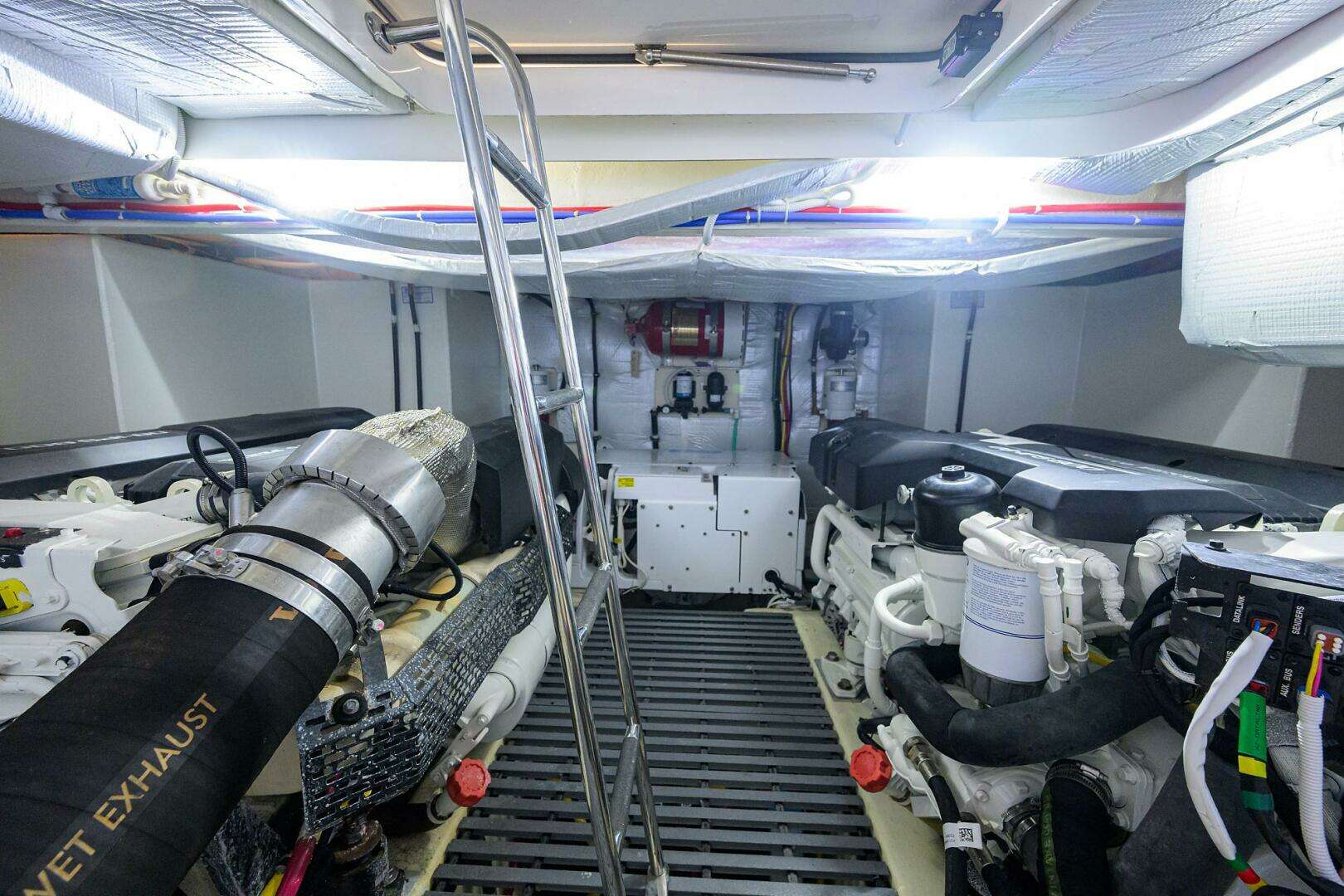

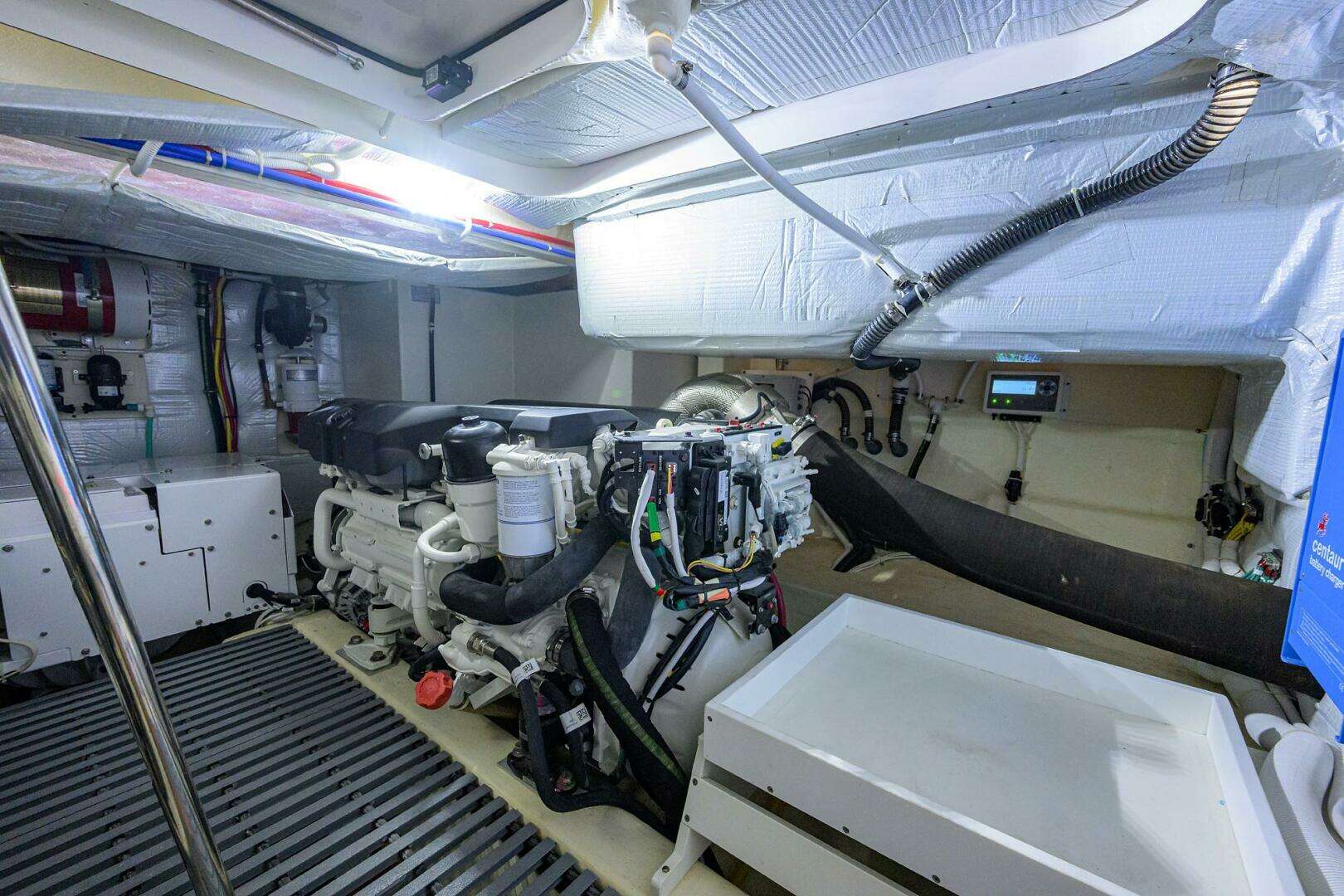

• Engine room with lighting and acoustical insulation
• Racor fuel filters/water separators, engines and generator
• Raw water intake strainers, engines and generator
• Vibration isolating mounts, engines and generator
• Plate mounted, thru-bolted engine system
• Three port oil changing system, main engines and generator
• (3) Automatic/manual electric bilge pumps with monitors at helm, 2,000 GPH each; (1) forward, (1) mid and (1) aft
• (2) Aluminum fuel tanks, total capacity 500 gallons, with in-line fuel vent filters and fuel shut-off valves on top of tanks
• Dockside water inlets in aft deck
• Fresh water tank with 135 gallon capacity
• Holding tank, 68 gallons, with deck discharge and holding tank vent filter
• Fresh water tank/holding tank monitor
• Fresh water pressure system with 10 GPM pump
• Water heater, 11 gallons
• Kahlenberg chrome dual trumpet air horn
• Fireboy clean agent fire extinguisher system for engine room
