Steering SystemJoystick Control

Additional Options and Upgrades

• FRP molded mast, separate radar platform on hardtop

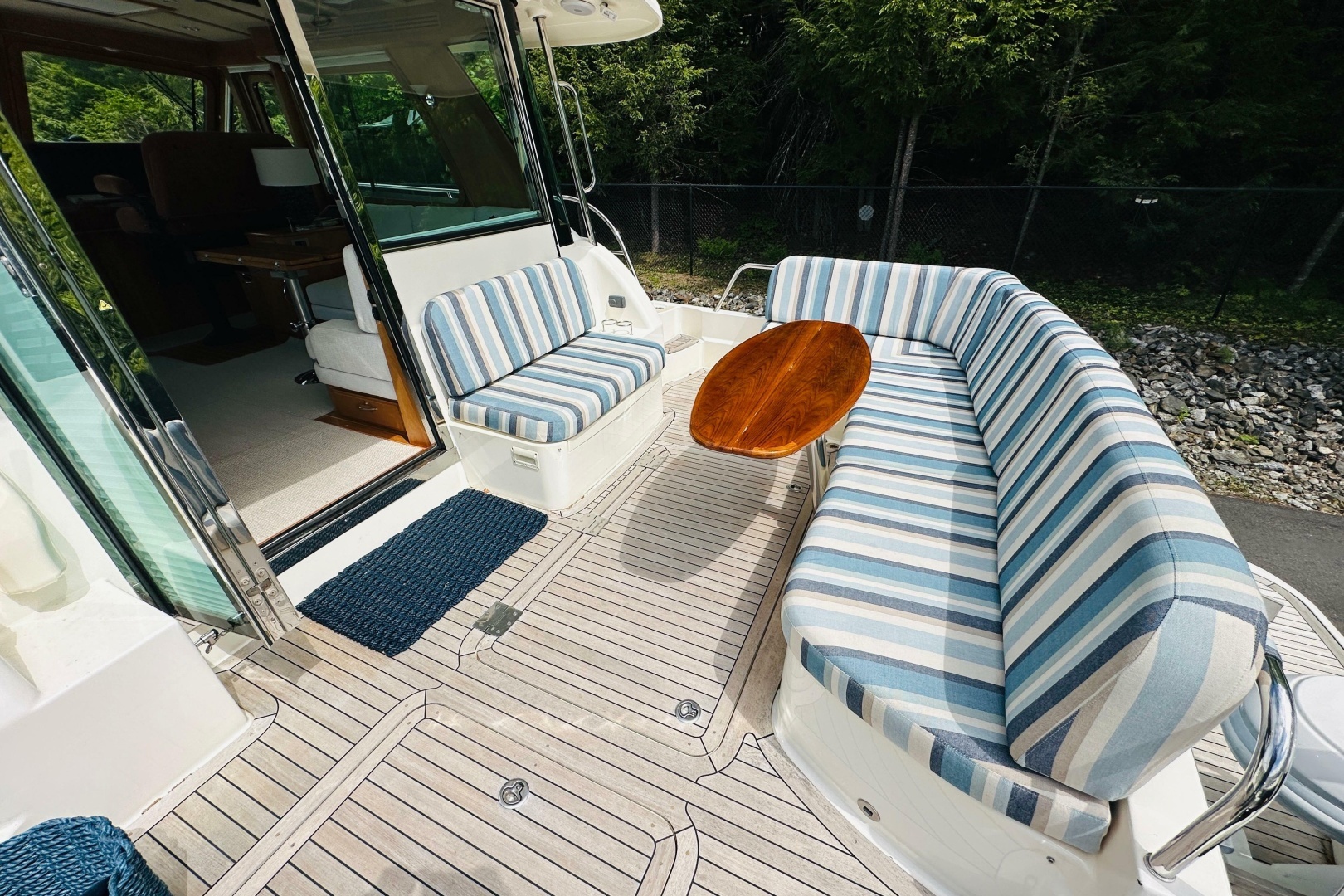

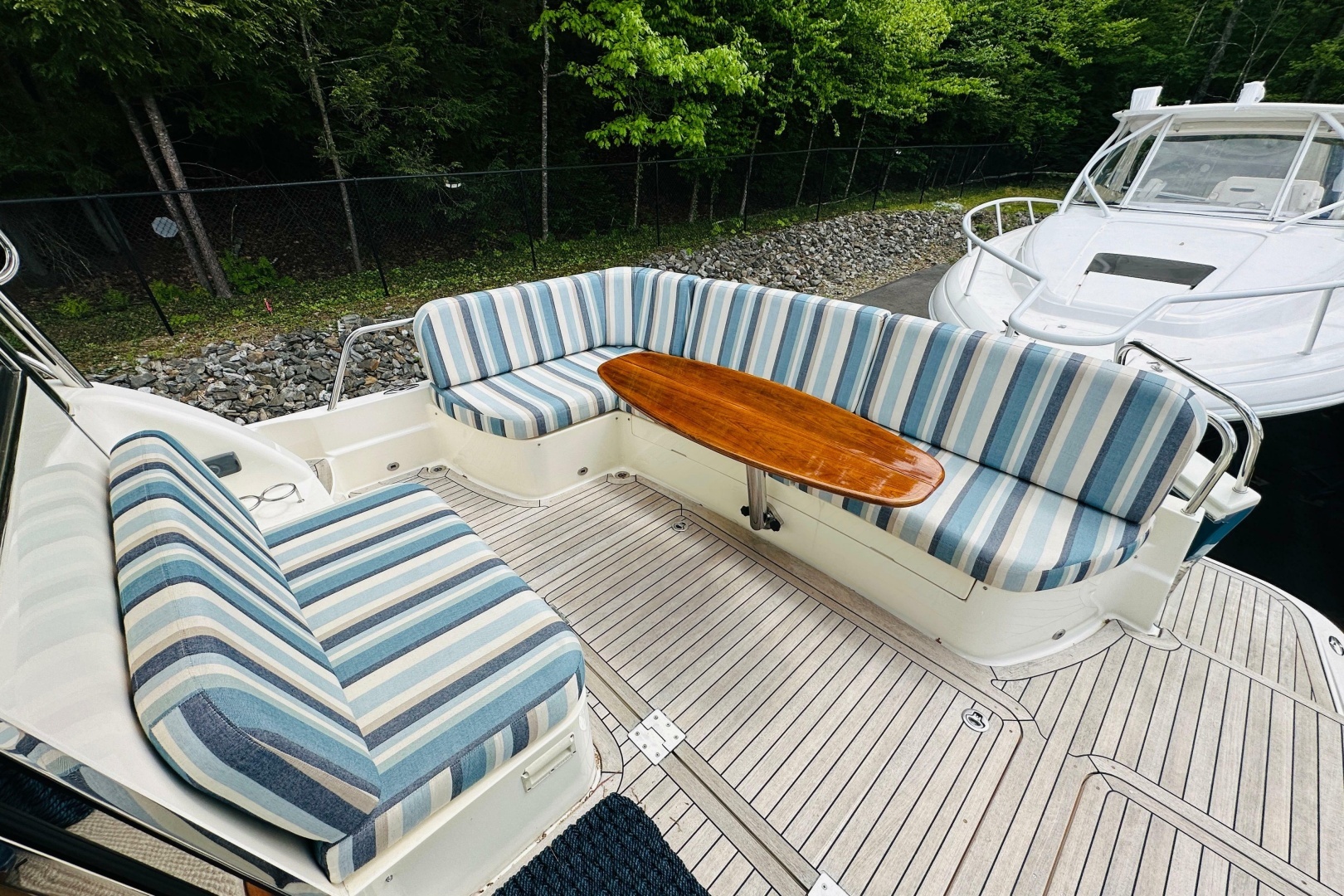

• Teak decking in aft cockpit including steps
• Teak decking on FRP swim platform
• Upgraded Fusion stereo
• Upgrade main salon TV from 26" to 32"
• Upright refrigerator with drawer freezer
• Reverso oil change system
• Kahlenberg dual chrome horns
• Kahlenberg horn controlle M-485A
• Hot and Cold transom shower
• Fresh water wash down forward
• Shore water inlet
• Accord shades on all opening ports
• Step under side door for easier access
• Cherry panel cabinet hanging lockers on each side of master berth
• Floor length mirror in master stateroom
• Open glove box with 110V, 12V
• Electric STIDD double bench seat
• Ultrasuede on STIDD bench seat with extra cushioning
• Privacy glass in both master and guest showers
• Sound attenuation (forward cabin to aft end of galley)
• Non-skid surface in utility room
• 2 pop up cleats on cockpit coaming for fenders port & stbd
• Spring cleats to 15"
• Chain counter for anchor windlass
• Inverter
• Custom Awlgrip hull 2025 by GIBY
• Contrasting anti-skid deck - Beige
• SureShade electric awning
• Extra outlets throughout boat

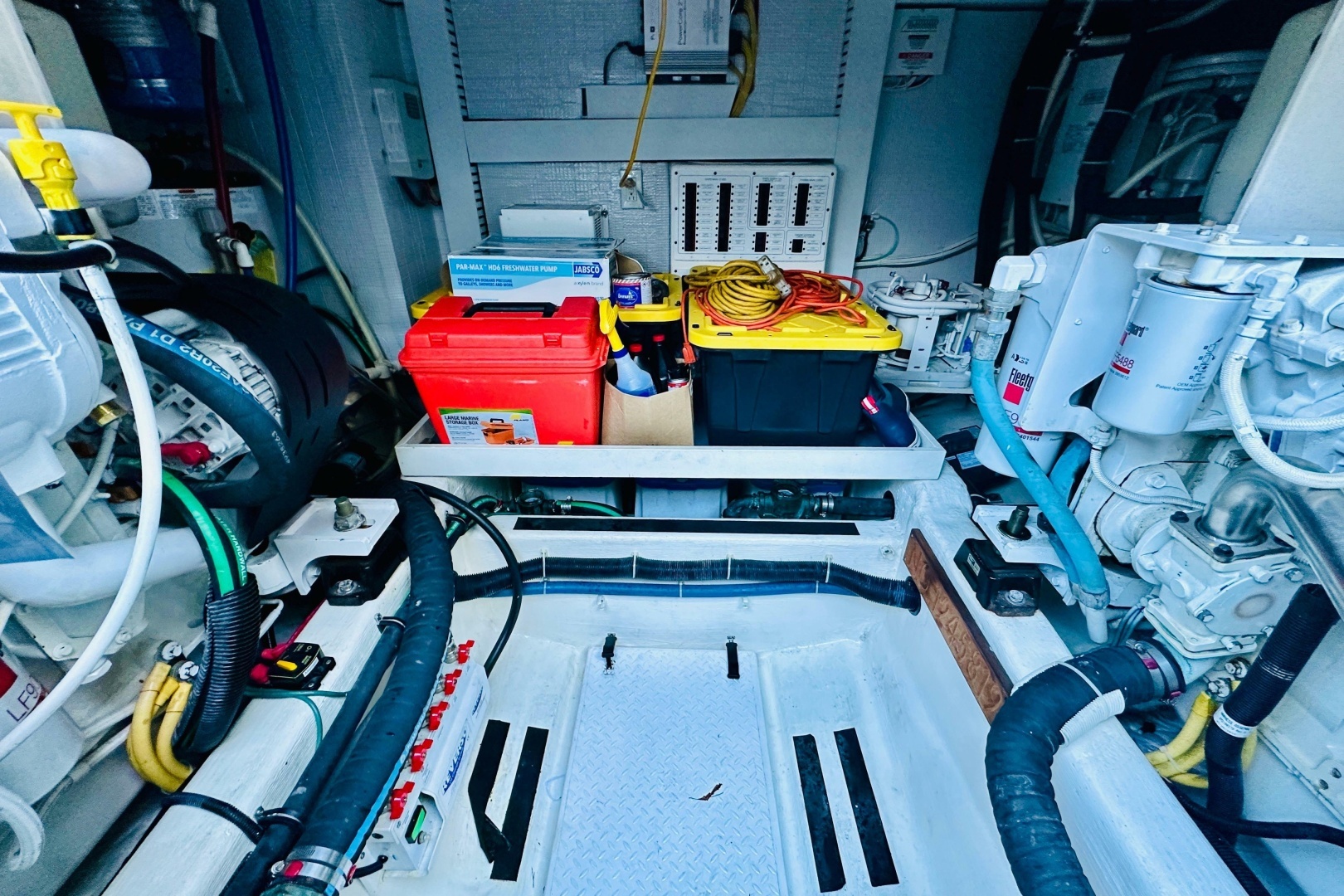

• Storage shelf with tie downs and supplies in engine room

Crew Cabin / Utility Room Layout

• Work bench with drawers and shelves
• Berth for guests
• Additional storage for supplies, manuals, etc
• Additional refrigerator

Electronics

• Garmin GPSMAP 8530 (2)
• Garmin 19" MFDs (2)
• Garmin SD Card Reader
• Garmin GMI 20 (2)
• Garmin GMR 426 radar
• Garmin GXM 51 weather
• Garmin VHF 215 with external speaker and hailer horn
• Shakespeare 8' VHF antenna with S/S ratchet mount (2)
• Fusion stereo head
• Cummins engine display
• Ultrasuede matching console cover

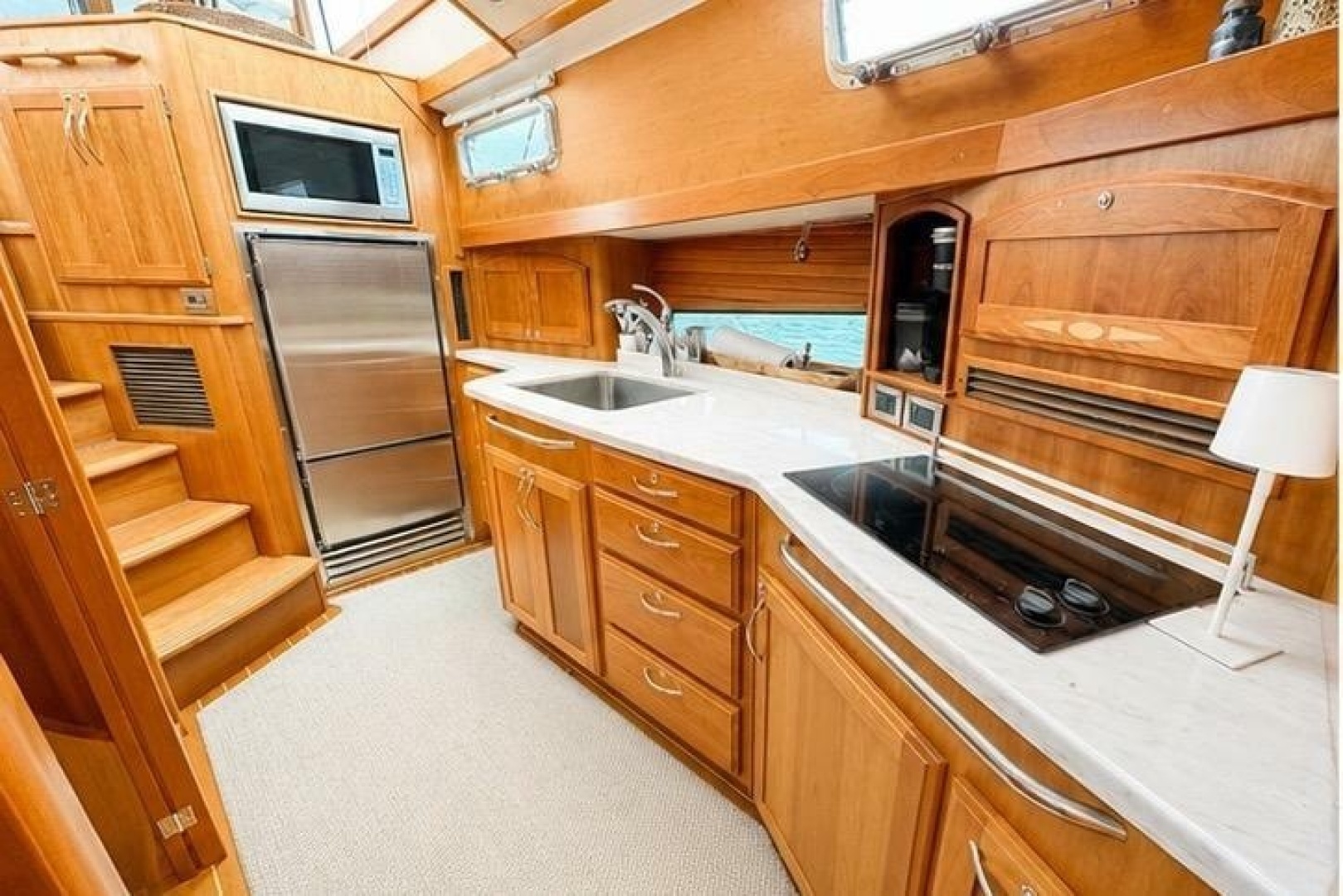

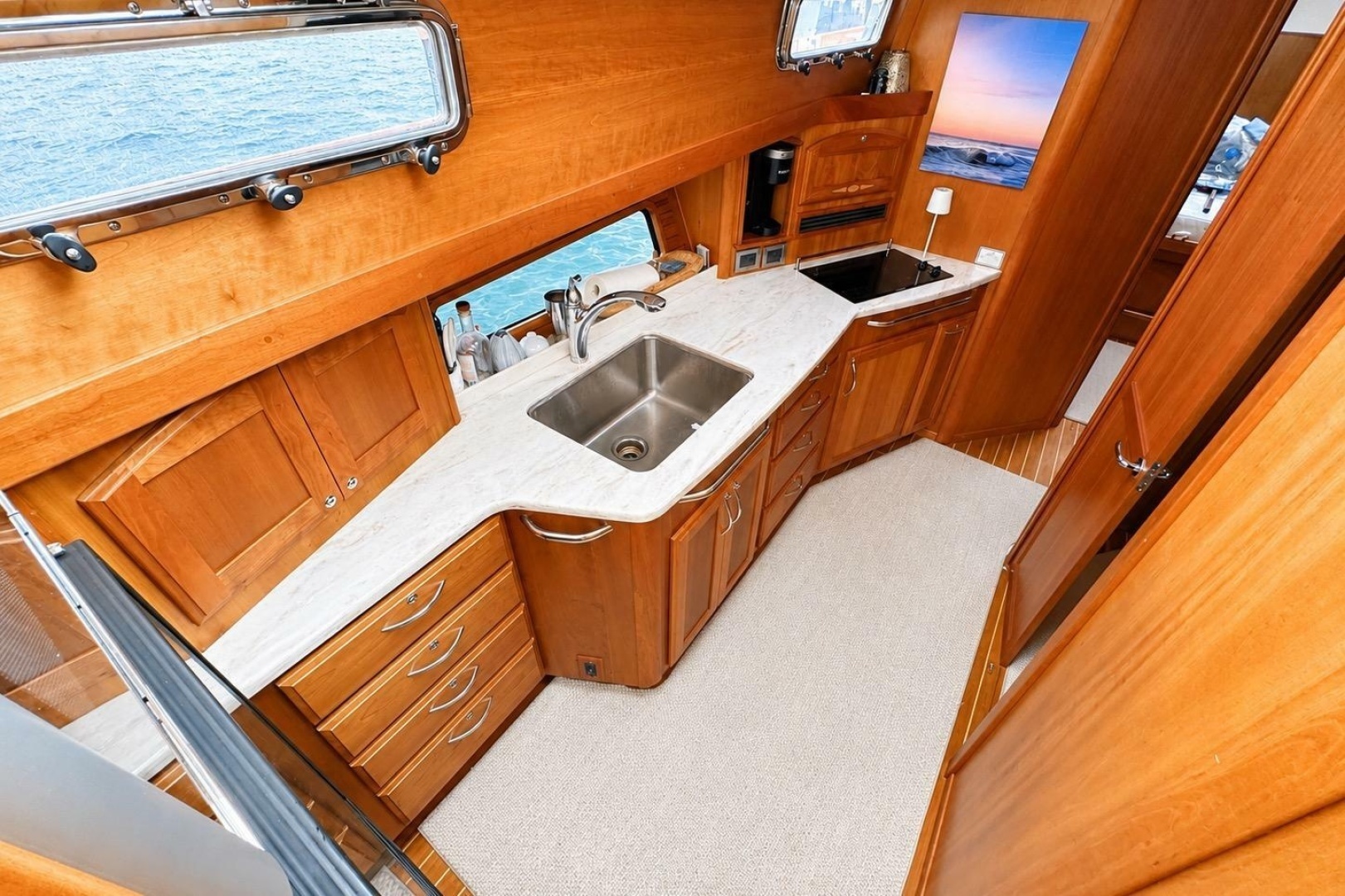

Galley

• Two burner electric cook top
• Convection microwave with stainless steel face
• Drawers and storage lockers below counter
• Built-in large waste basket under sink
• Stowage below steps
• Solid surface galley counter top
• Stainless steel under mount sink with cover and pull-out faucet
• Stainless steel under mount prep sink with cover
• Soap dispenser stainless steel stand-up refrigerator (top) and freezer
• Extra large trash bin conveniently located under sink
• Custom built-in cubby for a Keurig coffee maker
• SS stand up refrigerator (top) and freezer
• Teak and holly soles

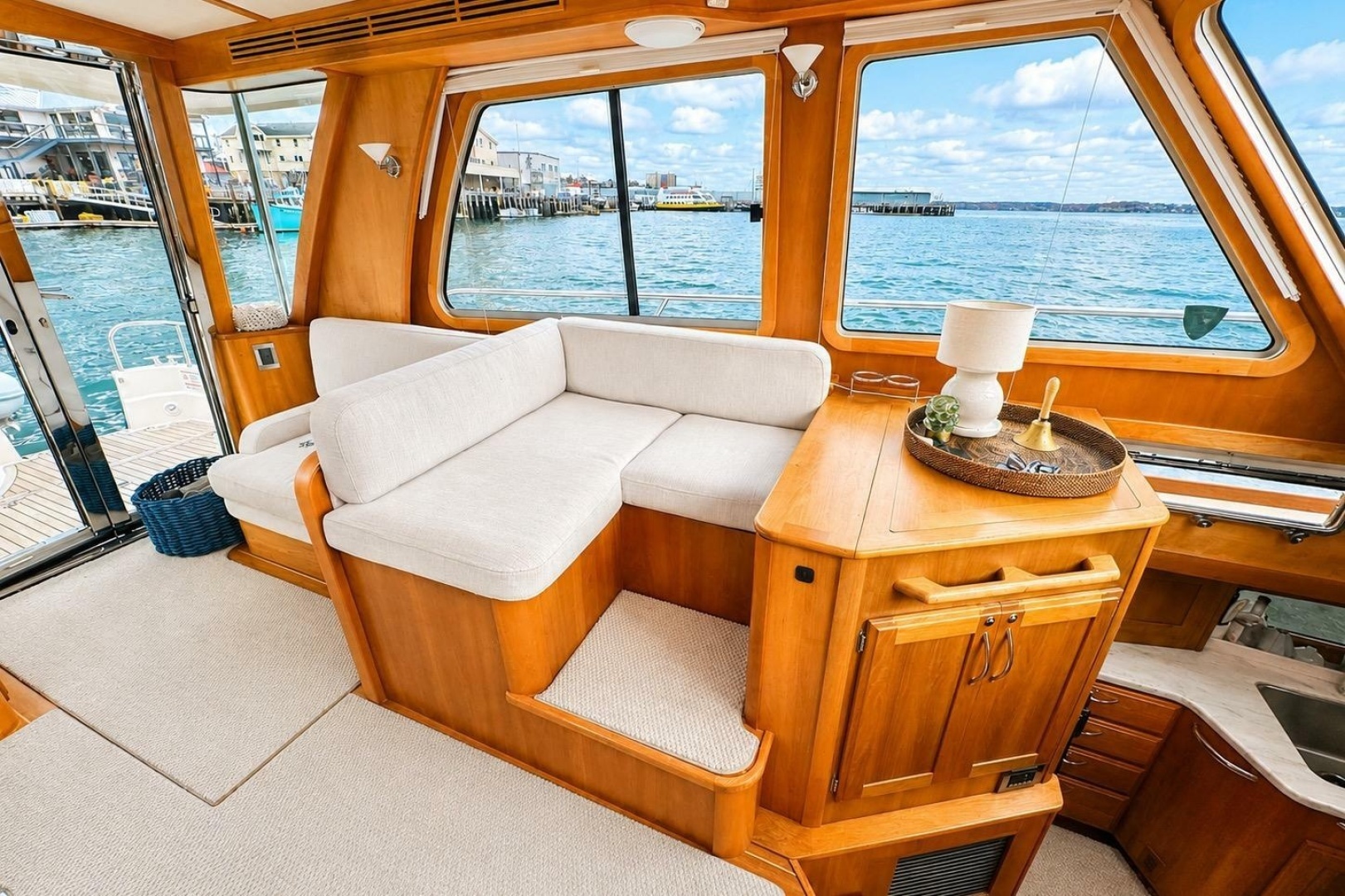

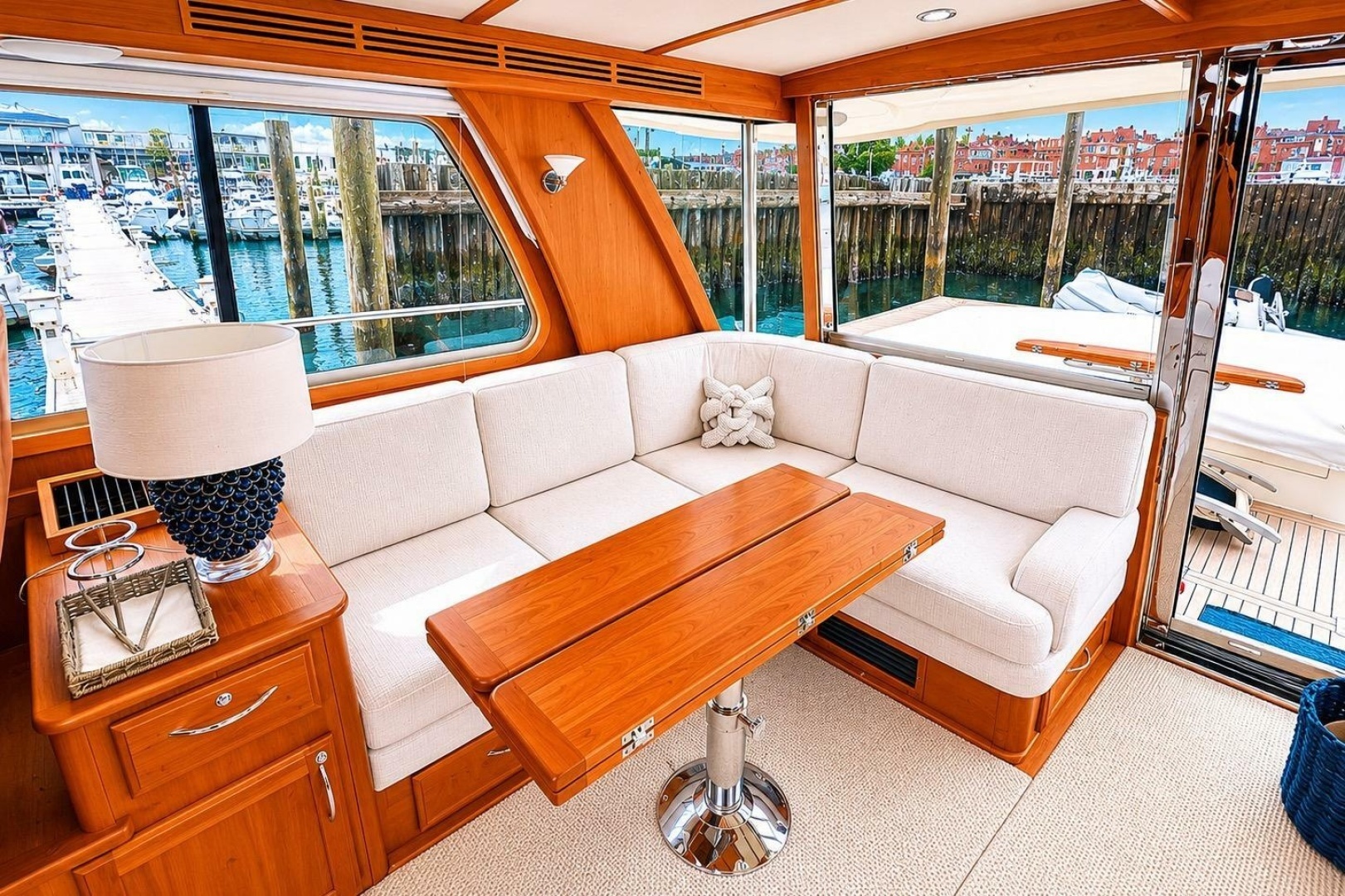

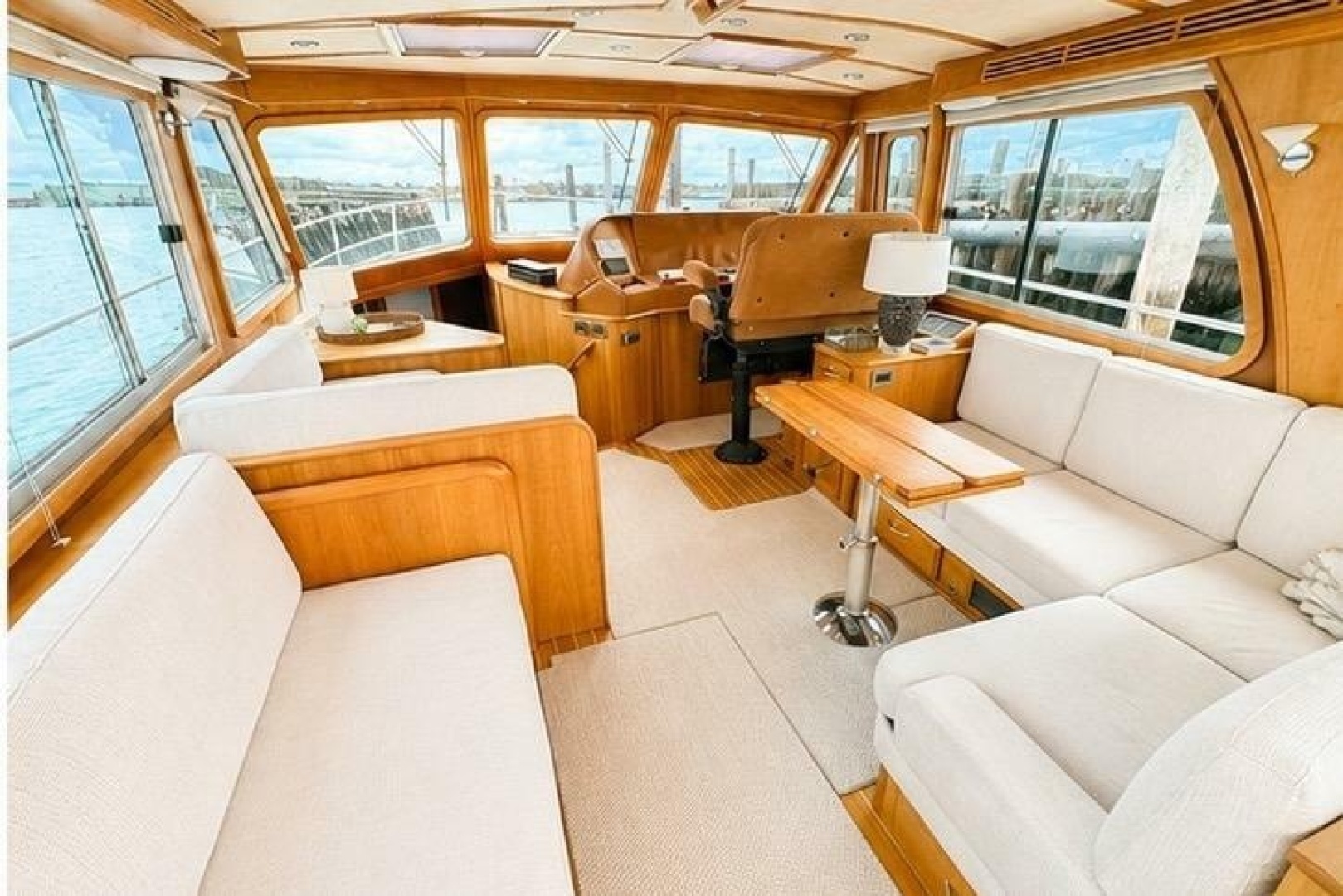

Salon

• “L” settee to starboard with storage and Sabre tool drawer under
• High Gloss finished table with hi-low pedestal
• Table lowers to coffee table height
• Flat screen LCD TV 32” on electric lift
• Raised mates L-shaped settee to port
• Stainless steel bi-fold door to cockpit
• Electrically operated large window aft of L-settee
• Swing door at helm to starboard side deck
• Deep chart table forward of L-settee
• Teak and holly soles

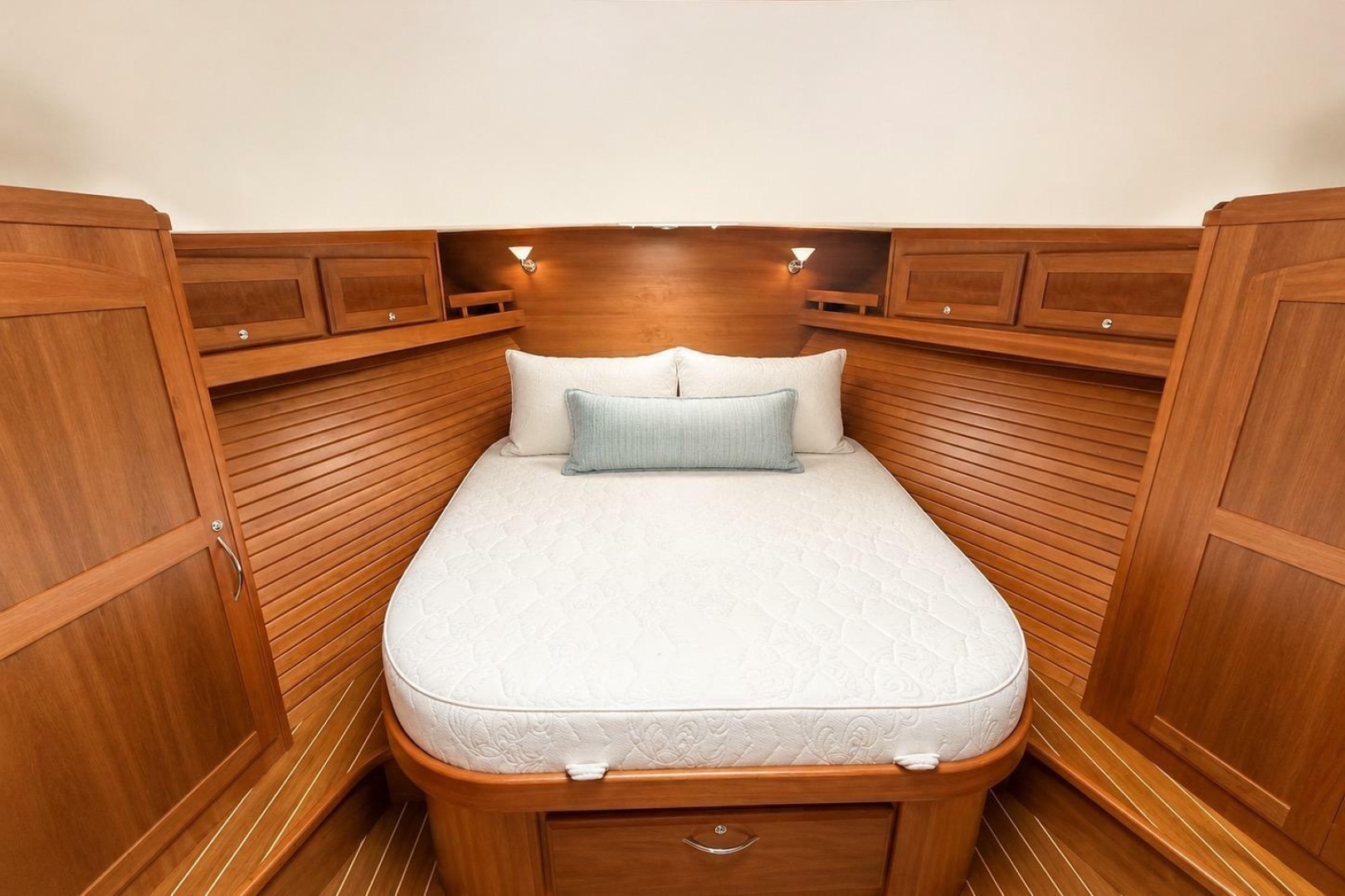

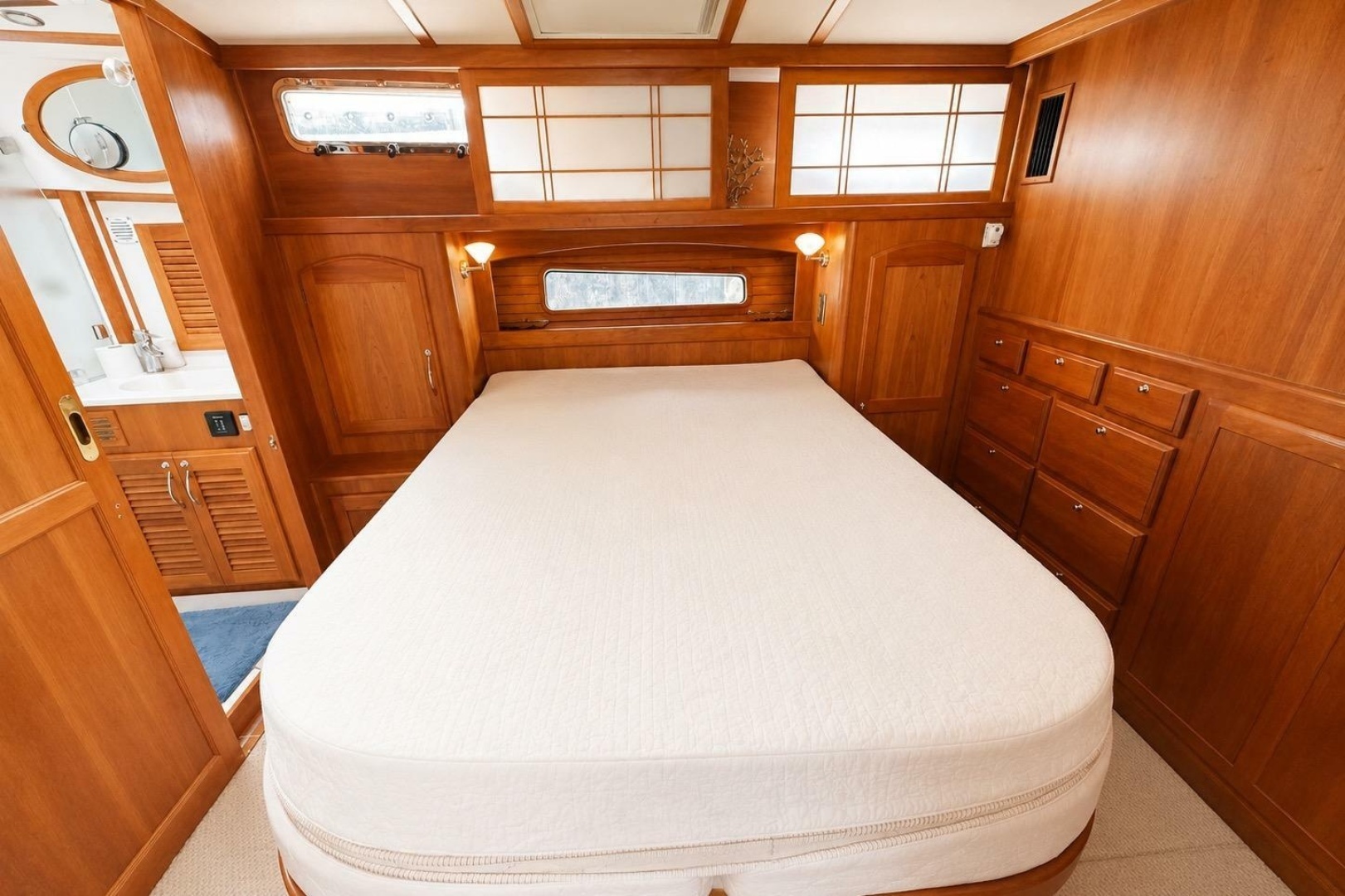

Owner Stateroom

• Queen walkaround island berth athwartship layout
• Hull side port light over head board
• Cherry panel closet doors
• Shoji style portlight screen panels
• Cherry hull ceilings
• Drawers under berth and in bulkhead aft of berth
• (2) hanging lockers fore and aft of bed
• LED flat screen TV
• Teak and holly soles
• Sound deadening soft headliner panels
• Pocket door to master head compartment

Owner Head

• Private access from master stateroom
• Custom tile in WC and shower sole
• Recessed stainless steel sink
• High gloss finish over solid cherry counter
• Vanity cabinet below sink
• Storage outboard
• Mirror above vanity, cherry framed with custom lights
• Separate shower stall with clear bi-fold enclosure and glass tile accent wall
• Electric shower sump pump
• Opening port to side deck
• Deck hatch with blind/screen overhead
• Ventilation blower
• Custom stainless steel towel hooks and racks
• Custom holding tank visual read out gauge

Guest Stateroom and Guest Head

GUEST STATEROOM

• Spacious island berth with laminated trim
• Cherry hull ceilings
• Drawers under berth
• Storage lockers, drawers and shelves
• Sound deadening soft headliner panels
• Pocket door to passageway
• Private access to forward head and shower
• Teak and holly soles

GUEST HEAD

• Stainless steel under mount sink
• Shower stall with seat and locker outboard
• Hot and cold pressure water
• Electric shower sump pump
• Storage lockers
• Solid surface vanity top with bull nose
• Custom stainless steel towel hooks and racks
• Soap dispenser
• Cherry wood trimmed mirror over sink
• Ventilation blower

Decor

• Varnished cherry interior finish
• Screens on all opening ports
• Ocean Air screen/blinds on deck hatches
• Ocean Air pleated blinds on side windows, rear window, side door and rear door
• Dovetailed, varnished maple drawer boxes

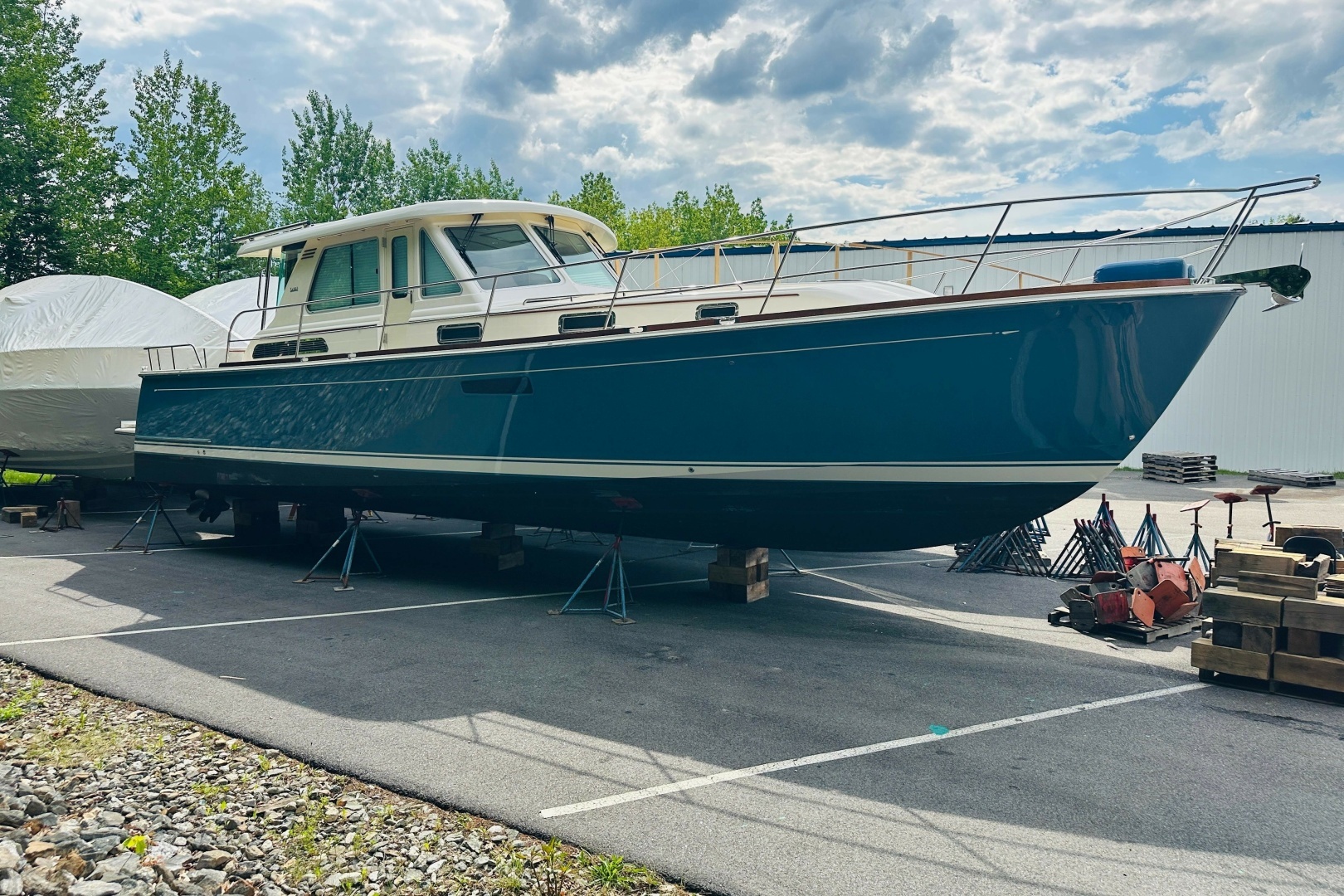

Hull

• Modified Deep “V” Planing hull design, with shallow pod drive tunnels
• 14º deadrise at transom, 23º deadrise amidships
• ISO NPG white gelcoat w/vinylester back-up resin
• Bottom, topsides and transom VIP resin infused biaxial E-glass with Corecell foam core
• Stringer system biaxial E-glass with foam core
• Resin Infused E-glass swim platform with molded-in anti-skid surface
• Hull side rubbing strakes
• PVC rub rail with stainless steel cap
• Gold recessed cove stripe

Deck and Deck Hardware

• VIP resin infused biaxial E-glass with balsa core
• Molded-in anti-skid deck surfaces
• Bi Fold aft salon door to port
• Sliding windows in salon on cabin sides
• Large electric opening window in salon aft bulkhead
• Hinged access door to side deck at helm
• Flush, outward opening, transom door with latch
• Anchor locker with slam latch
• Large lazarette/engine room access hatch in cockpit sole with compression latches
• 1 1/4" Diameter type 316 stainless steel perimeter rail system
• (8) Custom 15” Stainless steel cleats (2 fwd, 4 mid ship, 2 in aft cockpit)
• (1) 10” Stainless steel cleat to starboard of windlass as anchor rode tie off
• (4) Custom cast stainless steel mid-rail line chocks
• (2) Custom cast stainless steel skene chocks forward
• (2) Custom folding stainless steel mooring cleats aft
• Custom 12" stainless steel center cleats on aft transom
• Bow pulpit with dual anchor roller
• Quick anchor windlass, electric rope-chain type
• Flag staff holder
• (6) Custom stainless steel opening port lights
• Teak toe rails and teak cabin eyebrow
•  Custom cast stainless steel “SABRE” medallion

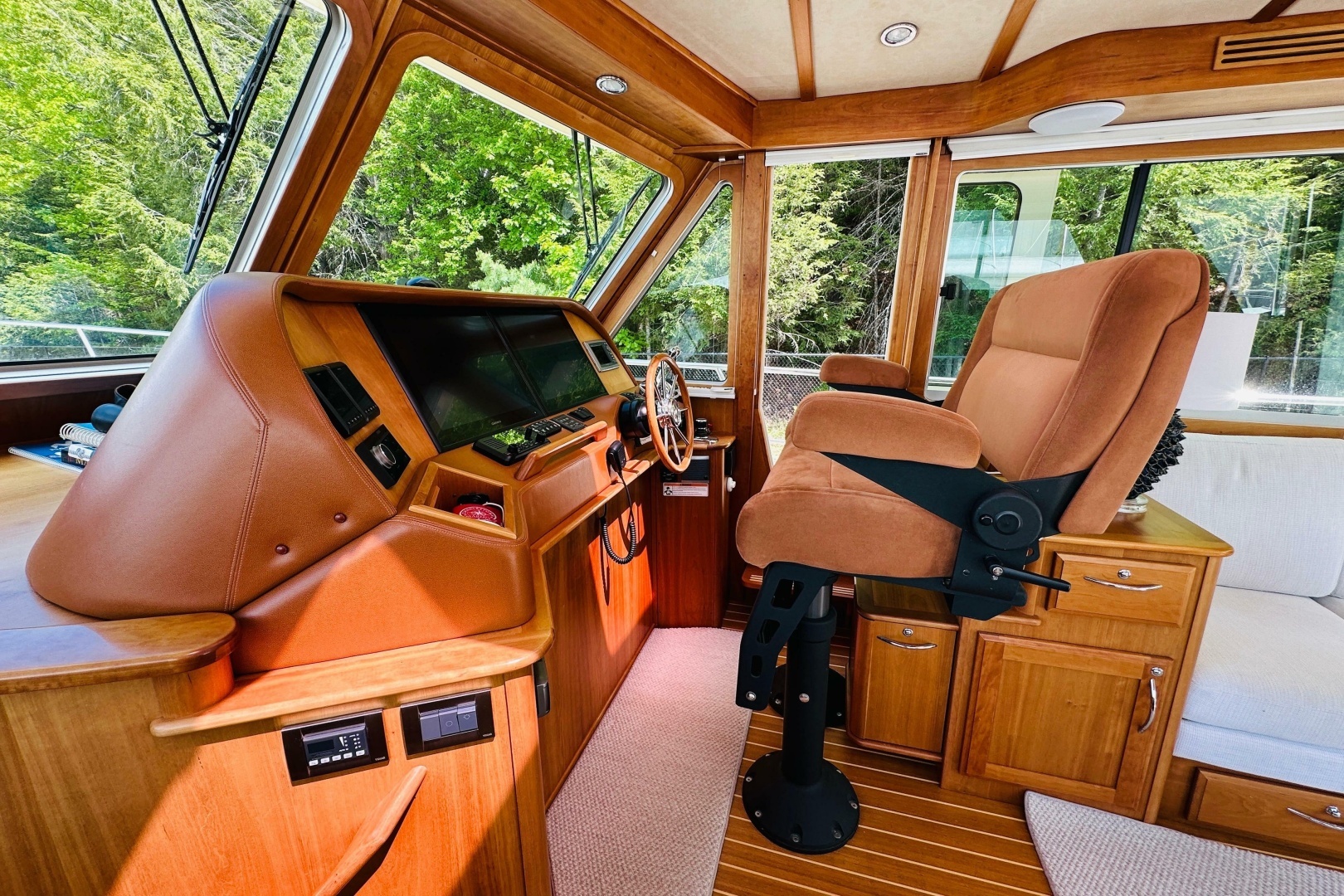

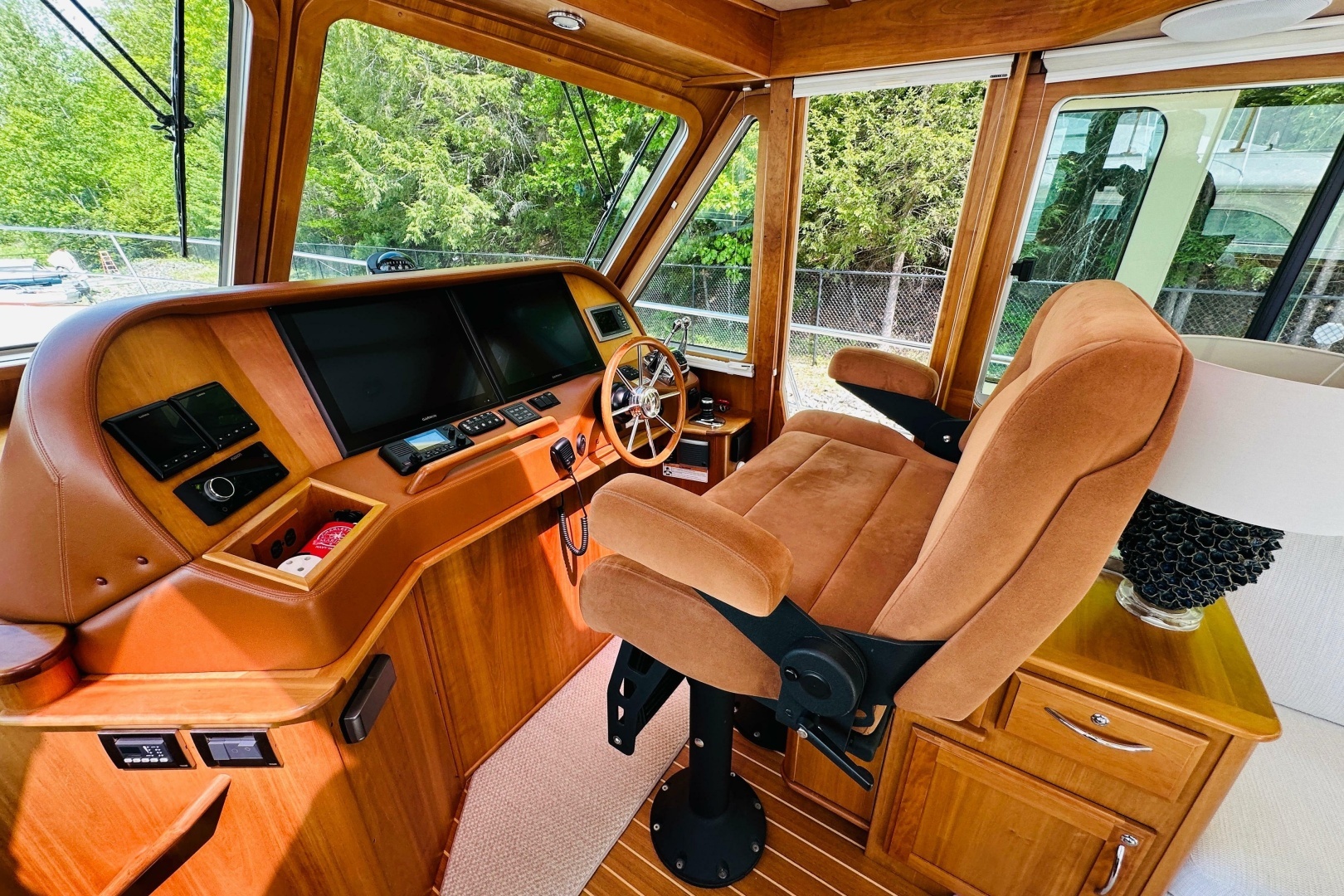

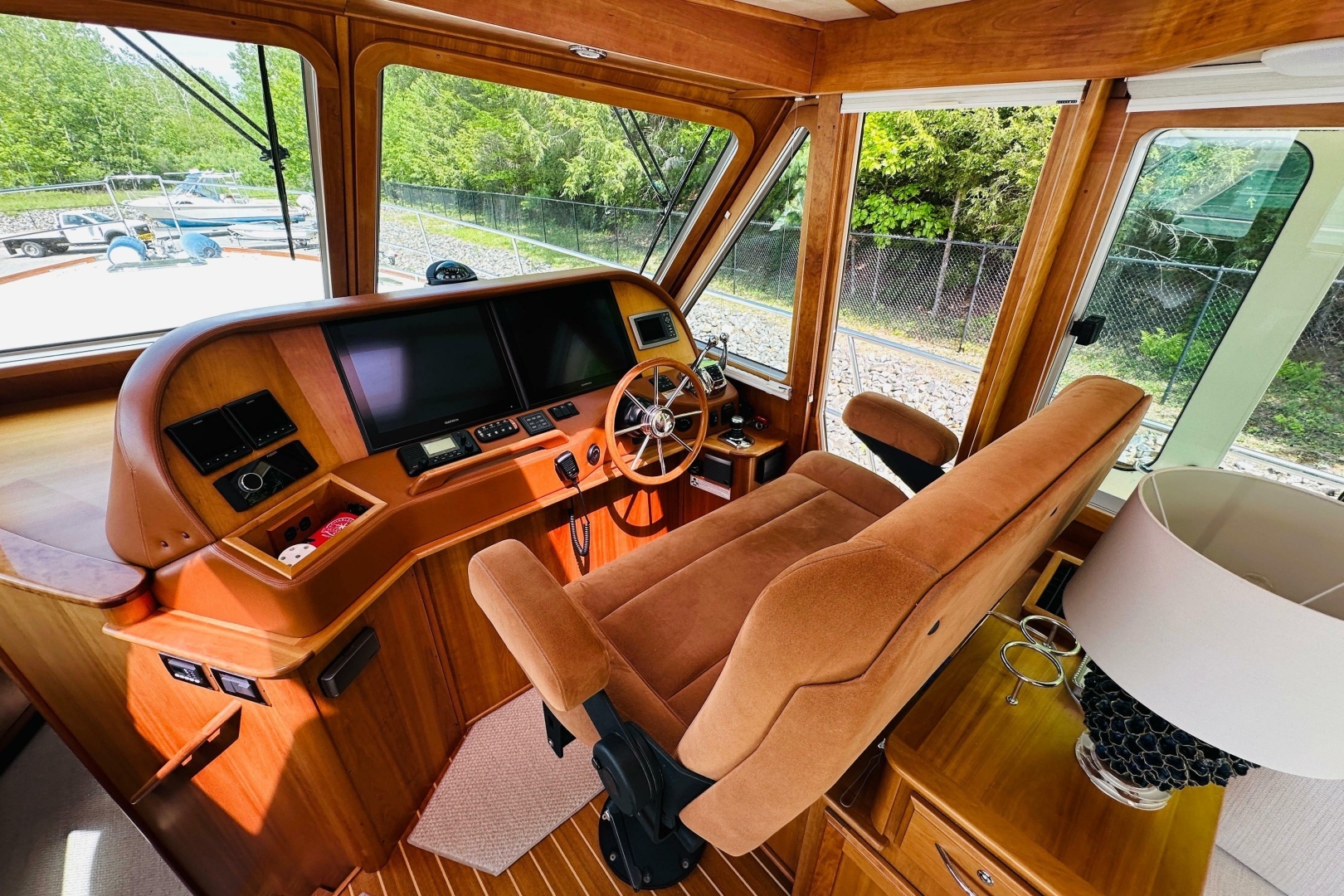

Helm Station

• Cummins DTS dual lever electronic controls

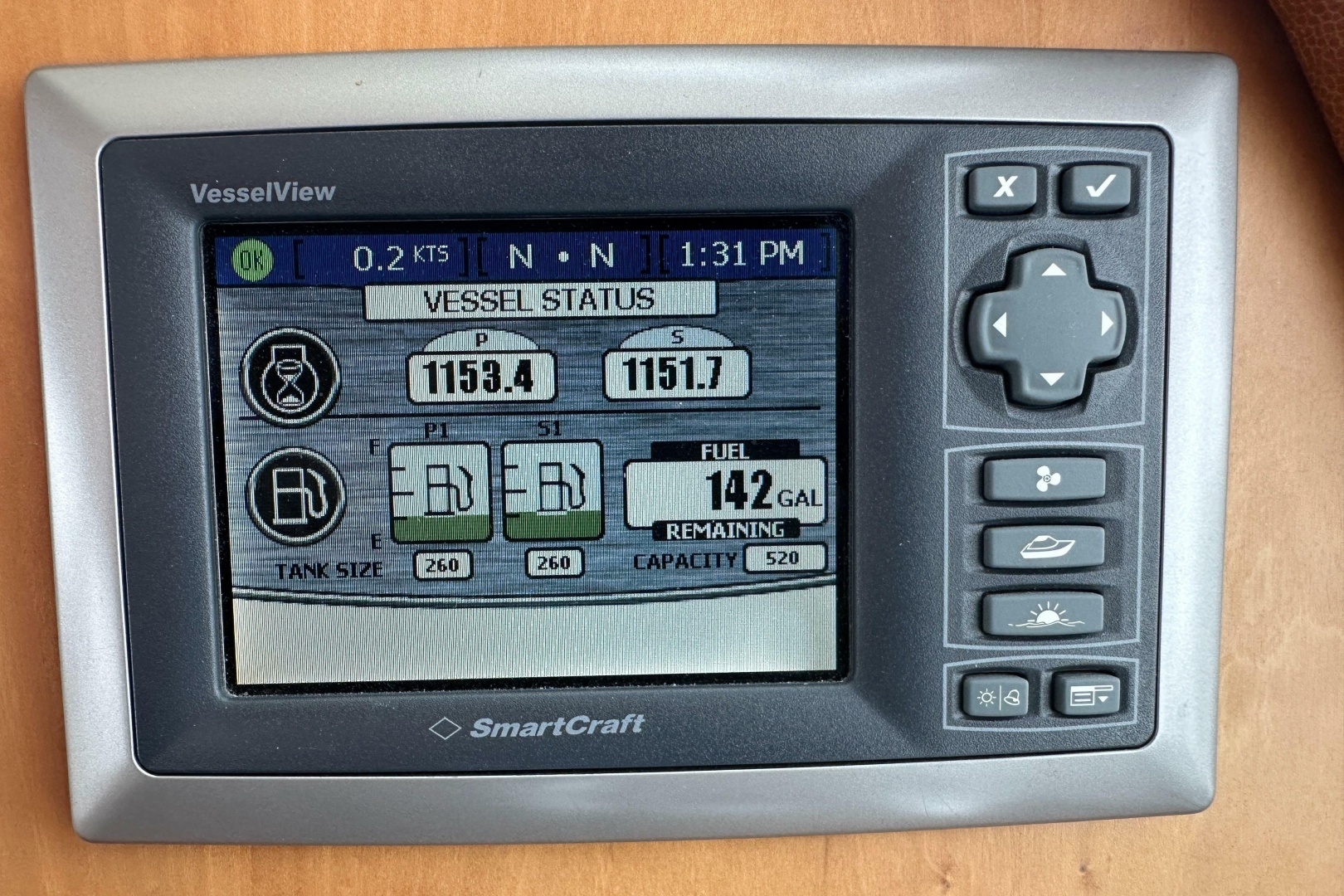

• Cummins Smart Craft display (engine data, tank levels, vessel data, alarms)
• Triple windshield wipers with washers
• Ritchie Compass
• Switch controls for horn, running lights, anchor light, engine room blower and optional equipment
• Stazo 400mm custom teak steering wheel with tilt helm

Propulsion and Steering

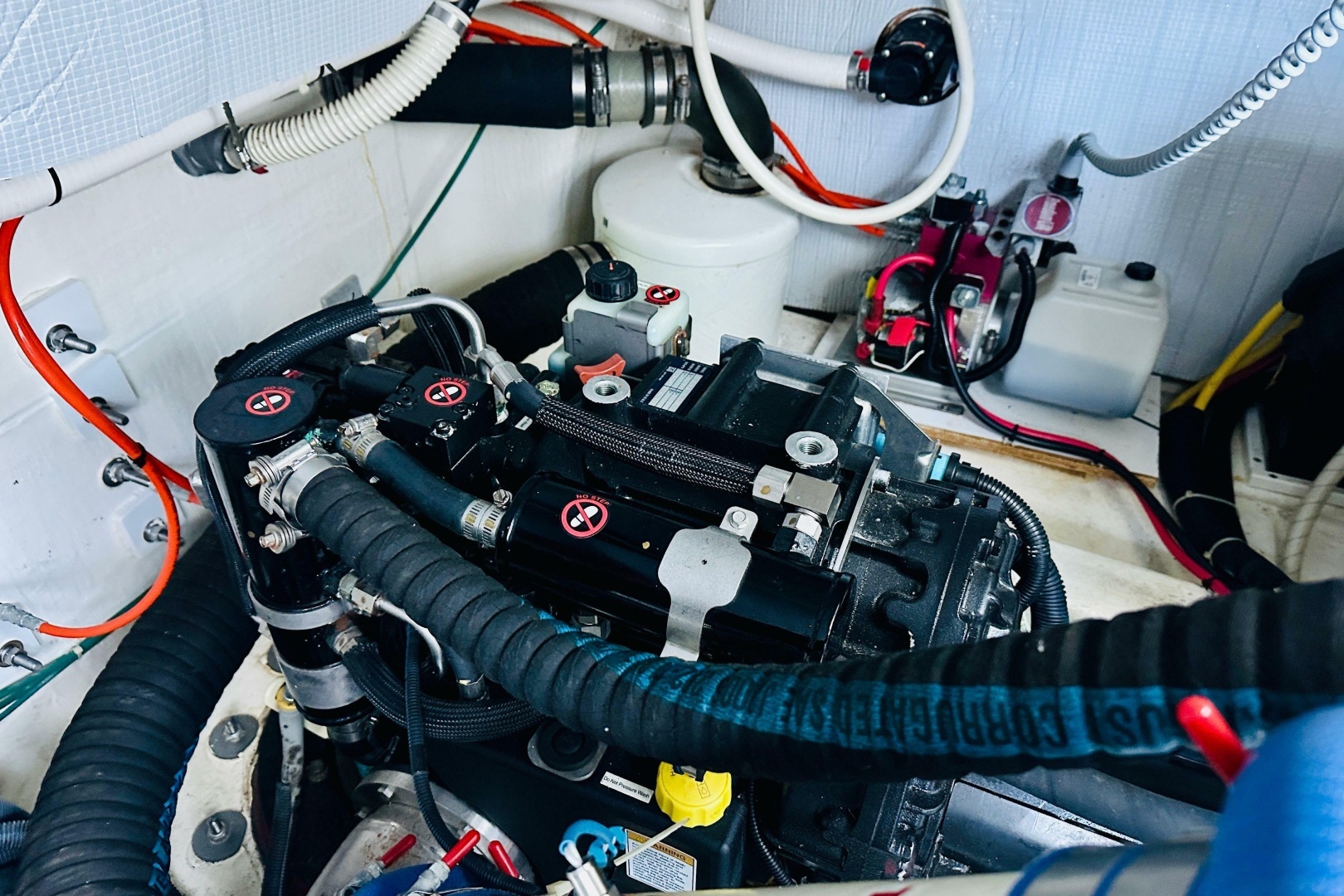

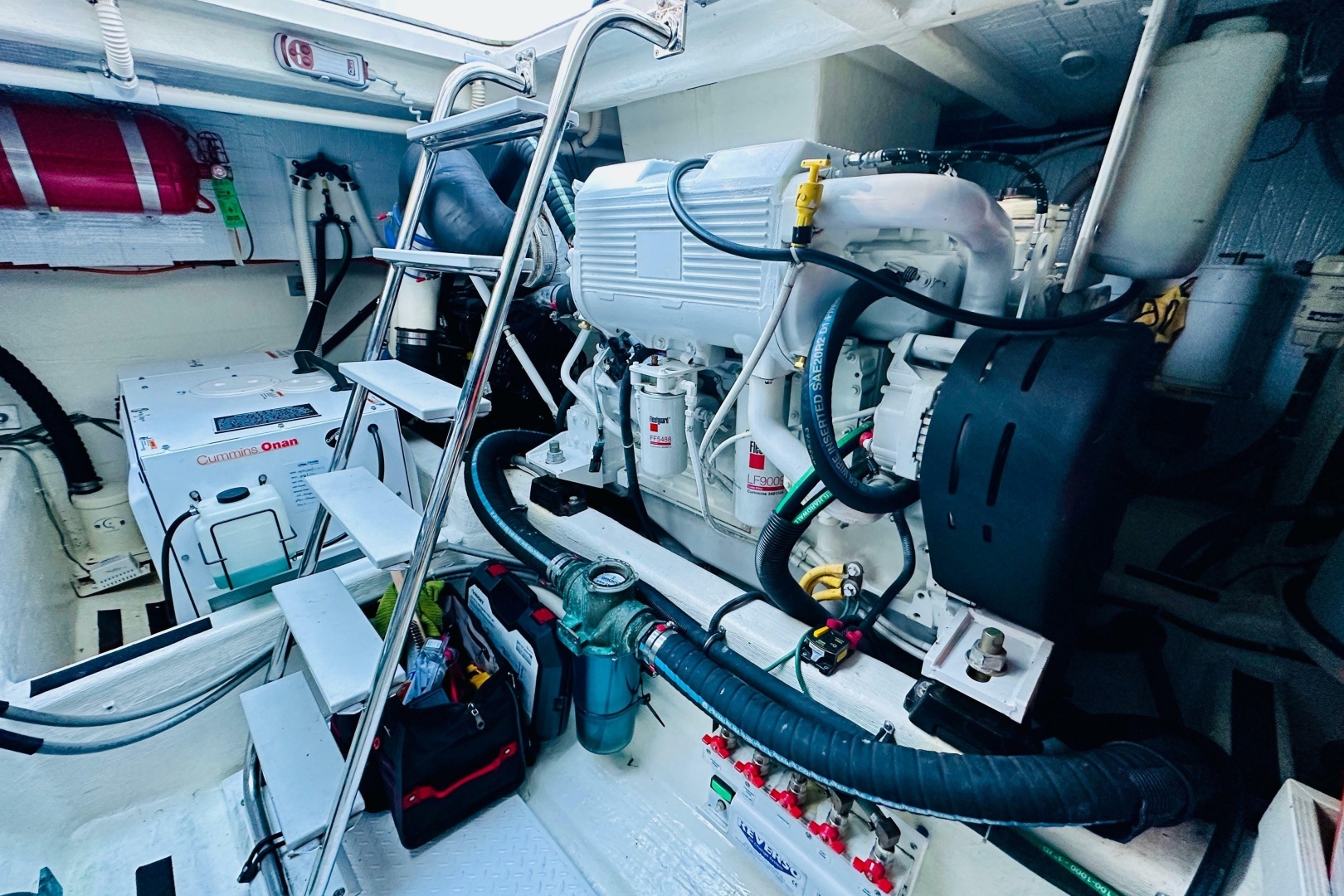

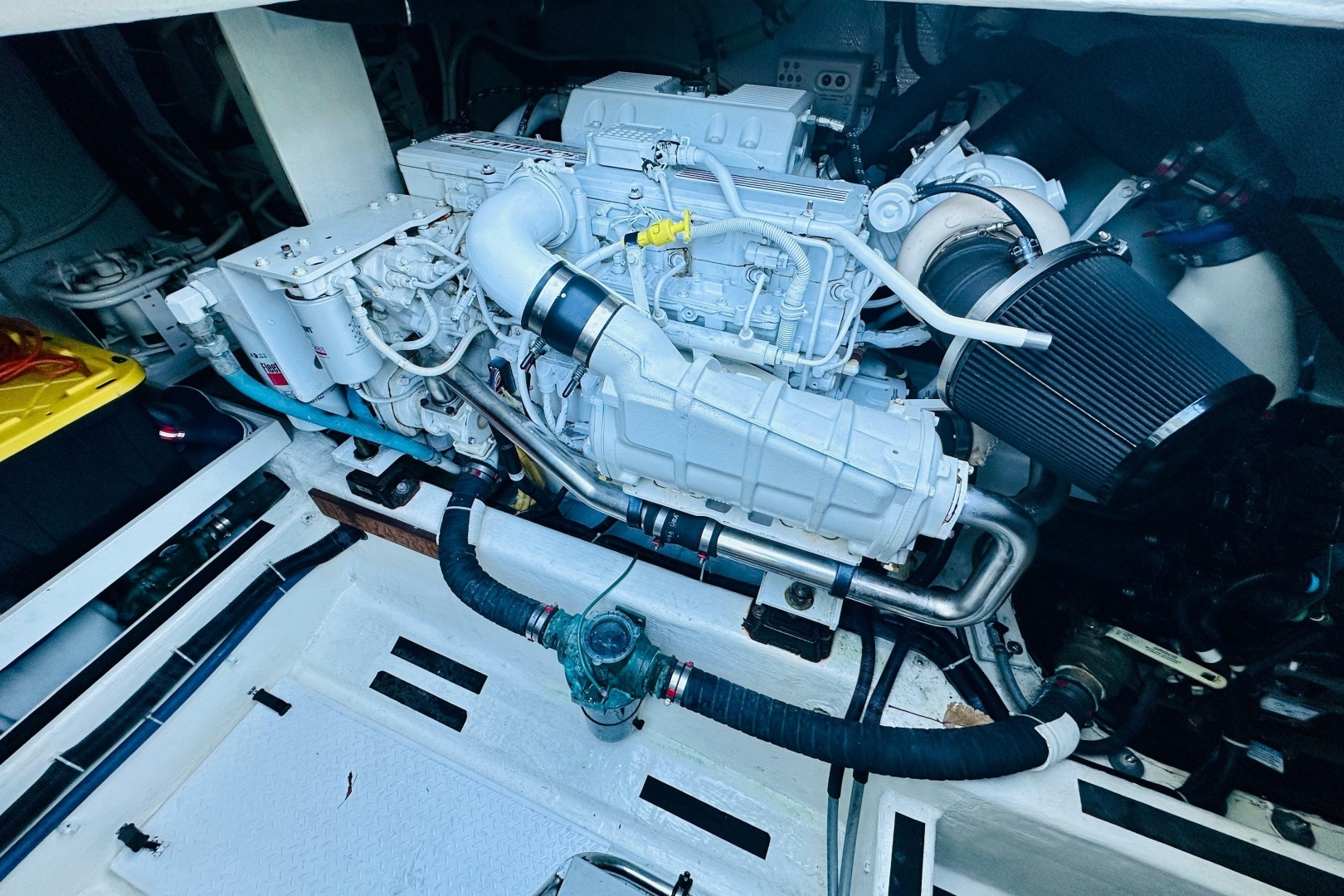

• Twin Cummins QSC 8.3L 550hp electronic, fresh water-cooled engines

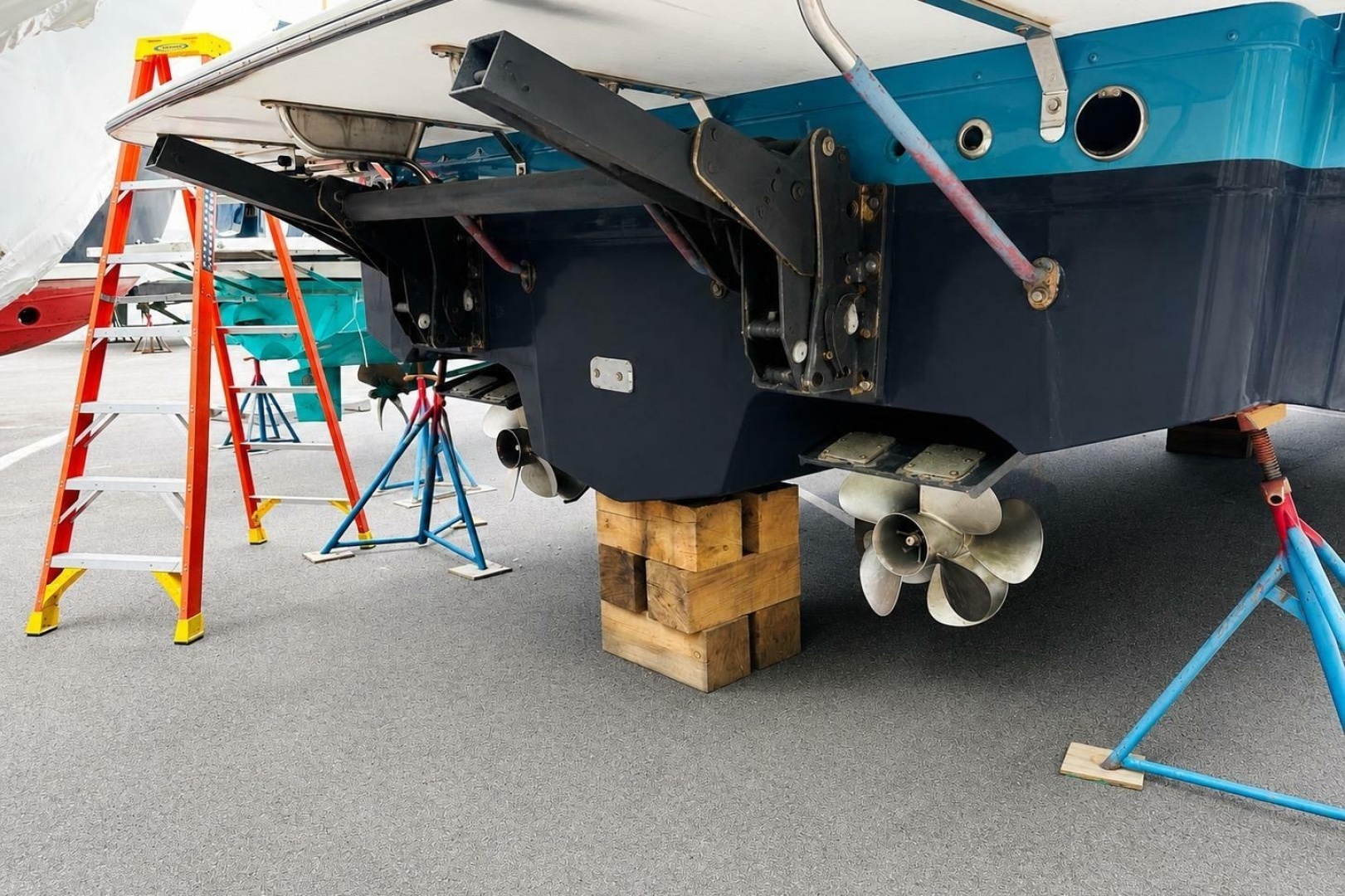

• Twin CMD Zeus 3800 pod drives, with integrated steering and trim
• 120A, 12V alternators each engine
• (2) Exhaust by-pass mufflers
• Engine room blower
• Engine room vent ducts
• Engine room floor with FRP anti-skid
• White gel-coated engine room
• Mylar face foam noise barrier
• Zeus helm with joystick
• Trim tabs integrated in CMD Zeus pod drives
• Skyhook GPS position hold system with dedicated GPS receiver
• Autopilot integration with drives and Garmin system

Fuel System

•  Two 260 USG diesel fuel tanks - port and starboard
•  Racor fuel filters
•  Two 2” “diesel” deck fill plates - port and starboard

Electrical System

• 12V DC ELECTRICAL SYSTEM
• Two AGM Group 31 dedicated engine start batteries
• Three AGM 4D deep cycle ship's service batteries
• One AGM Group 24 generator start battery
• Remote control battery switches with controls at helm
• Manual emergency battery crossover switch
• Illuminated main circuit breaker distribution
• Digital battery monitor
• Marine-grade, tinned wire throughout
• 120 VAC ELECTRICAL SYSTEM

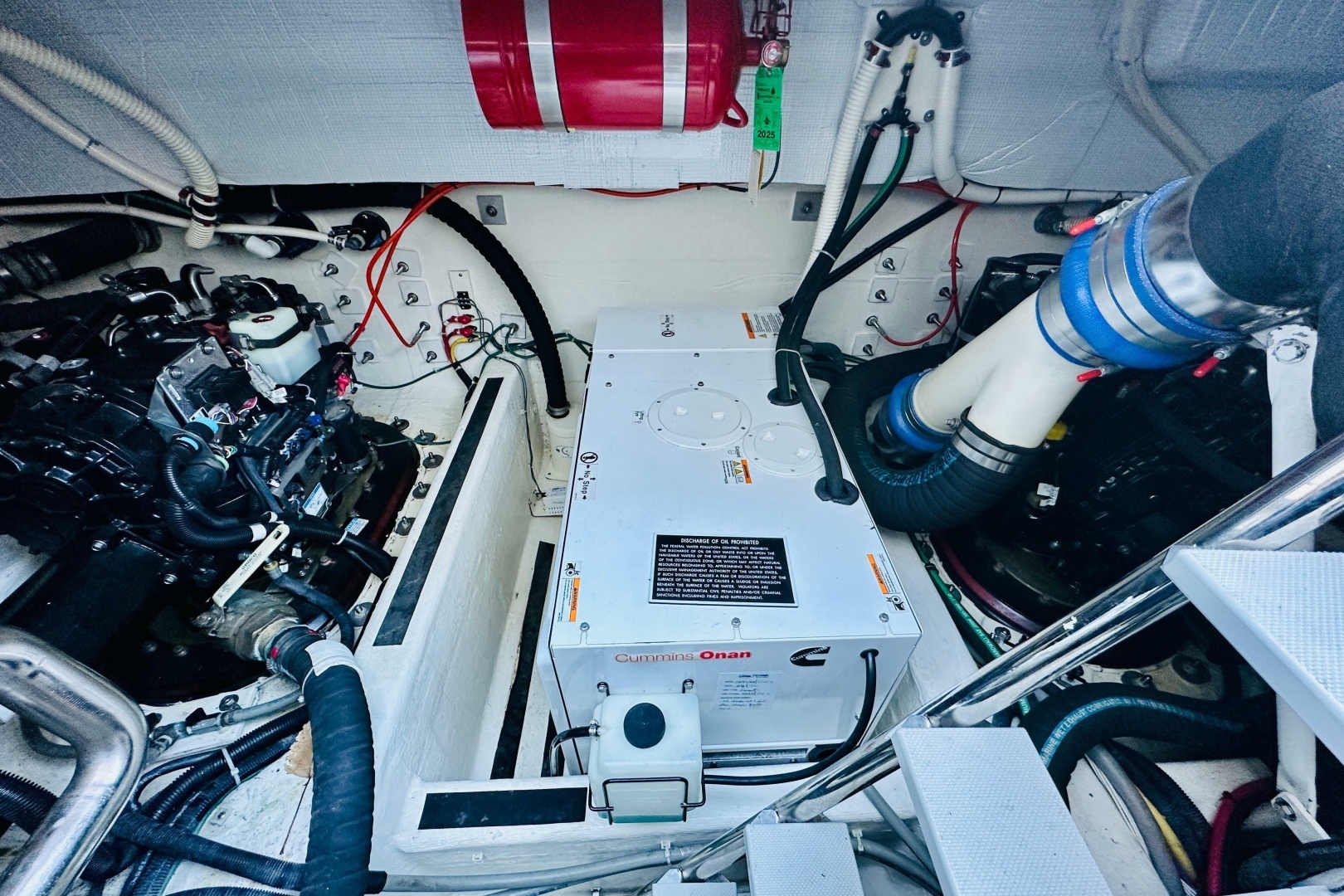

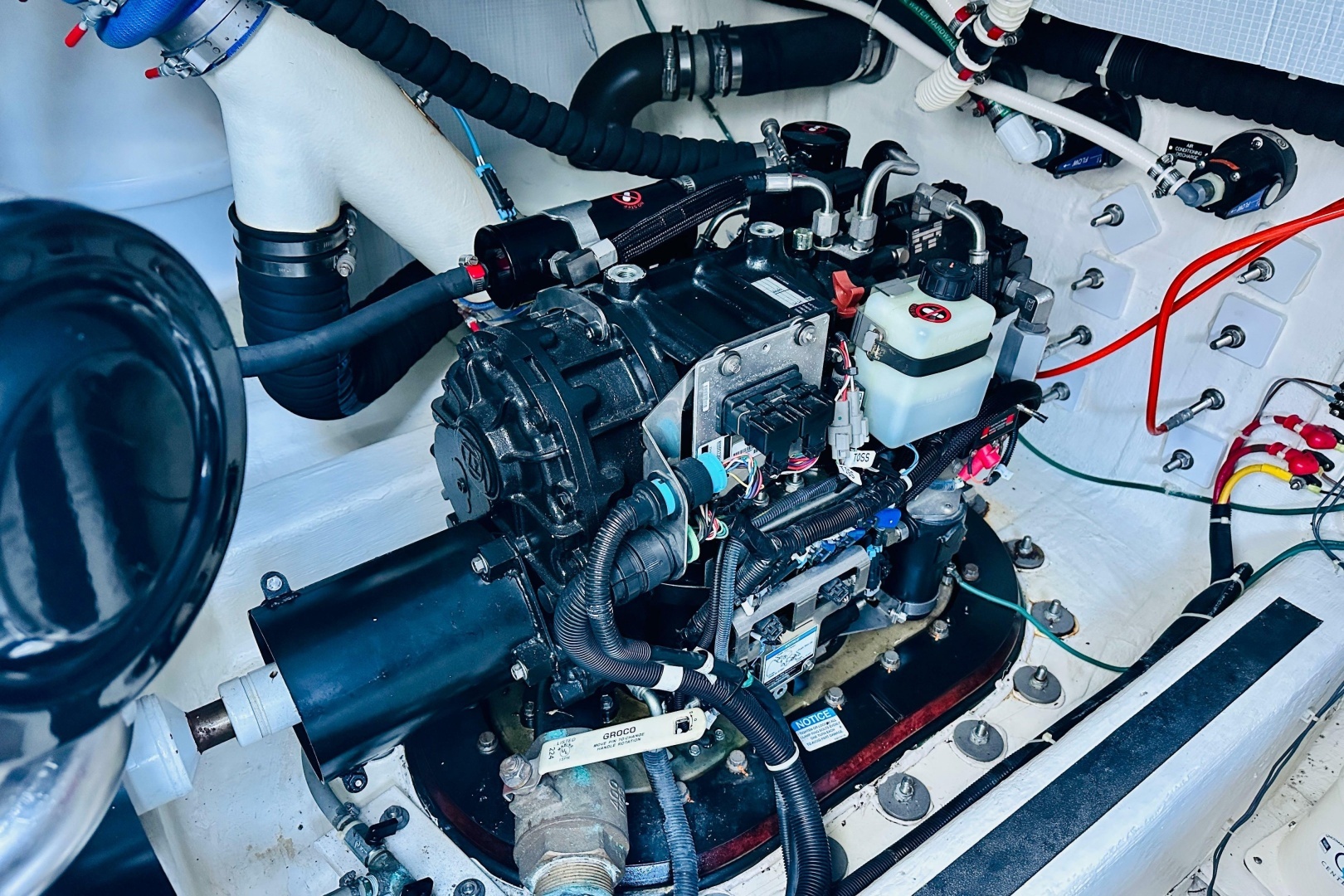

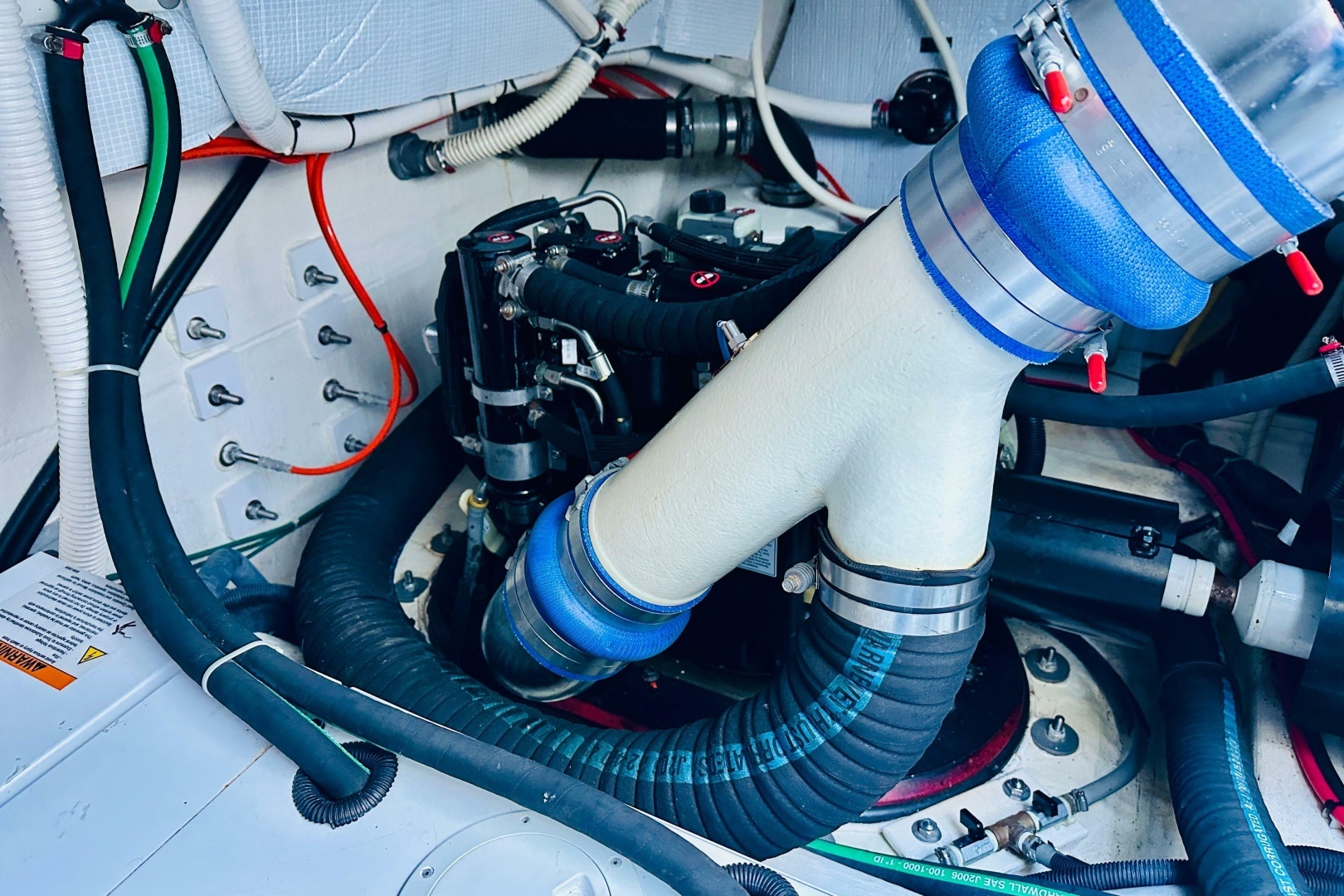

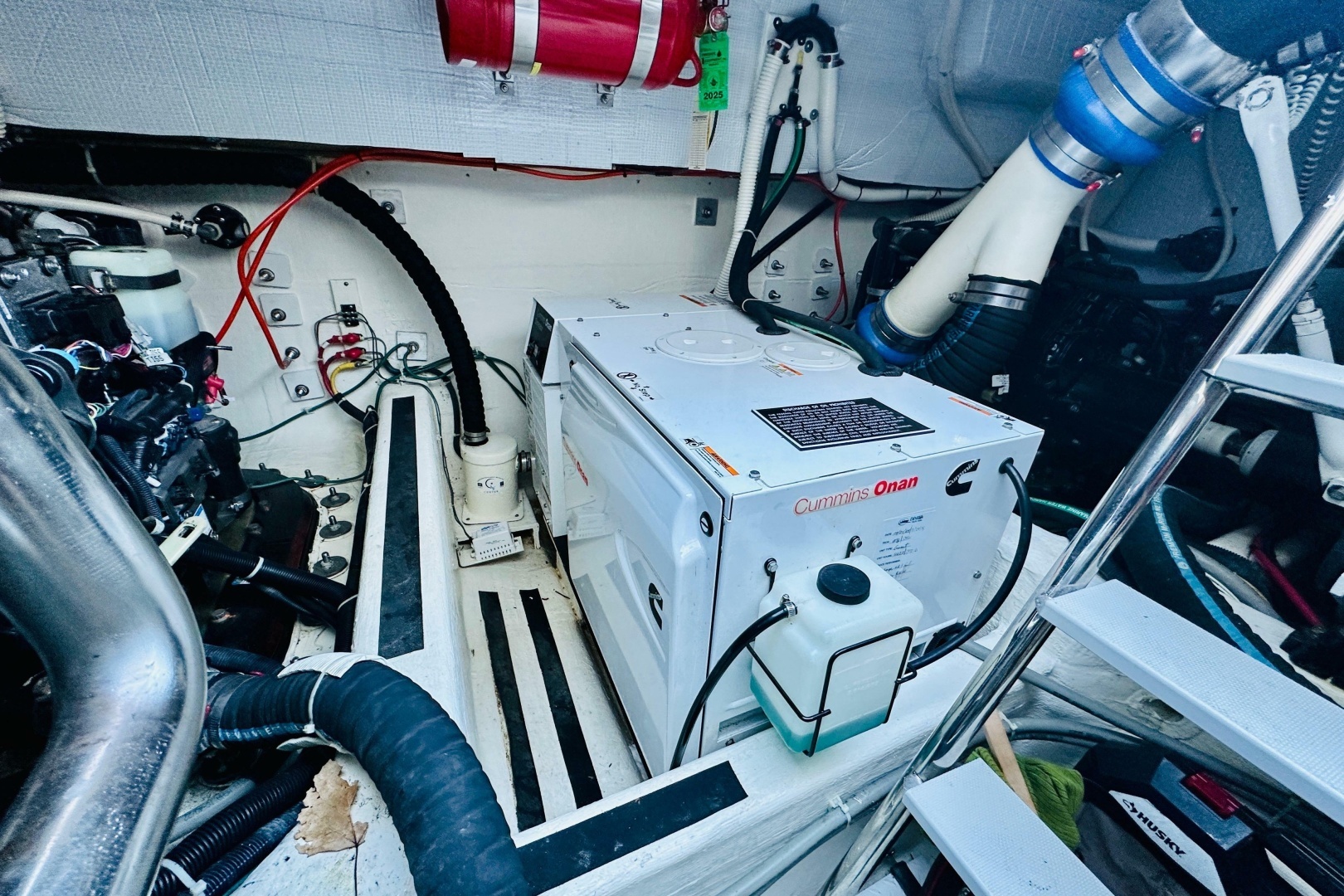

• Onan 13.5 kw generator
• Onan E series display
• Water drop muffler
• Cooling water intake strainer
• Sound shield
• Transfer switch
• 50A shore power service
• Glendinning Cablemaster & 50 ft. cord
• Fail safe galvanic isolator
• Illuminated main circuit breaker distribution panel
• Digital AC system monitor
• 120V GFCI protected outlets in each cabin and engine room.
• 50amp, 3-bank battery charger
• Reverse cycle heat/ air conditioning system

Fresh Water System

• Water capacity 160 gallons
• Stainless steel, 20 gal. water heater, operates on 110-VAC engine heat
• Temperature control valve on hot water supply
• Hot and cold water pressure system 12V
• Fresh water spigot in engine room
• Cockpit shower, hot and cold
• Fresh water wash down in anchor locker

Waste Disposal

• Polyethylene holding tank with 70 gallon capacity
• Jabsco Quiet Flush fresh water MSD in guest head
• Tecma Eco MSD in master head
• Diaphragm waste pump on holding tank

Safety

• Fire extinguishers - handheld portables
• Marelon sea valves on all thru-hull fittings below waterline
• Bonding system to safeguard against galvanic corrosion
• Automatic fire extinguishing discharge system in engine space with override
• (3) Automatic 12V electric bilge pumps
• (3) high water switches and alarm
