Interior Accommodations and Layout

MAGGIE features gorgeous teak joinery and a teak and holly cabin sole. The passageway doors, hanging lockers, and cabinetry are trimmed with beautiful Ebony wood. Overall, her interior is in very good condition. Numerous opening ports and overhead hatches provide superb ventilation and natural light.

She is a two-cabin, two-head layout, with the master cabin forward and quarterberth guest cabin aft. Each cabin has ensuite access to private heads. She has been lovingly cared for and well-maintained.

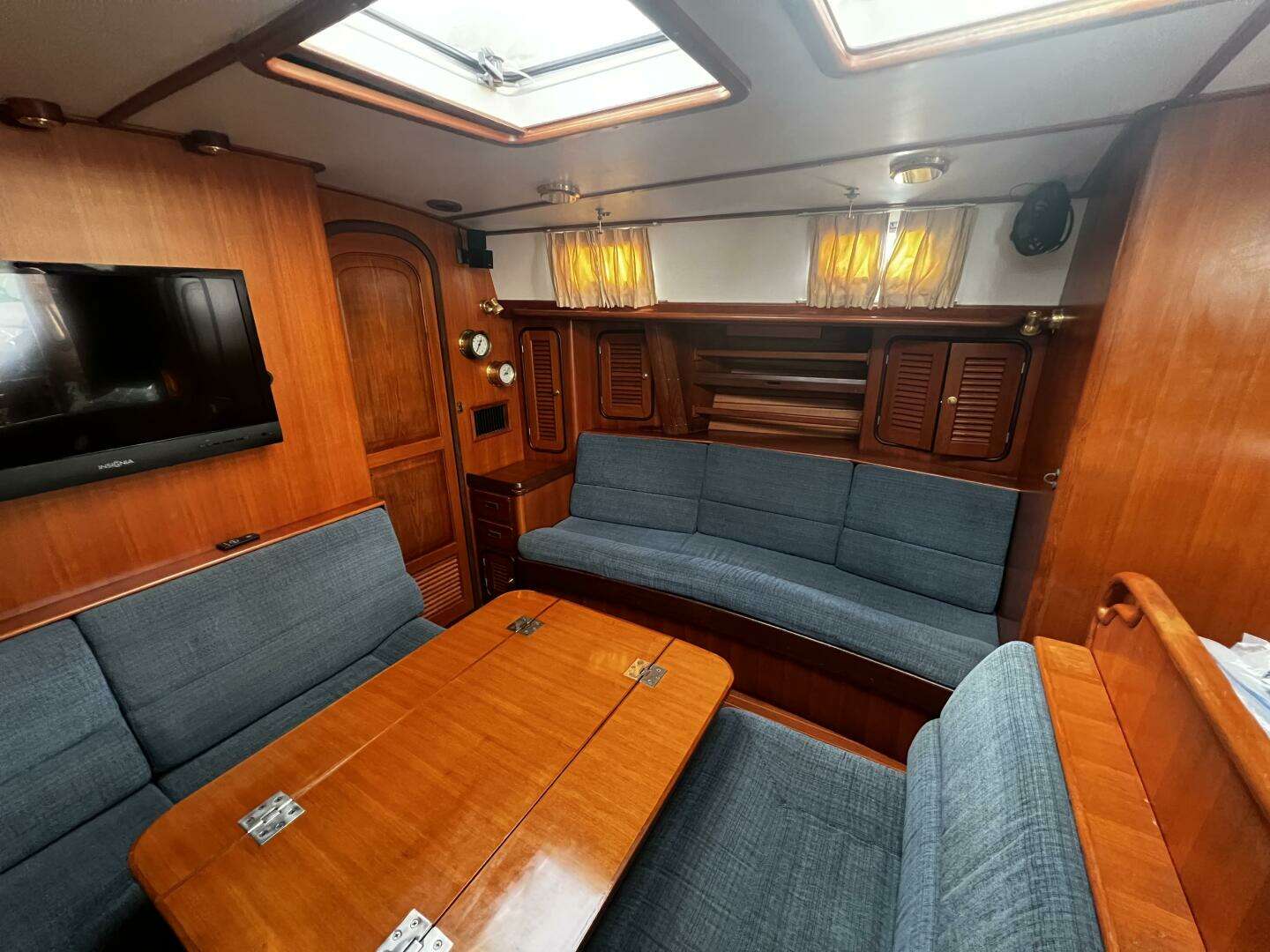

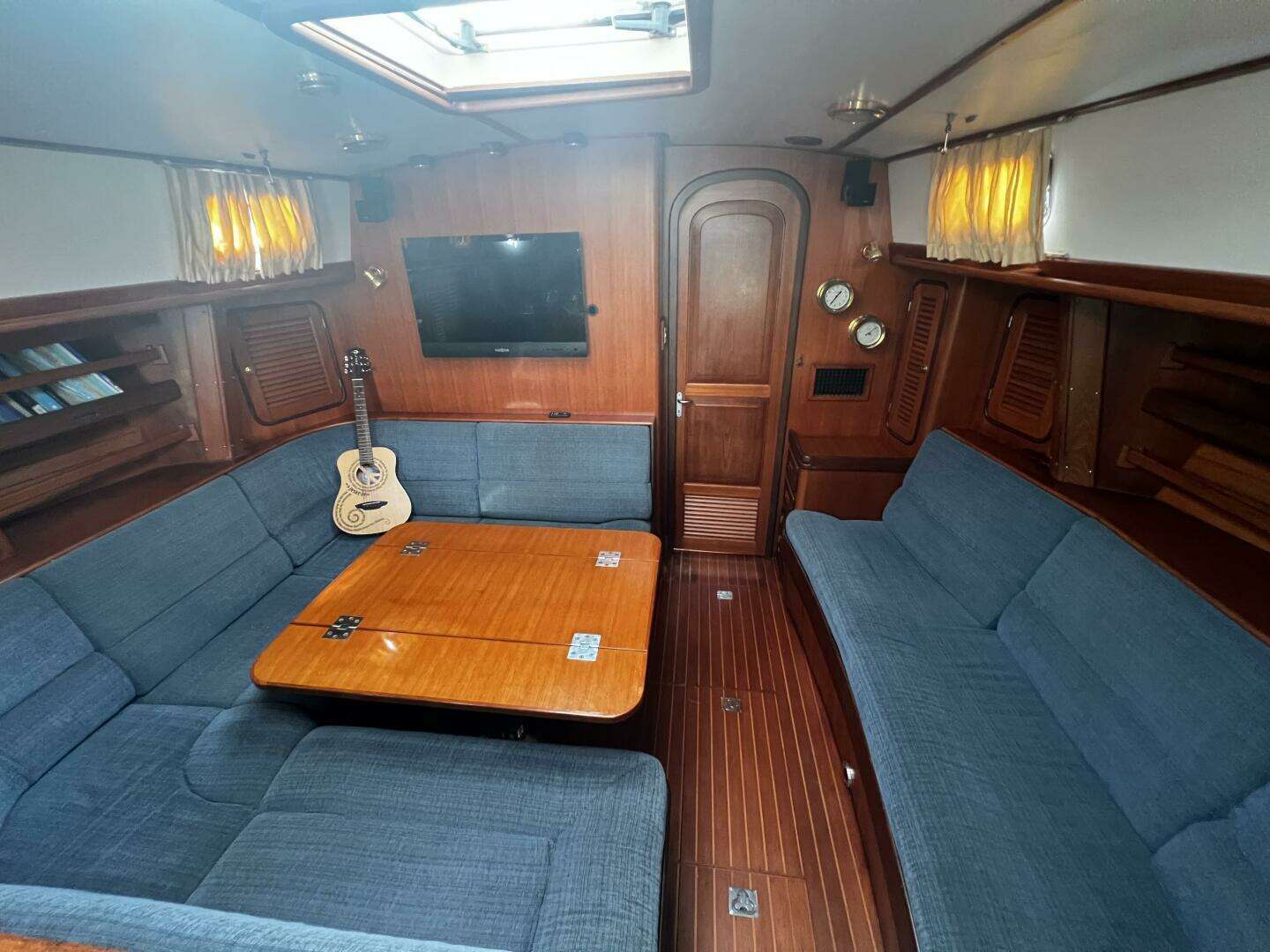

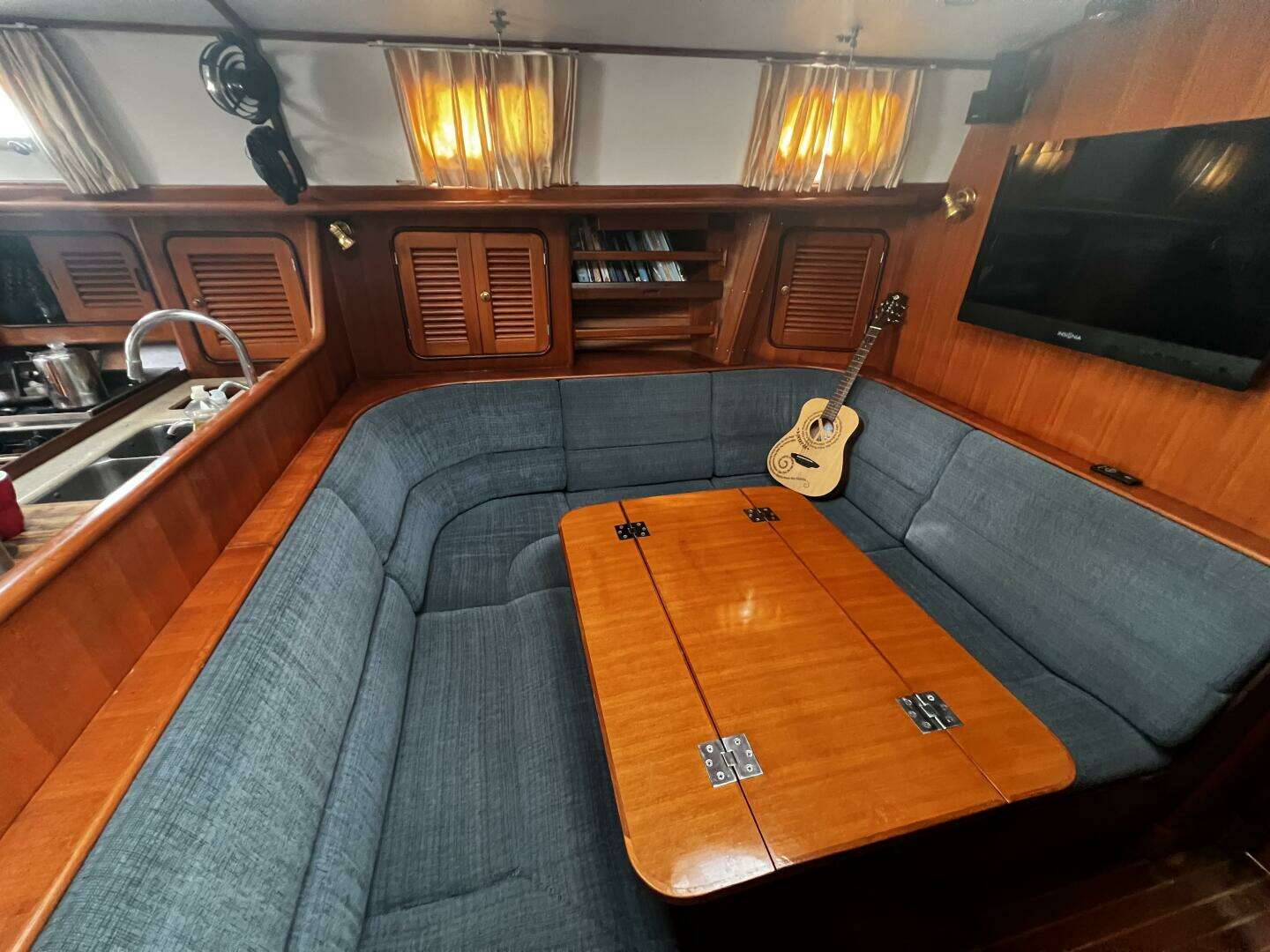

MAIN SALON

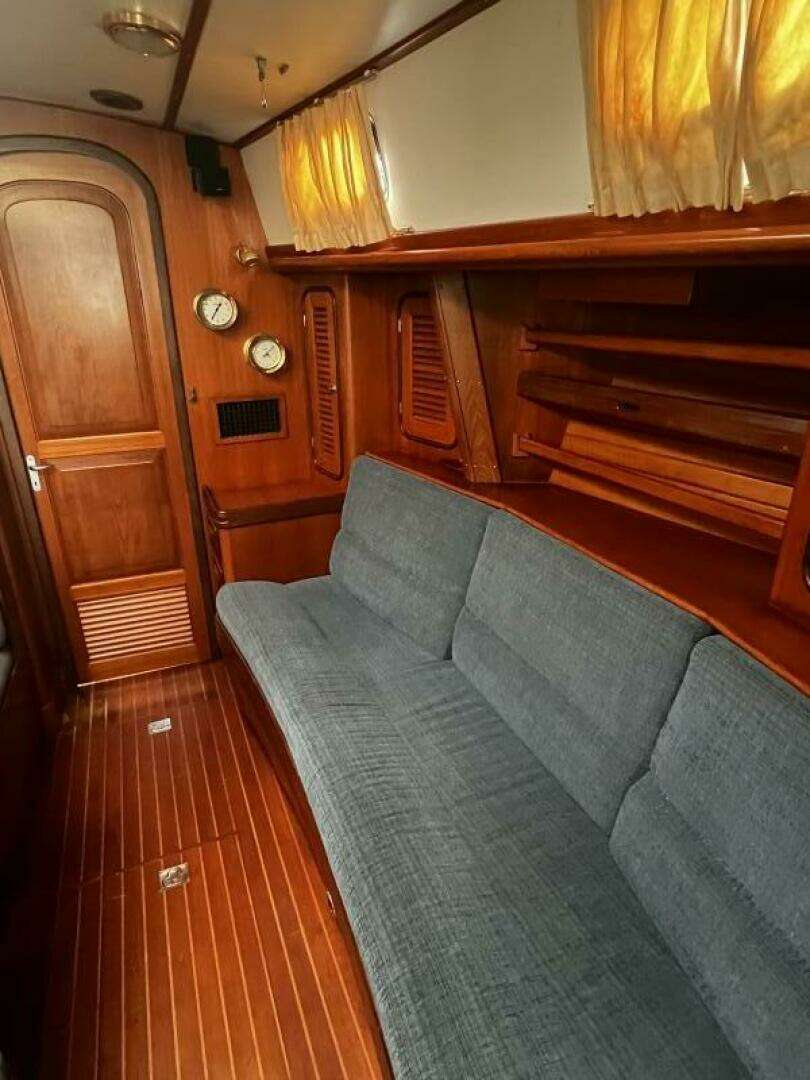

The main salon has a wraparound settee to port with a convertible dining table that can be used as a double berth. To starboard is a long settee with lee cloths. An ideal sea berth while offshore. All the cabinets and lockers are louvered for natural airflow and classic good looks. There are abundant lockers and bookshelves port and starboard.

• Salon dining table with adjustable pedestal – Converts into a double berth
• Full-size settee with lee cloth to starboard
• L-shaped settee to port with convertible dining table
• Louvered cabinets with bookshelves outboard of the settees
• Bank of drawers with fiddled end table and narrow locker forward of starboard settee
• Attractive raised panel passageway door with discontinuous arch leading into the forward cabin
• Teak-trimmed overhead deck hatches
• Ebony-trimmed joinery on the passageway doors, lockers, and cabinets
• Raised panel design on interior doors and hanging lockers

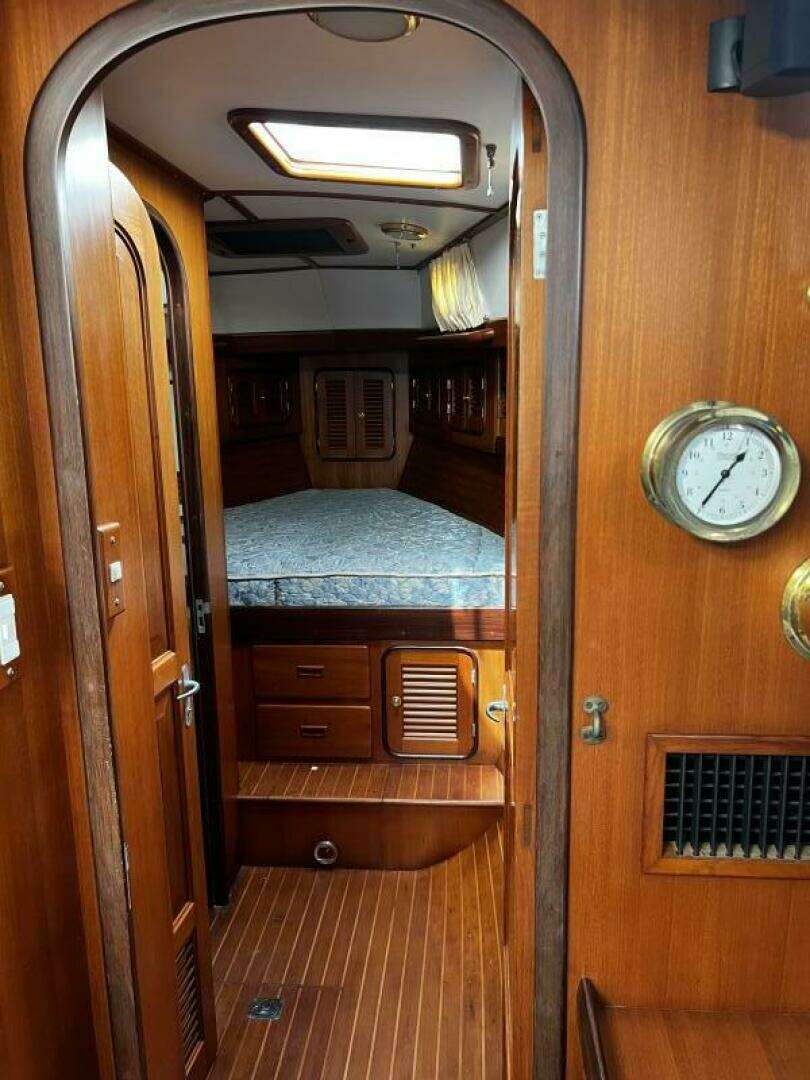

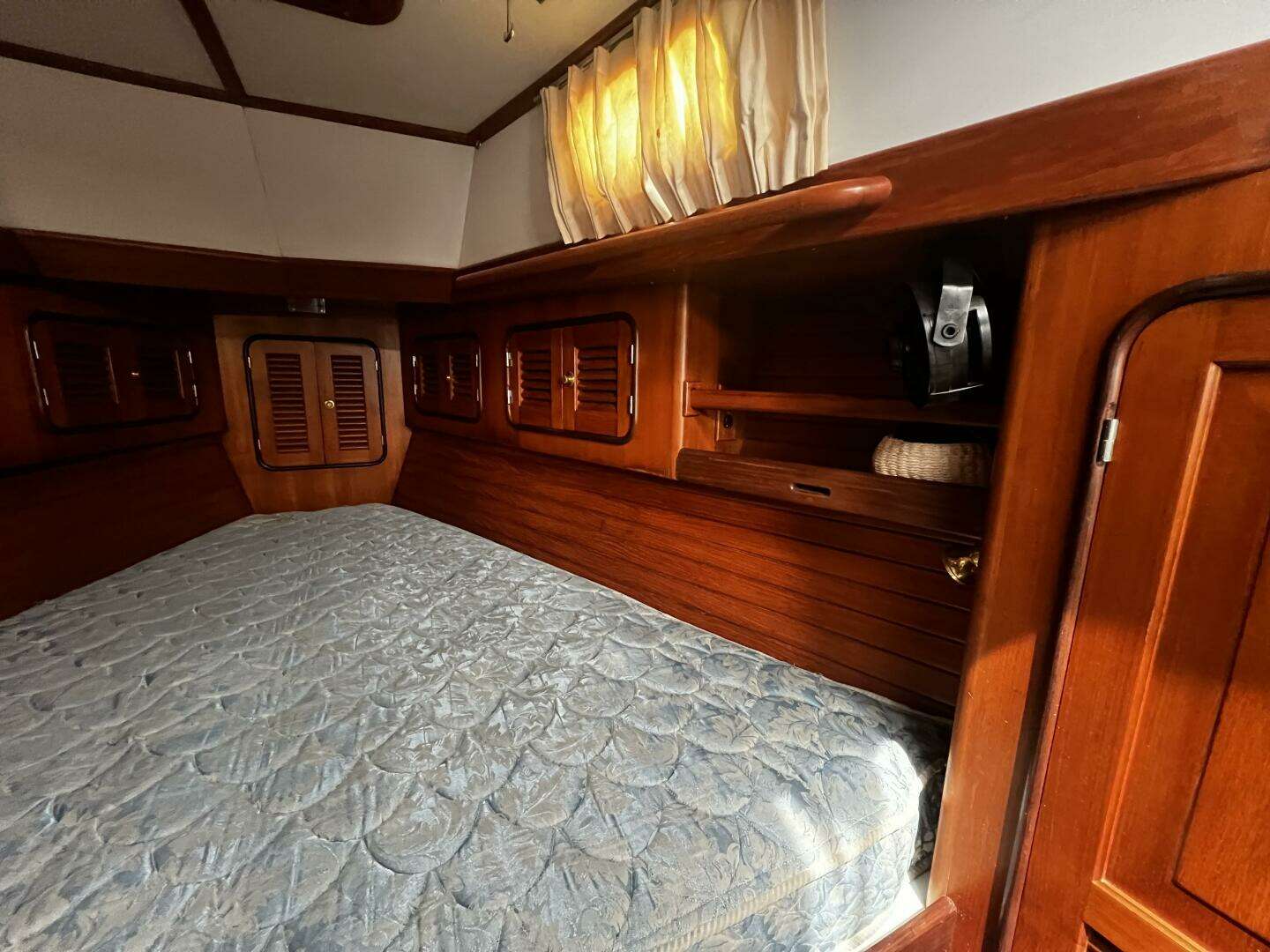

MASTER STATEROOM

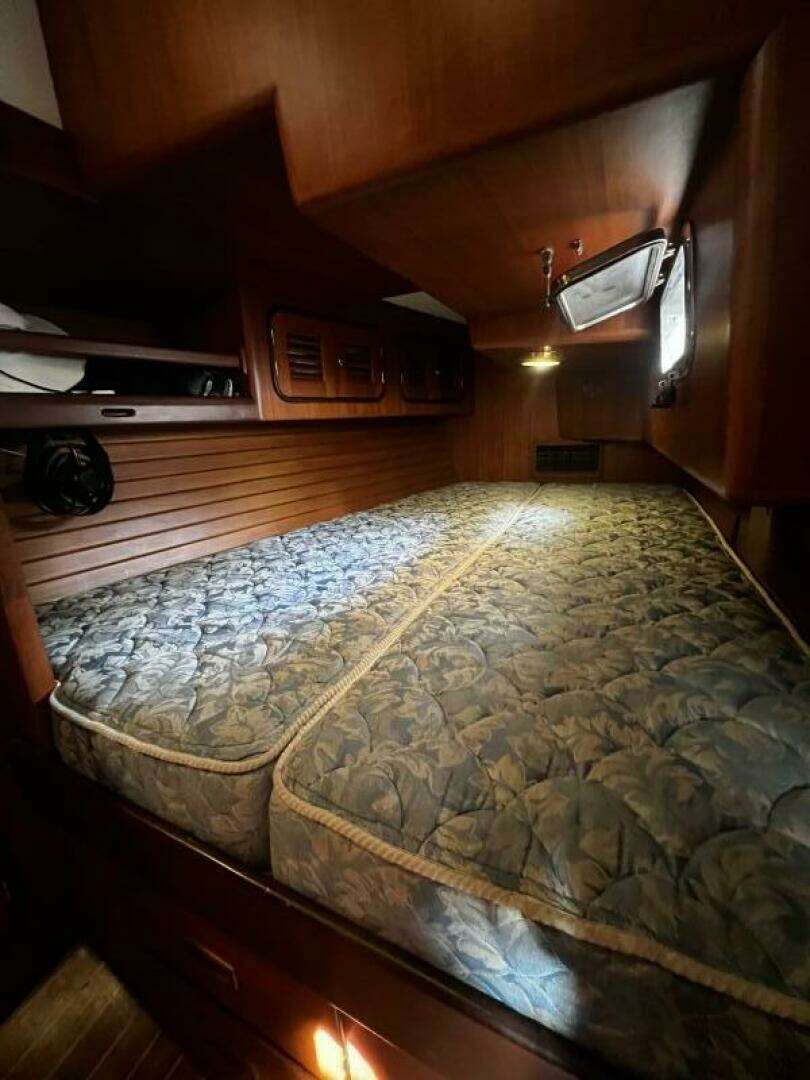

The master stateroom forward has an ensuite shower stall and head. The berth is a large V-berth with a custom mattress and lots of storage above and below. There are many cabinets and hanging lockers; storage is bountiful. The forward head has been upgraded with an electric flush marine toilet and features a separate stall shower with full standing head room, vanity sink with medicine cabinet above, and additional storage under the sink.

• Full beam V-berth with custom mattress
• Bank of two drawers and cabinets at the foot of the berth
• Louvered cabinets above and outboard
• Two opening overhead deck hatches
• Custom curtains for the port holes
• 12VDC Fans

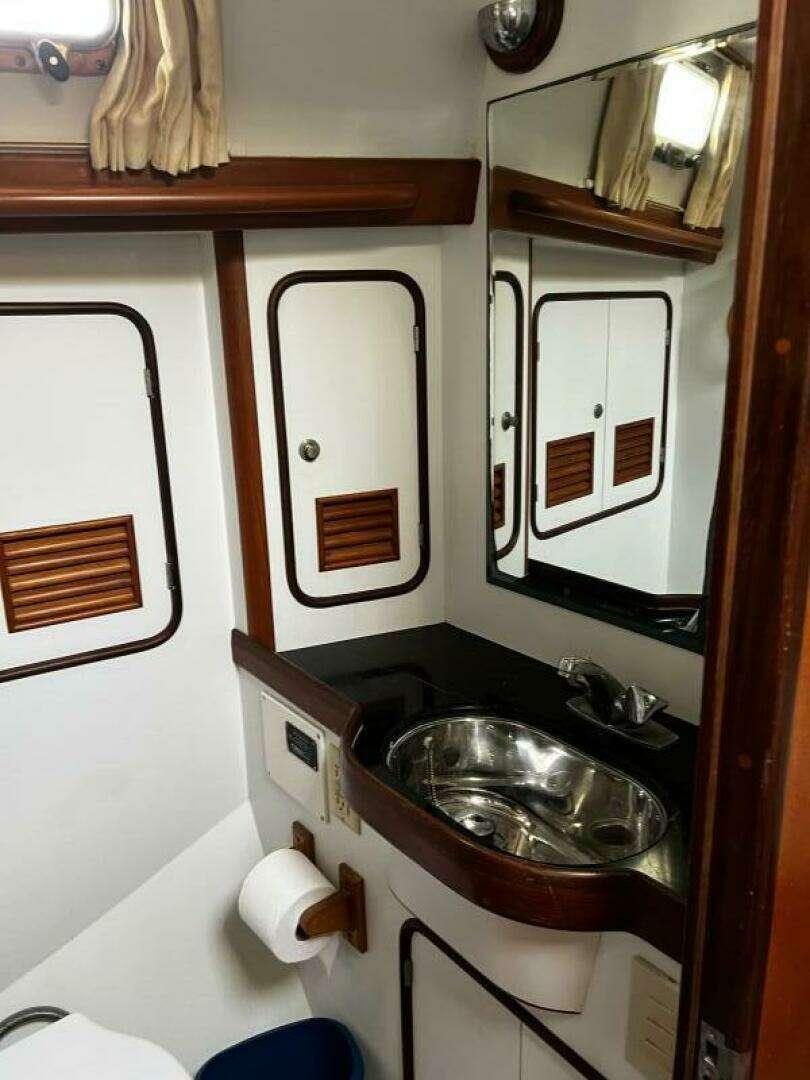

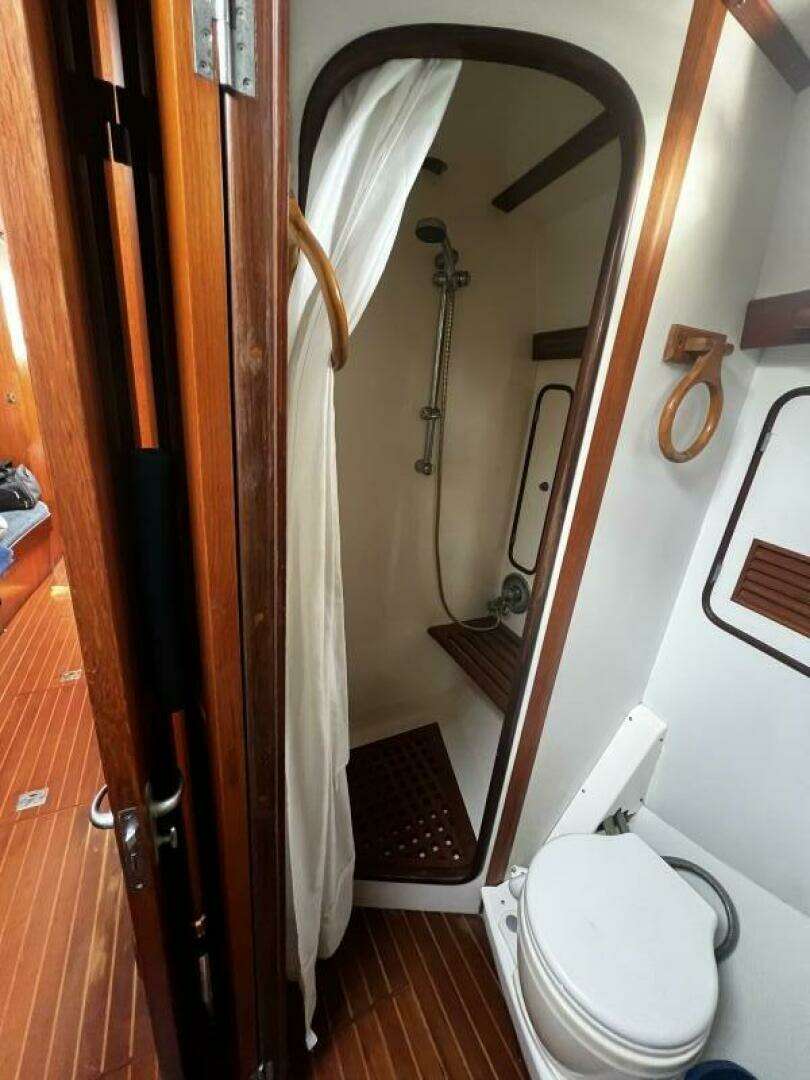

Forward Head

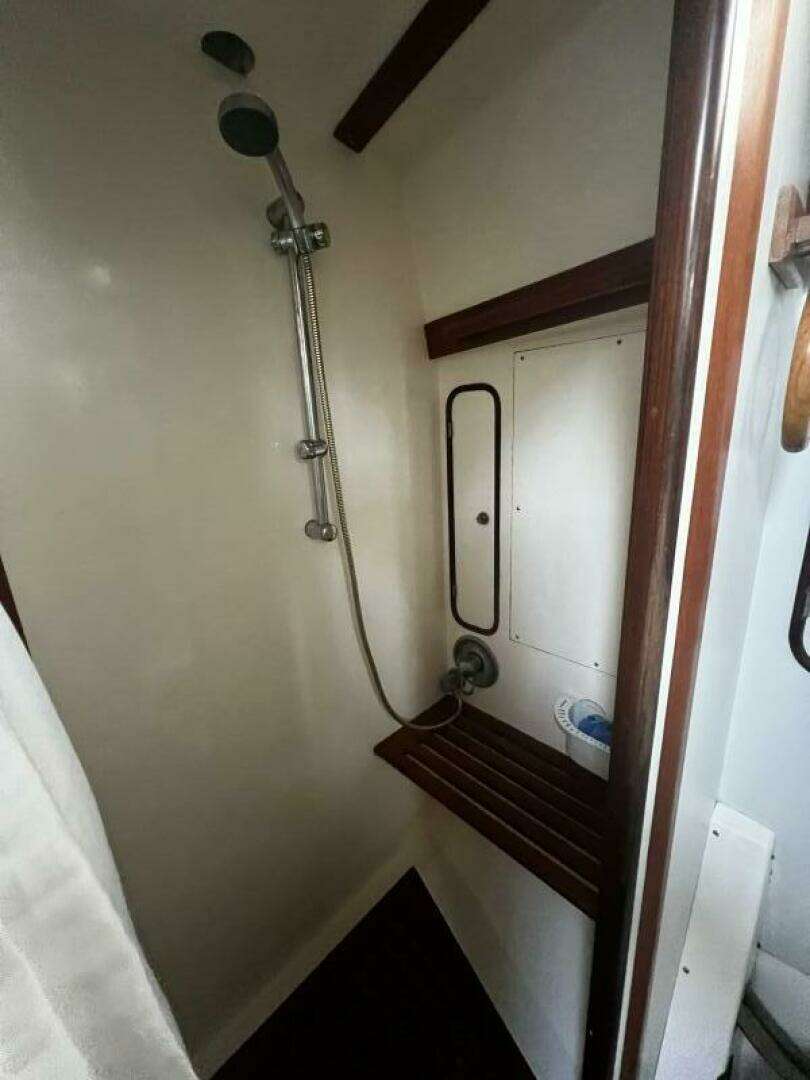

• A large separate stall shower with full-size headroom, folding teak shower seat, and dedicated shower sump with teak grate.
• Jabsco Lite Flush electric head (NEW 2019) with Scad Solo-1 holding tank monitor
• Teak shower and hand towel holders
• Single basin sink with vanity and medicine cabinet

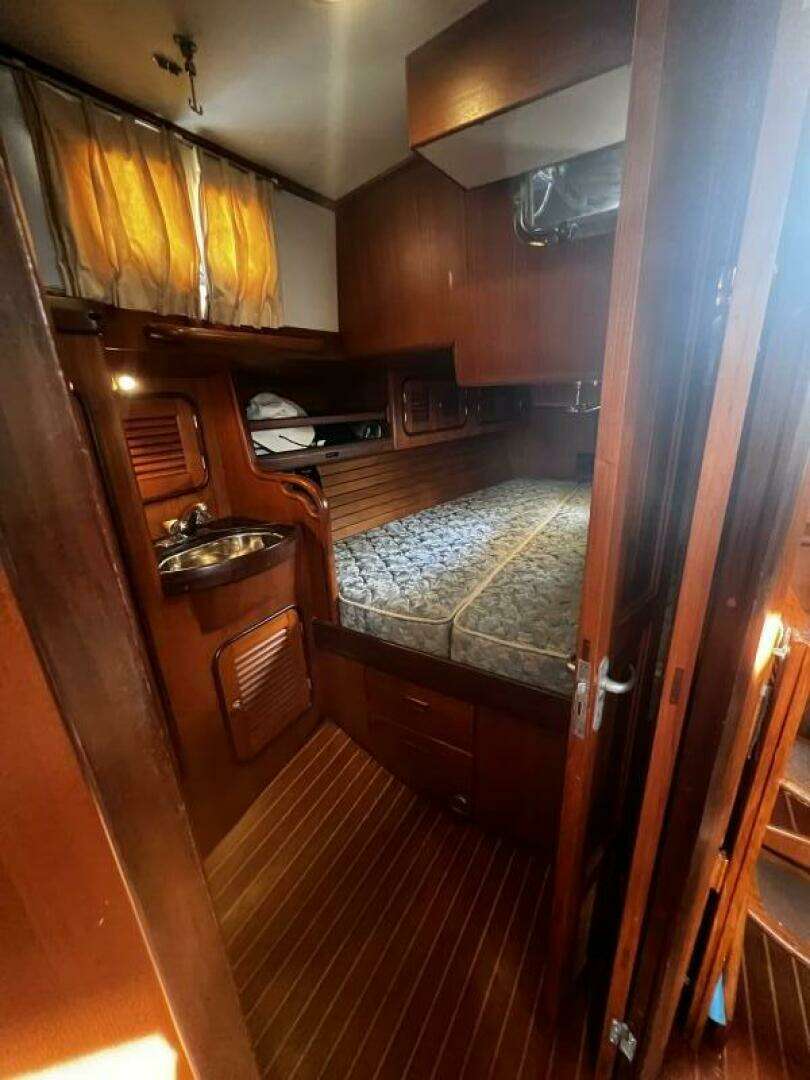

AFT STATEROOM

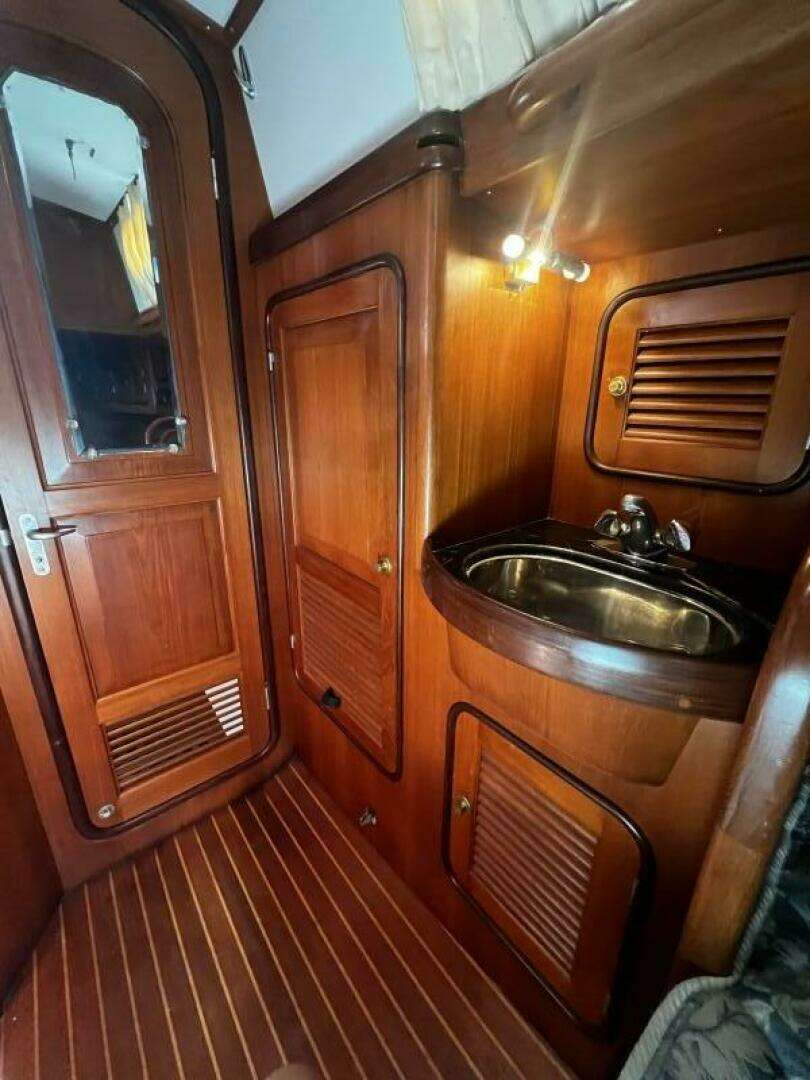

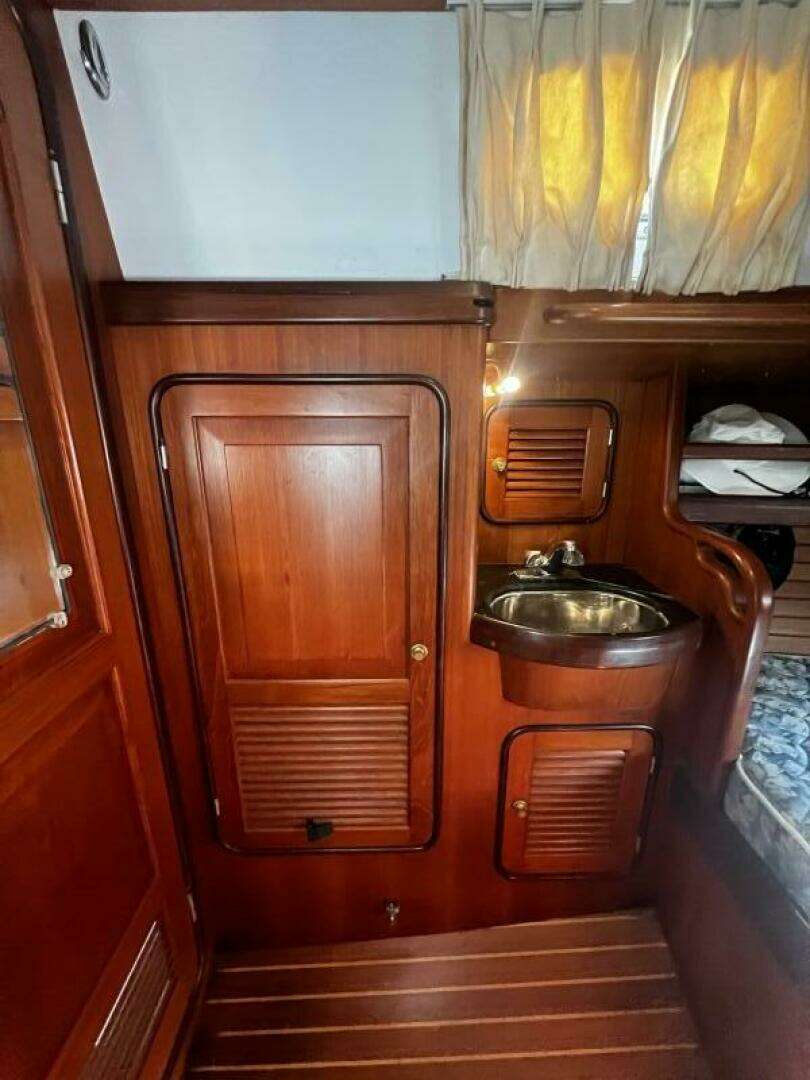

Starboard aft of the main salon is the guest cabin with an ensuite head that also serves as a day head. The cabin has a large double quarterberth, bookshelf, lockers, and a hanging locker. The ensuite has a manual head, shower, locker, and wet locker.

• Double quarterberth with custom mattress
• Single basin sink with cabinets above and below
• Tall hanging locker
• Bookshelf and two lockers above and outboard of the berth
• Opening port holes for natural airflow and light
• Drawers at the foot of the berth

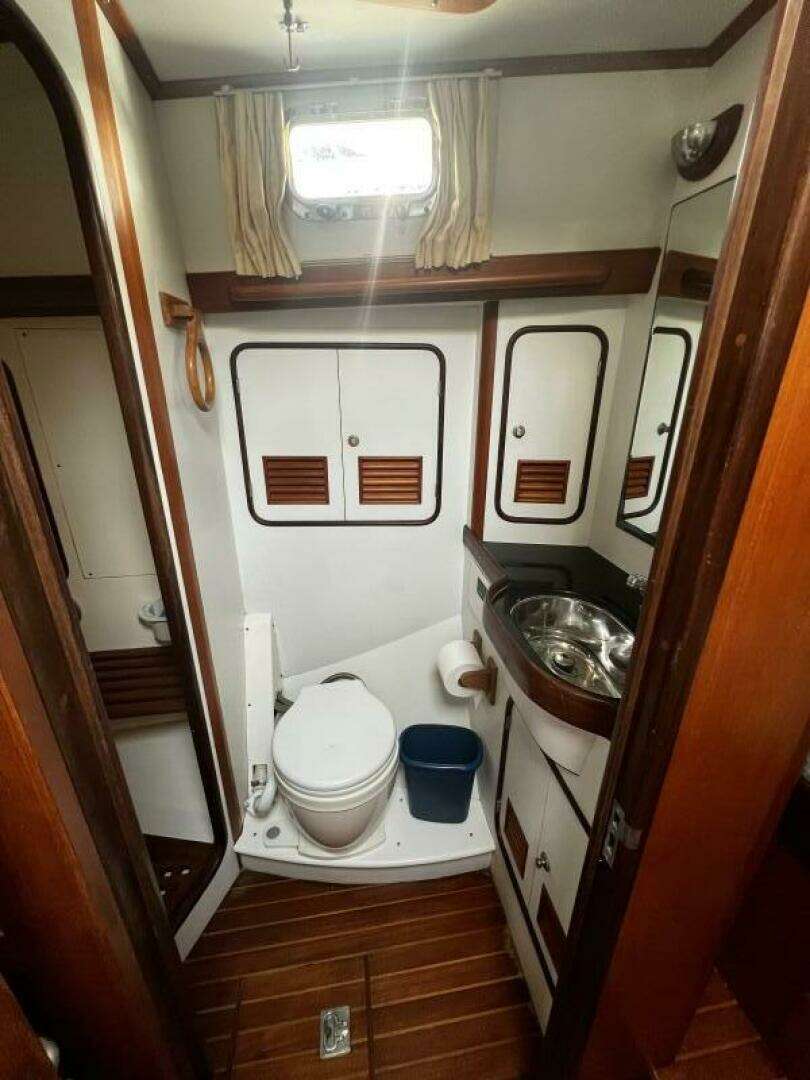

Aft Head

• Groko Model K manual head with Scan Solo-1 holding tank monitor
• Single basin sink with vanity and mirror
• Under-sink storage cabinet with easy access to plumbing
• Fold down shower seat and teak grate shower sump

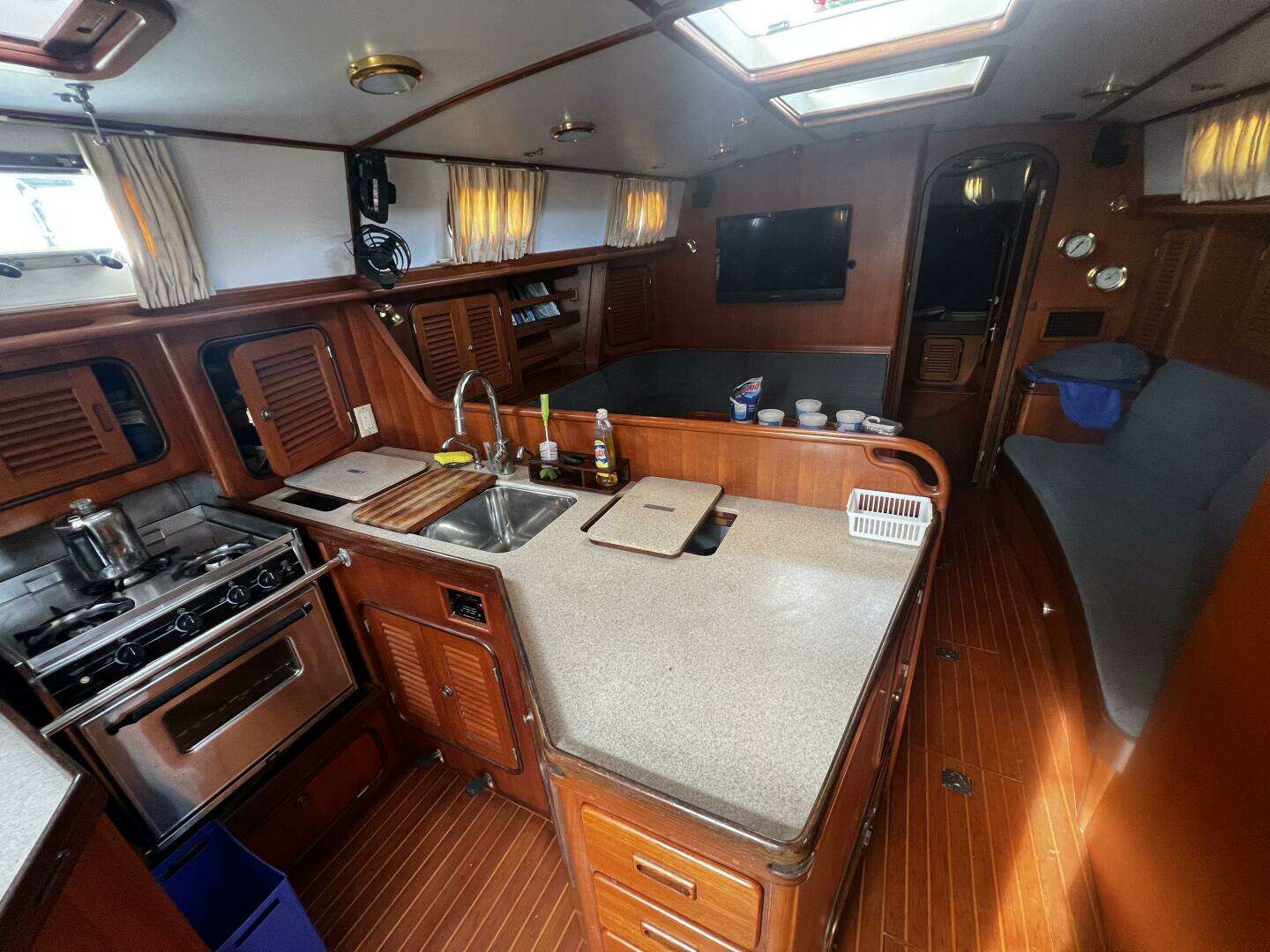

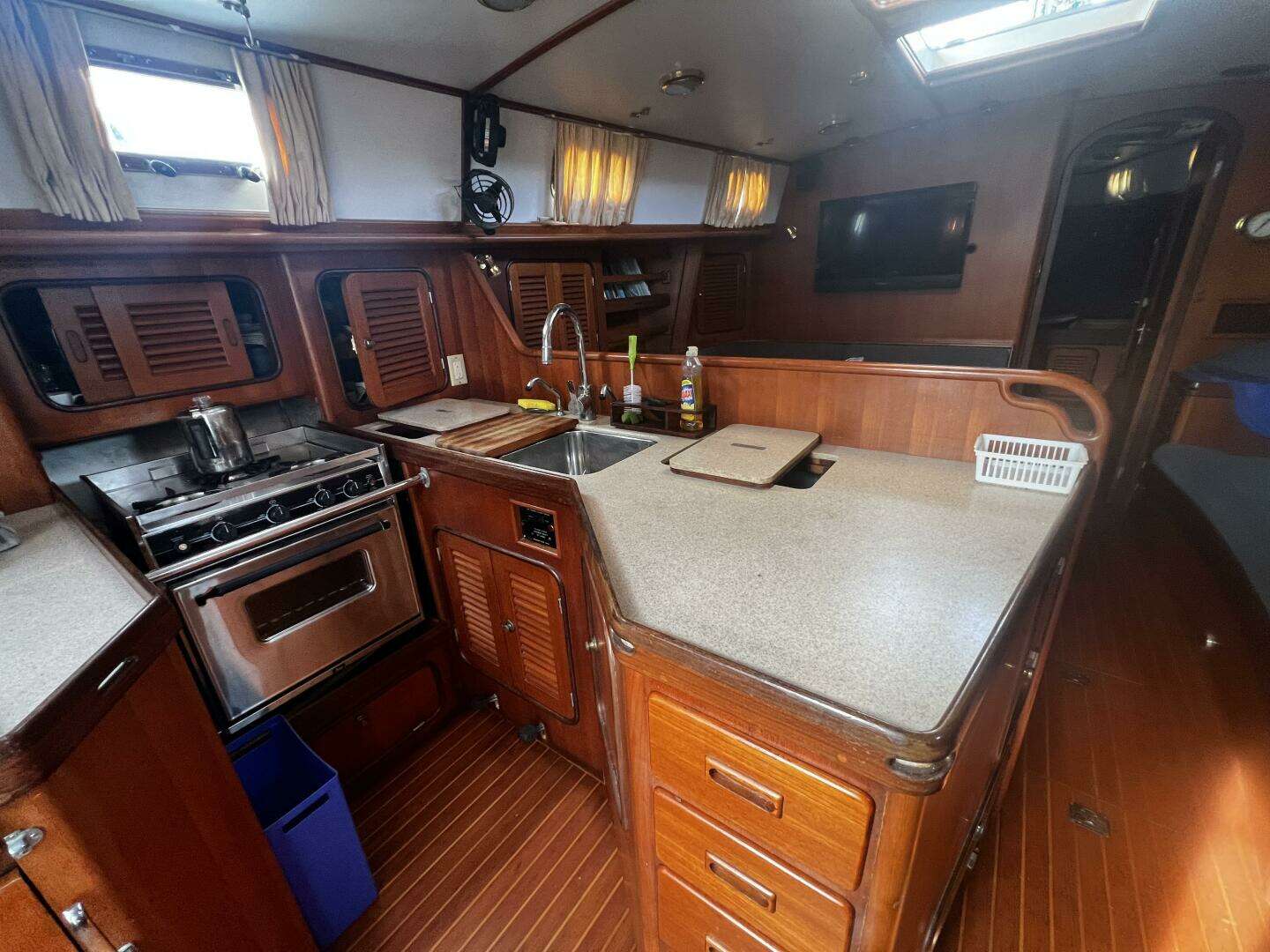

GALLEY

Aft of the main salon is the U-shaped galley. It is well equipped with a double basin sink, propane cooktop with oven and boiler, large refrigerator and freezer boxes, microwave cabinet, and lots of drawers and locker space for provisions and galleyware. The Corian countertops are in excellent condition and feature teak fiddles with incorporated hand holds. This is a proper galley for offshore passage making. It is very safe, secure, and functional.

• Corian countertops with fiddles
• Double basin stainless steel sink with pressurized hot/cold water
• Grohe faucets
• Seward Princess 3-burner propane stove and oven
• Stainless stove liner and safety bar
• Xintex safety LPG detector with automatic shutdown
• Heavily insulated refrigerator and freezer compartments
• Seafrost 12VDC refrigeration and freezer
• Engel portable 12VDC or 110VAC refrigerator/freezer
• Microwave cabinet with 110VAC outlet (Microwave not included)
• Magna propane BBQ grill with rail mount and dedicated 10lb propane tank
• Trash bin
• Numerous lockers and drawers

Navigation & Electronics

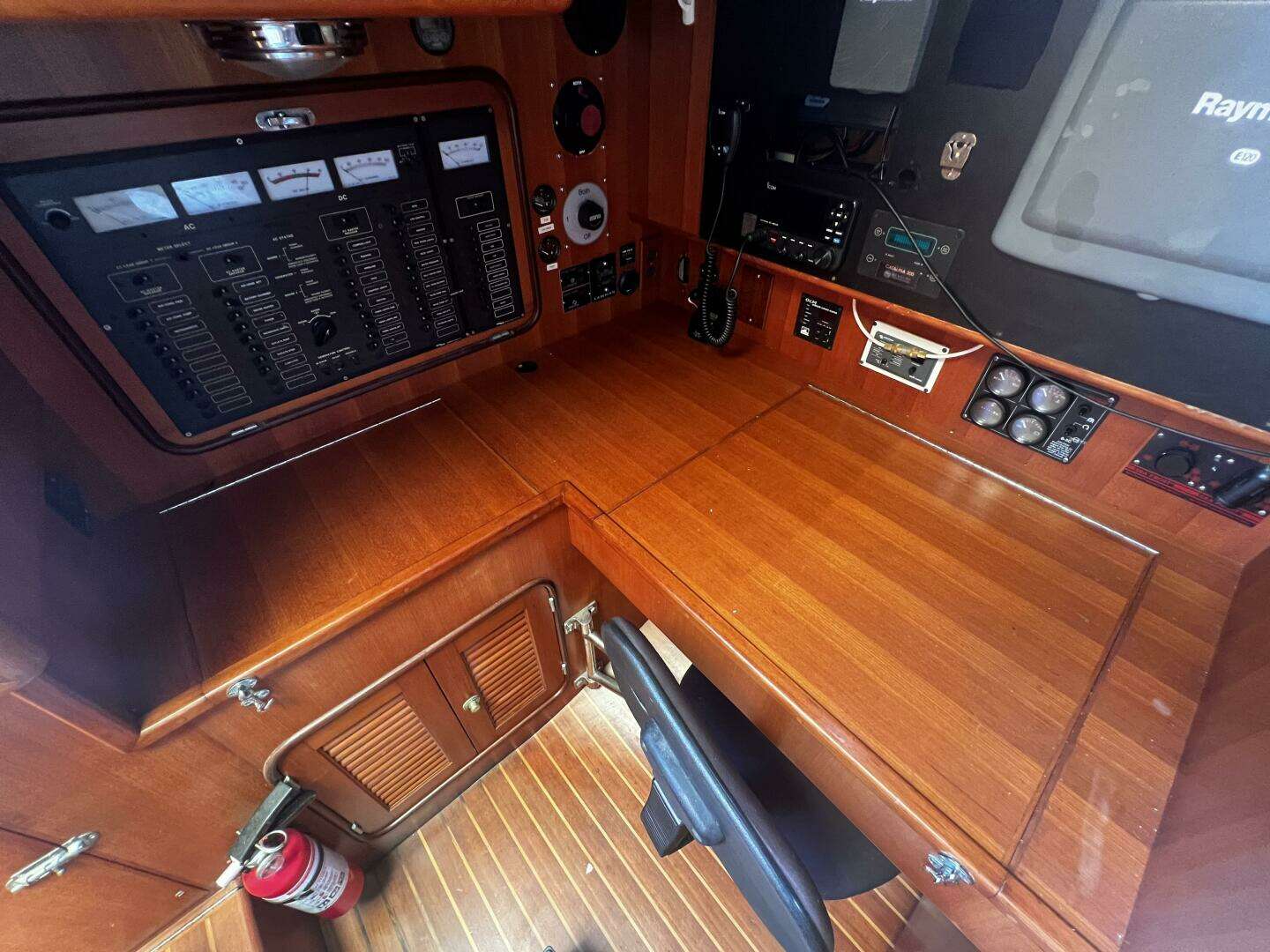

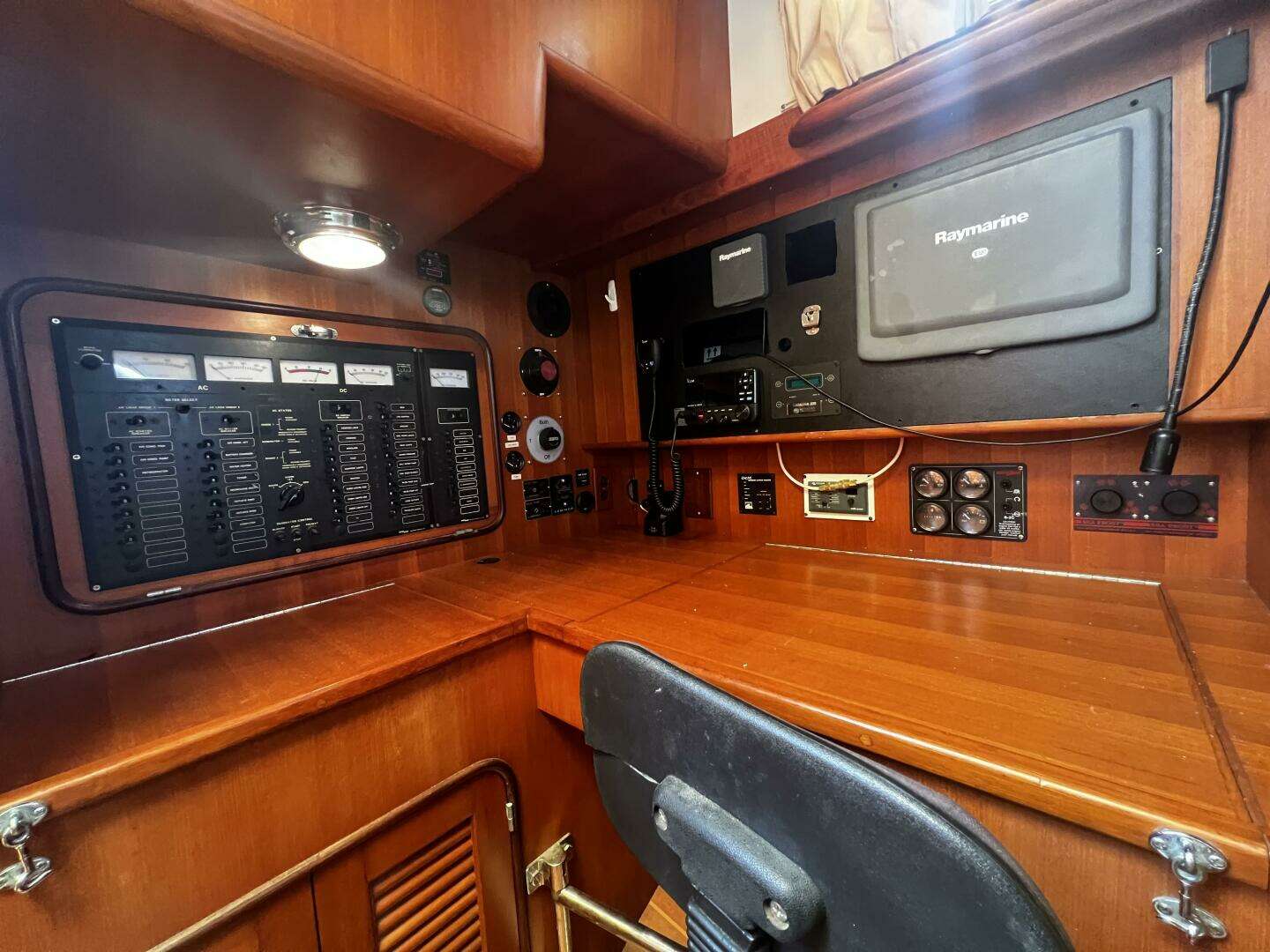

At the base of the companionway steps to port, aft of the galley is a large outboard-facing navigation station with a seat and fold top chart table. MAGGIE is well equipped with Raymarine cruising electronics. In 2023/2024, she was updated with a Starlink high-speed internet antenna and a new VHF radio with AIS.

Electronics

• Starlink high-speed wireless antenna and modem with DC conversion kit (NEW 2024)
• Raymarine E120 multifunction display at the navigation station
• Raymarine Evolution EV-1 autopilot with helm and navigation station control heads (NEW 2017)
• Raymarine 24” 4kW radar with mast mount
• ICOM 510 VHF radio with ICOM Command Mic at the helm (NEW 2023)
• Raymarine AIS350 Receiver / AIS650 Class B transceiver (NEW 2012)
• Echopilot forward looking sonar (NEW 2014)
• JPR Differential 200 GPS
• Electronic charts for the Caribbean, Eastern USA, Mediterranean Sea, Pacific, South Polynesia, Australia, Indonesia, Malaysia, Thailand, South Indian Ocean, South Africa, South Atlantic, and East Coast of Brazil to Barbados!
• JBL Bluetooth stereo speaker
• 32” Insignia LED TV in the salon with a Roku digital media streaming stick

Helm

• Raymarine E120 multifunction display at the Helm

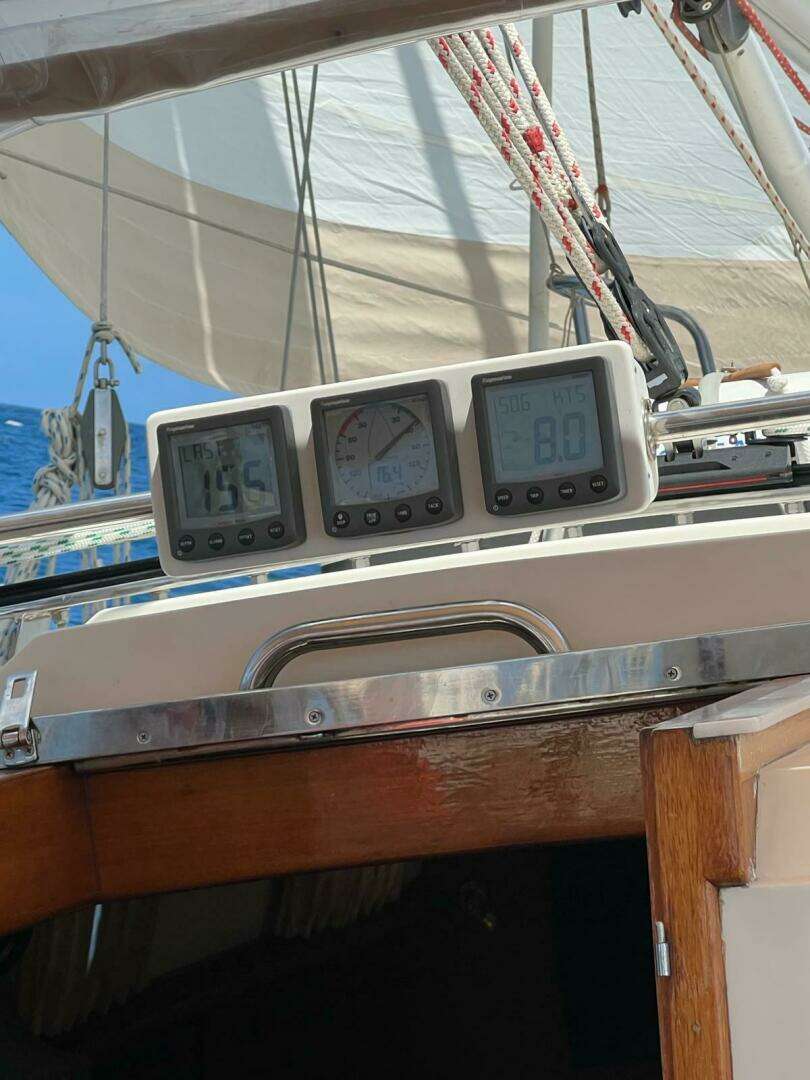

• Raymarine ST 60 sailing instrumentation across the companionway – Wind, Speed, Depth
• Ritchie Globe Master binnacle

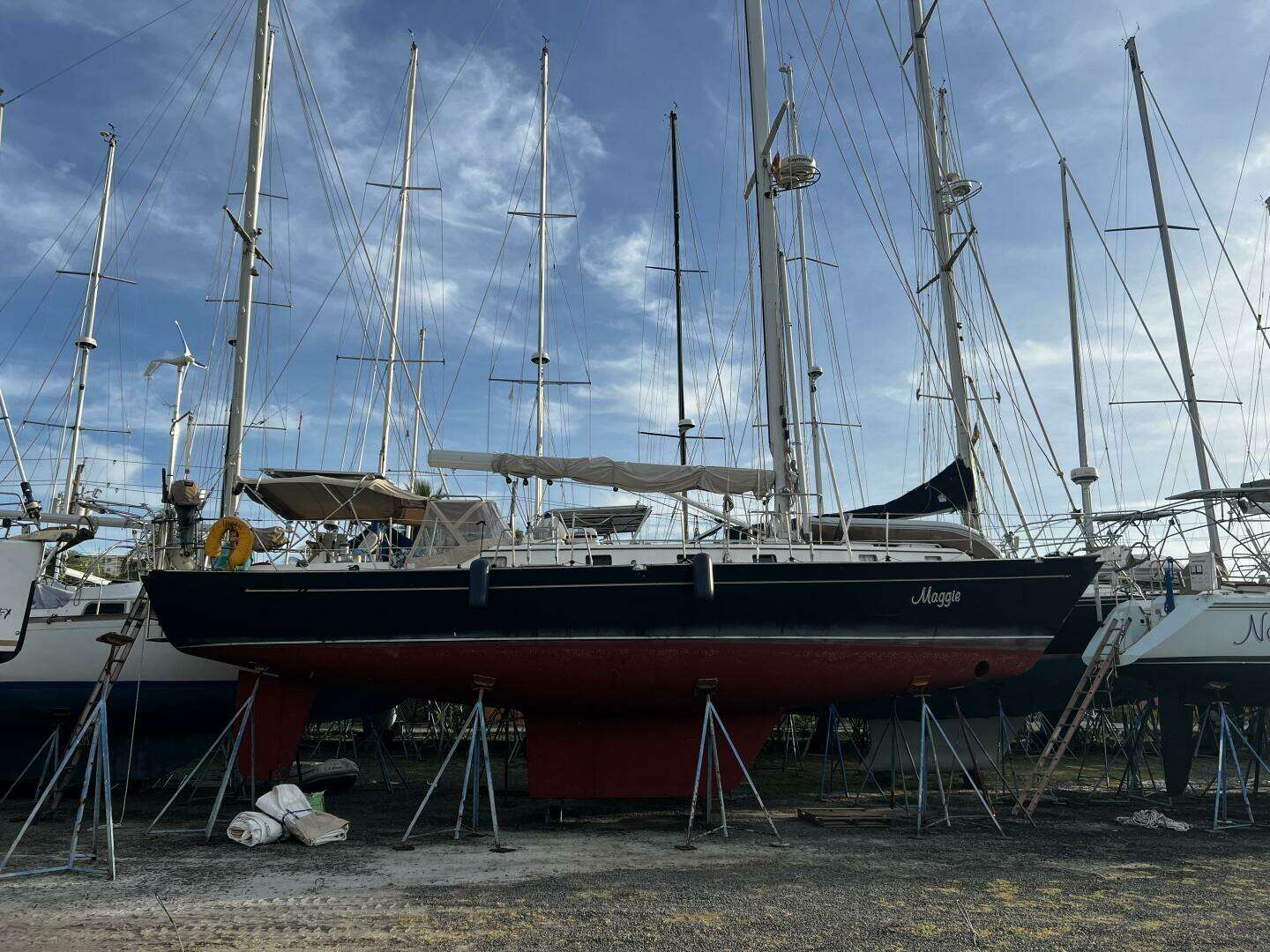

Hull & Deck

Solid fiberglass hull, with hand-laminated construction using knitted and biaxial fabrics, vinylester and isophthalic resin, and isophthalic gelcoat. The transverse and longitudinal stringers are foam-cored for strength and stiffness in the hull. The keel is internally ballasted and glassed into a modified fin keel. The skeg-mounted rudder with internal stainless steel rudderpost and integral stainless reinforcement is preferred for offshore sailing. All deck hardware is thru-bolted with stainless steel backing plates.

HULL

• Flag blue Awlgrip hull
• Teak cap rail with stainless striker
• Teak eyebrow
• Modified fin keel
• Skeg hung rudder
• Sea Hawk Island 77 – Two coats January 2023

DECK

• Moondust Awlgrip non-skid (NEW 2018)
• Eight Lewmar Offshore Series overhead hatches with sunbrella covers
• Seventeen opening stainless steel ports
• Kato Marine dinghy davits and motor lift
• Custom swim ladder at the stern
• Side removable boarding ladder
• Transom freshwater shower
• Numerous fenders and dock lines
• Sunbrella covers for the boom, hatches, companionway, binnacle, and cockpit table
• Molded fiberglass propane locker with proper ventilation and 2 20lb tanks
• Two bow cleats, foud mid-ship cleats, and two aft cleats
• Custom stainless steel deck mast collar

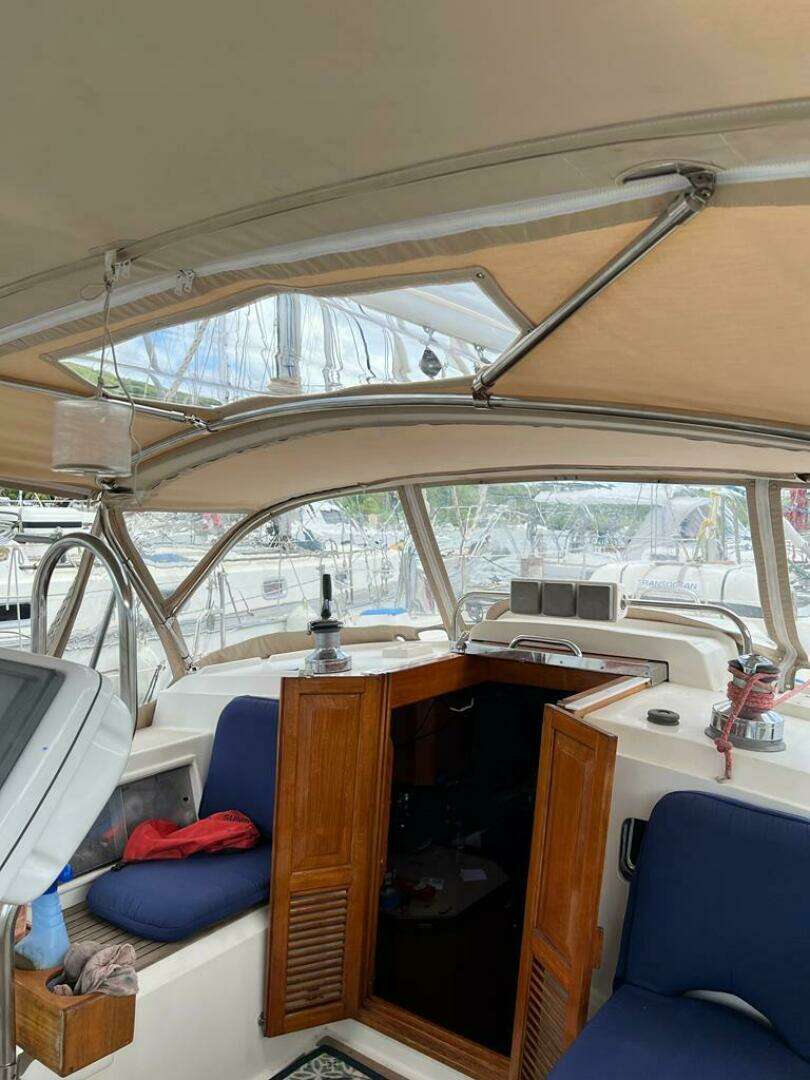

COCKPIT

• Teak companionway doors and drop board with a heavy-duty Lexan main hatch
• Edison steering pedestal
• Lewmar folding stainless steel wheel (NEW 2012)
• Teak-planked cockpit seats and sole
• Linen Sunbrella dodger and bimini (2017) – Includes aft rollup
• Linen Sunbrella cockpit cover and mainsail cover

Mast & Rigging

• Forespar double spreader aluminum mast – ICW-friendly mast height of 63’
• Forespar TS 400 GP custom spinnaker pole with mast mount and line controls
• Navtec-17 integral backstay adjuster
• Harken sail tracks with blocks and cars
• Traveler and mainsheet blocks (NEW 2024)
• Walder boom brake
• Topping lift

Sails & Winches

• Mainsail: Leisure-furl in boom furling with a Quantum fully battened mainsail
• Headsails: Roller furling 130 genoa and staysail
• Spinnaker: Parasailer (NEW 2015)
• (2) Electric Lewmar 64 two-speed primary winches
• Lewmar 44 utility winch on the coach roof
• Lewmar cockpit winch
• (2) Lewmar halyard winches on the mast

Ground Tackle

• Lewmar Concept 2 windlass with bow and cockpit controls (New cockpit controls in 2024)
• Double bow and single stern anchor rollers
• 75lb Rocna primary anchor with 200 feet of 3/8 inch chain
• 45lb CQR secondary anchor with 40 feet 3/8 inch chain and 180 feet three-strand rode
• West Marine Perf-30 Danforth stern anchor with 40 feet 3/8 inch chain and 180 feet of three-strand rode.
• Stern anchor locker

Ship Systems

ENGINE AND MECHANICAL

• Yanmar 63 HP with 3,600 hours with engine alarms
• Dual Racor 500 FG fuel filters
• Two-Zone reverse cycle Ocean Marine air conditioning units – 16,000 BTU Forward and 12,000 BTU aft.
• Spectra Catalina 300 Mark II watermaker (NEW 2012) with new membrane and connectors in 2023.
• MaxProp 3-Blade feathering propeller – Factory reconditioned in 2024
• Spurs line cutter on the propeller shaft
• Vetus bow thruster with remote control (NEW 2012)
• Air Line hookah system includes an Air Line 12V160-3 12VDC electric air compressor, regulator, and 60 feet of diving hose (NEW 2014)
• Bilge blower

PLUMBING & TANKAGE

• Fuel: 160 Gallon tank
• Water: (2) 75 Gallon tanks
• Holding: (2) GRP tanks
• Seaward hot water heater
• Fuel tank gauges at the navigation station
• (2) Electric bilge pumps with alarms and cycle counter plus (2) manual bilge pumps
• Foredeck fresh and saltwater washdown pump
• (2) 20lb Propane tanks

ELECTRICAL SYSTEM

• Northern Lights 6kW generator (NEW 2023) – 240 Hours
• (2) 30A Shore power inlets
• (4) 4D 220Ah Victron Energy house batteries (NEW 2022) – Total of 880Ah
• (2) 4D forward battery bank for bow thruster (NEW 2022) with Sterling battery to battery charger.
• Victron Energy MultiPlus inverter/charger with display and controller (NEW 2022)
• Xantrex battery monitor
• (2) 305W Victron Energy solar panels and MPPT controller (NEW 2024)
• AirSilentX Wind generator (NEW 2022)
• Balmar 100A primary alternator
• 65A secondary alternator
• Zinc Saver 2 galvanic isolator

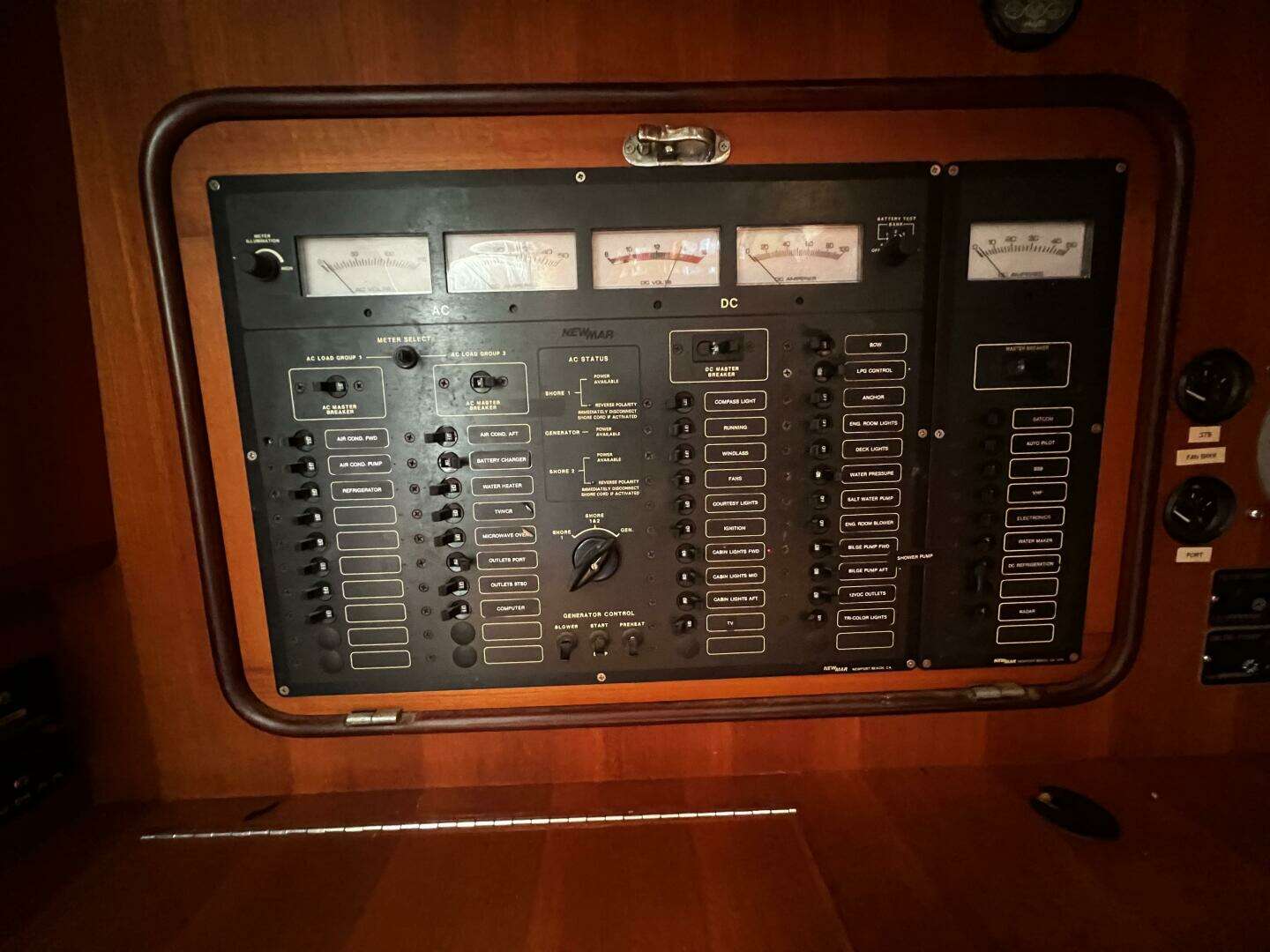

• 150A Newmar electrical panel
• Forespar mast head lightning dissipator
• Navigation lights on deck and tricolor at the masthead
• (3) Deck lights

Safety Equipment

• ACR 406 MHz EPIRB
• Fire extinguishers (NEW 2023)
• Radar reflector
• Galerider 36 drogue storm survival system
• MOB pole
• Plastimo Transocean six-man liferaft

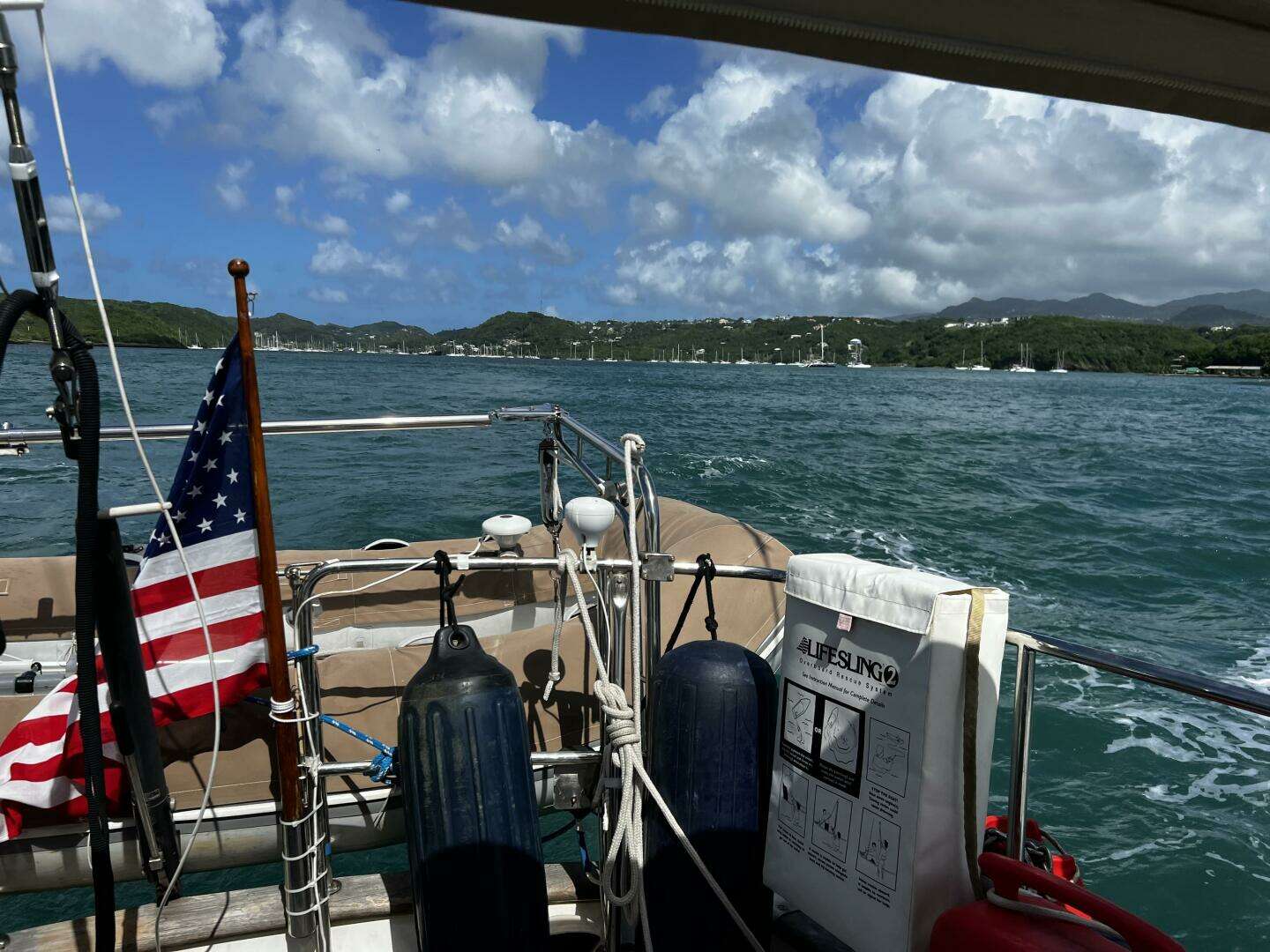

• Life sling
• Emergency tiller

Tender

• Achilles HB-315LX tender – 10’4” (NEW 2017)
• Yamaha 15HP 4-stroke outboard (NEW 2013)
• Dinghy chaps (NEW 2017)
• Kato Marine dinghy davits and motor lift
• Outboard motor mount on the stern rail
