Hull

• NPG Isophthalic gelcoat

• Modified epoxy vinylester resin used throughout laminate for superior bonding and strength

• Engineered multi-axial E-Glass fiber reinforcements, locally reinforced in high-load areas

• CNC computer cut closed-cell synthetic foam coring

• Laminated in “one shot” resin infusion process eliminating secondary bonding of structural materials

• All hull penetrations made through solid E-Glass laminate “core windows”

• Interior surfaces painted out for aesthetics

• Internal structural grid designed to carry rig and keel loads, bonded and glass-taped into hull

• UL and ABS approved, corrosion free Marelon flush through hull fittings

• Built to meet ABS Plan Certification

• Transferrable 10-year hull structural and blister warranty

Deck

• NPG Isophthalic gelcoat

• Modified epoxy vinylester resin used throughout laminate for superior bonding

• Engineered multi-axial E-Glass fiber reinforcements, locally reinforced in high-load areas

• CNC computer cut sealed end-grain balsa coring

• Laminated in “one shot” resin infusion process eliminating secondary bonding of structural materials

• All deck penetrations made through solid E-Glass laminate “core windows”

• Interior surfaces painted out for aesthetics

• Molded nonskid surface on working areas

• 6061 T6 aluminum backing plates added at lamination for all loaded hardware

• Inward-facing hull flange with integrally molded 6061 T6 aluminum bar forming a full length backing

plate for hull to deck joint

• Hull-to-deck joint fasteners, stainless steel and meet or exceed ABS standard for offshore use

• Hull-to-deck joint bonded with 3M 5200 adhesive sealant

Keel

• Fin with a Beavertail bulb keel 5' 10" draft

• Antimonial hardened lead keel castings

• Template-ground for fit and maximum performance

• Faired and epoxy coated

• Keel is through bolted to hull with cast-in-place stainless steel bolts

• Keel bolt quantity and size exceed ABS standard for offshore use

Rudder & Steering System

• Single-wheel system using cable-style radial steering

• 48” stainless steel wheel with leather cover

• Stainless steel pedestal guard

• Single-lever engine control

• 5” lighted binnacle compass with stainless steel hood

• High density, closed cell urethane foam rudder blade with modified epoxy reinforced skins

• Carbon-fiber rudder post autoclave-cured for high strength and low weight with stainless steel rudder

bearing sleeves

• Neoprene gaiter rudder post seal

• Self-aligning roller rudder bearings

• Emergency Tiller

Deck Hardware

• (2) Harken 50.2 STC (self-tailing chrome) cockpit winches

• (2) Harken 46.2 STC (self-tailing chrome) cabin top winches

• (12) Spinlock rope clutches for aft-led sail controls

• Harken self-tacking jib traveler with double-ended jib sheet led aft to cockpit winches

• Harken aft lead control blocks

• Harken turning blocks at base of mast for aft-led sail controls

• Harken mainsheet and traveler systems led to cabin top winch

• (3) Harken aluminum winch handles

• 27” x 1 1/8” diameter stainless steel stanchions

• 27” x 1 1/8” tube double stainless steel bow rail with navigation light

• 27” x 1 1/8” tube double stainless steel split stern rail with navigation light

• 1 x 19 double lifelines with port, starboard, and transom boarding gates

• Custom stainless steel stem fitting with integral double bow roller

• Custom stainless steel bow and midship mooring chocks

• (6) stainless steel 10” mooring cleats

• Custom stainless steel mast collar with multiple attachments for blocks

• 2 1/2” x 1 7/8” Teak toe rails through bolted through deck and hull flange.

• Teak taffrail

• Companionway hatch sea hood with instrument pod

• Match molded anchor locker lid with latch

• Offshore ready, match molded, and gasketed cockpit seat hatches

• Deck drains to waterline discharge, eliminates hull streaking

• Teak cabin top handrails

• Manual cockpit-mounted bilge pump

• Walk through transom with hinge-down swim platform with a telescoping stainless steel swim ladder

Ventilation

• (7) stainless steel unlimited offshore CE approved deck hatches

• (12) cabin side mounted stainless steel portholes with fly screens

• (2) cockpit-mounted stainless steel portholes with fly screens

• (4) polished chrome 4” cowl vents on teak-capped Dorade boxes with stainless steel guards

• Lexan sliding companionway hatch with solid teak hatch boards and trim

Electrical

• Batteries: (2) 200Ah Group 8D Relion Lithium Deep Cycle Battery

(3) 12V high cranking (engine, generator, bow thruster, windlass)

• Charger / InverterMagnum Energy ME2012

• Polished chrome and stainless steel interior lighting fixtures with LED lights

• Automatic lights in hanging lockers, main cabin lockers, and refrigerator compartment

• Service lighting in engine compartment and cockpit lockers

• Directional reading lights at berths and main cabin settees

• Directional spotlights in galley and over main cabin table

• Recessed, dimmable spotlights in main, forward, and aft cabin

• Interior, cockpit, and swim platform courtesy lighting

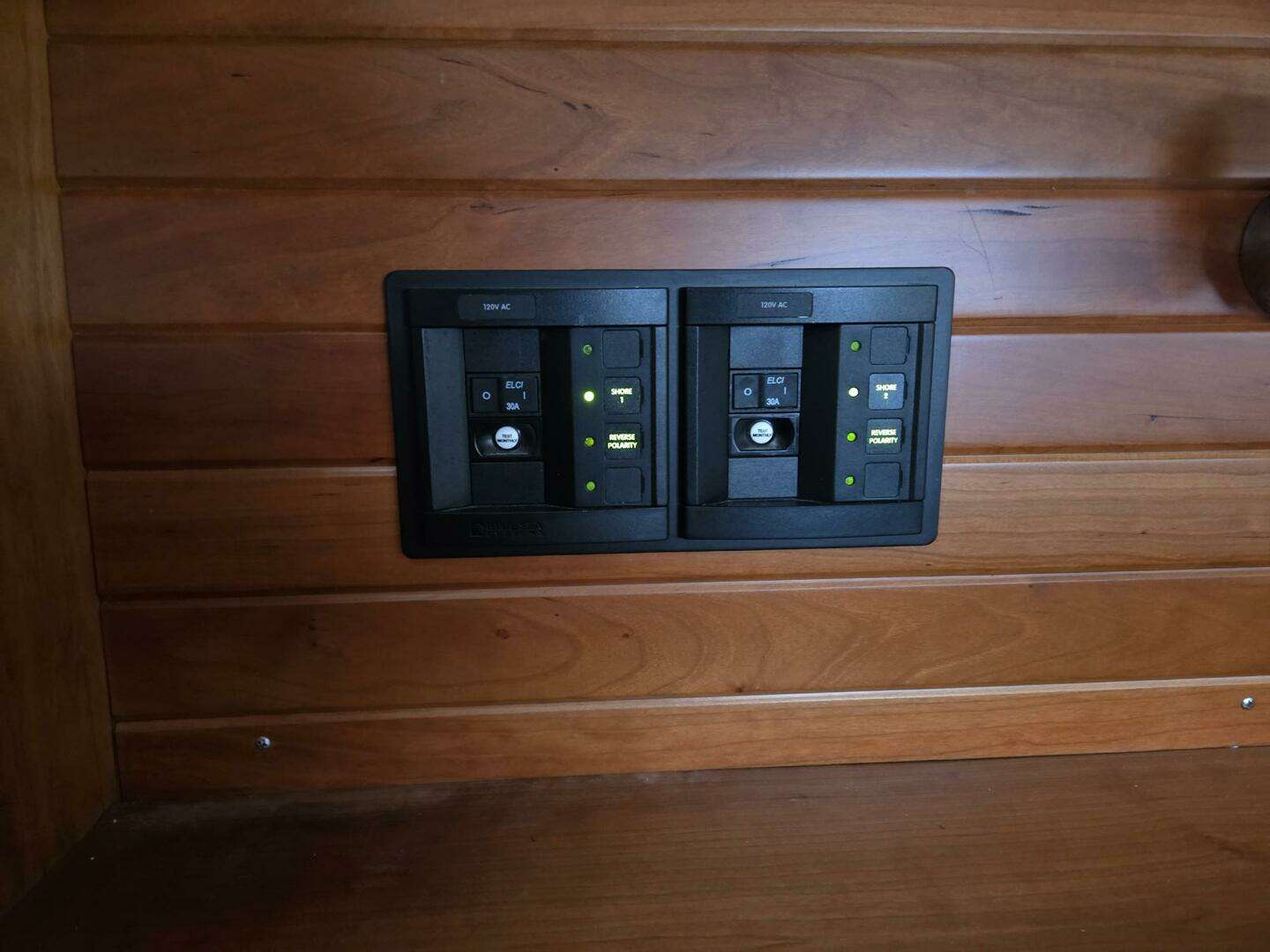

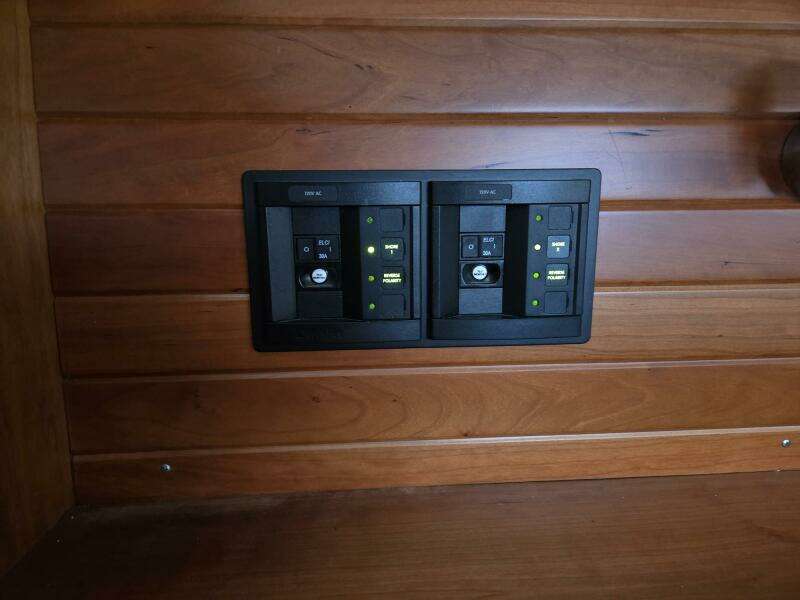

• (2) 30 AMP shore power services

• 110 VAC digital metered distribution panel prepped to accept genset

• 110 VAC shore power outlets in each cabin with GFI protection

• 12 VDC & 110 VAC digital metered distribution panel

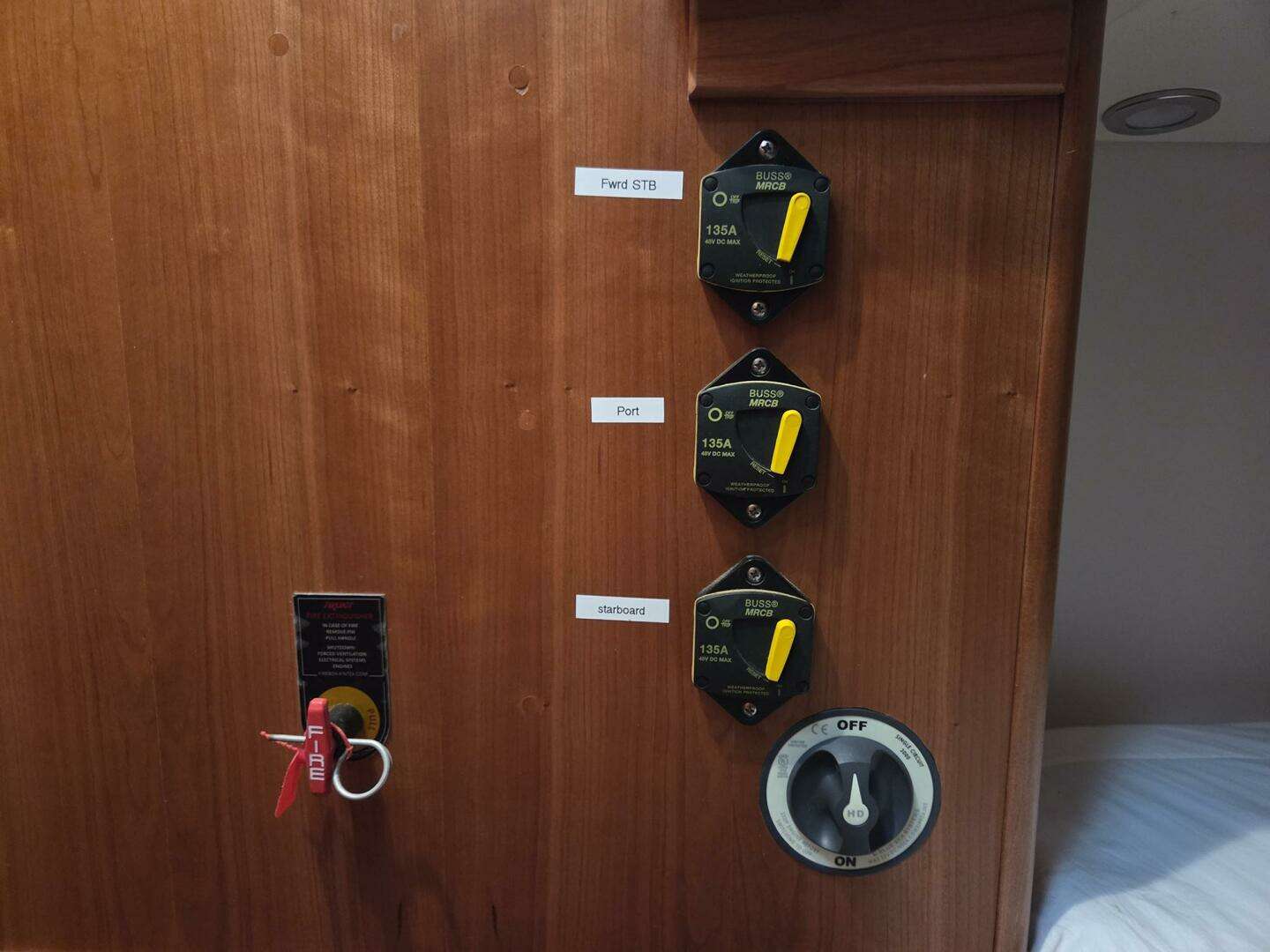

• Battery selector switch

• Electrical bonding system

• Electric sump pump with automatic float switch for icebox and shower drains

• Electric bilge pump with automatic float switch and manual override

• High water bilge alarm

• UL approved, stranded, tinned copper wiring

• Wiring bundled in PVC conduit with room for future installations

• All wiring chafe protected where it passes through internal structure

• ABYC compliant color coded wiring throughout

• USCG approved navigation lights on bow rail, stern rail, and mast

Interior

• Structural fiberglass timbers bonded to hull to carry mast and keel loads

• Structural bulkheads bonded to hull and deck

• Cherry-faced bulkheads and risers

• Cherry tongue-and-groove hull sides in forward cabin

• Solid stock cherry trim throughout

• Solid stock raised panel cherry cabinet doors throughout

• Solid stock raised panel cherry passage doors in cherry door jambs

• Polished chrome mortised door lock sets

• Solid stock cherry cabinet faces throughout

• Positive lock polished chrome cabinet hardware

• Solid cherry face, dovetail joined, all wood drawers throughout

• Cherry, drop leaf main cabin table with Tartan logo inlay and (2) drawers and center storage bin

• Cherry-battened, easy maintenance overhead with strategically placed access panels

• Varnished teak and holly cabin sole with teak banded access hatches

• Molded storage bins under hatches in cabin sole

• Varnished solid teak handrails placed for security in a seaway

• Interior woodwork sprayed with satin finish two-part conversion varnish

Accommodations & Storage

• Forward cabin with storage lockers, hanging locker, shelves, and drawers

• Approximately 78” x 64” berth in forward cabin with quilted mattress, storage beneath

• Furniture-grade main cabin settees and seats with contoured cushions

• Cherry cabinets with ventilated raised panel doors in main cabin

• 88” long sofa-style main cabin settees

• Port main cabin settee converts to double berth

• Large storage outboard of main cabin seat backs

• Forward-facing navigation station with chart storage and drawers

• Navigation station to port with adjustable nav chair and chart and laptop storage

• Navigation cabinets with installation space for extensive electronics

• Aft cabin with lockers, hanging locker, and shelves

• Full width 78” x 60” double berth in aft cabin with quilted mattress, storage beneath

Air Conditioning:  Forward & Aft Dometic Reverse Cycle Heat/Cool

• Divided sail and anchor locker forward

• Cockpit seat locker to port; cockpit lazarette hatches port and starboard

• LPG gas bottle storage in cockpit for two 11 lb. (5 kg) tanks

Galley & Plumbing

• 3-burner Force 10 gimbaled LPG stove with oven and broiler

• LPG sniffer with automatic shut off

• Cherry-faced cabinetry with raised panel access doors

• Cherry-faced, dovetailed cutlery drawers

• Molded 9” deep double sinks with premium marine grade galley faucet and manual foot pump with swivel spigot

• Granicoat solid surface galley countertops

• Storage under galley sink through ventilated raised panel cherry doors

• 12 VDC refrigeration / freezer

• Molded icebox with Granicoat solid surface countertop and 4” foam insulation with insulated top and side access. Insulated divider in box

• Hot and cold pressure water with service access to pump and plumbing

• Polyethylene tubing and Whale mechanical fittings for freshwater plumbing

• All below waterline hose connections are double clamped with stainless steel hose clamps

• Premium marine grade hoses used throughout

• 120 gallons of freshwater tankage with distribution manifold

• 10-gallon water heater, operates on 110 VAC or engine heat exchanger

Head

• (2) Marine heads, each with 20-gallon holding tank

• Deck pump out with vent

• Low odor premium marine grade sanitation hoses

• Separate stall showers with Plexiglass enclosures, molded seats, and molded shower lockers

• Shower drains to separate sump box with automatic overboard discharge

• Premium marine grade head faucet and shower mixer

• Molded Granicoat solid surface countertop with integral sink

• Utility storage under sink through raised panel cherry door

• Solid cherry face upper vanity cabinet with storage

Spars & Rigging

MAST

• Painted AMP Spars carbon-fiber mast with sheaves for (1) jib, (1) main, (1) reacher, and (1) spinnaker halyard

• Tapered airfoil swept spreaders

• 1x19 stainless steel wire rigging with forged turnbuckles

• Custom stainless steel chainplate system ties to structural FRP grid and hull

• Internal halyards

• Harken furler for self-tacking jib

• Mast to deck tie-rod to carry running rigging loads

• Masthead anchor light

• Steaming light with foredeck illuminator

• Mast wiring conduit

• Spartite mast sealing and chock system

BOOM

• Leisure-Furl in-boom furling

• Rod vang with tackle led aft

RUNNING RIGGING

• Low-stretch main, genoa, and reacher halyards

• Polyester double-braid jib sheet, reacher sheets, and mainsheet

• Polyester double-braid main traveler control lines

Sails & Canvas

In-Boom Furling Mainsail

Furling Reacher 150 Genoa

Furling Self Tacking Working Jib

Canvas Dodger & Bimini with bug screen

Companionway screens

Custom canvas hatch covers

Solar

All new components installed September 2021

Custom Marine Panels w/Sunpower Maxeon Cells

(6) panels, 540 Watts total

4 zoned 75A Victron MPPT Controllers

Electronics

• Raymarine Axiom 9 chartpotter (helm station)
• Raymarine EV-1 autopilot
• Raymarine AIS
• Raymarine Radar
• Raymarine VHF w/Remote Mic (helm station)
• Airmar DST 810 Speed, Depth, Temp Smart Sensor
• (3) Raymarine i70 remote display

Additional Accessories

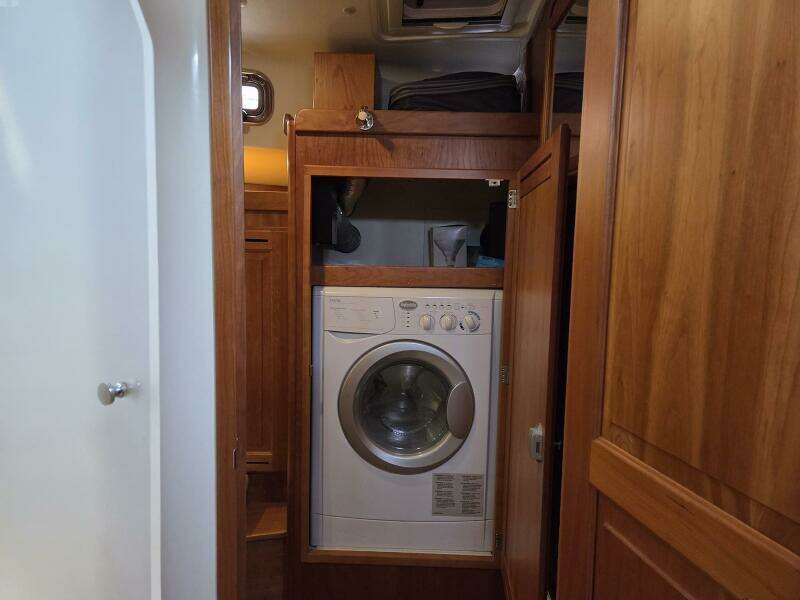

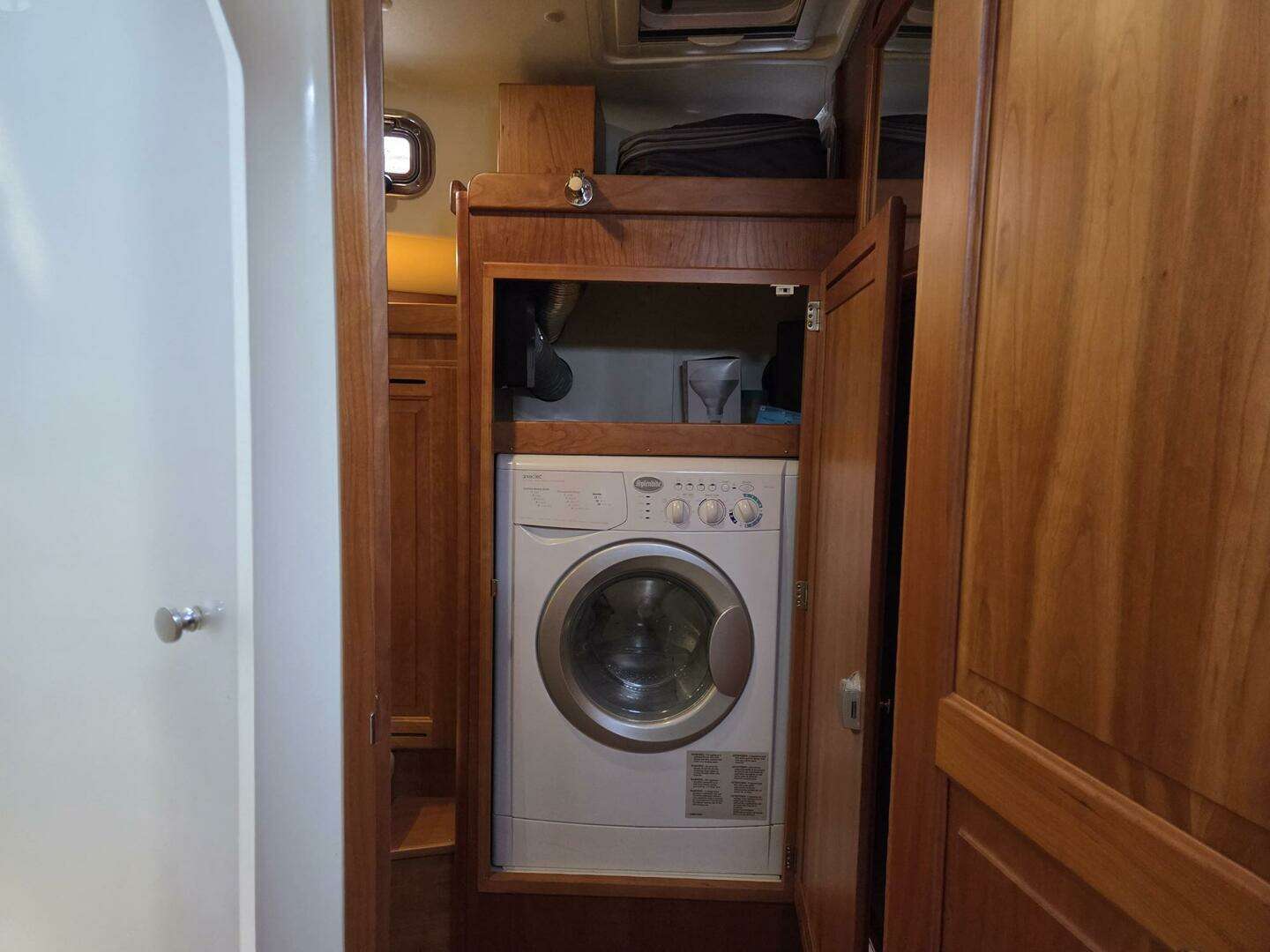

• Marine Washer/Dryer combo
• Cruise RO 20 gph water maker (not used in 3 seasons)
•

• Custom fitted mattress pad & sheet sets for all mattresses
• Monogrammed Beach & Bath towels
• Full kitchen utensils, pots, pans, tea kettle, blender, plates, bowls
• 6 Fenders w/custom monogram fleece covers
• 6 Monogrammed dock lines
• 6 - 1/2 inch dock lines
• (2) boat hooks
• Full set cockpit cushions
• Full compliment spare parts (engine, generator)
• Full compliment lubricants, coolant
• (2) sets of Jackline with stainless ratchet tensioner
• (3) inflatable life jacket with lanyards
• (6) USCG coastal waterway life jacket
• (3) fire extinguishers
• (2) 20A 50 ft shore power cords with custom canvas wrap.

Mechanical Disclaimer

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.
