Refrigerated Drawer System:

Manufacturer: Vitrifrigo

Series: DT Series Drawer Refrigerator/Freezer

Type: Dual Drawer Refrigeration System

• Vitrifrigo DT Series
• Stainless drawer style refrigeration
• Marine-grade installation

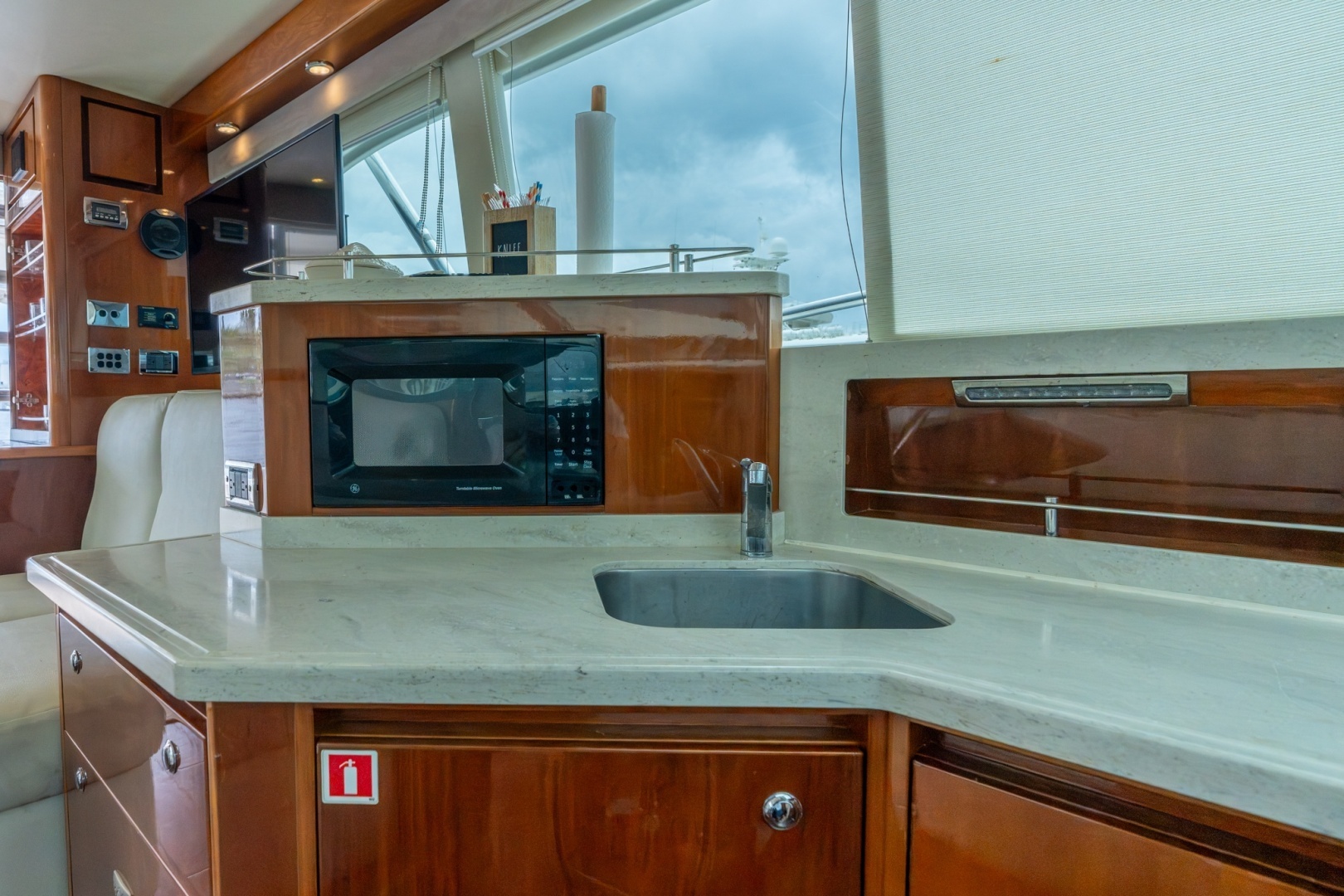

Galley Refrigerator:

Manufacturer: Vitrifrigo

Model: C62IX 316 NA PFT

Code: F16710100NPT

Capacity: 62 Liters

Compressor: Danfoss BD35F

Voltage: 12/24 VDC

Power Draw: 42W

Refrigerant: R134a

Serial Number: 0301583

Dishwasher

Manufacturer: Fisher & Paykel

Model Family: DishDrawer®

Visible controls:

• Heavy
• Normal
• Fast
• Delicate
• Rinse
• Eco

Cockpit Grill:

Manufacturer: Kenyon

Series: Kenyon Custom

• Flush-mounted electric grill
• Touch controls
• Stainless marine installation

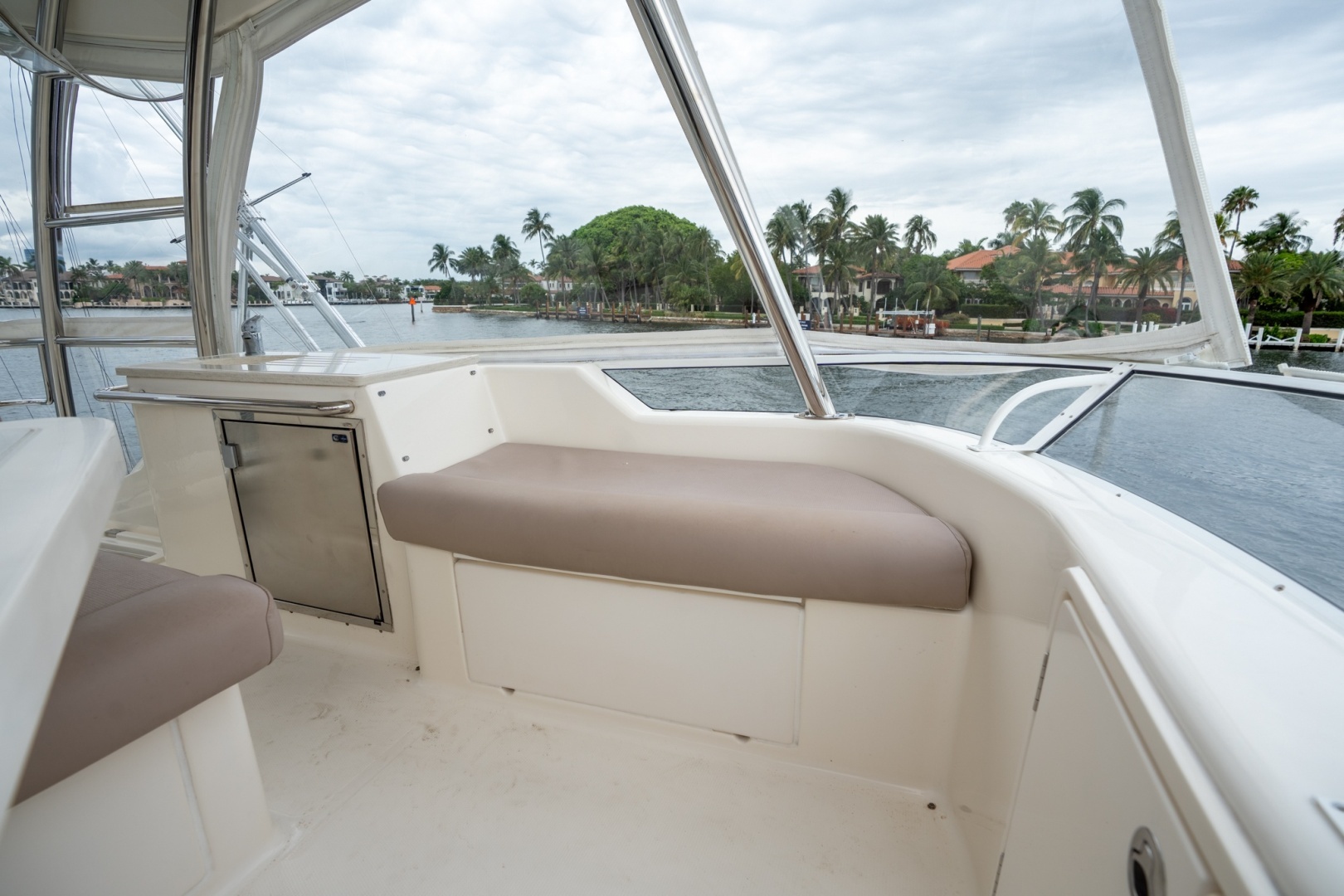

Flybridge Refrigerator:

Manufacturer: U-Line

Model: U-CO29B-03

Serial Number: 1016605-09-0004

Specifications:

• 115V
• 60 Hz
• 1/6 HP compressor
• R134a refrigerant
• Stainless marine refrigerator

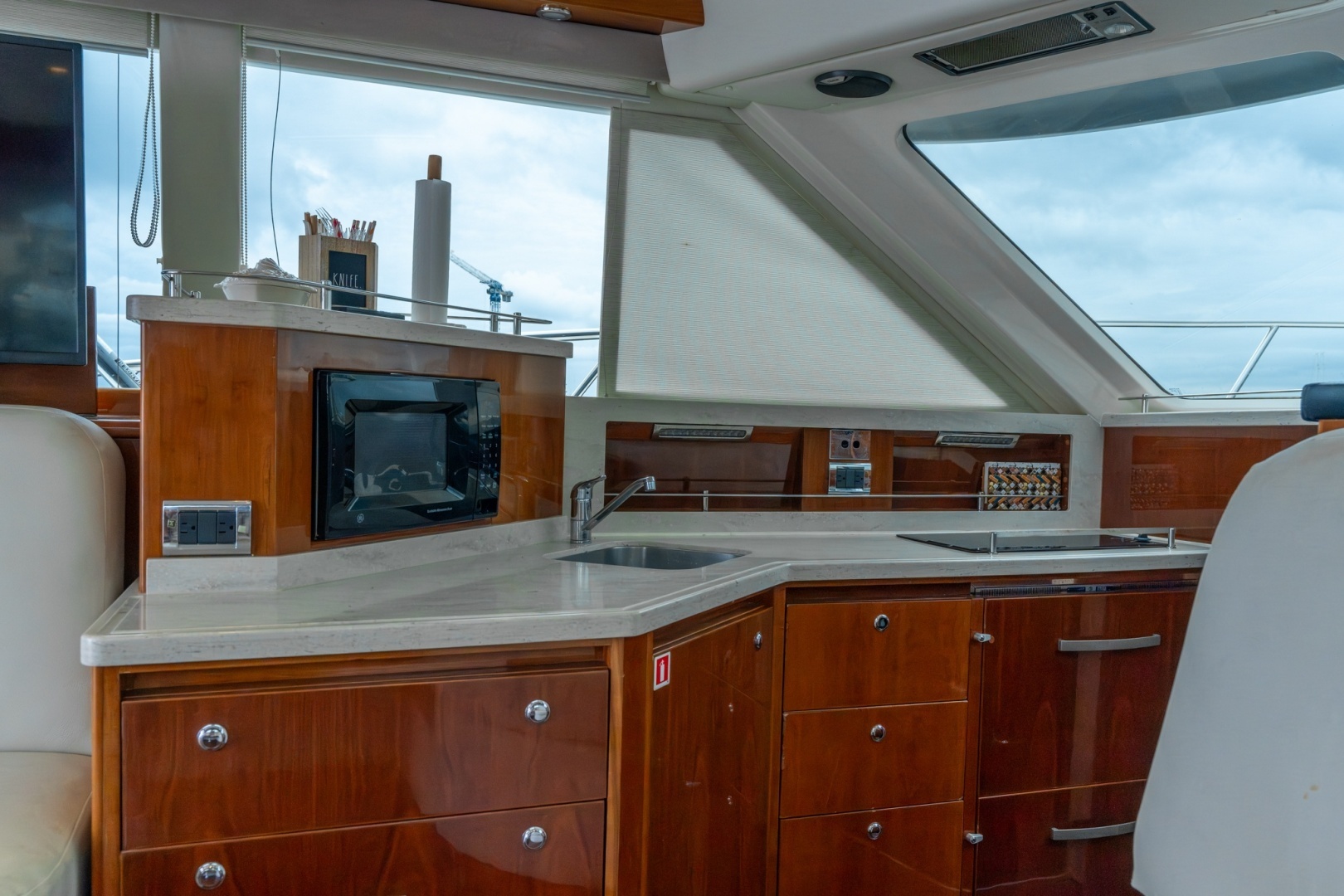

Appliances Section Overview Galley:

• Vitrifrigo dual refrigerated drawer system
• Vitrifrigo C62IX refrigerator with Danfoss compressor
• Fisher & Paykel Dish Drawer dishwasher
• Solid-surface countertops
• Abundant storage cabinetry

Cockpit Entertainment Center:

• Kenyon Custom electric grill
• Wet bar
• Refrigeration

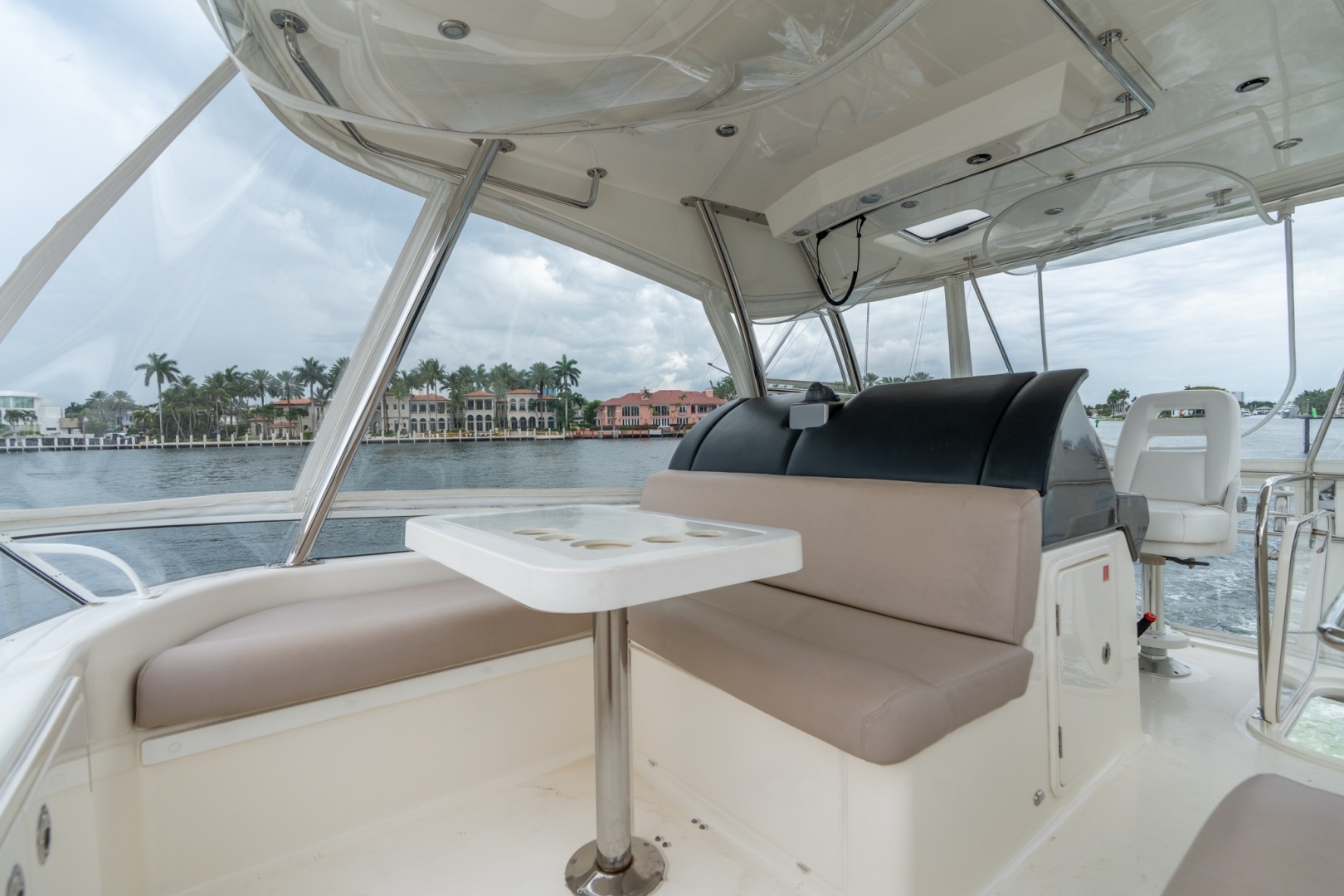

Flybridge:

• U-Line stainless refrigerator
• Entertaining area with refrigeration

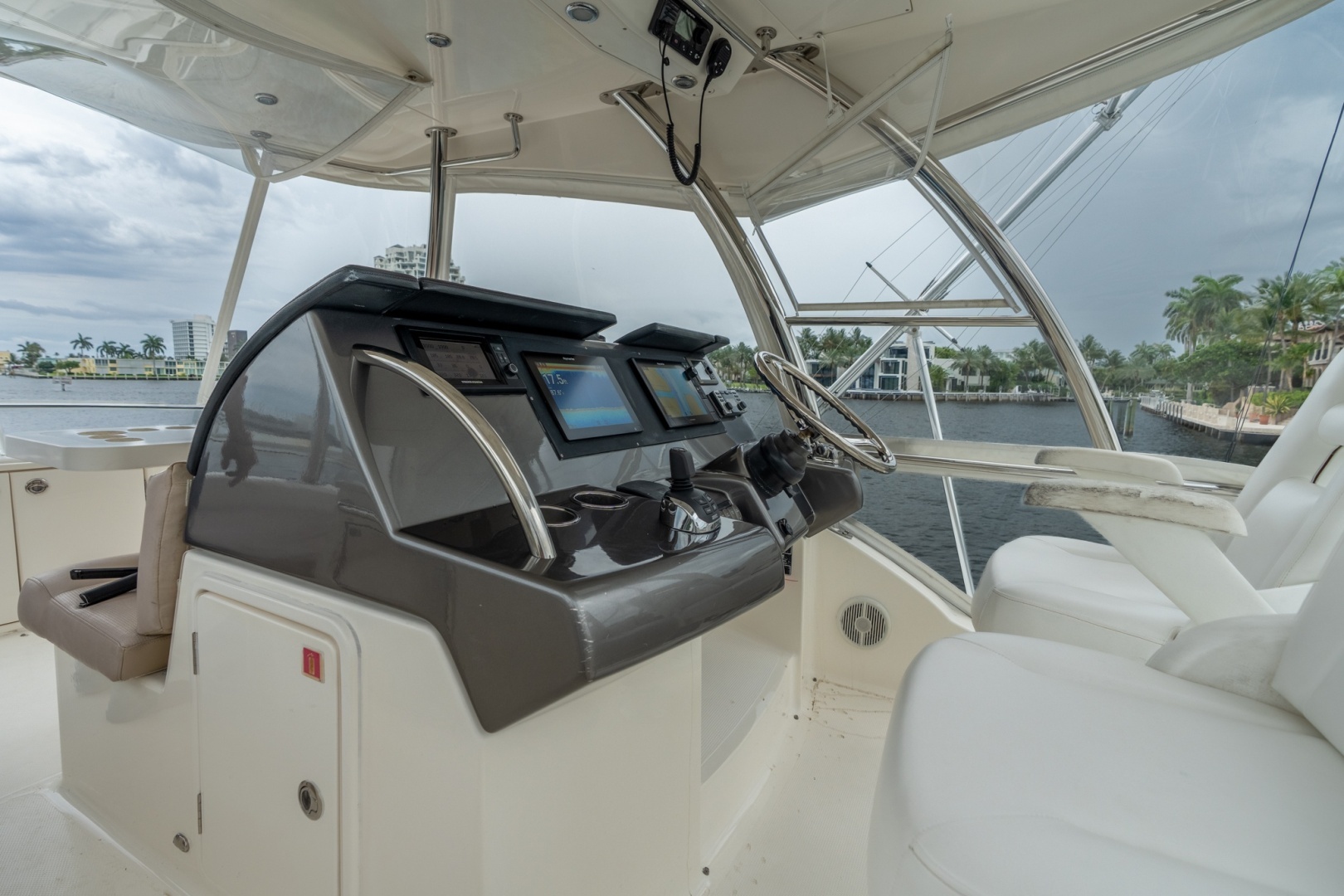

Navigation and Electronics Package

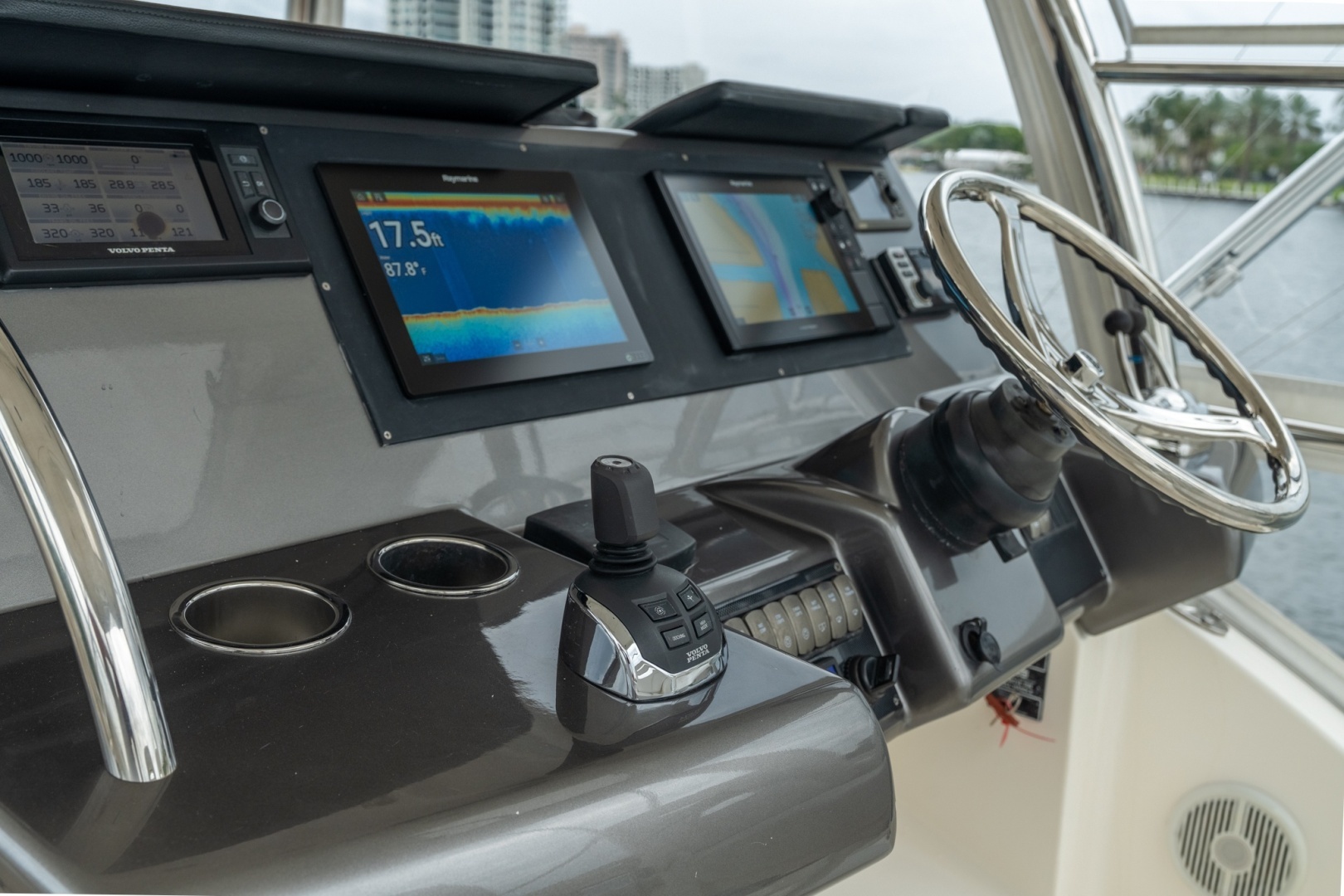

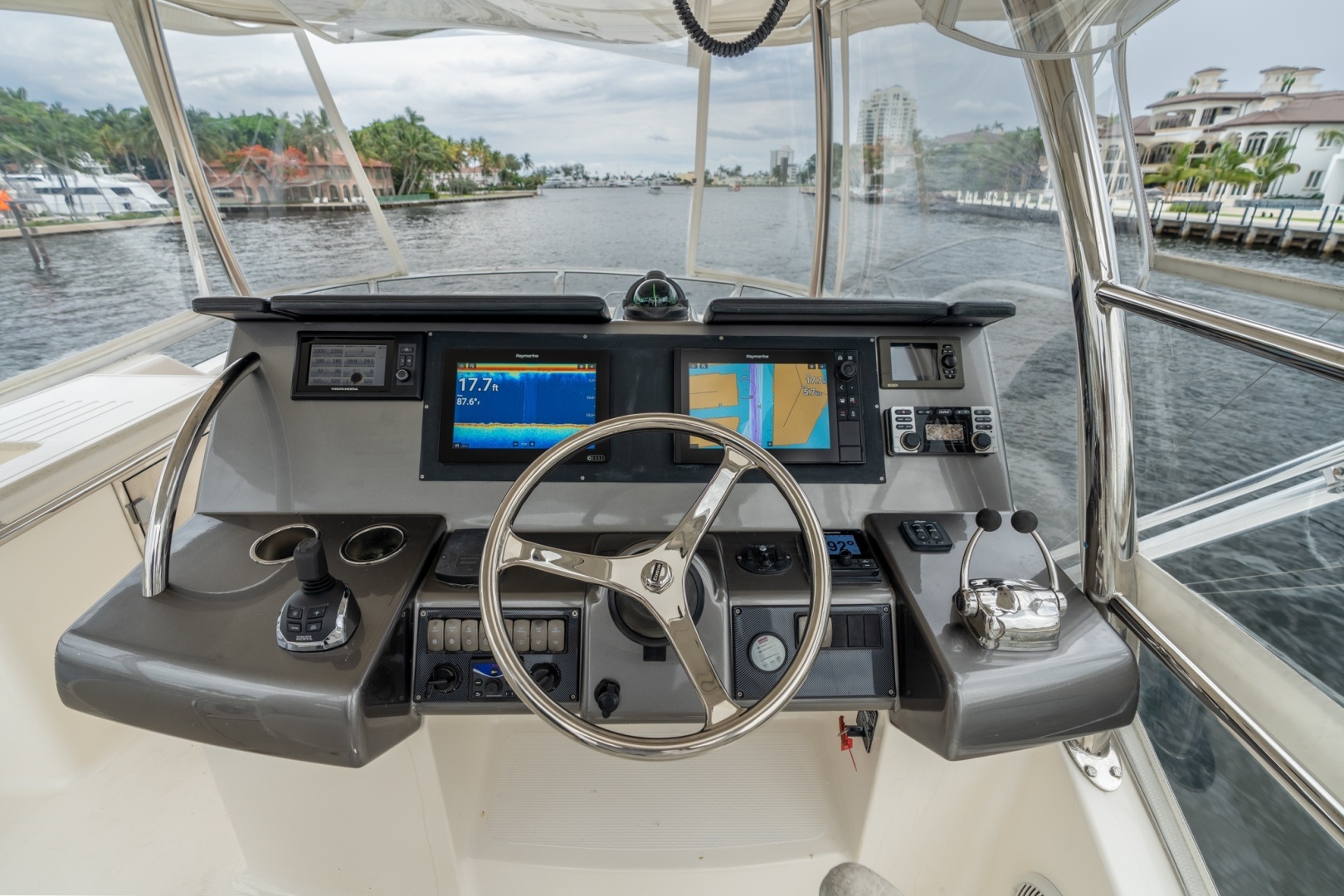

Multifunction DisplaysPrimary MFD

Manufacturer: Raymarine

Model: Axiom Pro 12 RVX

Part Number: E70372

Serial Number: 0293988

Features:

• RealVision 3D sonar capability
• GPS chartplotter
• Radar integration
• Autopilot integration
• Engine data integration
• NMEA 2000 networking

Secondary MFD

Manufacturer: Raymarine

Model: Axiom 12

Part Number: E70368

Serial Number: 1280115

Integrated with:

• Radar
• GPS
• AIS capable
• Autopilot
• Volvo engine data

RadarRadar Interface Module

Manufacturer: Raymarine

Model: VCM100

AutopilotAutopilot Control Head

Manufacturer: Raymarine

Product ID: E70097

Software Version: V3.08

Serial Number: 0191520

This is part of Raymarine's SmartPilot Evolution system.

Trim Tabs Trim Tab Controls

Manufacturer: Bennett Marine

Type: Indicator Trim Tab Control

Features:

• Port and Starboard position indicators
• Illuminated control panel
• Independent tab adjustment

VHF

Manufacturer: Raymarine

Raymarine DSC VHF Radio

Volvo IPS System: Volvo Penta Electronic Vessel Control

Model:

• R43FB IPS Package

Includes:

• Volvo Electronic Vessel Display
• Volvo IPS Joystick Docking System
• Electronic engine controls
• Dynamic IPS integration

Navigation Electronics:

• Raymarine Axiom Pro 12 RVX Multifunction Display
• Raymarine Axiom 12 Multifunction Display
• Raymarine Digital Radar System
• Raymarine VCM100 Radar Interface Module
• Raymarine Networked Electronics Architecture
• Raymarine Autopilot
• Raymarine DSC VHF Radio
• Volvo Penta Electronic Vessel Control
• Volvo IPS Joystick Docking System
• Bennett Trim Tab System

Many competing Riviera 43s still have:

• Raymarine E120W
• C-Series
• E-Series
• Older analog radar

This boat has been upgraded to:

• Axiom Pro 12 RVX
• Axiom 12
• Modern Raymarine Lighthouse software
• Modern radar integration

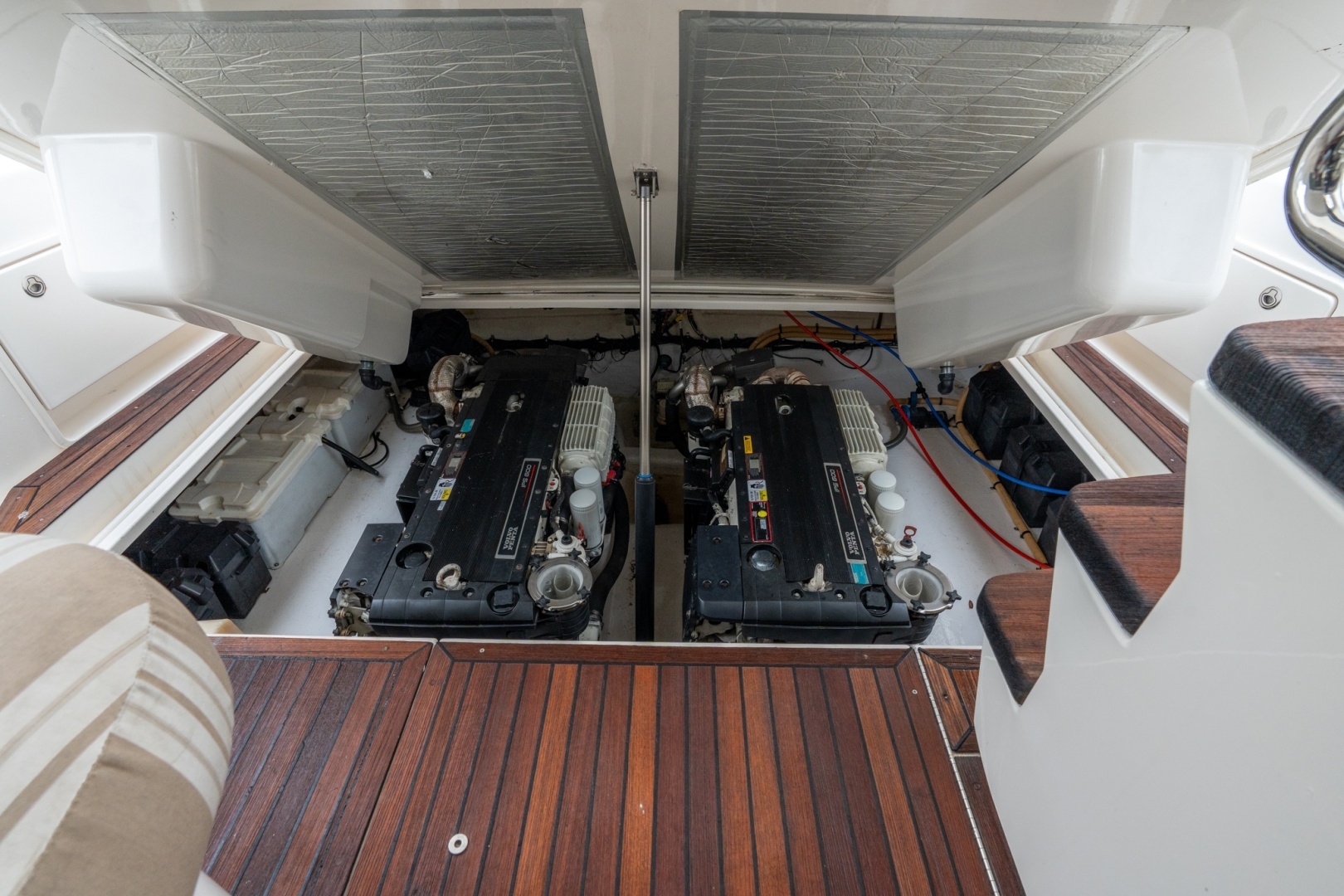

Propulsion Package

Engines:

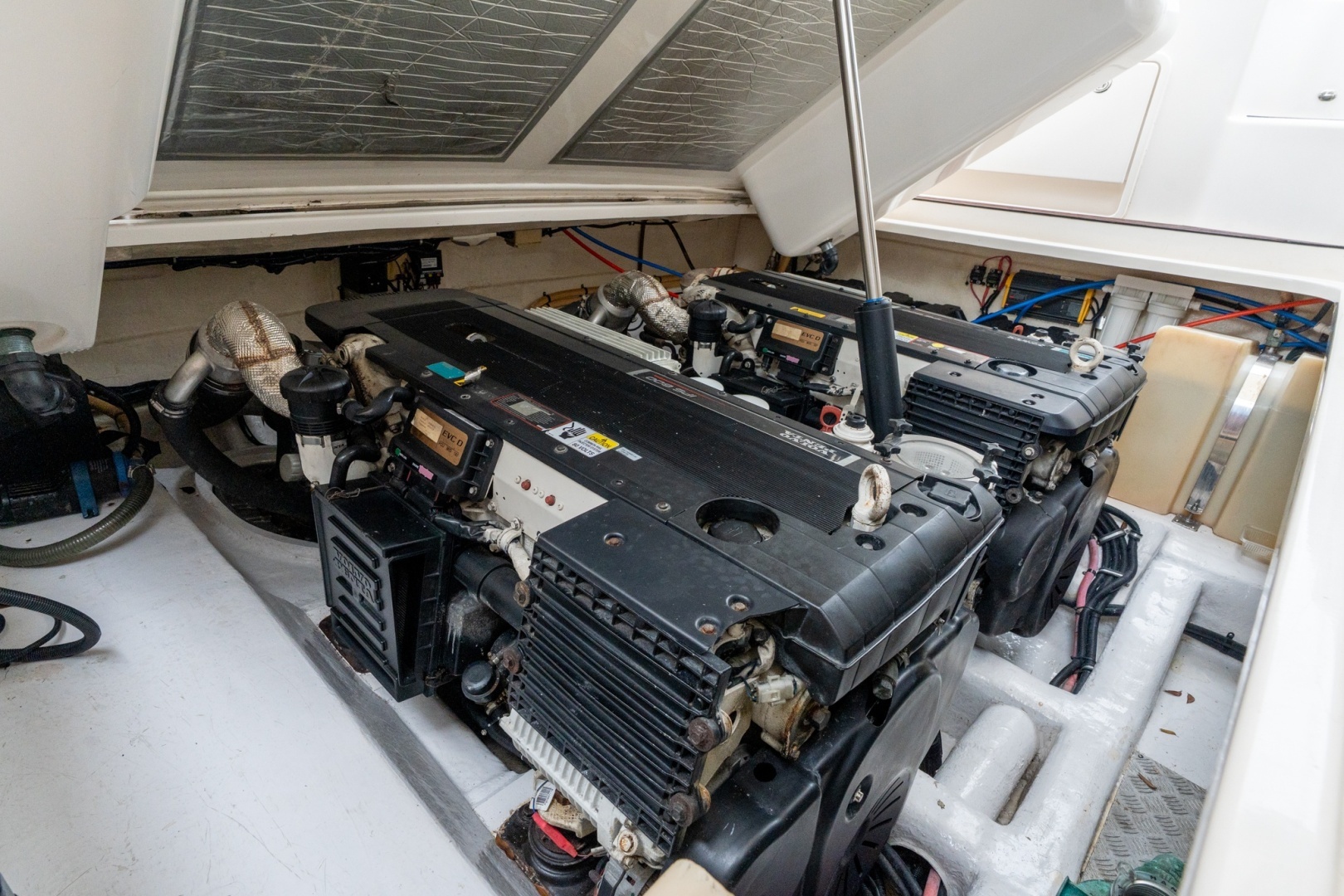

Volvo Penta D6-435 IPS

• Model Year: 2010
• Rated Power: 435 HP each
• 5.5 Liter Common Rail Diesel
• EPA Tier II Compliant
• Twin Installation

The emissions plate shows:

D6-435 KA

Twin Volvo Penta D6-435 IPS Package

Total Horsepower: 870 HP

IPS Drives

Port IPS Drive:

• Model: IPS-1
• Ratio: 1.82:1
• Volvo Part Number: 22499200
• Serial Number: 3940022461

Starboard IPS Drive:

• Model: IPS-1
• Ratio: 1.82:1
• Volvo Part Number: 22499200
• Serial Number: 3940021545

Generator

Cummins Onan Generator

Model: MDKBM-5270195

Serial Number: G100139129

Rated Output:

60 Hz Configuration

• 11.5 kW
• 120/240 Volt
• Single Phase
• 1800 RPM
• Diesel

Electrical Equipment

• 24V DC electrical system
• Upgraded Victron Energy Skylla-TG 24V / 100A smart battery charger
• Vanner Voltmaster 60A battery equalizer
• Dedicated engine start battery banks
• Dedicated auxiliary battery bank
• Dedicated house battery bank
• Cummins Onan 11.5kW diesel generator
• 120/240V AC electrical service
• Shore power connection
• CZone digital electrical monitoring and control system
