Vessel Overview

"Tilly Too" has the much sought-after galley-down arrangement, with the convertible dinette opposite. This configuration is the most desired by couples that plans to do some serious cruising (such as the Great Loop) with only occasional guests. It is the the most open layout available in this model, giving the yacht a much larger interior feel. Unlike most of her sisterships, "Tilly Too" has twin settees to port and starboard in the salon, giving her an even more open feel. Forward in the salon is the helm station to starboard (with a side door leading to the wide side deck), with the companion seat to port. Both the companion seat and the helm seat are adjustable STIDD chairs, with the helm seat being extra-wide. A new refrigerator has been installed beneath the helm seat.

Down three steps moving forward, the large and airy galley is to port, with the convertible dinette and entertainment center to starboard. Forward to port is the private head with large stall shower, and the Master Stateroom with centerline queen berth (and private access to the head) is in the bow.

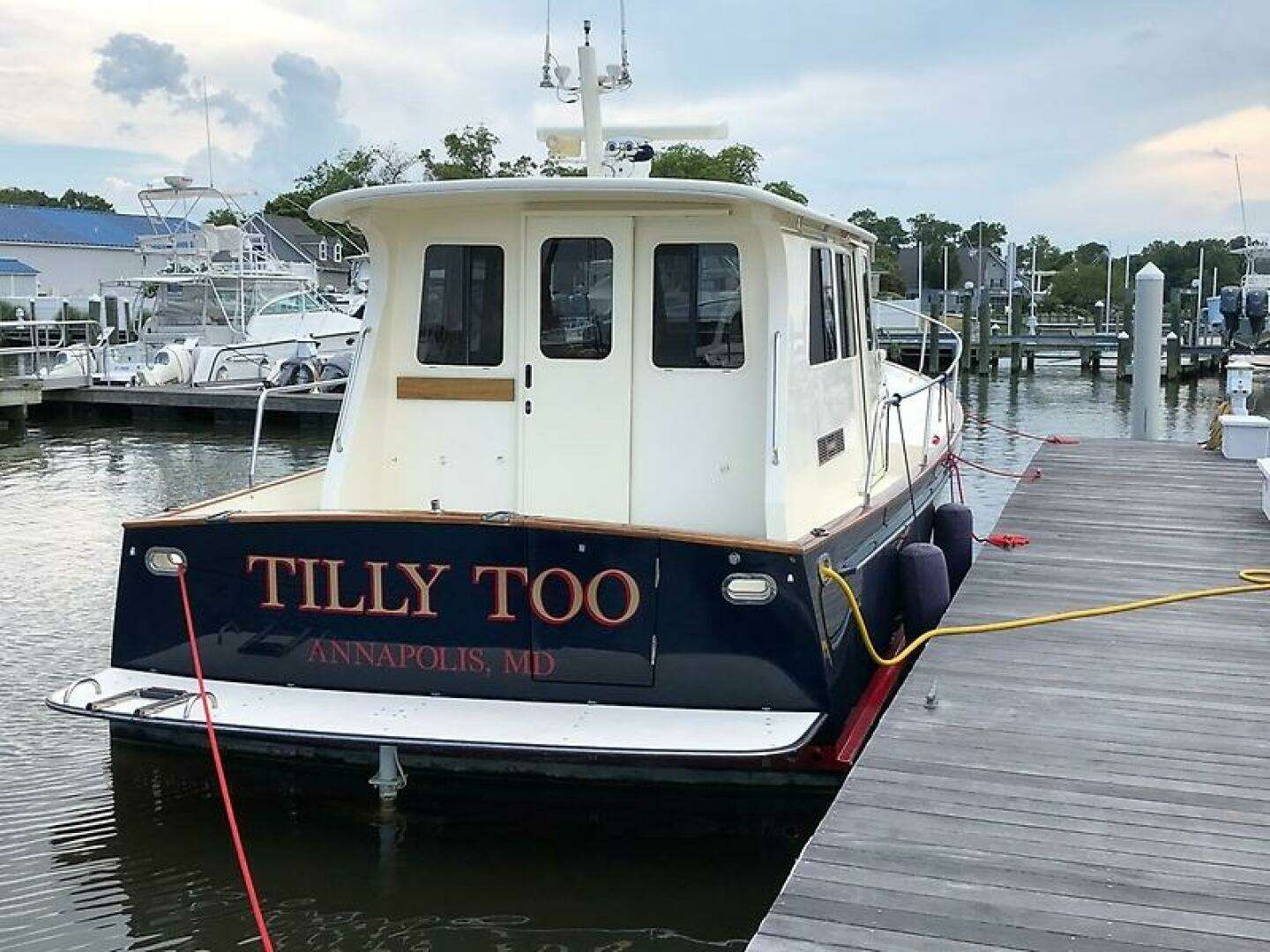

Aft of the main cabin is the large cockpit with transom door and swim platform, making access to the cockpit from a floating dock very easy. Two aft-facing bench seats are on either side of the centerline salon door, and there are steps on both sides of the house giving easy access to the wide side decks. The tall stainless bow and siderails makes access to the bow very comfortable and safe. The rigid inflatable dingy is located on a very convenient transom-mounted hoist. Very easy to deploy and stow.

Salon

From the cockpit, you enter the salon through a centerline sliding door. Step inside and sense the openness and the panoramic view. The quality of the build, and especially the woodwork, is immediately apparent. This roomy space features:

Port and starboard windows aft- sliding glass with screens

Side windows slide open- with screens

Custom curtains, both sides and aft

High gloss teak and holly sole

Engine room access - centerline and aft

Ultra leather sofas, port and starboard, with storage beneath

Decorative pillows

Bullet readings lights, aft to port and starboard

4 Flush mounted overhead lights, 2 stereo speakers

2 overhead Bowmar Hatches with screens

Courtesy lights, port and starboard

Helm

Galley

Leaving the helm area and down 3 steps, the U-Shaped galley is to port. An abundance of natural sunlight through the overhead windshield and multiple portlights gives the space an "open air" feeling- not at all like the typical crowded feel found on many other galley-down yachts. Some of this is attributed to the fact that the convertible dinette is just across to starboard, making the entire space an open full-beam area. The galley has all of the conveniences one would expect to find in a serious cruising yacht:

3 wood steps, the top 2 steps hinge open for storage

Courtesy lights in steps

Teak and holly sole

Corian Countertops

2-burner propane stove and oven, located aft in galley- cover for stove

Storage above and below stove

2 120V outlets

Stainless steel double sink with faucet and spray nozzle

Storage beneath sink, 3 drawers and door locker

3 storage areas outboard

Under-counter lighting

Pocket storage in counter

Microwave oven with storage on either side

Tundra refrigerator/freezer

Overhead lighting

Dinette

Directly across from the galley is the Convertible Dinette, which shares with the galley the abundant sunlight and adds to the open feel of the space. When needed, this space can be used to sleep guests as the dinette converts to a double berth. The dinette area also houses the large flat-screen TV, and can be treated like an "office away from home" while cruising. Other features include:

L-shaped dinette with storage beneath, converts to double berth

Decorative pillows

Teak and Holly Sole

Bi-fold table on two pedestals

Flatscreen TV- forward

Two 120 V outlets

2 outboard storage lockers with door

Storage shelves

1 large storage locker forward

2 porlights with shade

2 bullet reading lights, fore and aft

Overhead Bowmar Hatch with screen

Overhead lights

Courtesy Lights

Head

Forward of the galley, to port, is the enclosed head. Access is provided through a door that opens to the dinette area, as well as a private entrance from the Master Stateroom. The space is nice and roomy, especially for a 42' yacht. Some of the highlights are:

Overhead Bowmar hatch with screen

Overhead lighting

Portlight with shade

Corian countertop

Stainless steel sink with Grohe single lever faucet

Large mirror

Storage beneath sink

120V outlet

VacuFlush head system (uses fresh water)

Stainless steel towel ring

Cabinet storage

Pocket storage in counter with lid

Large shower stall with curtain and overhead lighting

Grohe shower wand

Fiberglass bench seat in shower

Shower stall storage compartment

AC/heat outlet

Master Stateroom

All the way forward is the private Master Stateroom with centerline queen berth. The Master offers plenty of natural lighting and ventilation, as well as a private entrance to the head. Also featured are:

Teak and Holly Sole

2 portlights, port and starboard, with shades

CO2 Alarm

Storage lockers with shelves, port and starboard

Large hanging closet

Courtesy Lights

Separate AC/heat system and controls

2 120V outlets

Overhead Bowmar Hatch with screen

Mirror on forward bulkead

2 Overhead lights

Bullet reading lights

Drawer storage beneath berth

Cockpit and Decks

The Legacy 42' utilizes excellent non-skid on all of her exterior decking. This model features wide and safe walkways on either side of the house, and her tall stainless steel bow rails provides great looks as well as a safe means to access the bow. Her cockpit is tremendous, and features a swim platform and transom door, making boarding the vessel a breeze. With her inflatable dingy stowed on the transom (see photos), the cockpit is loaded with features to add to the experience of boating:

Fiberglass swim platform with boarding ladder

Transom Door

Varnished teak covering boards

Flag staff- stainless steel mount- with wood staff

Stainless Steel Dingy Davit- St. Croix

Inflatable dingy with 3.5hp Mercurey 4-stroke outboard

Transom shower

Shore water inlet with pressure regulator

50amp shore power inlet and cord

30amp shore power inlet with cord

Courtesy Lights

Cockpit cover

2 corner hawsepipes per side

Centerline sliding salon door forward

2 aft-facing bench seats with cushions (propane tank storage beneath port side seat)

Storage under starboard aft-facing seat

Stainless steel grab rails, both sides

Molded steps to access side decks

2 under-gunwhale storage lockers

2 flush mounted rod holders

2 hatches to access lazzarette

Fender storage lockers, both sides aft of side decks

Muir windlass with all chain rode

Stainless anchor chute

Fortress FX23 anchor

2 Anchor lockers

Anchor washdown in port side anchor locker

Courtesy lights on decks

Varnished teak toerails and covering boards

Engine and Mechanical

The "Tilly Too" is loaded with equipment for extended cruising, and is equipped with both a diesel generator and an inverter to easily handle all electrical needs. Engine room access is just inside the salon door, and her single engine, plenty of room is afforded to move around and access every system of the boat with ease:

Cummins QSM11-M 660hp diesel engine

Electronic engine display at helm- multi-screen

ZF 311A transmission with electronic controls

Northern Lights 8KW diesel generator

AC and DC engine room lighting

Twin Racor fuel filters

All bronze through-hulls and strainers

Jabsco washdown pump

High water alarm

Bilge Pumps

Dripless shaft seal

Reverso oil change system

Inverter

House battery bank

Delta T engine room ventilation

Dometic Marine Air Systems (2 units)

Seaward hot water heater

Battery chargers

Performance Specs

RPM GPH Speed (Kts) Load %

600 1.1 5.0 14%

700 1.3 5.4 26%

800 1.8 6.0 32%

900 2.4 7.4 30%

1000 3.2 7.9 32%

1100 4.5 8.6 35%

1200 5.5 9.0 41%

1300 7.2 9.5 57%

1400 9.1 10.0 54%

1500 10.6 10.4 57%

1600 12.8 12.3 57%

1700 14.3 13.4 54%

1800 16.2 15.1 58%

1900 18.2 16.4 63%

2000 20.8 17.6 66%

2100 24.5 18.6 84%

2200 27.4 20.1 90%

2300 32.8 22.3 100%
