Standard Equipment

CONSTRUCTI0N

• Design made following European Directive requirements and according to EC certification

• Monolithic hull in polyester

• Monolithic structural hull liner bonded to the hull

• Injection molded deck in glass fiber/balsa sandwich, covered with "diamondpoint" non-slip coating

• Hull-deck joint screwed, bonded and trimmed with 1 toerail

• Cast iron keel fixed with bolts and stainless steel backing plates

• Rudder hung with glass compound stock

• White colored hull - Grey metal hull decoration

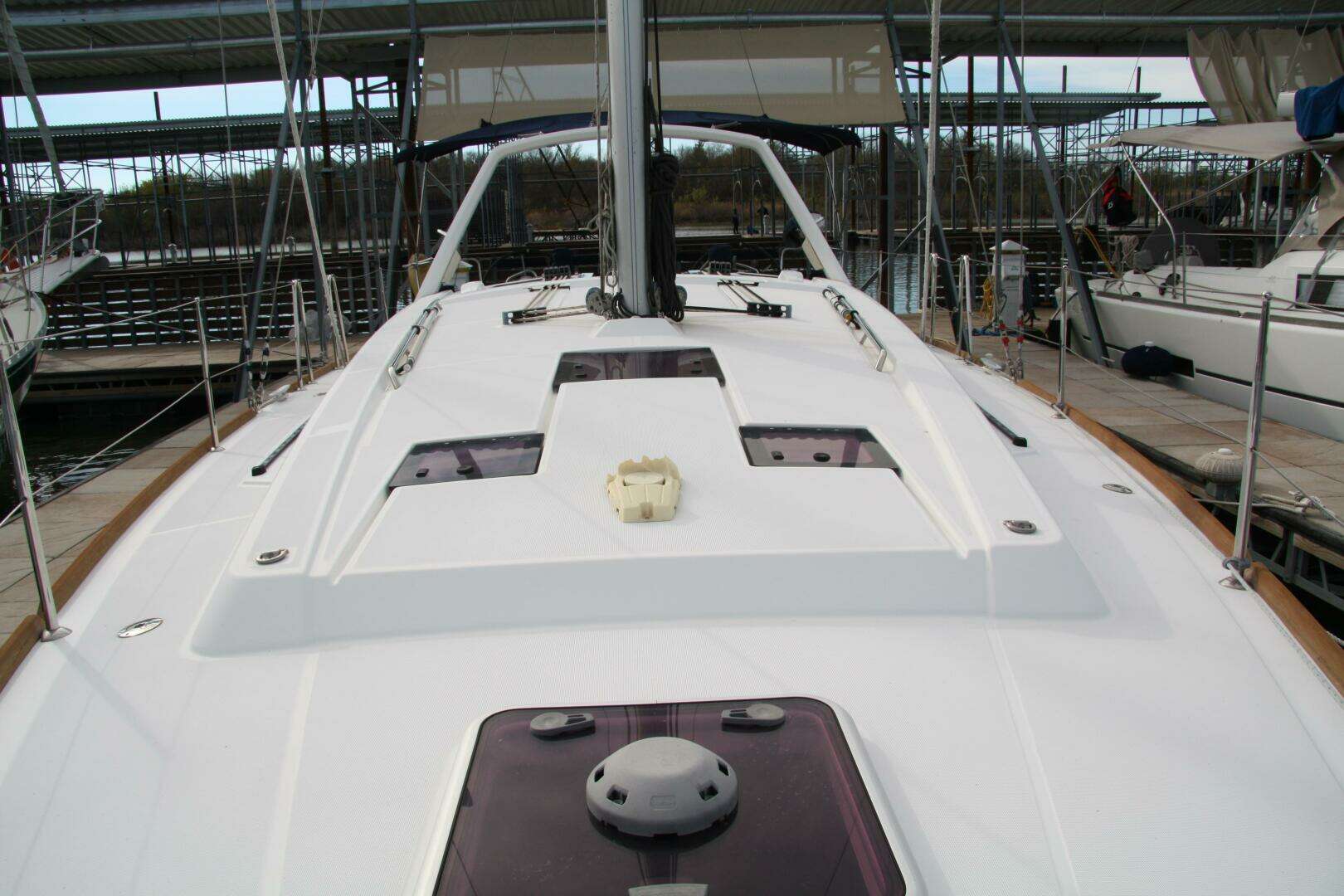

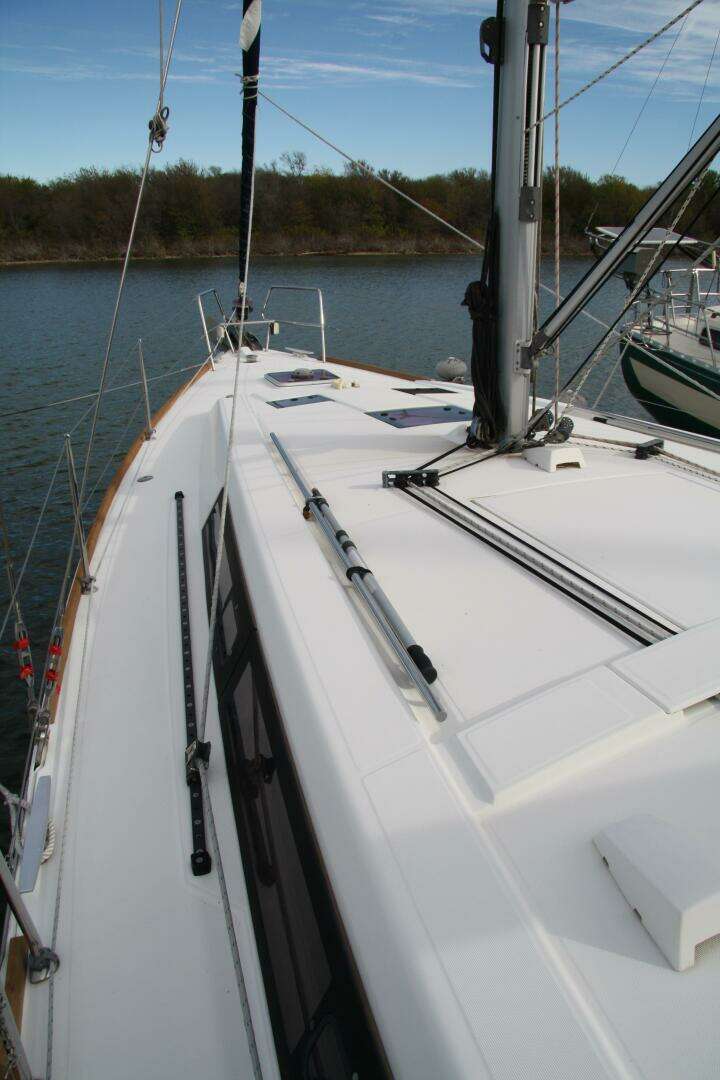

DECK EQUIPMENT

RIGGING

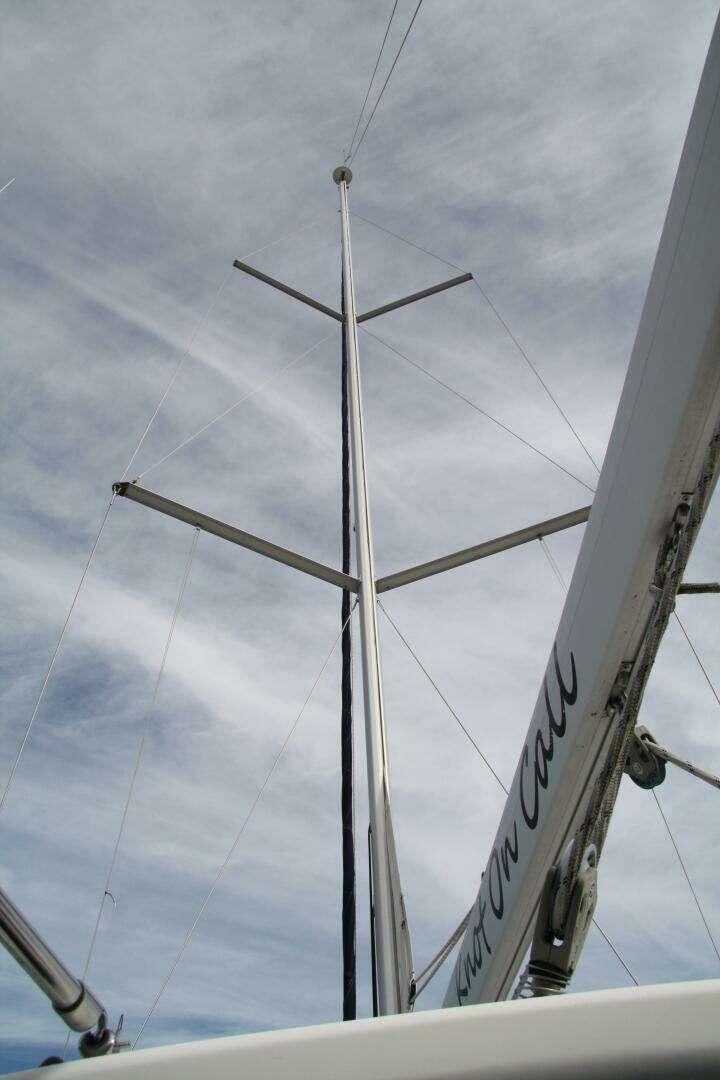

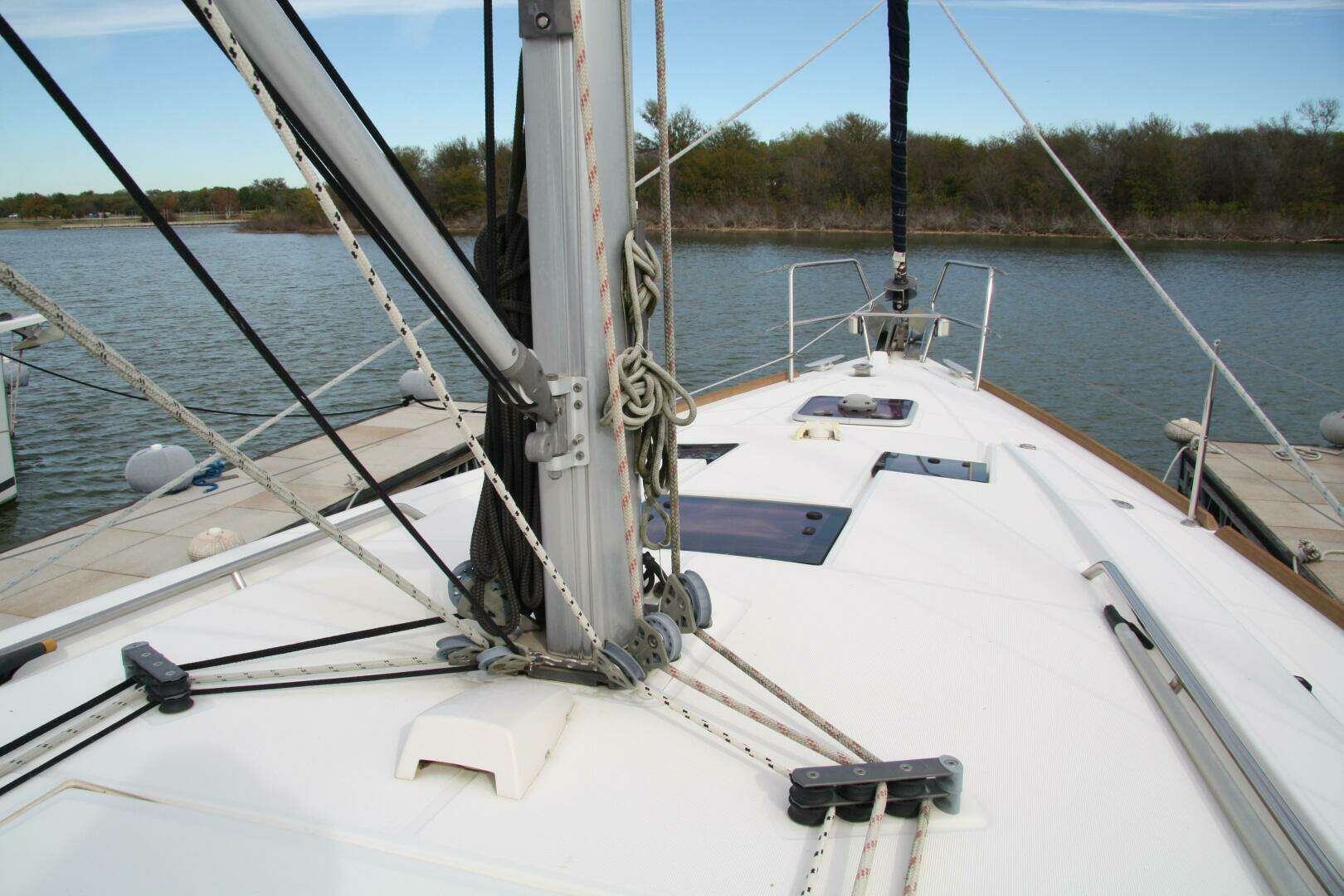

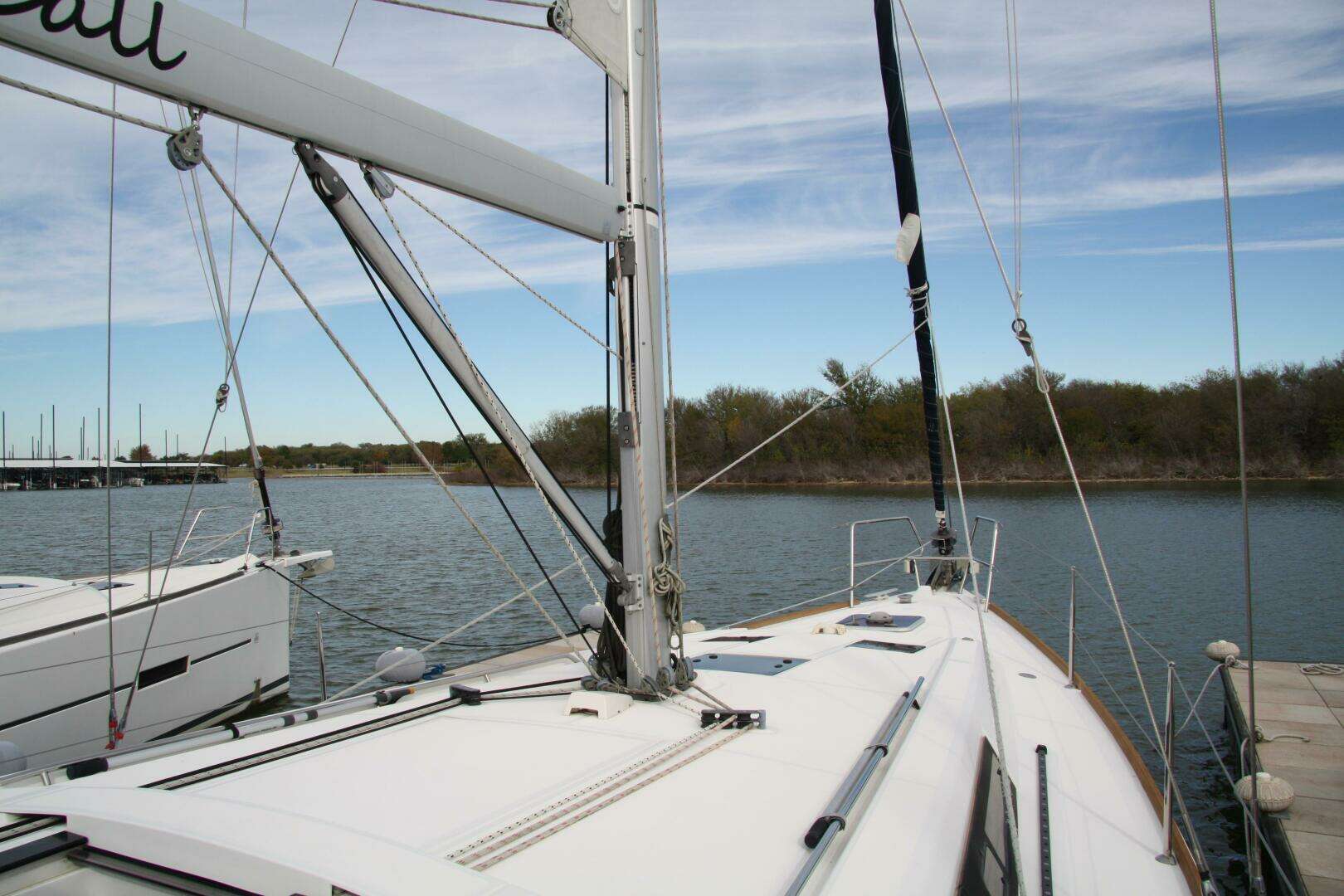

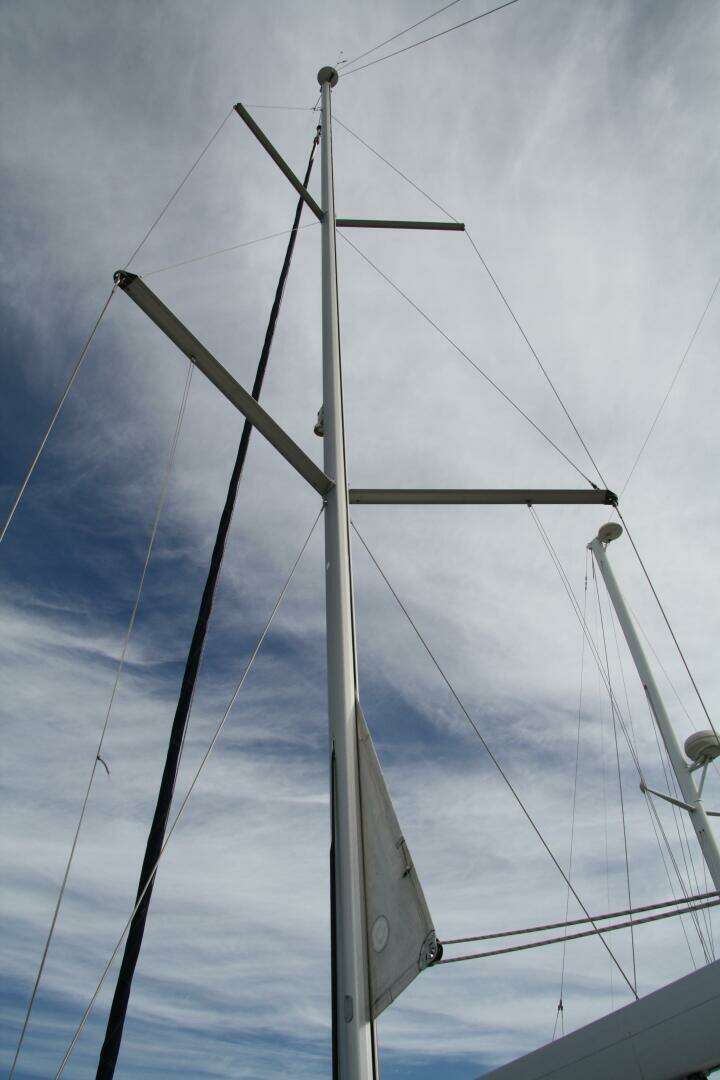

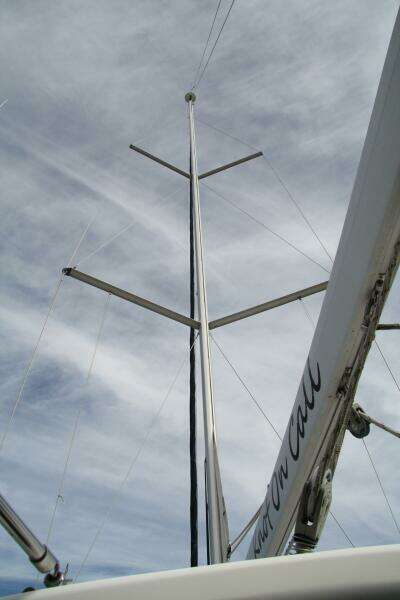

• Standard mast 9/10 anodized aluminum installed on the deck, 2 sets of spreaders

• Anodized aluminum boom

• Discontinuous stainless steel standing rigging

• 2 Backstays with turnbuckles

• Rigid boom vang

• Genoa furling system with drum on the deck

• 2 Stand Up blocks on mainsheet arch

• 2 Genoa tracks with piston adjusted traveller cars

• 2 Genoa sheet return blocks

• Rigging run back to cockpit (except boom topping lift)

• Complete running rigging: Main halyard, Genoa halyard with clutch on mast and cleat, Boom topping lift with cleat on mast, Mainsheet, 2 Genoa sheets 2 Reefing lines, 1 Manual reef

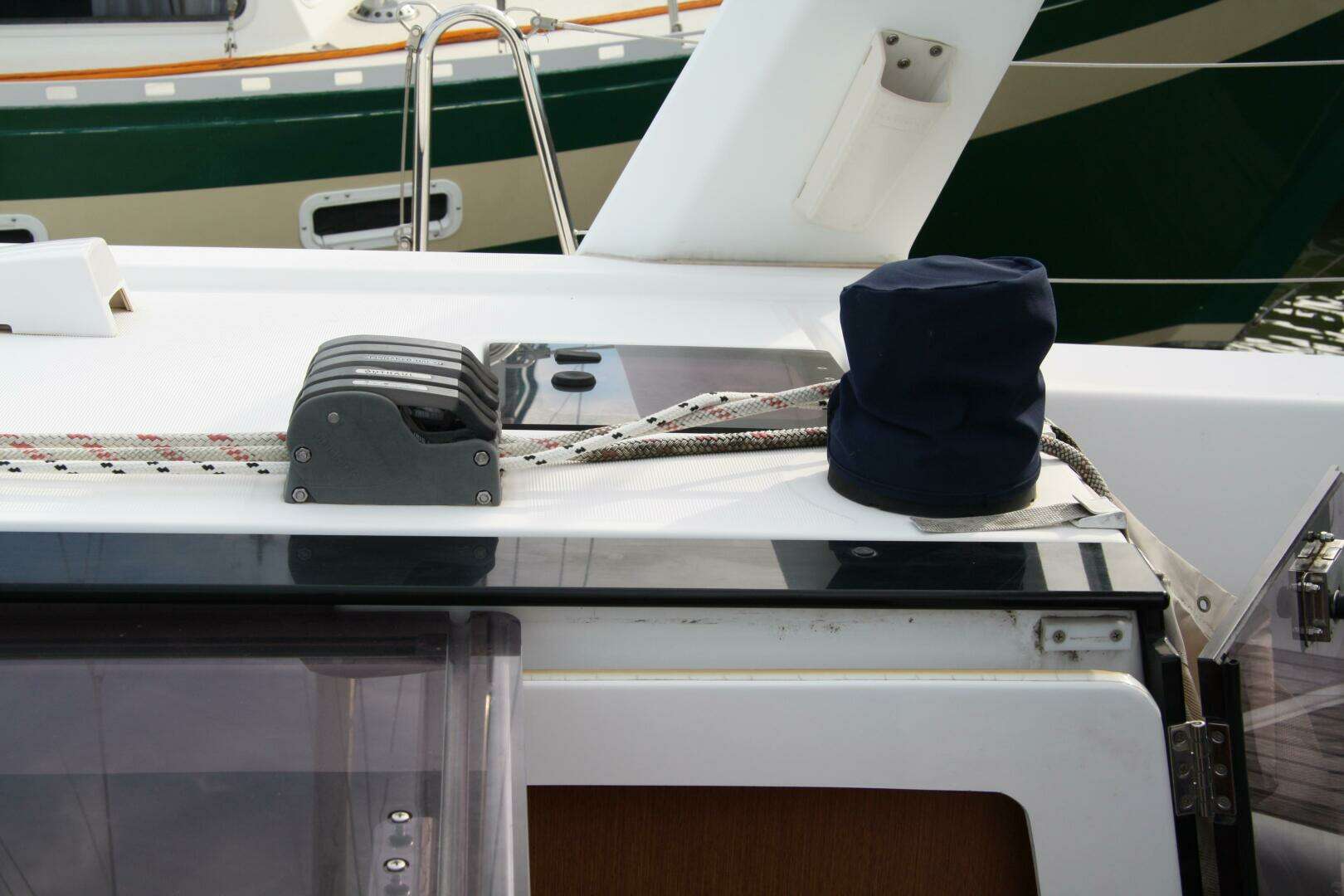

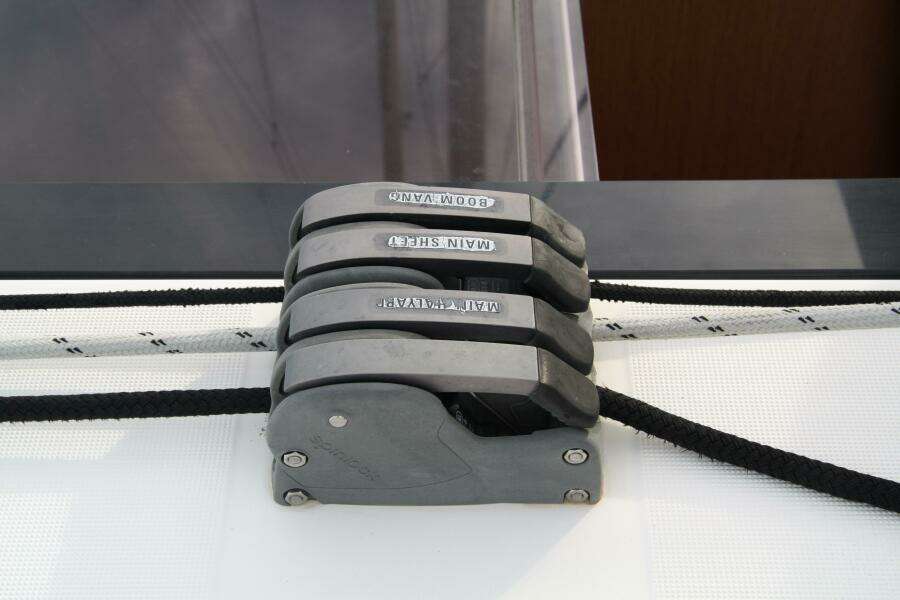

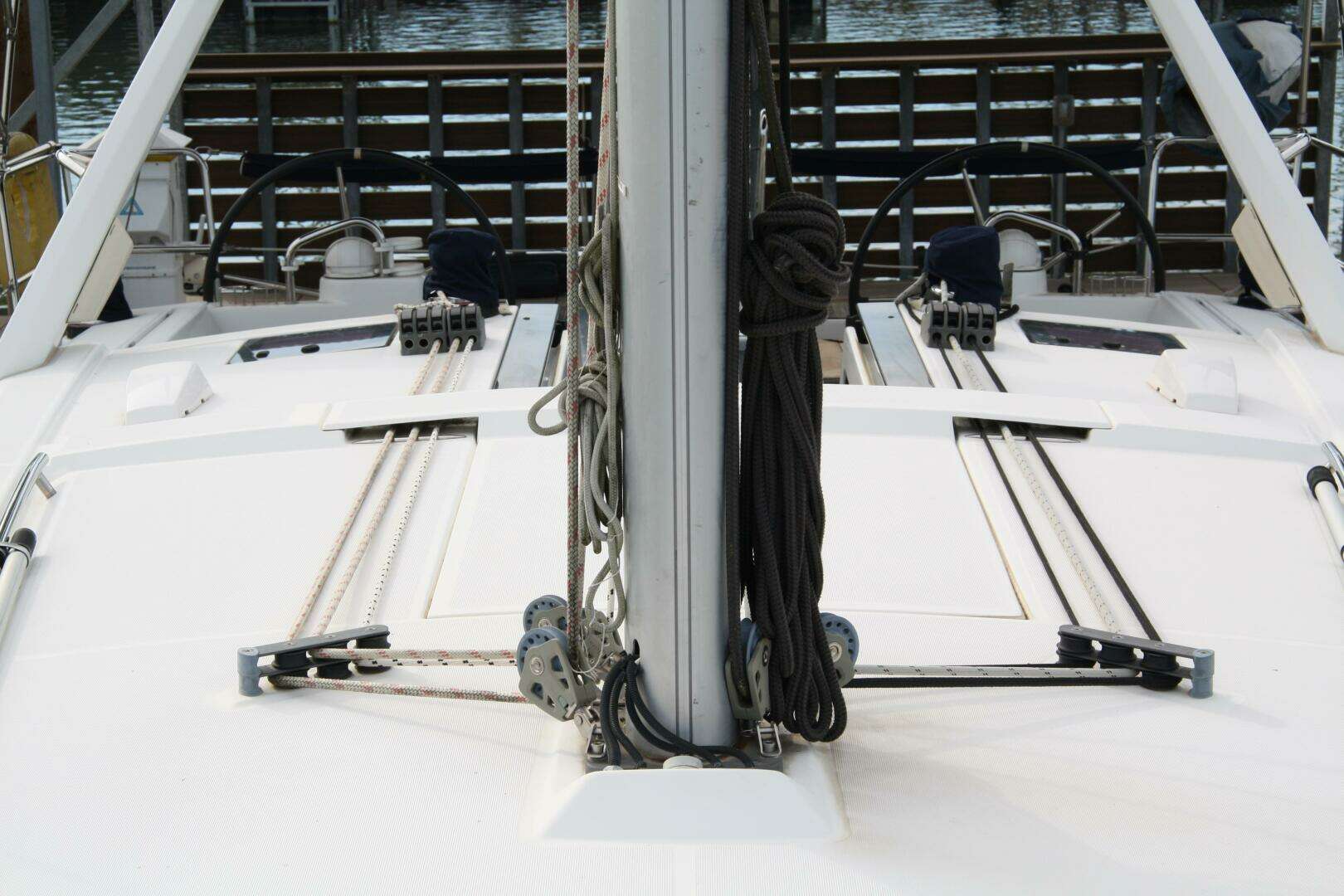

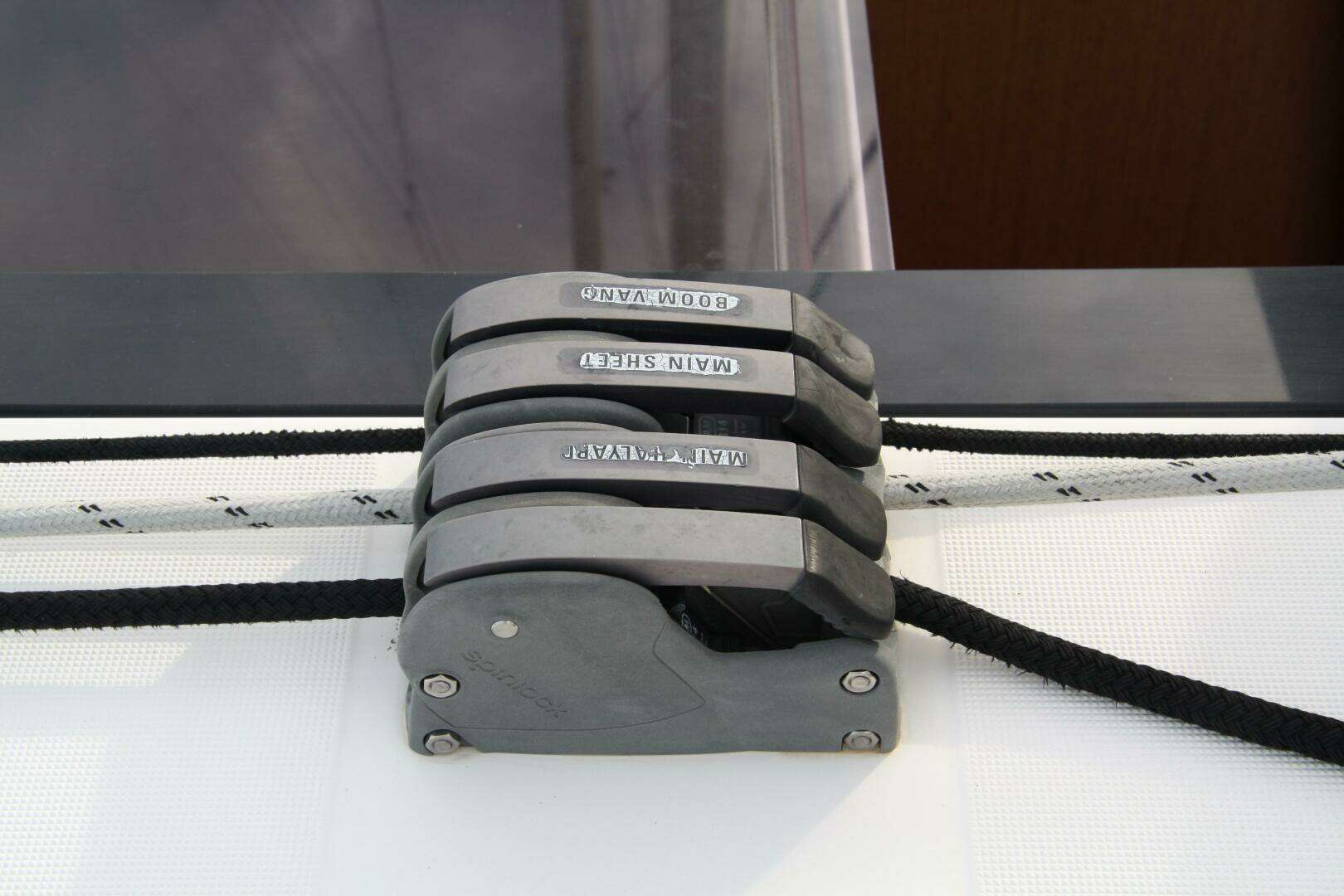

• 7 Line stoppers • 2 Halyard bags

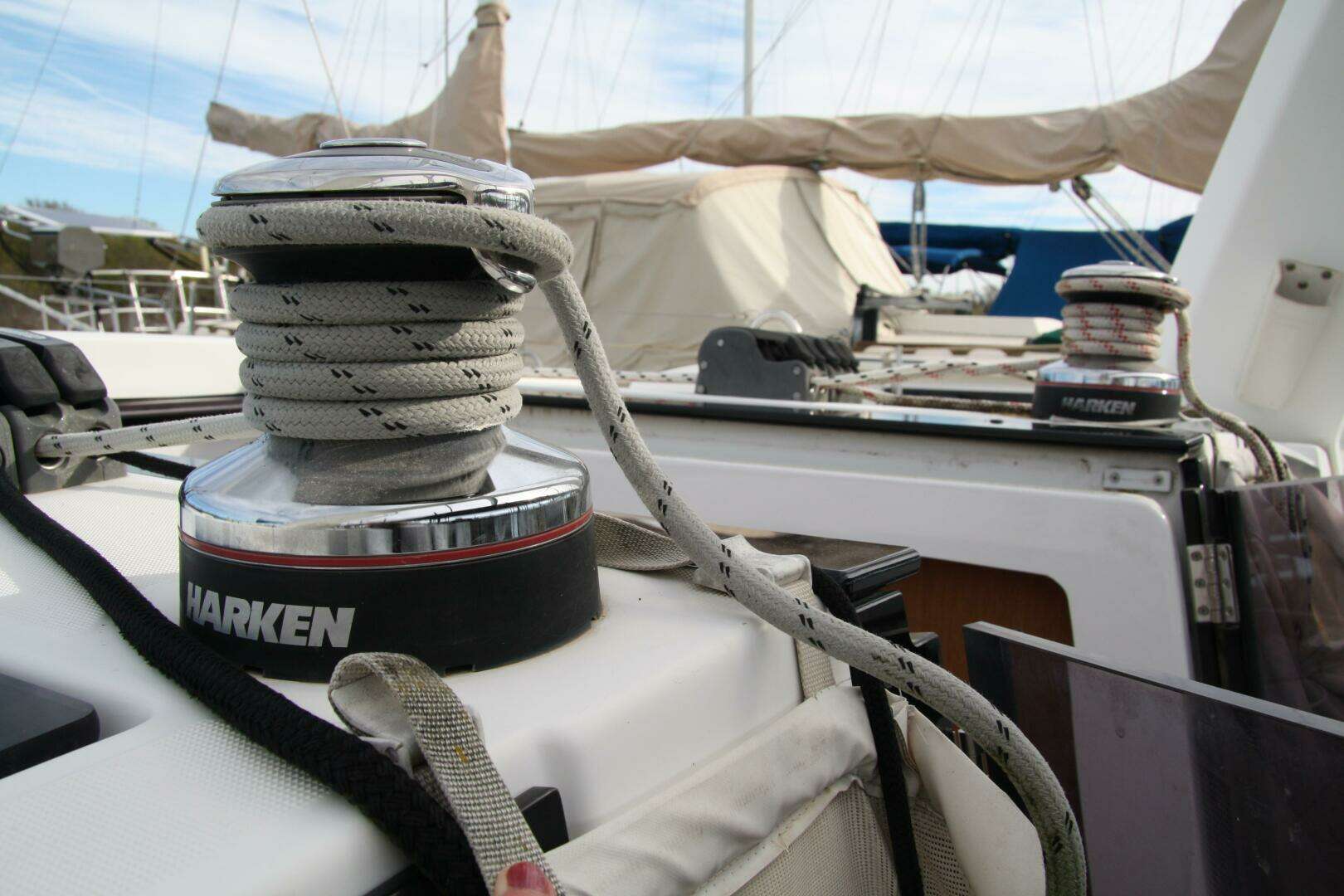

WINCHES

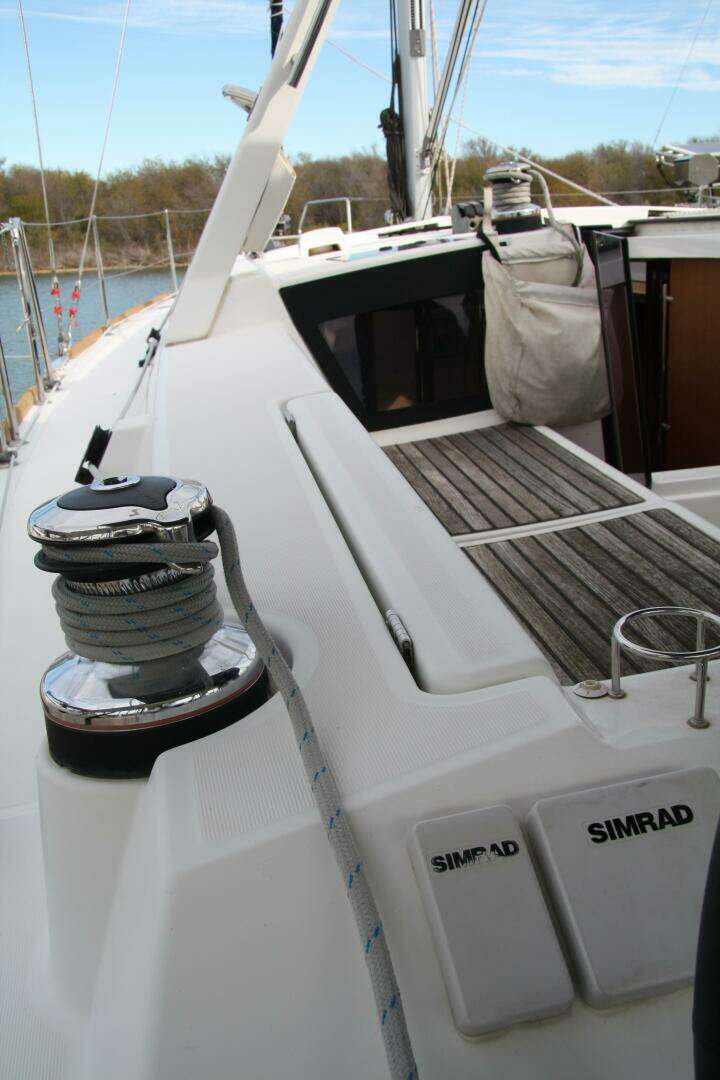

• 2 Self-tailing genoa sheet winches (H46.2 STA)

• 2 Self tailing coachroof winches (H40.2 STA)

• 2 Aluminum winch handles Speed Grip

• 4 Winch handle holders

SAILS

• Furling genoa with UV protective strip

• Semi full batten written sail with slider and roller slider

MOORING - ANCHORING GEAR

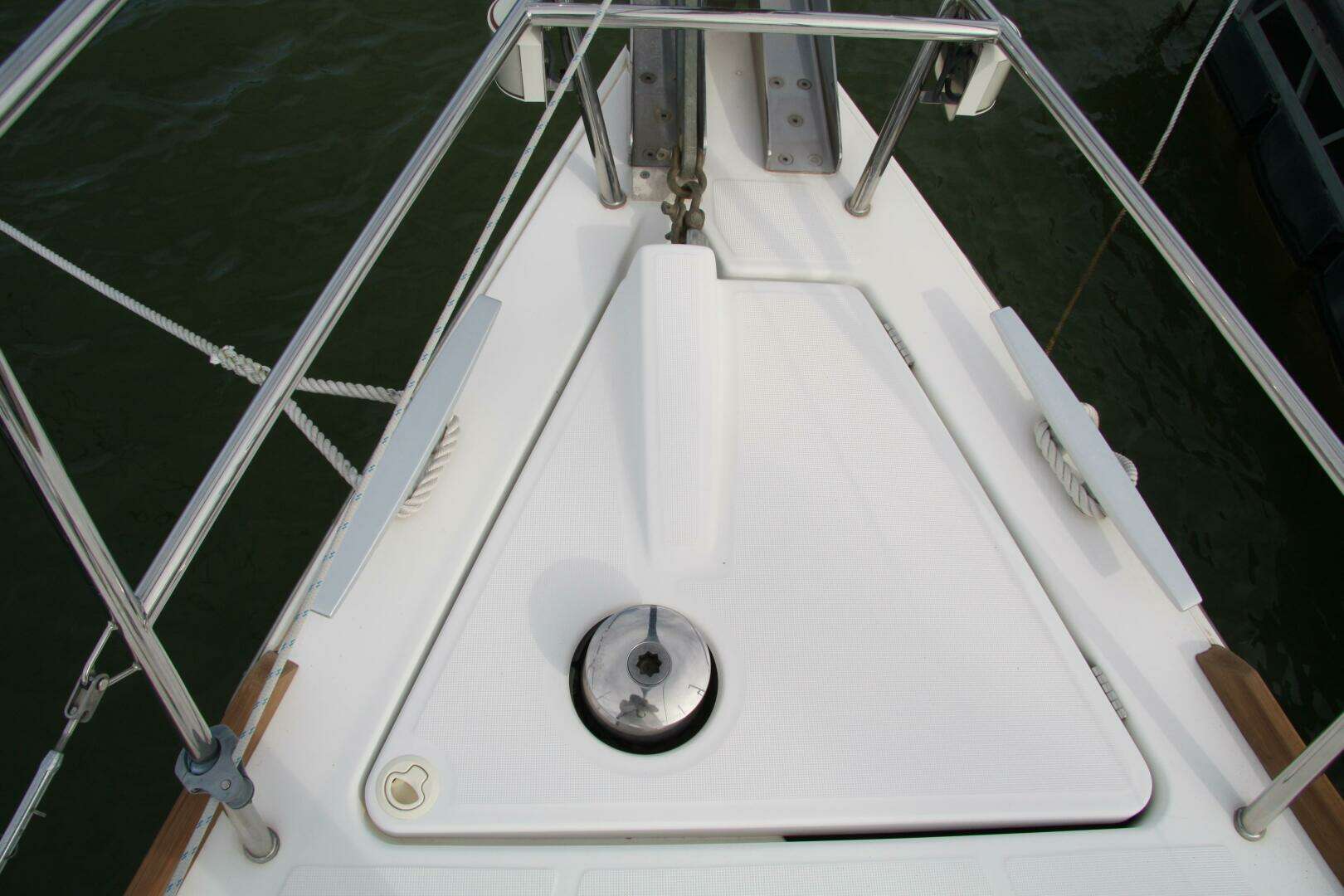

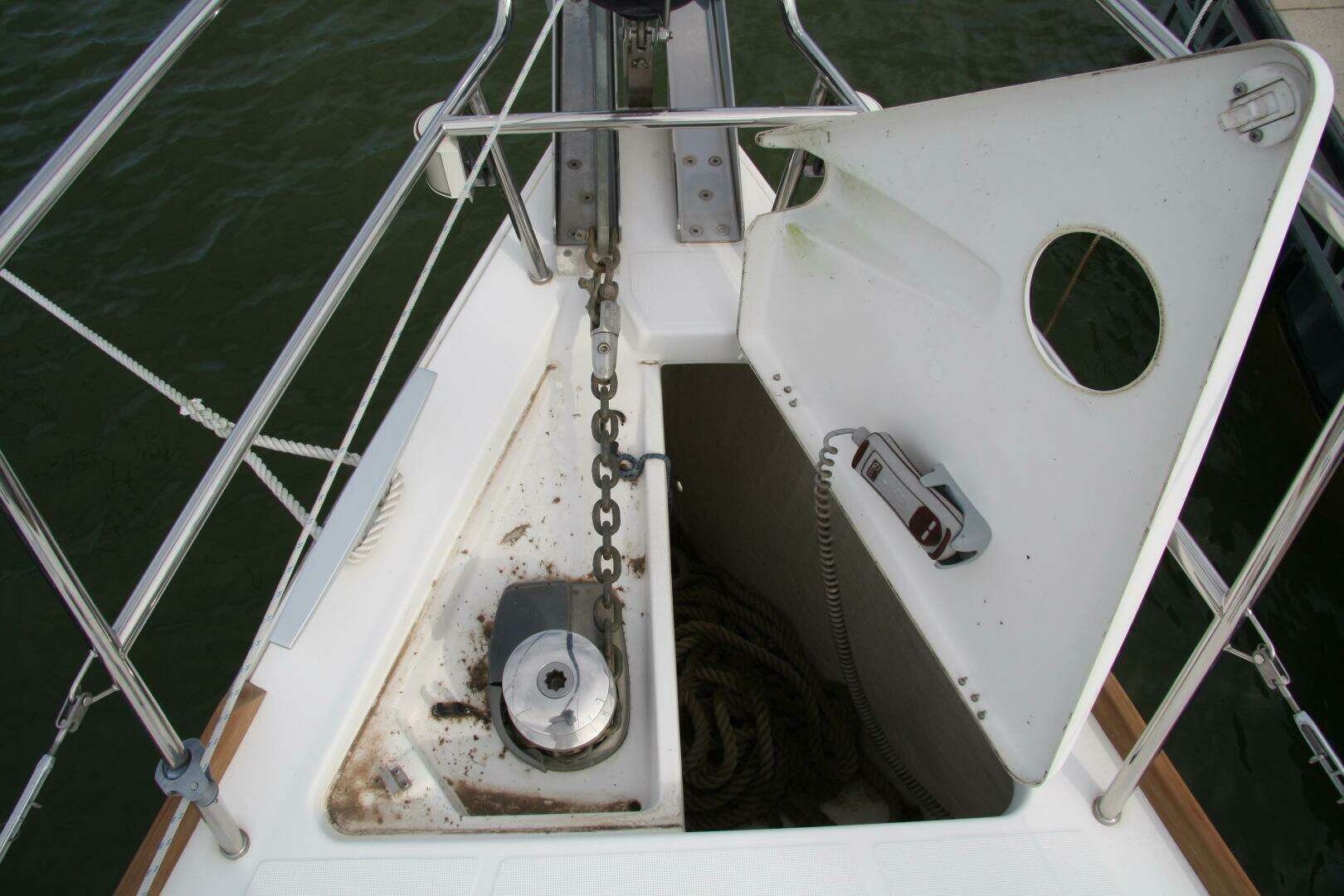

• Self-bailing chain locker - Clench bolt - Hatch cover

• Single roller stainless steel bow fitting with offset roller

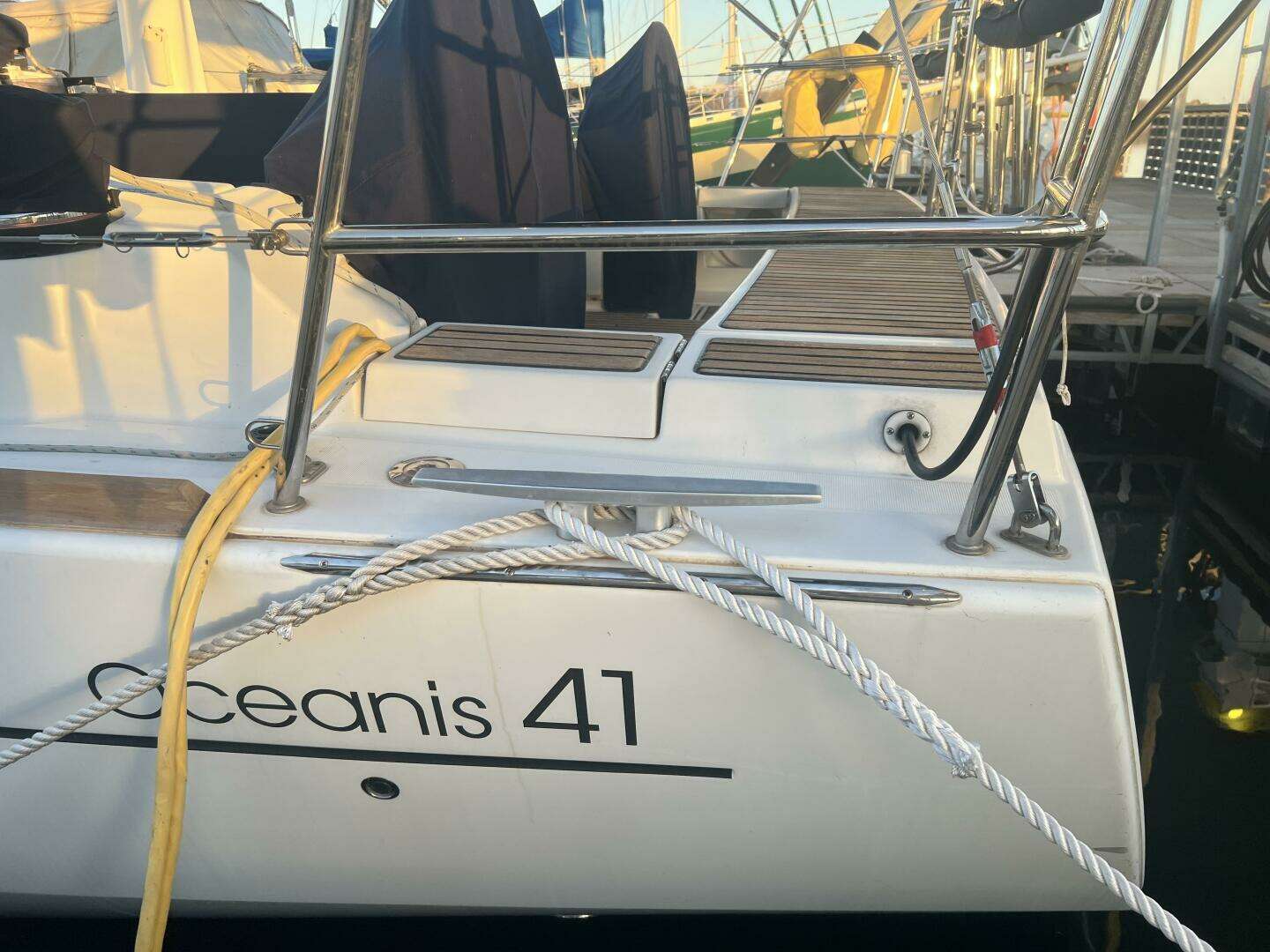

• 6 Aluminum mooring cleats - Stainless steel deck line protection

• Quick 12V anchor windlass

SAFETY ON DECK

• 1 Open stainless steel forward pulpit

• 2 Stainless steel aft pushpits

• 1 Ring lifebuoy bracket

• 1 Flag pole socket

• Double lifelines and stainless steel stanchions - Access to port and to starboard in lifelines

• Navigation lights

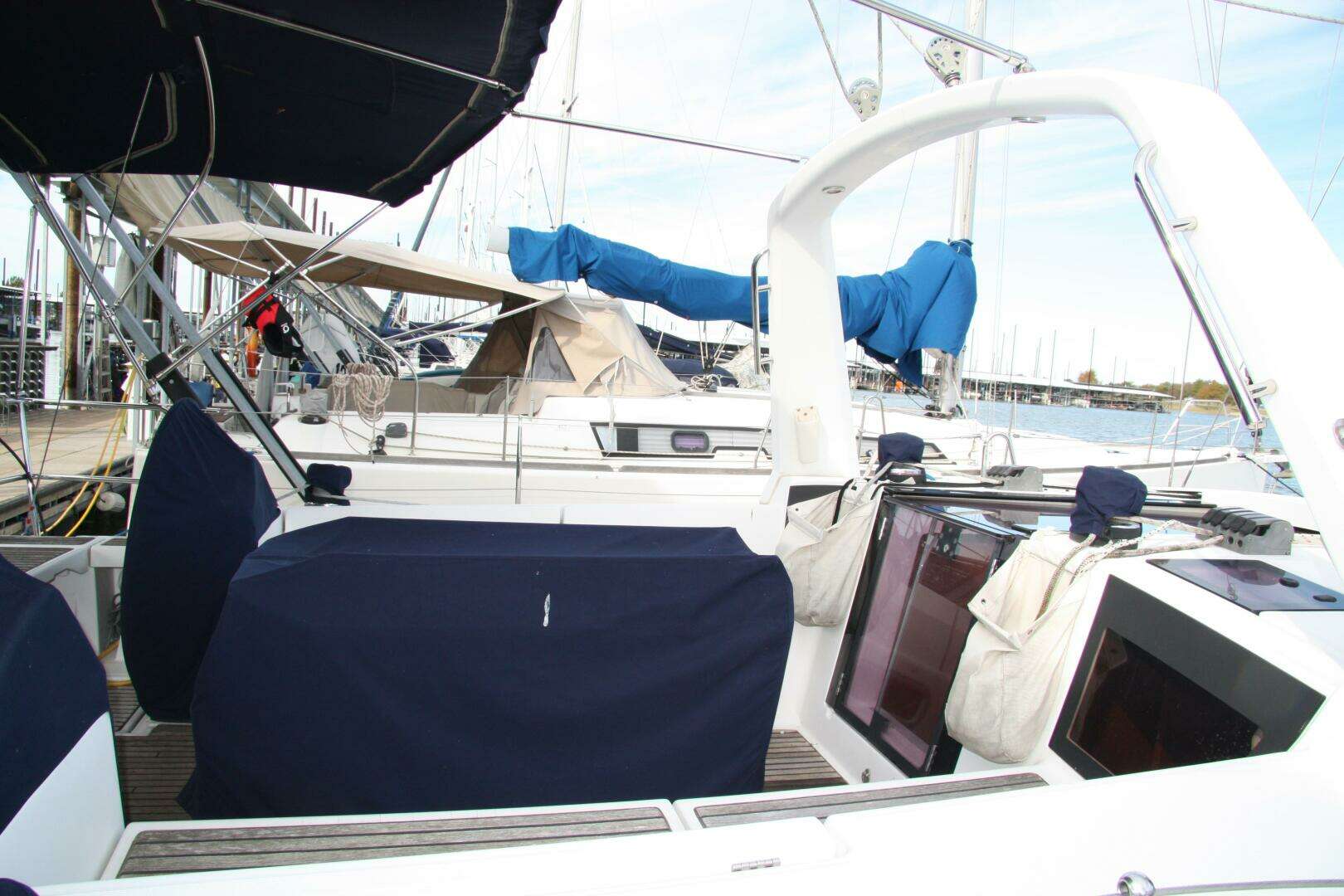

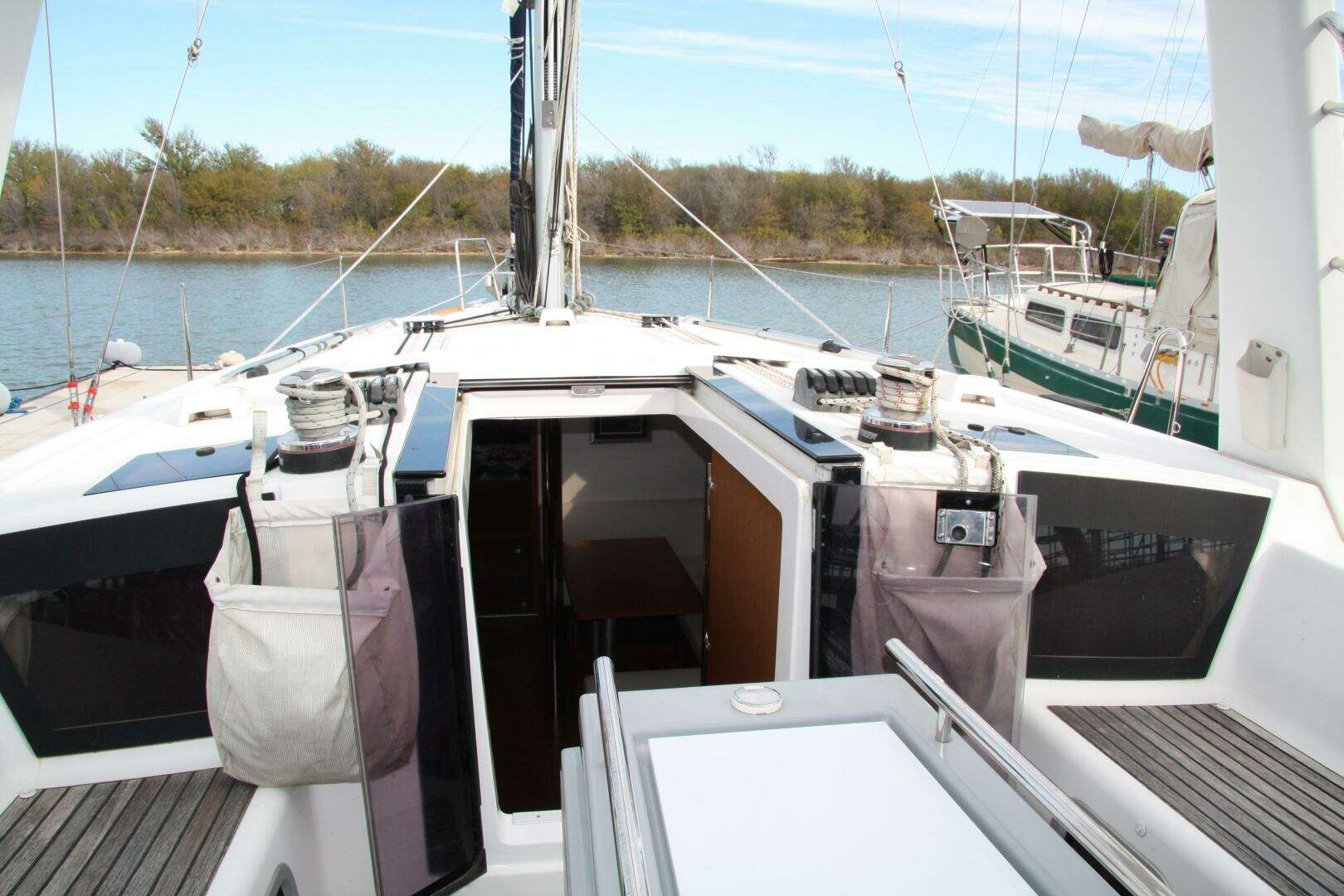

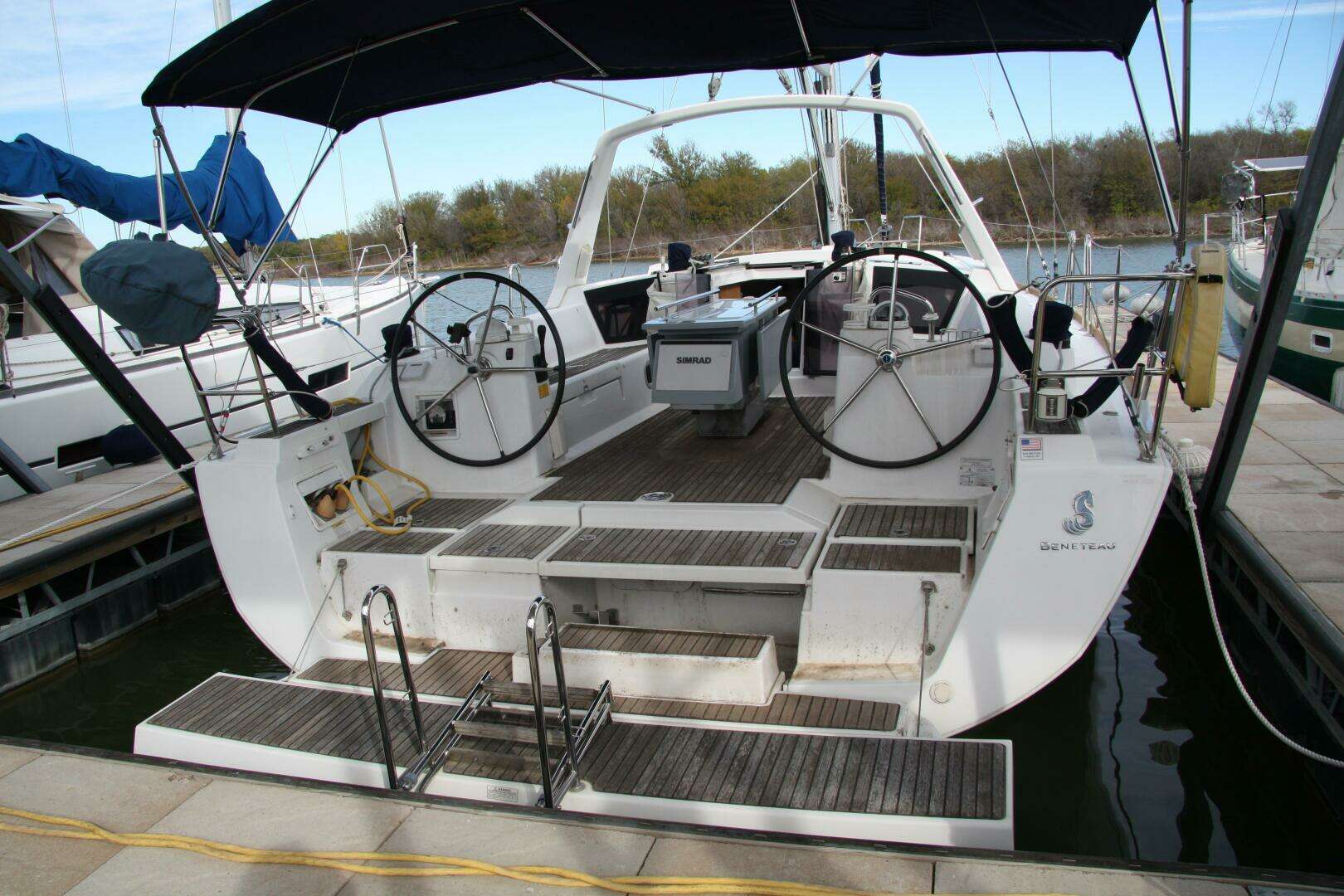

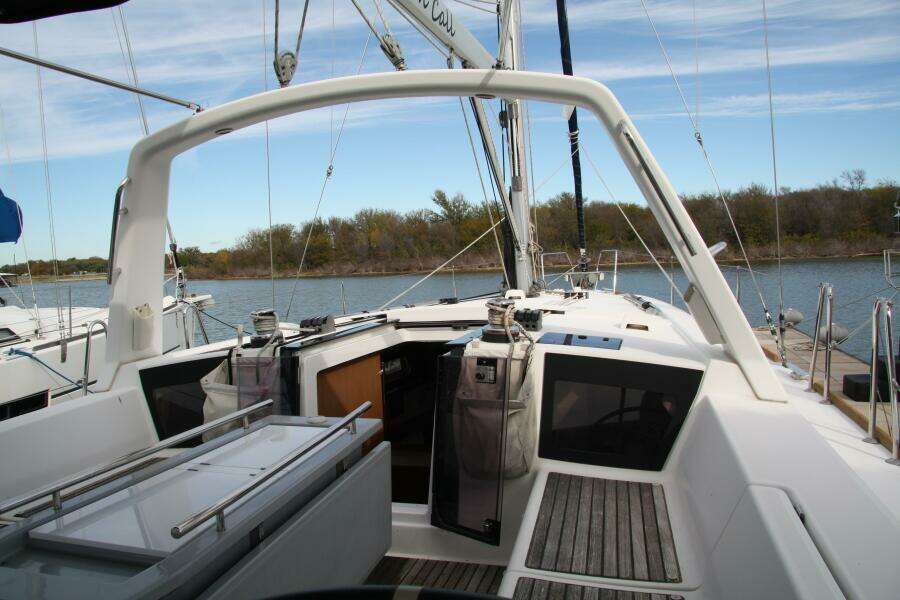

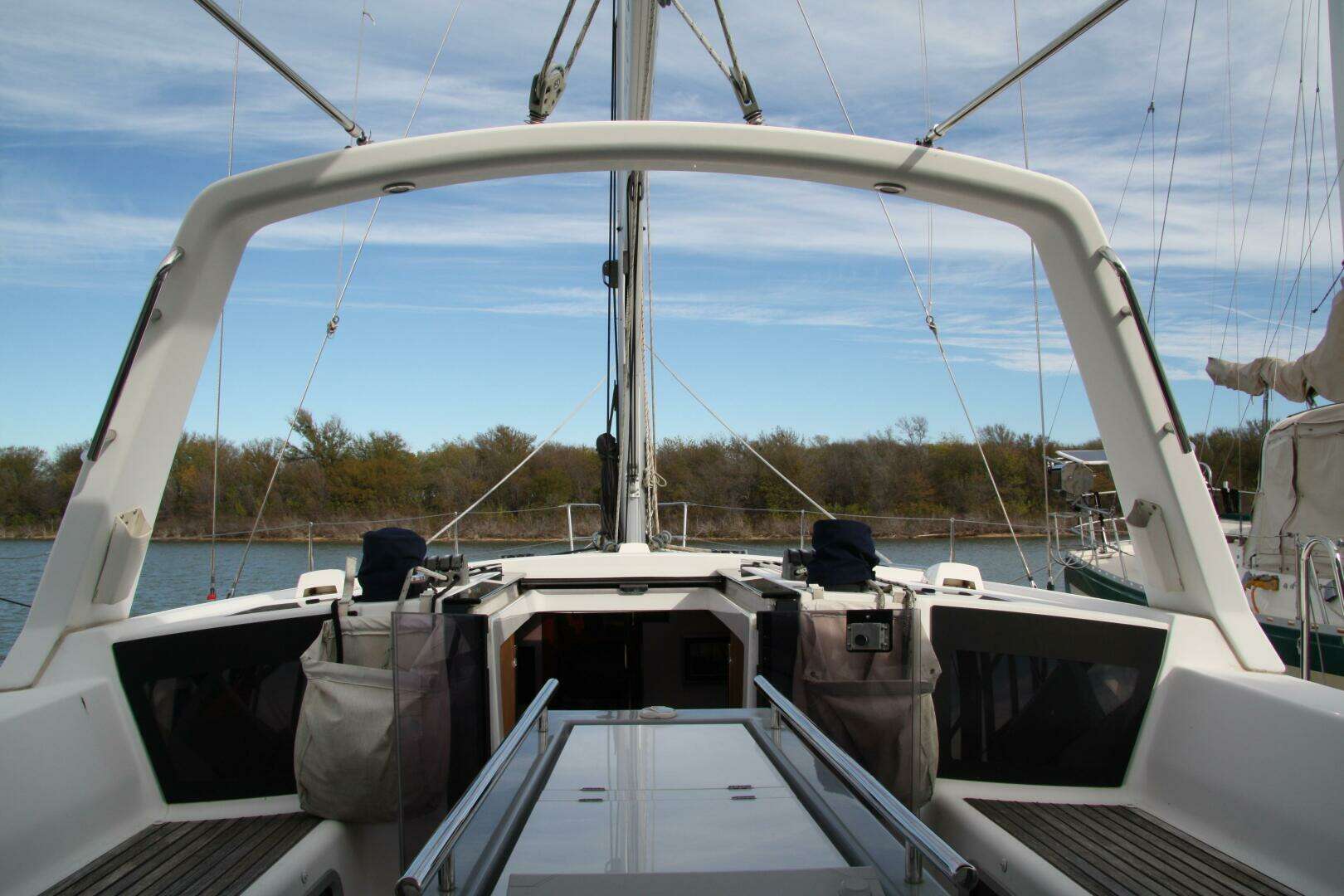

COCKPIT

• Self-bailing cockpit

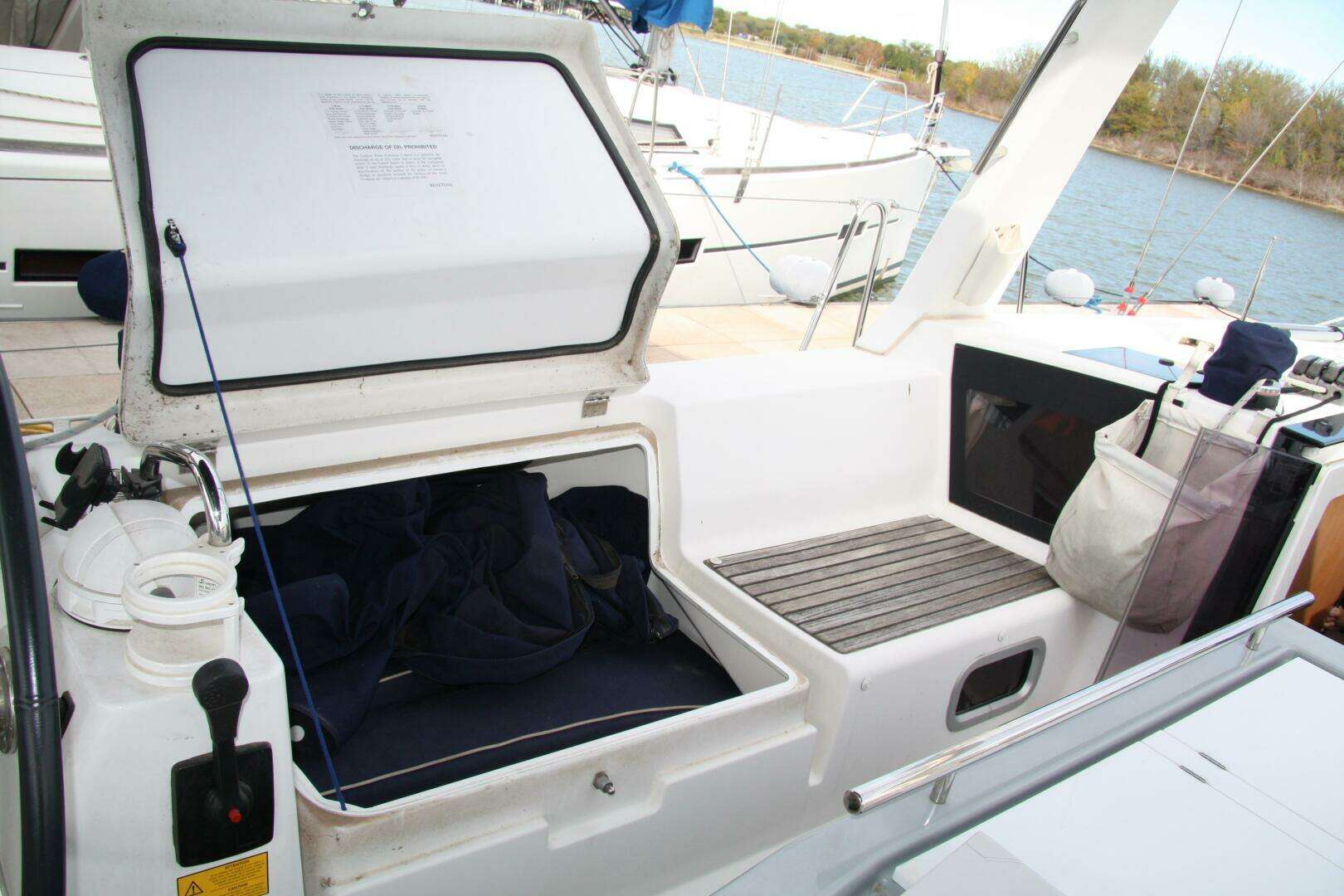

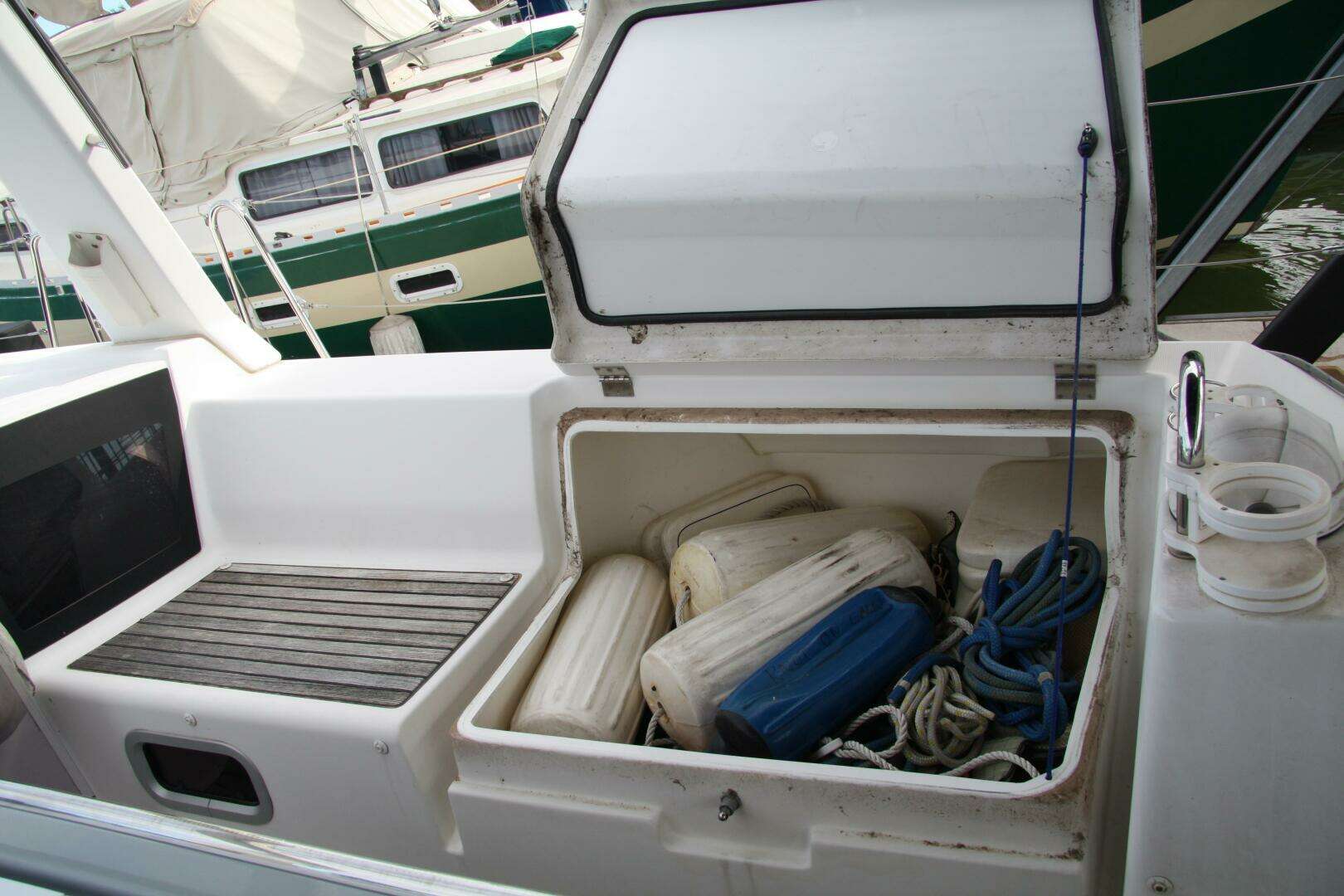

• 2 Cockpit locker

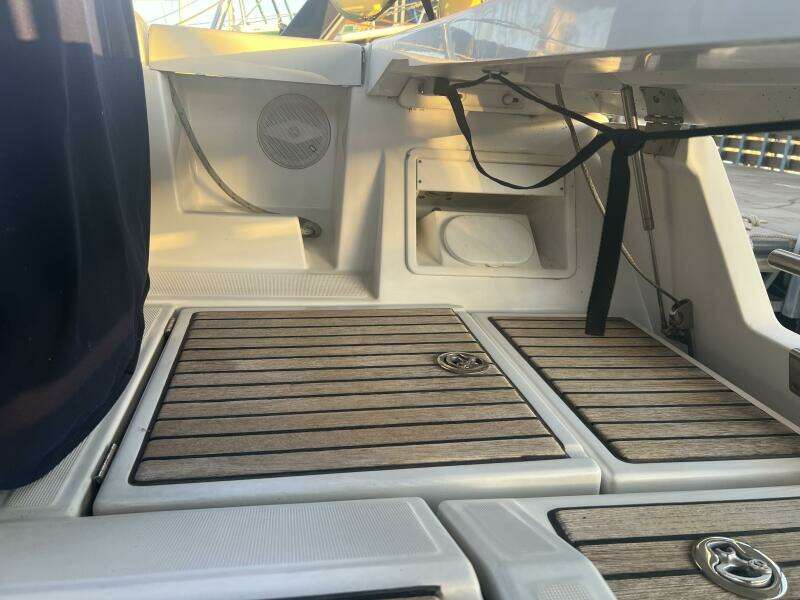

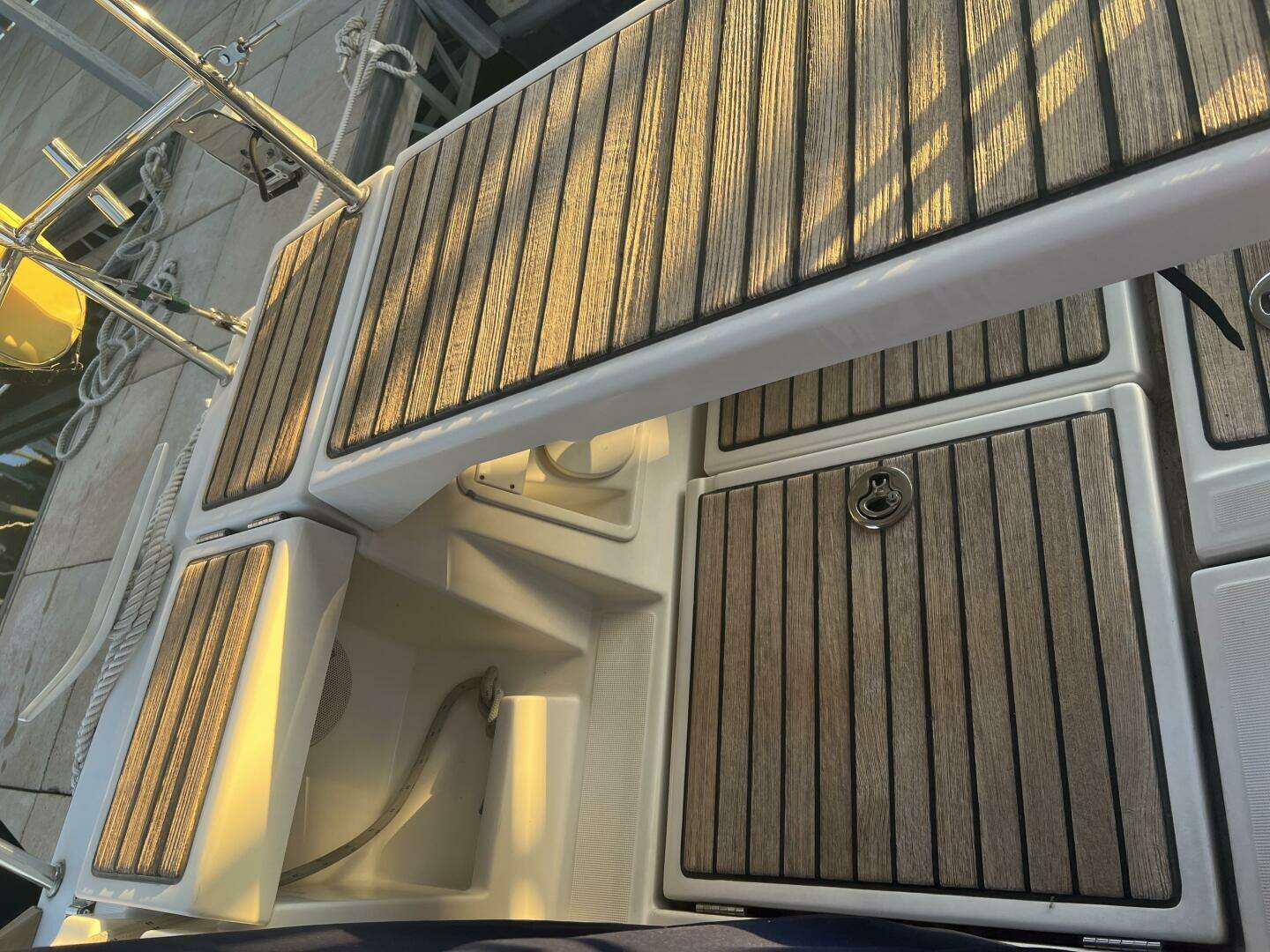

• 2 Lockers in cockpit floor under helm's feet

• 1 Liferaft locker under helm seat, in cockpit bottom (0,80 m x 0,40 m x 0,58 m / 2’7’’ x 1’4’’ x 1’11’’)

• 1 Gas locker for bottle(s) under the port helm seat

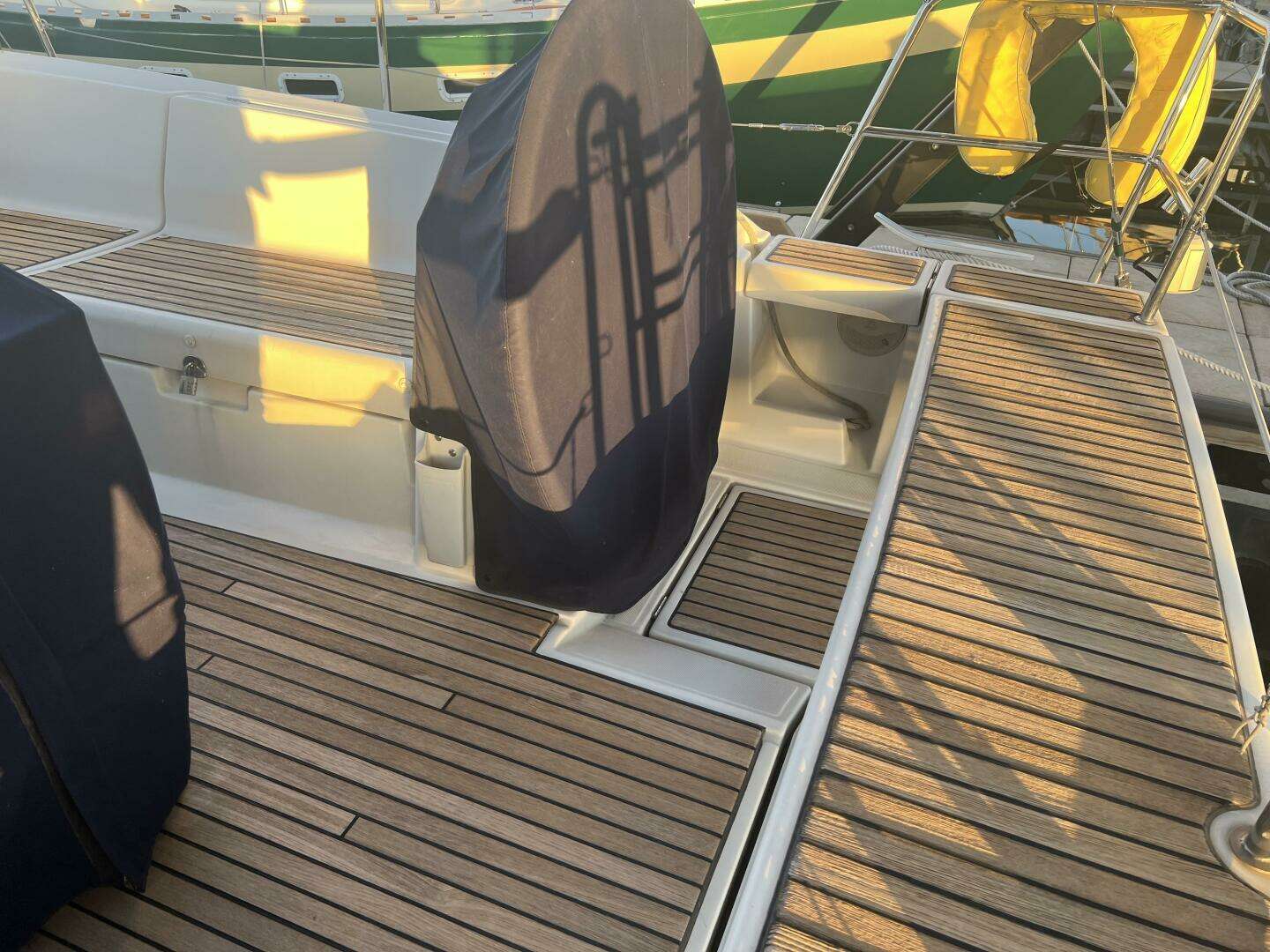

• Natural solid wood slatted cockpit benches

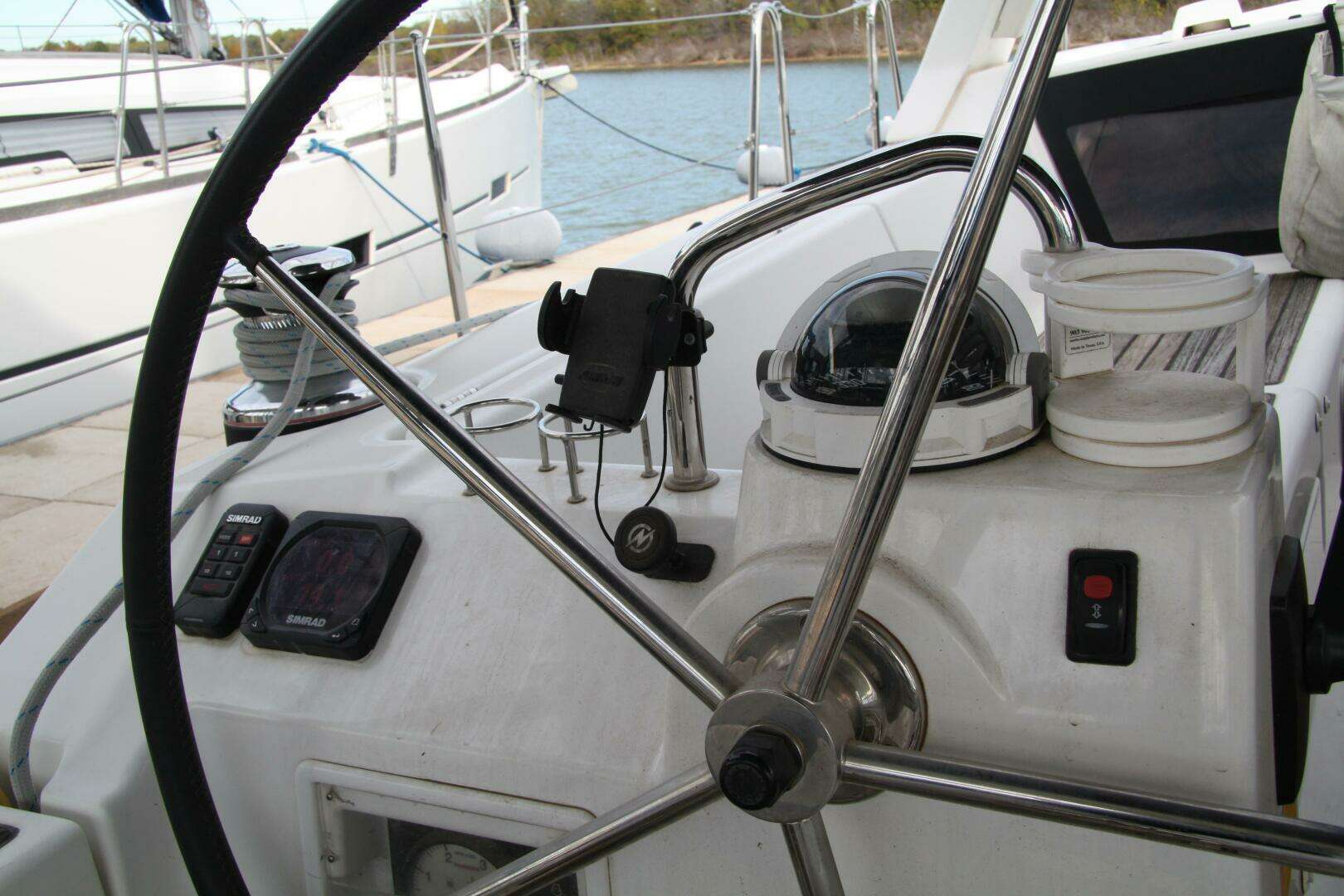

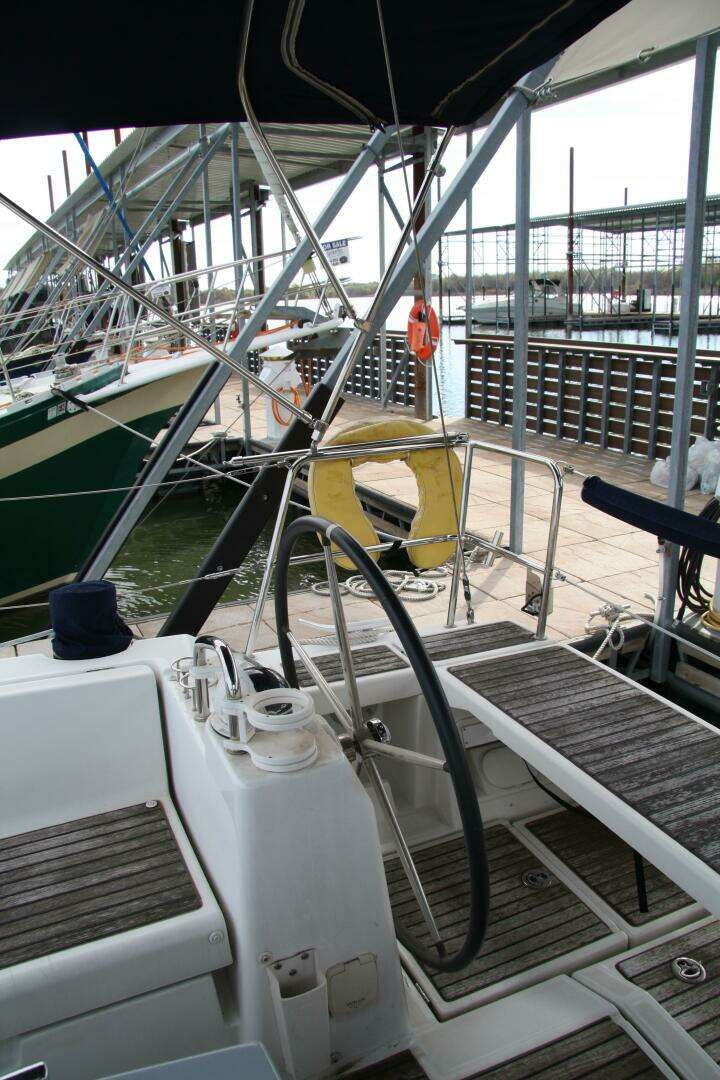

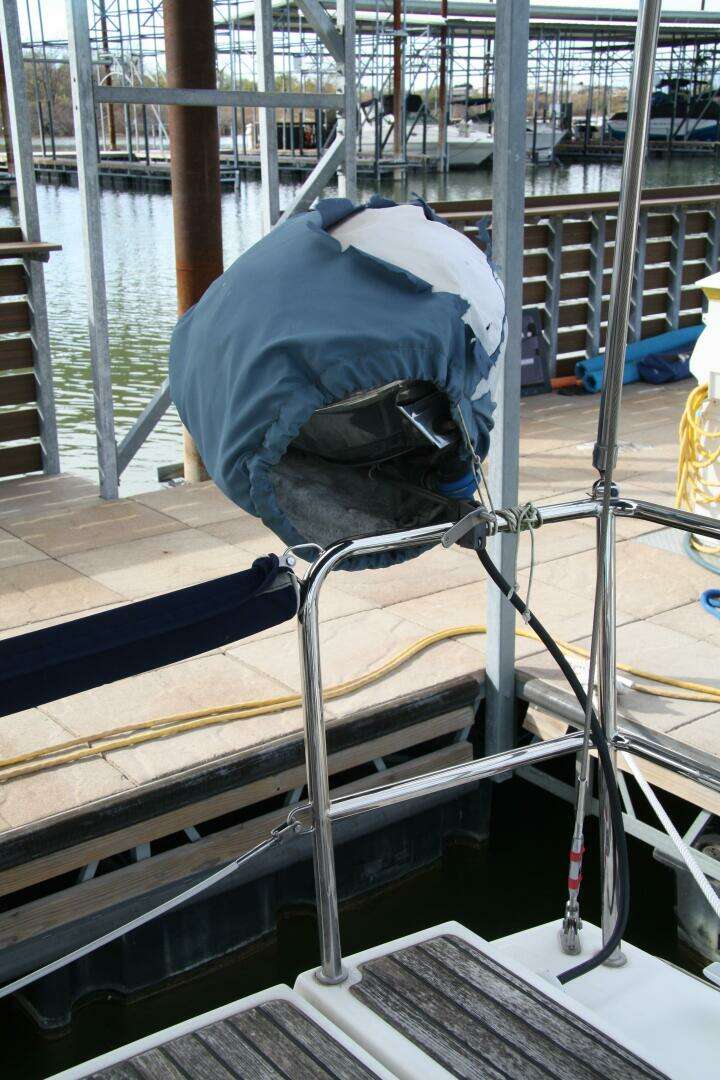

• 2 Steering wheel consoles: Stainless steel steering wheels - 900 mm diameter - Leather covered - Steering gear at the helm station - Metal cable transmission system - Stainless steel handrail - Navigation instrument pod (optional instruments) - Glass holder

• 1 Deck plate for access to tiller system + Power supply access hatch • 1 Emergency tiller

• 2 Steering compass on consoles

• Portside engine control and control panel

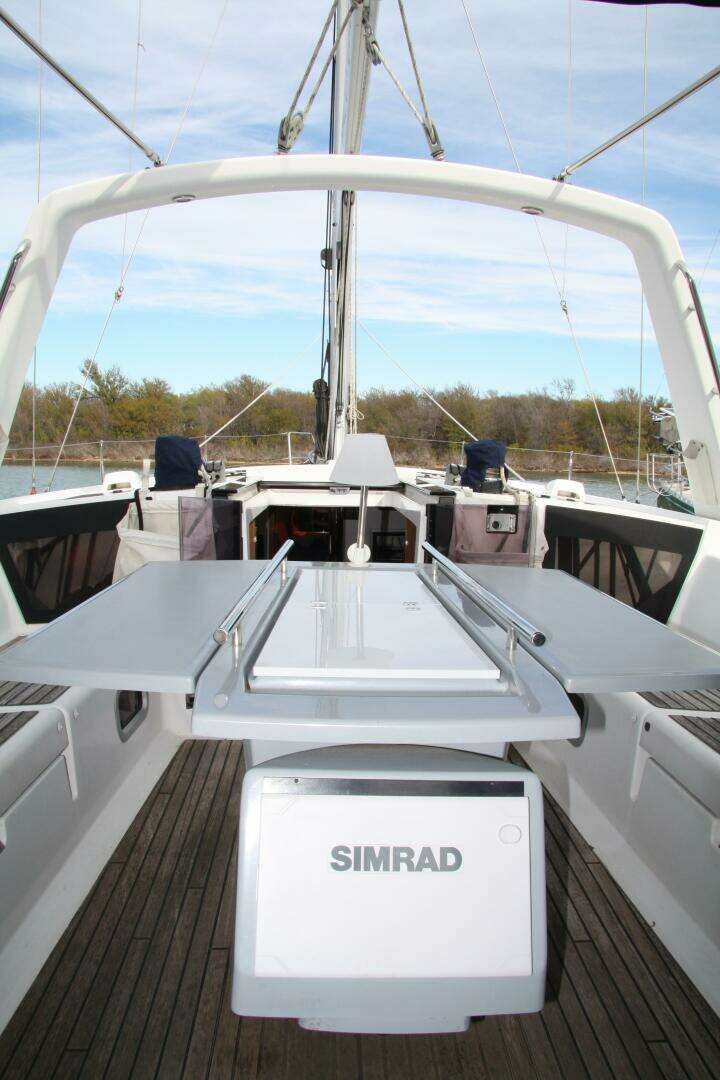

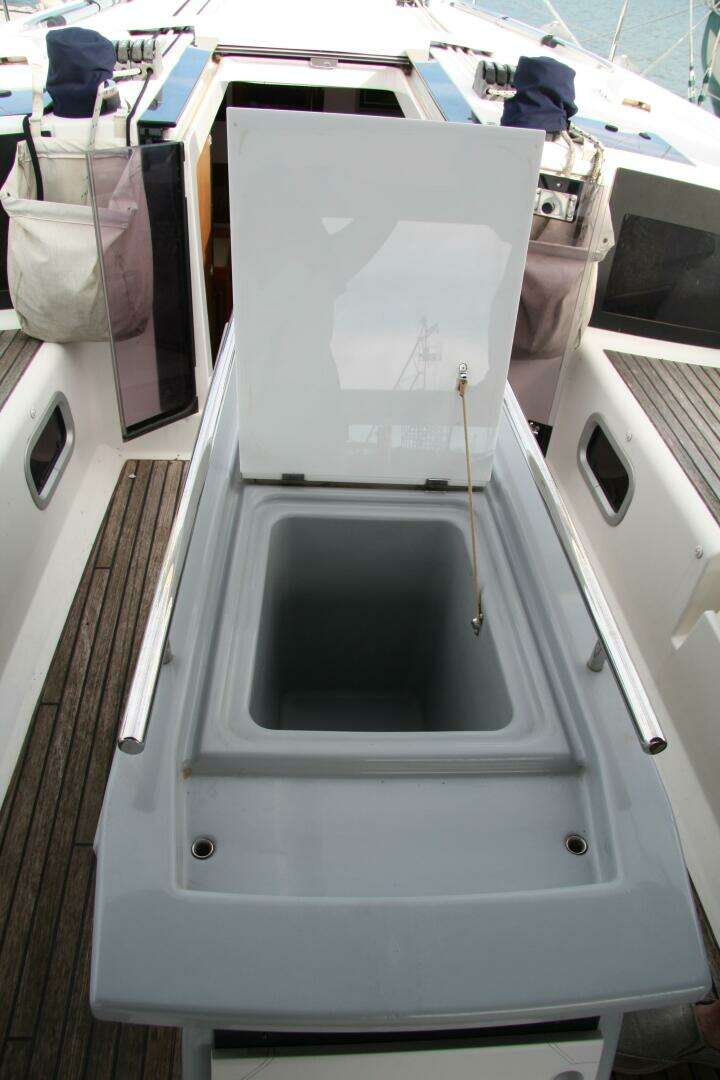

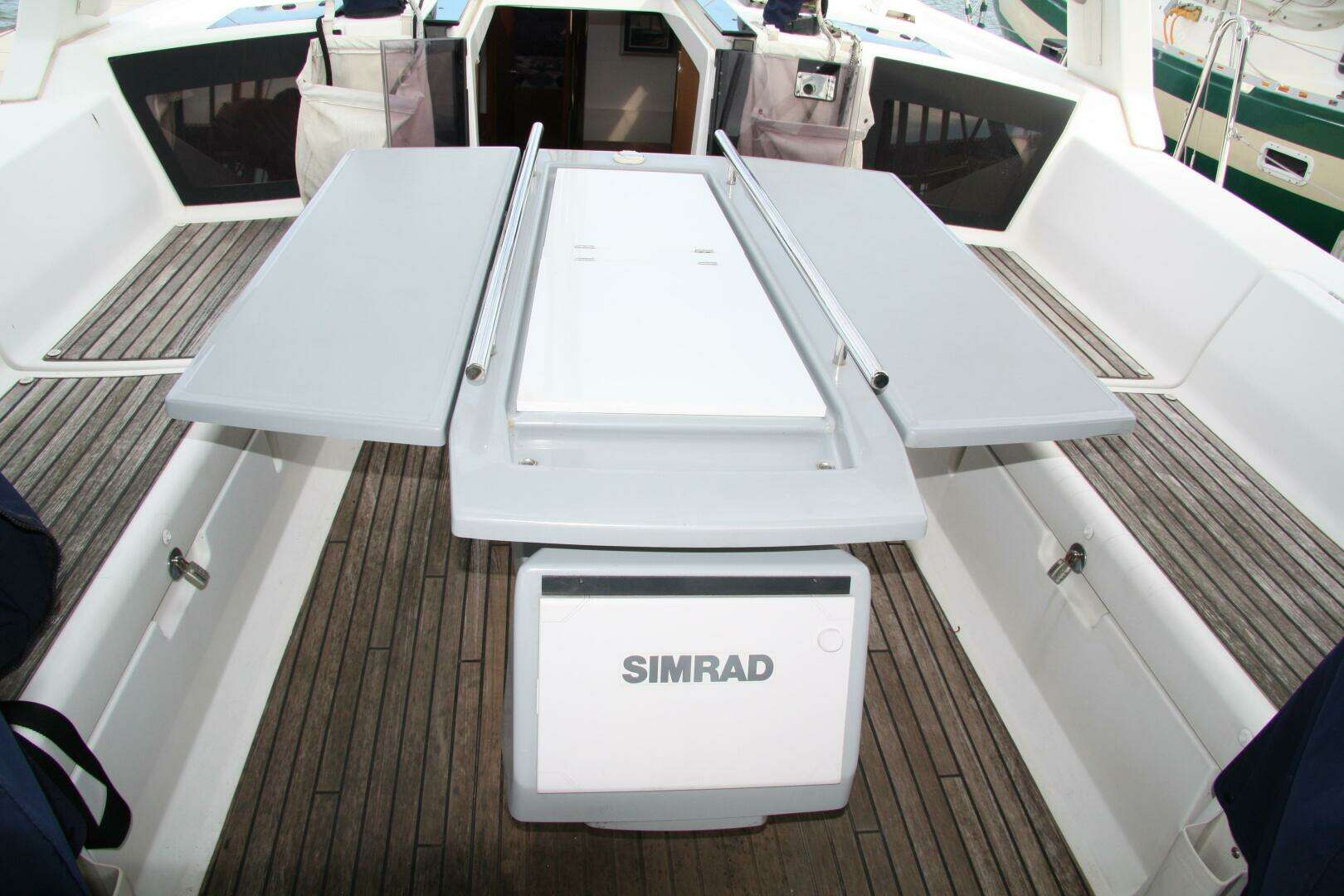

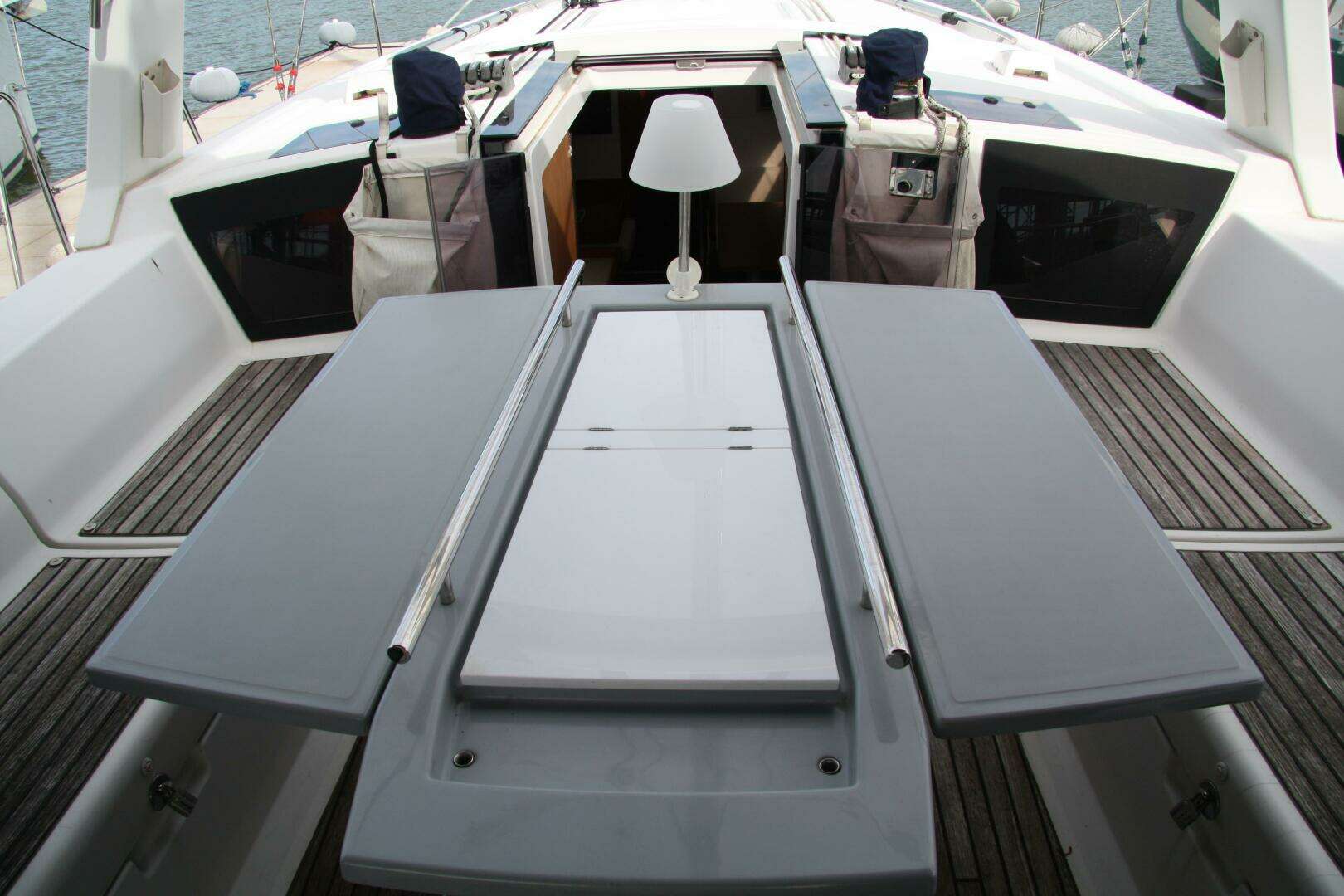

• Polyester cockpit table - 2 Flaps - Glove boxes - 2 Large storage space - 2 Stainless steel handrails - 12 V Power outlet - Lamp with shade

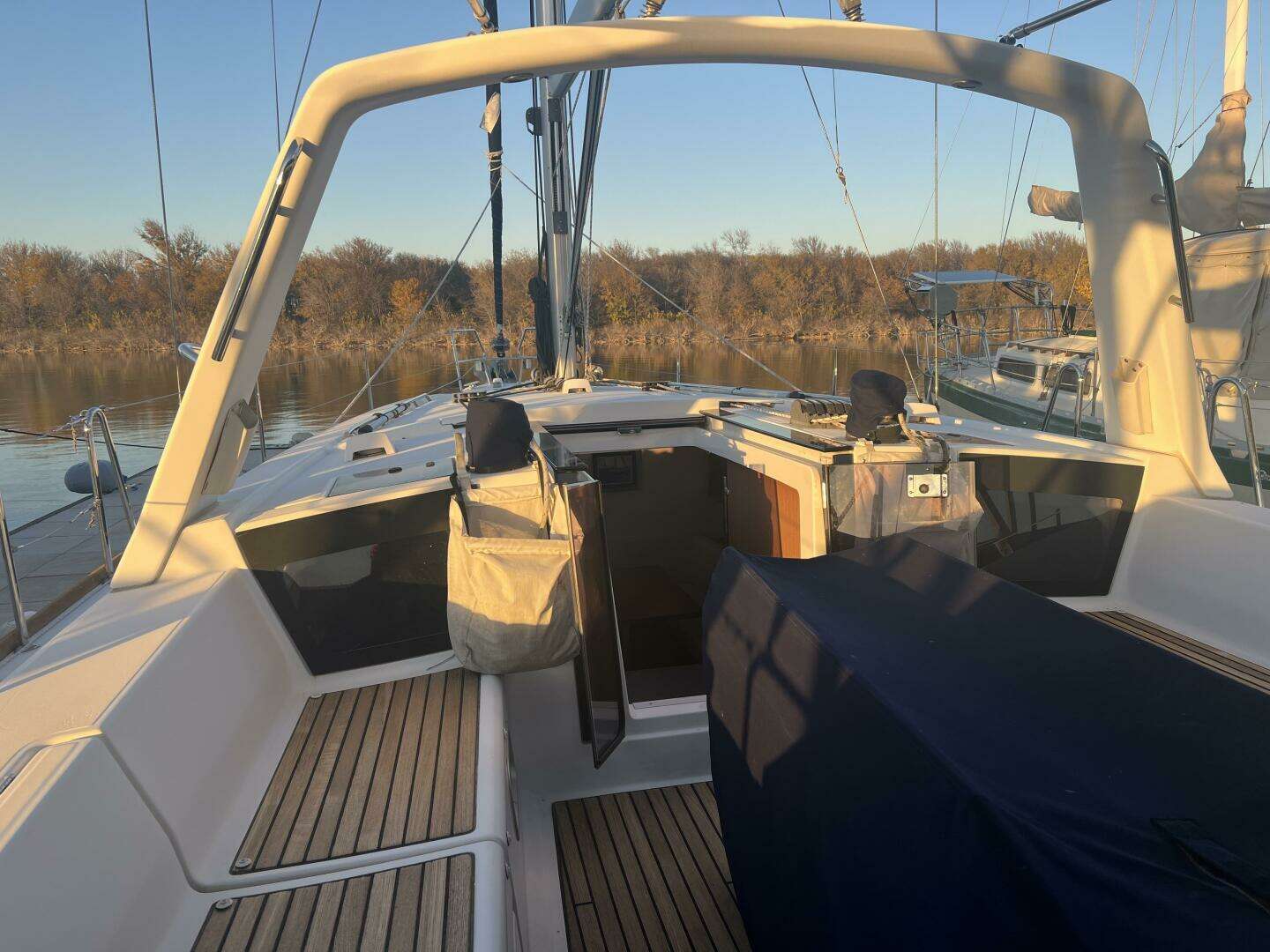

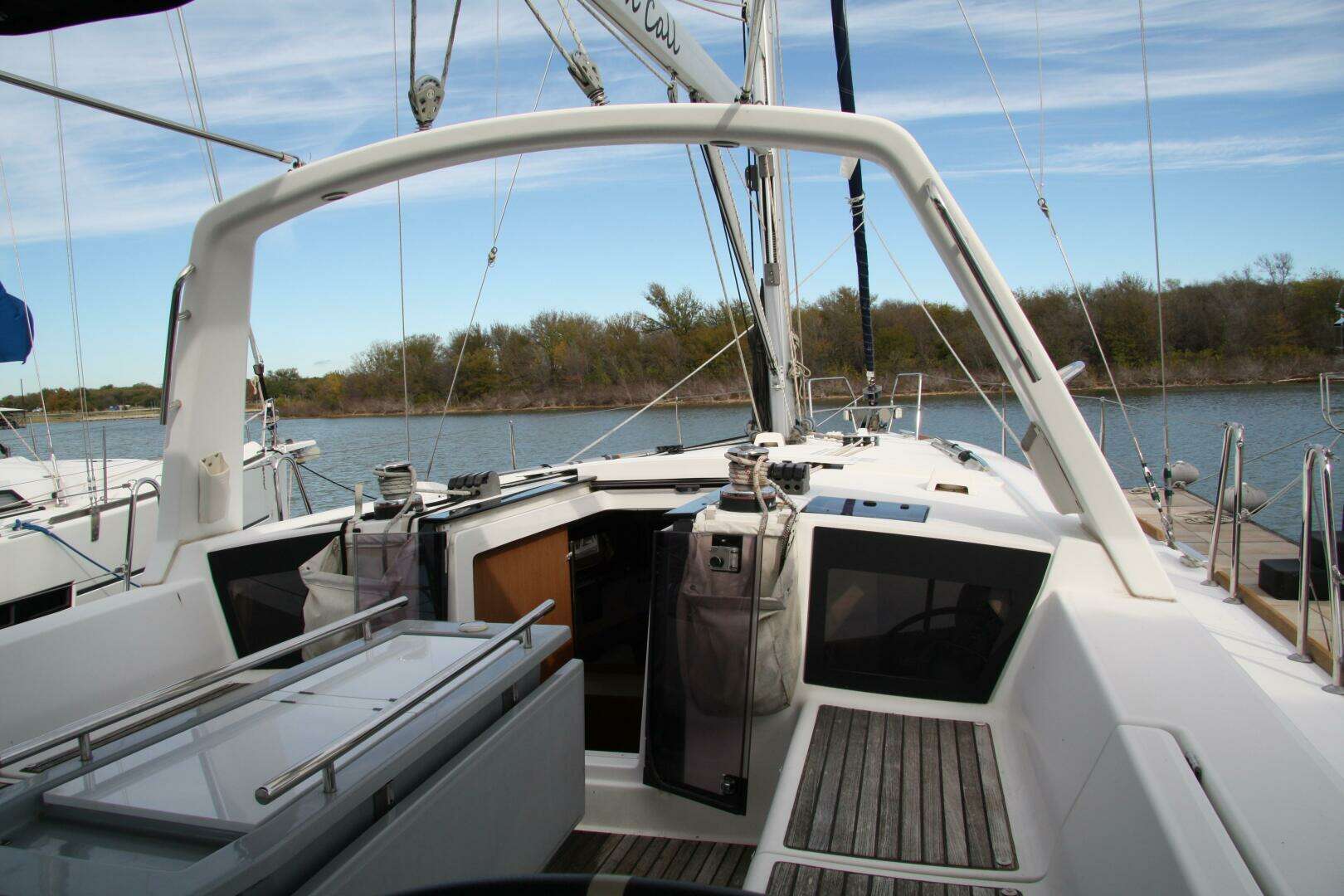

• 1 Fixed composite arch - Built-in lighting

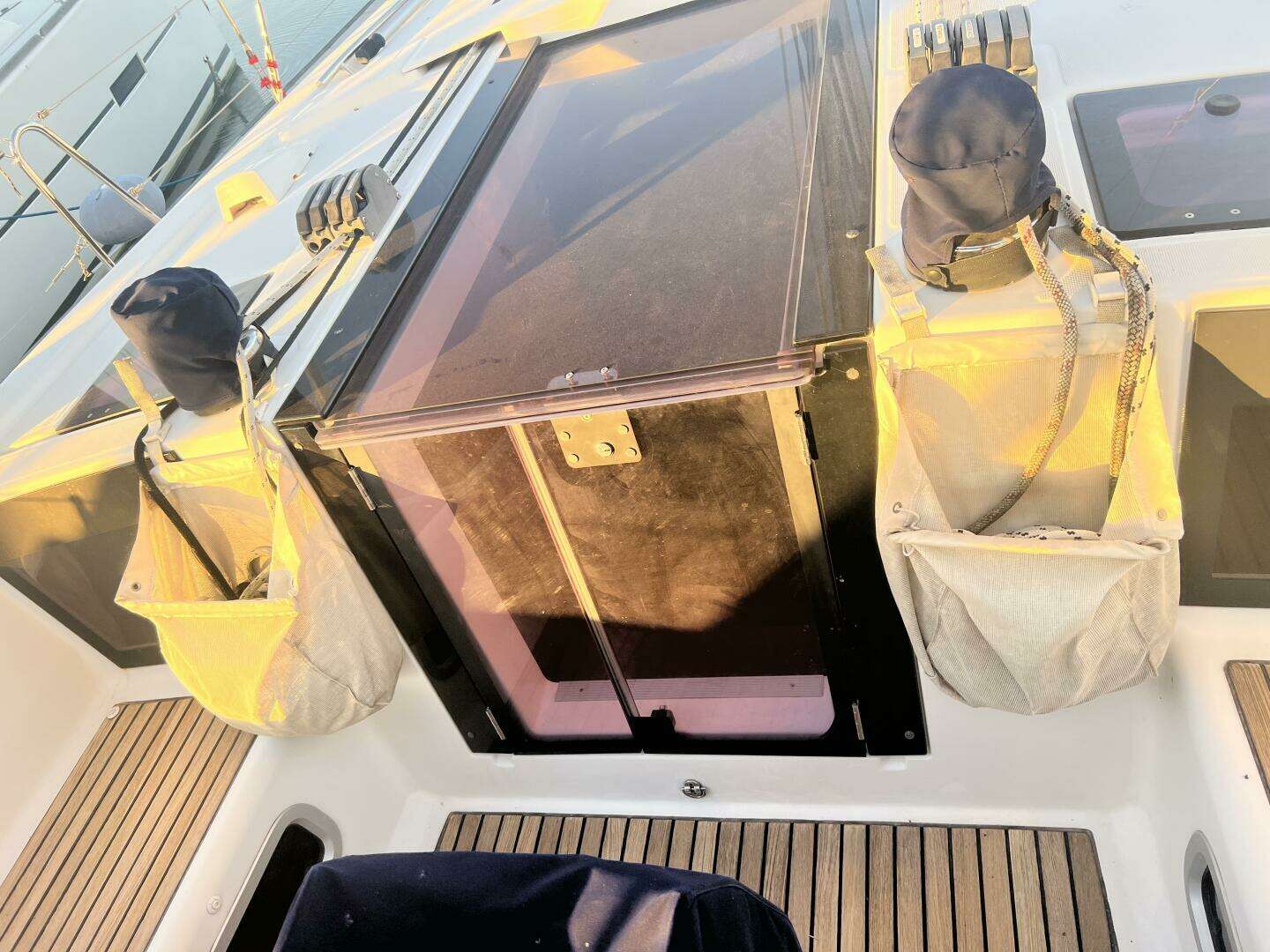

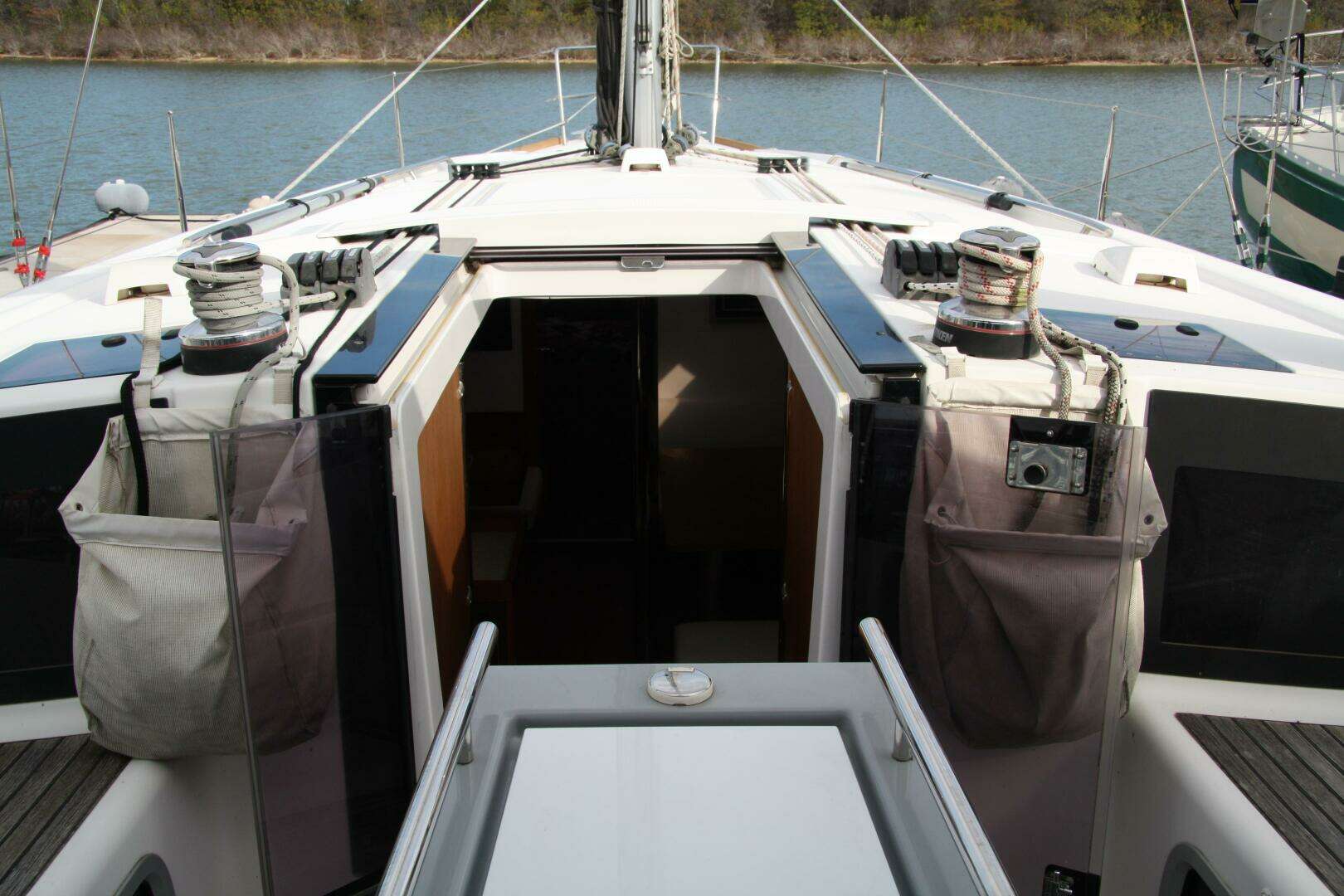

• 2 Hinged PMMA companionway doors - Sliding hatch made of PMMA

• Cockpit shower hot/cold water

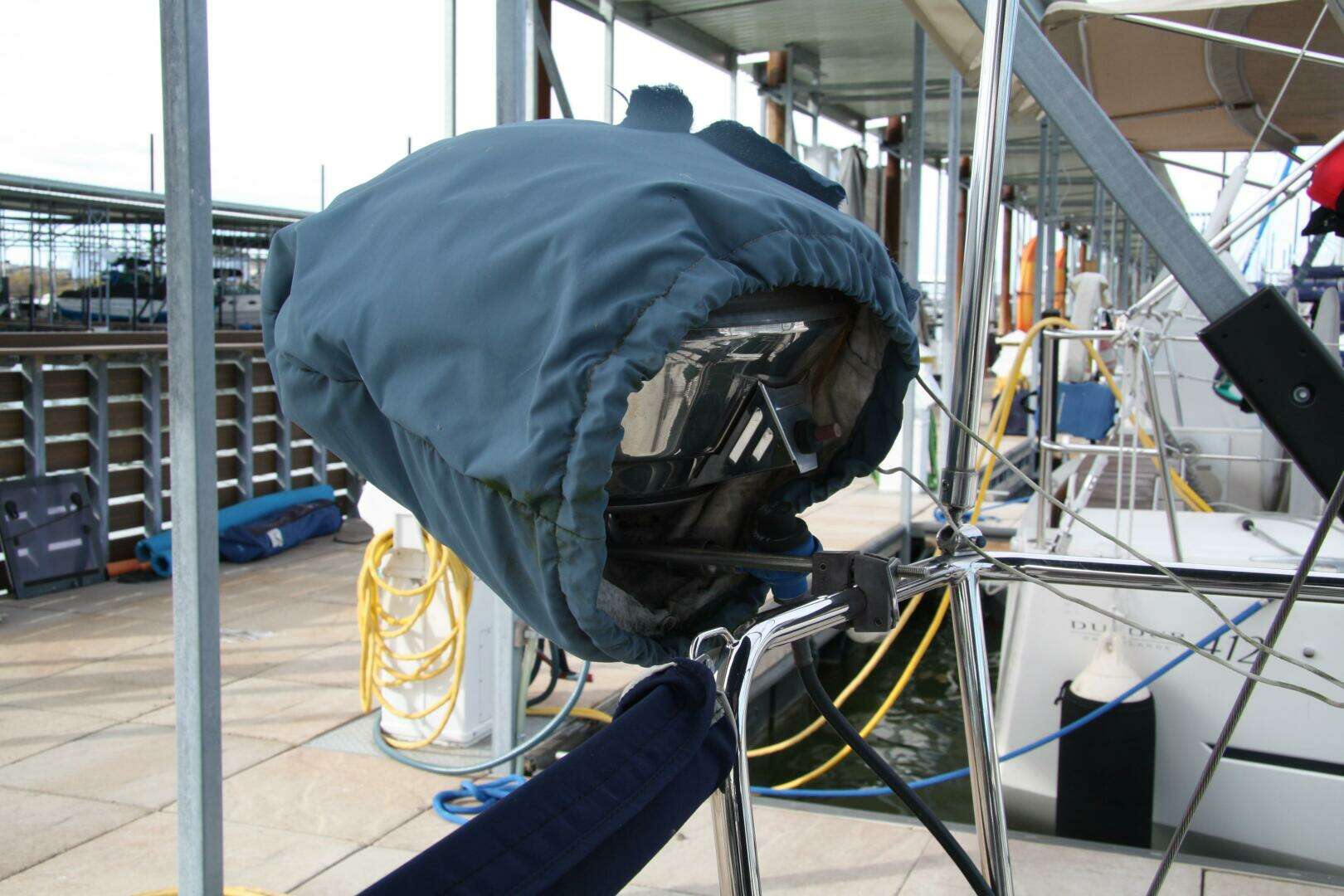

• Steering wheel cover white

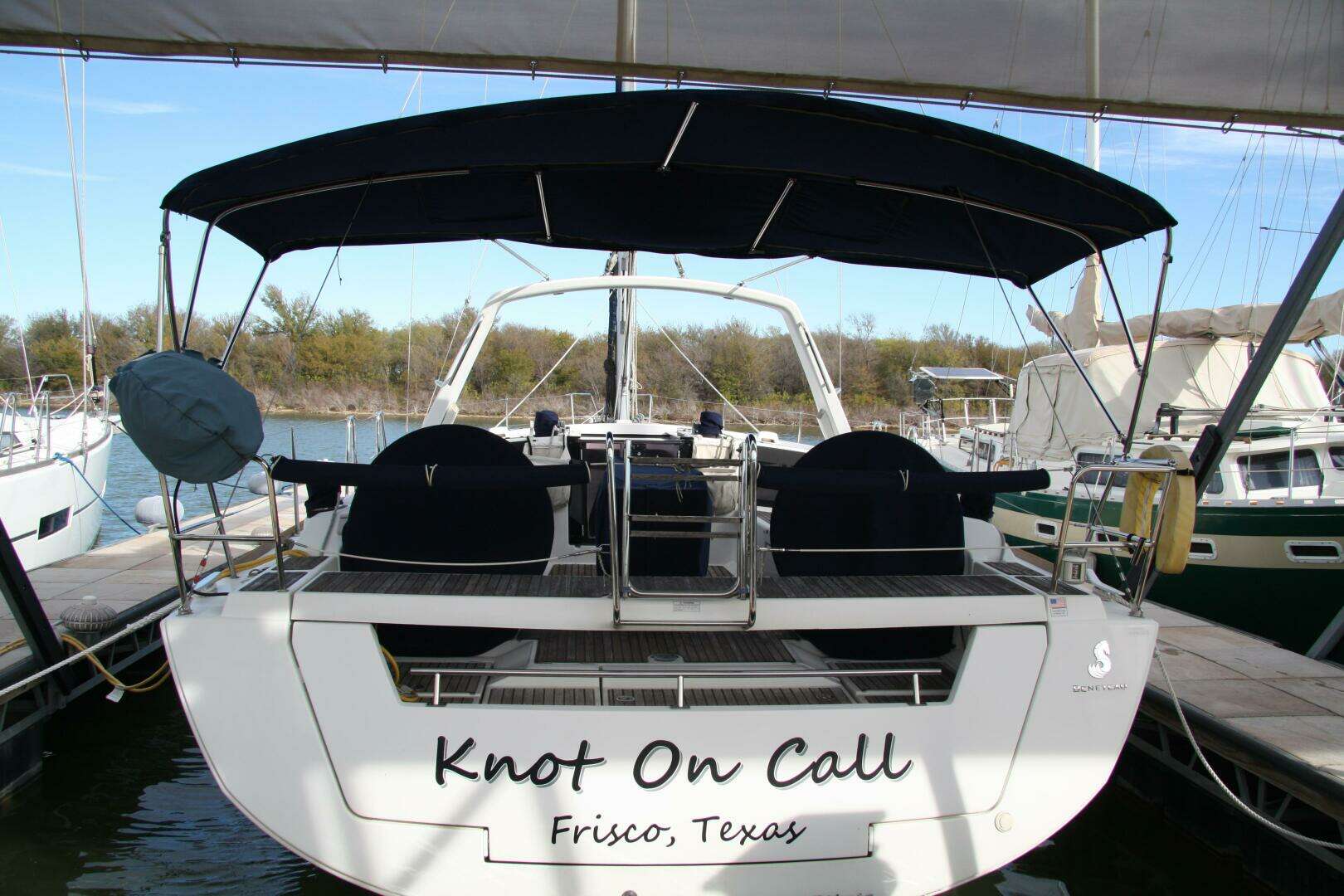

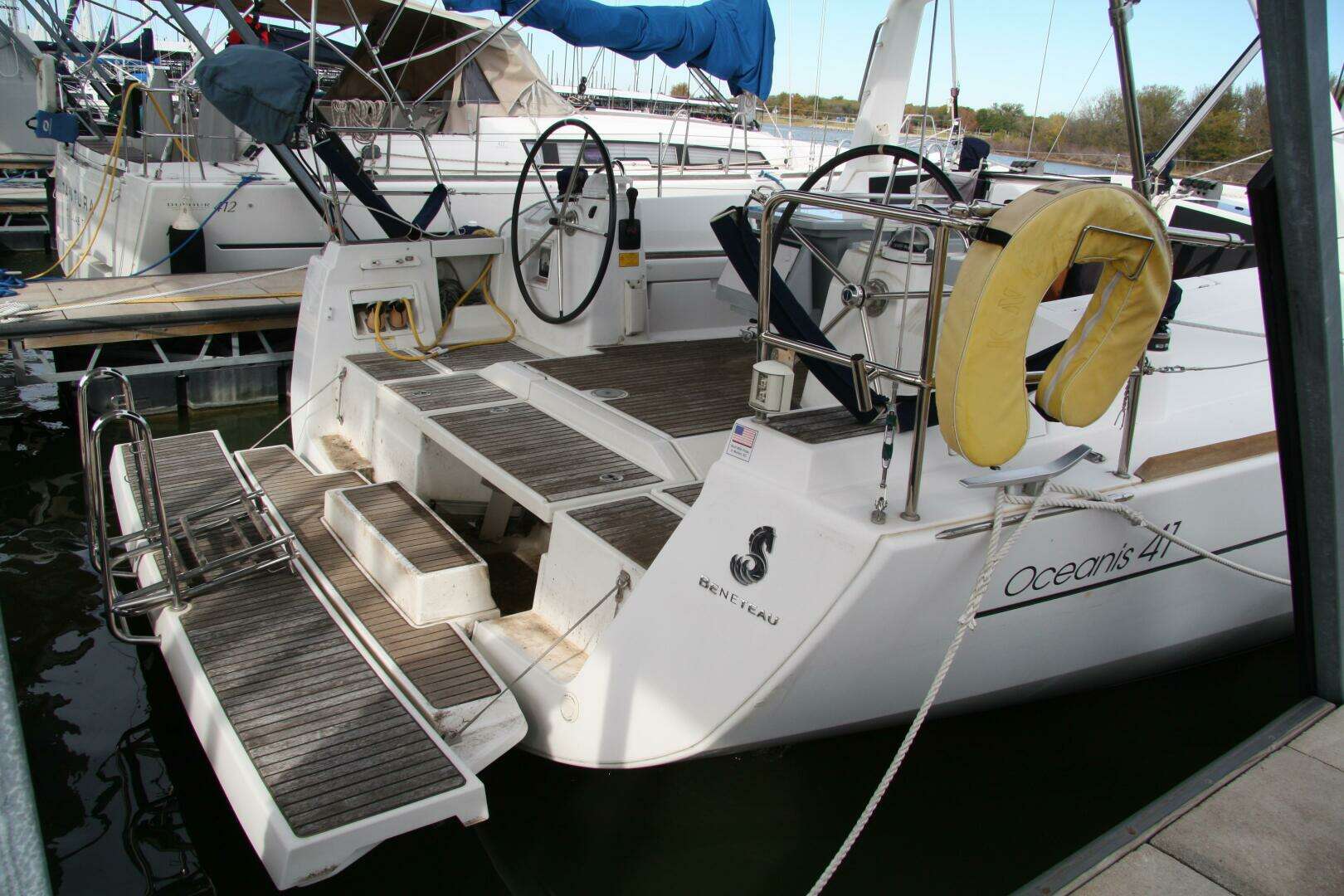

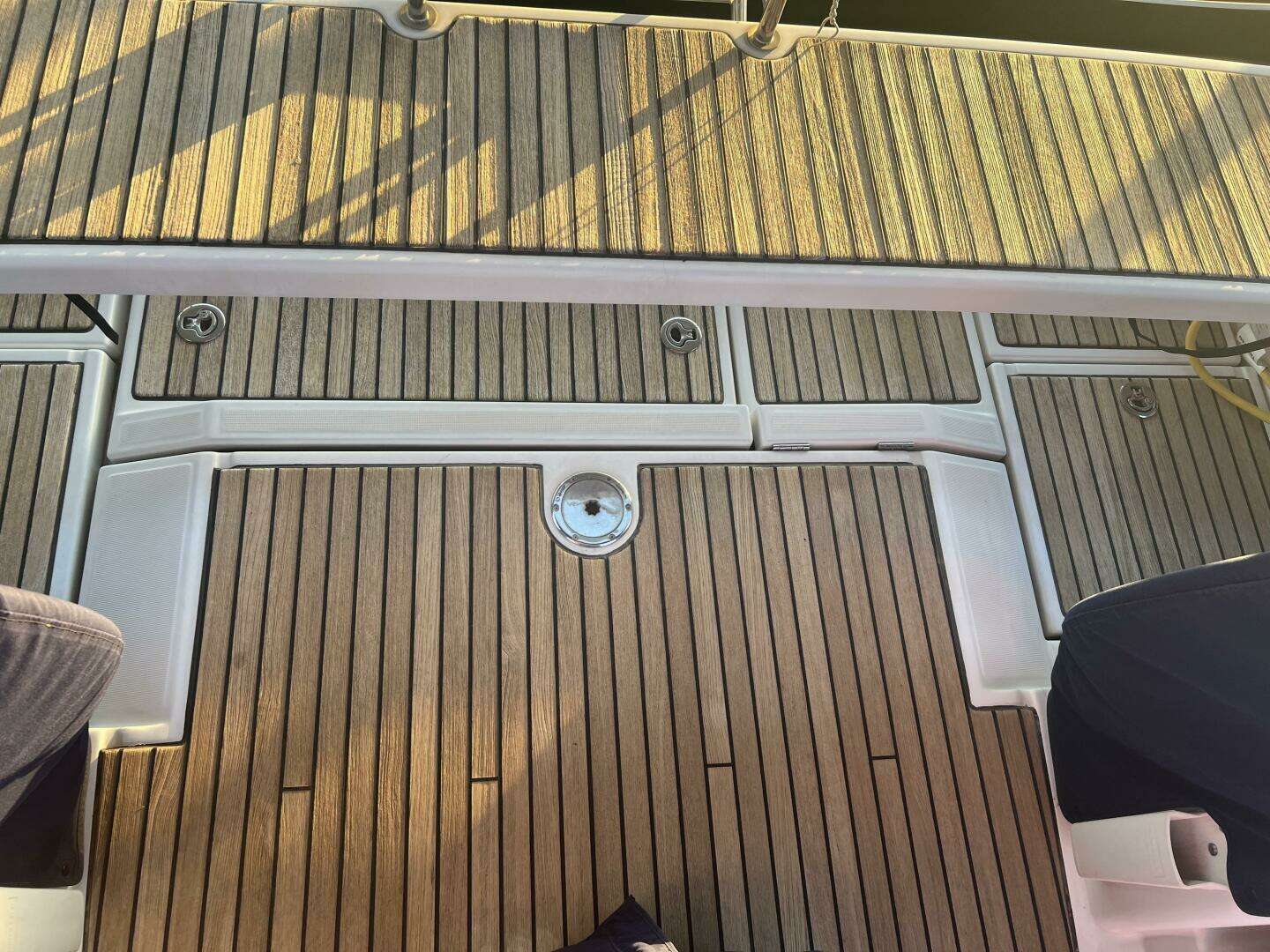

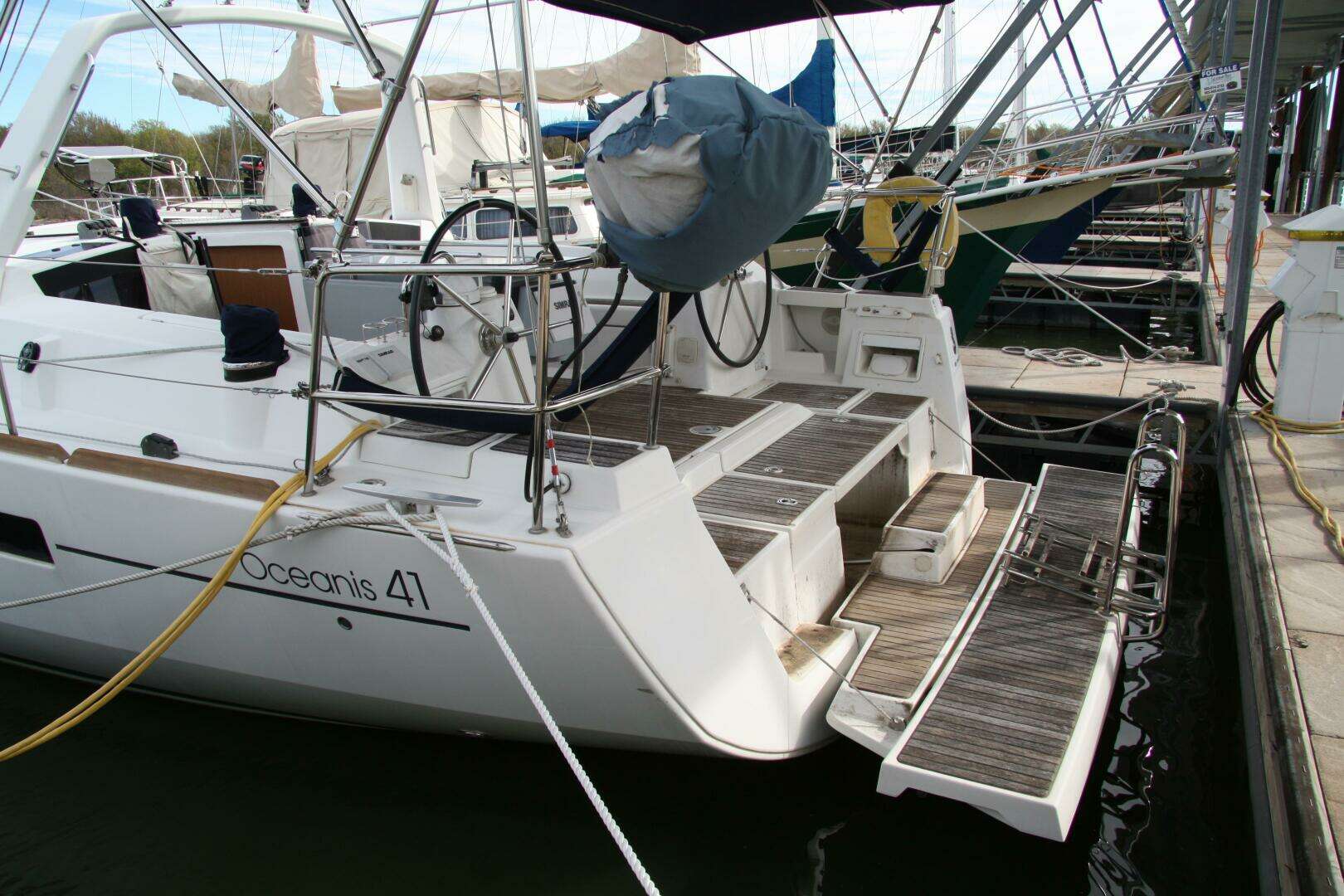

SWIM DECK / STERN DECK

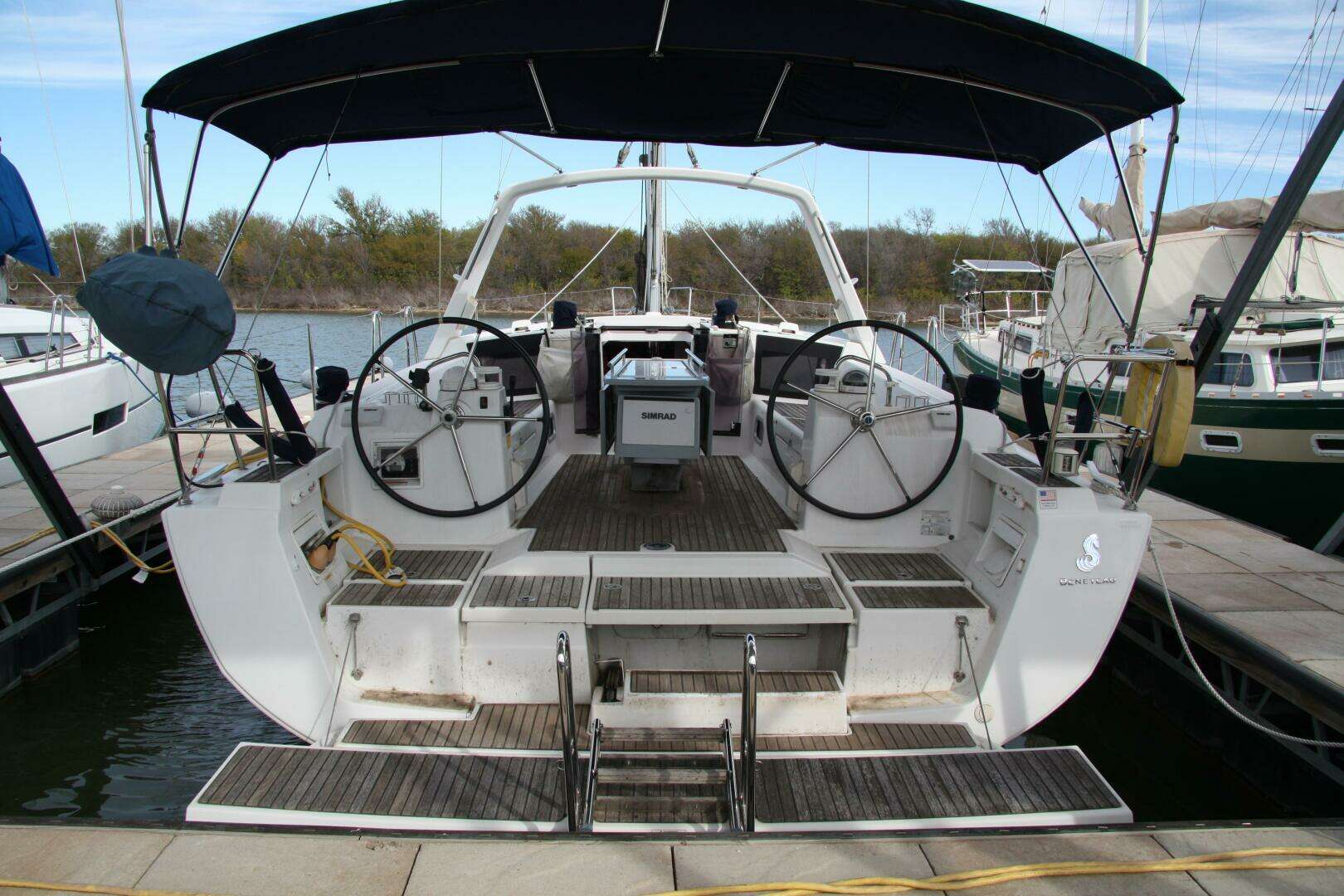

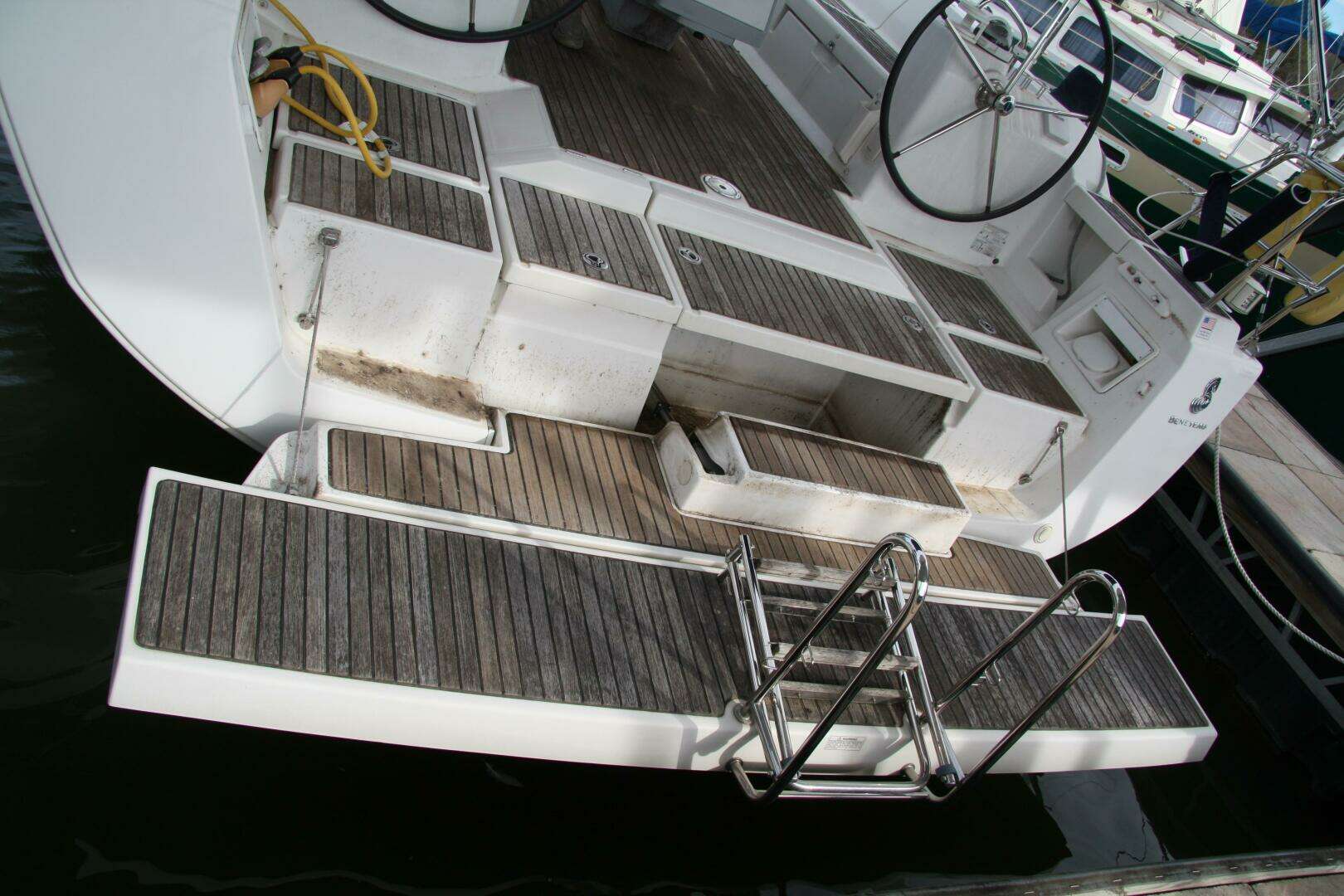

• Fully opening transom, convertible into swim platform (2,85 m x 0,77 m / 9’4’’ x 2’6’’)

• Electrically controlled opening swim platform

• Natural solid wood decking on swim platform

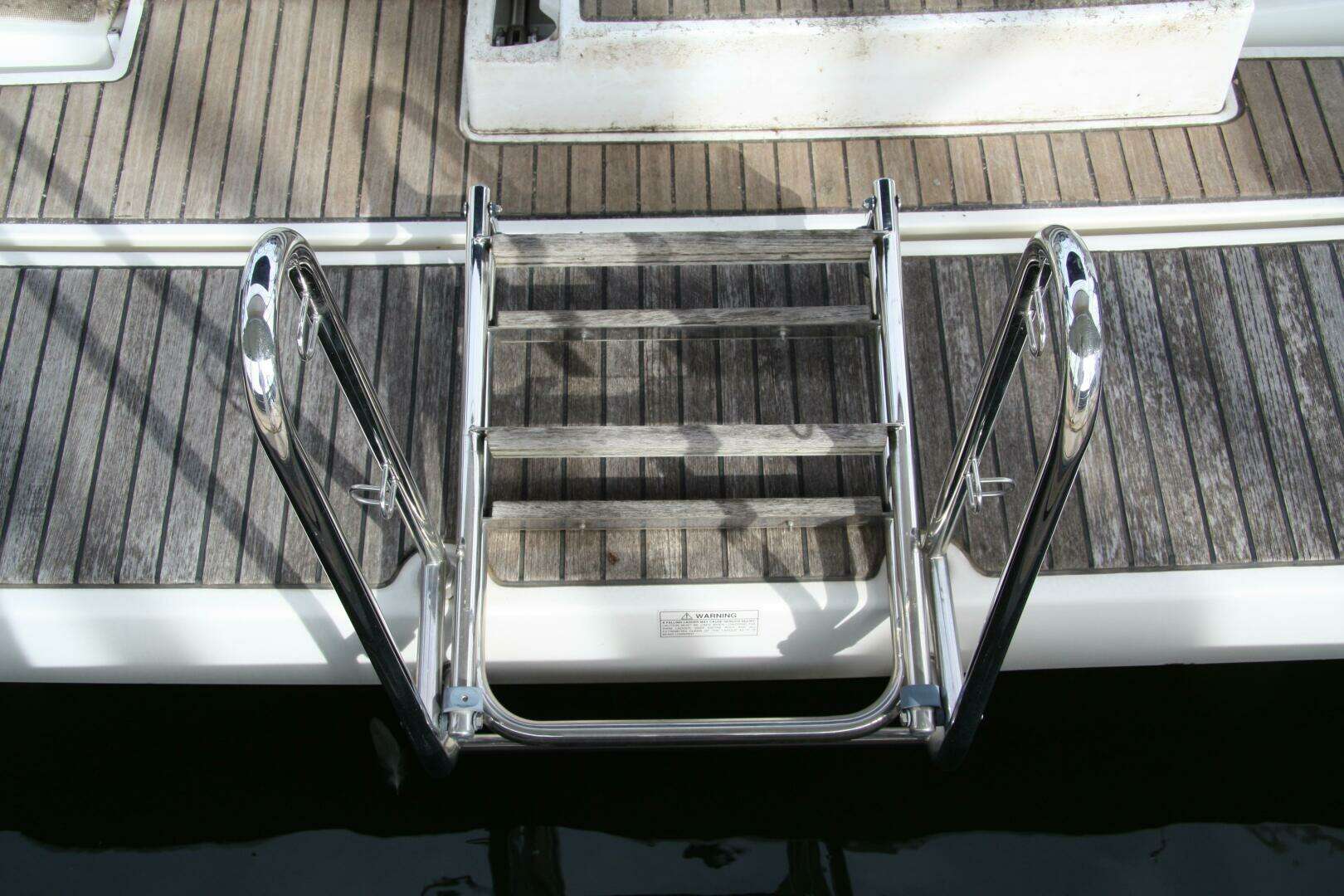

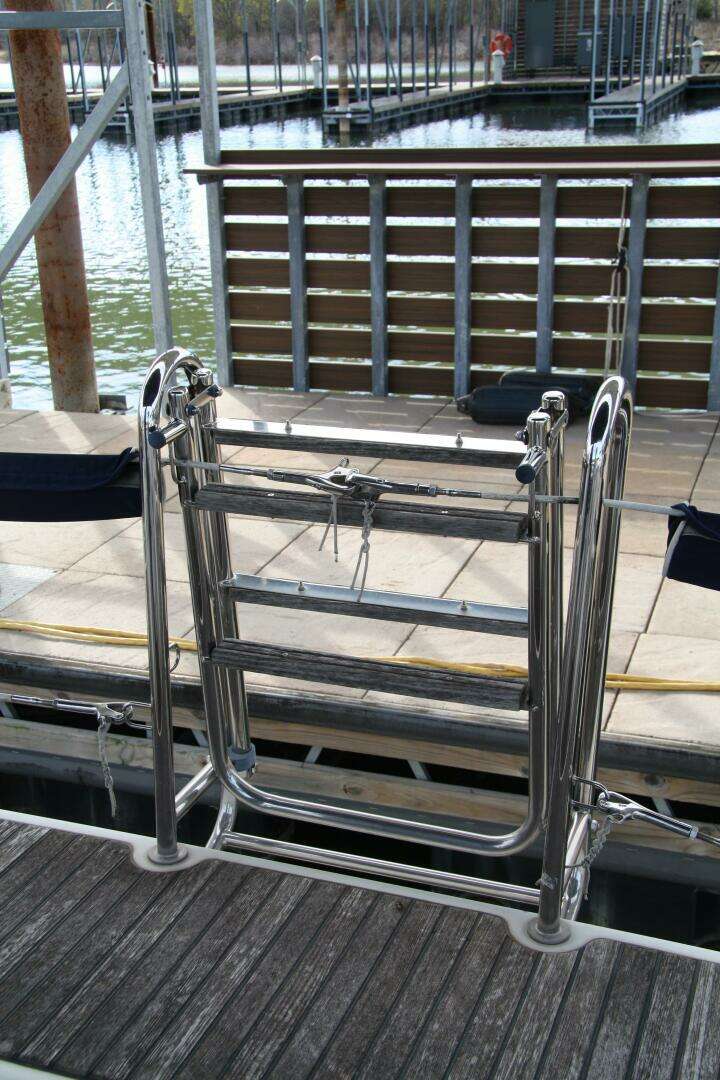

• 1 Stainless steel swim/boarding ladder - Solid wood steps - Folding

INTERIOR

• Woodwork Alpi Mahogany

• Parquet type laminated floors

• Padding upholstery in salon and cabins (White)

• Fabric upholstery

• Marine mattresses in the cabins

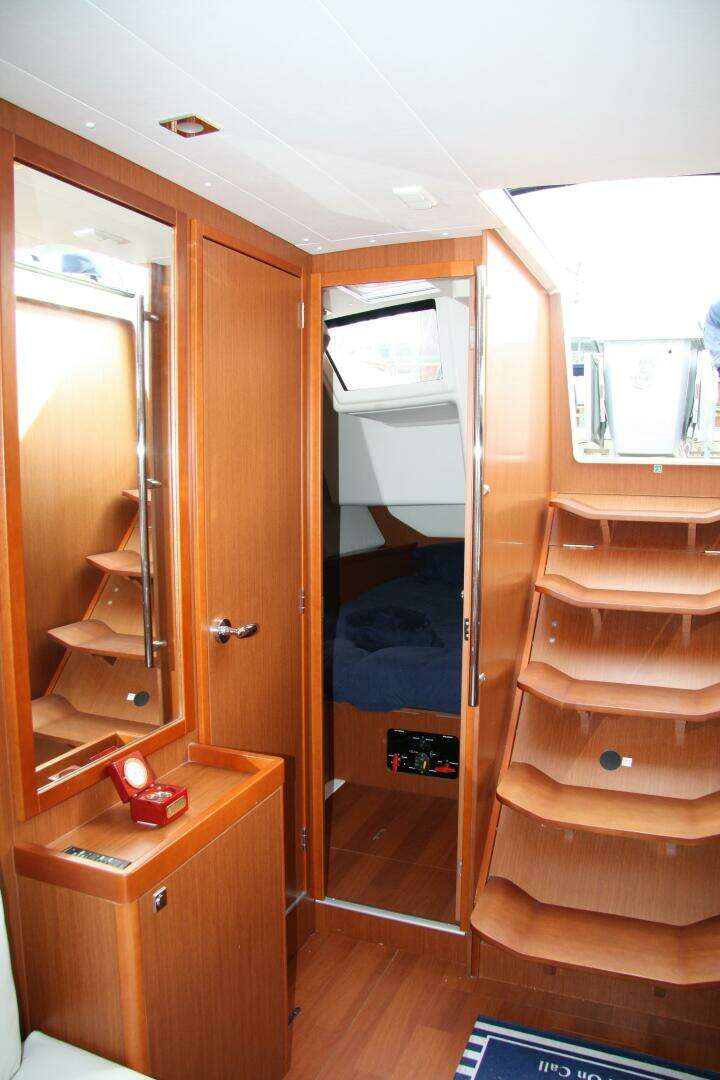

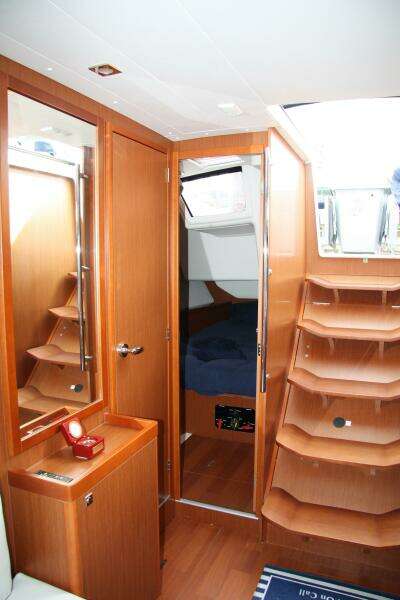

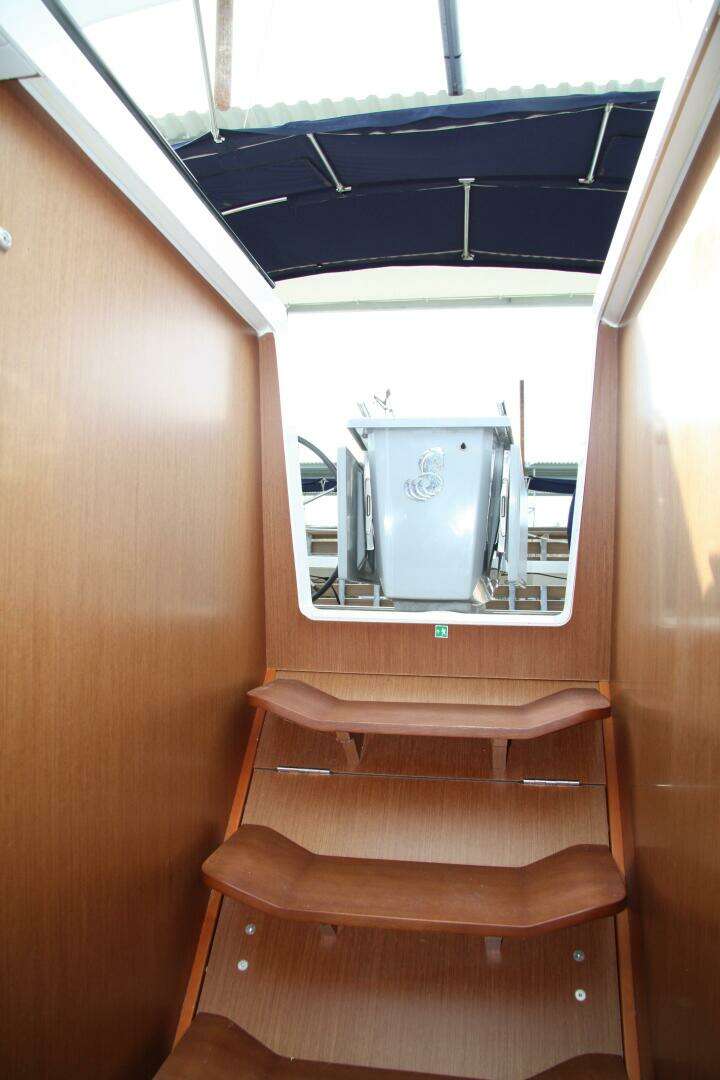

COMPANIONWAY

Headroom: 1,93 m / 6’4’’

• Wooden salon companionway with molded wood hanging steps with nonslip surface

• 2 Stainless steel handrails

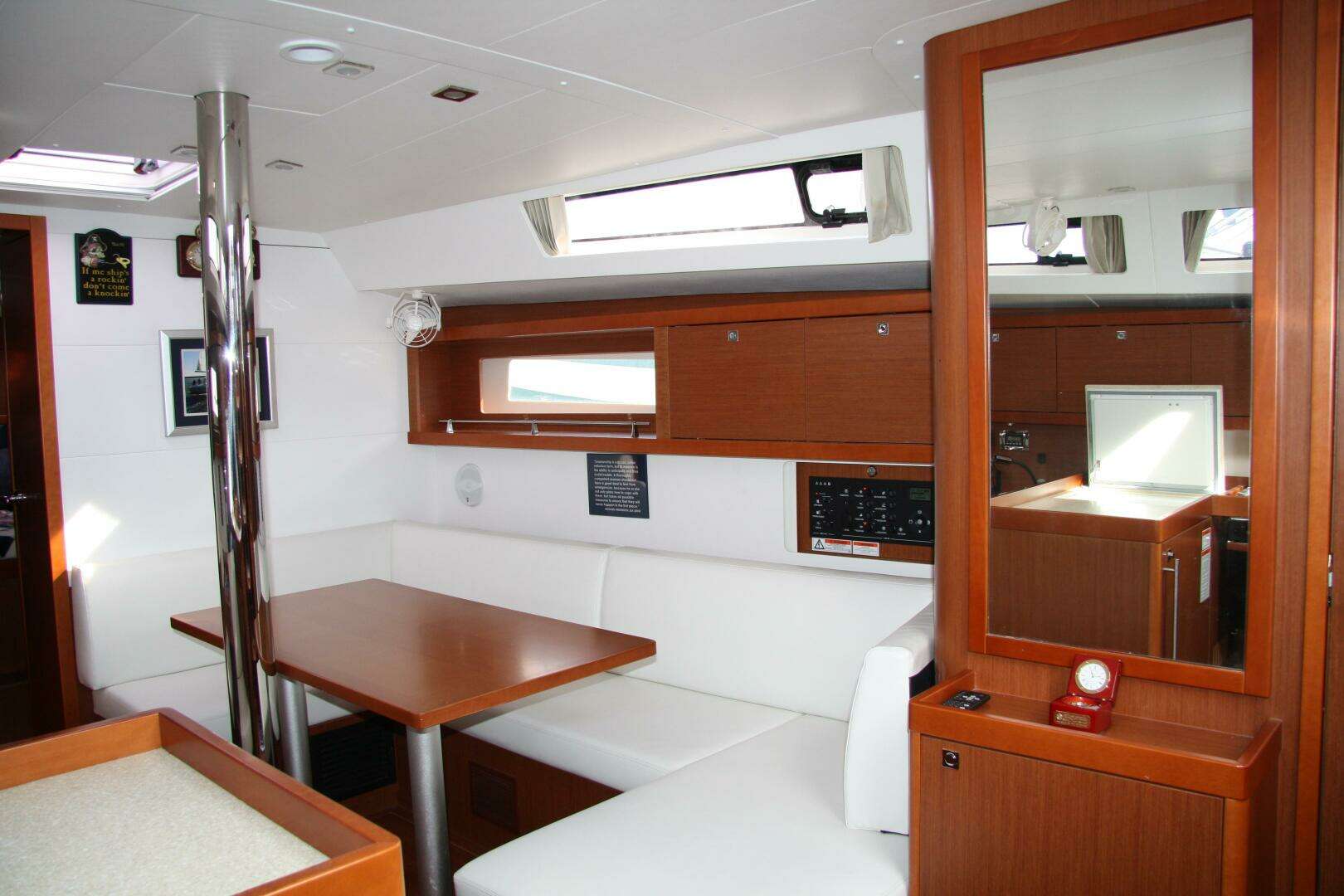

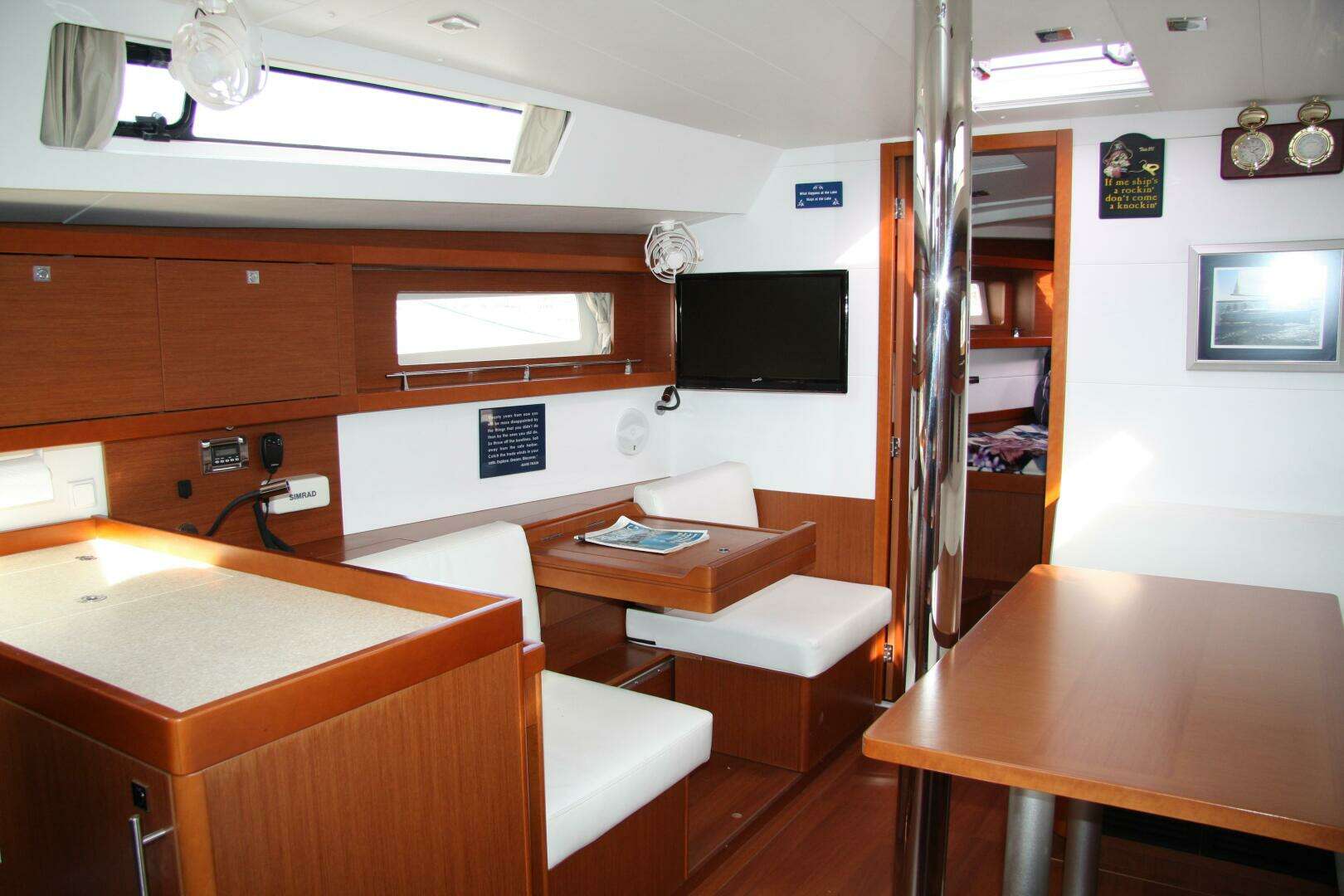

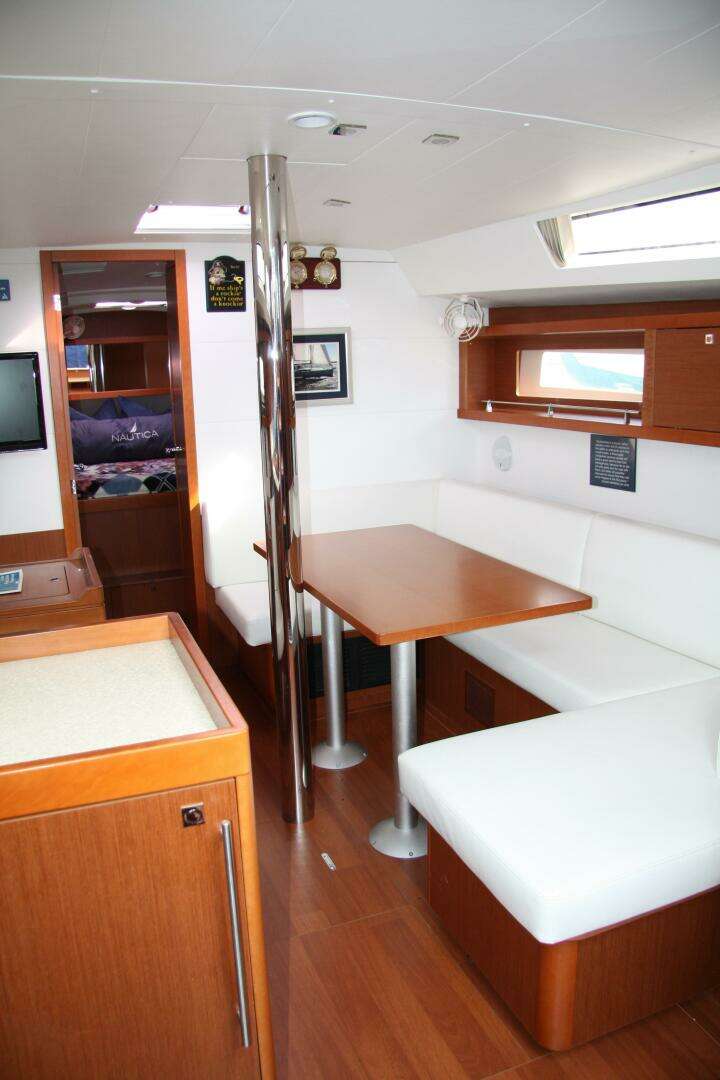

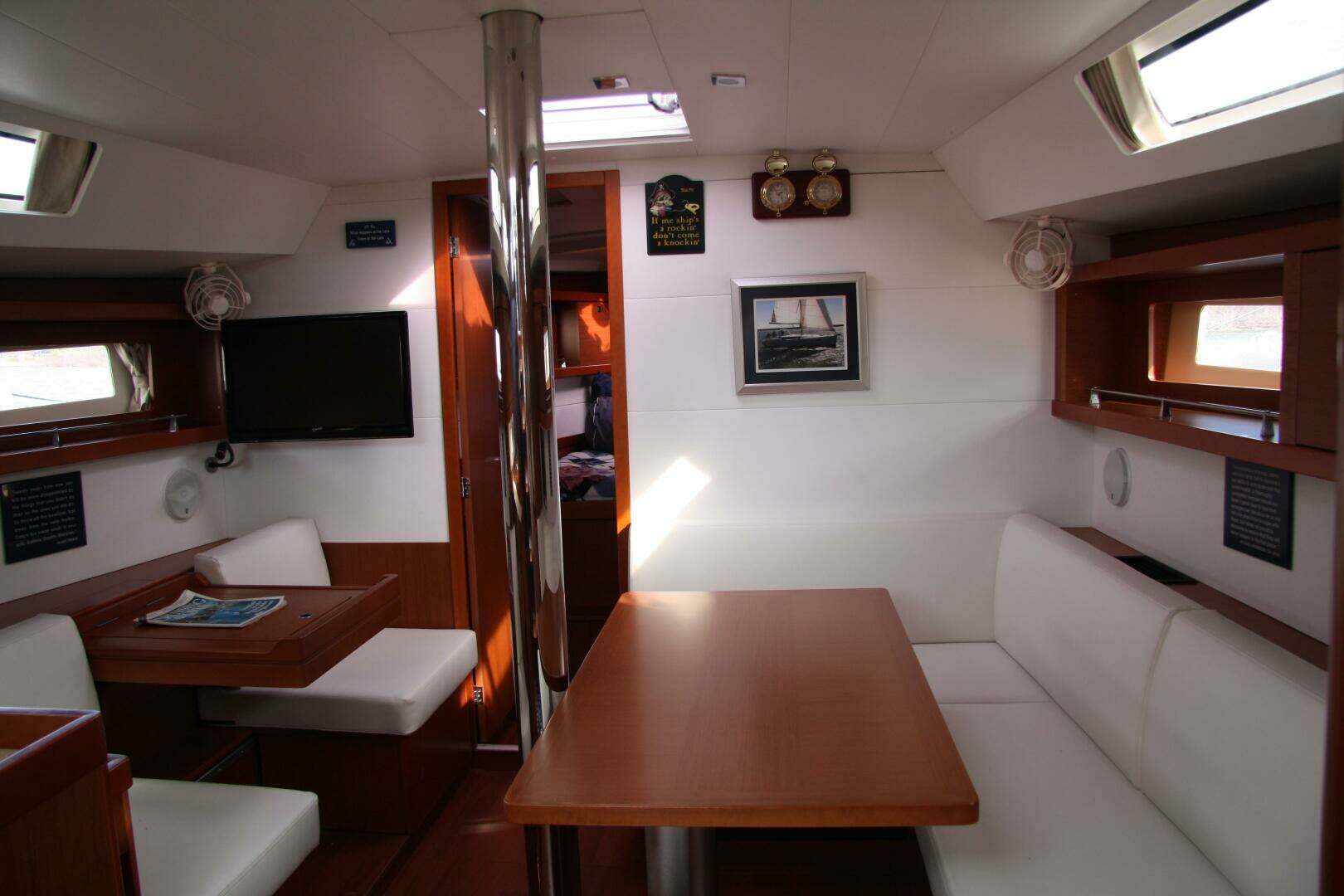

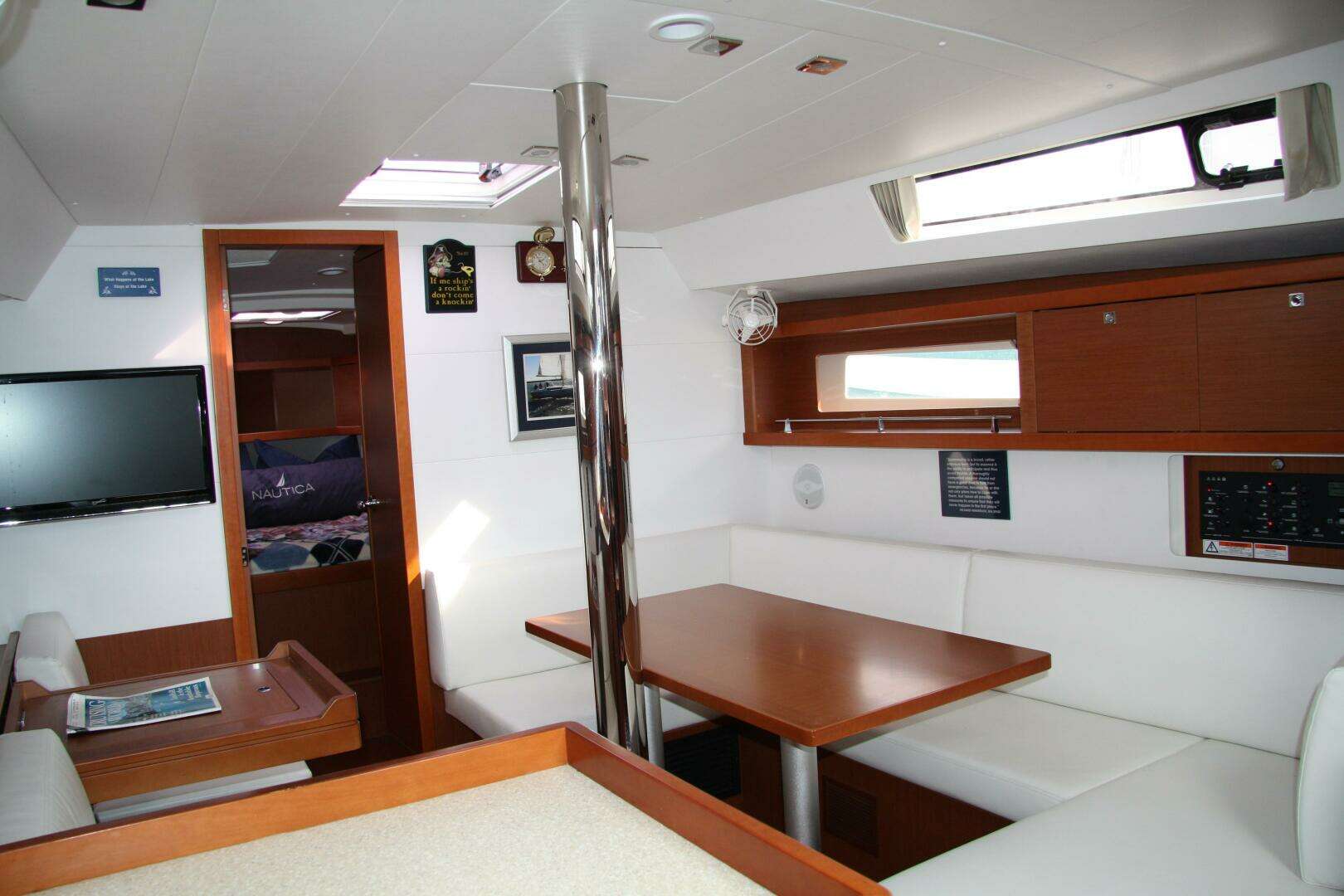

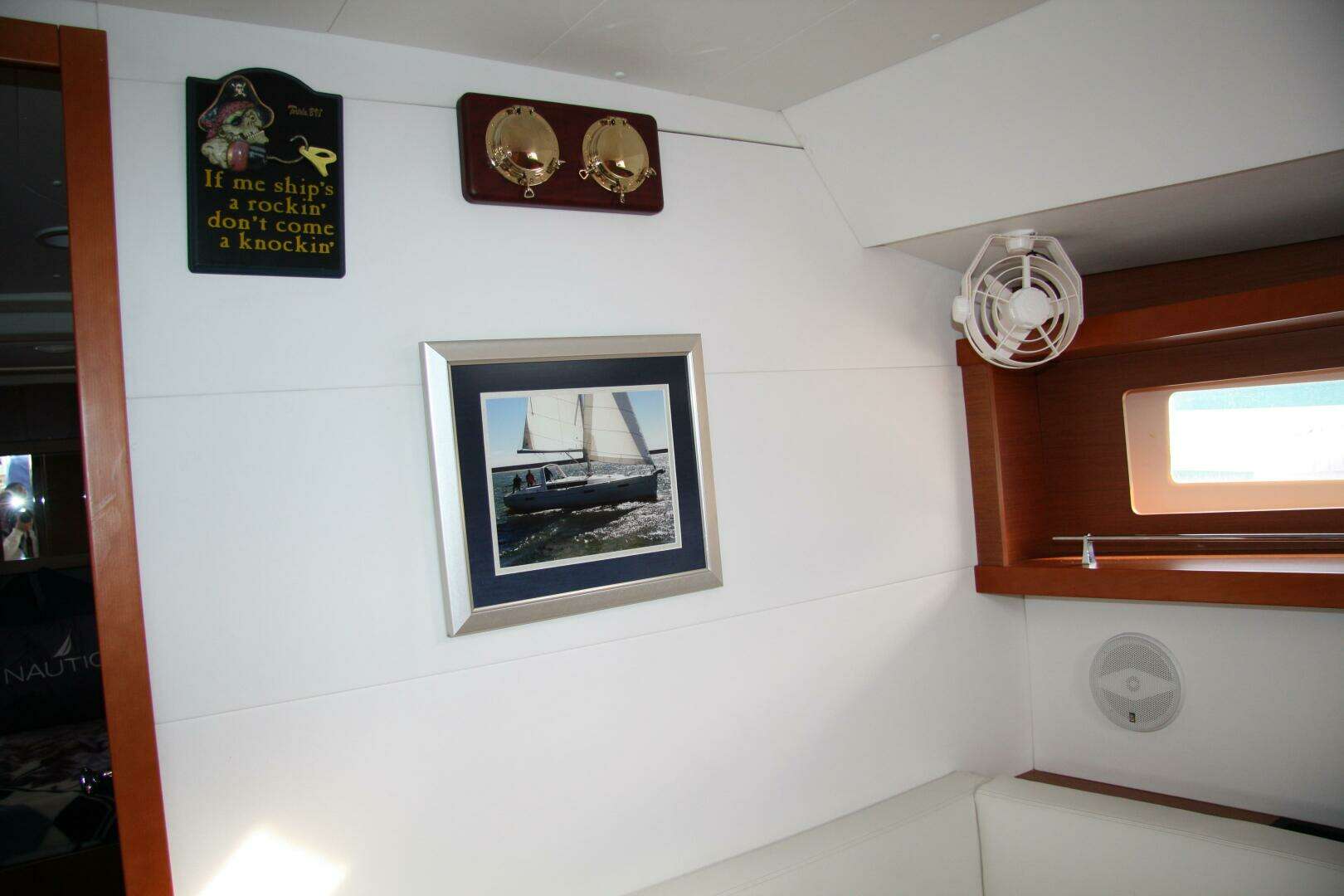

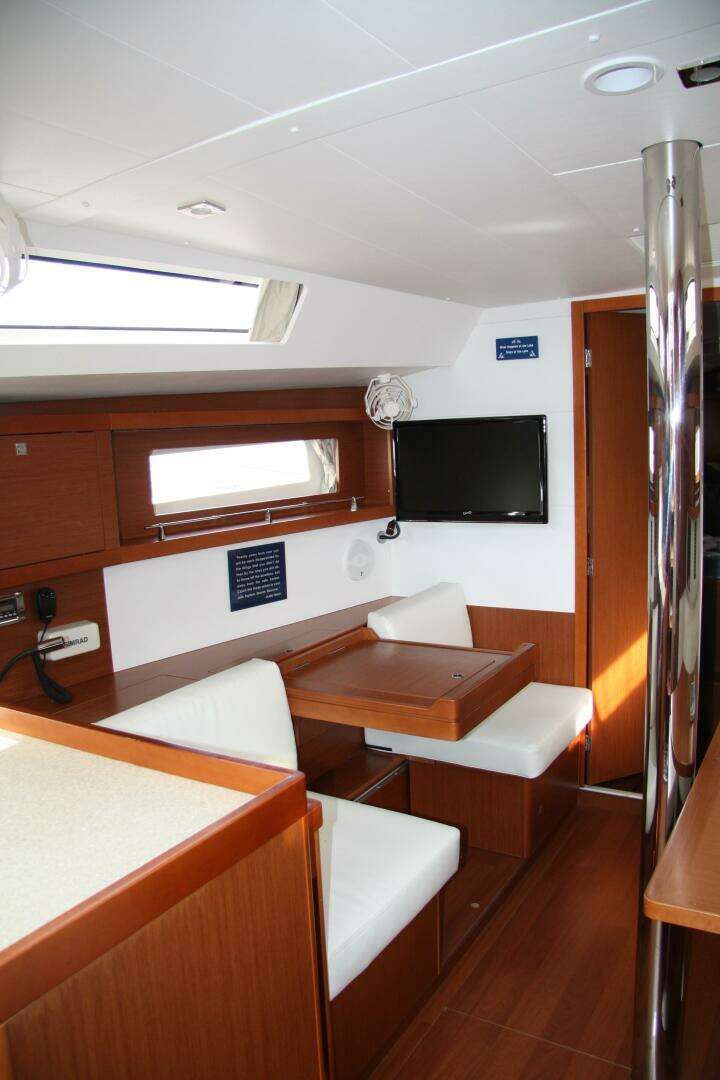

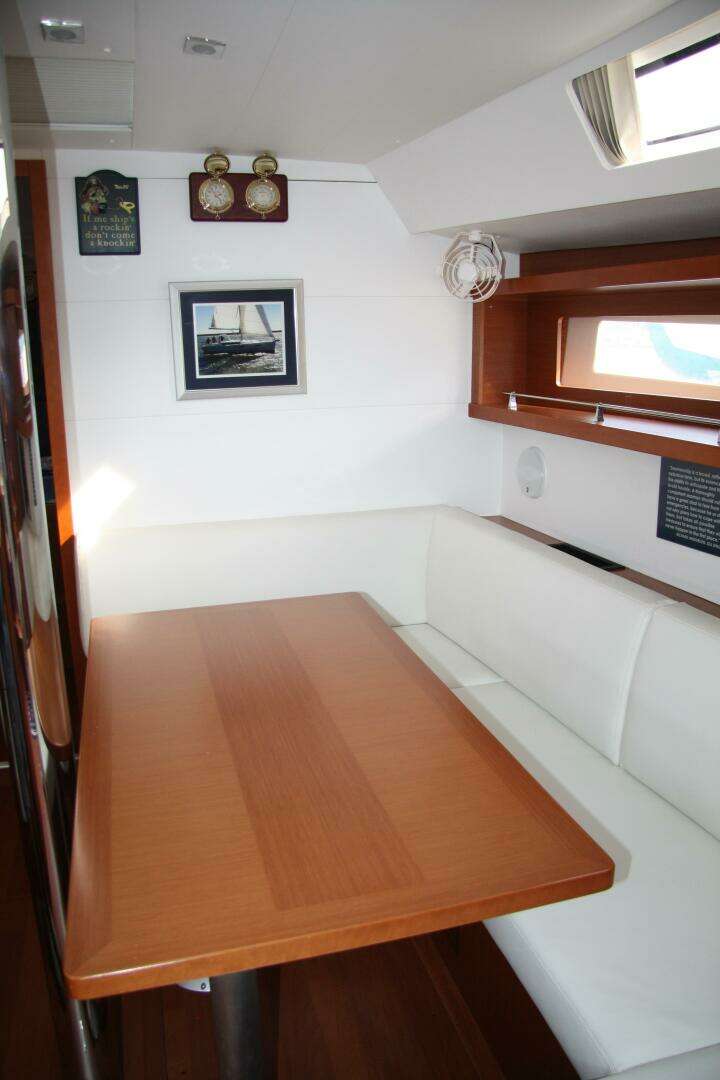

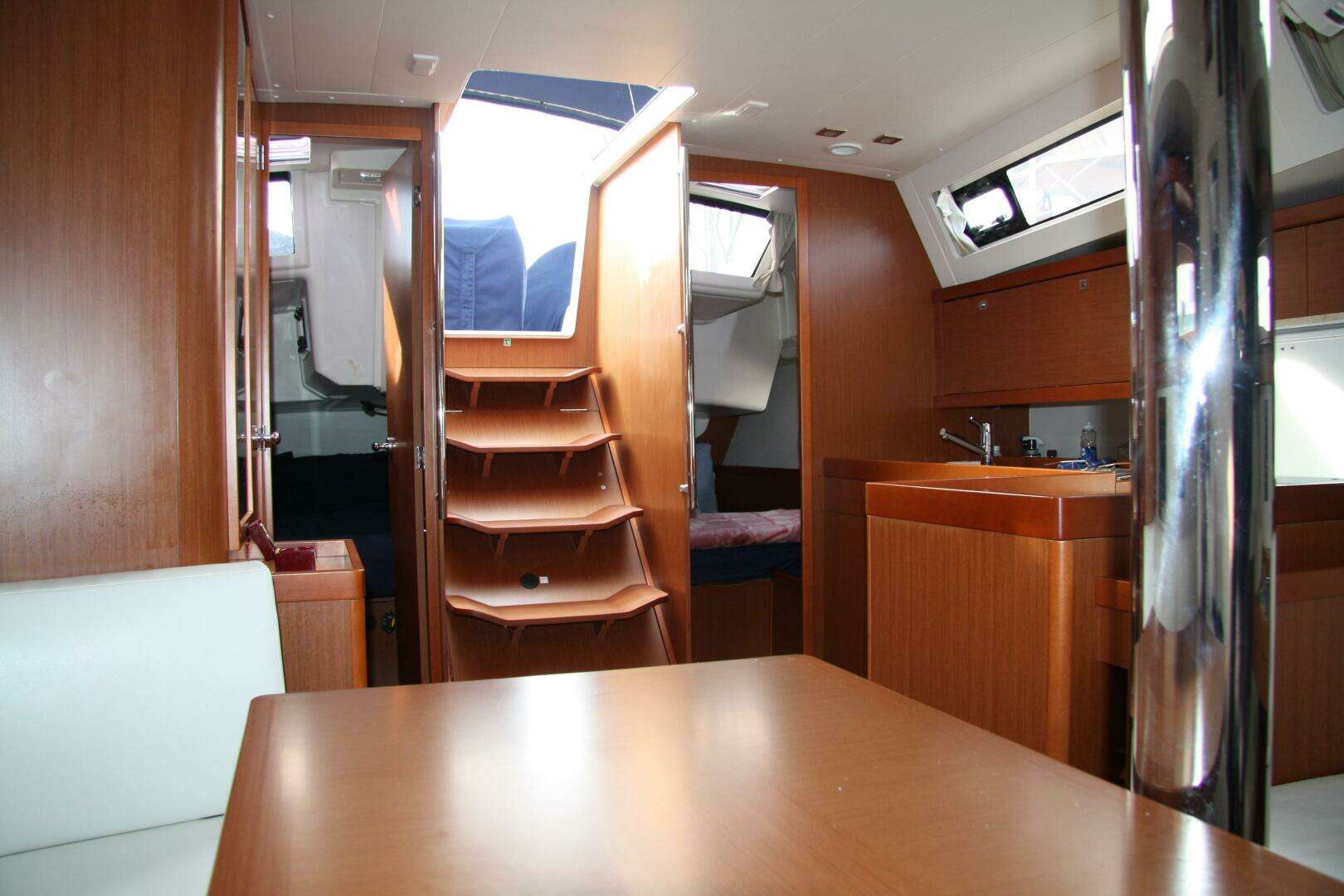

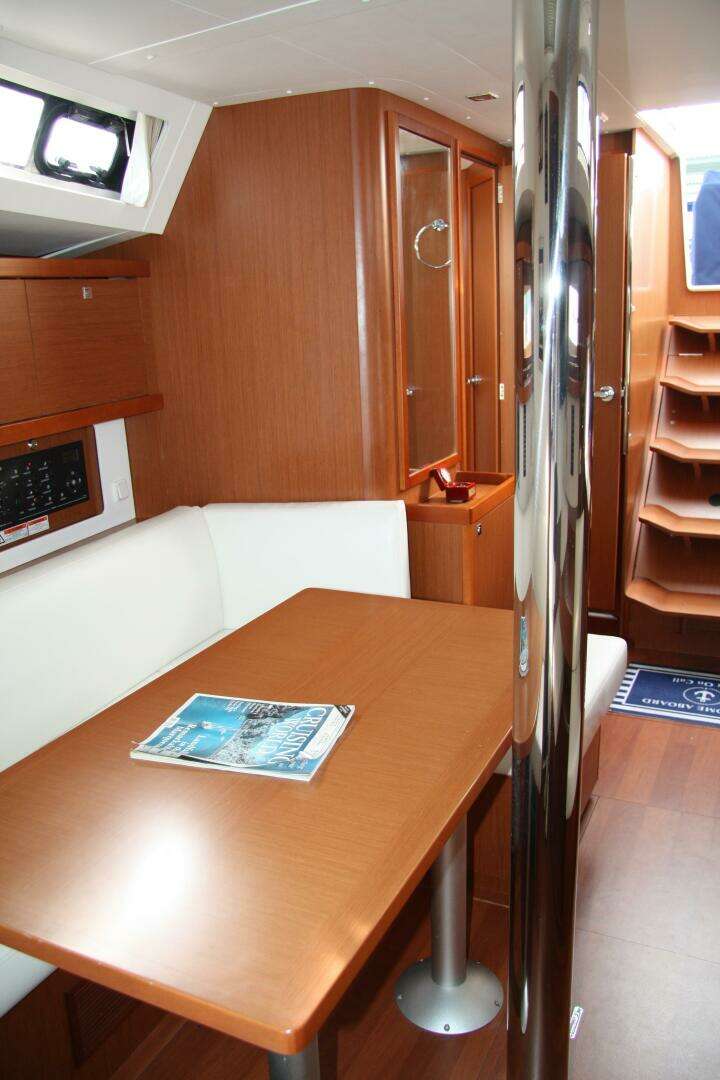

SALON

Headroom: 1,95 m / 6’5’’

• U-shaped salon bench - Double density foam

• Salon table in 1 piece - Varnished wood top with inlay - Aluminum legs

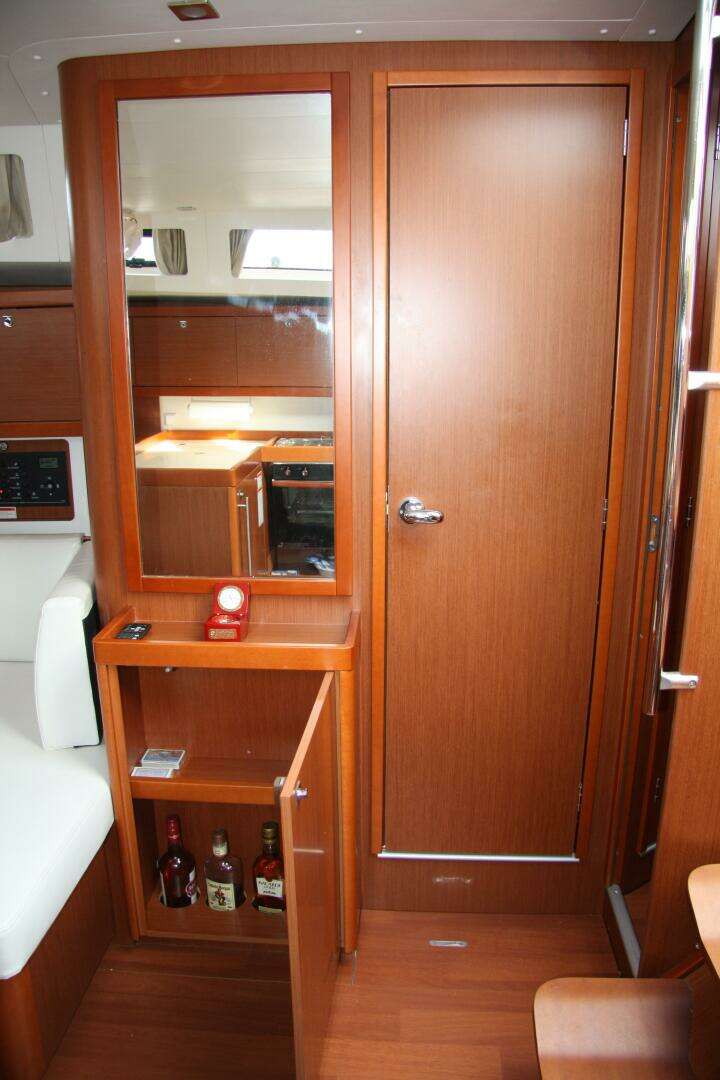

• Mirror on starboard bulkhead

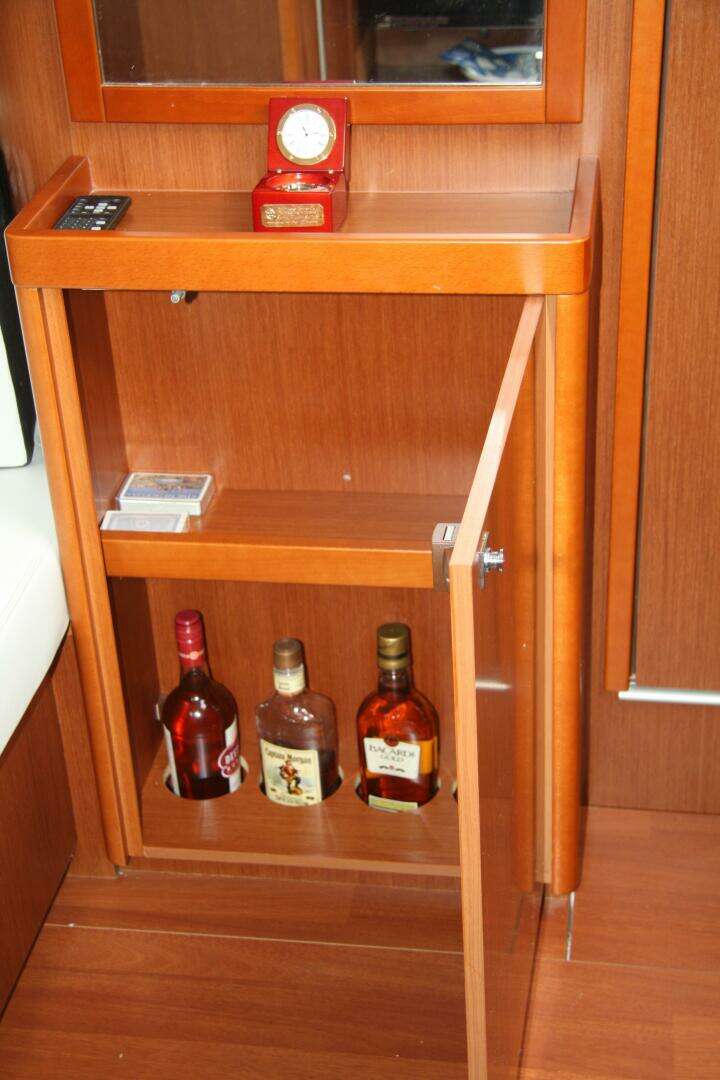

• Cupboard units - Cubby hole lockers and storage along the hull - Storage under bench seats

• Cubbyholes with stainless steel beading

• 2 Coachroof panoramic windows with curtains

• 2 Hull portholes with curtain

• 2 Opening portholes on coaming in side windows

• 1 Opening deck hatch with shutter / Mosquito screen

• LED interior lights

• Indirect light

* Leather covered handrails

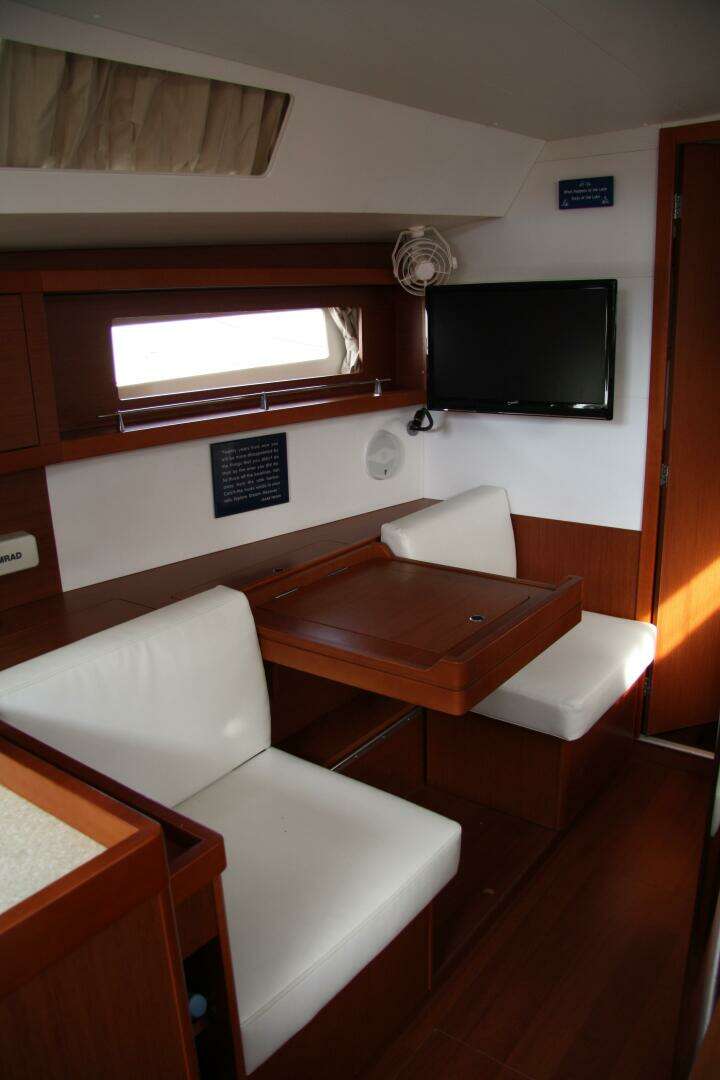

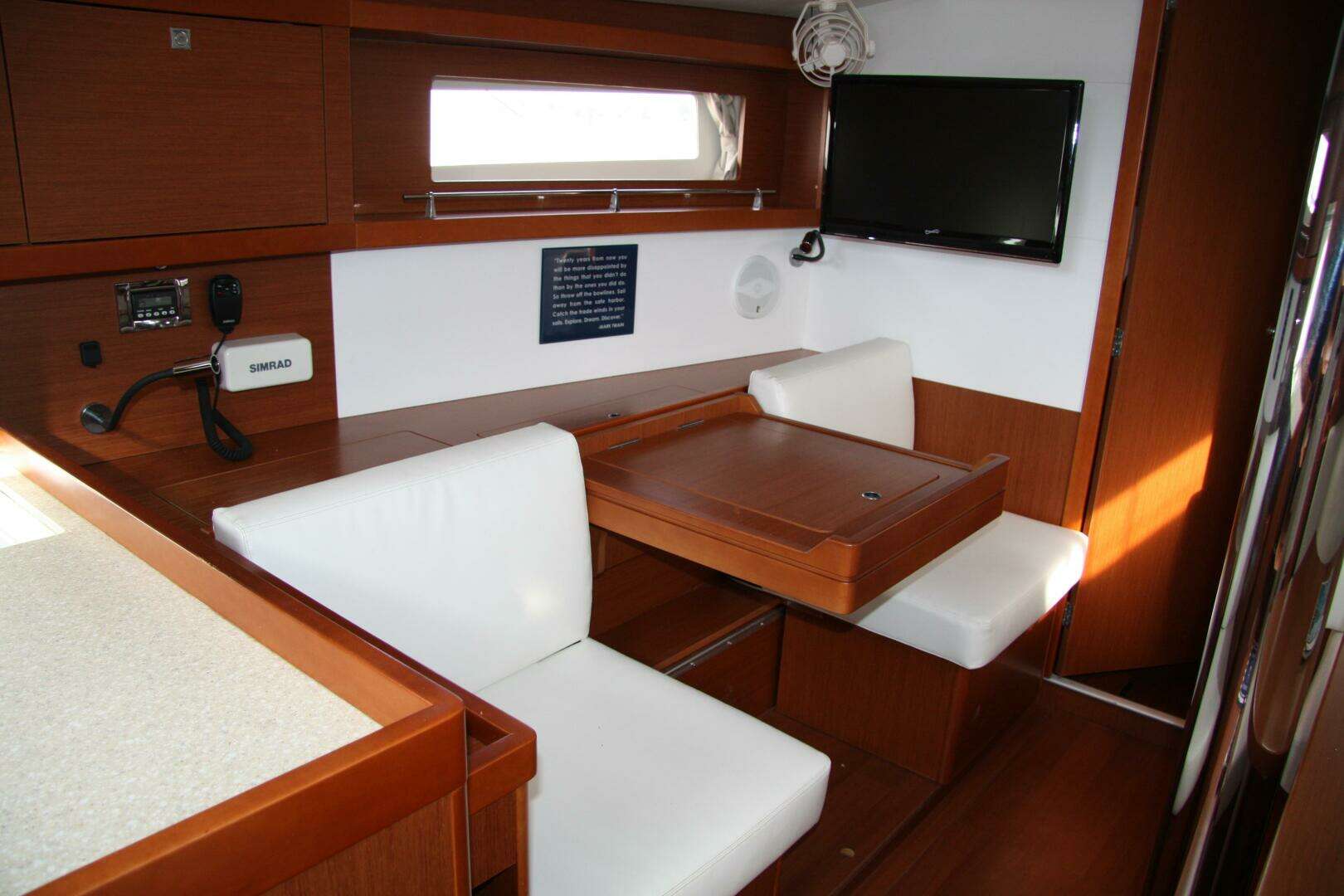

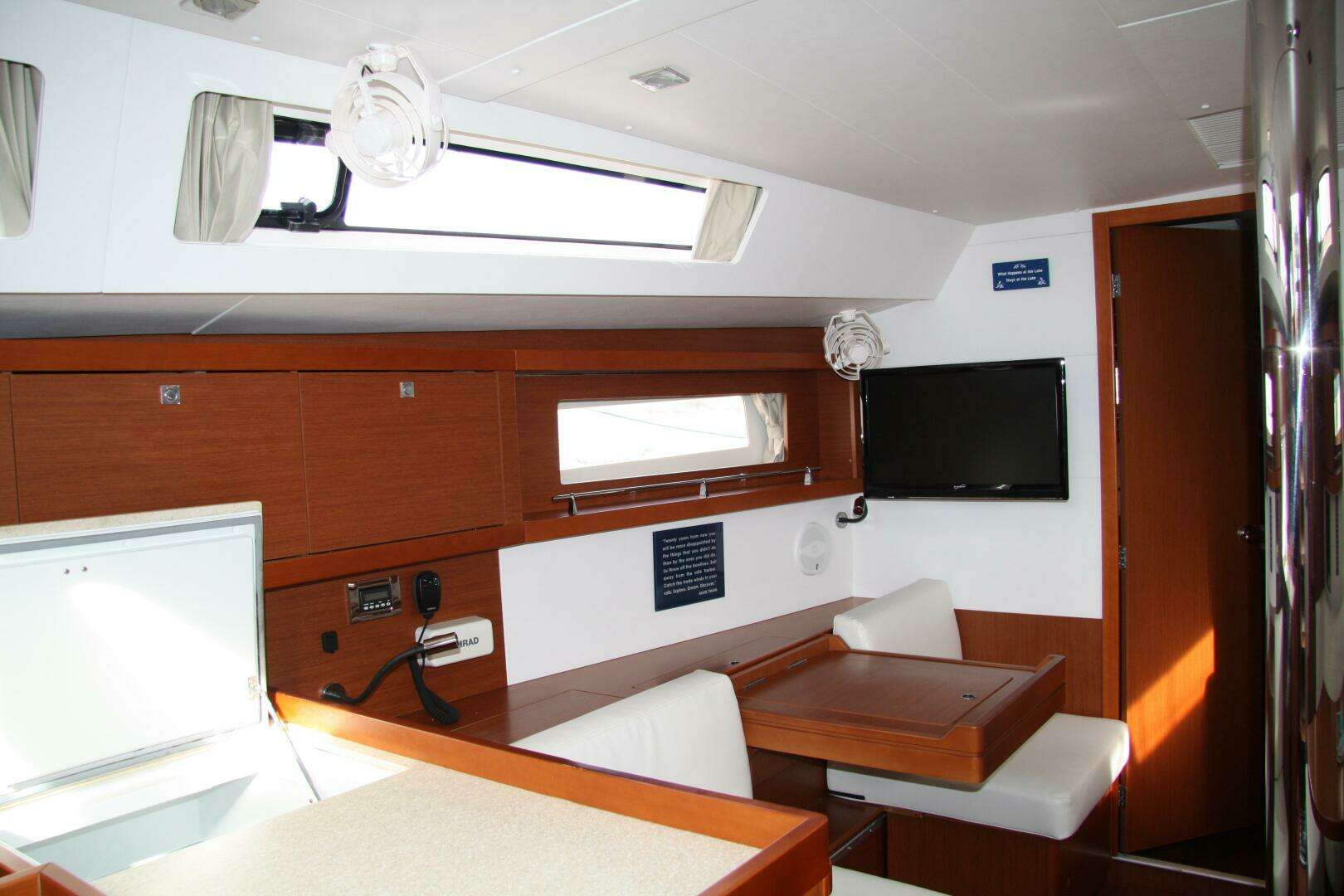

CHART TABLE - PORTSIDE

• Sliding, can be configured with the armchairs - Placed against the forward bulkhead , against the galley or between the 2 mobile seats

• Table with flap - Molded wood beading

• Switch panel on bulkhead for access to electrical functions

• 1 Reading light

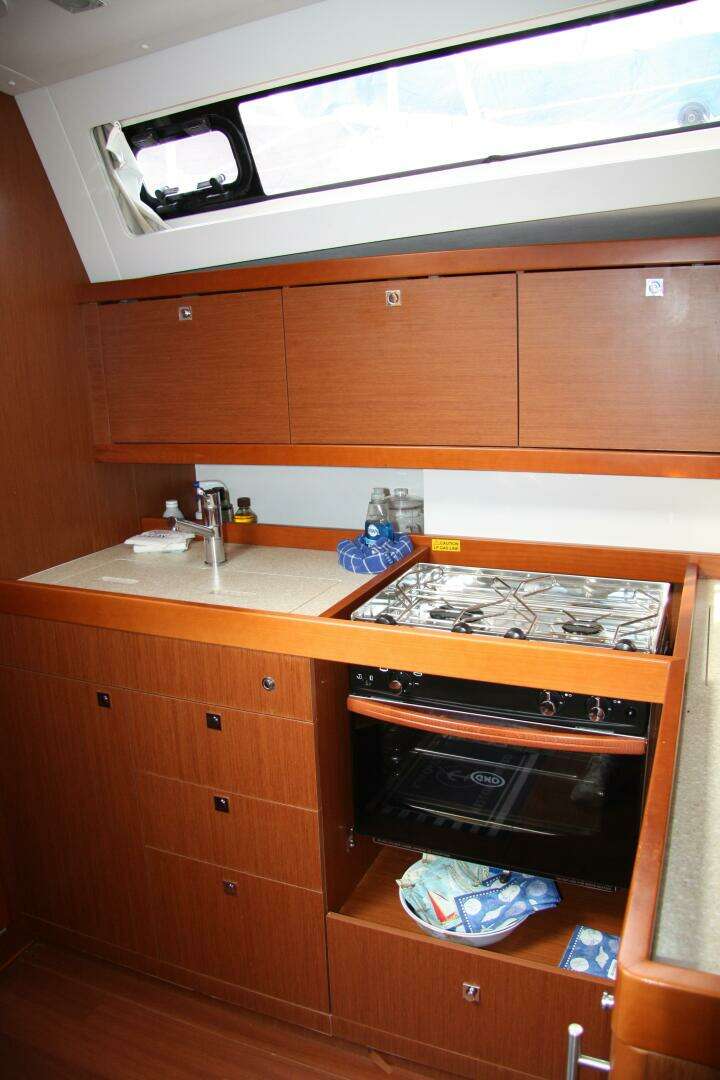

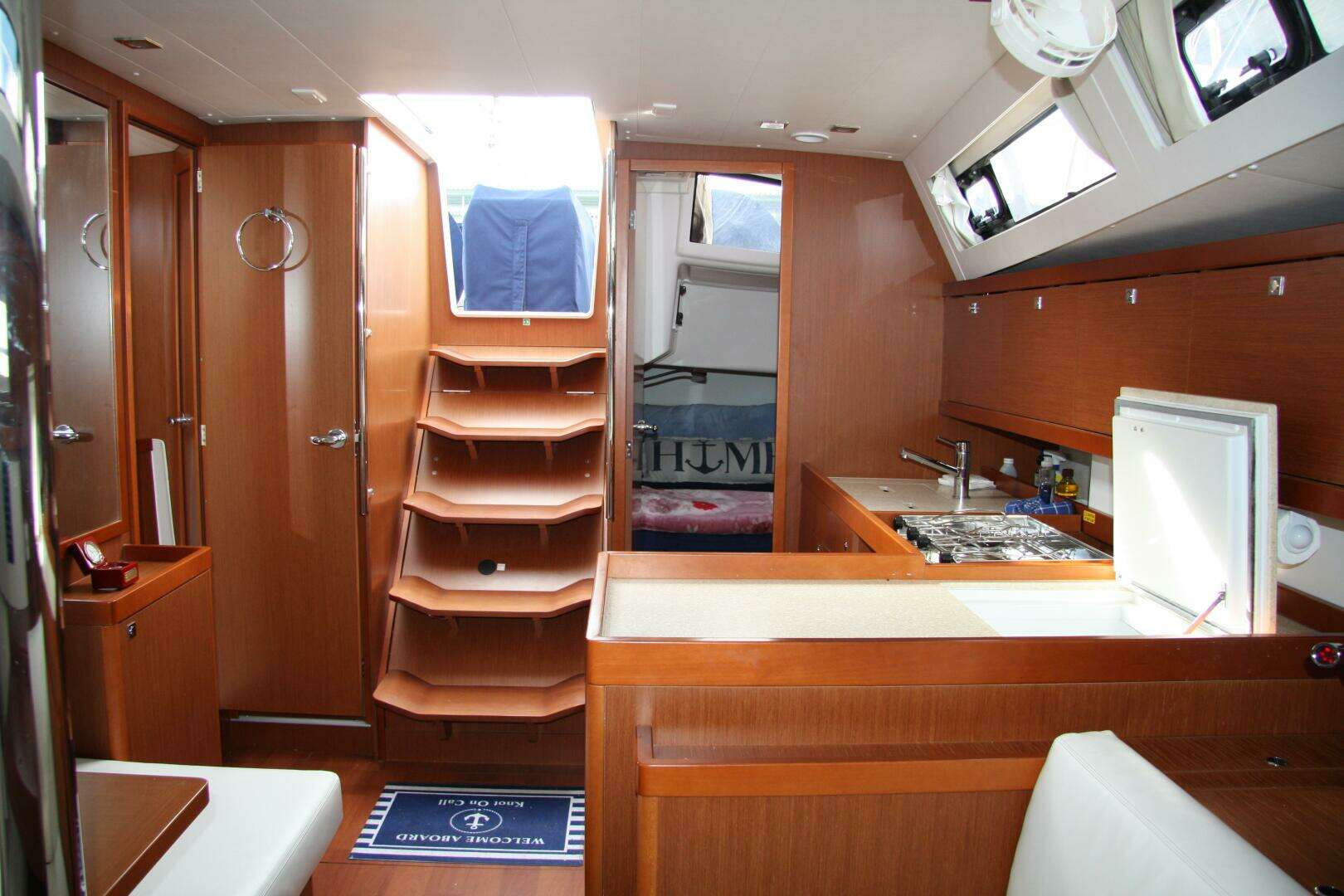

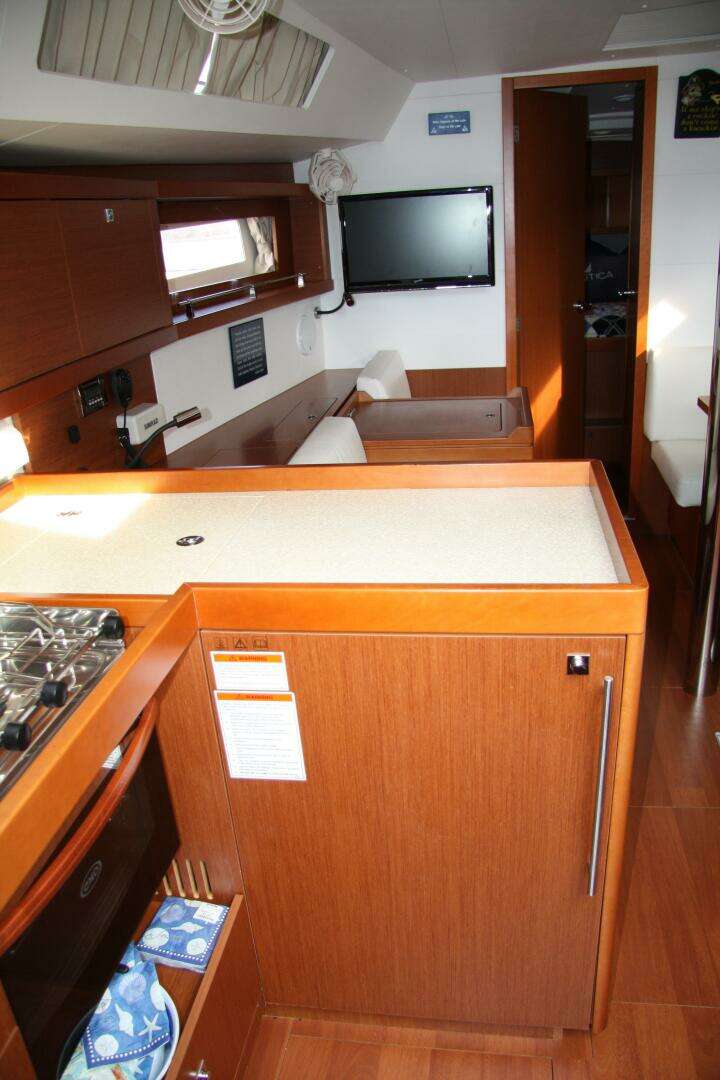

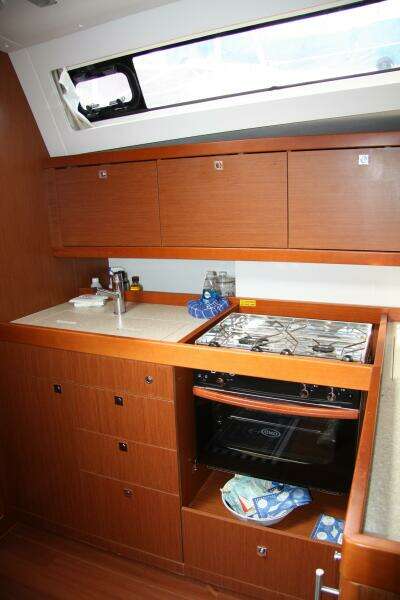

GALLEY - PORTSIDE

Headroom: 1,89 m / 6’2’’

• L-shaped kitchen

• Countertop of synthetic surfaces

• 1 Stainless steel sink 2 rectangular basins - 1 Mixer tap cold water / hot water, under pressure

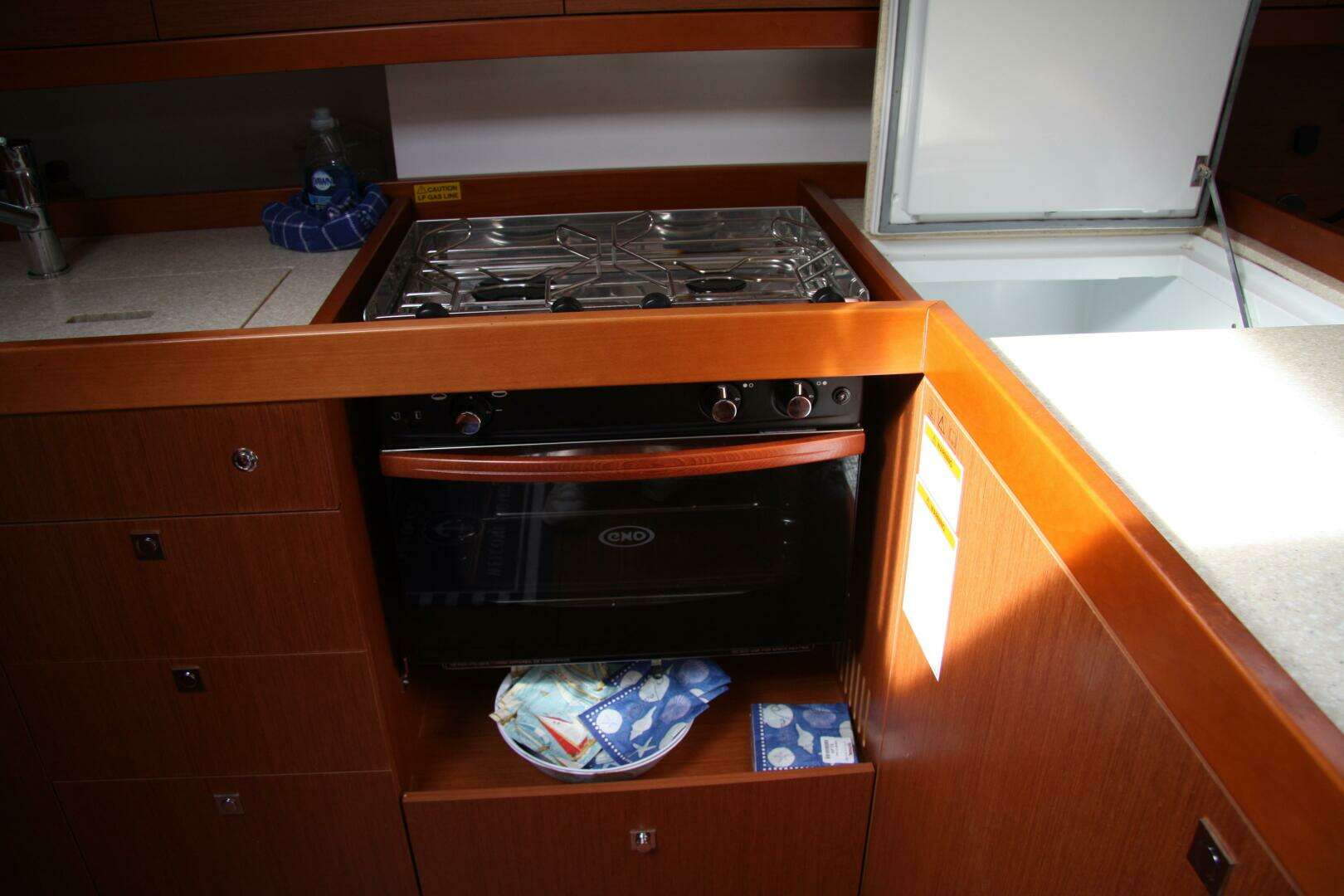

• 1 Gas stove 2 burners - Stainless steel oven on gimbal mountings - Stainless steel protection handrail

• 1 85 L ice box / 22 US Gal, top opening

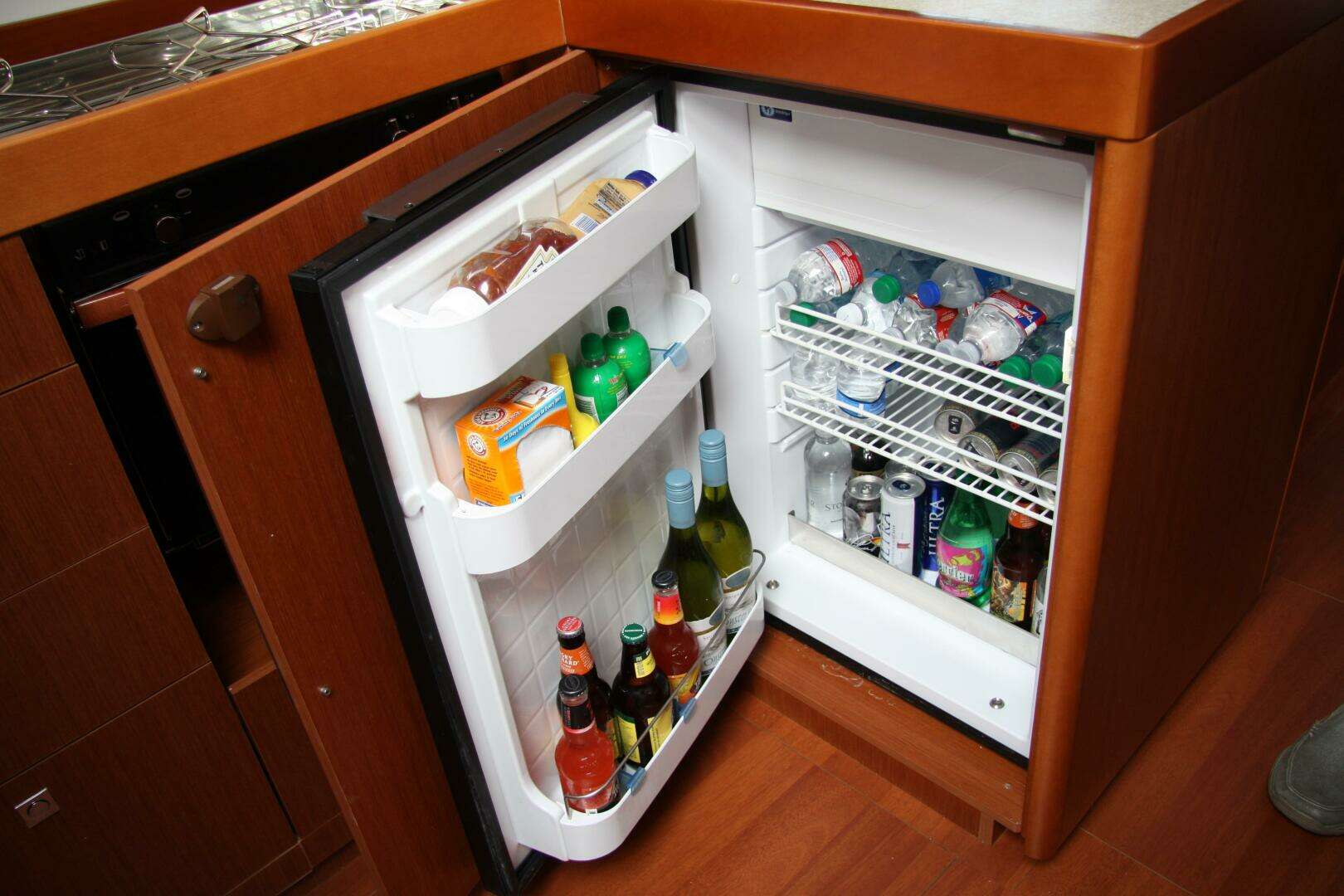

• 1 12 V 130 L refrigerator / 34 US Gal, front opening

• Fitted cupboards and closed cubbyholes - Garbage bin

• 1 Lower cupboard: 1 Drawer - 2 Shelves

• 1 Opening portlight with curtains in side windows in the coaming

• Storage space along the hull

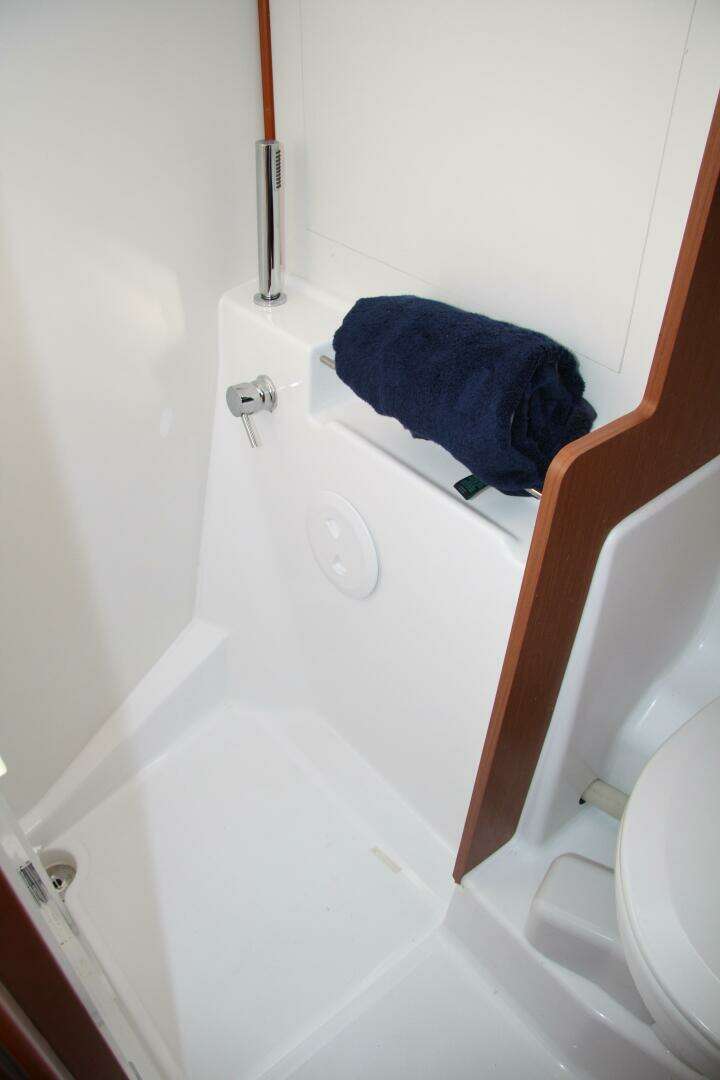

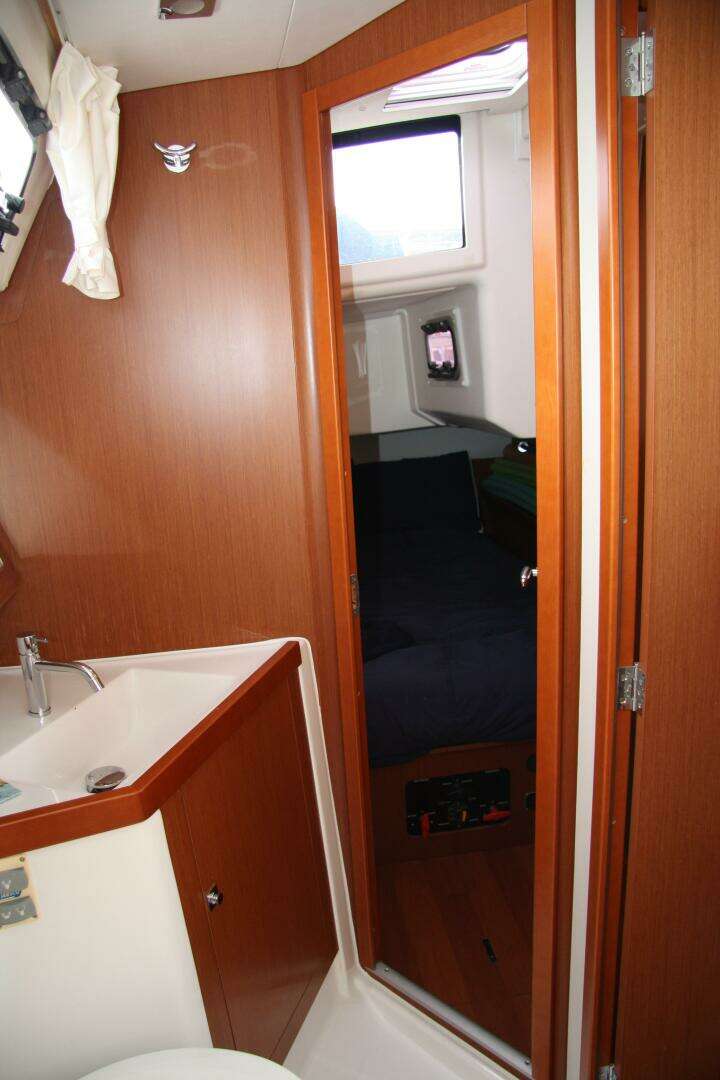

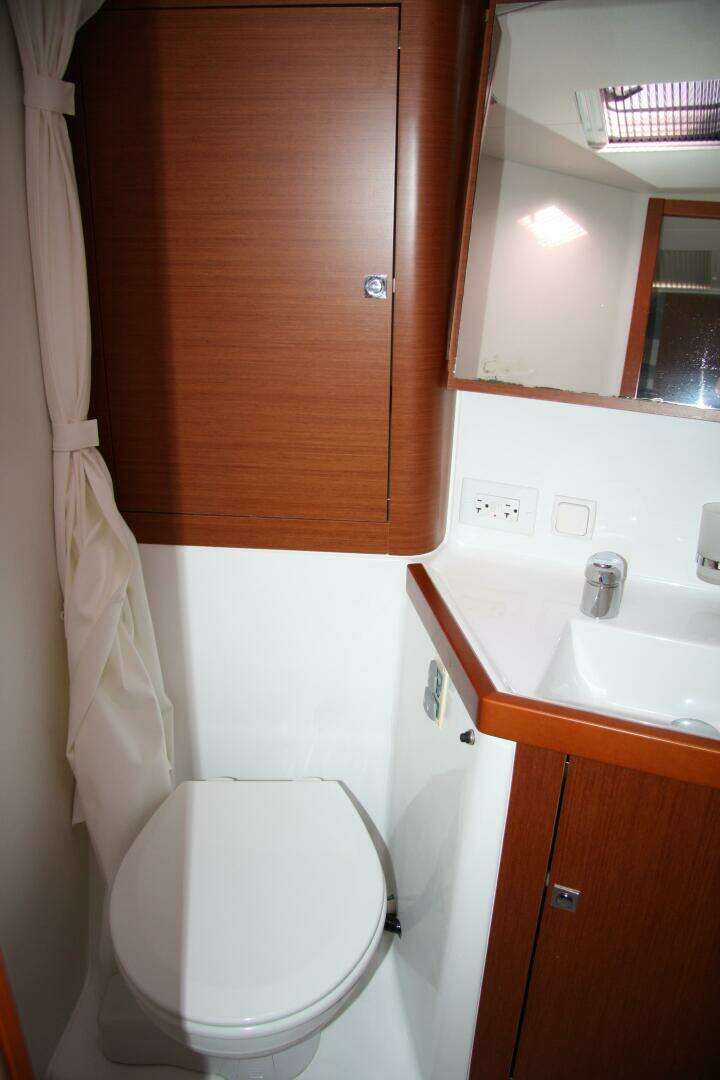

STARBOARD AFT HEAD COMPARTMENT

Headroom: 1,85 m / 6’1’’

• Access through salon and the starboard aft cabin

• Separate shower - 1 Mixing tap hot water / Cold water

• 1 Manual marine toilet

• 1 Rigid holding tank 80L / 21 US Gal

• Sink - 1 Faucet

• Washroom cabinet

• 2 Mirrors • Toilet accessories

• Cupboard

• 1 Opening portlight with curtains in side windows in the coaming

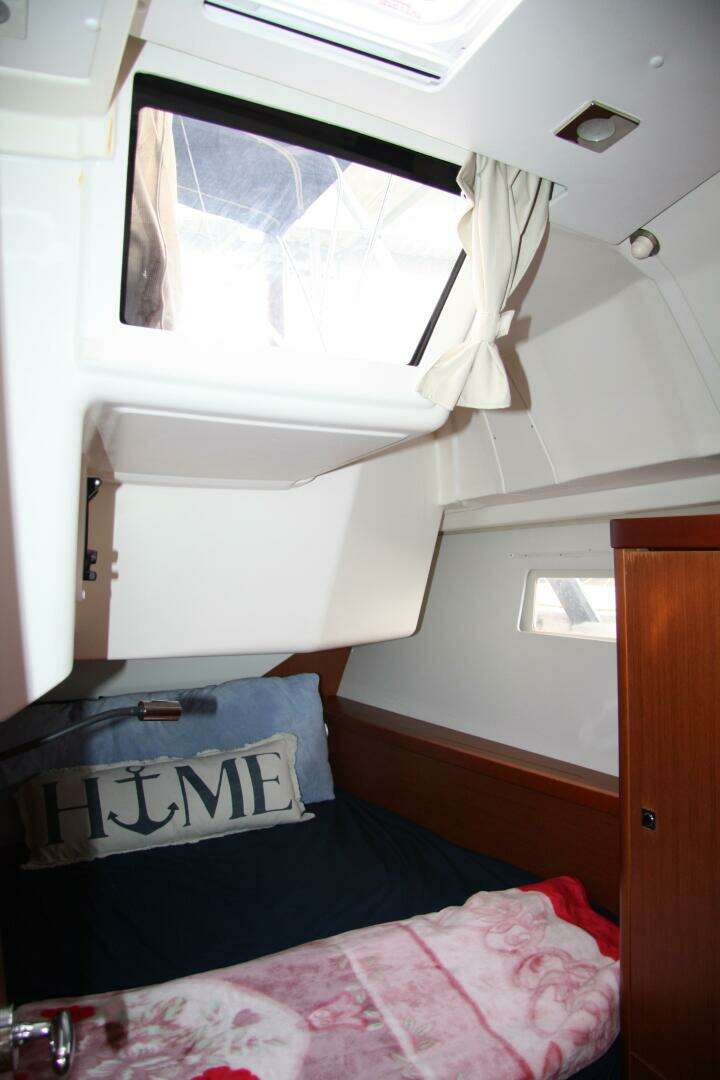

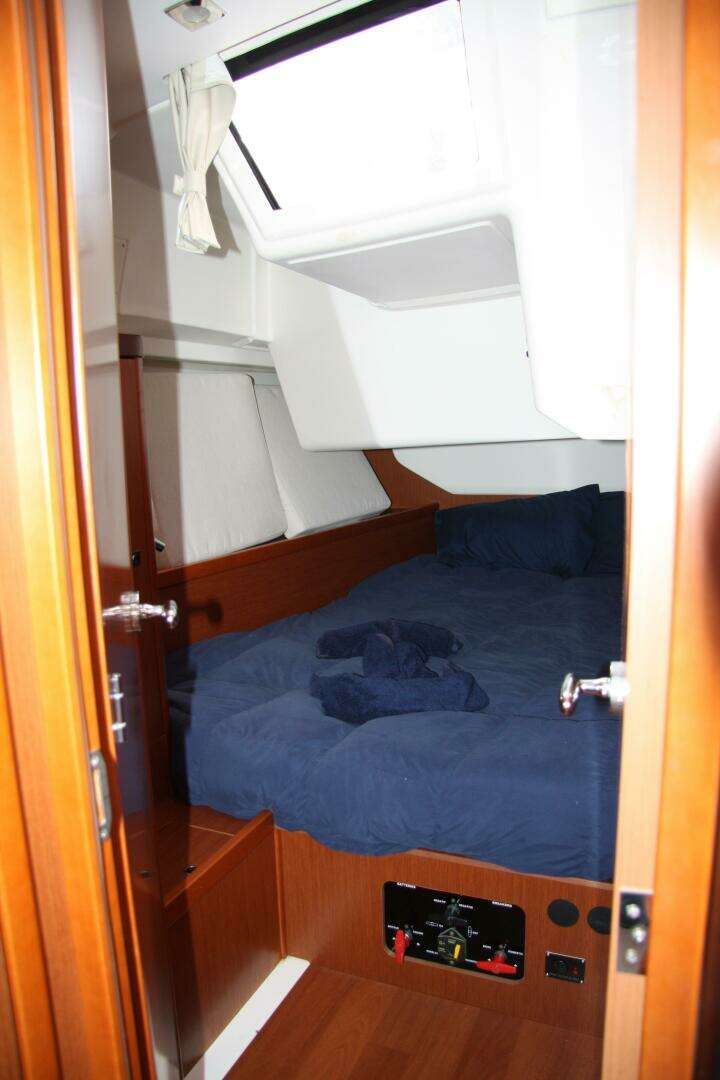

STARBOARD AFT CABIN

• Headroom: 1,89 m / 6’2’’

• 1 Double bed (2,00 m x 1,60 m x 1,28 m / 6’7’’ x 5’3’’ x 4’2’’)

• Access door to starboard aft washroom

• Cupboard units - Hanging locker - Closed cubbyholes

• 1 Bed access sideboard

• 1 Hull porthole with curtain

• 1 Cockpit windows with curtains

• 1 Porthole opening onto cockpit with curtain

• 1 Flush deck hatch with shutter / Mosquito screen

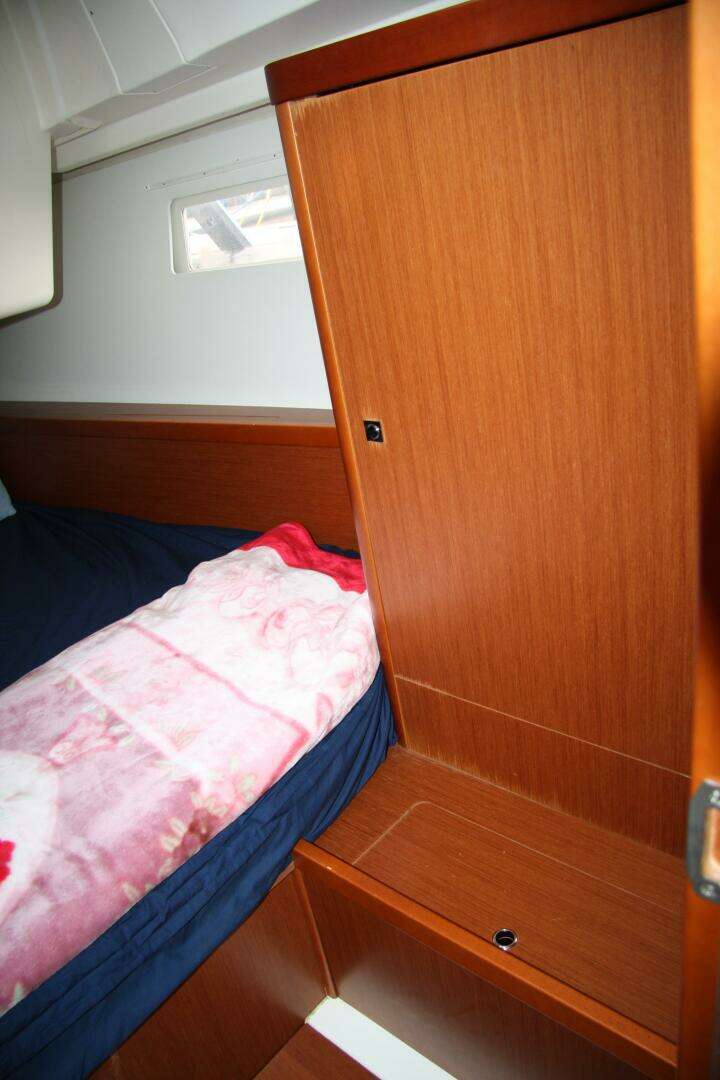

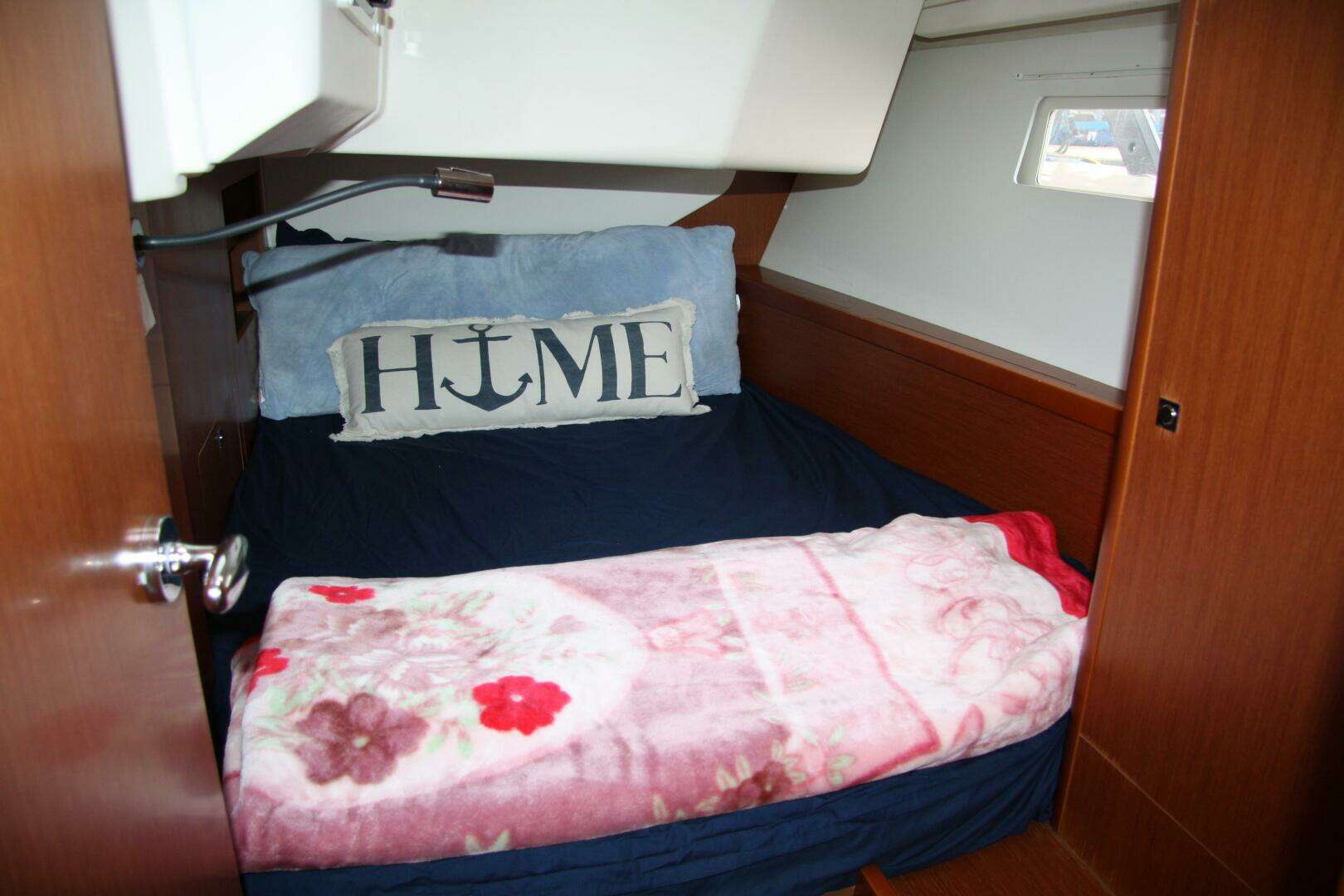

PORT AFT CABIN

• Headroom: 1,89 m / 6’2’’

• Double bed - Port cabin (2,00 m x 1,43 m x 1,10 m / 6’7’’ x 4’8’’ x 3’7’’)

• 1 Bed access sideboard

• Cupboard - Hanging locker - Closed cubbyholes

• 1 Hull porthole with curtain

• 1 Cockpit porthole with curtain

• 1 Flush deck hatch with shutter / Mosquito screen

• 1 Cockpit windows with curtains

• Indirect light

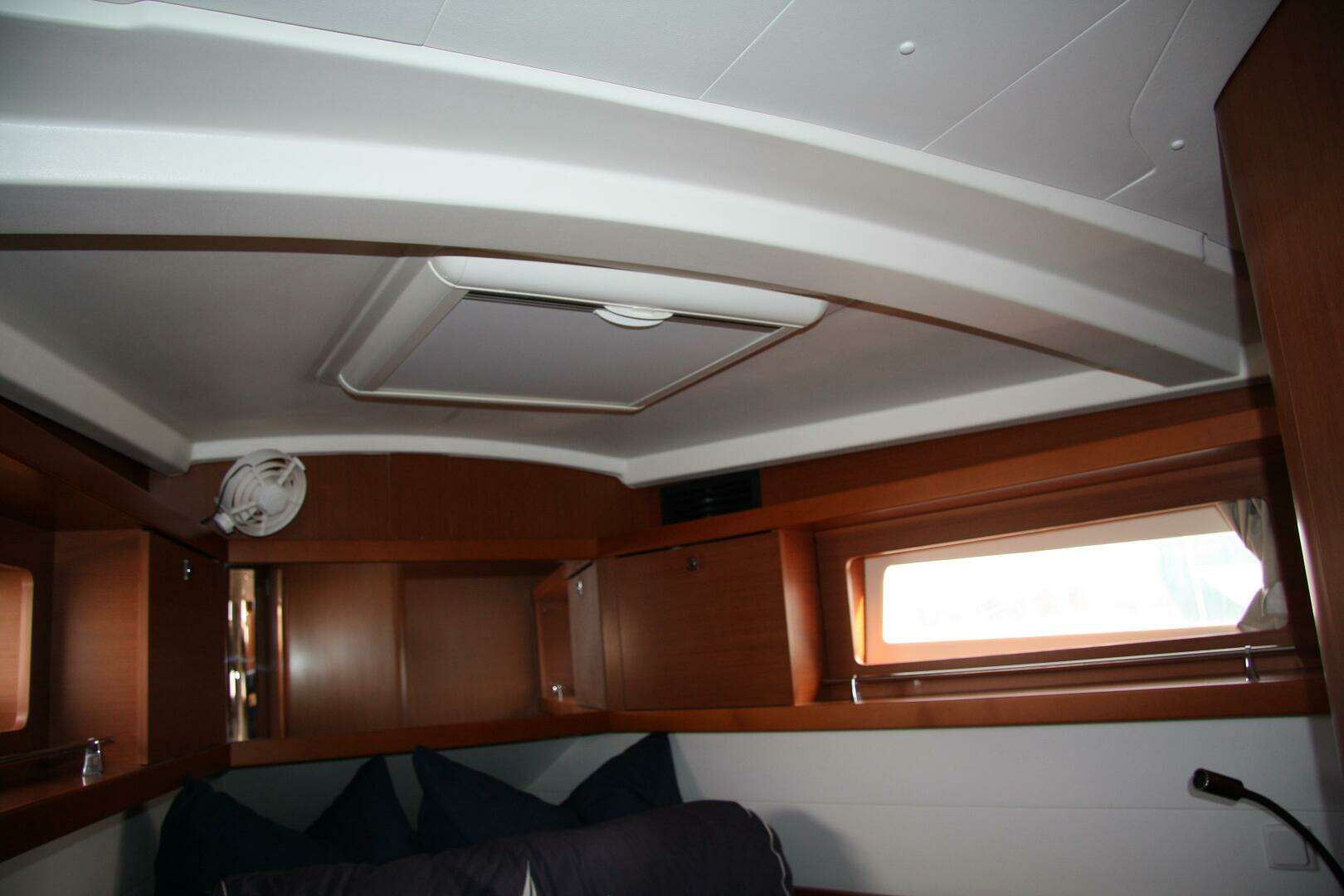

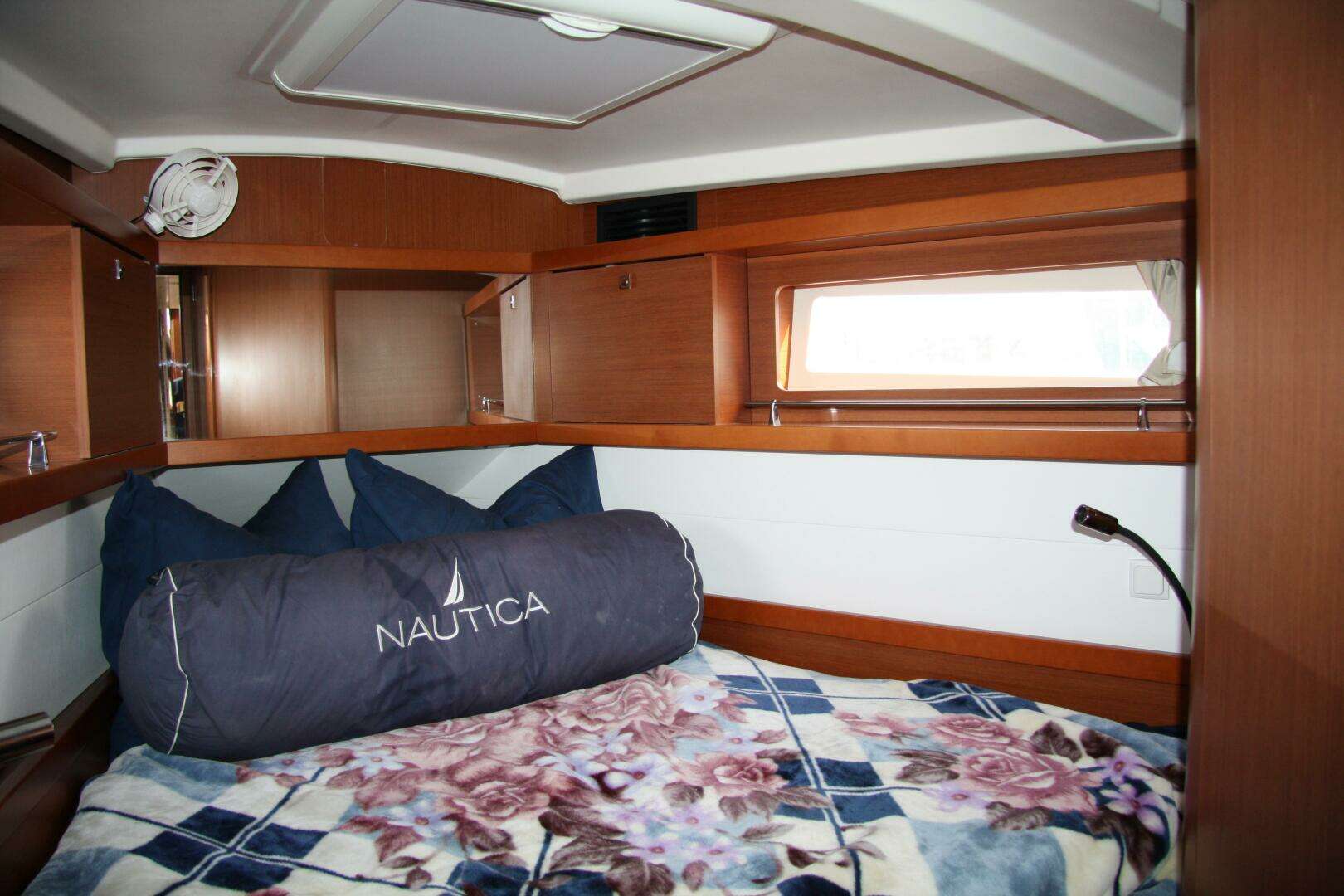

FORWARD CABIN

• Headroom: 1,87 m / 6’4’’

• Central double bed (2,00 m x 1,88 m x 0,51 m / 6’7’’ x 6’2’’ x 1’8’’)

• Hanging locker - Glove box - Cubby hole locker - Storage drawer - Stowage under platform

• 2 Opening hatches with blind / Mosquito screen

• 2 Hull portholes with curtain

• Indirect light

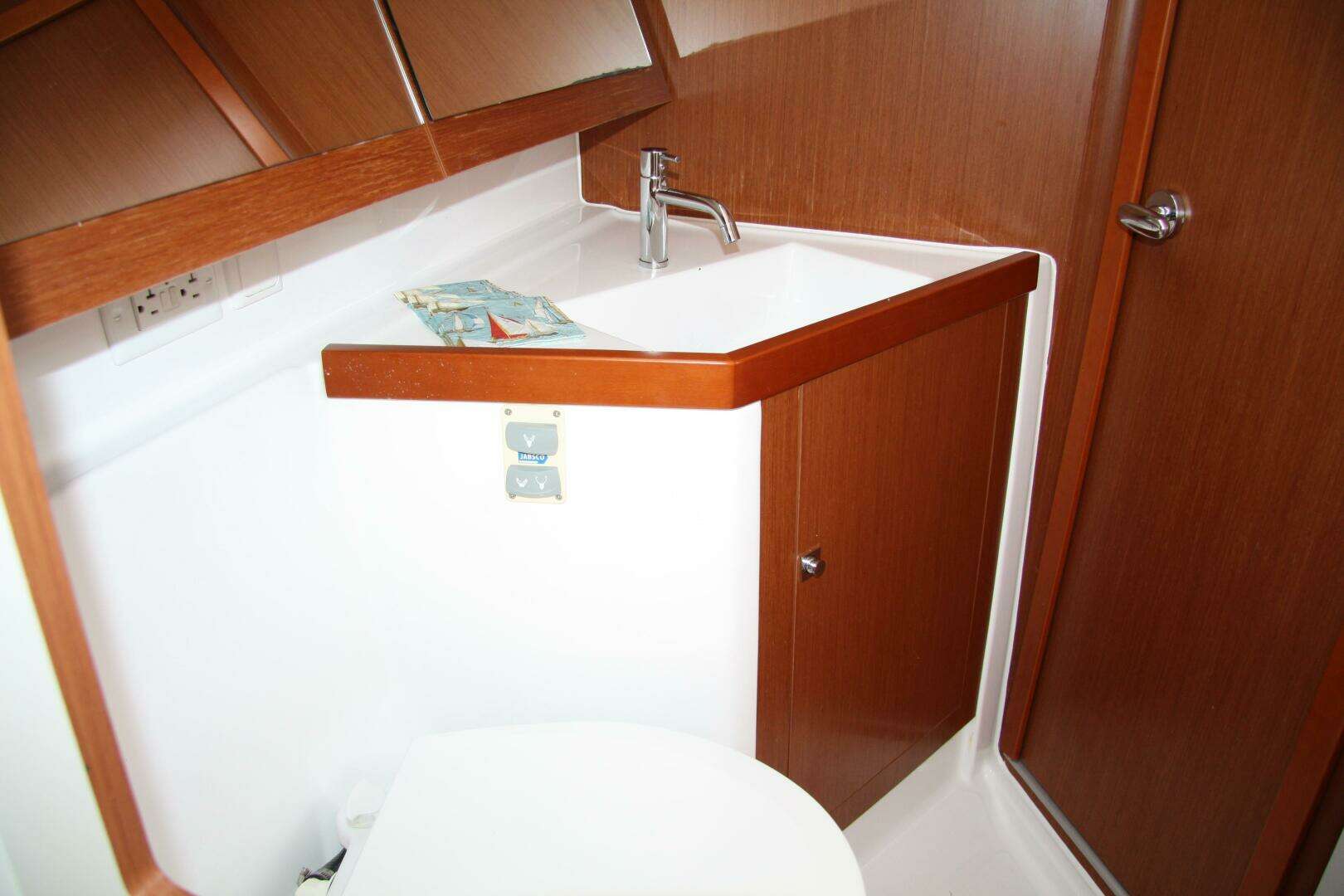

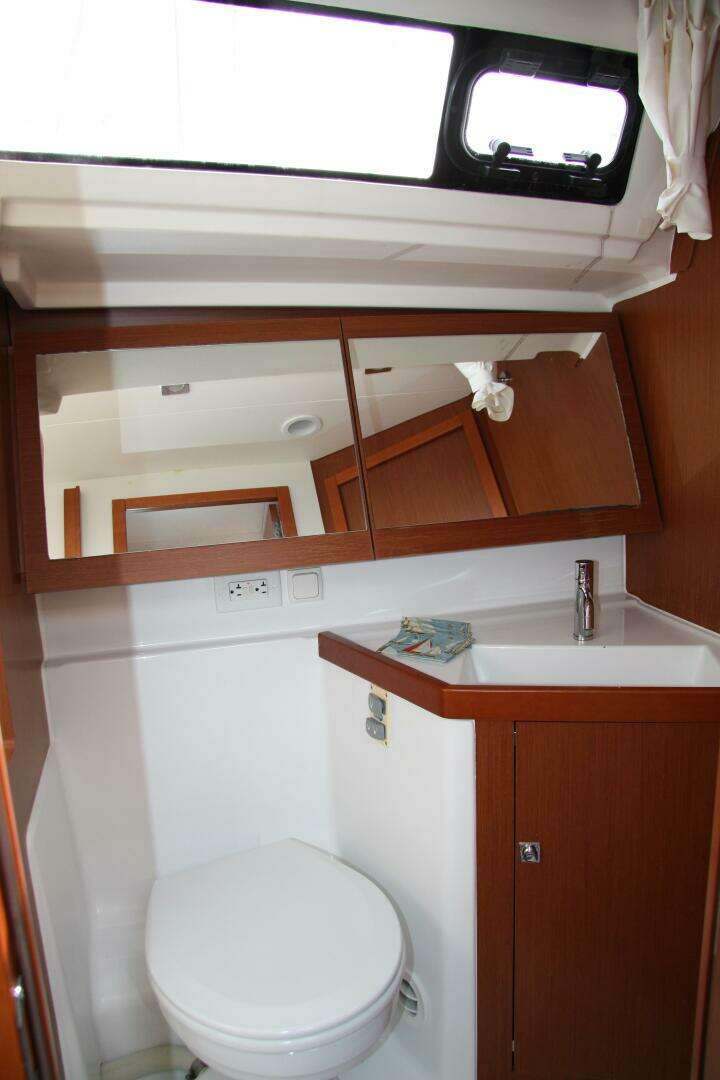

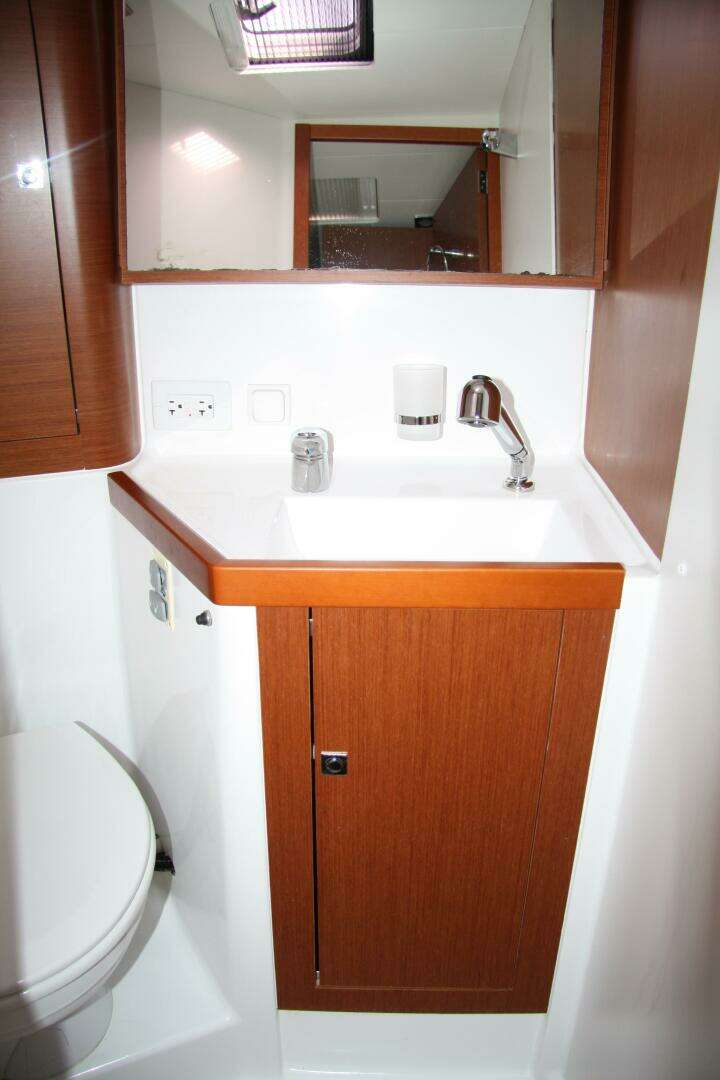

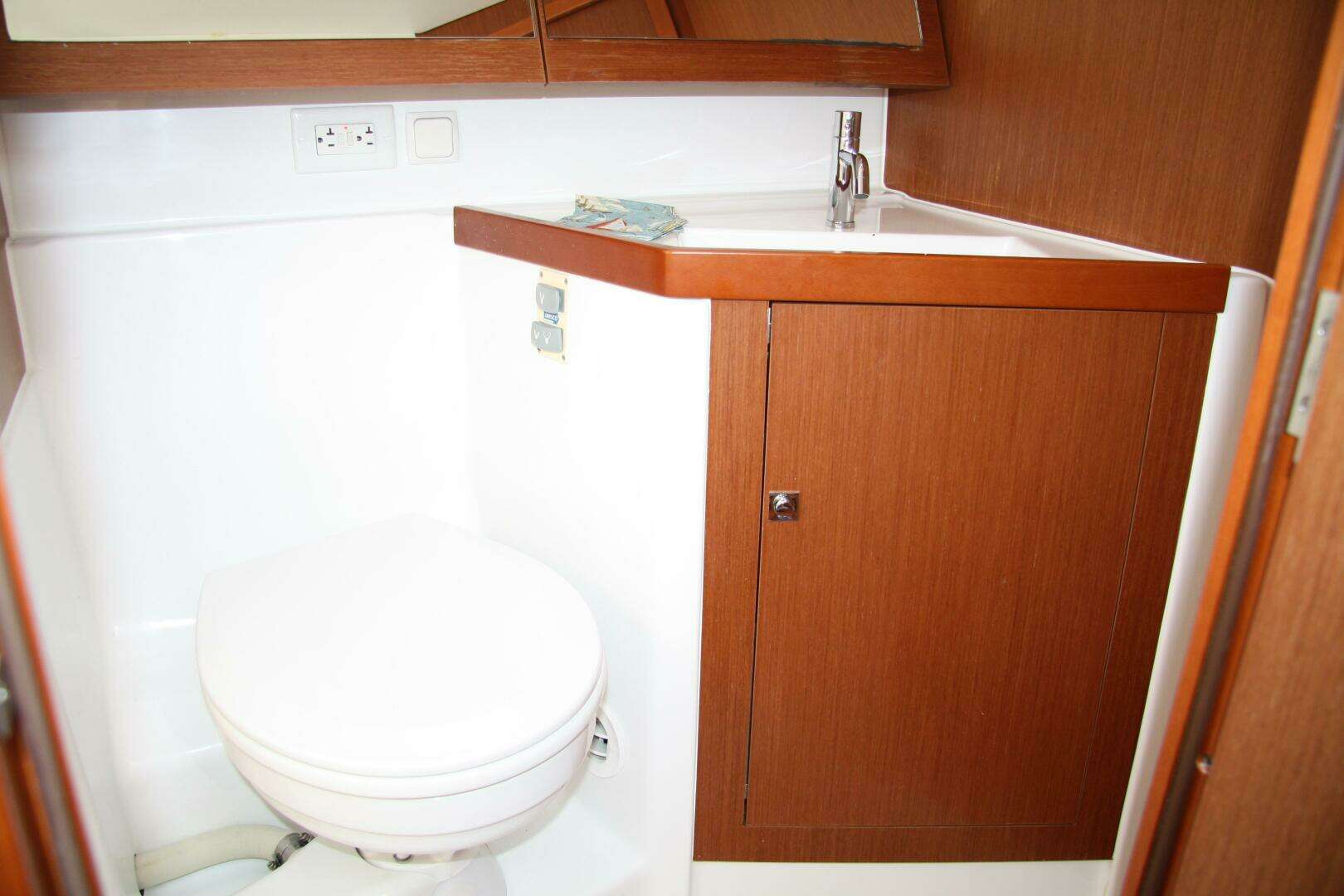

STARBOARD FORWARD HEAD COMPARTMENT

• Headroom: 1,89 m / 6’2’’

• Access through forward cabin

• Manual marine toilet

• Moulded basin - Storage space under the basin - Shower mixer tap hot / Cold water

• 1 Mirror

• 1 Washroom cabinet

• Toilet accessories

• Cupboard

• 1 Opening port in the coaming, within the side windows with curtain

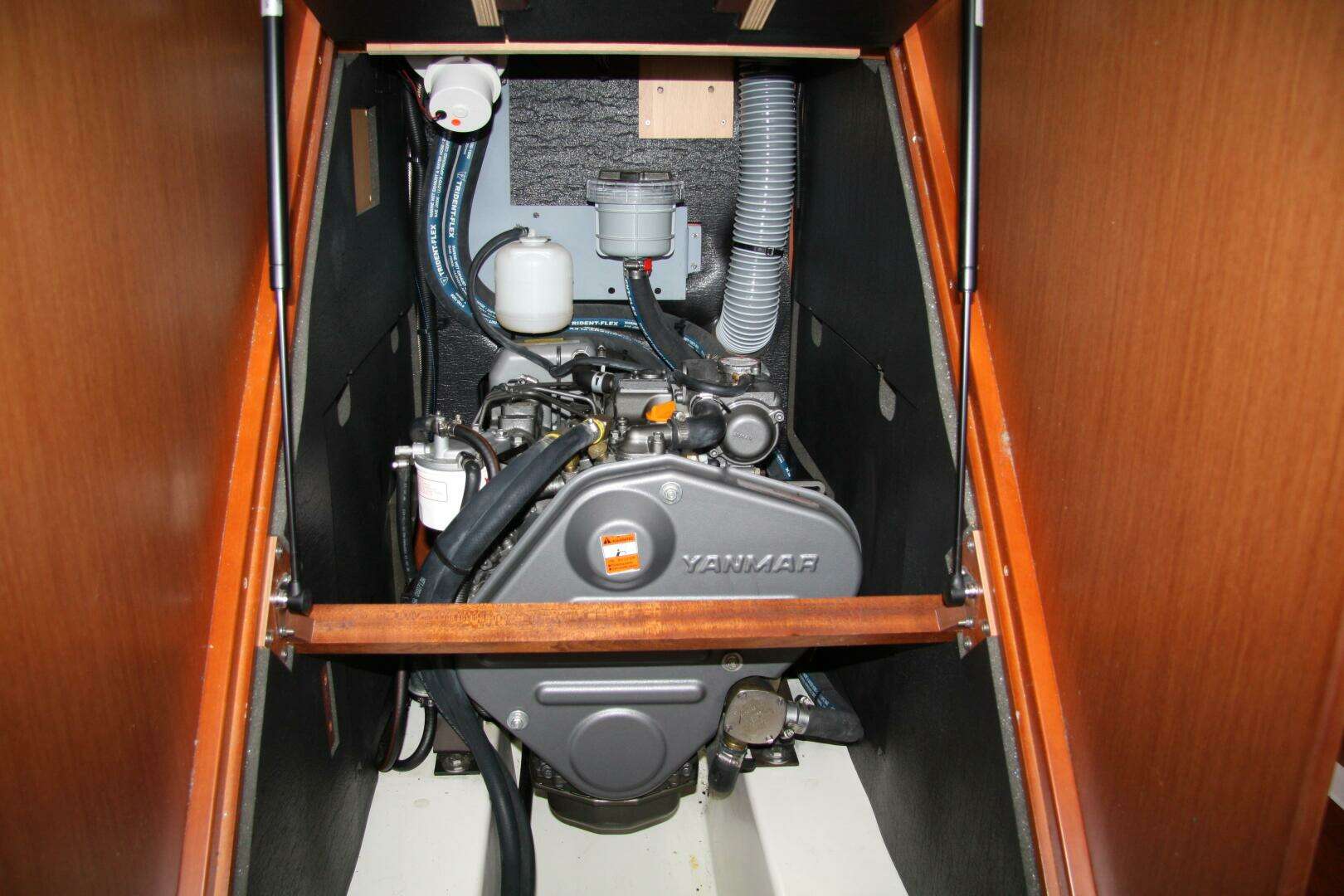

ENGINE

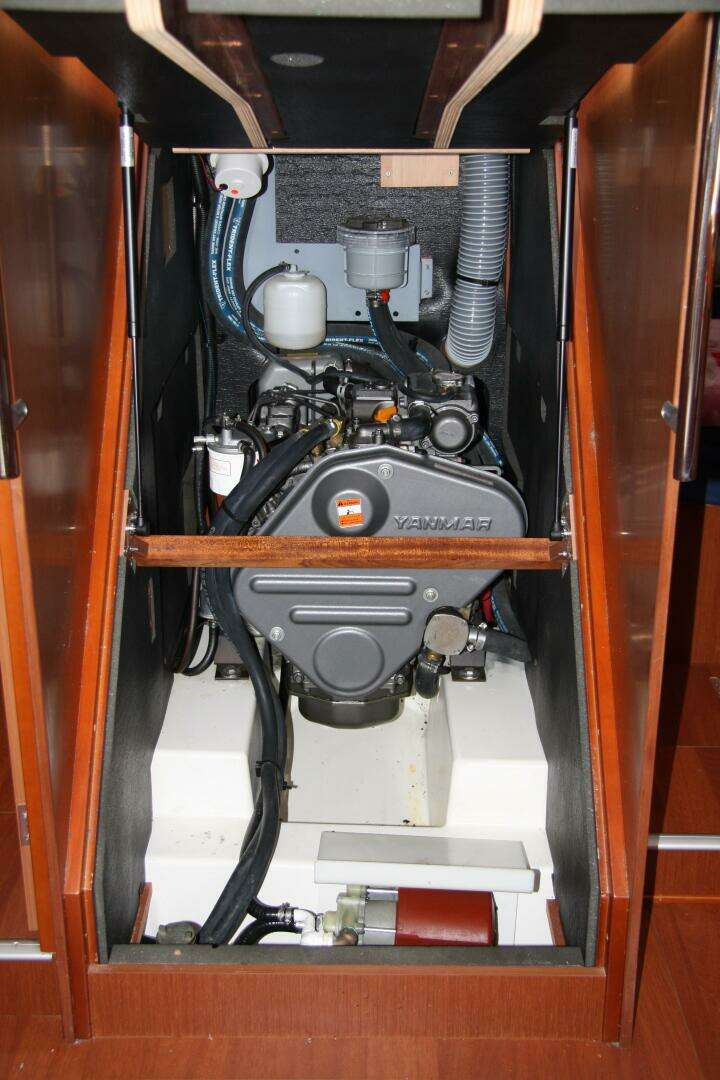

• Engine Yanmar Diesel 40 hp / 40 HP Sail Drive

• Engine control - Control panel in cockpit

• Engine compartment: Soundproofing foam - Ventilation: 1 air intake and 1 air outlet

• 1 Alternator 12 V / 125 Ah

• 1 Rotomoulded diesel tank 200 L / 53 US Gal (under port aft berth) - Electronic gauge - Low level alarm - 1 Deck filler

• Filters: Sea water - Diesel - Decanter

• Fixed three blade propeller

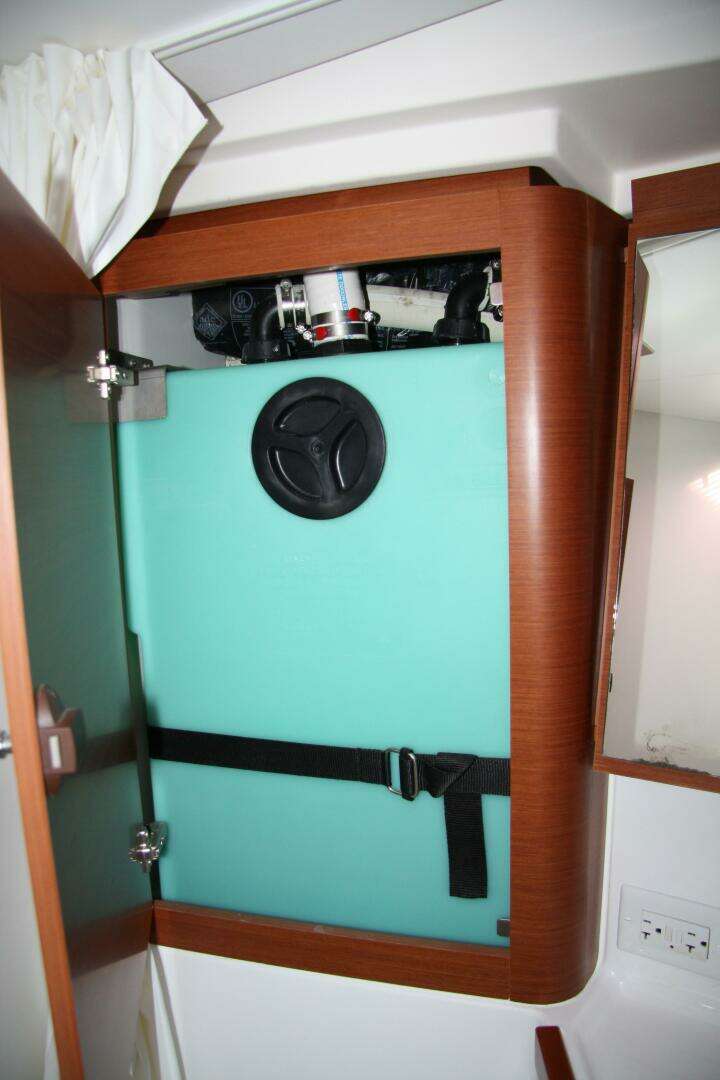

• 1 Engine access through companionway (opening with 2 gas pistons) - 2 Engine access through aft cabins

ELECTRICITY

• 12 V Circuit

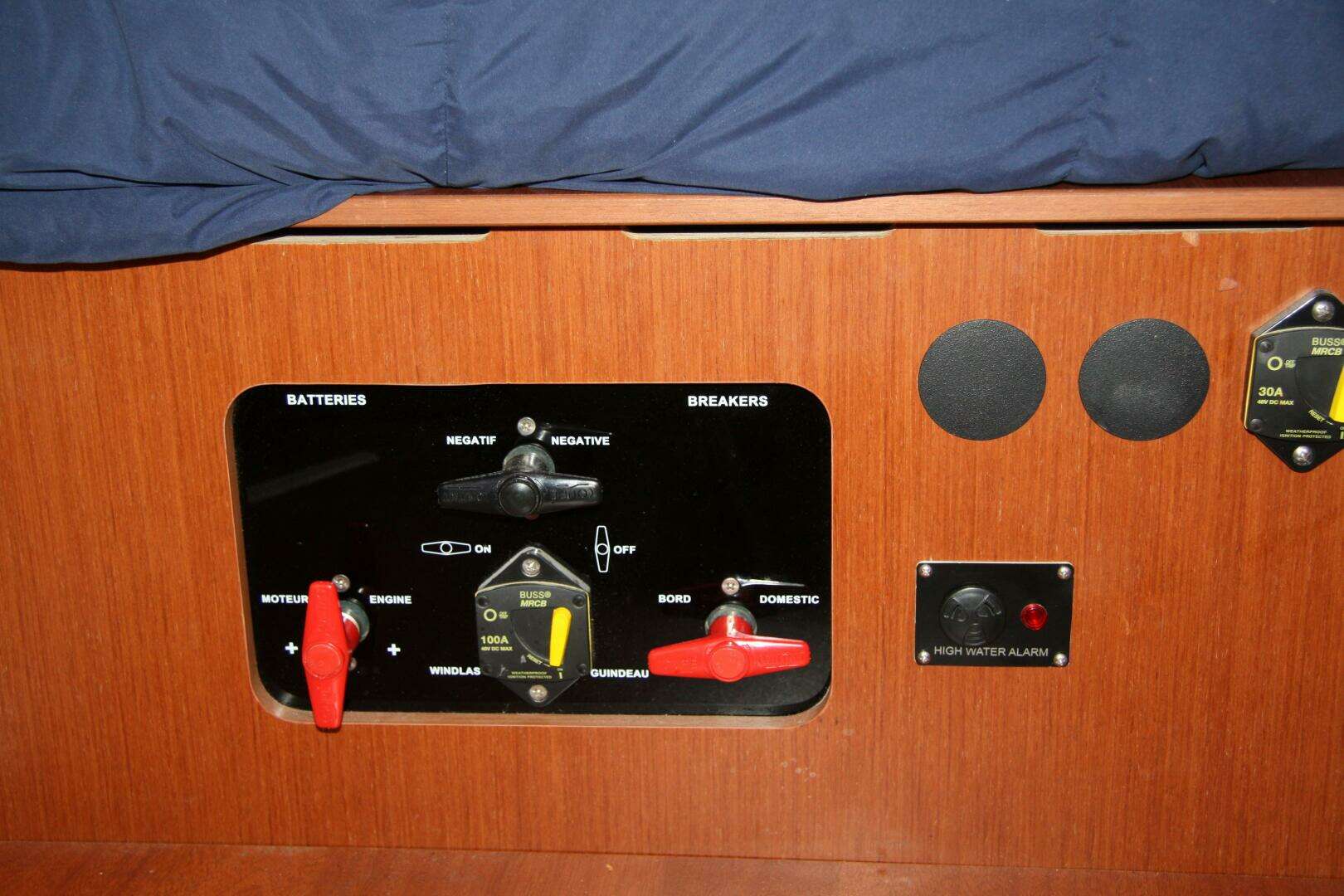

• 2 Service batteries (110 Ah) - 1 Engine battery (110 Ah)

• 1 Load balancer

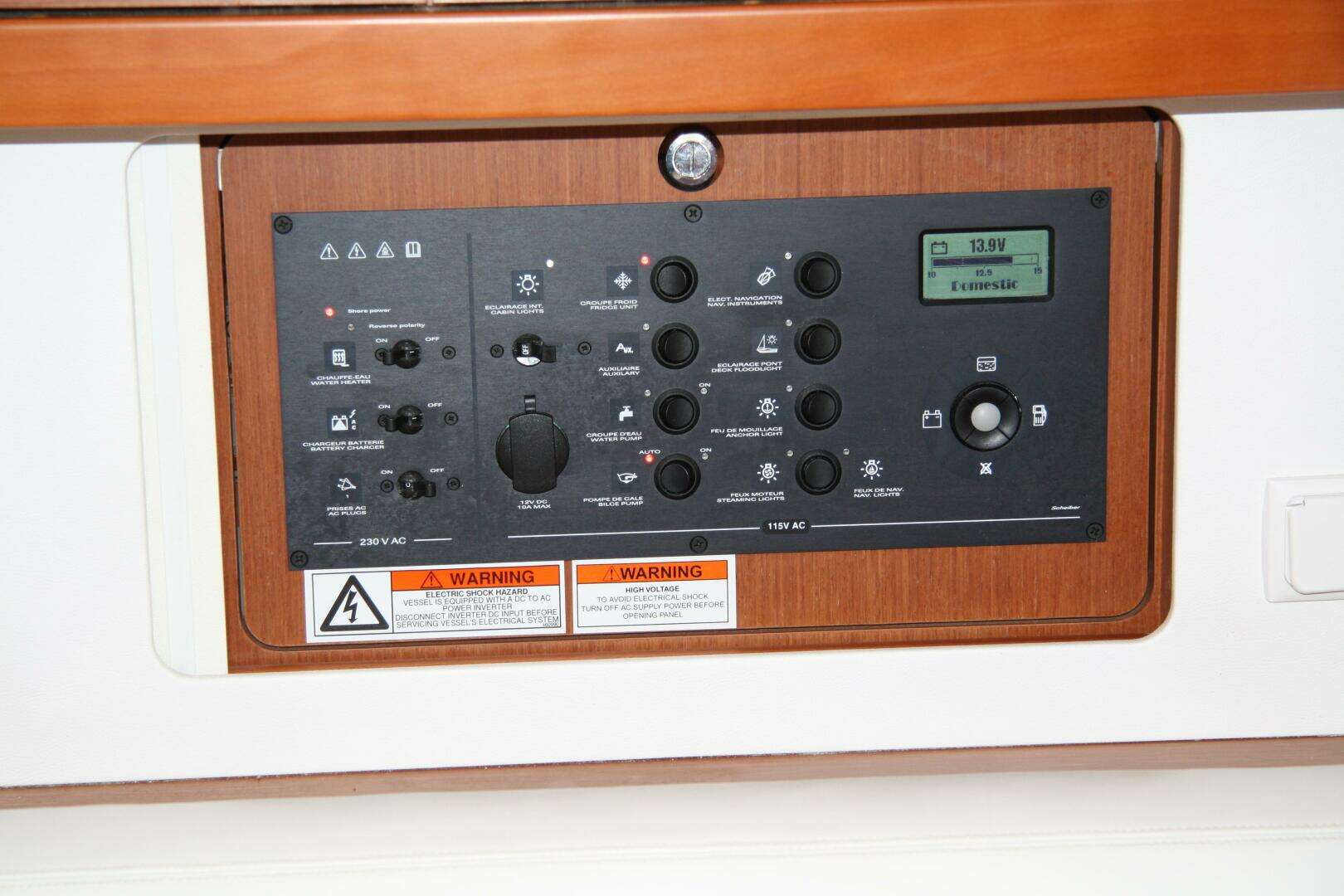

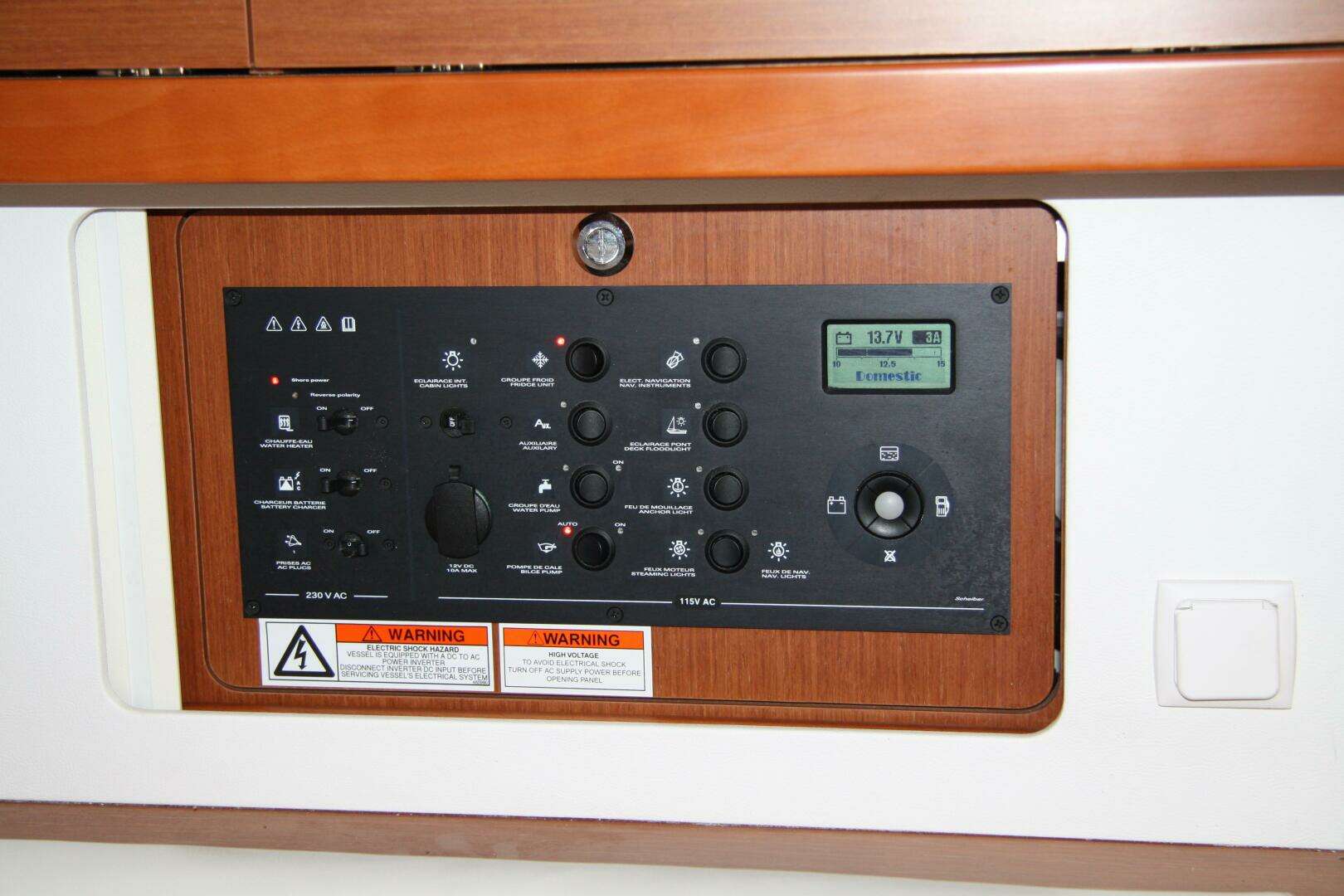

• 12 V Electrical panel (Fuses - Voltmeter - Water gauge - Fuel gauge - Battery warning - Fuel warning - Water warning)

• 1 12 V Power outlets

• Lighting: Overhead lights - Reading lights

• Navigation lights: 1 Forward and aft navigation lights - 1 Engine navigation light / Deck light forward of mast - 1 Mooring light on masthead

• Wire runs for options cables

• Full 115 V system (Interior power outlet 115 V, Shore power socket)

PLUMBING

• 1 Rotomolded freshwater tank (330 L / 87 US Gal Forward cabin) - 1 Deck filler

• Waterpressure system - Expansion tank - Inline filter

• 40 L Electric water heater / 11 US Gal (engine run)

• 1 Rigid holding tank 80L / 21 US Gal (Starboard aft head compartment)

• Delayed shower draining and electric shower drain pumps

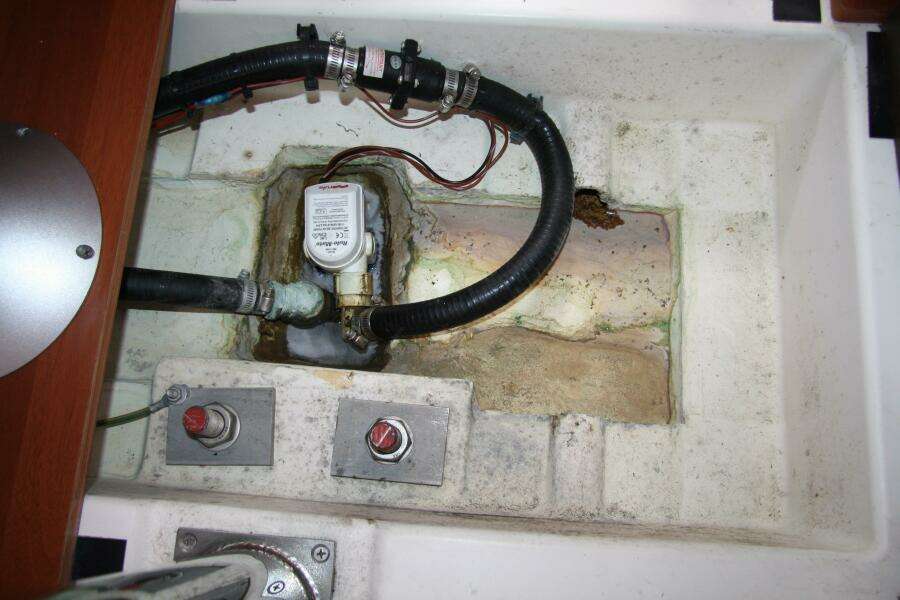

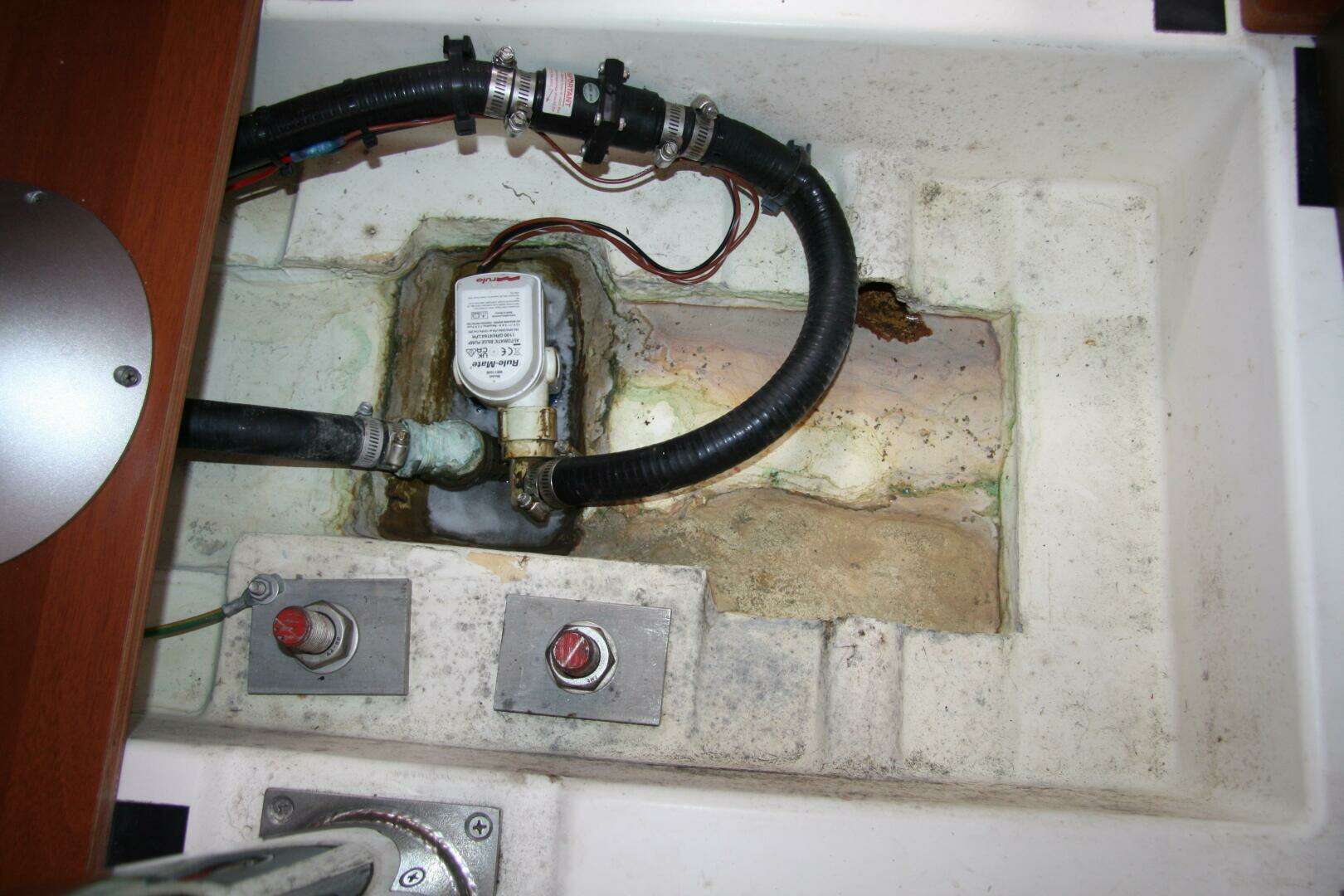

• 1 Electric bilge pump - 1 Manual bilge pump

• 1 Electric ice box drain pump

GAS

• 1 Gas bottle box in the cockpit (diameter 0,34 m x 0,53 m / 1’1’’ x 1’9’’)

• Regulator and solonoid

Manufacturer Supplied Options

Three Cabin Two Head Layout

Shoal Keel

Moonbeam PVC Cushions in Cabin

Avantage Trim Level

2 Flag Halyards

Roller Furling Mainsail

Microwave Oven

Air Conditioning in All Cabins

Convertible Salon Table

Electric Toilets in Both Heads

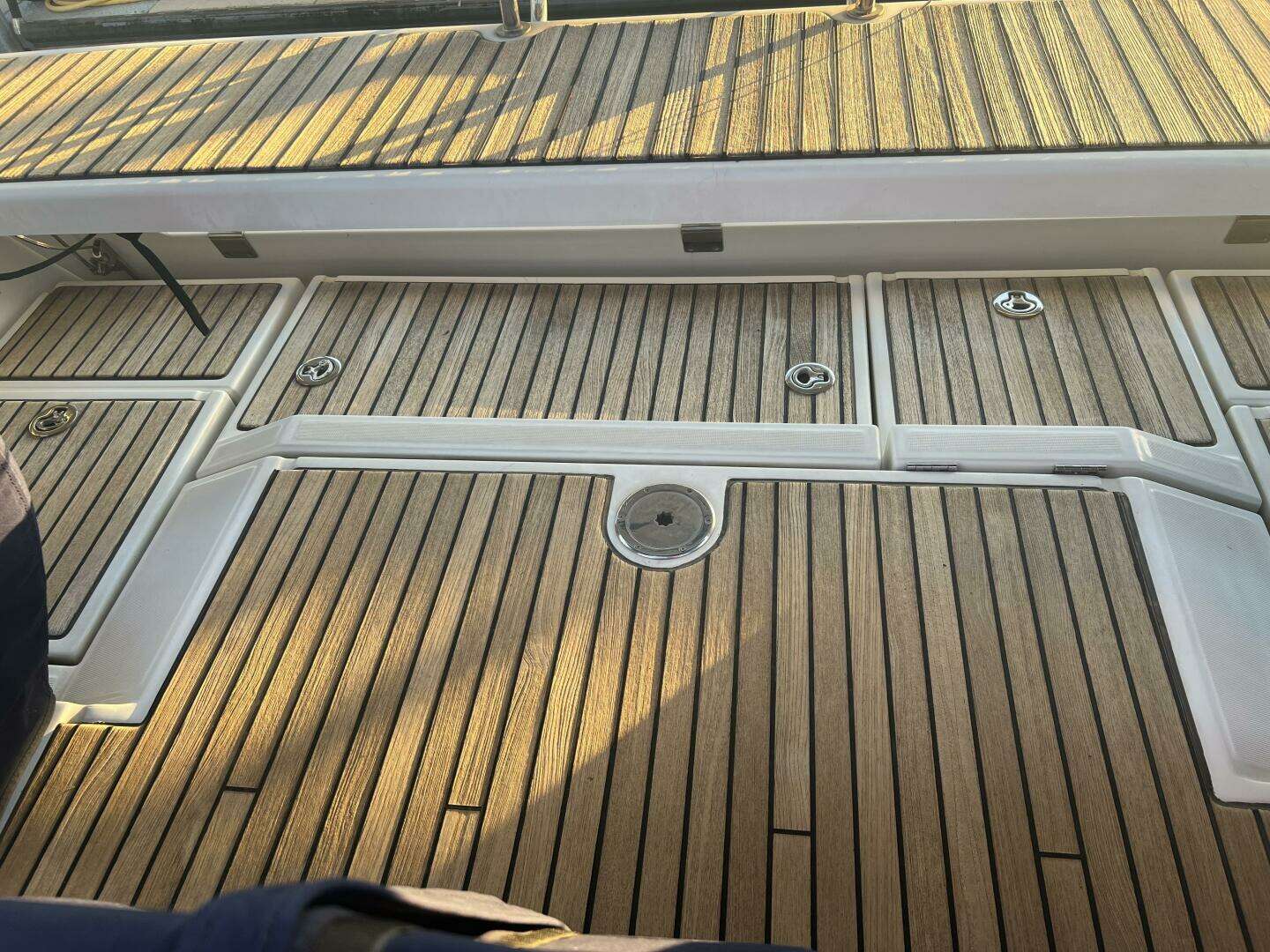

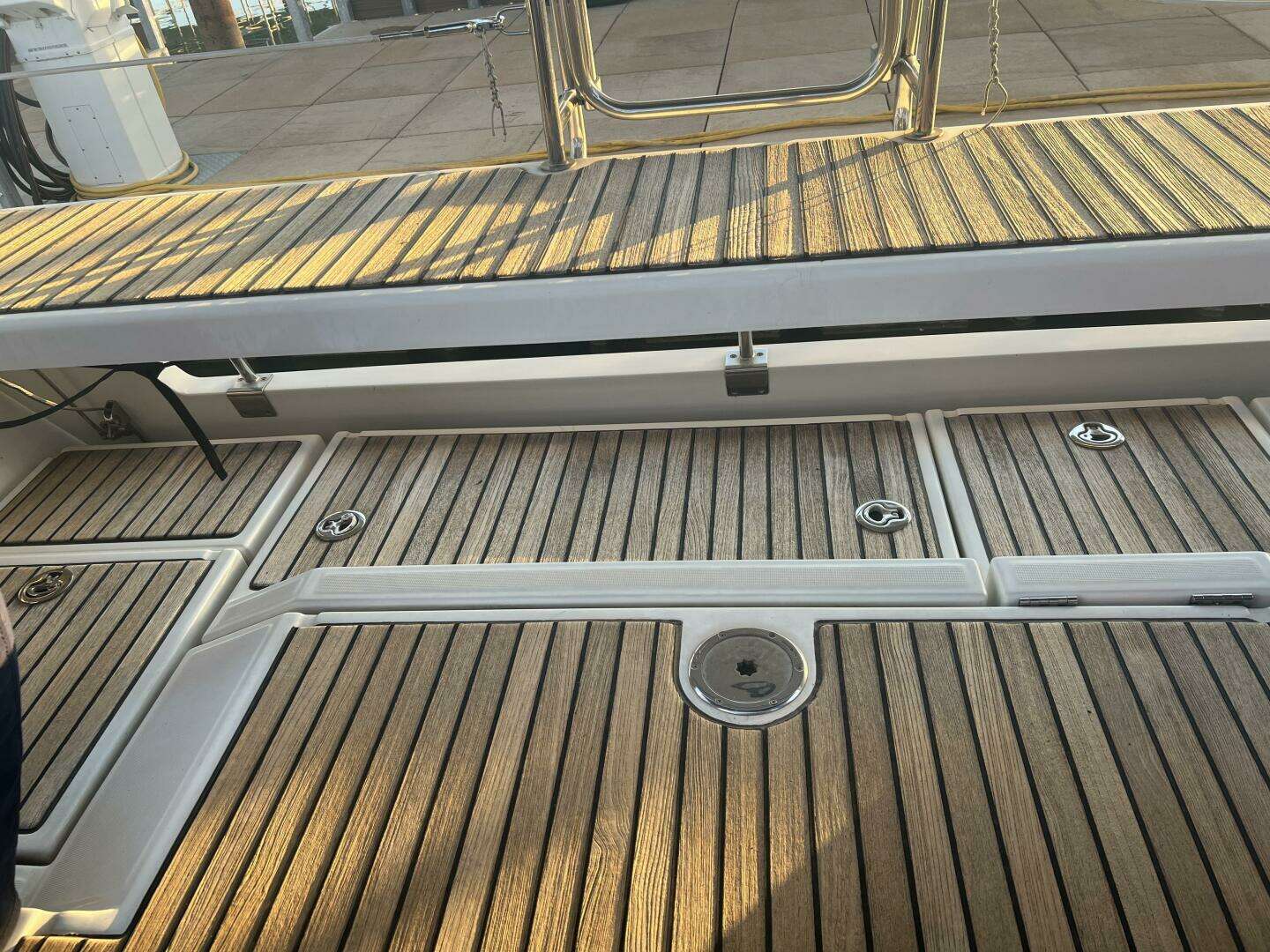

Wood Slated Cockpit Sole

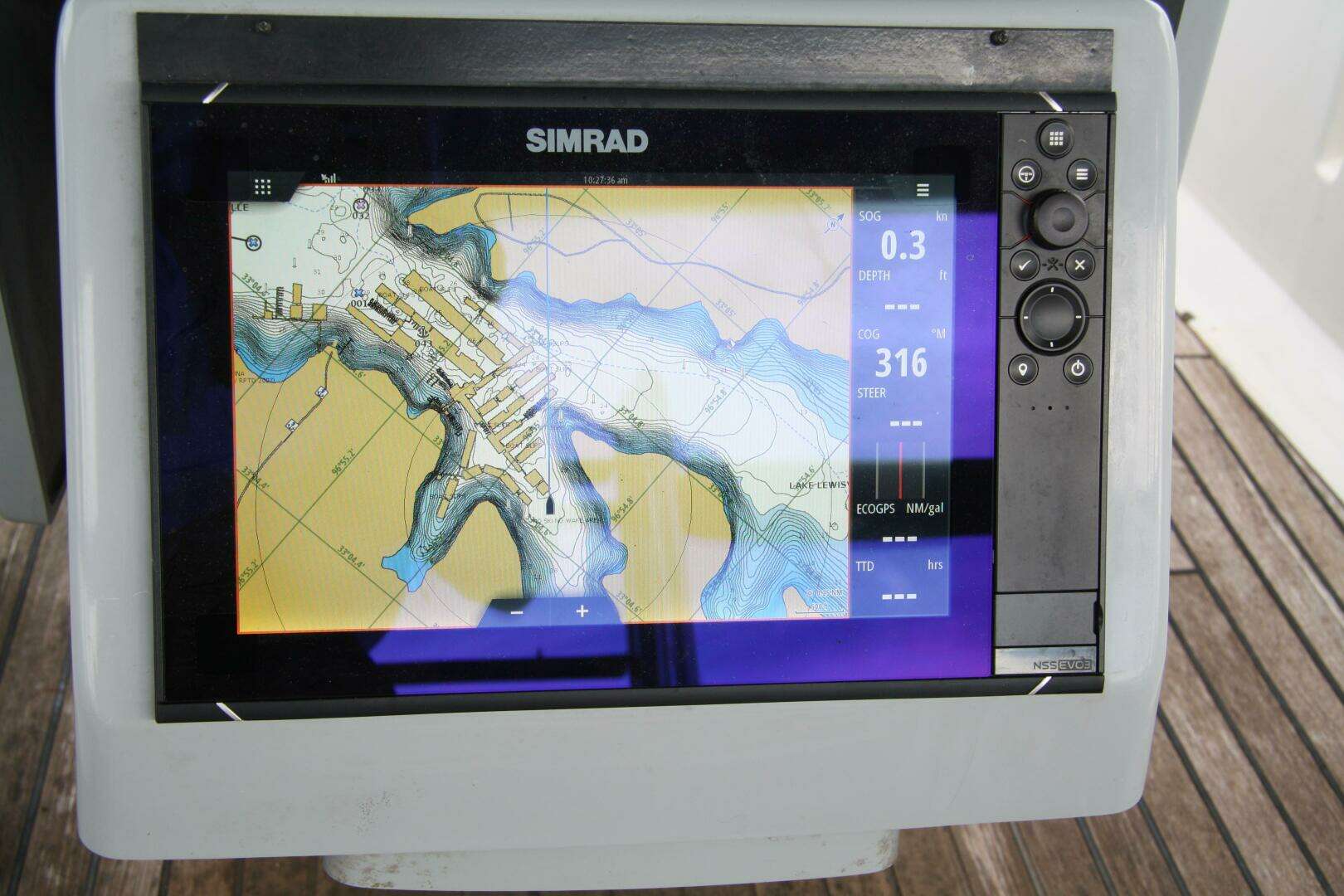

Simrad 12" Chart Plotter on Pivoting Cockpit Table Pod

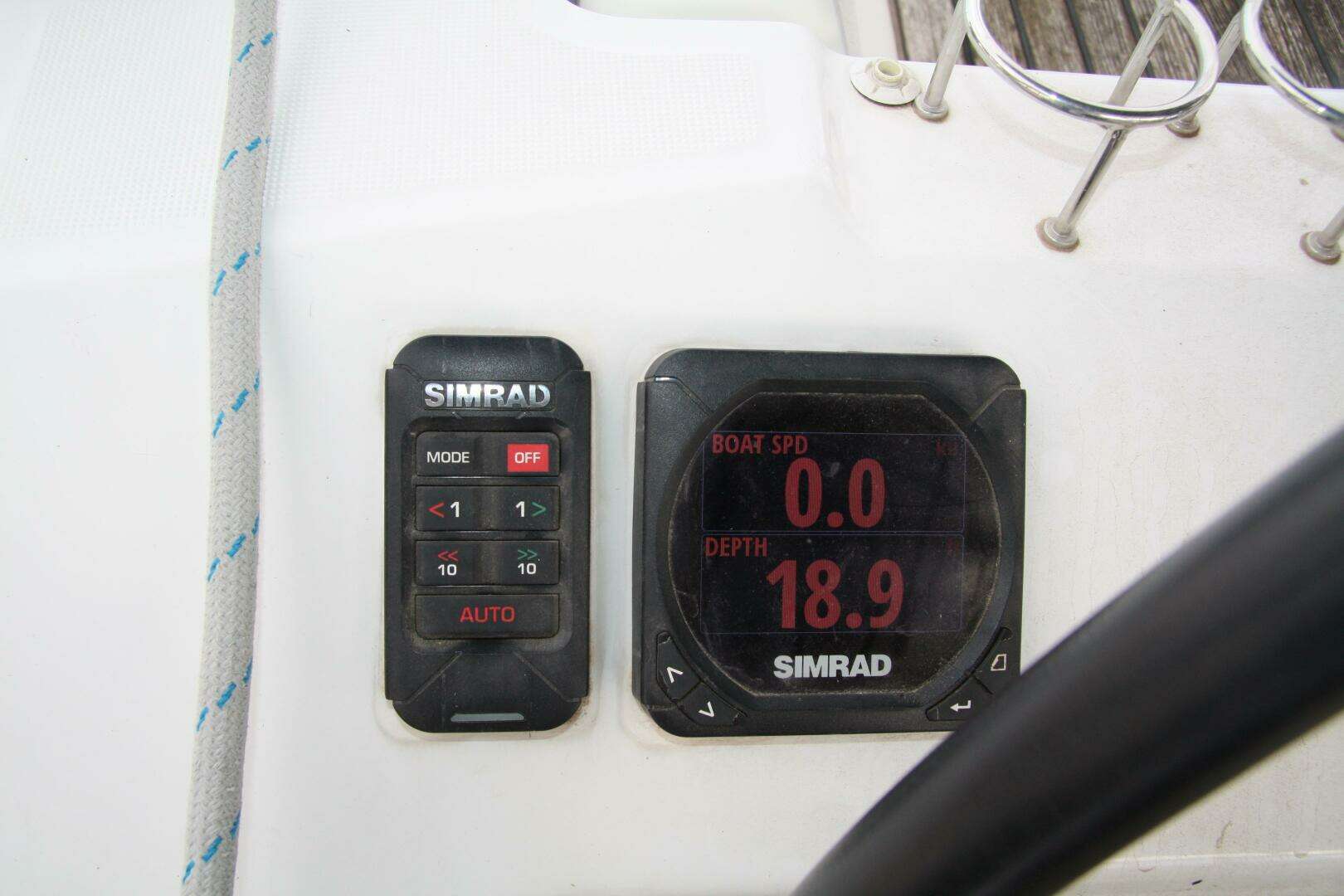

2- Simrad Multifunction Displays one located at each helm

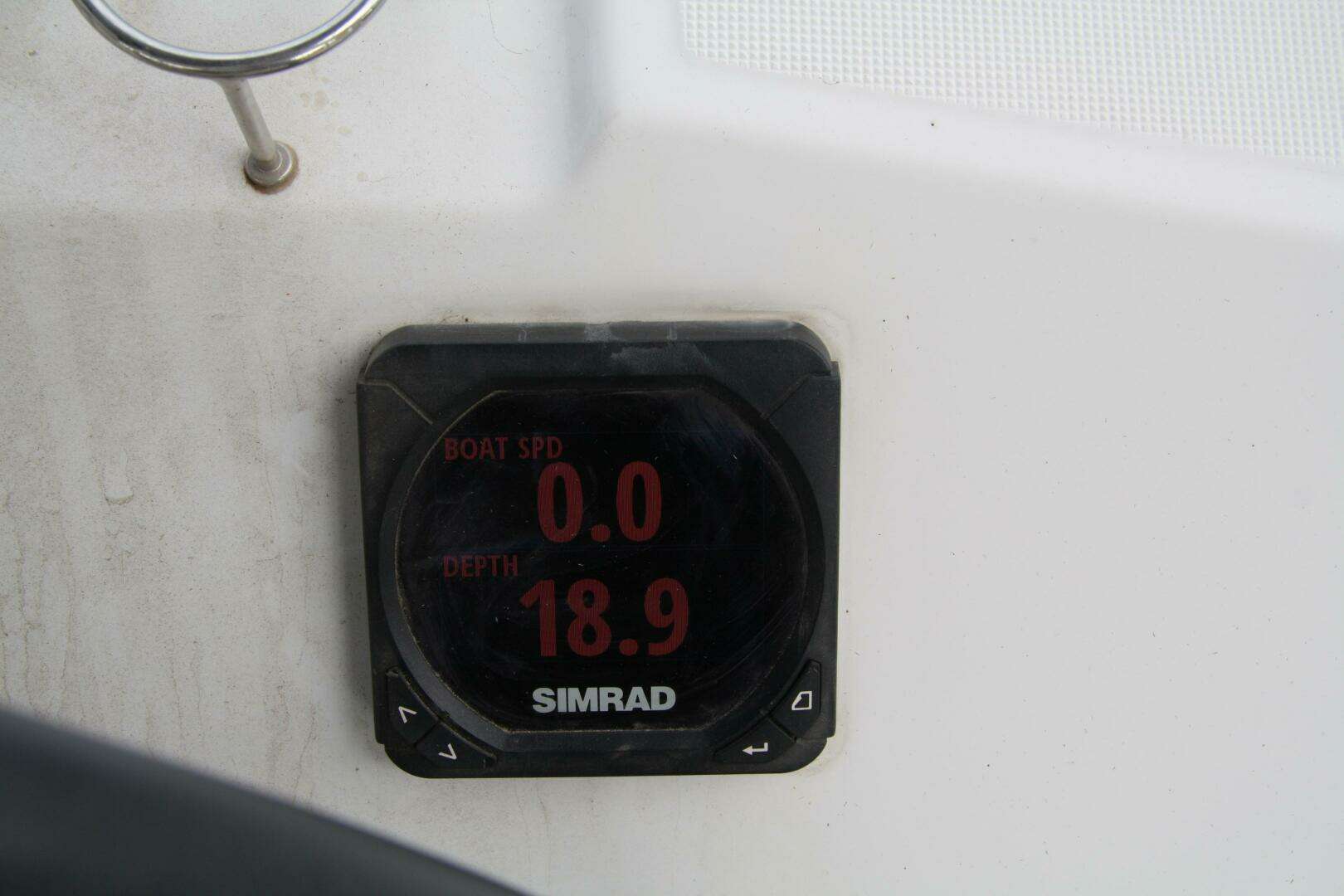

Wind, Speed, and Depth Transducers

Simrad VHF Radio and Wireless Remote

Simrad AutoPilot

Stereo with Cabin and Cockpit Speakers

Owner Supplied Options

Custom Bimini

Anchor Package

Mooring Package

USCG Safety Gear
