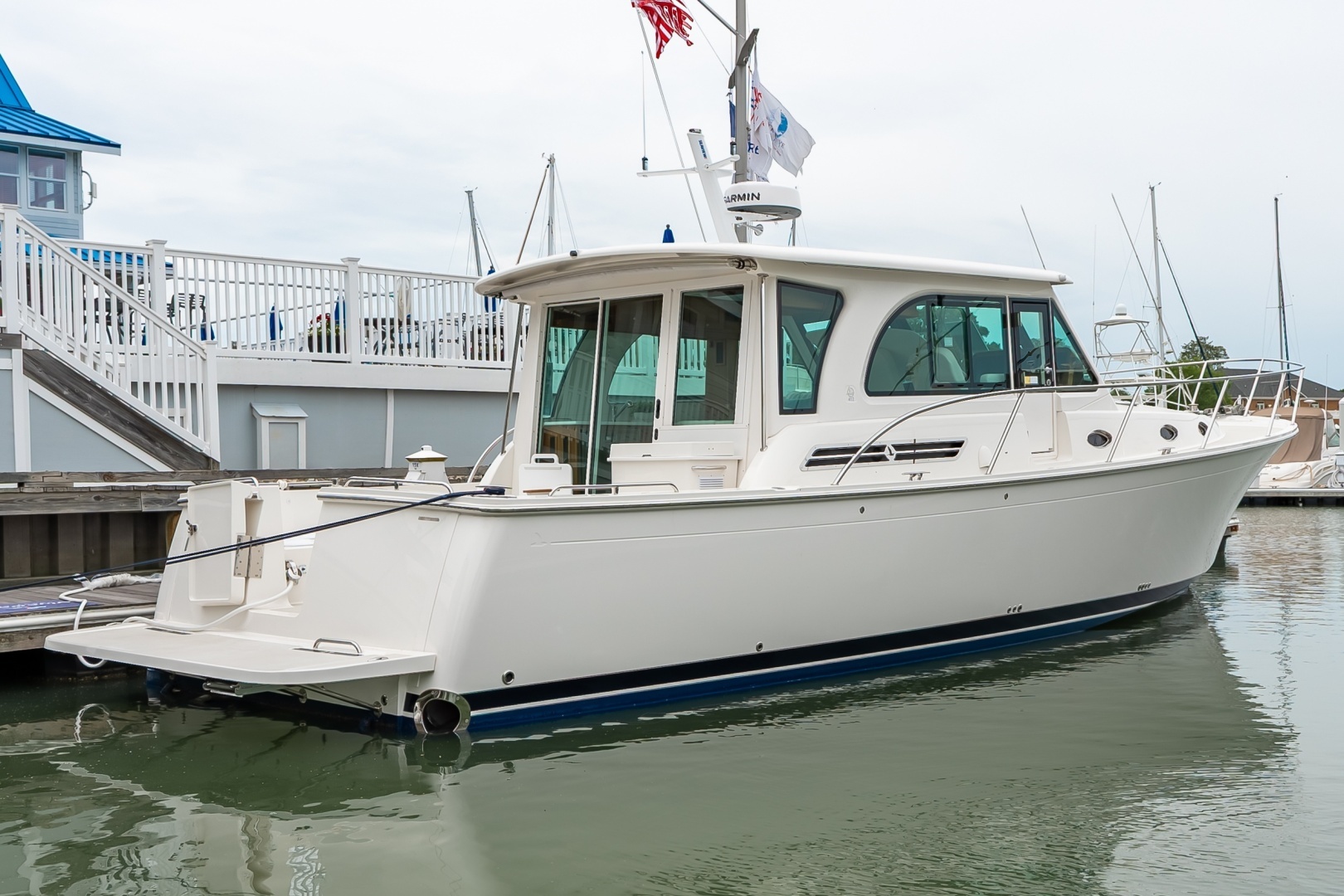

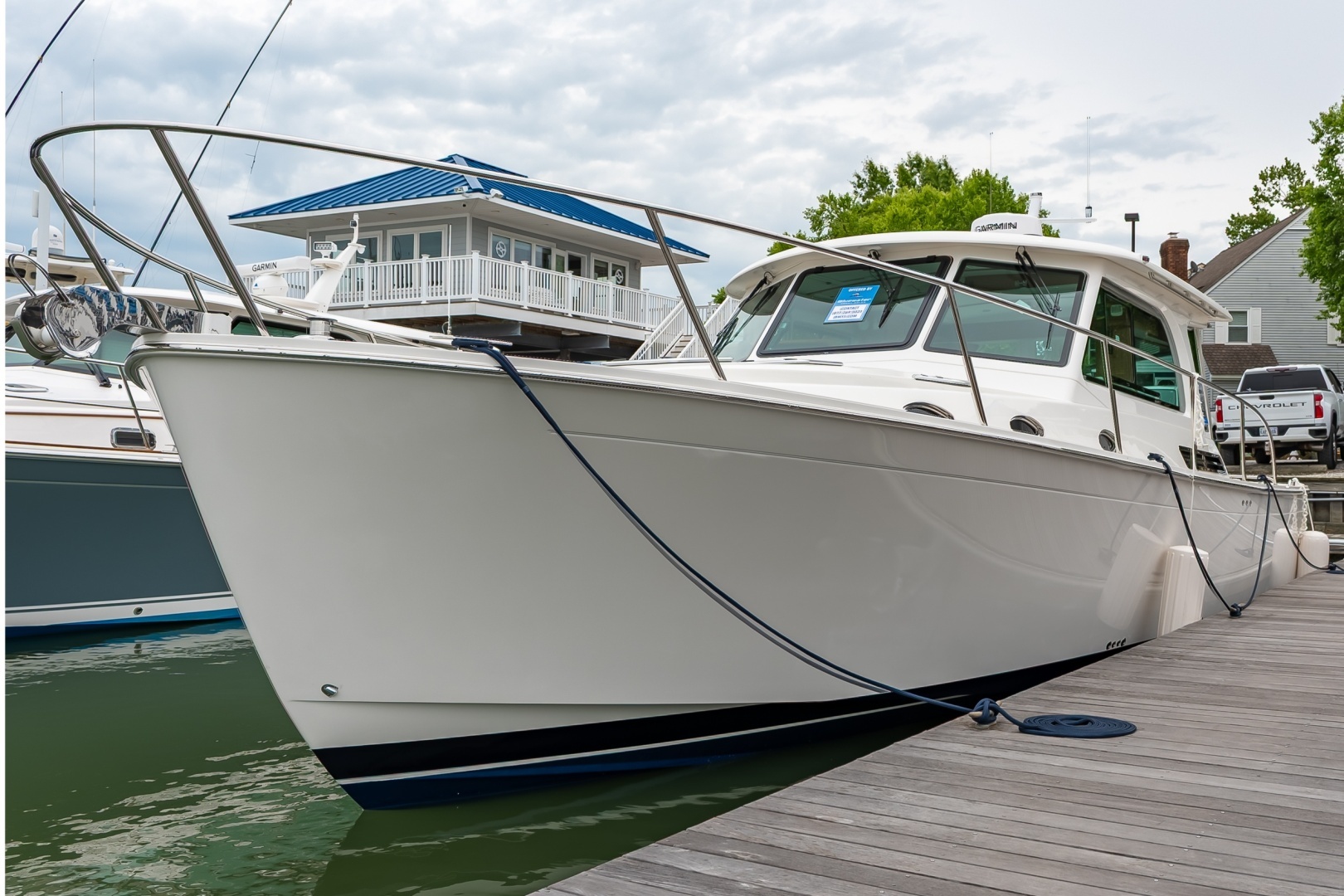

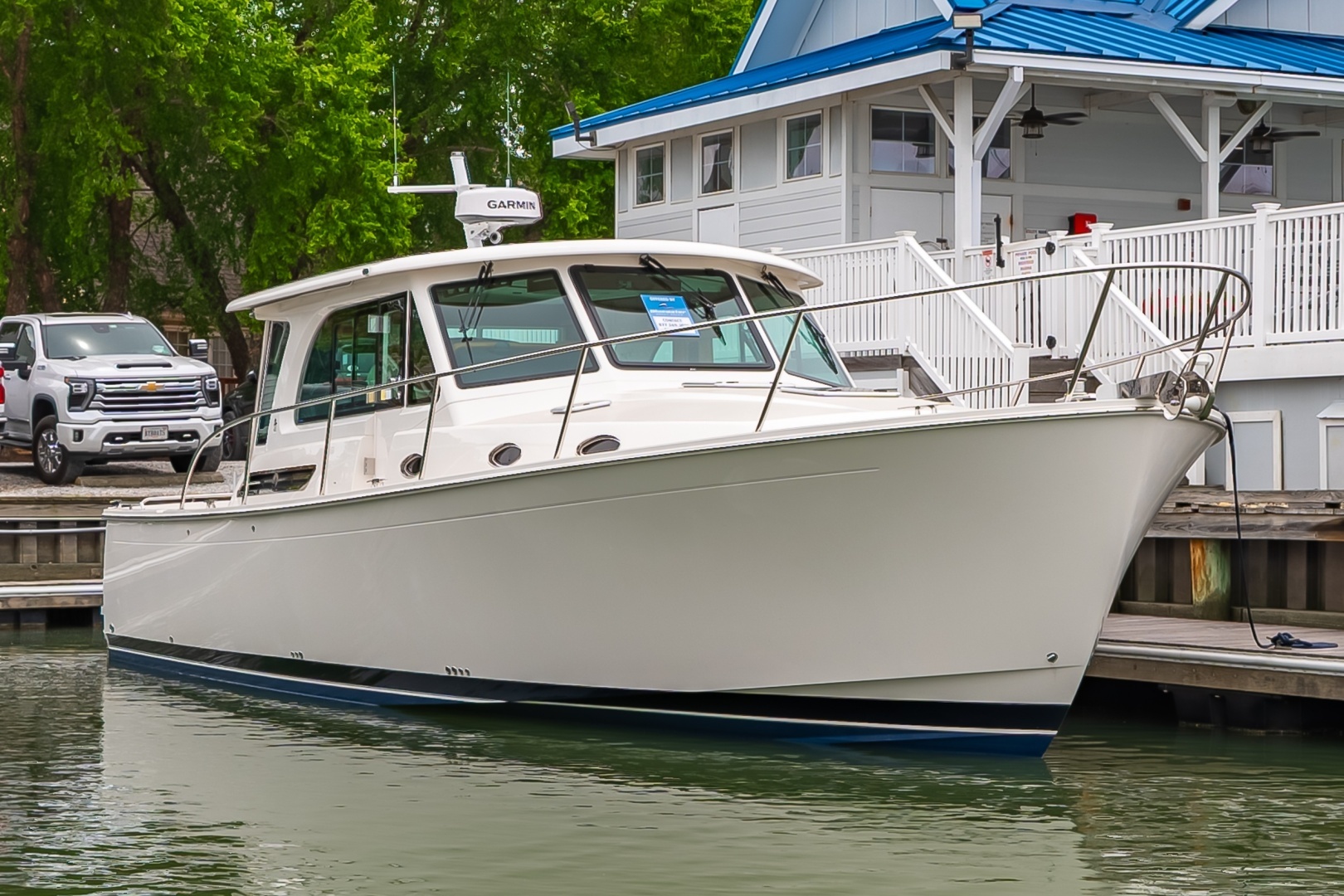

Hull

● Back Cove white iso-npg gelcoat w/ vinylester backup resin

● VIP Resin Infused Hull w/ PVC foam core hull bottom

● VIP Resin Infused foam core stringer system

● Advanced prop pocket hull design

● Painted boot stripe

● Molded cove stripe depression w/ “gold or silver leaf” style stripe and Back Cove Heron

Deck

● Back Cove white gelcoat w/graystone anti-skid on walking surfaces

● VIP resin infused balsa core sandwich structure

● Mooring cleats forward, aft and mid-ship (aft cleats are pull-up style)

● Stainless steel bow roller weldment, single anchor

● Anchor locker w/ ground tackle storage

● 24V electric anchor windlass w/control at helm & foot switches on deck

● Stainless steel flagstaff receiver

● Removable burgee staff

● LED hard top mounted running lights

● LED all-around anchor/ nav light on hard top

● Side deck door at helm

● Teak accent stripe on cabin side

● Custom 1-1/4’’ 316L stainless steel perimeter rail

● SS handrails concealed under hardtop, port, and starboard

● Compressed air horn on hardtop (mast optional)

● (6) opening port lights w/ insect screens and blinds

● Port & starboard molded steps leading to side and fore deck

● Cockpit hatches to lazarette and engine room

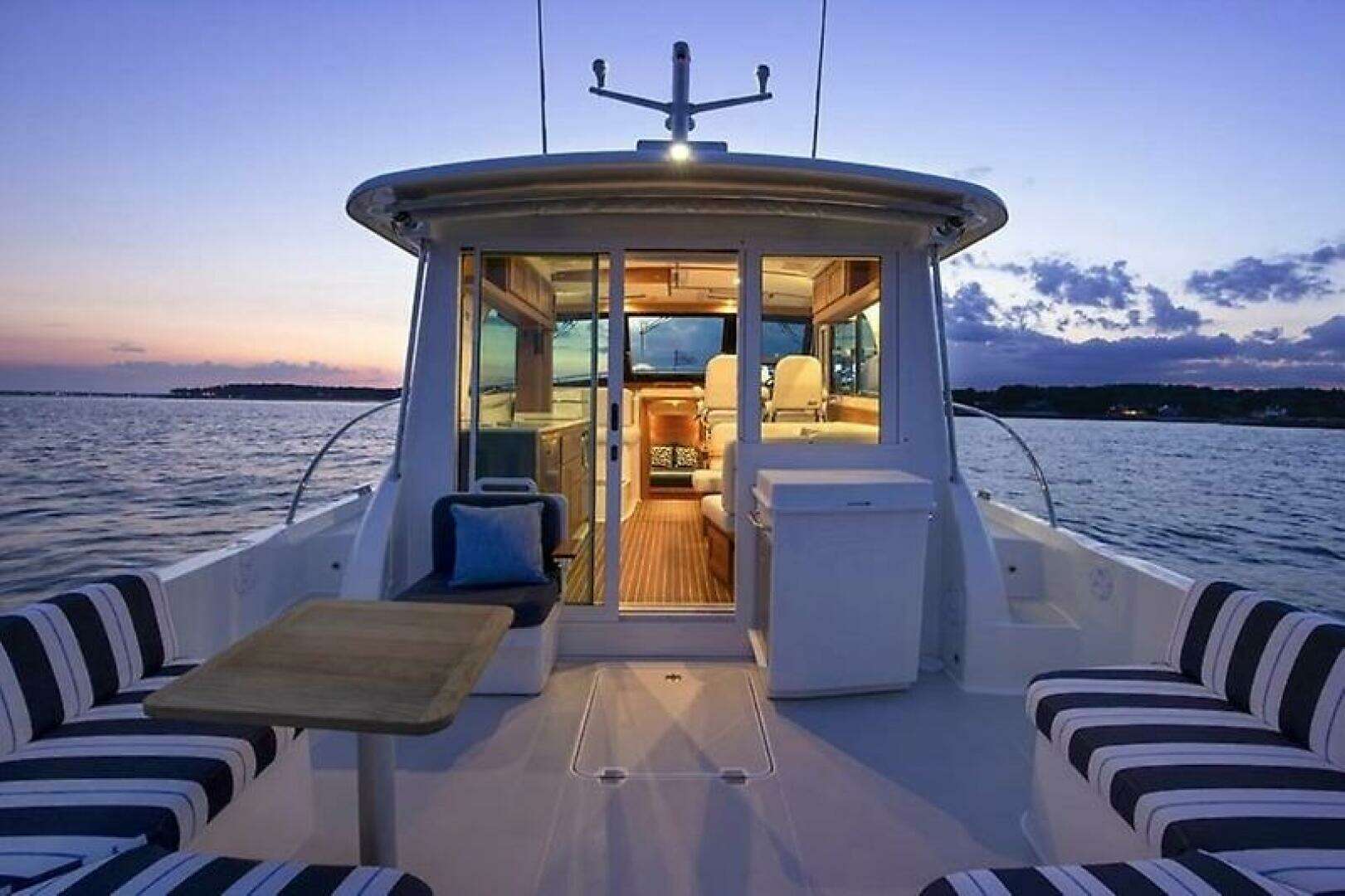

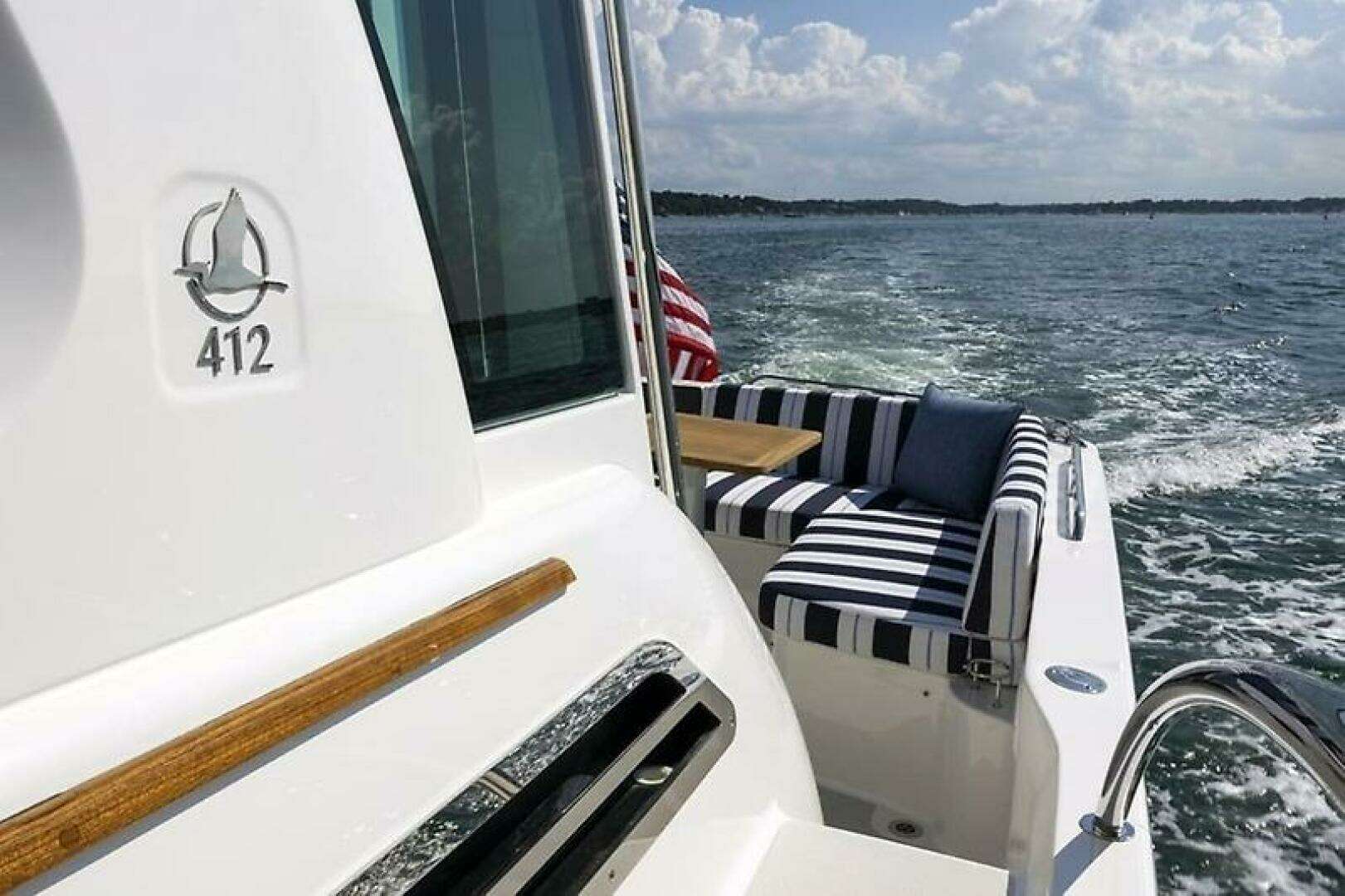

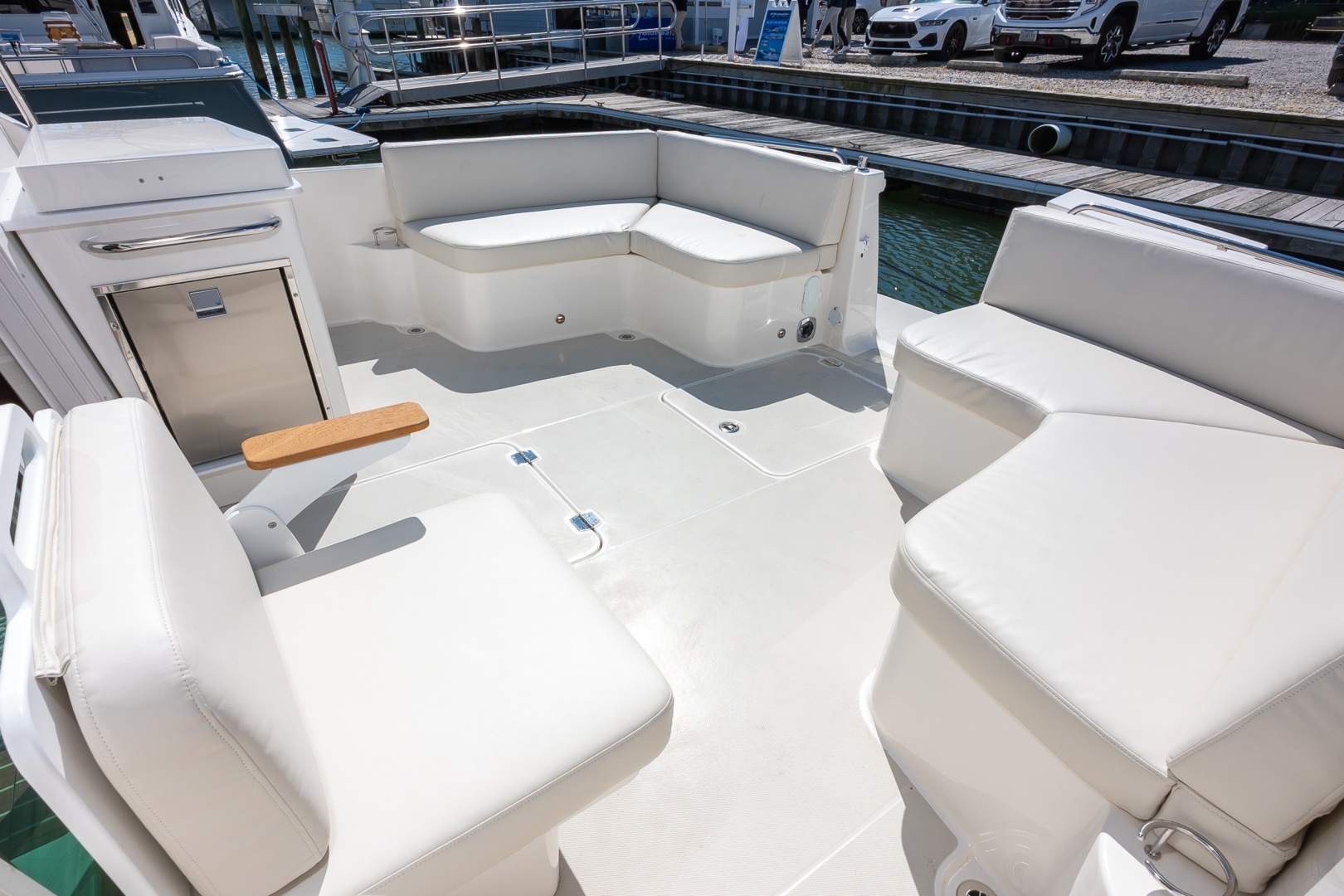

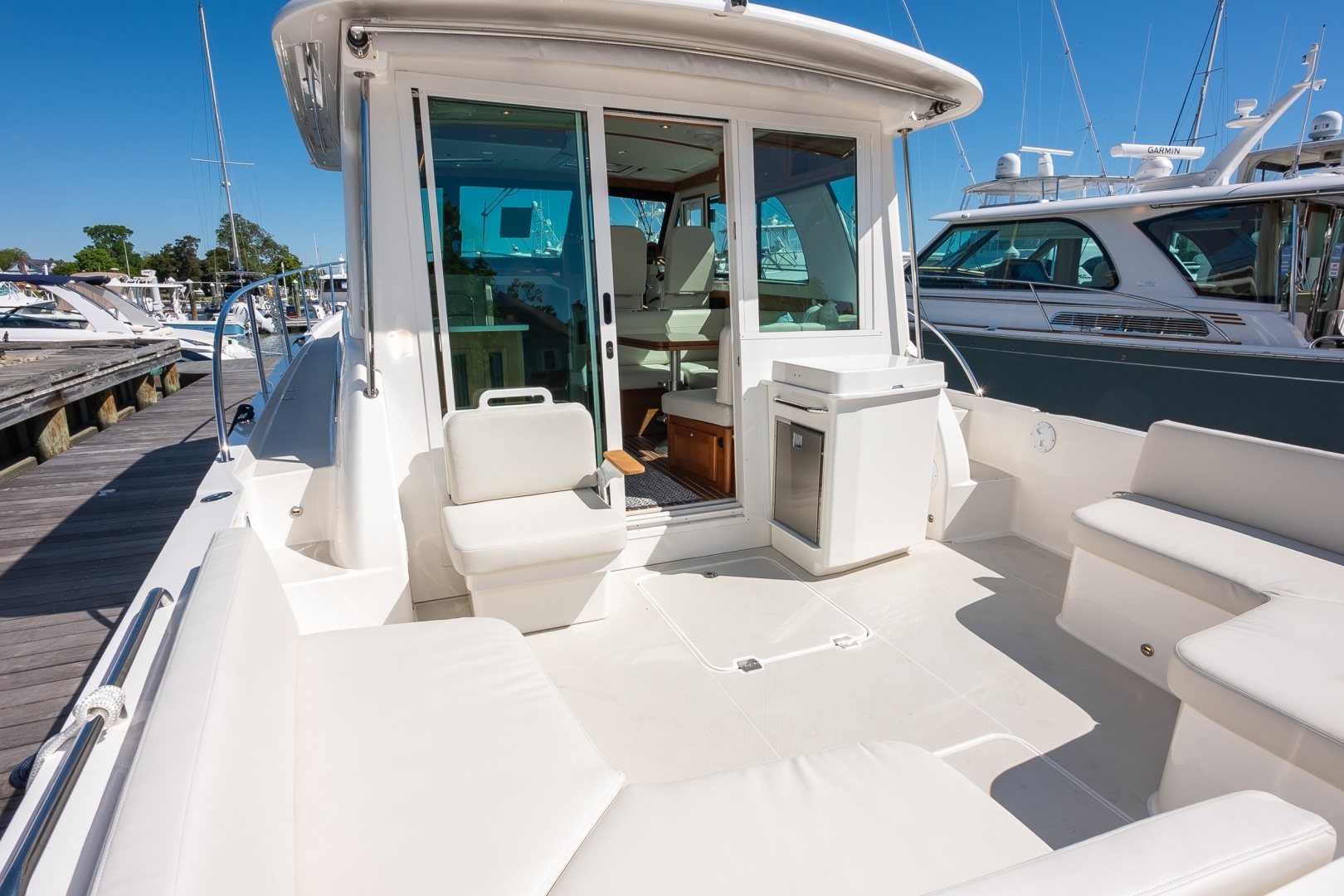

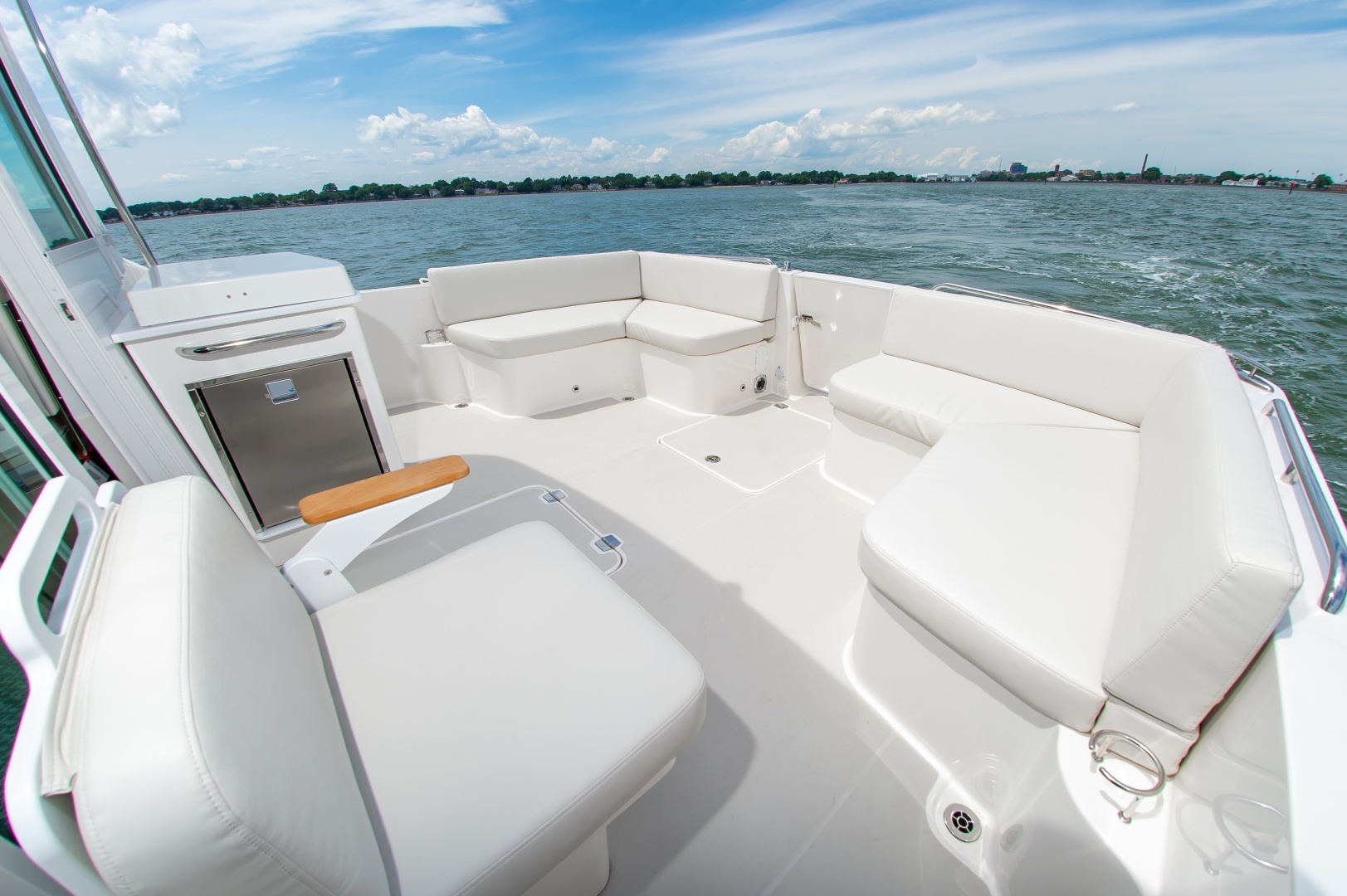

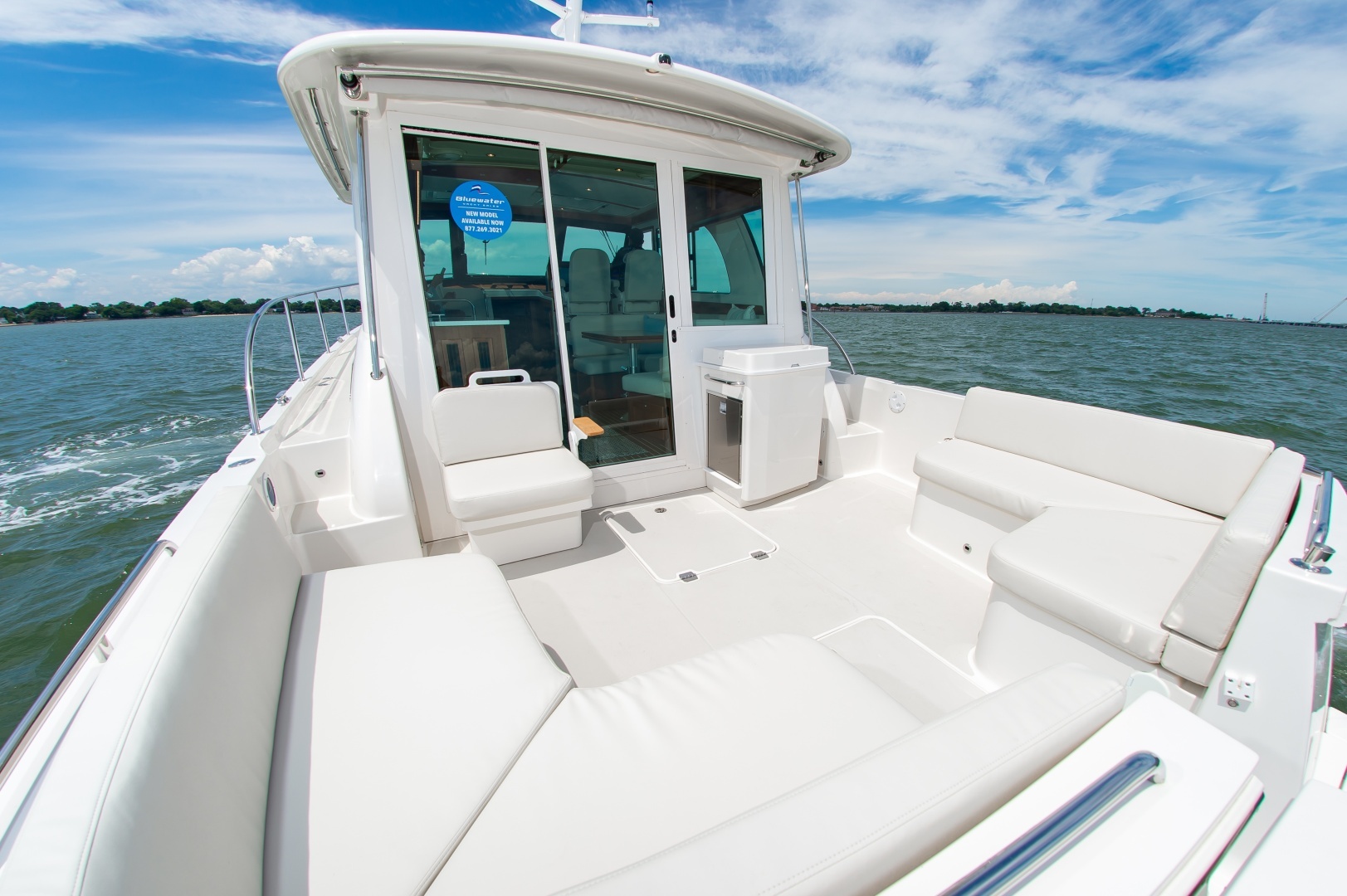

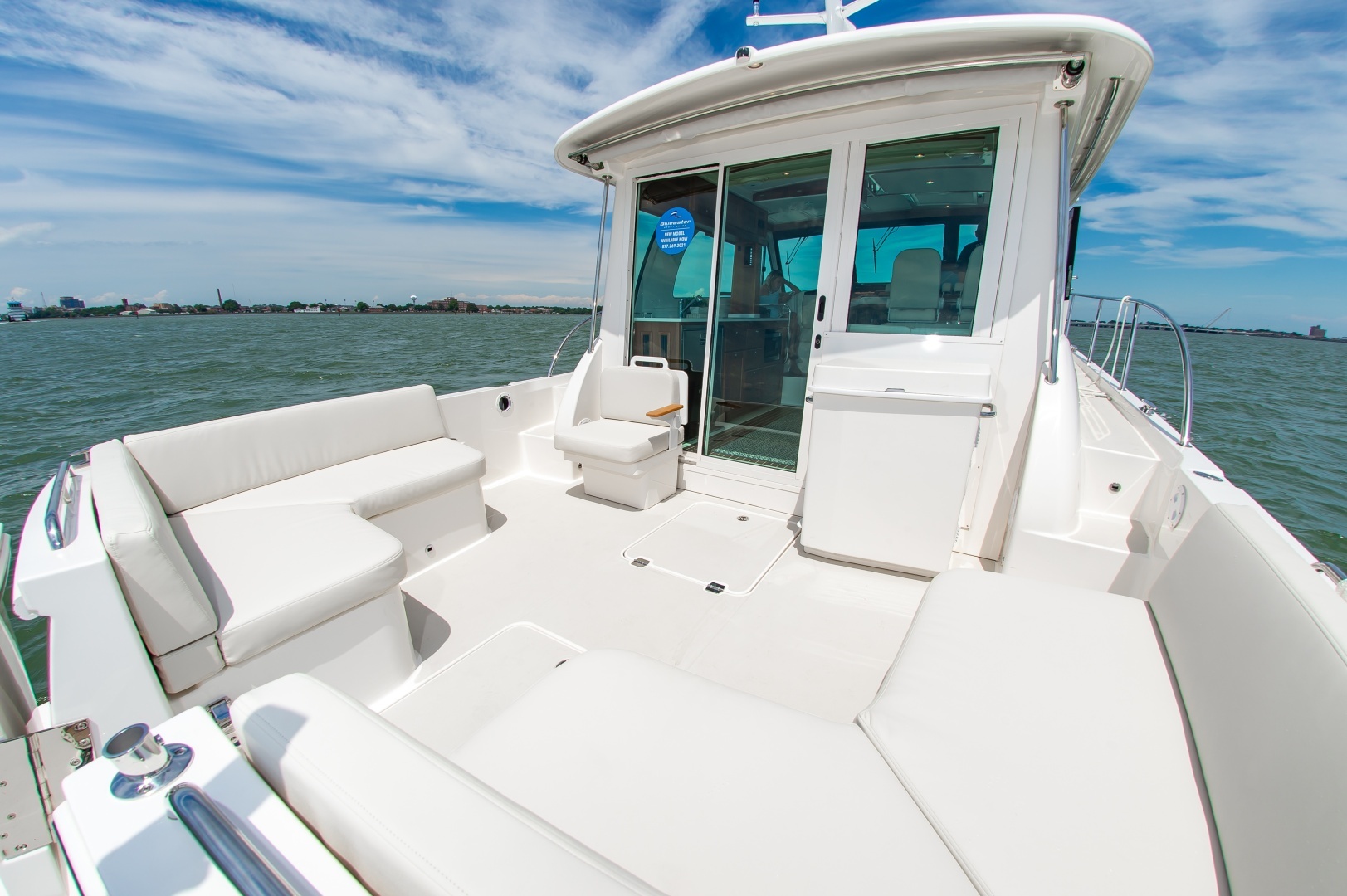

● Molded quarter seating in cockpit w/ storage, port, and starboard

● Transom door on centerline

● Swim platform w/ SS under-mount swim ladder on starboard side

● Hot and cold cockpit shower

● Self draining cockpit

● Pop-up cleats on swim platform (for tender)

● Stainless steel cockpit grab rails behind cockpit seats on coaming (4)

● 6.5 inch, 200 Watt Fusion speakers (aft of salon door)

Fuel System

● 400 US gallon fuel capacity w/ (2) 2” flip-tab deck fill (P&S)

● (2) 200 gallon vented cross-linked polyethylene fuel tanks (P&S) with shut off valves

● Racor fuel/water separators for engine and generator

Mechanical Systems

● Volvo D8 600 mhp electronic controlled engine w/ ZF gear

● 2.25’’ Aquamet shaft

● 4 Blade NiBrAl propeller

● PSS Dripless shaft log

● Binnacle mount electronic single lever engine control

● Volvo engine display

● Bronze sea valve on engine intake

● Marelon sea valves on underwater thru hulls

● Bronze raw water strainer on engine, generator and AC intakes

● Bronze external strainer on engine and air conditioner intakes

● 8’’ exhaust with two-stage horizontal muffler

● Electric dual actuator trim tabs w/ helm position indicator

● SeaStar hydraulic steering w/ tilt helm pump

● Sleipner bow thruster w/ joystick control (SE100)

● Sleipner stern thruster w/ joystick control (SE100)

● Hot and cold pressurized water

● 11 gallon water heater w/ heat exchanger, tempering valve and pressure relief valve plumbed to thru-hull

● Xintex-Fireboy automatic, clean agent fire extinguishing system in engine room w/ manual backup

● Air conditioning w/ reverse cycle heat 38kBTU (combined salon and cabin)

● Portable fire extinguishers in all accommodation spaces

Electrical Systems

● AC/DC control panels with polarity indicator

● 24Vdc system battery management switching

● 24Vdc 110 amp engine alternator

● 12Vdc breaker for electronics supplies fuse block behind helm pod

● Emergency battery bank cross-over switch (ACR)

● 240Vac 50 amp shore power inlet w/power 50ft cord reel

● 120/240Vac shore power system ELCI protected

● Galvanic isolator

● 9.0 kW genset with sound shield and water/exhaust separator

● GFI protected 120Vac outlets

● 60 Amp battery charger

● House bank = (2) 4D AGM house batteries wired in series – 24Vdc

● Engine bank = (4) Group 31 AGM batteries wired in series then parallel – 24Vdc

● (4) 24Vdc automatic bilge pumps and (2) bilge high water alarms

● Bonding system w/ zinc transom anode

● Mechanical/utility space LED lighting

● Cockpit courtesy lights switched at transom door and helm

● Guest cabin courtesy lights switched at guest berth and helm

● Owner cabin courtesy lights switched at helm and island berth

● Overhead LED lights w/ dimmer control in cabins, salon and cockpit

● Overhead bi-color LED light at helm station

● 12Vdc outlets at helm, guest cabin, and master stateroom

● Battery powered salon and cabin smoke detectors

● Hard-wired CO detectors in cabin and salon

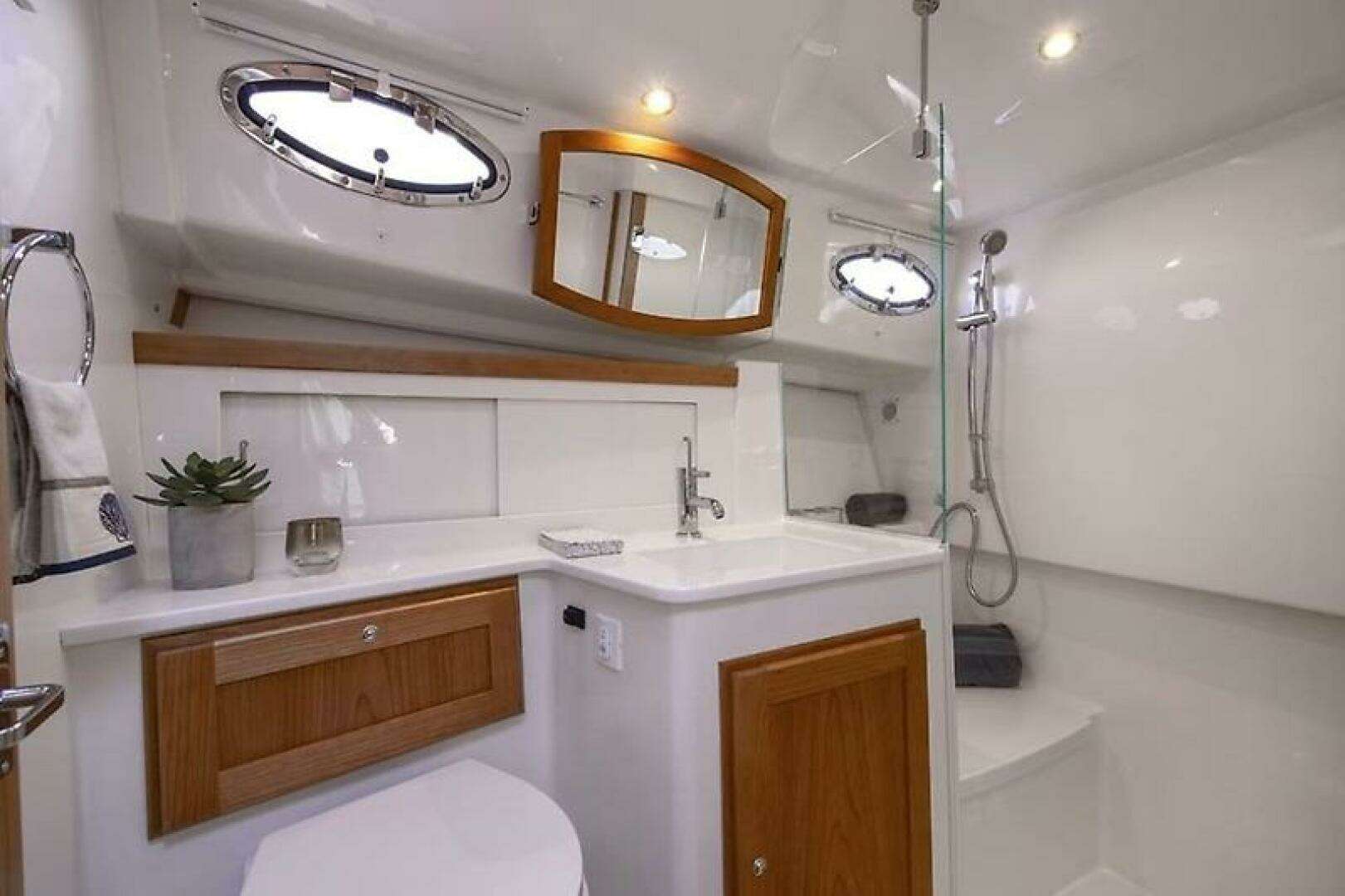

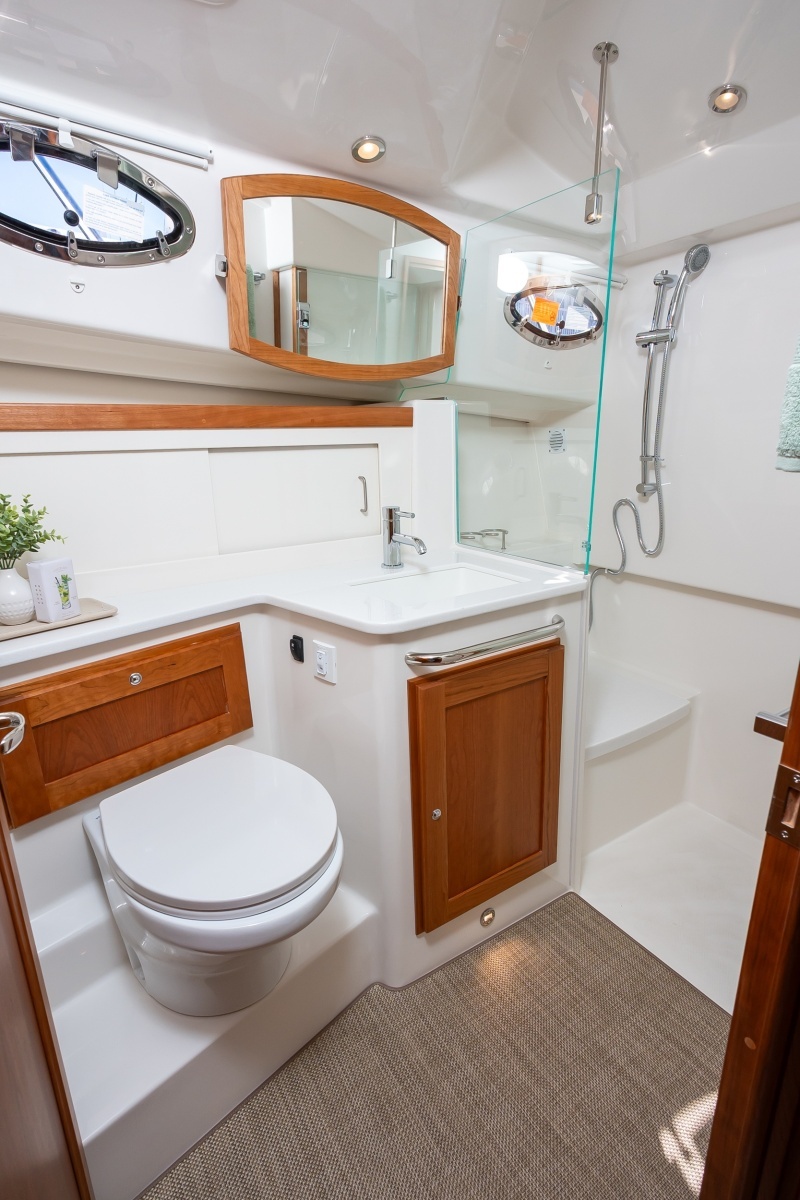

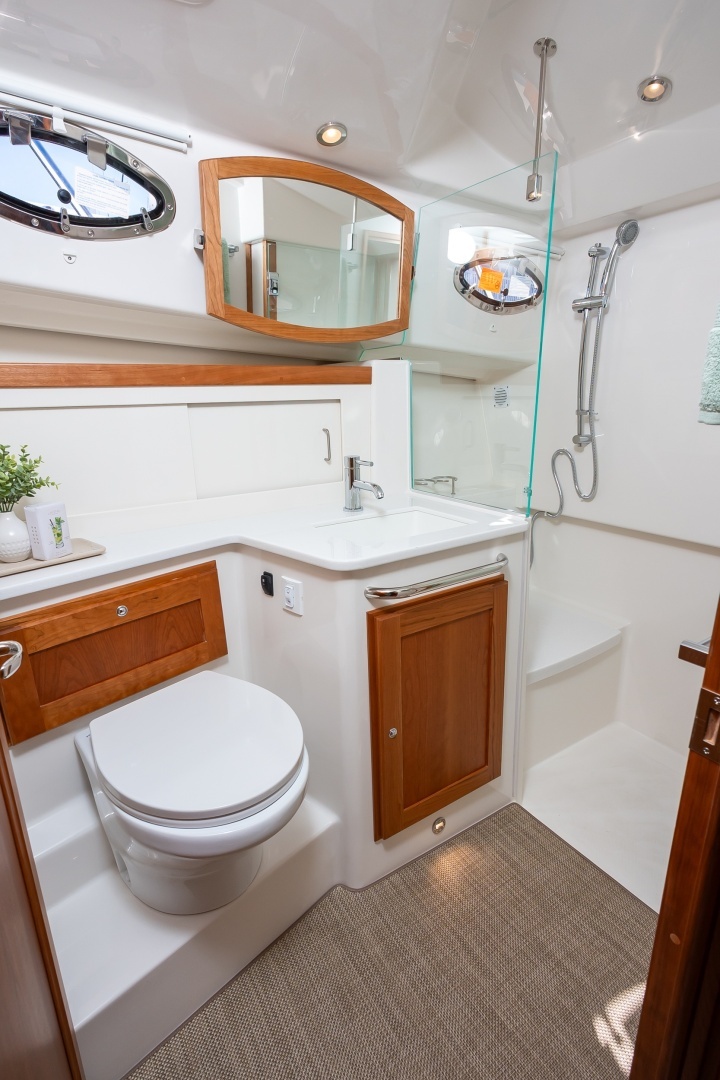

Owner’s Head / Sanitary System

● Head to starboard w/ separate shower stall

● Molded seat in shower stall w/ wet storage beneath

● Built-in vanity w/ sink and storage

● Lewmar hatch w/ OCEANair Skyscreen

● (2) Stainless steel opening ports w/ insect screens and shades

● Cherry framed mirror

● Solid surface countertop

● Single lever faucet

● Shower-drain sump pump system

● Full size fresh water electric MSD

● Waste and fresh water level gauge

● Macerator for holding tank overboard discharge (as permitted)

● Holding tank pump out fitting on deck

● Sealed overhead LED lighting (w/ dimmer control)

● Powered exhaust fan

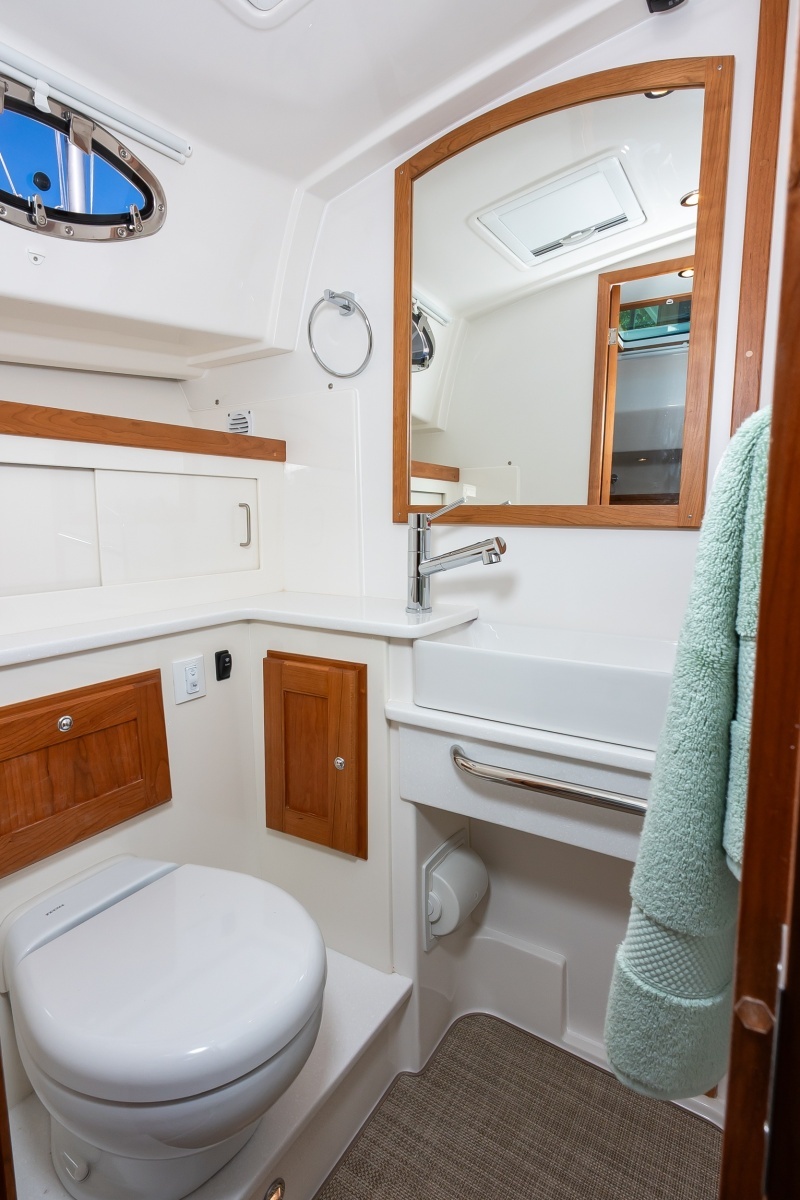

Day Head

● Built-in vanity w/ sink and storage

● Lewmar hatch w/ OCEANair Skyscreen

● Stainless steel opening port w/ insect screen and shade

● Cherry framed mirror

● Full length mirror on door

● Solid surface countertop

● Single lever pull-out faucet (doubles as shower wand)

● Shower-drain sump pump system

● Full size fresh water electric MSD

● Sealed overhead LED lighting (w/ dimmer control)

● Powered exhaust fan

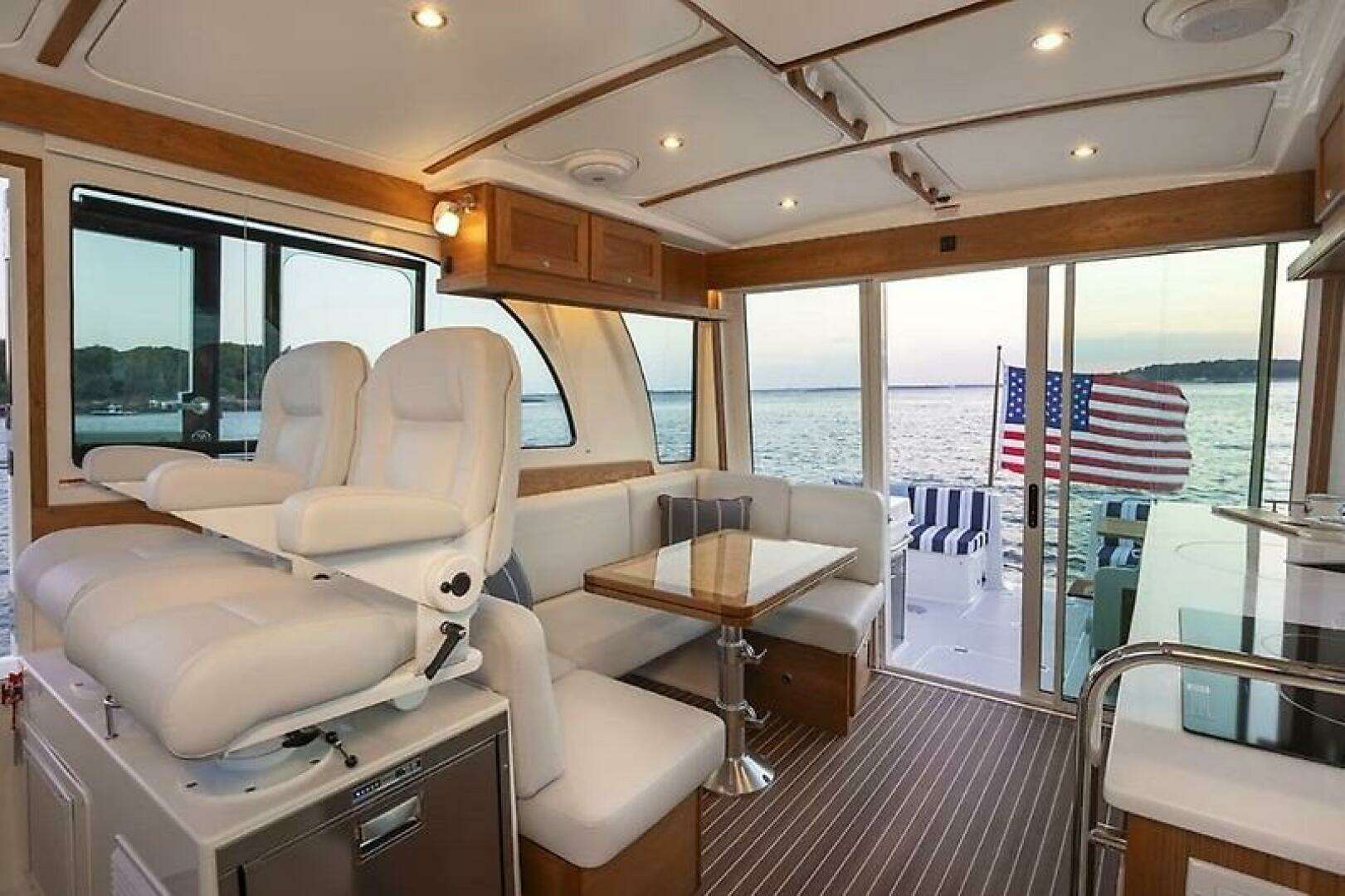

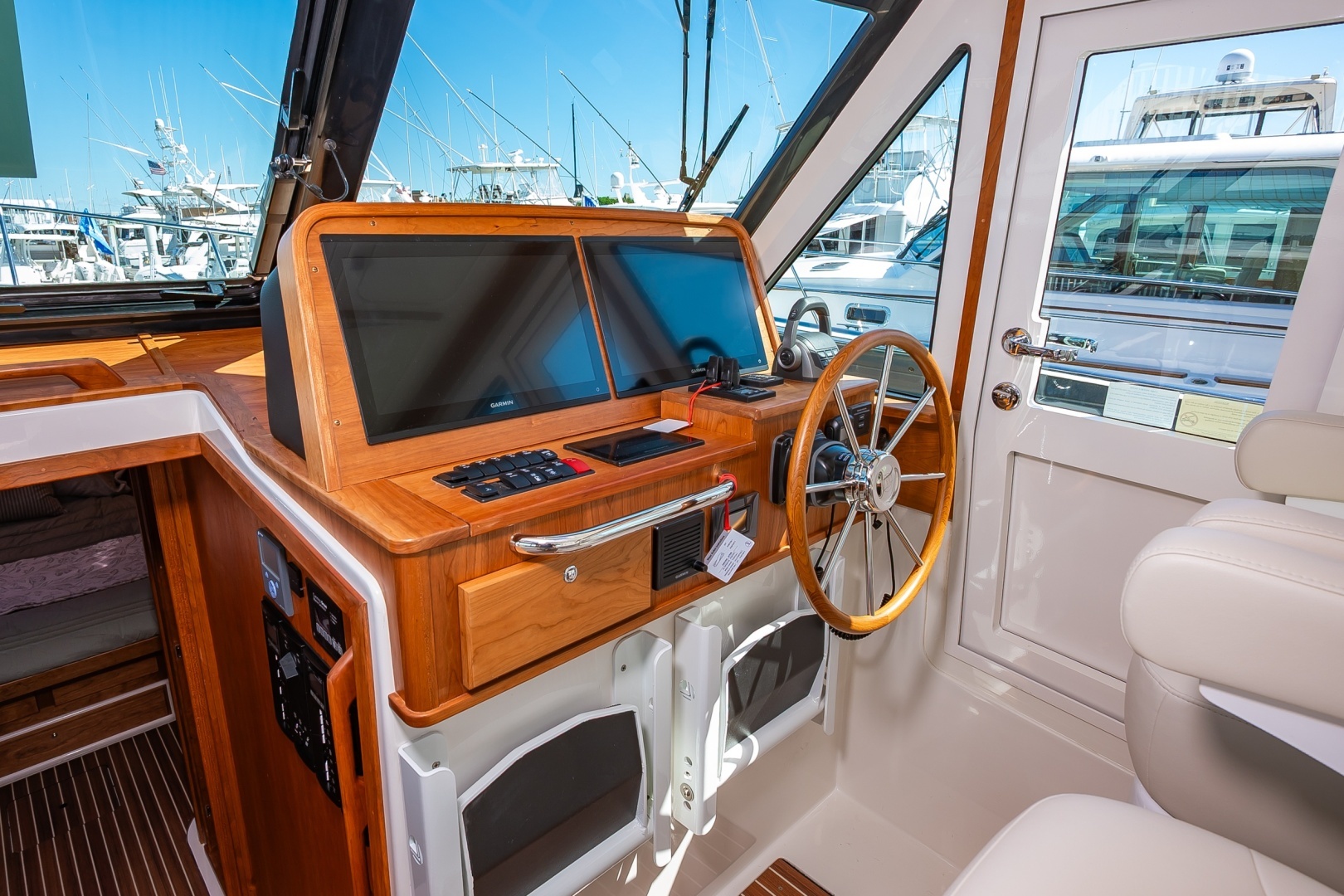

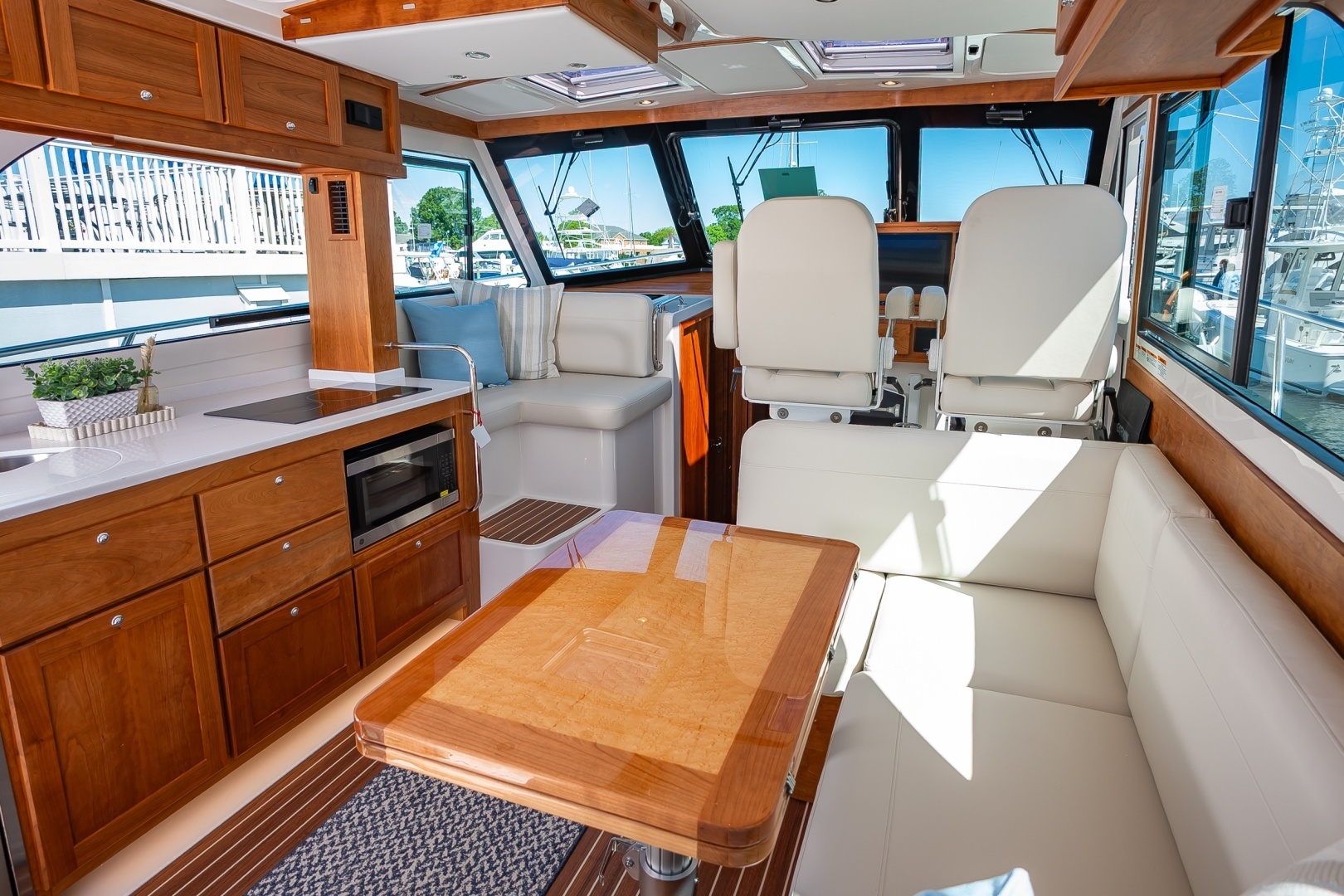

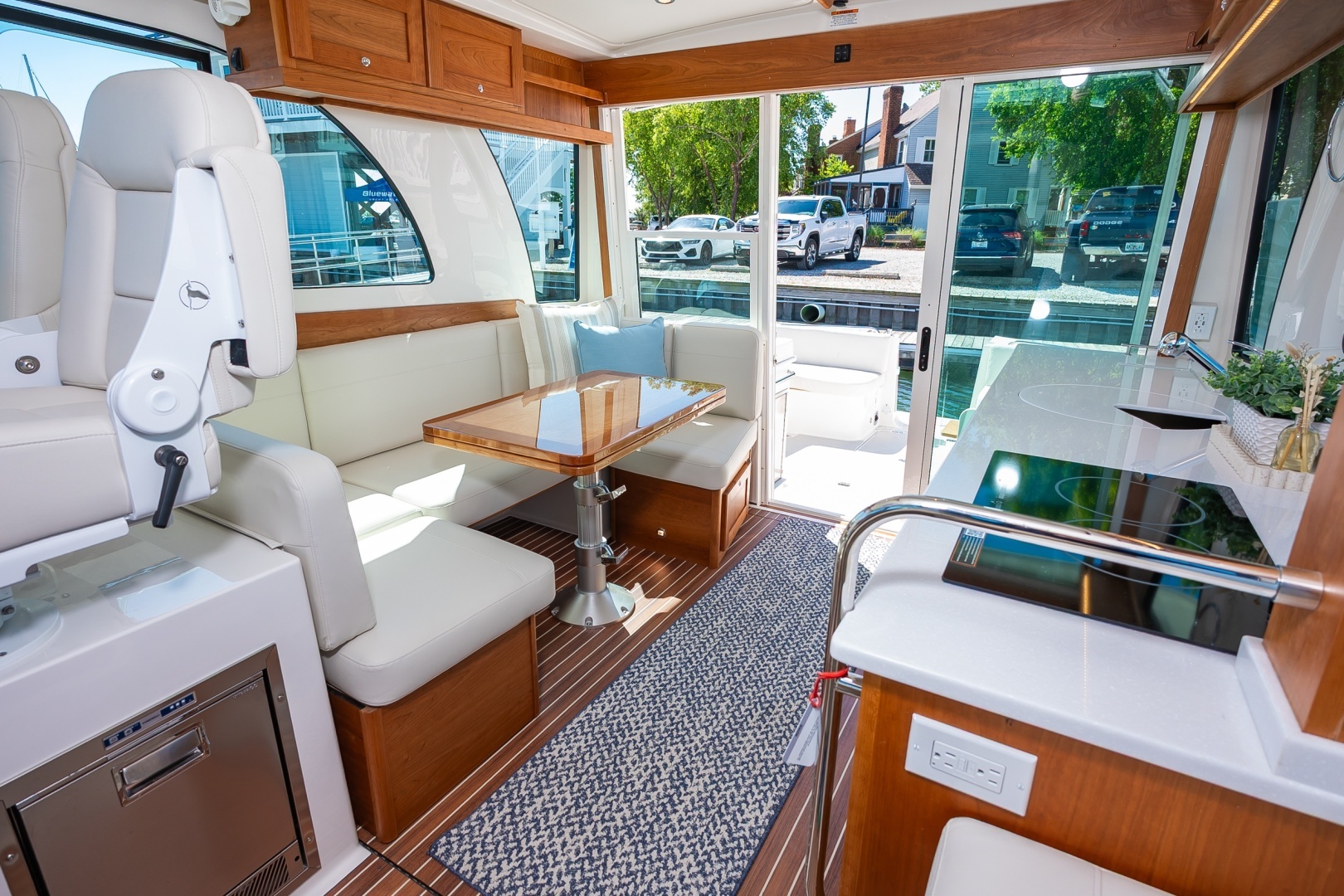

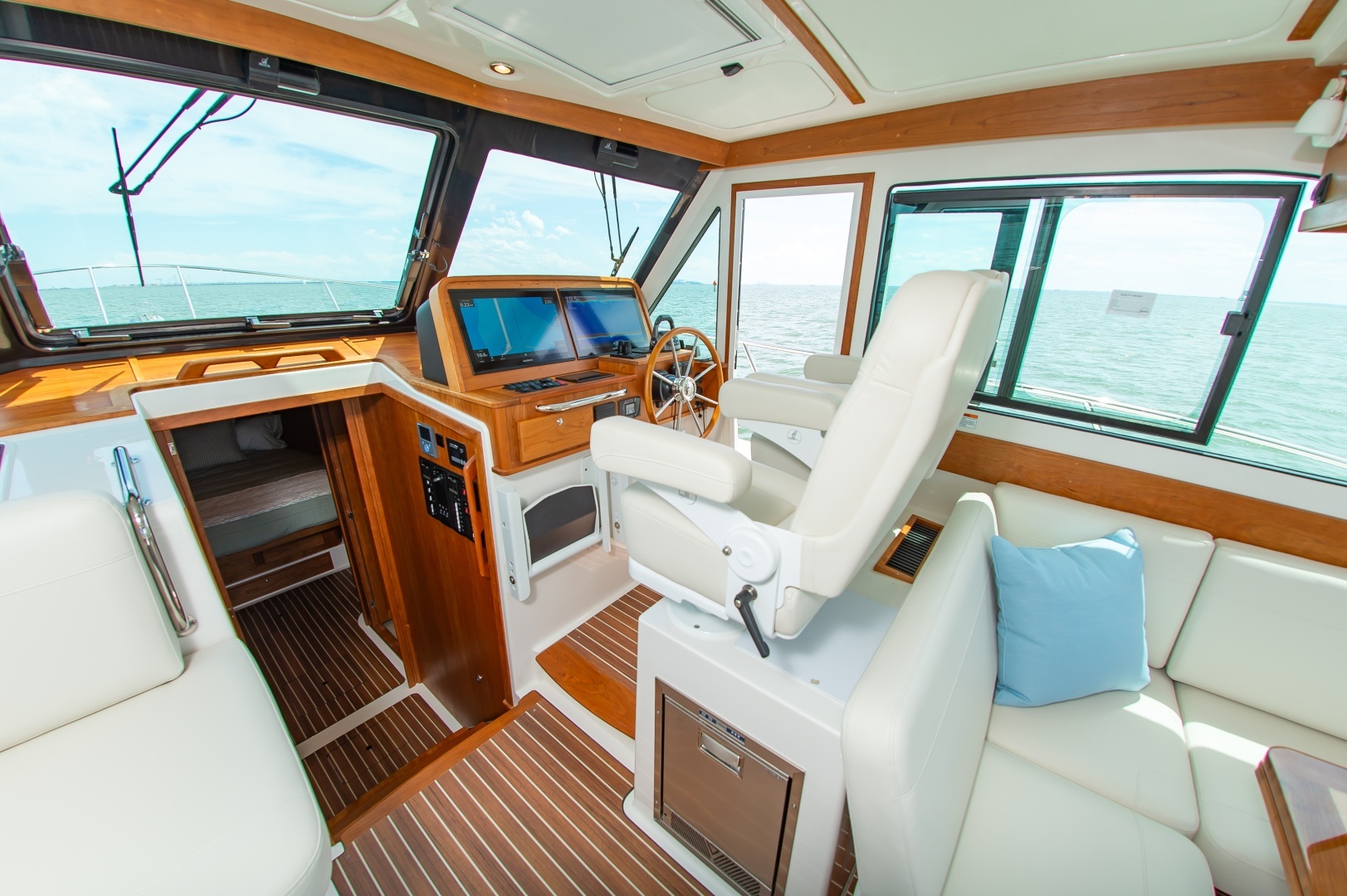

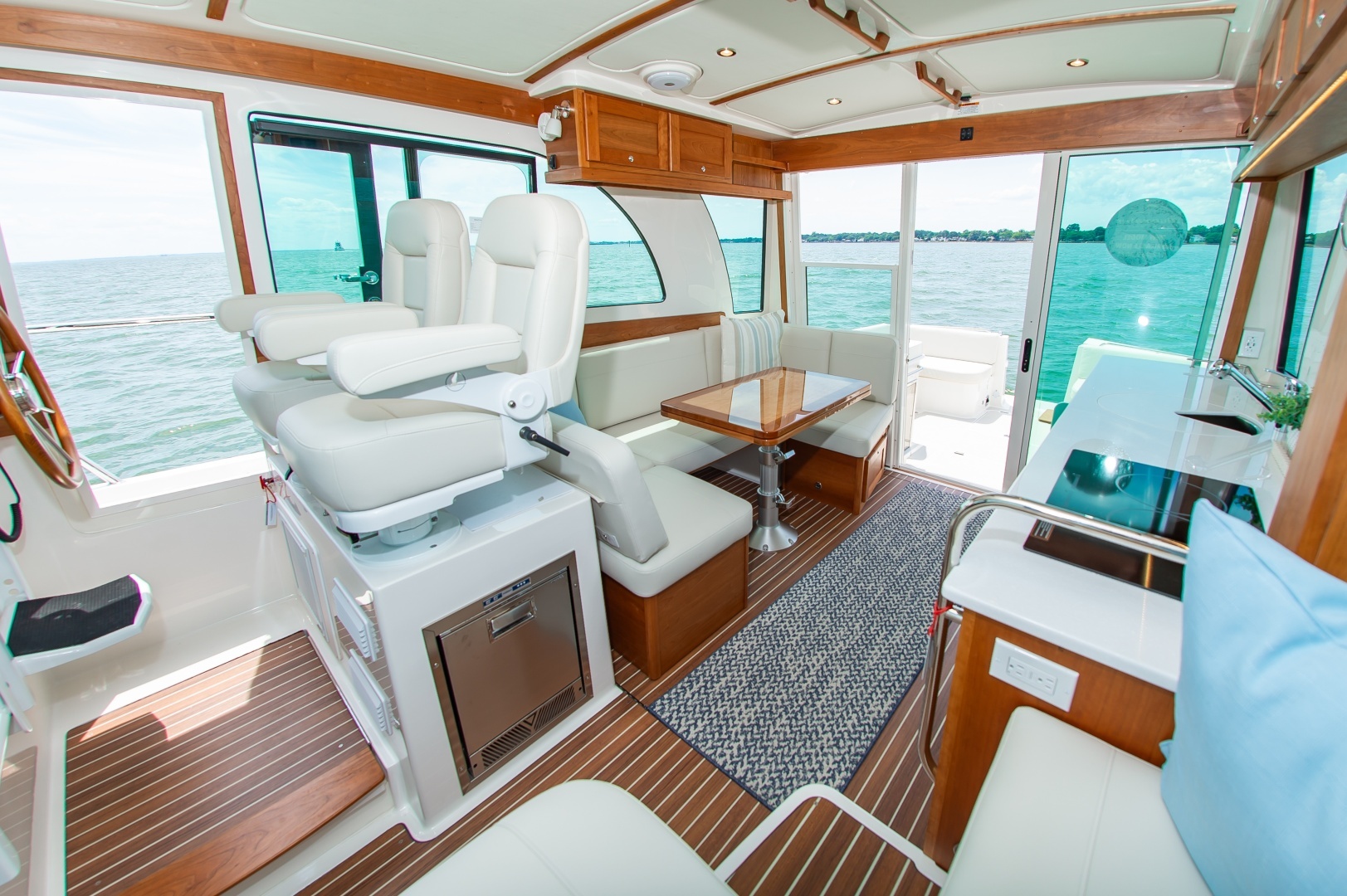

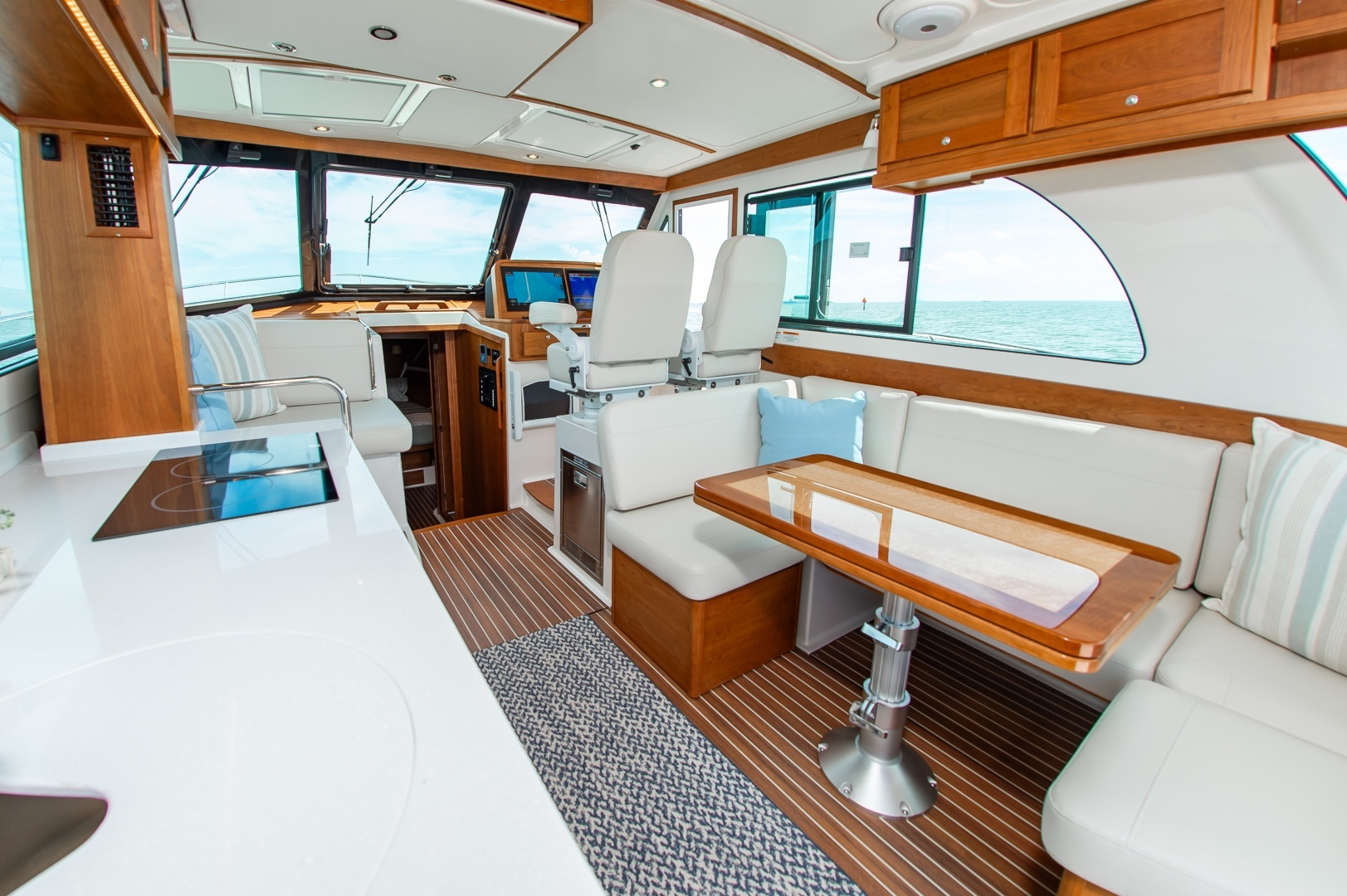

Helm Deck / Salon Area

● Frameless glass direct bond windows w/opening side windows

● Opening, framed center window

● Locking salon door w/ powered window to starboard

● (3) windshield wipers w/fresh water wash and intermittent control

● (2) Lewmar sliding hatch w/ OCEANair Skyscreen

● Compass, illuminated

● 20” wood grain steering wheel

● (2) Llebroc helm and mate’s seats

● Adjustable, sloping footrests at both helm seats

● Cherry dash and upholstered helm pod

● Mates lounge to port

● Large bilge storage below helm sole, access by gas strut assisted hatch

● Large engine room hatch opens by electric linear actuator

● Convertible dinette to starboard w/ (2) Back Cove high gloss inlaid tables

● Molded headliner with padded panel inserts

● SiriusXM ready Fusion stereo (w/ Bluetooth and NMEA2k)

● 6.5 inch, 200 Watt Fusion speakers

● Flip down 32” LED Smart TV in headliner cabinet

● “Teak and Holly” high pressure laminate sole w/ surface texture

● Charging station (AC/DC/USB)

● RG6 coax cables run from TV’s to helm storage room

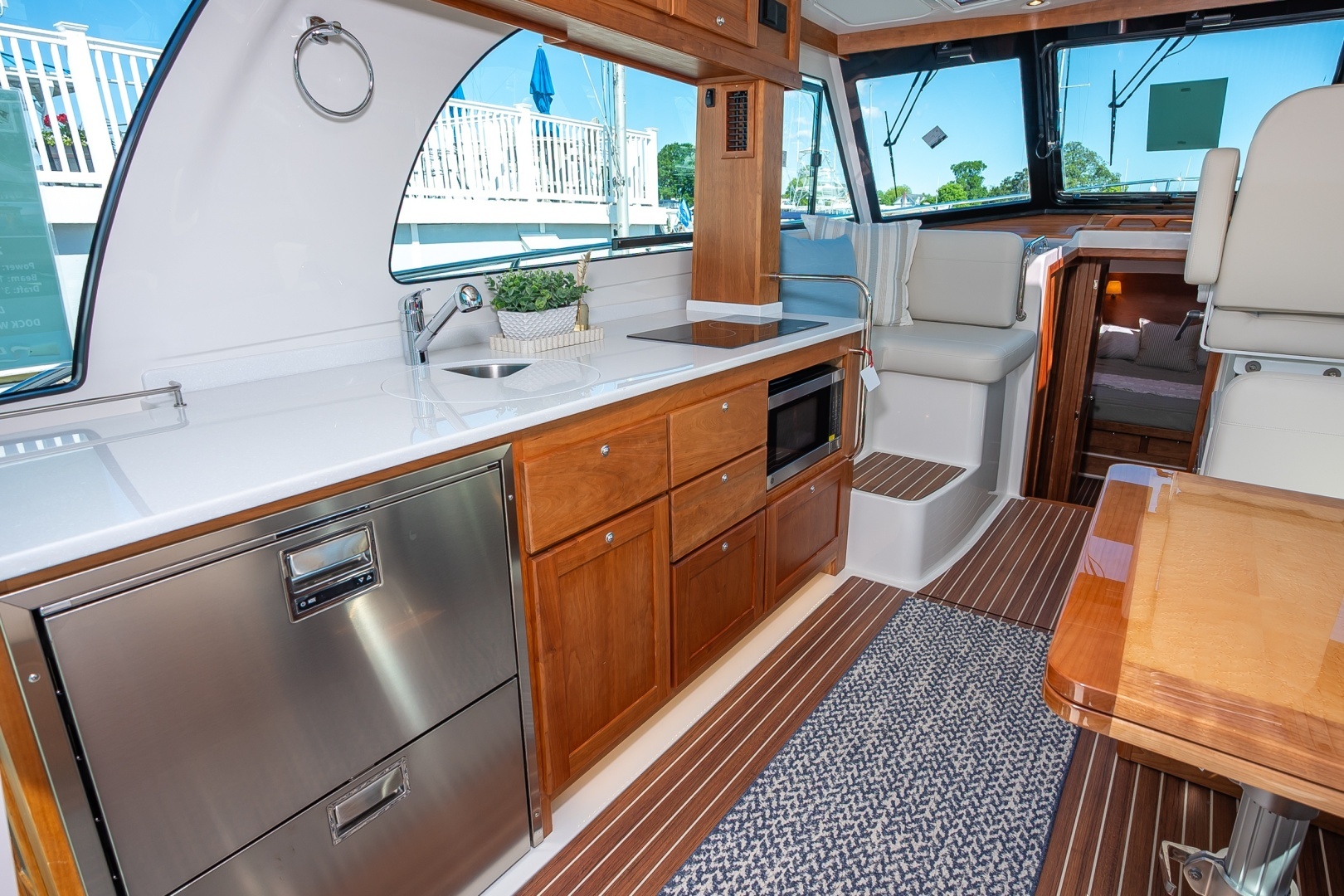

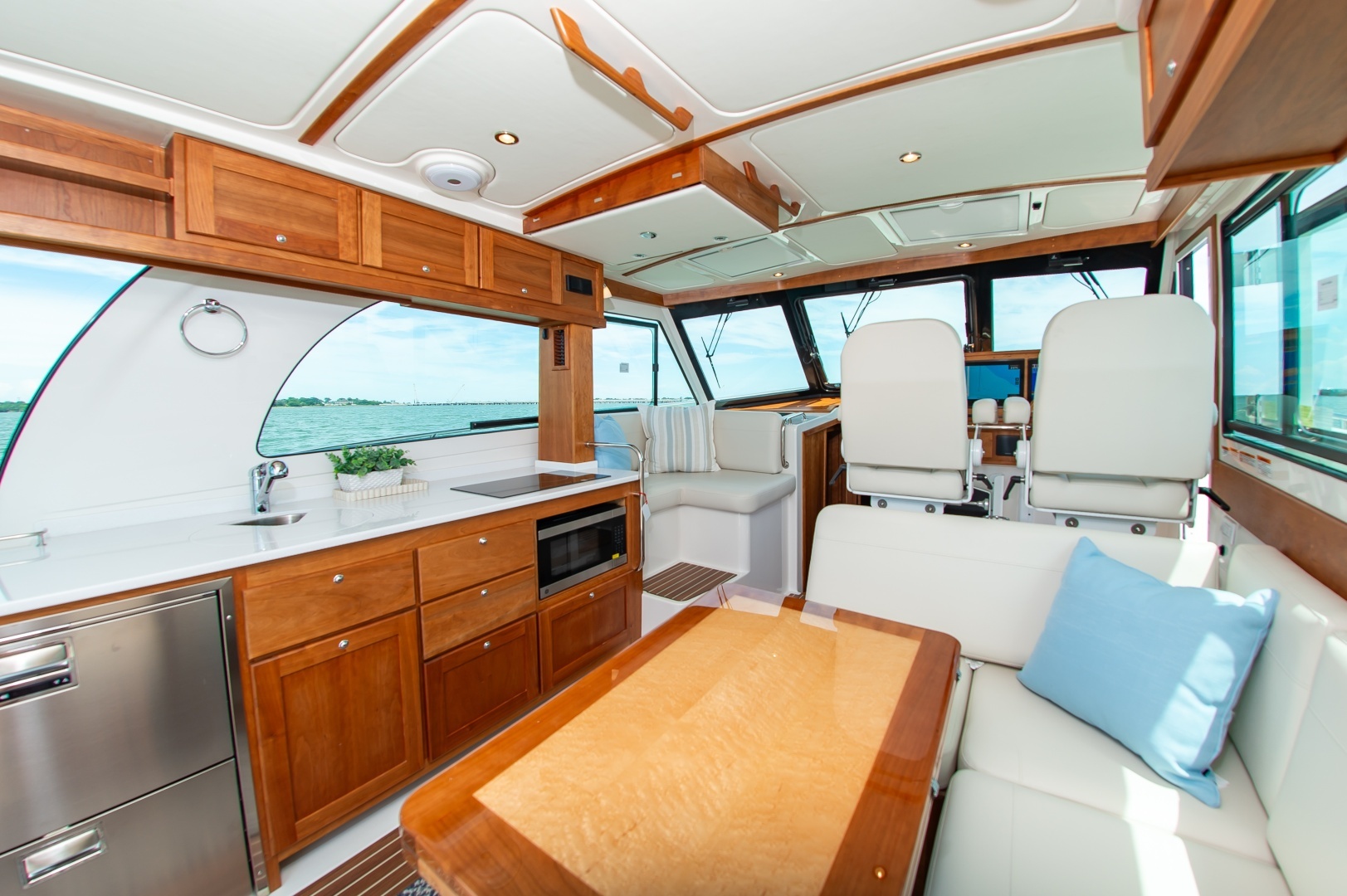

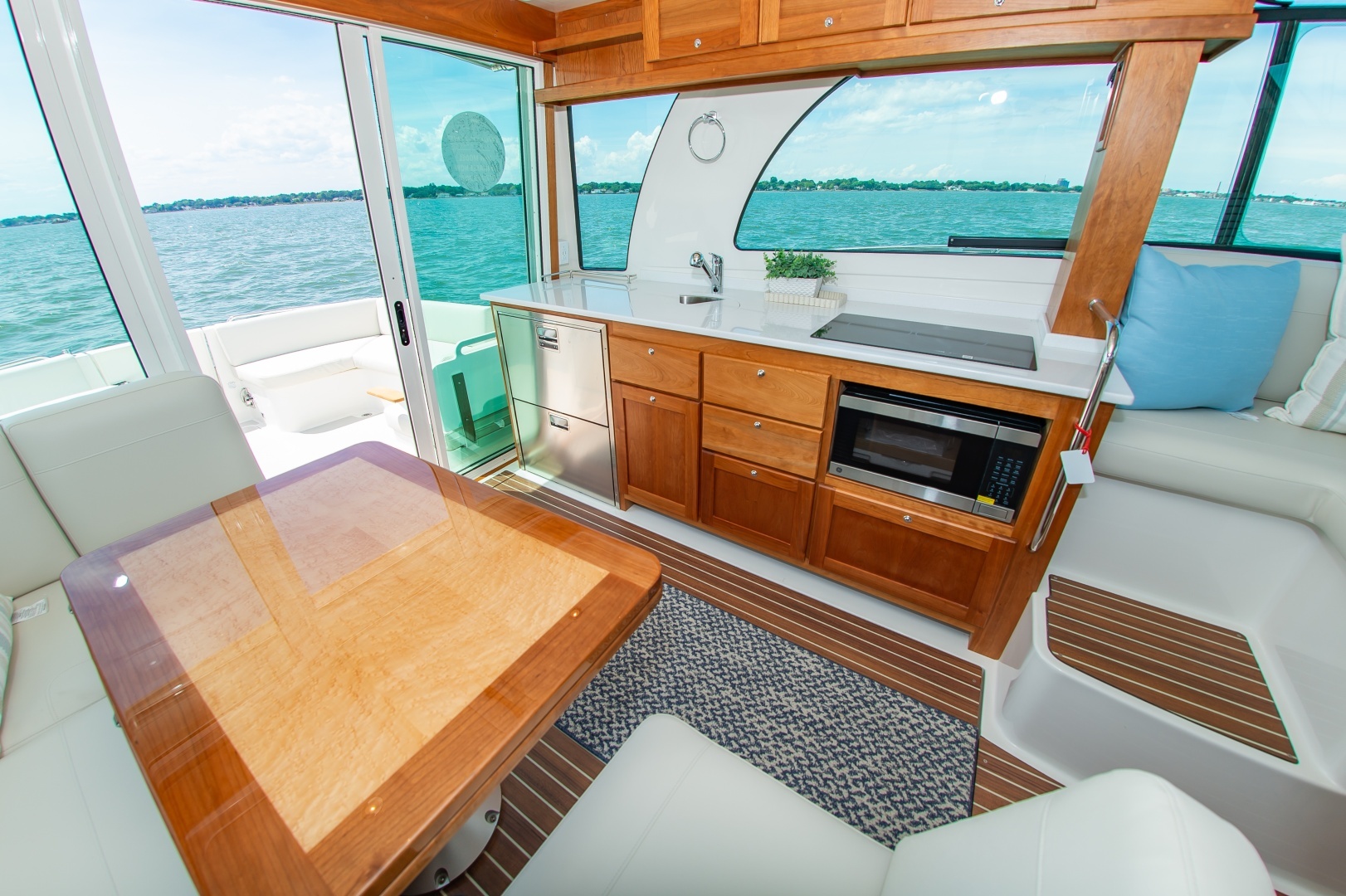

Helm Deck Galley

● Electric, induction two burner cook-top

● Galley, two-drawer style AC/DC SS “All-in-One” fridge-freezer

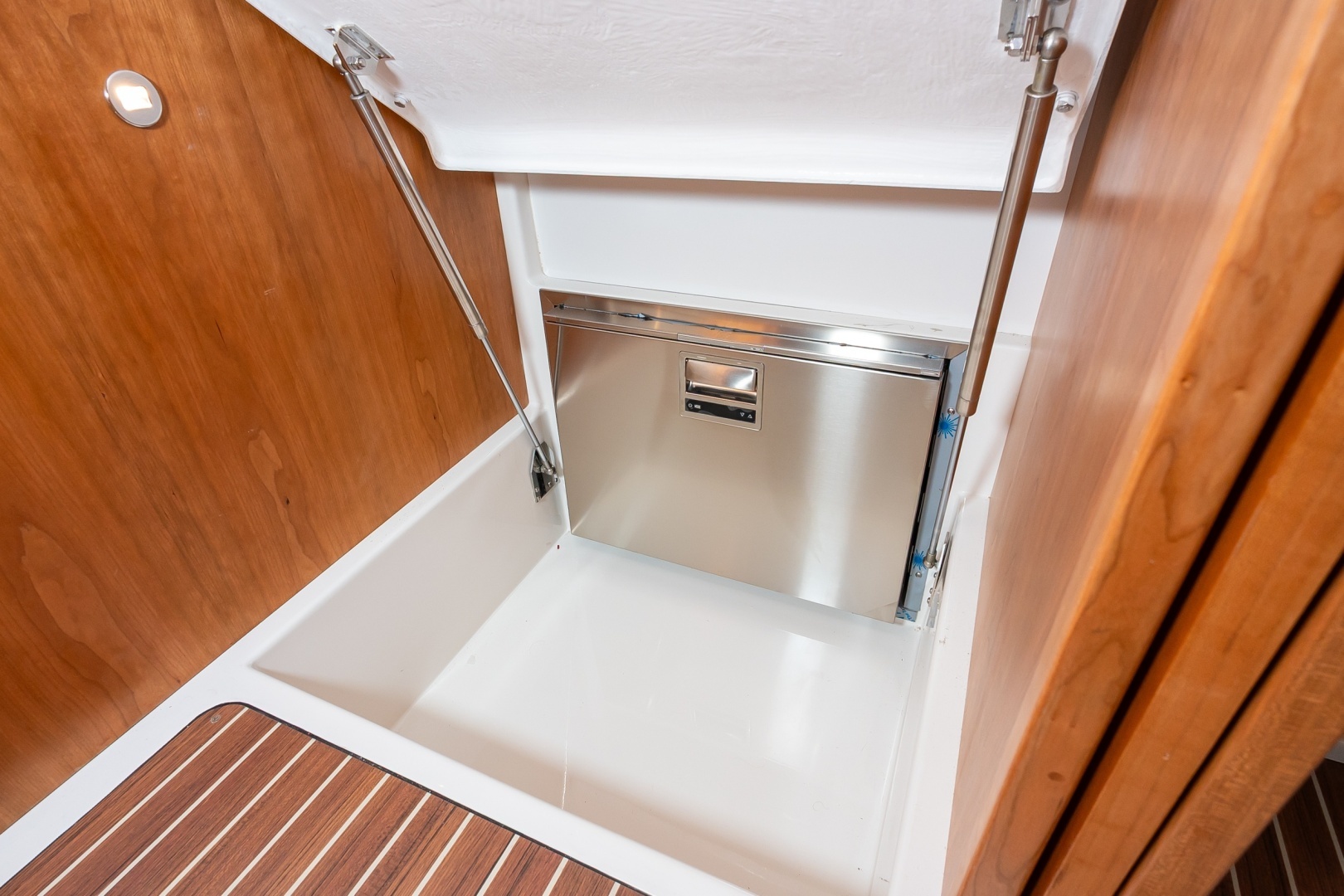

● Under helm seat, single drawer style AC/DC SS fridge designed to hold tall or short beverages

● Large SS galley sink w/ single lever faucet & drop in cover

● Solid surface countertop

● Under-counter convection microwave

● Drawer and door storage below counter

● Utensil drawer

● Trash and recycling container pull out drawer

● Overhead storage lockers

● “Teak and Holly” style high pressure laminate sole w/ surface texture

● Towel ring above sink

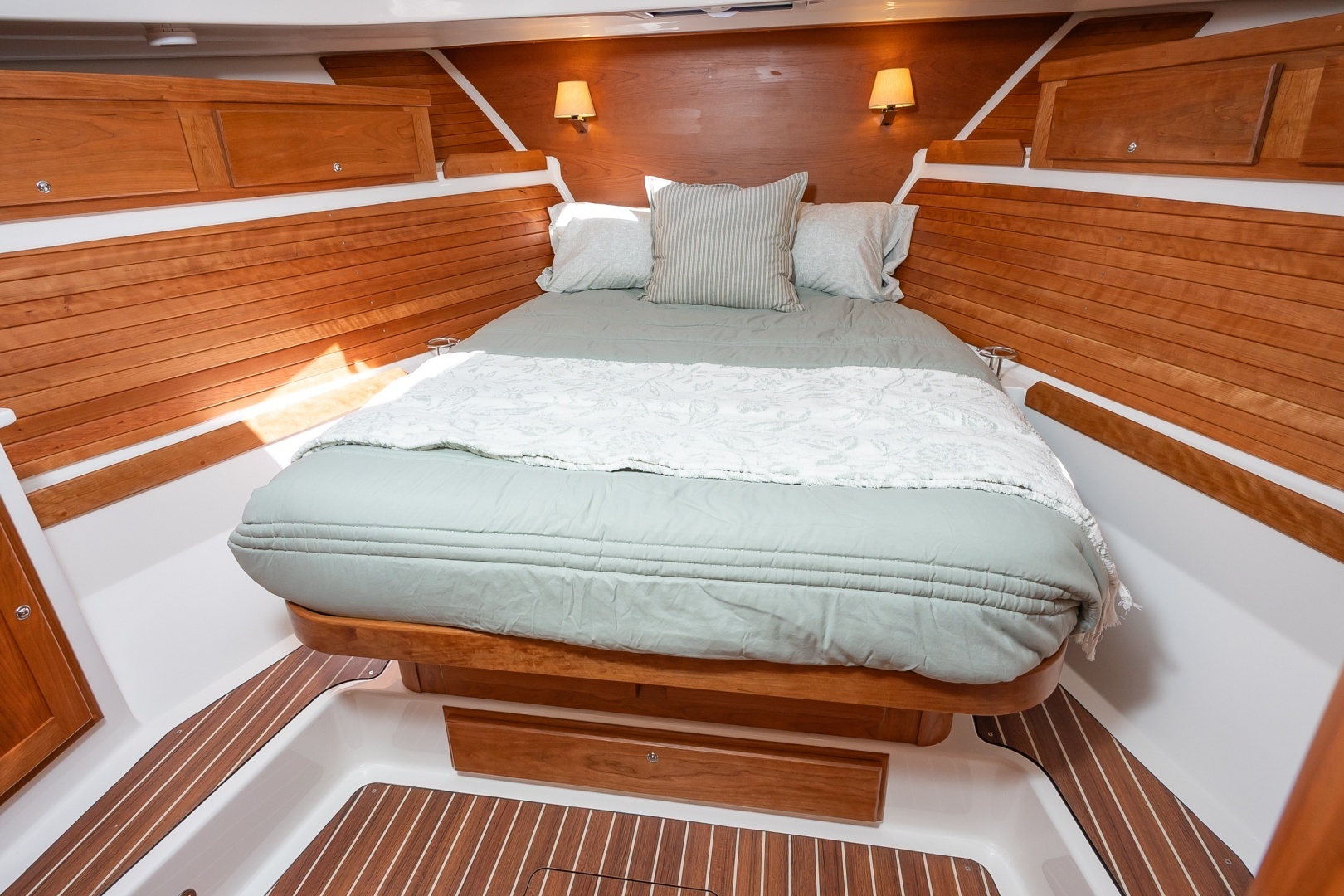

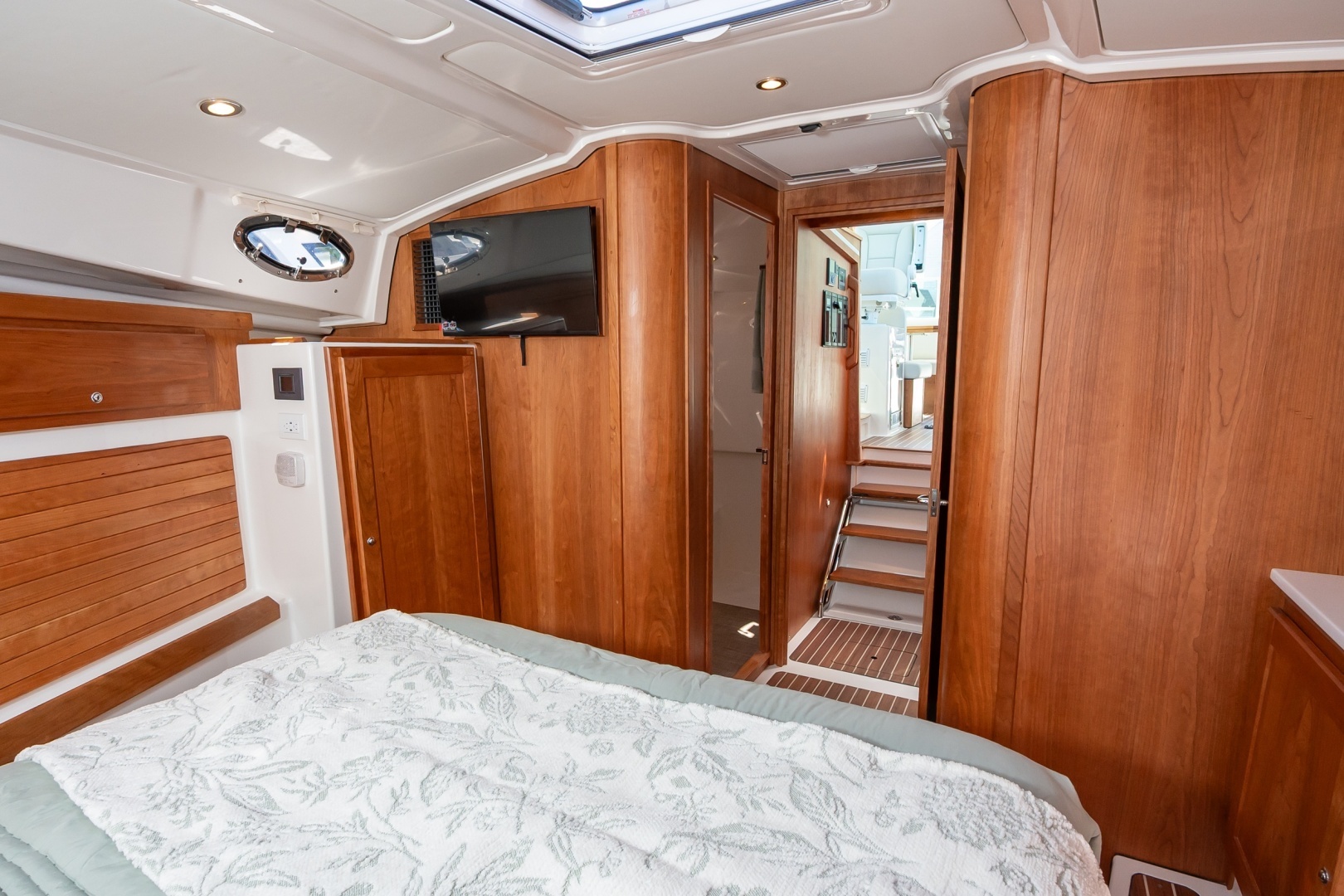

Owner’s Stateroom

● Cherry interior on molded composite hull liner

● (2) Lewmar hatches w/ OCEANair Skyscreen

● (2) Stainless steel opening ports w/ insect screens

● “Teak and Holly” high pressure laminate sole w/ surface texture

● Molded headliner with padded panel inserts

● Island queen berth w/ drawers and storage below

● 8” polyurethane/latex mattress ● Lockers outboard above berth (P&S)

● Cherry hull ceilings and headboard ● Cedar lined hanging locker to port

● Multi drawer bureau w/ dovetailed drawers to starboard

● Reading Lights on berth headboard

● LED overhead lighting with dimmer control

● 27” Samsung M5 FHD Smart Monitor streaming TV

● Charging station (AC/DC/USB)

● 6.5 inch, 200 Watt Fusion speakers

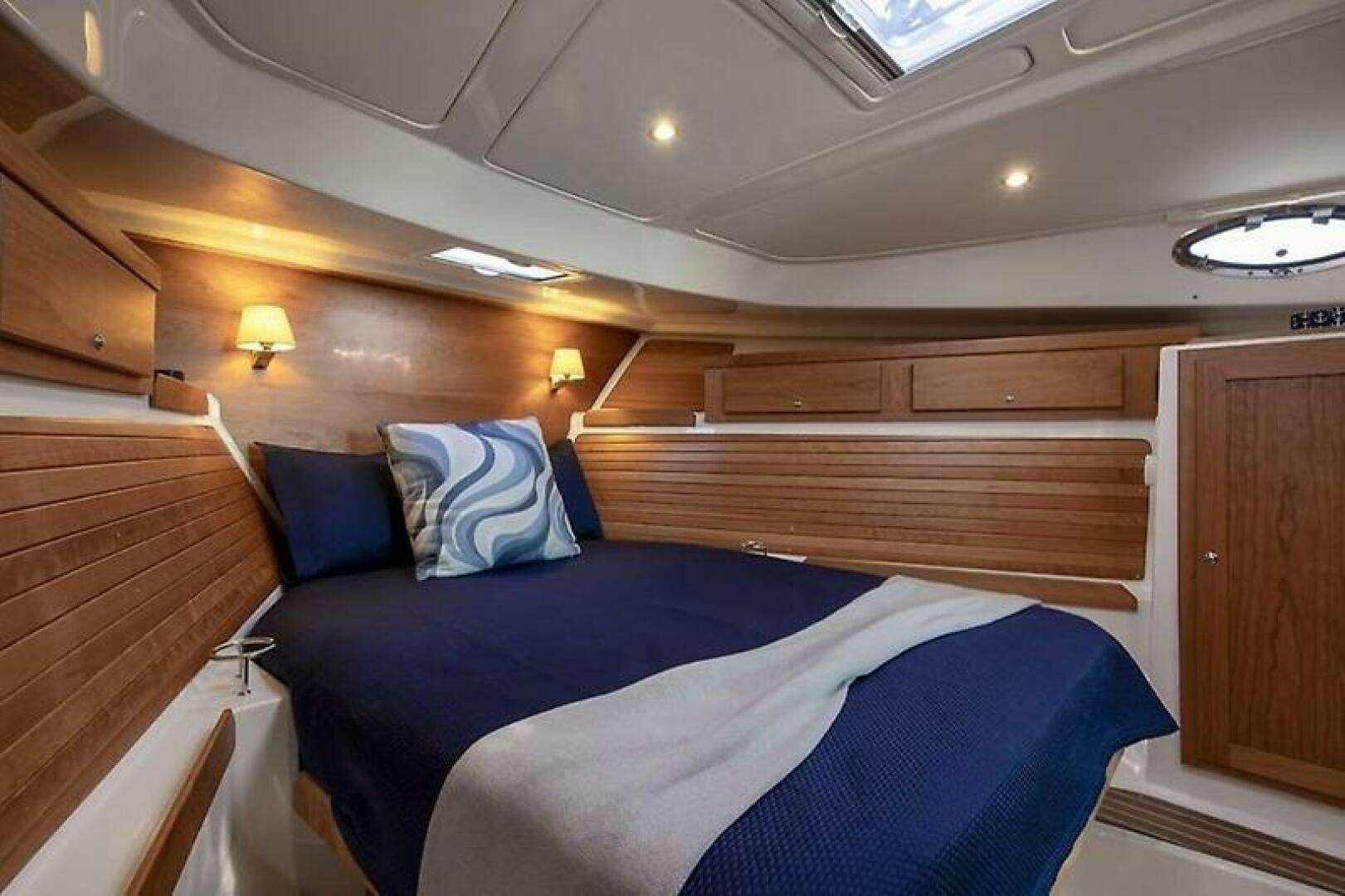

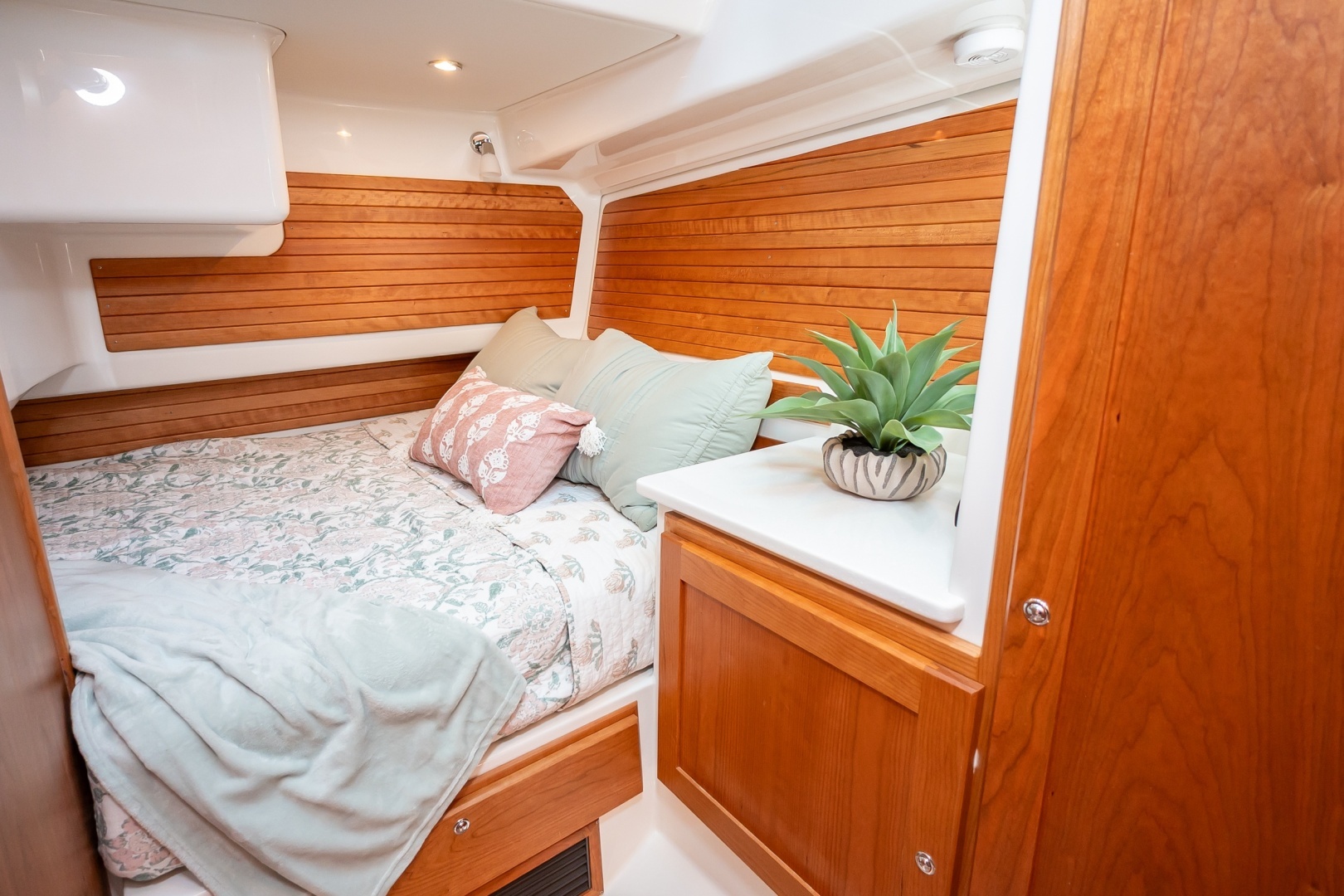

Guest Stateroom

● Cherry interior on molded composite hull liner

● Overhead skylight with shade

● Stainless steel opening port w/ insect screen

● “Teak and Holly” high pressure laminate sole w/ surface texture

● Molded headliner with padded panel inserts

● Queen berth w/ access to plumbing and air conditioning below

● 8” polyurethane/latex mattress

● Cedar lined hanging locker

● Berth-side table

● LED overhead lighting with dimmer control

● Reading Lights (2)

● Charging station (AC/DC/USB)

Optional Equipment

Hull gelcoat: Standard White

Cove Stripe & Heron: Silver

Interior fabrics Upgrade to Ultraleather

Vitrofrigo ice maker (in lieu of standard freezer)

Vitrofrigo DW70 drawer freezer below companionway steps

Washer/dryer combo in helm stoprage area

3000 Watt inverter

Back Cove Easy Dock System

Lenco Electric Trim Tabs

Cruise package (includes dual Racor fuel filters, 8D house batteries and windlass with drum)

Electrical Power Steering (EPS)

Freshwater washdown in anchor locker

Raw water washdown fore and aft

Oil changing system

Power center window

Cockpit electric grill and indel refrigerator in FRP cabinet on starboard side

Aft facing cockpit seat on portside

Shore water inlet in cockpit

SureShade SilentGlide cockpit awning system

Additional Items

Safety Package - (1) Lewmar 22# Delta anchor, (1) 5/16" x 6" anchor lead chain, (1) 5/8" x 200' anchor rode, (2) 5/16" shackles, (4) 5/8" x 25' dock lines, (2) 5/8" x 35' dock lines, (1) Flare kit, (2) 10" x 26" fenders, (2) 1/2" x 8' fender lines, (1) Fire extinguishers, (4) Life vests, (1) Throwable cushion, (1) safety gear bag
