Full Specifications

Accommodations;

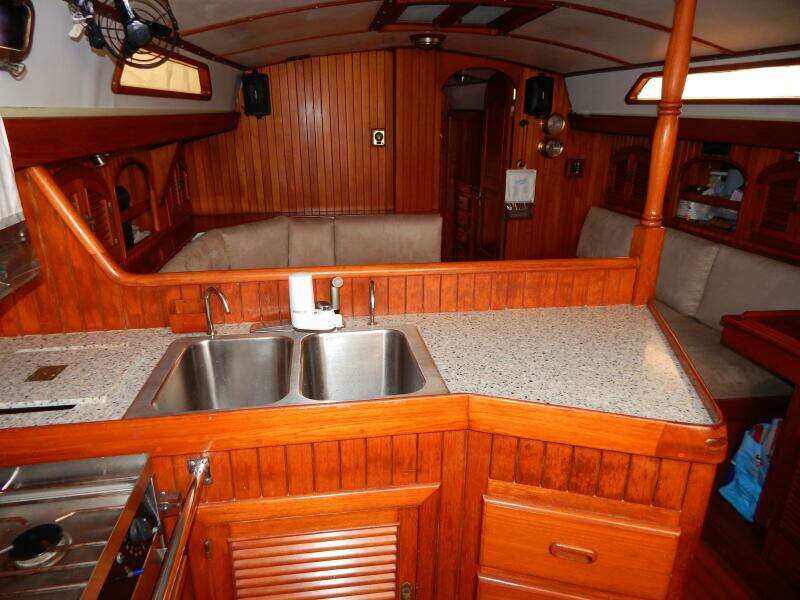

The furthest forward is the head with chain locker access forward, next aft to port is the Master Stateroom with a double pullman berth with drawer storage and lockers underneath, a bureau cabinetry, hanging lockers and a mirror above to starboard, next aft is the salon with a U-shaped dinette with leaves and engine underneath to port and a settee to starboard. There are lockers and shelves outboard and additional storage behind the settee backs. Next aft to port is the navigation station and guest stateroom, to starboard is the galley.

The cabin sole is teak and holly throughout. The interior joiner work and bulkheads are teak. There are 9 opening ports, 3 deck dorades and large overhead opening Lewmar Ocean 70 hatches (replaced 2020) and 1 small hatch for ventilation. There are (3) 12vdc powered fans. There are 2 fixed ports in the salon for additional light.

__________________________________________________________________________________________

Galley and Head;

Ice box with Adler Barbour refrigeration, top load and front, fully serviced and new motherboard, 2020

Double stainless steel sink with hot and cold filtered pressure water, raw and fresh water foot pumps

Corian countert tops and built in cutting board

Sharp Carousel microwave oven

Force 10 gimballed 3 burner LPG stove with oven and broiler

Trident Gas sensor, control and solenoid system

11 lb. propane tanks in dedicated locker in cockpit

Groco HF Manual flush head

Vanity and shower with hot and cold pressure water and foot pump fresh water

Shower Sumps

Heart Systems 4 Tank Tender level gauge

_________________________________________________________________________________________

Electrical;

Fisher Panda 4 Mini + Plus, 4kw generator

120 amp main engine alternator, 2016

(2) 30 amp shore power connections with cords

30 amp battery charger

120vac Paneltronics voltage source input panel with voltage and amperage meters

120vac circuit breaker panel

(2) 8A4D AGM house batteries, 2021

(2) Group 27 engine start and windlass batteries, 2016

Group 24 generator start battery, 2016

12vdc circuit breaker panel with voltage, amperage meters and battery test switches

Heart Interface 2000 Inverter/Charger with remote at nav station, 2007

Heart Interface Link 20 battery status indicator at nav station

(2) Magnum smart battery combiners, 2016

(2) 50 watt solar panels with switch and Victron Energy charge controller

(3) Bilge pump control panels with pump event counter

Dometic Marine Air 12k btu HVAC system, not commissioned recently since cruised in ME

________________________________________________________________________________________

Electronics and Navigation;

Raymarine a75 MFD touch screen at helmpod, 2016

Ramarine Quantum Q24C digital radar, 2016

Raymarine i70 Wind/Speed/Depth Multi Data pack at helmpod, 2016

New depth transducer, 2016

Raymarine AIS 350 dual channel receiver, 2016

SeaTalk NG converter, 2016

Raymarine EV-200 Evolution Autopilot with linear drive at helm, 2016

Raymarine a75 MFD touch screen at the nav station, 2016

Ritchie binnacle compass

Windex 15 wind vane

Standard Horizon Intrepid VHF radio at nav station, Ram mic at cockpit

Icom IC-M710 MF/HF marine transceiver, suspect antenna or ground issue prevents operation

Panasonic DPX35 AM/FM/CD receiver

Boston Ships Clock and Chelsea Barometer

ACR EPIRB, 2021

________________________________________________________________________________________

Deck and Hull;

Single bow roller with Bruce 66 lb anchor with 275 feet of 5/16 inch HS anchor chain, chain replaced 2018

Shurflo Blaster deck wash down pump, 2019

12vdc vertical windlass with foot switches and helm remote controls

Bow rail with side stanchions and double lifelines replaced 2017 with gates port and starboard

Teak deck re-seamed, 2020

Teak cap rails

Teak cabin top hand rails

Beige canvas sail cover

Custom hard dodger with side drop curtains

Edson pedestal wheel with Navpod SG225, 2016

Emergency tiller

Force 10 propane grill fed from LPG tanks

Stern pushpit

Edson outboard engine mount on stern rail

Radar support pole

Dinghy engine hoist

Lifesling 2

Swim boarding ladder, folding in stainless steel

Dinghy davits

________________________________________________________________________________________

Sails and Rigging;

Aluminum double spreader mast stepped on keel, keel mast step new 2016

Schaefer System 2100 roller furler on headstay, 2019

Harken Batt cars with Antal sail slide system

Garhauer boom vang, 2017

Harken mainsheet traveler

Lazy jacks

Quantum battened mainsail with 3 reef points

Quantum 150 genoa

Symetrical spinnaker

Storm tri sail with track on mast

(2)Lewmar self tailing halyard winches on mast

(2)Lewmar ST46 primaries

(1)Lewmar 16 main sheet winch

Lewmar ST16 roller furling winch

_________________________________________________________________________________________

Mechanical Systems;

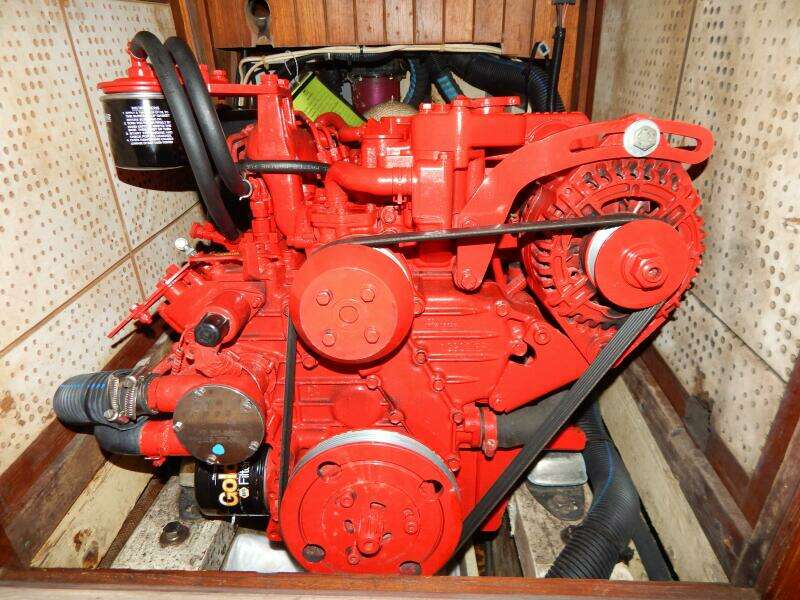

Fresh water cooled main engine and gear, 2016

Groco raw water sea strainers

Racor 500FG fuel water separator

Secondary fuel filter

Beta Marine C Deluxe control panel with tachometer with hour meter, temperature, oil pressure, volt meters, and lights for alarms

PYI 3 blade feathering 18 inch Maxprop propeller

Shark shaft line cutter

Starter, 2016

Re-bedded engine rails, 2016

Engine mounts, 2016

Shaft seal and cutlass bearing replaced, 2016
