2005 Pacific Seacraft 40'

12.19 m
$ 275,000 USD
7350 Edgewood Road, , 21403USAAnnapolis MD 21403 USA
703-593-7531

2005 Pacific Seacraft 40'

.

Description

S E R I O U S S E L L E R


- JUST REDUCED - OFFERS ENCOURAGED -

LATE MODEL - EXTENSIVE UPGRADES - "NO TEAK" (on deck) - SHOAL KEEL - CUTTER

"One of the last five built!!"  New replacement: >$1,000,000!!

lfAZURE is the perfect candidate for a minor factory rejuvenation - resulting in "new-like" PS-40 at a fraction of the cost of a 2025 new boat.


  • Rugged Pacific Seacraft construction
  • Classic Crealock seakindly design
  • Extensive factory refit/upgrades 2014-16
  • Optimized for: Cruising self-sufficiency; Ease of maintenance
  • Low hours on Yanmar diesel

(Currently on the hard - pending re-commissioning)


Pacific Seacraft factory highlights 2014-16

  • Two-zone AC/heat (w/ "soft-start" capability)
  • Webasto diesel heat
  • Standing rigging replaced
  • New England Ropes running rigging
  • Deck hatches upgraded to Manship SS hatches
  • Opening ports replaced with Newfound Metals SS ports
  • Custom factory wrap-around SS sternrail - with integral seats
  • Solar panels
  • Wind generator installed
  • Spreader lights -w/ wireless control; masthead lighting
  • Extensive electrical refinements/inspection/refurbishment
  • Custom switchable-manifold Racor fuel filter system
  • Custom engine room access/'ventilation
  • Hella light in engine room
  • Thorough systems service/inspection (details available)


MANUFACTURER/DESIGNER COMMENTS

The Pacific Seacraft 40 maintains the form, function, and esthetic that has produced safe and attractive Pacific Seacraft sailboats since 1976. The hull shape has a moderate freeboard and graceful overhangs fore and aft. While the waterline and beam are proportionally larger than previous Pacific Seacraft - Crealock collaborations (translating into greater interior volume), the hull retains the sensible dimensions and proportions essential to upwind performance, directional stability, and the hydrostatics which effect ultimate stability. The keel is a long fin of external lead ballast bolted on and bedded in epoxy. This joint is extremely strong and resistant to impact with underwater objects. The difference between the shoal-draft and standard keels has been increased to take greater advantage of the respective characteristics of each. The combination of the keel plan, skeg-mounted rudder, deep hull sections below the waterline forward, and a carefully positioned rig plan all contribute to exceptional directional stability and handling. The interior maintains the function and form that feels comfortable and works. Passage through the cabin is straight and unimpeded. Visual space opens from the galley forward. An aft head is located for easy access from the companion way. The galley is configured to provide hands-free support on either tack. On deck, a spacious foredeck with centerline king plank for footing features an extended bow platform and water designed for dodger attachment. The mainsheet system includes a traveler forward of the companionway and a dedicated self-tailing winch. The primary winches for the headsail can be reached from the helm. The deck quickly sheds water through bulwark hawse pipes and through deck drains that exit at the waterline. The cockpit is self-bailing and includes safety harness padeyes. Pedestal steering with single-lever control and pod-mounted instruments provide fingertip control. Extensive mooring cleats simplify docking. The Pacific Seacraft 40's deck and cockpit take into account the importance of safety when anchoring, docking, maneuvering, and sailing. windlass boss. The headsail and staysail are equipped with roller furling. The double-spreader keel-stepped mast includes two self-tailing winches for halyards. The solid boom vang is self-cleating. All sail controls, including the main halyard and two sets of reef lines, are led aft to the cockpit through deck sheave organizers and rope clutches to self-tailing winches There is a special molded-in shear

LOA40'

LOA12.19''

Beam12'

Beam Inch5''

Draft Max Feet5'

Draft Max Inch2''

TypeSail

ConditionUsed

Specifications

Name

AZURE

HIN/IMO

PSC40057F505

Sail-Used

Year

2005

12'5"

5'2"

Fuel Type

Diesel

Hull Material

Fiberglass

Displacement

24000

Engines

Engine 1

  • Engine Make: Yanmar
  • ModelEngine Model: 4JH4E
  • Engine TypeEngine Type: Inboard
  • Power HPPower HP: 55.00
  • Power KWPower KW: 41.01
  • Feul TypeFeul Type: Diesel
  • HoursHours: 1400.00
  • Engine Quantity1
  • Full Details

    .

    ACCOMMODATIONS

    Throughout: Webasto forced-air diesel heat; Varnished teak woodwork. White Formica cabin house trunk sides. - Louvered locker doors & solid drop doors with hidden hinges. - Louvered cabin doors (top half only) & panel head door with piano hinges. - Chrome bronze push button locks on all locker doors and drawers. - 6' 5" headroom with teak & holly sole throughout cabin area. - Positive push button latches on all locker doors. - Wrapped 4" foam cushions. Zippered vinyl headliner with superior insulation, deadens sound & provides easy access to deck hardware & wiring.

    Forecabin - 6' 7" long and 57" wide double island berth with drawers & shelves. - Teak ceilings above shelves. Teak bi-fold privacy door. - Vanity sink, mirror & large cedar-lined, louvered hanging locker.

    Main Salon - 6' 6" long "U" shaped dinette to starboard converts to 50" wide dbl. berth. - Sides have teak lockers & bookshelves with removable fiddles above seats, storage bins below. - Teak drop leaf table with with gas spring pedestal. - 6' 3" long settee berth to port with storage below. - Teak navigators desk w- storage under lift top. Nav panel & book shelves. -

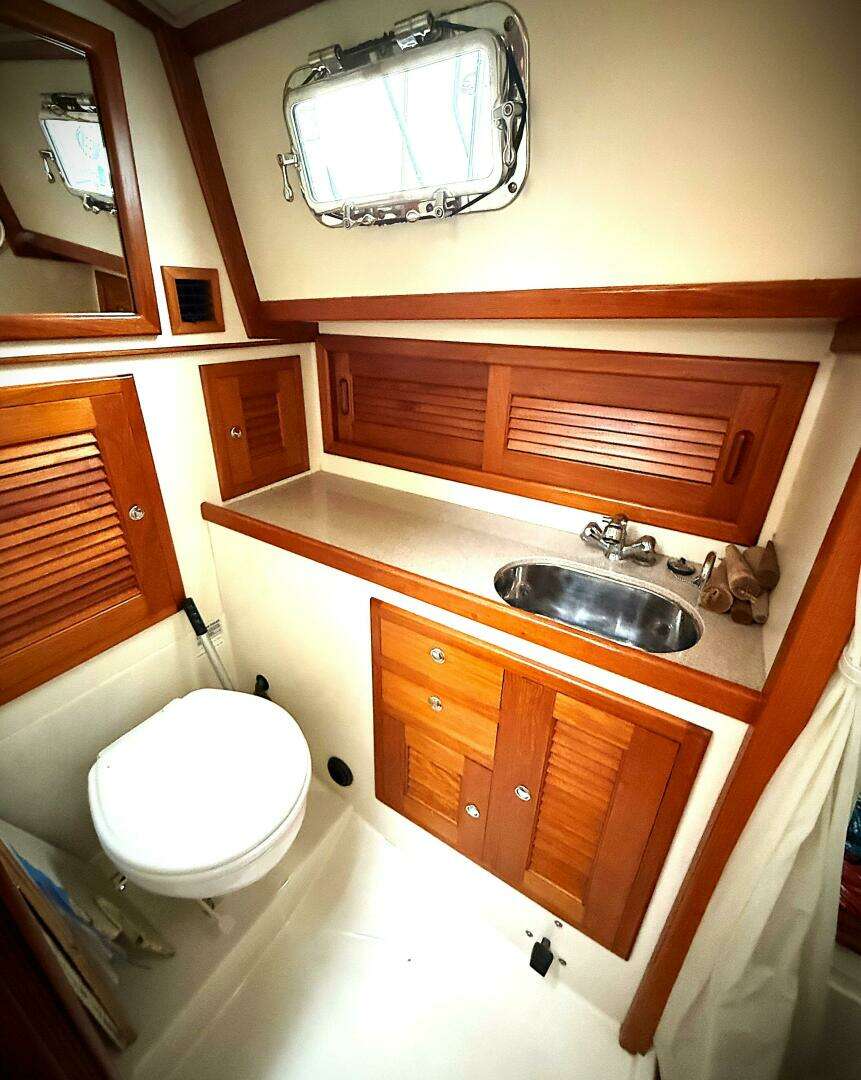

    Enclosed head with bi-fold solid panel door, nonskid flooring, ceramic head with macerator to holding tank, teak changing seat, wet locker, separate shower stall, and numerous dry storage lockers

    SAILS and RIGGING

    -- CUTTER RIG - Lefiell Spars -- Double-spreader mast --

    Doyle sails

    • Mainsail ("almost new")
    • 120% Furling genoa
    • Furling staysail
    • Storm sail

    ========================

    • Standing rigging replaced 2015
    • Harken MkIII genoa furler
    • Harken MkIII genoa furler


    IJPE : 847.50 sq ft

    I : 49.50 ft

    J : 18.42 ft

    P : 43.50 ft

    E : 18.00 ft

    Working Sail Area : 847.00 sq ft


    ELECTRONICS

    At nav-station:

    • Raymarine E80 (GPS Chartplotter/ Radar)
    • Icom IC-M802 Single Side Band transceiver
    • Standard Horizon Quantum GX23605 VHF transceiver
    • Qualcomm Global Star Satellite Phone

    At helm:

    • Raymarine E80 (GPS Chartplotter/ Radar)
    • Raymarine ST60 Tridata
    • Raymarine ST60 wind-speed/direction
    • Raymarine ST60 Smart Pilot Autopilot

    ELECTRICAL

    • 12V system with breaker/distribution panel
    • AGM batteries ('24 -- installation pending)
    • Engine-start battery ('24)
    • Two 260W solar panels ('15)
    • RDK 400W wind generator ('15)
    • 110V shorepower

    DECK and OTHER EQUIPMENT/FEATURES

    • Monitor steering vane
    • Dodger
    • Bimini
    • Factory custom extended stern pulpit/rails (extends forward to gates) ('15)
    • Lighthouse electric windlass
    • Full ground tackle

    -- Additional info available --


    ADDITIONAL FACTORY REFURBISHMENT

    • Rudder systems inspected/ refurbished
    • Prop, running gear refurbished
    • cutlass bearing replaced
    • Dripless shaft-seal replaced
    • Fuel pumps testedrefurbished
    • Lighthouse windlass rebuilt by manufacturer
    • Shorepower systems upgraded and service
    • Mast wiring inspected, serviced, replaced
    • "Mushroom" deck-ventilators replaced
    • Aluminum toerail refurbish and recaulked
    • LPG systems inspected/refurbished
    • Balmar regulator replaced
    • Much more..

    -- Fuel polished and tank cleaned recently --



    STANDARD FACTORY SPECS

    Construction - Hand laminated hull & molded in gel coat color. First hull laminate uses vinylester resin for superior blister resistance. Biaxial fiberglass hull. Balsa core from waterline to sheer. Standard hull & deck colors are Oyster White. Choice of boot & sheer stripe colors. - Upper and intermediate shrouds to s.s. chainplates & backing plates caulked & thru-bolted to the hull. Lower shroud chainplates set inboard for ease of movement. Solid teak rubstrake on hull. - Rudder with steel web frame supported by high strength manganese bronze gudgeon & closely coupled to steel reinforced integral skeg. - Ballast - 8,880 pound (4.04 mt) solid lead casting permanently attached w-s.s. keel bolts and backing plates. Keel to hull joint bedded in epoxy. -

    Interior: Structural fiberglass, plywood & gel coat interior module bonded into hull w-fiberglass mat & woven roving. Primary bulkheads bonded into hull & deck with fiberglass & bolted in place. - Deck, lockers & entire bilge are gel coated to prevent mildew & to facilitate cleaning. All bulkhead openings for hoses & wiring are rubber grommeted to prevent chafing. -

    Deck to hull connection: Integral hull & deck flanges mated & bedded in polyurethane and fastened with stainless steel thru-bolts. Deep bulwarks with heavy teak cap rail, hand fitted with butterfly joints. - Deck balsa cored. Plywood core in hardware mount areas. - Deck has molded-in nonskid pattern. - Hull finished with 3 coats epoxy below waterline. Deck Equipment - All cleats, winches, turning blocks, pulpits & stanchions are thru-bolted with metal backing plates & caulked on both sides with polyurethane. - 30" high stainless steel double rail bow & stern pulpits with running lights & 30" high double lifeline stanchions. - Stainless steel boarding gates, port & starboard, with double lifelines. - Extended s.s. bow platform & stem fitting w- 2 anchor rollers & locking pins. - Divided bow chain locker for two anchor rodes w- one anchor deck pipe. - Stern chain locker to starboard with deck pipe & stern anchor roller. - Chrome plated bronze deck hardware includes: All hinges, hasps, jam cleats, chain pipes, deck fills, etc. Two Harken #53.2 STC two speed, self-tailing genoa sheet winches. One Harken #44.2 STC two speed, self-tailing mainsheet winch. Three Harken #40.2 STC two speed, self-tailing for halyards & utility. Six 7" x 12" and eight 4" x 7" opening ports (2 in cockpit). CE approved. Two 12" & two 10" bow mooring cleats (4 total), 3" hawse pipes. Two 10" open spring cleats amidships. Two 10" stern mooring cleats with 9" chocks. One anchor deck pipe on foredeck & one aft. - Harken mainsheet traveler over companionway. - Harken deck sheave organizers. Spinlock rope clutches on coach roof. - 2 Bomar double opening hatches & 2 Bomar vent hatches. CE approved. - Two Vetus dorade cowl ventilators. Six teak handrails on cabin house. - Inboard & outboard genoa tracks with Harken cars. Harken foot blocks. - Fiberglass seahood, teak companionway sliding hatch & drop boards. - Stern mounted s.s. swim ladder with teak treads, boarding gate & overboard retrieval line.

    Interior - Varnished teak woodwork. White Formica cabin house trunk sides. - Louvered locker doors & solid drop doors with hidden hinges. - Louvered cabin doors (top half only) & panel head door with piano hinges. - Chrome bronze push button locks on all locker doors and drawers. - 6' 5" headroom with teak & holly sole throughout cabin area. - Positive push button latches on all locker doors. - Wrapped 4" foam cushions with choice of fabrics. - Zippered vinyl headliner with superior insulation, deadens sound & provides easy access to deck hardware & wiring. Forecabin - 6' 7" long and 57" wide double island berth with drawers & shelves. - Teak ceilings above shelves. Teak bi-fold privacy door. - Vanity sink, mirror & large cedar-lined, louvered hanging locker. Main Salon - 6' 6" long "U" shaped dinette to starboard converts to 50" wide dbl. berth. - Sides have teak lockers & bookshelves with removable fiddles above seats, storage bins below. - Teak drop leaf table with with gas spring pedestal. - 6' 3" long settee berth to port with storage below. - Teak navigators desk w- storage under lift top. Nav panel & book shelves. - Enclosed head with bi-fold solid panel door, nonskid flooring, ceramic head with macerator to holding tank, teak changing seat, wet locker, separate shower stall, and numerous dry storage lockers.

    Galley - Gimbaled s.s. three burner propane stove w-oven & broiler. - Safety bar. Formica stove top. Locker over refrigerator. - 10 cu. ft. ice box w-foam insulation, hinged lid & manual pump out to sink. - Polished s.s. double sink with electric pump pressure fresh water & foot operated manual pump. - Food & dish storage lockers & drawers. Tilt-out trash bin. Aft Stateroom - Enclosed aft stateroom with 6' 9" long and 54" wide double berth. - Teak privacy door separating aft stateroom from main salon. - Large cedar-lined hanging locker. Drawers under berth. - Vanity mirror on bulkhead. Teak ceilings above shelf. Plumbing - Three water tanks w-inspection ports, approx. 150 gallons (589.5 liters). - Hot & cold pressure fresh water system for galley, head & shower with accumulator tank & foot pump in head & galley - Easy access fresh water manifold. Color coded water hoses. - 6 gallon hot water heater from engine heat exchanger or shore power. - Bronze thru-hull fittings with UL approved bronze seacocks below the waterline & bronze ball valves above waterline; all double clamped. - Marine head with 19 gal. holding tank, macerator, & overboard pumpout. - Electric shower sump pump with overboard discharge. - 11 GPM electric automatic bilge pump with Ultra pump switch. - 25 GPM manual bilge pump in cockpit operable by helmsman. Engine - Yanmar 4JH2E, four cylinder, 51 hp (36.8 kW) diesel w- fresh water cooling. - 3" exhaust, electric stop, & 80 amp alternator. Yanmar "C" control panel. - Clear covered engine control panel in cockpit by helm with tachometer, engine hour meter & engine condition indicators. - Removable aluminum fuel tank approximately 70 gallons (265 liters) with gauge & cleaning port. Three-blade solid bronze propeller. - Mechanical fuel pump, electric back up fuel pump. Racor MA500 fuel filter. - Seawater strainer bulkhead mounted & water lift muffler system. Electrical - AC-DC master power control panel with AC ammeter, AC voltmeter, DC ammeter, DC voltmeter, polarity test circuit, 8 AC circuit breakers, 12 spare AC switches, battery condition monitor, 20 DC circuit breakers, 4 spare DC switches. Clear plastic screen. - Tinned copper wiring throughout. 110 Volt shore power system w- breaker. - Three Lifeline advanced absorbent glass mat sealed deep cycle marine batteries (105 amp-hrs.) under cabin sole. - One 4 position battery switch. Two fluorescent lights in main salon. - Cantalupi lights (nine dome & seven reading). - Chart light at navigation station. Dome light in engine & cockpit locker. - AC duplex receptacles with polished covers & GFI protection for 11OV. - VHF coaxial antenna cable led from masthead to navigators table. Cockpit - 7' long seats with contoured seat backs & seat drains. - Coamings have two built-in winch handle boxes, one is for shower. - Cockpit seat lockers for storage. Chrome opening portlight starboard. - Lazarette hatch & vented propane locker for two 5 gallon tanks. - One 5 gallon propane tank (empty) with s.s. mount. Copper LPG hose. - Two safety harness pad eyes in cockpit. - Whitlock Cobra pedestal wheel steering with brake & offset stainless steel pedestal guard, single lever engine control & emergency tiller. - Removable cockpit sole w-neoprene gasket seal, finger pulls, & four chrome retainers for access to engine, steering & packing gland. - Deep gutters & two 1-1-2" cockpit drains for fast self-bailing. Spars and Rigging - Custom aluminum spars with white two part linear polyurethane paint.
