1996 Manta 40
40' (12.19 m) Scout

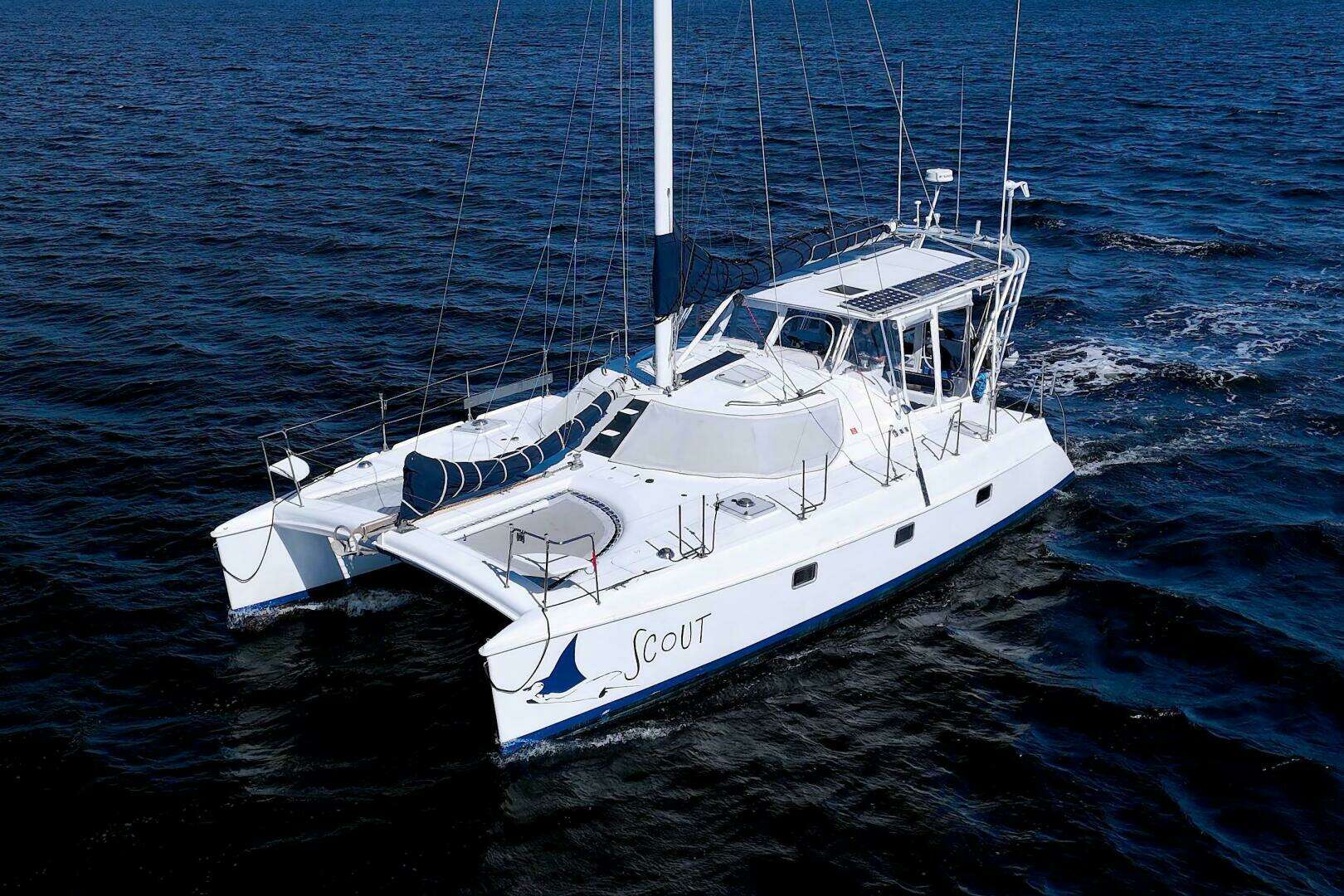

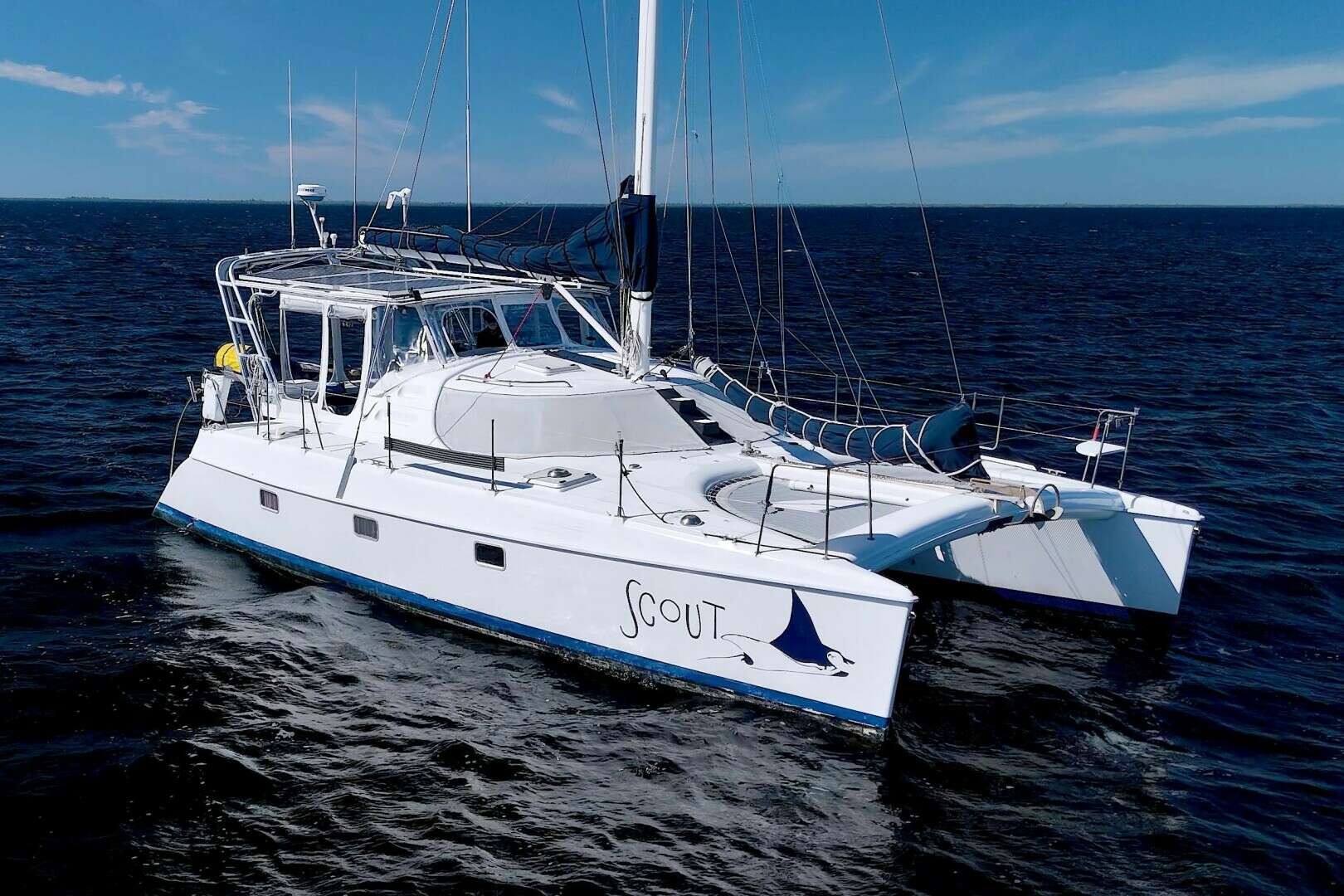

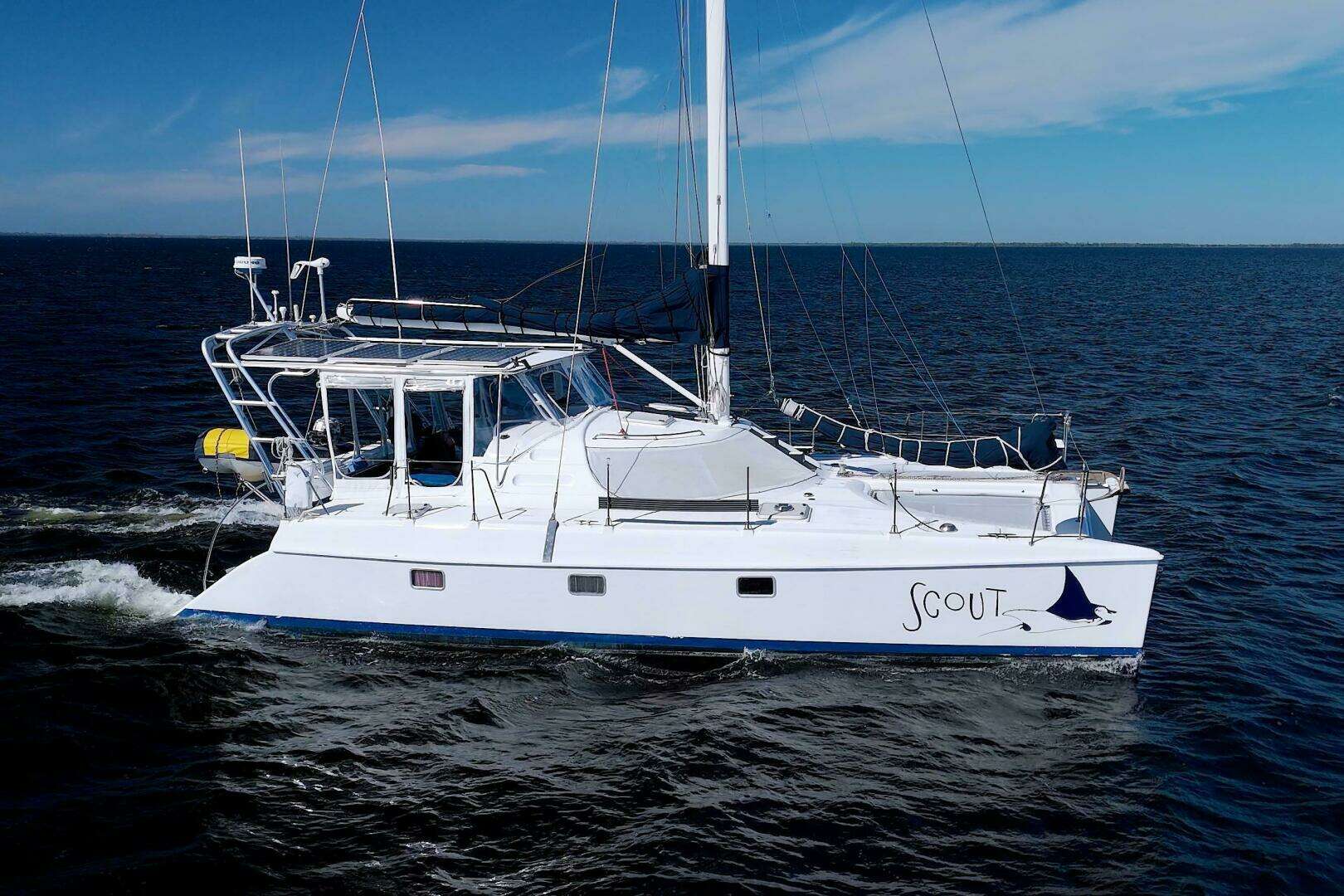

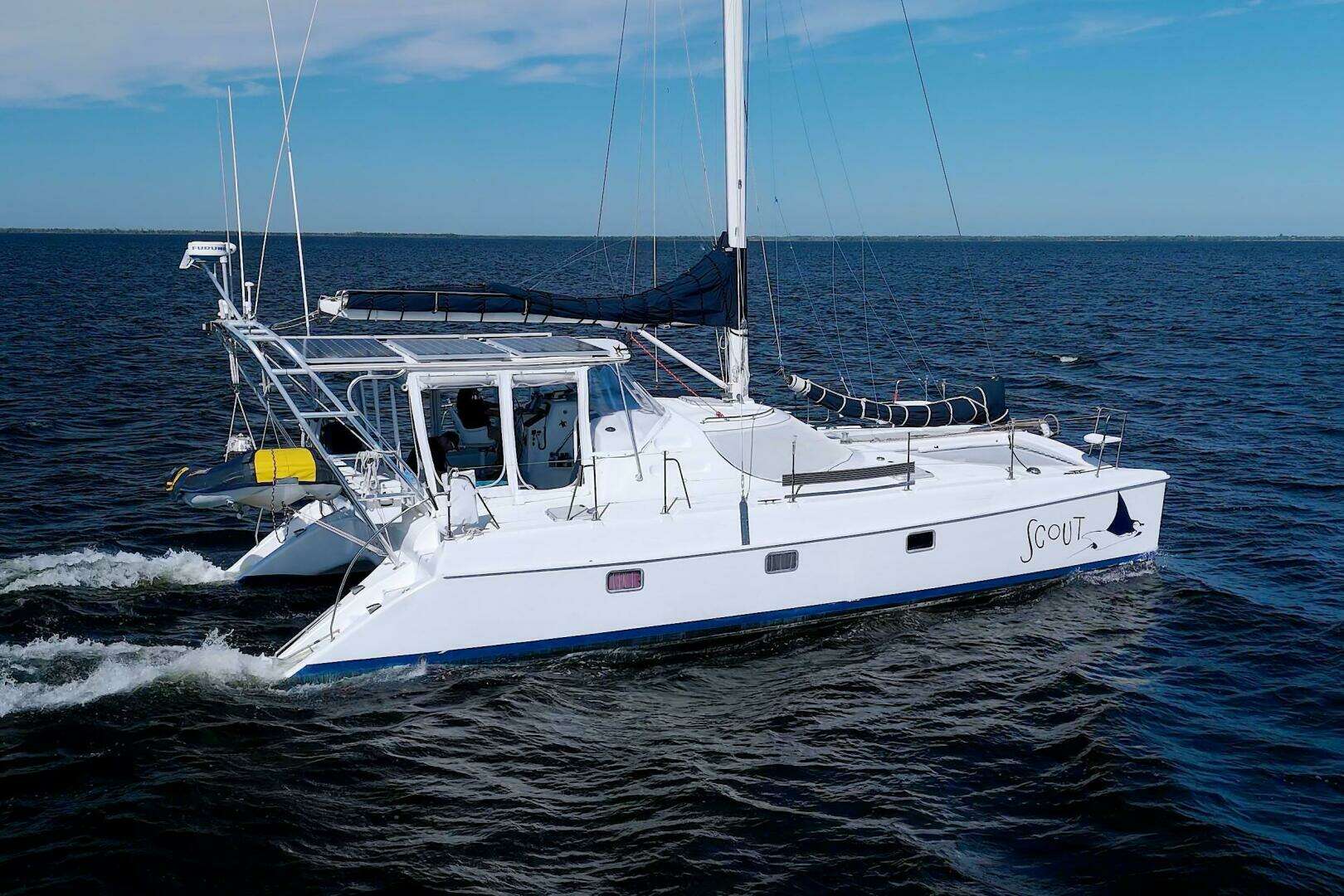

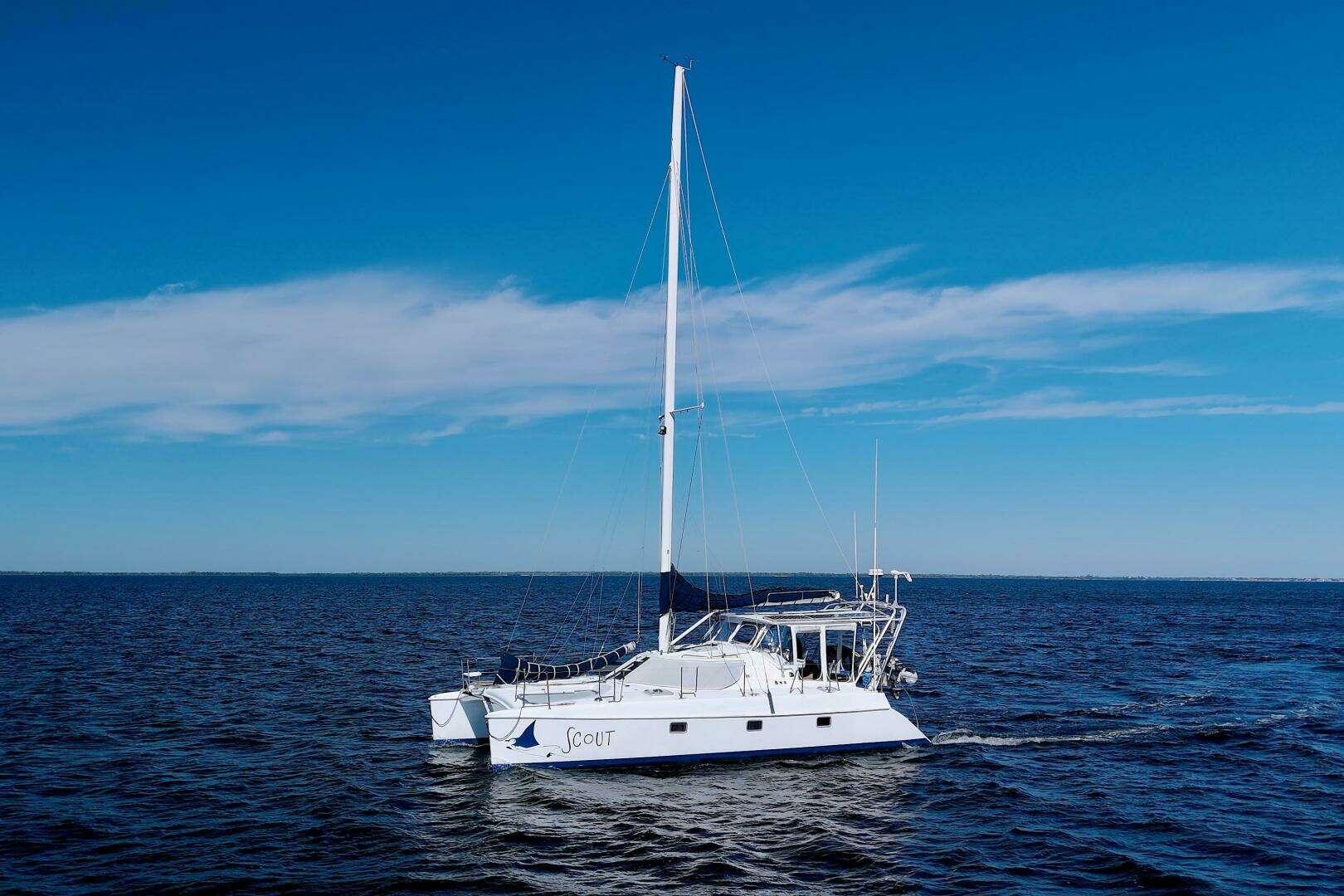

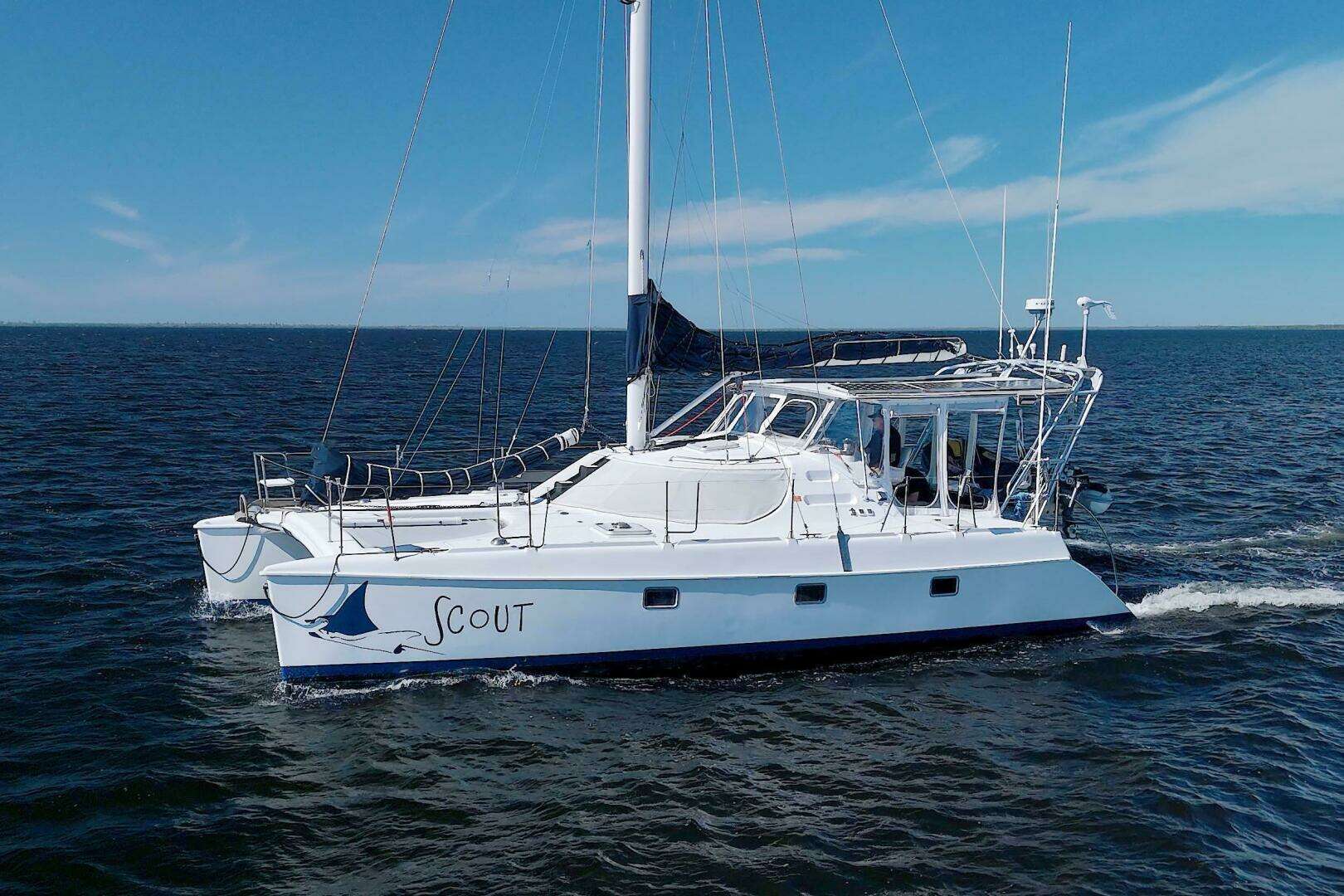

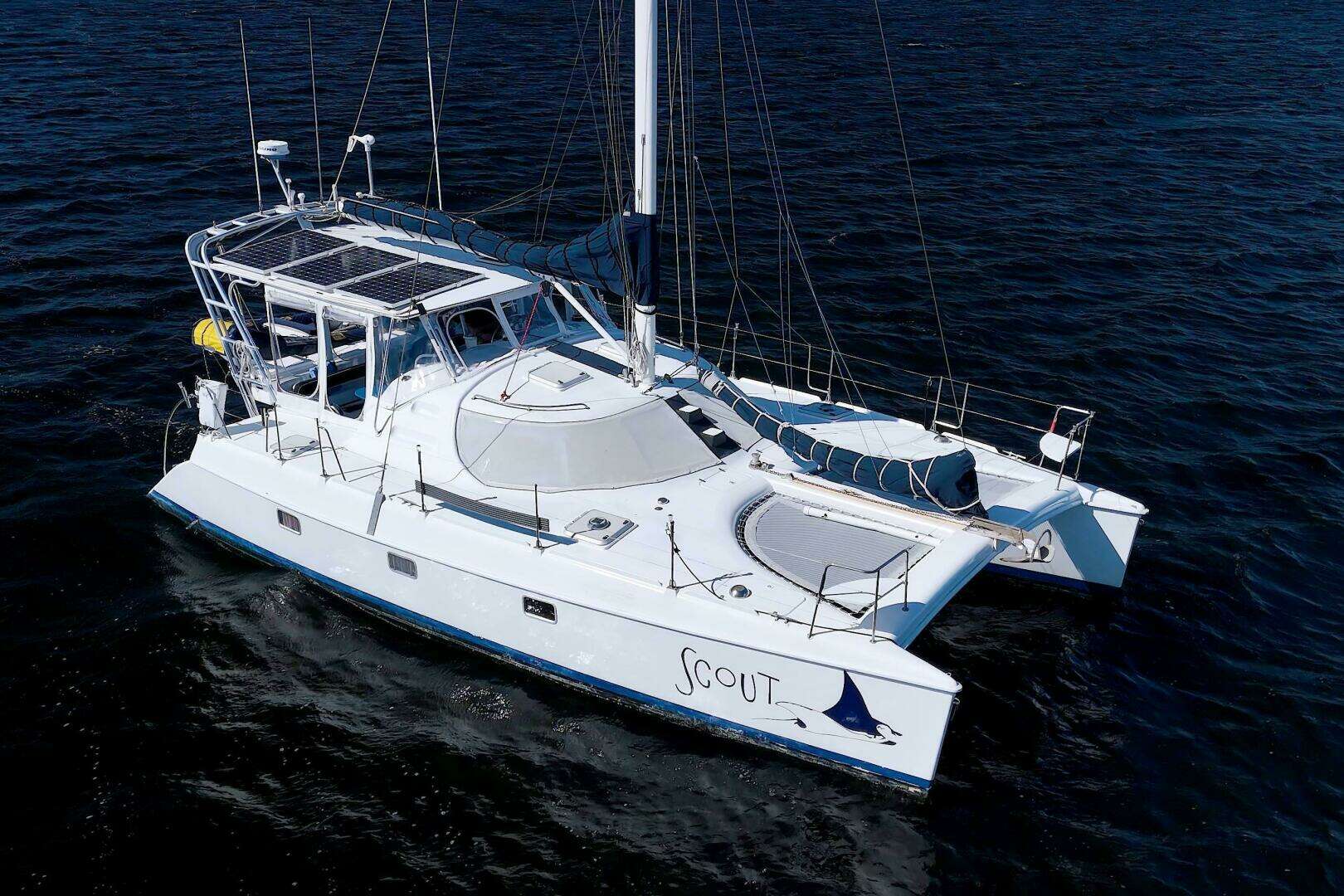

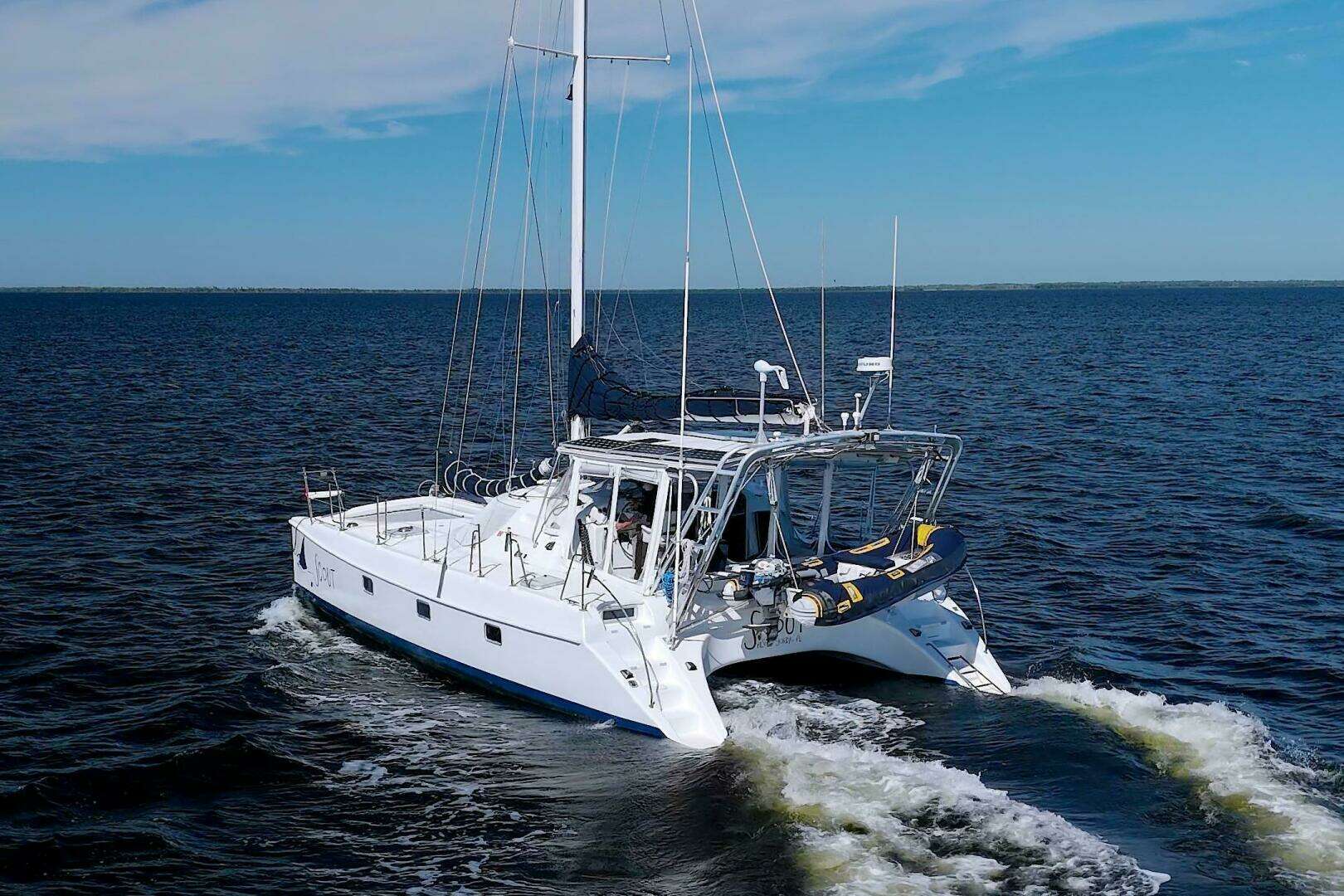

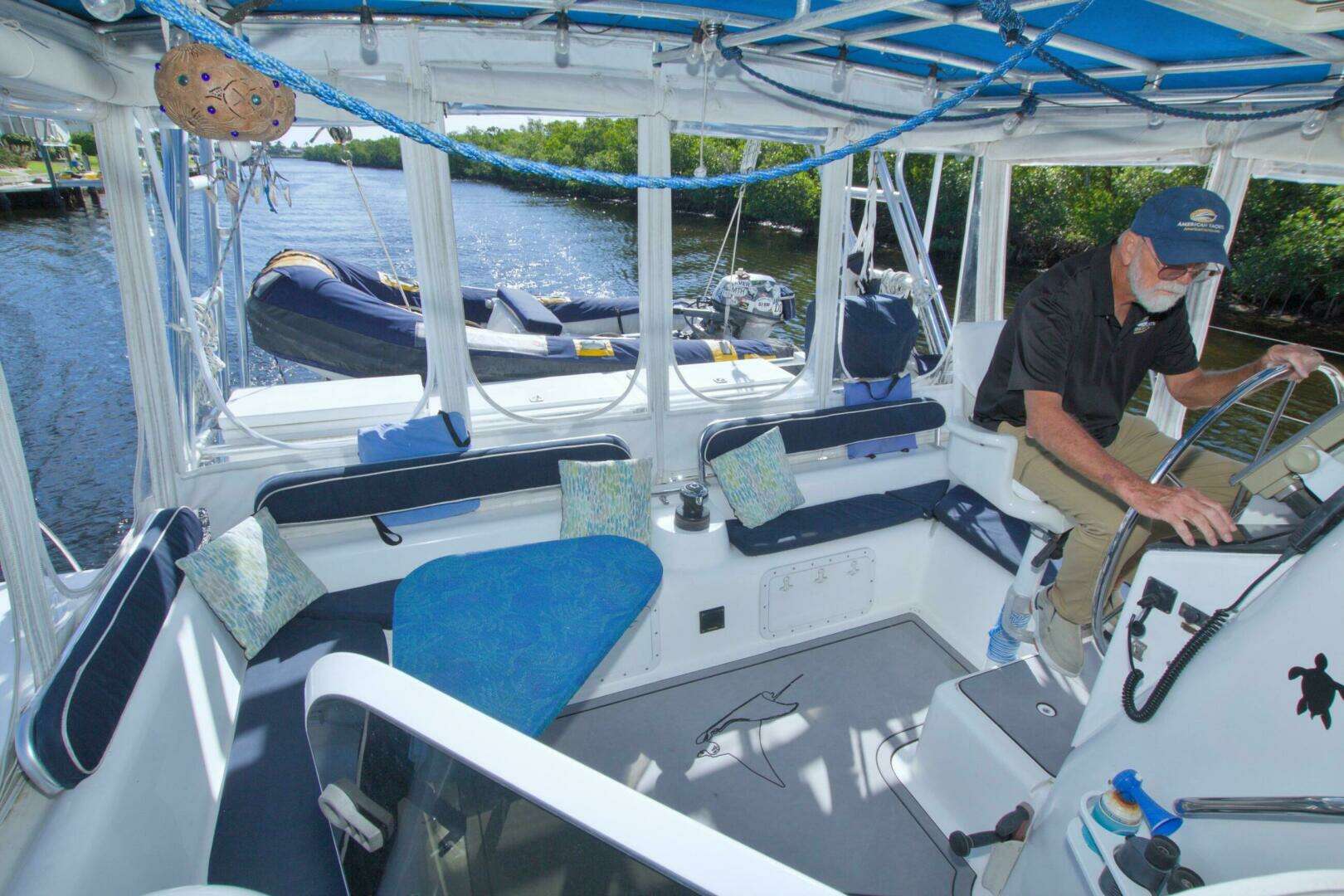

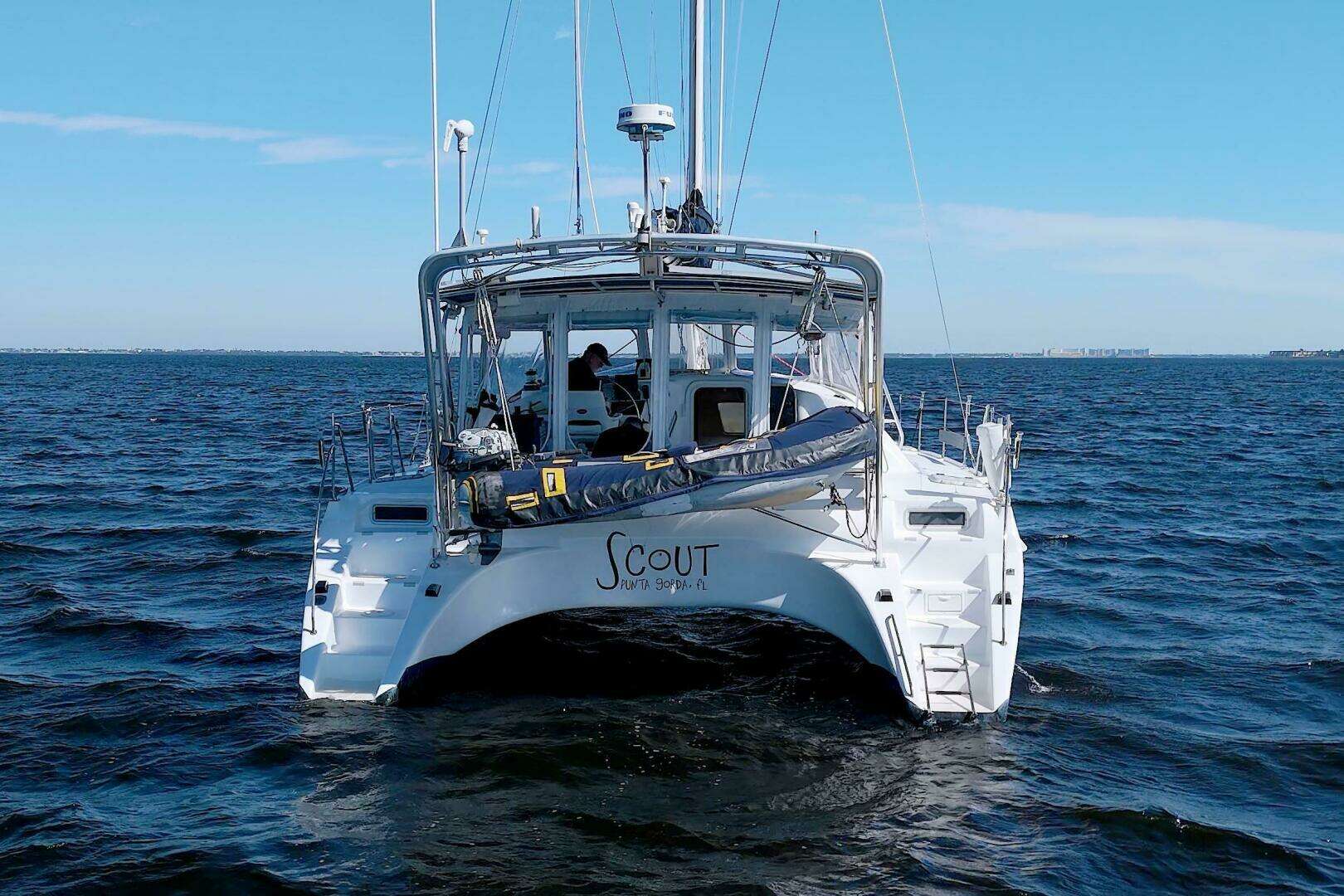

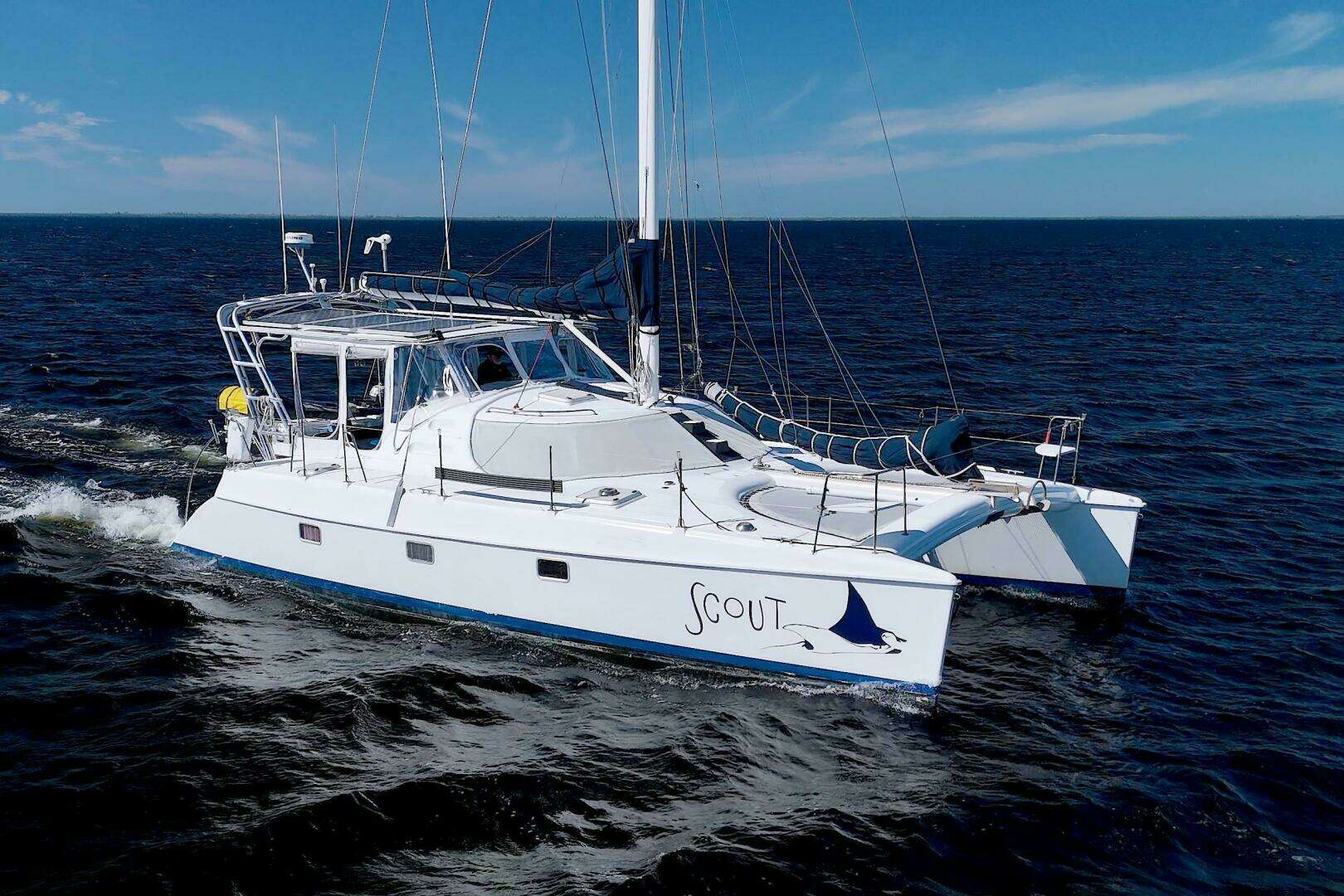

Meet *Scout*, a Manta 40 Catamaran blending performance and comfort. Twin 40hp Volvos deliver 7–8 knot cruising and 900-mile range. Features include master suite, two guest cabins, full cockpit enclosure, Camberspar jib, and a robust hardtop for solar and shade — built for world cruising
Flag of Registry: United States
| FEATURES: |
|---|
1996 Manta 40' 40
- 12.19 m
- Diesel
- Sail
- Catamaran
$ 219,000 USD
$ 309,233 CAD*€ 189,782 Euros*£ 166,797 GBP*
Description

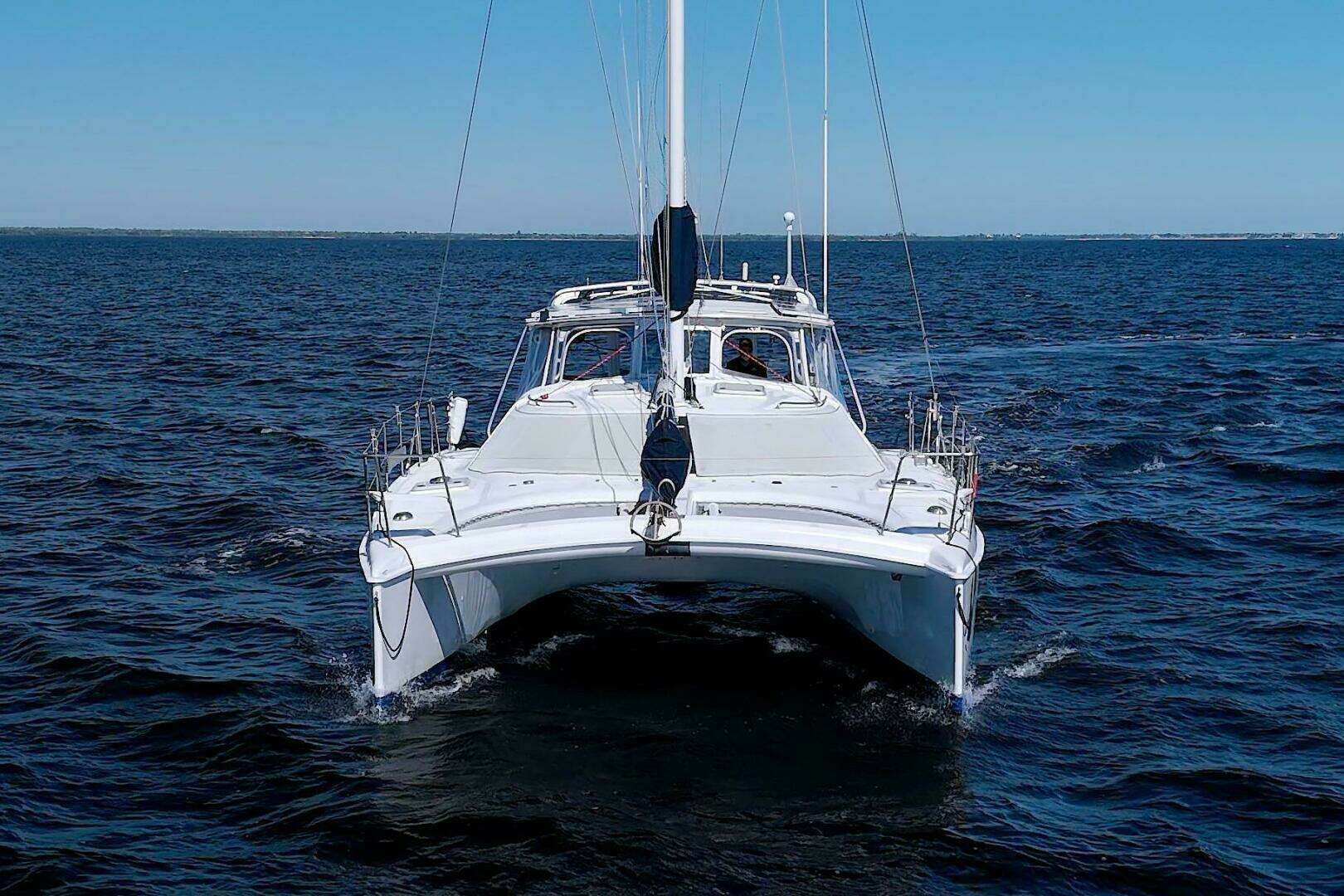

Introducing the Manta 40 Catamaran, Scout, a remarkable vessel that combines performance and comfort. With an overall length of 40 feet, this catamaran is crafted from durable composite materials, ensuring a strong foundation and a robust sailing experience. It features two powerful Volvo MD2040 inboard engines, each delivering 40 hp, providing reliable propulsion for your adventures on the water. The Manta 40 boasts a cruising speed of 7 knots and a maximum hull speed of 8 knots, making it an efficient choice for long voyages, with an impressive range of 900 miles under power. She is a delight to sail and both the exterior and interior provide a comfortable setting for those special anchorages.The vessel includes a well-appointed master suite in the port hull and two guest cabins in the starboard hull with a shared head/shower, enhancing comfort for all onboard. These boats were not intended for the charter trades. What they were designed for is to take a cruising couple world wide with occasional guests. They are by far the easiest catamaran to sail thanks to its Camberspar Jib and all control lines led to the cockpit. Hardly ever a need to leave the cockpit while under sail. Scout also boasts a full enclosure with screens.

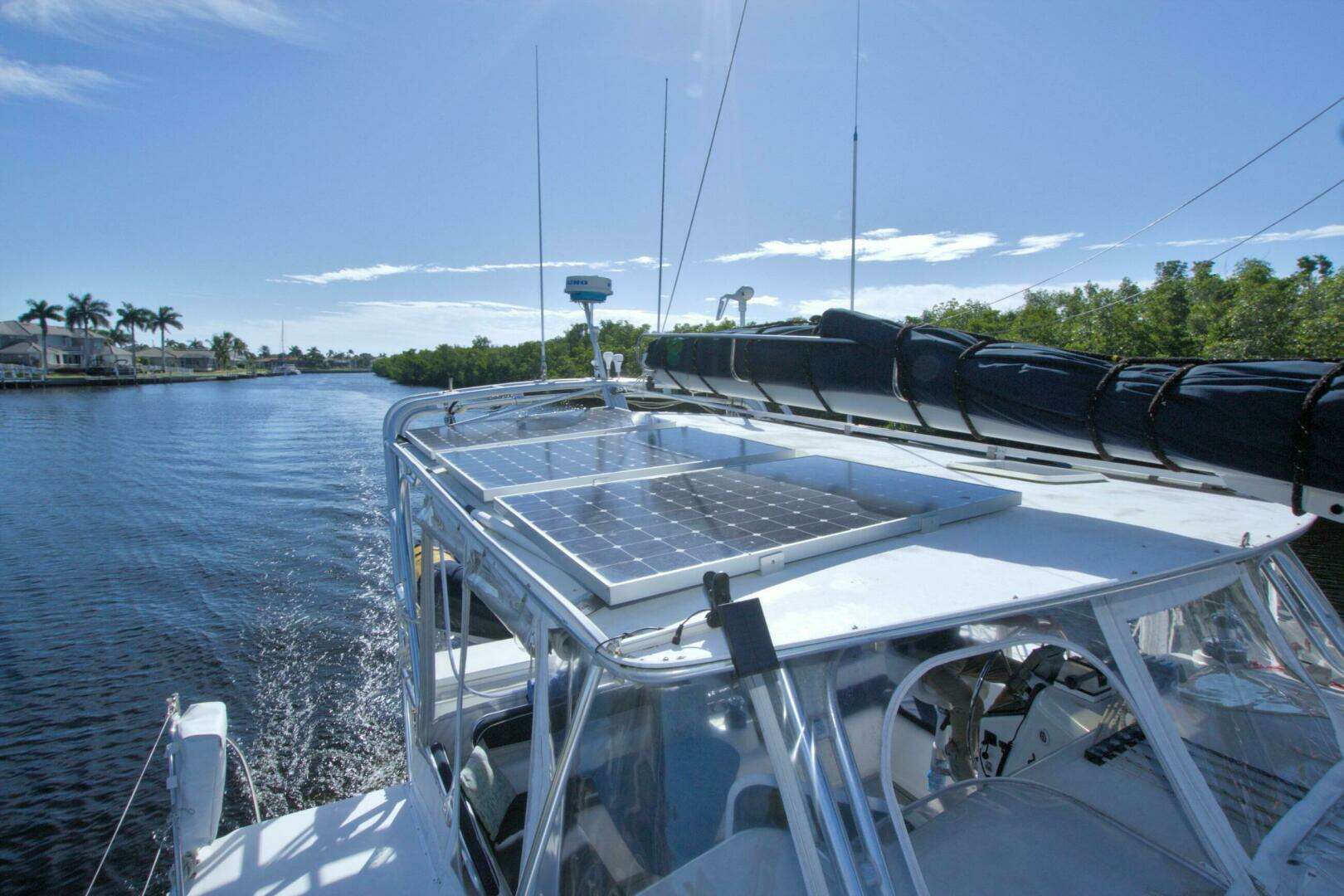

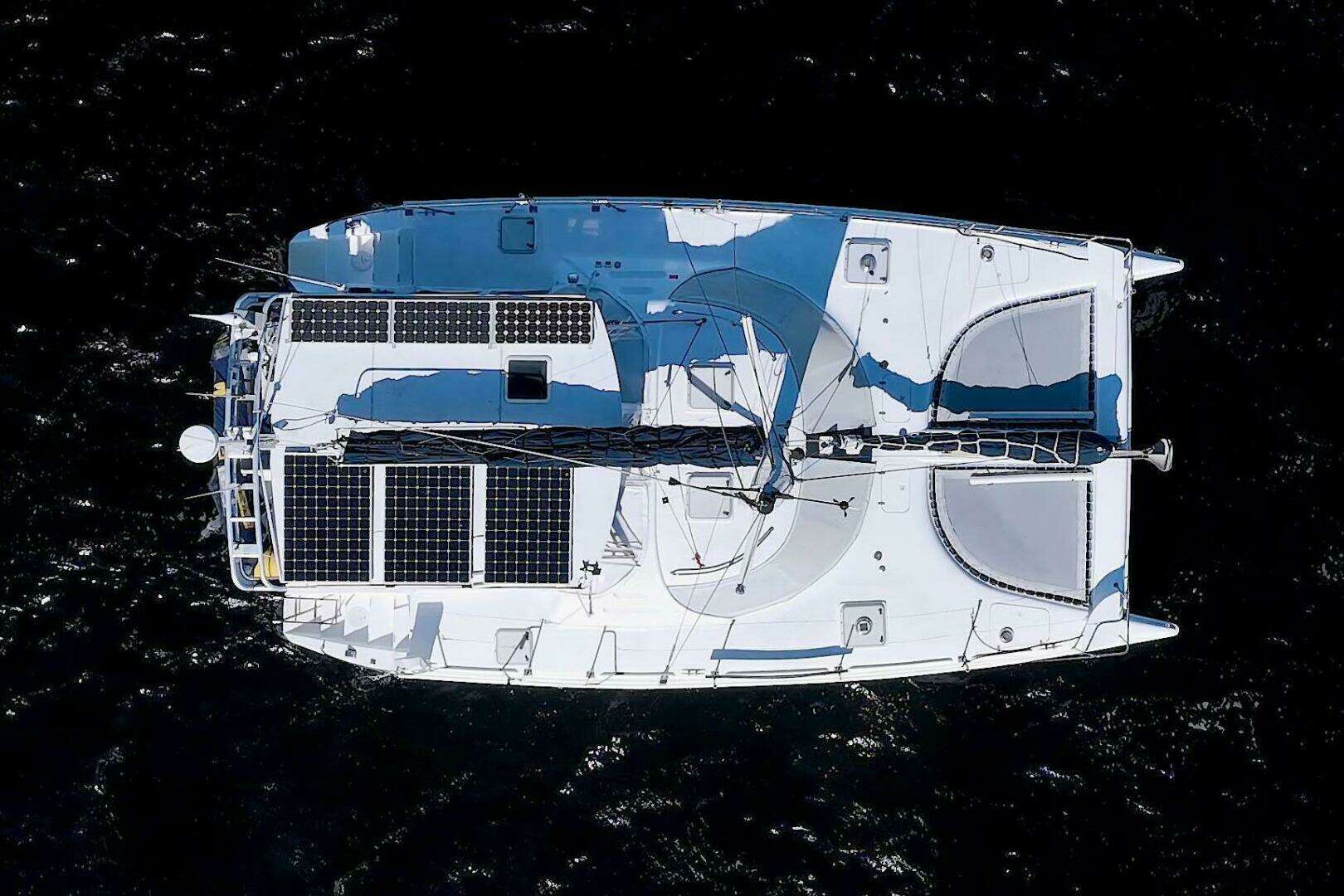

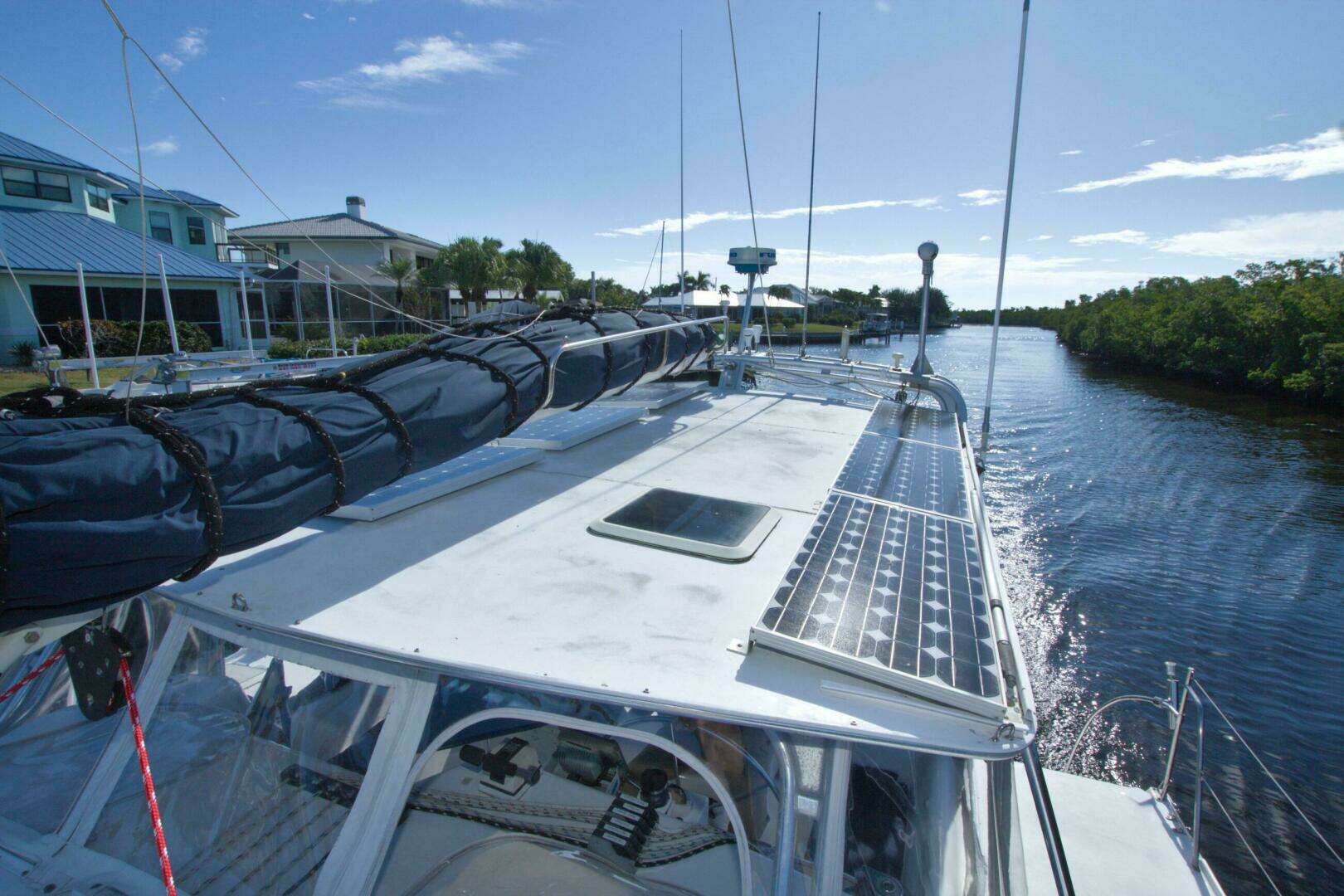

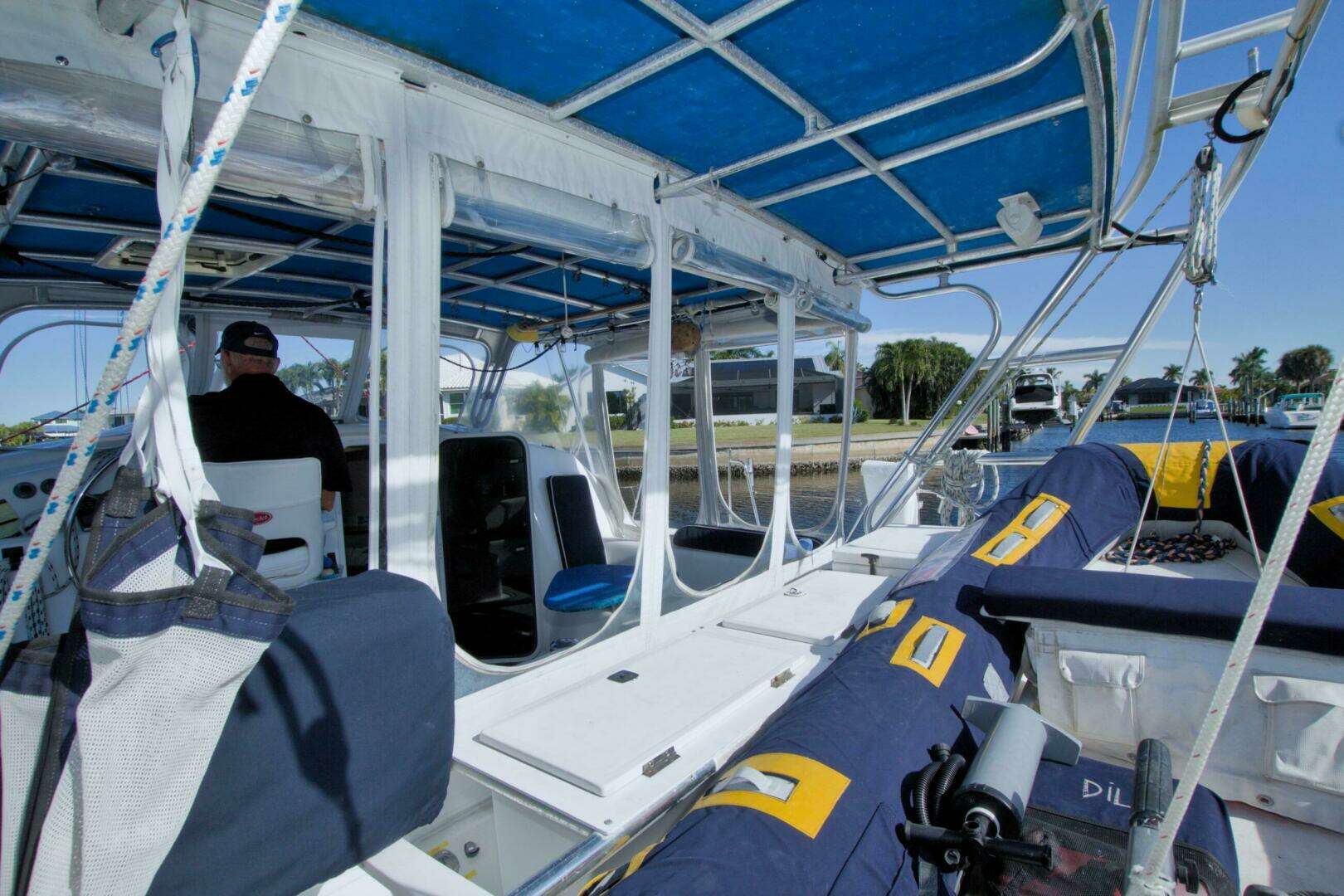

One of the best features of the Manta catamarans is the huge hardtop. It is powerfully built and provides the perfect platform for stowing sails, providing sun protection, a great place for SOLAR panels and best of all a perfect arrangment for keeping you dinghy safe and secure, even in a seaway.
LOA39'
LOA Inch8''
LOA12.09''
Beam21'
Draft Max Feet3'
Draft Max Inch7''
Bridge Clearance Feet61'
Fuel Tank (Gallons)100
Fuel Tank (Liters)378.54
Fresh Water (Gallons)100
Fresh Water (Liters)378.54
Holding Tank (Gallons)40
Holding Tank (Liters)151.42
TypeSail
ConditionUsed
Specifications
Scout
MJJ40117C696
39'8" (12.09 Meters)
Sail-Used
1996
3'7"
3
2
Diesel
Fiberglass
100 Gallons (378.54 Liters)
100 Gallons (378.54 Liters)
40 Gallons (151.42 Liters)
13000
Engines
Engine 1
- Engine Make: Volvo
- ModelEngine Model: MD2040
- YearEngine Year: 1996
- Engine TypeEngine Type: Inboard
- Drive TypeDrive Type: Sail
- Power HPPower HP: 40.00
- Power KWPower KW: 29.83
- Feul TypeFeul Type: Diesel
- HoursHours: 3717.00
- Engine LocationEngine Location: Port
Engine 2
- Engine Make: Volvo
- ModelEngine Model: MD2040
- YearEngine Year: 1996
- Engine TypeEngine Type: Inboard
- Drive TypeDrive Type: Sail
- Power HPPower HP: 40.00
- Power KWPower KW: 29.83
- Feul TypeFeul Type: Diesel
- HoursHours: 3374.00
- Engine LocationEngine Location: Starboard
Full Details
General Accommodations

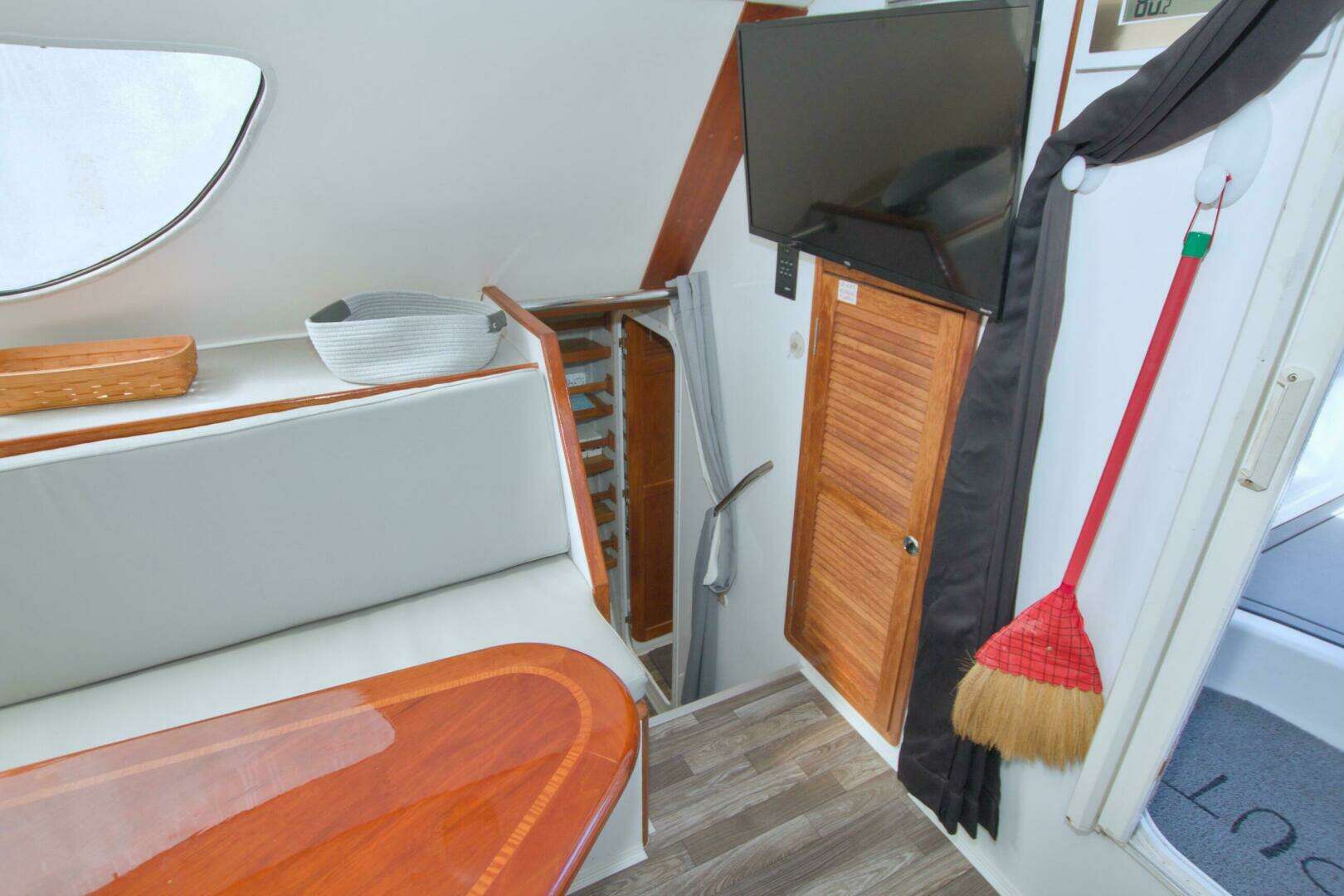

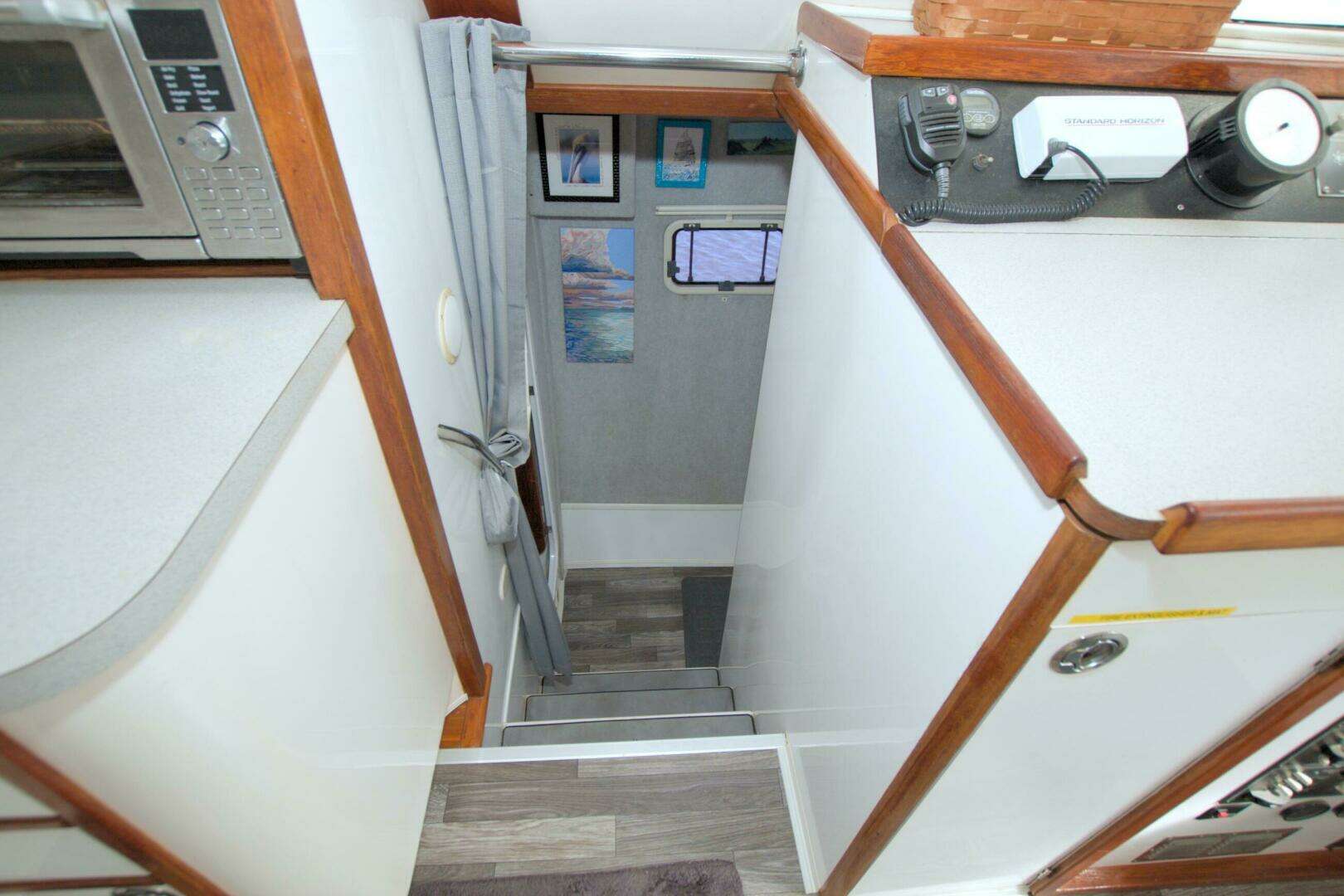

Entry into the salon is through a true "sea hatch" slightly to starboard of the centerline. To starboard forward is a large L-shaped settee with a beautiful varnisned adjustable table. To port forward is the refrigerator/freezer area, which may be the best in the business. The amount of insulation creates a large refer section and very accomodating freezer. Along the port side salon is the chart table with storage below. Aft to port in the U-shaped galley with double sinks, propane stove with oven and a microwave oven. A large hanging locker is along the starboard aft bulkhead with a 32' flat screen tv mounted on the bulkhead. Down four step to port you enter the master suite. It offers a full queen berth aft and a great head with a huge shower forward. The starboard hull has a large single berth forward and a full queen aft. Between the cabins is a head with marine toilrt, sink and counter and a shower. Hull sides are covered in grey Ozite carpet. Cabinetry is white laminate with teak trim and laminate counter tops. Headliners and sole are vinyl. Boat has two zones of reverse cycle heat and air conditioning.

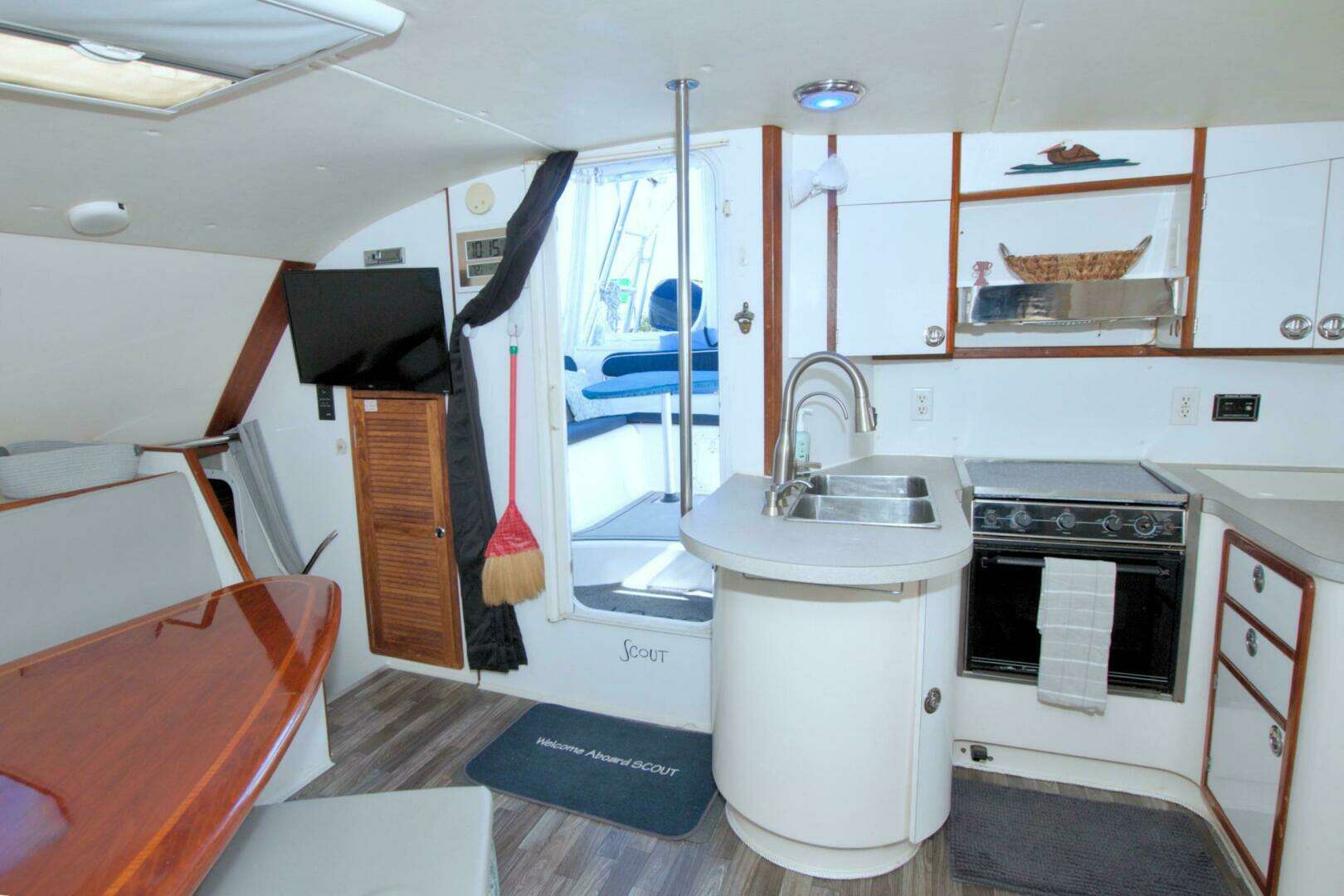

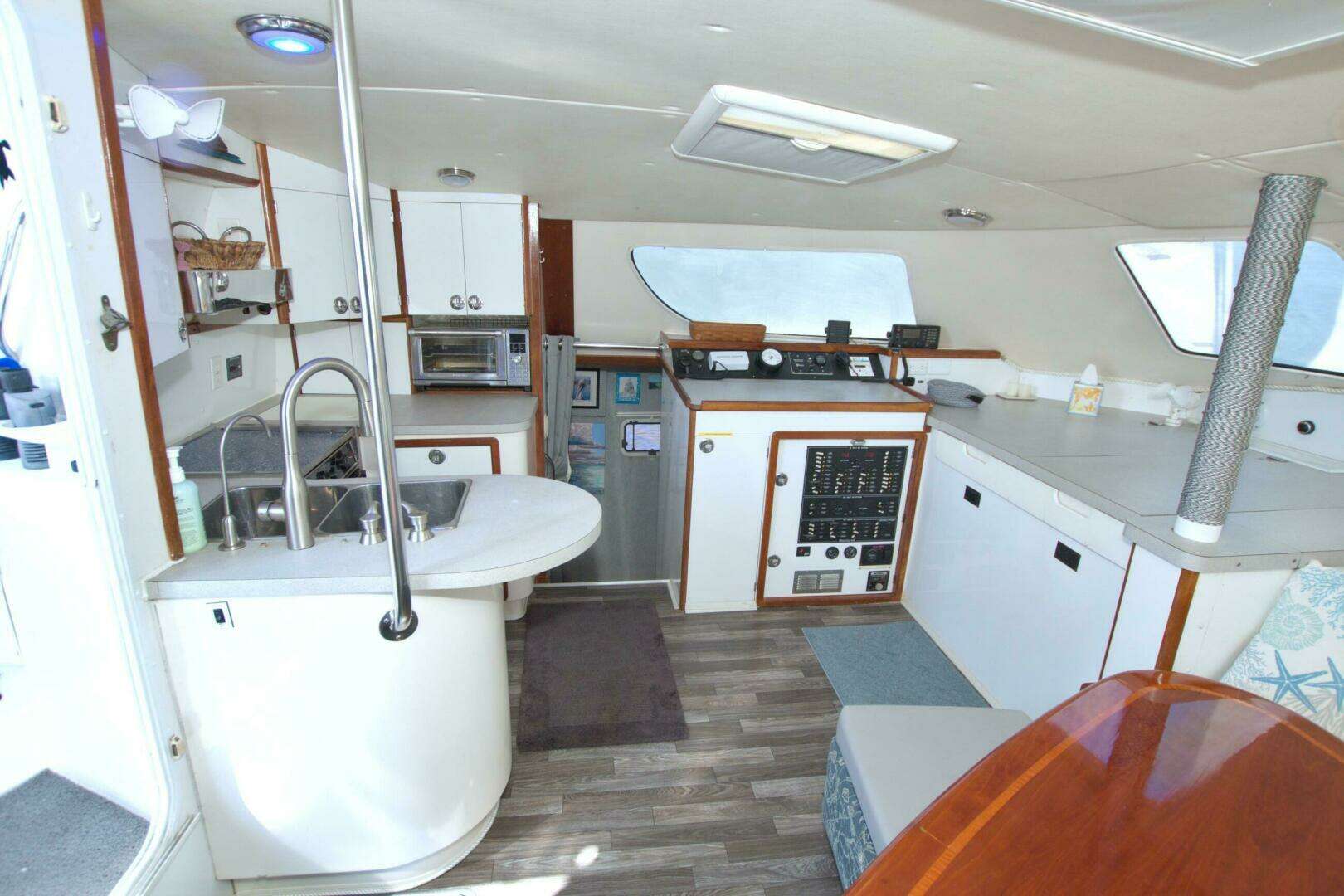

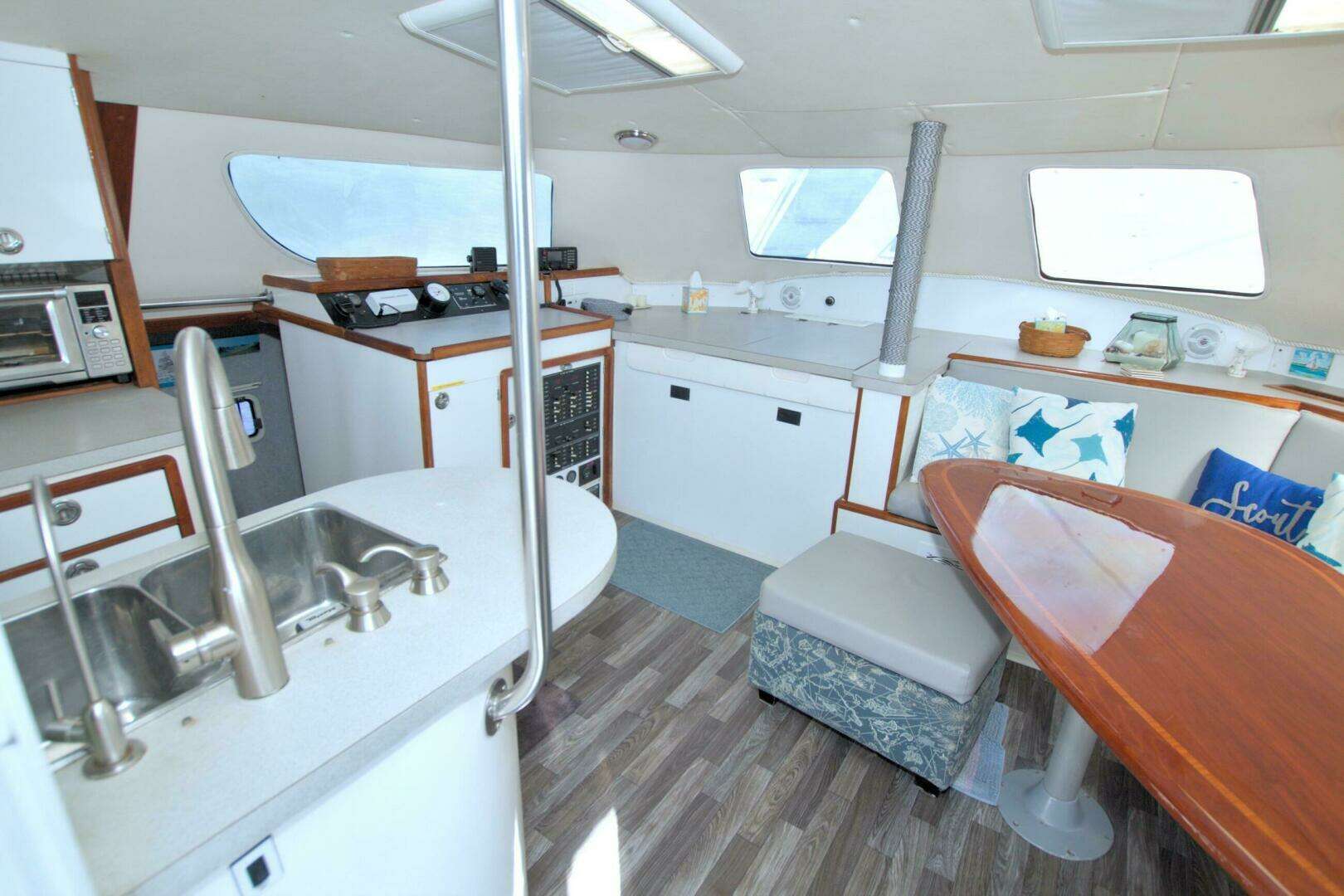

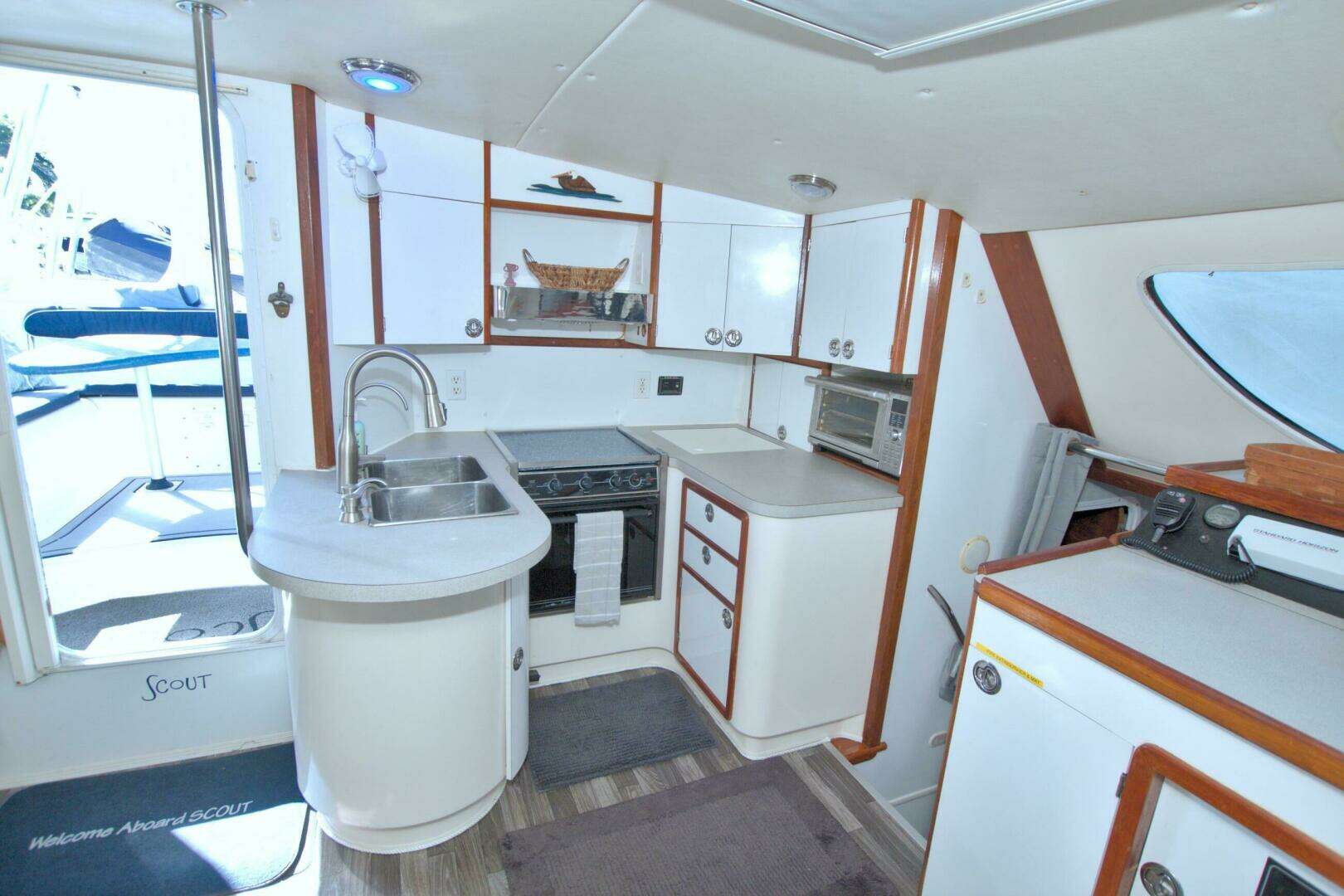

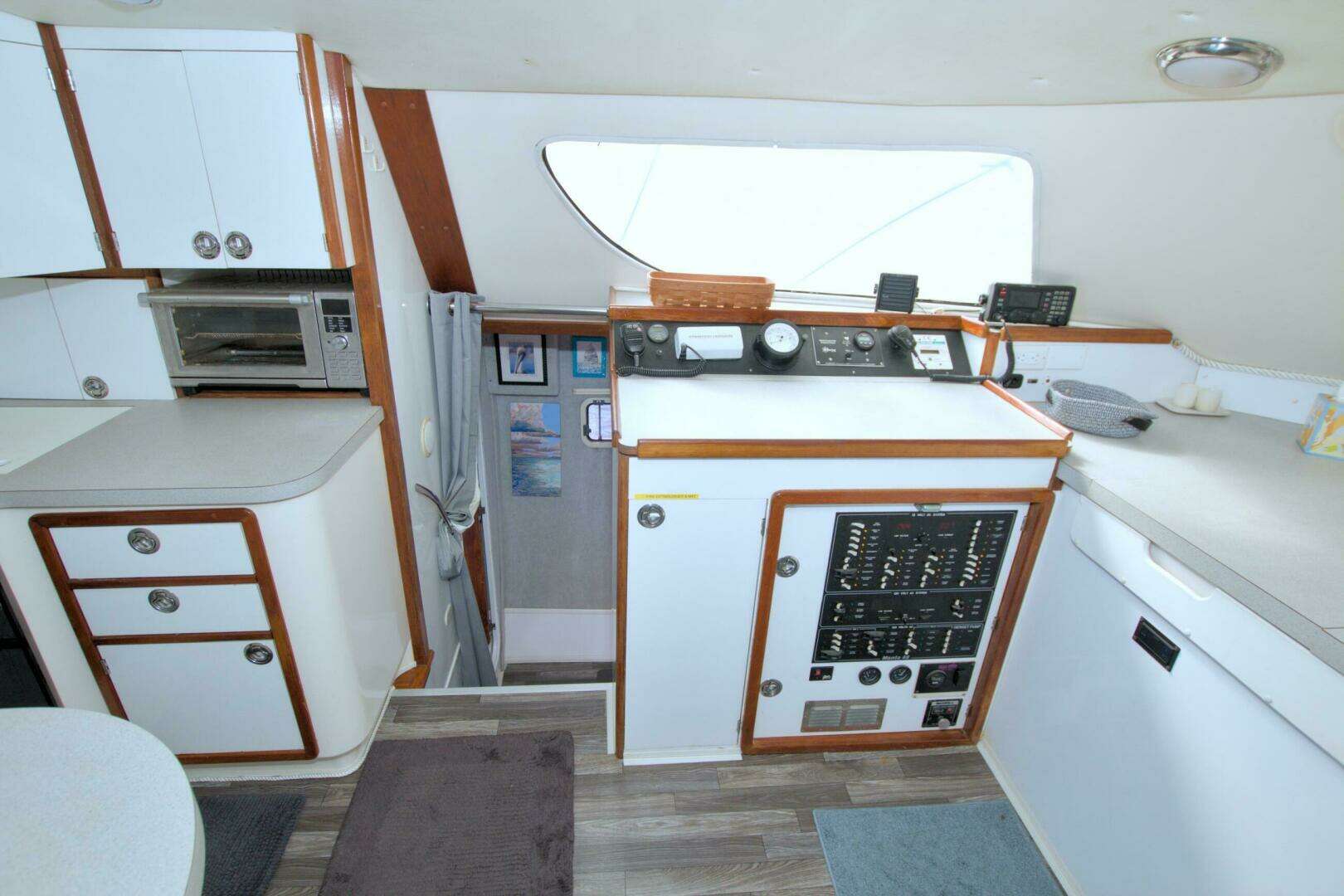

Salon and Galley

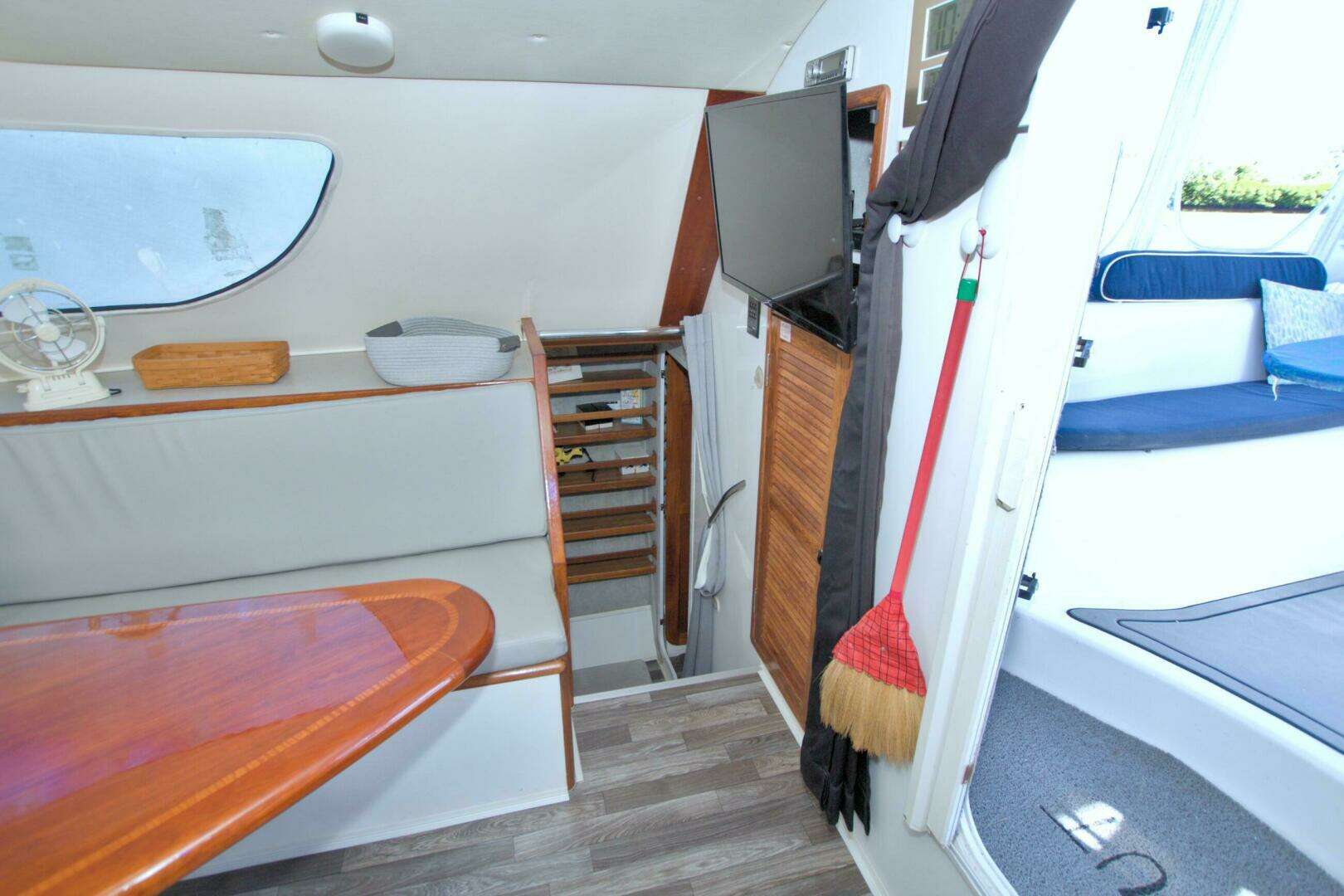

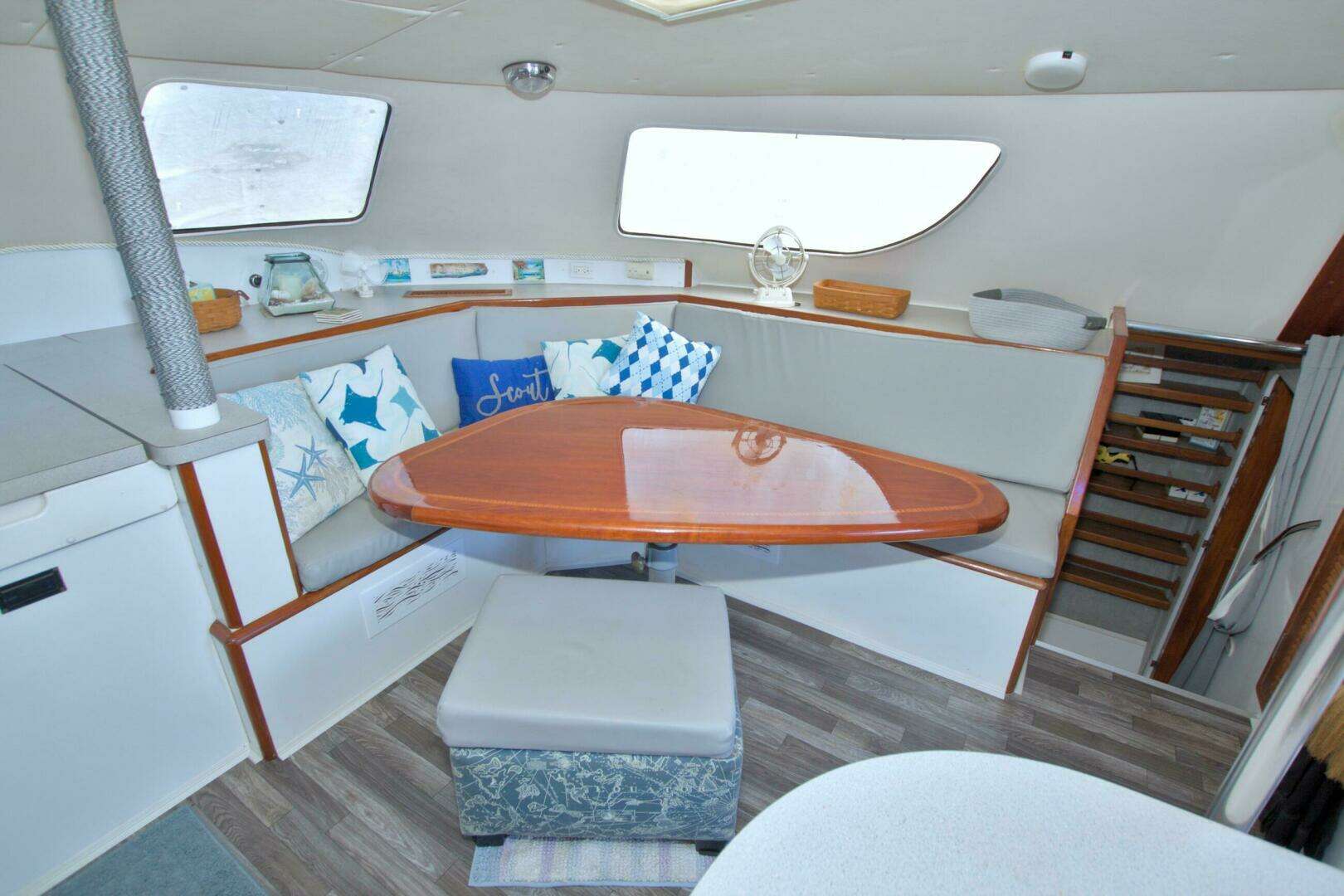

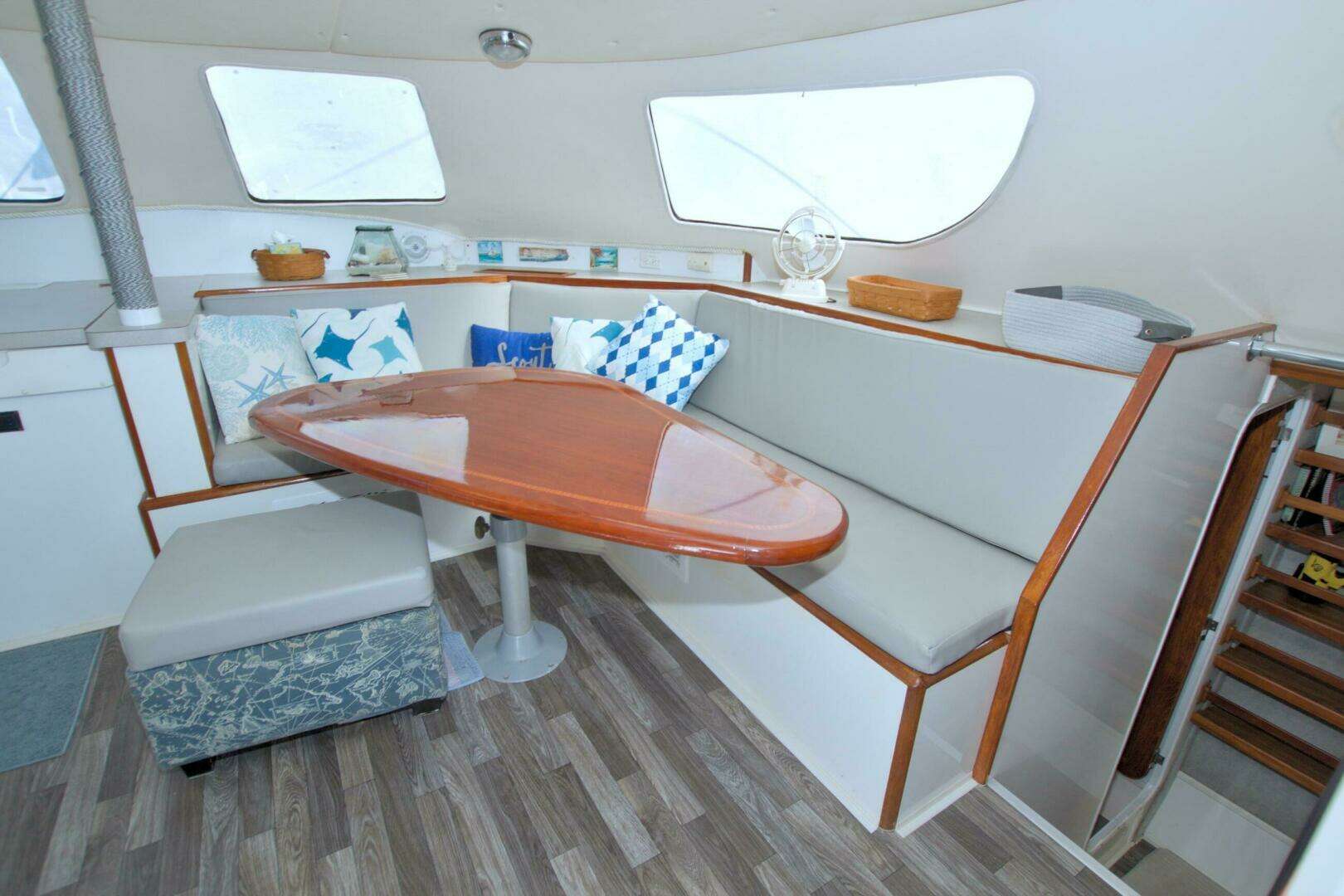

- L-shaped settee with new vinyl cushions. (2024)
- Varnished teak table.
- 270 Degree visability thru the tinted surround windows.
- Interior window covers for total privacy.
- Exterior Texalene sun cover for salon windows.

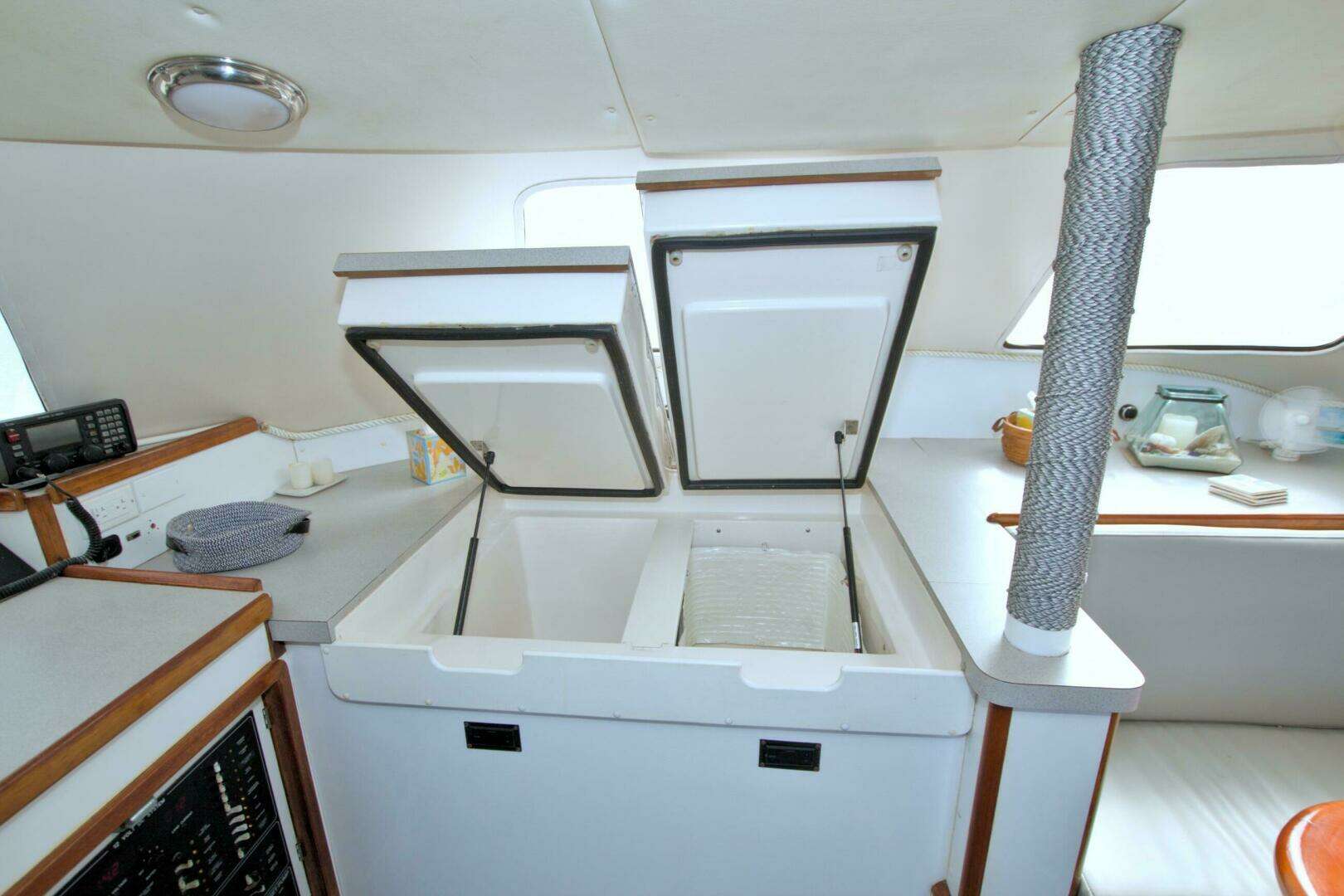

- Two compartment refrigerator/freezer with Adler Barber Cold Machine system.

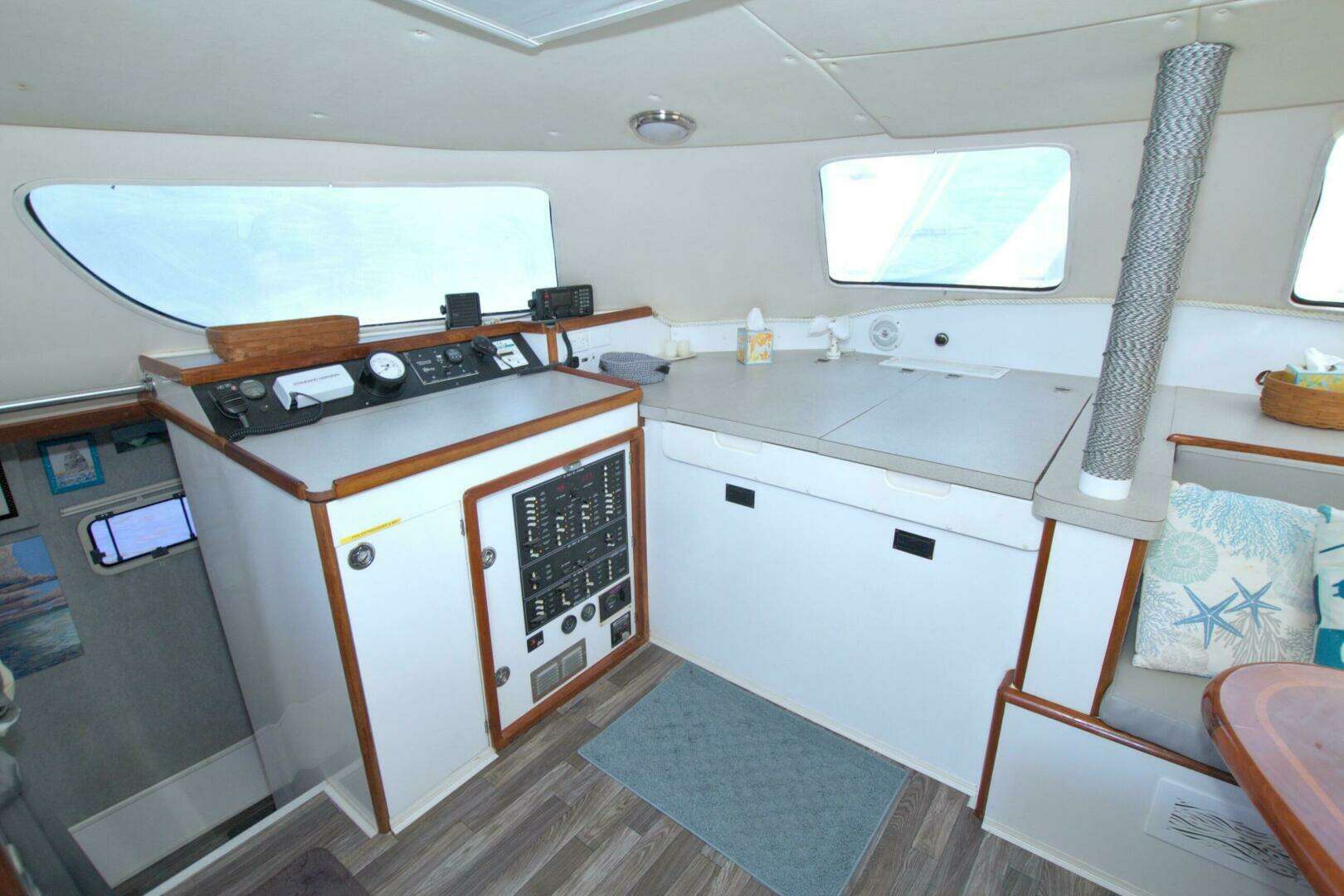

- Large chart table with flat storage below.
- Main electrical panel is under the chart table.
- Large storage locker also under chart table

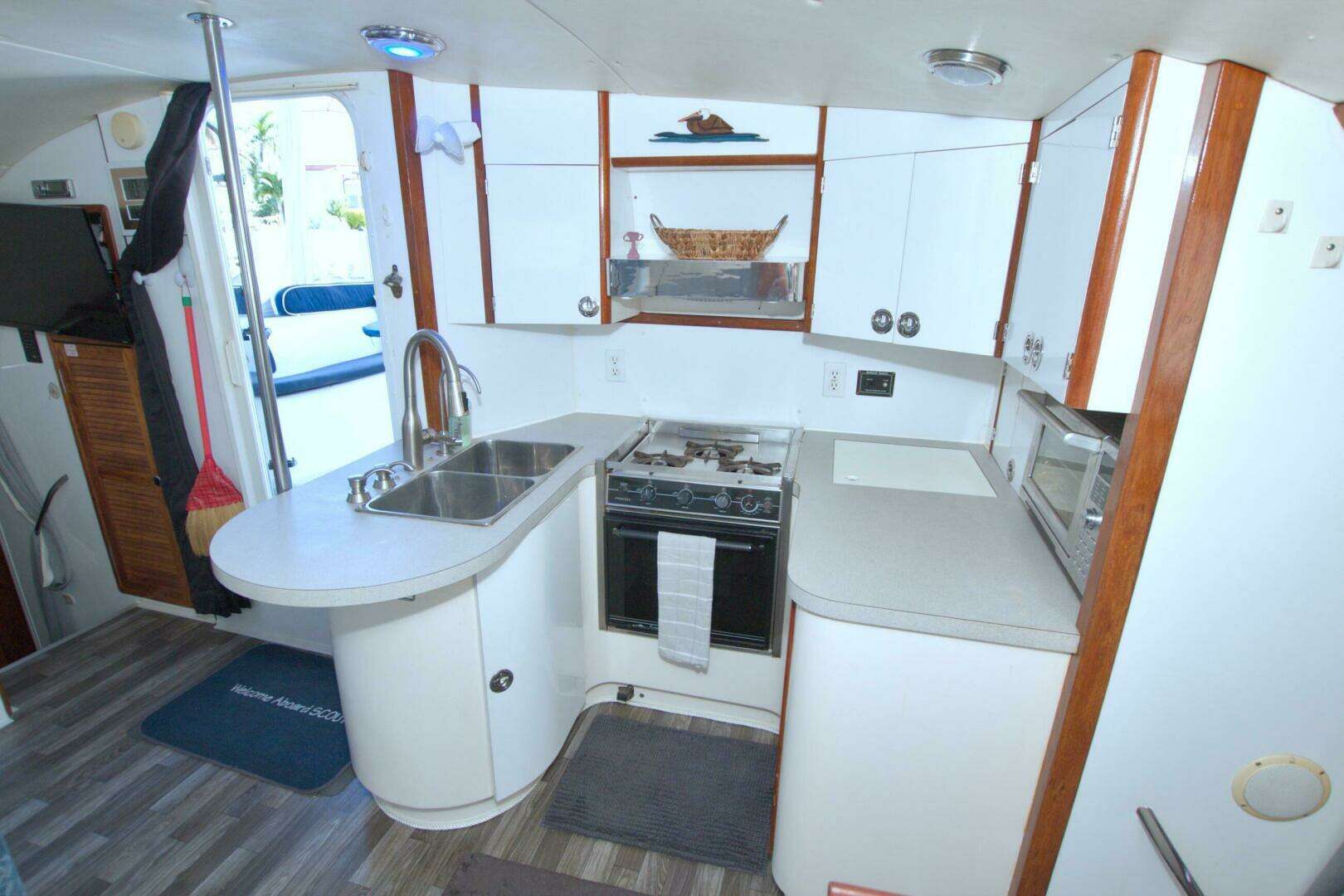

- Galley is U-shaped.
- Princess 3 burner propane stove with oven.
- Microwave oven.
- Dual deep stainless steel sinks with Euro style faucet.
- Filtered drinking water.
- (2) Soap despencers.
- (7) Cabinets.
- (2) Drawers.
- Appliance garage.
- (2) Opening overhead hatches with Ocean AIr screen/shade.
- Under counter deep storage cabinet.
- (4) Overhead lights.
- (2) Fans.
- (4) 120vac outlets.
- CO and Smoke detectors.
- 32" Smart TV.
- Large wet locker.

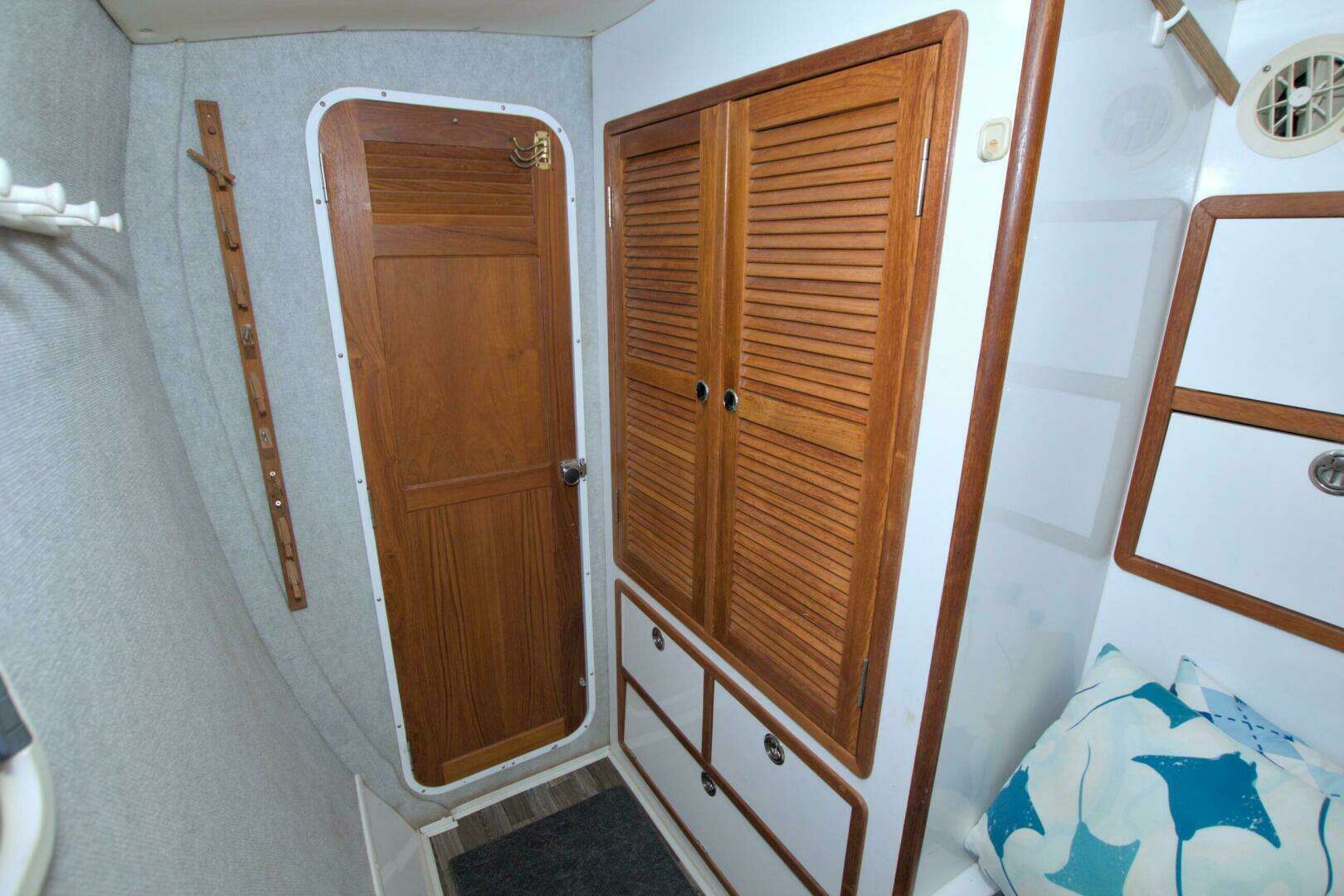

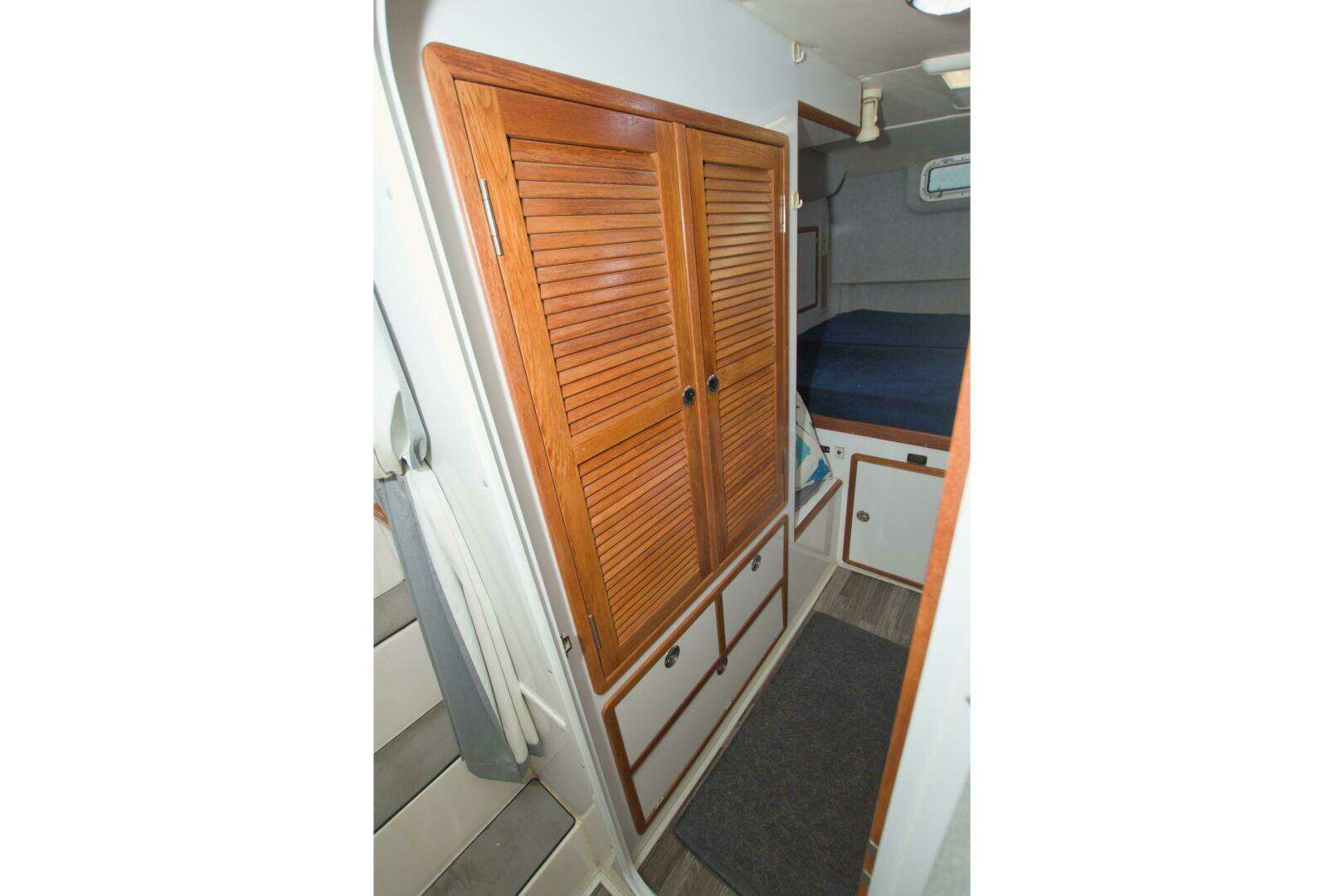

Master Suite
- Full queen berth fore to aft.
- Mini settee with storage under.
- Large hanging locker.
- (2) Drawers.
- (2) Inboard cabinets.
- (2) Opening port lights with screens and shade.
- Opening overhead hatch with Ocean Air screen/shade.
- 120VAC outlet.
- 12vdc Fan
- Overhead lighting.
- (2) Reading lamps.

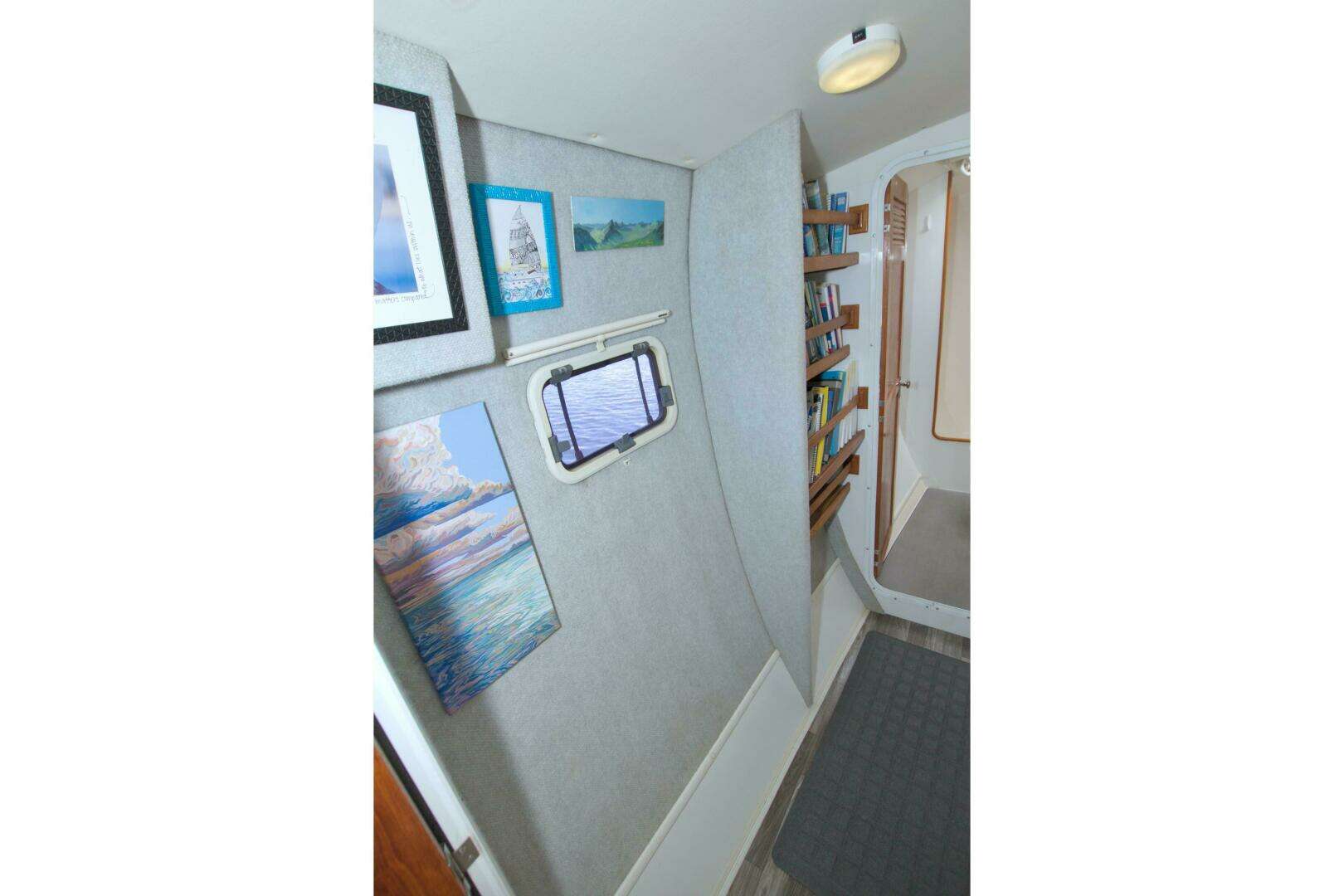

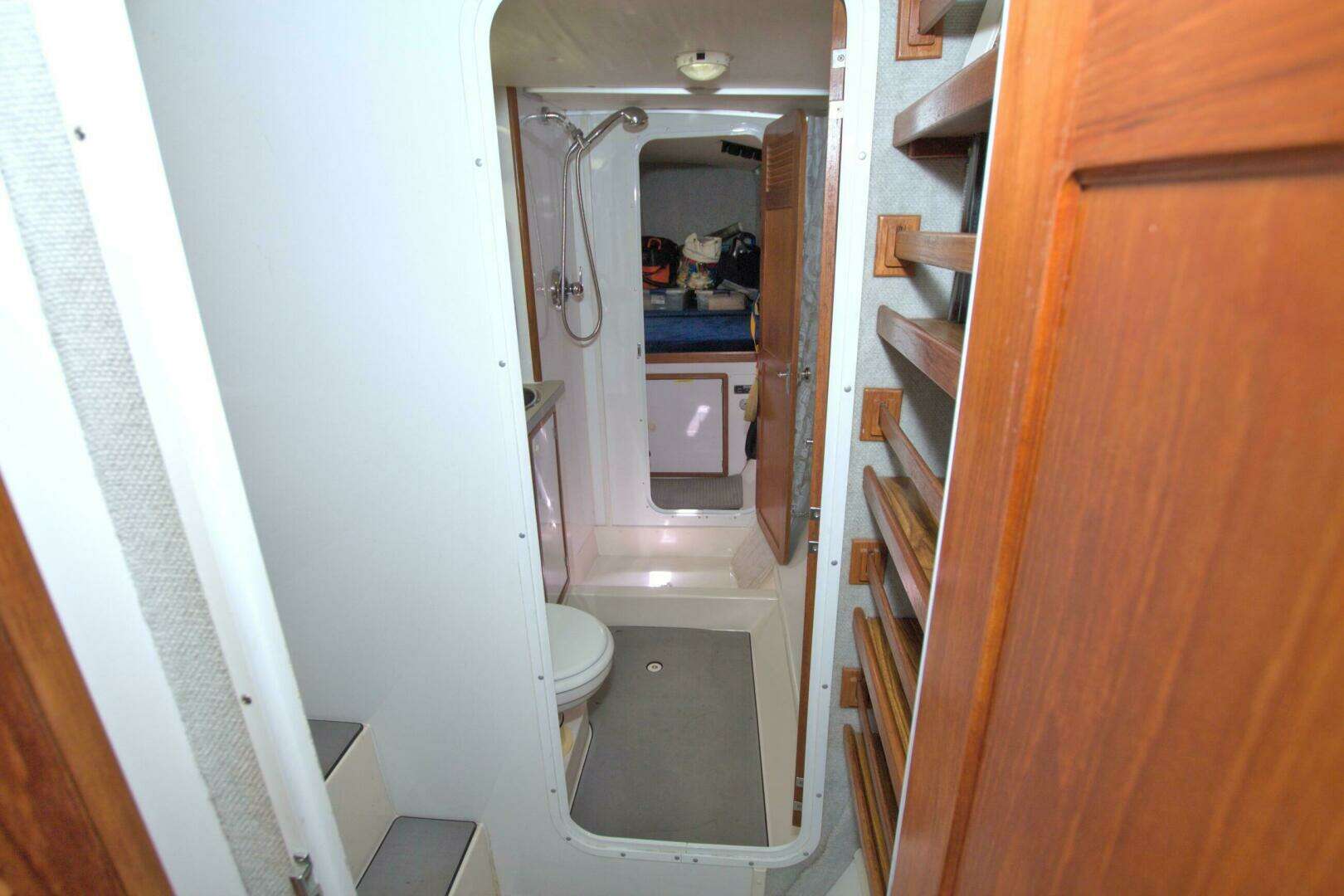

- The walkthrough to the head has a large pantry inboard.
- Book shelves outboard.
- Bilge access in sole.
- Overhead lighting.

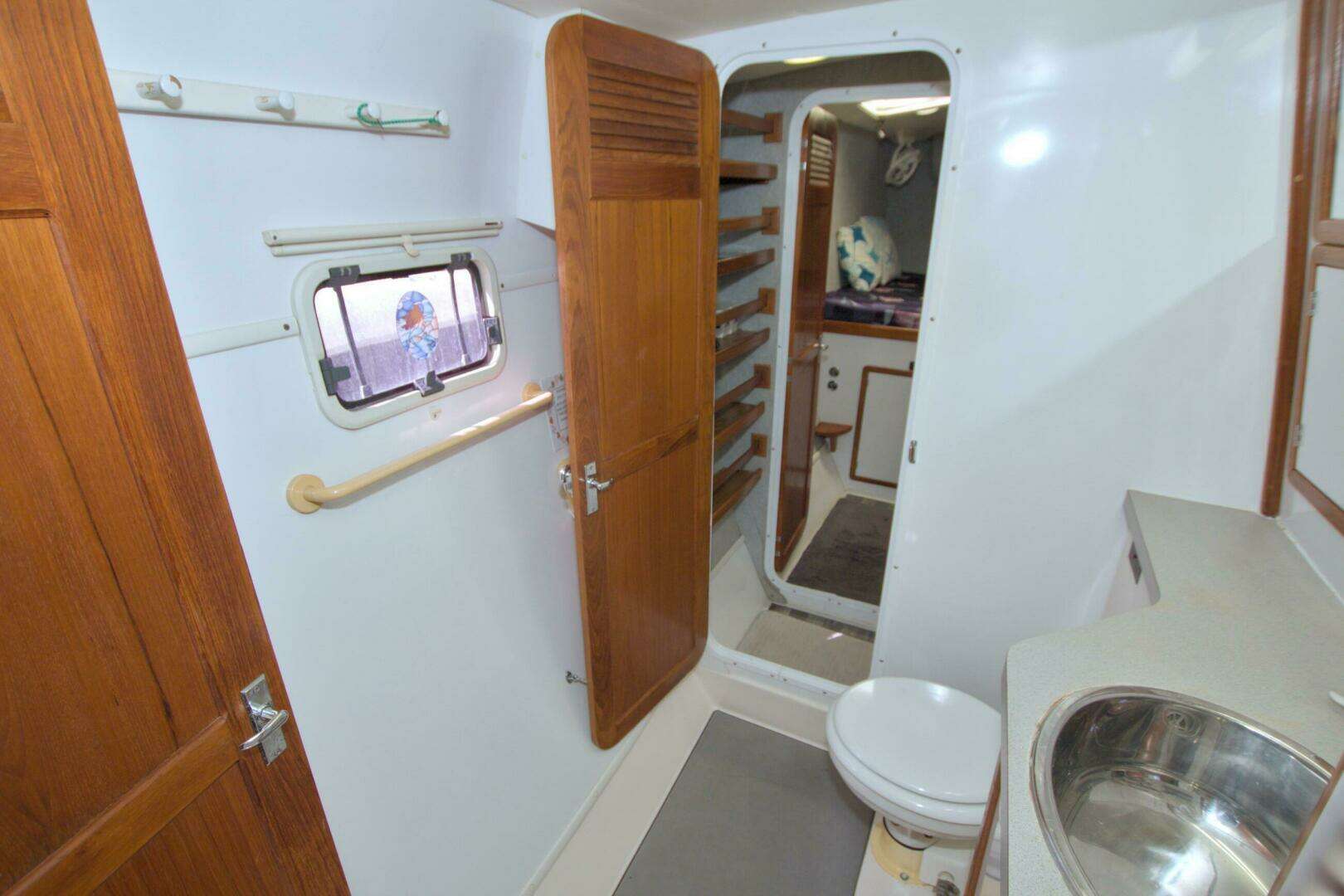

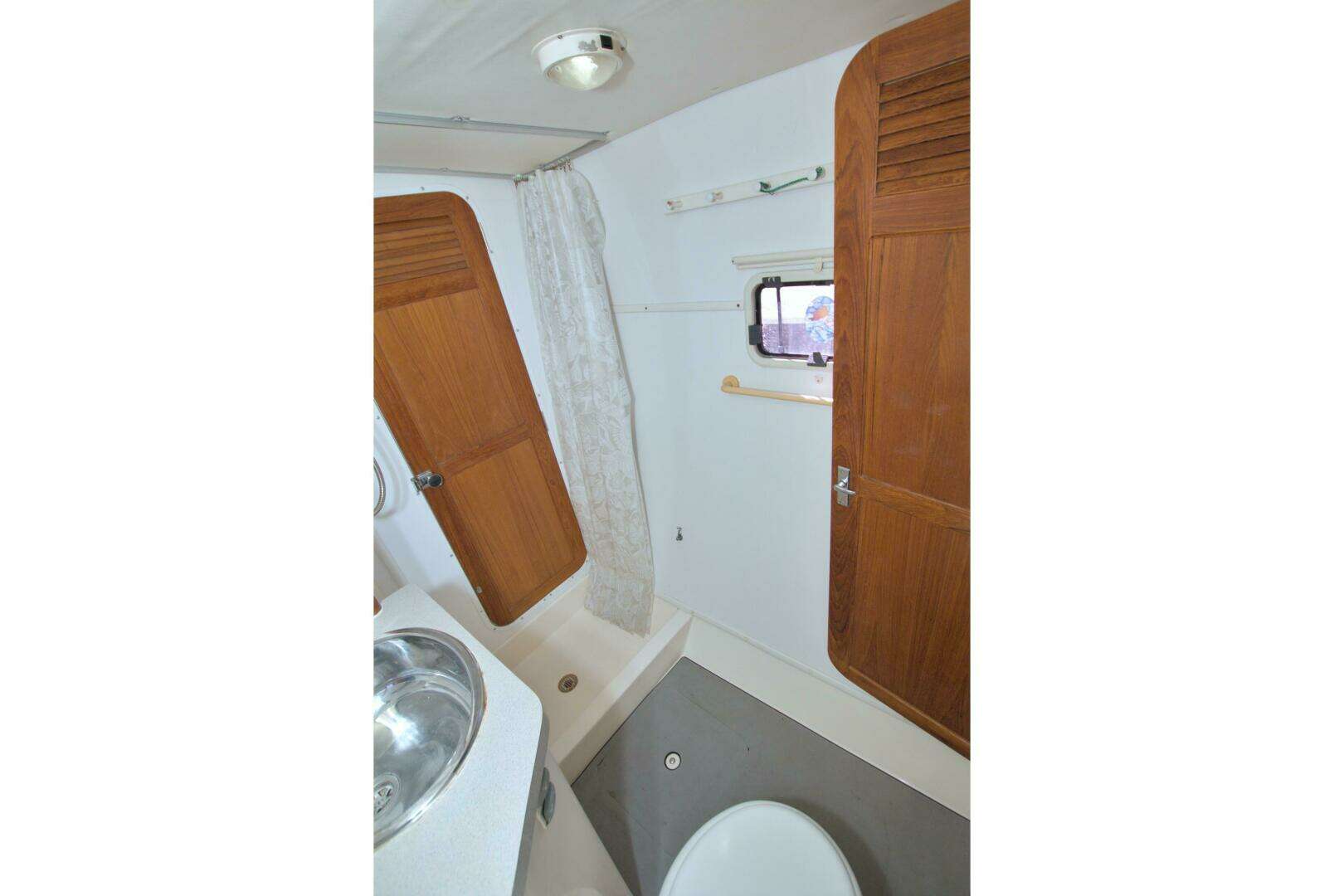

- Large head is forward.

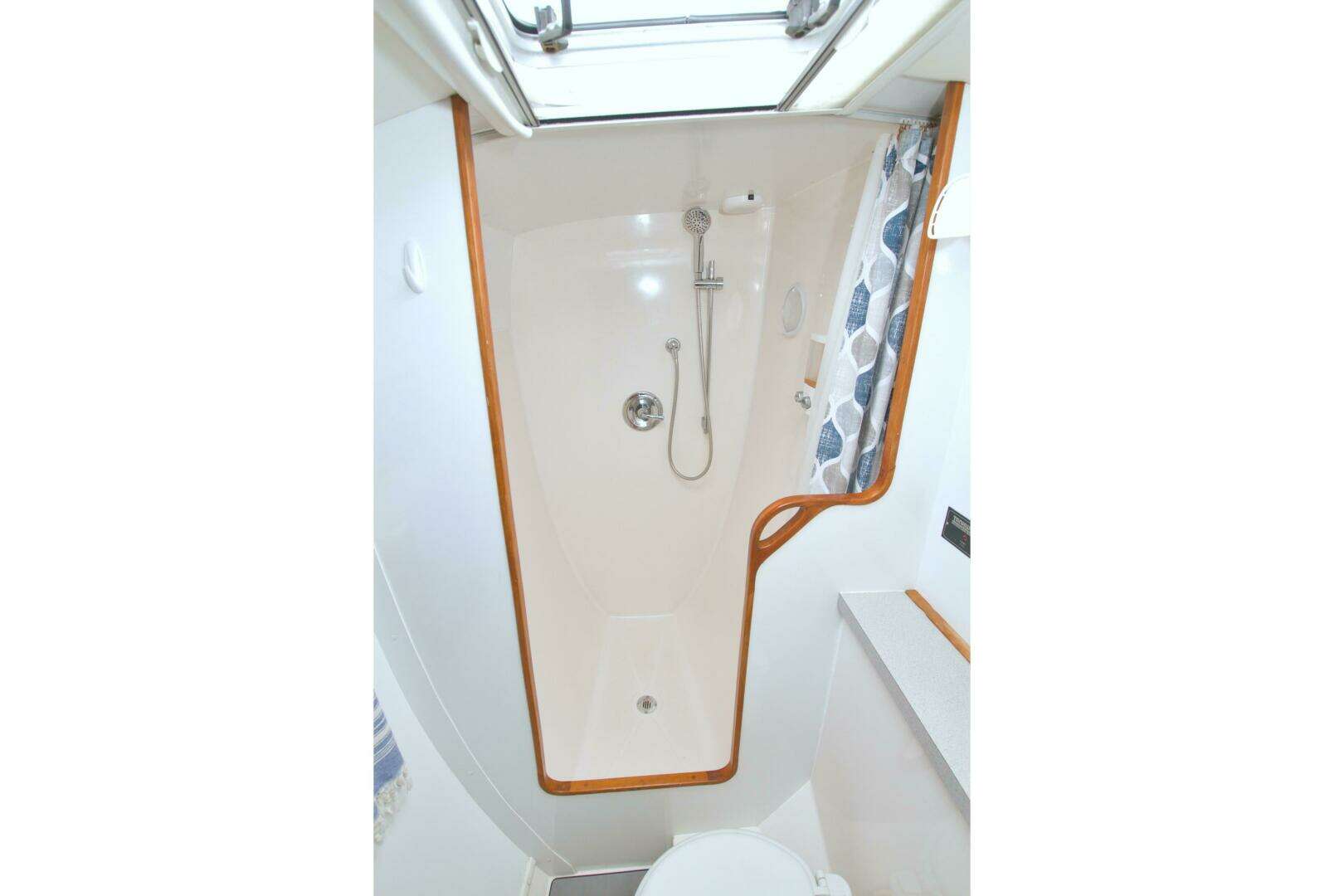

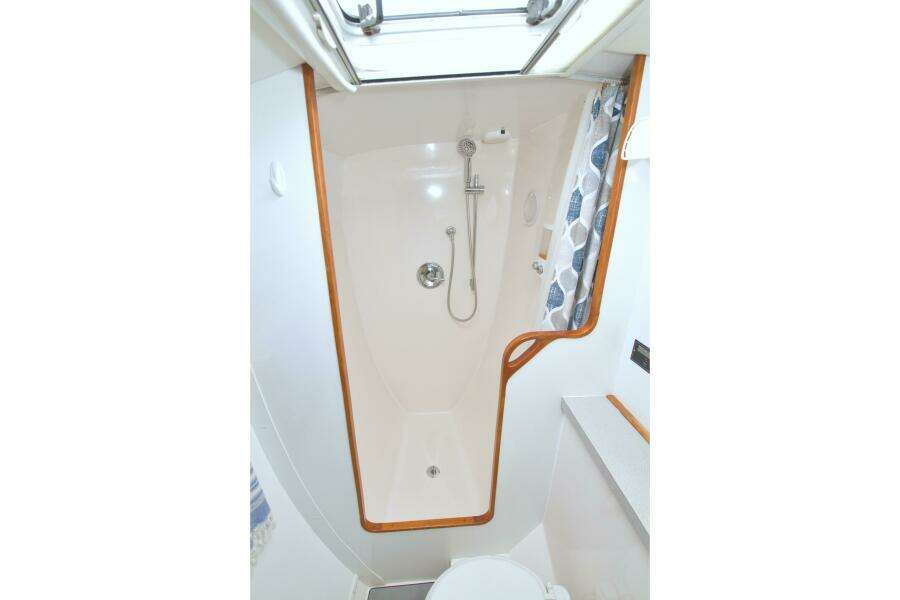

- Large shower with curtain.
- Jabsco Quiet Flush electric toilet.
- Stainless steel sink with single lever controls.
- Large medicine cabinet with mirrored doors.
- Opening overhead hatch with Ocean Air screen/shade.
- Opening port light with screen and shade.
- Waste tank monitor.
- 120VAC outlet.

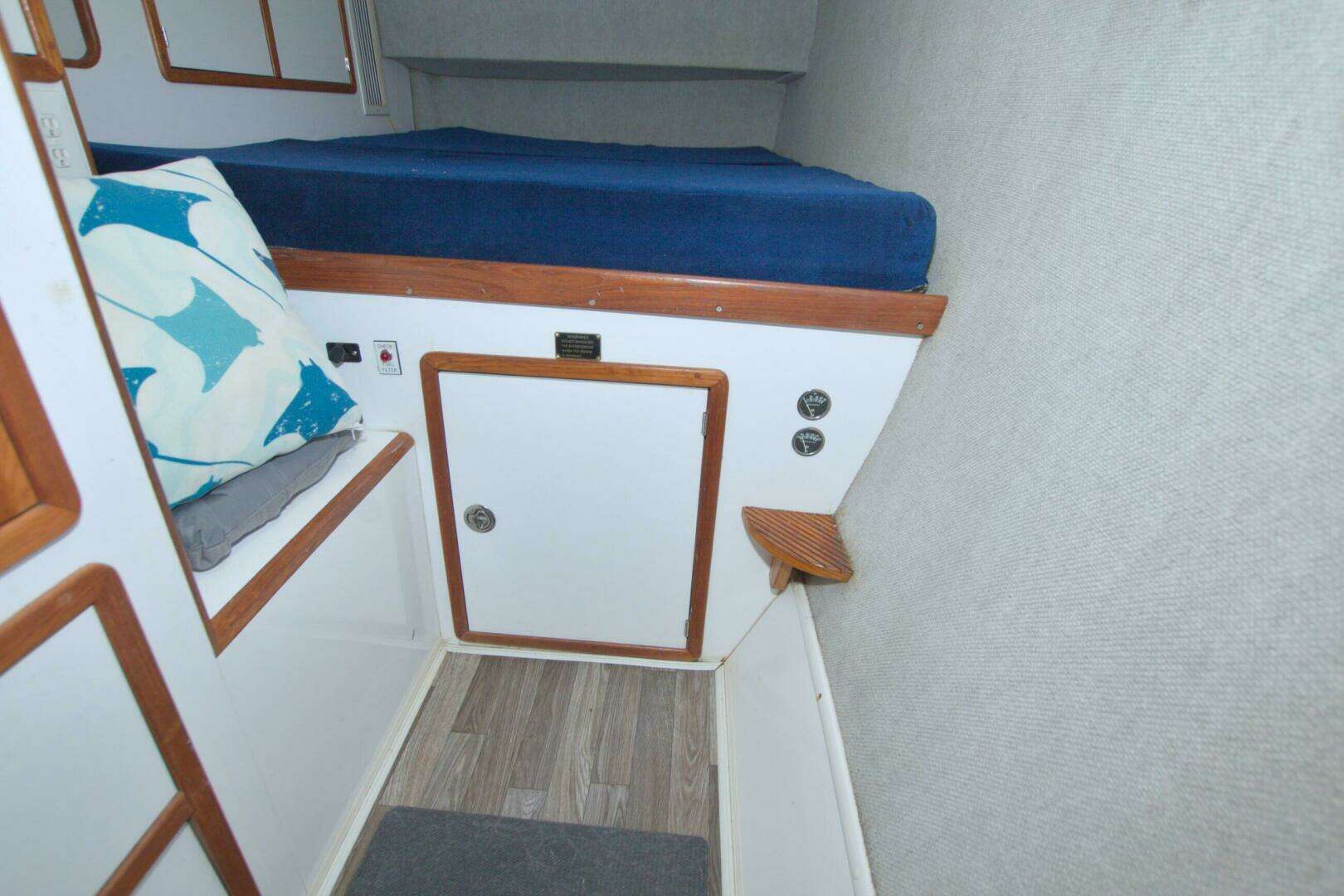

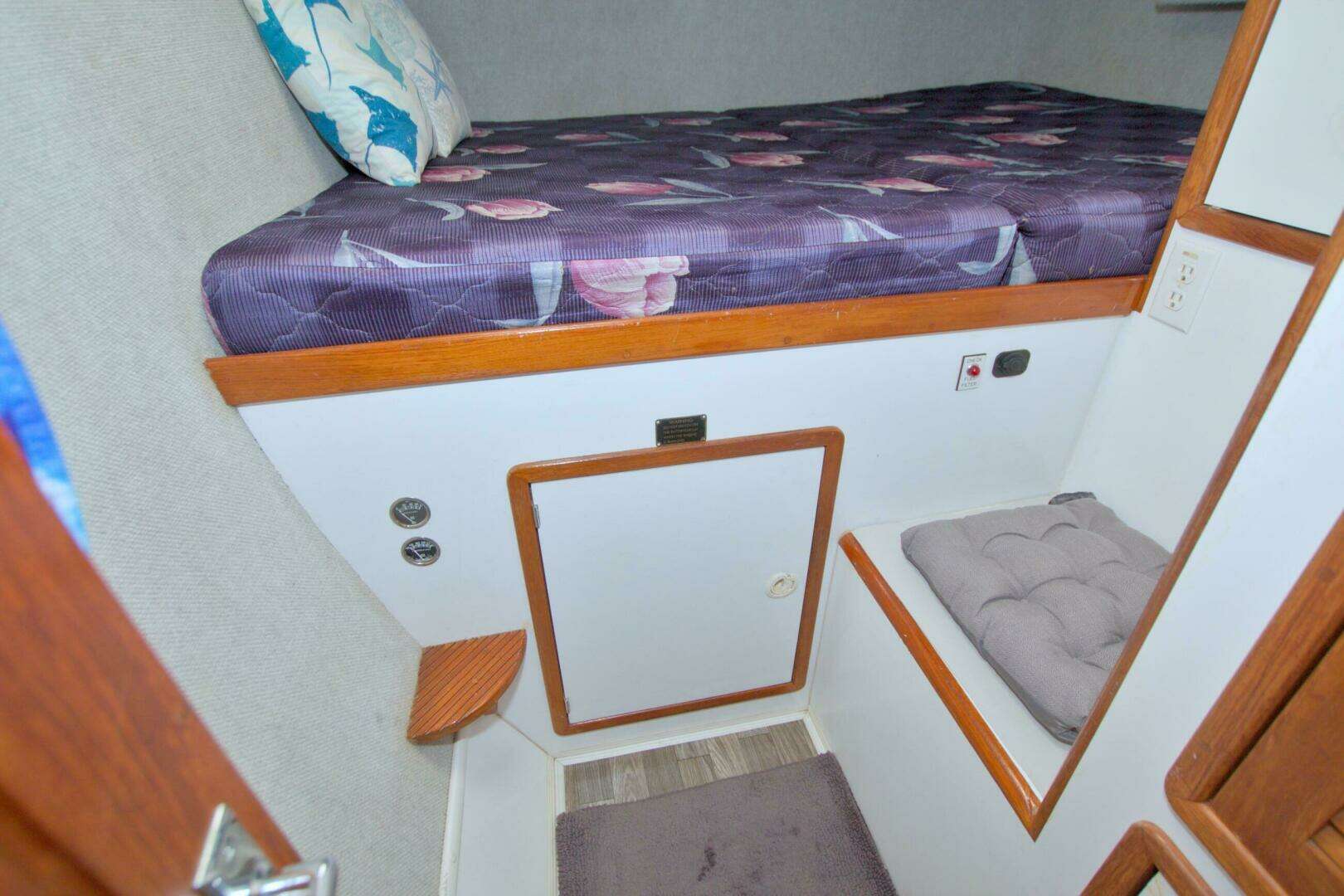

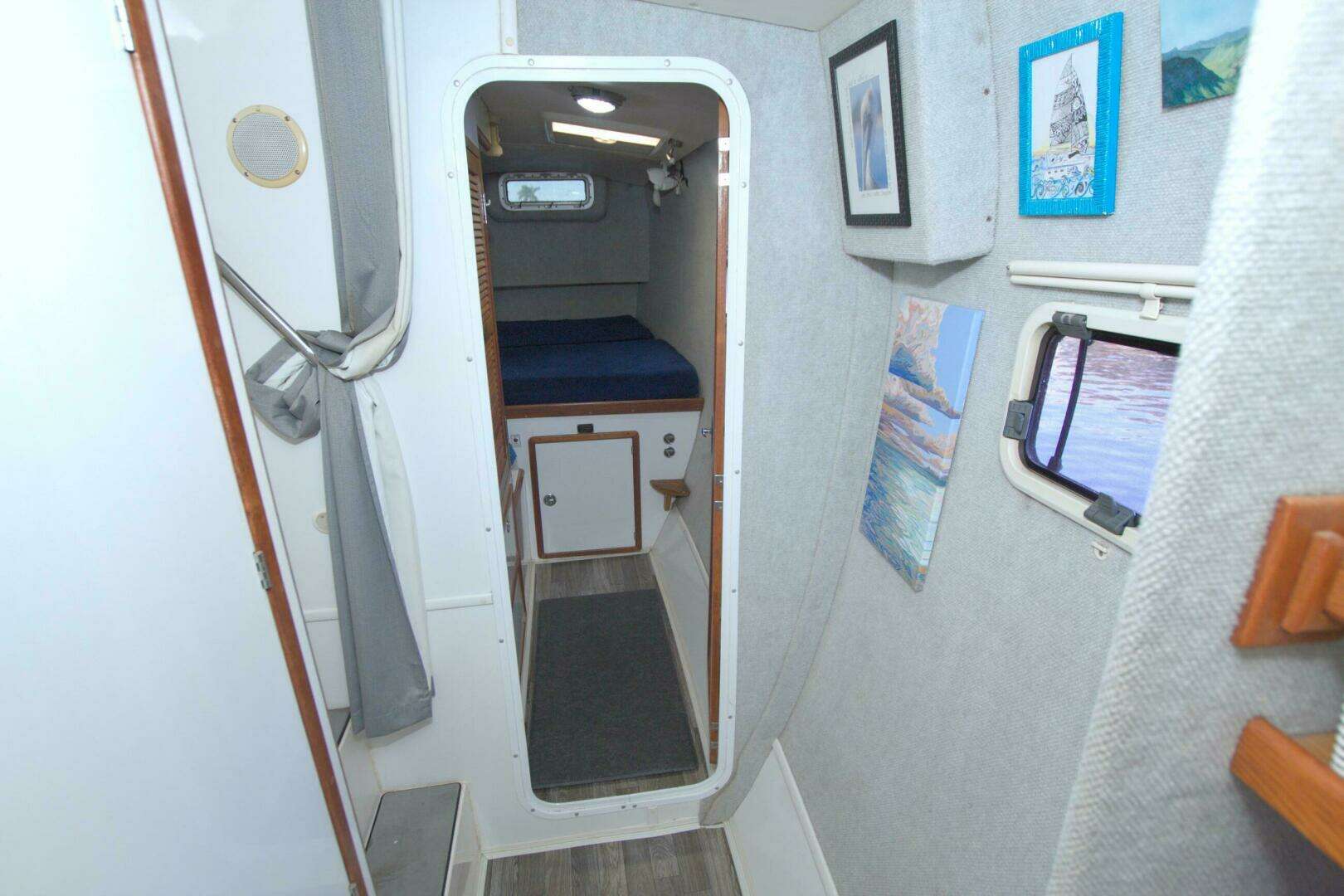

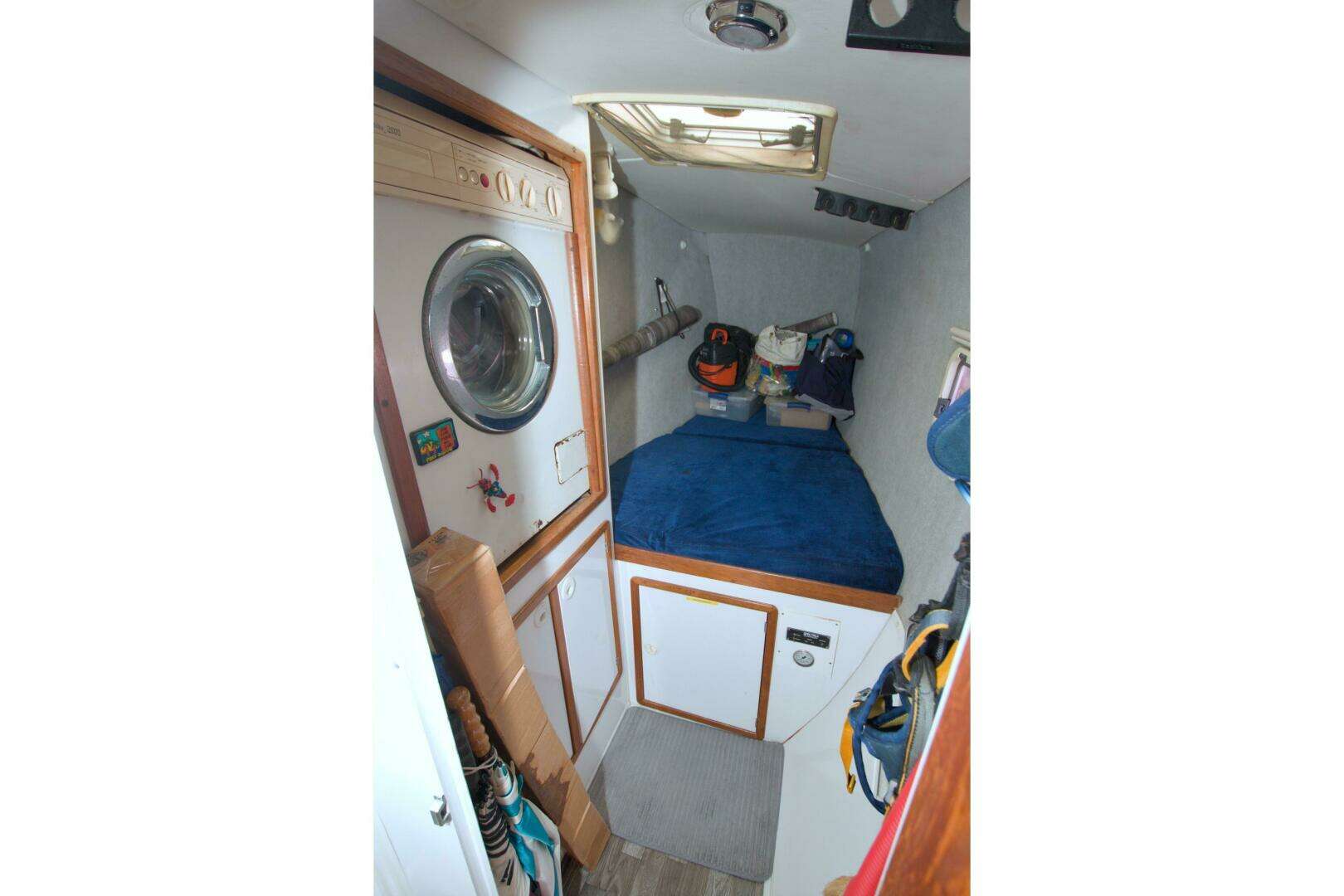

Foward Guest Cabin

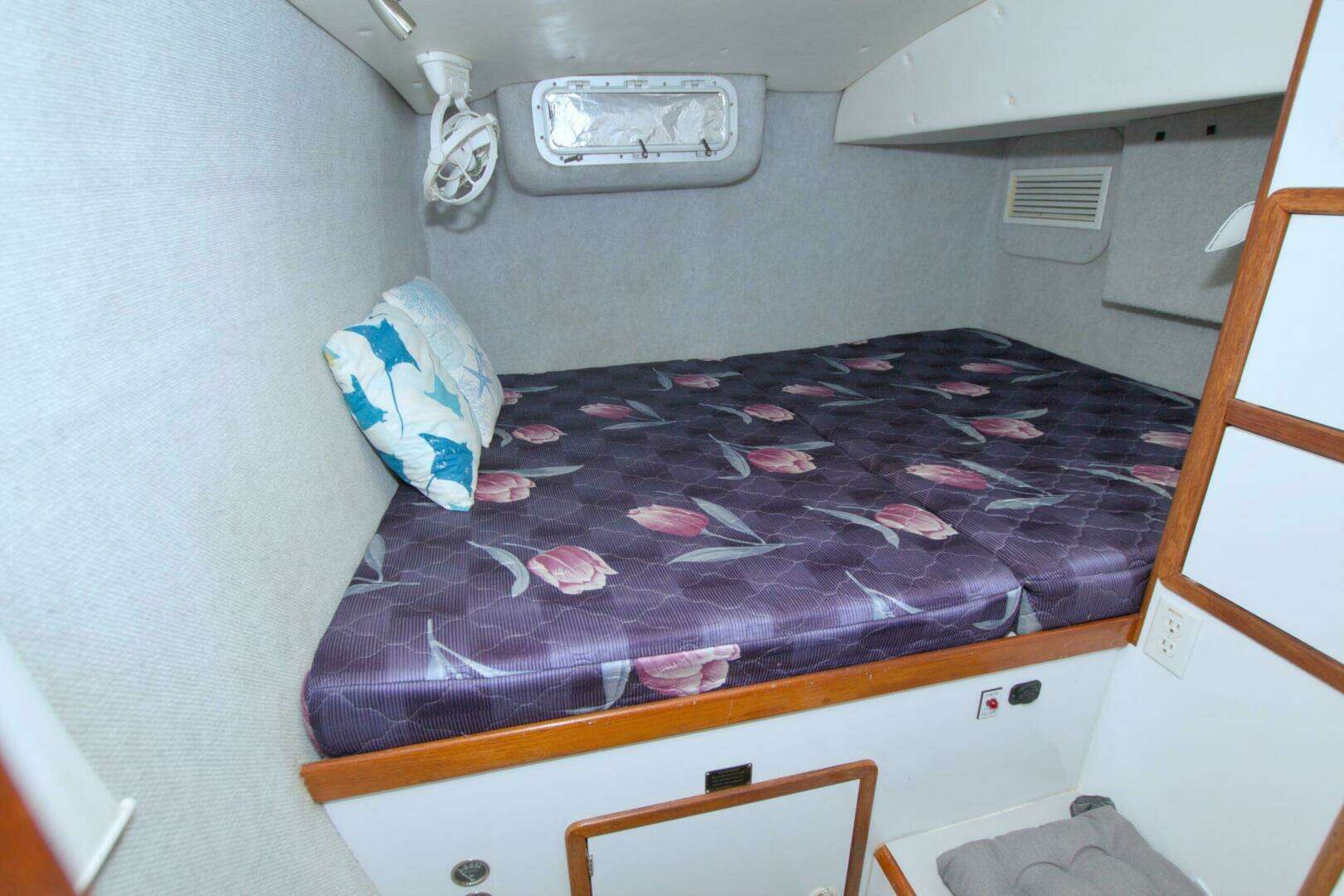

- Large single berth.

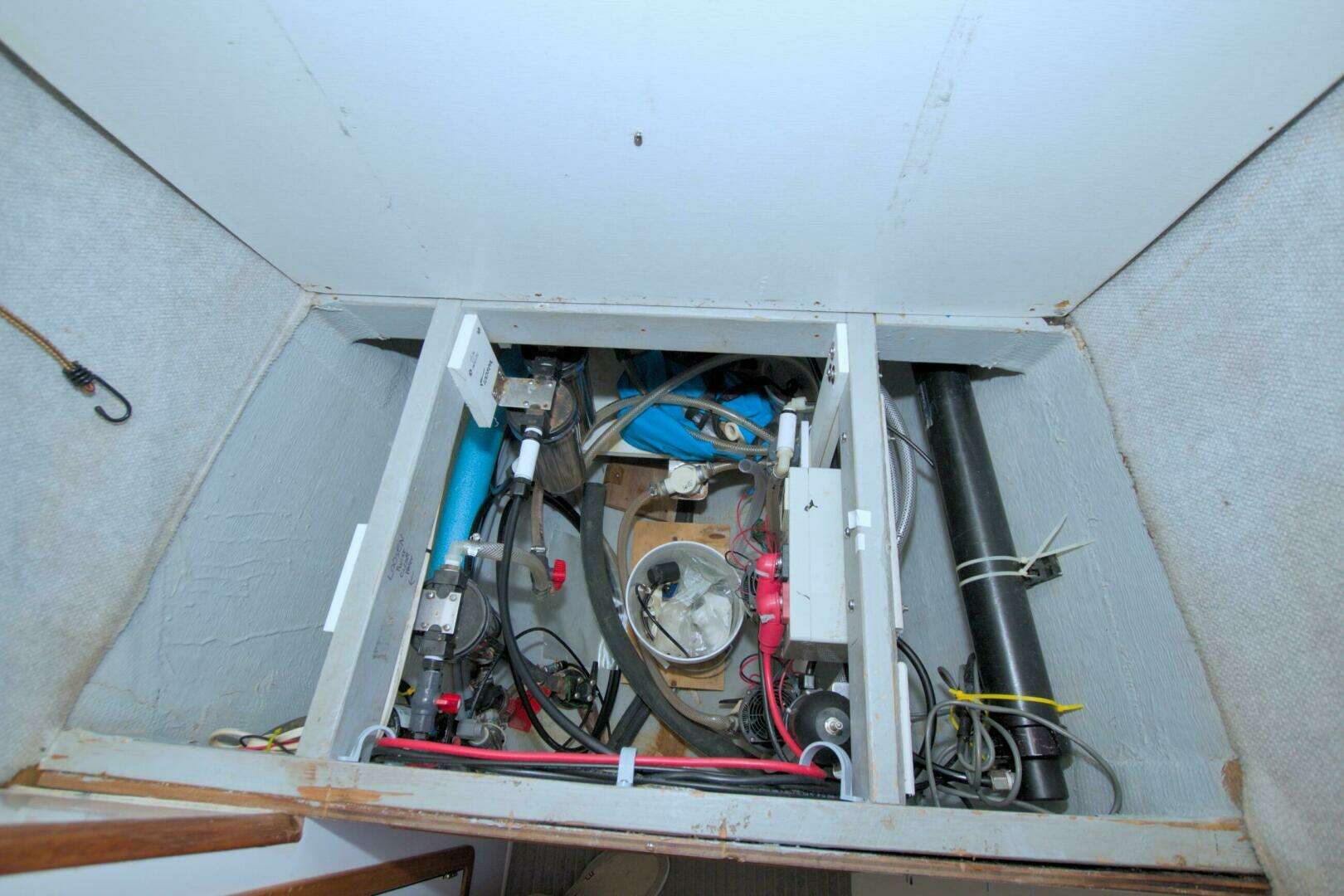

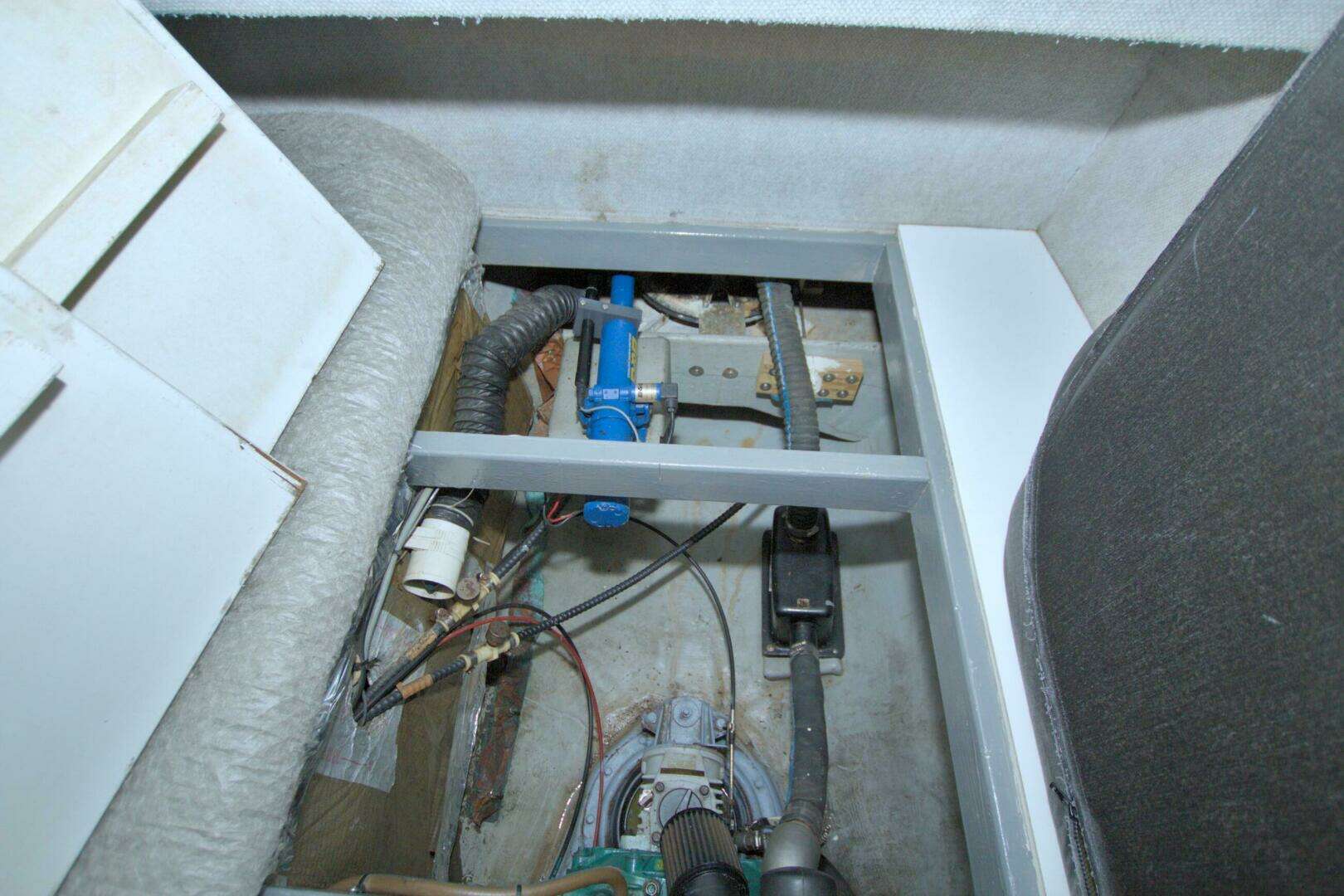

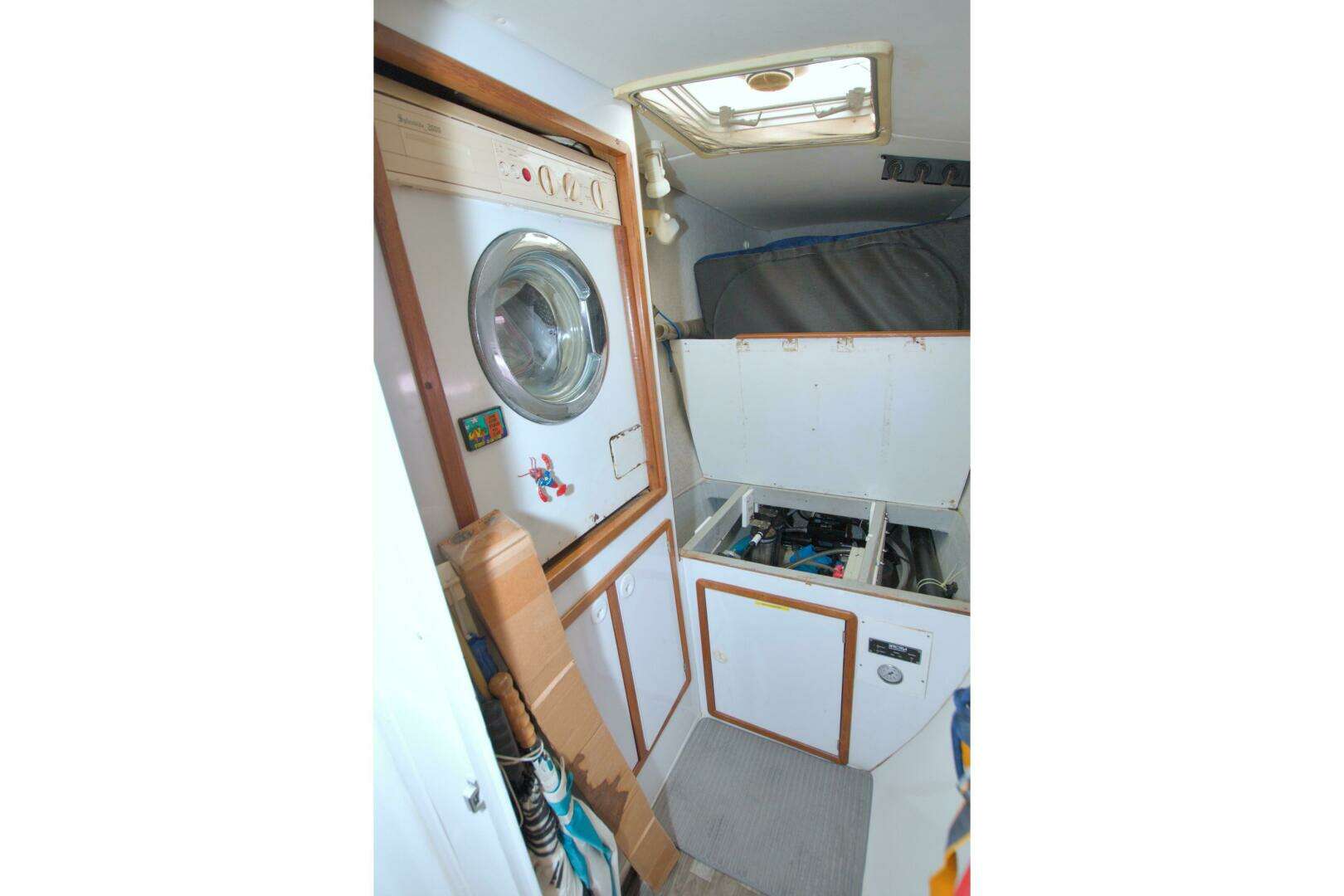

- Area below berth houses ships sevices; AC pump, water maker, water heater.
- Large cabinet inboard houses a Spledide washer/dryer.
- Opening port light with screen and shade.
- Opening overhead hatch with screen.
- 120VAC outlet.
- Overhead lighting.
- Reading light.
- 12VDC Fan.

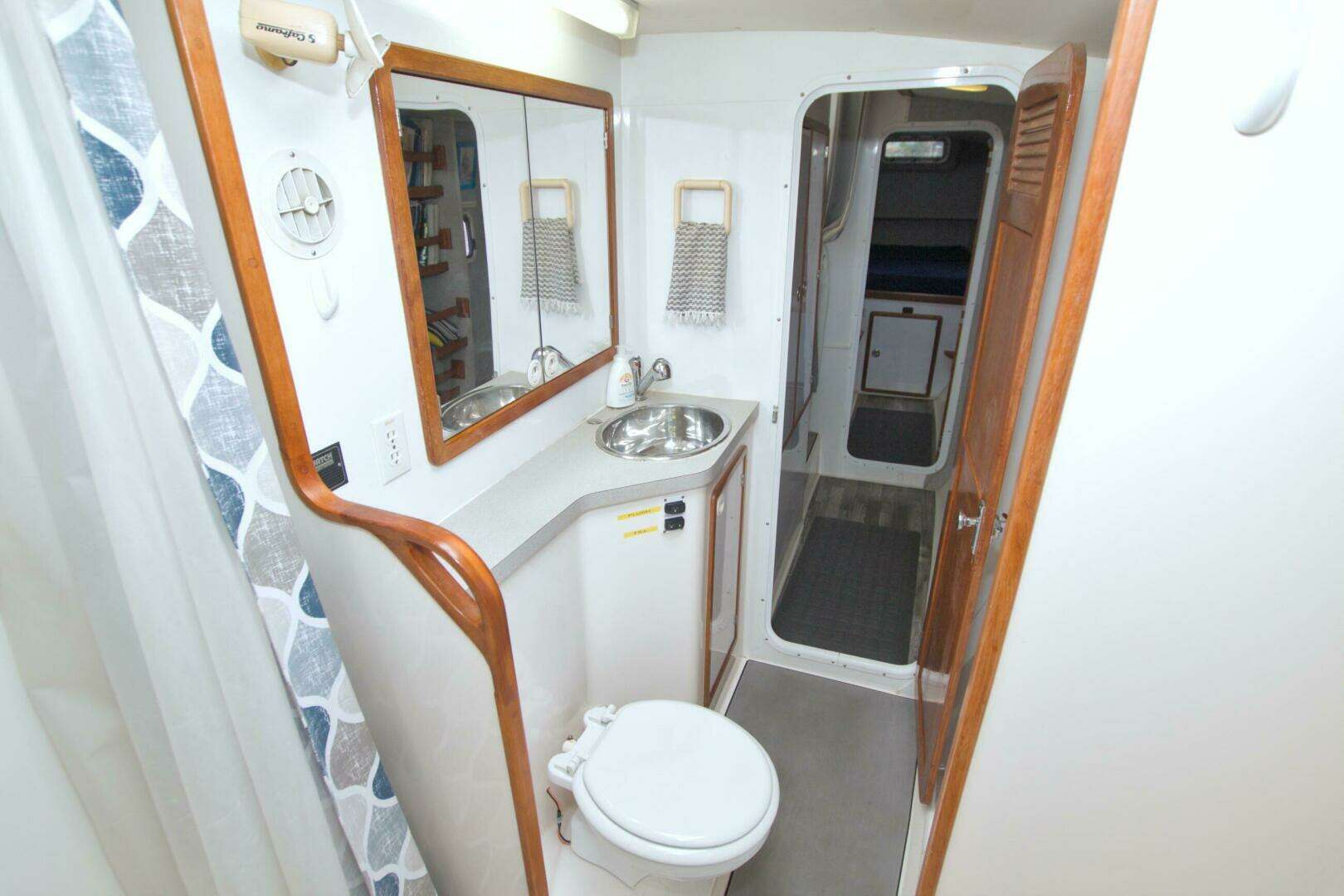

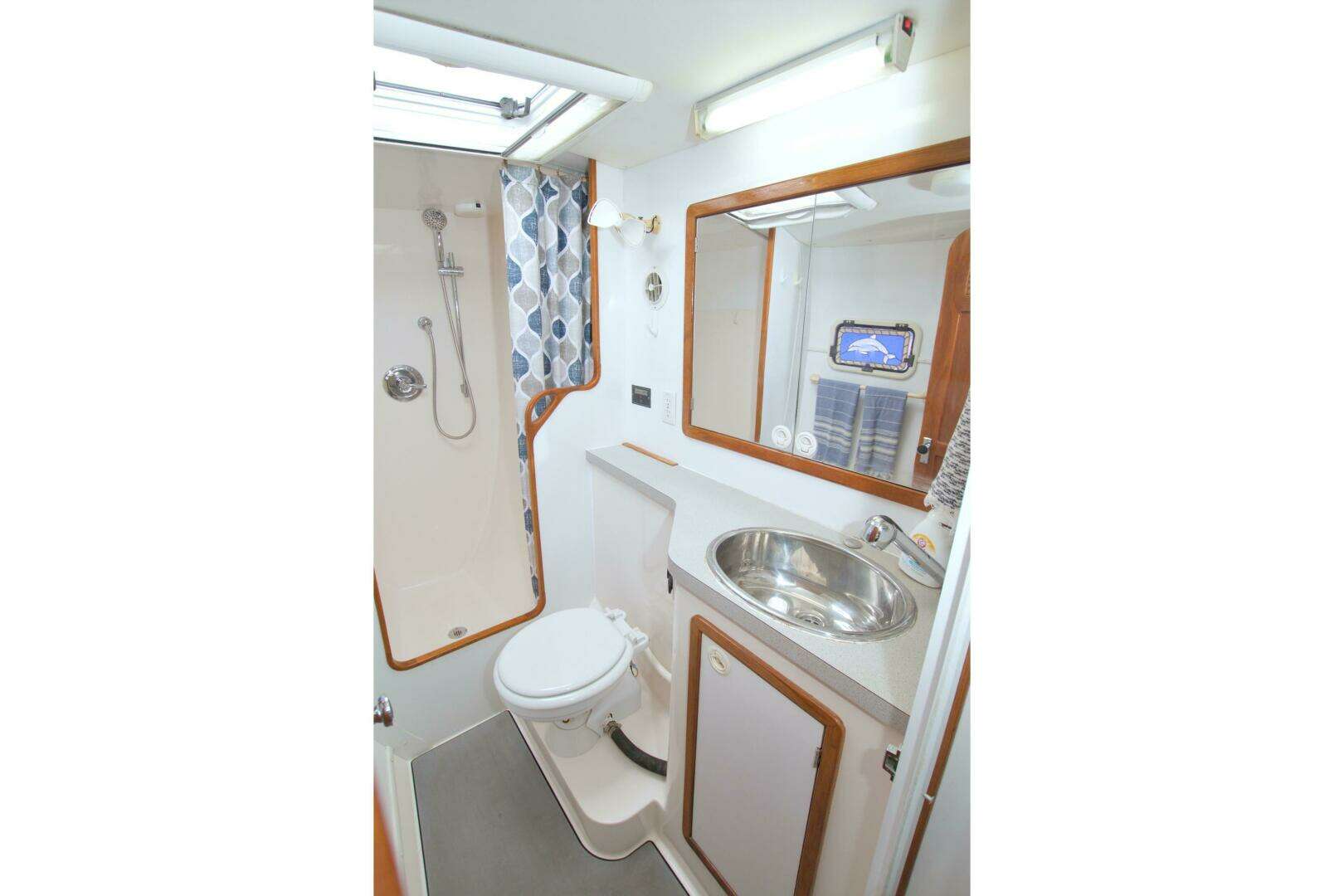

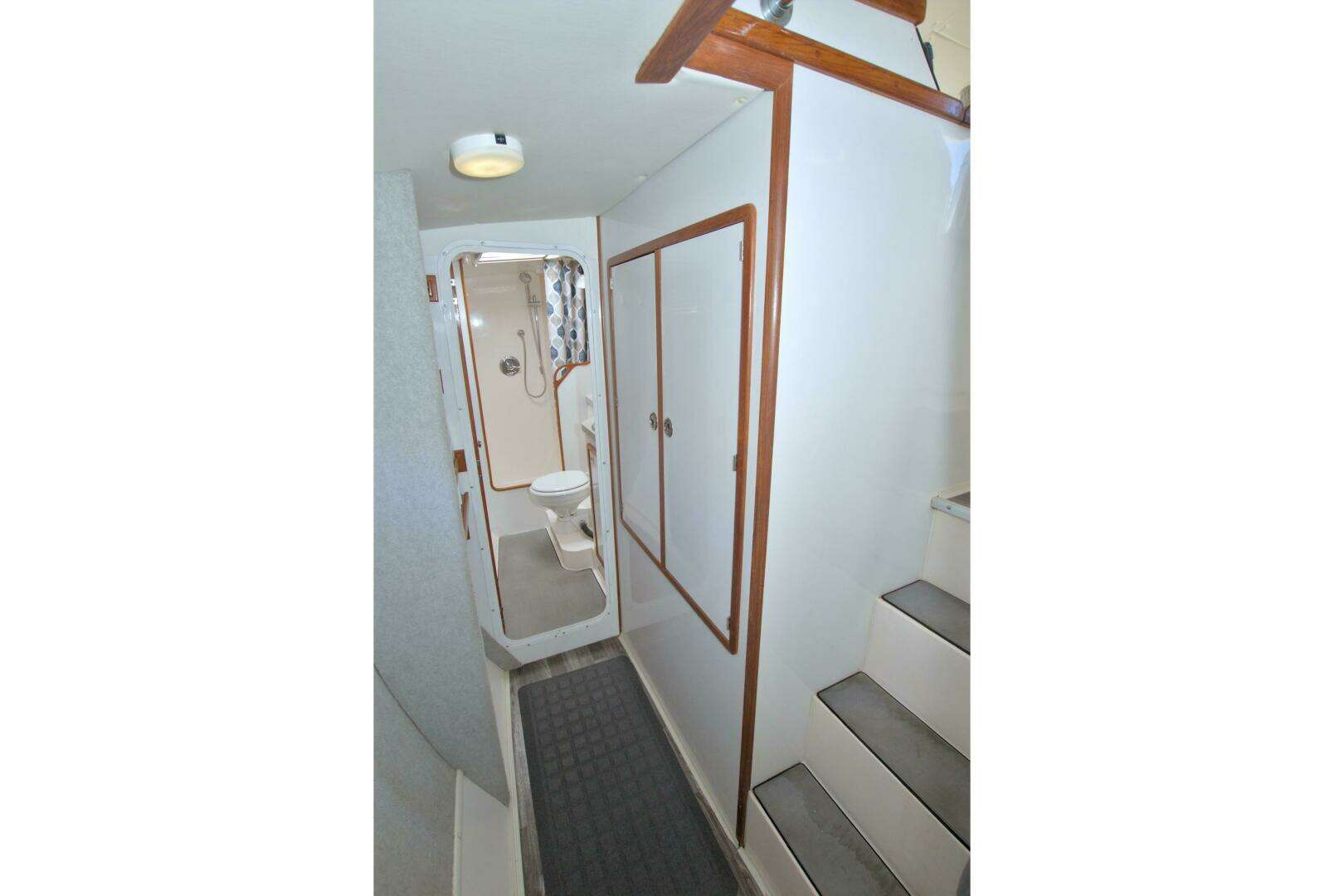

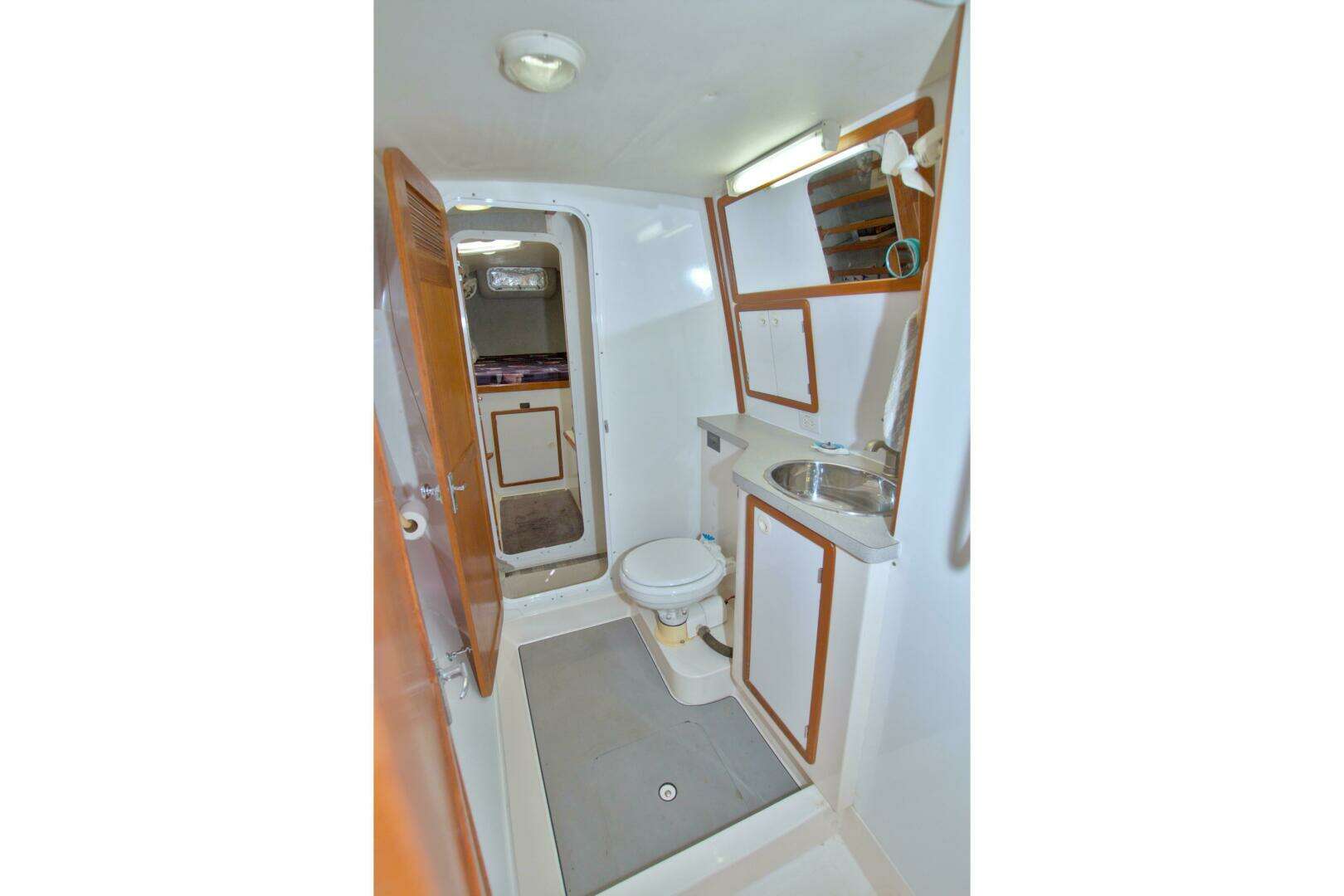

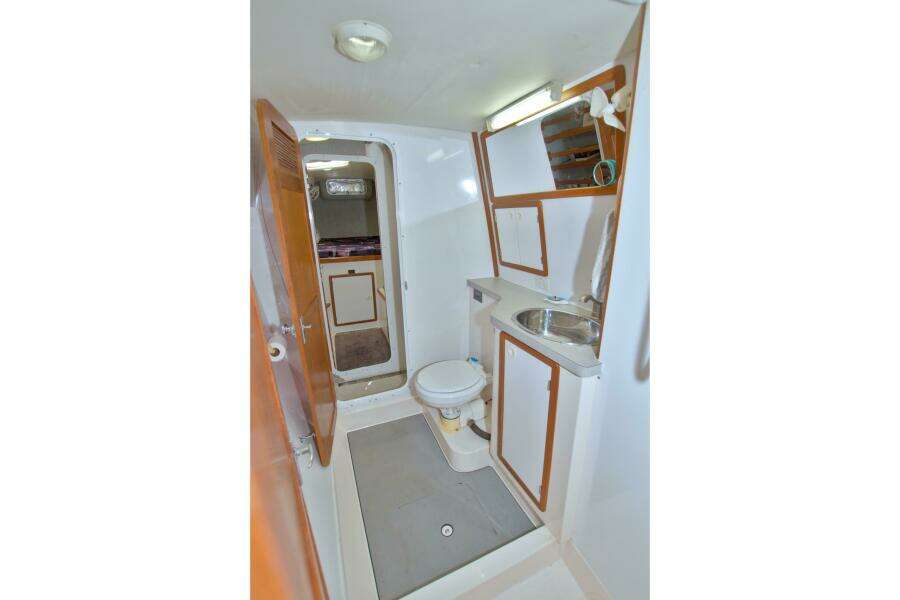

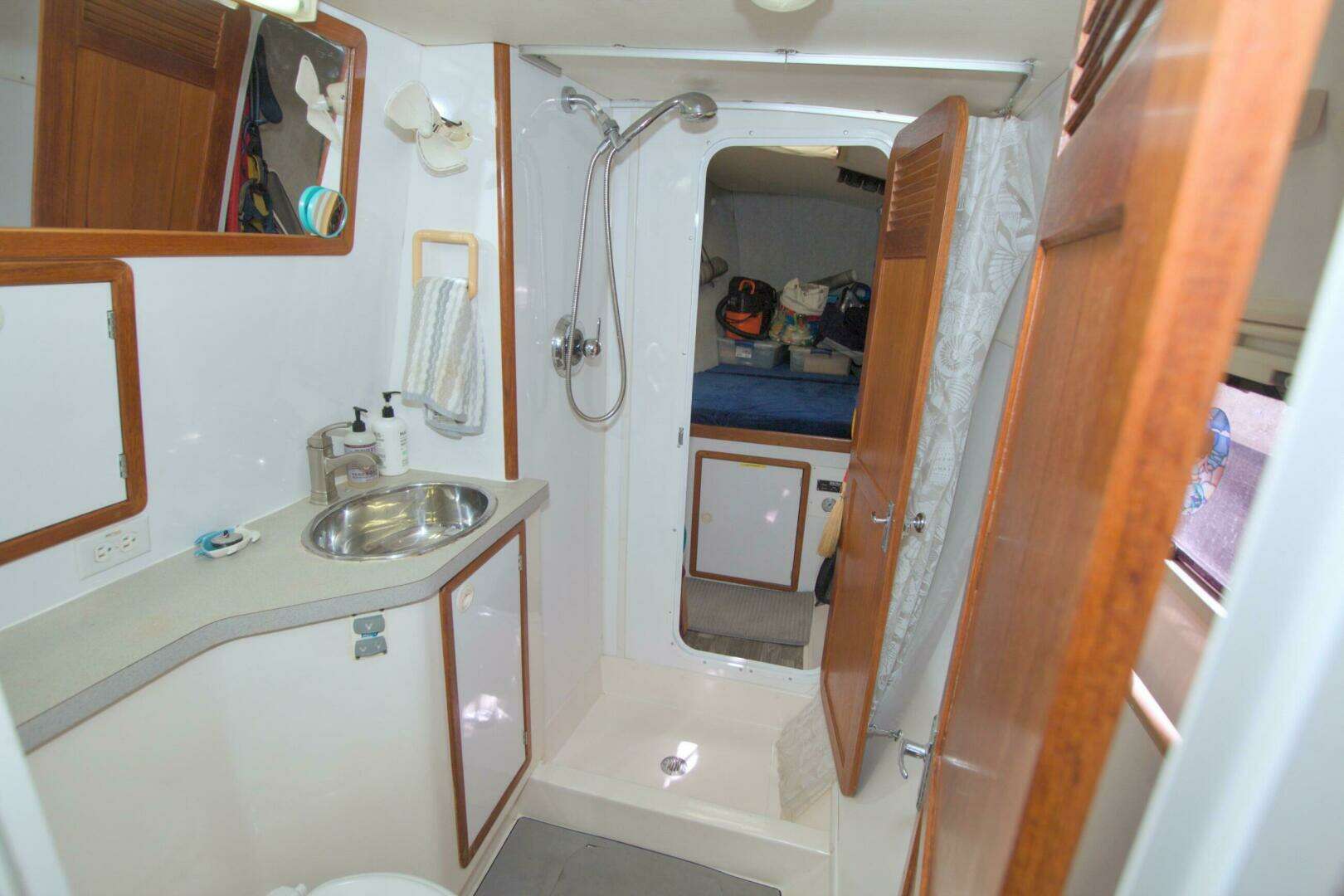

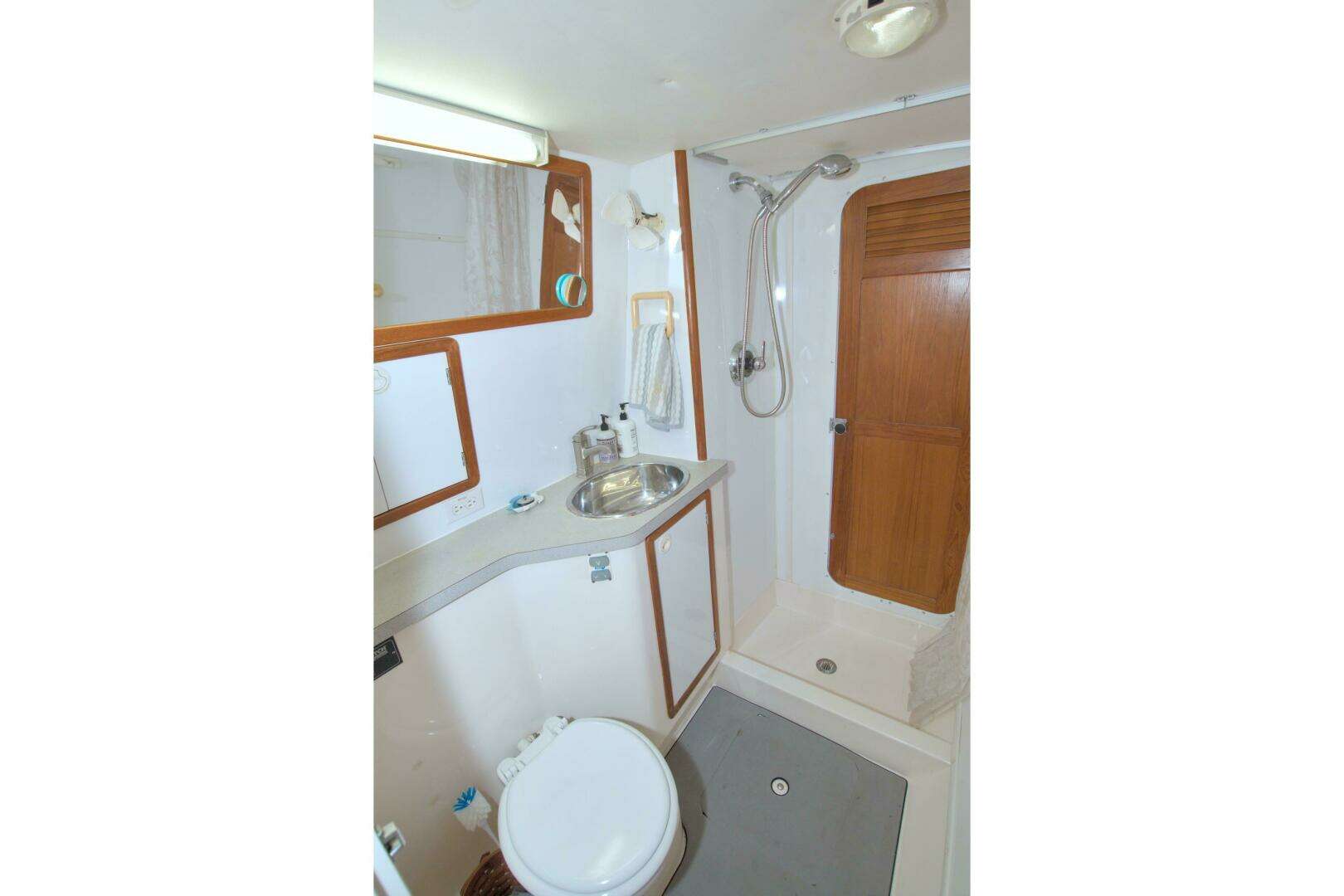

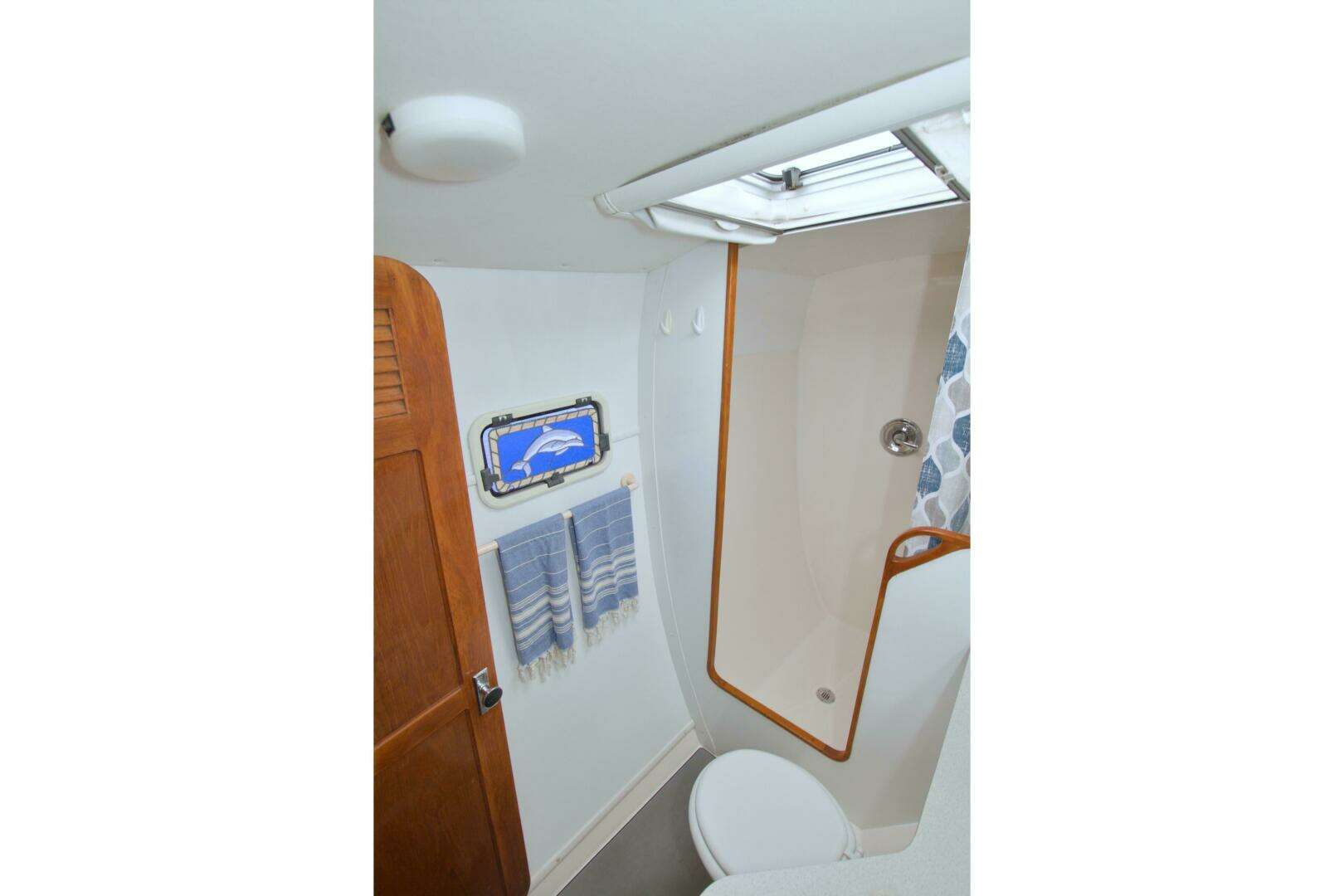

Guest Head
- Shower with curtain.
- Jabsco Quiet flush electric marine toilet.
- Counter with stainless steel sink.
- Medicine cabinet.
- Overhead lighting.
- Opening port light with screen and shade.

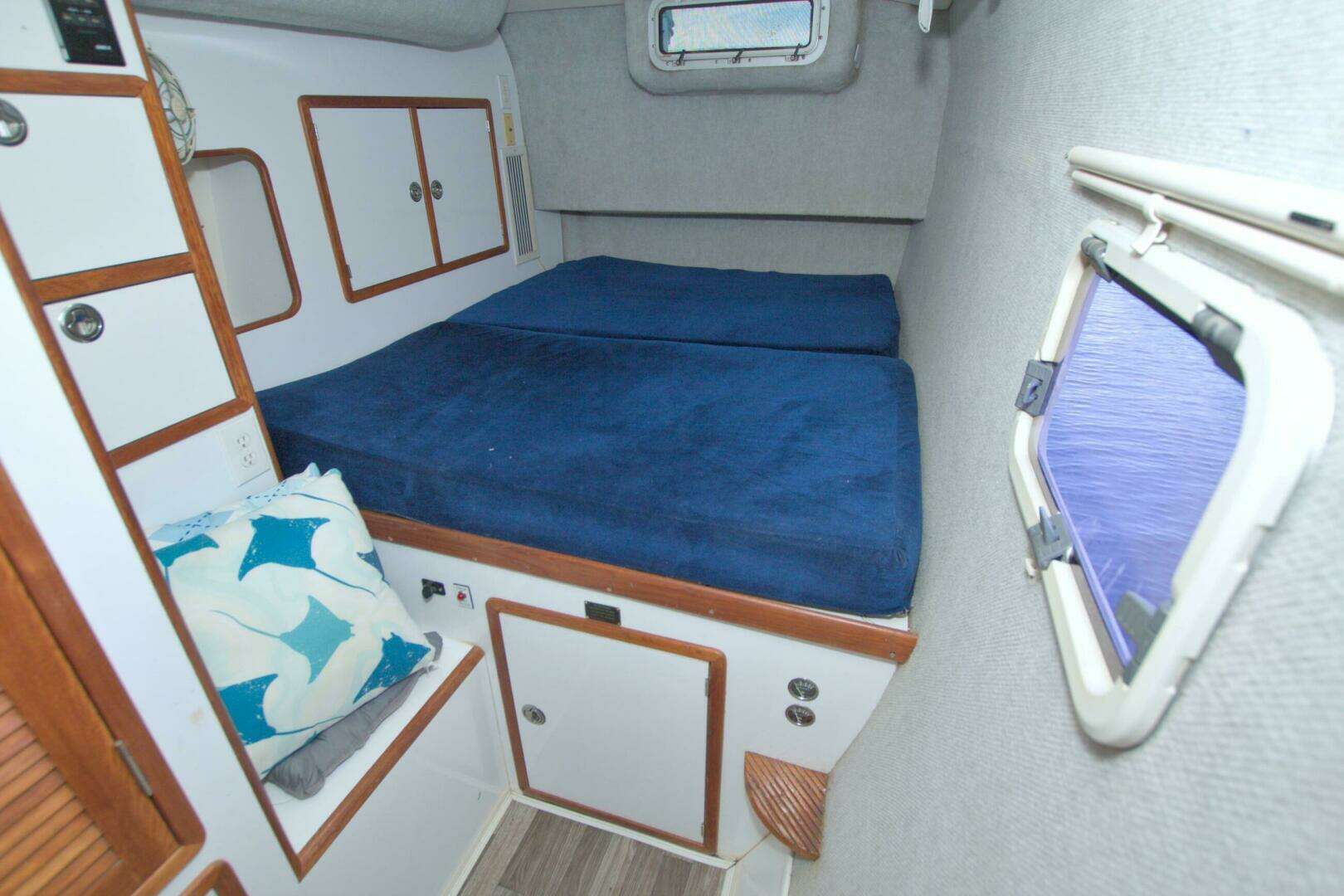

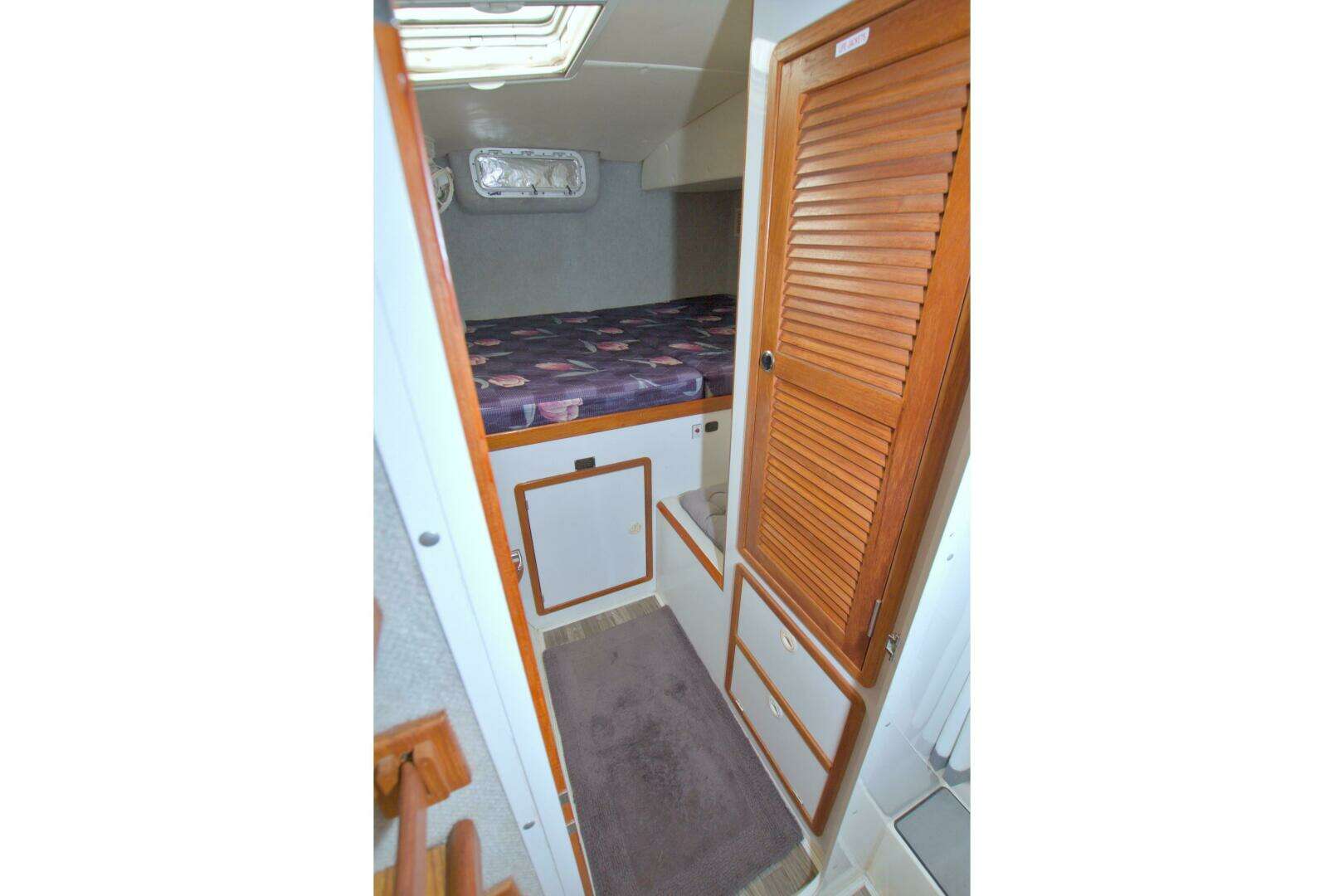

Aft Guest Cabin
- Full queen athwartship berth.
- Hanging locker.
- (2) Drawers.
- Mini settee with storage under.
- (2) Opening port lights with screen and shade.
- Opening overhead hatch with Ocean Air screen/shade.
- 120VAC outlet.
- Overhead lighting.
- Reading light.

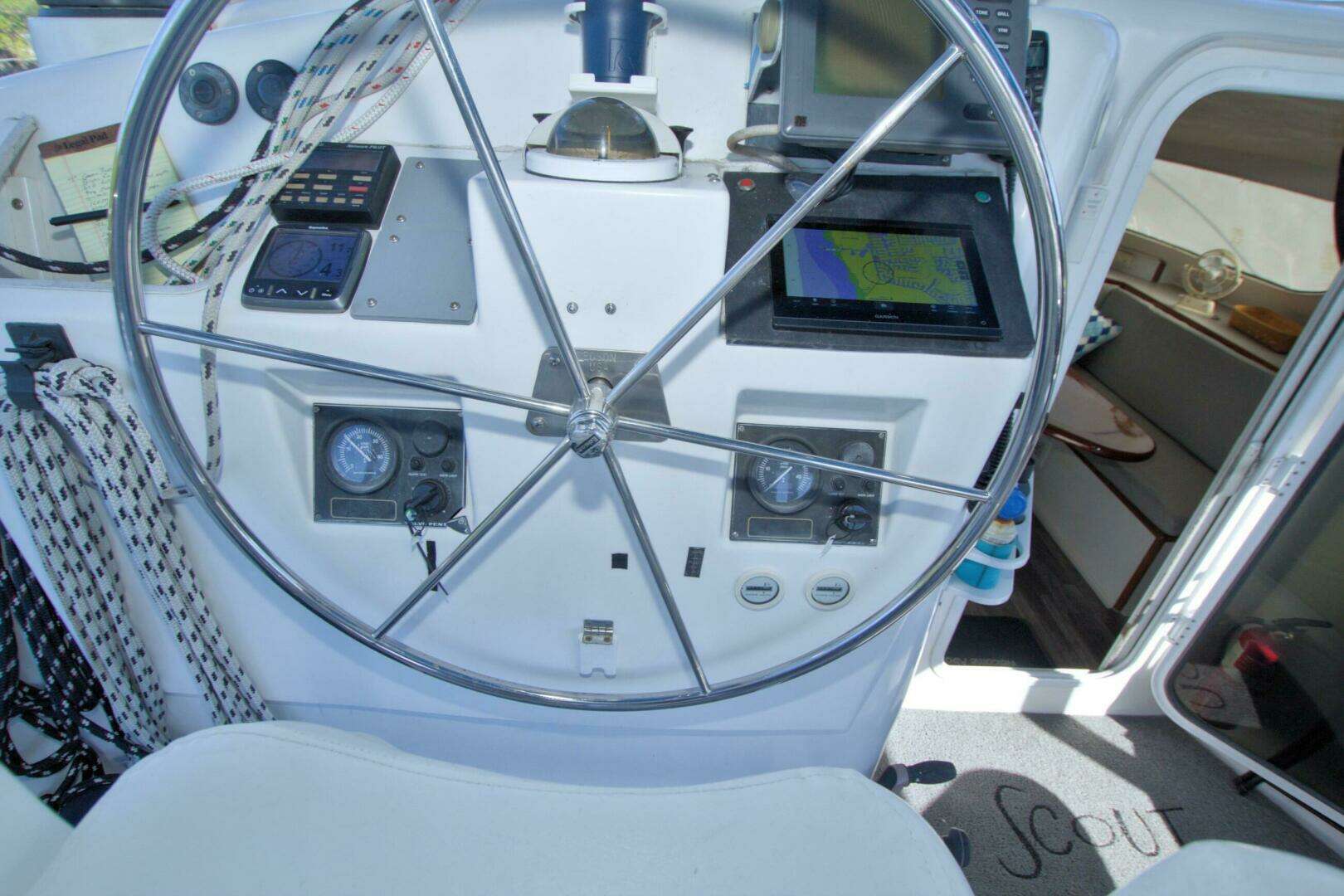

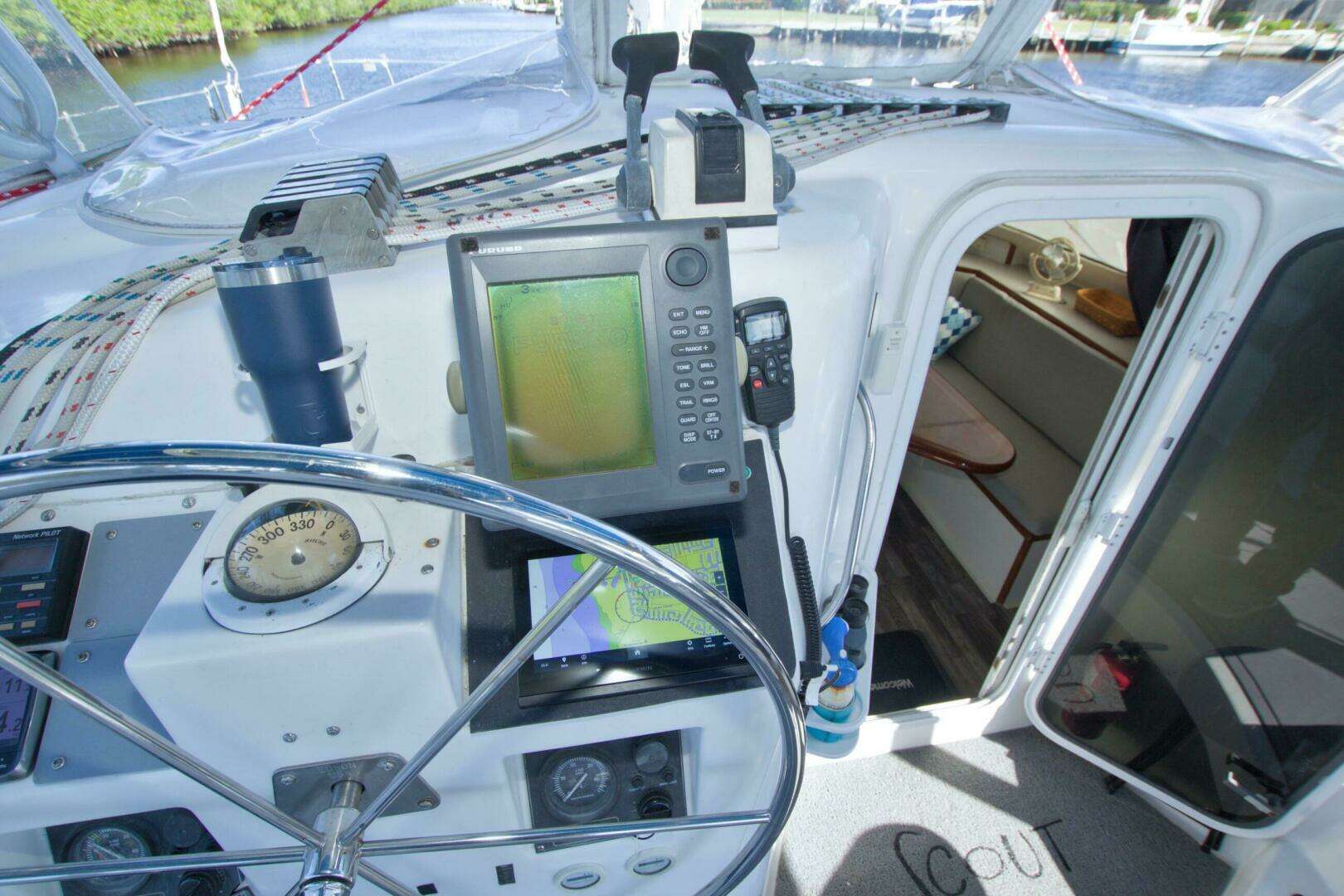

Electronics

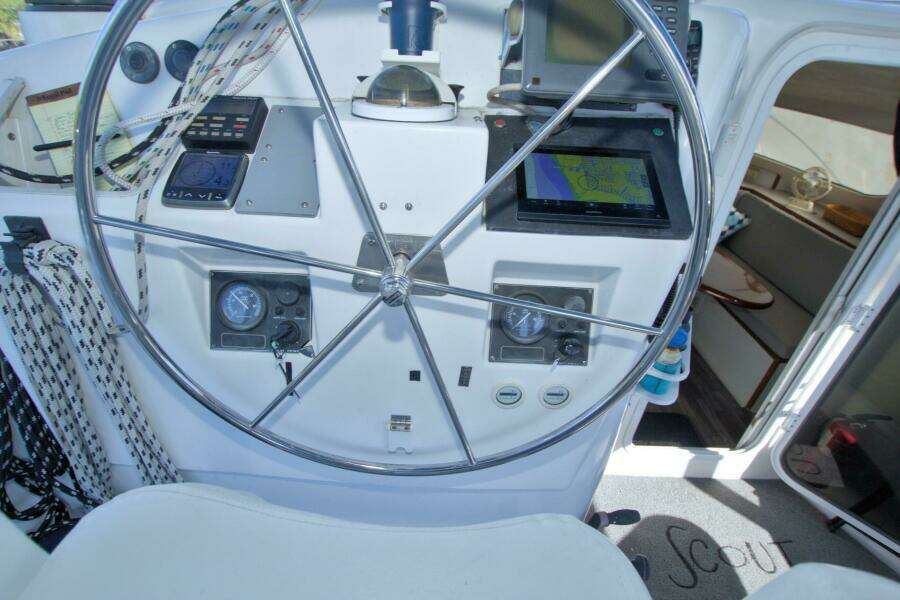

- 7" Garmin touch screen plotter. (2024)
- B&G autopilot.
- Furuno RADAR.
- Ray Marine multi function display ( depth and wind machine)
- Standard Horizon Matrix VHF radio with AIS reciever and Ram mic.
- ICOM M802 HF marine tranciever. (Operates as a HAM as well)
- AIS transciever.
- Xantrex battery monitor.
- 32" TCL flat screen TV.
- Clarion stereo.
Electrical Systems

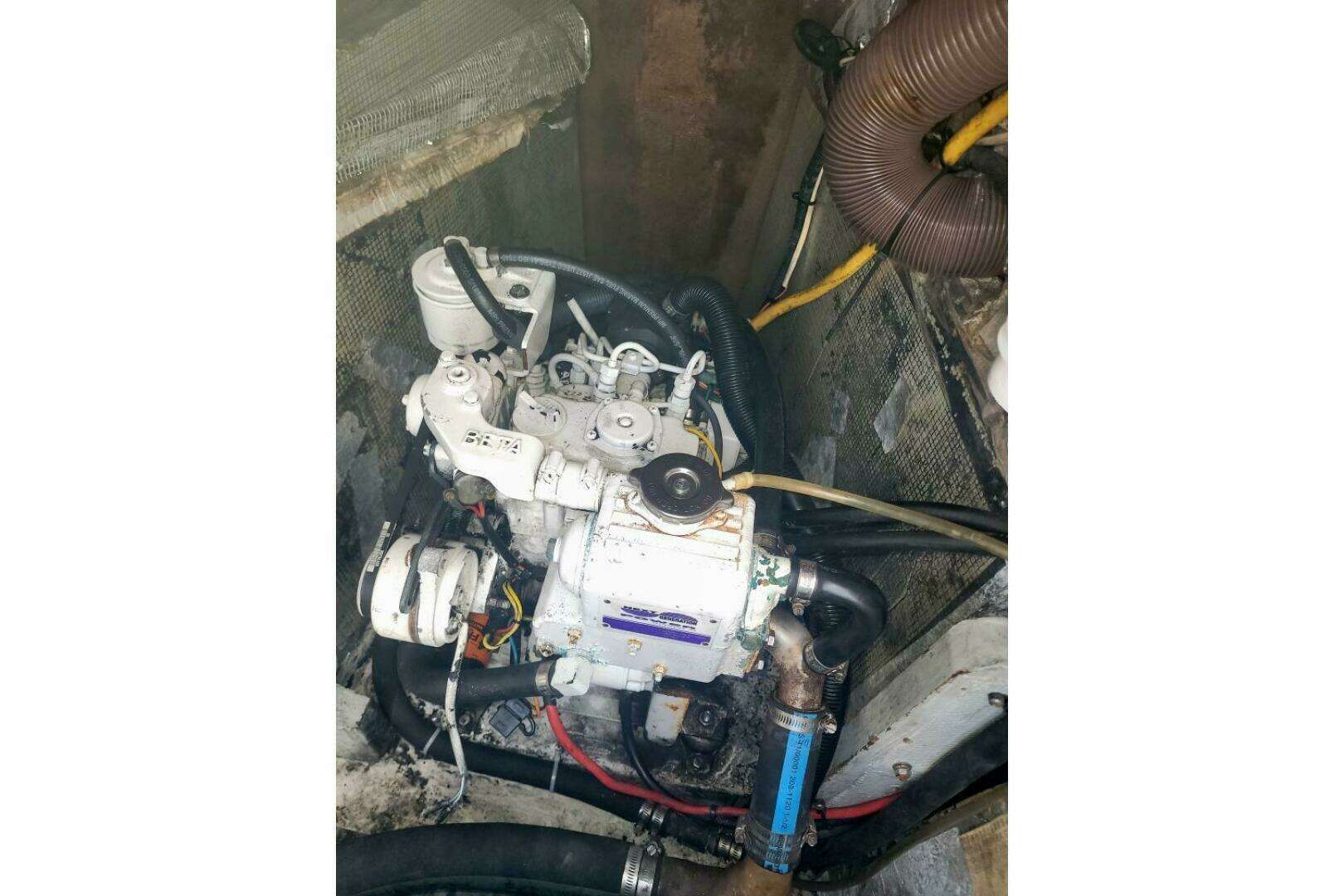

- Nexgen 5.5 kw diesel generator, located in the port forward deck locker. (1638 Hrs)
- Main ships electrical panel is located under the chart/nav station.
- (6) Flooded cell GC 2 house batteries. (705 AH).
- (2) Engine start batteries.

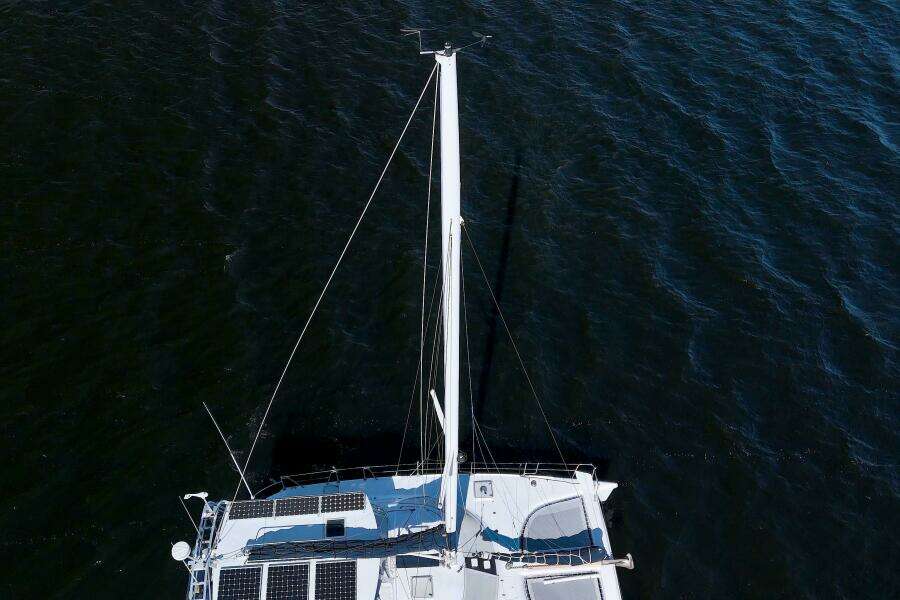

- 1000 Watts SOLAR panels with controller. (2020)
- 225 Watts SOLAR panels with controller still installed but not connected.
- West Marine invertor.
- Powermax 100amp battery charger.
- Wind generator.
Plumbing Systems
- 100 Gallon aluminum water tank.
- Spectra Catalina 12VDC water maker.
- Hard top rain catchment syetm.
- Pressure water.
- 120VAC and engine exchanger water heater.
- (2) 20 Gallon black water tanks with overboard, macerator or through deck discharge.
- Cockpit shower.
- Fore deck wash down system.
- (2) Electric bilge pumps.
- (2) Manual bilge pumps.
- Below waterline thruhulls and valves are non-corrosive Marlon.

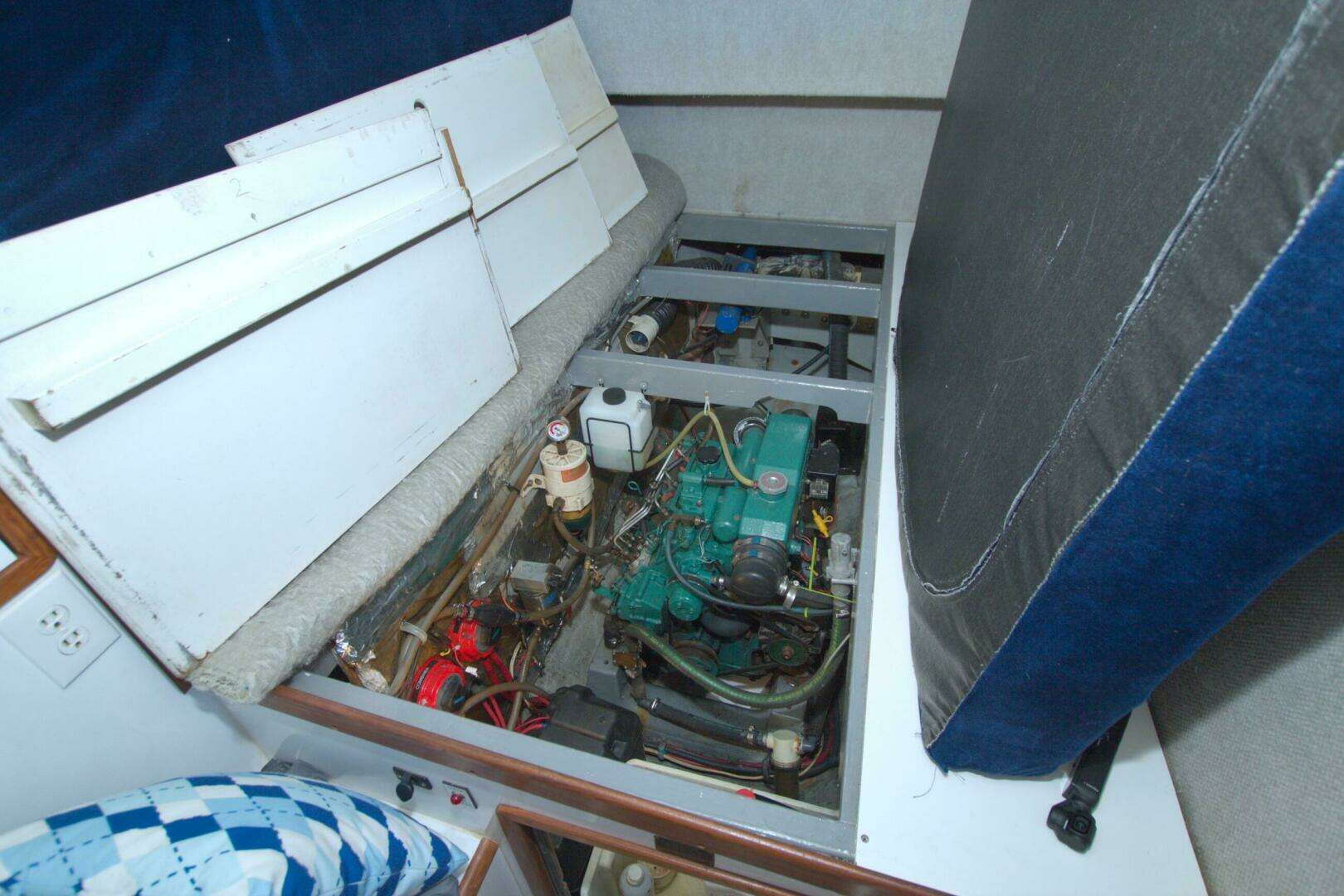

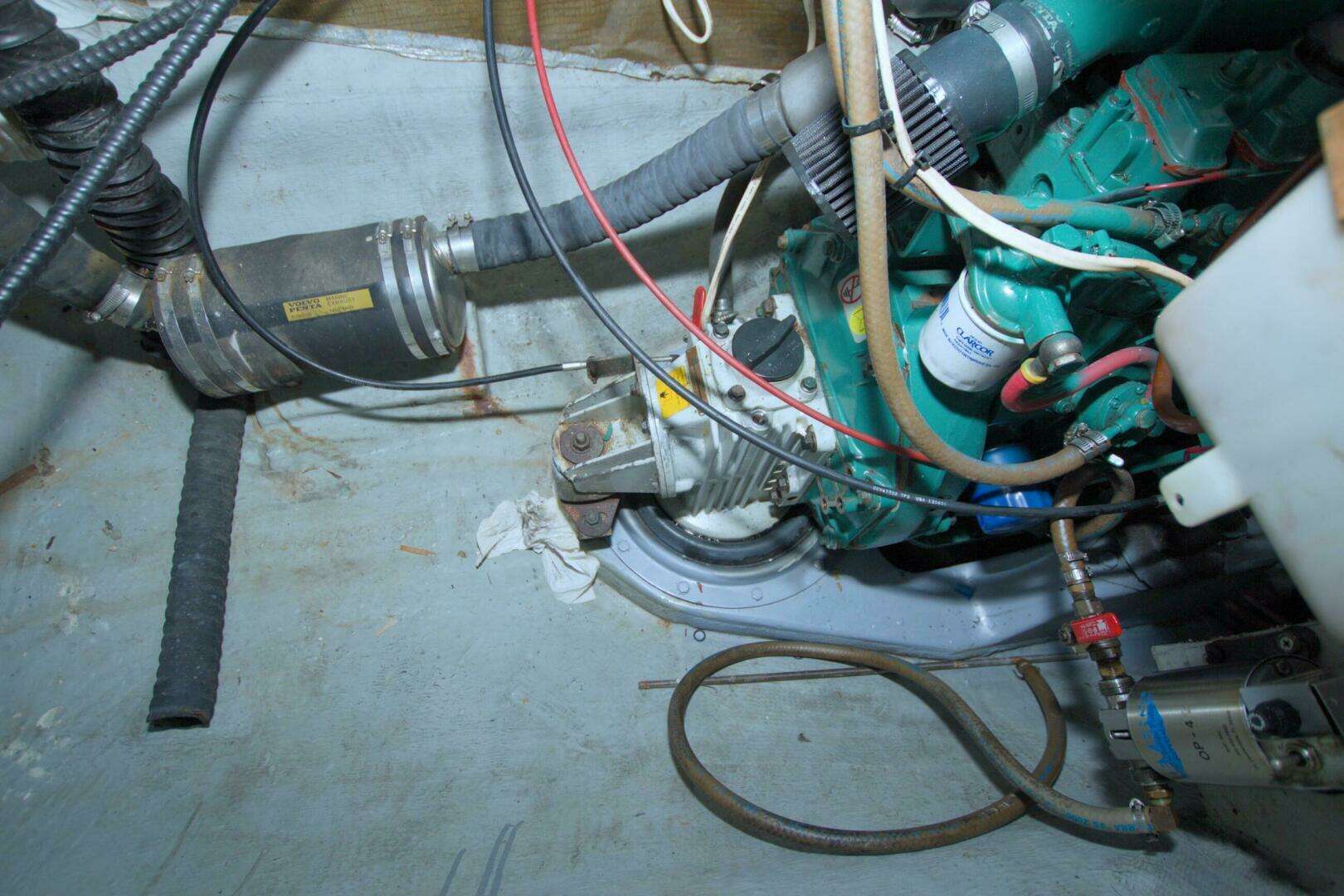

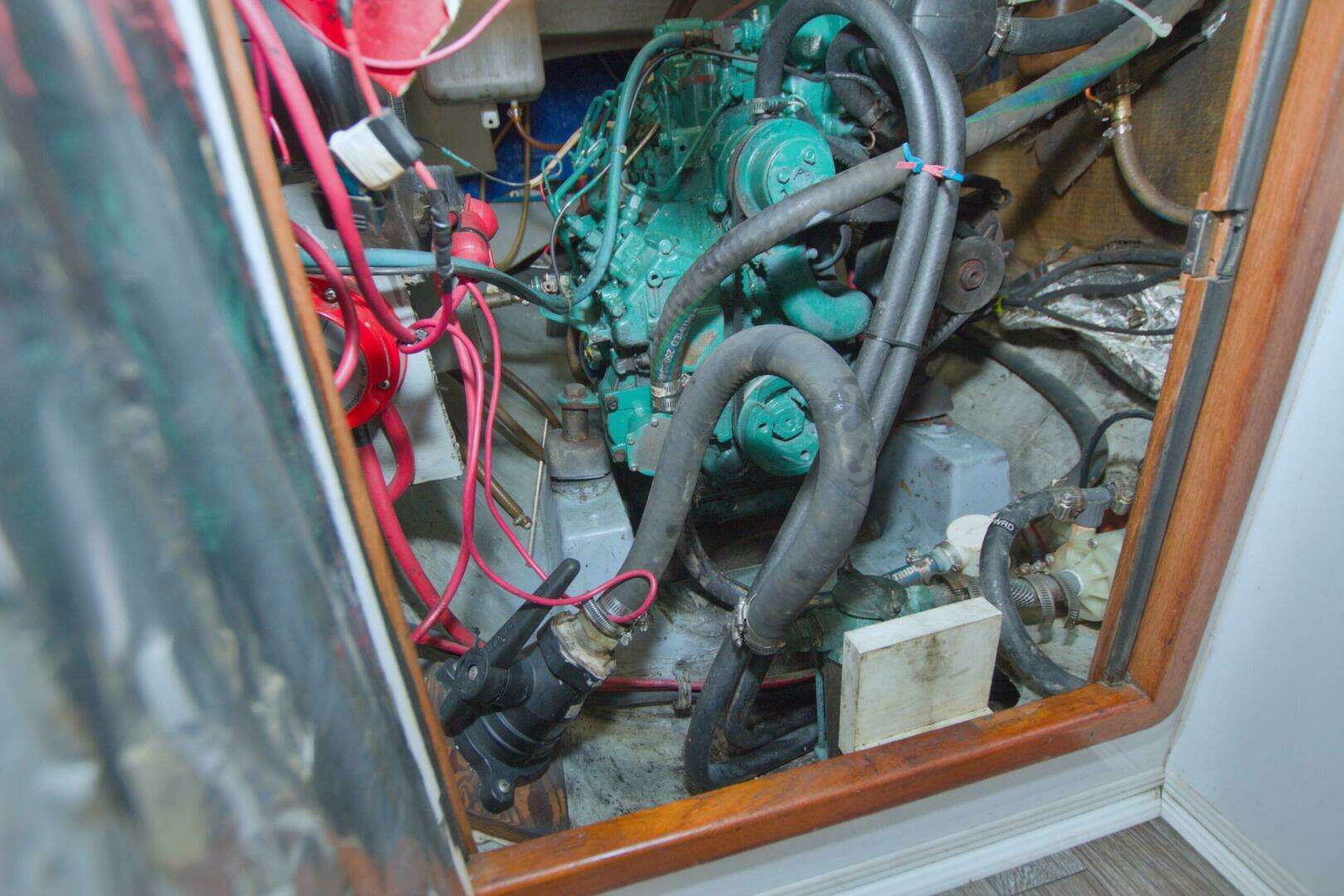

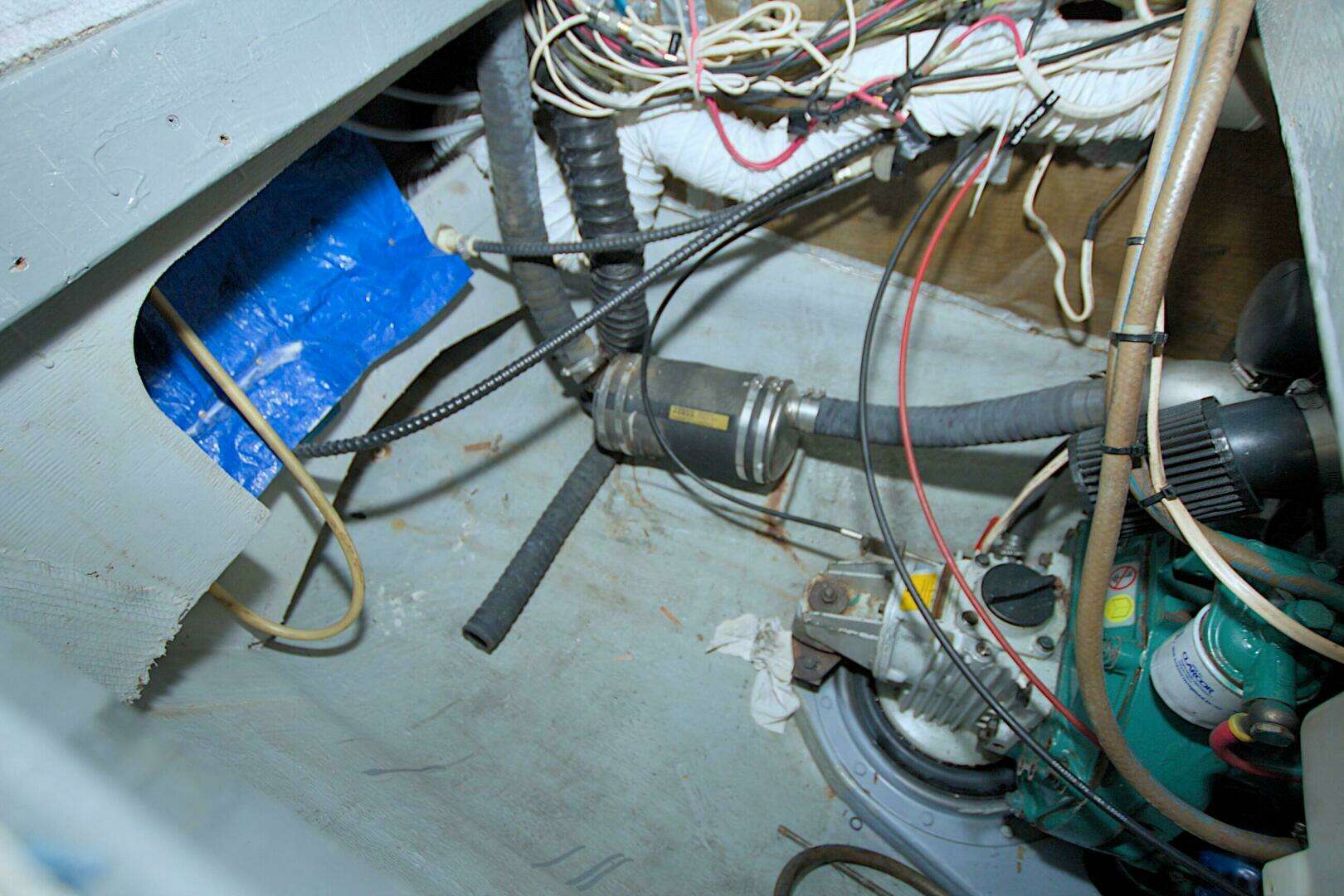

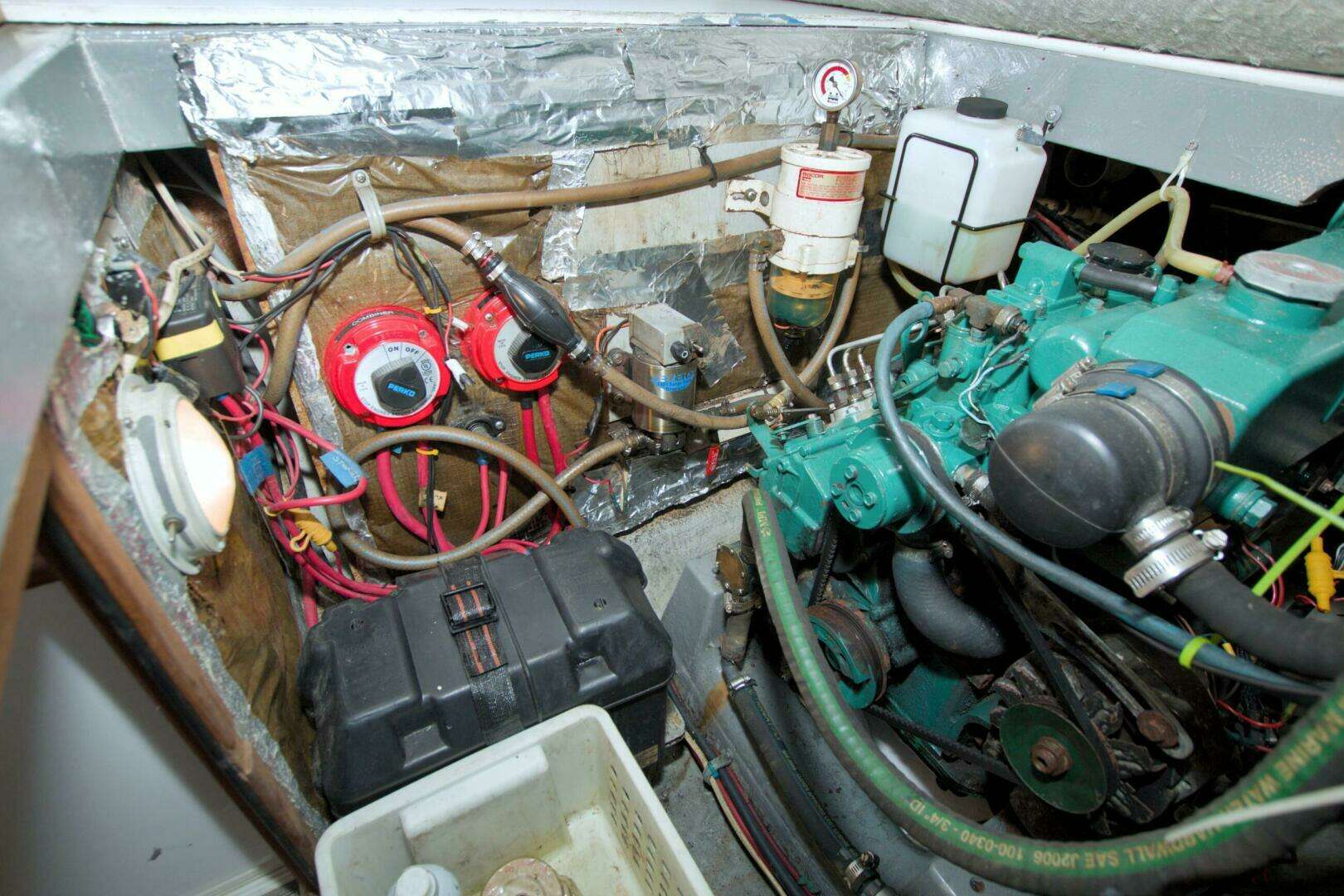

Mechanical Systems

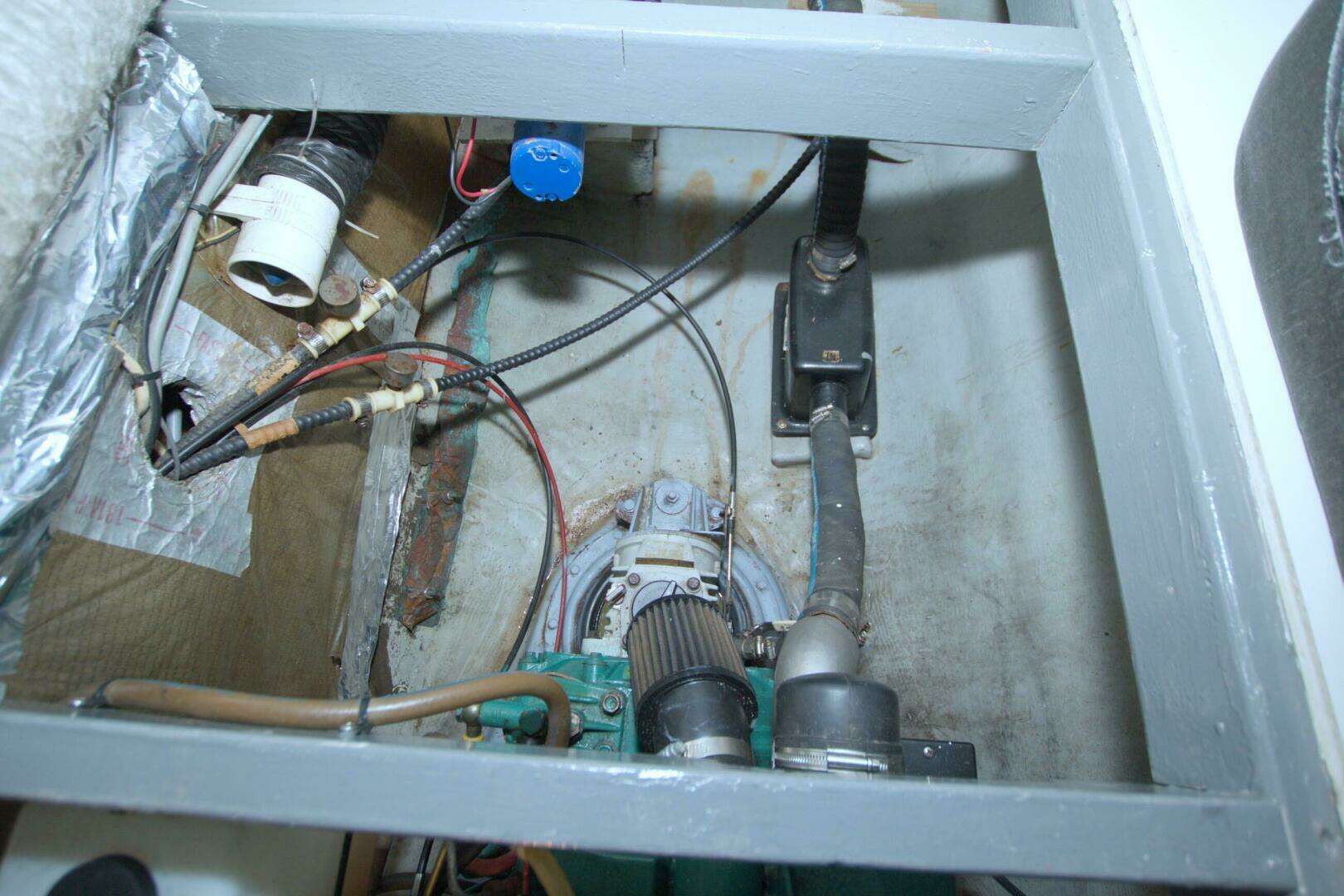

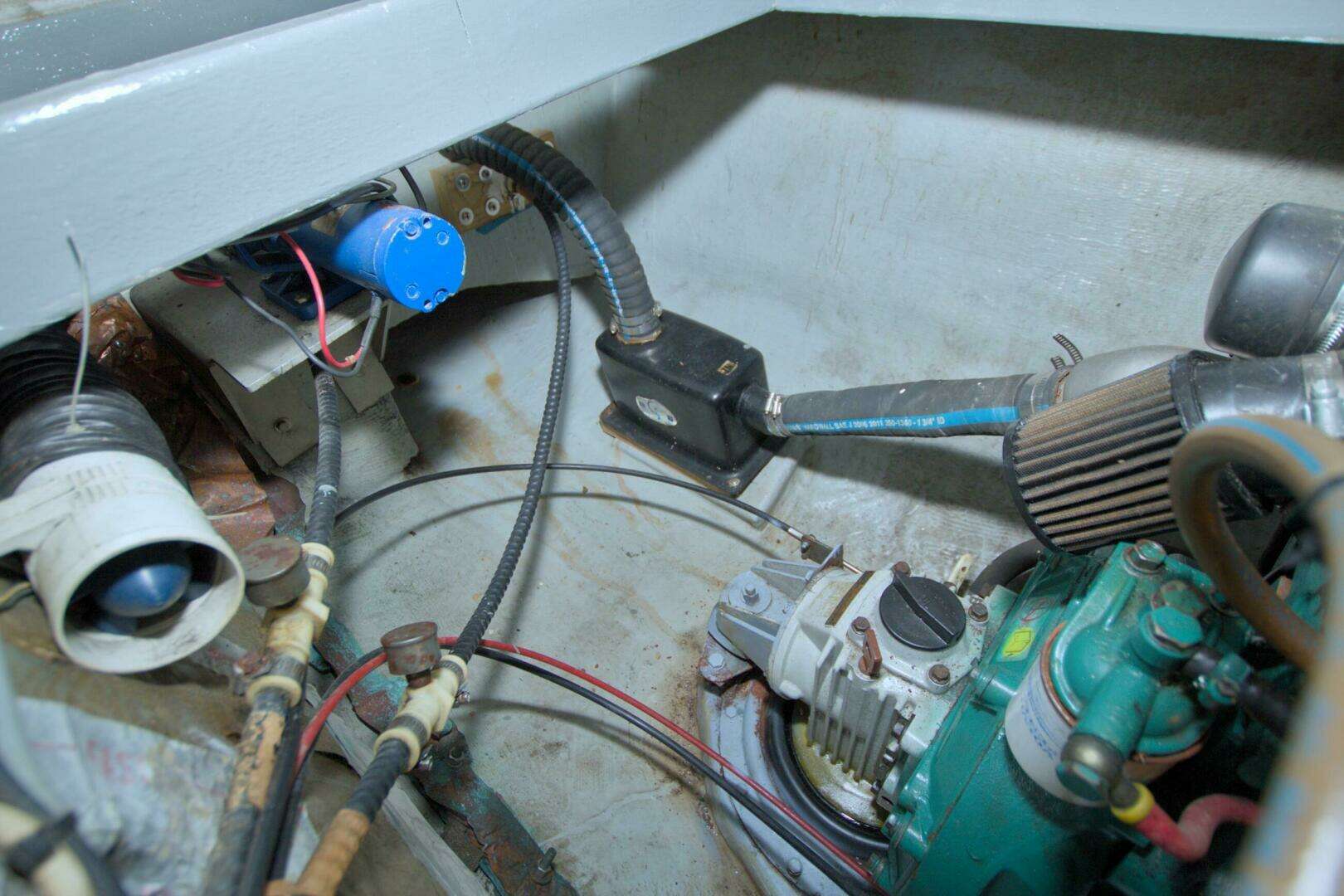

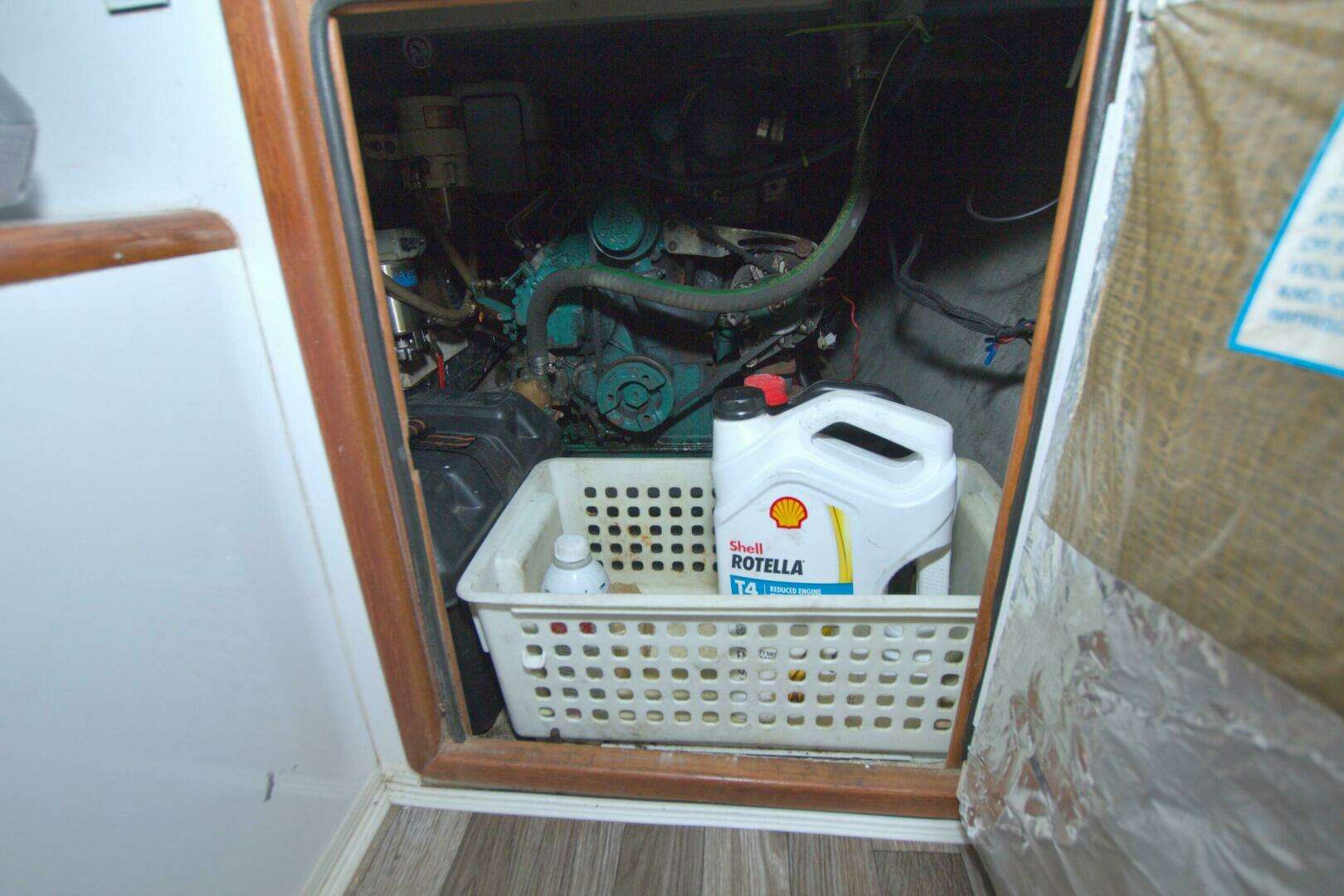

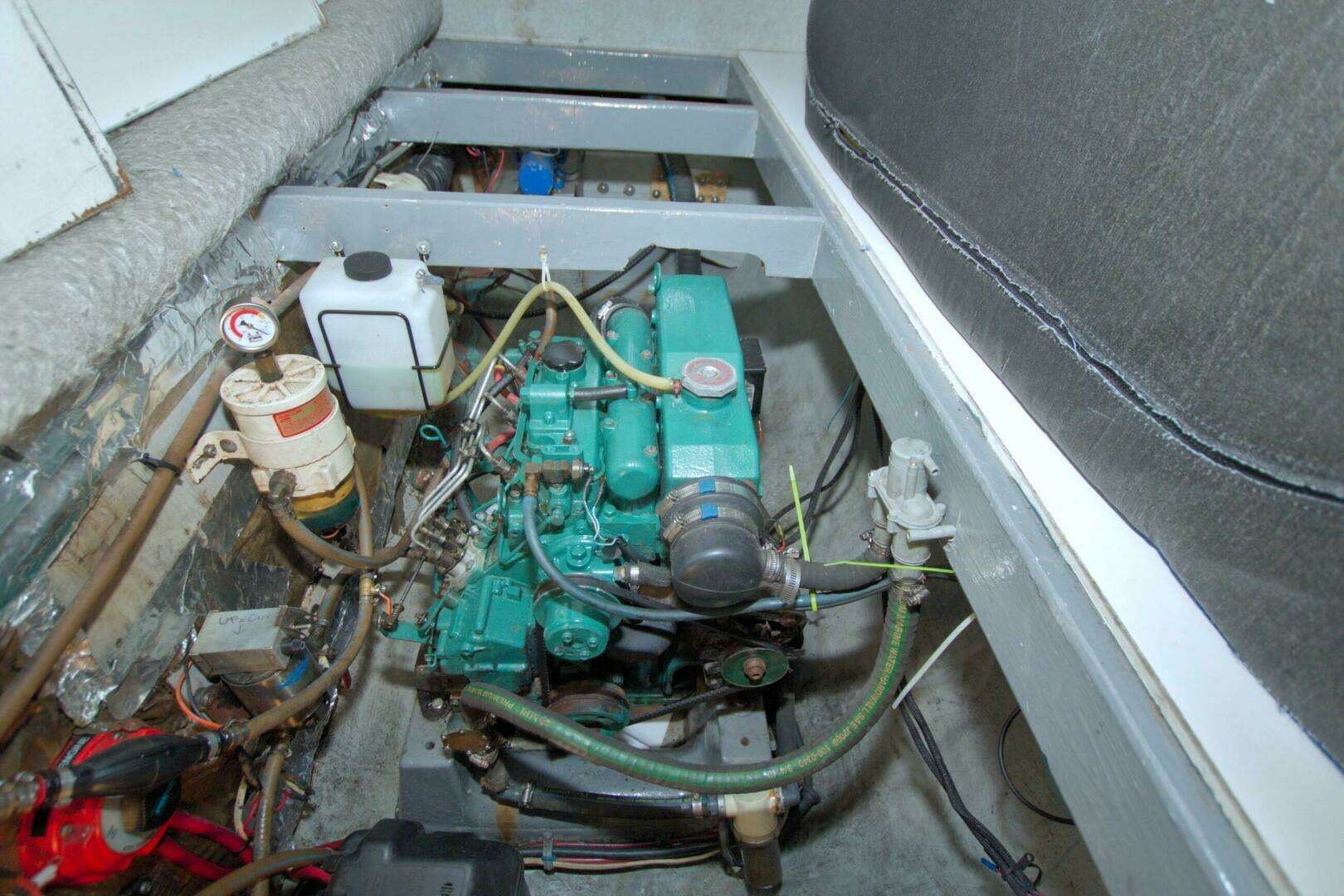

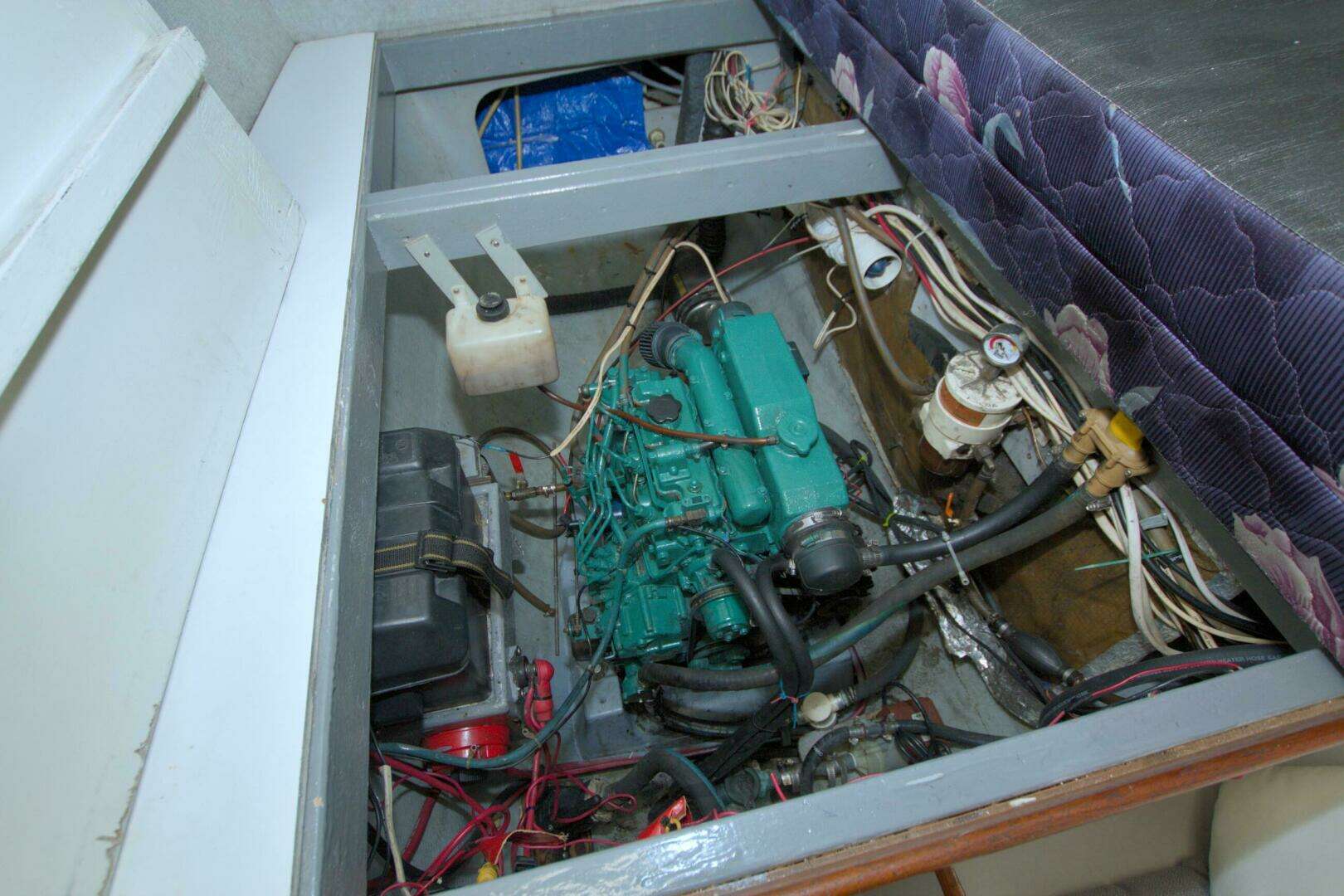

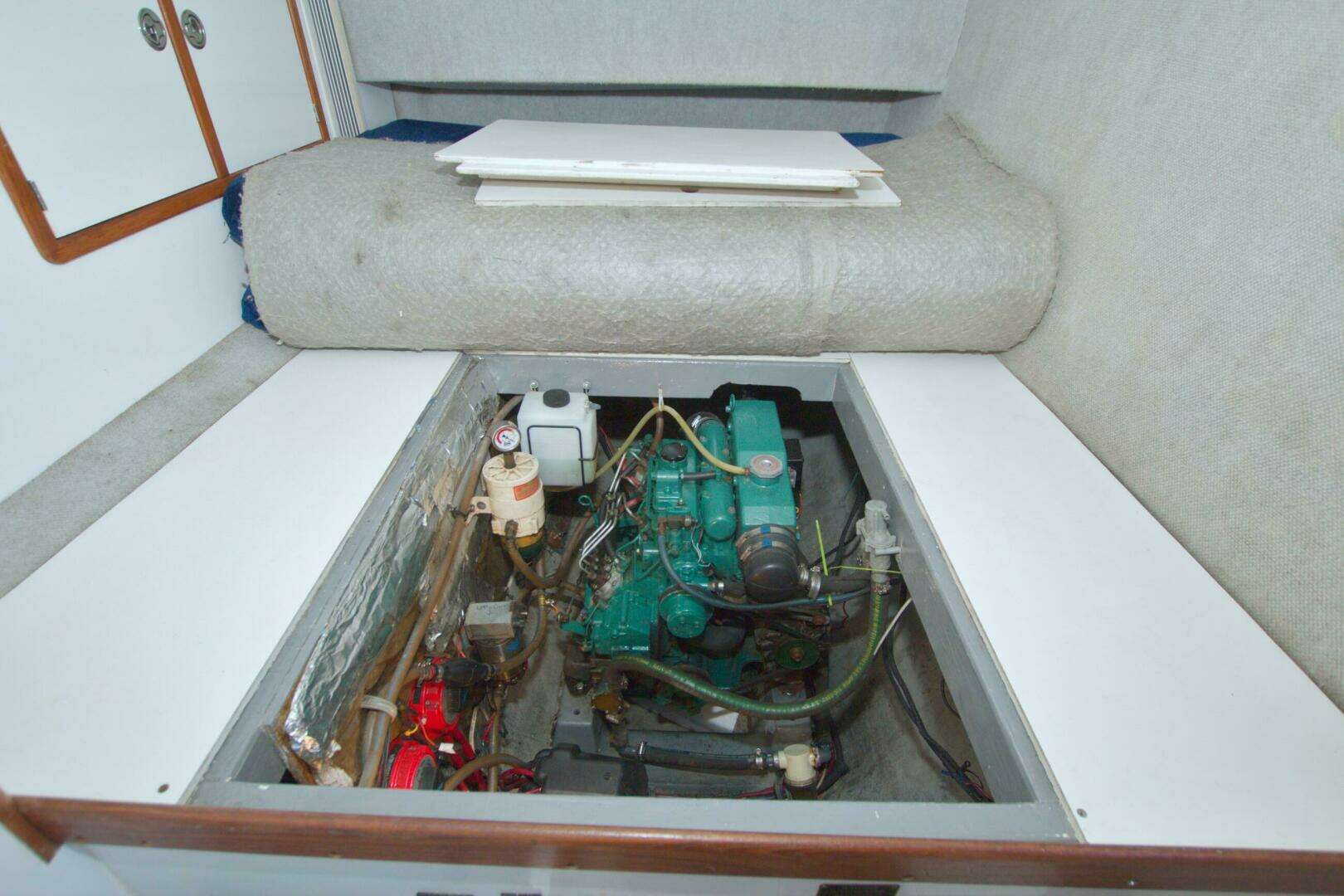

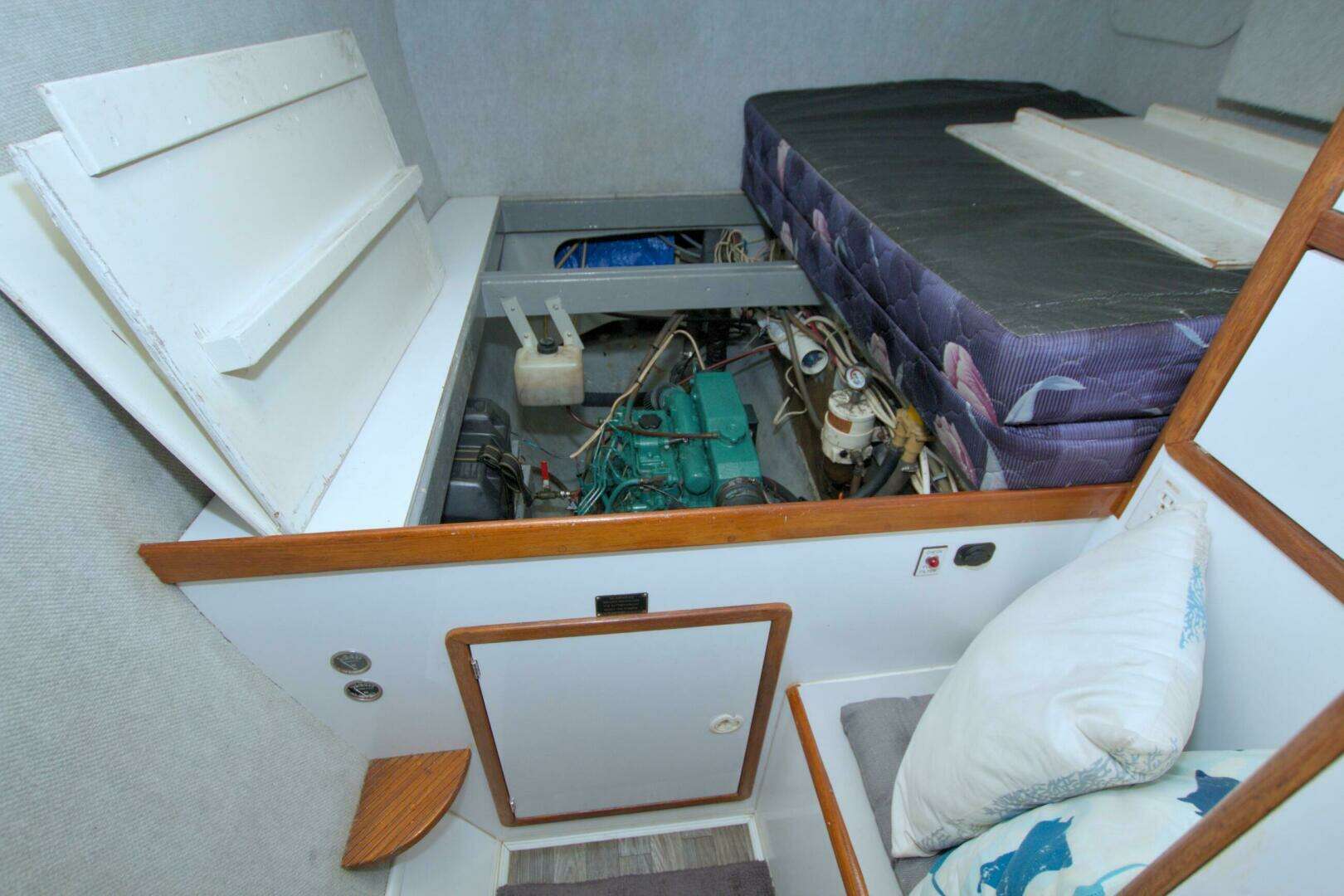

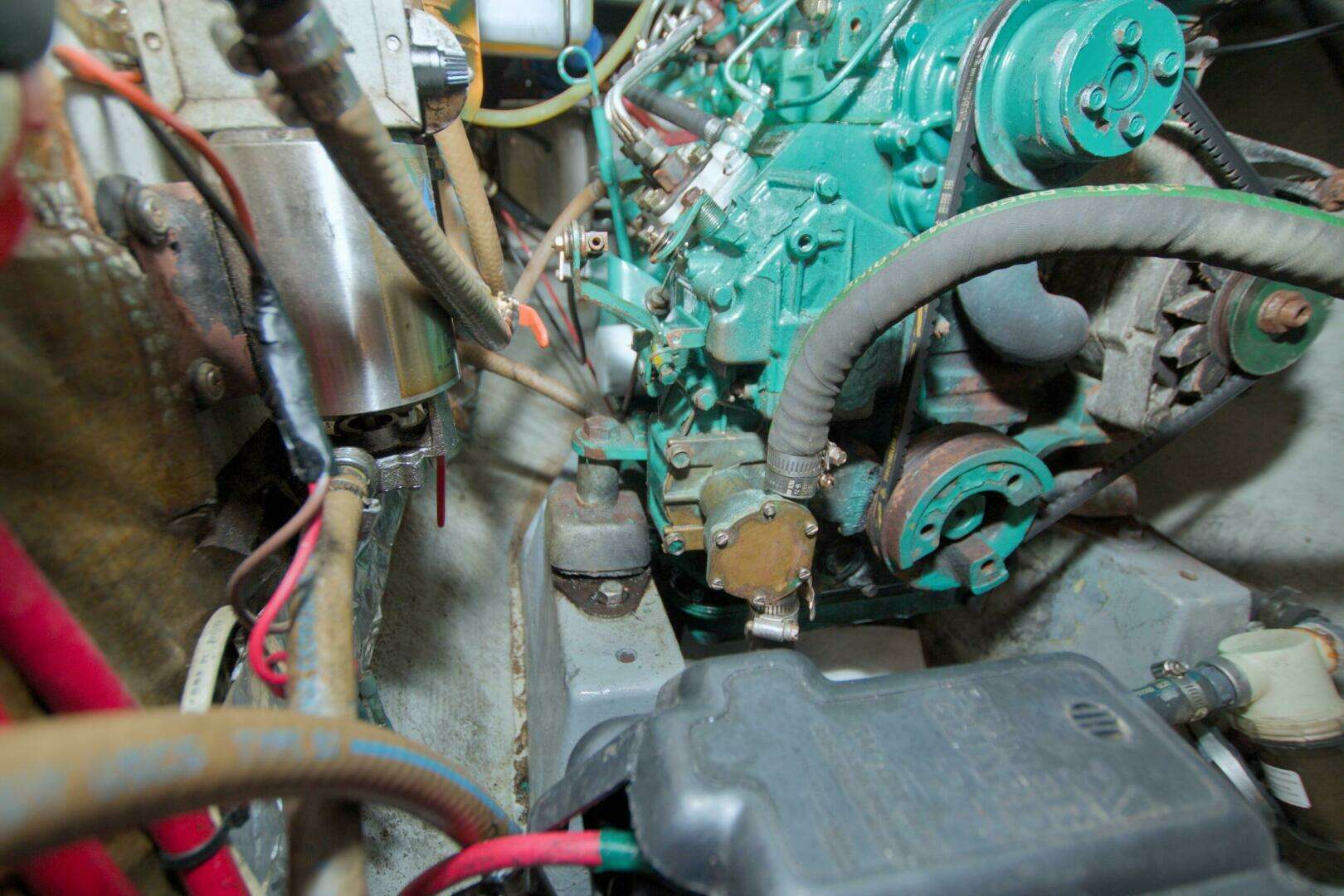

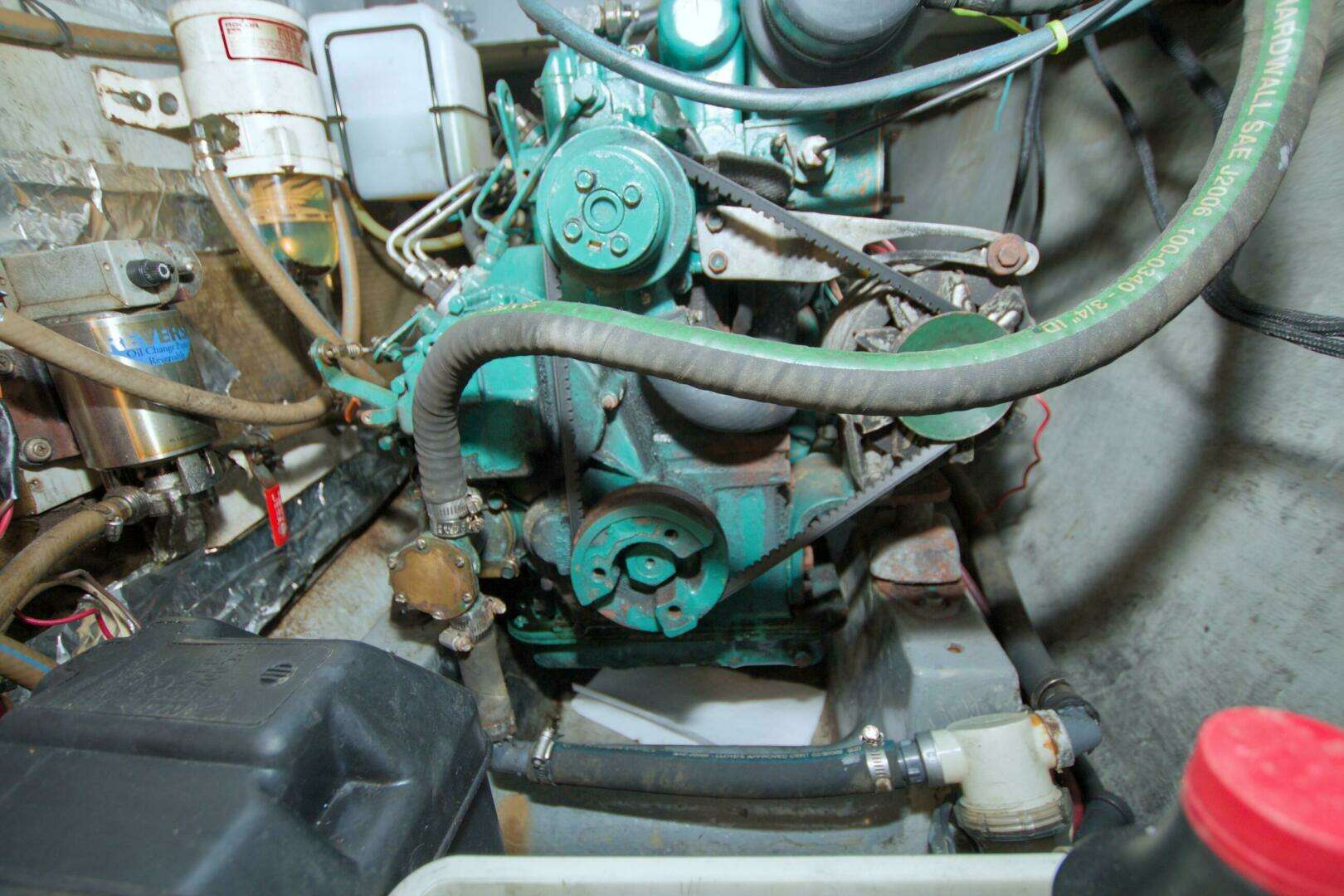

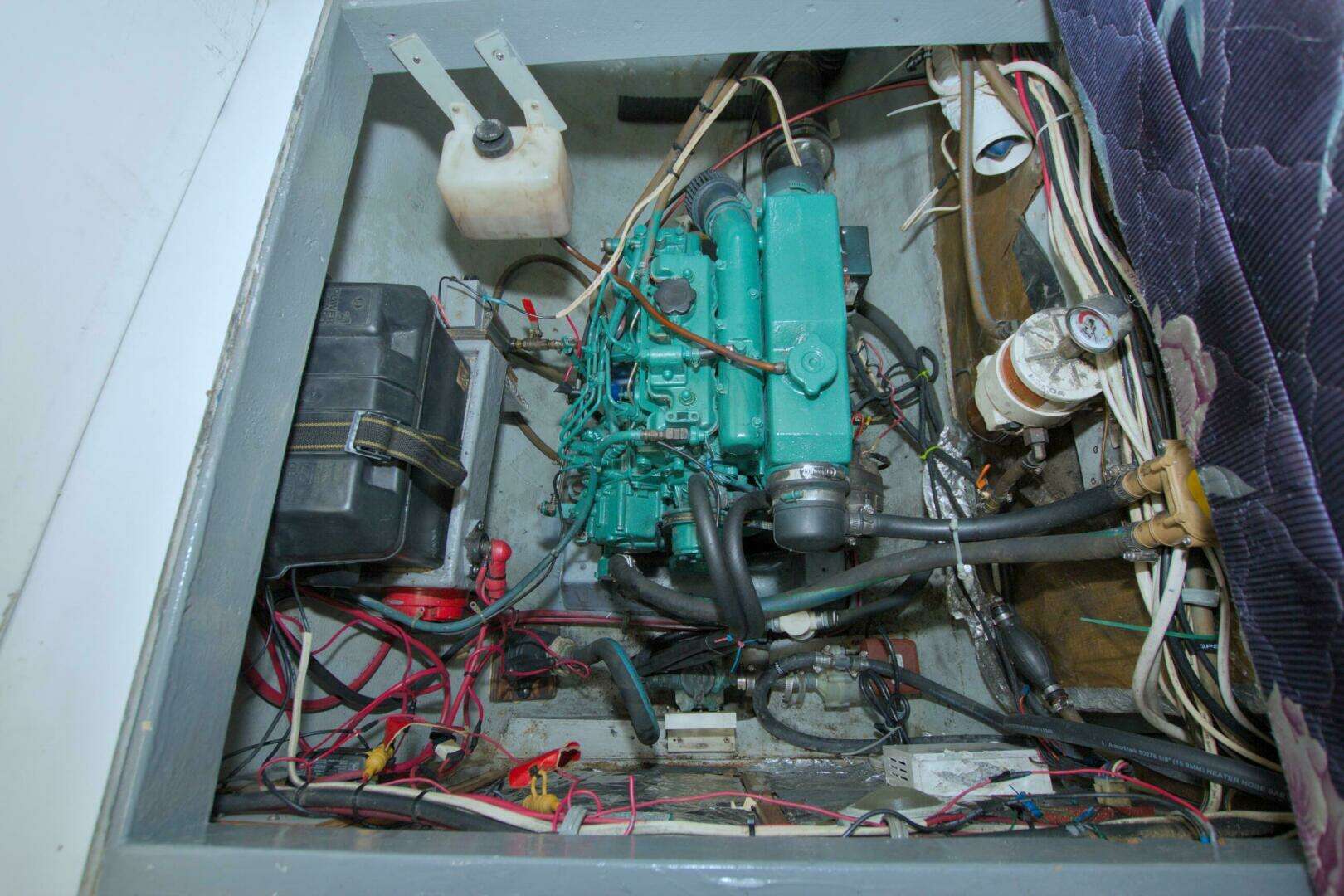

- (2) MD2040 Volvo marine diesel engine with fresh water cooling system.
- (2) S120 Volvo sail drives.
- (2) Volvo two blade bronze folding propellors.
- Sea strainers for engines.
- Oil change systems for engines.
- Racor fuel filters.
- Steering is cable pull/pull system.
- Engine room blowers.
- Aqualift muffler on port engine.
- Vetus muffler on stb engine.
- Oil and temp gauges mounted near engines, warning lights and alarms at helm.
Sails and Rigging
- Main sail with 2 reef points
- Tides luff track.

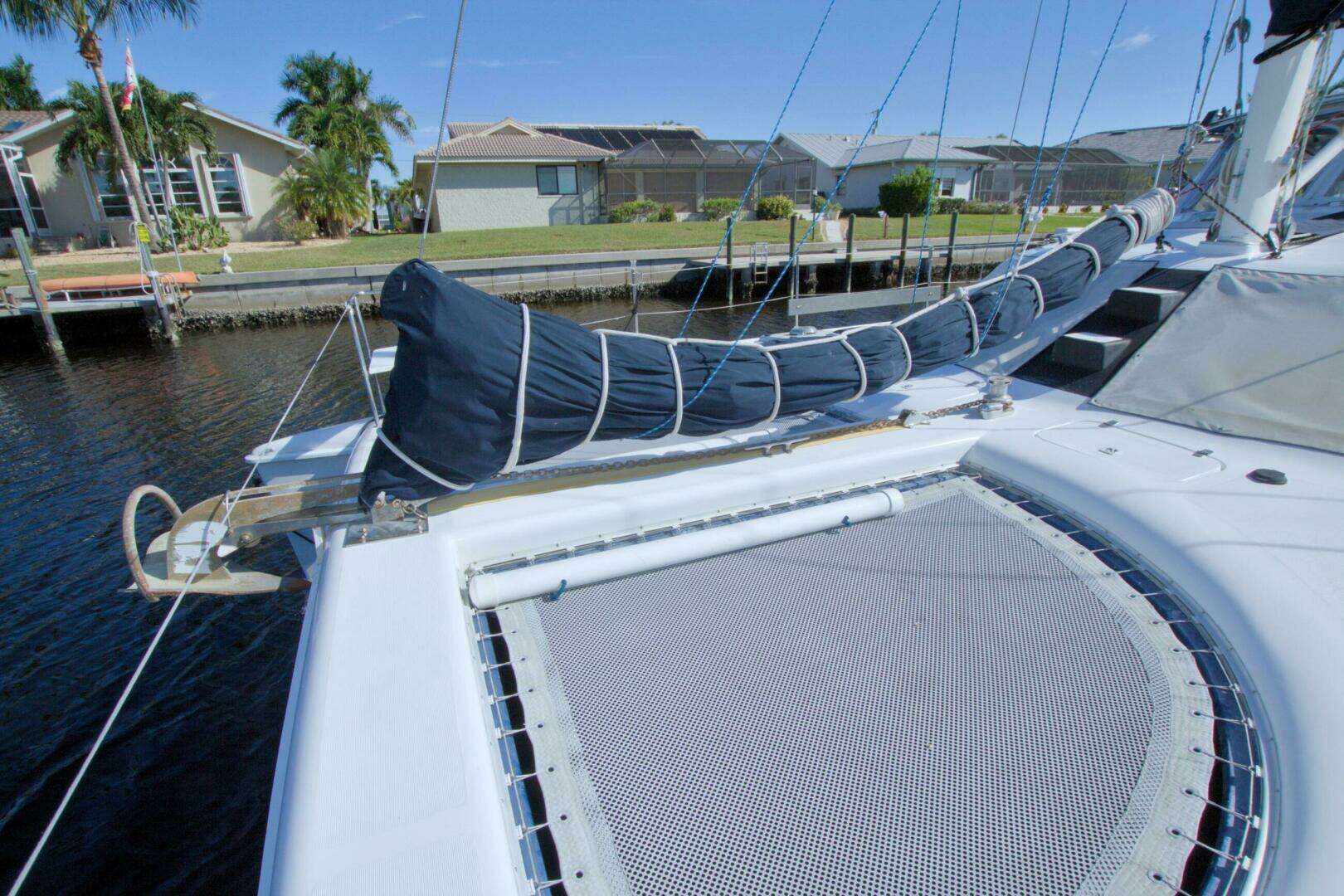

- New stack pack style main sail cover (2023)
- Camberspar jib.
- Sail cover. (2023)
- Asymetrical spinnaker in sock.

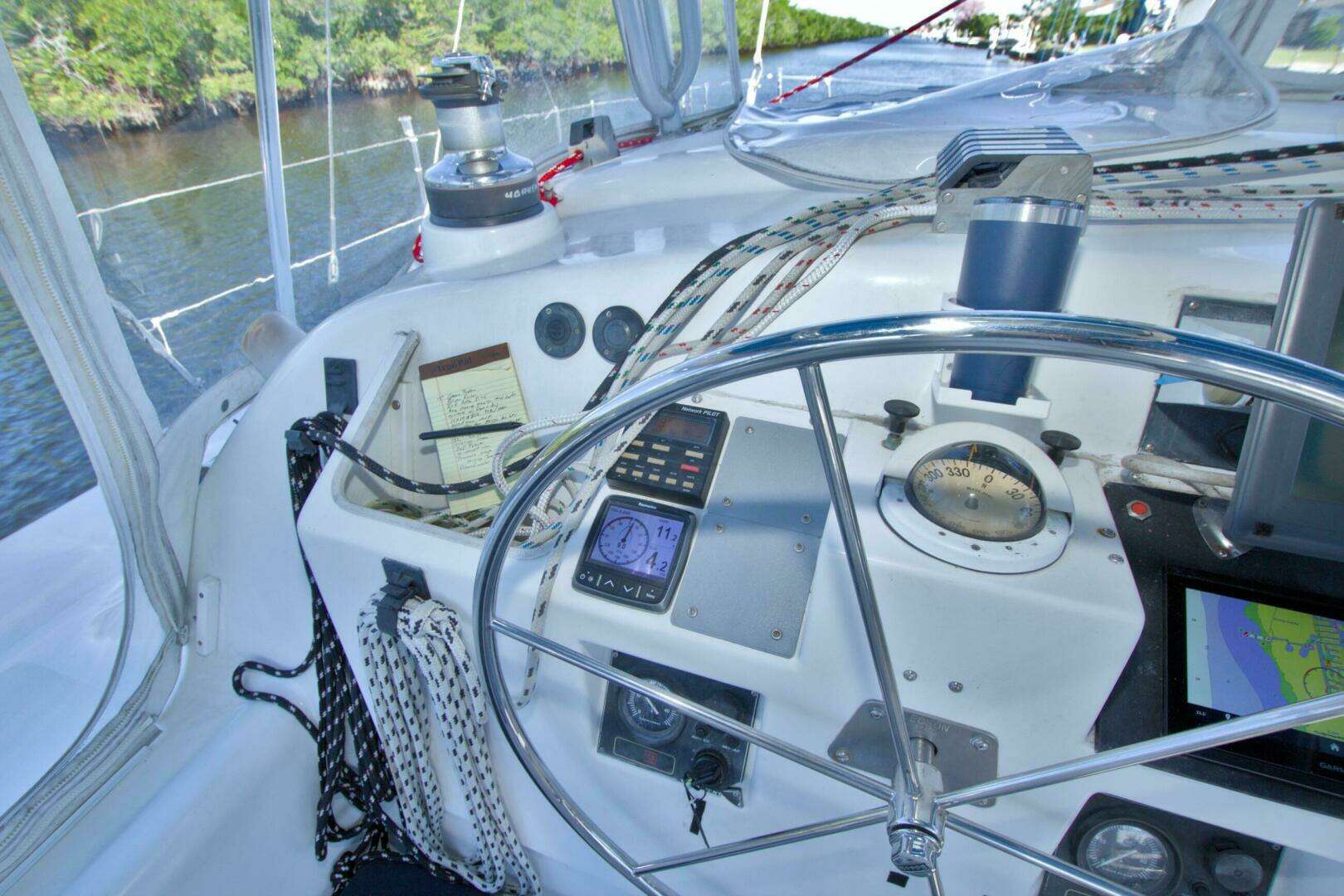

- Electric Harken winch at helm. Controls all lines except spinnaker.
- Boom strut.
- Wather boom brake.
- Harken 40 sst spinnaker sheet winch.
Ground Tackle
- Rockna style anchor.
- 5/16" G3 anchor chain
- Fortress secondary anchor and rode.
- Maxwell electric anchor windlass.
- Anchor snubber system.
Safety Equipment
- USCG safety pack.
- Lifeline retrieval system.
- Dyneema lifelines.
- RADAR reflector.
- Mooring lines

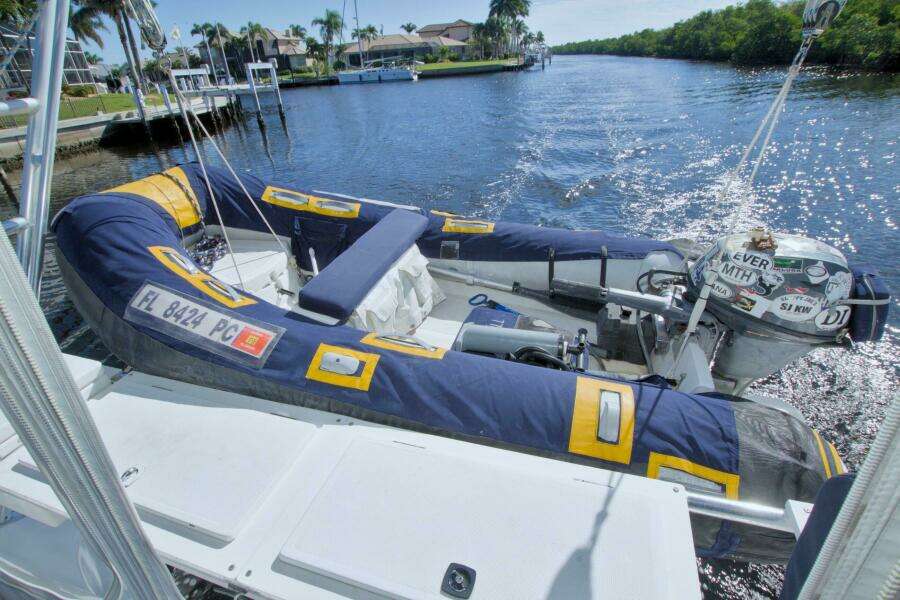

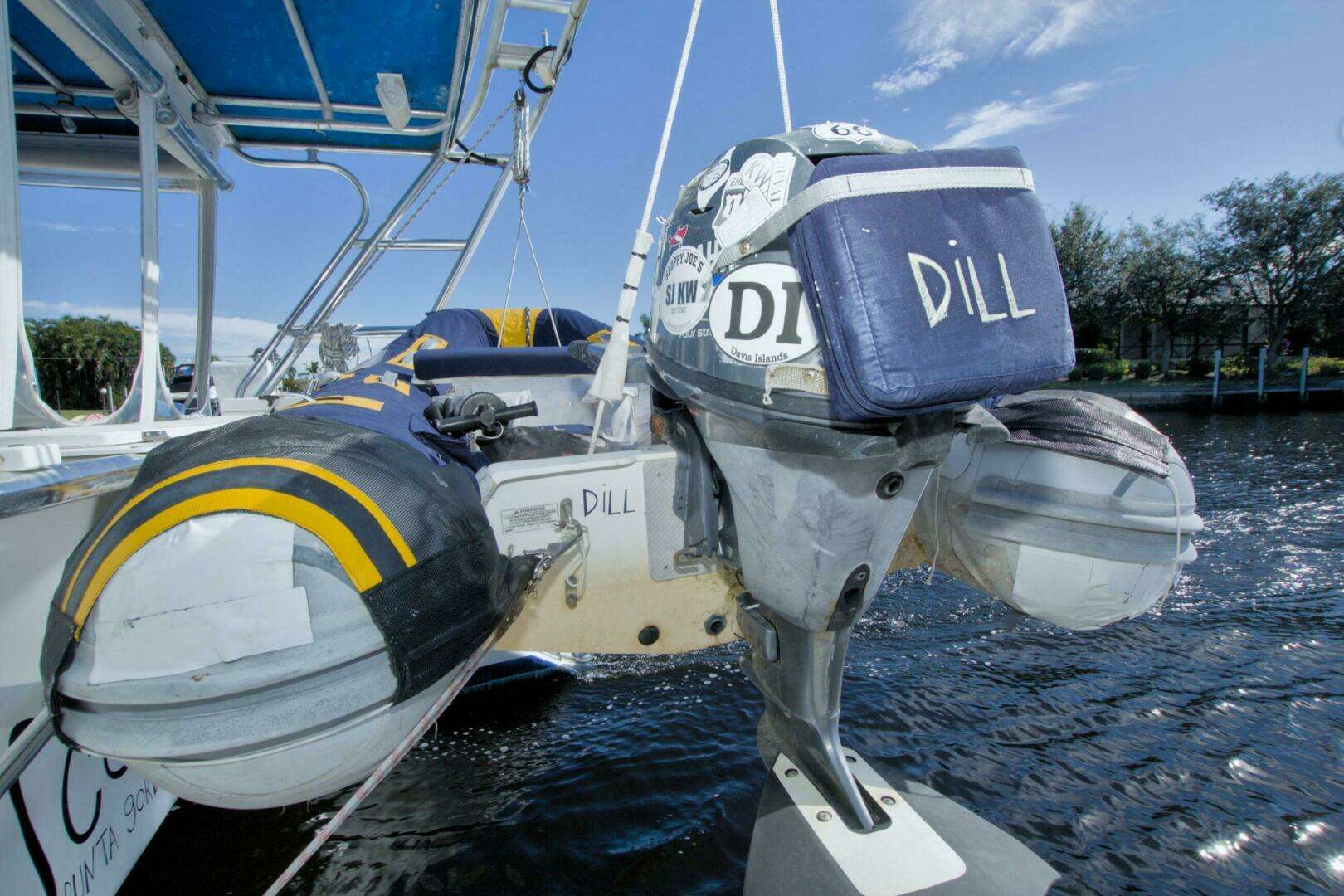

Tender

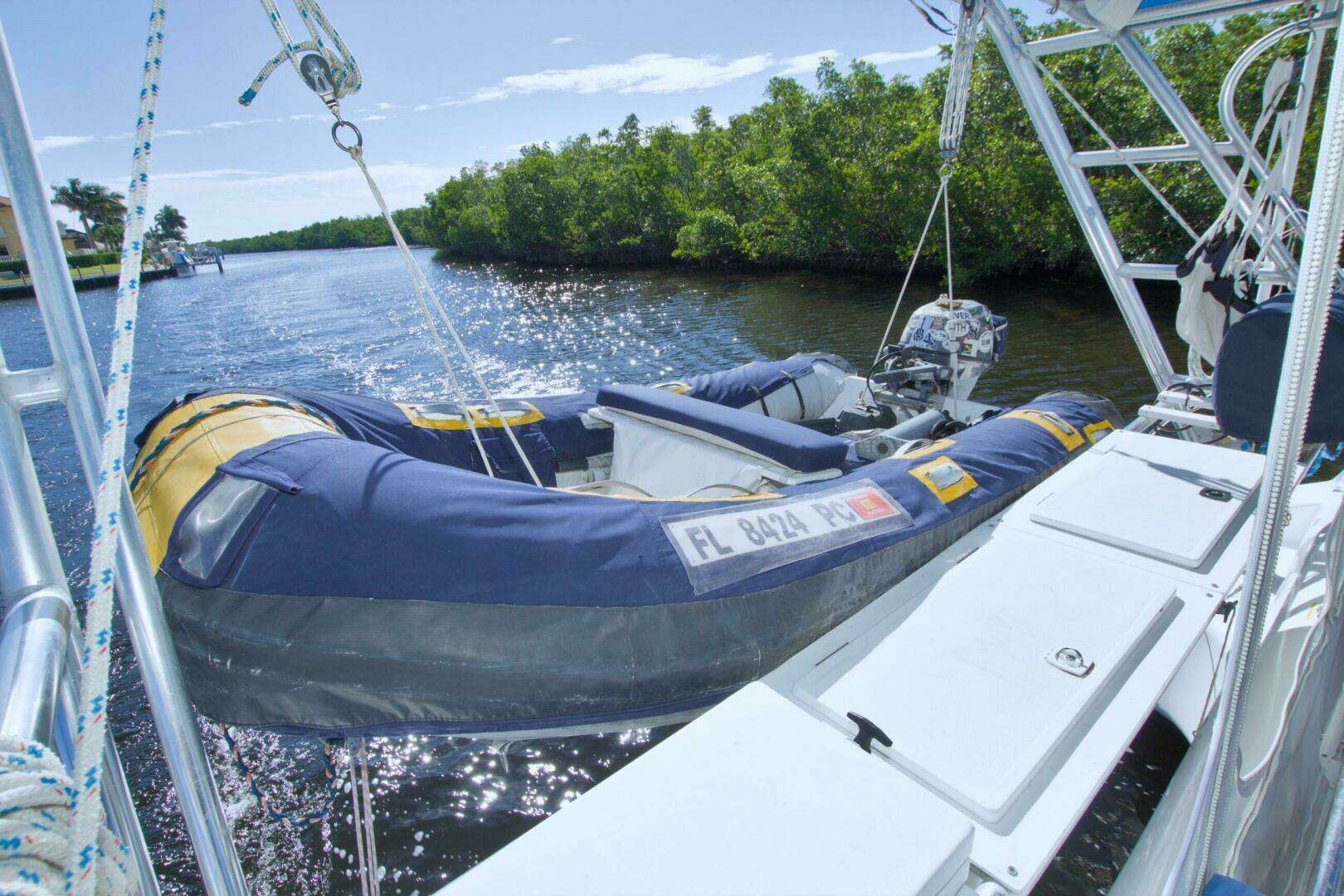

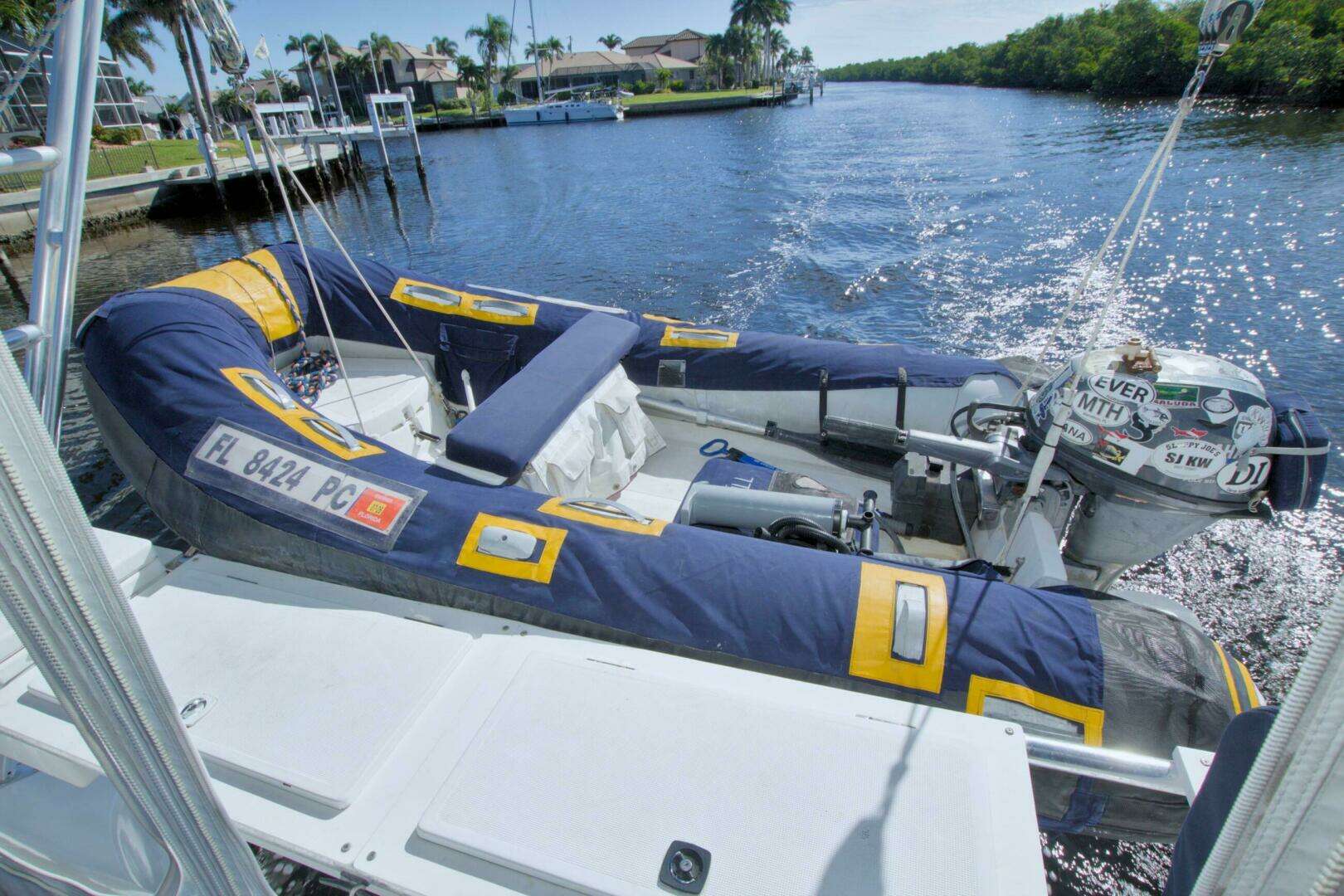

- 10.5 foot AB inflatable.
- 30 HP Yamaha outboard.
- Tube chaps.

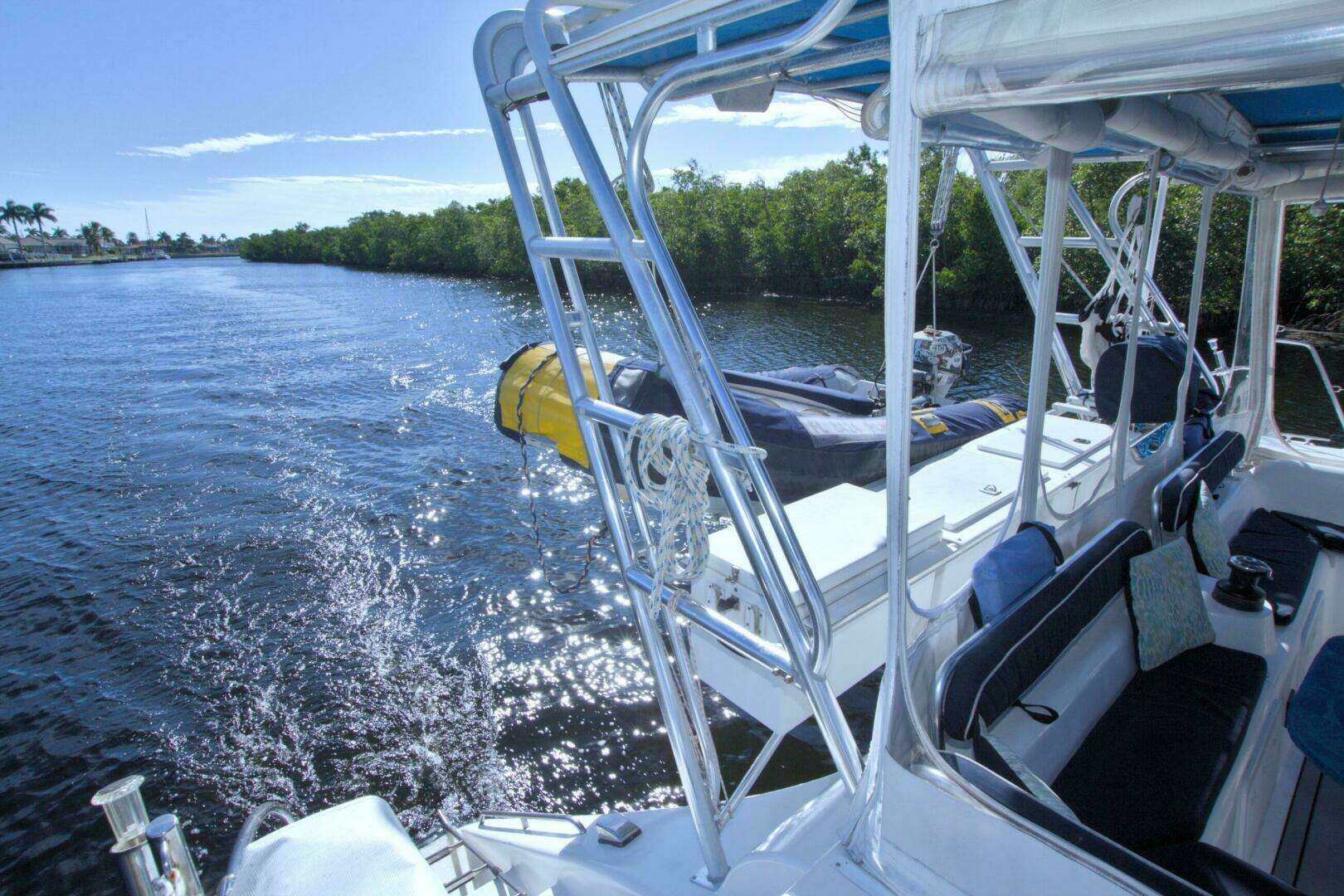

- Dinghy davit system built into the RADAR hardtop arch.

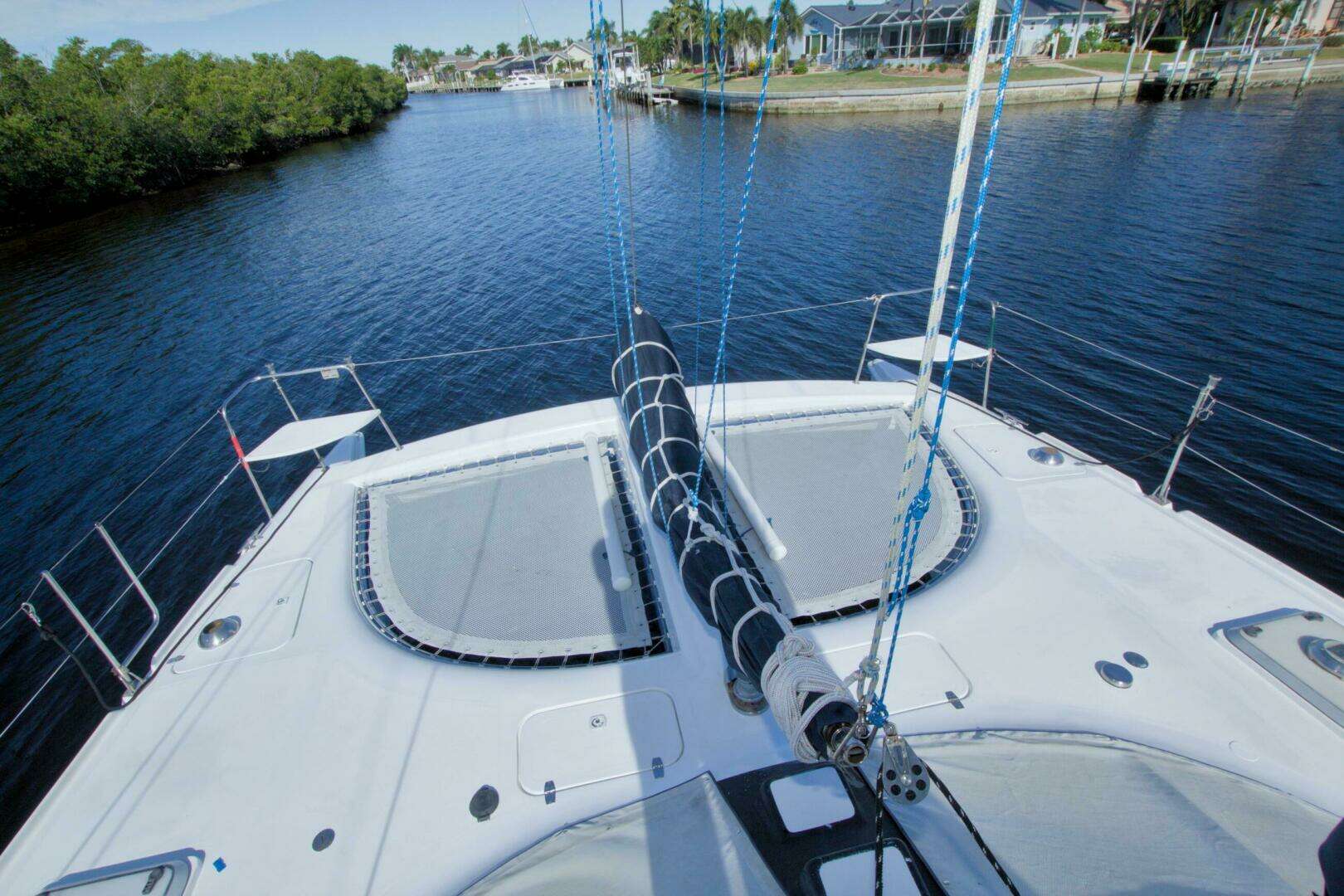

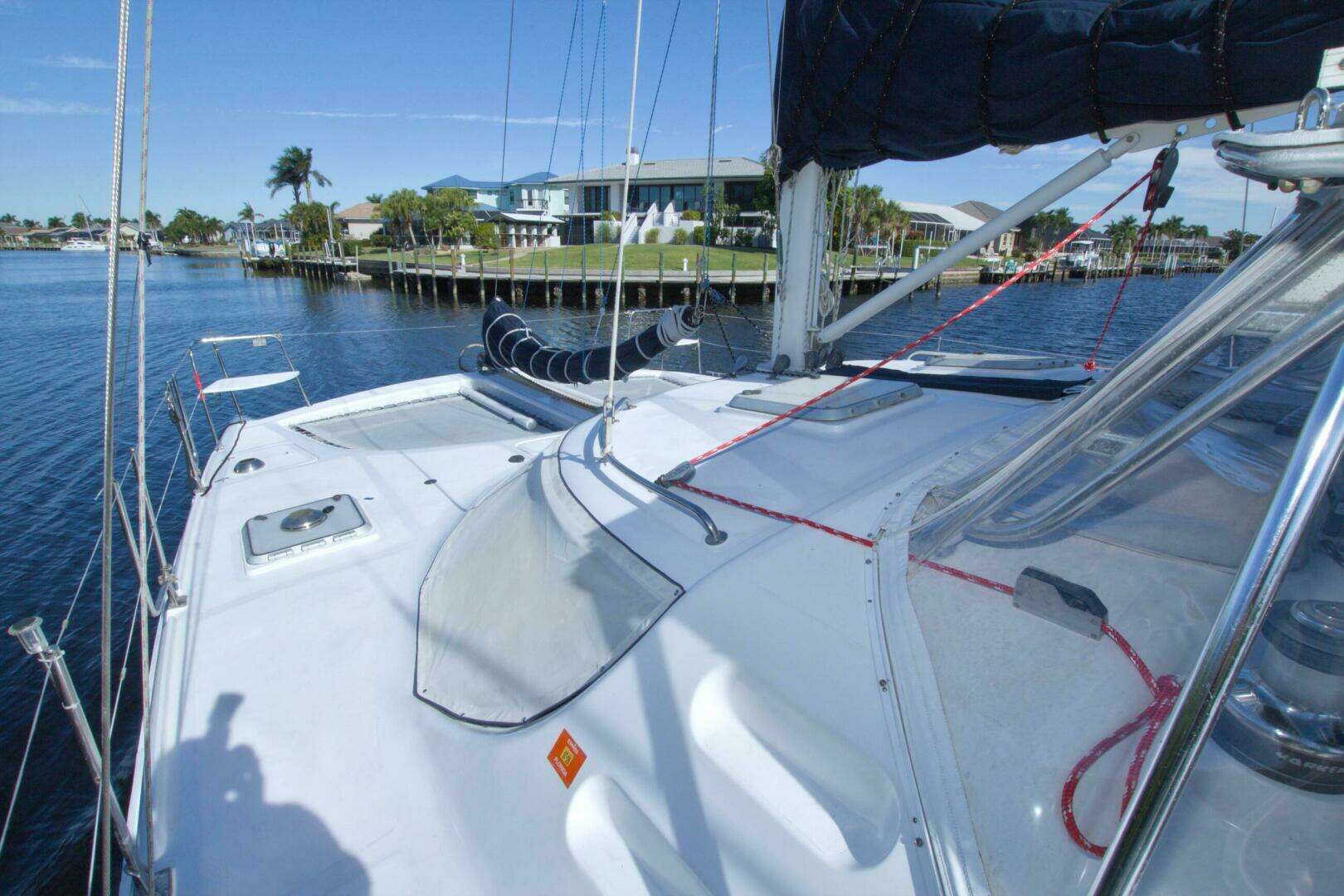

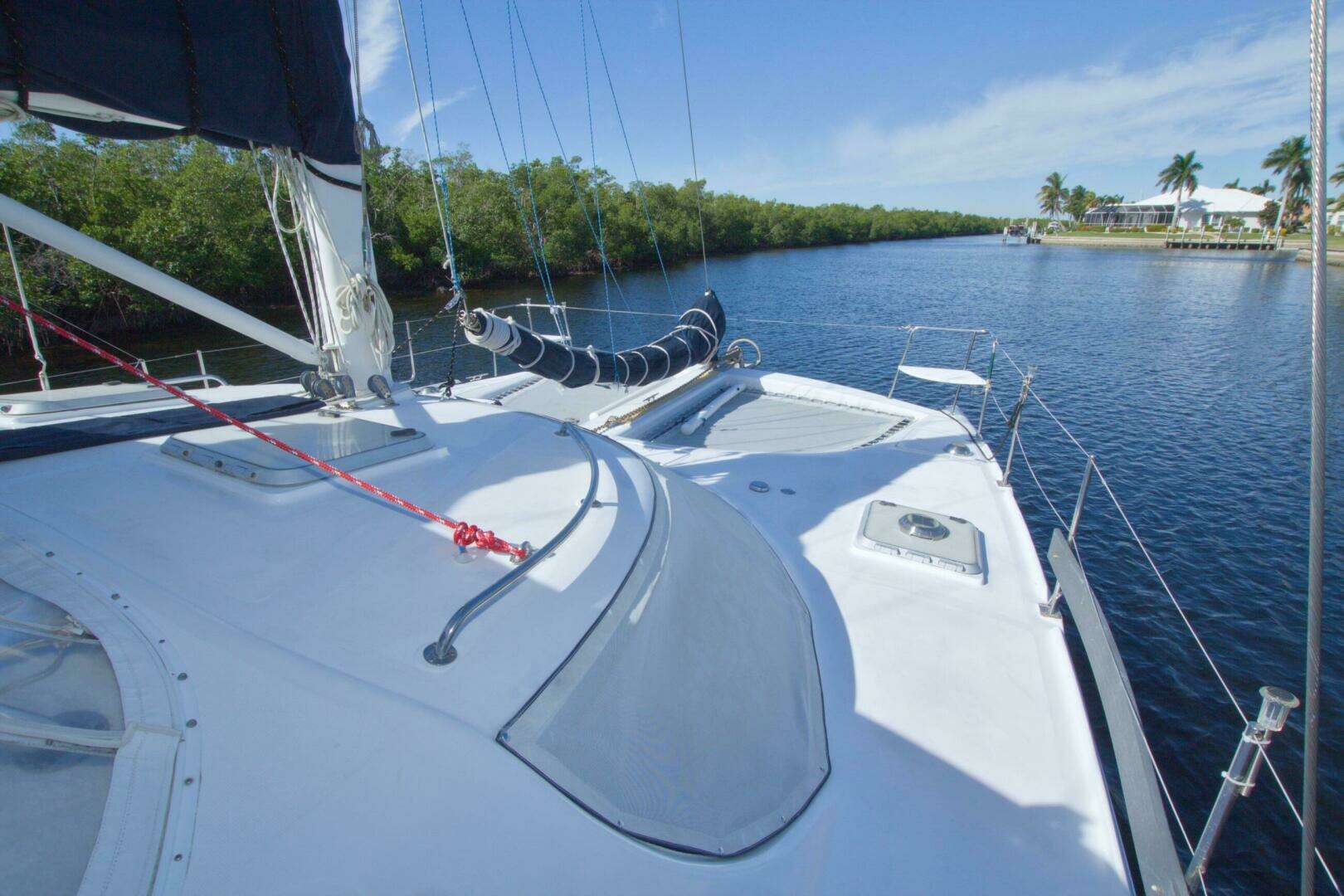

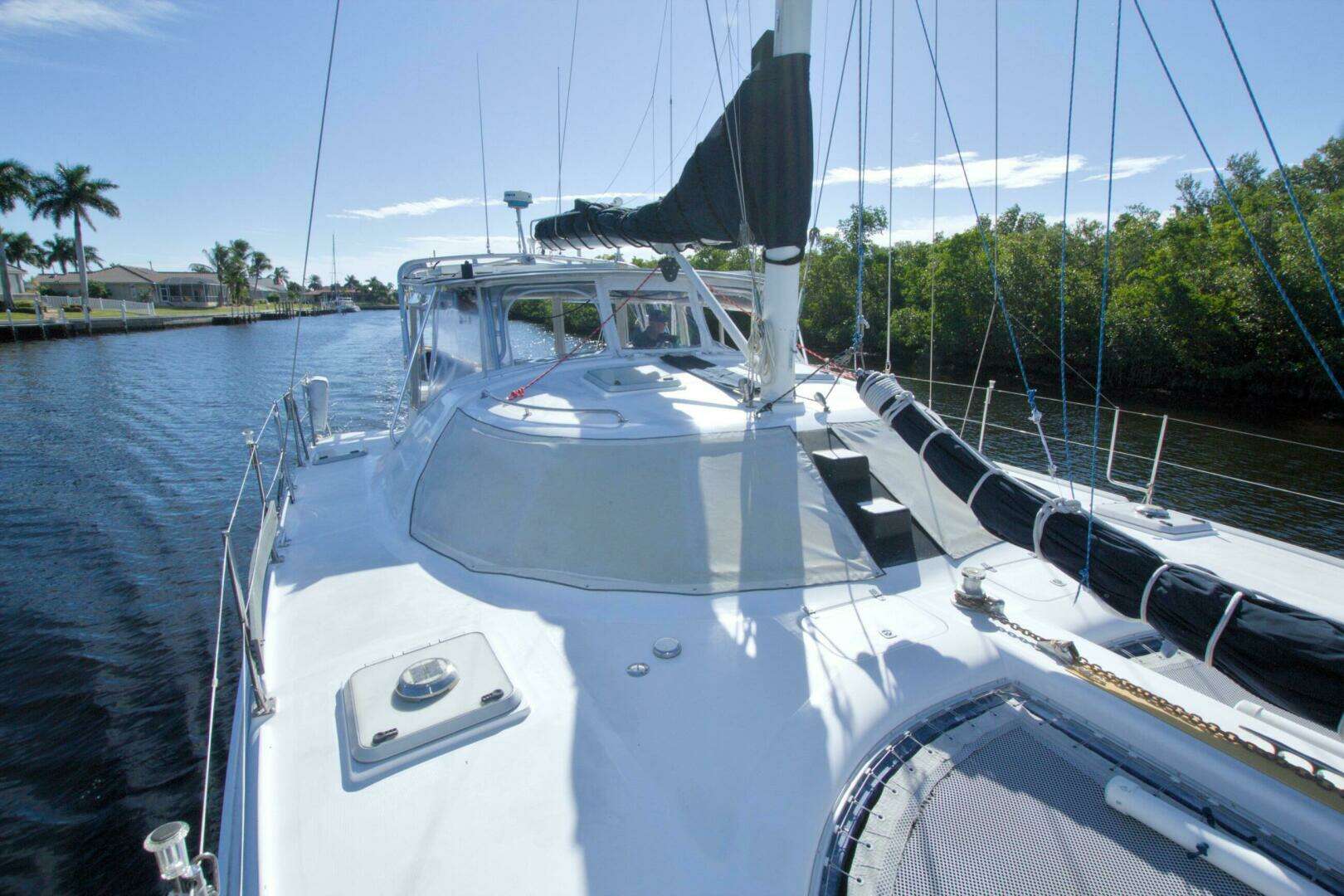

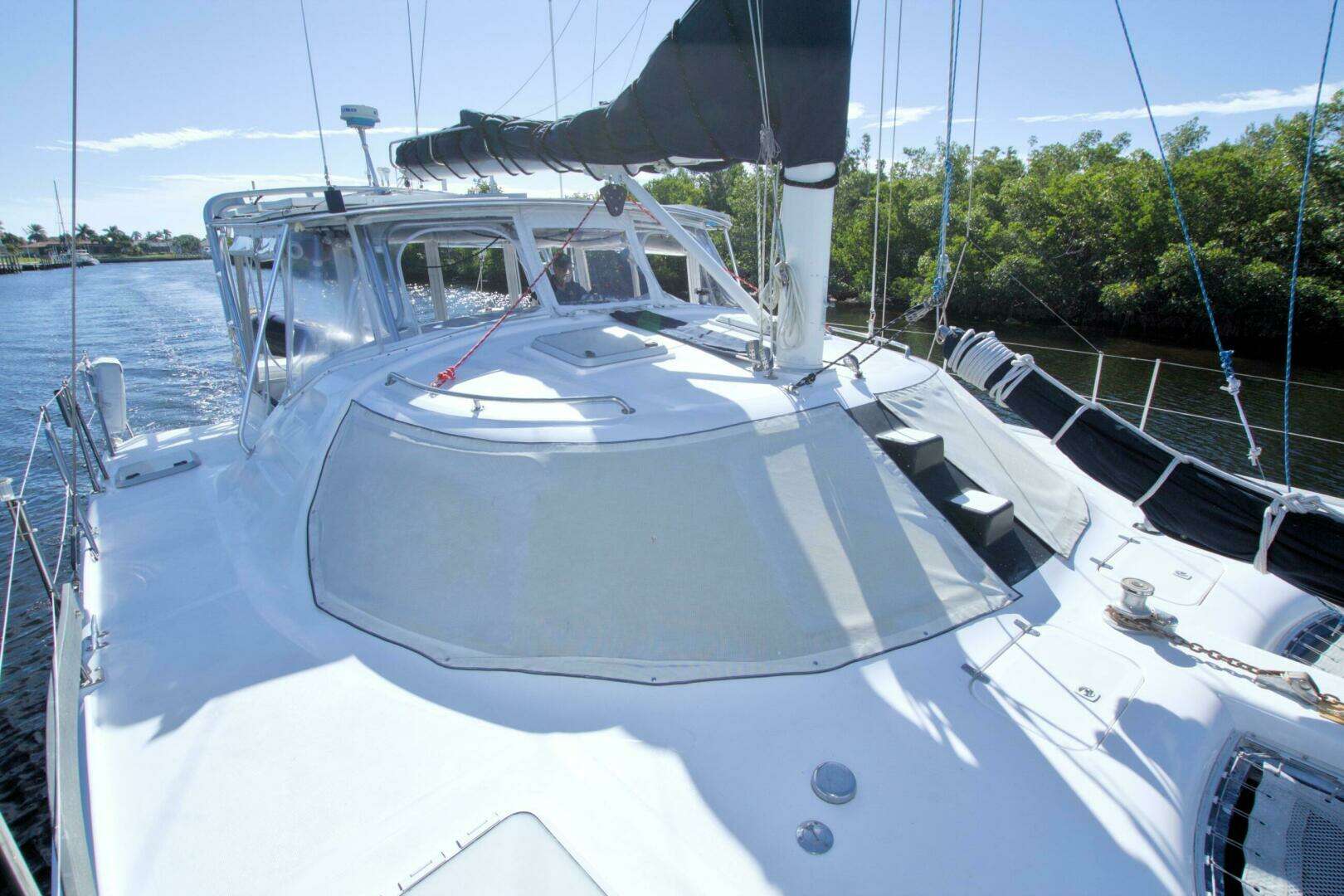

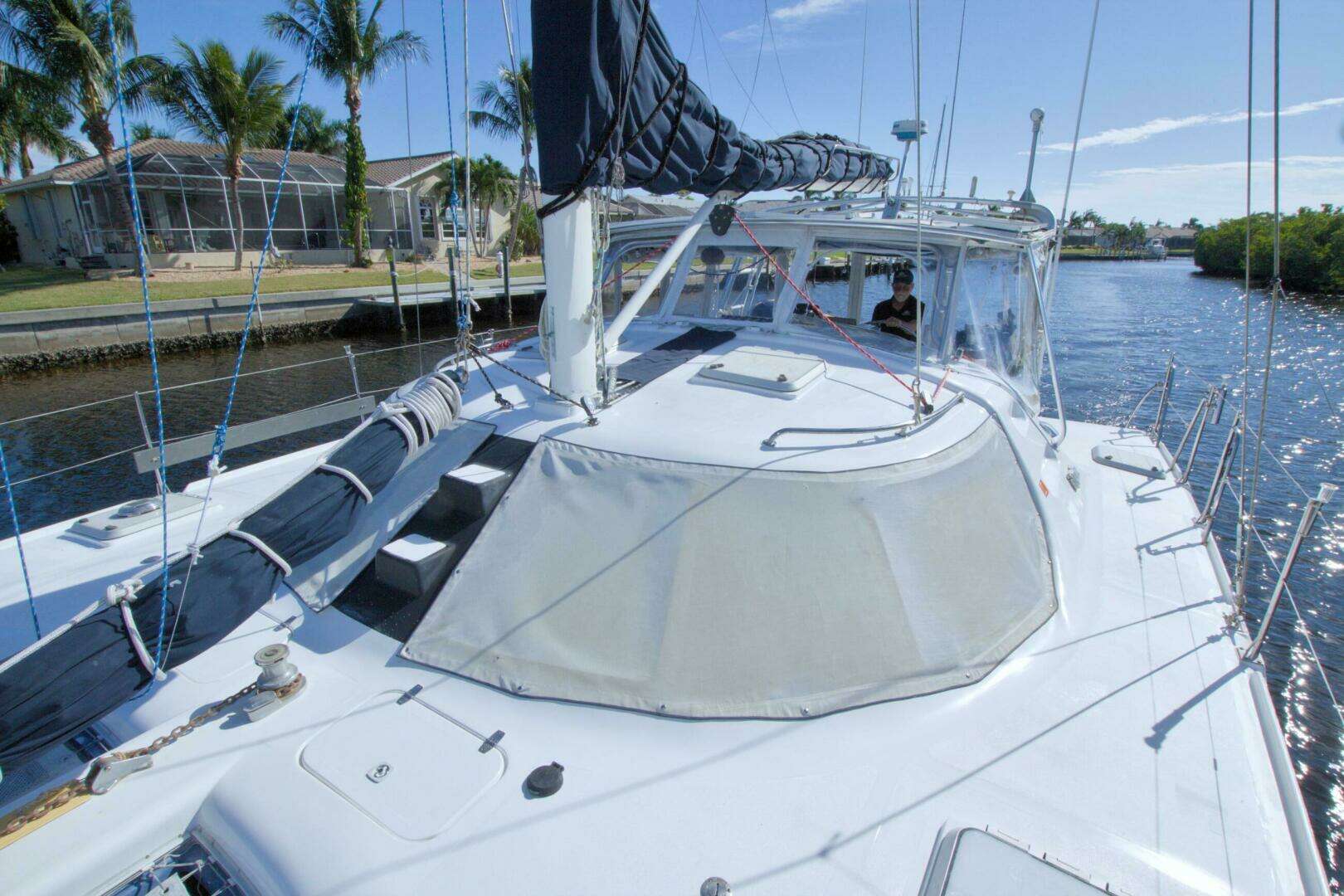

Deck Equipment
- Pyramid pattern non-skid.
- Collision bulkheads forward.
- Forward hull deck lockers (deep storage)
- (2) Lockers aft of the trampolines for line and anchor rode storage.
- Gates port an starboard aft.
