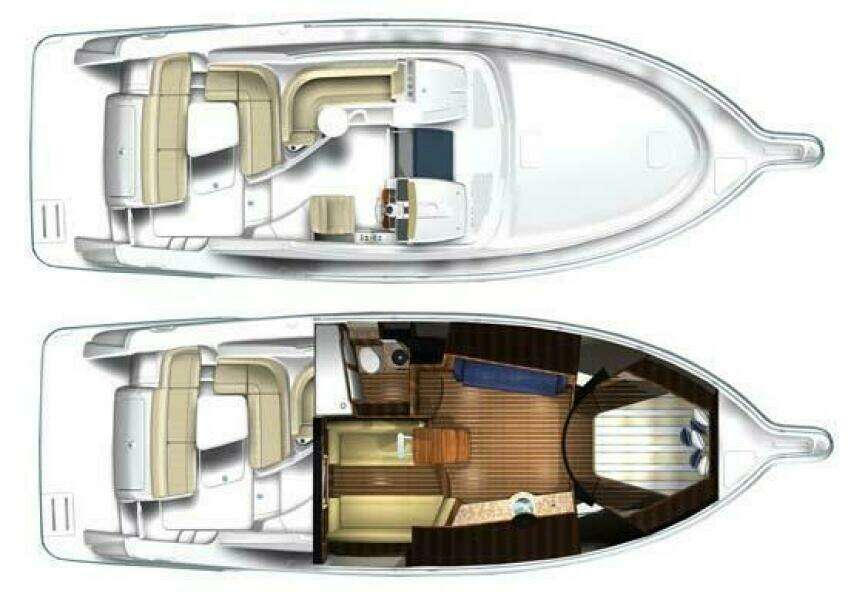

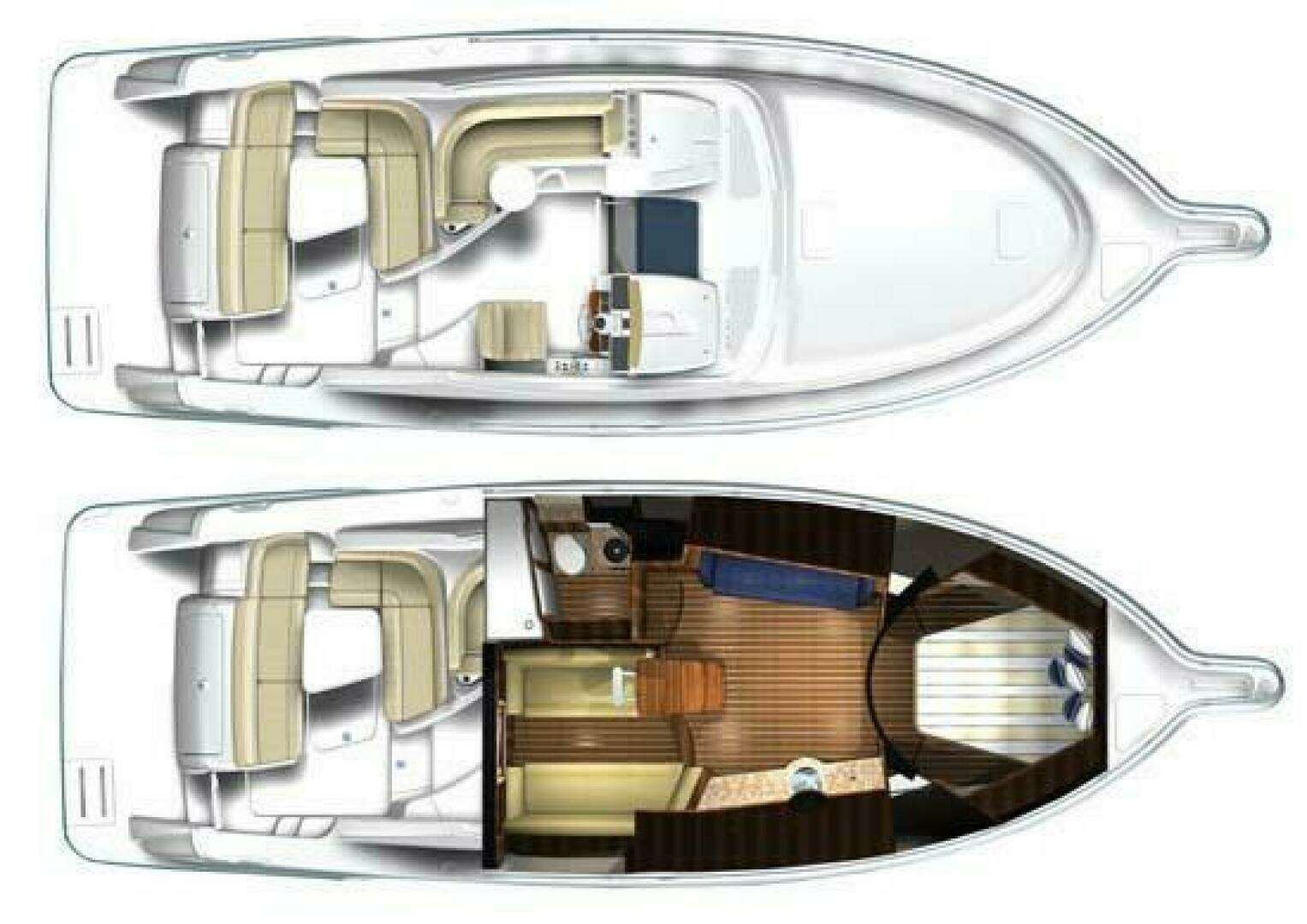

The full complement of IPS technology delivers 360-degree direction control at your fingertips. By utilizing the space advantages of the IPS drive in a single stateroom layout, Tiara Yachts designers have been able to open up the salon and increase the size of the head, including a full-frame door and stall shower. The extra space is also put to practical use in a step-down theater room lounging area. The 3900 Sovran is a uniquely livable single-stateroom floor plan that's ideal for cruising. Its living space is well thought out and fitted out with traditional Tiara Yachts attention to quality, seaworthiness and lasting value.

Standard Equipment

HULL, DECK, AND UPPER COCKPIT

• Fresh white gelcoat hull and deck

• Tiara custom diamond pattern non-skid deck and cockpit surfaces

• Constructed with a gelcoat outer layer with fiberglass skinned and infused with AME 6000 premium vinylester resin using closed mold technology

• Balsa cored deck and hullsides

• Wood and foam core stringers enclosed with fiberglass and integrated to the hull

• Bronze seacocks on all underwater thru-hull fittings

• Molded-in hullside engine room ventilation

• Black Imron bootline with gold accent

• QL Marine trim tabs

• Five (5) stainless steel molded-in, recessed opening portlights with privacy inserts

• Two (2) cast aluminum and acrylic forward deck hatches with adjusters and built-in Ocean Air shades

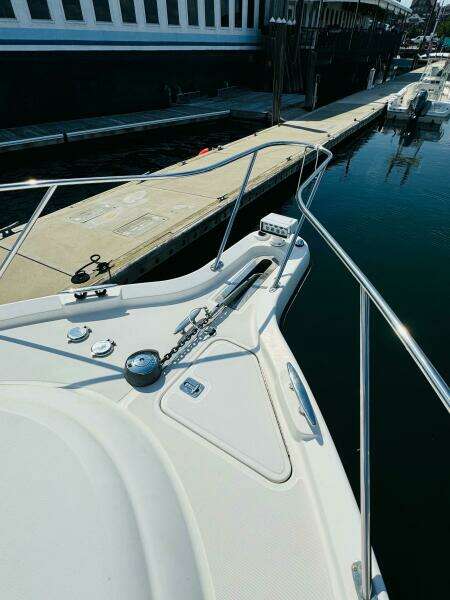

• Molded-in fiberglass pulpit with S.S. roller

• One-piece welded 316L S.S. bow rail with pulpit, staff, and burgee

• Automatic rope/chain anchor windlass system with operation from foredeck foot pedal and remote switch at helm

• One (1) 10" foredeck cleat

• Four (4) 12" cleats for bow and stern lines

• Two (2) 10" cleats for spring lines

• Tiara custom composite windshield integrated into the standard hardtop with tempered safety glass, safety handrails, power opening center section, and 3 washer/wipers

• Tiara custom composite hardtop integrated with the windshield. Includes solid side glass enclosures, aft curtain, 1 hatch with built-in Ocean Air screens and privacy covers, and red and white LED lighting. Aft curtain includes a zippered entryway.

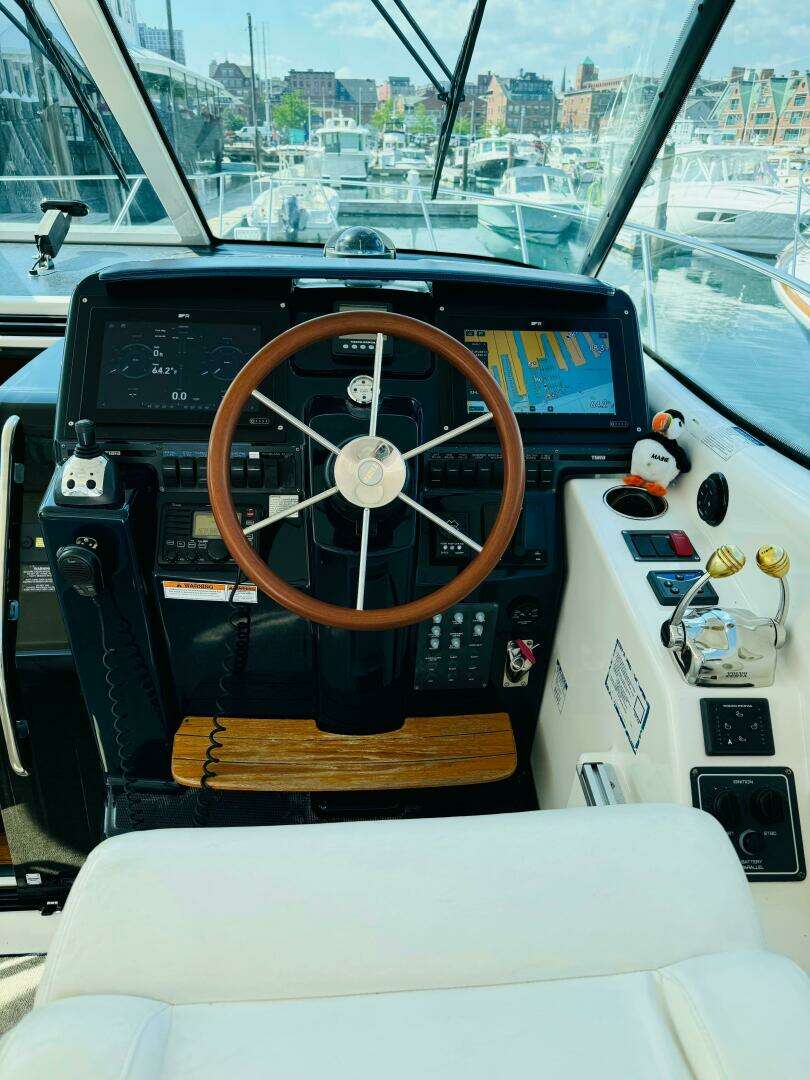

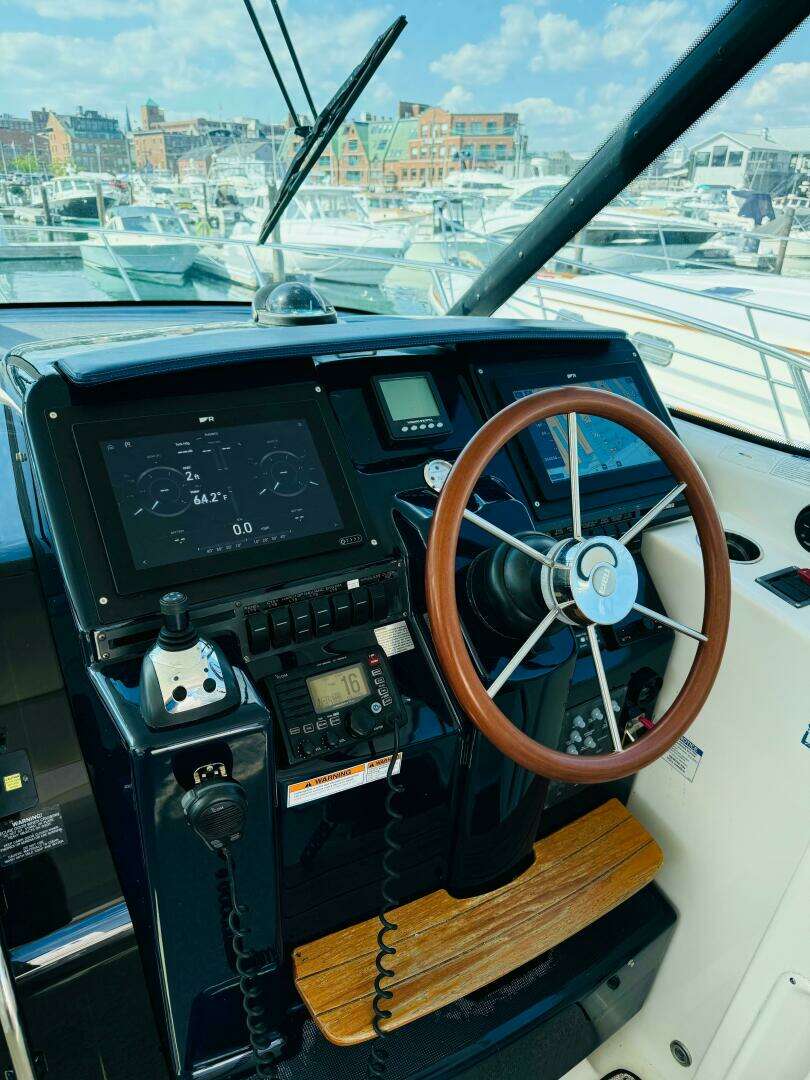

• Tiara hinged helm console with digital engine monitoring displays, recessed cup mahogany steering wheel

• Centerline entry to salon with acrylic sliding companionway door, screen door, and privacy cover

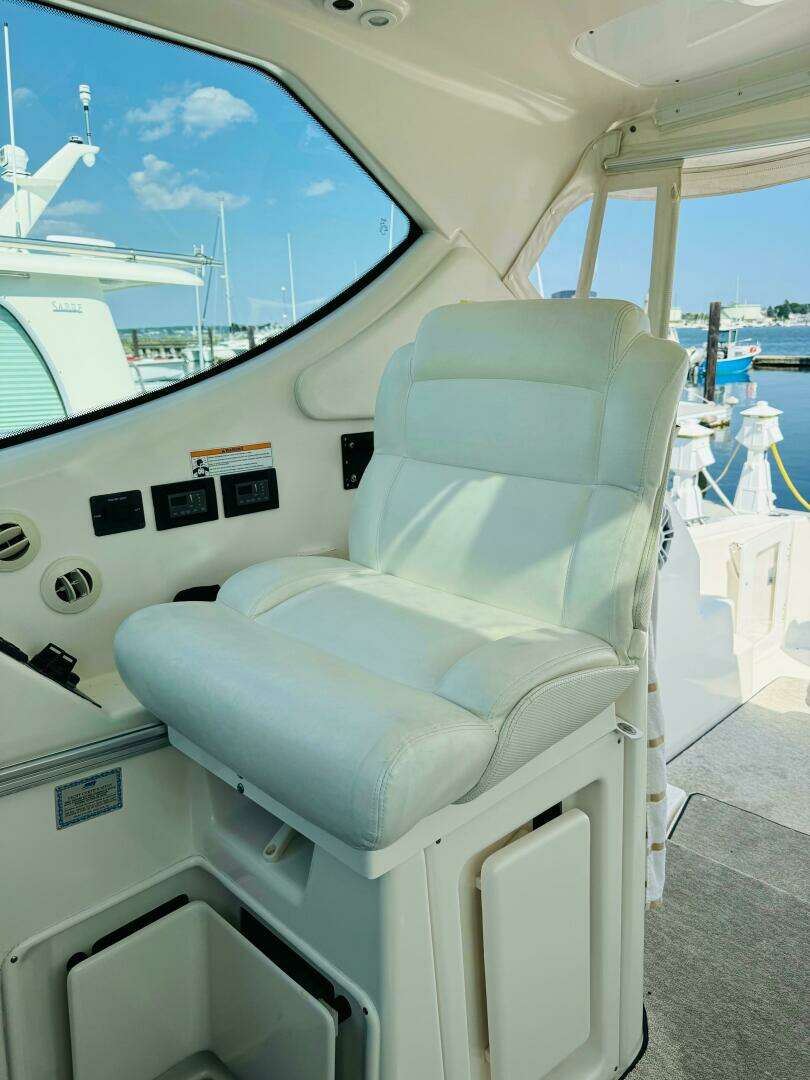

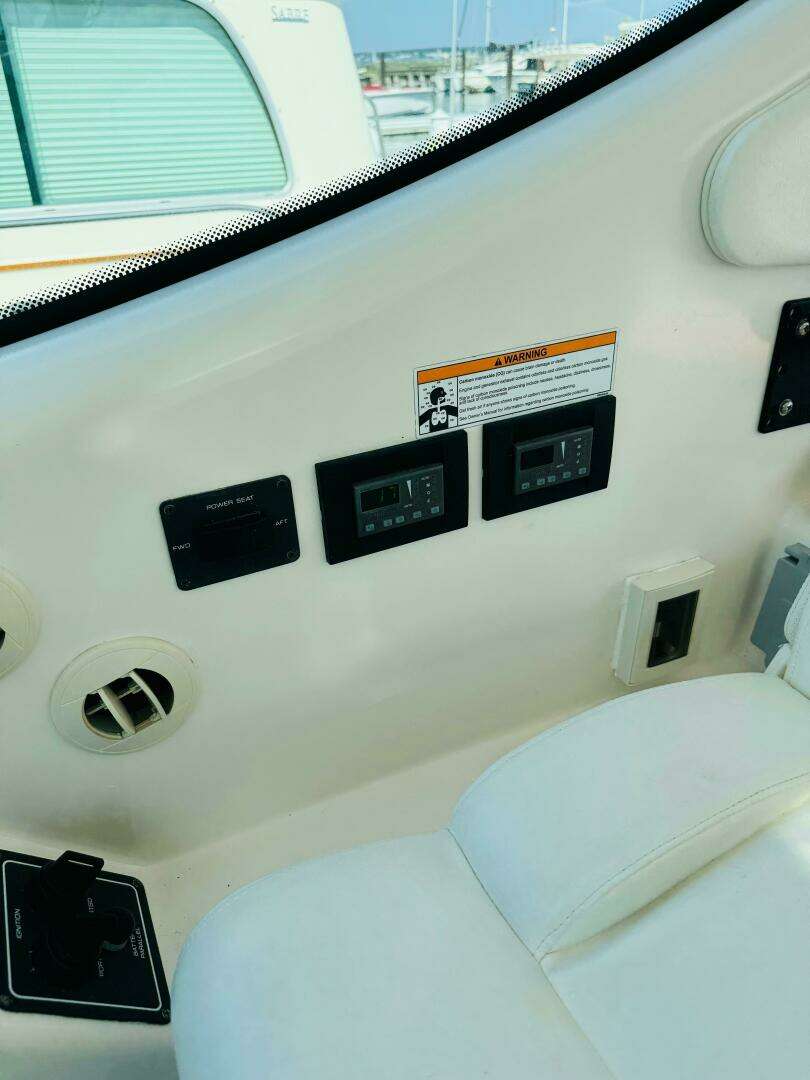

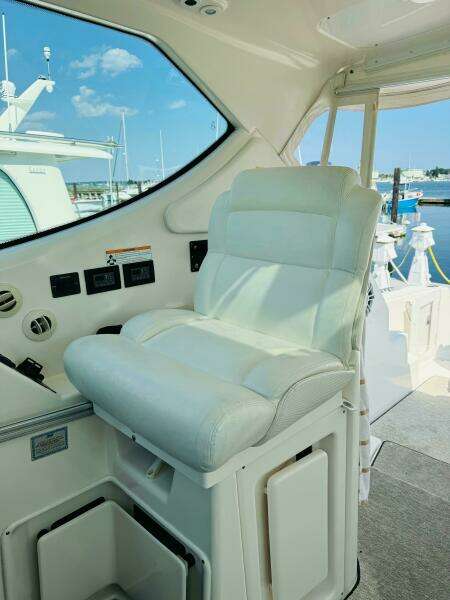

• Helm seat electrically actuated fore and aft with storage below

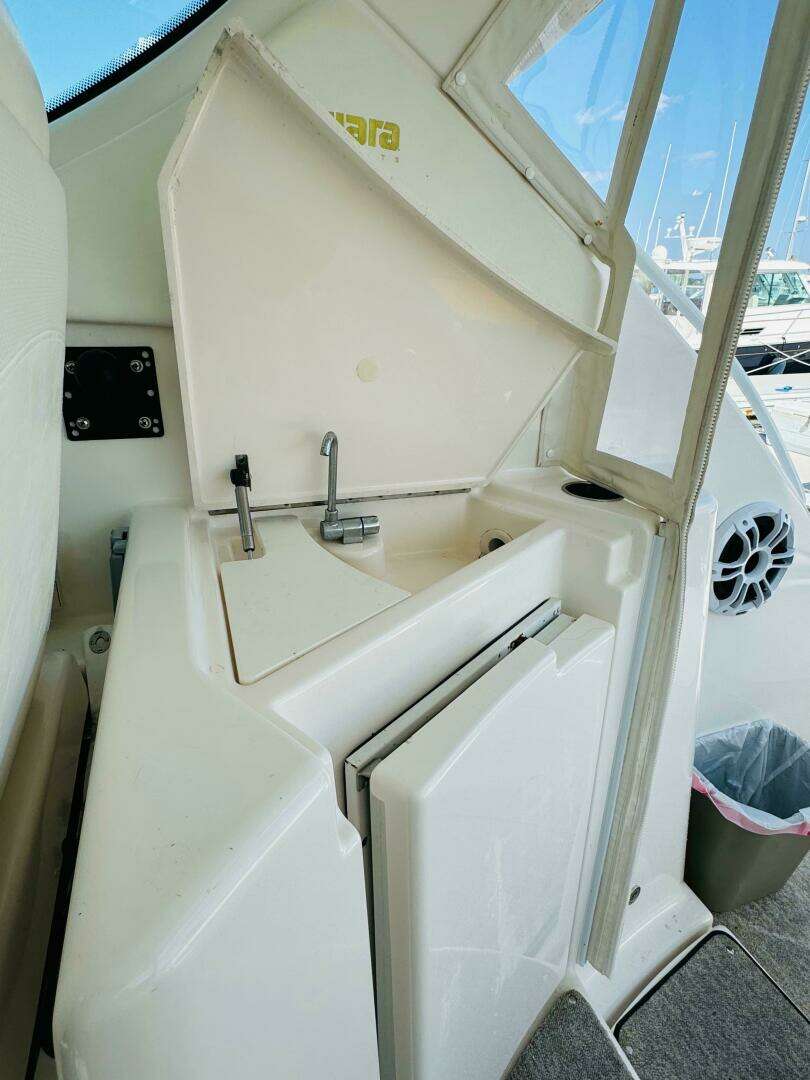

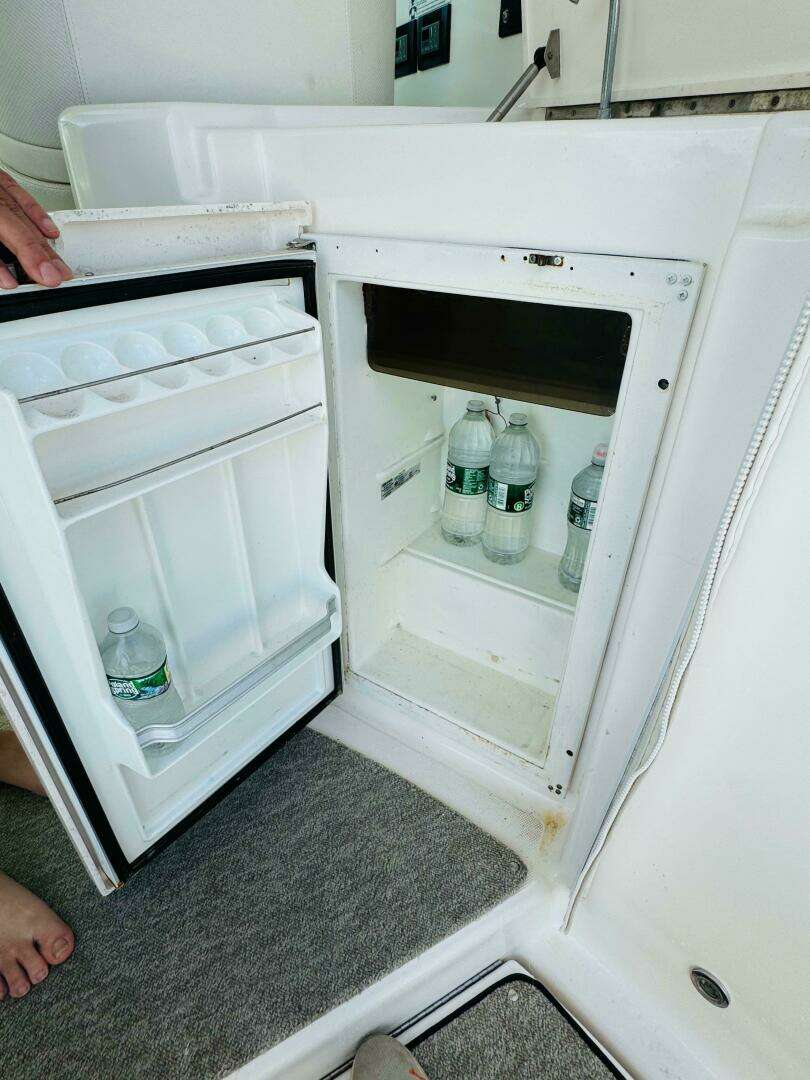

• Upper cockpit wet bar including sink with cup holders, refrigerator, and 120V outlet

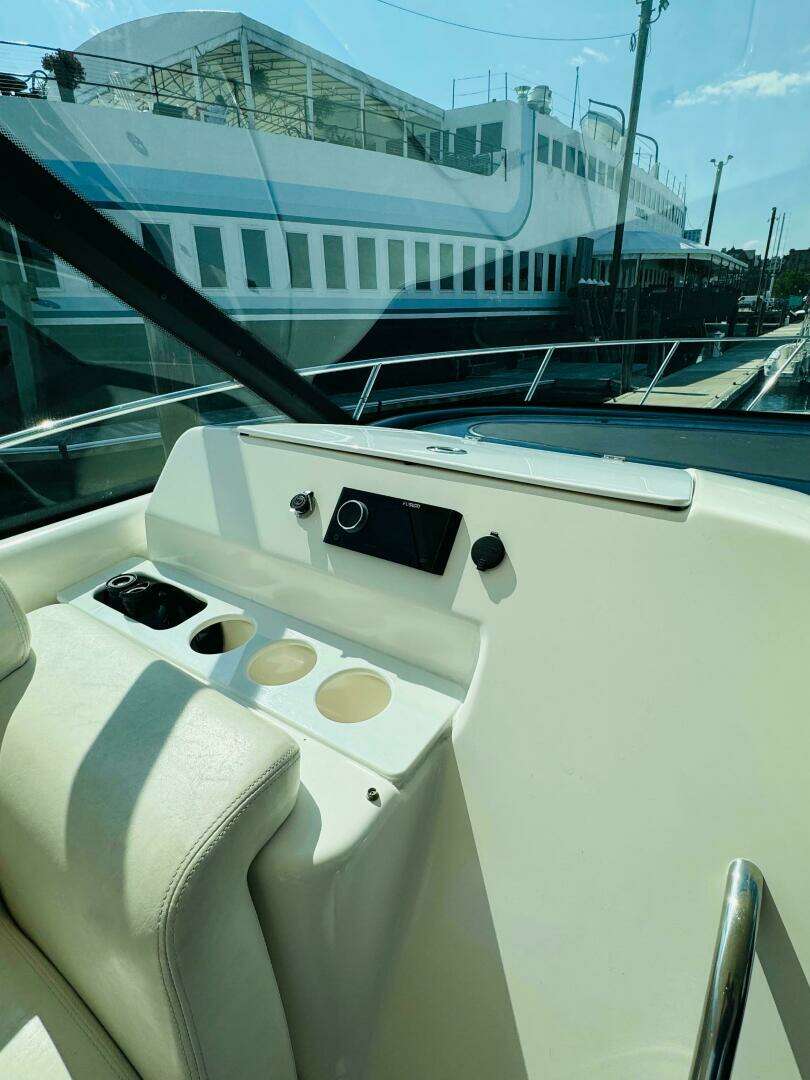

• Portside navigation center including chart storage with white acrylic lid and cup holders

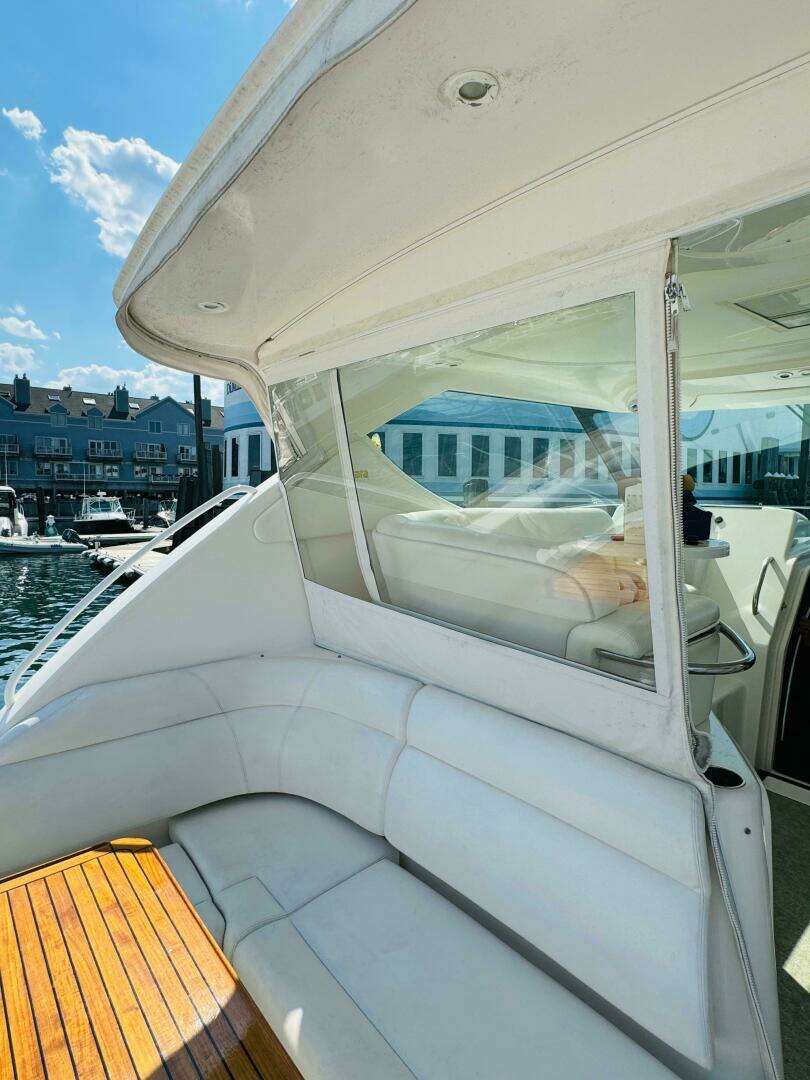

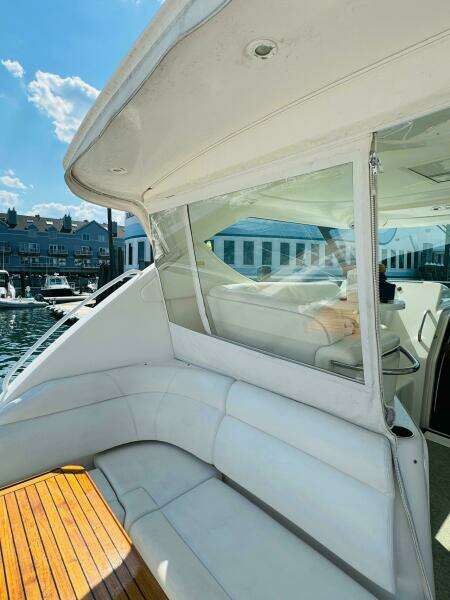

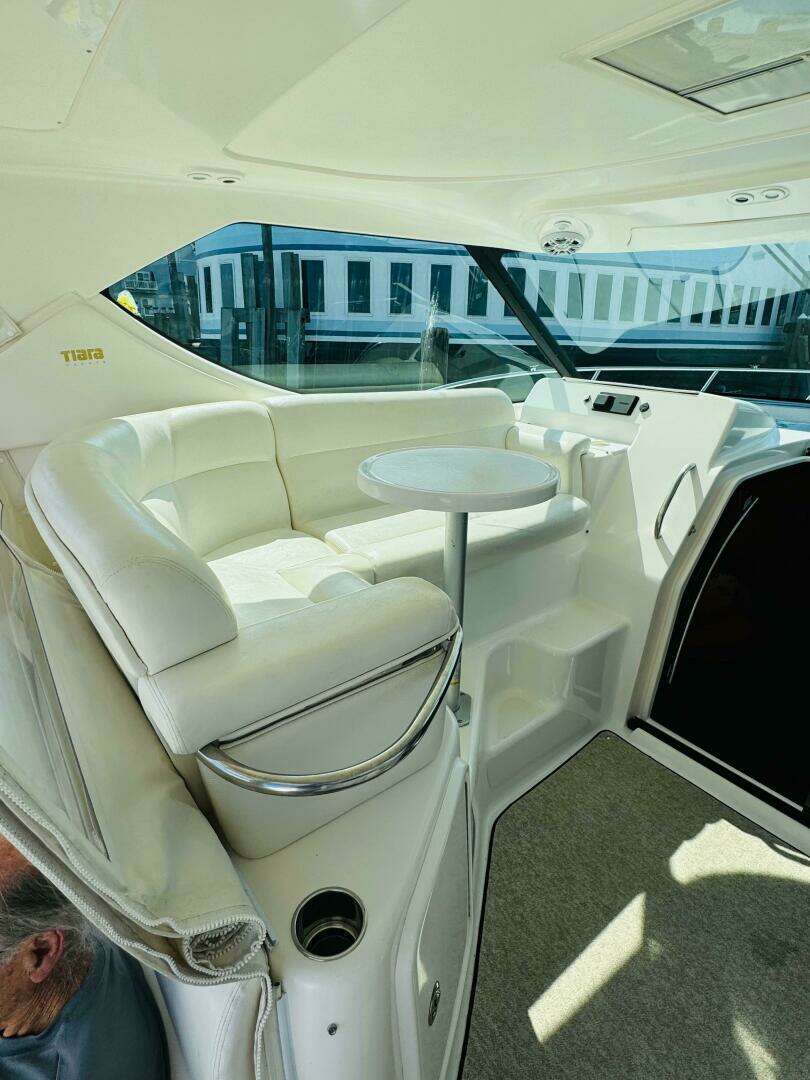

• Curved companion lounge with table and cup holders

• Helm console and seat covers for all cockpit furniture

LOWER COCKPIT

• Engine room access day hatch

• Actuated cockpit floor with insulated fiberglass liner for engine room access

• Aft facing seating

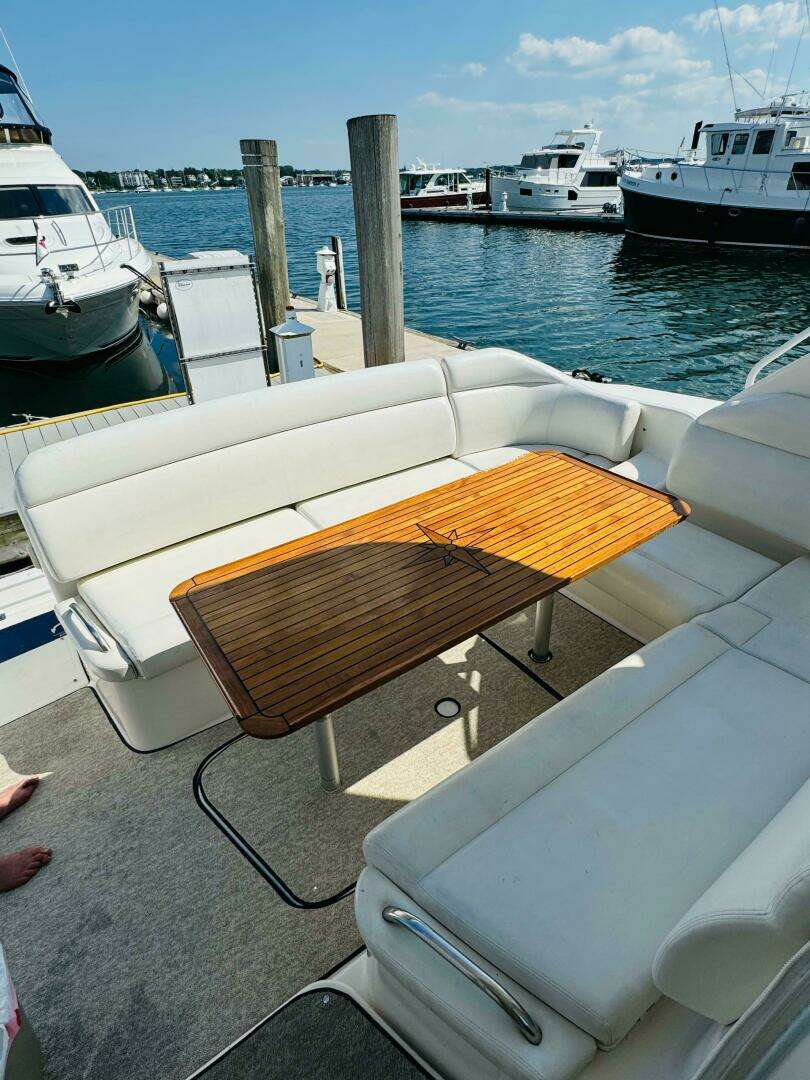

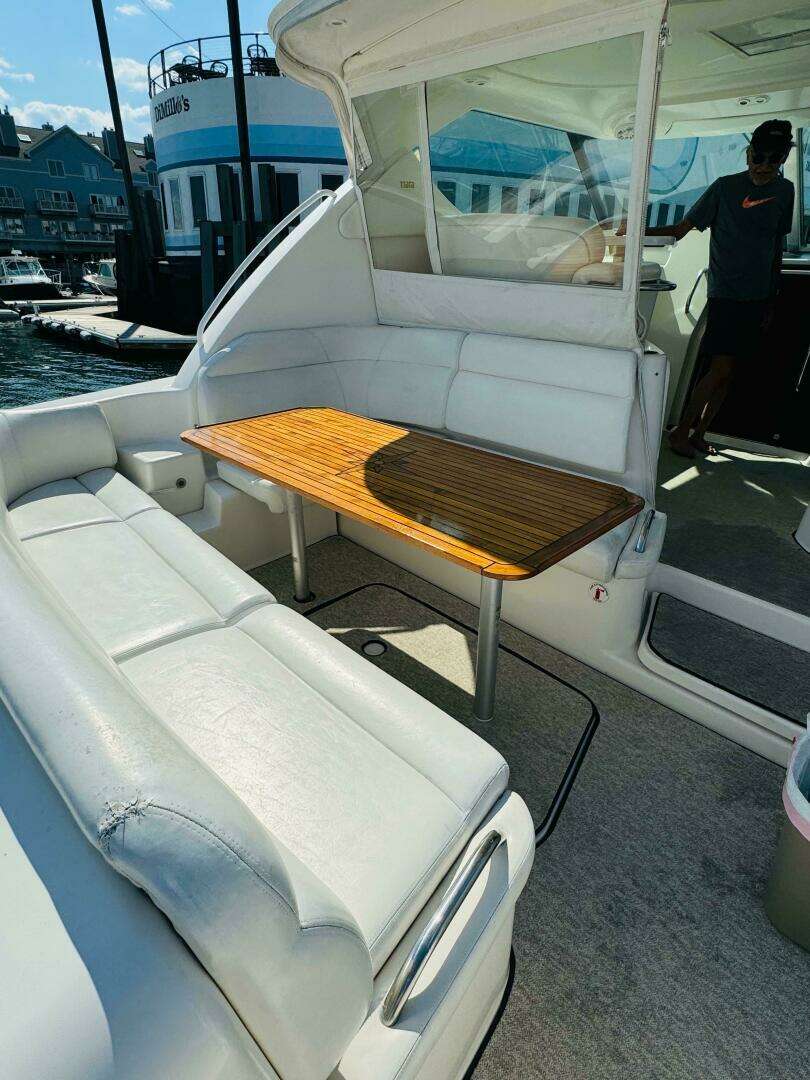

• Wrap around lounge with removable table, sun pad conversion, cup holders, and  storage below

• Molded-in steps to deck walkways

• Cockpit coaming bolsters

• Cockpit LED courtesy lights

TRANSOM AREA

• Single transom (starboard side) acrylic glass entry door with S.S. hardware. Door opens inboard with safety catch.

• Transom S.S. grab rail (starboard)

• Port and starboard transom mounted pop up cleats

• 48" integrated swim platform with slide-out S.S. swim ladder and 4 pad-eyes

• Transom storage compartment with fiberglass liner and one piece door actuated with gas springs

• Cockpit shower, hot and cold water

• Fresh water washdown outlet

• Raw water washdown outlet

INTERIOR GROUP

• Mold and mildew resistant headliner and hullside treatment

• Teak interior

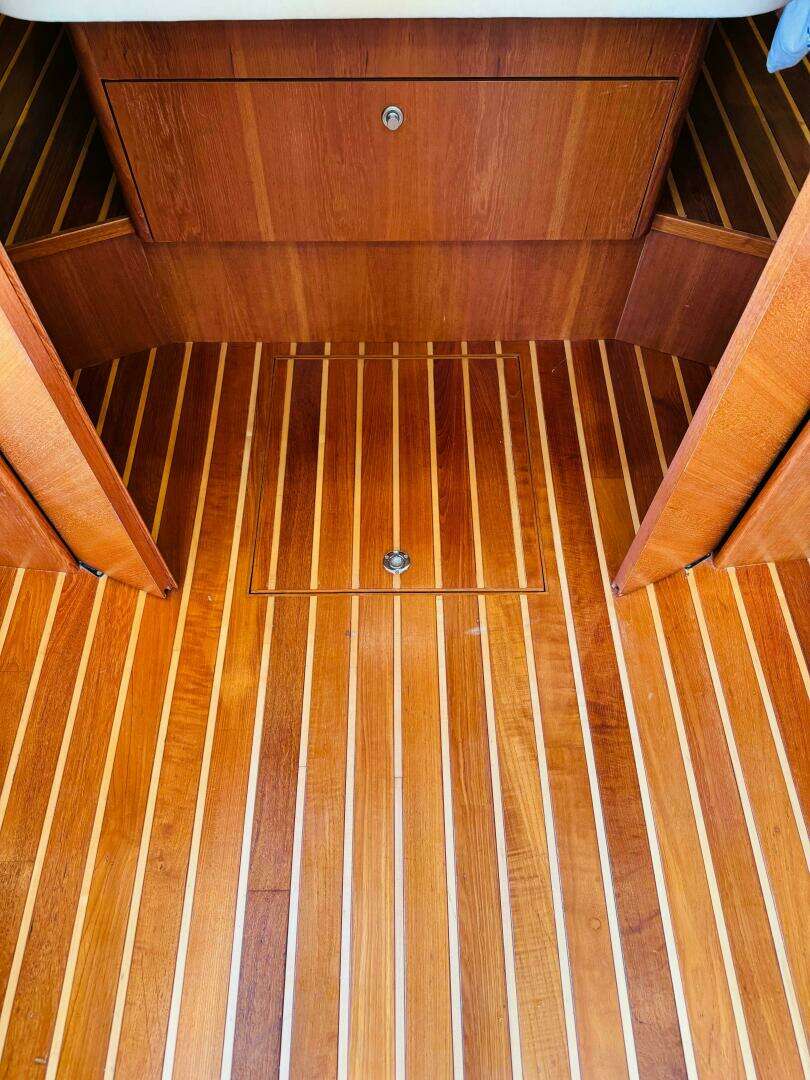

• Teak hardwood floor

• 12V lighting

MAIN SALON

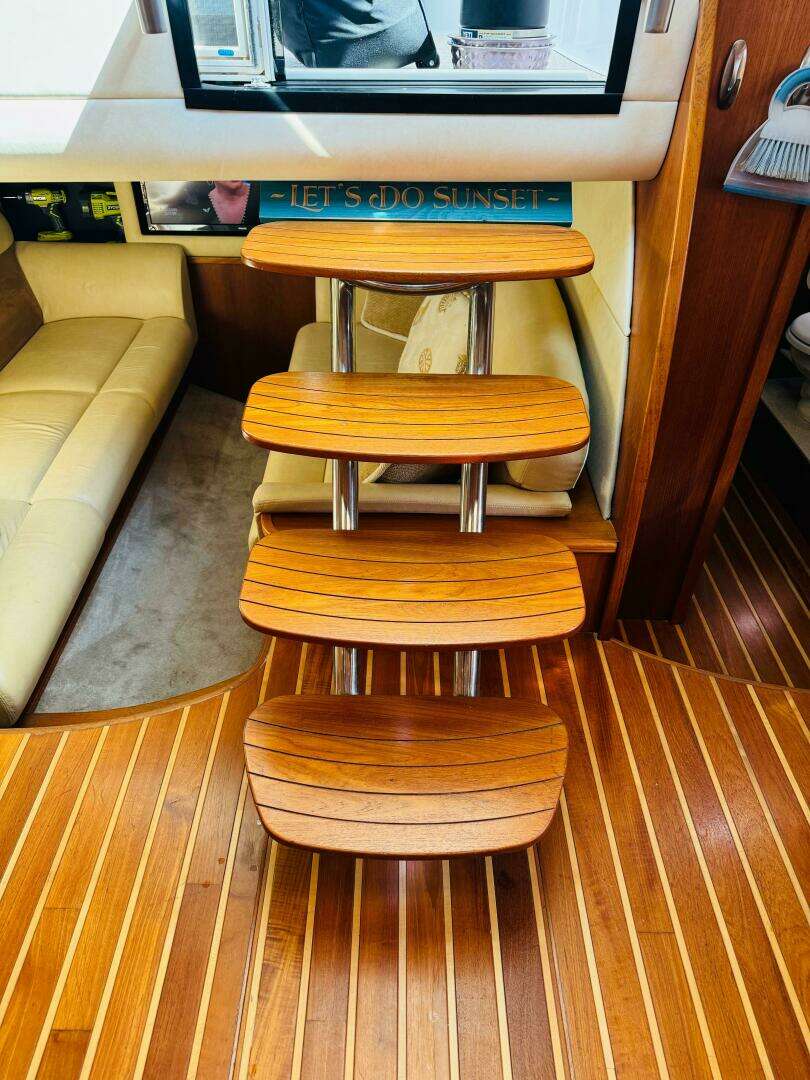

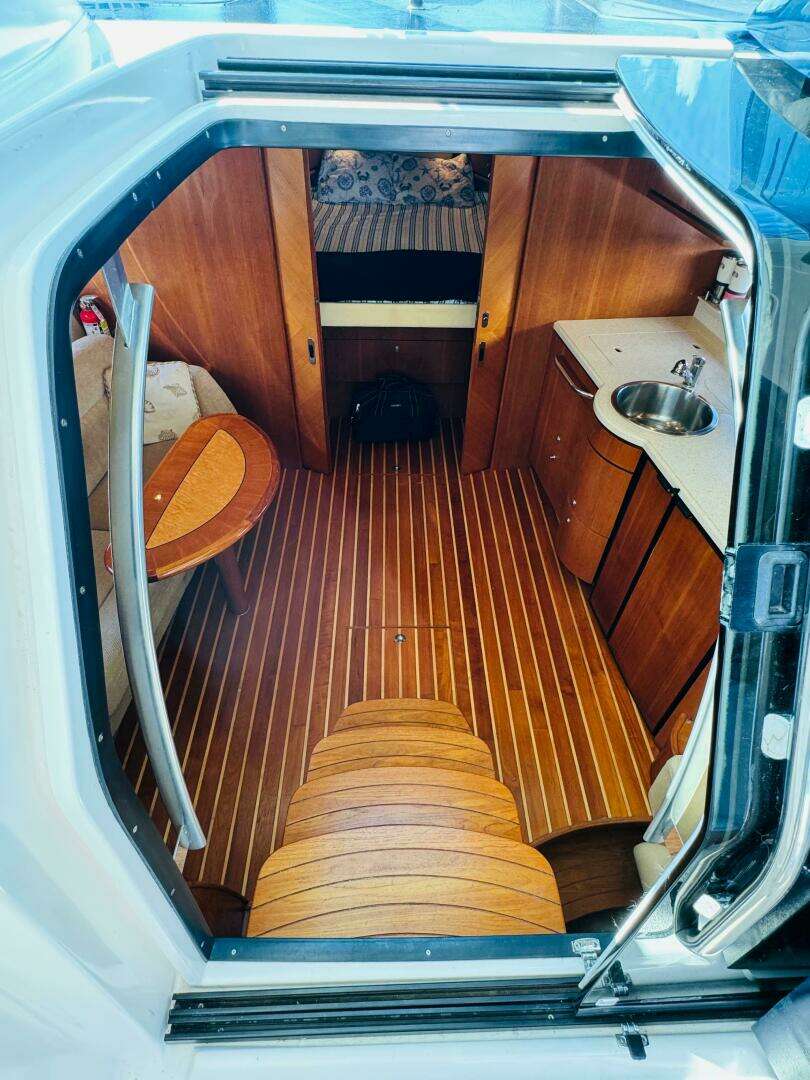

• Teak companionway entry steps

• Companionway safety handrails

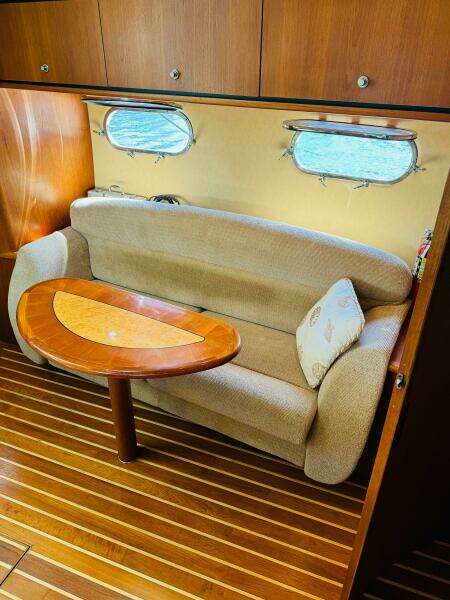

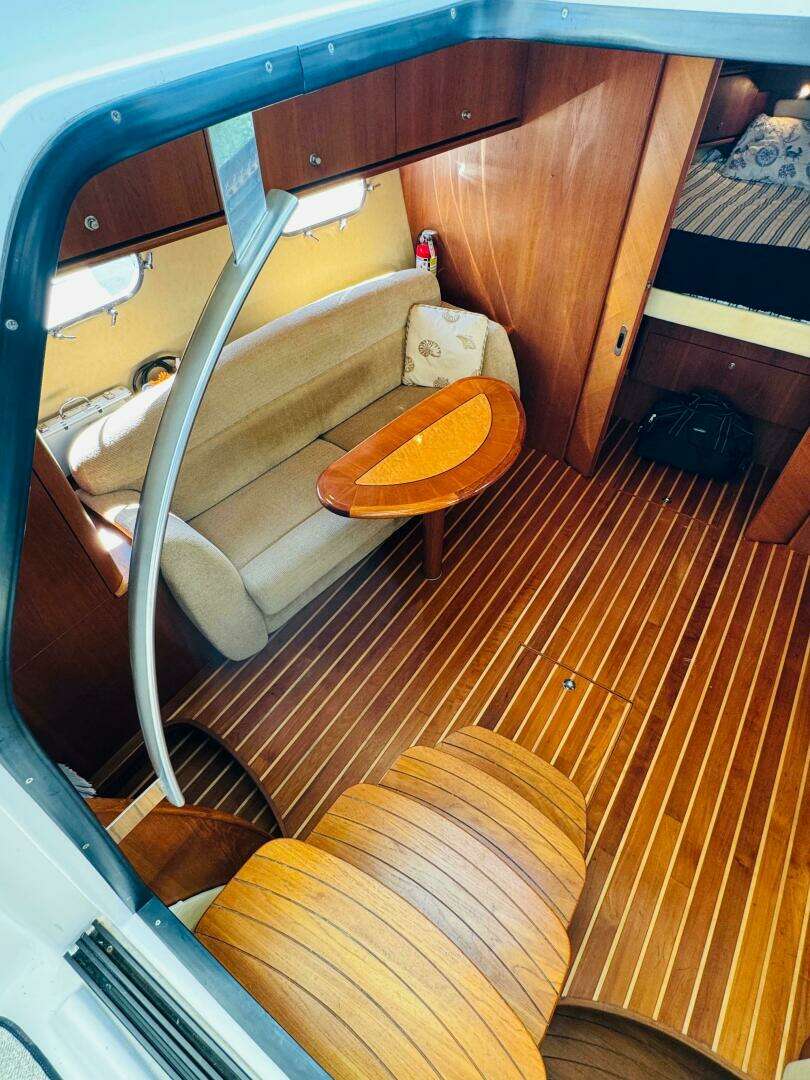

• Port side sofa complete with dinette table (teak with birdseye maple inlay and high gloss finish) and seating for 4

• Port and starboard upper hullside storage cabinets

• Cedar lined hanging locker, port

• Privacy curtain between salon and theater room

• Marine Air Systems 18,000 BTU air conditioner with reverse cycle heat

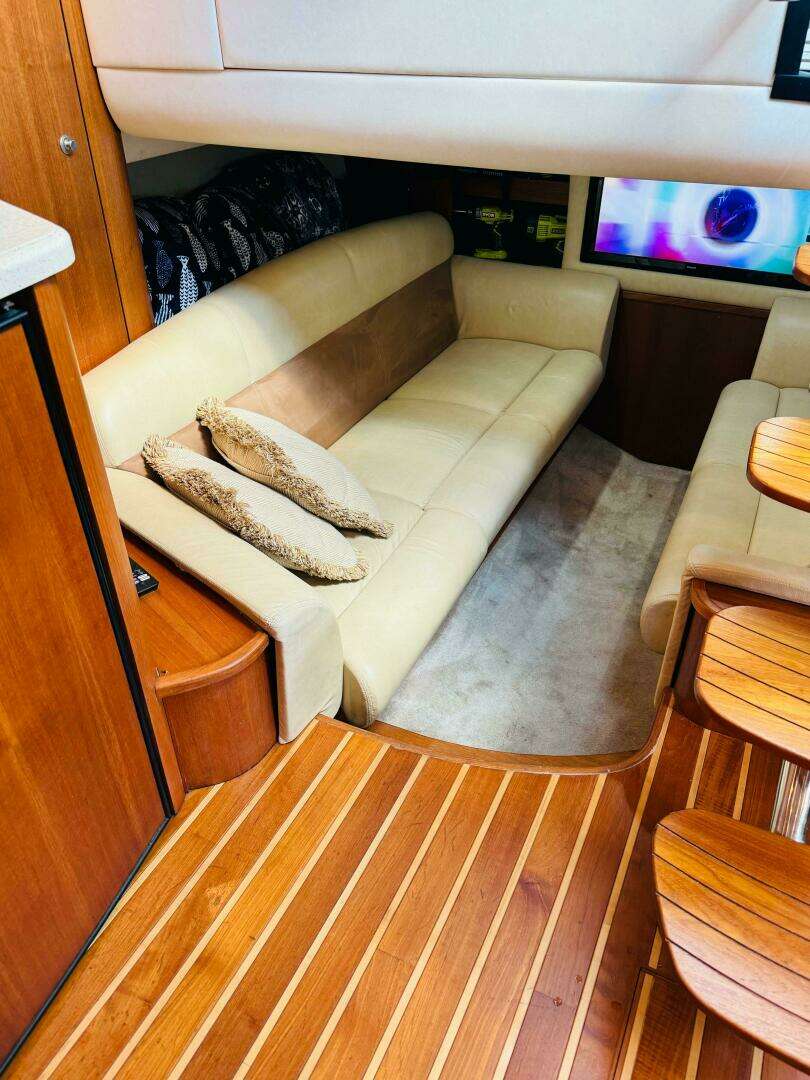

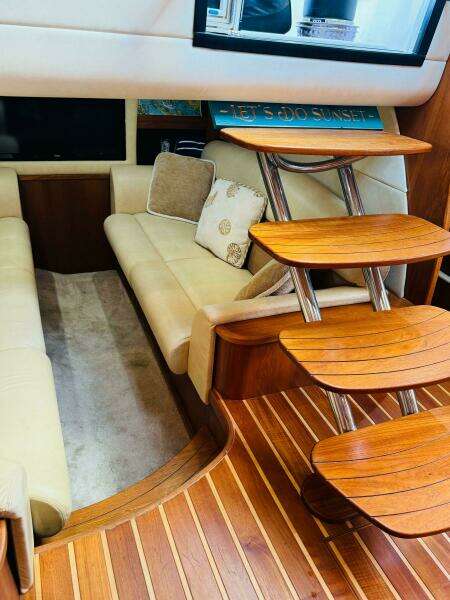

LOUNGE & THEATER ROOM

• Flat screen TV with speakers integrated with media/entertainment system

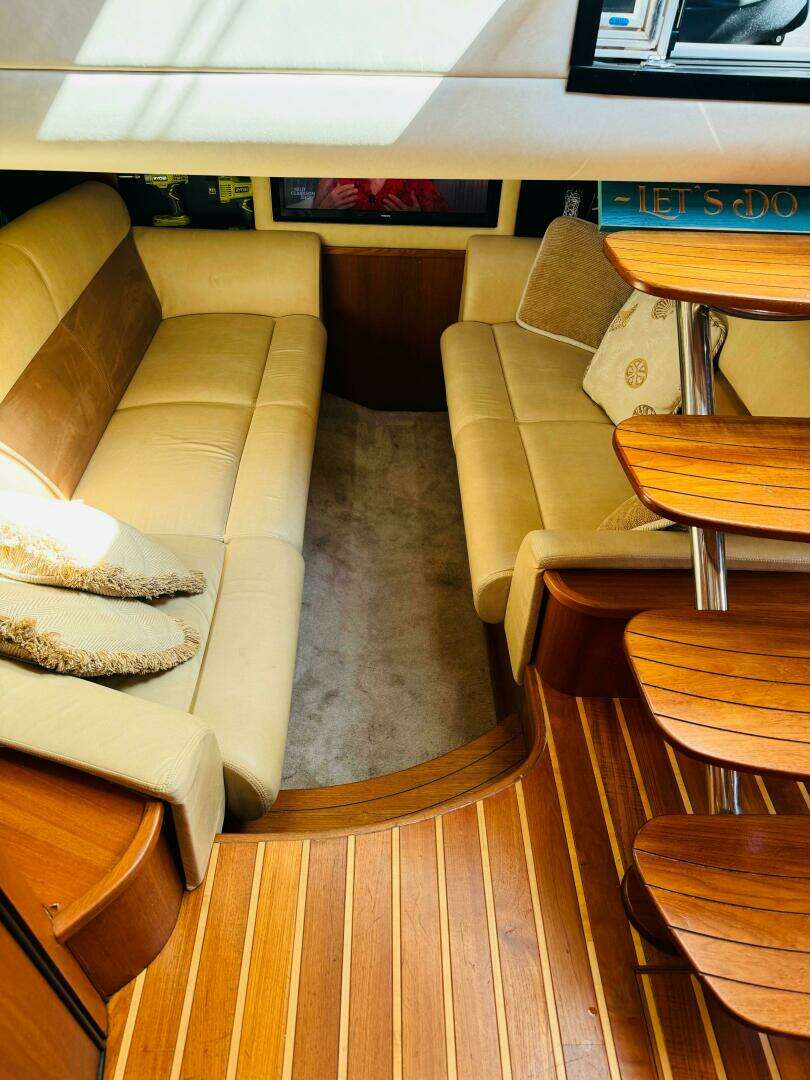

• Lounge seating fore and aft extending length of the room. Electrically actuated filler cushion to convert for sleeping privacy curtain to enclose.

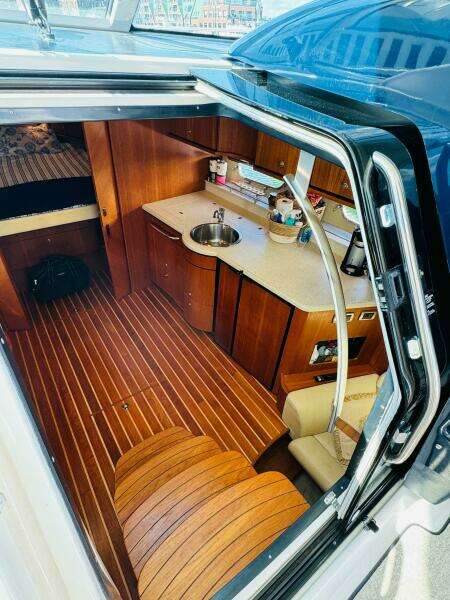

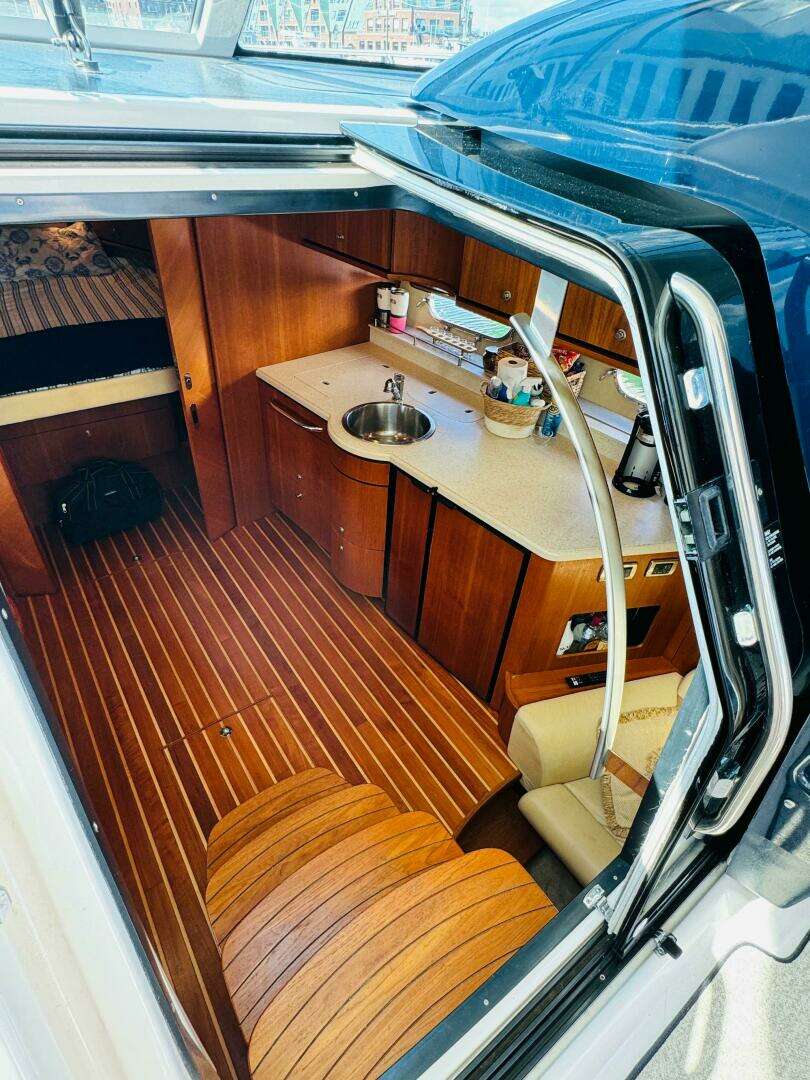

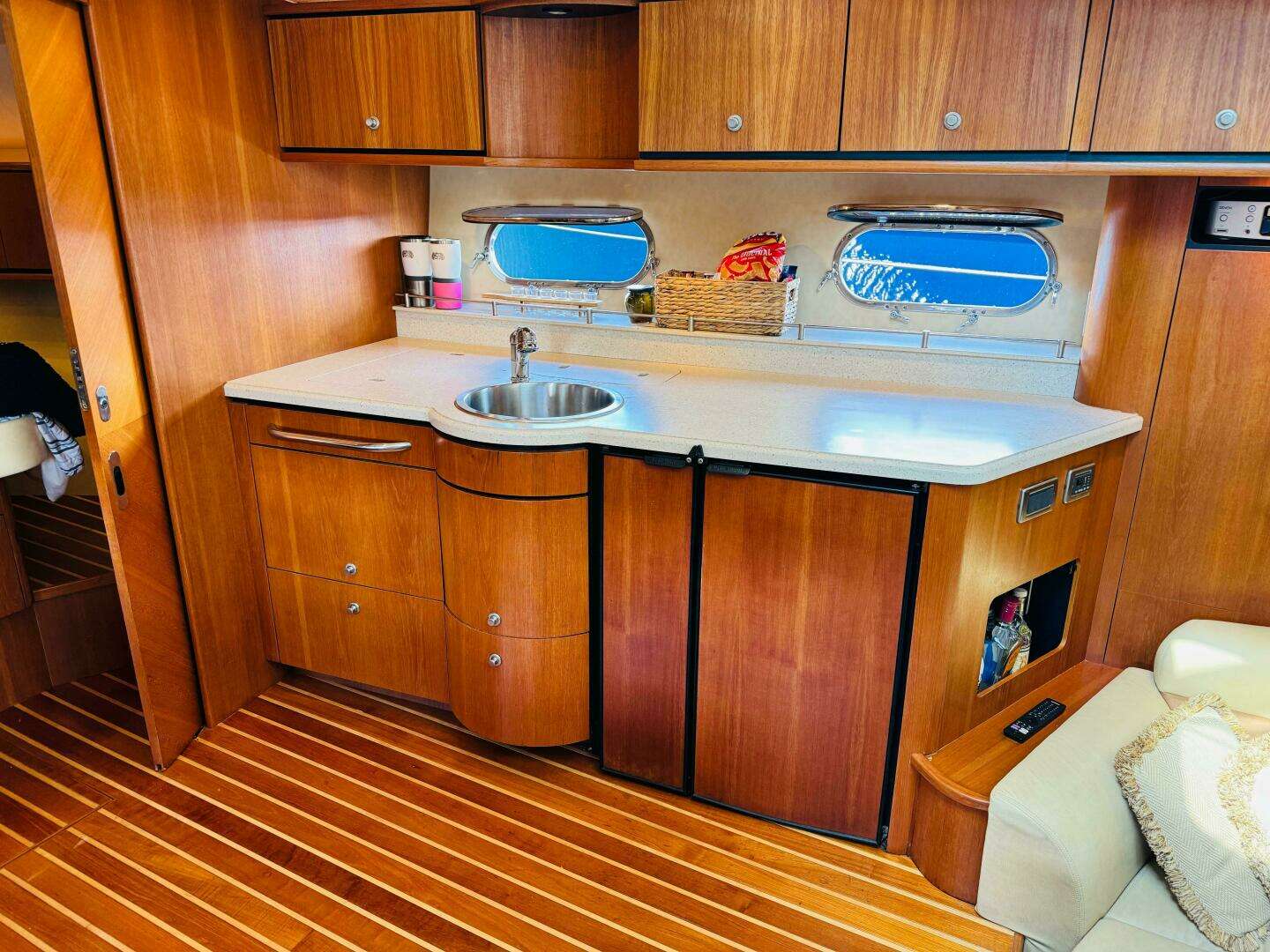

GALLEY

• Corian countertop

• One (1) S.S. undermount sinks with Corian cover and hot/cold water faucet

• Upper and lower cabinet storage

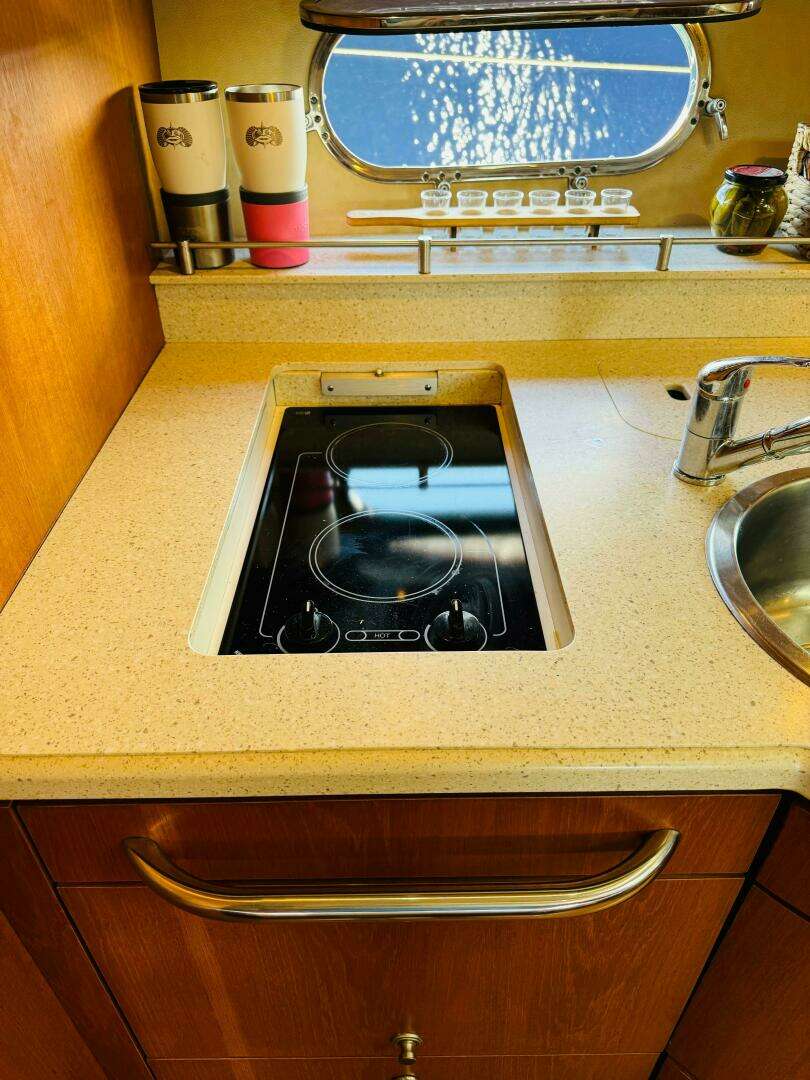

• Recessed two (2) burner ceramic cooktop with Corian cover

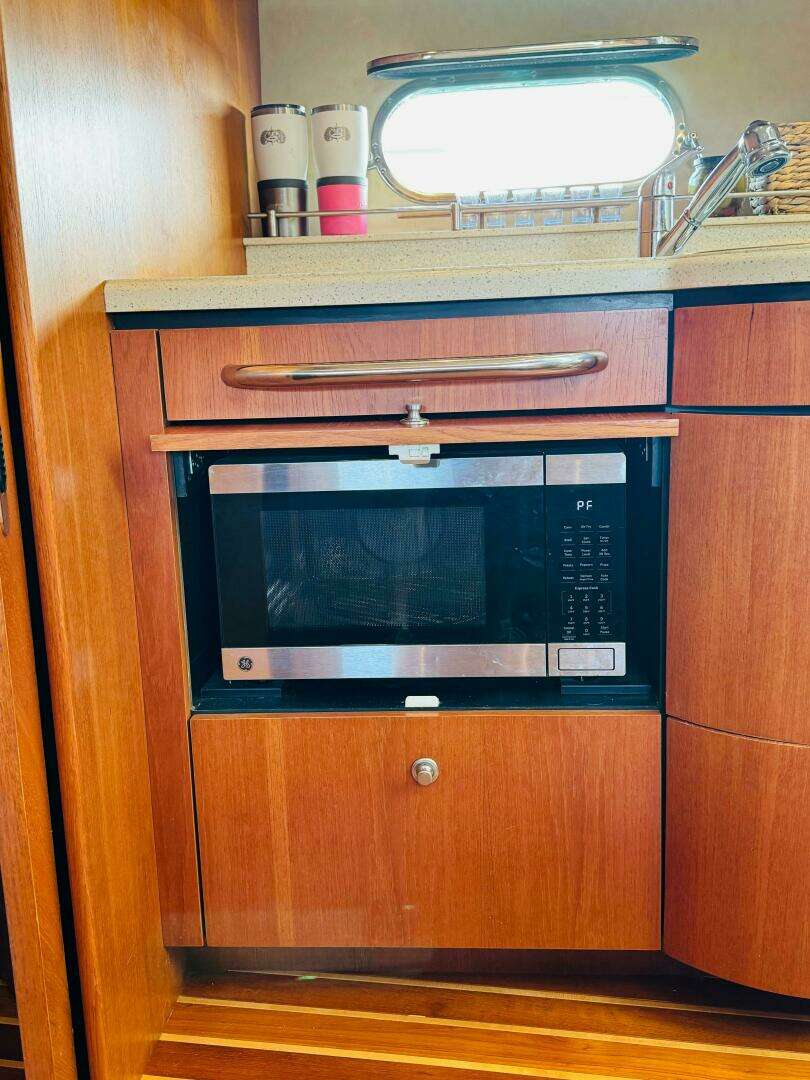

• Microwave oven

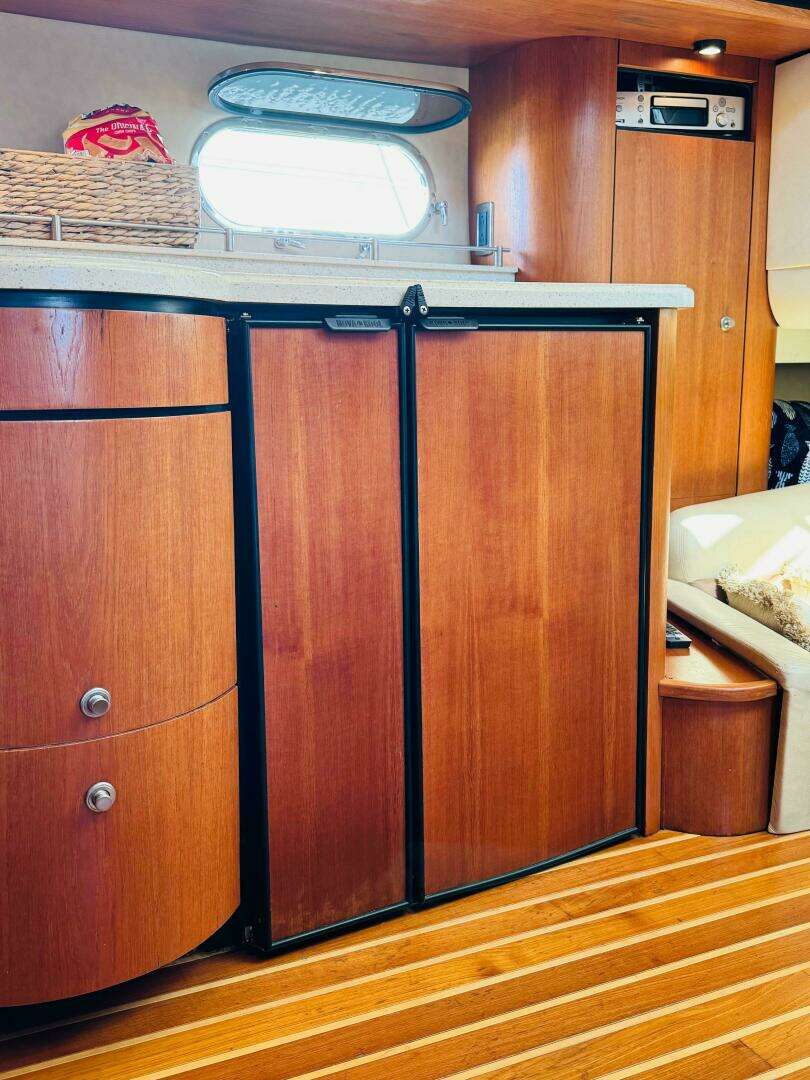

• NovaKool AC/DC refrigerator/freezer, wired DC

• Storage for cooktop and sink covers

• Stove top exhaust fan

• Waste basket

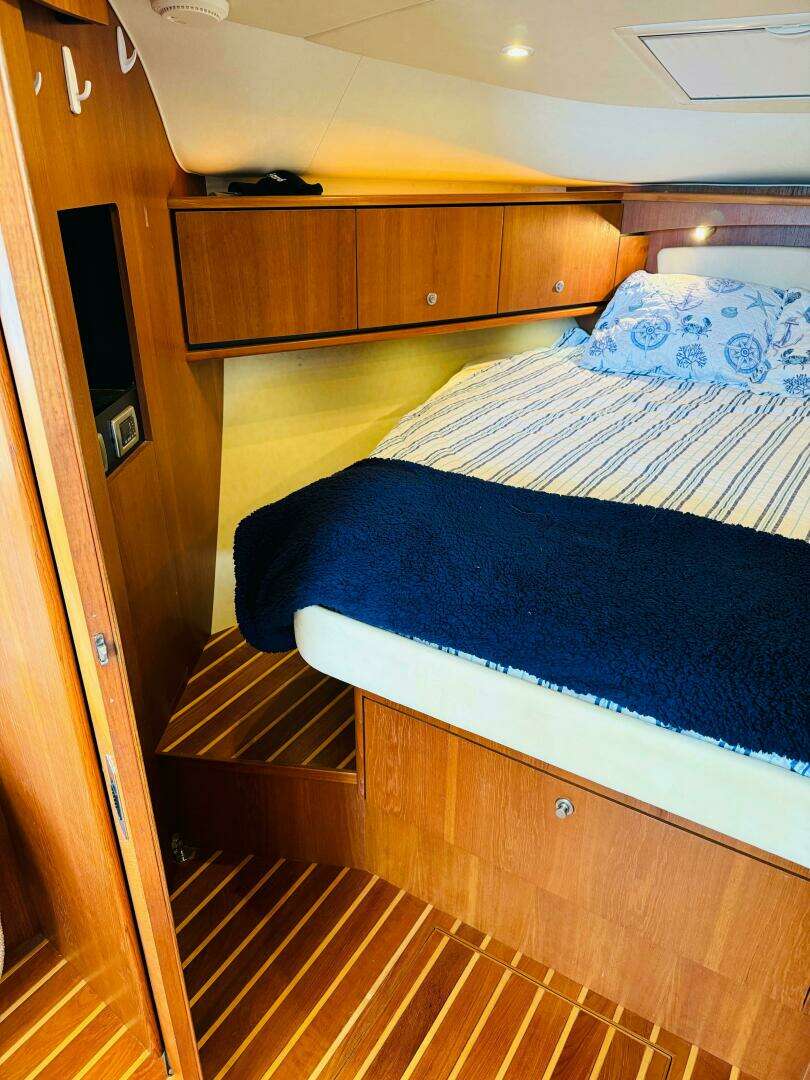

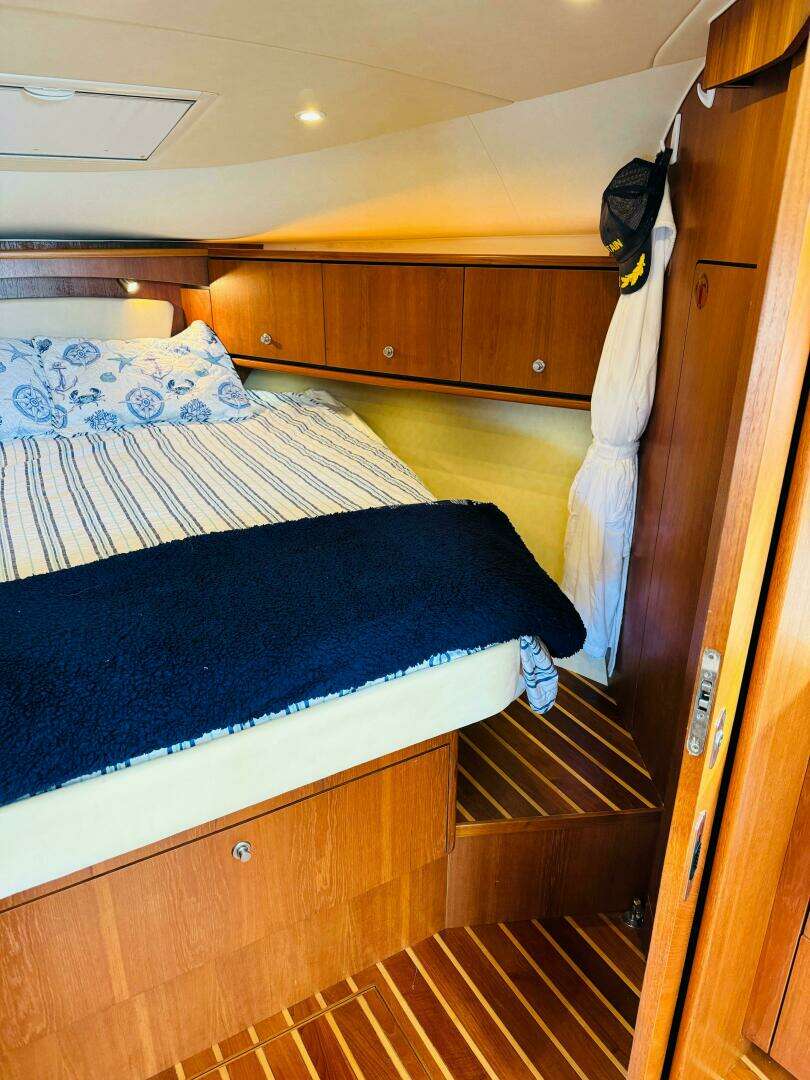

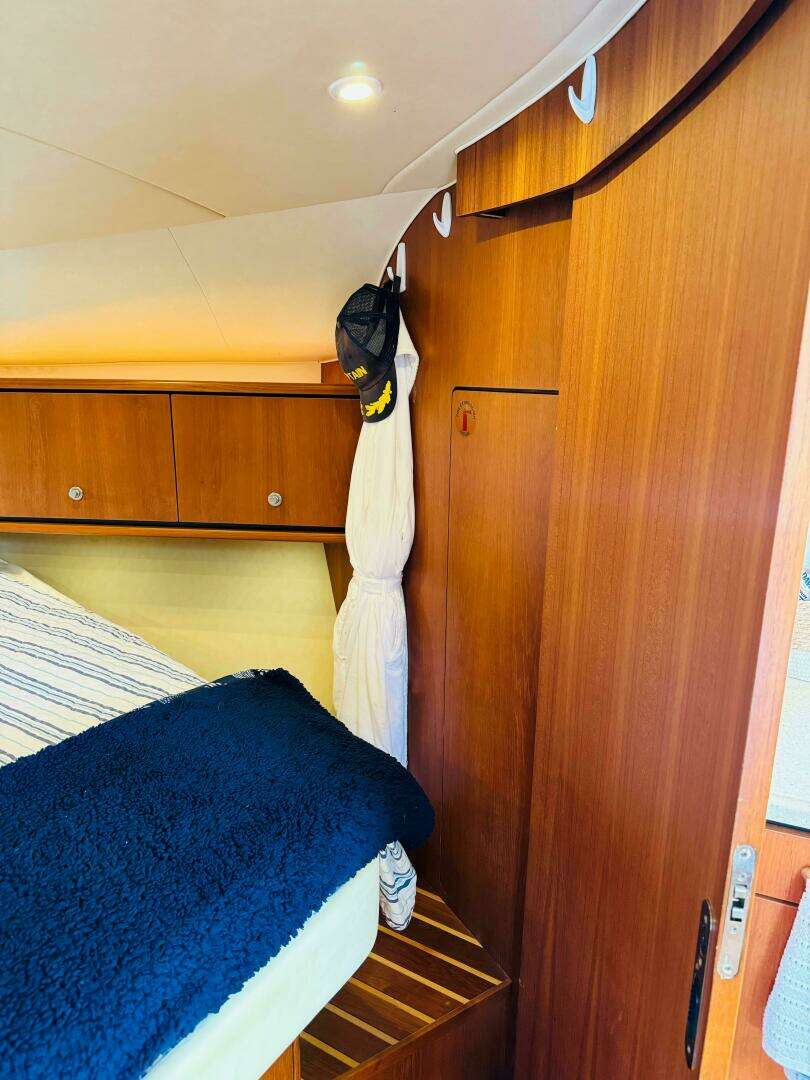

MASTER STATEROOM

• Curved sliding teak doors separate the master stateroom from the salon

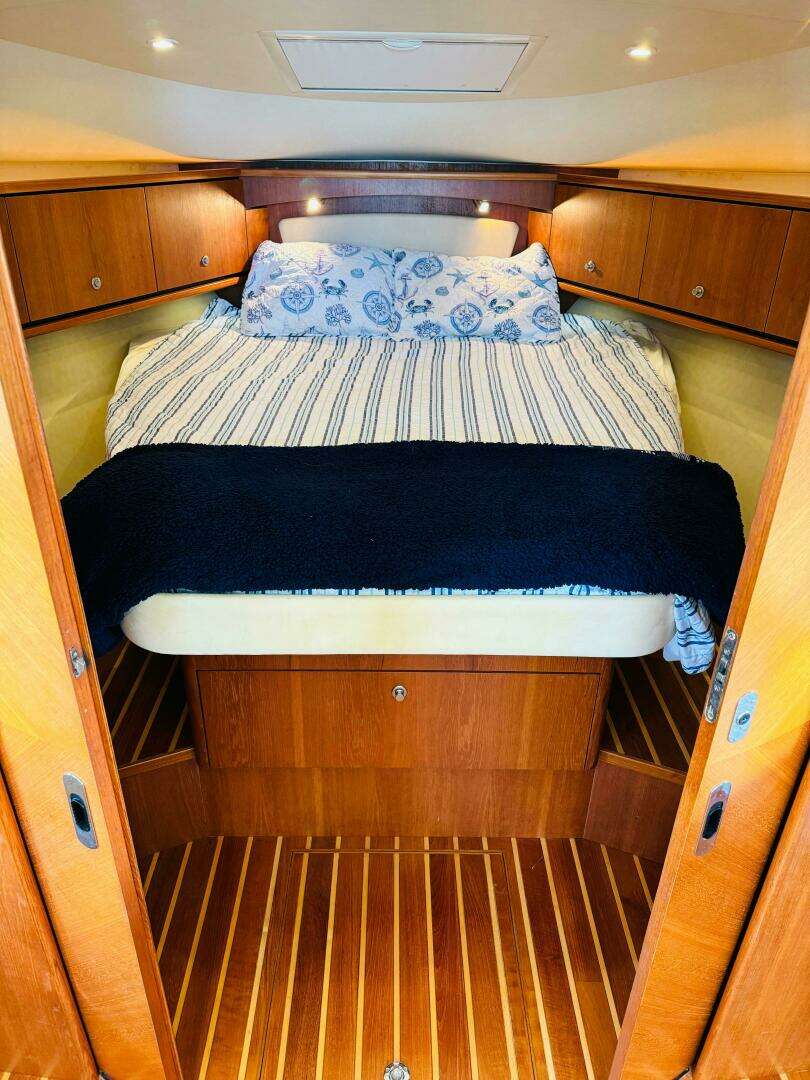

• Manually actuated pedestal berth with inner spring mattress and drawer storage below.

• Port and starboard overhead storage cabinets

• Two (2) reading lights, independently switched

• Cedar lined hanging lockers, port and starboard

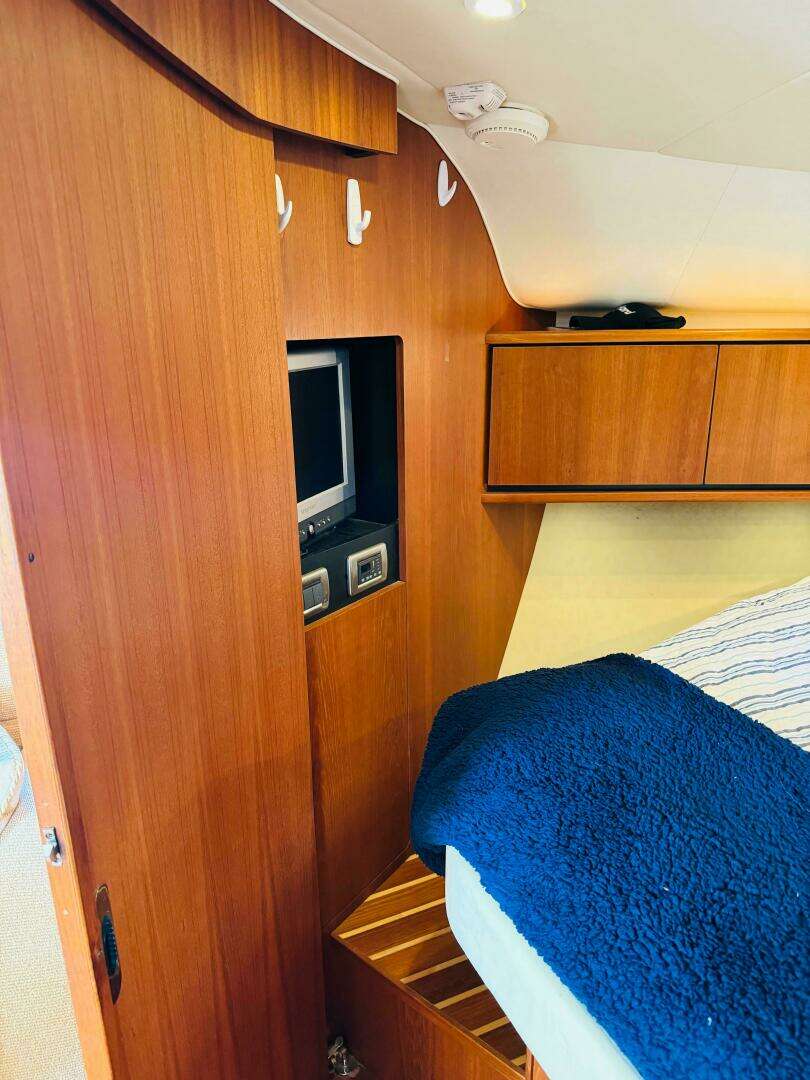

• Flat screen TV

• Marine Air Systems 7,000 BTU air conditioner with reverse cycle heat

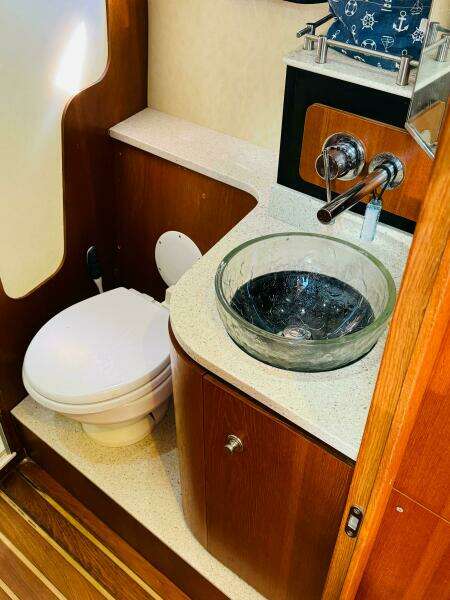

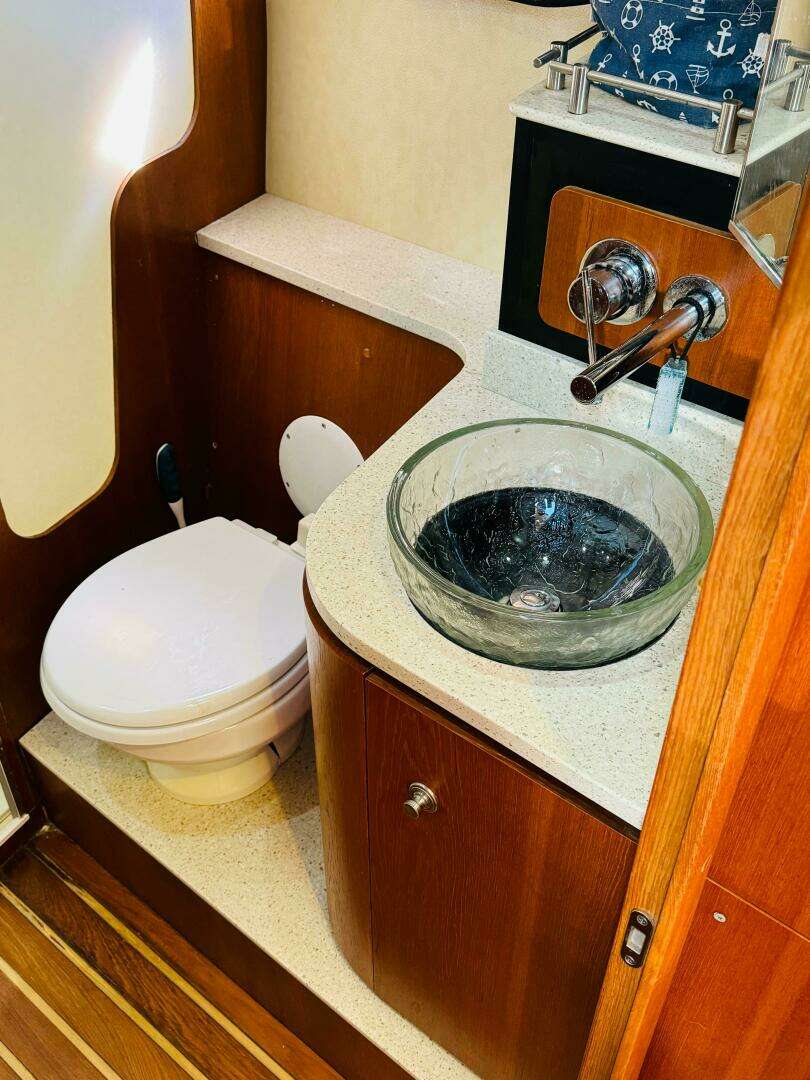

MASTER HEAD

• Full frame door with entry from the salon

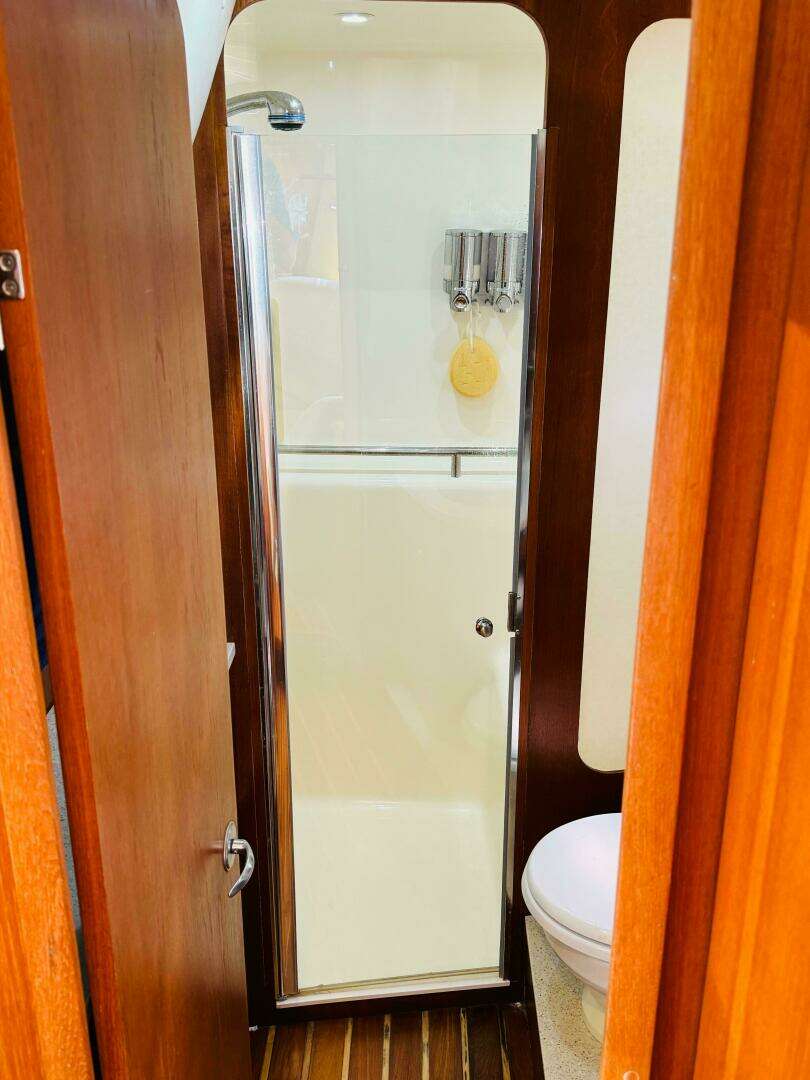

• Fiberglass stall shower with glass shower door

• Corian vanity countertop with clear glass vessel sink

• Lighted upper medicine cabinet with mirror

• Linen cabinet inboard with shelf storage

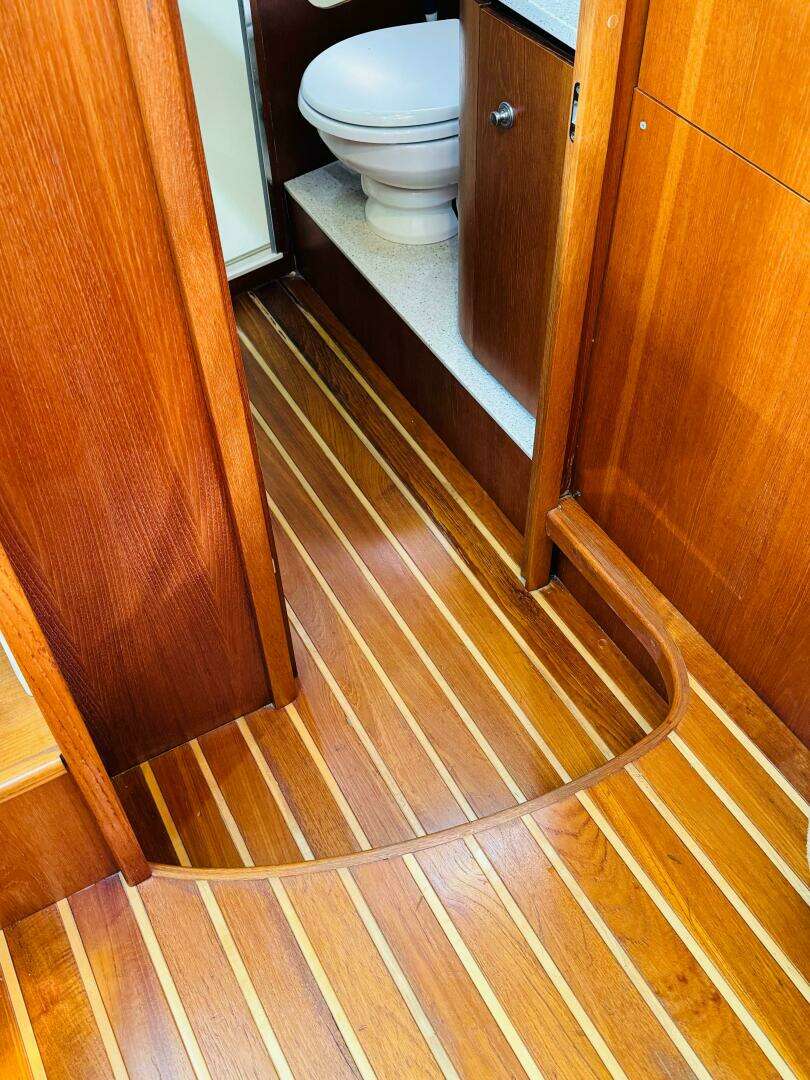

• Teak and holly inlay floor

• Vacuflush toilet

• Air conditioning discharge/vent

• Exhaust fan

• GFI protected outlets

INSTRUMENTATION, SAFETY, AND EQUIPMENT

• Tiara custom 12V DC and 120V/240V AC electrical system with DC master distribution panel in the cockpit

• One (1) 120V/240V AC 50 amp 65' dockside power cord with Glendinning cable recoiler and adapter for 30 amp service, located port aft

• Onan 9kw MDKBL diesel generator with sound shield and helm indicator

• Charles battery charger (1), 80 amp

• 12V 2 bank battery system with batteries and battery switches (3 engine batteries and 4 house batteries)

• Battery parallel system

• Electrical bonding system

• Zincs - transom, trim tabs, & drive units

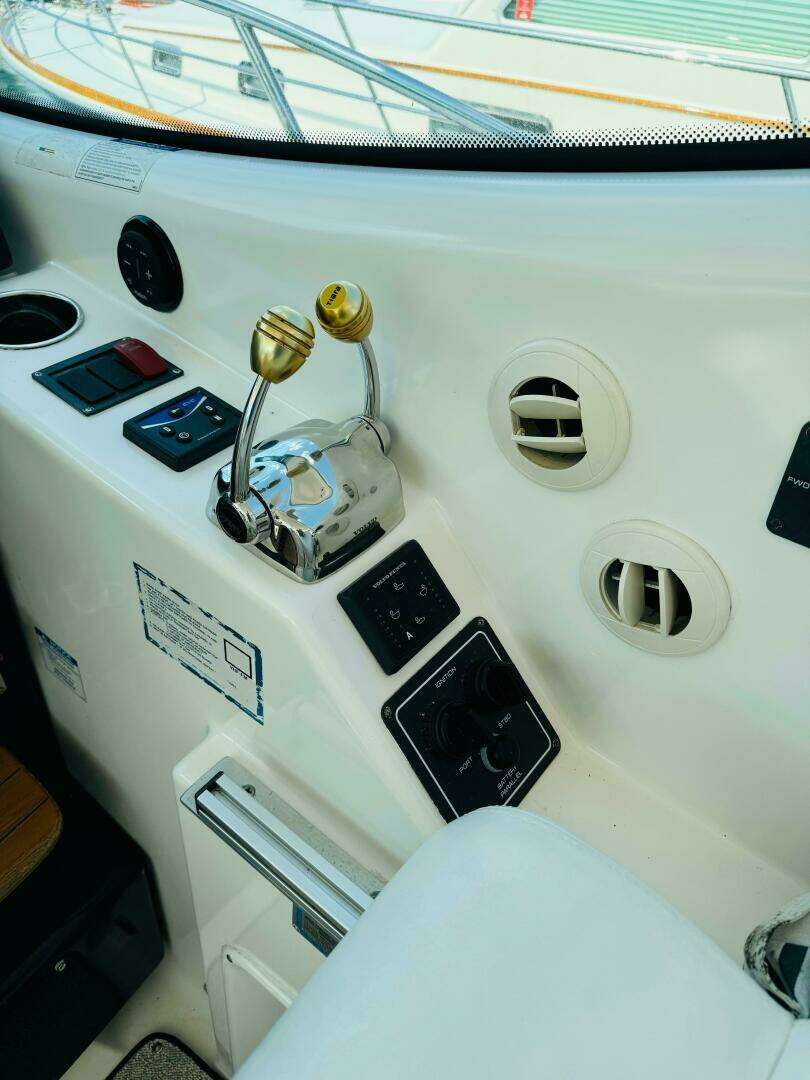

• Volvo electronic engine controls and steering system with 17.5" mahogany wheel

• Volvo IPS joystick control

• Volvo digital engine monitoring system includes fuel level and rudder angle indicators. Separate volt meters for engine and house batteries.

• Ritchie 4 1/2" SS-2000 Navigator compass

• High output 115 amp alternators (2) with internal regulators

• Engine room acoustical insulation with overhead fiberglass liner and 12V fluorescent lighting

• Racor fuel filters/water separators for engines & generator

• Raw water intake strainers on engines

• Vibration mounts for engines and generator

• Oil changing system - main engines and generator

• Three (3) automatic/manual bilge pumps with monitors at helm, 2000 GPH each: 1 forward, 1 mid, and 1 aft

• Service pump forward, 500 GPH

• Composite fuel tank, total capacity 300 gallons with in-line fuel vent filters

• Fresh water tank, 102 gallons

• Fresh water pressure system with Shurflo variable speed pump

• Dockside water inlet, aft

• Water heater, 11 gallons

• Holding tank, 38 gallons, with deck discharge and holding tank vent filter

• Fresh water tank/holding tank monitor

• Dual air horn

• FE-241 fire extinguisher system for engine room (HGC–227 agent for CE)

• U.S.C.G. and International navigation lighting

• NMMA Yacht Certification

Navigation Equipment

• (2) Raymarine Axiom 12' Multi-Function Display Units

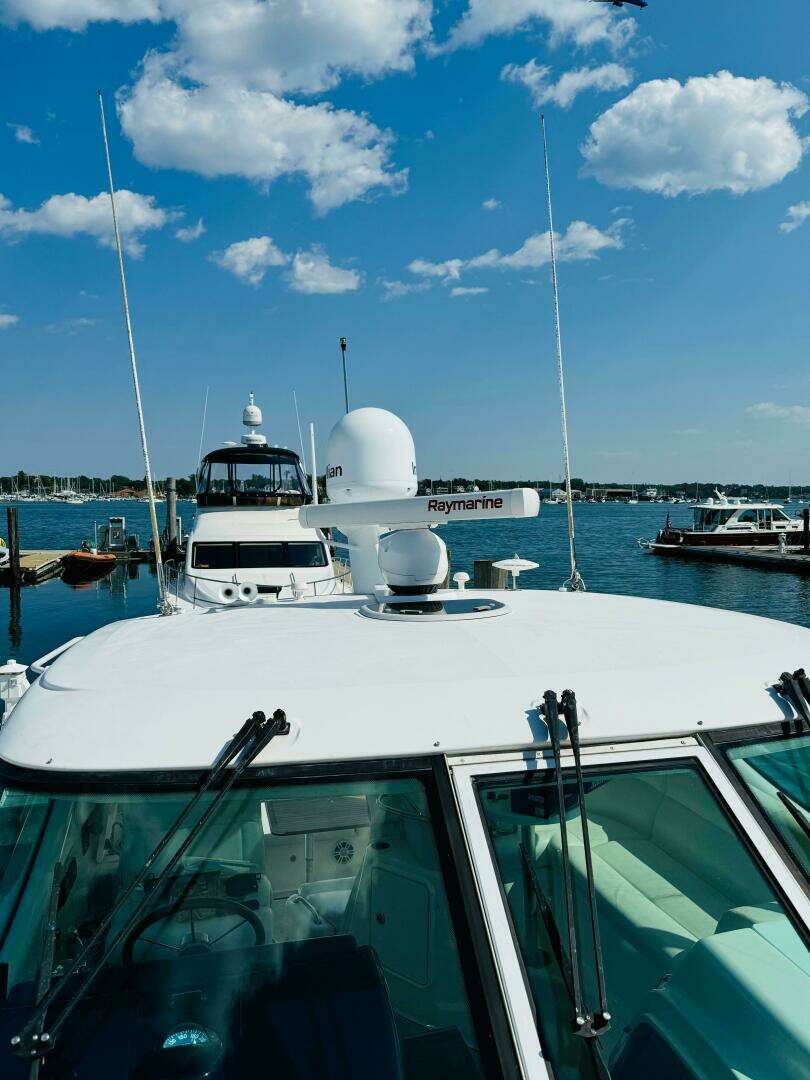

• Raymarine 4kW Open Array High Def Radar
• Raymarine p70Rs Auto-Pilot
• ICOM IC-M504 VHF Radio with Hailer Horn
• Spotlight - ACR LED with Remote Pad at the Helm
• Ritchie Compass

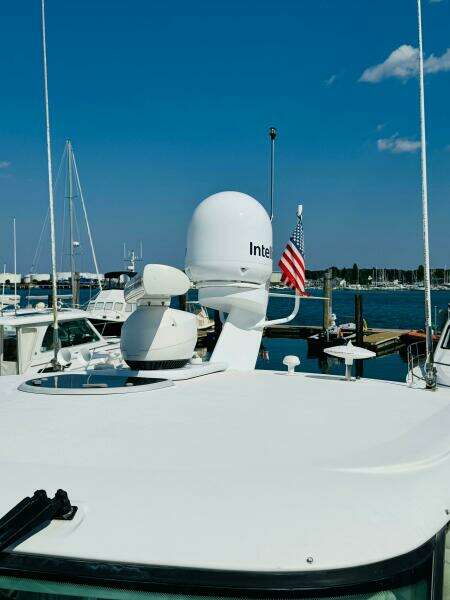

• Intellian Satellite TV Antenna
• Over the Air Digital Antenna
• Fusion Marine Radio
