Specifications

               Overall length 38’ 11”

               Hull length        38’ 2”

               Waterline length            35’ 2”

               Beam                  12’ 9”

               Displacement (light load with deep keel)           16,163 lbs

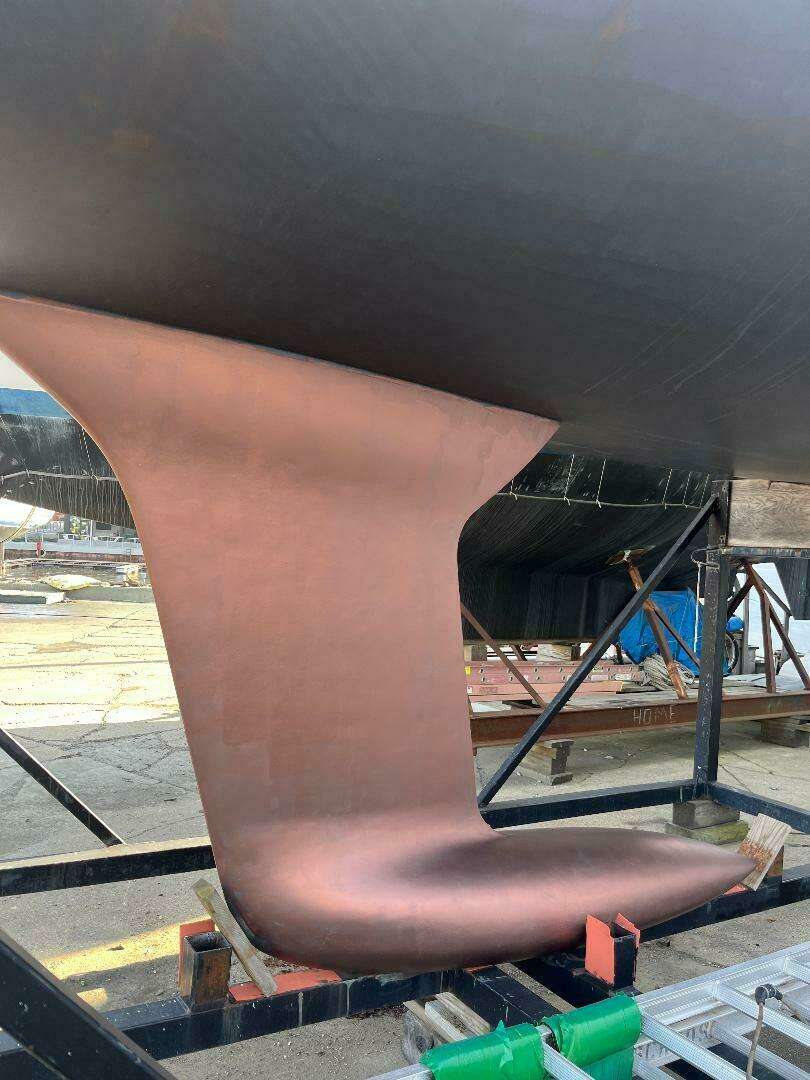

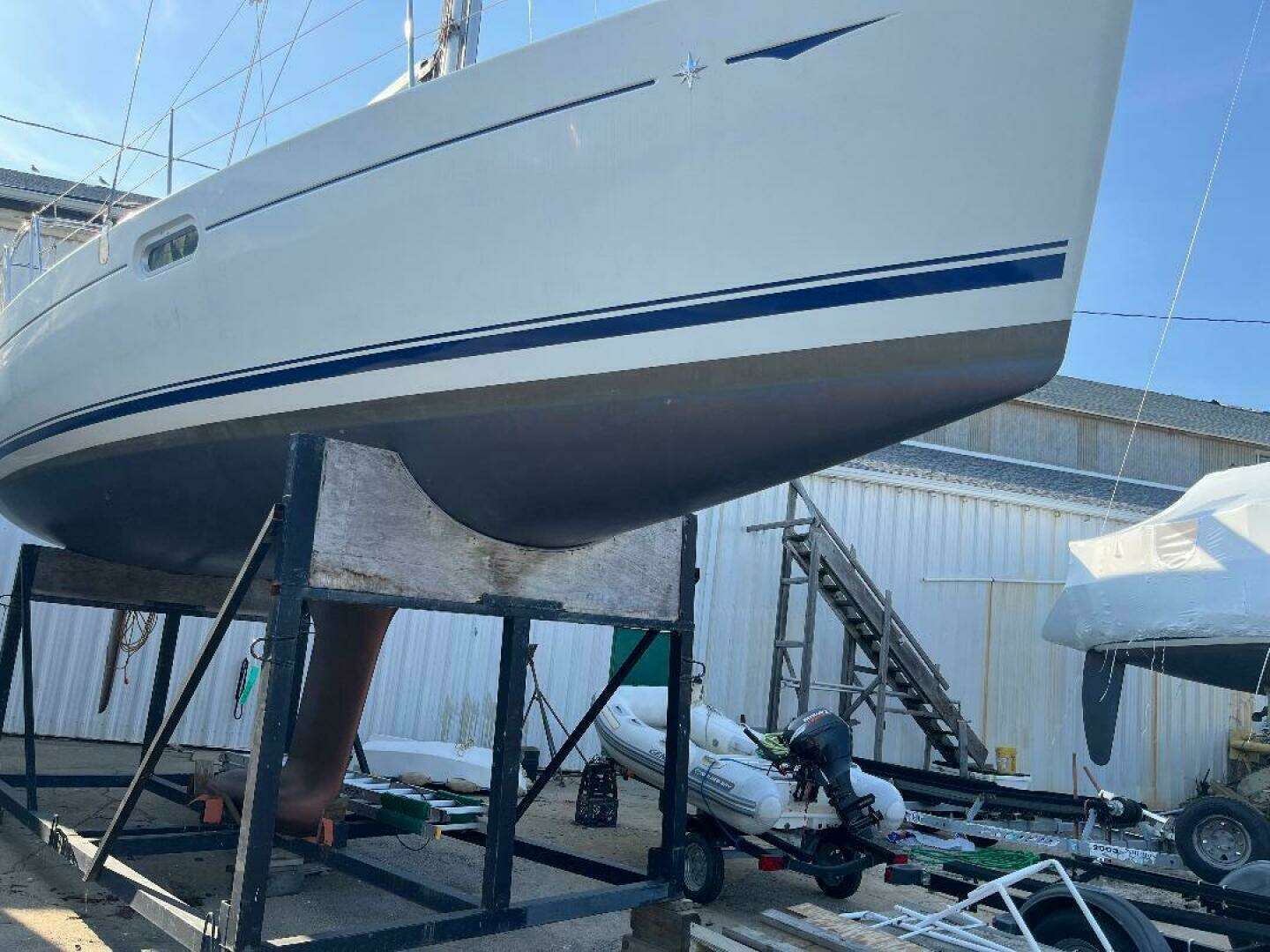

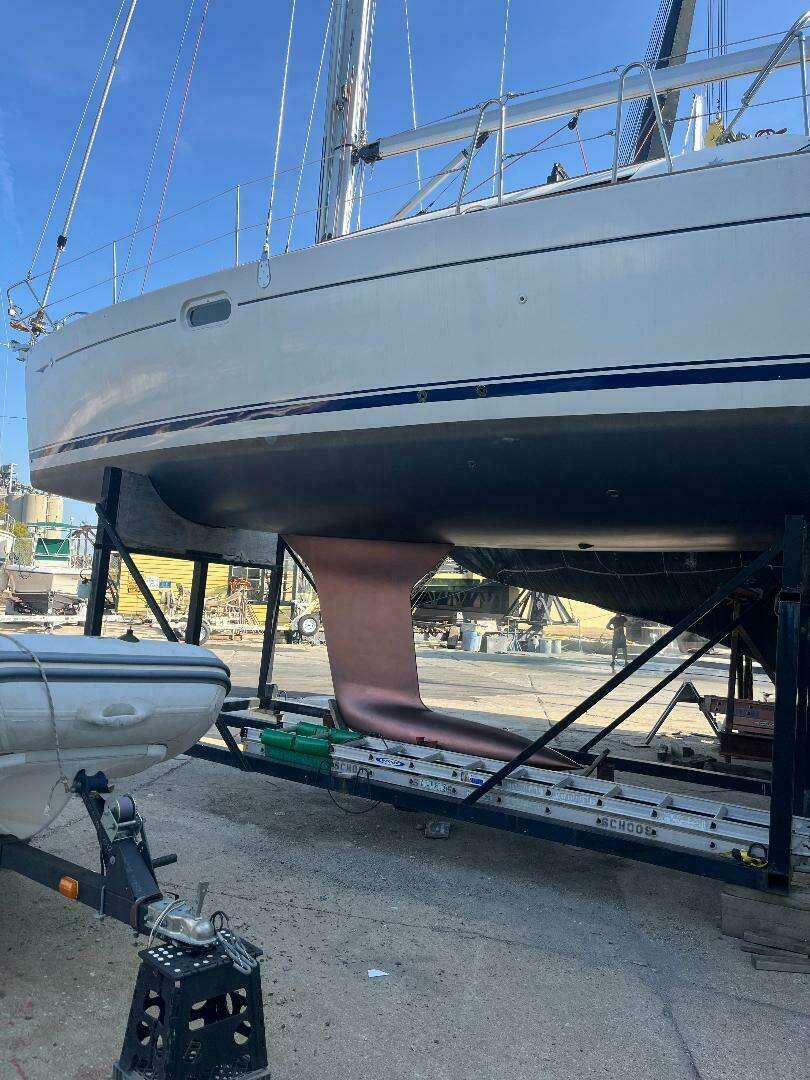

               Performance keel draft cast iron fin keel with elongated bulb  7’ 3”

               Performance keel weight           4,629 lbs.

               Architect/designer                       M. Lombard

               Water2 rotomolded tanks located under forward and aft berths with separate deck fills 94 GAL

               Fuel rotomolded tank located under aft berth with deck fill     34 GAL

               Holding tank rotomolded tank located in head compartment with valve for overboard discharge via gravity and deck fitting for pump out   22 Usgal

               Fridge compartment with vertical access         47 Usgal

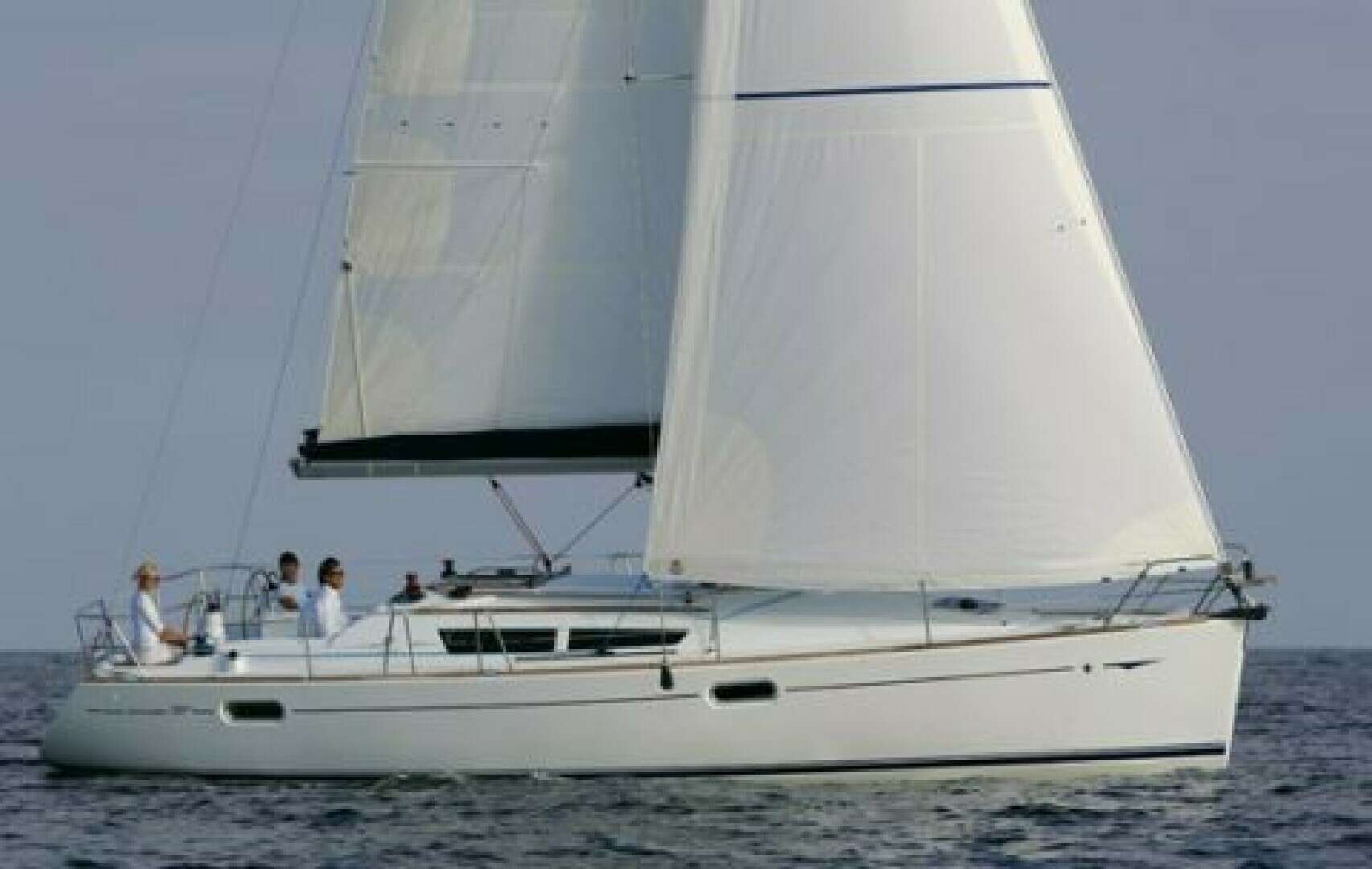

Sails

               Performance mainsail Quantum Prestige series tri-radial with sandwich construction of double taffeta layers for form stability and Rutgerson rolling cars, 2 automatic reefs and a 3^rd classic reef point        420 sqft

               Performance furling genoa 123% tri-radial Quantum Prestige series with sandwich construction of double taffeta layers for firm stability and Sunbrella UV luff protection, Rutgerson stainless steel eyes           409 sqft

               Spinnaker

               Total sail area  829 sqft

Sail handling

               Lazy bag in Sunbrella Captain Navy fabric with integrated lazy jacks

               Genoa winches 2 x Harken 44.2 self-tailing winches

               Coach roof winches 2 x Harken 40.2 self-tailing winches

               Winch handles 2 x Harken handles with ball-bearing grip

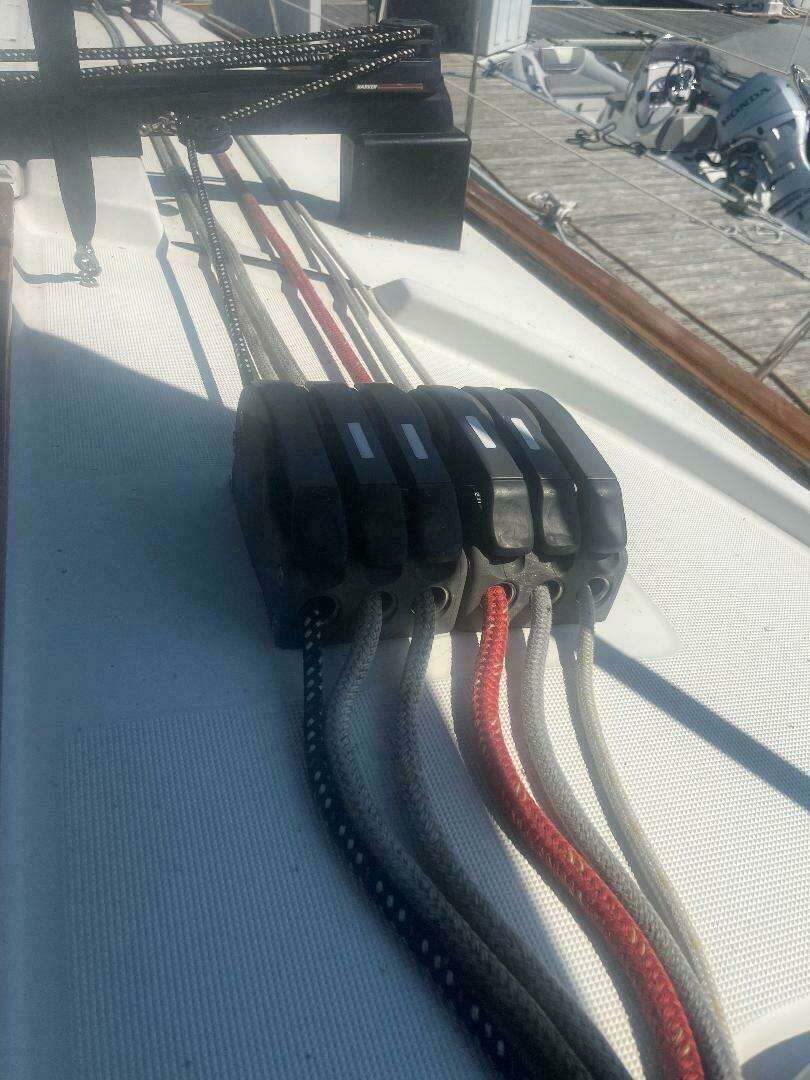

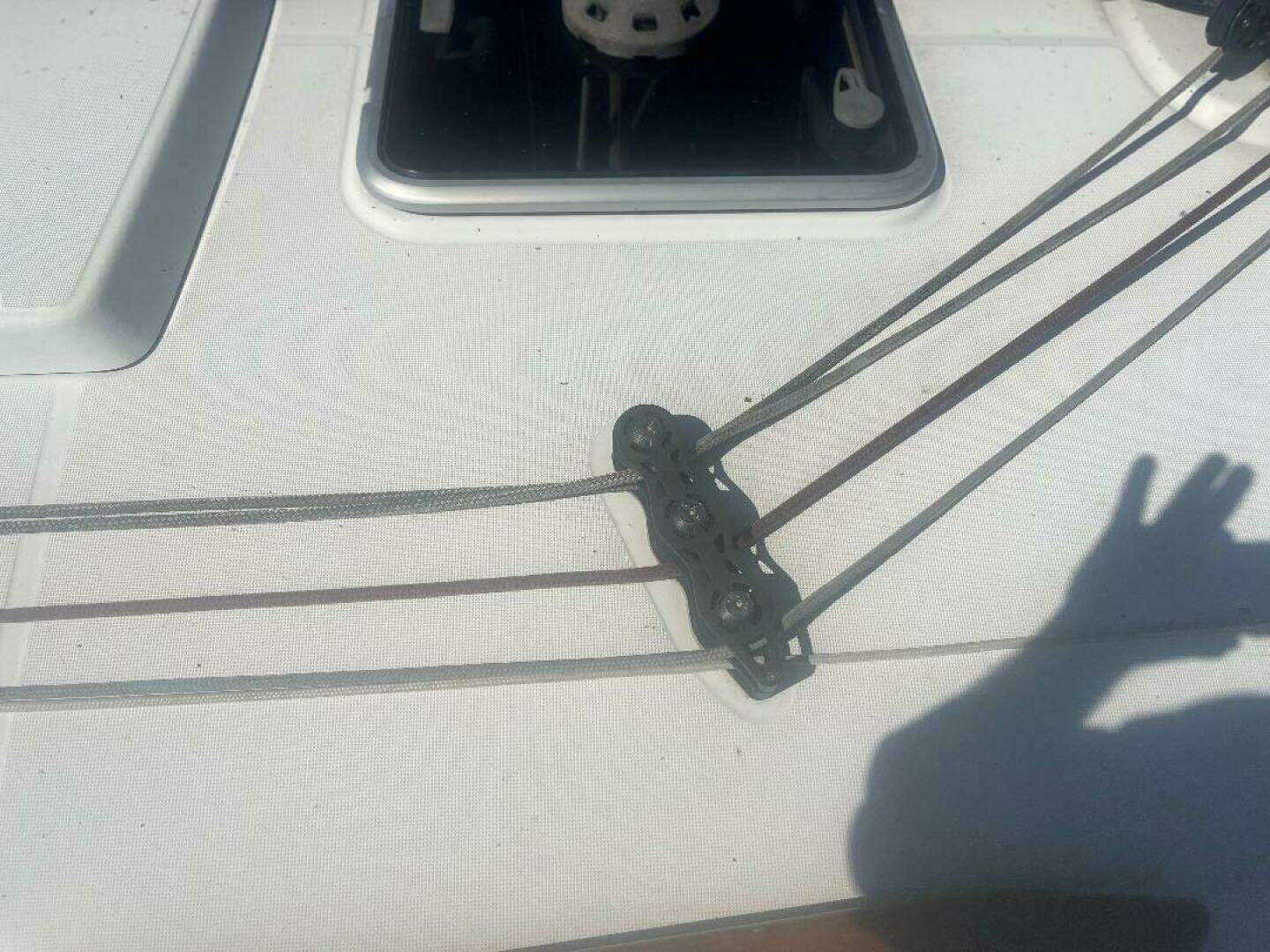

               Line jammers Spinlock, on both sides of coach roof with Harken return blocks

               Mainsheet traveler roof-mounted big boat traveler with ball-bearing car, ends, control lines lead aft to cockpit

Mast and Rigging

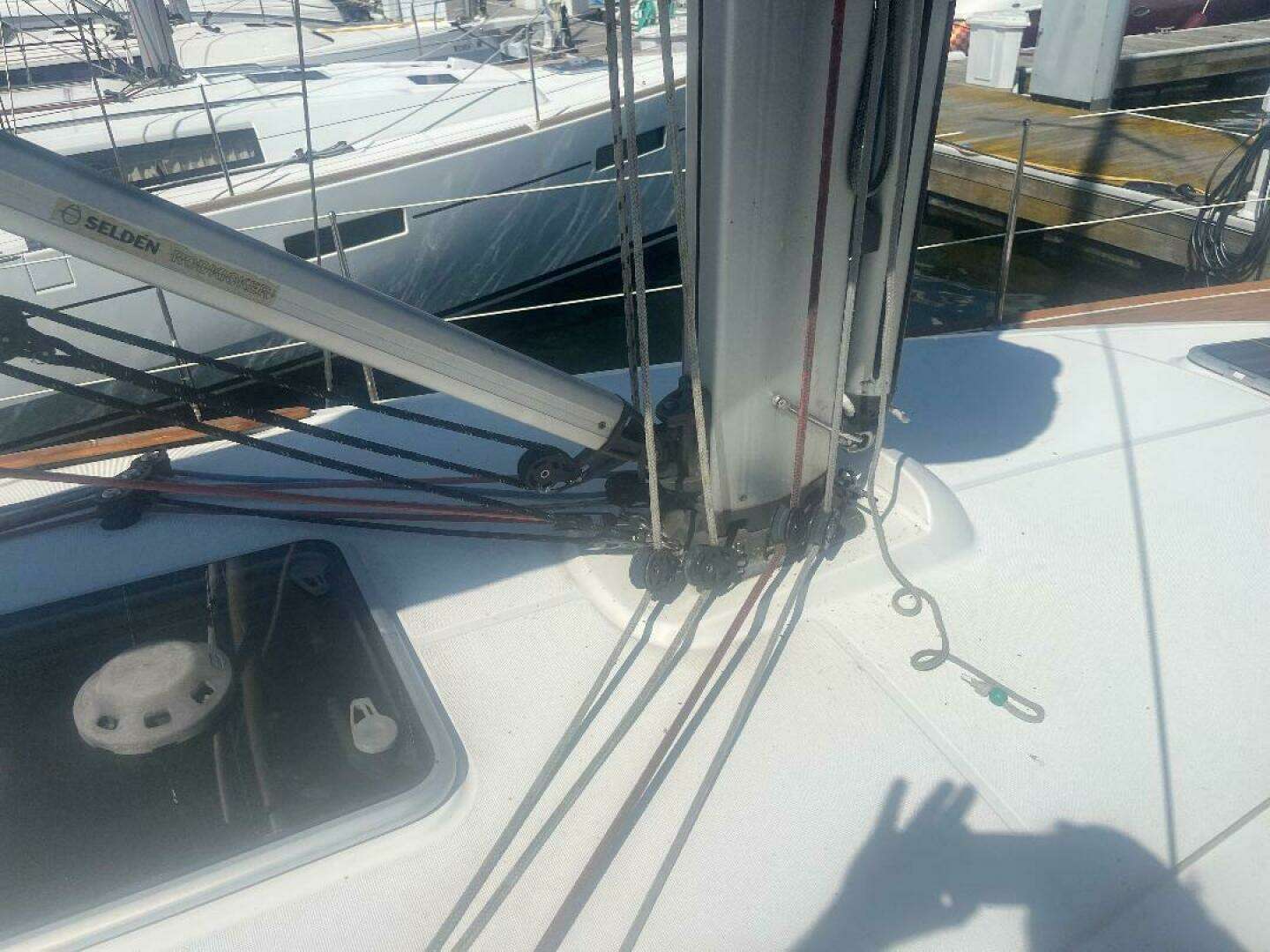

               Selden aluminum with double spreaders, spinnaker track mounted forward.

               Standing rigging discontinuous 1 x 9 stainless steel wire

Backstay adjustable via a block and tackle system and bridle-mounted car

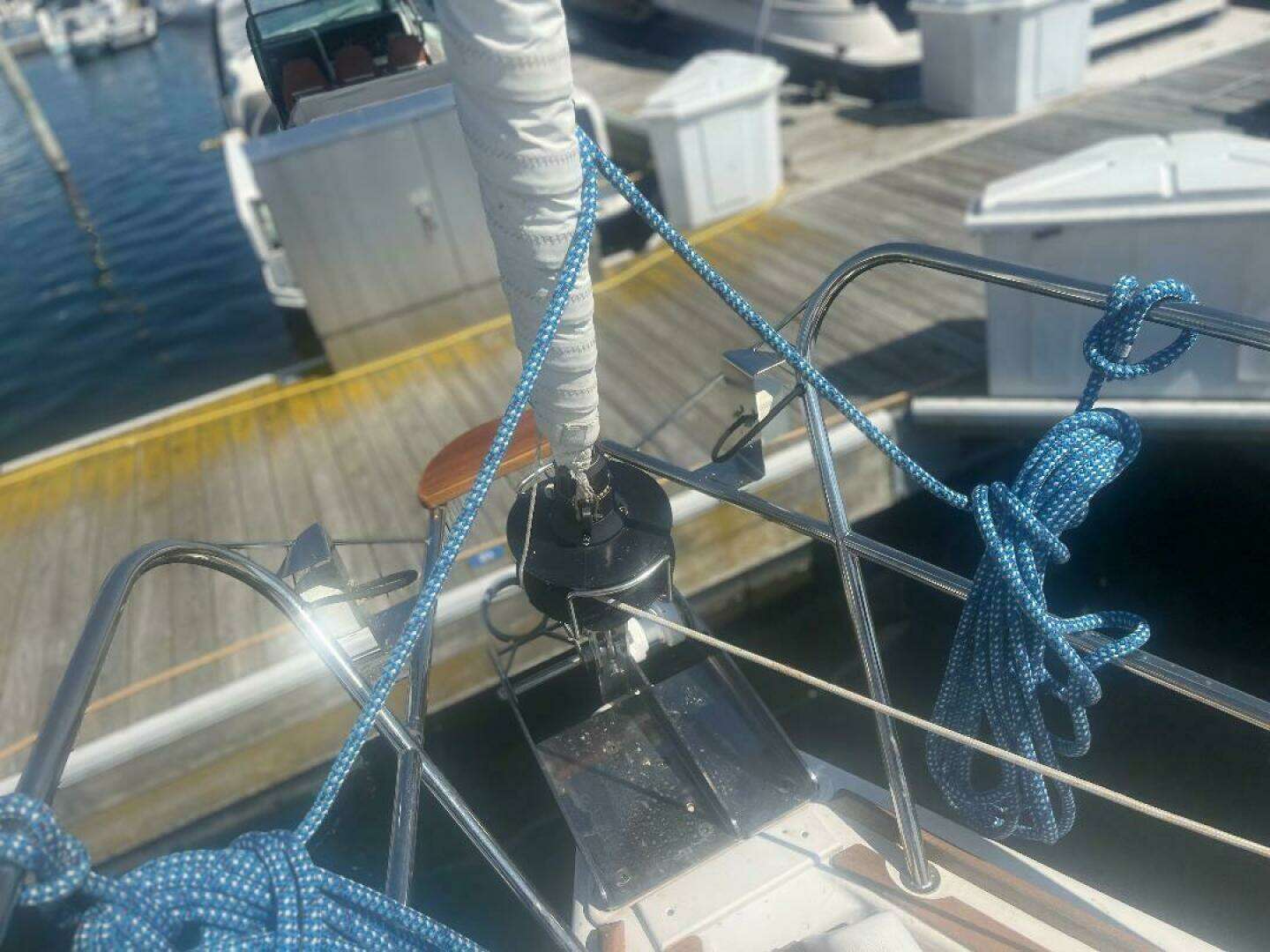

               Genoa furler Facnor LX racing series with removable drum, double sail slot and round profile, mounted to stem head fitting, furling line lead aft to roof winch

               Running rigging Dyneema mainsail halyard, genoa halyard, spinnaker halyard, mainsheet, genoa sheets

Rigid boom vang with gas cylinder and control line lead aft to the cockpit

Cockpit

               Teak inlay on seating area, transom and transom steps

               Cockpit lockers 2 lockers under bench seats and 1 lazarette locker under port helm seat for technical access to steering system

Life raft locker located in dedicated compartment between helm seats

Cockpit table folding injection-molded fiberglass table with storage, cup holders, stainless steel handrail, courtesy lighting, 12v plug

Gas locker located in lazarette locker under starboard helm seat, room for 2–10-gal gas bottle with connection to gas system and cut-off valve under stove in the galley

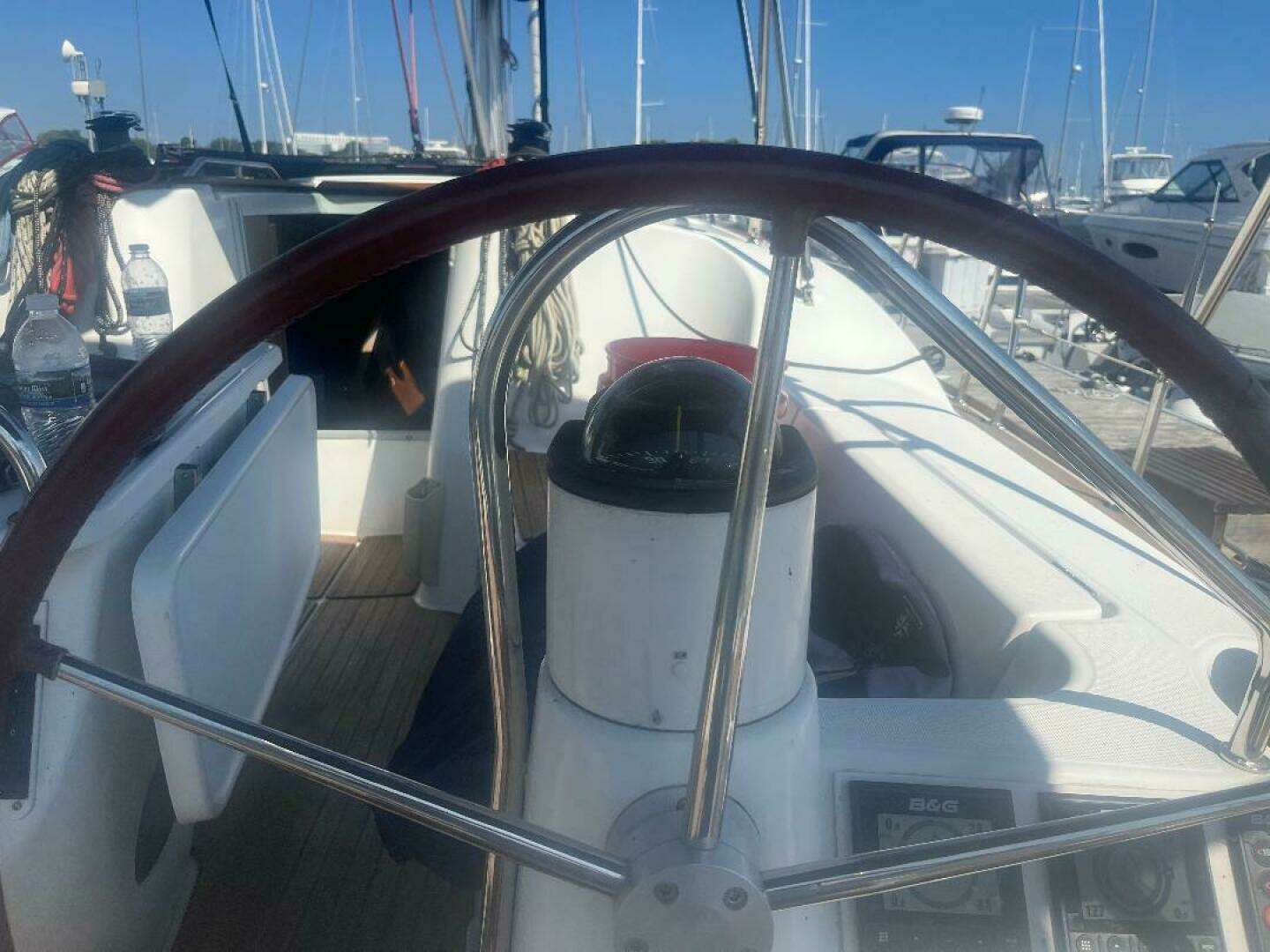

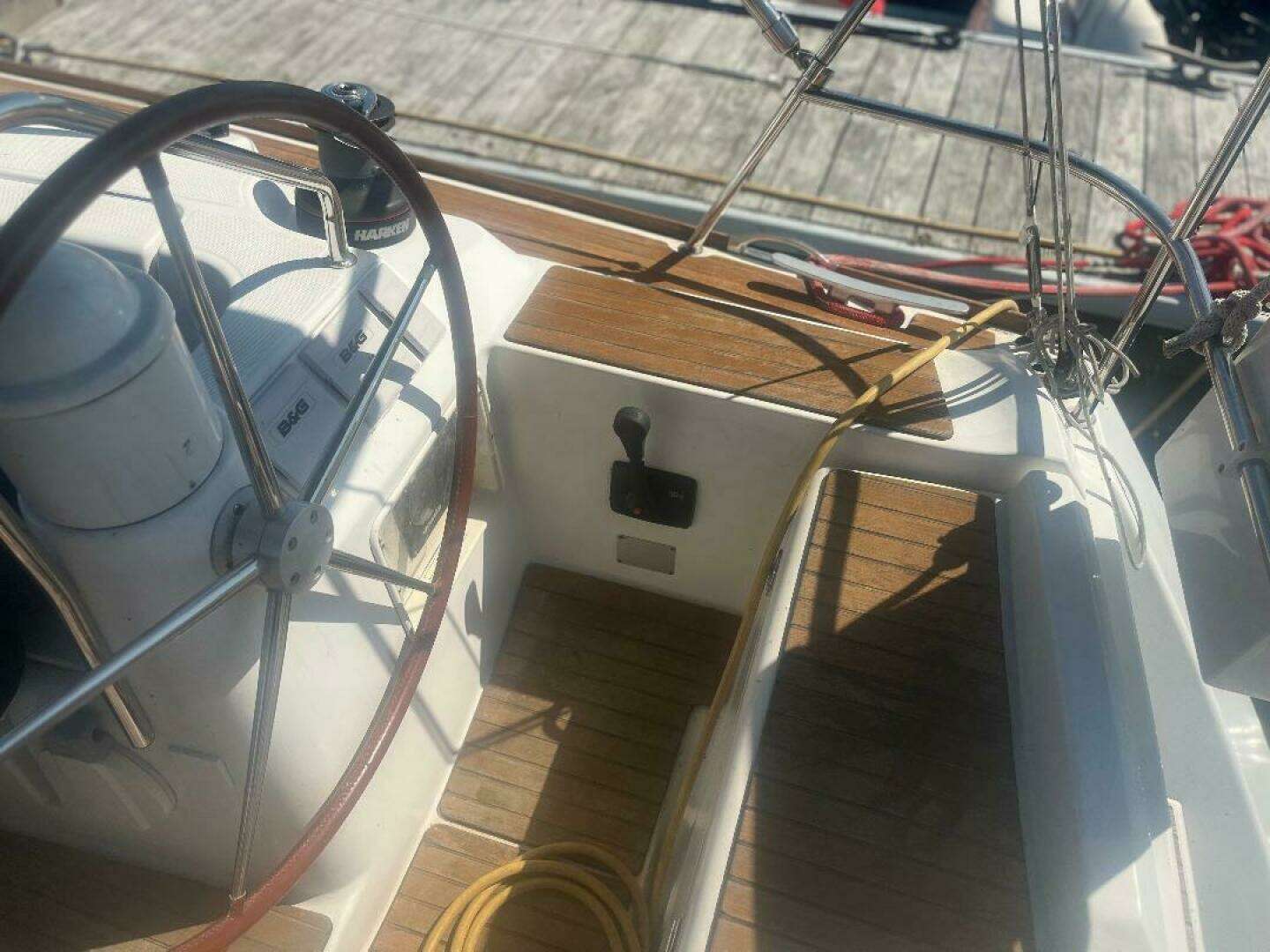

Wheels 2 leather-covered steering wheels with compasses at each steering position and stainless steel grabrails.

Emergency tiller with chrome fitting in cockpit floor

Instrumentation dedicated space for instruments within easy reach of helm positions, room for GPS chartplotter mounted at aft end of cockpit table with easy viewing from each helm

Engine controls throttle and engine control panel mounted at starboard helm, engine panel includes RPM gauge, warning lights, ignition

Swim ladder folding stainless steel ladder mounted on transom

Cockpit shower retractable hot and cold water shower with tap

Anchor locker forward, lockable, room for anchor and tackle, integrated area, holder for windlass handle

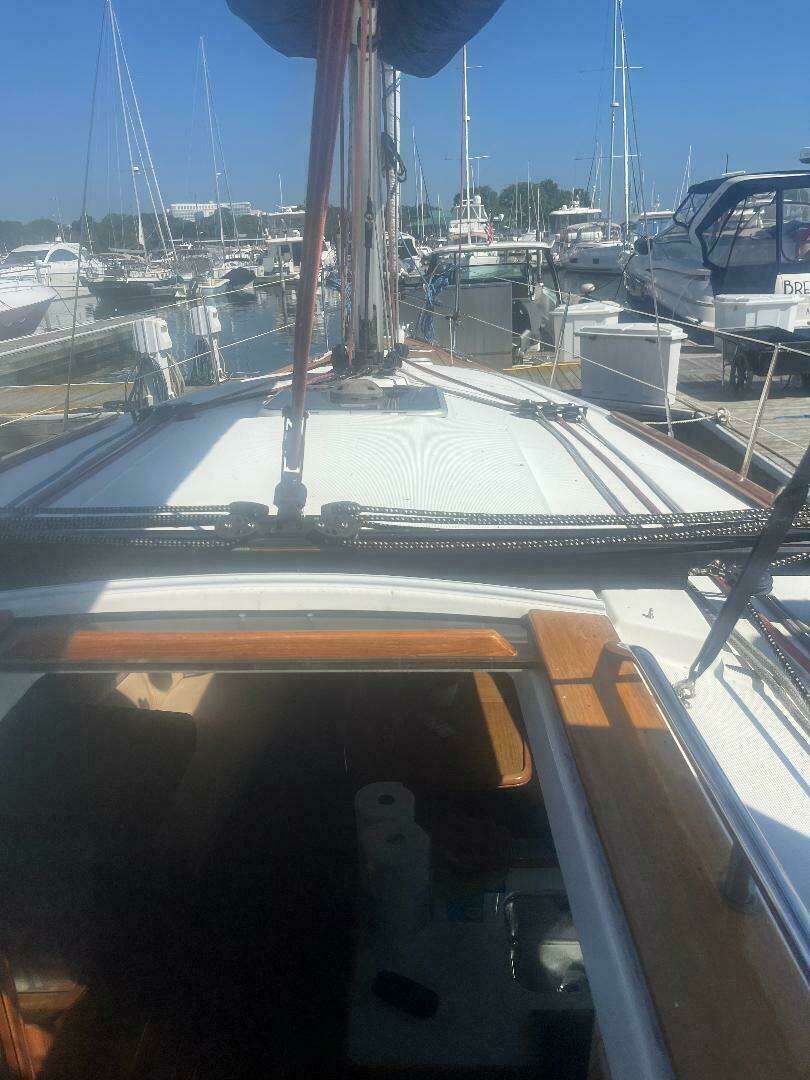

Deck Hardware

               Bow pulpit open stainless steel with teak step, navigation lights and integrated wiring for lights

               Stern pulpit stainless steel with flag holder, buoy cradle and integrated wiring passage for GPS antenna

               Electric windless Quick 1000W combination rope and chain, vertical-mounted in the anchor locker hand-held remote

               Anchor roller double stainless-steel fitting

               Lifelines double level of stainless-steel lifelines with PVC coating, stainless steel stanchions

               Lifeline gates opening gates on each side

               Toe rail teak profile with 6 integrated stainless-steel chocks and drainage for side deck

               Cleats 4 x aluminum mooring cleats forward and aft

               Midship cleats 2 x aluminum mooring cleats placed on side deck near midship chocks

               Handrails sculpted, long teak handrails on coach roof for secure movement forwards

Construction

Deck Prisma Process injected deck, ISO gelcoat surface, discontinuous blas block coring

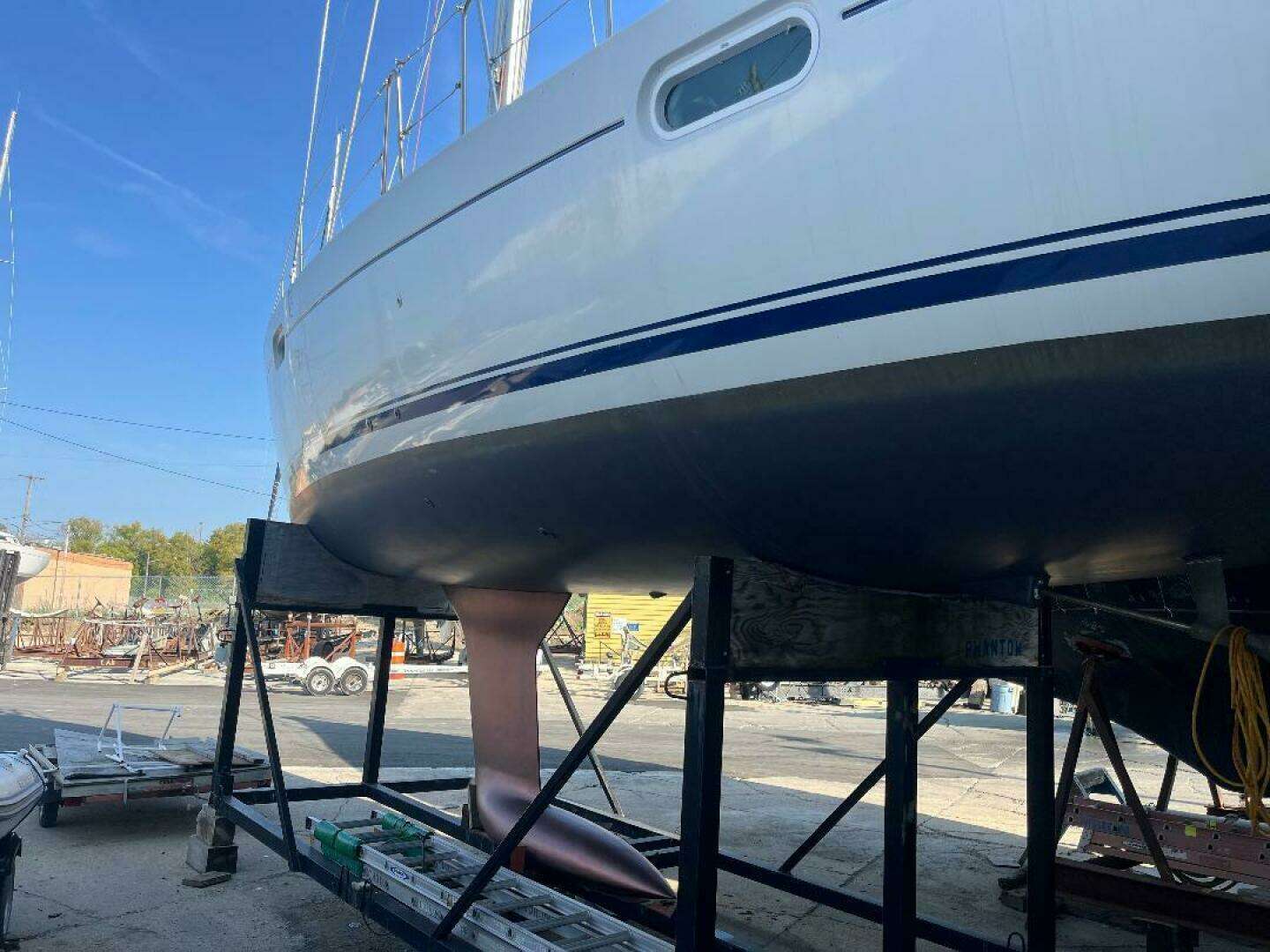

               Hull solid hand-laid ISO gelcoat surface, vinylester resin in outer skin to protect against osmosis

               Structure 3^rd generation inner fiberglass grid, high-load zones cut out and reinforced, drainage system through structure, special emergency repair zone in keel area

Lighting

               Flush mounted chrome brass ceiling lights I saloon, head compartments and cabins

               Chrome reading lights in aft cabins

               Indirect halogen lighting under side decks in saloon and head compartments

Gooseneck chart light mounted at nav station

Electrical

                               12v alternator output 60A

               Charge distributor/isolator

               Engine start battery capacity, battery located under aft starboard berth

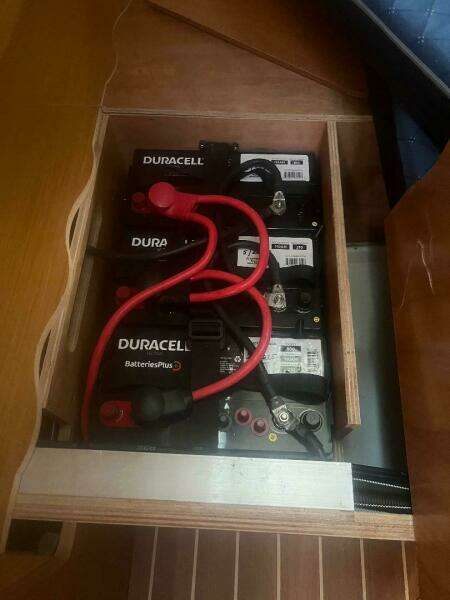

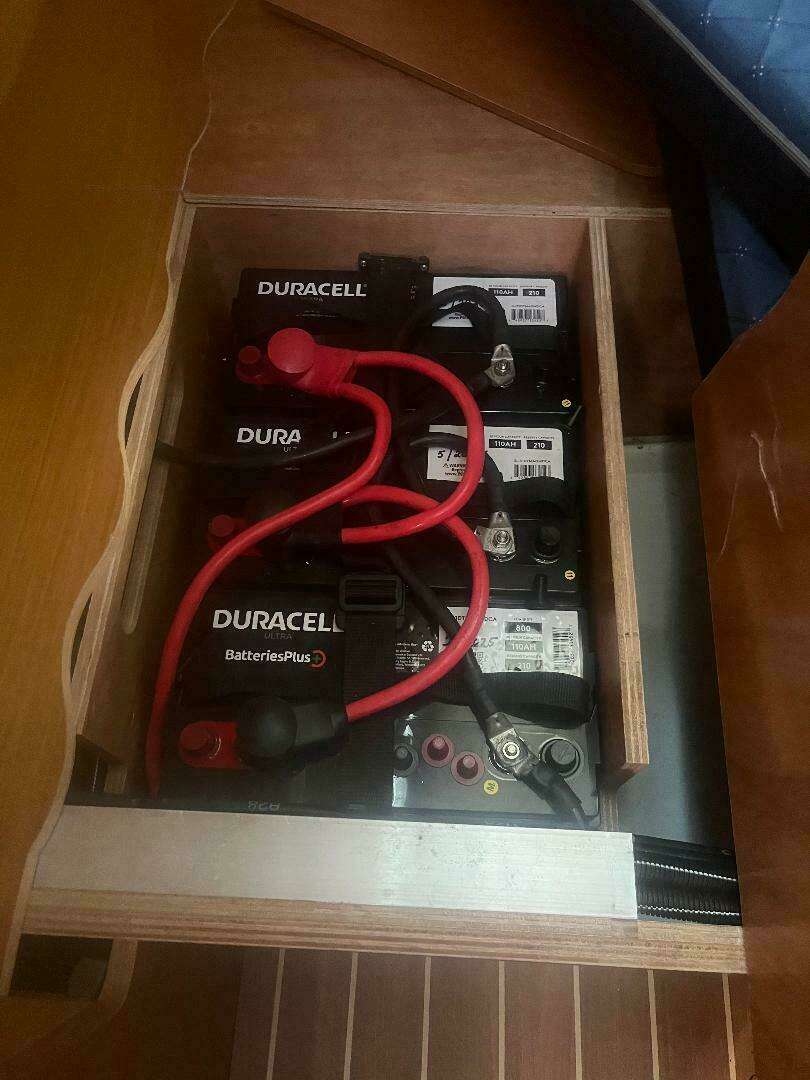

               Domestic battery bank capacity, batteries located under port aft berths

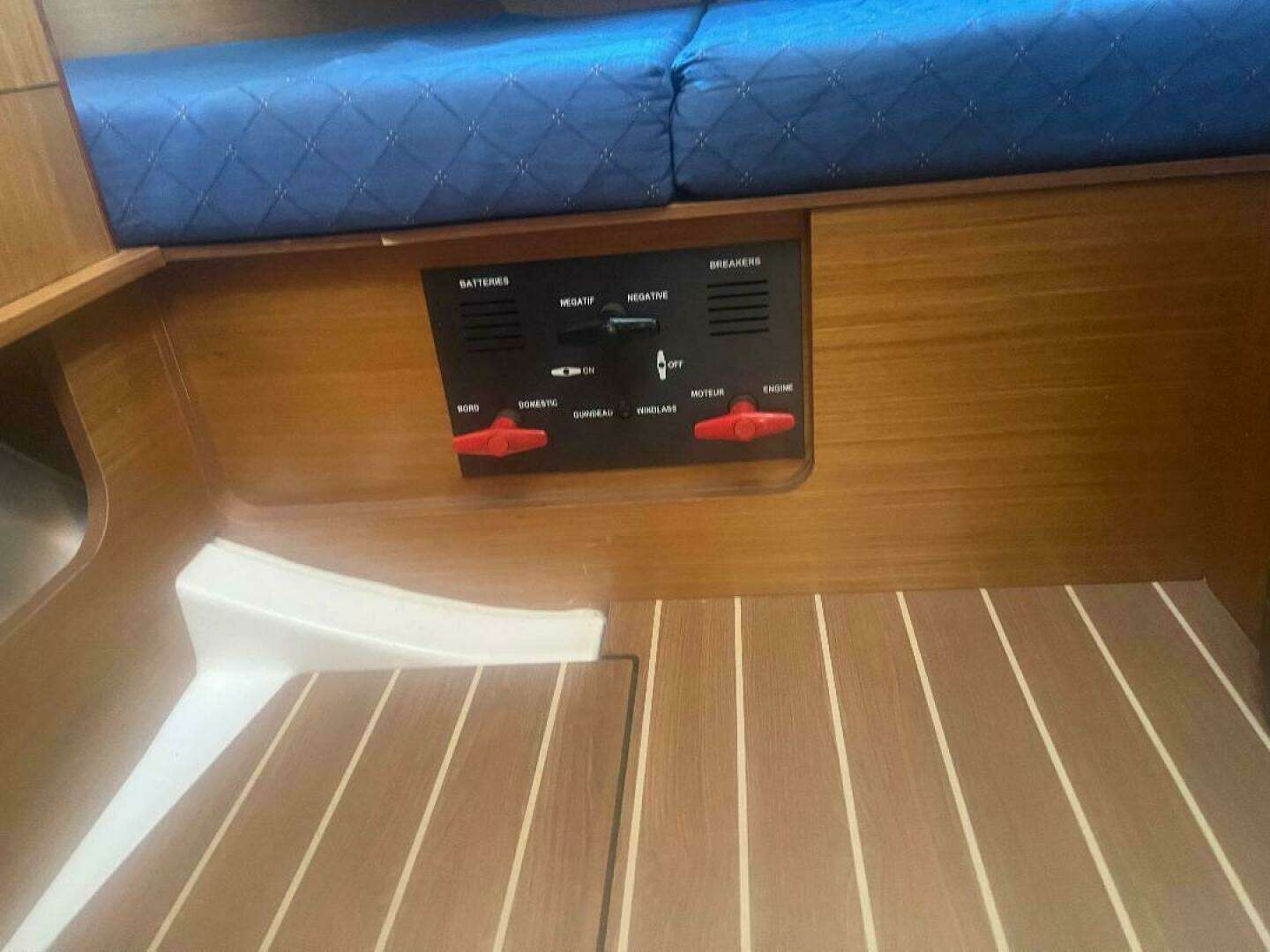

               Positive battery switch for engine and domestic bank and general cut-off switch mounted on panel in aft cabin

               Shorepower 115v inlet with differential breaker, one 115v plug per cabin , 115v plug in galley and nav station + 40A battery charger, multi-phase

               Electrical panel with 2v breakers, 115v breakers, 12v ammeter, 12v consumption meter, 12v consumption meter, 12v charging meter

               12v plug per cabin and at nav station

Plumbing

               Hot and cold pressurized water distribution through-out the boat via semi-rigid hose

               “Heavy-duty” water pump and accumulator tank for consistent water pressure

               10 Usgal hot water tank that is connected to engine heat exchanger and to a 115v electrical system

               Chromed shower faucet in washroom

               Electric bilge pump on float switch and manual dual-action pump in cockpit

               Digital water level display

               Shower sump equipped with individual electric pump with filters and on-off switches

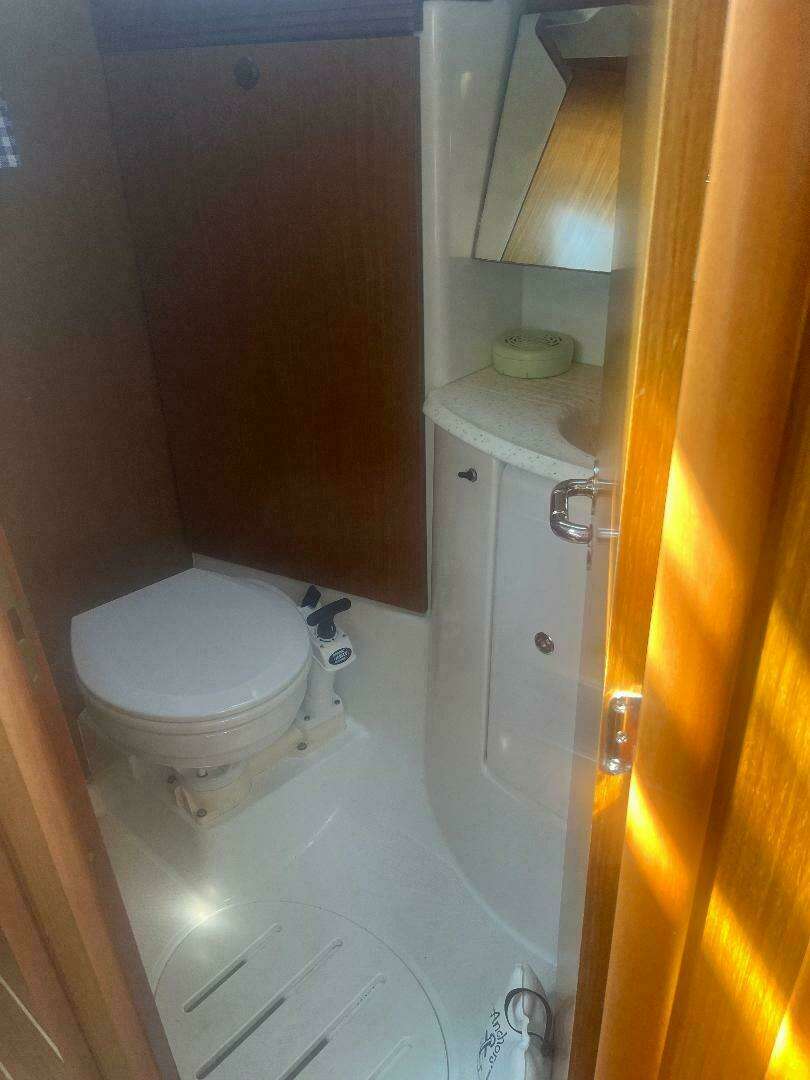

               Large manual pump marine toilet (new pump in 8/2025)

Engine and Steering

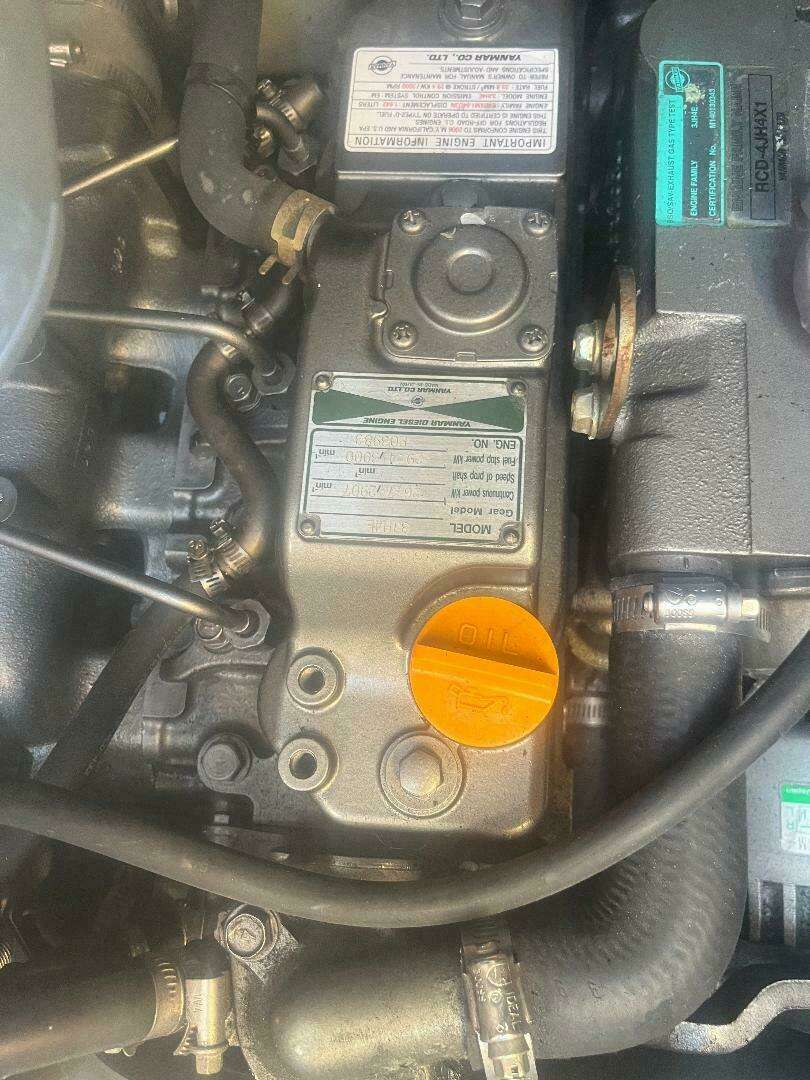

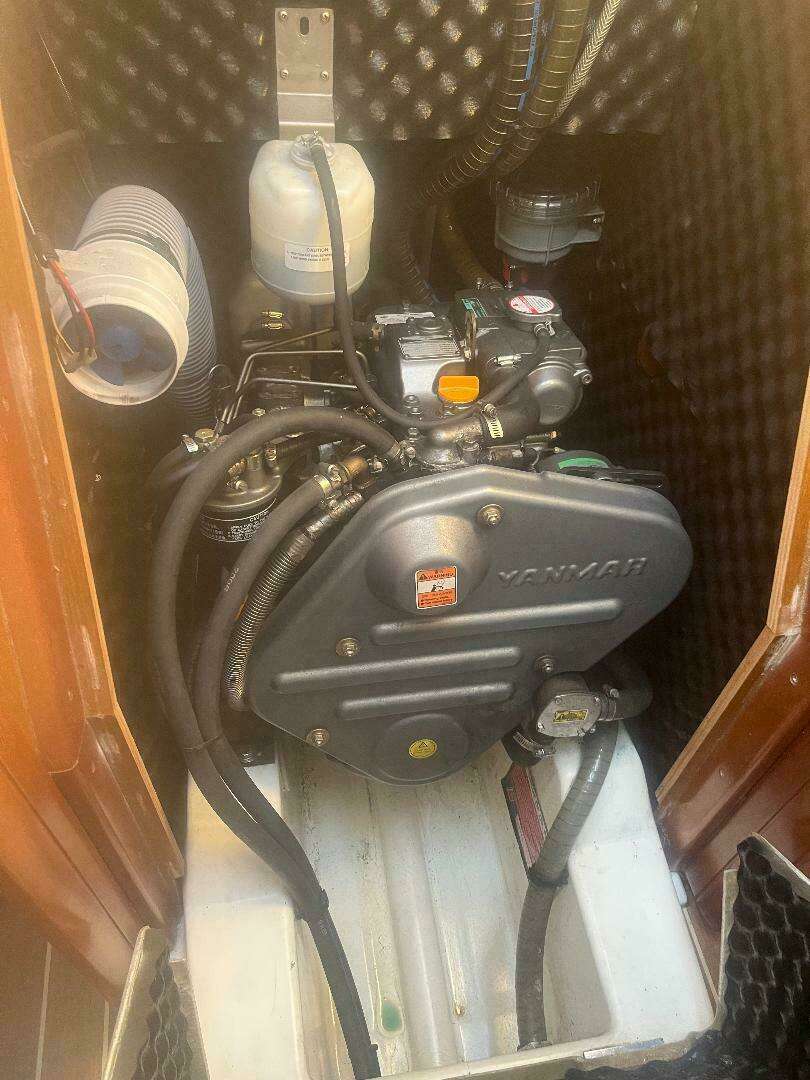

               Yanmar 3JH4E 40HP, 29.4Kw diesel engine

               Fully soundproofed engine compartment with engine access behind stairwell and from aft cabin

               Stainless steel propeller shaft 30mm diameter

               Fuel/water separator

Built-in muffler, forced air ventilation and stainless-steel exhaust fitting aft

               Feathering propeller, add performance under power, low-speed maneuvering backing and less drag under sail

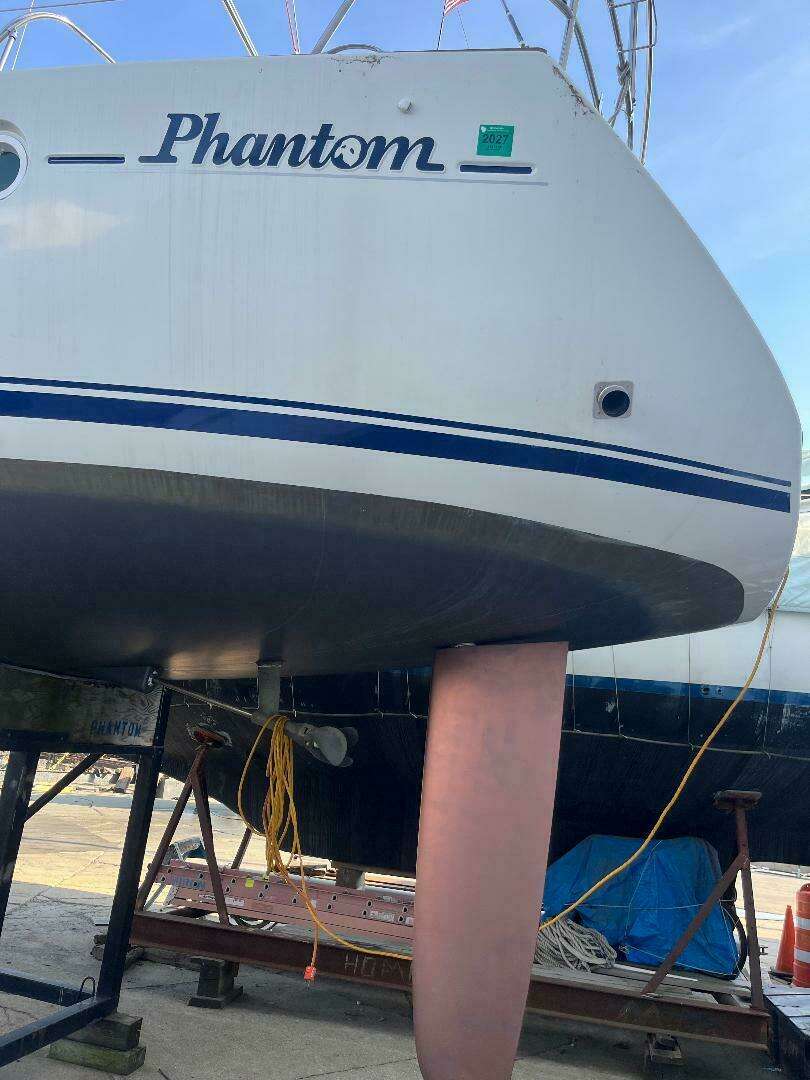

               Fiberglass rudder with stainless steel shaft

               Patented self-aligning rudder bearings for lower friction

Comfort Features and Options

               Fixed hull ports with track-mounted curtains 4

               Opening cockpit and roof ports with curtains                 2

               Lateral fixed windows with curtains     4

               Opening ports integrated into lateral windows 2

               Opening deck hatches forward-facing with sun blinds integrated into headliner           4

               Combination shade/insect screen for deck hatches

               CD/radio player in saloon

               Saloon stereo speakers x2

               Cockpit speakers x2 watertight

Interior features and option

               Wood

                               Fine Teak Interior laminated panels with solid wood trim around galley, companionway and cabinetry finished in satin UV stabilized varnish

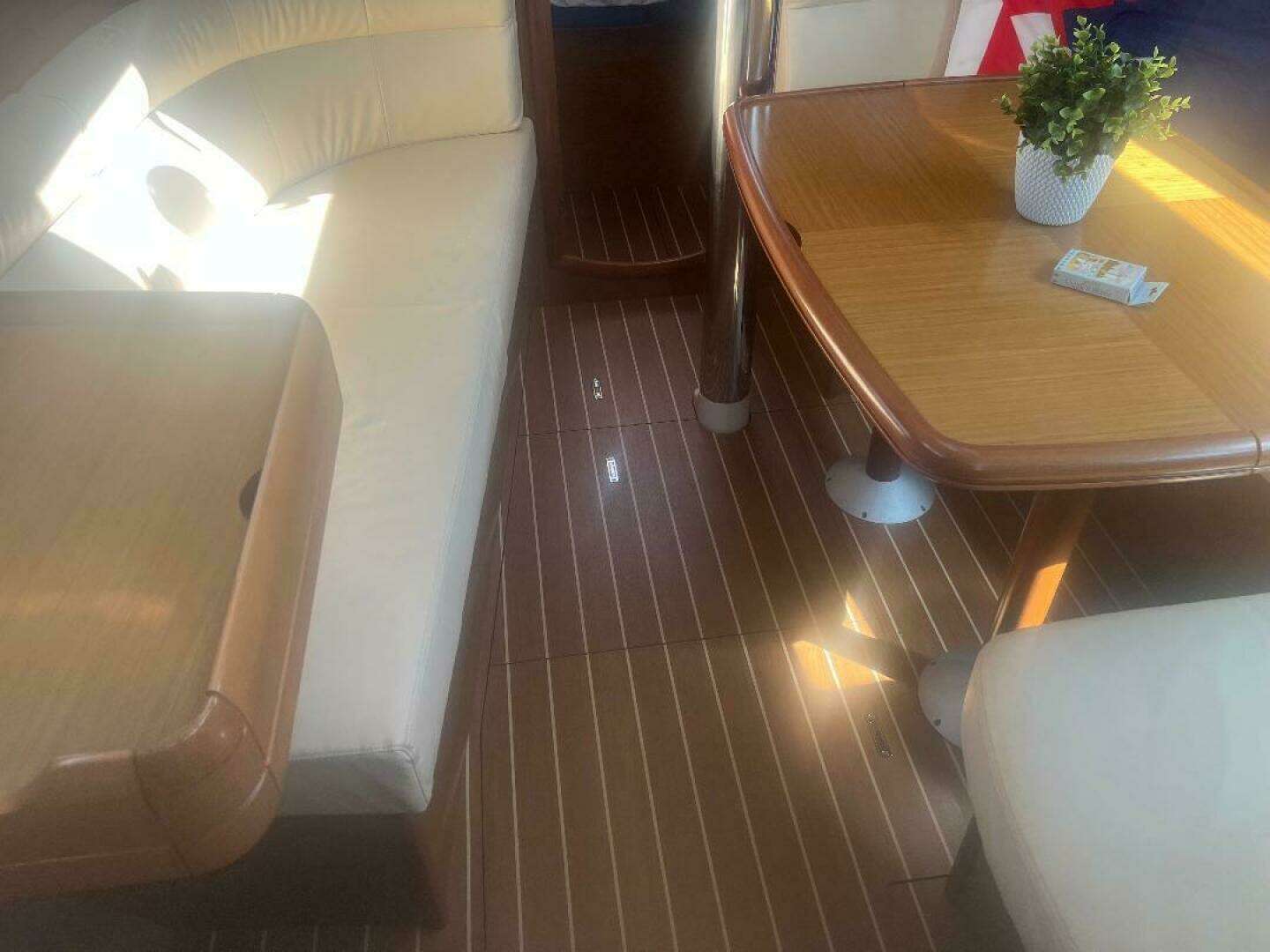

                               Laminated floorboards with light-colored lines, finished in satin UV stabilized varnish, varnished edges

               Forward Cabin

                               Forward owner’s cabin with central berth and storage forward of the berth

                               Double berth with wood trim, high density foam mattress

                               Double cabinet with shelves and hanging rod

                               Wood hull liner with storage shelf, vinyl liner above shelf

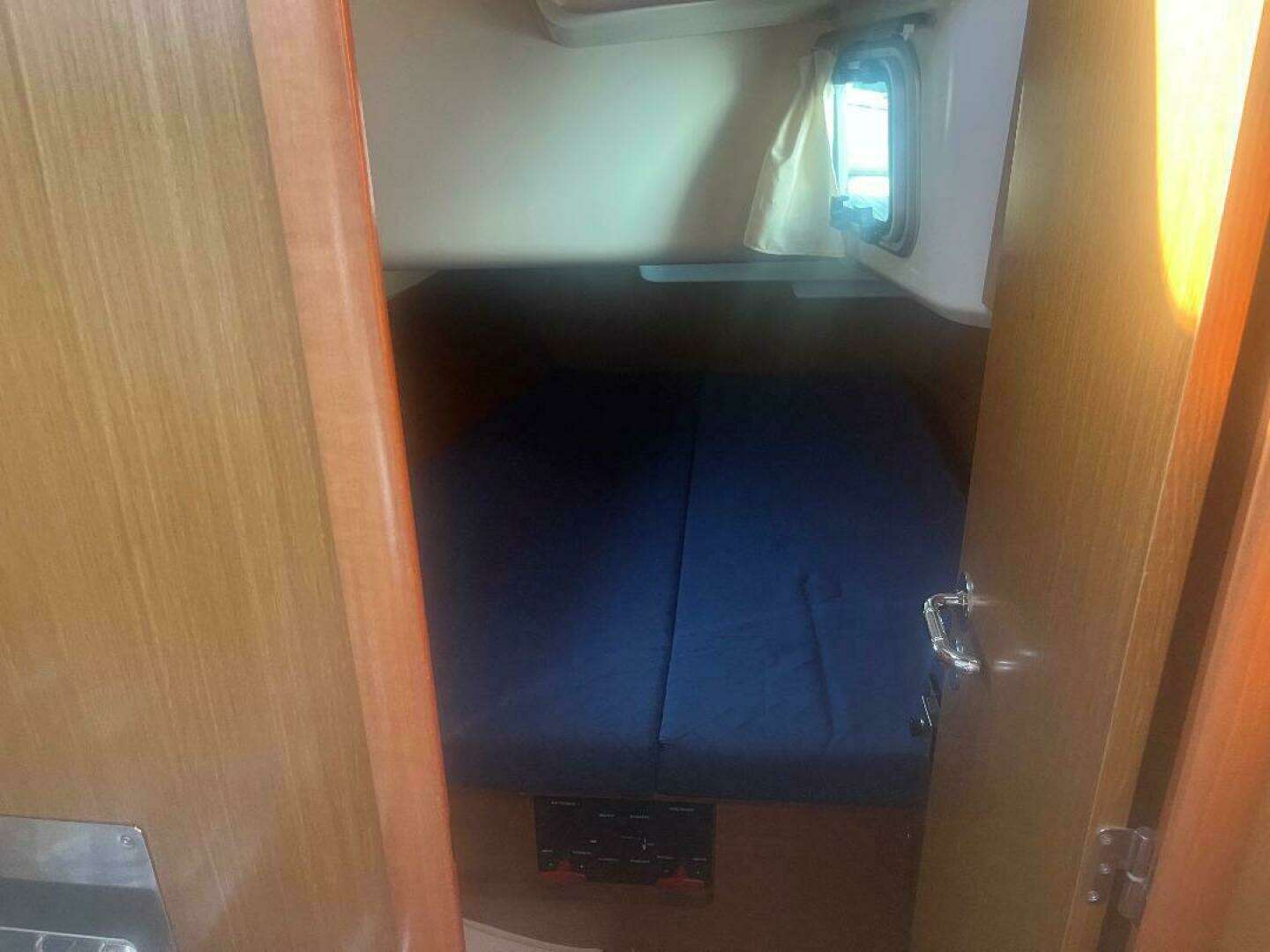

               Twin Aft Cabins

                               Double berths, high density foam 6’7” x 4’10”

                               Deep cabinet with shelves and hanging

                               Wood hull liner with storage shelf, vinyl liber above shelf

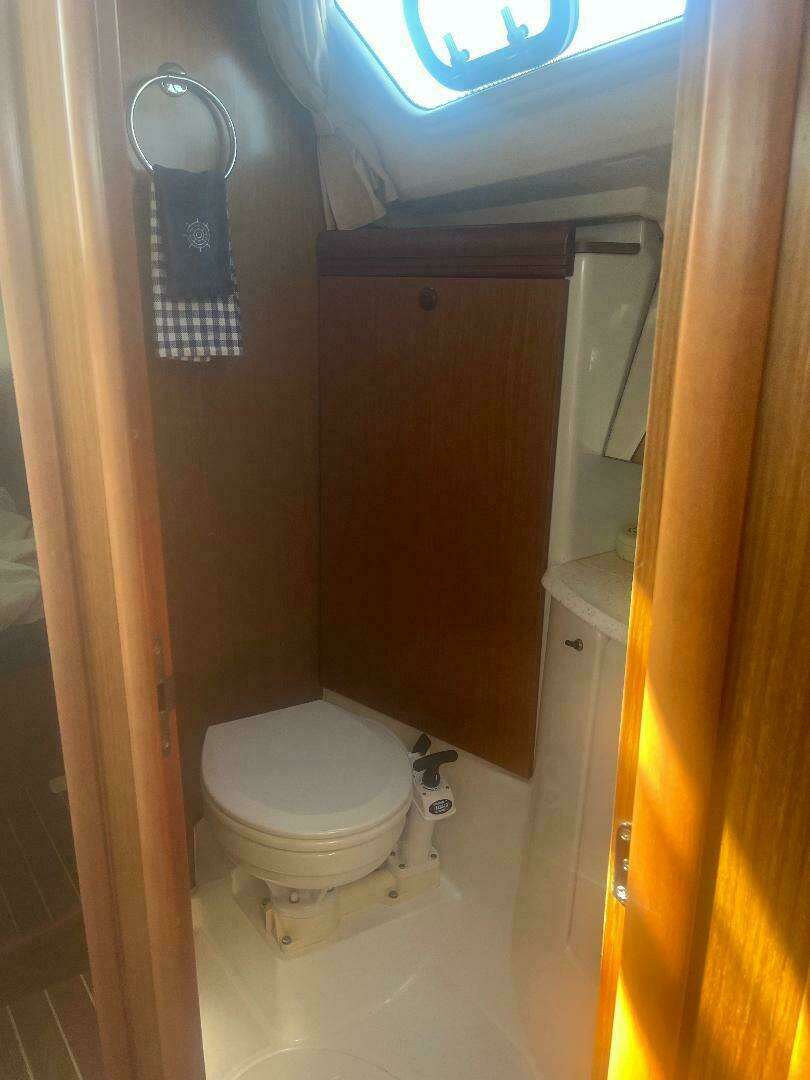

                               Head compartment aft with sink, shower, clothes hook, mirror, towel holder, toilet paper holder, wastebasket, cabinet above sink, shower sump with grate and electric drainage pump, access from saloon

               Navigation saloon

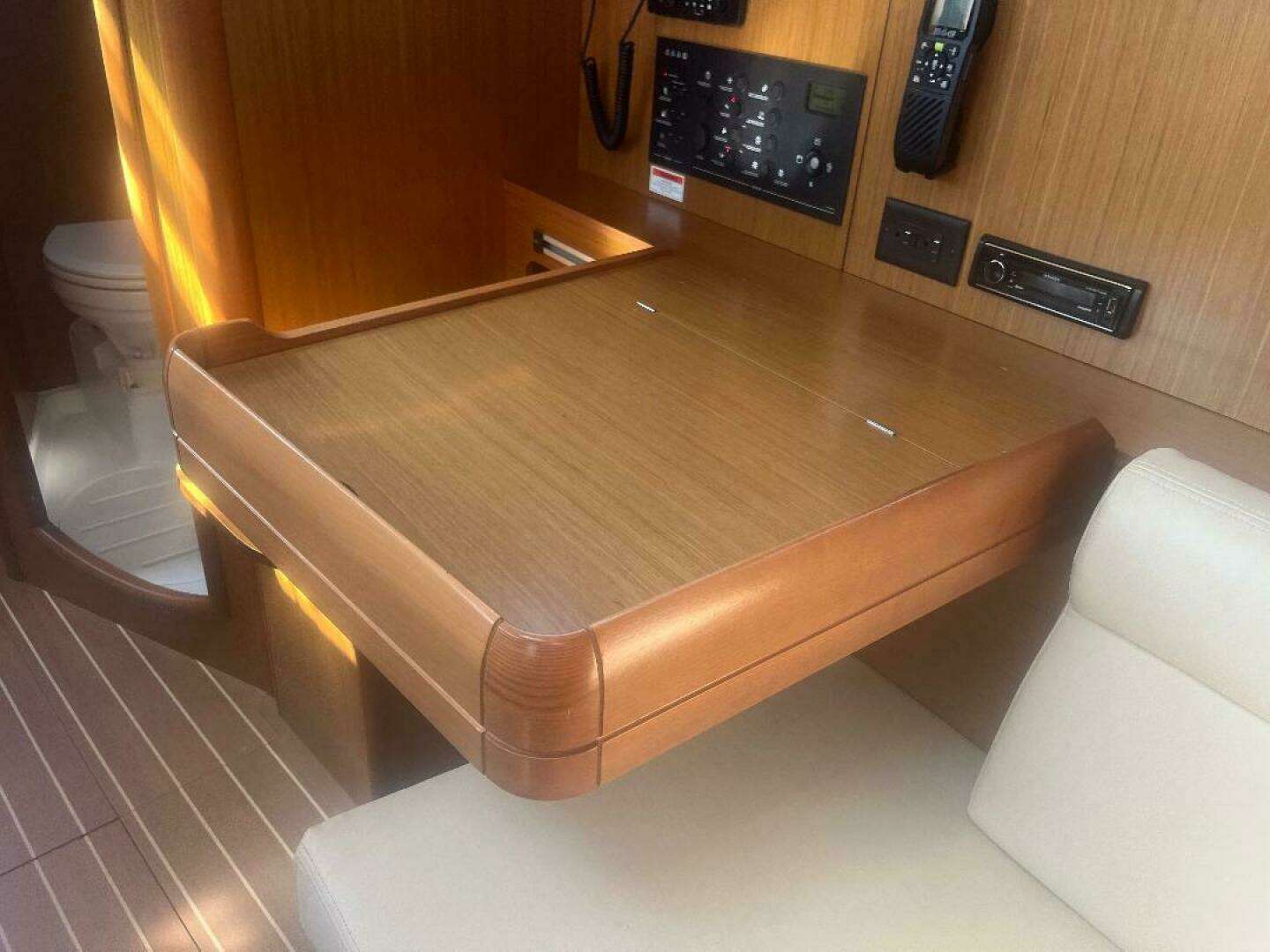

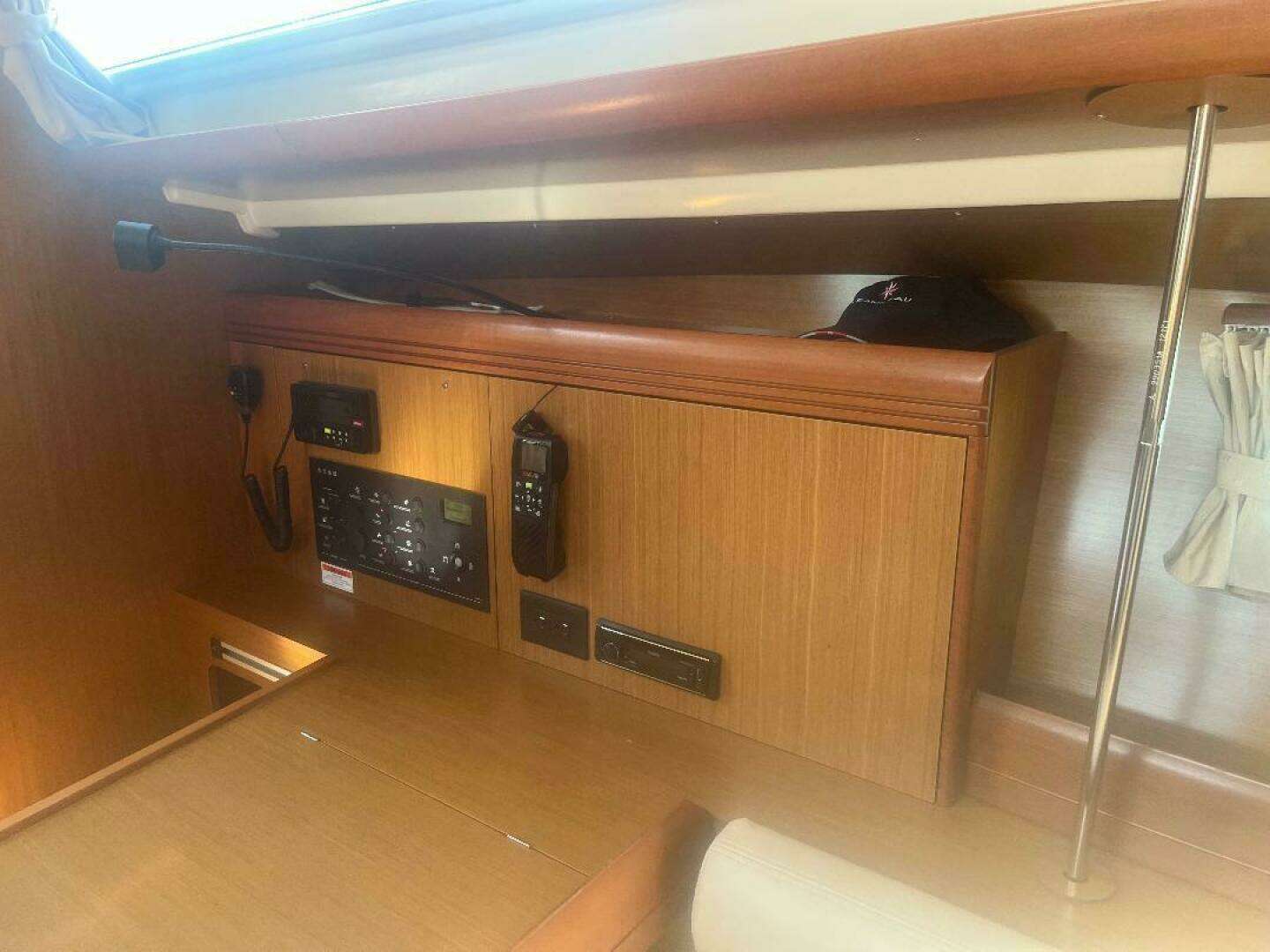

                               Navigation station full function with genera electrical panel, room for the latest in GPS chartplotters and bookshelf

                               Sliding nav desk that can be placed in forward-facing position for increased seating with curved nav seat and storage underneath

                               Deep navigation desk with storage

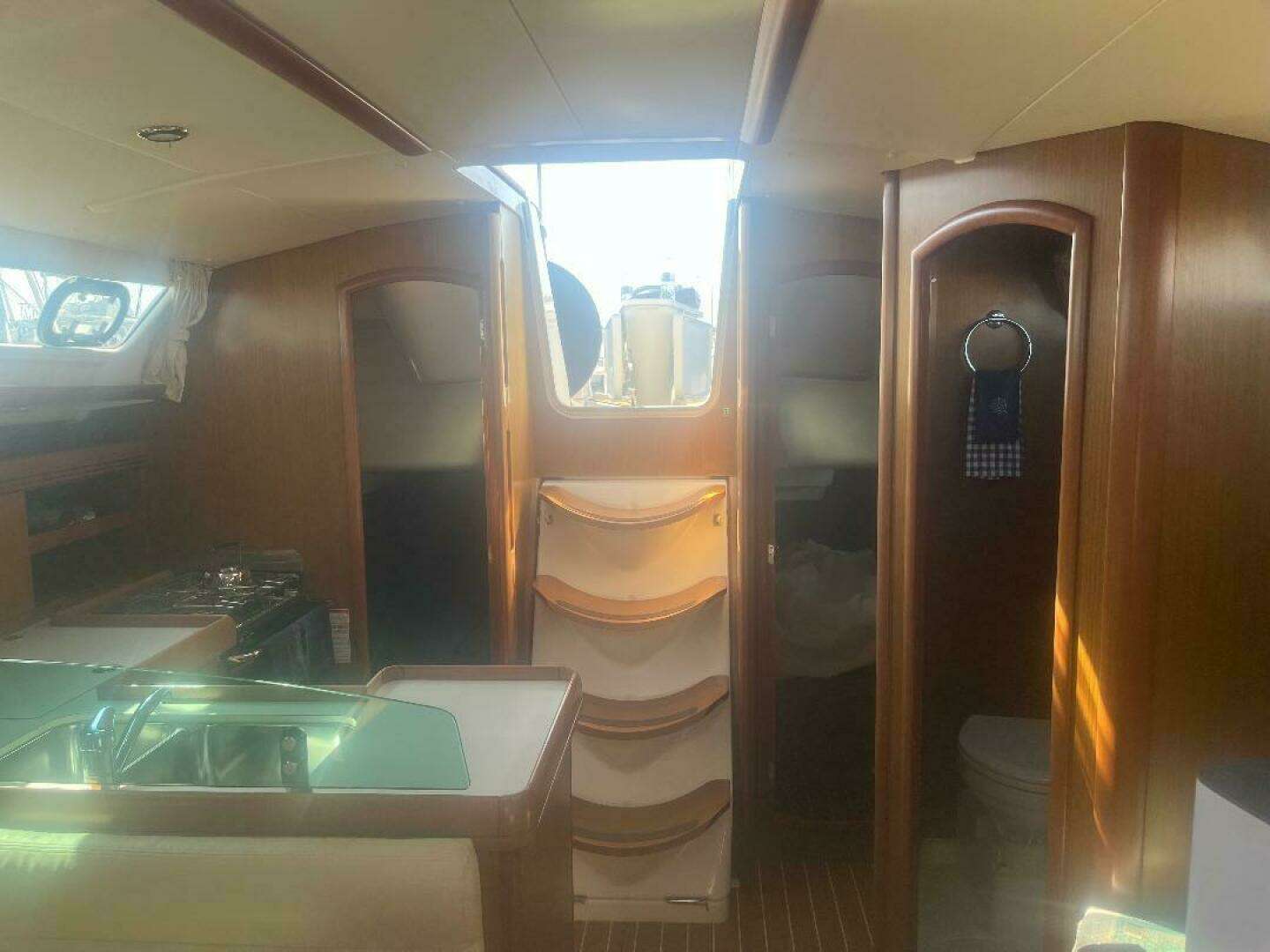

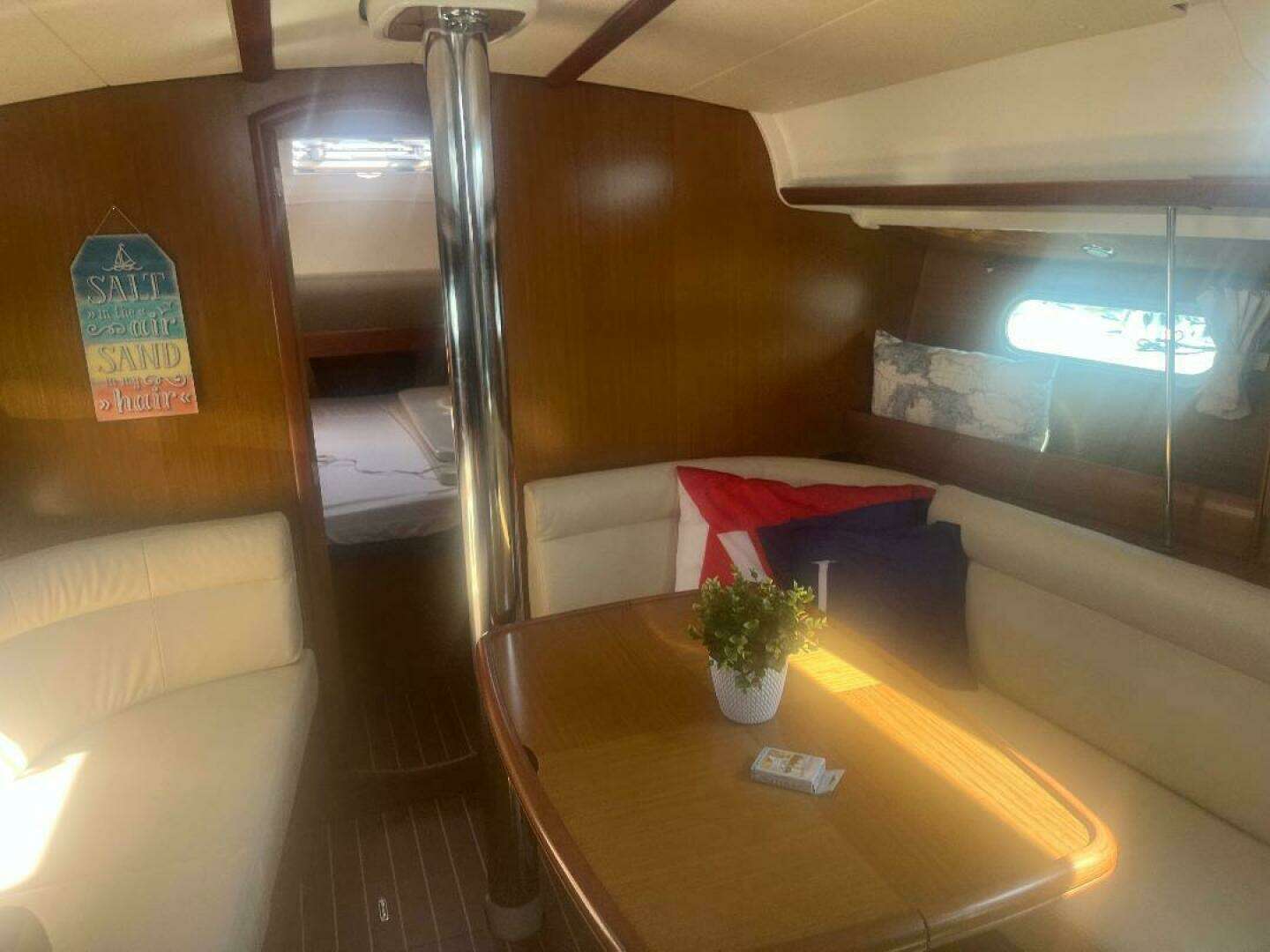

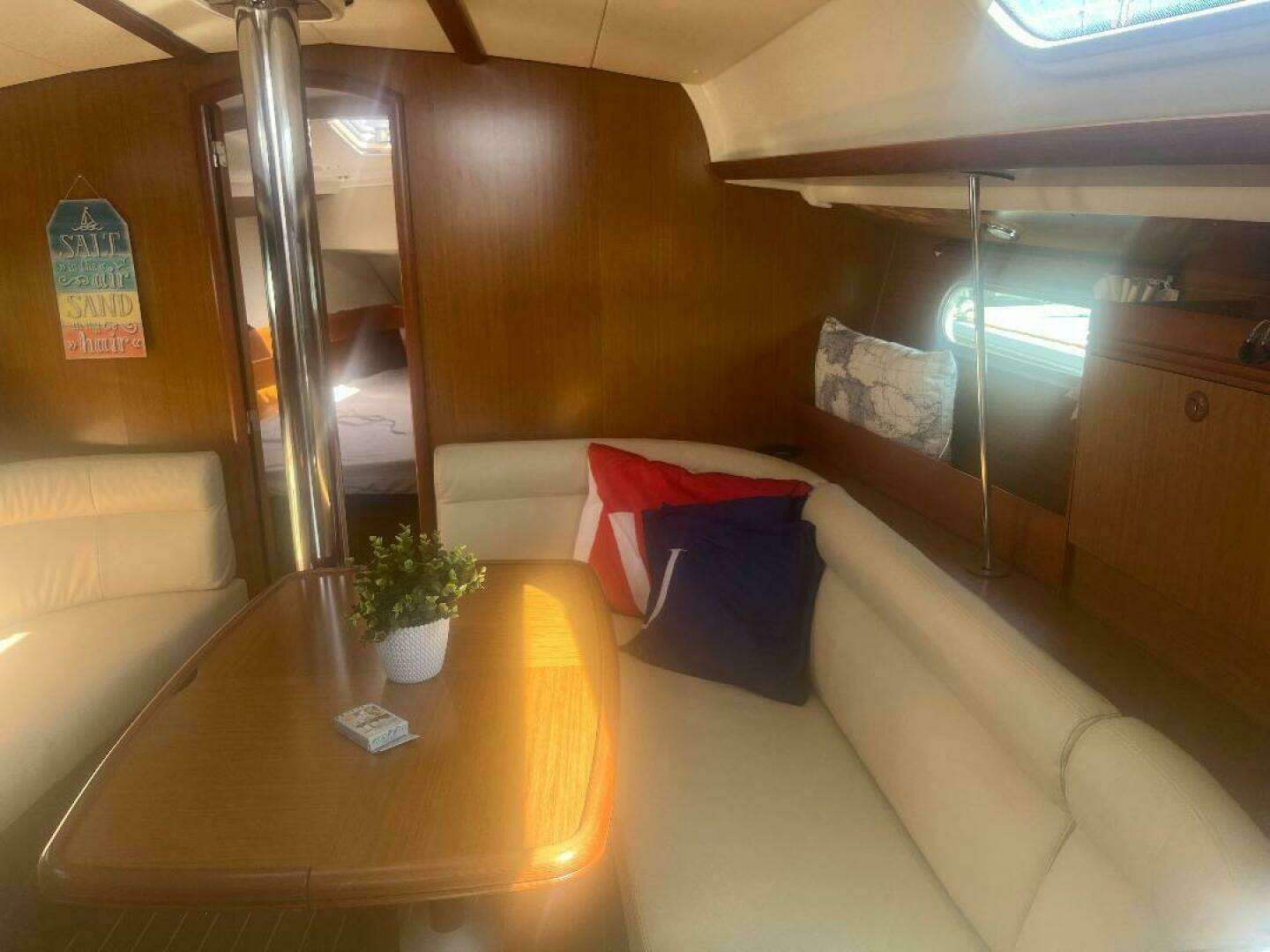

               Saloon

                               Saloon with U-shaped seating area to starboard, wrap-around cushions and storage under seating area

                               Saloon dining table with wood fiddles, removable pedestal legs

                               Bar locker and bottle storage

                               Upper storage cabinets

                               Lounge seating to port with plush cushions and cushions facing tables

                               Companionway with cured wood steps and non-slip strips

                               Plexiglass companionway door with dedicated storage location in the aft starboard cabin

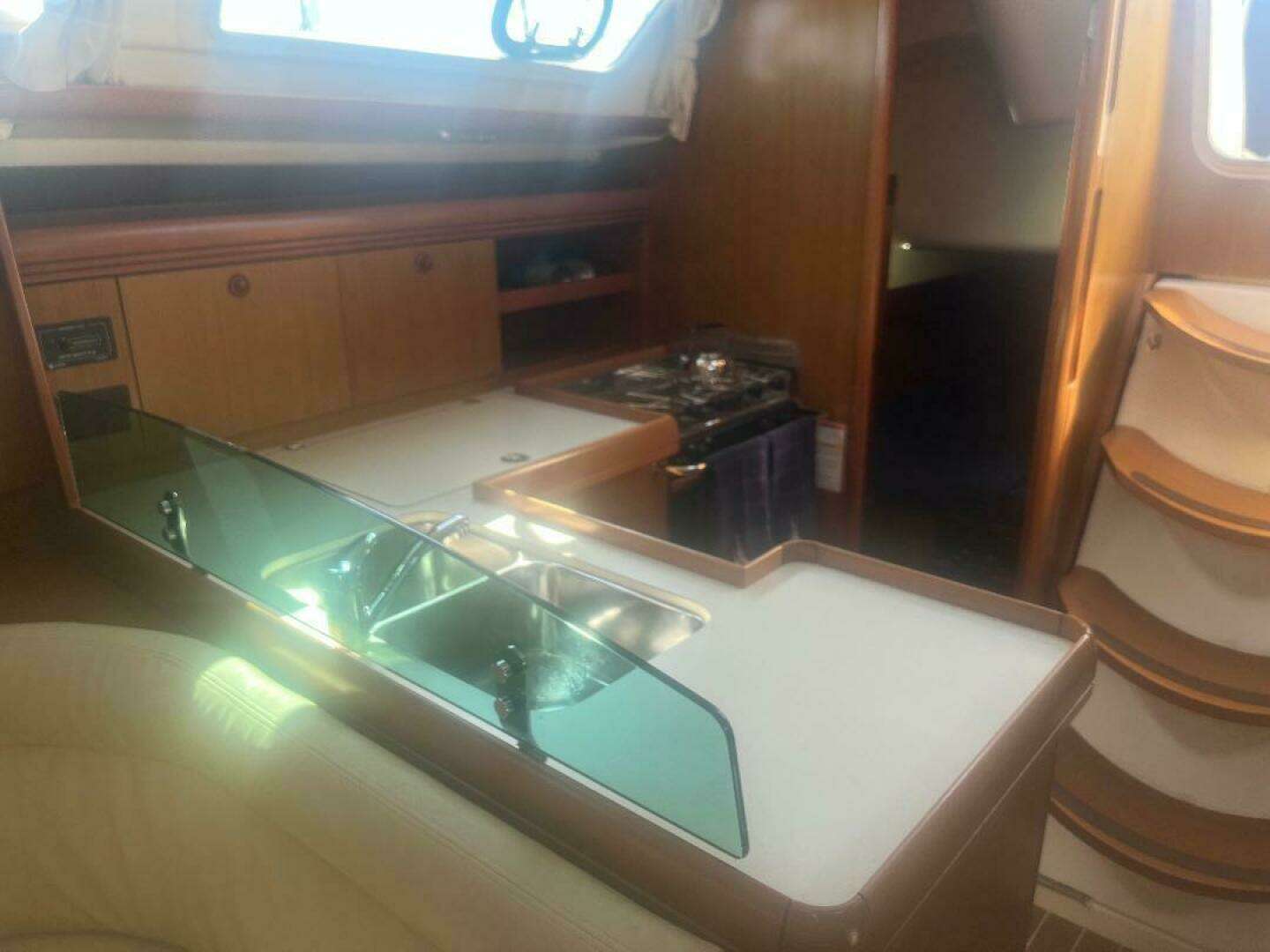

               Galley

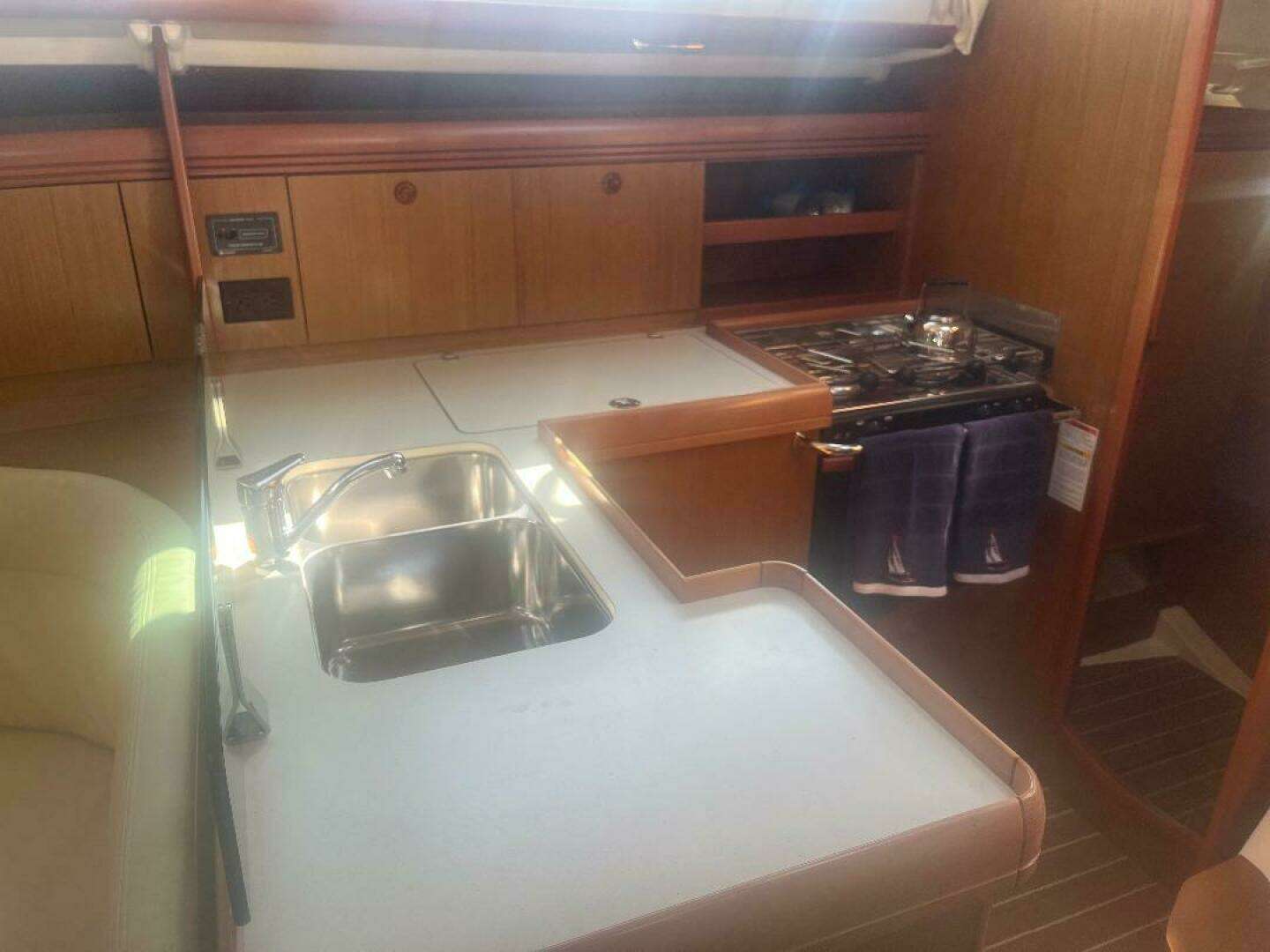

                               Galley with double stainless-steel sinks with cover and reversible cutting board, solid surface countertops, chrome plumbing fittings, strange cabinets and drawers

                               L-galley to port with glass separator between galley counter and seating area

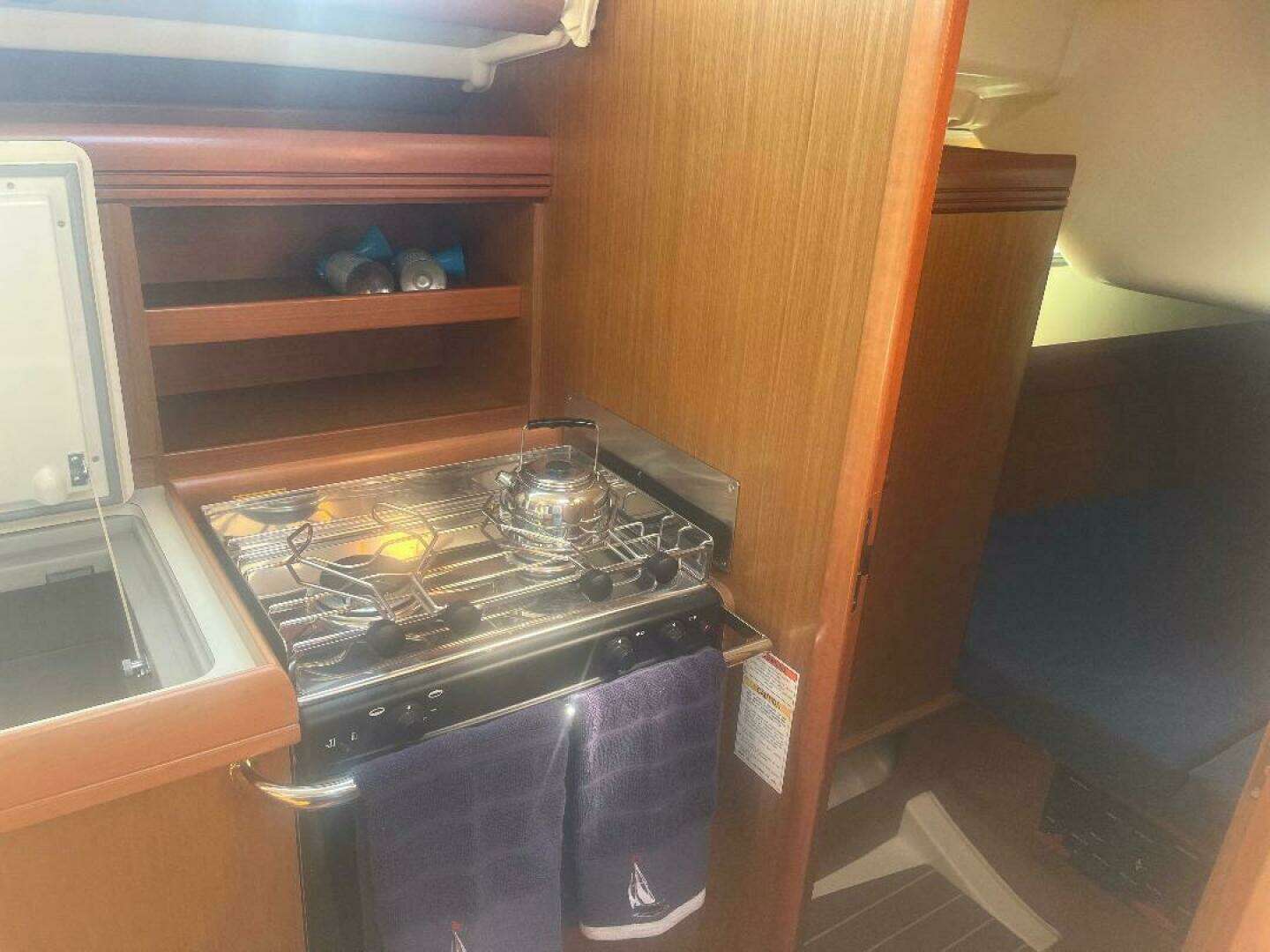

                               Gimballed 2-burner stove with oven with stainless steel protection bar

                               Luxury 2-burner stove with black finish, wood handle, stainless steel oven/broiler

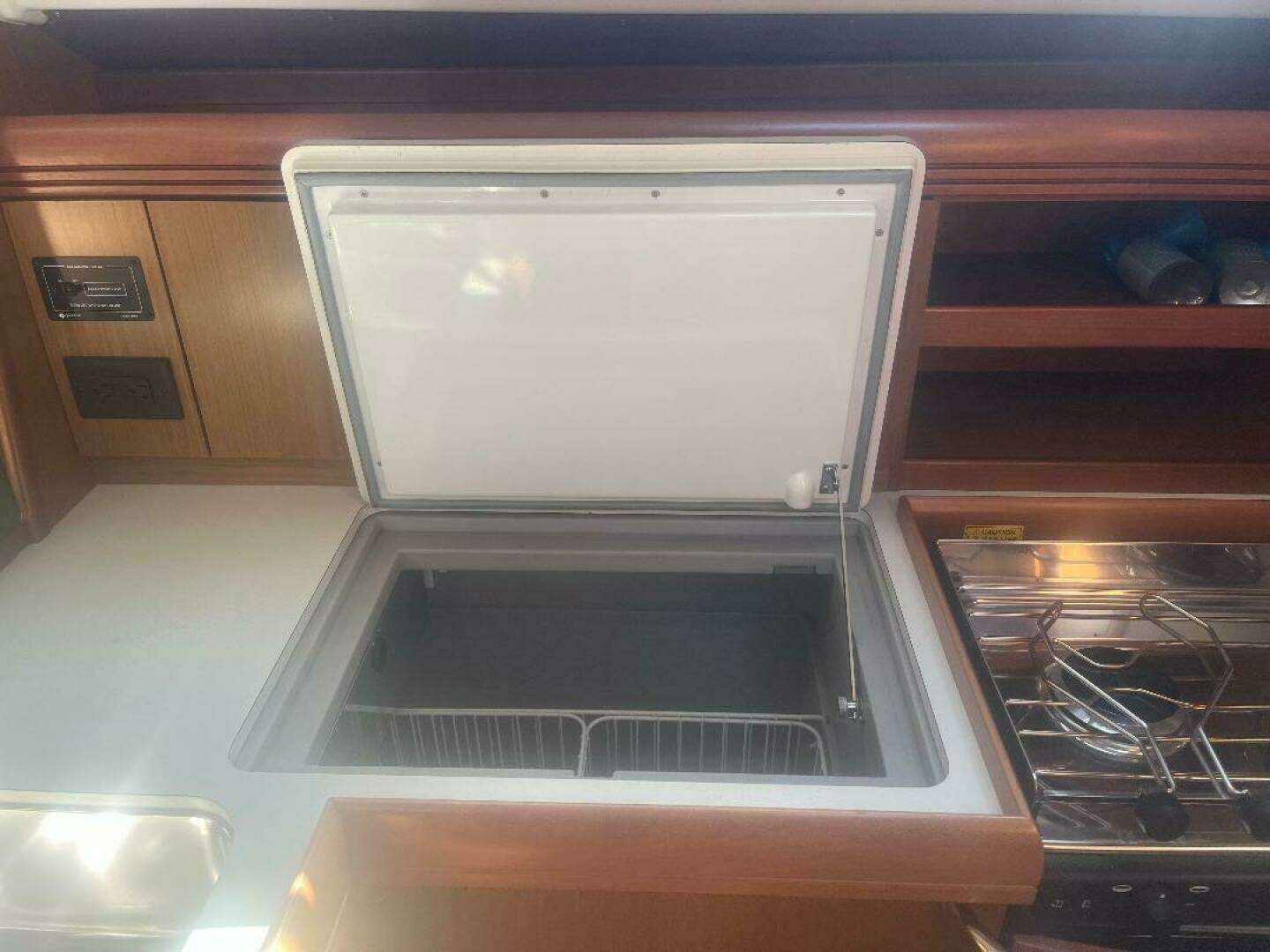

Single fridge box with freezer area, wire baskets, interior lighting comes on when door opened, 12v refrigeration and integrated compressor

Headroom

               Forward cabin                 6’2”

               Aft cabins                          6’5”

               Companionway             6’6”

               Saloon                                6’3”

               Galley                                 6’4”

C Cushions for side benches and each helm station

Sails

               Quantum Sunbrella Mainsail SailPack

               Quantum MC6000 16K DPI Race/Cruiser Mainsail 42.110m2

               Quantum MC6000 16K DPI Racer/Cruiser Genoa 41.472m2

Nort Sails Asymmetric Code 1.5A Norlon 75 with Snuffer sock

Instruments

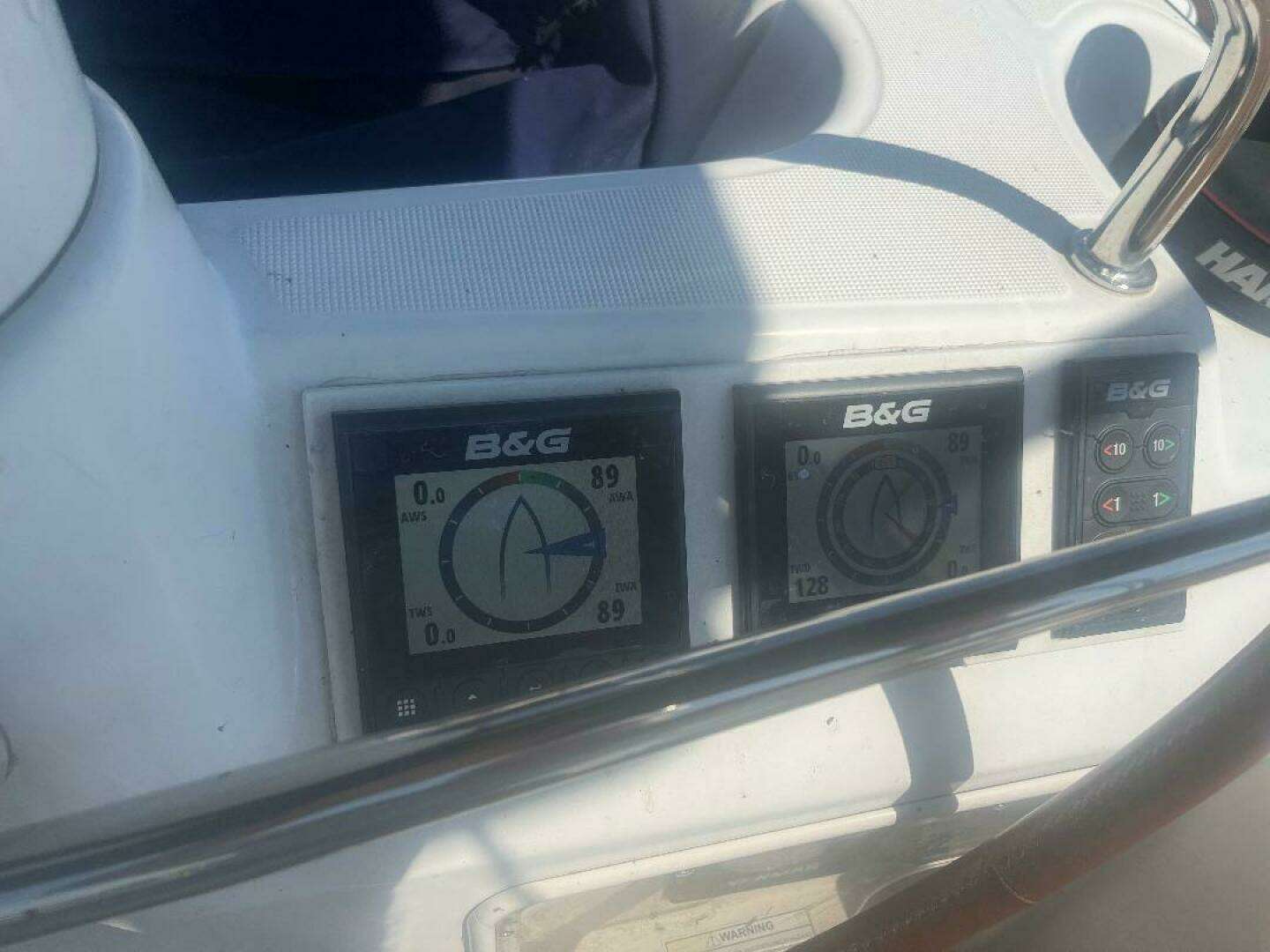

               B&G Triton 2 Digital Display(4)

               B&G Triton2 Autopilot Controller/Display

               B&G VHF W/L Handset, H50

               B&G H50 VHF Marine Radio with AIS and DSC

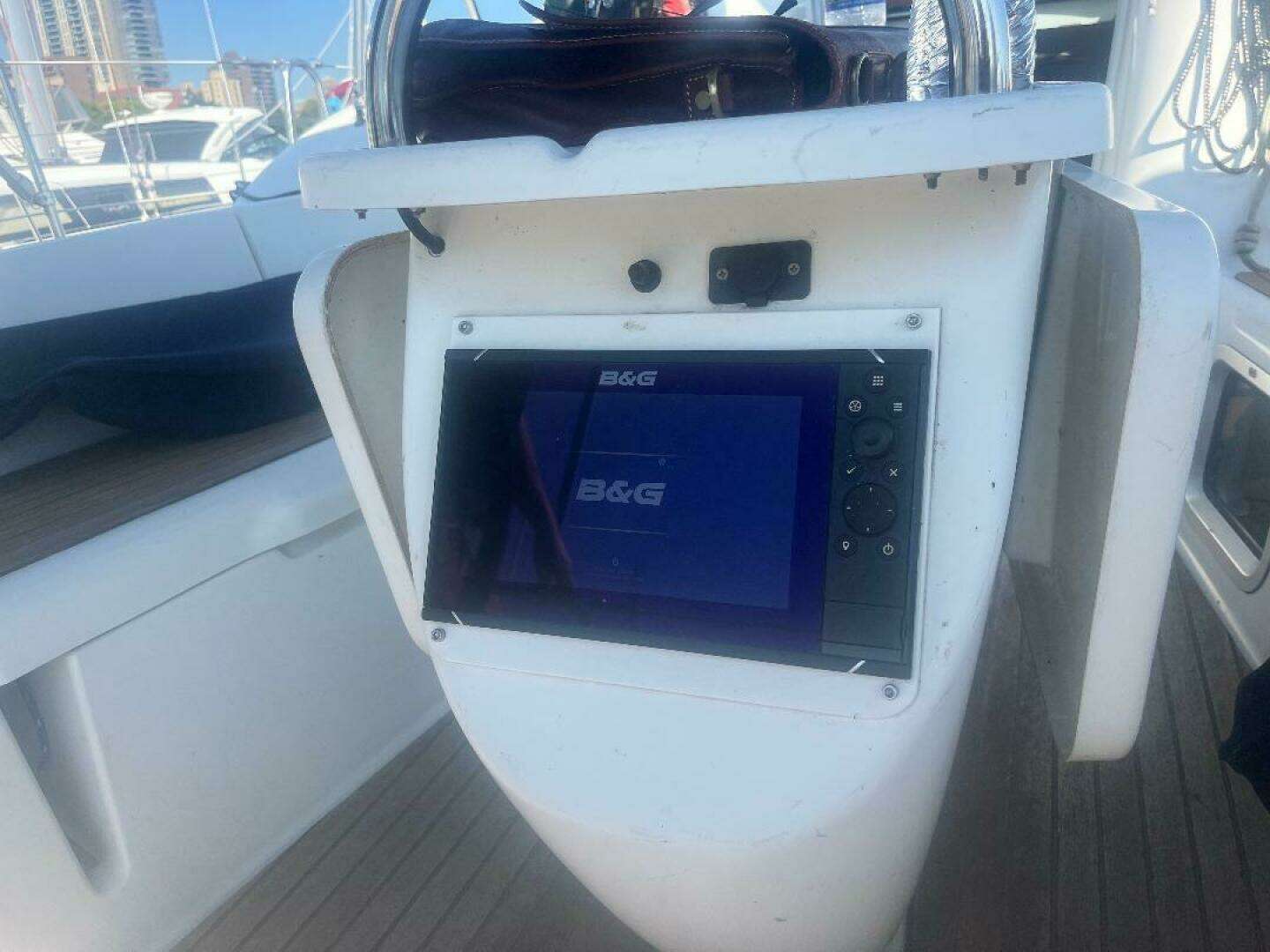

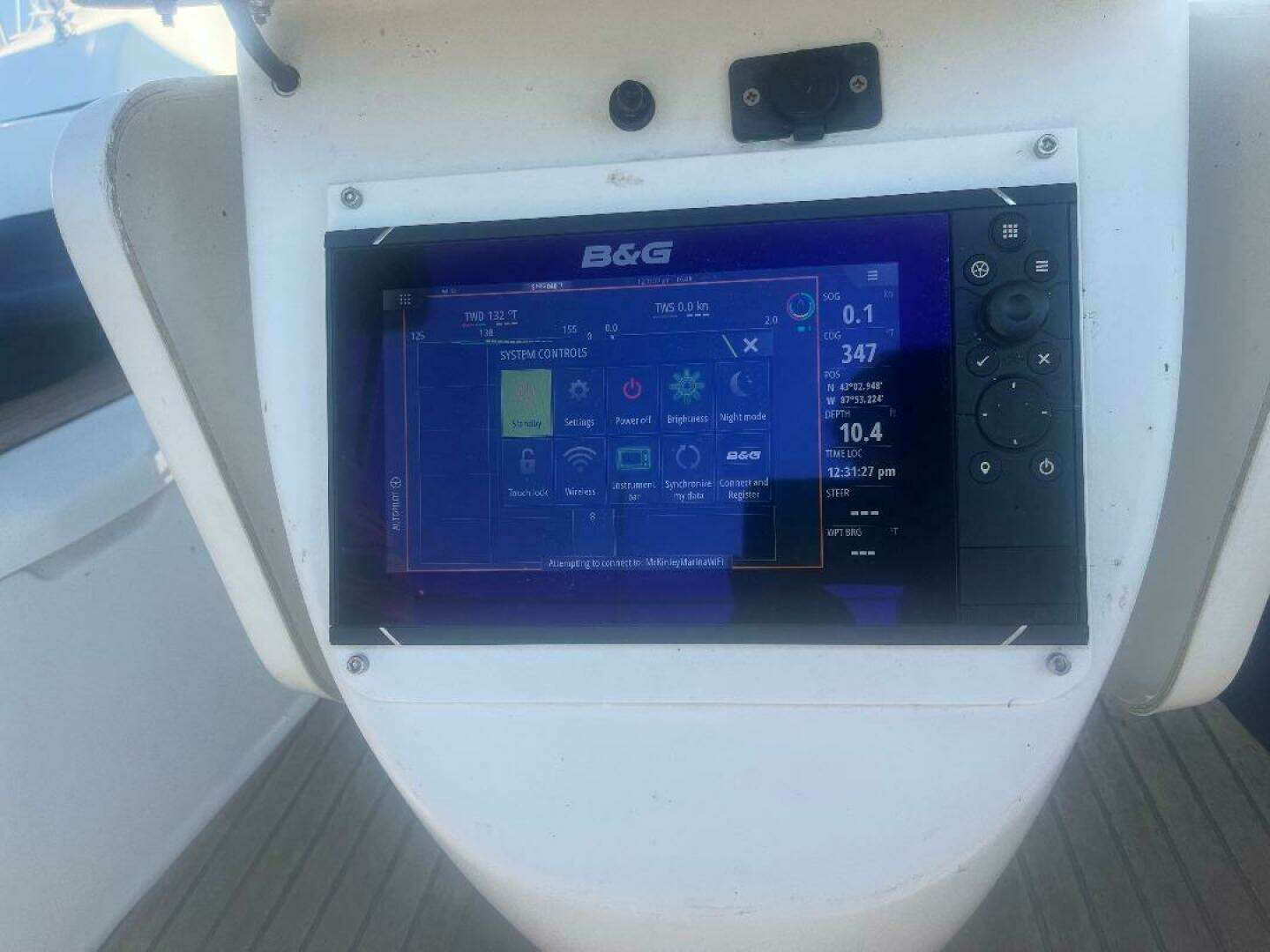

               B&G Zeus3-9 Multifunction Display
