Standard and Optional Features

Standard Equipment

• All rails welded 316-L stainless steel
• All hardware 316-L stainless steel

Deck/Cockpit

• 10" Stainless steel pull-up cleats: bow (2), spring line (2), crosstie cleats at transom (2)
• 10" Stainless steel cleats: stern cockpit with gunnel board hawse pipe (2), anchor locker (1)
• 29" interior freeboard
• Acrylic transom door with stainless steel latch
• Anchor - galvanized
• Anchor roller davit - stainless steel thru hull
• Bow eye - heavy duty polished stainless steel
• Chrome Boston Whaler Logo
• Dive door - molded fiberglass boarding door on port side with removable stainless steel dive ladder with dedicated storage in transom seat
• Drink holders - stainless steel; (2) in bow, (2) in hawse pipes, (2) at helm, (2) at console lounge, (2) in cockpit couch armrests and (4) in couch flip table
• Full coaming bolsters from bow to stern
• Lighting - LED courtesy lights in mechanical bilge (4- white), bow seating storage compartments (3-blue), anchor working area (white) and console storage (3-white)
• Lighting - LED courtesy lighting throughout cockpit, blue rope lighting
• Motorwell drains
• Livewell - pressurized (60-gallon) located at the transom on centerline with acrylic lid, blue interior with removable divider and dual red LED lighting (2000 GPH pump)
• Rails - low profile interior bow rail - welded stainless steel
• Rails - cockpit toe rails - stainless steel
• Rails - grab rails - stainless steel; forward lounge (2), couch leaning post, cabin companionway
• Rod holders - stainless steel gunnel mounted; at bow (4), stbd cockpit (3), port cockpit (2), integrated into hardtop frame (6)
• Rod holders - stainless steel transom mounted (2)
• Rod holders - under starboard gunnel (3) for 6' rods (deleted with cockpit seating option)
• Rub-rail - heavy duty white rub-rail with stainless steel insert
• Self-bailing cockpit sole
• Swim platform with recessed telescoping boarding ladder and grab rail
• Under gunnel storage shelf with downrigger weight holders (2 per side)

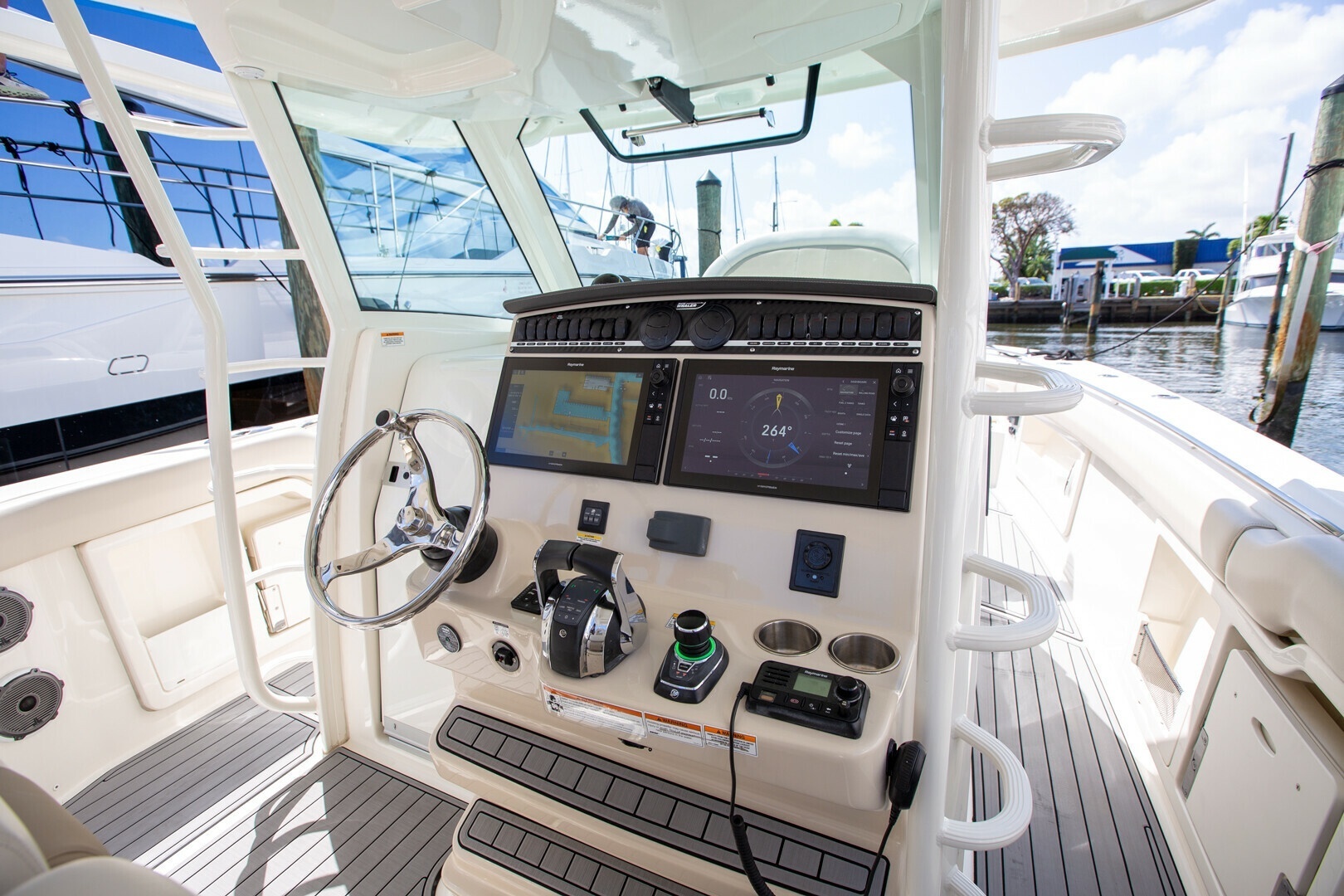

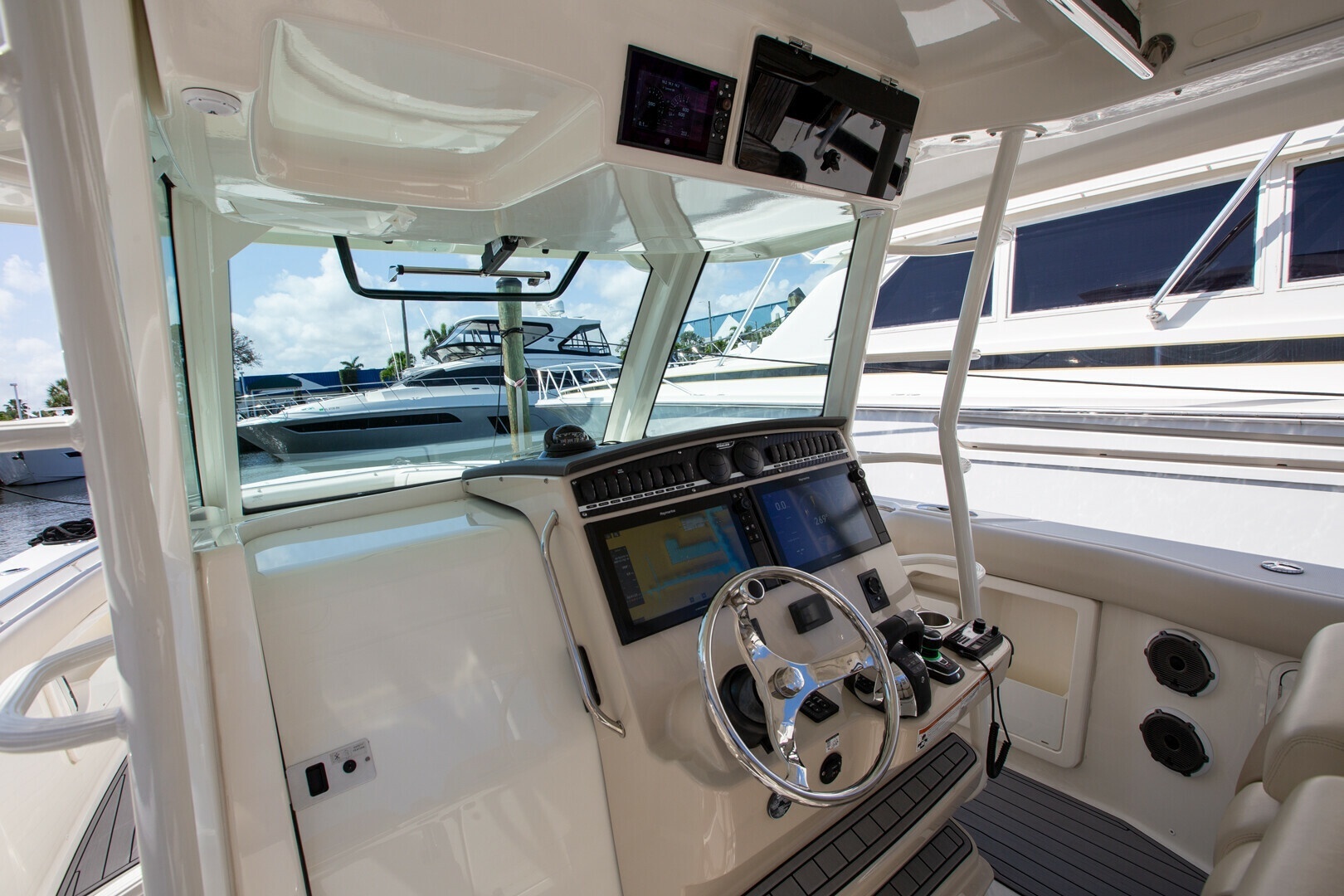

Console

• Center helm layout
• Compass with back lighting
• Dash visor with custom stitched cover and recessed storage tray with USB and 12v charging receptacles
• Electrical switch panel with illuminated text
• Drink holders (2)
• Electronics mounting surface with space for dual 16" displays
• Footrest molded into console with fold-down standing platform with maintenance free, anti-fatigue synthetic surface, provides improved visibility for captain and starboard passenger
• Ignition switches - remote key switches in main DC panel cabinet with pushbutton start/stop at helm
• Lockable acrylic sliding entry door
• Stereo (FUSION® MS-BB300)(integration into Raymarine with Navigation Package) - includes: FUSION® Black Box stereo with AM/FM/VHF/MP3, USB input, iPod/iPhone/Android compatible via integrated Bluetooth, Sirius XM option ready, stereo remote controls with LCD display and full audio control from cabin, helm and bow, JL Audio waterproof speakers - exterior, 6.5" aft cockpit (2), 7.7" at helm deck (2), 7.7" component at bow (2), 10" sub-woofer at helm deck (1), 6.5" in cabin (2) with JL Audio amplifiers
• Mercury DTS dual binnacle controls with integrated engine trim controls
• Steering wheel - cast stainless steel with knob and tilt helm

Seating

• Foldaway stern bench seat

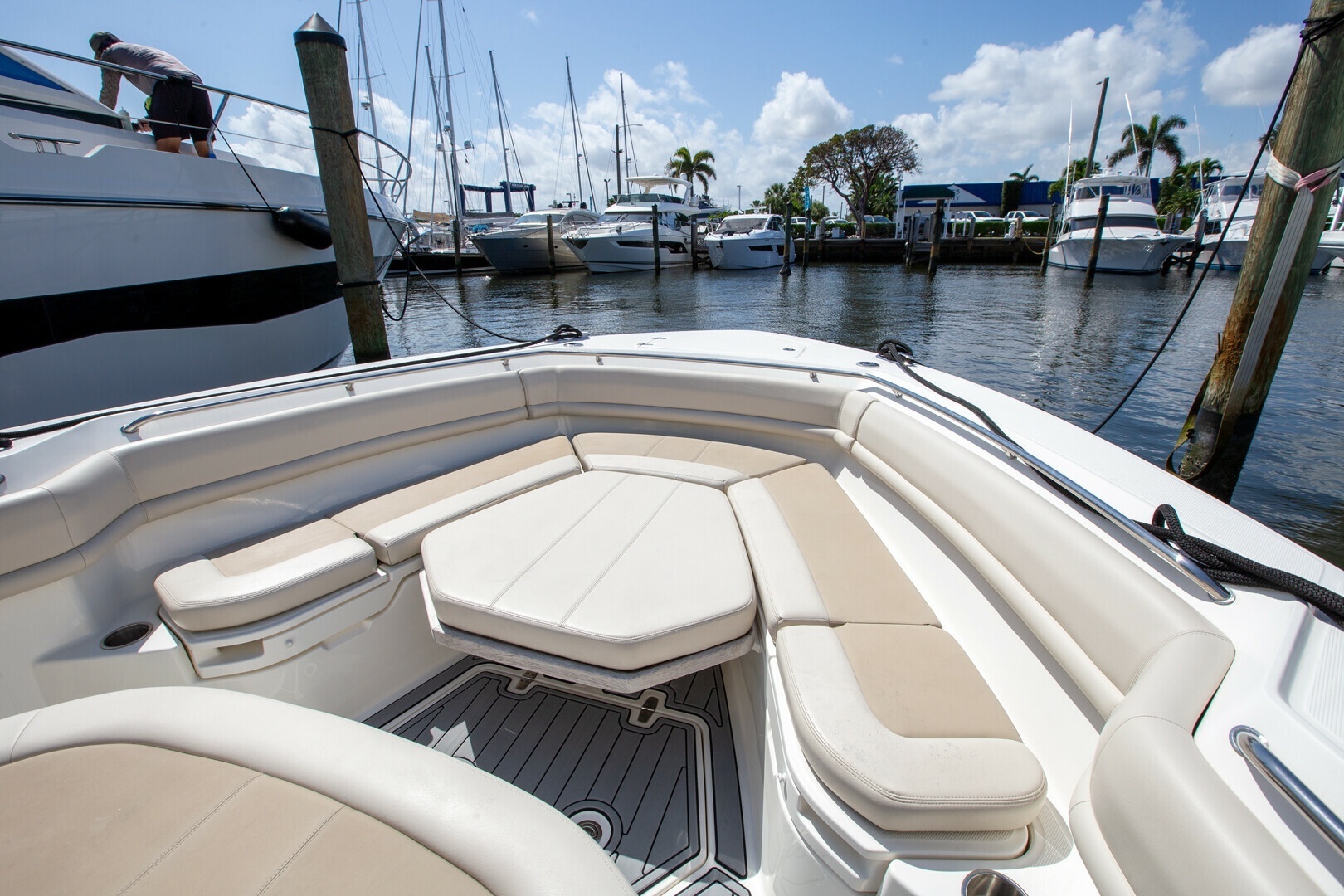

• Forward deck wrap-around seating with flip-up backrests, drink holders (2), stereo remote and fish box pump out switch

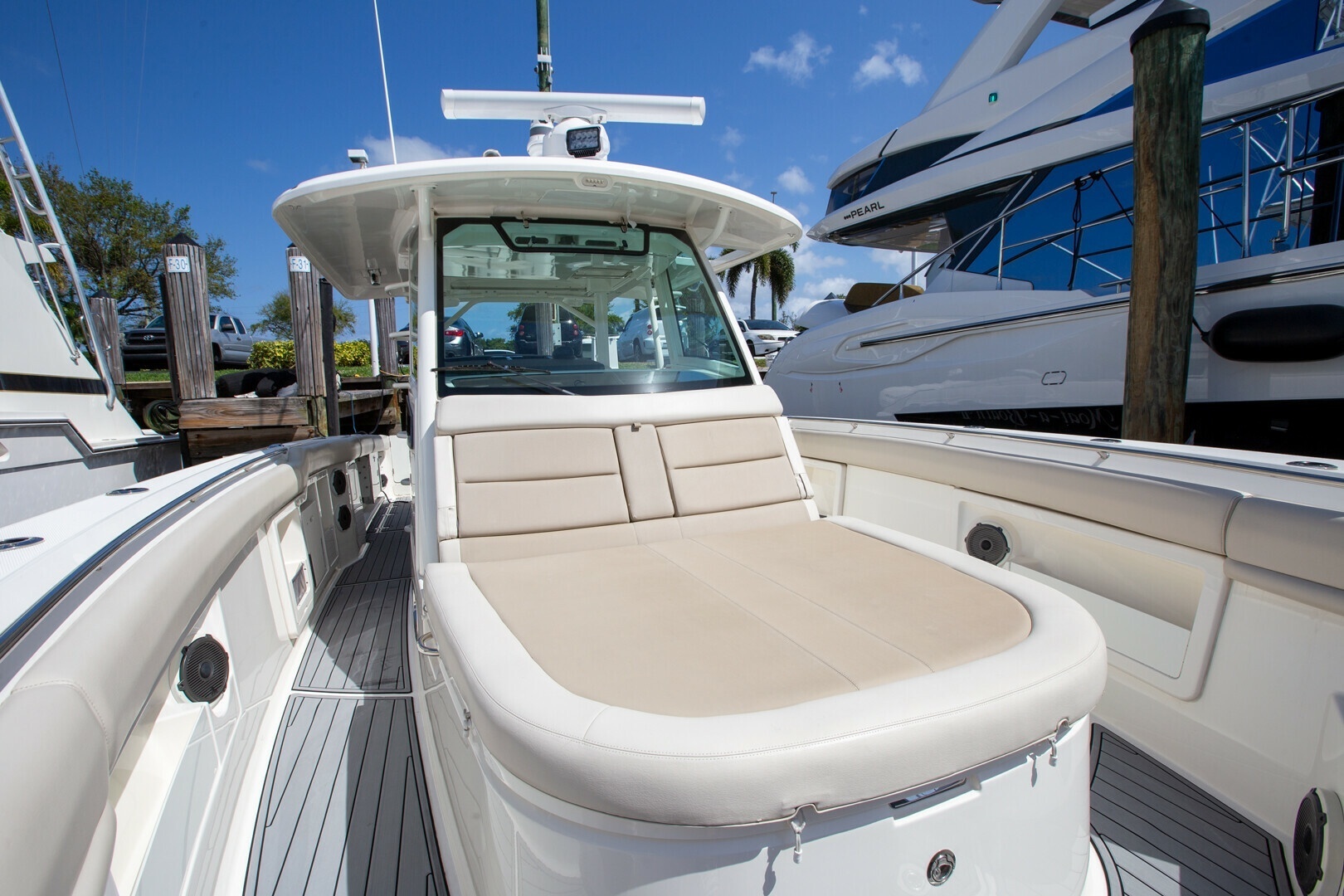

• Forward console lounge with fold-down armrests, drink holders (2) center armrest with (2) cup holders and 2 outboard arm rests (when center is folded down it provides access to dual USB charging ports)
• Helm and companion bolster style seats (3) with fold-down armrests (center seat is electrically actuated, side seats have manual fore and aft adjustment)
• Aft facing seating with stainless steel cup holders integrated into the arm rest (2)

Storage Exterior

• Bow anchor locker with drains
• Insulated in-floor fishboxes with pump-out; aft (2) forward (1)

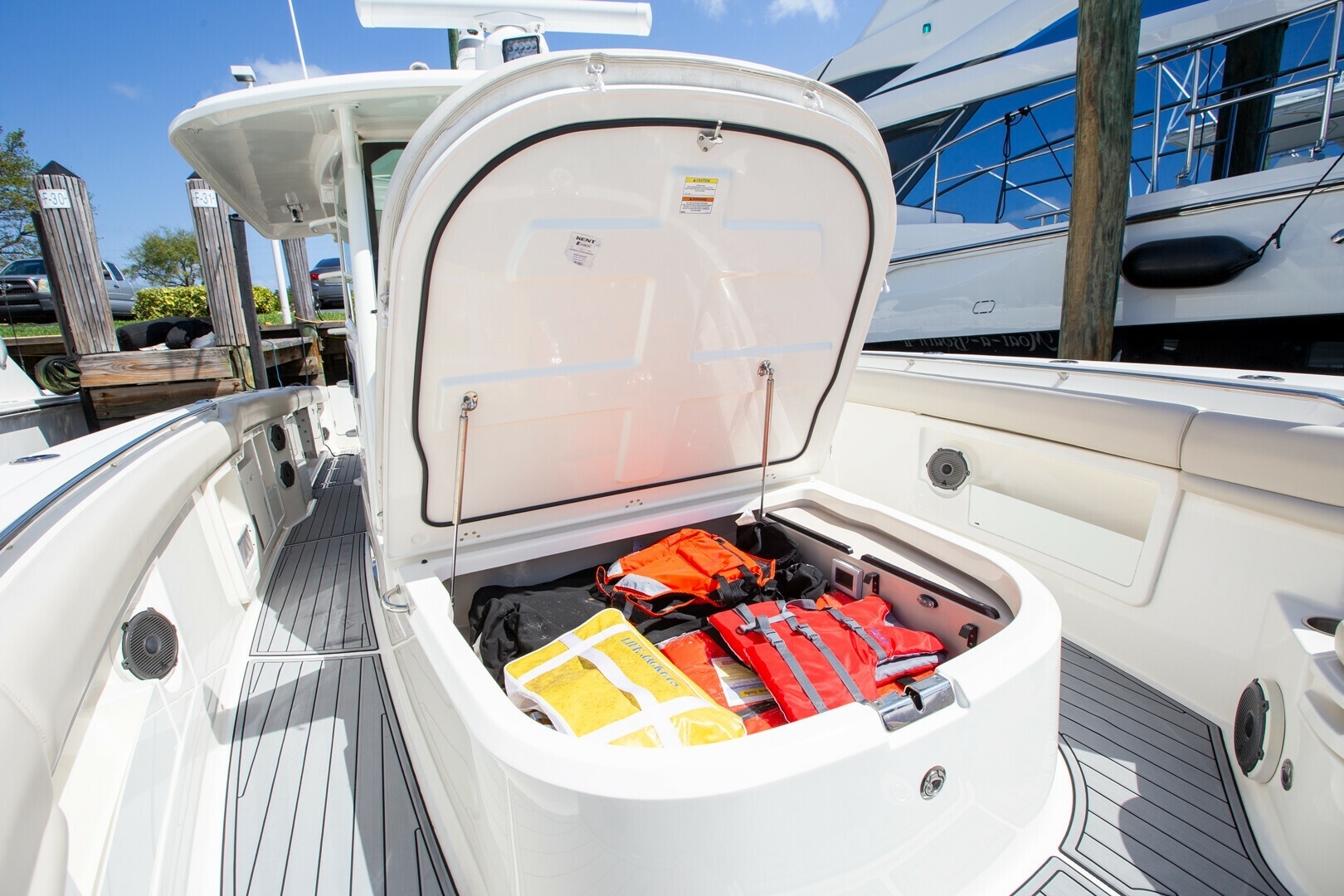

• Lifejacket or optional canvas enclosure storage in the hardtop
• Lockable console front storage - holds (2) five gallon buckets and one 36-qt cooler (included)
• Storage under bow seating with LED blue lighting
• Under gunnel cockpit storage shelves
• Helm Deck side coaming pockets with storage nets and blue LED lighting
• Bow side coaming pockets with storage pockets and blue LED lighting
• Insulated storage compartment under aft facing seat with drain and insulated sealed lid (upgradable to livewell option)

Storage Interior

• Storage cabinet on port side
• Storage under galley
• Storage in head

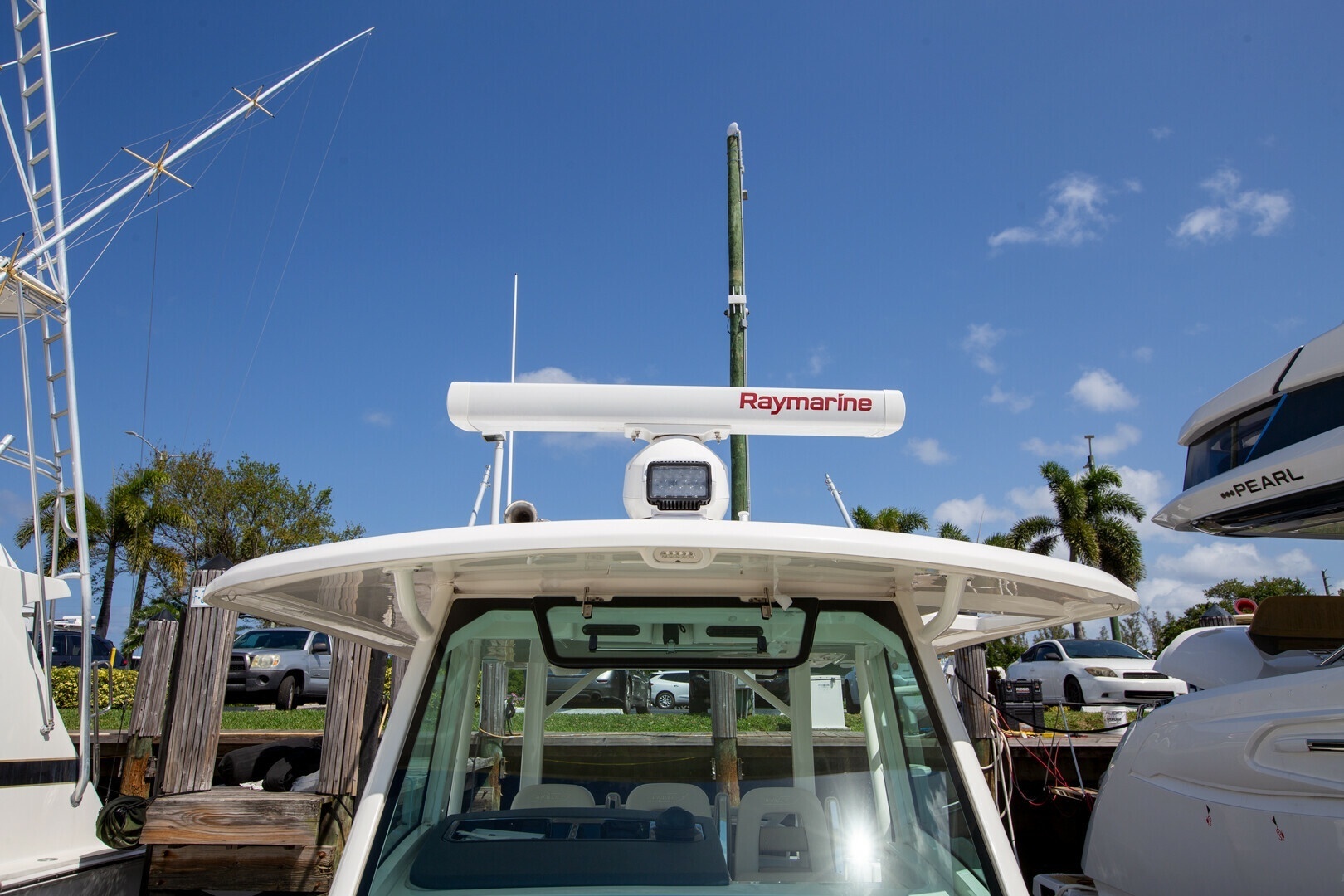

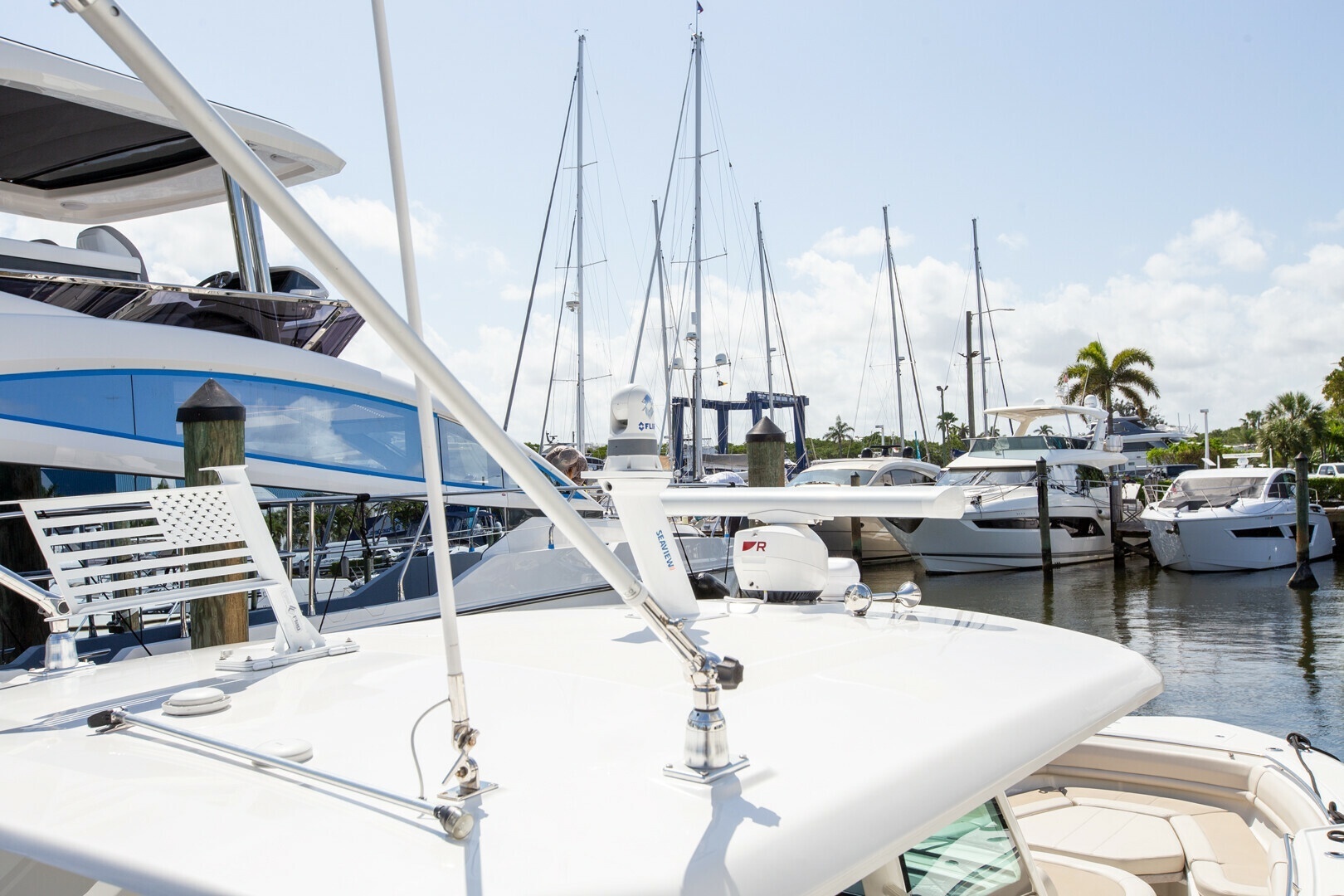

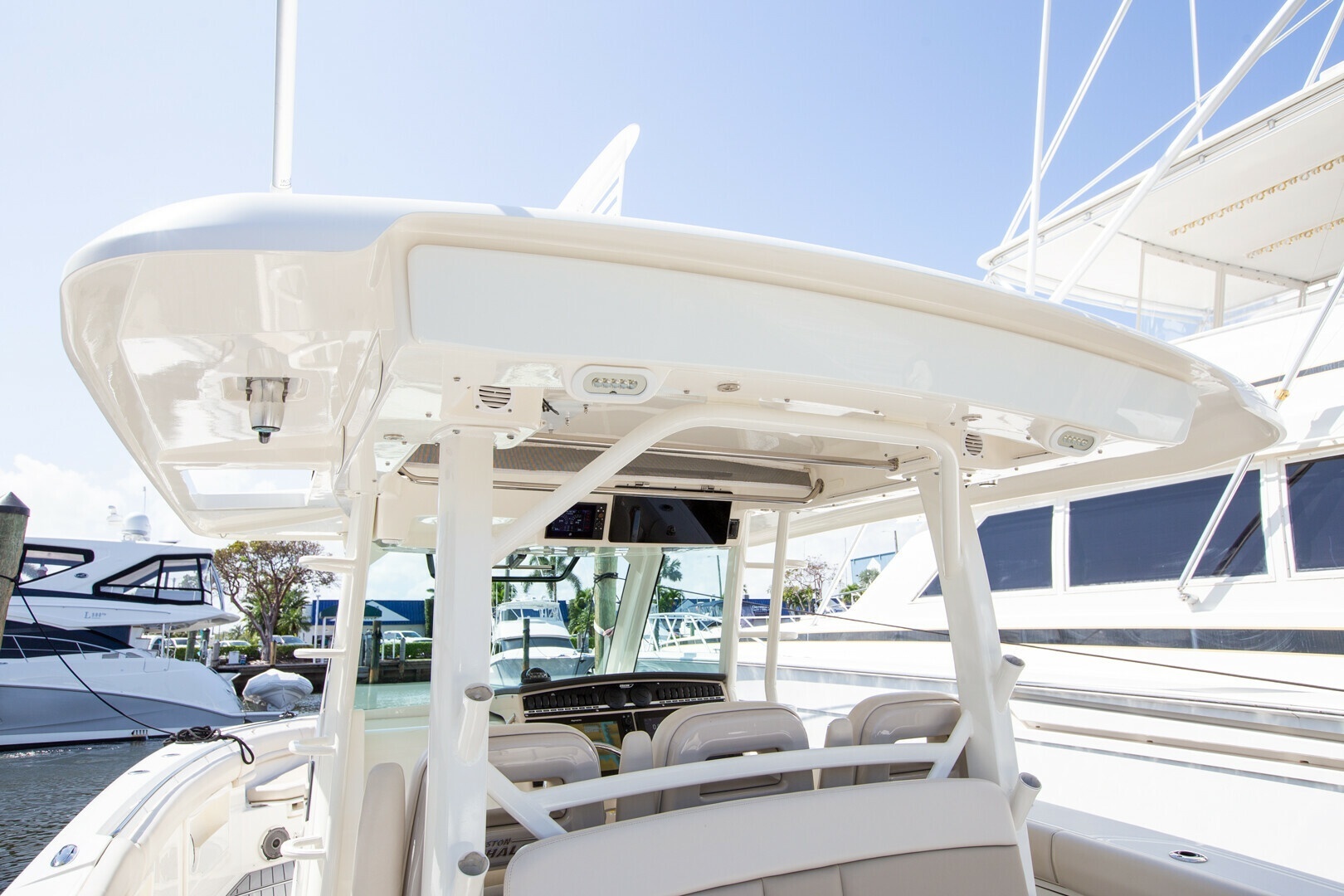

Hardtop/Windshield System

• Flood lights (2) recessed into hardtop lighting cockpit area
• Flood light (1) recessed into hardtop lighting bow area
• Hardtop support frame - custom powder coated aluminum frame integrated into the deck providing unobstructed walkways

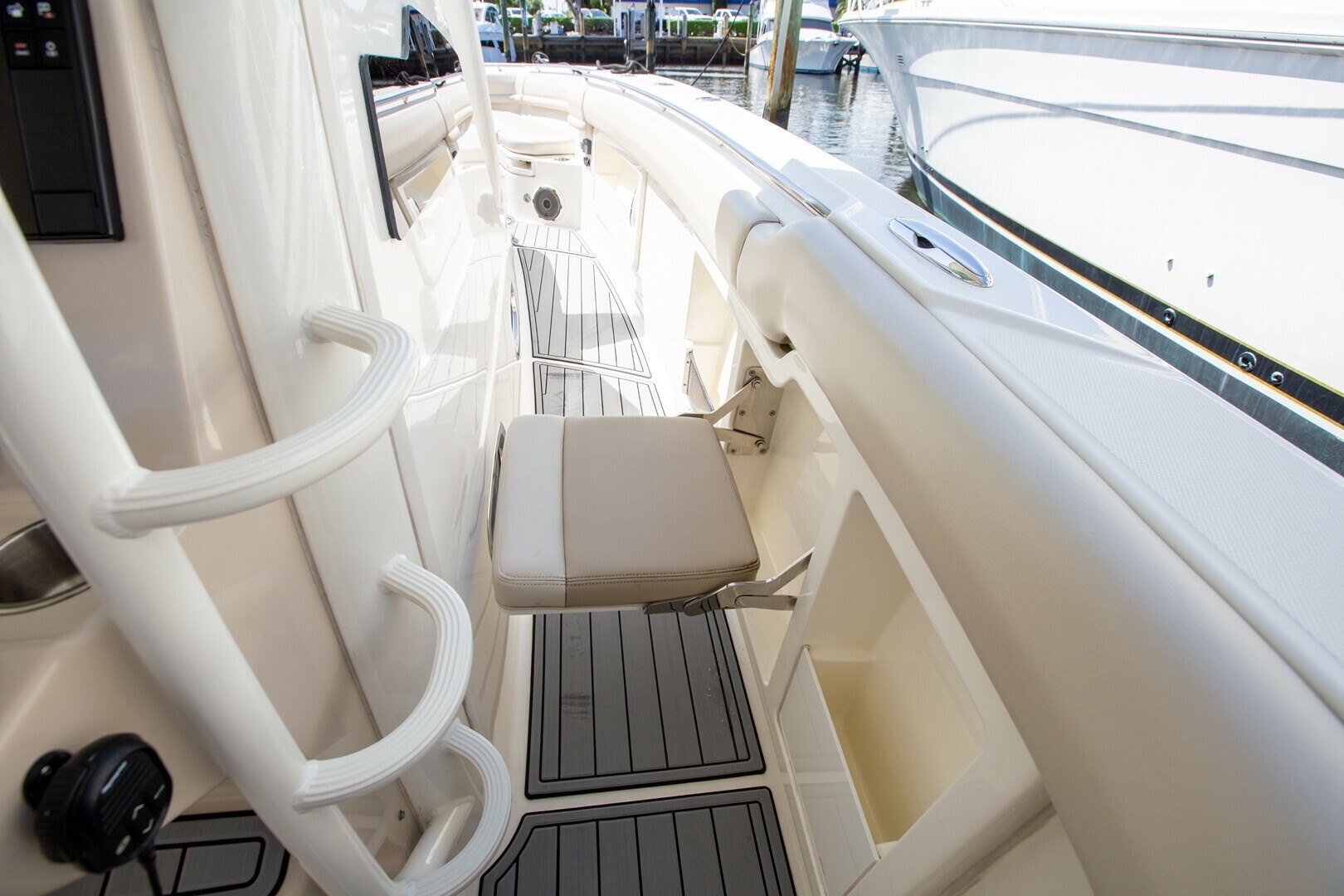

• Hardtop access; port side ladder to hatch in hardtop
• Lighting; recessed LED courtesy lighting (blue) (6)
• Lighting; recessed 2 color LED courtesy chart light (red and white) (1)
• Lifejacket/Canvas Enclosure storage

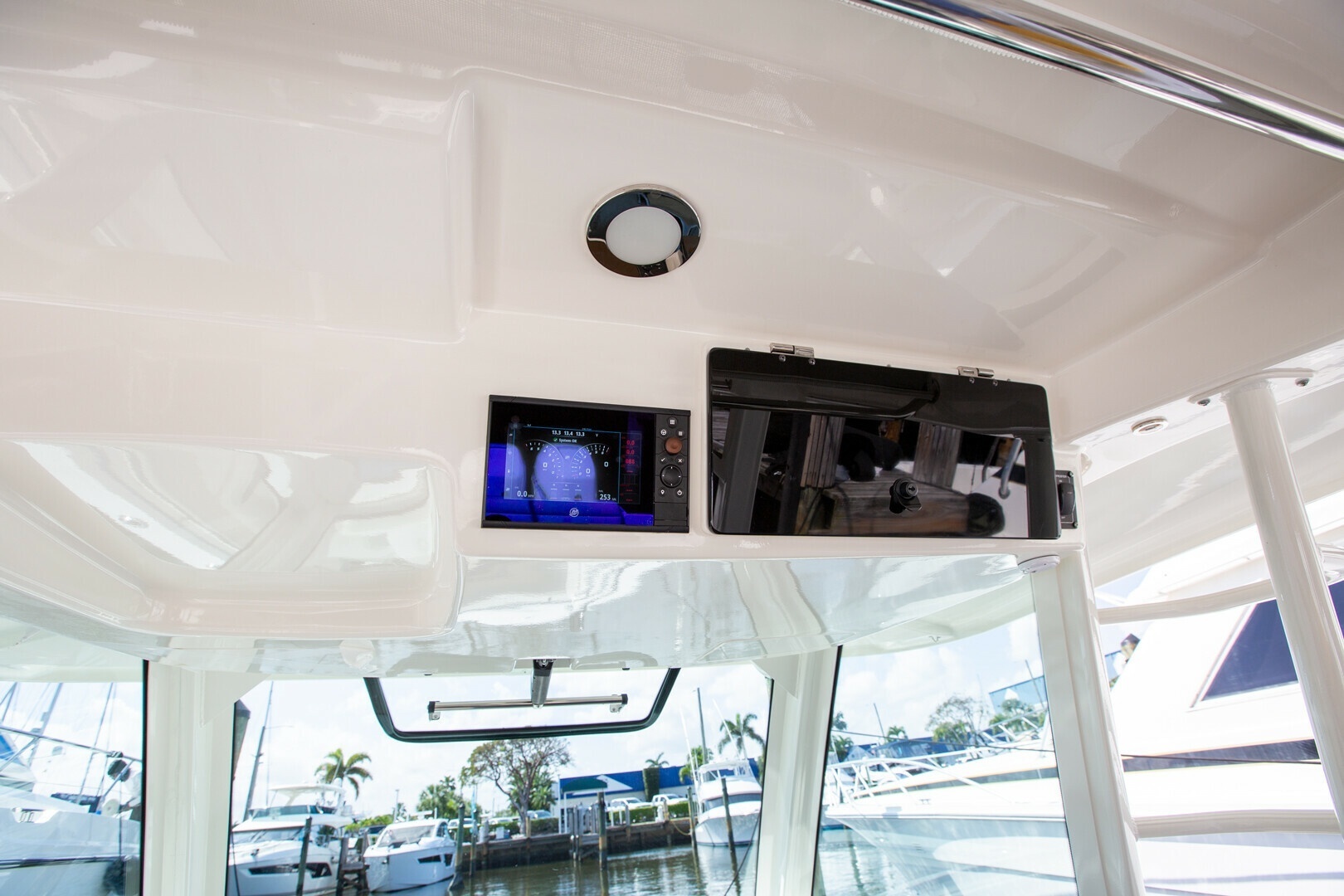

• Lockable electronics box in hardtop
• Outrigger ready
• Rod holders (6)
• Windshield defogger integrated into hardtop
• Mercury SmartCraft Vessel View 7" color touch screen display (network connections to Raymarine with Navigation Package)
• Tempered curved glass windshield with electric actuated vent
• Tempered full height side glass

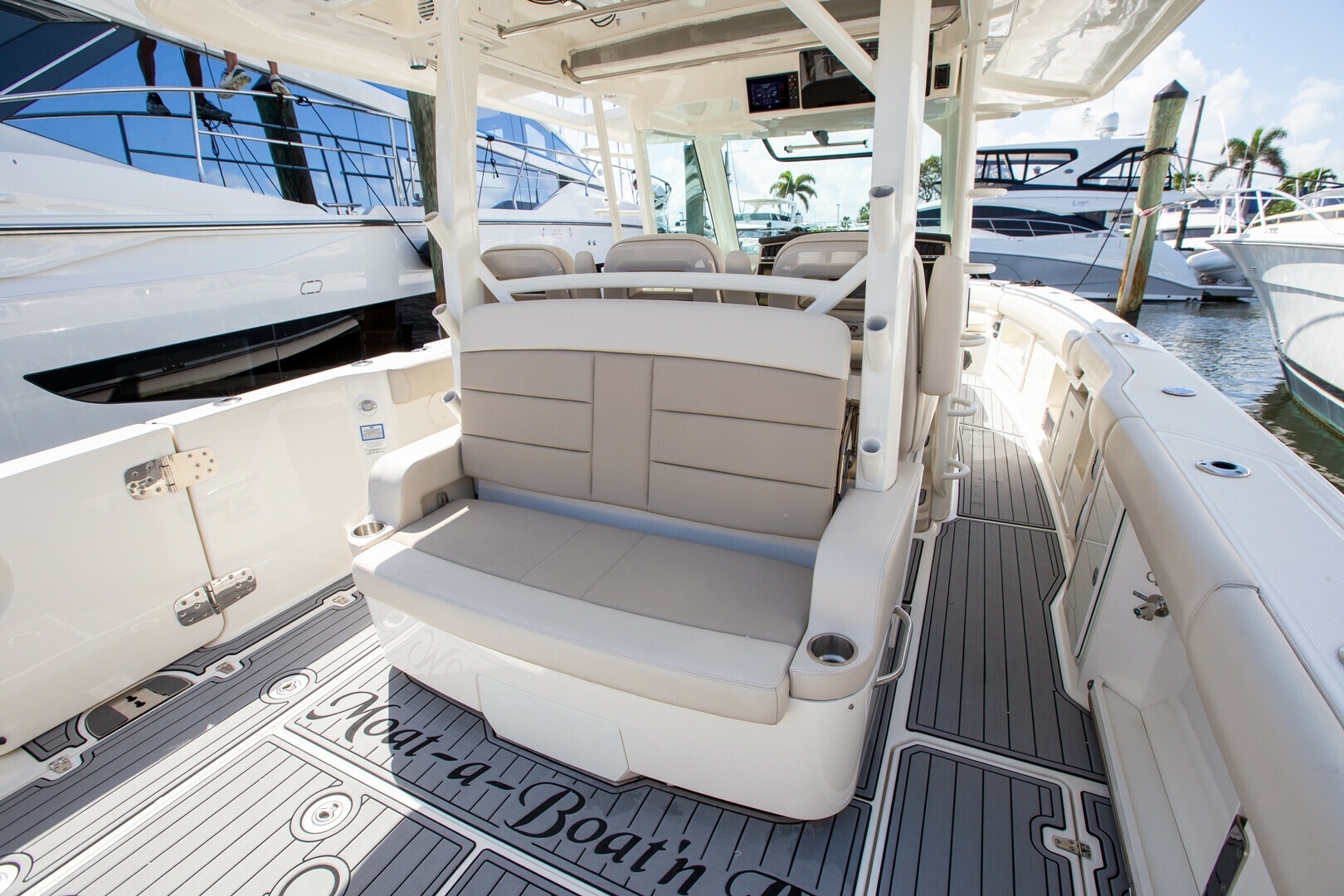

Couch Leaning Post

• Prep station work surface - easy stow-and-go work surface with teak counter, stainless steel drink holders (4) and poly cutting board
• Aft facing couch with insulated cooler storage under hinged seat, stainless steel cup holders recessed into seating arms (2)(optional 40 gallon livewell under seat)
• Refrigerator/freezer - stainless steel pullout drawer (1.75 cubic feet)
• Grab rails (3)
• Storage drawers (3) starboard side drawer system
• Port side fold-down footrest
• Helm and companion bolster style seats (3) with fold-down armrests (center seat is electrically actuated) (side seats have manual fore and aft slides)
• 120-V electrical outlet

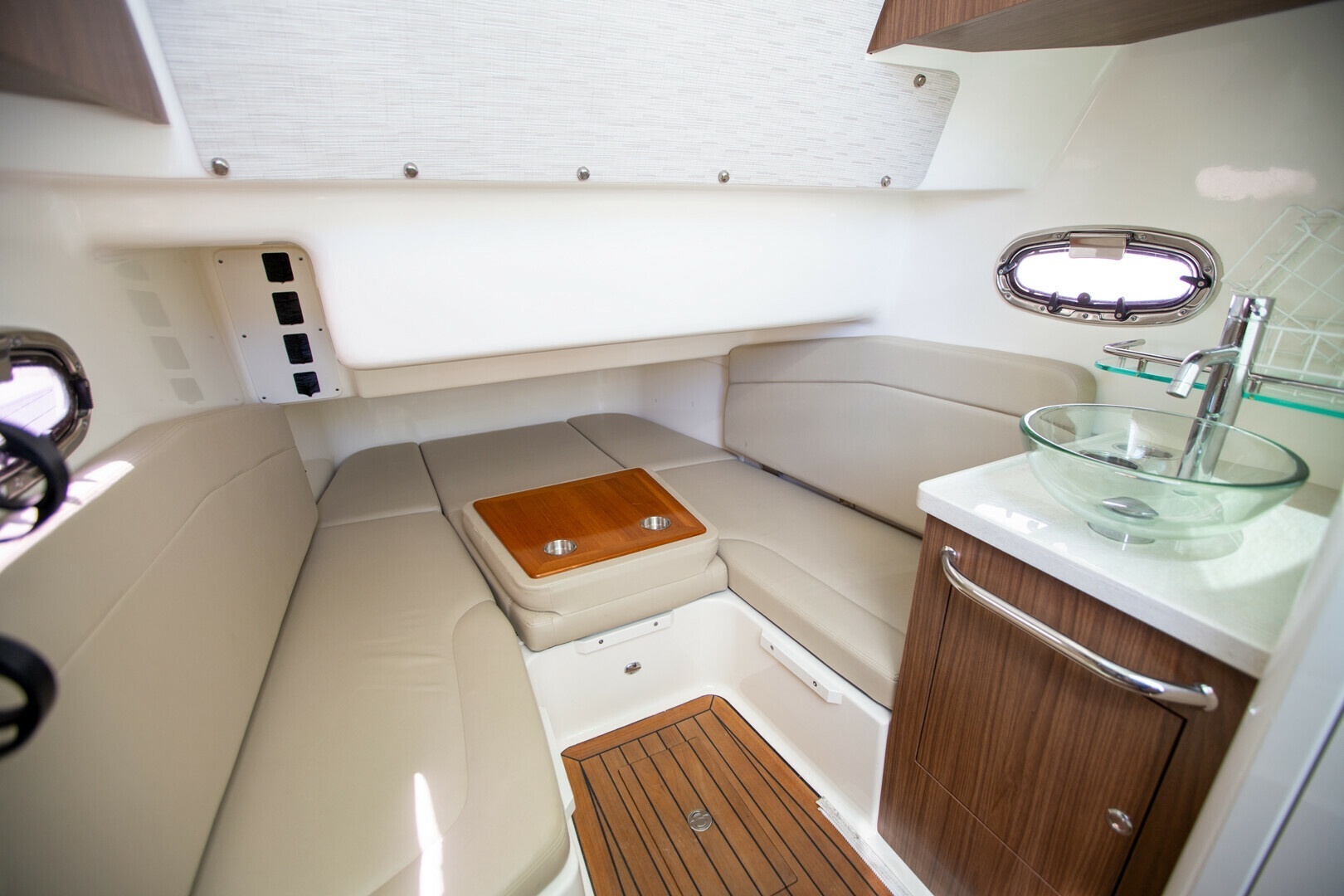

Cabin Interior

• Convertible settee / double berth with easy to clean fabric upholstery
• Dual USB receptacle, (2) 120-V outlet
• Air conditioner with exterior dash outlets (12K BTU)
• Lighting - LED diffused courtesy lights (blue)
• Flooring - solid teak
• Fold down seat backs with durable material providing storage conversion surface
• Opening portholes (2)
• Lighting - LED switchable overhead lights (4)(white)
• Microwave
• Storage cabinets
• Skylight and side lights (3)
• Rod storage, (4) 6.5' and (2) 7.5' rods
• Vanity with custom vessel sink
• Trash receptacle

Enclosed Head

• Shower with dedicated wand/sprayer
• Fiberglass enclosure with frosted acrylic locking door
• Hinged solid teak toilet cover
• Toilet paper holder
• Vacu-Flush® toilet, holding tank with tank vent filter, overboard discharge, and dockside pump-out
• Storage drawers (not compatible with freezer plate option)

Mechanical

• 445-gallon aluminum fuel tank
• 300 V8 DTS Black Triple Mercury FourStrokes with hydraulic power steering and Shadow Mode Technology
• Bilge pumps - automatic (1100 GPH berth, 2000 GPH bilge)
• Battery charger - 40 AMP and 50 AMP @ 12-V multi stage smart charging
• Bilge pump - high water bilge pump with visual and audible alarm (2000GPH)
• Battery trays (5) with remote switches and automatic charging/paralleling relays
• Bonding system for underwater through hull fittings
• Bow thruster (4kW) 12-V (Not available with Joystick Piloting Option)
• Cast bronze thru hull and seacocks (below waterline)
• Cast stainless steel thru hulls (above waterline)
• Cockpit and machinery space lighting
• Electric trim tabs with indicator (dual ram)
• Electric drive trim
• Engine fuel/water separators
• Freshwater - pressurized hot and cold water system with dockside hookup, with tank level indicator integrated into Vessel View with a 60-gallon tank
• Electric trumpet horn
• Freshwater manifold system with individual valve per circuit
• Freshwater - hot and cold, sink and shower in console, pull-out shower at transom and dive door
• Freshwater washdown - stainless steel spigot in aft cockpit and anchor compartment
• Generator - low CO gas (7.5kW) 120-V 60 Hz with fire suppression system, automatic with manual override
• Propellers - stainless steel
• LED navigation lights recessed in hardtop
• Raw-water washdown - stainless steel spigot in aft cockpit
• Self leveling tab system - Dynamic Running Surface
• Shore power inlets - dual 30-amp with isolation transformers and 50 ft shore power cords included
• Transducer pocket in hull bottom for flush mounting B260/B275 transducer
• Water heater (6 gal)
• Windlass with handheld remote control, 400' rode with anchor swivel, 35 lb anchor integrated into bow with a polished stainless steel bow roller
• Windshield wiper with wash system
