Optional Equipment

Exterior: hull, deck & pilothouse

• Non-standard colour: hull (e.g. dark blue or grey), single or double waterline
• Non-standard colour: deck + top of seats 2-coloured (grey RAL 7030)
• Teakrail extended width around aft deck
• Large "Bridgedeck box" behind pilot house (in combination with AD, instead of std small)
• Teak deck complete (laid teak with caulked seams)
• - Aft deck + side passages
• - Fore deck
• - Flybridge + steps up to flybridge
• Teak on front seats (not in combination with CFC)
• Teak on aft deck lockers/seats / 2 pcs
• Teak on "Bridgedeck box" behind pilothouse
• Teak on upper fore deck, between bow rails
• Teak on whole upper fore deck
• Teak on whole swimming platform (inspection hatch with outdrives, no hatch with IPS)
• Outboard bracket on transom, max 10 HP
• Name decal on boat
• Sun shade for fore deck, canvas & 2 pcs s/s stanchions
• Sun shade for aft deck, canvas & 2 pcs s/s stanchions
• Retractable s/s bar & attachable sun shade canvas, aft end on roof (not in combination with A.13.b)
• Full cover aft deck "tent" (in combination with C, AD C & AD FB, not in combination with A.13.b)
• Black Line "mask" - black window frames with black tape between front & side windows
• Black Line complete - Black Line "mask" (A.15.a) with exterior s/s parts powder coated black

Interior: pilothouse, aft & fore cabin

• Angled teak box for chart plotter in front of steering wheel
• Carpet beige with trim in pilothouse (std in aft & fore cabin)
• Damped driver's chair KAB Sentinel mechanical 60 mm damping (instead of std chair)
• Damped driver's chair KAB 524 mechanical 100 mm damping (instead of std chair)
• Damped driver's chair KAB 856 Air 100+60 mm damping (instead of std chair)
• Damped driver's chair Grammer Avento Premium mechanical 80 mm damping (instead of std chair)
• Arm rests 2 pcs & neck rest for KAB chair
• Arm rests 2 pcs & neck rest for Grammer chair
• Teak slats on berth hull sides in aft cabin
• Teak slats on berth hull sides in fore cabin / double berth in extended fore cabin
• Portlights hull opening s/s / 2 pcs (instead of std non-opening 2 pcs)
• Portlights hull non-opening s/s / 2 pcs extra (in addition to std non-opening 2 pcs)
• Portlights hull opening s/s / 2 pcs extra (in addition to std non-opening 2 pcs)
• Roof hatch on hinges Lewmar Low Profile 60 incl sun shade & mosquito net / 2 pcs
• Roof hatch sliding Lewmar Pilot h 78 incl sun shade & mosquito net (only without flybridge)
• Contemporary interior

Galley, water, heat & sanitary

• Salt water pump & tap in galley 7 L/min/1,4 bar (in addition to std fresh water tap)
• Electric induction cook-top, two cooking zones, 230 V (instead of std gas cooker)
• Wallas 88 DU diesel/ceramic (instead of std gas cooker)
• Electric oven with grill & microwave oven functions, 230 V (instead of std 230 V microwave oven)
• Gas oven (instead of std 230 V microwave oven)
• Fridge box with thermostat in "Bridgedeck box"
• Fridge/freezer box with double thermostat in "Bridgedeck box"
• Shower doors, glass (instead of std shower curtain)
• Cabin heater diesel, Eberspächer D4
• Radiator heater 250 W/230 V oil filled / pcs (engine room, "owner's cabin" and/or fore cabin)
• Shower on aft deck/swimming platform from galley pump fresh water cold/hot
• Deck wash salt water pump with hose 12,5 L/min/3,5 bar
• Air condition S, Webasto BlueCool S-13 (13 000 BTU), blower vents in all cabins
• Air condition M, Webasto BlueCool S-20 (20 000 BTU), blower vents in all cabins

Technical equipment & "various"

• Extra service battery GEL 120 Ah (3 pcs = std)
• Mastervolt Mass Combi Ultra 12/3000 W-150 A inverter/charger (instead of CombiMaster 12/3000-100)
• Generator 4 kW, Fischer Panda 5000i.Neo PMS, 2500-3250 RPM
• Generator 6 kW, Fischer Panda 8000i PMS, 2200-2800 RPM
• Mastervolt Mass GI 3,5 isolation transformer, against corrosion & electrical disturbance
• Bow lights LED 12V 4W HD, s/s housing (equivalent to ~ 2 x 48 W halogen)
• Mag-Lite hand search light + charger fitted
• LED lights: fore deck, aft deck & side gangways, 20 pcs (in addition to std LED-cables)
• Underwater lights on transom, Lumishore SMX 102, white colour / 2 pcs
• Long range running lights LED round - W-Light Booster 3 x 70 W, Ø 180 mm, on pilothouse roof
• Long range running lights, LED - Vision X XPR-9M, 19" (476 mm), 90 W on pilothouse roof
• Electrical search light Jabsco 255 SL dual beam (instead of std manual search light)
• Water alarm on fuel/water separator / 2 pcs Fuel decontaminator (microbe strainer) / 2 pcs
• Active Corrosion Protection (ACP) for DPI
• Active Corrosion Protection (ACP) for IPS (NOTE! Highly recommended by Volvo Penta)
• Windscreen wash system for std interval wipers /3 psc
• Anchor winch on transom STBRD electric Engbo Maxi 44 (1000 W)
• 50 m rope + roller + 15 kg "Bruce" s/s anchor + panel in pilothouse & on aft deck
• Remote control wireless for anchor winch & bow thruster
• Anchor winch on bow STBRD electric Lewmar V3 Gypsy/drum (1000 W)
• 8 m s/s chain/40 m rope + roller + 20 kg "Delta" galvanized anchor + panel in pilothouse & on fore deck
• Upgrade to s/s Lewmar DTX anchor 20 kg (see D.12.c)
• Mooring winch electric Lewmar C3 Capstans (1000 W) incl foot pedals (for fore and/or aft deck)
• Belt roll "Ankarolina" (2,5 ton) 24 m fitted in aft deck locker/seat / pcs
• Lifebuoy model "Lifesaver" / pcs
• Life raft 6 person, ISO 9650 Type 2
• Life raft 8 person, ISO 9650 Type 2
• Propeller holder fitted in engine room
• Propeller pair "H" for Volvo Penta DPI
• Propeller pair "T" for Volvo Penta IPS

Flybridge

• Panel for electrical winch on transom (see D.11.a)
• Panel for electrical winch on bow (see D.12.c)
• Jeepscreen full width foldable incl "wind skirt"
• Side window/windshield for jeepscreen (see E.5.a)
• Stainless steel bar on top of FB-windshield (included in E.8.b)
• Tarpaulin/canopy full cover off-white
• Cover for instruments off-white
• Chair covers off-white
• Bimini top off-white
• "Nauti" driver's chair, "Nauti" passenger chair & "Nauti" passenger sofa (including E.6.c)
• "Nauti" driver's chair & "L" passenger sofa (including E.5.c & E.6.c)
• Teak slats behind chairs & sofa (only in combination with std glass fiber chairs)

Technical Data

• L.O.A*
• 12,36 M (40,6')
• LENGTH (HULL)
• 11,25 M (36,9')
• BEAM
• 3,50 M (11,5')
• DRAUGHT
• 1,10 M (3,6')
• WEIGHT
• APPROX. 8200 KG
• FUEL TANK
• 1350 L
• WATER TANK
• 230 L
• HOT WATER BOILER
• 20 L
• HOLDING TANK
• 120 L
• ENGINE ALTERNATIVE
• 2 X D4-320 (470 KW, 640 HP)
• 2 X D6-340 (500 KW, 680 HP)
• 2 X D6-380 (560 KW, 760 HP)
• 2 X D6-400 (588 KW, 800 HP)
• 2 X D6-440 (648 KW, 880 HP)
• 2 X IPS500 (560 KW, 760 HP)
• 2 X IPS600 (648 KW, 880 HP)
• 2 X IPS650 (706 KW, 960 HP)
• TOP SPEED
• 30-38 K.T.
• CRUISING SPEED
• (2X380 HP) APPROX. 32 K.T.
• FUEL CONSUMPTION
• (2X380 HP) APPROX. 3,1 L/N.M.

Standard Equipment

Exterior Hull, Deck, & Pilothouse

• Hull: Off-White - Water line: Red/Dark Blue
• Deck: off-white, antislip surface
• Pilothouse: off-white with dark blue sun cap
• Antifouling (2x primer, 2x antifoul) Black
• Swimming platform incl rubber fender and teak lattice
• Swimming ladder s/s foldable + handle s/s
• Bow protection (to approx. 30 cm under water line)
• Urethane foam in stringers, hull sides and under berths
• Self-draining decks fore & aft
• Wide passageways on both sides of pilothouse
• Bollards 8 pcs, fairleads 2 pcs s/s
• U-shaped bow rail "shark fin" s/s on fore deck 2 pcs
• Bow ladder, foldable
• Hand rail s/s on fore deck side railings
• Hand rail teak on aft deck, stanchions s/s
• Tip-up teak rails aft side
• Transom door, tip-up teak rail
• Hand rail s/s around pilothouse front
• Hand rails s/s on both sides of pilothouse roof
• U-shaped front seat with three storage lockers
• Seat in front of pilothouse
• Under deck storage locker
• Anchor box
• Lockers/seats in aft deck corners 2 pcs
• Table + support on fore and aft deck
• Sliding doors in pilothouse, STBRD and PT
• Rear sliding window
• Protection s/s on door steps
• Ventilator on top of pilothouse s/s cover
• Targa bar s/s with running lights
• Mast foldable with hinged mast foot
• Flag pole

Interior: pilothouse & aft cabin

• Cabin wall upholstery
• Pelon Marina
• Teak panel to deckhead
• Teak panel to rear in pilothouse
• Teak floor in pilothouse
• Carpet, bordered beige in fore and aft cabins
• Targa carpet, dark blue, 2 pcs
• Pilothouse table, height adjustable on foot/pedestial
• U-shaped sofa with foldable back rest
• Driver´s seat on teak console
• Foot rests for driver and navigator
• Curtain tracks+ curtains BIT
• Cupboard behind driver´s seat
• Chart locker to deckhead
• Chart locker next to driver´s seat or to bulkhead
• Portlights, opening: 7 pcs
• STBRD side wall, rear wall in aft cabin
• aft toilet 2 pcs, fore cabin 3 pcs
• Portlight, non opening in hull s/s, 2 pcs
• Berths in fore and aft cabin
• Wardrobe in aft cabin
• LED Lighting in cabins,
• LED floor lights in pilothouse
• LED lights with dimmer in pilothouse
• LED Spotlights in aft cabin toilet
• "Cabin" reading light in pilothouse
• Reading lights in aft cabin 3 pcs, fore cabin 2 pcs
• Chart light
• Rubbish bin
• Coat hooks

Interior: upholstery, standard fabrics

• FIELD: Navy / Sand / Granite / Jet
• WOVEN: Dark Navy / Navy / Sand / Granite

Interior: steering position

• Panel for instruments above front window
• Panel for switches in front of steering wheel
• Navigation table with stowage lockers & cup holder
• Stowage locker under steering console
• Steering console adjustable
• Intrument panel (acc. to engine manufacturer)
• Engine control
• Teak steering wheel
• Electrical outlet 12V, USB & 230V pcs
• Fuel tank gauge
• Trim tab control
• Power trim control panel with display
• Volt gauges: Start + Service batteries

Galley, water, heating & sanitary

• Galley with two-burner gas cooker
• - sink, fresh water system, dinner service for 6
• Microwave owen 230V
• Fresh water tank (230 L) incl tank gauge
• Water heater (20 L)
• Refrigerator 65 L
• Toilet: electrical seawater flush, Corian (Glacier White)
• - wash basin, shower drain pump, shower in aft cabin
• Septic tank (120 L) with membrane pump, incl gauge
• Defroster/heater - connected to engine heat exchanger

Technical equipment: safety, mooring etc

• Bilge pump manual for engine room
• Bilge pump automatic 4 pcs
• Windscreen wipers with double arms, interval 2-speed
• Magnetic compass (pilothouse & flybridge)
• Horn (pilothouse & flybridge)
• LED Searchlight adjustable from pilothouse
• Work light 55 W 2 pcs
• LED light cable with dimmer under the "sun cap"
• Interceptor trim tabs (Volvo Penta BTS)
• Bow thruster, thrust 80 kg + backup battery                       *)
• Shore power incl 7 outlets, 25 m cable
• Battery charger 12/25 A + Combi Master 12/ 3000- 100
• Boat hook
• Mooring warp 10 m 6 pcs, flag halyard 3 pcs
• Fender + fender cover 6 pcs + storage
• Fire extinguisher 2 kg 2 pcs

Technical Equipment: Engine Installation

• Engine room insulation, gas struts on engine room hatches
• Air inlet on aft deck Fuel tanks (2x675 L)
• Fuel filter with water separator
• Fire extinguisher in engine room
• Start batteries: 2x 95 Ah AGM
• Service batteries: 3x 120 Ah GEL, cross-over
• Automatic Power trim, Trip Computer (Volvo Penta)
• Electronic steering system (Volvo Penta)
• Fuel at delivery 200 L
• Service box with oils and liquids

Flybridge

• Engine controls and steering + rubber steering wheel
• Bow thruster & Trim tab controls
• Tachometer
• Power trim control & indicator
• Driver´s seat, adjustable + removable pillow
• Passenger seat 2 pcs, adjustable + removable pillows
• Windshield, tinted acryl
• Double USB outlet
• Cup holder, teak

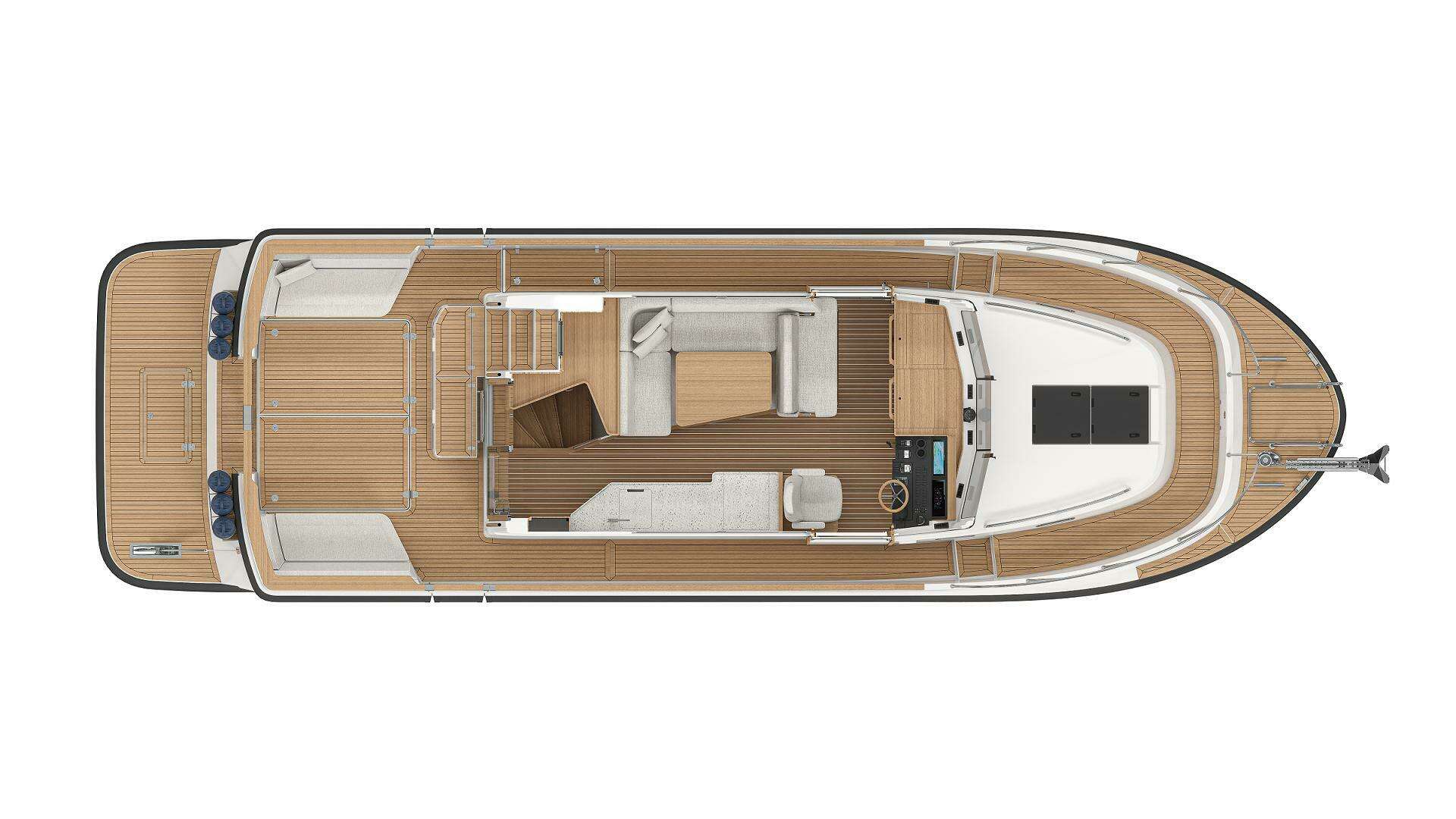

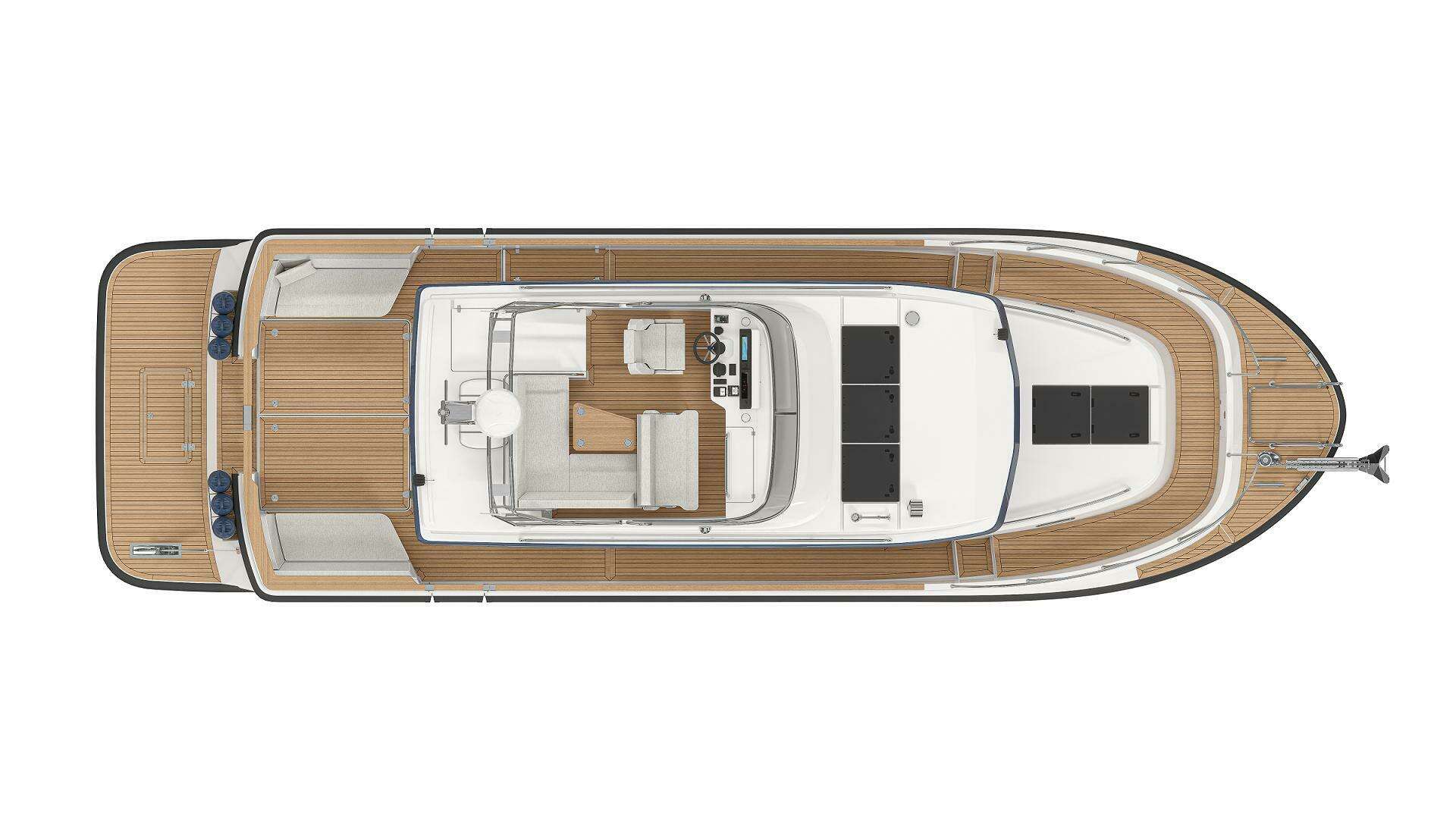

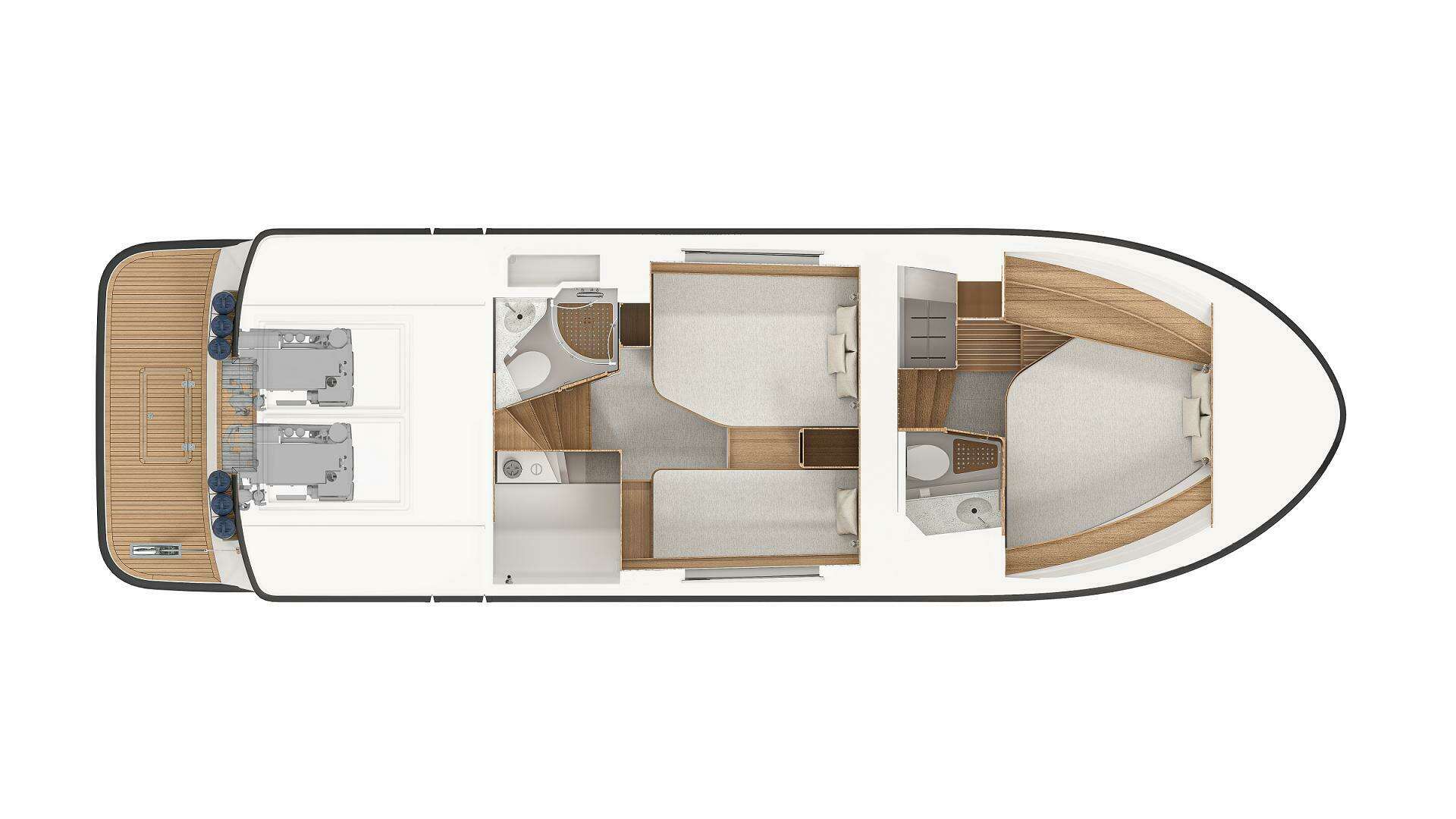

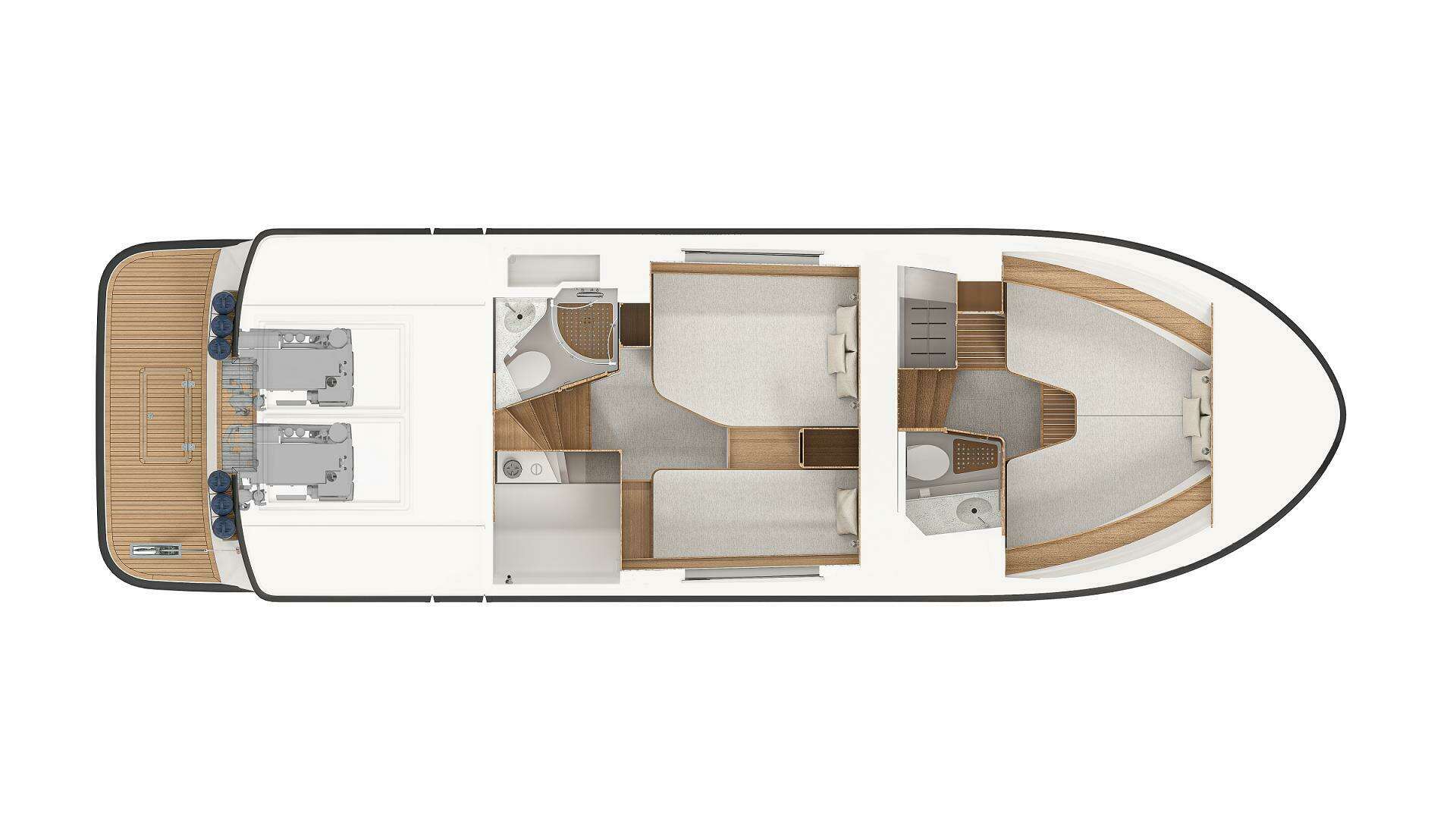

Targa 37 Layouts
