Standard Specifications

STRUCTURE

Sandwich structure is used for hullside above water line. Below the

water line solid FRP construction with vinylester resin for the outer

layers.

FRP sandwich for structural floors and superstructure.

Hull and deck / superstructure units joint sealed by 3M 5200 and

screwed and bolted where needed.

Recessed bow & stern thruster tunnel.

Integral full protected keel and rudder shoe

FINISH

Gelcoat semi-gloss finish on hull (gray)

Gelcoat semi-gloss finish on deck and superstructure (white)

Gelcoat semi-gloss finish on all interior fiberglass surfaces

Anti-fouling paint (black) on top of primer coat

PROPULSION

Betamarine BETA 85 Propulsion Engine –85 hp at 2,800rpm

Hydraulic transmission

TANKS

200 gal diesel total in 100 gal tanks port and starboard aluminum wing

tanks.

80 gal fresh water in two 40 gallon tanks port and starboard stainless

steel wing tanks.

22 gal waste tank

FUEL SYSTEM

Fuel filter / water separators, one on each tank

Tank selector valve

Deck Fills

Fuel vents

WATER SYSTEM

(2) wing tanks, approx. 80 USG tank capacity

(1) 1-1/2” water tank fill deck plate 5/8” vents on water tank water

tank level indication on gauge in pilothouse

(1) Pressure Water pump

(1) 6 USG 120VAC dual heating source hot water heater

Polyethylene water piping system

(1) washdown hose connector for freshwater wash down

BILGE SYSTEM

(4) Electric bilge pumps w/ electronic float switch

Bilge Pump Panel

Manual bilge pump in engine room compartment

Overboard thru hulls above WL for bilge pumps

SANITARY SYSTEM

(1) Electric marine head freshwater flush

22 USG Waste Tank

(1) wastewater level gauge in pilothouse

(1) vent line for waste tank

(1) 11⁄2” Deck Pump-out Plate

1 1⁄2” Seacock on overboard discharge.

Wastewater Pump for overboard drain.

STEERING

Hydraulic steering

18-inch steering wheel

Stainless steel rudder shaft

Rudder pintle bearing, gudgeon stainless steel skeg bar.

BOW & STERN THRUSTER

Standard bow and stern thruster

VENTILATION

(2) deck ventilators on fore cabin

(1) Solar powered ventilator in head

(1) deck ventilator on pilothouse/salon

(1) Solar powered ventilator on pilothouse/salon

12VDC SYSTEM

DC Breaker Panel

Battery Master Switches

(2) L16 size (6V/400Ah) House Batteries in enclosure

(1) 12V/50Ah Starter Battery in enclosure

High Power Beta 85 engine alternator 175A-12V

12V DC horn

Navigation lights white & NaviLED R/G Compact Switch Panel at helm

for multiple functions

120V

SmartPlug 120V/240V-30Amp shore power inlet

2,200W/100A-12V Battery Charger/Inverter

120V AC ELCI Breaker Panel

120V AC Breaker Panel

(5) 120VAC outlets (or 230V)

6 USG (30 ltr) Hot water heater: engine coolant coil + 120V AC heating

element

Typically (1-2) spare 120V breakers available in base configuration

ANCHORING

Stainless Bow Roller for self-launching anchor

(2) Bulwark mounted fairleads / Skene Chocks

(2) 10” Cleats Forward beside optional windlass

12V DC electric windlass with pilothouse controls

MOORING

(6) 8” Cleats on rail along side

(2) 10” Cleats on swim platform –Recessed

EXTERIOR

Tubular Mast structure on roof for Radar/Antenna

Hella NaviLED 360 all around white light on Mast top

Recessed and protected RED/GREEN lights

Locking latches on all exterior doors

Exterior doors sliding on durable 316 stainless steel rail system.

Gas assisted Springs on deck hatches.

Vinyl upper and lower dual fender rails

(10) CE Category A-III opening port lights

(2) CE Category A-III hatch 20x20in

(3) Custom Sliding FRP sliding doors

(1) S/S ladder for roof access

PILOTHOUSE

Helm station w/ instrument panels

Engine instrument panel

Single lever shift/throttle

Table and Settee with storage underneath

Helm seat

Settee with fabrics and cushions

Teak and holly style vinyl interior sole

Soft panel head liner with FRP sections for overhead lights

(1) ventilators

(1) solar ventilator

(2) LED overhead light white/red

GALLEY

Drawers and cabinets w/ shelves under counter

Quartz material counter tops

Deep FRP backsplashes

Refrigerator approx. 4.6 cu ft / 12Vdc

2-burner LPG cook top

Stainless steel galley sink

Galley Faucet –bulkhead mounted.

Teak and holly style vinyl interior sole

(1) LED overhead light white/red

(3) LED strip lights over galley counters and sink

FORECABIN

Fill Panel with cushion for v-berth to double conversion

Fill Panel stores under foot in dedicated recess

V-berth mattress 4-inch, 80 inches long

Teak and holly style vinyl interior sole

Positive latching for all locker doors and drawers Hanging lockers.

Storage cabinets under v-berth

LED reading lights

LED overhead light

(2) ventilators

HEAD/SHOWER

(1) Electric marine head freshwater flush

(1) Sliding door into head compartment (1) Solar powered vent

LED overhead light

Head/shower faucet

Washbasin, round

Positive latching for all locker doors and drawers

Medicine cabinet

Tissue paper holder

MID COCKPIT

High-Capacity Scupper system with back flow protection: drains

cockpit volume in approx. 15 seconds

FRP hatch to engine room - gas spring assisted.

(2) seat benches each seating two Cushions for on deck seating

Boarding door latches

S/S #316 grab rail (1-1/4” diameter)

Molded inlay pattern non-skid to fore and side decks

FOREDECK

Molded inlay pattern non-skid to fore and side decks

S/S #316 pulpit rails

ENGINE ROOM

Engine Room sound insulation

(2) Engine Room Intake vents

(1) Engine Room Blower Fan output

(6) LED engine room lights

AFT COCKPIT

Latches on hinged LPG locker hatches

Molded inlay pattern non-skid

GENERAL

Fire extinguishers per USCG regulations

Pilothouse & Salon

• Large L-shaped settee to port

• Drop Table creates a double berth

• Helm station with great visibility

• Comfortable captain’s chair

• Destroyer wheel at proper standing height

• Plenty of handholds

Central in the SeaPiper's layout, the pilothouse/salon is the primary living cabin. Joined with the galley, the open space offers comfortable seating for four around a settee table. The settee table is mounted on two pedestals to enable converting the settee into a comfortable double berth. A wide sliding door connects the pilothouse o the mid cockpit with no steps, making outdoor access convenient for pilot and passengers. The helm station, to starboard, provides a captain's chair and ample space for essential control systems. The pilothouse is equipped with seven fixed safety glazed windows, two rear bulkhead port lights, two roof ventilators, and 20" x 20" overhead hatch for natural light. Storage is easily accessible beneath the settee, and a floor hatch allows entry to the machinery space below. Handholds, along with two overhead, switchable white/red LED lights, enhance the functionality and safety of the pilothouse.

Galley

• Large counter surface

• Ample storage

• 2-burner LPG cooktop

• Large refrigerator

• Built-in platform prepped for microwave

• 2,200-watt inverter for plug-ins

• Stainless galley sink

• Great ventilation

Two steps down from the pilothouse/salon is the L-shaped galley, featuring ample counter surface, large storage capacity in lockers both to port and starboard, and separate storage shelf around the perimeter. The galley offers four opening port lights and one solar powered ventilator. The galley comes standard with high quality appliances, including a 2-burner LPG cook top, a 4.6 cu ft DC refrigerator, single stainless sink, hot and cold water faucet, and built-in platform prepped for future microwave or other preferred appliance (outlets are powered by a 2,200W inverter). There are handrails and one individually switched overhead white/red light. Two steps up connect the galley to the aft cockpit with a sliding door and a flip up scuttle.

Aft Cockpit

• LPG Locker under seat

• Two large transom doors open up to the extended

swim deck

• Self-draining through large scruppers

The aft cockpit has molded in seating to port and starboard. Each side houses a 5gal/20lbs LPG locker sealed and vented per ABYC regulations. With the transom doors open, the cockpit extends onto the swim deck and offers easy water access. The emergency tiller utilizes the aft cockpit sole hatch. Dock line cleats are in molded pockets port and starboard. Access to the water is convenient from the low swim deck. The cockpit walking surface has a non-slip coating. There is a hinged hatch in the deck to gain access to the lazarette and steering gear.

Mid Cockpit

• Efficient self-draining

• High cockpit coamings for safety

• Removeable seating

• Extensive Storage

• Boarding doors both port and starboard

The large mid cockpit is designed to offer unequalled flexibility. It provides superb access to the docks or water from a position of reduced motion of the boat through two side boarding doors. The cockpit has a minimum height of 29" coaming all around. Port and starboard are storage compartments that come with seating cushions and handrails. The mid cockpit provides quick and easy engine access through a large hatch. The cockpit walking surface has an anti-slip coating. Cleats are located fore and aft, and port and starboard.

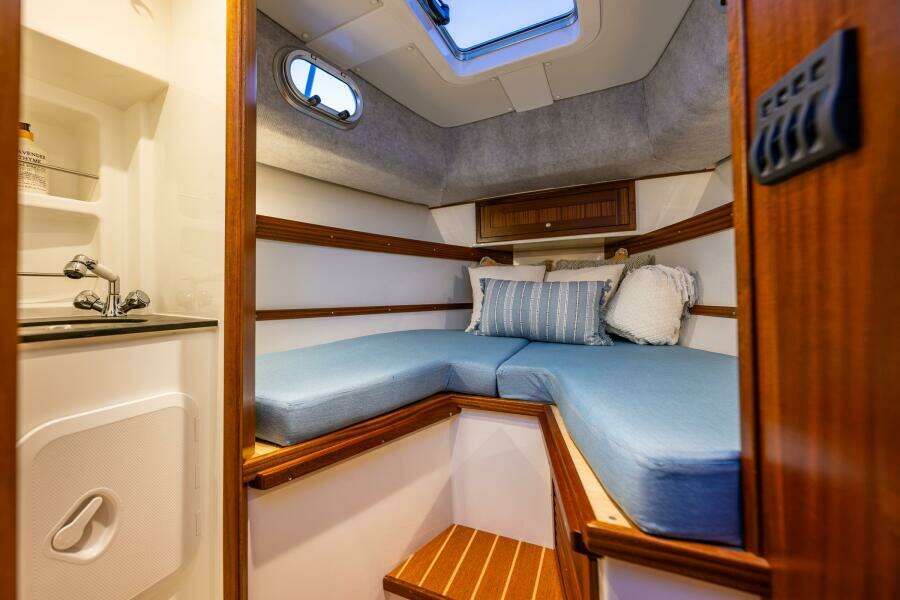

Forward Cabin

• Large V-berth that can convert into large double

berth

• Hanging locker and various drawers

• Ample storage compartments below berth

• Easy storage for berth platform extension

• Head/shower is completely lined in FRP

• Head/shower uses sliding doors: no drips!

• Designed for excellent ventilation

Access to the forward cabin is from the mid cockpit. This cabin is equipped with comfortable v-berth with storage underneath. An insertable platform and pillow cushion are provided to convert the berth into a double berth. To starboard is the hanging locker, to port is the head. The head features a wash basin, hot and cold water taps, and sliding doors. The electric macerating toilet uses freshwater to flush. The shower arrangement is a pull-out faucet/showerhead, and the sole includes a non-skid surface. The forecabin is equipped with four(4) opening ports, two passive ventilators, one solar powered ventilator, and a 20" x 20" overhead hatch. There are two LED bedside reading lights port and starboard and there is one overhead LED light (with white/red light selection).

Forward Deck & Bow Anchoring

• 14 inch side decks leading to bow

• Well protected by coaming

• 31 inch high rails on both sides

• Stainless bow roller

• Proper fair leads/chocks

• Structural reinforced pad for windlass

• Hatch access to chain locker and windlass motor

• Strong cleats on edge of coaming

The SeaPiper is equipped with a bow roller and electric windlass. There is a large anchor locker with easy access through two hinged deck hatches. The anchor is designed to be self-launching. Heavy duty anchoring, docking cleats, and fairleads are included to allow setting of two bow anchors and a bridle towing arrangement.

Below Cockpit Feature

• Tremendous storage capacity

• Easy access to electrical and water systems

• Batteries are in dedicated enclosures

• Battery charger and inverter

• Vinylester FRP holding tank – 35 gallons

Engine Room

The engine room is accessible through a dedicated hatch in the mid cockpit. In the area forward of the engine there is room to access the engine front and sides. Inside the pilothouse is also a hatch that allows access to the area behind the engine, the shaft seal, and exhaust system.

Extensive sound insulation is present between the engine room and the pilothouse/salon. The engine room ventilation is through dedicated ports of large capacity and the intake is protected from taking water.

The engine room also houses the house battery bank, fuel tanks, water tanks, the waste tank and there is a dedicated location for the 120VAC diesel genset.

Machinery and Tanks

Standard power is the Betamarine B85T which produces 85hp at 2,800rpm. The shaft is equipped with a dripless shaft seal and two cutlass bearings. The propeller is a 22" diameter four blade type for optimum efficiency. The engine uses a water lift muffler with dry stack riser to prevent raw water entering the engine.

Fuel is drawn from either tank, each of which has its own fuel filter / water separator. The total standard fuel capacity is 200 USG which can be expanded with an auxiliary tank. There are two fuel fills on deck, one for each wing tank. Tank level indicators are provided at the helm. Tanks are controlled by a crossover valve to allow fuel management.

A hydraulic steering system with an 18" wheel is located at the starboard helm station. SeaPiper is equipped with a standard bow & stern thruster.

In an emergency the rudder can be hand controlled by a manual tiller fit through to the cockpit deck hatch. A hydraulic bypass valve is incorporated in the hydraulic system to allow this control.

SeaPiper is equipped with two stainless steel wing tanks for fresh water 80 USG, with its own pressure pump and deck fill plate. The freshwater systems provide approx. 30 psi of hot and cold water to the galley, and head/shower. The waste tank is in the engine room forward and is equipped with a deck pump out plate overboard discharge with seacock and electric diaphragm waste.

Electrical

SeaPiper is equipped with two electrical systems: one for 12VDC and one for 12Vac. The house battery bank is configured for (2) 6V Group L16 sized batteries (400Ah each) and these batteries are connected into a 12V system. This house battery is connected to an AC inverter/charger to generate the 120Vac on board. In the pilothouse a MASTER battery switch is located that enables the 12V house battery to power SeaPiper's 12V system.

SeaPiper is equipped with a well laid out custom 12V circuit breaker panel and a 120Vac circuit breaker panel. An onboard battery charger is provided and is connected directly to the shore power connection, and this charges the house battery bank as well as the starting battery. The starting battery can be connected in parallel to the house battery bank by means of the MASTER battery switch.

There is a total of six (6) 120Vac outlets provided on board. For serviceability and to enable easy modifications wiring that is located behind panels is generally run through conduit. All wiring is Marine Grade stranded and tinned wire and labeled where appropriate.

Ventilation

All accommodations have extensive passive ventilation through dedicated ventilators, in addition to opening ports, hatches and opening doors.

Materials

The SeaPiper 37's hull and superstructure is of resin infused vinylester construction providing better fiber to resin ratio, stronger laminate, lower void content and a reduction in VOCs (gasses) emitted during construction. Most coring materials used are PVC foam. All fixed windows are glazed with laminated safety glass, and all interior wood and plywood are of marine grade or exterior quality.

Finish

The fiberglass finish is in gelcoat. Exterior deck and superstructures are white. The hull is standard white or gray with black anti-fouling paint and contrasting boot stripe. The interior fiberglass surfaces are finished in a white gelcoat finish.

Disclaimer

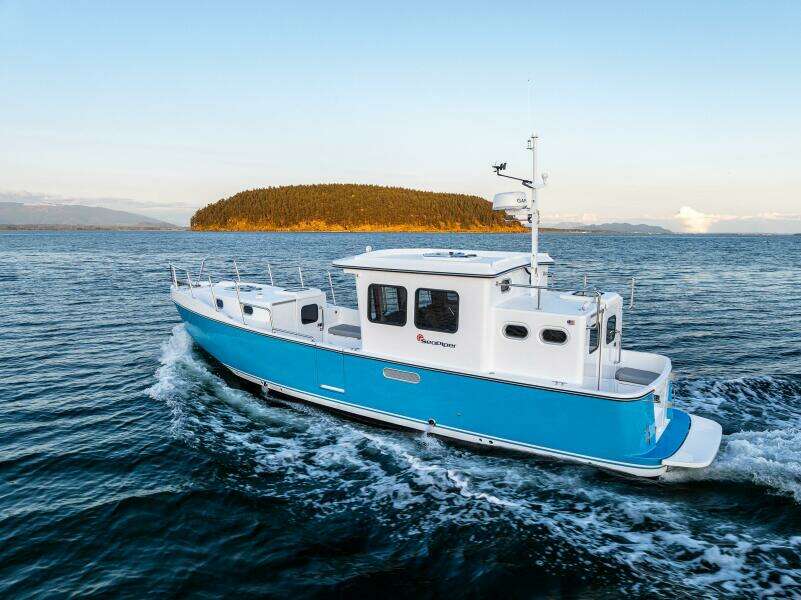

*Photos of sistership. The Seapiper 37 hull #16 is still in build.

Seattle Yachts reserves the right to change or modify specifications and pricing without prior notice.

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
