2002 Sabreline 36'
10.97 m
2002 Sabreline 36' Flybridge
- 10.97 m
- Diesel
- Power
- Downeast
2002 Sabreline Flybridge
36' (10.97 m) Twenty Summers
Well maintained and cruised for over 20 years by her current owner, Twenty Summers is an exceptional example of the popular Sabreline 36 Flybridge.
| FEATURES: |
|---|
| Seawise Tender Lift |
| Walker Bay 10’ Tender with 9.9hp Yamaha Outboard |
| Custom Stidd Helm and Mate Seats on Flybridge |
| Two Zone AC/Reverse Cycle Heat |
| Bimini and Full Flybridge Enclosure |
| Notable Upgrades: Preferred Power - Upgraded Yanmar 370hp twin diesel engines. Additional 40 gallon fresh water tank (total capacity 140 gallons). |
2002 Sabreline 36' Flybridge
- 10.97 m
- Diesel
- Power
- Downeast
$ 219,900 USD
$ 301,977 CAD*€ 190,810 Euros*£ 163,421 GBP*
Description
The Sabreline 36 Flybridge was a very successful limited-edition production yacht from Sabre Yachts. Built on the proven hull of the Sabreline 36 MKII Express, she has an 18 degree deadrise angle at the transom, wide chines and spray rails. The Sabreline 36 Flybridge gets up on a plane easily and offers one of the driest, most comfortable rides to be found in this size and type of motoryacht.
The interior is fitted out in varnished American Cherry with a Teak and Holly cabin sole.
Starting in the bow, the forward cabin offers a vee-berth layout with a large comfortable berth with several storage spaces below, a large hanging locker, full length mirror, and shelves with lockers on either side above the berth. There is direct and private access to the head.
Just aft of the forward cabin to starboard, is a full head with Jabsco electric MSD, solid surface vanity with storage behind, opening overhead hatch and portlight, and a large shower stall with seat. The head can be accessed through doors in both the forward cabin and the galley.
Just aft of the forward cabin to port is a full galley. The galley down configuration is well lit, spacious, and benefits from natural light coming from overhead through the salon windows. The cook and guests can easily maintain visual contact. The galley is equipped for cruising. An under-counter refrigerator, a convection microwave over, a ceramic cooktop and a double stainless steel sink with single lever mixing faucet, provide all the tools required for creating great meals onboard. Storage is plentiful under the counter, in the louvered door storage cabinets outboard of the sink and in the forward facing cabinets beside the microwave.
Amidships is the large open and airy salon. This entire area is surrounded by large opening windows providing exceptional light and a clear view from all around the yacht. The well-equipped lower helm is starboard side forward and has a door to the starboard sidedeck for easy access. To port is a navigator’s table and aft of that, a L-shaped settee with table. Opposite to starboard is the entertainment center.
On deck, you will find that safety and security were the primary concern of every design decision. Steps to the side decks are recessed so as not to steal valuable cockpit sole space. Side decks are also recessed and large diameter hand rails in 316 stainless steel offer a safe and easy passage from cockpit to foredeck. At the bow, there is a platform with anchor windlass and large lockers for storage of mooring lines and fenders.

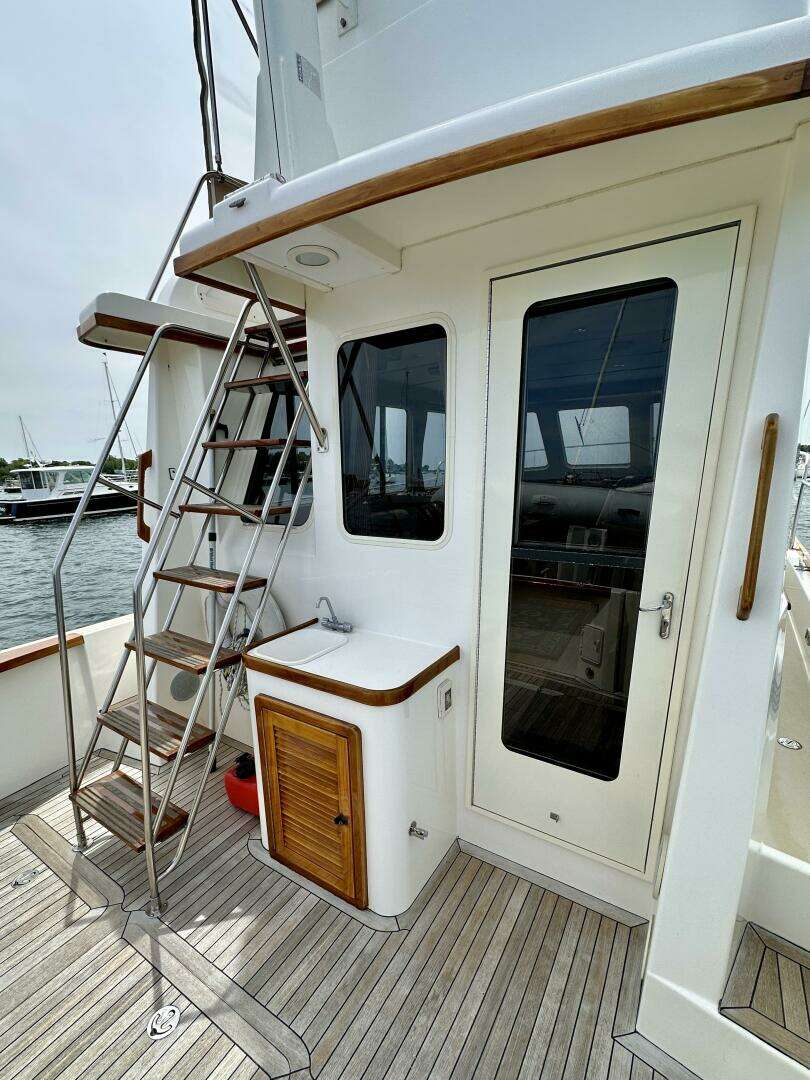

The cockpit is designed for relaxation and socializing. A transom swing door opens to the swim platform for easy access to the tender or the stainless steel telescoping swim ladder. Three large lazarette hatches with gas struts open to explore large storage areas below the cockpit. There are a cockpit wet bar, courtesy lighting, and beautiful teak coamings. The stairs to the command bridge are recessed into the back of the salon bulkhead and gently slope so as to be comfortable to climb and descend.

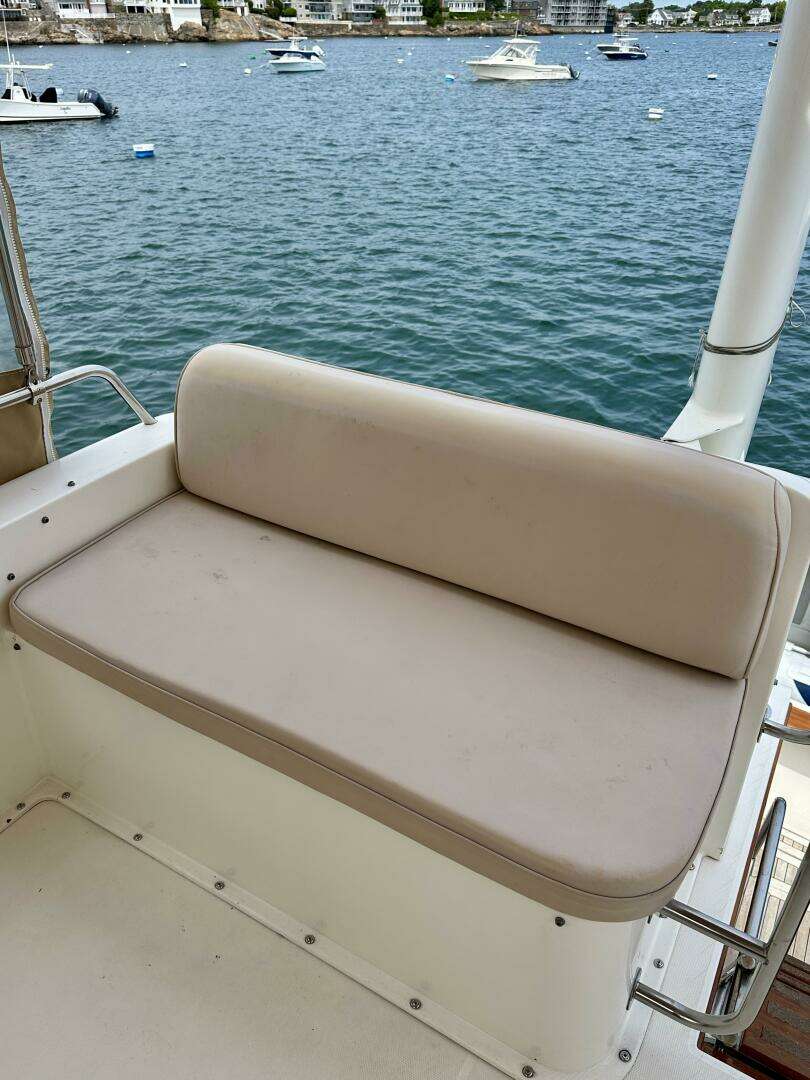

The command bridge, with custom bimini and enclosure, comes equipped with matching custom, recently added, Stidd helm seats and an aft bench seat. The command console is equipped with a full set of engine controls and upgraded navigational instrumentation and electronics.
LOA36'
LOA10.97''
Beam12'
Beam Inch6''
Draft Min Feet3'
Draft Min Inch4''
Fuel Tank (Gallons)300
Fuel Tank (Liters)1135.62
Fresh Water (Gallons)140
Fresh Water (Liters)529.96
Holding Tank (Gallons)30
Holding Tank (Liters)113.56
TypePower
ConditionUsed
Specifications
Twenty Summers
HWSF60110202
Power-Used
2002
12'6"
3'4"
1
2
1
29
21
Diesel
Fiberglass
300 Gallons (1135.62 Liters)
140 Gallons (529.96 Liters)
30 Gallons (113.56 Liters)
20600
Engines
Engine 1
- Engine Make: Yanmar
- ModelEngine Model: 6LYA-STP
- Engine TypeEngine Type: Inboard
- Power HPPower HP: 370.00
- Power KWPower KW: 275.91
- Feul TypeFeul Type: Diesel
- HoursHours: 1360.00
- Engine LocationEngine Location: Port
Engine 2
- Engine Make: Yanmar
- ModelEngine Model: 6LYA-STP
- Engine TypeEngine Type: Inboard
- Power HPPower HP: 370.00
- Power KWPower KW: 275.91
- Feul TypeFeul Type: Diesel
- HoursHours: 1386.00
- Engine LocationEngine Location: Starboard
Full Details
Electronics - Lower Helm Station
- Raymarine E80 Multi-Function Display
- Raymarine Closed Array Radar
- Raymarine ST60+ Depth
- Raymarine Smart Pilot Auto-Pilot with S100 remote
- Horizon Intrepid VHF
- Ritchie Powerdamp Compass
- Ignition key and start-up panel
- Gauges for tachometer and hour meter, voltmeter, engine and transmission oil pressure,
- cooling water temperature, and fuel level
- Engine alarm system for water temperature and oil pressure
- Bennett trim tab controls
- RodeCounter AA150
- Triple windshield wipers with washers
- Running, anchor, instrument and spreader light switches
- Stainless steel steering wheel
- Onan Genset Controls
- Xintex water tank gauge
Electronics - Flybridge Helm Station
- Raymarine E120 multi-function displays
- Raymarine ST6001 Smart Pilot Autopilot
- Raymarine ST60 Depth
- Horizon Ram Mic VHF
- Engine start-up panel
- Gauges for tachometer and hour meter, voltmeter, engine and transmission oil pressure, block
- cooling water temperature
- Engine alarms for water temperature and oil pressure
- Bennett trim tab controls
- Running light switches

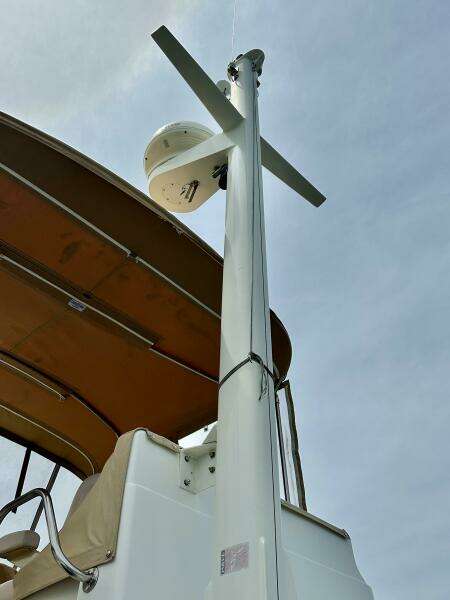

- Radar Mast
- Ritchie Powerdamp Compass
- Canvas covers for helm and bench seat
Salon and Lower Helm

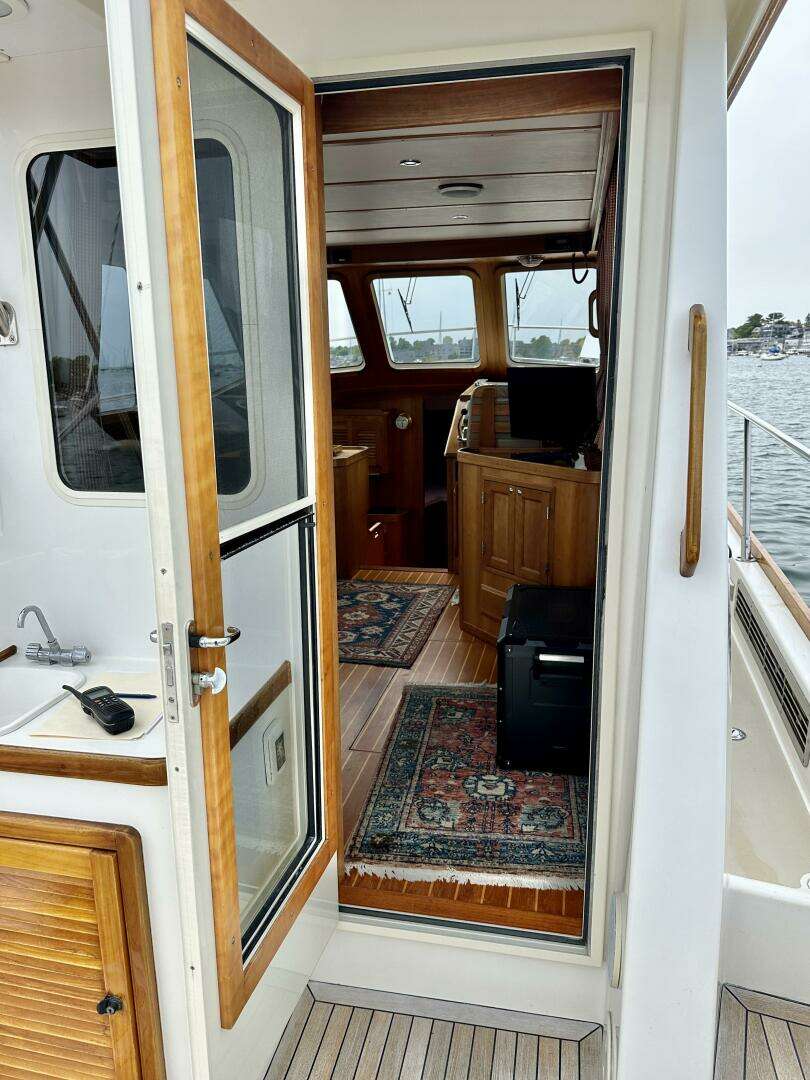

The salon is large and airy with excellent visibility through the large opening windows. There is a pilot house door to starboard. To starboard is the lower helm station with versatile folding helm seat. Across to port is a large chart table. Aft to port is the large "L" shaped dinette with adjustable cherry table. Across to starboard is the entertainment center. Access forward from the salon to the galley is via a custom three step staircase for extra safety.
- MarineAir Air Conditioning with Reverse Cycle Heat
- Ultraleather settee and helm chair upholstery
- "L" settee with hi-low table
- Drawers under settee
- Helmsman's seat w/fold-down base
- Teak and Holly sole
- Chart table with chart storage to port
- Sliding screened windows port, starboard and aft, with curtains
- Side deck access doors to starboard
- Sound deadening headliner panels
- Access hatch to engine room
- Passageway door to cockpit
- Entertainment center with flat screen TV
- Kenwood Stereo
- ICECO VL45 ProS 12v Portable Fridge Freezer
Galley and Domestic Systems
The Galley is forward of the salon, down three steps, open to above, which allows natural light to flood into the area. It is well laid out and offers expansive storage and counter space.
- Spacious solid-surface galley counter
- Double stainless-steel sink with single lever faucet
- Princess Gourmet 3 burner range
- Panasonic Convection Microwave oven
- NovaKool under counter refrigerator
- Cabinet storage lockers below counter
- Wall mounted storage cabinets
- Built-in waste basket
- Fresh Water capacity 140 gals
- Hot and cold fresh water pressure system 12V
- 11 gal. Whale hot water heater
- Jabsco electric marine head
- Dometic holding tank monitor
- 30 gallon polyethylene holding tank
- Weems & Plath clock
Cabin
The forward stateroom is outstanding on this boat with a large v-berth with drawers and storage lockers incorporated beneath. The large head and shower are en-suite and there is an abundance of storage throughout these spaces.
- MarineAir Air Conditioning with Reverse Cycle Heat
- Large V- berth with storage below
- Storage lockers along port and starboard sides
- Hanging locker
- Full length mirror
- Doors to galley and head
- Stainless steel opening ports with shades
- Overhead opening hatch
- Teak and holly sole
- Reading lights
- Overhead lights
- Courtesy lights
Head
- Ceramic sink with single lever faucet
- Shower stall with curved door and seat, storage locker
- Teak Towel rack
- Mirror
- Electric shower sump pump
- Holding tank level indicator
- Ventilation blower
- Jabsco Electric MSD
- Corian countertop
- Overhead hatch
- Opening portlight
Hull and Deck
- Modified "V'' hull design 18-degree at transom
- Hull laminate system with isophthalic NPG gelcoat and vinylester back-up resin
- Biaxial fiberglass laminate
- Balsa cored hull
- Foam/plywood cored fiberglass stringer system
- Awl Grip Flag Blue topsides
- Swim platform with low profile ladder
- PVC and stainless-steel rub rail
- Molded in anti-skid deck surfaces
- Teak bow pulpit with anchor roller
- Two anchor lockers, interiors painted white
- Muir Windlass
- Salt water washdowns at bow
- Recessed side deck walkways
- Door to main salon starboard
- (3) Hinged lazarette locker hatches in aft cockpit
- Transom door to swim platform
- Flagpole holder
- Stainless steel opening ports with screens
- Optional teak cockpit decking
- Cockpit fresh water shower
- Cockpit wet bar
Mechanical Features
- Upgraded Twin Yanmar 6LYA-STP 370hp engines
- ZF IRM 220 A-1 transmissions (2.454:1 reduction ratio)
- Reverso Oil Change System
- Manganize bronze struts with rubber cutlass bearings
- Four blade NiBrAl 24” x 30” propellers
- Engine room blower
- Engine room with Soundown foam noise barrier
- Engine isolator mounts
- Two fuel tanks, 300 gallons total
- Double Racor fuel filters for each engine with underway switching capability
- Fuel filter gauges
- Deck fill plate
- Tank tender fuel gauge
- Hydraulic steering system to both lower and upper control stations
- Bronze rudders
- Bennett trim tabs
- Automatic 12V electric bilge pumps
- Marelon sea valves on all below waterline thru-hull fittings
- Fireboy automatic fire extinguishing discharge system with dual override
Electrical Systems
- Onan 7.6 kW Diesel Generator w/ sound shield (3024hrs)
- Air Conditioning/Heat 110v AC - 2 zones
- 30 Amp 220V AC shore power inlet shore cord and 50amp splitter
- Battery charger
- DC 12V System
- Generator battery
- Illuminated main circuit breaker distribution panel
- 110V outlets in cabin, galley, head, engine room and bridge
- Batteries replaced in 2022
- Engine battery and emergency crossover switches in engine room
- Main disconnect panel for engines, ships power, bilge pumps and other systems
- 12V horn
- 12V pressure water system
- Navigation side and stern lights
- Tinned wire throughout
Tender and Davits
The tender is easily retrieved and deployed on a transom mounted Seawise tender lift system.
- Seawise electric tender lift
- Walker Bay 10’ hard bottom inflatable with Yamaha 9.9hp outboard
Exclusions
Any items seen aboard but not specifically stated in the listing should be considered excluded. This includes, but is not limited to, the owners personal belongings, clothing, tools, loose galley and decor items and art work.
Disclaimer
The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
