ACCOMMODATIONS

ORINOCO was custom built with solid walnut interior trim and veneered surfaces, with panelled locker fronts and dovetail jointed drawers, meticulously finished in satin varnish. Cabin soles are varnished teak and holly, while the overheads are upholstered panels.

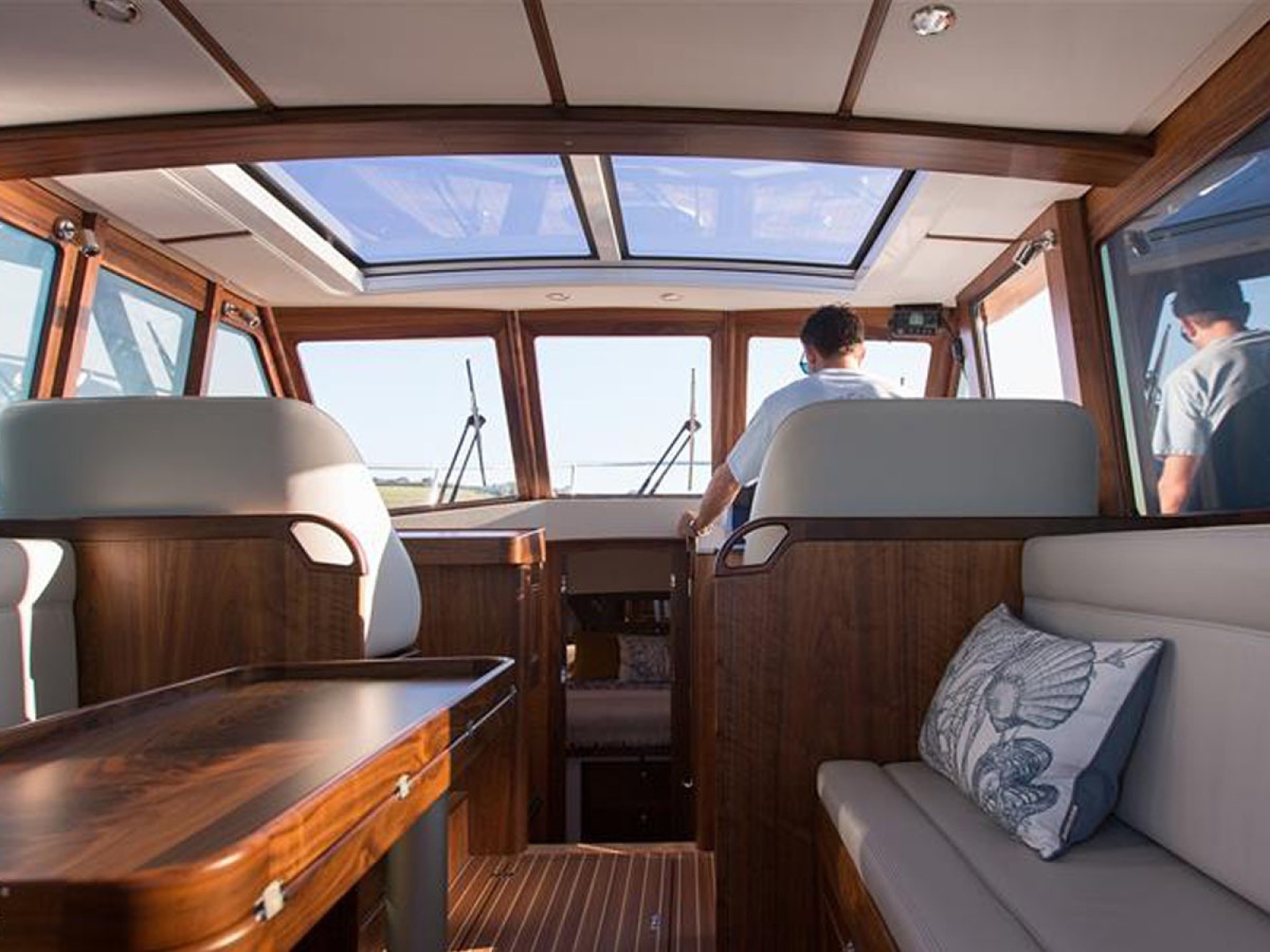

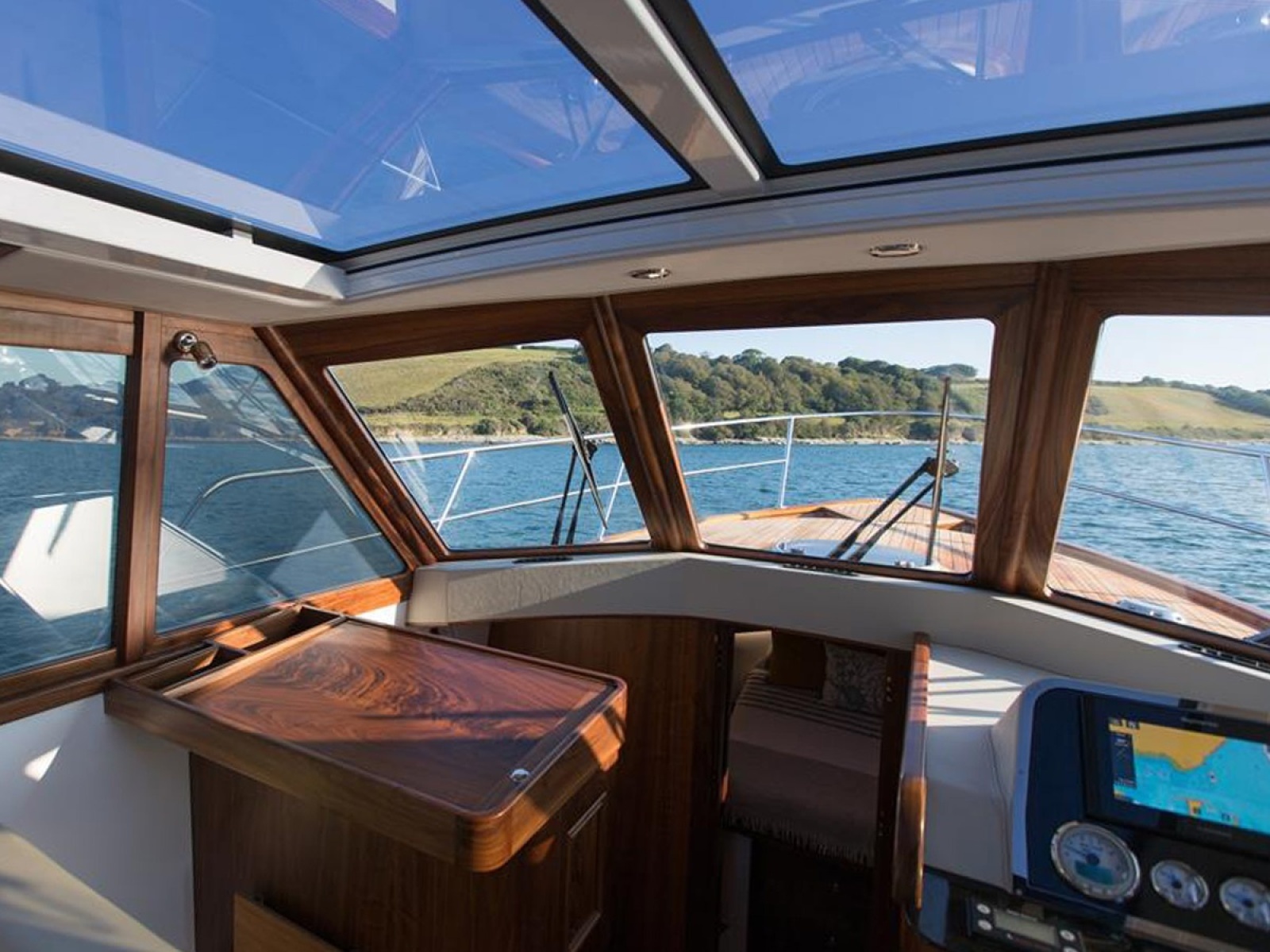

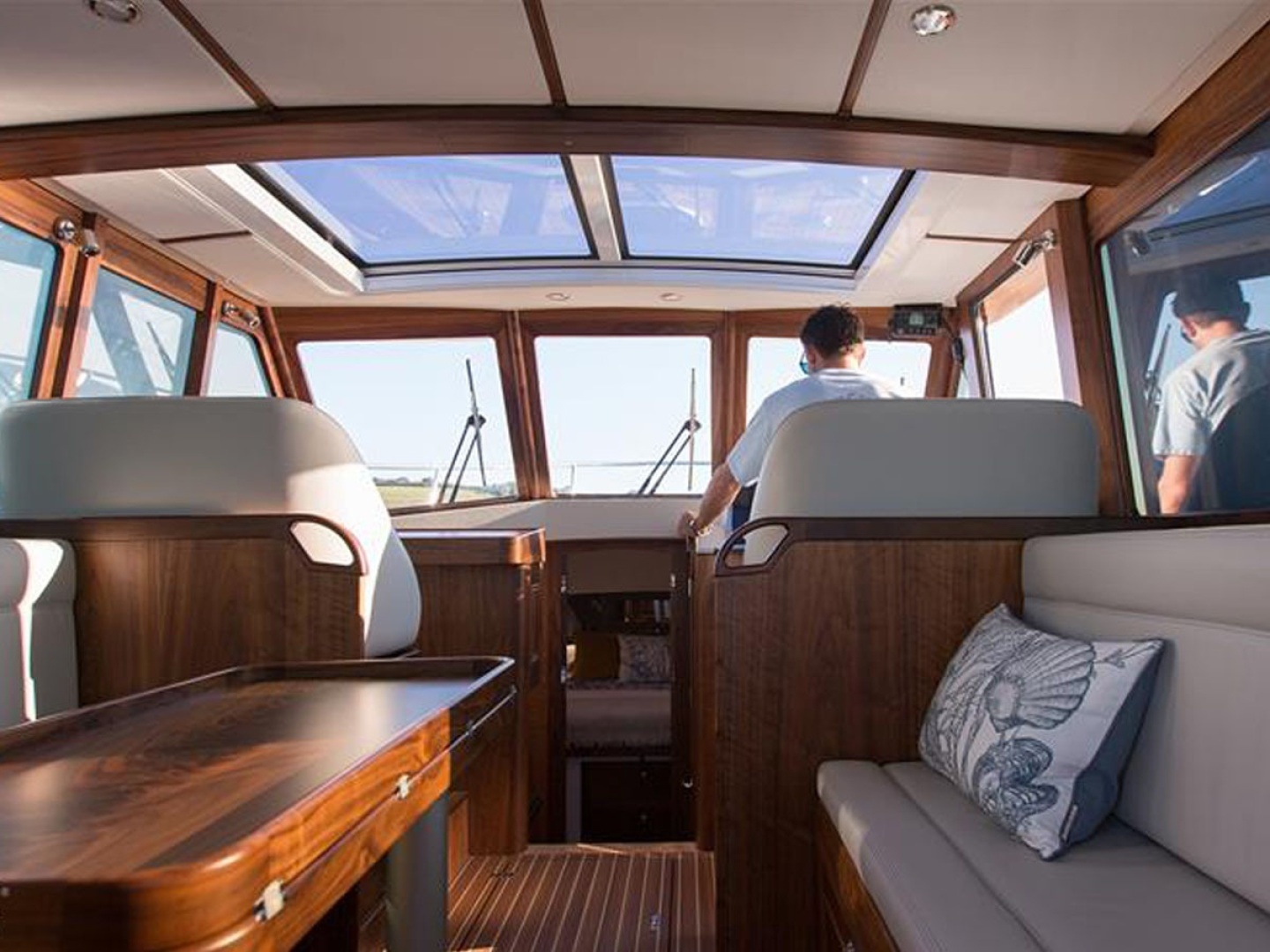

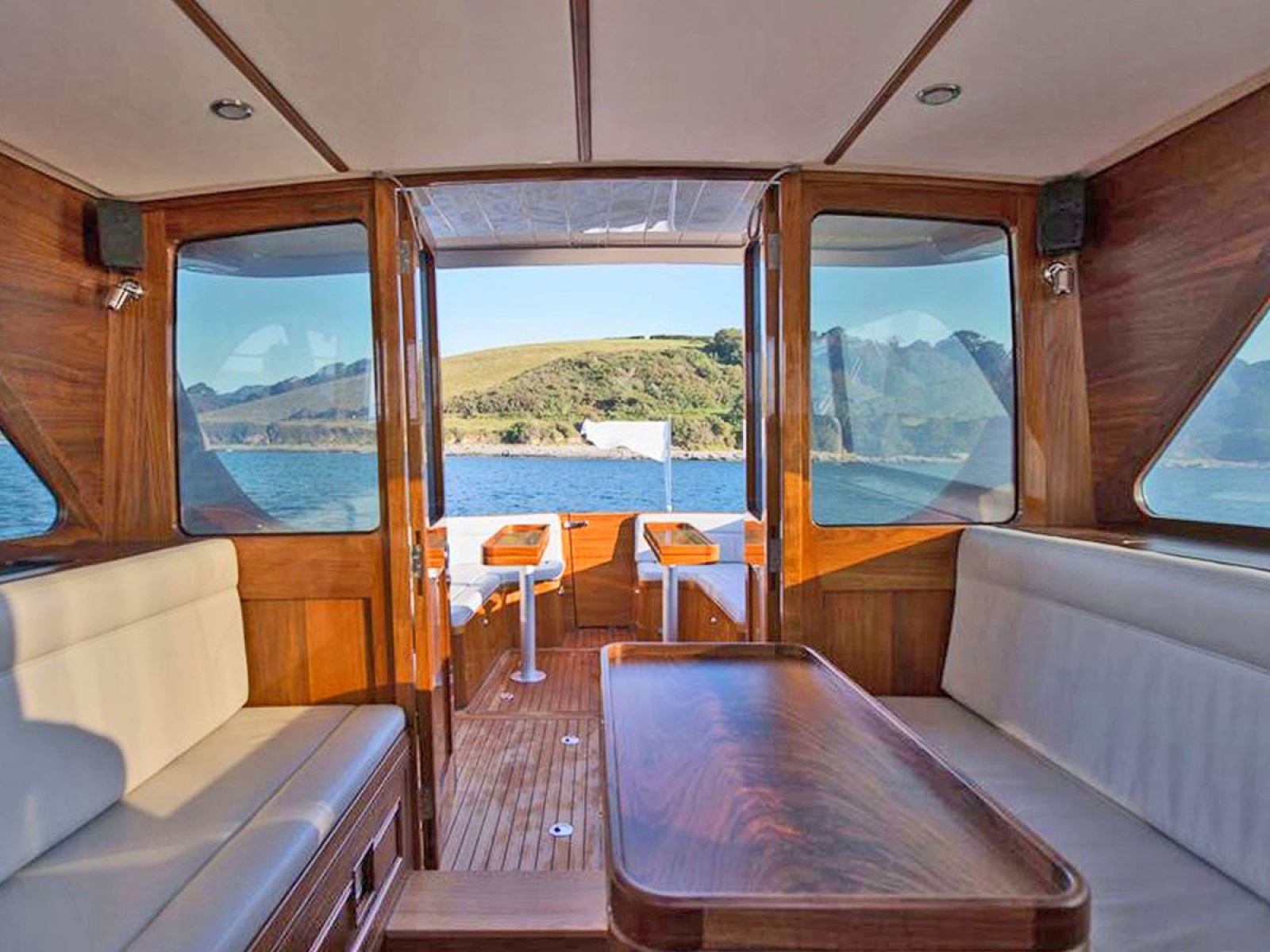

Saloon and helm

• Single level entry from aft cockpit into saloon and helm area
• Beautiful, varnished teak doors opening outwards to create one large indoor/outdoor space
• Full length settees each side with varnished walnut table
• Storage drawers under saloon seats
• Helm and companion seats
• Excellent light and visibility in all directions
• Samsung lift-up flat screen TV
• Courtesy lighting, spot lighting, reading lights, and down lighting controlled at helm screen
• AC
• Drink fridge in drawer under saloon seating
• Insulated lift-up hatch aft in saloon to access separate area forward of engine space
• Lift-up hatch forward to access a large storage area with mechanical and electrical systems and extra-large drink/wine fridge/ice box under saloon

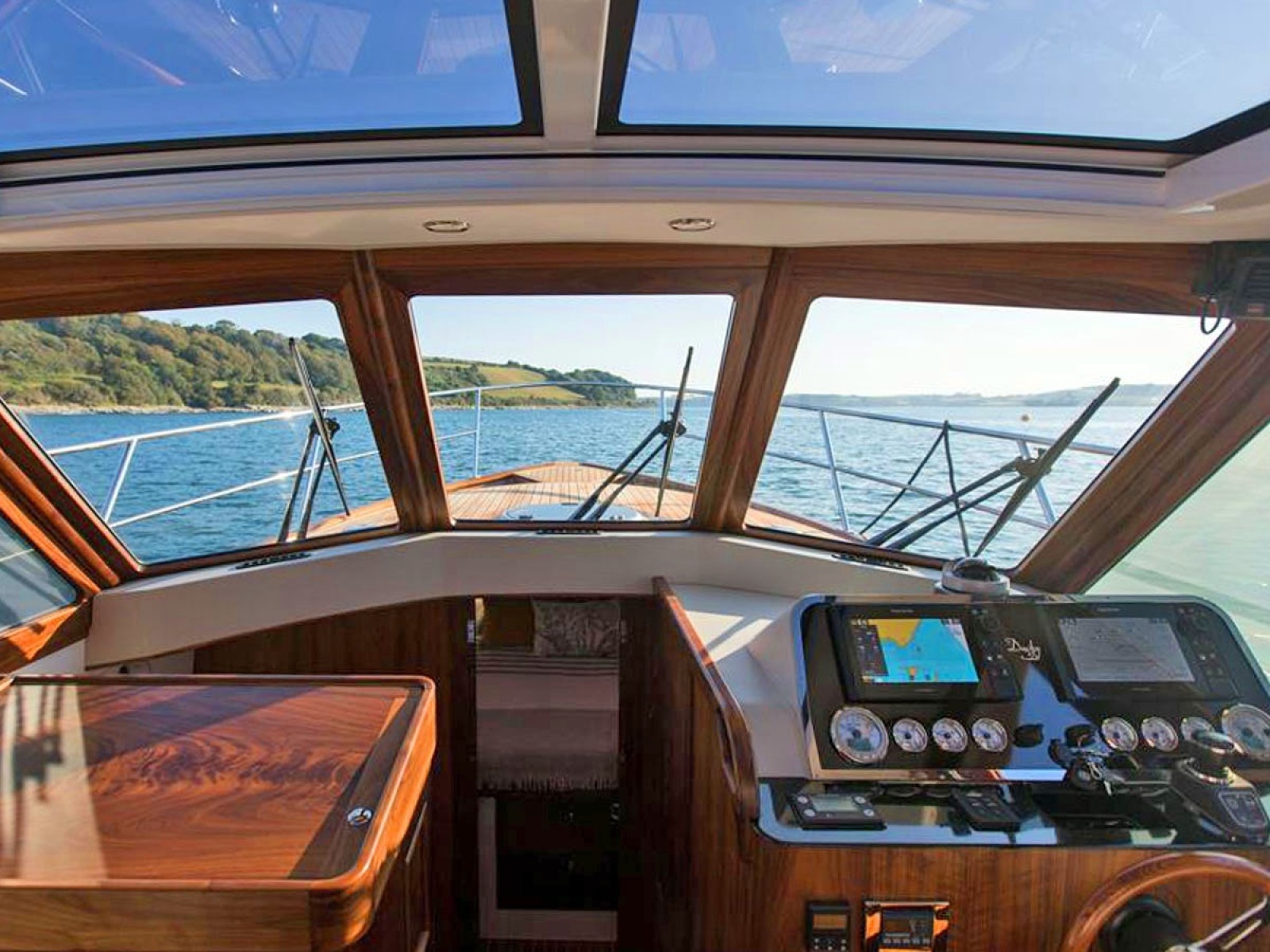

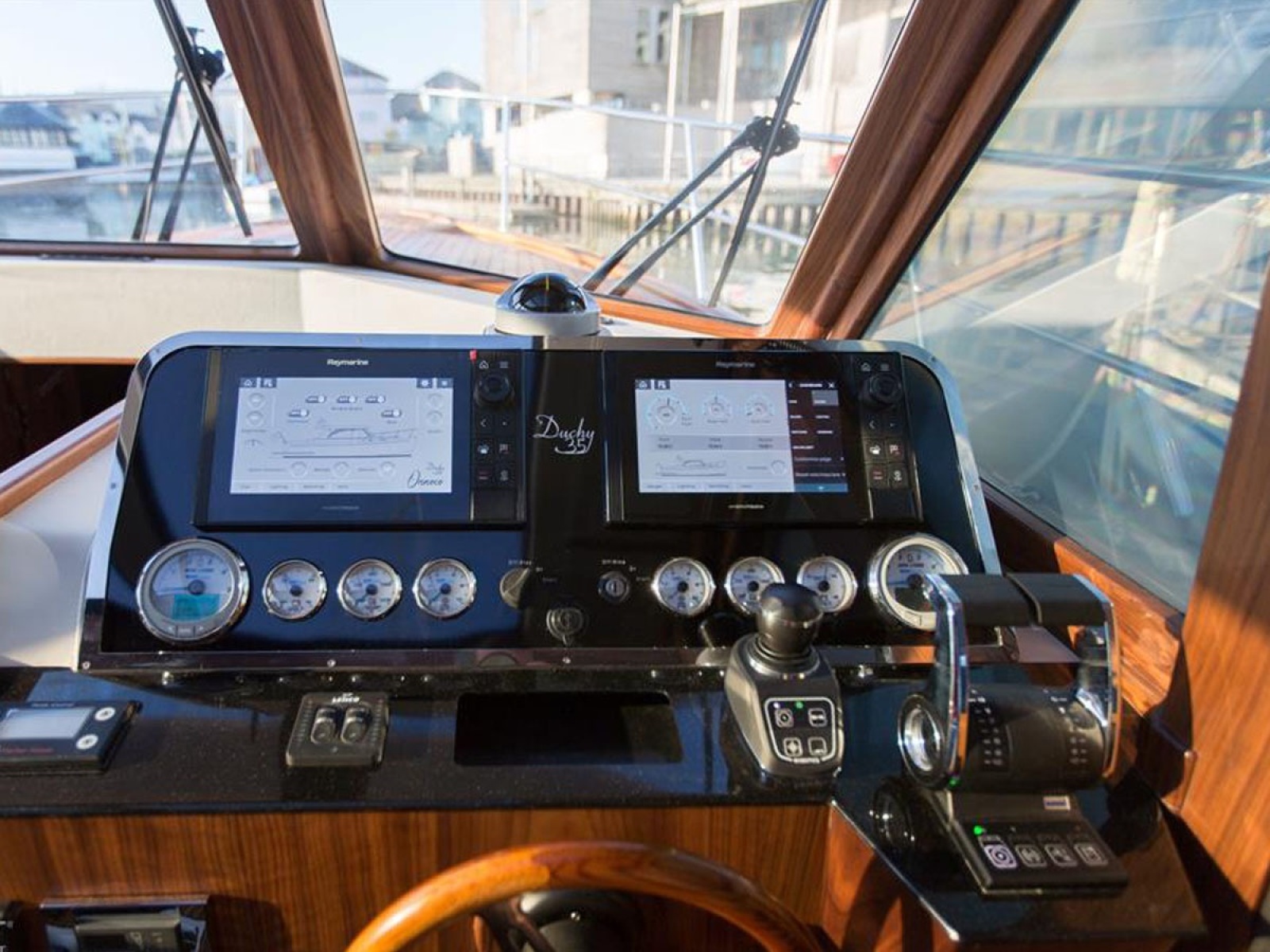

Helm station

• (2) Raymarine hybrid touchscreen multifunctional GPS chart plotter displays at helm
• Raymarine  radar and VHF radio
• Autopilot
• Remote monitoring
• AIS
• Onboard WiFi
• Engine information and tank levels displayed on helm display
• Analog compass at helm

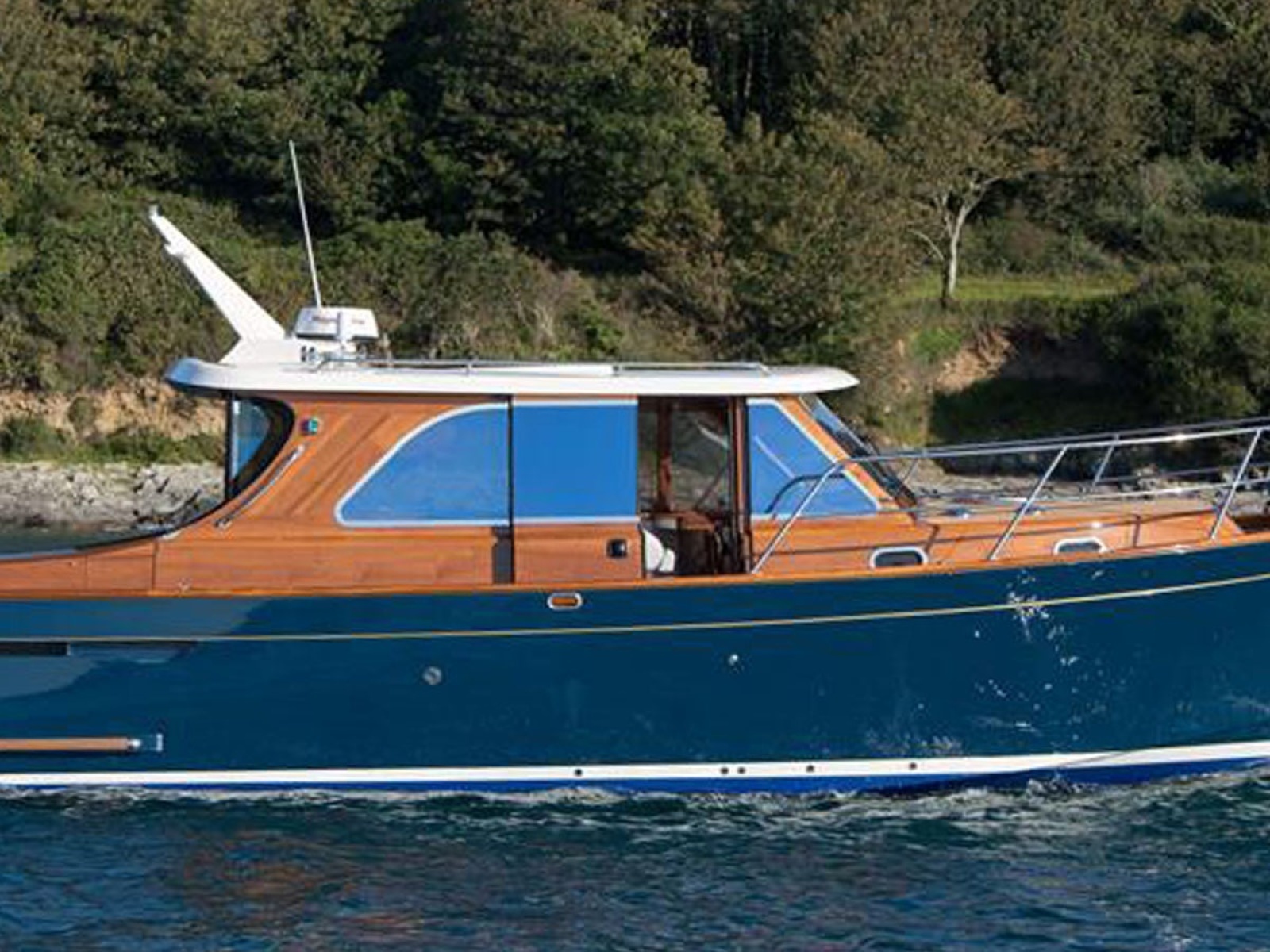

• Custom sliding helm door for easy and quick access to side decks
• Electric sunroof
• AC
• (3) Wipers with washers and demisters

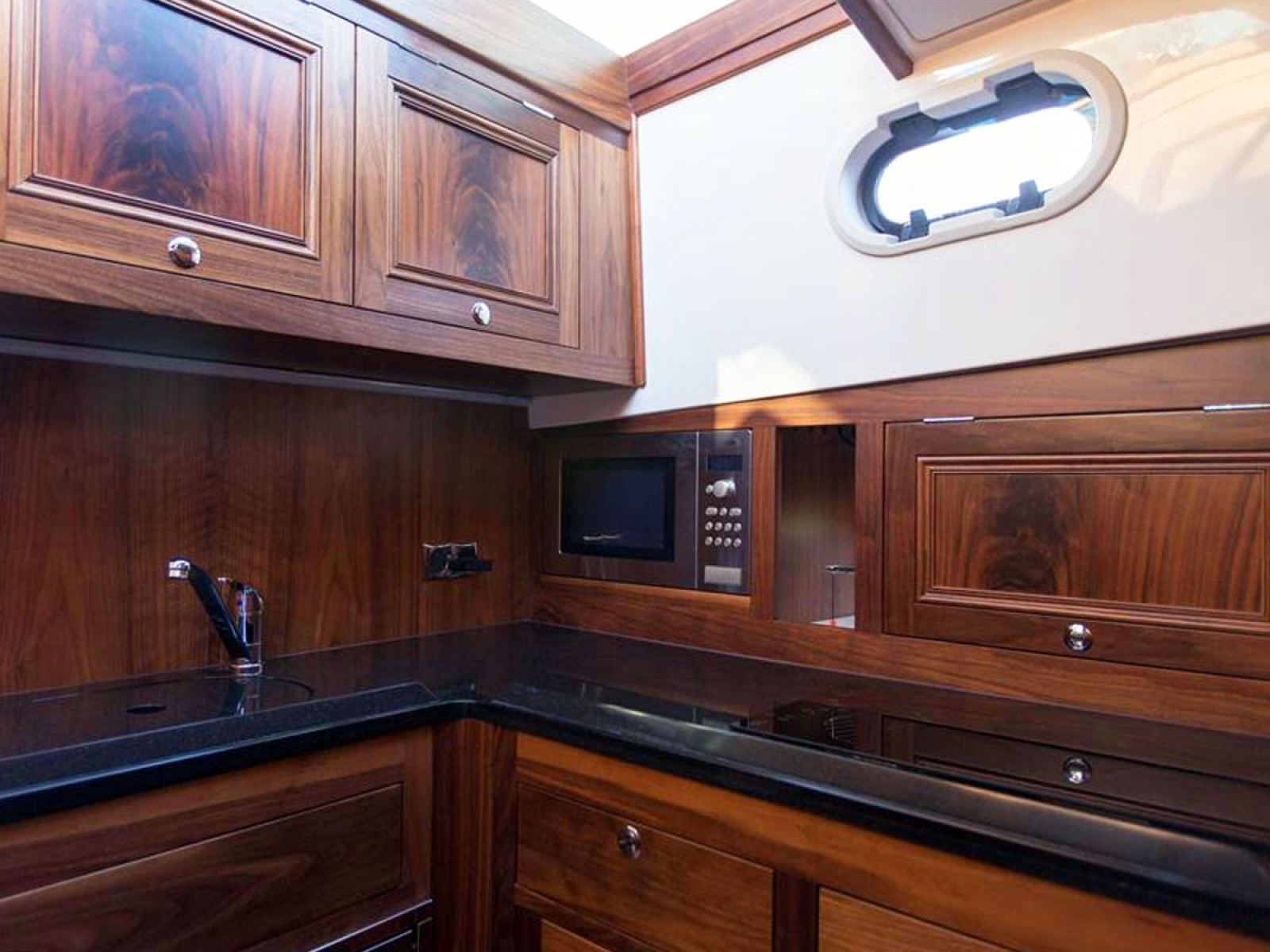

Galley

• The galley is port aft, partially open above to saloon, with generous storage and counter space.  Features include:
• Flush mounted stainless sink with hot/cold faucet
• Dometic DC refrigerator – 2 cu ft
• Two-burner induction stove
• Microwave oven
• Custom storage for glasses, cutlery and crockery
• Opening porthole
• Overhead electric lights

Head

• A fully enclosed head is aft to starboard with full head room
• Solid surface counter with stainless sink
• Fresh water faucet and retractable shower head
• Tecma electric toilet
• Mirror with storage cupboard
• Storage lockers above and below counter
• Opening porthole
• Heating

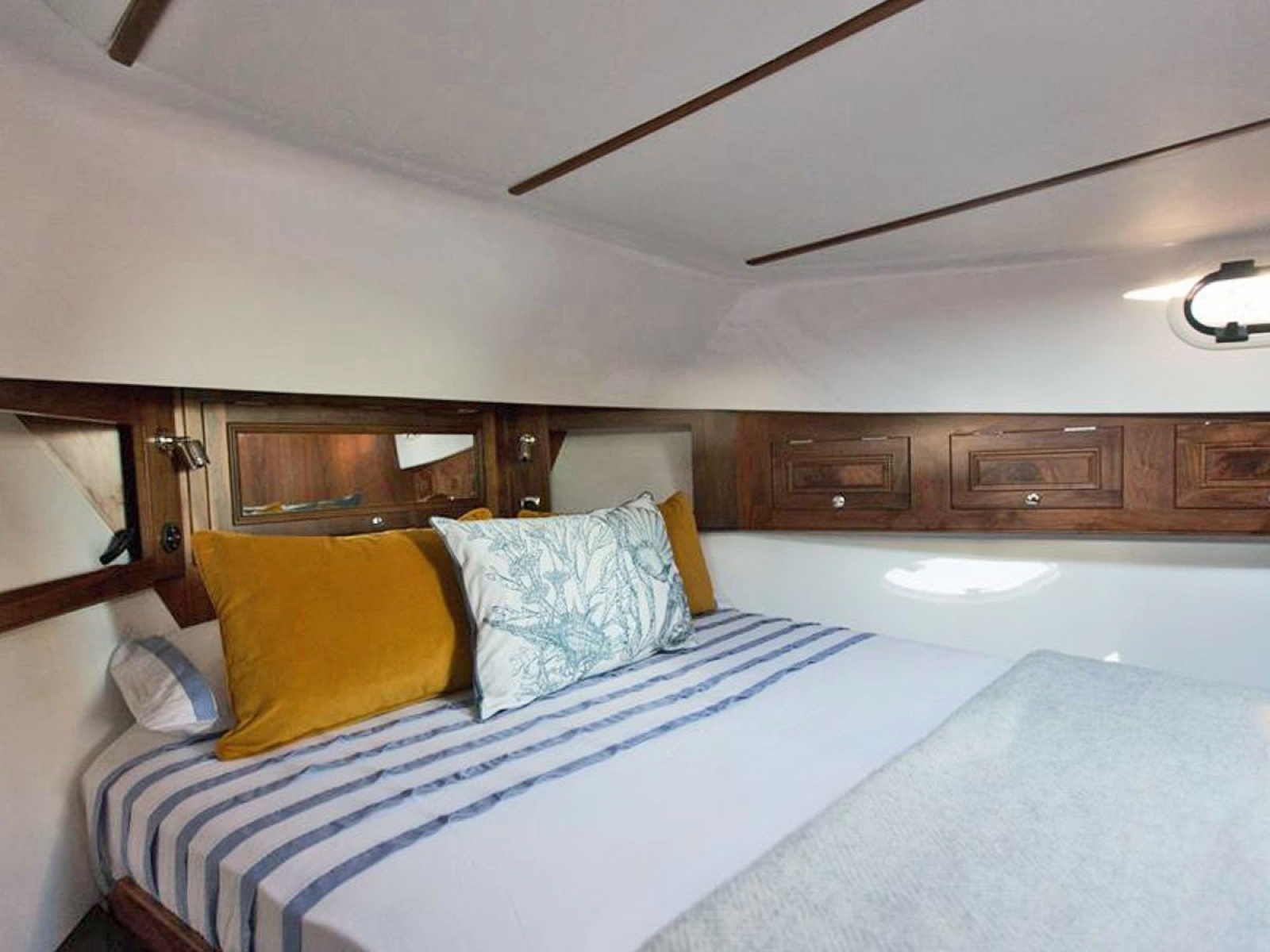

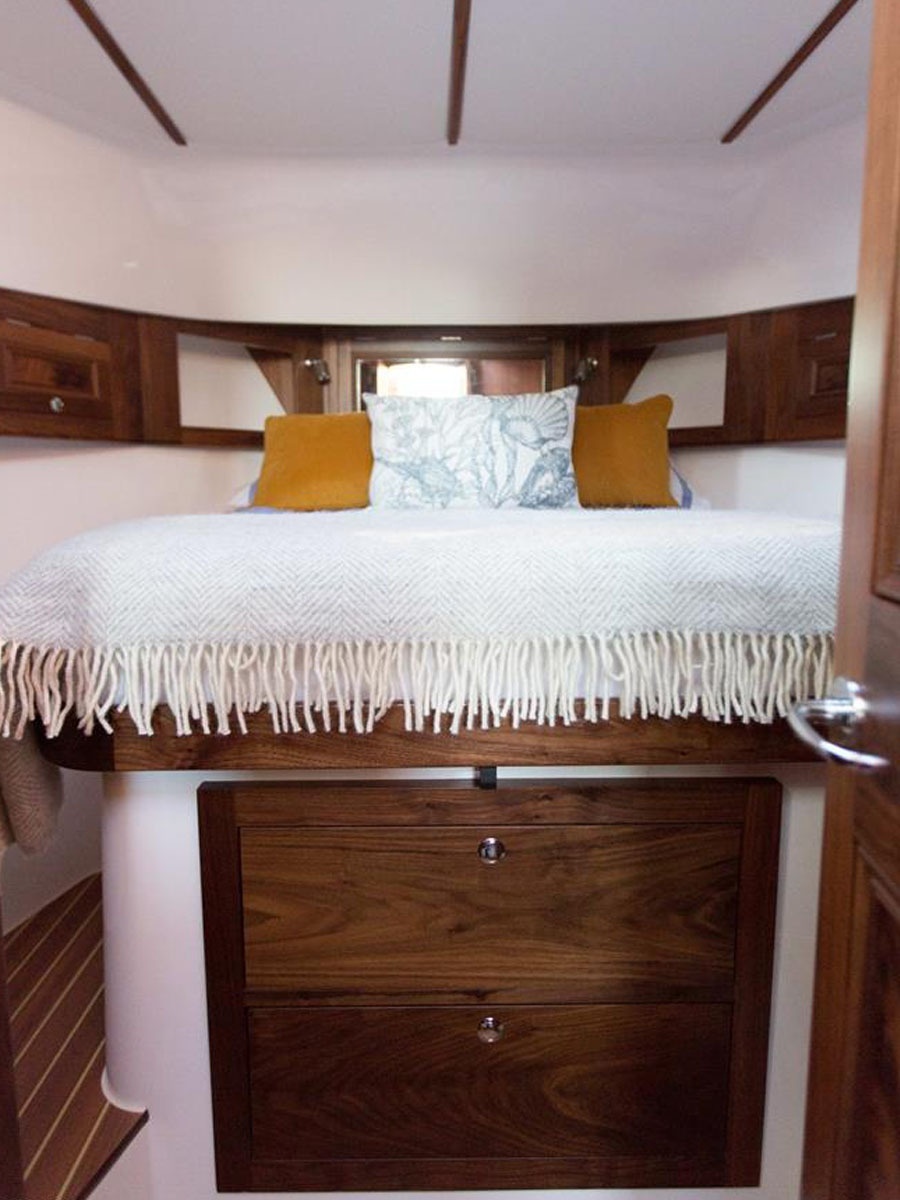

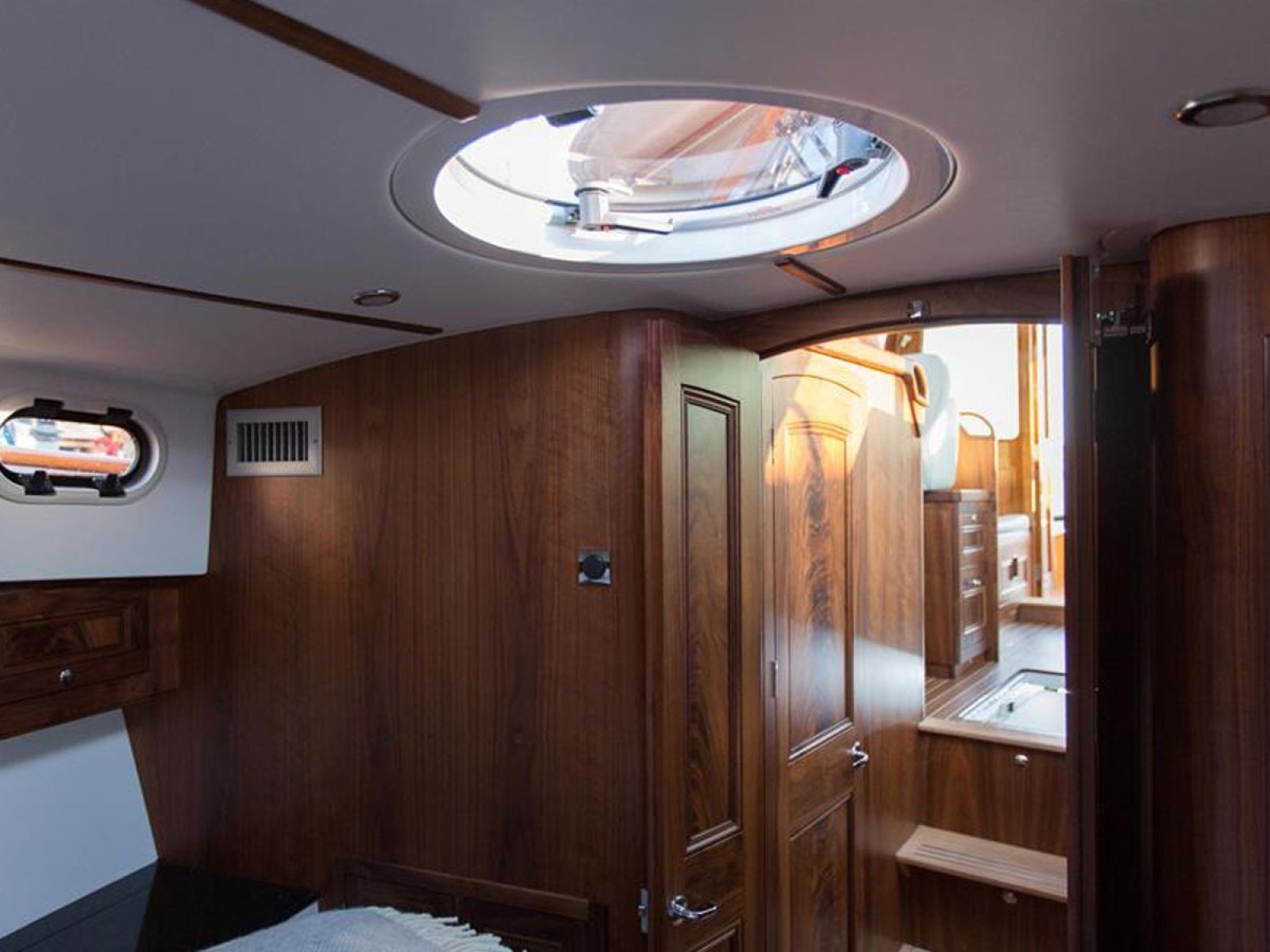

Forward Cabin

• Private cabin with large double berth on center
• Double spring split mattress with built-in 2” memory foam top, covered in Diamond Quilt and anti-bacterial mattress cover, 6” total height
• Drawer and storage bin under hinged berth
• Corian work tops outboard each side with storage space under
• Storage lockers above berth each side
• Hanging locker to port and locker to starboard
• Overhead lighting
• Reading lights
• USB charge
• 240/110 Electrical sockets
• (2) Opening portholes and a deck hatch for light and ventilation
• Access to anchor locker forward of berth
• Heating/AC

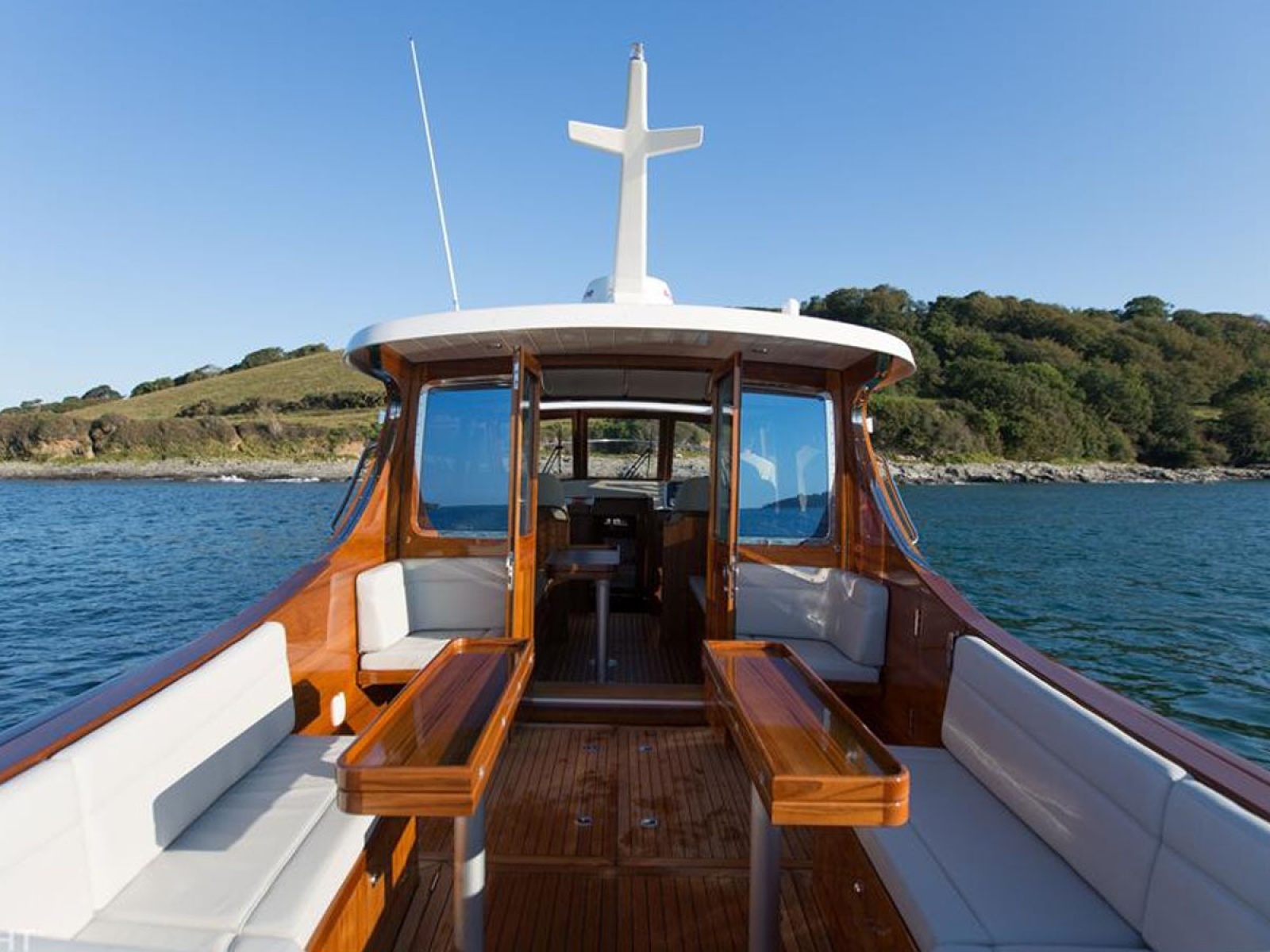

COCKPIT

Spacious cockpit at over 10’ long features convenient walk-through transom door leading to a large swim platform for easy swimming and boarding from dock.

• Twin L-settees aft with waterproof upholstered cushions and twin varnished teak tables
• Storage lockers under seating
• Laid teak cockpit sole
• Varnished teak coamings and vertical surfaces
• Aft lazarette accessible through hatch in cockpit sole
• Retractable stainless swim ladder
• Dinghy and snap davits
• Side door forward starboard side for easy access to side deck or fixed dock
• Built-in boarding step in the hull each side to assist side boarding
• Tonneau cockpit cover
• Shower

HULL

• Molded GRP hull with PVC foam core above waterline
• Molded GRP structural matrix bonded to hull
• Interior moldings for a clean, finished look
• Large molded GRP swim platform with protective perimeter rub rail extending 8’ forward along hull each side
• Flag blue gelcoat topsides, gold cove stripe, white boot stripe and blue bottom with epoxy barrier

DECK

• Molded GRP deck with foam core and varnished teak veneers on cabin sides, pilot house, cockpit coamings and inner bulwark
• Varnished teal cap rails

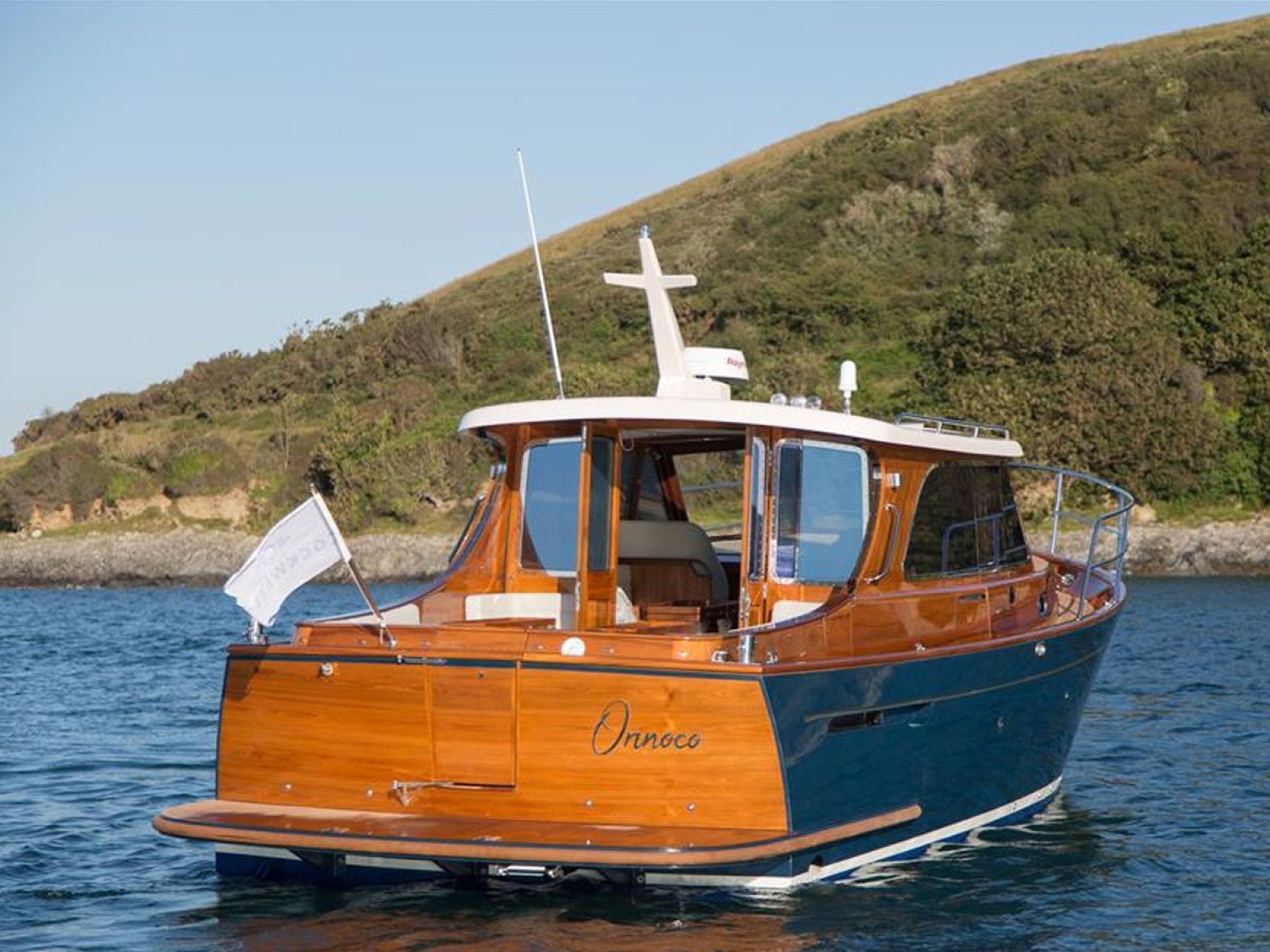

• Varnished teak transom
• All exterior teak completely stripped and re-built with 10 coats of two-part epoxy base and finish varnish May 2024

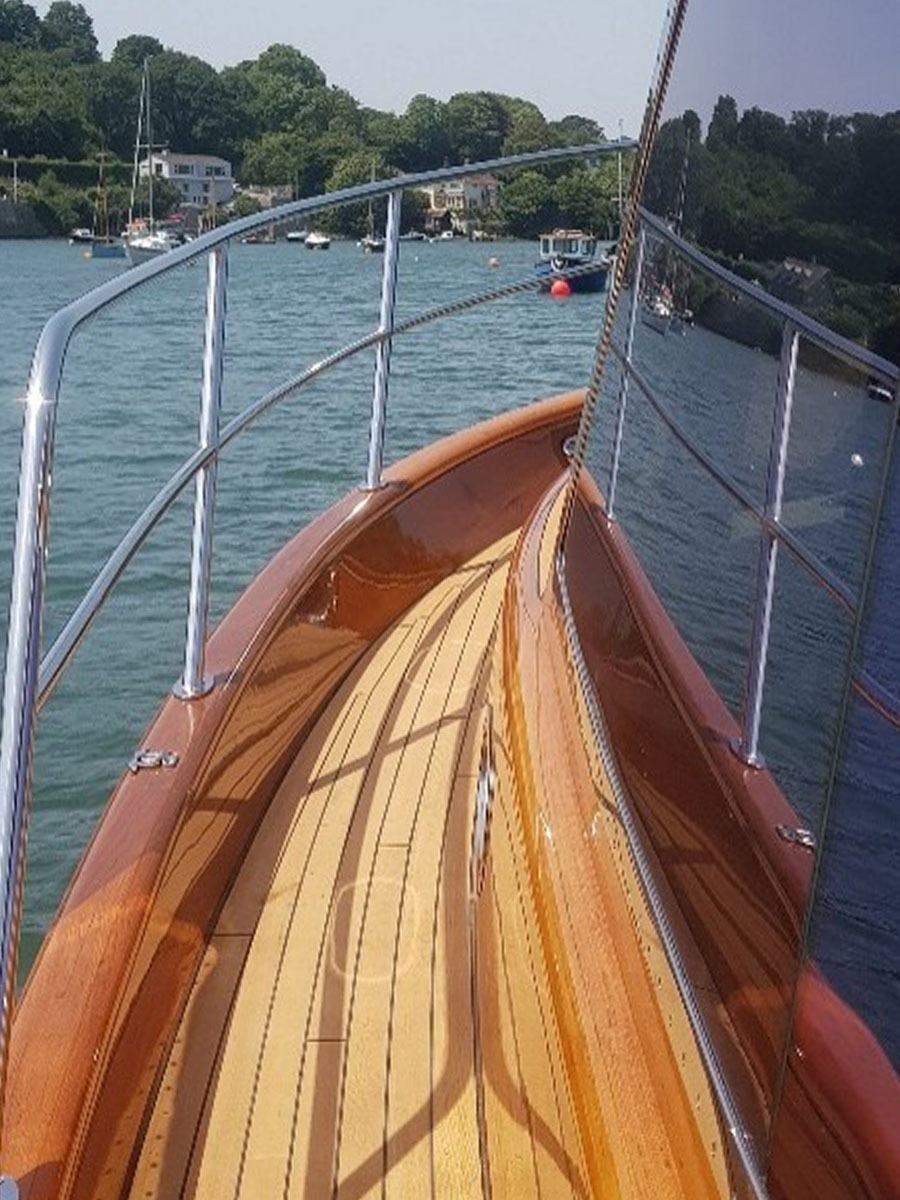

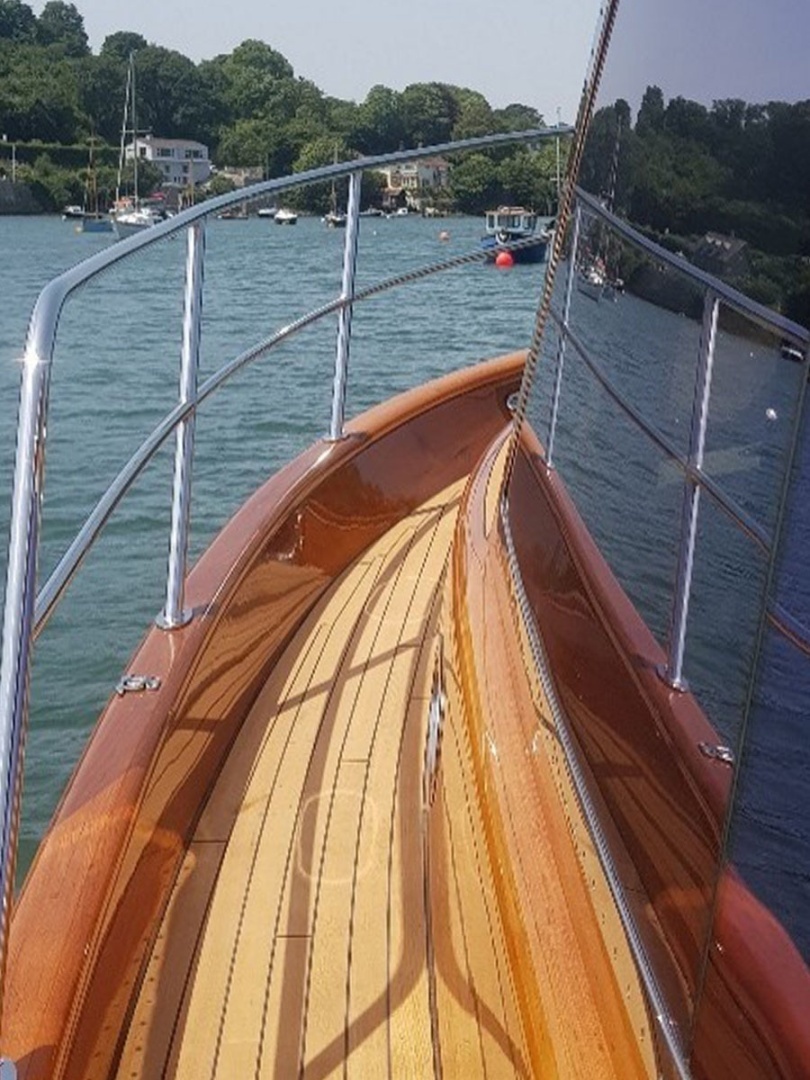

• Laid teak side decks and swim platform
• Quick Prince electric windlass recessed into foredeck with hatch cover
• Windlass controls on foredeck and at helm
• Double anchor rollers built into stainless stem fitting
• Bruce 33 lb/15 kg stainless steel anchor with 50’ chain rode
• Stainless double bow rail leading aft to midships
• Handrails on pilothouse leading aft to cockpit
• (4) Hawes cleats for bow and spring lines
• (2) Fixed stainless bollard cleats with chocks aft
• (4) Folding fender eyes
• Twin horn
• Stainless ensign staff

MECHANICAL SYSTEMS

Engine, Drive Train, Controls and Steering

• (2) Nanni T8V 350 hp diesel engines, cruise 25 knots, max 31 knots – only 130 hours since new
• Aventics joystick controls
• Bow and stern thrusters
• Engine starting key switch on the helm console
• (2) Dedicated AGM start batteries – one for each engine
• Stainless steel prop shafts supported by bronze p-brackets in partial hull tunnels
• Composite stern tubes with water cooled bearings and Tides Marine seals
• Custom designed bronze propellers for maximum performance
• Ambassador rope cutters
• Hydraulic steering with bronze rudders
• Zipwake trim tabs

Engine Exhaust, Fuel, and Cooling Systems

• Separate wet exhaust system for each engine
• Water trap exhaust silencers
• Two aluminum fuel tanks, upgraded 265 gallons total connected via a balance pipe
• Racor fuel filters/water separator
• Marine grade ISO flexible fuel system piping
• Vetus raw water intake strainers

Engine Space

• Engine space fully insulated
• Large twin hatches through forward cockpit sole for access to engine space
• Hatch openings aided by gas struts
• Automatic fire suppression system
• Engine room camera

Fresh Water System

• (2) Vetus water tanks, 115 gallons total
• Fresh water pump
• 8-gallon Quick Nautic water heater connected to engine and AC shore power
• Hot/cold deck shower at transom

Black and Gray Water

• Tecma electric flush toilet with direct discharge to holding tank
• Vetus 16 gal black water holding tank with direct overboard or deck pump-out
• Galley and head sinks fitted with gravity drain
• Whale electric shower sump pump

Bilge

• (2) Whale automatic bilge pumps forward and aft with bilge alarm
• Emergency manual bilge pump in cockpit
• Self-draining cockpit as per RCD requirements

General

• Espar diesel heater
• Air conditioning
• Onboard WiFi

ELECTRICAL SYSTEMS

• 12 Volt DC/240 Volt AC electrical system
• Custom Empirbus 12V DC control system with digital switching at helm display
• (4) AGM 120Ah batteries: (2) engine start batteries, (2) house batteries
• Engine alternators
• 240 volt AC battery charger
• 240 Volt AC shore power system with cord
• Generator – 6 kW (121 hrs, 4/2026)
• Solar panels
• USB charging sockets in saloon/helm area
• 12 Volt DC socket in lazarette hatch
• AC outlets throughout the boat
• Battery isolators and combiners accessed through aft hatch in cockpit
• Fusion marine stereo with (4) interior speakers and (2) waterproof speakers in cockpit
• 3 kW victor inverter charger

Lighting

• Swim platform lights
• Cockpit courtesy and deck head spotlights
• Saloon courtesy lights, reading lights and deck head spotlights
• Cabin courtesy, reading and wall lights
• Step courtesy lights
• Hanging locker and mirror light
• Engine room and lazarette lights

ADDITIONAL

• 4-person inflatable tender on snap davits
• Safety equipment
• (4) Fenders
• (4) Dock lines
• Comprehensive owner’s manual including guidance and schematics
• Binder with user manuals and guides for all equipment
